Panasonic of North America 96NBB-GT1540 5.8 GHz Cordless Telephone System User Manual EXHIBIT H
Panasonic Corporation of North America 5.8 GHz Cordless Telephone System EXHIBIT H
EXHIBIT H User Manual
Temporary Confidential
This unit is compatible with Caller ID. To use this feature, you must
subscribe to the appropriate services offered by your landline service
provider and VoIP service provider.
Please read these Operating Instructions before using the unit and save for
future reference.
Charge the handset battery for 7 hours before initial use.
Operating Instructions
Global VoIP Telephone
Model No. BB-GT1540
GT1540_Shinsei.book Page 1 Tuesday, February 13, 2007 3:53 PM
Temporary Confidential
2
Important safety
instructions
When using the product, basic safety
precautions should always be followed
to reduce the risk of fire, electric shock,
or personal injury.
1. Read all instructions carefully.
2. Follow all warnings and instructions
marked on the product.
3. Unplug the product from power
outlets before cleaning. Do not use
liquid or aerosol cleaners. Use a
moist cloth for cleaning.
4. Do not use the product near water, for
example near a bathtub, wash bowl,
kitchen sink, etc.
5. Place the product securely on a
stable surface. Serious damage
and/or injury may result if the product
falls.
6. Do not cover slots and openings on
the product. They are provided for
ventilation and protection against
overheating. Never place the product
near radiators, or in a place where
proper ventilation is not provided.
7. Use only the power source marked
on the product. If you are not sure of
the type of power supplied to your
home, consult your dealer or local
power company.
8. Do not place objects on the power
cord. Install the product where no one
can step or trip on the cord.
9. Do not overload power outlets and
extension cords. This can result in
the risk of fire or electric shock.
10.Never push any objects through slots
in the product. This may result in the
risk of fire or electric shock. Never
spill any liquid on the product.
11.To reduce the risk of electric shock,
do not disassemble the product. Take
the product to an authorized service
center when service is required.
Opening or removing covers may
expose you to dangerous voltages or
other risks. Incorrect reassembly can
cause electric shock when the
product is subsequently used.
12.Unplug the product from power
outlets and take to an authorized
service center when the following
conditions occur:
A. When the power cord is damaged
or frayed.
B. If liquid has been spilled into the
product.
C. If the product has been exposed
to rain or water.
D. If the product does not work
normally by following the
operating instructions. Adjust only
controls covered by the operating
instructions. Improper adjustment
may require extensive work by an
authorized service center.
E. If the product has been dropped
or physically damaged.
F. If the product exhibits a distinct
change in performance.
13.During thunderstorms, avoid using
telephones except cordless types.
There may be a remote risk of an
electric shock from lightning.
14.Do not use the product to report a gas
leak, when in the vicinity of the leak.
SAVE THESE INSTRUCTIONS
WARNING:
LTo prevent the risk of fire or electrical
shock, do not expose the product to
rain or any type of moisture.
LUnplug the product from power outlets
if it emits smoke, an abnormal smell,
or makes an unusual noise. These
conditions can cause fire or electric
GT1540_Shinsei.book Page 2 Tuesday, February 13, 2007 3:53 PM
Temporary Confidential
3
shock. Confirm that smoke has
stopped emitting and contact the
Panasonic Call Center at 1-800-211-
PANA (1-800-211-7262).
LDo not spill liquids (detergents,
cleansers, etc.) onto the telephone
line cord plug, or allow it to become
wet at all. This may cause a fire. If the
telephone line cord plug becomes
wet, immediately pull it from the
telephone wall jack, and do not use.
LDo not place or use this product near
automatically controlled devices such
as automatic doors and fire alarms.
Radio waves emitted from this product
may cause such devices to
malfunction resulting in an accident.
LCompletely insert the AC
adaptor/power plug into the power
outlet. Failure to do so may cause
electric shock and/or excessive heat
resulting in a fire.
LRegularly remove any dust, etc. from
the AC adaptor/power plug by pulling
it from the power outlet, then wiping
with a dry cloth. Accumulated dust
may cause an insulation defect from
moisture, etc. resulting in a fire.
CAUTION:
Installation
LNever install telephone wiring during a
lightning storm.
LNever install telephone line jacks in
wet locations unless the jack is
specifically designed for wet
locations.
LNever touch uninsulated telephone
wires or terminals unless the
telephone line has been disconnected
at the network interface.
LUse caution when installing or
modifying telephone lines.
LDo not touch the plug with wet hands.
LThe AC adaptor is used as the main
disconnect device. Ensure that the AC
outlet is installed near the product and
is easily accessible.
Battery
To reduce the risk of fire or injury to
persons, read and follow these
instructions.
LUse only the battery(ies) specified.
LDo not dispose of the battery(ies) in a
fire. They may explode. Check with
local waste management codes for
special disposal instructions.
LDo not open or mutilate the
battery(ies). Released electrolyte is
corrosive and may cause burns or
injury to the eyes or skin. The
electrolyte may be toxic if swallowed.
LExercise care when handling the
battery(ies). Do not allow conductive
materials such as rings, bracelets or
keys to touch the battery(ies),
otherwise a short circuit may cause
the battery(ies) and/or the conductive
material to overheat and cause burns.
LCharge the battery(ies) provided, or
identified for use with the product only,
in accordance with the instructions
and limitations specified in this
manual.
Medical
LConsult the manufacturer of any
personal medical devices, such as
pacemakers or hearing aids, to
determine if they are adequately
shielded from external RF (radio
frequency) energy. (The product
operates in the frequency range of
5.74 GHz to 5.84 GHz, and the power
output is 200 mW (max.).) Do not use
the product in health care facilities if
any regulations posted in the area
instruct you not to do so. Hospitals or
health care facilities may be using
GT1540_Shinsei.book Page 3 Tuesday, February 13, 2007 3:53 PM
Temporary Confidential
4
equipment that could be sensitive to
external RF energy.
For best performance
Base unit location/avoiding noise
The base unit and other compatible
Panasonic units use radio waves to
communicate with each other.
LFor maximum coverage and noise-
free communications, place your base
unit:
– at a convenient, high, and central
location with no obstructions
between the handset and base unit
in an indoor environment.
– away from electronic appliances
such as TVs, radios, personal
computers, wireless devices or
other phones.
– avoid facing radio frequency
transmitters, such as external
antennas of mobile phone cell
stations (avoid putting the base unit
on a bay window or near a window).
LCoverage and voice quality depends
on the local environmental conditions.
LIf the reception for a base unit location
is not satisfactory, move the base unit
to another location for better
reception.
Environment
LKeep the product away from electrical
noise generating devices, such as
fluorescent lamps and motors.
LThe product should be kept free from
excessive smoke, dust, high
temperature, and vibration.
LThe product should not be exposed to
direct sunlight.
LDo not place heavy objects on top of
the product.
LWhen you leave the product unused
for a long period of time, unplug the
product from the power outlet.
LThe product should be kept away from
heat sources such as heaters, kitchen
stoves, etc. It should not be placed in
rooms where the temperature is less
than 5 °C (41 °F) or greater than 40 °C
(104 °F). Damp basements should
also be avoided.
LThe maximum calling distance may be
shortened when the product is used in
the following places: Near obstacles
such as hills, tunnels, underground,
near metal objects such as wire
fences, etc.
LOperating the product near electrical
appliances may cause interference.
Move away from the electrical
appliances.
Routine care
LWipe the outer surface of the product
with a soft moist cloth. Do not use
benzine, thinner, or any abrasive
powder.
No responsibility will be taken by our
company with respect to
consequences resulting from the
inappropriate use, damage or both of
the unit.
GT1540_Shinsei.book Page 4 Tuesday, February 13, 2007 3:53 PM
Temporary Confidential
5
Setting up the base unit

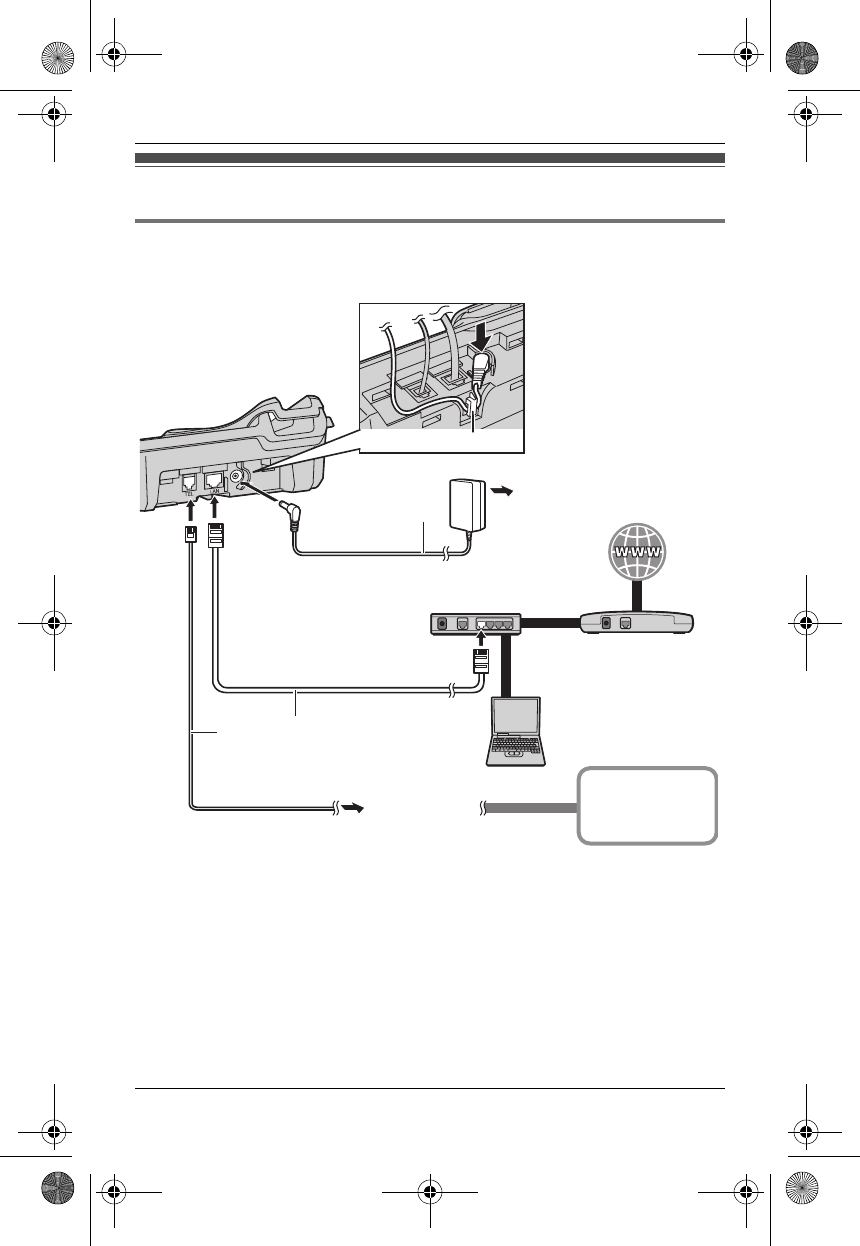

Connecting to a landline and the Internet (IP line)
Connect the base unit to a broadband router or modem with a built-in router.
*1 Computer is not required for setup or making/answering internet calls.
1Connect the included telephone line cord until it clicks into the “TEL” port on the
base unit and telephone line jack.
2Connect the included Ethernet cable to the “LAN” port on the base unit and
unused Ethernet (LAN) port on your router or modem with a built-in router.
3Connect the included AC adaptor to the base unit by pushing the plug firmly, then
plug the other end into the power outlet.
LUse only the included Panasonic AC adaptor PQLV203.
LThe STATUS indicator on the base unit flashes once in red.
Hook
(120 V AC, 60 Hz)
To single-line
telephone jack
(RJ11C)
AC adaptor
3
2
1
Telephone
line cord
Ethernet cable
Router
Computer
(optional) *1
Cable or
DSL modem
Internet
Public Switched
Telephone
Network
GT1540_Shinsei.book Page 5 Tuesday, February 13, 2007 3:53 PM
Temporary Confidential
6
4Set up the handset (page 7). “Please read VoIP Agreement. Agree?” is
displayed on the handset. Read the terms and conditions for VoIP services on
the included VoIP leaflet and press {YES}.
5Check for Internet access:
– When the STATUS indicator stops flashing and changes to steady green, the
installation is complete. Confirm your VoIP number.
– When the STATUS indicator does not light in green, you may need to configure
the Internet connection settings.
Note:
LThe AC adaptor must remain connected at all times. (It is normal for the adaptor to
feel warm during use.)
LThe AC adaptor should be connected to a vertically oriented or floor-mounted AC
outlet. Do not connect the AC adaptor to a ceiling-mounted AC outlet, as the
weight of the adaptor may cause it to become disconnected.
LThe unit will not work during a power failure. To use the landline, we recommend
connecting a corded telephone to the same telephone line or to the same
telephone line jack using a Panasonic T-adaptor.
GT1540_Shinsei.book Page 6 Tuesday, February 13, 2007 3:53 PM
Temporary Confidential
7

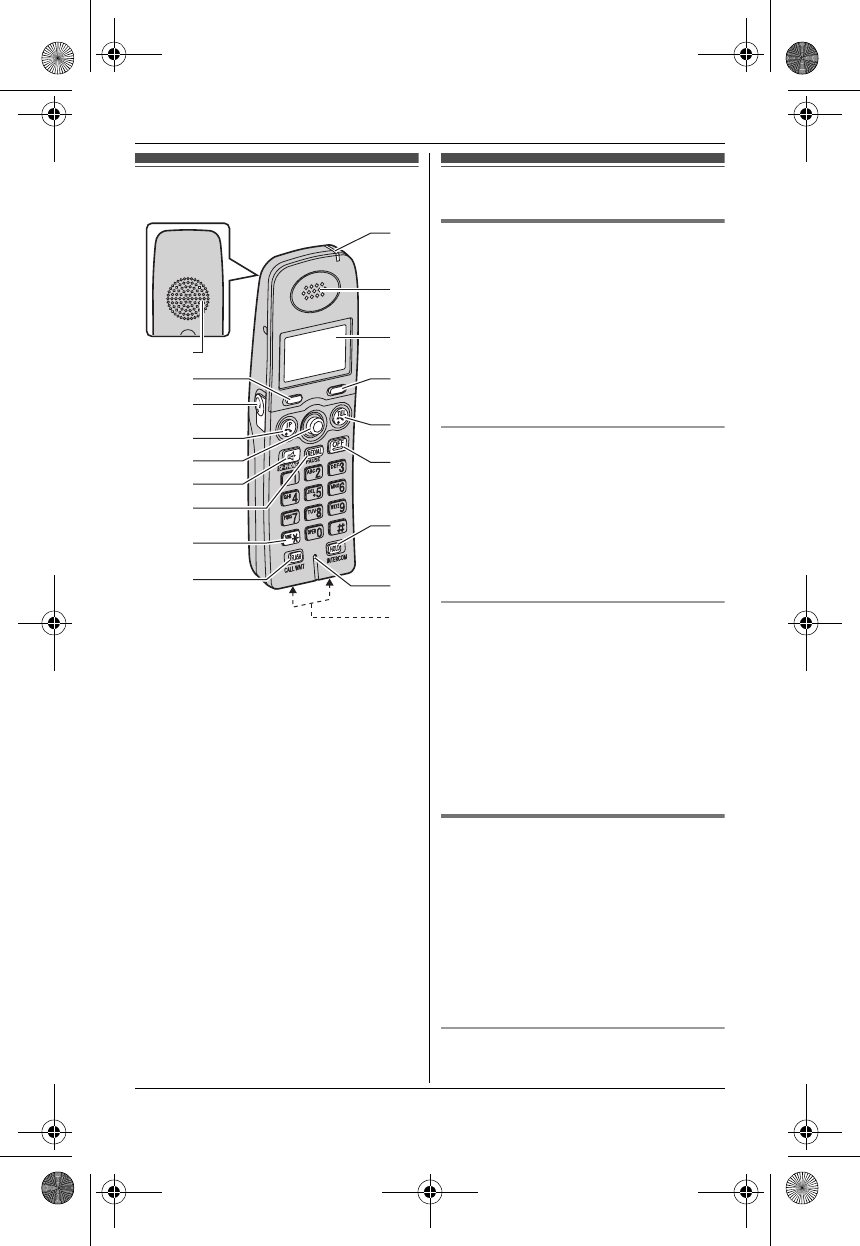

Setting up the handset
Battery installation/
replacement
1Press the notch of the handset cover
firmly, and slide it in the direction of
the arrow.
LIf necessary, remove the old
battery.
2Insert the battery (A), and press it
down until it snaps into position (B).
Then close the handset cover (C,
D).
Important:
LUse only the rechargeable
Panasonic battery.
Attention:
A nickel metal hydride battery that is
recyclable powers the product you have
purchased.
Please call 1-800-8-BATTERY (1-800-
822-8837) for information on how to
recycle this battery.
Battery charge
Place the handset on the base unit for 7
hours before initial use.
LWhile charging, the charge indicator
on the handset lights in amber. When
the battery is fully charged, the
indicator lights in green.
Note:
LIf you want to use the handset
immediately, charge the battery for at
least 15 minutes.
LTo ensure that the battery charges
properly, clean the charge contacts of
the handset and base unit with a soft,
dry cloth once a month. Clean more
often if the unit is subject to the
exposure of grease, dust, or high
humidity.
B
A
C
D
Charge
contacts
GT1540_Shinsei.book Page 7 Tuesday, February 13, 2007 3:53 PM
Temporary Confidential
8

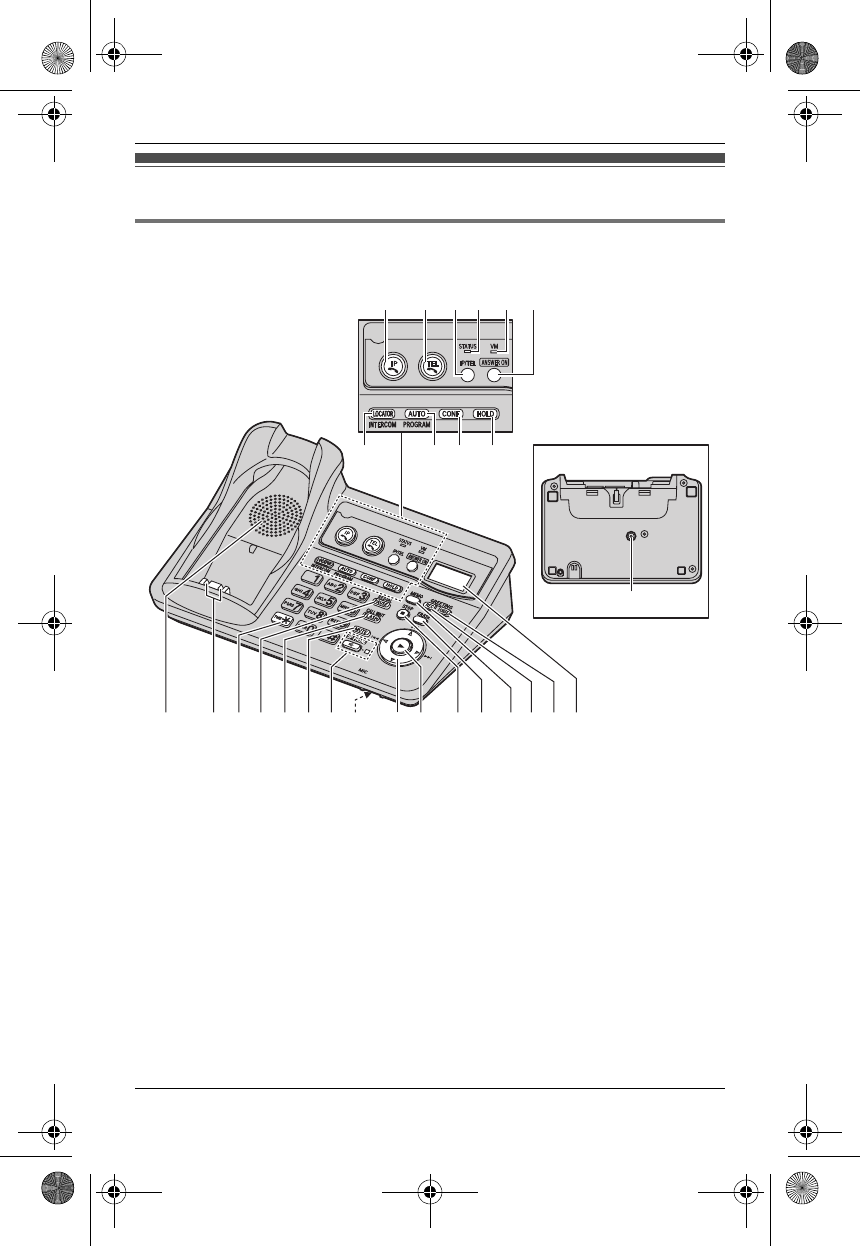

Controls (Base unit)
BB-GT1540
A {IP} (IP line)
IP indicator
B {TEL} (Landline)
TEL indicator
C {IP/TEL}
D STATUS indicator
E VM (Voice Mail) indicator
F {ANSWER ON}
ANSWER ON indicator
G {LOCATOR} {INTERCOM}
H {AUTO} {PROGRAM}
I {CONF} (Conference)
J {HOLD}
K Speaker
L Charge contacts
M {*} (TONE)
N {PAUSE} {REDIAL}
O {FLASH} {CALL WAIT}
P {MUTE}
Q {s} (SP-PHONE)
SP-PHONE indicator
R MIC (Microphone)
S Navigator key ({^} {V} {<} {>})
T {6} (Message)
Message indicator
U {STOP}
V {ERASE}
W {MEMO}
X {GREETING REC} (Recording)
Y {GREETING CHECK}
Z Display
! {IP RESET}
IP RESET
AB DC FE
R
HI JG
M NK O PQ T U
!
SL VXYWZ
Bottom view
GT1540_Shinsei.book Page 8 Tuesday, February 13, 2007 3:53 PM
Temporary Confidential
9
Controls (Handset)
ASpeaker
BSoft keys
CHeadset jack
D{IP} (IP line)
EJoystick
F{s} (SP-PHONE)
G{PAUSE} {REDIAL}
H{*} (TONE)
I{FLASH} {CALL WAIT}
JCharge indicator
Ringer indicator
Message indicator
KReceiver
LDisplay
M{TEL} (Landline)
N{OFF}
O{HOLD} {INTERCOM}
PMicrophone
QCharge contacts
Making calls
Using the handset N
1Dial the phone number.
2To make a landline call, press
{TEL}.
To make an internet call, press {IP}.
3When you finish talking, press
{OFF} or place the handset on the
base unit or charger.
Using the speakerphone
1Dial the phone number, and press
{s}.
LSpeak alternately with the other
party.
2When you finish talking, press
{OFF}.
Making a call using the redial list
The last 10 phone numbers dialed are
stored in the redial list (each 48 digits
max.). V (landline) and j (IP line)
indicate which line you made the call on.
1{REDIAL}
2{V}/{^}: Select the desired phone
number.
3Press {CALL}.
Using the base unit f
1To make a landline call, press
{TEL}.
To make an internet call, press {IP}.
2Dial the phone number.
3When the other party answers,
speak into the MIC.
4When you finish talking, press {s}.
Redialing the last number dialed
Press {TEL} or {IP}. i {REDIAL}
A
J
B
M
N
O
P
Q
K
L
B
D
E
F
G
H
I
C
GT1540_Shinsei.book Page 9 Tuesday, February 13, 2007 3:53 PM
Temporary Confidential
10
Answering calls
Using the handset N
When a call is being received, the ringer
indicator on the handset flashes rapidly.
1To answer the landline call, press
{TEL} or {s}.
To answer the internet call, press
{IP} or {s}.
2When you finish talking, press
{OFF}.
Using the base unit f
When a call is being received, the TEL
indicator or IP indicator flashes rapidly.
1{s}
2Speak into the MIC.
3When you finish talking, press {s}.
Using Caller ID service
This unit is Caller ID compatible. To use
Caller ID features, you must subscribe to
Caller ID services offered by your
landline service provider and the VoIP
service provider.
Note:
Lk Please contact your landline
service provider for details.
Ll Please contact the VoIP
service provider for details.
Caller ID features N
k
When an outside call is being received,
the calling party’s name and phone
number are displayed.
l
When an outside call is being received,
the calling party’s phone number is
displayed.
Caller information for the last 50 callers
is logged in the caller list from the most
recent call to the oldest.
Lk If the unit is connected to a PBX
system, caller information may not be
received properly. Consult your PBX
supplier.
Answering system
Turning the answering system
on f
1Press {IP/TEL} repeatedly to select
the desired line(s).
2Press {ANSWER ON} to turn on the
answering system.
Turning the answering system off
Press {ANSWER ON}.
GT1540_Shinsei.book Page 10 Tuesday, February 13, 2007 3:53 PM
Temporary Confidential
11
Greeting message
Recording your greeting
message f
1Press {IP/TEL} repeatedly to select
the desired line(s).
2{GREETING REC}
3Within 10 seconds, press
{GREETING REC} again.
4After the base unit beeps, speak
clearly about 20 cm (8 inches) away
from the MIC.
5To stop recording, press {STOP}.
Listening to messages
using the base unit
Press {6} (center of navigator key).
LThe base unit plays new messages
including voice memos.
Playing back messages for the
desired line(s)
1Press {IP/TEL} repeatedly to select
the desired line(s).
2Press {6} (center of navigator key).
GT1540_Shinsei.book Page 11 Tuesday, February 13, 2007 3:53 PM
Temporary Confidential
12
FCC and other information
This equipment complies with Part 68
of the FCC rules and the requirements
adopted by the ACTA. On the bottom
of this equipment is a label that
contains, among other information, a
product identifier in the format
US:ACJ----------.
If requested, this number must be
provided to the telephone company.
L Registration No
............(found on the bottom of the
unit)
L Ringer Equivalence No.
(REN).......0.1B
A plug and jack used to connect this
equipment to the premises wiring and
telephone network must comply with
the applicable FCC Part 68 rules and
requirements adopted by the ACTA. A
compliant telephone cord and modular
plug is provided with the product. It is
designed to be connected to a
compatible modular jack that is also
compliant.
The REN is used to determine the
number of devices that may be
connected to a telephone line.
Excessive RENs on a telephone line
may result in the devices not ringing in
response to an incoming call. In most
but not all areas, the sum of RENs
should not exceed five (5.0). To be
certain of the number of devices that
may be connected to a line, as
determined by the total RENs, contact
the local telephone company. For
products approved after July 23, 2001,
the REN for the product is part of the
product identifier that has the format
US:AAAEQ##TXXXX. The digits
represented by ## are the REN
without a decimal point (e.g., 03 is a
REN of 0.3).
If this equipment causes harm to the
telephone network, the telephone
company will notify you in advance
that temporary discontinuance of
service may be required. But if
advance notice isn't practical, the
telephone company will notify the
customer as soon as possible. Also,
you will be advised of your right to file
a complaint with the FCC if you
believe it is necessary.
The telephone company may make
changes in its facilities, equipment,
operations or procedures that could
affect the operation of the equipment.
If this happens the telephone company
will provide advance notice in order for
you to make necessary modifications
to maintain uninterrupted service.
If trouble is experienced with this
equipment, for repair or warranty
information, please contact a Factory
Service Center or other Authorized
Servicer. If the equipment is causing
harm to the telephone network, the
telephone company may request that
you disconnect the equipment until the
problem is resolved.
Connection to party line service is
subject to state tariffs. Contact the
state public utility commission, public
service commission or corporation
commission for information.
If your home has specially wired alarm
equipment connected to the telephone
line, ensure the installation of this
equipment does not disable your alarm
equipment. If you have questions
GT1540_Shinsei.book Page 12 Tuesday, February 13, 2007 3:53 PM
Temporary Confidential
13
about what will disable alarm
equipment, consult your telephone
company or a qualified installer.
This equipment is hearing aid
compatible as defined by the FCC in
47 CFR Section 68.316.
When you hold the phone to your ear,
noise might be heard in your Hearing
Aid. Some Hearing Aids are not
adequately shielded from external RF
(radio frequency) energy. If noise
occurs, use an optional headset
accessory or the speakerphone option
(if applicable) when using this phone.
Consult with your audiologist or
Hearing Aid manufacturer about the
availability of Hearing Aids which
provide adequate shielding to RF
energy commonly emitted by digital
devices.
WHEN PROGRAMMING
EMERGENCY NUMBERS AND(OR)
MAKING TEST CALLS TO
EMERGENCY NUMBERS:
1) Remain on the line and briefly
explain to the dispatcher the reason
for the call.
2) Perform such activities in the off-
peak hours, such as early morning
or late evenings.
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
Privacy of communications may not
be ensured when using this phone.
CAUTION:
Any changes or modifications not
expressly approved by the party
responsible for compliance could void
the user’s authority to operate this
device.
NOTE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
– Reorient or relocate the receiving
antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
– Consult the dealer or an experienced
radio/TV technician for help.
Some cordless telephones operate at
frequencies that may cause
interference to nearby TVs and VCRs.
To minimize or prevent such
interference, the base of the cordless
telephone should not be placed near
or on top of a TV or VCR. If
GT1540_Shinsei.book Page 13 Tuesday, February 13, 2007 3:53 PM
Temporary Confidential
14
interference is experienced, move the
cordless telephone further away from
the TV or VCR. This will often reduce,
or eliminate, interference.
FCC RF Exposure Warning:
L This product complies with FCC
radiation exposure limits set forth for
an uncontrolled environment.
L To comply with FCC RF exposure
requirements, the base unit must be
installed and operated 20 cm (8
inches) or more between the
product and all person’s body
(excluding extremities of hands,
wrist and feet).
L This product may not be collocated
or operated in conjunction with any
other antenna or transmitter.
L The handset may be carried and
operated with only the specific
provided belt-clip. Other non-tested
belt-clips or similar body-worn
accessories may not comply and
must be avoided.
Notice
GT1540_Shinsei.book Page 14 Tuesday, February 13, 2007 3:53 PM
Temporary Confidential
If you need assistance with setup or operation
If you are experiencing any difficulty with your phone’s functionality or features,
please contact Panasonic as follows.
1. Visit our website: http://www.panasonic.com/help
2. Contact us via the web at: http://www.panasonic.com/contactinfo
3. Call us at: 1-800-211-PANA (1-800-211-7262)
TTY users (hearing or speech impaired users) can call 1-877-833-8855.
When you ship the product
LCarefully pack your unit, preferably in the original carton.
LAttach a letter, detailing the symptom, to the outside of the carton.
LSend the unit to Panasonic Service and Technology Company Customer Service
Center, prepaid and adequately insured.
LDo not send your unit to Panasonic Consumer Electronics Company listed below
or to executive or regional sales offices. These locations do not repair consumer
products.
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Puerto Rico, Inc.
San Gabriel Industrial Park, Ave. 65 de Infantería, Km. 9.5,
Carolina, Puerto Rico 00985
Copyright:
This material is copyrighted by Panasonic Communications Co., Ltd., and may be
reproduced for internal use only. All other reproduction, in whole or in part, is
prohibited without the written consent of Panasonic Communications Co., Ltd.
© 2007 Panasonic Communications Co., Ltd. All Rights Reserved.
GT1540_Shinsei.book Page 100 Tuesday, February 13, 2007 3:53 PM
