2.4 GHz Cordless Phone System
with Fax and Copier
Operating Instructions
Model No. KX-FG2451
Please read these Operating
Instructions before using the unit
and save for future reference.
Temporary Confidential
2
For your future reference
Date of purchase Serial number
(found on the rear of the unit)
Dealer’s name and address
Dealer’s telephone number
Caution:
●The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a
computer or other electronic device, including fax machines, to send any message unless such
message clearly contains in a margin at the top or bottom of each transmitted page or on the
first page of the transmission, the date and time it is sent and an identification of the business or
other entity, or other individual sending the message and the telephone number of the sending
machine or such business, other entity, or individual. (The telephone number provided may not
be a 900 number or any other number for which charges exceed local or long-distance
transmission charges.)
In order to program this information into your fax machine, you should complete the instructions
on page 5 to page 7.
●Note that the images of copied or received documents will remain on the used film. When
disposing of the used film, use discretion.
●Do not rub or use an eraser on the printed side of recording paper, as the print may smear.
Temporary Confidential
3
Important safety instructions!
When using this unit, basic safety precautions
should always be followed to reduce the risk of
fire, electric shock, or personal injury.
1. Read and understand all instructions.
2. Follow all warnings and instructions marked
on this unit.
3. Unplug this unit from AC outlets before
cleaning. Do not use liquid or aerosol
cleaners. Use a damp cloth for cleaning.
4. Do not use this unit near water, for example
near a bath tub, wash bowl, kitchen sink, or
the like.
5. Place the unit securely on a stable surface.
Serious damage and/or injury may result if
the unit falls.
6. Do not cover slots and openings on the unit.
They are provided for ventilation and
protection against overheating. Never place
the unit near radiators, or in a place where
proper ventilation is not provided.
7. Use only the power source marked on the
unit. If you are not sure of the type of power
supplied to your home, consult your dealer
or local power company.
8. For safety purposes this product is equipped
with a three prong grounded plug. If you do
not have this type of outlet, please have one
installed. Do not use any type of adaptor
plug to defeat this safety feature.
9. Do not place objects on the power cord.
Install the unit where no one can step or trip
on the cord.
10. Do not overload wall outlets and extension
cords. This can result in the risk of fire or
electric shock.
11. Never push any objects through slots in this
unit. This may result in the risk of fire or
electric shock. Never spill any liquid on the
unit.
12. To reduce the risk of electric shock, do not
disassemble this unit. Take the unit to an
authorized servicenter when service is
required. Opening or removing covers may
expose you to dangerous voltages or other
risks. Incorrect reassembly can cause
electric shock when the unit is subsequently
used.
13. Unplug this unit from the wall outlet and refer
servicing to an authorized servicenter when
the following conditions occur:
A. When the power supply cord or plug is
damaged or frayed.
B. If liquid has been spilled into the unit.
C. If the unit has been exposed to rain or
water.
D. If the unit does not work normally by
following the operating instructions.
Adjust only controls covered by the
operating instructions. Improper
adjustment may require extensive work
by an authorized servicenter.
E. If the unit has been dropped or physically
damaged.
F. If the unit exhibits a distinct change in
performance.
14. During thunderstorms, avoid using
telephones except cordless types. There
may be a remote risk of an electric shock
from lightning.
15. Do not use this unit to report a gas leak,
when in the vicinity of the leak.
SAVE THESE
INSTRUCTIONS
INSTALLATION:
1. Never install telephone wiring during a
lightning storm.
2. Never install telephone jacks in wet locations
unless the jack is specifically designed for
wet locations.
3. Never touch uninsulated telephone wires or
terminals unless the telephone line has been
disconnected at the network interface.
4. Use caution when installing or modifying
telephone lines.
WARNING:
To prevent the risk of fire or electrical shock, do
not expose this product to rain or any type of
moisture.
OTHER INFORMATION
●
Keep the unit away from electrical noise-
generating devices, such as fluorescent lamps
and motors.
●
The unit should be kept free from dust, high
temperature and vibration.
●
The unit should not be exposed to direct
sunlight.
●
Do not place heavy objects on top of this unit.
●
Do not touch the plug with wet hands.
Temporary Confidential
4
Recording paper!
1Fan the stack of paper to prevent a paper
jam.
2Insert the paper into the paper tray.

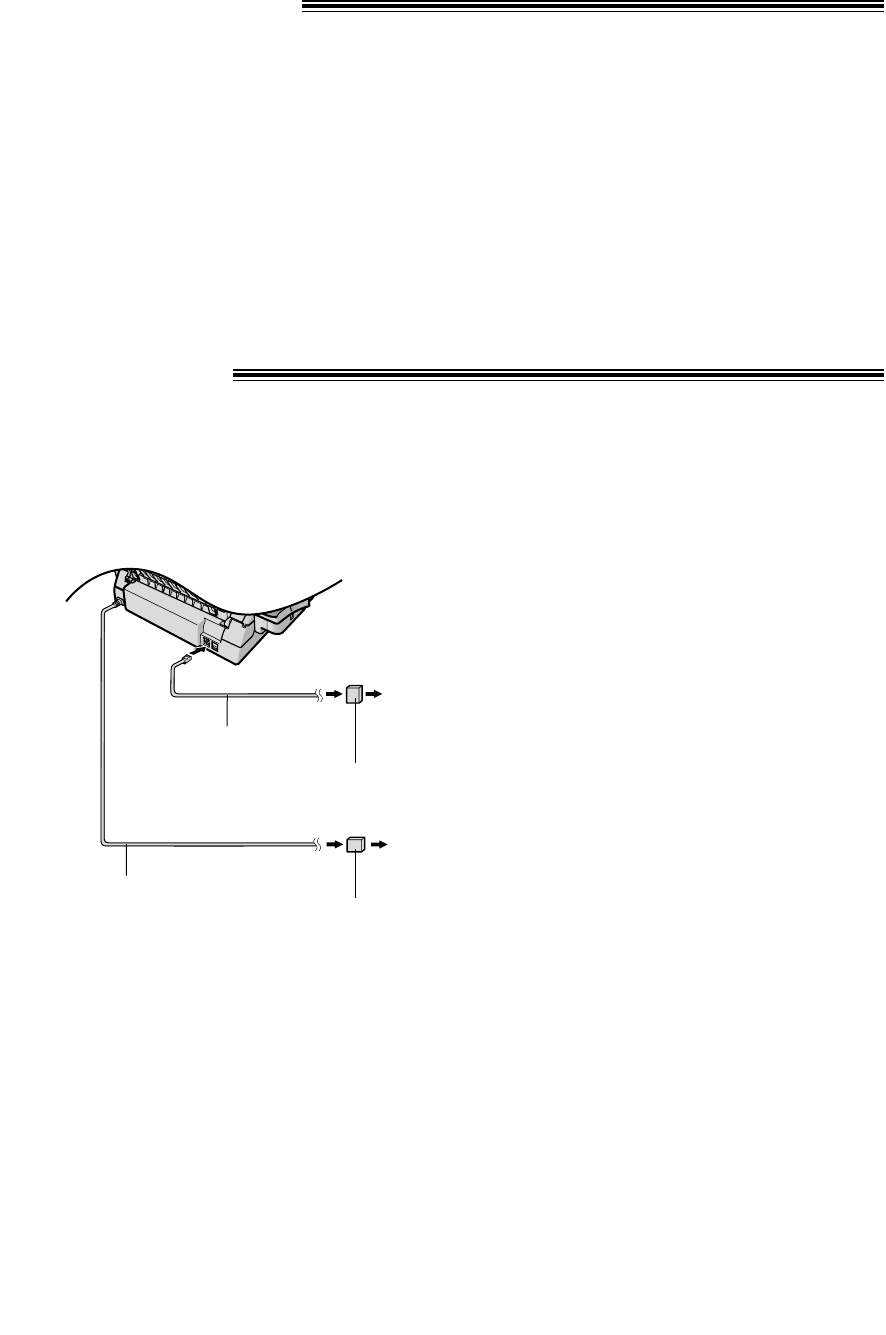

Connections!
1Connect the telephone line cord.
2Connect the power cord.
Note:
●The warranty does not cover damage due to power line surges or lightning. For additional equipment
protection, we recommend you use a surge protector.
Caution:
●When you operate this product, the power outlet should be near the product and easily accessible.
Power cord
To a power outlet
(120 V, 60 Hz)
Power surge
protector
( )
To a single telephone line jack
(RJ11C)
Power surge
protector
( )
Telephone
line cord
Temporary Confidential
5
Date and time, your logo and facsimile
telephone number!
You should program the date and time, your logo and facsimile telephone number. This
information will be printed on each page transmitted from your unit.

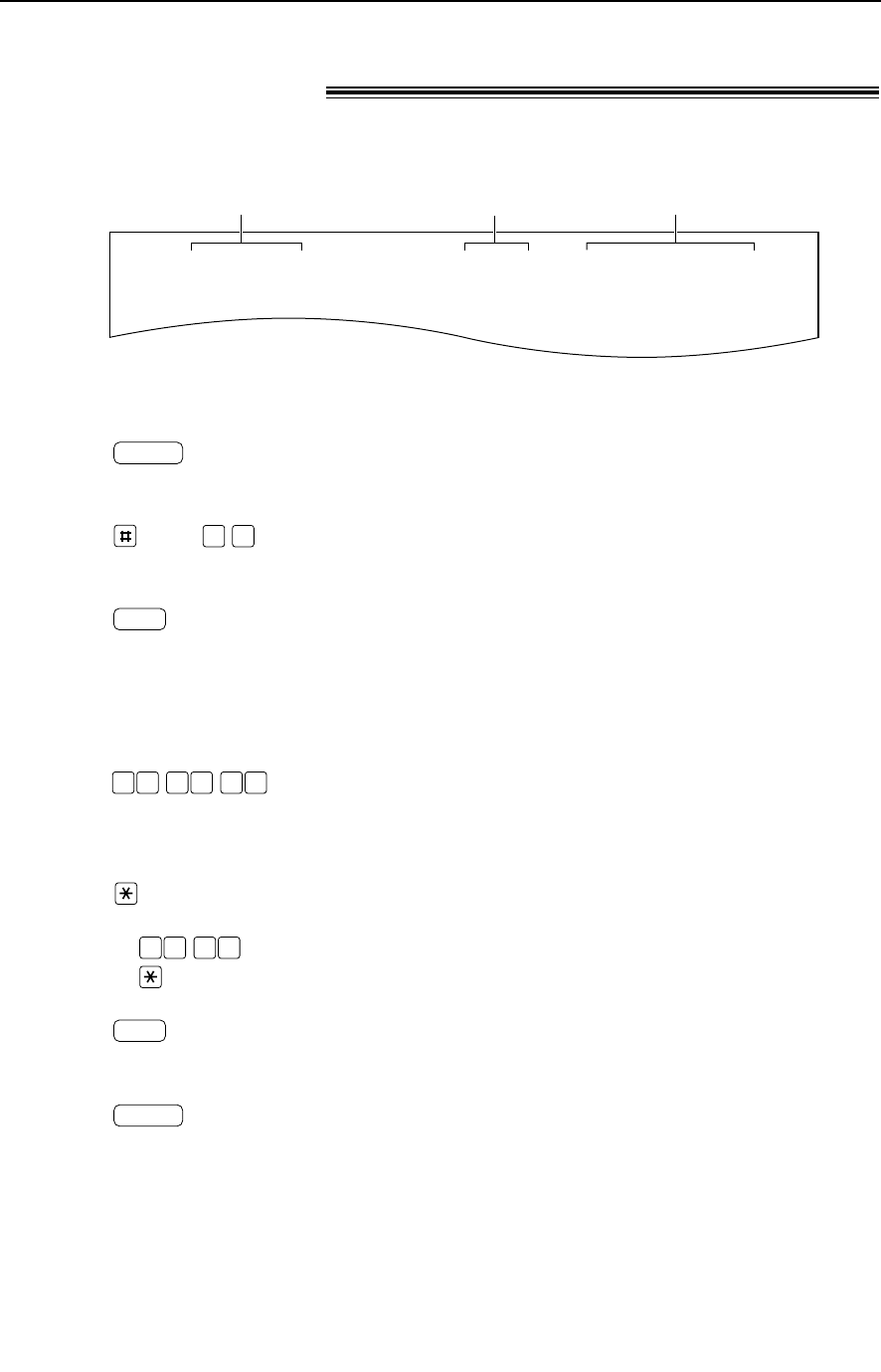

Fax Correspondence
Your logo Your facsimile telephone number Date and time
FROM : Panasonic Fax
Example: FAX NO. : 1234567 Feb. 26 2006 09:02AM P1
Setting the date and time
1Press .
2Press , then .
3Press .
4
Enter the correct month/day/year by selecting
2 digits for each, using the dial keypad.
Example: Aug. 10, 2006
Press .
5Enter the correct hour/minute by selecting
2 digits for each, using the dial keypad.
Press to select “AM” or “PM”.
Example: 3:15PM
1. Press .
2. Press until “PM” is displayed.
6Press .
7Press .
MENU
SET
1503
001 680
SET
0 1
MENU
Temporary Confidential
1
2
3
4
5
6
7
8
9
0
STOP
6
1Press .
2Press , then .
3Press .
4Enter your logo, up to 30 characters, using
the dial keypad. See right for details.
Example: “Bill”
1. Press five times.
2. Press three times.
3. Press three times.
4. Press to move the cursor to the next
space and press three times.
5Press .
6Press .
MENU
SET
5
5
4
2
SET
0 2
MENU

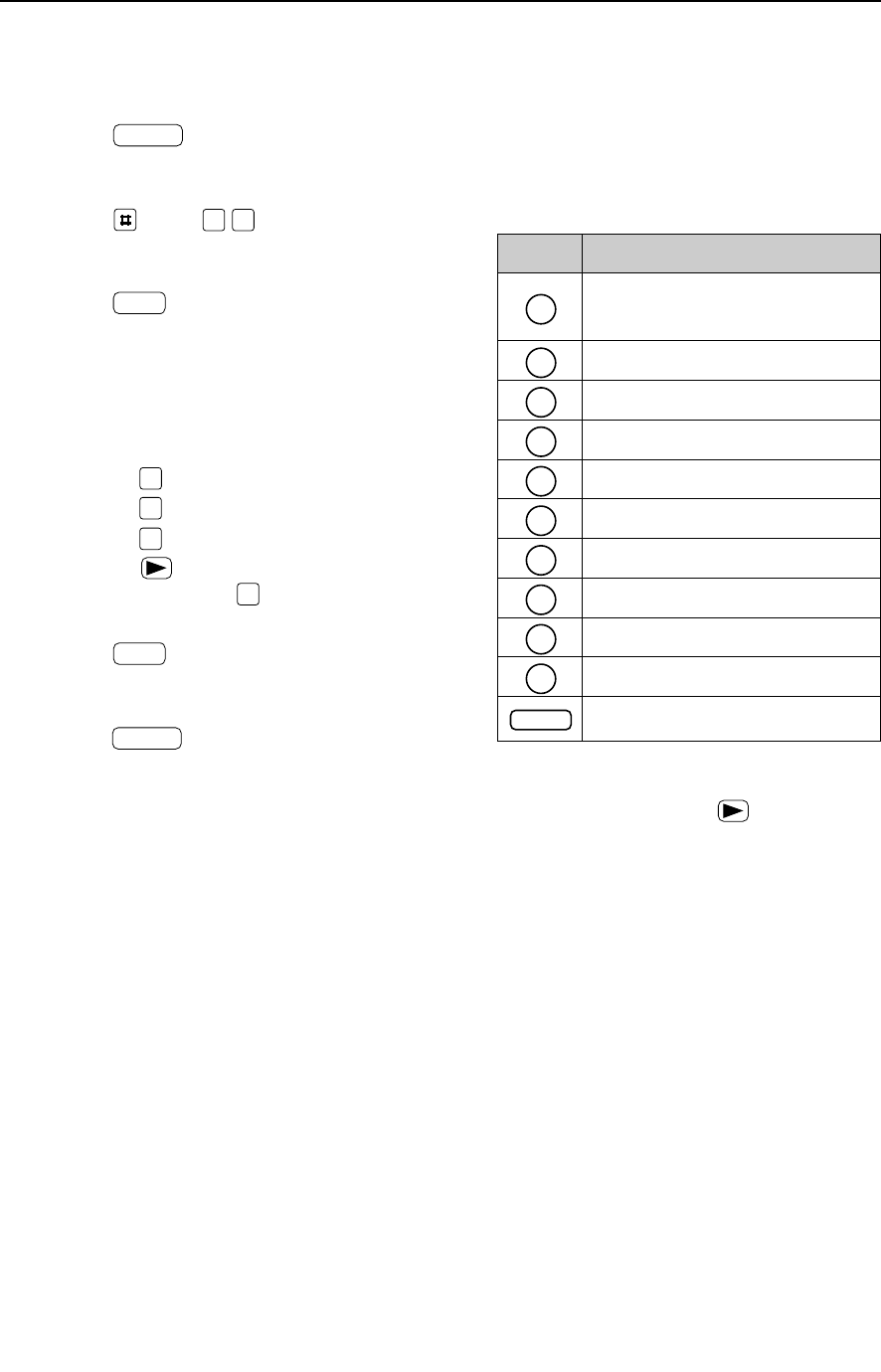

Setting your logo
The logo can be your company, division or name.
Keys Characters
#& ’ () @,–.
/1
abcABC2
def DEF3
ghiGHI4
jklJKL5
mnoMNO6
pqrsPQRS7
tuvTUV8
wxyzWXYZ9
0 (Space)
To delete a digit
To select characters with the dial
keypad
Pressing the dial keys will select a character as
shown below.
Note:
●To enter another character located on the
same number key, press to move the
cursor to the next space.
Temporary Confidential
7
Setting your facsimile telephone number
1Press .
2Press , then .
3Press .
4Enter your facsimile telephone number, up to
20 digits, using the dial keypad.
5Press .
6Press .
MENU
SET
SET
0 3
MENU
Temporary Confidential
8
Ringer volume
While the unit is idle, press or .
●If any documents are in the document entrance,
you cannot adjust the ringer volume. Confirm
that there are no documents in the entrance.
Speaker volume
While using the speakerphone,
press or .
Adjusting base unit volumes!
1Handset is off the base unit:
Press .
2Dial the telephone number.
3When finished talking, press or place
the handset on the base unit.
OFF
TALK
With the handset
Phone calls - making)
1Press .
2Dial the telephone number.
3When the other party answers, talk into the
microphone.
4When finished talking, press .
SP-PHONE
SP-PHONE
With the base unit
Fax voice guidance
volume
While listening to the fax voice guidance,
press or .
Answering device volume
While listening to the recorded
messages, press or .
To redial the last number
1. Press or .
2. Press .
REDIAL
SP-PHONE
TALK
Temporary Confidential
9
Phone calls - answering)
1Handset is off the base unit:
Press when the handset rings.
●You can also answer a call by pressing
any dial key 0 to 9, , or #.
(Any key talk feature)
Handset is on the base unit:
Lift the handset when the base unit rings.
2When finished talking, press or place
the handset on the base unit.
OFF
TALK
With the base unit
1When the base unit rings, press
.
2
When finished talking, press .
SP-PHONE
SP-PHONE
With the handset
Sending a fax manually!
1Adjust the width of the document guides to
the size of the document.
2Insert the document (up to 10 pages) FACE
DOWN until a single beep is heard and the
unit grabs the document.
3Press .
4Dial the fax number.
5When a fax tone is heard:
Press .
OR
When the other party answers your call:
Ask them to press their start button. When
the fax tone is heard, press .
FAX/START
FAX/START
SP-PHONE
To redial the last number
Press .
●If the line is busy, the unit will automatically redial the
number.
●To cancel redialing, press .
STOP
REDIAL
Temporary Confidential
10
1When the unit rings, press .
2When:
— document reception is required,
— a fax calling tone (slow beep) is heard, or
— no sound is heard,
press .
●The unit will start fax reception.
FAX/START
SP-PHONE
Receiving Faxes!
Receiving a fax using the
base unit
1When the handset rings, press or
.
2When:
— document reception is required,
— a fax calling tone (slow beep) is heard, or
— no sound is heard,
press *#9until a single beep is
heard.
●The unit will start fax reception.
SP-PHONE
TALK
Receiving a fax using the
handset
Temporary Confidential
11
This equipment complies with Part 68 of the FCC
rules and the requirements adopted by the ACTA.
On the rear of this equipment is a label that
contains, among other information, a product
identifier in the format US:ACJ----------.
If requested, this number must be provided to the
telephone company.
• Registration No .....(found on the rear of the unit)
• Ringer Equivalence No. (REN)
...............................(found on the rear of the unit)
A plug and jack used to connect this equipment to
the premises wiring and telephone network must
comply with the applicable FCC Part 68 rules and
requirements adopted by the ACTA. A compliant
telephone cord and modular plug is provided with
this product. It is designed to be connected to a
compatible modular jack that is also compliant.
The REN is used to determine the number of
devices that may be connected to a telephone line.
Excessive RENs on a telephone line may result in
the devices not ringing in response to an incoming
call. In most but not all areas, the sum of RENs
should not exceed five (5.0).To be certain of the
number of devices that may be connected to a
line, as determined by the total RENs, contact the
local telephone company. For products approved
after July 23, 2001, the REN for this product is part
of the product identifier that has the format
US:AAAEQ##TXXXX. The digits represented by
## are the REN without a decimal point (e.g.,03 is
a REN of 0.3).
If this equipment causes harm to the telephone
network, the telephone company will notify you in
advance that temporary discontinuance of service
may be required. But if advance notice isn’t
practical, the telephone company will notify the
customer as soon as possible. Also, you will be
advised of your right to file a complaint with the
FCC if you believe it is necessary.
The telephone company may make changes in its
facilities, equipment, operations or procedures that
could affect the operation of the equipment. If this
happens the telephone company will provide
advance notice in order for you to make necessary
modifications to maintain uninterrupted service.
If trouble is experienced with this equipment, for
repair or warranty information, please contact a
Factory Servicenter or other Authorized Servicer. If
the equipment is causing harm to the telephone
network, the telephone company may request that
you disconnect the equipment until the problem is
resolved.
Connection to party line service is subject to state
tariffs. Contact the state public utility commission,
public service commission or corporation
commission for information.
This equipment is hearing aid compatible as
defined by the FCC in 47 CFR Section 68.316.
When you hold the phone to your ear, noise might
be heard in your Hearing Aid. Some Hearing Aids
are not adequately shielded from external RF
(radio frequency) energy. If noise occurs, use an
optional headset accessory or the speakerphone
option (if applicable) when using this phone.
Consult with your audiologist or Hearing Aid
manufacturer about the availability of Hearing Aids
which provide adequate shielding to RF energy
commonly emitted digital devices.
If your home has specially wired alarm equipment
connected to the telephone line, ensure the
installation of this equipment does not disable your
alarm equipment. If you have questions about
what will disable alarm equipment, consult your
telephone company or a qualified installer.
WHEN PROGRAMMING EMERGENCY
NUMBERS AND(OR) MAKING TEST CALLS TO
EMERGENCY NUMBERS:
1) Remain on the line and briefly explain to the
dispatcher the reason for the call.
2) Perform such activities in the off-peak hours,
such as early morning or late evenings.
The software contained in this equipment to allow
user access to the network must be upgraded to
recognize newly established network area codes
and exchange codes as they are placed into
service. Failure to upgrade the premises systems
or peripheral equipment to recognize the new
codes as they are established will restrict the
customer and the customer’s employees from
gaining access to the network and to these codes.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Privacy of communications may not be ensured
when using this phone.
FCC and Other Information
Temporary Confidential
12
CAUTION:
Any changes or modifications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate this
device.
NOTE:
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses, and can radiate radio frequency energy
and, if not installed and used in accordance with
the instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more of
the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
— Consult the dealer or an experienced radio/TV
technician for help.
Some cordless telephones operate at frequencies
that may cause interference to nearby TVs and
VCRs. To minimize or prevent such interference,
the base of the cordless telephone should not be
placed near or on top of a TV or VCR. If
interference is experienced, move the cordless
telephone further away from the TV or VCR. This
will often reduce, or eliminate, interference.
FCC RF Exposure Warning:
This product complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. To comply with FCC RF exposure
requirements the base unit must be installed and
operated with its antenna located 20 cm or more
between antenna and all person’s body
(excluding extremities of hands, wrist and feet).
The handset unit may be carried and operated
with only the specific provided belt-clip. Other
non-tested belt-clips or similar body-worn
accessories may not comply and must be
avoided. The base and handset units must not be
co-located or operated in conjunction with any
other antenna or transmitter.
Temporary Confidential
13
PANASONIC CONSUMER ELECTRONICS COMPANY,
DIVISION OF MATSUSHITA ELECTRIC
CORPORATION OF AMERICA
One Panasonic Way,
Secaucus, New Jersey 07094
PANASONIC SALES COMPANY,
DIVISION OF MATSUSHITA
ELECTRIC OF PUERTO RICO, INC.,
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park,
Carolina, Puerto Rico 00985
Panasonic Facsimile Product
Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or workmanship, Panasonic
Consumer Electronics Company or Panasonic Sales Company (collectively referred to as “the warrantor”)
will, for the length of the period indicated on the chart below, which starts with the date of original purchase
(“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b)
replace it with a new or a refurbished product. The decision to repair or replace will be made by the
warrantor.
Batteries, antennas, optional accessories (such as additional handsets), ink film, toner cartridge, drum unit,
and ink cartridge (as may be applicable), and cosmetic parts (cabinet) are not warranted under this Limited
Warranty.
During the “Labor” Limited Warranty period there will be no charge for labor. During the “Parts” Limited
Warranty period, there will be no charge for parts. You must carry-in or mail-in your product during the
Limited Warranty period. This Limited Warranty only applies to products purchased and serviced in the
United States or Puerto Rico. This Limited Warranty is extended only to the original purchaser and only
covers products purchased as new. A purchase receipt or other proof of the original purchase date is
required for Limited Warranty service.
Carry-In or Mail-In Service
For Carry-In or Mail-In Service in the United States call 1-800-HELP-FAX (1-800-435-7329)
For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax (787)-768-2910.
Limited Warranty Limits And Exclusions
This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT
COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER
damages which occurred in shipment, or failures which are caused by products not supplied by the
warrantor such as non Panasonic ink film, toner cartridge or drum unit, or failures which result from
accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up
adjustments, signal reception problems, misadjustment of consumer controls, improper maintenance,
power line surge, improper voltage supply, lightning damage, modification, or commercial use (such as in a
hotel, office, restaurant, or other business), rental use of the product, service by anyone other than a
Factory Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY
COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF
THIS LIMITED WARRANTY. (As examples, this excludes damages for lost time, cost of having someone
remove or re-install an installed unit if applicable, or travel to and from the servicer. The items listed are not
exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE
WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
FAX categories Parts Labor
Laser Facsimile
Thermal Transfer Facsimile 6 Months
1 (one) Year
6 Months
1 (one) Year
Limited Warranty
Temporary Confidential
14
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations
on how long an implied Limited Warranty lasts, so the exclusions may not apply to you.
This Limited Warranty gives you specific legal rights and you may also have other rights which vary from
state to state. If a problem with this product develops during or after the Limited Warranty period, you may
contact your dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the
warrantor’s Consumer Affairs Department at the addresses listed for the warrantor.
PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR
RESPONSIBILITY.
For In Limited Warranty product service
• Call toll-free 1-800-HELP-FAX (1-800-435-7329)
for the location of an authorized servicenter.
For out of Limited Warranty technical and
troubleshooting support: Panasonic offers two
value based, cost effective, solutions:
1. Panasonic Continued Services 900 fee
based support: 1-900-FAX-HELP (1-900-329-
4357)
This exceptional service is charged directly to
your telephone bill at only $1.99 per minute.
2. Panasonic Premier Service Club (PPSC):
1-800-435-7329
PPSC provides toll free troubleshooting support
at only $7.99 for a one time sampler or $23.95
for a one year or 5 call membership. These
services are billed directly to your major credit
card.
Both of these comprehensive programs provide
real time, live agent support for customers who
are not eligible for coverage under the limited
warranty.
Terms and prices are subject to change without
notice.
When you ship the product
• Carefully pack your unit, preferably in the original
carton.
• Attach a letter, detailing the symptom or problem,
to the outside of the carton.
• Send the unit to an authorized servicenter,
prepaid and adequately insured.
• Do not send your unit to the Panasonic
Consumer Electronics Company or to any
executive or regional sales office. These
locations do not repair consumer products.
Temporary Confidential
15
Temporary Confidential
Panasonic Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America
One Panasonic Way,
Secaucus, New Jersey 07094
Panasonic Sales Company,
Division of Matsushita Electric of
Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
Technical data about this product!
Applicable Lines: Public Switched Telephone Network
Document Size: Max. 216 mm (81⁄2") in width / Max. 600 mm (235⁄8") in length
Effective Scanning Width: 208 mm (83⁄16")
Recording Paper Size: Letter: 216 mm x 279 mm (81⁄2"x 11")
Legal: 216 mm x 356 mm (81⁄2"x 14")
A4: 210 mm x 297 mm (81⁄4"x 1111⁄16")
Effective Printing Width: Letter/Legal: 208 mm (83⁄16")
A4: 202 mm (715⁄16")
Transmission Time*: Approx. 15 s/page (Original mode)**
Scanning Density: Horizontal: 8 pels/mm (203 pels/inch)
Vertical: 3.85 lines/mm (98 lines/inch)–STANDARD mode
7.7 lines/mm (196 lines/inch)–FINE/PHOTO mode
15.4 lines/mm (392 lines/inch)–SUPER FINE mode
Halftone Level: 64-level
Scanner Type: Contact Image Sensor (CIS)
Printer Type: Thermal Transfer on plain paper
Data Compression System:
Modified Huffman (MH), Modified READ (MR)
Modem Speed: 9,600 / 7,200 / 4,800 / 2,400 bps; Automatic Fallback
Operating Environment: 5 °C – 35 °C (41 °F – 95 °F), 20% – 80% RH (Relative Humidity)
Power Supply: 120 V AC, 60 Hz
** Transmission speed depends upon the contents of the pages,
resolution, telephone line conditions and capability of the other
party’s machine.
** Transmission speed is based upon the ITU-T No. 1 Test Chart
and original mode.
If the capability of the other party’s machine is inferior to your
unit, the transmission time may be longer.

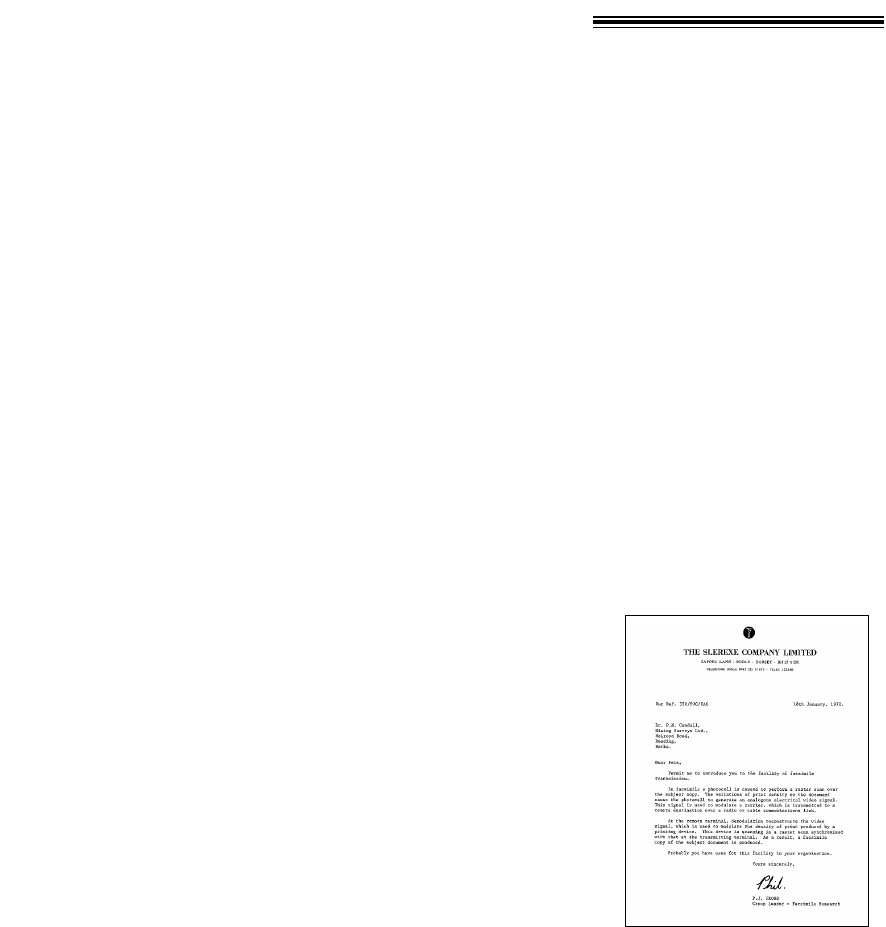

ITU-T No. 1 Test Chart
Note:
●Any details given in these instructions are subject to change without notice.
●The pictures and illustrations in these instructions may vary slightly from the actual product.
Temporary Confidential
