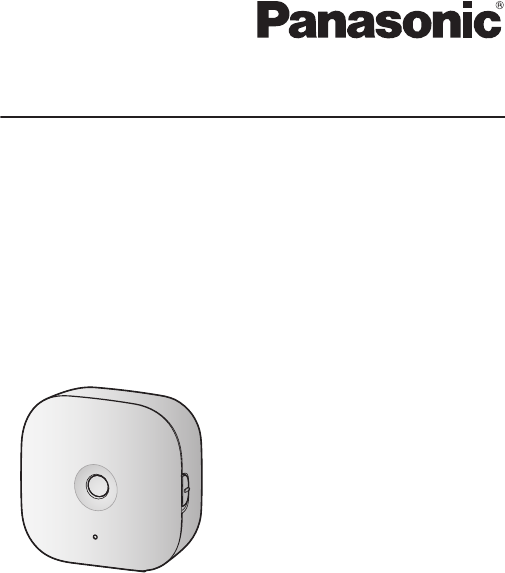

Wireless Motion Sensor
Model No. KX-HNS102
Thank you for purchasing a Panasonic product.
Please read this document before using the unit and save it for future
reference.
For assistance, visit our Web site: http://www.panasonic.com/help
for customers in the U.S.A. or Puerto Rico.
For your safety
To prevent severe injury and loss of life/
property, read this section carefully
before using the product to ensure
proper and safe operation of your
product.
WARNING
Installation
RWhen opening holes in walls for
installation or wiring, or when
securing the power cable, make
sure you do not damage existing
wiring and ductwork.
Operating safeguards
RDo not disassemble the product.
RNever put metal objects inside the
product. If metal objects enter the
product, turn off the circuit breaker
and contact an authorized service
center.
RDo not place the product in a
microwave or on an electromagnetic
cooking appliance. There is a risk of
overheating, smoke, fire, and
rupturing.
Medical
RConsult the manufacturer of any
personal medical devices, such as
pacemakers or hearing aids, to
determine if they are adequately
shielded from external RF (radio
frequency) energy. DECT features
operate between 1.92 GHz and
1.93 GHz with a peak transmission
power of 115 mW. Wi-Fi features
operate between 2.412 GHz and
2.462 GHz with a peak transmission
power of 100 mW.
RDo not use the product in health
care facilities if any regulations
posted in the area instruct you not to
do so. Hospitals or health care
facilities may be using equipment
that could be sensitive to external
RF energy.
CAUTION
Installation and location
RDo not place credit cards or other
objects sensitive to magnetic fields
near the magnet. The magnetic field
could cause the object to be come
unusable.
Battery
RDo not mix old and new batteries.
RDo not open or mutilate the
batteries. Released electrolyte from
the batteries is corrosive and may
cause burns or injury to the eyes or
skin. The electrolyte is toxic and
may be harmful if swallowed.
RExercise care when handling the
batteries. Do not allow conductive
materials such as rings, bracelets, or
keys to touch the batteries,
otherwise a short circuit may cause
the batteries and/or the conductive
material to overheat and cause
burns.
RDo not recharge, apply heat,
disassemble, or place in fire.
RDo not touch metal or other objects
to the battery terminals.
RIf electrolyte leaks from the battery,
do not touch the electrolyte or allow
it to come into contact with the eyes.
Electrolyte that has leaked from a
battery can cause blindness if it
2For assistance, please visit http://www.panasonic.com/help
Installation
enters the eyes. If electrolyte enters
the eyes, do not rub the eyes. Flush
them with clean water immediately
and seek medical attention.
RKeep out of the reach of small
children. There is a risk of
swallowing. If the battery is
swallowed, seek medical attention
immediately.
RRemove the battery if it becomes
unusable. There is a risk of leakage,
overheating, and rupture. Do not
attempt to use a battery if it is
leaking.
RDo not intentionally pour water on
the battery or allow it to get wet.
There is a risk of fire and smoke. If
the battery becomes wet, remove it
immediately and contact an
authorized service center.
RInsert the terminals of the battery
correctly. There is a risk of
overheating, burns, and electrolyte
leakage if the battery is inserted
incorrectly.
Important safety
instructions
When using your product, basic safety
precautions should always be followed
to reduce the risk of fire, electric shock,
and injury to persons, including the
following:
1. Do not use this product near water
for example, near a bathtub,
washbowl, kitchen sink, or laundry
tub, in a wet basement or near a
swimming pool.
SAVE THESE INSTRUCTIONS
For best performance
Base unit location/avoiding noise
The base unit and other compatible
Panasonic units use radio waves to
communicate with each other.
Environment
RKeep the product away from
electrical noise generating devices,
such as fluorescent lamps and
motors.
RThe product should be kept free
from excessive smoke, dust, high
temperature, and vibration.
RThe product should not be exposed
to direct sunlight.
RDo not place heavy objects on top of
the product.
RThe product should be kept away
from heat sources such as heaters,
kitchen stoves, etc. It should not be
placed in rooms where the
temperature is less than 0 °C (32 °F)
or greater than 40 °C (104 °F).
Damp basements should also be
avoided.
Routine care
RWipe the outer surface of the
product with a soft moist cloth.
RDo not use benzine, thinner, or any
abrasive powder.
For assistance, please visit http://www.panasonic.com/help 3
Installation
Notice:
• This product is designed for use in
the United States of America. Sale
or use of this product in other
countries may violate local laws.
• Cet appareil est conçu pour être
utilisé aux États-Unis d’Amérique.
La vente ou l’emploi de cet appareil
dans certains autres pays peut
constituer une infraction à la
législation locale.
• Este producto está diseñado para
usarse en los Estados Unidos de
América.
La venta o el empleo de este
producto en ciertos países puede
constituir violación de la legislación
local.
• ҁౢࠔࣁऍ୯٬ҔԶǶऩӧځд
୯ৎᎍ୧܈٬ҔǴёૈၴϸӦݤ
ٯǶ
• ࡇࡢ〇ရࡣࠊ᪥ᮏᅜእ࡛ࡢ⏝ࢆ┠
ⓗࡋ࡚タィࡉࢀ࡚࠾ࡾࠊ᪥ᮏᅜෆ
࡛ࡢ⏝ࡣἲᚊ㐪࡞ࡾࡲࡍࠋᚑ
ࡗ࡚ࠊᙜ♫࡛ࡣ᪥ᮏᅜෆ࠾࠸࡚ࡣ
ཎ๎ࡋ࡚ಟ⌮࡞ࡢࢧ࣮ࣅࢫࡣ⮴
ࡋࡡࡲࡍࠋ
4For assistance, please visit http://www.panasonic.com/help
Installation
FCC and other
information
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
Privacy of communications may not be
ensured when using this phone.
CAUTION:
Any changes or modifications not
expressly approved by the party
responsible for compliance could void
the user’s authority to operate this
device.
NOTE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
– Reorient or relocate the receiving
antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
– Consult the dealer or an
experienced radio/TV technician for
help.
Some cordless telephones operate at
frequencies that may cause
interference to nearby TVs and VCRs.
To minimize or prevent such
interference, the base of the cordless
telephone should not be placed near or
on top of a TV or VCR. If interference is
experienced, move the cordless
telephone further away from the TV or
VCR. This will often reduce or eliminate
interference.
FCC RF Exposure Warning:
RThis product complies with FCC
radiation exposure limits set forth for
an uncontrolled environment.
RTo comply with FCC RF exposure
requirements, the base unit must be
installed and operated 20 cm
(8 inches) or more between the
product and all person’s body.
RThis product may not be collocated
or operated in conjunction with any
other antenna or transmitter.
RFor body-worn operation, the
handset must be used only with a
non-metallic accessory. Use of other
accessories may not ensure
compliance with FCC RF exposure
requirements.
Notice:
For assistance, please visit http://www.panasonic.com/help 5
Installation
RFCC ID can be found inside the
battery compartment or on the
bottom of the units.
6For assistance, please visit http://www.panasonic.com/help
Installation
Physical features
ABC
D
Infrared sensor
Status light
Slide switch
Registration button
Wall mounting
Using Cover A
1Remove the cover.
2Attach Cover A to the wall.
xx mm
(xx in.)
3Attach the camera to Cover A.
Using Cover B
1Remove the cover.
2Attach Cover B to the wall.
3Attach the camera to Cover B.
For assistance, please visit http://www.panasonic.com/help 7
Setup
Specifications
RFrequency range
DECT:
1.92 GHz–1.93 GHz
Wi-Fi:
2.412 GHz–2.462 GHz (channels 1–
11)
8For assistance, please visit http://www.panasonic.com/help
Setup
Two Riverfront Plaza, Newark, NJ 07102-5490
© Panasonic System Networks Co., Ltd. 2014
