Panasonic of North America 96NKX-PRL260 DECT 6.0 Base with BT User Manual
Panasonic Corporation of North America DECT 6.0 Base with BT
User Manual
iPhone Docking Station with Link-to-Cell
Model No. KX-PRL262
Smartpohone Docking Station with Link-to-Cell
Model No. KX-PRD262
KX-PRL260 KX-PRL262 KX-PRL260 KX-PRLA20
series
KX-PRD260 KX-PRD262 KX-PRD260 KX-PRLA20
series
Accessory item/
Part number
①AC adaptor/PNLV238Z
②Telephone line cord
③Rechargeable batteries
④Handset cover*1
⑤Charger
⑥AC adaptor for charger/PNLV233Z
*1 The handset cover comes attached to the handset.
①②③④⑤⑥
2
2
Series Model No. Base unit Handset
Part No. Part No. Quantity
2
1
1
1
No. Quantity
1
4
Accessory item Order number
Rechargeable HHR-4DP
A
*1
batteries ・To order, please call 1-800-332-5368 or visit
http://www.panasonic.com/batterystore
Battery type:
–Nickel metal hydride (Ni-MH)
–2 x AAA (R03) size for each handset
T-adaptor KX-J66
Range extender KX-TGA405*2
Key detector KX-TGA20*3
*1 Replacement batteries ma
y
have a different capacit
y
from that of the supplied batteries.
*2 By installing this unit, you can extend the range of your phone system to include
areas where reception was previously not available. This product can be
purchased online. Please visit our Web site:
http://www.panasonic.com/RangeExtender
*3 B
y
re
g
isterin
g
the ke
y
detector
(
4 max.
)
to a Panasonic Di
g
ital Cordless Phone and
attaching it to easy-to-lose item beforehand, you can locate and find the mislaid item to
which the key detector attached. Please visit our Web site:
http://panasonic.net/pcc/products/telephone/p/tga20/
Handset (optional): KX-TGHA20
You can expand your phone system
by registering optional handsets (6 max.)
to a single base unit.
・Optional handsets may be a different color from
that of the supplied handsets.
Your smartphone: 2 max.
You can expand your phone system
by pairing the smartphone to a single base unit.
(for cellular calls)

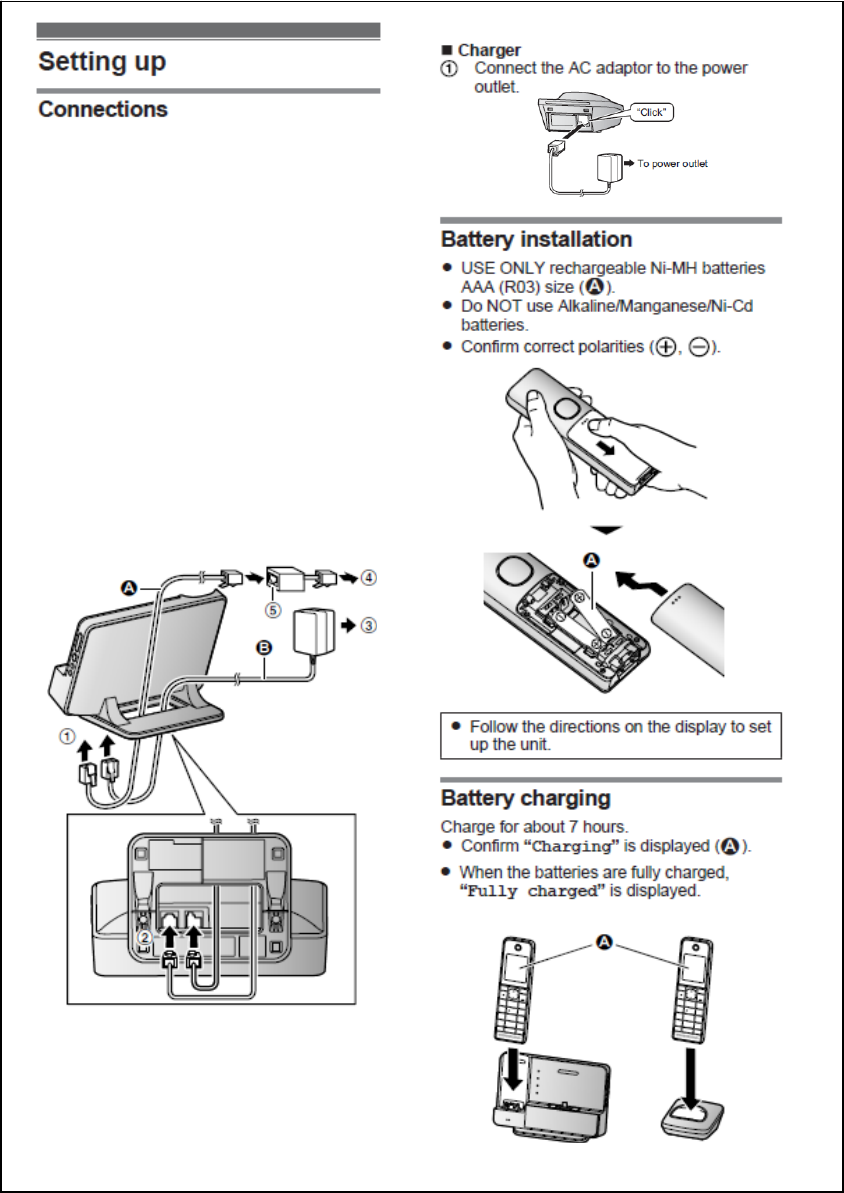

①Let the telephone line cord (A)
and AC adaptor (B) run through the slot of
the stand.
②Connect the telephone line cord (A) and
AC adaptor (B) to the jacks at the bottom
of the unit until you hear a click.
③Connect the AC adaptor to the power outlet.
④Connect the telephone line cord to
the single-line telephone jack (RJ11C)
until you hear a click.
⑤DSL/ADSL filter (not supplied) is
required if you have DSL/ADSL service.
Note:
・Use only the supplied Panasonic AC
adaptor PNLV238.
Playing music transferred
from your smartphone
1 Smartphone:
Follow the instructions of your
smartphone to play music and transfer to
the base unit.
2 Base unit:
The music is played from the base unit's
speaker and you can adjust the speaker
volume by pressing 【A】 or 【V】.
・The CELL indicator on the base unit turns
on.
Selecting a smartphone used for
music transfer
・iPhone 4, iPhone 4S, or iPhone 5 (iOS 5.0
or later)
or,
An Android device (Android 4.0 or later)
Requirement
・ Android is a trademark of Google Inc.
・ iPhone and iPad are trademarks of Apple
Inc.
・All other trademarks identified herein are
the property of their respective owners.
You must select a smartphone paired to the
base unit to use it for music transfer. Only 1
smartphone can be set.
Important:
・If there is only 1 smartphone paired to the
base unit, the smartphone is set for music
transfer without this settin
g
.
1 【MENU】【#】【6】 【0】【6】
2 【AV】: Select the desired smartphone. →
【SAVE】 → 【OFF】
Playing music on the base unit's
speaker
Trademarks
This feature allows you to:
- play the music transferred from your
paired smartphone through the base unit's
speaker.
- use the handset as a remote controller to
play music transferred from your
smartphone through the base unit's
speaker.
Important：
・The smartphone used for this feature
should be set as “Select device” setting
beforehand.
Printed in Malaysia
