Panasonic of North America 96NKX-PRWA13 DECT 6.0 Handset User Manual For TA manual PRW130 USA
Panasonic Corporation of North America DECT 6.0 Handset For TA manual PRW130 USA

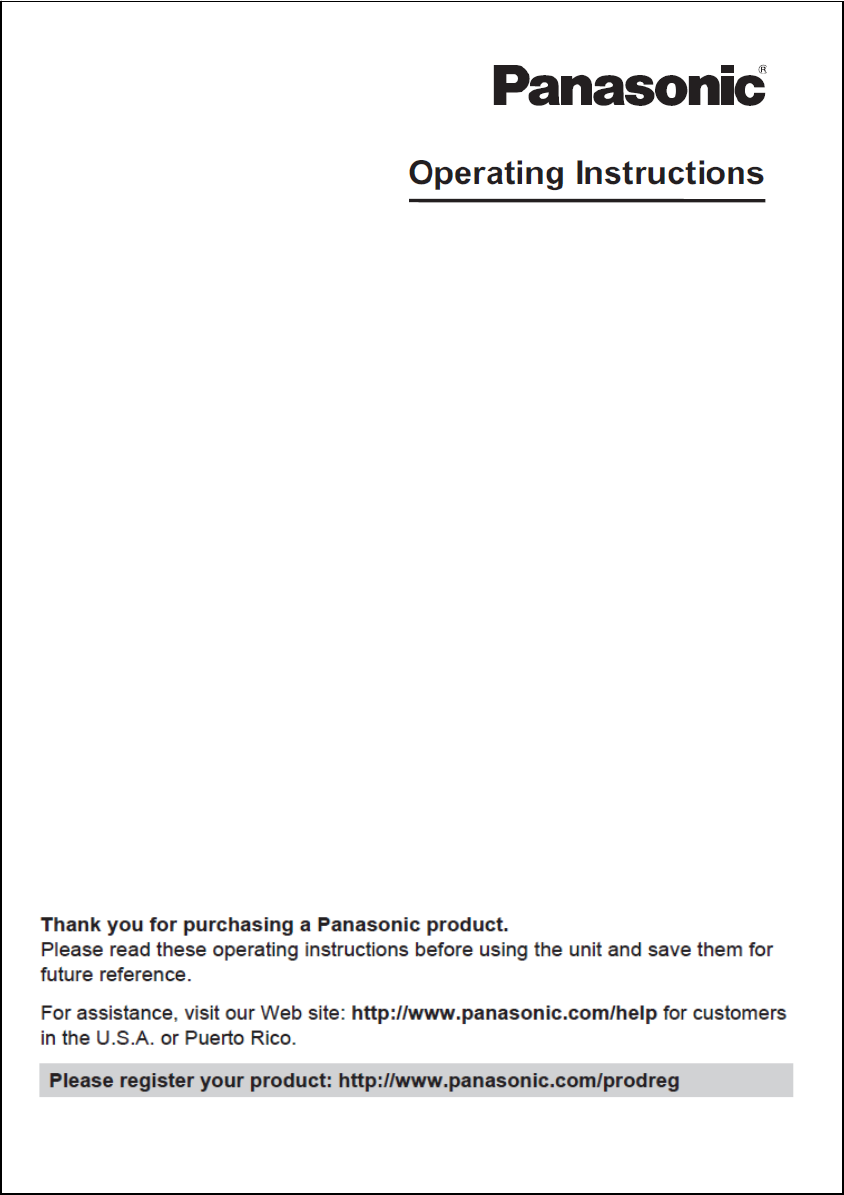

Users Manual
Premium Design Phone with Home Phone Connect
Model No. KX-PRW130
*1 See page 2 for replacement battery information.
*2 The handset cover comes attached to the handset.
①②③④
Accessory item Model number
Rechargeable HHR-4DP
A
*1
batteries Battery type:
–Nickel metal hydride (Ni-MH)
–2 x AAA (R03) size for each handset
T-adaptor KX-J66
Range extender KX-TGA405*2
Key detector KX-TGA20*3
*1 Replacement batteries may have a different capacity from that of the supplied batteries.
*2 By installing this unit, you can extend the range of your phone system to include areas
where reception was previously not available. This product can be purchased online. Please
visit our Web site: http://www.panasonic.com/RangeExtender
*3 By registering the key detector (4 max.) to a Panasonic Digital Cordless Phone and
attaching it to an easy-to-lose item in advance, you can locate and find the mislaid item to
which the key detector is attached. Please visit our Web site:
http://panasonic.net/pcc/products/telephone/p/tga20/
L Design and specifications are subject to change without notice.
L The illustrations in these instructions may vary slightly from the actual product.
①
No. Quantity
Handset cover*2
Rechargeable batteries*1
Telephone line cord/PQJA10075Z
AC adaptor/PNLV236Z
Accessory item/Part number
1
2
1
1
④
③
②
You can expand your phone system by
registering optional handsets (6 max.) to a
single base unit.
L Optional handsets may be a different color
from that of the supplied handsets.
Your smartphone: 4 max.
You can expand your phone system by installing the Smartphone
Connect app on your smartphone and registering your smartphone
to the base unit.
L You must configure the base unit and download the app before
you can use these features. See the “Smartphone Integration”
chapter beginning for more information.
Handset (optional): KX-PRWA13
2.
L Communication standards
DECT 6.0 (Digital Enhanced Cordless
Telecommunications 6.0),
Wi-Fi (IEEE 802.11 b/g/n)
L Frequency range
DECT:
1.92 GHz to 1.93 GHz
Wi-Fi:
2.412 GHz to 2.462 GHz (channels 1 to 11)
L RF transmission power
DECT:
115 mW (max.)
Wi-Fi:
100 mW (peak transmission power)
L Encryption
WPA2-PSK (TKIP/AES), WPA-PSK (TKIP/
AES), WEP (128/64 bit)
L Simplified configuration
WPS (PBC)
L Power source
120 V AC, 60 Hz
L Power consumption
Base unit:
Standby: Approx. 2.0 W
Maximum: Approx. 3.9 W
L Operating conditions
0 °C – 40 °C (32 °F – 104 °F), 20 % – 80 %
relative air humidity (dry)
Note:
L Design and specifications are subject to
change without notice.
L The illustrations in these instructions may
vary slightly from the actual product.

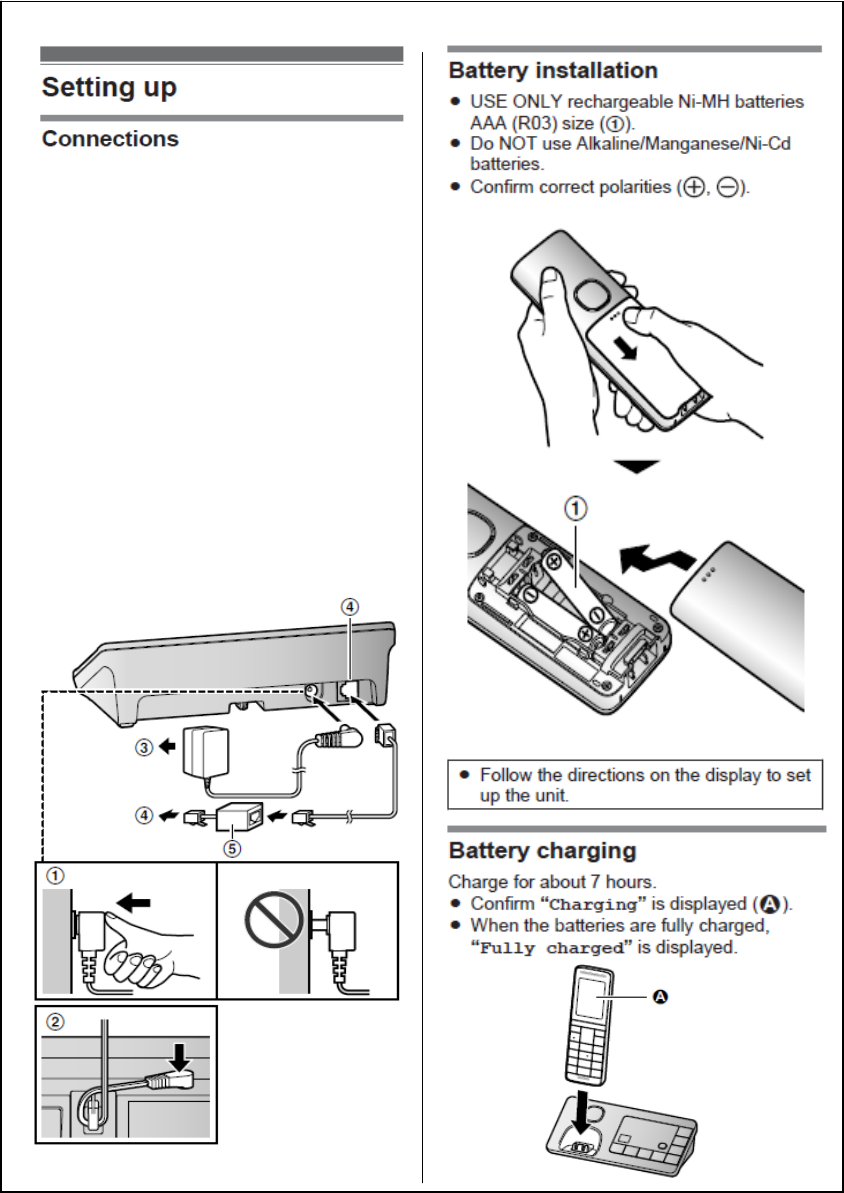

■Base unit
■Base unit
① Press the AC adaptor plug firmly to the
unit.
② Keep the plug in the horizontal position
and fasten the cord by hooking it.
③ Connect the AC adaptor to the power
outlet.
④ Connect the telephone line cord to the unit
and single-line telephone line jack (RJ11C)
until you hear a click.
⑤ ADSL/ADSL filter (not supplied) is
required if you have a DSL/ADSL service.
Note:
L Use only the supplied Panasonic AC
adaptor PNLV236.
.
OFF
.
.
.
Program this setting using either the base
unit or one of the handsets. (Fewer operations are
needed when using the base unit.)
Press the WPS button on your wireless router.
Press and hold 【WiFi SETUP】 button on the
base unit for about 5 seconds and then wait
for a long beep to sound.
