Panasonic of North America 96NKX-TG2584 2.4 GHz DSS Cordless Telephone Base Unit User Manual
Panasonic Corporation of North America 2.4 GHz DSS Cordless Telephone Base Unit Users Manual
Exhibit H for User Manual
2.4GHz Cordless Answering System
Pulse-or-tone dialing capability
Model No. KX-TG2584S
PLEASE READ BEFORE USE AND SAVE.
Charge the battery for about 15 hours before initial use.
Contents:
Location of Controls 2
Connections 5
Battery Installation/Battery Charge 6
Recording a Greeting Message 7
Making/Answering Calls with the Handset 8
Making/Answering Calls with the Portable Handset 9
Caller ID Service 9
Automatic Answering Operation 10
Listening to Messages 10
Important Safety Instructions 11
FCC and Other Information 13
Operating Instructions
– 2 –

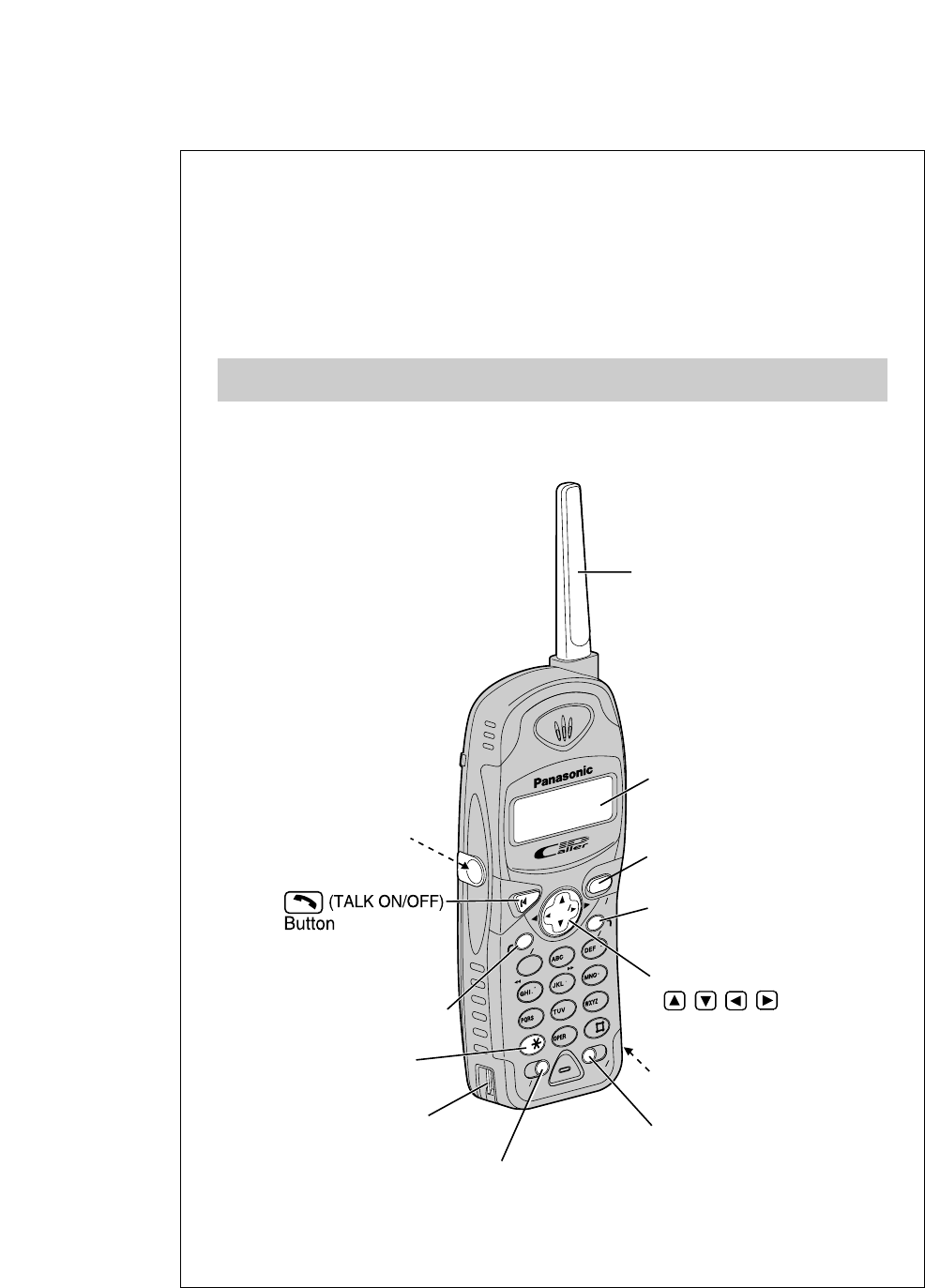

Location of Controls
∫Handset
TALK
4
FLFLASHSH
REDIALREDIAL
CALL WAL WAIT
PAUSEPAUSE
PLPLAYBABACK
TONE
STOP
ANS ON
78
9
0
ANS
OFFOFF
CH
FUNCTION EXIT
INTINTERCOM
ERCOM HOLD HOLD
SKIPKIP
REPEPEAT
1
2
3
ALL MSG
NEW W MSG
5
6
BACKBACK
FWD EDITEDIT
MUTEMUTE
LOUD LOUD
SEARCH
ON
OFF
(INTERCOM/HOLD)/
(CLEAR) Button
(FLASH/CALL\WAIT/PLAYBACK)
Button
Headset Jack
(TONE) Button
Navigator Key
( , , , )
Display
(FUNCTION/EXIT) / (CH)
(Channel) Button
Charge Contact
(REDIAL/PAUSE) Button
Antenna
CLEAR
CLEAR
Charge Contact
(MUTE) Button
Please read IMPORTANT SAFETY
INSTRUCTIONS on pages 11 before use.
Read and understand all instructions.
– 3 –

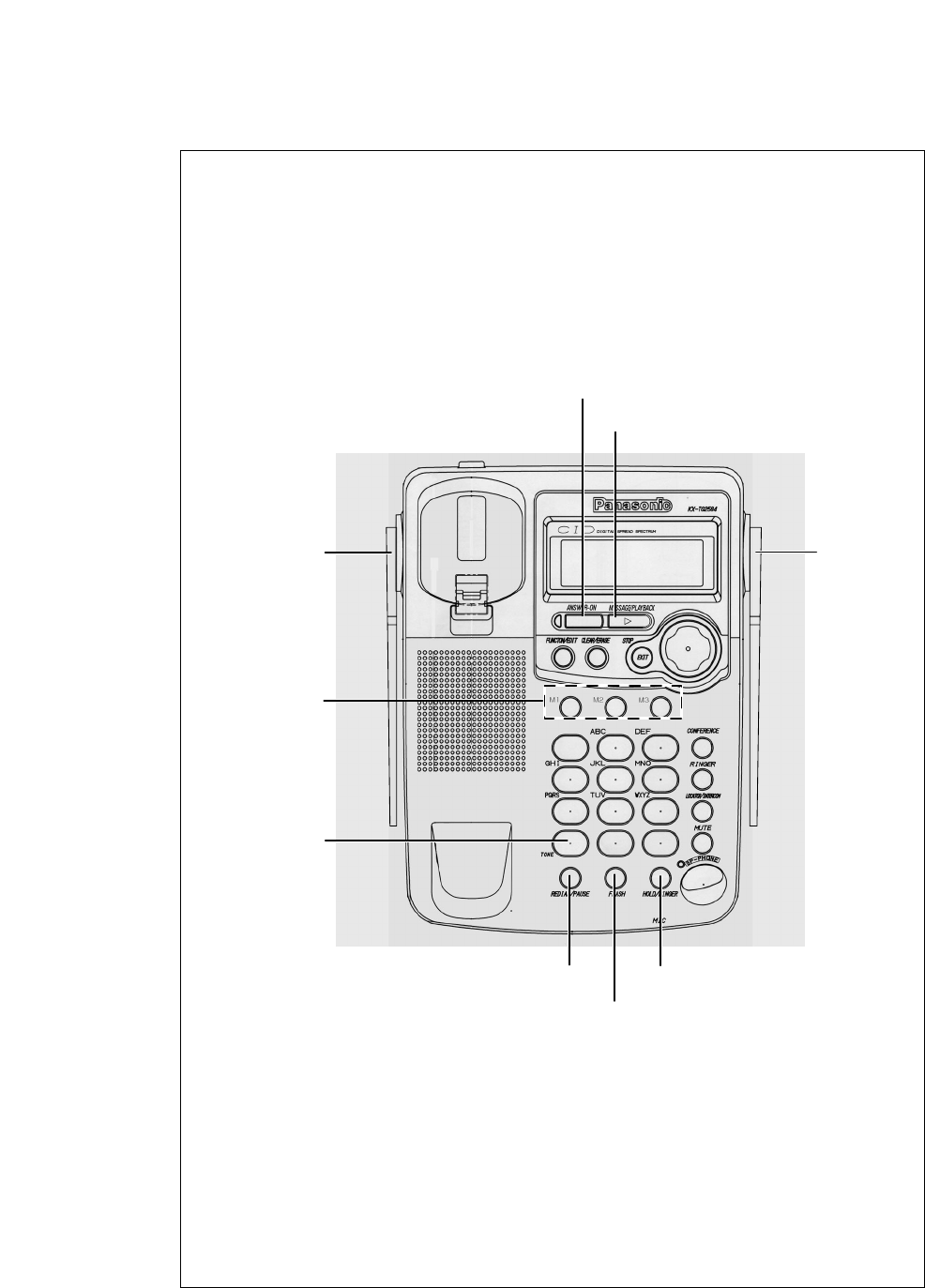

∫Base unit
(ANSWER\ON) Button
Antenna
(TONE) Button
Antenna
(REPLAY\PAUSE) Button
(FLASH/CALL\WAIT) Button
(HOLD) Button
(MESSAGE\PLAYBACK) Button
One-Touch
Auto Dial
Buttons
– 4 –

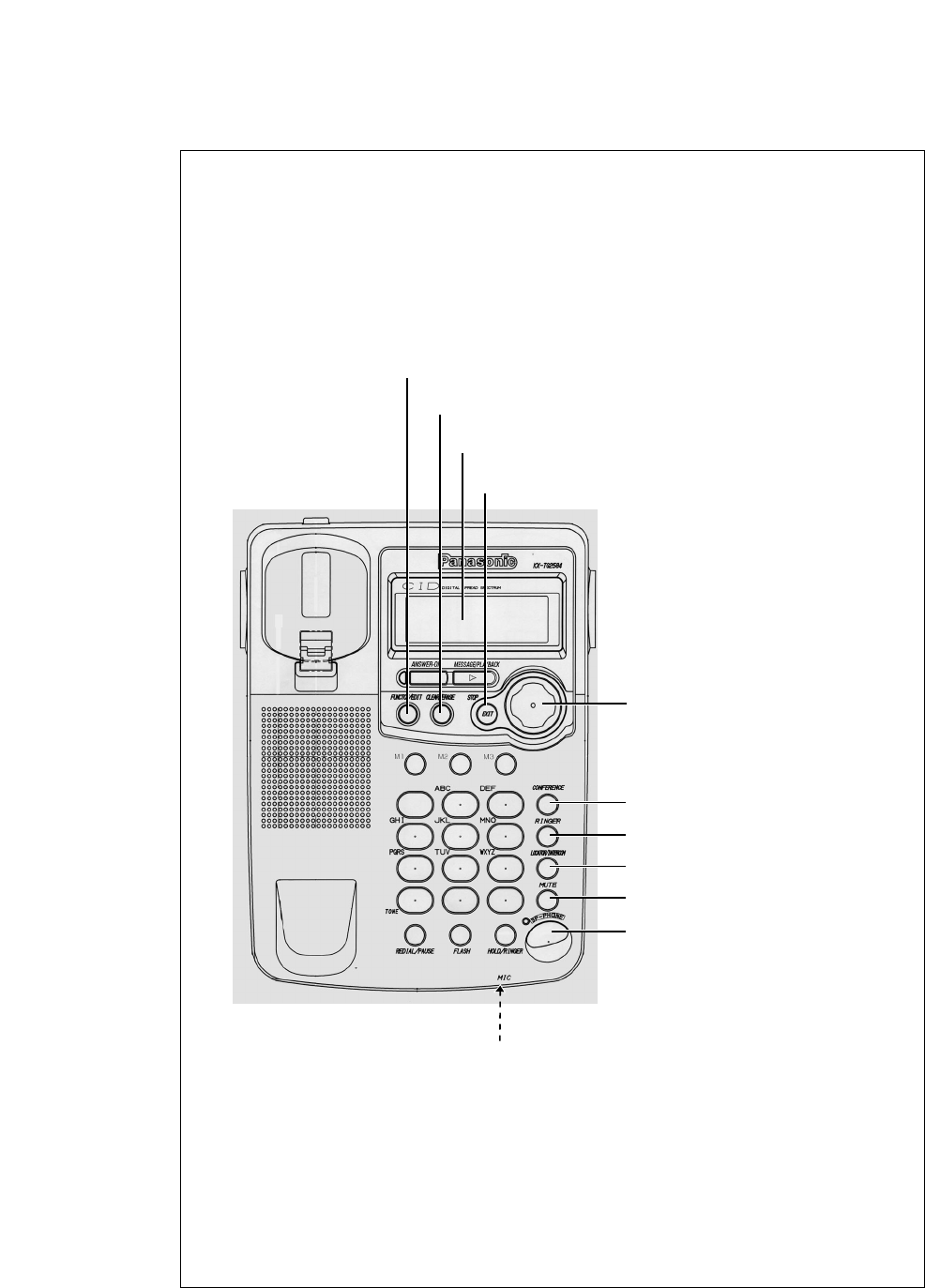

∫Base unit
(FUNCTION/EDIT) Button
(CLEAR/ERASE) Button
(STOP/EXIT) Button
MIC (Microphone)
Navigator Key
((‹), (›), (fi), (fl))
(CONFERENCE) Button
(RINGER) Button
(LOCATION/INTERCOM) Button
(MUTE) Button
(DIGITAL\SP-PHONE)
Button and indicator
Display
– 5 –

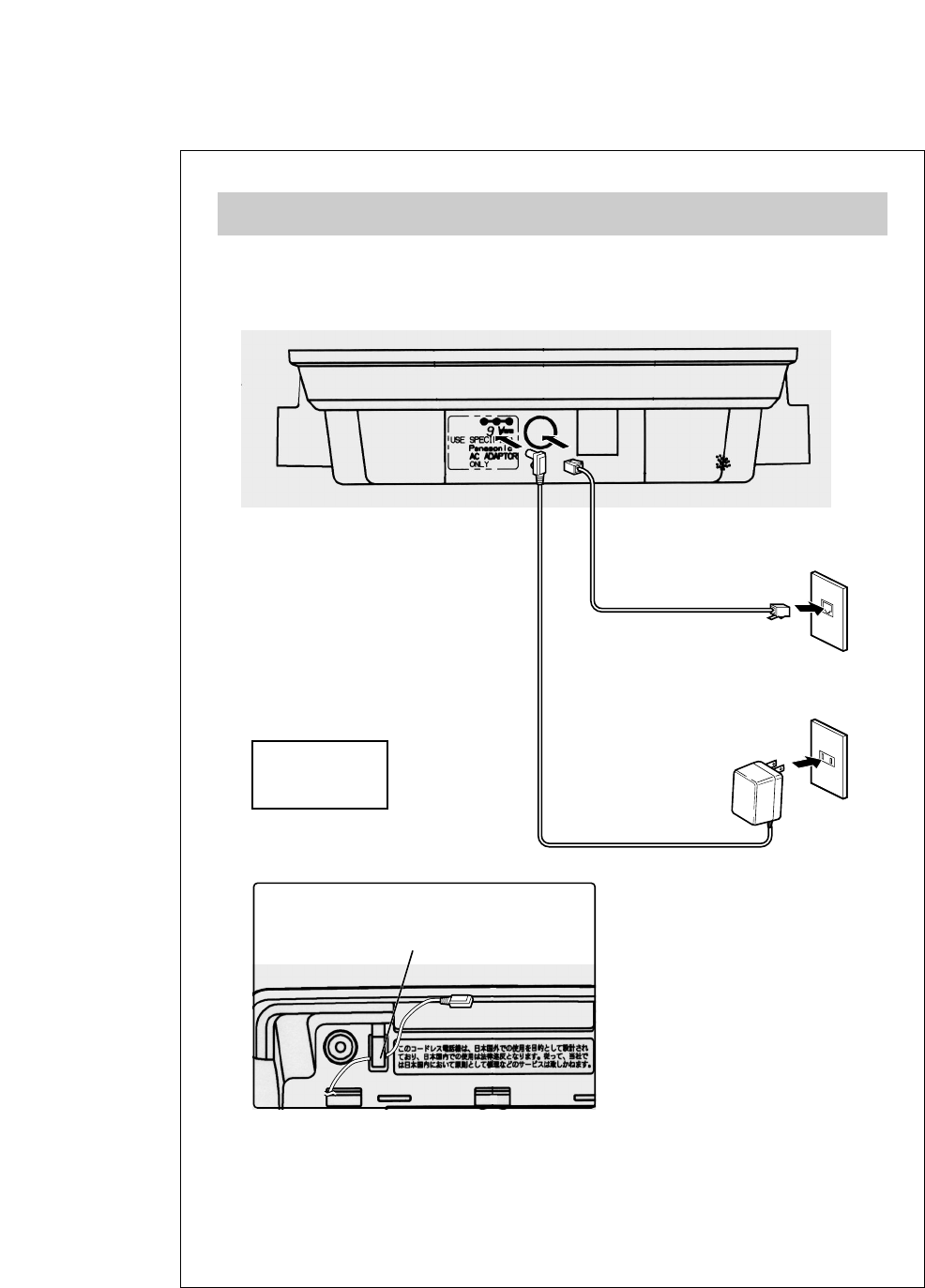

Connections
≥USE ONLY WITH Panasonic AC ADAPTOR PQLV10ZA.
≥The AC adaptor must remain connected at all times. (It is normal for the
adaptor to feel warm during use.)
Telephone Line Cord
Single-Line
Telephone Jack
(RJ11C)
Power Outlet
(AC 120 V, 60 Hz)
AC Adaptor
Raise the
antennas.
Fasten the AC adaptor cord to prevent it
from being disconnected.
Hook
∫Connect the AC adaptor and the telephone line cord.
– 6 –
Battery Installation/Battery Charge
∫Battery installation
1 Install the battery in the handset.
2 Close the handset cover.
∫Battery Charge
To power the handset, charge the battery.
Place the handset on the charger for about 15 hours before initial use.
∫Recharge
Recharge the battery when:
—“Recharge battery” is displayed,
—“ ” flashes on the display, or
—the handset beeps intermittently while it is in use.
≥Clean the charge contacts of the handset and the charger with a soft, dry
cloth once a month. Clean more often if the unit is subject to grease,
dust or high humidity. If not, the battery may not charge properly.
≥If the battery is fully charged, you do not have to place the handset on the
charger until “Recharge battery” is displayed and/or “” flashes. This
will maximize the battery life.
≥The battery cannot be overcharged.
A nickel cadmium battery that is recyclable powers the product
you have purchased. At the end of its useful life, under various
state and local laws, it is illegal to dispose of this battery into
your municipal waste stream. Please call 1-800-8-BATTERY for
information on how to recycle this battery.
– 7 –
Recording a Greeting Message
1 Press (FUNCTION).
2 Press (‹) or (›) until the arrow points to “Greeting
record”.
3 Press (fl).
4 After the beep, talk clearly, about 8 inches (20 cm)
away from the MIC (microphone).
5 When finished, press (fl).
≥If you do not record a greeting message, one of two messages will be played
when a call is received, depending on the caller’s recording time.
You can record a personal greeting message of up to 2 minutes. If a greeting
message is not recorded, one of two pre-recorded greetings will be played when
a call is received.
≥All messages (greeting, incoming, etc.) are stored in digital memory. The total
recording time is about 15 minutes. We recommend you record a brief
greeting message in order to leave more time for recording new messages.
– 8 –
∫To make a call
1 Lift the handset or press (DIGITAL\SP-PHONE).
2 Dial a telephone number.
3 To hang up, place the handset on the cradle or
press (DIGITAL\SP-PHONE).
≥To redial the last number, lift the handset or press (DIGITAL\SP-PHONE),then
press (REDIAL/PAUSE).
≥To adjust the receiver volume/speaker volume:
To increase, press (‹). To decrease, press (›).
≥To put a call on hold, press (HOLD).
≥To release the hold, press (HOLD).
∫To answer a call
Lift the handset or press (DIGITAL\SP-PHONE).
Making/Answering Calls with the Handset
– 9 –
∫To make a call
1 Press .
2Dial a telephone number.
3 To hang up, press .
≥To redial the last number, Press , then press (REDIAL/PAUSE).
≥To adjust the speaker volume:
To increase, press (‹). To decrease, press (›).
≥To put a call on hold, press (INTERCOM/HOLD).
≥To release the hold, press .
∫To answer a call
Press .
Caller ID Service
Making/Answering Calls with the Portable
Handset
This unit is compatible with a Caller ID service offered by your telephone
company.
After subscribing to a Caller ID service, the calling party’s information will be
shown on the handset display after the first ring.
The unit can record information of up to 30 different callers in the caller list. The
Caller List information is sorted by the most recent to the oldest call. When the
unit receives the 31st call, the oldest call is deleted.
If your unit is connected to a PBX system which does not support Caller ID
services, you cannot access those services. Please consult your equipment
supplier.
– 10 –
Listening to Messages
You can see the total number of recorded messages on the base unit display.
To listen to the messages, press (MESSAGE\PLAYBACK).
≥When you have new messages, the unit announces the number of new
messages and plays them back.
≥When you have no messages, the unit plays back all recorded messages.
Automatic Answering Operation
∫Setting the unit to answer calls
Press (ANSWER\ON) to turn on the answering system.
≥The indicator lights and “Answer set” is heard.
– 11 –
Important Safety Instructions
When using this unit, basic safety precautions should always be followed to
reduce the risk of fire, electric shock, or personal injury.
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from AC outlets before cleaning. Do not use liquid or
aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this unit near water, for example, near a bathtub, washbowl,
kitchen sink, or the like.
5. Place this unit securely on a stable surface. Serious damage and/or injury
may result if the unit falls.
6. Do not cover slots and openings on the unit. They are provided for
ventilation and protection against overheating. Never place the unit near
radiators, or in a place where proper ventilation is not provided.
7. Use only the power source marked on the unit. If you are not sure of the
type of power supplied to your home, consult your dealer or local power
company.
8. Do not place objects on the power cord. Install the unit where no one can
step or trip on the cord.
9. Do not overload wall outlets and extension cords. This can result in the risk
of fire or electric shock.
10. Never push any objects through slots in this unit. This may result in the risk
of fire or electric shock. Never spill any liquid on the unit.
11. To reduce the risk of electric shock, do not disassemble this unit. Take the
unit to an authorized servicenter when service is required. Opening or
removing covers may expose you to dangerous voltages or other risks.
Incorrect reassembly can cause electric shock when the unit is
subsequently used.
12. Unplug this unit from the wall outlet and refer servicing to an authorized
servicenter when the following conditions occur:
A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled into the unit.
C. If the unit has been exposed to rain or water.
D. If the unit does not work normally by following the operating instructions.
Adjust only controls covered by the operating instructions. Improper
adjustment may require extensive work by an authorized servicenter.
E. If the unit has been dropped or physically damaged.
F. If the unit exhibits a distinct change in performance.
13. During thunderstorms, avoid using telephones except cordless types. There
may be a remote risk of an electric shock from lightning.
14. Do not use this unit to report a gas leak, when in the vicinity of the leak.
SAVE THESE INSTRUCTIONS
– 12 –
CAUTION:
To reduce the risk of fire or injury to persons, read and follow these instructions.
1. Use only the battery(ies) specified.
2. Do not dispose of the battery(ies) in a fire. They may explode. Check with
local waste management codes for special disposal instructions.
3. Do not open or mutilate the battery(ies). Released electrolyte is corrosive
and may cause burns or injury to the eyes or skin. The electrolyte may be
toxic if swallowed.
4. Exercise care in handling batteries in order not to short the battery to
conductive materials such as rings, bracelets, and keys. The battery and/or
conductor may overheat and cause burns.
5. Charge the battery(ies) provided with or identified for use with this product
only in accordance with the instructions and limitations specified in this
manual.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR ANY TYPE OF MOISTURE.
≥The AC adaptor is used as the main disconnect device, ensure that the AC
outlet is located/installed near the unit and is easily accessible.
FCC and Other Information
– 13 –
If requested by the telephone company, inform them as follows:
Registration No. . . . . . . . . . . . . . . . . . . . . . . .(found on the bottom of the unit)
Ringer Equivalence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.1B
The particular telephone line to which the equipment is connected.
This unit must not be connected to a coin operated line.
If you are on a party line, check with your local telephone company.
Ringer Equivalence No. (REN):
The REN is useful in determining the quantity of devices you may connect to your
telephone line and still have all of those devices ring when your telephone number
is called. In most, but not all areas, the sum of the REN’s of all devices connected
to one line should not exceed five (5.0). To be certain of the number of devices
you may connect to your line, as determined by the REN, you should contact your
local telephone company to determine the maximum REN for your calling area.
In the event terminal equipment causes harm to the telephone network, the
telephone company should notify the customer, if possible, that service may be
stopped.
However, where prior notice is impractical, the company may temporarily cease
service providing that they:
(a) Promptly notify the customer.
(b) Give the customer an opportunity to correct the problem with their equipment.
(c) Inform the customer of the right to bring a complaint to the Federal
Communication Commission pursuant to procedures set out in FCC Rules
and Regulations Subpart E of Part 68.
The Telephone Company may make changes in its communications facilities,
equipment, operations or procedures, where such action is reasonably required
in the operation of its business and is not inconsistent with the rules and
regulations in 47 CFR Part 68.
If such changes can be reasonably expected to render any customer terminal
equipment incompatible with telephone company communications facilities, or
require modification or alteration of such terminal equipment, or otherwise
materially affect its use or performance, the customer shall be given adequate
notice in writing, to allow the customer an opportunity to maintain uninterrupted
service.
When programming emergency numbers and/or making test calls to emergency
numbers:
1. Remain on the line and briefly explain to the dispatcher the reason for the
call before hanging up.
2. Perform such activities in the off-peak hours, such as early morning hours or
late evenings.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
Privacy of communications may not be ensured when using this phone.
– 14 –
CAUTION:
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this device.
Note:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Some cordless telephones operate at frequencies that may cause interference
to nearby TVs and VCRs. To minimize or prevent such interference, the base of
the cordless telephone should not be placed near or on top of a TV or VCR. If
interference is experienced, move the cordless telephone further away from the
TV or VCR. This will often reduce or eliminate interference.
Operating near 2.4GHz electrical appliances may cause interference. Move
away from the electrical appliances and/or press the CH (channel) button.
This equipment is hearing aid compatible.
A TIA/EIA-IS-968 compliant telephone cord and modular plug is provided with
this equipment. This equipment is designed to be connected to the telephone
network or premises wiring using a compatible modular jack that is also
TIA/EIA-IS-968 compliant.
CAUTION:
To comply with FCC RF exposure requirements, the base unit should be
installed with its antenna located at 20 cm or more from persons and handset
should be carried with the specific belt-clip provided for the handset to ensure
compliance.
Other non-tested belt-clips or similar body-worn accessories may not comply,
therefore, should be avoided.
– 15 –
≥Environment—do not place the unit in a room where the temperature is less
than 5oC (41oF) or greater than 40oC (104oF). Allow 10 cm (4q) clearance
around the unit for proper ventilation. Avoid excessive smoke, dust,
mechanical vibration, shock, or direct sunlight.
≥Medical—consult the manufacturer of any personal medical devices, such as
pacemakers, to determine if they are adequately shielded from external RF
(radio frequency) energy. (The unit operates in the frequency range of
2401MHz to 2472MHz and the power output level can range from 0.001 watts
to 0.20 watts.) Do not use the unit in health care facilities if any regulations
posted in the area instruct you not to do so. Hospitals or health care facilities
may be using equipment that could be sensitive to external RF (radio
frequency) energy.
≥Routine care—wipe the unit with a soft cloth. Do not use benzine, thinner, or
any abrasive powder. When you leave the unit unused for long period of time,
unplug the AC adaptor from the outlet.
≥If there is any trouble—disconnect the unit from the telephone line and
connect a known working phone. If the known working phone operates
properly, have your unit repaired by one of the authorized Panasonic Factory
Service Centers. If the known working phone does not operate properly,
consult your telephone company.
For product service
≥Call 1-800-211-PANA(7262) for the location of an authorized servicenter.
≥Panasonic’s e-mail address for customerinquires:
consumerproducts@panasonic.com
for customers in the USA or Puerto Rico ONLY
When you ship the product
≥Carefully pack your unit, preferably in the original carton.
≥Attach a letter, detailing the symptom, to the outside of the carton.
Symptom
≥Send the unit to an authorized servicenter, prepaid and adequately insured.
≥Do not send your unit to the Panasonic Consumer Electronics Company listed
on the back cover or to executive or regional sales offices. These locations do
not repair consumer products.
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Sales Company,
Division of Matsushita Electric of Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park
Carolina, Puerto Rico 00985
