Panasonic of North America 96NKX-TG6051 5.8 GHz Expandable Digital Cordless Telephone User Manual
Panasonic Corporation of North America 5.8 GHz Expandable Digital Cordless Telephone
User Manual
This unit is compatible with Caller ID. To use this feature, you must
subscribe to the appropriate service offered by your service provider.
Please read these Operating Instructions before using the unit and save for
future reference.
For assistance, visit our website:
http://www.panasonic.com/phonehelp for customers in the U.S.A. or
Puerto Rico.
Charge the handset battery for 7 hours before initial use.
Operating Instructions
5.8 GHz Expandable Digital Cordless Phone
Model No. KX-TG6021
with Two Handsets
Model No. KX-TG6022
5.8 GHz Expandable Digital Cordless
Answering System
Model No. KX-TG6051
with Two Handsets
Model No. KX-TG6052
with Three Handsets
Model No. KX-TG6053
5.8 GHz Digital Cordless
Answering System
with Four Handsets
Model No. KX-TG6054
Model shown is KX-TG6021.
TG602X_605X.book Page 1 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Table of Contents
2For assistance, please visit http://www.panasonic.com/phonehelp
Introduction
Product information . . . . . . . . . . . . . . 3
Accessory information. . . . . . . . . . . . 4
Important safety instructions . . . . . . . 6
For best performance . . . . . . . . . . . . 8
Preparation
Setting up the base unit. . . . . . . . . . . 9
Setting up the handset . . . . . . . . . . . 9
Controls. . . . . . . . . . . . . . . . . . . . . . 12
Display. . . . . . . . . . . . . . . . . . . . . . . 13
Setting the unit before use . . . . . . . 14
Making/Answering Calls
Making calls. . . . . . . . . . . . . . . . . . . 15
Answering calls . . . . . . . . . . . . . . . . 16
Useful features during a call . . . . . . 16
Phonebook
Handset phonebook . . . . . . . . . . . . 19
Copying handset phonebook items. 20
Caller ID Service
Using Caller ID service . . . . . . . . . . 21
Caller list . . . . . . . . . . . . . . . . . . . . . 22
Programming
Programmable settings . . . . . . . . . . 24
Answering System
Answering system . . . . . . . . . . . . . . 30
Turning the answering system on/off 30
Greeting message. . . . . . . . . . . . . . 31
Listening to messages using the base
unit . . . . . . . . . . . . . . . . . . . . . . . . . 31
Listening to messages using the
handset . . . . . . . . . . . . . . . . . . . . . . 32
Remote operation . . . . . . . . . . . . . . 33
Answering system settings . . . . . . . 34
Voice Mail Service
Using Voice Mail service . . . . . . . . . 36
Multi-unit Operation
Intercom . . . . . . . . . . . . . . . . . . . . . 38
Transferring calls between handsets,
conference calls . . . . . . . . . . . . . . . 39
Registering a handset . . . . . . . . . . . 39
Useful Information
Wall mounting . . . . . . . . . . . . . . . . . 40
Headset (optional). . . . . . . . . . . . . . 41
Error messages. . . . . . . . . . . . . . . . 42
Troubleshooting . . . . . . . . . . . . . . . 44
FCC and other information . . . . . . . 48
Specifications . . . . . . . . . . . . . . . . . 51
Customer services . . . . . . . . . . . . . 52
Warranty . . . . . . . . . . . . . . . . . . . . . 53
Index
Index . . . . . . . . . . . . . . . . . . . . . . . . 55
TG602X_605X.book Page 2 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Introduction
For assistance, please visit http://www.panasonic.com/phonehelp 3
Product information
Thank you for purchasing a Panasonic cordless telephone.

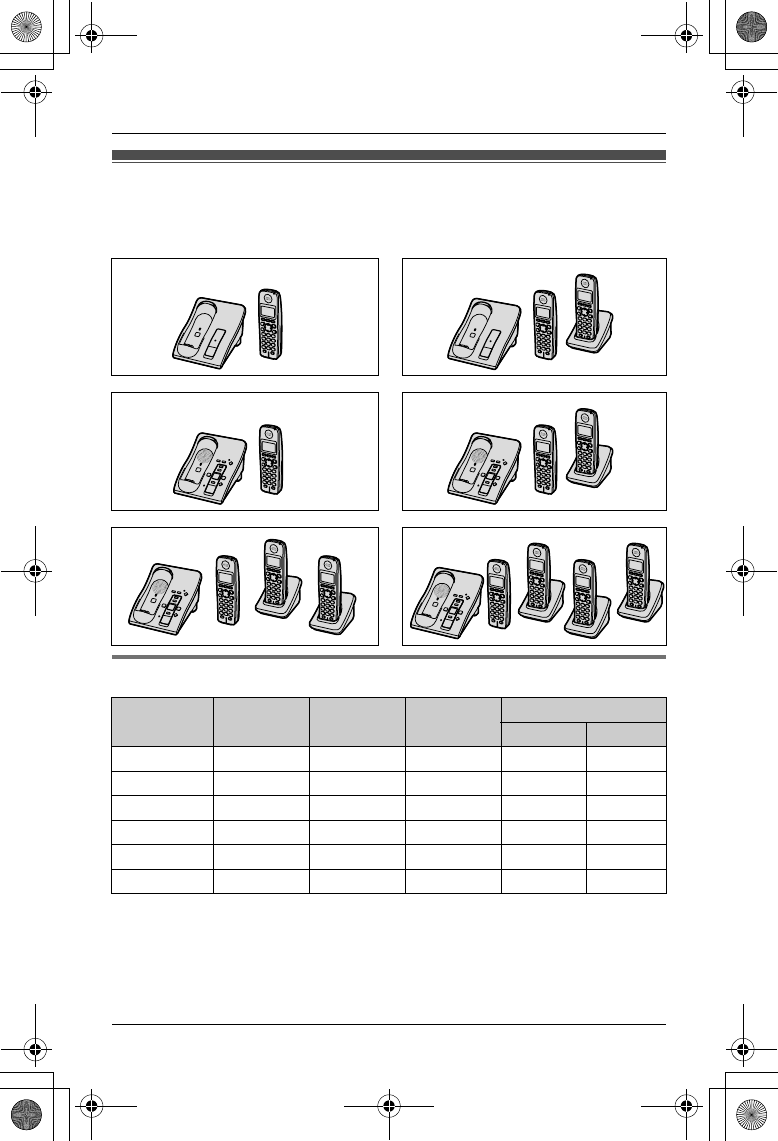

These operating instructions can be used for the following models:
Notable feature differences among the following models
*1 Intercom calls can be made between the handset and base unit.
*2 Intercom calls can be made between the handsets.
*3 Intercom calls can be made between the handsets by purchasing and registering
1 or more optional handsets (KX-TGA600, page 4).
Model no. Answering
system Talking
Caller ID Slow talk®Intercom
\ ⇔ N*1 N ⇔ N*2
KX-TG6021 – – – – –*3
KX-TG6022 – – – – r
KX-TG6051 rrrr–*3
KX-TG6052 rrrrr
KX-TG6053 rrrrr
KX-TG6054 rrrrr
KX-TG6021 KX-TG6022
KX-TG6051 KX-TG6052
KX-TG6053 KX-TG6054
TG602X_605X.book Page 3 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Introduction
4For assistance, please visit http://www.panasonic.com/phonehelp
Expanding your phone system
Accessory information

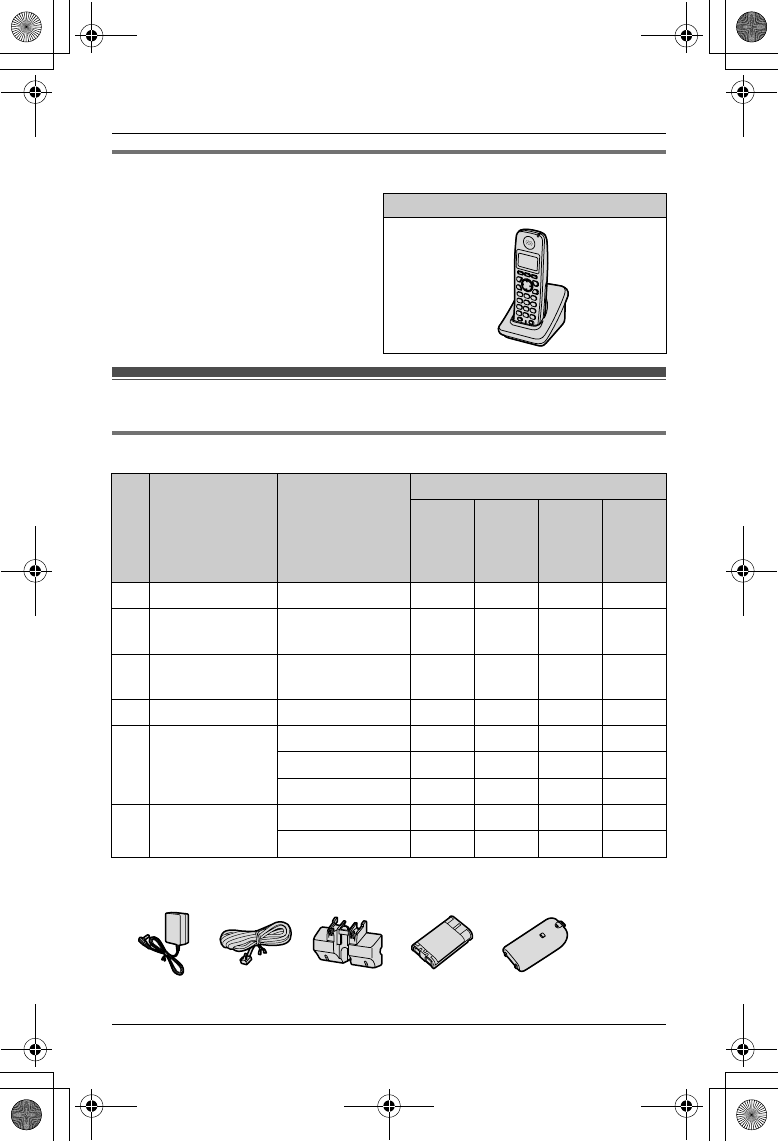

Included accessories
*1 The handset cover comes attached to the handset.
You can expand the phone system by
registering optional handsets to a single
base unit.
LA maximum of 4 total handsets
(included and optional) can be
registered to a single base unit.
LKX-TG6054: An additional handset
cannot be registered.
Handset (optional): KX-TGA600
No. Accessory item Order number
Quantity
KX-TG
6021M/
KX-TG
6051M
KX-TG
6022B/
KX-TG
6052B
KX-TG
6053S KX-TG
6054B
1AC adaptorPQLV203 1111
2Telephone line
cord
PQJA10075 1111
3Wall mounting
adaptor
PQKL10084Z2 1111
4Battery HHR-P107 1234
5Handset cover*1 PQYNTG6051MR 1–––
PQYNTG6052BR –2–4
PQYNTG6053SR ––3–
6Charger PQLV30050ZB –1–3
PQLV30050ZS ––2–
123456
TG602X_605X.book Page 4 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Introduction
For assistance, please visit http://www.panasonic.com/phonehelp 5
Additional/replacement accessories
Sales and support information
LTo order additional/replacement accessories, call 1-800-332-5368.
LTTY users (hearing or speech impaired users) can call 1-866-605-1277.
Accessory item Order number
Rechargeable nickel metal hydride
(Ni-MH) battery
HHR-P107
Accessory handset with charger KX-TGA600
Headset KX-TCA60, KX-TCA86, KX-TCA88HA,
KX-TCA92, KX-TCA93, KX-TCA94, or
KX-TCA95
T-adaptor KX-J66
TG602X_605X.book Page 5 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Introduction
6For assistance, please visit http://www.panasonic.com/phonehelp
Important safety
instructions
When using the product, basic safety
precautions should always be followed
to reduce the risk of fire, electric shock,
or personal injury.
1. Read all instructions carefully.
2. Follow all warnings and instructions
marked on the product.
3. Unplug the product from power
outlets before cleaning. Do not use
liquid or aerosol cleaners. Use a
moist cloth for cleaning.
4. Do not use the product near water,
for example near a bathtub, wash
bowl, kitchen sink, etc.
5. Place the product securely on a
stable surface. Serious damage
and/or injury may result if the
product falls.
6. Do not cover slots and openings on
the product. They are provided for
ventilation and protection against
overheating. Never place the
product near radiators, or in a place
where proper ventilation is not
provided.
7. Use only the power source marked
on the product. If you are not sure of
the type of power supplied to your
home, consult your dealer or local
power company.
8. Do not place objects on the power
cord. Install the product where no
one can step or trip on the cord.
9. Do not overload power outlets and
extension cords. This can result in
the risk of fire or electric shock.
10. Never push any objects through
slots in the product. This may result
in the risk of fire or electric shock.
Never spill any liquid on the product.
11. To reduce the risk of electric shock,
do not disassemble the product.
Take the product to an authorized
service center when service is
required. Opening or removing
covers may expose you to
dangerous voltages or other risks.
Incorrect reassembly can cause
electric shock when the product is
subsequently used.
12. Unplug the product from power
outlets and take to an authorized
service center when the following
conditions occur:
A. When the power cord is
damaged or frayed.
B. If liquid has been spilled into the
product.
C. If the product has been exposed
to rain or water.
D. If the product does not work
normally by following the
operating instructions. Adjust
only controls covered by the
operating instructions. Improper
adjustment may require
extensive work by an authorized
service center.
E. If the product has been dropped
or physically damaged.
F. If the product exhibits a distinct
change in performance.
13. During thunderstorms, avoid using
telephones except cordless types.
There may be a remote risk of an
electric shock from lightning.
14. Do not use the product to report a
gas leak, when in the vicinity of the
leak.
SAVE THESE
INSTRUCTIONS
TG602X_605X.book Page 6 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Introduction
For assistance, please visit http://www.panasonic.com/phonehelp 7
CAUTION:
Installation
LNever install telephone wiring during
a lightning storm.
LNever install telephone jacks in wet
locations unless the jack is
specifically designed for wet
locations.
LNever touch uninsulated telephone
wires or terminals unless the
telephone line has been
disconnected at the network
interface.
LUse caution when installing or
modifying telephone lines.
LDo not touch the plug with wet hands.
LThe AC adaptor is used as the main
disconnect device. Ensure that the
AC outlet is installed near the product
and is easily accessible.
Battery
To reduce the risk of fire or injury to
persons, read and follow these
instructions.
LUse only the battery(ies) specified.
LDo not dispose of the battery(ies) in a
fire. They may explode. Check with
local waste management codes for
special disposal instructions.
LDo not open or mutilate the
battery(ies). Released electrolyte is
corrosive and may cause burns or
injury to the eyes or skin. The
electrolyte may be toxic if swallowed.
LExercise care when handling the
battery(ies). Do not allow conductive
materials such as rings, bracelets or
keys to touch the battery(ies),
otherwise a short circuit may cause
the battery(ies) and/or the conductive
material to overheat and cause burns.
LCharge the battery(ies) provided, or
identified for use with the product
only, in accordance with the
instructions and limitations specified
in this manual.
WARNING:
LTo prevent the risk of fire or electrical
shock, do not expose the product to
rain or any type of moisture.
LUnplug the product from power
outlets if it emits smoke, an abnormal
smell, or makes an unusual noise.
These conditions can cause fire or
electric shock. Confirm that smoke
has stopped emitting and contact the
Panasonic Call Center at 1-800-211-
PANA (1-800-211-7262).
Medical
LConsult the manufacturer of any
personal medical devices, such as
pacemakers or hearing aids, to
determine if they are adequately
shielded from external RF (radio
frequency) energy. (The product
operates in the frequency range of
5.76 GHz to 5.84 GHz, and the power
output is 200 mW (max.).) Do not use
the product in health care facilities if
any regulations posted in the area
instruct you not to do so. Hospitals or
health care facilities may be using
equipment that could be sensitive to
external RF energy.
TG602X_605X.book Page 7 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Introduction
8For assistance, please visit http://www.panasonic.com/phonehelp
For best performance
Base unit location/avoiding noise
The base unit and other compatible
Panasonic units use radio waves to
communicate with each other.
LFor maximum coverage and noise-
free communications, place your
base unit:
– at a convenient, high, and central
location with no obstructions
between the handset and base unit
in an indoor environment.
– away from electronic appliances
such as TVs, radios, personal
computers, wireless devices or
other phones.
– avoid facing radio frequency
transmitters, such as external
antennas of mobile phone cell
stations (avoid putting the base unit
on the bay window or near the
window).
LCoverage and voice quality depends
on the local environmental conditions.
LIf the reception for a base unit location
is not satisfactory, move the base unit
to another location for better
reception.
Environment
LKeep the product away from electrical
noise generating devices, such as
fluorescent lamps and motors.
LThe product should be kept free from
excessive smoke, dust, high
temperature, and vibration.
LThe product should not be exposed to
direct sunlight.
LDo not place heavy objects on top of
the product.
LWhen you leave the product unused
for a long period of time, unplug the
product from the power outlet.
LThe product should be kept away
from heat sources such as heaters,
kitchen stoves, etc. It should not be
placed in rooms where the
temperature is less than 5 °C (41 °F)
or greater than 40 °C (104 °F). Damp
basements should also be avoided.
LThe maximum calling distance may
be shortened when the product is
used in the following places: Near
obstacles such as hills, tunnels,
underground, near metal objects such
as wire fences, etc.
LOperating the product near electrical
appliances may cause interference.
Move away from the electrical
appliances.
Routine care
LWipe the outer surface of the product
with a soft moist cloth. Do not use
benzine, thinner, or any abrasive
powder.
TG602X_605X.book Page 8 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Preparation
For assistance, please visit http://www.panasonic.com/phonehelp 9

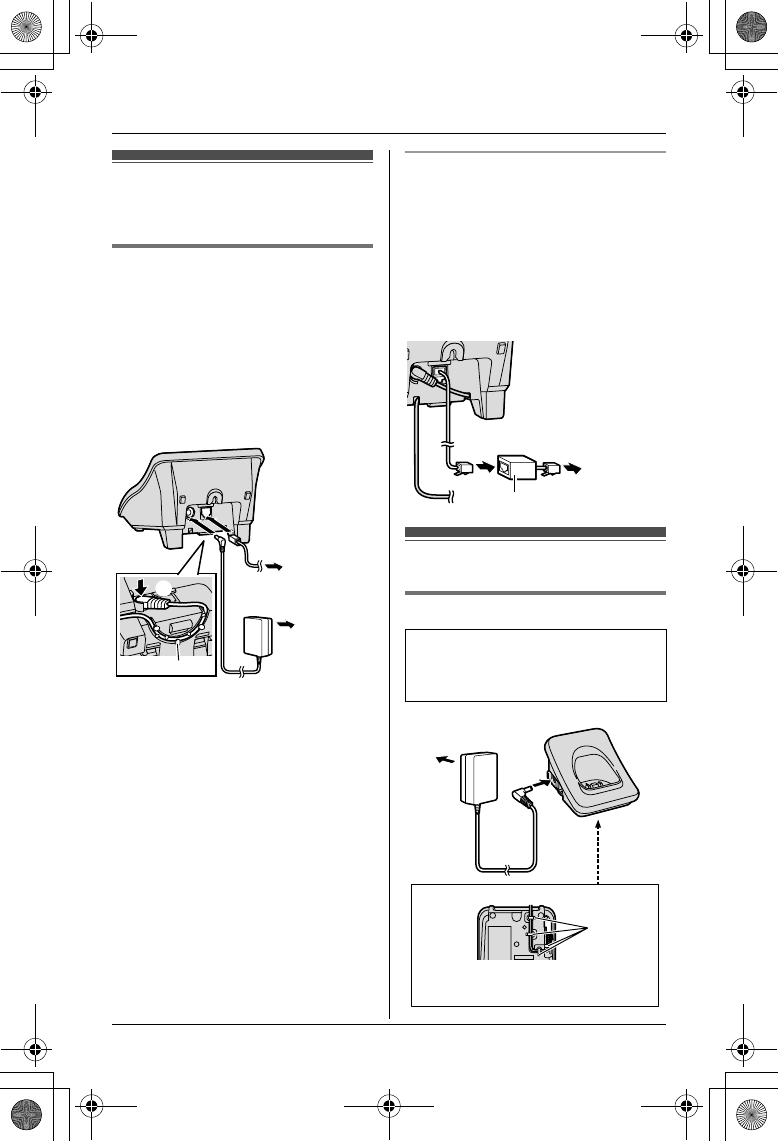

Setting up the base
unit
Connecting the AC adaptor
and telephone line cord
Connect the telephone line cord until it
clicks into the base unit and telephone
line jack (A). Connect the AC adaptor
cord (B) by pressing the plug firmly
(C).
LUse only the included Panasonic AC
adaptor PQLV203.
Note:
LThe AC adaptor must remain
connected at all times. (It is normal for
the adaptor to feel warm during use.)
LThe AC adaptor should be connected
to a vertically oriented or floor-
mounted AC outlet. Do not connect
the AC adaptor to a ceiling-mounted
AC outlet, as the weight of the
adaptor may cause it to become
disconnected.
LThe unit will not work during a power
failure. We recommend connecting a
corded telephone to the same
telephone line or to the same
telephone jack using a Panasonic T-
adaptor (page 5).
If you subscribe to a DSL service
Please attach a noise filter (contact your
DSL provider) to the telephone line
between the base unit and the
telephone line jack in the event of the
following:
– Noise is heard during conversations.
– Caller ID features do not function
properly.
Setting up the handset
Connecting the AC adaptor
(120 V AC,
60 Hz)
To single-line
telephone jack
(RJ11C)
A
B
Hooks
C
Available model:
KX-TG6022/KX-TG6052/
KX-TG6053/KX-TG6054
Noise filter
To single-line
telephone
jack (RJ11C)
(120 V AC, 60 Hz)
Bottom of the charger
Fasten the AC adaptor cord to
prevent it from being disconnected.
Hooks
TG602X_605X.book Page 9 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Preparation
10 For assistance, please visit http://www.panasonic.com/phonehelp

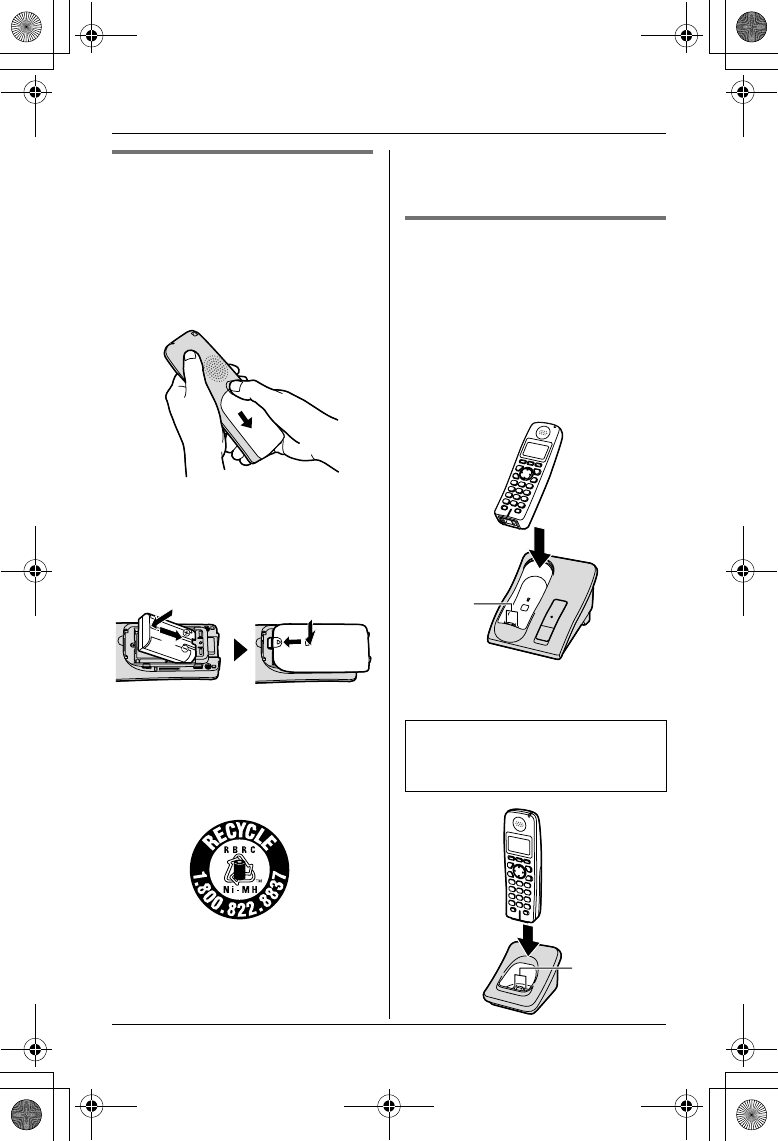

Battery installation/
replacement
1Press the notch of the handset cover
firmly, and slide it in the direction of
the arrow.
LIf necessary, remove the old
battery.
2Insert the battery (A), and press it
down until it snaps into position (B).
Then close the handset cover (C,
D).
Important:
LUse only the rechargeable Panasonic
battery noted on page 5.
Attention:
A nickel metal hydride battery that is
recyclable powers the product you have
purchased.
Please call 1-800-8-BATTERY (1-800-
822-8837) for information on how to
recycle this battery.
Battery charge
Place the handset on the base unit or
charger for 7 hours before initial use.
LWhile charging, “Charging” is
displayed and the charge indicator on
the handset lights. When the battery
is fully charged, “Charge
completed” is displayed.
Base unit:
LModel shown is KX-TG6021.
Charger:
B
A
C
D
Available model:
KX-TG6022/KX-TG6052/
KX-TG6053/KX-TG6054
Charge
contacts
Charge
contacts
TG602X_605X.book Page 10 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Preparation
For assistance, please visit http://www.panasonic.com/phonehelp 11
Note:
LIf you want to use the handset
immediately, charge the battery for at
least 15 minutes.
LTo ensure that the battery charges
properly, clean the charge contacts of
the handset, base unit, and charger
with a soft, dry cloth once a month.
Clean more often if the unit is subject
to the exposure of grease, dust, or
high humidity.
Battery level
Note:
LWhen the battery needs to be
charged, the handset beeps
intermittently during use.
Panasonic battery performance
Note:
LBattery operating time may be
shortened over time depending on
usage conditions and surrounding
temperature.
LBattery power is consumed whenever
the handset is off the base unit or
charger, even when the handset is not
in use.
LAfter the handset is fully charged,
displaying “Charge completed”, it
may be left on the base unit or
charger without any ill effect on the
battery.
LThe battery level may not be
displayed correctly after you replace
the battery. In this case, place the
handset on the base unit or charger
and let it charge for 7 hours.
Symbols used in these
operating instructions
Battery icon Battery level
5Fully charged
6Medium
7Low
Flashing: needs to
be recharged.
8Empty
Operation Operating time
While in use
(talking)
Up to 5 hours
While not in use
(standby)
Up to 11 days
While using the
clarity booster
feature (page 17)
Up to 3 hours
Symbol Meaning
{ }: button
name/soft key
name
The words in the
brackets indicate
button names/soft
key names on the
handset and base
unit.
Example:
Unit keys: {C},
{OFF}
Soft keys: {View
CID},
{Phonebook}
iProceed to the next
operation.
“ ”
Example:
“Initial
setting”
The words in
quotations indicate
the menu on the
display.
Example:
{V}/{^}:
“Initial
setting”
Press {V} or {^} to
select “Initial
setting”.
TG602X_605X.book Page 11 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Preparation
12 For assistance, please visit http://www.panasonic.com/phonehelp

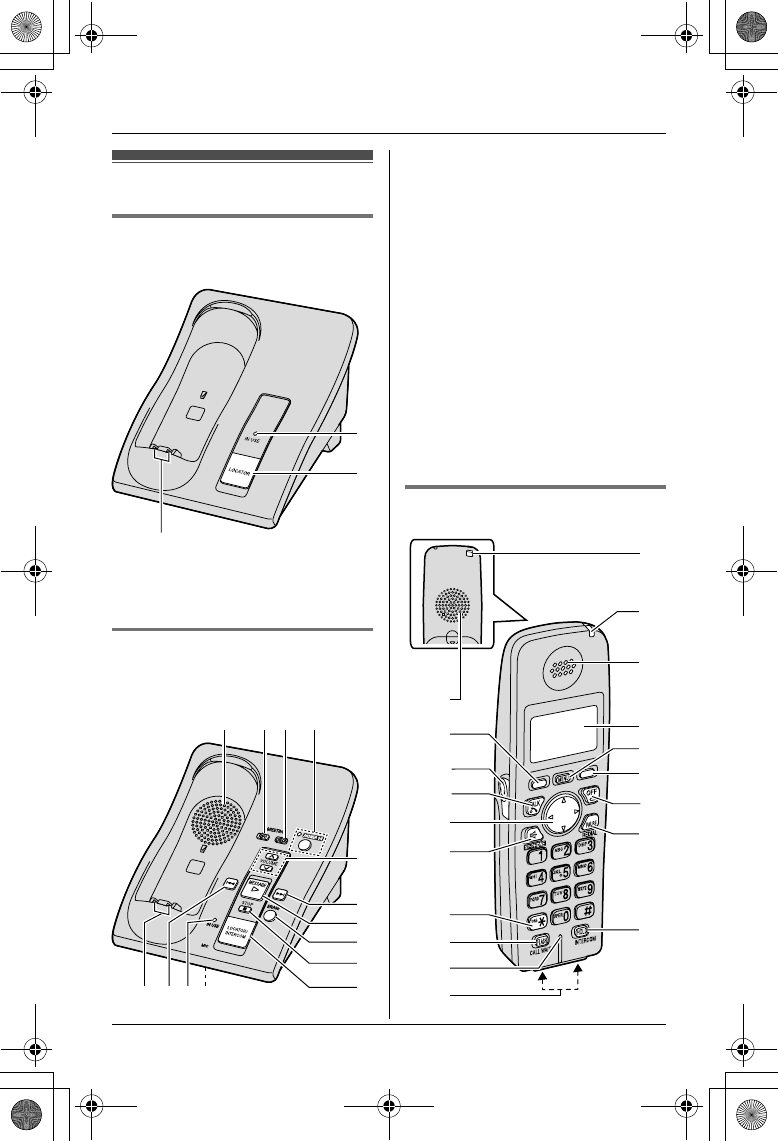

Controls
Base unit (KX-TG6021/KX-
TG6022)
AIN USE indicator
B{LOCATOR}
CCharge contacts
Base unit (KX-TG6051/KX-
TG6052/KX-TG6053/KX-
TG6054)
ASpeaker
B{GREETING REC} (Recording)
C{GREETING CHECK}
D{ANSWER ON}
ANSWER ON indicator
EVOLUME {<} {>}
F{>} (SKIP)
G{MESSAGE}
MESSAGE indicator
H{ERASE}
I{STOP}
J{LOCATOR} {INTERCOM}
KMIC (Microphone)
LIN USE indicator
M{<} (REPEAT)
NCharge contacts
Handset
A
B
C
A B C D
H
E
F
G
I
J
KMNL
A
L
M
N
Q
O
P
B
B
C
D
E
F
G
H
I
J
K
R
TG602X_605X.book Page 12 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Preparation
For assistance, please visit http://www.panasonic.com/phonehelp 13
ASpeaker
BSoft keys
CHeadset jack
D{C} (TALK)
ENavigator key ({^} {V} {<} {>})
F{s} (SP-PHONE)
G{*} (TONE)
H{FLASH} {CALL WAIT}
IMicrophone
JCharge contacts
KStrap hole
LCharge indicator
Ringer indicator
Message indicator
MReceiver
NDisplay
O{MENU}
P{OFF}
Q{PAUSE} {REDIAL}
R{HOLD} {INTERCOM}

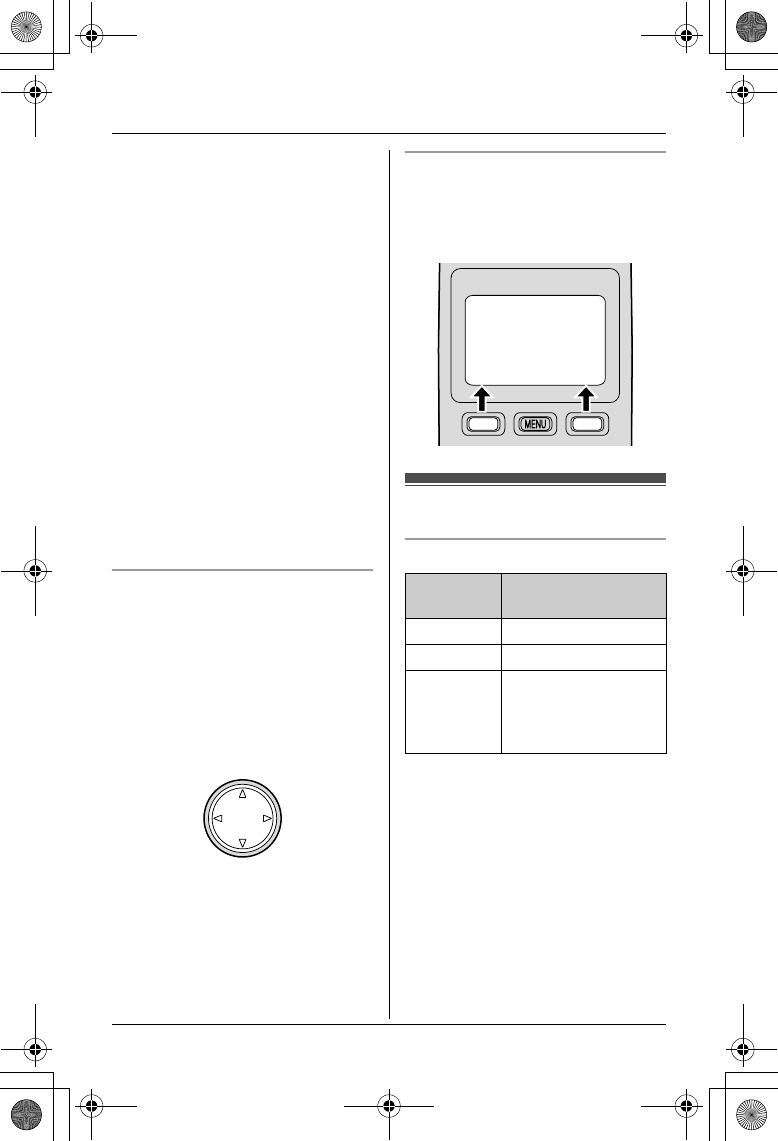

Using the navigator key
The handset navigator key can be used
to navigate through menus and to select
items shown on the display, by pressing
{^}, {V}, {<}, or {>}.
Adjusting audio volume
Press {^} or {V} repeatedly while
talking.
Using the soft keys
The handset features 2 soft keys. By
pressing a soft key, you can select the
feature shown directly above it on the
display.
Display
Handset display items
{V}
{^}
{<}{>}
Displayed
item Meaning
JVoice enhancer is on.
5Battery level
Example:
[1]
The handset’s
extension number
(example shown here:
handset 1)
5
10:30AM [1]
View Phone
K
CID book
L
TG602X_605X.book Page 13 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Preparation
14 For assistance, please visit http://www.panasonic.com/phonehelp
Setting the unit before
use
Important:
LTo program features by scrolling
through the display menus, see page
24.
Display language
The default setting is “English”.
1KX-TG6021/KX-TG6022
{MENU} i {0}{8}
KX-TG6051/KX-TG6052/KX-
TG6053/KX-TG6054
{MENU} i {0}{8}{1}
2{V}/{^}: Select the desired setting.
3Press the right soft key to save. i
{OFF}
Voice guidance language
You can select either “English” or
“Español” as voice guidance
language. The default setting is
“English”.
1{MENU} i {0}{8}{2}
2{V}/{^}: Select the desired setting.
3{Save} i {OFF}
Dialing mode
If you cannot make calls, change this
setting according to your telephone line
service. The default setting is “Tone”.
“Tone”: For tone dial service.
“Pulse”: For rotary pulse dial service.
1{MENU} i {0}{5}{1}
2{V}/{^}: Select the desired setting.
3{Save} i {OFF}
Date and time
Set the correct date and time.
– The handset displays the date and
time in standby mode.
– When you play back a message from
the answering system (page 31), the
unit announces the day and time it
was recorded.
1{MENU} i {4}{1}
2Enter the current month, day, and
year by selecting 2 digits for each.
Example: August 15, 2007
{0}{8} {1}{5} {0}{7}
3Enter the current hour and minute
(12-hour clock format) by selecting 2
digits for each.
Example: 9:30
{0}{9} {3}{0}
4{AM/PM}: Select “AM” or “PM”.
5{Save} i {OFF}
Note:
LIf you make a mistake when entering
the date and time, press {<}, {>},
{^}, or {V} to move the cursor, then
make the correction.
LThe date and time may be incorrect
after a power failure. In this case, set
the date and time again.
Available model:
KX-TG6051/KX-TG6052/
KX-TG6053/KX-TG6054
TG602X_605X.book Page 14 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Making/Answering Calls
For assistance, please visit http://www.panasonic.com/phonehelp 15
Making calls
1Dial the phone number.
LTo correct a digit, press {Clear}.
2Press {C} or {Call}.
3When you finish talking, press {OFF}
or place the handset on the base unit
or charger.
Note:
L“Line in use” is displayed when
someone is talking on the handset or
another phone.
Using the speakerphone
1Dial the phone number, and press
{s}.
LSpeak alternately with the other
party.
2When you finish talking, press
{OFF}.
Note:
LUse the speakerphone in a quiet
environment.
LTo switch to the receiver, press {C}.
Adjusting the receiver/speaker
volume
Press {^} or {V} repeatedly while
talking.
Making a call using the redial list
The last 5 phone numbers dialed are
stored in the redial list (each 48 digits
max.).
1{REDIAL}
2{V}/{^}: Select the desired phone
number.
3{C}
Erasing a number in the redial list
1{REDIAL}
2{V}/{^}: Select the desired phone
number.
3{Erase} i {Yes} i {OFF}
PAUSE button (for PBX/long
distance service users)
A pause is sometimes required when
making calls using a PBX or long
distance service. When storing a calling
card access number and/or PIN in the
phonebook, a pause is also needed
(page 20).
For example, if you need to dial the line
access number “9” when making
outside calls with a PBX:
1{9} i {PAUSE} i Dial the
phone number.
2{C}
Note:
LA 3.5 second pause is inserted each
time {PAUSE} is pressed. Press
repeatedly to insert longer pauses.
TG602X_605X.book Page 15 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Making/Answering Calls
16 For assistance, please visit http://www.panasonic.com/phonehelp
Answering calls
When a call is being received, the ringer
indicator flashes rapidly.
1Press {C} or {s}.
LYou can also answer the call by
pressing any dial key from {0} to
{9}, {*}, {#}, or {INTERCOM}.
(Any key talk feature)
2When you finish talking, press
{OFF}.
Note:
LYou can change the ringer indicator
light color and the ringer tone (page
26). You can also adjust the handset
ringer volume (page 27).
Auto talk
This feature allows you to answer a call
by simply lifting the handset off the base
unit or charger. You do not need to
press {C}. To activate this feature, see
page 26.
Temporary ringer off
While the handset is ringing for a call,
you can turn the ringer off temporarily
by pressing {OFF}.
Adjusting the base unit ringer
volume
Press {>} or {<} repeatedly to select
the desired volume.
LTo turn the ringer off, press and hold
{<} until the unit beeps 2 times.
Useful features during
a call
HOLD button
This feature allows you to put an
outside call on hold.
Press {HOLD} 2 times during an
outside call.
LTo release the hold, press {C}.
LAnother handset user can take the
call by pressing {C}.
Note:
LIf another phone is connected to the
same line (page 9), you can also take
the call by lifting its handset.
LIf a call is kept on hold for more than 6
minutes, an alarm tone starts to
sound. After 4 additional minutes on
hold, the call is disconnected.
Mute button
While mute is turned on, you can hear
the other party, but the other party
cannot hear you.
To mute your voice, press {Mute}.
LTo return to the conversation, press
{Mute} or {C}.
Note:
L{Mute} is a soft key visible on the
handset display during a call.
LWhen this feature is turned on,
{Mute} flashes.
FLASH button
Pressing {FLASH} allows you to use
special features of your host PBX such
as transferring an extension call, or
accessing optional telephone services
such as Call Waiting.
Available model:
KX-TG6051/KX-TG6052/
KX-TG6053/KX-TG6054
TG602X_605X.book Page 16 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Making/Answering Calls
For assistance, please visit http://www.panasonic.com/phonehelp 17
Note:
LTo change the flash time, see page
27.
For Call Waiting service
users
To use Call Waiting, you must subscribe
to Call Waiting service of your
telephone service provider.
This feature allows you to receive calls
while you are already talking on the
phone. If you receive a call while on the
phone, you will hear a Call Waiting tone.
Please contact your telephone service
provider for details and availability of
this service in your area.
Press {CALL WAIT} to answer the 2nd
call.
LTo switch between calls, press
{CALL WAIT}.
Temporary tone dialing (for
rotary/pulse service users)
You can temporarily switch the dialing
mode to tone when you need to access
touch tone services (for example,
answering services, telephone banking
services, etc.).
Press {*} (TONE) before entering
access numbers which require tone
dialing.
Handset clarity booster
This feature can improve sound clarity
when the handset is used in an area
where there may be interference.
During an outside call, this feature is
turned on automatically when
necessary. You can also turn this
feature on or off manually.
1Press {MENU} during an outside
call.
2{V}/{^}: Select “Booster on” or
“Booster off”. i {Select}
Note:
LWhen this feature is turned off
manually during a call, it does not turn
on automatically during the same call.
LWhile this feature is turned on;
– the battery operating time is
shortened (page 11).
– the maximum number of extensions
that can be used at a time may
decrease.
Handset voice enhancer
This feature clarifies the voice of the
person you are talking to, reproducing a
more natural-sounding voice that is
easier to hear and understand (page
27).
KX-TG6021/KX-TG6022
Press {(VE)} during an outside call to
turn on or off this feature.
LWhen this feature is turned on, J
is displayed.
KX-TG6051/KX-TG6052/KX-TG6053/
KX-TG6054
1Press {MENU} during an outside
call.
2{V}/{^}: Select “V.E. on” or “V.E.
off”. i {Select}
LWhen this feature is turned on,
J is displayed.
Note:
LDepending on the condition and
quality of your telephone line, this
feature may emphasize existing line
noise. If it becomes difficult to hear,
turn this feature off.
TG602X_605X.book Page 17 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Making/Answering Calls
18 For assistance, please visit http://www.panasonic.com/phonehelp
Slow Talk
This feature works to help slow down
the incoming audio when you are
having a conversation with an outside
party.
Important:
LYou cannot use this feature when;
– the handset announces names or
phone numbers.
– you are on an intercom call.
– you are on a conference call.
– you are listening to messages in the
answering system.
To turn this feature on or off, press
{Slow} during an outside call.
Note:
L{Slow} is a soft key visible on the
handset display during a call.
LWhen this feature is turned on,
{Slow} flashes.
LThis feature turns off after you hang
up the call.
LThe speed may become close to
normal when the handset receives
constant incoming audio for a period
of time.
Call share
This feature allows the handset to join
an existing outside call.
To join the conversation, press {C}
when the other handset is on an outside
call.
Note:
LThe possible number of participating
parties depends on the model.
KX-TG6021/KX-TG6022:
– 3 parties (including 1 outside party)
KX-TG6051/KX-TG6052/KX-
TG6053/KX-TG6054:
– 4 parties (including 1 outside party)
Available model:
KX-TG6051/KX-TG6052/
KX-TG6053/KX-TG6054
TG602X_605X.book Page 18 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Phonebook
For assistance, please visit http://www.panasonic.com/phonehelp 19
Handset phonebook
You can add up to 50 items to the
handset phonebook and search for
phonebook items by name.
Adding items to the
phonebook
1{Phonebook}
2{Add}
3Enter the name (max. 16
characters). i {Next}
4Enter the phone number (max. 32
digits). i {Next} i {Save}
LTo add other items, repeat from
step 2.
5{OFF}
Note:
LCaller ID subscribers can use ringer
ID and light-up ID features (page 22).
Character table for entering names
LTo enter another character that is
located on the same dial key, first
press {>} to move the cursor to the
next space.
Editing/correcting a mistake
Press {<} or {>} to move the cursor to
the character or number you want to
erase, then press {Clear}. Enter the
appropriate character or number.
LPress and hold {Clear} to erase all
characters or numbers.
Finding and calling a
phonebook item
Searching for a name alphabetically
by scrolling through all items
1{Phonebook} i {Search}
2{V}/{^}: Select the desired item.
3Press {C} to dial the phone
number.
Searching for a name by initial
1{Phonebook} i {Search}
2Press the dial key ({0} – {9}, {#}, or
{*}) that corresponds to the first
letter you are searching for (see the
character table, page 19).
Example: “LISA”
Press {5} repeatedly to display the
first phonebook entry starting with
the initial “L” and go to step 3.
LIf there is no item corresponding to
the letter you selected, the next
item is displayed.
3Press {V} to select the desired item.
Key Character
{1}&’ ( ) , –.
/1
{2}abcABC2
{3}def DEF3
{4}ghi GHI 4
{5}jklJKL5
{6}mnoMNO6
{7}pqr sPQR
S7
{8}tuvTUV8
{9}wxyzWXY
Z9
{0}0Space
{*} ;
{#} #
Key Character
TG602X_605X.book Page 19 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Phonebook
20 For assistance, please visit http://www.panasonic.com/phonehelp
4Press {C} to dial the phone
number.
Editing items in the
phonebook
1Find the desired item (page 19). i
{Option}
2{V}/{^}: “Edit” i {Select}
3Edit the name if necessary (see the
character table, page 19). i
{Next}
4Edit the phone number if necessary.
i {Next} i {Save} i {OFF}
Erasing items in the
phonebook
1Find the desired item (page 19).
2{Erase} i {Yes} i {OFF}
Chain dial
This feature allows you to dial phone
numbers in the handset phonebook
while you are on a call. This feature can
be used, for example, to dial a calling
card access number or bank account
PIN that you have stored in the handset
phonebook, without having to dial
manually.
1During an outside call, press
{MENU}.
2{V}/{^}: “Phonebook” i {Select}
3Find the desired item (page 19). i
{Call}
Note:
LWhen storing a calling card access
number and your PIN in the
phonebook as one phonebook item,
press {PAUSE} to add pauses after
the number and PIN as necessary
(page 15).
LIf you have rotary or pulse service,
you need to press {*} before
pressing {MENU} in step 1 to change
the dialing mode temporarily to tone.
Copying handset
phonebook items
You can copy one or all of the
phonebook items from one handset to
another.
Important:
LRinger ID and light-up ID for
phonebook items are not copied.
Copying an item
1{MENU} i {#}{1}
2{V}/{^}: Select the handset to copy
to. i {Next}
3{V}/{^}: Select the desired item. i
{Send}
4Press {OFF} after the long beep.
Copying all items
1{MENU} i {#}{2}
2{V}/{^}: Select the handset to copy
to. i {Send}
3Press {OFF} after the long beep.
TG602X_605X.book Page 20 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Caller ID Service
For assistance, please visit http://www.panasonic.com/phonehelp 21
Using Caller ID service
This unit is Caller ID compatible. To use
Caller ID features, you must subscribe
to Caller ID service of your telephone
service provider.
Caller ID features
When an outside call is being received,
the calling party’s name and telephone
number are displayed.
Caller information for the last 50 callers
is logged in the caller list by the most
recent call to the oldest.
LGenerally caller information is
displayed from the 2nd ring.
LIf the unit cannot receive caller
information, the following is
displayed:
–“Out of area”: The caller dialed
from an area which does not
provide Caller ID service.
–“Private caller”: The caller
requested not to send caller
information.
–“Long distance”: The caller
called you long distance.
LIf the unit is connected to a PBX
system, caller information may not be
received properly. Consult your PBX
supplier.
Missed calls
If a call is not answered, the unit treats
the call as a missed call. You can view
the number of missed calls by pressing
{View CID}.
Private name display
When caller information is received and
it matches a phone number stored in
the phonebook, the stored name is
displayed and logged in the caller list.
Call Waiting Caller ID display
If you subscribe to both Caller ID and
Call Waiting with Caller ID services, the
2nd caller’s information is displayed
after you hear a Call Waiting tone (page
17). Please contact your telephone
service provider for details and
availability of this service in your area.
Talking Caller ID
This feature lets you know who is calling
without looking at the display. When a
call comes in, the handset and base unit
announce the caller’s name or phone
number displayed on the handset
following every ring.
To use this feature, you must subscribe
to Caller ID service of your telephone
service provider.
The unit announces in English.
LIf the caller’s phone number is stored
in the phonebook of the extension
number 1 handset, all handsets and
the base unit announce the name
stored in that phonebook following
every ring.
LName pronunciation may vary. This
feature may not pronounce all names
correctly.
LCaller ID supports names of up to 15
letters. If the caller’s name has more
than 15 letters, the name is not
displayed or announced correctly.
LUsually the unit announces the
caller’s name after the 2nd ring. If you
turn on the answering system and set
the ring count to “2” (page 34), the
unit does not announce the caller’s
name. If “Toll saver” is selected
Available model:
KX-TG6051/KX-TG6052/
KX-TG6053/KX-TG6054
TG602X_605X.book Page 21 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Caller ID Service
22 For assistance, please visit http://www.panasonic.com/phonehelp
and there is a new message, the unit
does not announce the caller’s name.
LWhen you receive a call while on the
phone, the 2nd caller’s name is not
announced even if you subscribe to
both Caller ID and Call Waiting with
Caller ID services.
LThe announcement is heard at the
ringer volume (page 16, 27).
LThis feature can be turned on or off
(page 28).
Ringer ID/Light-up ID
This feature can help you identify who is
calling by using different ringer tones
and ringer indicator colors for different
callers stored in the phonebook. You
can assign a different ringer tone and
indicator color to each phonebook item.
When a call is received from a caller
stored in the phonebook, the assigned
ringer tone rings and the assigned
ringer indicator color flashes after Caller
ID information is displayed.
If you select “No Ringer ID” (default)
or “No Light-up ID” (default), the
handset uses the setting you selected
on page 26 when a call is received from
that caller.
1Find the desired item (page 19). i
{Option}
2To assign a ringer tone:
{V}/{^}: Select “Ringer ID”. i
{Select}
To assign a ringer indicator color:
{V}/{^}: Select “Light-up ID”. i
{Select}
3{V}/{^}: Select the desired setting.
4{Save} i {OFF}
Caller list
Viewing the caller list and
calling back
1{View CID}
2Press {V} to search from the most
recent call, or {^} to search from the
oldest call.
3Press {OFF} to exit.
Press {C} to call back.
Note:
LEach handset has its own caller list.
The number of missed calls may differ
between handsets. Even if you
viewed the caller list or answered a
call on one handset, the same
information is still recognized as a
missed call in the other handsets.
LA Q is displayed in caller information
which has already been viewed or
answered by any handset.
Editing a caller’s phone
number before calling back
You can edit a phone number in the
caller list by removing its area code and/
or the long distance code “1”.
1{View CID}
2{V}/{^}: Select the desired item. i
{Select}
3Press {Edit} repeatedly until the
phone number is shown in the
desired format.
1Local phone number
Example:
2Area code – Local phone number
Example:
321-5555
555-321-5555
TG602X_605X.book Page 22 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Caller ID Service
For assistance, please visit http://www.panasonic.com/phonehelp 23
31 – Area code – Local phone
number
Example:
4{C}
Caller ID number auto edit
feature
Once you call back an edited number,
the unit will remember the Area Code
and Format of the Edited Number. Next
time when someone calls from the
same Area Code, caller information will
be customized by the unit as follows:
– When the call is being received, the
Caller ID number will be displayed in
the same Format as the Edited
Number.
– After the call is ended, the telephone
number of the caller, when reviewed
from the Caller list, will be displayed in
the same Format as the Edited
Number.
For example, you can use this feature to
set the unit to ignore the area code of
callers in your area code, so that you
can call these local numbers using
caller information without dialing the
area code.
To activate this feature, you must edit
an item in the caller list, then call that
number. After that, phone numbers from
that caller’s area code are edited
automatically.
This feature can be turned on or off
(page 26).
Note:
LPhone numbers from the 4 most
recently edited area codes are
automatically edited.
LIf you move to another area, you can
turn this feature off to erase
previously edited area codes. To use
this feature again, turn it on and
reprogram the area codes you want to
edit once again.
Storing caller information
into the phonebook
1{View CID}
2{V}/{^}: Select the desired item. i
{Select}
LTo edit the number, press {Edit}
repeatedly until the phone number
is shown in the desired format.
3{Save}
LIf there is the name information for
the caller, skip to step 5.
4Enter the name (see the character
table, page 19). i {Next} i
{Save}
5{OFF}
Erasing selected caller
information
1{View CID}
2{V}/{^}: Select the desired item.
3{Erase} i {Yes} i {OFF}
Erasing all caller information
1{View CID}
2{All erase} i {Yes}
1-555-321-5555
TG602X_605X.book Page 23 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Programming
24 For assistance, please visit http://www.panasonic.com/phonehelp
Programmable settings
You can customize the unit by programming the following features using the handset.
To access the features, there are 2 methods:
– scrolling through the display menus (page 24)
– using the direct commands (page 26)
LMainly the direct command method is used in these operating instructions.
Programming by scrolling through the display menus
1{MENU}
2Press {V} or {^} to select the desired menu. i {Select}
LIf there is a sub-menu(s), press {V} or {^} to select the desired item. i
{Select}
3Press {V} or {^} to select the desired setting.
LThis step may vary depending on the feature being programmed.
4{Save} i {OFF}
Main menu Sub-menu 1 Sub-menu 2 Page
Message play
(KX-TG6051/KX-
TG6052/KX-TG6053/
KX-TG6054)
––32
V.M. access ––37
Alarm ––28
Ringer setting Ringer volume ––
Ringer tone ––
Ring color ––
Set date & time Date and time*1 –14
Time adjustment*1 ––
Voice enhancer –––
Copy phonebook Copy 1 item –20
Copy all items –20
Talking CallerID
(KX-TG6051/KX-
TG6052/KX-TG6053/
KX-TG6054)
–––
Customer support ––29
TG602X_605X.book Page 24 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Programming
For assistance, please visit http://www.panasonic.com/phonehelp 25
*1 If you program these settings using one of the handsets, you do not need to
program the same item using another handset.
Initial setting Set answering
(KX-TG6051/KX-
TG6052/KX-TG6053/
KX-TG6054)
Ring count*1 34
Recording time*1 35
Remote code*1 34
Voice Mail Store VM access#*1 36
VM tone detect*1 36
Message alert – 35, 37
LCD contrast ––
Key tone ––
Auto talk ––
Caller ID edit –23
Set tel line Set dial mode*1 14
Set flash time*1 –
Set line mode*1 –
Set base unit
(KX-TG6051/KX-
TG6052/KX-TG6053/
KX-TG6054)
Ringer tone*1 –
Talking CallerID*1 21
Registration HS registration 39
Deregistration 39
Change language Display
(KX-TG6051/KX-
TG6052/KX-TG6053/
KX-TG6054)
14
Voice prompt*1
(KX-TG6051/KX-
TG6052/KX-TG6053/
KX-TG6054)
14
Main menu Sub-menu 1 Sub-menu 2 Page
TG602X_605X.book Page 25 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Programming
26 For assistance, please visit http://www.panasonic.com/phonehelp
Programming using the direct commands
1{MENU}
2Enter the desired feature code.
3Enter the desired setting code.
LThis step may vary depending on the feature being programmed.
4{Save} i {OFF}
Note:
LIn the following table, < > indicates the default setting.
LIf you make a mistake or enter the wrong code, press {OFF}, then start again from
step 1.
Feature Feature
code Setting code System
setting*1 Page
Alarm {8}{1}: Once {0}: <Off>–28
Auto talk*2 {0}{3}{1}: On {0}: <Off>––
Caller ID edit
(Caller ID number
auto edit)
{0}{4}{1}: <On> {0}: Off –23
Copy phonebook
(1 item)
{#}{1}––20
Copy phonebook
(all items)
{#}{2}––20
Date and time {4}{1}–r14
Deregistration {0}{0}{2}––39
HS
registration
{0}{0}{1}––39
Key tone*3 {0}{2}{1}: <On> {0}: Off ––
LCD contrast
(Display contrast)
{0}{1}{1}–{6}: Level 1–6 <3> – –
Message alert {0}{#} {1}: On {0}: <Off> – 35, 37
Ring color
(Ringer indicator
color)
{1}{4}{1}: <Color1>=Amber
{2}: Color2=Green
{3}: Color3=Red
{4}: Multicolor
––
Ringer tone*4
(Handset)
{1}{2}{1}–{3}: Tone <1>–3
{4}–{7}: Melody 1–4
––
TG602X_605X.book Page 26 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Programming
For assistance, please visit http://www.panasonic.com/phonehelp 27
KX-TG6021/KX-TG6022 only
KX-TG6051/KX-TG6052/KX-TG6053/KX-TG6054 only
Ringer volume
(Handset)
{1}{1}{1}: Low {2}: Medium
{3}: <High> {0}: Off
––
Set dial mode {0}{5}{1}{1}: Pulse {2}: <Tone>r14
Set flash
time*5 {0}{5}{2}{1}: <700ms> {2}: 600ms
{3}: 400ms {4}: 300ms
{5}: 250ms {6}: 110ms
{7}: 100ms {8}: 90ms
r–
Set line mode*6 {0}{5}{3}{1}: A {2}: <B>r–
Store VM
access#
{0}{7}{1}–r36
Time
adjustment*7
(Caller ID
subscribers only)
{4}{2}{1}: <Caller
ID[auto]>
{0}: Manual
r–
V.M. access {3}––37
VM tone detect {0}{7}{2}{1}: <On> {0}: Off r36
Voice enhancer {5}{1}: On {0}: <Off>––
Feature Feature
code Setting code System
setting*1 Page
Change
language
(Display language)
{0}{8}{1}: <English>
{2}: Español
–14
Feature Feature
code Setting code System
setting*1 Page
Display
(Change language)
{0}{8}{1}{1}: <English>
{2}: Español
–14
Message play {2}––32
Recording time {0}{6}{2}{1}: 1min {2}: 2min
{3}: <3min>
r35
Remote code {0}{6}{3}–r34
Ring count {0}{6}{1}{2}–{7}: 2–7 rings <4>
{0}: Toll saver
r34
Feature Feature
code Setting code System
setting*1 Page
TG602X_605X.book Page 27 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Programming
28 For assistance, please visit http://www.panasonic.com/phonehelp
*1 If “System setting” column is checked, you do not need to program the same item
using another handset.
*2 If you subscribe to Caller ID service and want to view the caller’s information after
lifting up the handset to answer a call, turn off this feature.
*3 Turn this feature off if you prefer not to hear key tones while you are dialing or
pressing any keys, including confirmation tones and error tones.
*4 If you subscribe to a distinctive ring service (such as IDENTA-RING), select a tone
(tone 1 to 3). If you select a melody, you cannot distinguish lines by their ringers.
*5 The flash time depends on your telephone exchange or host PBX. Consult your
PBX supplier if necessary. The setting should stay at “700ms” unless pressing
{FLASH} fails to pick up the call waiting call.
*6 Generally, the line mode setting should not be adjusted. If “Line in use” is not
displayed when another phone connected to the same line is in use, you need to
change the line mode to “A”.
*7 This feature allows the unit to automatically adjust the date and time setting when
caller information is received. To use this feature, set the date and time first.
Alarm
An alarm will sound once for 3 minutes at the set time. Set the date and time
beforehand (page 14).
1{MENU} i {8}
2{V}/{^}: “Once” i {Select}
L To turn off the alarm, select “Off”.
3Set the desired date and time. i {Save}
4{V}/{^}: Select the desired ringer tone. i {Save}
L We recommend selecting a different ringer tone from outside call.
5{OFF}
Ringer tone
(Base unit)
{0}{*}
{1}
{1}–{3}: Tone <1>–3r–
Talking
CallerID
(Handset)
{9}{1}: <On> {0}: Off –21
Talking
CallerID
(Base unit)
{0}{*}
{4}
{1}: <On> {0}: Off r21
Voice prompt
(Change language)
{0}{8}{2}{1}: <English>
{2}: Español
r14
Feature Feature
code Setting code System
setting*1 Page
TG602X_605X.book Page 28 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Programming
For assistance, please visit http://www.panasonic.com/phonehelp 29
Note:
LTo stop the alarm, press any dial key or place the handset on the base unit or
charger.
LWhen the handset is in use, the alarm will not sound until the handset is in standby
mode.
Customer support
The handset can display the Internet address where you can download the operating
instructions or get further information for this product using your computer.
{MENU} i {V}/{^}: “Customer support” i {Select} i {OFF}
TG602X_605X.book Page 29 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Answering System
30 For assistance, please visit http://www.panasonic.com/phonehelp
Answering system
This unit contains an answering system
which can answer and record calls for
you when you are unavailable to
answer the phone.
Important:
LOnly 1 person can access the
answering system at a time.
LWhen callers leave messages, the
unit records the day and time of each
message. Make sure the date and
time have been correctly set (page
14).
Memory capacity
The total recording capacity (including
your greeting message) is about 18
minutes.
A maximum of 64 messages can be
recorded.
LIf the message memory becomes full,
the ANSWER ON indicator flashes
rapidly (if the answering system is
turned on). Erase unnecessary
messages (page 31).
LWhen the message memory
becomes full, the greeting message is
different depending on your situation:
– If you use the prerecorded greeting
message, the unit automatically
switches to another prerecorded
greeting message asking callers to
call again later.
– If you recorded your own greeting
message, the same message is still
announced to callers even though
their messages are not recorded.
Turning the answering
system on/off
Press {ANSWER ON} to turn on/off the
answering system.
LWhen the answering system is turned
on, the ANSWER ON indicator lights.
LWhen the answering system is turned
off, the ANSWER ON indicator turns
off.
Screening calls
While a caller is leaving a message, you
can listen to the call through the base
unit’s speaker. To adjust the speaker
volume, press {>} or {<} repeatedly.
You can answer the call by pressing
{C} on the handset.
Turning off the call screening feature
When the base unit is not in use, press
{GREETING CHECK}, then press and
hold {<} until the base unit beeps.
OR
While screening a call, press and hold
{<} until the sound goes off.
Note:
LIf you adjust the speaker volume
while listening to messages or talking
on the intercom, the speaker volume
for call screening is turned on again.
Available model:
KX-TG6051/KX-TG6052/
KX-TG6053/KX-TG6054
TG602X_605X.book Page 30 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Answering System
For assistance, please visit http://www.panasonic.com/phonehelp 31
Greeting message
When the unit answers a call, callers
are greeted by a greeting message. You
can record your own greeting message
or use a prerecorded greeting
message.
Recording your greeting
message
You can record your own greeting
message (max. 2 minutes). If you do not
record a greeting message, a
prerecorded greeting message is used.
1{GREETING REC}
2Within 10 seconds, press
{GREETING REC} again.
3After the base unit beeps, speak
clearly about 20 cm (8 inches) away
from the MIC.
4To stop recording, press {STOP}.
Using a prerecorded greeting
message
If you erase or do not record your own
greeting message, the unit plays a
prerecorded greeting message for
callers and ask them to leave
messages.
Playing back the greeting
message
Press {GREETING CHECK}.
Erasing your greeting
message
Press {GREETING CHECK}, and then
press {ERASE} while your greeting
message is playing.
Listening to messages
using the base unit
When new messages have been
recorded, the MESSAGE indicator on
the base unit flashes.
Press {MESSAGE}.
LThe base unit plays new messages.
LWhen you have no new messages,
the base unit plays back all
messages.
Operating the answering
system during playback
*1 If pressed within the first 5 seconds
a message, the previous message is
played.
Erasing all messages
Press {ERASE} 2 times while the unit is
not being used.
Key Operation
{>} or {<}Adjust the speaker
volume
{<}Repeat message*1
{>}Skip message
{STOP}Pause message
–To resume
playback, press
{MESSAGE}.
– To stop playback
completely, press
{STOP} again.
{ERASE}Erase current
playing message
TG602X_605X.book Page 31 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Answering System
32 For assistance, please visit http://www.panasonic.com/phonehelp
Listening to messages
using the handset
When new messages have been
recorded:
–“New message” is displayed.
– The message indicator on the
handset flashes slowly if the message
alert feature is turned on (page 35).
1{MENU}
2{V}/{^}: “Message play” i
{Select}
LThe handset plays new messages.
LWhen you have no new messages,
the handset plays back all
messages.
3When finished, press {OFF}.
Note:
LTo switch to the receiver, press {C}.
Voice guidance
If you do not press any buttons after the
last message is played back, the
handset’s voice guidance starts.
Operate the answering system by
following the guidance as necessary.
Calling back (Caller ID subscribers
only)
If Caller ID information was received for
the call, you can call the caller back
while listening to the message.
1Press {Select} during playback.
LTo edit the number before calling
back, press {Edit} repeatedly to
select the desired format (page
22).
2{Call}
Operating the answering
system during playback
You can also operate the answering
system by pressing dial keys on the
handset during playback.
*1 If pressed within the first 5 seconds
of a message, the previous
message is played.
*2 To resume operation, press a
command key within 15 seconds, or
the voice guidance will start.
Key Operation
{^} or {V} Adjust the receiver/
speaker volume
{1} or {<}Repeat message
(during playback)*1
{2} or {>}Skip message (during
playback)
{4}Play new messages
{5}Play all messages
{8}Turn answering system
on
{9}Stop playback*2
{0}Turn answering system
off
{*}{4} or
{Erase}
Erase currently playing
message
{*}{5}Erase all messages
TG602X_605X.book Page 32 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Answering System
For assistance, please visit http://www.panasonic.com/phonehelp 33
Remote operation
Using a touch tone phone, you can call
your phone number from outside and
access the unit to listen to messages.
The unit’s voice guidance prompts you
to press certain dial keys to perform
different operations.
Important:
LIn order to operate the answering
system remotely, you must first set a
remote code (page 34). This code
must be entered each time you
operate the answering system
remotely.
Using the answering system
remotely
1Dial your phone number from a touch
tone phone.
2After the greeting message starts,
enter your remote code (page 34).
LThe unit plays back new
messages.
LDepending on the voice guidance
language setting, the
announcements are different
(page 14).
3Control the unit using remote
commands (page 33).
4When finished, hang up.
Voice guidance
When the English voice guidance is
selected
During remote operation, the unit’s
voice guidance prompts you to press
{1} to perform a specific operation, or
press {2} to listen to more available
operations. Operations are presented
by voice guidance in the following order:
– Play back all messages
– Play back new messages
– Record a message
– Erase all messages
Note:
LIf you do not press any dial keys
within 10 seconds after a voice
guidance prompt, the unit
disconnects your call.
When the Spanish voice guidance is
selected
The voice guidance does not start
automatically. To start the voice
guidance, press {9}. The voice
guidance is announced in the order of
the remote command table (page 33).
Note:
LIf you do not press any dial keys
within 15 seconds after a voice
guidance prompt, the unit
disconnects your call.
Remote commands
You can press dial keys to access
certain answering system functions
without waiting for the voice guidance to
prompt you.
Key Remote command
{1}Repeat message
(during playback)*1
{2}Skip message (during
playback)
{4}Play new messages
{5}Play all messages
{9}Stop playback*2
Start voice guidance*3
{0}Turn answering system
off
TG602X_605X.book Page 33 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Answering System
34 For assistance, please visit http://www.panasonic.com/phonehelp
*1 If pressed within the first 5 seconds
of a message, the previous
message is played.
*2 For English voice guidance only
To resume operation, enter a remote
command within 15 seconds, or the
voice guidance starts.
*3 For Spanish voice guidance only
This is not included in Spanish voice
guidance announcements.
Turning on the answering system
remotely
If the answering system is off, you can
turn it on remotely.
1Dial your phone number.
2Let the phone ring 15 times.
LThe unit answers your call with the
greeting message.
LYou can hang up, or if you call from
a touch tone phone, you can enter
your remote code and begin
remote operation (page 33).
Skipping the greeting message to
leave a message
You can leave a message just as any
outside caller can. Call your phone
number. When the answering system
picks up, press {*} to skip the greeting
message and record your message
after the beep.
Answering system
settings
Remote code
A remote code must be entered when
operating the answering system
remotely. This code prevents
unauthorized parties from listening to
your messages remotely. The default
setting is “11”.
1{MENU} i {0}{6}{3}
2Enter the desired 2-digit remote
code. i {Save} i {OFF}
Ring count
You can change the number of times
the phone rings before the unit answers
calls.
The default setting is “4”.
“Toll saver”: The unit answers on
the 2nd ring when new messages have
been recorded, and on the 4th ring
when there are no new messages. If
you call your phone from outside to
listen to new messages (page 33), you
will know that there are no new
messages when the phone rings for the
3rd time. You can then hang up without
being charged for the call.
1{MENU} i {0}{6}{1}
2{V}/{^}: Select the desired setting.
3{Save} i {OFF}
For Voice Mail service subscribers
If you subscribe to a flat-rate service
package that includes Caller ID, Call
Waiting, Voice Mail, and unlimited local/
regional/long distance calls, please
note the following:
LTo use the Voice Mail service
provided by your telephone service
{*}{4}Erase currently playing
message
{*}{5}Erase all messages
Key Remote command
TG602X_605X.book Page 34 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Answering System
For assistance, please visit http://www.panasonic.com/phonehelp 35
provider rather than the unit’s
answering system, turn off the
answering system (page 30).
LTo use this unit’s answering system
rather than the Voice Mail service
provided by your telephone service
provider, please contact your
telephone service provider to
deactivate your Voice Mail service.
If your telephone service provider
cannot do this:
– Set this unit’s “Ring count”
setting so that this unit’s answering
system answers calls before the
Voice Mail service of your
telephone service provider does. It
is necessary to check the ring count
required to activate the Voice Mail
service provided by your telephone
service provider before changing
this setting.
– Change the ring count of the Voice
Mail service so that the answering
system can answer the call first. To
do so, consult your telephone
service provider.
Caller’s recording time
You can change the maximum
message recording time allotted to
each caller.
The default setting is “3min”.
1{MENU} i {0}{6}{2}
2{V}/{^}: Select the desired setting.
3{Save} i {OFF}
Message alert
You can select whether or not the
message indicator on the handset
flashes when new messages are
recorded (page 32). The default setting
is “Off”.
Important:
LIf there are new messages in your
Voice Mail service (page 36), the
message indicator also flashes
slowly.
1{MENU} i {0}{#}
2{V}/{^}: Select the desired setting.
3{Save} i {OFF}
Note:
LWhile message alert is on, battery
operating time is shortened (page 11).
TG602X_605X.book Page 35 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Voice Mail Service
36 For assistance, please visit http://www.panasonic.com/phonehelp
Using Voice Mail
service
Voice Mail is an automatic answering
service offered by your telephone
service provider. After you subscribe to
this service, the telephone service
provider’s Voice Mail system will
answer calls for you when you are
unavailable to answer the phone or
when your line is busy. Messages are
recorded by the telephone service
provider, not your telephone.
Important:
LPlease contact your telephone
service provider for details and
availability of this service in your area.
Storing the Voice Mail (VM)
access number
In order to listen to your Voice Mail
messages, you must dial your
telephone service provider’s Voice Mail
access number. Once you have stored
your Voice Mail access number, you
can dial it automatically (page 37).
1{MENU} i {0}{7}{1}
2Enter your access number (max. 32
digits). i {Save} i {OFF}
Note:
LWhen storing your Voice Mail access
number and your mailbox password,
press {PAUSE} to add pauses (page
15) between the access number and
the password as necessary. Consult
your telephone service provider for
the required pause time.
Example:
To erase the Voice Mail access
number
Repeat step 1, then press and hold
{Clear} until all digits are erased. Press
{Save}, then press {OFF}.
Voice Mail (VM) tone
detection
Your telephone service provider sends
special signals (sometimes called
“Voice Mail tones” or “stutter tones”) to
the unit to let you know you have new
Voice Mail messages. If you hear a
series of dial tones followed by a
continuous dial tone after you press
{C}, you have new Voice Mail
messages. Minutes after you hang up a
call or after the phone stops ringing,
your unit will check the phone line to
see if new Voice Mail messages have
been recorded.
Turn this feature off when:
– You do not subscribe to Voice Mail
service.
– Your telephone service provider does
not send Voice Mail tones.
– Your phone is connected to a PBX.
If you are not sure which setting is
required, consult your telephone
service provider.
Turning VM detection on/off
The default setting is “On”.
1{MENU} i {0}{7}{2}
2{V}/{^}: Select the desired setting.
3{Save} i {OFF}
1-222-333-4444
VM access
number
Pauses Password
PPPP 8888
TG602X_605X.book Page 36 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Voice Mail Service
For assistance, please visit http://www.panasonic.com/phonehelp 37
Listening to Voice Mail
messages
The unit lets you know that you have
new Voice Mail messages in the
following ways:
–“New Voice Mail” is displayed on
the handset.
– The message indicator on the
handset flashes slowly if message
alert feature is turned on (page 37).
1Press {C}, then press {VM} within
15 seconds.
LIf {VM} is not displayed, the Voice
Mail access number has not been
stored. Store the number (page
36).
OR
{MENU} i{V}/{^}: “V.M.
access” i {Select}
LThe speakerphone turns on.
2Follow the prerecorded instructions.
3When finished, press {OFF}.
Note:
LIf “New Voice Mail” still remains on
the display even after you have
listened to new messages, turn it off
by pressing and holding {OFF} until
the handset beeps.
LIf your Voice Mail service uses Voice
Mail tones and the message is over 3
minutes long, the handset may not
indicate new messages.
LIf your Voice Mail service uses Voice
Mail tones, the tones are heard from
any phone connected to the same
line. If you want to use another phone
to listen to Voice Mail messages, you
have to dial your access number
manually.
Message alert
You can select whether or not the
message indicator on the handset
flashes when there are new recorded
messages in the Voice Mail system.
The default setting is “Off”.
Important:
LKX-TG6051/KX-TG6052/KX-
TG6053/KX-TG6054 only
If there are new messages in the
answering system (page 30), the
message indicator also flashes
slowly.
1{MENU} i {0}{#}
2{V}/{^}: Select the desired setting.
3{Save} i {OFF}
Note:
LWhile message alert is on, battery
operating time is shortened (page 11).
TG602X_605X.book Page 37 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Multi-unit Operation
38 For assistance, please visit http://www.panasonic.com/phonehelp
Intercom
Intercom calls can be made:
– between handsets
– between handsets and the base unit
(KX-TG6051/KX-TG6052/KX-
TG6053/KX-TG6054 only)
Note:
LIf you receive an outside call while
talking on the intercom, you hear 2
tones. To answer the call, press
{OFF}, then press {C}.
LWhen paging a unit for an intercom
call, the paged unit beeps for 1
minute.
Making an intercom call
1{INTERCOM}
2{V}/{^}: Select the desired unit. i
{Select}
LTo stop paging, press {OFF}.
3When you finish talking, press
{OFF}.
KX-TG6051/KX-TG6052/KX-TG6053/
KX-TG6054
1{INTERCOM}
LAll the registered handsets beep
for 1 minute.
LTo stop paging, press
{INTERCOM}.
2When you finish talking, press
{INTERCOM}.
Answering an intercom call
1Press {C} or {s} to answer the
page.
2When you finish talking, press
{OFF}.
KX-TG6051/KX-TG6052/KX-TG6053/
KX-TG6054
1Press {INTERCOM} to answer the
page.
2When you finish talking, press
{INTERCOM}.
Note:
LWhen the ringer volume is set to off,
the handset or the base unit rings at a
low level for intercom calls.
Handset locator
1Base unit:
{LOCATOR}
LThe handset beeps for 1 minute.
2To stop paging:
Base unit:
Press {LOCATOR}.
Handset:
KX-TG6021/KX-TG6022:
Press {OFF}.
KX-TG6051/KX-TG6052/KX-
TG6053/KX-TG6054:
Press {INTERCOM}, then press
{OFF}.
Note:
LYou can locate a misplaced handset
by paging it.
Handset
Base unit
Handset
Base unit
TG602X_605X.book Page 38 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Multi-unit Operation
For assistance, please visit http://www.panasonic.com/phonehelp 39
Transferring calls
between handsets,
conference calls
Outside calls can be transferred
between 2 handsets. 2 handsets can
have a conference call with an outside
party.
1During an outside call, press
{INTERCOM} to put the call on hold.
2{V}/{^}: Select the desired unit. i
{Transfer}
3Wait for the paged party to answer.
LIf the paged party does not answer,
press {C} to return to the outside
call.
4To complete the transfer, press
{OFF}.
LThe outside call is being routed to
the handset.
To establish a conference call, press
{Conf}.
LTo leave the conference, press
{OFF}. The other parties can
continue the conversation.
LTo put the outside call on hold,
press {HOLD}. To resume the
conference, press {Conf}.
Answering transferred calls
Press {C} to answer the page.
LAfter the paging party disconnects,
you can talk to the outside caller.
Registering a handset
The included handset and base unit are
preregistered. If for some reason the
handset is not registered to the base
unit, register the handset.
1Handset:
{MENU} i {0}{0}{1}
2Base unit:
KX-TG6021/KX-TG6022:
Press and hold {LOCATOR} until
the IN USE indicator flashes.
KX-TG6051/KX-TG6052/KX-
TG6053/KX-TG6054:
Press and hold {LOCATOR/
INTERCOM} until the IN USE
indicator flashes.
LAfter the IN USE indicator starts
flashing, the rest of the procedure
must be completed within 1
minute.
3Handset:
Press {OK}, then wait until a beep
sounds.
4{OFF}
Registering an additional handset
See page 4 for information on the
available models and extension
numbers.
Start from step 2.
Deregistering a handset
1{MENU} i {0}{0}{2}
2{3}{3}{5} i {OK}
3Select the handset you want to
cancel by pressing the desired
handset number ({1}–{4}).
TG602X_605X.book Page 39 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Useful Information
40 For assistance, please visit http://www.panasonic.com/phonehelp

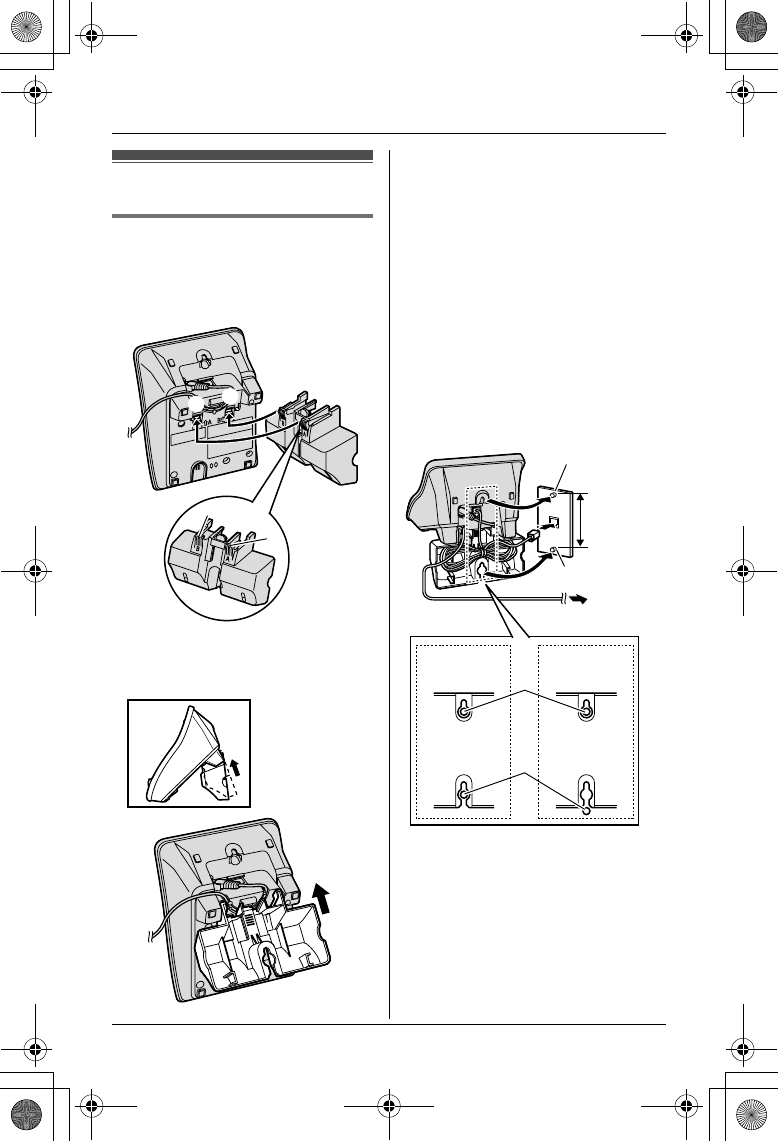

Wall mounting
Base unit
1Insert the hooks on the wall
mounting adaptor into the holes (1)
and (2) on the base unit.
2Adjust the adaptor to hold the base
unit, then push it in the direction of
the arrow until it clicks into place.
3Connect the telephone line cord.
Mount the unit by inserting the
mounting pins into the round
openings on the adaptor (for pin 2,
use round cut out at the bottom of the
adaptor if you are using the 4 inches
phone plate), then sliding the unit
down to secure it.
Connect the AC adaptor to power
outlet (page 9).
LThere are two common types of
wall phone plates. The distance
between 1 and 2 may vary
depending on the size of the wall
phone plate installed.
2
1
2
1
83 mm
(3
1
/
4
inches)
102 mm
(4 inches)
2
1
83 mm
(3
1
/
4
inches)
or
102 mm
(4 inches)
1
(120 V AC,
60 Hz)
2
TG602X_605X.book Page 40 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Useful Information
For assistance, please visit http://www.panasonic.com/phonehelp 41

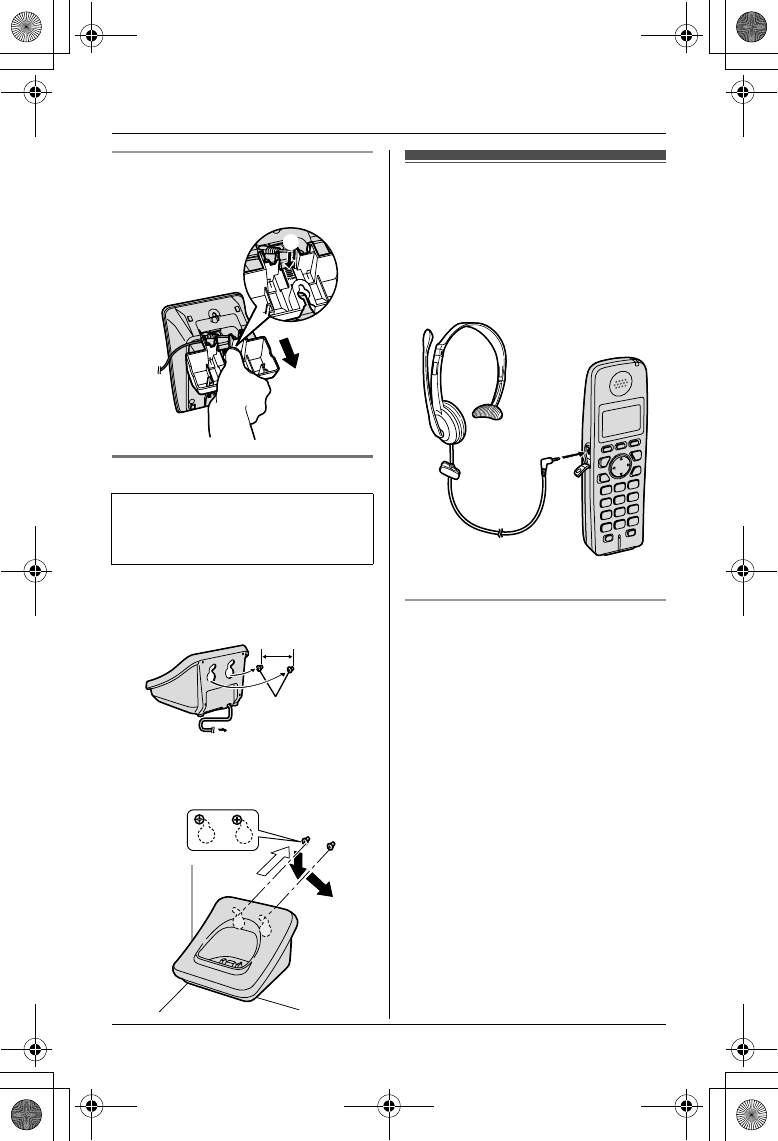

To remove the wall mounting adaptor
While pushing down the release levers
(A), remove the adaptor (B).
Charger
1Drive the screws (not included) into
the wall.
2Mount the charger (A), then slide it
down (B) and to the right (C) until it
is secure.
Headset (optional)
Connecting a headset to the handset
allows hands-free phone
conversations. We recommend using
the Panasonic headset noted on page
5.
LHeadset shown is KX-TCA86.
Switching a call between the headset
and handset speakerphone
To switch to the handset speakerphone,
press {s}.
To return to the headset, press {C}.
Available model:
KX-TG6022/KX-TG6052/
KX-TG6053/KX-TG6054
A
B
25.4 mm
(1 inch)
Screws
(120 V AC, 60 Hz)
A
B
C
TG602X_605X.book Page 41 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Useful Information
42 For assistance, please visit http://www.panasonic.com/phonehelp
Error messages
If the unit detects a problem, one of the following messages is shown on the display.
Display message Cause/solution
All handsets are
registered.
L4 handsets have already been registered to the
base unit. A previously deregistered handset
number may still be retained in the base unit. To
register an additional handset, erase the
unnecessary handset number (page 39).
Busy LThe called base unit is in use.*1
LAnother handset or the called handset is in use.
LThe handset you tried to copy phonebook items
to is in use.
LThe handset you are calling is too far from the
base unit.
Error!! LThe handset’s registration has failed. Move the
handset and base unit away from all electrical
appliances and try again.
LAnother handset user tried to send phonebook
items to you but there was an error. Have the
other handset user re-send the items to you
(page 20).
---Incomplete---
Phonebook full
LThe destination handset’s phonebook memory is
full. Erase unnecessary items from the
destination handset’s phonebook (page 20).
Invalid LThere is no handset registered to the base unit
matching the extension number you entered.
No items stored LYour phonebook or redial list is empty.
No link to base.
Move closer to base,
try again.
LThe handset has lost communication with the
base unit. Move closer to the base unit, and try
again.
LConfirm that the base unit’s AC adaptor is
plugged in.
LThe handset’s registration may have been
canceled. Re-register the handset (page 39).
Phonebook full LThere is no space to store new items in the
phonebook. Erase unnecessary items (page 20).
Please lift up and
try again.
LA handset button was pressed while the handset
was on the base unit or charger. Lift the handset
and press the button again.
TG602X_605X.book Page 42 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Useful Information
For assistance, please visit http://www.panasonic.com/phonehelp 43
*1 KX-TG6051/KX-TG6052/KX-TG6053/KX-TG6054
System is busy.
Please try again
later.
LOther units are in use and the system is busy. Try
again later.
LAnother user is listening to messages. Try again
later.*1
Store VM access# LYou have not stored the Voice Mail access
number. Store the number (page 36).
Display message Cause/solution
TG602X_605X.book Page 43 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Useful Information
44 For assistance, please visit http://www.panasonic.com/phonehelp
Troubleshooting
General use
Programmable settings
*1 KX-TG6051/KX-TG6052/KX-TG6053/KX-TG6054
Battery recharge
Problem Cause/solution
The unit does not work. LMake sure the battery is installed correctly and
fully charged (page 10).
LCheck the connections (page 9).
LUnplug the base unit’s AC adaptor to reset the
unit. Reconnect the adaptor and try again.
LThe handset has not been registered to the
base unit. Register the handset (page 39).
I cannot hear a dial tone. LConfirm the telephone line cord is properly
connected (page 9).
LDisconnect the unit from the telephone line and
connect a known working telephone. If the
working telephone operates properly, contact
our service personnel to have the unit repaired.
If the working telephone does not operate
properly, contact your telephone service
provider.
Problem Cause/solution
I cannot program items.*1 LWhile another user is listening to messages or
the answering system is answering a call, you
cannot program items. Try again later.
While programming, the
handset starts to ring.
LA call is being received. Answer the call and
start again after hanging up.
Problem Cause/solution
I fully charged the battery,
but 7 continues to flash,
or 8 is displayed.
LClean the charge contacts and charge again
(page 11).
LThe battery may need to be replaced with a new
one (page 10).
The handset display is
blank.
LConfirm that the battery is properly installed.
LFully charge the battery (page 10).
TG602X_605X.book Page 44 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Useful Information
For assistance, please visit http://www.panasonic.com/phonehelp 45
Making/answering calls, intercom
*1 KX-TG6051/KX-TG6052/KX-TG6053/KX-TG6054
Phonebook
Problem Cause/solution
Static is heard, sound cuts
in and out. Interference
from other electrical units.
LMove the handset and base unit away from
other electrical appliances.
LMove closer to the base unit.
LTurn on the clarity booster feature (page 17).
LIf your unit is connected to a telephone line with
DSL service, we recommend connecting a noise
filter between the base unit and the telephone
line jack. Contact your DSL provider for details.
The handset does not ring. LThe ringer volume is turned off. Adjust it (page
27).
The base unit does not
ring.*1 LThe ringer volume is turned off. Adjust it (page
16).
I cannot make a call. LThe dialing mode may be set incorrectly.
Change the setting (page 14).
LAnother handset is in use. Try again later.
I cannot have a
conversation using the
headset.
LMake sure that an optional headset is
connected properly (page 41).
LIf “SP-phone” is displayed on the handset,
press {C} to switch to the headset.
I cannot make long
distance calls.
LMake sure that you have long distance service.
I cannot page the handset. LThe called handset is too far from the base unit.
LThe called handset is in use. Try again later.
I cannot page the base
unit.*1 LThe base unit is in use. Try again later.
The Slow Talk feature does
not work.*1 LIf you are on a conference call, you cannot use
the Slow Talk feature.
Problem Cause/solution
Copying stopped with an
item displayed.
LThe destination handset may have lost
communication with the base unit, or the
destination handset user may have pressed
{C} or {s}.
The displayed phonebook item was not copied
to the handset. Press {OFF}. Confirm that the
destination handset is not in use and try again.
TG602X_605X.book Page 45 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Useful Information
46 For assistance, please visit http://www.panasonic.com/phonehelp
Caller ID
Problem Cause/solution
The handset does not
display the caller’s name
and/or phone number.
LYou have not subscribed to Caller ID service.
Contact your telephone service provider to
subscribe.
LIf your unit is connected to any additional
telephone equipment such as a Caller ID box or
cordless telephone jack, disconnect the unit
from the equipment and plug the unit directly
into the wall jack.
LIf your unit is connected to a telephone line with
DSL service, we recommend connecting a noise
filter between the base unit and the telephone
line jack. Contact your DSL provider for details.
LThe name display service may not be available
in some areas. Contact your telephone service
provider for details.
LOther telephone equipment may be interfering
with this unit. Disconnect the other equipment
and try again.
LThe caller requested not to send caller
information (page 21).
LIf a call is being transferred to you, the caller
information is not displayed.
LGenerally, caller information is displayed from
the 2nd ring.
The handset or base unit
does not announce the
displayed caller names or
phone numbers.*1
LThe handset or base unit’s ringer volume is
turned off. Adjust it (page 16, 27).
LThe Talking Caller ID feature is turned off. Turn it
on (page 28).
LThe ring count for the answering system is set to
“2” or “Toll saver”. Select a different setting
(page 34).
LIf the base unit and another handset are having
an intercom call, your handset does not
announce caller information.
The caller list/incoming
phone numbers are not
edited automatically.
LThe Caller ID number auto edit feature is turned
off. Turn it on and try again (page 26).
LYou need to call back the edited number to
activate Caller ID number auto edit.
TG602X_605X.book Page 46 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Useful Information
For assistance, please visit http://www.panasonic.com/phonehelp 47
*1 KX-TG6051/KX-TG6052/KX-TG6053/KX-TG6054
Answering system (KX-TG6051/KX-TG6052/KX-TG6053/KX-TG6054)
I cannot dial the phone
number edited in the caller
list.
LThe phone number you dialed might have an
incorrectly edited pattern (for example, the long
distance “1” or the area code is missing). Edit
the phone number with another pattern (page
22).
The 2nd caller’s
information is not displayed
during an outside call.
LIn order to use Caller ID, Call Waiting, or Call
Waiting Caller ID (CWID), you must first contact
your telephone service provider and subscribe
to the desired service.
After subscribing, you may need to contact your
telephone service provider again to activate this
specific service, even if you already subscribed
to both Caller ID and Call Waiting with Caller ID
services (CWID).
Problem Cause/solution
I cannot listen to messages
from a remote location.
LA touch tone phone is required for remote
operation.
LEnter the remote code correctly (page 33).
LThe answering system is off. Turn it on (page
34).
The unit does not record
new messages.
LThe answering system is off. Turn it on (page 30,
32).
LThe message memory is full. Erase
unnecessary messages (page 31).
LIf you subscribe to the Voice Mail service,
messages are recorded by the telephone
service provider not your telephone (page 34).
I cannot operate the
answering system.
LSomeone is operating the answering system.
LIf someone is talking on a conference call, you
cannot operate the answering system. Try again
later.
The message indicator on
the handset flashes.
LNew messages have been recorded. Listen to
the new messages (page 31).
Problem Cause/solution
TG602X_605X.book Page 47 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Useful Information
48 For assistance, please visit http://www.panasonic.com/phonehelp
FCC and other information
This equipment complies with Part 68
of the FCC rules and the requirements
adopted by the ACTA. On the bottom
of this equipment is a label that
contains, among other information, a
product identifier in the format
US:ACJ----------.
If requested, this number must be
provided to the telephone company.
L Registration No
............(found on the bottom of the
unit)
L Ringer Equivalence No.
(REN).......0.1B
A plug and jack used to connect this
equipment to the premises wiring and
telephone network must comply with
the applicable FCC Part 68 rules and
requirements adopted by the ACTA. A
compliant telephone cord and modular
plug is provided with the product. It is
designed to be connected to a
compatible modular jack that is also
compliant.
The REN is used to determine the
number of devices that may be
connected to a telephone line.
Excessive RENs on a telephone line
may result in the devices not ringing in
response to an incoming call. In most
but not all areas, the sum of RENs
should not exceed five (5.0). To be
certain of the number of devices that
may be connected to a line, as
determined by the total RENs, contact
the local telephone company. For
products approved after July 23, 2001,
the REN for the product is part of the
product identifier that has the format
US:AAAEQ##TXXXX. The digits
represented by ## are the REN
without a decimal point (e.g., 03 is a
REN of 0.3).
If this equipment causes harm to the
telephone network, the telephone
company will notify you in advance
that temporary discontinuance of
service may be required. But if
advance notice isn’t practical, the
telephone company will notify the
customer as soon as possible. Also,
you will be advised of your right to file
a complaint with the FCC if you
believe it is necessary.
The telephone company may make
changes in its facilities, equipment,
operations or procedures that could
affect the operation of the equipment.
If this happens the telephone company
will provide advance notice in order for
you to make necessary modifications
to maintain uninterrupted service.
If trouble is experienced with this
equipment, for repair or warranty
information, please contact a Factory
Servicenter or other Authorized
Servicer. If the equipment is causing
harm to the telephone network, the
telephone company may request that
you disconnect the equipment until the
problem is resolved.
Connection to party line service is
subject to state tariffs. Contact the
state public utility commission, public
service commission or corporation
commission for information.
If your home has specially wired alarm
equipment connected to the telephone
line, ensure the installation of this
equipment does not disable your alarm
equipment. If you have questions
TG602X_605X.book Page 48 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Useful Information
For assistance, please visit http://www.panasonic.com/phonehelp 49
about what will disable alarm
equipment, consult your telephone
company or a qualified installer.
This equipment is hearing aid
compatible as defined by the FCC in
47 CFR Section 68.316.
When you hold the phone to your ear,
noise might be heard in your Hearing
Aid. Some Hearing Aids are not
adequately shielded from external RF
(radio frequency) energy. If noise
occurs, use an optional headset
accessory or the speakerphone option
(if applicable) when using this phone.
Consult with your audiologist or
Hearing Aid manufacturer about the
availability of Hearing Aids which
provide adequate shielding to RF
energy commonly emitted by digital
devices.
WHEN PROGRAMMING
EMERGENCY NUMBERS AND(OR)
MAKING TEST CALLS TO
EMERGENCY NUMBERS:
1) Remain on the line and briefly
explain to the dispatcher the reason
for the call.
2) Perform such activities in the off-
peak hours, such as early morning
or late evenings.
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
Privacy of communications may not
be ensured when using this phone.
CAUTION:
Any changes or modifications not
expressly approved by the party
responsible for compliance could void
the user’s authority to operate this
device.
NOTE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
– Reorient or relocate the receiving
antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
– Consult the dealer or an experienced
radio/TV technician for help.
Some cordless telephones operate at
frequencies that may cause
interference to nearby TVs and VCRs.
To minimize or prevent such
interference, the base of the cordless
telephone should not be placed near
or on top of a TV or VCR. If
TG602X_605X.book Page 49 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Useful Information
50 For assistance, please visit http://www.panasonic.com/phonehelp
Notice
ENERGY STAR
As an ENERGY STAR® Participant,
Panasonic has determined that this
product meets the ENERGY STAR
guidelines for energy efficiency.
ENERGY STAR is a U.S. registered
mark.
interference is experienced, move the
cordless telephone further away from
the TV or VCR. This will often reduce,
or eliminate, interference.
FCC RF Exposure Warning:
L This product complies with FCC
radiation exposure limits set forth for
an uncontrolled environment.
L To comply with FCC RF exposure
requirements, the base unit must be
installed and operated 20 cm (8
inches) or more between the
product and all person’s body
(excluding extremities of hands,
wrist and feet).
L This product may not be collocated
or operated in conjunction with any
other antenna or transmitter.
L For body-worn operation, the
handset must be used only with a
non-metallic accessory. Use of other
accessories may not ensure
compliance with FCC RF exposure
requirements.
TG602X_605X.book Page 50 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Useful Information
For assistance, please visit http://www.panasonic.com/phonehelp 51
Specifications
General
Base unit
Handset
Charger*1
*1 KX-TG6022/KX-TG6052/KX-TG6053/KX-TG6054
Note:
LDesign and specifications are subject to change without notice.
LThe illustrations in these instructions may vary slightly from the actual product.
Operating
environment 5 °C – 40 °C (41 °F – 104 °F)
Frequency 5.76 GHz – 5.84 GHz
Dimensions Approx. height 97 mm × width 120 mm × depth 144 mm
(3 13/16 inches × 4 23/32 inches × 5 21/32 inches)
Mass (Weight) KX-TG6021/KX-TG6022
Approx. 220 g (0.49 lb.)
KX-TG6051/KX-TG6052/KX-TG6053/KX-TG6054
Approx. 270 g (0.60 lb.)
Power consumption Standby: Approx. 1.5 W
Maximum: Approx. 5 W
Power output 200 mW (max.)
Power supply AC adaptor (120 V AC, 60 Hz)
Dimensions Approx. height 156 mm × width 48 mm × depth 33 mm
(6 1/8inches × 1 7/8inches × 1 5/16 inches)
Mass (Weight) Approx. 155 g (0.34 lb.)
Power output 200 mW (max.)
Power supply Ni-MH battery (3.6 V, 650 mAh)
Dimensions Approx. height 68 mm × width 82 mm × depth 87 mm
(2 11/16 inches × 3 7/32 inches × 3 7/16 inches)
Mass (Weight) Approx. 270 g (0.60 lb.)
Power consumption Standby: Approx. 0.4 W
Maximum: Approx. 3.1 W
Power supply AC adaptor (120 V AC, 60 Hz)
TG602X_605X.book Page 51 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Useful Information
52 For assistance, please visit http://www.panasonic.com/phonehelp
Customer services
Customer Services Directory
Obtain Product Information and Operating Assistance; locate your
nearest Dealer or Servicenter; purchase Parts and Accessories; or make
Customer Service and Literature requests by visiting our Web Site at:
http://www.panasonic.com/help
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at: 1-800-211-PANA (1-800-211-7262),
Monday - Friday 9 am to 9 pm; Saturday - Sunday 10 am to 7 pm, EST.
TTY users (hearing or speech impaired users) can call 1-877-833-8855.
TTY users (hearing or speech impaired users) can call 1-866-605-1277.
Purchase Parts, Accessories and Instruction Books online for all
Panasonic Products by visiting our Web Site at:
http://www.pasc.panasonic.com
To buy handsets, please visit:
http://www.panasonic.com
or, send your request by E-mail to:
npcparts@us.panasonic.com
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)
(Monday - Friday 9 am to 9 pm, EST.)
Panasonic Services Company
20421 84th Avenue South, Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express, and
Personal Checks)
Accessory Purchases
Service in Puerto Rico
Panasonic Puerto Rico, Inc.
San Gabriel Industrial Park, Ave. 65 de Infantería, Km. 9.5,
Carolina, Puerto Rico 00985
Phone (787)750-4300, Fax (787)768-2910
TG602X_605X.book Page 52 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Useful Information
For assistance, please visit http://www.panasonic.com/phonehelp 53
✄
Warranty
PANASONIC CONSUMER
ELECTRONICS COMPANY, DIVISION
OF PANASONIC CORPORATION OF
NORTH AMERICA
One Panasonic Way,
Secaucus, New Jersey 07094
PANASONIC PUERTO RICO, INC.
San Gabriel Industrial Park,
Ave. 65 de Infantería, Km. 9.5,
Carolina, Puerto Rico 00985
Panasonic Telephone Products
Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or
workmanship, Panasonic Consumer Electronics Company or Panasonic Puerto
Rico, Inc. (collectively referred to as “the warrantor”) will, for the length of the
period indicated on the chart below, which starts with the date of original
purchase (“Limited Warranty period”), at its option either (a) repair your product
with new or refurbished parts, or (b) replace it with a new or a refurbished
product. The decision to repair or replace will be made by the warrantor.
Parts Labor
One (1) Year One (1) Year
During the “Labor” Limited Warranty period there will be no charge for labor.
During the “Parts” Limited Warranty period, there will be no charge for parts.
You must mail-in your product prepaid during the Limited Warranty period. This
Limited Warranty excludes both parts and labor for batteries, antennas, and
cosmetic parts (cabinet). This Limited Warranty only applies to products
purchased and serviced in the United States or Puerto Rico. This Limited
Warranty is extended only to the original purchaser and only covers products
purchased as new.
Mail-In Service
For assistance in the continental U.S.A. in obtaining repairs please ship the
product prepaid to:
Panasonic Services Company Customer Servicenter
4900 George McVay Drive Suite B Door #12 McAllen, TX 78503
For assistance in Puerto Rico call Panasonic Puerto Rico, Inc. (787)-750-4300
or fax (787)-768-2910.
For Limited Warranty service for headsets if a headset is included with this
product please call Panasonic Call Center at 1-800-211-PANA (1-800-211-
7262).
When shipping the unit carefully pack, include all accessories, and send it
prepaid, adequately insured and preferably in the original carton. Include a
letter detailing the complaint and provide a day time phone number where you
can be reached.
TG602X_605X.book Page 53 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Useful Information
54 For assistance, please visit http://www.panasonic.com/phonehelp
IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES
RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE,
AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE
CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH
PROOF OF PURCHASE.
Limited Warranty Limits And Exclusions
This Limited Warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The Limited Warranty ALSO DOES NOT COVER damages which
occurred in shipment, or failures which are caused by products not supplied by
the warrantor, or failures which result from accidents, misuse, abuse, neglect,
bug infestation, mishandling, misapplication, alteration, faulty installation, set-
up adjustments, misadjustment of consumer controls, improper maintenance,
power line surge, lightning damage, modification, introduction of sand, humidity
or liquids, commercial use such as hotel, office, restaurant, or other business or
rental use of the product, or service by anyone other than a Factory Servicenter
or other Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
“LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM
THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF
THIS LIMITED WARRANTY. (As examples, this excludes damages for lost
time, lost calls or messages, cost of having someone remove or re-install an
installed unit if applicable, travel to and from the servicer. The items listed are
not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED
WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY,
ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty lasts,
so the exclusions may not apply to you.
This Limited Warranty gives you specific legal rights and you may also have
other rights which vary from state to state. If a problem with this product
develops during or after the Limited Warranty period, you may contact your
dealer or Servicenter. If the problem is not handled to your satisfaction, then
write to the warrantor’s Consumer Affairs Department at the addresses listed
for the warrantor.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY, ARE YOUR RESPONSIBILITY.
TG602X_605X.book Page 54 Friday, October 13, 2006 9:39 AM
Temporary Confidential
Index
For assistance, please visit http://www.panasonic.com/phonehelp 55
Index
A Alarm: 28
Answering calls: 16
Answering system
Erasing messages: 32, 34
Listening to messages: 31, 32, 33
Turning on/off: 30, 32, 33, 34
Auto talk: 16
B Battery: 10, 11
Booster (Clarity booster): 17
C Call screening: 30
Call share: 18
Call Waiting: 17
Call Waiting Caller ID: 21
Caller ID edit: 22
Caller ID number auto edit: 23
Caller ID service: 21
Caller list: 22, 23
Chain dial: 20
Conference calls: 39
Connections: 9
Customer support: 29
D Date and time: 14
Dialing mode: 14
Display
Contrast: 26
Language: 14
E Error messages: 42
F Flash: 16
Flash time: 27
G Greeting message: 31
H Handset locator: 38
Headset, optional: 41
Hold: 16
I Intercom: 38
K Key tone: 26
L Light-up ID: 22
Line mode: 27
M Making calls: 15
Memory capacity (message
recording): 30
Message alert: 35, 37
Missed calls: 21
Mute: 16
N Navigator key: 13
P Pause: 15
Phonebook: 19
Phonebook copy: 20
Pulse service: 17
R Recording time: 35
Redial list: 15
Registration: 39
Remote code: 34
Remote operation: 33
Ring color: 26
Ring count: 34
Ringer ID: 22
Ringer off: 16, 27
Ringer tone: 28
Rotary service: 17
S Slow Talk: 18
Soft keys: 13
SP-phone: 15
T Talking Caller ID: 21
Time adjustment: 27
Toll saver: 34
Tone: 17
Transferring calls: 39
Troubleshooting: 44
TTY: 5, 52
V VE (Voice Enhancer): 17
VM (Voice Mail): 36
Voice guidance: 32, 33
Voice guidance language: 14
Voice Mail access number: 36
Volume
Base unit ringer: 16
Handset ringer: 27
Receiver: 15
Speaker: 15
W Wall mounting: 40, 41
Warranty: 53
TG602X_605X.book Page 55 Friday, October 13, 2006 9:39 AM
Temporary Confidential
If you need assistance with setup or operation
1Visit our website: http://www.panasonic.com/phonehelp
2Contact us via the web at: http://www.panasonic.com/contactinfo
3Call us at: 1-800-211-PANA (1-800-211-7262)
TTY users (hearing or speech impaired users) can call 1-877-833-8855.
When you ship the product
LCarefully pack your unit, preferably in the original carton.
LAttach a letter, detailing the symptom, to the outside of the carton.
LSend the unit to Panasonic Services Company Customer Servicenter, prepaid and
adequately insured.
LDo not send your unit to Panasonic Consumer Electronics Company listed below
or to executive or regional sales offices. These locations do not repair consumer
products.
We recommend keeping a record of the following information for future reference.
Attach your purchase receipt here.
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Puerto Rico, Inc.
San Gabriel Industrial Park, Ave. 65 de Infantería, Km. 9.5,
Carolina, Puerto Rico 00985
Copyright:
This material is copyrighted by Panasonic Communications Co., Ltd., and may be
reproduced for internal use only. All other reproduction, in whole or in part, is
prohibited without the written consent of Panasonic Communications Co., Ltd.
© 2006 Panasonic Communications Co., Ltd. All Rights Reserved.
Serial No. Date of purchase
(found on the bottom of the base unit)
Name and address of dealer
PQQX15653ZA DM1106PM0
TG602X_605X.book Page 56 Friday, October 13, 2006 9:39 AM
Temporary Confidential
