Panasonic of North America 96NKX-TGA407 DECT Home Network System Range Extender User Manual TGA407 option e e
Panasonic Corporation of North America DECT Home Network System Range Extender TGA407 option e e
Users Manual
Installation Guide
By installing this unit, you can extend the range of your phone system to include
areas where reception was previously not available.
The unit extends the range in all directions, allowing several floors to be covered.
Important:
LThis unit is an accessory unit for use with a Panasonic Digital Cordless phone.
For more details, visit our Web site:
http://shop.panasonic.com/support
LYou must register this unit with your base unit before it can be used.
LFor assistance, visit our Web site:
http://shop.panasonic.com/support for customers in the U.S.A.
Accessory information
Supplied accessories
For best performance
Placement
LInstall the unit within base unit range in an indoor environment. We recommend
installing the unit in a raised position (such as on a wall).
LAvoid positioning the unit close to objects that will interfere with reception, such as
thick walls, radiators, metal shelving, etc.
LFor maximum distance noise-free operation, place the unit away from electrical
appliances such as TV, radio, personal computer, or other telephone equipment.
Range Extender
Model No. KX-TGA407
Accessory item/Part number Quantity
AC adaptor/PNLV226-0X 1
Printed in Malaysia
PNQX8636ZA PP0118ZU0
TGA407(option)_(e-e).fm Page 1 Tuesday, December 26, 2017 8:48 AM
2For assistance, please visit http://shop.panasonic.com/support
LKeep an appropriate distance from the base unit to maximize the range of your
phone system. Find the appropriate location by checking the w indicator. If the w
indicator lights red or amber, re-position this unit in a place where the w indicator
lights green.

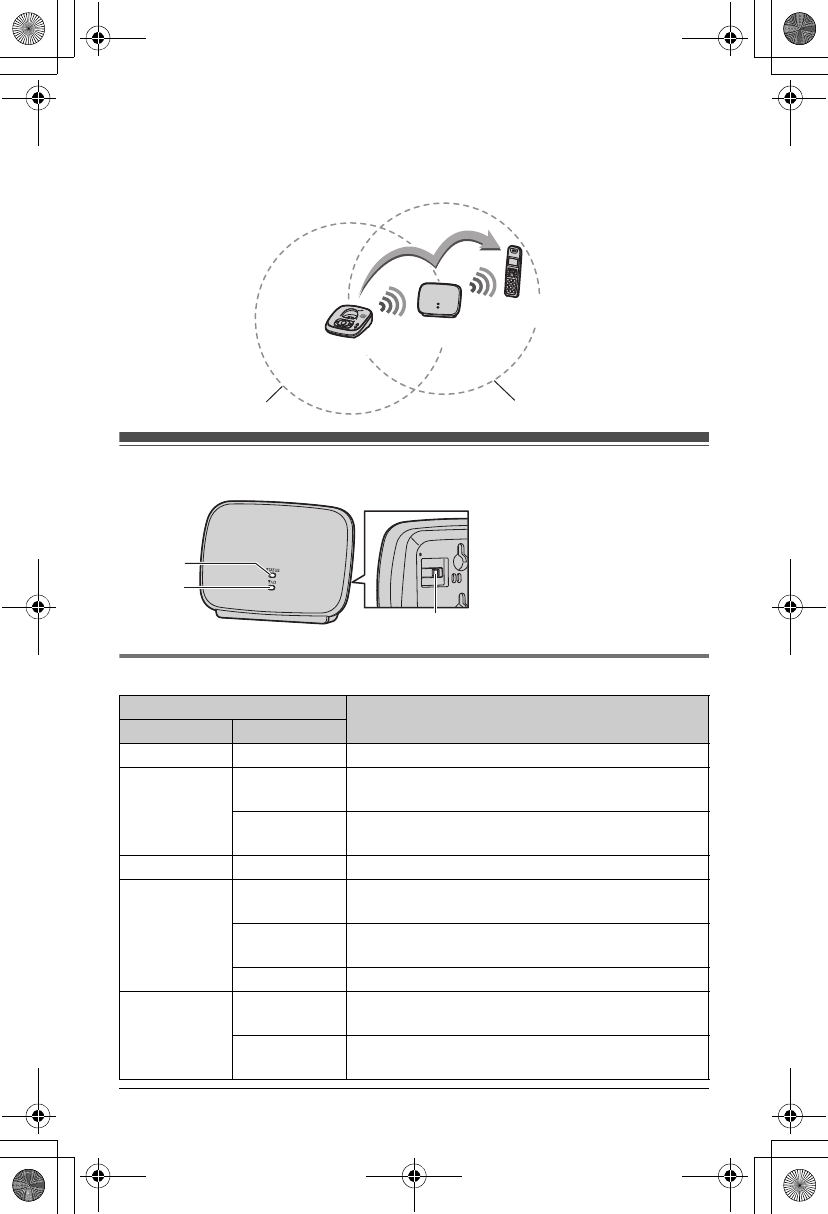

Controls
Understanding the STATUS indicator and w indicator
ASTATUS indicator
Bw indicator
ID indicator
C{PROGRAM}
Indicators Meaning
STATUS w/ ID
Amber On Off Unregistered.
Green On Green On Within base unit range. The unit is ready for use.
(Signal strength is strong)
Amber On Within base unit range. The unit is ready for use.
(Signal strength is weak)
Red On Red Flashing Out of base unit range.
Green
Flashing
Green On 1 handset is communicating with the base unit
through this unit. (Signal strength is strong)
Amber On 1 handset is communicating with the base unit
through this unit. (Signal strength is weak)
Off The unit is in registration mode.
Green
Flashing
Rapidly
Green On 2 handsets are communicating with the base unit
through this unit. (Signal strength is strong)
Amber On 2 handsets are communicating with the base unit
through this unit. (Signal strength is weak)
Base unit
Handset
Range extender
Range extender rangeBase unit range
B
A
C
TGA407(option)_(e-e).fm Page 2 Tuesday, December 26, 2017 8:48 AM
For assistance, please visit http://shop.panasonic.com/support 3
*1 The time elapsed after turning on the range extender while pressing and holding
down {PROGRAM}.

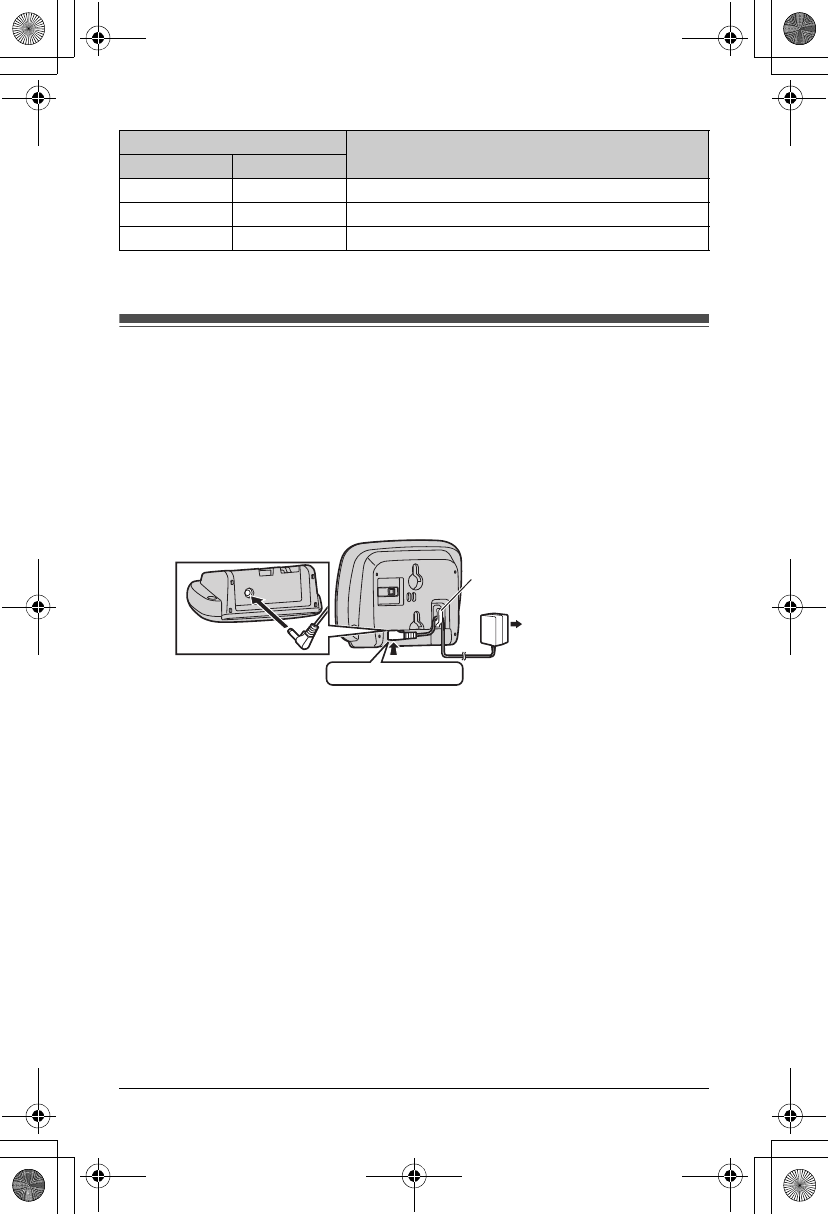

Installation/Registering the range extender to the base unit
1Range extender: Connect the AC adaptor to a power outlet.
LUse only the supplied Panasonic AC adaptor PNLV226.
LWhen the unit is turned on, the STATUS indicator and w indicator light amber
for about 2 seconds.
LIf the range extender is not yet registered, the STATUS indicator lights amber. If
the range extender is already registered, the STATUS indicator lights red while
the w indicator flashing red.
2Base unit: Press and hold {LOCATOR} for about 5 seconds.
LDepending on the base unit, a registration tone sounds.
LIf all registered handsets start ringing, press the same button to stop. Then
repeat this step.
LThe next step must be completed within 90 seconds.
3Range extender: Press and hold {PROGRAM} for about 3 seconds to enter
the registration mode.
LWhen the unit is in the registration mode, the STATUS indicator flashing green.
4Range extender: Release {PROGRAM}
LThe STATUS indicator continue flashing green while registering.
LAfter registration complete, STATUS indicator and w indicator light amber for 2
seconds. Then, the STATUS indicator lights red while the w indicator flashing
red before registration complete.
5Range extender: Confirm that the STATUS indicator and w indicator light
green. (The unit is ready for use.)
LIf the indicators do not light green, re-position the unit in a place where the
indicators light green.
Red Flashing Off Entering deregistration mode. (0-10 seconds*1)
Red On Off Deregistration complete. (after 10 seconds*1)
Off Off The power is off.
Indicators Meaning
STATUS w/ ID
Press plug firmly.
Hook
(120 V AC, 60 Hz)
TGA407(option)_(e-e).fm Page 3 Tuesday, December 26, 2017 8:48 AM
4For assistance, please visit http://shop.panasonic.com/support
6Base unit: To exit registration mode, press {LOCATOR}.
LDepending on the base unit, it will automatically return to standby after
registration completed.
Note:
LThe AC adaptor must remain connected at all times. (It is normal for the adaptor to
feel warm during use.)
LThe AC adaptor should be connected to a vertically oriented or floor-mounted AC
outlet. Do not connect the AC adaptor to a horizontally oriented AC outlet that faces
the floor, such as an AC outlet installed on a ceiling or under a table, as the weight
of the adaptor may cause it to become disconnected.
LThe unit can support a maximum of 2 handsets at a time.
LUp to 2 range extenders can be registered to the base unit.
Deregistering the range extender from the base unit
1Unplug the AC adaptor from power outlet, then press and hold {PROGRAM}.
2While pressing and holding {PROGRAM}, re-connect the AC adaptor.
LWhen the unit is in the deregistration mode, the STATUS indicator flashing red.
3Keep pressing and holding {PROGRAM} for about 10 seconds until the
STATUS indicator light red. Then release {PROGRAM}.
LAfter deregistration complete, STATUS indicator and w indicator light amber for
2 seconds. Then, w indicator lights off.

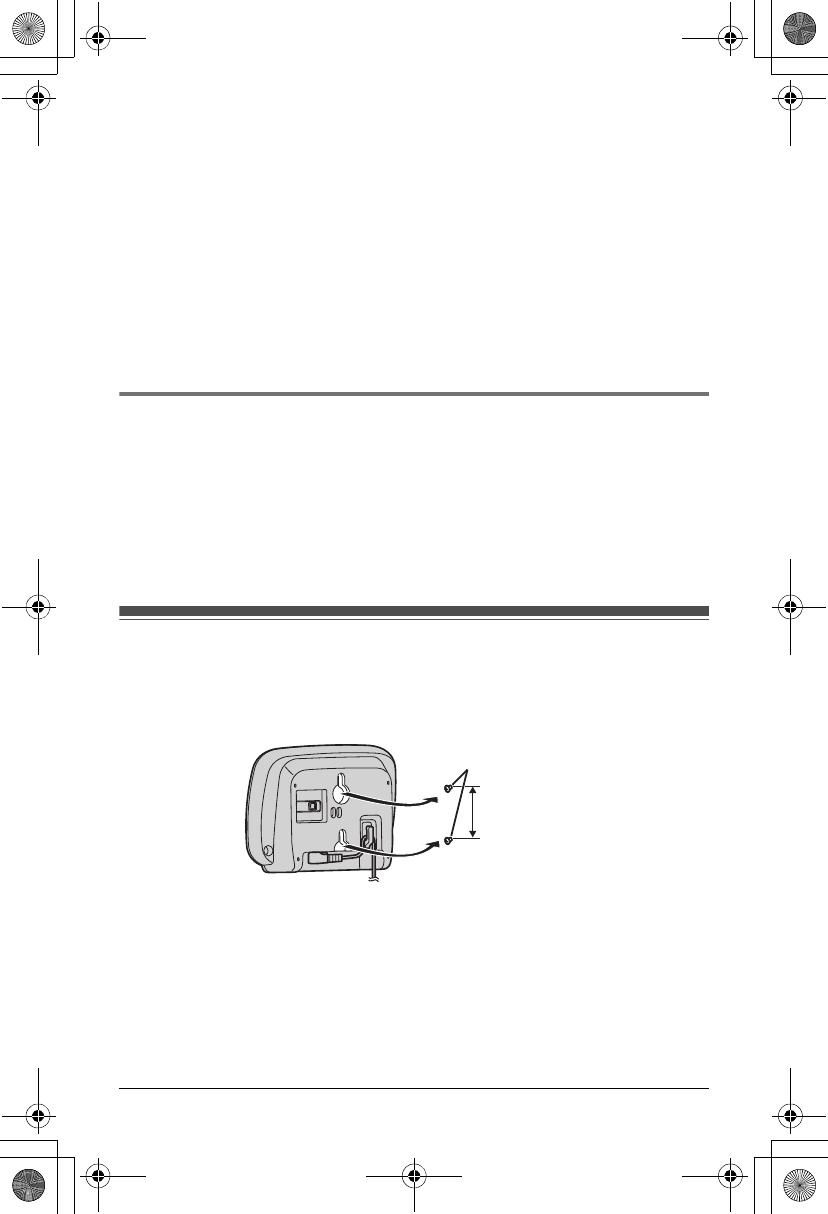

Wall Mounting
Drive the screws (not supplied) into the wall. Mount the unit, then slide it down.
Note:
LMake sure that the wall is strong enough to support the weight of the unit.
37.0 mm
(115
/
32 inches)
Screws
TGA407(option)_(e-e).fm Page 4 Tuesday, December 26, 2017 8:48 AM
For assistance, please visit http://shop.panasonic.com/support 5
Troubleshooting
For your safety
To prevent severe injury and loss of life/property, read this section carefully before using the
product to ensure proper and safe operation of your product.
kWARNING
Power connection
LUse only the power source marked on the product.
LDo not overload power outlets and extension cords. This can result in the risk of fire or electric
shock.
LCompletely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause
electric shock and/or excessive heat resulting in a fire.
LRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power
outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from
moisture, etc. resulting in a fire.
LUnplug the product from power outlets if it emits smoke, an abnormal smell, or makes an
unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has
stopped emitting and contact us at http://shop.panasonic.com/support
LUnplug from power outlets and never touch the inside of the product if its casing has been
broken open.
LNever touch the plug with wet hands. Danger of electric shock exists.
Problem Cause/solution
The unit does not work. LWhen the indicators do not light, the AC adaptor is not
connected properly. Check the connections.
LWhen the indicators do not light green, move the unit
closer to the base unit.
LRegistration may have been canceled.
Re-register the range extender:
Perform from step 2, “Installation/Registering the
range extender to the base unit”, page 3.
While talking using the
handset, sound cuts in
and out.
LThe handset is out of range. Move the handset closer
to this unit.
The STATUS indicator
continues to flash
green for a while.
L{PROGRAM} was pressed. The unit is in
programming mode. To exit, press {PROGRAM}
again. Do not press {PROGRAM}, except when
registering or deregistering the unit.
TGA407(option)_(e-e).fm Page 5 Tuesday, December 26, 2017 8:48 AM
6For assistance, please visit http://shop.panasonic.com/support
Installation
LTo prevent the risk of fire or electrical shock, do not expose the product to rain or any type of
moisture.
LDo not place or use this product near automatically controlled devices such as automatic doors
and fire alarms. Radio waves emitted from this product may cause such devices to malfunction
resulting in an accident.
LDo not allow the AC adaptor to be excessively pulled, bent or placed under heavy objects.
Operating safeguards
LUnplug the product from power outlets before cleaning. Do not use liquid or aerosol cleaners.
LDo not disassemble the product.
Medical
LConsult the manufacturer of any personal medical devices, such as pacemakers or hearing
aids, to determine if they are adequately shielded from external RF (radio frequency) energy.
(The product operates in the frequency range of 1.92 GHz to 1.93 GHz, and the RF
transmission power is 115 mW (max.).)
LDo not use the product in health care facilities if any regulations posted in the area instruct you
not to do so. Hospitals or health care facilities may be using equipment that could be sensitive
to external RF energy.
kCAUTION
Installation and location
LThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed
near the product and is easily accessible.
Important safety instructions
When using your product, basic safety precautions should always be followed to reduce the risk
of fire, electric shock, and injury to persons, including the following:
SAVE THESE INSTRUCTIONS
For best performance
Range extender location/avoiding noise
The range extender and other compatible Panasonic units use radio waves to communicate with
each other.
LFor maximum coverage and noise-free communications, place your range extender:
– at a convenient, high, and central location with no obstructions between the handset and
range extender in an indoor environment.
– away from electronic appliances such as TVs, radios, personal computers, wireless devices,
or other phones.
– facing away from radio frequency transmitters, such as external antennas of mobile phone
cell stations. (Avoid putting the range extender on a bay window or near a window.)
LCoverage and voice quality depends on the local environmental conditions.
LIf the reception for a range extender location is not satisfactory, move the range extender to
another location for better reception.
1. Do not use this product near water for example, near a bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may
be a remote risk of electric shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord indicated in this manual.
TGA407(option)_(e-e).fm Page 6 Tuesday, December 26, 2017 8:48 AM
For assistance, please visit http://shop.panasonic.com/support 7
Environment
LKeep the product away from electrical noise generating devices, such as fluorescent lamps
and motors.
LThe product should be kept free from excessive smoke, dust, high temperature, and vibration.
LThe product should not be exposed to direct sunlight.
LDo not place heavy objects on top of the product.
LWhen you leave the product unused for a long period of time, unplug the product from the
power outlet.
LThe product should be kept away from heat sources such as heating devices, cooking
appliances, etc. It should not be placed in rooms where the temperature is less than 0 C (32
F) or greater than 40 C (104 F). Damp basements should also be avoided.
LThe maximum calling distance may be shortened when the product is used in the following
places: Near obstacles such as hills, tunnels, underground, near metal objects such as wire
fences, etc.
LOperating the product near electrical appliances may cause interference. Move away from the
electrical appliances.
Routine care
LWipe the outer surface of the product with a soft moist cloth.
LDo not use benzine, thinner, or any abrasive powder.
Other information
Notice for product disposal, transfer, or return
LThis product can store your private/confidential information. To protect your privacy/
confidentiality, we recommend that you erase information such as phonebook or caller list
entries from the memory before you dispose of, transfer, or return the product.
Notice
Specifications
NStandard: DECT 6.0 (Digital Enhanced Cordless Telecommunications 6.0)
NFrequency range: 1.92 GHz to 1.93 GHz
NRF transmission power: 115 mW (max.)
NPower source: 120 V AC, 60 Hz
NPower consumption: Standby: 1.2 W, Maximum: 2.0 W
NOperating conditions:
0C – 40 C (32 F – 104 F), 20 % – 80 % relative air humidity (dry)
Note:
LDesign and specifications are subject to change without notice.
LThe illustrations in these instructions may vary slightly from the actual product.
TGA407(option)_(e-e).fm Page 7 Tuesday, December 26, 2017 8:48 AM
8For assistance, please visit http://shop.panasonic.com/support
FCC and other information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this device.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV technician for help.
Some cordless telephones operate at frequencies that may cause interference to nearby TVs and
VCRs. To minimize or prevent such interference, the range extender should not be placed near
or on top of a TV or VCR. If interference is experienced, move the range extender and cordless
telephone further away from the TV or VCR. This will often reduce, or eliminate, interference.
FCC RF Exposure Warning:
LThis product complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
LTo comply with FCC RF exposure requirements, the range extender must be installed and
operated 20 cm (8 inches) or more between the product and all person’s body (excluding
extremities of hands, wrist and feet).
LThis product may not be collocated or operated in conjunction with any other antenna or
transmitter.
Notice
LFCC ID can be found on the back of the unit.
TGA407(option)_(e-e).fm Page 8 Tuesday, December 26, 2017 8:48 AM
For assistance, please visit http://shop.panasonic.com/support 9
Graphical symbols for use on equipment and
their descriptions
Symbol Explanation Symbol Explanation
Alternating current
(A.C.)
Class II equipment
(equipment in which
protection against
electric
shock relies on Double
Insulation or
Reinforced
Insulation)
Direct current (D.C.) “ON” (power)
Protective earth “OFF” (power)
Protective bonding
earth
Stand-by (power)
Functional earth “ON”/“OFF” (power;
push-push)
For indoor use only Caution, risk of electric
shock
TGA407(option)_(e-e).fm Page 9 Tuesday, December 26, 2017 8:48 AM
10 For assistance, please visit http://shop.panasonic.com/support
Customer services
Accessories!
hp://shop.panasonic.com/support
Customer Services Directory
Shop
for all your Panasonic gear
Go to
Get everything you need to get the most out of
your Panasonic products
Accessories & Parts for your Camera, Phone, A/V
products, TV, Computers & Networking, Personal
Care, Home Appliances, Headphones, Baeries,
Backup Chargers & more…
For Product Informaon, Operang Assistance,
Parts, Owner’s Manuals, Dealer and Service info
go to hp://shop.panasonic.com/support
For the hearing or speech impaired TTY: 1- 877-833-8855
As of June 2015
TGA407(option)_(e-e).fm Page 10 Tuesday, December 26, 2017 8:48 AM
For assistance, please visit http://shop.panasonic.com/support 11
Limited Warranty (ONLY FOR U.S.A)
Limited Warranty Coverage (For USA Only)
Labor
One (1) Year
Parts
One (1) Year
To submit a new repair request and for quick repair status visit our Web Site at
http://shop.panasonic.com/support
Panasonic Products Limited Warranty
Online Repair Request
Mail-In Service--Online Repair Request
If your product does not work properly because of a defect in materials or workmanship,
Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length
of the period indicated on the chart below, which starts with the date of original purchase
(“warranty period”), at its option either (a) repair your product with new or refurbished parts,
(b) replace it with a new or a refurbished equivalent value product, or (c) refund your
purchase price. The decision to repair, replace or refund will be made by the warrantor.
During the “Labor” warranty period there will be no charge for labor. During the “Parts”
warranty period, there will be no charge for parts. This Limited Warranty excludes both
parts and labor for non-rechargeable batteries, antennas, and cosmetic parts (cabinet).
This warranty only applies to products purchased and serviced in the United States.
This warranty is extended only to the original purchaser of a new product which was
not sold “as is”.
Telephone
When shipping the unit, carefully pack, include all supplied accessories listed in the
Owner’s Manual, and send it prepaid, adequately insured and packed well in a carton box.
When shipping Lithium Ion batteries please visit our Web Site at
http://shop.panasonic.com/support as Panasonic is committed to providing the most up to
date information. Include a letter detailing the complaint, a return address and provide a
daytime phone number where you can be reached. A valid registered receipt is required
under the Limited Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL
BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING
DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL
BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF
OF PURCHASE.
Product or Part Name
TGA407(option)_(e-e).fm Page 11 Tuesday, December 26, 2017 8:48 AM
12 For assistance, please visit http://shop.panasonic.com/support
© Panasonic Corporation 2018
Limited Warranty Limits and Exclusions
(As examples, this excludes damages for lost time, travel to and from the servicer,
loss of or damage to media or images, data or other memory or recorded content.
The items listed are not exclusive, but for illustration only.)
This warranty ONLY COVERS failures due to defects in materials or workmanship,
and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty
ALSO DOES NOT COVER damages which occurred in shipment, or failures which
are caused by products not supplied by the warrantor, or failures which result from
accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty
installation, set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, introduction of sand,
humidity or liquids, commercial use such as hotel, office, restaurant, or other business
or rental use of the product, or service by anyone other than a Factory Service Center
or other Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
“LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT
OF ANY BREACH OF THIS WARRANTY.
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF
MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY,
ARE YOUR RESPONSIBILITY.
Some states do not allow the exclusion or limitation of incidental or consequential damages,
or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary
from state to state. If a problem with this product develops during or after the warranty period,
you may contact your dealer or Service Center. If the problem is not handled to your
satisfaction, then write to:
Consumer Affairs Department
Panasonic Corporation of North America
661 Independence Pkwy
Chesapeake, VA 23320
As of June 2015
Two Riverfront Plaza, Newark, NJ 07102-5490
TGA407(option)_(e-e).fm Page 12 Tuesday, December 26, 2017 8:48 AM
For assistance, please visit http://shop.panasonic.com/support 13
Notes
TGA407(option)_(e-e).fm Page 13 Tuesday, December 26, 2017 8:48 AM
