Thank you for purchasing a Panasonic cordless telephone.
Please read this Installation Manual before using the unit and
save for future reference.
For assistance, visit our website:
http://www.panasonic.com/help for
customers in the U.S.A. or Puerto
Rico.
This handset is an accessory handset for use with Panasonic
Digital Cordless Phones:
KX-TG8231/KX-TG8232
You must register this handset with your base unit before it can
be used. This installation manual describes only the steps
needed to register and begin using the handset. Please read
the base unit’s operating instructions for further details.
Charge the batteries for 7 hours before initial use.
Expandable Digital Cordless Handset
Model No. KX-TGA820
Installation Manual
PQQX16156ZA DC0107YK0
TGA820(e).fm Page 1 Friday, May 18, 2007 4:47 PM
Temporary Confidential
2For assistance, please visit http://www.panasonic.com/help
Supplied accessories
*1 The handset cover comes attached to the handset.
Note:
LPlease read the base unit’s operating instructions for additional/
replacement accessories.
Sales and support information
LTo order replacement accessories, call 1-800-332-5368.
LTTY users (hearing or speech impaired users) can call 1-866-605-
1277.

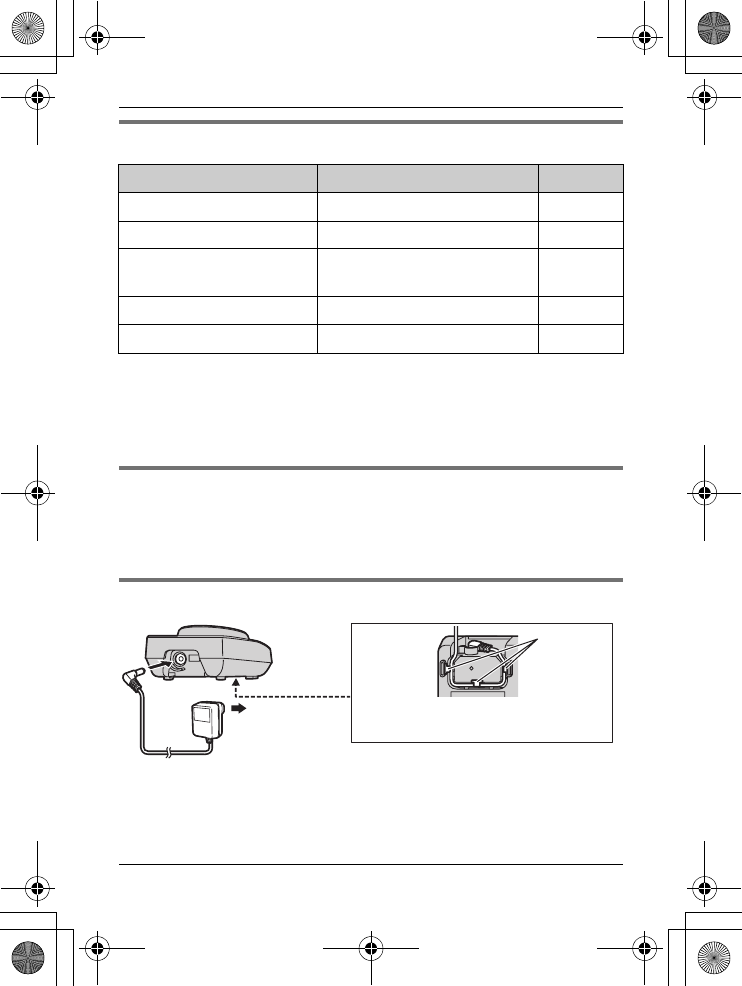

Connecting the charger
Note:
LUse only the supplied Panasonic AC adaptor PQLV209.
LThe AC adaptor must remain connected at all times. (It is normal for
the adaptor to feel warm during use.)
Accessory item Order number Quantity
Charger PQLV30056YB 1
AC adaptor for charger PQLV209V 1
Batteries HHR-4DPA
(Part No. HHR-55AAABU)
2
Handset cover*1 PQYNTG8200E 1
Belt clip PQKE10481Z1 1
Hooks
(120 V AC,
60 Hz)
Fasten the AC adaptor cord to
prevent it from being disconnected.
TGA820(e).fm Page 2 Friday, May 18, 2007 4:47 PM
Temporary Confidential
For assistance, please visit http://www.panasonic.com/help 3
Battery installation/Battery charge
Important:
LUse only the supplied rechargeable batteries noted on page 6.
LUSE ONLY rechargeable Ni-MH batteries AAA (R03) size.
LDo NOT use Alkaline/Manganese/Ni-Cd batteries.
LEnsure correct polarities (S, T) when installing the batteries.
LWipe the battery ends (S, T) with a dry cloth.
LWhen installing the batteries, avoid touching the battery ends (S, T)
or the unit contacts.

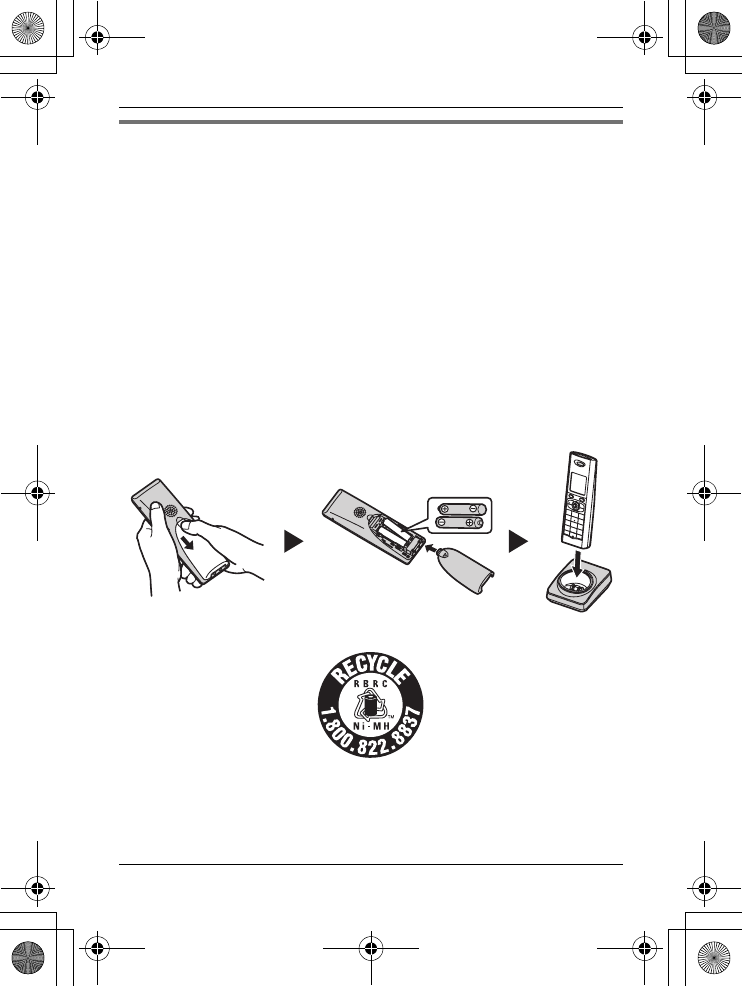

1Press the notch of the handset cover firmly, and slide it in the direction
of the arrow.
2Insert the batteries negative (T) end first. Close the handset cover.
3Place the handset on the charger for 7 hours before initial use.
Attention:
A nickel metal hydride battery that is recyclable powers the product you
have purchased.
Please call 1-800-8-BATTERY (1-800-822-8837) for information on how
to recycle this battery.
TGA820(e).fm Page 3 Friday, May 18, 2007 4:47 PM
Temporary Confidential
4For assistance, please visit http://www.panasonic.com/help
Note:
LIf you fully charged the batteries, but the operating time seems to be
short, wipe the battery ends (S, T) and the unit contacts with a dry
cloth.
Register the handset to a KX-TG8231/KX-TG8232
base unit
1Base unit:
Press and hold {x} (LOCATOR) until the registration tone sounds.
LIf all registered handsets start ringing, press {x} (LOCATOR) to
stop, then repeat this step.
LAfter the base unit beeps, the rest of the procedure must be
completed within 1 minute and 30 seconds.
2Handset:
Press {OK}, then wait until a beep sounds and w stops flashing.
Changing the display language
1{MENU} (center of joystick)
2Select M by pushing the joystick in any direction. i {SELECT}
3Push the joystick up or down to select “Change languagei
{SELECT}
4Push the joystick up or down to select the desired language. i
{SAVE} i {OFF}
TGA820(e).fm Page 4 Friday, May 18, 2007 4:47 PM
Temporary Confidential
For assistance, please visit http://www.panasonic.com/help 5
Belt clip
You can hang the handset on your belt or pocket using the supplied belt
clip.

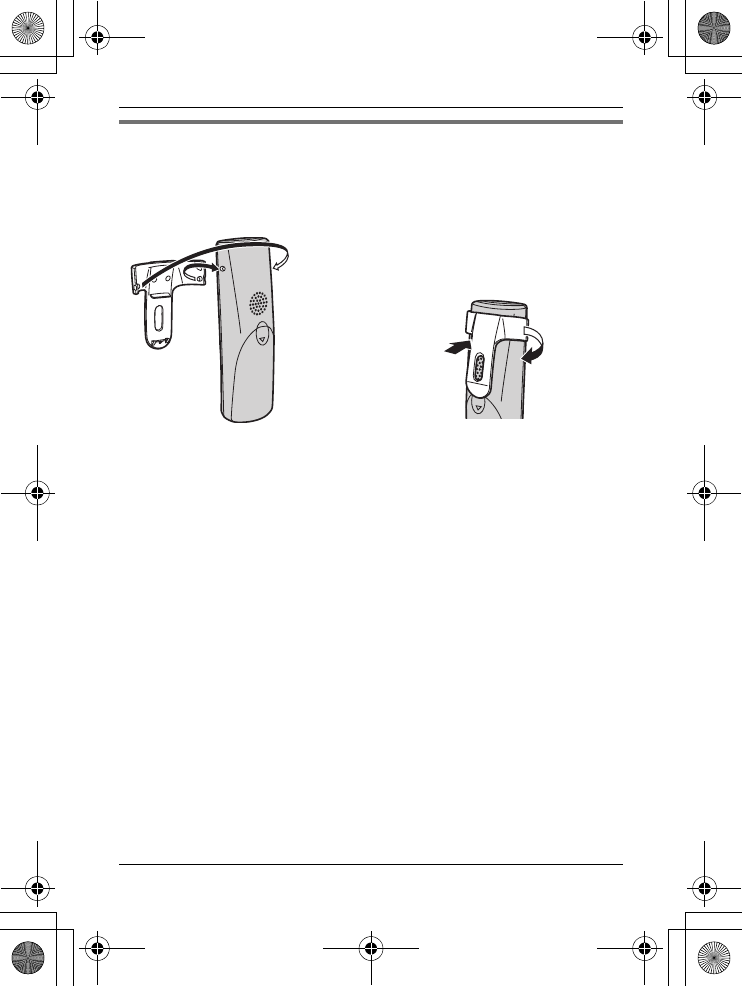

NTo attach the belt clip NTo remove the belt clip
While pressing the top of the clip(A),
pull the right edge in the direction of
the arrow (B).
A
B
TGA820(e).fm Page 5 Friday, May 18, 2007 4:47 PM
Temporary Confidential
6For assistance, please visit http://www.panasonic.com/help
Important safety instructions
WARNING:
LTo prevent the risk of fire or electrical shock, do not expose the product
to rain or any type of moisture.
LUnplug the product from power outlets if it emits smoke, an abnormal
smell, or makes an unusual noise. These conditions can cause fire or
electric shock. Confirm that smoke has stopped emitting and contact
the Panasonic Call Center at 1-800-211-PANA (1-800-211-7262).
LDo not place or use this product near automatically controlled devices
such as automatic doors and fire alarms. Radio waves emitted from
this product may cause such devices to malfunction resulting in an
accident.
LCompletely insert the AC adaptor/power plug into the power outlet.
Failure to do so may cause electric shock and/or excessive heat
resulting in a fire.
LRegularly remove any dust, etc. from the AC adaptor/power plug by
pulling it from the power outlet, then wiping with a dry cloth.
Accumulated dust may cause an insulation defect from moisture, etc.
resulting in a fire.
CAUTION:
Installation
LOperating the product near electrical appliances may cause
interference. Move away from the electrical appliances.
LThe AC adaptor is used as the main disconnect device. Ensure that
the AC outlet is installed near the product and is easily accessible.
Battery
To reduce the risk of fire or injury to persons, read and follow these
instructions.
LUse only the battery(ies) specified.
LDo not dispose of the battery(ies) in a fire, as they may explode. Check
with local waste management codes for special disposal instructions.
TGA820(e).fm Page 6 Friday, May 18, 2007 4:47 PM
Temporary Confidential
For assistance, please visit http://www.panasonic.com/help 7
LDo not open or mutilate the battery(ies). Released electrolyte is
corrosive and may cause burns or injury to the eyes or skin. The
electrolyte may be toxic if swallowed.
LExercise care when handling the battery(ies). Do not allow conductive
materials such as rings, bracelets or keys to touch the battery(ies),
otherwise a short circuit may cause the battery(ies) and/or the
conductive material to overheat and cause burns.
LCharge the battery(ies) provided, or identified for use with the product
only, in accordance with the instructions and limitations specified in
this manual.
FCC and other information
This equipment is hearing aid compatible as defined by the FCC in 47
CFR Section 68.316.
When you hold the phone to your ear, noise might be heard in your
Hearing Aid. Some Hearing Aids are not adequately shielded from
external RF (radio frequency) energy. If noise occurs, use an optional
headset accessory or the speakerphone option (if applicable) when
using this phone. Consult with your audiologist or Hearing Aid
manufacturer about the availability of Hearing Aids which provide
adequate shielding to RF energy commonly emitted by digital devices.
WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING
TEST CALLS TO EMERGENCY NUMBERS:
1) Remain on the line and briefly explain to the dispatcher the reason for
the call.
2) Perform such activities in the off-peak hours, such as early morning or
late evenings.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation.
TGA820(e).fm Page 7 Friday, May 18, 2007 4:47 PM
Temporary Confidential
8For assistance, please visit http://www.panasonic.com/help
Privacy of communications may not be ensured when using this phone.
CAUTION:
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this
device.
NOTE:
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC RF Exposure Warning:
LThis product complies with FCC radiation exposure limits set forth for
an uncontrolled environment.
LThis handset may not be collocated or operated in conjunction with
any other antenna or transmitter.
LThe handset may be carried and operated with only the specific
provided belt-clip. Other non-tested belt-clips or similar body-worn
accessories may not comply and must be avoided.
TGA820(e).fm Page 8 Friday, May 18, 2007 4:47 PM
Temporary Confidential
For assistance, please visit http://www.panasonic.com/help 9
Notice
Lߎߩ⵾ຠߪޔᣣᧄ࿖ᄖߢߩ૶↪ࠍ⋡⊛ߣߒߡ⸳⸘ߐࠇߡ߅ࠅޔᣣᧄ
࿖ౝߢߩ૶↪ߪᴺᓞ㆑෻ߣߥࠅ߹ߔޕᓥߞߡޔᒰ␠ߢߪᣣᧄ࿖ౝߦ
߅޿ߡߪේೣߣߒߡୃℂߥߤߩࠨ࡯ࡆࠬߪ⥌ߒ߆ߨ߹ߔޕ
Lҏ౰ࠢட࣏छ୽ٺҢՄ೩Ȅषӵڏт୽ড়᎛୵ܖٺҢȂџ૖ོႂІ࿋
ӴݲٽȄ
LThis product is designed for use in the United States of America.
Sale or use of this product in other countries may violate local laws.
LCet appareil est conçu pour être utilisé aux États-Unis d’Amérique.
La vente ou l’emploi de cet appareil dans certains autres pays peut
constituer une infraction à la législation locale.
LEste producto está diseñado para usarse en los Estados Unidos de
América.
La venta o el empleo de este producto en ciertos países puede
constituir violación de la legislación local.
TGA820(e).fm Page 9 Friday, May 18, 2007 4:47 PM
Temporary Confidential
10 For assistance, please visit http://www.panasonic.com/help
If you need assistance with setup or
operation
1Visit our website: http://www.panasonic.com/help
2Contact us via the web at: http://www.panasonic.com/contactus
3Call us at: 1-800-211-PANA (1-800-211-7262)
TTY users (hearing or speech impaired users) can call 1-877-833-
8855.
When you ship the product
LCarefully pack your unit, preferably in the original carton.
LAttach a letter, detailing the symptom, to the outside of the carton.
LSend the unit to Panasonic Service and Technology Company,
Exchange Center, prepaid and adequately insured.
LDo not send your unit to Panasonic Consumer Electronics Company
listed below or to executive or regional sales offices. These locations
do not repair consumer products.
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Puerto Rico, Inc.
San Gabriel Industrial Park, Ave. 65 de Infantería, Km. 9.5,
Carolina, Puerto Rico 00985
Copyright:
This material is copyrighted by Panasonic Communications Co., Ltd.,
and may be reproduced for internal use only. All other reproduction, in
whole or in part, is prohibited without the written consent of Panasonic
Communications Co., Ltd.
© 2007 Panasonic Communications Co., Ltd. All Rights Reserved.
TGA820(e).fm Page 10 Friday, May 18, 2007 4:47 PM
Temporary Confidential

Navigation menu
