Panasonic of North America 96NKX-TGFA30 DECT 6.0 Handset User Manual Installation Manual English

Panasonic Corporation of North America DECT 6.0 Handset Installation Manual English

Users Manual

Installation Manual
Additional Digital Cordless Handset
Model No. KX-TGFA30
Thank you for purchasing a Panasonic product.
This unit is an additional handset compatible with the following series of
Panasonic Digital Cordless Phone:
KX-TGF340/KX-TGF350/KX-TGF370/KX-TGF380
(The corresponding models are subject to change without notice.)
You must register this handset with your base unit before it can be used. This
installation manual describes only the steps needed to register and begin using
the handset. Please read the base unit’s operating instructions for further details.
Please read this installation manual before using the unit and save it for future
reference.
For assistance, visit our Web site: www.panasonic.com/support
for customers in the U.S.A. or Puerto Rico.
Printed in Malaysia PNQX6731ZA PT1114MG0
TGFA30(en)_Malaysia_1127_ver006.1 1 2014/11/27 18:03:12
Accessory information
Supplied accessories
Accessory item/Part number Quantity
Charger*1 1
Rechargeable batteries/HHR-4DPA 2
Handset cover*2, *3 1
Belt clip*4 1
*1 PNLC1040ZB (Black), PNLC1040ZS (Silver), PNLC1040ZN (Champagne
gold)
*2 The handset cover comes attached to the handset.
*3 PNYNTGA680BR (Black), PNYNTGFA30NR (White)
*4 PNKE1268Z1 (Black), PNKE1268Z3 (White)
Note:
RPlease read the base unit’s operating instructions for additional/replacement
accessories.
– Optional headsets: KX-TCA60, KX-TCA93, KX-TCA400, KX-TCA430
Setting up
Connections/Wall mounting
Connect the AC adaptor to the power outlet.
Drive the screws (
1
) (not supplied) into the wall, if necessary.
2
27.2 mm (1 1/16 inches)
2
1
12
Note:
RThe AC adaptor must remain connected at all times. (It is normal for the adaptor
to feel warm during use.)
2For assistance, please visit www.panasonic.com/support
Installation
TGFA30(en)_Malaysia_1127_ver006.2 2 2014/11/27 18:03:13
RMake sure that the wall and the fixing method are strong enough to support the
weight of the unit.

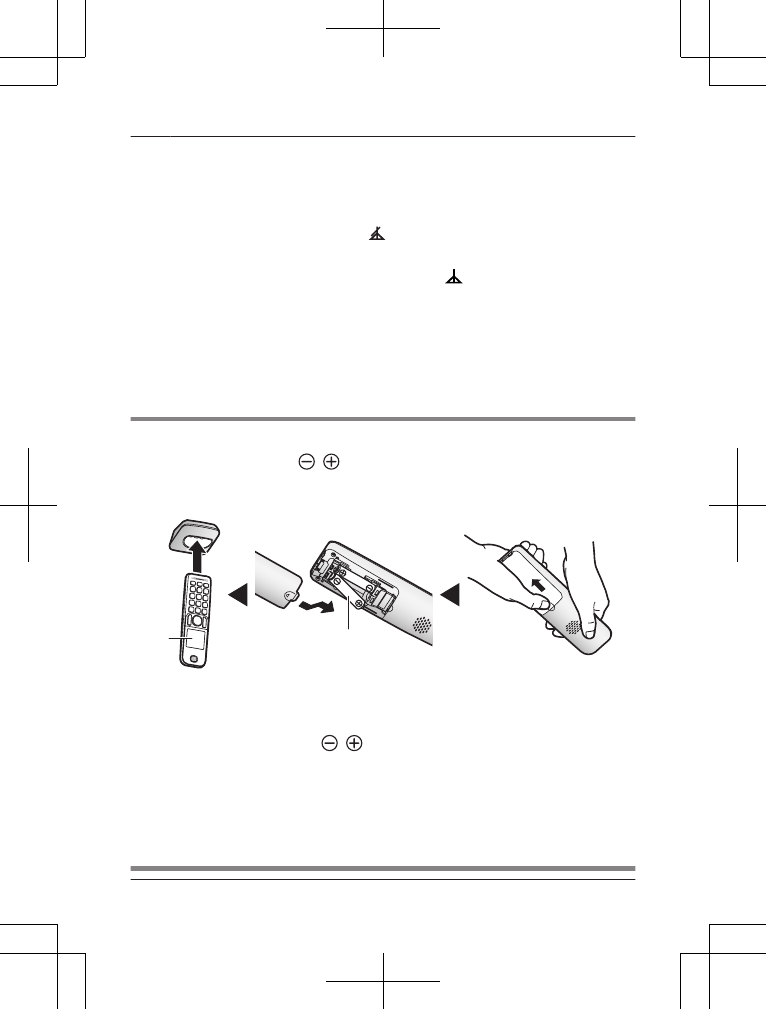

Battery installation/Battery charging
Important:
RUse the supplied rechargeable batteries. For replacement, we recommend using
the Panasonic rechargeable batteries noted on page 2.
RUSE ONLY rechargeable Ni-MH batteries AAA (R03) size (
1
).
RDo NOT use alkaline/manganese/Ni-Cd batteries.
RConfirm correct polarities ( , ).
Charge for about 7 hours.
RConfirm “Charging” is displayed (
2
).
RWhen the batteries are fully charged, “Fully charged” is displayed.
12
Note:
RIf the batteries are fully charged, but the operating time seems to be shorter,
clean the battery ends ( , ) and the charge contacts with a dry cloth and
charge again.
Registering a handset to a base unit
1Base unit:
Press and hold MLOCATORN for about 5 seconds.
RIf all registered handsets start ringing, press MLOCATORN again to stop,
then repeat this step.
2Handset:
Place the handset on the base unit or charger, then wait until a long beep
sounds and is displayed.
Note:
RIf an error tone sounds, or if is displayed, register the handset according to
the base unit’s operating instructions.
For assistance, please visit www.panasonic.com/support 3
Installation
TGFA30(en)_Malaysia_1127_ver006.3 3 2014/11/27 18:03:13
Display language
1MMENUN#110
2MbN: Select the desired setting. a MSAVEN a MOFFN
For your safety
To prevent severe injury and loss of life/property, read this section carefully before
using the product to ensure proper and safe operation of your product.
WARNING
Power connection
RCompletely insert the AC adaptor/power plug into the power outlet. Failure to do
so may cause electric shock and/or excessive heat resulting in a fire.
RRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it
from the power outlet, then wiping with a dry cloth. Accumulated dust may cause
an insulation defect from moisture, etc. resulting in a fire.
RUnplug the product from power outlets if it emits smoke, an abnormal smell, or
makes an unusual noise. These conditions can cause fire or electric shock.
Confirm that smoke has stopped emitting and contact us at
www.panasonic.com/contactinfo
Installation
RTo prevent the risk of fire or electrical shock, do not expose the product to rain
or any type of moisture.
RDo not place or use this product near automatically controlled devices such as
automatic doors and fire alarms. Radio waves emitted from this product may
cause such devices to malfunction resulting in an accident.
CAUTION
Installation and location
RThe AC adaptor is used as the main disconnect device. Ensure that the AC
outlet is installed near the product and is easily accessible.
Battery
RWe recommend using the supplied batteries or additional/replacement batteries
noted on page 2 for replacement battery information. USE ONLY rechargeable
Ni-MH batteries AAA (R03) size.
4For assistance, please visit www.panasonic.com/support
Installation
TGFA30(en)_Malaysia_1127_ver006.4 4 2014/11/27 18:03:13
RDo not mix old and new batteries.
RDo not open or mutilate the batteries. Released electrolyte from the batteries is
corrosive and may cause burns or injury to the eyes or skin. The electrolyte is
toxic and may be harmful if swallowed.
RExercise care when handling the batteries. Do not allow conductive materials
such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit
may cause the batteries and/or the conductive material to overheat and cause
burns.
RCharge the batteries provided with or identified for use with this product only, in
accordance with the instructions and limitations specified in this manual.
ROnly use a compatible base unit (or charger) to charge the batteries. Do not
tamper with the base unit (or charger). Failure to follow these instructions may
cause the batteries to swell or explode.
Attention:
A nickel metal hydride battery that is
recyclable powers the product you have
purchased.
Please call 1-800-8-BATTERY
(1-800-822-8837) for information on how
to recycle this battery.
Important safety instructions
When using your product, basic safety precautions should always be followed to
reduce the risk of fire, electric shock, and injury to persons, including the following:
1. Do not use this product near water for example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet basement or near a swimming pool.
2. Do not use the telephone to report a gas leak in the vicinity of the leak.
3. Use only the power cord and batteries indicated in this manual. Do not dispose
of batteries in a fire. They may explode. Check with local codes for possible
special disposal instructions.
SAVE THESE INSTRUCTIONS
Other information
ROperating the product near electrical appliances may cause interference. Move
away from the electrical appliances.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of
used batteries according to the instructions.
For assistance, please visit www.panasonic.com/support 5
Installation
TGFA30(en)_Malaysia_1127_ver006.5 5 2014/11/27 18:03:13
Routine care
RWipe the outer surface of the product with a soft moist cloth.
RDo not use benzine, thinner, or any abrasive powder.
Notice for product disposal, transfer, or return
RThis product can store your private/confidential information. To protect your
privacy/confidentiality, we recommend that you erase information such as
phonebook or caller list entries from the memory before you dispose of, transfer,
or return the product.
FCC and other information
This equipment is hearing aid compatible as defined by the FCC in 47 CFR Section
68.316.
When you hold the phone to your ear, noise might be heard in your Hearing Aid.
Some Hearing Aids are not adequately shielded from external RF (radio frequency)
energy. If noise occurs, use an optional headset accessory or the speakerphone
option (if applicable) when using this phone. Consult with your audiologist or
Hearing Aid manufacturer about the availability of Hearing Aids which provide
adequate shielding to RF energy commonly emitted by digital devices.
WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING TEST
CALLS TO EMERGENCY NUMBERS:
1) Remain on the line and briefly explain to the dispatcher the reason for the call.
2) Perform such activities in the off-peak hours, such as early morning or late
evenings.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Privacy of communications may not be ensured when using this phone.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this device.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
6For assistance, please visit www.panasonic.com/support
Installation
TGFA30(en)_Malaysia_1127_ver006.6 6 2014/11/27 18:03:13
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
FCC RF Exposure Warning:
RThis product complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
RThis handset may not be collocated or operated in conjunction with any other
antenna or transmitter.
RThe handset may be carried and operated with only the specific provided
belt-clip. Other non-tested belt-clips or similar body-worn accessories may not
comply and must be avoided.
Notice:
RFCC ID can be found inside the battery compartment or on the bottom of the
unit.
Compliance with TIA-1083 standard
T
Compatible with
Hearing Aid T-Coil
TIA-1083
Telephone handsets identified with this logo have reduced
noise and interference when used with T-Coil equipped
hearing aids and cochlear implants.
For assistance, please visit www.panasonic.com/support 7
Installation
TGFA30(en)_Malaysia_1127_ver006.7 7 2014/11/27 18:03:13
Notice:
LThis product is designed for use in the United States of America. Sale or use
of this product in other countries may violate local laws.
LCet appareil est conçu pour être utilisé aux États-Unis d’Amérique. La vente
ou l’emploi de cet appareil dans certains autres pays peut constituer une
infraction à la législation locale.
LEste producto está diseñado para usarse en los Estados Unidos de América.
La venta o el empleo de este producto en ciertos países puede constituir
violación de la legislación local.
Lҏ౰ࠢட࣏छ୽ٺҢՄ೩Ȅषӵڏт୽ড়᎛୵ܖٺҢȂџ૖ོႂІ࿋ӴݲٽȄ
Lߎߩ⵾ຠߪޔᣣᧄ࿖ᄖߢߩ૶↪ࠍ⋡⊛ߣߒߡ⸳⸘ߐࠇߡ߅ࠅޔᣣᧄ࿖ౝߢߩ
૶↪ߪᴺᓞ㆑෻ߣߥࠅ߹ߔޕᓥߞߡޔᒰ␠ߢߪᣣᧄ࿖ౝߦ߅޿ߡߪේೣߣߒ
ߡୃℂߥߤߩࠨ࡯ࡆࠬߪ⥌ߒ߆ߨ߹ߔޕ
8For assistance, please visit www.panasonic.com/support
Installation
TGFA30(en)_Malaysia_1127_ver006.8 8 2014/11/27 18:03:13
Customer services
Accessories!
www.panasonic.com/accessories
Customer Services Directory
Shop
for all your Panasonic gear
Go to
Get everything you need to get the most out of
your Panasonic products
Accessories & Parts for your Camera, Phone, A/V
products, TV, Computers & Networking, Personal
Care, Home Appliances, Headphones, Ba!eries,
Backup Chargers & more…
For Product Informa"on, Opera"ng Assistance,
Parts, Owner’s Manuals, Dealer and Service info
go to www.panasonic.com/support
For the hearing or speech impaired TTY: 1- 877-833-8855
For assistance, please visit www.panasonic.com/support 9
Appendix
TGFA30(en)_Malaysia_1127_ver006.9 9 2014/11/27 18:03:13
Warranty (For United States and Puerto
Rico)
10 For assistance, please visit www.panasonic.com/support
Appendix
TGFA30(en)_Malaysia_1127_ver006.10 10 2014/11/27 18:03:13
Limited Warranty Limits And Exclusions
This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship,
and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty
ALSO DOES NOT COVER damages which occurred in shipment, or failures which are
caused by products not supplied by the warrantor, or failures which result from accidents,
misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty
installation, set-up adjustments, misadjustment of consumer controls, improper maintenance,
power line surge, lightning damage, modification, introduction of sand, humidity or liquids,
commercial use such as hotel, office, restaurant, or other business or rental use of the
product, or service by anyone other than a Factory Service Center or other Authorized
Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED
WARRANTY COVERAGE". THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR
ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY. (As examples, this
excludes damages for lost time, lost calls or messages, cost of having someone remove or
re-install an installed unit if applicable, travel to and from the servicer. The items listed are not
exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES,
INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD
OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages,
or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.
This Limited Warranty gives you specific legal rights and you may also have other rights
which vary from state to state. If a problem with this product develops during or after the
Limited Warranty period, you may contact your dealer or Service Center. If the problem is not
handled to your satisfaction, then write to the warrantor's Consumer Affairs Department at the
addresses listed for the warrantor.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE
YOUR RESPONSIBILITY.
When you ship the product
ȷCarefully pack your unit, preferably in the original carton.
ȷAttach a letter, detailing the symptom.
ȷSend the unit to Panasonic Exchange Center, prepaid and adequately insured.
ȷDo not send your unit to Panasonic Corporation of North America listed on the back
cover or to executive or regional sales offices. These locations do not repair consumer
products.
For assistance, please visit www.panasonic.com/support 11
Appendix
TGFA30(en)_Malaysia_1127_ver006.11 11 2014/11/27 18:03:13
Two Riverfront Plaza, Newark, NJ 07102-5490
© Panasonic System Networks Co., Ltd. 2014
12 For assistance, please visit www.panasonic.com/support
Appendix
TGFA30(en)_Malaysia_1127_ver006.12 12 2014/11/27 18:03:14
Idioma de la pantalla
1MMENUN#110
2MbN: Seleccione la configuración deseada. a MGUARDARN a MOFFN
4
Instalación
Instalación y carga de la batería
Importante:
RUtilice las baterías recargables que se suministran. Para reemplazarlas, recomendamos
el uso de las baterías recargables Panasonic que se especifican en la página 2.
RUSE SOLO baterías Ni-MH recargables tamaño AAA (R03) (
1
).
RNO utilice baterías alcalinas, de manganeso ni de Ni-Cd.
RConfirme que las polaridades estén correctas ( , ).
Cargue aproximadamente durante 7 horas.
RConfirme que se muestre “Cargando” (
2
).
RUna vez que las baterías están completamente cargadas, aparece “Carg. Comp.”.
12
Nota:
RSi las baterías están completamente cargadas pero el tiempo de funcionamiento parece
ser más corto, limpie los extremos de las baterías ( , ) y los contactos de carga con
un paño seco y cárguelas de nuevo.
Cómo registrar un auricular a una unidad base
1Unidad base:
Oprima y mantenga oprimido MLOCATORN durante aproximadamente 5 segundos.
RSi todos los auriculares registrados comienzan a timbrar, oprima MLOCATORN de
nuevo para detenerlos y después repita este paso.
2Auricular:
Coloque el auricular en la unidad base o cargador, y después espere hasta que suene
un pitido largo y aparezca .
Nota:
RSi suena un tono de error, o si se muestra , registre el auricular de acuerdo con las
instrucciones de operación de la unidad base.
3
Instalación
Información de los accesorios
Accesorios que se suministran
Accesorio/Pieza número Cantidad
Cargador*1 1
Baterías recargables/HHR-4DPA 2
Cubierta del auricular*2, *3 1
Sujetador para cinturón*4 1
*1 PNLC1040ZB (negro), PNLC1040ZS (plateado), PNLC1040ZN (dorado champán)
*2 La tapa del auricular viene unida a él.
*3 PNYNTGA680BR (negro), PNYNTGFA30NR (blanco)
*4 PNKE1268Z1 (negro), PNKE1268Z3 (blanco)
Nota:
RLea las instrucciones de operación de la unidad base para obtener información sobre
accesorios adicionales o de repuesto.
– Audífonos opcionales: KX-TCA60, KX-TCA93, KX-TCA400, KX-TCA430
Instalación
Conexiones/Montaje en la pared
Conecte el adaptador de corriente a la toma de corriente.
Si lo requiere, inserte los tornillos (
1
) (no se suministran) en la pared.
2
27.2 mm (1 1/16 pulgadas)
2
1
12
Nota:
REl adaptador de corriente debe permanecer conectado en todo momento (es normal que
el adaptador se caliente durante su uso).
RAsegúrese de que la pared y el método de colocación sean lo suficientemente
resistentes para soportar el peso de la unidad.
2
Instalación
Manual de instalación
Auricular Inalámbrico Digital Adicional
Modelo n° KX-TGFA30
Gracias por adquirir un producto Panasonic.
Esta unidad es un auricular adicional compatible con la siguiente serie de teléfonos ina-
lámbricos digitales Panasonic:
KX-TGF340/KX-TGF350/KX-TGF370/KX-TGF380
(Los modelos correspondientes están sujetos a cambio sin previo aviso.)
Debe registrar este auricular en su unidad base antes de poder usarlo. Este manual de
instalación solo describe los pasos necesarios para registrar y comenzar a usar el auri-
cular. Lea las instrucciones de operación de la unidad base para obtener más detalles.
Lea este manual de instalación antes de usar la unidad y guárdelo para consultarlo en el
futuro.
Para obtener ayuda, visite nuestro sitio web: www.panasonic.com/support
para clientes en los EE. UU. o Puerto Rico (solo en inglés).

Navigation menu
