Panasonic of North America 96NKX-TGMA45 DECT 6.0 Handset User Manual
Panasonic Corporation of North America DECT 6.0 Handset Users Manual
Users Manual
Amplified Cordless Telephone with Digital Answering Machine
Model No. KX-TGM420
KX-TGM450
KX-TGM420 KX-TGM420 KX-TGM420 KX-TGMA44
series
KX-TGM450 KX-TGM450 KX-TGM450 KX-TGMA45
series
No. Accessory item/Part number Quantity
①
AC adaptor*1, *2
②
Telephone line cord*2, *3
③Wall mounting adaptor/PNKL1001Z3
④
Rechargeable batteries*4, *5
⑤
Handset cover*6/PNYNTGMA44WR
⑥Belt clip*7/PNKE2076Z1
*1 PNLV226X: KX-TGM420
PNLV236-0Y: KX-TGM450
*2 The AC adaptor and telephone line cord are connected to the base unit at the time of
shipment.
*3 PQJA10075Y (Black cord), PQJA10075Z (Transparent cord)
*4 The supplied rechargeable batteries in the handset and base unit are installed with insulation
sheets inserted between battery ends and the terminals at the time of shipment.
Remove the insulation sheets before use.
*5 See page 3 for replacement battery information.
*6
The handset cover comes attached to the handset at the time of shipment.
*7 The belt clip comes attached to the handset at the time of shipment.
①②③④⑤⑥
1
1
1
4
1
1
1
1
Handset
Part No. Quantity
Series Model No.
Base unit
Part No.
Accessory item Model number/Specifications
Rechargeable
HHR-4DPA*1
batteries ・
To order, please visit http://shop.panasonic.com/support
Battery type:
–Nickel metal hydride (Ni-MH)
–2 x AAA (R03) size for each handset
Headset KX-TCA60, KX-TCA400. KX-TCA430
Range extender
KX-TGA405*2
Key detector
KX-TGA20*3
*1
Replacement batteries may have a different capacity from that of the supplied batteries.
*2
By installing this unit, you can extend the range of your phone system to include
areas where reception was previously not available. This product can be
purchased online. Please visit our Web site: http://shop.panasonic.com/support
*3
By registering the key detector (4 max.) to a Panasonic Digital Cordless Phone and
attaching it to an easy-to-lose item in advance, you can locate and find the mislaid item to
which the key detector is attached. Please visit our Web site:
http://www.panasonic.com/tga20
Handset (optional): KX-TGMA44*1/KX-TGMA45*2
You can expand your phone system
by registering optional handsets (6 max.)
to a single base unit.
・
Optional handsets may be a different color from
that of the supplied handsets.
*1

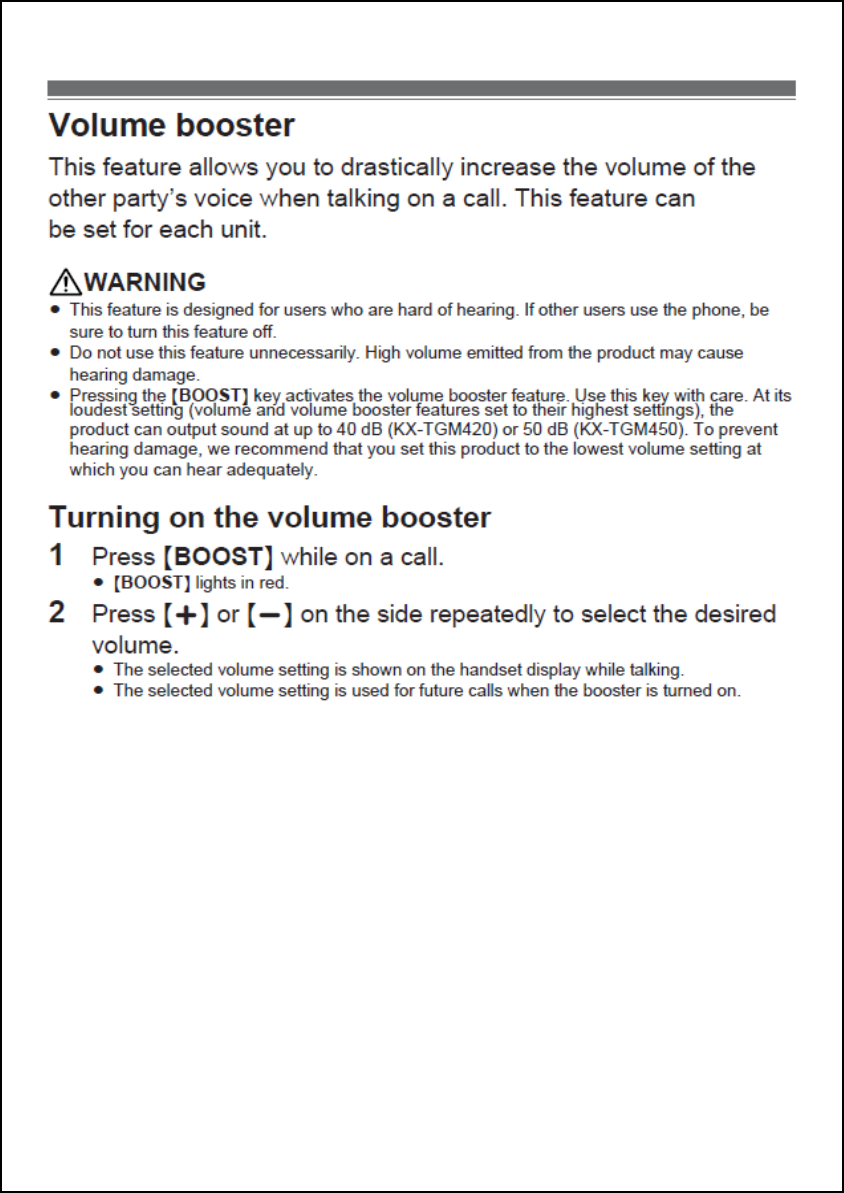

Receiver volume for outside calls is adjustable up to 40 dB (when the booster is on).
*2
Receiver volume for outside calls is adjustable up to 50 dB (when the booster is on).
.
.
.
