Panasonic of North America 96NKX-THA16 2.4 GHz Wireless Speakerphone User Manual Exhibit H for
Panasonic Corporation of North America 2.4 GHz Wireless Speakerphone Exhibit H for
Exhibit H for User Manual
Temporary Confidential
This unit is compatible with Caller ID. To use this feature, you must
subscribe to the appropriate service offered by your service provider.
Please read these Operating Instructions before using the unit and save
for future reference.
For assistance, visit our website: http://www.panasonic.com for
customers in the U.S.A. or Puerto Rico.
2.4 GHz Expandable Cordless Unit
Model No. KX-THA16
Operating Instructions
%QXGTHO2CIG6JWTUFC[/C[#/
Temporary Confidential
Introduction
2 For assistance, please visit http://www.panasonic.com/consumersupport

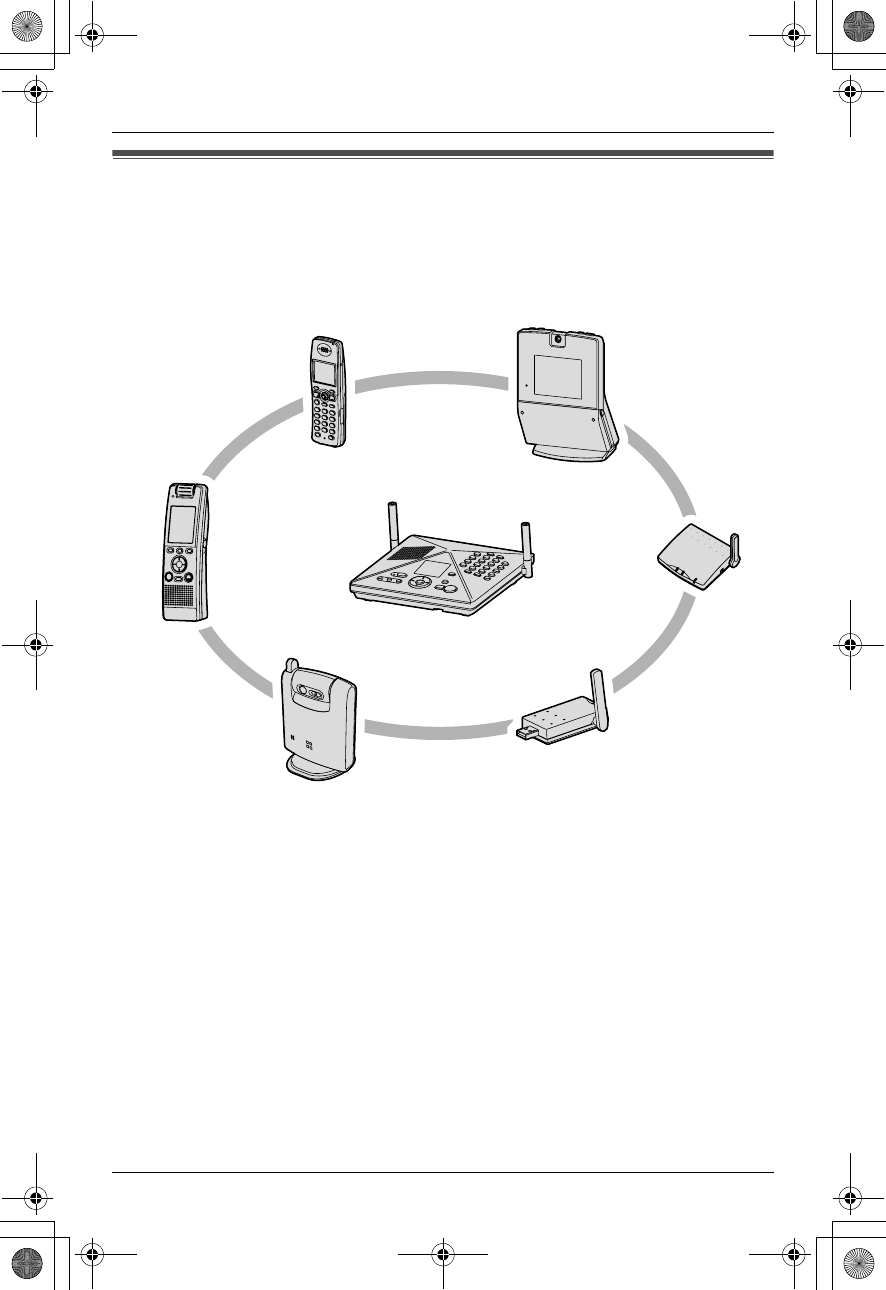

Expanding your phone
You can expand the system by adding handsets (monochrome display handsets and color
display handset), wireless camera unit, USB wireless adaptor, and repeater, sold
separately. Using these accessories, you can have a video call, monitor on a room where
the color display handset or wireless camera is located and taking pictures.
Note:
LUp to 8 handsets (KX-THA11/KX-THA12/KX-THA16) and up to 10 other Bluetooth
featured units (KX-THA13/KX-THA14 and a maximum of 5 cellular phones) can be
registered to a single base unit.
A
B
C
D
G
H
F
E
TH102.book Page 8 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Introduction
For assistance, please visit http://www.panasonic.com/consumersupport 3
Available accessory handsets
3 accessory handset models are available.
Operations and features of 3 different accessory handsets have certain differences as
indicated in the table below.
*1 USB-support allows you to connect the handset to your PC and send pictures and
songs from your PC to the handset, as well as create and edit phonebook entries using
your PC.
*2 For information on using this feature, refer to the help section of the GIGARANGE USB
Utility software. If you have not installed the GIGARANGE USB Utility software, refer to
the included “Installation Guide for GIGARANGE USB Utility” for details.
Feature KX-THA11 KX-THA12 KX-THA16 Page
Display type Monochrome Color Color –
Display size 1.6 inch 2 inch 3.6 inch –
Control type Joystick Navigator key Navigator key
USB-support*1 rr r
*2
Picture ID – rr
Picture download feature – rr
*2
Song record feature rr r
Song download feature rr r
*2
Wallpaper – rr
Wallpaper download
feature – rr
*2
Memory status display – rr
Video call – rr
View monitor – rr
Camera – rr
Cellular feature rrr
TH102.book Page 9 Thursday, May 12, 2005 6:47 PM
Temporary Confidential
Introduction
4 For assistance, please visit http://www.panasonic.com/consumersupport
Important safety
instructions
When using this unit, basic safety
precautions should always be followed to
reduce the risk of fire, electric shock, or
personal injury.
1. Read and understand all instructions.
2. Follow all warnings and instructions
marked on this unit.
3. Unplug this unit from power outlets
before cleaning. Do not use liquid or
aerosol cleaners. Use a damp cloth for
cleaning.
4. Do not use this unit near water, for
example near a bathtub, wash bowl,
kitchen sink, etc.
5. Place the unit securely on a stable
surface. Serious damage and/or injury
may result if the unit falls.
6. Do not cover slots and openings on the
unit. They are provided for ventilation
and protection against overheating.
Never place the unit near radiators, or
in a place where proper ventilation is
not provided.
7. Use only the power source marked on
the unit. If you are not sure of the type
of power supplied to your home,
consult your dealer or local power
company.
8. Do not place objects on the power
cord. Install the unit where no one can
step or trip on the cord.
9. Do not overload power outlets and
extension cords. This can result in the
risk of fire or electric shock.
10. Never push any objects through slots
in this unit. This may result in the risk of
fire or electric shock. Never spill any
liquid on the unit.
11. To reduce the risk of electric shock, do
not disassemble this unit. Take the unit
to an authorized service center when
service is required. Opening or
removing covers may expose you to
dangerous voltages or other risks.
Incorrect reassembly can cause
electric shock when the unit is
subsequently used.
12. Unplug this unit from power outlets and
refer servicing to an authorized service
center when the following conditions
occur:
A. When the power cord is damaged
or frayed.
B. If liquid has been spilled into the
unit.
C. If the unit has been exposed to rain
or water.
D. If the unit does not work normally
by following the operating
instructions. Adjust only controls
covered by the operating
instructions. Improper adjustment
may require extensive work by an
authorized service center.
E. If the unit has been dropped or
physically damaged.
F. If the unit exhibits a distinct change
in performance.
13. During thunderstorms, avoid using
telephones except cordless types.
There may be a remote risk of an
electric shock from lightning.
14. Do not use this unit to report a gas
leak, when in the vicinity of the leak.
SAVE THESE
INSTRUCTIONS
CAUTION:
LDo not touch the plug with wet hands.
LThe AC adaptor is used as the main
disconnect device. Ensure that the AC
outlet is installed near the unit and is
easily accessible.
+PVTQFWEVKQPHO2CIG/QPFC[/C[2/
Temporary Confidential
Introduction
For assistance, please visit http://www.panasonic.com/consumersupport 5
Battery
To reduce the risk of fire or injury to
persons, read and follow these
instructions.
LUse only the battery(ies) specified.
LDo not dispose of the battery(ies) in a
fire. They may explode. Check with local
waste management codes for special
disposal instructions.
LDo not open or mutilate the battery(ies).
Released electrolyte is corrosive and
may cause burns or injury to the eyes or
skin. The electrolyte may be toxic if
swallowed.
LExercise care when handling the
battery(ies). Do not allow conductive
materials such as rings, bracelets or
keys to touch the battery(ies), otherwise
a short circuit may cause the battery(ies)
and/or the conductive material to
overheat and cause burns.
LCharge the battery(ies) provided with or
identified for use with this product only in
accordance with the instructions and
limitations specified in this manual.
WARNING:
LTo prevent the risk of fire or electrical
shock, do not expose this product to rain
or any type of moisture.
LUnplug this unit from power outlets if it
emits smoke, an abnormal smell or
makes an unusual noise. These
conditions can cause fire or electric
shock. Confirm that smoke has stopped
and contact the Panasonic Call Center
at 1-800-211-PANA (7262).
Medical
LConsult the manufacturer of any
personal medical devices, such as
pacemakers or hearing aids, to
determine if they are adequately
shielded from external RF (radio
frequency) energy. (The unit operates in
the frequency range of 2.4 GHz to 2.48
GHz, and the power output level can
range from 0.04 to 0.25 watts.) Do not use
the unit in health care facilities if any
regulations posted in the area instruct
you not to do so. Hospitals or health care
facilities may be using equipment that
could be sensitive to external RF (radio
frequency) energy.
+PVTQFWEVKQPHO2CIG/QPFC[/C[2/
Temporary Confidential
Introduction
6 For assistance, please visit http://www.panasonic.com/consumersupport
For best performance
Base unit location/noise
The base unit and handset use radio
waves to communicate with each other.
For maximum distance and noise-free
operation, we recommend the following:
LPlacing the unit away from electrical
appliances such as a TV, personal
computer or another cordless phone.
LPlacing the base unit in a HIGH and
CENTRAL location with no obstructions
such as walls.
LRaising the antennas vertically.
LIf you use the handset near a microwave
oven which is being used, noise may be
heard. Move away from the microwave
oven and closer to the base unit.
LIf you use the handset near another
cordless phone’s base unit, noise may
be heard. Move away from the other
cordless phone’s base unit and closer to
your base unit.
Environment
LKeep the unit away from electrical noise
generating devices, such as fluorescent
lamps and motors.
LThe unit should be kept free from
excessive smoke, dust, high
temperature and vibration.
LThe unit should not be exposed to direct
sunlight.
LDo not place heavy objects on top of the
unit.
LWhen you leave the unit unused for a
long period of time, unplug this unit from
power outlet.
LThe unit should be kept away from heat
sources such as heaters, kitchen stoves,
etc. It should not be placed in rooms
where the temperature is less than 5 °C
(41 °F) or greater than 40 °C (104 °F).
Damp basements should also be
avoided.
LThe maximum calling distance may be
shortened when the unit is used in the
following places: Near obstacles such as
hills, tunnels, undergrounds, near metal
objects such as wire fences, etc.
LOperating near 2.4 GHz electrical
appliances may cause interference.
Move away from the electrical
appliances.
Routine care
LWipe the outer surface of the unit with a
soft cloth. Do not use benzine, thinner or
any abrasive powder.
+PVTQFWEVKQPHO2CIG/QPFC[/C[2/
Temporary Confidential
Preparation
For assistance, please visit http://www.panasonic.com/consumersupport 7
Connections

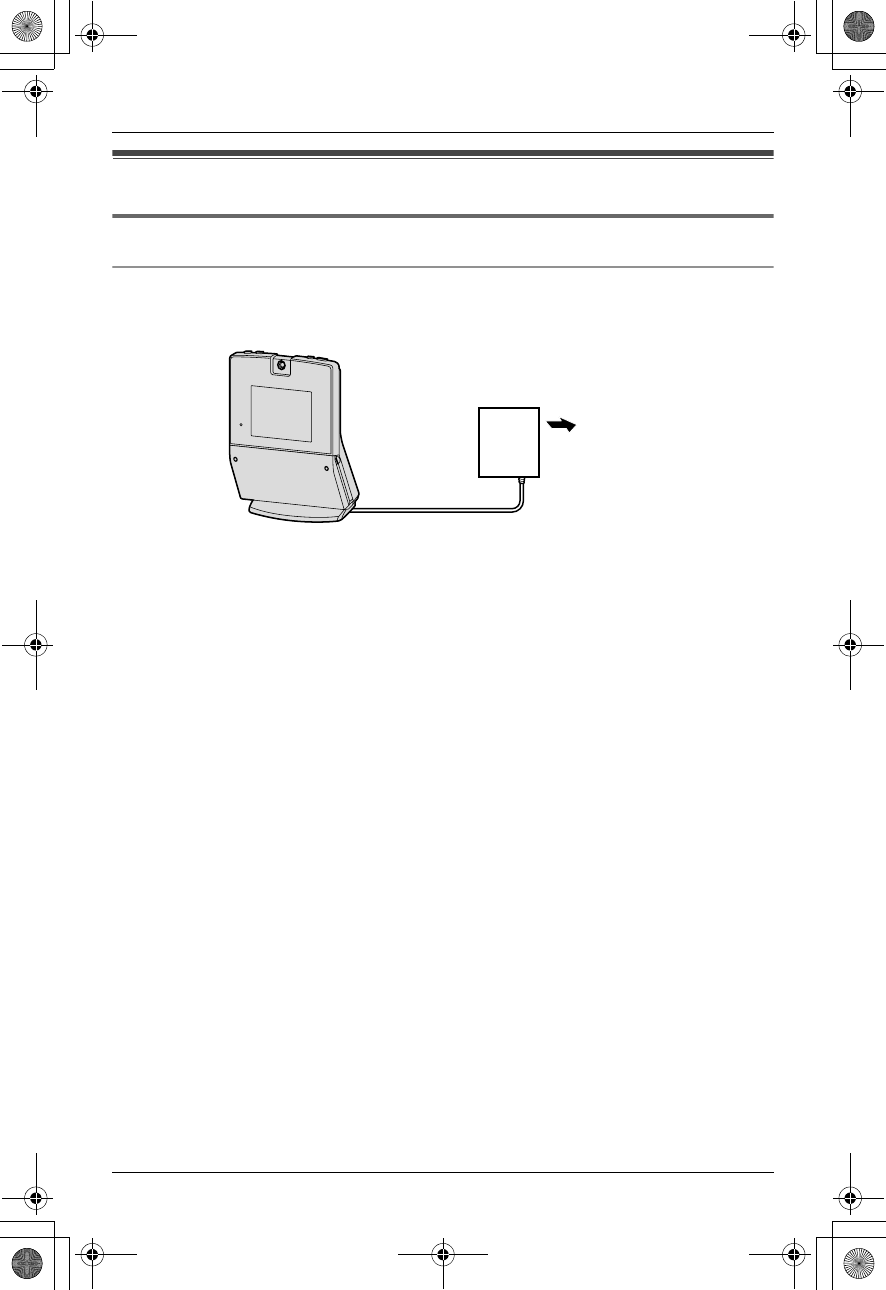

Connecting the AC adaptor
Note:
LUse only the included Panasonic AC adaptor PQLV203.
LThe AC adaptor must remain connected at all times. (It is normal for the adaptor to feel
warm during use.)
LThe AC adaptor should be connected to a vertically oriented or floor-mounted AC outlet.
Do not connect the AC adaptor to a ceiling-mounted AC outlet, as the weight of the
adaptor may cause it to become disconnected.
(AC 120 V, 60 Hz)
2TGRCTCVKQPHO2CIG6JWTUFC[/C[#/
Temporary Confidential
Preparation
8 For assistance, please visit http://www.panasonic.com/consumersupport
Battery installation
Insert the battery (1), and press it down
until it snaps into the compartment (2).
Close the cover.
Battery replacement
LUse only the rechargeable Panasonic
battery.
1Press the notch on the cover firmly and
slide it as indicated by the arrow.
2Replace the old battery with a new one,
and close the cover.
Attention:
A nickel metal hydride battery that is
recyclable powers the product you have
purchased.
Please call 1-800-8-BATTERY for
information on how to recycle this battery.
2TGRCTCVKQPHO2CIG6JWTUFC[/C[#/
Temporary Confidential
Preparation
9 For assistance, please visit http://www.panasonic.com/consumersupport

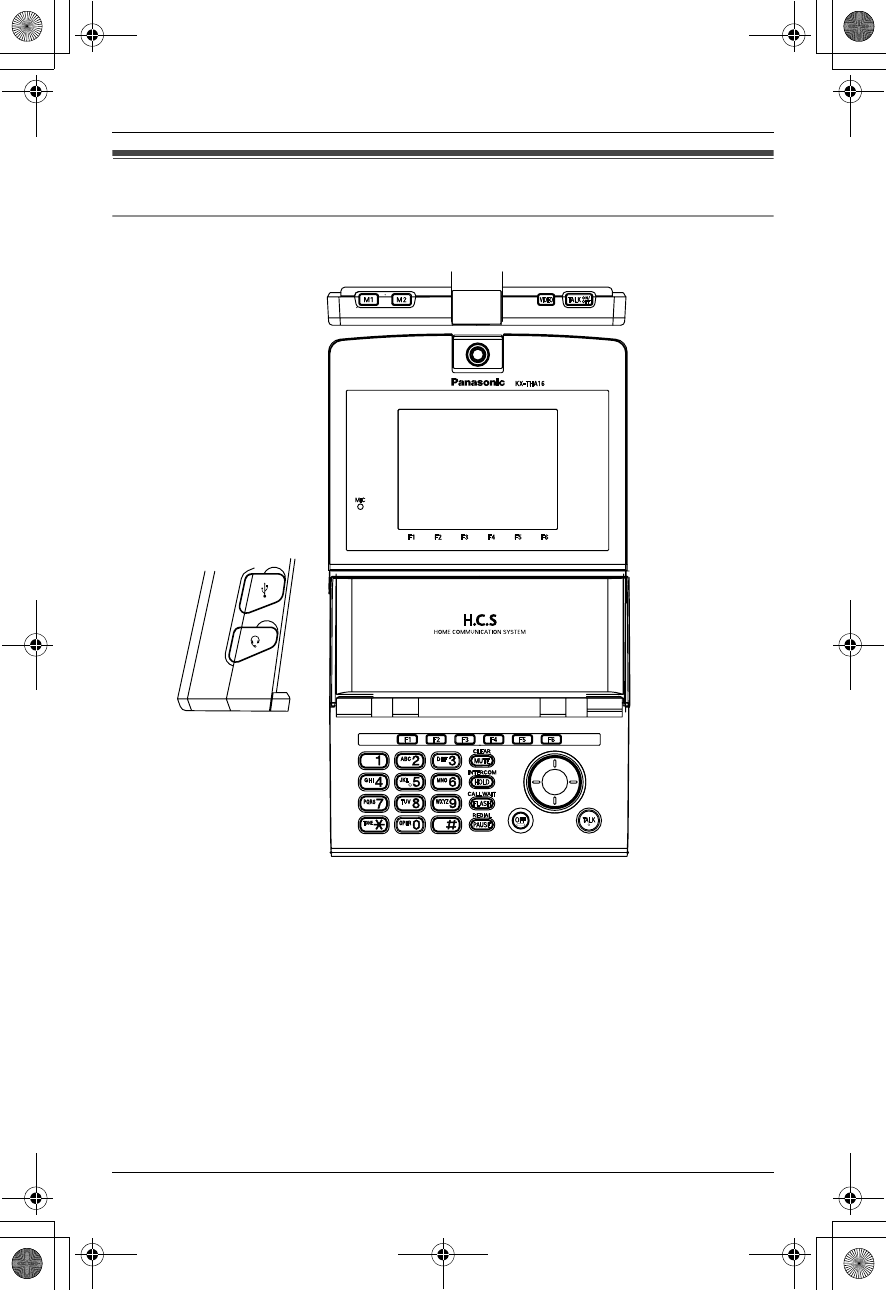

Controls
Visual portable unit
AFunction keys
BSpeaker
CDisplay
D[TALK]
E[TALK ON/OFF]
F{REDIAL} {PAUSE}
G{CALL WAIT} {FLASH}
H{*} (TONE)
ICamera
J[VIDEO]
K[M1]
L[M2]
M{OFF}
NNavigator key
O{INTERCOM}[HOLD]
P[CLEAR]{MUTE}
Q{CALL WAIT} {FLASH}
RUSB port
SHeadset jack/Audio jack
2TGRCTCVKQPHO2CIG6JWTUFC[/C[2/
Temporary Confidential
Preparation
10 For assistance, please visit http://www.panasonic.com/consumersupport
Registering the unit
1Base unit:
Press and hold {INTERCOM} until it
starts flashing.
LAfter the {INTERCOM} starts
flashing, the rest of the procedure
must be completed within 1 minute.
2KX-THA16:
Enter the PIN. (Default: “0000”)
3KX-THA16:
Press {OK}, then wait until the unit
beeps.
2TGRCTCVKQPHO2CIG6JWTUFC[/C[#/
Temporary Confidential
Making/Answering Calls
For assistance, please visit http://www.panasonic.com/consumersupport 11
Making calls
1Dial the phone number.
2[TALK]
3When finished talking, press {OFF}.
Answering calls
1[TALK]
2Speak into the MIC.
3When finished talking, press {OFF}.
/CMKPIAECNNUHO2CIG6JWTUFC[/C[#/
Temporary Confidential
Caller ID Service
12 For assistance, please visit http://www.panasonic.com/consumersupport
Using Caller ID service
This unit is Caller ID compatible. To use
Caller ID features, you must subscribe to
your telephone company’s Caller ID
service.
Caller ID features
When an outside call is being received, the
calling party’s name and telephone
number will be displayed.
Caller information for the last 50 different
callers will be logged in the caller list,
allowing you to return missed calls. Caller
information is stored by the most recent
call to the oldest.
LWhile listening to a message recorded
by the answering system, using the
handset, you can call back the caller
without having to dial the phone number.
LIf the unit cannot receive caller
information, the following will be
displayed:
“Out of area”: The caller dialed from
an area which does not provide Caller ID
service.
“Private caller”: The caller
requested not to send caller information.
“Long distance”: The caller called
you long distance.
LIf the unit is connected to a PBX system,
caller information may not be received
properly. Consult your PBX supplier.
Talking Caller ID
This feature allows you to know who is
calling without looking at the display. When
a call comes in, the handset and base unit
will announce the caller’s name displayed
on the handset following every ring.
To use this feature, you must subscribe to
your telephone company’s Caller ID
service.
LName pronunciation may vary. This
feature may not pronounce all names
correctly.
LCaller ID supports names of up to 15
letters. If the caller’s name has more
than 15 letters, the name will not be
displayed or announced correctly.
LUsually the unit will announce the
caller’s name after the 2nd ring. If you
turn on the answering system, and set
the ring count to “2”, the unit will not
announce the caller’s name. If “Toll
saver” is selected, and there is a new
message, the unit will not announce the
caller’s name.
%CNNGT+&HO2CIG6JWTUFC[/C[2/
Temporary Confidential
Caller ID Service
For assistance, please visit http://www.panasonic.com/consumersupport 13
Caller list
Caller information for the last 50 different
callers will be logged in the caller list. You
can use this list to return missed calls.
Missed calls
If a call is not answered, the unit treats the
call as a missed call. The number of
missed calls is shown on the handset
display. This lets you know if you should
view the caller list to see who called while
you were out.
Viewing the caller list and
calling back
1[MENU] (F6)
2{#}{2}{1}{3}
3Press the navigator key down to search
from the most recent call, or up to
search from the oldest call.
4[TALK]
%CNNGT+&HO2CIG6JWTUFC[/C[2/
Temporary Confidential
Answering System Features
14 For assistance, please visit http://www.panasonic.com/consumersupport
Answering system
Important:
LOnly 1 person can access the answering
system (listen to messages, record a
greeting message, etc.) at a time.
LWhen callers leave messages, the unit
records the day and time of each
message. Make sure the date and time
have been set.
Listening to messages
When new messages have been
recorded, “New message” is displayed.
1[MENU] (F6)
2{#}{3}{0}{0}
LWhen you have no new messages,
the unit will play back all messages.
#PUYGTKPIAU[UVGOHO2CIG6JWTUFC[/C[2/
Temporary Confidential
Useful Information
15 For assistance, please visit http://www.panasonic.com/consumersupport
FCC and other information
WHEN PROGRAMMING EMERGENCY
NUMBERS AND(OR) MAKING TEST
CALLS TO EMERGENCY NUMBERS:
1) Remain on the line and briefly explain
to the dispatcher the reason for the
call.
2) Perform such activities in the off-peak
hours, such as early morning or late
evenings.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
Privacy of communications may not be
ensured when using this phone.
CAUTION:
Any changes or modifications not
expressly approved by the party
responsible for compliance could void the
user’s authority to operate this device.
NOTE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference in
a residential installation. This equipment
generates, uses, and can radiate radio
frequency energy and, if not installed and
used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
− Reorient or relocate the receiving
antenna.
− Increase the separation between the
equipment and receiver.
− Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
− Consult the dealer or an experienced
radio/TV technician for help.
Some cordless telephones operate at
frequencies that may cause interference
to nearby TVs and VCRs. To minimize or
prevent such interference, the base of
the cordless telephone should not be
placed near or on top of a TV or VCR. If
interference is experienced, move the
cordless telephone further away from the
TV or VCR. This will often reduce, or
eliminate, interference.
7UGHWN+PHQTOCVKQPHO2CIG/QPFC[/C[2/
Temporary Confidential
Useful Information
16 For assistance, please visit http://www.panasonic.com/consumersupport
FCC RF Exposure Warning:
This product complies with FCC radiation
exposure limits set forth for an
uncontrolled environment. To comply
with FCC RF exposure requirements the
unit must be installed and operated 20
cm or more away from all person’s body
(excluding extremities of hands, wrist
and feet). The unit must not be co-
located or operated in conjunction with
any antenna or transmitter.
Responsible party:
Panasonic Corporation of North America
One Panasonic Way,
Secaucus, New Jersey 07094
Phone number: 1-800-211-PANA (7262)
7UGHWN+PHQTOCVKQPHO2CIG/QPFC[/C[2/
Temporary Confidential
If you need assistance with setup or operation;
1Visit our website: http://www.panasonic.com/consumersupport
2Contact us via the web at: http://www.panasonic.com/contactinfo
3Call us at: 1-800-211-PANA (7262)
TTY users (hearing or speech impaired users) can call 1-877-833-8855.
When you ship the product;
LCarefully pack your unit, preferably in the original carton.
LAttach a letter, detailing the symptom, to the outside of the carton.
LSend the unit to Panasonic Services Company Customer Servicenter, prepaid and
adequately insured.
LDo not send your unit to Panasonic Consumer Electronics Company listed below or to
executive or regional sales offices. These locations do not repair consumer products.
Copyright:
This material is copyrighted by Panasonic Communications Co., Ltd., and may be
reproduced for internal use only. All other reproduction, in whole or in part, is prohibited
without the written consent of Panasonic Communications Co., Ltd.
© 2005 Panasonic Communications Co., Ltd. All Rights Reserved.
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Puerto Rico, Inc.
San Gabriel Industrial Park, Ave. 65 de Infantería, Km. 9.5,
Carolina, Puerto Rico 00985
TH102.book Page 96 Thursday, May 12, 2005 6:47 PM
