Users manual
Important Information

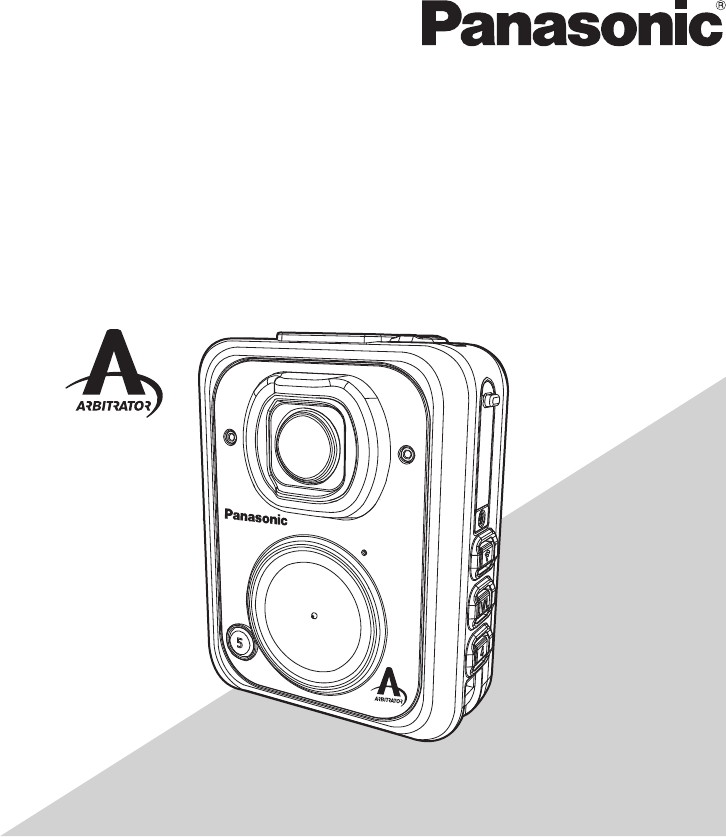

Body Worn Camera
Model No. WV-TW370
WV-TW370
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
2
The model number and serial number of this
product may be found on the surface of the
unit.
You should note the model number and serial
number of this unit in the space provided and
retain this book as a permanent record of your
purchase to aid identification in the event of
theft.
Model No.
Serial No.
For U.S.A
WARNING:
• Batteries (battery pack or batteries installed)
shall not be exposed to excessive heat such
as sunshine, fire or the like.
• The installation shall be carried out in accor-
dance with all applicable installation rules.
• The connections should comply with local
electrical code.
CAUTION:
• Changes or modifications not expressly
approved by the party responsible for compli-
ance could void the user’s authority to operate
the equipment.
For U.S.A.
[Part 15 Subpart B]
Note: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
[Part 15 Subpart C ]
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
The available scientific evidence does not show that any health problems are associated with using
low power wireless devices. There is no proof, however, that these low power wireless devices are
absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the
microwave range while being used. Whereas high levels of RF can produce health effects (by heating
tissue), exposure of low-level RF that does not produce heating effects causes no known adverse
health effects. Many studies of low-level RF exposures have not found any biological effects. Some
studies have suggested that some biological effects might occur, but such findings have not been
confirmed by additional research. WV-TW370 has been tested and found to comply with FCC
radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency
(RF) Exposure Guidelines.
[Part 15 Subpart E]
Compliance with FCC requirement 15.407(c)
Data transmission is always initiated by software, which is the passed down through the MAC, through
the digital and analog baseband, and finally to the RF chip. Several special packets are initiated by
the MAC. These are the only ways the digital baseband portion will turn on the RF transmitter, which it
then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the
aforementioned packets is being transmitted. In other words, this device automatically discontinue
transmission in case of either absence of information to transmit or operational failure.
Frequecncy Tolerance: within ±20 ppm
MEDICAL:
Consult the manufacturer of any personal medical devices, such as pacemakers, to determine if they
are adequately shielded from external RF (radio frequency) energy. (The unit operates in the
frequency range of 2.412 GHz to 2.462 GHz, and the power output level is 0.1 watts.)
Do not use the unit in health care facilities if any regulations posted in the area instruct you not to do
so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF
(radio frequency) energy.
For U.S.A.
3
CAN ICES-3(A)/NMB-3(A)
For Canada
For Canada
[RSS-Gen]
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the
following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired opera-
tion of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
[RSS-102]
The available scientific evidence does not show that any health problems are associated with using
low power wireless devices. There is no proof, however, that these low power wireless devices are
absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the
microwave range while being used. Whereas high levels of RF can produce health effects (by heating
tissue), exposure of low-level RF that does not produce heating effects causes no known adverse
health effects. Many studies of low-level RF exposures have not found any biological effects. Some
studies have suggested that some biological effects might occur, but such findings have not been
confirmed by additional research. WV-TW370 has been tested and found to comply with IC radiation
exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio
frequency (RF) Exposure rules.
Les connaissances scientifiques dont nous disposons n’ont mis en évidence aucun problème de
santé associé à l’usage des appareils sans fil à faible puissance. Nous ne sommes cependant pas en
mesure de prouver que ces appareils sans fil à faible puissance sont entièrement sans danger. Les
appareils sans fil à faible puissance émettent une énergie radioélectrique (RF) très faible dans le
spectre des micro-ondes lorsqu’ils sont utilisés. Alors qu’une dose élevée de RF peut avoir des effets
sur la santé (en chauffant les tissus), l’exposition à de faibles RF qui ne produisent pas de chaleur n’a
pas de mauvais effets connus sur la santé. De nombreuses études ont été menées sur les
expositions aux RF faibles et n’ont découvert aucun effet biologique. Certaines études ont suggéré
qu’il pouvait y avoir certains effets biologiques, mais ces résultats n’ont pas été confirmés par des
recherches supplémentaires. WV-TW370 a été testé et jugé conforme aux limites d’exposition aux
rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux
fréquences radioélectriques (RF) CNR-102 de l’IC.
[RSS-247]
5150-5350 MHz band is restricted to indoor operation only.
La bande 5150-5350 MHz est restreinte à une utilisation à l’intérieur seulement.
High-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz
and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN
devices.
Les radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour
les bandes 5250-5350 MHz et 5650-5850 MHz, et ces radars pourraient causer du brouillage et/ou
des dommages aux dispositifs LAN-EL.
FCC RF Exposure Warning:
The Body Worn Camera may be carried and operated with only the tested clip. Other non-tested
clips or similar body-won accessories may not comply and must be avoided.
4
Contents
Important safety instructions ......................................................................................................... 5
About the Battery .......................................................................................................................... 5
Limitation of liability ....................................................................................................................... 7
Disclaimer of warranty ................................................................................................................... 8
Preface .......................................................................................................................................... 8
Main functions ............................................................................................................................... 9
About the user manuals ................................................................................................................ 9
System requirements for a PC .................................................................................................... 10
Trademarks and registered trademarks....................................................................................... 10
Copyright ..................................................................................................................................... 10
Open Source Software ................................................................................................................ 10
Network security ......................................................................................................................... 11
Precautions ................................................................................................................................. 12
Precautions for installation .......................................................................................................... 16
Parts and functions ..................................................................................................................... 17
Indicators ..................................................................................................................................... 20
Specifications .............................................................................................................................. 23
Standard accessories .................................................................................................................. 25
Optional accessories ................................................................................................................... 25
5
Important safety instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water. (Common Trigger Box: WV-TW37003, Pairing Dock:
WV-TW37004 and Multi-Dock Charger: WV-TC370 only)
6) Clean only with dry cloth. (Common Trigger Box: WV-TW37003, Pairing Dock: WV-TW37004
and Multi-Dock Charger: WV-TC370 only)
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instruc-
tions. (Multi-Dock Charger: WV-TC370 only)
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other appara-
tus (including amplifiers) that produce heat.
9) Only use attachments/accessories specified by the manufacturer.
10) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
About the Battery
When Using the Battery
DANGER
(1) Misusing the battery may cause the battery to get hot, explode, or ignite and cause serious
injury. Be sure to follow the safety instructions listed below:
• Keep the battery away from heat and fire.
• Do not forcibly set or connect the battery in the reverse direction. The battery has a certain
polarity.
• Do not connect the positive terminal and the negative terminal of the battery to each other
with any metal object (such as a wire).
• To prevent damages or short-circuit of the metal terminal, tightly pack the battery into a case
during transport.
• Do not solder directly onto the battery.
• Do not expose the battery to water or salt water, or allow the battery to get wet.
(2) Do not disassemble or modify the battery. The battery contains safety and protection device
which, if damaged, may cause the battery to generate heat, explode, or ignite.
(3) Do not place the battery on or near fire, stoves, or other high temperature locations. Do not
place the battery in direct sunlight, inside cars, or in hot water. Failure to observe this may
cause the battery to generate heat, explode, or ignite.
(4) Do not insert the battery into equipment designed to be hermetically sealed. In some cases,
hydrogen or oxygen may be discharged from the cell resulting in rupture, fire, or explosion.
6
WARNING
(1) Immediately discontinue use of the battery if, while using, charging, or storing the battery, the
battery is giving out an unusual smell, feels hot, changes color, changes shape or appears
abnormal in any other way. Contact your authorized dealer or Panasonic if any of these prob-
lems are observed.
(2) Do not place the batteries in microwave ovens, high-pressure containers, or on induction cook-
ware.
(3) In the event that the battery leaks and the electrolyte gets into your eye, do not rub the eye.
Rinse well with water and immediately seek medical care. If left untreated, the battery fluid
could cause damage to the eye.
(4) If electrolyte leaks from the battery and adheres to the skin or clothes, immediately rinse with
water. Otherwise, it may cause skin irritation.
(5) If the battery is leaking or giving out an unusual smell, immediately keep away the battery from
flames. Otherwise, it may be a cause of ignition, smoke, or rupture.
CAUTION
(1) If the device is to be used by small children, an adult should explain the contents of the user’s
manual to the children. Provide an adequate supervision and ensure that the device is being
used as explained in the user’s manual.
(2) When the battery is worn out, insulate the terminals with adhesive tape or similar materials
before disposal.
While Charging
DANGER
Be sure to follow the instructions listed below while charging the battery. Failure to observe those
may cause the battery to become hot, rupture, or ignite resulting in serious injury.
(1) When charging the battery, either use a specified battery charger or otherwise ensure that the
battery charging conditions specified by Panasonic are met.
(2) Do not attach the batteries to a power supply plug or directly to a vehicle’s cigarette lighter.
WARNING
Do not continue charging the battery if it does not charge within the specified time. Otherwise, it
may cause the battery to become hot, rupture, or ignite.
CAUTION
(1) The temperature range over which the battery can be charged is 0 °C to 60 °C {32 °F to
140°F}. Charging the battery at temperatures outside of this range may cause the battery to
become hot or to break. Charging the battery outside of this temperature range may also harm
the performance of the battery or reduce the battery’s life expectancy.
(2) Do not charge the battery near flames or in a car parked under blazing sun. If the battery gets
hot, the protection circuit will be activated and the battery may not be charged normally. Also, if
the protection circuit is damaged, it may be a cause of an abnormal chemical reaction resulting
in fire, smoke, heat generation, or rupture.
7
Limitation of liability
THIS PUBLICATION IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE, OR NON-INFRINGEMENT OF
THE THIRD PARTY'S RIGHT.
THIS PUBLICATION COULD INCLUDE TECHNICAL INACCURACIES OR TYPOGRAPHICAL
ERRORS. CHANGES ARE ADDED TO THE INFORMATION HEREIN, AT ANY TIME, FOR THE
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S).
Battery Replacement
WARNING
The battery should be replaced only by personnel from Panasonic Service Center.
(1) Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries accord-
ing to the instructions.
(2) Dispose of used batteries according to the instructions. (Refer to the instructions below for safe
disposal of lithium ion polymer battery.)
When Discharging the Battery
DANGER
Do not discharge the battery using any device except for specified devices. When the battery is
used in devices aside from the specified device, it may harm the performance of the battery or
reduce the battery’s life expectancy. Also, if the device causes an abnormal current to flow, it may
cause the battery to become hot, explode, or ignite resulting in serious injury.
CAUTION
The temperature range over which the battery can be discharged is –20 °C to 50 °C {–4 °F to
122°F}. Using the battery outside of this temperature range may also harm the performance of the
battery or reduce the battery’s life expectancy.
Safe Disposal of Lithium Ion Polymer Battery
(1) Be sure to discharge battery cells before disposal.
(2) If the battery is physically damaged, it is not recommended to discharge battery cells before
disposal.
(3) Battery must also be cooled off before proceeding disposal.
(4) Submerge the battery into a bucket or tub of salt water. This container should have a lid but it
does not need to be air-tight.
Allow the battery to remain in the tub of slat water for at least 2 weeks.
(5) Remove the battery from the salt water and dispose of as hazardous waste.
8
Disclaimer of warranty
IN NO EVENT SHALL Panasonic System Networks Co., Ltd. BE LIABLE TO ANY PARTY OR ANY
PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT,
FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:
(1) ANY LOSS OR DAMAGE, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT, SPE-
CIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THE PROD-
UCT;
(2) ANY INCONVENIENCE, LOSS, OR DAMAGE CAUSED BY INAPPROPRIATE USE OR NEGLI-
GENT OPERATION OF THE USER;
(3) ALL MALFUNCTIONS OR TROUBLES FROM UNAUTHORIZED DISASSEMBLE, REPAIR OR
MODIFICATION OF THE PRODUCT BY THE USER, REGARDLESS OF THE CAUSE OF THE
MALFUNCTION OR TROUBLE;
(4) INCONVENIENCE OR ANY LOSS ARISING WHEN IMAGES ARE NOT DISPLAYED, DUE TO
ANY REASON OR CAUSE INCLUDING ANY FAILURE OR PROBLEM OF THE PRODUCT;
(5) ANY PROBLEM, CONSEQUENTIAL INCONVENIENCE, OR LOSS OR DAMAGE, ARISING
OUT OF THE SYSTEM COMBINED BY THE DEVICES OF THIRD PARTY;
(6) ANY CLAIM OR ACTION FOR DAMAGES BROUGHT BY ANY PERSON OR ORGANIZATION
AS A PHOTOGRAPHED SUBJECT DUE TO VIOLATION OF PRIVACY CONCERNING A SUR-
VEILLANCE CAMERA'S PICTURE OR SAVED DATA, FOR SOME REASON (INCLUDING USE
WHEN USER AUTHENTICATION ON THE AUTHENTICATION SETTING SCREEN IS SET TO
OFF), BECOMING PUBLIC OR BEING USED FOR ANY PURPOSE;
(7) LOSS OF REGISTERED DATA CAUSED BY ANY FAILURE (INCLUDING INITIALIZATION OF
THE PRODUCT DUE TO FORGOTTEN AUTHENTICATION INFORMATION SUCH AS A USER
NAME AND PASSWORD).
Preface
WV-TW370 Body Worn Camera is battery-powered camera that is used to record images by being
worn on a human body.
It has fisheye lens, which enables shooting with wide angles.
It is also possible to record images on the internal memory card of the camera.
9
About the user manuals
Main functions
Panasonic’s power-saving design and newly adopted battery enable long hour operation
A long hour operation without charging, such as in two-shift work system, is possible.
Wide angle
Wide angle shooting is achieved by adopting a fisheye lens and 1/2.86 type MOS image sensor.
Compliant with IEEE802.11ac standard, high-speed wireless communication function is
provided.
The recorded data can be uploaded in a high speed via wireless communication.
BLE (Bluetooth Low Energy) enables low-power communication with peripheral devices
Low power consumption is achieved in communication with peripheral device.
GPS (Global Positioning System) is adopted
The camera positions can be recorded.
Robust designing for rough environment
• High falling shock resistance compliant with MIL-STS-810G is provided.
• IP67-compliant superior dust-proof and water-proof properties are provided.
• A scratch-resistant hard coating is applied to the surface of the fisheye lens.
There is an operating instruction for the WV-TW370 as follows.
• Installation Guide: Explains how to install and connect devices.
The instructions for mounting the optional parts to be used with BWC are
included.
• Important Information (this document): Provides basic information about the product.
The external appearance and other parts shown in this manual may differ from the actual product
within the scope that will not interfere with normal use due to improvement of the product.
10
System requirements for a PC
Trademarks and registered trademarks
• The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
and any use of such marks by Panasonic Corporation is under license.
• All other trademarks identified herein are the property of their respective owners.
Copyright
Except for open source software licensed under GPL/LGPL and so on, distributing, copying, disas-
sembling, reverse compiling and reverse engineering of the software provided with this product are
all expressly prohibited. In addition, exporting any software provided with this product violating
export laws is prohibited.
Open Source Software
• This product contains open source software licensed under GPL (GNU General Public
License), LGPL (GNU Lesser General Public License), etc.
• Customers can duplicate, distribute and modify the source code of the software under license
of GPL and/or LGPL.
• Refer to the “Open Source Software” leaflet for further information about open source software
licenses and the source code.
• Please note that Panasonic shall not respond to any inquiries regarding the contents of the
source code.
For the system requirements for a PC, refer to “Operating Instructions” of Back-End Client (Back-
End Application).
11
Network security
As you will use this unit connected to a network, your attention is called to the following security
risks.
q Leakage or theft of information through this unit
w Use of this unit for illegal operations by persons with malicious intent
e Interference with or stoppage of this unit by persons with malicious intent
It is your responsibility to take precautions such as those described below to protect yourself
against the above network security risks.
• Use this unit in a network secured by a firewall, etc.
• If this unit is connected to a network that includes PCs, make sure that the system is not
infected by computer viruses or other malicious entities (using a regularly updated anti-virus
program, anti-spyware program, etc.).
12
Precautions
Turn off the power in air planes
Failure to observe this may interfere with the
safety of the flight.
Do not bring the camera near medical
devices (Do not bring it into an operating
room, ICU, or CCU, etc.)
The waveform emitted from the device may
affect the medical devices. It may cause mal-
function resulting in an accident.
Refer installation work to the dealer.
Installation work requires technique and experi-
ence. Failure to observe this may cause injury,
or damage to the product. Be sure to consult
the dealer.
Turn the power off when do wiring of this
product.
Failure to observe this may cause electric
shock. In addition, short circuit or wrong wiring
may cause fire.
Correctly perform all wiring
Short circuits in the wiring or incorrect wiring
may cause fire or electrical shock.
Do not pull the cables
Failure to observe this may cause injury.
Do not damage the cables
If a heavy object is put on the cable or is
pinched, the cable may be damaged and be a
cause of injury.
Do not rub the edges of metal parts with
your hand
Failure to observe this may cause injury.
Do not use this product in an inflammable
atmosphere
Failure to observe this may cause an explosion
resulting in injury.
The screws and bolts must be tightened to
the specified torque
Failure to observe this may cause a drop
resulting in injury or accidents.
Do not block the ventilation openings.
Failure to observe this may cause fire since
blocking the ventilation openings can raise the
temperature inside the product.
(Multi-Dock Charger:WV-TC370 only)
Do not strike or give a strong shock to this
product
Failure to observe this may cause fire or injury.
Do not pour or wet the unit.
This may result electric shock or fire. Turn the
power off immediately and contact qualified
service personnel for service.
(Multi-Dock Charger: WV-TC370,
Common Trigger Box: WV-TW37003,
Pairing Dock: WV-TW37004 only)
Do not insert any foreign objects
Fire or electrical shock may be caused if water
or any foreign objects, such as metal objects,
enter inside the unit.
Turn the power off immediately and contact
qualified service personnel for service.
Do not attempt to disassemble or modify
this product
Failure to observe this may cause fire or elec-
tric shock.
Consult the dealer for the repair or inspections.
Periodic inspections shall be conducted.
Rust on the metal parts or screws may cause a
fall of the product resulting in injury or acci-
dents.
Consult the dealer for the inspections.
Turn the power off when cleaning this pro-
duct.
Failure to observe this may cause injury.
13
Stop the operation immediately when
something is wrong with this product.
When smoke goes up from the product, the
smell of smoke comes from the product, or the
exterior of the product has deteriorated, con-
tinued use will cause a fire or fall of the product
resulting in injury, or damage to the product.
In this case, turn the power off immediately
and contact qualified service personnel for ser-
vice.
Do not throw into flame
Failure to observe this may cause ignition or
rupture.
Refer disposal to experts
If burned, chemical substance may be dis-
charged and hurt eyes, cause fire or burn.
Use a specified battery charger.
Failure to observe this may be a cause of leak-
age, heat generation, or rupture of the battery.
Do not throw into flame or heat up.
Failure to observe this may be a cause of leak-
age, heat generation, or rupture of the battery.
Use the same model or equivalent lithium
ion polymer battery when replacement is
required.
Failure to observe this may result in heat gener-
ation, rupture of the battery, or ignition.
Contact your dealer for replacement of the lith-
ium ion polymer battery.
Do not directly touch the product with
your skin when it has been turned on for
an extended period.
Direct skin contact with high-temperature parts
of the product for extended periods may cause
low-temperature burns.
A lithium ion polymer battery that is recy-
clable powers the product you have pur-
chased.
Please call 1-800-8-BATTERY for information
on how to recycle this battery.
(L’appareil que vous vous êtes procuré est ali-
menté par une batterie au lithium-ion/lithium-
polymère.
Pour des renseignements sur le recyclage de la
batterie, veuillez composer
le 1-800-8-BATTERY.)
14
[Precautions for use]
To keep on using with stable performance
Do not use this product in hot and humid con-
ditions for a long time.
Failure to observe this causes component deg-
radation resulting in life shortening of this prod-
uct.
Do not expose this product to direct heat
sources such as a heater.
Handle this product with care.
Do not drop this product, nor apply shock or
vibration to the product.
Failure to observe this may cause trouble.
If a strong shock or vibration is applied to the
enclosure, it may cause damage to this prod-
uct.
About the battery
A battery is installed inside the camera. Do not
leave the battery exposed in environments of
excessive heat as a result of sunlight or fire.
The capacity of the battery is reduced each
time it is used. In particular, recharging or using
the battery in high-temperature locations
increases deterioration.
Do not touch the lens with your bare
hands.
A dirty lens causes deterioration of picture
quality.
When an error is detected, this product
will restart automatically.
This product will be inoperable for around 1
minute after the restart just as when the power
is turned on.
Periodically images on the screen appear
to be distorted
When the camera is installed in a location
where it is subject to small vibrations (for
example, when it is installed near devices that
vibrate), images may appear distorted and
stretched lengthways.
This phenomenon is a characteristic of image
pickup devices that use MOS sensors and is
caused by the relationship between the peri-
odic movements of the camera and the timing
that the image sensor reads images. This is not
a problem with the camera.
About internal memory card
The internal memory card is consumables:
Replace it in accordance with their operating
lifetimes. It's operating lifetimes vary depending
on the usage environment and conditions.
Make sure to contact a service engineer when
replacing the internal memory card.
About the MOS image sensor
• When continuously shooting a bright light
source such as a spotlight, the color filter
of the MOS image sensor may become
deteriorated and this may cause discolor-
ation.
Even when changing the fixed shooting
direction after continuously shooting a
spotlight for a certain period, the discolor-
ation may remain.
• When shooting fast-moving subjects or
objects crossing the shooting area may
look to be bending askew.
About the built-in microphone
• If moisture attach to the peristome of buil-
tin microphone, the volume may decrease.
Please leave it to air dry sufficiently before
use.
• When cleaning the peristome of built-in
microphone, do not use any sharp-ended
object to stab it. Doing so may result in
failure.
15
Cleaning this product body
Be sure to turn off the power before cleaning.
Failure to observe this may cause injury.
Do not use benzine, thinner, alcohol, or any
other types of solvents or detergents.
Otherwise, it may cause discoloration.
When using a chemical cloth for cleaning, read
the caution provided with the chemical cloth
product.
Do not loozen or remove screws unless
instructed to do so in the product documenta-
tion.
Cleaning the lens
Use a lens cleaning paper (used to clean cam-
era lenses or lenses of spectacles).
When using solvent, use an alcohols solvent
and do not use a thinner or a glass cleaner.
AVC Patent Portfolio License
THIS PRODUCT IS LICENSED UNDER THE
AVC PATENT PORTFOLIO LICENSE FOR THE
PERSONAL USE OF A CONSUMER OR
OTHER USES IN WHICH IT DOES NOT
RECEIVE REMUNERATION TO (i) ENCODE
VIDEO IN COMPLIANCE WITH THE AVC
STANDARD (“AVC VIDEO”) AND/OR (ii)
DECODE AVC VIDEO THAT WAS ENCODED
BY A CONSUMER ENGAGED IN A PER-
SONAL ACTIVITY AND/OR WAS OBTAINED
FROM A VIDEO PROVIDER LICENSED TO
PROVIDE AVC VIDEO. NO LICENSE IS
GRANTED OR SHALL BE IMPLIED FOR ANY
OTHER USE. ADDITIONAL INFORMATION
MAY BE OBTAINED FROM MPEG LA, L.L.C.
SEE HTTP://WWW.MPEGLA.COM
Equipment classification and power
source indication label
Refer to the indication label on the rear side of
this unit for the equipment classification, power
source, and other information.
Product disposal/transfer
Data saved on this product or a storage device
used with this product may lead to personal
information leakage.
When it is necessary to dispose or give this
product to someone, even when for repair,
make sure that there is no data on this prod-
uct.
16
Precautions for installation
Do not place this product in the following
places:
• Locations where a chemical agent is used
such as a swimming pool
• Locations subject to moisture or oil smoke
such as a kitchen
• Locations that have a specific environment
that is subject to an inflammable atmo-
sphere or solvents
• Locations where a radiation, an X-ray, a
strong radio wave or a strong magnetic
field is generated
• Locations near coasts directly subjected to
sea breezes, or locations subject to corro-
sive gases such as from hot springs, vol-
canic regions, etc.
• Locations where the temperature is not
within the specified range (–20 °C to
+50°C {–4 °F to 122 °F})
• Locations subject to condensation as the
result of severe changes in temperature (In
case of installing the product in such loca-
tions, the lens may become foggy or con-
densation may be caused on the lens.)
Sulfurization caused by rubber products
Do not place the product near rubber products
(packing, rubber feet, etc.) that contain sulfur.
There is a risk that sulfur components in rubber
products may cause electrical parts and termi-
nals, etc. to become sulfurized and corrode.
When noise disturbance may happen
Conduct the power distribution work to keep a
distance of 1 m {3.28 feet} or more from the
120 V (for U.S. and Canada) or 220 V – 240 V
(for Europe and other countries) power line.
Or conduct the electric conduit work sepa-
rately (Always connect the metal pipe with
grounding).
Radio disturbance
When this product is used near TV/radio
antenna, strong electric field or magnetic field
(near a motor, a transformer or a power line),
images may be distorted and noise may be
produced.
Panasonic assumes no responsibility for injuries or property damage resulting from
failures arising out of improper installation or operation inconsistent with this
documentation.
For information about the installation tasks, refer to the provided Installation Guide.
17

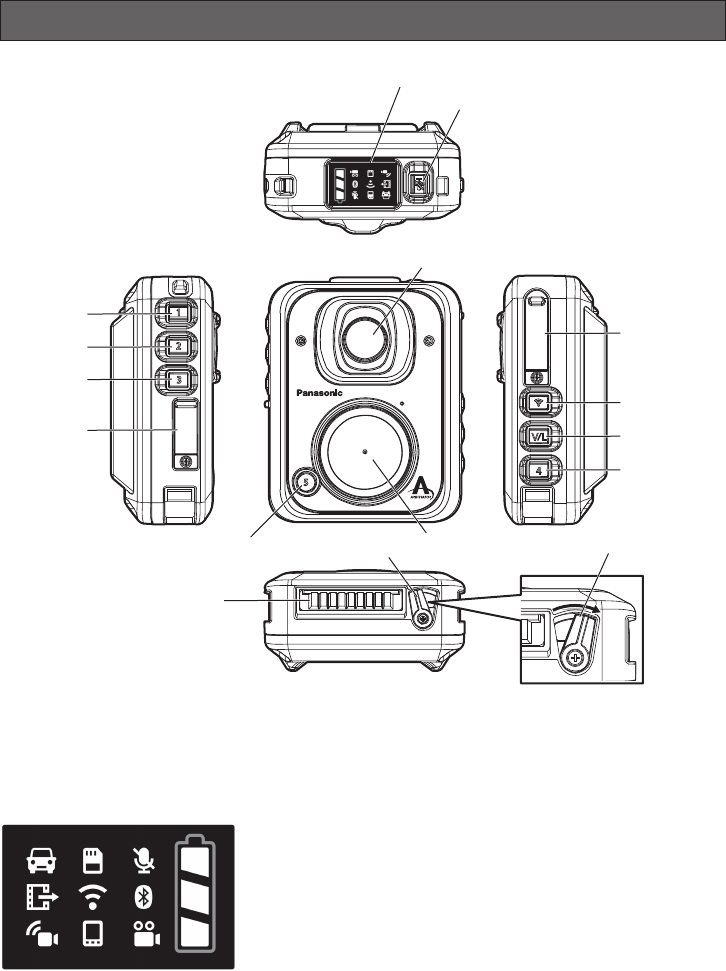

Parts and functions
q Status Screen
The operating condition of the camera or a remaining amount of the battery is displayed. The fol-
lowing describes the display layout. Refer to page 20 for further information about details of the dis-
play.
w Audio mute
Press the mute button to mute the audio during recording.
q Status Screen
w Mute
Lens
r Port for
External
camera
u B-1 button
i B-2 button
o B-3 button
2 ! Micro USB
Port
4 ! Bottom Terminal
1 ! B-5 button
t Wireless LAN
y Indicator
Mode
0 ! B-4 button
3 ! Power SW (off) 3 ! Power SW (on)
e Record
18
e Record
Start: When it’s pushed.
Stop: Press and hold the Record button for more than two seconds(default) depending on the
settings (2/3/5 seconds).
r Port for External Camera (Release in March, 2017)
A terminal to connect an external camera. When an external camera is connected, the imaging cir-
cuit with a built-in camera will be automatically turned off.
t Wireless LAN
Wireless LAN has 3 different modes as Station 1/ Station 2/ AP/ OFF.
Station1: For connecting with VPU (Video Processing Unit Recorder of ICV system).
Station2: For connecting with BES (Back end Server).
AP: AP (Access Point) mode for the live view of the system via smart phone application
OFF: Turn off the Wireless LAN
y Indicator Mode
A display mode can be selected from the following:
LED and Vibrator Mode: Indicate the operation or status of system via LED and Vibrator.
LED Mode: Indicate the operation or status of system via LED indicator
Vibrator Mode: Indicate the operation or status of system via Vibrator
None Mode: It doesn’t indicate the operation or status of system
u B-1 button/ i B-2 button/ o B-3 button/ !0 B-4 button/ !1 B-5 button
There are configurable buttons on the camera.
Configurable button, Available functions for each button.
B-1 B-2 B-3 B-4 B-5
Record Start/Stop Default N/A N/A OK N/A
Classify 1 N/A Default N/A N/A N/A
Classify 2 N/A N/A Default N/A N/A
Classify 3 N/A N/A N/A Default N/A
Snapshot OK N/A N/A OK Default
*About Classify button
The camera has a push switch to select the incidents type and also it has button to add the inci-
dents type to the video data.
19
2! Micro USB Port
It will be used for charging and USB connection.
The charging time depends on the connected device,
PC: about 6 hours
Cigar charging adapter: about 3 hours
3! Power switch
Control power on/off
4! Bottom Terminal (USB, Power)
A terminal to be used when charging the camera by setting onto Multi-Dock Charger (WV-TC370 :
option) or Pairing Dock (WV-TW37004 : option). Also, it is used when transferring recorded data to
the PC.
• BLE (Bluetooth Low Energy) * Equipped inside the camera
A function to be used for making wireless connection with peripheral devices such as Common
Trigger Box (WV-TW37003 : option).
• Wireless LAN * Equipped inside the camera
A function to be used for making wireless connection with Acess Point on IEEE802.11 a/b/g/n/ac
mode.
20

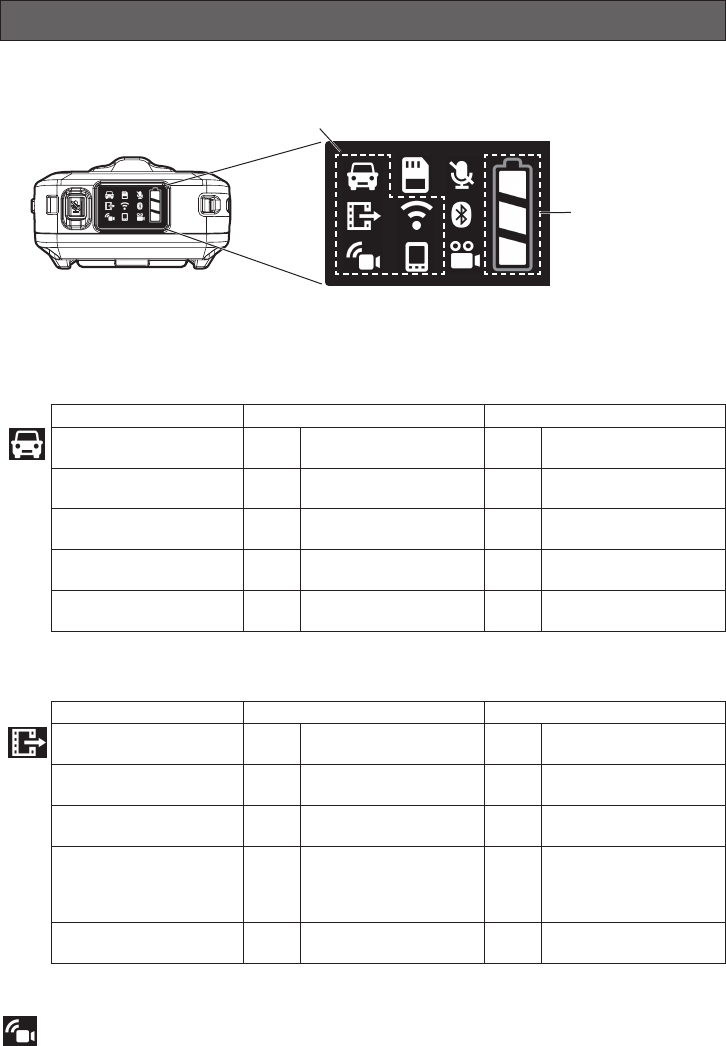

Indicators
Battery indicators
Wireless LAN indicators
There are LED indicators in main controller like below details.
■Wireless LAN indicators (ST1, ST2, ST3, AP, Wireless LAN)
• ST1 (Wireless LAN Station1 Mode Status LED)
Connection to Video Processing Unit (Recorder of ICV system) □: On ■: Off
Display and meaning Wireless LAN LED operation ST1 LED operation
Not ST1 mode (LED off /
Power off) ■Off ■Off
Searching Access Point
(No link to Wireless LAN) □⇔■Blink green
(0.5 sec: On 0.5 sec: Off) □⇔■Blink green
(0.5 sec: On 2.5 sec: Off)
Has been linked to
Access Point. □Lights green □⇔■Blink green
(0.5 sec: On 2.5 sec: Off)
Has been linked to Video
Processing Unit. □Lights green □Lights green
Transfer Data to Video
Processing Unit. □Lights green □⇔■Blink green
(0.5 sec: On 0.5 sec: Off)
• ST2 (Wireless LAN Station2 Mode Status LED)
Connection to Back End Server □: On ■: Off
Display and meaning Wireless LAN LED operation ST2 LED operation
Not ST2 mode (LED off /
Power off) ■Off ■Off
Searching Access Point
(No link to Wireless LAN) □⇔■Blink green
(0.5 sec: On 0.5 sec: Off) □⇔■Blink green
(0.5 sec: On 2.5 sec: Off)
Has been linked to
Access Point. □Lights green □⇔■Blink green
(0.5 sec: On 2.5 sec: Off)
Has been linked to Back
End Server
System or completed
uploading.
□Lights green □Lights green
Uploading / Streaming /
Data transferring □Lights green □⇔■Blink green
(0.5 sec: On 0.5 sec: Off)
• ST3 (Wireless LAN Station3 Mode Status LED )
This indicator is not used (as of January, 2017).
21
• AP (Wireless LAN AP Mode Status LED)
Connected with smart phone □: On ■: Off
Display and meaning Wireless LAN LED operation AP LED operation
Not AP mode (LED off /
Power off) ■Off ■Off
AP mode is selected, but
not connected anything. □⇔■Blink green
(0.5 sec: On 0.5 sec: Off) □⇔■Blink green
(0.5 sec: On 2.5 sec: Off)
Connected with a
smartphone □Lights green □Lights green
Streaming / Playback.
A smart phone is
connected.
□Lights green □⇔■Blink green
(0.5 sec: On 0.5 sec: Off)
• Wireless LAN (Wireless LAN Link Status LED) □: On ■: Off
Display and meaning Wireless LAN LED operation
Detect any hardware
problems □Lights red
No link Wireless LAN off
(LED off / Power off) ■Off
Waiting to be linked □⇔■Blink green
(0.5 sec: On 0.5 sec: Off)
Has been linked to any
client. □Lights green
■Battery indicators □: On ■: Off
Power SW = On and at not Charging
(Normally operating)
Power SW = On or Off and at Charging
(Charging)
□
□
□
Lights green Remain = 100% Lights green Remain = 100%
□
□
□
Lights green Remain ≧Thresh (A) Blink green Remain ≧Thresh (A)
■
□
□
Lights green Thresh (A) >Remain
≧Thresh (B) Blink green Thresh (A) >Remain
≧Thresh (B)
■
■
□
Lights green Thresh (B) >Remain
≧Thresh (C) Blink orange Thresh (B) >Remain
≧Thresh (C)
■
■
□
Blink orange Thresh (C) >Remain>5% Blink orange Thresh (C) >Remain>5%
■
■
□
Fast blink red Remain < 5% *1Fast blink red Remain < 5% *1
■
■
■
Off Indicator mode
= LED off mode OffIndicator mode
= LED off mode
*1 BWC does not wake up.
The values of Thresh (A), Thresh (B), Thresh (C) can be changed with software.
The defaults are as follows:
Thresh (A): 50 %, Thresh (B): 30 %, Thresh (C): 15 %
Fore details, refer to “Operating Instructions” of Back-End Client (Back-End Application).
22
■Others
• Internal memory card (Storage Status LED)
Remain recording time or card status. □: On ■: Off
Display and meaning Internal memory card LED operation
LED off / Power off ■Off
Remain recording time > 3 Hours □Lights green
3 Hours > Remain recording time > 1 Hour □Lights orange
1 Hour > Remain recording time □⇔■Blink red
(0.5 sec: On 0.5 sec: Off)
Card Full > Card Error/Corrupted card, No Card,
Protected card □Lights red
• Mute (Audio mute LED) Audio Mute on/off
Display and meaning Mute LED operation
Audio mute off (LED off / Power off) ■Off
Audio Mute on □Lights orange
Under connected with PC via USB □⇔■Blink orange
(0.5 sec: On 0.5 sec: Off)
• BLE (Bluetooth LED) Connect to Bluetooth device. □: On ■: Off
Display and meaning BLE LED operation
No link/ Bluetooth off (LED off / Power off) ■Off
Searching Device □⇔■Blink green
(0.5 sec: On 0.5 sec: Off)
No pairing information □⇔■Blink green
(2.5 sec: On 2.5 sec: Off)
Connected to Bluetooth Device. □Lights green
• Rec (Recording LED) □: On ■: Off
Display and meaning Rec LED operation
Not Recording / Recording stops (LED off / Power off) ■Off
During Recording □Lights red
Snapshot is recorded □→■Flash once in the red
Classify is recorded □→■Flash once in the red
Fail to Start Recording □□□→■Blinking 3 times in the red
When BWC receive the command from PC application. □⇔■Blink red
(0.5 sec: On 0.5 sec: Off)
23
Specifications
●Basic
Power source: Rechargeable lithium ion polymer battery: 3400 mAh or more
* Battery can be charged using Multi-Dock Charger (WV-TC370),
Pairing Dock (WV-TW37004) or Cigar charging adapter
(accessory) Can be charged from the PC connecting with a USB
cable.
Power consumption: DC 3.7 V/ Approx. 3.4 A/ Approx. 12.9 W
Continuous operating time *1: 17 hours
(1280 × 720 30 fps mode, Wireless LAN: Off, GPS: On, REC: Off)
Full-charging term *2: About 3 hours
(by Multi-Dock Charger or Cigar charging adapter)
About 6 hours
(by PC USB connection)
Operating environment: Ambient operating temperature: −20°C to +50°C {−4°F to 122°F}
Ambient operating humidity: 10 % to 100 %
Storage environment: Storage temperature: –30°C to +60°C {–22°F to 140°F}
Storage humidity: 10 % to 95 % (no condensation)
Built-in microphone: Nondirectional electret condenser microphone
Internal memory card: 64 GB
Terminals: External Camera terminal
micro USB terminal
Waterproof *3: IP67/IP66 (IEC60529), Type 4X (UL50), NEMA 4X compliant
On-vehicle support: Compliant with MIL-STS-810G
Dimensions: 70 mm (W) x 86 mm (H) x 31 mm (D)
{2-3/4 inches (W) x 3-3/8 inches (H) x 1-7/32 inches (D)}
(Excluding projections)
Mass: Approx. 200 g {0.44 lbs}
Finish: Main body: ABS resin, Lusterless black
*1 The measurement result is based on the Panasonic original standard. It varies depending on
the operating environment and system configuration.
*2 Charging with a Multi-Dock Charger (WV-TC370), left at a room temperature. The battery
charging time varies depending on the operating environment and the system configuration.
*3 Limited for the case when the cap of the external camera and the USB connector cap are
properly closed.
24
●Others
Wireless LAN
Communication Standard: IEEE802.11 a/b/g/n/ac
Access Control: CSMA/CA
Frequency Band(STA): 2.4 GHz band (ISM)
2412 to 2462 MHz, 5 MHz step 11ch
5.3 GHz band
5280 to 5320 MHz, 20 MHz step 3ch (20 MHz BW),
5310 MHz (40 MHz BW)
5.6 GHz band
5500 to 5580 MHz, 20 MHz step 5ch (20 MHz BW),
5660 to 5720 MHz, 20 MHz step 4ch (20 MHz BW),
5510 MHz, 5550 MHz, 5670 MHz, 5710 MHz (40 MHz BW),
5530 MHz, 5690 MHz (80 MHz BW)
5.8 GHz band
5745 to 5825 MHz, 20 MHz step 5ch
5755 MHz, 5795 MHz (40 MHz BW), 5775 MHz (80 MHz BW)
Frequency Band(AP): 2.4 GHz band (ISM)
2412 to 2462 MHz, 5 MHz step 11ch
5.8 GHz band
5745 to 5825 MHz, 20 MHz step 5ch
5755 MHz, 5795 MHz (40 MHz BW), 5775 MHz (80 MHz BW)
SISO: 1x1, 1 stream
Bluetooth
Communication protocol: BLE (Bluetooth4.1)
GPS (Global Positioning System)
Geodetic system: WGS-84
Communication protocol: NEMA-0183
Positioning accuracy
(Open air):
Single GPS: 2.2 m, CEP (5.3 m, 2DRMS)
Follow-up performance: Speed: 200 km/h or less
Acceleration: 2 G or less, Signal follow-up
25
Important Information (this document) ...............................................1 pc.
Warranty card*1 .................................................................................1 pc.
Code label*2 ......................................................................................1 pc.
*1 This product comes with several types of warranties. Each warranty is only applicable to the
products purchased in the regions indicated on the relevant warranty.
*2 This label may be required for network management. The network administrator shall retain the
code label.
Cigar charging adapter ......................................................................1 pc.
USB charging cable ...........................................................................1 pc.
1st plate ............................................................................................1 pc.
Standard accessories
Optional accessories
• Multi-Dock Charger:
(Up to eight cameras can be charged simultaneously)
WV-TC370
• Body Worn External Camera (Release in March, 2017):
(Sub-camera to be connected with BWC)
WV-TW37001
• Common Trigger Box:
(An I/O device to enable camera activation from external devices,
or to notify the external device of camera activation.)
WV-TW37003
• Pairing Dock:
(Connected with the Common Trigger Box with a ethernet cable to
execute initial pairing of Bluetooth. Also, charging can be done
simultaneously.)
WV-TW37004
: This product is compliant with APPLIANCE EFFICIENCY REGULATIONS of the California
Energy Commission (CEC).
26
27
Disposal of Old Equipment and Batteries
Only for European Union and countries with recycling systems
These symbols on the products, packaging, and/or accompanying documents mean
that used electrical and electronic products and batteries must not be mixed with
general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please
take them to applicable collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent any
potential negative effects on human health and the environment.
For more information about collection and recycling, please contact your local
municipality.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
Note for the battery symbol (bottom symbol)
This symbol might be used in combination with a chemical symbol. In this case it
complies with the requirement set by the Directive for the chemical involved.
For U.S. and Canada:
Panasonic System Communications
Company of North America,
Unit of Panasonic Corporation
of North America
www.panasonic.com/business/
For customer support, call 1.800.528.6747
Two Riverfront Plaza, Newark, NJ 07102-5490
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga,
Ontario, L4W 2T3 Canada
(905)624-5010
www.panasonic.ca
© Panasonic System Networks Co., Ltd. 2017
NSh1216-0 PGQX2140ZA Printed in Japan
