Contents
User Manual for CF18
![](/img.php?id=411588&img=bg1.png)
Operation

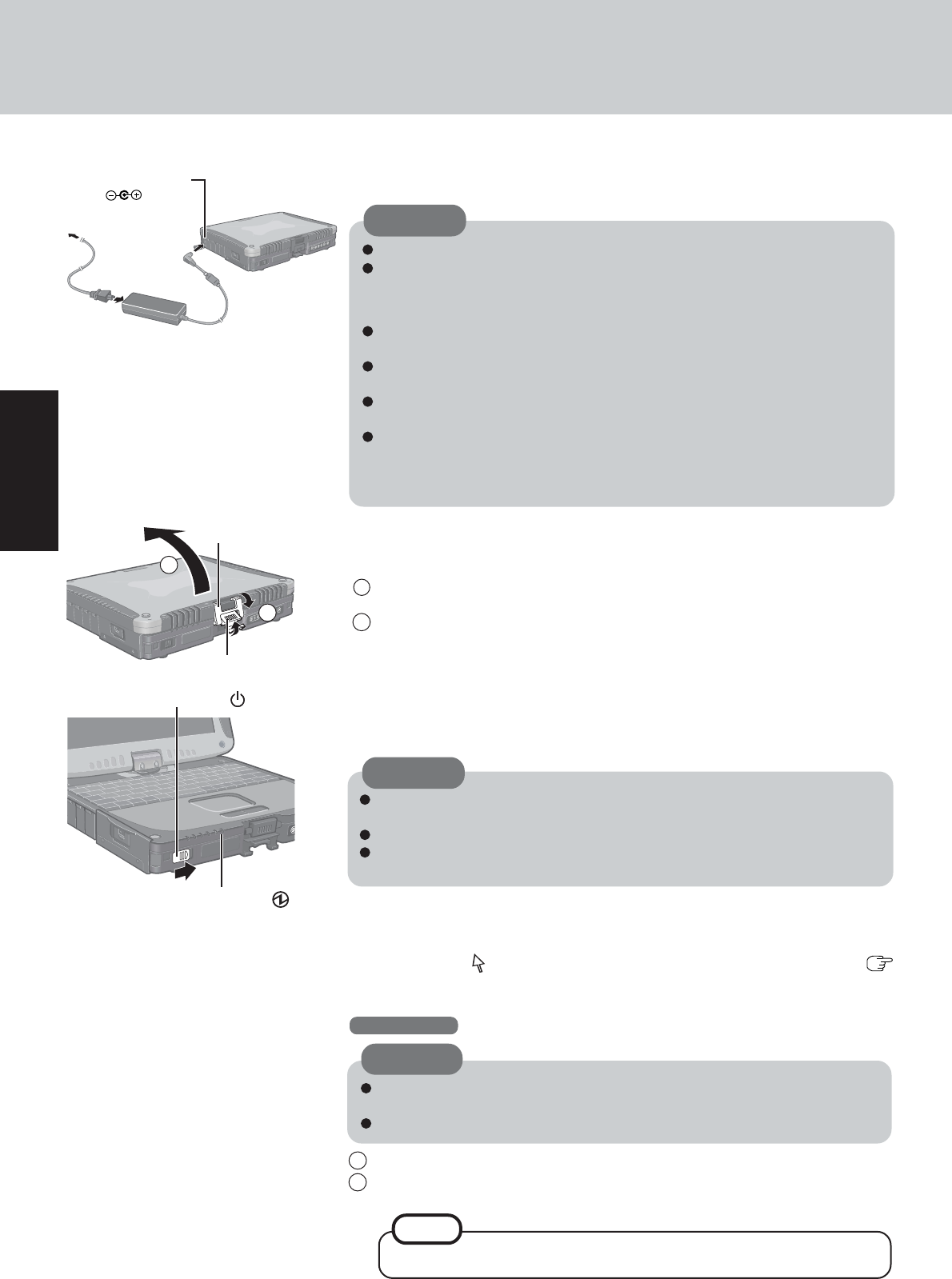

Starting Up/Shutting Down ............................ 15

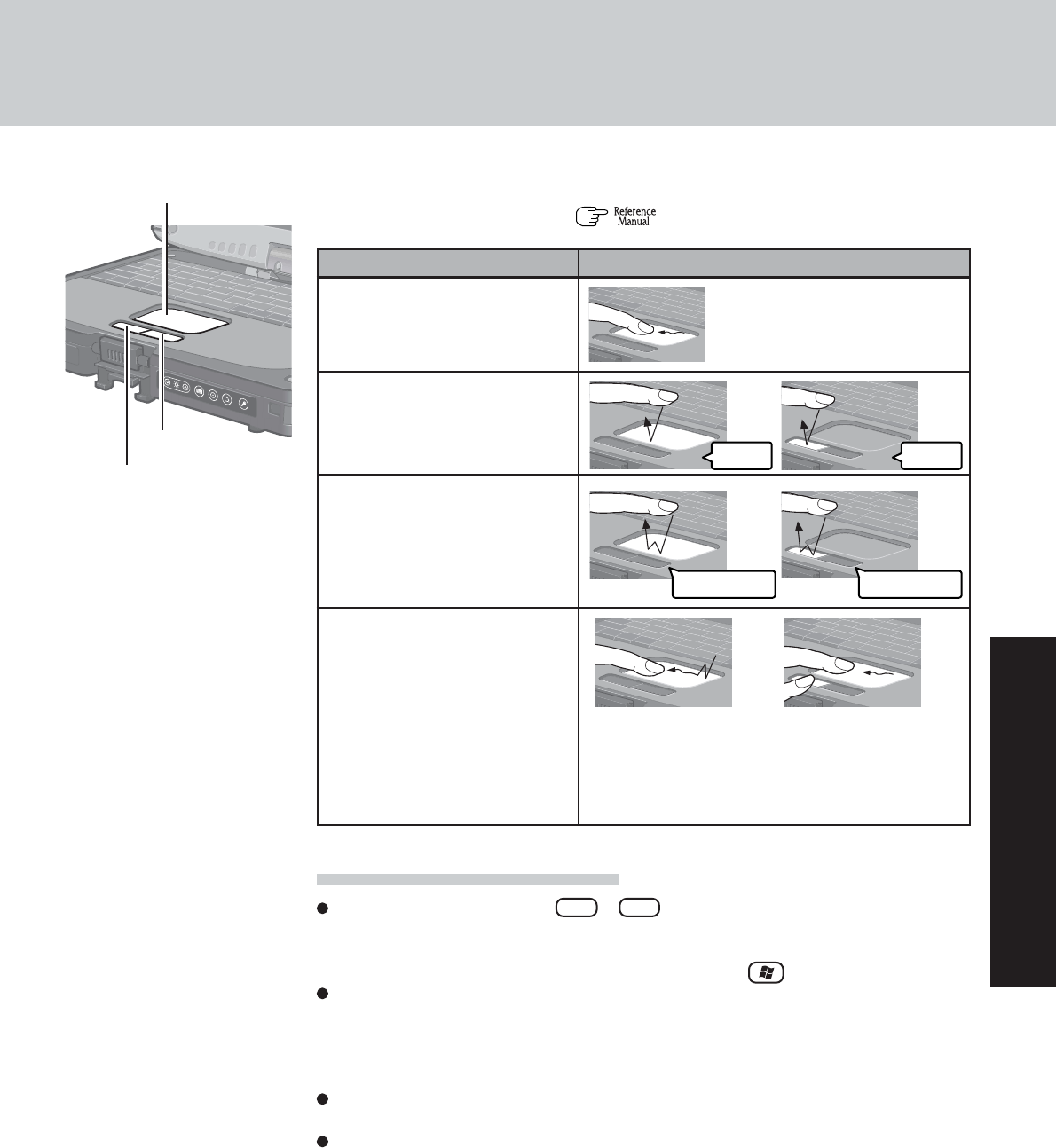

Touch Pad (Basic Operation) ............................. 19
Touchscreen (Basic Operation) .......................... 20

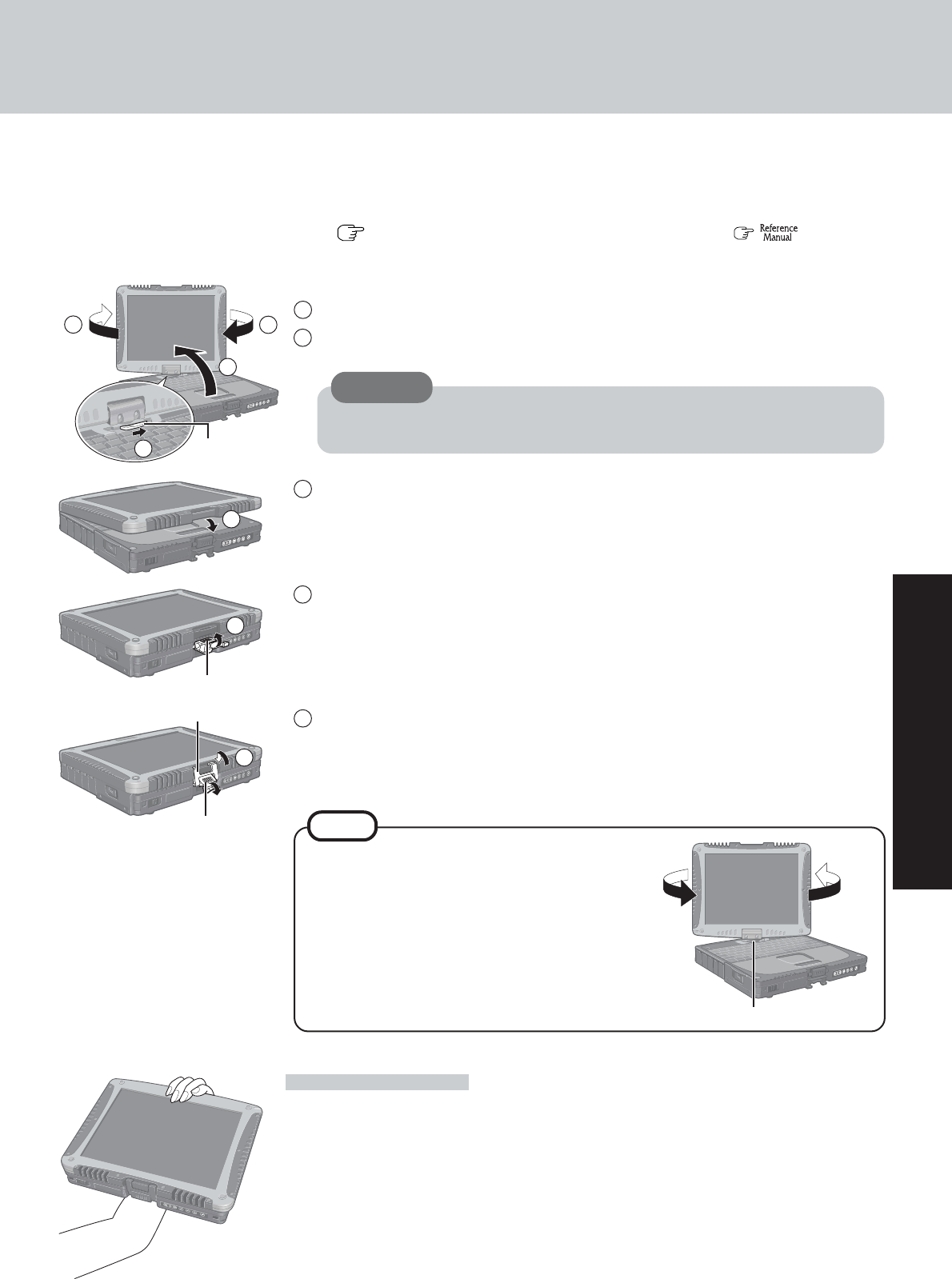

Operating in Tablet Mode .............................. 21
Reference Manual ......................................... 23
OPERATING INSTRUCTIONS
Personal Computer
Appendix
LIMITED USE LICENSE AGREEMENT ........ 32
Hard Disk Data Erase Utility .......................... 34

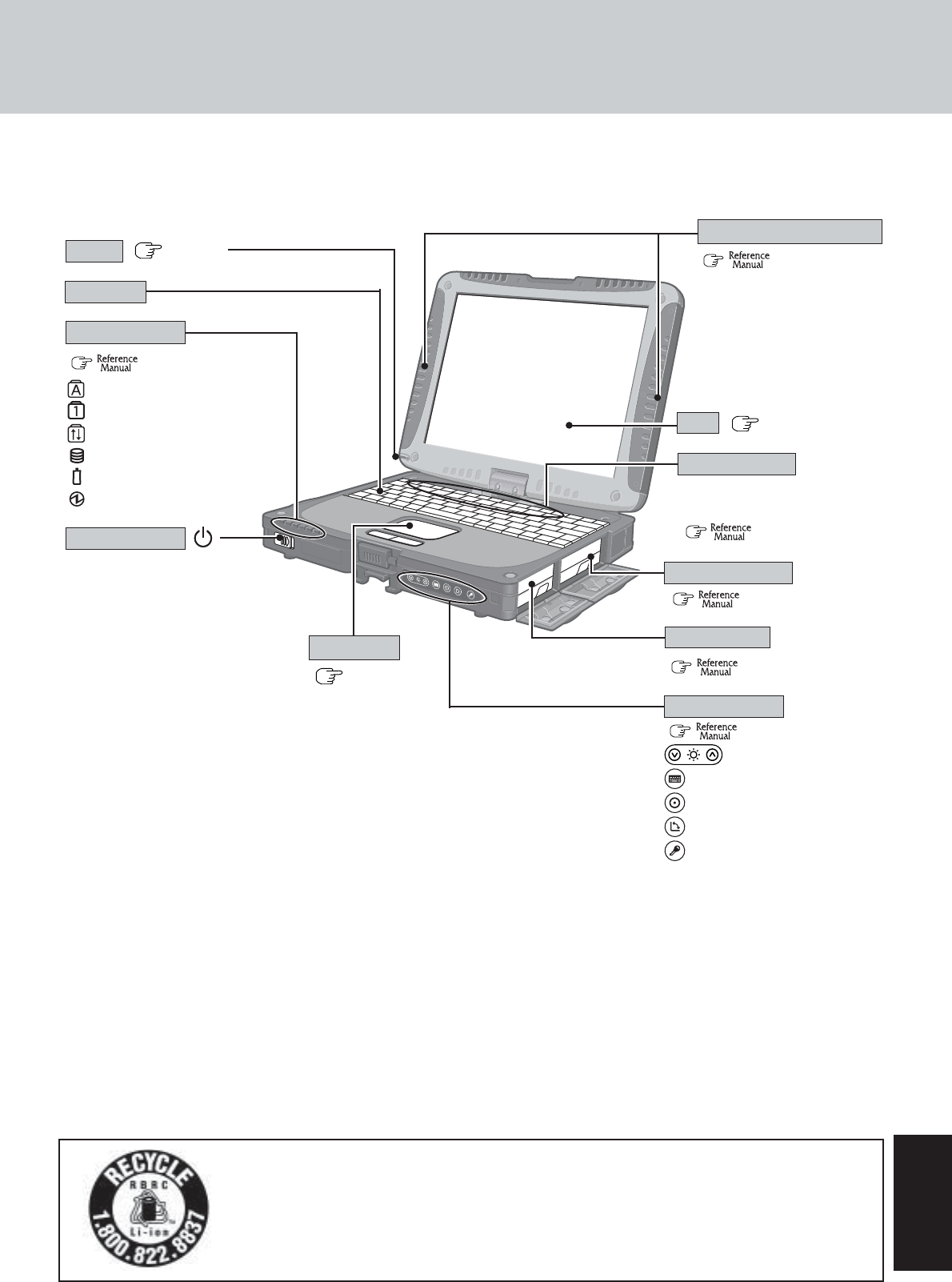

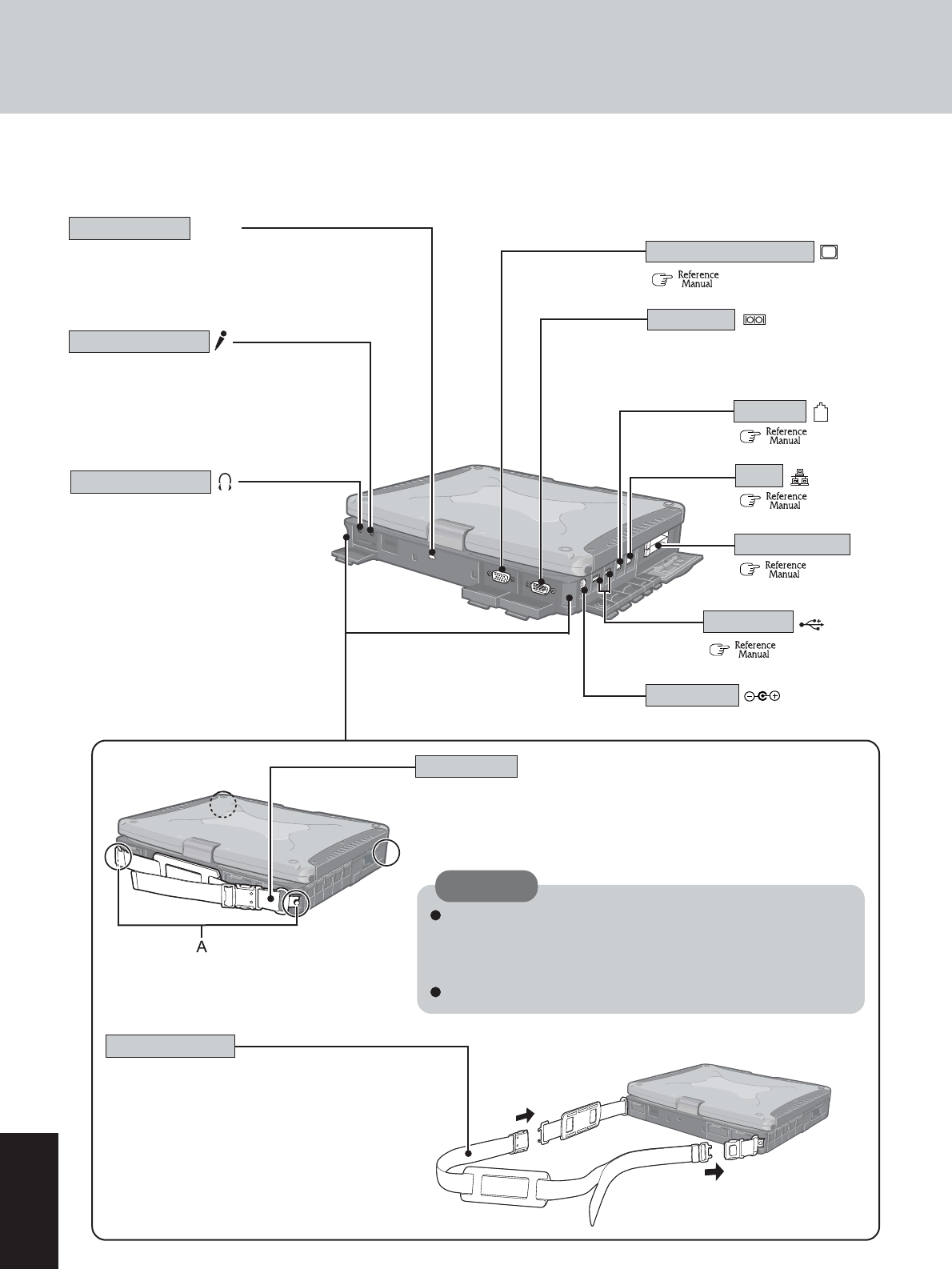

Names and Functions of Parts ...................... 35
Specifications ................................................ 39
LIMITED WARRANTY ................................... 41
Troubleshooting
List of Error Codes ......................................... 24
Dealing with Problems (Summary) ................... 25
Reinstalling Software .................................... 30
Getting Started
Read Me First.................................................. 3
First-time Operation ........................................ 9
Contents
[Additional Manual]
Reference Manual
This manual can be accessed on your computer. Refer
to page 23 on how to access the Reference Manual.
Reference Manual
•Read Me First
•Key Combinations
Reference Manual
•Tablet Buttons
•Touch Pad (Advanced)
•
Touchscreen (Advanced)
•Software keyboard
•
Panasonic Hand Writing
•Display Rotation
•Standby/Hibernation
Functions
•Security Measures
•
Computing on the Road
•Battery Power
•PC Cards
•RAM Module
•Port Replicator
•External Display
•USB Devices
•Modem
•LAN
•Wireless LAN
•Hard Disk Drive
•Setup Utility
•LED Indicators
Reference Manual
•Technical Information
•DMI Viewer
•List of Error Codes
•Dealing with Problems
(Advanced)
Appendix Getting StartedOperationTroubleshooting
Model No. CF-18 Series
2000 XP
Please read these instructions carefully before using this product and save this manual for future use.
![](/img.php?id=411588&img=bg2.png)
2
Getting Started
Introduction
Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new
computer.
Illustrations and Terminology in this Manual
Copyright
This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be
reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd.
No patent liability is assumed with respect to the use of the information contained herein.
©2003 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
Disclaimer
Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no
liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals.
Trademarks
Microsoft® and Windows® are registered trademarks of Microsoft Corporation of the United States and/or other countries.
Intel, Pentium, PROSet and SpeedStep™ are either registered trademarks or trademarks of Intel Corporation.
Adobe® and Acrobat® are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or
other countries.
Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd.
Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective owner companies.
NOTE:NOTE provides a useful fact or helpful information.
CAUTION:CAUTION indicates a condition that may result in minor or moderate injury.
WARNING:WARNING indicates a hazard that may result in moderate or serious injury.
Windows 2000 : Information for Microsoft® Windows® 2000 Professional users. “Windows” or “Windows 2000”
in this manual.
Windows XP : Information for Microsoft® Windows® XP Professional users. “Windows” or “Windows XP” in
this manual.
Enter : This illustration means to press the [Enter] key.
Fn + F5 : This illustration means to press and hold the [Fn] key, then press the [F5] key.
[Start]-[Run]:This illustration means to click [Start], then to click [Run].
(For some applications, you may need to double-click.)
:Where to go for referred information.
: This illustration means to refer to the Reference Manual, which is available on your computer.
Refer to page 23 on how to access this manual.
Windows 2000 screens are used in this manual when no specific OS (operating system) notes are required.
Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explana-
tion easier to understand.
In this manual, descriptions are given using illustrations not featuring the hand strap for convenience of explanation.
If the user has logged on without administrator authority, some functions may not be executable, and some screens may be
not displayed as shown in this manual. If this happens, log on with Administrator authority to enable these functions.
Confirm the latest information on optional products in catalogs, etc.
*For the Model No., insert the 12 digit number (for example, CF-18BHAZXDM) located on
the bottom of the computer.
Customer's Record
Serial No.
or
Date of Purchase
Model No.*
Code No.
Dealer's Name
Dealer's Address
![](/img.php?id=411588&img=bg3.png)
3
Getting Started
Read Me First
Federal Communications Commission Radio
Frequency Interference Statement
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the Panasonic Service Center or an experienced ra-
dio/TV technician for help.
Warning
To assure continued compliance, use only shielded interface
cables when connecting to a computer or peripheral. Also, any
changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate this equipment.
FCC RF Exposure Warning:
This computer is provided with PC Card slots that could be
used with wireless transmitter(s), which will be specifically rec-
ommended, when they become available. Other third-party wire-
less transmitter(s) have not been RF exposure evaluated for use
with this computer and may not comply with FCC RF exposure
requirements.
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment.
This equipment must be installed and operated in accordance
with provided instructions and minimum 2.5 cm spacing must
be provided between antenna and all person’s body (excluding
extremities of hands, wrist and feet) during wireless modes of
operation.
This transmitter must not be co-located or operated in conjunc-
tion with any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Responsible Party: Matsushita Electric Corporation of America
One Panasonic Way
Secaucus, NJ 07094
Tel No:1-800-LAPTOP-5 (1-800-527-8675)
For U.S.A.
1. This equipment complies with CFR47 Part 68 rules. On the
computer is a label that contains, among other information,
the FCC registration number and ringer equivalence number
(REN) for this equipment. If required, this information must
be provided to the telephone company.
2. An FCC compliant telephone cord and modular plug is pro-
vided with this equipment. This equipment is designed to be
connected to the telephone network or premises wiring us-
ing a compatible modular jack which is Part 68 compliant.
See Installation Instructions for details.
3. The REN is used to determine the quantity of devices which
may be connected to the telephone line. Excessive RENs on
the telephone line may result in the devices not ringing in re-
sponse to an incoming call. In most, but not all area, the sum
of RENs should not exceed five (5.0). To be certain of the
number of devices that may be connected to a line, as deter-
mined by the total RENs, contact the local telephone com-
pany.
4. If your telephone equipment cause harm to the telephone net-
work, the telephone company will notify you in advice that
temporary discontinuance of service may be required. But if
advice notice isn’t practical, the telephone company will no-
tify the customer as soon as possible. Also, you will be ad-
vised of your right to file a complaint with the FCC if you
believe it is necessary.
5. The telephone company may take changes in it’s facilities,
equipment, operations or procedures that could affect the op-
eration of the equipment. If this happens the telephone com-
pany will provide advance notice in order for you to make
necessary modifications to maintain uninterrupted service.
6. If trouble is experienced with this equipment, for repair or
warranty information, please contact Matsushita Electric
Corporation of America at DIAL TOLL FREE 1-800-LAP-
TOP5 (1-800-527-8675). If the equipment is causing harm
to the telephone network, the telephone company may re-
quest that you disconnect the equipment until the problem is
resolved.
7.
There are no user serviceable parts contained in this equipment.
8. This equipment may not be used on coin service provided by
the telephone company. Connection to party lines is subject
to state tariffs.
9. The Telephone Consumer Protection Act of 1991 makes it
unlawful for any person to use a computer or other electronic
device to send any message via a telephone fax machine un-
less such message clearly contains in a margin at the top or
bottom of each transmitted page or on the first page of the
transmission, the date and time it is sent and an identification
of the business or other entry, or other individual sending the
message and the telephone number of the sending machine
or such business, other entity, or individual. In order to pro-
gram this information into your fax software, you should re-
fer to the manual of the Fax software being used.
FCC Regulation Notice for modem
This equipment contains a FCC approved modem.
Manufacturer of modem: AMBIT Microsystems Corporation
Model No. T60M283.** (** = numbers or alphabet letters)
FOR HOME OR OFFICE USE
Tested To Comply
With FCC Standards
![](/img.php?id=411588&img=bg4.png)
4
Getting Started
Read Me First
For Canada
Industry Canada (IC) Notice for modem
This equipment contains an Industry Canada approved modem unit.
The Industry Canada label is affixed on the modem unit.
EQUIPMENT ATTACHMENT LIMITATIONS
“NOTICE: The Industry Canada label identifies certified
equipment. This certification means that the equipment meets
telecommunications network protective, operational and
safety requirements as prescribed in the appropriate Terminal
Equipment Technical Requirements document(s). The
Department does not guarantee the equipment will operate
to the user’s satisfaction.
Before installing this equipment, users should ensure that it
is permissible to be connected to the facilities of the local
telecommunications company. The equipment must also be
installed using an acceptable method of connection. The
customer should be aware that compliance with the above
conditions may not prevent degradation of service in some
situations.
Repairs to certified equipment should be coordinated by a
representative designated by the supplier. Any repairs or
alterations made by the user to this equipment, or equipment
malfunctions, may give the telecommunications company
cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the
electrical ground connections of the power utility, telephone
lines and internal metallic water pipe system, if present, are
connected together. This precaution may be particularly
important in rural areas. Caution: Users should not attempt
to make such connections themselves, but should contact
the appropriate electric inspection authority, or electrician,
as appropriate.”
“NOTICE: The Ringer Equivalence Number (REN) assigned
to each terminal device provides an indication of the
maximum number of terminals allowed to be connected to a
telephone interface. The termination on an interface may
consist of any combination of devices subject only to the
requirement that the sum of the Ringer Equivalence Numbers
of all the devices does not exceed 5.”
REN: See bottom of the computer
RESTRICTIONS CONCERNANT LE RACCORDEMENT
DE MATÉRIEL
“AVIS: L’étiquette d’Industrie Canada identifie le matériel
homologué. Cette étiquette certifie que le matériel est
conforme aux normes de protection, d’exploitation et de
sécurité des réseaux de télécommunications, comme le
prescrivent les documents concernant les exigences
techniques relatives au matériel terminal. Le Ministère
n’assure toutefois pas que le matériel fonctionnera à la
satisfaction de l’utilisateur.
Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il
est permis de le raccorder aux installations de l’entreprise
locale de télécommunication. Le matériel doit également être
installé en suivant une méthode acceptée de raccordement.
L’abonné ne doit pas oublier qu’il est possible que la
conformité aux conditions énoncées ci-dessus n’empêche
pas la dégradation du service dans certaines situations.
Les réparations de matériel homologué doivent être
coordonnées par un représentant désigné par le fournisseur.
L’entreprise de télécommunications peut demander à
l’utilisateur de débrancher un appareil à la suite de
réparations ou de modifications effectuées par l’utilisateur
ou à cause de mauvais fonctionnement.
Pour sa propre protection, l’utilisateur doit s’assurer que tous
les fils de mise à la terre de la source d’énergie électrique,
des lignes téléphoniques et des canalisations d’eau
métalliques, s’il y en a, sont raccordés ensemble. Cette
précaution est particulièrement importante dans les régions
rurales. Avertissement: L’utilisateur ne doit pas tenter de faire
ces raccordements lui-même; il doit avoir recours à un service
d’inspection des installations électriques, ou à un électricien,
selon le cas.”
“AVIS: L’indice d’équivalence de la sonnerie (IES) assigné
à chaque dispositif terminal indique le nombre maximal de
terminaux qui peuvent être raccordés à une interface. La
terminaison d’une interface téléphonique peut consister en
une combinaison de quelques dispositifs, à la seule condition
que la somme d’indices d’équivalence de la sonnerie de touts
les dispositifs n’excède pas 5.”
IES: Voir sous le fond de l’ordinateur
10.According to the FCC’s electrical safety advisory, we recom-
mend that you may install an AC surge arrestor in the AC out-
let to which this equipment is connected. Telephone compa-
nies report that electrical surges, typically lightning transients,
are very destructive to customer terminal equipment connected
to AC power sources and that this is a major nationwide prob-
lem.
“Caution: To reduce the risk of fire, use only No.26 AWG or larger telecom-
munication line cord.”
“ATTENTION: Pour réduire le risque d’incendie, utiliser uniquement des
conducteurs de télécommunications 26 AWG ou de section supérieure.”
Notice for the products using LCD
This product uses one or more fluorescent lamps containing a
small amount of mercury. It also contains lead in some compo-
nents. Disposal of these materials may be regulated in your com-
munity due to environmental considerations. For disposal or
recycling information please contact your local authorities, or
the Electronics Industries Alliance: <http://www.eiae.org/>
Industry Canada
This product complies with RSS210 Industry Canada.
Operation is subject to the following two conditions;
(1) this device may not cause interference, and
(2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
![](/img.php?id=411588&img=bg5.png)
5

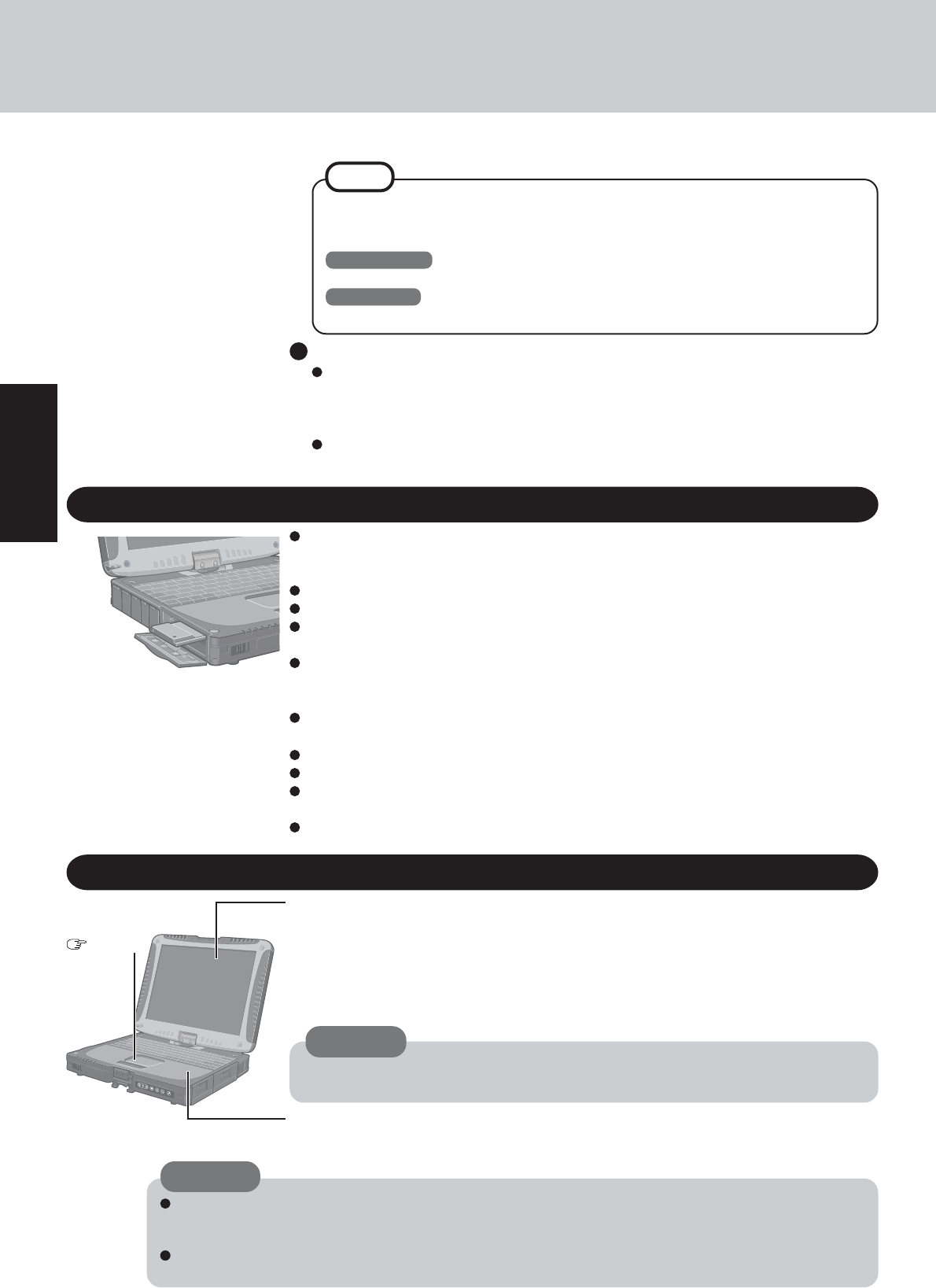

Getting Started

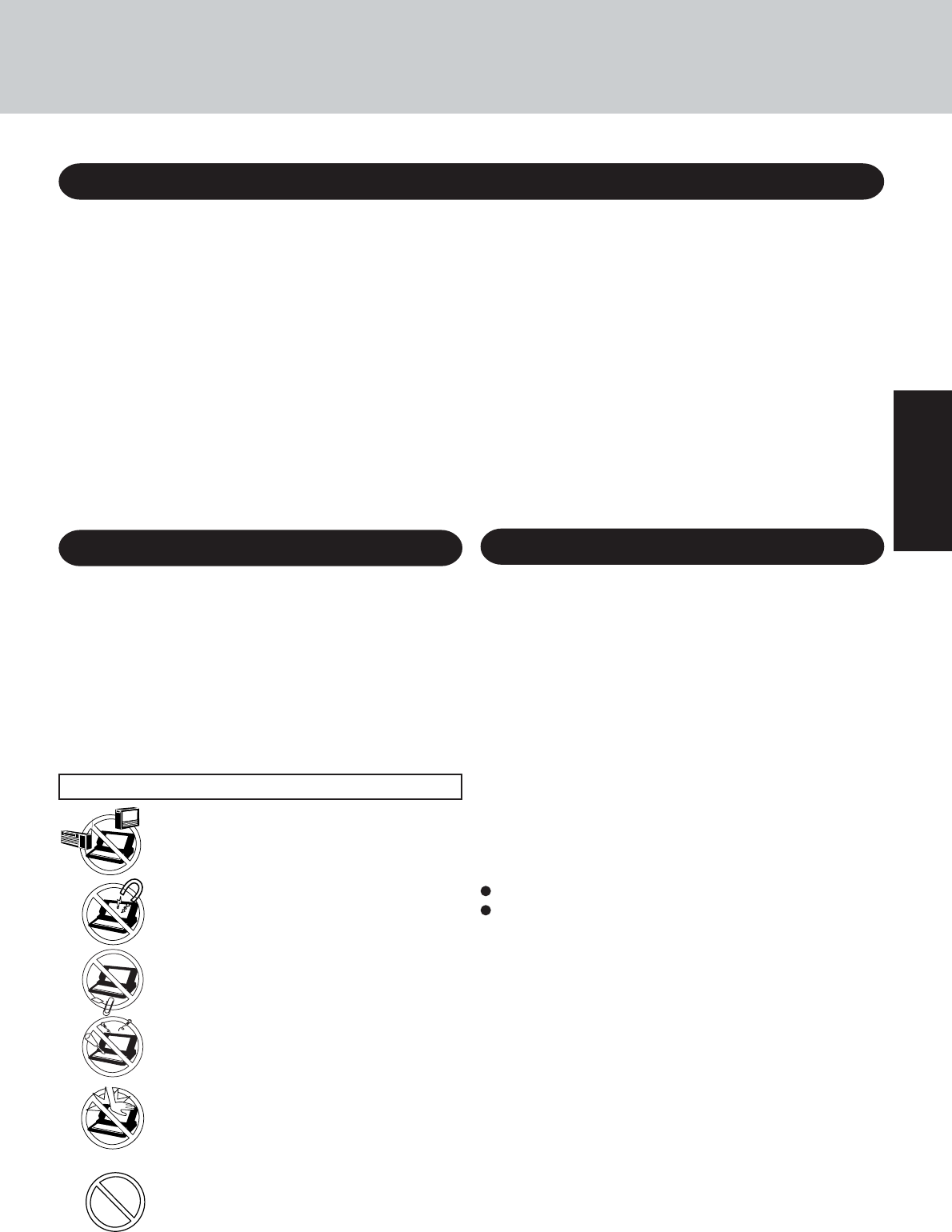

Avoid Magnetic Fields
Keep the computer away from magnets.
Data stored on the hard disk may be lost.
Keep Small Objects Away
Do not insert paper clips or other small objects
into the computer.
Do Not Disassemble the Computer
Do not attempt to disassemble your computer.
Avoid Excessive Force on the Display
Do not apply excessive downward force on the
display when it is completely opened, especially
when plugs and/or cables are connected to the
rear of the computer.
Avoid low-temperature burns
Avoid more than casual contact with any heat
producing area of the notebook computer, power
adaptor, and any option or accessory you use with
it. Even low heat, if warmer than body tempera-
ture, can cause a burn, if the skin is exposed to
the heat source for a long enough period of time.
Avoid Radio Frequency Interference
Do not place the computer near a television or
radio receiver.
Precautions
The CF-18 was developed based on thorough research into the
real-world portable computing environments. Exhaustive pur-
suit of usability and reliability under harsh conditions led to in-
novations such has the magnesium alloy exterior, vibration
damped hard disk drive and floppy disk drive, flexible internal
connections. The CF-18’s outstanding engineering has been
tested using the stiff MIL-STD- 810F (for vibration and shock)
and IP (for dust and water) based procedures.
As with any portable computer device precautions should be
taken to avoid any damage. The following usage and handling
procedures are recommended.
Before putting the computer away, be sure to wipe off any moisture.
This product and your Health
This product, like other radio devices, emits radio frequency
electromagnetic energy. The level of energy emitted by this prod-
uct however is far much less than the electromagnetic energy
emitted by wireless devices like for example mobile phones.
Because this product operates within the guidelines found in
radio frequency safety standards and recommendations, we be-
lieve this product is safe for use by consumers. These standards
and recommendations reflect the consensus of the scientific com-
munity and result from deliberations of panels and committees
of scientists who continually review and interpret the extensive
research literature.
In some situations or environments, the use of this product may
be restricted by the proprietor of the building or responsible rep-
resentatives of the organization. These situations may for ex-
ample include:
Using this product on board of airplanes, or
In any other environment where the risk of interference to other
devices or services is perceived or identified as harmful.
If you are uncertain of the policy that applies on the use of wire-
less devices in a specific organization or environment (e.g. air-
ports), you are encouraged to ask for authorization to use this
product prior to turning on the product.
Regulatory Information
We are not responsible for any radio or television interference
caused by unauthorized modification of this product. The cor-
rection of interference caused by such unauthorized modifica-
tion will be the responsibility of the user. We and its authorized
resellers or distributors are not liable for damage or violation of
government regulations that may arise from failing to comply
with these guidelines.
Information to the User
Important Safety Instructions / Importantes Mesures De Sécurité
When using your telephone equipment, basic safety precau-
tions should always be followed to reduce the risk of fire, elec-
tric shock and injury to persons, including the following:
1.Do not use this product near water, for example, near a bath
tub, wash bowl, kitchen sink or laundry tub, in a wet base-
ment or near a swimming pool.
2.Avoid using a telephone (other than a cordless type) during an
electrical storm. There may be a remote risk of electric shock
from lightning.
3.Do not use the telephone to report a gas leak in the vicinity of
the leak.
4.Use only the power cord and batteries indicated in this manual.
Do not dispose of batteries in a fire. They may explode. Check
with local codes for possible special disposal instructions.
SAVE THESE INSTRUCTIONS
Certaines mesures de sécurité doivent être prises pendant
l’utilisation de matérial téléphonique afin de réduire les risques
d’incendie, de choc électrique et de blessures. En voici
quelquesunes:
1.Ne pas utiliser l’appareil près de l’eau, p.ex., près d’une
baignoire, d’un lavabo, d’un évier de cuisine, d’un bac à la-
ver, dans un sous-sol humide ou près d’une piscine.
2.Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil sans
fil) pendant un orage électrique. Ceci peut présenter un risque
de choc électrique causé par la foudre.
3.Ne pas utiliser l’appareil téléphonique pour signaler une fuite
de gaz s’il est situé près de la fuite.
4.Utiliser seulement le cordon d’alimentation et le type de piles
indiqués dans ce manual. Ne pas jeter les piles dans le feu:
elles peuvent exploser. Se conformer aux règlements pertinents
quant à l’élimination des piles.
CONSERVER CES INSTRUCTIONS
![](/img.php?id=411588&img=bg6.png)
6
Getting Started

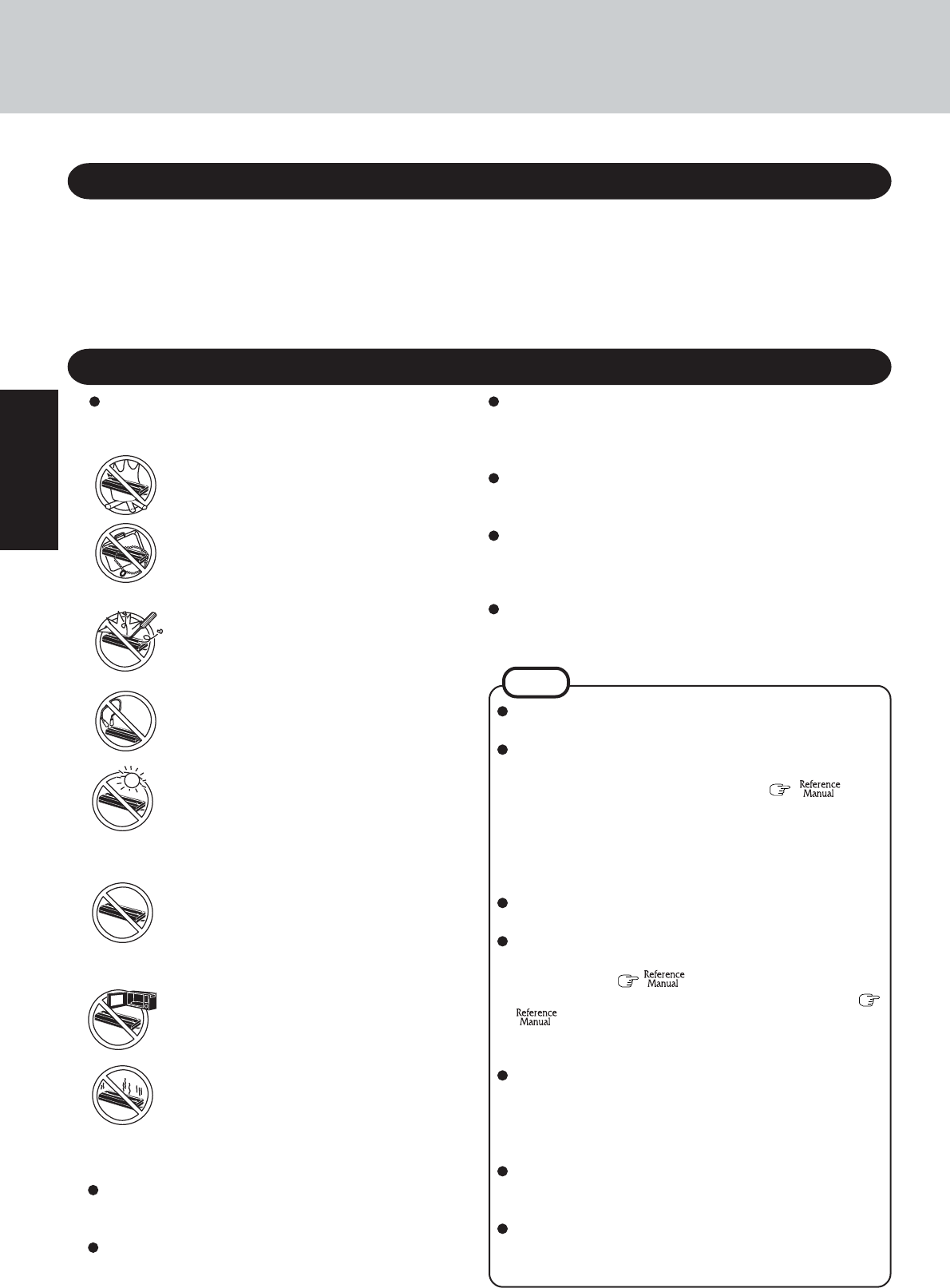

Precautions ( Battery Pack )
NOTE
The battery pack may become warm during recharging or
normal use. This is completely normal.
Recharging will not commence if internal temperature of
the battery pack is outside of the allowable temperature
range (0 °C to 50 °C {32°F to 122 °F}) “Bat-
tery Power”. Once the allowable range requirement is
satisfied, charging begins automatically. Note that the
recharging time varies based on the usage conditions. (Re-
charging takes longer than usual when the temperature is
10 °C {50 °F} or less.)
If the temperature is low, the operating time is shortened. Only
use the computer within the allowable temperature range.
This computer has a high temperature mode function that
prevents the degradation of the battery in high temperature
environments. ( “Battery Power”) If the high
temperature mode is enabled in the Setup Utility (
“Setup Utility”), a level of 100% in the [High Tem-
perature] mode is about a level of 80% in the [Normal
Temperature] mode.
The battery pack is a consumable item. If the amount of
time the computer can be run off a particular battery pack
becomes dramatically shorter and repeated rechargings
do not restore its performance, the battery pack should be
replaced with a new one.
When transporting a spare battery inside a package,
briefcase, etc., it is recommended that it be placed in a
plastic bag so that its contacts are protected.
Always power off the computer when it is not in use.
Leaving the computer on when the AC adaptor is not
connected will exhaust the remaining battery capacity.
Care should be exercised with regard to the following in
order to avoid the possibility of overheating, fire or dam-
age.
Avoid Heat
Do not throw the battery pack into a fire or
expose it to excessive heat.
Do Not Disassemble
Do not insert sharp objects into the battery pack,
expose it to bumps or shocks, deform, disas-
semble, or modify it.
Do Not Short
Do not short the positive (+) and negative (-)
contacts.
Do Not Put into a Microwave
Do not put the battery pack into a microwave
oven or a pressurized chamber.
Avoid Extreme Heat, Cold and Direct Sun-
light
Do not charge, use or leave the battery pack for
extended periods where it will be exposed to
direct sunlight, in a hot place (in car on a sunny
day, for example), or in a cold place.
Keep Articles Away
Do not place the battery pack together with ar-
ticles such as necklaces or hairpins when carry-
ing or storing.
If the battery pack will not be used for a long period of time
(a month or more), charge or discharge (use) the battery pack
until the remaining battery level becomes 30% to 40% and
store it in a cool, dry place.
This computer prevents overcharging of the battery by re-
charging only when the remaining power is less than approx.
95% of capacity.
The battery pack is not charged when the computer is first
purchased. Be sure to charge it before using it for the first
time. When the AC adaptor is connected to the computer,
charging begins automatically.
Should the battery leak and the fluid get into your eyes, do not
rub your eyes. Immediately flush your eyes with clear water
and see a doctor for medical treatment as soon as possible.
Stop Using
Should the battery emit an abnormal odor, be-
come hot to the touch, become discolored,
change shape, or become in any way different
from normal, remove it from the computer or
charger and stop using it.
Do Not Use With Any Other Computer
The battery pack is rechargeable and was in-
tended for the specified computer or charger.
Do not use it with a computer other than the
one for which it was designed.
Do not touch the terminals on the battery pack. The bat-
tery pack may no longer function properly if the contacts
are dirty or damaged.
Do not expose the battery pack to water, or allow it to
become wet.
Read Me First
Lithium Battery!
This computer contains a lithium battery to enable the date, time,
and other data to be stored. The battery should only be exchanged
by authorized service personnel.
Warning! A risk of explosion from incorrect installation or mis-
application may possibly occur.
Lithium Battery
Pile au lithium!
Le micro-ordinateur renferme une pile au lithium qui permet de
sauvegarder certaines données comme la date et l’heure
notamment. Elle ne devra être remplacée que par un technicien
qualifié.
Avertissement! Risque d’explosion en cas de non respect de cette
mise en garde!
![](/img.php?id=411588&img=bg7.png)
7
Getting Started
Users are advised to purchase the latest versions of virus protection software and use them regularly.
Computer Viruses
We recommend you run the software:
• When booting your computer.
• After receiving data.
We recommend that you check data received on disks or from external sources, such as data down-
loaded from the Internet, e-mail, etc. (For compressed files, uncompress them before running a check).
Saving Data on the Hard Disk
Do not expose your computer to shock.
Use care when handling your computer, shock may damage your hard disk or make your software appli-
cations and data unusable.
Do not power down your computer while software applications are running or hard disk drive
indicator ( ) is on.
Properly shut Windows down to avoid problems.
Save all valuable data to disks.
Backing up data to disks will limit damage should trouble occur to your computer or should you inad-
vertently change or erase data.
Use the security function for all important data. ( “Security Measures”)
Hard Disk Lock
When the Hard Disk Lock is set to [Enable], it is impossible to read/write data from/to the hard disk when the
hard disk is installed in a different computer, since a password is also set for the hard disk. When the hard disk
is returned to the original computer, you can read/write data as before. In this case, however, make the settings
in the Setup Utility exactly the same as they were before the hard disk was removed. (Note that this Hard Disk
Lock does not guarantee the complete protection of data.) ( “Security Measures”)
When Disposing of or Transferring Ownership of This Device
When disposing of or transferring ownership of this device, completely erase all data on the hard disk in
order to prevent the theft of hard disk data. Even if you delete data or initialize the hard disk through normal
Windows commands, data can still be read using special software. In order to erase all data, either have the
data erased by a specialist (at a charge) or use the hard disk data erase utility (included) ( page 34).
(Note that this hard disk data erase utility does not guarantee that data will be completely erased.)
Also note that transferring ownership of this device without deleting software from the hard disk may
violate software user’s licenses.
When Using Peripheral Devices
Pay strict attention to the following points to avoid damage to the computer, peripheral devices, cables, etc.
Also, in addition to following this manual and the Reference Manual, carefully read the operating instruc-
tions for the peripheral devices being used.
Use only peripheral devices that conform to the computer’s specifications.
Connect the devices properly, paying close attention to the condition and position of the connectors.
If a connection cannot be made easily, do not apply undue force; check once more to confirm the condi-
tion and position of the connector (alignment of pins, etc.) .
If the connector has holding screws, fasten the screws firmly.
Do not carry the computer with cables attached, and do not pull on the cables forcefully.
Environment
In use: Temperature: 5 °C to 35 °C {41 °F to 95 °F}
Humidity: 30% to 80% RH (No condensation)
Not in use: Temperature: -20 °C to 60 °C {-4 °F to 140 °F}
Humidity: 30% to 90% RH (No condensation)
Usage Environment
(To next page)
![](/img.php?id=411588&img=bg8.png)
8
Getting Started
Touch Pad
page 19
Read Me First
Such areas may result in damage to the computer.
Areas with electronic equipment
These areas may interfere with your display or cause your computer to produce strange sounds.
Areas with extremely high/low temperatures
Do not leave things near the computer that are sensitive to heat. During operation, the
computer may become warm.
Places not to use your computer
Handling
This computer has been designed so as to minimize shock to the LCD and hard disk drive, etc.,
but no warranty is provided against such trouble. Therefore, as a precision instrument, be
extremely careful in the handling.
Do not drop or hit your computer against solid objects.
Do not carry your computer when it is on.
Remove all external devices and cables, and PC Cards sticking out of the computer (see the
figure on the left) before transporting the computer.
We recommend preparing a fully charged battery.
When transporting spare batteries inside a package, briefcase, etc., it is recommended that it
be placed in a plastic bag so that its contacts are protected.
Do not place the computer upright or allow it to tip over. When the computer receives extremely
strong shock after falling, the hard disk or floppy disk drive, etc., may become inoperable.
Do not carry the computer while the display is open, or carry it by gripping the display.
Do not put anything (e.g., a piece of paper) between the display and keyboard.
Always carry your computer with you. Never check it in with luggage. For use of the com-
puter inside an aircraft, we recommend asking the airlines regarding their policy on this issue.
It is a good idea to make backup copies on disks and carry them with you.
Maintenance
Areas excluding the display
Wipe these areas with a soft cloth, after applying water or detergent diluted with water to the
soft cloth and firmly wringing out excess water.
Display
Use the Soft Cloth included with the computer. (For more information, refer to “Suggestions
About Cleaning the LCD Surface” that comes with the Soft Cloth.)
If the Protective Film becomes dirty or damaged, it may be time to replace your Protective
Film. The Protective Film is a disposable item. To find out the model number of your Protec-
tive Film, contact Panasonic Technical Support. (For more information, refer to the “Operat-
ing Instructions” that come with the Protective Film.)
Do not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect the surface, e.g., discoloration.
In addition, do not use commercially-available household cleaners and cosmetics, as they may contain compo-
nents harmful to the surface.
Do not directly add or spray water or detergent. If liquid enters the inside of the computer, it may cause it to
work improperly or be damaged.
CAUTION
Do not touch the screen before you re-attach a Protective Film, as you may leave a mark or
a scratch on the screen.
CAUTION
NOTE
Only use the computer within the allowable temperature range.
When the computer is left powered on in a low temperature environment, set [Turn off
hard disks] to [Never] in the following menu to avoid damage to the hard disk drive.
Windows 2000
[Start] - [Settings] - [Control Panel] - [Power Options] - [Power Schemes]
Windows XP
[Start] - [Control Panel] - [Performance and Maintenance] - [Power Options] - [Power Schemes]
![](/img.php?id=411588&img=bg9.png)
9
Getting Started
1
First-time Operation
Read the steps below to help you learn what parts are included, and to gain an understanding of
some basic computer-related operations.

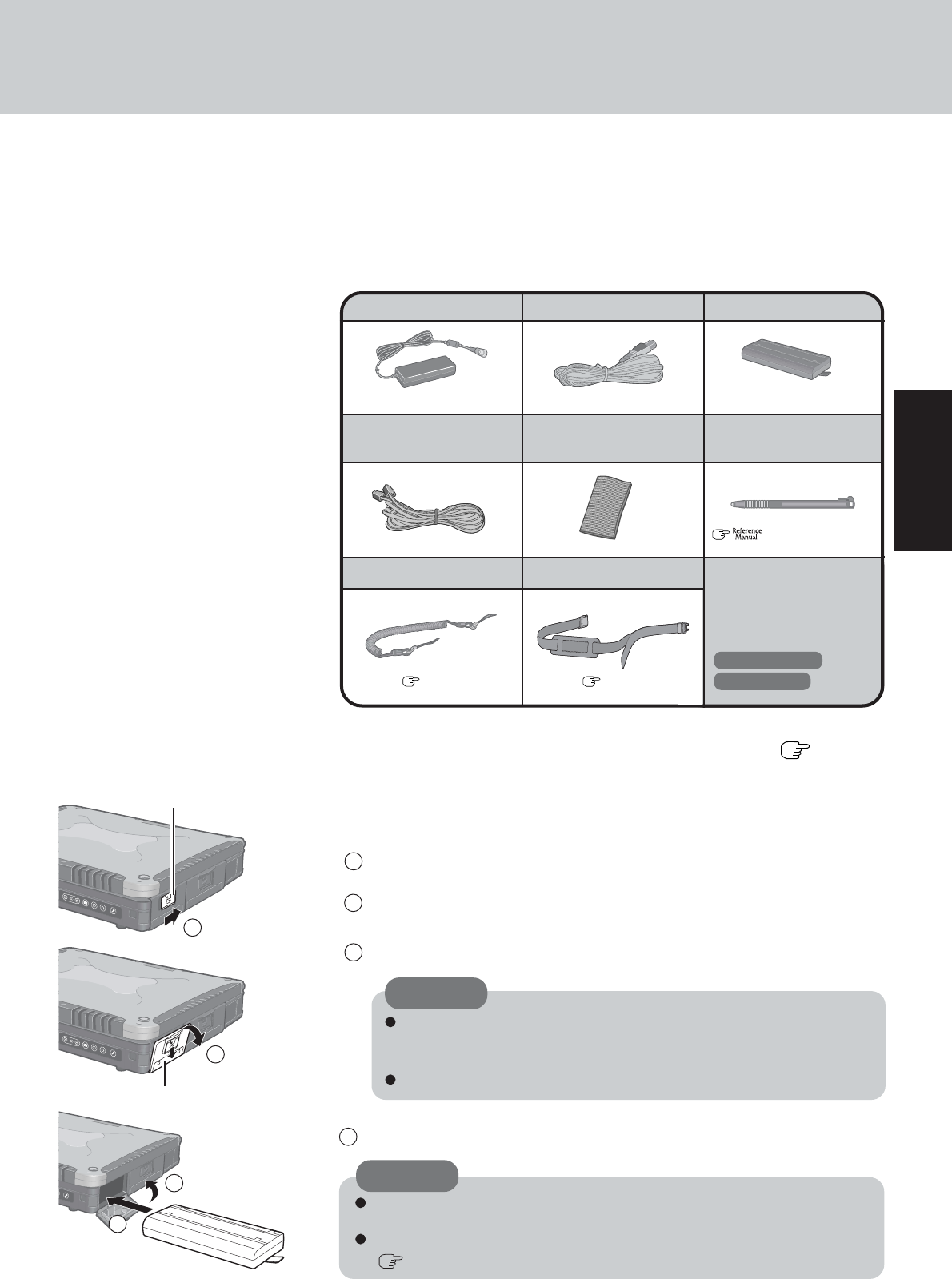

1Confirm the inclusion of all parts.
Make sure the parts shown in the figure have been supplied. If any of these items are
missing or are not working properly, contact Panasonic Technical Support.
3Insert the battery pack.
Unlock the cover by sliding the latch to the right.
1
CAUTION
Do not touch the terminals on the battery pack and the computer. The
battery pack may no longer function properly if the contacts are dirty or
damaged. Also, the computer may not operate properly.
Be sure to insert the battery pack as illustrated.
2Slide the latch down, and then without releasing it, open the cover as illustrated.
3Slide the battery pack inward until it is firmly in place.
2Read the LIMITED USE LICENSE AGREEMENT. ( page 32)
Before removing the seal covering the power switch, read the LIMITED USE LICENSE
AGREEMENT.
Model No : CF-AA1623A
AC adaptor ..........1
Model No :CF-VZSU30
AC Cord ...............1 Battery Pack........1
Modem Telephone
Cable ......................1
Operating Instructions
(This book)
.................... 1
Windows® Book .... 1
Product Recovery CD-ROM
Windows 2000
.........
2
Windows XP
............
3
( “Touchscreen(Advanced)”)
Soft Cloth ...............1
Confirm that the latch lock is correctly in place. If you carry your computer
without the latch lock in place, the battery pack may fall out.
Before using the battery pack, carefully read “Precautions (Battery Pack)”
( page 6).
CAUTION

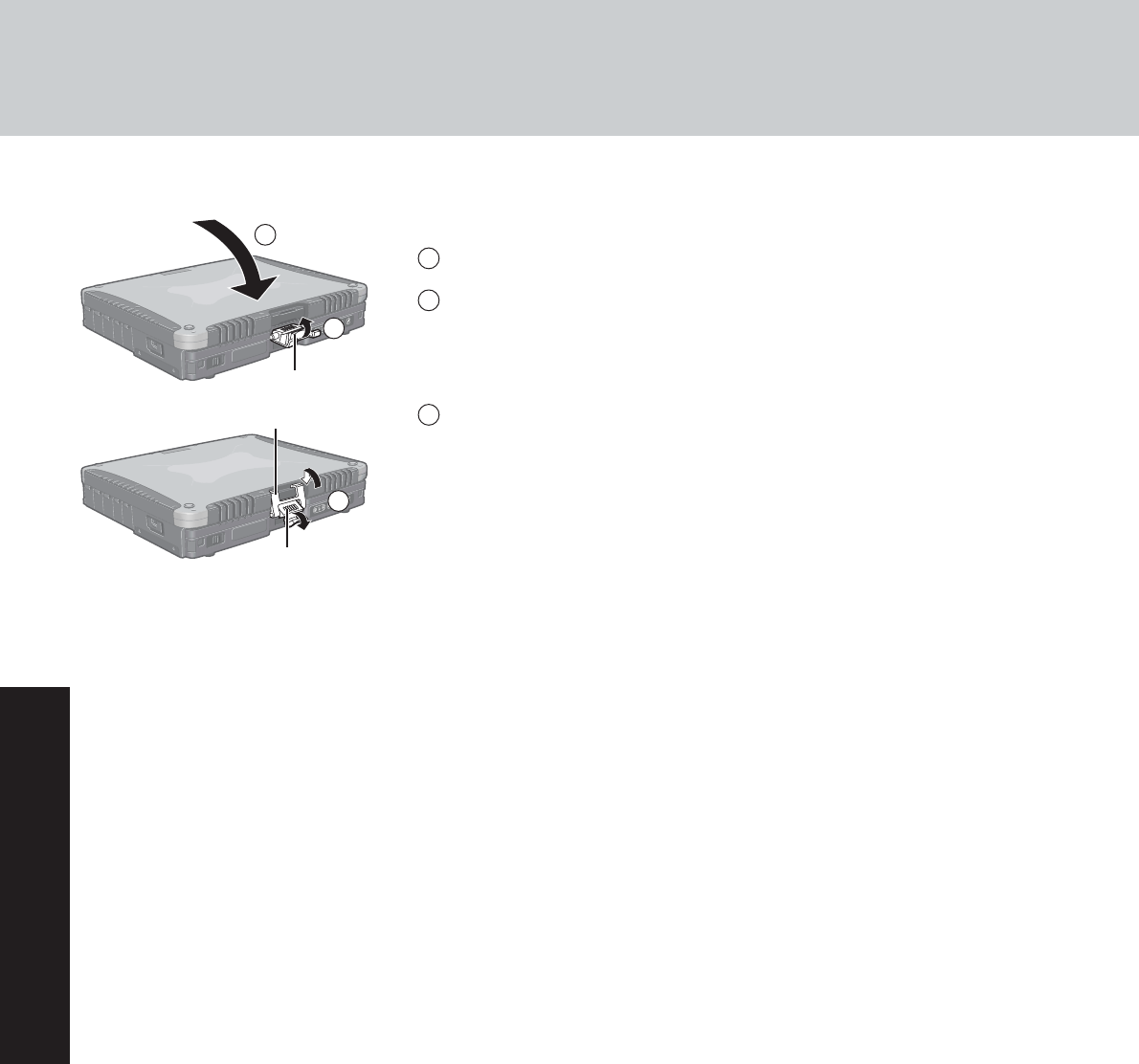

4Close the cover, then lock it by sliding the latch to the left.
Latch
Cover
2
3
4
Stylus .....................1

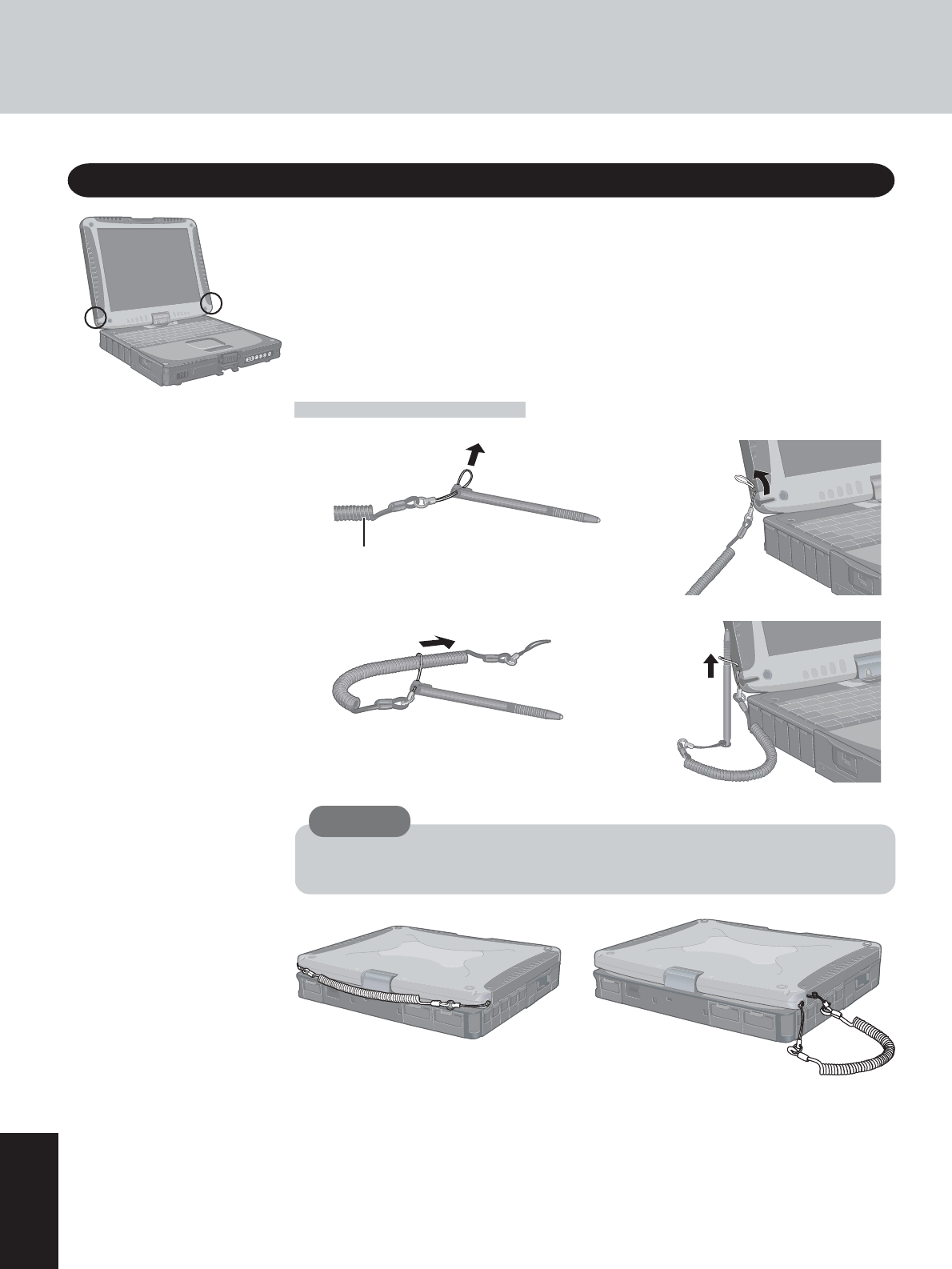

Tether ......................1 Shoulder Strap........1
( page 36)( page 38)
![](/img.php?id=411588&img=bga.png)
10
Getting Started
First-time Operation

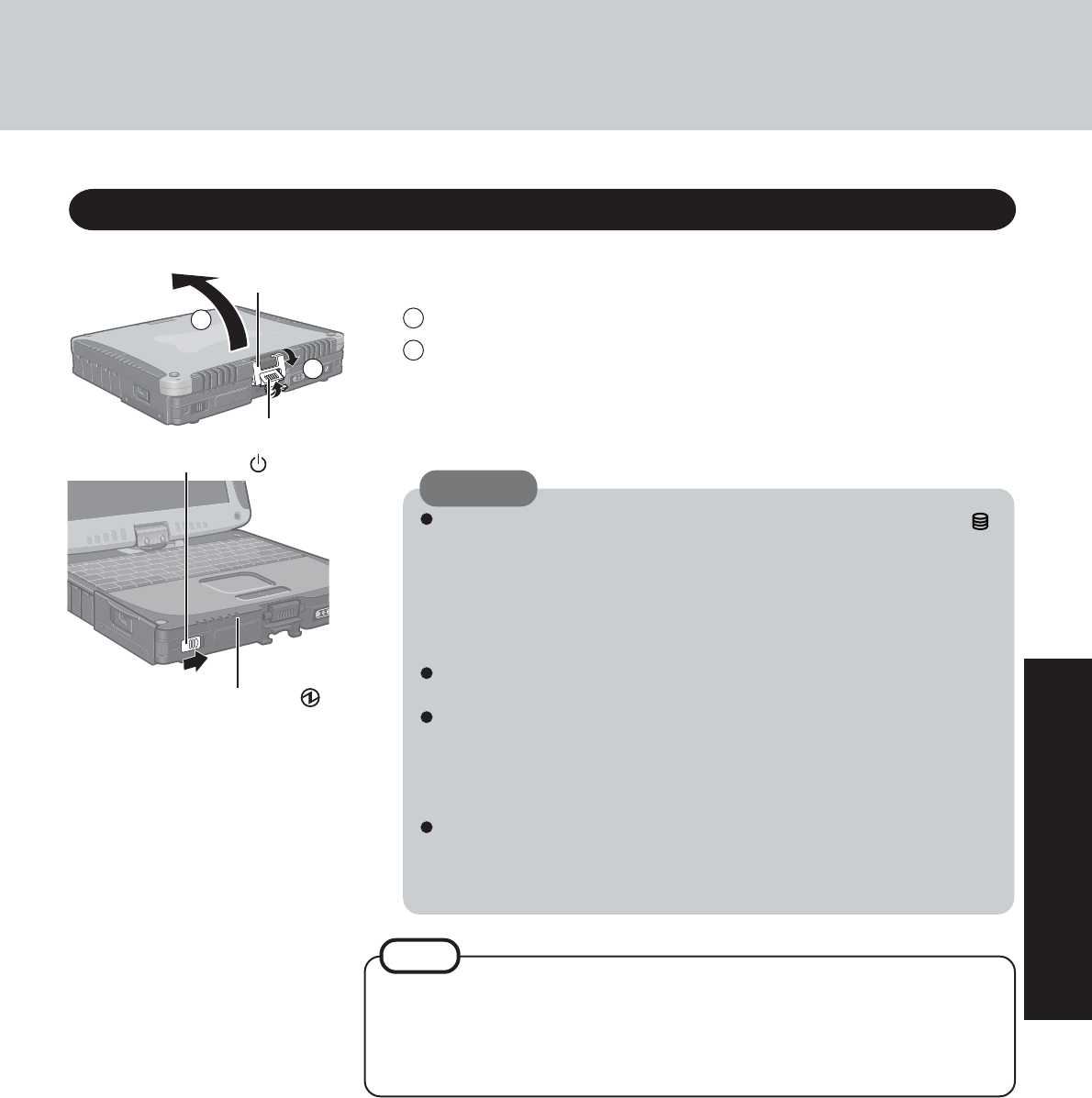

5Open the display.
1Pull up on the latch A and release the latch B.
2Lift open the display.
Slide the power switch and hold it for approximately one second until the power indi-
cator turns on before releasing it.
CAUTION
Connect your computer to a power outlet.
CAUTION
Be sure the AC adaptor is connected until completing the first-time use operation.
When using the computer for the first time, do not connect any peripheral de-
vice except the battery pack and AC adaptor to the computer.
Handling the AC adaptor
Do not twist or pull the AC power cord forcefully. Doing so may damage the
connections.
Use only the specified AC adaptor with your computer. Using an AC adaptor
other than the one supplied might damage the battery and/or the computer.
When the DC plug is not connected to the computer, disconnect the AC cord
from your AC wall outlet.
Problems such as sudden voltage drops may arise during periods of thunder
and lightning. Since this could adversely affect your computer, an uninterruptible
power source (UPS) is highly recommended unless running from the battery
pack alone.
4
6Turn your computer on.
Latch A
Do not slide the power switch and hold it for more than four seconds; this will
cause the power to be turned off forcibly.
Do not slide the power switch repeatedly.
Once the computer is powered off, you must wait at least ten seconds before
powering it on again.
7Setup Windows.
Moving the cursor ( ) or clicking buttons can be performed with the touch pad (
page 19).
1At [Welcome to the Windows 2000 Setup Wizard], select [Next].
2After reading the agreement, select [I accept this agreement] or [I don’t accept
this agreement], then select [Next].
Windows 2000
Do not press any keys or touch the touch pad until [Windows 2000 Profes-
sional Setup] is displayed.
Do not use the touchscreen during the Windows setup.
CAUTION
NOTE
If [I don’t accept this agreement] is selected, the Windows setup will be aborted.
Latch B
2
1
Power Switch
Power Indicator
DC-IN Jack
DC IN 16.0 V
![](/img.php?id=411588&img=bgb.png)
11
Getting Started
CAUTION
3Select settings for your region, then select [Next].
4Enter your name and organization and then select [Next].
5Enter your computer name and administrator password and then select [Next].
Remember this password! If the password is forgotten, Windows cannot be
operated.
6Enter the correct date, time and time zone, then select [Next].
7At [Networking Settings], select [Typical settings], then select [Next].
8At [Workgroup or Computer Domain], select [No, this computer is not on a net-
work, or is on a network without a domain], then select [Next].
The computer will restart.
9At [Welcome to the Network Identification Wizard], select [Next].
10
At [Users of This Computer], select [Users must enter a user name and password
to use this computer], then select [Next].
11
Select [Finish].
12
Enter your administrator password and select [OK].
1At [Welcome to the Windows XP Setup Wizard], select [Next].
2After reading the agreement, select [I accept this agreement] or [I don’t accept this
agreement], then select [Next].
Windows XP
NOTE
If [I don’t accept this agreement] is selected, the Windows setup will be aborted.
Do not press any keys or touch the touch pad until [Windows XP Professional
Setup] is displayed.
Do not use the touchscreen during the Windows setup.
CAUTION
3Select settings for your region, then select [Next].
4Enter your name and organization and then select [Next].
5Enter your computer name and administrator password and then select [Next].
CAUTION
Remember this password! If the password is forgotten, Windows cannot be
operated.
6Enter the correct date, time and time zone, then select [Next].
7At [Networking Settings], select [Typical settings], then select [Next].
8At [Workgroup or Computer Domain], select [No, this computer is not on a net-
work, or is on a network without a domain], then select [Next].
The computer will restart.
NOTE
It may take two to three minutes until the next screen is displayed. Wait, and
do not press any keys, or touch the touch pad, etc.
![](/img.php?id=411588&img=bgc.png)
12
Getting Started
First-time Operation
NOTE
If [Windows XP is currently configured to manage the Intel(R) PRO/Wireless
LAN adaptor.] is displayed, select [Yes].
8Calibrate the touchscreen.
1
Select [Start] - [Settings] - [Control Panel] - [Mouse] - [TouchScreen] - [Calibration].
2
Touch the “+” mark on the calibration screen with the stylus (included) for about one second.
3After the calibration procedure is executed (e.g., after the nine “+” marks are
touched), the procedure ends when Enter is pressed.
4Select [OK].
Windows 2000
1Select [Start] - [Control Panel] - [Printers and Other Hardware] - [Mouse] -
[TouchScreen] - [Calibration].
2
Touch the “+” mark on the calibration screen with the stylus (included) for about one second.
3After the calibration procedure is executed (e.g., after the nine “+” marks are
touched), the procedure ends when Enter is pressed.
4Select [OK].
Windows XP
9Enter your administrator password and select .
9Windows XP
Create a new account.
1Select [Start] - [Control Panel] - [User Accounts] - [Create a new account].
2Enter a name for the new account, then select [Next].
3Select [Computer administrator], then select [Create Account].
4<When you want to create a password for the new account>
Select the new account you have created and select [Create a password].
Follow the instructions on the screen to create a password.
5Select [Start] - [Turn Off Computer] - [Restart] to restart the computer.
CAUTION
Remember this password! If the password is forgotten, Windows cannot be operated.
You can create a password reset disk beforehand
( page 14).
If “Yes, make this computer a member of the following domain” is selected,
the following message may be displayed: [An invalid domain was specified.
Would you like to proceed for now and try joining a domain later?]. In this
case, select [Yes]. After selecting [Yes], the computer will restart automati-
cally, but sometimes the [Starting Windows] message will remain on the screen,
and windows will not start up. If this happens, hold Tab down while
pressing Alt until [Network Identification Wizard] is displayed on top, and
follow the instructions on the screen.
NOTE
![](/img.php?id=411588&img=bgd.png)
13
Getting Started
CAUTION
Store the floppy disks in a safe place. They will enable you to return your
computer to the condition at the time of purchase should any problems occur.
When creating backup disks, do not run any other application program.
When creating backup disks and the message [Insufficient files to copy] is
displayed, select [OK] and then contact Panasonic Technical Support.
While the floppy disk drive indicator is on, do not remove the floppy disk,
power off the computer or use the standby or hibernation function (
“Standby/Hibernation Functions”).
Be sure to create the backup disk.
If a backup disk is not created, it will be impossible to return the computer to
its original state. In this case, contact Panasonic Technical Support.

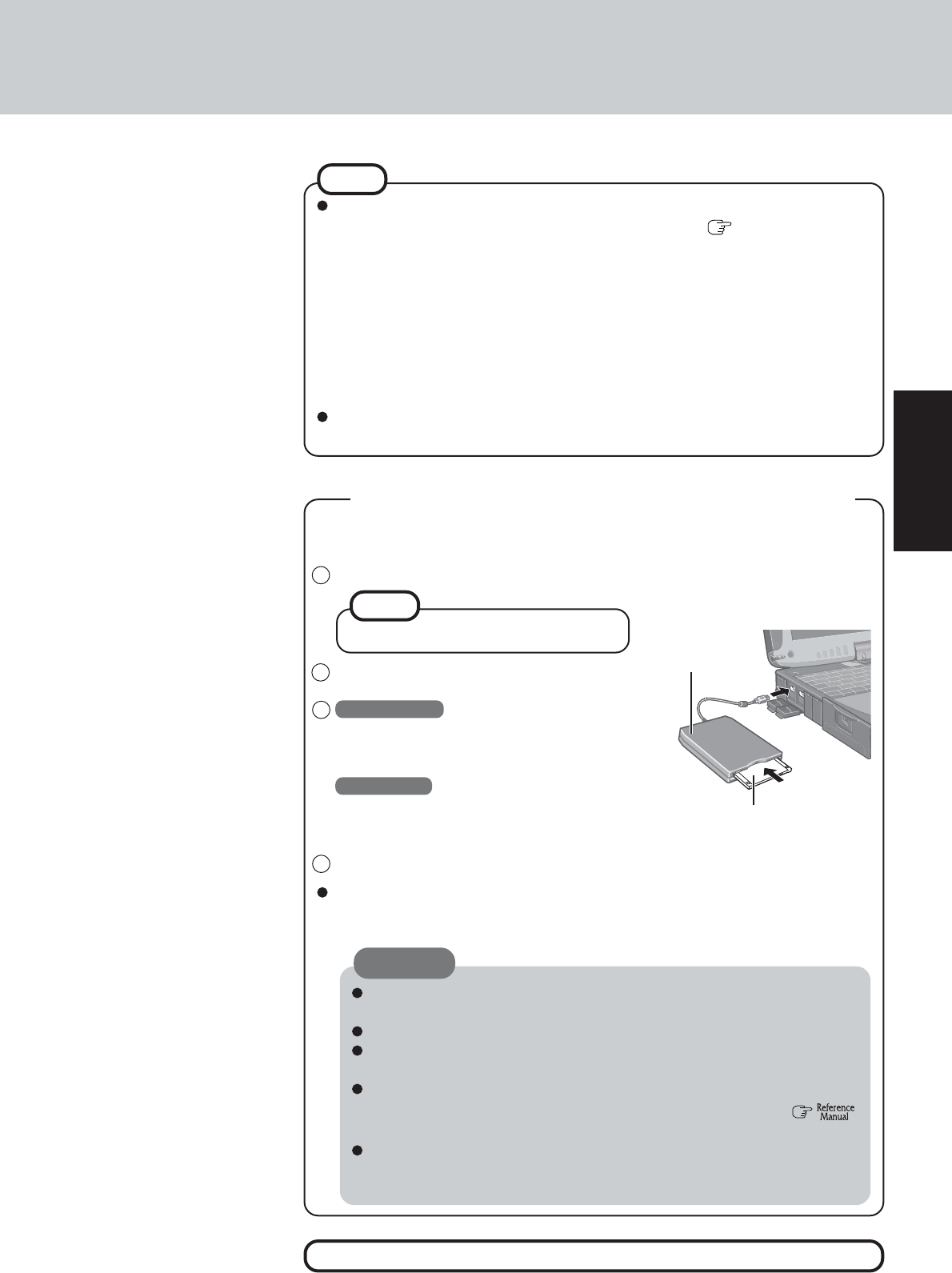

Create BACKUP Disks for Reinstallation
1Connect the USB floppy disk drive to your computer.
2Prepare 2HD floppy disks and make sure they are
not in the write-protected state, and then set it.
3Windows 2000
Select [Start] - [Programs] - [Panasonic] - [Create
Backup Disk] and follow the on-screen instruc-
tions.
Windows XP
Select [Start] - [All Programs] - [Panasonic] - [Cre-
ate Backup Disk] and follow the on-screen instruc-
tions.
4Place a label identifying the contents on each disk.
Name of created backup disk
FIRSTAID FD (When the display for creating the UPDATE FD is shown, create
the disk by following the on-screen instructions.)
This concludes the first-time use operation guidelines.
To create backup disks, the USB floppy disk drive (optional: CF-VFDU03) and format-
ted 2HD floppy disks are needed.
Label on the top sur-
face, and insert the
shutter-side headfirst.
USB
Floppy
The floppy disk drive must be the A drive.
NOTE
When creating a new user account:
• If you make mail settings, create password reset disks ( page 14), or conduct
other related operations before creating the user account, you will be unable to use
any previous mail history or settings.
• When you create the first new account, you can only select [Computer administra-
tor].
Once a “Computer Administrator” account has been created, you can create addi-
tional limited user accounts.
Note also that only the added user account will be displayed in the Welcome screen.
The account for the administrator created during Windows setup will not be dis-
played.
If you use the wireless LAN, be sure to refer to the Reference Manual’s “Wireless
LAN”.
NOTE
![](/img.php?id=411588&img=bge.png)
14
Getting Started
Depending on the Windows settings, installed applications, and drivers, menus and
other displays may differ, or some functions (such as use of the password reset disk)
may be inoperable.
You can select Classic view for the Control Panel or select the Classic Start menu.
You can also change the way a user logs on or off.
The procedure in this manual uses the method of the Windows XP default setting
(not Classic Start menu etc.).
Resetting the password
Windows XP has a function to reset a forgotten password.
To use this function, you need to create a password reset disk beforehand following
the steps below.
1Connect the USB floppy disk drive (optional: CF-VFDU03) to your computer.
2Select [Start] - [Control Panel] - [User Accounts] and select the account you used
to logon.
3Select [Prevent a forgotten password] from the [Related Tasks] menu of the ac-
count you have logged on to and create a password reset disk following the on-
screen instructions.
Store the password reset disk in a safe place.
·Only the logon password for each account can be reset.
The password set in the Setup Utility cannot be reset.
Information for Windows XP
First-time Operation
![](/img.php?id=411588&img=bgf.png)
15
OperationOperation
1Open the display.
Starting Up/Shutting Down
Starting Up
2Turn your computer on.
Slide the power switch and hold it for approximately one second until the power
indicator turns on before releasing it.
2
CAUTION
While booting, avoid the following until the hard disk drive indicator ( )
has turned off.
• Connecting or disconnecting the AC adaptor.
• Touching the power switch or the tablet buttons.
• Performing any keyboard, touch pad, touchscreen (or external mouse) op-
erations.
• Closing the display.
Once the computer is powered off, you must wait at least ten seconds before
powering it on again.
When using this computer with the battery pack only, it may take some time
for the power to turn on after sliding the power switch. In this case, slide the
power switch and hold it for more than one second. This phenomenon oc-
curs because the standby power is minimized while the power is turned off; it
is not a malfunction.
When the CPU temperature rises, the computer may not power on to prevent
the CPU from overheating. Should this happen, allow the computer to cool
down then switch the power on again.
If the computer still does not power on, contact Panasonic Technical Support.
Pull up on the latch A and release the latch B.
1
1
Lift open the display.2
When the power is turned on, sometimes the message “Warming up the system” is
displayed or the battery indicator alternately blinks green and orange, and start-up
takes longer than usual (a few minutes or more). This function is designed to prevent
hard disk drive malfunctions that may occur at low temperatures. Wait for the com-
puter to start up.
NOTE
Latch B
Power Switch
Power indicator
Latch A
![](/img.php?id=411588&img=bg10.png)
16
Operation
Starting Up/Shutting Down
3Log on to Windows.
Windows 2000
After confirming that the hard disk drive indicator ( ) has turned off, input the user
name and password, then select [OK]. Until the correct user name and password are
entered, the computer will not operate.
Windows XP
After confirming that the hard disk drive indicator ( ) has turned off, select the user
and input the password, then select . Until the correct password entered the com-
puter will not operate.
The power saving function is factory set, so if there is no input from a key, the touch
pad, the tablet button, the touchscreen or an external mouse (when one is connected)
for a certain interval of time, the power to the LCD and hard disk may be turned off.
The LCD will resume operation when the touch pad, the touchscreen or an external
mouse (when one is connected) is used or a key or the tablet button is pressed.
The power to the LCD may be turned off even when an application software is being
installed. In this case, because it is conceivable that a selection dialog box will be
shown, do not press Space or Enter to attempt to resume from this condition
as doing so may trigger a selection, but instead, press a key unrelated to the direct
triggering of a selection, like Ctrl .
In addition, when the computer is left alone, it automatically enters the standby or
hibernation mode ( “Standby/Hibernation Functions”). The computer
will resume by sliding the power switch.
Windows XP
When switching to a different user with the Fast User Switching function, it may not
be possible to set the settings of the display. In this case, log on with the administra-
tor authority again, not using the Fast User Switching function, and try the operation
once more.
NOTE
When an application or file that was previously displayed ap-
pears on your screen,
the standby or hibernation mode has been set. ( “Standby/Hibernation Func-
tions”)
Enter your password*1 and press Enter .( “Security Measures”)
Will Start
Will Not Start
(Power off)
If [Enter Password] is displayed,
*1Supervisor Password or User Password set in the Setup Utility
(not the Windows password).
*2Even if no password is entered for about a minute when starting
up the Setup Utility, the power will not be turned off.
Three incorrect attempts
or
No password for about a minute*2
The correct password
Enter Password [ ]
4Select your application.
You are able to start working on your computer.
![](/img.php?id=411588&img=bg11.png)
17
OperationOperation
Shutting Down (power off your computer)
Restarting your computer (without shutting down)
Windows 2000
Select [Restart], then select [OK].
Windows XP
Select [Restart].
To shut down using the keyboard,
Windows 2000
Press , U , and select [Shut down] with , then press Enter .
Windows XP
Press , U , and select [Turn Off] with , then press Enter .
To quickly resume computer operation after shutting down,
The standby or hibernation function is available. ( “Standby/Hiberna-
tion Functions”)
NOTE
This procedure is for shutting down the computer without using the standby or hibernation
function ( “Standby/Hibernation Functions”).
1Save important data and close each application.
2Windows 2000
Select [Start] - [Shut Down].
Windows XP
Select [Start] - [Turn Off Computer].
3Windows 2000
Select [Shut down], then select [OK].
Windows XP
Select [Turn Off].
Your computer will power off automatically.
CAUTION
Do not do the following during the shutdown/restart procedure.
• Connecting or disconnecting the AC adaptor.
• Touching the power switch or the tablet buttons.
• Performing any keyboard, touch pad, touchscreen (or external mouse) opera-
tions.
• Closing the display.
(To next page)
![](/img.php?id=411588&img=bg12.png)
18
Operation
Starting Up/Shutting Down
4Close the display.
1Close the display.
2Pull up on the latch A.
3Position the latch B on the display side, then bring the latch A down to fix the
display in place.
Latch A
2
1
3
Latch A
Latch B
![](/img.php?id=411588&img=bg13.png)
19
OperationOperation
Touch Pad (Basic Operation)
Use the touch pad to move the cursor on the display and perform normal computer operations.
For instructions on how to operate, “Touch Pad (Advanced)”.
Handling the Touch Pad
If a key combination such as Fn + F5 is used while the pad is being touched, the
function of the key combination may not work. In addition, it is possible that control of the
cursor will be lost and the cursor will not show proper movements. In such cases, the
computer has to be restarted by using the keyboard (e.g., ).
The touch pad is designed to be used with a fingertip only. Therefore, avoid the following
actions, which may cause damage to the work surface.
• Placing any object on the work surface
• Pressing down forcefully with sharp-pointed objects (e.g., nails) or hard objects that can
leave marks (e.g., pencils and ball point pens)
Try to avoid having any harmful substances such as oil, come in contact with the touch pad.
The cursor may not work properly in such cases.
When the touch pad becomes dirty:
Wipe to remove dirt by using a dry soft cloth such as gauze or a soft cloth first applied with
detergent diluted with water and then thoroughly wrung.
Do not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect the surface,
e.g., discoloration. In addition, do not use commercially-available household cleaners and
cosmetics, as they may contain components harmful to the surface.
or
Two quick taps, but on
the second tap leaving
your finger down (apply-
ing pressure) and moving
it on the work surface.
While holding down the
button, moving your fin-
ger on the work surface.
or
Function Operation
Moving the Cursor
Tapping/Clicking
Double-Tapping/
Double-Clicking
Dragging
or
Move the tip of your finger lightly
over the surface.
tapping clicking
double-tapping
Left Button
Right Button
Work Surface
double-clicking
![](/img.php?id=411588&img=bg14.png)
20
Operation

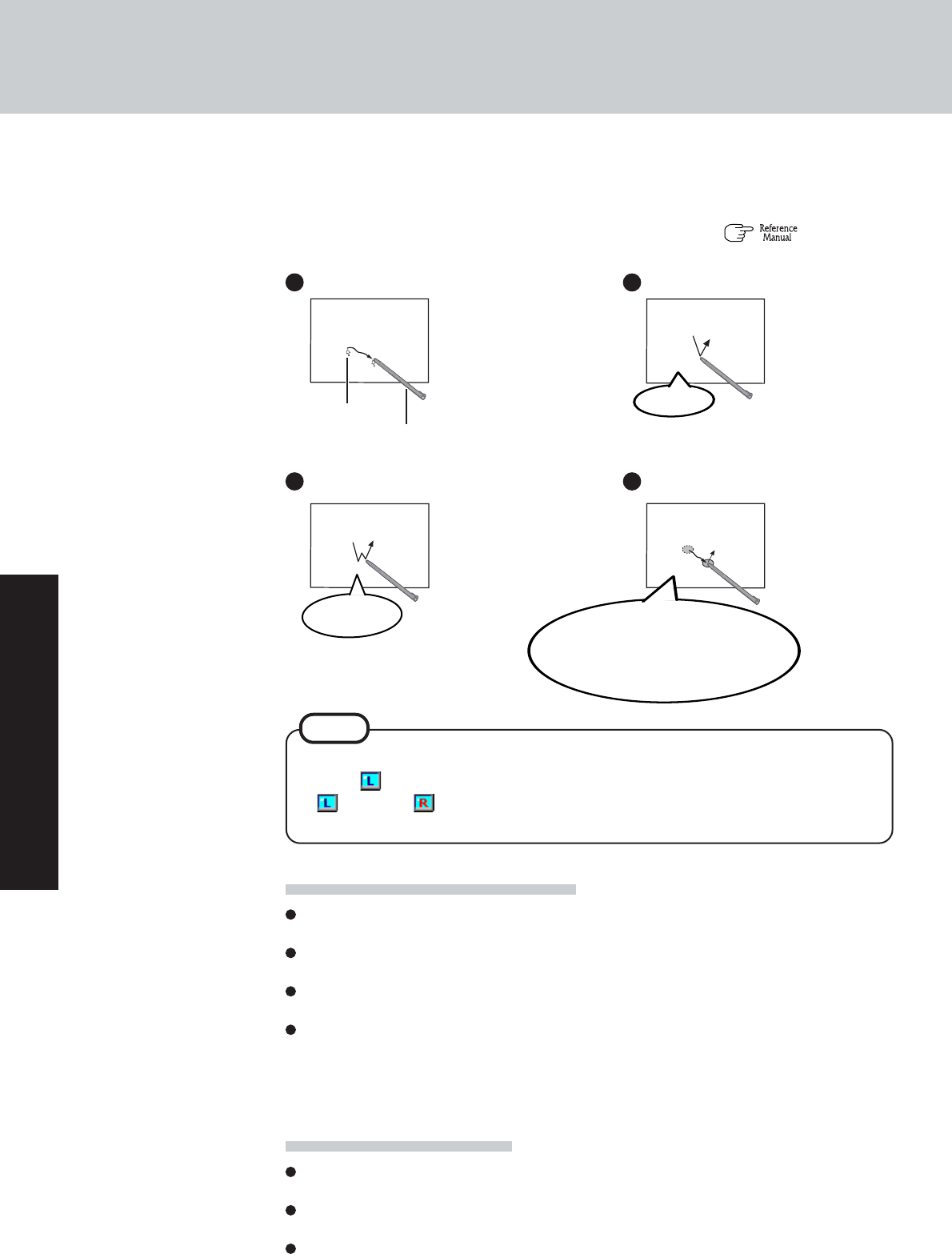

Touchscreen (Basic Operation)
Your computer is equipped with a touchscreen function allowing you to perform the same opera-
tions as the touch pad or mouse by touching the surface of the display with the stylus (included).
(The following explanation gives one example (for the default settings).)
The operation settings can be changed. For detailed information, “Touchscreen
(Advanced)”.
Moving the cursor
Double-clicking
Clicking
Dragging
Cursor
Handling the Touchscreen
Use the stylus included with the computer. Do not use an implement other than the stylus that
comes with the computer.
Do not place any object on the surface or press down forcefully with sharp-pointed objects
(e.g., nails), or hard objects that can leave marks (e.g., pencils and ball point pens).
Do not operate the computer when such things as dust are on the screen. Do not allow contact
with substances that could dirty the touchscreen, such as oil.
When the touchscreen becomes dirty:
Wipe to remove dirt by using a dry soft cloth included with the computer.
Do not use benzene or thinner, or rubbing alcohol.
For more information, refer to “Suggestions About Cleaning the LCD Surface” that comes
with the soft cloth.
Handling the Stylus
Clean the stylus tip and screen prior to operation. Foreign particles can scratch the screen and
impede the operation of the stylus.
Use the stylus only for the computer screen. Using it for any other purpose may damage the
stylus and scratch the screen.
Do not use pencils, implements with sharp tips or hard objects for screen operations. The
screen may be damaged as a result.
Stylus
One tap
Touch and hold the object (i. e.
file or icon), move the stylus on
the surface (dragging the ob-
ject to the desired location),
then release the stylus.
Two quick
taps
To right-click:
1Select on the taskbar.
changes to .
2Select the object you want to right-click.
NOTE
![](/img.php?id=411588&img=bg15.png)
21
OperationOperation
Operating in Tablet Mode
Usage Example
In Tablet Mode, the computer can be operated while holding the body as shown in the figure.
In addition to being used as a regular notebook computer (Laptop mode), this computer can
also be operated in Tablet mode. Simply turn the display around 180°, and close the computer
with the display facing up. In Tablet mode, the computer can be operated using the touch-
screen ( page 20), the software keyboard and the tablet buttons ( “Tablet But-
tons”), instead of the internal keyboard and the touch pad.
Set the computer in Tablet mode using the following procedure.
1Open the display so that it is perpendicular with the body of the computer.
2Slide the latch C to the right, and then without releasing it, turn the display clockwise by
180°.
3Close the computer with the display facing up.
CAUTION
Do not rotate the display more than 180°, or attempt to rotate the display counter-
clockwise.
2
1
3
4
5
Latch A
Latch B
To return to Laptop mode:
Perform the steps for changing the computer into
Tablet mode, only in reverse order.
1Pull up on latch A and release the latch B.
2Open the display.
3Slide the latch C to the right, and then without
releasing it, turn the display counter-clockwise
by 180°.
NOTE
4Pull up on the latch A.
5Position the latch B on the display side, then bring the latch A down to fix the display in
place.
Latch A
2
2Latch C
Latch C
![](/img.php?id=411588&img=bg16.png)
22

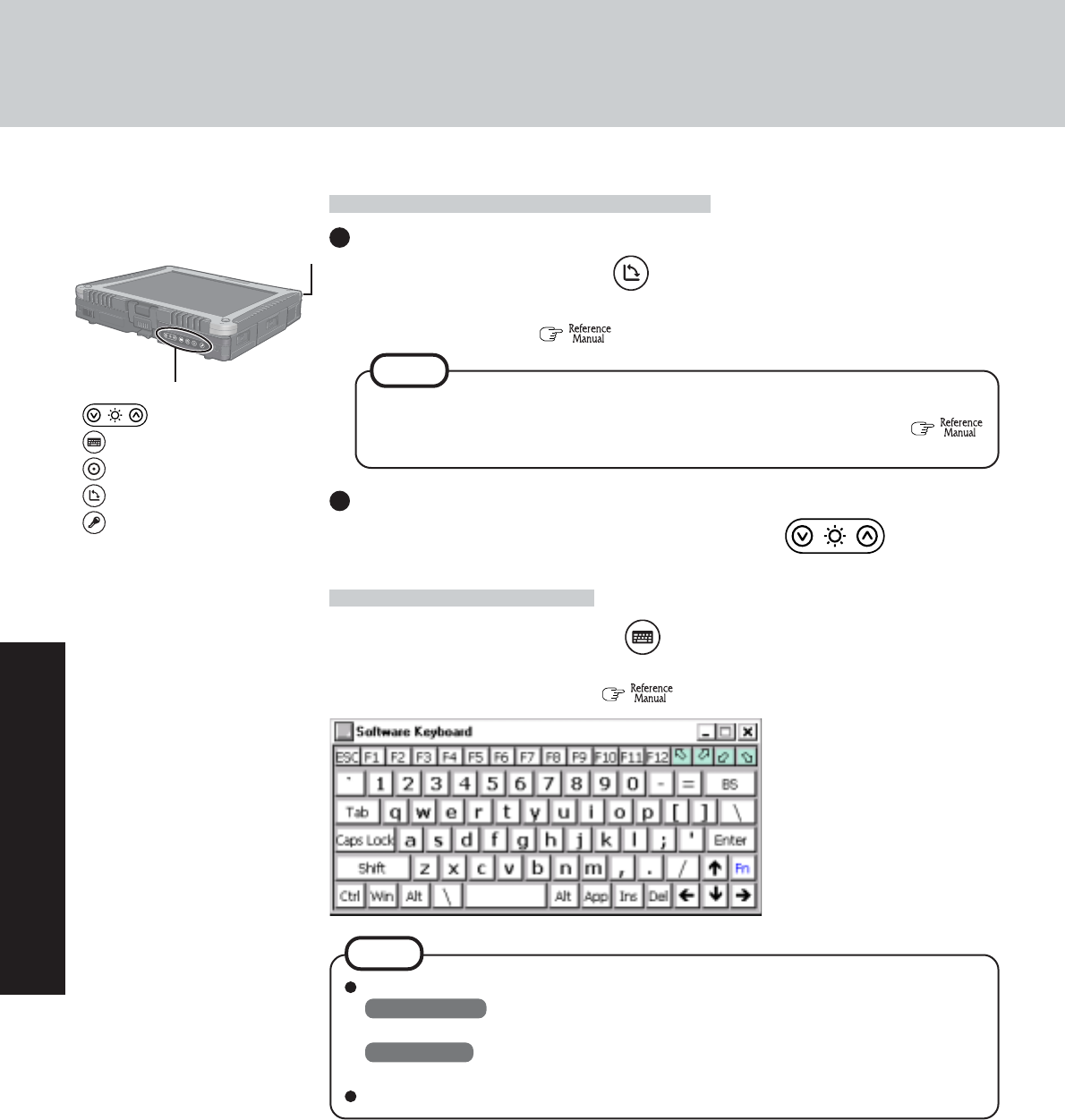

Operation
You can also start up the software keyboard using the following procedure.
Windows 2000
Select [Start] - [Programs] - [Panasonic] - [Software Keyboard].
Windows XP
Select [Start] - [All Programs] - [Panasonic] - [Software Keyboard].
When using the touchscreen function, use only the stylus included with the computer.
NOTE
Changing the Display Settings
To rotate the display
Press the rotation button until the display is set at the angle
that is most comfortable for you.
For detailed information, “Display Rotation”
Inputting Characters
Press the input panel button .
The software keyboard shown below will appear, and characters can be input with the stylus
(included). For detailed information, “Software Keyboard”.
To adjust the brightness of LCD
Press the LCD brightness control buttons .
You can set the computer so that the display automatically rotates to your preferred
angle when changing from Laptop Mode to Tablet Mode or vice versa. (
“Display Rotation”)
NOTE
Stylus
Tablet Buttons
LCD brightness control
Input Panel
Enter
Rotation
Security
Operating in Tablet Mode
![](/img.php?id=411588&img=bg17.png)
23
OperationOperation
Illustrations may be difficult to view depending on the magnification. If this is the case, we recommend that the display be
magnified.
The characters in PDF files (such as the Reference Manual) may be difficult to read depending on the Acrobat Reader
settings and the Windows Desktop settings. In such cases, change the Acrobat Reader settings with the following procedure.
1Start up Acrobat Reader.
2Select [Edit] - [Preferences] - [Accessibility], and then set [Color Scheme] to [Use colors specified in document].
When the taskbar is hidden at the bottom portion of Acrobat Reader, set the maximum display window size.
If a printer is connected, we recommend printing pages. The illustrations and display samples may not print with a high
quality.
NOTE
Reference Manual
The Reference Manual and the Important Tips can be accessed on your computer. When a printer is connected, these manuals can
also be printed.
The Reference Manual explains functions for you to make greater use of the computer, such as how to add peripheral devices,
how the Setup Utility works, and other useful information. (Refer to the cover of this manual for a list of the main contents
included.)
Important Tips provides information on how to maximize use of the battery pack, which is necessary for computing away from
your home or office.
It also offers helpful explanations on how to use the touchscreen more effectively.
Opening the Reference Manual or Important Tips
Reference Manual
Windows 2000
Select [Reference Manual] in [Start] - [Programs] - [Panasonic] - [On-Line Manuals].
Windows XP
Select [Reference Manual] in [Start].
Important Tips
Select on the desktop.
Important Tips can also be accessed from the following menu.
Windows 2000
Select [Important Tips] in [Start] - [Programs] - [Panasonic] - [On-Line Manuals]
Windows XP
Select [Important Tips] in [Start] - [All Programs] - [Panasonic] - [On-Line Manuals]
When the Reference Manual or Important Tips is started up for the first time, the License Agreement of the Acrobat Reader may be
displayed. If it is displayed, after reading the agreement, select [Accept] to access the Reference Manual or Important Tips.
Refer to Acrobat Reader Help to use the Acrobat Reader.
![](/img.php?id=411588&img=bg18.png)
24
Troubleshooting
List of Error Codes
The following is a list of the messages that BIOS can display. Most of them occur during POST. Some of them display
information about a hardware device, e.g., the amount of memory installed. Others may indicate a problem with a device,
such as the way it has been configured. Following the list are explanations of the messages and remedies for reported
problems.
If your system displays any of the below error messages other that the ones marked with an asterisk (*), write down the
message and contact Panasonic Technical Support. If your system fails after you make changes in the Setup menus, reset the
computer, enter Setup and install Setup defaults or correct the error.
0200 Failure Fixed Disk
Fixed disk in not working or not configured properly. Check to see if fixed disk is attached properly. Run Setup.
Find out if the fixed-disk type is correctly identified.
0211 Keyboard error
Keyboard not working.
0212 Keyboard Controller Failed
Keyboard controller failed test. May require replacing keyboard controller.
0213 Keyboard locked - Unlock key switch
Unlock the system to proceed.
0230 System RAM Failed at offset : nnnn
System RAM failed at offset nnnn of in the 64k block at which the error was detected.
0231 Shadow RAM Failed at offset : nnnn
Shadow RAM failed at offset nnnn of the 64k block at which the error was detected.
0232 Extended RAM Failed at offset : nnnn
Extended RAM Failed at address line : nnnn
Extended memory not working or not configured properly at offset or address line nnnn.
0250 System battery is dead - Replace and run SETUP
The CMOS clock battery indicator shows the battery is dead. Replace the battery and run Setup to reconfigure the system.
*0251 System CMOS checksum bad - Default configuration used
System CMOS has been corrupted or modified incorrectly, perhaps by an application program that changes data stored in CMOS. The
BIOS installed Default SETUP Values. If you do not want these values, enter Setup and enter your own values. If the error persists, check
the system battery or contact Panasonic Technical Support.
0260 System timer error
The timer test failed. Requires repair of system board.
0270 Real time clock error
Real-time clock fails BIOS test. May require board repair.
0271 Check date and time settings
Real-time clock is illegal. Run Setup and set the date and clock.
*0280 Previous boot incomplete - Default configuration used
Previous POST did not complete successfully. POST loads default values and offers to run Setup. If the failure was caused by incorrect
values and they are not corrected, the next boot will likely fail. On systems with control of wait states, improper Setup settings can also
terminate POST and cause this error on the next boot. Run Setup and verify that the wait-state configuration is correct. This error is cleared
the next time the system is booted.
02D0 System cache error - Cache disabled
Contact your Panasonic Technical Support.
Failing Bits : nnnn
The hex number nnnn is a map of the bits at the RAM address which failed the memory test. Each 1 (one) in the map indicates a failed bit.
See error 230,231 or 232 for offset address of the failure in System, Extended or Shadow memory.
Operating System not found
Operating system cannot be located on either drive A: or drive C:. Enter Setup and see if fixed disk and drive A: are properly identified.
Press <F1> to resume, <F2> to Setup
Displayed after any recoverable error message. Press <F1> to start the boot process or <F2> to enter a Setup and change the settings. Write
down and follow the information shown on the screen.
0614 Serial Port A config. error - device disabled
0616 Serial Port B config. error - device disabled
Serial Device I/O Address or IRQ are in conflict. Change the I/O Address or IRQ in the Setup Utility.
![](/img.php?id=411588&img=bg19.png)
25
Troubleshooting
Dealing with Problems (Summary)
The power indicator or bat-
tery indicator is not lit
The computer does not op-
erate when a USB device is
connected
[Enter Password] is dis-
played
POST Startup Error(s) is
displayed
Windows startup, or an op-
eration is extremely slow
The date and time are incor-
rect
When resuming from the
standby or hibernation
mode, [Enter Password]
does not appear even if a
password has been set in the
Setup Utility
When “Invalid system disk.
Replace the disk, and then
press any key.” (or a simi-
lar message) is displayed
When the administrator
password is forgotten
Check the cable connection for the AC adaptor.
Check to see if a fully charged battery is properly installed.
Remove the battery pack and disconnect the AC adaptor, then connect them again.
The computer may not operate when certain USB devices are connected. Disconnect the
USB device, or set [Legacy USB support] to [Disable] in [Advanced] menu of the Setup
Utility.
Input your password. If you have forgotten it, contact Panasonic Technical Support.
page 24
Press F9 in the Setup Utility ( “Setup Utility”). This will restore the Setup
Utility’s settings to their default values (except the password settings). Then, the Setup
Utility must be run once again for you to input the appropriate operating environment set-
tings. (The processing speed depends on the application software used, so this operation
may not cause the processing speed to increase.)
You can set the date and time using the following menu.
Windows 2000
[Control Panel] - [Date/Time]
Windows XP
[Control Panel] - [Date, Time, Language, and Regional Options] - [Date and Time]
When the computer is connected to a LAN, confirm the date and time of the server.
If you continue to experience problems, the internal battery maintaining the clock may
need to be replaced. Contact Panasonic Technical Support.
When the computer is connected to a LAN, confirm the date and time of the server.
This computer will not correctly recognize the date and time starting from the year 2100 A.D.
Even when a password has been set in the Setup Utility, [Enter Password] does not appear when
the computer resumes from the standby or hibernation mode. If you want to use the security
function when using the standby or hibernation mode, use the Windows password as follows:
Windows 2000
Set the password in [Control Panel] - [Users and Passwords], then add the check mark for
[Prompt for password when computer goes off standby] in [Control Panel] - [Power Op-
tions] - [Advanced].
Windows XP
Select the account to change in [Control Panel] - [User Accounts] and set the password, then
add the check mark for [Prompt for password when computer resumes from standby] in
[Control Panel] - [Performance and Maintenance] - [Power Options] - [Advanced].
This means a floppy disk that does not contain system startup information has been left in
the floppy disk drive. Remove the floppy disk, and press any key.
This message may appear when certain USB devices are connected. Remove the USB
device, or set [Legacy USB support] in [Advanced] menu of the Setup Utility to [Disable].
If the message still appears even after trying the above two measures, this may be an
indication that some type of hard disk failure has occurred. Contact Panasonic Technical
Support.
Windows 2000
After reinstalling, setup Windows and then set the password again.
Windows XP
If you have created a password reset disk ( page 14), a message is displayed when you
fail to correctly enter the password. Follow the message’s instructions and set the password
again by using the password reset disk.
If you have not created a password reset disk, after reinstalling, setup Windows and then set
the password again.
When a problem occurs, refer to this page. The “Reference Manual” also contains detailed information. If a problem appears to be
related to a software application, read the software related manual. If you still cannot troubleshoot the problem, contact Panasonic
Technical Support.
Starting Up
![](/img.php?id=411588&img=bg1a.png)
26
Troubleshooting
No display after powering on
The power has not been
turned off, but after a cer-
tain period of time, there is
no display
When the battery pack is
used, the screen is darker
than when the AC adaptor
is connected
An afterimage appears (e.g.,
green, red, and blue dots
remain on the display) or
there are dots not display-
ing the correct colors
The cursor cannot be con-
trolled properly
When there is no display to an external display,
• Check your cable connection to the external display.
• Confirm your display is powered on.
• Check the settings for your external display.
Try changing the display by pressing Fn + F3 .
When displaying only through an external display, if the computer is shut down by using
the standby or hibernation function, there may be no display on the LCD unless the
external display is connected when operations are resumed. In this case, connect the
external display or press Fn + F3 .
Has the computer been set to the power-saving mode?
To resume operation of your computer from the condition the power of the display is off
(for energy conservation purposes), press any key unrelated to the direct triggering of a
selection, like Ctrl .
To save power, your computer may have automatically entered the standby mode (power
indicator blinks green) or hibernation mode (power indicator turns off). In such cases,
slide the power switch.
If you want to switch the display destination repeatedly by pressing Fn + F3 , make
sure that the display destination has switched completely each time before pressing
Fn + F3 again.
Press Fn + F2 and adjust the brightness. Note, however, that when the brightness is
increased, the battery running time will become shorter.
Brightness can be set to separate levels for when the AC adaptor is connected and when it is
disconnected.
If an image is displayed for a prolonged period of time, an afterimage may appear. This
is not a malfunction. The afterimage will disappear when a different screen is displayed.
High-precision and advanced technologies are necessary in the production of color liquid
crystal displays (color LCDs). Therefore, if 0.002% or less of the picture elements either
fail to light or remain constantly lit (that is, more than 99.998% of elements are function-
ing properly), no defect is considered to exist.
Restart the computer by using the keyboard (Press , U , and select [Restart] with
, then press Enter ).
If the computer does not respond to keyboard commands, read “Computer hangs”
( page 29).
Be sure to use the Display Rotation Tool to rotate the display.
Display
Press F9 in the Setup Utility ( “Setup Utility”). This will restore the Setup
Utility’s settings to their default values (except the password settings).
Try removing all peripheral devices.
Check a disk error using the following procedure.
Windows 2000
1Select [Local Disk(C:)] with the right button in [My Computer], and select [Proper-
ties].
2Select [Tools] - [Check Now].
3Select [Start] after selecting required items in [Check disk options].
Windows XP
1Select [Local Disk(C:)] with the right button in [Start] - [My Computer], and select
[Properties].
2Select [Tools] - [Check Now].
3Select [Start] after selecting required items in [Check disk options].
At startup, hold down F8 when the [Panasonic] screen disappears, and release your
finger when the Windows Advanced Options Menu is displayed. Start the computer in
Safe Mode, and confirm the details of the error.
Starting Up (continued)
When the previous item is
not the cause
Dealing with Problems (Summary)
![](/img.php?id=411588&img=bg1b.png)
27
Troubleshooting
The red indicator lights
The red indicator blinks
The orange indicator blinks
The green indicator blinks
The battery indicator blinks
green and orange alternately
The battery level is very low (the charge is less than approx. 9% capacity).
Connect the AC adaptor. You can use the computer when the battery indicator light is or-
ange. If you do not have an AC adaptor, save your data and power off your computer. After
replacing the battery pack with a fully charged one, turn your computer on.
Quickly save your data and power off your computer. Remove the battery pack and discon-
nect the AC adaptor, then connect them again.
If the problem persists, contact Panasonic Technical Support. The battery pack or recharg-
ing function may be defective.
Battery cannot be recharged temporarily because the internal temperature of the battery pack
is outside of the acceptable temperature range for recharging. Once the allowable range
requirement is satisfied, charging begins automatically. Your computer can be used normally
in this state.
In high temperature mode, the battery pack is discharging to a level of 80%* in normal
temperature mode. ( “Battery Power”)
Do not remove the battery pack while the battery indicator is blinking green.
*A level of 80% in normal temperature mode is displayed as [100%] in high temperature mode.
Warming up the system to prevent hard disk drive malfunctions at low temperature. Leave
your computer as is. Once the allowable temperature range requirement is satisfied, your
computer will start automatically.
Battery Indicator
The cursor does not move in
scrolling area of the touch
pad
The external display no
longer displays properly
During simultaneous dis-
play, the screen of the exter-
nal display becomes disor-
dered
When the Microsoft® IntelliMouse™ Wheel mode or the original mode is set for the touch
pad, only scroll operations are possible for the right part or bottom part of the touch pad. In
this case, cursor operations are possible by using the work surface excluding the right part or
bottom part. When no mode is set, the entire surface of the touch pad can be used for cursor
operations.
When an external display is used that is incompatible with the power saving modes of the
computer, the display may not function correctly when the computer enters the power sav-
ing mode. In such cases, turn off the power to the external display.
Try changing the display by pressing Fn + F3 .
If you continue to experience problems, try changing the display in the following menu.
Windows 2000
[Start] - [Settings] - [Control Panel] - [Intel(R) Extreme Graphics].
Windows XP
[Start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) Extreme Graphics]
Display (continued)
Is Acrobat Reader installed?
If Acrobat Reader is not installed, run [c:\util\reader\acroreader51_enu_full.exe] in [Start] -
[Run] to reinstall the program. When installing the program, do not change the installation
destination folder. If the destination folder is changed, the Reference Manual cannot be
opened from the [Start] menu.
Reference Manual
The Reference Manual is
not displayed
![](/img.php?id=411588&img=bg1c.png)
28
Troubleshooting
Dealing with Problems (Summary)
The display cannot be ro-
tated
The display cannot be
changed and the operation
of the touch pad and the
touchscreen do not match
the display angle
The display is not rotated
automatically by switching
from Laptop mode to Tab-
let mode, or vice versa
When the display is rotated,
an application error occurs
in explorer.exe
When the screensaver starts
while the display is rotated,
nothing is displayed on the
screen
Windows 2000
The operation of the touch
pad and the touchscreen do
not match the display angle
Display Rotation
Remove the checkmark from [Hide modes that this monitor cannot display]*.
*Windows 2000
In
[Start] - [Settings] - [Control Panel] - [Display] - [Settings] - [Advanced] - [Monitor].
Windows XP
In [Start] - [Control Panel] - [Appearance and Themes] - [Display] - [Settings] - [Advanced] - [Monitor].
Close any applications that are currently open.
Windows 2000
Add the checkmark for [Enable Rotation] in [Start] - [Settings] - [Control Panel] - [Intel(R)
Extreme Graphics]
When some applications are running (Outlook Express etc.), the display may not be
changed and the operation of the touch pad and the touchscreen may not match the dis-
play angle. Press the rotation button 1 - 3 times (until the operation of the touch pad
and the touchscreen matches the display angle). After exiting the application, rotate the
display, then start up the application again.
If the problem persists, restart the computer.
Confirm that the default angle of each mode is correctly set. ( “Display Rotation”)
Windows XP
Do not switch from Laptop mode to Tablet mode, or vice versa, while Windows is in the
process of switching users with the Fast User Switching function.
Windows 2000
Select [Center] for [Picture Display] in [Start] - [Settings] - [Control Panel] - [Display] -
[Background].
Windows XP
Select [Center] for [Position] in [Start] - [Control Panel] - [Appearance and Themes] - [Dis-
play] - [Desktop].
Some screensaver types do not display anything on the screen for the first minute or so. Try
changing the screensaver type.
This problem may occur if the screen settings are changed while the display is rotated. Press
the rotation button 1 - 3 times (until the operation of the touch pad and the touchscreen
matches the display angle).
Windows cannot be shut
down or restarted
“This program is not re-
sponding” is displayed
when shutting down or log-
ging off
Shutting down
If a USB device is connected, try removing it.
This message appears periodically; for example, when using a Wireless LAN. If the mes-
sage appears, select [End Now]. Delete the check mark for [Show the tray icon] in the
following menu.
Windows 2000 : [Start] - [Programs] - [Intel Network Adapters] - [Intel(R) PROSet]
Windows XP : [Start] - [All Programs] - [Intel Network Adapters] - [Intel(R) PROSet]
![](/img.php?id=411588&img=bg1d.png)
29
Troubleshooting
Some applications do not
work properly When switching to a different user with the Fast User Switching function, the following
problems may occur.
•
Some applications may not work properly (for example, PDF files may not be printed properly).
•Key combinations with Fn may not work.
• It may not be possible to set the settings of the display.
• A serial mouse may not work.
• Wireless LAN may not work.
If any of the above occurs, log on with the administrator authority again, not using the Fast
User Switching function, and try the operation once more.
Fast User Switching Function Windows XP
Press Ctrl + Shift + Esc to open Task Manager and close the software application
which is not responding.
After shutting down by sliding the power switch for more than four seconds, slide the
power switch to power on and open the application again.
If the program no longer works normally, delete the program using the following procedure.
Then reinstall the program.
Windows 2000 : [Start] - [Settings] - [Control Panel] - [Add/Remove Programs]
Windows XP : [Start] - [Control Panel] - [Add or Remove Programs]
Others
Computer hangs
![](/img.php?id=411588&img=bg1e.png)
30
Troubleshooting
Reinstalling Software
Before Reinstallation
Preparing
• BACKUP DISK(s) created in advance ( page 13)
• Product Recovery CD-ROM (included)
• Panasonic USB floppy disk drive (optional: CF-VFDU03)
• Panasonic CD drive (optional: KXL-RW10AN <PC Card-compatible> or CF-VDRRT1 <USB>)
When using a PC Card-compatible CD drive other than the Panasonic KXL-RW10AN CD drive: page 31
Reinstalling
Important
Before the reinstallation procedure, remove all peripherals (except for the CD and floppy disk drive).
Be sure the AC adaptor is connected until the reinstallation procedure is completed.
When using the Panasonic KXL-RW10AN CD drive, set the switch of the PC Card to 16-bit.
NOTE
1Turn off the computer.
2Connect the CD drive to the computer.
<Only when using the Panasonic CD drive KXL-RW10AN>
Connect the floppy disk drive to the USB port of the com-
puter, then set the FIRSTAID FD in the floppy disk drive.
3Turn the computer on, and press F2 while [Panasonic]
screen is displayed.
The Setup Utility will start up.
If the password has been set, enter the Supervisor Pass-
word.
4Write down all of the contents of the Setup Utility and then
press F9 .
At the confirmation message, select [Yes] and press
Enter .
<Only when using the Panasonic CD drive CF-VDRRT1>
Select [Boot] menu, then select [CD Drive] and press F6
until [CD Drive] is at the top of the [Boot] menu.
When reinstall procedure is performed, the contents of the hard disk will be erased. Be sure to back up any critical data that is
on your hard disk before running the reinstall procedure.
The reinstall procedure will return the computer to its original condition.
• If you have created partitions for data, the data may be erased or become corrupt as a result of the reinstall procedure.
5Place the disc number one of the recovery CDs into the CD
drive.
6Press F10 .
At the confirmation message, select [Yes] and press
Enter .
The computer will restart, and this screen should appear.
7Select [1. Start restoring the operating system.].
The License Agreement screen should appear.
---------------------------------------------------------------------
Select a number
---------------------------------------------------------------------
1. Start restoring the operating system.
2. Erase the whole data on HDD for security.
3. End
---------------------------------------------------------------------
If you have not created the FIRSTAID FD, you can create by using the following procedure:
Windows 2000
[Create Backup Disk] in [Start] - [Programs] - [Panasonic].
Windows XP
[Create Backup Disk] in [Start] - [All Programs] - [Panasonic].
If you can not create this disk, contact Panasonic Technical Support.
![](/img.php?id=411588&img=bg1f.png)
31
Troubleshooting
8Select [1. Yes, I agree to the provisions above and wish to
continue!].
This screen should appear.
Windows 2000
<When using a PC Card-compatible CD drive other than
the Panasonic KXL-RW10AN>
Copy the necessary drivers, from the floppy disk included
with your CD drive, to the FIRSTAID FD with the method
below. It will be necessary to edit the CONFIG.SYS file
and AUTOEXEC.BAT file on the FIRSTAID FD. When
editing the AUTOEXEC.BAT file, some CD drives require
card managers (card and socket service). See the manual
included with your CD drive for further details.
1Start Windows and insert the FIRSTAID FD.
2Windows 2000
Select [Start]-[Programs]-[Accessories]-[Notepad]-
[File]-[Open], input [a:\config.sys], then select [Open].
Windows XP
Select [Start]-[All Programs]-[Accessories]-[Notepad]-
[File]-[Open], input [a:\config.sys], then select [Open].
3Rewrite the following line and save.
Delete the following four lines.
;KXL-RW10AN DRIVER
DEVICE=A:\TOOLS\KMASMGRA.SYS
DEVICE=A:\TOOLS\KMASASPA.SYS
DEVICE=A:\TOOLS\KMASCDA.SYS /D:MSCD000
Add the driver of your CD drive.
Device=A:\DRIVER1.SYS /D:MSCD000
Rewrite this driver for the driver of your
CD drive. The driver for the PC Card will
also be necessary. Refer to the operation
manual that accompanies the CD drive.
Save the file and close [Notepad].
4Copy the CD driver file (i.e., the driver file rewritten in
step 3 ) of the CD drive below [a:\] of the FIRSTAID
FD.
5Set the floppy disk to the write-protect state.
After this, follow the reinstalling procedure of <Only when
using the Panasonic CD drive KXL-RW10AN>.
(
page 30)
When an UPDATE FD is to be created, follow the steps
in the readme.txt on the disk. (
page 13)
NOTE
---------------------------------------------------------------------
Select a number
---------------------------------------------------------------------
1. Restore Windows(R) 2000 Professional to the whole HDD.
2. Make two partitions, for the operating system and data. And restore
Windows(R) 2000 Professional to the operating system partition.
(All existing partitions on HDD will be lost.)
3. Restore Windows(R) 2000 Professional to the first partition.
4. End
---------------------------------------------------------------------
---------------------------------------------------------------------
Select a number
---------------------------------------------------------------------
1. Restore Windows(R) XP Professional to the whole HDD.
2. Make two partitions, for the operating system and data. And restore
Windows(R) XP Professional to the operating system partition.
(All existing partitions on HDD will be lost.)
3. Restore Windows(R) XP Professional to the first partition.
4. End
---------------------------------------------------------------------
Windows XP
9Make a selection from the menu.
When selecting [2], enter the basic partition size for the
operating system installation and press Enter .
(The data partition size is the remainder after subtract-
ing the basic partition size.)
To select [3], the initial partition size must be 6 GB or
more of the hard disk size. Reinstallation cannot be per-
formed with a small partition size.
10 At the confirmation message, press Y .
The operation of reinstallation for the hard disk starts au-
tomatically. (The operations take about 20 minutes <PC
Card-compatible> or 50 minutes <USB>.)
Do not cancel the reinstall procedure before it is
completed.
When a message appears instructing you to insert
the next CD, insert the recovery CD showing the
next number in the sequence, and then select [OK].
If the message “The media does not contain the cor-
rect file” appears, select [OK]. A message will ap-
pear instructing you to insert the next CD.
Confirm that the proper recovery CD has been in-
serted by opening the tray of the CD drive and then
close the tray, then select [OK].
CAUTION
14 Press F9 .
At the confirmation message, select [Yes] and press
Enter . (The Setup Utility settings will return to their
default values. Even the security settings with the excep-
tion of the password(s) will return to their default values.)
15 Press F10 .
At the confirmation message, select [Yes] and press
Enter .
16 Perform the setup procedure for Windows by following
the instructions on the screen. ( page 10 - 12)
17 Run the Setup Utility and change the settings where nec-
essary.
11 After the reinstallation procedure completes, press any key.
The computer will be shut down.
<Only when using the Panasonic CD drive KXL-RW10AN>
Remove the FIRSTAID FD and the floppy disk drive.
12 Remove the recovery CD and the CD drive.
13 Turn the computer on, and press F2 while [Panasonic]
screen is displayed.
The Setup Utility will start up.
If the password has been set, enter the Supervisor Pass-
word.
![](/img.php?id=411588&img=bg20.png)
32
Appendix
YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANICALLY OR ELECTRONICALLY TRACE
THE PROGRAMS, OR ANY COPY THEREOF, IN WHOLE OR IN PART.
YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PROGRAMS OR ANY COPY THEREOF, IN
WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THE LICENSE.
IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO ANOTHER PARTY, EXCEPT AS PERMIT-
TED IN PARAGRAPH E ABOVE, YOUR LICENSE IS AUTOMATICALLY TERMINATED.
This license is effective only for so long as you own or lease the Product, unless earlier terminated. You may terminate
this license at any time by destroying, at your expense, the Programs and related documentation together with all
copies thereof in any form. This license will also terminate effective immediately upon occurrence of the conditions
therefor set forth elsewhere in this Agreement, or if you fail to comply with any term or condition contained herein. Upon
any such termination, you agree to destroy, at your expense, the Programs and related documentation together with all
copies thereof in any form.
A. MEI hereby grants you a personal, non-transferable and non-exclusive right and license to use the Programs in
accordance with the terms and conditions stated in this Agreement. You acknowledge that you are receiving only
a LIMITED LICENSE TO USE the Programs and related documentation and that you shall obtain no title,
ownership nor any other rights in or to the Programs and related documentation nor in or to the algorithms,
concepts, designs and ideas represented by or incorporated in the Programs and related documentation, all of
which title, ownership and rights shall remain with MEI or its suppliers.
B. You may use the Programs only on the single Product which was accompanied by the Programs.
C. You and your employees and agents are required to protect the confidentiality of the Programs. You may not
distribute or otherwise make the Programs or related documentation available to any third party, by time-sharing
or otherwise, without the prior written consent of MEI.
D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documentation
for any purpose, except that you may make one (1) copy of the Programs for backup purposes only in support of
your use of the Programs on the single Product which was accompanied by the Programs. You shall not modify,
or attempt to modify, the Programs.
E. You may transfer the Programs and license them to another party only in connection with your transfer of the
single Product which was accompanied by the Programs to such other party. At the time of such a transfer, you
must also transfer all copies, whether in printed or machine readable form, of every Program, and the related
documentation, to the same party or destroy any such copies not so transferred.
F. You may not remove any copyright, trademark or other notice or product identification from the Programs and
you must reproduce and include any such notice or product identification on any copy of any Program.
LICENSE
TERM
YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE BOUND
BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE STATE-
MENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT,
ORAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN US, RELATING TO THE SUBJECT MAT-
TER OF THIS AGREEMENT.
THE SOFTWARE PROGRAM(S) ("PROGRAMS") FURNISHED WITH THIS PANASONIC® PRODUCT ("PRODUCT")
ARE LICENSED ONLY TO THE END-USER ("YOU"), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH
THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY DEEMED
TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.
Matsushita Electric Industrial Co., Ltd. ("MEI") has developed or otherwise obtained the Programs and hereby licenses
their use to you. You assume sole responsibility for the selection of the Product (including the associated Programs) to
achieve your intended results, and for the installation, use and results obtained therefrom.
LIMITED USE LICENSE AGREEMENT
About Intel® software products
The enclosed software products and documentation were developed at private expense, and are provided with “RESTRICTED
RIGHTS.” Use, duplication or disclosure by the government is subject to restrictions as set forth in FAR 52.227-14 and
DFARS 252.227-7013 et. seq. or its successor. The use of this product by the government constitutes acknowledgment of
Intel's proprietary rights in the product.
![](/img.php?id=411588&img=bg21.png)
33
AppendixAppendix
A. MEI vous octroie par les présentes le droit et la licence personnels, non cessibles et non exclusifs d'utiliser les
Logiciels conformément aux termes, clauses et conditions de ce Contrat. Vous reconnaissez ne recevoir qu'un
droit limité d'utiliser les Logiciels et la documentation les accompagnant et vous vous engagez à n'obtenir aucun
droit de titre, propriété ni aucun autre droit vis-à-vis des Logiciels et de la documentation les accompagnant ni
vis-à-vis des algorithmes, concepts, dessins, configurations et idées représentés par ou incorporés dans les
Logiciels et la documentation les accompagnant, dont les titres, propriété et droits resteront tous à MEI ou à
leurs propriétaires.
B. Vous ne pouvez utiliser les Logiciels que sur le Produit unique qui est accompagné par les Logiciels.
C. Vous et vos employés ou agents êtes requis de protéger la confidentialité des Logiciels. Vous ne pouvez ni
distribuer ni mettre les Logiciels et la documentation les accompagnant à la disposition d'un tiers, par partage de
temps ou de quelque autre manière que ce soit, sans l'autorisation écrite préalable de MEI.
D. Vous ne pouvez ni copier ni reproduire ni permettre la copie ni la reproduction des Logiciels ni de la documen-
tation les accompagnant pour quelque fin que ce soit, à l'exception d'une (1) copie des Logiciels à des fins de
sauvegarde uniquement pour soutenir votre utilisation des Logiciels sur le Produit unique qui est accompagné
par les Logiciels. Vous ne pouvez ni modifier ni tenter de modifier les Logiciels.
E. Vous ne pouvez céder les Logiciels et en octroyer la licence à une autre partie qu'en rapport avec votre cession
du Produit unique qui est accompagné par les Logiciels à cette autre partie. Au moment de cette cession, vous
devez céder également toutes les copies, que ce soit sous forme imprimée ou lisible par la machine, de tous les
Logiciels ainsi que de la documentation les accompagnant, à la même partie ou détruire les copies non cédées.
F. Vous ne pouvez retirer aucune marque de droits d'auteur, marque ou autre ni aucune identification de produit
des Logiciels et vous devez reproduire et inclure toutes ces notices ou identifications de produit sur toutes les
copies des Logiciels.
Vous ne pouvez assembler en sens inverse, compiler en sens inverse ni retracer les Logiciels ni aucune de leurs
copies, de façon électronique ou mécanique, en tout ou en partie.
Vous ne pouvez utiliser, copier, modifier, altérer ni céder les Logiciels ni aucune de leurs copies, en tout ou en partie,
à l'exception de ce qui est expressément stipulé dans ce contrat.
Si vous cédez la possession de toute copie ou de tout Logiciel à une autre partie, à l'exception de ce qui est autorisé
au paragraphe E ci-dessus, votre licence est automatiquement résiliée.
Licence
Termes, clauses et conditions
Cette licence n'est effective que pour la durée de possession ou de crédit-bail du Produit, à moins d'une résiliation
antérieure. Vous pouvez résilier cette licence à tout moment en détruisant, à vos frais, les Logiciels et la documentation
les accompagnant avec toutes leurs copies, sous quelque forme que ce soit. Cette licence sera également résiliée,
avec application immédiate, si les conditions de résiliation définies ailleurs dans ce contrat se sont réalisées ou si vous
ne respectez pas les termes, clauses et conditions qui y sont contenues. Au moment de la résiliation, vous acceptez de
détruire, à vos frais, les Logiciels et la documentation les accompagnant avec toutes leurs copies, sous quelque forme
que ce soit.
Vous reconnaissez avoir lu ce contrat, en avoir compris toute la substance et avoir accepté de respecter ses termes,
clauses et conditions. Vous reconnaissez en outre qu'ils sont la description complète et exclusive du contrat conclu
entre nous, contrat qui remplace et annule toute proposition ou contrat précédent, écrit ou oral, et toute autre commu-
nication entre nous, relativement à l'objet du présent contrat.
Le(s) logiciel(s) (les "Logiciels") fournis avec ce produit Panasonic® (le "Produit") sont exclusivement concédés en
licence à l'utilisateur ultime ("vous"), et ils ne peuvent être utilisés que conformément aux clauses contractuelles ci-
dessous. En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et condi-
tions des présentes.
Matsushita Electric Industrial Co., Ltd. ("MEI") a mis au point ou obtenu les Logiciels et vous en concède l'utilisation par
les présentes. Vous assumez l'entière responsabilité du choix de ce Produit (y compris des Logiciels associés) pour
obtenir les résultats escomptés, ainsi que de l'installation, de l'utilisation et des résultats obtenus.
Contrat de licence d'usage limité
![](/img.php?id=411588&img=bg22.png)
34
Appendix
Hard Disk Data Erase Utility
Procedure
1Turn off the computer.
2Connect the CD drive to the computer.
<Only when using the Panasonic CD drive KXL-RW10AN>
Connect the floppy disk drive to the USB port of the com-
puter, then set the FIRSTAID FD in the floppy disk drive.
3Turn the computer on, and press F2 while [Panasonic]
screen is displayed.
The Setup Utility will start up.
If the password has been set, enter the Supervisor Password.
4Press F9 .
At the confirmation message, select [Yes] and then press
Enter .
<Only when using the Panasonic CD drive CF-VDRRT1>
Select [Boot] menu, then select [CD Drive] and press
F6 until [CD Drive] is at the top of the [Boot] menu.
5Place disc number one of the recovery CDs into the CD drive.
6Press F10 .
At the confirmation message, select [Yes] and press
Enter .
The computer will restart, and this screen should appear.
This computer is equipped with a utility for erasing hard disk data.
When disposing of or transferring ownership of this device, erase all data on the hard disk in order to prevent the theft of hard disk
data following the steps below.
The hard disk data erase utility erases data using an “overwriting” method, but there is a possibility that due to malfunctions or
other operational errors, data may not be completely erased. There are also specialized devices that may be able to read data
that has been erased using this method. If you need to erase highly confidential data, we recommend that you contact a
company that specializes in this process. Matsushita Electric Industrial Co., Ltd. will bear no responsibility for losses or
damages suffered as a result of the use of this utility.
NOTE
Be sure the AC adaptor is connected until the procedure is completed.
This utility can only be used for internal hard disk. It cannot be used to erase data from external hard disks.
This utility cannot erase data from damaged disk.
This utility cannot erase data for specific partitions.
After executing this utility, the computer cannot be booted from the hard disk.
If you have not created the FIRSTAID FD, you can create by using the following procedure:
Windows 2000 : [Create Backup Disk] in [Start] - [Programs] - [Panasonic].
Windows XP : [Create Backup Disk] in [Start] - [All Programs] - [Panasonic].
If you can not create this disk, contact your Panasonic Technical Support.
When using the Panasonic KXL-RW10AN CD drive, set the switch of the PC Card to 16-bit.
Preparing
Product Recovery CD-ROM
Panasonic CD drive (optional: KXL-RW10AN <PC Card-compatible> or CF-VDRRT1 <USB>)
<Only when using the CD-ROM drive Panasonic KXL-RW10AN>
Panasonic USB floppy disk drive (optional CF-VFDU03)
FIRSTAID FD created in advance ( page 13)
---------------------------------------------------------------------
Select a number
---------------------------------------------------------------------
1. Start restoring the operating system.
2. Erase the whole data on HDD for security.
3. End
---------------------------------------------------------------------
7Select [2. Erase the whole data on HDD for security.].
8At the confirmation message, press Y .
9At [<<< Start menu >>>], press Enter .
10 The approximate time required for erasing data will be dis-
played.
Press Space .
11 At the confirmation message, press Enter .
The operation of erasing the hard disk starts.
(If necessary, the “hard disk data erase” operation can be
cancelled after it has begun by pressing Ctrl + C .
If the operation is cancelled before being completed, a part
of the data will not be erased.)
12 After the operation is complete:
Under normal conditions, the message [Hard disk data has
been deleted.] will be displayed.
Press any key. The computer will be shut down.
If a problem occurred during the operation, an error mes-
sage will be displayed.
<Only when using the Panasonic CD drive KXL-RW10AN>
Remove the FIRSTAID FD and the floppy disk drive.
13 Remove the recovery CD and the CD drive.
![](/img.php?id=411588&img=bg23.png)
35
AppendixAppendix
Names and Functions of Parts
( “Wireless LAN”)
Wireless LAN Antenna
For information on the key com-
binations available.
(
“Key Combinations”
)
LCD
( “Hard Disk Drive”)
( “Battery Power”)
Keyboard
( “LED Indicators”)
Caps Lock
Numeric Key (NumLk)
Scroll Lock (ScrLk)
Hard disk drive status
Battery pack status
Power status
Before using the computer
for the first time, carefully
read the [LIMITED USE LI-
CENSE AGREEMENT]. If
you agree to the conditions,
remove the seal.
( “Tablet Buttons”)
LCD brightness control
Input Panel
Enter
Rotation
Security
( page 19)
Touch Pad
Stylus
Power Switch
( page 20)
LED Indicators
( page 20)
Function Keys
Hard Disk Drive
Battery Pack
A lithium ion battery that is recyclable powers the product you have purchased. Please call 1-800-
8-BATTERY for information on how to recycle this battery.
L’appareil que vous vous êtes procuré est alimenté par une batterie au lithium-ion. Pour des
renseignements sur le recyclage de la batterie, veuillez composer le 1-800-8-BATTERY.
Tablet Buttons
![](/img.php?id=411588&img=bg24.png)
36
Appendix
( “PC Cards”)
PC Card Slots
( “Modem”)
Modem
( “LAN”)
LAN
( “USB Devices”)
USB Ports
DC IN 16.0 VDC-IN Jack
Use this port to a serial mouse or serial
communication devices.
A cable can be connected to prevent
theft of your computer. For more infor-
mation, read the manual provided with
the cable.
LOCK
( “External Display”)
Use only a monaural condenser micro-
phone (miniature jack). Using an input
source other than a monaural condenser
microphone may not allow audio to be
input or may damage the equipment.
Microphone Jack
Use this jack to connect headphones or
amplifier-equipped speakers. Audio
output from the internal speaker is dis-
abled when headphones or external
speakers are connected.
Headphone Jack
Security Lock
Names and Functions of Parts
Serial Port
External Display Port
The strap has been designed to carry only the weight of the
computer. Therefore, be sure that the strap does not carry a weight
that exceeds the weight of the computer. The strap may acci-
dentally come loose from the computer.
Do not use a strap that is damaged or about to tear.
CAUTION
The hand strap can be attached to any two of the four corners using
screws (A) which were used to attach the hand strap.
Adjust the length of the belt so that the computer does not fall by mis-
take, and firmly hold the computer when using it.
(The above illustration shows the position
where the hand strap is attached at the factory.)
The shoulder strap can be connected to the
hand strap to make it longer.
Hand Strap
Shoulder Strap
![](/img.php?id=411588&img=bg25.png)
37
AppendixAppendix

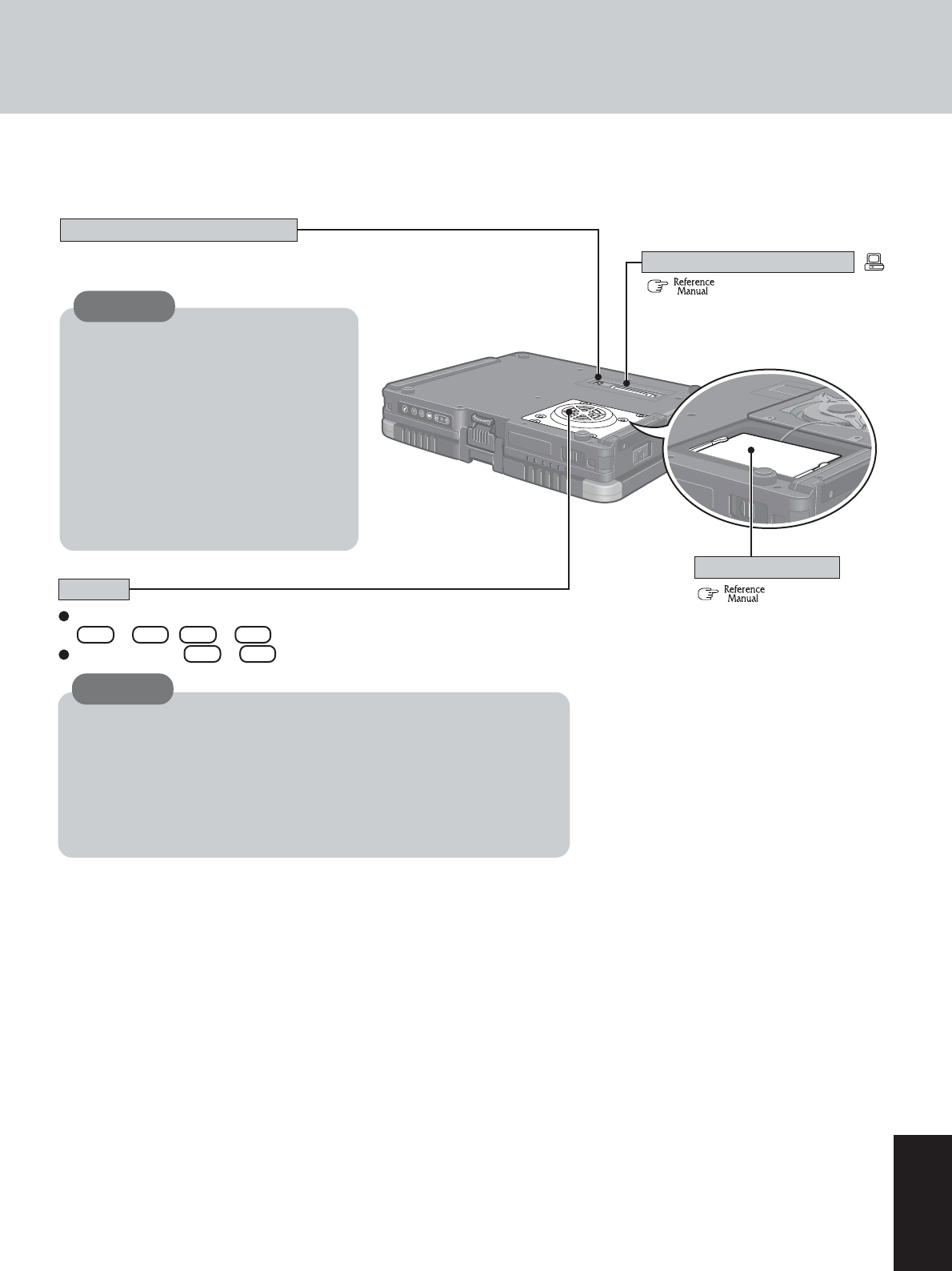

To adjust the volume:
Fn + F5 / Fn + F6
Speaker on/off : Fn + F4
( “Port Replicator”)
Speaker ( “RAM Module”)
RAM Module Slot
CAUTION
Do not allow metallic objects or magnetic media to come in close proximity
to the speaker on the bottom surface of the computer.
• Because the speaker contains a magnet, metal objects may become attached
to the bottom surface of the computer. This may cause the computer to be
unstable, or may mark the surface of the desk on which it is sitting.
• If floppy disks, magnetic memory cards, or other magnetic media approach
the speaker, there is a risk that data will be destroyed.
The external antenna connector is for use as
an extension in the future.
CAUTION
FCC RF Exposure Warning:
This transmitter must not be co-located or
operated in conjunction with any other an-
tenna or transmitter.
Optional Port Replicator contains TNC con-
nector for external mounted antenna. Em-
ployed antenna cannot exceed 7 dBi an-
tenna gain and must be professionally in-
stalled. Also, must maintain minimum 20
cm spacing between external antenna and
all person’s body during wireless mode of
operation.
Expansion Bus Connector
External Antenna Connectors
![](/img.php?id=411588&img=bg26.png)
38
Appendix
Names and Functions of Parts
Using the Tether
The tether can be attached to the bottom right or bottom left corner of the display. It prevents
the stylus (included) from falling accidentally.
Attaching the Tether
1
2
3
4
Tether
CAUTION
When closing the display, be careful not to catch the tether between the display and main
part of the computer. (See the figure below.)
![](/img.php?id=411588&img=bg27.png)
39
AppendixAppendix
Specifications
CF-18BHAZXDM/CF-18BHAZXKM
Intel®
Pentium M processor 900 MHz ULV
1 MB
256 MB (768 MB Max.)
UMA (64 MB Max.)
10.4 type (TFT)
256/65536/16M colors (640 x 480 dots/800 x 600 dots/1024x768 dots)
256/65536/16M colors (640 x 480 dots/800 x 600 dots/1024x768 dots/1280x1024
dots)*2
40 GB*3
Windows keyboard (82 keys)
Touch Pad
Touchscreen (Anti-Reflection, Stylus (included) touch capable)
Two Type I or Type II, or one Type III
3.3 V: 400 mA, 5 V: 400 mA
200-pin, SO-DIMM, 2.5 V, DDR-SDRAM, PC2100 Compliant
Dsub 9-pin Male
Miniature jack, 3.5 DIA
Miniature jack, 3.5 DIA
4-pin x 2, USB2.0
RJ-11 Data:56 kbps (V.92 & K56flex*6) FAX:14.4 kbps
RJ 45 IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
802.11b
Dedicated 100-pin female
Dedicated 50 Ω coaxial connector x 2
Monaural Speaker
AC ’97 2.1 Compatible, 18 bits full duplex stereo
Li-ion 7.4 V, 6.6 Ah
Windows 2000 Approx. 4 hours - 7.5 hours*8 (Approx. 5.5 hours*9)
Windows XP Approx. 4 hours - 8 hours*8 (Approx. 6 hours*9)
Approx. 7 h
Approx. 3.5 h
Coin type lithium battery 3.0 V
Input : 100 V - 240 V AC, 50 Hz / 60 Hz Output : 16.0 V DC, 2.5 A
Approx. 18 W*12 / Approx. 41 W (maximum when recharging in the ON state)
5 °C to 35 °C {41 °F to 95 °F}
30% to 80% RH (No condensation)
-20 °C to 60 °C {-4 °F to 140 °F}
30% to 90% RH (No condensation)
271 mm X 49 mm X 216 mm {10.7 " X 1.93 " X 8.5 "}
Approx. 2.0 kg {Approx. 4.5 lb.}
Model No.
CPU
L2 (Second) Cache Memory
Memory
Video Memory
LCD Type
Displayed Colors*1
External Display
Hard Disk Drive
Keyboard
Pointing Device
PC Card Slot
Allowable current (total for two slots)
RAM Module Slot*4
Serial Port
Microphone Jack*5
Interface Headphone Jack
USB Port
Modem
LAN
Wireless LAN
Expansion Bus Connector
External Antenna Connector
Speaker
Sound
Battery Pack
Operating Time*7
Charging Time*7Power On
Power Off
Clock Battery
AC Adaptor*10
Power Consumption*11
Environment
In use Temperature
Humidity
Not in use
Temperature
Humidity
Physical Dimensions*13
(W X H X D)
Weight*13
*1A 16M color display is achieved by using the dithering function.
Windows XP : 256 color depth and the resolution of 640 x 480 are not supported.
*2Maximum resolution depends on the specifications of the external display.
Windows XP : 256 color depth and the resolution of 640 x 480 are not supported.
*31GB = 109 bytes
*4Only a RAM card designed for PC2100 can be added.
*5Use only a monaural condenser microphone.
*6The settings for the K56flex modem need to be changed according to the AT command.
*7Varies depending on the usage conditions.
*8Measured using BatteryMarkTM Version 4.0.1 (LCD brightness: Maximum - Minimum)
*9Measured using MobileMarkTM 2002 (LCD brightness: 60 cd/m2)
*10 <Only for North America>
The AC adaptor is compatible with power sources up to 240 V AC adaptor.
This computer is supplied with a 125 V AC compatible AC cord.
*11 Approx. 0.7 W when the battery pack is fully charged (or not being charged) and the computer is off.
Approx. 1.5 W when the Wake up from LAN function has been enabled.
*12 Rated power consumption.
*13 The dimensions and weight do not include the hand strap.
Main Specifications
![](/img.php?id=411588&img=bg28.png)
40
Appendix
CF-18BHAZXDM
Microsoft® Windows® 2000 Professional with
Service Pack3 (NTFS File System)
Setup Utility
DMI Viewer
Adobe® Acrobat® Reader
Intel® SpeedStep™ technology Applet
Intel® PROSet
WLAN Security Client
Wireless LAN Switch
Panasonic Hand Writing
Software Keyboard
Display Rotation Tool
Hard Disk Data Erase Utility*
Software
Model No.
Operating System
Utility Programs
CF-18BHAZXKM
Microsoft® Windows® XP Professional with
Service Pack1 (NTFS File System)
Setup Utility
DMI Viewer
Adobe® Acrobat® Reader
Intel® PROSet
WLAN Security Client
Wireless LAN Switch
Panasonic Hand Writing
Software Keyboard
Display Rotation Tool
Hard Disk Data Erase Utility*
* The Product Recovery CD-ROM is required.
Specifications
![](/img.php?id=411588&img=bg29.png)
41
AppendixAppendix
LIMITED WARRANTY
PANASONIC PERSONAL COMPUTER AND PERIPHERALS LIMITED WARRANTY
Panasonic Computer Solutions Company (referred to as “Panasonic”) will repair this product (other than software, which is covered by a separate
warranty) with new or rebuilt parts, free of charge in the U.S.A. for three (3) years from the date of original purchase in the event of a defect in materials
or workmanship. This warranty includes the AC adaptor but excludes the batteries and all other options and accessories which are covered for a
period of one (1) year from the date of purchase.
This warranty is extended solely to the original purchaser. A purchase receipt or other proof of date of original purchase will be required before
warranty performance is rendered.
This warranty only covers failures due to defects in materials or workmanship which occur during normal use. It does not cover damage which occurs
in shipment or failures which are caused by products not supplied by Panasonic, or failures which result from alteration, accident, misuse, introduction
of liquid or other foreign matter into the unit, abuse, neglect, installation, maladjustment of consumer controls, improper maintenance, modification or
service by anyone other than a Factory Service Center or authorized Panasonic Service Dealer, or damage that is attributable to acts of God.
Limits and Exclusions:
There are no other express warranties except as listed below.
PANASONIC SHALL NOT BE LIABLE FOR LOSS OF DATA OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE
USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING
THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE APPLICABLE WARRANTY
PERIOD SET FORTH ABOVE. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long
an implied warranty lasts, so the above limitations or exclusions may not apply to you.
This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. If a problem with your product
develops during or after the warranty period, you may contact our representatives at 1-800-LAPTOP5. If the problem is not handled to your satisfac-
tion, then write to the Consumer Affairs Division at the address indicated below.
SOFTWARE LIMITED WARRANTY
Panasonic Computer Solutions Company (referred to as “Panasonic”) warrants to you only that the disk(s) or other media on which the Programs are
furnished will be free from defects in materials and workmanship under normal use for a period of sixty (60) days from the date of delivery thereof to
you, as evidenced by your purchase receipt.
This is the only warranty Panasonic makes to you. Panasonic does not warrant that the functions contained in the Programs will meet your require-
ments or that the operation of the Programs will be uninterrupted or error free.
Panasonic’s entire liability, and your exclusive remedy under this warranty shall be limited to the replacement, in the United States, of any defective
disk or other media which is returned to Panasonic’s Authorized Service Center, together with a copy of the purchase receipt, within the aforesaid
warranty period.
Anything in the foregoing to the contrary notwithstanding, Panasonic shall have no obligation for any defects in the disk(s) or other media on which the
Programs are furnished resulting from your storage thereof, or for defects that have been caused by operation of the disk(s) or other media otherwise
than on the Product or in environmental conditions other than those specified by Panasonic by alteration, accident, misuse, abuse, neglect, mishan-
dling, misapplication, installation, maladjustment of consumer controls, improper maintenance, modification of damage that is attributable to acts of
God. In addition, Panasonic shall have no obligation for any defects in the disk(s) or other media if you have modified, or attempted to modify any
Program.
DURATION OF IMPLIED WARRANTIES, IF ANY, IS LIMITED TO SIXTY (60) DAYS.
PANASONIC ASSUMES NO RISK OF AND SHALL NOT IN ANY CASE BE LIABLE FOR ANY DAMAGES, INCLUDING, WITHOUT LIMITATION,
ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES ARISING FROM BREACH OF WARRANTY OR CONTRACT, NEGLI-
GENCE OR ANY OTHER LEGAL THEORY, INCLUDING, WITHOUT LIMITATION LOSS OF GOODWILL, PROFITS OR REVENUE, LOSS OF USE
OF THE PROGRAMS OR PRODUCTS OR ANY ASSOCIATED EQUIPMENT, COST OF CAPITAL, COST OF ANY SUBSTITUTE EQUIPMENT,
FACILITIES, SERVICES, DOWNTIME COSTS, OR CLAIMS OF ANY PARTY DEALING WITH YOU FOR SUCH DAMAGES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so
the above limitations or exclusions may not apply to you.
This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
This Limited Warranty will be governed by the laws the State of New York, without regard to its conflict-of-laws rules.
* * *
To obtain service or technical assistance within the continental U.S.A. and Alaska.
DIAL TOLL FREE: 1-800-LAPTOP5
Correspondence requesting product information should be sent to:
Panasonic Computer Solutions Company
50 Meadowlands Parkway, Panazip 2F-5, Secaucus, NJ 07094
For U.S.A.
![](/img.php?id=411588&img=bg2a.png)
42
Appendix
PANASONIC COMPUTER AND PERIPHERALS LIMITED WARRANTY
Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end user customer, this computer product (excluding software media), when
purchased from PCI or from a PCI authorized reseller, to be free from defects in materials and workmanship under normal use, subject to the terms
set forth below, during the period of warranty coverage specified.
Remedy – In the event of a warranty claim, contact PCI’s representatives within the applicable warranty period, identifying the nature of the defect
claimed, at 1-800-668-8386 between 9:00 A.M. and 5:00 P.M., Eastern Time Zone, Mon. – Fri. (excluding holidays) for instructions on how to obtain
service. A purchase receipt or other proof of date of original purchase is required before warranty service is performed. Defective parts covered by
this Limited Warranty will be repaired or replaced with new or comparable rebuilt parts on an exchange basis. Warranty replacement or repair is
subject to the terms of this Limited Warranty for the balance of the original period of warranty coverage.
No Coverage – This Limited Warranty does not cover products purchased outside Canada. Neither does it cover damage to, failure of, or defects in
a product or accessory through mishandling, improper installation, abnormal use, misuse, neglect, accident, introduction of liquid or other foreign
matter into the product, alteration or servicing by anyone not authorized by PCI, or act of God.
IF YOU SHIP THE PRODUCT FOR WARRANTY SERVICE
Carefully pack the product, preferably in the original carton. Include details of defect claimed and proof of date of original purchase. No liability is
assumed for loss or damage to the product while in transit, if you chose your own transportation carrier.
SOFTWARE MEDIA LIMITED WARRANTY
Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end user customer, that the disk(s) or other media on which software program(s)
is/are supplied will be free from defects in materials and workmanship under normal use in Canada for a period of sixty (60) days from date of receipt
as evidenced by your purchase receipt for your Panasonic Computer product.
THIS IS THE ONLY WARRANTY THAT PCI MAKES RESPECTING THE SOFTWARE MEDIA. PCI does not warrant the software. Please refer to the
software licensor’s written warranty (accompanying the copy of the software) for any software warranty claim.
Claim Procedure – In the event of a defect in material or workmanship in the media during the sixty (60) day warranty period, and you return it,
transportation costs prepaid, to Panasonic Canada Inc., Computer Products Marketing, at the above address, within the warranty period, together
with a copy of your purchase receipt, and an explanation of the suspected defect, PCI will replace in Canada the defective disk(s) or other media.
Remedy – PCI’s entire liability, and your only remedy for any breach of this software media warranty is limited to replacement of the media only. It
does not cover any other damages, including, but not limited to, loss of use or profit loss, or special, indirect or consequential damages, or other
claims, whether or not of similar character.
No Coverage – This limited warranty does not apply if the disk(s) or other media has been used in other than a Panasonic product, or in environmen-
tal conditions other than those specified by PCI or the manufacturer, or if subjected to misuse, neglect, mishandling, modification or attempted
modification of the program, or if damaged by accident or act of God. PCI is not responsible for damage to or loss of any program, data or removable
storage media.
GENERAL
NO OTHER WARRANTIES – PCI DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE SOFTWARE, SOFT-
WARE MEDIA, COMPUTER PRODUCT, OPTIONS AND ACCESSORIES.
NO LIABILITY FOR CONSEQUENTIAL DAMAGES – IN NO EVENT SHALL PCI BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUEN-
TIAL DAMAGES ARISING FROM ANY BREACH OF THE LIMITED WARRANTIES SET OUT IN THIS DOCUMENT, OR FROM THE USE OF THE
COMPUTER PRODUCT, INCLUDING, WITHOUT LIMITATION, LOSS OF DATA, BUSINESS, PROFIT OR GOODWILL.
IN ANY EVENT, PCI’S MAXIMUM LIABILITY FOR ANY BREACH SHALL NOT EXCEED THE AMOUNT ACTUALLY PAID BY YOU FOR THE
COMPUTER PRODUCT.
NO ACTION, REGARDLESS OF ITS BASIS, MAY BE BEGUN AGAINST PCI MORE THAN TWO (2) YEARS AFTER THE CAUSE OF ACTION
AROSE.
Statutory Warranties – Some jurisdictions do not allow these limitations or exclusions, so they may not apply to you.
Scope of Coverage
Whole Product (except Batteries), AC adaptor and CD-ROM
(if factory installed)
Batteries, CD-ROM (unless factory installed), Port Replicator,
Extra Memory Modules and all other Peripherals, Options and
Accessories
Period of Coverage
Three (3) Years from Date of Original
End User Customer Purchase
One (1) Year from Date of Original End
User Customer Purchase
Type of Failure Coverage
Defective Materials or Workmanship
Defective Materials or Workmanship
For Canada
LIMITED WARRANTY
![](/img.php?id=411588&img=bg2b.png)
43
AppendixAppendix
Memo
![](/img.php?id=411588&img=bg2c.png)
Outline of the International ENERGY STAR® Office Equipment Program
The international ENERGY STAR® Office Equipment Program is an international program
that promotes energy saving through the use of computers and other office equipment.
The program backs the development and dissemination of products with functions that
effectively reduce energy consumption. It is an open system in which business proprietors
can participate voluntarily. The targeted products are office equipment such as computers,
displays, printers, facsimiles, and copiers. Their standards and logos are uniform among
participating nations.
As an ENERGY STAR® Partner, Matsushita Electric Industrial Co., Ltd. has
determined that this product meets the ENERGY STAR® guidelines for energy
efficiency.
© 2003 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
Printed in Japan
FJ0803-0
DFQX5421ZA
