Users Manual

1. Users Manual
2. Users Manual Supplement

Users Manual

Personal Computer

Appendix

LIMITED USE LICENSE AGREEMENT .......... 34

Hard Disk Backup Function ............................. 36

Hard Disk Data Erase Utility ............................ 40

Specifications................................................... 42

LIMITED WARRANTY ..................................... 44

Troubleshooting

List of Error Codes ........................................ 26

Dealing with Problems (Summary)....................... 27

Reinstalling Software .................................... 32

Operation

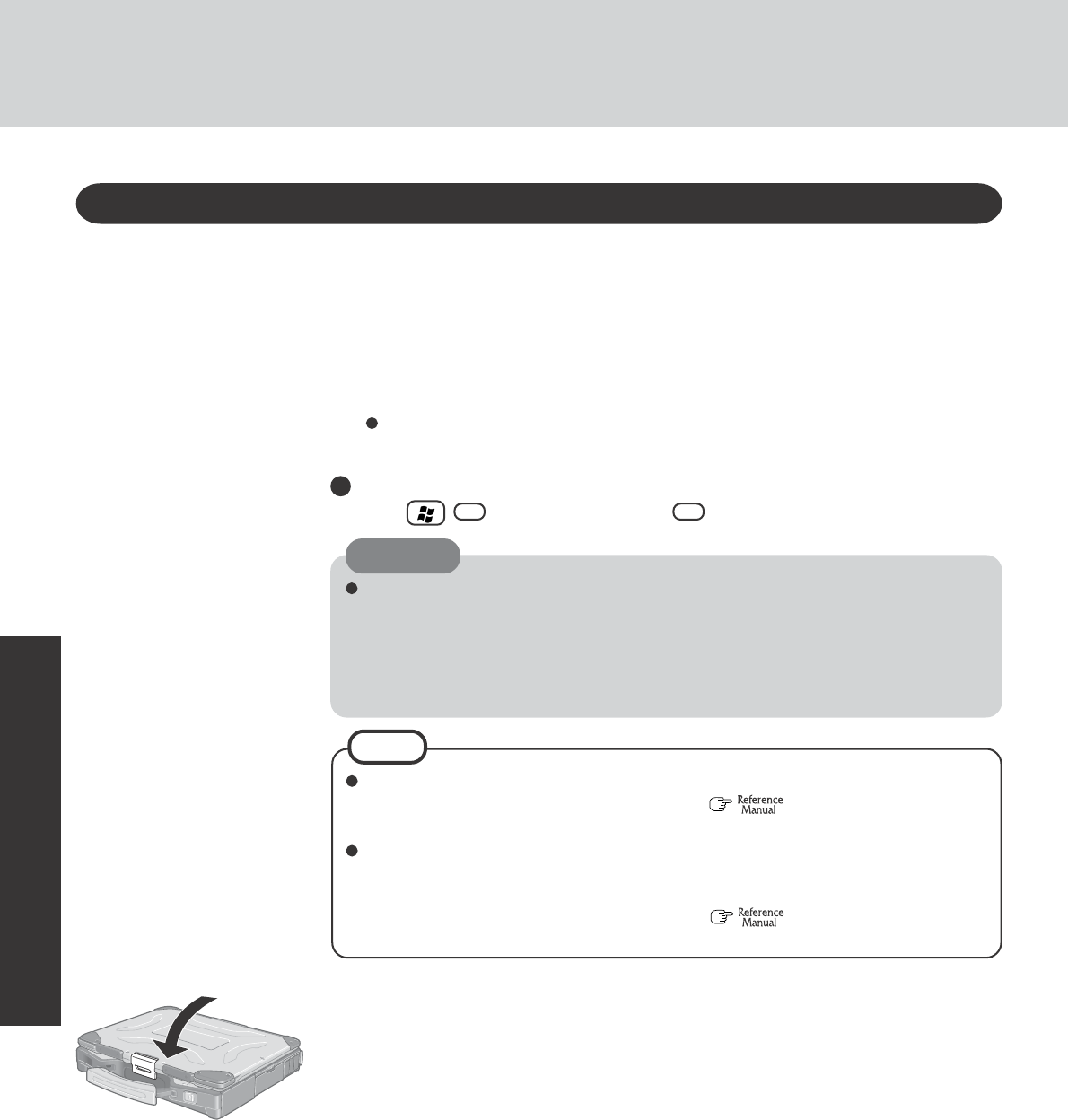

Starting Up/Shutting Down............................ 16

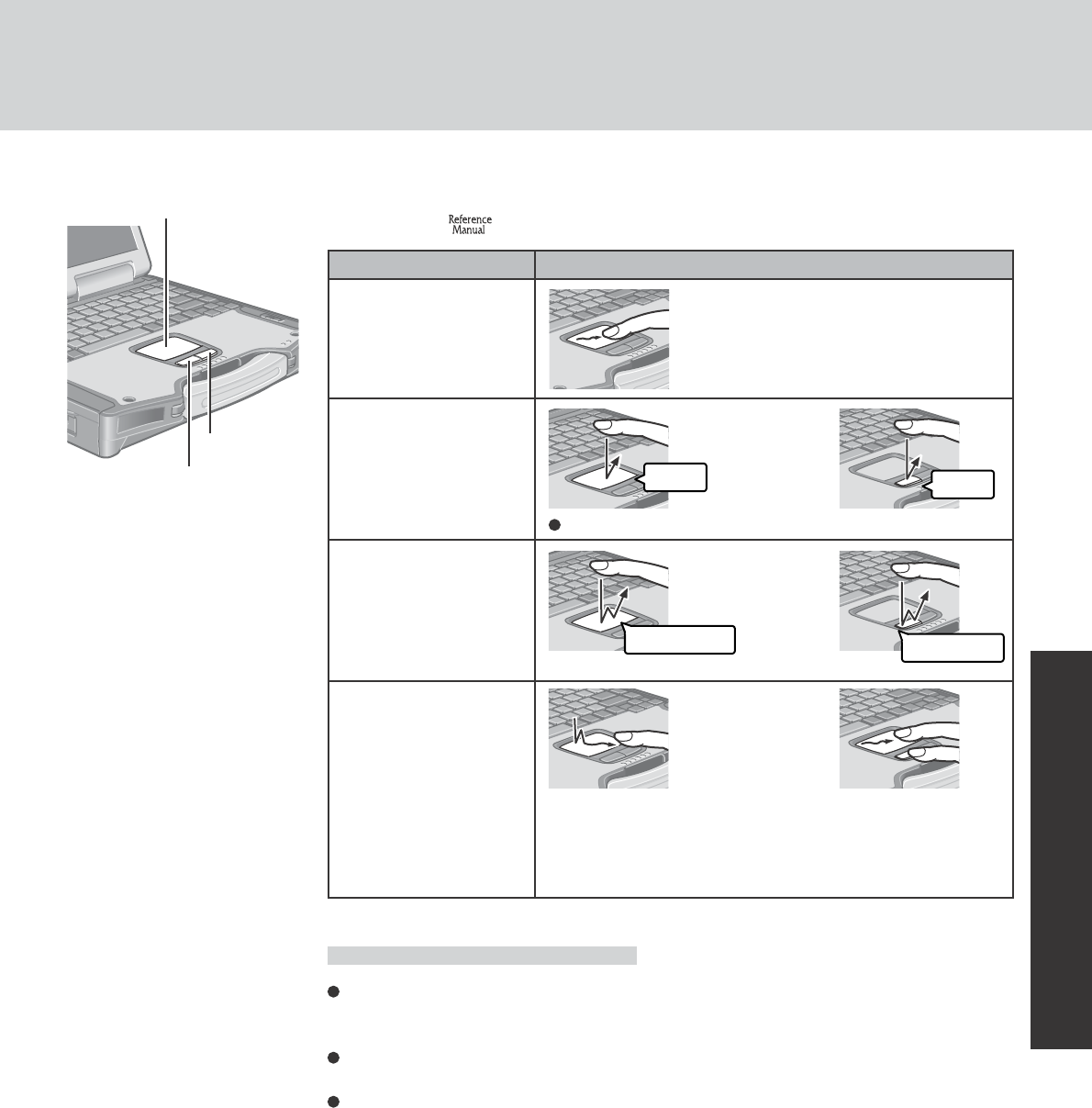

Touch Pad (Basic Operation) ........................ 19

Reference Manual ......................................... 20

Useful Information ......................................... 21

Getting Started

Read Me First ................................................. 3

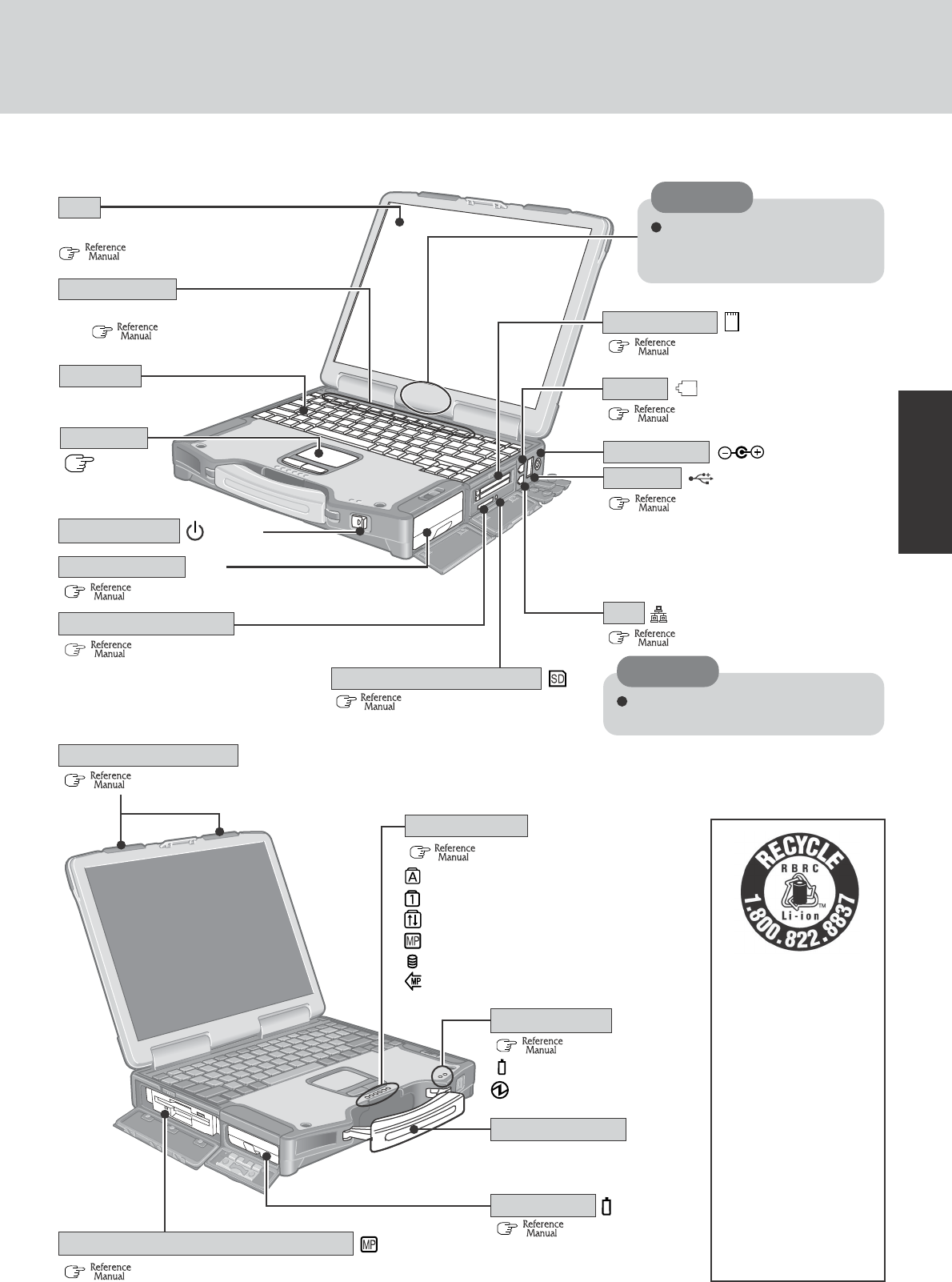

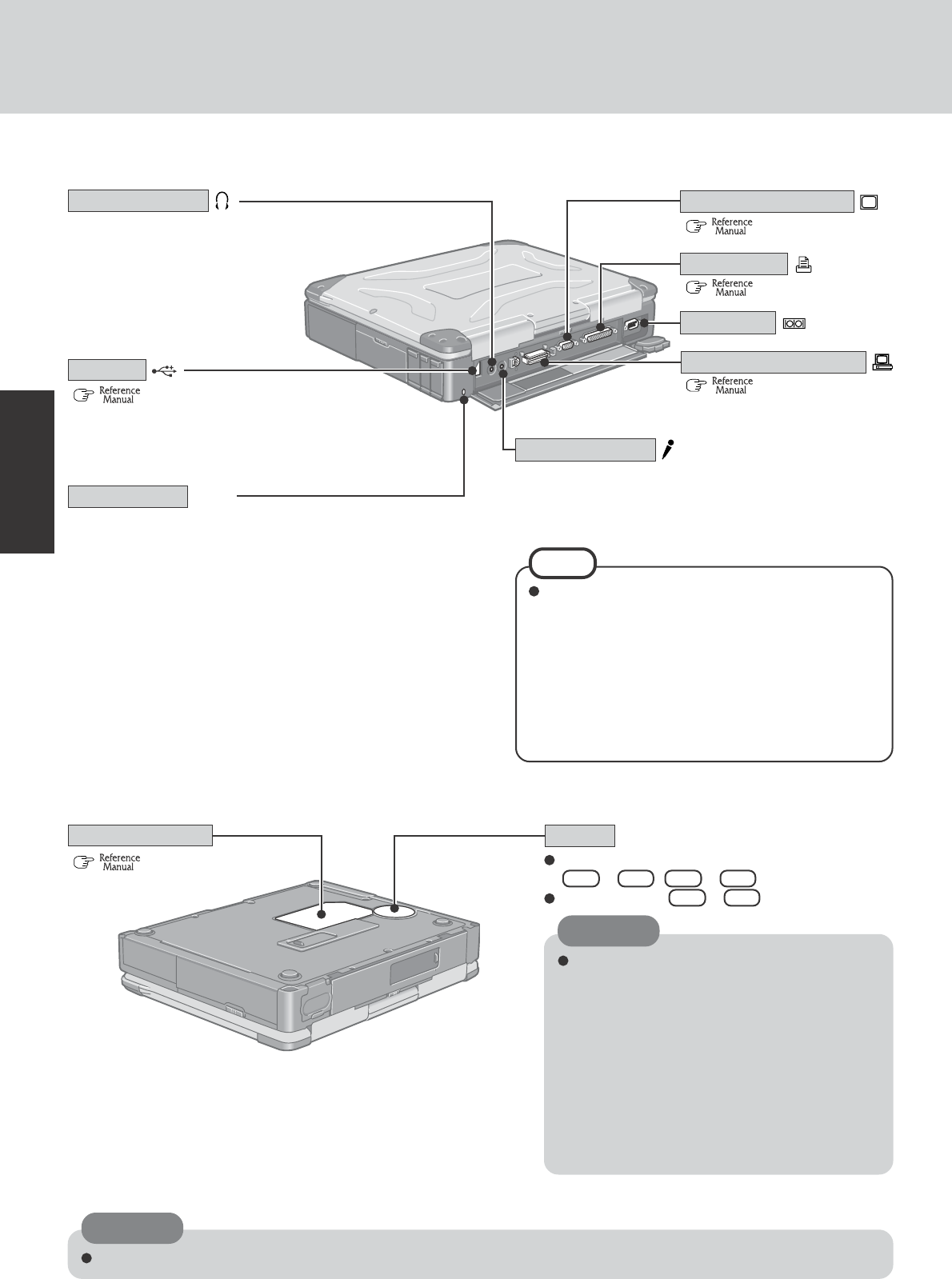

Names and Functions of Parts........................ 9

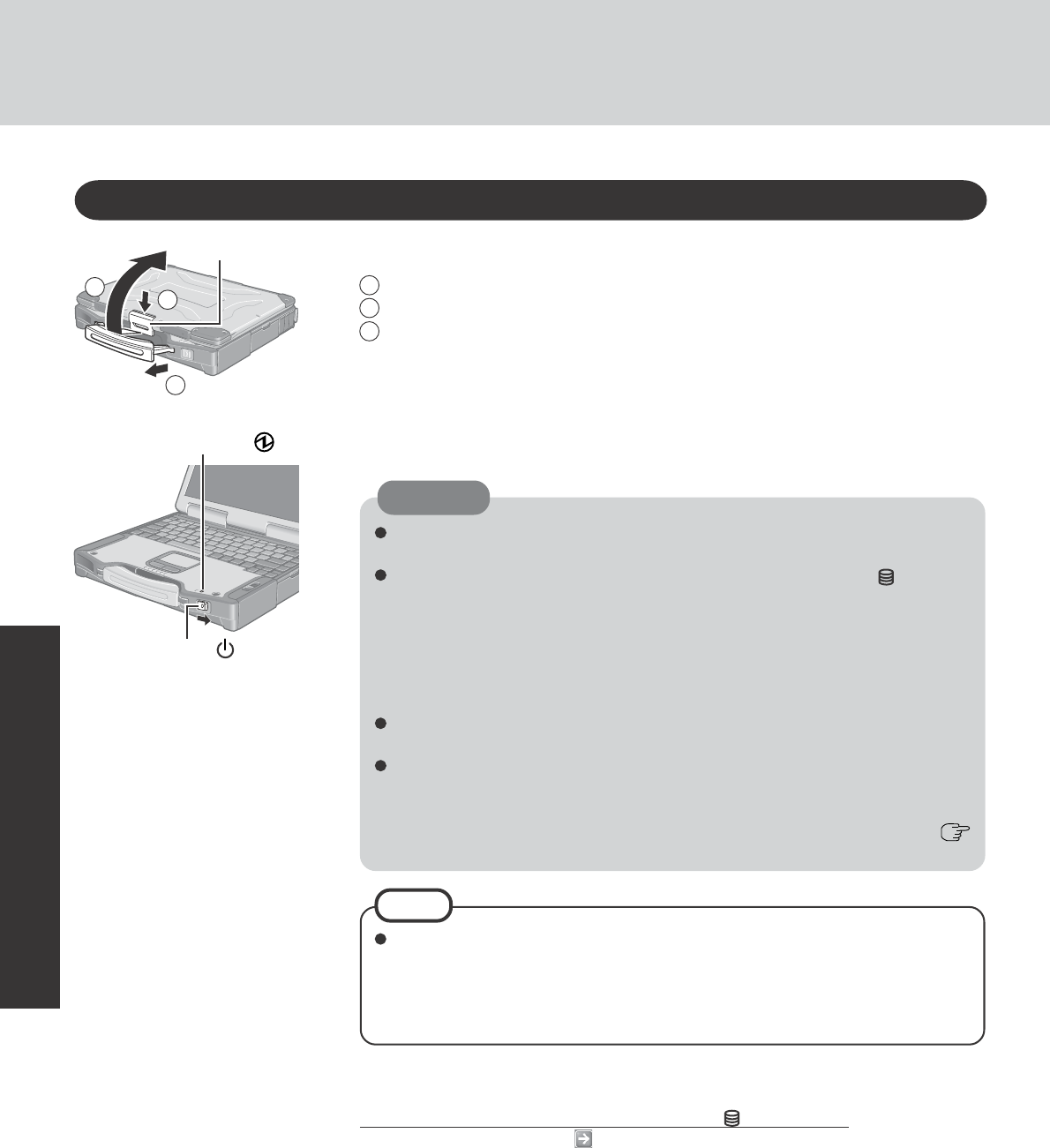

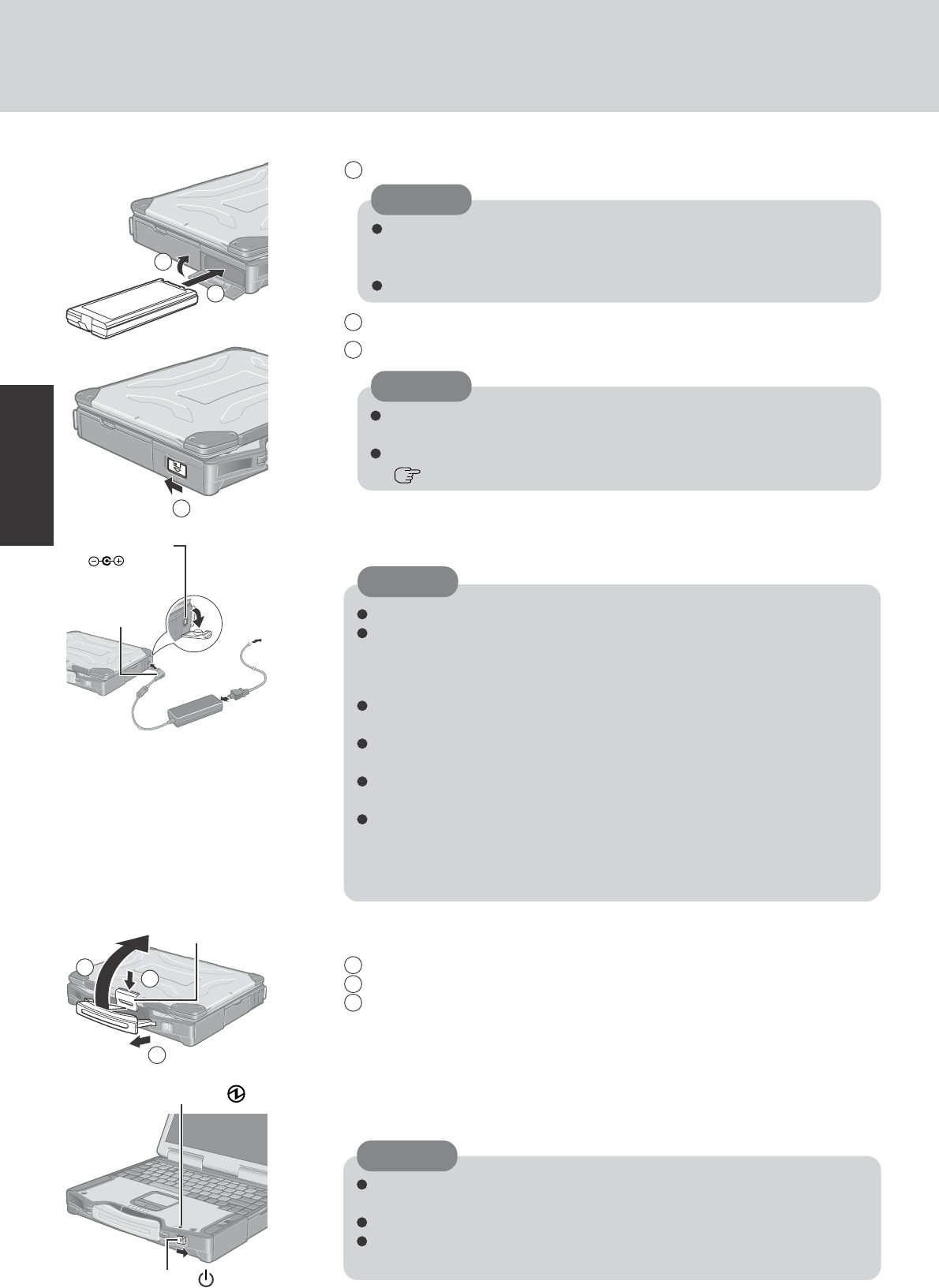

First-time Operation ...................................... 11

Contents

[Additional Manual]

Reference Manual

This manual can be accessed on your computer.

Refer to page 20 on how to access the Reference Manual.

Reference Manual

•Read Me First

•Key Combinations

Reference Manual

•Touch Pad

•Touchscreen

•Panasonic Hand Writing

•Standby/Hibernation

Functions

•Security Measures

•Computing on the Road

•Battery Power

•Multimedia Pocket

•PC Cards

•SD Memory Card

Security Function

•RAM Module

•Port Replicator

•External Display

•Printer

•USB Devices

•Modem

•LAN

•Wireless LAN

•Hard Disk Drive

•Setup Utility

•Icon Enlarger

•Loupe Utility

Reference Manual

•Technical Information

•DMI Viewer

•List of Error Codes

•Dealing with Problems

(Advanced)

Appendix Getting Started

Operation

Troubleshooting

Model No. CF-29 Series

Please read these instructions carefully before using this product and save this manual for future use.

•LED Indicators

OPERATING INSTRUCTIONS

Getting Started

Introduction

Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new

computer.

Illustrations and Terminology in this Manual

form without the prior written permission of Matsushita Electric Industrial Co., Ltd.

No patent liability is assumed with respect to the use of the information contained herein.

Disclaimer

Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liability for

damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals.

Trademarks

Microsoft, Windows, the Windows logo and IntelliMouse are registered trademarks of Microsoft Corporation of the United States and/or other

countries.

Intel, Pentium and PROSet are either registered trademarks or trademarks of Intel Corporation.

SD Logo is a trademark.

Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States

and/or other countries.

Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd.

Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective owner companies.

* For the Model No., insert the 12 digit number (for example, CF-29LTQGZBM) located on

the bottom of the computer.

NOTE:NOTE provides a useful fact or helpful information.

CAUTION:CAUTION indicates a condition that may result in minor or moderate injury.

Enter : This illustration means to press the [Enter] key.

Fn + F5 : This illustration means to press and hold the [Fn] key, then press the [F5] key.

[start] - [Run]: This illustration means to click [start], then to click [Run]. For some applications, you may need to double-

click.

: Where to go for referred information.

: This illustration means to refer to the Reference Manual, which is available on your computer.

Refer to page 20 on how to access this manual.

Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation

easier to understand.

If the user has logged on without the administrator authority, some functions may not be executable, and some screens may

not be displayed as shown in this manual. If this happens, log on with the administrator authority to enable these functions.

In this manual, “Microsoft® Windows® XP Professional Service Pack 2 with Advanced Security Technologies” is indicated

as “Windows” or “Windows XP”.

Confirm the latest information on optional products in catalogs, etc.

The “CD/DVD drive” is a description about drives, such as CD-ROM, DVD-ROM & CD-R/RW and DVD MULTI drives.

Customer's Record

Serial No.

Date of Purchase

Model No.*

Code No.

Dealer's Name

Dealer's Address

Getting Started

Read Me First

Federal Communications Commission Radio

Frequency Interference Statement

Note: This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

Consult the Panasonic Service Center or an experienced ra-

dio/TV technician for help.

Warning

To assure continued compliance, use only shielded interface

cables when connecting to a computer or peripheral. Also, any

changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to

operate this equipment.

FCC RF Exposure Warning:

This equipment is provided with PC Card slot that could be

used with wireless transmitters, which will be specifically

recommended when they become available.

Other third-party wireless transmitters have not been RF ex-

posure evaluated for use with this computer and may not com-

ply with FCC RF exposure requirements.

This equipment complies with FCC radiation exposure lim-

its set forth for an uncontrolled environment.

This equipment has been approved for mobile operation, and

unless otherwise advised in separate supplemental instruc-

tions for individual wireless transmitter(s), requires minimum

20 cm spacing be provided between antenna(s) and all

person’s body (excluding extremities of hands, wrist and feet)

during wireless modes of operation.

This equipment may use multiple installed transmitters, which

may be capable of simultaneous transmission.

This equipment is provided with external antenna connector(s)

for connection to optional Car Mounter or Port Replicator for

mobile external mounted antenna(s). External antenna(s) must

be professionally installed and cannot exceed recommended

maximum antenna gain as described in individual provided

supplement instructions for wireless transmitters. Also, user

must maintain minimum 20 cm spacing between external

antenna(s) and all person’s body (excluding extremities of

hands, wrist and feet) during wireless modes of operation.

This product is restricted to indoor use due to its operation in

the 5.15 to 5.25 GHz frequency range.

FCC requires this product to be used indoors for the frequency

range 5.15 to 5.25 GHz to reduce the potential for harmful in-

terference to co-channel Mobile Satellite systems.

High power radars are allocated as primary users of the 5.25 to

5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can

cause interference with and /or damage this product.

For U.S.A.

1. This equipment complies with CFR47 Part 68 rules. On the

computer is a label that contains, among other information,

the FCC registration number and ringer equivalence number

(REN) for this equipment. If required, this information must

be provided to the telephone company.

2. An FCC compliant telephone cord and modular plug is pro-

vided with this equipment. This equipment is designed to be

connected to the telephone network or premises wiring us-

ing a compatible modular jack which is Part 68 compliant.

See Installation Instructions for details.

3. The REN is used to determine the quantity of devices which

may be connected to the telephone line. Excessive RENs on the

telephone line may result in the devices not ringing in response

to an incoming call. In most, but not all area, the sum of RENs

should not exceed five (5.0). To be certain of the number of

devices that may be connected to a line, as determined by the

total RENs, contact the local telephone company.

4. If your telephone equipment cause harm to the telephone

network, the telephone company will notify you in advice

that temporary discontinuance of service may be required.

But if advice notice isn’t practical, the telephone company

will notify the customer as soon as possible. Also, you will

be advised of your right to file a complaint with the FCC if

you believe it is necessary.

5. The telephone company may take changes in its facilities,

equipment, operations or procedures that could affect the op-

eration of the equipment. If this happens the telephone com-

pany will provide advance notice in order for you to make

necessary modifications to maintain uninterrupted service.

6. If trouble is experienced with this equipment, for repair or

warranty information, please contact Panasonic Corporation

of North America at DIAL TOLL FREE 1-800-LAPTOP5

(1-800-527-8675). If the equipment is causing harm to the

telephone network, the telephone company may request that

you disconnect the equipment until the problem is resolved.

7. There are no user serviceable parts contained in this equip-

ment.

8. This equipment may not be used on coin service provided

by the telephone company. Connection to party lines is sub-

ject to state tariffs.

FCC Regulation Notice for modem

This equipment contains a FCC approved modem.

FOR HOME OR OFFICE USE

Tested To Comply

With FCC Standards

This device complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including

interference that may cause undesired operation.

Responsible Party: Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Tel No:1-800-LAPTOP5 (1-800-527-8675)

Getting Started

Read Me First

For Canada

Industry Canada (IC) Notice for modem

This equipment contains an Industry Canada approved modem unit.

The Industry Canada label is affixed on the modem unit.

EQUIPMENT ATTACHMENT LIMITATIONS

“NOTICE: The Industry Canada label identifies certified

equipment. This certification means that the equipment meets

telecommunications network protective, operational and

safety requirements as prescribed in the appropriate Terminal

Equipment Technical Requirements document(s). The

Department does not guarantee the equipment will operate

to the user’s satisfaction.

Before installing this equipment, users should ensure that it

is permissible to be connected to the facilities of the local

telecommunications company. The equipment must also be

installed using an acceptable method of connection. The

customer should be aware that compliance with the above

conditions may not prevent degradation of service in some

situations.

Repairs to certified equipment should be coordinated by a

representative designated by the supplier. Any repairs or

alterations made by the user to this equipment, or equipment

malfunctions, may give the telecommunications company

cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical

ground connections of the power utility, telephone lines and

internal metallic water pipe system, if present, are connected

together. This precaution may be particularly important in

rural areas. Caution: Users should not attempt to make such

connections themselves, but should contact the appropriate

electric inspection authority, or electrician, as appropriate.”

“NOTICE: The Ringer Equivalence Number (REN) assigned

to each terminal device provides an indication of the

maximum number of terminals allowed to be connected to a

telephone interface. The termination on an interface may

consist of any combination of devices subject only to the

requirement that the sum of the Ringer Equivalence Numbers

of all the devices does not exceed 5.”

REN: See bottom of the computer

RESTRICTIONS CONCERNANT LE RACCORDEMENT

DE MATÉRIEL

“AVIS: L’étiquette d’Industrie Canada identifie le matériel

homologué. Cette étiquette certifie que le matériel est

conforme aux normes de protection, d’exploitation et de

sécurité des réseaux de télécommunications, comme le

prescrivent les documents concernant les exigences tech-

niques relatives au matériel terminal. Le Ministère n’assure

toutefois pas que le matériel fonctionnera à la satisfaction

de l’utilisateur.

Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il

est permis de le raccorder aux installations de l’entreprise

locale de télécommunication. Le matériel doit également

être installé en suivant une méthode acceptée de

raccordement. L’abonné ne doit pas oublier qu’il est pos-

sible que la conformité aux conditions énoncées ci-dessus

n’empêche pas la dégradation du service dans certaines situ-

ations.

Les réparations de matériel homologué doivent être

coordonnées par un représentant désigné par le fournisseur.

L’entreprise de télécommunications peut demander à

l’utilisateur de débrancher un appareil à la suite de

réparations ou de modifications effectuées par l’utilisateur

ou à cause de mauvais fonctionnement.

Pour sa propre protection, l’utilisateur doit s’assurer que

tous les fils de mise à la terre de la source d’énergie

électrique, des lignes téléphoniques et des canalisations

d’eau métalliques, s’il y en a, sont raccordés ensemble. Cette

précaution est particulièrement importante dans les régions

rurales. Avertissement: L’utilisateur ne doit pas tenter de

faire ces raccordements lui-même; il doit avoir recours à un

service d’inspection des installations électriques, ou à un

électricien, selon le cas.”

“AVIS: L’indice d’équivalence de la sonnerie (IES) assigné

à chaque dispositif terminal indique le nombre maximal de

terminaux qui peuvent être raccordés à une interface. La

terminaison d’une interface téléphonique peut consister en

une combinaison de quelques dispositifs, à la seule condi-

tion que la somme d’indices d’équivalence de la sonnerie

de touts les dispositifs n’excède pas 5.”

IES: Voir sous le fond de l’ordinateur

Notice for the products using LCD

This product uses one or more fluorescent lamps containing a

small amount of mercury. It also contains lead in some compo-

nents. Disposal of these materials may be regulated in your com-

munity due to environmental considerations. For disposal or

recycling information please contact your local authorities, or

the Electronics Industries Alliance: <http://www.eiae.org/>

UL1604-conforming model. (The model which has de-

scription of “UL1604” in the bottom of the computer.)

• THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS I,

DIVISION 2, GROUPS A, B, C AND D OR NON-HAZ-

ARDOUS LOCATIONS ONLY.

• WARNING – EXPLOSION HAZARD – SUBSTITUTION

OF COMPONENTS MAY IMPAIR SUITABILITY FOR

CLASS I, DIVISION 2.

• When connecting and using a device manufactured by a third

party, enquire to the manufacturer as to whether the device

suits CLASS I, DIVISION 2.

9. The Telephone Consumer Protection Act of 1991 makes it

unlawful for any person to use a computer or other electronic

device to send any message via a telephone fax machine un-

less such message clearly contains in a margin at the top or

bottom of each transmitted page or on the first page of the

transmission, the date and time it is sent and an identification

of the business or other entry, or other individual sending the

message and the telephone number of the sending machine or

such business, other entity, or individual. In order to program

this information into your fax software, you should refer to

the manual of the Fax software being used.

10.According to the FCC’s electrical safety advisory, we rec-

ommend that you may install an AC surge arrestor in the AC

outlet to which this equipment is connected. Telephone com-

panies report that electrical surges, typically lightning tran-

sients, are very destructive to customer terminal equipment

connected to AC power sources and that this is a major na-

tionwide problem.

“Caution: To reduce the risk of fire, use only No.26 AWG or larger tele-

communication line cord.”

“ATTENTION: Pour réduire le risque d’incendie, utiliser uniquement des

conducteurs de télécommunications 26 AWG ou de section supérieure.”

Getting Started

Declaration of Conformity (DoC)

“Hereby, we declare, that this Personal Computer is in compliance with the essential requirements and other

relevant provisions of the Directive 1999/5/EC.”

Hint:

If you want to get a copy of the original DoC of our products which relates to the R&TTE, please contact to our

web address: http://www.doc.panasonic.de

Contact:

Panasonic Services Europe

A Division of Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Network connection.

The terminal equipment is intended for connection to the following public network;

In all the countries of European Economical Area;

- Public Switched Telephony Networks

Technical Features.

The terminal equipment includes the following features;

- DTMF dialing

- Maximum bitrate receiving mode: 56 kbit/s

- Maximum bitrate sending mode: 33.6 kbit/s

This product is designed to interwork with the Public Switched Telecommunication Networks in UK, Ireland, Netherlands, Sweden,

Denmark, Finland, Switzerland, Luxembourg, Belgium, France, Germany, Spain, Portugal, Iceland, Greece, Italy, Norway and Austria.

--------------------------------------------------------------------------------------------------------------------------------------------

Compliance Notice - CE Mark

This equipment is in conformance with the requirements of the European Council Directive listed below:

73/23/EEC Low Voltage Directive with amendment 93/68/EEC

89/336/EEC EMC Directive with amendments 92/31/EEC and 93/68/EEC

1999/5/EC R&TTE

--------------------------------------------------------------------------------------------------------------------------------------------

For Europe

CSA C22 2 NO.213-conforming model. (The model

which has description of “CSA C22 2 NO.213” in the

bottom of the computer.)

• THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS I,

DIVISION 2, GROUPS A, B, C AND D OR NON-HAZ-

ARDOUS LOCATIONS ONLY.

• WARNING – EXPLOSION HAZARD – SUBSTITUTION

OF COMPONENTS MAY IMPAIR SUITABILITY FOR

CLASS I, DIVISION 2.

• When connecting and using a device manufactured by a third

party, enquire to the manufacturer as to whether the device

suits CLASS I, DIVISION 2.

Industry Canada

This product complies with RSS210 Industry Canada.

Operation is subject to the following two conditions;

(1) this device may not cause interference, and

(2) this device must accept any interference, including interfer-

ence that may cause undesired operation of the device.

(For models with a “CE” mark on the bottom of the computer)

This product (local network devices) for the band 5150-5250

MHz is only for indoor usage to reduce potential for harmful

interference to co-channel Mobile Satellite systems.

High power radars are allocated as primary users (meaning they

have priority) of 5250-5350 MHz and 5650-5850 MHz and these

radars could cause interference and/or damage to LELAN devices.

RF Exposure Warning

This equipment has been approved for mobile operation, and

unless otherwise advised in separate supplemental instructions

for individual wireless transmitter(s), requires minimum 20cm

spacing be proved between antenna(s) and all person’s body

(excluding extremities of hands, wrist and feet) during wireless

modes of operation.

Mise en garde concernant l’exposition à l’énergie

radiofréquence

Cet équipement a été homologué pour un fonctionnement sans fil

et, sauf avis contraire inclus dans la notice d’utilisation d’un autre

émetteur sans fil, une distance minimale de 20 cm doit être assurée

entre l’antenne et le corps de toute personne (à l’exclusion des

mains, poignets et pieds) pendant le fonctionnement sans fil.

Getting Started

Read Me First

Important Safety Instructions / Importantes Mesures De Sécurité

When using your telephone equipment, basic safety precau-

tions should always be followed to reduce the risk of fire,

electric shock and injury to persons, including the follow-

ing:

1.Do not use this product near water, for example, near a

bath tub, washbowl, kitchen sink or laundry tub, in a wet

basement or near a swimming pool.

2.Avoid using a telephone (other than a cordless type) dur-

ing an electrical storm. There may be a remote risk of elec-

tric shock from lightning.

3.Do not use the telephone to report a gas leak in the vicin-

ity of the leak.

4.Use only the power cord and batteries indicated in this

manual. Do not dispose of batteries in a fire. They may

explode. Check with local codes for possible special dis-

posal instructions.

SAVE THESE INSTRUCTIONS

Certaines mesures de sécurité doivent être prises pendant

l'utilisation de matérial téléphonique afin de réduire les

risques d'incendie, de choc électrique et de blessures. En

voici quelquesunes:

1.Ne pas utiliser l'appareil près de l'eau, p.ex., près d'une

baignoire, d'un lavabo, d'un évier de cuisine, d'un bac à

laver, dans un sous-sol humide ou près d'une piscine.

2.Éviter d'utiliser le téléphone (sauf s'il s'agit d'un appareil

sans fil) pendant un orage électrique. Ceci peut présenter

un risque de choc électrique causé par la foudre.

3.Ne pas utiliser l'appareil téléphonique pour signaler une

fuite de gaz s'il est situé près de la fuite.

4.Utiliser seulement le cordon d'alimentation et le type de

piles indiqués dans ce manual. Ne pas jeter les piles dans

le feu: elles peuvent exploser. Se conformer aux règlements

pertinents quant à l'élimination des piles.

CONSERVER CES INSTRUCTIONS

This product and your Health

This product, like other radio devices, emits radio frequency elec-

tromagnetic energy. The level of energy emitted by this product

however is far much less than the electromagnetic energy emit-

ted by wireless devices like for example mobile phones.

Because this product operates within the guidelines found in ra-

dio frequency safety standards and recommendations, we believe

this product is safe for use by consumers. These standards and

recommendations reflect the consensus of the scientific commu-

nity and result from deliberations of panels and committees of

scientists who continually review and interpret the extensive re-

search literature.

In some situations or environments, the use of this product may

be restricted by the proprietor of the building or responsible rep-

resentatives of the organization. These situations may for example

include:

Using this product on board of airplanes, or

In any other environment where the risk of interference to other

devices or services is perceived or identified as harmful.

If you are uncertain of the policy that applies on the use of wire-

less devices in a specific organization or environment (e.g. air-

ports), you are encouraged to ask for authorization to use this

product prior to turning on the product.

Regulatory Information

We are not responsible for any radio or television interference

caused by unauthorized modification of this product. The cor-

rection of interference caused by such unauthorized modifica-

tion will be the responsibility of the user. We and its authorized

resellers or distributors are not liable for damage or violation of

government regulations that may arise from failing to comply

with these guidelines.

Information to the User

Lithium Battery!

This computer contains a lithium battery to enable the date, time,

and other data to be stored. The battery should only be exchanged

by authorized service personnel.

Warning! A risk of explosion from incorrect installation or mis-

application may possibly occur.

Pile au lithium!

Le micro-ordinateur renferme une pile au lithium qui permet de

sauvegarder certaines données comme la date et l'heure

notamment. Elle ne devra être remplacée que par un technicien

qualifié.

Avertissement! Risque d'explosion en cas de non respect de cette

mise en garde!

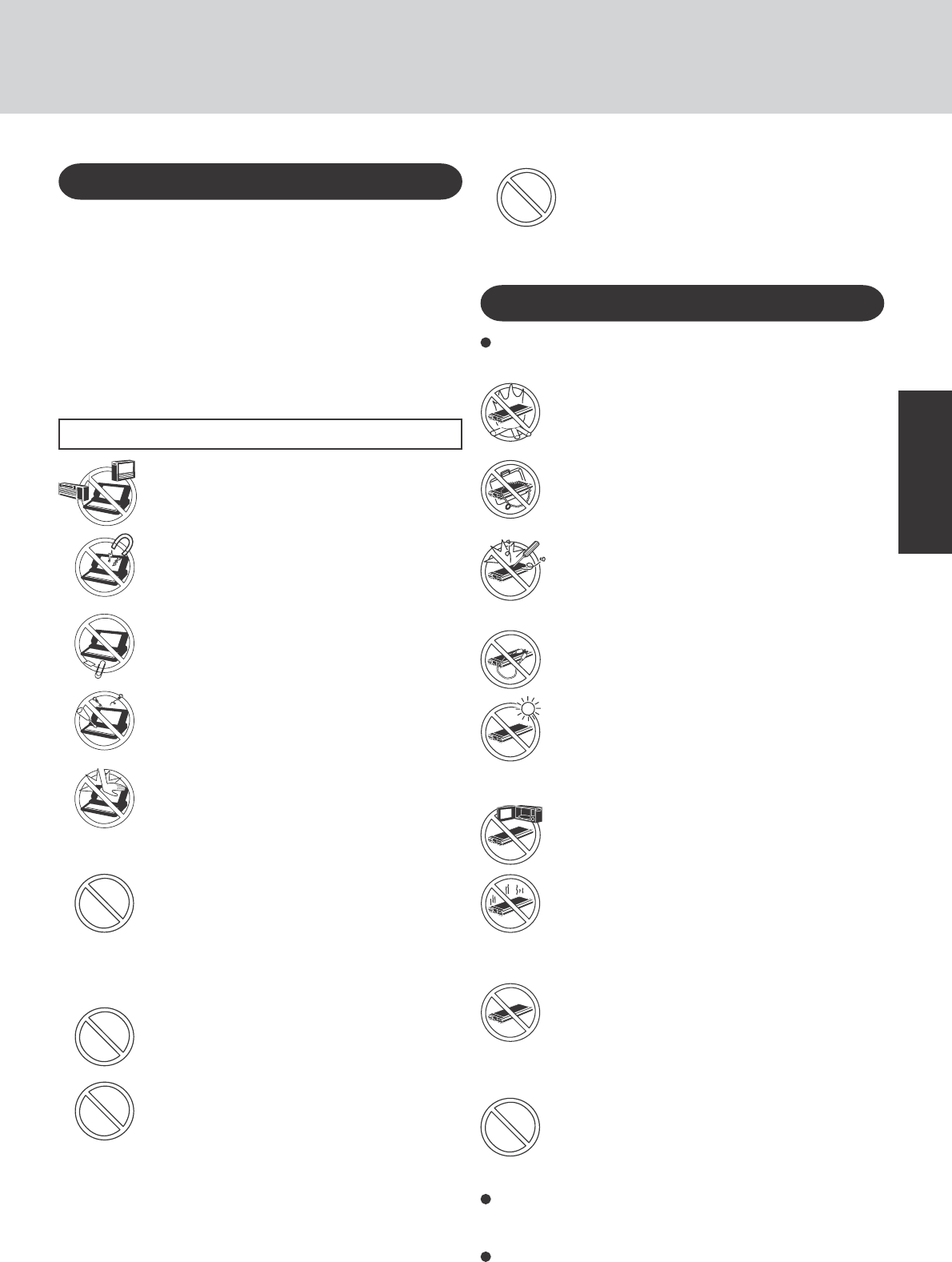

Lithium Battery

Getting Started

Care should be exercised with regard to the following in or-

der to avoid the possibility of overheating, fire or damage.

Avoid Heat

Do not throw the battery pack into a fire or ex-

pose it to excessive heat.

Do Not Disassemble

Do not insert sharp objects into the battery pack,

expose it to bumps or shocks, deform, disassemble,

or modify it.

Do Not Short

Do not short the positive (+) and negative (-) con-

tacts.

Do Not Put into a Microwave

Do not put the battery pack into a microwave oven

or a pressurized chamber.

Avoid Extreme Heat, Cold and Direct Sunlight

Do not charge, use or leave the battery pack for ex-

tended periods where it will be exposed to direct

sunlight, in a hot place (in a car on a sunny day, for

example), or in a cold place.

Keep Articles Away

Do not place the battery pack together with articles

such as necklaces or hairpins when carrying or stor-

ing.

Stop Using

Should the battery emit an abnormal odor, become

hot to the touch, become discolored, change shape,

or become in any way different from normal, remove

it from the computer or charger and stop using it.

Do Not Use With Any Other Computer

The battery pack is rechargeable and was intended

for the specified computer or charger. Do not use it

with a computer other than the one for which it was

designed.

Do not touch the terminals on the battery pack. The battery

pack may no longer function properly if the contacts are dirty

or damaged.

Do not expose the battery pack to water, or allow it to become

wet.

Avoid Radio Frequency Interference

Do not place the computer near a television or

radio receiver.

Precautions

The CF-29 was developed based on thorough research into the

real-world portable computing environments. Exhaustive pursuit

of usability and reliability under harsh conditions led to innova-

tions such has the magnesium alloy exterior, vibration damped

hard disk drive and floppy disk drive, flexible internal connec-

tions. The CF-29’s outstanding engineering has been tested us-

ing the strict MIL-STD- 810F (for vibration and shock) and IP

(for dust and water) based procedures.

As with any portable computer device precautions should be taken

to avoid any damage. The following usage and handling proce-

dures are recommended.

Avoiding Low-temperature Burns

Avoid more than casual contact with any heat pro-

ducing area of the notebook computer, AC adap-

tor, and any option or accessory you use with it.

Even low heat, if warmer than body temperature,

can cause a burn, if the skin is exposed to the heat

source for a long period of time.

Avoid Magnetic Fields

Keep the computer away from magnets.

Data stored on the hard disk may be lost.

Keep Small Objects Away

Do not insert paper clips or other small objects

into the computer.

Do Not Disassemble the Computer

Do not attempt to disassemble your computer.

Avoid Excessive Force on the Display

Do not apply excessive downward force on the

display when it is completely opened, especially

when plugs and/or cables are connected to the rear

of the computer.

Before putting the computer away, be sure to wipe off any moisture.

Precautions (Battery Pack)

Do not touch the computer and cable when it

starts thundering

Do not use this computer with a battery pack

other than the one specified (the one included

with the computer or the specified battery pack

sold separately)

Do not connect a telephone line, or a network

cable other than the one specified, into the

LAN port

If the LAN port is connected to a network such as

the ones listed below, a fire or electric shock may

result.

•

Networks other than 1000BASE-T, 100BASE-TX

or 10BASE-T

• Phone lines (Telephone lines, internal phone

lines (on-premise switches), digital public

phones, etc.)

Keep SD Memory Cards away from infants

and small children

Accidental swallowing will result in bodily injury.

In the event of accidental swallowing, see a doctor

immediately.

Getting Started

NOTE

The battery pack may become warm during recharging or

normal use. This is completely normal.

Recharging will not commence if internal temperature of

the battery pack is outside of the allowable temperature

range (0 °C to 50 °C {32°F to 122 °F}). ( “Bat-

tery Power”) Once the allowable range requirement is

satisfied, charging begins automatically. Note that the

recharging time varies based on the usage conditions. (Re-

charging takes longer than usual when the temperature is

10 °C {50 °F} or below.)

If the temperature is low, the operating time is shortened.

Only use the computer within the allowable temperature

range.

This computer has a high temperature mode function that

prevents the degradation of the battery in high tempera-

ture environments. ( “Battery Power”) A level

corresponding to a 100% charge for high temperature

mode is approximately equivalent to an 80% charge level

for normal temperature mode.

The battery pack is a consumable item. If the amount of

time the computer can be run by using a particular battery

pack becomes dramatically shorter and repeated recharg-

ing does not restore its performance, the battery pack

should be replaced with a new one.

When transporting a spare battery inside a package, brief-

case, etc., it is recommended that it be placed in a plastic

bag so that its contacts are protected.

Always power off the computer when it is not in use. Leav-

ing the computer on when the AC adaptor is not connected

will exhaust the remaining battery capacity.

If the battery pack will not be used for a long period of time

(a month or more), charge or discharge (use) the battery pack

until the remaining battery level becomes 30% to 40% and

store it in a cool, dry place.

This computer prevents overcharging of the battery by re-

charging only when the remaining power is less than approx.

95% of capacity.

The battery pack is not charged when the computer is first

purchased. Be sure to charge it before using it for the first

time. When the AC adaptor is connected to the computer,

charging begins automatically.

Should the battery leak and the fluid get into your eyes, do not

rub your eyes. Immediately flush your eyes with clear water and

see a doctor for medical treatment as soon as possible.

Precautions (Battery Pack)

Read Me First

Warning: Notebook Computer may be installed in a motor ve-

hicle and visible to the driver only if used to support vehicle

related functions such as vehicle information, system control,

rear or side observation and navigation. If used for entertain-

ment purpose, such as television reception or video play, it must

be installed to the rear of the driver’s seat where it will not be

visible, directly or indirectly, to the operator of the motor ve-

hicle. Check with individual state/provincial laws to determine

lawful use of this product while operating within a motor ve-

hicle.

Avertissement : L’ordinateur bloc-notes peut être installé dans

un véhicule motorisé et dans le champ de vision du conducteur

uniquement en tant que dispositif d’aide aux fonctions du

véhicule, comme par exemple pour fournir des informations sur

le véhicule, comme dispositif de contrôle de système, pour

l’observation à l’arrière ou sur les côtés du véhicule, ainsi que

pour fournir de l’information routière. Pour toute utilisation à fin

de divertissement, comme par exemple pour regarder la télévision

ou jouer à des jeux vidéo, il doit être installé à l’arrière du siège

du conducteur, en un emplacement où il ne sera pas visible, ni

directement ni indirectement, pour le conducteur du véhicule

motorisé. Vérifiez les lois fédérales et nationales qui régissent

l’utilisation légale de cet appareil à l’intérieur d’un véhicule

motorisé.

For Used in Motor Vehicle /

Pour L’utilisation Dans Un Véhicule

Motorisé

Getting Started

Names and Functions of Parts

( “LED Indicators”)

( page 19)

The illustrations shown may differ from the actual physical appearances.

LED Indicators

( “LED Indicators”)

(Only for models with touchscreen:

“Touchscreen”)

For information on the key combinations avail-

able ( “Key Combinations”).

Power Switch

For enhanced portability and

in-the-field efficiency.

Caps lock

Numeric key lock (NumLk)

Scroll lock (ScrLk)

Multimedia pocket device status

Hard disk drive status

Power status of the multimedia pocket

Battery pack status

Power status

Carrying Handle

Touch Pad

Function Keys

( “USB Devices”)

Depending on the shape of the plug, some

USB devices cannot be connected to the

USB port. In this case, use a commercially-

available USB extension cable.

( “LAN”)

( “Modem”)

LAN

( “Hard Disk Drive”)

Hard Disk Drive

LED Indicators

( “Multimedia Pocket”)

USB Port

Keyboard

( “Wireless LAN”)

Wireless LAN Antenna

CAUTION

Do not connect the modem telephone

cable into the LAN port.

DC IN 15.6V

DC-IN Jack

( “Battery Power”)

Battery Pack

Multimedia Pocket (Floppy Disk Drive)

A lithium ion battery that

is recyclable powers the

product you have pur-

chased. Please call 1-

800-8-BATTERY for in-

formation on how to re-

cycle this battery.

L’appareil que vous vous

êtes procuré est alimenté

par une batterie au

lithium-ion. Pour des

renseignements sur le

recyclage de la batterie,

veuillez composer le 1-

800-8-BATTERY.

Modem

POWER

HDD

LCD CAUTION

Do not allow metallic objects or

magnetic media to come near

this area.

PC Card Slots

( “LED Indicators”)

SD Memory Card Indicator

( “SD Memory Card”

and “SD Memory Card Security

Function”)

SD Memory Card Slot

( “PC Cards”)

Getting Started

Serial Port

Expansion Bus Connector

( “Port Replicator”)

( “External Display”)

Use this jack to connect head-

phones or amplifier-equipped

speakers. Audio output from the

internal speaker is disabled when

headphones or external speakers

are connected.

Headphone Jack

( “RAM Module”)

Speaker

To adjust the volume:

Fn + F5 / Fn + F6

Speaker on/off : Fn + F4

RAM Module Slot

Security Lock

A Kensington cable can be connected.

For more information, read the manual that comes with the cable.

LOCK

External Display Port

Parallel Port

NOTE

When using an external microphone, do not remove

the check mark for “Mute” under “Microphone Bal-

ance” of the Volume Control dialog box and do not

increase the playback volume. Howling may result.

Howling may occur in the same way when discon-

necting an external microphone. (The microphone of

“Volume Control” is in the state of mute at the time of

factory shipment. This is not shown at the time of

factory shipment.)

CAUTION

Do not allow metallic objects or magnetic media

to come near the speaker on the bottom surface

of the computer.

• Because the speaker contains a magnet, metal

objects may become attached to the bottom

surface of the computer. This may cause the

computer to be unstable, or may mark the sur-

face of the desk on which it is sitting.

• If floppy disks, magnetic memory cards, or other

magnetic media approach the speaker, there is

a risk that data will be destroyed.

Names and Functions of Parts

CAUTION

Do not cover the computer with a thick cloth, such as a blanket.

( “USB Devices”)

Depending on the shape of the plug, some USB devices

cannot be connected to the USB port. In this case, use a

commercially-available USB extension cable.

USB Port

Use only a monaural condenser microphone (miniature jack).

Using an input source other than a monaural condenser mi-

crophone may not allow audio to be input or may damage the

equipment.

Microphone Jack

( “Printer”)

Getting Started

2Read the LIMITED USE LICENSE AGREEMENT. ( page 34)

Be sure to read the LIMITED USE LICENSE AGREEMENT before breaking the seal

on the computer’s packaging.

3Insert the battery pack.

1Unlock the cover by sliding the latch to the right.

First-time Operation

Read the steps below to help you learn what parts are included, and to gain an understanding of

some basic computer-related operations.

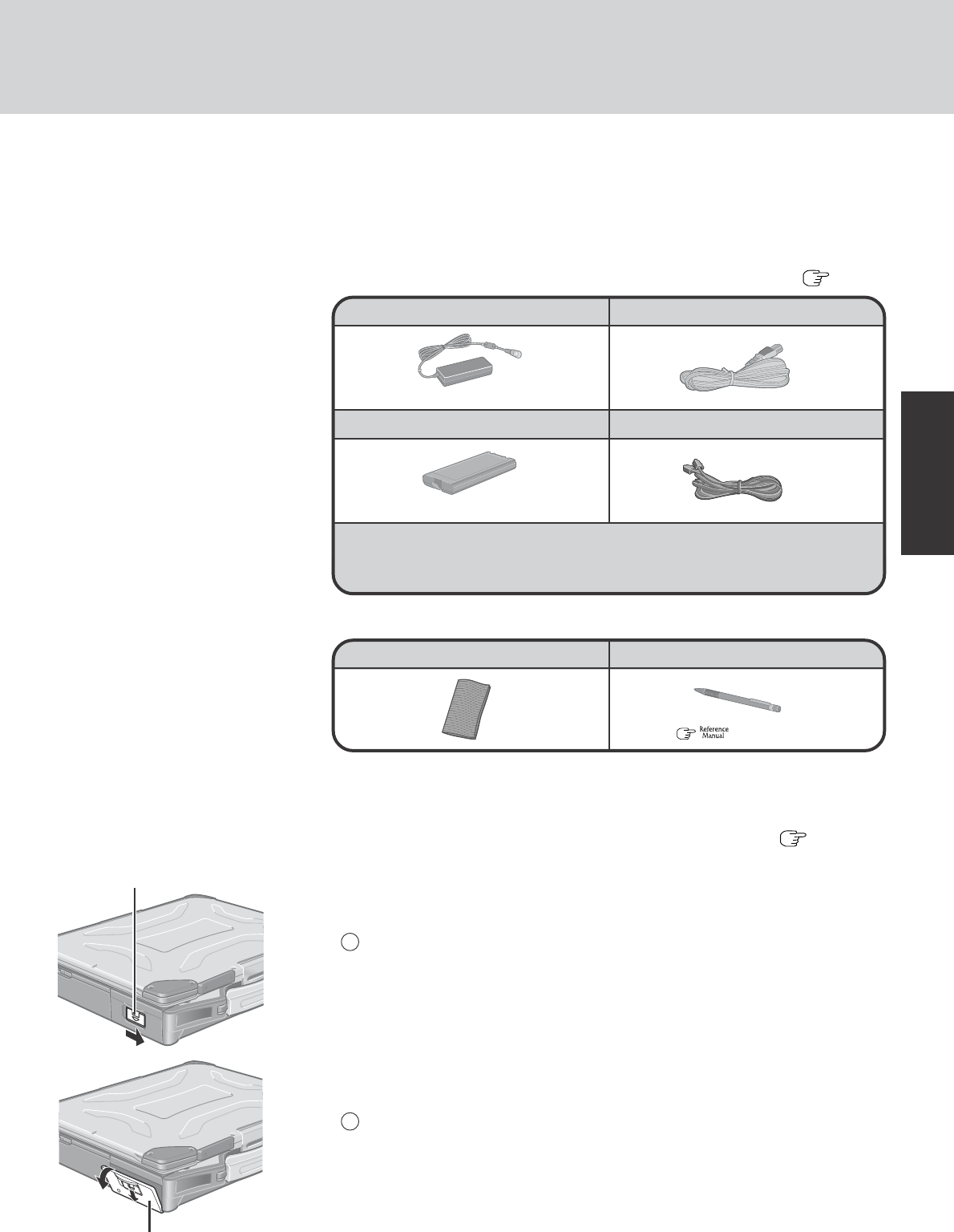

1Confirm the inclusion of all parts.

Make sure the parts shown in the figure have been supplied. If any of these items are

missing or are not working properly, contact Panasonic Technical Support. ( page 44)

Model No : CF-AA1653A

Model No : CF-VZSU29A

Operating Instructions (This book)*1.......................................................... 1

Windows® Book ...................................................................................... 1

Product Recovery CD-ROM ................................................................... 3

( “Touchscreen”)

Soft Cloth .................................. 1 Stylus ..................................... 1

Battery Pack .............................. 1 Modem Telephone Cable .......... 1

AC Adaptor................................ 1 AC Cord ..................................... 1

Latch

Cover

*1If additional instructions are included with the computer, be sure to read them. It may be neces-

sary to perform additional operations during the following procedures.

2Slide the latch down, and then without releasing it, open the cover as illustrated.

Getting Started

First-time Operation

6Turn your computer on.

Slide the power switch and hold it for approximately one second until the power indi-

cator turns on before releasing it.

Do not slide the power switch and hold it for more than four seconds; this will

cause the power to be turned off forcibly.

Do not slide the power switch repeatedly.

Once the computer is powered off, you must wait at least ten seconds before

powering it on again.

4Connect your computer to a power outlet.

Be sure the AC adaptor is connected until completing the first-time use operation.

When using the computer for the first time, do not connect any peripheral de-

vice except the battery pack and AC adaptor to the computer.

Handling the AC adaptor

Do not twist or pull the AC power cord forcefully. Doing so may damage the

connections.

Use only the specified AC adaptor with your computer. Using an AC adaptor

other than the one supplied might damage the battery and/or the computer.

When the DC plug is not connected to the computer, disconnect the AC cord

from your AC wall outlet.

Problems such as sudden voltage drops may arise during periods of thunder and

lightning. Since this could adversely affect your computer, an uninterruptible

power source (UPS) is highly recommended unless running from the battery

pack alone.

Power Indicator

CAUTION

5Open the display.

1Pull the carrying handle forward.

2Press the latch as illustrated.

3Lift up the latch and open the display.

CAUTION

Do not touch the terminals on the battery pack and the computer. The battery

pack may no longer function properly if the contacts are dirty or damaged.

Also, the computer may not operate properly.

Be sure to insert the battery pack as illustrated.

3Slide the battery pack inward until it is firmly in place.

4Close the cover until it clicks into place.

5Lock the cover by sliding the latch to the left.

CAUTION

Confirm that the latch lock is correctly in place. If you carry your computer

without the latch lock in place, the battery pack may fall out.

Before using the battery pack, carefully read “Precautions (Battery Pack)”

( page 7-8).

DC-IN Jack

DC IN 15.6 V

DC Plug

Power Switch

Latch

POWER

Getting Started

7Setup Windows.

Moving the cursor or clicking buttons can be performed with the touch pad. ( page 19)

The touchscreen does not work properly during the Windows setup.

NOTE

Select settings for your region, then select [Next].

4Enter your name and organization and then select [Next].

5Enter your computer name and administrator password and then select [Next].

Do not press any keys or touch the touch pad until [Windows XP Professional

Setup] is displayed.

CAUTION

1At [Welcome to the Windows XP Setup Wizard], select [Next].

2After reading the agreement, select [I accept this agreement] or [I don’t accept this

agreement], then select [Next].

NOTE

If [I don’t accept this agreement] is selected, the Windows setup will be aborted.

CAUTION

Remember this password! If the password is forgotten, Windows cannot be

operated.

6Enter the correct date, time and time zone, then select [Next].

7Enter your administrator password and select .

Wait until the hard disk drive indicator has turned off.

NOTE

It may take some time before the computer restarts and the screen of step 7 is

displayed. Wait, and do not press any keys, or touch the touch pad, etc.

NOTE

When Windows setup is completed, the following message will be displayed at

the bottom right of the screen: “Your computer might be at risk.” Continue to

the next step.

The message is generated by the [Security Center] function in [Control Panel],

and does not indicate an error or malfunction. For more information about [Se-

curity Center]: page 22.

The computer will restart.

Getting Started

This concludes the first-time use operation guidelines.

8Create a new account.

If the cursor cannot be pointed correctly with the stylus, calibrate the touchscreen fol-

lowing the procedure below.

1Select [start] - [Control Panel] - [Printers and Other Hardware] - [Mouse] -

[TouchScreen] - [Calibration].

2Touch the “+” mark on the calibration screen with the stylus (included) for about

one second.

3After the calibration procedure is executed (e.g., after the nine “+” marks are

touched), the procedure ends when Enter is pressed.

4Select [OK].

About the Icon Enlarger:

• If the characters or icons on the screen are too small and difficult to see, after complet-

ing step 8, select [start] - [All Programs] - [Panasonic] - [Icon Enlarger]. This will

allow you to magnify the display of characters and icons on the screen.

• The [Icon Enlarger] can be set separately for each account.

You can also use [Loupe Utility], which enlarges a part of the screen. ( “Loupe

Utility”)

If you use the wireless LAN, be sure to refer to the Reference Manual’s “Wireless LAN”.

NOTE

First-time Operation

1Select [start] - [Control Panel] - [User Accounts] - [Create a new account].

2Enter a name for the new account, then select [Next].

3Select [Computer administrator], then select [Create Account].

4<When you want to create a password for the new account>

Select the new account you have created and select [Create a password].

Follow the instructions on the screen to create a password.

5Select [start] - [Turn Off Computer] - [Restart] to restart the computer.

Remember this password! If the password is forgotten, Windows cannot be operated.

You can create a password reset disk beforehand ( page 15).

When creating a new user account:

• If you make mail settings, create password reset disks ( page 15), or conduct

other related operations before creating the user account, you will be unable to use

any previous mail history or settings.

• When you create the first new account, you can only select [Computer administrator].

Once a “Computer Administrator” account has been created, you can create addi-

tional limited user accounts.

Note also that only the added user account will be displayed in the Welcome screen.

The account for the administrator created during Windows setup will not be dis-

played.

Getting Started

Information for Windows XP

Depending on the Windows settings, installed applications, and drivers, menus and other

displays may differ, or some functions (such as use of the password reset disk) may be inop-

erable. Check with your system administrator for details.

You can select Classic view for the Control Panel or select the Classic Start menu. You can

also change the way a user logs on or off.

The procedure in this manual uses the method or view of the Windows XP default setting

(not Classic view or Classic Start menu etc.).

Resetting the password

Windows XP has a function to reset a forgotten password.

To use this function, you need to create a password reset disk beforehand following the steps

below.

1Select [start] - [Control Panel] - [User Accounts].

2Select the account you used to log on and select [Prevent a forgotten password] from

[Related Tasks] menu.

Create a password reset disk following the on-screen instructions.

Store the password reset disk in a safe place.

• Only the logon password for each account can be reset.

The password set in the Setup Utility ( “Setup Utility”) cannot be reset.

Operation

1Open the display.

Starting Up/Shutting Down

Starting Up

2Turn your computer on.

Slide the power switch and hold it for approximately one second until the power indicator

turns on before releasing it.

When the AC adaptor is not connected, the power will not go on if the display is

closed.

While booting, avoid the following until the hard disk drive indicator has turned

off.

• Connecting or disconnecting the AC adaptor.

• Touching the power switch.

• Performing any keyboard, touch pad, touchscreen (only for models with touch-

screen), or external mouse operations.

• Closing the display.

Once the computer is powered off, you must wait at least ten seconds before pow-

ering it on again.

When the CPU temperature rises, the computer may not power on to prevent the

CPU from overheating. Should this happen, allow the computer to cool down then

switch the power on again.

If the computer still does not power on, contact Panasonic Technical Support. (

page 44)

CAUTION

1Pull the carrying handle forward.

2Press the latch as illustrated.

3Lift up the latch and open the display.

Power Indicator

Power Switch

Latch

POWER

When the power is turned on in a low-temperature environment, sometimes the

message “Warming up the system. Please wait...” is displayed (up to 20 minutes) or

the battery indicator alternately blinks green and orange. This function is designed

to prevent hard disk drive malfunctions that may occur at low temperatures. Wait

for the computer to start up.

NOTE

3Log on to Windows.

After confirming that the hard disk drive indicator has turned off, select the user and

input the password, then select . Until the correct password is entered, the computer will

not operate.

4Select your application.

You are able to start working on your computer.

Operation

The power saving function is factory set, so if there is no input from a key, the touch pad,

the touchscreen (only for models with touchscreen) or an external mouse (when one is

connected) for a certain interval of time, the power to the LCD and hard disk may be

turned off. The LCD will resume operation when the touch pad, the touchscreen (only

for models with touchscreen) or an external mouse (when one is connected) is used or a

key is pressed.

The power to the LCD may be turned off even when an application software is being

installed. In this case, because it is conceivable that a selection dialog box will be shown,

do not press Space or Enter to attempt to resume from this condition as doing

so may trigger a selection, but instead, press a key unrelated to the direct triggering of a

selection, like Ctrl .

In addition, when the computer is left alone, it automatically enters the standby or hiber-

nation mode. The computer will resume by sliding the power switch. (

“Standby/Hibernation Functions”)

NOTE

Three incorrect attempts

No password for about a minute

The correct password Will Start

Enter your password*1 and press Enter . ( “Security Measures”)

Will Not Start

(Power off)

If [Enter Password] is displayed

*1Supervisor Password or User Password set in the Setup Utility (not the Windows password).

Enter Password [ ]

Operation

Shutting Down (power off your computer)

To quickly resume computer operation after shutting down,

The standby or hibernation function is available ( “Standby/Hibernation Func-

tions”).

When you leave the computer or interrupt your work...

If you use the “Standby” or “Hibernation” function, then when you turn on the power

next time, the application software and files you were using before will be displayed, and

you can restart the same operations immediately ( “Standby/Hibernation Func-

tions”).

NOTE

1Save important data and close each application.

2Select [start] - [Turn Off Computer].

3Select [Turn Off].

Your computer will power off automatically.

Restarting your computer (without shutting down):

Select [Restart].

To shut down using the keyboard;

Press , U , and select [Turn Off] with U .

CAUTION

Do not do the following during the shutdown/restart procedure.

• Connecting or disconnecting the AC adaptor.

• Touching the power switch.

• Performing any keyboard, touch pad, touchscreen (only for models with touchscreen),

or external mouse operations.

• Closing the display.

4Close the display until the latch clicks into place.

Starting Up/Shutting Down

Operation

Function

Touch Pad (Basic Operation)

Use the touch pad to move the cursor on the screen and perform computer operations. For more

details, refer to “Touch Pad”.

By design the touch pad is to be used with a finger tip only. Do not place any object on the

work surface or press down forcefully with sharp-pointed objects (e.g., nails) or hard ob-

jects that can leave marks (e.g., pencils and ball point pens).

Try to avoid having any harmful substances such as oil, come in contact with the touch pad.

The cursor may not work properly in such cases.

When the touch pad becomes dirty:

Wipe to remove dirt by using a dry soft cloth such as gauze or a soft cloth first applied with

detergent diluted with water and then thoroughly wrung.

Do not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect the surface,

e.g., discoloration. In addition, do not use commercially-available household cleaners and

cosmetics, as they may contain components harmful to the surface.

Two quick taps, but on the

second tap leaving your

finger down (applying

pressure) and moving it on

the work surface.

While holding down

the button, moving

your finger on the

work surface.

Touch Pad Operation

Moving the Cursor

Tapping/Clicking

Double-Tapping/

Double-Clicking

Dragging

Move the tip of your finger lightly over

the work surface.

tapping clicking

double-clicking

Handling the Touch Pad

Left Button

Right Button

Work Surface

double-tapping

To right-click: click with the right button.

Operation

Reference Manual

Illustrations may be difficult to view depending on the magnification. If the illustration

is too small, magnify the display.

If a printer is connected, we recommend printing the pages required. Depending on the

printer, the illustrations and display samples may not be printed with a high quality.

NOTE

The Reference Manual and the Important Tips can be accessed on your computer. When a

printer is connected, these manuals can also be printed.

Reference Manual

The Reference Manual explains functions for you to make greater use of the computer, such

as how to add peripheral devices, how the Setup Utility works, and other useful information.

(Refer to the cover of this manual for a list of the main contents included.)

How to access the Reference Manual

Select [Reference Manual] in [start].

Important Tips

Important Tips provides information on how to maximize use of the battery pack, which is

necessary for computing away from your home or office.

It also offers helpful explanations on how to use the touchscreen more effectively.

How to access the Important Tips

Select on the desktop.

Important Tips can also be accessed from [start] - [All Programs] - [Panasonic] - [On-

Line Manuals] - [Important Tips].

When the Reference Manual or Important Tips is accessed for the first time, the License Agree-

ment of the Adobe Reader may be displayed. If it is displayed, after reading the agreement, select

[Accept] to access the Reference Manual or Important Tips.

Refer to Adobe Reader Help to use the Adobe Reader.

Reference Manual / Important Tips

Operation

Useful Information

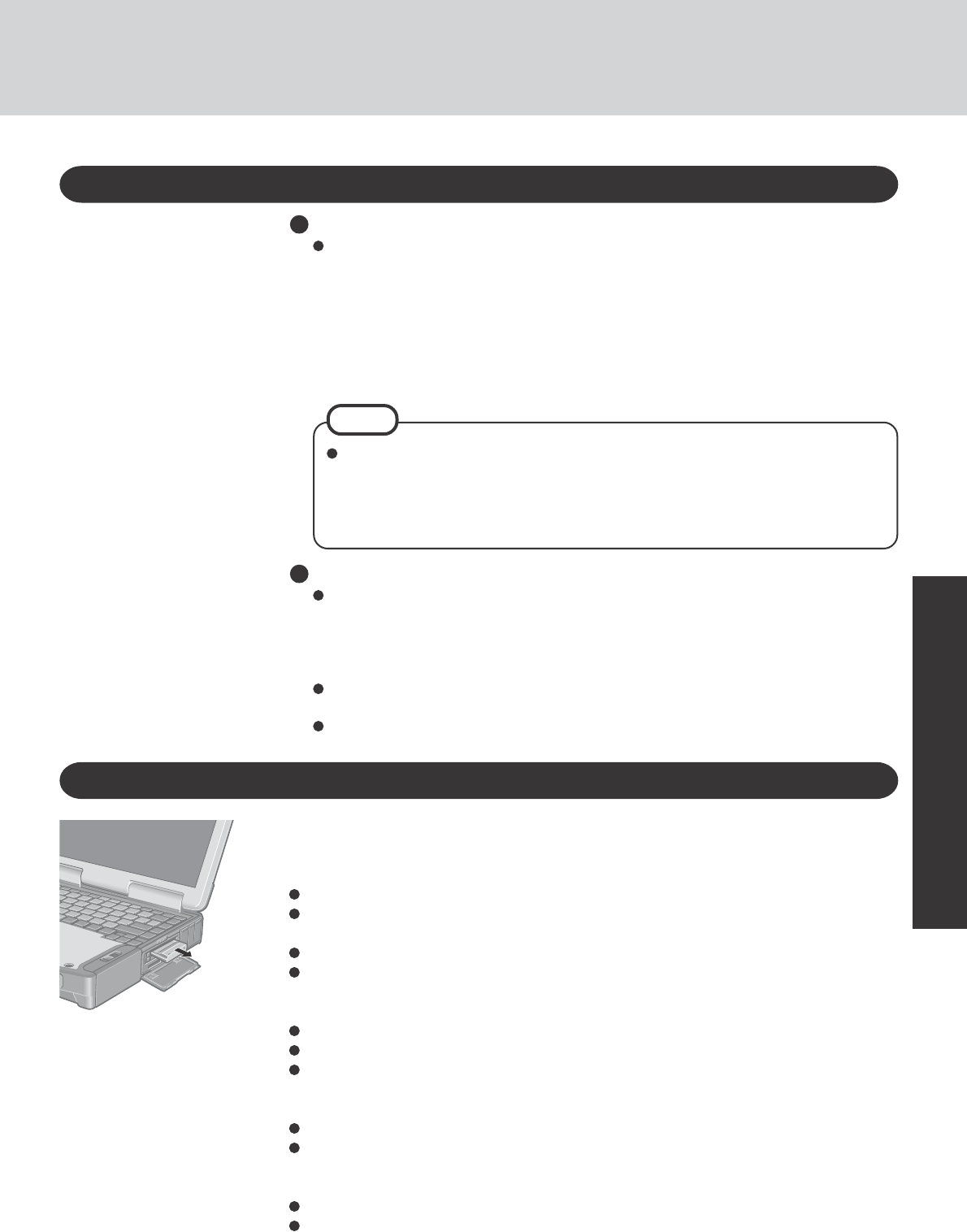

Environment

Operation: Temperature: 5 °C to 35 °C {41 °F to 95 °F}

Humidity : 30% to 80% RH (No condensation)

Storage: Temperature: -20 °C to 60 °C {-4 °F to 140 °F}

Humidity : 30% to 90% RH (No condensation)

Usage Environment

Handling

This computer has been designed so as to minimize shock to the LCD and hard disk drive, the

leakage of liquid (e.g., water) on to the keyboard, etc., but no warranty is provided against such

trouble. Therefore, as a precision instrument, be extremely careful when handling.

When carrying the computer, be sure to keep to the following:

Turn off the computer.

Remove all external devices, cables, PC Cards protruding from the computer (see figure on

the left) and SD Memory Cards before transporting the computer.

Do not drop or hit your computer against solid objects.

Do not place the computer upright or allow it to tip over. When the computer receives

extremely strong shock after falling, the hard disk or floppy disk drive, etc., may become

inoperable.

Do not carry the computer while the display is open, or carry it by gripping the display.

Do not put anything (e.g., a piece of paper) between the display and keyboard.

When taking an airplane, always carry your computer with you. Never check it in with

luggage. Before using the computer inside an airplane, we recommend asking the airlines

regarding their policy on this issue.

Do not leave a disk in the drive while transporting your computer.

When transporting a spare battery pack inside a package, briefcase, etc., it is recommended

that it be placed in a plastic bag in order to protect its contacts.

We recommend the following:

Preparing a fully charged battery pack (and optional charger, if possible).

Making backup copies on discs and carrying them with you.

NOTE

Only use the computer within the allowable temperature range.

When the computer is left powered on in a low temperature environment, set [Turn off

hard disks] to [Never] in the following menu to avoid damage to the hard disk drive.

[start] - [Control Panel] - [Performance and Maintenance] - [Power Options] - [Power

Schemes]

Places not to use your computer

Such areas may result in damage to the computer.

Areas with electronic equipment

These areas may interfere with your display or cause your computer to produce strange

sounds.

Areas with extremely high/low temperatures

Do not leave things near the computer that are sensitive to heat. During operation, the

computer may become warm.

Before putting the computer away, be sure to wipe off any moisture.

Even within the temperature and humidity ranges noted above, using the computer for

long periods of time in an environment with exceptionally low or high temperatures or

high humidity may result in deterioration of the product, which can lead to a reduction in

product life.

Operation

Useful Information

Maintenance

Do not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect the sur-

face, e.g., discoloration. In addition, do not use commercially-available household clean-

ers and cosmetics, as they may contain components harmful to the surface.

Do not directly add or spray water or detergent. If liquid enters the inside of the com-

puter, it may cause it to work improperly or be damaged.

Display (LCD)

Use the Soft Cloth included with the computer. (For more information, refer to “Suggestions

About Cleaning the LCD Surface” that come with the Soft Cloth.)

If the Protective Film becomes damaged, it may be time to replace your Protective Film. The

Protective Film is a disposable item. To find out the model number of your Protective Film,

contact Panasonic Technical Support. (For more information, refer to the “Operating Instruc-

tions” that come with the Protective Film.)

Avoid using water when cleaning the panel. Ingredients included in water may leave scratches

and reduce readability of the screen.

Avoid rubbing off dust/dirt with cloth since it may leave scratch on the screen.

Sweep dust/dirt with fine brush, then wipe it with a dry soft cloth used for cleaning glasses.

Apply camera lens cleaner on a soft gauze and clean it with gentle force. Then, wipe with a dry

soft cloth used for cleaning glasses.

CAUTION

Areas excluding the display

Wipe these areas with a soft cloth, after applying water or detergent diluted with water to the

soft cloth and firmly wringing out excess water.

Do not touch or use a touchscreen before you re-attach a Protective Film, as you may

leave a mark or a scratch on the touchscreen.

CAUTION

Security Center/Antivirus Protection

Use the Windows Security Center function to protect Windows from damage by computer

viruses, etc.

Windows Security Center

What is Windows Security Center?

The Windows Security Center allows centralized management of Windows security infor-

mation, and monitors antivirus measures and other Windows security settings to ensure

optimum safety.

Use the Windows Security Center function to protect your computer from damage by vi-

ruses, etc.

Select [start] - [Control Panel] - [Security Center] to display the current settings for the

following security functions.

• Windows Firewall

A security system for protecting the computer from unauthorized access via the Internet

or other external networks.

The firewall regulates the data exchanged between the computer and the external net-

work, so that only approved data can pass through.

At the time of purchase, the Windows Firewall is set to be enabled.

Operation

• Automatic Updates

If your computer is connected to the Internet, this function regularly checks whether secu-

rity updates and other important updates have been made available, and automatically

installs these updates in their latest conditions.

• Virus Protection

This function regularly checks whether antivirus software has been installed in the com-

puter, and whether the version of that software is the latest version available.

Read the message, select (red icon) on the taskbar, and make the appropriate settings.

This message, which the Windows Security Center ( page 22) displays to confirm the security-

related settings regularly, will be displayed until the settings are made more properly.

If the message “Your computer might be at risk” is displayed

NOTE

This message does not indicate an error. You can use the computer while the message is

displayed. However, in order to operate the computer more safely, we recommend mak-

ing the appropriate measures to reduce damage from virus and other attacks, thus avoid-

ing the appearance of this message.

Some network-related software and some online network games do not operate normally

if the Windows Firewall is enabled. Ask the software manufacturer about the Windows

Firewall in the case of using such software.

For further details on the Windows Firewall, see the help displayed by the following

methods:

1Select [start] - [Help and Support].

2Input [Windows Firewall] into [Search] and select .

3Select [Windows Firewall overview].

NOTE

The Pop-up Blocker

In Windows XP, security functions have been strengthened with regard to Web contents.

One of these is the “Pop-up Blocker,” which may prevent some Web pages from being displayed.

Users are advised to purchase the latest versions of virus protection software and use

them regularly.

We recommend you run the software:

• When booting your computer.

• After receiving data.

We recommend that you check data received on disks or from external sources, such as data

downloaded from the Internet, e-mail, etc. (For compressed files, uncompress them before

running a check).

For Data Execution Prevention (DEP), you can make one of the settings in the following menu.

[start] - [Control Panel] - [Performance and Maintenance] - [System] - [Advanced] - [Settings]

(in [Performance]) - [Data Execution Prevention].

For more information, refer to Windows help.

Computer Viruses

Windows Update

You can use the latest patches and service packs for Windows with the following menus.

Do not apply “Driver Updates” even if a message to update a driver appears. If a driver

update is required, contact to Panasonic Technical Support. ( page 44)

[start] - [All programs] - [Windows Update]

Operation

Useful Information

When Using Peripheral Devices

Pay strict attention to the following points to avoid damage to the computer, peripheral devices,

cables, etc. Also, in addition to following this manual and the Reference Manual, carefully read

the instruction manuals for the peripheral devices being used.

Use only peripheral devices that conform to the computer’s specifications.

Connect the devices properly, paying close attention to the condition and position of the

connectors.

If a connection cannot be made easily, do not apply undue force; check once more to confirm

the condition and position of the connector (alignment of pins, etc.) .

If the connector has holding screws, fasten the screws firmly.

Do not carry the computer with cables attached, and do not pull on the cables forcefully.

Do not power off your computer or press the floppy disk drive eject button while the

multimedia pocket device indicator is on.

Doing so may damage the data on the floppy disk and render the floppy disk useless.

Use care when handling floppy disks.

To protect the data on your floppy disks or to prevent a floppy disk from becoming stuck in

your computer, avoid the following:

• Sliding the shutter on the floppy disk manually.

• Exposing the floppy disk to a magnetic field.

• Storing the floppy disk in locations prone to high temperatures, low pitched noise, damp-

ness, or dust.

• Applying more than one label on the floppy disk.

Confirm the contents of a floppy disk before formatting it.

Confirm that no important data is on the floppy disk, because all data on the floppy disk will

be erased.

Use the write-protect tab.

This is a must for preserving important data. This prevents your data from being erased or overwrit-

ten.

Saving Data on Floppy Disks

Write Enable

Write Disable

Write-protect Tab

Saving Data on the Hard Disk

Do not expose your computer to shock.

Use care when handling your computer, shock may damage your hard disk or make your

software applications and data unusable.

Do not power off your computer while software applications are running or hard disk

drive indicator is on.

Properly shut Windows down to avoid problems.

Save all valuable data to disks.

Backing up data to disks will limit damage should trouble occur to your computer or should

you inadvertently change or erase data.

Use the security function for all important data. ( “Security Measures” and

“SD Memory Card Security Function”)

Hard Disk Lock

When the Hard Disk Lock is set to [Enable], it is impossible to read/write data from/to the

hard disk when the hard disk is installed in a different computer. When the hard disk is

returned to the original computer, you can read/write data as before. In this case, however,

make the settings in the Setup Utility exactly the same as they were before the hard disk was

removed. (Note that this Hard Disk Lock does not guarantee the complete protection of

data.) ( “Security Measures”)

Operation

When Disposing of or Transferring Ownership of This Device

When disposing of or transferring ownership of this device, erase all data on the hard disk in order

to prevent the theft of hard disk data. Even if you delete data or initialize the hard disk through

normal Windows commands, data can still be read using special software. In order to erase all

data, either have the data erased by a specialist (at a charge) or use the hard disk data erase utility

(included) ( page 40). (Note that this hard disk data erase utility does not guarantee that data

will be completely erased.)

Also, note that if you transfer ownership of this device without deleting commercial soft-

ware that you have installed to the hard disk, you may be in violation of the licensing

agreement for that software.

When Changing Hard Disk Partitions

When using the hard disk backup function, divide the hard disk into partitions when a backup

area is created. ( page 36) If you divide the hard disk into partitions before creating the

backup area, the backup area cannot be created.

To prevent theft of data or unauthorized access to the hard disk

via a wireless LAN

If you plan to use wireless LAN functions, we recommend that you do so only after making

the appropriate security settings, such as for data encryption.

Wireless LAN (only for models with wireless LAN)

Troubleshooting

List of Error Codes

When turning on the computer, if one of the following error codes or messages is displayed, follow the instructions shown below.

If the problem persists, or if the error code or message displayed is not shown here, contact Panasonic Technical Support. ( page 44)

Error Code/Message

0211: Keyboard error

0251: System CMOS checksum

bad - Default configuration used

0271: Check date and time set-

tings

0280: Previous boot incomplete

- Default configuration used

02B0: Diskette drive A error

0613: Serial Port*1 configura-

tion changed

0614: Serial Port*1 config. error

- device disabled

*1The port name, such as A or B, is

displayed, indicating the conflict-

ing ports.

Press <F2> to Setup

Operating System not found

Extended RAM Module Failed

Action

If an external keyboard or mouse is connected, disconnect these devices.

An error has occurred in the memory that stores the Setup Utility settings. This error occurs

when the memory content is changed through some inadvertent operation by a program or

other function.

Run the Setup Utility and load the default values, then change the settings to the appropri-

ate values as needed.

If the problem persists, the internal clock battery may need to be replaced. Contact Pana-

sonic Technical Support.

The date and time setting are incorrect.

Run the Setup Utility and set the date and time correctly.

If the problem persists, the internal clock battery may need to be replaced. Contact Pana-

sonic Technical Support.

Startup has failed repeatedly, so the Setup Utility settings have been returned to their default

values, and the computer has been booted.

Run the Setup Utility and load the default values, then change the settings to the appropri-

ate values as needed.

Disconnect the floppy disk drive and reconnect it. Make sure the drive is secured cor-

rectly.

I/O address and IRQ settings are in conflict.

Run the Setup Utility and change the settings in [Advanced] menu so there is no port

conflicts.

Write down the error details and press F2 to run the Setup Utility. Confirm the settings,

and change the settings to the appropriate values as needed.

The OS is not properly installed on the floppy disk or the hard disk that you are trying to boot

from.

If the computer cannot be booted from the floppy disk, check the floppy disk drive to

ensure that the disk is in fact bootable, and use another bootable disk if not.

If the computer cannot be booted from the hard disk, confirm whether the hard disk is

properly recognized in [Information] menu of the Setup Utility.

• If the hard disk is recognized, perform the reinstallation procedure.

• If not, contact Panasonic Technical Support.

If a device is connected to the USB port, disconnect the device, or run the Setup Utility

and set [Legacy USB Support] in [Advanced] menu to [Disable].

If the extended RAM module has not been inserted properly, or if an extended RAM

module other than one matching the specifications has been inserted, a beep will sound

and the message “Extended RAM Module Failed” will be displayed when turning the

power on. In this case, turn the power off, confirm that the extended RAM module meets

the specifications, and reinsert it.

To run the Setup Utility

1Restart the computer.

2Press F2 while [Panasonic] boot screen is displayed soon after the computer begins the startup procedure.

Troubleshooting

The power indicator is not

lit

The computer does not op-

erate when a USB device is

connected

[Enter Password] is dis-

played

POST Startup Error(s) is

displayed

Windows startup, or an op-

eration is extremely slow

The date and time are incor-

rect

When resuming from the

standby or hibernation

mode, [Enter Password]

does not appear even if a

password has been set in the

Setup Utility

When the administrator

password is forgotten

When “Remove disks or

other media. Press any key

to restart” (or a similar mes-

sage) is displayed

[Executing Battery

Recalibration] screen is dis-

played

When a problem occurs, refer to this page. The “Reference Manual” also contains detailed information. If a problem appears to be

related to a software application, read the software related manual. If you still cannot troubleshoot the problem, contact Panasonic

Technical Support. ( page 44) You can use the PC Information Viewer to check the computer’s usage status. (

“Dealing with Problems (Advanced)”)

Dealing with Problems (Summary)

Starting Up

Check the cable connection for the AC adaptor.

Check to see if a charged battery pack is properly installed.

Remove the battery pack and disconnect the AC adaptor, then connect them again.

The computer may not operate when certain USB devices are connected. Disconnect the

USB device, or set [Legacy USB Support] to [Disable] in [Advanced] menu of the Setup

Utility.

Input your Supervisor Password or User Password. If you have forgotten it, contact Pana-

sonic Technical Support.

page 26

Press F9 in the Setup Utility ( “Setup Utility”). This will restore the Setup

Utility’s settings to their default values (except the password settings). Then, the Setup

Utility must be run once again for you to input the appropriate operating environment

settings. (The processing speed depends on the application software used, so this opera-

tion may not cause the processing speed to increase.)

If you install resident software after purchasing this computer, disable the resident software.

When Indexing Service is enabled, Windows operation becomes slower.

Disable Indexing Service in the following menu.

[start] - [Search] - [Change preferences] - [Without Indexing Service]

You can set the date and time using the following menu.

[start] - [Control Panel] - [Date, Time, Language, and Regional Options] - [Date and Time]

When the computer is connected to a LAN, confirm the date and time of the server.

If you continue to experience problems, the internal battery maintaining the clock may

need to be replaced. Contact Panasonic Technical Support.

This computer will not correctly recognize the date and time starting from the year 2100

A.D.

Even when a password has been set in [Security] menu of the Setup Utility, [Enter Pass-

word] does not appear when the computer resumes from the standby or hibernation mode.

If you want to use the security function when using the standby or hibernation mode, use

the Windows password as follows:

1Select [start] - [Control Panel] - [User Accounts], and select the account for which the

password will be set.

2Select [Create a password], input the password, and then [Create Password].

3Add the check mark for [Prompt for password when computer resumes from standby]

in [Control Panel] - [Performance and Maintenance] - [Power Options] - [Advanced].

If you have created a password reset disk ( page 15), a message is displayed when you

fail to correctly enter the password. Follow the message’s instructions and set the pass-

word again by using the password reset disk.

If you have not created a password reset disk, after reinstalling, setup Windows and then

set the password again.

This means a floppy disk that does not contain system startup information has been left in

the floppy disk drive. Remove the floppy disk, and press any key.

This message may appear when certain USB devices are connected. Remove the USB de-

vice, or set [Legacy USB Support] in [Advanced] menu of the Setup Utility to [Disable].

If the message still appears even after trying the above two measures, this may be an indica-

tion that some type of hard disk failure has occurred. Contact Panasonic Technical Support.

When Windows is shut down during the Battery Recalibration procedure, if you select

[Cancel] in the [End Program] screen, Windows shutdown is aborted. In this case, Battery

Recalibration will begin the next time the computer is started. To start up Windows, turn

off the computer by sliding the power switch, and then turn it back on again.

Troubleshooting

Dealing with Problems (Summary)

When the previous item is

not the cause

Starting Up (continued)

Press F9 in the Setup Utility ( “Setup Utility”). This will restore the Setup

Utility’s settings to their default values (except the password settings).

Try removing all peripheral devices.

Check a disk error using the following procedure.

1Select [start] - [My Computer], right-click [Local Disk(C:)], and then select [Proper-

ties].

2Select [Tools] - [Check Now].

3Select [Start] after selecting required items in [Check disk options].

At startup, hold down F8 when [Panasonic] boot screen disappears*1, and release your

finger when the Windows Advanced Options Menu is displayed. Start the computer in

Safe Mode, and confirm the details of the error.

*1When [Password on boot] is set to [Enable], [Enter Password] appears after the [Panasonic] boot

screen disappears. Hold down F8 soon after inputting the password and pressing Enter .

On the [Enter Password]

screen, a beep sounds and the

password cannot be entered

Even after entering the pass-

word, [Type your password]

is displayed again

Entering Password

The computer may be in ten-key mode.

If the NumLk indicator lights, press NumLk to disable the ten-key mode, and then

input.

The computer may be in ten-key mode.

If the NumLk indicator lights, press NumLk to disable the ten-key mode, and then

input.

The computer may be in Caps Lock mode.

If the Caps Lock indicator lights, press Caps Lock to disable the Caps Lock mode,

and then input.

No display after powering on

The power has not been

turned off, but after a cer-

tain period of time, there is

no display

When the battery pack is

used, the screen is darker

than when the AC adaptor

is connected

The LCD brightness changes

a number of times when the

AC adaptor is disconnected

Image colors are not repro-

duced as expected when dis-

playing photographs or

other images

When there is no display to an external display,

• Check your cable connection to the external display.

• Confirm your display is powered on.

• Check the settings for your external display.

The display destination may be set to the external display.

Try changing the display destination by pressing Fn + F3 .

If you want to switch the display destination repeatedly by pressing Fn + F3 , make

sure that the display destination has switched completely each time before pressing

Fn + F3 again.

Press Fn + F2 and adjust the LCD brightness.

Has the computer been set to the power-saving mode?

To resume operation of your computer from the condition the power of the display is off

(for energy conservation purposes), press any key unrelated to the direct triggering of a

selection, like Ctrl .

To save power, your computer may have automatically entered the standby mode (power

indicator blinks green) or hibernation mode (power indicator turns off). In such cases,

slide the power switch.

Press Fn + F2 and adjust the LCD brightness. Note, however, that when the LCD

brightness is increased, the battery running time will become shorter.

The LCD brightness can be set to separate levels for when the AC adaptor is connected

and when it is disconnected.

Intel(R) Display Power Saving Technology ( “Computing on the Road”) is

active and automatically changes the LCD brightness.

We recommend removing the check mark from [Intel(R) Display Power Saving Technol-

ogy]. ( “Computing on the Road”)

Display

Troubleshooting

An afterimage appears (e.g.,

green, red, and blue dots re-

main on the display) or there

are dots not displaying the

correct colors

The screen becomes disor-

dered

The external display no

longer displays properly

When you want to display

the fonts or icons at a larger

size

During simultaneous dis-

play, one of the screens be-

comes disordered

When a video such as an

MPEG file is being played

with Media Player, the dis-

play destination cannot be

switched using Fn + F3

When the screen saver is set,

an error occurs during a re-

sume operation

If an image is displayed for a prolonged period of time, an afterimage may appear. This is

not a malfunction. The afterimage will disappear when a different screen is displayed.

High-precision and advanced technologies are necessary in the production of color liquid

crystal displays (color LCDs). Therefore, if 0.002% or less of the picture elements either

fail to light or remain constantly lit (that is, more than 99.998% of elements are function-

ing properly), no defect is considered to exist.

The screen display may become distorted if the resolution or number of colors is changed,

or if an external display is connected or disconnected while the computer is operating.

Restart the computer.

When an external display not compatible with the power saving mode is used with the

computer, the display may not function correctly when the computer enters the power

saving mode. In such cases, turn off the power to the external display.

Change the size of the icons, etc. using “Icon Enlarger” ( “Icon Enlarger”).

To enlarge a part of the screen, use Loupe Utility ( “Loupe Utility”).

Try changing the display by pressing Fn + F3 .

If you continue to experience problems, try changing the display destination in the follow-

ing menu.

[start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) GMA Driver for Mo-

bile] - [Devices]

When the [Command Prompt] is set to “Full Screen” by pressing Alt + Enter , the

picture is displayed on one of the screens only. When the window display is restored by

pressing Alt + Enter , the picture is displayed on both screens.

The display destination cannot be switched while a video such as an MPEG file is playing.

Stop playing the moving picture before switching the display destination.

When the computer automatically enters the standby or hibernation mode while the screen

saver is running, an error may occur during a resume operation. In such cases, turn off the

screen saver or try changing the pattern of the screensaver.

Display (continued)

Windows cannot be shut

down or restarted

Shutting Down

If a USB device is connected, try removing it.

It may take one or two minutes to shut down.

Battery Indicator

The red indicator lights

The red indicator blinks

The green indicator blinks*1

The battery level is very low (the charge is approx. 9% or less).

Connect the AC adaptor. You can use the computer when the battery indicator light is

orange. If you do not have an AC adaptor, save your data and power off your computer.

After replacing the battery pack with a fully charged one, turn your computer on.

Quickly save your data and power off your computer. Remove the battery pack and dis-

connect the AC adaptor, then connect them again.

If the problem persists, contact Panasonic Technical Support. The battery pack or charg-

ing circuit may be defective.

In high temperature mode, the battery is discharging to the level that corresponds to an

80%*2 charge for normal temperature mode. ( “Battery Power”) Do not re-

move the battery pack while the battery indicator is blinking green. If you remove it, the

power will be turned off forcibly.

*1Only for the main battery pack.

*2In high temperature mode, the level that corresponds to an 80% charge for normal temperature

mode is displayed as [100%].

Troubleshooting

Dealing with Problems (Summary)

Battery Indicator (continued)

The battery indicator blinks

green and orange alternately

The orange indicator blinks

Warming up the system to prevent hard disk drive malfunctions at low temperature. Leave

your computer as is. Once the allowable temperature range requirement is satisfied, your

computer will start automatically.

Battery cannot be recharged temporarily because the internal temperature of the battery

pack is outside of the acceptable temperature range for recharging. Once the allowable

range requirement is satisfied, charging begins automatically. Your computer can be used

normally in this state.

Touch Pad / Touchscreen (only for models with touchscreen)

If you are using an external mouse, ensure that the external mouse has been connected

correctly.

Restart the computer by using the keyboard (Press , U , and select [Restart] with

R ).

If the computer does not respond to keyboard commands, read “No response”

( page 31).

Has the Setup Utility been used to set [Touch Pad] to [Enable]?

When external mouse drivers are installed (e.g., Intellimouse), the touch pad may not be

used.

Has the touch pad driver been properly installed?

As a result of the physical characteristics of the touchscreen, sometimes the position of the

stylus does not match the position of the cursor on the screen. This is not a malfunction.

Perform [Calibration] ( page 14).

Has the Setup Utility been used to set [Touchscreen] to [Enable]?

When mouse drivers are installed (i.e. IntelliMouse), the touchscreen is unable to be used.

Reinstall the touchscreen driver.

Has the touchscreen driver been properly installed?

The cursor cannot be con-

trolled properly

Unable to input using the

touch pad

Unable to point correctly

with the stylus included with

the computer

Unable to input by touching

the display

The Reference Manual is

not displayed

Is Adobe Reader installed?

If you have uninstalled Adobe Reader, install using the following procedures.

1Select [start] - [Run], input [c:\util\reader\AdbeRdr70_enu_full.exe], then select [OK].

Install Adobe Reader by following the instructions on the screen.

Reference Manual

SD Memory Card

Cannot log on with the SD

Memory Card

Windows logon user name and password are not set in the SD Memory Card correctly.

Enter the Windows user name and password without using the SD Memory Card.

After logging on, set the same user name and the password on the SD Memory Card and

Windows, using the following operation.

• Change the setting of the SD Memory Card by [SD Card Setup]. ( “SD

Memory Card Security Function”)

Troubleshooting

Others

Press Ctrl + Shift + Esc to open Task Manager and close the software application

which is not responding.

Is there an input screen hidden behind another window? Use Alt + Tab to check for

other windows being displayed.

After shutting down by sliding the power switch for more than four seconds, slide the

power switch to power on and open the application again.

If the program no longer works normally, delete the program using the following menu.

Then reinstall the program.

[start] - [Control Panel] - [Add or Remove Programs]

No response

Some applications may not

work properly

When switching to a different user with the Fast User Switching function, the following

problems may occur.

• Some applications may not work properly.

•Key combinations with Fn may not work.

• It may not be possible to set the settings of the display.

• A serial mouse may not work.

• <Only for models with wireless LAN>

Wireless LAN may not work.

In this case, log off all users without using Fast User Switching function, and try the

operation once more. If the problem persists, restart the computer.

Fast User Switching function

Troubleshooting

9Make a selection from the menu.

When [2] is selected, the hard disk backup function

cannot be enabled. When using the hard disk backup

function, select [1] to reinstall Windows to the hard

disk, and then divide the hard disk into partitions

when a backup area is created ( page 36).

NOTE

Reinstalling Software

Before Reinstallation

Preparing

• Product Recovery CD-ROM (included)

• Panasonic CD/DVD drive for the multimedia pocket (optional: Confirm the latest information on optional products in

catalogs, etc.)

Reinstalling

Important

Before the reinstallation procedure, remove all peripherals (except for the CD/DVD drive).

Be sure the AC adaptor is connected until the reinstallation procedure is completed.

When reinstallation procedure is performed, the contents of the hard disk will be erased. Be sure to back up any critical data on

your hard disk to another media or to an external hard disk before running the reinstallation procedure.

The reinstallation procedure will return the computer to its original condition.

Even if a hard disk backup area has been created, this backup area will be erased, and all the backed up data will be lost.

(This is not the case when Windows is reinstalled in the first partition.)

• If you have created partitions for data, the data may be erased or become corrupt as a result of the reinstallation procedure.

1Turn off the computer and insert the CD/DVD drive into

the multimedia pocket. ( “Multimedia Pocket”)

2Turn on the computer, and press F2 while [Panasonic]

boot screen is displayed.

The Setup Utility will start up.

If the password has been set, enter the Supervisor Pass-

word.

3Write down all of the contents of the Setup Utility and

then press F9 .

At the confirmation message, select [Yes] and press

Enter .

4Select [Boot] menu, then select [IDE MP: xxxxxxxxxx]

and press F6 until [IDE MP: xxxxxxxxxx] is at the top

of the [Boot] menu.

5Place the disc number one of the recovery CDs into the

CD/DVD drive.

6Press F10 .

At the confirmation message, select [Yes] and press

Enter .

The computer will restart, and this screen should appear.

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

Reinstalling : Windows(R) XP Professional

1. Reinstall Windows to the whole HDD to factory default.

2. Make two partitions, for the operating system and data. And reinstall

Windows to the operating system partition.

(All existing partitions on HDD will be lost.)

3. Reinstall Windows to the first partition.

0. Cancel

---------------------------------------------------------------------

8Press 1 to select [1. Yes, I agree to the provisions above

and wish to continue!].

This screen should appear.

When the following message appears, press Y .

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. [ Recovery ] Reinstall Windows.

2. [ Erase HDD ] Erase the whole data on HDD for security.

3. [ Backup ] Enable the Backup function.*1

0. [ Cancel ] Cancel.

---------------------------------------------------------------------

7Press 1 to execute [1.[Recovery]].

(You can cancel this operation by pressing 0 .)

The License Agreement screen should appear.

---------------------------------------------------------------------

Reinstalling : Windows(R) XP Professional

The Backup function has been enabled.

If [ Recovery ] or [ Erase HDD] is executed, the Backup function will be

disabled, and your Backup data will be lost.

(If Windows is reinstalled to the first partition, Backup data will not be

lost.)

Will you continue?

---------------------------------------------------------------------

When selecting [2], enter the basic partition size for

the operating system installation and press

Enter .

(The data partition size is the remainder after subtract-

ing the basic partition size.)

To select [3], the initial partition size must be 6 GB or

more of the hard disk size. Reinstallation cannot be per-

formed with a small partition size.

*1This is not displayed when the hard disk backup function

has been enabled.

Troubleshooting

If you select [1] or [2], the following message appears. In

this case, press Y .

If the following message appears, press R .

---------------------------------------------------------------------

The Backup function has been enabled.

If [Recovery] is executed, the Backup function will be disabled, and your

Backup data will be lost.

Will you continue?

---------------------------------------------------------------------

Computer must be rebooted in order to execute [Recovery].

Please reboot with Product Recovery CD-ROM set in the appropriate drive.

After rebooting, execute [Recovery] following the on screen instructions.

---------------------------------------------------------------------

Do not interrupt the reinstallation procedure be-

fore completion, for example by turning off the

computer or pressing Ctrl + Alt + Del , as

this may prevent Windows from starting up, or may

cause data to be lost so that the reinstallation pro-

cedure cannot be executed.

When a message appears instructing you to insert

the next CD, insert the recovery CD showing the

next number in the sequence, and then select [OK].

If the message [The media does not contain the cor-

rect file] appears, select [OK]. A message will ap-

pear instructing you to insert the next CD.

Confirm that the proper recovery CD has been in-

serted, then select [OK].

CAUTION

10 At the confirmation message, press Y .

The operation of reinstallation for the hard disk starts au-

tomatically. (The operations take about 20 minutes.)

If additional instructions are included with the computer,

be sure to read them. It may be necessary to perform

additional operations during the following procedures.

NOTE

After the reinstallation procedure completes, this screen

should appear.

----------------------------------------------------------------

[Recovery] is complete.

Windows(R) XP Professional install wizard will start after reboot.

Please remove the Product Recovery CD-ROM, and turn off the computer.

If the reinstall process is interrupted before completion,

please execute [Recovery] again.

----------------------------------------------------------------

17 Perform the first-time use operation ( page 12 step 6

- page 14 step 8).

18 Run the Setup Utility and change the settings where nec-

essary.

11 Remove the recovery CD, and then press any key.

The computer will be shut down.

12 Remove the CD/DVD Drive.

13 Turn on the computer, and press F2 while [Panasonic]

boot screen is displayed.

The Setup Utility will start up.

If the password has been set, enter the Supervisor Pass-

word.

14 Press F9 .

At the confirmation message, select [Yes] and press

Enter . (The Setup Utility settings will return to their

default values. Even the security settings with the excep-

tion of the password(s) will return to their default val-

ues.)

You can change the drive letter for the CD/DVD drive or hard

disk drive by the following steps.

Drive letters can only be changed when two or more parti-

tions have been created on the hard disk drive. The drive

letter of the C drive cannot be changed.

We recommend that you make these changes before in-

stalling applications.

1Select [start] - [Control Panel] - [Performance and Mainte-

nance] - [Administrative Tools] - [Computer Management].

2Select [Disk Management] from [Storage].

3Right click on the partition of the hard disk or the name of

the CD/DVD drive and select [Change Drive Letter and

Paths...].

4Select [Change].

5Select [Assign the following drive letter] and select the new

drive letter, and then select [OK].

6At the confirmation message, select [Yes].

15 Select [Exit] and then select [Save Current Values], then

press Enter .

At the confirmation message, select [Yes] and press

Enter .

16 Turn the computer off by sliding the power switch.

Appendix

LIMITED USE LICENSE AGREEMENT

THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC® PRODUCT (“PRODUCT”)

ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH

THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY DEEMED

TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.

Matsushita Electric Industrial Co., Ltd. (“MEI”) has developed or otherwise obtained the Programs and hereby licenses

their use to you. You assume sole responsibility for the selection of the Product (including the associated Programs) to

achieve your intended results, and for the installation, use and results obtained therefrom.

LICENSE

A. MEI hereby grants you a personal, non-transferable and non-exclusive right and license to use the Programs in

accordance with the terms and conditions stated in this Agreement. You acknowledge that you are receiving only

a LIMITED LICENSE TO USE the Programs and related documentation and that you shall obtain no title, owner-

ship nor any other rights in or to the Programs and related documentation nor in or to the algorithms, concepts,

designs and ideas represented by or incorporated in the Programs and related documentation, all of which title,

ownership and rights shall remain with MEI or its suppliers.

B. You may use the Programs only on the single Product which was accompanied by the Programs.

C. You and your employees and agents are required to protect the confidentiality of the Programs. You may not

distribute or otherwise make the Programs or related documentation available to any third party, by time-sharing

or otherwise, without the prior written consent of MEI.

D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documentation for

any purpose, except that you may make one (1) copy of the Programs for backup purposes only in support of your

use of the Programs on the single Product which was accompanied by the Programs. You shall not modify, or

attempt to modify, the Programs.

E. You may transfer the Programs and license them to another party only in connection with your transfer of the

single Product which was accompanied by the Programs to such other party. At the time of such a transfer, you

must also transfer all copies, whether in printed or machine readable form, of every Program, and the related

documentation, to the same party or destroy any such copies not so transferred.

F. You may not remove any copyright, trademark or other notice or product identification from the Programs and you

must reproduce and include any such notice or product identification on any copy of any Program.

YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANICALLY OR ELECTRONICALLY TRACE

THE PROGRAMS, OR ANY COPY THEREOF, IN WHOLE OR IN PART.

YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PROGRAMS OR ANY COPY THEREOF, IN

WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THE LICENSE.

IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO ANOTHER PARTY, EXCEPT AS PERMIT-

TED IN PARAGRAPH E ABOVE, YOUR LICENSE IS AUTOMATICALLY TERMINATED.

TERM

This license is effective only for so long as you own or lease the Product, unless earlier terminated. You may terminate

this license at any time by destroying, at your expense, the Programs and related documentation together with all copies

thereof in any form. This license will also terminate effective immediately upon occurrence of the conditions therefor set

forth elsewhere in this Agreement, or if you fail to comply with any term or condition contained herein. Upon any such

termination, you agree to destroy, at your expense, the Programs and related documentation together with all copies

thereof in any form.

YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE BOUND

BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE STATE-

MENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT,

ORAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN US, RELATING TO THE SUBJECT MAT-

TER OF THIS AGREEMENT.

About Intel® software products

The enclosed software products and documentation were developed at private expense, and are provided with “RESTRICTED

RIGHTS.” Use, duplication or disclosure by the government is subject to restrictions as set forth in FAR 52.227-14 and DFARS

252.227-7013 et. seq. or its successor. The use of this product by the government constitutes acknowledgment of Intel's propri-

etary rights in the product.

Appendix

Contrat de licence d’usage limité

Le(s) logiciel(s) (les “Logiciels”) fournis avec ce produit Panasonic® (le “Produit”) sont exclusivement concédés en li-

cence à l’utilisateur ultime (“vous”), et ils ne peuvent être utilisés que conformément aux clauses contractuelles ci-

dessous. En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et conditions

des présentes.

Matsushita Electric Industrial Co., Ltd. (“MEI”) a mis au point ou obtenu les Logiciels et vous en concède l’utilisation par

les présentes. Vous assumez l’entière responsabilité du choix de ce Produit (y compris des Logiciels associés) pour

obtenir les résultats escomptés, ainsi que de l’installation, de l’utilisation et des résultats obtenus.

Licence

A. MEI vous octroie par les présentes le droit et la licence personnels, non cessibles et non exclusifs d’utiliser les

Logiciels conformément aux termes, clauses et conditions de ce contrat. Vous reconnaissez ne recevoir qu’un

droit limité d’utiliser les Logiciels et la documentation les accompagnant et vous vous engagez à n’obtenir aucun

droit de titre, propriété ni aucun autre droit vis-à-vis des Logiciels et de la documentation les accompagnant ni vis-

à-vis des algorithmes, concepts, dessins, configurations et idées représentés par ou incorporés dans les Logiciels

et la documentation les accompagnant, dont les titres, la propriété et les droits resteront tous à MEI ou à leurs

propriétaires.

B. Vous ne pouvez utiliser les Logiciels que sur le Produit unique qui est accompagné par les Logiciels.

C. Vous et vos employés ou agents êtes requis de protéger la confidentialité des Logiciels. Vous ne pouvez ni

distribuer ni mettre les Logiciels et la documentation les accompagnant à la disposition d’un tiers, par partage de

temps ou de quelque autre manière que ce soit, sans l’autorisation écrite préalable de MEI.

D. Vous ne pouvez ni copier ni reproduire ni permettre la copie ni la reproduction des Logiciels ni de la documenta-

tion les accompagnant pour quelque fin que ce soit, à l’exception d’une (1) copie des Logiciels à des fins de

sauvegarde uniquement pour soutenir votre utilisation des Logiciels sur le Produit unique qui est accompagné par

les Logiciels. Vous ne pouvez ni modifier ni tenter de modifier les Logiciels.

E. Vous ne pouvez céder les Logiciels et en octroyer la licence à une autre partie qu’en rapport avec votre cession

du Produit unique qui est accompagné par les Logiciels à cette autre partie. Au moment de cette cession, vous

devez céder également toutes les copies, que ce soit sous forme imprimée ou lisible par la machine, de tous les

Logiciels ainsi que de la documentation les accompagnant, à la même partie ou détruire les copies non cédées.

F. Vous ne pouvez retirer aucune marque de droits d’auteur, marque de commerce ou autre ni aucune identification

de produit des Logiciels et vous devez reproduire et inclure toutes ces notices ou identifications de produit sur

toutes les copies des Logiciels.

Vous ne pouvez assembler en sens inverse, compiler en sens inverse ni retracer les Logiciels ni aucune de leurs copies,

de façon électronique ou mécanique, en tout ou en partie.

Vous ne pouvez utiliser, copier, modifier, altérer ni céder les Logiciels ni aucune de leurs copies, en tout ou en partie, à

l’exception de ce qui est expressément stipulé dans ce contrat.

Si vous cédez la possession de toute copie ou de tout Logiciel à une autre partie, à l’exception de ce qui est autorisé au

paragraphe E ci-dessus, votre licence est automatiquement résiliée.

Termes, clauses et conditions

Cette licence n’est effective que pour la durée de possession ou de crédit-bail du Produit, à moins d’une résiliation

antérieure. Vous pouvez résilier cette licence à tout moment en détruisant, à vos frais, les Logiciels et la documentation

les accompagnant avec toutes leurs copies, sous quelque forme que ce soit. Cette licence sera également résiliée, avec

application immédiate, si les conditions de résiliation définies ailleurs dans ce contrat se sont réalisées ou si vous ne

respectez pas les termes, clauses et conditions qui y sont contenues. Au moment de la résiliation, vous acceptez de

détruire, à vos frais, les Logiciels et la documentation les accompagnant avec toutes leurs copies, sous quelque forme

que ce soit.

Vous reconnaissez avoir lu ce contrat, en avoir compris toute la substance et avoir accepté de respecter ses termes,

clauses et conditions. Vous reconnaissez en outre qu’ils sont la description complète et exclusive du contrat conclu entre

nous, contrat qui remplace et annule toute proposition ou contrat précédent, écrit ou oral, et toute autre communication

entre nous, relativement à l’objet du présent contrat.

Appendix

Hard Disk Backup Function

The hard disk backup function creates a backup area (storage area) on the hard disk. This area is to back up (store) hard disk

contents or restore backed up contents to their original locations.

By backing up the data on your hard disk to a backup area, you can protect your data from loss or damage resulting from operational

errors or other factors. Also, you can back up or restore hard disk contents using this computer alone, without having to use other

media or peripheral devices.

At the time of purchase, the hard disk backup function is disabled. If you follow the procedure below to create a backup area, the

hard disk backup function will be enabled, and you will be able to back up your data. Note, that once the backup function has been

enabled, you will have to perform the reinstallation procedure to disable it again ( page 32).

Disconnect or remove all peripheral devices (except for the CD/DVD drive) and SD Memory

Cards, as the backup area may not be created properly while these devices are connected.

Be sure the AC adaptor is connected to the computer.

A backup area cannot be created if the hard disk is already divided into several partitions. Return

the computer to its condition at the time of purchase (one partition only), and create the backup

area.

To divide the partition, make the selection when the backup area is created ( page 37 step 8).

If the partition configuration is changed (partitions created, size changed, etc.) after the backup

area has been created, it will no longer be possible to execute the backup function. To change the

configuration, it is necessary to return the computer to its condition at the time of purchase, and

then create the backup area again.

The hard disk backup function will only work for the internal hard disk. This function does not

work with an external hard disk.

Backup and restore functions will not operate if the hard disk has been damaged.

Do not use the NTFS file system compression function, as this may result in insufficient capacity

of the backup area.

If the hard disk malfunctions, it will be impossible to read the data stored on it. We recommend

that you also back up important data to a location other than the hard disk (an external hard disk

or other media).

Execute a disk error check using the following procedure.

1Select [start] - [My Computer], right-click [Local Disk(C:)], and then select [Properties].

2Select [Check Now] from [Tools].

3In [Check Disk], select [Start] without adding a check mark beside any of the items.

If a message is displayed indicating that there is an error in the disk, display [Check Disk], and

add a check mark for [Automatically fix file system errors] and [Scan for and attempt recovery

of bad sectors], select [Start], and check for disk errors again.

The hard disk backup function does not accommodate dynamic disks. Do not convert the hard

disk to a dynamic disk.

The hard disk backup function cannot back up or restore data properly if there is a problem with the hard disk when the data is

backed up or restored. Note that if an error occurs while data is being restored, whether as a result of an unexpected malfunction,

incorrect operation, or other reason, the data in the hard disk (data before restoration) may be lost.

Matsushita Electric Industrial Co., Ltd. will bear no responsibility for any damages suffered by the user (including loss of data)

as a result of the use of this function.

Before Using a Hard Disk Backup Function

Preparing

Product Recovery CD-ROM (included)

Panasonic CD/DVD drive for the multimedia pocket (optional: Confirm the latest information on

optional products in catalogs, etc.)

Appendix

1Turn off the computer and insert the CD/DVD drive into the multimedia pocket. (

“Multimedia Pocket”)

2Turn on the computer, and press F2 while [Panasonic] boot screen is displayed.

The Setup Utility will start up.

If a password has been set, enter the Supervisor Password. You cannot register [Boot] menu

with a User Password.

3Select [Boot] menu, then select [IDE MP: xxxxxxxxxx] and press F6 until [IDE MP:

xxxxxxxxxx] is at the top of the [Boot] menu.

4Place the disk number one of the recovery CDs into the CD/DVD drive.

5Press F10 .

At the confirmation message, select [Yes] and press Enter .

The computer will restart. If [Enter Password] is displayed during the following procedures,

input the Supervisor Password or the User Password.

This screen should appear.

6Press 3 to execute [3.Backup].

Regarding backup area

• Requires availability of at least half of the entire hard disk. Without sufficient space

available, the backup area cannot be created.

• When the backup area is created, the usable hard disk capacity will be reduced to less

than half.

• The backup area cannot be accessed from Windows. For this reason, backed up data

cannot be copied to CD-R or other removable disk media.

• When the hard disk backup function is executed, data in the backup area will be over-

written. If newly created or edited data is backed up later, data stored previously

in the backup area will be lost.

NOTE

Create a Backup Area

When dividing the hard disk into partitions

Do not execute [1. Recovery] to divide the hard disk into partitions. The hard disk backup

function cannot be enabled after the hard disk has been partitioned. Use procedure 8 to

divide the hard disk.

CAUTION

The usable hard disk area

[At the time of purchase] [After the backup area is created]

The backup area

Cannot be accessed

from Windows.

Can be accessed from

Windows (One partition).

7At the confirmation message, press Y .

8Select how to divide the hard disk from the menu.

Select [1].

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. [ Recovery ] Reinstall Windows.

2. [ Erase HDD ] Erase the whole data on HDD for security.

3. [ Backup ] Enable the Backup function.

0. [ Cancel ] Cancel.

---------------------------------------------------------------------

Appendix

Hard Disk Backup Function

9At the confirmation message, press Y .

The backup area is then created.

10 When the message [You must reboot in order to enable the Backup function] appears, remove

the recovery CD, and press any key to restart the computer. The computer is restarted, then the

backup process will begin.

11 When the message [[Backup] is complete] appears, press Ctrl + Alt + Del to restart the

computer.

Do not press Ctrl + Alt + Del until the message is displayed.

CAUTION

The [Boot] menu in the Setup Utility is set to start up from the CD/DVD drive. Change this

setting if necessary.

The next time the backup or restore functions are executed, follow the procedure for “Backing

Up and Restoring Data” ( below).

NOTE

1Turn the computer on, and press F2 while [Panasonic] boot screen is displayed.

The Setup Utility will start up.

If a password has been set, enter the Supervisor Password or the User Password.

2Select [Exit] menu, then select [Hard Disk Backup / Restore] and press Enter .

At the confirmation message, select [Yes] and press Enter .

Backing Up and Restoring Data

Before executing the backup function, execute a disk error check ( page 36).

Do not interrupt the backup or restore functions before completion, for example by turning

off the power or pressing Ctrl + Alt + Del , as this may prevent Windows from

starting up, or may cause data to be lost so that the backup and restore functions cannot be

executed.

CAUTION

12 After logging on to Windows, a message will appear advising that a new device has been in-

stalled and that the computer must be restarted to enable the settings. Select [Yes] to restart the

computer.

Select [2], enter the partition size (GB), and press Enter .

• You can cancel this operation by pressing 0 .

• The data partition size will be the maximum settable size less the number entered above.

The maximum settable size will differ depending on models.

The usable hard disk area

[At the time of purchase] [After the backup area is created]

The backup area

Cannot be accessed

from Windows.

Can be accessed from

Windows (Two partitions).

Appendix

To disable the hard disk backup function

Perform the reinstallation procedure. All data in the backup area and the hard disk will be

erased.

Conduct steps 1-8 for “Reinstalling Software” ( page 32). Select [1] or [2] to execute the

reinstallation at the screen for executing the reinstallation.

• When [1] is selected, the hard disk backup function will be disabled.

• When [2] is selected, the hard disk backup function will be disabled, but in this case, because

the hard disk has been divided into partitions, the hard disk backup function cannot be

re-enabled ( page 25).

CAUTION

When the hard disk backup function has been enabled, the backed up data will not be erased

even if a commercial data erasing utility or similar software is used to erase all data from user-

accessible area. To erase all data on the hard disk, including backed up data, use a commercial

data erasing utility after disabling the hard disk backup function following the procedure be-

low, or use the hard disk data erase utility included in this computer ( page 40).

Occasionally, the message [#1805 cannot write image file] will be displayed, and the backup

function will be interrupted. If this error occurs, execute the backup function again. After

this, if the backup function is completed properly, then there is no problem in the hard disk.

4When the message [[Backup] is complete] or [[Restore] is complete] is displayed, press

Ctrl

+ Alt + Del to restart the computer.

• If the backup or restore process was interrupted before completion, for example if the power

was turned off, execute the process again.

• After logging on to Windows, when a new device is installed and a message appears advising

that the computer must be restarted to enable the settings, select [Yes] to restart the computer.

3Select the operation to be executed from the menu.

1 Press 1 to execute [1. [Backup]].

(When dividing the hard disk into two partitions, select the backup method at next screen.)

2At the confirmation message, press Y .

The backup process will begin.

1 Press 2 to execute [2. [Restore]].

(When data is backed up in two partitions, select the restore method at next screen.)

2At the confirmation message, press Y .

The restore process will begin.

The time required to complete the backup or restore process differs depending on the

data volume.

NOTE

Appendix

Hard Disk Data Erase Utility

This computer is equipped with a utility for erasing hard disk data.

When disposing of or transferring ownership of this device, erase all data on the hard disk in order to prevent the theft of hard disk

data by following the steps below.

The hard disk data erase utility erases data using an “overwriting” method, but there is a possibility that due to malfunctions or

other operational errors, data may not be completely erased. There are also specialized devices that may be able to read data that

has been erased using this method. If you need to erase highly confidential data, we recommend that you contact a company that

specializes in this process. Matsushita Electric Industrial Co., Ltd. will bear no responsibility for losses or damages suffered as

a result of the use of this utility.

Product Recovery CD-ROM (included)

Panasonic CD/DVD drive for the multimedia pocket (optional: Confirm the latest information on optional products in catalogs, etc.)

1Turn off the computer.

2Insert the CD/DVD drive into the multimedia pocket.

( “Multimedia Pocket”)

3Turn on the computer, and press F2 while [Panasonic]

boot screen is displayed.

The Setup Utility will start up.

If the password has been set, enter the Supervisor

Password.

4Select [Boot] menu, then select [IDE MP: xxxxxxxxxx]

and press F6 until [IDE MP: xxxxxxxxxx] is at the top

of the [Boot] menu.

5Place the disc number one of the recovery CDs into the

CD/DVD drive.

6Press F10 .

At the confirmation message, select [Yes] and press

Enter .

The computer will restart, and this screen should appear.

NOTE

Be sure the AC adaptor is connected until the procedure is completed.

This utility can only be used for internal hard disk. It cannot be used to erase data from external hard disks.

This utility cannot erase data from damaged disk.

This utility cannot erase data for specific partitions.

After executing this utility, the computer cannot be booted from the hard disk.

The backup area and the data in the backup area will be erased.

Preparing

Procedure

When the following message appears, press Y .

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. [ Recovery ] Reinstall Windows.

2. [ Erase HDD ] Erase the whole data on HDD for security.

3. [ Backup ] Enable the Backup function.*1

0. [ Cancel ] Cancel.

---------------------------------------------------------------------

*1This is not displayed when the hard disk backup function

has been enabled.

---------------------------------------------------------------------

Reinstalling : Windows(R) XP Professional

The Backup function has been enabled.

If [Recovery ] or [Erase HDD] is executed, the Backup function will be

disabled, and your Backup data will be lost.

(If Windows is reinstalled to the first partition, Backup data will not be

lost.)

Will you continue?

---------------------------------------------------------------------

7Press 2 to execute [2. [Erase HDD]].

(You can cancel this operation by pressing 0 .)

When the following message appears, press Y .

---------------------------------------------------------------------

The Backup function has been enabled.

If [Erase HDD] is executed, the Backup function will be disabled, and your

Backup data will be lost.

Will you continue?

---------------------------------------------------------------------

When the following message appears, press R .

---------------------------------------------------------------------

Computer must be rebooted in order to execute [Erase HDD].

Please reboot with Product Recovery CD-ROM set in the appropriate drive.

After rebooting, execute [Erase HDD] following the on screen instructions.

---------------------------------------------------------------------

8At the confirmation message, press Y .

9When [<<<Start Menu>>>] is displayed, press Enter .

10 The approximate time required for erasing data will be

displayed.

Press Space .

Appendix

11 At the confirmation message, press Enter . The

operation of erasing the hard disk will start.

(If necessary, the “hard disk data erase” operation can

be cancelled after it has begun by pressing

Ctrl + C . If the operation is cancelled before

being completed, a part of data will not be erased.)

12 After the operation is complete:

Under normal conditions, the message [Hard disk data has

been deleted.] will be displayed.

If a problem occurred during the operation, an error mes-

sage will be displayed.

13 Remove the recovery CD, and then press any key to turn

off the computer.

Appendix

Specifications

Model No.

CPU

Memory

Video Memory

LCD Type

Displayed Colors*3

External Display

Hard Disk Drive

Keyboard

Floppy Disk Drive

PC Card Slot

Allowable current

(total for two slots)

RAM Module Slot*6

SD Memory Card Slot*7

Interface Parallel Port

External Display Port

Serial Port

Microphone Jack*8

Headphone Jack

Expansion Bus Connector

USB Port

Modem

LAN

Wireless LAN

External Antenna Connector

Pointing Device

Sound

*11 MB = 1,048,576 bytes

*2A segment of the main memory is allotted automatically depending on the computer’s operating status. The size of the Video Memory

cannot be set by the user.

*3A 16,777,216 color display is achieved by using the dithering function.

*4Maximum resolution depends on the specifications of the external display.

*51GB = 1,000,000,000 bytes. Your operating system or some application software will report as fewer GB.

*6Only a RAM module designed for PC2-3200 can be added.

*7This slot does not support the MultiMedia card.

Operation has been confirmed for Panasonic SD Memory Cards with up to 1 GB capacity.

*8Use only a monaural condenser microphone.

*9The settings for the K56flex modem need to be changed according to the AT command.

Main Specifications

CF-29LTQGZBM CF-29MTQGZBM CF-29L3LGZBM CF-29M3LGZBM

Intel

Pentium

M Processor Low Voltage 778 (1.60 GHz, 2 MB*

L2 cache, 400 MHz FSB)

512 MB*

(1536 MB*

Max.) 256 MB*

(1280 MB*

Max.)

UMA (128 MB*1 Max.)*2

13.3 XGA type (TFT) with Touchscreen 13.3 XGA type (TFT)

65,536/16,777,216 colors (800 x 600 dots/1024 x 768 dots)

65,536/16,777,216 colors (800 x 600 dots/1024 x 768 dots/1280 x 1024 dots/

1600 x 1200 dots)*4

80 GB*560 GB*5

87 keys

720 KB/1.44 MB (two-mode)

Two Type I or Type II, or one Type III

3.3 V: 400 mA

5 V: 400 mA

200 pin, 1.8 V, SO-DIMM, DDR2 SDRAM, PC2-3200 Compliant

SD Memory Card

Dsub 25-pin female

Mini Dsub 15-pin female

Dsub 9-pin male

Miniature jack, 3.5 DIA

Miniature jack, 3.5 DIA, Impedance 32 Ω, Output Power 4 mW x 2

Dedicated 80-pin female

4-pin x 2, USB 2.0

RJ-11 jack, Data: 56 kbps (V.92 & K56flex*9) FAX: 14.4 kbps

RJ-45 jack, IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab

1000Base-T

Built-in Intel® PRO/ — Built-in Intel® PRO/ —

Wireless 2915 ABG Wireless 2915 ABG

( page 43) ( page 43)

Dedicated 50 Ω coaxial connector

Touch Pad Touch Pad

Touchscreen (Anti-Reflection, Stylus (in-

cluded) touch capable)

WAVE and MIDI playback, Monaural Speaker (built in)

This page provides the specifications for the basic model CF-29LTQGZBM/CF-29MTQGZBM/CF-29L3LGZBM/CF-29M3LGZBM.

The model number will change depending on the configuration of the unit, such as, CPU speed, memory size, HDD size, Operating

System, LCD type, and whether a wireless LAN is built in or not.

To check the model number:

Check the bottom of the computer or the box the computer came in at the time of purchase.

To check CPU speed, memory size and the hard disk drive (HDD) size:

Run the Setup Utility ( “Setup Utility”).

Confirm the required information by checking the following items.

• [Information] menu

CPU speed: [CPU Speed] Memory size: [System Memory] Hard disk drive size: [Primary Master]

• [Advanced] menu

Wireless LAN: [Wireless LAN] is displayed only if a wireless LAN is built in.

Appendix

Model No.

Battery Pack

Operating Time*10

Charging Time*10 Power On

Power Off

Clock Battery

AC Adaptor*13 Input

Output

Power Consumption*14

Environment

Operation

Temperature

Humidity

Storage

Temperature

Humidity

Physical Dimensions (W x H x D)

Weight (including the carrying handle)

Software

Operating System

Utility Programs

CF-29LTQGZBM/CF-29MTQGZBM CF-29L3LGZBM/CF-29M3LGZBM

Li-ion 11.1 V, 7.65 Ah

Main battery: Approx. 5 hours - 8 hours*11 (Approx. 7 hours*12)

Main battery + Second battery: Approx. 8 hours - 13.5 hours*

(Approx. 10.5 hours*

)

Main battery: Approx. 8 hours

Main battery + Second battery: Approx. 12 hours

Main battery: Approx. 4.5 hours

Main battery + Second battery: Approx. 7 hours

Coin type lithium battery 3.0 V

100 V - 240 V AC, 50 Hz/60 Hz

15.6 V DC, 5.0 A

Approx. 35 W*15 / Approx. 60 W (maximum when recharging in the ON state)

5 °C to 35°C {41 °F to 95 °F}

30% to 80% RH (No condensation)

-20 °C to 60 °C {-4 °F to 140 °F}

30% to 90% RH (No condensation)

302 mm x 64.3 mm x 273 mm (excluding protrusion) {11.9 " x 2.6 " x 10.7 "}

Approx. 3.69 kg {Approx. 8.14 lb.} Approx. 3.56 kg {Approx. 7.85 lb.}

Main Specifications

*10 Varies depending on the usage conditions, CPU speed, etc.

*11 Measured using BatteryMark™ Version 4.0.1 (LCD brightness: Maximum - Minimum)

*12 Measured using MobileMark™ 2002 (LCD brightness: 60 cd/m2)

*13 <Only for North America>

The AC adaptor is compatible with power sources up to 240 V AC adaptor. The computer is supplied with a 125 V AC compatible AC cord.

*14 Approx. 0.9 W when the battery pack is fully charged (or not being charged) and the computer is off.

Approx. 1.5 W when the Wake up from LAN function has been enabled.

*15 Rated power consumption

Microsoft® Windows® XP Professional Service Pack 2 with Advanced Security

Technologies

Setup Utility Hard Disk Data Erase Utility*18

DMI Viewer SD Utility

Microsoft® Windows® Media Player 10 Icon Enlarger

Adobe Reader Loupe Utility

Intel® PROSet/Wireless Software*17 Hotkey Settings

Panasonic Hand Writing Battery Recalibration Utility

PC Information Viewer Wireless LAN Switch

Hard Disk Backup Utility*18 Wireless Switch Utility

*17 Only for models with wireless LAN

*18 The Product Recovery CD-ROM is required.

Wireless LAN

Data Transfer Rates*16

Standards Supported

Transmission Method

Wireless Channels Used

RF Frequency Band

IEEE802.11a: 54/48/36/24/18/12/9/6 Mbps (automatically switched)

IEEE802.11b: 11/5.5/2/1 Mbps (automatically switched)

IEEE802.11g: 54/48/36/24/18/12/9/6 Mbps (automatically switched)

IEEE802.11a/IEEE802.11b/IEEE802.11g

OFDM system, DS-SS system

IEEE802.11a: Channels 36/40/44/48/52/56/60/64/149/153/157/161/165

IEEE802.11b/IEEE802.11g: Channels 1 to 11

IEEE802.11a: 5.18~5.32 GHz, 5.745~5.825 GHz

IEEE802.11b/IEEE802.11g: 2412~2462 MHz

*16 These are speeds specified in IEEE802.11a+b+g standards. Actual speeds may differ.

Appendix

LIMITED WARRANTY

PANASONIC PERSONAL COMPUTER AND PERIPHERALS LIMITED WARRANTY

Panasonic Computer Solutions Company (referred to as “Panasonic”) will repair this product (other than software, which is covered by a separate

warranty) with new or rebuilt parts, free of charge in the U.S.A. for three (3) years from the date of original purchase in the event of a defect in

materials or workmanship. This warranty includes the AC adaptor but excludes the batteries and all other options and accessories which are

covered for a period of one (1) year from the date of purchase.

This warranty is extended solely to the original purchaser. A purchase receipt or other proof of date of original purchase will be required before

warranty performance is rendered.

This warranty only covers failures due to defects in materials or workmanship which occur during normal use. It does not cover damage which

occurs in shipment or failures which are caused by products not supplied by Panasonic, or failures which result from alteration, accident, misuse,

introduction of liquid or other foreign matter into the unit, abuse, neglect, installation, maladjustment of consumer controls, improper maintenance,

modification or service by anyone other than a Factory Service Center or authorized Panasonic Service Dealer, or damage that is attributable to acts

of God.

Limits and Exclusions:

There are no other express warranties except as listed below.

PANASONIC SHALL NOT BE LIABLE FOR LOSS OF DATA OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE

USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING

THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE APPLICABLE WARRANTY

PERIOD SET FORTH ABOVE. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how

long an implied warranty lasts, so the above limitations or exclusions may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. If a problem with your product

develops during or after the warranty period, you may contact our representatives at 1-800-LAPTOP5. If the problem is not handled to your

satisfaction, then write to the Consumer Affairs Division at the address indicated below.

SOFTWARE LIMITED WARRANTY

Panasonic Computer Solutions Company (referred to as “Panasonic”) warrants to you only that the disk(s) or other media on which the Programs are

furnished will be free from defects in materials and workmanship under normal use for a period of sixty (60) days from the date of delivery thereof

to you, as evidenced by your purchase receipt.

This is the only warranty Panasonic makes to you. Panasonic does not warrant that the functions contained in the Programs will meet your

requirements or that the operation of the Programs will be uninterrupted or error free.

Panasonic’s entire liability, and your exclusive remedy under this warranty shall be limited to the replacement, in the United States, of any defective

disk or other media which is returned to Panasonic’s Authorized Service Center, together with a copy of the purchase receipt, within the aforesaid

warranty period.

Anything in the foregoing to the contrary notwithstanding, Panasonic shall have no obligation for any defects in the disk(s) or other media on which

the Programs are furnished resulting from your storage thereof, or for defects that have been caused by operation of the disk(s) or other media

otherwise than on the Product or in environmental conditions other than those specified by Panasonic by alteration, accident, misuse, abuse,

neglect, mishandling, misapplication, installation, maladjustment of consumer controls, improper maintenance, modification of damage that is

attributable to acts of God. In addition, Panasonic shall have no obligation for any defects in the disk(s) or other media if you have modified, or

attempted to modify any Program.

DURATION OF IMPLIED WARRANTIES, IF ANY, IS LIMITED TO SIXTY (60) DAYS.

PANASONIC ASSUMES NO RISK OF AND SHALL NOT IN ANY CASE BE LIABLE FOR ANY DAMAGES, INCLUDING, WITHOUT LIMITATION,

ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES ARISING FROM BREACH OF WARRANTY OR CONTRACT, NEG-

LIGENCE OR ANY OTHER LEGAL THEORY, INCLUDING, WITHOUT LIMITATION LOSS OF GOODWILL, PROFITS OR REVENUE, LOSS OF

USE OF THE PROGRAMS OR PRODUCTS OR ANY ASSOCIATED EQUIPMENT, COST OF CAPITAL, COST OF ANY SUBSTITUTE EQUIP-

MENT, FACILITIES, SERVICES, DOWNTIME COSTS, OR CLAIMS OF ANY PARTY DEALING WITH YOU FOR SUCH DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so

the above limitations or exclusions may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

This Limited Warranty will be governed by the laws the State of New York, without regard to its conflict-of-laws rules.

* * *

To obtain service or technical assistance within the continental U.S.A. and Alaska.

DIAL TOLL FREE: 1-800-LAPTOP5

Correspondence requesting product information should be sent

to: Panasonic Computer Solutions Company,

50 Meadowlands Parkway, Panazip 2F-5, Secaucus, NJ 07094

For U.S.A.

Appendix

PANASONIC COMPUTER AND PERIPHERALS LIMITED WARRANTY

Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end user customer, this computer product (excluding software media), when

purchased from PCI or from a PCI authorized reseller, to be free from defects in materials and workmanship under normal use, subject to the terms

set forth below, during the period of warranty coverage specified.

Remedy – In the event of a warranty claim, contact PCI’s representatives within the applicable warranty period, identifying the nature of the defect

claimed, at 1-800-668-8386 between 9:00 A.M. and 5:00 P.M., Eastern Time Zone, Mon. – Fri. (excluding holidays) for instructions on how to obtain

service. A purchase receipt or other proof of date of original purchase is required before warranty service is performed. Defective parts covered by

this Limited Warranty will be repaired or replaced with new or comparable rebuilt parts on an exchange basis. Warranty replacement or repair is

subject to the terms of this Limited Warranty for the balance of the original period of warranty coverage.

No Coverage – This Limited Warranty does not cover products purchased outside Canada. Neither does it cover damage to, failure of, or defects

in a product or accessory through mishandling, improper installation, abnormal use, misuse, neglect, accident, introduction of liquid or other foreign

matter into the product, alteration or servicing by anyone not authorized by PCI, or act of God.

IF YOU SHIP THE PRODUCT FOR WARRANTY SERVICE

Carefully pack the product, preferably in the original carton. Include details of defect claimed and proof of date of original purchase. No liability

is assumed for loss or damage to the product while in transit, if you chose your own transportation carrier.

SOFTWARE MEDIA LIMITED WARRANTY

Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end user customer, that the disk(s) or other media on which software program(s)

is/are supplied will be free from defects in materials and workmanship under normal use in Canada for a period of sixty (60) days from date of receipt

as evidenced by your purchase receipt for your Panasonic Computer product.

THIS IS THE ONLY WARRANTY THAT PCI MAKES RESPECTING THE SOFTWARE MEDIA. PCI does not warrant the software. Please refer to

the software licensor’s written warranty (accompanying the copy of the software) for any software warranty claim.

Claim Procedure – In the event of a defect in material or workmanship in the media during the sixty (60) day warranty period, and you return it,

transportation costs prepaid, to Panasonic Canada Inc., Computer Products Marketing, at the above address, within the warranty period, together

with a copy of your purchase receipt, and an explanation of the suspected defect, PCI will replace in Canada the defective disk(s) or other media.

Remedy – PCI’s entire liability, and your only remedy for any breach of this software media warranty is limited to replacement of the media only. It

does not cover any other damages, including, but not limited to, loss of use or profit loss, or special, indirect or consequential damages, or other

claims, whether or not of similar character.

No Coverage – This limited warranty does not apply if the disk(s) or other media has been used in other than a Panasonic product, or in environmen-

tal conditions other than those specified by PCI or the manufacturer, or if subjected to misuse, neglect, mishandling, modification or attempted

modification of the program, or if damaged by accident or act of God. PCI is not responsible for damage to or loss of any program, data or

removable storage media.

GENERAL

NO OTHER WARRANTIES – PCI DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED

TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE SOFTWARE,

SOFTWARE MEDIA, COMPUTER PRODUCT, OPTIONS AND ACCESSORIES.

NO LIABILITY FOR CONSEQUENTIAL DAMAGES – IN NO EVENT SHALL PCI BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUEN-

TIAL DAMAGES ARISING FROM ANY BREACH OF THE LIMITED WARRANTIES SET OUT IN THIS DOCUMENT, OR FROM THE USE OF THE

COMPUTER PRODUCT, INCLUDING, WITHOUT LIMITATION, LOSS OF DATA, BUSINESS, PROFIT OR GOODWILL.

IN ANY EVENT, PCI’S MAXIMUM LIABILITY FOR ANY BREACH SHALL NOT EXCEED THE AMOUNT ACTUALLY PAID BY YOU FOR THE

COMPUTER PRODUCT.

NO ACTION, REGARDLESS OF ITS BASIS, MAY BE BEGUN AGAINST PCI MORE THAN TWO (2) YEARS AFTER THE CAUSE OF ACTION

AROSE.

Statutory Warranties – Some jurisdictions do not allow these limitations or exclusions, so they may not apply to you.

Scope of Coverage

Whole Product (except Batteries), AC adaptor and CD-ROM

(if factory installed)

Batteries, CD-ROM (unless factory installed), Port Replicator,

Extra Memory Modules and all other Peripherals, Options and

Accessories

Period of Coverage

Three (3) Years from Date of Original

End User Customer Purchase

One (1) Year from Date of Original End

User Customer Purchase

Type of Failure Coverage

Defective Materials or Workmanship

For Canada

Appendix

Memo

Appendix

Outline of the International ENERGY STAR® Office Equipment Program

The international ENERGY STAR® Office Equipment Program is an international program

that promotes energy saving through the use of computers and other office equipment.

The program backs the development and dissemination of products with functions that

effectively reduce energy consumption. It is an open system in which business proprietors

can participate voluntarily. The targeted products are office equipment such as computers,

displays, printers, facsimiles, and copiers. Their standards and logos are uniform among

participating nations.

As an ENERGY STAR® Partner, Matsushita Electric Industrial Co., Ltd. has

determined that this product meets the ENERGY STAR® guidelines for energy

efficiency.

Panasonic Computer Solutions Company,

50 Meadowlands Parkway, Panazip 2F-5,

Secaucus, NJ 07094

Panasonic Canada Inc.

5770 Ambler Drive Mississauga,

Ontario L4W 2T3

Printed in Japan

FJ0705-1075

DFQX5556ZA

Panasonic of North America 9TGCF-29DA Panasonic Toughbook w/ WLAN, HSDPA & Bluetooth User Manual OPERATING INSTRUCTIONS

Panasonic Corporation of North America Panasonic Toughbook w/ WLAN, HSDPA & Bluetooth OPERATING INSTRUCTIONS

Contents

Users Manual

Navigation menu

Namespaces

Views

Navigation
