9TGCF 733A User Manual HTML Version

Users Manual

Personal Computer

OPERATING INSTRUCTIONS

Appendix

LIMITED USE LICENSE AGREEMENT ........33

Hard Disk Backup Function............................35

Hard Disk Data Erase Utility...........................39

Specifications .................................................40

LIMITED WARRANTY....................................42

Troubleshooting

List of Error Codes ......................................... 23

Dealing with Problems (Summary)....................... 24

Reinstalling Software .................................... 31

Operation

Starting Up/Shutting Down............................ 15

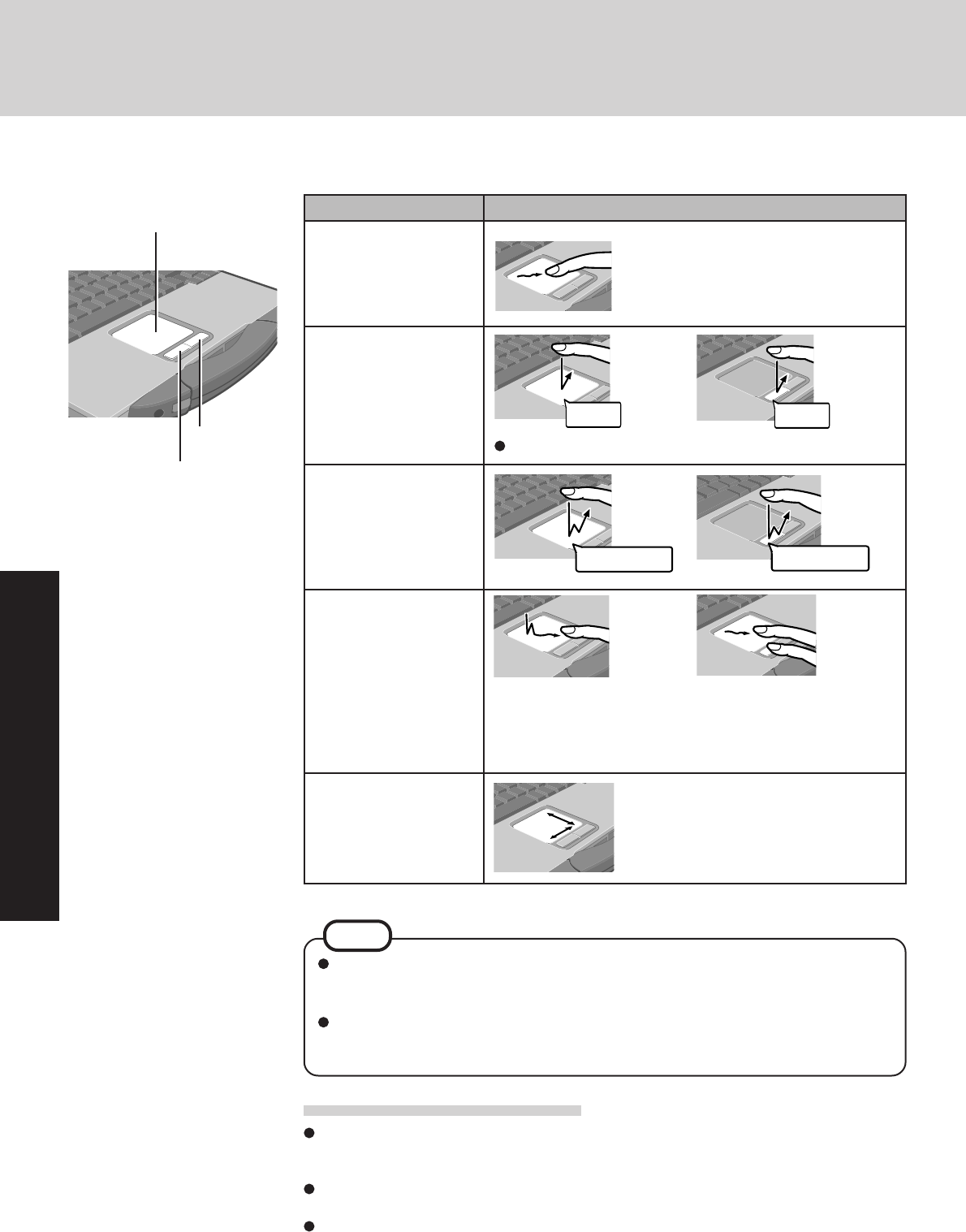

Touch Pad ..................................................... 18

Reference Manual ......................................... 19

Useful Information ......................................... 20

Getting Started

Read Me First.................................................. 3

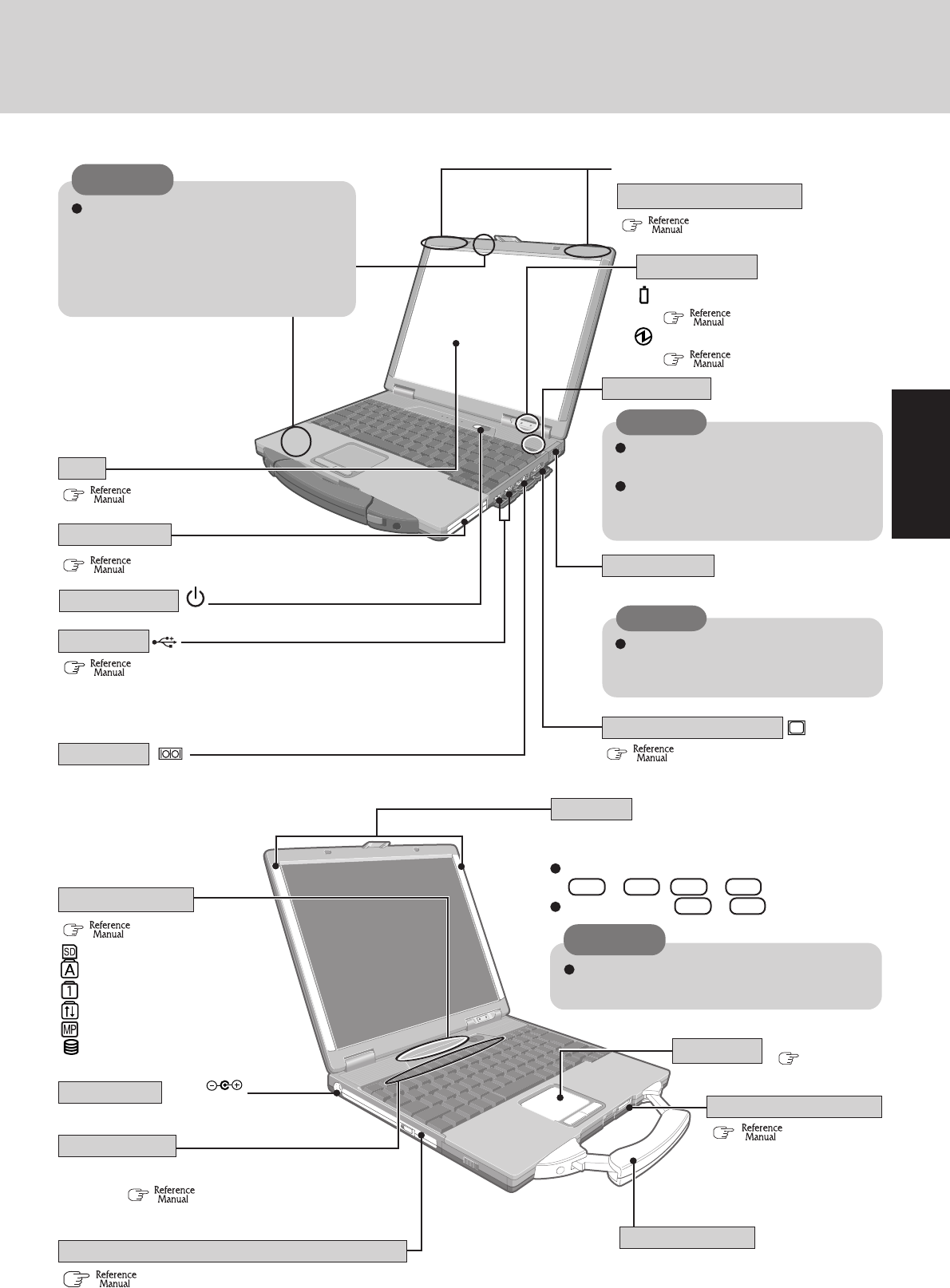

Names and Functions of Parts ........................ 9

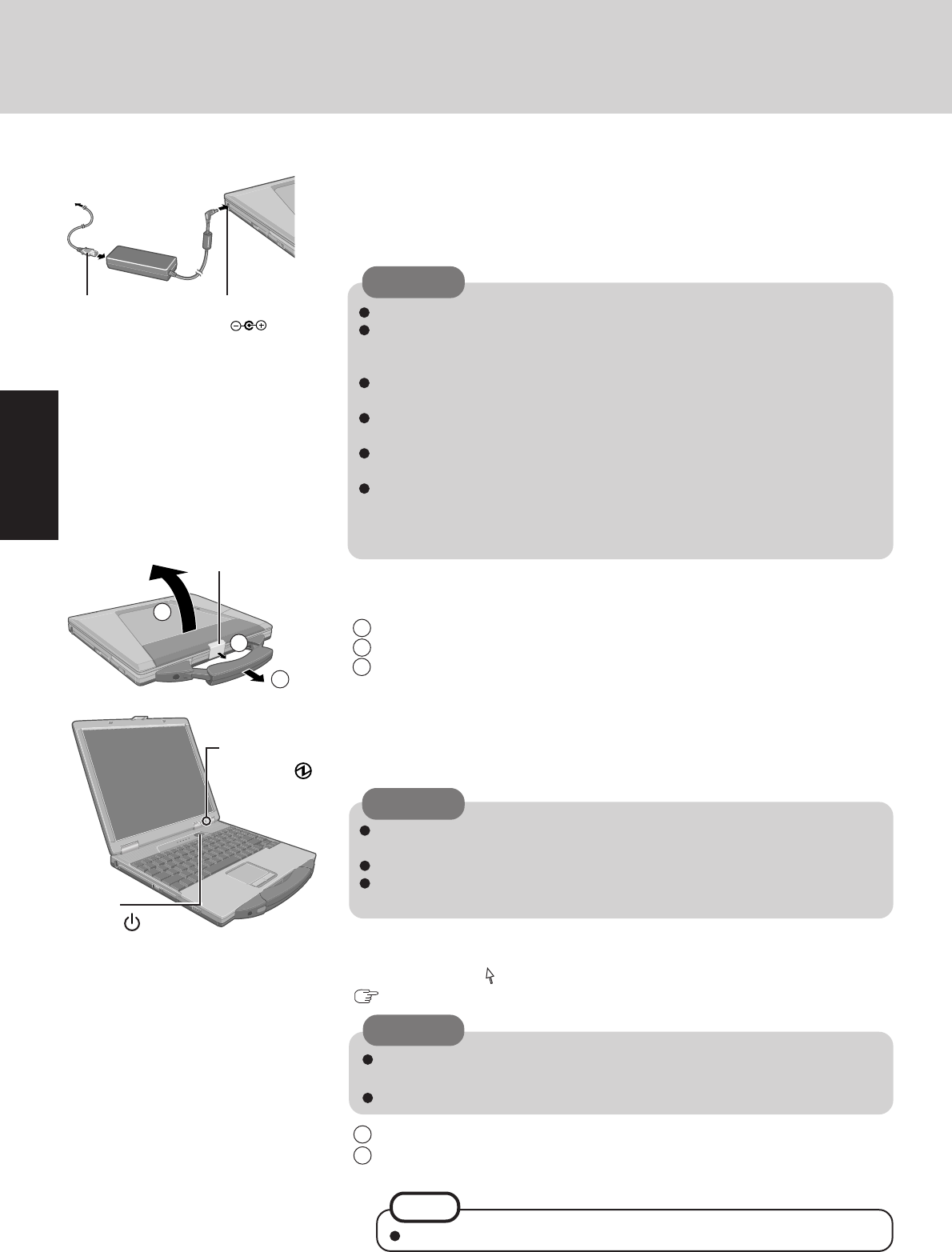

First-time Operation ......................................11

Contents

[Additional Manual]

Reference Manual

This manual can be accessed on your computer. Refer

to page 19 on how to access the Reference Manual.

Reference Manual

•Touch Pad

•Touchscreen

•Standby/Hibernation

Functions

•Security Measures

•Computing on the Road

•Battery Power

•Multimedia Pocket

•DVD-ROM & CD-R/RW Drive

• WinDVD

• B’s Recorder/B’s CLiP

•PC Cards

• SD Memory Card

•SD Memory Card Security

Function

•RAM Module

•Port Replicator / I/O Box

•External Display

•Printer

•USB Devices

•Modem

•LAN

•Wireless LAN

•Hard Disk Drive

•Setup Utility

• Icon Enlarger

• Loupe Utility

Reference Manual

•Technical Information

•DMI Viewer

•List of Error Codes

•Dealing with Problems

(Advanced)

Model No. CF-73 Series

Please read these instructions carefully before using this product and save this manual for future use.

Getting Started

Appendix Operation

Troubleshooting

•Read Me First

•Key Combinations

•LED Indicators

Getting Started

Introduction

Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new

computer.

Customer’s Record

Serial No.

Date of Purchase

Model No. *

Code No.

Dealer’s Name

Dealer’s Address

* For the Model No., insert the 12 digit number (for example, CF-73SCVTSBM) located on

the bottom of the computer.

Illustrations and Terminology in this Manual

reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd.

No patent liability is assumed with respect to the use of the information contained herein.

Disclaimer

Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no

liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals.

Trademarks

Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other

countries.

Intel, Pentium and PROSet are either registered trademarks or trademarks of Intel Corporation.

Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United

States and/or other countries.

Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd.

Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective owner compa-

nies.

NOTE:NOTE provides a useful fact or helpful information.

CAUTION:CAUTION indicates a condition that may result in minor or moderate injury.

Enter : This illustration means to press the [Enter] key.

Fn + F5 : This illustration means to press and hold the [Fn] key, then press the [F5] key.

[start] - [Run]: This illustration means to click [start], then to click [Run]. For some applications, you may need to

double-click.

:Where to go for referred information.

: This illustration means to refer to the Reference Manual, which is available on your computer.

Refer to page 19 on how to access this manual.

Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation

easier to understand.

If the user has logged on without the administrator authority, some functions may not be executable, and some screens may not

be displayed as shown in this manual. If this happens, log on with the administrator authority to enable these functions.

Confirm the latest information on optional products in catalogs, etc.

In this manual, “Microsoft® Windows® XP Professional Service Pack 2 with Advanced Security Technologies” is indicated

as “Windows” or “Windows XP”.

In this manual, the following software packages are described as follows:

“B’s Recorder GOLD7 BASIC” as “B’s Recorder”

“B’s CLiP 6” as “B’s CLiP”

Circular media such as DVD-ROM and CD-ROM are described as “discs”.

The following drives may be described as “CD/DVD drive”.

DVD-ROM & CD-R/RW drive, DVD MULTI drive

Getting Started

Read Me First

Federal Communications Commission Radio

Frequency Interference Statement

Note: This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

Consult the Panasonic Service Center or an experienced ra-

dio/TV technician for help.

Warning

To assure continued compliance, use only shielded interface

cables when connecting to a computer or peripheral. Also, any

changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to

operate this equipment.

FCC RF Exposure Warning:

This equipment is provided with PC Card slot that could be

used with wireless transmitters, which will be specifically

recommended when they become available.

Other third-party wireless transmitters have not been RF ex-

posure evaluated for use with this computer and may not

comply with FCC RF exposure requirements.

This equipment complies with FCC radiation exposure lim-

its set forth for an uncontrolled environment.

This equipment has been approved for mobile operation, and

unless otherwise advised in separate supplemental instruc-

tions for individual wireless transmitter(s), requires mini-

mum 20 cm spacing be provided between antenna(s) and all

person’s body (excluding extremities of hands, wrist and feet)

during wireless modes of operation.

This equipment may use multiple installed transmitters, which

may be capable of simultaneous transmission.

This product is restricted to indoor use due to its operation in

the 5.15 to 5.25 GHz frequency range.

FCC requires this product to be used indoors for the frequency

range 5.15 to 5.25 GHz to reduce the potential for harmful

interference to co-channel Mobile Satellite systems.

High power radars are allocated as primary users of the 5.25 to

5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations

can cause interference with and /or damage this product.

For U.S.A.

FCC Regulation Notice for modem

This equipment contains a FCC approved modem.

FOR HOME OR OFFICE USE

Tested To Comply

With FCC Standards

1. This equipment complies with CFR47 Part 68 rules. On the

computer is a label that contains, among other information,

the FCC registration number and ringer equivalence number

(REN) for this equipment. If required, this information must

be provided to the telephone company.

2. An FCC compliant telephone cord and modular plug is pro-

vided with this equipment. This equipment is designed to be

connected to the telephone network or premises wiring us-

ing a compatible modular jack which is Part 68 compliant.

See Installation Instructions for details.

3. The REN is used to determine the quantity of devices which

may be connected to the telephone line. Excessive RENs on the

telephone line may result in the devices not ringing in response

to an incoming call. In most, but not all area, the sum of RENs

should not exceed five (5.0). To be certain of the number of

devices that may be connected to a line, as determined by the

total RENs, contact the local telephone company.

4. If your telephone equipment cause harm to the telephone net-

work, the telephone company will notify you in advice that

temporary discontinuance of service may be required. But if

advice notice isn’t practical, the telephone company will no-

tify the customer as soon as possible. Also, you will be ad-

vised of your right to file a complaint with the FCC if you

believe it is necessary.

5. The telephone company may take changes in its facilities,

equipment, operations or procedures that could affect the op-

eration of the equipment. If this happens the telephone com-

pany will provide advance notice in order for you to make

necessary modifications to maintain uninterrupted service.

6. If trouble is experienced with this equipment, for repair or

warranty information, please contact Panasonic Corporation

of North America at DIAL TOLL FREE 1-800-LAPTOP5

(1-800-527-8675). If the equipment is causing harm to the

telephone network, the telephone company may request that

you disconnect the equipment until the problem is resolved.

7. There are no user serviceable parts contained in this equip-

ment.

8. This equipment may not be used on coin service provided by

the telephone company. Connection to party lines is subject

to state tariffs.

This device complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including

interference that may cause undesired operation.

Responsible Party: Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Tel No:1-800-LAPTOP5 (1-800-527-8675)

Getting Started

Read Me First

For Canada

Industry Canada (IC) Notice for modem

This equipment contains an Industry Canada approved modem unit.

The Industry Canada label is affixed on the modem unit.

EQUIPMENT ATTACHMENT LIMITATIONS

“NOTICE: The Industry Canada label identifies certified

equipment. This certification means that the equipment meets

telecommunications network protective, operational and

safety requirements as prescribed in the appropriate Terminal

Equipment Technical Requirements document(s). The

Department does not guarantee the equipment will operate

to the user’s satisfaction.

Before installing this equipment, users should ensure that it is

permissible to be connected to the facilities of the local

telecommunications company. The equipment must also be

installed using an acceptable method of connection. The customer

should be aware that compliance with the above conditions may

not prevent degradation of service in some situations.

Repairs to certified equipment should be coordinated by a

representative designated by the supplier. Any repairs or

alterations made by the user to this equipment, or equipment

malfunctions, may give the telecommunications company

cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical

ground connections of the power utility, telephone lines and

internal metallic water pipe system, if present, are connected

together. This precaution may be particularly important in rural

areas. Caution: Users should not attempt to make such

connections themselves, but should contact the appropriate

electric inspection authority, or electrician, as appropriate.”

“NOTICE: The Ringer Equivalence Number (REN) assigned

to each terminal device provides an indication of the

maximum number of terminals allowed to be connected to a

telephone interface. The termination on an interface may

consist of any combination of devices subject only to the

requirement that the sum of the Ringer Equivalence Numbers

of all the devices does not exceed 5.”

REN: See bottom of the computer

RESTRICTIONS CONCERNANT LE RACCORDEMENT

DE MATÉRIEL

“AVIS: L’étiquette d’Industrie Canada identifie le matériel

homologué. Cette étiquette certifie que le matériel est

conforme aux normes de protection, d’exploitation et de

sécurité des réseaux de télécommunications, comme le

prescrivent les documents concernant les exigences

techniques relatives au matériel terminal. Le Ministère

n’assure toutefois pas que le matériel fonctionnera à la

satisfaction de l’utilisateur.

Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il

est permis de le raccorder aux installations de l’entreprise

locale de télécommunication. Le matériel doit également être

installé en suivant une méthode acceptée de raccordement.

L’abonné ne doit pas oublier qu’il est possible que la

conformité aux conditions énoncées ci-dessus n’empêche pas

la dégradation du service dans certaines situations.

Les réparations de matériel homologué doivent être

coordonnées par un représentant désigné par le fournisseur.

L’entreprise de télécommunications peut demander à

l’utilisateur de débrancher un appareil à la suite de réparations

ou de modifications effectuées par l’utilisateur ou à cause de

mauvais fonctionnement.

Pour sa propre protection, l’utilisateur doit s’assurer que tous

les fils de mise à la terre de la source d’énergie électrique,

des lignes téléphoniques et des canalisations d’eau

métalliques, s’il y en a, sont raccordés ensemble. Cette

précaution est particulièrement importante dans les régions

rurales. Avertissement: L’utilisateur ne doit pas tenter de faire

ces raccordements lui-même; il doit avoir recours à un service

d’inspection des installations électriques, ou à un électricien,

selon le cas.”

“AVIS: L’indice d’équivalence de la sonnerie (IES) assigné

à chaque dispositif terminal indique le nombre maximal de

terminaux qui peuvent être raccordés à une interface. La

terminaison d’une interface téléphonique peut consister en

une combinaison de quelques dispositifs, à la seule condition

que la somme d’indices d’équivalence de la sonnerie de touts

les dispositifs n’excède pas 5.”

IES: Voir sous le fond de l’ordinateur

Notice for the products using LCD

This product uses one or more fluorescent lamps containing a

small amount of mercury. It also contains lead in some compo-

nents. Disposal of these materials may be regulated in your com-

munity due to environmental considerations. For disposal or

recycling information please contact your local authorities, or

the Electronics Industries Alliance: <http://www.eiae.org/>

9. The Telephone Consumer Protection Act of 1991 makes it

unlawful for any person to use a computer or other electronic

device to send any message via a telephone fax machine un-

less such message clearly contains in a margin at the top or

bottom of each transmitted page or on the first page of the

transmission, the date and time it is sent and an identification

of the business or other entry, or other individual sending the

message and the telephone number of the sending machine

or such business, other entity, or individual. In order to pro-

gram this information into your fax software, you should re-

fer to the manual of the Fax software being used.

10.According to the FCC’s electrical safety advisory, we recom-

mend that you may install an AC surge arrestor in the AC outlet

to which this equipment is connected. Telephone companies re-

port that electrical surges, typically lightning transients, are very

destructive to customer terminal equipment connected to AC

power sources and that this is a major nationwide problem.

“Caution: To reduce the risk of fire, use only No.26 AWG or larger tele-

communication line cord.”

“ATTENTION: Pour réduire le risque d’incendie, utiliser uniquement des

conducteurs de télécommunications 26 AWG ou de section supérieure.”

Getting Started

Industry Canada

This product complies with RSS210 Industry Canada.

Operation is subject to the following two conditions;

(1) this device may not cause interference, and

(2) this device must accept any interference, including interfer-

ence that may cause undesired operation of the device.

Declaration of Conformity (DoC)

“Hereby, we and Panasonic Service Europe GmbH (PSE), declares that this Personal Computer is in compliance

with the essential requirements and other relevant provisions of the Directive 1999/5/EC.”

Hint:

If you want to get a copy of the original DoC of our products which relates to the R&TTE, please contact to our

web address: http://doc.panasonic-tc.de

Network connection.

The terminal equipment is intended for connection to the following public network;

In all the countries of European Economical Area;

- Public Switched Telephony Networks

Technical Features.

The terminal equipment includes the following features;

- DTMF dialing

- Maximum bitrate receiving mode: 56 kbit/s

- Maximum bitrate sending mode: 33.6 kbit/s

This product is designed to interwork with the Public Switched Telecommunication Networks in UK, Ireland, Netherlands, Sweden,

Denmark, Finland, Switzerland, Luxembourg, Belgium, France, Germany, Spain, Portugal, Iceland, Greece, Italy, Norway and

Austria.

--------------------------------------------------------------------------------------------------------------------------------------------

Compliance Notice - CE Mark

This equipment is in conformance with the requirements of the European Council Directive listed below:

73/23/EEC Low Voltage Directive with amendment 93/68/EEC

89/336/EEC EMC Directive with amendments 92/31/EEC and 93/68/EEC

1999/5/EC

--------------------------------------------------------------------------------------------------------------------------------------------

For Europe

(For models with a “CE” mark on the bottom of the computer)

This product (local network devices) for the band 5150-5250

MHz is only indoor usage to reduce potential for harmful inter-

ference to co-channel Mobile Satellite systems.

High power radars are allocated as primary users (meaning the

have priority) of 5250-5350 MHz and 5650-5850 MHz and these

radars could cause interference and/or damage to LELAN de-

vices.

Getting Started

Read Me First

Lithium Battery

Lithium Battery!

This computer contains a lithium battery to enable the date,

time, and other data to be stored. The battery should only be

exchanged by authorized service personnel.

Warning! A risk of explosion from incorrect installation or mis-

application may possibly occur.

Important Safety Instructions / Importantes Mesures De Sécurité

When using your telephone equipment, basic safety precau-

tions should always be followed to reduce the risk of fire,

electric shock and injury to persons, including the following:

1.Do not use this product near water, for example, near a

bath tub, washbowl, kitchen sink or laundry tub, in a wet

basement or near a swimming pool.

2.Avoid using a telephone (other than a cordless type) dur-

ing an electrical storm. There may be a remote risk of elec-

tric shock from lightning.

3.Do not use the telephone to report a gas leak in the vicin-

ity of the leak.

4.Use only the power cord and batteries indicated in this

manual. Do not dispose of batteries in a fire. They may

explode. Check with local codes for possible special dis-

posal instructions.

SAVE THESE INSTRUCTIONS

Certaines mesures de sécurité doivent être prises pendant

l’utilisation de matérial téléphonique afin de réduire les

risques d’incendie, de choc électrique et de blessures. En

voici quelquesunes:

1.Ne pas utiliser l’appareil près de l’eau, p.ex., près d’une

baignoire, d’un lavabo, d’un évier de cuisine, d’un bac à

laver, dans un sous-sol humide ou près d’une piscine.

2.Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil

sans fil) pendant un orage électrique. Ceci peut présenter

un risque de choc électrique causé par la foudre.

3.Ne pas utiliser l’appareil téléphonique pour signaler une

fuite de gaz s’il est situé près de la fuite.

4.Utiliser seulement le cordon d’alimentation et le type de

piles indiqués dans ce manual. Ne pas jeter les piles dans

le feu: elles peuvent exploser. Se conformer aux règlements

pertinents quant à l’élimination des piles.

CONSERVER CES INSTRUCTIONS

Information to the User

This product and your Health

This product, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by this product

however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones.

Because this product operates within the guidelines found in radio frequency safety standards and recommendations, we believe this

product is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result

from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of this product may be restricted by the proprietor of the building or responsible

representatives of the organization. These situations may for example include:

Using this product on board of airplanes, or

In any other environment where the risk of interference to other devices or services is perceived or identified as harmful.

If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports),

you are encouraged to ask for authorization to use this product prior to turning on the product.

Regulatory Information

We are not responsible for any radio or television interference caused by unauthorized modification of this product. The correction

of interference caused by such unauthorized modification will be the responsibility of the user. We and its authorized resellers or

distributors are not liable for damage or violation of government regulations that may arise from failing to comply with these

guidelines.

Pile au lithium!

Le micro-ordinateur renferme une pile au lithium qui permet

de sauvegarder certaines données, notamment la date et l’fheure.

La pile ne doit être remplacée que par un technicien qualifié.

Danger ! Risque d’fexplosion en cas de non respect de cette

mise en garde!

Getting Started

Keep SD Memory Cards away from infants and

small children.

Accidental swallowing will result in bodily injury.

In the event of accidental swallowing, see a doctor

immediately.

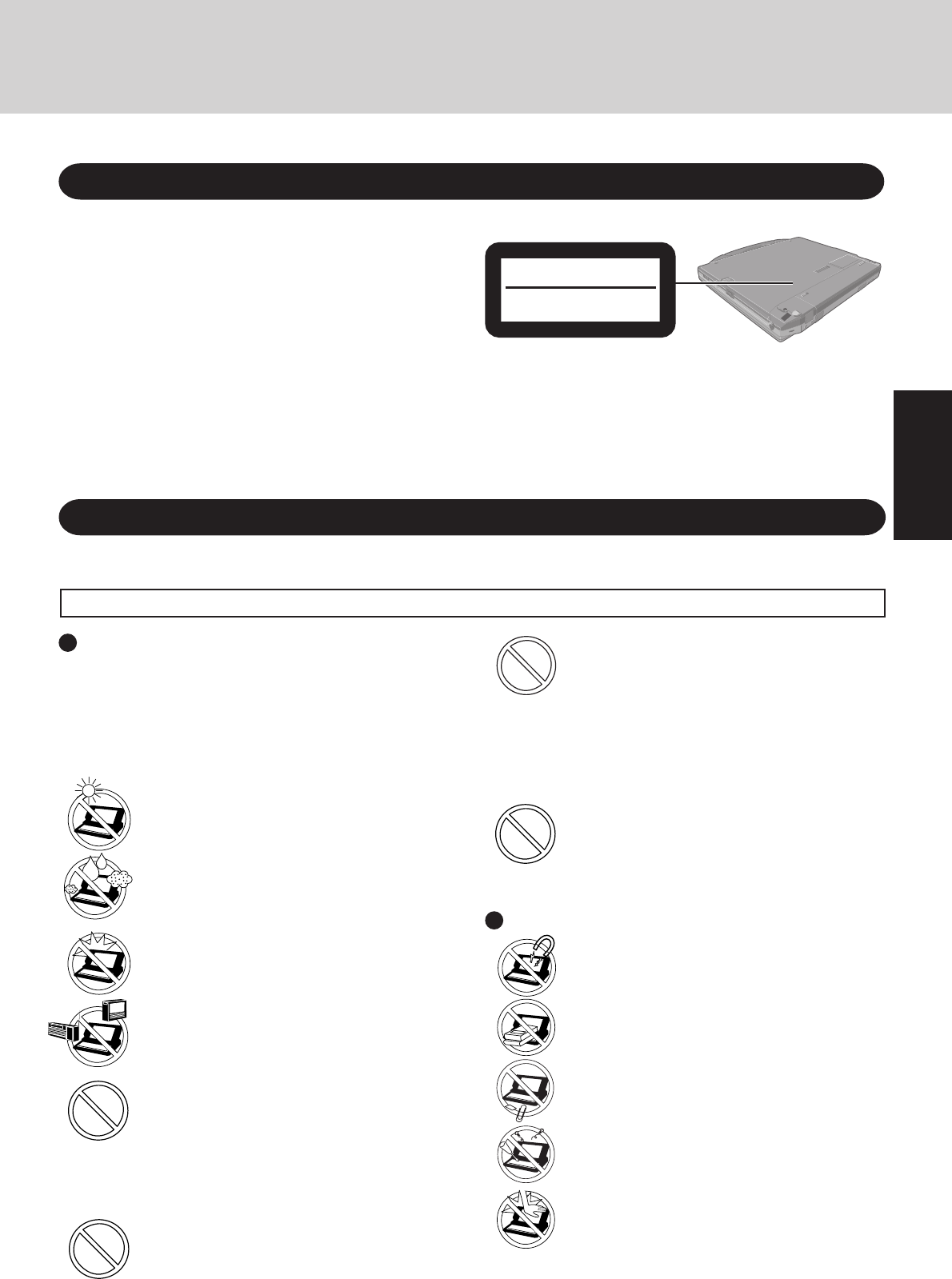

CD/DVD Drive Caution

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY

RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.

REFER SERVICING TO QUALIFIED PERSONNEL.

AVERTISSEMENT!

CET APPAREIL UTILISE UN LASER.

L’UTILISATION DE COMMANDES OU DE RÉGLAGES OU

L’EXÉCUTION DE PROCÉDURES AUTRES QUE CELLES

SPÉCIFIÉES ICI PEUVENT PROVOQUER UNE EXPOSITION À

DES RADIATIONS DANGEREUSES.

NE PAS OUVRIR LES COUVERCLES NI ESSAYER DE RÉPARER

SOI-MÊME.

CONFIER TOUT TRAVAIL D'ENTRETIEN À UN PERSONNEL

QUALIFIÉ.

Bottom

CLASS 1 LASER PRODUCT

LASER KLASSE1

Laser safety information is appropriate only when drive with laser is

installed.

Les mesures de sécurité relatives au laser ne s’appliquent que lors de

l’installation d’une unité avec laser.

Precautions

Avoid Extreme Heat and Cold

Do not store or use the computer in locations

exposed to heat, direct sunlight, or extreme cold.

Avoid moving the computer between locations with

large temperature difference.

Operation: 5 oC to 35 oC {41 oF to 95 oF}

Storage: -20 oC to 60 oC {-4 oF to 140 oF}

Avoid Direct Sunlight on the LCD Panel

The LCD panel should not be exposed to direct

sunlight or ultraviolet light.

Avoid Humidity, Liquids and Dust

Do not store or use the computer in locations exposed

to high humidity, liquids (including rain) or dust.

Usage

This computer has been designed so as to minimize shock to the LCD and hard disk drive, the leakage of liquid (e.g., water) on to the keyboard,

etc., but no warranty is provided against such trouble. Therefore, as a precision instrument, be extremely careful in the handling.

Before putting the computer away, be sure to wipe off any moisture.

Prevent Shock

Avoid subjecting the computer to severe vibrations or

impact. Do not place the computer inside a car trunk.

Avoid Radio Frequency Interference

Do not place the computer near a television or ra-

dio receiver.

Avoiding Low-temperature Burns

Avoid more than casual contact with any heat pro-

ducing area of the notebook computer, AC adap-

tor, and any option or accessory you use with it.

Even low heat, if warmer than body temperature,

can cause a burn, if the skin is exposed to the heat

source for a long period of time.

Handling

Avoid Magnetic Fields

Keep the computer away from magnets.

Data stored on the hard disk may be lost.

Avoid Stacking

Do not place heavy objects on top of the computer.

Keep Small Objects Away

Do not insert paper clips or other small objects into

the computer.

Do Not Disassemble the Computer

Do not attempt to disassemble your computer.

Avoid Excessive Force on the Display

Do not apply excessive downward force on the

display when it is completely opened, especially

when plugs and/or cables are connected to the rear

of the computer.

Do not touch the computer and cable when it

starts thundering

Do not connect a telephone line, or a network cable

other than the one specified, into the LAN port

If the LAN port is connected to a network such as

the ones listed below, a fire or electric shock may

result.

• Networks other than 1000BASE-T, 100BASE-

TX or 10BASE-T

• Phone lines (Telephone lines, internal phone lines

(on-premise switches), digital public phones, etc.)

Getting Started

Read Me First

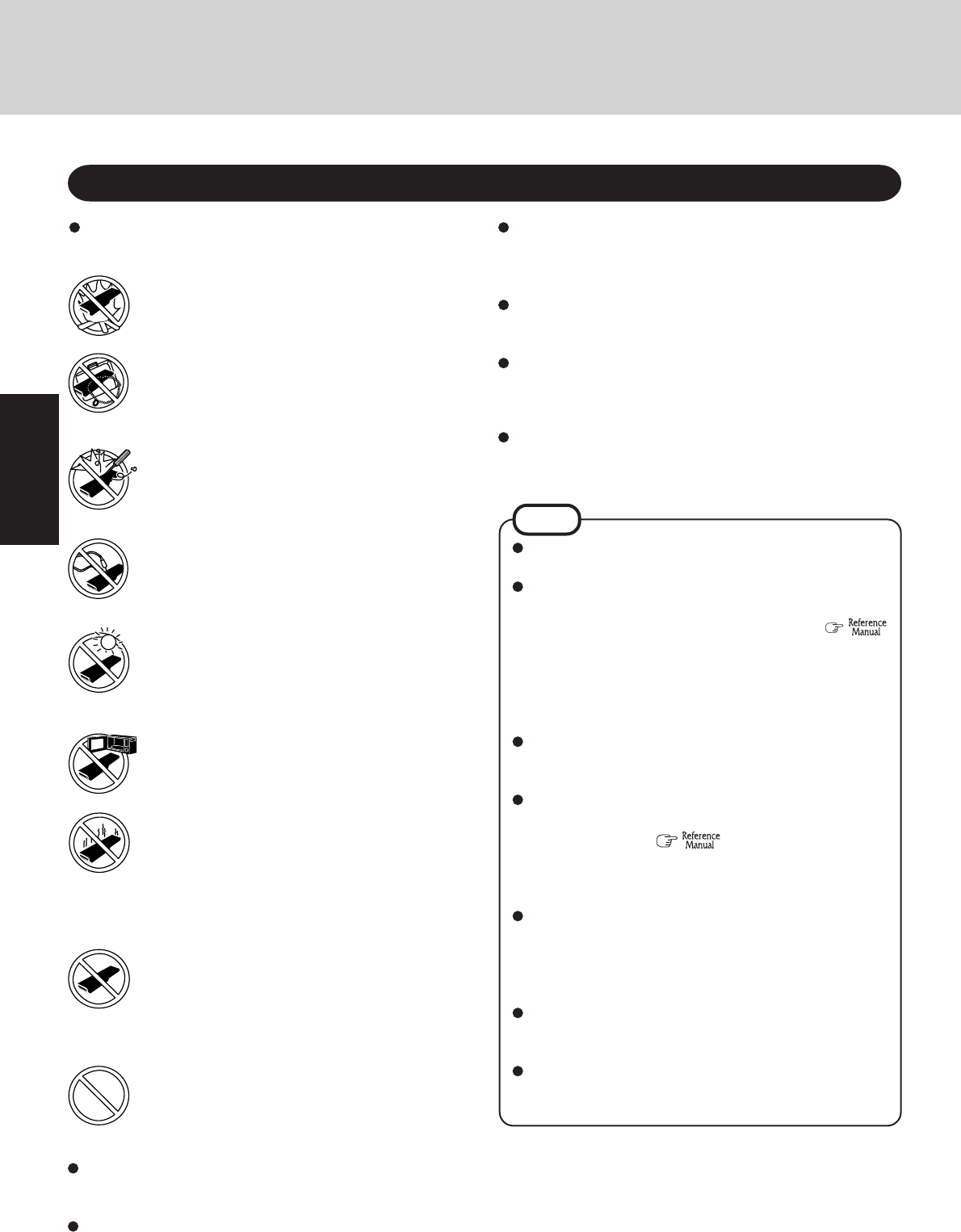

Precautions (Battery Pack)

NOTE

The battery pack may become warm during recharging

or normal use. This is completely normal.

Recharging will not commence if internal temperature

of the battery pack is outside of the allowable tempera-

ture range (0 °C to 50 °C {32 °F to 122 °F}). (

“Battery Power”) Once the allowable range requirement

is satisfied, charging begins automatically. Note that the

recharging time varies based on the usage conditions.

(Recharging takes longer than usual when the tempera-

ture is 10 °C {50 °F} or below.)

If the temperature is low, the operating time is shortened.

Only use the computer within the allowable temperature

range.

This computer has a high temperature mode function that

prevents the degradation of the battery in high tempera-

ture environments. ( “Battery Power”) A level

corresponding to a 100% charge for high temperature

mode is approximately equivalent to an 80% charge level

for normal temperature mode.

The battery pack is a consumable item. If the amount of

time the computer can be run by using a particular bat-

tery pack becomes dramatically shorter and repeated re-

charging does not restore its performance, the battery pack

should be replaced with a new one.

When transporting a spare battery inside a package, brief-

case, etc., it is recommended that it be placed in a plastic

bag so that its contacts are protected.

Always power off the computer when it is not in use.

Leaving the computer on when the AC adaptor is not

connected will exhaust the remaining battery capacity.

Care should be exercised with regard to the following in or-

der to avoid the possibility of overheating, fire or damage.

Avoid Heat

Do not throw the battery pack into a fire or ex-

pose it to excessive heat.

Keep Articles Away

Do not place the battery pack together with articles

such as necklaces or hairpins when carrying or stor-

ing.

Do Not Disassemble

Do not insert sharp objects into the battery pack,

expose it to bumps or shocks, deform, disassemble,

or modify it.

Do Not Short

Do not short the positive (+) and negative (-) con-

tacts.

Avoid Extreme Heat, Cold and Direct Sunlight

Do not charge, use or leave the battery pack for

extended periods where it will be exposed to direct

sunlight, in a hot place (in a car on a sunny day, for

example), or in a cold place.

Do Not Put into a Microwave

Do not put the battery pack into a microwave oven

or a pressurized chamber.

Stop Using

Should the battery emit an abnormal odor, become

hot to the touch, become discolored, change shape,

or become in any way different from normal, re-

move it from the computer or charger and stop us-

ing it.

Do Not Use With Any Other Computer

The battery pack is rechargeable and was intended

for the specified computer or charger. Do not use

it with a computer other than the one for which it

was designed.

Do not use this computer with a battery pack

other than the one specified (the one included

with the computer or the specified battery pack

sold separately)

If the battery pack will not be used for a long period of time

(a month or more), charge or discharge (use) the battery pack

until the remaining battery level becomes 30% to 40% and

store it in a cool, dry place.

This computer prevents overcharging of the battery by re-

charging only when the remaining power is less than approx.

95% of capacity.

The battery pack is not charged when the computer is first

purchased. Be sure to charge it before using it for the first

time. When the AC adaptor is connected to the computer,

charging begins automatically.

Should the battery leak and the fluid get into your eyes, do not

rub your eyes. Immediately flush your eyes with clear water

and see a doctor for medical treatment as soon as possible.

Do not touch the terminals on the battery pack. The battery

pack may no longer function properly if the contacts are dirty

or damaged.

Do not expose the battery pack to water, or allow it to be-

come wet.

Getting Started

Names and Functions of Parts

Power Switch

Battery pack status

( “Battery Power”)

Power status

( “LED Indicators”)

LED Indicators

CAUTION

( “External Display”)

External Display Port

Serial Port

USB Ports

( page 20)

Touch Pad

For enhanced portability and

in-the-field efficiency.

Carrying Handle

For information on the key combinations

available. ( “Key Combinations)

( “LED Indicators”)

LED Indicators

SD Memory Card status

Caps Lock

Numeric Key (NumLk)

Scroll Lock (ScrLk)

Multimedia pocket device status

Hard disk drive status

( “Multimedia Pocket” and “DVD-ROM & CD-R/RW Drive”)

Multimedia Pocket (DVD-ROM & CD-R/RW Drive)

Function Keys

Speakers

DC-IN Jack DC IN 15.6 V

( “Wireless LAN”)

Wireless LAN Antenna

Use this port to a serial mouse or serial com-

munication devices.

( “Touchscreen”)

Remove any accumulated dust using

a vacuum cleaner.

Do not block or place the computer in

a location that may prevent proper

ventilation.

Sound is output from Card Speakers built into the

back panel of the LCD screen.

To adjust the volume:

Fn + F5 / Fn + F6

Speaker on/off : Fn + F4

CAUTION

Do not allow metallic objects or magnetic me-

dia to come near the speakers.

( “SD Memory

Card” and “SD Memory

Card Security Function”)

SD Memory Card Slot

Do not allow metallic objects or mag-

netic media to come near these areas.

• If floppy disks, magnetic memory

cards, or other magnetic media ap-

proach these areas, there is a risk that

data will be destroyed.

CAUTION

LCD

( “USB Devices”)

Depending on the shape of the plug, some USB devices cannot

be connected to the USB port. In this case, use a commercially-

available USB extension cable.

( “PC Cards”)

PC Card Slots

This vent allows heat to exit.

CAUTION

Exhaust vent

Do not block or place the computer in

a location that may prevent proper

ventilation.

Suction vent

Getting Started

Names and Functions of Parts

Use only a monaural condenser

microphone (miniature jack). Us-

ing an input source other than a

monaural condenser microphone

may not allow audio to be input or

may damage the equipment.

Use this jack to connect head-

phones or amplifier-equipped

speakers. Audio output from the in-

ternal speaker is disabled when

headphones or external speakers are

connected.

( “LAN”)

( “Modem”)

LAN

Modem

Microphone Jack

Headphone Jack

This hole allows heat to exit.

Ventilation Hole

I/O Box Connector

MP Release Button

( “Multimedia Pocket” )

( “RAM Module”)

( “Battery Power”)

Battery Pack

RAM Module Slot

( “Port Replicator/I/O Box”)

Expansion Bus Connector

CAUTION

For connecting printer, external mouse, keyboard,

etc., through the I/O box (optional).

( “Port Replicator/I/O Box”)

A lithium ion battery that is recyclable powers the product you

have purchased. Please call 1-800-8-BATTERY for information

on how to recycle this battery.

L’appareil que vous vous êtes procuré est alimenté par une batterie

au lithium-ion. Pour des renseignements sur le recyclage de la

batterie, veuillez composer le 1-800-8-BATTERY.

Security Lock LOCK

A Kensington cable can be connected.

For more information, read the manual that

comes with cable.

EXT.

Do not block or place the computer in a

location that may prevent proper venti-

lation.

CAUTION

Do not cover the computer with a thick cloth, such as a blanket.

CAUTION

Do not connect the modem telephone

cable into the LAN port.

Getting Started

First-time Operation

Read the steps below to help you learn what parts are included, and to gain an understanding of

some basic computer-related operations.

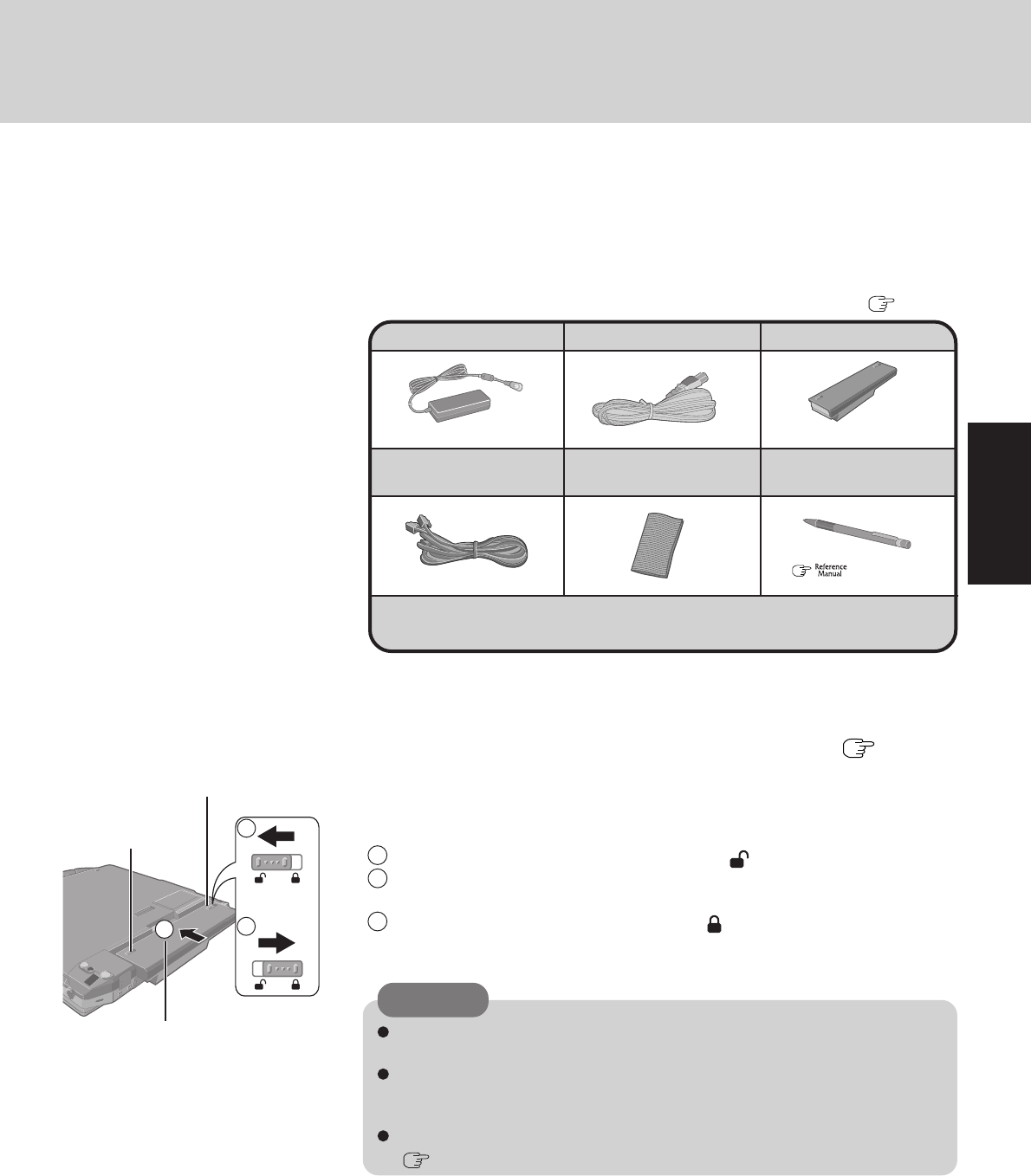

1Confirm the inclusion of all parts.

Make sure the parts shown in the figure have been supplied. If any of these items are

missing or is not working properly, contact Panasonic Technical Support. ( page 41)

Confirm that the latch is properly locked. If it is not, the battery pack may fall out

while you are carrying around the computer.

Do not touch the terminals on the battery pack and the computer. The battery

pack may no longer function properly if the contacts are dirty or damaged. Also,

the computer may not operate properly.

Before using the battery pack, carefully read “Precautions (Battery Pack)”

( page 8).

2Read the LIMITED USE LICENSE AGREEMENT. ( page 32)

Be sure to read the LIMITED USE LICENSE AGREEMENT before breaking the seal

on the computer’s packaging.

3Turn the computer over and insert the battery pack.

1Slide the right-side latch to the unlock position ( ).

2Make sure the battery pack is facing the correct direction, slide it in the direction of

the arrow.

3Slide the right-side latch to the lock position ( ), and then check to ensure that the

battery pack is held firmly.

(Left latch is locked automatically.)

Model No: CF-AA1653A

AC Adaptor .............1

Model No: CF-VZSU26

AC Cord ................1 Battery Pack ........1

Modem Telephone

Cable ...................... 1

AC Adaptor .............1

Battery Pack

Right-side Latch

Operating Instructions (This book)*

.... 1

Product Recovery DVD-ROM

....... 1

Windows® Book ...................... 1

CAUTION

( “Touchscreen”)

*1If additional instructions are included with the computer, be sure to read them. It may be

necessary to perform additional operations during the following procedures.

Soft Cloth ............. 1 Stylus ...................1

Left-side Latch

Getting Started

First-time Operation

Connect your computer to a power outlet.

CAUTION

Be sure the AC adaptor is connected until completing the first-time use operation.

When using the computer for the first time, do not connect any peripheral de-

vice except the battery pack and AC adaptor to the computer.

Handling the AC adaptor

Do not twist or pull the AC power cord forcefully. Doing so may damage the

connections.

Use only the specified AC adaptor with your computer. Using an AC adaptor

other than the one supplied might damage the battery and/or the computer.

When the DC plug is not connected to the computer, disconnect the AC cord

from your AC wall outlet.

Problems such as sudden voltage drops may arise during periods of thunder and

lightning. Since this could adversely affect your computer, an uninterruptible

power source (UPS) is highly recommended unless running from the battery

pack alone.

5Open the display.

1Pull the carrying handle forward.

2Lift up the latch.

3Lift open the display.

CAUTION

6Turn your computer on.

Press the power switch and hold it for approximately one second until the power indi-

cator turns on before releasing it.

Do not press the power switch and hold it for more than four seconds; this will

cause the power to be turned off forcibly.

Do not press the power switch repeatedly.

Once the computer is powered off, you must wait at least ten seconds before

powering it on again.

7Setup Windows.

Moving the cursor ( ) or clicking buttons can be performed with the touch pad

( page 18).

The battery pack will be charged automatically.

Charging Time: Approx. 3 hours

(Varies depending on the usage conditions.)

Latch

Power

Switch

Power

Indicator

DC-IN Jack

DC IN 15.6 V

CAUTION

1At [Welcome to the Windows XP Setup Wizard], select [Next].

2After reading the agreement, select [I accept this agreement] or [I don’t accept this

agreement], then select [Next].

NOTE

DC Plug

Do not press any keys or touch the touch pad until [Windows XP Professional

Setup] is displayed.

Do not use the touchscreen during the Windows setup.

If [I don’t accept this agreement] is selected, the Windows setup will be aborted.

Getting Started

CAUTION

Remember this password! If the password is forgotten, Windows cannot

be operated.

3Select settings for your region, then select [Next].

4Enter your name and organization and then select [Next].

5Enter your computer name and administrator password and then select [Next].

6Enter the correct date, time and time zone, then select [Next].

7Enter your administrator password and select .

The computer will restart.

NOTE

It may take some time before the computer restarts and the screen of step

7 is displayed. Wait, and do not press any keys, touch the touch pad, etc.

When creating a new user account:

• If you make mail settings, create password reset disks ( page 14), or

conduct other related operations before creating the user account, you will

be unable to use any previous mail history or settings.

• When you create the first new account, you can only select [Computer

administrator].

Once a “Computer Administrator” account has been created, you can cre-

ate additional limited user accounts.

Note also that only the added user account will be displayed in the Wel-

come screen. The account for the administrator created during Windows

setup will not be displayed.

NOTE

CAUTION

Remember this password! If the password is forgotten, Windows cannot be

operated. You can create a password reset disk beforehand ( page 14).

8Create a new account.

1Select [start] - [Control Panel] - [User Accounts] - [Create a new account].

2Enter a name for the new account, then select [Next].

3Select [Computer administrator], then select [Create Account].

4<When you want to create a password for the new account>

Select the new account you have created and select [Create a password].

Follow the instructions on the screen to create a password.

5Select [start] - [Turn Off Computer] - [Restart] to restart the computer.

NOTE

When Windows setup is completed, the following message will be displayed

at the bottom right of the screen: “Your computer might be at risk.” Con-

tinue to the next step.

The message is generated by the [Security Center] function in [Control Panel],

and does not indicate an error or malfunction. For more information about

[Security Center]: page 21.

Getting Started

Depending on the Windows settings, installed applications, and drivers, menus and

other displays may differ, or some functions (such as use of the password reset disk)

may be inoperable. Check with your system administrator for details.

You can select Classic view for the Control Panel or select the Classic Start menu.

You can also change the way a user logs on or off.

The procedure in this manual uses the method or view of the Windows XP default

setting (not Classic view or Classic Start menu etc.).

Resetting the password

Windows XP has a function to reset a forgotten password.

To use this function, you need to create a password reset disk beforehand following

the steps below.

1Connect the USB floppy disk drive (optional: CF-VFDU03) to your computer.

2Select [start] - [Control Panel] - [User Accounts].

3Select [Prevent a forgotten password] from the [Related Tasks] menu of the ac-

count you have logged on to and create a password reset disk following the on-

screen instructions.

Store the password reset disk in a safe place.

• Only the logon password for each account can be reset.

The password set in the Setup Utility ( “Setup Utility”) cannot be reset.

Information for Windows XP

This concludes the first-time use operation guidelines.

First-time Operation

9Calibrate the touchscreen.

1Log on to Windows.

2Select [start] - [All programs] - [Fujitsu Touch Panel (USB)] - [Touch Screen Cali-

bration Utility].

3Touch the 12 “+” target marks sequentially with the stylus, and then select [Cali-

bration].

Keep touching each “+” mark until it blinks.

4Select [Save & Exit].

NOTE

Calibrate the touchscreen for each account created.

About the Icon Enlarger:

• If the characters or icons on the screen are too small and difficult to see,

after completing step 9, select [start] - [All Programs] - [Panasonic] - [Icon

Enlarger]. This will allow you to magnify the display of characters and

icons on the screen. ( “Icon Enlarger”)

• The [Icon Enlarger] can be set separately for each account.

You can also use [Loupe Utility], which enlarges a part of the screen. (

“Loupe Utility”)

If you use the wireless LAN, be sure to refer to the Reference Manual’s

“Wireless LAN”.

NOTE

Operation

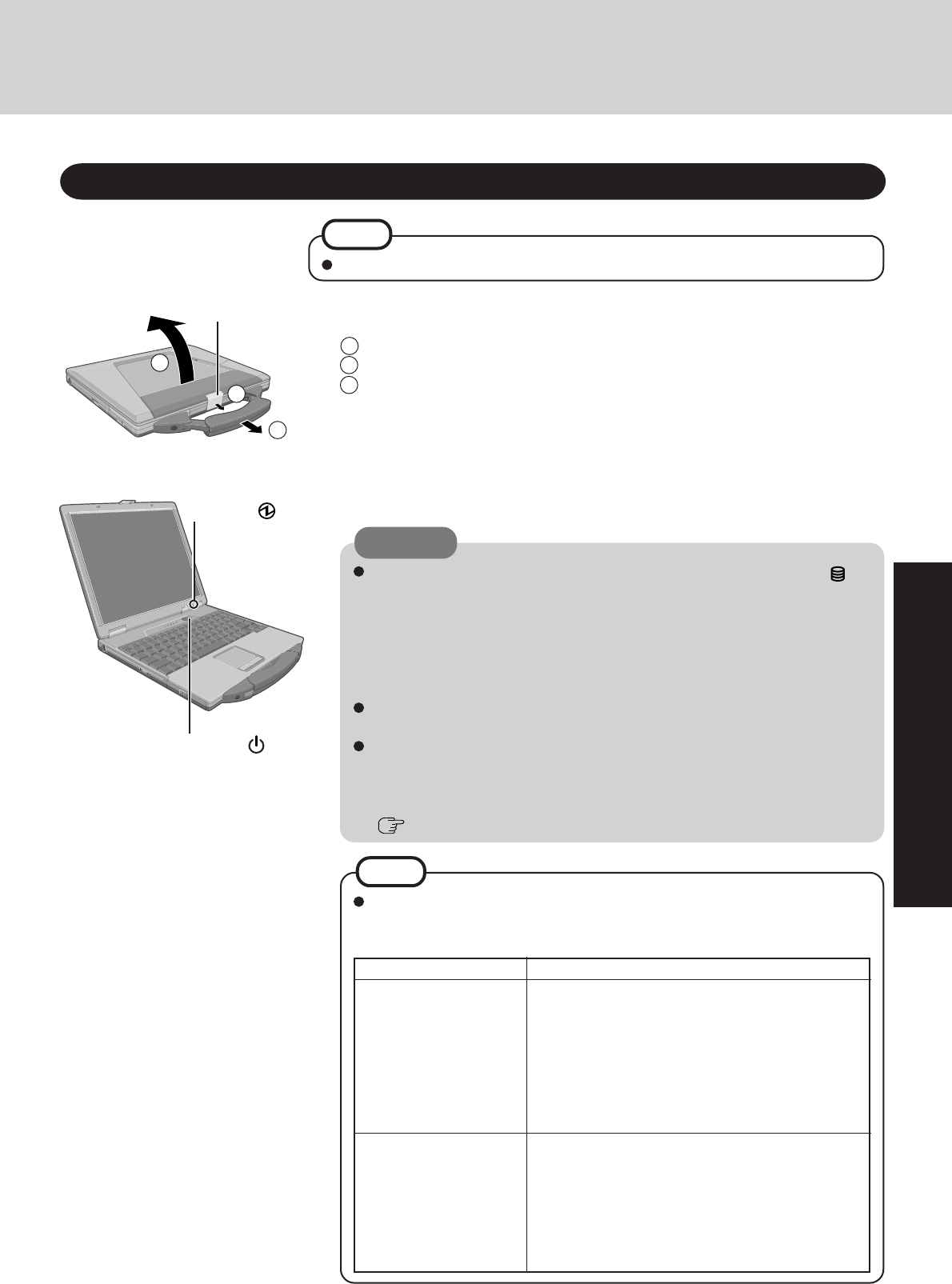

Starting Up/Shutting Down

Starting Up

Power Switch

Power

Indicator

2Turn your computer on.

Press the power switch and hold it for approximately one second until the power indi-

cator turns on before releasing it.

CAUTION

While booting, avoid the following until the hard disk drive indicator has

turned off.

• Connecting or disconnecting the AC adaptor.

• Touching the power switch.

• Performing any keyboard, touch pad, touchscreen or external mouse opera-

tions.

• Closing the display.

Once the computer is powered off, you must wait at least ten seconds before

powering it on again.

When the CPU temperature rises, the computer may not power on to prevent

the CPU from overheating. Should this happen, allow the computer to cool

down then switch the power on again.

If the computer still does not power on, contact Panasonic Technical Support.

( page 41)

Latch 1Open the display.

1Pull the carrying handle forward.

2Lift up the latch.

3Lift open the display.

You may encounter the following situations when the computer is turned on at

very low temperatures. These functions are designed to prevent hard disk drive

malfunctions that may occur at low temperatures.

NOTE

Situation

The computer turns on,

and the message “Warm-

ing up the system (up to

30 minutes)” is displayed.

• The computer does not

turn on.

• The computer does not

resume operation from

standby mode.

(The power indicator

blinks quickly in green.)

Action

The computer is warming up before start up. Wait for

the computer to start up (takes up to 30 minutes).

However, the computer may fail to warm up and the

message “Cannot warm up the system” will be dis-

played, and the computer will not start. If this happens,

turn off the computer, leave it in an environment with

a temperature of 5 °C {41 °F} or more for about an

hour, and then try turning the power on once more.

Leave it in an environment with a temperature of 5

°C {41 °F} or more for about an hour, then try turn-

ing the power on once more.

If the dummy card is inserted, remove it before starting up.

NOTE

Operation

Starting Up/Shutting Down

3Log on to Windows.

After confirming that the hard disk drive indicator has turned off, select the user and

input the password, then select . Until the correct password is entered, the computer

will not operate.

4Select your application.

You are able to start working on your computer.

The power saving function is factory set, so if there is no input from a key, the touch

pad, the touchscreen or an external mouse (when one is connected) for a certain

interval of time, the power to the LCD and hard disk may be turned off. The LCD

will resume operation when the touch pad, the touchscreen or an external mouse

(when one is connected) is used or a key is pressed.

The power to the LCD may be turned off even when an application software is being

installed. In this case, because it is conceivable that a selection dialog box will be

shown, do not press Space or Enter to attempt to resume from this condition

as doing so may trigger a selection, but instead, press a key unrelated to the direct

triggering of a selection, like Ctrl .

In addition, when the computer is left alone, it automatically enters the standby or

hibernation mode. The computer will resume by pressing the power switch. (

“Standby/Hibernation Functions”)

NOTE

If the screen on the left is displayed immediately after you turn

on the power...

A password has been set to ensure the computer’s security.

Enter your password*1 and press Enter . ( “Security Measures”)

When the correct password is input, the computer will start.

When three incorrect password attempts or nothing is input for one minute, the com-

puter will power off.

*1Supervisor Password or User Password set in the Setup Utility (not the Windows password).

Enter Password [ ]

Operation

Shutting Down (power off your computer)

1Save important data and close each application.

2Select [start] - [Turn Off Computer].

3Select [Turn Off].

Your computer will power off automatically.

Restarting your computer (without shutting down):

Select [Restart].

To shut down using the keyboard;

Press , U , and select [Turn Off] with U .

CAUTION

Do not do the following during the shutdown/restart procedure.

• Connecting or disconnecting the AC adaptor.

• Touching the power switch.

• Performing any keyboard, touch pad, touchscreen or external mouse operations.

• Closing the display.

When you leave the computer or interrupt your work...

If you use the “Standby” or “Hibernation” function, then when you turn on the power next

time, the application software and files you were using before will be displayed, and you

can restart the same operations immediately ( “Standby/Hibernation Functions”).

To quickly resume computer operation after shutting down,

The standby or hibernation function is available ( “Standby/Hibernation

Functions”).

NOTE

Operation

Touch Pad

Use the touch pad to move the cursor on the screen and perform normal computer operations.

Left Button

Work Surface

Refer to [Mouse Properties] for information on basic operations other than the above.

To display [Mouse Properties]:

Select [start] - [Control Panel] - [Printers and Other Hardware] - [Mouse].

The operations of Scroll, Pan or Zoom will differ depending on the application. There

are cases the touch pad will not support these operations even with an application that

supports the functions.

Right Button

Handling the Touch Pad

By design the touch pad is to be used with a finger tip only. Do not place any object on the

work surface or press down forcefully with sharp-pointed objects (e.g., nails) or hard ob-

jects that can leave marks (e.g., pencils and ball point pens).

Try to avoid having any harmful substances such as oil, come in contact with the touch pad.

The cursor may not work properly in such cases.

When the touch pad becomes dirty:

Wipe to remove dirt by using a dry soft cloth such as gauze or a soft cloth first applied with

detergent diluted with water and then thoroughly wrung.

Do not use benzene, thinner, rubbing alcohol. Doing so may adversely affect the surface,

e.g., discoloration. In addition, do not use commercially-available household cleaners and

cosmetics, as they may contain components harmful to the surface.

Two quick taps, but on the

second tap leaving your fin-

ger down (applying pres-

sure) and moving it on the

work surface.

While holding down the but-

ton, moving your finger on

the work surface.

Function Operation

Moving the Cursor

Tapping/Clicking

Double-Tapping/

Double-Clicking

Dragging

Scroll*1

Scroll a document

(The movements will dif-

fer depending on the ap-

plication.)

Move the tip of your finger

lightly over the work surface.

tapping clicking

double-clickingdouble-tapping

NOTE

To right-click: click with the right button.

*1 The movements will differ depending on the application.

Operation

Reference Manual

The Reference Manual and the Important Tips can be accessed on your computer. When a

printer is connected, these manuals can also be printed.

Illustrations may be difficult to view depending on the magnification. If the illustration is

too small, magnify the display.

If a printer is connected, we recommend printing the pages required. Depending on the

printer, the illustrations and display samples may not be printed with a high quality.

NOTE

Reference Manual

The Reference Manual explains functions for you to make greater use of the computer,

such as how to add peripheral devices, how the Setup Utility works, and other useful infor-

mation. (Refer to the cover of this manual for a list of the main contents included.)

How to access the Reference Manual

Select [Reference Manual] in [start].

Important Tips

Important Tips provides information on how to maximize use of the battery pack, which is

necessary for computing away from your home or office.

It also offers helpful explanations on how to use the touchscreen more effectively.

How to access the Important Tips

Select on the desktop.

Important Tips can also be accessed from [start] - [All Programs] - [Panasonic] - [On-

Line Manuals] - [Important Tips].

When the Reference Manual or Important Tips is accessed for the first time, the License Agree-

ment of the Adobe Reader may be displayed. If it is displayed, after reading the agreement, select

[Accept] to access the Reference Manual or Important Tips.

Refer to Adobe Reader Help to use the Adobe Reader.

Reference Manual / Important Tips

Operation

Useful Information

Handling

Display (LCD)

Use the Soft Cloth included with the computer. (For more information, refer to “Suggestions

About Cleaning the LCD Surface” that comes with the Soft Cloth.)

Areas excluding the display

Wipe these areas with a soft cloth, after applying water or detergent diluted with water to the

soft cloth and firmly wringing out excess water.

Do not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect the

surface, e.g., discoloration. In addition, do not use commercially-available household

cleaners and cosmetics, as they may contain components harmful to the surface.

Do not directly add or spray water or detergent. If liquid enters the inside of the com-

puter, it may cause it to work improperly or be damaged.

CAUTION

Maintenance

This computer has been designed so as to minimize shock to the LCD and hard disk drive, the

leakage of liquid (e.g., water) on to the keyboard, etc., but no warranty is provided against such

trouble. Therefore, as a precision instrument, be extremely careful when handling.

When carrying the computer, be sure to keep to the following:

Turn off the computer.

Remove all external devices, cables, PC Cards protruding from the computer (see figure on

the left), and SD Memory Cards before transporting the computer.

Do not drop or hit your computer against solid objects.

Do not place the computer upright or allow it to tip over. When the computer receives extremely

strong shock after falling, the hard disk or floppy disk drive, etc., may become inoperable.

Do not carry the computer while the display is open, or carry it by gripping the display.

Do not put anything (e.g., a piece of paper) between the display and keyboard.

When taking an airplane, always carry your computer with you. Never check it in with

luggage. Before using the computer inside an airplane, we recommend asking the airlines

regarding their policy on this issue.

Do not leave a disk in the drive while transporting your computer.

When transporting a spare battery pack inside a package, briefcase, etc., it is recommended

that it be placed in a plastic bag in order to protect its contacts.

We recommend the following:

Preparing a fully charged battery pack (and optional charger, if possible).

Making backup copies on discs and carrying them with you.

Environment

Operation: Temperature: 5 °C to 35 °C {41 °F to 95 °F}

Humidity : 30% to 80% RH (No condensation)

Storage: Temperature: -20 °C to 60 °C {-4 °F to 140 °F}

Humidity : 30% to 90% RH (No condensation)

Even within the temperature and humidity ranges noted above, using the computer for long

periods of time in an environment with exceptionally low or high temperatures or high humid-

ity may result in deterioration of the product, which can lead to a reduction in product life.

Places not to use your computer

Such areas may result in damage to the computer.

Areas with electronic equipment

These areas may interfere with your display or cause your computer to produce strange sounds.

Areas with extremely high/low temperatures

Do not leave things near the computer that are sensitive to heat. During operation, the

computer may become warm.

Usage Environment

Operation

Security Center/Antivirus Protection

Use the Windows Security Center function to protect Windows from damage by computer

viruses, etc.

Windows Security Center

What is Windows Security Center?

The Windows Security Center allows centralized management of Windows security infor-

mation, and monitors antivirus measures and other Windows security settings to ensure

optimum safety.

Use the Windows Security Center function to protect your computer from damage by vi-

ruses, etc.

Select [start] - [Control Panel] - [Security Center] to display the current settings for the

following security functions.

• Windows Firewall

A security system for protecting the computer from unauthorized access via the Internet

or other external networks.

The firewall regulates the data exchanged between the computer and the external net-

work, so that only approved data can pass through.

At the time of purchase, the Windows Firewall is set to be enabled.

• Automatic Updates

If your computer is connected to the Internet, this function regularly checks whether secu-

rity updates and other important updates have been made available, and automatically

installs these updates in their latest conditions.

• Virus Protection

This function regularly checks whether antivirus software has been installed in the com-

puter, and whether the version of that software is the latest version available.

Read the message, select (red icon) on the taskbar, and make the appropriate settings.

This message, which the Windows Security Center displays to confirm the security-related settings

regularly, will be displayed until the settings are made more properly.

If the message “Your computer might be at risk” is displayed

NOTE

This message does not indicate an error. You can use the computer while the message is

displayed. However, in order to operate the computer more safely, we recommend mak-

ing the appropriate measures to reduce damage from virus and other attacks, thus avoid-

ing the appearance of this message.

Some network-related software and some online network games do not operate normally

if the Windows Firewall is enabled. Ask the software manufacturer about the Windows

Firewall in the case of using such software.

For further details on the Windows Firewall, see the help displayed by the following

methods:

1Select [start] - [Help and Support] and input [Windows Firewall] into [Search].

2Select [Windows Firewall overview].

NOTE

The Pop-up Blocker

In Windows XP, security functions have been strengthened with regard to Web contents.

One of these is the “Pop-up Blocker,” which may prevent some Web pages from being dis-

played.

Operation

Useful Information

Saving Data on the Hard Disk

Hard Disk Lock

When the Hard Disk Lock is set to [Enable], it is impossible to read/write data from/to the hard

disk when the hard disk is installed in a different computer, since a password is also set for the

hard disk. When the hard disk is returned to the original computer, you can read and write data as

before. In this case, however, make the settings in the Setup Utility exactly the same as they were

before the hard disk was removed. (Note that this Hard Disk Lock does not guarantee the com-

plete protection of data.) ( “Security Measures”)

Do not expose your computer to shock.

Use care when handling your computer, shock may damage your hard disk or make your

software applications and data unusable.

Do not power off your computer while software applications are running or hard disk

drive indicator is on.

Properly shut Windows down to avoid problems.

Save all valuable data to disks, etc.

Backing up data to disks, etc. will limit damage should trouble occur to your computer or

should you inadvertently change or erase data.

Use the security function for all important data. ( “Security Measures” and

“SD Memory Card Security Function”)

When Using Peripheral Devices

Pay strict attention to the following points to avoid damage to the computer, peripheral devices,

cables, etc. Also, in addition to following this manual and the Reference Manual, carefully read

the instruction manuals for the peripheral devices being used.

Use only peripheral devices that conform to the computer’s specifications.

Connect the devices properly, paying close attention to the condition and position of the

connectors.

If a connection cannot be made easily, do not apply undue force; check once more to con-

firm the condition and position of the connector (alignment of pins, etc.).

If the connector has holding screws, fasten the screws firmly.

Do not carry the computer with cables attached, and do not pull on the cables forcefully.

Users are advised to purchase the latest versions of virus protection software and use

them regularly.

We recommend you run the software:

• When booting your computer.

• After receiving data.

We recommend that you check data received on disks or from external sources, such as data

downloaded from the Internet, e-mail, etc. (For compressed files, uncompress them before

running a check).

For Data Execution Prevention (DEP), you can make one of the settings in the following menu.

[start] - [Control panel] - [Performance and Maintenance] - [System] - [Advanced] - [Settings]

(in [Performance]) - [Data Execution Prevention].

For more information, refer to Windows help.

Computer Viruses

Windows Update

You can use the latest patches and service packs for Windows with the following menus.

Do not apply “Driver Updates” even if a message to update a driver appears. If a driver

update is required, contact to Panasonic Technical Support. ( page 42)

[start] - [All programs] - [Windows Update]

Operation

Wireless LAN (only for models with wireless LAN)

To prevent theft of data or unauthorized access to the hard disk

via a wireless LAN.

If you plan to use wireless LAN functions, we recommend that you do so only after making

the appropriate security settings, such as for data encryption.

When Disposing of or Transferring Ownership of This Device

When disposing of or transferring ownership of this device, erase all data on the hard disk in

order to prevent the theft of hard disk data. Even if you delete data or initialize the hard disk

through normal Windows commands, data can still be read using special software. In order to

erase all data, either have the data erased by a specialist (at a charge) or use the hard disk data

erase utility (included) ( page 38). (Note that this hard disk data erase utility does not guar-

antee that data will be completely erased.)

Also, note that if you transfer ownership of this device without deleting commercial soft-

ware that you have installed to the hard disk, you may be in violation of the licensing

agreement for that software.

When Changing Hard Disk Partitions

When using the hard disk backup function, divide into partitions when a backup area is created

( page 34). If you divide up the hard disk into partitions before creating the backup area, the

backup area cannot be created.

Troubleshooting

List of Error Codes

When turning on the computer, if one of the following error codes or messages is displayed, follow the instructions shown below.

If the problem persists, or if the error code or message displayed is not shown here, contact Panasonic Technical Support. ( page 41)

Error Code/Message

0211: Keyboard error

0251: System CMOS checksum

bad - Default configuration

used

0271: Check date and time set-

tings

0280: Previous boot incomplete

- Default configuration used

0613: Serial Port*1 configura-

tion changed

0614: Serial Port*1 config. error

- device disabled

*1The port name, such as A or B,

is displayed, indicating the con-

flicting ports.

Press <F2> to Setup

Operating System not found

Extended RAM Module Failed

Action

If an external keyboard is connected, disconnect these devices.

An error has occurred in the memory that stores the Setup Utility settings. This error occurs

when the memory content is changed through some inadvertent operation by a program or

other function.

Run the Setup Utility and load the default values, then change the settings to the appro-

priate values as needed.

If the problem persists, the internal clock battery may need to be replaced. Contact Pana-

sonic Technical Support.

The data and time setting are incorrect.

Run the Setup Utility and set the date and time correctly.

If the problem persists, the internal clock battery may need to be replaced. Contact Pana-

sonic Technical Support.

Startup has failed repeatedly, so the Setup Utility settings have been returned to their default

values, and the computer has been restarted.

Run the Setup Utility and load the default values, then change the settings to the appropri-

ate values as needed.

I/O address and IRQ settings are in conflict.

Run the Setup Utility and change the settings in [Advanced] menu so there is no port

conflicts.

Write down the error details and press F2 to run the Setup Utility. Confirm the

settings, and change the settings to the appropriate values as needed.

The OS is not properly installed on the floppy disk or the hard disk that you are trying to

boot from.

If the computer cannot be booted from the floppy disk, check the floppy disk drive to

ensure that the disk is in fact bootable, and change it to another if not.

If the computer cannot be booted from the hard disk, confirm whether the hard disk is

properly recognized in [Information] menu of the Setup Utility.

• If the hard disk is recognized, perform the reinstallation procedure.

• If not, contact Panasonic Technical Support.

If a device is connected to the USB port, disconnect the device, or run the Setup Utility

and set [Legacy USB Support] in [Advanced] menu to [Disable].

If the extended RAM module has not been inserted properly, or if an extended RAM

module other than one matching the specifications has been inserted, a beep will sound

and the message “Extended RAM Module Failed” will be displayed when turning the

power on. In this case, turn the power off, confirm that the extended RAM module meets

the specifications, and reinsert it.

To run the Setup Utility

1Restart the computer.

2Press F2 while [Panasonic] boot screen is displayed soon after the computer begins the startup procedure.

Troubleshooting

Dealing with Problems (Summary)

The power indicator or bat-

tery indicator is not lit

The computer does not op-

erate when a USB device is

connected

[

Enter Password

] is displayed

POST Startup Error(s) is

displayed

Windows startup, or an op-

eration is extremely slow

The date and time are incor-

rect

When resuming from the

standby or hibernation

mode, [Enter Password]

does not appear even if a

password has been set in the

Setup Utility

When the administrator

password is forgotten

When “Remove disks or

other media. Press any key

[Executing Battery

Recalibration] screen is dis-

played

Check the cable connection for the AC adaptor.

Check to see if a charged battery is properly inserted.

Remove the battery pack and disconnect the AC adaptor, then connect them again.

The computer may not operate when certain USB devices are connected.

Disconnect the USB device, or set [Legacy USB Support] to [Disable] in [Advanced]

menu of the Setup Utility.

Input your Supervisor Password or User Password. If you have forgotten it, contact

Panasonic Technical Support.

page 24

Press F9 in the Setup Utility ( “Setup Utility”). This will restore the Setup

Utility’s settings to their default values (except the password settings). Then, the Setup

Utility must be run once again for you to input the appropriate operating environment

settings. (The processing speed depends on the application software used, so this opera-

tion may not cause the processing speed to increase.)

If you install resident software after purchasing this computer, disable the resident software.

When Indexing Service is enabled, Windows operation becomes slower.

Disable Indexing Service in the following menu.

[start] - [Search] - [Change preferences] - [Without Indexing Service]

You can set the date and time using the following menu:

[start] - [Control Panel] - [Date, Time, Language, and Regional Options] - [Date and Time]

When the computer is connected to a LAN, confirm the date and time of the server.

If you continue to experience problems, the internal battery maintaining the clock may

need to be replaced. Contact Panasonic Technical Support.

This computer will not correctly recognize the date and time starting from the year 2100 A.D.

Even when a password has been set in the Setup Utility, [Enter Password] does not appear

when the computer resumes from the standby or hibernation mode. If you want to use the

security function when using the standby or hibernation mode, use the Windows pass-

word as follows:

1Select [start] - [Control Panel] - [User Accounts], and select the account for which the

password will be set.

2Select [Create a password], input the password, and then [Create Password].

3Add the check mark for [Prompt for password when computer resumes from standby]

in [Control Panel] - [Performance and Maintenance] - [Power Options] - [Advanced].

If you have created a password reset disk ( page 14), a message is displayed when you

fail to correctly enter the password. Follow the message’s instructions and set the pass-

word again by using the password reset disk.

If you have not created a password reset disk, after reinstalling, setup Windows and then

set the password again.

This means a floppy disk that does not contain system startup information has been left in

the floppy disk drive. Remove the floppy disk, and press any key.

This message may appear when certain USB devices are connected. Remove the USB

device, or set [Legacy USB Support] in [Advanced] menu of the Setup Utility to [Disable].

If the message still appears even after trying the above measures, this may be an indication

that some type of hard disk failure has occurred. Contact Panasonic Technical Support.

This screen appears because the Battery Recalibration was canceled before Windows was

shut down last. To start up Windows, turn off the computer by sliding the power switch,

and then turn it back on again.

When a problem occurs, refer to this page. The “Reference Manual” also contains detailed information. If a problem appears to be

related to a software application, read the software related manual. If you still cannot troubleshoot the problem, contact Panasonic

Technical Support. ( page 41)You can use the PC Information Viewer to check the computer’s usage status. ( “Deal-

ing with Problems (Advanced)”)

Starting Up

Troubleshooting

Dealing with Problems (Summary)

No display after powering on

The power has not been

turned off, but after a cer-

tain period of time, there is

no display

When the battery pack is

used, the screen is darker

than when the AC adaptor

is connected

The LCD brightness changes

a number of times when the

AC adaptor is disconnected

Image colors are not repro-

duced as expected when dis-

playing photographs or

other images

An afterimage appears (e.g.,

green, red, and blue dots re-

main on the display) or there

are dots not displaying the

correct colors

When there is no display to an external display,

• Check your cable connection to the external display.

• Confirm your display is powered on.

• Check the settings for your external display.

The display destination may be set to the external display.

Try changing the display destination by pressing Fn + F3 .

If you want to switch the display destination repeatedly by pressing Fn + F3 , make

sure that the display destination has switched completely each time before pressing

Fn + F3 again.

Press Fn + F2 and adjust the brightness.

Has the computer been set to the power-saving mode?

To resume operation of your computer from the condition the power of the display is off

(for energy conservation purposes), press any key unrelated to the direct triggering of a

selection, like Ctrl .

To save power, your computer may have automatically entered the standby mode (power

indicator blinks green) or hibernation mode (power indicator turns off). In such cases,

press the power switch.

Press Fn + F2 and adjust the brightness. Note, however, that when the brightness is

increased, the battery running time will become shorter.

Brightness can be set to separate levels for when the AC adaptor is connected and when

it is disconnected.

Intel(R) Display Power Saving Technology ( “Computing on the Road”) is

active and automatically changes the LCD brightness.

We recommend removing the check mark from [Intel(R) Display Power Saving Technol-

ogy]. ( “Computing on the Road”)

If an image is displayed for a prolonged period of time, an afterimage may appear. This is

not a malfunction. The afterimage will disappear when a different screen is displayed.

High-precision and advanced technologies are necessary in the production of color liquid

crystal displays (color LCDs). Therefore, if 0.002% or less of the picture elements either

fail to light or remain constantly lit (that is, more than 99.998% of elements are function-

ing properly), no defect is considered to exist.

Display

When the previous item is

not the cause

Press F9 in the Setup Utility ( “Setup Utility”). This will restore the Setup

Utility’s settings to their default values (except the password settings).

Try removing all peripheral devices.

Check a disk error using the following procedure.

1Display [Local Disk(C:) Properties].

Select [Local Disk(C:)] with the right button in [start] - [My Computer], and select

[Properties].

2Select [Tools] - [Check Now].

3Select [Start] after selecting required items in [Check disk options].

At startup, hold down F8 when [Panasonic] boot screen disappears*1, and release

your finger when the Windows Advanced Options Menu is displayed. Start the computer

in Safe Mode, and confirm the details of the error.

*1 When [Password on boot] is set to [Enable], [Enter Password] appears after the [Panasonic] boot

screen disappears. Hold down F8 soon after inputting the password and pressing Enter .

Starting Up (continued)

Troubleshooting

Windows cannot be shut

down or restarted

Shutting down

If a USB device is connected, try removing it.

It may take one or two minutes to shut down.

The screen becomes disor-

dered

The external display no

longer displays properly

When you want to display

the fonts or icons at a larger

size

During simultaneous dis-

play, one of the screens be-

comes disordered

When a video such as an

MPEG file or a DVD video

is being played with

WinDVD or Windows? Me-

dia Player, the display des-

tination cannot be switched

using Fn + F3

When the screen saver is set,

an error will occur during a

resume operation

The screen display may become distorted if the resolution or number of colors is changed,

or if an external display is connected or disconnected while the computer is operating.

Restart the computer.

When an external display not compatible with the power saving mode is used with the

computer, the display may not function correctly when the computer enters the power

saving mode. In such cases, turn off the power to the external display.

Change the size of the icons, etc. using “Icon Enlarger” ( “Icon Enlarger”).

To enlarge a part of the screen, use Loupe Utility ( “Loupe Utility”).

Try changing the display by pressing Fn + F3 .

If you continue to experience problems, try changing the display destination in the follow-

ing menu.

[start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) GMA Driver] - [De-

vices]

When the [Command Prompt] is set to “Full Screen” by pressing Alt + Enter , the

picture is displayed on one of the screens only. When the window display is restored by

pressing Alt + Enter , the picture is displayed on both screens.

The display destination cannot be switched while a video such as an MPEG file and a

DVD video is playing. Stop playing the video before switching the display destination.

When the computer automatically enters the standby or hibernation mode while the screen

saver is running, an error may occur during a resume operation. In such cases, turn off the

screen saver or try changing the pattern of the screensaver.

Display (continued)

Battery Indicator

The red indicator lights

The red indicator blinks

The green indicator blinks*2

The orange indicator blinks

The battery level is very low (the charge is approx. 9% or less).

Connect the AC adaptor. You can use the computer when the battery indicator light is

orange. If you do not have an AC adaptor, save your data and power off your computer.

After replacing the battery pack with a fully charged one, turn your computer on.

Quickly save your data and power off your computer. Remove the battery pack and dis-

connect the AC adaptor, then connect them again.

If the problem persists, contact Panasonic Technical Support. The battery pack or charg-

ing circuit may be defective.

In high temperature mode, the battery is discharging to the level that corresponds to an

80%*1 charge for normal temperature mode. ( “Battery Power”) Do not re-

move the battery pack while the battery indicator is blinking green, or the power will be

turned off forcibly.

*1In high temperature mode, the level that corresponds to an 80% charge for normal tem-

perature mode is displayed as [100%].

*2Only for the main battery pack.

Battery cannot be recharged temporarily because the internal temperature of the battery

pack is outside of the acceptable temperature range for recharging. Once the allowable

range requirement is satisfied, charging begins automatically. Your computer can be used

normally in this state.

Troubleshooting

Dealing with Problems (Summary)

Touch Pad / Touchscreen

If you are using an external mouse, ensure that the external mouse has been connected

correctly.

Restart the computer by using the keyboard.

(Press , U , and select [Restart] with R )

If the computer does not respond to keyboard commands, read “No response”

( page 28).

Has the Setup Utility been used to set [Touch Pad] to [Enable]?

When external mouse drivers are installed (e.g., Intellimouse), the touch pad may not be

used.

Has the touch pad driver been properly installed?

As a result of the physical characteristics of the touchscreen, sometimes the position of

the stylus does not match the position of the cursor on the screen. This is not a malfunc-

tion. Perform [Calibration]. ( page 14)

When mouse drivers are installed (i.e. IntelliMouse), the touchscreen is unable to be used.

Reinstall the touchscreen driver.

Has the touchscreen driver been properly installed?

The cursor cannot be con-

trolled properly

Unable to input using the

touch pad

Unable to point correctly

with the stylus included

with the computer

Unable to input by touching

the display

Is Adobe Reader installed?

If you have uninstalled Adobe Reader, install using the following procedures.

1Log on to Windows with the administrator authority.

2Select [start] - [Run], input [c:\util\reader\AdbeRdr60_enu_full.exe], then select [OK].

Install Adobe Reader by following the instructions on the screen.

3Update Adobe Reader to its latest version.

If your computer is connected to the Internet, start up Adobe Reader and select [Help]

- [Update].

If your computer is not connected to the Internet, select [start] - [Run], input

[c:\util\reader\Acro-Reader_6.0.2_Update.exe], then select [OK].

Reference Manual

The Reference Manual is

not displayed

Reinstalling B’s Recorder/B’s CLiP

When reinstalling, the input

of a serial number has been

asked

Input the following serial number

B’s Recorder: GK5PAA-AAAQ-1756-2885

B’s CLiP: HG5PAA-AAAC-2804-1478

SD Memory Card

Cannot log on with the SD

Memory Card

Windows logon user name and password are not set in the SD Memory Card correctly.

Enter the Windows user name and password without using the SD Memory Card.

After logging on, set the same user name and the password on the SD Memory Card and

Windows, using one of the following operations.

• Change the setting of the SD Memory Card side by [SD Card Setup].

• Change the setting of the Windows side by [Control Panel].

Troubleshooting

Some applications do not

work properly

Fast User Switching Function

When switching to a different user with the Fast User Switching function, the following

problems may occur.

• Some applications may not work properly.

• Key combinations with the Fn key may not work.

• It may not be possible to set the settings of the display.

• A serial mouse may not work.

• The B’s CLiP icon will no longer be shown on the taskbar and CD-RW disc cannot be

written using B’s CLiP.

• Wireless LAN may not work (only for models with wireless LAN).

In this case, log off all users without using Fast User Switching function, and try the

operation once more. If the problem persists, restart the computer.

Press Ctrl + Shift + Esc to open Task Manager and close the software application

which is not responding.

Is there an input screen (e.g., password input screen at startup) hidden behind another

window? Use Alt + Tab to check for other windows being displayed.

After shutting down by sliding the power switch for more than four seconds, slide the

power switch to power on and open the application again.

If the program no longer works normally, delete the program using the following menu.

Then reinstall the program.

[start] - [Control Panel] - [Add or Remove Programs]

Some video files use a Codec that is not installed as a standard. In these cases, if you play

back the video file after connecting to the Internet, the Codec may be downloaded auto-

matically, allowing you to play back the file.

Others

No response

When trying to play back

video files using Windows®

Media Player, the message

[Codec required] appears, and

the file cannot be played back

Troubleshooting

Reinstalling Software

Before Reinstallation

1Turn off the computer and insert the CD/DVD drive into

the multimedia pocket. ( “Multimedia Pocket”)

2Turn on the computer, and press F2 while [Panasonic]

boot screen is displayed.

The Setup Utility will start up.

If the password has been set, enter the Supervisor Pass-

word.

3Write down all of the contents of the Setup Utility and

then press F9 .

At the confirmation message, select [Yes] and then press

Enter .

4Select [Boot] menu, then select [IDE MP: xxxxxxxxxx]

and press F6 until [IDE MP: xxxxxxxxxx] is at the top

of the [Boot] menu.

5Place the Product Recovery DVD-ROM into the CD/DVD

drive.

6Press F10 .

At the confirmation message, select [Yes] and press

Enter .

The computer will restart, and this screen should appear.

Reinstalling

8Press 1 to select [1. Yes, I agree to the provisions above

and wish to continue!].

This screen should appear.

Preparing

You will need the Product Recovery DVD-ROM and CD/DVD drive (included).

Important

Before the reinstallation procedure, remove all peripherals (except for the CD/DVD drive).

Be sure the AC adaptor is connected until the reinstallation procedure is completed.

Even if reinstallation is executed, the number of times that the DVD video region code can be set will not be returned to

the state set at the time of factory shipment. ( “DVD-ROM & CD-R/RW Drive”)

9Make a selection from the menu.

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

Reinstalling : Windows(R) XP Professional

1. Reinstall Windows to the whole HDD to factory default.

2. Make two partitions, for the operating system and data. And reinstall

Windows to the operating system partition.

(All existing partitions on HDD will be lost.)

3. Reinstall Windows to the first partition.

0. Cancel

---------------------------------------------------------------------

When reinstallation procedure is performed, the contents of the hard disk will be erased. Be sure to back up any critical data on

your hard disk to another media or to an external hard disk before running the reinstallation procedure.

The reinstallation procedure will return the computer to its original condition.

Even if a hard disk backup area has been created, this backup area will be erased, and all the backed up data will be lost.

(This is not the case when Windows is reinstalled in the first partition.)

• If you have created partitions for data, the data may be erased or become corrupt as a result of the reinstallation procedure.

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. [ Recovery ] Reinstall Windows.

2. [ Erase HDD ] Erase the whole data on HDD for security.

3. [ Backup ] Enable the Backup function.

0. [ Cancel ] Cancel.

---------------------------------------------------------------------

When the message [The Backup function has been en-

abled. If [Recovery] or [Erase HDD] is executed, the

Backup function will be disabled, and your Backup data

will be lost.] appears, press Y .

7Press 1 to execute [1.[Recovery]].

(You can cancel this operation by pressing 0 .)

The License Agreement screen should appear.

When selecting [2], enter the basic partition size for

the operating system installation and press Enter .

(The data partition size is the remainder after subtract-

ing the basic partition size.)

To select [3], the initial partition size must be 6 GB or

more of the hard disk size. Reinstallation cannot be per-

formed with a small partition size.

If you select [1] or [2], the message [The Backup function

has been enabled. If [Recovery] is executed, the Backup

function will be disabled, and your Backup data will be

lost.] appears. In this case, press Y .

If the message [Computer must be rebooted in order to

execute [Recovery.]] appears, press R .

When [2] is selected, the hard disk backup func-

tion cannot be enabled because the hard disk has

been divided into partitions.

NOTE

Troubleshooting

Do not interrupt the reinstallation procedure be-

fore completion, for example by turning off the

computer or pressing Ctrl + Alt + Del , as

this may prevent Windows from starting up, or may

cause data to be lost so that the reinstallation pro-

cedure cannot be executed.

11 Remove the Product Recovery DVD-ROM, and then press

any key.

The computer will be shut down.

12 Turn on the computer, and press F2 while [Panasonic]

boot screen is displayed.

The Setup Utility will start up.

If the password has been set, enter the Supervisor Pass-

word.

13 Press F9 .

At the confirmation message, select [Yes] and press

Enter . (The Setup Utility settings will return to their

default values. Even the security settings with the excep-

tion of the password(s) will return to their default values.)

14 Select [Exit] and then select [Save Current Values], then

press Enter .

At the confirmation message, select [Yes] and press

Enter .

15 Turn off the computer by pressing the power switch.

10 At the confirmation message, press Y .

The operation of reinstallation for the hard disk starts au-

tomatically. (The operations take about 15 minutes.)

You can change the drive letter for the CD/DVD drive or hard

disk drive by the following steps.

Drive letters can only be changed when two or more parti-

tions have been created on the hard disk drive. The name

of the C: drive cannot be changed.

We recommend that you make these changes before in-

stalling applications.

1Select [start] - [Control Panel] - [Performance and Mainte-

nance] - [Administrative Tools] - [Computer Management].

2Select [Disk Management] from [Storage].

3Right click on the partition of the hard disk or the name of

the CD/DVD drive and select [Change Drive Letter and

Paths...].

4Select [Change].

5Select [Assign the following drive letter] and select the

new drive letter, and then select [OK].

6At the confirmation message, select [Yes].

CAUTION

After the reinstallation procedure completes, this screen

should appear.

-----------------------------------------------------------------------

[Recovery] is complete.

Windows(R) XP Professional install wizard will start after reboot.

Please remove the Product Recovery DVD-ROM, and turn off the computer.

------------------------------------------------------------------------

16 Perform the first-time use operation ( page 12 step 6

- page 14 step 9 ).

17 Run the Setup Utility and change the settings where nec-

essary.

If additional instructions are included with the com-

puter, be sure to read them. It may be necessary to

perform additional operations during the following

procedures.

NOTE

Appendix

LIMITED USE LICENSE AGREEMENT

THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC® PRODUCT (“PRODUCT”)

ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH

THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY DEEMED

TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.

Matsushita Electric Industrial Co., Ltd. (“MEI”) has developed or otherwise obtained the Programs and hereby licenses

their use to you. You assume sole responsibility for the selection of the Product (including the associated Programs) to

achieve your intended results, and for the installation, use and results obtained therefrom.

LICENSE

A. MEI hereby grants you a personal, non-transferable and non-exclusive right and license to use the Programs in

accordance with the terms and conditions stated in this Agreement. You acknowledge that you are receiving only

a LIMITED LICENSE TO USE the Programs and related documentation and that you shall obtain no title,

ownership nor any other rights in or to the Programs and related documentation nor in or to the algorithms,

concepts, designs and ideas represented by or incorporated in the Programs and related documentation, all of

which title, ownership and rights shall remain with MEI or its suppliers.

B. You may use the Programs only on the single Product which was accompanied by the Programs.

C. You and your employees and agents are required to protect the confidentiality of the Programs. You may not

distribute or otherwise make the Programs or related documentation available to any third party, by time-sharing

or otherwise, without the prior written consent of MEI.

D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documentation

for any purpose, except that you may make one (1) copy of the Programs for backup purposes only in support of

your use of the Programs on the single Product which was accompanied by the Programs. You shall not modify,

or attempt to modify, the Programs.

E. You may transfer the Programs and license them to another party only in connection with your transfer of the

single Product which was accompanied by the Programs to such other party. At the time of such a transfer, you

must also transfer all copies, whether in printed or machine readable form, of every Program, and the related

documentation, to the same party or destroy any such copies not so transferred.
