OPERATING INSTRUCTIONS

Personal Computer

Model No. CF-74 series

Introduction.................................................2

Read Me First ..............................................3

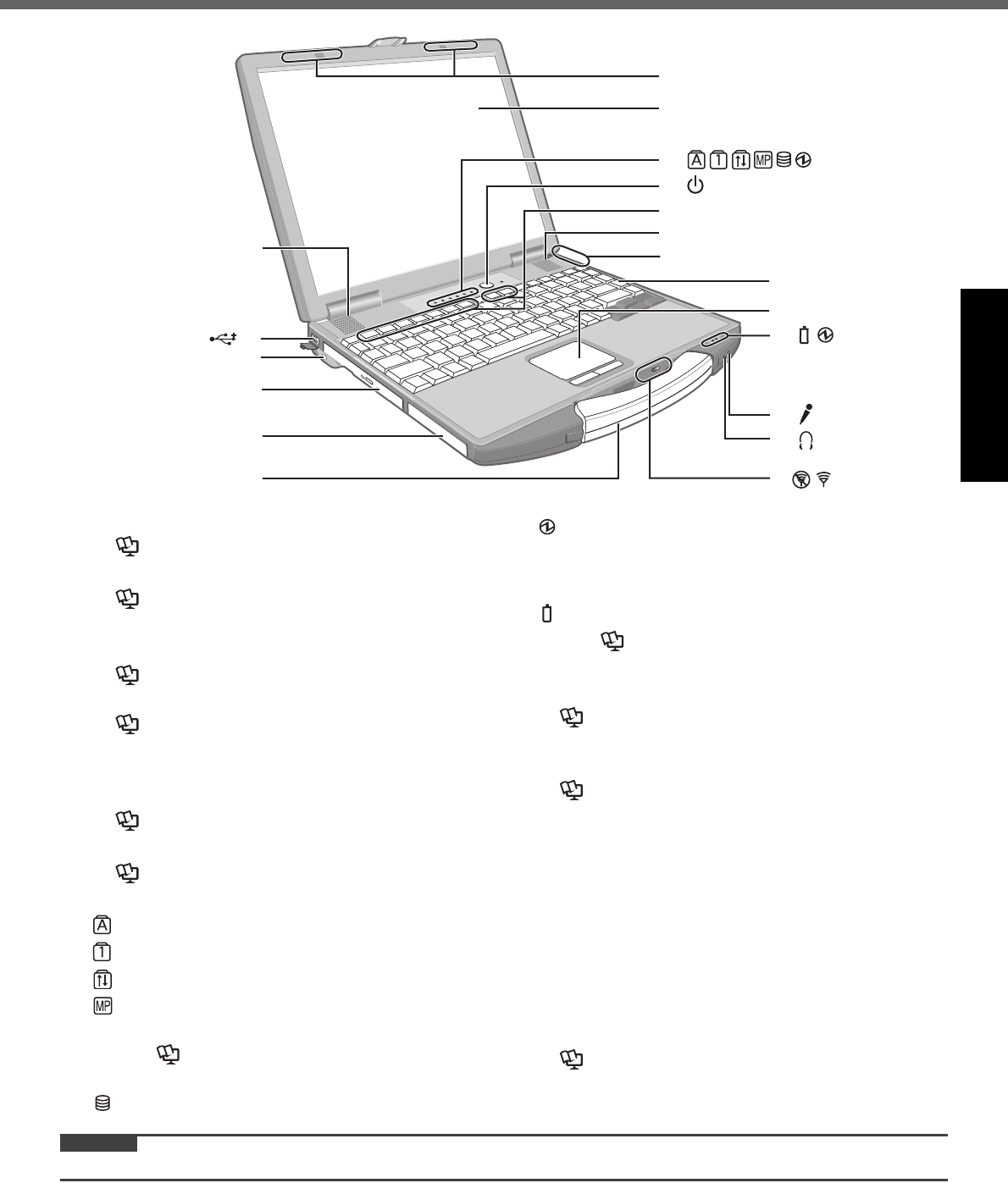

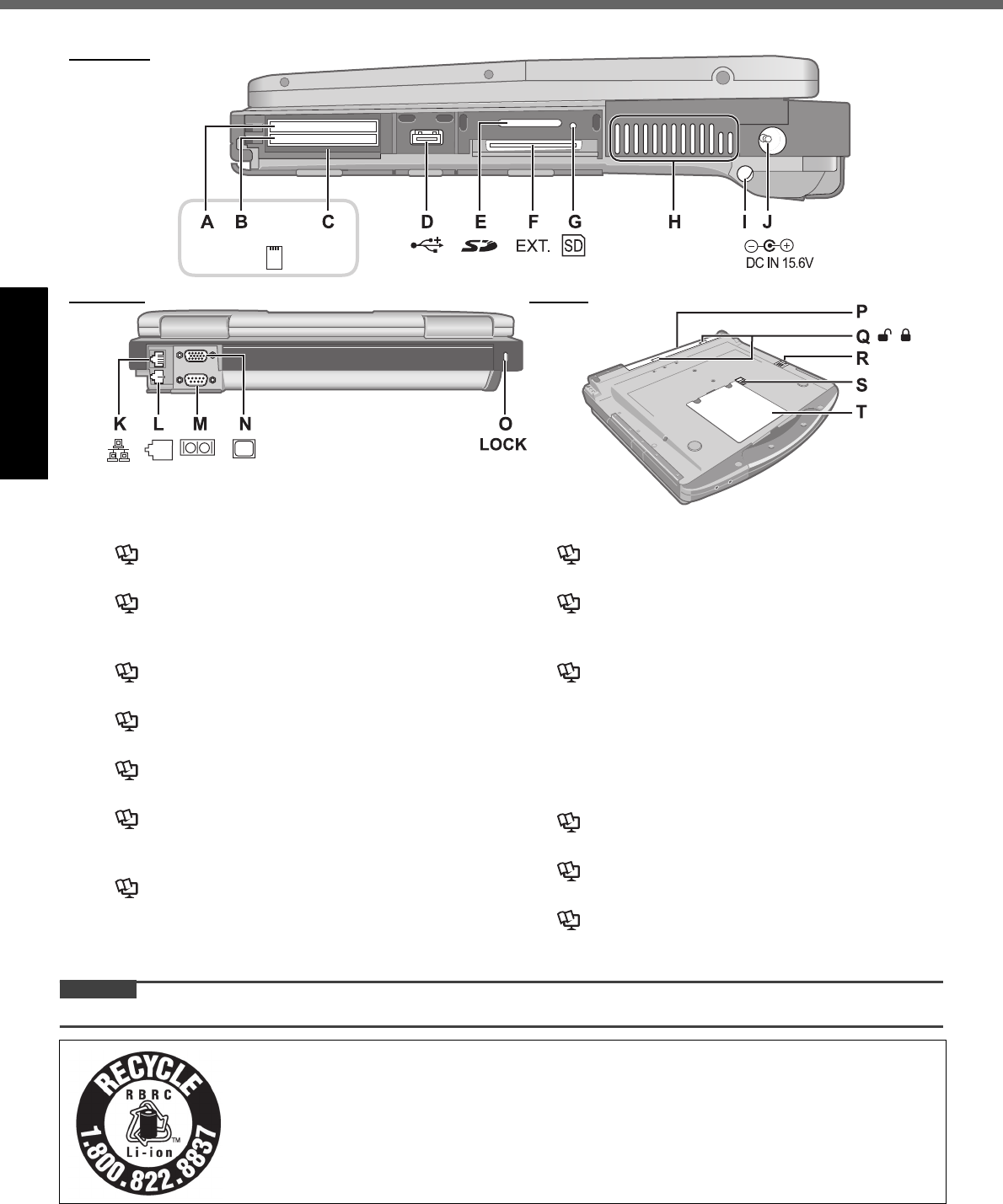

Description of Parts .......................................9

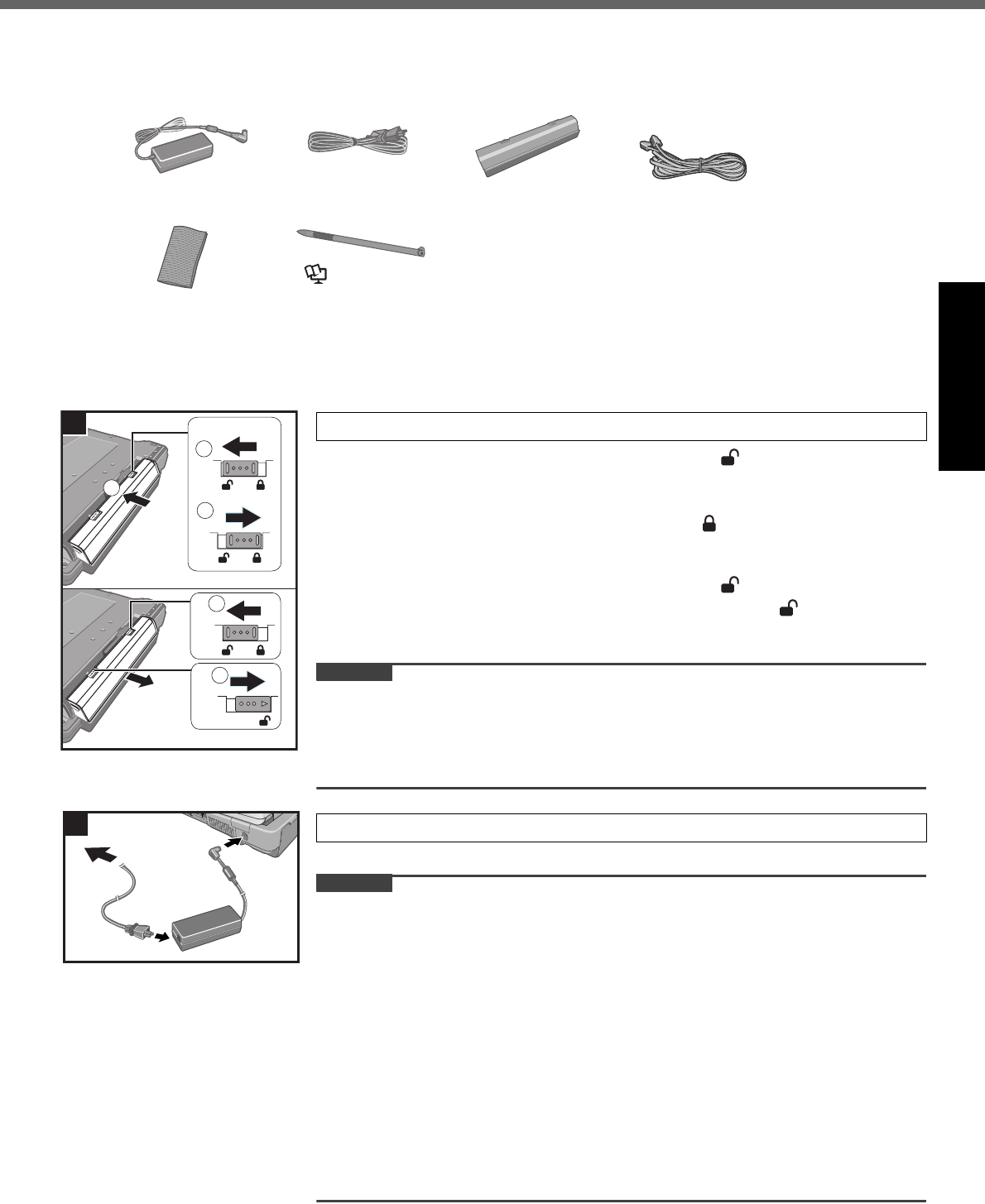

First-time Operation .....................................11

On-screen Manual.......................................13

Handling and Maintenance.............................14

Hard Disk Backup Function ............................16

Hard Disk Data Erase Utility ...........................19

Reinstalling Software....................................20

Error Code/Message ....................................22

Troubleshooting (Basic) ................................23

LIMITED USE LICENSE AGREEMENT..............26

Contrat de licence d’usage limité ......................27

Specifications ............................................28

LIMITED WARRANTY ..................................30

For more information about the com-

puter, you can refer to the on-screen

manual.

To access the on-screen manual

Îpage 13 “On-screen Manual”

Getting StartedUseful InformationTroubleshootingAppendix

Introduction

Thank you for purchasing this Panasonic computer. For optimum performance and safety, please read these instruc-

tions carefully.

Terms and illustrations in these instructions

zSome illustrations are simplified to help your understanding and may look different from the actual unit.

zIf you do not log on as an administrator, you cannot use some functions or cannot display some screens.

zRefer for the latest information about optional products to the catalogs, etc.

zIn these instructions, the names and terms are referred as follows.

• “Microsoft® Windows® XP Professional Service Pack 2 with Advanced Security Technologies” as “Windows” or

“Windows XP”

• “WinDVD™ 5 (OEM Version)” as “WinDVD”

• “B’s Recorder GOLD8 BASIC” as “B’s Recorder”

• “B’s CLiP 6” as “B’s CLiP”

• DVD-ROM & CD-R/RW drive, and DVD MULTI drive as “CD/DVD drive”

• Circular media including DVD-ROM and CD-ROM as “discs”

zThe display modes are referred as follows. ( ) indicates the terms in [Intel® 82852/82855 GM/GME Graphics Control-

ler Properties] screen. To display the screen, select [start] - [Control Panel] - [Other Control Panel Options] - [Intel(R)

Extreme Graphics 2 M].

• Internal LCD (Notebook): The computer’s display

• External display (Monitor): External display

• Simultaneous display (Intel® Dual Display Clone): The same screen is displayed on the internal LCD and the

external display.

• Extended desktop: The extended working area across the internal LCD and the external display.

Copyright

be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd.

No patent liability is assumed with respect to the use of the information contained herein.

Disclaimer

Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd.

assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the com-

puter and the manuals.

Trademarks

Microsoft®, Windows®, the Windows logo and IntelliMouse are registered trademarks of Microsoft Corporation of the

United States and/or other countries.

Intel, Core, Viiv, Centrino and PROSet are either registered trademarks or trademarks of Intel Corporation.

SD Logo is a trademark.

Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorpo-

rated in the United States and/or other countries.

Bluetooth is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Matsushita Electric Industrial Co., Ltd.

WinDVD™ is a trademark of InterVideo, Inc.

Panasonic® is a registered trademark of Matsushita Electric Industrial Co., Ltd.

Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective

own companies.

: Conditions that may result in minor or moderate injury.

: Useful and helpful information.

Enter

: Press [Enter] key.

: Press and hold [Fn] key, and then press [F5] key.

[start] - [Run] : Click [start], and then click [Run]. You may need to double-click in some cases.

Î : Page in these Operating Instructions or in the Reference Manual.

: Reference to the on-screen manuals.

CAUTION

NOTE

Getting StartedUseful InformationTroubleshootingAppendix

Read Me First

Federal Communications Commission Radio Fre-

quency Interference Statement

Note: This equipment has been tested and found to com-

ply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interfer-

ence in a residential installation. This equipment gener-

ates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does

cause harmful interference to radio or television recep-

tion, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

zReorient or relocate the receiving antenna.

zIncrease the separation between the equipment and

receiver.

zConnect the equipment into an outlet on a circuit differ-

ent from that to which the receiver is connected.

zConsult the Panasonic Service Center or an experi-

enced radio/TV technician for help.

Warning

To assure continued compliance, use only shielded inter-

face cables when connecting to a computer or peripheral.

Also, any changes or modifications not expressly

approved by the party responsible for compliance could

void the user’s authority to operate this equipment.

FCC RF Exposure Warning:

zThis equipment is provided with PC Card slot that could

be used with wireless transmitters, which will be specifi-

cally recommended when they become available.

Other third-party wireless transmitters have not been

RF exposure evaluated for use with this computer and

may not comply with FCC RF exposure requirements.

zThis equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment.

zThis equipment has been approved for mobile opera-

tion, and unless otherwise advised in separate supple-

mental instructions for individual wireless transmitter(s),

requires minimum 20 cm spacing be provided between

antenna(s) and all person’s body (excluding extremities

of hands, wrist and feet) during wireless modes of oper-

ation.

zThis equipment may use multiple installed transmitters,

which may be capable of simultaneous transmission.

This product is restricted to indoor use due to its operation

in the 5.15 to 5.25 GHz frequency range.

FCC requires this product to be used indoors for the fre-

quency range 5.15 to 5.25 GHz to reduce the potential for

harmful interference to co-channel Mobile Satellite systems.

High power radars are allocated as primary users of the

5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These

radar stations can cause interference with and/or damage

this product.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and

(2)

This device must accept any interference received, includ-

ing interference that may cause undesired operation.

Responsible Party: Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Tel No:1-800-LAPTOP5 (1-800-527-8675)

FCC Regulation Notice for modem

This equipment contains a FCC approved modem.

1. This equipment complies with CFR47 Part 68 rules.

On the computer is a label that contains, among other

information, the FCC registration number and ringer

equivalence number (REN) for this equipment. If

required, this information must be provided to the tele-

phone company.

2. An FCC compliant telephone cord and modular plug is

provided with this equipment. This equipment is

designed to be connected to the telephone network or

premises wiring using a compatible modular jack

which is Part 68 compliant. See Installation Instruc-

tions for details.

3. The REN is used to determine the quantity of devices

which may be connected to the telephone line. Exces-

sive RENs on the telephone line may result in the

devices not ringing in response to an incoming call. In

most, but not all area, the sum of RENs should not

exceed five (5.0). To be certain of the number of

devices that may be connected to a line, as deter-

mined by the total RENs, contact the local telephone

company.

4. If your telephone equipment cause harm to the tele-

phone network, the telephone company will notify you

in advice that temporary discontinuance of service

may be required. But if advice notice isn’t practical, the

telephone company will notify the customer as soon as

possible. Also, you will be advised of your right to file a

complaint with the FCC if you believe it is necessary.

5. The telephone company may take changes in its facili-

ties, equipment, operations or procedures that could

affect the operation of the equipment. If this happens

the telephone company will provide advance notice in

order for you to make necessary modifications to

maintain uninterrupted service.

6. If trouble is experienced with this equipment, for repair

or warranty information, please contact Panasonic

Corporation of North America at DIAL TOLL FREE 1-

800-LAPTOP5 (1-800-527-8675). If the equipment is

causing harm to the telephone network, the telephone

company may request that you disconnect the equip-

ment until the problem is resolved.

7. There are no user serviceable parts contained in this

equipment.

8. This equipment may not be used on coin service pro-

vided by the telephone company. Connection to party

lines is subject to state tariffs.

Models for U.S.A.

Read Me First

Getting StartedUseful InformationTroubleshootingAppendix

9. The Telephone Consumer Protection Act of 1991

makes it unlawful for any person to use a computer or

other electronic device to send any message via a

telephone fax machine unless such message clearly

contains in a margin at the top or bottom of each trans-

mitted page or on the first page of the transmission,

the date and time it is sent and an identification of the

business or other entry, or other individual sending the

message and the telephone number of the sending

machine or such business, other entity, or individual. In

order to program this information into your fax soft-

ware, you should refer to the manual of the Fax soft-

ware being used.

10.According to the FCC’s electrical safety advisory, we

recommend that you may install an AC surge arrestor

in the AC outlet to which this equipment is connected.

Telephone companies report that electrical surges,

typically lightning transients, are very destructive to

customer terminal equipment connected to AC power

sources and that this is a major nationwide problem.

“Caution : To reduce the risk of fire, use only No.26 AWG or

larger telecommunication line cord.”

“ATTENTION : Pour réduire le risque d’incendie, utiliser

uniquement des conducteurs de télécommunications 26

AWG ou de section supérieure.”

Notice for the products using LCD

This product uses one or more fluorescent lamps contain-

ing a small amount of mercury. It also contains lead in

some components. Disposal of these materials may be

regulated in your community due to environmental consid-

erations.

For disposal or recycling information please contact your

local authorities, or the Electronics Industries Alliance:

<http://www.eiae.org/>

Industry Canada (IC) Notice for modem

This equipment contains an Industry Canada approved

modem unit.

The Industry Canada label is affixed on the modem unit.

EQUIPMENT ATTACHEMENT LIMITATIONS

“NOTICE: The Industry Canada label identifies certified

equipment. This certification means that the equipment

meets telecommunications network protective, opera-

tional and safety requirements as prescribed in the appro-

priate Terminal Equipment Technical Requirements

document(s). The Department does not guarantee the

equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that

it is permissible to be connected to the facilities of the

local telecommunications company. The equipment must

also be installed using an acceptable method of connec-

tion. The customer should be aware that compliance with

the above conditions may not prevent degradation of ser-

vice in some situations.

Repairs to certified equipment should be coordinated by a

representative designated by the supplier. Any repairs or

alterations made by the user to this equipment, or equip-

ment malfunctions, may give the telecommunications

company cause to request the user to disconnect the

equipment.

Users should ensure for their own protection that the elec-

trical ground connections of the power utility, telephone

lines and internal metallic water pipe system, if present,

are connected together. This precaution may be particu-

larly important in rural areas. Caution: Users should not

attempt to make such connections themselves, but should

contact the appropriate electric inspection authority, or

electrician, as appropriate.”

“NOTICE: The Ringer Equivalence Number (REN)

assigned to each terminal device provides an indication of

the maximum number of terminals allowed to be connected

to a telephone interface. The termination on an interface

may consist of any combination of devices subject only to

the requirement that the sum of the Ringer Equivalence

Numbers of all the devices does not exceed 5.”

REN: See bottom of the computer

RESTRICTIONS CONCERNANT LE RACCORDEMENT

DE MATÉRIEL

“AVIS: L’étiquette d’Industrie Canada identifie le matériel

homologué. Cette étiquette certifie que le matériel est

conforme aux normes de protection, d’exploitation et de

sécurité des réseaux de télécommunications, comme le

prescrivent les documents concernant les exigences tech-

niques relatives au matériel terminal. Le Ministère

n’assure toutefois pas que le matériel fonctionnera à la

satisfaction de l’utilisateur.

Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est

permis de le raccorder aux installations de l’entreprise locale

de télécommunication. Le matériel doit également être installé

en suivant une méthode acceptée de raccordement.

L’abonné ne doit pas oublier qu’il est possible que la con-

formité aux conditions énoncées ci-dessus n’empêche

pas la dégradation du service dans certaines situations.

Les réparations de matériel homologué doivent être coor-

données par un représentant désigné par le fournisseur.

L’entreprise de télécommunications peut demander à

l’utilisateur de débrancher un appareil à la suite de répa-

rations ou de modifications effectuées par l’utilisateur ou à

cause de mauvais fonctionnement.

Pour sa propre protection, l’utilisateur doit s’assurer que

tous les fils de mise à la terre de la source d’énergie élec-

trique, des lignes téléphoniques et des canalisations

d’eau métalliques, s’il y en a, sont raccordés ensemble.

Cette précaution est particulièrement importante dans les

régions rurales. Avertissement: L’utilisateur ne doit pas

tenter de faire ces raccordements lui-même; il doit avoir

recours à un service d’inspection des installations élec-

triques, ou à un électricien, selon le cas.”

“AVIS: L’indice d’équivalence de la sonnerie (IES) assigné

à chaque dispositif terminal indique le nombre maximal de

terminaux qui peuvent être raccordés à une interface. La

terminaison d’une interface téléphonique peut consister

en une combinaison de quelques dispositifs, à la seule

condition que la somme d’indices d’équivalence de la

sonnerie de touts les dispositifs n’excède pas 5.”

IES: Voir sous le fond de l’ordinateur

Models for Canada

Getting StartedUseful InformationTroubleshootingAppendix

Industry Canada

This product complies with RSS210 Industry Canada.

Operation is subject to the following two conditions;

(1) this device may not cause interference, and

(2) this device must accept any interference, including

interference that may cause undesired operation of

the device.

This product (local network devices) for the band 5150-

5250 MHz is only indoor usage to reduce potential for

harmful interference to co-channel Mobile Satellite sys-

tems.

High power radars are allocated as primary users (mean-

ing they have priority) of 5250-5350 MHz and 5650-5850

MHz and these radars could cause interference and/or

damage to LELAN devices.

RF Exposure Warning

This equipment has been approved for mobile operation,

and unless otherwise advised in separate supplemental

instructions for individual wireless transmitter(s), requires

minimum 20cm spacing be proved between antenna(s)

and all person’s body (excluding extremities of hands,

wrist and feet) during wireless modes of operation.

Mise en garde concernant l’exposition à l’énergie

radiofréquence

Cet équipement a été homologué pour un fonctionnement

sans fil et, sauf avis contraire inclus dans la notice d’utili-

sation d’un autre émetteur sans fil, une distance minimale

de 20 cm doit être assurée entre l’antenne et le corps de

toute personne (à l’exclusion des mains, poignets et

pieds) pendant le fonctionnement sans fil.

Declaration of Conformity (DoC)

“Hereby, we declare that this Personal Computer is in compliance with the essential requirements

and other relevant provisions of the Directive 1999/5/EC.”

Hint:

If you want to get a copy of the original DoC of our products which relates to the R&TTE, please con-

tact our web address: http://www.doc.panasonic.de

Contact:

Panasonic Services Europe

A Division of Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Network connection.

The terminal equipment is intended for connection to the following public network;

In all the countries of European Economical Area;

- Public Switched Telephony Networks

Technical Features.

The terminal equipment includes the following features;

- DTMF dialing

- Maximum bitrate receiving mode: 56 kbit/s

- Maximum bitrate sending mode: 33.6 kbit/s

This product is designed to interwork with the Public Switched Telecommunication Networks in UK, Ireland, Nether-

lands, Sweden, Denmark, Finland, Switzerland, Luxembourg, Belgium, France, Germany, Spain, Portugal, Iceland,

Greece, Italy, Norway and Austria.

Compliance Notice - CE Mark

This equipment is in conformance with the requirements of the European Council Directive listed below:

73/23/EEC Low Voltage Directive with amendment 93/68/EEC

89/336/EEC EMC Directive with amendments 92/31/EEC and 93/68/EEC

1999/5/EC R&TTE

Models for Europe

Read Me First

Getting StartedUseful InformationTroubleshootingAppendix

When using your telephone equipment, basic safety pre-

cautions should always be followed to reduce the risk of

fire, electric shock and injury to persons, including the fol-

lowing:

1. Do not use this product near water, for example, near

a bath tub, wash bowl, kitchen sink or laundry tub, in a

wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type)

during an electrical storm. There may be a remote risk

of electric shock from lightning.

3. Do not use the telephone to report a gas leak in the

vicinity of the leak.

4. Use only the power cord and batteries indicated in this

manual. Do not dispose of batteries in a fire. They may

explode. Check with local codes for possible special

disposal instructions.

SAVE THESE INSTRUCTIONS

Certaines mesures de sécurité doivent être prises pen-

dant l’utilisation de matérial téléphonique afin de réduire

les risques d’incendie, de choc électrique et de blessures.

En voici quelquesunes:

1. Ne pas utiliser l’appareil près de l’eau, p.ex., près d’une

baignoire, d’un lavabo, d’un évier de cuisine, d’un bac à

laver, dans un sous-sol humide ou près d’une piscine.

2. Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil

sans fil) pendant un orage électrique. Ceci peut présenter

un risque de choc électrique causé par la foudre.

3. Ne pas utiliser l’appareil téléphonique pour signaler

une fuite de gaz s’il est situé près de la fuite.

4. Utiliser seulement le cordon d’alimentation et le type de

piles indiqués dans ce manual. Ne pas jeter les piles

dans le feu: elles peuvent exploser. Se conformer aux

règlements pertinents quant à l’élimination des piles.

CONSERVER CES INSTRUCTIONS

This product and your Health

This product, like other radio devices, emits radio fre-

quency electromagnetic energy. The level of energy emit-

ted by this product however is far much less than the

electromagnetic energy emitted by wireless devices like

for example mobile phones.

Because this product operates within the guidelines found

in radio frequency safety standards and recommenda-

tions, we believe this product is safe for use by consum-

ers. These standards and recommendations reflect the

consensus of the scientific community and result from

deliberations of panels and committees of scientists who

continually review and interpret the extensive research lit-

erature.

In some situations or environments, the use of this prod-

uct may be restricted by the proprietor of the building or

responsible representatives of the organization. These sit-

uations may for example include:

zUsing this product on board of airplanes, or

zIn any other environment where the risk of interference

to other devices or services is perceived or identified

as harmful.

If you are uncertain of the policy that applies on the use of

wireless devices in a specific organization or environment

(e.g. airports), you are encouraged to ask for authoriza-

tion to use this product prior to turning on the product.

Regulatory Information

We are not responsible for any radio or television interfer-

ence caused by unauthorized modification of this product.

The correction of interference caused by such unautho-

rized modification will be the responsibility of the user. We

and its authorized resellers or distributors are not liable for

damage or violation of government regulations that may

arise from failing to comply with these guidelines.

Lithium Battery!

This computer contains a lithium battery to enable the

date, time, and other data to be stored. The battery should

only be exchanged by authorized service personnel.

Warning!

A risk of explosion from incorrect installation or misappli-

cation may possibly occur.

Pile au lithium!

Le micro-ordinateur renferme une pile au lithium qui per-

met de sauvegarder certaines données, notamment la

date et l’heure. La pile ne doit être remplacée que par un

technicien qualifié.

Danger ! Risque d’explosion en cas de non respect de

cette mise en garde!

Important Safety Instructions / Importantes Mesures De Sécurité

Information to the User

Lithium Battery / Pile au lithium

Getting StartedUseful InformationTroubleshootingAppendix

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN

MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.

REFER SERVICING TO QUALIFIED PERSONNEL.

AVERTISSEMENT!

CET APPAREIL UTILISE UN LASER.

L’UTILISATION DE COMMANDES OU DE RÉGLAGES OU

L’EXÉCUTION DE PROCÉDURES AUTRES QUE CELLES

SPÉCIFIÉES ICI PEUVENT PROVOQUER UNE EXPOSITION À

DES RADIATIONS DANGEREUSES.

NE PAS OUVRIR LES COUVERCLES NI ESSAYER DE

RÉPARER SOIMÊME.

CONFIER TOUT TRAVAIL D’ENTRETIEN À UN PERSONNEL

QUALIFIÉ.

This computer has been designed so as to minimize shock to the LCD and hard disk drive, the leakage of liquid (e.g., water)

on to the keyboard, etc., but no warranty is provided against such trouble. Therefore, as a precision instrument, be extremely

careful in the handling.

Usage Avoid Extreme Heat and Cold

Do not store or use the computer in locations

exposed to heat, direct sunlight, or extreme cold.

Avoid moving the computer between locations

with large temperature difference.

Operation: 5 °C to 35 °C {41 °F to 95 °F}

Storage: -20 °C to 60 °C {-4 °F to 140 °F}

Avoid Direct Sunlight on the LCD Panel

The LCD panel should not be exposed to direct

sunlight or ultraviolet light.

Avoid Humidity, Liquids and Dust

Do not store or use the computer in locations

exposed to high humidity, liquids (including rain)

or dust.

Prevent Shock

Avoid subjecting the computer to severe vibra-

tions or impact. Do not place the computer inside

a car trunk.

Avoid Radio Frequency Interference

Do not place the computer near a television or

radio receiver.

Avoiding Low-temperature Burns

Avoid more than casual contact with any heat

producing area of the notebook computer, AC

adaptor, and any option or accessory you use

with it. Even low heat, if warmer than body tem-

perature, can cause a burn, if the skin is

exposed to the heat source for a long enough

period of time.

Do Not Touch the Computer and Cable When

it Starts Thundering

Do Not Connect a Telephone Line, or a Net-

work Cable Other Than the One Specified,

into the LAN Port

If the LAN port is connected to a network such

as the ones listed below, a fire or electric shock

may result.

• Networks other than 1000BASE-T,

100BASE-TX or 10BASE-T.

• Phone lines [Telephone lines, internal phone

lines (on-premise switches), digital public

phones, etc.]

Do Not Connect the AC Adaptor to a Power

Source Other Than a Standard Household

AC Outlet.

Connecting to a DC/AC converter (inverter)

may damage the AC adaptor.

On an airplane, only connect the AC adaptor/

charger to an AC outlet specifically approved

for such use.

Keep SD Memory Cards Away From Infants

and Small Children.

Accidental swallowing will result in bodily injury.

In the event of accidental swallowing, see a

doctor immediately.

Handling

Avoid Magnetic Fields

Keep the computer away from magnets.

Data stored on the hard disk may be lost.

Avoid Stacking

Do not place heavy objects on top of the com-

puter.

Keep Small Objects Away

Do not insert paper clips or other small objects

into the computer.

Do Not Disassemble the Computer

Do not attempt to disassemble your computer.

Avoid Excessive Force on the Display

Do not apply excessive downward force on the

display when it is completely opened, espe-

cially when plugs and/or cables are connected

to the rear of the computer.

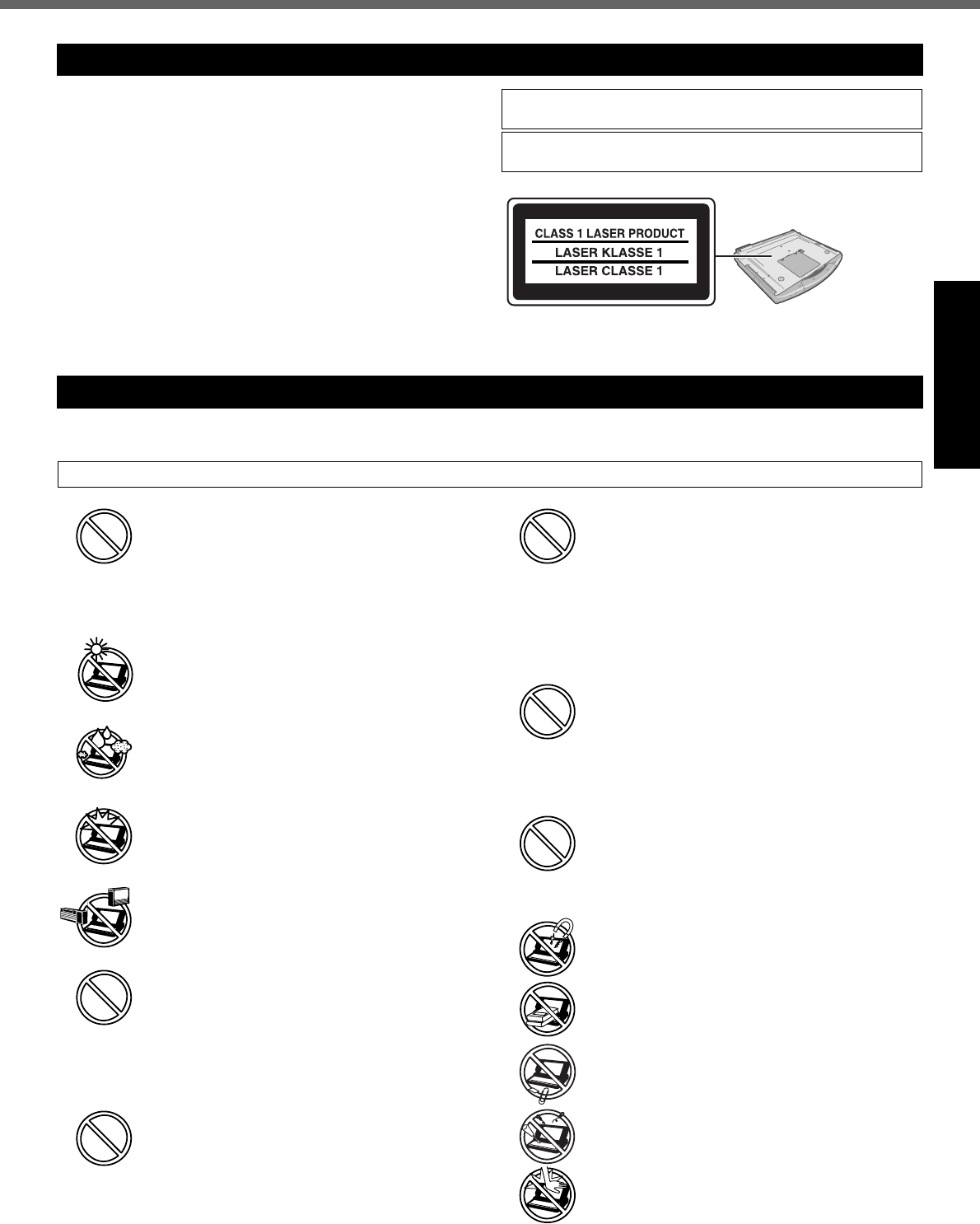

CD/DVD Drive Caution

Laser safety information is appropriate only when drive

with laser is installed.

Les mesures de sécurité relatives au laser ne s’appliquent

que lors de l’installation d’une unité avec laser.

Bottom

Precautions

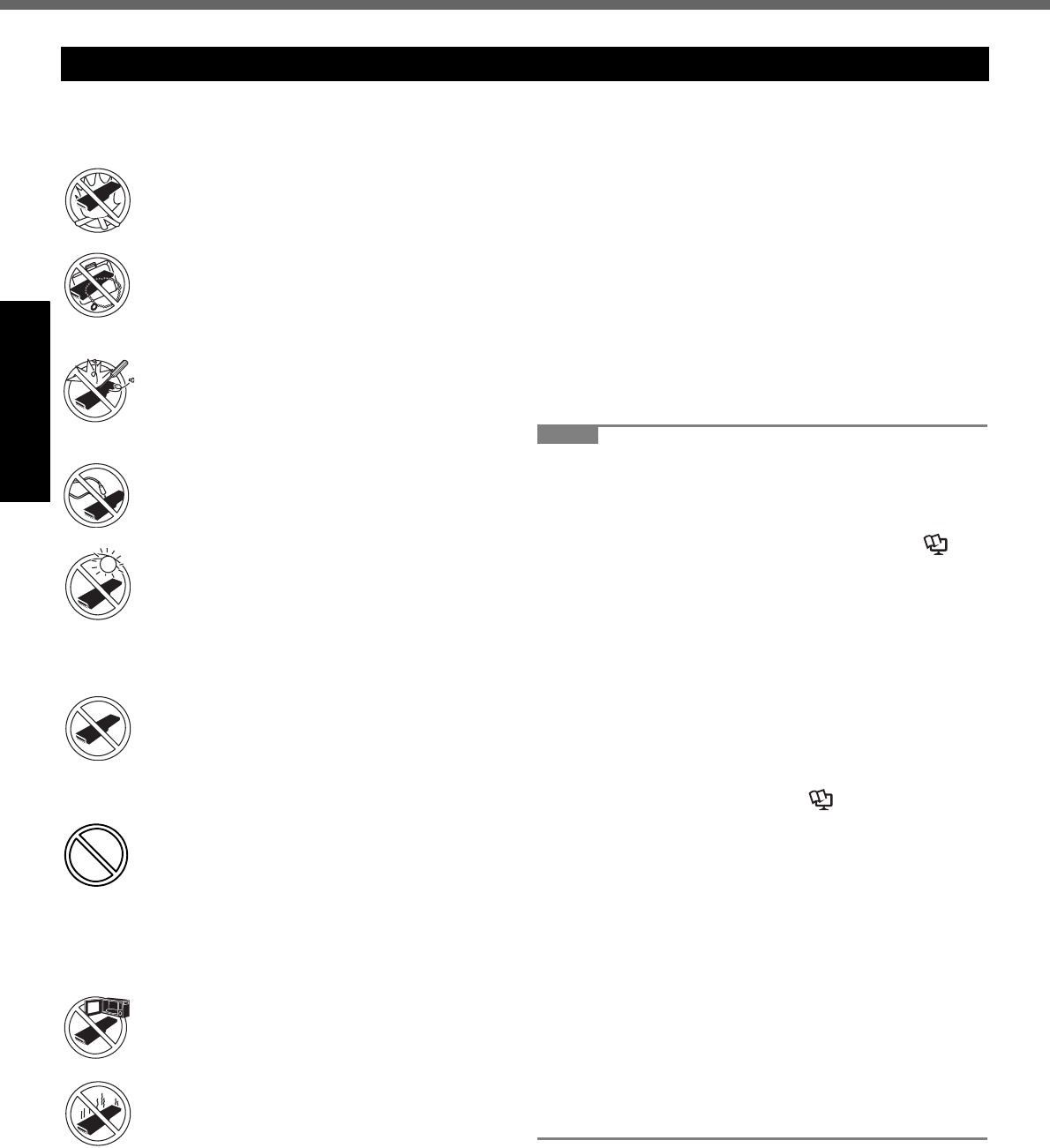

Before putting the computer away, be sure to wipe off any moisture.

Read Me First

Getting StartedUseful InformationTroubleshootingAppendix

zCare should be exercised with regard to the following

in order to avoid the possibility of overheating, fire or

damage.

Avoid Heat

Do not throw the battery pack into a fire or

expose it to excessive heat.

Keep Articles Away

Do not place the battery pack together with

articles such as necklaces or hairpins when

carrying or storing.

Do Not Disassemble

Do not insert sharp objects into the battery

pack, expose it to bumps or shocks, deform,

disassemble, or modify it.

Do Not Short

Do not short the positive (+) and negative (-)

contacts.

Avoid Extreme Heat, Cold and Direct Sun-

light

Do not charge, use or leave the battery pack

for extended periods where it will be exposed

to direct sunlight, in a hot place (in a car on a

sunny day, for example), or in a cold place.

Do Not Use With Any Other Computer

The battery pack is rechargeable and was

intended for the specified computer or

charger. Do not use it with a computer other

than the one for which it was designed.

Do Not Use This Computer with a Battery

Pack Other Than the One Specified

Use only the specified Panasonic battery

pack (CF-VZSU43) with your CF-74. Use of

batteries other than those manufactured and

supplied by Panasonic may represent a

safety hazard.

Do Not Put into a Microwave

Do not put the battery pack into a microwave

oven or a pressurized chamber.

Stop Using

Should the battery emit an abnormal odor,

become hot to the touch, become discolored,

change shape, or become in any way differ-

ent from normal, remove it from the com-

puter and stop using it.

zDo not touch the terminals on the battery pack. The

battery pack may no longer function properly if the

contacts are dirty or damaged.

zDo not expose the battery pack to water, or allow it to

become wet.

zIf the battery pack will not be used for a long period of

time (a month or more), charge or discharge (use) the

battery pack until the remaining battery level becomes

30% to 40% and store it in a cool, dry place.

zThis computer prevents overcharging of the battery by

recharging only when the remaining power is less than

approx. 95% of capacity.

zThe battery pack is not charged when the computer is

first purchased. Be sure to charge it before using it for

the first time. When the AC adaptor is connected to the

computer, charging begins automatically.

zShould the battery leak and the fluid get into your

eyes, do not rub your eyes. Immediately flush your

eyes with clear water and see a doctor for medical

treatment as soon as possible.

NOTE

zThe battery pack may become warm during recharging

or normal use. This is completely normal.

zRecharging will not commence if internal temperature

of the battery pack is outside of the allowable tempera-

ture range (0 °C to 50 °C {32°F to 122°F}) (Î Ref-

erence Manual “Battery Power”). Once the allowable

range requirement is satisfied, charging begins auto-

matically. Note that the recharging time varies based

on the usage conditions. (Recharging takes longer

than usual when the temperature is 10 °C {50°F} or

below.)

zIf the temperature is low, the operating time is short-

ened. Only use the computer within the allowable tem-

perature range.

zThis computer has a high temperature mode function

that prevents the degradation of the battery in high

temperature environments. (Î Reference Manual

“Battery Power”) A level corresponding to a 100%

charge for high temperature mode is approximately

equivalent to an 80% charge level for normal tempera-

ture mode.

zThe battery pack is a consumable item. If the amount

of time the computer can be run by using a particular

battery pack becomes dramatically shorter and

repeated recharging does not restore its performance,

the battery pack should be replaced with a new one.

zWhen transporting a spare battery inside a package,

briefcase, etc., it is recommended that it be placed in a

plastic bag so that its contacts are protected.

zAlways power off the computer when it is not in use.

Leaving the computer on when the AC adaptor is not

connected will exhaust the remaining battery capacity.

Precautions (Battery Pack)

Getting StartedUseful InformationTroubleshootingAppendix

Description of Parts

CAUTION

zDo not put a metallic object or magnetic media close to the speakers.

A :Speaker

Î Reference Manual “Key Combinations”

B :USB port

Î Reference Manual “USB Devices”

C :Stylus holder

D :Multimedia pocket

Î Reference Manual “Multimedia Pocket”

E : Hard disk drive

Î Reference Manual “Hard Disk Drive”

F : Carrying handle

G :Wireless LAN antenna

Î Reference Manual “Wireless LAN”

H :LCD

Î Reference Manual “Touchscreen”

I : LED indicator

: Caps lock

: Numeric key (NumLk)

: Scroll lock (ScrLk)

: Multimedia pocket device status or the second

battery status

Î Reference Manual “Multimedia Pocket”

“Battery Power”

: Hard disk drive status

: Power status

(Off: Power off/Hibernation, Green: Power on, Blink-

ing green: Standby, Blinking green rapidly: Cannot

power on or resume due to low temperature.)

: Battery status

Î Reference Manual “Battery Power”

J : Power button

K :Function key

Î Reference Manual “Key Combinations”

L : Bluetooth antenna

Î Reference Manual “Bluetooth”

M :Keyboard

N :Touch pad

O :Microphone jack

You can use a stereo condenser microphone. Con-

necting other type of microphone may interrupt audio

input or may cause a malfunction.

P :Headphone jack

You can connect headphones or amplified speakers.

When they are connected, audio from the internal

speakers is not heard.

Q :Wireless switch

Î Reference Manual “Wireless LAN” “Bluetooth”

“Wireless Switch Utility”

Getting Started

Description of Parts

CAUTION

zDo not block the ventilation hole with a thick cloth etc. Select a position with good ventilation.

A :ExpressCard slot

Î Reference Manual “PC Card / ExpressCard”

B :PC Card slot

Î Reference Manual “PC Card / ExpressCard”

C :Smart Card slot

Î Reference Manual “Smart Card”

D :USB port

Î Reference Manual “USB Devices”

E : SD Memory Card slot

Î Reference Manual “SD Memory Card”

F : Expansion bus connector

Î Reference Manual “Mini Port Replicator”

G :SD Memory Card indicator

(Blinking: During access or a password is requested)

Reference Manual “SD Memory Card”

H :Ventilation hole

I : Stylus holder

J : DC-IN jack

K :LAN port

Î Reference Manual “LAN”

L : Modem port

Î Reference Manual “Modem”

M :Serial port

N :External display port

Î Reference Manual “External Display”

O :Security lock

You can connect a Kensington cable. Refer to the

instruction manual of the cable.

P : Battery pack

Q :Battery latch

R :Multimedia pocket release button

Î Reference Manual “Multimedia Pocket”

S : Hard disk drive latch

Î Reference Manual “Hard Disk Drive”

T : RAM module slot

Î Reference Manual “RAM Module”

A lithium ion battery that is recyclable powers the product you have purchased.

Please call 1-800-8-BATTERY for information on how to recycle this battery.

L’appareil que vous vous êtes procuré est alimenté par une batterie au lithium-ion.

Pour des renseignements sur le recyclage de la batterie, veuillez composer le

1-800-8-BATTERY.

EX PC

Right side

Rear side Bottom

Getting StartedUseful InformationTroubleshootingAppendix

First-time Operation

Preparation

ACheck and identify the supplied accessories.

If you do not find the described accessories, contact Panasonic Technical Support (Îpage 30).

zYou will need the serial number when you reinstall B’s Recorder/B’s CLiP using Product Recovery DVD-ROM

(Îpage 25).

BRead the LIMITED USE LICENSE AGREEMENT before breaking the seal on the computer’s packaging

(Îpage 26).

ASlide the right latch (A) to the unlocked position ( ).

BInsert the battery pack in the correct direction until it securely fits the connec-

tor.

CSlide the right latch (A) to the locked position ( ).

To remove the battery pack

ASlide the right latch (B) to the unlocked position ( ).

BSlide and hold the left latch (C) to the unlocked position ( ), and hold the

center of the battery pack and push out in parallel with the bottom surface of

the computer.

CAUTION

zMake sure the latch is securely locked. Otherwise the battery pack may fall when

you carry the computer.

zDo not touch the terminals of the battery pack and the computer. Doing so can

make the terminals dirty or damaged, and may cause malfunction of the battery

pack and the computer.

The battery charging starts automatically.

CAUTION

zDo not disconnect the AC adaptor and do not switch the wireless switch to on

until the first-time operation procedure is completed.

zWhen using the computer for the first time, do not connect any peripheral device

except the battery pack and AC adaptor.

zHandling the AC adaptor

• Do not twist or pull the AC power cord forcefully. Doing so may damage the

connections.

• Use only the specified AC adaptor with your computer. Using an AC adaptor

other than the one supplied might damage the battery and/or the computer.

• When the DC plug is not connected to the computer, disconnect the AC cord

from your AC wall outlet.

• Problems such as sudden voltage drops may arise during periods of thunder

and lightning. Since this could adversely affect your computer, an

uninterruptible power source (UPS) is highly recommended unless running

from the battery pack alone.

• AC Adaptor . . . . 1

Model No: CF-AA1683A

• AC Cord . . . . . . 1 • Battery Pack . . .1

Model No: CF-VZSU43

• Modem Telephone

Cable . . . . . . . . . 1

• Soft Cloth . . . . . 1 • Stylus . . . . . . . . 1

(Î Reference Manual “Touchscreen”)

• Operating Instructions (This book) . . 1

• Product Recovery DVD-ROM . . . . . . 1

•Windows

® Book . . . . . . . . . . . . . . . . . 1

11 Insert the battery pack.

22 Connect your computer to a power outlet.

Getting Started

First-time Operation

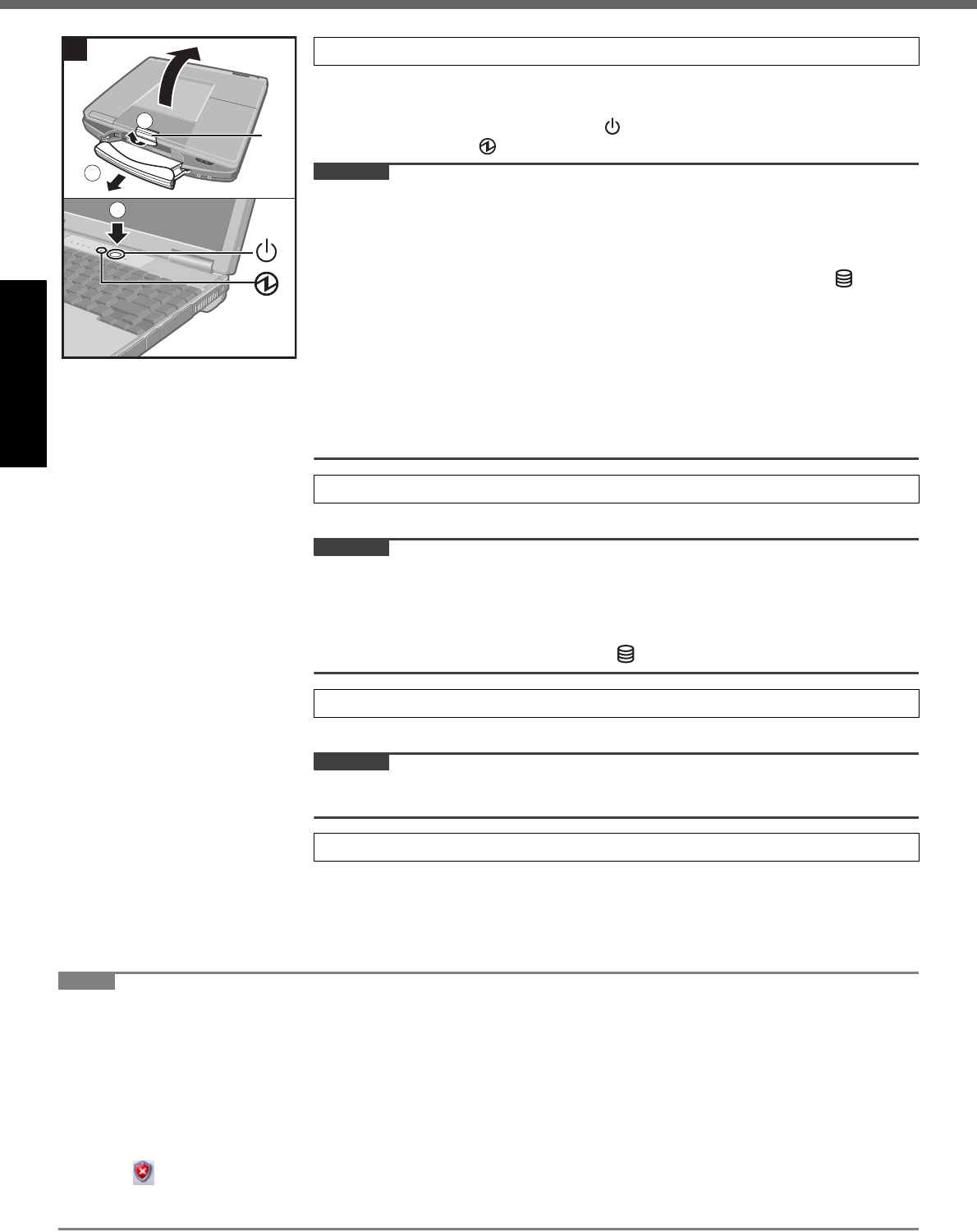

APull the carrying handle forward.

BLift up the latch (A) and lift open the display.

CPress and hold the power button for approximately one second until the

power indicator lights.

CAUTION

zDo not press the power button repeatedly.

zThe computer will forcibly be turned off if you press and hold the power button for

four seconds or longer.

zOnce you turn off the computer, wait for ten seconds or more before you turn on

the computer again.

Do not perform the following operation until the hard disk drive indicator turns off.

• Connecting or disconnecting the AC adaptor

• Pressing the power button

• Touching the keyboard, touch pad, touchscreen (only for model with touch-

screen) or external mouse

• Closing the display

zWhen the CPU temperature is high, the computer may not start up to prevent

overheating of the CPU. Wait until the computer cools down, and then turn the

power on again. If the computer does not power on even after cooling down,

contact Panasonic Technical Support (Îpage 30).

AFollow the on-screen instructions.

CAUTION

zWhen you set date/time/time zone and click [Next], the screen may not go to the

next step for a few minutes. Do not touch the keyboard or touch pad, and wait

until the screen changes.

zIf “An unexpected error has occurred…” (or a similar message) is displayed,

select [OK]. This is not a malfunction.

zWait until the hard disk drive indicator has turned off.

AClick [start] - [Control Panel] - [User Accounts] - [Create a new account].

CAUTION

Remember your password. If you forget the password, you cannot use the Windows

operation system. Creating a password reset disk beforehand is recommended.

AClick [start] - [All programs] - [Fujitsu Touch Panel (USB)] - [Touch Screen

Calibration Utility].

BUsing the stylus, touch each of the 12 “+” target marks one by one until it

blinks, and then click [Calibration].

CClick [Save & Exit].

NOTE

zRegarding Windows XP

You can select the Classic view of Control Panel or the Classic Start menu. You can also change the way a user logs

on or off. This manual explains using the Windows XP default setting (not Classic view or Classic Start menu etc.).

zWindows Update

You can update to the latest patches and service packs for Windows with the following menus.

[start] - [All Programs] - [Windows Update]

Do not apply “Driver Updates” even if a message to update a driver appears. If a driver update is required,

contact Panasonic Technical Support (Îpage 30).

zIf the message “Your computer might be at risk” is displayed

Select (red icon) on the taskbar and make the appropriate settings. The Windows Security Center regularly

gives you notice so that you can make the optimum settings. This is not an error message and you can use the com-

puter. However, making appropriate measures is recommended to reduce the risk of virus and other attacks.

3 Turn on the computer.

4 Setup Windows.

5 Create a new account.

6 Perform the touchscreen calibration.

Getting StartedUseful InformationTroubleshootingAppendix

On-screen Manual

You can access the Reference Manual and the Important Tips on the computer screen.

When you access the Reference Manual and the Important Tips for the first time, the License Agreement of the Adobe

Reader may be displayed. Read it carefully and select [Accept] to proceed.

Reference Manual

The Reference Manual contains the practical information to help you fully enjoy the computer’s performance.

To access the Reference Manual:

AClick [start] - [Reference Manual].

Important Tips

The Important Tips will provide you with the helpful information about the battery and touchscreen. Read to use the bat-

tery pack in the optimum condition to obtain longer operation time.

To access the Important Tips:

ADouble-click on the desktop.

zAlternatively click [start] - [All Programs] - [Panasonic] - [On-Line Manuals] - [Important Tips].

Contents

zKey Combinations

zTouchscreen

zStandby/Hibernation Functions

zSecurity Measures

zBattery Power

zMultimedia Pocket

zDVD-ROM & CD-R/RW Drive

zWinDVD

zB’s Recorder/B’s CLiP

zPC Card / ExpressCard

zSD Memory Card

zSD Security

zSmart Card

zRAM Module

zMini Port Replicator

zExternal Display

zUSB Devices

zModem

zLAN

zWireless Switch Utility

zWireless LAN

zBluetooth

zHard Disk Drive

zSetup Utility

zIcon Enlarger

zLoupe Utility

zDMI Viewer

zTechnical Information

zTroubleshooting (Advanced)

Getting StartedUseful InformationTroubleshootingAppendix

Handling and Maintenance

zPlace the computer on a flat stable surface. Do not place the computer upright or turn it over. If the computer is

exposed to an extremely strong impact, it may become inoperable.

zTemperature: Operation : 5 °C to 35 °C {41 °F to 95 °F}

Storage: -20°C to 60 °C {- 4 °F to 140 °F}

Humidity: Operation : 30% to 80% RH (No condensation)

Storage: 30% to 90% RH (No condensation)

Even within the above temperature/humidity ranges, using for a long time in an extreme environment will result in

the product deterioration and will shorten the product life.

zDo not place the computer in the following areas, otherwise the computer may be damaged.

• Near electronic equipment. Image distortion or noise may occur.

• In extremely high or low temperature.

zAs the computer can become hot during operation, keep it away from items that are sensitive to heat.

This computer is designed to minimize shock to parts such as the LCD and the hard disk drive and equipped with a drip-

proof keyboard, but no warranty is provided against any trouble caused by shock. Be extremely careful when handling

the computer.

zWhen carrying the computer:

• Turn off the computer.

• Remove all external devices, cables, cards and other protruding things.

• Remove a disc in the CD/DVD drive.

• Do not drop or hit the computer against solid objects.

• Do not leave the display open.

• Do not grip the display part.

zDo not put anything (e.g., a piece of paper) between the display and keyboard.

zWhen you board an airplane, take the computer with you and never put it in your checked luggage. When using the

computer on airplane, follow the airline’s instructions.

zWhen carrying a spare battery, put it in a plastic bag to protect its terminals.

zThe touch pad is designed to be used with a finger tip. Do not place any object on its surface and do not press down

strongly with sharp-pointed or hard objects that may leave marks (e.g., nails, pencils and ball point pens).

zAvoid any harmful substances such as oil from getting into the touch pad. The cursor may not work correctly.

zUse only the included stylus to touch the touchscreen. Do not place any object on its surface and do not press down

strongly with sharp-pointed or hard objects that may leave marks (e.g., nails, pencils and ball point pens).

zDo not use the stylus when dust or dirt (e.g., oil) is on the screen. Otherwise foreign particles on the screen/stylus

can scratch the screen surface or obstruct the stylus operation.

zUse the stylus only for touching the screen. Using it for any other purpose may damage the stylus and result in

scratches on the screen.

When using peripheral devices

Follow these instructions and the Reference Manual to avoid any damage to the devices. Carefully read the instruction

manuals of the peripheral devices.

zUse the peripheral devices conforming to the computer’s specifications.

zConnect to the connectors in the correct direction.

zIf it is hard to insert, do not try forcibly but check the connector’s shape, direction, alignment of pins, etc.

zIf screws are included, fasten them securely.

zRemove the cables when you carry the computer. Do not pull the cables forcibly.

Preventing your computer from unauthorized use via wireless LAN

zBefore using wireless LAN, make the appropriate security settings such as data encryption.

Operation Environment

Handling Cautions

Getting StartedUseful InformationTroubleshootingAppendix

To clean the LCD panel

Use the soft cloth included with the computer. (For further information, refer to “Suggestions About Cleaning the LCD

Surface” that comes with the soft cloth.)

To clean areas other than the LCD panel

Wipe with a soft dry cloth such as gauze. When using detergent, dip a soft cloth in water-diluted detergent and wring it

thoroughly.

CAUTION

zDo not use benzene, thinner, or rubbing alcohol since it may adversely affect the surface causing discoloration, etc.

Do not use commercially-available household cleaners and cosmetics, as they may contain components harmful to

the surface.

zDo not apply water or detergent directly to the computer, since liquid may enter inside of the computer and cause

malfunction or damage.

Maintenance

Getting StartedUseful InformationTroubleshootingAppendix

Hard Disk Backup Function

The hard disk backup function creates a backup area (storage area) on the hard disk. This area is to back up (store) the

hard disk data or to restore the backup data to their original locations.

Using this function, you can protect your data when it is lost or corrupted by operational errors or other factors. You do

not need other media or peripheral devices to back up or restore hard disk data on this computer.

At purchase, the hard disk backup function is disabled. If you create a backup area, the hard disk backup function will

be enabled and you can back up your data.

CAUTION

zTo disable the backup function after it is enabled, you have to perform the reinstallation procedure (Îpage 20).

zA backup area cannot be created if the hard disk is already divided into several partitions. Return the computer to

one partition, and create the backup area.

zIf the partition configuration is changed after the backup area is created (creating partitions, changing size, etc.), the

backup function will be disabled. You need to return the computer to the original condition and create the backup

area again.

zDo not use the NTFS file system compression function. It may result in insufficient capacity of the backup area.

zThe hard disk backup function does not accommodate dynamic disks. Do not convert the hard disk to a dynamic

disk.

NOTE

zThe backup area requires at least half of the entire hard disk capacity. If the capacity is not sufficient, the backup

area will not be created.

zWhen the backup area is created, the usable hard disk capacity will be less than half of the original capacity.

zThe backup area cannot be accessed from Windows. The backup data cannot be copied to CD-R or other remov-

able disk media.

zWhen the hard disk backup function is executed, data in the backup area will be overwritten and the data previously

stored will be lost.

Preparation

zPrepare the following items:

• The Product Recovery DVD-ROM (included)

• Panasonic CD/DVD drive (included)

zRemove all peripherals (except for the CD/DVD drive).

zConnect the AC adaptor and do not remove it until hard disk backup is complete.

1 Turn off the computer and insert the CD/DVD drive into the multimedia pocket

(Î Reference Manual “Multimedia Pocket”).

2 Turn on the computer, and press

several times while [Panasonic] boot screen is dis-

played.

The Setup Utility starts up.

zIf the password is requested, enter the Supervisor Password.

3 Select the [Boot] menu and select [IDE MP], and then press

until [IDE MP] moves up

to the top of the boot priority order.

4 Select the [Security] menu and set [CD/DVD Operation] to [Enable].

5 Set the Product Recovery DVD-ROM into the CD/DVD drive.

The hard disk backup function cannot back up or restore data correctly if a hard disk problem occurs during data

backup or restoring. If an error occurs due to an unexpected malfunction, incorrect operation, or other reason while

data is being restored, the hard disk data (data before restoration) may be lost.

Matsushita Electric Industrial Co., Ltd. will bear no responsibility for any damages suffered by the user (including loss

of data) as a result of the use of this function.

Creating the Backup Area

Getting StartedUseful InformationTroubleshootingAppendix

6 Press

F10

At the confirmation message, select [Yes] and press

Enter

The computer restarts.

zIf [Enter Password] is displayed during the following procedures, input the Supervisor Password or the User

Password.

7 Press

to execute [3. [Backup]].

At the confirmation message, press

CAUTION

zWhen you divide the hard disk into partitions:

Do not execute [1. [Recovery]] to divide the hard disk into partitions. The hard disk backup function cannot be

enabled after the hard disk has been partitioned. Use step 8 to divide the hard disk.

8 Select the setting.

zTo create a backup area and enable the backup function without dividing the hard disk

Select [1].

zTo create a backup area and divide hard disk into two partitions, for OS and data

Select [2]. Enter the size of operating system partition and press

Enter

• To cancel: press

(The size of data partition will be determined by subtracting the operating system partition size from the

maximum size.)

9 At the confirmation message, press

The backup area is then created.

10 When the message [You must reboot in order to enable the Backup function.] appears,

remove the Product Recovery DVD-ROM, and press any key to restart the computer.

The computer restarts, then the backup process will begin.

11 When the message [[Backup] is complete] appears, press

Ctrl

Alt

Del

to restart the

computer.

zDo not press

Ctrl

Alt

Del

before the message is displayed.

zAfter logging on to Windows, a message will appear indicating that a new device has been installed and that

the computer must be restarted to enable the settings.

12 Select [Yes] to restart the computer.

NOTE

zThe [Boot] menu in the Setup Utility is now set to start up from the CD/DVD drive. Change it if necessary.

zTo perform the backup/restore function next time; “Creating/Restoring the Backup Data” (Îbelow).

zThe backup area cannot be accessed from windows.

CAUTION

zBefore executing the backup function, execute a disk error check.

zDo not interrupt the backup or restore functions. Do not turn off the power and do not press Ctrl + Alt + Del, otherwise

Windows cannot start up, or the data may be lost and the backup and restore functions may not be completed.

1 Turn on the computer, and press

several times while [Panasonic] boot screen is dis-

played.

The Setup Utility starts up.

zIf the password is requested, enter the Supervisor Password or the User Password.

2 Select the [Exit] menu and select [Hard Disk Backup / Restore], and then press

Enter

At the confirmation message, select [Yes] and press

Enter

Creating/Restoring the Backup Data

Getting StartedUseful InformationTroubleshootingAppendix

Hard Disk Backup Function

3 Select the setting.

zTo back up hard disk contents to the backup area

APress

to execute [1. [Backup]].

• If the hard disk is divided into two partitions, select the backup method at the next screen.

BAt the confirmation message, press

• The backup process starts.

zTo restore backed up contents to the hard disk

APress

to execute [2. [Restore]].

• When data is backed up in two partitions, select the restore method at the next screen.

BAt the confirmation message, press

• The restore process starts.

NOTE

zThe required time to complete the backup or restore process depends on the data volume.

4 When the message [[Backup] is complete] or [[Restore] is complete] is displayed, press

Ctrl

Alt

Del

to restart the computer.

zIf the backup or restore process was interrupted before completion, execute the process again.

zAfter logging on to Windows, a message will appear indicating that a new device has been installed and that

the computer must be restarted to enable the settings. Select [Yes] to restart the computer.

CAUTION

zWhen the hard disk backup function has been enabled, you cannot erase the backup data even when you erase all

data from user accessible area by using a commercial data erasing utility or similar software. To erase all data on the

hard disk including backed up data, use the hard disk data erase utility included in this computer (Îpage 19). Erase

the data using the hard disk data erase utility before disposing of or transferring ownership of this computer.

zDuring backup, the message [#1805 cannot write image file] may appear, and the backup function may be inter-

rupted. In this case, execute the backup function again. If the backup function is completed normally, the hard disk

has no problem.

To disable the hard disk backup function

Perform the reinstallation procedure.

CAUTION

zAll data in the backup area and hard disk will be erased.

APerform steps 1-8 for “Reinstalling Software” (Îpage 20).

BSelect [1] or [2] to execute the reinstallation at the screen for executing the reinstallation.

• [1]: The hard disk backup function is disabled.

• [2]: The hard disk backup function is disabled. However the hard disk backup function cannot be reenabled

because the hard disk has been divided into partitions.

• [3]: The hard disk backup function is not disabled.

Getting StartedUseful InformationTroubleshootingAppendix

Hard Disk Data Erase Utility

When disposing the computer or transferring the ownership, erase all hard disk data in order to avoid data leakage.

Even if you erase the data or initialize the hard disk using normal Windows commands, the data can be read with some

special software. Use the hard disk data erase utility to erase the data completely.

Note that transferring of the ownership without uninstalling the commercial software will be a violation of the software’s

license agreement.

CAUTION

zThe backup area and the backup data will be erased.

NOTE

zEven if hard disk data erase is performed, the number of times of DVD’s region code setting will not be reset.

Preparation

zPrepare the following items:

• The Product Recovery DVD-ROM (included)

• Panasonic CD/DVD drive (included)

zRemove all peripherals (except for the CD/DVD drive).

zConnect the AC adaptor and do not remove it until hard disk data erase is complete.

1 Turn off the computer and insert the CD/DVD drive into the multimedia pocket

(Î Reference Manual “Multimedia Pocket”).

2 Turn on the computer, and press

several times while [Panasonic] boot screen is dis-

played.

The Setup Utility starts up.

zIf the password is requested, enter the Supervisor Password.

3 Select the [Boot] menu, then select [IDE MP] and press

until [IDE MP] is at the top of

the boot priority order.

4 Select the [Security] menu and set [CD/DVD Operation] to [Enable].

5 Set the Product Recovery DVD-ROM into the CD/DVD drive.

6 Press

F10

At the confirmation message, select [Yes] and press

Enter

The computer restarts.

zWhen the hard disk backup function has been enabled, the confirmation message appears to inform that the

backup function will be disabled, and the backup area and data will be erased. Press

to proceed.

7 Press

to execute [2. [Erase HDD]].

zTo cancel this operation, press

zWhen the hard disk backup function has been enabled, the confirmation message appears to inform that the

backup function will be disabled, and the backup area and data will be erased. Press

to proceed. If the

reboot message appears, press

to proceed.

8 At the confirmation message, press

9 When [<<< Start Menu >>>] is displayed, press

Enter

The approximate time required for erasing data will be displayed.

10 Press

Space

At the confirmation message, press

Enter

The hard disk erase process starts. When the operation is completed, the [Hard disk data has been deleted.]

message will appear. If a problem has occurred during the operation, an error message will appear.

zTo cancel partway, press

Ctrl

. The data erasure will be up to that point.

11 Remove the Product Recovery DVD-ROM, and then press any key to turn off the com-

puter.

The hard disk data erase utility erases the data using overwriting method. If a malfunction or other operational error

occurs during the erasing process, the data may not be completely erased. Also there may be special devices to read

the erased data. To erase highly confidential data, ask a specialized company. Matsushita Electric Industrial Co., Ltd.

will bear no responsibility for losses or damages suffered as a result of the use of this utility.

Getting StartedUseful InformationTroubleshootingAppendix

Reinstalling Software

Preparation

zPrepare the following items:

• The Product Recovery DVD-ROM (included)

• Panasonic CD/DVD drive (included)

zRemove all peripherals (except for the CD/DVD drive).

zConnect the AC adaptor and do not remove it until reinstallation is complete.

NOTE

zEven if reinstallation is performed, the number of times of DVD’s region code setting will not be reset.

1 Turn off the computer and insert the CD/DVD drive into the multimedia pocket

(Î Reference Manual “Multimedia Pocket”).

2 Turn on the computer, and press

several times while [Panasonic] boot screen is dis-

played.

The Setup Utility starts up.

zIf the password is requested, enter the Supervisor Password.

3 Write down all of the contents of the Setup Utility and press

At the confirmation message, select [Yes] and press

Enter

4 Select the [Boot] menu, then select [IDE MP] and press

until [IDE MP] is at the top of

the boot priority order.

5 Select the [Security] menu and set [CD/DVD Operation] to [Enable].

6 Set the Product Recovery DVD-ROM into the CD/DVD drive.

7 Press

F10

At the confirmation message, select [Yes] and press

Enter

The computer will restart.

zWhen the hard disk backup function has been enabled, the confirmation message appears to inform that the

backup function will be disabled, and the backup area and data will be erased. Press

to proceed.

8 Press

to execute [1. [Recovery]].

The License Agreement screen appears.

zTo cancel partway, press

9 Press

to select [1. Yes, I agree to the provisions above and wish to continue!].

10 Select the settings.

z[2]: Enter the size of operating system partition and press

Enter

You cannot create the hard disk backup area if you select [2].

(The size of data partition will be determined by subtracting the operating system partition size from the

maximum size.)

[3]: Windows will be installed in the first partition.

(The size of the first partition must be 20 GB or more. If smaller, installation will not be possible.)

zWhen the hard disk backup function has been enabled, the confirmation message appears to inform that the

backup function will be disabled, and the backup area and data will be erased. Press

to proceed. If the

reboot message appears, press

to proceed.

At the confirmation message, press

Reinstallation starts automatically. (It will take approximately 20 minutes.)

zDo not interrupt reinstallation, for example by turning off the computer or pressing

Ctrl

Alt

Del

. Other-

wise reinstallation may become unavailable as Windows may not start up or the data may be corrupted.

11 Remove the Product Recovery DVD-ROM, and then press any key to turn off the com-

puter.

When you reinstall the software, the hard disk data will be erased. Back up important data to other media or an exter-

nal hard disk before reinstallation.

Reinstalling software will return the computer to the default condition. The hard disk backup area and the backup data

(Îpage 16) will be erased. (If you reinstall Windows in the first partition, the backup area and data will not be

erased.) Even if the data is stored in partitions on the hard disk, it may be erased or corrupted.

Getting StartedUseful InformationTroubleshootingAppendix

12 Turn on the computer, and press

several times while [Panasonic] boot screen is dis-

played.

The Setup Utility starts up.

zIf the password is requested, enter the Supervisor Password.

13 Press

At the confirmation message, select [Yes] and then press

Enter

The Setup Utility settings excluding the password(s) will return to the default values.

14 Select the [Exit] menu and then select [Save Current Values], then press

Enter

At the confirmation message, select [Yes] and press

Enter

15 Turn the computer off by using the power button.

zIf additional instructions are included with the computer, be sure to read them. It may be necessary to perform

additional operations during the following procedure.

16 Perform the first-time operation (Îpage 11).

17 Start the Setup Utility and change the settings as necessary.

To change the drive letter of hard disk or CD/DVD drive

NOTE

zDrive letters can be changed only when two or more partitions have been created on the hard disk drive.

zThe name of the C: drive cannot be changed.

zChange the drive letters before installing applications.

AClick [start] - [Control Panel] - [Performance and Maintenance] - [Administrative Tools], and double-click [Com-

puter Management].

BClick [Disk Management] from [Storage].

CRight-click the hard disk partition or the CD/DVD drive name, and click [Change Drive Letter and Paths...].

DClick [Change...].

EClick [Assign the following drive letter] and the new drive letter, and then click [OK].

At the confirmation message, click [Yes].

Getting StartedUseful InformationTroubleshootingAppendix

Error Code/Message

Follow the instructions below when an error message or code appears. If the problem persists or if the error code/mes-

sage is not shown here, contact Panasonic Technical Support (Îpage 30).

To start the Setup Utility

ARestart the computer.

BPress

several times while [Panasonic] boot screen is displayed.

Error Code/Message Solution

0211 Keyboard error zDisconnect external keyboard or mouse.

0251 System CMOS

checksum bad -

Default configuration

used

An error has occurred in the memory of Setup Utility settings. This occurs when the memory

content is changed by an unexpected program operation, etc.

zStart the Setup Utility and return the settings to the default values, and then change the

settings as necessary.

zIf the problem persists, the internal clock battery may need to be replaced. Contact

Panasonic Technical Support (Îpage 30).

0271 Check date and

time settings

The date and time settings are not correct.

zStart the Setup Utility and set the correct date and time.

zIf the problem persists, the internal clock battery may need to be replaced. Contact

Panasonic Technical Support (Îpage 30).

0280 Previous boot

incomplete - Default

configuration used

Startup has failed repeatedly, so the Setup Utility settings have been returned to the default

values to startup the computer.

zStart the Setup Utility and return the settings to the default values, and then change the

settings as necessary.

Press <F2> to Setup zWrite down the error details and press

to start the Setup Utility. Change the settings if

necessary.

Operating System not

found

The operating system is not installed in the floppy disk or the hard disk that you are going to

boot from.

zIf using a floppy disk, change the disk to the one you can use for boot.

zIf using the hard disk, check if the hard disk is recognized in [Information] menu of the

Setup Utility. If the hard disk is recognized, perform the reinstallation (Îpage 20). If not,

contact Panasonic Technical Support (Îpage 30).

zIf a device is connected to the ExpressCard slot or the USB port, disconnect the device,

or set [ExpressCard Slot], [USB Port] or [Legacy USB Support] to [Disable] in the

[Advanced] menu of the Setup Utility.

Extended RAM

Module Failed

When the extended RAM module is not inserted correctly or the extended RAM module is

not conforming to the computer’s specifications, so a beep will sound and the “Extended

RAM Module Failed” message will be displayed when you turn the power on.

zPress the power button for four seconds or longer to turn off the computer, confirm that

the extended RAM module conforms to the specifications, and reinsert it.

Getting StartedUseful InformationTroubleshootingAppendix

Troubleshooting (Basic)

Follow the instructions below when a problem has occurred. There is also an advanced troubleshooting guide in the

“Reference Manual”. For a software problem, refer to the software’s instruction manual. If the problem persists, contact

Panasonic Technical Support (Îpage 30). You can also check the computer’s status in the PC Information Viewer

(Î Reference Manual “Troubleshooting (Advanced)”).

Starting Up

Cannot start up.

The power indicator or bat-

tery indicator is not lit.

zConnect the AC adaptor.

zInsert a fully charged battery.

zRemove the battery pack and the AC adaptor, then connect them again.

zIf a device is connected to the ExpressCard slot or the USB port, disconnect the

device, or set [ExpressCard Slot], [USB Port] or [Legacy USB Support] to [Disable]

in the [Advanced] menu of the Setup Utility.

The power is turned on but

“Warming up the system (up

to 30 minutes)” appears.

zThe computer is warming up before start up. Wait for the computer to start up (takes up

to 30 minutes). If, “Cannot warm up the system” is displayed, the computer failed to

warm up and does not start. In this case, turn off the computer, leave it in an environ-

ment of 5 °C {41 °F} or higher temperature for about an hour, and then turn on the power

again.

Cannot turn on the computer.

The computer does not

resume from standby.

(The power indicator blinks

quickly in green.)

zLeave it in an environment of 5 °C {41 °F} or higher temperature for about an hour, then

turn on the power again.

You have forgotten the

password.

zSupervisor Password or User Password: Contact Panasonic Technical Support (Îpage

30).

zAdministrator password:

• If you have a password reset disk, you can reset the administrator password. Set the

disk and enter any wrong password, then follow the on-screen instructions and set a

new password.

• If you do not have a password reset disk, reinstall (Îpage 20) and set up Windows,

and then set a new password.

“Remove disks or other

media. Press any key to

restart” or a similar mes-

sage appears.

zA floppy disk is in the drive and it does not contain system startup information. Remove

the floppy disk and press any key.

zThis message may appear with some devices connected to the ExpressCard slot or the

USB port. Remove the device, or set [ExpressCard Slot], [USB Port] or [Legacy USB

Support] to [Disable] in the [Advanced] menu of the Setup Utility.

zIf the problem persists after removing the disk, it may be a hard disk failure. Contact

Panasonic Technical Support (Îpage 30).

Windows startup and opera-

tion is slow.

zPress

in the Setup Utility (Îpage 22 “To start the Setup Utility”) to return the Setup

Utility settings (excluding the passwords) to the default values. Start the Setup Utility and

make the settings again. (Note that the processing speed depends on the application

software, so this procedure may not make Windows faster.)

zIf you installed a resident software after purchase, turn off the residence.

zDisable Indexing Service in the following menu.

Click [start] - [Search] - [Change preferences] - [Without Indexing Service]

The date and time are incor-

rect.

zMake the correct settings. Click [start] - [Control Panel] - [Date, Time, Language, and

Regional Options] - [Date and Time].

zIf the problem persists, the internal clock battery may need to be replaced. Contact

Panasonic Technical Support (Îpage 30).

zWhen the computer is connected to LAN, check the date and time of the server.

zThe 2100 A.D. or later year will not be correctly recognized on this computer.

[Executing Battery

Recalibration] screen

appears.

zThe Battery Recalibration was canceled before Windows was shut down last time. To

start up Windows, turn off the computer by the power button, and then turn on.

[Enter Password] does not

appear when resuming from

standby/hibernation.

zTo display [Enter Password] at resuming, set the Windows password. The password you

have set in the Setup Utility is not requested at resuming.

AClick [start] - [Control Panel] - [User Accounts] and select the account, and set the

password.

BClick [start] - [Control Panel] - [Performance and Maintenance] - [Power Options] -

[Advanced] and add a check mark for [Prompt for password when computer resumes

from standby].

Getting StartedUseful InformationTroubleshootingAppendix

Troubleshooting (Basic)

Cannot resume. zAn error may occur when the computer automatically enters the standby or hibernation

mode while the screensaver is active. In this case, turn off the screensaver or change

the pattern of the screensaver.

Other startup problems. zPress

in the Setup Utility (Îpage 22 “To start the Setup Utility”) to return the Setup

Utility settings (excluding the passwords) to the default values. Start the Setup Utility and

make the settings again.

zRemove all peripheral devices.

zCheck to see if there was a disk error.

AClick [start] - [My Computer] and right-click [Local Disk(C:)], and click [Properties].

BClick [Tools] - [Check Now].

CSelect the option in [Check disk options] and click [Start].

zStart the computer in Safe Mode and check the error details. When the [Panasonic] boot

screen disappears*1 at startup, press and hold

until the Windows Advanced Options

Menu is displayed.

*1 When [Password on boot] is set to [Enable] in the [Security] menu of the Setup Utility,

[Enter Password] appears after the [Panasonic] boot screen disappears. As soon as you

enter the password and press

Enter

, press and hold

Shutting down

Windows does not shut

down.

zRemove the USB device and the ExpressCard.

zWait one or two minutes. It is not a malfunction.

Display

No display. zThe external display is selected. Press

to switch the display. Wait until the dis-

play has been switched completely before pressing

again.

zWhen using an external display,

• Check the cable connection.

• Turn on the display.

• Check the settings of external display.

zThe display is turned off by the power-saving function. To resume, do not press the direct

selection keys, but press any other key like

Ctrl

zThe computer entered standby or hibernation by the power-saving function. To resume,

press the power button.

The screen is dark. zThe screen is darker when the AC adapter is not connected. Press

and adjust

the brightness. As you increase the brightness, battery consumption increases.

You can separately set the brightness for when the AC adaptor is connected and when

not connected.

The LCD brightness changes

a number of times when the

AC adaptor is disconnected.

zIntel(R) Display Power Saving Technology is active and automatically changes the LCD

brightness. This is not a malfunction.

Image colors are not repro-

duced as expected when

displaying photographs or

other images.

zRemove the check mark of [Intel(R) Display Power Saving Technology].

ASelect [start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) GMA Driver

for Mobile].

BSelect [Display Settings] - [Power Settings].

The screen is disordered. zChanging the number of display colors and resolution may affect the screen. Restart the

computer.

zConnecting/disconnecting an external display may affect the screen. Restart the com-

puter.

zWhen using Simultaneous display, set the same display colors for the external display as

those for the LCD.

zWhen using Simultaneous display, do not press

zEnable or disable Simultaneous display, and soon restart the computer.

Starting Up

Getting StartedUseful InformationTroubleshootingAppendix

During Simultaneous dis-

play, one of the screens

becomes disordered.

zWhen using the Extended Desktop, use the same display colors for the external display

as those used by the LCD.

zIf you continue to experience problems, try changing the display by clicking [start] - [Con-

trol Panel] - [Other Control Panel Options] - [Intel(R) GMA Driver for Mobile] - [Display

Devices]

zWhen the [Command Prompt] is set to “Full Screen” by pressing

Alt

Enter

, the pic-

ture is displayed on one of the screens only. When the window display is restored by

pressing

Alt

Enter

, the picture is displayed on both screens.

zSimultaneous display cannot be used until Windows startup is complete (during Setup

Utility, etc.).

The external display does

not work normally.

zIf the external display does not support the power saving function, it may not work nor-

mally when the computer enters the power saving mode. Turn off the external display.

Touch Pad / Touchscreen (only for model with touchscreen)

The cursor does not work. zWhen using the external mouse, connect it correctly.

zRestart the computer using the keyboard.

(Press ,

, and

to select [Restart].)

zIf the computer does not respond to keyboard commands, read “No response”

(Îbelow).

Cannot input using the

touch pad.

zSet [Touch Pad] to [Enable] in the [Main] menu of the Setup Utility.

zThe drivers for some mice may disable the touch pad. Check your mouse’s operating

instructions.

Cannot input using the

touchscreen.

zWhen mouse drivers are installed (i.e. IntelliMouse), the touchscreen does not work.

Reinstall the touchscreen driver.

Cannot point the correct posi-

tion using the included stylus.

zPerform the touchscreen calibration (Îpage 12).

Reference Manual

The Reference Manual is not

displayed.

zInstall Adobe Reader.

ALog on to Windows as an administrator.

BClick [start] - [Run], input [c:\util\reader\AdbeRdr70_enu_full.exe], then click [OK].

CFollow the on-screen instructions.

Reinstalling B’s Recorder/B’s CLiP

A serial number is

requested when reinstalling.

zInput the following serial number

B’s Recorder: HT5PAA-AAAD-3775-4015

B’s CLiP: HG5PAA-AAAC-2804-1478

Others

No response. zPress

Ctrl

Shift

Esc

to open Task Manager and close the software application that

is not responding.

zAn input screen (e.g., password input screen at startup) may be hidden behind another

window. Press

Alt

Tab

to check.

zPress the power button for four seconds or longer to shut down the computer, and then

press the power button to turn it on. If the application program does not work normally,

uninstall and reinstall the program. To uninstall, click [start] - [Control Panel] - [Add or

Remove Programs].

Display
