Panasonic of North America 9TGCF-C11 Toughbook PC with WWAN, WLAN and Bluetooth User Manual
Panasonic Corporation of North America Toughbook PC with WWAN, WLAN and Bluetooth Users Manual
Users Manual
Contents
Getting Started
OPERATING INSTRUCTIONS
Personal Computer
Model No. CF-C1 series
Introduction ................................................................. 2
Read Me First ............................................................ 3
(Precautions)

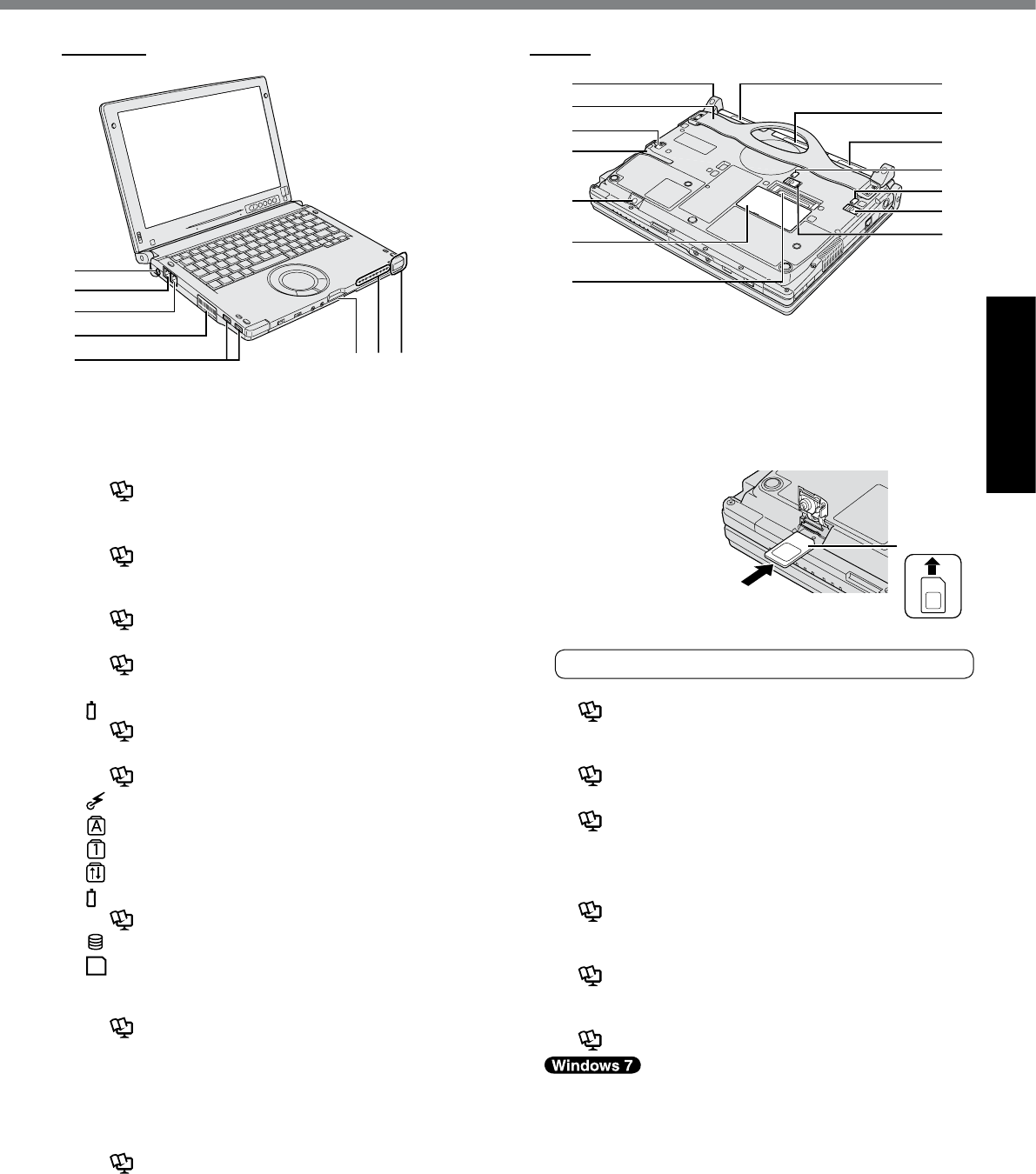

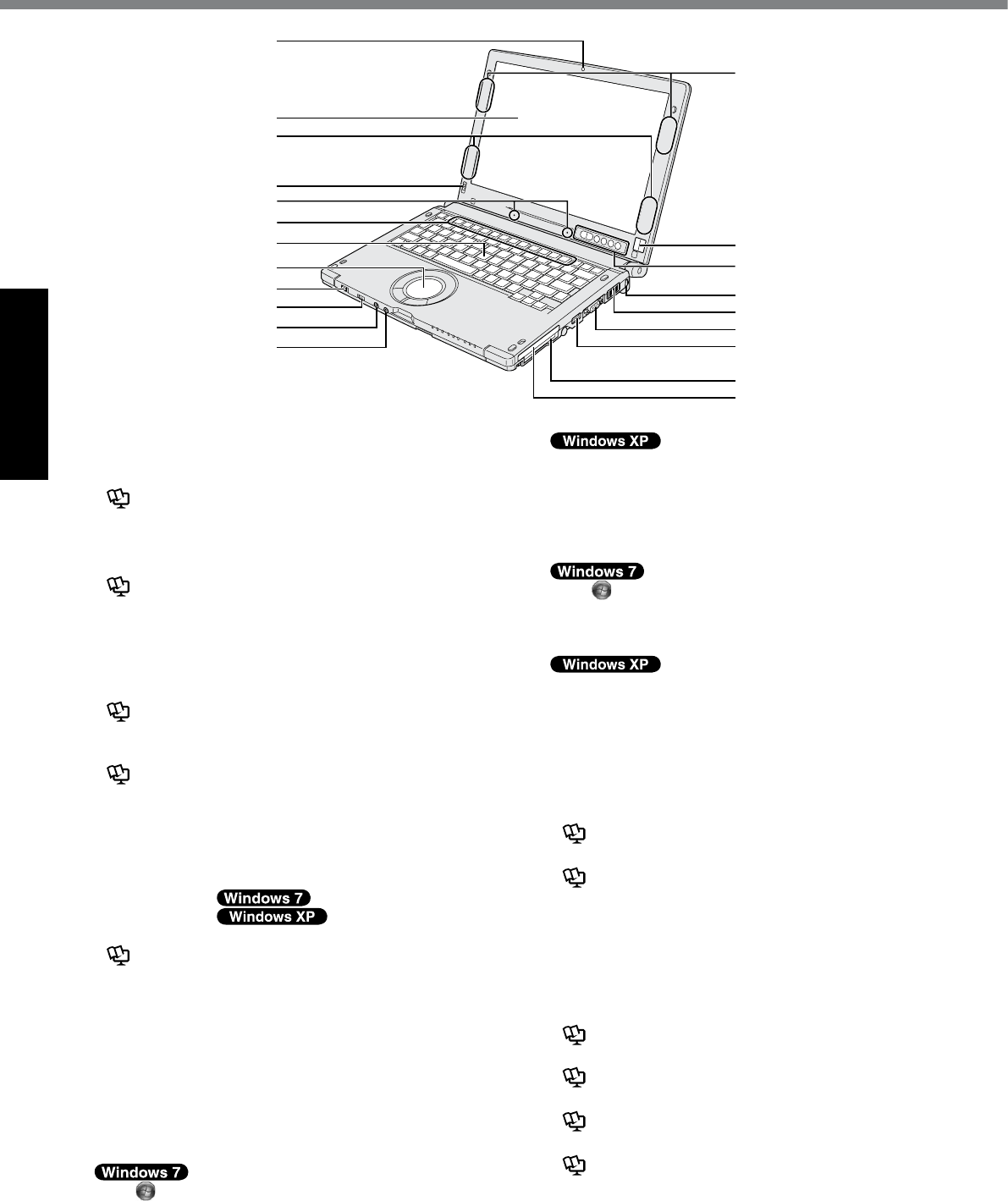

Description of Parts ..................................................10
First-time Operation ..................................................14
Useful Information
On-screen Manual ....................................................19
Handling and Maintenance .......................................20
Reinstalling Software ................................................24
Troubleshooting
Troubleshooting (Basic) ............................................26
Appendix
LIMITED USE LICENSE AGREEMENT ...................30
Specications ...........................................................33
LIMITED WARRANTY ..............................................36
Please read these instructions carefully before using this product, and save this manual for future use.
For further information about the com-
puter, you can refer to the on-screen
manual.
To access the on-screen manual
è page 19 “On-screen Manual”
Getting StartedUseful InformationTroubleshootingAppendix
2
Getting Started
Introduction
Thank you for purchasing this Panasonic product. For optimum performance and safety, please read these instructions
carefully.
n Terms and illustrations in these instructions
CAUTION : Conditions that may result in minor or moderate injury.
NOTE : Useful and helpful information.
Enter
: Press [Enter] key.
Fn
+
F5
: Press and hold [Fn] key, and then press [F5] key.
(Start) - [All Programs] : Click (Start), and then click [All Programs]. You may need to double-click in some
cases.
[start] - [Run] : Click [start], and then click [Run]. You may need to double-click in some cases.
è : Page in these Operating Instructions or in the Reference Manual.
: Reference to the on-screen manuals.
l indicates Genuine Windows® 7 Professional Operating System.
l indicates Genuine Microsoft® Windows® XP Tablet PC Edition Operating System.
l Someillustrationsaresimpliedtohelpyourunderstandingandmaylookdifferentfromtheactualunit.
l If you do not log on as an administrator, you cannot use some functions or cannot display some screens.
l Refer for the latest information about optional products to the catalogs, etc.
l In these instructions, the names and terms are referred as follows.
“Genuine Windows® 7 Professional” as “Windows” or “Windows 7”
“Genuine Microsoft® Windows® XP Tablet PC Edition Service Pack 3” as “Windows” or “Windows XP”
Thescreenofthisproductsupportingtwotouchingmethods(usingdigitizerpen/yourngers)asthe“screen”.
n Disclaimer
Computerspecicationsandmanualsaresubjecttochangewithoutnotice.PanasonicCorporationassumesnoli-
ability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the
manuals.
n Trademarks
Microsoft®, Windows®, the Windows logo, and IntelliMouse are registered trademarks of Microsoft Corporation of the
United States and/or other countries.
Intel, Core, Centrino and PROSet are either registered trademarks or trademarks of Intel Corporation.
SDHC Logo is a trademark of 3D-3C, LLC.
Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorpo-
rated in the United States and/or other countries.
Computrace® is a registered trademark of Absolute® Software Corp.
Bluetooth
™
is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Panasonic Corporation.
Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective
own companies.
3
Getting Started
Read Me First
Models for U.S.A.
Federal Communications Commission Radio Frequency
Interference Statement
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential instal-
lation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one
or more of the following measures:
l Reorient or relocate the receiving antenna.
l
Increase the separation between the equipment and receiver.
l Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
l Consult the Panasonic Service Center or an experienced
radio/TV technician for help.
Warning
To assure continued compliance, use only shielded interface
cables when connecting to a computer or peripheral. Also, any
changesormodicationsnotexpresslyapprovedbytheparty
responsible for compliance could void the user’s authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
FCC RF Exposure Warning:
l This equipment is provided with PC Card slot that could be
usedwithwirelesstransmitters,whichwillbespecically
recommended when they become available.
Other third-party wireless transmitters have not been RF
exposure evaluated for use with this computer and may not
comply with FCC RF exposure requirements.
<Only for model with wireless LAN/wireless WAN/Bluetooth>
l This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment.
l This equipment has been approved for portable operation,
and does not require any minimum spacing be provided
between antennas and all person’s body.
25-M-8
<Only for model with wireless LAN>
This product is restricted to indoor use due to its operation in
the 5.15 to 5.25 GHz frequency range.
FCC requires this product to be used indoors for the frequency
range 5.15 to 5.25 GHz to reduce the potential for harmful
interference to co-channel Mobile Satellite systems. High power
radars are allocated as primary users of the 5.25 to 5.35 GHz
and 5.65 to 5.85 GHz bands. These radar stations can cause
interference with and/or damage this product.
25-M-W-8
Responsible Party: Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
Tel No:1-800-LAPTOP5 (1-800-527-8675)
6-M-1
<Only for model with modem>
FCC Regulation Notice for modem
This equipment contains a FCC approved modem.
1. This equipment complies with CFR47 Part 68 rules.
On the computer is a label that contains, among other infor-
mation, the FCC registration number and ringer equivalence
number (REN) for this equipment. If required, this informa-
tion must be provided to the telephone company.
2. An FCC compliant telephone cord and modular plug is
provided with this equipment. This equipment is designed to
be connected to the telephone network or premises wiring
using a compatible modular jack which is Part 68 compliant.
See Installation Instructions for details.
3.
The REN is used to determine the quantity of devices which
may be connected to the telephone line. Excessive RENs on
the telephone line may result in the devices not ringing in re-
sponse to an incoming call. In most, but not all area, the sum of
RENsshouldnotexceedve(5.0).Tobecertainofthenumber
of devices that may be connected to a line, as determined by
the total RENs, contact the local telephone company.
4.
If your telephone equipment cause harm to the telephone network,
the telephone company will notify you in advice that temporary
discontinuance of service may be required. But if advice notice
isn’t practical, the telephone company will notify the customer as
soonaspossible.Also,youwillbeadvisedofyourrighttolea
complaint with the FCC if you believe it is necessary.
5.
The telephone company may take changes in its facilities, equip-
ment, operations or procedures that could affect the operation
of the equipment. If this happens the telephone company will
provide advance notice in order for you to make necessary modi-
cationstomaintainuninterruptedservice.
6.
If trouble is experienced with this equipment, for repair or
warranty information, please contact Panasonic Corpora-
tion of North America at DIAL TOLL FREE 1-800-LAPTOP5
(1-800-527-8675). If the equipment is causing harm to the
telephone network, the telephone company may request that
you disconnect the equipment until the problem is resolved.
7.
There are no user serviceable parts contained in this equipment.
8.
This equipment may not be used on coin service provided by the tele-
phone company. Connection to party lines is subject to state tariffs.
9. The Telephone Consumer Protection Act of 1991 makes it unlawful
for any person to use a computer or other electronic device to send
any message via a telephone fax machine unless such message
clearly contains in a margin at the top or bottom of each transmit-
tedpageorontherstpageofthetransmission,thedateandtime
itissentandanidenticationofthebusinessorotherentry,or
other individual sending the message and the telephone number of
the sending machine or such business, other entity, or individual. In
order to program this information into your fax software, you should
refer to the manual of the Fax software being used.
10.
According to the FCC’s electrical safety advisory, we recom-
mend that you may install an AC surge arrestor in the AC outlet
to which this equipment is connected. Telephone companies
report that electrical surges, typically lightning transients, are
very destructive to customer terminal equipment connected to
AC power sources and that this is a major nationwide problem.
“Caution:Toreducetheriskofre,useonlyNo.26AWGor
larger(e.g.,24AWG)ULlistedorCSAcertiedtelecommunica-
tion line cord.”
“ATTENTION : Pour réduire le risque d’incendie, utiliser unique-
ment des conducteurs de télécommunications 26 AWG ou de
sectionsupérieure(p.ex.24AWG)ULénumérésouCSAcertié.”
16-M-1
<For USA-California Only>
This product contains a Coin Cell Lithium Battery
which contains Perchlorate Material - special handling
may apply.
See www.dtsc.ca.gov/harzardouswaste/perchlorate/
38-M-1
4
Getting Started
Read Me First
Models for Canada
<Only for model with modem>
Industry Canada (IC) Notice for modem
This equipment contains an Industry Canada approved modem unit.
TheIndustryCanadalabelisafxedonthemodemunit.
EQUIPMENT ATTACHEMENT LIMITATIONS
“NOTICE:TheIndustryCanadalabelidentiescertiedequip-
ment.Thiscerticationmeansthattheequipmentmeetstele-
communications network protective, operational and safety re-
quirements as prescribed in the appropriate Terminal Equipment
Technical Requirements document(s). The Department does not
guarantee the equipment will operate to the user’s satisfaction.
Before installing this equipment, users should ensure that it is
permissible to be connected to the facilities of the local telecom-
munications company. The equipment must also be installed us-
ing an acceptable method of connection. The customer should
be aware that compliance with the above conditions may not
prevent degradation of service in some situations.
Repairstocertiedequipmentshouldbecoordinatedbyarep-
resentative designated by the supplier. Any repairs or alterations
made by the user to this equipment, or equipment malfunctions,
may give the telecommunications company cause to request
the user to disconnect the equipment.
Users should ensure for their own protection that the electri-
cal ground connections of the power utility, telephone lines and
internal metallic water pipe system, if present, are connected
together. This precaution may be particularly important in rural
areas. Caution: Users should not attempt to make such con-
nections themselves, but should contact the appropriate electric
inspection authority, or electrician, as appropriate.”
“NOTICE: The Ringer Equivalence Number (REN) assigned to
each terminal device provides an indication of the maximum num-
ber of terminals allowed to be connected to a telephone interface.
The termination on an interface may consist of any combination of
devices subject only to the requirement that the sum of the Ringer
Equivalence Numbers of all the devices does not exceed 5.”
REN: See bottom of the computer
RESTRICTIONS CONCERNANT LE RACCORDEMENT DE
MATÉRIEL
“AVIS:L’étiquetted’IndustrieCanadaidentielematérielhomo-
logué.Cetteétiquettecertiequelematérielestconformeaux
normes de protection, d’exploitation et de sécurité des réseaux
de télécommunications, comme le prescrivent les documents
concernant les exigences techniques relatives au matériel termi-
nal. Le Ministère n’assure toutefois pas que le matériel fonction-
nera à la satisfaction de l’utilisateur.
Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est
permis de le raccorder aux installations de l’entreprise locale de
télécommunication. Le matériel doit également être installé en
suivant une méthode acceptée de raccordement.
L’abonné ne doit pas oublier qu’il est possible que la conformité
aux conditions énoncées ci-dessus n’empêche pas la dégrada-
tion du service dans certaines situations.
Les réparations de matériel homologué doivent être coordon-
nées par un représentant désigné par le fournisseur.
L’entreprise de télécommunications peut demander à l’utilisateur de
débrancherunappareilàlasuitederéparationsoudemodications
effectuées par l’utilisateur ou à cause de mauvais fonctionnement.
Pour sa propre protection, l’utilisateur doit s’assurer que tous
leslsdemiseàlaterredelasourced’énergieélectrique,des
lignes téléphoniques et des canalisations d’eau métalliques, s’il
y en a, sont raccordés ensemble. Cette précaution est particu-
lièrement importante dans les régions rurales. Avertissement:
L’utilisateur ne doit pas tenter de faire ces raccordements lui-
même; il doit avoir recours à un service d’inspection des instal-
lations électriques, ou à un électricien, selon le cas.”
“AVIS: L’indice d’équivalence de la sonnerie (IES) assigné
à chaque dispositif terminal indique le nombre maximal de
terminaux qui peuvent être raccordés à une interface. La ter-
minaison d’une interface téléphonique peut consister en une
combinaison de quelques dispositifs, à la seule condition que
la somme d’indices d’équivalence de la sonnerie de touts les
dispositifs n’excède pas 5.”
IES: Voir sous le fond de l’ordinateur
17-Ca-1
Canadian ICES-003
This Class B digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
7-M-2
<Only for model with wireless LAN/Bluetooth>
Industry Canada
This product complies with RSS310 Industry Canada.
Operation is subject to the following two conditions;
(1) this device may not cause interference, and
(2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
30-Ca-1-1
<Only for model with wireless LAN>
This product (local network devices) for the band 5150-5250
MHz is only indoor usage to reduce potential for harmful inter-
ference to co-channel Mobile Satellite systems.
High power radars are allocated as primary users (meaning
they have priority) of 5250-5350 MHz and 5650-5850 MHz and
these radars could cause interference and/or damage to LE-
LAN devices.
30-Ca-2-1
5
Getting Started
Models for Europe
<Only for model with a “CE” mark on the bottom of the computer>
Declaration of Conformity (DoC)
“Hereby, Panasonic declares that this Personal Computer is in compliance with the essential requirements and
other relevant provisions of the Directive 1999/5/EC.”
Hint:
If you want to get a copy of the original DoC of our above mentioned products,
please contact our web address: http://www.doc.panasonic.de
Authorized Representative:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
Network connection of Wired Modem.
The terminal equipment is intended for connection to the following public network;
In all the countries of European Economical Area and Turkey;
- Public Switched Telephony Networks
Technical Features of Wired Modem.
The terminal equipment includes the following features;
- DTMF dialing
- Maximum bitrate receiving mode: 56 kbit/s
- Maximum bitrate sending mode: 33.6 kbit/s
18-E-1
Important Safety Instructions / Importantes Mesures De Sécurité
<Only for model with modem>
When using your telephone equipment, basic safety precautions
shouldalwaysbefollowedtoreducetheriskofre,electric
shock and injury to persons, including the following:
1. Do not use this product near water, for example, near a bath
tub, wash bowl, kitchen sink or laundry tub, in a wet base-
ment or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during
an electrical storm. There may be a remote risk of electric
shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity
of the leak.
4. Use only the power cord and batteries indicated in this man-
ual.Donotdisposeofbatteriesinare.Theymayexplode.
Check with local codes for possible special disposal instruc-
tions.
SAVE THESE INSTRUCTIONS
19-E-1
<Pour modèles avec modem uniquement>
Certaines mesures de sécurité doivent être prises pendant l’utilisation
dematérialtéléphoniqueanderéduirelesrisquesd’incendie,de
choc électrique et de blessures. En voici quelquesunes:
1. Ne pas utiliser l’appareil près de l’eau, p.ex., près d’une
baignoire, d’un lavabo, d’un évier de cuisine, d’un bac à
laver, dans un sous-sol humide ou près d’une piscine.
2. Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil
sansl)pendantunorageélectrique.Cecipeutprésenter
un risque de choc électrique causé par la foudre.
3. Ne pas utiliser l’appareil téléphonique pour signaler une fuite
de gaz s’il est situé près de la fuite.
4. Utiliser seulement le cordon d’alimentation et le type de piles
indiqués dans ce manual. Ne pas jeter les piles dans le feu:
elles peuvent exploser. Se conformer aux règlements perti-
nents quant à l’élimination des piles.
CONSERVER CES INSTRUCTIONS
19-F-1
<Only for model with wireless LAN/Bluetooth>
This product and your Health
This product, like other radio devices, emits radio frequency
electromagnetic energy. The level of energy emitted by this
product however is far much less than the electromagnetic ener-
gy emitted by wireless devices like for example mobile phones.
Because this product operates within the guidelines found in
radio frequency safety standards and recommendations, we
believe this product is safe for use by consumers. These stan-
dardsandrecommendationsreecttheconsensusofthesci-
enticcommunityandresultfromdeliberationsofpanelsand
committees of scientists who continually review and interpret
the extensive research literature.
In some situations or environments, the use of this product may be
restricted by the proprietor of the building or responsible representa-
tives of the organization. These situations may for example include:
l Using this product on board of airplanes, or
l
In any other environment where the risk of interference to
otherdevicesorservicesisperceivedoridentiedasharmful.
If you are uncertain of the policy that applies on the use of
wirelessdevicesinaspecicorganizationorenvironment(e.g.
airports), you are encouraged to ask for authorization to use this
product prior to turning on the product.
Regulatory Information
We are not responsible for any radio or television interference
causedbyunauthorizedmodicationofthisproduct.Thecor-
rectionofinterferencecausedbysuchunauthorizedmodica-
tion will be the responsibility of the user. We and its authorized
resellers or distributors are not liable for damage or violation of
government regulations that may arise from failing to comply
with these guidelines.
26-M-1
Information to the User / Informations destinées aux utilisateurs
6
Getting Started
Read Me First
Safety Precautions
<Only for model with wireless WAN>
The following safety precautions must be observed during all phases of the operation, usage, service or repair of any Personal
Computer or Handheld Computer incorporating wireless WAN modem. Manufacturers of the cellular terminal are advised to con-
vey the following safety information to users and operating personnel and to incorporate these guidelines into all manuals supplied
with the product. Failure to comply with these precautions violates safety standards of design, manufacture and intended use of the
product. Panasonic assumes no liability for customer failure to comply with these precautions.
When in a hospital or other health care facility, observe the restrictions on the use of mobiles. Switch Personal Computer
or Handheld Computer incorporating wireless WAN modem off, if instructed to do so by the guidelines posted in sensitive
areas. Medical equipment may be sensitive to RF energy.
The operation of cardiac pacemakers, other implanted medical equipment and hearing aids can be affected by interfer-
ence from Personal Computer or Handheld Computer incorporating wireless WAN modem placed close to the device.
If in doubt about potential danger, contact the physician or the manufacturer of the device to verify that the equipment is
properly shielded. Pacemaker patients are advised to keep their Personal Computer or Handheld Computer incorporating
wireless WAN modem away from the pacemaker, while it is on.
Switch off Personal Computer or Handheld Computer incorporating wireless WAN modem before boarding an aircraft.
Make sure it cannot be switched on inadvertently. The operation of wireless appliances in an aircraft is forbidden to
prevent interference with communications systems. Failure to observe these instructions may lead to the suspension or
denial of cellular services to the offender, legal action, or both.
DonotoperatePersonalComputerorHandheldComputerincorporatingwirelessWANmodeminthepresenceofam-
mable gases or fumes. Switch off the cellular terminal when you are near petrol stations, fuel depots, chemical plants or
where blasting operations are in progress. Operation of any electrical equipment in potentially explosive atmospheres
can constitute a safety hazard.
Your Personal Computer or Handheld Computer incorporating wireless WAN modem receives and transmits radio fre-
quency energy while switched on. Remember that interference can occur if it is used close to TV sets, radios, computers
or inadequately shielded equipment. Follow any special regulations and always switch off Personal Computer or Hand-
held Computer incorporating wireless WAN modem wherever forbidden, or when you suspect that it may cause interfer-
ence or danger.
Roadsafetycomesrst!DonotuseaPersonalComputerorHandheldComputerincorporatingwirelessWANmodem
while driving a vehicle. Do not place the computer with wireless WAN modem in an area where it could cause personal
injury to the driver or passengers. It is recommended to stow the unit in the boot or secure stowage area while driving.
Do not place the computer with wireless WAN modem in an area over an air bag or in the vicinity where an air bag may
deploy.
AirbagsinatewithgreatforceandifthecomputerwithwirelessWANmodemisplacedintheairbagdeploymentarea
may be propelled with great force and cause serious injury to occupants of the vehicle.
IMPORTANT!
Personal Computer or Handheld Computer incorporating wireless WAN modem operate using radio signals and cellular
networks cannot be guaranteed to connect in all conditions. Therefore, you should never rely solely upon any wireless
device for essential communications, for example emergency calls.
Remember, in order to make or receive calls, Personal Computer or Handheld Computer incorporating wireless WAN
modem must be switched on and in a service area with adequate cellular signal strength.
Some networks do not allow for emergency calls if certain network services or phone features are in use (e.g. lock func-
tions,xeddialingetc.).Youmayneedtodeactivatethosefeaturesbeforeyoucanmakeanemergencycall.
Some networks require that a valid SIM card be properly inserted in Personal Computer or Handheld Computer incorpo-
rating wireless WAN modem.
27-1-2
<Uniquementlesmodèlesavecréseaulocalsanslet/ouBlue-
tooth>
Ce produit et votre santé
Ce produit, comme tout autre appareil radio, émet de l’énergie
radioélectrique. Toutefois, la quantité d’énergie émise par ce
produit est beaucoup moins importante que l’énergie radioélec-
triqueémisepardesappareilssansltelsquelestéléphones
portables. L’utilisation de ce produit ne comporte aucun risque
pour le consommateur du fait que cet appareil opère dans les
limites des directives concernant les normes et les recom-
mendations de sécurité sur les fréquences radio. Ces normes
etrecommandationsreètentleconsensusdelacommunauté
scientiqueetrésultentdedélibérationsdejurysetcomitésde
scientiquesquiexaminentetinterprètentcontinuellementles
nouveautés de la vaste littérature sur les recherches effectuées.
Dans certaines situations ou environnements, l’utilisation de ce
produit peut être restreinte par le propriétaire du bâtiment ou
par les représentants responsables de l’organisation. Ces situa-
tions peuvent être les suivantes par exemple :
l A bord d’un avion, ou
l Dans tout autre environnement où les risques d’interférence
surd’autresappareilsouservicessontperçusouidenti-
ables comme dangereux.
Si vous n’êtes pas sûr de la réglementation applicable à l’
utilisationd’appareilssansldansuneorganizationouun
environnementspécique,(parexempledansunaéroport)
nous vous invitons à demander l’autorisation d’utiliser ce produit
avant sa mise en marche.
Informations concernant la réglementation
Nous déclinons toute responsabilité pour toute interférence
radiooutélévisioncauséepardesmodicationsnonautorisées
apportées à ce produit. La correction d’interférences causées
pardetellesmodicationsnonautoriséesseralaseulerespon-
sabilitédesonutilisateur.Nousmêmes,lesrevendeursofciels
et les distributeurs ne sommes pas responsable de tout dégât
ou de toute violation des règlements de l’État pouvant découler
du non-respect de ces directives.
26-F-1
7
Getting Started
Lithium Battery / Pile au lithium
Lithium Battery!
This computer contains a lithium battery to enable the date,
time, and other data to be stored. The battery should only be
exchanged by authorized service personnel.
Warning!
A risk of explosion from incorrect installation or misapplication
may possibly occur.
15-E-1
Pile au lithium!
Le micro-ordinateur renferme une pile au lithium qui permet de
sauvegarder certaines données, notamment la date et l’heure.
Lapilenedoitêtreremplacéequeparuntechnicienqualié.
Danger!Risqued’explosionencasdenonrespectdecette
miseengarde!
15-F-1
Information on Disposal in other Countries outside the European Union
These symbols are only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the
correct method of disposal.
53-M-1
THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS
PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC
CONTROL EQUIPMENT/SYSTEMS, AIRCRAFT COCKPIT
EQUIPMENT/SYSTEMS*1, MEDICAL DEVICES OR ACCES-
SORIES*2, LIFE SUPPORT SYSTEMS OR OTHER EQUIP-
MENTS/DEVICES/SYSTEMS THAT ARE INVOLVED WITH
ENSURING HUMAN LIFE OR SAFETY. PANASONIC WILL
NOT BE RESPONSIBLE FOR ANY LIABILITY RESULTING
FROM THE USE OF THIS PRODUCT ARISING OUT OF THE
FOREGOING USES.
*1 AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2
Electrical Flight Bag (EFB) Systems and Class1 EFB Systems
whenusedduringcriticalphasesofight(e.g.,duringtake-
off and landing) and/or mounted on to the aircraft. Class1 EFB
Systemsand2EFBSystemsaredenedbyFAA:AC(Advi-
sory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance
Leaets)No.36.
*2 AsdenedbytheEuropeanMedicalDeviceDirective(MDD)
93/42/EEC.
Panasoniccannotguaranteeanyspecications,technolo-
gies, reliability, safety (e.g. Flammability/Smoke/Toxicity/Radio
Frequency Emission, etc) requirements related to aviation
standards and medical equipment standards that differ from
thespecicationsofourCOTS(Commercial-Off-The-Shelf)
products.
Panasoniccannotguaranteeanyspecications,technolo-
gies, reliability, safety (e.g. Flammability/Smoke/Toxicity/Radio
Frequency Emission, etc) requirements related to aviation
standardsthatexceedthespecicationsofourCOTS(Com-
mercial-Off-The-Shelf) products.
If a Malfunction or Trouble Occurs, Immediately Stop Use
If a Malfunction Occurs, Immediately Unplug the AC Plug
and the Battery Pack
This product is damaged
Foreign object inside this product
Smoke emitted
Unusual smell emitted
Unusually hot
Continuing to use this product while any of the above conditions
arepresentmayresultinreorelectricshock.
If a malfunction or trouble occurs, immediately unplug the AC
plug and remove the battery pack. Then, contact your techni-
calsupportofceforrepair.
Do Not Touch This Product and Cable When It Starts Thun-
dering
Electric shock may result.
Do Not Connect the AC Adaptor to a Power Source Other
Than a Standard Household AC Outlet
Otherwise,areduetooverheatingmayresult.Connectingtoa
DC/AC converter (inverter) may damage the AC adaptor. On an
airplane, only connect the AC adaptor/charger to an AC outlet
specicallyapprovedforsuchuse.
Do Not Do Anything That May Damage the AC Cord, the AC
Plug, or the AC Adaptor
Do not damage or modify the cord, place it near hot tools, bend,
twist, or pull it forcefully, place heavy objects on it, or bundle it
tightly.
Continuingtouseadamagedcordmayresultinre,shortcir-
cuit, or electric shock.
Do Not Pull or Insert the AC Plug If Your Hands Are Wet
Electric shock may result.
Clean Dust and Other Debris of the AC Plug Regularly
If dust or other debris accumulates on the plug, humidity, etc.
maycauseadefectintheinsulation,whichmayresultinare.
Pull the plug, and wipe it with a dry cloth.
Pull the plug if the computer is not being used for a long pe-
riod of time.
Insert the AC Plug Completely
Iftheplugisnotinsertedcompletely,reduetooverheatingor
electric shock may result.
Do not use a damaged plug or loose AC outlet.
Do Not Place Containers of Liquid or Metal Objects on Top
of This Product
If water or other liquid spills, or if paper clips, coins, or foreign
mattergetinsidethisproduct,reorelectricshockmayresult.

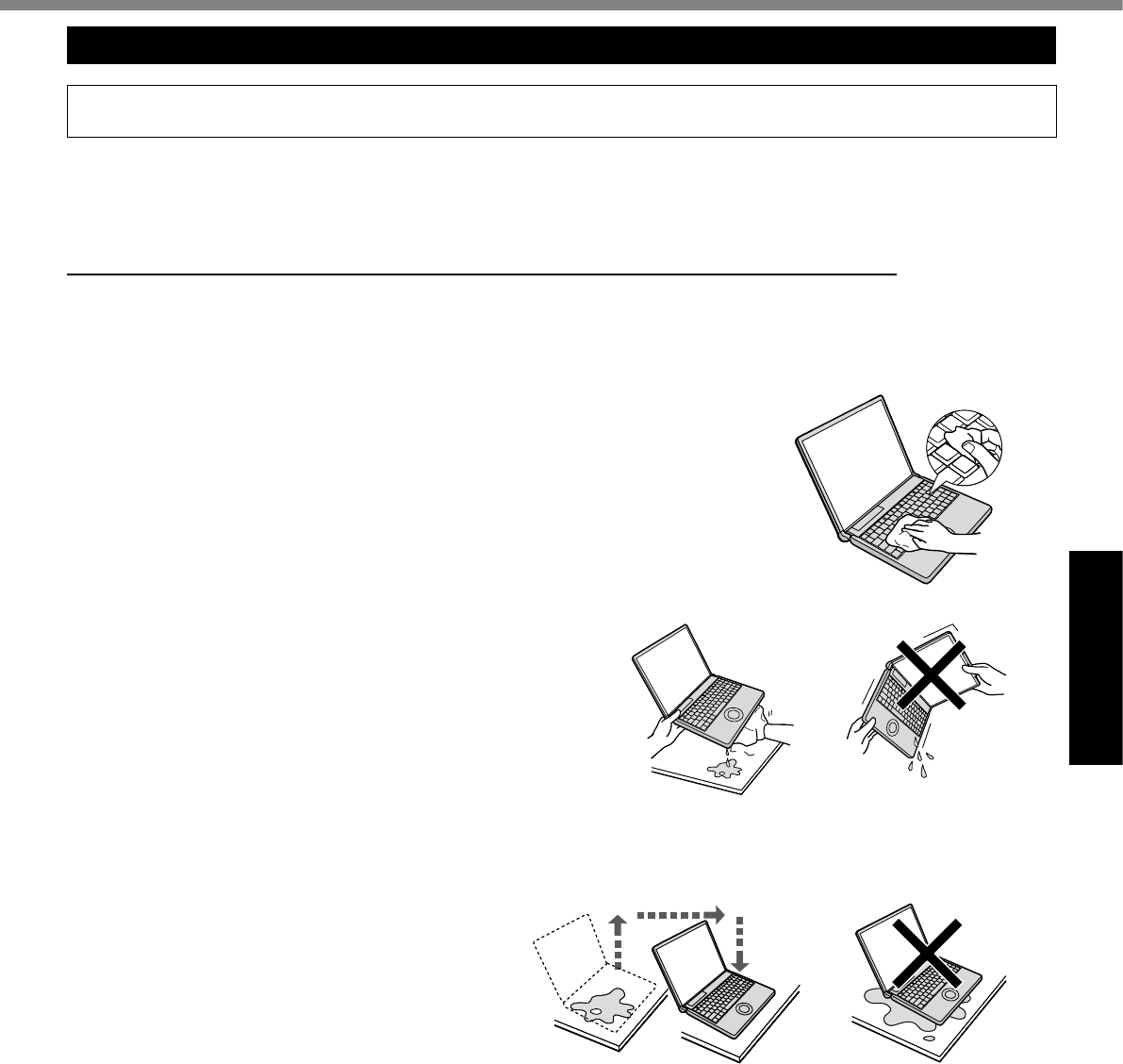

If water spills in the keyboard, refer to page 23. If foreign mat-
ter has found its way inside, immediately turn the power off
and unplug the AC plug and remove the battery pack. Then
contactyourtechnicalsupportofce.
Do Not Disassemble This Product
The high-voltage areas inside may give you an electric shock,
orforeignmattermayenterandresultinare.
Keep SD Memory Cards Away from Infants and Small Chil-
dren
Accidental swallowing will result in bodily injury.
In the event of accidental swallowing, see a doctor imme-
diately.
Do Not Place This Product on Unstable Surface
If balance is lost, this product may fall over or drop, resulting in
an injury.
Precautions
8
Getting Started
Avoid Stacking
If balance is lost, this product may fall over or drop, resulting in
an injury.
Do Not Leave This Product in High Temperature Environ-
ment for a Long Period of Time
Leaving this product where it will be exposed to extremely high
temperaturessuchasnearreorindirectsunlightmaydeform
the cabinet and/or cause trouble in the internal parts. Continued
use in such a resulting condition may lead to short-circuiting or
insulationdefects,etc.whichmayinturnleadtoareorelectric
shocks.
Do Not Block the Ventilation Hole
Otherwise,heatwillbuildupinside,possiblyresultinginare.
Hold the Plug When Unplugging the AC Plug
Pullingonthecordmaydamagethecord,resultinginareor
electric shock.
Do Not Move This Product While the AC Plug Is Connected
TheACcordmaybedamaged,resultinginreorelectricshock.
If the AC cord is damaged, unplug the AC plug immediately.
Use Only the Specied AC Adaptor With This Product
Using an AC adaptor other than the one supplied (supplied with the
unitoronesoldseparatelyasanaccessory)mayresultinare.
Do Not Subject the AC Adaptor to Any Strong Impact
Using the AC adaptor after a strong impact such as being
droppedmayresultinelectricshock,shortcircuit,orre.
Take a Break of 10-15 Minutes Every Hour
Using this product for long periods of time may have detrimental
health effects on the eyes or hands.
Precautions (Battery Pack)
Do Not Use With Any Other Product
The battery pack is rechargeable and was intended for the
speciedproduct.Ifitisusedwithaproductotherthantheone
for which it was designed, electrolyte leakage, generation of
heat, ignition or rupture may result.
Do Not Charge the Battery Using Methods Other Than
Those Specied
Ifthebatteryisnotchargedusingoneofthespeciedmethods,
electrolyte leakage, generation of heat, ignition or rupture may
result.
Do Not Throw the Battery Pack Into a Fire or Expose It to
Excessive Heat
Generation of heat, ignition or rupture may result.
Avoid Extreme Heat (Near the Fire, In Direct Sunlight, for
Example)
Electrolyte leakage, generation of heat, ignition or rupture may
result.
Do Not Insert Sharp Objects Into the Battery Pack, Expose
It to Bumps or Shocks, Disassemble, or Modify It
Electrolyte leakage, generation of heat, ignition or rupture may
result.
If this product is subjected to a strong impact, stop using it im-
mediately.
Do Not Short the Positive (+) and Negative (-) Contacts
Generation of heat, ignition or rupture may result.
Do not place the battery pack together with articles such
as necklaces or hairpins when carrying or storing.
Do Not Use This Product with a Battery Pack Other Than
the One Specied
Useonlythespeciedbatterypack(CF-VZSU66U)withyour
product. Use of battery packs other than those manufactured
and supplied by Panasonic may present a safety hazard (gen-
eration of heat, ignition or rupture).
Do Not Turn the Volume Up To Loud When Using Head-
phones
Listening at high volumes that overstimulate the ear for long
periods of time may result in loss of hearing.
Do Not Connect a Telephone Line, or a Network Cable
Other Than the One Specied, into the LAN Port
If the LAN port is connected to a network such as the ones
listedright,areorelectricshockmayresult.
Networks other than 1000BASE-T, 100BASE-TX or
10BASE-T
Phone lines (IP phone (Internet Protocol Telephone), Tele-
phone lines, internal phone lines (on-premise switches),
digital public phones, etc.)
Do Not Use With Exposing the Skin To This Product For a
Long Period of Time
Using this product with exposing the skin to the heat source of
this product or AC adaptor for a long period of time can cause a
low-temperature burn.
<Only for model with modem>
Use the Modem with a Regular Telephone Line
Connection to an internal phone line (on-premise switches) of
acompanyorbusinessofce,etc.ortoadigitalpublicphone
or use in a country or area not supported by the computer may
resultinareorelectricshocks.
l
Do not place the computer near a television or radio receiver.
l Keep the computer away from magnets. Data stored on the
hard disk may be lost.
When the Battery Pack Has Deteriorated, Replace It with a
New One
Continued use of a damaged battery pack may result in heat
generation, ignition or battery rupture.
l Do not touch the terminals on the battery pack. The battery
pack may no longer function properly if the contacts are dirty
or damaged.
l Do not expose the battery pack to water, or allow it to be-
come wet.
l If the battery pack will not be used for a long period of time (a
month or more), charge or discharge (use) the battery pack
until the remaining battery level becomes 30% to 40% and
store it in a cool, dry place.
l This computer prevents overcharging of the battery by
recharging only when the remaining power is less than ap-
prox. 95% (when Economy Mode (ECO) is enabled: 75%) of
capacity.
l Thebatterypackisnotchargedwhenthecomputerisrst
purchased.Besuretochargeitbeforeusingitfortherst
time. When the AC adaptor is connected to the computer,
charging begins automatically.
l Shouldthebatteryleakandtheuidgetintoyoureyes,do
notrubyoureyes.Immediatelyushyoureyeswithclear
water and see a doctor for medical treatment as soon as
possible.
CAUTION:
Risk of Explosion if Battery is replaced by an Incorrect Type.
Dispose of Used Batteries According to the Instructions.
58-E-1
Read Me First
9
Getting Started
NOTE
l The battery pack may become warm during recharging or
normal use. This is completely normal.
l Recharging will not commence if internal temperature of the
battery pack is outside of the allowable temperature range
(0 °C to 55 °C {32°F to 131 °F}).
(è Reference Manual “Battery Power”) Once the allow-
ablerangerequirementissatised,chargingbeginsauto-
matically. Note that the recharging time varies based on the
usage conditions. (Recharging takes longer than usual when
the temperature is
10 °C {50 °F} or below.)
l In high-temperature environments, the battery takes longer
to fully recharge. In low-temperature environments, the bat-
tery takes longer to fully recharge and the operating time is
shorter. Only use the computer within the allowable temper-
ature range.
l The battery pack is a consumable item. If the amount of
time the computer can be run by using a particular battery
pack becomes dramatically shorter and repeated recharging
does not restore its performance, the battery pack should be
replaced with a new one.
l When transporting a spare battery inside a package, brief-
case, etc., it is recommended that it be placed in a plastic
bag so that its contacts are protected.
l Always power off the computer when it is not in use. Leaving
the computer on when the AC adaptor is not connected will
exhaust the remaining battery capacity.
A lithium ion battery that is recycla-
ble powers the product you have
purchased.
Please call 1-800-8-BATTERY for
information on how to recycle this
battery.
L’appareil que vous vous êtes pro-
curé est alimenté par une batterie
au lithium-ion.
Pour des renseignements sur le
recyclage de la batterie, veuillez
composer le
1-800-8-BATTERY.
48-M-1
10
Getting Started
Description of Parts
A: Web Camera
<Only for model with Web Camera>
B: LCD/Digitizer
è Reference Manual “Digitizer / Multi Touch
Operation”
C: Wireless LAN Antenna
<Only for model with wireless LAN>
è Reference Manual “Wireless LAN”
D: LCD Rotation Lock
<Only for model with Fingerprint Reader>
è page 12 “Rotating the Display”
E: Microphone
F: Function Key
è Reference Manual “Key Combinations”
G: Keyboard
H: Touch Pad
è Reference Manual “Using the Touch Pad”
I: Power Switch
è page 16
Power Indicator
• Off: Power off/Hibernation
• Green: Power on
• Blinking green: ( ) Sleep /
( ) Standby
J: Wireless Switch
è Reference Manual “Disabling / Enabling
Wireless Communication”
K: Headphone Jack
Youcanconnectheadphonesorampliedspeakers.
When they are connected, audio from the internal
speakers is not heard.
L: Microphone Jack
A condenser microphone can be used. If other types
of microphones are used, audio input may not be pos-
sible, or malfunctions may occur.
• When recording in stereo using a stereo microphone:
Click (Start) - [Control Panel] - [Hardware and
Sound] - [Sound] - [Recording] - [Microphone] -
[Properties], and then remove a check mark of [En-
able audio enhancements] in [Advanced].
Click [start] - [All Programs] - [SoundMAX] - [Con-
trol Panel] and select [Microphone], and then add
a check mark for [No Filtering] in [Microphone En-
hancements].
• When using a monaural microphone with a 2-termi-
nal plug:.
Click (Start) - [Control Panel] - [Hardware and
Sound] - [Sound] - [Recording] - [Microphone] -
[Properties], and then add a check mark for [Enable
audio enhancements] in [Advanced].
Click [start] - [All Programs] - [SoundMAX] - [Con-
trol Panel] and select [Microphone], and then add
a check mark for [Voice Recording] in [Microphone
Enhancements].
M: Wireless WAN Antenna
<Only for model with wireless WAN>
N: Fingerprint Reader
<Only for model with Fingerprint Reader>
è Reference Manual “Fingerprint Reader”
O: Tablet Buttons
è Reference Manual “Tablet Buttons”
P: Security Lock
You can connect a Kensington cable. Refer to the
instruction manual of the cable. The security lock and
cable is a theft prevention device. Panasonic Corpora-
tion will bear no responsibility in the event of theft.
Q: Speaker
R: External Display Port
è Reference Manual “External Display”
S: USB Port
è Reference Manual “USB Devices”
T: PC Card Slot
è Reference Manual “PC Cards”
U: Smart Card Slot
è Reference Manual “Smart Card”
N
M
O
P
Q
R
S
T
U
H
J
K
L
G
F
D
I
A
B
C
E
11
Getting Started
Front side
F G H
A
B
C
D
E
P
Q
R
S
T
U
V
L
M
K
I
J
N
O
Bottom
A: DC-IN Jack
B: LAN Port
è Reference Manual “LAN”
C: Modem Port
<Only for model with modem>
è Reference Manual “Modem”
D: Ventilation Hole
E: USB Ports
è Reference Manual “USB Devices”
F: SD Memory Card Slot
è Reference Manual “SD/SDHC Memory Card”*1
G: LED Indicator
1
: Battery Status 1
è Reference Manual “Battery Power”
ECO : Economy Mode (ECO) Status
è Reference Manual “Battery Power”
: Wireless Switch Status
: Caps Lock
: Numeric Key (NumLk)
: Scroll Lock (ScrLk)
2
: Battery Status 2
è Reference Manual “Battery Power”
: Hard disk drive status
: SD/SDHS/SDXC Memory Card Status*1
H: Bluetooth Antenna
<Only for model with Bluetooth>
è Reference Manual “Bluetooth”
I: Tether Hook
è page 14
J: Hand Strap
è page 14 “Using the Hand Strap”
K: Hard Disk Drive Latch
è Reference Manual “Hard Disk drive”
L: Pen Holder
è page 14
M: SIM Card Slot
Open the cover and
inset a SIM card.
Insert the SIM card
into the SIM Card
Slot with the con-
tact side facing up-
ward and with the
cut corner oriented
as shown in the illustration.
Do not insert the SIM card upside down.
N: RAM Module Slot
è Reference Manual “Expanding Memory”
O: Port Replicator Connector
Connect the Port Replicator (optional).
è Reference Manual “Port Replicator”
P: Hard Disk Drive
è Reference Manual “Hard Disk drive”
Q: Battery Bay Weight Saver
R: Battery Pack
è page 15
è Reference Manual “Battery Power””
S: Battery 2 Indicator
T: Battery 1 Indicator
è Reference Manual “Battery Power”
U: Battery 1 Latch
V: Battery 2 Latch
è Reference Manual “Battery Power”
*1 SD/SDHC/SDXC Memory Cards are sup-
ported.
SIM CardSIM Card
12
Getting Started

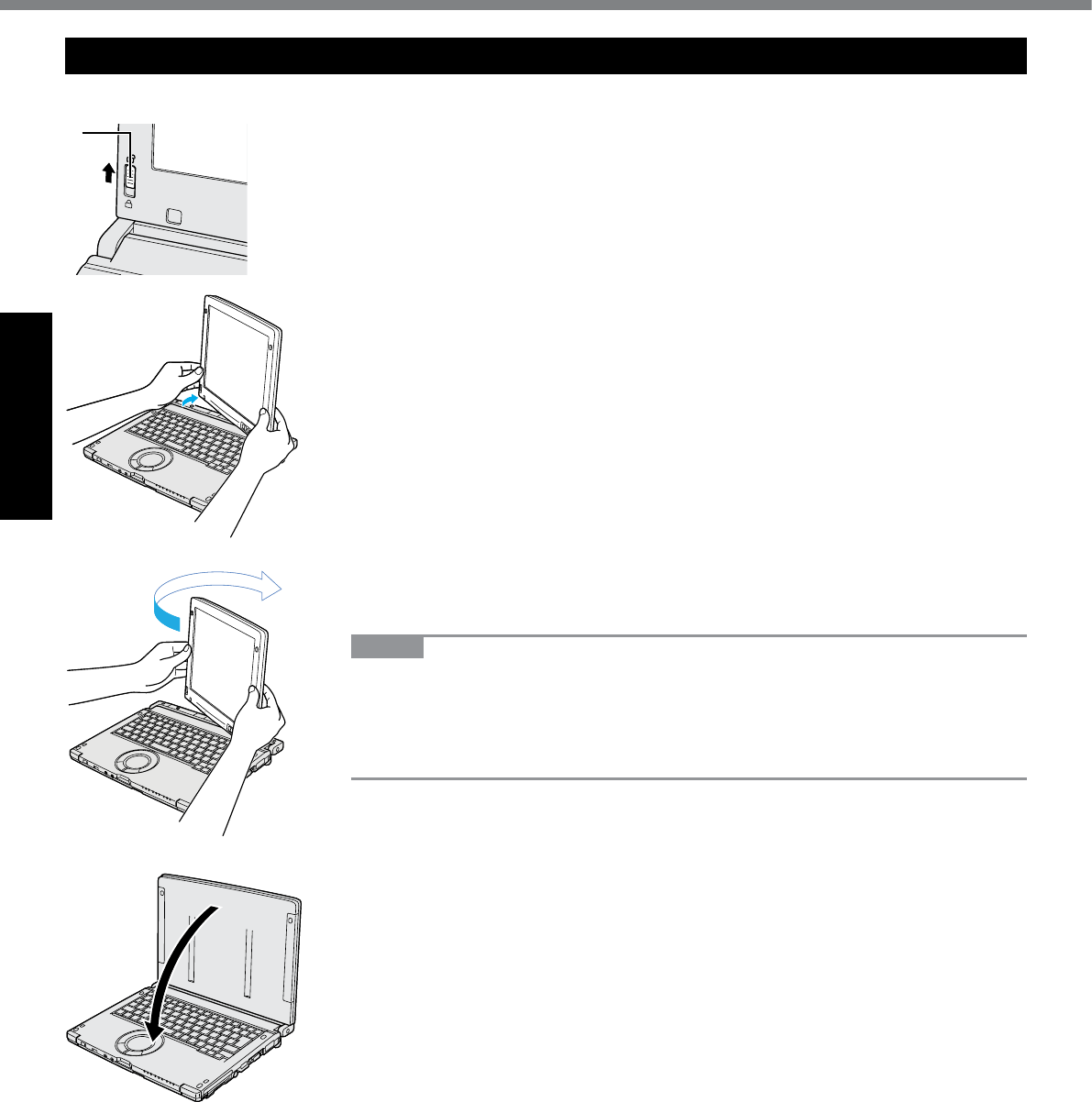

Rotating the Display
n Switching to the Tablet Mode
Description of Parts
A Open the display.
Lift up the display until it stops (approx. 90 degrees).
B Slide the LCD Rotation Lock (A) to the unlocked position.
C Hold the bottom left and bottom right of the display, and rotate the display in the
direction of the arrow.
The lock will click as it is released.
D Rotate the display 180 degrees in the direction of the arrow while holding both
sides.
Stop rotation when the display clicks into place.
NOTE
l The display cannot be rotated more than 180 degrees in the direction of the ar-
row, or in the opposite direction of the arrow. Do not attempt to rotate the display
more than 180 degrees or in the opposite direction using force.
l Do not allow the tether for the digitizer pen or other cables to get caught be-
tween the display and the base when rotating the display.
E Tilt down the display in the direction of the arrow.
AA
④④
13
Getting Started

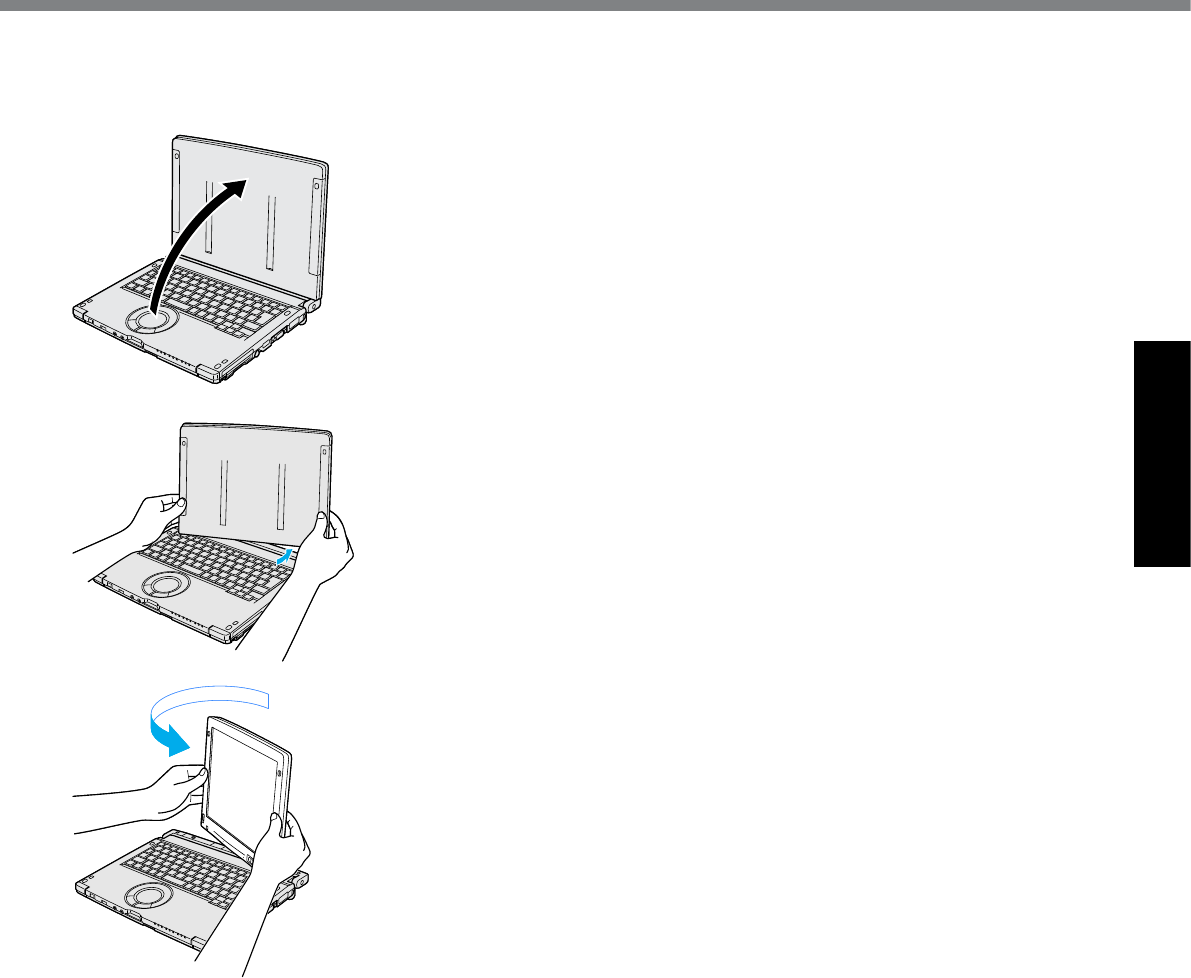

n Switching to the Laptop Mode
A Open the display.
Lift up the display until it stops (approx. 90 degrees).
B Hold the bottom left and bottom right of the display, and rotate the display in the
direction of the arrow.
The lock will click as it is released.
C Rotate the display 180 degrees in the direction of the arrow while holding both
sides.
Stop rotation when the display clicks into place.
D Slide the LCD Rotation Lock to the unlocked position.
14
Getting Started

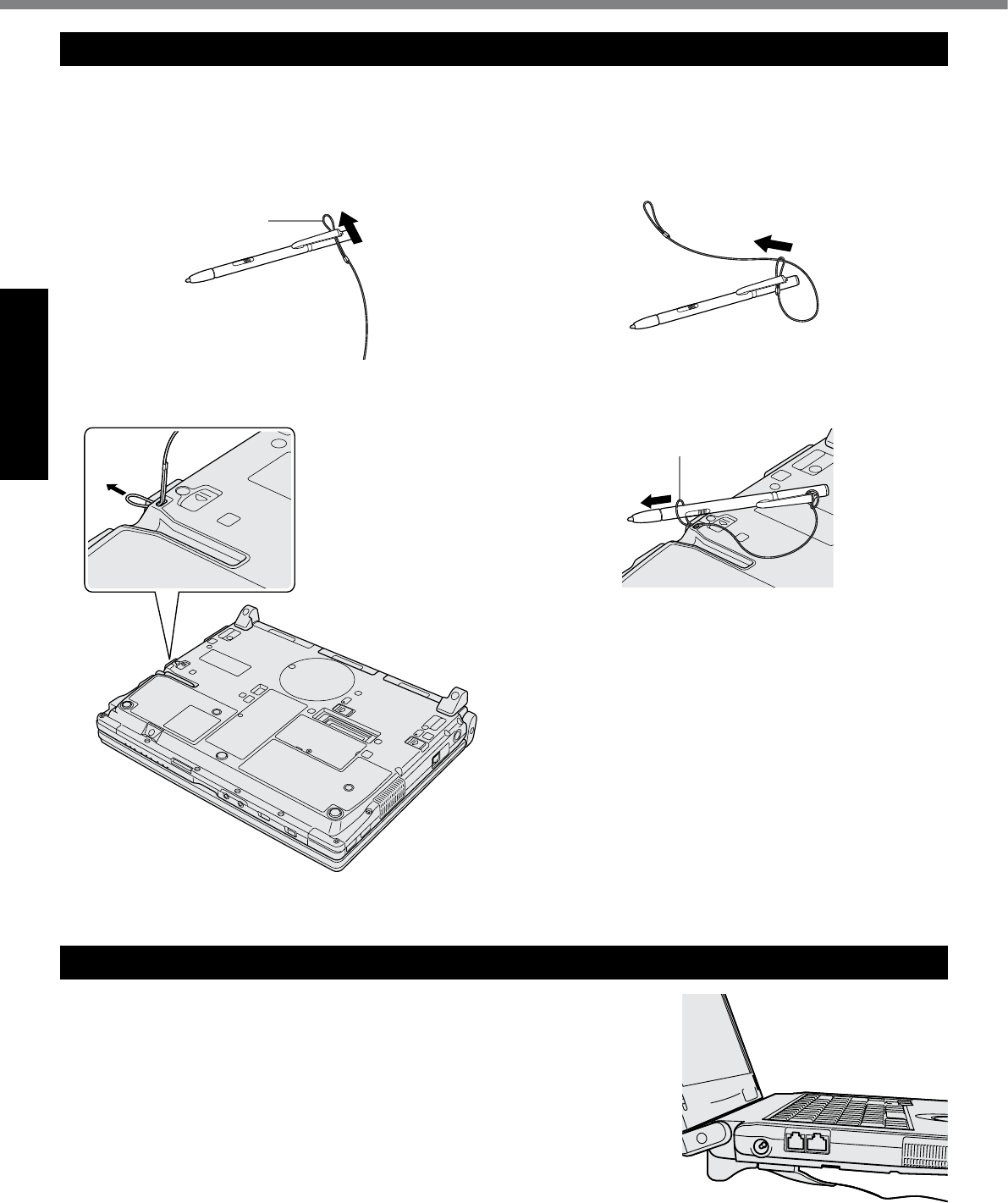

Before Using the Digitizer Pen
The tether prevents the digitizer pen from falling accidentally.
Attaching the digitizer pen to the computer using the tether
A B
C Thread the strap of the tether from the hole as illus-
trated.
D
Using the Hand Strap
The hand strap is convenient for computing while standing.
To carry the computer, put your hand between the computer and the hand strap
topreventiffromfalling,andrmlyholdthecomputerwhenusingit.
Pass the shorter loop
through the hole.
longer loop
Description of Parts
15
Getting Started

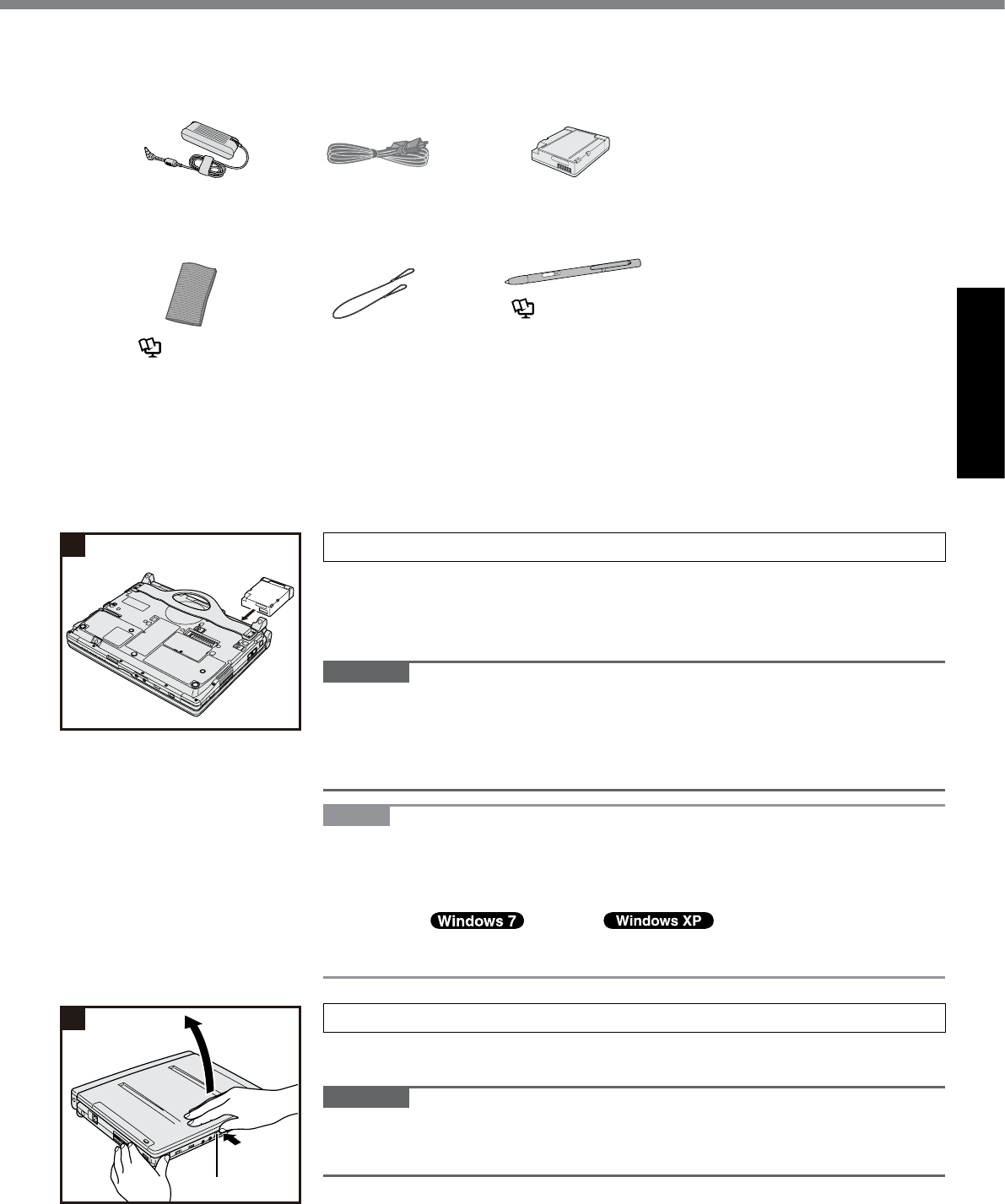

n Preparation
A Check and identify the supplied accessories.
Ifyoudonotndthedescribedaccessories,contactyourtechnicalsupportofce.
• AC Adaptor . . . . . 1
Model No: CF-AA6503A
• AC Cord . . . . . . . 1 • Digitizer Pen . . . 1
ModelNo:CF-VZSU66U
<Only for model with touchscreen>
• Soft Cloth . . . . . . 1
(è
Reference Manual
“Digitizer / Multi Touch
Operation”)
• Tether . . . . . . . . . 1 • Digitizer Pen . . . 1
(è
Reference Manual “Digitizer / Multi Touch Operation”)
• Operating Instructions (This book) . . . . . . . . . . . . . . . . . . . . . . . . . . .1
• Product Recovery DVD-ROM Windows® 7 Professional . . . . . . . . . .1
• Product Recovery DVD-ROM Windows® XP Tablet PC Edition . . . . .1
B Read the LIMITED USE LICENSE AGREEMENT before breaking the seal on the computer’s packaging
(è page 30).
1 Inserting the Battery Pack
A Turn over the computer.
l Make sure no foreign objects are under the computer.
B Slide the battery pack in parallel with the arrow direction until it clicks to the
secured position.
CAUTION
l Make sure the latch is securely locked. Otherwise the battery pack may fall
when you carry the computer.
l Do not touch the terminals of the battery pack and the computer. Doing so can
make the terminals dirty or damaged, and may cause malfunction of the battery
pack and the computer.
NOTE
l Note that the computer consumes electricity even when the computer power is
off. If the battery pack is fully charged, the battery will fully discharge in the fol-
lowing period of time:
• When power is off: Approx. @@ weeks
• In sleep ( )/standby ( ): Approx. @@ days*1
• In hibernation: Approx. @@ days*1
*1 If “Wake Up from wired LAN” is disabled, the period of time will be longer.
2 Opening the Display
A Hold the side of the computer with either of your hands and then hold and lift
the (A) part to open the display.
CAUTION
l Do not open the display wider than necessary (130° or more), and do not apply
excessive pressure to the LCD. Do not open or close the computer holding the
edge of the LCD segment.
1
①
First-time Operation
2
①
A

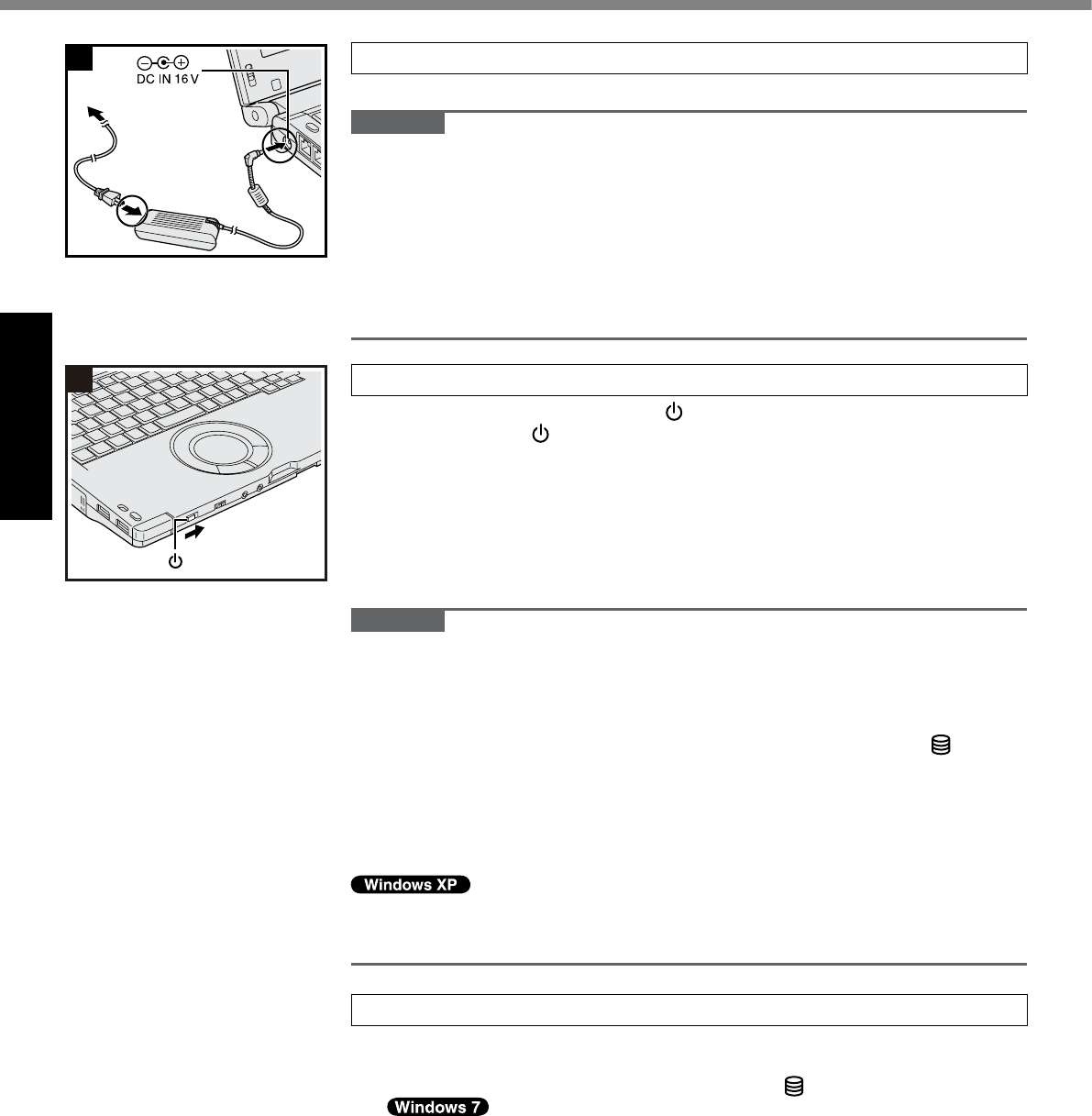

16
Getting Started
3
3 Connect your computer to a power outlet.
The battery charging starts automatically.
CAUTION
l Do not disconnect the AC adaptor and do not switch the wireless switch to on
untiltherst-timeoperationprocedureiscompleted.
l Whenusingthecomputerforthersttime,donotconnectanyperipheraldevice
except the battery pack and AC adaptor.
l Handling the AC adaptor
Problems such as sudden voltage drops may arise during periods of thunder
and lightning. Since this could adversely affect your computer, an uninter-
ruptible power source (UPS) is highly recommended unless running from the
battery pack alone.
4 Turn on the computer.
A Slide and hold the power switch for approximately 1 second until the
power indicator lights.
l When the power is turned on, the power indicator lights. But, in the fol-
lowing cases, the power indicator may turn off once immediately after the
power is turned on.
After removing the battery pack and the AC adaptor and setting them
again
After sliding the power switch for four seconds or longer and turning off
the power
CAUTION
l Do not slide the power switch repeatedly.
l The computer will forcibly be turned off if you slide and hold the power switch for
4 seconds or longer.
l Once you turn off the computer, wait for 10 seconds or more before you turn on
the computer again.
l
Do not perform the following operation until the hard disk drive indicator turns off.
Connecting or disconnecting the AC adaptor
Sliding the power switch
Touching the keyboard, touch pad or screen
Closing the display
l Any changes from the default setting of the Setup Utility must not be made until
the First-time Operation is completed.
l The input panel is displayed on “Welcome to the Windows XP Setup Wizard”.
Move “Welcome to the Windows XP Setup Wizard” and make sure that the
“Welcome to the Windows XP Setup Wizard” and the input panel do not overlap.
5 Setup Windows.
Follow the on-screen instructions.
l The computer restarts several times. Do not touch the keyboard or touch
pad, and wait until the hard disk drive indicator
has turned off.
l After the computer is turned on, the screen remains black or unchanged for
a while. This is not a malfunction. Wait for a moment until the Windows setup
screen appears.
l During setup of Windows, use the touch pad and clicking to move the cursor
and to click an item.
l Setup of Windows will take approximately 20 minutes.
Gotothenextstep,conrmingeachmessageonthedisplay.
l “Join a wireless network” screen may not appear.
You can set the Wireless Network after the setup of Windows is complete.
4
First-time Operation
17
Getting Started
CAUTION
l You can change the user name, password, image and security setting after
setup of Windows.
l Remember your password. If you forget the password, you cannot use Win-
dows. Creating a password reset disk beforehand is recommended.
l Wait until the hard disk drive indicator has turned off.
l Do not use the following words for user name: CON, PRN, AUX, CLOCK$, NUL,
COM1 to COM9, LPT1 to LPT9, @. In particular, if you create a user name (ac-
count name) that includes the “@” mark, a password will be requested at the
log-on screen, even if no password has been set. If you try to log on without en-
tering a password, “The user name or password is incorrect.” may be displayed
and you will not be able to log on to Windows (è page 27).
l You cannot choose the following words for user name and password: CON,
PRN, AUX, CLOCK$, NUL, COM1 to COM9, LPT1 to LPT9.
l When you set date/time/time zone and click [Next], the screen may not go to the
next step for a few minutes. Do not touch the keyboard or touch pad, and wait
until the screen changes.
l If “An unexpected error has occurred ...” (or a similar message) is displayed,
click [OK]. This is not a malfunction.
l At “Welcome to Tablet PC”, you can learn the basic operations of Windows XP
Tablet PC Edition.
6 Perform the screen calibration.
l Calibration by an administrator
NOTE
l Atrst,logontoWindowsasanadministrator,andperformthiscalibration.
A
Click (start) - [Control Panel] - [Hardware and Sound] - [Tablet PC Settings].
B Click [Calibrate].
C Click [Pen input].
D If [User Account Control] is displayed, click [Yes].
E Using the digitizer pen, touch each of the 16 “+” target marks one by one,
and then click [OK].
F Repeat steps A and B.
G Click [Touch input].
H If [User Account Control] is displayed, click [Yes].
I
Usingthenger,toucheachofthe16“+”targetmarksonebyone,andthenclick[OK].
A Click [start] - [Control Panel] - [Printers and Other Hardware] - [Tablet and
Pen Settings].
B Click [Calibrate…].
C Click [Pen].
D Using the digitizer pen, touch each of the 4 “+” target marks one by one and
then click [OK].
E Repeat steps A and B.
F Click [Touch].
GUsingthenger,toucheachofthe4“+”targetmarksonebyone,andthen
click [Finished].
7 Create a new account.
Click [start] - [Control Panel] - [User Accounts] - [Create a new account].
CAUTION
l Remember your password. If you forget the password, you cannot use the Win-
dows operating system. Creating a password reset disk beforehand is recom-
mended.
l If needed, perform the screen calibration by each standard user (è
Refer-
ence Manual
“Digitizer / Multi Touch Operation”).
18
Getting Started
NOTE
l PC Information Viewer
This computer periodically records the management information of the hard disk, etc. The maximum data volume for each
record is 1024 bytes.
This information is only used for estimating the cause in the case when the hard disk goes down by any possibility. They
are never sent to outside via network nor used for any other purpose except for the purpose described the above.
To disable the function, add the check mark for [Disable the automatic save function for management information history]
in [Hard Disk Status] of PC Information Viewer, and click [OK].
(
è
Reference Manual “Checking the Computer’s Usage Status”)
l To conserve power, the following power saving methods are set at the time of purchase. (When AC adaptor
is connected)
The screen automatically turns off after 15 minutes of inactivity.
The computer automatically enters sleep/ standby*2 after 20 minutes of inactivity.
*2 Refer to Reference Manual “Sleep/Standby or Hibernation Functions” about resuming from sleep/standby.
l Even when the AC adaptor is not connected to the computer, power is consumed (Max. 0.2 W) simply by
having the AC adaptor plugged into an AC outlet. (When using with 115 V AC)
n Precaution against Starting Up/Shutting Down
l Do not do the following
Connecting or disconnecting the AC adaptor
Sliding the power switch
Touching the keyboard, touch pad, screen, or external mouse
Closing the display
Turn on/off the wireless switch
n About the battery for this computer
The computer has 2 battery pack compartments; one for the included battery pack, and the other for an optional bat-
tery pack. If one of the two battery packs has remaining power, you can replace the other battery pack without turning
off the computer (è
Reference Manual
“Battery Power”).
Power is consumed only on either battery pack. Charging is made for the two battery packs at the same time.
With the battery charger (optional: CF-VCBC11U), you can remove the empty battery pack from the computer and
charge it while using the computer.
n To change the partition structure
You can shrink a part of an existing partition to create unallocated disk space, from which you can create a new parti-
tion. This computer has a single partition as default setting.
A Click (Start) and right-click [Computer], then click [Manage].
l A standard user needs to enter an administrator password.
B Click [Disk Management].
C Right-click the partition for Windows (“c” drive in the default setting), and click [Shrink Volume].
l Thepartitionsizedependsonthecomputerspecications.
D Input the size in [Enter the amount of space to shrink in MB] and click [Shrink].
l You cannot input a larger number than the displayed size.
l Toselect[Reinstalltotherst2partitions.]inreinstallingWindows7(è page 24), 30000 MB or more is nec-
essary for [Total size after shrink in MB].
E Right-click [Unallocated] (the shrunk space in the step D) and click [New Simple Volume].
F Follow the on-screen instructions to make the settings, and click [Finish].
Wait until formatting is completed.
NOTE
l You can create an additional partition using remaining unallocated space or newly creating unallocated space.
l To delete a partition, right-click the partition and click [Delete Volume] in step C.
First-time Operation
19
Useful Information
On-screen Manual
You can access the Reference Manual and the Important Tips on the computer screen.
WhenyouaccesstheReferenceManualandtheImportantTipsforthersttime,theLicenseAgreementoftheAdobe
Reader may be displayed. Read it carefully and select [Accept] to proceed.
n Reference Manual
The Reference Manual contains the practical information to help you fully enjoy the computer’s performance.
To access the Reference Manual:
Double-click on the desktop.
l Alternatively click (Start) - [All Programs] - [Panasonic] - [On-Line Manuals] - [Reference Manual].
Click [start] - [Reference Manual].
l Alternatively click [start] - [All Programs] - [Panasonic] - [On-Line Manuals] - [Reference Manual].
n Important Tips
The Important Tips will provide you with the battery information so that you can use the battery pack in the optimum
condition to obtain longer operation time.
To access the Important Tips:
Double-click on the desktop.
l Alternatively click (Start) - [All Programs] - [Panasonic] - [On-Line Manuals] - [Important Tips].
Double-click on the desktop.
l Alternatively click [start] - [All Programs] - [Panasonic] - [On-Line Manuals] - [Important Tips].
NOTE
l When Adobe Reader update notice is displayed, we recommend you follow the on-screen procedure and update.
See http://www.adobe.com/ for the latest version of Adobe Reader.

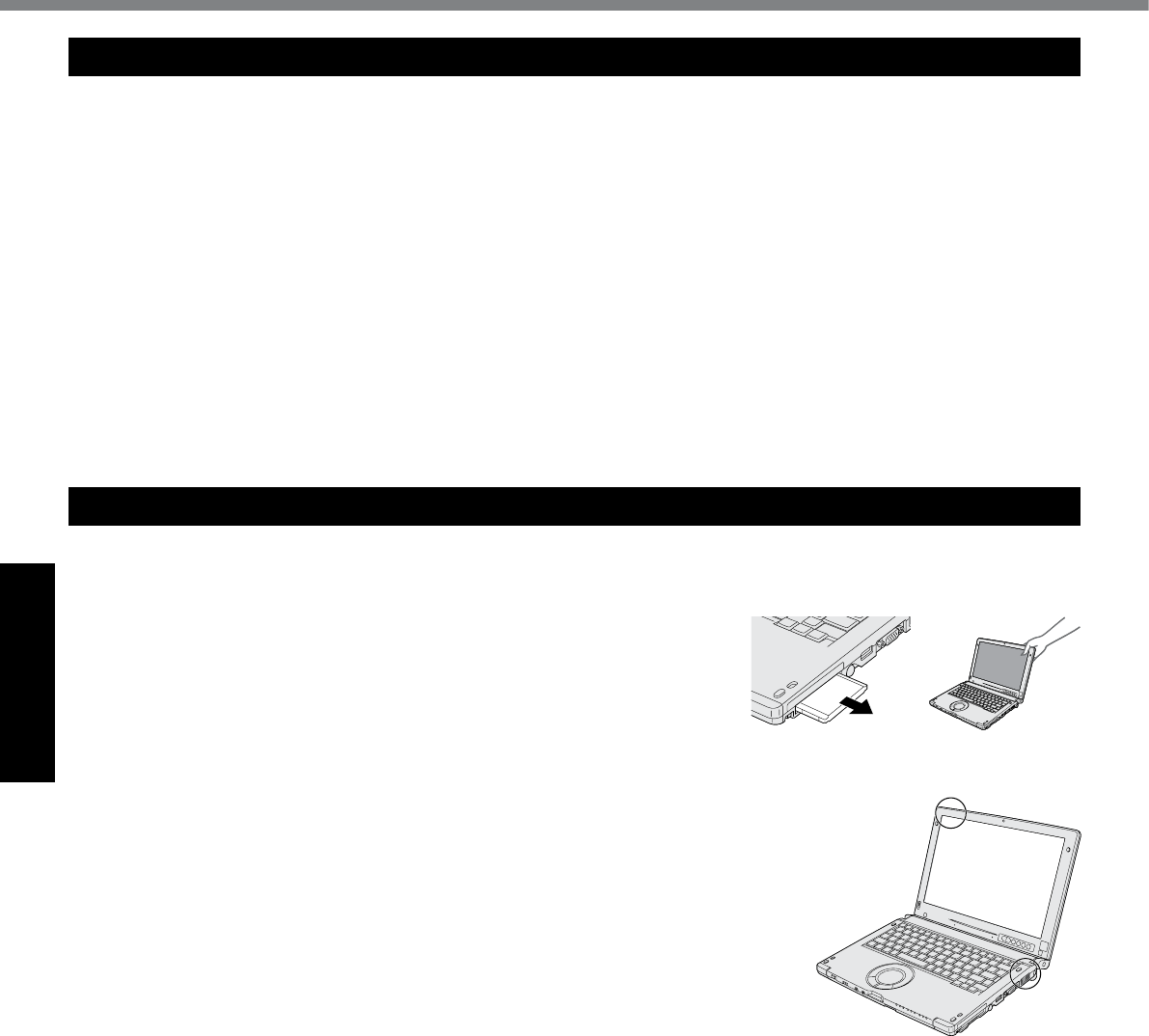

20
Useful Information
Handling and Maintenance
Operation environment
l Temperature: Operation : 5 °C to 35 °C {41 °F to 95 °F}
Storage : -20°C to 60 °C {- 4 °F to 140 °F}
Humidity: Operation : 30% to 80% RH (No condensation)
Storage : 30% to 90% RH (No condensation)
Even within the above temperature/humidity ranges, using for a long time in an extreme environment will result in
the product deterioration and will shorten the product life.
Besuretousethecomputerinanenvironmentwithsufcientheatventilation.
Avoid using the computer on a highly heat retentive surfaces (e.g., rubber pads and blankets). If possible, use the
computer on surfaces that can dissipate heat, such as a steel desk.
Do not cover the computer with towels, keyboard covers, etc., as this prevents heat dissipation.
When using the computer, always keep the display open. (Note, however, that closing the display while the com-
puter is in use does not cause generation of heat, ignition, or other malfunctions.)
l Do not place the computer in the following areas, otherwise the computer may be damaged.
Near electronic equipment. Image distortion or noise may occur.
In extremely high or low temperature.
l As the computer can become hot during operation, keep it away from items that are sensitive to heat.
Handling cautions
This computer is designed to minimize shock to parts such as the LCD and the hard disk drive and equipped with a
drip-proof keyboard, but no warranty is provided against any trouble caused by shock. Be extremely careful when han-
dling the computer.
l When carrying the computer:
Turn off the computer.
Remove all external devices, cables, PC Cards and other protruding ob-
jects.
Do not drop or hit the computer against solid objects.
Do not leave the display open.
Do not grip the display part and area of tablet buttons.
l Do not put anything (e.g., a piece of paper) between the display and keyboard.
l When you board an airplane, take the computer with you and never put it in your
checked luggage. When using the computer on airplane, follow the airline’s instruc-
tions.
l This computer contains a magnet and magnetic products at the locations circled in
the illustration at the right. Avoid leaving metallic object or magnetic media in con-
tact with these areas.
l When carrying a spare battery, put it in a plastic bag to protect its terminals.
l Thetouchpadisdesignedtobeusedbyngertip.Donotplaceanyobjectonits
surface and do not press down strongly with sharp-pointed or hard objects that may
leave marks (e.g., nails, pencils and ball point pens).
l Be careful of computer drop resulting from the hand strap damage.
l Avoid any harmful substances such as oil from getting into the touch pad. The cursor may not work correctly.
l Be careful not to get injured by dropping or getting hit when carrying the computer.
l Useonlythedigitizerpenorngertotouchthescreen.Donotplaceanyobjectonitssurfaceanddonotpress
down strongly with sharp-pointed or hard objects that may leave marks (e.g., nails, pencils and ball point pens).
l Do not use the screen when dust or dirt (e.g., oil) is on the screen. Otherwise foreign particles on the screen or digi-
tizer pen can scratch the screen surface or obstruct the pen operation.
l Use the digitizer pen only for touching the screen. Using it for any other purpose may damage the digitizer pen and
result in scratches on the screen.
l Thescreenuseselectromagneticinductionandmaynotworkproperlynearstrongelectricaleldormagneticeld
such as:
Near AM radio base station or relay station antennas
NearCRTdisplaysthatgeneratestrongelectromagneticeldnoise
Move the screen away from such locations so it will work properly.
l Thecursorcannotfollowthedigitizerpenorngermovementifyoumovethedigitizerpenorngertooquickly.
NGNG
21
Useful Information
n If the computer becomes warm during usage
l Check the following
If you are not using a wireless LAN, turn the wireless LAN off.
If the computer becomes warm while the screen saver is displayed, set the screen saver to [Windows XP].
Screen savers that use 3-D images or other complex images increase the CPU utilization rate.
Use recommended RAM module products. Non-recommended RAM modules may not operate properly, and may
cause damage to your computer.
l
Click onthenoticationareaandclick . Then select [Panasonic Power management (Better Heat Disper-
sion)].
When changing to [Panasonic Power management (Better Heat Dispersion)], the following settings will change.
– Change to [High Speed] from [Standard] in [Fan control mode].
Rotation of the cooling fan speeds fast and the computer can be cooled down. Note that the battery operating
time will be shorter.
– Switch the screen saver to [Prohibited].
When you do not frequently use CPU or the rotation noise of the fan bothers you, set [Standard] or [Low Speed]
in [Fan control mode].
A Click onthenoticationareaandclick .
B Select [Standard] or [Low Speed] in [Fan control mode].
è Reference Manual “Customizing the Power Setting”
l
Double-click on the desktop and click [High speed], then click [OK].
When you set [High speed], rotation of the cooling fan speeds up and the computer can be cooled down. Note
that the battery operating time will be shorter.
When you do not frequently use CPU or the rotation noise of the fan bothers you, set [Standard] or [Low speed]
as necessary.
n When using peripheral devices
Follow these instructions and the Reference Manual to avoid any damage to the devices. Carefully read the instruction
manuals of the peripheral devices.
l Usetheperipheraldevicesconformingtothecomputer’sspecications.
l Connect to the connectors in the correct direction.
l If it is hard to insert, do not try forcibly but check the connector’s shape, direction, alignment of pins, etc.
l If screws are included, fasten them securely.
l Remove the cables when you carry the computer. Do not pull the cables forcibly.
n Preventing your computer from unauthorized use via wireless LAN/Bluetooth/wireless WAN
<Only for model with wireless LAN/Bluetooth/wireless WAN>
l Before using wireless LAN/Bluetooth/wireless WAN, make the appropriate security settings such as data encryp-
tion.
22
Useful Information
Maintenance
To clean the LCD panel
Use the soft cloth included with the computer (For more information, refer to Reference Manual “Suggestions About
Cleaning the LCD Surface”.)
Cleaning the display while the power is on may cause the computer to malfunction. Also, dirt on the screen is easier to
see when the computer is powered off, and so is easier to clean.
To clean the touch pad
Wipe lightly with a gauze or other dry, soft cloth.
To clean areas other than the LCD panel and touch pad
Wet a soft cloth with water or a diluted kitchen cleanser (neutral), wring the cloth out thoroughly, and wipe the dirty
area gently. Using a detergent other than a neutral kitchen cleanser (e.g., a weak alkali cleanser) may adversely affect
painted surfaces.
CAUTION
l Do not use benzene, thinner, or rubbing alcohol since it may adversely affect the surface causing discoloration, etc.
Do not use commercially-available household cleaners and cosmetics, as they may contain components harmful to
the surface.
l Do not apply water or detergent directly to the computer, since liquid may enter inside of the computer and cause
malfunction or damage.
Handling and Maintenance
23
Useful Information
If You Spill Water on the Keyboard
Note that repairs resulting from liquids being spilled on the computer are not free of charge, and not covered by war-
ranty.
The keyboard on this computer incorporate a drain system (a moisture protection mechanism) that minimizes the
amount of liquid reaching the inside of the computer even if water is spilled on the keyboard.
Any water that comes in contact with the keyboard is drained off through holes in the bottom of the computer, so that
virtually no water is left inside the computer. However, this is not a guarantee against damage to the hard disk or other
internal parts, or against the loss or deletion of data.
The drain system is incorporated into only the keyboard. It does not apply to any other components.
l If you spill water or any other liquid on the keyboard, even a small amount, be sure to perform the following steps.
Failure to perform these steps may result in damage to the computer. The drain system will not provide complete
protection against water entering the computer.
1 Immediately turn off the computer, and remove the AC adaptor.
2 Wipe any water droplets off of the top of the keyboard using a
soft, dry cloth.
3 Slowly lift up the computer, keeping it
level,
and wipe any water coming out of the
holes on the bottom using a soft, dry
cloth.
If the computer is tilted during this step, liquid may seep
inside the computer resulting in damage.
4 Keeping the computer level, move
the computer to a dry place.
If the computer is placed back on the wet sur-
face, water may seep inside the computer from
the bottom.
5 Remove the battery pack.
6 Be sure to contact your technical support ofce to have the computer checked for any
malfunctions.

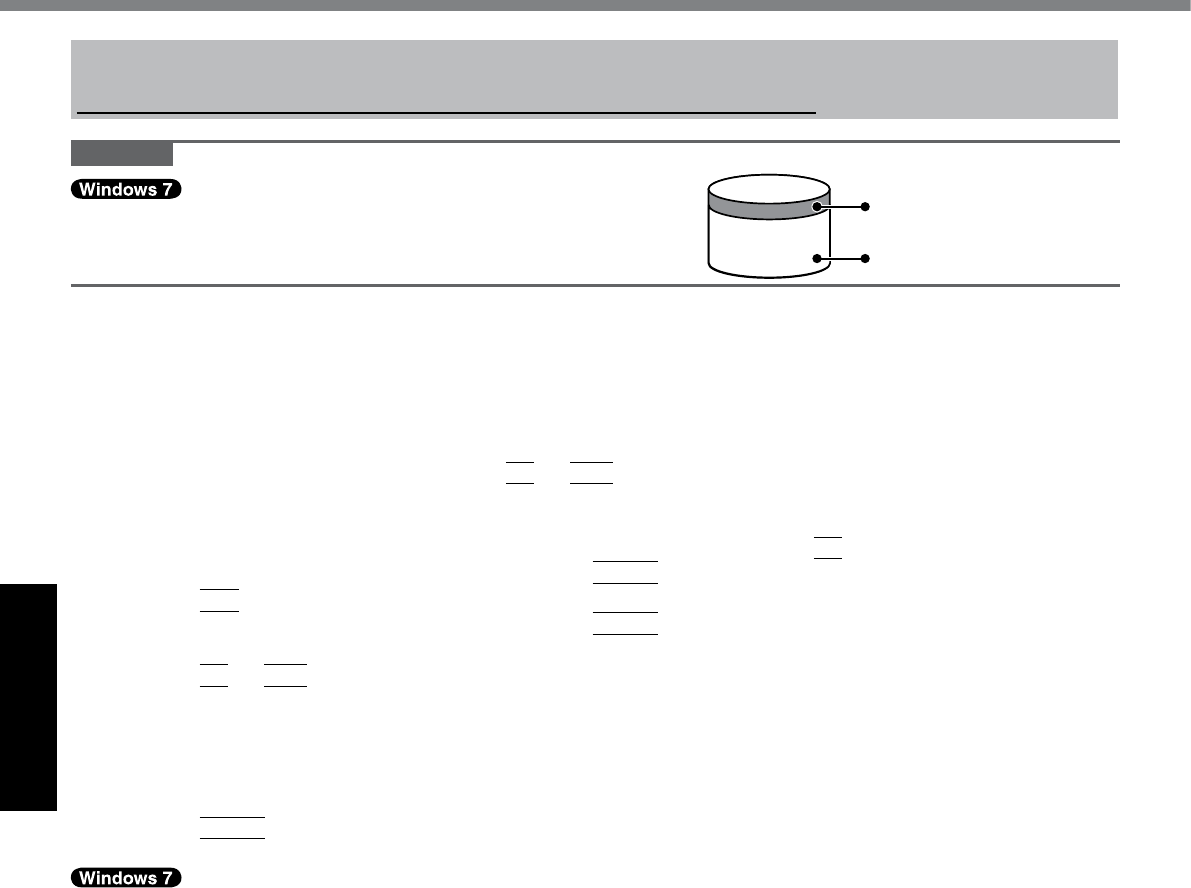

24
Useful Information
Reinstalling software will return the computer to the default condition. When you reinstall the software, the hard disk
data will be erased.
Back up important data to other media or an external hard disk before reinstallation.
CAUTION
Donotdeletethepartitionwithbootlesontheharddisk.
The disk space in the partition is not available to store data.
Preparation
l Prepare the following items:
The Product Recovery DVD-ROM (included)
Panasonic CD/DVD drive (optional)
l Remove all peripherals (except for the CD/DVD drive).
l Connect the AC adaptor and do not remove it until reinstallation is complete.
1 Turn off the computer and connect CD-DVD drive to the computer.
2 Turn on the computer, and press
F2
or
Del
while [Panasonic] boot screen is displayed.
The Setup Utility starts up.
l If the password is requested, enter the Supervisor Password.
3 Write down all of the contents of the Setup Utility and press
F9
.
Attheconrmationmessage,select[Yes]andpress
Enter
.
4 Press
F10
.
Attheconrmationmessage,select[Yes]andpress
Enter
.
Computer will restart.
5 Press
F2
or
Del
while [Panasonic] boot screen is displayed.
The Setup Utility starts up.
l If the password is requested, enter the Supervisor Password.
6 Set the Product Recovery DVD-ROM for Windows which you install into the CD/DVD
drive.
7 Select the [Exit] menu, then select your CD/DVD drive in [Boot Override].
8 Press
Enter
.
The computer will restart.
9 Click [Reinstall Windows] and click [Next].
The License Agreement screen appears.
10 Click [Yes, I agree to the provisions above and wish to continue!] and click [Next].
11 When reinstalling Windows 7 installed in the hard disk from Windows 7:
Select the settings and click [Next].
l [Reinstall Windows to the whole Hard Disk to factory default.]
You will have two partitions.
l [Reinstalltotherst2partitions.]*1
Select this option when the hard disk has already been divided into several partitions. For how to create a
new partition, refer to “To change the partition structure” (è page 18).
You can keep the partition structure.
*1ThisdoesnotappearifWindowscannotbereinstalledtothepartitioncontainingbootlesandtheareaus-
able by Windows.
When reinstalling Windows 7 installed in the hard disk from Windows XP:
Click [Next].
12 At the conrmation message, click [YES].
Reinstallation starts according to the instructions on the screen. (It will take approximately 30 - 60 minutes.)
l Do not interrupt reinstallation, for example by turning off the computer. Otherwise reinstallation may become
unavailable as Windows may not start up or the data may be corrupted.
13 Remove the Product Recovery DVD-ROM, and then click [OK] to turn off the computer.
14 Turn on the computer.
l If the password is requested, enter the Supervisor Password.
15 Perform the “First-time Operation” (è page 15).
Reinstalling Software
Area usable by Windows
Hard disk Partition with boot files
(approximately 300 MB)
25
Useful Information
16 Start the Setup Utility and change the settings as necessary.
17 Perform Windows Update.
9 Press
1
to execute [1. [Recovery]].
The License Agreement screen appears.
l To cancel partway, press
0
.
10 Press
1
to select [1. Yes, I agree to the provisions above and wish to continue!].
11 Select the settings.
When installing Windows XP into hard disk installed from Windows 7, select
1
or
2
.
Do not select [3]: This option is only available when using Windows XP.
If you select [3]: an error may occur during the installation.
12 At the conrmation message, press
Y
.
Reinstallation starts automatically. (It will take approximately 30 - 40 minutes.)
l Do not interrupt reinstallation, for example by turning off the computer or pressing
Ctrl
+
Alt
+
Del
. Oth-
erwise reinstallation may become unavailable as Windows may not start up or the data may be corrupted.
13 Remove the Product Recovery DVD-ROM, and then press any key to turn off the com-
puter.
l
If additional instructions are included with the computer, be sure to read them. It may be necessary to perform
additional operations during the following procedure.
14 Turn on the computer.
l
If the password is requested, enter the Supervisor Password.
15 Perform the “First-time Operation” (è page 15).
16 Start the Setup Utility and change the settings as necessary.
26
Troubleshooting
Troubleshooting (Basic)
Follow the instructions below when a problem has occurred. There is also an advanced troubleshooting guide in the
“Reference Manual”. For a software problem, refer to the software’s instruction manual. If the problem persists, contact
yourtechnicalsupportofce.Youcanalsocheckthecomputer’sstatusinthePCInformationViewer(è Refer-
ence Manual “Check the Computer’s Usage Status”).
n Starting Up and Sleep/Standby and Hibernation Mode
The computer does not
power on / The power indi-
cator or battery indicator is
not lit.
l Connect the AC adaptor.
l Insert a fully charged battery.
l Remove the battery pack and the AC adaptor, then connect them again.
l If an additional RAM module has been inserted, remove the RAM module and check to
see if the RAM module is the recommended one.
l When the CPU temperature is high, the computer may not start up to prevent overheat-
ing of the CPU. Wait until the computer cools down, and then turn the power on again. If
the computer does not power on even after cooling down, contact your technical support
ofce.
Windows does not start up. l Remove all peripheral devices (e.g. USB memory).
l If the power indicator is lit, slide the power switch for four seconds or longer to turn off,
then turn on again.
l Using the following procedure, start up in Safe Mode, and check the error details.
A Turn on the computer, and when the [Panasonic] boot screen disappears (after en-
tering the password*1 if one is set) hold down
F8
.
B Releaseyourngerwhen[WindowsAdvancedOptionsMenu]isdisplayed,andwith
or , select [Safe Mode], then press
Enter
.
Follow the on-screen instructions.
*1 Supervisor Password or User Password set with the Setup Utility
l Press
F9
in the Setup Utility to return the Setup Utility settings (excluding the pass-
words) to the default values. Start the Setup Utility and make the settings again.
You have forgotten the pass-
word.
l SupervisorPasswordorUserPassword:Contactyourtechnicalsupportofce.
l Administrator password:
If you have another account with Administrator authority, log-on with it, then delete the
password for the problem account.
If you have a password reset disk, click [Reset password] displayed after the pass-
word input error, then follow the on-screen instructions to set a new password.
If you have a password reset disk, you can reset the administrator password. Set the
disk and enter any wrong password, then follow the on-screen instructions and set a
new password.
If you cannot do either of the above, you will need to reinstall (è page 24) and setup Win-
dows.
“Remove disks or other
media. Press any key to
restart” or a similar message
appears.
l Aoppydiskisintheoppydiskdriveanditdoesnotcontainsystemstartupinforma-
tion.Removetheoppydiskandpressanykey.
l This message may appear with some devices connected to the USB port. Remove the
device or set [Legacy USB Support] to [Disabled] in the [Advanced] menu of the Setup
Utility.
l If the problem persists after removing the disk, it may be a hard disk failure. Perform the
reinstallation and return the hard disk to its condition at the time of purchase (è page 24).
Iftheproblempersistsevenafterthereinstallation,contactyourtechnicalsupportofce.
The date and time are incor-
rect.
l Make the correct settings.
Click (Start) - [Control Panel] - [Clock, Language, and Region] - [Date
and Time].
Click [start] - [Control Panel] - [Date, Time, Language, and Regional
Options] - [Date and Time].
l If the problem persists, the internal clock battery may need to be replaced. Contact your
technicalsupportofce.
l When the computer is connected to LAN, check the date and time of the server.
l The 2100 A.D. or later year will not be correctly recognized on this computer.
[Executing Battery Recali-
bration] screen appears.
l The Battery Recalibration was canceled before Windows was shut down last time. To
start up Windows, turn off the computer by the power switch, and then turn on.
27
Troubleshooting
n Starting Up and Sleep/Standby and Hibernation Mode
The computer will not auto-
matically enter
sleep / stand-
by or hibernation.
l If you connect to a network using wireless LAN function, perform access point settings.
(è Reference Manual “Wireless LAN”)
l If you do not use wireless LAN function, turn off wireless LAN function. (è Refer-
ence Manual “Disabling/Enabling Wireless Communication”)
l Make sure that you are not using any software that regularly accesses the hard disk.
When logging on (e.g., re-
suming the computer), audio
is distorted.
l Perform the following steps to change the audio settings to prevent audio output.
A Right-click the desktop and click [Personalize] - [Sounds].
B Remove the check mark from [Play Windows Startup sound], and click [OK].
A Click [start] - [Control Panel] - [Sounds, Speech, and Audio Devices] - [Sounds and
Audio Devices], and click [Sounds].
B Set [Windows Logon] and [Windows Logoff] to [(None)].
Cannot resume. l One of the following operations may have been carried out.
In sleep/ standby mode, the AC adaptor or battery pack
was disconnected, or a peripheral was connected or disconnected.
The power switch was slid for four seconds or longer to forcibly turn off the computer.
Slide the power switch to turn on the computer. Data not saved will be lost.
Other startup problems. l Check to see if there was a disk error.
A Remove all peripheral devices including an external display.
B
Click (Start) - [Computer] and right-click [Local Disk (C:)], and click [Properties].
Click [start] - [My Computer] and right-click [Local Disk (C:)], and click [Properties].
C Click [Tools] - [Check Now…].
A standard user needs to enter an administrator password.
D Select the option in [Check disk options] and click [Start].
E
Click [Schedule disk check] and restart the computer.
l Start the computer in Safe Mode and check the error details. (è page 26 “Windows
does not start up”.)
n Shutting Down
Windows does not shut
down.
l Remove all peripheral devices.
l Wait one or two minutes. It is not a malfunction.
n Password
Even after entering the pass-
word, a message appears
requesting to type it again.
l If lights up, press
NumLk
to disable the ten-key mode, and then input.
l If lights up, press
Caps Lock
to disable the Caps Lock mode, and then input.
Cannot log on to Windows.
(“The user name or pass-
word is incorrect.” is dis-
played.)
l The user name (account name) includes the “@” mark.
If another user account name exists:
Log on to Windows using another user account name, and delete the account name that
includes “@”. Then create a new account name.
If no other account name exists:
You need to reinstall Windows (è page 24).
28
Troubleshooting
n Display
The screen becomes black
for a moment. l
When you set [Intel(R) video driver power saving function] - [Intel(R) Display Power Sav-
ing Technology] of Panasonic Power Plan Extension Utility to [Enabled], if you do the fol-
lowing operations, the screen becomes black for a moment, but this is not a malfunction.
You can use it.
Adjust the brightness of the screen with
Fn
+
F1
/
Fn
+
F2
.
Remove and insert the AC adaptor.
While you are using motion video playback software, benchmark software for graphic, if er-
ror screen is displayed or application software does not function normally, set [Intel(R) video
driver power saving function] - [Intel(R) Display Power Saving Technology] to [Disabled].
l When you set [Intel video driver power saving function (Intel(R) Display Power Saving
Technology)] of Power Saving Utility to [Enable], if you do the following operations, the
screen becomes black for a moment, but this is not a malfunction. You can use it.
Adjust the brightness of the screen with
Fn
+
F1
/
Fn
+
F2
.
Remove and insert the AC adaptor.
While you are using motion video playback software, benchmark software for graphic, if
error screen is displayed or application software does not function normally, set [Intel video
driver power saving function (Intel(R) Display Power Saving Technology)] to [Disable].
No display. l The external display is selected. Press
Fn
+
F3
(or +
P
) to switch the
display. Wait until the display has been switched completely before pressing
Fn
+
F3
(or
+
P
) again.
l The display is turned off by the power-saving function. To resume, do not press the
direct selection keys, but press any other key like
Ctrl
.
l The computer entered sleep/ standby or hibernation by
the power-saving function. To resume, slide the power switch.
l The screen may become darker. Press
Fn
+
F2
to make the screen brighter.
The screen is disordered. l Changing the number of display colors and resolution may affect the screen. Restart the
computer.
l The refresh rate of the internal LCD may be 40 hertz. Change the refresh rate of the
internal LCD.
A
Right-click on the desktop, and click [Graphics Properties].
Click [start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) GMA Driver
for Mobile].
B Click [Display Settings].
C If [Refresh Rate] of the Notebook is [40 Hertz], change to [60 Hertz] and click [OK].
The external display does
not work normally.
l If the external display does not support the power saving function, it may not work nor-
mally when the computer enters the power saving mode. Turn off the external display.
n Battery
The battery indicator lights
red.
l The battery level is very low (the charge is approx. 9% or less).
l Connect the AC adaptor. You can use the computer when the indicator light is orange.
If you do not have an AC adaptor, save your data and power off your computer. After
replacing the battery pack with a fully charged one, turn your computer on again.
The battery indicator is blink-
ing.
l If blinking red:
Quickly save your data and power off your computer. Remove the battery pack and dis-
connect the AC adaptor, then connect them again. If the problem persists, contact your
technicalsupportofce.Thebatterypackorchargingcircuitmaybedefective.
l If blinking orange:
Battery cannot be recharged temporarily because the internal temperature of the bat-
tery pack is outside the acceptable temperature range for recharging. Your computer
canbeusednormallyinthisstate.Oncetherangerequirementissatised,charging
begins automatically.
Software applications and peripheral devices (USB devices, etc.) are consuming too
much power. Exit the software applications currently running, and remove all peripher-
als.Oncetherangerequirementissatised,chargingbeginsautomatically.
Troubleshooting (Basic)
29
Troubleshooting
n Battery
Thebatteryindicatorisash-
ing.
l The battery is recharging.
If [Battery Charging Indicator] in the [Main] menu of the Setup Utility is set to [Flashing],
the indicator will alternately become lighter and darker.
n Touch Pad/Screen
The cursor does not work. l When using the external mouse, connect it correctly.
l Restart the computer by using the keyboard.
Press and press è two times, and press to select [Restart] and press
Enter
.
Press ,
U
, and
R
to select [Restart].
l
If the computer does not respond to keyboard commands, read “No response”
(
è
below).
Cannot input using the touch
pad.
l Set [Touch Pad] to [Enable] in the [Main] menu of the Setup Utility.
l The drivers for some mice may disable the touch pad. Check your mouse’s operating
instructions.
Cannot point the correct
position using the included
digitizer pen.
l Perform the screen calibration (
è
page 16).
n Reference Manual
The Reference Manual is
not displayed.
l Install Adobe Reader.
A Log on to Windows as an administrator.
B
Click (Start)andinput“c:\util\reader\Setup.exe”in[Searchprogramsandles]
then press
Enter
.
Click [start] - [Run] and input “c:\util\reader\setup.exe”, then click [OK].
C Update Adobe Reader to its latest version.
If your computer is connected to the internet, start up Adobe Reader and click [Help]
- [Check for Updates...].
n Others
No response. l Press
Ctrl
+
Shift
+
Esc
to open Task Manager and close the software application
that is not responding.
l An input screen (e.g., password input screen at startup) may be hidden behind another
window. Press
Alt
+
Tab
to check.
l
Slide the power switch for four seconds or longer to shut down the computer, and then slide
the power switch to turn it on. If the application program does not work normally, uninstall
and reinstall the program. To uninstall,
click (Start) - [Control Panel] - [Programs] - [Uninstall a program].
click [start] - [Control Panel] - [Add or Remove Programs].
<Only for model with wire-
less WAN>
When you orient the comput-
er so that the wireless WAN
antenna is placed close to
you, and then try to rotate
the display, the message
“To assure compliance with
RF exposure requirement,
WWAN cannot be used in
this direction. Do you want to
rotate and disable WWAN?”
appears.
l Click [Yes] to turn off the wireless WAN and continue using the computer in the current
orientation. If you do not want to turn off the wireless WAN, click [No]. In this case, the
display will not rotate to the most suitable orientation.
30
Appendix
LIMITED USE LICENSE AGREEMENT
THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC PRODUCT (“PRODUCT”)
ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH
THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY
DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.
Panasonic Corporation has developed or otherwise obtained the Programs and hereby licenses their use to you. You
assume sole responsibility for the selection of the Product (including the associated Programs) to achieve your intend-
ed results, and for the installation, use and results obtained therefrom.
LICENSE
A. Panasonic Corporation hereby grants you a personal, non-transferable and non-exclusive right and license to use
the Programs in accordance with the terms and conditions stated in this Agreement. You acknowledge that you are
receiving only a LIMITED LICENSE TO USE the Programs and related documentation and that you shall obtain
no title, ownership nor any other rights in or to the Programs and related documentation nor in or to the algorithms,
concepts, designs and ideas represented by or incorporated in the Programs and related documentation, all of
which title, ownership and rights shall remain with Panasonic Corporation or its suppliers.
B. You may use the Programs only on the single Product which was accompanied by the Programs.
C. YouandyouremployeesandagentsarerequiredtoprotectthecondentialityofthePrograms.Youmaynotdistrib-
ute or otherwise make the Programs or related documentation available to any third party, by time-sharing or other-
wise, without the prior written consent of Panasonic Corporation.
D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documentation for
any purpose, except that you may make one (1) copy of the Programs for backup purposes only in support of your
use of the Programs on the single Product which was accompanied by the Programs. You shall not modify, or at-
tempt to modify, the Programs.
E. You may transfer the Programs and license them to another party only in connection with your transfer of the single
Product which was accompanied by the Programs to such other party. At the time of such a transfer, you must also
transfer all copies, whether in printed or machine readable form, of every Program, and the related documentation,
to the same party or destroy any such copies not so transferred.
F. Youmaynotremoveanycopyright,trademarkorothernoticeorproductidenticationfromtheProgramsandyou
mustreproduceandincludeanysuchnoticeorproductidenticationonanycopyofanyProgram.
YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANICALLY OR ELECTRONICALLY TRACE
THE PROGRAMS, OR ANY COPY THEREOF, IN WHOLE OR IN PART.
YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PROGRAMS OR ANY COPY THEREOF, IN
WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THE LICENSE.
IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO ANOTHER PARTY, EXCEPT AS PER-
MITTED IN PARAGRAPH E ABOVE, YOUR LICENSE IS AUTOMATICALLY TERMINATED.
TERM
This license is effective only for so long as you own or lease the Product, unless earlier terminated. You may termi-
nate this license at any time by destroying, at your expense, the Programs and related documentation together with
all copies thereof in any form. This license will also terminate effective immediately upon occurrence of the conditions
thereof set forth elsewhere in this Agreement, or if you fail to comply with any term or condition contained herein. Upon
any such termination, you agree to destroy, at your expense, the Programs and related documentation together with all
copies thereof in any form.
YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE BOUND
BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE STATE-
MENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT,
ORAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN US, RELATING TO THE SUBJECT MAT-
TER OF THIS AGREEMENT.
31
Appendix
GOVERNMENT RESTRICTED RIGHTS.
The Software is provided with “RESTRICTED RIGHTS.” Use duplication or disclosure by the government is subject
to restrictions as set forth in FAR52.227-14 and DFAR252. 227-7013 et seq. or their successors.
Use of the Software by the government constitutes acknowledgement of Intel’s proprietary rights therein.
Contractor or Manufacturer is Intel Corporation, 2200 Mission College Blvd., Santa Clara, CA 95052.
U.S. GOVERNMENT RESTRICTED RIGHTS:
Thesoftwareanddocumentationare“commercialitems”asthattermsisdenedat48C.F.R.2.101,consistingof
“commercial computer software” and “commercial computer software documentation” as such terms are used in 48
C.F.R. 12.212 Consistent with 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-I through 227. 7202-4, all U.S. Government
and users acquire the software and documentation with only those rights set forth herein.
Manufactureisidentiedinthecopyrightstatementonthesoftware.
32
Appendix
Contrat de licence d’usage limité
Le(s) logiciel(s) (les “Logiciels”) fournis avec ce produit Panasonic (le “Produit”) sont exclusivement concédés en
licence à l’utilisateur ultime (“vous”), et ils ne peuvent être utilisés que conformément aux clauses contractuelles cides-
sous.Enutilisantleslogiciels,vousvousengagezdemanièredénitiveàrespecterlestermes,clausesetconditions
des présentes.
Panasonic Corporation a mis au point ou obtenu les Logiciels et vous en concède l’utilisation par les présentes. Vous
assumez l’entière responsabilité du choix de ce Produit (y compris des Logiciels associés) pour obtenir les résultats
escomptés, ainsi que de l’installation, de l’utilisation et des résultats obtenus.
Licence
A. Panasonic Corporation vous octroie par les présentes le droit et la licence personnels, non cessibles et non exclu-
sifs d’utiliser les Logiciels conformément aux termes, clauses et conditions de ce contrat. Vous reconnaissez ne
recevoir qu’un droit limité d’utiliser les Logiciels et la documentation les accompagnant et vous vous engagez à n’
obtenir aucun droit de titre, propriété ni aucun autre droit vis-à-vis des Logiciels et de la documentation les accom-
pagnantnivis-à-visdesalgorithmes,concepts,dessins,congurationsetidéesreprésentésparouincorporésdans
les Logiciels et la documentation les accompagnant, dont les titres, propriété et droits resteront tous à Panasonic
Corporation ou à leurs propriétaires.
B. Vous ne pouvez utiliser les Logiciels que sur le Produit unique qui est accompagné par les Logiciels.
C. VousetvosemployésouagentsêtesrequisdeprotégerlacondentialitédesLogiciels.Vousnepouveznidis-
tribuer ni mettre les Logiciels et la documentation les accompagnant à la disposition d’un tiers, par partage de
temps ou de quelque autre manière que ce soit, sans l’autorisation écrite préalable de Panasonic Corporation.
D. Vous ne pouvez ni copier ni reproduire ni permettre la copie ni la reproduction des Logiciels ni de la documenta-
tionlesaccompagnantpourquelquenquecesoit,àl’exceptiond’une(1)copiedesLogicielsàdesnsdesau-
vegarde uniquement pour soutenir votre utilisation des Logiciels sur le Produit unique qui est accompagné par les
Logiciels.VousnepouveznimodiernitenterdemodierlesLogiciels.
E. Vous ne pouvez céder les Logiciels et en octroyer la licence à une autre partie qu’en rapport avec votre cession du
Produit unique qui est accompagné par les Logiciels à cette autre partie. Au moment de cette cession, vous devez
céder également toutes les copies, que ce soit sous forme imprimée ou lisible par la machine, de tous les Logiciels
ainsi que de la documentation les accompagnant, à la même partie ou détruire les copies non cédées.
F. Vousnepouvezretireraucunemarquededroitsd’auteur,marquedecommerceouautreniaucuneidentication
deproduitdesLogicielsetvousdevezreproduireetincluretoutescesnoticesouidenticationsdeproduitsur
toutes les copies des Logiciels.
Vous ne pouvez assembler en sens inverse, compiler en sens inverse ni retracer les Logiciels ni aucune de leurs cop-
ies, de façon électronique ou mécanique, en tout ou en partie.
Vousnepouvezutiliser,copier,modier,altérernicéderlesLogicielsniaucunedeleurscopies,entoutouenpartie,à
l’exception de ce qui est expressément stipulé dans ce contrat.
Si vous cédez la possession de toute copie ou de tout Logiciel à une autre partie, à l’exception de ce qui est autorisé
au paragraphe E ci-dessus, votre licence est automatiquement résiliée.
Termes, clauses et conditions
Cette licence n’est effective que pour la durée de possession ou de crédit-bail du Produit, à moins d’une résiliation an-
térieure. Vous pouvez résilier cette licence à tout moment en détruisant, à vos frais, les Logiciels et la documentation
les accompagnant avec toutes leurs copies, sous quelque forme que ce soit. Cette licence sera également résiliée,
avecapplicationimmédiate,silesconditionsderésiliationdéniesailleursdanscecontratsesontréaliséesousivous
ne respectez pas les termes, clauses et conditions qui y sont contenues. Au moment de la résiliation, vous acceptez
de détruire, à vos frais, les Logiciels et la documentation les accompagnant avec toutes leurs copies, sous quelque
forme que ce soit.
Vous reconnaissez avoir lu ce contrat, en avoir compris toute la substance et avoir accepté de respecter ses termes,
clauses et conditions. Vous reconnaissez en outre qu’ils sont la description complète et exclusive du contrat conclu
entre nous, contrat qui remplace et annule toute proposition ou contrat précédent, écrit ou oral, et toute autre commu-
nication entre nous, relativement à l’objet du présent contrat.
33
Appendix
Specications
Thispageprovidesthespecicationsforthebasicmodel.
Themodelnumberisdifferentaccordingtotheunitconguration.
l To check the model number:
Check the bottom of the computer or the box the computer came in at the time of purchase.
l Run the Setup Utility (è Reference Manual “Setup Utility”) and select [Information] menu.
[CPU Speed]: CPU speed, [Memory Size]: Memory size, [Hard Disk]: Hard disk drive size
n Main Specications
Model No. CF-C1ADAAZGM/CF-C1ADAAZDM
CPU/Secondary cache memory Intel® vProTM Technology*1
Intel® Core i5-520M (2.4 GHz, Intel® Smart Cache 3 MB*1)
Chipset Mobile Intel® QM57 Express Chipset
Main Memory*2*3 2 GB, DDR2 SDRAM (4 GB Max.)
Video Memory*2*4
UMA 763 MB Max. (When Memory is 2 GB) / UMA 1563 MB Max. (When Memory is 4 GB)
UMA 1024 MB Max.
Hard Disk Drive*5 250 GB
Approx. 300 MB is used as a partition with recovery tools. (Users cannot use this partition.)
Display Method 12.1 WXGA type (TFT) (1200 × 800 dots)
Internal LCD 65,536/16,777,216 colors (1200 × 800 dots)*6
External Display*7 65,536/16,777,216 colors (800 x 600 dots/1024 x 768 dots/1280x 720 dots/1280 x 768 dots/
1280 x 1024 dots/1400 x 1050 dots/1680 x 1050 dots/1600 x 1200 dots/1920 x 1050 dots/
1920 x 1200 dots)
Simultaneous Display on LCD
+ External Display*7 65,536/16,777,216 colors (800 x 600 dots/1024 x 768 dots/1280x 720 dots/1280 x 768 dots/
1280 x 800 dots)*6
Wireless LAN Intel® Centrino® Advanced-N 6200 AGN (è page 34)
Bluetooth*9 è page 34
LAN*10 IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
Modem*11 Data: 56 kbps (V.92) FAX: 14.4 kbps
Fingerprint Reader Array Size: 192 x 4 pixels, Image Size: 192 x 512 pixels, Image Resolution: 508 DPI
Sound WAVE and MIDI playback, Intel®HighDenitionAudiosubsystemsupport,MonauralSpeaker
(built-in)
Security Chip TPM (TCG V1.2 compliant)*12
Card Slots PC Card Slot x 1, Type I or Type II, Allowable current 3.3 V: 400 mA, 5 V: 400 mA
SD Memory Card
Slot*13 x 1
Contact Smart
Card Slot*14 x 1
RAM Module Slot x 1, DDR3 SDRAM, 204-pin, 1.8 V, SO-DIMM, PC2-6400 Compliant*15
Interface USB portx x 3 (USB 2.0 x 3)*16 / Modem Port (RJ-11)*11 / LAN Port (RJ-45)*10 / External Display
Port: Mini Dsub 15-pin female / Microphone Jack*17: Miniature jack, 3.5 DIA / Headphone Jack:
Miniature jack, 3.5 DIA / Port Replicator connector: Dedicated 84-pin male
Keyboard / Pointing Device 83 keys/Touch Pad/Digitizer + Multi touch (digitizer pen (included) touch capable)
Power Supply AC adaptor or Battery pack
AC Adaptor*18 Input: 100 V - 240 V AC, 50 Hz/60 Hz
Output: 16 V DC, 5.0 A
Battery Pack Li-ion 7.4 V, 6.0 Ah (Typ.), 5.7 Ah (Min.)
Operating Time*19 Approx. @@ hours (Economy Mode (ECO) – Disable)
Charging Time*20 Approx. 2.5 hours (Power off)/Approx. @@ hours (Power on)
Power Consumption*21 Approx. 30 W*22 / Approx. 80 W (maximum when no-recharging in the ON state)
Physical Dimensions (W × D × H) 299.2 mm × 226.5 mm × 30.6 mm (at the front)/44.3 mm (at the rear) {11.8 ” × 8.9 ” × 1.2 ”/1.7 ”}
Weight*23 Approx. 1.47 kg {3.3 lb}
34
Appendix
Model No. CF-C1ADAAZGM/CF-C1ADAAZDM
Environment
Operation Temperature 5 °C to 35 °C
Humidity 30 % to 80 % RH (No condensation)
Storage Temperature -20 °C to 60 °C
Humidity 30 % to 90 % RH (No condensation)
OS*24
Genuine Windows® 7 Professional
Genuine Microsoft® Windows® XP Tablet PC Edition Service Pack 3
Pre-installed Software*24
Adobe Reader / Loupe Utility / Touch Pad Utility / PC Information Viewer / PC Information Popup /
Display Rotation Tool / Hotkey Settings / Wireless Switch Utility / Intel
®
Matrix Storage Manager /
Bluetooth™ Stack for Windows by TOSHIBA
*9
/ Battery Recalibration Utility / Intel
®
PROSet/Wire-
less Software / Wireless Connection Disable Utility
*27
/ Protector Suite
*25
/ Dashboard for CF-C1 /
Hand Writing Utility
Microsoft® Internet Explorer 8.0 / DirectX 11/ Microsoft® Windows® Media Player 12 / Microsoft®
.NETFramework3.5.1/InneonTPMProfessionalPackageV3.6*26 / Power Plan Extension Utility
Microsoft® Internet Explorer 6 Service Pack 3 / DirectX 9.0c / Microsoft® Windows® Media Play-
er 10 / Microsoft® Windows® Movie Maker 2.1 / Microsoft® .NET Framework 3.5 / Icon Enlarger /
PowerSavingUtility/FANControlUtility/EconomyMode(ECO)SettingUtility/InneonTPM
Professional Package V3.5SP1*26
Aptio Setup Utility / Hard Disk Data Erase Utility*28 / PC-Diagnostic Utility
n Wireless LAN <Only for model with wireless LAN>
Data Transfer Rates IEEE802.11a : 54/48/36/24/18/12/9/6 Mbps (automatically switched)*29
IEEE802.11b : 11/5.5/2/1 Mbps (automatically switched)*29
IEEE802.11g : 54/48/36/24/18/12/9/6 Mbps (automatically switched)*29
IEEE802.11n : (HT20) GI = 400ns: 144.4/130/115.6/86.7/72.2/65/57.8/43.3/39/28.9/21.7/14.4/
7.2 Mbps (automatically switched)*29
GI = 800ns: 130/117/104/78/65/58.5/52/39/26/19.5/13/6.5 Mbps
(HT40) GI = 400ns: 300/270/240/180/157.5/135/120/90/60/30/15 Mbps
(automatically switched)*29
GI = 800ns: 270/243/216/162/135/121.5/108/81/54/40.5/27/13.5 Mbps
Standards Supported IEEE802.11a / IEEE802.11b / IEEE802.11g / IEEE802.11n
Transmission method OFDM system, DSSS system
Wireless Channels Used IEEE802.11a : Channels 36/40/44/48/52/56/60/64/100/104/108/112/116/132/136/140/149/153/
157/161/165
IEEE802.11b/IEEE802.11g : Channels 1 to 11
IEEE802.11n : Channels 1-11/36/40/44/48/52/56/60/64/100/104/108/112/116/132/136/140/149/
153/157/161/165
RF Frequency Band IEEE802.11a : 5.18 GHz - 5.32 GHz, 5.5 GHz - 5.7 GHz, 5.745 GHz - 5.825 GHz
IEEE802.11b/IEEE802.11g : 2.412 GHz - 2.462 GHz
IEEE802.11n : 2.412
GHz - 2.462 GHz, 5.18 GHz - 5.32 GHz, 5.5 GHz - 5.7 GHz,
5.745 GHz - 5.825 GHz
n Bluetooth™ <Only for model with Bluetooth>
Bluetooth Version 2.1 + EDR
Transmission method FHSS system
Wireless Channels Used Channels 1 to 79
RF Frequency Band 2.402 GHz - 2.48 GHz
*1 The Intel® Active Management Technology (Intel® AMT) function must be set before use.
*2 1 MB = 1,048,576 bytes / 1 GB = 1,073,741,824 bytes
*3 You can physically expand the memory up to 4 GB, but the total amount of usable memory available will be less depending on
theactualsystemconguration.
*4 A segment of the main memory is allotted automatically depending on the computer’s operating status. The size of the Video
Memory cannot be set by the user.
The size of Video memory is allotted depending on the operating system.
*5 1 MB = 1,000,000 bytes. 1 GB = 1,000,000,000 bytes. Your operating system or some application software will report as fewer
GB.
*6 A 16,777,216 color display is achieved by using the dithering function.
*7 Display may be impossible using some connected external displays.
*8 Only for model with wireless LAN.
Specications
35
Appendix
*9 Only for model with Bluetooth.
*10 Some devices cannot be used depending on the port type.
*11 Only for model with modem.
*12 Only for model that supports TPM.
For information on TPM, click (Start) and input “c:\util\drivers\tpm\README.pdf” in [Search programs and
les]andpress
Enter
, and refer to the Installation Manual of “Trusted Platform Module (TPM)”.
For information on TPM, click [start] - [Run] and input “c:\util\drivers\tpm\README.pdf”, and refer to the Instal-
lation Manual of “Trusted Platform Module (TPM)”.
*13 This slot is not compatible with the UHS-I high speed transfer.
OperationhasbeentestedandconrmedusingPanasonicSDMemoryCardwithacapacityofupto2GB, Panasonic SDHC
Memory Card with a capacity of up to 32 GB, and Panasonic SDXC Memory Card with a capacity of up to 64 GB.
Operation on other SD equipment is not guaranteed.
*14 Only for model with Smart Card Slot
*15 Only a RAM module can be used (Panasonic : CF-BAC02GU).
*16 Does not guarantee operation of all USB-compatible peripherals.
*17 Use a condenser-stereo microphone.
*18 <Only for North America>
The AC adaptor is compatible with power sources up to 240 V AC adaptor. This computer is supplied with a 125 V AC compat-
ible AC cord.
20-M-1-1
*19 Measured using MobileMark™ 2007 (LCD brightness : 60 cd/m2).
Varies depending on the usage conditions, or when an optional device is attached.
When Economy Mode (ECO) is enabled, the operating time becomes approximately 20 % shorter than when it is disabled.
*20 Varies depending on the usage conditions, CPU speed, etc.
Itmaytakealongtimetochargeafullydischargedbattery.Whenusingtheoptionalbatterypack(CF-VZSU66U):Approx.
@@@ hours (Power off)/Approx. @@@ hours (Power on)
*21 Approx. 0.9 W when the battery pack is fully charged (or not being charged) and the computer is off.
<When using with 115 V AC>
Even when the AC adaptor is not connected to the computer, power is consumed (Max. 0.2 W) simply by having the AC adaptor
plugged into an AC outlet.
*22 Rated power consumption.
20-M-1-1
*23 Average value. May differ depending on models.
*24 Operations of this computer are not guaranteed except for the pre-installed OS and the installed OS by using the Product Re-
covery DVD-ROM (included).
Some parts of the software in the Product Recovery DVDROM may not be installed depending on a model.
*25 Onlyformodelwithngerprintreader.Mustbeinstalledbeforeuse.
*26 Only for model that supports TPM. Must be installed before use.
*27 Must be installed before use.
*28 The Product Recovery DVD-ROM is required.
*29 ThesearespeedsspeciedinIEEE802.11a+b+g+nstandards.Actualspeedsmaydiffer.
36
Appendix
LIMITED WARRANTY
For U.S.A.
Panasonic Solutions Company - Worldwide Product Warranties
Section 1: Limited Warranty - Hardware
Panasonic Solutions Company (referred to as “Panasonic”) will repair the products listed below with new or rebuilt parts, free of
chargeintheU.S.A.orotherPanasonicapprovedlocationfortheperiodspeciedbelowfromthedateoforiginalpurchaseinthe
event of a defect in materials or workmanship. These warranties are extended solely to the original purchaser. A purchase receipt or
other proof of date of original purchase will be required before warranty performance is rendered.
• Laptop Computers – 3 Years
• PDRC - LCD and Keyboard Assemblies – 3 Years
• MDWD – Mobile Computer and Wireless Display Assemblies (CF-07/CF-08) - 3 Years
• Ultra-Mobile PC (CF-U1/CF-H1) – 3 Years
• Hand-held Computers (P1/P2) – 1 Year
• Arbitrator Video Camera – 1 Year
• Arbitrator Recorder Unit – 1 Year
• Arbitrator Remote Control Panel – 1 Year
• Arbitrator Wireless Receiver Unit – 1 Year
• Arbitrator P2 Card(s) (All Sizes) – 1 Year
• Arbitrator Wireless Microphone(s) / Transmitter – 90 Days
• Arbitrator System Component Interconnect Cables – 90 Days
Battery Warranty
The battery supplied with the product is covered under the warranty for one (1) year from date of purchase, except as excluded
in Section 3. Batteries purchased separately are covered under the warranty for one (1) year from the date of purchase. A battery
furnished under the warranty is covered for the remaining period of the one year warranty on the original or purchased battery.
Wireless Module Warranty
Panasonic approved wireless modems installed in Panasonic brand computers and integrated by Panasonic or an Authorized Pana-
sonic Wireless Integrator are covered under the warranty for the remaining warranty period of the computer in which the modem
is installed. For computers with less than three (3) months remaining on the unit warranty, the wireless modem will be covered for
a period of three (3) months from the date of installation of the modem, covering only modem replacement or modem installation
related issues.
All modems must be approved by the wireless carrier prior to use. Any use or attempted use of a wireless modem not approved and
activated by the carrier for use on their network is strictly prohibited and is not sanctioned or warranted by Panasonic and may result
in legal action. In addition, all modems must be approved by Panasonic as compatible with the computer hardware before installa-
tion or use.
Panasonic’s sole responsibility for the warranty or technical support of the software required to install or operate the modem is
denedinSection2(LimitedSoftwareWarranty).AnyattemptedsoftwareinstallationbyanyoneotherthanaPanasonicAuthorized
Wireless Integrator is not covered under warranty and may result in service charges to re-image or replace the hard drive.
Installation or attempted installation by any party other than Panasonic or an Authorized Panasonic Wireless Integrator is strictly not
covered under the warranty and may void the computer warranty if damage results.
Options and Accessories warranties
The below listed Panasonic brand or supplied options and accessories are covered under this limited warranty for the period speci-
edfromthedateofpurchaseorasspecicallystated:
• AC Adaptor / Power Cord – 3 Years
• Memory Card (Panasonic Brand) – 3 Years
• Car Mount Docking Station PCB or Complete Vehicle Docking Station – 3 Years
• Port Replicator / I-O Box / Device Cradle (like CF-08) – 3 Years
• Antenna Pass-through Cable – 3 Years
• Backlit or Full-sized keyboard - 3 Years or assumes warranty of the unit in which it is installed
• Integrated Panasonic supplied options and kits including, but not limited to Wireless WAN, Media Bay Drives (Floppy,
CD/DVD, Combo), GPS, Bluetooth, Smartcard Reader, Magnetic Card Reader, Barcode Scanner and Fingerprint readers – 3
Years or assumes warranty period of the unit in which it is installed provided the integration was performed by Panasonic or
an Authorized Options Integrator.
• Hard Drive (separately purchased) – 1 Year
• External USB Drives (CD / DVD / Floppy / Hard Drive) – 1 Year
• Optional Battery – 1 Year
• Battery Charger / Multi-Bay Battery Charger – 1 Year
• Stylus – 90 Days (physical damage excluded)
37
Appendix
Section 2 - Limited Warranty - Software
Panasonic Solutions Company (referred to as “Panasonic”) warrants to you only that the disk(s) or other media on which the Pro-
grams are furnished will be free from defects in material and workmanship under normal use for a period of sixty (60) days from the
date of delivery thereof to you, as evidenced by your purchase receipt.
This is the only warranty Panasonic makes to you. Panasonic does not warrant that the functions contained in the Programs will
meet your requirements or that the operation of the Programs will be uninterrupted or error free. Panasonic shall have no obligation
for any defects in the disk(s) or other media on which the Programs are furnished resulting from your storage thereof, or for defects
that have been caused by operation of the disk(s) or other media
Panasonic’s entire liability and your exclusive remedy under this warranty shall be limited to the replacement, in the United States
or other Panasonic designated location, of any defective disk or other media which is returned to Panasonic’s Authorized Service
Center, together with a copy of the purchase receipt, within the aforesaid warranty period. The customer is responsible for ensuring
that all data is backed up and made secure during normal use and before sending a unit for service.
Section 3 - Limited Warranty Exclusions
Specicallyexcludedfromthewarrantyare:
• Allconsumableitems;suchasscreenprotectionlms,logobadges,labels,cleaningcloths,carrycases,manuals,cables,
straps, belts, holsters, tethers, and harnesses and any other options and accessories not listed above or covered under a
separate warranty.
• Failures related to the product operating system, hard drive image, software setup, software program, virus, other program(s)
orle(s)ontheharddriveorinanycomputermemorylocation.
• Failures due to BIOS settings or changes, as well as any cosmetic or physical damage to the unit.
• Any unit or device with a missing or altered model number or serial number label
• Damage which occurs in shipment
• Failures which are caused by products not supplied by Panasonic
• Failures which result from alteration, accident, misuse, introduction of liquid or other foreign matter into the unit, abuse, ne-
glect,installation,maladjustmentofconsumercontrols,impropermaintenanceormodication,usenotinaccordancewith
product use instructions
• Failures due to service by anyone other than a Panasonic Authorized Service Provider
• Failures caused by improper integration by any company other than Panasonic or a Panasonic Authorized Integrator.
• Damage, failure, or loss due to the unit being stolen, lost, misplaced, or used by anyone other than the original purchaser
• Damage that is attributable to acts of God
This warranty only covers failures due to defects in materials or workmanship which occur during normal use.
THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CON-
TROL EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*1. PANASONIC WILL NOT BE RESPONSIBLE
FOR ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.
*1 AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2 Electrical Flight Bag (EFB) Systems and Class1 EFB Systems
whenusedduringcriticalphasesofight(e.g.,duringtake-offandlanding)and/ormountedontotheaircraft.Class1EFBSys-
temsand2EFBSystemsaredenedbyFAA:AC(AdvisoryCircular)120-76AorJAA:JAATGL(TemporaryGuidanceLeaets)
No.36
Other Limits and Exclusions: There are no other express warranties except as listed above.
PANASONIC SHALL NOT BE LIABLE FOR LOSS OF DATA OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES RE-
SULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND
IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PUR-
POSE ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. Some states do not allow the exclusion
or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitations or
exclusions may not apply to you.
Thislimitedwarrantygivesyouspeciclegalrights,andyoumayalsohaveotherrightswhichvaryfromstatetostate.
For technical support or to arrange for service on your Panasonic computer product, call our toll-free hotline at 1-800-
LAPTOP5.
DIAL TOLL FREE: 1-800-LAPTOP5 (1-800-527-8675)
Web Site : www.panasonic.com/toughbook
38
Appendix
LIMITED WARRANTY
For Canada
PANASONIC COMPUTER AND PERIPHERALS LIMITED WARRANTY
Coverage–PanasonicCanadaInc.(“PCI”)warrantstoyou,therstendusercustomer,thiscomputerproduct(excludingsoftware
media), when purchased from PCI or from a PCI authorized reseller, to be free from defects in materials and workmanship under
normaluse,subjecttothetermssetforthbelow,duringtheperiodofwarrantycoveragespecied.
Scope of Coverage Period of Coverage Type of Failure Coverage
• Laptop Computers (except Battery) and AC Adaptor
• Factory/PCI installed options including Wireless WAN, GPS,
Bluetooth, Finger print reader, Backlit keyboard, Memory Card
and Media Bay Drives (Floppy, CD/DVD)
• Mobile Wireless Display
• PDRC – LCD and Keyboard Assemblies
• Port Replicator
Three (3) Years from Date of
Original End User Customer
Purchase
Defective Materials or Work-
manship
• Hand-held Computers
• Battery
• Battery charger
• Auto Adaptor
• External USB Drives
One (1) Year from Date of
Original End User Customer
Purchase
Defective Materials or Work-
manship
• Stylus Ninety (90) Days from Date of
Original End User Customer
Purchase
Defective Materials or Work-
manship
• Allconsumableitemsincludingprotectionlm,cleaningcloth,
carry case, tether and harness No Coverage
Remedy – In the event of a warranty claim, contact PCI’s representatives within the applicable warranty period, identifying the
natureofthedefectclaimed,at1-800-668-8386between9:00A.M.and5:00P.M.,EasternTimeZone,Mon.–Fri.(excluding
holidays) for instructions on how to obtain service. A purchase receipt or other proof of date of original purchase is required before
warranty service is performed. Defective parts covered by this Limited Warranty will be repaired or replaced with new or comparable
rebuilt parts on an exchange basis. Warranty replacement or repair is subject to the terms of this Limited Warranty for the balance
of the original period of warranty coverage.
No Coverage – This Limited Warranty does not cover products purchased outside Canada. Neither does it cover damage to, failure
of, or defects in a product or accessory through mishandling, improper installation, abnormal use, misuse, neglect, accident, intro-
duction of liquid or other foreign matter into the product, alteration or servicing by anyone not authorized by PCI, or act of God.
THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CON-
TROL EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*2. PANASONIC WILL NOT BE RESPONSIBLE
FOR ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.
*2 AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2 Electrical Flight Bag (EFB) Systems and Class1 EFB Systems
whenusedduringcriticalphasesofight(e.g.,duringtake-offandlanding)and/ormountedontotheaircraft.Class1EFBSys-
temsand2EFBSystemsaredenedbyFAA:AC(AdvisoryCircular)120-76AorJAA:JAATGL(TemporaryGuidanceLeaets)
No.36
IF YOU SHIP THE PRODUCT FOR WARRANTY SERVICE
Carefully pack the product, preferably in the original carton. Include details of defect claimed and proof of date of original pur-
chase. No liability is assumed for loss or damage to the product while in transit, if you chose your own transportation carrier.
SOFTWARE MEDIA LIMITED WARRANTY
Coverage–PCIwarrantstoyou,therstendusercustomer,thatthedisk(s)orothermediaonwhichsoftwareprogram(s)is/are
supplied will be free from defects in materials and workmanship under normal use in Canada for a period of sixty (60) days from
date of receipt as evidenced by your purchase receipt for your Panasonic Computer product.
THIS IS THE ONLY WARRANTY THAT PCI MAKES RESPECTING THE SOFTWARE MEDIA. PCI does not warrant the software.
Please refer to the software licensor’s written warranty (accompanying the copy of the software) for any software warranty claim.
Claim Procedure – In the event of a defect in material or workmanship in the media during the sixty (60) days warranty period, and
you return it, transportation costs prepaid, to Panasonic Canada Inc., Computer Products Marketing, 5770 Ambler Drive, Mississau-
ga, Ontario L4W 2T3, within the warranty period, together with a copy of your purchase receipt, and an explanation of the suspected
defect, PCI will replace in Canada the defective disk(s) or other media.
Remedy – PCI’s entire liability, and your only remedy for any breach of this software media warranty is limited to replacement of the
mediaonly.Itdoesnotcoveranyotherdamages,including,butnotlimitedto,lossofuseorprotloss,orspecial,indirectorconse-
quential damages, or other claims, whether or not of similar character.
No Coverage – This limited warranty does not apply if the disk(s) or other media has been used in other than a Panasonic product,
orinenvironmentalconditionsotherthanthosespeciedbyPCIorthemanufacturer,orifsubjectedtomisuse,neglect,mishan-
dling,modicationorattemptedmodicationoftheprogram,orifdamagedbyaccidentoractofGod.PCIisnotresponsiblefor
damage to or loss of any program, data or removable storage media.
GENERAL
NO OTHER WARRANTIES – PCI DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RE-
SPECT TO THE SOFTWARE, SOFTWARE MEDIA, COMPUTER PRODUCT, OPTIONS AND ACCESSORIES.
NO LIABILITY FOR CONSEQUENTIAL DAMAGES – IN NO EVENT SHALL PCI BE LIABLE FOR ANY SPECIAL, INDIRECT OR
CONSEQUENTIAL DAMAGES ARISING FROM ANY BREACH OF THE LIMITED WARRANTIES SET OUT IN THIS DOCUMENT,
OR FROM THE USE OF THE COMPUTER PRODUCT, INCLUDING, WITHOUT LIMITATION, LOSS OF DATA, BUSINESS, PROF-
IT OR GOODWILL.
IN ANY EVENT, PCI’S MAXIMUM LIABILITY FOR ANY BREACH SHALL NOT EXCEED THE AMOUNT ACTUALLY PAID BY YOU
FOR THE COMPUTER PRODUCT.
NO ACTION, REGARDLESS OF ITS BASIS, MAY BE BEGUN AGAINST PCI MORE THAN TWO (2) YEARS AFTER THE CAUSE
OF ACTION AROSE.
Statutory Warranties – Some jurisdictions do not allow these limitations or exclusions, so they may not apply to you.
39
Appendix
GARANTIE LIMITÉE
Pour le Canada
GARANTIE LIMITÉE – ORDINATEURS ET PÉRIPHÉRIQUES PANASONIC
Couverture –
Panasonic Canada Inc. (« PCI ») garantit à l’acheteur original que ce produit informatique (à l’exclusion des supports des
logiciels) est, au moment de sa vente par PCI ou d’un revendeur agréé par PCI, exempt de défauts de pièces et de fabrication dans les
conditions normales d’utilisation, et ce, pendant la période de couverture de la garantie, sous réserve des modalités décrites ci-dessous.
Éléments couverts Durée de couverture Type de couverture
• Ordinateurs blocs-notes (sauf batteries) et adaptateur secteur
• Optionsinstalléesenusine/parPCIincluant:WANsansl,
GPS, Bluetooth, lecteur d’empreintes digitales, clavier ré-
troéclairé, carte mémoire et lecteurs (disquettes, CD/DVD)
• Écranmobilesansl
• Ensembles PDRC – ACL et clavier
• Duplicateur de port
Trois (3) ans à partir de la
date d’achat original. Défauts de pièces et de fabrica-
tion
• Ordinateurs de poche
• Batterie
• Chargeur de batterie
• Adaptateur pour voiture
• Périphériques USB
Un (1) an à partir de la date
d’achat original. Défauts de pièces et de fabrica-
tion
• Stylo pointeur standard ou pour numériseur graphique
Quatre-vingt-dix (90) jours à
partir de la date d’achat original.
Défauts de pièces et de fabrica-
tion
•
Tous les articles consommables incluant les pellicules protectrices,
chiffons de nettoyage, étuis de transport, longes et sangles
Aucune couverture
Recours –
Pour obtenir des informations sur la marche à suivre dans le cas où une réclamation en vertu de la garantie deviendrait
nécessaire, communiquez par téléphone avec un représentant de PCI au 1-800-668-8386, entre 9h00 et 17h00 (heure de l’Est) du lundi
auvendredi(sauflesjoursfériés),avantl’échéancedelagarantieapplicable,enprenantsoind’identierlanaturedeladéfaillance.
Unreçuoutouteautrepiècejusticativedeladated’achatoriginalseraexigéavanttouteréparation.Toutepiècedéfectueusecouverte
par la présente garantie limitée sera réparée ou remplacée par une pièce neuve ou remise à neuf. Le remplacement ou la réparation
sera fait conformément aux modalités de la présente garantie limitée pendant la durée restante de la période originale de la garantie.
Produits non couverts – La présente garantie limitée ne couvre pas les produits achetés à l’extérieur du Canada. Elle ne couvre
pas non plus les dommages, la défaillance ou les défauts attribuables à une manutention inadéquate, une mauvaise installation,
une utilisation anormale ou abusive, de la négligence, un accident, un déversement ou la pénétration d’un objet étranger, une modi-
cation,uncasfortuitouuneréparationeffectuéeparunepersonnenonagrééeparPCI.
CE PRODUIT N’EST PAS DESTINÉ À ÊTRE UTILISÉ, EN TOUT OU EN PARTIE, COMME SYSTÈME/ÉQUIPEMENT NUCLÉAIRE, SYS-
TÈME/ ÉQUIPEMENT DE CONTRÔLE DU TRAFFIC AÉRIEN OU SYSTÈME/ÉQUIPEMENT DE POSTE DE PILOTAGE D’AVION*3. PANA-
SONIC DÉCLINE TOUTE RESPONSABILITÉ CONCERNANT L’UTILISATION DE CE PRODUIT DANS LES CAS SUSMENTIONNÉS.
*3 Les SYSTÈMES/ÉQUIPEMENTS DE POSTE DE PILOTAGE D’AVION sont dotés de systèmes OEPP (organiseur électronique
de poste de pilotage) de classe 2 et de classe 1 utilisés pendant des phases critiques de vol (par exemple, pendant le décollage
etl’atterrissage)et(ou)montéssurl’avion.LessystèmesOEPPdeclasse1etdeclasse2sontdénisparlecirculaired’infor-
mationFAA:AC(AdvisoryCircular)120-76Aoulefeuiletn°36JAA:JAATGL(TemporaryGuidanceLeaets)No36.
EXPÉDITION DU PRODUIT POUR SERVICE SOUS GARANTIE
Emballez soigneusement le produit, de préférence dans son emballage d’origine. Joignez une description de la défaillance de
mêmequ’unepiècejusticativedeladated’achat.PanasonicCanadaInc.nepeutêtretenueresponsablepourtoutdommageou
perte subi pendant le transport si vous avez choisi le transporteur.
GARANTIE LIMITÉE – SUPPORTS DES LOGICIELS
Couverture – Panasonic Canada Inc. (« PCI ») garantit à l’acheteur original que la ou les disquettes ou tout autre support sur
lequel le ou les programmes sont fournis sont exempts de défauts de pièces et de fabrication dans des conditions normales d’utili-
sation au Canada, et ce, pour une période de soixante (60) jours suivant la date de réception indiquée sur la preuve d’achat.
LA PRÉSENTE GARANTIE EST LA SEULE OFFERTE PAR PCI COUVRANT LES SUPPORTS DE LOGICIELS. PCI ne garantit
pas les logiciels. Reportez-vous à la garantie écrite du concédant de licence d’utilisation du logiciel (qui accompagne la copie du
logiciel) pour toute réclamation en vertu de la garantie.
Réclamation – marche à suivre –
Panasonic Canada Inc. remplacera toute disquette ou support défectueux si l’article en question est
retourné, port payé, à son service de Marketing – produits informatiques, 5770 Ambler Drive, Mississauga (Ontario) L4W 2T3, dans les soix-
ante(60)jourssuivantladated’achatoriginal.Joignezàvotreenvoiunepiècejusticativedevotreachatetunedescriptionduproblème.
Recours –
La responsabilité de PCI - et votre seul recours - dans le cas de toute défaillance couverte par la garantie sur ce support de
logiciel est limitée au seul remplacement du support. Elle ne couvre aucun autre dommage, y compris, mais non exclusivement, la perte
d’usageoudeprots,niaucundommagespécial,indirectouconsécutif,niaucuneautreréclamationdenaturesimilaireouautre.
Produits non couverts –
La présente garantie limitée ne s’applique pas si la ou les disquettes ou autre support ont été utilisés dans un
produitd’unemarqueautrequePanasonicoudansdesconditionsenvironnementalesautresquecellesspéciéesparPCIoulefabricant,
ousoumisàunemauvaiseutilisation,àlanégligence,àunemanutentioninadéquateouencoresileprogrammeaétémodiéousubiune
tentativedemodicationoudesdommagesattribuablesàunaccidentouàuncasfortuit.Deplus,PCIn’assumeaucuneresponsabilité
pour toute perte de, ou tout dommage à, un programme, des données ou un support de sauvegarde amovible.
GÉNÉRALITÉS
PCI NE RECONNAÎT AUCUNE AUTRE GARANTIE, EXPLICITE OU IMPLICITE, Y COMPRIS, MAIS NON EXCLUSIVEMENT, LES
GARANTIES IMPLICITES DE VALEUR COMMERCIALE ET D’UTILITÉ À UNE FIN QUELCONQUE, À L’ÉGARD DU LOGICIEL,
SUPPORTS DE LOGICIELS, PRODUITS INFORMATIQUES, PÉRIPHÉRIQUES ET ACCESSOIRES.
SOUS AUCUNE CIRCONSTANCE PCI NE POURRA ÊTRE TENUE RESPONSABLE DES DOMMAGES SPÉCIAUX, INDIRECTS
OU CONSÉCUTIFS ATTRIBUABLES À UN MANQUEMENT AUX GARANTIES LIMITÉES DÉCRITES DANS LE PRÉSENT DOCU-
MENT OU À L’UTILISATION DU PRODUIT INFORMATIQUE, Y COMPRIS, SANS RESTRICTION, LA PERTE DE DONNÉES,
D’AFFAIRES, D’ACHALANDAGE OU DE PROFIT.
DANS TOUS LES CAS, LA RESPONSABILITÉ MAXIMALE DE PCI POUR TOUT MANQUEMENT NE POURRA EXCÉDER LE
PRIX DE VENTE DU PRODUIT INFORMATIQUE.
AUCUNE RÉCLAMATION, SANS ÉGARD À SES MOTIFS, NE POURRA ÊTRE FAITE AUPRÈS DE PCI PLUS DE DEUX (2) ANS
APRÈS LES FAITS INVOQUÉS À LA BASE D’UNE TELLE RÉCLAMATION.
Garantie statutaires –
Certaines juridictions interdisent de telles limitations ou exclusions; aussi, pourraient-elles ne pas s’appliquer
.
As an ENERGY STAR® Partner, Panasonic Corporation has determined that this
product meets the ENERGY STAR® guidelines for energy efciency. By enabling
available power management settings, Panasonic computers enter a low-power sleep
mode after a period of inactivity, saving the user energy. To learn more about power
management, please visit the web site:
www.energystar.gov/index.cfm?c=power_mgt.pr_power_management
Outline of the International ENERGY STAR® Ofce Equipment Program
The international ENERGY STAR® Ofce Equipment Program is an international program that promotes energy
saving through the use of computers and other ofce equipment. The program backs the development and dis-
semination of products with functions that effectively reduce energy consumption. It is an open system in which
business proprietors can participate voluntarily. The targeted products are ofce equipment such as computers,
displays, printers, facsimiles, and copiers. Their standards and logos are uniform among participating nations.
For information about ENERGY STAR®, refer to the following web site:
Web Site: www.energystar.gov
22-M-1
Panasonic Solutions Company
3 Panasonic Way, Panazip 2F-5,
Secaucus, NJ 07094
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga,
Ontario L4W 2T3
© Panasonic Corporation 2010
Printed in Japan
HS0410-0
DFQW5397ZA
