9TGCF T21 User Manual HTML Version

Users Manual

OPERATING INSTRUCTIONS

Personal Computer

Appendix

LIMITED USE LICENSE AGREEMENT ........ 29

Hard Disk Backup Function ........................... 31

Hard Disk Data Erase Utility .......................... 35

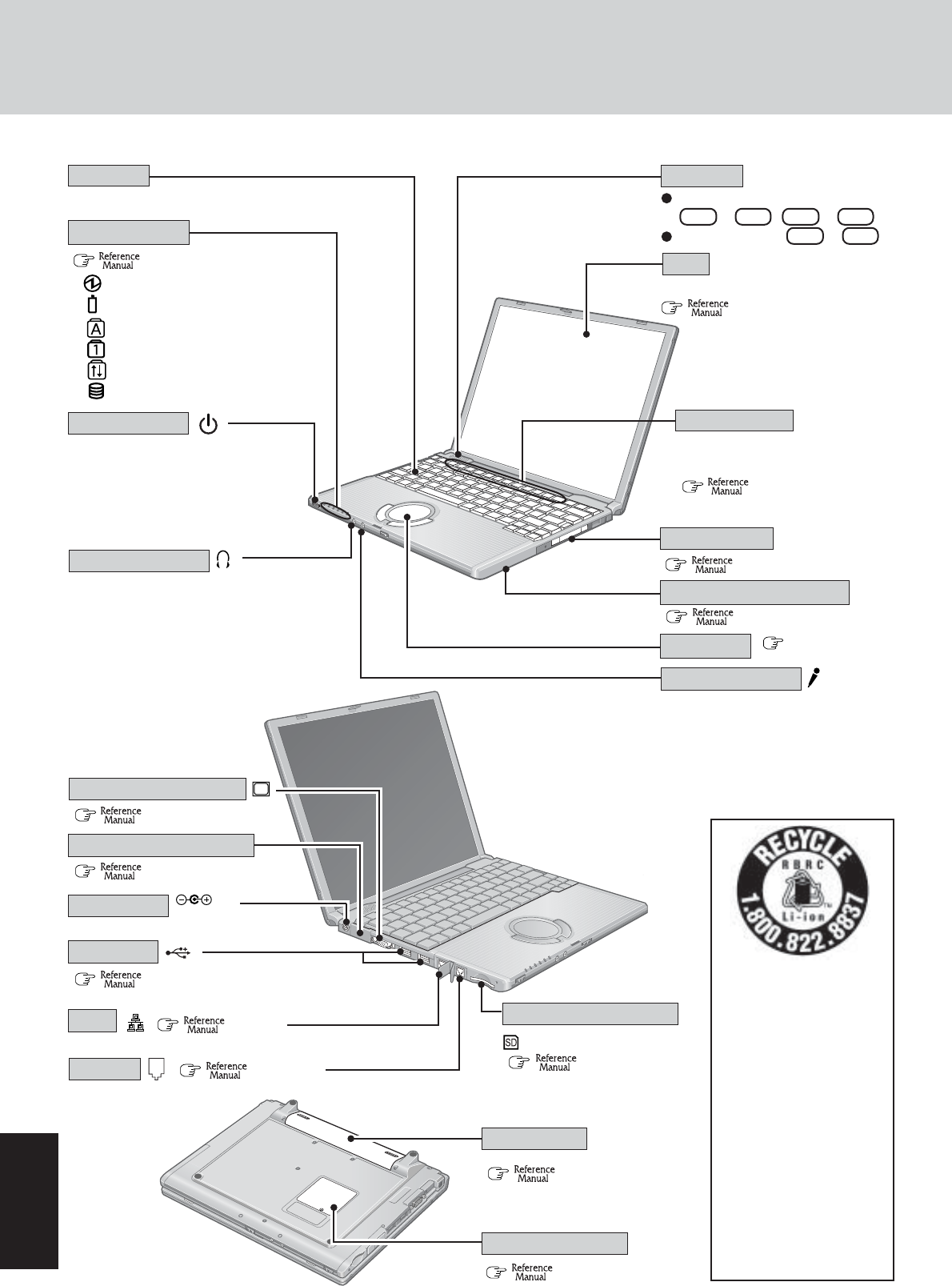

Names and Functions of Parts ...................... 36

Specifications ................................................ 37

LIMITED WARRANTY ................................... 38

Troubleshooting

List of Error Codes ......................................... 21

Dealing with Problems (Summary) ....................... 22

Reinstalling Software .................................... 27

Operation

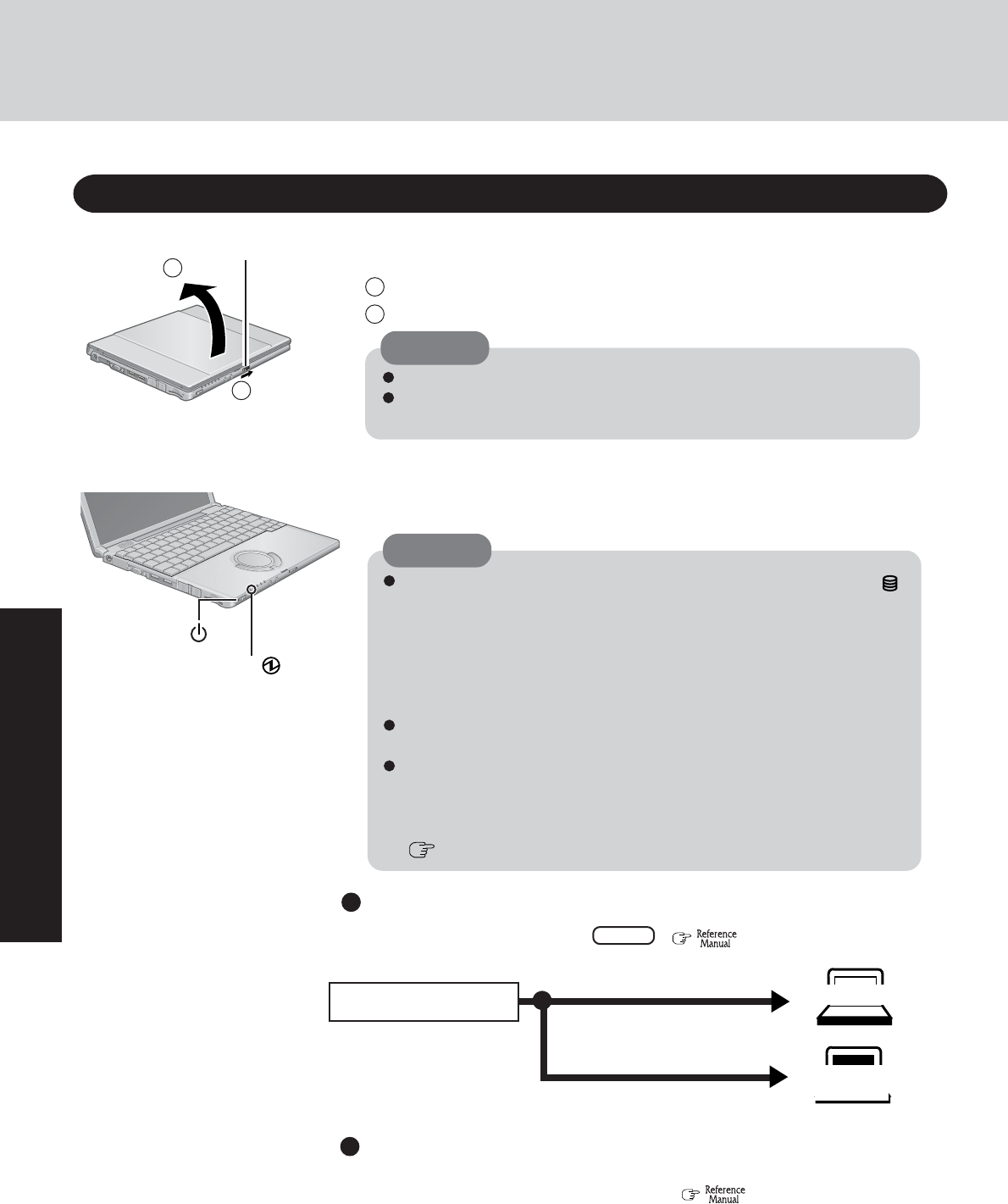

Starting Up/Shutting Down ............................ 16

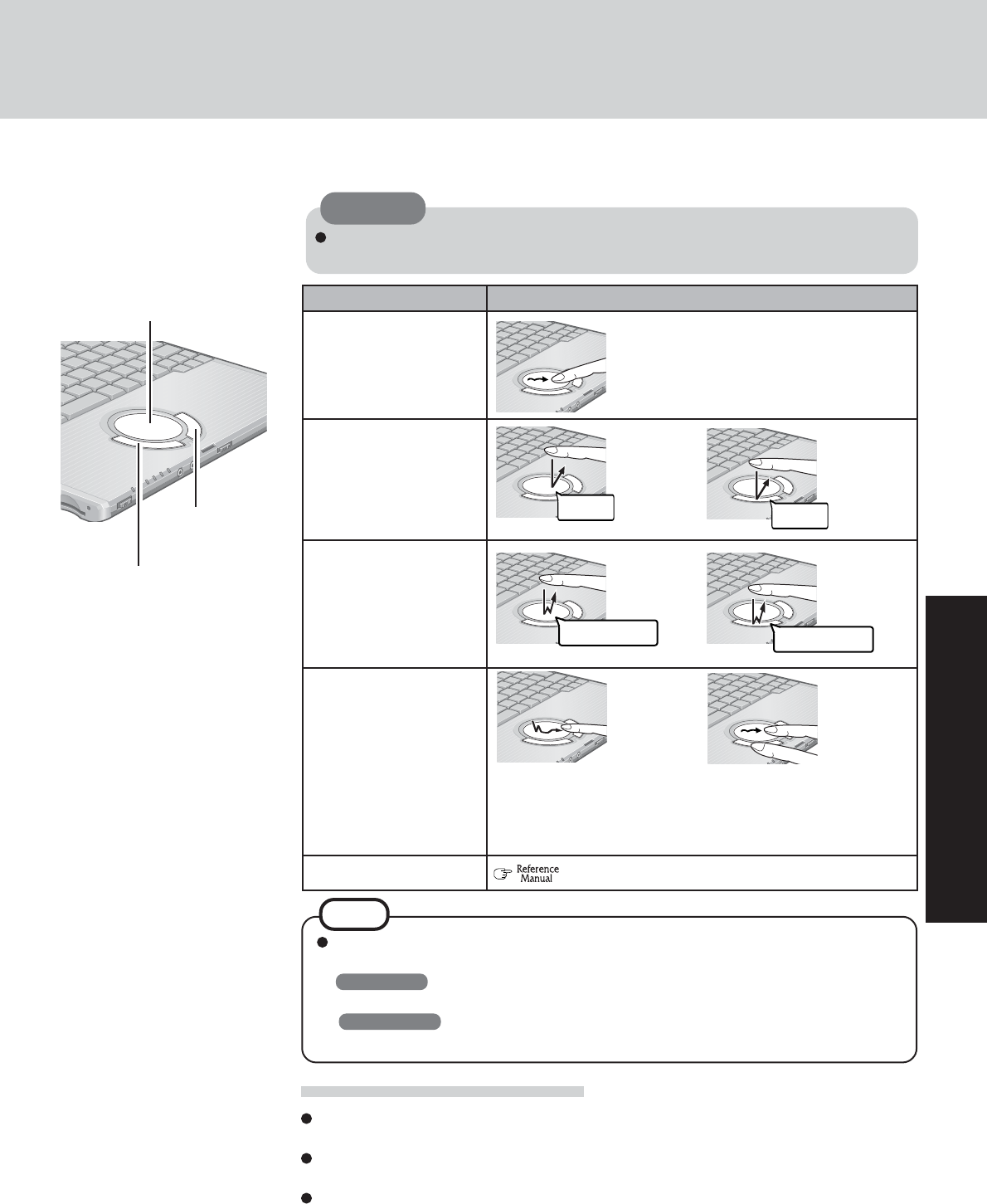

Touch Pad ..................................................... 19

Reference Manual ......................................... 20

Getting Started

Read Me First.................................................. 3

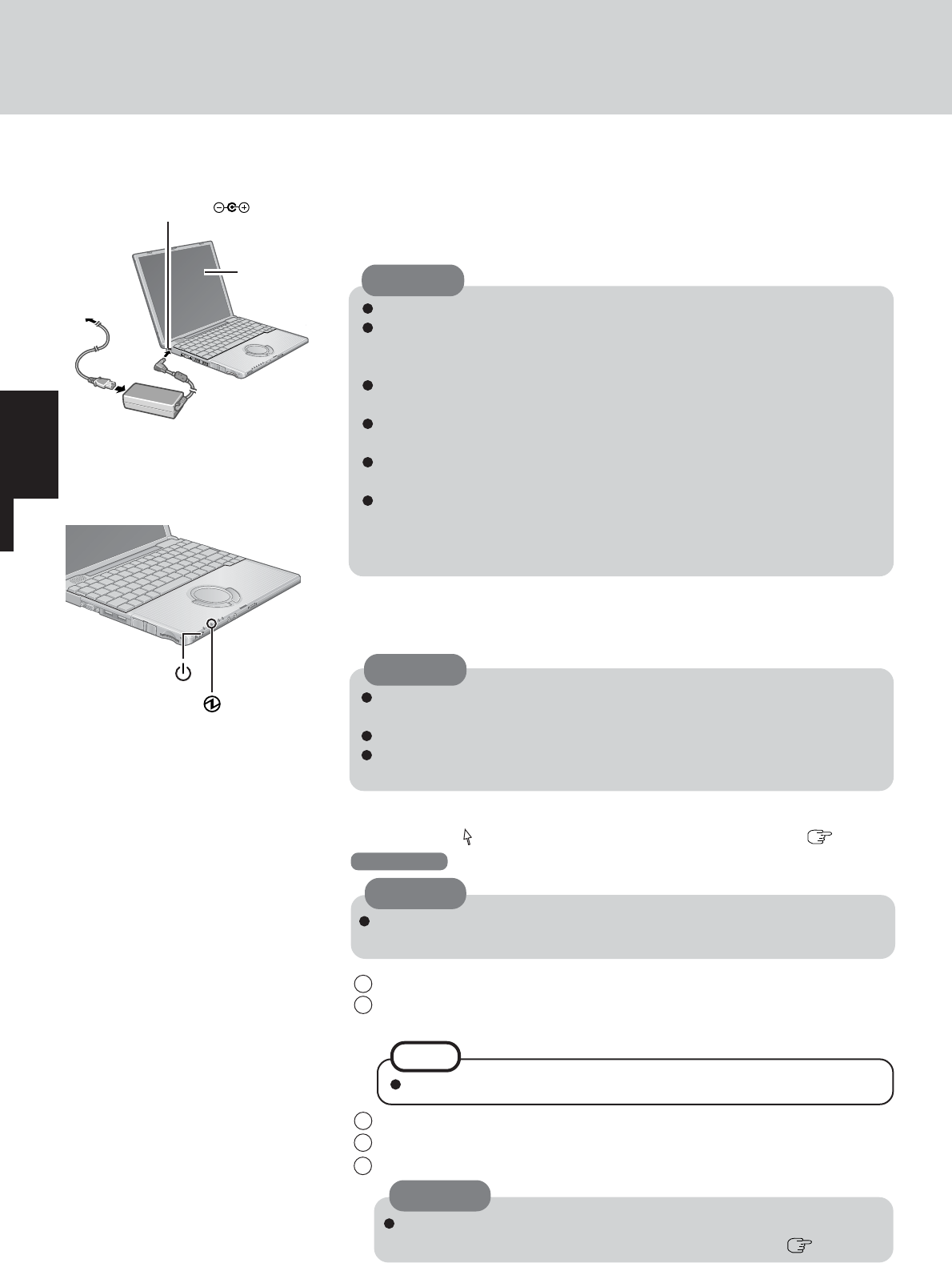

First-time Operation ...................................... 11

Contents

[Additional Manual]

Reference Manual

This manual can be accessed on your computer. Refer

to page 20 on how to access the Reference Manual.

Reference Manual

•Read Me First •LED Indicators

•Key Combinations

Appendix Getting StartedOperation

Troubleshooting

Model No. CF-T2 Series

2000

Please read these instructions carefully before using this product and save this manual for future use.

Reference Manual

•Technical Information

•DMI Viewer

•List of Error Codes

•Dealing with Problems

(Advanced)

Reference Manual

•Touch Pad

•Touchscreen*

•Standby/Hibernation

Functions

•Security Measures

•Computing on the

Road

•Battery Power

•SD-MovieStage

•PC Cards

•SD Memory Card/

MultiMedia Card

•RAM Module

•External Display

•USB Devices

•Modem

•LAN

•Wireless LAN

•Setup Utility

*Only for models with

touchscreen

Getting Started

Introduction

Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new

computer.

Illustrations and Terminology in this Manual

reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd.

No patent liability is assumed with respect to the use of the information contained herein.

Disclaimer

Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no

liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals.

Trademarks

Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other

countries.

Intel, Pentium, SpeedStep and PROSet are either registered trademarks or trademarks of Intel Corporation.

SD Logo is a trademark.

Adobe® and Acrobat® are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or

other countries.

Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd.

NOTE:NOTE provides a useful fact or helpful information.

CAUTION:CAUTION indicates a condition that may result in minor or moderate injury.

WARNING:WARNING indicates a hazard that may result in moderate or serious injury.

Windows XP : Information for Microsoft® Windows® XP Professional users.

Windows 2000 : Information for Microsoft® Windows® 2000 Professional users.

Enter : This illustration means to press the [Enter] key.

Fn + F5 : This illustration means to press and hold the [Fn] key, then press the [F5] key.

[start] - [Run]: This illustration means to click [start], then to click [Run]. For some applications, you may need to

double-click.

In Windows 2000, [start] is displayed as [Start].

:Where to go for referred information.

: This illustration means to refer to the Reference Manual, which is available on your computer.

Refer to page 20 on how to access this manual.

Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation

easier to understand.

This manual covers two types of models, as distinguished by the type of LCD screen (models with touchscreen and models

without touchscreen).

If the user has logged on without the administrator authority, some functions may not be executable, and some screens

may not be displayed as shown in this manual. If this happens, log on with the administrator authority to enable these

functions.

Confirm the latest information on optional products in catalogs, etc.

Customer’s Record

Serial No.

Date of Purchase

Model No. *1

Code No.

Dealer’s Name

Dealer’s Address

*1For the Model No., insert the 12 digit number (for example, CF-T2AWAZZDM) located

on the bottom of the computer.

Getting Started

Read Me First

Federal Communications Commission Radio

Frequency Interference Statement

Note: This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

Consult the Panasonic Service Center or an experienced ra-

dio/TV technician for help.

Warning

To assure continued compliance, use only shielded interface

cables when connecting to a computer or peripheral. Also, any

changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to

operate this equipment.

FCC RF Exposure Warning: This computer is provided with

PC Card slots that could be used with wireless transmitter(s),

which will be specifically recommended, when they become

available. Other third-party wireless transmitter(s) have not been

RF exposure evaluated for use with this computer and may not

comply with FCC RF exposure requirements.

This device complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including

interference that may cause undesired operation.

Responsible Party: Matsushita Electric Corporation of America

One Panasonic Way

Secaucus, NJ 07094

Tel No:1-800-LAPTOP-5 (1-800-527-8675)

For U.S.A.

1. This equipment complies with CFR47 Part 68 rules. On the

computer is a label that contains, among other information,

the FCC registration number and ringer equivalence number

(REN) for this equipment. If required, this information must

be provided to the telephone company.

2. An FCC compliant telephone cord and modular plug is pro-

vided with this equipment. This equipment is designed to be

connected to the telephone network or premises wiring us-

ing a compatible modular jack which is Part 68 compliant.

See Installation Instructions for details.

3. The REN is used to determine the quantity of devices which

may be connected to the telephone line. Excessive RENs on

the telephone line may result in the devices not ringing in re-

sponse to an incoming call. In most, but not all area, the sum

of RENs should not exceed five (5.0). To be certain of the

number of devices that may be connected to a line, as deter-

mined by the total RENs, contact the local telephone com-

pany.

4. If your telephone equipment cause harm to the telephone net-

work, the telephone company will notify you in advice that

temporary discontinuance of service may be required. But if

advice notice isn’t practical, the telephone company will no-

tify the customer as soon as possible. Also, you will be ad-

vised of your right to file a complaint with the FCC if you

believe it is necessary.

5. The telephone company may take changes in it’s facilities,

equipment, operations or procedures that could affect the op-

eration of the equipment. If this happens the telephone com-

pany will provide advance notice in order for you to make

necessary modifications to maintain uninterrupted service.

6. If trouble is experienced with this equipment, for repair or

warranty information, please contact Matsushita Electric

Corporation of America at DIAL TOLL FREE 1-800-LAP-

TOP5 (1-800-527-8675). If the equipment is causing harm

to the telephone network, the telephone company may re-

quest that you disconnect the equipment until the problem is

resolved.

There are no user serviceable parts contained in this equipment.

8. This equipment may not be used on coin service provided by

the telephone company. Connection to party lines is subject

to state tariffs.

9. The Telephone Consumer Protection Act of 1991 makes it

unlawful for any person to use a computer or other electronic

device to send any message via a telephone fax machine un-

less such message clearly contains in a margin at the top or

bottom of each transmitted page or on the first page of the

transmission, the date and time it is sent and an identification

of the business or other entry, or other individual sending the

message and the telephone number of the sending machine

or such business, other entity, or individual. In order to pro-

gram this information into your fax software, you should re-

fer to the manual of the Fax software being used.

FCC Regulation Notice for modem

This equipment contains a FCC approved modem.

Manufacturer of modem: PCTEL Inc.

Model No. PCT2304WT

FOR HOME OR OFFICE USE

Tested To Comply

With FCC Standards

FCC RF Exposure Warning:

This equipment complies with FCC radiation exposure limits

set forth for an uncontrolled environment.

This equipment must be installed and operated in accordance

with provided instructions and minimum 2.5 cm spacing must

be provided between antenna and all person’s body (excluding

extremities of hands, wrist and feet) during wireless modes of

operation.

This transmitter must not be co-located or operated in conjunc-

tion with any other antenna or transmitter.

Getting Started

Read Me First

For Canada

Industry Canada (IC) Notice for modem

This equipment contains an Industry Canada approved modem unit.

The Industry Canada label is affixed on the modem unit.

EQUIPMENT ATTACHMENT LIMITATIONS

“NOTICE: The Industry Canada label identifies certified

equipment. This certification means that the equipment meets

telecommunications network protective, operational and

safety requirements as prescribed in the appropriate Terminal

Equipment Technical Requirements document(s). The

Department does not guarantee the equipment will operate

to the user’s satisfaction.

Before installing this equipment, users should ensure that it

is permissible to be connected to the facilities of the local

telecommunications company. The equipment must also be

installed using an acceptable method of connection. The

customer should be aware that compliance with the above

conditions may not prevent degradation of service in some

situations.

Repairs to certified equipment should be coordinated by a

representative designated by the supplier. Any repairs or

alterations made by the user to this equipment, or equipment

malfunctions, may give the telecommunications company

cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the

electrical ground connections of the power utility, telephone

lines and internal metallic water pipe system, if present, are

connected together. This precaution may be particularly

important in rural areas. Caution: Users should not attempt

to make such connections themselves, but should contact

the appropriate electric inspection authority, or electrician,

as appropriate.”

“NOTICE: The Ringer Equivalence Number (REN) assigned

to each terminal device provides an indication of the

maximum number of terminals allowed to be connected to a

telephone interface. The termination on an interface may

consist of any combination of devices subject only to the

requirement that the sum of the Ringer Equivalence Numbers

of all the devices does not exceed 5.”

REN: See bottom of the computer

RESTRICTIONS CONCERNANT LE RACCORDEMENT

DE MATÉRIEL

“AVIS: L’étiquette d’Industrie Canada identifie le matériel

homologué. Cette étiquette certifie que le matériel est

conforme aux normes de protection, d’exploitation et de

sécurité des réseaux de télécommunications, comme le

prescrivent les documents concernant les exigences

techniques relatives au matériel terminal. Le Ministère

n’assure toutefois pas que le matériel fonctionnera à la

satisfaction de l’utilisateur.

Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il

est permis de le raccorder aux installations de l’entreprise

locale de télécommunication. Le matériel doit également être

installé en suivant une méthode acceptée de raccordement.

L’abonné ne doit pas oublier qu’il est possible que la

conformité aux conditions énoncées ci-dessus n’empêche

pas la dégradation du service dans certaines situations.

Les réparations de matériel homologué doivent être

coordonnées par un représentant désigné par le fournisseur.

L’entreprise de télécommunications peut demander à

l’utilisateur de débrancher un appareil à la suite de

réparations ou de modifications effectuées par l’utilisateur

ou à cause de mauvais fonctionnement.

Pour sa propre protection, l’utilisateur doit s’assurer que tous

les fils de mise à la terre de la source d’énergie électrique,

des lignes téléphoniques et des canalisations d’eau

métalliques, s’il y en a, sont raccordés ensemble. Cette

précaution est particulièrement importante dans les régions

rurales. Avertissement: L’utilisateur ne doit pas tenter de faire

ces raccordements lui-même; il doit avoir recours à un service

d’inspection des installations électriques, ou à un électricien,

selon le cas.”

“AVIS: L’indice d’équivalence de la sonnerie (IES) assigné

à chaque dispositif terminal indique le nombre maximal de

terminaux qui peuvent être raccordés à une interface. La

terminaison d’une interface téléphonique peut consister en

une combinaison de quelques dispositifs, à la seule condition

que la somme d’indices d’équivalence de la sonnerie de touts

les dispositifs n’excède pas 5.”

IES: Voir sous le fond de l’ordinateur

10.According to the FCC’s electrical safety advisory, we recom-

mend that you may install an AC surge arrestor in the AC out-

let to which this equipment is connected. Telephone compa-

nies report that electrical surges, typically lightning transients,

are very destructive to customer terminal equipment connected

to AC power sources and that this is a major nationwide prob-

lem.

“Caution: To reduce the risk of fire, use only No.26 AWG or larger telecom-

munication line cord.”

“ATTENTION: Pour réduire le risque d’incendie, utiliser uniquement des

conducteurs de télécommunications 26 AWG ou de section supérieure.”

Notice for the products using LCD

This product uses one or more fluorescent lamps containing a

small amount of mercury. It also contains lead in some compo-

nents. Disposal of these materials may be regulated in your com-

munity due to environmental considerations. For disposal or

recycling information please contact your local authorities, or

the Electronics Industries Alliance: <http://www.eiae.org/>

Industry Canada

This product complies with RSS210 Industry Canada.

Operation is subject to the following two conditions;

(1) this device may not cause interference, and

(2) this device must accept any interference, including interfer-

ence that may cause undesired operation of the device.

Getting Started

This product and your Health

This product, like other radio devices, emits radio frequency

electromagnetic energy. The level of energy emitted by this

product however is far much less than the electromagnetic en-

ergy emitted by wireless devices like for example mobile

phones.

Because this product operates within the guidelines found in

radio frequency safety standards and recommendations, we be-

lieve this product is safe for use by consumers. These stan-

dards and recommendations reflect the consensus of the scien-

tific community and result from deliberations of panels and

committees of scientists who continually review and interpret

the extensive research literature.

In some situations or environments, the use of this product may

be restricted by the proprietor of the building or responsible

representatives of the organization. These situations may for

example include:

Using this product on board of airplanes, or

In any other environment where the risk of interference to other

devices or services is perceived or identified as harmful.

If you are uncertain of the policy that applies on the use of

wireless devices in a specific organization or environment (e.g.

airports), you are encouraged to ask for authorization to use

this product prior to turning on the product.

Regulatory Information

We are not responsible for any radio or television interference

caused by unauthorized modification of this product. The cor-

rection of interference caused by such unauthorized modifica-

tion will be the responsibility of the user. We and its authorized

resellers or distributors are not liable for damage or violation

of government regulations that may arise from failing to com-

ply with these guidelines.

Information to the User

Important Safety Instructions / Importantes Mesures De Sécurité

When using your telephone equipment, basic safety precautions

should always be followed to reduce the risk of fire, electric

shock and injury to persons, including the following:

1.Do not use this product near water, for example, near a bath

tub, wash bowl, kitchen sink or laundry tub, in a wet base-

ment or near a swimming pool.

2.Avoid using a telephone (other than a cordless type) during

an electrical storm. There may be a remote risk of electric

shock from lightning.

3.Do not use the telephone to report a gas leak in the vicinity of

the leak.

4.Use only the power cord and batteries indicated in this manual.

Do not dispose of batteries in a fire. They may explode. Check

with local codes for possible special disposal instructions.

SAVE THESE INSTRUCTIONS

Certaines mesures de sécurité doivent être prises pendant

l’utilisation de matérial téléphonique afin de réduire les risques

d’incendie, de choc électrique et de blessures. En voici

quelquesunes:

1.Ne pas utiliser l’appareil près de l’eau, p.ex., près d’une

baignoire, d’un lavabo, d’un évier de cuisine, d’un bac à la-

ver, dans un sous-sol humide ou près d’une piscine.

2.Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil

sans fil) pendant un orage électrique. Ceci peut présenter un

risque de choc électrique causé par la foudre.

3.Ne pas utiliser l’appareil téléphonique pour signaler une fuite

de gaz s’il est situé près de la fuite.

4.Utiliser seulement le cordon d’alimentation et le type de piles

indiqués dans ce manual. Ne pas jeter les piles dans le feu:

elles peuvent exploser. Se conformer aux règlements

pertinents quant à l’élimination des piles.

CONSERVER CES INSTRUCTIONS

Lithium Battery

Lithium Battery!

This computer contains a lithium battery to enable the date, time,

and other data to be stored. The battery should only be exchanged

by authorized service personnel.

Warning! A risk of explosion from incorrect installation or mis-

application may possibly occur.

Pile au lithium!

Le micro-ordinateur renferme une pile au lithium qui permet de

sauvegarder certaines données comme la date et l’heure

notamment. Elle ne devra être remplacée que par un technicien

qualifié.

Avertissement! Risque d’explosion en cas de non respect de

cette mise en garde!

Getting Started

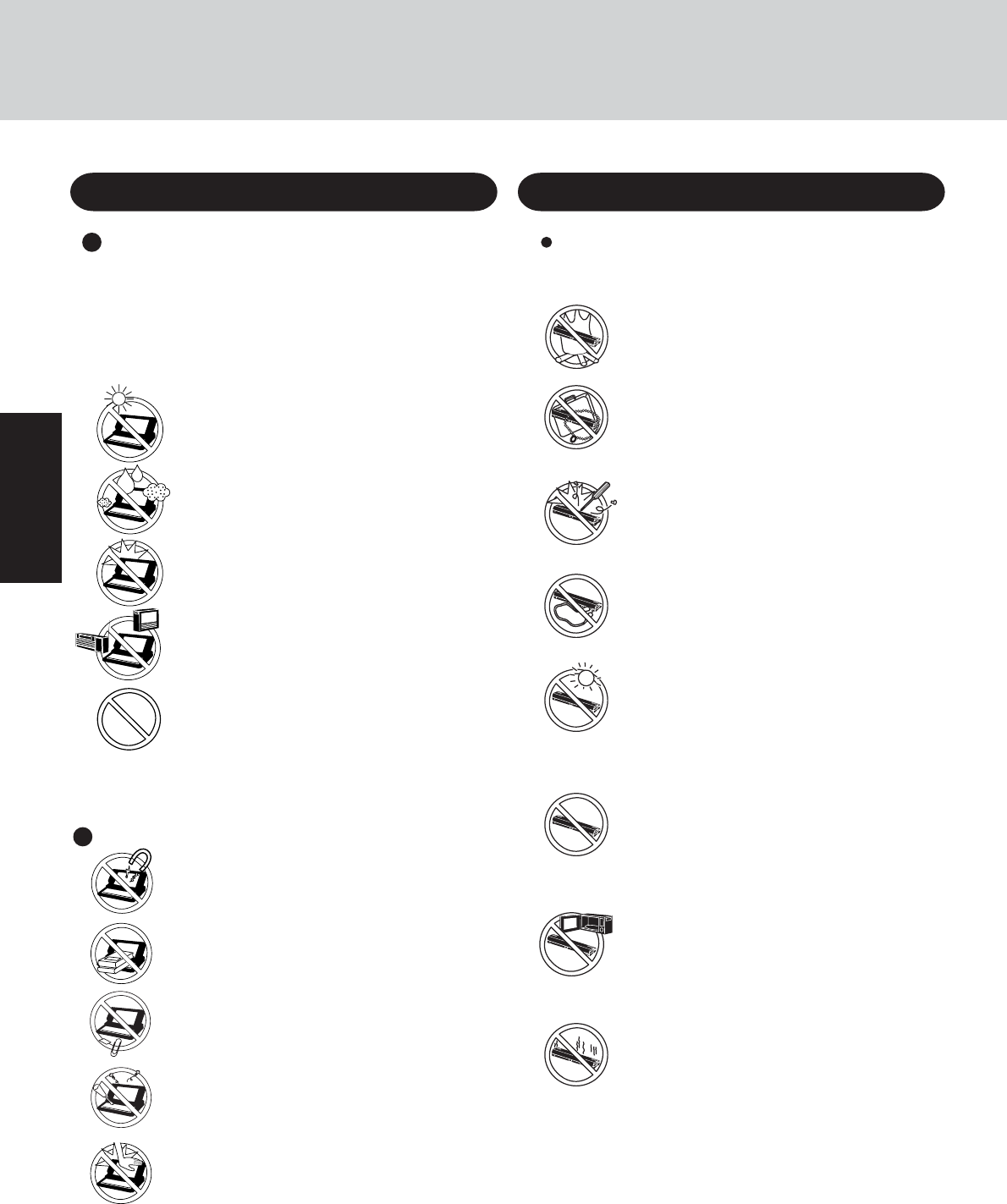

Care should be exercised with regard to the following in

order to avoid the possibility of overheating, fire or dam-

age.

Avoid Heat

Do not throw the battery pack into a fire or

expose it to excessive heat.

Do Not Disassemble

Do not insert sharp objects into the battery pack,

expose it to bumps or shocks, deform, disas-

semble, or modify it.

Do Not Short

Do not short the positive (+) and negative (-)

contacts.

Do Not Put into a Microwave

Do not put the battery pack into a microwave

oven or a pressurized chamber.

Avoid Extreme Heat, Cold and Direct Sun-

light

Do not charge, use or leave the battery pack for

extended periods where it will be exposed to

direct sunlight, in a hot place (in a car on a sunny

day, for example), or in a cold place.

Keep Articles Away

Do not place the battery pack together with ar-

ticles such as necklaces or hairpins when carry-

ing or storing.

Stop Using

Should the battery emit an abnormal odor, be-

come hot to the touch, become discolored,

change shape, or become in any way different

from normal, remove it from the computer and

stop using it.

Do Not Use With Any Other Computer

The battery pack is rechargeable and was in-

tended for the specified computer. Do not use

it with a computer other than the one for which

it was designed.

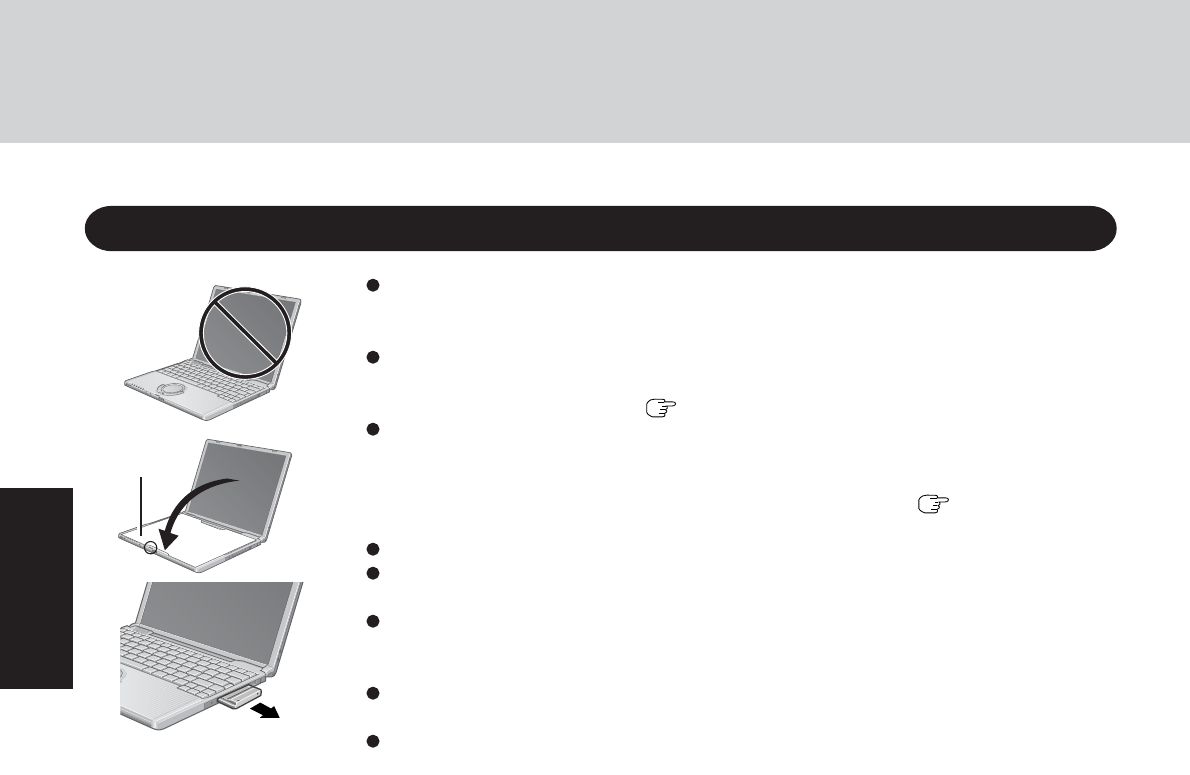

Read Me First

Handling

Avoid Magnetic Fields

Keep the computer away from magnets.

Data stored on the hard disk may be lost.

Avoid Stacking

Do not place heavy objects on top of the computer.

Keep Small Objects Away

Do not insert paper clips or other small objects into

the computer.

Do Not Disassemble the Computer

Do not attempt to disassemble your computer.

Avoid Excessive Force on the Display

Do not apply excessive downward force on the

display.

Precautions

Avoid Extreme Heat and Cold

Do not store or use the computer in locations

exposed to heat, direct sunlight, or extreme cold.

Avoid moving the computer between locations with

large temperature difference.

Operation: 5 oC to 35 oC {41 oF to 95 oF}

Storage: -20 oC to 60 oC {-4 oF to 140 oF}

Avoid Direct Sunlight on the LCD Panel

The LCD panel should not be exposed to direct

sunlight or ultraviolet light.

Avoid Humidity, Liquids and Dust

Do not store or use the computer in locations exposed

to high humidity, liquids (including rain) or dust.

Prevent Shock

Avoid subjecting the computer to severe vibrations or

impact. Do not place the computer inside a car trunk.

Avoid Radio Frequency Interference

Do not place the computer near a television or ra-

dio receiver.

Avoiding low-temperature burns

Avoid more than casual contact with any heat pro-

ducing area of the notebook computer, AC adap-

tor, and any option or accessory you use with it.

Even low heat, if warmer than body temperature,

can cause a burn, if the skin is exposed to the heat

source for a long enough period of time.

Usage

Precautions (Battery Pack)

Getting Started

Precautions (Battery Pack)

NOTE

The battery pack may become warm during recharging or

normal use. This is completely normal.

Recharging will not commence outside of the allowable

temperature range (0 °C to 55 °C {32 °F to 131 °F}). (

“Battery Power”) Once the allowable range re-

quirement is satisfied, charging begins automatically.

Note that the recharging time varies based on the usage

conditions. (Recharging takes longer than usual when the

temperature is 10 °C {50 °F} or less.)

If the temperature is low, the operating time is shortened.

Only use the computer within the allowable temperature

range.

The battery pack is a consumable item. If the amount of

time the computer can be run off a particular battery pack

becomes dramatically shorter and repeated recharging

does not restore its performance, the battery pack should

be replaced with a new one.

When transporting a spare battery inside a package, brief-

case, etc., it is recommended that it be placed in a plastic

bag so that its contacts are protected.

Always power off the computer when it is not in use.

Leaving the computer on when the AC adaptor is not

connected will exhaust the remaining battery capacity.

Do not touch the terminals on the battery pack. The battery

pack may no longer function properly if the contacts are dirty

or damaged.

Do not expose the battery pack to water, or allow it to be-

come wet.

If the battery pack will not be used for a long period of time

(a month or more), charge or discharge (use) the battery pack

until the remaining battery level becomes 30% to 40% and

store it in a cool, dry place.

This computer prevents overcharging of the battery by re-

charging only when the remaining power is less than approx.

95% of capacity.

The battery pack is not charged when the computer is first

purchased. Be sure to charge it before using it for the first

time. When the AC adaptor is connected to the computer,

charging begins automatically.

Should the battery leak and the fluid get into your eyes, do not

rub your eyes. Immediately flush your eyes with clear water

and see a doctor for medical treatment as soon as possible.

Saving Data on the Hard Disk

Hard Disk Lock

When the Hard Disk Lock is set to [Enable], it is impossible to read/write data from/to the hard

disk when the hard disk is installed in a different computer, since a password is also set for the

hard disk. When the hard disk is returned to the original computer, you can read/write data as

before. In this case, however, make the settings in the Setup Utility exactly the same as they

were before the hard disk was removed. (Note that this Hard Disk Lock does not guarantee the

complete protection of data.)( “Security Measures”)

Do not expose your computer to shock.

Use care when handling your computer, shock may damage your hard disk or make your

software applications and data unusable.

Do not power off your computer while software applications are running or hard disk drive

indicator ( ) is on.

Properly shut Windows*1 down to avoid problems.

Save all valuable data to disks.

Backing up data to disks will limit damage should trouble occur to your computer or should

you inadvertently change or erase data.

Use the security function for all important data. ( “Security Measures” and

“SD Memory Card/MultiMedia Card”)

*1Windows XP : This computer uses Microsoft® Windows® XP Professional.

Windows 2000 : This computer uses Microsoft® Windows® 2000 Professional.

Getting Started

Read Me First

Users are advised to purchase the latest versions of virus protection software and use

them regularly.

We recommend you run the software:

• After booting your computer.

• After receiving data.

We recommend that you check data received on disks or from external sources, such as

data downloaded from the Internet, e-mail, etc. (For compressed files, uncompress them

before running a check).

Computer Viruses

To prevent theft of data or unauthorized access to the hard disk via a wireless LAN.

If you plan to use wireless LAN functions, we recommend that you do so only after making

the appropriate security settings, such as for data encryption.

Wireless LAN

When Using Peripheral Devices

Pay strict attention to the following points to avoid damage to the computer, peripheral de-

vices, cables, etc. Also, in addition to following this manual and the Reference Manual,

carefully read the instruction manuals for the peripheral devices being used.

Use only peripheral devices that conform to the computer’s specifications.

Connect the devices properly, paying close attention to the condition and position of the

connectors.

If a connection cannot be made easily, do not apply undue force; check once more to

confirm the condition and position of the connector (alignment of pins, etc.) .

If the connector has holding screws, fasten the screws firmly.

Do not carry the computer with cables attached, and do not pull on the cables forcefully.

When Disposing of or Transferring Ownership of This Device

When disposing of or transferring ownership of this device, erase all data on the hard disk in

order to prevent the theft of hard disk data. Even if you delete data or initialize the hard disk

through normal Windows commands, data can still be read using special software. In order to

erase all data, either have the data erased by a specialist (at a charge) or use the hard disk data

erase utility (included) ( page 35). (Note that this hard disk data erase utility does not

guarantee that data will be completely erased.)

Also, note that if you transfer ownership of this device without deleting commercial software

that you have installed to the hard disk, you may be in violation of the licensing agreement for

that software.

When Changing Hard Disk Partitions

When using the hard disk backup function ( page 31), do not divide up the hard disk before

creating a backup region. If you do this, the backup region cannot be created. Divide into the

partition when the backup region is created.

Getting Started

Windows Update

You can use the latest patches and service packs for Windows with the following menus.

Do not apply "Driver Update" even if a message to update a driver appears. If a driver

update is required, contact to our web address.

Windows XP

[start] - [All programs] - [Windows Update]

Windows 2000

[Start] - [Windows Update]

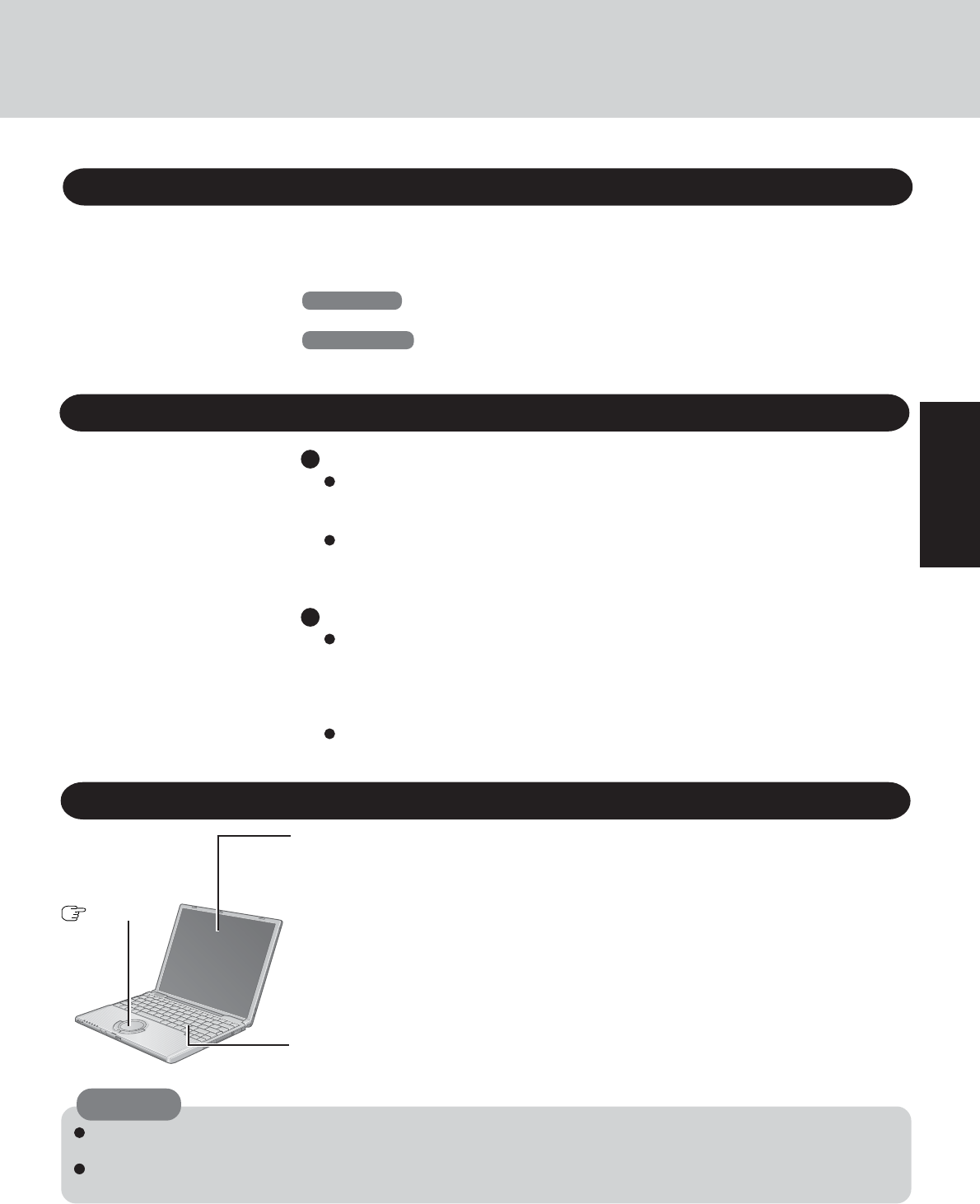

Environment

Place the computer on a flat stable surface. Do not place the computer upright or allow

it to tip over. When the computer receives extremely strong shock after falling, the hard

disk may become inoperable.

In use: Temperature: 5 °C to 35 °C {41 °F to 95 °F}

Humidity : 30% to 80% RH (No condensation)

Not in use: Temperature: -20 °C to 60 °C {-4 °F to 140 °F}

Humidity : 30% to 90% RH (No condensation)

Places not to use your computer

Such areas may result in damage to the computer.

Areas with electronic equipment

These areas may interfere with your display or cause your computer to produce

strange sounds.

Areas with extremely high/low temperatures

Do not leave things near the computer that are sensitive to heat. During operation, the

computer may become warm.

Usage Environment

Touch Pad

page 19

Display

Use the soft cloth included with the computer. (For more information, refer to “Suggestions

About Cleaning the LCD Surface” that comes with the soft cloth.)

Avoid using water when cleaning the panel. Ingredients included in water may leave scratches

and reduce readability of the screen.

Avoid rubbing off dust/dirt with cloth since it may leave scratch on the screen.

Sweep dust/dirt with fine brush, then wipe it with a dry soft cloth used for cleaning glasses.

Apply camera lens cleaner on a soft gauze and clean it with gentle force. Then, wipe with a

dry soft cloth used for cleaning glasses.

Areas excluding the display

Wipe these areas with a soft cloth, after applying water or detergent diluted with water to the

soft cloth and firmly wringing out excess water.

Maintenance

Do not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect the surface, e.g., discoloration. In addition, do

not use commercially-available household cleaners and cosmetics, as they may contain components harmful to the surface.

Do not directly add or spray water or detergent. If liquid enters the inside of the computer, it may cause it to work

improperly or be damaged.

CAUTION

Getting Started

Read Me First

Handling

This computer has been designed so as to minimize shock to the LCD and hard disk drive, etc.,

but no warranty is provided against such trouble. Therefore, as a precision instrument, be

extremely careful in the handling.

Do not carry the computer while the display is open, or carry it by gripping the display or the

cabinet around the display (see figure A). When closing the display, ensure that the latch is

positioned correctly in the slot ( page 11).

Do not carry your computer when the power is on. Lay the carrying cloth that comes with

the computer across the keyboard (see figure B), and close the display gently.

When closing the display, take care to ensure that the carrying cloth does not get caught in

the panel switch, and check that the latch on the computer body ( page 11) is properly

aligned.

Do not drop or hit your computer against solid objects.

Remove all external devices, cables, PC Cards sticking out of the computer (see figure C),

SD memory cards, and MultiMedia Cards before transporting the computer.

We recommend preparing a fully charged battery pack.

When transporting a spare battery pack inside a package, briefcase, etc., it is recommended

that it be placed in a plastic bag so that its contacts are protected.

Always carry your computer with you. Never check it in with luggage. For use of the com-

puter inside an aircraft, we recommend asking the airlines regarding their policy on this issue.

It is a good idea to make backup copies on disks and carry them with you.

Carrying

Cloth

Getting Started

First-time Operation

Read the steps below to help you learn what parts are included, and to gain an understanding

of some basic computer-related operations.

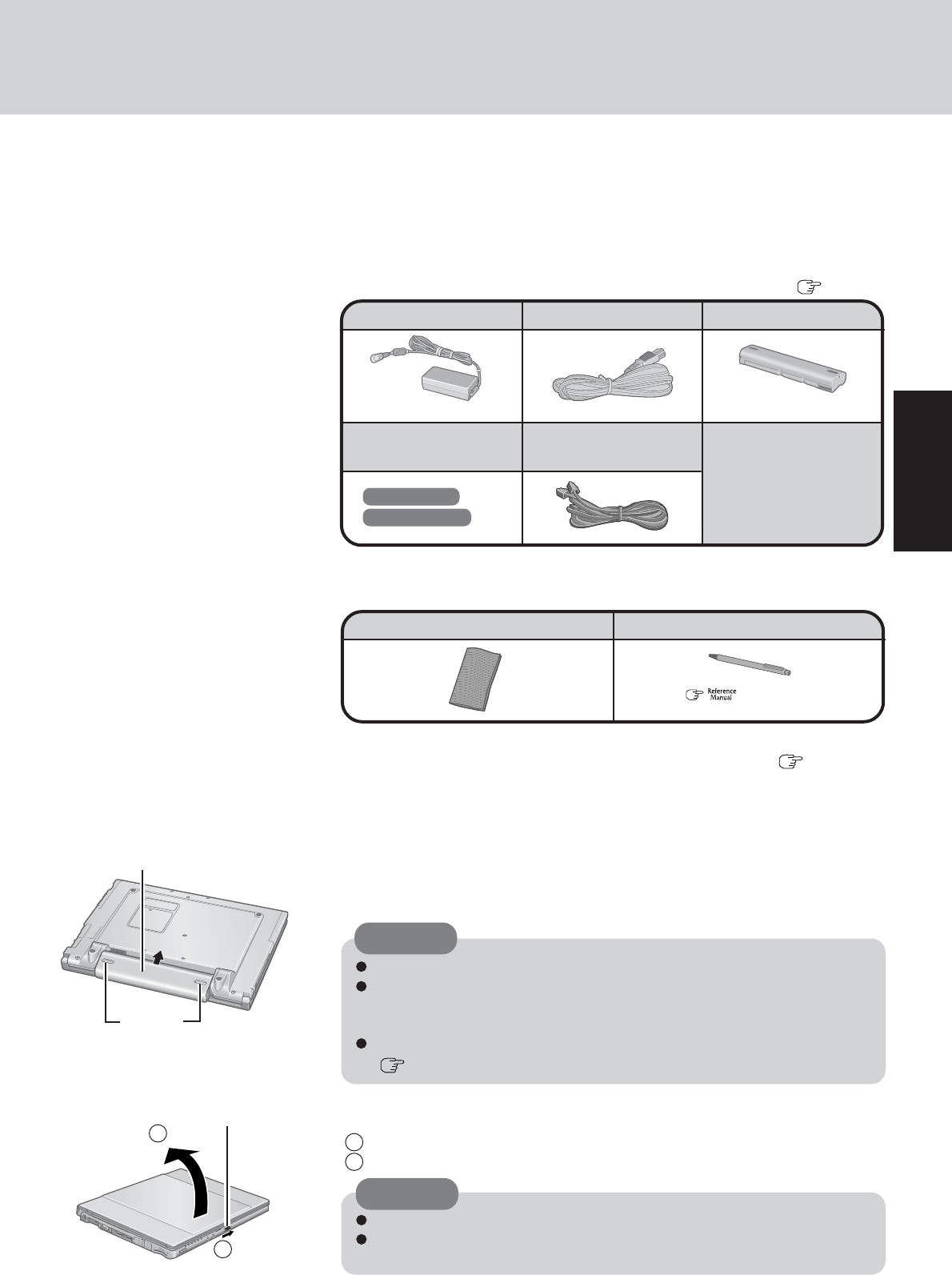

1Confirm the inclusion of all parts.

Make sure the parts shown in the figure have been supplied. If any of these items are

missing or is not working properly, contact your technical support office

( page 38).

Model No : CF-AA1623A

AC adaptor ..........1

Model No :CF-VZSU24/

CF-VZSU24A

AC Cord ...............1 Battery Pack........1

Product Recovery

CD-ROM

Modem Telephone

Cable ................... 1

Windows® Book .... 1

Operating Instructions

(This book)

.................... 1

Windows XP .......3

Windows 2000 ....2

3Turn the computer over and insert the battery pack.

Make sure the battery pack is facing the correct direction, slide it in the direction of the

arrow, and then check to ensure that the battery pack is held firmly by the latches on

the left and right sides.

Latches

CAUTION

Be sure the battery pack is properly connected to the connector.

Do not touch the terminals on the battery pack and the computer. The battery

pack may no longer function properly if the contacts are dirty or damaged.

Also, the computer may not operate properly.

Before using the battery pack, carefully read “Precautions (Battery Pack)”

( page 6).

2Read the LIMITED USE LICENSE AGREEMENT. ( page 29)

Before removing the seal covering the power switch, read the LIMITED USE LICENSE

AGREEMENT.

Battery Pack

Refer to page 9 for details on the carrying cloth for protecting the keyboard.

4Open the display.

1Slide the latch located at the front.

2Lift open the display.

CAUTION

Do not open the display wider than necessary (160° or more).

Do not apply excessive pressure to the LCD. Also, do not hold the LCD when

opening or closing the display.

Latch

( “Touchscreen”)

Soft Cloth .................................. 1 Stylus ..................................... 1

Getting Started

Select settings for your region, then select [Next].

4Enter your name and organization and then select [Next].

First-time Operation

Connect your computer to a power outlet.

CAUTION

Be sure the AC adaptor is connected until completing Step 7 on page 14.

When using the computer for the first time, do not connect any peripheral de-

vice except the battery pack and AC adaptor to the computer.

Handling the AC adaptor

Do not twist or pull the AC power cord forcefully. Doing so may damage the

connections.

Use only the specified AC adaptor with your computer. Using an AC adaptor

other than the one supplied might damage the battery and/or the computer.

When the DC plug is not connected to the computer, disconnect the AC cord

from your AC wall outlet.

Problems such as sudden voltage drops may arise during periods of thunder

and lightning. Since this could adversely affect your computer, an uninterruptible

power source (UPS) is highly recommended unless running from the battery

pack alone.

CAUTION

6Turn your computer on.

Slide the power switch and hold it for approximately one second until the power indi-

cator turns on before releasing it.

Do not slide the power switch and hold it for more than four seconds; this will

cause the power to be turned off forcibly.

Do not slide the power switch repeatedly.

Once the computer is powered off, you must wait at least ten seconds before

powering it on again.

7Setup Windows.

Moving the cursor ( ) or clicking buttons can be performed with the touch pad ( page 19).

The battery pack will be charged automatically.

Charging Time: Approx. 3 hours

(Varies depending on the usage conditions.)

Do not press any keys or move the touch pad until [Windows XP Professional

Setup] is displayed.

CAUTION

Windows XP

1At [Welcome to the Windows XP Setup Wizard], select [Next].

2After reading the agreement, select [I accept this agreement] or [I don’t accept this

agreement], then select [Next].

NOTE

If [I don’t accept this agreement] is selected, the Windows setup will be aborted.

LCD

DC-IN Jack DC IN 16V

Power Switch

Power Indicator

CAUTION

Remember this password! If the password is forgotten, Windows cannot be

operated. You can create a password reset disk beforehand ( page 15).

5Enter your computer name and administrator password and then select [Next].

Getting Started

7At [Networking Settings], select [Typical settings], then select [Next].

8At [Workgroup or Computer Domain], select [No, this computer is not on a

network, or is on a network without a domain], then select [Next].

The computer will restart.

NOTE

If [Windows XP is currently configured to manage the Intel(R) PRO/Wireless

LAN adaptor.] is displayed, select [Yes].

If you use the wireless LAN, be sure to refer to the Reference Manual's "Wire-

less LAN" section.

9Enter your administrator password and select .

10 Select [start] - [Control Panel] - [User Accounts] - [Create a new account] and

follow the instructions on the display to create a user account, then restart the

computer.

NOTE

It may take two to three minutes until the next screen is displayed. Wait, and

do not press any keys, or touch the touch pad, etc.

If "Yes, make this computer a member of the following domain" is selected,

the following message may be displayed: [An invalid domain was specified.

Would you like to proceed for now and try joining a domain later?]. In this

case, select [Yes]. After selecting [Yes], the computer will restart automati-

cally, but sometimes the [Starting Windows] message will remain on the

screen, and windows will not start up. If this happens, hold Alt down

while pressing Tab until [Network Identification Wizard] is displayed on

top, and follow the instructions on the screen.

NOTE

6Enter the correct date, time and the time zone, then select [Next].

When creating a new user account:

If you make mail settings, create password reset disks ( page 15), or

conduct other related operations before creating the user account, you will

be unable to use any previous mail history or settings.

When you create the first new account, you can only select [Computer ad-

ministrator].

Once a "Computer Administrator" account has been created, you can create

additional limited user accounts.

Note also that only the added user account will be displayed in the Wel-

come screen. The account for the administrator created during Windows

setup will not be displayed.

NOTE

If the cursor can not be pointed correctly with the stylus, perform [Calibration] in

[start] - [Control Panel] - [Printers and Other Hardware] - [Mouse] - [TouchScreen].

Getting Started

First-time Operation

Remember this password! If the password is forgotten, Windows cannot be

operated.

CAUTION

1At [Welcome to the Windows 2000 Setup Wizard], select [Next].

2After reading the agreement, select [I accept this agreement] or [I don’t accept this

agreement], then select [Next].

If [I don’t accept this agreement] is selected, the Windows setup will be

aborted.

NOTE

3Select settings for your region, then select [Next].

4Enter your name and organization and then select [Next].

5Enter your computer name and administrator password and then select [Next].

6Enter the correct date, time and the time zone, then select [Next].

7 At [Networking Settings], select [Typical settings], then select [Next].

8At [Workgroup or Computer Domain], select [No, this computer is not on a

network, or is on a network without a domain], then select [Next].

The computer will restart.

At [Welcome to the Network Identification Wizard], select [Next].

At [Users of This Computer], select [Users must enter a user name and pass-

word to use this computer], then select [Next].

Select [Finish].

Enter your administrator password and select [OK].

If the cursor can not be pointed correctly with the stylus, perform [Calibration] in

[Start] - [Settings] - [Control Panel] - [Mouse] - [TouchScreen].

Do not press any keys or move the touch pad until [Windows 2000 Profes-

sional Setup] is displayed.

CAUTION

Windows 2000

This concludes the first-time use operation guidelines.

Getting Started

Depending on the Windows settings, installed applications, and drivers, menus and

other displays may differ, or some functions (such as use of the password reset disk)

may be inoperable.

You can select Classic view for the Control Panel or select the Classic Start menu.

You can also change the way a user logs on or off.

The procedure in this manual uses the method or view of the Windows XP default

setting (not Classic view or Classic Start menu etc.).

Resetting the password

Windows XP has a function to reset a forgotten password.

To use this function, you need to create a password reset disk beforehand following

the steps below.

1Connect the USB floppy disk drive (optional: CF-VFDU03) to your computer.

2Select [start] - [Control Panel] - [User Accounts].

3Select [Prevent a forgotten password] from [Related Tasks] menu of the account

you have logged on to and create a password reset disk by following the on-screen

instructions.

Store the password reset disk in a safe place.

·Only the logon password for each account can be reset.

The password set in the Setup Utility cannot be reset.

Information for Windows XP

Operation

1Open the display.

Starting Up/Shutting Down

Starting Up

Slide the latch located at the front.

Lift open the display.2

CAUTION

Do not open the display wider than necessary (160° or more).

Do not apply excessive pressure to the LCD. Also, do not hold the LCD

when opening or closing the display.

Latch

Three incorrect attempts

No password for about a minute

The correct password

Will Start

Enter your password*1 and press Enter . ( “Security Measures”)

Will Not Start

(Power off)

If [Enter Password] is displayed

*1Supervisor Password or User Password set in the Setup Utility (not

the Windows password).

Enter Password [ ]

2Turn your computer on.

Slide the power switch and hold it for approximately one second until the power

indicator turns on before releasing it.

CAUTION

While booting, avoid the following until the hard disk drive indicator ( )

has turned off.

• Connecting or disconnecting the AC adaptor.

• Touching the power switch.

• Performing any keyboard, touch pad, touchscreen (only for models with

touchscreen), or external mouse operations.

• Closing the display.

Once the computer is powered off, you must wait at least ten seconds before

powering it on again.

When the CPU temperature rises, the computer may not power on to pre-

vent the CPU from overheating. Should this happen, allow the computer to

cool down then switch the power on again.

If the computer still does not power on, contact your technical support office.

( page 38)

When an application or file that was previously displayed

appears on your screen

The standby or hibernation mode has been set ( “Standby/Hibernation Func-

tions”).

Power Switch

Power Indicator

OperationOperation

The power saving function is factory set, so if there is no input from a key, the touch

pad, touchscreen (only for models with touchscreen) or an external mouse (when

one is connected) for a certain interval of time, the power to the LCD and hard disk

may be turned off. The LCD will resume operation when the touch pad, touchscreen

(only for models with touchscreen) or an external mouse (when one is connected) is

used or a key is pressed.

The power to the LCD may be turned off even when an application software is being

installed. In this case, because it is conceivable that a selection dialog box will be

shown, do not press Space or Enter to attempt to resume from this condition

as doing so may trigger a selection, but instead, press a key unrelated to the direct

triggering of a selection, like Ctrl .

In addition, when the computer is left alone, it automatically enters the standby or

hibernation mode ( “Standby/Hibernation Functions”). The computer

will resume by sliding the power switch.

You may hear a mechanical “click” shortly after the hard disk indicator has turned

off when there has been no input from a key or device operation, when the computer

enters the standby or hibernation mode, or when Windows is shut down. This is the

sound of the head shifting positions, to reduce power consumption or to protect the

hard disk from shocks. This sound does not indicate a malfunction.

Windows XP

When switching to a different user with the Fast User Switching function, it may

not be possible to set the settings of the display. In this case, log off all logged in

users, and try the operation once more. If the problem persists, restart the computer.

NOTE

4Select your application.

You are able to start working on your computer.

3Log on to Windows.

Windows XP

After confirming that the hard disk drive indicator ( ) has turned off, select the

user and input the password, then select . Until the correct password is entered, the

computer will not operate.

Windows 2000

After confirming that the hard disk drive indicator ( ) has turned off, input the user

name and password, then select [OK]. Until the correct user name and password are

entered, the computer will not operate.

Operation

Shutting Down (power off your computer)

3 Windows XP

Select [Turn Off].

Windows 2000

Select [Shut down], then select [OK].

Your computer will power off automatically.

Restarting your computer (without shutting down)

Windows XP

Select [Restart].

Windows 2000

Select [Restart], then select [OK].

To shut down using the keyboard,

Windows XP

Press , U , and select [Turn Off] with , then press Enter .

Windows 2000

Press , U , and select [Shut down] with , then press Enter .

To quickly resume computer operation after shutting down,

The standby or hibernation function is available ( “Standby/Hibernation

Functions”).

NOTE

This procedure is for shutting down the computer without using the standby or hibernation

function ( “Standby/Hibernation Functions”

)

1Save important data and close each application.

2 Windows XP

Select [start] - [Turn Off Computer].

Windows 2000

Select [Start] - [Shut Down].

CAUTION

Do not do the following during the shutdown/restart procedure.

• Connecting or disconnecting the AC adaptor.

• Touching the power switch.

• Performing any keyboard, touch pad, touchscreen (only for models with

touchscreen), or external mouse operations.

• Closing the display.

Starting Up/Shutting Down

OperationOperation

Touch Pad

Use the touch pad to move the cursor on the display and perform normal computer operations.

Left Button

Work Surface

NOTE

Right Button

Handling the Touch Pad

Do not place any object on the work surface or press down forcefully with sharp-pointed

objects (e.g., nails) or hard objects that can leave marks (e.g., pencils and ball point pens).

Try to avoid having any harmful substances such as oil, come in contact with the touch pad.

The cursor may not work properly in such cases.

When the touch pad becomes dirty:

Wipe to remove dirt by using a dry soft cloth such as gauze or a soft cloth first applied with

detergent diluted with water and then thoroughly wrung.

Do not use benzene, thinner, or rubbing alcohol.

Doing so may adversely affect the surface,

e.g., discoloration. In addition, do not use commercially-available household cleaners and

cosmetics, as they may contain components harmful to the surface.

Two quick taps, but on the

second tap leaving your fin-

ger down (applying pres-

sure) and moving it on the

work surface.

While holding down the but-

ton, moving your finger on

the work surface.

Function Operation

Moving the Cursor

Tapping/Clicking

Double-Tapping/

Double-Clicking

Dragging

Scroll

Move the tip of your finger

lightly over the work surface.

double-tapping

“Touch Pad”

double-clicking

tapping clicking

Refer to [Mouse Properties] for information on basic operations other than the above.

To display [Mouse Properties]:

Windows XP

[start] - [Control Panel] - [Printers and Other Hardware] - [Mouse]

Windows 2000

[Start] - [Settings] - [Control Panel] - [Mouse]

CAUTION

By design the touch pad is to be used with a finger tip only. Therefore, do not use any

implement which causes damage on the work surface.

Operation

Reference Manual

The Reference Manual and the Important Tips can be accessed on your computer. When a

printer is connected, these manuals can also be printed.

The Reference Manual explains functions for you to make greater use of the computer, such

as how to add peripheral devices, how the Setup Utility works, and other useful information.

(Refer to the cover of this manual for a list of the main contents included.)

Important Tips provides information on how to maximize use of the battery pack, which is

necessary for computing away from your home or office.

It also offers helpful explanations on how to use the touchscreen more effectively.

Illustrations may be difficult to view depending on the magnification. If the illustra-

tion is too small, magnify the display.

When the taskbar is hidden at the bottom portion of Acrobat Reader, set the maximum

display window size.

If a printer is connected, we recommend printing pages. The illustrations and display

samples may not print with a high quality.

NOTE

Running the Reference Manual or Important Tips

Reference Manual

Windows XP

Select [Reference Manual] in [start].

Windows 2000

Select [Reference Manual] in [Start] - [Programs] - [Panasonic] -

[On-Line Manuals].

Important Tips

Select on the desktop.

Important Tips can also be accessed from the following menu.

Windows XP

Select [Important Tips] in [start] - [All Programs] - [Panasonic] - [On-Line Manuals].

Windows 2000

Select [Important Tips] in [Start] - [Programs] - [Panasonic] - [On-Line Manuals].

When the Reference Manual or Important Tips is started up for the first time, the License Agree-

ment of the Acrobat Reader may be displayed. If it is displayed, after reading the agreement,

select [Accept] to access the Reference Manual or Important Tips.

Troubleshooting

List of Error Codes

The following is a list of the messages that BIOS can display. Most of them occur during POST. Some of them display

information about a hardware device, e.g., the amount of memory installed. Others may indicate a problem with a device,

such as the way it has been configured. Following the list are explanations of the messages and remedies for reported

problems.

If your system displays any of the below error messages other that the ones marked with an asterisk (*), write down the

message and contact your technical support office. ( page 38) If your system fails after you make changes in the Setup menus,

reset the computer, enter Setup and install Setup defaults or correct the error.

0200 Failure Fixed Disk

Fixed disk in not working or not configured properly. Check to see if fixed disk is attached properly. Run Setup.

Find out if the fixed-disk type is correctly identified.

0211 Keyboard error

Keyboard not working.

0212 Keyboard Controller Failed

Keyboard controller failed test. May require replacing keyboard controller.

0213 Keyboard locked - Unlock key switch

Unlock the system to proceed.

0230 System RAM Failed at offset : nnnn

System RAM failed at offset nnnn of in the 64k block at which the error was detected.

0231 Shadow RAM Failed at offset : nnnn

Shadow RAM failed at offset nnnn of the 64k block at which the error was detected.

0232 Extended RAM Failed at offset : nnnn

Extended RAM Failed at address line : nnnn

Extended memory not working or not configured properly at offset or address line nnnn.

0250 System battery is dead - Replace and run SETUP

The CMOS clock battery indicator shows the battery is dead. Replace the battery and run Setup to reconfigure the system.

*0251 System CMOS checksum bad - Default configuration used

System CMOS has been corrupted or modified incorrectly, perhaps by an application program that changes data stored in CMOS. The

BIOS installed Default SETUP Values. If you do not want these values, enter Setup and enter your own values. If the error persists, check

the system battery or contact your technical support office.

0260 System timer error

The timer test failed. Requires repair of system board.

0270 Real time clock error

Real-time clock fails BIOS test. May require board repair.

0271 Check date and time settings

Real-time clock is illegal. Run Setup and set the date and clock.

*0280 Previous boot incomplete - Default configuration used

Previous POST did not complete successfully. POST loads default values and offers to run Setup. If the failure was caused by incorrect

values and they are not corrected, the next boot will likely fail. On systems with control of wait states, improper Setup settings can also

terminate POST and cause this error on the next boot. Run Setup and verify that the wait-state configuration is correct. This error is cleared

the next time the system is booted.

02D0 System cache error - Cache disabled

Contact your technical support office.

Failing Bits : nnnn

The hex number nnnn is a map of the bits at the RAM address which failed the memory test. Each 1 (one) in the map indicates a failed bit.

See error 230,231 or 232 for offset address of the failure in System, Extended or Shadow memory.

Operating System not found

Operating system cannot be located on either drive A: or drive C:. Enter Setup and see if fixed disk and drive A: are properly identified.

Press <F1> to resume, <F2> to Setup

Displayed after any recoverable error message. Press <F1> to start the boot process or <F2> to enter a Setup and change the settings. Write

down and follow the information shown on the screen.

Troubleshooting

The power indicator or bat-

tery indicator is not lit

The computer does not op-

erate when a USB device is

connected

[

Enter Password

] is displayed

POST Startup Error(s) is

displayed

Windows startup, or an op-

eration is extremely slow

The date and time are incor-

rect

When resuming from the

standby or hibernation

mode, [Enter Password]

does not appear even if a

password has been set in the

Setup Utility

When “Invalid system disk.

Replace the disk, and then

press any key.” (or a simi-

lar message) is displayed

Dealing with Problems (Summary)

Check the cable connection for the AC adaptor.

Check to see if a fully charged battery is properly inserted.

Remove the battery pack and disconnect the AC adaptor, then connect them again.

The computer may not operate when certain USB devices are connected. Disconnect the

USB device, or set [Legacy USB Support] to [Disable] in [Advanced] menu of the Setup

Utility.

Input your Supervisor Password or User Password. If you have forgotten it, contact your

technical support office ( page 38).

page 21

Press F9 in the Setup Utility ( “Setup Utility”). This will restore the Setup

Utility’s settings to their default values (except the password settings). Then, the Setup

Utility must be run once again for you to input the appropriate operating environment

settings. (The processing speed depends on the application software used, so this opera-

tion may not cause the processing speed to increase.)

If operations slow down during streaming playback, try changing the number of colors of

the display.

You can set the date and time using the following menu:

Windows XP

[start] - [Control Panel] - [Date, Time, Language, and Regional Options] - [Date and

Time]

Windows 2000

[Start] - [Settings] - [Control Panel] - [Date/Time]

If you continue to experience problems, the internal battery maintaining the clock may

need to be replaced. Contact your technical support office ( page 38).

When the computer is connected to a LAN, confirm the date and time of the server.

This computer will not correctly recognize the date and time starting from the year 2100

A.D.

Even when a password has been set in the Setup Utility, [Enter Password] does not

appear when the computer resumes from the standby or hibernation mode.

If you want to use the security function when using the standby or hibernation mode, use

the Windows password as follows:

Windows XP

Select the account to change in [start] - [Control Panel] - [User Accounts] and set the

password, then add the check mark for [Prompt for password when computer resumes

from standby] in [Control Panel] - [Performance and Maintenance] - [Power Options] -

[Advanced].

Windows 2000

Set the password in [Start] - [Settings] - [Control Panel] - [Users and Passwords], then

add the check mark for [Prompt for password when computer goes off standby] in

[Control Panel] - [Power Options] - [Advanced].

This means a floppy disk that does not contain system startup information has been left in

the floppy disk drive. Remove the floppy disk, and press any key.

This message may appear when certain USB devices are connected. Remove the USB

device, or set [Legacy USB Support] in [Advanced] menu of the Setup Utility to [Dis-

able].

If the message still appears even after trying the above two measures, this may be an

indication that some type of hard disk failure has occurred. Contact your technical sup-

port office ( page 38).

When a problem occurs, refer to this page. The “Reference Manual” also contains detailed information. If a problem appears to be

related to a software application, read the software related manual. If you still cannot troubleshoot the problem, contact your

technical support office. ( page 38) You can use the PC Information Viewer to check the computer's usage status. ( page 26)

Starting Up

Troubleshooting

When the administrator

password is forgotten

When the previous item is

not the cause

Set the password again in the following procedure.

Windows XP

If you have created a password reset disk ( page 15), a message is displayed when

you fail to correctly enter the password. Follow the message’s instructions and set the

password again by using the password reset disk.

If you have not created a password reset disk, after reinstalling, setup Windows and then

set the password again.

Windows 2000

After reinstalling, setup Windows and then set the password again.

Press F9 in the Setup Utility ( “Setup Utility”). This will restore the Setup

Utility’s settings to their default values (except the password settings).

Try removing all peripheral devices.

Check a disk error using the following procedure.

1Display [Local Disk(C:) Properties].

Windows XP

Select [Local Disk(C:)] with the right button in [start] - [My Computer], and select

[Properties].

Windows 2000

Select

[Local Disk(C:)] with the right button in [My Computer], and select [Properties].

2Select [Tools] - [Check Now].

3Select [Start] after selecting required items in [Check disk options].

At startup, hold down F8 when [Panasonic] screen disappears, and release your finger

when the Windows Advanced Option Menu is displayed. Start the computer in Safe

Mode, and confirm the details of the error.

Starting Up (continued)

No display after powering on

The power has not been

turned off, but after a cer-

tain period of time, there is

no display

When the battery pack is

used, the screen is darker

than when the AC adaptor

is connected

The cursor cannot be con-

trolled properly

When there is no display to an external display,

• Check your cable connection to the external display.

• Confirm your display is powered on.

• Check the settings for your external display.

The display destination may be set to the external display.

Try changing the display destination by pressing Fn + F3 .

If you want to switch the display destination repeatedly by pressing Fn + F3 , make

sure that the display destination has switched completely each time before pressing

Fn + F3 again.

Has the computer been set to the power-saving mode?

To resume operation of your computer from the condition the power of the display is off

(for energy conservation purposes), press any key unrelated to the direct triggering of a

selection, like Ctrl .

To save power, your computer may have automatically entered the standby mode (power

indicator blinks green) or hibernation mode (power indicator turns off). In such cases,

slide the power switch.

Press Fn + F2 and adjust the brightness. Note, however, that when the brightness is

increased, the battery running time will become shorter.

Brightness can be set to separate levels for when the AC adaptor is connected and when

it is disconnected.

If you are using an external mouse, ensure that the external mouse has been connected

correctly.

Restart the computer by using the keyboard (Press , U , and select [Restart] with

, then press Enter ).

If the computer does not respond to keyboard commands, read “No response”

( page 25).

Display

Troubleshooting

Dealing with Problems (Summary)

Display (continued)

An afterimage appears (e.g.,

green, red, and blue dots

remain on the display) or

there are dots not display-

ing the correct colors

The screen becomes disor-

dered

The external display no

longer displays properly

During simultaneous dis-

play, the screen of the exter-

nal display becomes disor-

dered

When an MPEG file is be-

ing played with Media

Player, the display destina-

tion cannot be switched us-

ing Fn + F3

If an image is displayed for a prolonged period of time, an afterimage may appear. This

is not a malfunction. The afterimage will disappear when a different screen is displayed.

High-precision and advanced technologies are necessary in the production of color liquid

crystal displays (color LCDs). Therefore, if 0.002% or less of the picture elements either

fail to light or remain constantly lit (that is, more than 99.998% of elements are function-

ing properly), no defect is considered to exist.

Changing the number of colors and resolution of the display may affect the screen. Re-

start the computer.

When an external display not compatible with the power saving mode is used with the

computer, the display may not function correctly when the computer enters the power

saving mode. In such cases, turn off the power to the external display.

Try changing the display by pressing Fn + F3 .

If you continue to experience problems, try changing the display destination in the fol-

lowing menu:

Windows XP

[start] - [Control Panel] - [Other Control Panel Options] - [Inte

l(R)

Extreme Graphics] -

[Devices]

Windows 2000

[Start] - [Settings] - [Control Panel] - [

Inte

l(R)

Extreme Graphics] - [Devices]

The display destination cannot be switched while an MPEG file is playing. Stop playing

the MPEG file before switching the display destination.

Battery Indicator

The red indicator lights

The red indicator blinks

The orange indicator blinks

The battery level is very low (the charge is less than approx. 9% capacity).

Connect the AC adaptor. You can use the computer when the indicator light is orange. If

you do not have an AC adaptor, save your data and power off your computer. After

replacing the battery pack with a fully charged one, turn your computer on.

Quickly save your data and power off your computer. Remove the battery pack and

disconnect the AC adaptor, then connect them again.

If the problem persists, contact your technical support office ( page 38). Possible

failure in the battery pack or charging circuit.

Battery cannot be recharged temporarily because the internal temperature of the battery

pack is outside of the acceptable temperature range for recharging. Once the allowable

range requirement is satisfied, charging begins automatically. Your computer can be used

normally in this state.

Windows cannot be shut

down or restarted

Shutting down

If a USB device is connected, try removing it.

Is Acrobat Reader installed?

If Acrobat Reader is not installed, run [c:\util\reader\m\acroreader51_enu_full.exe] in

[start]*1 - [Run] to reinstall theprogram. When installing the program, do not change the

installation destination folder. If the destination folder is changed, the Reference Manual

cannot be opened from [start]*2 menu.

*1Windows 2000 : [Start]

Reference Manual

The Reference Manual is

not displayed

Troubleshooting

Some applications may not

work properly

Fast User Switching Function Windows XP

When switching to a different user with the Fast User Switching function, the following

problems may occur. In this case, log off all logged in users, and try the operation once

more. If the problem persists, restart the computer.

• Some applications may not work properly.

• Key combination with Fn may not work.

• It may not be possible to set the settings of the display.

• The wireless LAN cannot be used.

Press Ctrl + Shift + Esc to open Task Manager and close the software application

which is not responding.

After shutting down by sliding the power switch for more than four seconds, slide the

power switch to power on and open the application again.

If the program no longer works normally, delete the program using the following menu.

Then reinstall the program.

Windows XP : [start] - [Control Panel] - [Add or Remove Programs]

Windows 2000 : [Start] - [Settings] - [Control Panel] - [Add/Remove Programs]

No response

Others

SD Card Setup (SD memory card security function)

Cannot log on with the SD

memory card

Windows logon user name and a password are not set in the SD memory card correctly.

Enter the Windows user name and password without using the SD memory card. After

logging on, reset the SD memory card, or use the [Control Panel] to create a user with the

user name and password set on the SD memory card

( “SD Memory Card/MultiMedia Card”)

Troubleshooting

You can use the PC Information Viewer to check the computer’s usage status, and use

this information when calling technical support office for advice. (If you have not logged

on with administrator authority, some information will be displayed as [Not Found].)

Running PC Information Viewer

Windows XP

1Select [start] - [All Programs] - [Panasonic] - [PC Information Viewer] - [PC

Information Viewer].

Windows 2000

1Select [Start] - [Programs] - [Panasonic] - [PC Information Viewer] - [PC Informa-

tion Viewer].

Click on the items to display detailed information for each item.

Save information to a file

Displayed information can be saved to a text file(.txt).

1Run the PC Information Viewer and display the information you wish to save.

2Select [Save].

·To save the item that is displayed.

Select [Save only the information displayed] and [OK].

·To save all items.

Select [Save all the information] and [OK].

3Select the folder, input the file name, then select [Save].

Save a copy of the screen to a file

You can save a copy of the screen currently being displayed to a file in bitmap

format (.bmp).

1Display the screen you want to save.

2Press Ctrl + Alt + F8 .

[pcinfo.bmp] will be saved in [My Documents] folder. If [pcinfo.bmp] file already

exists, it will be overwritten. (If [pcinfo.bmp] file is set as a “Read only” or “Hid-

den” file, the new file cannot be saved).

Check the Computer's Usage Status

You can also save a copy of the screen to a file using the following procedure.

Windows XP

Select [start] - [All Programs] - [Panasonic] - [PC Information Viewer] - [Screen Copy].

Windows 2000

Select [Start] - [Programs] - [Panasonic] - [PC Information Viewer] - [Screen Copy].

At the time of purchase, the computer is set so that a copy of the screen can be saved to

a file by pressing Ctrl + Alt + F8 . This setting can be changed using the

following procedure.

1Select [PC Information Viewer].

Windows XP

Select [start] - [All Programs] - [Panasonic] - [PC Information Viewer].

Windows 2000

Select [Start] - [Programs] - [Panasonic] - [PC Information Viewer].

2Select [Screen Copy] with the right button, and select [Properties] - [Shortcut].

3Move the cursor to [Shortcut key], and press the key to be used for the shortcut.

Colors are saved in 256 colors.

When using an Extended Desktop.

Saves a copy of the screen displayed on the primary device.

NOTE

Dealing with Problems (Summary)

Troubleshooting

Reinstalling Software

Before Reinstallation

Preparing

• Product Recovery CD-ROM (included)

• Panasonic USB CD drive (optional: CF-VDRRT1M)

Reinstalling

Important

Before the reinstallation procedure, remove all peripherals (except for the CD drive).

Be sure the AC adaptor is connected until the reinstallation procedure is completed.

When reinstall procedure is performed, the contents of the hard disk will be erased. Be sure to back up any critical data on your

hard disk to another media or to an external hard disk before running the reinstall procedure.

The reinstall procedure will return the computer to its original condition.

Even if a hard disk backup area has been created, this backup area will be erased, and all the backed up data will be lost.

(This is not the case when Windows is reinstalled in the First partition.)

• If you have created partitions for data, the data may be erased or become corrupt as a result of the reinstall procedure.

1Turn off the computer and connect the USB CD drive to

the computer.

2Turn the computer on, and press F2 while [Panasonic]

screen is displayed.

The Setup Utility will start up.

If the password has been set, enter the Supervisor Pass-

word.

3Write down all of the contents of the Setup Utility and then

press F9 .

At the confirmation message, select [Yes] and press

Enter .

4Select [Boot] menu, then select [USB CD Drive] and press

F6 until [USB CD Drive] is at the top of the [Boot]

menu.

5Place the disc number one of the recovery CDs into the CD

drive.

6Press F10 .

At the confirmation message, select [Yes] and press

Enter . The computer will restart.

When the hard disk backup function has been enabled.

When the message [The hard disk backup function will

be disabled. The backup data will be erased.] appears,

press Y .

This screen should appear.

7Select [1.[Recovery]].

The License Agreement screen should appear.

8Select [1. Yes, I agree to the provisions above and wish to

continue!].

9Make a selection from the menu.

When selecting [2], enter the basic partition size for

the operating system installation and press Enter .

(The data partition size is the remainder after subtract-

ing the basic partition size.)

To select [3], the initial partition size must be 6 GB or

more of the hard disk size. Reinstallation cannot be

performed with a small partition size.

When the hard disk backup function has been enabled.

If you select [1] or [2], the message [The hard disk

backup function will be disabled. The backup data

will be erased.] appears. In this case, press Y .

However, when [2] is selected, the hard disk backup

function cannot be re-enabled because the hard disk

has been divided into partitions.

Windows 2000

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

Reinstalling : Windows(R) 2000 Professional

1. Reinstall Windows to the whole HDD to factory default.

2. Make two partitions, for the operating system and data. And reinstall

Windows to the operating system partition.

(All existing partitions on HDD will be lost.)

3. Reinstall Windows to the first partition.

0. Cancel

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

Reinstalling : Windows(R) XP Professional

1. Reinstall Windows to the whole HDD to factory default.

2. Make two partitions, for the operating system and data. And reinstall

Windows to the operating system partition.

(All existing partitions on HDD will be lost.)

3. Reinstall Windows to the first partition.

0. Cancel

---------------------------------------------------------------------

Windows XP

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. [ Recovery ] Reinstall Windows.

2. [ Erase HDD ] Erase the whole data on HDD for security.

0. [ Cancel ] Cancel.

---------------------------------------------------------------------

This screen should appear.

Troubleshooting

11 After the reinstallation procedure completes, this

screen should appear.

12 Remove the recovery CD and press any key to shut

down the computer, then remove the CD drive.

13 Turn the computer on, and press F2 while [Panasonic]

screen is displayed.

The Setup Utility will start up.

If the password has been set, enter the Supervisor Pass-

word.

14 Press F9 .

At the confirmation message, select [Yes] and press

Enter . (The Setup Utility settings will return to their

default values. Even the security settings with the ex-

ception of the password(s) will return to their default

values.)

15 Press F10 .

At the confirmation message, select [Yes] and press

Enter .

16 Perform the setup procedure for Windows by following

the instructions on the screen ( page 12).

17 Run the Setup Utility and change the settings where nec-

essary.

Do not interrupt the reinstall procedure before

completion, for example by turning off the com-

puter or pressing Ctrl + Alt + Del , as this

may prevent Windows from starting up, or may

cause data to be lost so that the reinstall procedure

cannot be executed.

When a message appears instructing you to insert

the next CD, insert the recovery CD showing the

next number in the sequence, and then select [OK].

If the message [The media does not contain the cor-

rect file] appears, select [OK]. A message will ap-

pear instructing you to insert the next CD.

Confirm that the proper recovery CD has been in-

serted by opening the cover of the CD drive and

then close the cover, then select [OK].

CAUTION

Reinstalling Software

--------------------------------------------------------------------------

[Recovery] is complete.

Windows(R) XP Professional install wizard will start after reboot.

After turning off the power, please disconnect the CD/DVD-ROM drive, and

turn the power on again.

--------------------------------------------------------------------------

Windows XP

Windows 2000

--------------------------------------------------------------------------

[Recovery] is complete.

Windows(R) 2000 Professional install wizard will start after reboot.

After turning off the power, please disconnect the CD/DVD-ROM drive, and

turn the power on again.

--------------------------------------------------------------------------

If you select [3] in step 8 ( page 27) and execute rein-

stallation, the drive name for the second partition (data par-

tition) may be switched with that of the SD Memory Card.

You can still use the drives after the names have been

switched, but you can also return the drive names to their

original state using the following procedures.

(The following procedure assumes that before reinstallation,

the second partition (data partition) was Drive E:, and the

SD Memory Card was Drive D:)

1Disable the drive name for the second partition (data

partition).

1In the menu below, select [Computer Management].

Windows XP

Select [start]-[Control Panel]-[Performance and Main-

tenance]-[Administrative Tools].

Windows 2000

Select [Start]-[Settings]-[Control Panel]-[Administra-

tive Tools].

2Select [Disk Management].

3Right click on the partition for which [D:] is displayed

and select [Change Drive Letter and Paths...].

4Select [Remove].

5At the confirmation message, select [Yes].

2Change the SD Memory Card drive name to [D:].

Use the SD drive change tool to change the SD Memory

Card to the D: drive. ( [SD Memory Card/

MultiMedia Card]).

3Set the drive name for the second partition (data partition)

as [E:].

1In the menu below, select [Computer Management].

Windows XP

Select [start]-[Control Panel]-[Performance and Main-

tenance]-[Administrative Tools].

Windows 2000

Select [Start]-[Settings]-[Control Panel]-[Administra-

tive Tools].

2Select [Disk Management].

3Right click on the partition for which the drive name is

not displayed, and select [Change Drive Letter and

Paths...].

4Select [Add...], assign [E:] as the drive letter, and select

[OK].

10 At the confirmation message , press Y .

The operation of reinstallation for the hard disk starts

automatically. (The operations take about an hour.)

AppendixAppendix

LIMITED USE LICENSE AGREEMENT

YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANICALLY OR ELECTRONICALLY TRACE

THE PROGRAMS, OR ANY COPY THEREOF, IN WHOLE OR IN PART.

YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PROGRAMS OR ANY COPY THEREOF, IN

WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THE LICENSE.

IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO ANOTHER PARTY, EXCEPT AS PERMIT-

TED IN PARAGRAPH E ABOVE, YOUR LICENSE IS AUTOMATICALLY TERMINATED.

This license is effective only for so long as you own or lease the Product, unless earlier terminated. You may terminate

this license at any time by destroying, at your expense, the Programs and related documentation together with all

copies thereof in any form. This license will also terminate effective immediately upon occurrence of the conditions

therefor set forth elsewhere in this Agreement, or if you fail to comply with any term or condition contained herein. Upon

any such termination, you agree to destroy, at your expense, the Programs and related documentation together with all

copies thereof in any form.

A. MEI hereby grants you a personal, non-transferable and non-exclusive right and license to use the Programs in

accordance with the terms and conditions stated in this Agreement. You acknowledge that you are receiving only

a LIMITED LICENSE TO USE the Programs and related documentation and that you shall obtain no title,

ownership nor any other rights in or to the Programs and related documentation nor in or to the algorithms,

concepts, designs and ideas represented by or incorporated in the Programs and related documentation, all of

which title, ownership and rights shall remain with MEI or its suppliers.

B. You may use the Programs only on the single Product which was accompanied by the Programs.

C. You and your employees and agents are required to protect the confidentiality of the Programs. You may not

distribute or otherwise make the Programs or related documentation available to any third party, by time-sharing

or otherwise, without the prior written consent of MEI.

D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documentation

for any purpose, except that you may make one (1) copy of the Programs for backup purposes only in support of

your use of the Programs on the single Product which was accompanied by the Programs. You shall not modify,

or attempt to modify, the Programs.

E. You may transfer the Programs and license them to another party only in connection with your transfer of the

single Product which was accompanied by the Programs to such other party. At the time of such a transfer, you

must also transfer all copies, whether in printed or machine readable form, of every Program, and the related

documentation, to the same party or destroy any such copies not so transferred.

F. You may not remove any copyright, trademark or other notice or product identification from the Programs and

you must reproduce and include any such notice or product identification on any copy of any Program.

LICENSE

TERM

YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE BOUND

BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE STATE-

MENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT,

ORAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN US, RELATING TO THE SUBJECT MAT-

TER OF THIS AGREEMENT.

THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC® PRODUCT (“PRODUCT”)

ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH

THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY DEEMED

TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.

Matsushita Electric Industrial Co., Ltd. (“MEI”) has developed or otherwise obtained the Programs and hereby licenses

their use to you. You assume sole responsibility for the selection of the Product (including the associated Programs) to

achieve your intended results, and for the installation, use and results obtained therefrom.

Appendix

A. MEI vous octroie par les présentes le droit et la licence personnels, non cessibles et non exclusifs d'utiliser les

Logiciels conformément aux termes, clauses et conditions de ce Contrat. Vous reconnaissez ne recevoir qu'un

droit limité d'utiliser les Logiciels et la documentation les accompagnant et vous vous engagez à n'obtenir aucun

droit de titre, propriété ni aucun autre droit vis-à-vis des Logiciels et de la documentation les accompagnant ni

vis-à-vis des algorithmes, concepts, dessins, configurations et idées représentés par ou incorporés dans les

Logiciels et la documentation les accompagnant, dont les titres, propriété et droits resteront tous à MEI ou à

leurs propriétaires.

B. Vous ne pouvez utiliser les Logiciels que sur le Produit unique qui est accompagné par les Logiciels.

C. Vous et vos employés ou agents êtes requis de protéger la confidentialité des Logiciels. Vous ne pouvez ni

distribuer ni mettre les Logiciels et la documentation les accompagnant à la disposition d'un tiers, par partage de

temps ou de quelque autre manière que ce soit, sans l'autorisation écrite préalable de MEI.

D. Vous ne pouvez ni copier ni reproduire ni permettre la copie ni la reproduction des Logiciels ni de la documen-

tation les accompagnant pour quelque fin que ce soit, à l'exception d'une (1) copie des Logiciels à des fins de

sauvegarde uniquement pour soutenir votre utilisation des Logiciels sur le Produit unique qui est accompagné

par les Logiciels. Vous ne pouvez ni modifier ni tenter de modifier les Logiciels.

E. Vous ne pouvez céder les Logiciels et en octroyer la licence à une autre partie qu'en rapport avec votre cession

du Produit unique qui est accompagné par les Logiciels à cette autre partie. Au moment de cette cession, vous

devez céder également toutes les copies, que ce soit sous forme imprimée ou lisible par la machine, de tous les

Logiciels ainsi que de la documentation les accompagnant, à la même partie ou détruire les copies non cédées.

F. Vous ne pouvez retirer aucune marque de droits d'auteur, marque ou autre ni aucune identification de produit

des Logiciels et vous devez reproduire et inclure toutes ces notices ou identifications de produit sur toutes les

copies des Logiciels.

Vous ne pouvez assembler en sens inverse, compiler en sens inverse ni retracer les Logiciels ni aucune de leurs

copies, de façon électronique ou mécanique, en tout ou en partie.

Vous ne pouvez utiliser, copier, modifier, altérer ni céder les Logiciels ni aucune de leurs copies, en tout ou en partie,

à l'exception de ce qui est expressément stipulé dans ce contrat.

Si vous cédez la possession de toute copie ou de tout Logiciel à une autre partie, à l'exception de ce qui est autorisé

au paragraphe E ci-dessus, votre licence est automatiquement résiliée.

Licence

Termes, clauses et conditions

Cette licence n'est effective que pour la durée de possession ou de crédit-bail du Produit, à moins d'une résiliation

antérieure. Vous pouvez résilier cette licence à tout moment en détruisant, à vos frais, les Logiciels et la documentation

les accompagnant avec toutes leurs copies, sous quelque forme que ce soit. Cette licence sera également résiliée,

avec application immédiate, si les conditions de résiliation définies ailleurs dans ce contrat se sont réalisées ou si vous

ne respectez pas les termes, clauses et conditions qui y sont contenues. Au moment de la résiliation, vous acceptez de

détruire, à vos frais, les Logiciels et la documentation les accompagnant avec toutes leurs copies, sous quelque forme

que ce soit.

Vous reconnaissez avoir lu ce contrat, en avoir compris toute la substance et avoir accepté de respecter ses termes,

clauses et conditions. Vous reconnaissez en outre qu'ils sont la description complète et exclusive du contrat conclu

entre nous, contrat qui remplace et annule toute proposition ou contrat précédent, écrit ou oral, et toute autre commu-

nication entre nous, relativement à l'objet du présent contrat.

Le(s) logiciel(s) (les “Logiciels”) fournis avec ce produit Panasonic® (le “Produit”) sont exclusivement concédés en

licence à l'utilisateur ultime (“vous”), et ils ne peuvent être utilisés que conformément aux clauses contractuelles ci-

dessous. En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et condi-

tions des présentes.

Matsushita Electric Industrial Co., Ltd. (“MEI”) a mis au point ou obtenu les Logiciels et vous en concède l'utilisation par

les présentes. Vous assumez l'entière responsabilité du choix de ce Produit (y compris des Logiciels associés) pour

obtenir les résultats escomptés, ainsi que de l'installation, de l'utilisation et des résultats obtenus.

Contrat de licence d’usage limité

AppendixAppendix

Hard Disk Backup Function

The hard disk backup function creates a backup area (storage area) on the hard disk. This area is to back up (store) hard disk

contents or restore backed up contents to their original locations.

By backing up the data on your hard disk to a backup area, you can protect your data from loss or damage resulting from opera-

tional errors or other factors. Also, you can back up or restore hard disk contents using this computer alone, without having to use

other media or peripheral devices.

At the time of purchase, the hard disk backup function is disabled. If you follow the procedure below to create a backup area, the

hard disk backup function will be enabled, and you will be able to back up your data. Note, that once the backup function has been

enabled, you will have to perform the reinstall procedure to disable it again ( page 27).

Disconnect or remove all peripheral devices, SD memory cards, and MultiMedia cards. Take

care to disconnect all USB floppy disk drives, as the backup area may not be created properly

while these devices are connected.

Be sure the AC adaptor is connected to the computer.

A backup area cannot be created if the hard disk is already divided into several partitions. Return

the computer to its condition at the time of purchase (one partition only), and create the backup

area.

To divide the partition, make the selection when the backup area is created ( page 32 step 8).

If the partition configuration is changed (partitions created, size changed, etc.) after the backup

area has been created, it will no longer be possible to execute the backup function. To change the

configuration, it is necessary to return the computer to its condition at the time of purchase, and

then create the backup area again.

The hard disk backup function will only work for the internal hard disk. This function does not

work with an external hard disk.

Backup and restore functions will not operate if the hard disk has been damaged.

Do not use the NTFS file system compression function, as this may result in insufficient capacity

of the backup area.

If the hard disk malfunction occurs, it will be impossible to read the data stored hard disk. We

recommend that you also back up important data to a location other than the hard disk (an external

hard disk or other media).

Execute a disk error check using the following procedure.

1Display the [Local Disk(C:) properties].

Windows XP

Select [Local Disk(C:)] with the right button in [start] - [My Computer], and select [Properties].

Windows 2000

Select [Local Disk(C:)] with the right button in [My Computer], and select [Properties].

2Select [Check Now] from [Tools].

3In [Check Disk], select [Start] without adding a check mark beside any of the items.

If a message is displayed indicating that there is an error in the disk, display [Check Disk], and

add a check mark for [Automatically fix file system errors] and [Scan for and attempt recov-

ery of bad sectors], select [Start], and check for disk errors again.

The hard disk backup function does not accommodate dynamic disks. Do not convert the hard

disk to a dynamic disk.

The hard disk backup function cannot back up or restore data properly if there is a problem with the hard disk when the data is

backed up or restored. Note that if an error occurs while data is being restored, whether as a result of an unexpected malfunc-

tion, incorrect operation, or other reason, the data in the hard disk (data before restoration) may be lost.

Matsushita Electric Industrial Co., Ltd. will bear no responsibility for any damages suffered by the user (including loss of data)

as a result of the use of this function.

Before Using a Hard Disk Backup Function

Preparing

Product Recovery CD-ROM (included)

Panasonic USB CD drive (optional: CF-VDRRT1M)

(To next page)

Appendix

Hard Disk Backup Function

1Turn off the computer and connect the USB CD drive to the computer.

2Turn the computer on, and press F2 while [Panasonic] screen is displayed.

The Setup Utility will then start.

If a password has been set, enter the Supervisor Password. You cannot create a backup area

with a User Password.

3Select [Boot] menu, then select [USB CD Drive] and press F6 until [USB CD Drive] is at the

top of the [Boot] menu.

4Place disk number one of the recovery CDs into the CD drive.

5Press F10 .

At the confirmation message, select [Yes] and press Enter .

The computer will restart. If [Input the password] is displayed during the following procedures,

input the Supervisor Password or the User Password.

6Press 3 to execute [3.Backup].

7At the confirmation message, press Y .

8Select how to divide the hard disk from the menu.

To create a backup area and enable the backup function without dividing the hard disk

Select [1].

To create a backup area and divide hard disk into two partitions, for OS and data

Select [2], enter the partition size (GB), and press Enter .

• You can cancel this operation by pressing 0 .

• The data partition size will be the maximum settable size less the number entered above.

The maximum settable size will differ depending on models.

Regarding backup area

• Requires availability of at least half of the entire hard disk. Without sufficient space

available, the backup area cannot be created.

• When the backup area is created, the usable hard disk capacity will be reduced to less

than half.

• The backup area cannot be accessed from Windows. For this reason, backed up data

cannot be copied to CD-R or other removable disk media.

• When the hard disk backup function is executed, data in the backup area will be

overwritten. If newly created or edited data is backed up later, data stored previously

in the backup area will be lost.

NOTE

Create a Backup Area

When dividing the hard disk into partitions

Do not execute [1. Recovery] to divide the hard disk into partitions. The hard disk

backup function cannot be enabled after the hard disk has been partitioned. Use proce-

dure 8 to devide the hard disk.

CAUTION

The usable hard disk area

[At the time of purchase] [After the backup area is created]

The backup area

Cannot be accessed

from Windows.

Can be accessed from

Windows (One partition).

The usable hard disk area

[At the time of purchase] [After the backup area is created]

The backup area

Cannot be accessed

from Windows.

Can be accessed from

Windows (Two partitions).

AppendixAppendix

9When the confirmation message is displayed, press [Yes].

The backup area is then created.

10 When the message [You must reboot in order to enable the Backup function] appears, remove

the recovery CD, and press any key to reboot the computer. When the computer is rebooted

and [Input the password] is displayed, enter the Supervisor Password or the User Password.

The backup process will begin.

11 When the message [[Backup] is complete] appears, press Ctrl + Alt + Del to reboot the

computer.

12 A message will appear advising that a new device has been installed and that the computer

must be rebooted to enable the settings. Select [Yes] to reboot the computer.

Do not press Ctrl + Alt + Del until the message is displayed.

CAUTION

The [Boot] menu in the setup utility is set to start up from the USB CD drive. Change this

setting if necessary.

The next time the backup or restore functions are executed, follow the procedure for [Back-

ing Up and Restoring Data] ( below).

NOTE

1Turn the computer on, and press F2 while [Panasonic] screen is displayed.

The Setup Utility will start up.

If a password has been set, enter the Supervisor Password or the User Password.

2Use and to move to the [Exit] menu, then use and to select [Hard Disk

Backup / Restore] and press Enter .

When the confirmation message is displayed, select [Yes], and press Enter .

Backing Up and Restoring Data

Before executing the backup function, execute a disk error check ( page 31).

Do not interrupt the backup or restore functions before completion, for example by turning

off the power or pressing Ctrl + Alt + Del , as this may prevent Windows from

starting up, or may cause data to be lost so that the backup and restore functions cannot be

executed.

CAUTION

3Select the operation to be executed from the menu.

1 Press 1 to execute [1. [Backup]].

(When dividing the hard disk into two partitions, select the backup method at next screen.)

2At the confirmation message, press Y .

The backup process will begin.

1 Press 2 to execute [2. [Restore]].

(When data is backed up in two partitions, select the restore method at next screen.)

2At the confirmation message, press Y .

The restore process will begin.

The time required to complete the backup or restore process differs depending on the

data volume.

NOTE

Appendix

To disable the hard disk backup function

Perform the reinstall procedure. All data in the backup area and the hard disk will be erased.

Conduct steps 1-7 for [Reinstalling Software] ( page 27). Select [1] or [2] to execute the

reinstallation at the screen for executing the reinstallation.

• When [1] is selected, the hard disk backup function can be disabled.

• When [2] is selected, the hard disk backup function can be disabled, but in this case, because

the hard disk has been divided into partitions, the hard disk backup function cannot be

re-enabled ( page 8).

• When [3] is selected, the hard disk backup function cannot be disabled.

CAUTION

When the hard disk backup function has been enabled, even if a commercial data erasing

utility or similar software is used to erase all data from user-accessible area, the backed up

data will not be erased. You can use the hard disk data erase utility included in this com-

puter ( page 35) to erase all data on the hard disk, including backed up data. Use this

hard disk data erase utility before disposing of or transferring ownership of this computer.

Occasionally, the message [#1805 cannot write image file] will be displayed, and the backup

function will be interrupted. If this error occurs, execute the backup function again. After

this, if the backup function is completed properly, then there is no problem in the hard disk.

4When the message [[Backup] is complete] or [[Restore] is complete] is displayed, press

Ctrl

+ Alt + Del to restart the computer.

• If the backup or restore process was interrupted before completion, for example if the power

was turned off, execute the process again.

• When a new device is installed and a message appears advising that the computer must be

restarted to enable the settings, select [Yes] to restart the computer.

Hard Disk Backup Function

AppendixAppendix

Hard Disk Data Erase Utility

This computer is equipped with a utility for erasing hard disk data.

When disposing of or transferring ownership of this device, erase all data on the hard disk in order to prevent the theft of hard disk

data following the steps below.

The hard disk data erase utility erases data using an “overwriting” method, but there is a possibility that due to malfunctions or

other operational errors, data may not be completely erased. There are also specialized devices that may be able to read data

that has been erased using this method. If you need to erase highly confidential data, we recommend that you contact a

company that specializes in this process. Matsushita Electric Industrial Co., Ltd. will bear no responsibility for losses or

damages suffered as a result of the use of this utility.

Preparing

• Product Recovery CD-ROM (included)

• Panasonic USB CD drive (optional: CF-VDRRT1M)

7Select [2. [Erase HDD]].

8At the confirmation message, press Y .

10 The approximate time required for erasing data will be displayed.

Press Space .

11 At the confirmation message, press Enter . The operation of erasing the hard disk starts.

(If necessary, the “hard disk data erase” operation can be cancelled after it has begun by pressing Ctrl + C .

If the operation is cancelled before being completed, a part of data will not be erased.)

12 After the operation is complete:

Under normal conditions, the message [Hard disk data has been deleted.] will be displayed. Press any key. The computer will

be shut down.

If a problem occurred during the operation, an error message will be displayed.

13 Remove the recovery CD and the CD drive.

Procedure

NOTE

Be sure the AC adaptor is connected until the procedure is completed.

This utility can only be used for internal hard disk. It cannot be used to erase data from external hard disks.

This utility cannot erase data from damaged disk.

This utility cannot erase data for specific partitions.

After executing this utility, the computer cannot be booted from the hard disk.

1Turn off the computer.

2Connect the USB CD drive to the computer.

3Turn the computer on, and press F2 while [Panasonic] screen is displayed.

The Setup Utility will start up.

If the password has been set, enter the Supervisor Password.

4Select [Boot] menu, then select [USB CD Drive] and press F6 until [USB CD Drive] is at the top of [Boot] menu.

5Place the disc number one of the recovery CDs into the CD drive.

6Press F10 .

At the confirmation message, select [Yes] and press Enter .

The computer will restart.

When the hard disk backup function has been enabled.

When the message [The hard disk backup function will be disabled. The backup data will be erased.] appears,

press Y .

This screen should appear.

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. [ Recovery ] Reinstall Windows.

2. [ Erase HDD ] Erase the whole data on HDD for security.

0. [ Cancel ] Cancel.

---------------------------------------------------------------------

Appendix

Names and Functions of Parts

DC-IN Jack

( page 19)

Touch Pad

To adjust the volume:

Fn + F5 / Fn + F6

Speaker on/off : Fn + F4

Speaker

External Display Port

DC IN 16V

Power Switch

Before using the computer for the

first time, carefully read the

[LIMITED USE LICENSE

AGREEMENT]. If you agree to

the conditions, remove the seal.

( “PC Cards”)

PC Card Slot

( “LAN”)

LAN SD memory card status

( “SD Memory

Card/MultiMedia Card”)

( “USB Devices”)

( “External Display”)

USB Ports

SD Memory Card Slot

Battery Pack

RAM Module Slot

( “RAM Module”)

For information on the key combi-

nations available.

( “Key Combinations”).

Use only a monaural condenser mi-

crophone (miniature jack). Using an

input source other than a monaural

condenser microphone may not allow

audio to be input or may damage the

equipment.

Microphone Jack

Use this jack to connect headphones or am-

plifier-equipped speakers. Audio output from

the internal speaker is disabled when head-

phones or external speakers are connected.

Headphone Jack

LCD

( “LED Indicators”)

Power status

Battery pack status

LED Indicators

Caps Lock

Numeric Key (NumLk)

Scroll Lock (ScrLk)

Hard disk drive status

Keyboard

Function Keys

( “Modem”)Modem

( “Battery Power”)

Wireless LAN Antenna

( “Wireless LAN”)

Wireless LAN Antenna

(Only for models with touchscreen:

“Touchscreen”)

A lithium ion battery that

is recyclable powers the

product you have pur-

chased. Please call 1-

800-8-BATTERY for in-

formation on how to re-

cycle this battery.

L’appareil que vous vous

êtes procuré est alimenté

par une batterie au

lithium-ion. Pour des

renseignements sur le

recyclage de la batterie,

veuillez composer le 1-

800-8-BATTERY.

AppendixAppendix

Model No.

CPU

Memory (Expandable to)

Video Memory

LCD Type

Displayed Colors*2

External Display

Hard Disk Drive

Keyboard

Slots PC Card Slot

Allowable current

RAM Module Slot*5

SD Memory Card Slot

Interface External Display Port

Microphone Jack

Headphone Jack

USB Ports

Modem

LAN

Wireless LAN

Pointing Device

Sound

Battery Pack

Operating Time*8

Charging Time*8

Clock Battery

AC Adaptor Input

Output

Power Consumption*9

Environment In use

Temperature

Humidity

Not in use Temperature

Humidity

Physical Dimensions (W × H × D)

Weight

Operating System

Utility Programs

*1A segment of the main memory is allotted automatically depending on the computer’s operating status. The size of the Video Memory

cannot be set by the user.

*2A 16M color display is achieved by using the dithering function.

Windows XP : 256 color depth and the resolution of 640 x 480 are not supported.

*3Maximum resolution depends on the specifications of the external display.

Windows XP : 256 color depth and the resolution of 640 x 480 are not supported.

*41GB = 109 bytes

*5Options: CF-BAT0256U (256MB)

*6Only a RAM card designed for PC2100 can be added.

*7The settings for the K56flex modem need to be changed according to the AT command.

*8Varies depending on the usage conditions, CPU speed, etc.

*9Approx. 1.5 W when the battery pack is fully charged (or not being charged) and the computer is off.

*10 Rated power consumption.

*11 Only for Windows XP

*12 The Product Recovery CD-ROM is required.

Main Specifications

CF-T2AWAZZDM

Intel® Pentium® M Processor 900 MHz

L1 Cache Memory: 32 KB

L2 (Second) Cache Memory: 1MB

256 MB (512 MB Max.)

UMA (64 MB Max.)*1

12.1 type (TFT)

256/65536/16M colors (640 × 480 dots/800 × 600 dots/1024 × 768 dots)

256/65536/16M colors (640 × 480 dots/800 × 600 dots/1024 × 768 dots/1280 × 1024

dots)*3

Approx. 40 GB*4

85 keys

One Type I or Type II

3.3 V: 400 mA, 5 V: 400 mA

172-pin, 2.5 V, Micro DIMM, DDR SDRAM, PC2100*6

SD memory card/MultiMedia Card

Mini Dsub 15-pin female

Miniature jack, 3.5 DIA

Miniature jack, 3.5 DIA, Impedance 32 Ω, Output Power 4 mW × 2

4-pin × 2, USB 2.0

RJ-11 jack, Data: 56 kbps (V.92 & K56flex)*7 FAX:14.4 kbps

RJ-45 jack, IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX

IEEE 802.11b compliant Frequency 2.4 GHz band

Touch Pad

WAVE and MIDI playback, Monaural Speaker (built in)

Li-ion 7.4 V, 4.4 Ah

Approx. 4.5 hours

Approx. 3 hours

Coin type lithium battery 3.0 V

100 V - 240 V AC, 50 Hz/60 Hz

16 V DC, 2.5 A

Approx. 35 W*10 / Approx. 40 W (maximum when recharging in the ON state)

5 °C to 35°C {41 °F to 95 °F}

30% to 80% RH (No condensation)

-20 °C to 60 °C {-4 °F to 140 °F}

30% to 90% RH (No condensation)

268 mm × 26.1 mm(at the front)/39.1 mm(at the rear) × 210 mm (excluding protru-

sion){10.6 " × 1.0 " / 1.5 " × 8.3 "}

Approx. 1070 g {2.4 lb}

Microsoft® Windows® 2000

Professional with Service Pack 3

Adobe® Acrobat® Reader, Intel®

PROSet, WLAN Security Client, Setup Utility, SD-

MovieStage*11, SD Utility, SD Drive Name Change Tool, Touch Pad Utility, DMI

Viewer, PC Information Viewer, Hard Disk Backup Utility*12, Hard Disk Data Erase Utility*12

Specifications

Microsoft® Windows® XP

Professional with Service Pack 1

CF-T2AWAZZKM

Approx. 5 hours

Appendix

LIMITED WARRANTY

PANASONIC PERSONAL COMPUTER AND PERIPHERALS LIMITED WARRANTY

Panasonic Computer Solutions Company (referred to as “Panasonic”) will repair this product (other than software, which is covered by a separate

warranty) with new or rebuilt parts, free of charge in the U.S.A. for three (3) years from the date of original purchase in the event of a defect in materials

or workmanship. This warranty includes the AC adaptor but excludes the batteries and all other options and accessories which are covered for a

period of one (1) year from the date of purchase.

This warranty is extended solely to the original purchaser. A purchase receipt or other proof of date of original purchase will be required before

warranty performance is rendered.

This warranty only covers failures due to defects in materials or workmanship which occur during normal use. It does not cover damage which occurs

in shipment or failures which are caused by products not supplied by Panasonic, or failures which result from alteration, accident, misuse, introduction

of liquid or other foreign matter into the unit, abuse, neglect, installation, maladjustment of consumer controls, improper maintenance, modification or

service by anyone other than a Factory Service Center or authorized Panasonic Service Dealer, or damage that is attributable to acts of God.

Limits and Exclusions:

There are no other express warranties except as listed below.

PANASONIC SHALL NOT BE LIABLE FOR LOSS OF DATA OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE

USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING

THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE APPLICABLE WARRANTY

PERIOD SET FORTH ABOVE. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long

an implied warranty lasts, so the above limitations or exclusions may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. If a problem with your product

develops during or after the warranty period, you may contact our representatives at 1-800-LAPTOP5. If the problem is not handled to your satisfac-

tion, then write to the Consumer Affairs Division at the address indicated below.

SOFTWARE LIMITED WARRANTY

Panasonic Computer Solutions Company (referred to as “Panasonic”) warrants to you only that the disk(s) or other media on which the Programs are

furnished will be free from defects in materials and workmanship under normal use for a period of sixty (60) days from the date of delivery thereof to

you, as evidenced by your purchase receipt.

This is the only warranty Panasonic makes to you. Panasonic does not warrant that the functions contained in the Programs will meet your require-

ments or that the operation of the Programs will be uninterrupted or error free.

Panasonic’s entire liability, and your exclusive remedy under this warranty shall be limited to the replacement, in the United States, of any defective

disk or other media which is returned to Panasonic’s Authorized Service Center, together with a copy of the purchase receipt, within the aforesaid

warranty period.

Anything in the foregoing to the contrary notwithstanding, Panasonic shall have no obligation for any defects in the disk(s) or other media on which the

Programs are furnished resulting from your storage thereof, or for defects that have been caused by operation of the disk(s) or other media otherwise

than on the Product or in environmental conditions other than those specified by Panasonic by alteration, accident, misuse, abuse, neglect, mishan-

dling, misapplication, installation, maladjustment of consumer controls, improper maintenance, modification of damage that is attributable to acts of

God. In addition, Panasonic shall have no obligation for any defects in the disk(s) or other media if you have modified, or attempted to modify any

Program.

DURATION OF IMPLIED WARRANTIES, IF ANY, IS LIMITED TO SIXTY (60) DAYS.

PANASONIC ASSUMES NO RISK OF AND SHALL NOT IN ANY CASE BE LIABLE FOR ANY DAMAGES, INCLUDING, WITHOUT LIMITATION,

ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES ARISING FROM BREACH OF WARRANTY OR CONTRACT, NEGLI-

GENCE OR ANY OTHER LEGAL THEORY, INCLUDING, WITHOUT LIMITATION LOSS OF GOODWILL, PROFITS OR REVENUE, LOSS OF USE

OF THE PROGRAMS OR PRODUCTS OR ANY ASSOCIATED EQUIPMENT, COST OF CAPITAL, COST OF ANY SUBSTITUTE EQUIPMENT,

FACILITIES, SERVICES, DOWNTIME COSTS, OR CLAIMS OF ANY PARTY DEALING WITH YOU FOR SUCH DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so

the above limitations or exclusions may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

This Limited Warranty will be governed by the laws the State of New York, without regard to its conflict-of-laws rules.

* * *

To obtain service or technical assistance within the continental U.S.A. and Alaska.

DIAL TOLL FREE: 1-800-LAPTOP5

Correspondence requesting product information should be sent to:

Panasonic Computer Solutions Company

50 Meadowlands Parkway, Panazip 2F-5, Secaucus, NJ 07094

For U.S.A.

AppendixAppendix

LIMITED WARRANTY

PANASONIC COMPUTER AND PERIPHERALS LIMITED WARRANTY

Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end user customer, this computer product (excluding software media), when

purchased from PCI or from a PCI authorized reseller, to be free from defects in materials and workmanship under normal use, subject to the terms

set forth below, during the period of warranty coverage specified.

Remedy – In the event of a warranty claim, contact PCI’s representatives within the applicable warranty period, identifying the nature of the defect

claimed, at 1-800-668-8386 between 9:00 A.M. and 5:00 P.M., Eastern Time Zone, Mon. – Fri. (excluding holidays) for instructions on how to obtain

service. A purchase receipt or other proof of date of original purchase is required before warranty service is performed. Defective parts covered by

this Limited Warranty will be repaired or replaced with new or comparable rebuilt parts on an exchange basis. Warranty replacement or repair is

subject to the terms of this Limited Warranty for the balance of the original period of warranty coverage.

No Coverage – This Limited Warranty does not cover products purchased outside Canada. Neither does it cover damage to, failure of, or defects in

a product or accessory through mishandling, improper installation, abnormal use, misuse, neglect, accident, introduction of liquid or other foreign

matter into the product, alteration or servicing by anyone not authorized by PCI, or act of God.

IF YOU SHIP THE PRODUCT FOR WARRANTY SERVICE

Carefully pack the product, preferably in the original carton. Include details of defect claimed and proof of date of original purchase. No liability is

assumed for loss or damage to the product while in transit, if you chose your own transportation carrier.

SOFTWARE MEDIA LIMITED WARRANTY

Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end user customer, that the disk(s) or other media on which software program(s)

is/are supplied will be free from defects in materials and workmanship under normal use in Canada for a period of sixty (60) days from date of receipt

as evidenced by your purchase receipt for your Panasonic Computer product.

THIS IS THE ONLY WARRANTY THAT PCI MAKES RESPECTING THE SOFTWARE MEDIA. PCI does not warrant the software. Please refer to the

software licensor’s written warranty (accompanying the copy of the software) for any software warranty claim.

Claim Procedure – In the event of a defect in material or workmanship in the media during the sixty (60) day warranty period, and you return it,

transportation costs prepaid, to Panasonic Canada Inc., Computer Products Marketing, at the above address, within the warranty period, together

with a copy of your purchase receipt, and an explanation of the suspected defect, PCI will replace in Canada the defective disk(s) or other media.

Remedy – PCI’s entire liability, and your only remedy for any breach of this software media warranty is limited to replacement of the media only. It

does not cover any other damages, including, but not limited to, loss of use or profit loss, or special, indirect or consequential damages, or other

claims, whether or not of similar character.

No Coverage – This limited warranty does not apply if the disk(s) or other media has been used in other than a Panasonic product, or in environmen-

tal conditions other than those specified by PCI or the manufacturer, or if subjected to misuse, neglect, mishandling, modification or attempted

modification of the program, or if damaged by accident or act of God. PCI is not responsible for damage to or loss of any program, data or removable

storage media.

GENERAL

NO OTHER WARRANTIES – PCI DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,

IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE SOFTWARE, SOFT-

WARE MEDIA, COMPUTER PRODUCT, OPTIONS AND ACCESSORIES.

NO LIABILITY FOR CONSEQUENTIAL DAMAGES – IN NO EVENT SHALL PCI BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUEN-

TIAL DAMAGES ARISING FROM ANY BREACH OF THE LIMITED WARRANTIES SET OUT IN THIS DOCUMENT, OR FROM THE USE OF THE

COMPUTER PRODUCT, INCLUDING, WITHOUT LIMITATION, LOSS OF DATA, BUSINESS, PROFIT OR GOODWILL.

IN ANY EVENT, PCI’S MAXIMUM LIABILITY FOR ANY BREACH SHALL NOT EXCEED THE AMOUNT ACTUALLY PAID BY YOU FOR THE

COMPUTER PRODUCT.

NO ACTION, REGARDLESS OF ITS BASIS, MAY BE BEGUN AGAINST PCI MORE THAN TWO (2) YEARS AFTER THE CAUSE OF ACTION

AROSE.

Statutory Warranties – Some jurisdictions do not allow these limitations or exclusions, so they may not apply to you.

Scope of Coverage

Whole Product (except Batteries), AC adaptor and CD-ROM

(if factory installed)

Batteries, CD-ROM (unless factory installed), Port Replicator,

Extra Memory Modules and all other Peripherals, Options and

Accessories

Period of Coverage

Three (3) Years from Date of Original

End User Customer Purchase

One (1) Year from Date of Original End

User Customer Purchase

Type of Failure Coverage

Defective Materials or Workmanship

For Canada

Outline of the International ENERGY STAR® Office Equipment Program

The international ENERGY STAR® Office Equipment Program is an international program

that promotes energy saving through the use of computers and other office equipment.

The program backs the development and dissemination of products with functions that

effectively reduce energy consumption. It is an open system in which business proprietors

can participate voluntarily. The targeted products are office equipment such as computers,

displays, printers, facsimiles, and copiers. Their standards and logos are uniform among

participating nations.

As an ENERGY STAR® Partner, Matsushita Electric Industrial Co., Ltd. has

determined that this product meets the ENERGY STAR® guidelines for energy

efficiency.

Printed in Japan

SS0603-0

DFQX5408ZA

Panasonic Computer Solutions Company

50 Meadowlands Parkway, Panazip 2F-5,

Secaucus, NJ 07094

Panasonic Canada Inc.

5770 Ambler Drive Mississauga,

Ontario L4W 2T3
