OPERATING INSTRUCTIONS

Personal Computer

Appendix

LIMITED USE LICENSE AGREEMENT ....... 35

Hard Disk Backup Function........................... 37

Hard Disk Data Erase Utility.......................... 41

Specifications ................................................ 42

LIMITED WARRANTY .................................. 44

Troubleshooting

List of Error Codes ......................................... 27

Dealing with Problems (Summary)................... 28

Reinstalling Software .................................... 33

Operation

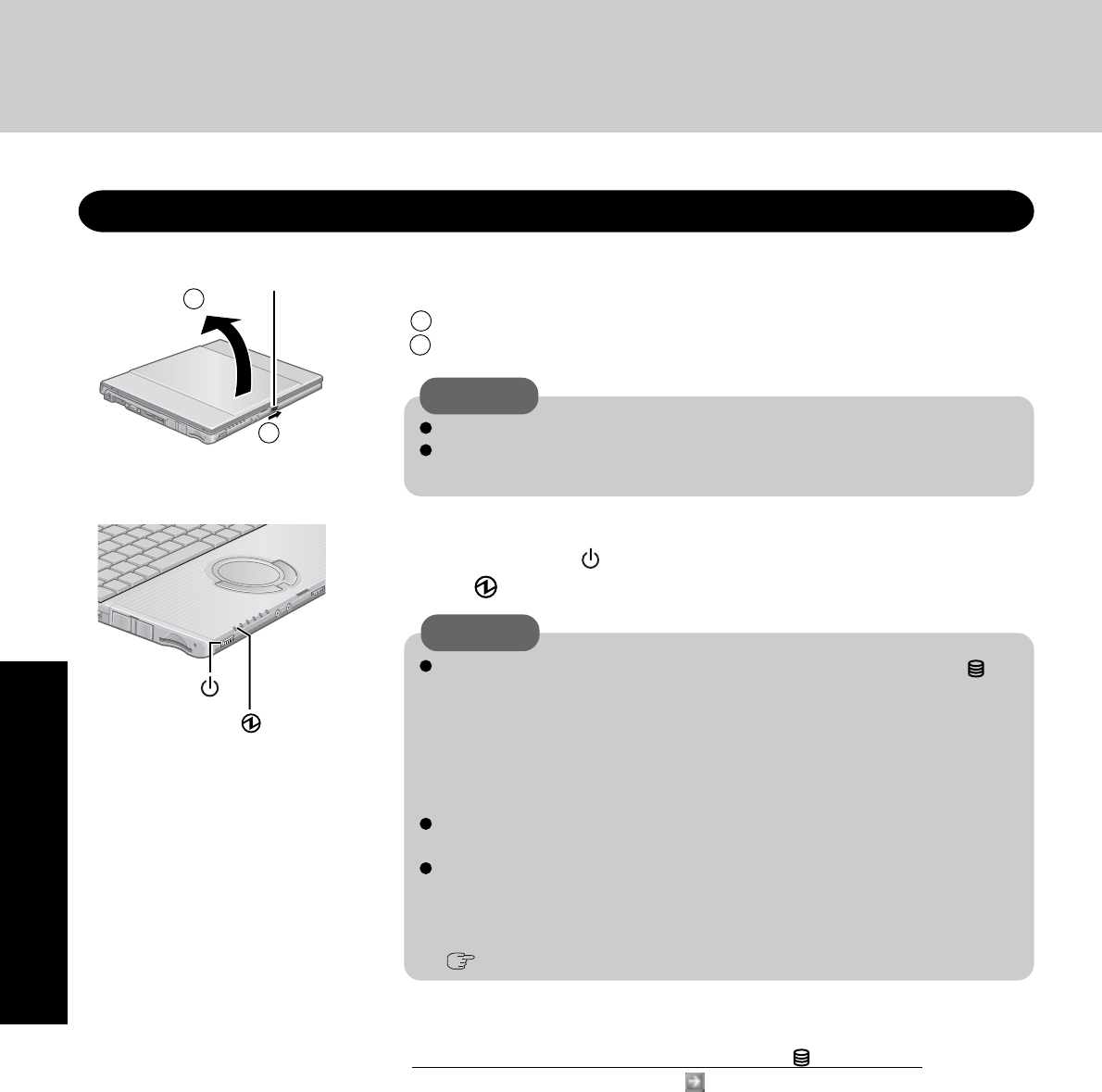

Starting Up/Shutting Down ............................ 16

Touch Pad ..................................................... 19

Reference Manual......................................... 20

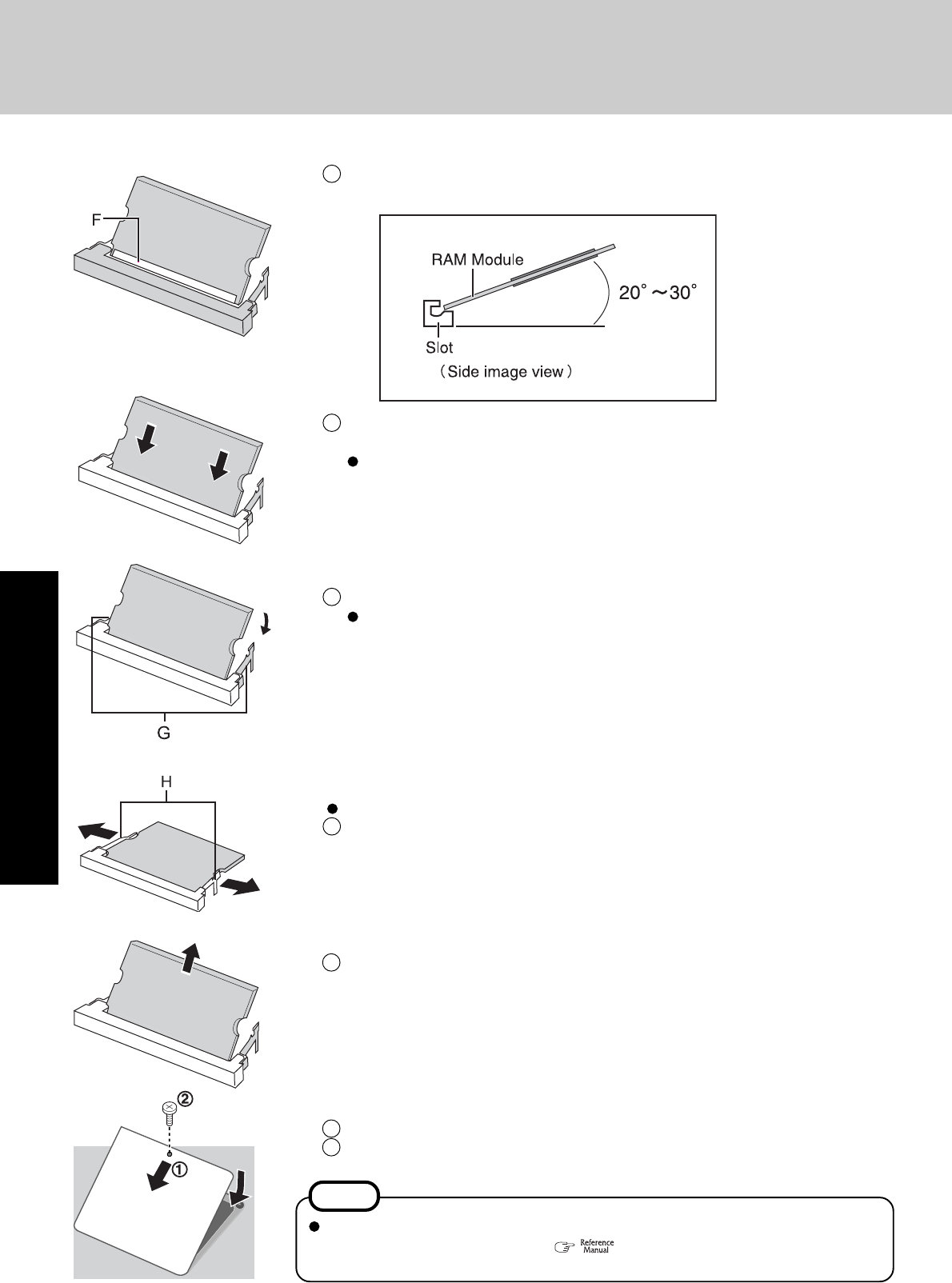

RAM Module ................................................. 21

Useful Information......................................... 23

Getting Started

Read Me First ................................................. 3

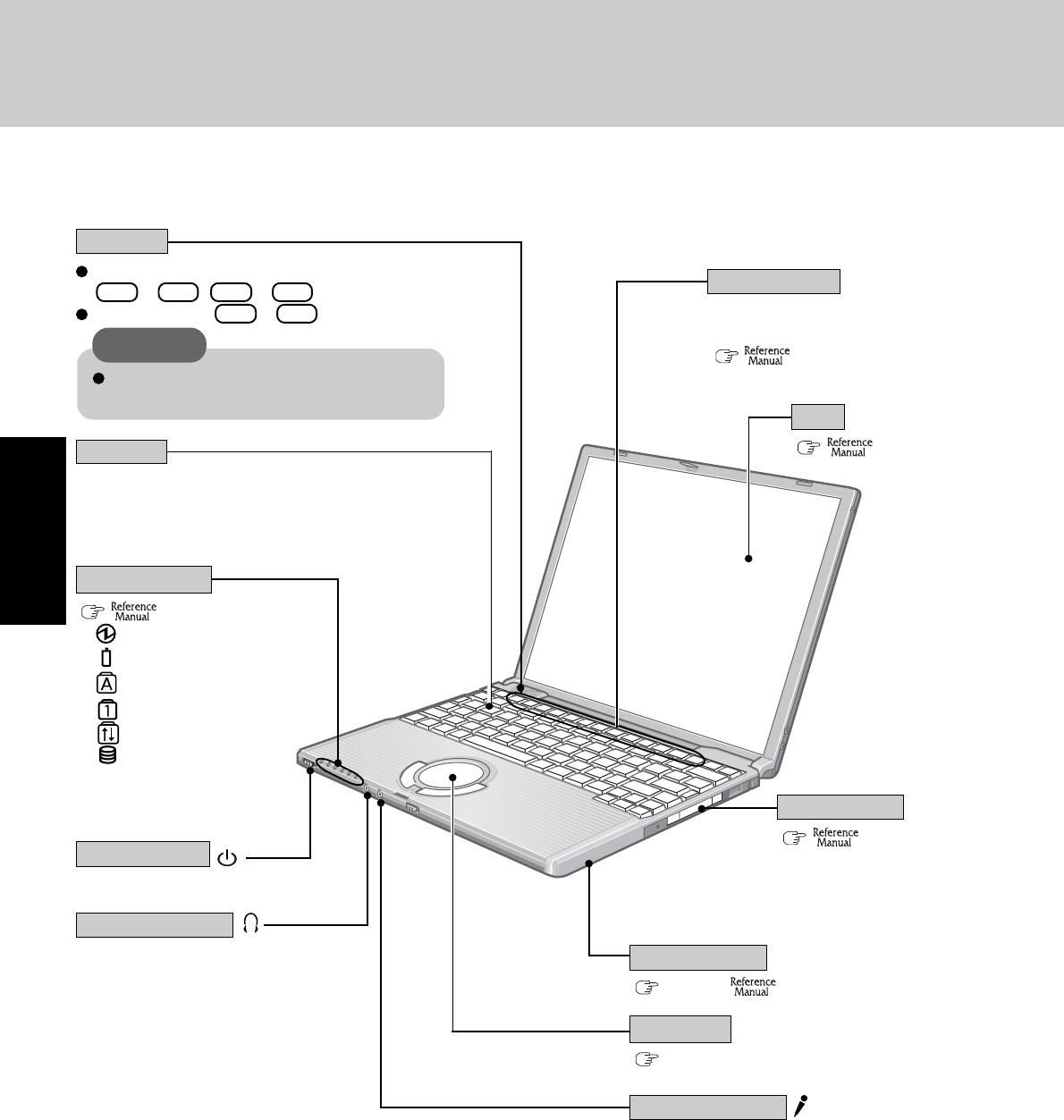

Names and Functions of Parts...................... 10

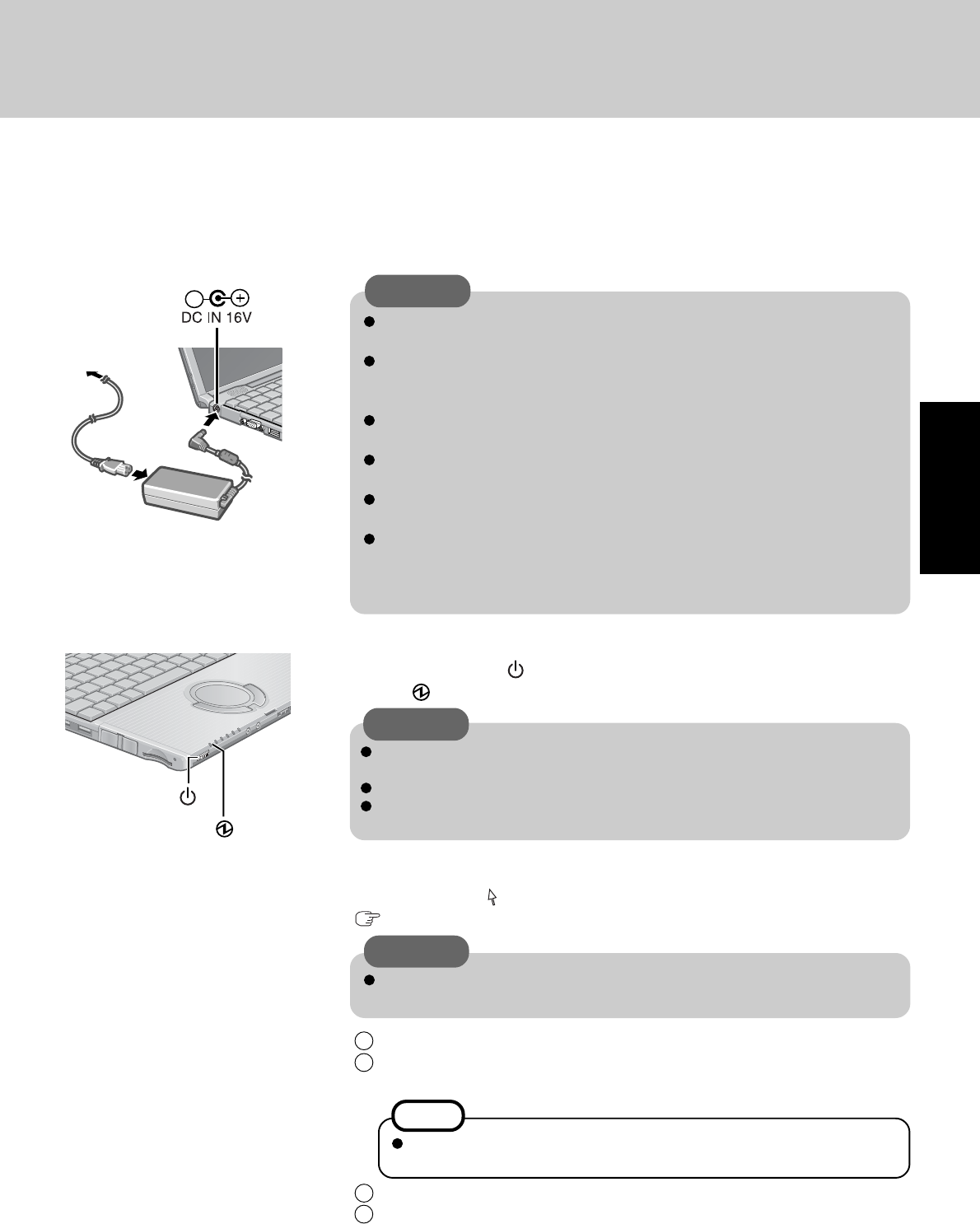

First-time Operation ...................................... 12

Contents

Appendix Getting StartedOperationTroubleshooting

Please read these instructions carefully before using this product and save this manual for future use.

Reference Manual

•Technical Information

•DMI Viewer •List of Error Codes

•Dealing with Problems

(Advanced)

Model No. CF-T2 Series

Page

[Additional Manual]

Reference Manual

This manual can be accessed on your computer. Re-

fer to page 20 on how to access the Reference Manual.

Reference Manual

•Touch Pad

•Touchscreen

•Standby/Hibernation

Functions

•Security Measures

•Computing on the Road

•Battery Power

•SD-MovieStage

•PC Cards

•SD Memory Card/

MultiMedia Card

•SD Memory Card

Security Function

•External Display

•USB Devices

•Modem

•LAN

•Wireless LAN

•Setup Utility

•Icon Enlarger

Reference Manual

•Read Me First •LED Indicators

•Key Combinations

Getting Started

Introduction

Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new

computer.

Illustrations and Terminology in this Manual

reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd.

No patent liability is assumed with respect to the use of the information contained herein.

Disclaimer

Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no

liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals.

Trademarks

Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other

countries.

Intel, Pentium and PROSet are either registered trademarks or trademarks of Intel Corporation.

SD Logo is a trademark.

Adobe® and Acrobat® are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or

other countries.

Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd.

Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective owner compa-

nies.

NOTE:NOTE provides a useful fact or helpful information.

CAUTION:CAUTION indicates a condition that may result in minor or moderate injury.

Enter : This illustration means to press the [Enter] key.

Fn + F5 : This illustration means to press and hold the [Fn] key, then press the [F5] key.

When using with the [Fn] and [Ctrl] functions interchanged, read with [Fn] and [Ctrl] reversed (

“Key Combinations”).

[start] - [Run]: This illustration means to click [start], then to click [Run]. For some applications, you may need to

double-click.

:Where to go for referred information.

: This illustration means to refer to the Reference Manual, which is available on your computer.

Refer to page 20 on how to access this manual.

Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation

easier to understand.

In this manual, “Microsoft® Windows® XP Professional” is indicated as “Windows” or “Windows XP”.

If the user has logged on without the administrator authority, some functions may not be executable, and some screens may

not be displayed as shown in this manual. If this happens, log on with the administrator authority to enable these functions.

Confirm the latest information on optional products in catalogs, etc.

Circular media such as DVD-ROM and CD-ROM are described as “discs”.

Customer’s Record

Serial No.

Date of Purchase

Model No. *1

Code No.

Dealer’s Name

Dealer’s Address

*1For the Model No., insert the 12 digit number (for example, CF-T2DWATZKM) located on

the bottom of the computer.

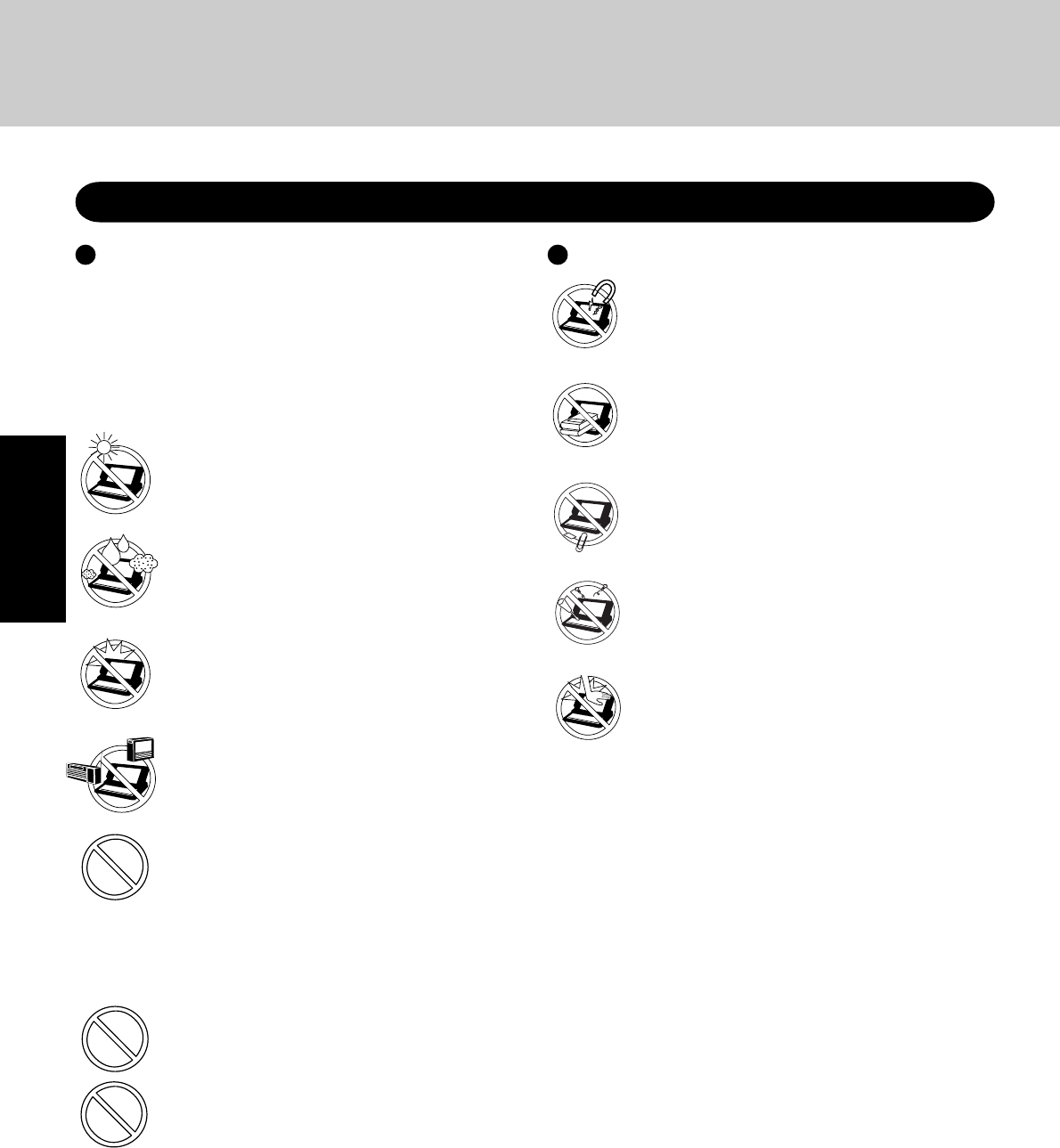

Getting Started

Read Me First

For U.S.A.

FCC Regulation Notice for modem

This equipment contains a FCC approved modem.

Manufacturer of modem: PC TEL Inc.

Model No. PCT2304WT

FOR HOME OR OFFICE USE

Tested To Comply

With FCC Standards

1. This equipment complies with CFR47 Part 68 rules. On the

computer is a label that contains, among other information,

the FCC registration number and ringer equivalence number

(REN) for this equipment. If required, this information must

be provided to the telephone company.

2. An FCC compliant telephone cord and modular plug is pro-

vided with this equipment. This equipment is designed to be

connected to the telephone network or premises wiring using

a compatible modular jack which is Part 68 compliant. See

Installation Instructions for details.

3. The REN is used to determine the quantity of devices which

may be connected to the telephone line. Excessive RENs on the

telephone line may result in the devices not ringing in response

to an incoming call. In most, but not all area, the sum of RENs

should not exceed five (5.0). To be certain of the number of

devices that may be connected to a line, as determined by the

total RENs, contact the local telephone company.

4. If your telephone equipment cause harm to the telephone net-

work, the telephone company will notify you in advice that

temporary discontinuance of service may be required. But if

advice notice isn’t practical, the telephone company will no-

tify the customer as soon as possible. Also, you will be ad-

vised of your right to file a complaint with the FCC if you

believe it is necessary.

5. The telephone company may take changes in it’s facilities,

equipment, operations or procedures that could affect the op-

eration of the equipment. If this happens the telephone com-

pany will provide advance notice in order for you to make

necessary modifications to maintain uninterrupted service.

6. If trouble is experienced with this equipment, for repair or

warranty information, please contact Matsushita Electric

Corporation of America at DIAL TOLL FREE 1-800-LAP-

TOP5 (1-800-527-8675). If the equipment is causing harm

to the telephone network, the telephone company may re-

quest that you disconnect the equipment until the problem is

resolved.

7. There are no user serviceable parts contained in this equip-

ment.

8. This equipment may not be used on coin service provided by

the telephone company. Connection to party lines is subject

to state tariffs.

9. The Telephone Consumer Protection Act of 1991 makes it un-

lawful for any person to use a computer or other electronic

device to send any message via a telephone fax machine un-

less such message clearly contains in a margin at the top or

bottom of each transmitted page or on the first page of the

transmission, the date and time it is sent and an identification

of the business or other entry, or other individual sending the

message and the telephone number of the sending machine or

such business, other entity, or individual. In order to program

this information into your fax software, you should refer to the

manual of the Fax software being used.

Federal Communications Commission Radio

Frequency Interference Statement

Note: This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

Consult the Panasonic Service Center or an experienced ra-

dio/TV technician for help.

Warning

To assure continued compliance, use only shielded interface

cables when connecting to a computer or peripheral. Also, any

changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to

operate this equipment.

FCC RF Exposure Warning:

This equipment complies with FCC radiation exposure limits

set forth for an uncontrolled environment.

This equipment must be installed and operated in accordance

with provided instructions and minimum 1.5 cm spacing must

be provided between antenna and all person’s body (excluding

extremities of hands, wrist and feet) during wireless modes of

operation.

This transmitter must not be co-located or operated in conjunc-

tion with any other antenna or transmitter. This computer is

provided with a PC Card slot that could be used with wireless

transmitter(s), which will be specifically recommended, when

they become available. Other third-party wireless transmitter(s)

have not been RF exposure evaluated for use with this com-

puter and may not comply with FCC RF exposure requirements.

This device complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including

interference that may cause undesired operation.

Responsible Party: Matsushita Electric Corporation of America

One Panasonic Way

Secaucus, NJ 07094

Tel No:1-800-LAPTOP-5 (1-800-527-8675)

Getting Started

For Canada

Industry Canada (IC) Notice for modem

This equipment contains an Industry Canada approved modem unit.

The Industry Canada label is affixed on the modem unit.

EQUIPMENT ATTACHMENT LIMITATIONS

“NOTICE: The Industry Canada label identifies certified

equipment. This certification means that the equipment meets

telecommunications network protective, operational and

safety requirements as prescribed in the appropriate Terminal

Equipment Technical Requirements document(s). The

Department does not guarantee the equipment will operate

to the user’s satisfaction.

Before installing this equipment, users should ensure that it is

permissible to be connected to the facilities of the local

telecommunications company. The equipment must also be

installed using an acceptable method of connection. The customer

should be aware that compliance with the above conditions may

not prevent degradation of service in some situations.

Repairs to certified equipment should be coordinated by a

representative designated by the supplier. Any repairs or

alterations made by the user to this equipment, or equipment

malfunctions, may give the telecommunications company

cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical

ground connections of the power utility, telephone lines and

internal metallic water pipe system, if present, are connected

together. This precaution may be particularly important in rural

areas. Caution: Users should not attempt to make such

connections themselves, but should contact the appropriate

electric inspection authority, or electrician, as appropriate.”

“NOTICE: The Ringer Equivalence Number (REN) assigned

to each terminal device provides an indication of the

maximum number of terminals allowed to be connected to a

telephone interface. The termination on an interface may

consist of any combination of devices subject only to the

requirement that the sum of the Ringer Equivalence Numbers

of all the devices does not exceed 5.”

REN: See bottom of the computer

RESTRICTIONS CONCERNANT LE RACCORDEMENT

DE MATÉRIEL

“AVIS: L’étiquette d’Industrie Canada identifie le matériel

homologué. Cette étiquette certifie que le matériel est

conforme aux normes de protection, d’exploitation et de

sécurité des réseaux de télécommunications, comme le

prescrivent les documents concernant les exigences

techniques relatives au matériel terminal. Le Ministère

n’assure toutefois pas que le matériel fonctionnera à la

satisfaction de l’utilisateur.

Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il

est permis de le raccorder aux installations de l’entreprise

locale de télécommunication. Le matériel doit également être

installé en suivant une méthode acceptée de raccordement.

L’abonné ne doit pas oublier qu’il est possible que la

conformité aux conditions énoncées ci-dessus n’empêche pas

la dégradation du service dans certaines situations.

Les réparations de matériel homologué doivent être

coordonnées par un représentant désigné par le fournisseur.

L’entreprise de télécommunications peut demander à

l’utilisateur de débrancher un appareil à la suite de réparations

ou de modifications effectuées par l’utilisateur ou à cause de

mauvais fonctionnement.

Pour sa propre protection, l’utilisateur doit s’assurer que tous

les fils de mise à la terre de la source d’énergie électrique,

des lignes téléphoniques et des canalisations d’eau

métalliques, s’il y en a, sont raccordés ensemble. Cette

précaution est particulièrement importante dans les régions

rurales. Avertissement: L’utilisateur ne doit pas tenter de faire

ces raccordements lui-même; il doit avoir recours à un service

d’inspection des installations électriques, ou à un électricien,

selon le cas.”

“AVIS: L’indice d’équivalence de la sonnerie (IES) assigné

à chaque dispositif terminal indique le nombre maximal de

terminaux qui peuvent être raccordés à une interface. La

terminaison d’une interface téléphonique peut consister en

une combinaison de quelques dispositifs, à la seule condition

que la somme d’indices d’équivalence de la sonnerie de touts

les dispositifs n’excède pas 5.”

IES: Voir sous le fond de l’ordinateur

10.According to the FCC’s electrical safety advisory, we recom-

mend that you may install an AC surge arrestor in the AC outlet

to which this equipment is connected. Telephone companies

report that electrical surges, typically lightning transients, are

very destructive to customer terminal equipment connected to

AC power sources and that this is a major nationwide problem.

“Caution: To reduce the risk of fire, use only No.26 AWG or larger telecom-

munication line cord.”

“ATTENTION: Pour réduire le risque d’incendie, utiliser uniquement des

conducteurs de télécommunications 26 AWG ou de section supérieure.”

Notice for the products using LCD

This product uses one or more fluorescent lamps containing a

small amount of mercury. It also contains lead in some compo-

nents. Disposal of these materials may be regulated in your com-

munity due to environmental considerations. For disposal or

recycling information please contact your local authorities, or

the Electronics Industries Alliance: <http://www.eiae.org/>

Industry Canada

This product complies with RSS210 Industry Canada.

Operation is subject to the following two conditions;

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.

Read Me First

Getting Started

Declaration of Conformity (DoC)

“Hereby, we and Panasonic Testing Centre (Europe) GmbH (PTC), declares that this Personal Computer is in

compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC.”

Hint:

If you want to get a copy of the original DoC of our products which relates to the R&TTE, please contact to our

web address: http://doc.panasonic-tc.de

Network connection.

The terminal equipment is intended for connection to the following public network;

In all the countries of European Economical Area;

- Public Switched Telephony Networks

Technical Features.

The terminal equipment includes the following features;

- DTMF dialing

- Maximum bitrate receiving mode: 56 kbits/s

- Maximum bitrate sending mode: 33.6 kbit/s

This product is designed to interwork with the Public Switched Telecommunication Networks in UK, Ireland, Netherlands, Sweden,

Denmark, Finland, Switzerland, Luxembourg, Belgium, France, Germany, Spain, Portugal, Iceland, Greece, Italy, Norway and

Austria.

--------------------------------------------------------------------------------------------------------------------------------------------

Compliance Notice - CE Mark

This equipment is in conformance with the requirements of the European Council Directive listed below:

73/23/EEC Low Voltage Directive with amendment 93/68/EEC

89/336/EEC EMC Directive with amendments 92/31/EEC and 93/68/EEC

1999/5/EC

--------------------------------------------------------------------------------------------------------------------------------------------

For Europe

Declaration of Conformity (DoC)

“Hereby, we and Panasonic Service Europe GmbH (PSE), declares that this Personal Computer is in compliance

with the essential requirements and other relevant provisions of the Directive 1999/5/EC.

Hint:

If you want to get a copy of the original DoC of our products which relates to the R&TTE, please contact to our web address: http:/

/doc.panasonic-tc.de

Getting Started

Read Me First

Warning: THIS APPLIANCE MUST BE EARTHED.

Important

The wires in this mains lead are coloured in accordance with the

following code:

Green-and-yellow: Earth

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this apparatus

may not correspond with the coloured markings identifying the

terminals in your plug, proceed as follows:

The wire which is coloured GREEN-and-YELLOW must be con-

nected to the terminal in the plug which is marked by the letter E

or by the safety earth symbol coloured GREEN or GREEN-

and-YELLOW.

The wire which is coloured Blue must be connected to the ter-

minal which is marked with the letter N or coloured BLACK.

The wire which is coloured Brown must be connected to the

terminal which is marked with the letter L or coloured RED.

The mains plug on this equipment must be used to disconnect

the mains power.

Please ensure that a socket outlet is available near the equip-

ment and shall be easily accessible.

How to replace the fuse

Open the fuse compartment

with a screwdriver and replace

the fuse.

Warnings

This equipment is not designed for connection to an IT power

system.

(An IT system is a system having no direct connections be-

tween live parts and Earth; the exposed-conducive-parts of

the electrical installation are earthed.

An IT system is not permitted where the computer is directly

connected to public supply systems in the U.K.)

Disconnect the mains plug from the supply socket when the

computer is not in use.

This equipment is produced to BS800/1983.

Warning

This apparatus must be earthed for your safety.

To ensure safe operation the three-pin plug must be inserted

only into a standard three-pin power point which is effectively

earthed through the normal household wiring.

Extension cords used with the equipment must be three-core

and be correctly wired to provide connection to earth. Wrongly

wired extension cords are a major cause of fatalities.

The fact that the equipment operates satisfactorily does not im-

ply that the power point is earthed and that the installation is

completely safe.

For your safety, if you have any doubt about the effective earthing

of the power point, consult a qualified electrician.

FOR YOUR SAFETY PLEASE READ THE FOLLOW-

ING TEXT CAREFULLY

This appliance is supplied with a moulded three pin mains plug

for your safety and convenience.

A 3 amp fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the re-

placement fuse has a rating of 3 amps and that it is approved by

ASTA or BSI to BS 1362.

Check for the ASTA mark

A S A

or the BSI mark on the body

of the fuse.

If the plug contains a removable fuse cover you must ensure that

it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a re-

placement cover is obtained.

A replacement fuse cover can be purchased from your local

Panasonic Dealer.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR

THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE

SHOULD BE REMOVED AND THE PLUG CUT OFF AND

DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK

IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP

SOCKET.

If a new plug is to be fitted please observe the wiring code as

shown below.

If in any doubt please consult a qualified electrician.

For U.K. and Hong Kong

Getting Started

This product and your Health

This product, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by this product

however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones.

Because this product operates within the guidelines found in radio frequency safety standards and recommendations, we believe this

product is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and

result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of this product may be restricted by the proprietor of the building or responsible

representatives of the organization. These situations may for example include:

Using this product on board of airplanes, or

In any other environment where the risk of interference to other devices or services is perceived or identified as harmful.

If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports),

you are encouraged to ask for authorization to use this product prior to turning on the product.

Regulatory Information

We are not responsible for any radio or television interference caused by unauthorized modification of this product. The correction

of interference caused by such unauthorized modification will be the responsibility of the user. We and its authorized resellers or

distributors are not liable for damage or violation of government regulations that may arise from failing to comply with these

guidelines.

Information to the User

Lithium Battery

Lithium Battery!

This computer contains a lithium battery to enable the date, time, and other data to be stored. The battery should only be exchanged

by authorized service personnel.

Warning! A risk of explosion from incorrect installation or misapplication may possibly occur.

Pile au lithium!

Le micro-ordinateur renferme une pile au lithium qui permet de sauvegarder certaines données comme la date et l’heure notamment.

Elle ne devra être remplacée que par un technicien qualifié.

Avertissement! Risque d’explosion en cas de non respect de cette mise en garde!

Important Safety Instructions / Importantes Mesures De Sécurité

When using your telephone equipment, basic safety precautions

should always be followed to reduce the risk of fire, electric

shock and injury to persons, including the following:

1. Do not use this product near water, for example, near a bath

tub, wash bowl, kitchen sink or laundry tub, in a wet base-

ment or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during

an electrical storm. There may be a remote risk of electric

shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of

the leak.

4. Use only the power cord and batteries indicated in this manual.

Do not dispose of batteries in a fire. They may explode. Check

with local codes for possible special disposal instructions.

SAVE THESE INSTRUCTIONS

Certaines mesures de sécurité doivent être prises pendant l’utilisation

de matérial téléphonique afin de réduire les risques d’incendie, de

choc électrique et de blessures. En voici quelquesunes:

1. Ne pas utiliser l’appareil près de l’eau, p.ex., près d’une baignoire,

d’un lavabo, d’un évier de cuisine, d’un bac à laver, dans un

sous-sol humide ou près d’une piscine.

2. Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil sans

fil) pendant un orage électrique. Ceci peut présenter un risque de

choc électrique causé par la foudre.

3. Ne pas utiliser l’appareil téléphonique pour signaler une fuite de

gaz s’il est situé près de la fuite.

4. Utiliser seulement le cordon d’alimentation et le type de piles

indiqués dans ce manual. Ne pas jeter les piles dans le feu: elles

peuvent exploser. Se conformer aux règlements pertinents quant

à l’élimination des piles.

CONSERVER CES INSTRUCTIONS

Getting Started

Read Me First

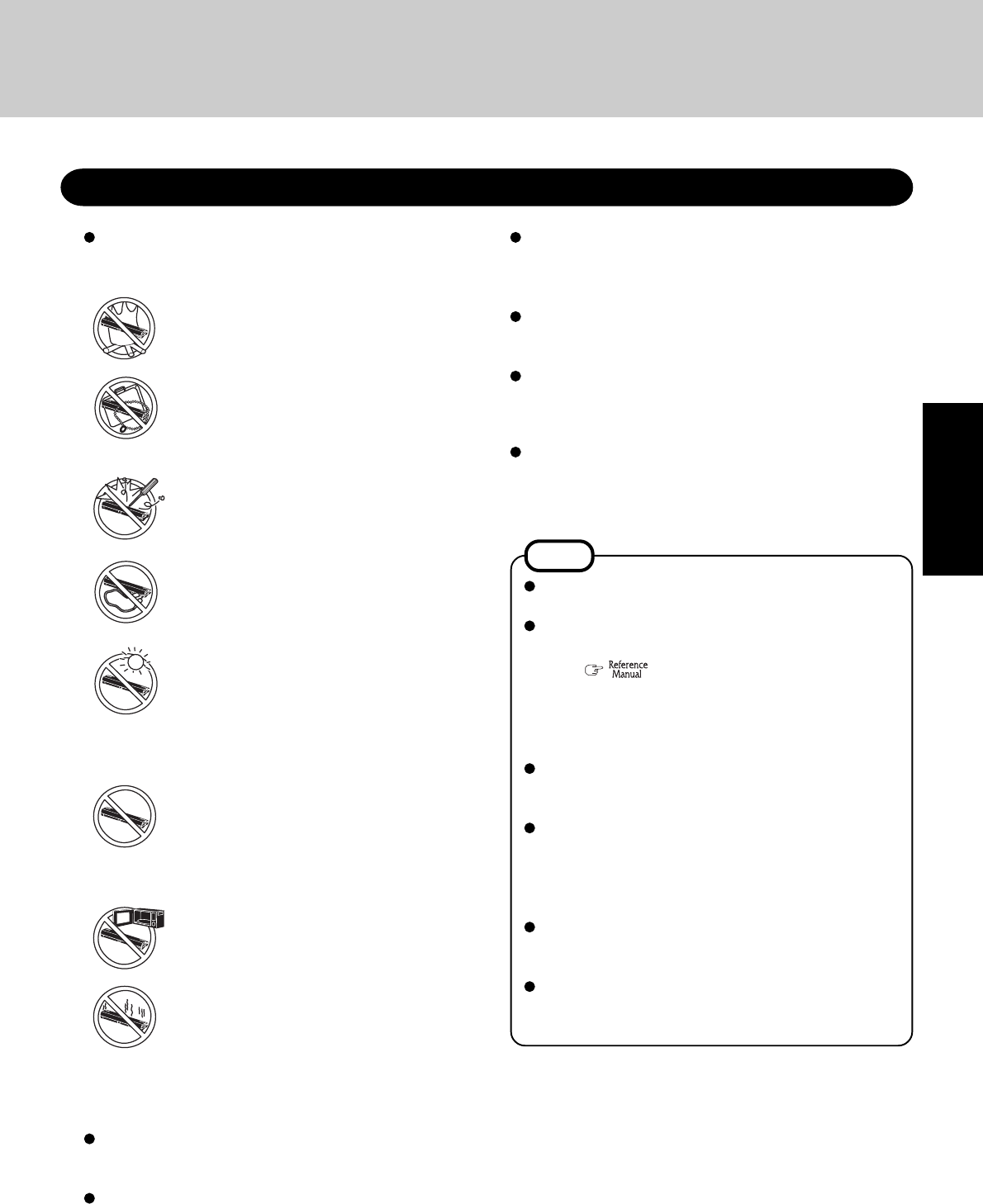

Precautions

Avoid Extreme Heat and Cold

Do not store or use the computer in locations

exposed to heat, direct sunlight, or extreme cold.

Avoid moving the computer between locations with

large temperature difference.

Operation: 5 oC to 35 oC {41 oF to 95 oF}

Storage: -20 oC to 60 oC {-4 oF to 140 oF}

Avoid Direct Sunlight on the LCD Panel

The LCD panel should not be exposed to direct

sunlight or ultraviolet light.

Avoid Humidity, Liquids and Dust

Do not store or use the computer in locations ex-

posed to high humidity, liquids (including rain) or

dust.

Prevent Shock

Avoid subjecting the computer to severe vibrations

or impact. Do not place the computer inside a car

trunk.

Avoid Radio Frequency Interference

Do not place the computer near a television or ra-

dio receiver.

Avoiding low-temperature burns

Avoid more than casual contact with any heat pro-

ducing area of the notebook computer, AC adap-

tor, and any option or accessory you use with it.

Even low heat, if warmer than body temperature,

can cause a burn, if the skin is exposed to the heat

source for a long enough period of time.

Do not touch the AC plug and modem telephone

cable when it starts thundering.

Keep SD memory cards and MultiMedia cards

(both sold separately) away from infants and

small children.

Accidental swallowing will result in bodily injury.

In the event of accidental swallowing, see a doctor

immediately.

Usage Handling

Avoid Magnetic Fields

Keep the computer away from magnets.

Data stored on the hard disk may be lost.

Avoid Stacking

Do not place heavy objects on top of the computer.

Keep Small Objects Away

Do not insert paper clips or other small objects into

the computer.

Do Not Disassemble the Computer

Do not attempt to disassemble your computer.

Avoid Excessive Force on the Display

Do not apply excessive downward force on the

display.

Getting Started

Precautions (Battery Pack)

NOTE

The battery pack may become warm during recharging

or normal use. This is completely normal.

Recharging will not commence outside of the allow-

able temperature range (0 °C to 55 °C {32 °F to 131

°F}). ( “Battery Power”) Once the allowable

range requirement is satisfied, charging begins auto-

matically. Note that the recharging time varies based

on the usage conditions. (Recharging takes longer than

usual when the temperature is 10 °C {50 °F} or less.)

If the temperature is low, the operating time is short-

ened. Only use the computer within the allowable tem-

perature range.

The battery pack is a consumable item. If the amount

of time the computer can be run off a particular battery

pack becomes dramatically shorter and repeated re-

charging does not restore its performance, the battery

pack should be replaced with a new one.

When transporting a spare battery inside a package,

briefcase, etc., it is recommended that it be placed in a

plastic bag so that its contacts are protected.

Always power off the computer when it is not in use.

Leaving the computer on when the AC adaptor is not

connected will exhaust the remaining battery capacity.

Care should be exercised with regard to the following in

order to avoid the possibility of overheating, fire or dam-

age.

Avoid Heat

Do not throw the battery pack into a fire or

expose it to excessive heat.

Keep Articles Away

Do not place the battery pack together with ar-

ticles such as necklaces or hairpins when carry-

ing or storing.

Do Not Disassemble

Do not insert sharp objects into the battery pack,

expose it to bumps or shocks, deform, disas-

semble, or modify it.

Do Not Short

Do not short the positive (+) and negative (-)

contacts.

Avoid Extreme Heat, Cold and Direct Sun-

light

Do not charge, use or leave the battery pack for

extended periods where it will be exposed to di-

rect sunlight, in a hot place (in a car on a sunny

day, for example), or in a cold place.

Do Not Use With Any Other Computer

The battery pack is rechargeable and was in-

tended for the specified computer. Do not use it

with a computer other than the one for which it

was designed.

Do Not Put into a Microwave

Do not put the battery pack into a microwave

oven or a pressurized chamber.

Stop Using

Should the battery emit an abnormal odor, be-

come hot to the touch, become discolored,

change shape, or become in any way different

from normal, remove it from the computer and

stop using it.

If the battery pack will not be used for a long period of time

(a month or more), charge or discharge (use) the battery

pack until the remaining battery level becomes 30% to 40%

and store it in a cool, dry place.

This computer prevents overcharging of the battery by re-

charging only when the remaining power is less than approx.

95% of capacity.

The battery pack is not charged when the computer is first

purchased. Be sure to charge it before using it for the first

time. When the AC adaptor is connected to the computer,

charging begins automatically.

Should the battery leak and the fluid get into your eyes, do

not rub your eyes. Immediately flush your eyes with clear

water and see a doctor for medical treatment as soon as pos-

sible.

Do not touch the terminals on the battery pack. The battery

pack may no longer function properly if the contacts are

dirty or damaged.

Do not expose the battery pack to water, or allow it to be-

come wet.

Getting Started

( page 26, “Wireless LAN”)

Wireless LAN

Names and Functions of Parts

For information on the key combi-

nations available.

( “Key Combinations”).

Keyboard

( page 19)

Touch Pad

( “PC Cards”)

Power Switch

Caps Lock

Numeric Key (NumLk)

Scroll Lock (ScrLk)

Hard disk drive status

To adjust the volume:

Fn + F5 / Fn + F6

Speaker on/off : Fn + F4

Speaker

CAUTION

Do not allow metallic objects or magnetic me-

dia to come near the speaker.

Function Keys

( “LED Indicators”)

Power status

Battery pack status

LED Indicators

PC Card Slot

( “Touchscreen”)

LCD

Use this jack to connect headphones or am-

plifier-equipped speakers. Audio output from

the internal speaker is disabled when head-

phones or external speakers are connected.

Headphone Jack

Use only a monaural condenser microphone

(miniature jack). Using an input source

other than a monaural condenser micro-

phone may not allow audio to be input or

may damage the equipment.

Microphone Jack

Getting Started

( page 21)

( “Battery Power”)

( “USB Devices”)

( “External Display”)

USB Ports

DC-IN Jack DC IN 16V

External Display Port

A lithium ion battery that is

recyclable powers the prod-

uct you have purchased.

Please call 1-800-8-BAT-

TERY for information on

how to recycle this battery.

L’appareil que vous vous

êtes procuré est alimenté par

une batterie au lithium-ion.

Pour des renseignements sur

le recyclage de la batterie,

veuillez composer le 1-800-

8-BATTERY.

( “Modem”)

Modem

SD memory card status

( “SD Memory Card/MultiMedia Card”)

( “LAN”)

LAN

CAUTION

Do not cover the computer with a thick cloth, such as a blanket.

( page 26, “Wireless LAN”)

Wireless LAN

SD Memory Card Slot

Do not allow metallic objects or

magnetic media to come near this

area.

CAUTION

RAM Module Slot

Battery Pack

( page 17)

Hand Strap

Getting Started

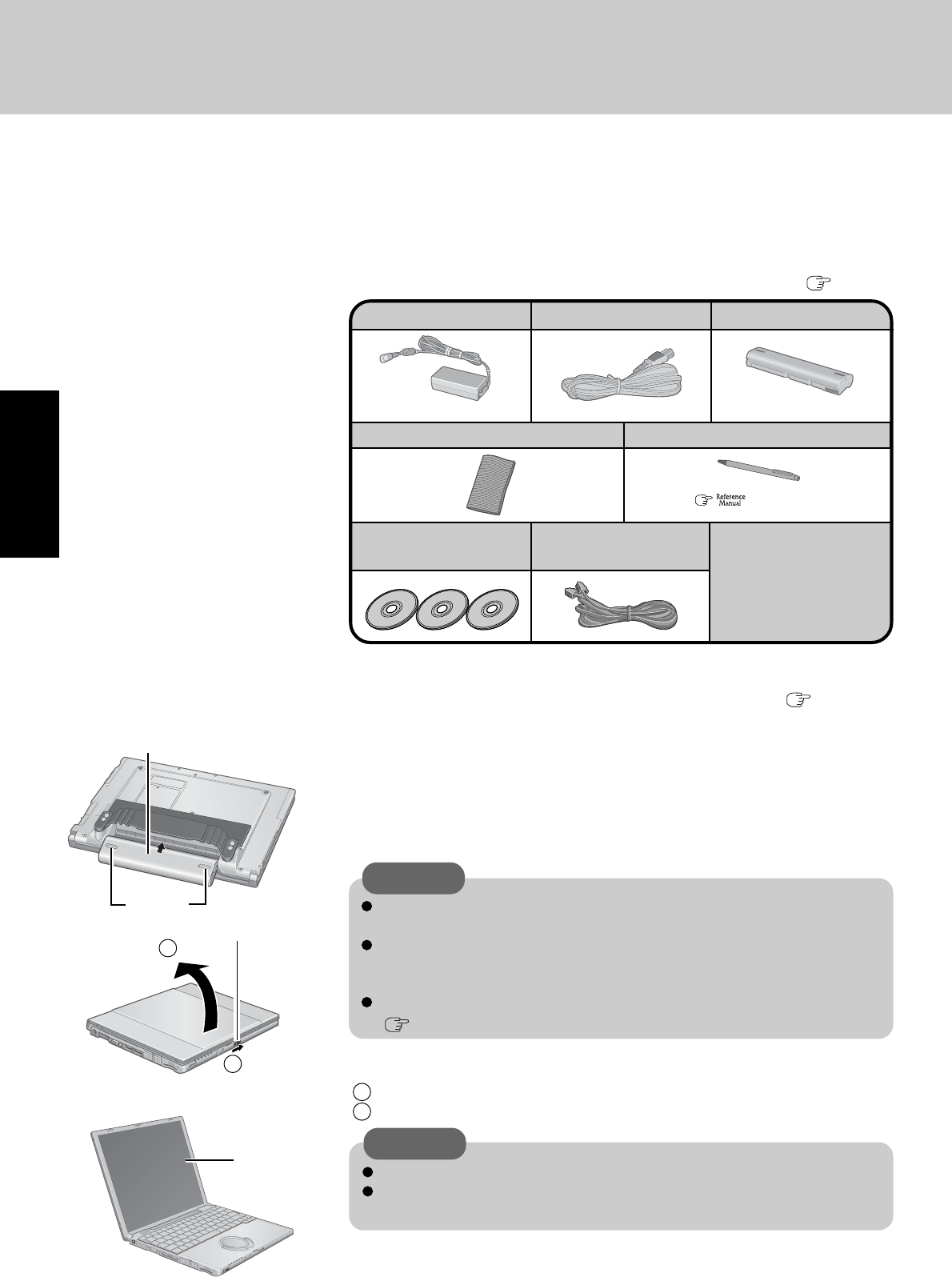

First-time Operation

Read the steps below to help you learn what parts are included, and to gain an understanding of

some basic computer-related operations.

1Confirm the inclusion of all parts.

Make sure the parts shown in the figure have been supplied. If any of these items are

missing or is not working properly, contact your technical support office ( page 44).

Model No : CF-AA1623A

AC adaptor ..........1 AC Cord ...............1 Battery Pack ........1

Product Recovery

CD-ROM ..............3 Modem Telephone

Cable ...................1

3Turn the computer over and insert the battery pack.

Make sure the battery pack is facing the correct direction, slide it in the direction of the

arrow, and then check to ensure that the battery pack is held firmly by the latches on the

left and right sides.

CAUTION

Confirm that the latch is properly locked. If it is not, the battery pack may come

off while you are carrying around the computer.

Do not touch the terminals on the battery pack and the computer. The battery

pack may no longer function properly if the contacts are dirty or damaged. Also,

the computer may not operate properly.

Before using the battery pack, carefully read “Precautions (Battery Pack)”

( page 9).

2Read the LIMITED USE LICENSE AGREEMENT. ( page 35)

Be sure to read the LIMITED USE LICENSE AGREEMENT before breaking the seal

on the computer's packaging.

4Open the display.

1Slide the latch (A) located at the front.

2Lift open the display.

CAUTION

Do not open the display wider than necessary (160° or more).

Do not apply excessive pressure to the LCD (B). Also, do not hold the LCD

when opening or closing the display.

Latches

Battery Pack

Model No :CF-VZSU24A

( “Touchscreen”)

Refer to page 23 for details on the carrying cloth for protecting the keyboard.

Soft Cloth .................................. 1 Stylus...................................... 1

Operating Instructions

(This book)

.................... 1

Windows® Book .... 1

Getting Started

Connect your computer to a power outlet.

CAUTION

Be sure the AC adaptor is connected until completing the first-time use opera-

tion.

When using the computer for the first time, do not connect any peripheral de-

vice except the battery pack and AC adaptor to the computer.

Handling the AC adaptor

Do not twist or pull the AC power cord forcefully. Doing so may damage the

connections.

Use only the specified AC adaptor with your computer. Using an AC adaptor

other than the one supplied might damage the battery and/or the computer.

When the DC plug is not connected to the computer, disconnect the AC cord

from your AC wall outlet.

Problems such as sudden voltage drops may arise during periods of thunder and

lightning. Since this could adversely affect your computer, an uninterruptible

power source (UPS) is highly recommended unless running from the battery

pack alone.

CAUTION

6Turn your computer on.

Slide the power switch and hold it for approximately one second until the power

indicator turns on before releasing it.

Do not slide the power switch and hold it for more than four seconds; this will

cause the power to be turned off forcibly.

Do not slide the power switch repeatedly.

Once the computer is powered off, you must wait at least ten seconds before

powering it on again.

7Setup Windows.

Moving the cursor or clicking buttons can be performed with the touch pad

( page 19).

The battery pack will be charged automatically.

Charging Time: Approx. 3 hours

(Varies depending on the usage conditions.)

Do not press any keys, or touch the touch pad or touchscreen until [Windows

XP Professional Setup] is displayed.

CAUTION

1At [Welcome to the Windows XP Setup Wizard], select [Next].

2After reading the agreement, select [I accept this agreement] or [I don’t accept this

agreement], then select [Next].

NOTE

If [I don’t accept this agreement] is selected, the Windows setup will be

aborted.

3Select settings for your region, then select [Next].

4Enter your name and organization and then select [Next].

Getting Started

6Enter the correct date, time and the time zone, then select [Next].

The computer will restart.

7Enter your administrator password and select .

CAUTION

Remember this password! If the password is forgotten, Windows cannot be

operated.

When creating a new user account:

If you make mail settings, create password reset disks ( page 15), or

conduct other related operations before creating the user account, you will

be unable to use any previous mail history or settings.

When you create the first new account, you can only select [Computer ad-

ministrator].

Once a “Computer Administrator” account has been created, you can create

additional limited user accounts.

Note also that only the added user account will be displayed in the Welcome

screen. The account for the administrator created during Windows setup

will not be displayed.

About the Icon Enlarger:

If the characters or icons on the screen are too small and difficult to see, after

completing step 8, select [start] - [All Programs] - [Panasonic] - [Icon En-

larger]. This will allow you to magnify the display of characters and icons on

the screen. ( “Icon Enlarger”)

The [Icon Enlarger] can be set separately for each account.

NOTE

5Enter your computer name and administrator password and then select [Next].

CAUTION

Remember this password! If the password is forgotten, Windows cannot be

operated. You can create a password reset disk beforehand ( page 15).

8Create a new account.

1Select [start] - [Control Panel] - [User Accounts] - [Create a new account].

2Enter a new name for the new account, then select [Next].

3Select [Computer administrator], then select [Create Account].

4<When you want to create a password for the new account>

Select the new account you have created and select [Create a password].

Follow the instructions on the screen to create a password.

5Select [start] - [Turn Off Computer] - [Restart] to restart the computer.

First-time Operation

NOTE

It may take some time before the computer restarts and the screen of step 7

is displayed. Wait, and do not press any keys, or touch the touch pad or

touchscreen, etc.

If the keyboard or the touch pad etc. are operated, a message will appear

indicating that there is no response on the screen, or some screens may

appear white. In such cases, also wait until the next screen is displayed.

Getting Started

Depending on the Windows settings, installed applications, and drivers, menus and

other displays may differ, or some functions (such as use of the password reset disk)

may be inoperable. Check with your system administrator for details.

You can select Classic view for the Control Panel or select the Classic Start menu.

You can also change the way a user logs on or off.

The procedure in this manual uses the method or view of the Windows XP default

setting (not Classic view nor Classic Start menu etc.).

Resetting the password

Windows XP has a function to reset a forgotten password.

To use this function, you need to create a password reset disk beforehand following

the steps below.

1Connect the USB floppy disk drive (optional: CF-VFDU03) to your computer.

2Select [start] - [Control Panel] - [User Accounts].

3Select [Prevent a forgotten password] from [Related Tasks] menu of the account

you used to logon and create a password reset disk following the on-screen instruc-

tions.

Store the password reset disk in a safe place.

·Only the logon password for each account can be reset.

The password set in the Setup Utility cannot be reset.

Information for Windows XP

NOTE

To improve the security of the computer, be sure to refer to "Security of the Computer

( page 25)" and "Windows Update ( page 26)".

If you use the wireless LAN, be sure to refer to “Wireless LAN”( page 26).

This concludes the first-time use operation guidelines.

9Start up Windows® Media Player.

Log on with the administrator authority, and select on the desktop.

After this, start up the application following the instructions on the screen.

During this process, you will be required to agree to the license agreement.

For Windows® Media Player, it is necessary to agree to the license agreement for

each account created.

If [I Decline] is selected or a window is closed without any decision being made in

the license agreement, no icons on the desktop may be selected. In this case, restart

the computer.

After completing the settings, select on the screen of the Windows® Media Player.

If the cursor can not be pointed correctly with the stylus, perform [Calibration] in [start] -

[Control Panel] - [Printers and Other Hardware] - [Mouse] - [TouchScreen].

Operation

1Open the display.

Starting Up/Shutting Down

Starting Up

1Slide the latch (A) located at the front.

2Lift open the display.

CAUTION

Do not open the display wider than necessary (160° or more).

Do not apply excessive pressure to the LCD. Also, do not hold the LCD when

opening or closing the display.

2Turn your computer on.

Slide the power switch and hold it for approximately one second until the power

indicator turns on before releasing it.

CAUTION

While booting, avoid the following until the hard disk drive indicator has

turned off.

• Connecting or disconnecting the AC adaptor.

• Touching the power switch.

• Performing any keyboard, touch pad, touchscreen, or external mouse opera-

tions.

• Closing the display.

Once the computer is powered off, you must wait at least ten seconds before

powering it on again.

When the CPU temperature rises, the computer may not power on to prevent the

CPU from overheating. Should this happen, allow the computer to cool down

then switch the power on again.

If the computer still does not power on, contact your technical support office.

( page 44)

3Log on to Windows.

After confirming that the hard disk drive indicator has turned off, select the user

and input the password, then select . Until the correct password is entered, the

computer will not operate.

4Select your application.

You are able to start working on your computer.

Operation

The power saving function is factory set, so if there is no input from a key, the touch

pad, touchscreen or an external mouse (when one is connected) for a certain interval

of time, the power to the LCD and hard disk may be turned off. The LCD will resume

operation when the touch pad, touchscreen or an external mouse (when one is con-

nected) is used or a key is pressed.

The power to the LCD may be turned off even when an application software is being

installed. In this case, because it is conceivable that a selection dialog box will be

shown, do not press Space or Enter to attempt to resume from this condition

as doing so may trigger a selection, but instead, press a key unrelated to the direct

triggering of a selection, like Ctrl .

In addition, when the computer is left alone, it automatically enters the standby or

hibernation mode ( “Standby/Hibernation Functions”). The computer will

resume by sliding the power switch.

You may hear a mechanical “click” shortly after the hard disk indicator has turned off

when there has been no input from a key or device operation, when the computer

enters the standby or hibernation mode, or when Windows is shut down. This is the

sound of the head shifting positions, to reduce power consumption or to protect the

hard disk from shocks. This sound does not indicate a malfunction.

NOTE

If the screen on the left is displayed immediately after you turn

on the power...

A password has been set to ensure the computer’s security.

Enter your password*1 and press Enter . ( “Security Measures”)

When the correct password is input, the computer will start.

When three incorrect password attempts or nothing is input for one minute, the com-

puter will power off.

*1Supervisor Password or User Password set in the Setup Utility (not the Windows password).

Enter Password [ ]

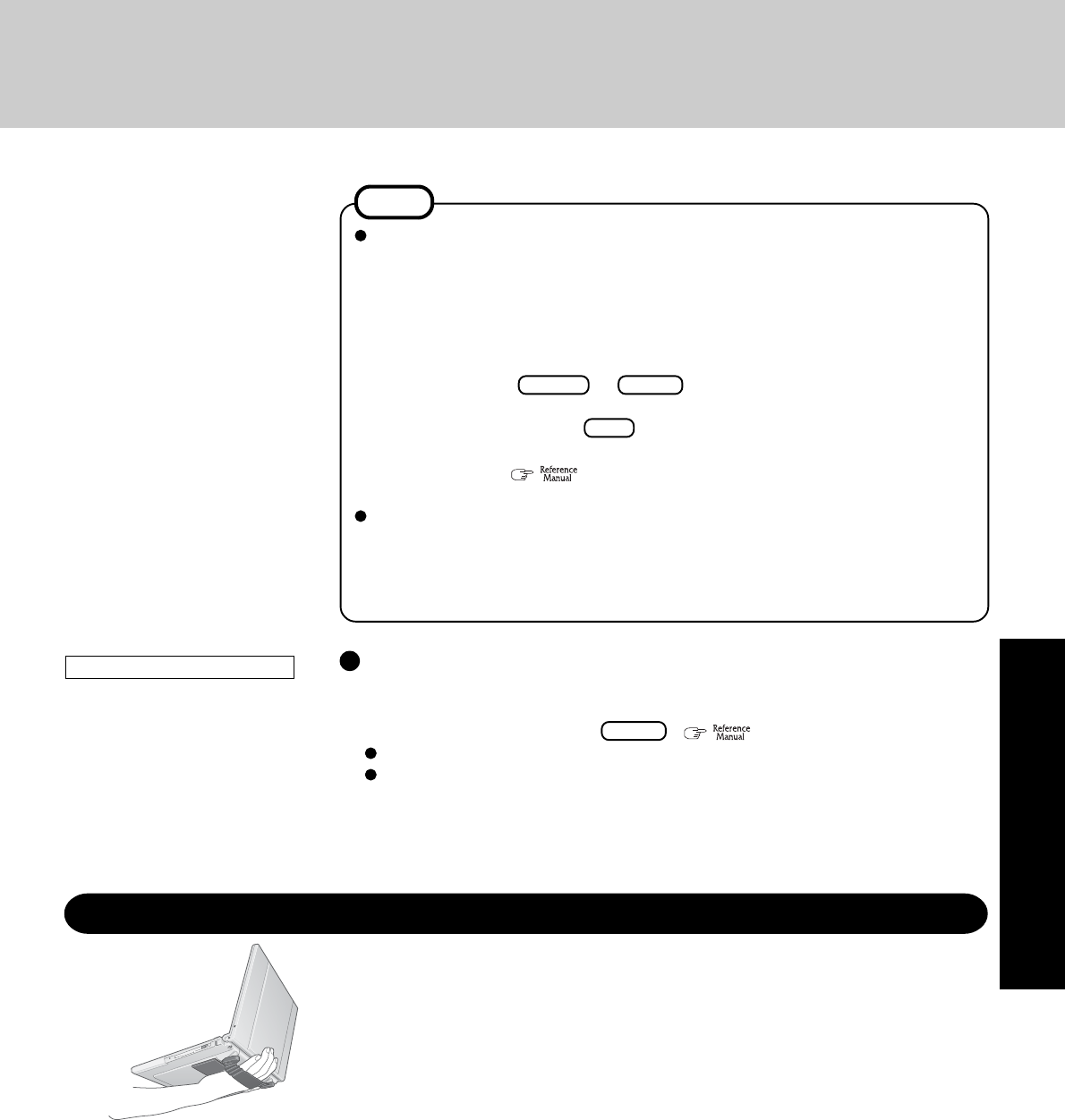

How to Use the Hand Strap

The hand strap is convenient for computing while standing.

To carry the computer, put your hand between the computer and the hand strap to prevent it

from falling, and firmly hold the computer when using it.

Operation

Shutting Down (power off your computer)

1Save important data and close each application.

2Select [start] - [Turn Off Computer].

3Select [Turn Off].

Your computer will power off automatically.

Restarting your computer (without shutting down):

Select [Restart].

To shut down using the keyboard:

Press , U , and select [Turn Off] with , then press

Enter .

CAUTION

Do not do the following during the shutdown/restart procedure.

• Connecting or disconnecting the AC adaptor.

• Touching the power switch.

• Performing any keyboard, touch pad, touchscreen or external mouse operations.

• Closing the display.

When you leave the computer or interrupt your work...

If you use the “Standby” or “Hibernation” function, then when you turn on the power next

time, the application software and files you were using before will be displayed, and you

can restart the same operations. ( “Standby/Hibernation Functions”)

Starting Up/Shutting Down

Operation

Touch Pad

Use the touch pad to move the cursor on the screen and perform computer operations.

Two quick taps, but on the

second tap leaving your fin-

ger down (applying pressure)

and moving it on the work

surface.

While holding down the but-

ton, moving your finger on

the work surface.

Function Operation

Moving the Cursor

Tapping/Clicking

Double-Tapping/

Double-Clicking

Dragging

Scroll

Move the tip of your finger

lightly over the work surface.

Trace a circle around the touch pad. (

“Touch Pad”)

Refer to [Mouse Properties] for information on basic operations other than the above.

To display [Mouse Properties], select [start] - [Control Panel] - [Printers and Other

Hardware] - [Mouse].

When using the touch pad, keep the following in mind.

• By design the touch pad is to be used with a finger tip only. Do not place any object on

the work surface or press down forcefully with sharp-pointed objects (e.g., nails) or

hard objects that can leave marks (e.g., pencils and ball point pens).

• Try to avoid having any harmful substances, such as oil, come in contact with the

touch pad. The cursor may not work properly in such cases.

NOTE

A. Work Surface (Touch Pad)

B. Left Button

C. Right Button

tapping clicking

double-tapping double-clicking

Operation

Reference Manual

The Reference Manual and the Important Tips can be accessed on your computer. When a

printer is connected, these manuals can also be printed.

Illustrations may be difficult to view depending on the magnification. If the illustra-

tion is too small, magnify the display.

When the taskbar is hidden at the bottom portion of Acrobat Reader, set the maximum

display window size.

If a printer is connected, we recommend printing pages. The illustrations and display

samples may not print with a high quality.

NOTE

Reference Manual

The Reference Manual explains functions for you to make greater use of the computer, such

as how to add peripheral devices, how the Setup Utility works, and other useful information.

(Refer to the cover of this manual for a list of the main contents included.)

How to access the Reference Manual

Select [Reference Manual] in [start].

Important Tips

Important Tips provides information on how to maximize use of the battery pack, which is

necessary for computing away from your home or office.

It also offers helpful explanations on how to use the touchscreen more effectively.

How to access the Important Tips

Select on the desktop.

Important Tips can also be accessed from [start] - [All Programs] - [Panasonic] - [On-

Line Manuals] - [Important Tips].

When the Reference Manual or Important Tips is accessed for the first time, the License Agree-

ment of the Acrobat Reader may be displayed. If it is displayed, after reading the agreement, select

[Accept] to access the Reference Manual or Important Tips.

Refer to Acrobat Reader Help to use the Acrobat Reader.

Reference Manual / Important Tips

Operation

Use a RAM module meeting the RAM module specifications below. If a module is used that

does not meet the specifications, there are cases in which data may become unusable or the

computer may not operate properly.

RAM module specifications: ( page 42)

172 pins, Micro DIMM, 2.5 V, DDR SDRAM, PC2100

Contact your technical support office to confirm recommended memory.

RAM Module

Inserting / Removing the RAM Module

CAUTION

RAM modules are extremely sensitive to static electricity. There are cases where

static electricity generated by the human body has adversely affected such modules.

When inserting or removing a RAM module, do not touch the terminals or internal

components, insert objects other than the module, or allow foreign particles to enter.

Doing so has been known to cause damage, fire or electric shock.

CAUTION

If the RAM module is difficult to insert or difficult to press down, do not force it. Check

once more to ensure that the module is positioned correctly.

Use the proper size screw driver to insure that the screw does not get stripped.

1Power off your computer.

( page 18)

Do not shut down using the standby or hibernation function.

Disconnect the AC adaptor.

2Turn the computer over and remove the battery pack and the

screw (A), then remove the cover (B).

3Insert/Remove RAM module.

Inserting the RAM module

1Check direction of a RAM module (C).

Hold the RAM module in the direction that the notch (E) of the RAM module

suits to the protrusion (D) of the slot.

Operation

RAM Module

4Press the RAM module down until the right and left hooks (G) lock into place.

When pressing down the module, the right and left hooks will open slightly and

will return after locking.

Removing the RAM module

1Gently open the left and right hooks (H).

The RAM module will be raised at an angle.

2Gently remove the RAM module from the slot.

4Put the cover back in place.

1Insert the cover at an angle, then fit it into place.

2Fasten the screw.

Whether the RAM module is properly recognized or not can be confirmed in [Infor-

mation] menu of the Setup Utility ( “Setup Utility”).

If the RAM module is not recognized, power off the computer and insert it again.

NOTE

2Place the RAM module lightly in parallel with a slot.

(The gold terminals (F) are visible)

3Insert the module parallel to the slot and press firmly until the gold terminals are

no longer visible.

The slot may be damaged if the following procedure is performed without

inserting the module firmly.

Operation

Environment

Place the computer on a flat stable surface. Do not place the computer upright or allow it

to tip over. When the computer receives extremely strong shock after falling, the hard

disk may become inoperable.

In use: Temperature: 5 °C to 35 °C {41 °F to 95 °F}

Humidity : 30% to 80% RH (No condensation)

Not in use: Temperature: -20 °C to 60 °C {-4 °F to 140 °F}

Humidity : 30% to 90% RH (No condensation)

Places not to use your computer

Such areas may result in damage to the computer.

Areas with electronic equipment

These areas may interfere with your display or cause your computer to produce strange sounds.

Areas with extremely high/low temperatures

Do not leave things near the computer that are sensitive to heat. During operation, the

computer may become warm.

Usage Environment

Useful Information

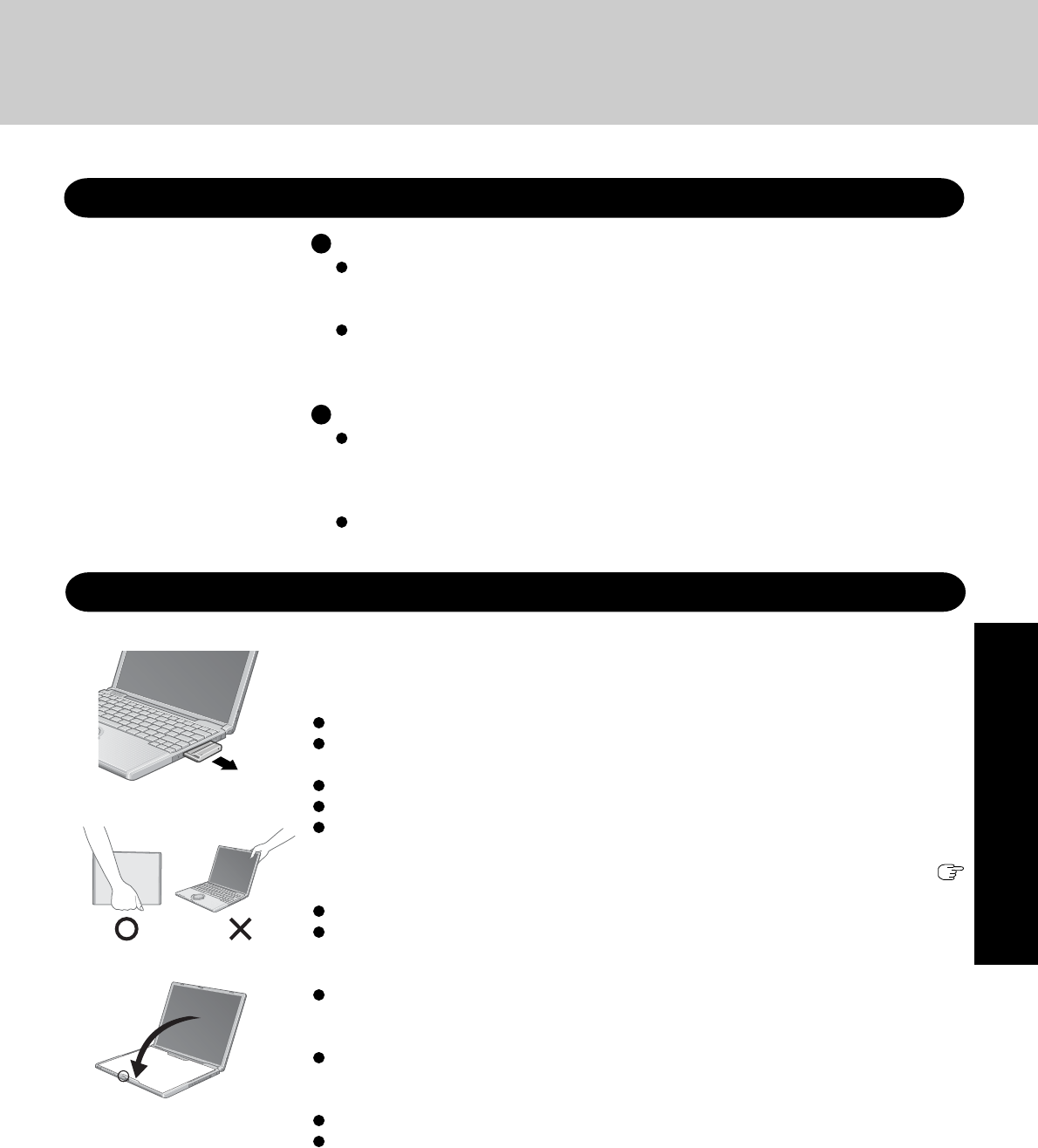

Handling

This computer has been designed so as to minimize shock to the LCD and hard disk drive, etc.,

but no warranty is provided against such trouble. Therefore, as a precision instrument, be

extremely careful in the handling.

When carrying the computer, be sure to keep to the following:

Turn off the computer.

Remove all external devices, cables, PC Cards protruding from the computer (see figure

A), SD memory cards, and MultiMedia Cards before transporting the computer.

Close the display, and ensure that the latch is positioned correctly in the slot.

Do not carry the computer by gripping the display or the cabinet around the display (see figure B).

Lay the carrying cloth that comes with the computer across the keyboard (see figure C), and

close the display gently. When closing the display, take care to ensure that the carrying cloth

does not get caught in the panel switch, and check that the latch on the computer body (

page 12) is properly aligned.

Do not drop or hit the computer against solid objects.

If the computer is being carried in a soft bag when the battery pack has been removed, be careful

to avoid undue pressure on the body of the computer in a crowded place, etc., as this may result

in damage to the LCD.

When taking an airplane, always carry your computer with you. Never check it in with luggage.

Before using the computer inside an airplane, we recommend asking the airlines regarding their

policy on this issue.

When transporting a spare battery pack inside a package, briefcase, etc., it is recommended

that it be placed in a plastic bag in order to protect its contacts.

We recommend the following:

Preparing a fully charged battery pack.

Making backup copies on discs and carrying them with you.

Operation

When Using Peripheral Devices

Pay strict attention to the following points to avoid damage to the computer, peripheral devices,

cables, etc. Also, in addition to following this manual and the Reference Manual, carefully read

the instruction manuals for the peripheral devices being used.

Use only peripheral devices that conform to the computer’s specifications.

Connect the devices properly, paying close attention to the condition and position of the

connectors.

If a connection cannot be made easily, do not apply undue force; check once more to confirm

the condition and position of the connector (alignment of pins, etc.) .

If the connector has holding screws, fasten the screws firmly.

Do not carry the computer with cables attached, and do not pull on the cables forcefully.

Saving Data on the Hard Disk

Do not expose your computer to shock.

Use care when handling your computer, shock may damage your hard disk or make your

software applications and data unusable.

Do not power off your computer while software applications are running or hard disk drive

indicator is on.

Properly shut Windows down to avoid problems.

Save all valuable data to discs.

Backing up data to discs will limit damage should trouble occur to your computer or should

you inadvertently change or erase data.

Use the security function for all important data. ( “Security Measures” and

“SD Memory Card Security Function”)

Hard Disk Lock

When the Hard Disk Lock is set to [Enable], it is impossible to read/write data from/to the hard

disk when the hard disk is installed in a different computer, since a password is also set for the

hard disk. When the hard disk is returned to the original computer, you can read/write data as

before. In this case, however, make the settings in the Setup Utility exactly the same as they

were before the hard disk was removed. (Note that this Hard Disk Lock does not guarantee the

complete protection of data.) ( “Security Measures”)

Useful Information

Display (LCD)

Use the soft cloth included with the computer. (For more information, refer to “Suggestions

About Cleaning the LCD Surface” that comes with the soft cloth.)

When areas excluding the display/the touch pad become dirty:

Wipe these areas with a soft cloth, after applying water or detergent diluted with water to the

soft cloth and firmly wringing out excess water.

Maintenance

Do not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect the

surface, e.g., discoloration. In addition, do not use commercially-available household

cleaners and cosmetics, as they may contain components harmful to the surface.

Do not directly add or spray water or detergent. If liquid enters the inside of the com-

puter, it may cause it to work improperly or be damaged.

CAUTION

Operation

When Changing Hard Disk Partitions

When using the hard disk backup function, divide into the partition when the backup area is

created ( page 37). If you divide up the hard disk before creating a backup area, the backup

area cannot be created.

Security of the Computer

To improve the security of the computer, use the following measures.

Use antivirus software (commercially available).

Use Windows XP Internet Connection Firewall.

Update Windows ( page 26).

Getting the newest information about security from the Website of Microsoft Corp. etc.

Using Antivirus Software

Especially in the following cases, we recommend you to perform a virus check.

Be sure to use the most up-to-date antivirus software when checking for viruses.

After booting your computer.

After receiving data.

We recommend that you check data received on disks or from external sources, such as data

downloaded from the network, Internet, e-mail, etc. (For compressed files, decompression

may be required before running a check.)

Using Internet Connection Firewall

An Internet Connection Firewall protects a computer from unlawful access via the Internet etc.

Make the settings by the following methods.

1Select [start] - [Control Panel] - [Network and Internet Connections] - [Network Connec-

tions].

2Select the icon of the connection you want to protect, from LAN, a modem or a high-speed

Internet category, with the right button, and select [Properties].

3Select [Advanced], add the check mark to [Protect my computer and network by limiting or

preventing access to this computer from the Internet] of [Internet Connection Firewall], and

select [OK].

If there are two or more methods of connecting to the Internet, repeat steps 2-3 of the procedure

for each connection.

Some network-related software and some online network games do not operate normally

if the Internet Connection Firewall is enabled. Ask the software manufacturer about the

Internet Connection Firewall in the case of using such software.

For further details of the Internet Connection Firewall, select [start] - [Help and Support]

and input [Internet Connection Firewall] into [Search], and see the help displayed.

NOTE

When Disposing of or Transferring Ownership of This Device

When disposing of or transferring ownership of this device, erase all data on the hard disk in order

to prevent the theft of hard disk data. Even if you delete data or initialize the hard disk through

normal Windows commands, data can still be read using special software. In order to erase all

data, either have the data erased by a specialist (at a charge) or use the hard disk data erase utility

(included) ( page 41). (Note that this hard disk data erase utility does not guarantee that data

will be completely erased.)

Also, note that if you transfer ownership of this device without deleting commercial software

that you have installed to the hard disk, you may be in violation of the licensing agreement for

that software.

Operation

Useful Information

Wireless LAN

To prevent theft of data or unauthorized access to the hard disk via a wireless LAN.

If you plan to use wireless LAN functions, we recommend that you do so only after making

the appropriate security settings, such as for encryption.

For instructions on settings for wireless LAN and cautions during use, select [start]-

[Reference Manual], and refer to "Wireless LAN".

Before using a wireless LAN, turn the wireless LAN on using the following method (at

the time of purchase, the wireless LAN is set to [Off]).

1 Double-click on the taskbar.

2 Select your wireless LAN adaptor and select [General].

3 Select [On] for [Switch radio].

4 Select [OK].

The icon will turn to or .

Do not use wireless LAN on airplanes, in hospitals, or in other locations where wireless

LAN signals may affect the operation of devices in the vicinity.

Abide by instructions regarding use in airplanes and hospitals.

Windows Update

Windows Update enables you to update Windows on your computer by applying the latest

patches and service packs for Windows.

Connect the Internet and perform it from [start] - [All programs] - [Windows Update].

Do not apply “Driver Updates” even if a message to update a driver appears. If a driver

update is required, contact your technical support office ( page 44).

Be sure to perform Windows Update after reinstallation ( page 33).

The installed patches can be confirmed in [start] - [Control Panel] - [Add or Remove Pro-

grams].

Troubleshooting

List of Error Codes

When turning on the computer, if one of the following error codes or messages is displayed, follow the instructions shown below.

If the problem persists, or if the error code or message displayed is not shown here, contact your technical support office ( page

44).

Error Code/Message

0211: Keyboard error

0251: System CMOS checksum

bad - Default configuration

used

0271: Check date and time set-

tings

0280: Previous boot incomplete

- Default configuration used

Press <F1> to resume, <F2> to

Setup

Operating System not found

Action

If an external keyboard or mouse is connected, disconnect these devices.

An error has occurred in the memory that stores the Setup Utility settings. This error occurs

when the memory content is changed through some inadvertent operation by a program or

other function.

Run the Setup Utility and load the default values, then change the settings to the appropri-

ate values as needed.

If the problem persists, the internal clock battery may need to be replaced. Contact your

technical support office.

The date and time setting are incorrect.

Run the Setup Utility and set the date and time correctly.

If the problem persists, the internal clock battery may need to be replaced. Contact your

technical support office.

Startup has failed repeatedly, so the Setup Utility settings have been returned to their default

values, and the computer has been booted.

Run the Setup Utility and load the default values, then change the settings to the appropri-

ate values as needed.

Write down the error details and press F2 to run the Setup Utility. Confirm the settings,

and change the settings to the appropriate values as needed.

The OS is not properly installed on the floppy disk or the hard disk that you are trying to boot

from.

If the computer cannot be booted from the floppy disk, check the floppy disk drive to

ensure that the disk is in fact bootable, and change it to another if not.

If the computer cannot be booted from the hard disk, confirm whether the hard disk is

properly recognized in [Information] menu of the Setup Utility.

If the hard disk is recognized, perform the reinstallation procedure. If not, contact your

technical support office.

If a device is connected to the USB port, disconnect the device, or run the Setup Utility

and set [Legacy USB Support] in [Advanced] menu to [Disable].

How to run the Setup Utility

1Restart the computer.

2Press F2 while [Panasonic] boot screen is displayed soon after the computer begins the startup procedure.

Troubleshooting

The power indicator or bat-

tery indicator is not lit

The computer does not op-

erate when a USB device is

connected

[Enter Password] is dis-

played

POST Startup Error(s) is

displayed

Windows startup, or an op-

eration is extremely slow

The date and time are incor-

rect

When resuming from the

standby or hibernation

mode, [Enter Password]

does not appear even if a

password has been set in the

Setup Utility

When “Remove disks or

other media. Press any key

to restart” (or a similar mes-

sage) is displayed

When the administrator

password is forgotten

Dealing with Problems (Summary)

Check the cable connection for the AC adaptor.

Check to see if a fully charged battery is properly inserted.

Remove the battery pack and disconnect the AC adaptor, then connect them again.

The computer may not operate when certain USB devices are connected. Disconnect the

USB device, or set [Legacy USB Support] to [Disable] in [Advanced] menu of the Setup

Utility.

Input your Supervisor Password or User Password. If you have forgotten it, contact your

technical support office ( page 44).

page 27

Press F9 in the Setup Utility ( “Setup Utility”). This will restore the Setup

Utility’s settings to their default values (except the password settings). Then, the Setup

Utility must be run once again for you to input the appropriate operating environment

settings. (The processing speed depends on the application software used, so this opera-

tion may not cause the processing speed to increase.)

If operations slow down during streaming playback, try changing the number of colors of

the display.

Disable any resident software.

You can set the date and time using the following menu:

[start] - [Control Panel] - [Date, Time, Language, and Regional Options] - [Date and Time]

If you continue to experience problems, the internal battery maintaining the clock may

need to be replaced. Contact your technical support office ( page 44).

When the computer is connected to a LAN, confirm the date and time of the server.

This computer will not correctly recognize the date and time starting from the year 2100 A.D.

Even when a password has been set in the Setup Utility, [Enter Password] does not appear

when the computer resumes from the standby or hibernation mode.

If you want to use the security function when using the standby or hibernation mode, use

the Windows password as follows:

1Select the account to change in [start] - [Control Panel] - [User Accounts] and set the pass-

word.

2Add the check mark for [Prompt for password when computer resumes from standby] in

[Control Panel] - [Performance and Maintenance] - [Power Options] - [Advanced].

This means a floppy disk that dose not contain system startup information has been left in

the floppy disk drive. Remove the floppy disk, and press any key.

This message may appear when certain USB devices are connected. Remove the USB

device, or set [Legacy USB Support] in [Advanced] menu of the Setup Utility to [Dis-

able].

If the message still appears even after trying the above measures, this may be an indication

that some type of hard disk failure has occurred. Contact your technical support office.

If you have created a password reset disk ( page 15), a message is displayed when you

fail to correctly enter the password. Follow the message’s instructions and set the pass-

word again by using the password reset disk.

If you have not created a password reset disk, after reinstalling, setup Windows and then

set the password again.

When a problem occurs, refer to this page. The “Reference Manual” also contains detailed information. If a problem appears to be

related to a software application, read the software related manual. If you still cannot troubleshoot the problem, contact your

technical support office ( page 44). You can use the PC Information Viewer to check the computer’s usage status. (

“Dealing with Problems (Advanced)”)

Starting Up

Troubleshooting

No display after powering on

The power has not been

turned off, but after a cer-

tain period of time, there is

no display

When the battery pack is

used, the screen is darker

than when the AC adaptor

is connected

The cursor cannot be con-

trolled properly

An afterimage appears (e.g.,

green, red, and blue dots re-

main on the display) or there

are dots not displaying the

correct colors

The screen becomes disor-

dered

When there is no display to an external display,

• Check your cable connection to the external display.

• Confirm your display is powered on.

• Check the settings for your external display.

The display destination may be set to the external display.

Try changing the display destination by pressing Fn + F3 .

If you want to switch the display destination repeatedly by pressing Fn + F3 , make

sure that the display destination has switched completely each time before pressing

Fn + F3 again.

Press Fn + F2 and adjust the brightness.

Has the computer been set to the power-saving mode?

To resume operation of your computer from the condition the power of the display is off

(for energy conservation purposes), press any key unrelated to the direct triggering of a

selection, like Ctrl .

To save power, your computer may have automatically entered the standby mode (power

indicator blinks green) or hibernation mode (power indicator turns off). In such cases,

slide the power switch.

Press Fn + F2 and adjust the brightness. Note, however, that when the brightness is

increased, the battery running time will become shorter.

Brightness can be set to separate levels for when the AC adaptor is connected and when

it is disconnected.

If you are using an external mouse, ensure that the external mouse has been connected

correctly.

Restart the computer by using the keyboard (Press , U , and select [Restart] with

, then press Enter ).

If the computer does not respond to keyboard commands, read “No response”

( page 32).

If an image is displayed for a prolonged period of time, an afterimage may appear. This is

not a malfunction. The afterimage will disappear when a different screen is displayed.

High-precision and advanced technologies are necessary in the production of color liquid

crystal displays (color LCDs). Therefore, if 0.002% or less of the picture elements either

fail to light or remain constantly lit (that is, more than 99.998% of elements are function-

ing properly), no defect is considered to exist.

Changing the number of colors or resolution of the display may affect the screen. Restart

the computer.

Display

When the previous item is

not the cause Press F9 in the Setup Utility ( “Setup Utility”). This will restore the Setup

Utility’s settings to their default values (except the password settings).

Try removing all peripheral devices.

Check a disk error using the following procedure.

1Display [Local Disk (C:) Properties].

Select [Local Disk(C:)] with the right button in [start] - [My Computer], and select

[Properties].

2Select [Tools] - [Check Now].

3Select [Start] after selecting required items in [Check disk options].

At startup, hold down F8 when [Panasonic] boot screen disappears*1, and release your

finger when the Windows Advanced Option Menu is displayed. Start the computer in

Safe Mode, and confirm the details of the error.

*1When [Password on boot] is set to [Enable], [Enter Password] appears after the [Panasonic]

boot screen disappears. Hold down F8 soon after inputting the password and pressing

Enter .

Starting Up (continued)

Troubleshooting

The external display no

longer displays properly

When you want to display

the fonts or icons at a larger

size

When an MPEG file is being

played with Windows® Me-

dia Player, the display desti-

nation cannot be switched

using Fn + F3

During simultaneous dis-

play, the screen of the exter-

nal display becomes disor-

dered

When an external display not compatible with the power saving mode is used with the

computer, the display may not function correctly when the computer enters the power

saving mode. In such cases, turn off the power to the external display.

Change the size of the icons, etc. using “Icon Enlarger” ( “Icon Enlarger”).

You can also change the settings as follows (for more details, refer to the Windows Help).

1Select [start] - [Control Panel] - [Appearance and Themes] - [Display] - [Appearance].

2Select the font size in [Font size], and select [Effects] and then add the check mark for

[Use large icons] to increase the icon size.

3Select [OK], then select [OK].

The display destination cannot be switched while a video such as an MPEG file is playing.

Stop playing the video before switching the display destination.

Try changing the display by pressing Fn + F3 .

If you continue to experience problems, try changing the display destination in the follow-

ing menu:

[start] - [Control Panel] - [Other Control Panel Options] - [Inte

l(R)

Extreme Graphics] -

[Devices]

When [Command Prompt] is set to “Full Screen” by pressing Alt + Enter , the screen

is displayed on one of the displays only. When the window display is restored by pressing

Alt + Enter , the screen is displayed on both displays.

Display (continued)

Windows cannot be shut

down or restarted

Shutting Down

If a USB device is connected, try removing it.

Dealing with Problems (Summary)

Standby / Hibernation Function

Unable to enter standby or

hibernation mode

Unable to automatically

enter standby or hiberna-

tion mode

The computer does not

resume

If a USB device is connected to the computer (note: only for some USB devices), remove

the USB device temporarily. If the problem persists, restart the computer.

It may take one or two minutes to enter standby or hibernation mode.

The computer may not enter standby mode properly and seems to be frozen in the case

that the computer is communicating via the modem. If this happens, slide the power switch

for four seconds or more to forcibly turn your computer off.

If a peripheral is connected to the computer, disconnect the device.

When the internal LCD is closed, the computer may not enter standby or hibernation

mode. In order to activate standby or hibernation automatically while using the com-

puter with the internal LCD closed, set the [Touch Pad] to [Disable] in the [Main] menu

of the Setup Utility.

Did you disconnect the AC adaptor or the battery pack while the computer was in

standby mode? If the computer's power supply is disconnected while the computer is in

standby mode, all unsaved data will be lost.

Did you slide the power switch and hold it for four seconds or more? If you slide the

power switch and hold it for four seconds or more, the power will be turned off forcibly. In

this case, all unsaved data will be lost.

Troubleshooting

Some applications may not

work properly

Fast User Switching Function

When switching to a different user with the Fast User Switching function, the following

problems may occur.

• Some applications may not work properly.

•Key combination with Fn may not work.

• It may not be possible to set the settings of the display.

• The wireless LAN cannot be used.

SD Memory Card

Cannot log on with the SD

memory card Windows logon user name and password are not set in the SD memory card correctly.

Enter the Windows user name and password without using the SD memory card.

After logging on, set the same user name and the password on the SD memory card and

Windows, using one of the following operations.

• Change the setting of the SD memory card side by [SD Card Setup].

• Change the setting of the Windows side by [Control Panel].

Battery Indicator

The red indicator lights

The red indicator blinks

The orange indicator blinks

The battery level is very low (the charge is approx. 9% or less).

Connect the AC adaptor. You can use the computer when the indicator light is orange. If

you do not have an AC adaptor, save your data and power off your computer. After replac-

ing the battery pack with a fully charged one, turn your computer on.

Quickly save your data and power off your computer. Remove the battery pack and dis-

connect the AC adaptor, then connect them again.

If the problem persists, contact your technical support office ( page 44). The battery

pack or charging circuit may be defective.

Battery cannot be recharged temporarily because the internal temperature of the battery

pack is outside of the acceptable temperature range for recharging. Once the allowable

range requirement is satisfied, charging begins automatically. Your computer can be used

normally in this state.

Is Acrobat Reader installed?

If Acrobat Reader is not installed, run [c:\util\reader\acroreader51_enu_full.exe] in [start]

- [Run] to reinstall the program. When installing the program, do not change the installa-

tion destination folder. If the destination folder is changed, the Reference Manual cannot

be opened from [start] menu.

Reference Manual

The Reference Manual is

not displayed

You do not know the avail-

able RAM module

Cannot tell whether the

RAM module has been cor-

rectly installed

The RAM module has not

been recognized

RAM Module

page 21

You can check whether the RAM module is recognized using [Information] menu in the

Setup Utility. If the RAM module is not recognized, turn the computer off and reinsert the

RAM module.

Make sure the RAM module has been properly inserted.

Use the RAM module that supports the recommended specifications ( page 21).

Troubleshooting

Dealing with Problems (Summary)

No response

When trying to play back

video files using Windows®

Media Player, the message

[Codec required] appears,

and the file cannot be played

back

The shortcut icon for the

Windows® Media Player is

not displayed on the desktop

Two shortcut icons for the

Windows® Media Player are

displayed on the desktop

Cannot operate Fn key

Press Ctrl + Shift + Esc to open Task Manager and close the software application

which is not responding.

After shutting down by sliding the power switch for more than four seconds, slide the

power switch to power on and open the application again.

If the program no longer works normally, select [start] - [Control Panel] - [Add or Re-

move Programs] to delete the program.

Then reinstall the program.

Some video files use a Codec that is not installed as a standard. In these cases, if you play

back the video file after connecting to the Internet, the Codec may be downloaded auto-

matically, allowing you to play back the file.

Start up Windows® Media Player from [start] - [All Programs]. Also, you can copy the

icon from [All Programs] list to the desktop and use this icon to start Windows® Media

Player.

Did the user who first accepted the Windows® Media Player license agreement have the

administrator authority? Two icons will be displayed until someone with the administrator

authority accepts the license agreement, but either icon can be used to start the program.

In [Main] menu of the Setup Utility, is [Fn / Ctrl key] set to [Replace]?

Return the setting to [Normal], or press Ctrl instead of Fn if you want to leave the

setting in the [Replace] position.

Others

Troubleshooting

Reinstalling Software

Before Reinstallation

Preparing

• Product Recovery CD-ROM (included)

• Panasonic DVD-ROM & CD-R/RW drive (optional: CF-VDRRT1M, CF-VDRRT2W)

Important

Before the reinstallation procedure, remove all peripherals (except for the DVD-ROM & CD-R/RW drive).

Be sure the AC adaptor is connected until the reinstallation procedure is completed.

Reinstalling

When reinstallation procedure is performed, the contents of the hard disk will be erased. Be sure to back up any critical data on

your hard disk to another media or to an external hard disk before running the reinstallation procedure.

The reinstallation procedure will return the computer to its original condition.

Even if a hard disk backup area has been created, this backup area will be erased, and all the backed up data will be lost.

(This is not the case when Windows is reinstalled in the first partition.)

• If you have created partitions for data, the data may be erased or become corrupt as a result of the reinstallation procedure.

1Turn off the computer and connect the DVD-ROM & CD-

R/RW drive to the computer.

2Turn on the computer, and press F2 while [Panasonic]

boot screen is displayed.

The Setup Utility will start up.

If the password has been set, enter the Supervisor Pass-

word.

3Write down all of the contents of the Setup Utility and then

press F9 .

At the confirmation message, select [Yes] and press

Enter .

4Select [Boot] menu, then select [USB CD/DVD Drive] and

press F6 until [USB CD/DVD Drive] is at the top of the

[Boot] menu.

5Place the disc number one of the recovery CDs into the

DVD-ROM & CD-R/RW drive.

6Press F10 .

At the confirmation message, select [Yes] and press

Enter .

The computer will restart and this screen should appear.

8Press 1 to select [1. Yes, I agree to the provisions above

and wish to continue!].

This screen should appear.

9Make a selection from the menu.

When selecting [2], enter the basic partition size for the

operating system installation and press Enter .

(The data partition size is the remainder after subtract-

ing the basic partition size.)

To select [3], the first partition size must be 6 GB or

more of the hard disk size. Reinstallation cannot be per-

formed with a small partition size.

If you select [1] or [2], the message [The Backup function

has been enabled. If [Recovery] is executed, the Backup

function will be disabled, and your Backup data will be

lost.] appears. In this case, press Y .

7Press 1 to execute [1. [Recovery]].

(You can cancel this operation by pressing 0 .)

The License Agreement screen should appear.

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

Reinstalling : Windows(R) XP Professional

1. Reinstall Windows to the whole HDD to factory default.

2. Make two partitions, for the operating system and data. And reinstall

Windows to the operating system partition.

(All existing partitions on HDD will be lost.)

3. Reinstall Windows to the first partition.

0. Cancel

---------------------------------------------------------------------

When [2] is selected, the hard disk backup func-

tion cannot be enabled because the hard disk has

been divided into partitions.

NOTE

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. [ Recovery ] Reinstall Windows.

2. [ Erase HDD ] Erase the whole data on HDD for security.

3. [ Backup ] Enable the Backup function.

0. [ Cancel ] Cancel.

---------------------------------------------------------------------

When the message [The Backup function has been enabled.

If [Recovery] or [Erase HDD] is executed, the Backup func-

tion will be disabled, and your Backup data will be lost.]

appears, press Y .

Troubleshooting

11 Remove the recovery CD and press any key to shut

down the computer, then remove the DVD-ROM & CD-R/

RW drive.

12 Turn on the computer, and press F2 while [Pana-

sonic] boot screen is displayed.

The Setup Utility will start up.

If the password has been set, enter the Supervisor Pass-

word.

13 Press F9 .

At the confirmation message, select [Yes] and press

Enter . (The Setup Utility settings will return to their

default values. Even the security settings with the excep-

tion of the password(s) will return to their default values.)

14 Press F10 .

At the confirmation message, select [Yes] and press

Enter .

15 Perform the setup procedure for Windows by following the

instructions on the screen ( page 13).

16 Run the Setup Utility and change the settings where neces-

sary.

17 If you can connect to Internet, perform Windows Update.

Do not interrupt the reinstallation procedure before

completion, for example by turning off the computer

or pressing Ctrl + Alt + Del , as this may

prevent Windows from starting up, or may cause data

to be lost so that the reinstallation procedure cannot

be executed.

When a message appears instructing you to insert

the next CD, insert the recovery CD showing the

next number in the sequence, and then select [OK].

If the message [The media does not contain the cor-

rect file] appears, select [OK]. A message will ap-

pear instructing you to insert the next CD.

Confirm that the proper recovery CD has been in-

serted by opening the cover of the DVD-ROM &

CD-R/RW drive and then close the cover, then se-

lect [OK].

CAUTION

After the reinstallation procedure completes, this screen

should appear.

10 At the confirmation message, press Y .

The operation of reinstallation for the hard disk starts auto-

matically. (The operations take about an hour.)

If you select [3] in step 9 ( page 33) and execute reinstalla-

tion, the drive name for the second partition (data partition)

may be switched with that of the SD Memory Card. You can

still use the drives after the names have been switched, but you

can also return the drive names to their original state using the

following procedures.

(The following procedure assumes that before reinstallation,

the second partition (data partition) was Drive D:, and the SD

Memory Card was Drive E:)

1Disable the drive name for the second partition (data parti-

tion).

1In the menu below, select [Computer Management].

Select [start] - [Control Panel] - [Performance and Main-

tenance] - [Administrative Tools].

2Select [Disk Management].

3Right click on the partition for which [E:] is displayed

and select [Change Drive Letter and Paths...].

4Select [Remove].

5At the confirmation message, select [Yes].

2Change the SD memory card drive name to [E:].

Use the SD drive name change tool to change the SD

Memory Card to the E: drive. ( "SD Memory

Card/ MultiMedia Card").

3Set the drive name for the second partition (data partition)

as [D:].

1In the menu below, select [Computer Management].

Select [start] - [Control Panel] - [Performance and Main-

tenance] - [Administrative Tools].

2Select [Disk Management].

3Right click on the partition for which the drive name is

not displayed, and select [Change Drive Letter and

Paths...].

4Select [Add...], assign [D:] as the drive letter, and select

[OK].

Reinstalling Software

-----------------------------------------------------------------------

[Recovery] is complete.

Windows(R) XP Professional install wizard will start after reboot.

Please remove the Product Recovery CD-ROM.

After turning off the power, disconnect the CD/DVD-ROM drive, and turn the

power on again.

-----------------------------------------------------------------------

Appendix

LIMITED USE LICENSE AGREEMENT

THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC® PRODUCT (“PRODUCT”)

ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH

THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY DEEMED

TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.

Matsushita Electric Industrial Co., Ltd. (“MEI”) has developed or otherwise obtained the Programs and hereby licenses

their use to you. You assume sole responsibility for the selection of the Product (including the associated Programs) to

achieve your intended results, and for the installation, use and results obtained therefrom.

LICENSE

A. MEI hereby grants you a personal, non-transferable and non-exclusive right and license to use the Programs in

accordance with the terms and conditions stated in this Agreement. You acknowledge that you are receiving only

a LIMITED LICENSE TO USE the Programs and related documentation and that you shall obtain no title, owner-

ship nor any other rights in or to the Programs and related documentation nor in or to the algorithms, concepts,

designs and ideas represented by or incorporated in the Programs and related documentation, all of which title,

ownership and rights shall remain with MEI or its suppliers.

B. You may use the Programs only on the single Product which was accompanied by the Programs.

C. You and your employees and agents are required to protect the confidentiality of the Programs. You may not

distribute or otherwise make the Programs or related documentation available to any third party, by time-sharing

or otherwise, without the prior written consent of MEI.

D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documentation for

any purpose, except that you may make one (1) copy of the Programs for backup purposes only in support of your

use of the Programs on the single Product which was accompanied by the Programs. You shall not modify, or

attempt to modify, the Programs.

E. You may transfer the Programs and license them to another party only in connection with your transfer of the

single Product which was accompanied by the Programs to such other party. At the time of such a transfer, you

must also transfer all copies, whether in printed or machine readable form, of every Program, and the related

documentation, to the same party or destroy any such copies not so transferred.

F. You may not remove any copyright, trademark or other notice or product identification from the Programs and you

must reproduce and include any such notice or product identification on any copy of any Program.

YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANICALLY OR ELECTRONICALLY TRACE

THE PROGRAMS, OR ANY COPY THEREOF, IN WHOLE OR IN PART.

YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PROGRAMS OR ANY COPY THEREOF, IN

WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THE LICENSE.

IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO ANOTHER PARTY, EXCEPT AS PERMIT-

TED IN PARAGRAPH E ABOVE, YOUR LICENSE IS AUTOMATICALLY TERMINATED.

TERM

This license is effective only for so long as you own or lease the Product, unless earlier terminated. You may terminate

this license at any time by destroying, at your expense, the Programs and related documentation together with all copies

thereof in any form. This license will also terminate effective immediately upon occurrence of the conditions therefor set

forth elsewhere in this Agreement, or if you fail to comply with any term or condition contained herein. Upon any such

termination, you agree to destroy, at your expense, the Programs and related documentation together with all copies

thereof in any form.

YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE BOUND

BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE STATE-

MENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT,

ORAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN US, RELATING TO THE SUBJECT MAT-

TER OF THIS AGREEMENT.

About Intel® software products

The enclosed software products and documentation were developed at private expense, and are provided with “RESTRICTED

RIGHTS.” Use, duplication or disclosure by the government is subject to restrictions as set forth in FAR 52.227-14 and DFARS

252.227-7013 et. seq. or its successor. The use of this product by the government constitutes acknowledgment of Intel's propri-

etary rights in the product.

Appendix

A. MEI vous octroie par les présentes le droit et la licence personnels, non cessibles et non exclusifs d'utiliser les

Logiciels conformément aux termes, clauses et conditions de ce Contrat. Vous reconnaissez ne recevoir qu'un

droit limité d'utiliser les Logiciels et la documentation les accompagnant et vous vous engagez à n'obtenir aucun

droit de titre, propriété ni aucun autre droit vis-à-vis des Logiciels et de la documentation les accompagnant ni vis-

à-vis des algorithmes, concepts, dessins, configurations et idées représentés par ou incorporés dans les Logiciels

et la documentation les accompagnant, dont les titres, propriété et droits resteront tous à MEI ou à leurs propriétaires.

B. Vous ne pouvez utiliser les Logiciels que sur le Produit unique qui est accompagné par les Logiciels.

C. Vous et vos employés ou agents êtes requis de protéger la confidentialité des Logiciels. Vous ne pouvez ni

distribuer ni mettre les Logiciels et la documentation les accompagnant à la disposition d'un tiers, par partage de

temps ou de quelque autre manière que ce soit, sans l'autorisation écrite préalable de MEI.

D. Vous ne pouvez ni copier ni reproduire ni permettre la copie ni la reproduction des Logiciels ni de la documenta-

tion les accompagnant pour quelque fin que ce soit, à l'exception d'une (1) copie des Logiciels à des fins de

sauvegarde uniquement pour soutenir votre utilisation des Logiciels sur le Produit unique qui est accompagné

par les Logiciels. Vous ne pouvez ni modifier ni tenter de modifier les Logiciels.

E. Vous ne pouvez céder les Logiciels et en octroyer la licence à une autre partie qu'en rapport avec votre cession

du Produit unique qui est accompagné par les Logiciels à cette autre partie. Au moment de cette cession, vous

devez céder également toutes les copies, que ce soit sous forme imprimée ou lisible par la machine, de tous les

Logiciels ainsi que de la documentation les accompagnant, à la même partie ou détruire les copies non cédées.

F. Vous ne pouvez retirer aucune marque de droits d'auteur, marque ou autre ni aucune identification de produit des

Logiciels et vous devez reproduire et inclure toutes ces notices ou identifications de produit sur toutes les copies

des Logiciels.

Vous ne pouvez assembler en sens inverse, compiler en sens inverse ni retracer les Logiciels ni aucune de leurs

copies, de façon électronique ou mécanique, en tout ou en partie.

Vous ne pouvez utiliser, copier, modifier, altérer ni céder les Logiciels ni aucune de leurs copies, en tout ou en partie, à

l'exception de ce qui est expressément stipulé dans ce contrat.

Si vous cédez la possession de toute copie ou de tout Logiciel à une autre partie, à l'exception de ce qui est autorisé au

paragraphe E ci-dessus, votre licence est automatiquement résiliée.

Licence

Termes, clauses et conditions

Cette licence n'est effective que pour la durée de possession ou de crédit-bail du Produit, à moins d'une résiliation

antérieure. Vous pouvez résilier cette licence à tout moment en détruisant, à vos frais, les Logiciels et la documentation

les accompagnant avec toutes leurs copies, sous quelque forme que ce soit. Cette licence sera également résiliée, avec

application immédiate, si les conditions de résiliation définies ailleurs dans ce contrat se sont réalisées ou si vous ne

respectez pas les termes, clauses et conditions qui y sont contenues. Au moment de la résiliation, vous acceptez de

détruire, à vos frais, les Logiciels et la documentation les accompagnant avec toutes leurs copies, sous quelque forme

que ce soit.

Vous reconnaissez avoir lu ce contrat, en avoir compris toute la substance et avoir accepté de respecter ses termes,

clauses et conditions. Vous reconnaissez en outre qu'ils sont la description complète et exclusive du contrat conclu

entre nous, contrat qui remplace et annule toute proposition ou contrat précédent, écrit ou oral, et toute autre communi-

cation entre nous, relativement à l'objet du présent contrat.

Le(s) logiciel(s) (les “Logiciels”) fournis avec ce produit Panasonic® (le “Produit”) sont exclusivement concédés en

licence à l'utilisateur ultime (“vous”), et ils ne peuvent être utilisés que conformément aux clauses contractuelles ci-

dessous. En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et condi-

tions des présentes.

Matsushita Electric Industrial Co., Ltd. (“MEI”) a mis au point ou obtenu les Logiciels et vous en concède l'utilisation par

les présentes. Vous assumez l'entière responsabilité du choix de ce Produit (y compris des Logiciels associés) pour

obtenir les résultats escomptés, ainsi que de l'installation, de l'utilisation et des résultats obtenus.

Contrat de licence d’usage limité

Appendix

Hard Disk Backup Function

The hard disk backup function creates a backup area (storage area) on the hard disk. This area is to back up (store) hard disk

contents or restore backed up contents to their original locations.

By backing up the data on your hard disk to a backup area, you can protect your data from loss or damage resulting from operational

errors or other factors. Also, you can back up or restore hard disk contents using this computer alone, without having to use other

media or peripheral devices.

At the time of purchase, the hard disk backup function is disabled. If you follow the procedure below to create a backup area, the

hard disk backup function will be enabled, and you will be able to back up your data. Note, that once the backup function has been

enabled, you will have to perform the reinstallation procedure to disable it again ( page 33).

Disconnect or remove all peripheral devices (except for the DVD-ROM & CD-R/RW drive), SD

memory cards, and MultiMedia cards. Take care to disconnect the USB floppy disk drive, as the

backup area may not be created properly while these devices are connected.

Be sure the AC adaptor is connected to the computer.

A backup area cannot be created if the hard disk is already divided into several partitions. Return

the computer to its condition at the time of purchase (one partition only), and create the backup

area.

To divide the partition, make the selection when the backup area is created ( page 38 step 8).

If the partition configuration is changed (partitions created, size changed, etc.) after the backup

area has been created, it will no longer be possible to execute the backup function. To change the

configuration, it is necessary to return the computer to its condition at the time of purchase, and

then create the backup area again.

The hard disk backup function will only work for the internal hard disk. This function does not

work with an external hard disk.

Backup and restore functions will not operate if the hard disk has been damaged.

Do not use the NTFS file system compression function, as this may result in insufficient capacity

of the backup area.

If the hard disk malfunction occurs, it will be impossible to read the data stored hard disk. We

recommend that you also back up important data to a location other than the hard disk (an external

hard disk or other media).

Execute a disk error check using the following procedure.

1Display the [Local Disk(C:) properties].

Select [Local Disk(C:)] with the right button in [start] - [My Computer], and select [Properties].

2Select [Check Now] from [Tools].

3In [Check Disk], select [Start] without adding a check mark beside any of the items.

If a message is displayed indicating that there is an error in the disk, display [Check Disk], and

add a check mark for [Automatically fix file system errors] and [Scan for and attempt recovery

of bad sectors], select [Start], and check for disk errors again.

The hard disk backup function does not accommodate dynamic disks. Do not convert the hard

disk to a dynamic disk.

The hard disk backup function cannot back up or restore data properly if there is a problem with the hard disk when the data is

backed up or restored. Note that if an error occurs while data is being restored, whether as a result of an unexpected malfunction,

incorrect operation, or other reason, the data in the hard disk (data before restoration) may be lost.

Matsushita Electric Industrial Co., Ltd. will bear no responsibility for any damages suffered by the user (including loss of data)

as a result of the use of this function.

Before Using a Hard Disk Backup Function

Preparing

Product Recovery CD-ROM (included)

Panasonic DVD-ROM & CD-R/RW drive (optional: CF-VDRRT1M, CF-VDRRT2W)

Appendix

Hard Disk Backup Function

The usable hard disk area

[At the time of purchase] [After the backup area is created]

The backup area

Cannot be accessed

from Windows.

Can be accessed from

Windows (One partition).

8Select how to divide the hard disk from the menu.

Select [1].

1Turn off the computer and connect the DVD-ROM & CD-R/RW drive to the computer.

2Turn the computer on, and press F2 while [Panasonic] boot screen is displayed.

The Setup Utility will start up.

If a password has been set, enter the Supervisor Password.

You cannot register [Boot] menu with a User Password.

3Select [Boot] menu, then select [USB CD/DVD Drive] and press F6 until [USB CD/DVD

Drive] is at the top of [Boot] menu.

4Place disc number one of the recovery CDs into the DVD-ROM & CD-R/RW drive.

5Press F10 .

At the confirmation message, select [Yes] and press Enter .

The computer will restart. If [Enter Password] is displayed during the following procedures, input

the Supervisor Password or the User Password.

This screen should appear.

Regarding backup area

• Requires availability of at least half of the entire hard disk. Without sufficient space

available, the backup area cannot be created.

• When the backup area is created, the usable hard disk capacity will be reduced to less

than half.

• The backup area cannot be accessed from Windows. For this reason, backed up data

cannot be copied to CD-R or other removable disk media.

• When the hard disk backup function is executed, data in the backup area will be over-

written. If newly created or edited data is backed up later, data stored previously

in the backup area will be lost.

NOTE

Create a Backup Area

When dividing the hard disk into partitions

Do not execute [1. [Recovery]] to divide the hard disk into partitions. The hard disk

backup function cannot be enabled after the hard disk has been partitioned. Use proce-

dure 8 to divide the hard disk.

CAUTION

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. [ Recovery ] Reinstall Windows.

2. [ Erase HDD ] Erase the whole data on HDD for security.

3. [ Backup ] Enable the Backup function.

0. [ Cancel ] Cancel.

---------------------------------------------------------------------

6Press 3 to execute [3. [Backup]].

7At the confirmation message, press Y .

Appendix

Select [2], enter the partition size (GB), and press Enter .

• You can cancel this operation by pressing 0 .

• The data partition size will be the maximum settable size less the number entered above.

The maximum settable size will differ depending on models.

9At the confirmation message, press Y .

The backup area is then created.

10 When the message [You must reboot in order to enable the Backup function.] appears, remove

the recovery CD, and press any key to restart the computer. The computer is restarted, then the

backup process will begin.

11 When the message [[Backup] is complete] appears, press Ctrl + Alt + Del to restart the

computer.

12 A message will appear advising that a new device has been installed and that the computer must

be restarted to enable the settings. Select [Yes] to restart the computer.

The [Boot] menu in the Setup Utility is set to start up from the DVD-ROM & CD-R/RW

drive. Change this setting if necessary.

The next time the backup or restore functions are executed, follow the procedure for [Backing

Up and Restoring Data] ( below).

NOTE

The usable hard disk area

[At the time of purchase] [After the backup area is created]

The backup area

Cannot be accessed

from Windows.

Do not press Ctrl + Alt + Del until the message is displayed.

CAUTION

Can be accessed from

Windows (Two partitions).

1Turn the computer on, and press F2 while [Panasonic] boot screen is displayed.

The Setup Utility will start up.

If a password has been set, enter the Supervisor Password or the User Password.

2Select [Exit] menu, then select [Hard Disk Backup / Restore] and press Enter .

At the confirmation message, select [Yes], and press Enter .

Backing Up and Restoring Data

Before executing the backup function, execute a disk error check ( page 37).

Do not interrupt the backup or restore functions before completion, for example by turning

off the power or pressing Ctrl + Alt + Del , as this may prevent Windows from starting

up, or may cause data to be lost so that the backup and restore functions cannot be executed.

CAUTION

Appendix

To disable the hard disk backup function

Perform the reinstallation procedure. All data in the backup area and the hard disk will be erased.

Conduct steps 1-8 for [Reinstalling Software] ( page 33). Select [1] or [2] to execute the

reinstallation at the screen for executing the reinstallation.

• When [1] is selected, the hard disk backup function can be disabled.

• When [2] is selected, the hard disk backup function can be disabled, but in this case, because

the hard disk has been divided into partitions, the hard disk backup function cannot be re-

enabled ( page 25).

• When [3] is selected, the hard disk backup function cannot be disabled.

CAUTION

When the hard disk backup function has been enabled, even if a commercial data erasing

utility or similar software is used to erase all data from user-accessible area, the backed up

data will not be erased. You can use the hard disk data erase utility included in this computer

( page 41) to erase all data on the hard disk, including backed up data. Use this hard disk

data erase utility before disposing of or transferring ownership of this computer.

Occasionally, the message [#1805 cannot write image file] will be displayed, and the backup

function will be interrupted. If this error occurs, execute the backup function again. After

this, if the backup function is completed properly, then there is no problem in the hard disk.

3Select the operation to be executed from the menu.

1Press 1 to execute [1. [Backup]].

(When dividing the hard disk into two partitions, select the backup method at next screen.)

2At the confirmation message, press Y .

The backup process will begin.

1Press 2 to execute [2. [Restore]].

(When data is backed up in two partitions, select the restore method at next screen.)

2At the confirmation message, press Y .

The restore process will begin.

4When the message [[Backup] is complete] or [[Restore] is complete] is displayed, press

Ctrl

+ Alt + Del to restart the computer.

• If the backup or restore process was interrupted before completion, for example if the power

was turned off, execute the process again.

• When a new device is installed and a message appears advising that the computer must be

restarted to enable the settings, select [Yes] to restart the computer.

The time required to complete the backup or restore process differs depending on the data

volume.

NOTE

Hard Disk Backup Function

Appendix

Hard Disk Data Erase Utility

This computer is equipped with a utility for erasing hard disk data.

When disposing of or transferring ownership of this device, erase all data on the hard disk in order to prevent the theft of hard disk

data following the steps below.

The hard disk data erase utility erases data using an overwriting method, but there is a possibility that due to malfunctions or

other operational errors, data may not be completely erased. There are also specialized devices that may be able to read data that

has been erased using this method. If you need to erase highly confidential data, we recommend that you contact a company that

specializes in this process. Matsushita Electric Industrial Co., Ltd. will bear no responsibility for losses or damages suffered as

a result of the use of this utility.

Preparing

• Product Recovery CD-ROM (included)

• Panasonic DVD-ROM & CD-R/RW drive (optional: CF-VDRRT1M, CF-VDRRT2W)

8At the confirmation message, press Y .

9When [<<<Start Menu>>>] is displayed, press Enter .

10 The approximate time required for erasing data will be dis-

played.

Press Space .

11 At the confirmation message, press Enter . The operation

of erasing the hard disk starts.

(If necessary, the “hard disk data erase” operation can be can-

celled after it has begun by pressing Ctrl +C . If the

operation is cancelled before being completed, a part of data

will not be erased.)

12 After the operation is complete:

Under normal conditions, the message [Hard disk data has

been deleted.] will be displayed.

If a problem occurred during the operation, an error message

will be displayed.

13 Remove the recovery CD, and then press any key to turn off

the computer.

14 Remove the DVD-ROM & CD-R/RW drive.

Procedure

NOTE

Be sure the AC adaptor is connected until the procedure is completed.

This utility can only be used for internal hard disk. It cannot be used to erase data from external hard disks.

This utility cannot erase data from damaged disk.

This utility cannot erase data for specific partitions.

After executing this utility, the computer cannot be booted from the hard disk.

1Turn off the computer.

2Connect the DVD-ROM & CD-R/RW drive to the computer.

3Turn the computer on, and press F2 while [Panasonic]

boot screen is displayed.

The Setup Utility will start up.

If the password has been set, enter the Supervisor Password.

4Select [Boot] menu, then select [USB CD/DVD Drive] and

press F6 until [USB CD/DVD Drive] is at the top of

[Boot] menu.

5Place the disc number one of the recovery CDs into the DVD-

ROM & CD-R/RW drive.

6Press F10 .

At the confirmation message, select [Yes] and press

Enter .

The computer will restart, and this screen should appear.

When the message [The Backup function has been enabled.

If [Recovery] or [Erase HDD] is executed, the Backup func-

tion will be disabled, and your Backup data will be lost.]

appears, press Y .

7Press 2 to execute [2.[Erase HDD]].

(You can cancel this operation by pressing 0 .)

When the message [The Backup function has been enabled.

If [Erase HDD] is executed, the Backup function will be

disabled, and your Backup data will be lost.] appears, press

Y .

---------------------------------------------------------------------

Select a number

---------------------------------------------------------------------

1. [ Recovery ] Reinstall Windows.

2. [ Erase HDD ] Erase the whole data on HDD for security.

3. [ Backup ] Enable the Backup function.

0. [ Cancel ] Cancel.

---------------------------------------------------------------------

Appendix

Model No.

CPU/Cache

Memory

Video Memory

Hard Disk Drive

LCD Type

Displayed Colors*4

External Display

Slots PC Card Slot

Allowable current

RAM Module Slot*6

SD Memory Card Slot

Interface External Display Port

Microphone Jack

Headphone Jack

USB Ports

Modem

LAN

Wireless LAN

Keyboard/Pointing Device

Sound

Battery Pack

Operating Time*9

Charging Time*9

Clock Battery

AC Adaptor*12 Input

Output

Power Consumption*13

Environment In use

Temperature

Humidity

Not in use Temperature

Humidity

Physical Dimensions (W × H × D)

Weight

*11 MB = 1,048,576 bytes

*2A segment of the main memory is allotted automatically depending on the computer’s operating status. The size of the

Video Memory cannot be set by the user.

*31 GB = 1,000,000,000 bytes. Operating system or some application software will report as fewer GB.

*4A 16777216 color display is achieved by using the dithering function.

*5Maximum resolution depends on the specifications of the external display.

*6Options: CF-BAU0256U (256 MB), CF-BAU0512U (512 MB) Contact your technical support office. ( page 44)

*7A PC2700-compliant RAM module added to this computer, operates at the same speed as a PC2100-compliant RAM

module.

*8The settings for the K56flex modem need to be changed according to the AT command.

*9Varies depending on the usage conditions, CPU speed, etc.

*10 Measured using BatteryMark™ Version 4.0.1 (LCD brightness: Maximum - Minimum)

*11 Measured using MobileMark™ 2002 (LCD brightness: 60 cd/m2)

*12 <Only for North America>

The AC adaptor is compatible with power sources up to 240 V AC adaptor. The computer is supplied with a 125 V AC

compatible AC cord.

*13 Approx. 1.5 W when the battery pack is fully charged (or not being charged) and the computer is off.

*14 Rated power consumption.

Main Specifications

CF-T2DWATZKM

Intel® Pentium® M Processor 1.1 GHz ULV/1MB*1 On-Die Level 2 (L2) Cache

256 MB*1 (768 MB*1 Max.), DDR SDRAM

UMA (64 MB*1 Max.)*2

Approx. 40 GB*3

12.1 XGA type (TFT) with Touchscreen

65536/16777216 colors (800 × 600 dots/1024 × 768 dots)

65536/16777216 colors (800 × 600 dots/1024 × 768 dots/1280 × 1024 dots/

1600 × 1200 dots)*5

One Type I or Type II

3.3 V: 400 mA, 5 V: 400 mA

172-pin, 2.5 V, Micro DIMM, DDR SDRAM, PC2100 Compliant*7

SD memory card/MultiMedia Card

Mini Dsub 15-pin female

Miniature jack, 3.5 DIA

4-pin × 2, USB 2.0

RJ-11 jack, Data: 56 kbps (V.92 & K56flex)*8 FAX:14.4 kbps

RJ-45 jack, IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX

IEEE802.11b/g

85 keys/Touch Pad, Touchscreen (stylus(included) touch capable)

WAVE and MIDI playback, Monaural Speaker (built in)

Li-ion 7.4 V, 4.4 Ah

Approx. 2.5 hours - 5hours*10 (Approx. 3.5 hours*11)

Approx. 3 hours

Coin type lithium battery 3.0 V

100 V - 240 V AC, 50 Hz/60 Hz

16 V DC, 2.5 A

Approx. 35 W*14 / Approx. 40 W (maximum when recharging in the ON state)

5 °C to 35°C {41 °F to 95 °F}

30% to 80% RH (No condensation)

-20 °C to 60 °C {-4 °F to 140 °F}

30% to 90% RH (No condensation)

268 mm × 28.3 mm(at the front)/46.7 mm(at the rear) × 210 mm (excluding protru-

sion){10.6 " × 1.2 " / 1.9 " × 8.3 "}

Approx. 1220 g {2.7 lb.}

Specifications

Appendix

Operating System

Utility Programs

Microsoft® Windows® XP Professional with Service Pack 1a

Adobe® Acrobat® Reader, Intel® PROSet, SD-MovieStage, SD Utility, Icon Enlarger,

Touch Pad Utility, DMI Viewer, PC Information Viewer, Hotkey Settings

Setup Utility, Hard Disk Data Erase Utility*1, Hard Disk Backup tool*1

Main Specifications

*1The Product Recovery CD-ROM is required.

Appendix

PANASONIC PERSONAL COMPUTER AND PERIPHERALS LIMITED WARRANTY

Panasonic Computer Solutions Company (referred to as “Panasonic”) will repair this product (other than software, which is covered by a separate

warranty) with new or rebuilt parts, free of charge in the U.S.A. for three (3) years from the date of original purchase in the event of a defect in

materials or workmanship. This warranty includes the AC adaptor but excludes the batteries and all other options and accessories which are

covered for a period of one (1) year from the date of purchase.

This warranty is extended solely to the original purchaser. A purchase receipt or other proof of date of original purchase will be required before

warranty performance is rendered.

This warranty only covers failures due to defects in materials or workmanship which occur during normal use. It does not cover damage which

occurs in shipment or failures which are caused by products not supplied by Panasonic, or failures which result from alteration, accident, misuse,

introduction of liquid or other foreign matter into the unit, abuse, neglect, installation, maladjustment of consumer controls, improper maintenance,

modification or service by anyone other than a Factory Service Center or authorized Panasonic Service Dealer, or damage that is attributable to acts

of God.

Limits and Exclusions:

There are no other express warranties except as listed below.

PANASONIC SHALL NOT BE LIABLE FOR LOSS OF DATA OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM

THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES,

INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE APPLICABLE

WARRANTY PERIOD SET FORTH ABOVE. Some states do not allow the exclusion or limitation of incidental or consequential damages, or

limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. If a problem with your product

develops during or after the warranty period, you may contact our representatives at 1-800-LAPTOP5. If the problem is not handled to your

satisfaction, then write to the Consumer Affairs Division at the address indicated below.

SOFTWARE LIMITED WARRANTY

Panasonic Computer Solutions Company (referred to as “Panasonic”) warrants to you only that the disk(s) or other media on which the Programs

are furnished will be free from defects in materials and workmanship under normal use for a period of sixty (60) days from the date of delivery thereof

to you, as evidenced by your purchase receipt.

This is the only warranty Panasonic makes to you. Panasonic does not warrant that the functions contained in the Programs will meet your

requirements or that the operation of the Programs will be uninterrupted or error free.

Panasonic’s entire liability, and your exclusive remedy under this warranty shall be limited to the replacement, in the United States, of any defective

disk or other media which is returned to Panasonic’s Authorized Service Center, together with a copy of the purchase receipt, within the aforesaid

warranty period.

Anything in the foregoing to the contrary notwithstanding, Panasonic shall have no obligation for any defects in the disk(s) or other media on which

the Programs are furnished resulting from your storage thereof, or for defects that have been caused by operation of the disk(s) or other media

otherwise than on the Product or in environmental conditions other than those specified by Panasonic by alteration, accident, misuse, abuse,

neglect, mishandling, misapplication, installation, maladjustment of consumer controls, improper maintenance, modification of damage that is

attributable to acts of God. In addition, Panasonic shall have no obligation for any defects in the disk(s) or other media if you have modified, or

attempted to modify any Program.

DURATION OF IMPLIED WARRANTIES, IF ANY, IS LIMITED TO SIXTY (60) DAYS.

PANASONIC ASSUMES NO RISK OF AND SHALL NOT IN ANY CASE BE LIABLE FOR ANY DAMAGES, INCLUDING, WITHOUT LIMITATION,

ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES ARISING FROM BREACH OF WARRANTY OR CONTRACT, NEG-

LIGENCE OR ANY OTHER LEGAL THEORY, INCLUDING, WITHOUT LIMITATION LOSS OF GOODWILL, PROFITS OR REVENUE, LOSS OF

USE OF THE PROGRAMS OR PRODUCTS OR ANY ASSOCIATED EQUIPMENT, COST OF CAPITAL, COST OF ANY SUBSTITUTE EQUIP-

MENT, FACILITIES, SERVICES, DOWNTIME COSTS, OR CLAIMS OF ANY PARTY DEALING WITH YOU FOR SUCH DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so

the above limitations or exclusions may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

This Limited Warranty will be governed by the laws the State of New York, without regard to its conflict-of-laws rules.

* * *

To obtain service or technical assistance within the continental U.S.A. and Alaska.

DIAL TOLL FREE: 1-800-LAPTOP5

Correspondence requesting product information should be sent to:

Panasonic Computer Solutions Company

50 Meadowlands Parkway, Panazip 2F-5, Secaucus, NJ 07094

For U.S.A.

LIMITED WARRANTY

Appendix

PANASONIC COMPUTER AND PERIPHERALS LIMITED WARRANTY

Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end user customer, this computer product (excluding software media), when

purchased from PCI or from a PCI authorized reseller, to be free from defects in materials and workmanship under normal use, subject to the terms

set forth below, during the period of warranty coverage specified.

Remedy – In the event of a warranty claim, contact PCI’s representatives within the applicable warranty period, identifying the nature of the defect

claimed, at 1-800-668-8386 between 9:00 A.M. and 5:00 P.M., Eastern Time Zone, Mon. – Fri. (excluding holidays) for instructions on how to obtain

service. A purchase receipt or other proof of date of original purchase is required before warranty service is performed. Defective parts covered by

this Limited Warranty will be repaired or replaced with new or comparable rebuilt parts on an exchange basis. Warranty replacement or repair is

subject to the terms of this Limited Warranty for the balance of the original period of warranty coverage.

No Coverage – This Limited Warranty does not cover products purchased outside Canada. Neither does it cover damage to, failure of, or defects

in a product or accessory through mishandling, improper installation, abnormal use, misuse, neglect, accident, introduction of liquid or other foreign

matter into the product, alteration or servicing by anyone not authorized by PCI, or act of God.

IF YOU SHIP THE PRODUCT FOR WARRANTY SERVICE

Carefully pack the product, preferably in the original carton. Include details of defect claimed and proof of date of original purchase. No liability

is assumed for loss or damage to the product while in transit, if you chose your own transportation carrier.

SOFTWARE MEDIA LIMITED WARRANTY

Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end user customer, that the disk(s) or other media on which software

program(s) is/are supplied will be free from defects in materials and workmanship under normal use in Canada for a period of sixty (60) days from

date of receipt as evidenced by your purchase receipt for your Panasonic Computer product.

THIS IS THE ONLY WARRANTY THAT PCI MAKES RESPECTING THE SOFTWARE MEDIA. PCI does not warrant the software. Please refer to

the software licensor’s written warranty (accompanying the copy of the software) for any software warranty claim.

Claim Procedure – In the event of a defect in material or workmanship in the media during the sixty (60) day warranty period, and you return it,

transportation costs prepaid, to Panasonic Canada Inc., Computer Products Marketing, at the above address, within the warranty period, together

with a copy of your purchase receipt, and an explanation of the suspected defect, PCI will replace in Canada the defective disk(s) or other media.

Remedy – PCI’s entire liability, and your only remedy for any breach of this software media warranty is limited to replacement of the media only. It

does not cover any other damages, including, but not limited to, loss of use or profit loss, or special, indirect or consequential damages, or other

claims, whether or not of similar character.

No Coverage – This limited warranty does not apply if the disk(s) or other media has been used in other than a Panasonic product, or in environ-

mental conditions other than those specified by PCI or the manufacturer, or if subjected to misuse, neglect, mishandling, modification or attempted

modification of the program, or if damaged by accident or act of God. PCI is not responsible for damage to or loss of any program, data or

removable storage media.

GENERAL

NO OTHER WARRANTIES – PCI DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED

TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE SOFTWARE,

SOFTWARE MEDIA, COMPUTER PRODUCT, OPTIONS AND ACCESSORIES.

NO LIABILITY FOR CONSEQUENTIAL DAMAGES – IN NO EVENT SHALL PCI BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUEN-

TIAL DAMAGES ARISING FROM ANY BREACH OF THE LIMITED WARRANTIES SET OUT IN THIS DOCUMENT, OR FROM THE USE OF THE

COMPUTER PRODUCT, INCLUDING, WITHOUT LIMITATION, LOSS OF DATA, BUSINESS, PROFIT OR GOODWILL.

IN ANY EVENT, PCI’S MAXIMUM LIABILITY FOR ANY BREACH SHALL NOT EXCEED THE AMOUNT ACTUALLY PAID BY YOU FOR THE

COMPUTER PRODUCT.

NO ACTION, REGARDLESS OF ITS BASIS, MAY BE BEGUN AGAINST PCI MORE THAN TWO (2) YEARS AFTER THE CAUSE OF ACTION

AROSE.

Statutory Warranties – Some jurisdictions do not allow these limitations or exclusions, so they may not apply to you.

Scope of Coverage

Whole Product (except Batteries), AC adaptor and CD-ROM

(if factory installed)

Batteries, CD-ROM (unless factory installed), Port Replicator,

Extra Memory Modules and all other Peripherals, Options and

Accessories

Period of Coverage

Three (3) Years from Date of Original

End User Customer Purchase

One (1) Year from Date of Original End

User Customer Purchase

Type of Failure Coverage

Defective Materials or Workmanship

For Canada

Memo

Outline of the International ENERGY STAR® Office Equipment Program

The international ENERGY STAR® Office Equipment Program is an international program

that promotes energy saving through the use of computers and other office equipment.

The program backs the development and dissemination of products with functions that

effectively reduce energy consumption. It is an open system in which business proprietors

can participate voluntarily. The targeted products are office equipment such as computers,

displays, printers, facsimiles, and copiers. Their standards and logos are uniform among

participating nations.

As an ENERGY STAR® Partner, Matsushita Electric Industrial Co., Ltd. has

determined that this product meets the ENERGY STAR® guidelines for energy

efficiency.

Printed in Japan

SS0504-0

DFQX5455ZA

Panasonic Computer Solutions Company

50 Meadowlands Parkway, Panazip 2F-5,

Secaucus, NJ 07094

Panasonic Canada Inc.

5770 Ambler Drive Mississauga,

Ontario L4W 2T3
