Panasonic of North America 9TGCF-TW81 Notebook PC with WWAN, WLAN and Bluetooth User Manual DFQW5227ZA W8 X M
Panasonic Corporation of North America Notebook PC with WWAN, WLAN and Bluetooth DFQW5227ZA W8 X M
Users Manual
Please read these instructions carefully before using this product and save this manual for future use.
Contents
Getting Started
Useful Information
Troubleshooting
Getting StartedUseful InformationTroubleshootingAppendix
Appendix
OPERATING INSTRUCTIONS
Personal Computer
Model No. CF-W8 series
Introduction.................................................2
Read Me First ..............................................3
Description of Parts .....................................11
First-time Operation .....................................13
On-screen Manual.......................................16
Handling and Maintenance.............................17
Expanding Memory......................................20
Intel® Active Management Technology ...............22
Troubleshooting (Basic)/Error Code/Message.......24
Hardware Diagnostics...................................28
Installing Windows Vista................................31
LIMITED USE LICENSE AGREEMENT..............33
Specifications ............................................35
LIMITED WARRANTY ..................................38
For further information about the com-
puter, you can refer to the on-screen
manual.
To access the on-screen manual
Îpage 16 “On-screen Manual”
For your technical support office, refer to
“LIMITED WARRANTY.”
2
Getting StartedUseful InformationTroubleshootingAppendix
Introduction
Thank you for purchasing this Panasonic computer. For optimum performance and safety, please read these instruc-
tions carefully.
Terms and illustrations in these instructions
zSome illustrations are simplified to help your understanding and may look different from the actual unit.
zIf you do not log on as an administrator, you cannot use some functions or cannot display some screens.
zRefer for the latest information about optional products to the catalogs, etc.
zIn these instructions, the names and terms are referred as follows.
• “Microsoft® Windows® XP Professional Service Pack 2 with Advanced Security Technologies” as “Windows” or
“Windows XP”
• “Windows Vista® Business with Service Pack 1” as “Windows” or “Windows Vista”
• “WinDVD™ 8 (OEM Version)” as “WinDVD”
zThe display modes are referred as follows. ( ) indicates the terms in [Intel® Graphics Media Accelerator Driver for
mobile] screen. To display the screen, right-click the desktop and click [Graphics Properties].
• Internal LCD (Notebook): The computer’s display
• External display (Monitor): External display
• Simultaneous display (Intel (R) Dual Display Clone): The same screen is displayed on the internal LCD and the
external display.
• Extended Desktop: The extended working area across the internal LCD and the external display.
Copyright
This manual is copyrighted by Panasonic Corporation with all rights reserved. No part of this manual may be repro-
duced in any form without the prior written permission of Panasonic Corporation.
No patent liability is assumed with respect to the use of the information contained herein.
© Panasonic Corporation 2008
Disclaimer
Computer specifications and manuals are subject to change without notice. Panasonic Corporation assumes no liability
for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manu-
als.
Trademarks
Microsoft®, Windows®, Windows Vista® and the Windows logo are registered trademarks of Microsoft Corporation of
the United States and/or other countries.
Intel, Core, Centrino and PROSet are either registered trademarks or trademarks of Intel Corporation.
SDHC Logo is a trademark.
Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorpo-
rated in the United States and/or other countries.
Bluetooth™ is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Panasonic Corporation.
InterVideo, WinDVD™, the InterVideo logo, Ulead and the Corel logo are trademarks or registered trademarks of Corel
Corporation and/or its subsidiaries in Canada, the United States and/or other countries.
Sonic and Roxio are trademarks or registered trademarks of Sonic in the United States and/or other countries.
Computrace® is a registered trademark of Absolute® Software Corp.
Panasonic is a registered trademark of Panasonic Corporation.
Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective
own companies.
: Conditions that may result in minor or moderate injury.
: Useful and helpful information.
Enter
: Press [Enter] key.
Fn
+
F5
: Press and hold [Fn] key, and then press [F5] key.
[start] - [Run] : Click [start], and then click [Run].
Î : Page in these Operating Instructions.
Î : Reference to the on-screen manuals.
CAUTION
NOTE
3
Getting StartedUseful InformationTroubleshootingAppendix
Read Me First
<Only for model with a “ ” mark on the bottom of the computer>
Federal Communications Commission Radio Fre-
quency Interference Statement
Note: This equipment has been tested and found to com-
ply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment gener-
ates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit differ-
ent from that to which the receiver is connected.
Consult the Panasonic Service Center or an experi-
enced radio/TV technician for help.
Warning
To assure continued compliance, use only shielded inter-
face cables when connecting to a computer or peripheral.
Also, any changes or modifications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate this equipment.
FCC RF Exposure Warning:
This computer is provided with a PC Card slot that could
be used with wireless transmitter(s), which will be spe-
cifically recommended, when they become available.
Other third-party wireless transmitter(s) have not been
RF exposure evaluated for use with this computer and
may not comply with FCC RF exposure requirements.
.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2)
This device must accept any interference received, includ-
ing interference that may cause undesired operation.
Responsible Party: Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
Tel No:1-800-LAPTOP5 (1-800-527-8675)
6-M-1
FCC Regulation Notice for modem
This equipment contains a FCC approved modem.
1. This equipment complies with CFR47 Part 68 rules.
On the computer is a label that contains, among other
information, the FCC registration number and ringer
equivalence number (REN) for this equipment. If
required, this information must be provided to the tele-
phone company.
2. An FCC compliant telephone cord and modular plug is
provided with this equipment. This equipment is
designed to be connected to the telephone network or
premises wiring using a compatible modular jack
which is Part 68 compliant. See Installation Instruc-
tions for details.
3. The REN is used to determine the quantity of devices
which may be connected to the telephone line. Exces-
sive RENs on the telephone line may result in the
devices not ringing in response to an incoming call. In
most, but not all area, the sum of RENs should not
exceed five (5.0). To be certain of the number of
devices that may be connected to a line, as deter-
mined by the total RENs, contact the local telephone
company.
4. If your telephone equipment cause harm to the tele-
phone network, the telephone company will notify you
in advice that temporary discontinuance of service
may be required. But if advice notice isn’t practical, the
telephone company will notify the customer as soon as
possible. Also, you will be advised of your right to file a
complaint with the FCC if you believe it is necessary.
5. The telephone company may take changes in its facili-
ties, equipment, operations or procedures that could
affect the operation of the equipment. If this happens
the telephone company will provide advance notice in
order for you to make necessary modifications to
maintain uninterrupted service.
6. If trouble is experienced with this equipment, for repair
or warranty information, please contact Panasonic
Corporation of North America at DIAL TOLL FREE 1-
800-LAPTOP5 (1-800-527-8675). If the equipment is
causing harm to the telephone network, the telephone
company may request that you disconnect the equip-
ment until the problem is resolved.
7. There are no user serviceable parts contained in this
equipment.
Models for U.S.A.
This computer complies with FCC radiation exposure
limits set forth for an uncontrolled environment.
This computer may not be co-located or operated in
conjunction with any other antenna or transmitter.
< For computer with installed WLAN/Bluetooth >
This PC with WLAN and/or Bluetooth transmitters installed,
has been approved for portable operation and does not
require any minimum spacing be provided between
antennas and all person’s body
< For computer with installed WWAN >
This PC with WWAN transmitter installed, has been
approved for mobile operation and to assure compliance with
RF exposure requirements, a minimum of 20 cm (8 inches)
must be maintained between the WWAN antenna located in
top of LCD and all person’s body (excluding extremities of
hands, wrist and feet) during wireless modes of operation.
< For computer with installed WLAN >
This product is restricted to indoor use due to its operation in the 5.15
to 5.25 GHz frequency range. FCC requires this product to be used
indoors for the frequency range 5.15 to 5.25 GHz to reduce the
potential for harmful interference to co-channel Mobile Satellite
systems. High power radars are allocated as primary users of the
5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations
can cause interference with and /or damage this product.
4
Read Me First
Getting StartedUseful InformationTroubleshootingAppendix
8. This equipment may not be used on coin service pro-
vided by the telephone company. Connection to party
lines is subject to state tariffs.
9. The Telephone Consumer Protection Act of 1991
makes it unlawful for any person to use a computer or
other electronic device to send any message via a
telephone fax machine unless such message clearly
contains in a margin at the top or bottom of each trans-
mitted page or on the first page of the transmission,
the date and time it is sent and an identification of the
business or other entry, or other individual sending the
message and the telephone number of the sending
machine or such business, other entity, or individual. In
order to program this information into your fax soft-
ware, you should refer to the manual of the Fax soft-
ware being used.
10.According to the FCC’s electrical safety advisory, we
recommend that you may install an AC surge arrestor
in the AC outlet to which this equipment is connected.
Telephone companies report that electrical surges,
typically lightning transients, are very destructive to
customer terminal equipment connected to AC power
sources and that this is a major nationwide problem.
“Caution : To reduce the risk of fire, use only No.26 AWG or
larger telecommunication line cord.”
“ATTENTION : Pour réduire le risque d’incendie, utiliser
uniquement des conducteurs de télécommunications 26
AWG ou de section supérieure.”
16-M-1
Notice for the products using LCD
This product has a fluorescent lamp that contains mer-
cury. Disposal may be regulated in your community due to
environmental considerations.
For disposal or recycling information, please contact your
local authorities, or the Electronic Industries Alliance:
<http://www.eiae.org/>
24-M-1
<For USA-California Only>
This product contains a CR Coin Cell Lithium Battery
which contains Perchlorate Material- special handling
may apply.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
38-M-1
<Only for model with wireless WAN>
The following safety precautions must be observed during all phases of the operation, usage, service or repair of any
Personal Computer or Handheld Computer incorporating Wireless WAN. Manufacturers of the cellular terminal are
advised to convey the following safety information to users and operating personnel and to incorporate these guidelines
into all manuals supplied with the product. Failure to comply with these precautions violates safety standards of design,
manufacture and intended use of the product. Panasonic assumes no liability for customer failure to comply with these
precautions.
When in a hospital or other health care facility, observe the restrictions on the use of mobiles. Switch
Personal Computer or Handheld Computer incorporating Wireless WAN off, if instructed to do so by the
guidelines posted in sensitive areas. Medical equipment may be sensitive to RF energy. The operation of
cardiac pacemakers, other implanted medical equipment and hearing aids can be affected by interference
from Personal Computer or Handheld Computer incorporating Wireless WAN placed close to the device. If in
doubt about potential danger, contact the physician or the manufacturer of the device to verify that the
equipment is properly shielded. Pacemaker patients are advised to keep their Personal Computer or
Handheld Computer incorporating Wireless WAN away from the pacemaker, while it is on.
Switch off Personal Computer or Handheld Computer incorporating Wireless WAN before boarding an
aircraft. Make sure it cannot be switched on inadvertently. The operation of wireless appliances in an aircraft
is forbidden to prevent interference with communications systems. Failure to observe these instructions may
lead to the suspension or denial of cellular services to the offender, legal action, or both.
Do not operate Personal Computer or Handheld Computer incorporating Wireless WAN in the presence of
flammable gases or fumes. Switch off the cellular terminal when you are near petrol stations, fuel depots,
chemical plants or where blasting operations are in progress. Operation of any electrical equipment in
potentially explosive atmospheres can constitute a safety hazard.
Your Personal Computer or Handheld Computer incorporating Wireless WAN receives and transmits radio
frequency energy while switched on. Remember that interference can occur if it is used close to TV sets,
radios, computers or inadequately shielded equipment. Follow any special regulations and always switch off
Personal Computer or Handheld Computer incorporating Wireless WAN wherever forbidden, or when you
suspect that it may cause interference or danger.
Road safety comes first! Do not use a Personal Computer or Handheld Computer incorporating Wireless
WAN while driving a vehicle. Do not place the computer with Wireless WAN in an area where it could cause
personal injury to the driver or passengers. It is recommended to stow the unit in the boot or secure stowage
area while driving. Do not place the computer with Wireless WAN in an area over an air bag or in the vicinity
where an air bag may deploy. Air bags inflate with great force and if the computer with Wireless WAN is
placed in the air bag deployment area may be propelled with great force and cause serious injury to
occupants of the vehicle.
Safety Precautions
5
Getting StartedUseful InformationTroubleshootingAppendix
IMPORTANT!
Personal Computer or Handheld Computer incorporating Wireless WAN operate using radio signals and
cellular networks cannot be guaranteed to connect in all conditions. Therefore, you should never rely solely
upon any wireless device for essential communications, for example emergency calls.
Remember, in order to make or receive calls, Personal Computer or Handheld Computer incorporating
Wireless WAN must be switched on and in a service area with adequate cellular signal strength.
Some networks do not allow for emergency calls if certain network services or phone features are in use (e.g.
lock functions, fixed dialing etc.). You may need to deactivate those features before you can make an
emergency call.
Some networks require that a valid SIM card be properly inserted in Personal Computer or Handheld
Computer incorporating Wireless WAN.
27-1-2
Industry Canada (IC) Notice for modem
This equipment contains an Industry Canada approved
modem unit.
The Industry Canada label is affixed on the modem unit.
EQUIPMENT ATTACHEMENT LIMITATIONS
“NOTICE: The Industry Canada label identifies certified equip-
ment. This certification means that the equipment meets tele-
communications network protective, operational and safety
requirements as prescribed in the appropriate Terminal Equip-
ment Technical Requirements document(s). The Department
does not guarantee the equipment will operate to the user’s
satisfaction.
Before installing this equipment, users should ensure that it is
permissible to be connected to the facilities of the local tele-
communications company. The equipment must also be
installed using an acceptable method of connection. The cus-
tomer should be aware that compliance with the above condi-
tions may not prevent degradation of service in some
situations.
Repairs to certified equipment should be coordinated by a rep-
resentative designated by the supplier. Any repairs or alter-
ations made by the user to this equipment, or equipment
malfunctions, may give the telecommunications company
cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical
ground connections of the power utility, telephone lines and
internal metallic water pipe system, if present, are connected
together. This precaution may be particularly important in rural
areas. Caution: Users should not attempt to make such con-
nections themselves, but should contact the appropriate elec-
tric inspection authority, or electrician, as appropriate.”
“NOTICE: The Ringer Equivalence Number (REN) assigned to
each terminal device provides an indication of the maximum
number of terminals allowed to be connected to a telephone
interface. The termination on an interface may consist of any
combination of devices subject only to the requirement that the
sum of the Ringer Equivalence Numbers of all the devices
does not exceed 5.”
REN: See bottom of the computer
RESTRICTIONS CONCERNANT LE RACCORDEMENT
DE MATÉRIEL
“AVIS: L’étiquette d’Industrie Canada identifie le matériel
homologué. Cette étiquette certifie que le matériel est con-
forme aux normes de protection, d’exploitation et de sécurité
des réseaux de télécommunications, comme le prescrivent les
documents concernant les exigences techniques relatives au
matériel terminal. Le Ministère n’assure toutefois pas que le
matériel fonctionnera à la satisfaction de l’utilisateur.
Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est
permis de le raccorder aux installations de l’entreprise locale
de télécommunication. Le matériel doit également être installé
en suivant une méthode acceptée de raccordement.
L’abonné ne doit pas oublier qu’il est possible que la confor-
mité aux conditions énoncées ci-dessus n’empêche pas la
dégradation du service dans certaines situations.
Les réparations de matériel homologué doivent être coordon-
nées par un représentant désigné par le fournisseur.
L’entreprise de télécommunications peut demander à l’utili-
sateur de débrancher un appareil à la suite de réparations ou
de modifications effectuées par l’utilisateur ou à cause de
mauvais fonctionnement.
Pour sa propre protection, l’utilisateur doit s’assurer que tous
les fils de mise à la terre de la source d’énergie électrique, des
lignes téléphoniques et des canalisations d’eau métalliques,
s’il y en a, sont raccordés ensemble. Cette précaution est par-
ticulièrement importante dans les régions rurales. Avertisse-
ment: L’utilisateur ne doit pas tenter de faire ces
raccordements lui-même; il doit avoir recours à un service
d’inspection des installations électriques, ou à un électricien,
selon le cas.”
“AVIS: L’indice d’équivalence de la sonnerie (IES) assigné à
chaque dispositif terminal indique le nombre maximal de ter-
minaux qui peuvent être raccordés à une interface. La termi-
naison d’une interface téléphonique peut consister en une
combinaison de quelques dispositifs, à la seule condition que
la somme d’indices d’équivalence de la sonnerie de touts les
dispositifs n’excède pas 5.”
IES: Voir sous le fond de l’ordinateur
17-Ca-1
Models for Canada
6
Read Me First
Getting StartedUseful InformationTroubleshootingAppendix
Canadian ICES-003
This Class B digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada.
7-M-2
<Only for model with wireless LAN/Bluetooth>
Industry Canada
Operation is subject to the following two conditions;
(1) this device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of
the device.
30-Ca-1-1
<Only for model with wireless LAN>
This product (local network devices) for the band 5150-
5250 MHz is only indoor usage to reduce potential for
harmful interference to co-channel Mobile Satellite sys-
tems.
High power radars are allocated as primary users (mean-
ing they have priority) of 5250-5350 MHz and 5650-5850
MHz and these radars could cause interference and/or
damage to LELAN devices.
30-Ca-2-1
<Only for model with a “CE” mark on the bottom of the computer>
Declaration of Conformity (DoC)
“Hereby, we declare that this Personal Computer is in compliance with the essential requirements
and other relevant provisions of the Directive 1999/5/EC.”
Hint:
If you want to get a copy of the original DoC of our products which relates to the R&TTE, please con-
tact our web address: http://www.doc.panasonic.de
Contact and Pursuant to at the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Service Europe, a division of
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
Network connection.
The terminal equipment is intended for connection to the following public network;
In all the countries of European Economical Area;
- Public Switched Telephony Networks
Technical Features.
The terminal equipment includes the following features;
- DTMF dialing
- Maximum bitrate receiving mode: 56 kbit/s
- Maximum bitrate sending mode: 33.6 kbit/s
18-E-1
Models for Europe
7
Getting StartedUseful InformationTroubleshootingAppendix
When using your telephone equipment, basic safety pre-
cautions should always be followed to reduce the risk of
fire, electric shock and injury to persons, including the fol-
lowing:
1. Do not use this product near water, for example, near
a bath tub, wash bowl, kitchen sink or laundry tub, in a
wet basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type)
during an electrical storm. There may be a remote risk
of electric shock from lightning.
3. Do not use the telephone to report a gas leak in the
vicinity of the leak.
4. Use only the power cord and batteries indicated in this
manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special
disposal instructions.
SAVE THESE INSTRUCTIONS
19-E-1
Certaines mesures de sécurité doivent être prises pen-
dant l’utilisation de matérial téléphonique afin de réduire
les risques d’incendie, de choc électrique et de blessures.
En voici quelquesunes:
1. Ne pas utiliser l’appareil près de l’eau, p.ex., près d’une
baignoire, d’un lavabo, d’un évier de cuisine, d’un bac à
laver, dans un sous-sol humide ou près d’une piscine.
2. Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil
sans fil) pendant un orage électrique. Ceci peut présenter
un risque de choc électrique causé par la foudre.
3. Ne pas utiliser l’appareil téléphonique pour signaler
une fuite de gaz s’il est situé près de la fuite.
4. Utiliser seulement le cordon d’alimentation et le type de
piles indiqués dans ce manual. Ne pas jeter les piles
dans le feu: elles peuvent exploser. Se conformer aux
règlements pertinents quant à l’élimination des piles.
CONSERVER CES INSTRUCTIONS
19-F-1
<Only for model with wireless LAN/wireless WAN/Bluetooth>
This product and your Health
This product, like other radio devices, emits radio fre-
quency electromagnetic energy. The level of energy emit-
ted by this product however is far much less than the
electromagnetic energy emitted by wireless devices like
for example mobile phones.
Because this product operates within the guidelines found
in radio frequency safety standards and recommenda-
tions, we believe this product is safe for use by consum-
ers. These standards and recommendations reflect the
consensus of the scientific community and result from
deliberations of panels and committees of scientists who
continually review and interpret the extensive research lit-
erature.
In some situations or environments, the use of this prod-
uct may be restricted by the proprietor of the building or
responsible representatives of the organization. These sit-
uations may for example include:
zUsing this product on board of airplanes, or
zIn any other environment where the risk of interference
to other devices or services is perceived or identified
as harmful.
If you are uncertain of the policy that applies on the use of
wireless devices in a specific organization or environment
(e.g. airports), you are encouraged to ask for authoriza-
tion to use this product prior to turning on the product.
Regulatory Information
We are not responsible for any radio or television interfer-
ence caused by unauthorized modification of this product.
The correction of interference caused by such unautho-
rized modification will be the responsibility of the user. We
and its authorized resellers or distributors are not liable for
damage or violation of government regulations that may
arise from failing to comply with these guidelines.
26-M-1
<Uniquement les modèles avec réseau local sans fil,
r
é
seau large sans fil et/ou Bluetooth>
Ce produit et votre santé
Ce produit, comme tout autre appareil radio, émet de l’éner-
gie radioélectrique. Toutefois, la quantité d’énergie émise par
ce produit est beaucoup moins importante que l’énergie
radioélectrique émise par des appareils sans fil tels que les
téléphones portables. L’utilisation de ce produit ne comporte
aucun risque pour le consommateur du fait que cet appareil
opère dans les limites des directives concernant les normes
et les recommandations de sécurité sur les fréquences radio.
Ces normes et recommandations reflètent le consensus de
la communauté scientifique et résultent de délibérations de
jurys et comités de scientifiques qui examinent et interprètent
continuellement les nouveautés de la vaste littérature sur les
recherches effectuées. Dans certaines situations ou environ-
nements, l’utilisation de ce produit peut être restreinte par le
propriétaire du bâtiment ou par les représentants respons-
ables de l’organisation. Ces situations peuvent être les suiv-
antes par exemple :
zA bord d’un avion, ou
zDans tout autre environnement où les risques d’inter-
férence sur d’autres appareils ou services sont perçus
ou identifiables comme dangereux.
Si vous n’êtes pas sûr de la réglementation applicable à
l’utilisation d’appareils sans fil dans une organisation ou
un environnement spécifique, (par exemple dans un
aéroport) nous vous invitons à demander l’autorisation
d’utiliser ce produit avant sa mise en marche.
Informations concernant la réglementation
Nous déclinons toute responsabilité pour toute interférence
radio ou télévision causée par des modifications non
autorisées apportées à ce produit. La correction d’inter-
férences causées par de telles modifications non autorisées
sera la seule responsabilité de son utilisateur. Nousmêmes, les
revendeurs officiels et les distributeurs ne sommes pas respon-
sable de tout dégât ou de toute violation des règlements de
l’État pouvant découler du non-respect de ces directives.
26-F-1
Important Safety Instructions / Importantes Mesures De Sécurité
Information to the User / Informations destinées aux utilisateurs
8
Read Me First
Getting StartedUseful InformationTroubleshootingAppendix
Lithium Battery!
This computer contains a lithium battery to enable the
date, time, and other data to be stored. The battery should
only be exchanged by authorized service personnel.
Warning! A risk of explosion from incorrect installation or
misapplication may possibly occur.
15-E-1
Pile au lithium!
Le micro-ordinateur renferme une pile au lithium qui per-
met de sauvegarder certaines données, notamment la
date et l’heure. La pile ne doit être remplacée que par un
technicien qualifié.
Danger ! Risque d’explosion en cas de non respect de
cette mise en garde!
15-F-1

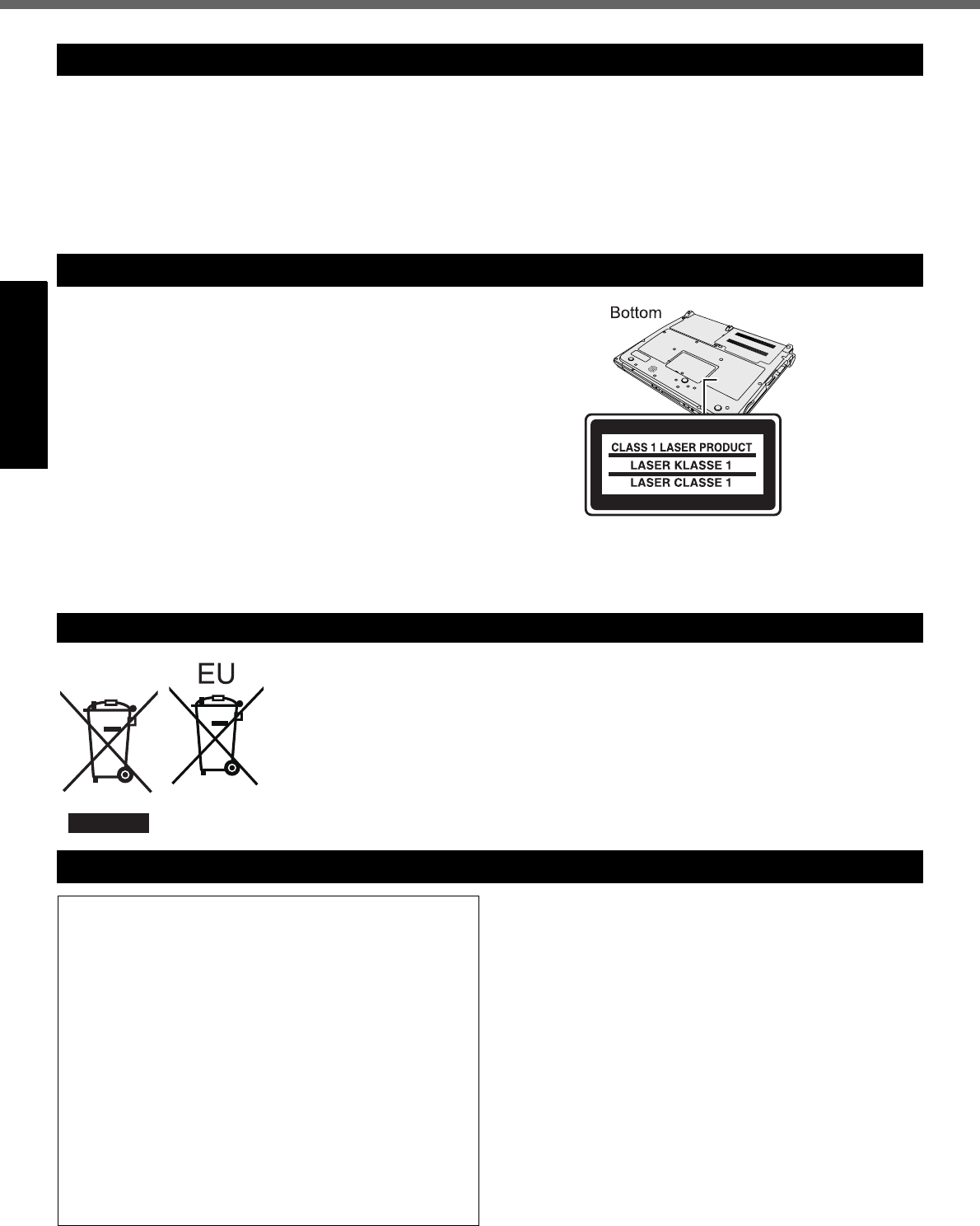

CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
12-E-1
AVERTISSEMENT!
CET APPAREIL UTILISE UN LASER.
L’UTILISATION DE COMMANDES OU DE RÉGLAGES OU L’EXÉCU-
TION DE PROCÉDURES AUTRES QUE CELLES SPÉCIFIÉES ICI PEU-
VENT PROVOQUER UNE EXPOSITION À DES RADIATIONS
DANGEREUSES.
NE PAS OUVRIR LES COUVERCLES NI ESSAYER DE RÉPARER
SOIMÊME.
CONFIER TOUT TRAVAIL D’ENTRETIEN À UN PERSONNEL QUALIFIÉ.
12-F-1
12-1-1
These symbols are only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask
for the correct method of disposal.
53-M-1
This computer is not intended for use in medical equip-
ment including life-support systems, air traffic control sys-
tems, or other equipment, devices or systems that are
involved with ensuring human life or safety. Panasonic
cannot be held responsible in any way for any damages
or loss resulting from the use of this computer in these
types of equipment, devices or systems, etc.
If a Malfunction Occurs, Immediately Unplug the AC
Plug and the Battery Pack
• This product is damaged
• Foreign object inside this product
• Smoke emitted
• Unusual smell emitted
• Unusually hot
Continuing to use this product while any of the above con-
ditions are present may result in fire or electric shock.
Lithium Battery / Pile au lithium
CD/DVD Drive Caution
Information on Disposal in other Countries outside the European Union
Precautions
THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS
PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAF-
FIC CONTROL EQUIPMENT/SYSTEMS, OR AIRCRAFT
COCKPIT EQUIPMENT/SYSTEMS*1. PANASONIC WILL
NOT BE RESPONSIBLE FOR ANY LIABILITY RESULTING
FROM THE USE OF THIS PRODUCT ARISING OUT OF
THE FOREGOING USES.
*1 AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2
Electrical Flight Bag (EFB) Systems and Class1 EFB Systems
when used during critical phases of flight (e.g., during take-off and
landing) and/or mounted on to the aircraft. Class1 EFB Systems
and 2 EFB Systems are defined by FAA: AC (Advisory Circular)
120-76A or JAA: JAA TGL (Temporary Guidance Leaflets) No.36.
Panasonic cannot guarantee any specifications, tech-
nologies, reliability, safety (e.g. Flammability/Smoke/
Toxicity/Radio Frequency Emission, etc) requirements
related to aviation standards that exceed the specifica-
tions of our COTS (Commercial-Off-The-Shelf) products.
39-E-1
9
Getting StartedUseful InformationTroubleshootingAppendix
•I
f a malfunction occurs, immediately turn the power off and
unplug the AC plug, and then remove the battery pack.
Then contact your technical support office.
Do Not Touch This Product and Cable When It Starts Thundering
Electric shock may result.
Do Not Connect the AC Adaptor to a Power Source
Other Than a Standard Household AC Outlet
Otherwise, a fire due to overheating may result. Connect-
ing to a DC/AC converter (inverter) may damage the AC
adaptor. On an airplane, only connect the AC adaptor/
charger to an AC outlet specifically approved for such use.
Do Not Do Anything That May Damage the AC Cord,
the AC Plug, or the AC Adaptor
Do not damage or modify the cord, place it near hot tools, bend,
twist, or pull it forcefully, place heavy objects on it, or bundle it tightly.
Continuing to use a damaged cord may result in fire, short circuit, or
electric shock.
Do Not Pull or Insert the AC Plug If Your Hands Are Wet
Electric shock may result.
Clean Dust and Other Debris of the AC Plug Regularly
If dust or other debris accumulates on the plug, humidity, etc.
may cause a defect in the insulation, which may result in a fire.
• Pull the plug, and wipe it with a dry cloth.
Pull the plug if the computer is not being used for a long period of time.
Insert the AC Plug Completely
If the plug is not inserted completely, fire due to overheat-
ing or electric shock may result.
• Do not use a damaged plug or loose AC outlet.
Do Not Place Containers of Liquid or Metal Objects on
Top of this Product
If water or other liquid spills, or if paper clips, coins, or foreign
matter get inside this product, fire or electric shock may result.
• If water spills in the keyboard, refer to page 19. If other for-
eign matter has found its way inside, immediately turn the
power off and unplug the AC plug and remove the battery
pack. Then contact your technical support office.
Do Not Disassemble This Product
There are high-voltage areas inside which may give you an elec-
tric shock if you should touch them. Do not touch the pins and cir-
cuit boards inside, and do not allow foreign matter to enter inside.
Also, remodeling or disassembly may cause a fire.
Keep SD Memory Cards Away from Infants and Small Children
Accidental swallowing will result in bodily injury.
• In the event of accidental swallowing, see a doctor immediately.
Do Not Place This Product on Unstable Surfaces
If balance is lost, this product may fall over or drop, result-
ing in an injury.
Avoid Stacking
If balance is lost, this product may fall over or drop, result-
ing in an injury.
Do Not Keep This Product Wherever There is a Lot of
Water, Moisture, Steam, Dust, Oily Vapors, etc.
Otherwise, possibly resulting in fire or electric shock.
Do Not Leave This Product in High Temperature Envi-
ronment for a Long Period of Time
Leaving this product where it will be exposed to extremely
high temperatures such as near fire or in direct sunlight may
deform the cabinet and/or cause trouble in the internal
parts. Continued use in such a resulting condition may lead
to short-circuiting or insulation defects, etc. which may in
turn lead to a fire or electric shocks.
Do Not Block the Ventilation Hole
Otherwise, heat will build up inside, possibly resulting in a fire.
Hold the Plug When Unplugging the AC Plug
Pulling on the cord may damage the cord, resulting in a
fire or electric shock.
Do Not Move This Product While the AC Plug Is Connected
The AC cord may be damaged, resulting in fire or electric shock.
• If the AC cord is damaged, unplug the AC plug immediately.
Use Only the Specified AC Adaptor With This Product
Using an AC adaptor other than the one supplied
(attached to your product or supplied by Panasonic) may
result in a fire.
Do Not Subject the AC Adaptor to Any Strong Impact
Using the AC adaptor after a strong impact such as being
dropped may result in electric shock, short circuit, or fire.
Take a Break of 10-15 Minutes Every Hour
Using this product for long periods of time may have detri-
mental health effects on the eyes or hands.
Do Not Look into the CD/DVD Drive
Looking directly at the internal laser light source may
result in damage to eyesight.
Do Not Use Discs That Are Cracked or Deformed
Because the discs rotate at high speeds, damaged discs
may break apart causing injury.
• Discs that are not round and discs that have been
repaired using adhesives are similarly dangerous, and
so should not be used.
Do Not Turn the Volume Up to Loud When Using
Headphones
Listening at high volumes that overstimulate the ear for
long periods of time may result in loss of hearing.
Use the Modem with a Regular Telephone Line
Connection to an internal phone line (on-premise
switches) of a company or business office, etc. or to a dig-
ital public phone or use in a country or area not supported
by the computer may result in a fire or electric shocks.
Do Not Connect a Telephone Line, or a Network Cable
Other Than the One Specified, into the LAN Port
If the LAN port is connected to a network such as the
ones listed below, a fire or electric shock may result.
• Networks other than 1000BASE-T, 100BASE-TX or
10BASE-T
• Phone lines (IP phone (Internet Protocol Telephone),
Telephone lines, internal phone lines (on-premise
switches), digital public phones, etc.)
Do Not Use with Exposing the Skin to This Product
for a Long Period of Time
Using this product with exposing the skin to the heat
source of this product or AC adaptor for a long period of
time can cause a low-temperature burn.
z
Do not place the computer near a television or radio receiver.
zKeep the computer away from magnets. Data stored
on the hard disk may be lost.
10
Read Me First
Getting StartedUseful InformationTroubleshootingAppendix
Do Not Use with Any Other Product
The battery pack is rechargeable and was intended for
the specified product. If it is used with a product other
than the one for which it was designed, electrolyte leak-
age, generation of heat, ignition or rupture may result.
Do Not Charge the Battery Using Methods Other Than
Those Specified
If the battery pack is not charged using one of the speci-
fied methods, electrolyte leakage, generation of heat, igni-
tion or rupture may result.
Do Not Throw the Battery Pack into a Fire or Expose It
to Excessive Heat
Generation of heat, ignition or rupture may result.
Avoid Extreme Heat (Near the Fire, in Direct Sunlight,
for Example)
Electrolyte leakage, generation of heat, ignition or rupture
may result.
Do Not Insert Sharp Objects into the Battery Pack,
Expose It to Bumps or Shocks, Disassemble, or Modify It
Electrolyte leakage, generation of heat, ignition or rupture
may result.
• If this product is subjected to a strong impact, stop using
it immediately.
Do Not Short the Positive (+) and Negative (-) Contacts
Generation of heat, ignition or rupture may result.
• Do not place the battery pack together with articles such as
necklaces or hairpins when carrying or storing.
Do Not Use This Product with a Battery Pack Other
Than the One Specified
Use only the specified battery pack (CF-VZSU51W/CF-
VZSU52W) with your product. Use of battery packs other than
those manufactured and supplied by Panasonic may present
a safety hazard (generation of heat, ignition or rupture).
When the Battery Pack Has Become Degraded,
Replace It with a New One
Continued use of a degraded battery pack may generate
high levels of heat, cause a fire to start and cause the
pack to burst or explode.
zDo not touch the terminals on the battery pack. The
battery pack may no longer function properly if the
contacts are dirty or damaged.
zDo not expose the battery pack to water, or allow it to
become wet.
zIf the battery pack will not be used for a long period of
time (a month or more), charge or discharge (use) the
battery pack until the remaining battery level becomes
30% to 40% and store it in a cool, dry place.
zThis computer prevents overcharging of the battery by
recharging only when the remaining power is less than
approx. 95% (when Economy Mode (ECO) is enabled:
75%) of capacity.
zThe battery pack is not charged when the computer is
first purchased. Be sure to charge it before using it for
the first time. When the AC adaptor is connected to the
computer, charging begins automatically.
zShould the battery leak and the fluid get into your
eyes, do not rub your eyes. Immediately flush your
eyes with clear water and see a doctor for medical
treatment as soon as possible.
NOTE
z
The battery pack may become warm during recharg-
ing or normal use. This is completely normal.
zRecharging will not commence if internal tempera-
ture of the battery pack is outside of the allowable
temperature range (0 °C to 55 °C {32 °F to
131 °F}). (Î Reference Manual “Battery
Power”) Once the allowable range requirement is
satisfied, charging begins automatically. Note that
the recharging time varies based on the usage
conditions. (Recharging takes longer than usual
when the temperature is 10 °C {50 °F} or below.)
z
In high-temperature environments, the battery takes
longer to fully recharge. In low-temperature environ-
ments, the battery takes longer to fully recharge and
the operating time is shorter. Only use the computer
within the allowable temperature range.
zThe battery pack is a consumable item. If the
amount of time the computer can be run by using a
particular battery pack becomes dramatically
shorter and repeated recharging does not restore
its performance, the battery pack should be
replaced with a new one.
zWhen transporting a spare battery inside a pack-
age, briefcase, etc., it is recommended that it be
placed in a plastic bag so that its contacts are pro-
tected.
zAlways power off the computer when it is not in
use. Leaving the computer on when the AC adap-
tor is not connected will exhaust the remaining bat-
tery capacity.
Precautions (Battery Pack)
A lithium ion battery that is recy-
clable powers the product you
have purchased.
Please call 1-800-8-BATTERY
for information on how to recycle
this battery.
L’appareil que vous vous êtes
procuré est alimenté par une bat-
terie au lithium-ion.
Pour des renseignements sur le
recyclage de la batterie, veuillez
composer le 1-800-8-BATTERY.
48-M-1
11
Getting StartedUseful InformationTroubleshootingAppendix

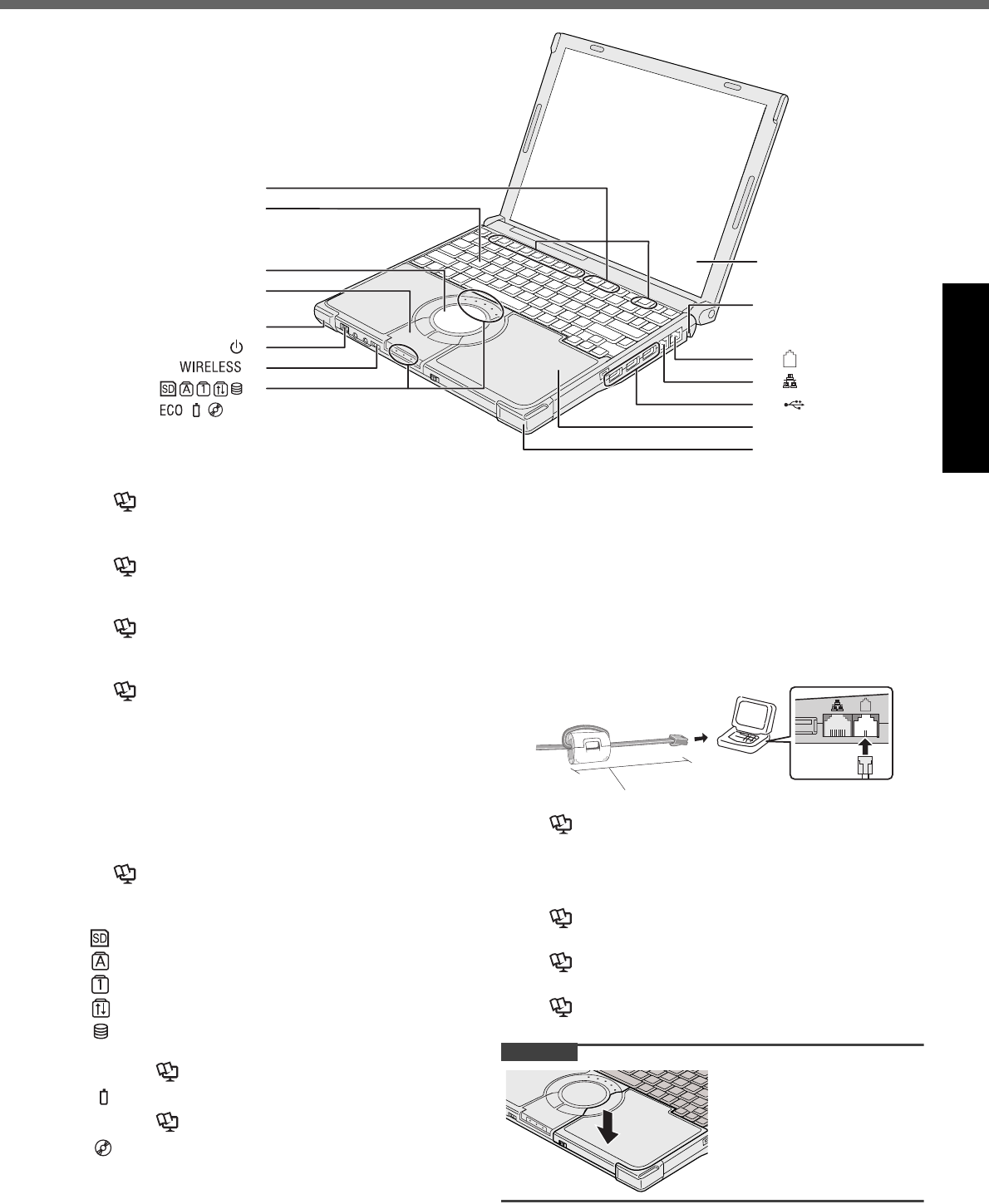

Description of Parts
A :Function Key
Î Reference Manual “Key Combinations”
B :Keyboard
C :Touch Pad
Î Reference Manual “Using the Touch Pad”
D :Bluetooth Antenna
<Only for model with Bluetooth>
Î Reference Manual “Bluetooth”
E : Wireless LAN Antenna
<Only for model with wireless LAN>
Î Reference Manual “Wireless LAN”
F : Power Switch
Îpage 14
Power Indicator
• Off: Power off/Hibernation
•Green: Power on
• Blinking green: Standby
G :Wireless Switch
Switch the wireless devices to on (right side) or to off (left side).
<Only for model with wireless LAN/wireless WAN/Bluetooth>
Î Reference Manual “Disabling/Enabling Wire-
less Communication”
H :LED Indicator
: SD/SDHC Memory Card status
: Caps lock
: Numeric key (NumLk)
: Scroll lock (ScrLk)
: Hard disk drive status
ECO
: Economy Mode (ECO) status
Î Reference Manual “Battery Power”
: Battery status
Î Reference Manual “Battery Power”
: CD/DVD drive status
• Off: Drive power is off.
• Green: Drive power is on, but the drive is not
accessed.
• Blinking green: Drive power is on, and the
drive is being accessed.
I : LCD
J : Security Lock
You can connect a Kensington cable. Refer to the instruc-
tion manual of the cable. The security lock and cable is a
theft prevention device. Panasonic Corporation will bear
no responsibility in the event of theft.
K :Modem Port
• Be sure to use the included modem telephone cable,
and insert the ferrite core side of modem telephone
cable into the modem port on the computer.
• Do not move/remove the ferrite core of modem tele-
phone cable.
Î Reference Manual “Modem”
L : LAN Port
If the Mini Port Replicator is connected to the computer,
connect the LAN cable to the LAN port on the Mini Port
Replicator. You cannot use the LAN port on the computer.
Î Reference Manual “LAN”
M :USB Ports
Î Reference Manual “USB Devices”
N :CD/DVD Drive
Î Reference Manual “CD/DVD Drive”
CAUTION
When closing the disc
cover, press down the disc
cover (position of the
arrow) to ensure that the
cover is locked.
I
J
K
L
M
N
E
A
B
C
D
E
F
G
H
90 mm {3.5 "} or less
12
Getting Started

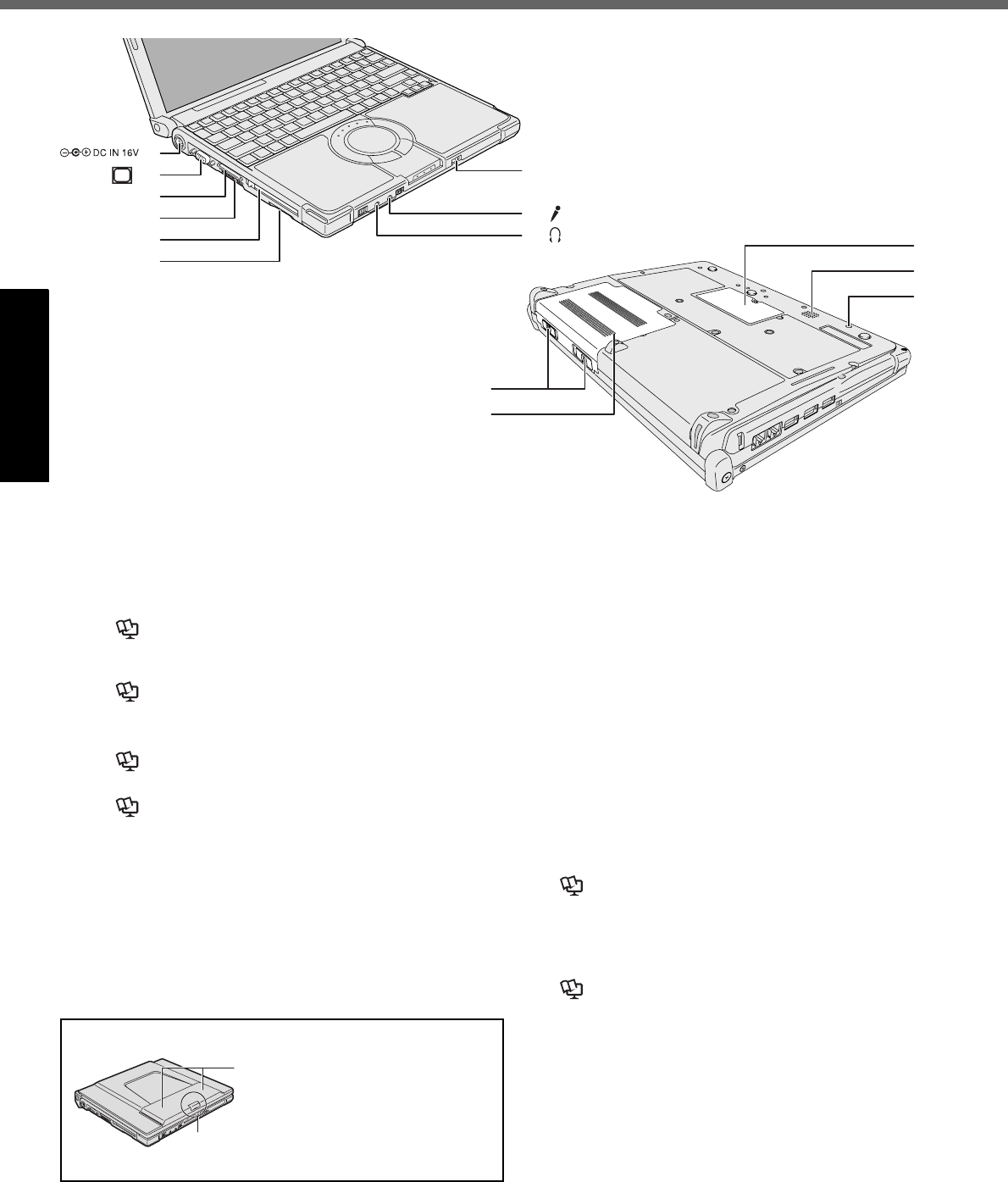

Description of Parts
EXT.
G
A
B
C
D
E
F
H
I
N
K
J
M
L
A :DC-IN Jack
B :External Display Port
If the Mini Port Replicator is connected to the com-
puter, connect the external display to the external dis-
play port on the Mini Port Replicator. You cannot use
the external display port on the computer.
Î Reference Manual “External Display”
C :Mini Port Replicator Connector
Connect the Mini Port Replicator (optional).
Î Reference Manual “Mini Port Replicator”
D :Ventilation Hole
E : PC Card Slot
Î Reference Manual “PC Cards”
F : SD Memory Card Slot
Î Reference Manual “SD/SDHC Memory Card”
G :CD/DVD Drive Power/Open Switch
• Slide the switch to the right to open the disc cover.
• Slide the switch to the left to turn on/off the drive power.
H :Microphone Jack
A condenser microphone can be used. If other types
of microphones are used, audio input may not be pos-
sible, or malfunctions may occur.
•
When recording in stereo using a stereo microphone: Click
[start] - [All Programs] - [SoundMAX] - [Control Panel] and
select [Microphone], and then select [No Filtering] in [Micro-
phone Enhancements].
•
When using a monaural microphone with a 2-terminal plug:
Click [start] - [All Programs] - [SoundMAX] - [Control Panel]
and select [Microphone], and then select [Voice Recording] in
[Microphone Enhancements]. Otherwise only audio on the left
track will be heard when recorded in stereo.
I : Headphone Jack
You can connect headphones or amplified speakers.
When they are connected, audio from the internal
speakers is not heard.
J : Battery Latches
Îpage 13
K :Battery Pack
Îpage 13
Î Reference Manual “Battery Power”

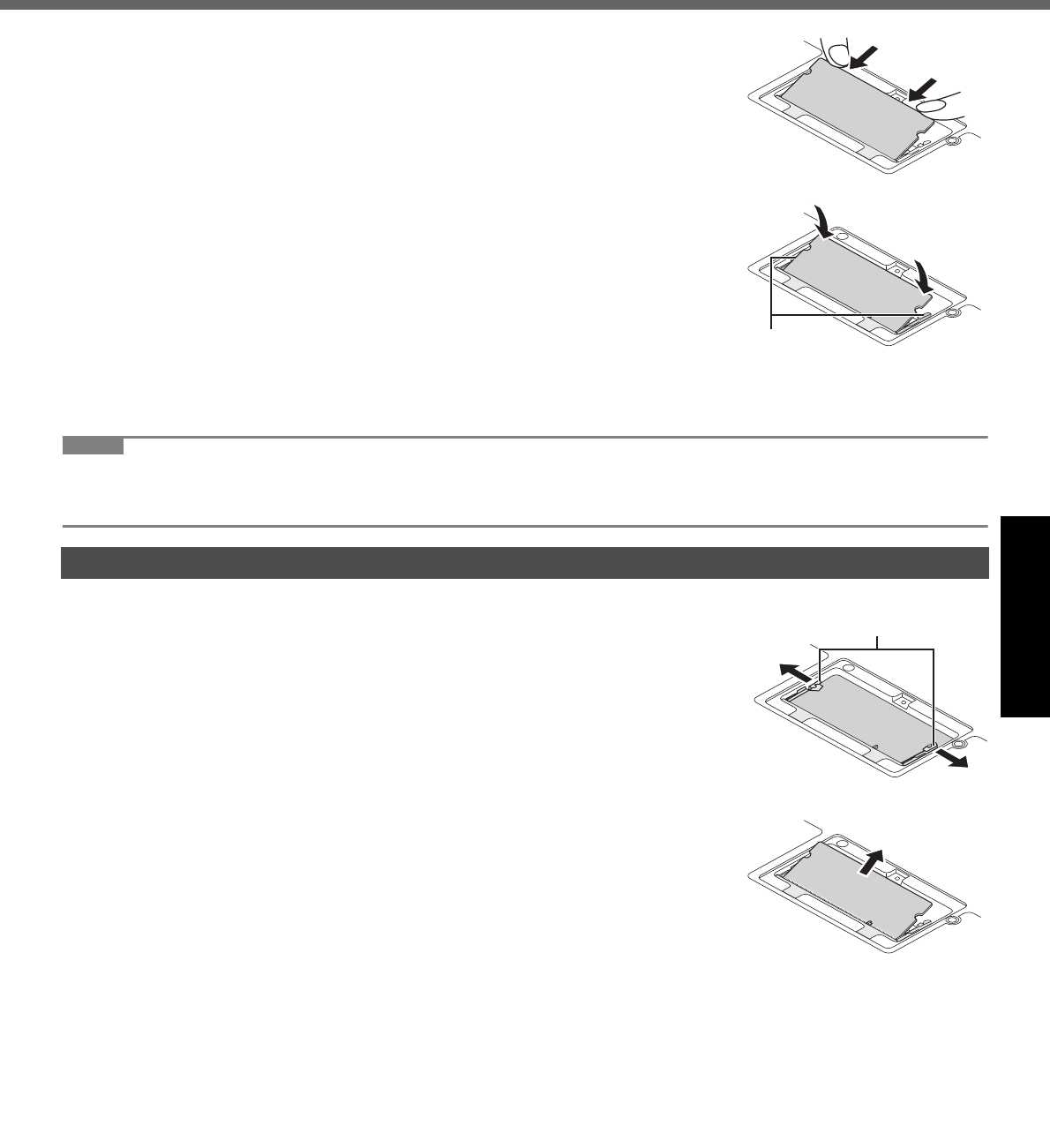

L : RAM Module Slot
Îpage 20
M :Speaker
N :Emergency Hole
Î Reference Manual “CD/DVD Drive”
SIM Card Slot
Wireless WAN Antenna
<Only for model with wireless WAN>
13
Getting StartedUseful InformationTroubleshootingAppendix

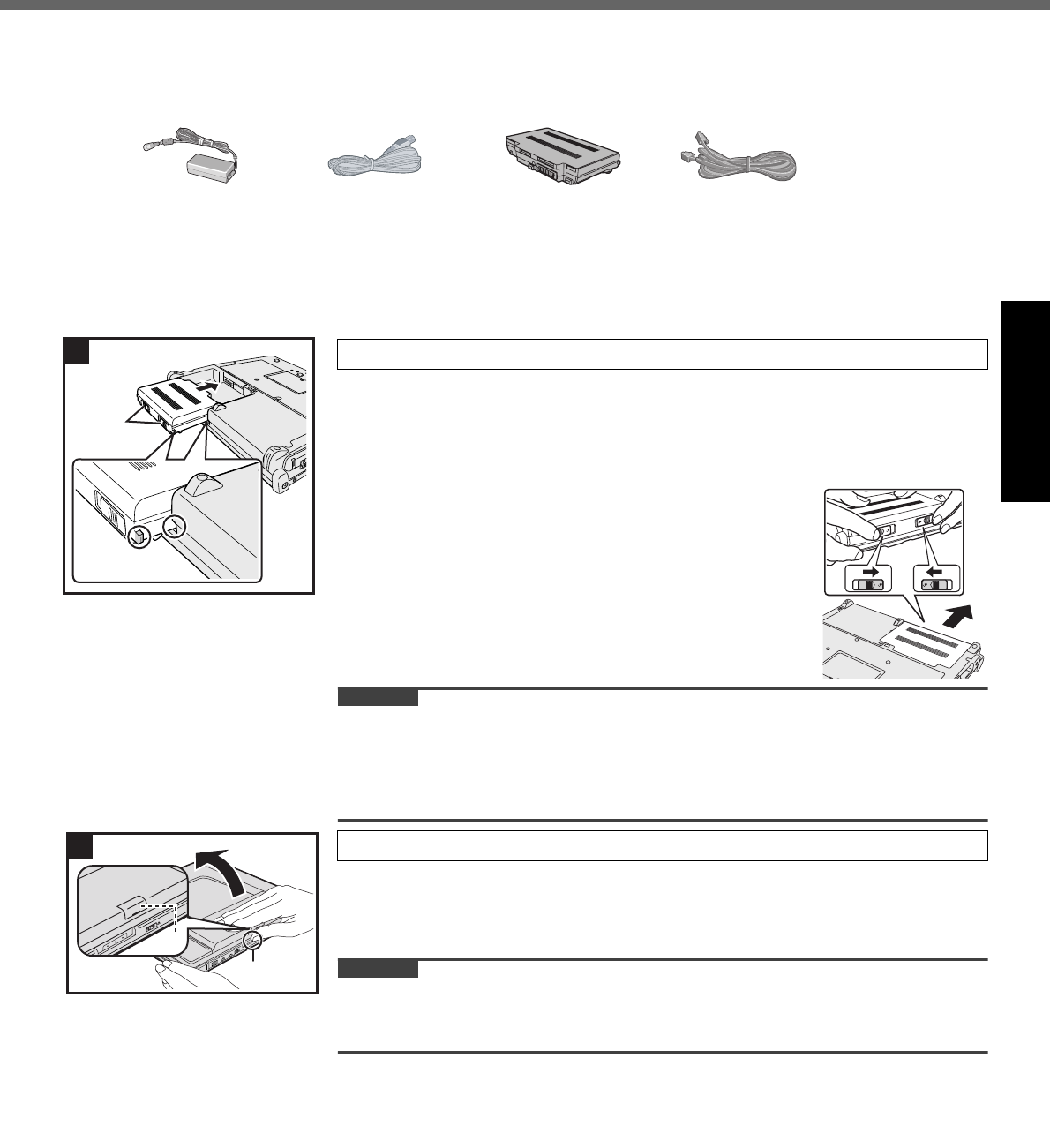

First-time Operation
Preparation
ACheck and identify the supplied accessories.
If you do not find the described accessories, contact your technical support office.
BRead the LIMITED USE LICENSE AGREEMENT before breaking the seal on the computer’s packaging
(Îpage 33).
Slide the battery pack in parallel with the arrow direction and attach it so that the
left and right projections on the new battery pack match the dents of the com-
puter.
In case that the projection does not match the dents of the computer, detach the
battery pack once, then slide it while pushing it lightly to avoid floating.
zTo remove
Slide both the left and right latches to the unlocked
position, and push out the battery pack in parallel with
the computer.
CAUTION
zMake sure the latches are securely locked. Otherwise the battery pack may fall
when you carry the computer.
zDo not touch the terminals of the battery pack and the computer. Doing so can
make the terminals dirty or damaged, and may cause malfunction of the battery
pack and the computer.
Hold the side of the computer with either of your hands and then hold and lift the
(A) part to open the display.
<Only for model with wireless WAN>
zBe careful not to press the SIM card slot cover (B) by mistake.
CAUTION
zDo not open the display wider than necessary (140° or more), and do not apply
excessive pressure to the LCD. Do not open or close the computer holding the
edge of the LCD segment.
• AC Adaptor . . . . 1
Model No: CF-AA6373A
• AC Cord . . . . . . 1 • Battery Pack . . .1
Model No: CF-VZSU51W
• Modem Telephone Cable . . . 1
• Operating Instructions (This book) . . . . . . . . . . . . . . . . . . . . . . . . .1
• Product Recovery DVD-ROM Windows Vista® Business SP 1 . .1
1 Insert the battery pack.
1
Battery
Latches
2 Open the display.
A
B
2
14
Getting Started
First-time Operation
The battery charging starts automatically.
CAUTION
zDo not disconnect the AC adaptor and do not switch the wireless switch to
on until the first-time operation procedure is completed.
zWhen using the computer for the first time, do not connect any peripheral device
except the battery pack and AC adaptor.
zHandling the AC adaptor
• Problems such as sudden voltage drops may arise during periods of thunder and
lightning. Since this could adversely affect your computer, an uninterruptible power
source (UPS) is highly recommended unless running from the battery pack alone.
Slide and hold the power switch for approximately one second until the
power indicator lights.
CAUTION
zDo not slide the power switch repeatedly.
zThe computer will forcibly be turned off if you slide and hold the power switch for
four seconds or longer.
zOnce you turn off the computer, wait for ten seconds or more before you turn on
the computer again.
z
Do not perform the following operation until the hard disk drive indicator turns off.
• Connecting or disconnecting the AC adaptor
• Sliding the power switch or CD/DVD drive power/open switch
• Touching the keyboard or touch pad
• Closing the display
zDo not change the Setup Utility until completing step 5. If you do so, Windows
setup may not operate properly.
Follow the on-screen instructions.
zThe computer will restart after the setup is complete.
To go to the next step, wait until the hard disk drive indicator has turned
off.
CAUTION
zDo not turn off the computer until completing the first-time operation procedure.
zWhen you set date/time/time zone and click [Next], the screen may not go to the
next step for a few minutes. Do not touch the keyboard or touch pad, and wait
until the screen changes.
Click [start] - [Control Panel] - [User Accounts] - [Create a new account].
CAUTION
z
Remember your password. If you forget the password, you cannot use the Windows
operation system. Creating a password reset disk beforehand is recommended.
Î Reference Manual “CD/DVD Drive”

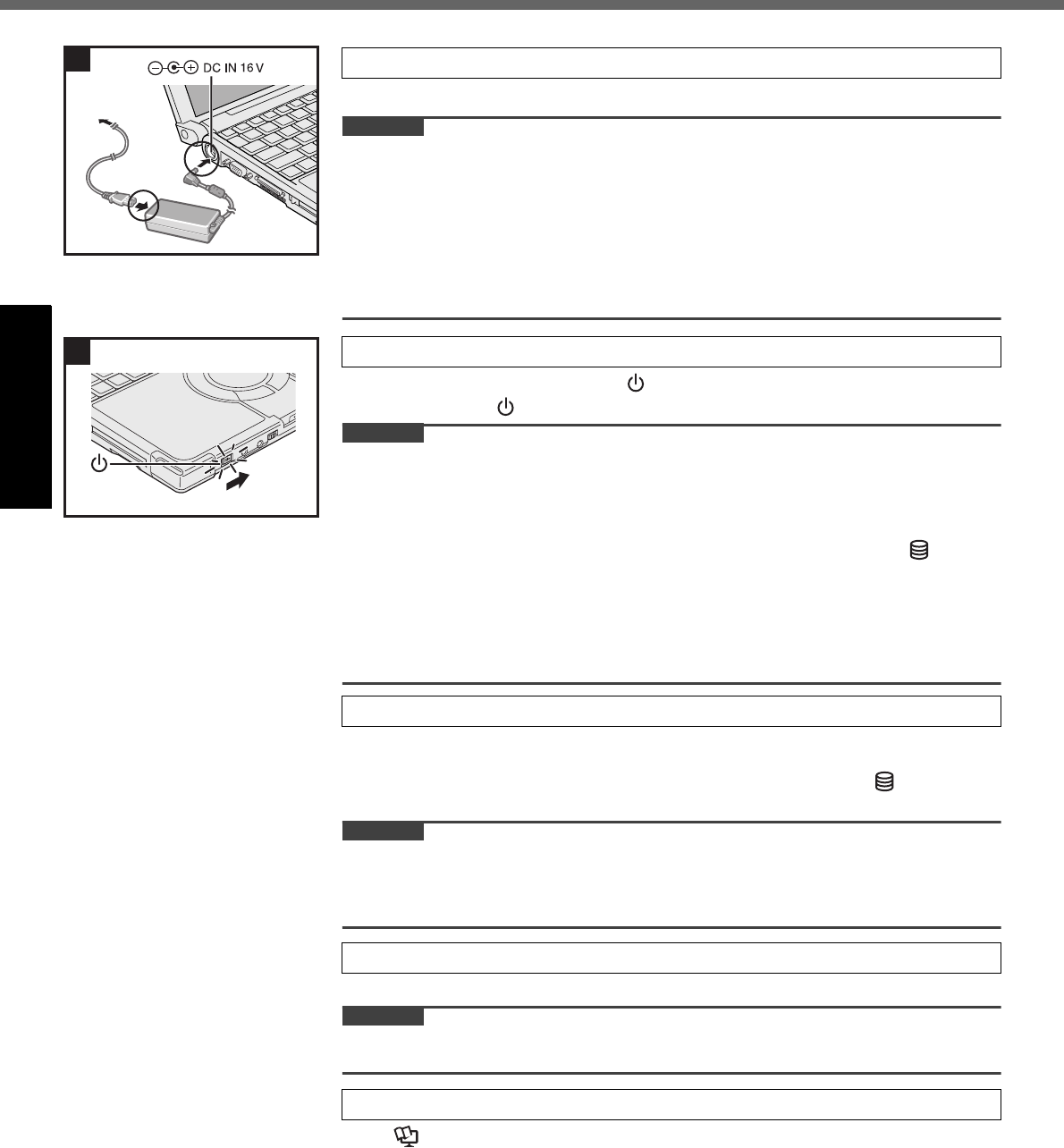

3 Connect your computer to a power outlet.
4 Turn on the computer.
5 Setup Windows.
6 Create a new account.
7 Change the internal CD/DVD drive letter if necessary.
3
4
15
Getting StartedUseful InformationTroubleshootingAppendix
NOTE
zRegarding Windows XP
You can select the Classic view of Control Panel or the Classic Start menu. You can also change the way a user logs
on or off. This manual explains using the Windows XP default setting (not Classic view or Classic Start menu etc.).
zWindows Update
You can update to the latest patches and service packs for Windows with the following menus.
[start] - [All Programs] - [Windows Update]
Do not apply “Driver Updates” even if a message to update a driver appears. If a driver update is required,
contact your technical support office.
zIf the message “Your computer might be at risk” is displayed
Select (red icon) on the notification area and make the appropriate settings. The Windows Security Center reg-
ularly gives you notice so that you can make the optimum settings. This is not an error message and you can use the
computer. However, making appropriate measures is recommended to reduce the risk of virus and other attacks.
zPC Information Viewer
This computer periodically records the management information of the hard disk, etc. The maximum data volume for
each record is 1024 bytes. This information is only used for estimating the cause when the hard disk goes down by
any possibility. They are never sent to outside via network nor used for any other purpose except for the purpose
described the above.
To disable the function, add the check mark for [Disable the automatic save function for management information
history] in [Hard Disk Status] of PC Information Viewer, and click [OK].
When you disable the function, information on how to use the hard disk of PC Information Popup is not displayed.
(Î Reference Manual “Check the Computer’s Usage Status” and “PC Information Popup”)
zIf you hear the sounds from CD/DVD drive
In the following situations, the sounds from the CD/DVD drive can be heard.
• Immediately after the CD/DVD drive is turned on
• Just after turning on the computer with [Optical Drive Power] set to [On] in the Setup Utility
• When a CD or DVD is playing
The sounds you hear are normal operating sounds created by the motor in the CD/DVD drive operating; it is not a
malfunction.
zTo conserve power, the following power saving methods are set at the time of purchase. (When AC adaptor
is connected)
• The screen automatically turns off after 15 minutes of inactivity.
• The computer automatically enters standby*1 after 20 minutes of inactivity.
*1 Refer to Reference Manual “Standby or Hibernation Functions” about resuming from standby.
zPower consumption in each mode is as follows. (When AC adaptor is connected)
• When the screen is off Approx. 10 W
• In standby Approx. 2.2 W
• The battery pack is fully charged (or not being charged) and the computer is off Approx. 0.9 W
zNote that the computer consumes electricity even when the computer power is off. If the battery pack is fully
charged, the battery will be fully discharged in the following period of time:
*2 If “Wake Up from wired LAN” is disabled, the period of time will become slightly longer.
If “Wake Up from wireless LAN” is enabled, the period of time will become shorter.
z
When the CD/DVD drive power is turned off, the message “The ‘Standard Dual Channel PCI IDE Controller’ device
can now be safely removed from the system” will appear, but the CD/DVD drive is an internal device, so it cannot
be removed.
When Starting Up/Shutting Down
zDo not do the following
• Connecting or disconnecting the AC adaptor
• Sliding the power switch or CD/DVD drive power/open switch
• Touching the keyboard, touch pad or external mouse
• Closing the display
When using the supplied battery pack (CF-VZSU51W) When using the optional battery pack (CF-VZSU52W)
• In standby: Approx. 3 days (If “Wake Up from wired
LAN” is enabled: 2 days)*2
• In hibernation: Approx.1.5 months (If “Wake Up
from wired LAN” is enabled: 3 days)*2
• When power is off: Approx. 1.5 months (If “Power
On by wired LAN” is enabled: 3 days)
• In standby: Approx. 1.5 days (If “Wake Up from
wired LAN” is enabled: 1 days)*2
• In hibernation: Approx. 0.7 months (If “Wake Up
from wired LAN” is enabled: 1.5 days)*2
• When power is off: Approx. 0.7 months (If “Power
On by wired LAN” is enabled: 1.5 days)
16
Getting StartedUseful InformationTroubleshootingAppendix
On-screen Manual
You can access the following manuals on the computer screen after completing the “First-time Operation”.
When you access the on-screen manual for the first time, the License Agreement of the Adobe Reader may be dis-
played. Read it carefully and select [Accept] to proceed.
Reference Manual
The Reference Manual contains the practical information to help you fully enjoy the computer’s performance.
To access the Reference Manual:
Click [start] - [All Programs] - [Panasonic] - [On-Line Manuals] - [Reference manual].
Important Tips
The Important Tips will provide you with the helpful information about the battery. Read to use the battery pack in the
optimum condition to obtain longer operation time.
To access the Important Tips:
Double-click on the desktop.
zAlternatively click [start] - [All Programs] - [Panasonic] - [On-Line Manuals] - [Important Tips].
Hard Disk Handling
The Hard Disk Handling will provide you with the helpful information on how to use the hard disk.
To access the Hard Disk Handling:
Click [start] - [All Programs] - [Panasonic] - [On-Line Manuals] - [Hard Disk Handling].
NOTE
zWhen Adobe Reader update notice is displayed, we recommend you follow the on-screen procedure to update.
See http://www.adobe.com/ for the latest version of Adobe Reader.
Contents
zRead Me First
zUsing the Touch Pad
zKey Combinations
zBattery Power
zComputing on the Road
zStandby or Hibernation Functions
zSecurity Measures
zCD/DVD Drive
zWinDVD
zRoxio Creator LJB
zPC Cards
zSD/SDHC Memory Card
zMini Port Replicator
zExternal Display
zUSB Devices
zModem
zLAN
zDisabling/Enabling Wireless Com-
munication
zWireless LAN
zBluetooth
zSetup Utility
zIcon Enlarger
zLoupe Utility
zTroubleshooting (Advanced)
zCheck the Computer’s Usage Sta-
tus
zPC Information Popup
zProtecting Your Computer from
Viruses
zTechnical Information
17
Getting StartedUseful InformationTroubleshootingAppendix
Handling and Maintenance
zPlace the computer on a flat stable surface. Do not place the computer upright. If the computer is exposed to an
extremely strong impact, it may become inoperable.
zTemperature: Operation: 5 °C to 35 °C {41 °F to 95 °F}
Storage: -20°C to 60 °C {- 4 °F to 140 °F}
Humidity: Operation: 30% to 80% RH (No condensation)
Storage: 30% to 90% RH (No condensation)
Even within the above temperature/humidity ranges, using for a long time in an extreme environment will result in
the product deterioration and will shorten the product life.
• Be sure to use the computer in an environment with sufficient heat ventilation.
- Avoid using the computer on a highly heat retentive surfaces (e.g., rubber pads and blankets). If possible, use
the computer on surfaces that can dissipate heat, such as a steel desk.
- Do not cover the computer with towels, keyboard covers, etc., as this prevents heat dissipation.
- When using the computer, always keep the display open. (Note, however, that closing the display while the com-
puter is in use does not cause generation of heat, ignition, or other malfunctions.)
zDo not place the computer in the following areas, otherwise the computer may be damaged.
• Near electronic equipment. Image distortion or noise may occur.
• Near magnets or in magnetic fields.
• In extremely high or low temperature.
zAs the computer can become hot during operation, keep it away from items that are sensitive to heat.
This computer is designed to minimize shock to parts such as the hard disk drive, but no warranty is provided against
any trouble caused by shock. Be extremely careful when handling the computer.
zWhen carrying the computer:
• Turn off the computer.
• Remove all external devices, cables, cards and other protruding things.
• Remove a disc in the CD/DVD drive.
• Do not drop or hit the computer against solid objects.
• Do not leave the display open.
• Do not pick up or hold the computer by display part.
zWhen you board an airplane, take the computer with you and never put it in your
checked luggage. When using the computer on airplane, follow the airline’s
instructions.
zWhen carrying a spare battery, put it in a plastic bag to protect its terminals.
zThis computer contains a magnet and magnetic products at the locations circled in
the illustration at right. Avoid leaving metallic object or magnetic media in contact
with these areas.
zThe touch pad is designed to be used with a finger tip. Do not place any object on
its surface and do not press down strongly with sharp-pointed or hard objects that
may leave marks (e.g., nails, pencils and ball point pens).
zAvoid any harmful substances such as oil from getting into the touch pad. The cur-
sor may not work correctly.
zIf the computer is being carried in a soft bag with the battery pack removed, avoid undue pressure on the body of the
computer in a crowded place, etc., as this may result in damage to the LCD.
If the computer becomes warm during usage
zCheck the following
• If you are not using a wireless LAN, turn the wireless LAN off.
• If the computer becomes warm while the screen saver is displayed, set the screen saver to [Windows XP]. Screen
savers that use 3-D images or other complex images increase the CPU utilization rate.
• Use recommended RAM module products. Non-recommended RAM modules may not operate properly, and may
cause damage to your computer.
zDouble-click on the desktop and click [High speed], then click [OK].
• When you set [High speed], rotation of the cooling fan speeds up and the computer can be cooled down. Note that
the battery operating time will be shorter.
• When you do not frequently use CPU or the rotation noise of the fan bothers you, set [Standard] or [Low speed] as
necessary.
Operation Environment
Handling Cautions
Bottom
18
Getting StartedUseful InformationTroubleshootingAppendix
Handling and Maintenance
When using peripheral devices
Follow these instructions and the Reference Manual to avoid any damage to the devices. Carefully read the instruction
manuals of the peripheral devices.
zUse the peripheral devices conforming to the computer’s specifications.
zConnect to the connectors in the correct direction.
zIf it is hard to insert, do not try forcibly but check the connector’s shape, direction, alignment of pins, etc.
zIf screws are included, fasten them securely.
Preventing your computer from unauthorized use via wireless LAN/wireless WAN/Bluetooth
<Only for model with wireless LAN/wireless WAN/Bluetooth>
zBefore using wireless LAN/wireless WAN/Bluetooth, make the appropriate security settings such as data encryption.
<Only for model that supports TPM>
Computrace® Software
Computrace® software tracks your stolen computer.
zComputrace® software is not included or installed in this computer.
zConsult Absolute Software Corp. before disposal.
zRefer to the following URL for Computrace® software for installation and available service regions. Note that this
service is only available in certain regions.
http://www.absolute.com
To clean the LCD panel and touch pad
Wipe lightly with a gauze or other dry, soft cloth.
To clean areas other than the LCD panel and touch pad
Wet a soft cloth with water or a diluted kitchen cleanser (neutral), wring the cloth out thoroughly, and wipe the dirty area gently.
Using a detergent other than a neutral kitchen cleanser (e.g., a weak alkali cleanser) may adversely affect painted surfaces.
CAUTION
z
Do not use benzene, thinner, or rubbing alcohol since it may adversely affect the surface causing discoloration, etc. Do not
use commercially-available household cleaners and cosmetics, as they may contain components harmful to the surface.
zDo not apply water or detergent directly to the computer, since liquid may enter inside of the computer and cause
malfunction or damage.
Maintenance
19
Getting StartedUseful InformationTroubleshootingAppendix
The keyboard on this computer incorporate a drain system (a moisture protection mechanism) that minimizes the
amount of liquid reaching the inside of the computer even if water is spilled on the keyboard.
Any water that comes in contact with the keyboard is drained off through holes in the bottom of the computer, so that vir-
tually no water is left inside the computer. However, this is not a guarantee against damage to the hard disk or other
internal parts, or against the loss or deletion of data.
The drain system is incorporated into only the keyboard. It does not apply to any other components.
zIf you spill water or any other liquid on the keyboard, even a small amount, be sure to perform the following steps.
Failure to perform these steps may result in damage to the computer. The drain system will not provide complete
protection against water entering the computer.
1 Immediately turn off the computer, and remove the AC adaptor.
2 Wipe any water droplets off of the top of the keyboard using a
soft, dry cloth.
3 Slowly lift up the computer, keeping it level,
and wipe any water coming out of the holes
on the bottom using a soft, dry cloth.
If the computer is tilted during this step, liquid may seep
inside the computer resulting in damage.
4 Keeping the computer level, move
the computer to a dry place.
If the computer is placed back on the wet
surface, water may seep inside the computer
from the bottom.
5 Insert the tip of a ball-point pen or other object into the emer-
gency hole on the bottom of the computer, and move it in the
direction of the arrow to open the disc cover.
The computer should be kept level, without tilting, while the disc cover is being
opened. Move the computer to the edge of the desk or table to perform this oper-
ation.
6 Check to see whether there is any water inside the CD/DVD drive.
If there is water inside, wipe it using a soft, dry cloth.
7 Remove the battery pack.
8 Be sure to contact your technical support office to have the computer checked for any
malfunctions.
If You Spill Water on the Keyboard
Note that repairs resulting from liquids being spilled on the computer are not free of charge, and not covered by war-
ranty.
20
Getting StartedUseful InformationTroubleshootingAppendix
Expanding Memory
Use RAM modules that comply with the specifications below. Using any other module may cause malfunction or result
in computer failure.
RAM module specifications:
DDR2 SDRAM, 200 pins, SO-DIMM, 1.8 V, PC2-5300
CAUTION
zUse recommended RAM module products. Do not use non-recommended RAM modules. Non-recommended RAM
modules may not operate properly, and may cause damage to your computer. Some non-recommended RAM mod-
ules may overheat, causing the cover to warp. Refer to various sources for recommended RAM module.
zRAM modules are extremely sensitive to static electricity. There are cases where static electricity generated by the
human body has adversely affected such RAM modules. When inserting or removing a RAM module, do not touch
the terminals or internal components, insert objects other than the module, or allow foreign particles to enter. Doing
so has been known to cause damage, fire or electric shock.
zPanasonic Corporation will bear no responsibility whatsoever for failures or damage caused by the use of non-rec-
ommended RAM modules, or by incorrect installation or removal of such RAM modules. Before installing a RAM
module, confirm the product type and the correct installation method.
Preparation
ATurn off your computer.
• Do not use the standby or hibernation.
BDisconnect the AC adaptor and remove the battery pack.
CRemove the screw (A) and the cover on the bottom of the computer.
• Use the appropriate screw driver so as not to strip the thread of screw.
1 Place the RAM module lightly in parallel with the RAM module slot so that the notch (B)
of the RAM module and the protrusion (C) of the RAM module slot is in the same direc-
tion.
zThe gold terminals are visible at this point.
zRAM module is at an angle of 20° - 30° with the horizontal line.
Inserting the RAM Module
A
RAM Module
Slot
B C Gold Terminals
21
Getting StartedUseful InformationTroubleshootingAppendix
2 Insert the RAM module parallel to the slot firmly until the gold
terminals are invisible.
zIf it is hard to insert the RAM module, do not try forcibly but check the mod-
ule’s direction.
3 Press the RAM module down until the right and left hooks (D)
lock into place.
zWhen pressing down the module, the right and left hooks will open slightly
and will return after locking.
zIf it is hard to press down the RAM module, do not try forcibly but check the
module’s direction.
4 Set the cover and battery pack back.
NOTE
zIf the RAM module is recognized correctly, the total size of this computer’s memory and RAM module memory is dis-
played on the [Information] menu of the Setup Utility.
If the RAM module is not recognized, turn off the computer and insert it again.
1 Carefully open the left and right hooks (E).
The RAM module will be raised.
2 Carefully remove the RAM module from the slot.
3 Set the cover and battery pack back.
Removing the RAM Module
D
E
22
Getting StartedUseful InformationTroubleshootingAppendix
I
ntel
®
Active Management Technology (Intel
®
AMT)
<Only for model with AMT>
Intel® AMT offers the operational management function and security function through network.
1 Turn on the computer, and press
F2
or
Del
while [Panasonic] boot screen is displayed.
The Setup Utility starts up.
zIf the password is requested, enter the Supervisor Password.
2 If the Supervisor Password is not set, select the [Security] menu, then set Supervisor
Password.
3 Select the [Security] menu, and select [AMT Configuration], and press
Enter
.
4 Select [Intel(R) AMT] and press
Enter
.
5 Select [Enabled] and press
Enter
.
6 Select [Intel(R) ME Setup Prompt] and press
Enter
.
7 Select [Enabled] and press
Enter
.
8 Press
Esc
.
If you do not use the Supervisor Password, clear the Supervisor Password following steps.
ASelect [Set Supervisor Password], and press
Enter
.
BEnter the Current Password, and press
Enter
.
CPress
Enter
when the [Create New Password] display is shown.
DPress
Enter
when the [Confirm New Password] display is shown.
9 Press
F10
.
At the confirmation message, select [Yes] and press
Enter
.
The computer will restart.
The following procedures are example. It is different according to your environment. Contact your technical sup-
port office.
APress
Ctrl
+
P
when [Press <CTRL - P> to enter Intel(R) ME Setup] is shown after the [Panasonic] boot
screen disappears.
BEnter “admin” in [Intel(R) ME Password], and press
Enter
.
CEnter the New Password in [Intel(R) ME New Password] to change the password, and press
Enter
.
At confirmation massage, enter the password, and press
Enter
.
Write down new password to remember you password.
The password has the limitation (Îbellow).
DSelect [Intel(R) ME Configuration], and press
Enter
.
At the confirmation message, press
Y
.
ESetup the items if necessary.
Confirm your system administrator about the setup items.
FSelect [Return to Previous Menu] after setup is complete.
Follow the on-screen instructions.
The computer will restart.
CAUTION
zYou can use the following characters to set Intel(R) ME Password.
• Minimum of 8 and maximum of 32 characters are used.
• 1 or more numeric characters are included.
• 1 or more special characters (example: “!” “$”) are included (only characters that can be displayed with the US
keyboard).
• Capital letters and small letters are mixed.
Setting AMT configuration
23
Getting StartedUseful InformationTroubleshootingAppendix
1 Click [start] - [Run] and input “c:\util\drivers\amt\MEI\setup.exe”, then click [OK].
Follow the on-screen instructions.
2 If [SOL/IDE-R] is set to [Enabled] in the INTEL(R) AMT CONFIGURATION, click [start] -
[Run] and input “c:\util\drivers\amt\LMS_SOL\setup.exe”, then click [OK].
Follow the on-screen instructions.
1 Turn on the computer, and press
F2
or
Del
while [Panasonic] boot screen is displayed.
The Setup Utility starts up.
zIf the password is requested, enter the Supervisor Password.
2 If the Supervisor Password is not set, select the [Security] menu, then set Supervisor
Password.
3 Select the [Security] menu, and select [AMT Configuration], and press
Enter
.
4 Select [Intel(R) AMT] and press
Enter
.
5 Select [Disabled] and press
Enter
.
6 Press
Esc
.
7 Select the [Exit] menu, and select [Save Current Values], and press
Enter
.
At the confirmation message, select [Yes] and press
Enter
.
8 Select the [Security] menu, and select [AMT Configuration], and press
Enter
.
9 Select [Reset AMT Configuration] and press
Enter
.
At the confirmation message, select [Yes] and press
Enter
.
The computer will restart.
zIf the password is requested, enter the Supervisor Password.
10 Press
Y
when the “Continue with unconfiguration” message will appear.
Installing the driver
Resetting AMT configuration
24
Getting StartedUseful InformationTroubleshootingAppendix
Troubleshooting (Basic)/Error Code/Message
Follow the instructions below when a problem has occurred. There is also an advanced troubleshooting guide in the
“Reference Manual”. For a software problem, refer to the software’s instruction manual. If the problem persists, contact
your technical support office. You can also check the computer’s status in the PC Information Viewer (Î Reference
Manual “Check the Computer’s Usage Status”).
Troubleshooting (Basic)
Starting Up and Standby and Hibernation Mode
The computer does not
power on/
The power indicator or bat-
tery indicator is not lit.
zConnect the AC adaptor.
zInsert a fully charged battery.
zRemove the battery pack and the AC adaptor, then connect them again.
zIf an additional RAM module has been inserted, remove the RAM module and check to
see if the RAM module is the recommended one.
z
When the CPU temperature is high, the computer may not start up to prevent overheating of
the CPU. Wait until the computer cools down, and then turn the power on again. If the com-
puter does not power on even after cooling down, contact your technical support office.
Windows does not start up. zRemove all peripheral devices (e.g. USB memory).
zIf an additional RAM module has been inserted, remove the RAM module and check to
see if the RAM module is the recommended one.
zIf the power indicator is lit, slide the power switch for four seconds or longer to turn off,
then turn on again.
zUsing the following procedure, start up in Safe Mode, and check the error details.
ATurn on the computer, and when the [Panasonic] boot screen disappears (after enter-
ing the password*1 if one is set) hold down
F8
.
BRelease your finger when [Windows Advanced Options Menu] is displayed, and with
Ï or Ð, select [Safe Mode], then press
Enter
.
Follow the on-screen instructions.
*1 Supervisor Password or User Password set with the Setup Utility
zPress
F9
in the Setup Utility (Îpage 27 “To start the Setup Utility”) to return the Setup
Utility settings (excluding the passwords) to the default values. Start the Setup Utility and
make the settings again.
Cannot boot from internal
CD/DVD drive.
zMake sure that the bootable CD/DVD is set properly.
zStart the Setup Utility, and confirm the following settings.
• [Optical Drive] is set to [Enabled] in the [Advanced] menu.
• [Optical Drive Power] is set to [On] in the [Main] menu.
• [Boot Option #1] is set to [CD/DVD Drive] in the [Boot] menu.
zWhen an external CD/DVD drive is connected, you cannot boot from the internal CD/
DVD drive.
You have forgotten the
password.
zSupervisor Password or User Password: Contact your technical support office.
zAdministrator password:
• If you have a password reset disk, you can reset the administrator password. Set the
disk and enter any wrong password, then follow the on-screen instructions and set a
new password.
• If you do not have a password reset disk, reinstall (ÎSupplementary Instructions for
Windows XP) and set up Windows, and then set a new password.
“Remove disks or other
media. Press any key to
restart” or a similar mes-
sage appears.
zA floppy disk is in the floppy disk drive and it does not contain system startup informa-
tion. Remove the floppy disk and press any key.
z
This message may appear with some devices connected to
the USB port
. Remove the
device or set [Legacy USB Support] to [Disabled] in the [Advanced] menu of the Setup Utility.
z
If the problem persists after removing the disk, it may be a hard disk failure. Perform the rein-
stallation and return the hard disk to its condition at the time of purchase
(ÎSupplementary
Instructions for Windows XP)
. If the problem persists even after the reinstallation, contact
your technical support office
.
[Executing Battery Recali-
bration] screen appears.
zThe Battery Recalibration was canceled before Windows was shut down last time. To
start up Windows, turn off the computer by the power switch, and then turn on.
The computer will not auto-
matically enter standby/
hibernation.
zIf you connect to a network using wireless LAN function, perform access point settings.
(Î Reference Manual “Wireless LAN”)
zIf you do not use wireless LAN function, turn off wireless LAN function. (Î Refer-
ence Manual “Disabling/Enabling Wireless Communication”)
zMake sure that you are not using any software that regularly accesses the hard disk.
25
Getting StartedUseful InformationTroubleshootingAppendix
When logging on (e.g.,
resuming the computer),
audio is distorted.
zPerform the following steps to change the audio settings to prevent audio output.
AClick [start] - [Control Panel] - [Sounds, Speech, and Audio Devices] - [Sounds and
Audio Devices], and click [Sounds].
BSet [Windows Logon] and [Windows Logoff] to [(None)].
Cannot resume. zOne of the following operations may have been carried out.
• In standby mode, the AC adaptor or battery pack was disconnected, or a peripheral
was connected or disconnected.
• The power switch was slid for four seconds or longer to forcibly turn off the computer.
Slide the power switch to turn on the computer. Data not saved will be lost.
Other startup problems. zCheck to see if there was a disk error.
ARemove all peripheral devices including an external display.
BClick [start] - [My Computer] and right-click [Local Disk (C:)], and click [Properties].
CClick [Tools] - [Check Now].
• A standard user needs to enter an administrator password.
DSelect the option in [Check disk options] and click [Start].
zStart the computer in Safe Mode and check the error details. (
Î
page 24 “Windows
does not start up”.)
Shutting Down
Windows does not shut
down.
zRemove all peripheral devices.
zWait one or two minutes. It is not a malfunction.
Password
Even after entering the pass-
word, a message appears
requesting to type it again.
zIf lights up, press
NumLk
to disable the ten-key mode, and then input.
zIf lights up, press
Caps Lock
to disable the Caps Lock mode, and then input.
Display
When the screen becomes
black for a moment.
z
When you set [Intel video driver power saving function (Intel(R) Display Power Saving Tech-
nology)] of Power Saving Utility to [Enabled], if you do the following operations, the screen
becomes black for a moment, but this is not a malfunction. You can continue to use this.
• Adjust the brightness of the screen with
Fn
+
F1
/
Fn
+
F2
.
• Remove and insert the AC adaptor.
While you are using motion video playback software, benchmark software for graphic, if
error screen is displayed or application software does not function normally, set [Intel video
driver power saving function (Intel
(R)
Display Power Saving Technology)] to [Disable].
No display. zThe external display is selected. Press
Fn
+
F3
to switch the display. Wait until the dis-
play has been switched completely before pressing
Fn
+
F3
again.
zThe display is turned off by the power-saving function. To resume, do not press the direct
selection keys, but press any other key like
Ctrl
.
zThe computer entered standby or hibernation by the power-saving function. To resume,
slide the power switch.
zThe screen may become darker. Press
Fn
+
F2
to make the screen brighter.
The screen is disordered. z
Changing the number of display colors and resolution may affect the screen. Restart the computer.
z
The refresh rate of the internal LCD may be 40 hertz. Change the refresh rate of the internal LCD.
AClick [start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) GMA Driver
for Mobile].
BClick [Display Settings].
CIf [Refresh Rate] of the Notebook is [40 Hertz], change to [60 Hertz] and click [OK].
The external display does
not work normally.
zIf the external display does not support the power saving function, it may not work nor-
mally when the computer enters the power saving mode. Turn off the external display.
Battery
The battery indicator is
lights red.
zThe battery level is very low (the charge is approx. 9% or less).
zConnect the AC adaptor. You can use the computer when the indicator light is orange. If
you do not have an AC adaptor, save your data and power off your computer. After
replacing the battery pack with a fully charged one, turn your computer on again.
Starting Up and Standby and Hibernation Mode
26
Getting StartedUseful InformationTroubleshootingAppendix
Troubleshooting (Basic)/Error Code/Message
The battery indicator is
blinking.
zIf blinking red:
Quickly save your data and power off your computer. Remove the battery pack and dis-
connect the AC adaptor, then connect them again. If the problem persists, contact your
technical support office. The battery pack or charging circuit may be defective.
zIf blinking orange:
• Battery cannot be recharged temporarily because the internal temperature of the bat-
tery pack is outside the acceptable temperature range for recharging. Your computer
can be used normally in this state. Once the range requirement is satisfied, charging
begins automatically.
• Software applications and peripheral devices (USB devices, etc.) are consuming too
much power. Exit the software applications currently running, and remove all peripher-
als. Once the range requirement is satisfied, charging begins automatically.
The battery indicator is
flashing.
zThe battery is recharging.
If [Battery Charging Indicator] in [Main] menu of the Setup Utility is set to [Flashing], the
indicator will alternately become lighter and darker.
Touch Pad
The cursor does not work. zWhen using the external mouse, connect it correctly.
zRestart the computer by using the keyboard.
Press ,
U
, and
R
to select [Restart].
z
If the computer does not respond to keyboard commands, read “No response” (
Î below
)
.
Cannot input using the
touch pad.
zSet [Touch Pad] to [Enabled] in the [Main] menu of the Setup Utility.
z
The drivers for some mice may disable the touch pad. Check your mouse’s operating instructions.
Reference Manual
The Reference Manual is not
displayed.
zInstall Adobe Reader.
ALog on to Windows as an administrator.
B
Click [start] - [Run] and input “c:\util\reader\setup.exe”, then click [OK]
.
CFollow the on-screen instructions.
Others
No response. zPress
Ctrl
+
Shift
+
Esc
to open Task Manager and close the software application that
is not responding.
zAn input screen (e.g., password input screen at startup) may be hidden behind another
window. Press
Alt
+
Tab
to check.
z
Slide the power switch for four seconds or longer to shut down the computer, and then slide
the power switch to turn it on. If the application program does not work normally, uninstall and
reinstall the program. To uninstall, click [start] - [Control Panel] - [Add or Remove Programs].
The computer does not rec-
ognize the CD/DVD drive.
zRestart the computer.
After the computer restarts, it may recognize a CD/DVD drive.
Battery
27
Getting StartedUseful InformationTroubleshootingAppendix
Follow the instructions below when an error code or message appears. If the problem persists or if the error code/mes-
sage displayed is not shown here, contact your technical support office.
To start the Setup Utility
ARestart the computer.
BPress
F2
or
Del
while [Panasonic] boot screen is displayed.
Error Code/Message
Error Code/Message Solution
Bad System CMOS An error has occurred in the memory of system settings. This occurs when the memory con-
tent is changed by an unexpected program operation, etc.
zStart the Setup Utility and return the settings to the default values, and then change the set-
tings as necessary.
zIf the problem persists, the internal clock battery may need to be replaced. Contact your tech-
nical support office.
System CMOS
Checksum Error
Invalid Year. System
date restored to 01/01/
2008
The date and time settings are not correct.
zStart the Setup Utility and set the correct date and time.
zIf the problem persists, the internal clock battery may need to be replaced. Contact your tech-
nical support office.
Error
Hard disk access is
prohibited by "Hard
Disk Lock". Please
enter the Setup Utility
and change the
values correctly to
permit access.
The hard disk access is prohibited.
zStart the Setup Utility and select [Disabled] in [Hard Disk Lock] in the [Security] menu.
Press <F2> to enter
setup
z
Write down the error details and press
F2
or
Del
to start the Setup Utility. Change the settings if nec-
essary.
Reboot and Select
proper Boot device or
Insert Boot Media in
selected Boot device
and press a key
The operating system is not installed in the floppy disk or the hard disk that you are going to boot from.
zIf using a floppy disk, change the disk to the one you can use for boot.
zIf using the hard disk, check if the hard disk is recognized in [Information] menu of the Setup
Utility. If the hard disk is recognized, perform the reinstallation (ÎSupplementary Instructions
for Windows XP). If not, contact your technical support office.
zIf a device is connected to the USB port, disconnect the device, or set [Legacy USB Support]
to [Disabled] in the [Advanced] menu of the Setup Utility.
Disk error
Press any key to
restart
Extended RAM
Module Failed
zThe RAM module is not inserted correctly. Turn off the computer, and confirm that the RAM
module conforms to the recommended module, and reinsert it.
Standard RAM Failed zContact your technical support office.
FAN ERROR zThe cooling fan does not work correctly. Contact your technical support office.
28
Getting StartedUseful InformationTroubleshootingAppendix
Hardware Diagnostics
If the hardware installed in this computer is not operating properly, you can use the PC-Diagnostic Utility to determine
whether or not there is a problem.
If the utility discovers a problem in the hardware, contact your technical support office.
Hardware below can be checked using this utility. (Software cannot be checked.)
zCPU
zMemory
zHard Disk
zCD/DVD Drive
zVideo Controller
zSound*1
zModem
zLAN
zWireless LAN*2
zBluetooth*3
zUSB
zPC Card Controller
zSD Card Controller
zKeyboard
zTouch Pad
*1 When the PC-Diagnostic Utility is running, a loud beep will sound, so do not use headphones at this time. (The beep will not
sound if mute is using Windows.)
*2 Only for model with wireless LAN
*3 Only for model with Bluetooth
zWhen the video diagnostic check is running, the display may be distorted, and when the audio diagnostic check is
running, sounds may be generated from the speaker. These are not malfunctions.
NOTE
zOnly for the hard disk, keyboard and touch pad, you can select standard diagnostic check or extended diagnostic
check.
When the PC-Diagnostic Utility starts up, it will run the standard diagnostic check.
zWe recommend that you use the touch pad for operations. When not using the touch pad, you can operate using the
internal keyboard instead. Note, however, that the touch pad and internal keyboard may not function temporarily dur-
ing diagnostic check. If this happens, wait for a moment before operating them.
zIf the touch pad does not operate properly, press
Ctrl
+
Alt
+
Del
to restart the computer,
or slide the power switch
to turn the power off, and then restart the PC-Diagnostic Utility.
Hardware that can be checked using the PC-Diagnostic Utility
Regarding the PC-Diagnostic Utility
Operations Touch pad operations Internal keyboard operations
Select icon Place the cursor above the icon
Press
Space
and then press
Î Í Ï Ð
( (close) cannot be selected).
Click the icon Tap or click (right click cannot be used) Press
Space
above the icon.
Complete the PC- Diagnos-
tic Utility and then restart
the computer
Click (close) Press
Ctrl
+
Alt
+
Del
.
29
Getting StartedUseful InformationTroubleshootingAppendix

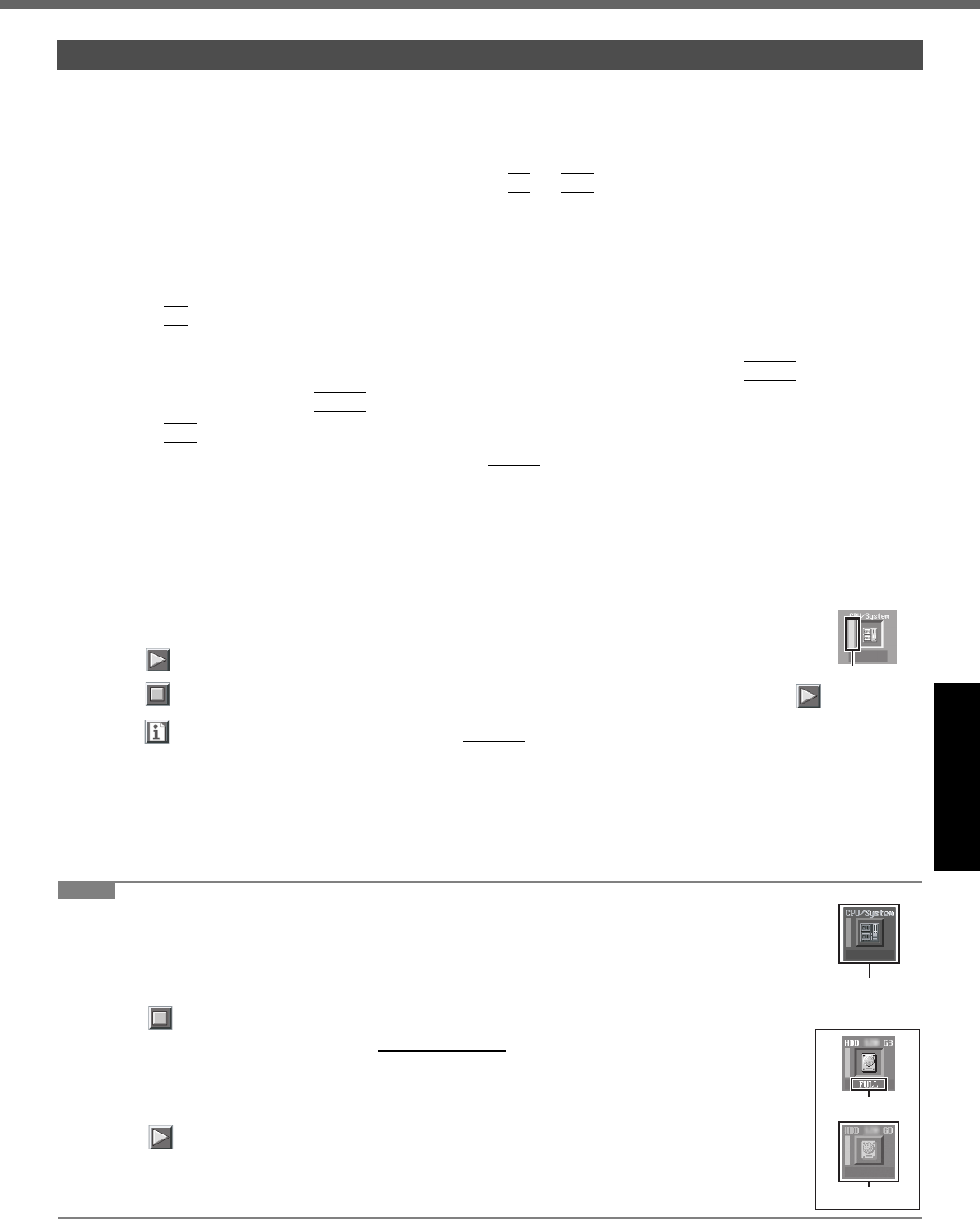

Run this utility using the default settings in the Setup Utility.
If the Setup Utility or other settings will not allow a hardware to be executed, the hardware icon will be displayed in gray.
1 Connect the AC adaptor, and turn on the wireless switch.
During the diagnostic check, do not remove the AC adaptor, or attach any peripheral devices.
2 Turn on or restart the computer, and press
F2
or
Del
while [Panasonic] boot screen is
displayed.
The Setup Utility starts up.
zIf the password is requested, enter the Supervisor Password.
zIf you are using the computer after changing the settings from the status at the time of purchase, we recom-
mend that you make a note of the settings that are changed.
3 Press
F9
.
At the confirmation message, select [Yes] and press
Enter
.
4 Select the [Main] menu, then select [Optical Drive Power] and press
Enter
.
5 Select [On] and press
Enter
.
6 Press
F10
.
At the confirmation message, select [Yes] and press
Enter
.
The computer will restart.
7 While [Panasonic] boot screen is displayed, press and hold
Ctrl
+
F7
until “Please Wait”
appears at the bottom of the display.
When the PC-Diagnostic Utility starts up, it will automatically begin the diagnostic check for all hardware components.
zIf the password is requested, enter the password.
zThe touch pad and the internal keyboard cannot be used until alternating blue and yellow colors are displayed
on the left side of the
hardware
icon (A).
zBy clicking the icon, you can execute the following operations:
• : Start the diagnostic check from the beginning
• : Stop the diagnostic check (You cannot restart the check partway through by clicking )
• : Display help (click the screen or press
Space
to return to the original diagnostic check screen)
z
You can check the status of the diagnostic check by the display color on the left side of the hardware icon (A).
• Aqua: Not running diagnostic check
• Alternating blue and yellow: Currently running diagnostic check. The interval of the alternating colors differs depend-
ing on the type of diagnostic check currently running.
During memory diagnostic check, the display may freeze for a long period of time. Wait until the process is complete.
• Green: No problems discovered
• Red: Problems discovered
NOTE
zUsing the following procedure, you can run a diagnostic check on a specified hardware component,
or run an extended diagnostic check on the hard disk, keyboard and touch pad (You do not need to
perform the extended diagnostic check for the keyboard and touch pad in normal use.). The
extended diagnostic check on the hard disk is more detailed, and so requires a longer period of time
to
run.
AClick to stop the diagnostic check.
BClick the icon for the hardware that is not to be checked, so that the icon is displayed in gray (B).
When running a check on
the hard disk
, keyboard or touch pad, clicking the icon once will turn on
the extended diagnostic check (“FULL” (C) will be displayed below the icon); click again, and the
icon will be displayed in gray (D).
CClick to start the diagnostic check.
Running the Diagnostic Check
A
e.g. hard disk
C
D
B
30
Getting StartedUseful InformationTroubleshootingAppendix
Hardware Diagnostics
8 When all the hardware has been checked, confirm the diagnostic check results.
If the display is red and the message “Check Result TEST FAILED” is displayed, you can assume that there is a
problem with the computer’s hardware. Confirm which hardware component is displayed as red, and contact your
technical support office.
If the display is green and the message “Check Result TEST PASSED” is displayed, the computer’s hardware is
operating normally. Continue using the computer as it is. If the computer still does not operate properly, reinstall
the software. (ÎSupplementary Instructions for Windows XP)
NOTE
zIf you run a memory diagnostic check after installing a new RAM module (sold separately) and the message “Check
Result TEST FAILED” is displayed:
Remove the additional RAM module and run the diagnostic check again. If the message “Check Result TEST
FAILED” is still displayed, you can assume that there is a problem with the internal RAM module.
9 After the diagnostic check is complete, click (close), or press
Ctrl
+
Alt
+
Del
to
restart the computer.
NOTE
zWhen you set [Optical Drive Power] to [On] in the [Main] menu of Setup Utility, you will hear operation sound from
CD/DVD drive soon after the computer starts the startup procedure. To avoid the sound when the computer is start-
ing up, set [Optical Drive Power] to [Off].
31
Getting StartedUseful InformationTroubleshootingAppendix

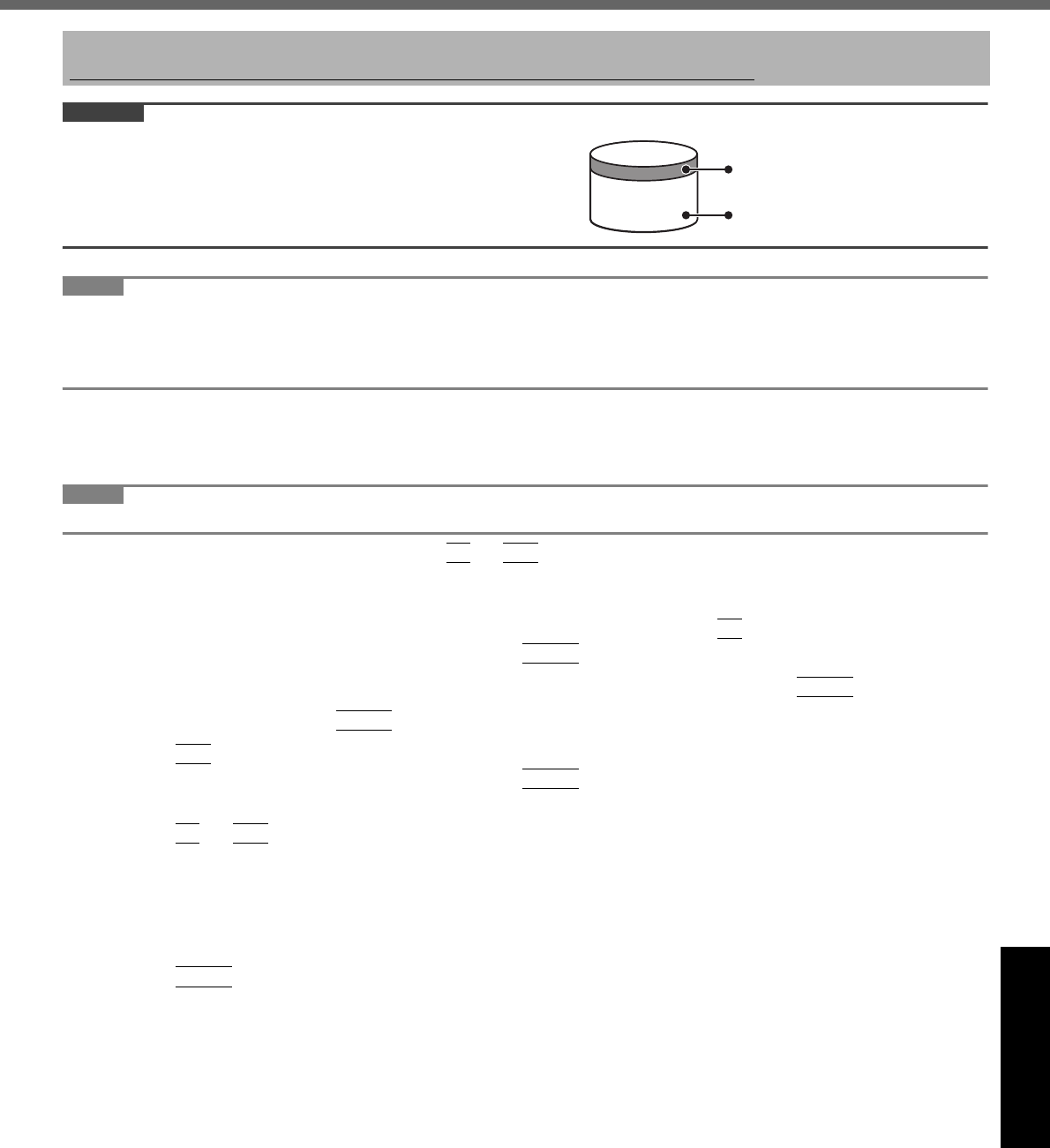

Installing Windows Vista
CAUTION
Do not delete the recovery partition on the hard disk when using
Windows Vista.
This partition contains data to help recover your system.
The disk space in the partition is not available to store data.
NOTE
zThis computer is provided the license of Windows Vista Business which includes the right to downgrade to Windows
XP Professional.
zTo correctly operate “First-time operation for Windows Vista” (ÎStep 16), please download the Operating Instruc-
tions for the Windows Vista model before installation.
Preparation
zPrepare the Product Recovery DVD-ROM for Windows Vista (included).
zRemove all peripherals.
zConnect the AC adaptor and do not remove it until installation is complete.
NOTE
zEven if reinstallation is performed, the number of times of DVD’s region code setting will not be reset.
1 Turn on the computer, and press
F2
or
Del
while [Panasonic] boot screen is displayed.
The Setup Utility starts up.
zIf the password is requested, enter the Supervisor Password.
2 Write down all of the contents of the Setup Utility and press
F9
.
At the confirmation message, select [Yes] and press
Enter
.
3 Select the [Main] menu, then select [Optical Drive Power] and press
Enter
.
4 Select [On] and press
Enter
.
5 Press
F10
.
At the confirmation message, select [Yes] and press
Enter
.
The computer will restart.
6 Press
F2
or
Del
while [Panasonic] boot screen is displayed.
The Setup Utility starts up.
zIf the password is requested, enter the Supervisor Password.
7 Set the Product Recovery DVD-ROM for Windows Vista into the CD/DVD drive.
8 Select the [Exit] menu, then select [MATSHITADVD-XXX XXXXXX] in [Boot Override].
9 Press
Enter
.
The computer will restart.
10 Click [Reinstall Windows] and click [Next].
The License Agreement screen appears.
11 Click [Yes, I agree to the provisions above and wish to continue!] and click [Next].
12 Select the settings and click [Next].
z[Reinstall Windows to the whole Hard Disk to factory default.]
You will have a single partition.
z[Reinstall Windows to the operating system partition.]
You can keep the partition structure.
This option is only available when using Windows Vista.
13 At the confirmation message, click [YES].
Reinstallation starts automatically. (It will take approximately 40 minutes.)
When you install Windows Vista, the hard disk data will be erased.
Back up important data to other media or an external hard disk before reinstallation.
Area usable by Windows Vista
Hard disk Recovery partition
(approximately 2 GB)
32
Getting StartedUseful InformationTroubleshootingAppendix
Installing Windows Vista
zDo not interrupt reinstallation, for example by turning off the computer. Otherwise reinstallation may become
unavailable as Windows may not start up or the data may be corrupted.
14 Remove the Product Recovery DVD-ROM, and then click [OK] to turn off the computer.
15 Turn on the computer.
zIf the password is requested, enter the Supervisor Password.
16 Perform the first-time operation for Windows Vista.
17 Start the Setup Utility and change the settings as necessary.
18 Perform Windows Update.
Information about Windows Vista
To download the Operating Instructions for Windows Vista model
Select your model and download the Operating Instructions from the following web site:
https://eww.pavc.panasonic.co.jp/pc/cgi-bin/itn/toughbook/dl01.cgi
The information about Windows Vista on the Panasonic personal computer
Visit the following web site:
https://eww.pavc.panasonic.co.jp/pc/itn/support/vistaxpdwg1.html
