Panasonic of North America 9TGCF-U14 Toughbook PC with WWAN, WLAN and Bluetooth User Manual CF U1 Vista US GettingStart indd

Panasonic Corporation of North America Toughbook PC with WWAN, WLAN and Bluetooth CF U1 Vista US GettingStart indd

Users Manual

OPERATING INSTRUCTIONS

Personal Computer

Model No. CF-U1 series

For further information about the computer, you can refer to the

on-screen manual.

To access the on-screen manual  page 29 “On-screen Manual”

Please read these instructions carefully before using this product and save this

manual for future use.

Appendix

LIMITED USE LICENSE AGREEMENT

..44

Speciﬁcations ....................................48

LIMITED WARRANTY .......................52

Troubleshooting

Troubleshooting (Basic) .....................36

Useful Information

On-screen Manual .............................29

Handling and Maintenance ................30

Reinstalling Software .........................32

Getting Started

Introduction .........................................2

Read Me First .....................................4

Description of Parts ...........................15

Preparation ........................................19

First-time Operation ...........................24

Contents

Getting Started

Useful Information

TroubleshootingAppendix

Getting Started

Introduction

Thank you for purchasing this Panasonic computer. For optimum performance

and safety, please read these instructions carefully.

In these instructions, the names are referred as follows.

 “Windows Vista® Business” as “Windows” or “Windows Vista”

 “Microsoft® Windows® XP Professional Service Pack 2 with Advanced Security

Technologies” as “Windows”, “Windows XP”

 Terms and illustrations in these instructions

 : Page in these Operating Instructions or in the Reference Manual.

: Reference to the on-screen manuals.

CAUTION : Conditions that may result in minor or moderate injury.

NOTE : Useful and helpful information.

: Press [ ] (Enter) key.

+ (F2): Press and hold [Fn] key, and then press [U] (F2) key.

Click : Touch the screen with the stylus.

Right-click

Touch and hold with the stylus, or touch and select the right button

of “touch pointer”.

A Click on the notiﬁcation area.

B Click the object you want to right-click.

(Start) - [All Programs] :

Click (Start), and then click [All Programs].

[start] - [All Programs] :

Click [start], and then click [All Programs].

You may need to double-click in some cases.

 Some illustrations are simpliﬁed to help your understanding and may look

different from the actual unit.

 If you do not log on as an administrator, you cannot use some functions or

cannot display some screens.

 Refer for the latest information about optional products to the catalogs, etc.

Getting Started

 Copyright

This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all

rights reserved. No part of this manual may be reproduced in any form without the

prior written permission of Matsushita Electric Industrial Co., Ltd.

No patent liability is assumed with respect to the use of the information contained

herein.

 Disclaimer

Computer speciﬁcations and manuals are subject to change without notice. Mat-

sushita Electric Industrial Co., Ltd. assumes no liability for damage incurred di-

rectly or indirectly from errors, omissions or discrepancies between the computer

and the manuals.

 Trademarks

Microsoft®, Windows®, Windows Vista®, and the Windows logo are registered

trademarks of Microsoft Corporation of the United States and/or other countries.

Intel, Core, Centrino and PROSet are either registered trademarks or trademarks

of Intel Corporation.

SDHC Logo is a trademark.

Adobe, the Adobe logo and Adobe Reader are either registered trademarks or

trademarks of Adobe Systems Incorporated in the United States and/or other

countries.

Computrace® is a registered trademark of Absolute® Software Corp.

Bluetooth™ is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to

Matsushita Electric Industrial Co., Ltd.

Panasonic® is a registered trademark of Matsushita Electric Industrial Co., Ltd.

Names of products, brands, etc., appearing in this manual are trademarks or

registered trademarks of their respective own companies.

Getting Started

Read Me First

Models for U.S.A.

Federal Communications Commis-

sion Radio Frequency Interference

Statement

Note: This equipment has been tested

and found to comply with the limits for

a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits

are designed to provide reasonable

protection against harmful interference

in a residential installation. This equip-

ment generates, uses and can radiate

radio frequency energy and, if not

installed and used in accordance with

the instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that

interference will not occur in a particu-

lar installation. If this equipment does

cause harmful interference to radio or

television reception, which can be

determined by turning the equipment

off and on, the user is encouraged to

try to correct the interference by one or

more of the following measures:

 Reorient or relocate the receiving

antenna.

 Increase the separation between

the equipment and receiver.

 Connect the equipment into an

outlet on a circuit different from that

to which the receiver is connected.

 Consult the Panasonic Service

Center or an experienced radio/TV

technician for help.

Warning

To assure continued compliance, use

only shielded interface cables when

connecting to a computer or peripheral.

Also, any changes or modiﬁcations not

expressly approved by the party re-

sponsible for compliance could void

the user’s authority to operate this

equipment.

FCC RF Exposure Warning:

<Only for model with wireless LAN/

wireless WAN/Bluetooth>

 This equipment complies with FCC

radiation exposure limits set forth

for an uncontrolled environment.

 This equipment is provided with

external antenna connector(s) for

connection to optional Cradle for

mobile external mounted

antenna(s). External antenna(s)

must be professionally installed and

cannot exceed recommended maxi-

mum antenna gain as described in

individual provided supplement

instructions for wireless transmit-

ters. Also, user must maintain mini-

mum 20 cm spacing between exter-

nal antenna(s) and all person’s

body (excluding extremities of

hands, wrist and feet) during wire-

less modes of operation.

25-M-1-3

This product is restricted to indoor use

due to its operation in the 5.15 to 5.25

This equipment has been approved

for portable operation, and does not 

require any minimum spacing be 

provided between antennas and all 

person’s body.

This equipment may not be 

co-located or operated with any 

other antenna or trasnsmitter.

< Optional Car Mounter / Port Replicator >

Getting Started

GHz frequency range. FCC requires

this product to be used indoors for the

frequency range 5.15 to 5.25 GHz to

reduce the potential for harmful interfer-

ence to co-channel Mobile Satellite

systems. High power radars are allo-

cated as primary users of the 5.25 to

5.35 GHz and 5.65 to 5.85 GHz bands.

These radar stations can cause interfer-

ence with and/or damage this product.

25-M-W-1

This device complies with Part 15 of

the FCC Rules. Operation is subject to

the following two conditions:

(1) This device may not cause harmful

interference, and

(2) This device must accept any inter-

ference received, including interfer-

ence that may cause undesired

operation.

Responsible Party:

Panasonic Corporation of North

America

One Panasonic Way

Secaucus, NJ 07094

Tel No:1-800-LAPTOP5 (1-800-527-

8675)

6-M-1

NOTICE for the products using LCD

This product has a ﬂuorescent lamp

that contains mercury. Disposal may be

regulated in your community due to

environmental considerations.

For disposal or recycling information,

please contact your local authorities, or

the Electronic Industries Alliance:

<http://www.eiae.org/>

24-M-2

Models for Canada

Canadian ICES-003

This Class B digital apparatus complies

with Canadian ICES-003.

Cet appareil numérique de la classe B

est conforme à la norme NMB-003 du

Canada.

7-M-2

<Only for model with wireless LAN/

Bluetooth>

Industry Canada

This product complies with RSS210

Industry Canada.

Operation is subject to the following

two conditions;

(1) this device may not cause interfer-

ence, and

(2) this device must accept any inter-

ference, including interference that

may cause undesired operation of

the device.

30-Ca-1-1

This product (local network devices) for

the band 5150-5250 MHz is only indoor

usage to reduce potential for harmful

interference to co-channel Mobile

Satellite systems.

High power radars are allocated as

primary users (meaning they have

priority) of 5250-5350 MHz and 5650-

5850 MHz and these radars could

cause interference and/or damage to

LELAN devices.

30-Ca-2-1

This device has been designed to

operate with an antenna having a

maximum gain of 3.53 dBi. Antenna

having a higher gain is strictly prohib-

ited per regulations of Industry Cana-

da. The Required antenna impedance

is 50 ohms.

Getting Started

Read Me First

Information to the User

<Only for model with wireless LAN/

Bluetooth>

This product and your Health

This product, like other radio devices,

emits radio frequency electromagnetic

energy. The level of energy emitted by

this product however is far much less

than the electromagnetic energy emit-

ted by wireless devices like for exam-

ple mobile phones.

Because this product operates within

the guidelines found in radio frequency

safety standards and recommenda-

tions, we believe this product is safe

for use by consumers. These stan-

dards and recommendations reﬂect the

consensus of the scientiﬁc community

and result from deliberations of panels

and committees of scientists who

continually review and interpret the

extensive research literature.

In some situations or environments,

the use of this product may be restrict-

ed by the proprietor of the building or

responsible representatives of the

organization. These situations may for

example include:

 Using this product on board of

airplanes, or

 In any other environment where the

risk of interference to other devices

or services is perceived or identiﬁed

as harmful.

If you are uncertain of the policy that

applies on the use of wireless devices

in a speciﬁc organization or environ-

ment (e.g. airports), you are encour-

aged to ask for authorization to use

this product prior to turning on the

product.

Regulatory Information

We are not responsible for any radio or

television interference caused by unau-

thorized modiﬁcation of this product.

The correction of interference caused

by such unauthorized modiﬁcation will

be the responsibility of the user. We

and its authorized resellers or distribu-

tors are not liable for damage or viola-

tion of government regulations that

may arise from failing to comply with

these guidelines.

26-M-1

To reduce potential radio interference

to other users, the antenna type and its

gain should be so chosen that the

equivalent isotropically radiated power

(EIRP) is not more than that required

for successful communication.

25-Ca-1-1

Getting Started

Informations destinées aux utilisateurs

<Uniquement les modèles avec réseau

local sans ﬁl et/ou Bluetooth>

Ce produit et votre santé

Ce produit, comme tout autre appareil

radio, émet de l’énergie radioélectrique.

Toutefois, la quantité d’énergie émise par

ce produit est beaucoup moins impor-

tante que l’énergie radioélectrique émise

par des appareils sans ﬁl tels que les

téléphones portables. L’utilisation de ce

produit ne comporte aucun risque pour le

consommateur du fait que cet appareil

opère dans les limites des directives

concernant les normes et les recomman-

dations de sécurité sur les fréquences

radio. Ces normes et recommandations

reﬂètent le consensus de la communauté

scientiﬁque et résultent de délibérations

de jurys et comités de scientiﬁques qui

examinent et interprètent continuellement

les nouveautés de la vaste littérature sur

les recherches effectuées. Dans cer-

taines situations ou environnements,

l’utilisation de ce produit peut être re-

streinte par le propriétaire du bâtiment ou

par les représentants responsables de

l’organisation. Ces situations peuvent

être les suivantes par exemple :



A bord d’un avion, ou



Dans tout autre environnement où les

risques d’interférence sur d’autres

appareils ou services sont perçus ou

identiﬁables comme dangereux.

Si vous n’êtes pas sûr de la réglementa-

tion applicable à l’utilisation d’appareils

sans ﬁl dans une organisation ou un

environnement spéciﬁque, (par exemple

dans un aéroport) nous vous invitons à

demander l’autorisation d’utiliser ce

produit avant sa mise en marche.

Informations concernant la

réglementation

Nous déclinons toute responsabilité pour

toute interférence radio ou télévision

causée par des modiﬁcations non autori-

sées apportées à ce produit. La correc-

tion d’interférences causées par de telles

modiﬁcations non autorisées sera la

seule responsabilité de son utilisateur.

Nousmêmes, les revendeurs ofﬁciels et

les distributeurs ne sommes pas respon-

sable de tout dégât ou de toute violation

des règlements de l’État pouvant découl-

er du non-respect de ces directives.

26-F-1

Safety Precautions

The following safety precautions must be observed during all phases of the opera-

tion, usage, service or repair of any Personal Computer or Handheld Computer

incorporating wireless WAN modem. Manufacturers of the cellular terminal are

advised to convey the following safety information to users and operating person-

nel and to incorporate these guidelines into all manuals supplied with the product.

Failure to comply with these precautions violates safety standards of design,

manufacture and intended use of the product. Panasonic assumes no liability for

customer failure to comply with these precautions*1.

Getting Started

Read Me First

When in a hospital or other health care facility, observe the restrictions

on the use of mobiles. Switch Personal Computer or Handheld Com-

puter incorporating wireless WAN modem off, if instructed to do so by

the guidelines posted in sensitive areas. Medical equipment may be

sensitive to RF energy.

The operation of cardiac pacemakers, other implanted medical equip-

ment and hearing aids can be affected by interference from Personal

Computer or Handheld Computer incorporating wireless WAN modem

placed close to the device. If in doubt about potential danger, contact

the physician or the manufacturer of the device to verify that the equip-

ment is properly shielded. Pacemaker patients are advised to keep their

Personal Computer or Handheld Computer incorporating wireless WAN

modem away from the pacemaker, while it is on.

Switch off Personal Computer or Handheld Computer incorporating

wireless WAN modem before boarding an aircraft. Make sure it cannot

be switched on inadvertently. The operation of wireless appliances in an

aircraft is forbidden to prevent interference with communications sys-

tems. Failure to observe these instructions may lead to the suspension

or denial of cellular services to the offender, legal action, or both.

Do not operate Personal Computer or Handheld Computer incorporating

wireless WAN modem in the presence of ﬂammable gases or fumes.

Switch off the cellular terminal when you are near petrol stations, fuel

depots, chemical plants or where blasting operations are in progress.

Operation of any electrical equipment in potentially explosive atmo-

spheres can constitute a safety hazard.

Your Personal Computer or Handheld Computer incorporating wireless

WAN modem receives and transmits radio frequency energy while

switched on. Remember that interference can occur if it is used close to

TV sets, radios, computers or inadequately shielded equipment. Follow

any special regulations and always switch off Personal Computer or

Handheld Computer incorporating wireless WAN modem wherever

forbidden, or when you suspect that it may cause interference or dan-

ger.

Road safety comes ﬁrst! Do not use a Personal Computer or Handheld

Computer incorporating wireless WAN modem while driving a vehicle.

Do not place the computer with wireless WAN modem in an area where

it could cause personal injury to the driver or passengers. It is recom-

mended to stow the unit in the boot or secure stowage area while driv-

ing.

Do not place the computer with wireless WAN modem in an area over

an air bag or in the vicinity where an air bag may deploy.

Air bags inﬂate with great force and if the computer with wireless WAN

modem is placed in the air bag deployment area may be propelled with

Getting Started

Lithium Battery / Pile au lithium

Lithium Battery!

This computer contains a lithium bat-

tery to enable the date, time, and other

data to be stored. The battery should

only be exchanged by authorized

service personnel.

Warning!

A risk of explosion from incorrect instal-

lation or misapplication may possibly

occur.

15-E-1

Pile au lithium!

Le micro-ordinateur renferme une pile

au lithium qui permet de sauvegarder

certaines données, notamment la date

et l’heure. La pile ne doit être rempla-

cée que par un technicien qualiﬁé.

Danger ! Risque d’explosion en cas de

non respect de cette mise en garde!

15-F-1

great force and cause serious injury to occupants of the vehicle.

IMPORTANT!

Personal Computer or Handheld Computer incorporating wireless WAN

modem operate using radio signals and cellular networks cannot be

guaranteed to connect in all conditions. Therefore, you should never rely

solely upon any wireless device for essential communications, for ex-

ample emergency calls.

Remember, in order to make or receive calls, Personal Computer or

Handheld Computer incorporating wireless WAN modem must be

switched on and in a service area with adequate cellular signal strength.

Some networks do not allow for emergency calls if certain network

services or phone features are in use (e.g. lock functions, ﬁxed dialing

etc.). You may need to deactivate those features before you can make

an emergency call.

Some networks require that a valid SIM card be properly inserted in

Personal Computer or Handheld Computer incorporating wireless WAN

modem.

27-1-2

*1 In locations where the use of wireless devices is prohibited, please

turn your Wireless Switch off, or check to make sure that your Wire-

less Ready Indicator is off . Please note that in some cases, wireless

devices may be operating even in Sleep/Standby modes.

Getting Started

Information on Disposal in other Countries outside

the European Union

These symbols are only valid in the European Union.

If you wish to discard this product, please contact your

local authorities or dealer and ask for the correct method

of disposal.

53-M-1

Read Me First

For Used in Motor Vehicle /Pour L’utilisation Dans Un

Véhicule Motorisé

Warning: Notebook Computer may be

installed in a motor vehicle and visible

to the driver only if used to support

vehicle related functions such as ve-

hicle information, system control, rear

or side observation and navigation. If

used for entertainment purpose, such

as television reception or video play, it

must be installed to the rear of the

driver’s seat where it will not be visible,

directly or indirectly, to the operator of

the motor vehicle. Check with individu-

al state/provincial laws to determine

lawful use of this product while operat-

ing within a motor vehicle.

Avertissement : L’ordinateur bloc-notes

peut être installé dans un véhicule

motorisé et dans le champ de vision du

conducteur uniquement en tant que

dispositif d’aide aux fonctions du véhi-

cule, comme par exemple pour fournir

des informations sur le véhicule, com-

me dispositif de contrôle de système,

pour l’observation à l’arrière ou sur les

côtés du véhicule, ainsi que pour

fournir de l’information routière. Pour

toute utilisation à ﬁn de divertissement,

comme par exemple pour regarder la

télévision ou jouer à des jeux vidéo, il

doit être installé à l’arrière du siège du

conducteur, en un emplacement où il

ne sera pas visible, ni directement ni

indirectement, pour le conducteur du

véhicule motorisé. Vériﬁez les lois

fédérales et nationales qui régissent

l’utilisation légale de cet appareil à

l’intérieur d’un véhicule motorisé.

35-M-1

Getting Started

Precautions

THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR

EQUIPMENT/SYSTEMS, AIR TRAFFIC CONTROL EQUIPMENT/SYSTEMS, OR

AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*2. PANASONIC WILL NOT BE RE-

SPONSIBLE FOR ANY LIABILITY RESULTING FROM THE USE OF THIS PROD-

UCT ARISING OUT OF THE FOREGOING USES.

*2 AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2 Electrical Flight Bag

(EFB) Systems and Class1 EFB Systems when used during critical phases of ﬂight

(e.g., during take-off and landing) and/or mounted on to the aircraft. Class1 EFB

Systems and 2 EFB Systems are deﬁned by FAA: AC (Advisory Circular) 120-76A or

JAA: JAA TGL (Temporary Guidance Leaﬂets) No.36.

Panasonic cannot guarantee any speciﬁcations, technologies, reliability, safety (e.g.

Flammability/Smoke/Toxicity/Radio Frequency Emission, etc) requirements related

to aviation standards that exceed the speciﬁcations of our COTS (Commercial-

Off-The-Shelf) products.

39-E-1

This computer is not intended for use in

medical equipment including life-support

systems, air trafﬁc control systems, or

other equipment, devices or systems that

are involved with ensuring human life or

safety. Panasonic cannot be held respon-

sible in any way for any damages or loss

resulting from the use of this unit in these

types of equipment, devices or systems,

etc.

The CF-U1 was developed based on

thorough research into the real-world

portable computing environments. Ex-

haustive pursuit of usability and reliability

under harsh conditions led to innovations

such has the magnesium alloy exterior,

vibration damped ﬂash memory disk

drive, ﬂexible internal connections. The

CF-U1’s outstanding engineering has

been tested using the strict MIL-STD-

810F (for vibration and shock) and IP (for

dust and water) based procedures.

As with any portable computer device

precautions should be taken to avoid any

damage. The following usage and han-

dling procedures are recommended.

Before putting the computer away, be

sure to wipe off any moisture.

If a Malfunction Occurs, Immediately

Unplug the AC Plug and the Battery

Pack

 This product is damaged

 Foreign object inside this product

 Smoke emitted

 Unusual smell emitted

 Unusually hot

Continuing to use this product while any

of the above conditions are present may

result in ﬁre or electric shock.

 If a malfunction occurs, immediately

turn the power off and unplug the AC

plug, and then remove the battery

pack. Then, contact your technical

support ofﬁce.

Do Not Touch This Product and Cable

When It Starts Thundering

Electric shock may result.

Do Not Connect the AC Adaptor to a

Power Source Other Than a Standard

Household AC Outlet

Otherwise, a ﬁre due to overheating may

result. Connecting to a DC/AC converter

(inverter) may damage the AC adaptor.

On an airplane, only connect the AC

adaptor/charger to an AC outlet speciﬁ-

cally approved for such use.

Getting Started

Read Me First

Do Not Do Anything That May Damage

the AC Cord, the AC Plug, or the AC

Adaptor

Do not damage or modify the cord, place

it near hot tools, bend, twist, or pull it

forcefully, place heavy objects on it, or

bundle it tightly.

Continuing to use a damaged cord may

result in ﬁre, short circuit, or electric

shock.

Do Not Pull or Insert the AC Plug If

Your Hands Are Wet

Electric shock may result.

Clean Dust and Other Debris of the AC

Plug Regularly

If dust or other debris accumulates on

the plug, humidity, etc. may cause a

defect in the insulation, which may result

in a ﬁre.

 Pull the plug, and wipe it with a dry

cloth.

Pull the plug if the computer is not

being used for a long period of time.

Insert the AC Plug Completely

If the plug is not inserted completely, ﬁre

due to overheating or electric shock may

result.

 Do not use a damaged plug or loose

AC outlet.

Close the Connector Cover Tightly

When Using This Product Where Is a

Lot of Water, Moisture, Steam, Dust,

Oily Vapors, etc.

The entry of foreign matter may cause a

ﬁre or electric shocks.

 If foreign matter has found its way

inside, immediately turn the power off

and unplug the AC cord, and then

remove the battery pack. Then contact

your technical support ofﬁce.

Do Not Disassemble This Product

There are high-voltage areas inside

which may give you an electric shock if

you should touch them. Do not touch the

pins and circuit boards inside, and do not

allow foreign matter to enter inside.

Also, remodeling or disassembly may

cause a ﬁre.

Keep SD Memory Cards Away from

Infants and Small Children

Accidental swallowing will result in bodily

injury.

 In the event of accidental swallowing,

see a doctor immediately.

Do Not Place This Product on Unsta-

ble Surface

If balance is lost, this product may fall

over or drop, resulting in an injury.

Avoid Stacking

If balance is lost, this product may fall

over or drop, resulting in an injury.

Do Not Leave This Product in High

Temperature Environment for a Long

Period of Time

Leaving this product where it will be

exposed to extremely high temperatures

such as near ﬁre or in direct sunlight may

deform the cabinet and/or cause trouble

in the internal parts. Continued use in

such a resulting condition may lead to

short-circuiting or insulation defects, etc.

which may in turn lead to a ﬁre or electric

shocks.

Hold the Plug When Unplugging the

AC Plug

Pulling on the cord may damage the

cord, resulting in a ﬁre or electric shock.

Do Not Move This Product While the

AC Plug Is Connected

The AC cord may be damaged, resulting

in ﬁre or electric shock.

 If the AC cord is damaged, unplug the

AC plug immediately.

Use Only the Speciﬁed AC Adaptor

With This Product

Using an AC adaptor other than the one

supplied (attached to your product or

supplied by Panasonic) may result in a

ﬁre.

Do Not Subject the AC Adaptor to Any

Strong Impact

Using the AC adaptor after a strong

impact such as being dropped may result

in electric shock, short circuit, or ﬁre.

Getting Started

Precautions (Battery Pack)

Do Not Use with Any Other Product

The battery pack is rechargeable and

was intended for the speciﬁed product. If

it is used with a product other than the

one for which it was designed, electrolyte

leakage, generation of heat, ignition or

rupture may result.

Do Not Charge the Battery Using

Methods Other Than Those Speciﬁed

If the battery is not charged using one of

the speciﬁed methods, electrolyte leak-

age, generation of heat, ignition or rup-

ture may result.

Do Not Throw the Battery Pack into a

Fire or Expose It to Excessive Heat

Generation of heat, ignition or rupture

may result.

Avoid Extreme Heat (Near the Fire, in

Direct Sunlight, for Example)

Electrolyte leakage, generation of heat,

ignition or rupture may result.

Do Not Insert Sharp Objects into the

Battery Pack, Expose It to Bumps or

Shocks, Disassemble, or Modify It

Electrolyte leakage, generation of heat,

ignition or rupture may result.

 If this product is subjected to a strong

impact, stop using it immediately.

Do Not Short the Positive (+) and

Negative (-) Contacts

Generation of heat, ignition or rupture

may result. Do not place the battery pack

together with articles such as necklaces

or hairpins when carrying or storing.

Do Not Use This Product with a Bat-

tery Pack Other Than the One Speci-

ﬁed

Use only the speciﬁed battery pack (CF-

VZSU53W) with your product. Use of

battery packs other than those manufac-

tured and supplied by Panasonic may

present a safety hazard (generation of

heat, ignition or rupture).

 Do not touch the terminals on the

battery pack. The battery pack may

no longer function properly if the

contacts are dirty or damaged.

 Do not expose the battery pack to

water, or allow it to become wet.

 If the battery pack will not be used for

a long period of time (a month or

more), charge or discharge (use) the

battery pack until the remaining

battery level becomes 30% to 40%

and store it in a cool, dry place.

 This computer prevents overcharging

of the battery by recharging only

when the remaining power is less

than approx. 95% of capacity.

 The battery pack is not charged when

the computer is ﬁrst purchased. Be

sure to charge it before using it for the

ﬁrst time. When the AC adaptor is

connected to the computer, charging

begins automatically.

Take a Break of 10-15 Minutes Every

Hour

Using this product for long periods of

time may have detrimental health effects

on the eyes or hands.

Do Not Turn the Volume Up to Loud

When Using Headphones

Listening at high volumes that overstimu-

late the ear for long periods of time may

result in loss of hearing.

Do Not Use with Exposing the Skin to

This Product for a Long Period of

Time

Using this product with exposing the skin

to the heat source of this product or AC

adaptor for a long period of time can

cause a low-temperature burn.

 Do not place the computer near a

television or radio receiver.

 Keep the computer away from mag-

nets. Data stored on the hard disk may

be lost.

Getting Started

Read Me First

A lithium ion battery that is recyclable powers the product

you have purchased.

Please call 1-800-8-BATTERY for information on how to

recycle this battery.

L’appareil que vous vous êtes procuré est alimenté par

une batterie au lithium-ion.

Pour des renseignements sur le recyclage de la batterie,

veuillez composer le

1-800-8-BATTERY 48-M-1

 Should the battery leak and the ﬂuid

get into your eyes, do not rub your

eyes. Immediately ﬂush your eyes

with clear water and see a doctor for

medical treatment as soon as pos-

sible.

NOTE

 The battery pack may become

warm during recharging or normal

use. This is completely normal.

 Recharging will not commence if

internal temperature of the battery

pack is outside of the allowable

temperature range (0 °C to 50 °C

{32°F to 122 °F}).

( Reference Manual “Battery

Power”) Once the allowable range

requirement is satisﬁed, charging

begins automatically. Note that the

recharging time varies based on the

usage conditions. (Recharging

takes longer than usual when the

temperature is 10 °C {50 °F} or

below.)

 In high-temperature environments,

the battery takes longer to fully

recharge and the operating time is

shorter. Only use the computer

within the allowable temperature

range.

 This computer has a high tempera-

ture mode function that prevents the

degradation of the battery in high

temperature environments. (

Reference Manual “Battery Power”)

A level corresponding to a 100%

charge for high temperature mode

is approximately equivalent to an

80% charge level for normal tem-

perature mode.

 The battery pack is a consumable

item. If the amount of time the

computer can be run by using a

particular battery pack becomes

dramatically shorter and repeated

recharging does not restore its

performance, the battery pack

should be replaced with a new one.

 When transporting a spare battery

inside a package, briefcase, etc., it

is recommended that it be placed in

a plastic bag so that its contacts are

protected.

 Always power off the computer

when it is not in use. Leaving the

computer on when the AC adaptor

is not connected will exhaust the

remaining battery capacity.

Getting Started

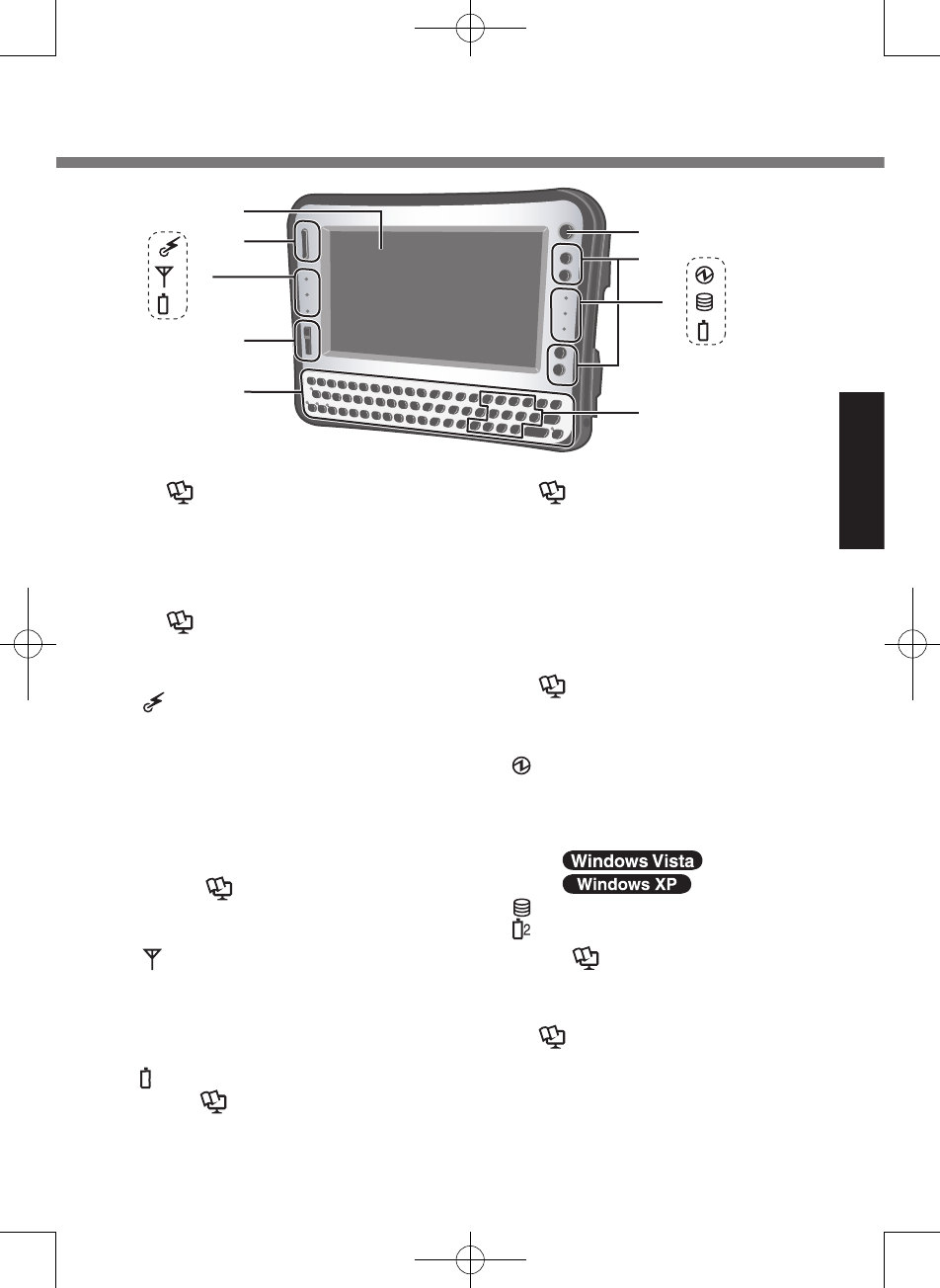

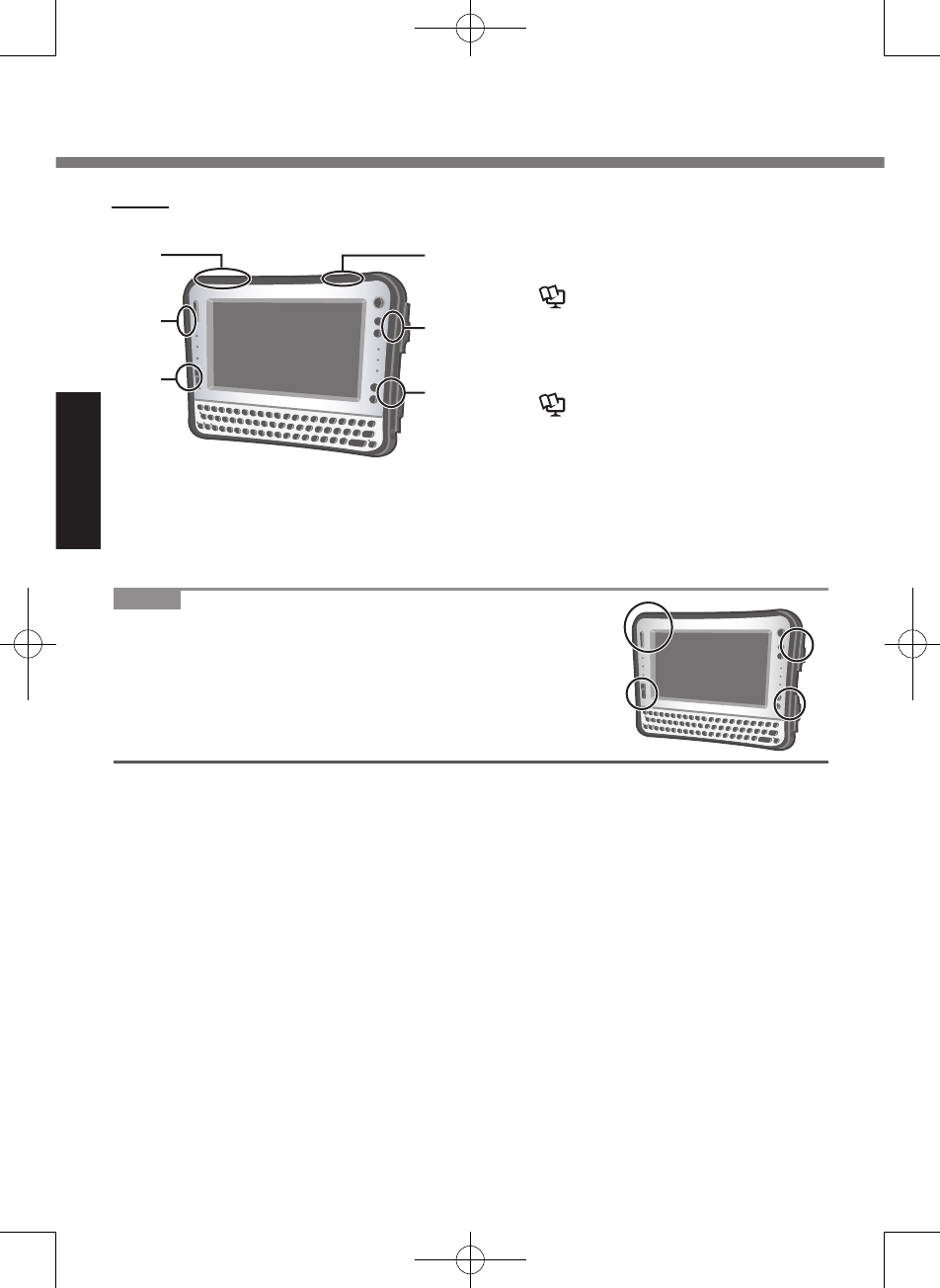

Description of Parts

A: LCD

 Reference Manual

“Touchscreen”

B: Scroll Button

You can scroll the screen, etc. This

works as a mouse wheel.

 Reference Manual

“Hardware Button Setting”

C: LED Indicator

: Wireless ready

This indicator lights when

Wireless LAN, Bluetooth, and/

or Wireless WAN are connect-

ed and ready. It does not

necessarily indicate the On/Off

condition of the wireless con-

nection.

 Reference Manual

“Disabling/Enabling

Wireless Communication”

: Wireless WAN status

<Only for model with wireless

WAN>



Refer to the instruction manual

of the wireless device.

: Battery 1 status

 Reference Manual

“Battery Power”

D: Zoom Button

 Reference Manual

“Zoom Function”

E: Keyboard

F: Power Switch

G: Application Buttons

You can register your favorite appli-

cation ﬁles to 4 buttons respectively.

 Reference Manual

“Hardware Button Setting”

H: LED Indicator

: Power status

 Off: Power off/Hibernation

 Green: Power on

 Blinking green

: Sleep

: Standby

: Flash memory status

: Battery 2 status

 Reference Manual

“Battery Power”

I: Function Key

 Reference Manual

“Key Combinations”

Getting Started

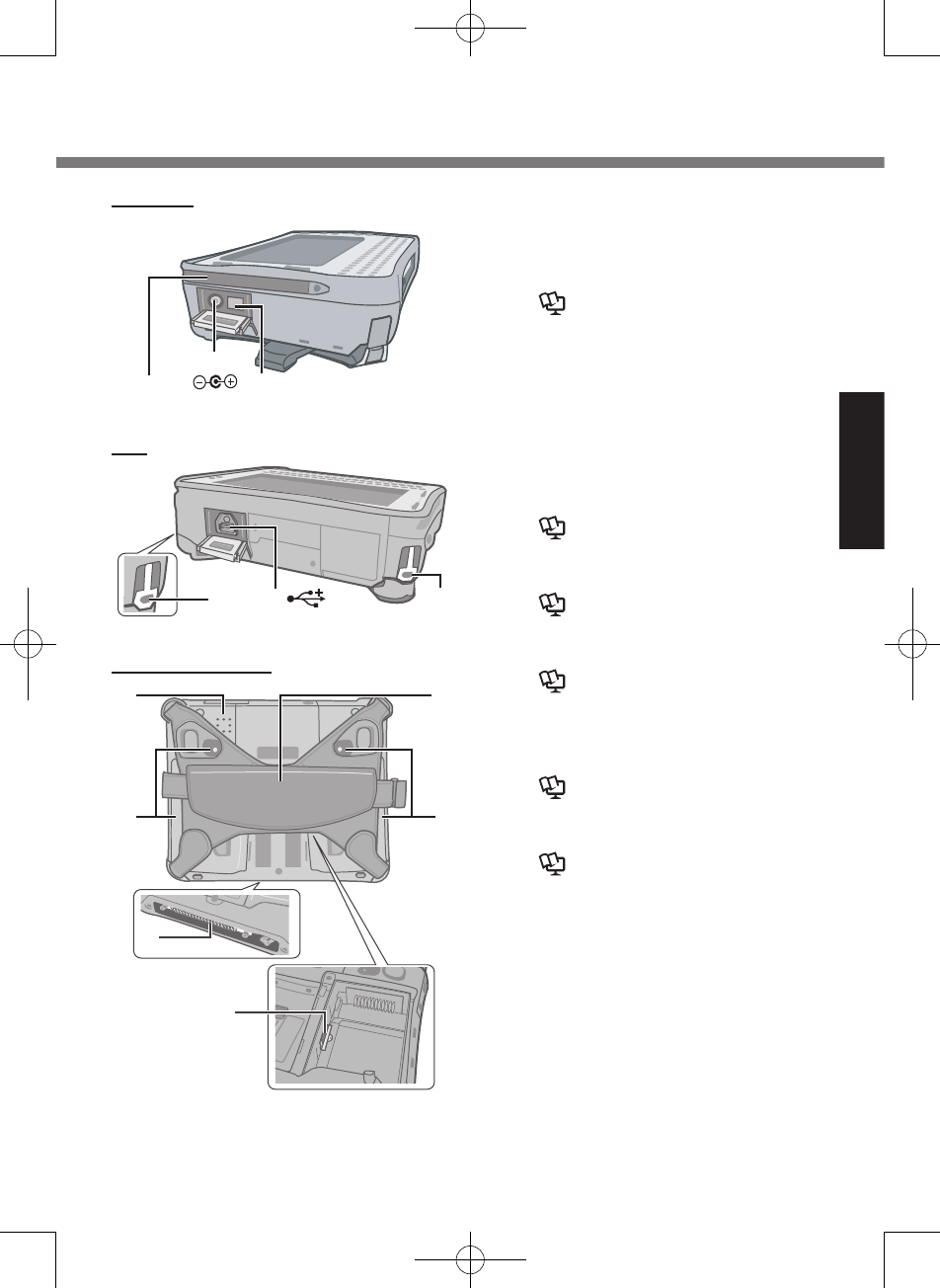

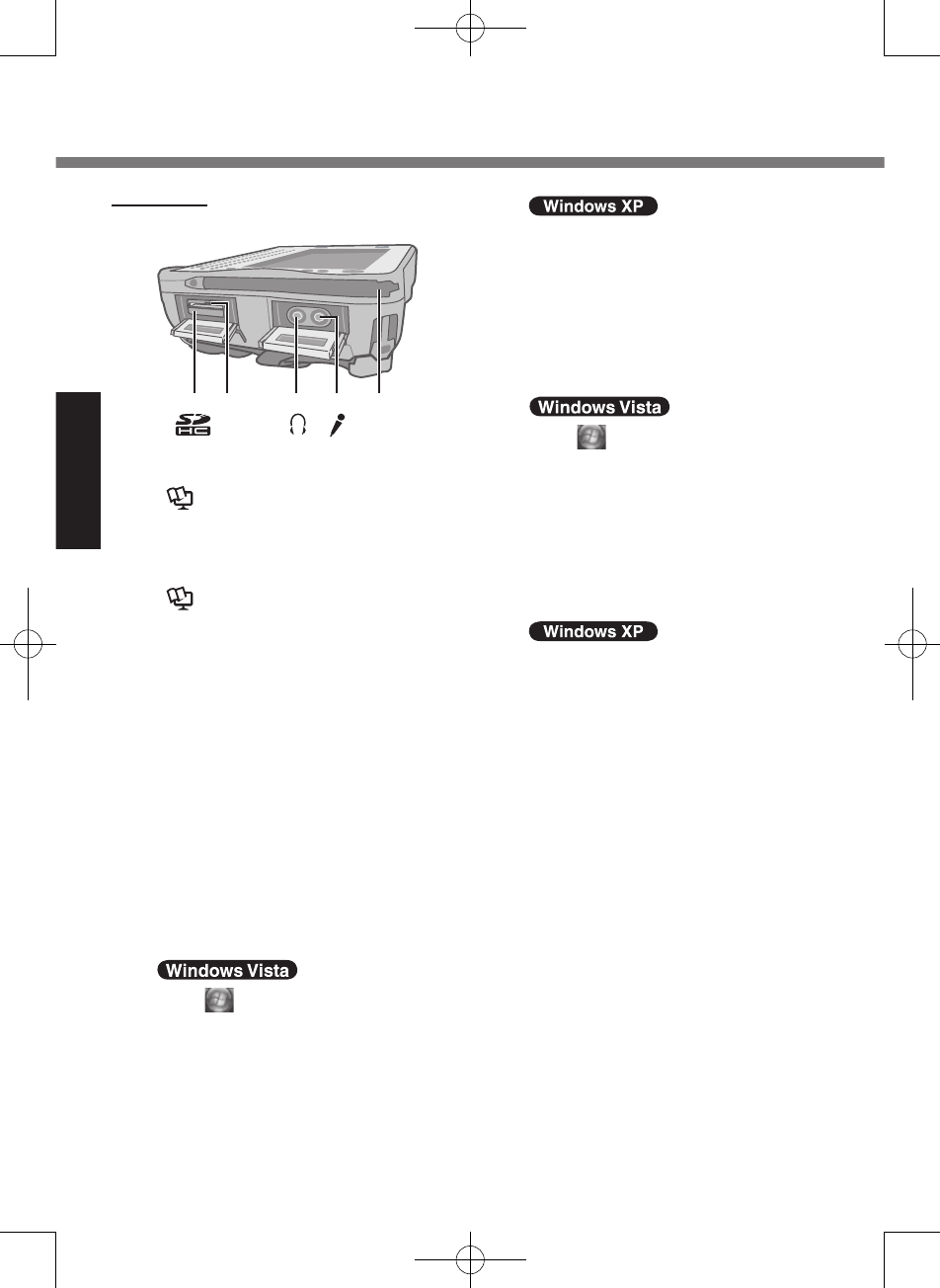

A B D EC

Right side

Description of Parts

A: SD Memory Card Slot

 Reference Manual

“SD Memory Card”

B: SD Memory Card Indicator

(Blinking: During access)

 Reference Manual

“SD Memory Card”

C: Headphone Jack

You can connect headphones or

ampliﬁed speakers. When they are

connected, audio from the internal

speakers is not heard.

D: Microphone Jack

A condenser microphone can be

used. If other types of microphones

are used, audio input may not be

possible, or malfunctions may occur

as a result.



When recording in stereo using a

stereo microphone:

Click (Start) - [Control Panel] -

[Hardware and Sound] - [Sound] -

[Recording] - [Microphone] -

[Properties], and then add a

check mark for [No Audio en-

hancements] in [Microphone

Enhancements].

Click [start] - [All Programs] -

[SoundMAX] - [Control Panel] and

select [Microphone], and then add

a check mark for [No Filtering] in

[Microphone Enhancements].



hen using a monaural micro-

phone with a 2-terminal plug:

Click (Start) - [Control Panel] -

[Hardware and Sound] - [Sound] -

[Recording] - [Microphone] -

[Properties], and then add a

check mark for [Voice enhance-

ments] in [Microphone Enhance-

ments].

Otherwise, only audio on

the left track will be recorded.

Click [start] - [All Programs] -

[SoundMAX] - [Control Panel] and

select [Microphone], and then add

a check mark for [Voice Record-

ing] in [Microphone Enhance-

ments]. Otherwise, only audio on

the left track will be recorded.

E: Stylus Holder (right side)

Getting Started

Rear and Bottom

D E D

Top

DC IN 16V

Left side

A: Stylus Holder (left side)

B: DC-IN Jack

C: Wireless Switch

 Reference Manual

“Disabling/Enabling Wireless

Communication”

D: Security Lock (2 holes)

A Kensington cable can be con-

nected.

For further information, read the

manual that comes with the cable.

E: USB Port

 Reference Manual “USB

Devices”

F: Speaker

 Reference Manual

“Key Combinations”

G: Battery 2 case/indicator

 Reference Manual “Battery

Power”

H: Hand strap

I: Battery 1 case/indicator

 Reference Manual “Battery

Power”

J: Expansion Bus Connector

 Reference Manual “Cradle /

Mini Dock

K: SIM card slot

To open the battery cover  page

19 “Inserting the Battery Packs”.

Getting Started

NOTE

 This computer contains a magnet and magnetic

products at the locations circled in the illustration.

The battery cover also has the magnet on the back

side.

Avoid leaving metallic object or magnetic media in

contact with these areas.

Inside

Description of Parts

A: Wireless WAN antenna

B: Wireless LAN antenna

 Reference Manual

“Wireless LAN”

C: Bluetooth antenna

 Reference Manual

“Bluetooth”

D: GPS antenna

Getting Started

Preparation

 Conﬁrmation

A Check and identify the supplied accessories.

If you do not ﬁnd the described accessories, contact Panasonic Technical

Support ( page 54).

• AC Adaptor . . . . . 1

Model No: CF-AA1633A

• AC Cord . . . . . . . 1 • Battery Packs . . 2

Model No: CF-VZSU53W

• Stylus . . . . . . . . . . . . . . . . . . . 1 • Tether . . . . . . . . . . . . . . . . . . . 1

• Operating Instructions (This book) . . . . . . . . . . . . . . . . . . . . . . . . . . .1

• Product Recovery DVD-ROM Windows Vista® Business SP1 . . . . . .1

• Product Recovery DVD-ROM Windows XP Professional SP2 . . . . .1

The stylus and tether has already been attached to the computer at the

time of purchase.

B Read the LIMITED USE LICENSE AGREEMENT before breaking the seal

on the computer’s packaging ( page 44).

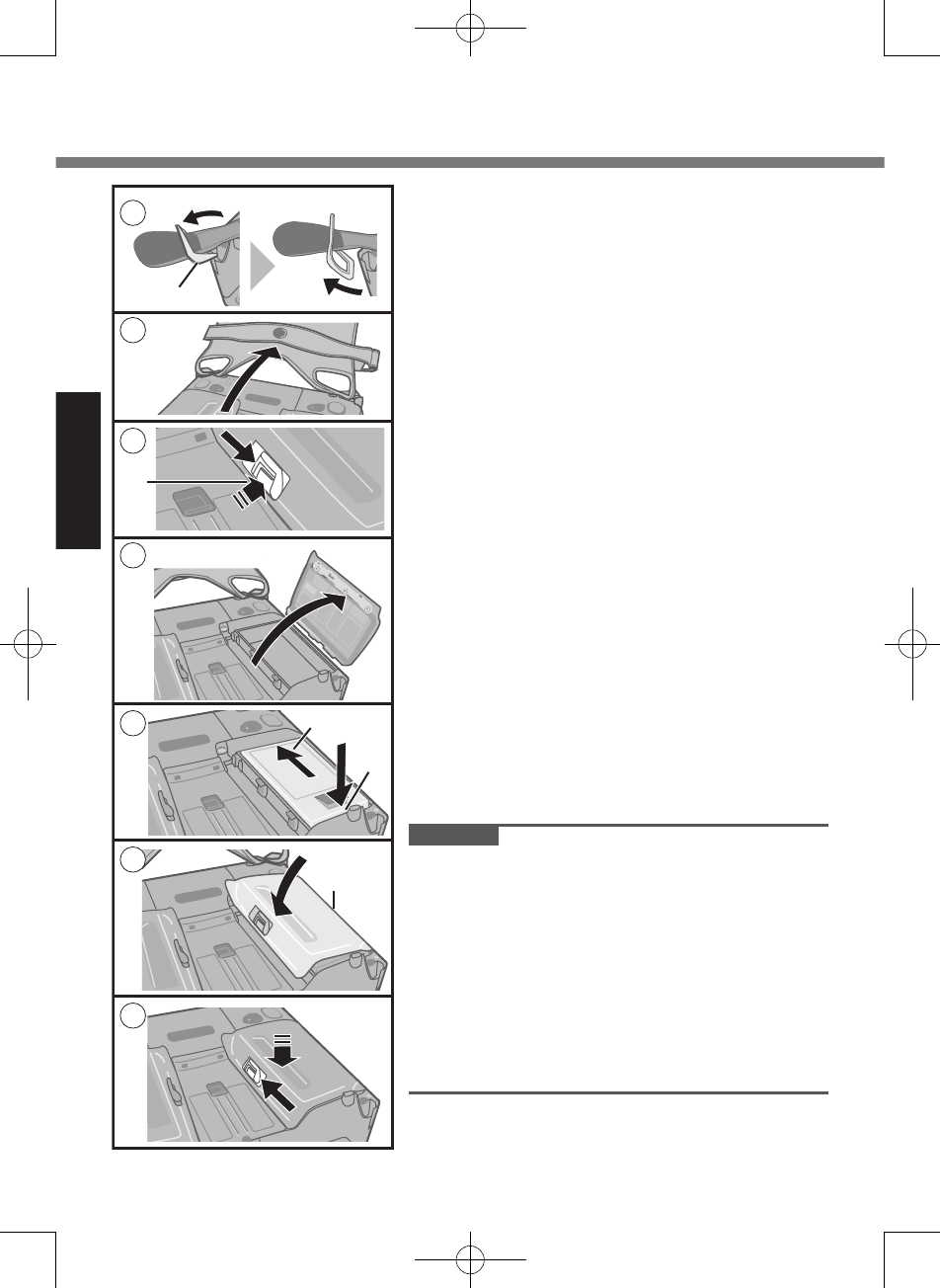

 Inserting the Battery Packs

Insert the battery pack to 2 battery cases.

Place the computer on a soft cloth with the panel side down.

A Remove the edge (A) of hand strap passing

through the clip. (The illustration shows the

left side of hand strap as an example.)

Getting Started

B Tip the clip (B) front to pull it out of the com-

puter. (Do the same for the right side of hand

strap.)

C Open up the whole hand strap.

D Press and hold (C) and slide the latch to

unlock the battery cover. (The illustration

shows Battery 1 as an example.)

E Remove the battery cover.

F Insert the battery pack matching with (D)

side.

Then, slide down the battery pack (E).

G Attach the battery cover.

Insert the claw (F) of the cover matching the

dent of computer, and press down the latch

side of cover to close.

 Make sure the latch is on the “OPEN”

side.

 If the cover does not close ﬁrmly, insert

the claw again. If the problem persists,

check if the battery is inserted properly.

H Press and hold the battery cover and slide

the latch to ﬁx.

(Take the steps D to H for Battery 2 as well.)

I Attach the hand strap back to the original

form.

Take the steps A and B in the reverse order.

CAUTION

 The computer does not operate without the

battery cover attached.

 Make sure the latch is securely locked.

Otherwise the battery pack may fall when

you carry the computer.

 Do not touch the terminals of the battery

pack and the computer. Doing so can make

the terminals dirty or damaged, and may

cause malfunction of the battery pack and

the computer.

Preparation

Getting Started

NOTE

 To conserve power, the following power saving methods are set at the time of

purchase.

 The screen automatically turns off after 15 minutes of inactivity.

 The computer automatically enters sleep*1 after 20 minutes of inactivity.

*1 Refer to Reference Manual “Sleep and Hibernation Functions” about

resuming from sleep.

 The computer automatically enters standby*2 after 20 minutes of inactivity.

*2 Refer to Reference Manual “Standby and Hibernation Functions” about

resuming from standby.

 Note that the computer consumes electricity even when the computer power is

off. If the battery pack is fully charged, the battery will fully discharge in the

following period of time:

 When power is off: Approx. 7 weeks

 In sleep ( ) / standby ( ) : Approx. 2 days

 In hibernation: Approx. 3 days

 When the DC plug is not connected to the computer, disconnect the AC cord

from your AC wall outlet. Power is consumed simply by having the AC adaptor

plugged into an electrical outlet.

Power consumption in each mode is as follows. (When AC adaptor is connected)

 When the screen is off: Approx. 6.7 W

 In sleep ( ) / standby ( ) : Approx. 1 W

 The battery pack is fully charged (or not being charged) and the computer is

off: Approx. 0.9 W

About the battery for this computer

This computer uses 2 battery packs.

The battery is charged (page 24) and power is consumed only on either bat-

tery pack. Those operations switch to the other battery pack automatically.

 When the computer is connected to the Cradle (optional: CF-VEBU11U), the

battery pack is charged when the AC adaptor is connected to the Cradle.

 With the battery charger (CF-VCBU11U) sold separately, you can remove the

empty battery pack and charge it while using the computer.

 You can insert or remove the battery pack while the computer is ON. Be sure

not to remove the battery pack being used by mistake. (Refer to Reference

Manual “Battery Power” )

Getting Started

The stylus has already been attached to the

computer at the time of purchase.

Use the computer with the stylus attached not

to lose it. If the stylus is removed for its position

change or replacement, attach it according to

the instruction below.

A Attach the tether to the stylus.

B Insert the tether to (A) of computer and pass

the stylus to ﬁx.

You can store the stylus at (B) or (C) of the

computer.

 Attaching the stylus to the computer

C B

 Using the stylus

You can use the touchscreen function to per-

form the same operation as the mouse. Touch

the screen surface with the stylus (included).

To right-click

Touch and hold with the stylus, or touch and

select the right button of “touch pointer”.

A Click on the notiﬁcation area.

B Click the object you want to right-click.

Preparation

Getting Started

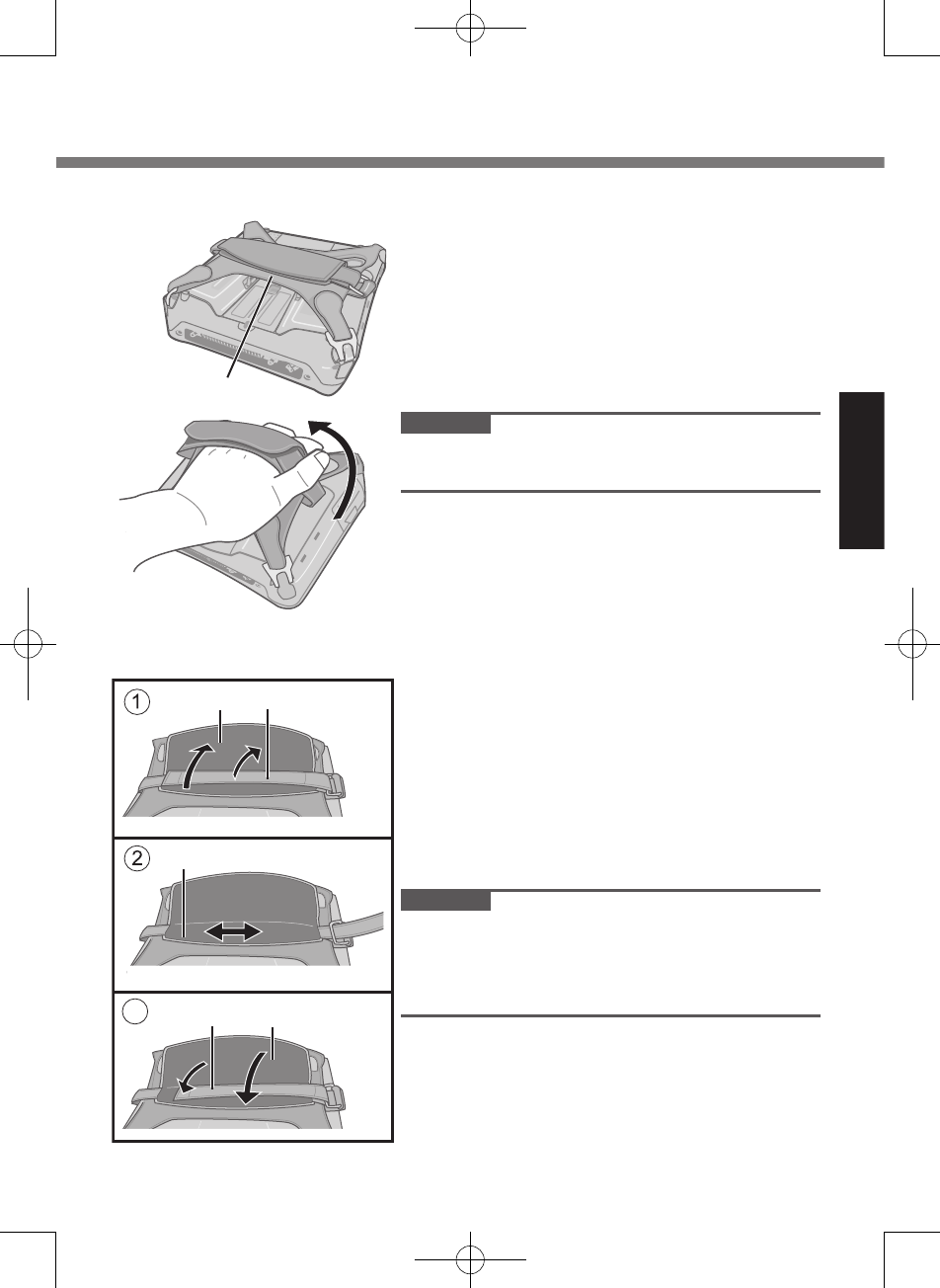

 Adjusting the hand strap

Adjust the fastening strength of hand strap as

below.

A Remove (A) from the strap joint and next

remove (B).

B Adjust the position (C).

C Attach (D), then (E) to the joint.

Attach the hand strap ﬁrmly so that the strap

does not come off.

CAUTION

 If the hand strap loosens, the computer may

fall down.

 Do not use the strap if it becomes worn or

damaged.

 Using the hand strap

When using the computer holding with hand,

insert your hand to (A) part of the hand strap.

Fix the hand strap ﬁrmly so that the computer

does not come off, and then turn it over.

 When the hand strap is too loose or too

tight, you can adjust the hand strap accord-

ing to the instructions below.

CAUTION

 If the hand is not securely ﬁxed to the hand

strap, the computer may drop.

Getting Started

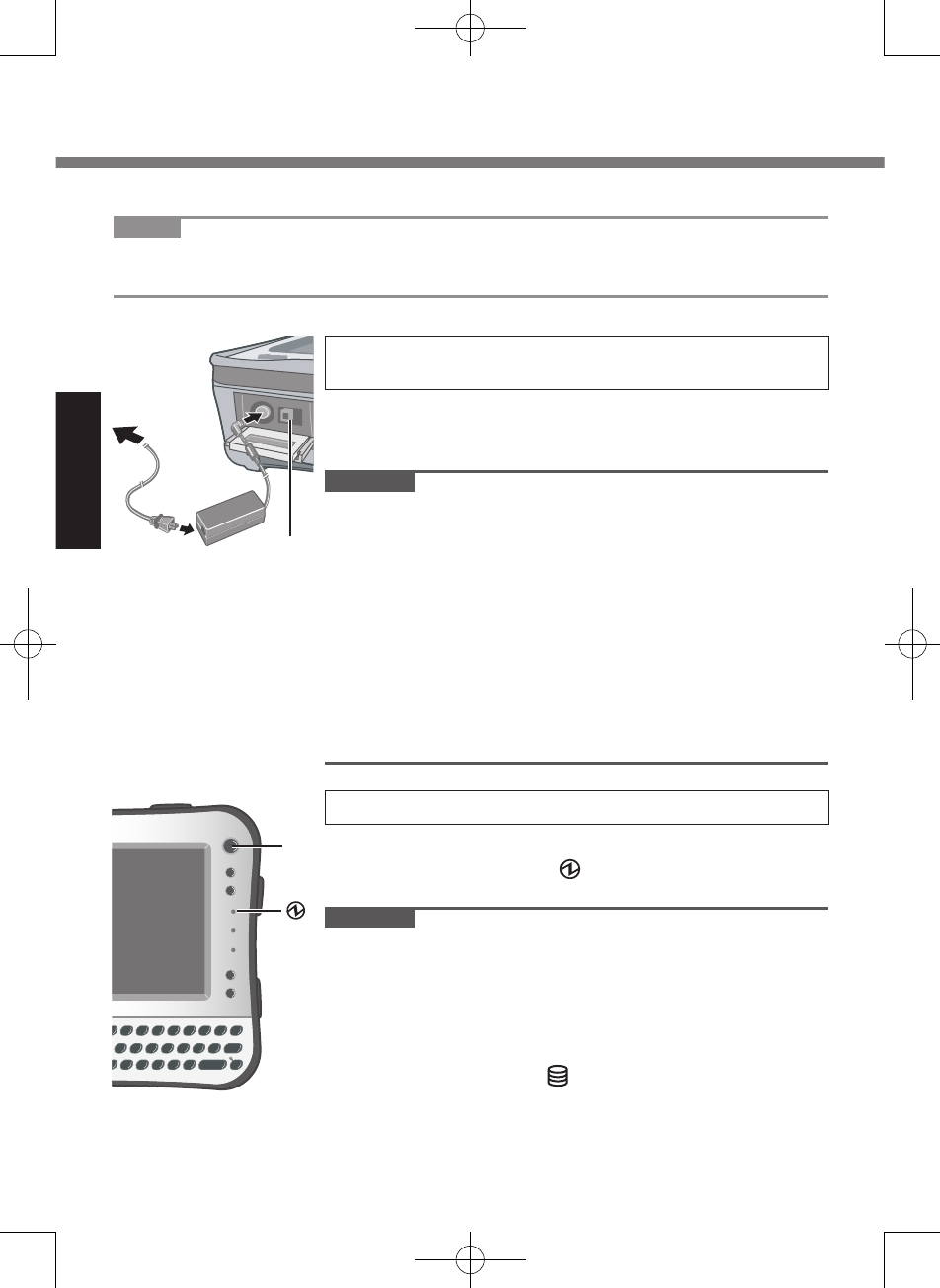

1 Connect your computer to a power

outlet.

The battery charging starts automatically. ( page

21).

CAUTION

 Do not disconnect the AC adaptor until the “Setting up

the computer” procedure is completed.

 When using the computer for the ﬁrst time, do not

connect any peripheral device except the battery pack

and AC adaptor.

 Handling the AC adaptor



Problems such as sudden voltage drops may arise dur-

ing periods of thunder and lightning. Since this could

adversely affect your computer, an uninterruptible

power source (UPS) is highly recommended unless

running from the battery pack alone.

2 Turn on the computer.

A Press the power switch (B).

The power indicator lights.

CAUTION

 Do not press the power switch repeatedly.

 The computer will forcibly be turned off if you press

and hold the power switch for 4 seconds or longer.

 Once you turn off the computer, wait for 10 seconds or

more before you turn on the computer again.



Do not perform the following operation until the ﬂash

memory drive indicator turns off.

 Connecting or disconnecting the AC adaptor

 Pressing the power switch

 Touching the keyboard, touchscreen or external

First-time Operation

 Setting up the computer

NOTE

 Be sure the Wireless switch (A) is ON before setting. The computer may not

be set properly if the switch is OFF.

Getting Started

mouse

 Turn on/off the wireless switch

 When the CPU temperature is high, the computer may

not start up to prevent overheating of the CPU. Wait

until the computer cools down, and then turn the

power on again. If the computer does not power on

even after cooling down, contact Panasonic Technical

Support ( page 54).

 Any changes from the default setting of the Setup

Utility must not be made until the “Setting up the

computer” procedure is completed.

3 Setup Windows.

During setup of Windows, use the stylus to move the

cursor and to click an item. ( page 22)

A Follow the on-screen instructions.

 After turning on the computer, “Please wait while

windows sets up your computer .........” appears,

and then a small circle circulates on the screen.

This will take a few minutes.

 Setup of Windows will take approximately 20 min-

utes. Go to the next step, conﬁrming each mes-

sage on the display.

CAUTION

 You cannot choose the following words for user name

and password: CON, PRN, AUX, CLOCK$, NUL,

COM1 to COM9, LPT1 to LPT9.

 You can change the user name, password, image and

security setting after setup of Windows.

 Remember your password. If you forget the password,

you cannot use the Windows. Creating a password

reset disk beforehand is recommended.



The wallpaper for the ﬁrst logon user has already been

set on “3 Setup Windows.” .

When using this computer under the sun, the screen

becomes easily viewable by changing the wallpaper to

the white wallpaper.

Getting Started

A Right-click on the desktop, and click [Personalize] -

[Background].

B Select [Solid Colors] at [Location].

C Select the white wallpaper and click [OK].

 When you set date/time/time zone and click [Next],

the screen may not go to the next step for a few min-

utes. Do not touch the keyboard, and wait until the

screen changes.

 If “An unexpected error has occurred…” (or a similar

message) is displayed, click [OK]. This is not a mal-

function.

 Wait until the ﬂash memory drive indicator has

turned off.

4 Perform the touchscreen calibration.

At ﬁrst, log on to Windows as an administrator, and per-

form this calibration.

A Click (Start) - [Control Panel] - [Additional

Options] - [Tablet Calibration].

B Using the stylus, touch each of the 9 “+” target

marks one by one.

Perform the following calibration for each user.

A Click (Start) - [Control Panel] - [Mobile PC] -

[Tablet PC Settings].

B Click [Calibrate].

C Using the stylus, touch each of the 4 “+” target

marks one by one, and then click [OK].

A Click [start] - [Control Panel] - [Other Control Panel

Options] - [Touch Panel].

B Select [Calibration] in [Touch Panel Settings].

C Select [9 point], [12 point] or [20 point] in [Accuracy

required], and click [Apply].

D Click [Calibrate Now] in [Calibration].

E Using the stylus, touch each of the “+” target marks

one by one until it blinks, and then press (En-

ter).

First-time Operation

Getting Started

NOTE

 PC Information Viewer

This computer periodically records the management information of the ﬂash mem-

ory, etc. The maximum data volume for each record is 1024 bytes. This information

is only used for estimating the cause when the ﬂash memory goes down by any

possibility. They are never sent to outside via network nor used for any other pur-

pose except for the purpose described the above.

To disable the function, add the check mark for [Disable the automatic save func-

tion for management information history] in [Hard Disk Status] of PC Information

Viewer, and click [OK].

(



Reference Manual “Checking the Computer’s Usage Status”)

 Precaution against Starting Up/Shutting Down

 Do not do the following

 Connecting or disconnecting the AC adaptor

 Pressing the power switch

 Touching the keyboard, touchscreen or external mouse

 Turn on/off the wireless switch

 To change the partition structure

You can shrink a part of an existing partition to create unallocated drive space,

from which you can create a new partition. This computer has a single partition in

the default setting.

A Click (Start) and right-click [Computer], then click [Manage].

 A standard user needs to enter an administrator password.

F Click [Update] in [Calibration].

G Click [OK].

5 Create a new account.

A Click [start] - [Control Panel] - [User Accounts] -

[Create a new account].

CAUTION

 Remember your password. If you forget the password,

you cannot use the Windows operation system.

Creating a password reset disk beforehand is recom-

mended.

Getting Started

B Click [Disk Management].

C Right-click the partition for Windows (“c” drive in the default setting), and

click [Shrink Volume].

 The partition size depends on the computer speciﬁcations.

D Input the size in [Enter the amount of space to shrink in MB] and click

[Shrink].

 You cannot input a larger number than the displayed size.

E Right-click [Unallocated] (the shrunk space in the step D) and click [New

Simple Volume].

F Follow the on-screen instructions to make the settings, and click [Finish].

Wait until formatting is completed.

NOTE

 You can create an additional partition using remaining unallocated space or

newly creating unallocated space.

 To delete a partition, right-click the partition and click [Delete Volume] in the

step C.

First-time Operation

Useful Information

On-screen Manual

You can access the Reference Manual and the Important Tips on the computer screen.

When you access the Reference Manual and the Important Tips for the ﬁrst time, the

License Agreement of the Adobe Reader may be displayed. Read it carefully and

select [Accept] to proceed.

 Reference Manual

The Reference Manual contains the practical information to help you fully enjoy

the computer’s performance.

To access the Reference Manual:

A Double-click on the desktop.

 Alternatively click (Start) - [All Programs] - [Panasonic] - [On-Line

Manuals] - [Reference Manual].

A Click [start] - [Reference Manual].

 Important Tips

The Important Tips will provide you with the battery information so that you can

use the battery pack in the optimum condition to obtain longer operation time.

The Important Tips will provide you with the helpful information about the battery

and touchscreen. Read to use the battery pack in the optimum condition to obtain

longer operation time.

To access the Important Tips:

A Double-click on the desktop.

 Alternatively click (Start) - [All Programs] - [Panasonic] - [On-Line

Manuals] - [Important Tips].

A Double-click on the desktop.

 Alternatively click [start] - [All Programs] - [Panasonic] - [Battery] -

[Important Tips] or click [start] - [All Programs] - [Panasonic] - [On-Line

Manuals] - [Important Tips].

NOTE

 When Adobe Reader update notice is displayed, we recommend you follow the

on-screen procedure and update.

See http://www.adobe.com/ for the latest version of Adobe Reader.

Useful Information

Handling and Maintenance

Operation environment

 Temperature: Operation : 5 °C to 35 °C {41 °F to 95 °F}

Storage : -20°C to 60 °C {- 4 °F to 140 °F}

Humidity: Operation : 30% to 80% RH (No condensation)

Storage : 30% to 90% RH (No condensation)

Even within the above temperature/humidity ranges, using for a long time in an

extreme environment will result in the product deterioration and will shorten the

product life.

 Do not place the computer in the following areas, otherwise the computer may

be damaged.

 Near electronic equipment. Image distortion or noise may occur.

 In extremely high or low temperature.

 As the computer can become hot during operation, keep it away from items

that are sensitive to heat.

Handling cautions

This computer is designed to minimize shock to parts such as the LCD and the

ﬂash memory and equipped with a drip-proof keyboard, but no warranty is pro-

vided against any trouble caused by shock. Be extremely careful when handling

the computer.

 When carrying the computer:

 Turn off the computer.

 Remove all external devices, cables and other protruding things and then

close all terminal covers.

 Do not drop or hit the computer against solid objects.

 Do not grip the display part.

 When you board an airplane, take the computer with you and never put it in

your checked luggage. When using the computer on airplane, follow the air-

line’s instructions.

 When carrying a spare battery, put it in a plastic bag to protect its terminals.

 Be careful of computer drop resulting from the hand strap damage.

 Use only the included stylus to touch the screen. Do not place any object on its

surface and do not press down strongly with sharp-pointed or hard objects that

may leave marks (e.g., nails, pencils and ball point pens).

 Do not use the stylus when dust or dirt (e.g., oil) is on the screen. Otherwise

foreign particles on the screen/stylus can scratch the screen surface or ob-

struct the stylus operation.

 Use the stylus only for touching the screen. Using it for any other purpose may

damage the stylus and result in scratches on the screen.

Useful Information

 When using peripheral devices

Follow these instructions and the Reference Manual to avoid any damage to the

devices. Carefully read the instruction manuals of the peripheral devices.

 Use the peripheral devices conforming to the computer’s speciﬁcations.

 Connect to the connectors in the correct direction.

 If it is hard to insert, do not try forcibly but check the connector’s shape, direc-

tion, alignment of pins, etc.

 If screws are included, fasten them securely.

 Remove the cables when you carry the computer. Do not pull the cables forc-

ibly.

 Preventing your computer from unauthorized use via wireless LAN/Blue-

tooth/Wireless WAN

 Before using wireless LAN/Bluetooth/Wireless WAN, make the appropriate

security settings such as data encryption.

 Computrace® Software

Computrace® software tracks your stolen computer.

 Computrace® software is not included or installed in this computer.

 Consult Absolute Software Corp. before disposal.

 Refer to the following URL for Computrace® software for installation and avail-

able service regions. Note that this service is only available in certain regions.

http://www.absolute.com

Maintenance

Wipe with a soft dry cloth such as gauze.

To clean areas other than the LCD panel

Wipe with a soft dry cloth such as gauze. When using detergent, dip a soft cloth in

water-diluted detergent and wring it thoroughly.

CAUTION

 Do not use benzene, thinner, or rubbing alcohol since it may adversely affect

the surface causing discoloration, etc. Do not use commercially-available

household cleaners and cosmetics, as they may contain components harmful

to the surface.

 Do not apply water or detergent directly to the computer, since liquid may enter

inside of the computer and cause malfunction or damage.

Useful Information

Reinstalling software will return the computer to the default condition. When you

reinstall the software, the ﬂash memory data will be erased.

Back up important data to other media or an external hard disk before reinstalla-

tion.

Preparation

 Prepare the following items:

 The Product Recovery DVD-ROM (included)

Product Recovery DVD-ROM Windows Vista® Business SP1

Product Recovery DVD-ROM Windows XP Professional SP2

 Panasonic USB CD/DVD drive (optional) (refer to recent catalogs and

other sources for information about the products available)

 Remove all peripherals (except for the CD/DVD drive).

 Connect the AC adaptor and do not remove it until reinstallation is com-

plete.

1 Turn off the computer and connect the CD/DVD drive to

the USB port ( page 17).

2 Turn on the computer, and press + (F2) or +

(Del) while [Panasonic] boot screen is displayed.

The Setup Utility starts up.

 If the password is requested, enter the Supervisor Password.

3 Write down all of the contents of the Setup Utility and

press + (F9).

At the conﬁrmation message, select [Yes] and press (Enter).

4 Press + (F10).

At the conﬁrmation message, select [Yes] and press (Enter).

The computer will restart.

5 Press + (F2) or + (Del) while [Panasonic] boot

screen is displayed.

The Setup Utility starts up.

 If the password is requested, enter the Supervisor Password.

6 Set the Product Recovery DVD-ROM into the CD/DVD

drive.

7 Select the [Exit] menu, then select your CD/DVD drive in

[Boot Override].

Reinstalling Software

Useful Information

8 Press (Enter).

The computer will restart.

9 Click [Reinstall Windows] and click [Next].

The License Agreement screen appears.

10 Click [Yes, I agree to the provisions above and wish to

continue!] and click [Next].

11 Select the settings and click [Next].

 [Reinstall Windows to the whole Hard Disk to factory default.]

You will have a single partition.

 [Reinstall Windows to the operating system partition.]

You can keep the partition structure.

12 At the conﬁrmation message, click [YES].

Reinstallation starts automatically. (It will take approximately 30 minutes.)

 Do not interrupt reinstallation, for example by turning off the computer or

pressing , and + (Del). Otherwise reinstallation may

become unavailable as Windows may not start up or the data may be

corrupted.

13 Remove the Product Recovery DVD-ROM, and then click

[OK] to turn off the computer, then remove the CD/DVD

drive.

14 Turn on the computer.

 If the password is requested, enter the Supervisor Password.

15 Perform the steps 3 and 4 for setting up the computer (

pages 25 to 26).

16 Start the Setup Utility and change the settings as neces-

sary.

17 Perform Windows Update.

9 Press to execute [1. [Recovery]].

The License Agreement screen appears.

 To cancel partway, press .

10 Press to select [1. Yes, I agree to the provisions above

and wish to continue!].

Useful Information

11 Select the settings.

 [2]: Enter the size of operating system partition and press Enter.

(The size of data partition will be determined by subtracting the

operating system partition size from the maximum size.)

 [3]: Windows will be installed in the ﬁrst partition.

(The size of the ﬁrst partition must be XX GB or more. If smaller,

installation will not be possible.)

At the conﬁrmation message, press or .

Reinstallation starts automatically. (It will take approximately 30 - 75 min-

utes.)

 Do not interrupt reinstallation, for example by turning off the computer or

pressing , and + (Del). Otherwise reinstallation may

become unavailable as Windows may not start up or the data may be

corrupted.

12 Remove the Product Recovery DVD-ROM, and then press

any key to turn off the computer.

If additional instructions are included with the computer, be sure to read

them. It may be necessary to perform additional operations during the

following procedure.

13 Turn on the computer.

 If the password is requested, enter the Supervisor Password.

14 Perform the steps 3, 4 and 5 for setting up the computer

( pages 25 to 27).

15 Start the Setup Utility and change the settings as neces-

sary.

Installing Windows Vista

NOTE

 This computer is provided the license of Microsoft® Windows Vista® Business

(including a downgrade right to Microsoft® Windows® XP Professional).

Follow the steps below to install Windows Vista.

1 Reinstall Windows XP to the whole ﬂash memory drive to

factory default ( page 32).

Reinstalling Software

Useful Information

2 When the message [[Recovery] is complete.] appears,

remove the Product Recovery DVD-ROM for Windows XP,

and set the Product Recovery DVD-ROM for Windows Vis-

ta.

3 Press any key to turn off the computer.

If you turn off the computer without replacing the Product Recovery DVD-

ROM or performing setting up the computer for Windows XP, refer to step

1-6 “Reinstalling Software” ( page 32), and boot the computer from the

Product Recovery DVD-ROM for Windows Vista.

4 Turn on the computer.

5 Perform the reinstallation for Windows Vista from step 7

( page 32).

 Select [Reinstall Windows to the whole Hard Disk to factory default.] in

the step 11 ( page 33).

NOTE

 The information about Windows Vista on the Panasonic personal computer

Visit the following web site:

https://eww.pavc.panasonic.co.jp/pc/itn/support/vistaxpdwg1.html

Troubleshooting

Troubleshooting (Basic)

Follow the instructions below when a problem has occurred. There is also an

advanced troubleshooting guide in the “Reference Manual”. For a software prob-

lem, refer to the software’s instruction manual. If the problem persists, contact

Panasonic Technical Support ( page 54). You can also check the computer’s

status in the PC Information Viewer

( Reference Manual “Checking the Computer’s Usage Status”).

 Starting Up

Cannot start up.

The power indicator

or battery indicator

is not lit.

 Connect the AC adaptor.

 Insert a fully charged battery.

 Remove the battery pack and the AC adaptor, then con-

nect them again.

 If a device is connected to the USB port, disconnect the

device, or set [Legacy USB Support] to [Disabled] in

the [Advanced] menu of the Setup Utility. ( Refer-

ence Manual “Setup Utility”)

Cannot turn on the

computer.

The computer does

not resume from

sleep ( )

/standby

( ).

(The power indicator

blinks quickly in

green.)

 Leave it in an environment of 5 °C {41 °F} or higher tem-

perature for about an hour, then turn on the power again.

You have forgotten

the password.

 Supervisor Password or User Password: Contact Pana-

sonic Technical Support ( page 54).

 Administrator password:

 If you have a password reset disk, you can reset the ad-

ministrator password. Set the disk and enter any wrong

password, then follow the on-screen instructions and set

a new password.

 If you do not have a password reset disk, reinstall (

page 32) and set up Windows, and then set a new pass-

word.

Troubleshooting

 Starting Up

“Remove disks or

other media. Press

any key to restart”

or a similar mes-

sage appears.

 A ﬂoppy disk is in the drive and it does not contain system

startup information. Remove the ﬂoppy disk and press any

key.

 If a device is connected to the USB port, disconnect the

device, or set [Legacy USB Support] to [Disabled] in

the [Advanced] menu of the Setup Utility. ( Refer-

ence Manual “Setup Utility”)

 If the problem persists after having tried the above solu-

tions, it may be a ﬂash memory failure. Contact Panasonic

Technical Support ( page 54).

Windows startup

and operation is

slow.

 Press + (F9) in the Setup Utility ( Reference

Manual “Setup Utility”) to return the Setup Utility settings

(excluding the passwords) to the default values. Start the

Setup Utility and make the settings again. (Note that the

processing speed depends on the application software, so

this procedure may not make Windows faster.)

 If you installed a resident software after purchase, turn off

the residence.

 Disable the pop-up menu and Input Panel Tab.

A Open the Input Panel, and click [Tools] - [Options] -

[Opening].

B Remove the check mark of [Show the Input Panel tab]

and click [OK].

 Disable Indexing Service in the following menu.

Click [start] - [Search] - [Change preferences] - [With

Indexing Service (for faster local service)].

Troubleshooting

 Starting Up

The date and time

are incorrect.

 Make the correct settings.

Click (Start) - [Control Panel] - [Clock, Language, and

Region] - [Date and Time].

Click [start] - [Control Panel] - [Date, Time, Language, and

Regional Options] - [Date and Time].

 If the problem persists, the internal clock battery may need

to be replaced. Contact Panasonic Technical Support (

page 54).

 When the computer is connected to LAN, check the date

and time of the server.

 The 2100 A.D. or later year will not be correctly recognized

on this computer.

[Executing Battery

Recalibration]

screen appears.

 The Battery Recalibration was canceled before Windows

was shut down last time. To start up Windows, turn off the

computer by the power switch, and then turn on.

[Enter Password]

does not appear

when resuming from

sleep ( )

/standby

( )

hibernation.

 The password you have set in the Setup Utility is not

requested at resuming. To use the password security at

resuming, set the Windows password.

A Click (Start) - [Control Panel] - [Add or remove user

accounts] and select the account, and set the pass-

word.

B Click (Start) - [Control Panel] - [System and Main-

tenance] - [Require a password when the computer

wakes] and add a check mark for [Require a pass-

word].

 Set the Windows password. The password you have set in

the Setup Utility is not requested at resuming.

A Click [start] - [Control Panel] - [User Accounts] and

select the account, and set the password.

B Click [start] - [Control Panel] - [Performance and Main-

tenance] - [Power Options] - [Advanced] and add a

check mark for [Prompt for password when computer

resumes from standby].

Troubleshooting (Basic)

Troubleshooting

 Starting Up

Cannot resume. 

An error may occur when the computer automatically enters

the sleep ( ) / standby ( ) or

hibernation mode while the screensaver is active. In this

case, turn off the screensaver or change the pattern of the

screensaver.



If you press and hold the power switch for 4 seconds or

longer, the power will be turned off forcibly and the computer

will not resume. In this case, all unsaved data will be lost.



You disconnected the AC adaptor and the battery pack while

the computer was in sleep ( ) / standby

( ). If the computer’s power supply is discon-

nected in sleep ( ) / standby ( ),

unsaved data will be lost and the computer will not resume.

 The battery is exhausted.

Sleep ( ) / stand-

by ( )

and hibernation consume some power.

Other startup

problems.  Press + (F9) in the Setup Utility ( Reference

Manual “Setup Utility”) to return the Setup Utility settings

(excluding the passwords) to the default values. Start the

Setup Utility and make the settings again.

 Remove all peripheral devices.

 Check to see if there was a disk error.

A Remove all peripheral devices including an external

display.

B Click (Start) - [Computer] and right-click [Local Disk

(C:)], and click [Properties].

C Click [Tools] - [Check Now].

 A standard user needs to enter an administrator

password.

D Select the option in [Check disk options] and click

[Start].

E Click [Schedule disk check] and restart the computer.

A Click [start] - [My Computer] and right-click [Local

Disk(C:)], and click [Properties].

B Click [Tools] - [Check Now].

C Select the option in [Check disk options] and click

[Start].

Troubleshooting

 Starting Up

Other startup

problems.

(continued)

 Start the computer in Safe Mode and check the error

details. When the [Panasonic] boot screen disappears*1 at

startup, press and hold + (F8) until the Windows

Advanced Options Menu is displayed.

*1 When [Password on boot] is set to [Enabled] in the [Secu-

rity] menu of the Setup Utility, [Enter Password] appears

after the [Panasonic] boot screen disappears. As soon as

you enter the password and press (Enter), press and

hold + (F8).

 Shutting down

Windows does not

shut down.

 Remove the USB device.

 Wait one or two minutes. It is not a malfunction.

 Display

No display.  The external display is selected. Press + ( ) to

switch the display. Wait until the display has been

switched completely before pressing + ( )

again.

 When using an external display,

 Check the cable connection.

 Turn on the display.

 Check the settings of external display.

 The display is turned off by the power-saving function. To

resume, do not press the direct selection keys, but press

any other key like .

 The computer entered

sleep ( ) / standby

( )

or hibernation by the power-saving func-

tion. To resume, press the power switch.

 The screen may not be displayed even after the computer

resumed from standby or hibernation. In this case, press

+ ( ) to enter standby and resume the computer

again.

The screen is dark.  The screen is darker when the AC adaptor is not connect-

ed. Press + ( ) and adjust the brightness. As you

increase the brightness, battery consumption increases.

You can separately set the brightness for when the AC

adaptor is connected and when not connected.

Troubleshooting (Basic)

Troubleshooting

 Display

The LCD brightness

changes a number

of times when the

AC adaptor is dis-

connected.

 Intel(R) Display Power Saving Technology is active and

automatically changes the LCD brightness. This is not a

malfunction.

The screen is disor-

dered.

 Changing the number of display colors and resolution may

affect the screen. Restart the computer.

 Connecting/disconnecting an external display may affect

the screen. Restart the computer.

During Simultane-

ous display, one of

the screens be-

comes disordered.

 Simultaneous display cannot be used until Windows

startup is complete (during Setup Utility, etc.)

 When using the Extended Desktop, use the same display

colors for the external display as those used by the LCD.

 If you continue to experience problems, try changing the

display.

Right-click on the desktop, and click [Graphics Properties]

- [Display Devices].

 If the [Command Prompt ] is displayed in full-screen,

reduce the display size.

The external display

does not work nor-

mally.



If the external display does not support the power saving

function, it may not work normally when the computer enters

the power saving mode. Turn off the external display.

Troubleshooting

 Display

<Only for model

with GPS>

The cursor cannot

be controlled prop-

erly.

 Operate the following steps.

Set [GPS] to [Disabled] in the [Advanced - Serial Port

Conﬁguration] of the Setup Utility.

B Press + (F10) and select [Yes] at the conﬁrma-

tion message, and press (Enter).

The computer will restart.

C Log on to Windows as an administrator.

D Click (Start) and input “c:\util\drivers\gps\GPSVista.

reg” in [Start Search], and press (Enter).

E Click [Yes] and click [OK].

The computer will restart.

Press + (F2) while [Panasonic] boot screen is

displayed.

Set [GPS] to [Enabled] in the [Advanced - Serial Port

Conﬁguration].

Press + (F10) and select [Yes] at the conﬁrma-

tion message, and press (Enter).

 Touchscreen

The cursor does not

work.

 When using the external mouse, connect it correctly.

 Restart the computer using the keyboard.

Press (Windows) and press three times, and press

to select [Restart] and press (Enter).

Press (Windows), and to select [Restart].



If the computer does not respond to keyboard commands,

read “No response.” ( page 43)

Cannot input using

the touchscreen.

 Set [Touchscreen Mode] to [Auto] or [Tablet] in the [Main]

menu of the Setup Utility.

Cannot point the

correct position

using the included

stylus.

 Perform the touchscreen calibration ( pages 26).

Troubleshooting (Basic)

Troubleshooting

 Reference Manual

The Reference

Manual is not dis-

played.

 Install Adobe Reader.

A Log on to Windows as an administrator.

Click (Start) and input “c:\util\reader\setup.exe” in

[Start Search] then press (Enter).

Click [start] - [Run], input “c:\util\reader\setup.exe”,

then click [OK].

Follow the on-screen instructions.

C Update Adobe Reader to its latest version.

If your computer is connected to the internet, start up

Adobe Reader and click [Help] - [Check for Updates].

 Others

No response.  Press , (Shift), and (ESC) to open Task

Manager and close the software application that is not

responding.

 An input screen (e.g., password input screen at startup)

may be hidden behind another window. Press +

to check.

 Press the power switch for 4 seconds or longer to shut

down the computer, and then press the power switch to

turn it on. If the application program does not work nor-

mally, uninstall and reinstall the program.

To uninstall:

Click (Start) - [Control Panel] - [Uninstall a program].

Click [start] - [Control Panel] - [Add or Remove Programs].

4444

Appendix

LIMITED USE LICENSE AGREEMENT

THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS

PANASONIC® PRODUCT (“PRODUCT”) ARE LICENSED ONLY TO THE END-

USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH

THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS

SHALL BE CONCLUSIVELY DEEMED TO CONSTITUTE YOUR ACCEPTANCE

OF THE TERMS OF THIS LICENSE.

Matsushita Electric Industrial Co., Ltd. (“MEI”) has developed or otherwise ob-

tained the Programs and hereby licenses their use to you. You assume sole re-

sponsibility for the selection of the Product (including the associated Programs) to

achieve your intended results, and for the installation, use and results obtained

therefrom.

LICENSE

A. MEI hereby grants you a personal, non-transferable and non-exclusive right

and license to use the Programs in accordance with the terms and conditions

stated in this Agreement. You acknowledge that you are receiving only a LIM-

ITED LICENSE TO USE the Programs and related documentation and that

you shall obtain no title, ownership nor any other rights in or to the Programs

and related documentation nor in or to the algorithms, concepts, designs and

ideas represented by or incorporated in the Programs and related documenta-

tion, all of which title, ownership and rights shall remain with MEI or its suppli-

ers.

B. You may use the Programs only on the single Product which was accompa-

nied by the Programs.

C. You and your employees and agents are required to protect the conﬁdentiality

of the Programs. You may not distribute or otherwise make the Programs or

related documentation available to any third party, by time-sharing or other-

wise, without the prior written consent of MEI.

D. You may not copy or reproduce, or permit to be copied or reproduced, the

Programs or related documentation for any purpose, except that you may

make one (1) copy of the Programs for backup purposes only in support of

your use of the Programs on the single Product which was accompanied by

the Programs. You shall not modify, or attempt to modify, the Programs.

E. You may transfer the Programs and license them to another party only in

connection with your transfer of the single Product which was accompanied by

the Programs to such other party. At the time of such a transfer, you must also

transfer all copies, whether in printed or machine readable form, of every

Program, and the related documentation, to the same party or destroy any

such copies not so transferred.

4545

Appendix

F. You may not remove any copyright, trademark or other notice or product identi-

ﬁcation from the Programs and you must reproduce and include any such

notice or product identiﬁcation on any copy of any Program.

YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANI-

CALLY OR ELECTRONICALLY TRACE THE PROGRAMS, OR ANY COPY

THEREOF, IN WHOLE OR IN PART.

YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PRO-

GRAMS OR ANY COPY THEREOF, IN WHOLE OR IN PART, EXCEPT AS EX-

PRESSLY PROVIDED IN THE LICENSE.

IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO

ANOTHER PARTY, EXCEPT AS PERMITTED IN PARAGRAPH E ABOVE, YOUR

LICENSE IS AUTOMATICALLY TERMINATED.

TERM

This license is effective only for so long as you own or lease the Product, unless

earlier terminated. You may terminate this license at any time by destroying, at

your expense, the Programs and related documentation together with all copies

thereof in any form. This license will also terminate effective immediately upon

occurrence of the conditions thereof set forth elsewhere in this Agreement, or if

you fail to comply with any term or condition contained herein. Upon any such

termination, you agree to destroy, at your expense, the Programs and related

documentation together with all copies thereof in any form.

YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDER-

STAND IT AND AGREE TO BE BOUND BY ITS TERMS AND CONDITIONS.

YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE STATE-

MENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY

PROPOSAL OR PRIOR AGREEMENT, ORAL OR WRITTEN, AND ANY OTHER

COMMUNICATIONS BETWEEN US, RELATING TO THE SUBJECT MATTER

OF THIS AGREEMENT.

About Intel® software products

The enclosed software products and documentation were developed at private

expense, and are provided with “RESTRICTED RIGHTS.” Use, duplication or

disclosure by the government is subject to restrictions as set forth in FAR

52.227-14 and DFARS 252.227-7013 et. seq. or its successor. The use of this

product by the government constitutes acknowledgment of Intel’s proprietary

rights in the product.

4646

Appendix

Contrat de licence d’usage limité

Le(s) logiciel(s) (les “Logiciels”) fournis avec ce produit Panasonic® (le “Produit”)

sont exclusivement concédés en licence à l’utilisateur ultime (“vous”), et ils ne

peuvent être utilisés que conformément aux clauses contractuelles cidessous. En
