Users Manual
Operating Instructions
Over The Range Microwave Oven
Model: NN-P295
For assistance, please call: 787-750-4300
or visit us at www.panasonicpr.com (Puerto Rico)
For assistance, please call: 1-800-211-PANA(7262)
or send e-mail to: consumerproducts@panasonic.com
or visit us at www.panasonic.com (U.S.A)
Safety Information
Precautions ................................................Inside cover
Important Safety Instructions.................................1-2
Installation and Grounding Instructions ...............3-4
Safety Precautions......................................................5
Operation
Timer Feature (Kitchen Timer/Stand Time/Delay Start)
....................................................................................18
How to Use Shelf ........................................................19
Microwave Shortcuts..............................................20-21
Food Characteristics ...................................................22
Cooking Techniques...............................................22-23
Quick Guide to Operation ...........................................29
Operation
Control Panel ................................................................8
Function Features .........................................................9
Setting the Clock.........................................................10
Selecting Light On/Night/Off........................................10
Selecting Turntable On/Off..........................................10
Selecting Fan High/Low/Off ........................................10
Selecting Super/Turbo/Off...........................................10
Selecting Auto Off 1/3/5/10 .........................................10
Selecting Power & Cook Time.....................................11
Quick Min Feature.......................................................11
Keep Warm Feature ....................................................11
Popcorn Feature .........................................................12
More/Less Feature......................................................12
Beverages ...................................................................12
Inverter Turbo Defrost Feature....................................13
Defrosting Tips & Techniques ................................13-14
Sensor Reheat Feature...............................................15
Sensor Cook Feature..................................................15
Sensor Cook Chart .....................................................16
Microwave Recipes.....................................................17
Maintenance
Care and Cleaning of Your Microwave Oven ........24-26
Accessory Purchases..................................................24
Cleaning Vent Grille (Oven Air Vent)...........................25
Installing Vent Grille ....................................................25
Charcoal Filter Attachment/Replacement ...................25
Cleaning Grease Filters ..............................................26
Installing Grease Filters ..............................................26
Cooktop/Night Light Replacement ..............................26
Oven Light Replacement ............................................26
Before Requesting Service .........................................27
Limited Warranty & Customer Service Directory ........28
General Information
Cookware Guide ...........................................................6

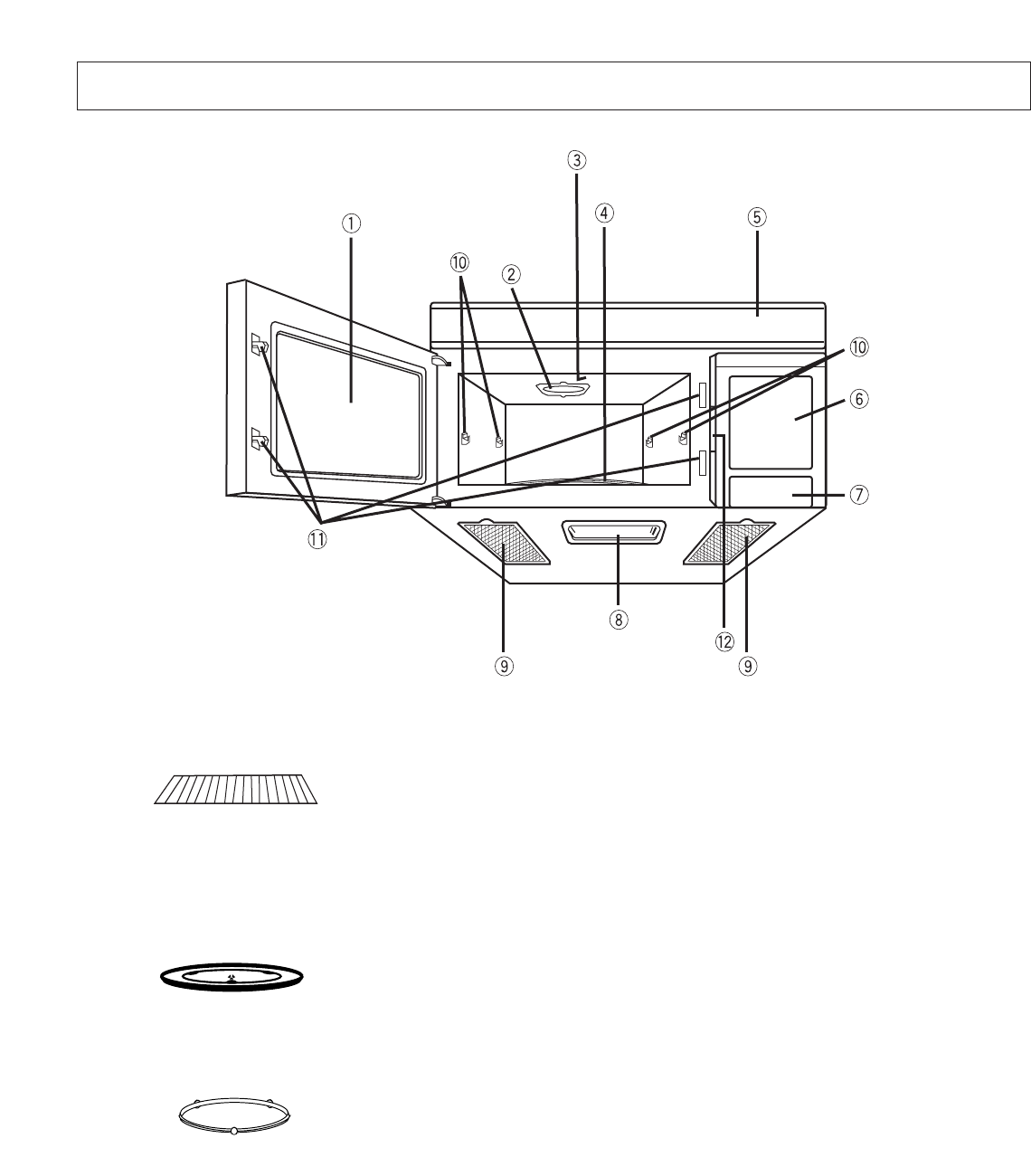

Oven Components Diagram .........................................7
Specifications ..............................................................30
User’s Record .............................................................30
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.
Para instrucciones en español, voltee el libro.
F00036Z00AP
FLE0505-0
Printed in China
© Copyrighted by Matsushita Electric Industrial Co., Ltd. 2005.
Your safety and the safety of others are very important.
We have provided important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful expo-
sure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumu-
late on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that
there is no damage to the:
(1) door (bent),
(2) hinges and latches (broken or loosened),
(3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.
The safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell
you what can happen if the instructions are not followed.
This is the safety alert symbol. It is used to alert you to potential hazards that can kill or hurt you
and others.
The safety messages will follow the safety alert symbol and either the word “DANGER”, “WARNING”
or “CAUTION”. These words mean:
You can be killed or seriously injured if you don’t immediately follow instruc-
tions.
You can be killed or seriously injured if you don’t follow instructions.
Microwave Oven Safety
DANGER
WARNING
You can be exposed to a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
CAUTION
1
IMPORTANT SAFETY INSTRUCTIONS
—To reduce the risk of burns, electric shock, fire, injury to persons, or
exposure to excessive microwave energy:
1. Read all instructions before using this appliance.
2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY,” found on the inside front cover.
3. This appliance must be grounded. Connect only to a properly grounded outlet. See “GROUNDING
INSTRUCTIONS” found on page 3.
4. As with any cooking appliance, DO NOT leave oven unattended while in use.
5. Install or locate this appliance only in accordance with the installation instructions found on page 3.
6. DO NOT cover or block any openings on this appliance.
7. DO NOT store this appliance outdoors. DO NOT use this product near water— for example, near a kitchen sink,
in a wet basement, or near a swimming pool or similar locations.
8. Use this appliance only for its intended use as described in this manual. DO NOT use corrosive chemicals,
vapors, or non-food products in this appliance. This type of oven is specifically designed to heat, or cook food. It
is not designed for industrial or laboratory use. The use of corrosive chemicals in heating or cleaning will damage
the appliance and may result in radiation leaks.
9. When cleaning surfaces of the door and oven that come together on closing the door, use only mild, non-abrasive
soaps or detergents applied with a sponge or soft cloth.
10. DO NOT allow children to use this appliance, unless closely supervised by an adult. DO NOT assume that
because a child has mastered one cooking skill he/she can cook everything.
11. DO NOT operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been
damaged or dropped.
12. DO NOT immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. DO NOT let cord hang over edge of a table or counter.
15. This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service
center for examination, repair or adjustment.
16. Some products such as whole eggs with or without shell, narrow neck bottles and sealed containers — for
example, closed glass jars — may explode and should not be heated in this oven.
17. To reduce the risk of fire in the oven cavity:
(a) Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are
placed inside the oven to facilitate cooking.
(b) Remove wire twist-ties from paper or plastic bags before placing bag in oven.
(c) If material inside the oven ignites, keep oven door closed, turn oven off, and disconnect the power
cord, or shut off power at the fuse or circuit breaker panel.
(d) DO NOT use the cavity for storage purposes. DO NOT leave paper products, cooking utensils or food in
the cavity when not in use.
18. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be
boiling. Visible bubbling when the container is removed from the microwave oven is not always present. THIS
COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DIS-
TURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
(a) STIR THE LIQUID BOTH BEFORE AND HALFWAY THROUGH HEATING IT.
(b) Do not heat water and oil, or fats together. The film of oil will trap steam, and may cause a violent
eruption.
(c) Do not use straight-sided containers with narrow necks.
(d) After heating, allow the container to stand in the microwave oven for a short time before removing the
container.
19. DO NOT cook directly on the turntable. It can crack, cause injury or damage to the oven.
Your microwave oven is a cooking appliance and you should use as much care as you use with a stove or any other
cooking appliance. When using this electrical appliance, basic safety precautions should be followed, including the
following:
Thank you for purchasing a Panasonic Microwave Oven.
WARNING
2
IMPORTANT SAFETY INSTRUCTIONS (continued)
TO AVOID THE RISK OF SHOCK:
DO NOT remove outer panel from oven. Repairs must be done only by a qualified service person.
TO REDUCE THE RISK OF EXPOSURE TO MICROWAVE ENERGY:
DO NOT tamper with, or make any adjustments or repairs to Door, Control Panel Frame, Safety
Interlock Switches, or any other part of oven, microwave leakage may result.
TO AVOID THE RISK OF FIRE:
1. DO NOT operate the oven empty. The microwave energy will reflect continuously throughout
the oven causing overheating and damage, if food or water is not present to absorb energy.
2. DO NOT store flammable materials next to, on top of, or in the oven.
3. DO NOT dry clothes, newspapers or other materials in the oven, or use newspaper or paper
bags for cooking.
4. DO NOT hit or strike Control Panel. Damage to controls may occur.
5. DO NOT use recycled paper products unless the paper product is labeled as safe for microwave oven use.
Recycled paper products may contain impurities which may cause sparking.
TO AVOID THE RISK OF SCALDING:
POT HOLDERS should always be used when removing items from the oven. Heat is transferred from the HOT food
to the cooking container and from the container to the Glass Tray. The Glass Tray can also be very HOT after remov-
ing the cooking container from the oven.
Glass Tray
1. DO NOT operate the oven without the Roller Ring and the Glass Tray in place.
2. DO NOT operate the oven without the Glass Tray fully engaged on the drive hub. Improper cooking or damage to
the oven could result. Verify that the Glass Tray is properly engaged and rotating by observing its rotation when
you press Start. Note: The Glass Tray can turn in either direction.
3. Use only the Glass Tray specifically designed for this oven. DO NOT substitute any other glass tray.
4. If the Glass Tray is hot, allow to cool before cleaning or placing in water.
5. DO NOT cook directly on the Glass Tray. Always place food in a microwave safe dish, or on a rack set in a
microwave safe dish.
6. If food or utensil on the Glass Tray touches oven walls, causing the tray to stop moving, the tray will automatically
rotate in the opposite direction.
Roller Ring
1. The Roller Ring and oven floor should be cleaned frequently to prevent excessive noise.
2. Always replace the Roller Ring and the Glass Tray in their proper positions.
3. The Roller Ring must always be used for cooking along with the Glass Tray.
WARNING
SAVE THESE INSTRUCTIONS
For proper use of your oven read remaining safety cautions and operating instructions.
20. This appliance is suitable for use above both gas and electric cooking equipment 36 inches (91.4 cm) or less
wide. To reduce the risk of fire and electric shock, install at least 135/8inches (34.6 cm), above a cooktop, meas-
ured to the bottom of the oven.
21. Clean Ventilating Hoods Frequently – Grease should not be allowed to accumulate on hood or filter.
22. Use care when cleaning the Grease filter. Corrosive cleaning agents, such as lye-based oven cleaners, may dam-
age the filter. Clean in hot detergent solution every month.
23. When flaming foods under the hood, turn the fan on.
3
INSTALLATION AND GROUNDING INSTRUCTIONS
Examine Your Oven
Unpack oven, remove all packing material and examine the oven for any damage such as dents, broken door latches
or cracks in the door. Notify dealer immediately if oven is damaged. DO NOT install if oven is damaged.
Installation

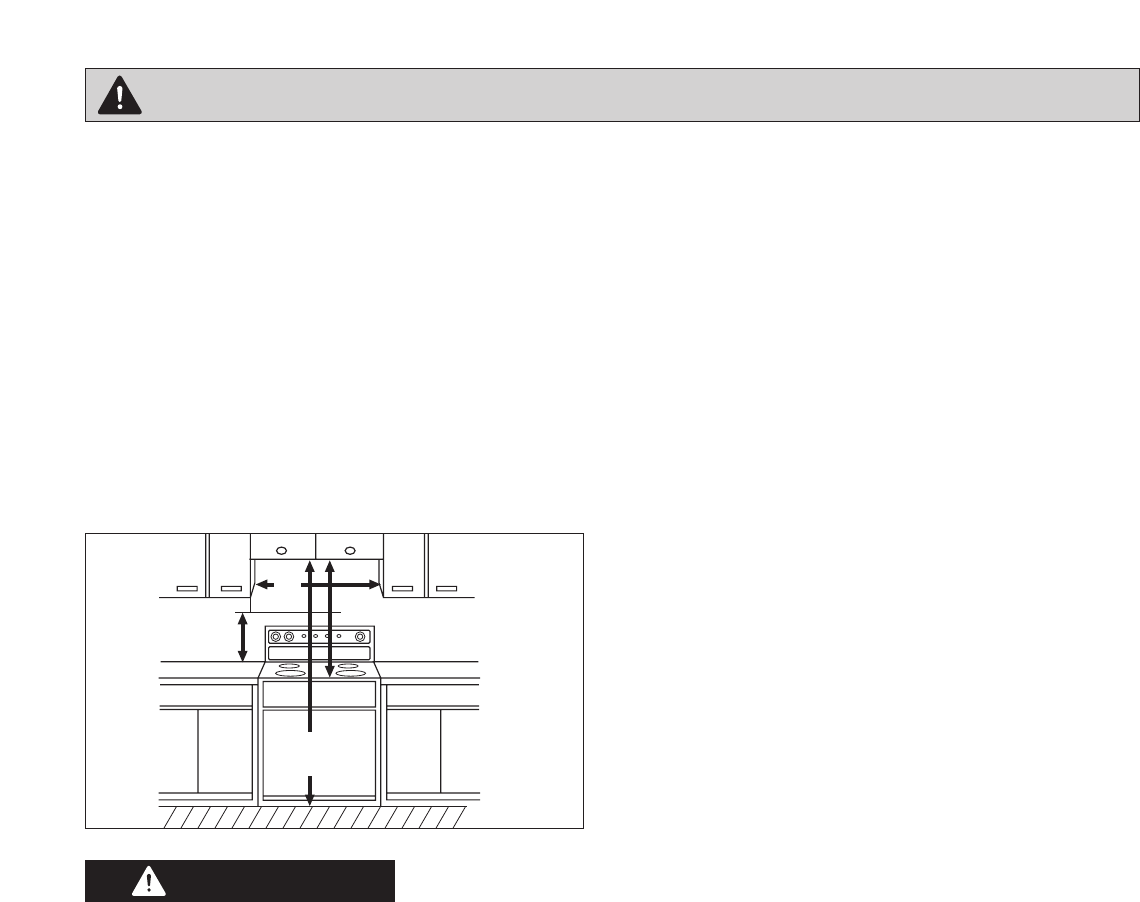

1. This oven must be installed in at least a 30 inch opening, it is suitable for use above gas or electric cooking equip-
ment 36 inches or less wide. To reduce the risk of fire or electric shock, install at least 135/8" (34.6 cm) above any
cooktop.
2. It is recommended that the product be mounted to a flush wall of 2" x 4" (5 x 10cm) stud and 3/8" (1cm)
minimum thickness drywall or plaster/lath construction. For further information, please consult the additional
installation instructions provided.
3. Make sure the bottom of the top cabinet is 66" (1.67 m) or more from the floor and 30" (76 cm) or more from the
cooking surface.
4. Be sure to install this oven only in accordance with the additional installation instructions provided.
5. This oven was manufactured for household use only. It is not approved or tested for mobile vehicle, marine, or
commercial use.
30"
(76 cm) 30" (76 cm)
MINIMUM
66"
(167 cm)
MINIMUM
135/8"
(34.6 cm)
MINIMUM

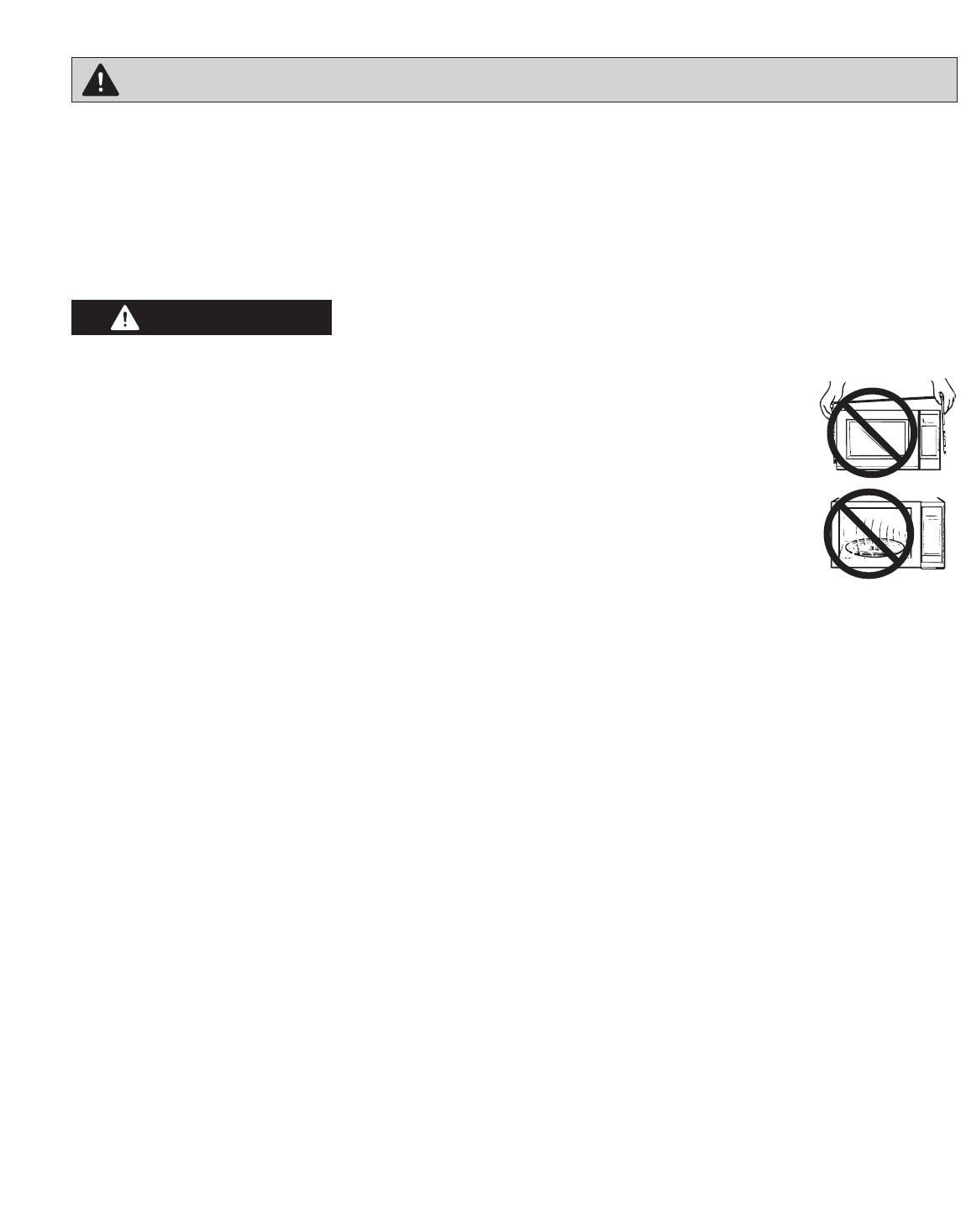

—IMPROPER USE OF THE GROUNDING PLUG CAN RESULT IN A RISK OF
ELECTRIC SHOCK.
Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if
doubt exists as to whether the appliance is properly grounded.
Grounding Instructions
THIS APPLIANCE MUST BE GROUNDED. In the event of an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a
grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
• Plug into properly installed and grounded 3 prong outlet.
• DO NOT remove ground prong.
• DO NOT use an adapter.
• DO NOT use an extension cord.
WARNING
4
INSTALLATION AND GROUNDING INSTRUCTIONS
(continued)
Wiring Requirements
The oven must be operated on a SEPARATE CIRCUIT. No other appliance should share the circuit with the microwave
oven. If it does, the branch circuit fuse may blow or the circuit breaker may trip. The oven must be plugged into at least
a 15 AMP, 120 VOLT, 60 Hz GROUNDED OUTLET. Where a standard two-prong outlet is encountered, it is the per-
sonal responsibility and obligation of the consumer to have it replaced with a properly grounded three-prong outlet. The
VOLTAGE used must be the same as specified on this microwave oven (120 V, 60 Hz). Using a higher voltage is dan-
gerous and may result in a fire or oven damage. Using a lower voltage will cause slow cooking. Panasonic is NOT
responsible for any damages resulting from the use of the oven with any voltage other than specified.
TV / Radio Interference
1.Operation of the microwave oven may cause interference to your radio, TV or similar equipment.
2.When there is interference, it may be reduced or eliminated by taking the following measures:
(a) Place the radio, TV, etc. away from the microwave oven as far as possible.
(b) Use a properly installed antenna to obtain stronger signal reception.
(c) Clean door and sealing surfaces of the oven. (See Care and Cleaning of Your Microwave Oven)
The Hood
1.The vent fan in your oven will operate automatically under certain conditions. Caution is required to prevent the
starting and spreading of accidental cooking fires while the vent fan is in operation.
2.Never leave surface units unattended at high heat setting. Boil over causes smoking and greasy spillovers that may
ignite and spread if vent fan is operating. To minimize automatic fan operation, use adequate sized utensils and use
high heat settings only when necessary.
3.In the event of a grease fire, smother flaming pan on surface unit by covering pan completely with well-fitting lid,
cookie sheet or flat tray.
4.Keep hood and grease filters clean, according to instructions on page 26, to maintain adequate venting and avoid
grease fires.
5.To protect the automatic fan feature, always keep the filter clean (see page 26). Should the fan require repair, do
not operate microwave oven until it has been repaired.
Indoor Venting
If this appliance is to be vented inside the kitchen, be sure the charcoal filter kit is installed in the unit before you
operate. Additional replacement charcoal filter kits can be purchased from your local Panasonic dealer when needed
(see page 25).
Fan Motor Operation
After using the oven repeatedly or for long time, the fan may operate to cool the electric components. This is perfectly
normal, and you can take out the food from the oven while the fan operates.
5
Follow These Safety Precautions When Cooking in Your Oven.
IMPORTANT
Proper cooking depends upon the power, the time setting and quantity of food. If you use a smaller portion
than recommended but cook at the time for the recommended portion, fire could result.
1) HOME CANNING / STERILIZING / DRYING FOODS / SMALL QUANTITIES OF FOODS
• DO NOT use your oven for home canning. Your oven cannot maintain the food at the proper canning temperature.
The food may be contaminated and then spoil.
• DO NOT use the microwave oven to sterilize objects (baby bottles, etc.). It is difficult to keep the oven at the high
temperature needed for sterilization.
• DO NOT dry meats, herbs, fruits or vegetables in your oven. Small quantities of food or foods with low moisture
content can dry out, scorch or catch on fire if overheated.
2) POPCORN
Popcorn may be popped in a microwave oven corn popper. Microwave popcorn which pops in its own package is
also available. Follow popcorn manufacturers’ directions and use a brand suitable for the cooking power of your
microwave oven.
CAUTION: When using pre-packaged microwave popcorn, you can follow recommended package instructions or
use the popcorn pad (refer to page 12). Otherwise, the popcorn may not pop adequately or may ignite and cause a
fire. Never leave oven unattended when popping popcorn. Allow the popcorn bag to cool before opening, always
open the bag facing away from your face and body to prevent steam burns.
3) DEEP FAT FRYING
• DO NOT deep fat fry in your microwave oven. Cooking oils may burst into flames and may cause damage to the
oven and perhaps result in burns. Microwave utensils may not withstand the temperature of the hot oil, and can
shatter or melt.
4) FOODS WITH NONPOROUS SKINS
• DO NOT COOK/REHEAT WHOLE EGGS, WITH OR WITHOUT THE SHELL. Steam buildup in whole eggs may
cause them to explode, and possibly damage the oven or cause injury. Reheating SLICED hard-boiled eggs and
cooking SCRAMBLED eggs is safe.
• Potatoes, apples, whole squash and sausages are examples of foods with nonporous skins. These types of
foods must be pierced before microwave cooking to prevent them from exploding.
CAUTION: Cooking dry or old potatoes can cause fire.
5) GLASS TRAY / COOKING CONTAINERS / FOIL
• Cooking containers get hot during microwaving. Heat is transferred from the HOT food to the container and the
Glass Tray. Use pot holders when removing containers from the oven or when removing lids or plastic wrap covers
from cooking containers, to avoid burns.
• The Glass Tray will get hot during cooking. It should be allowed to cool before handling or before paper products,
such as paper plates or microwave popcorn bags, are placed in the oven for microwave cooking.
• When using foil in the oven, allow at least 1-inch (2.5 cm) of space between foil and interior oven walls or door.
• Dishes with metallic trim should not be used, as arcing may occur.
6) PAPER TOWELS / CLOTHS
• DO NOT use paper towels or cloths which contain a synthetic fiber woven into them. The synthetic fiber may cause
the towel to ignite. Use paper toweling under supervision.
7) BROWNING DISHES / OVEN COOKING BAGS
• Browning dishes or grills are designed for microwave cooking only. Always follow instructions provided by the manu-
facturer. DO NOT preheat browning dish more than 6 minutes.
• If an oven cooking bag is used for microwave cooking, prepare according to package directions. DO NOT use a
wire twist-tie to close bag, instead use plastic ties, cotton string or a strip cut from the open end of the bag.
8) THERMOMETERS
• DO NOT use a conventional meat thermometer in your oven. Arcing may occur. Microwave safe thermometers are
available for both meat and candy.
9) BABY FORMULA / BABY FOOD
• DO NOT heat baby formula or baby food in the microwave oven. The glass jar or surface of the food may appear
warm while the interior can be so hot as to burn the infant’s mouth and esophagus.
10) REHEATING PASTRY PRODUCTS
• When reheating pastry products, check temperatures of any fillings before eating. Some foods have fillings which
heat faster and can be extremely hot, while the surface remains warm to the touch (ex. Jelly Donuts).
11) GENERAL OVEN USAGE GUIDELINES
• DO NOT use the oven for any purpose other than the preparation of food.
Safety Precautions
7

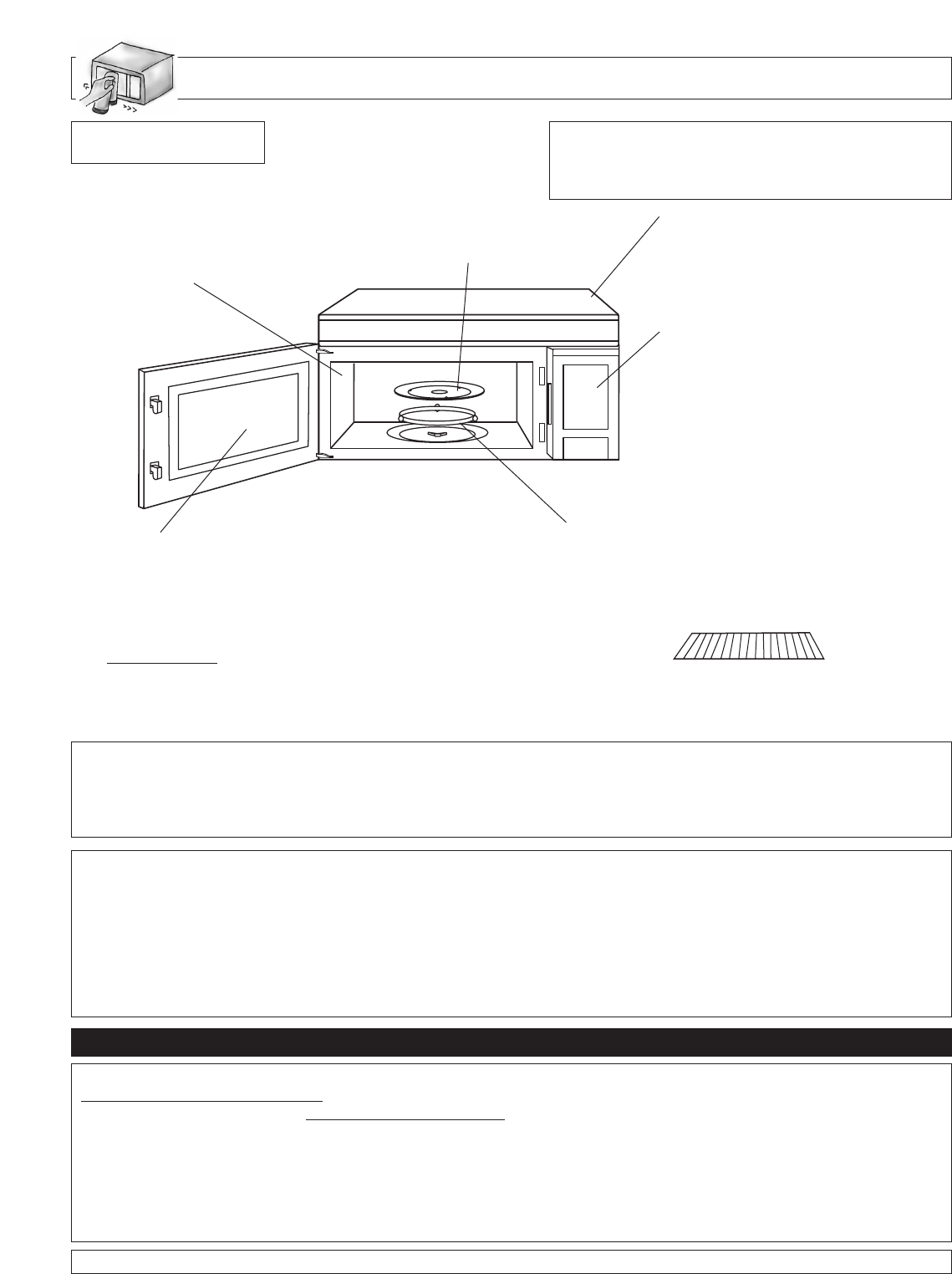

Oven Components Diagram
11See-through Oven Window
22Waveguide Cover (do not remove)
33Oven Light (Oven Light can be replaced, see page 26)
44Glass Tray (Turntable)
55Oven Air Vent (Vent Grille/Vent Grille is removable and can be
cleaned, see page 25)
66Control Panel
77Door Release Button
88Cooktop Light (Cooktop Light can be replaced, see page 26)
99Grease Filter (Grease filter is removable and can be cleaned,
see page 26)
00Shelf Supports
--Door Safety Lock System
==Identification Plate
Shelf
Shelf can be used for 2-level cooking,
see page 19
Glass Tray
Roller Ring
24
Care and Cleaning of Your Microwave Oven
BEFORE CLEANING:
Unplug oven at wall outlet.
AFTER CLEANING:
Be sure to place the Roller Ring and the Glass Tray in the
proper position and press Stop/Reset Pad to clear the
Display.
Inside of the oven:
Wipe with a damp cloth after using.
Mild detergent may be used if need-
ed. Do not use harsh detergents or
abrasives.
Glass Tray:
Remove and wash in warm soapy
water or in a dishwasher.
Outside oven surfaces:
Clean with a damp cloth.
To prevent damage to the operating parts
inside the oven, water should not be
allowed to seep into ventilation openings.
Oven Door:
Wipe with a soft dry cloth when steam accumulates inside
or around the outside of the oven door. During cooking,
especially under high humidity conditions, steam is given
off from the food. (Some steam will condense on cooler
surfaces, such as the oven door. This is normal.)
Inside surface is covered with a heat and vapor barrier
film. Do not remove.
Roller Ring and oven cavity floor:
Clean the bottom surface of the oven with mild detergent
water or window cleaner, and dry. Roller Ring may be
washed in mild soapy water or dishwasher. These areas
should be kept clean to avoid excessive noise.
Shelf
Clean with a soft damp cloth
to avoid scratches.
Control Panel:
* Covered with a removable protective film
to prevent scratches during shipping.
Small bubbles may appear under this film.
(Hint - To remove film, apply masking or
clear tape to an exposed corner and pull
gently.)
* If the Control Panel becomes wet, clean it
with a soft dry cloth. Do not use harsh
detergents or abrasives.
IT IS IMPORTANT TO KEEP THE OVEN CLEAN AND DRY. FOOD RESIDUE AND CONDEN-
SATION MAY CAUSE RUSTING OR ARCING AND DAMAGE TO THE OVEN. AFTER USE,
WIPE DRY ALL SURFACES-INCLUDING VENT OPENINGS, OVEN SEAMS, AND UNDER
GLASS TRAY.
PART DESCRIPTION PART NUMBER
Instructions / Operating Manual (this book) F00036Z00AP
Glass Tray A06015H00AP
Shelf (Metal Rack) F06025H00AP
Roller Ring Assembly F290D5Q01AP
Oven Light F612E5H01AP
Cooktop Light F612E6Z00AP (halogen)
Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at:
http://www.pasc.panasonic.com
or, send your request by E-mail to: npcparts@us.panasonic.com
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday-Friday 9 am to 8 pm, EST.)
Panasonic Services Company
20421 84th Avenue South,
Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
Accessory Purchases
25
Care and Cleaning of Your Microwave Oven
(continued)

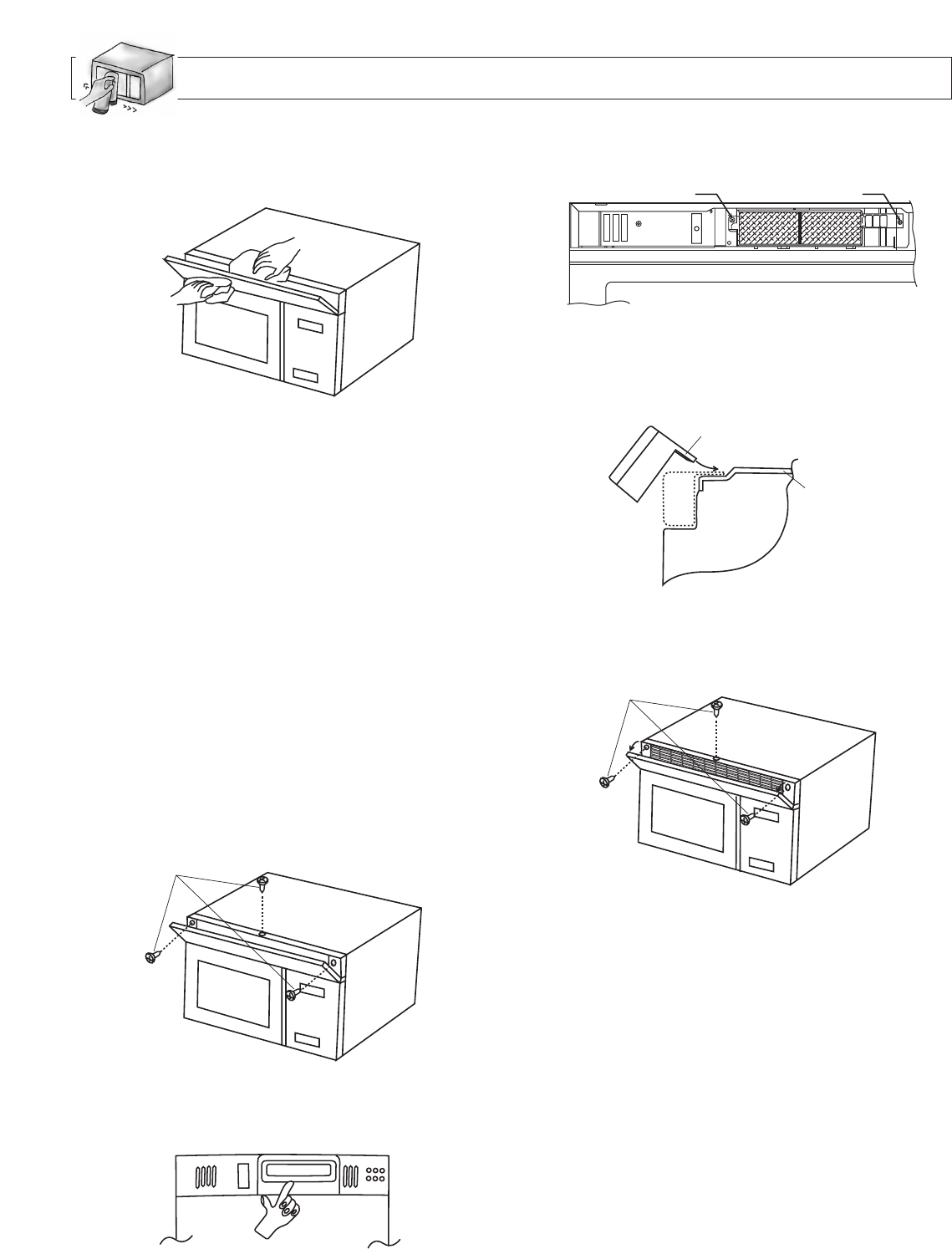

Cleaning Vent Grille (Oven Air Vent)
1. Moisten a soft cloth in hot water containing mild detergent.
2. Wipe the front surface gently.
3. Tilt the Grille cover forward slowly as shown in Fig. A.
4. Wipe inside the Grille cover.
To avoid the risk of injury when cleaning, DO NOT directly
contact the metal edges of the Grille cover.
Installing the replacement Charcoal Filter
(NN-CF203)
This product is shipped for use in the top exhaust ventilation
mode.
If you wish to install this product without using an exhaust
duct, the exhaust must be recirculated through the front grille
and the charcoal filter. This product is shipped with a standard
charcoal filter already installed.
The Charcoal Filter cannot be cleaned and should be replaced
periodically every 6 to 12 months, or more often if necessary.
When necessary to replace the charcoal filter, it can be pur-
chased from your local Panasonic dealer.
The part number of the replacement charcoal filter is NN-
CF203, refer to the following instructions for replacement.

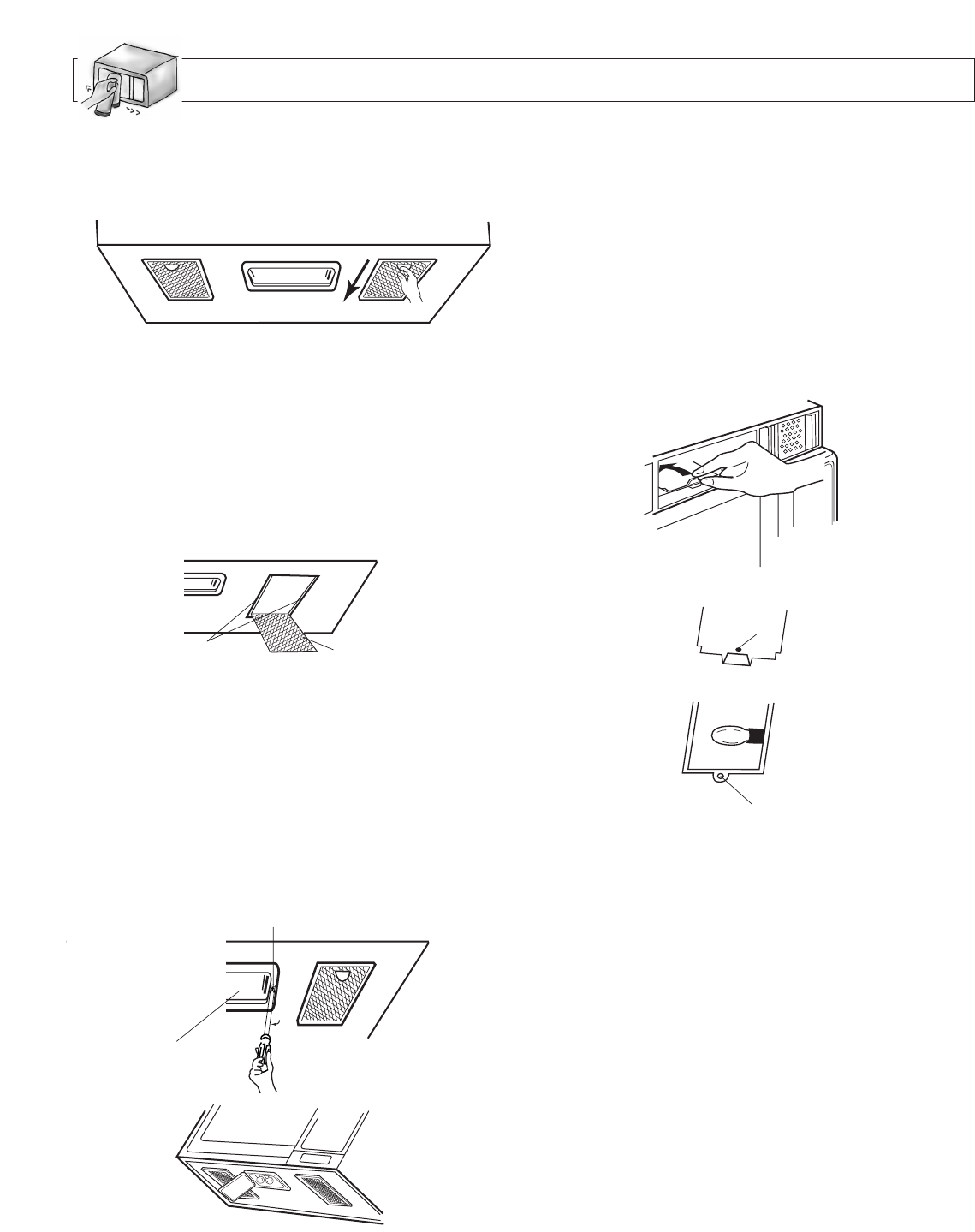

1. Remove the Vent Grille
Pull the front louver down to open as shown in Fig. B.
Remove two screws from the front and one from the top,
then pull the Vent Grille forward.
2. Remove the Standard Charcoal Filter
Insert your finger under the bottom of the filter, and pull the
Charcoal Filter forward as shown in Fig.C.
Installing Vent Grille
1. Slide the top flange of Grille along the top plate, then tilt the
Grille down to fit as shown in Fig. E.
2. Tilt the front louver downwards, then secure with three
screws, one on each side and one on top as shown in
Fig. F.
(Fig. A)
Screws
(Fig. B)
(Fig. D)
Screw Screw
Top flange of Grille
Top Plate
(Fig. E)
Screws
(Fig. F)
(Fig. C)
3. Install replacement Charcoal Filter (NN-CF203)
Install the Charcoal Filter aligning the two holes, then secure
with two screws as shown in Fig. D.
26
Care and Cleaning of Your Microwave Oven
(continued)
Cleaning Grease Filters
The Grease Filters should be removed and cleaned often, at
least once a month.
1. Grasp the "metal ring" on the Grease Filter. Slide the
Grease Filter to the rear of oven.
2. Pull the Grease Filter out.
3. Use care when cleaning the Grease Filters. Corrosive clean-
ing agents, such as lye-based oven cleaners, may damage
the Grease Filters. Clean the Grease Filters with a warm
detergent solution. Do not use ammonia or other alkali
because it will darken metal. Light brushing can be used to
remove embedded dirt. Shake and remove moisture before
replacing.
Installing Grease Filters
1. Slide in the edge of the Grease Filters along the opening's
guide edges.
2. Push up front edge and pull forward until it fits.
Caution: After removing the Grease Filter, be careful with the
sharp edges at the openings.
Never operate the Vent Fan without the Grease Filters in
place.
Halogen Cooktop/Night Light Replacement
Be careful as the Cooktop Light Cover and the bulb may be
hot.
1. Unplug microwave oven or disconnect power.
2. Loosen the screw to open the Cooktop Light Cover.
(Be careful not to lose the screw.)
3. Replace the old bulb with a new one.
(use Max. 125 V, 30 W, Wide Pin Capsule Type/GY8.0~9.0
recommended)
Do not touch a new Halogen bulb with bare hands.
Fingerprints may result in shorter life. Remove fingerprints
with alcohol.
If this bulb is not available locally, contact your local
Panasonic dealer. Part number is F612E6Z00AP.
4. Reinstall the Cooktop Light Cover with a screw.
Oven Light Replacement
Be careful as the Oven Light Cover and the bulb may be
hot.
1. Unplug microwave oven or disconnect power.
2. Remove the Vent Grille and Charcoal Filter.
(see page 25 for Charcoal Filter replacement).
3. Lift the tab of Oven Light Cover, and push back. Lift up and
remove the cover.
4. Replace the old bulb with a new one.
(use Max. 125 V, 30 W)
If this bulb is not available locally, contact your local
Panasonic dealer. Part number is F612E5H01AP.
5. Reinstall the Oven Light cover securely aligning the hole in
cover, onto the detent.
When cleaning the Oven Light Cover or the adjacent area,
clean with a soft damp cloth.
To avoid scratches, do not use harsh detergents or abrasives.
Grasp the ring
opening
guide Grease Filter
detent
hole
Oven Light Cover
Cooktop Light Cover
screw
27
Before Requesting Service
These things are normal:
The oven causes interference Some radio and TV interference might occur when you cook with the microwave oven.
with my TV. This interference is similar to the interference caused by small appliances such as
mixers, vacuums, blow dryers, etc. It does not indicate a problem with your oven.
Steam accumulates on the oven During cooking, steam and warm air are given off from the food. Most of the steam and
door and warm air comes from warm air are removed from the oven by the air which circulates in the oven cavity.
the oven vents. However, some steam will condense on cooler surfaces such as the oven door. This is
normal. After use, the oven should be wiped dry (see page 24).
The oven is not plugged in securely. Remove plug from outlet, wait 10 seconds and
re-insert.
Circuit breaker or fuse is tripped or Reset circuit breaker or replace fuse.
blown.
There is a problem with the outlet. Plug another appliance into the outlet to check if
it is working.
The door is not closed completely. Close the oven door securely.
Start Pad was not pressed after Press Start Pad.
programming.
Another program is already entered Press Stop/Reset Pad to cancel the previous
into the oven. program and enter new program.
The program is not correct. Program again according to the Operating
Instructions.
Stop/Reset Pad has been pressed Program oven again.
accidentally.
The Glass Tray is not positioned Take out Glass Tray and Roller Ring. Wipe with
properly on the Roller Ring or there a damp cloth and reset Roller Ring and Glass
is food under the Roller Ring. Tray properly.
The Roller Ring and oven bottom Clean these parts according to Care and
are dirty. Cleaning of your Microwave Oven
(see page 24).
The CHILD LOCK was activated Deactivate LOCK by pressing Function pad,
by pressing Function pad and touching number 5 and selecting "CHILD
selecting "CHILD LOCK ON". LOCK OFF". (see page 9)
Oven will not turn on.
Oven will not start cooking.
The Glass Tray wobbles.
When the oven is operating,
there is noise coming from the
glass tray.
The word “Child” appears in
the Display Window.
Function Pad was pressed and Deactivate mode by pressing Function pad,
selected "DEMO MODE ON". touching number and selecting "DEMO OFF".
(see page 9)
The word "DEMO MODE"
appears on the Display
Window.
PROBLEM POSSIBLE CAUSE REMEDY
28
Limited Warranty & Customer Services Directory
PANASONIC CONSUMER ELECTRONICS COMPANY, PANASONIC SALES COMPANY,
DIVISION OF PANASONIC CORPORATION OF DIVISION OF PANASONIC PUERTO RICO, INC.,
NORTH AMERICA Ave. 65 de Infanteria, Km. 9.5
One Panasonic Way San Gabriel Industrial Park
Secaucus, New Jersey 07094 Carolina, Puerto Rico 00985
PANASONIC
Over-The-Range Microwave Oven
Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics
Company or Panasonic Sales Company (collectively referred to as “the warrantor”) will, for the length of the period indicated on
the chart below, which starts with the date of original purchase ("warranty period"), at its option either (a) repair your product with
new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by
the warrantor.
PARTS LABOR
ALL PARTS (EXCEPT MAGNETRON TUBE) 1 (ONE) YEAR 1 (ONE) YEAR
MAGNETRON TUBE 5 (FIVE) YEAR 1 (ONE) YEAR
Labor - In home service for one year on all parts (including, without limitation, magnetron tube). After the labor warranty has
expired, the purchaser pays for all labor charges for removal and installation of parts (including, without limitation, magnetron
tube). This warranty only applies to products purchased and services in the United States or Puerto Rico. This warranty is extend-
ed only to the original purchaser of a new product, which was not sold “as is”. A purchase receipt or other proof of the original pur-
chase date is required for warranty service.
In home service in the USA can be obtained during the warranty period by contacting Panasonic Services Company (PASC), toll
free, at 1-800-211-PANA (7262) to locate a PASC authorized Servicenter.
For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax (787)-768-2910.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER glass, plastic parts,
temperature probes(if included) and normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages
which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from
accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of
consumer controls, improper maintenance, power line surge, lightning damage, modification, or commercial use (such as in a
hotel, office, restaurant, or other business), rental use of the product, service by anyone other than a Factory Service center or
other Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE". THE WAR-
RANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, cost
of having someone remove or re-install an installed unit if applicable, or travel to and from the servicer. The items listed are not
exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MER-
CHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied
warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have others rights which vary from state to state. If a problem with
this product develops during or after the warranty period, you may contact your dealer or Service center. If the problem is not han-
dled to your satisfaction, then write to the warrantor's Consumer Affairs Department at the addresses listed for the warrantor.
PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.
Obtain Product Information and Operating Assistance; locate your nearest Dealer or servicenter; purchase Parts and Accessories; or
make Customer Service and Literature requests by visiting our Web Site at: http://www.panasonic.com/consumersupport
or, contact us via the web at: http://www.panasonic.com/contactinfo
You may also contact us directly at: 1-800-211-PANA(7262),
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Customer Services Directory
Panasonic Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Phone (787)750-4300, Fax (787)768-2910
Service in Puerto Rico
30
The serial number of this product may be found on the
left side of the control panel. You should note the model
number and the serial number of this oven in the space
provided and retain this book as a permanent record of
your purchase for future reference.
Model No. ______________________________
Serial No. ______________________________
Date of Purchase ________________________
User’s Record
Panasonic Consumer Electronics Panasonic Sales Company, Division of
Company, Division of Panasonic Panasonic Puerto Rico, Inc. (“PSC”)
Corporation of North America Ave. 65 de Infanteria, Km. 9.5
One Panasonic Way San Gabriel Industrial Park,
Secaucus, New Jersey 07094 Carolina, Puerto Rico 00985
Matsushita Electric Industrial Co., Ltd.
Panasonic Home Appliances Microwave Oven (Shanghai) Co., Ltd.
898 Long Dong Road, Pu Dong, Shanghai, China 201203
Web Site: http://www.panasonic.co.jp/global
Power Source:
Power Consumption:
Cooking Power:*
Outside Dimensions
(H x W x D):
Oven Cavity Dimensions
(H x W x D):
Charcoal Filter (optional):
Operation Frequency:
Ventilation Power:
Net Weight:
120 V, 60 Hz
12.2 Amps, 1,430 W
1,200 W
16 7/16" x 29 7/8" x 15"
(418 mm x 759 mm x 381 mm)
9 1/2" x 23 1/4" x 14 7/16"
(242 mm x 591 mm x 367 mm)
NN-CF203
2,450 MHz
Super Turbo High Low
420 CFM 300 CFM 160 CFM 130 CFM
Approx. 55 lbs. (25.0 kg)
*IEC Test procedure Specifications/part numbers subject to change without notice.
Specifications
