Panasonic of North America AP7B51 Microwave Oven User Manual

Panasonic Appliance Company of America Microwave Oven

User Manual

Owner’s Manual

Microwave Oven

Household Use Only

Model No. NN-SN966S

NN-SN766S

READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.

Scan this code for special instructions and features.

For assistance, please contact us via the web at:

http://shop.panasonic.com/support (U.S.A Only)

For microwave oven safety reference, please visit the FDA’s web page at:

http://www.fda.gov/Radiation-EmittingProducts/default.htm

Para obtener instrucciones en español, por favor visite la página web en:

http://shop.panasonic.com/support

F0003BR60AP

PA0216-0

Printed in China

F0003BR60AP_02_20151225.indd 1F0003BR60AP_02_20151225.indd 1 2016/1/18 8:39:342016/1/18 8:39:34

EXHIBIT: E

CONTENTS

Safety Information

IMPORTANT SAFETY INSTRUCTIONS ............................................................................................................................................... 1-3

Installation and Grounding Instructions ........................................................................................................................................ 3-4

Food Preparation .................................................................................................................................................................................... 4-5

Location of Controls .................................................................................................................................................................................. 7

Operation

Using the Microwave for the First Time ............................................................................................................................................. 8

Setting the Clock ......................................................................................................................................................................................... 8

Setting the Child Safety Lock ................................................................................................................................................................. 8

Cooking .......................................................................................................................................................................................................... 9

Setting the Timer ........................................................................................................................................................................................ 9

Setting a Standing Time .........................................................................................................................................................................10

Setting a Delayed Start ...........................................................................................................................................................................10

Quick 30 .......................................................................................................................................................................................................11

Keep Warm ..................................................................................................................................................................................................11

Popcorn ........................................................................................................................................................................................................11

Inverter Turbo Defrost ............................................................................................................................................................................12

Defrosting Tips & Techniques ..............................................................................................................................................................12

Sensor Reheat ............................................................................................................................................................................................13

Sensor Cook ................................................................................................................................................................................................13

Sensor Cook Chart ....................................................................................................................................................................................14

Food Characteristics ................................................................................................................................................................................15

Maintenance

Care and Cleaning of Your Microwave Oven ..................................................................................................................................16

Shop Accessories ......................................................................................................................................................................................16

Before Requesting Service ....................................................................................................................................................................17

Limited Warranty (Only for U.S.A.) ......................................................................................................................................................18

General Information

Cookware Guide ......................................................................................................................................................................................... 6

Specifications .............................................................................................................................................................................................19

Trim Kit Information ................................................................................................................................................................................19

User’s Record ..............................................................................................................................................................................................20

F0003BR60AP_02_20151225.indd 2F0003BR60AP_02_20151225.indd 2 2016/1/18 8:39:352016/1/18 8:39:35

IMPORTANT SAFETY INSTRUCTIONS

Your safety and the safety of others are very important.

We have provided important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol. It is used to alert you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER”, “WARNING” or “CAUTION”. These

words mean:

You can be killed or seriously injured if you don’t immediately follow instructions.

You can be killed or seriously injured if you don’t follow instructions.

You can be exposed to a potentially hazardous situation which, if not avoided, may result in

minor or moderate injury.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen

if the instructions are not followed.

DANGER

WARNING

CAUTION

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY

(a) DO NOT attempt to operate this oven with the door open,

since open-door operation can result in harmful exposure to

microwave energy. It is important not to defeat or tamper

with the safety interlocks.

(b) DO NOT place any object between the oven front face and

the door, or allow soil or cleaner residue to accumulate on

sealing surfaces.

important that the oven door close properly and that there is

no damage to the:

(1) door (bent),

(2) hinges and latches (broken or loosened),

(3) door seals and sealing surfaces.

(d) The oven should not be adjusted or repaired by anyone

except properly qualified service personnel.

Thank you for purchasing a Panasonic Microwave Oven

Your microwave oven is a cooking appliance and you should use as much care as you use with a stove or any other cooking appliance.

When using this electric appliance, basic safety precautions should be followed, including the following:

To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to

excessive microwave energy:

1. Read all instructions before using this appliance.

2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY,” above.

3. This appliance must be grounded. Connect only to a properly grounded outlet. See “GROUNDING INSTRUCTIONS” found on page 3.

4. As with any cooking appliance, DO NOT leave oven unattended while in use.

5. Install or locate this appliance only in accordance with the installation instructions found on page 3.

6. DO NOT cover or block any openings on this appliance.

7. DO NOT store this appliance outdoors. DO NOT use this product near water (for example, near a kitchen sink, in a wet basement, or

near a swimming pool or similar locations).

8. Use this appliance only for its intended use as described in this manual. DO NOT use corrosive chemicals, vapors or non-food products

in this appliance. This type of oven is specifically designed to heat or cook food. It is not designed for industrial or laboratory use. The

use of corrosive chemicals in heating or cleaning will damage the appliance and may result in radiation leaks.

9. When cleaning surfaces of the door and oven that come together on closing the door, use only mild, non-abrasive soaps or

detergents applied with a sponge or soft cloth.

WARNING

F0003BR60AP_02_20151225.indd 1F0003BR60AP_02_20151225.indd 1 2016/1/18 8:39:362016/1/18 8:39:36

10. DO NOT allow children to use this appliance, unless closely supervised by an adult. DO NOT assume that because a child has

mastered one cooking skill he/she can cook everything.

11. DO NOT operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.

12. DO NOT immerse cord or plug in water.

13. Keep cord away from heated surfaces.

14. DO NOT let cord hang over edge of a table or counter.

15. This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service center for examination,

repair or adjustment.

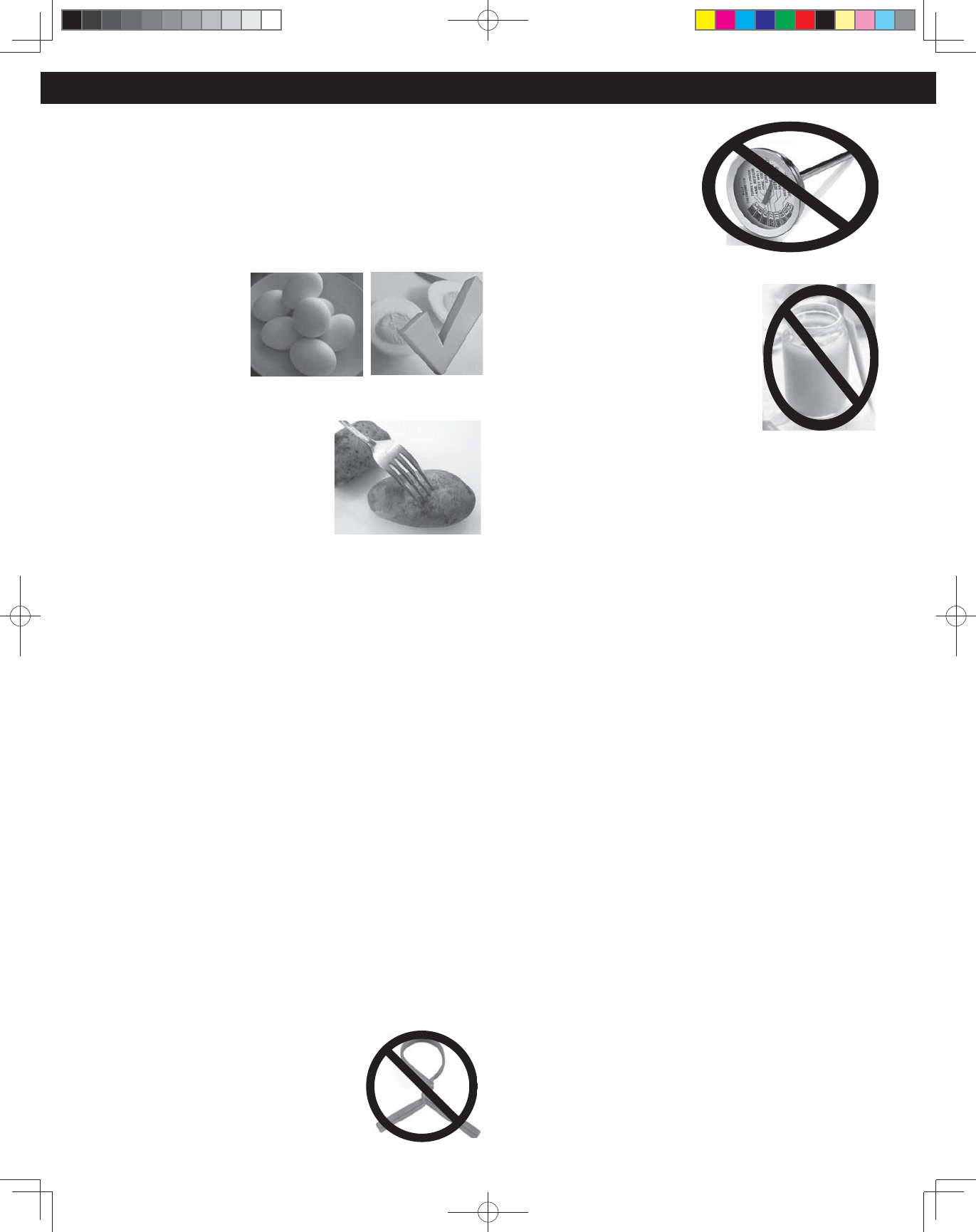

16. Some products such as whole eggs, with or without shell, narrow neck bottles and sealed containers (for example, closed glass jars)

may explode and should not be heated in this oven.

17. To reduce the risk of fire in the oven cavity:

(a) DO NOT overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside

the oven to facilitate cooking.

(b) Remove wire twist-ties from paper or plastic bags before placing bag in oven.

(c) If material inside the oven ignites, keep oven door closed, turn oven off, and disconnect the power cord, or shut off

power at the fuse or circuit breaker panel.

(d) DO NOT use the cavity for storage purposes. DO NOT leave paper products, cooking utensils or food in the cavity

when not in use.

18. Superheated Liquids: Liquids, such as water, coffee or tea are able to be overheated beyond the boiling point without showing

evidence (or signs) of boiling. Visible bubbling is not always present when the container is removed from the microwave oven. THIS

COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED

INTO THE LIQUID. To reduce the risk of injury to persons:

(a) STIR THE LIQUID BOTH BEFORE AND HALFWAY THROUGH HEATING.

(b) DO NOT heat water and oil, or fats together. The film of oil will trap steam, and may cause a violent eruption.

(d) After heating, allow the container to stand in the microwave oven for a short time before removing the container.

19. DO NOT cook directly on the turntable. It can crack, and cause injury or damage to the oven.

20. For the oven designed for installation into a wall cabinet:

(a) DO NOT operate any heating or cooking appliance beneath this appliance.

(b) DO NOT mount unit over or near any portion of a heating or cooking appliance.

(d) DO NOT store anything directly on the top of the appliance surface when the appliance is in operation.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS (continued)

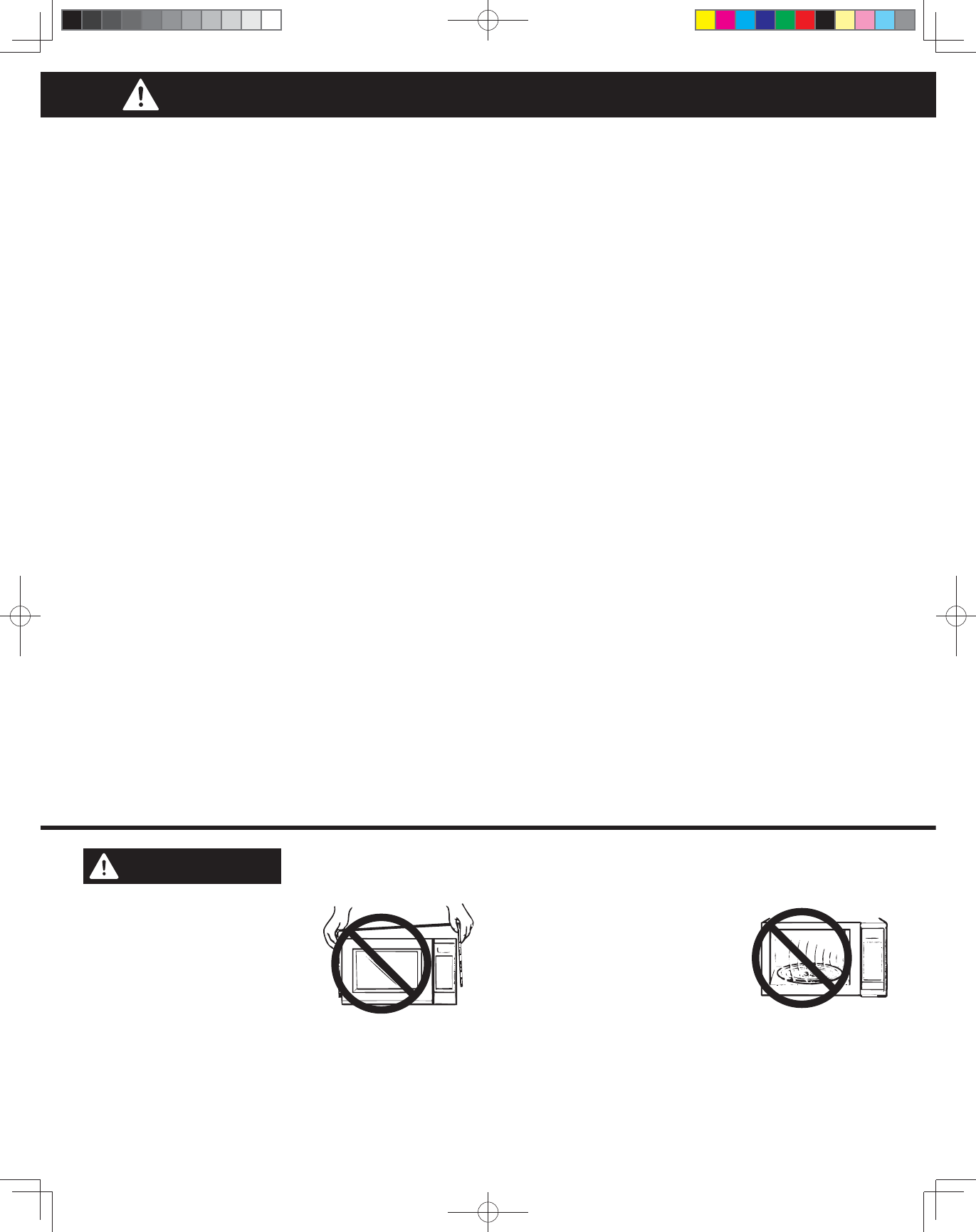

TO AVOID THE RISK OF SHOCK:

DO NOT remove outer panel from

oven. Repairs must be done only by

a qualified service person.

TO REDUCE THE RISK OF EXPOSURE TO MICROWAVE ENERGY:

DO NOT tamper with, or make any adjustments or repairs to Door,

Control Panel Frame, Safety Interlock Switches, or any other part of

the oven. Microwave leakage may result.

TO AVOID THE RISK OF FIRE:

1. DO NOT operate the microwave

oven empty or use metal containers.

When using the microwave oven

without water or food, microwave

energy cannot be absorbed and will

continuously reflect throughout the

cavity. This will cause arcing and damage the oven cavity, door

or other components, which can lead to a fire hazard.

2. DO NOT store flammable materials next to, on top of, or in the

oven.

Safety Precautions

WARNING

F0003BR60AP_02_20151225.indd 2F0003BR60AP_02_20151225.indd 2 2016/1/18 8:39:362016/1/18 8:39:36

IMPORTANT SAFETY INSTRUCTIONS (continued)

Installation and Grounding Instructions

Examine Your Oven

Unpack oven, remove all packing material and examine the oven

for any damage such as dents, broken door latches or cracks in the

door. Notify dealer immediately if oven is damaged. DO NOT install

if oven is damaged.

Placement of Oven

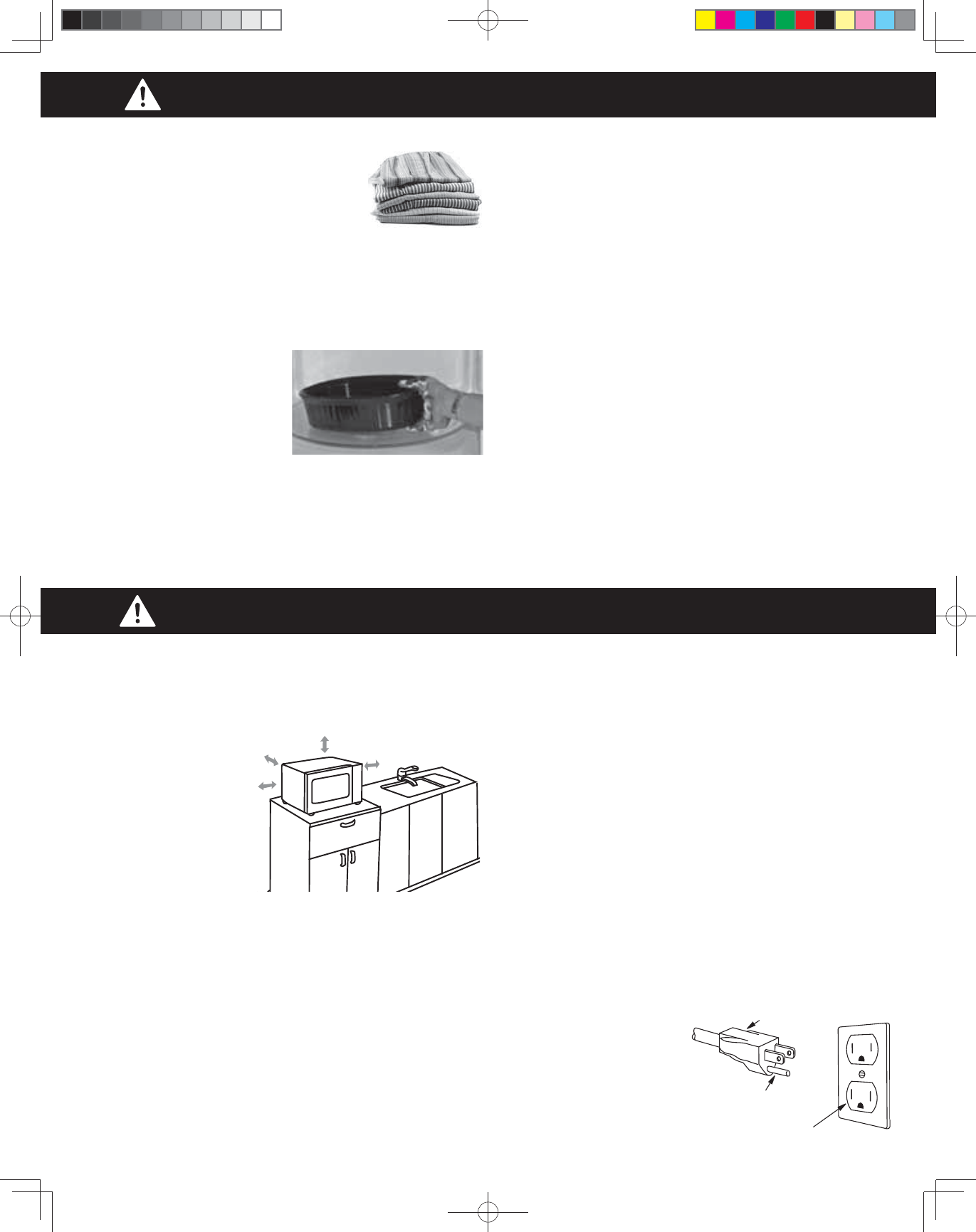

1. The oven must be placed

on a flat, stable surface.

Place the front surface of

the door 3 inches

(7.6 cm) or more from

the counter top edge to

avoid accidental tipping

of the microwave oven

during normal use. For

proper operation, the oven must have sufficient airflow. Allow

3 inches (7.6 cm) of space on both sides of the oven and 1 inch

(2.5 cm) of space on top of the oven.

(a) DO NOT block air vents. If they are blocked during

operation, the oven may overheat and be damaged.

(b) DO NOT place oven near a hot, damp surface such as a

gas or electric range, sink, or dishwasher.

2. This oven is manufactured for household use only. It is not

approved or tested for mobile vehicle, marine, or commercial

use.

Installation

1. DO NOT block air vents. If they are blocked during operation,

the oven may overheat. If the oven overheats, a thermal safety

device will turn the oven off. The oven will remain inoperable

until it has cooled.

2. The oven is designed for installation into a wall cabinet by using

the proper trim kit available from a local Panasonic dealer,

follow all instructions packed with the kit.

WARNING: IMPROPER USE OF THE GROUNDING

PLUG CAN RESULT IN A RISK OF ELECTRIC SHOCK.

Consult a qualified electrician or service person if the grounding

instructions are not completely understood, or if doubt exists as to

whether the appliance is properly grounded. If it is necessary to use

an extension cord, use only a three-wire extension cord that has a

three-prong polarized grounding plug, and a three-slot receptacle

that will accept the plug of the appliance. The marked rating of the

extension cord should be equal to or greater than the electrical

rating of the appliance.

Grounding Instructions

THIS APPLIANCE MUST BE GROUNDED.

In the event of an electrical

short circuit, grounding

reduces the risk of electric

shock by providing an

escape wire for the electric

current. This appliance is

equipped with a cord having

a grounding wire with a

grounding plug.

3. DO NOT dry clothes, newspapers or other

materials in the oven, or use newspaper or

paper bags for cooking.

4. DO NOT hit or strike Control Panel. Damage

to controls may occur.

5. DO NOT use recycled paper products

unless the paper product is labeled as safe for microwave oven

use. Recycled paper products may contain impurities, which may

cause sparking.

TO AVOID THE RISK OF SCALDING:

POT HOLDERS should always be used when removing items from

the oven. Heat is transferred from

the HOT food to the cooking

container and from the container

to the Glass Tray. The Glass

Tray can also be very HOT after

removing the cooking container

from the oven.

Glass Tray

1. DO NOT operate the oven without the Roller Ring and the Glass

Tray in place.

2. DO NOT operate the oven without the Glass Tray fully engaged

on the drive hub. Improper cooking or damage to the oven

could result. Verify that the Glass Tray is properly engaged and

rotating by observing its rotation when you press Start.

Note: The Glass Tray can turn in either direction.

3. Use only the Glass Tray specifically designed for this oven.

DO NOT substitute any other glass tray.

4. If the Glass Tray is hot, allow to cool before cleaning or placing

in water.

5. DO NOT cook directly on the Glass Tray. Always place food in

a microwave safe dish, or on a rack set in a microwave safe dish.

6. If food or utensil on the Glass Tray touches oven walls, causing

the tray to stop moving, the tray will automatically rotate in the

opposite direction.

Roller Ring

1. The Roller Ring and oven floor should be cleaned frequently to

prevent excessive noise.

2. Always replace the Roller Ring and the Glass Tray in their proper

positions.

3. The Roller Ring must always be used for cooking along with the

Glass Tray.

3-Pronged Plug

Ground Plug

3-Prong Receptacle

For proper use of your oven, read remaining safety cautions and operating instructions.

F0003BR60AP_02_20151225.indd 3F0003BR60AP_02_20151225.indd 3 2016/1/18 8:39:362016/1/18 8:39:36

The plug must be plugged into an outlet that is properly installed

and grounded.

• Plug into properly installed and grounded three-prong

outlet.

• DO NOT remove ground prong.

• DO NOT use an adapter.

Power Supply

1. A short power-supply cord is provided to reduce the risks

resulting from becoming entangled in or tripping over a

longer cord.

2. Longer cord sets or extension cords are available and may be

used if care is exercised in their use. DO NOT let cord hang over

edge of a table or counter.

3. If a long cord or extension cord is used,

(1) the marked electrical rating of the cord set or extension

cord should be at least as great as the electrical rating of

the appliance,

(2) the extension cord must be a grounding-type three-wire

cord, and

(3) the longer cord should be arranged so that it will not

drape over the countertop or tabletop where it can be

pulled on by children or tripped over accidentally.

Wiring Requirements

The oven must be operated on a SEPARATE CIRCUIT. No other

appliance should share the circuit with the microwave oven.

If it does, the branch circuit fuse may blow or the circuit breaker

may trip. The oven must be plugged into at least a 20 A, 120 V, 60

Hz GROUNDED OUTLET. Where a standard two-prong outlet is

encountered, it is the personal responsibility and obligation of

the consumer to have it replaced with a properly grounded three-

prong outlet. The VOLTAGE used must be the same as specified

on this microwave oven (120 V, 60 Hz). Using a higher voltage is

dangerous and may result in a fire or oven damage. Using a lower

voltage will cause slow cooking. Panasonic is NOT responsible for

any damages resulting from the use of the oven with any voltage

other than specified.

TV / RADIO / WIRELESS EQUIPMENT INTERFERENCE

This product has been tested and found to comply with the

limits for Microwave Oven , pursuant to Part 18 of the FCC Rules.

This product can radiate radio frequency energy, which could

cause interference to such products as radio, TV, baby monitor,

cordless phone, Bluetooth, wireless router, etc., which can be

confirmed by turning this product off and on. If present, the user is

encouraged to try to correct by taking one or more of the following

countermeasures:

(1) Increase the spacing distance between the microwave oven

and other product receiving the interference.

(2) If possible, use a properly installed receiver antenna and/or

reorient the receiving antenna of the other product receiving

the interference.

(3) Plug the microwave oven into a different outlet from the other

product receiving the interference.

(4) Clean door and sealing surfaces of the oven. (See Care and

Cleaning of Your Microwave Oven)

Installation and Grounding Instructions (continued)

Food Preparation

Follow these Safety Precautions when cooking in your oven.

IMPORTANT

Proper cooking depends upon the power, the time setting

and quantity of food. If you use a smaller portion than

recommended but cook at the time for the recommended

portion, fire could result.

1) HOME CANNING / STERILIZING / DRYING FOODS / SMALL

QUANTITIES OF FOODS

• DO NOT use your oven for home canning. Your oven cannot

maintain the food at the proper canning temperature. The food

may be contaminated and then spoil.

• DO NOT use the microwave oven to sterilize objects (baby

bottles, etc.). It is difficult to keep the oven at the high

temperature needed for sterilization.

• DO NOT dry meats, herbs, fruits or vegetables in your oven.

Small quantities of food or foods with low moisture content can

dry out, scorch or catch on fire if overheated.

2) POPCORN

Popcorn may be popped in a microwave oven corn popper.

Microwave popcorn that pops in its own package is also available.

Follow popcorn manufacturers’ directions and use a brand suitable

for the cooking power of your microwave oven.

CAUTION: When using pre-packaged microwave popcorn, you can

follow recommended package instructions or use the Popcorn pad

(refer to page 11). Otherwise, the popcorn may not pop adequately

or may ignite and cause a fire. Never leave the oven unattended

when popping popcorn. Allow the popcorn bag to cool before

opening, and always open the bag facing away from your face and

body to prevent steam burns.

F0003BR60AP_02_20151225.indd 4F0003BR60AP_02_20151225.indd 4 2016/1/18 8:39:362016/1/18 8:39:36

3) DEEP FAT FRYING

• DO NOT deep fat fry in your microwave oven. Cooking oils

may burst into flames and may cause damage to the oven and

may result in burns. Microwave utensils may not withstand the

temperature of the hot oil, and can shatter or melt.

4) FOODS WITH NONPOROUS SKINS

• DO NOT COOK / REHEAT WHOLE EGGS, WITH OR WITHOUT

THE SHELL.

Steam buildup in whole

eggs may cause them

to explode, and possibly

damage the oven or

cause injury. Reheating

SLICED hard-boiled eggs

and cooking SCRAMBLED eggs is safe.

• Potatoes, apples, whole squash

and sausages are examples of

foods with nonporous skins. These

types of foods must be pierced

before microwave cooking to

prevent them from exploding.

CAUTION: Cooking dry or old

potatoes can cause fire.

5) GLASS TRAY / COOKING CONTAINERS / FOIL

• Cooking containers get hot during microwaving. Heat is

transferred from the HOT food to the container and the Glass

Tray. Use pot holders when removing containers from the oven

or when removing lids or plastic wrap covers from cooking

containers, to avoid burns.

• The Glass Tray will get hot during cooking. It should be allowed

to cool before handling or before paper products, such as paper

plates or microwave popcorn bags, are placed in the oven for

microwave cooking.

• When using foil in the oven, allow at least 1-inch (2.5 cm) of

space between foil and interior oven walls or door.

• Dishes with metallic trim should not be used, as arcing

may occur.

6) PAPER TOWELS / CLOTHS

• DO NOT use paper towels or cloths that contain a synthetic fiber

woven into them. The synthetic fiber may cause the towel to

ignite. Use paper toweling under supervision.

7) BROWNING DISHES / OVEN COOKING BAGS

• Browning dishes or grills are designed for microwave cooking

only. Always follow instructions provided by the manufacturer.

DO NOT preheat browning dish more than six minutes.

• If an oven cooking bag is used for microwave cooking, prepare

according to package directions. DO NOT

use a wire twist-tie to close bag. Instead

use plastic ties, cotton string or a strip cut

from the open end of the bag.

8) THERMOMETERS

• DO NOT use a conventional

meat thermometer in

your oven. Arcing may

occur. Microwave safe

thermometers are available

for both meat and candy.

9) BABY FORMULA / BABY FOOD

• DO NOT heat baby formula or baby

food in the microwave oven. The glass

jar or surface of the food may appear

warm while the interior can be so hot

as to burn the infant’s mouth and

esophagus.

10) REHEATING PASTRY PRODUCTS

• When reheating pastry products, check temperatures of any

fillings before eating. Some foods have fillings, which heat faster

and can be extremely hot, while the surface remains warm to the

touch (for example, jelly donuts).

11) GENERAL OVEN USAGE GUIDELINES

• DO NOT use the oven for any purpose other than the

preparation of food.

Food Preparation (continued)

F0003BR60AP_02_20151225.indd 5F0003BR60AP_02_20151225.indd 5 2016/1/18 8:39:362016/1/18 8:39:36

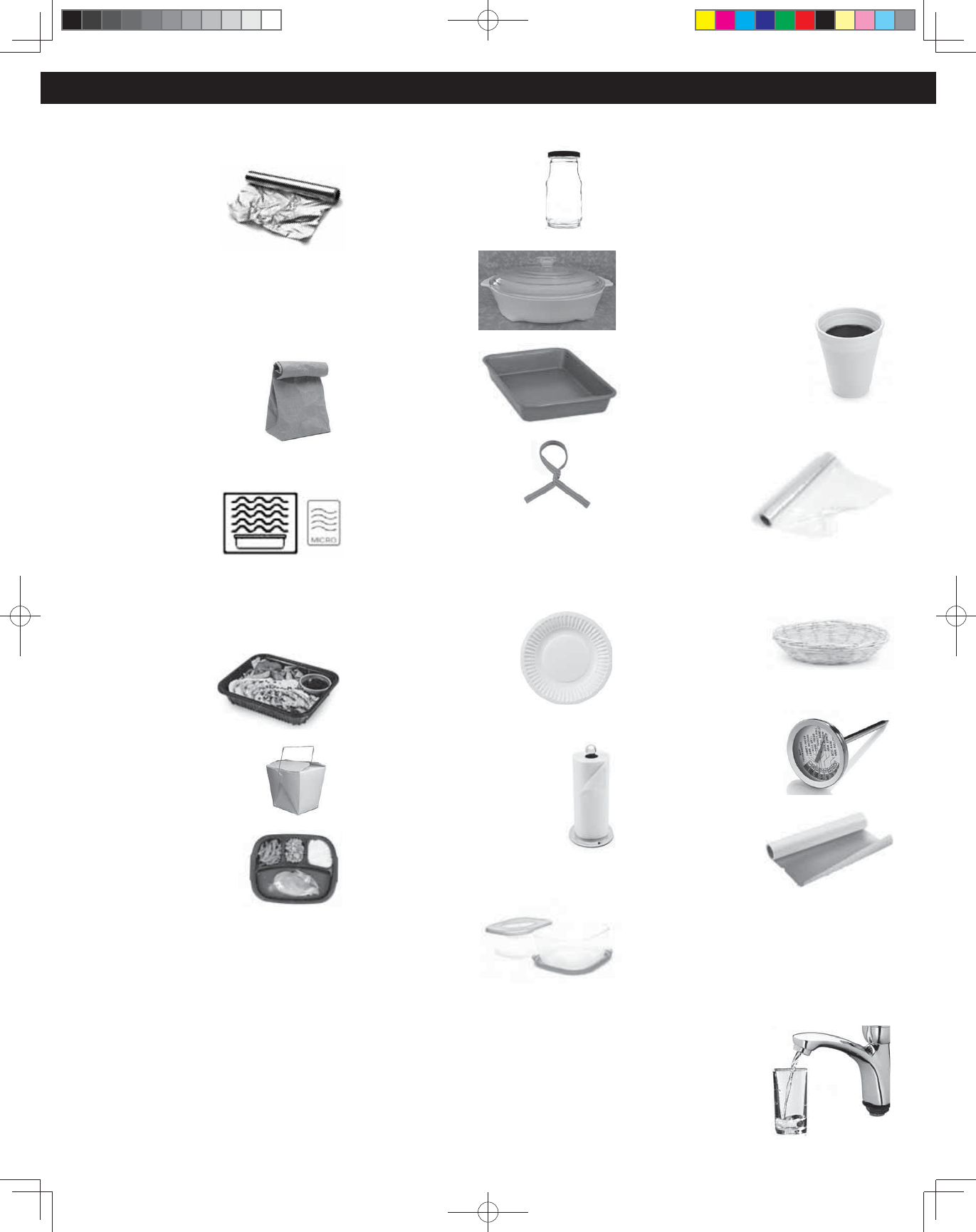

Aluminum Foil

It is not recommended

to use. Arcing can occur

if foil is too close to oven

wall or door and cause

damage to your oven.

Browning Dish

Yes. Only use browning dishes that are designed

for microwave cooking. Check browning dish

information for instructions/heating chart. Do

not preheat for more than six minutes.

Brown Paper Bags

No. They may cause a fire in

the oven.

Microwave Safe

Yes. If labeled Microwave Safe, check

manufacturers’ directions for use in

microwave heating.

Some dinnerware

may state on the back

of the dish, “Oven-

Microwave Safe”.

Dinnerware

If unlabeled, use CONTAINER TEST below.

Disposable Polyester Paperboard Dishes

Yes. Some frozen foods

are packaged in these

dishes. Also can be

purchased in some

grocery stores.

Fast Food Cartons with

Metal Handle

No. Metal handle may cause

arcing.

Frozen Dinner Trays

If made for the microwave,

then yes. If it contains metal,

then no.

Glass Jars

No. Most glass jars are not

heat resistant.

Heat Resistant Oven

Glassware/Ceramic

Yes, but only ones for

microwave cooking

and browning.

(See CONTAINER

TEST below.)

Metal Bakeware

No. Metal can cause

arcing and damage to

your oven.

Metal Twist-Ties

No. May cause arcing

which could cause a fire in

the oven.

Oven Cooking Bag

Yes. Follow manufacturers’ directions. Close bag

with the nylon tie provided, a strip cut from the

end of the bag, or a piece of cotton string. Do

not close with metal twist-tie. Make six 1⁄2-inch

slits near the closure.

Paper Plates/Cups

Yes. Use to warm cooked

foods, and to cook foods that

require short cooking time,

such as hot dogs. Do not

microwave paper cups; they

may overheat and ignite.

Towels & Napkins

Yes, only paper napkins/towels. Use

to warm rolls and sandwiches, only

if labeled safe for microwave use.

Do NOT use recycled paper towels.

Parchment Paper

Yes. Use as a cover to prevent splattering.

Plastic Cookware

Yes, with caution.

Should be labeled,

“Suitable for

Microwave Heating.”

Check Microwave Safe manufacturers’ directions

for recommended uses. Some microwave safe

plastic containers are not suitable for cooking

foods with high fat or sugar content. The heat

from hot food may cause warping.

Plastic, Melamine

No. This material absorbs microwave energy.

Dishes get HOT!

Plastic Foam Cups

Yes, with caution. Plastic foam

will melt if foods reach a high

temperature. Use short term

only to reheat foods to a low

serving temperature. Do not

microwave paper cups; they

may overheat and ignite.

Plastic Wrap

Yes. Use to cover

food during cooking

to retain moisture

and prevent

splattering.

Should be labeled “Suitable for Microwave

Heating”. Check package directions.

Straw, Wicker, Wood

Yes, short term only.

Use only for short term

reheating and to bring

food to a low serving

temperature. Wood may dry out, split or crack.

Thermometers

Only microwave safe

thermometers can be

used, NOT conventional

thermometers.

Wax Paper

Yes. Use as a cover to

prevent splattering

and to retain moisture.

Cookware Guide

CONTAINER TEST

TO TEST A CONTAINER FOR SAFE MICROWAVE OVEN USE: Fill a microwave safe cup with cool water and place it in

the microwave oven along side the empty container to be tested; heat one (1) minute at P10 (HIGH). If the container is

microwave oven safe (transparent to microwave energy), the empty container should remain comfortably cool and the

water should be hot. If the container is hot, it has absorbed some microwave energy and should NOT be used. This test

cannot be used for plastic containers.

This section answers the question, “Can I use in the Microwave?”

F0003BR60AP_02_20151225.indd 6F0003BR60AP_02_20151225.indd 6 2016/1/18 8:39:362016/1/18 8:39:36

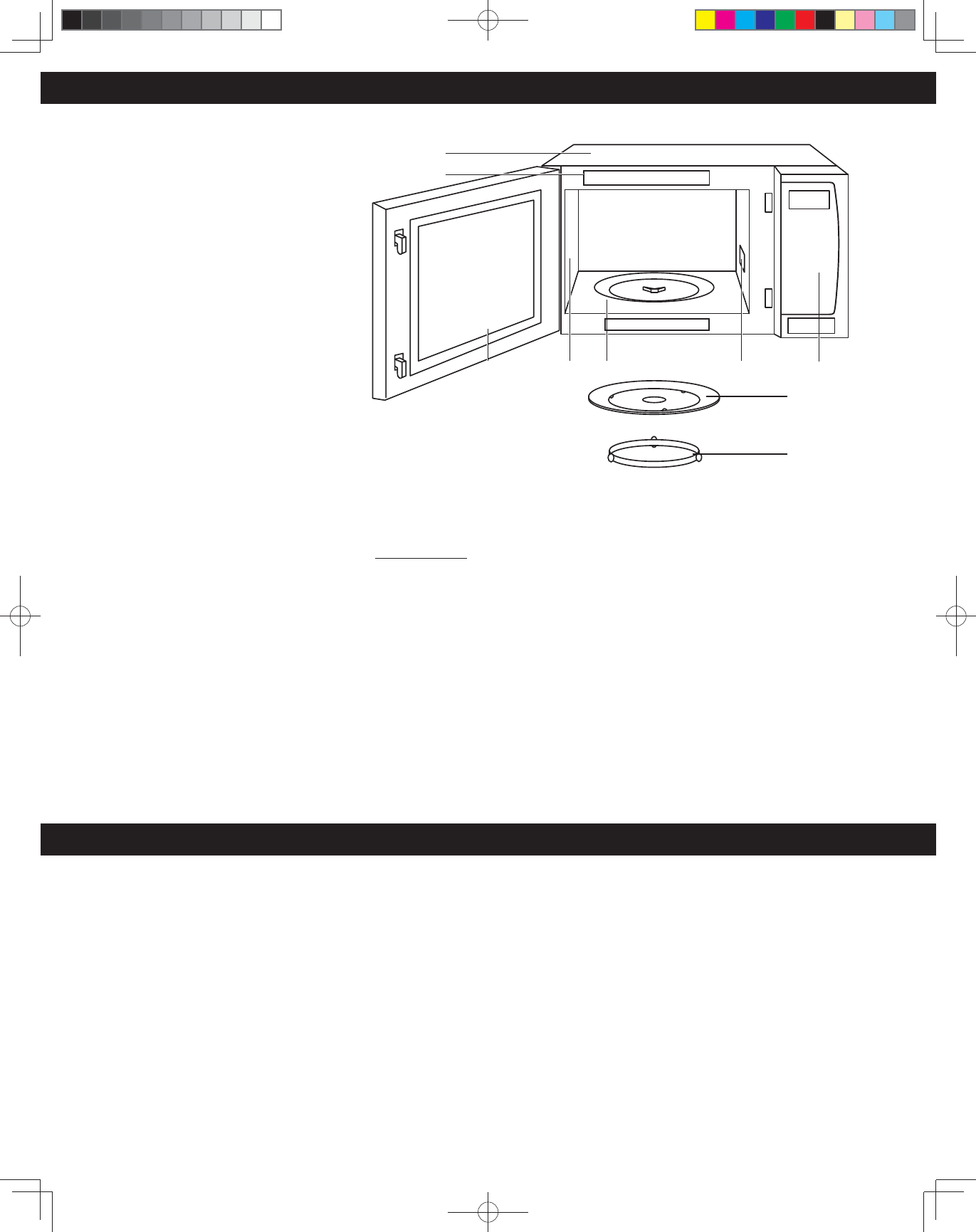

Care and Cleaning of Your Microwave Oven

Please see below and the following page

for particular cleaning instructions for

each section of the oven.

BEFORE CLEANING: Unplug oven at wall

outlet. If outlet is inaccessible, leave oven

door open while cleaning.

AFTER CLEANING: Be sure to place the

Roller Ring and the Glass Tray in the proper

position and press Stop/Reset Pad to clear

the Display.

1. Outside oven surfaces: Clean with a

damp cloth. To prevent damage to the

operating parts inside the oven, water

should not be allowed to seep into

ventilation openings.

2. Label: Do not remove. Wipe with a

damp cloth.

3. Inside the Oven: Wipe with a damp

cloth after using. Mild detergent may

be used if needed. Do not use harsh

detergents or abrasives.

4. Oven Door: Wipe with a soft dry cloth

when steam accumulates inside or around the outside of the oven door. During cooking, especially under high humidity conditions,

steam is given off from the food. (Some steam will condense on cooler surfaces, such as the oven door. This is normal.) Inside surface

is covered with a heat and vapor barrier film. Do not remove.

5. Oven Cavity Floor: Clean the bottom surface of the oven with mild detergent, water or window cleaner, and dry.

6. Wave Guide Cover: Do not remove Wave Guide Cover. It is important to keep cover clean in the same manner as the inside of the

oven.

7. Control Panel: The Control Panel is covered with a removable protective film to prevent scratches during shipping. Small bubbles

may appear under this film, so if this is the case, remove by applying masking or clear tape to an exposed corner and pull gently. If

the Control Panel becomes wet, clean it with a soft dry cloth. Do not use harsh detergents or abrasives.

8. Glass Tray: Remove and wash in warm soapy water or in a dishwasher.

9. Roller Ring: Roller Ring may be washed in mild soapy water or dishwasher. These areas should be kept clean to avoid excessive noise.

IT IS IMPORTANT TO KEEP THE OVEN CLEAN AND DRY. FOOD RESIDUE AND CONDENSATION MAY CAUSE

RUSTING OR ARCING AND DAMAGE TO THE OVEN. AFTER USE, WIPE DRY ALL SURFACES,

INCLUDING VENT OPENINGS, OVEN SEAMS, AND UNDER GLASS TRAY.

Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at:

www.panasonic.com/accessories

Parts Available to Order

For NN-SN966S

Instructions/Operating Manual (this book) ..................................................... F0003BR60AP

Glass Tray ....................................................................................................................A06014M00AP

Roller Ring Assembly .............................................................................................. F290D9330AP

For NN-SN766S

Instructions/Operating Manual (this book) ..................................................... F0003BR60AP

Glass Tray .................................................................................................................... A06014A00AP

Roller Ring Assembly .............................................................................................. F290D9R00AP

Shop Accessories

➀

➃➆

➇

➁

➈

➂➄➅

F0003BR60AP_02_20151225.indd 16F0003BR60AP_02_20151225.indd 16 2016/1/18 8:39:392016/1/18 8:39:39

Before Requesting Service

See below before calling for service, as most problems can easily be remedied by following these simple solutions:

Problem Solution

The oven causes TV

interference.

Some radio, TV, Wi-Fi, cordless telephone, baby monitor, blue tooth or

other wireless equipment interference might occur when you cook with the

microwave oven. This interference is similar to the interference caused by small

appliances such as mixers, vacuums, blow dryers, etc. It does not indicate a

problem with your oven.

Steam accumulates

on oven door and

warm air comes from

the oven vents.

During cooking, steam and warm air are given off from the food. Most of the

steam and warm air are removed from the oven by the air which circulates in the

oven cavity. However, some steam will condense on cooler surfaces such as the

oven door. This is normal. After use, the oven should be wiped dry (see page 16).

Oven will not turn on.

The oven is not plugged in securely or needs to be reset; remove plug from

outlet, wait ten seconds and re-insert.

Main circuit breaker or main fuse is tripped; reset main circuit breaker or replace

main fuse.

There is a problem with the outlet; plug another appliance into the outlet to

check if it is working.

Oven will not start

cooking.

The door is not completely closed; close the oven door securely.

Start was not pressed after programming; press Start.

Another program is already entered into the oven; press Stop/Reset to cancel

the previous program and enter new program.

The program is not correct; program again according to the Operating

Instructions.

Stop/Reset has been pressed accidentally; program oven again.

The Glass Tray

wobbles.

The Glass Tray is not positioned properly on the Roller Ring or there is food under

the Roller Ring; take out Glass Tray and Roller Ring. Wipe with a damp cloth and

reset Roller Ring and Glass Tray properly.

When the oven is

operating, there is

noise coming from

the Glass Tray.

The Roller Ring and oven bottom are dirty; clean these parts according to Care

and Cleaning of Your Microwave Oven (see page 16).

The word “ ”

appears in the

display.

The CHILD SAFETY LOCK was activated by pressing Start three times; Deactivate

CHILD SAFETY LOCK by pressing Stop/Reset three times.

The oven stops

cooking and “H00“,

“H97” or “H98”

appears in the

display.

The oven’s power supply has failed; please contact an authorized Service Center

(see next page).

F0003BR60AP_02_20151225.indd 17F0003BR60AP_02_20151225.indd 17 2016/1/18 8:39:392016/1/18 8:39:39

Specifications

Trim Kit Information

Power Source ............................................................................................................................................................................................................................120 V, 60 Hz

Power Consumption ...............................................................................................................................................................................................12.7 Amps, 1,460 W

Cooking Power* ............................................................................................................................................................................................................................... 1,250 W

Operating Frequency ................................................................................................................................................................................................................ 2,450 MHz

For NN-SN966S

Outside Dimensions (W x H x D) ........................................................................................................................................................................... 23 7⁄8” x 14” x 19 7⁄16”

(606 mm x 356 mm x 493 mm)

Oven Cavity Dimensions (W x H x D) .............................................................................................................................................................18 7⁄16” x 10 15⁄16” x 18 1⁄2”

(469 mm x 278 mm x 470 mm)

Net Weight .......................................................................................................................................................................................................Approx. 37.0 lbs (16.7 kg)

For NN-SN766S

(555 mm x 304 mm x 493 mm)

(418 mm x 228 mm x 470 mm)

*IEC Test procedure Specifications subject to change without notice.

Trim Kit for 27” Cabinet (For NN-SN966S)

Model Number: ..........................................................................................................................................................................................................................NN-TK922S

Outside Dimensions (W x H) .................................................................................................................................................................................................27” x 18 ⁄”

........................................................................................................................................................................................................................................ (684 mm x 472 mm)

Cabinet Opening (W x H x D) ..................................................................................................................................................................................25 ⁄” x 17 3⁄8” x 21”

Trim Kit for 30” Cabinet (For NN-SN966S)

Trim Kit for 27” Cabinet (For NN-SN766S)

Trim Kit for 30” Cabinet (For NN-SN766S)

F0003BR60AP_02_20151225.indd 19F0003BR60AP_02_20151225.indd 19 2016/1/18 8:39:392016/1/18 8:39:39

Panasonic Consumer Electronics Company,

Division of Panasonic Corporation of North America

Two Riverfront Plaza

Newark, New Jersey 07102

Panasonic Appliances Microwave Oven (Shanghai) Co., Ltd.

Website : www.panasonic.com

The serial number of this product may be found on the back side of the oven or on the left side of the control panel.

You should note the model number and the serial number of this oven in the space provided and retain this book as

a permanent record of your purchase for future reference.

Model No. ______________________________

Serial No. ______________________________

Date of Purchase ________________________

Scan this code for special

instructions and features

User’s Record

F0003BR60AP_02_20151225.indd 20F0003BR60AP_02_20151225.indd 20 2016/1/18 8:39:392016/1/18 8:39:39

Panasonic of North America AP7B51 Microwave Oven User Manual

Panasonic Appliance Company of America Microwave Oven

Contents

User Manual

Navigation menu

Namespaces

Views

Navigation
