Panasonic of North America B30R1302 Compact Stereo System User Manual
Panasonic Corporation of North America Compact Stereo System
ACJ-B30R1302_ User Manual
RQT9742-P
ESPAÑOL ENGLISH
until
2011/12/26
Owner’s Manual
Thank you for purchasing this product.
Please read these instructions carefully before using this product,
and save this manual for future use.
If you have any questions, contact: 1-800-211-PANA (7262)
Register online at www.panasonic.com/register (U.S. customers only)
Compact Stereo System
Model No. SC-HC38
Included Installation Instructions (l2, 3 and 16, 17)
The installation work should be done by a qualified installation specialist.
Before commencing work, carefully read these installation instructions and the operating
instructions to ensure that installation is performed correctly.
(Please keep these instructions. You may need them when maintaining or moving this unit.)
La referencia rápida en español se puede encontrar en la página 18.
P
SC-HC38~RQT9742.book Page 1 Tuesday, December 4, 2012 11:49 AM
2
RQT9742
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the
unit. Follow the safety instructions on the unit and the
applicable safety instructions listed below. Keep these
operating instructions handy for future reference.
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8 Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding-type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11 Only use attachments/accessories specified by the
manufacturer.
12 Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from
tip-over.
13 Unplug this apparatus during lightning storms or when
unused for long periods of time.
14 Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
-If you see this symbol-
Unit
≥To reduce the risk of fire, electric shock or product damage,
– Do not expose this unit to rain, moisture, dripping or
splashing.
– Do not place objects filled with liquids, such as vases, on
this unit.
– Use only the recommended accessories.
– Do not remove covers.
– Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
AC power supply cord
≥The power plug is the disconnecting device.
Install this unit so that the power plug can be unplugged from
the socket outlet immediately.
Button-type battery (Lithium battery)
≥Risk of fire, explosion and burns. Do not disassemble, heat
above 60 oC (140 oF) or incinerate.
Information on Disposal in other Countries
outside the European Union
This symbol is only valid in the
European Union.
If you wish to discard this
product, please contact your local
authorities or dealer and ask for
the correct method of disposal.
WARNING
DO NOT INGEST BATTERY,
CHEMICAL BURN HAZARD
This product contains a coin/button cell battery. If the
coin/button cell battery is swallowed, it can cause
severe internal burns in just 2 hours and can lead to
death. Keep new and used batteries away from
children. If the battery compartment does not close
securely, stop using the product and keep it away from
children. If you think batteries might have been
swallowed or placed inside any part of the body, seek
immediate medical attention.
If any electrolyte should come into contact with your
hands or clothes, wash it off thoroughly with water.
If any electrolyte should come into contact with your
eyes, never rub the eyes. Rinse eyes thoroughly with
water, and then consult a doctor.
<For USA-California only>
This product contains a CR Coin Cell Lithium Battery
which contains Perchlorate Material s special handling
may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
(Inside of product)
SC-HC38~RQT9742.book Page 2 Tuesday, December 4, 2012 11:49 AM
3
RQT9742
ENGLISH
Unit
≥This unit utilizes a laser. Use of controls or adjustments or
performance of procedures other than those specified herein
may result in hazardous radiation exposure.
≥Do not place sources of naked flames, such as lighted
candles, on this unit.
Placement
≥To reduce the risk of fire, electric shock or product damage,
– Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this unit is
well ventilated.
– Do not obstruct this unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
Button-type battery (Lithium battery)
≥Danger of explosion if battery is incorrectly replaced.
Replace only with the type recommended by the
manufacturer.
≥Keep out of reach of children.
≥Insert with poles aligned.
≥Mishandling of batteries can cause electrolyte leakage and
may cause a fire.
– Remove batteries if you do not intend to use the remote
control for a long period of time. Store in a cool, dark
place.
– Do not heat or expose to flame.
– Do not leave the battery(ies) in a car exposed to direct
sunlight for a long period of time with doors and windows
closed.
– Do not touch the terminals (i and j) with metal objects.
– Do not recharge, disassemble, remodel, heat or throw into
fire.
≥When disposing the batteries, please contact your local
authorities or dealer and ask for the correct method of
disposal.
Table of contents
IMPORTANT SAFETY INSTRUCTIONS............2
Accessories....................................................... 3
Control reference guide.................................... 4
Connections ......................................................5
Unit and media care ..........................................5
Inserting media..................................................6
Bluetooth® operations ......................................7
Media playback operations ..............................8
Listening to the radio........................................9
Sound adjustment........................................... 10
Clock and Timer ..............................................10
Others............................................................... 11
Troubleshooting .............................................. 11
Licenses...........................................................13
Playable media ................................................14
About Bluetooth®............................................14
Specifications..................................................15
Attaching the unit to a wall (optional) ...........16
Spanish Quick Reference /
Referencia rápida en español .....................18
Limited Warranty (ONLY FOR U.S.A. AND
PUERTO RICO).............................................19
Accessories
CAUTION
Product Identification Marking is located on the bottom
of the unit.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
CAUTION
CAUTION :
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
RISK
OF
ELECTRIC
SHOCK
DO NOT
OPEN
About descriptions in this Owner’s Manual
≥Pages to be referred to are indicated as “l±±”
Check the supplied accessories before using this unit.
∏1 Remote control
(with a battery)
(N2QAYC000082)
∏1 AC power supply
cord
(K2CB2CB00022)
∏1 FM indoor
antenna
(RSAX0002)
Wall mounting accessories
∏1 Safety holder
(RGQ0660-K)
∏1 Screw
(XTB3i8JFJK)
∏2 Wall mount
brackets
(RMQX1082-S)
≥Do not use AC power supply cord with other equipment.
≥Product numbers provided in this Owner’s Manual are
correct as of December 2012. These may be subject to
change.
SC-HC38~RQT9742.book Page 3 Tuesday, December 4, 2012 11:49 AM
4
RQT9742

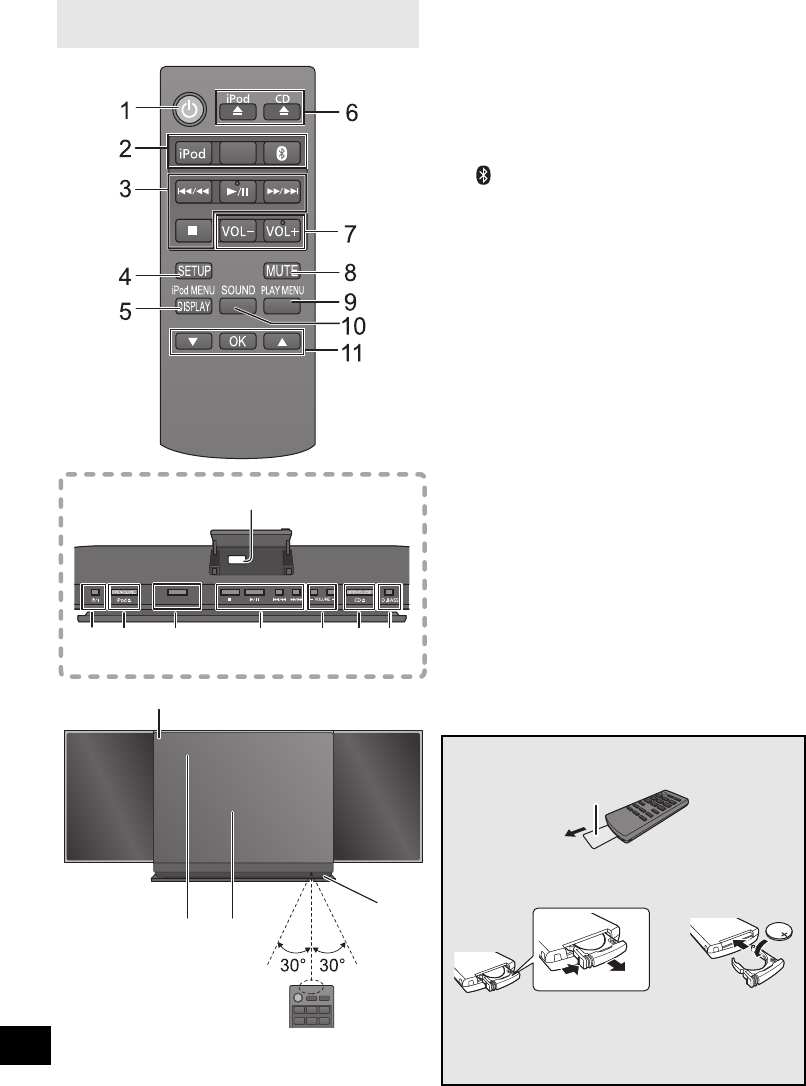

Control reference guide
1Standby/on switch [Í/I] (Í)
Press to switch the unit from on to standby mode or
vice versa.
In standby mode, the unit is still consuming a small
amount of power.
2Select the audio source
On the remote control
[iPod]: “IPOD_DOCK” ,. “IPOD_PORT”
[CD/RADIO]: “CD” ,. “FM”
[]: “BLUETOOTH”
On this unit:
“CD” -. “FM” -. “BLUETOOTH” -. “IPOD_DOCK”
^--------------------- “IPOD_PORT” (----------------b
3Basic playback control buttons
4Enter setup menu
5Enter the iPod®/iPhone® menu /
Change displayed information
6Open or close the sliding door
7Adjust the volume (0 (min) to 50 (max))
8Mute the sound
Mutes the sound. Press again to cancel.
“MUTE” is also canceled when the volume is adjusted
or the unit is turned off.
9Enter playback menu
10 Enter sound menu
11 Selection/OK
12 iPod port for iPod/iPhone/iPad® (l6)
13 Dynamic Bass sound effect selector
14 Power on indicator
15 Display
16 Sliding door
17 Remote control signal sensor
Distance:
Within approx. 7 m (23 ft) directly in front.
≥To avoid interference, please do not put any objects
in front of signal sensor.
Unless otherwise indicated, operations are
described using the remote control.
SELECTOR
iPad
12
13673216
14
15 16 17
CD/
RADIO
Top view
∫Before using for the first time
Remove the insulation sheet A.
∫To replace a button-type battery
Battery type: CR2025 (Lithium battery)
≥Set the button-type battery with its (i) mark
facing upward.
≥Keep the button-type battery out of reach of
children to prevent swallowing.
SC-HC38~RQT9742.book Page 4 Tuesday, December 4, 2012 11:49 AM
5
RQT9742
ENGLISH
Connections
≥These speakers do not have magnetic shielding. Do not place them near a television, personal computer or other
devices easily influenced by magnetism.
≥Tape the antenna to a wall or column in a position with the least amount of interference. (Use an FM outdoor antenna if
radio reception is poor.)
Unit and media care
Pull out the AC power plug from the outlet before
maintenance.
∫Clean this unit with a soft, dry cloth
≥When dirt is heavy, wring a cloth moistened in water
tightly to wipe the dirt, and then wipe it with a dry cloth.
≥Never use alcohol, paint thinner or benzine to clean this
unit.
≥Before using chemically treated cloth, carefully read the
instructions that came with the cloth.
∫Maintenance of the lens
∫Clean discs
Wipe with a damp cloth and then wipe dry.
∫Disc handling precautions
≥Handle discs by the edges to avoid inadvertent
scratches or fingerprints on the disc.
≥Do not attach labels or stickers to discs.
≥Do not use record cleaning sprays, benzine, thinner,
static electricity prevention liquids or any other solvent.
≥Do not use the following discs:
– Discs with exposed adhesive from removed stickers or
labels (rented discs etc.).
– Discs that are badly warped or cracked.
– Irregularly shaped discs, such as heart shapes.
∫To dispose or transfer this unit
The unit may keep the user settings information in
the unit. If you discard this unit either by disposal or
transfer, then follow the procedure to return all the
settings to the factory presets to delete the user
settings. (l11, “To return all settings to the factory
preset”)
≥The operation history may be recorded in the
memory of this unit.
ョヮチモワヵ
ヘブ
モヤチリワ 」
1
2
Adhesive tape
(not supplied)
FM indoor antenna
(supplied)
Connect the AC power supply cord after all other connections are completed.
To a household AC outlet
AC Power supply cord (supplied)
This unit consumes a small amount of AC power (l15) even when turned off.
≥In the interest of power conservation, if you will not be using this unit for an extended
period of time, unplug it from the household AC outlet.
≥Clean the lens regularly to prevent malfunctions. Use
a blower to remove dust and a cotton swab if it is
extremely dirty.
≥You cannot use a CD type lens cleaner.
≥Do not leave the sliding door open for prolonged
periods of time. This will cause the lens to get dirty.
≥Be careful not to touch the lens with your fingers.
Lens
DO DO NOT
SC-HC38~RQT9742.book Page 5 Tuesday, December 4, 2012 11:49 AM
6
RQT9742

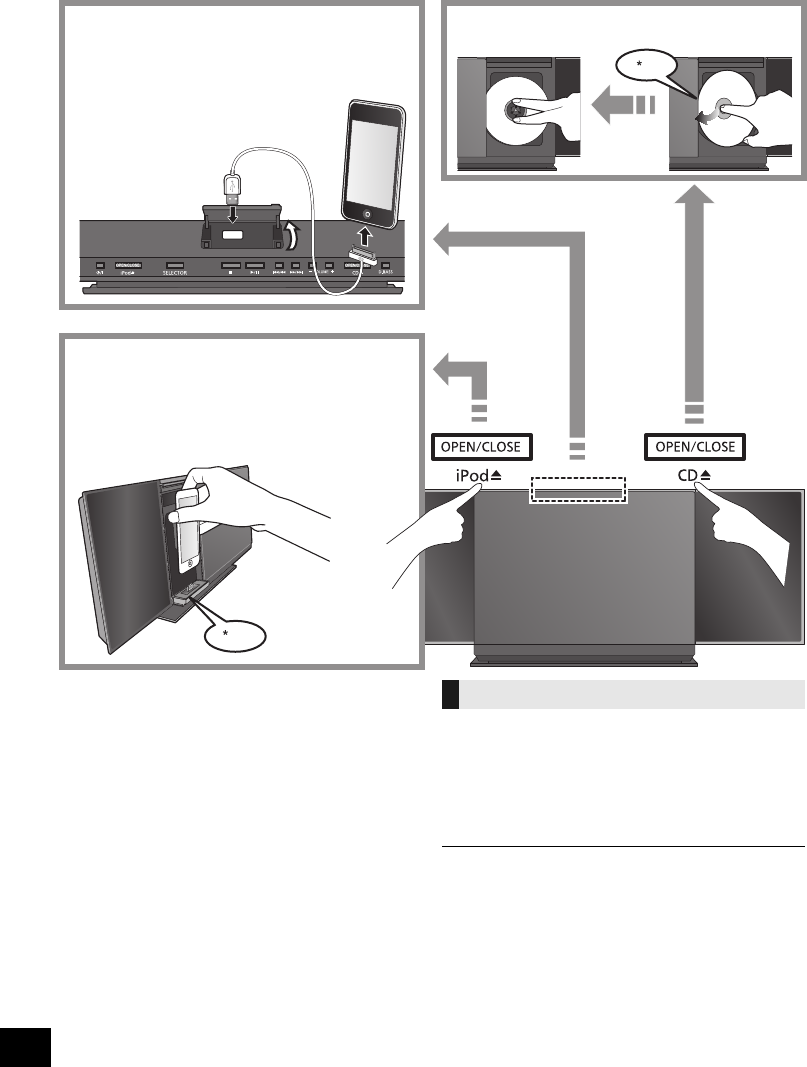

Inserting media
*1: Refer to “Playable media” for compatible models.
(l14)
*2: Do not connect the following models to this unit’s iPod
port:
– iPod classic®, iPod [4th (color display), and
5th (video) generation]
Unexpected behavior may occur.
*3: When using the Lightning connector:
≥Be sure to remove the iPod/iPhone from its case.
≥Do not push or pull the dock manually.
≥Make sure that the iPod/iPhone is fully inserted and
its back is resting against the cushion pad.
≥Make sure to hold the dock when removing the iPod/
iPhone.
*4: Make sure to tilt the disc so as not to touch the sliding
door.
≥Do not open the sliding door manually.
≥Make sure that the unit does not fall when inserting or
removing media.
≥When moving this unit, be sure to remove all media and
turn this unit to standby mode.
Charging starts when an iPod*2/iPhone/iPad is
connected to this unit.
≥During standby mode, charging will not start from the
USB cable connection, however it will start as usual from
the Lightning connector.
– To charge from the USB cable connection, start the
charging before turning this unit to standby mode.
≥Check the iPod/iPhone/iPad to see if the battery is fully
charged. (Once fully recharged, additional recharging
will not occur.)
≥If this unit is switched to standby mode
“IPOD CHARGING” is shown on the unit’s display.
3
4
iPad
Select “IPOD_DOCK” as the source
Connect Lightning connector models *1
Select “IPOD_PORT” as the source
Connect using the dedicated
USB cable (not supplied) *1, 2
Select “CD” as the source
Charging an iPod/iPhone/iPad
SC-HC38~RQT9742.book Page 6 Tuesday, December 4, 2012 11:49 AM
7
RQT9742
ENGLISH
Bluetooth® operations
By using the Bluetooth® connection, you can listen to the sound from the Bluetooth® audio device from this
unit wirelessly.
Preparation
≥Turn on the Bluetooth® feature of the device and
place the device near this unit.
≥If this unit is already connected to a Bluetooth®
device, disconnect it.
1Press [ ] to select “BLUETOOTH”.
≥If “PAIRING” is indicated on the display, go to step 3.
2Press [PLAY MENU] to select “NEW DEV.” and
then press [OK].
{. “PAIRING” is indicated on the display.
3Select “SC-HC38” from the Bluetooth® device’s
Bluetooth® menu.
4Start play on the Bluetooth® device.
≥Refer to the operating instructions of the Bluetooth®
device for details.
If prompted for the passkey, input “0000”.
≥You can register up to 8 devices with this unit. If a 9th
device is paired, the device that has not been used for
the longest time will be replaced.
Preparation
≥Turn on the Bluetooth® feature of the device and
place the device near this unit.
≥If this unit is already connected to a Bluetooth®
device, disconnect it.
1Press [ ] to select “BLUETOOTH”.
{. “READY” is indicated on the display.
2Select “SC-HC38” from the Bluetooth® device’s
Bluetooth® menu.
{. The name of the connected device is indicated on
the display for 2 seconds.
3Start play on the Bluetooth® device.
≥This unit can only be connected to one device at a time.
≥When “BLUETOOTH” is selected as the source, this unit
will automatically try and connect to the last connected
Bluetooth® device. The Bluetooth® device will be
disconnected if a different audio source (e.g., [CD]) is
selected.
You can change the transmission speed to prioritize
transmission quality or sound quality.
Preparation
≥Press [ ] to select “BLUETOOTH”.
≥If a Bluetooth® device is already connected,
disconnect it.
1Press [PLAY MENU] repeatedly to select
“LINK MODE”.
2Press [3,4] to select the mode and then
press [OK].
MODE 1: Emphasis on connectivity
MODE 2: Emphasis on sound quality
≥The default setting is “MODE 1”.
If the sound input level of the Bluetooth®
transmission is too low, change the input level
setting.
Preparation
≥Connect a Bluetooth® device.
1Press [PLAY MENU] repeatedly to select
“INPUT LEVEL”.
2Press [3,4] to select the level and then press
[OK].
“LEVEL 0” ,. “LEVEL i1” ,. “LEVEL i2”
^---------------------------------------------------------------J
≥Select “LEVEL 0” if the sound is distorted.
≥The default setting is “LEVEL 0”.
1While a Bluetooth® device is connected:
Press [PLAY MENU] to select
“DISCONNECT?”.
2Press [3,4] to select “OK? YES” and then
press [OK].
Pairing Bluetooth® devices
Connecting a paired Bluetooth®
device
Bluetooth® transmission mode
Bluetooth® input level
Disconnecting a Bluetooth® device
SC-HC38~RQT9742.book Page 7 Tuesday, December 4, 2012 11:49 AM
8
RQT9742
Media playback operations
The following marks indicate the availability of the
feature.
Preparation
≥Turn the unit on.
≥Insert the media (l6) or connect the Bluetooth®
device (l7).
≥Press [CD], [iPod] or [ ] to select the audio
source.
[CD] [Bluetooth] To display information
Press [DISPLAY] repeatedly.
≥To use this unit’s remote control with a Bluetooth®
device, the Bluetooth® device must support AVRCP
(Audio Video Remote Control Profile).
Depending on the device or the status of the device,
some operations may not work.
[iPod] To navigate through the iPod/iPhone
menu
≥Open the Music App to use this feature with
iPod touch®/iPhone.
–[3,4]: To navigate menu items.
– [OK]: To go to the next menu.
– [iPod MENU]: To return to the previous menu.
≥To view the operation, open the sliding door.
≥The operation may vary among iPod/iPhone/iPad
models.
≥Depending on the model, it may be necessary to select
the album, artist, etc. on the iPod/iPhone/iPad.
Select the playback mode.
1Press [PLAY MENU] to select “PLAYMODE” or
“REPEAT”.
2Press [3,4] to select the setting and then
press [OK].
≥When using an iPod/iPhone/iPad or Bluetooth® device,
use the setting on the device, if available.
≥During random play, you cannot skip to the previous
track.
≥The mode is canceled when you open the sliding door
for discs.
[CD] : CD audio in CD-DA format
[iPod] : Compatible iPod/iPhone/iPad (l14)
[Bluetooth] : Connected Bluetooth® device (l7)
Basic play ([CD], [iPod], [Bluetooth])
Play Press [1/;].
Stop Press [∫].
Pause Press [1/;].
Press again to restart play.
Skip Press [:/6] or [5/9]
to skip track.
Search During play or pause
Press and hold [:/6] or
[5/9].
≥[iPod] : Backwards search is only
within the current track.
Playback modes ([CD])
PLAYMODE
OFF
PLAYMODE
Select to cancel the play mode
setting.
1-TRACK Only plays the selected track.
≥“1, ” is displayed.
(Skip to the desired track)
RANDOM Plays the contents randomly.
≥“RND” is displayed.
REPEAT
ON REPEAT Turn on repeat mode.
≥“`” is displayed.
OFF REPEAT Turn off repeat mode.
SC-HC38~RQT9742.book Page 8 Tuesday, December 4, 2012 11:49 AM
9
RQT9742
ENGLISH
Listening to the radio
You can preset up to 30 channels.
Preparation
≥Make sure that the FM antenna is connected.
(l5)
≥Turn the unit on.
≥Press [RADIO] to select “FM”.
A station previously stored is overwritten when another
station is stored in the same channel preset.
1Press [PLAY MENU] to select “A.PRESET”.
2Press [3,4] to select “LOWEST” or
“CURRENT” and then press [OK].
LOWEST:
To begin auto preset with the lowest frequency
(FM 87.9 or FM 87.5).
CURRENT:
To begin auto preset with the current
frequency.*
* To change the frequency, refer to “Manual tuning and
presetting”.
The tuner starts to preset all the stations it can
receive into the channels in ascending order.
Preparation
1Press [PLAY MENU] repeatedly to select
“TUNEMODE”.
2Press [3,4] to select “PRESET” and then
press [OK].
Press [:/6] or [5/9] to select the
channel.
∫Manual tuning and presetting
Select a radio broadcast.
1Press [PLAY MENU] repeatedly to select
“TUNEMODE”.
2Press [3,4] to select “MANUAL” and then
press [OK].
3Press [:/6] or [5/9] to tune to the
required station.
≥To start automatic tuning, press and hold
[:/6], [5/9] until the frequency starts
scrolling. Tuning stops when a station is found.
To preset the channel
4While listening to the radio broadcast
Press [OK].
5Press [3,4] to select the channel and then
press [OK].
∫To improve FM sound quality
1While receiving FM broadcasts, press
[PLAY MENU] repeatedly to select “FM
MODE”.
2Press [3,4] to select “MONO” and then press
[OK].
≥This setting can be preset and memorized. To do
so, continue to step 4 of “Manual tuning and
presetting”.
≥Select “STEREO” in step 2 to return to stereo
broadcasts.
≥“MONO” is canceled if the frequency is changed.
≥If “MONO” is selected, regardless of the type of signal
this unit is receiving, “FM MONO” is displayed when
[DISPLAY] is pressed. (lbelow)
∫To display the current signal status
Press [DISPLAY].
≥“STEREO” is displayed when this unit tunes to a stereo
broadcast.
Presetting stations automatically
Listening to a preset channel
“FM ST”: The FM signal is in stereo.
“FM”: The FM signal is in monaural.
≥“FM” is also displayed even if this unit is not
tuned to a station.
SC-HC38~RQT9742.book Page 9 Tuesday, December 4, 2012 11:49 AM
10
RQT9742
Sound adjustment
The following sound effects can be added to the
audio output.
1Press [SOUND] repeatedly to select the effect.
2Press [3,4] to select the setting and then
press [OK].
*1: This function can also be selected with the [D.BASS]
button on the unit.
≥You may experience a reduction in sound quality when
these effects are used with some sources. If this occurs,
turn the sound effects off.
Clock and Timer
This is a 12-hour clock.
1Press [SETUP] repeatedly to select “CLOCK”.
2Press [3,4] to set the time and then press
[OK].
≥To display the clock, press [SETUP] to select “CLOCK”
and then press [OK] once. The time is displayed for 10
seconds.
(During standby, press [DISPLAY] once.)
≥The clock is reset when there is a power failure or when
the AC power supply cord is removed.
≥Reset the clock regularly to maintain accuracy.
*1: “CD”, “IPOD_DOCK”, “IPOD_PORT” and “FM” can be
set as the music source.
You can set the timer so this unit turns on at a
certain time every day.
Preparation
Set the clock (lleft).
∫Setting the timer
1Press [SETUP] repeatedly to select
“TIMER ADJ”.
2Press [3,4] to set the starting time
(“ON TIME”) and then press [OK].
3Press [3,4] to set the finishing time
(“OFF TIME”) and then press [OK].
∫Turn the timer on
1Select the music source*1 and set the desired
volume.
2Press [SETUP] repeatedly to select
“TIMER SET”.
3Press [3,4] to select “SET” and then press
[OK].
≥“F” is displayed.
≥To turn the timer off, select “OFF”.
4Press [Í] to turn the unit off.
≥To display the timer settings, press [SETUP] repeatedly
to select “TIMER ADJ” and then press [OK] once.
The music source and volume will also be displayed if
the timer is turned on.
≥During standby, if the timer is turned on, press
[DISPLAY] twice to display the settings.
≥This unit can be used as normal after the timer is set,
however:
– Turn the unit to standby mode before the timer start
time.
– Even if the audio source or the volume is changed, the
timer will still use the audio source and volume that
was set when the timer was turned on.
The sleep timer can turn the unit off after a set time.
1Press [SETUP] to select “SLEEP”.
2Press [3,4] to set the time (in minutes) and
then press [OK].
“SLEEP 30” ,. “SLEEP 60” ,. “SLEEP 90” ,. “SLEEP 120”
^----------------------. OFF (Cancel) (----------------------J
≥The remaining time is indicated on the unit’s display
except when other operations are performed.
≥The play timer and sleep timer can be used together.
The sleep timer always has priority.
Direct-Vocal
Surround
(
D.SURROUND
)
“LEVEL 1”, “LEVEL 2” or
“OFF”.
≥The factory preset is “OFF”.
Preset EQ
(PRESET EQ)
“HEAVY” (heavy), “SOFT”
(soft), “CLEAR” (clear),
“VOCAL” (vocal) or “FLAT”
(flat/off).
≥The factory preset is “HEAVY”.
Bass (BASS) or
Treble (TREBLE)
Adjust the level (j4 to i4).
Dynamic Bass*1
(D.BASS)
“ON D.BASS” or
“OFF D.BASS”.
≥The factory preset is
“ON D.BASS”.
Setting the clock
Play timer
Sleep timer
SC-HC38~RQT9742.book Page 10 Tuesday, December 4, 2012 11:49 AM
11
RQT9742
ENGLISH
Others
As a factory preset, this unit will always turn off
automatically if there is no sound output and no
operation for approx. 30 minutes.
To cancel this function
1Press [SETUP] repeatedly to select
“AUTO OFF”.
2Press [3,4] to select “OFF” and then press
[OK].
≥To turn automatic standby on, select “ON” in step 2.
≥This setting cannot be selected when “FM” is the source.
The brightness of this unit’s display can be
changed.
1Press [SETUP] repeatedly to select “DIMMER”.
2Press [3,4] to select “ON” and then press
[OK].
To cancel the dimmer, select “OFF” in step 2.
When other Panasonic equipment responds to the
supplied remote control, change the remote control
code.
1Press [CD] to select “CD”.
2While pressing and holding [SELECTOR] on
the unit, press and hold [CD/RADIO] on the
remote control until the unit's display shows
“REMOTE 2”.
3Press and hold [OK] and [CD/RADIO] on the
remote control for at least 4 seconds.
≥To change the mode back to “REMOTE 1”, repeat the
steps above but replace the button pressed on the
remote control from [CD/RADIO] to [ ].
Troubleshooting
Before requesting service, make the following
checks. If you are in doubt about some of the check
points, or if the solutions indicated in the following
guide do not solve the problem, refer to “Customer
Services Directory (United States and Puerto Rico)”
on page 19.
Humming heard during play.
≥An AC power supply cord or fluorescent light is near the
cords. Keep other appliances and cords away from this
unit’s cables.
Incorrect display or play will not start.
≥Make sure that the disc is compatible with this unit.
(l14)
≥There is moisture on the lens. Wait for about an hour
and then try again.
A beat sound or noise is heard while receiving
radio broadcast.
≥Confirm the FM antenna is properly connected. (l5)
≥Adjust the position of the antenna.
≥Try to keep a certain amount of distance between the
antenna and AC power supply cord.
≥Try using an outdoor antenna if there are buildings or
mountains nearby.
≥Switch the television or other audio players off or
separate it from this unit.
≥Keep this unit away from mobile phones if the
interference is apparent.
Automatic standby
Display brightness
Changing the unit and remote
control code
To return all settings to the factory preset
When the following situations occur, reset the
memory:
≥There is no response when buttons are pressed.
≥You want to clear and reset the memory contents.
1Disconnect the AC power supply cord. (Wait
for at least 3 minutes before proceeding to
step 2.)
2While pressing and holding down [Í/I] on the
unit, reconnect the AC power supply cord.
≥“--------” appears on the display.
3Release [Í/I].
All the settings are returned to the factory preset. You will
need to reset the memory items.
Common problems
Disc operations
Radio
SC-HC38~RQT9742.book Page 11 Tuesday, December 4, 2012 11:49 AM
12
RQT9742
Stations cannot be selected.
Change the FM frequency step.
1Press [RADIO] to select “FM”.
2Press and hold [SELECTOR] on the unit.
After a few seconds the display changes to show the
current lowest frequency. Continue to hold the button
down. The lowest frequency changes and the step is
changed.
Cannot charge or operate.
≥Have you selected the appropriate selector?
Press [iPod] to select either “IPOD_DOCK” or
“IPOD_PORT”.
≥Check that the iPod/iPhone/iPad is connected properly.
(l6)
≥The battery of the iPod/iPhone/iPad is depleted. Charge
the iPod/iPhone/iPad, and then operate again.
≥Connect the iPod/iPhone/iPad again or try to restart the
iPod/iPhone/iPad.
≥When this unit is in standby mode, charging will not start
when using the USB cable connection.
Turn this unit on and make sure the charging has started
before switching this unit to standby mode.
Pairing cannot be done.
≥Check the Bluetooth® device condition.
The device cannot be connected.
≥The pairing of the device was unsuccessful or the
registration has been replaced. Try pairing the device
again. (l7)
≥This unit might be connected to a different device.
Disconnect the other device and try pairing the device
again. (l7)
The device is connected but audio cannot be
heard through this unit.
≥For some built-in Bluetooth® devices, you have to set the
audio output to “SC-HC38” manually. Read the operating
instructions for the device for details.
The sound is interrupted.
≥The device is out of the 10 m (33 ft) communication
range. Bring the Bluetooth® device closer to this unit.
≥Remove any obstacle between this unit and the device.
≥Other devices that use the 2.4 GHz frequency band
(wireless LAN, microwaves, cordless phones, etc.) are
interfering. Bring the Bluetooth® device closer to this unit
and distance it from the other devices.
≥Select “MODE1” for stable communication. (l7)
The remote control doesn't work properly.
≥The remote control and this unit are using a different
code. (lright, “REMOTE ”)
≥Is the battery depleted or is the battery inserted
incorrectly? (l4)
The following messages or service numbers
may appear on the unit's display.
“--:--”
≥You plugged the AC power supply cord in for the first
time or there was a power failure recently. Set the time
(l10).
“ADJUST CLOCK”
≥Clock is not set. Adjust the clock accordingly.
“ADJUST TIMER”
≥Play timer is not set. Adjust the play timer accordingly.
“AUTO OFF”
≥The unit has been left unused for about 30 minutes and
will shut down within a minute. Press any button to
cancel it.
“CANNOT SET”
≥Select an audio source other than “BLUETOOTH”.
“CHECKING CONNECTION”
≥The unit is checking the connected iPod/iPhone/iPad.
≥If this display keeps appearing, make sure that the
battery of the iPod/iPhone/iPad is not depleted and that
the iPod/iPhone/iPad is turned on and connected
correctly. (l6)
“DIMMER”
≥Appears 10 seconds after the volume is turned to “0”.
“ERROR”
≥Incorrect operation is performed. Read the instructions
and try again.
“F” (“ ” stands for a number.)
≥There is a problem with this unit.
Note down the displayed number, disconnect the AC
supply cord and consult your dealer.
iPod/iPhone/iPad operations
Bluetooth®
Remote control
Messages
SC-HC38~RQT9742.book Page 12 Tuesday, December 4, 2012 11:49 AM
13
RQT9742
ENGLISH
“ILLEGAL OPEN”
≥Sliding door is not in correct position. Turn the unit off
and on again. If this display appears again, consult the
dealer.
“IPOD_DOCK OVER CURRENT ERROR”
“IPOD_PORT OVER CURRENT ERROR”
≥The iPod/iPhone/iPad is drawing too much power.
Disconnect the iPod/iPhone/iPad and turn the unit off
and on again.
“NODEVICE”
≥The iPod/iPhone/iPad device is not inserted correctly.
Read the instructions and try again. (l6)
≥The battery of the iPod/iPhone/iPad is depleted. Charge
the iPod/iPhone/iPad and turn it on before connecting.
“NO DISC”
≥Insert a disc to be played. (l6)
“NO PLAY”
≥A CD that is not in CD-DA format is inserted. It cannot be
played.
“NOT SUPPORTED”
≥You have connected an iPod/iPhone/iPad that cannot be
played. (l14)
≥If the iPod/iPhone/iPad is compatible, turn it on and
connect it correctly.
“READING”
≥The unit is checking the CD information. After this
display has disappeared, start operating.
“REMOTE ” (“ ” stands for a number.)
≥The remote control and this unit are using different
codes. Change the code on the remote control.
– When “REMOTE 1” is displayed, press and hold [OK]
and [ ] for more than 4 seconds.
– When “REMOTE 2” is displayed, press and hold [OK]
and [CD/RADIO] for more than 4 seconds.
Licenses
“Made for iPod”, “Made for iPhone”, and “Made for iPad”
mean that an electronic accessory has been designed to
connect specifically to iPod, iPhone, or iPad,
respectively, and has been certified by the developer to
meet Apple performance standards.
Apple is not responsible for the operation of this device
or its compliance with safety and regulatory standards.
Please note that the use of this accessory with iPod,
iPhone, or iPad may affect wireless performance.
iPad, iPhone, iPod, iPod classic, iPod nano, and iPod
touch are trademarks of Apple Inc., registered in the U.S.
and other countries.
The Bluetooth® word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by
Panasonic Corporation is under license.
Other trademarks and trade names are those of their
respective owners.
SC-HC38~RQT9742.book Page 13 Tuesday, December 4, 2012 11:49 AM
14
RQT9742
Playable media
Compatible with Lightning connector
Compatible with iPod port connection
(as of December 2012)
≥Compatibility depends on the software version. Update
your iPod/iPhone/iPad to the latest software before
using it with this unit.
≥Please be aware that Panasonic accepts no
responsibility for the loss of data and/or information.
≥A disc with the CD Logo.
≥This unit can play back discs that conform to the CD-DA
format.
≥The unit may not be able to play some discs due to the
condition of the recording.
≥This unit cannot play back MP3 files.
Note about using a DualDisc
≥The digital audio content side of a DualDisc does not
meet the technical specifications of the Compact Disc
Digital Audio (CD-DA) format so play may not be
possible.
≥Do not use a DualDisc in this unit as it may not be
possible to insert it correctly and it may get scratched or
scraped.
About Bluetooth®
∫Frequency band used
This unit uses the 2.4 GHz frequency band.
∫Certification of this device
≥This system conforms to frequency restrictions
and has received certification based on
frequency laws. Thus, a wireless permit is not
necessary.
≥The action below are punishable by law in some
countries:
jTaking apart or modifying the unit.
jRemoving specification indications.
∫Restrictions of use
≥Wireless transmission and/or usage with all
Bluetooth® equipped devices is not guaranteed.
≥All devices must conform to standards set by
Bluetooth SIG, Inc.
≥Depending on the specifications and settings of a
device, it can fail to connect or some operations
can be different.
≥This system supports Bluetooth® security
features. But depending on the operating
environment and/or settings, this security is
possibly not sufficient. Transmit data wirelessly to
this system with caution.
≥This system cannot transmit data to a Bluetooth®
device.
∫Range of use
Use this device at a maximum range of
10 m (33 ft).
The range can decrease depending on the
environment, obstacles or interference.
∫Interference from other devices
≥This unit may not function properly and troubles
such as noise and sound jumps may arise due to
radio wave interference if this unit is located too
close to other Bluetooth® devices or the devices
that use the 2.4 GHz band.
≥This unit may not function properly if radio waves
from a nearby broadcasting station, etc. is too
strong.
∫Intended usage
≥This unit is for normal, general use only.
≥Do not use this system near an equipment or in
an environment that is sensitive to radio
frequency interference (example: airports,
hospitals, laboratories, etc).
Compatible iPod/iPhone/iPad
iPod touch® (5th generation)
iPod nano® (7th generation)
iPhone® 5
iPod touch®
1st, 2nd, 3rd, 4th, and 5th generation
iPod nano®
2nd, 3rd, 4th, 5th, 6th, and 7th generation
iPhone® 5 / iPhone® 4S / iPhone® 4 /
iPhone® 3GS / iPhone® 3G / iPhone®
iPad® (1st, 3rd, and 4th generation) /
iPad® 2 (2nd generation)
iPad® mini
Compatible CD
Panasonic bears no responsibility for data
and/or information that is compromised
during a wireless transmission.
RQT9742~body1_mst.fm Page 14 Tuesday, December 4, 2012 12:57 PM
15
RQT9742
ENGLISH
Specifications
∫GENERAL
∫AMPLIFIER SECTION
∫TUNER SECTION
∫DISC SECTION
∫SPEAKER SYSTEM SECTION
∫TERMINAL SECTION
∫BLUETOOTH SECTION
≥Specifications are subject to change without notice.
Mass and dimensions are approximate.
≥Total harmonic distortion is measured by a digital
spectrum analyzer.
*1: When the iPod/iPhone/iPad is not charging and the
dock is closed.
Power consumption 34 W
Power consumption in standby mode*1
Approx. 0.1 W
Power consumption in standby mode
(With the iPod dock out)
Approx. 0.4 W
Power supply AC 120 V, 60 Hz
Dimensions (WkHkD)
500 mmk204 mmk84 mm
(19 11/16qk81/32qk35/16q)
(Depth without stand: 75 mm (3q))
Mass (Weight)
Approx. 2.6 kg(5.7 lbs)
Operating temperature range
0oCtor40 oC(r32 oF to r104 oF)
Operating humidity range
35 % to 80 % RH (no condensation)
Output power:
RMS Output Power Stereo mode
Front Ch (both ch driven)
20 W per channel (6 ≠), 1 kHz, 10 % THD
Total RMS Stereo mode power 40 W
FTC Output Power Stereo mode
Front Ch (both ch driven)
15 W per channel (6 ≠),
20 Hz to 20 kHz, 1 % THD
Total FTC Stereo mode power 30 W
Preset Memory FM 30 stations
Frequency Modulation (FM)
Frequency range
87.9 MHz to 107.9 MHz (200 kHz step)
87.5 MHz to 108.0 MHz (100 kHz step)
Antenna terminals
75 ≠(unbalanced)
Disc played [8 cm (3q) or 12 cm (5q)]
CD, CD-R/RW (CD-DA)
Pick up
Wavelength 790 nm (CD)
Audio output (Disc)
Number of channels 2 ch (FL, FR)
Type
1 way, 1 speaker system (Passive Radiator)
Speaker unit(s)
Full range
6.5 cm (2 1/2q) Cone typek1 per channel
Passive Radiator
8cm(31/8q)k2 per channel
Impedance 6≠
Lightning Connector DC OUT 5 V, 1.0 A MAX
iPod Port DCOUT 5V, 2.1A MAX
Bluetooth system specification V3.0
Wireless equipment classification Class 2
Supported profiles A2DP, AVRCP, GAVDP
Frequency band 2402 MHz to 2480 MHz
(Adaptive Frequency Hopping)
Driving distance 10 m (33 ft) Line of sight
SC-HC38~RQT9742.book Page 15 Tuesday, December 4, 2012 11:49 AM
16
RQT9742
Attaching the unit to a wall (optional)
∫Supplied accessories
≥1 Safety holder
≥1 Screw
≥2 Wall mount brackets
∫Commercially available accessories
(not supplied)
≥4 Wall mount bracket fixing screws
≥1 Safety holder fixing screw
≥1 Fall prevention cord
≥1 Screw eye
Use screws with a nominal diameter of 4 mm (5/32q), which
are suitable to the material of the wall (e.g., wood, steel,
concrete, etc.)
1Detach the stand from the unit.
{. Unscrew the fixing screw (2 pieces) at the bottom of
the unit.
{. Gently pull the stand off the unit as illustrated.
≥Keep the removed screws and stand in a safe
place.
2Measure and mark the position of the wall
mount brackets (Both sides).
{. Use figures below to identify the screwing positions.
The position to attach the wall mount brackets
Space required
Installation accessories
≥Keep the safety holder out of reach of children to
prevent swallowing.
≥Keep the screws out of reach of children to
prevent swallowing.
≥Keep the wall mount brackets out of reach of
children to prevent swallowing.
Safety precautions
Professional installation is required.
The installation should never be done by any
other than a qualified installation specialist.
PANASONIC DISCLAIMS ANY PROPERTY
DAMAGE AND/OR SERIOUS INJURY,
INCLUDING DEATH RESULTING FROM
IMPROPER INSTALLATION OR INCORRECT
HANDLING.
≥Be sure to install this unit as indicated
within this Owner’s Manual.
Wall mount instructions
Before installation, turn the unit off and disconnect
the AC power supply cord from the AC outlet.
Bottom of the unit
Stand
Soft blanket or cloth
Fixing screw
202 mm (8q)
12.5 mm (1/2q)
300 mm (11 13/16q)
232 mm (9 7/8q)
700 mm (27 1/2q)
66 mm
(2 5/8q)
202 mm (8q)
125 mm (4 7/8q)
143 mm
(5 5/8q)
500 mm (19 5/8q)
118 mm
(4 5/8q)
30 mm
(1 1/8q)
SC-HC38~RQT9742.book Page 16 Tuesday, December 4, 2012 11:49 AM
17
RQT9742
ENGLISH
3Attach the wall mount bracket to the wall with
2 screws (not supplied). (Both sides)
≥Use a spirit level to ensure both wall mount brackets
are level.
≥Make sure that the screw used and the wall are
strong enough to support the weight of at least
33 kg (72.8 lbs).
4Fix the safety holder onto the unit with the
screw (supplied).
{. Screw tightening torque: 50 N0cm (0.4 lbf0ft) to
70 N0cm (0.5 lbf0ft).
5Attach the fall prevention cord (not supplied) to
this unit.
≥Use a cord that is capable of supporting over 33 kg
(72.8 lbs) (with a diameter of about 1.5 mm (1/16q)).
6Hook the unit securely onto the wall mount
brackets with both hands.
≥Connect the FM antenna and the AC power supply
cord to the unit before hanging the unit onto the
wall. (l5)
≥After hanging the unit, release your hand carefully
to confirm the unit sits securely on the wall.
7Drive the safety holder fixing screw
(not supplied) to secure the safety holder onto
the wall.
≥Make sure that the screw used and the wall are
strong enough to support the weight of at least
33 kg (72.8 lbs).
≥Refer to step 3 for requirements before screwing.
8Attach the fall prevention cord (not supplied) to
the wall.
≥Make sure that the screw used and the wall are
strong enough to support the weight of at least
33 kg (72.8 lbs).
≥Make sure that the slack of the cord is minimal.
At least 30 mm (1 3/16q)
‰7.5 mm (19/64q)
to
‰9.4 mm (3/8q)
‰4 mm
(5/32q)Wall mount bracket
Screw
(supplied)
Cord (not supplied)
Wall
Safety holder fixing screw
(not supplied)
Safety holder
Fixed to the
wall
Cord (not supplied)
Screw eye (not supplied)
Wall
SC-HC38~RQT9742.book Page 17 Tuesday, December 4, 2012 11:49 AM
18
RQT9742
Conexiones
≥Consumo de energía en Standby
(modo de espera): Aprox. 0,1 W
Insertar o sacar los medios
Operaciones de
reproducción de medios
Preparación
≥Encienda la unidad.
≥Inserte el medio. (larriba)
≥Presione [CD] o [iPod] para seleccionar la fuente de
audio.
Reloj y temporizador
Éste es un reloj de 12 horas.
1Presione [SETUP] para seleccionar “CLOCK”.
2Presione [3,4] para seleccionar la hora y
luego presione [OK].
Spanish Quick Reference / Referencia rápida en
español
1
2
Cinta adhesiva
(no suministrado)
Antena interior
FM
(suministrado)
Conecte el cable de
alimentación AC después de
que todas las demás
conexiones estén completas.
Hacia el tomacorriente AC
Cable de alimentación AC (suministrado)
iPad
Reproducción básica
Reproducir Presione [1/;].
Detención Presione [∫].
Pausa Presione [1/;].
Presione nuevamente para reiniciar la
reproducción.
Saltear Presione [:/6] o [5/9] para
saltear una pista.
Búsqueda Durante la reproducir o pausa
Mantenga presionado [:/6] o
[5/9].
Ajuste del reloj
SC-HC38~RQT9742.book Page 18 Tuesday, December 4, 2012 11:49 AM
19
RQT9742
ESPAÑOL ENGLISH
Limited Warranty
(ONLY FOR U.S.A. AND PUERTO RICO)
Panasonic Consumer Marketing Company of North America,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Products Limited Warranty
Limited Warranty Coverage
(For USA and Puerto Rico Only)
If your product does not work properly because of a defect in materials or
workmanship, Panasonic Consumer Marketing Company of North America
(referred to as “the warrantor”) will, for the length of the period indicated on
the chart below, which starts with the date of original purchase (“warranty
period”), at its option either (a) repair your product with new or refurbished
parts, (b) replace it with a new or a refurbished equivalent value product, or (c)
refund your purchase price. The decision to repair, replace or refund will be
made by the warrantor.
During the “Labor” warranty period there will be no charge for labor. During
the “Parts” warranty period, there will be no charge for parts. This Limited
Warranty excludes both parts and labor for non-rechargeable batteries,
antennas, and cosmetic parts (cabinet). This warranty only applies to products
purchased and serviced in the United States or Puerto Rico. This warranty is
extended only to the original purchaser of a new product which was not sold
“as is”.
Mail-In Service
For assistance in the U.S.A. and Puerto Rico in obtaining repairs, please ship
the product prepaid to:
Panasonic Exchange Center
4900 George McVay Drive
Suite B
McAllen, TX 78503
panacare@us.panasonic.com
Online Repair Request
To submit a new repair request and for quick repair status visit our Web Site at
www.panasonic.com/repair.
When shipping the unit, carefully pack, include all supplied accessories listed
in the Owner’s Manual, and send it prepaid, adequately insured and packed
well in a carton box. When shipping Lithium Ion batteries please visit our Web
Site at www.panasonic.com/BatteryHandling as Panasonic is committed to
providing the most up to date information. Include a letter detailing the
complaint, a return address and provide a daytime phone number where you
can be reached. A valid registered receipt is required under the Limited
Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/
PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT
PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED
FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF
OF PURCHASE.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The warranty ALSO DOES NOT COVER damages which occurred
in shipment, or failures which are caused by products not supplied by the
warrantor, or failures which result from accidents, misuse, abuse, neglect,
mishandling, misapplication, alteration, faulty installation,
set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, introduction
of sand, humidity or liquids, commercial use such as hotel, office, restaurant,
or other business or rental use of the product, or service by anyone other than
a Factory Service Center or other Authorized Servicer, or damage that is
attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
“LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY.
(As examples, this excludes damages for lost time, travel to and from the
servicer, loss of or damage to media or images, data or other memory or
recorded content. The items listed are not exclusive, but for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE
WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD
OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty lasts,
so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other
rights which vary from state to state. If a problem with this product develops
during or after the warranty period, you may contact your dealer or Service
Center. If the problem is not handled to your satisfaction, then write to the
warrantor’s Consumer Affairs Department at the addresses listed for the
warrantor.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY, ARE YOUR RESPONSIBILITY.
As of October 2012
Product or Part Name Parts Labor
Compact Stereo System 1 Year 1 Year
All included Accessories
(Except Non-Rechargeable Batteries) 90 Days Not Applicable
Only Non-Rechargeable Batteries 10 Days Not Applicable
Customer Services Directory (United States and Puerto Rico)
Obtain Product Information and Operating Assistance; locate your
nearest Dealer or Service Center; purchase Parts and
Accessories; or make Customer Service and Literature requests
by visiting our Web Site at:
http://www.panasonic.com/help
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262)
Monday-Friday 9am-9pm,
Saturday-Sunday 10am-7pm EST
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Accessory Purchases (United States and Puerto Rico)
Purchase Parts, Accessories and Instruction Books online for all
Panasonic Products by visiting our Web Site at:
http://www.pstc.panasonic.com
Or, send your request by E-mail to:
npcparts@us.panasonic.com
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)
(Monday-Friday 9am-9pm EST)
Panasonic National Parts Center
20421 84th Ave S., Kent, WA 98032
(We accept Visa, MasterCard, Discover Card, American Express)
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
The model number and serial number of this product can be found
on either the back or the bottom of the unit.
Please note them in the space provided below and keep for future
reference.
MODEL NUMBER SC-HC38
SERIAL NUMBER
User memo:
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
TELEPHONE NUMBER
SC-HC38~RQT9742.book Page 19 Tuesday, December 4, 2012 11:49 AM
FCC Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
≥Reorient or relocate the receiving antenna.
≥Increase the separation between the equipment and receiver.
≥Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
≥Consult the dealer or an experienced radio/TV technician for help.
Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Responsible Party:
Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
Support Contact:
Panasonic Consumer Marketing Company of North America
Telephone No.: 1-800-211-PANA (7262)
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the
FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF)
Exposure rules. This equipment has very low levels of RF energy that is deemed to comply without maximum permissive
exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least
20 cm (7 7/8q) or more away from person’s body (excluding extremities: hands, wrists, feet and ankles).
Panasonic Consumer Marketing
Company of North America,
Division of Panasonic Corporation of
North America
One Panasonic Way, Secaucus,
New Jersey 07094
http://www.panasonic.com
C Panasonic Corporation 2012
Printed in Malaysia
RQT9742-P
F1212KW0
pr
SC-HC38~RQT9742.book Page 20 Tuesday, December 4, 2012 11:49 AM
