Panasonic of North America DY-WL5 WIRELESS LAN ADAPTOR User Manual DY WL5 20120117
Panasonic Corporation of North America WIRELESS LAN ADAPTOR DY WL5 20120117
User Manual
Confidential 1
Panasonic
WIRELESS LAN ADAPTOR
DY-WL5
User Manual
Rev. 0.01
Confidential 2
Reviewers
Department Name Review Dates
Plan Results
Director of Engineering Opo.Lee
Hardware Engineering Lary S.C. Luo
Confidential 3
Table of Contents
1. INTRODUCTION .................................................................................................................................................. 4
1.1
S
COPE
.......................................................................................................................................................... 4
1.2
F
UNCTION
................................................................................................................................................... 4
2. PRODUCT SPECIFICATION ............................................................................................................................... 5
2.1
RF
S
PECIFICATION
............................................................................................................................................... 5
2.2
E
LECTRICAL
S
PECIFICATION
................................................................................................................................ 6
3. PIN DESCRIPTIONS ............................................................................................................................................. 7
3.1
USB
P
IN DESCRIPTIONS
....................................................................................................................................... 7
3.2
RF
C
ONNECTOR
................................................................................................................................................... 7
4. MECHANICAL DRAWING .................................................................................................................................. 8
APPENDIX : STATEMENT ...................................................................................................................................... 9
Confidential 4
1.
Introduction
Project Name: WIRELESS LAN ADAPTOR
This documentation describes the product specification of the WIFI
802.11b/g/n USB Dongle, it is a confidential document of FOXCONN.
This Wireless LAN adapter is
specifically designed
for use with
Panasonic mobile wireless LAN-compatible players, recorders, etc.
This wireless LAN adapter does not support PC, Notebook PC or
tablet PC operation and will not function when plugged into those
devices.
1.1 Scope
The DY-WL5 802.11b/g/n Dongle provides wireless modem functionality
utilizing CCK and OFDM technology. The objective of this use manual is to
verify the functionality of the DY-WL5 802.11b/g/n Dongle RF/Digital
electronic design against the design specifications.
1.2 Function
Support IEEE 802.11b/g/n specified functions
1x1 single stream with antenna diversity
USB2.0 interface support
Confidential 5
2. Product Specification

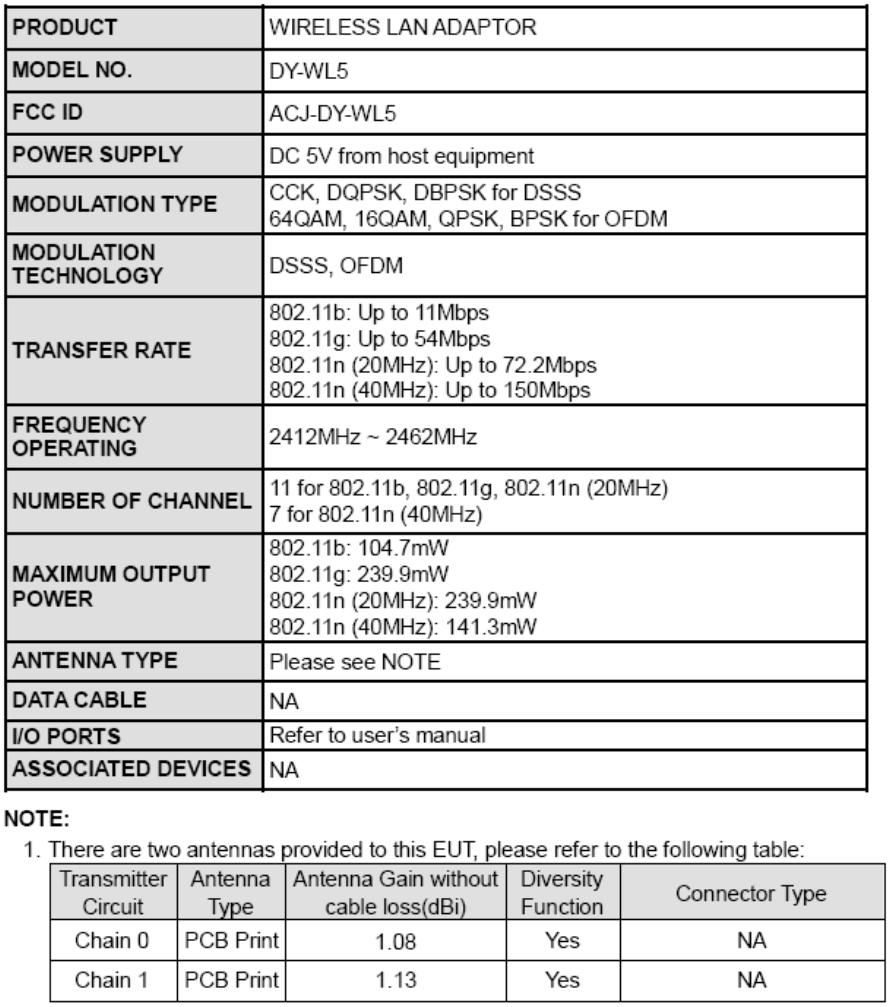

2.1 RF Specification
Confidential 6
2.2 Electrical Specification
Absolute Maximum Ratings
These specifications indicate levels where permanent damage to the
device can occur. Functional operation is not guaranteed under these
conditions. Operation at absolute maximum conditions for extended can
adversely affect long-term reliability of the device.
DC Specification
Confidential 7
3. Pin descriptions

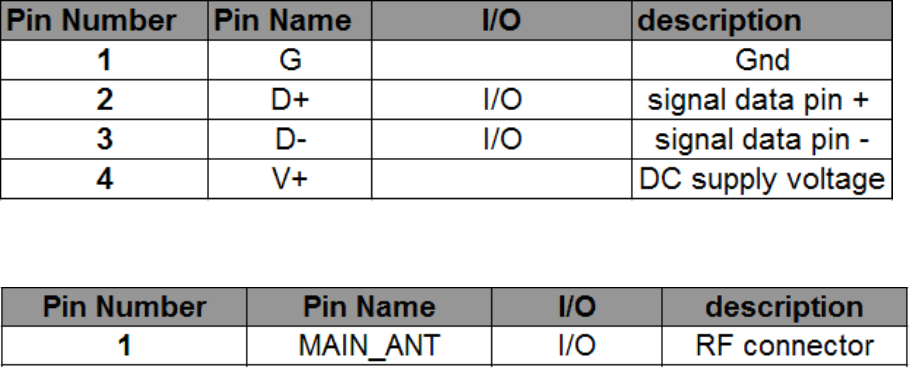

3.1 USB Pin descriptions
3.2 RF Connector

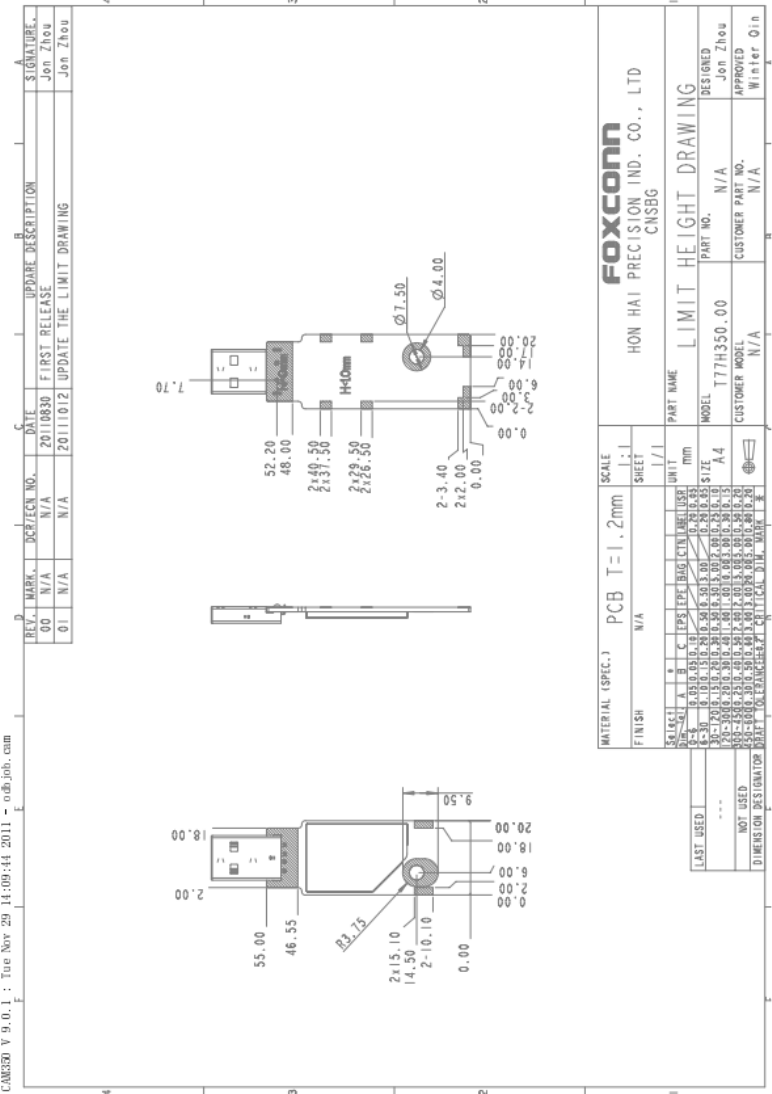

4.
Mechanical Drawing
Confidential
Mechanical Drawing
8
Confidential 9
Appendix : Statement
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Radiation Exposure Statement:
The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment
and are safe for intended operation as described in this manual. The further RF exposure reduction can be
achieved if the product can be kept as far as possible from the user body or set the device to lower output
power if such function is available.
Note: The country code selection is for non-US model only and is not available to all US model. Per FCC
regulation, all WiFi product marketed in US must fixed to US operation channels only.
Confidential
10
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils
radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le
dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout
brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.
Radiation Exposure Statement:
The product comply with the Canada portable RF exposure limit set forth for an uncontrolled
environment and are safe for intended operation as described in this manual. The further RF
exposure reduction can be achieved if the product can be kept as far as possible from the user
body or set the device to lower output power if such function is available.
Déclaration d'exposition aux radiations:
Le produit est conforme aux limites d'exposition pour les appareils portables RF pour les Etats-
Unis et le Canada établies pour un environnement non contrôlé.
Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La réduction aux
expositions RF peut être augmentée si l'appareil peut être conservé aussi loin que possible du
corps de l'utilisateur ou que le dispositif est réglé sur la puissance de sortie la plus faible si une
telle fonction est disponible.
For Taiwan 警語
警語警語
警語：
：：
：
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變
更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至
無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法
通信或工業、科學及醫療用電波輻射性電機設備之干擾。
Confidential
11
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following
test methods have been applied in order to prove presumption of conformity with the essential
requirements of the R&TTE Directive 1999/5/EC:
EN 60950-1:2006+A11:2009+A1: 2010
Safety of Information Technology Equipment
EN62311 : 2008
Assessment of electronic and electrical equipment related to human exposure restrictions for
electromagnetic fields (0 Hz – 300 GHz)
EN 300 328 V1.7.1: 2006
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems;
Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum
modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the
R&TTE Directive
EN 301 489-1 V1.8.1: 2008
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility
(EMC) standard for radio equipment and services; Part 1: Common technical requirements
EN 301 489-17 V2.1.1 2009
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility
(EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband
transmission systems and 5 GHz high performance RLAN equipment
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member
states and EFTA countries, except in France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain
authorization to use the device for setting up outdoor radio links and/or for supplying public access to
telecommunications and/or network services.
Confidential
12
This device may not be used for setting up outdoor radio links in France and in some areas the RF output
power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed
information the end-user should contact the national spectrum authority in France.
