User Manual
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
1!
!
Index&
OPERATIONAL&PRINCIPLE&
APPLINK&
AUDIO&
AUDIO&SETTINGS&
BEZEL&DIAGNOSTICS&

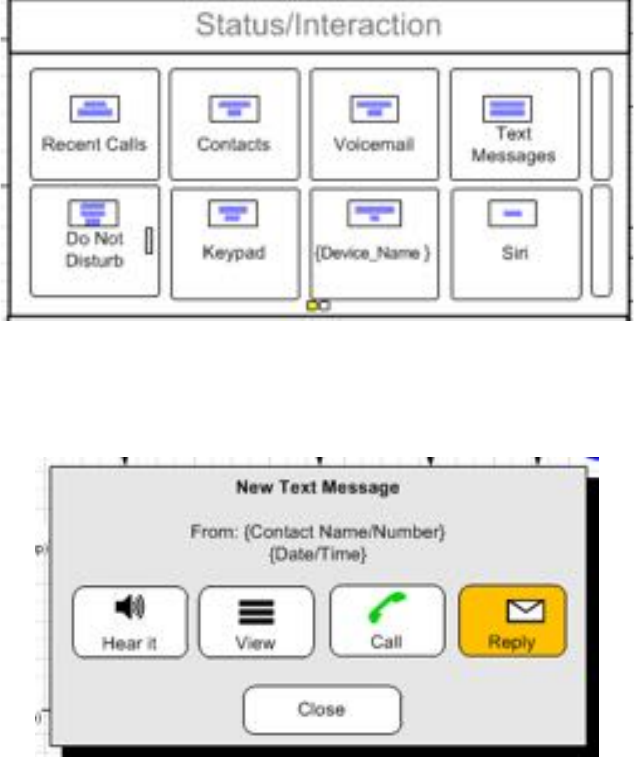

BLUETOOTH&PHONE&

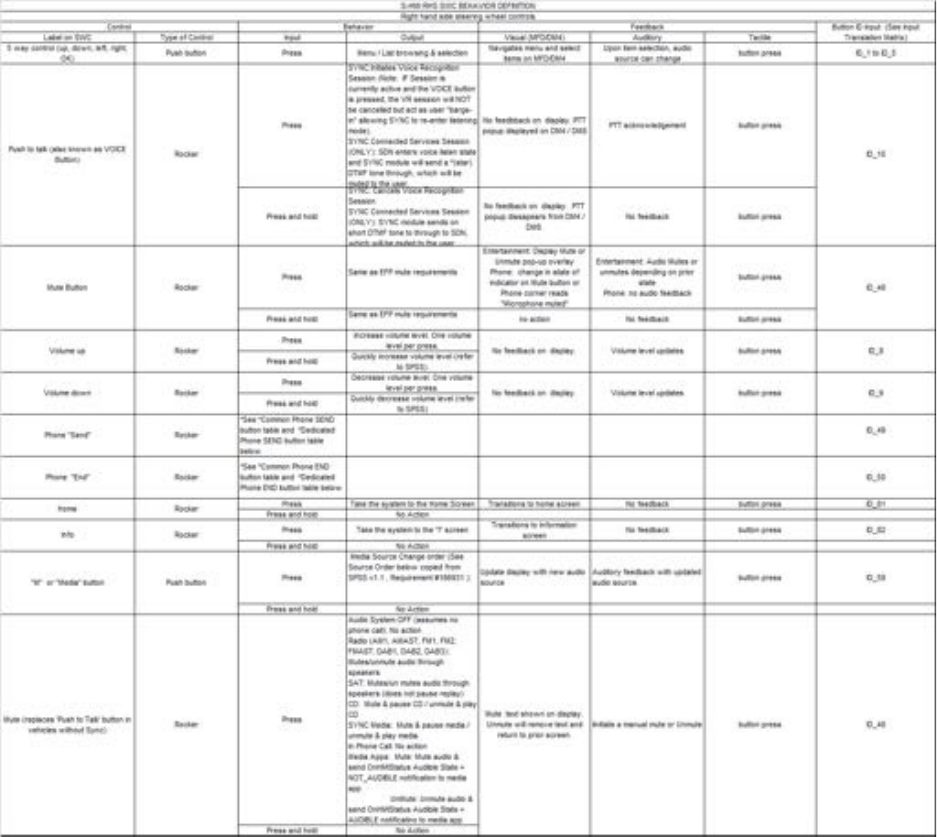

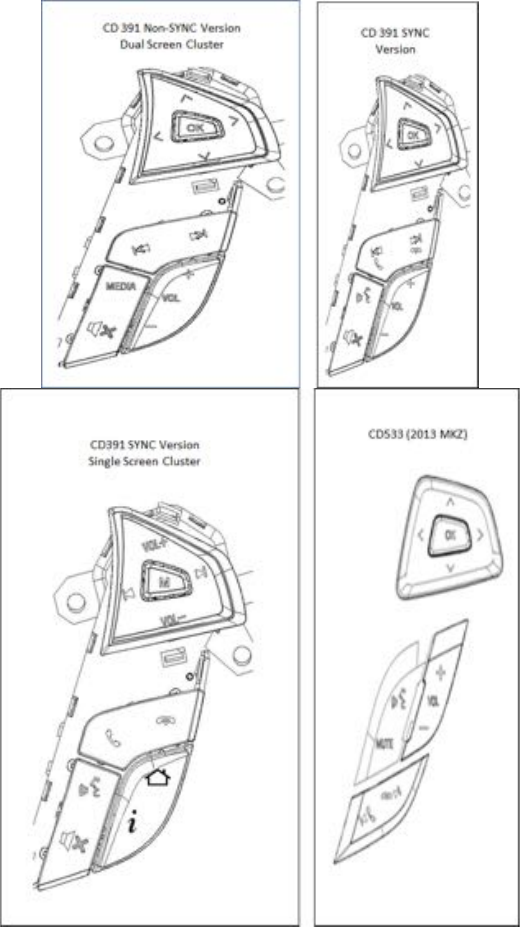

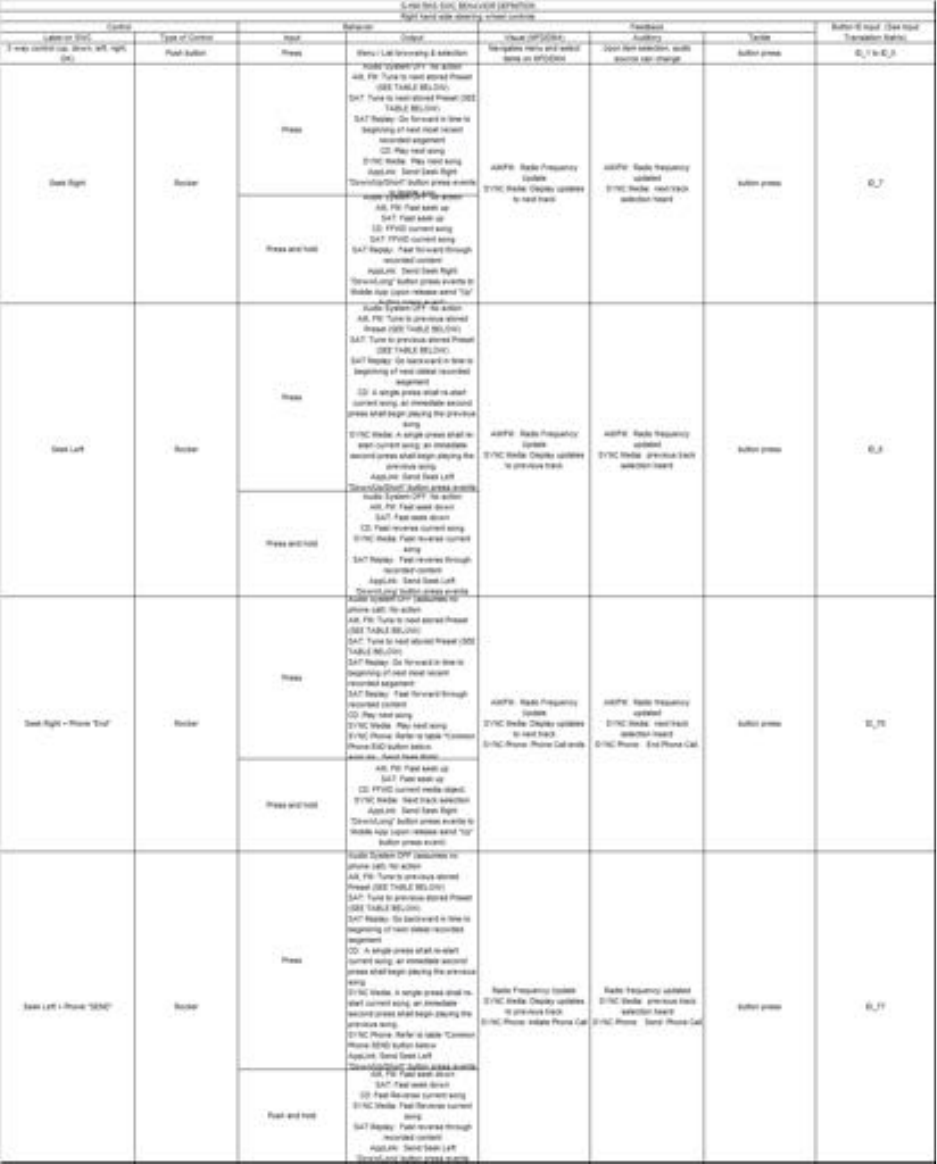

BUTTONS&

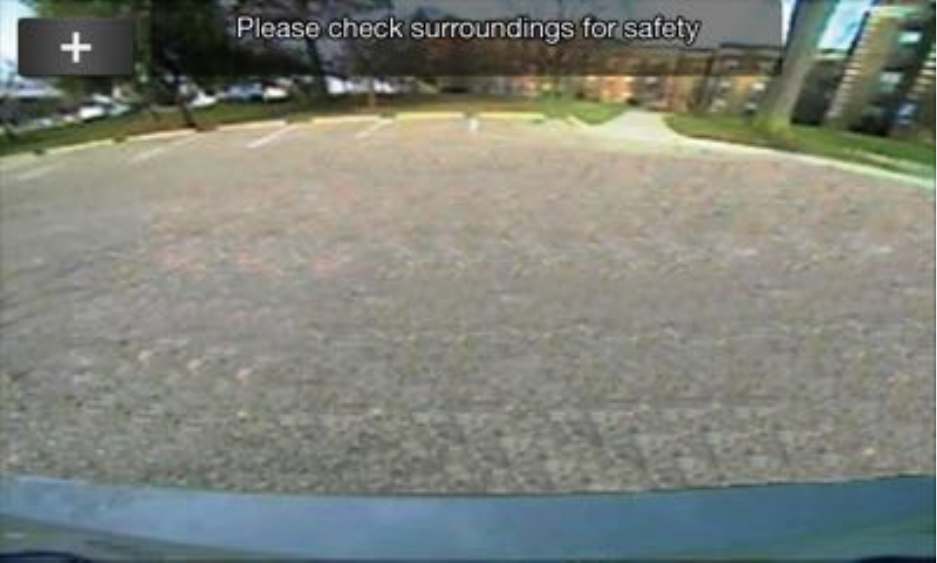

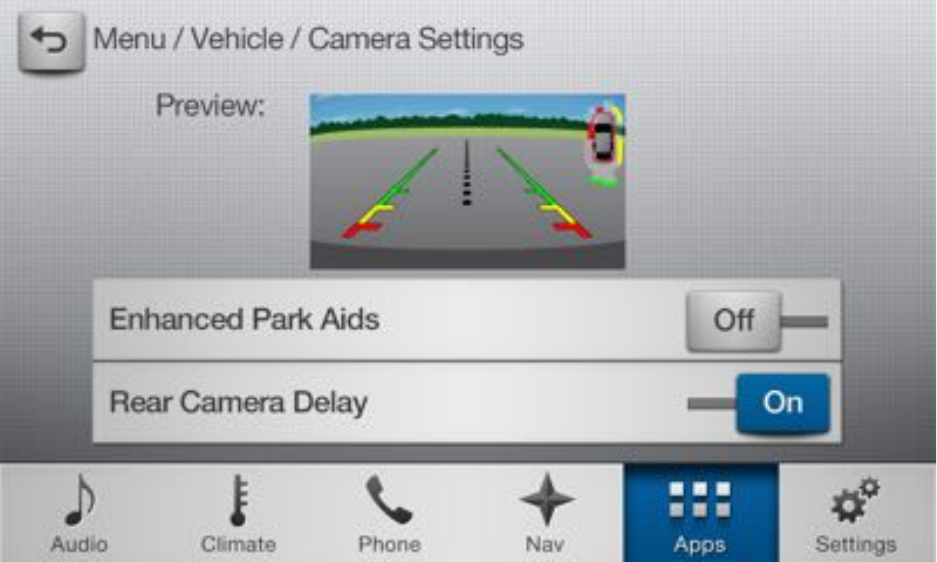

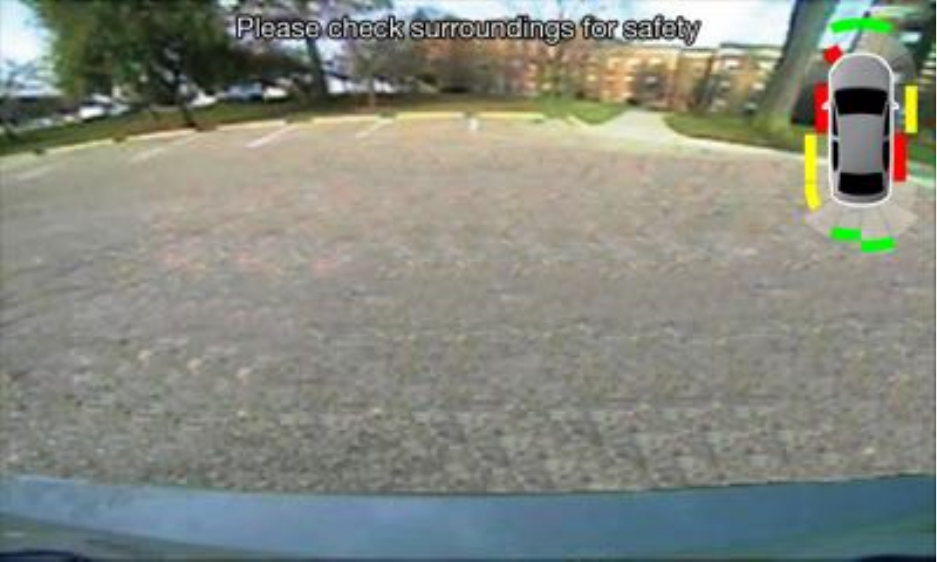

CAMERA&

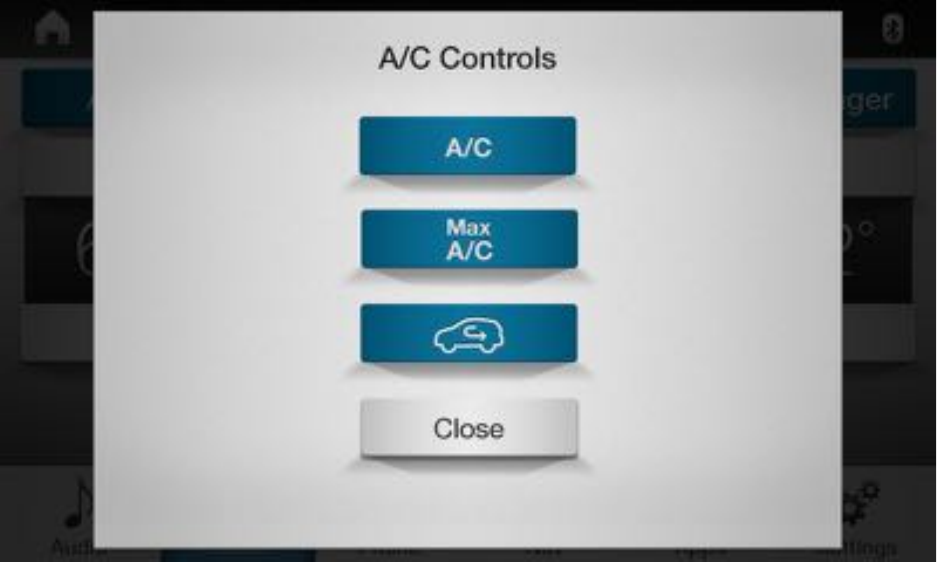

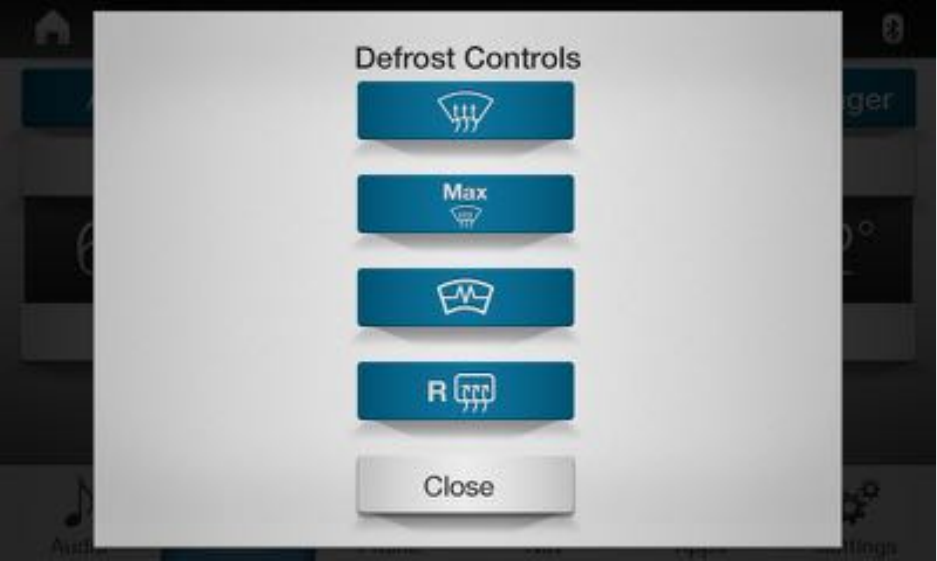

CLIMATE&CONTROL&
CLOCK&

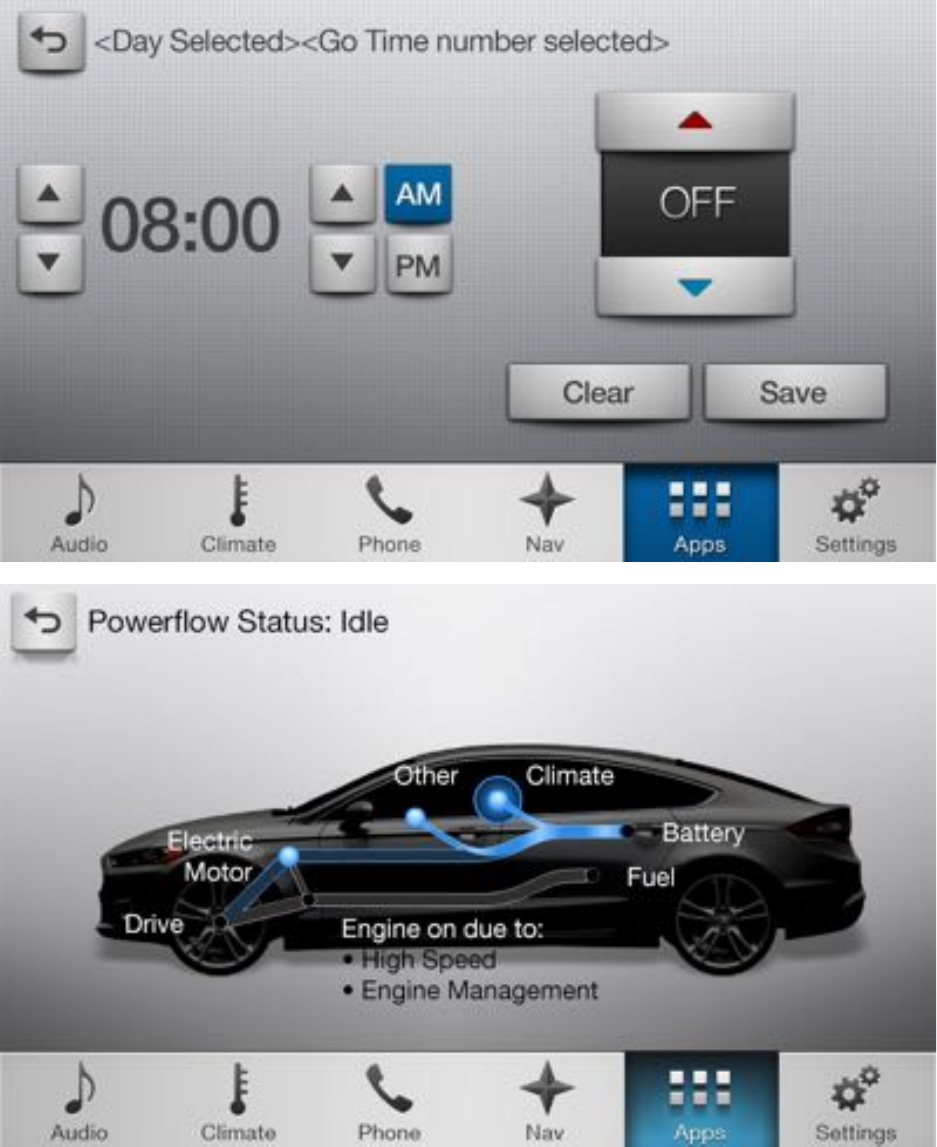

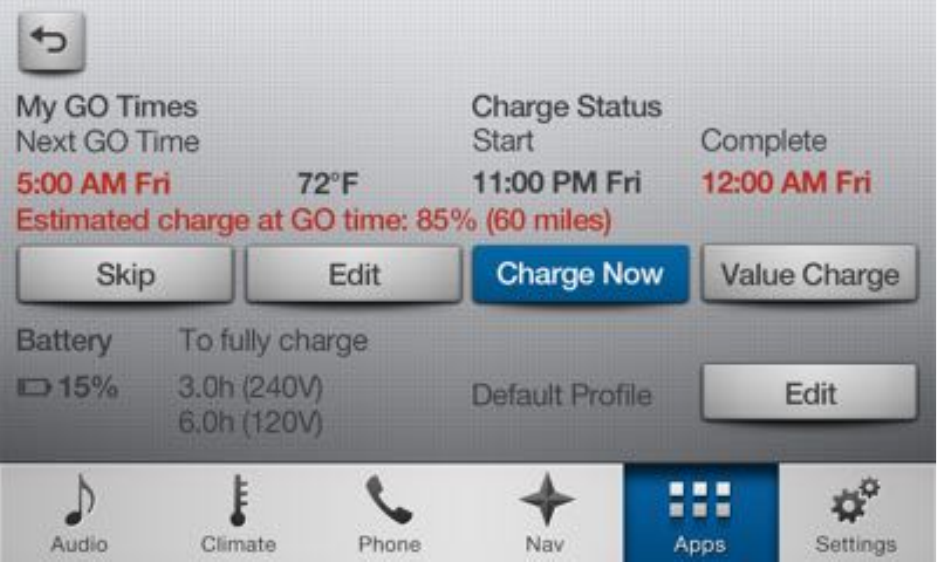

ELECTRIFICATION&

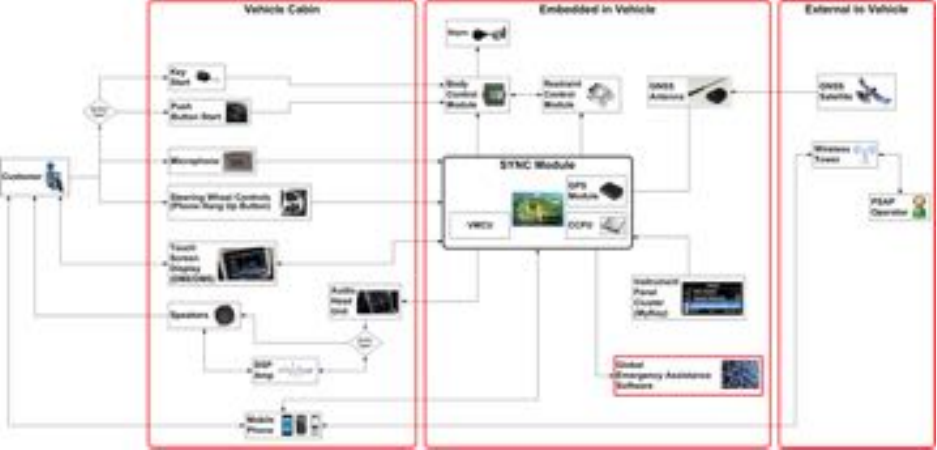

EMERGENCY&ASSIST&

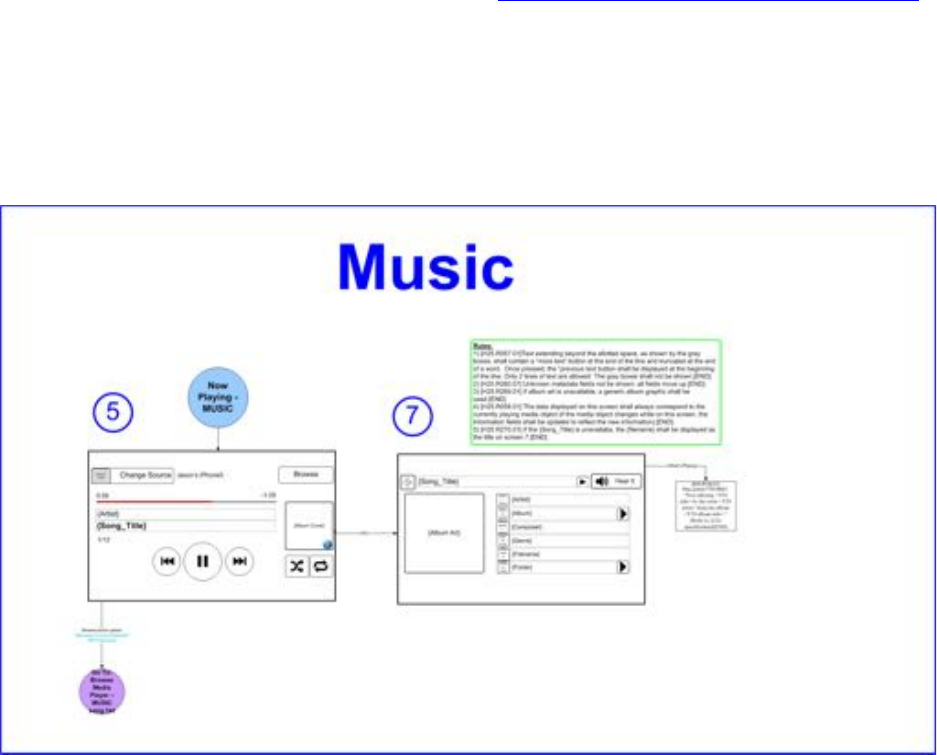

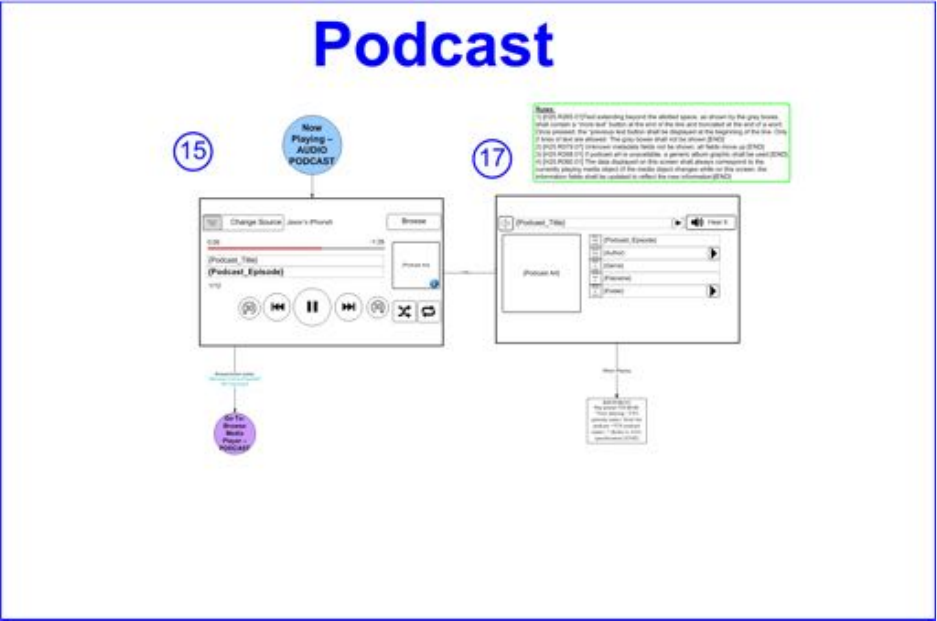

MEDIA&PLAYER&
MESSAGE&CENTER&
MULTI&CONTOURED&SEATS&
MYKEY&

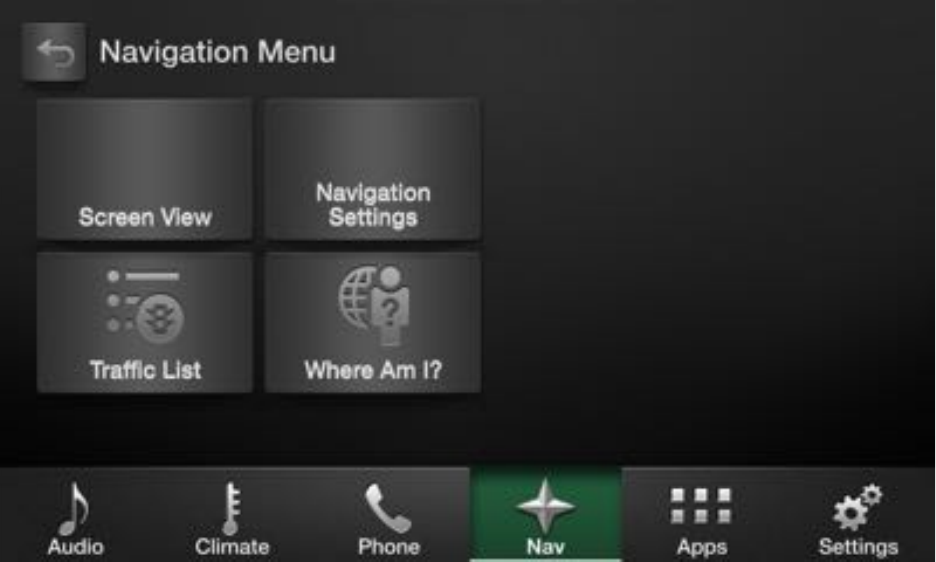

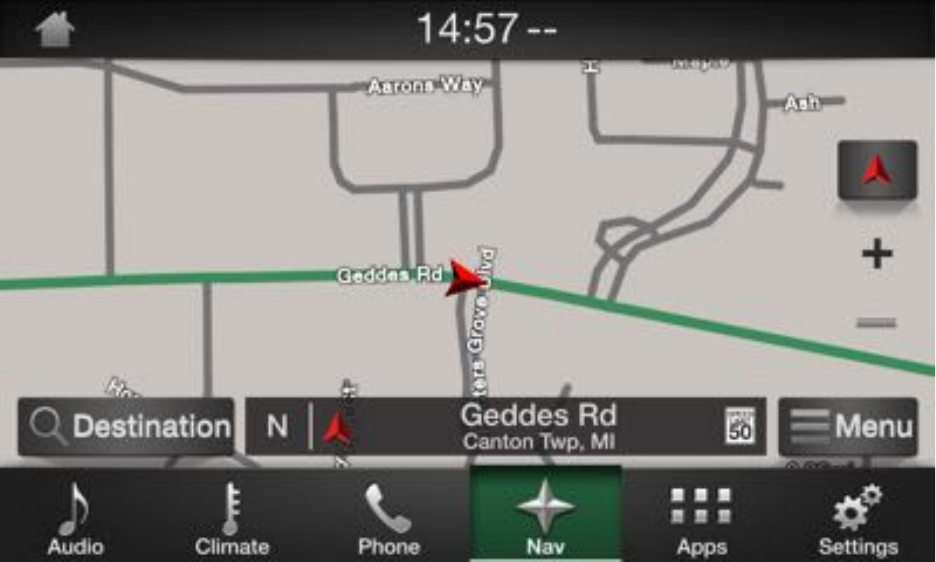

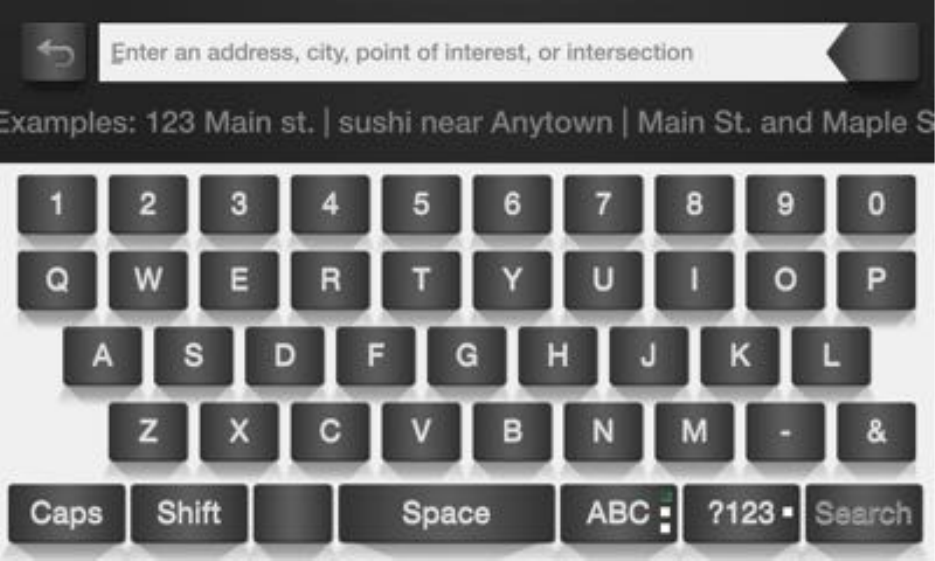

NAVIGATION&

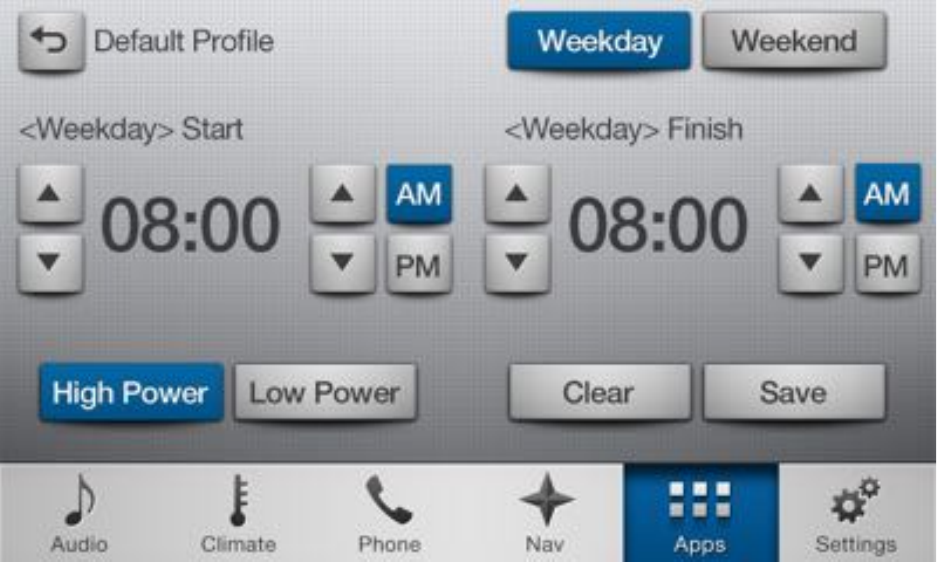

POWER&MANAGEMENT&

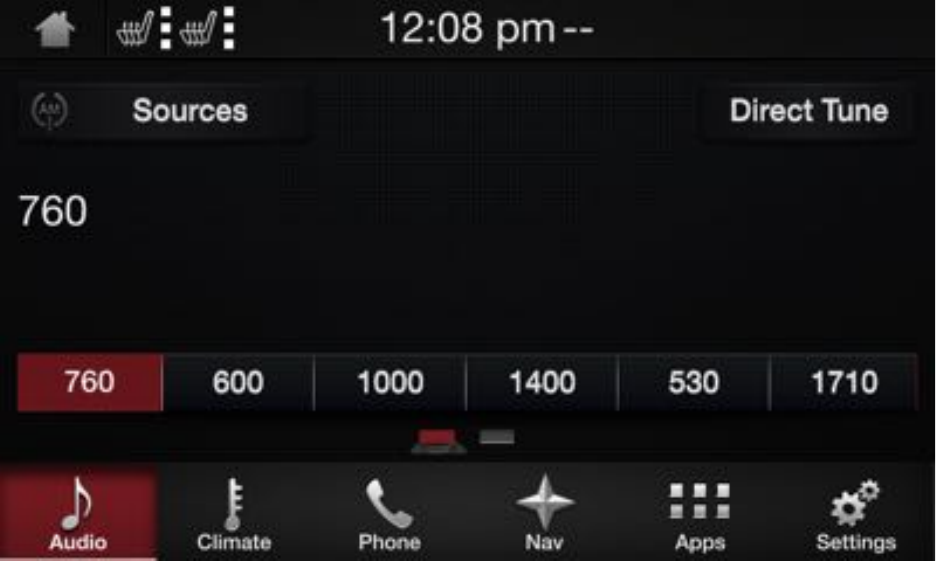

RADIO&
SETTINGS&

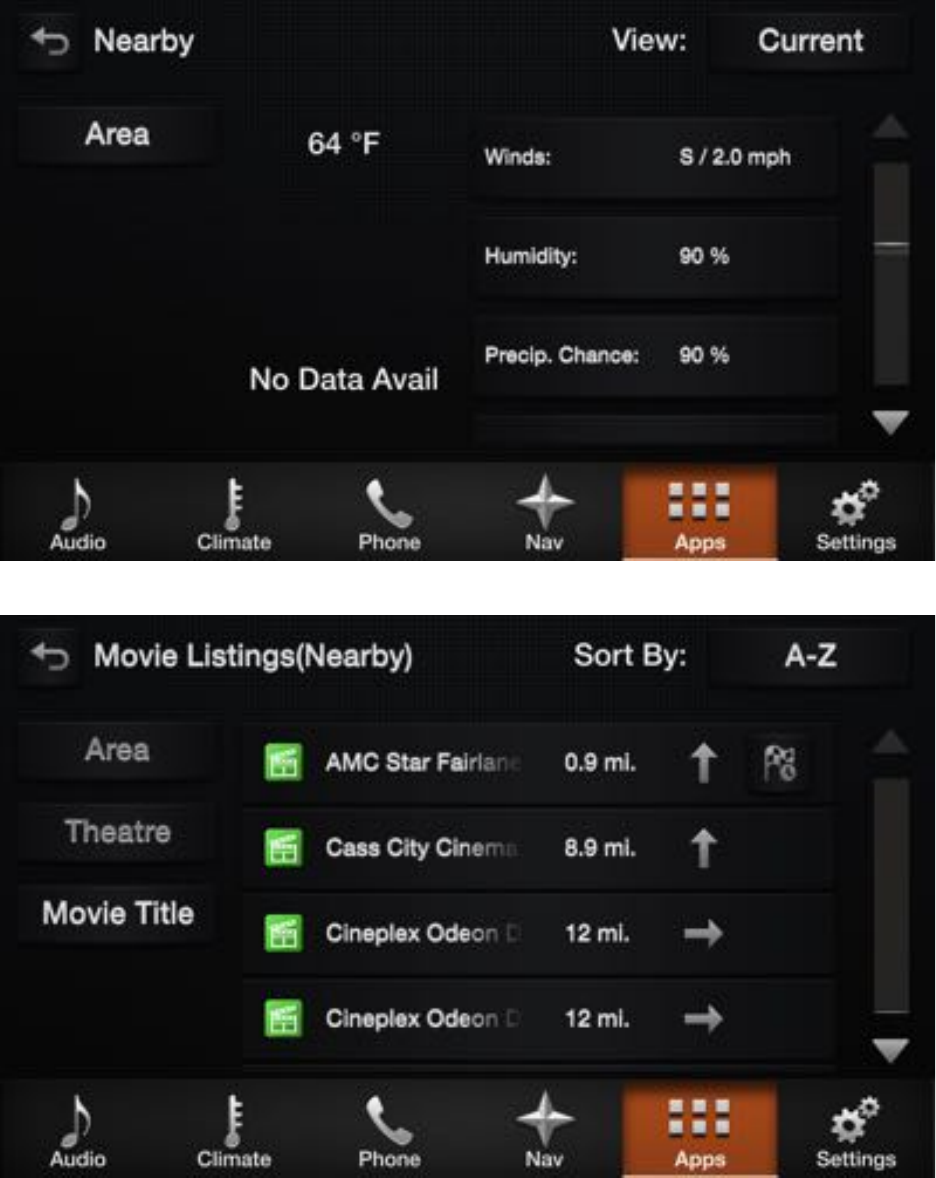

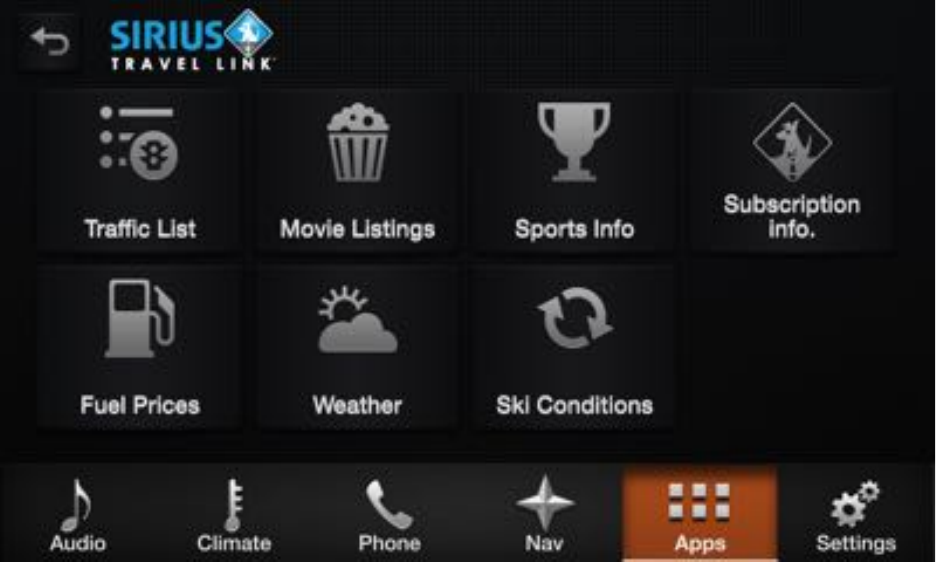

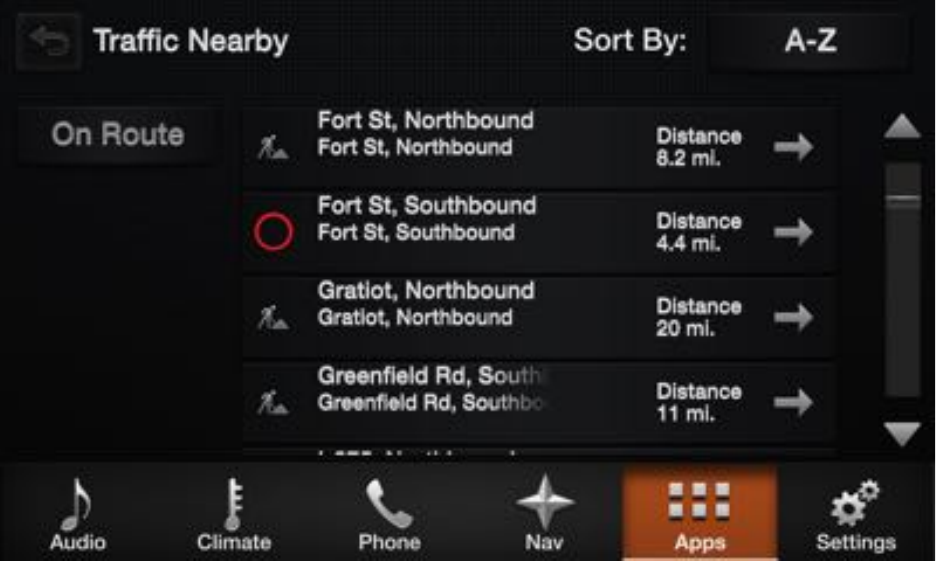

TRAVEL&LINK&
VOICE&COMMANDS&
VOLUME&

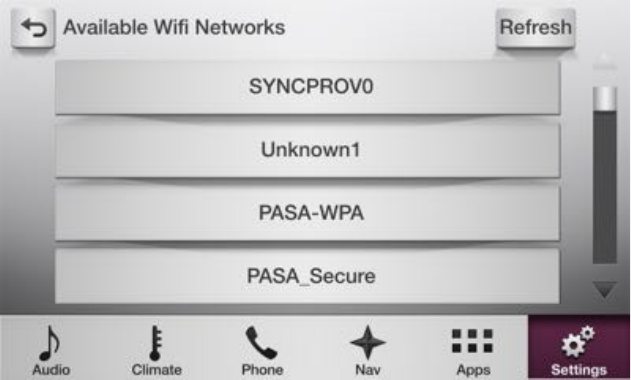

WI-FI&
&
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
2!
!
OPERATIONAL&PRINCIPLE&
&
The!Ford!Sync!FA-170-BCAR-HS!is!defined!as!a!HMI!module!with!an!attached!external!faceplate.!!All!
display!and!keypad!inputs!are!done!via!remote!modules.!!The!Sync!Module!is!capable!of!receiving!and!
playing!or!displaying!!USB!(x2),!Microphone!Inputs!(x2),!Bluetooth!2.1+EDR,!WLAN!(Wi-Fi:!2.4GHZ!and!
5GHz),!line!level!stereo!audio!!and!a!mono!line!level!outputs.!
Communication!to!remote!keypads,!head!unit!!and!other!cluster!modules!is!accomplished!via!system!
buses!
1) HS!CAN:!Vehicle!High!Speed!Communications!Bus!(500Kb/s)!
2) I!CAN!Bus:!Vehicle!Infotainment!CAN!Bus!!(500Kb/s)!
3) SD!Link:!Sirius!Data!Link!–!A!UART!communication!from!AHU’s!Sirius!module!to!the!Sync!via!a!
differential!CAN!interface!(115Kb/s)!
The!Sync!Module!is!comprised!of!two!boards,!main!and!multi-media!
Main&Board!-!Controls!the!interface!to!the!external!busses!(CAN!interface),!responsible!for!digitization!of!
all!analog!audio/video!signals,!power!moding!and!primary!power!generation!of!for!Sync!Module.!!!
Main&Board&Components:&
CPU!–!(IC603)!Bolero,!SPC5644CF0VLU8,!utilizes!Freescale’s!dual!32-bit!Core!Power!Architecture!running!
at!80MHz.!!The!CPU!has!utilizes!a!16MHz!crystal!for!generation!of!all!internal!PLL!loops!used!during!
normal!operation!of!the!processor.!!An!additional!32K.768KHz!crystal!is!used!for!the!real!time!clock!and!
watchdog!generation.!!IC603!is!mainly!used!for!bus!interface!to!the!vehicles!LAN!busses!(HS!CAN!and!
ICAN).!!The!processor!is!the!power!master!for!the!module!and!controls!the!powering!sequences!for!the!
radio.!!!
!
Power&Supplies:!The!main!board!has!5!SMPS!used!for!generation!of!power!to!the!system.!!The!
MAX16932!is!a!dual!synchronous!switch!mode!power!supply!running!at!2.1MHz.!!The!output!rail!for!the!
3.3VSW!is!capable!of!delivering!6A!to!the!main!and!multimedia!boards.!!The!3.3VSW!rail!is!sent!to!the!
MMB!for!generation!of!the!power!rails!needed!on!the!MMB.!!The!3.3VBatt!rail!is!the!second!SMPS!on!
the!MAX16932!switcher,!it!is!capable!of!1.5A!of!output!current!and!it!output!is!fed!to!the!Bolero!CPU!
and!WiLink!Module.!!There!are!2!USB!connectors!on!the!main!board,!each!VBUS!rail!is!supplied!power!by!
a!Maxim!MAX16984!USB!Smart!Switch!Supply.!!The!MAX16984!power!supplies!are!capable!of!delivering!
2.1A!of!current!with!voltage!compensation!based!on!current!requirement!for!the!USB!port..!!The!
MAX16904!is!800mA,!2.1MHz!used!to!power!the!+5V_SW!rail,!which!supplies!current!to!the!Audio!
CODEC!and!GNSS!antenna!
Audio&CODEC!–!CS4234!has!4!Channels!of!Differential!audio!data!input!(4!ADC!Channels)!and!5!channels!
of!Differential!Analog!Audio!Output!(DACs).!!The!Sync!module!is!currently!using!2!analog!channel!inputs!!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
3!
!
for!microphone!digitalization!and!3!DAC!channels!for!a!stereo!and!mono!signal!output.!!All!data!
communicated!over!the!I2S!buses!is!at!a!48KHz.!!!!
Video&ADC:!!(IC803)!Analog!!Devices!ADV7281WBCPZ-M-RL!converts!the!analog!rear!view!camera!video!
(NTSC!or!PAL!Video)!into!a!MIPI!data!stream.!!The!MIPI!video!output!is!sent!to!the!OMAP5432!using!
differential!data!and!clock!lines.!!The!ADV7281WBCPZ-M-RL!uses!a!28.6363!MHz!crystal!for!generation!
of!the!video!data.!
CPLD:!IC120!(LCMXO2-640HC-4TG100ITR)!is!Lattice’s!MachX02!CPLD!device!used!for!level!translation!
between!the!Main!Board’s!CPU!(3.3V!Logic)!and!the!multi-media!board’s!CPU!(1.8V!logic).!!It!also!is!used!
as!an!I/O!expansion!for!the!OMAP5!data!to!the!main!board!
SERDES&:!(IC802)!Texas!Instrument’s!DS90UB925QSQX/NOPB!converts!the!OMAP5432’s!24!Bit!RGB!data!
into!a!video!LVDS!signals.!!The!RGB!data!coming!from!the!OMAP5432!is!clocking!at!approximately!
33MHz!and!has!an!output!data!rate!of!approximately!1GHz.!!The!backchannel!capabilities!of!the!SERDES!
IC!uses!an!I2C!bus!to!control!the!remotes!display!and!read!the!touchscreen!inputs!from!the!user.!!The!
I2C!bus!communicates!to!the!OMAP!processor!at!100KHz!to!400KHz!data!rates.!
WiLink8&Module:!!(E502)!WiLink8!Module!is!a!module!built!by!Panasonic!using!the!WL1873!chipset!from!
Texas!Instruments.!!The!device!is!capable!of!Bluetooth!2.1+EDR,!Wi-Fi!2.4!and!5!GHz!operations!(SISO)!as!
well!receptions!of!GNSS!(GPS!and!Glonass)!satellite!data.!!The!module!has!a!built!in!26MHz!TCXO!for!
clock!generations!within!the!module.!!Bluetooth!Audio!uses!the!HCI!(UART)!for!A2DP!Bluetooth!audio!
streaming!and!BT!Hands!free!phone!audio!is!communicated!to!the!OMAP!processor!via!the!I2S!bus.!!Wi-
Fi!interface!is!via!the!SDIO!bus!and!GNSS!data!shares!the!HCI!UART!bus!with!the!Bluetooth!A2DP.!
3&Axis&Accelerometer:!(IC410)!ADXL312WACPZ-RL!send!3!axis!acceleration!rates!to!the!OMAP!processor!
via!the!I2C!bus!!that!operates!at!100-400KHz.!!The!accelerometer!data!is!used!by!the!GPS!dead!reckoning!
engine!for!improved!navigation!functions!
!
Multi-Media&Board:&Does!HMI,!audio!&!video!decoding,!USB!interface,!Wi-Fi!and!Bluetooth!interface!to!!
WiLink!module!on!Main!Board,!!GNSS!navigational!functions!including!dead!reckoning!and!route!
generation!and!navigation.!!Video!input!from!rear!view!camera!is!received!via!main!boards!VADC!via!
MIPI!bus!and!Video!output!to!the!main!board!SERDES!IC!is!by!24!bit!RGB!data.!
CPU!–!IC100!–!OMAP5432!contains!dual!core!A15!processor!with!an!operational!frequency!of!1GHz.!!The!
processor!is!used!as!the!media!processor!for!the!Sync!Module.!!A!19.2MHz!crystal!and!the!processors!
internal!PLLs!generate!most!clock!necessary!for!operation!of!the!system.!!An!additional!12.288MHz!TXO!
is!used!for!generation!of!the!master!clock!for!the!Audio!data!(8,!16,!and!48KHz).!!The!processor!is!
responsible!for:!
1) 24!bit!RGB!Outputs!
2) USB!Host!and!Interface!to!external!modules!(USB2.0)!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
4!
!
3) Audio!Interface!for:!
a. USB!Decodes!
b. AEC/Voice!Recognition!
c. Video!Decode!for!Rear!View!Camera!display!
d. Bluetooth!Audio!Decode!of!HCI!data!
e. Text!to!Speech!for!Voice!prompts!
4) HMI!generation!for!viewing!on!remote!display!
5) Wi-Fi!interface!through!SDIO!Bus!
6) GNSS-Route!generation,!map!rendering,!dead!reckoning!and!point!of!interest!generations!
!
DDR3&Memory!–!(IC200-IC203)!MT41K256M16HA-125AAT:E!is!Micron!4Gbit!DDR3!memory!that!is!
clocked!at!533MHz.!!The!4!memory!devices!are!combined!for!a!total!bus!width!of!64bits!and!memory!
depth!of!2!Giga!bytes,!
!
eMMC&Flash:!(IC204)!The!eMMC!device!from!SanDisk!is!used!to!store!the!executable!code,!!voice!
recognition!data!base,!startup!animations,!user!data,!and!maps!for!the!navigation!system.!!The!eMMC!
components!are!SanDisk’s!19nm!153pin!BGA!devices!in!8GB,!32GB,!and!64GB!memory!depths.!!!The!
memory!size!is!dependent!on!the!functionality!requirements!and!region!of!the!world!the!module!is!used!
in.!!All!devices!will!communicate!using!the!48Mz!DDR!mode!on!the!SDIO!bus!
!
External&USB&Phy;!(IC500)!TUSB1210BRHBRQ1!is!a!standalone!USB!transceiver!IC!that!converts!USB!Data!
(DP+/-)!into!a!8!but!ULPI!data!stream!to!the!OMAP!processor.!!The!data!ULPI!data!rate!to!the!OMAP!
processor!is!at!60MHz.!!The!IC!receives!an!additional!19.2MHz!clock!from!the!OMAP!processor!.!!IC500!is!
only!used!when!communication!occurs!on!USB!Port!2.!
!
PMIC&:!(IC700)!O9038A352IZWSRQ1!is!manufactured!by!Texas!instruments.!!It!is!the!power!management!
IC!that!is!comprised!of!9!SMPS!and!11!LDOs.!!The!power!supplies!are!used!to!supply!the!needed!voltage!
rails!for!the!devices!on!the!multimedia!board.!!The!PMIC!is!clocked!by!its!own!16.384MHz!crystal.!!!
!
Apple&iPod&Authentication:!(IC102)!MFI337S3959,!Apple!Rev!C!IC!communicates!to!the!OMAA!processor!
over!the!Audio!and!Video!I2C!Bus.!!When!an!Apple!device!is!connected!to!the!module!via!USB!port,!it!
issues!a!challenge!to!the!Sync!Module.!!The!Sync!module!uses!the!Apple!IC!to!get!the!proper!response!to!
the!challenge!and!also!issues!a!counter!challenge!to!the!remote!device.!!!!
!
3&Axis&Rae&Gyro:!(E500)!A3G4250DTR!supplies!the!OMAP!processor!with!a!3!axis!Rate!data!in!degrees!
per!second.!!The!MEMS!gyro!communicates!to!the!OMAP!processor!via!an!I2C!bus!operating!at!100-
400KHz!data!rate.!!Data!from!the!rate!gyro!is!used!to!aid!the!accuracy!of!the!dead!reckoning!algorithm!in!
the!navigation!function!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
5!
!
APPLINK&
What!is!AppLink?!
AppLink! enables! vehicle! occupants! to! use! the! applications! (“apps”)! present! on! their! mobile! devices!
through! the! head-unit! thereby! reducing! driver! distractions.! SYNC! AppLink! uses! voice-activated! (voice!
recognition! (VR))!technology! to!build!a! hands-free! bridge! between! the!head-unit!and!the!smartphone!
applications!(through!Bluetooth! (BT)).! Through!voice!commands! occupants!can!stream! Internet!radio,!
listen!to!tweets,!and!more!without!fumbling!through!phone!menus.!
SYNC! AppLink-compatible! mobile! applications! are! available! for! Android™,! BlackBerry®,! and! iPhone®!
smartphone!platforms,!and!new!applications!are!being!added!regularly.!Applications!can!be!purchased!
and!downloaded!through!Google!Play,!iTunes®!App!Store,!and!Blackberry®!App!World™.43!
Some!of!the!AppLink!enabled!applications!include:!Pandora,!Stitcher,!iHeartRadio,!OpenBeak,!NPR!News,!
SYNC!Destinations,!Scout!by!Telenav.!
How!does!it!work!(End-User!Perspective)?!
1. User!installs!an!AppLink!enabled!app!onto!mobile!phone.!
2. User!connects!mobile!phone!with!SYNC!
a. For!iPhone:!Connection!is!through!USB!using!cable!
b. For!Android/Blackberry:!Connection!is!through!Bluetooth!
3. User!starts!the!App!on!mobile!phone!
4. User!accesses!App!from!SYNC!
a. Apps!can!be!accessed!through!the!SYNC!HMI/SWC!
b. Apps!can!be!accessed!through!voice!prompts!
Examples:!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
6!
!
!
APPLINK&
!

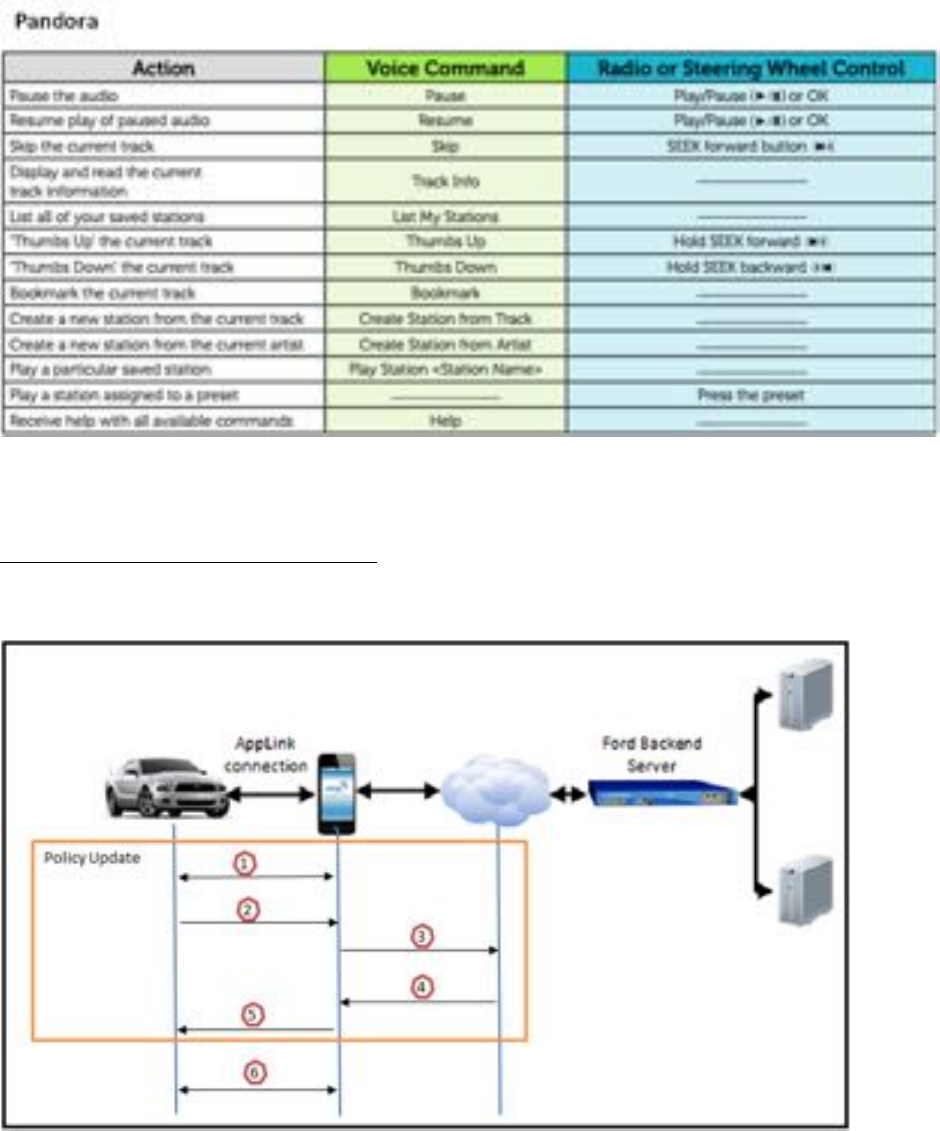

How!does!it!work!(Technical!Perspective)?!
!
!
A. Policy!Update:!
1. The!mobile!phone!and!SYNC!are!connected!(either!through!Bluetooth!or!through!USB)!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
7!
!
2. SYNC-AppLink!requests!update!to!local!policy!table!and!sends!this!request!to!mobile!device.!
3. Proxy! code! within! mobile! device! forwards! the! request! to! Ford! Backend! Server! via! cloud!
using!the!phone’s!mobile!connection.!
4. Ford!Backend!Server!provides!updated!policy!table!back!to!mobile!phone.!
5. Mobile!phone!passes!on!the!updated!policy!table!to! SYNC-AppLink! where! the! local! policy!
table!gets!updated.!
B. Application!Interaction!
6. Mobile!phone!and!SYNC!AppLink!pass!messages!to/forth!in!response!to!user!requests.!
!
!
AppLink!Ford!Video:!http://support.ford.com/sync-technology/access-applink-mobile-applications-sync!
!
&
AUDIO&

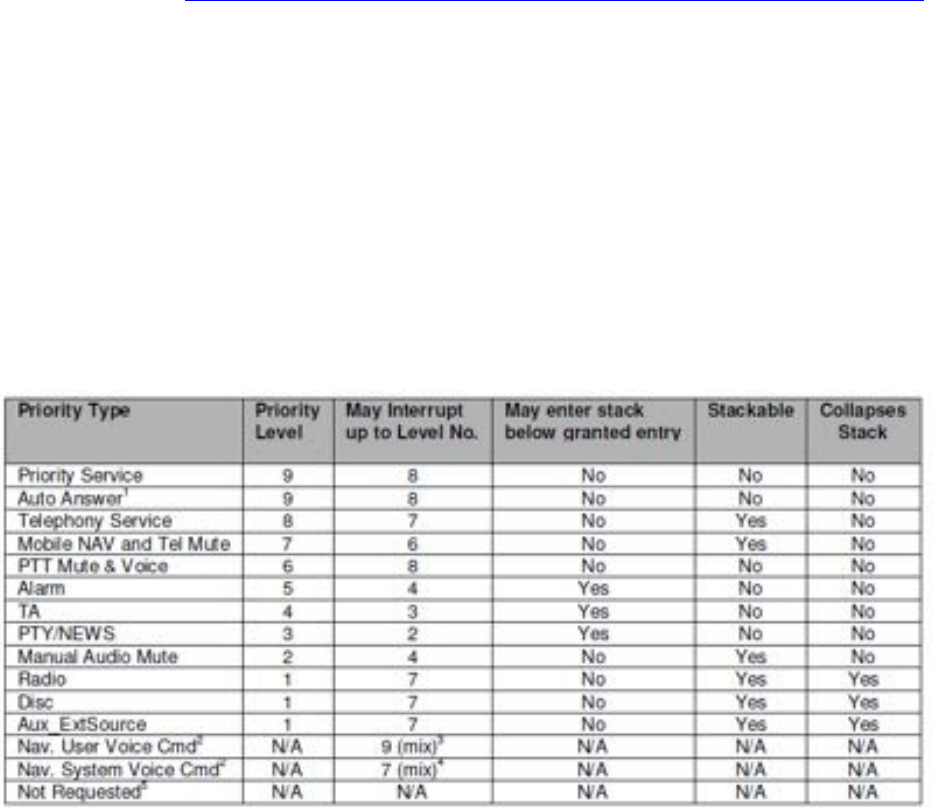

Management!
Audio sources are typically activated /deactivated due to event which causes an audio source to be either
requested for playback or released from playback. Since multiple clients may request access to the audio
system for playback, mixing, etc. the Audio Resource Server must have a method in place to track the requests
for sources and track the current sources.
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
8!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
AUDIO&SETTINGS&
!
Tonal Settings Control
Bass, Treble, Midrange, Balance, Fade

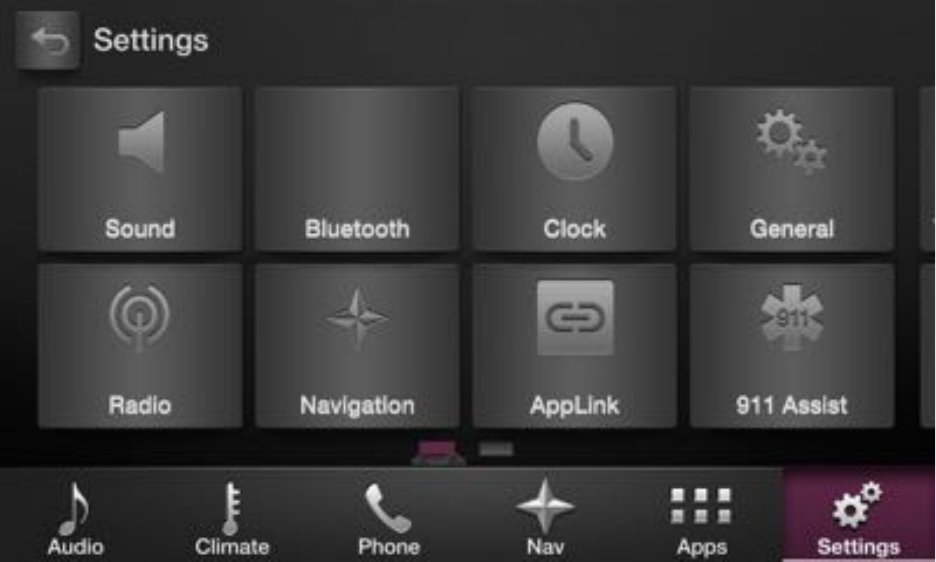

These controls are available in the Sound section of the Settings.
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
9!
!

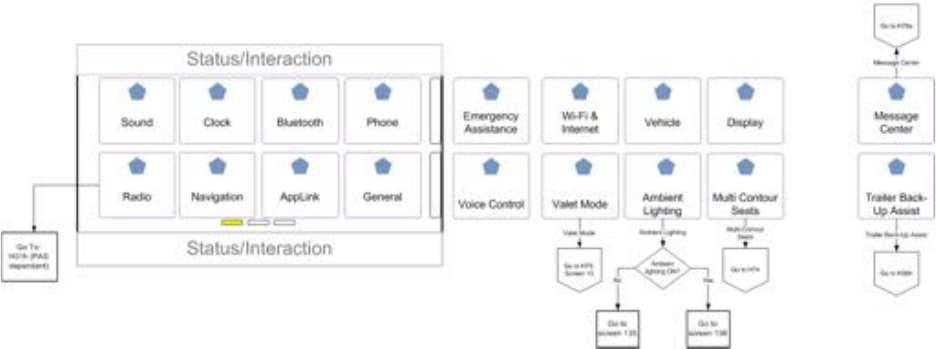

Sound Settings
Status/Interaction
Bass
Speed Adjusted Volume
Treble
Midrange
Balance and Fade
Reset
Reset
Reset
Off
!
!
!

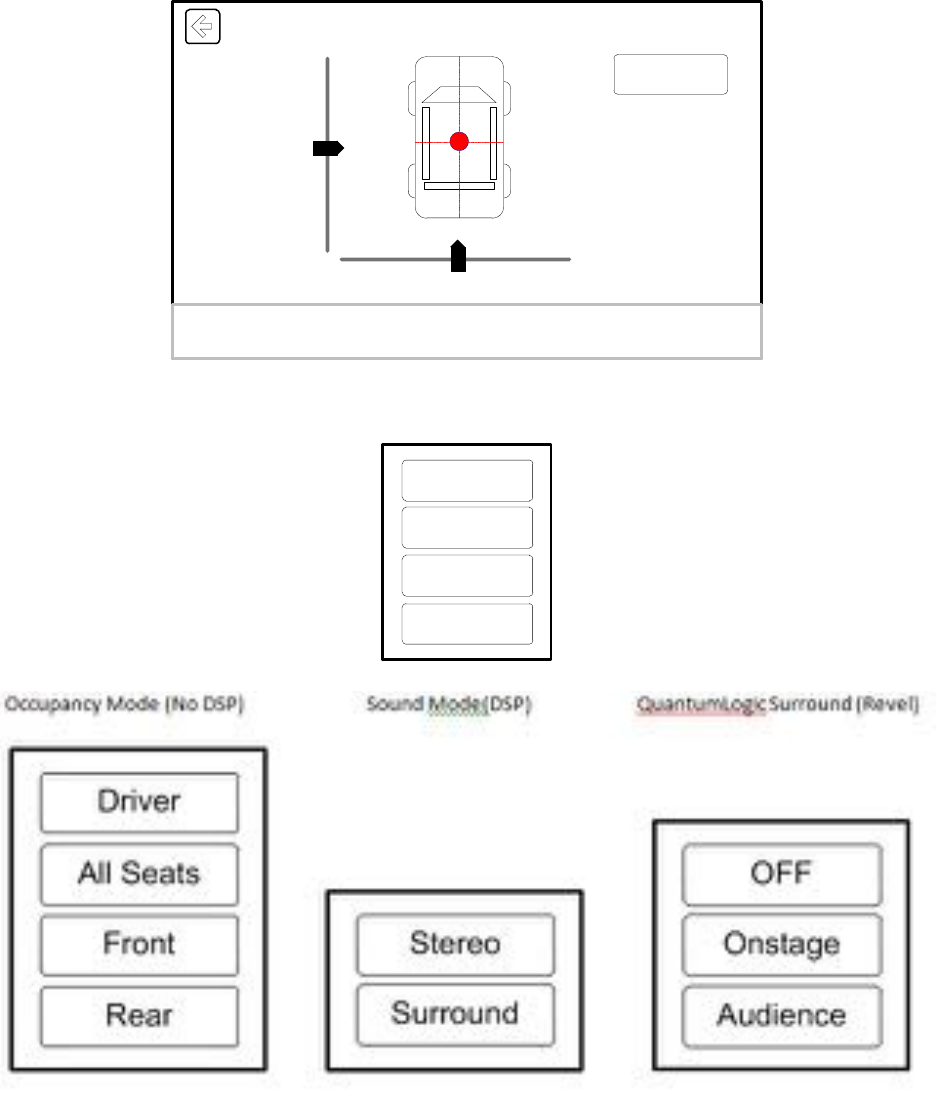

Depending!on!vehicle!configuration!and!components,!The!following!options!may!be!available.!
!
Occupancy Mode (no external amp present), DSP Program Mode (Sound Mode)
QuantumLogic Surround (Revel Present)
Play!THX!Deepnote!available!if!configured!as!Lincoln!and!DSP!on.!
Play!Revel!Experience!available!if!configured!as!Revel!on.!
Occupancy Mode Driver
Sound Mode Surround
QuantumLogic Surround Audience
Play THX Deep Note™
Play Revel Experience™
!
AUDIO&SETTINGS&
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
10!
!
Balance!&!Fade!
!
Balance and Fade
Status/Interaction
Balance
Fade
Reset
!
!
Speed Compensated Volume
!
Off
Low
Medium
High
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
11!
!
BEZEL&DIAGNOSTICS&
!
Upon system start-up the Bezel Diagnostic Client shall set the signal _Bezel_Diagnostic.Rq :
Diagnostic_Operation.Rq == "Get All Background Diagnostic Request" and request from the Bezel Diagnostic
Servers the following information:
1. Software Part Number
2. Hardware Part Number
3. Calibration Part Number
4. SDARS ESN Number (applicable only to SDARS server)
Bezel Diagnostics
RETURN
APIM Diagnostics
AHU Diagnostics
DSP Diagnostics
EFP Diagnostics
Exit Diagnostics
!
!
Information!specific!to!APIM!will!be!available!through!this!menu.!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
12!
!
Bezel Diagnostics / APIM
RETURN
Part Numbers
Touch Screen Calibration
Software Versions
Touch Screen Activation Test
Configuration Status
Display Test Pattern
GPS Information
RGB Pixel Test
Tones Test
Exit Diagnostics
Rear Tones Test
Engineering Dev. Mode
!
!
BLUETOOTH&PHONE&
Handsfree!Phone!User!guide!!
Jim!Fulner,!Panasonic!Automotive!Systems!Company!of!America,!Inc.!
The!Handsfree!phone!feature!allows!the!Sync!system!to!act!as!an!extension!of!your!phone!via!wireless!
technology!called!Bluetooth®.!Bluetooth®!is!like!an!invisible!cable!that!connects!one!device!to!one!other!
device.!It!is!important!to!remember!that!the!features!of!Sync!available!to!the!user!are!dependent!on!the!
Bluetooth®!functionality!of!the!user’s!phone.!NOTE:&Some&phones&may&have&features&that&work&on&the&
handset&but&are¬&necessarily&extended&via&Bluetooth®,&this&may&include,&but&is¬&limited&to,&
features&like&Text&Massaging’s&(SMS),&photo&caller&ID,&personalized&ringtones,&etc.!For!more!
information!on!your!particular!phone’s!Bluetooth®!capabilities,!please!contact!your!cell!phone!provider’s!
technical!support!team.!
In!order!to!use!the!Handsfree!phone!capability!you!must!pair!the!cell!phone!with!sync.!(Pairing!is!the!
establishment!of!the!initial!connection!of!the!two!devices,!telling!each!other!that!they!exist!and!they!
trust!each!other).!You’ll!find!the!option!in!SETTINGS!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
13!
!
!

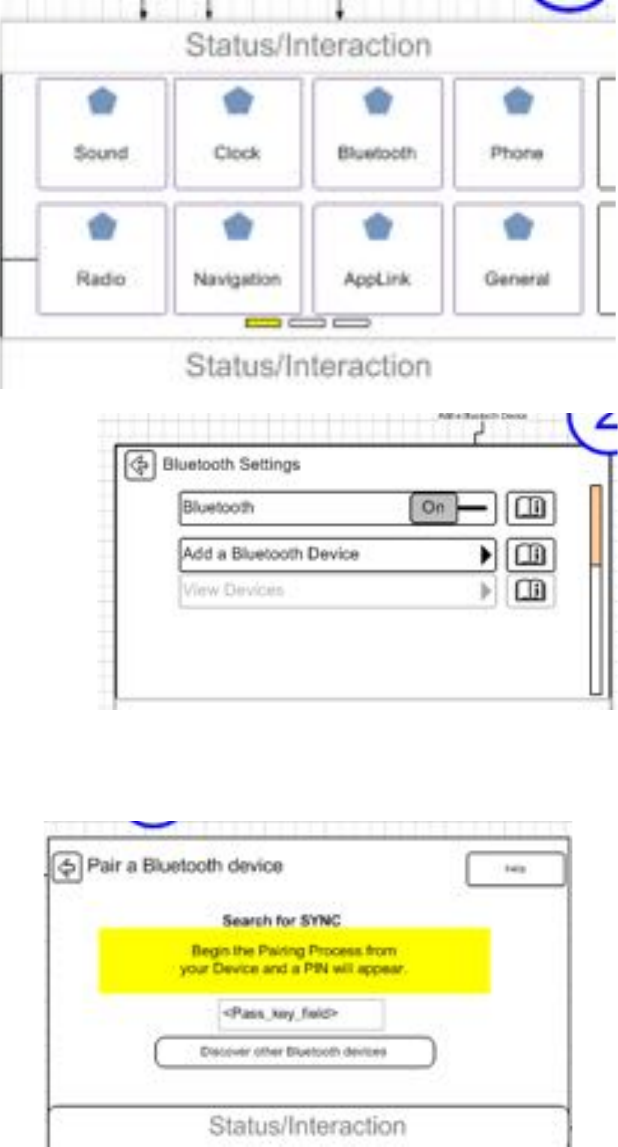

Choose!BLUETOOTH!Choose! ADD!A!
BLUETOOTH!DEVICE!!
BLUETOOTH&PHONE&
!
Then!search!for!new!devices!from!your!cell!phone.!This!is!normally!done!via!your!phone’s!SETTINGS!or!
TOOLS!menu.!For!specific!instructions!regarding!pairing!your!phone!please!see!your!phone’s!users’!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
14!
!
manual!or!contact!your!cell!phone!carriers!technical!support!team.!You!should!be!able!to!select!SYNC!
from!a!search!option.!You!will!then!need!to!confirm!the!PIN.!Your!phone!should!prompt!you!to!either!
enter!the!PIN!as!shown!on!SYNC!or!it!will!automatically!show!a!PIN!and!you!need!to!confirm!on!both!
your!phone!and!SYNC!that!the!PIN!matches.!!It!is!recommend!that,!if!given!the!option!on!your!phone,!
you!set!SYNC!as!TRUSTED!(sometimes!this!will!be!called!AUTOMATIC,!AUTHORIZED,!ALLOW!ACCESS!TO!
PHONEBOOK!or!similar!wording).!!
Once!pairing!is!successful!your!phone!and!SYNC!trust!each!other.!Automatic!connection!should!begin.!
Pairing!should!only!need!to!be!performed!once.!Subsequent!connections!should!occur!automatically!
when!you!get!in!the!car!and!your!phone’s!Bluetooth®!feature!is!turned!on.!!SYNC!can!pair!(store!in!
memory)!up!to!12!devices,!however!only!one!phone!can!be!connected!at!a!time.!!
If!your!phone!supports!phonebook!synchronization!via!Bluetooth®!this!synchronization!will!begin!
automatically!(you!may!need!to!authorize!the!first!download!from!your!phone).!Once!authorized,!initial!
phonebook!download!may!take!more!than!two!minutes!for!your!phonebook!to!download!and!become!
available.!Subsequent!connections!the!phonebook!should!be!available!almost!immediately!upon!
connection.!!!
If!your!phone!received!an!incoming!phone!call!the!caller!ID!will!be!displayed!and!a!ringtone!will!be!
played!in!the!speakers.!This!can!be!answered!via!the!touch!screen,!or!your!steering!wheel!controls.!The!
call!can!be!heard!via!the!vehicle!speakers!and!you!can!talk!handsfree,!your!vehicle’s!microphone!will!
pick!up!your!voice.!Remember!to!keep!your!eyes!on!the!road!and!hands!on!the!wheel.!!

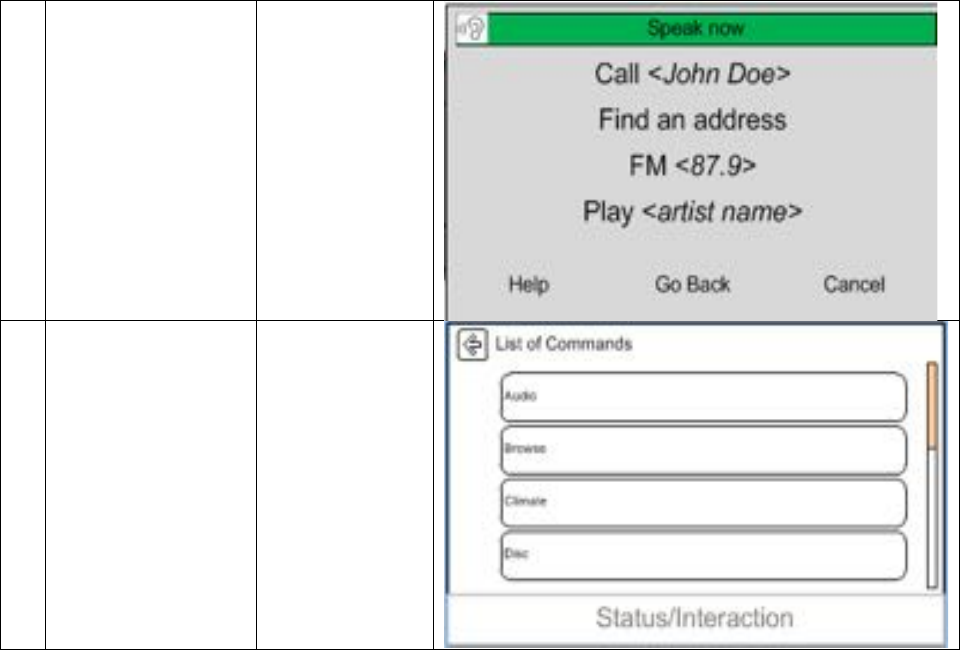

To!make!an!outgoing!call!you!can!tap!the!voice!button!on!your!steering!wheel!control!and!say!a!number!
“Call!512-646-6400”!or!a!contact!in!the!sync!phonebook!“Call!Alex!Jones!at!work.”!The!same!options!can!
be!access!via!SYNC’s!PHONE!menu!on!the!touch!screen.!
&
BLUETOOTH&PHONE&
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
15!
!
!
If!your!phone!supports!Text!Messaging!over!Bluetooth®!and!you!receive!an!incoming!text!message!an!
alert!will!show!on!the!display,!and!a!tone!will!play!through!the!speakers.!You!can!then!choose!to!have!
the!message!read!to!you.!!
!
If!your!device!supports!replying!to!SMS!over!Bluetooth®,!you!will!be!given!a!list!of!predefined!messages!
to!choose!from!to!reply!with!such!as!“Can’t!talk!right!now,!I’m!Driving.”!Note,!many!devices!do!not!fully!
support!Bluetooth®!text!messaging,!most!notably!the!Apple!iPhone.!!
Handsfree!phone!is!a!convenience!feature,!not!a!safety!feature.!!Even!when!using!handsfree!it!is!
recommended!that!the!vehicle!be!parked!in!a!safe!location!while!calling!or!texting.!No!significant!
difference!has!been!shown!in!regards!to!driver!distraction!between!holding!your!phone!and!using!a!
handsfree!system!like!SYNC.!!
Troubleshooting&tips:&If&at&any&time&Handsfree&phone&is¬&functioning&as&expected,&it&is&
recommended&to&perform&a&soft&reset&on&your&phone.&This&is&normally&done&by&removing&the&battery&
for&a&short&time.&If&problems&still&occur&you&may&choose&to&delete&the&pairing&from&both&device&and&pair&
them&again.&For&phone&specific&information&contact&your&carrier’s&tech&support.&For&additional&SYNC&
support&contact&1-877-xxx-xxxx&
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
16!
!
BUTTONS&
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
17!
!
!
BUTTONS&
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
18!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
19!
!
BUTTONS&
!
!
!
!
!
!
!
!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
20!
!
!
!
!
CAMERA&
Brief&description&of&Camera&and&features.&
The!SYNC!Gen3!Camera!feature!includes!multiple!functions;!Rear!Video!Camera!(RVC)!with!zoom,!Front!Video!
Camera!(FVC)!with!zoom,!Park!Distance!Control!(PDC),!Flank!Guard,!Active!Park!Assist!(APA),!Park!Out!Assist!(POA),!
Parallel!Park!Assist,!Perpendicular!Park!Assist!(left!and!right!side),!Trailer!Backup!Assist!(TBA),!and!360!degree!view.!

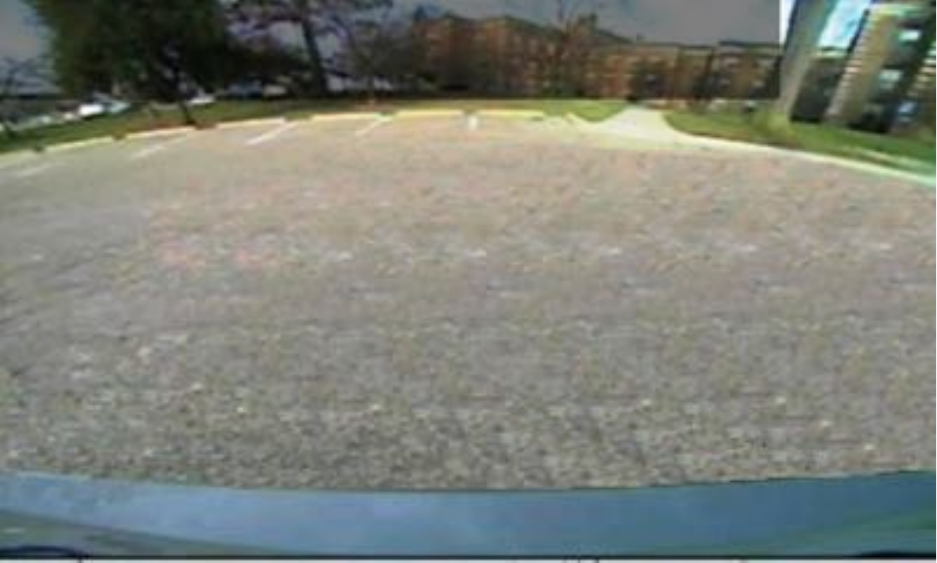

RVC:&
RVC!is!activate!by!shifting!the!vehicle!to!reverse!and!will!maintain!until!the!user!switches!out!of!reverse!or!exceeds!
a!speed!of!10kph.!
!
PDC:&
PDC!is!the!ability!for!the!user!to!have!a!visual!representation!for!how!close!they!are!to!an!object!while!
reversing!their! vehicle.!The! four!bottom!sectors!of! the!car!image!below! represent!PDC.!They! will!turn!
from! transparent! to! green! to! yellow! to! red! depending! on! how! close! the! object! is! to! the! appropriate!
sensor.!There!will!also!be!an!audio!tone!accompanied!with!the!visual!representation!that!will!beep!more!
frequently!the!close!the!vehicle!comes!to!the!object,!ending!in!a!solid!tone!when!the!driver!is!becoming!
too!close!to!the!object.!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
21!
!
!
!
!
CAMERA&
!
!
Flank&Guard:&
Flank!Guard!is!the!ability!for!the!user!to!have!a!visual!representation!for!how!close!they!are!to!an!object!
while! driviing! in! forward! or! reverse.! The! four! middle! sectors! on! each! side! of! the! car! image!above!
represent! Flank! Guard.! They! will! turn! from! transparent! to! green! to! yellow! to! red! depending! on! how!
close! the! object! is! to! the! appropriate! sensor.! There! will! also! be! an! audio! tone! accompanied! with! the!
visual!representation!that!will!beep!more!frequently!the!close!the!vehicle!comes!to!the!object,!ending!in!
a!solid!tone!when!the!driver!is!becoming!too!close!to!the!object.!
RVC&Settings:&
RVC!settings!shall!consist!of!the!ability!to!turn!Enhanced!Park!Aids!ON/Off,!as!well!as!RVC!delay.!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
22!
!
!
!
!
!
CAMERA&
!
!
APA:!
APA!is!a!feature!that!assists!in!the!user!with!finding!an!available!parking!spot!and!to!maneuver!into!the!
spot!by!way!of!controlling!the!steering!wheel.!The!driver!is!responsible!for!controlling!gas!and!brake!as!
well!as!shifting.!Commands!and!warnings!in!the!form!of!text!will!be!presented!on!the!HMI!screen!as!well!
as!different!icons!associated!with!the!instruction!–!pull!forward,!back!up,!searching!left,!searching!right,!
stop,!and!reverse.!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
23!
!
!
!
!
!
!
CAMERA&
!
!

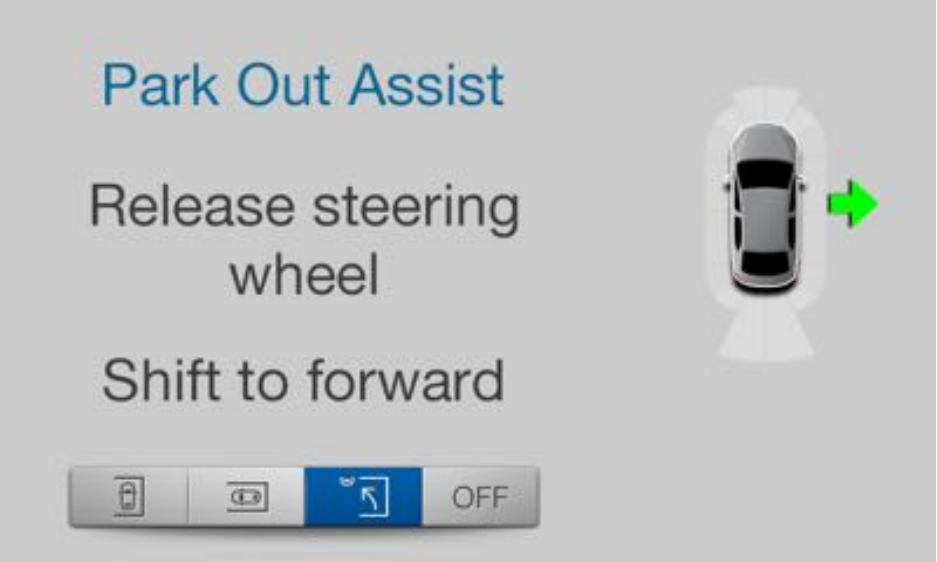

POA:&
POA!assists!the!driver!in!pulling!out!of!a!tight!parking!spot.!When!the!camera!is!used!with!the!feature!it!
looks! and! acts! very! similar! to! APA! with! two! exceptions;! 1)! PDC! can! be! active! as! well,! 2)! There! are!
different! icons! –! pull! forward,! back! up,! caution,! finish,! and! stop.! When! the! camera! is! not! used!or! is!
unavailable!the!view!will!look!like!the!below!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
24!
!
!
!
!
!
!
!
!
CAMERA&
!
!

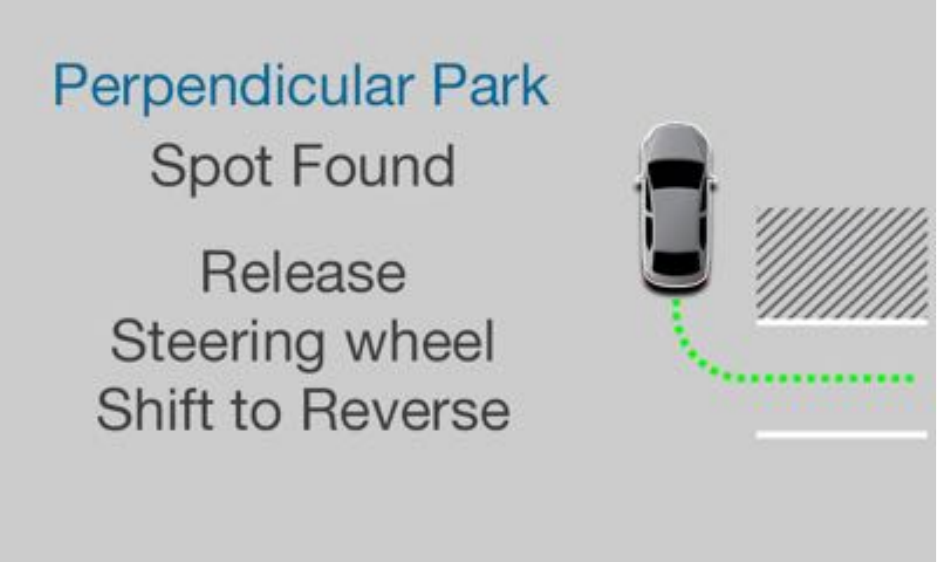

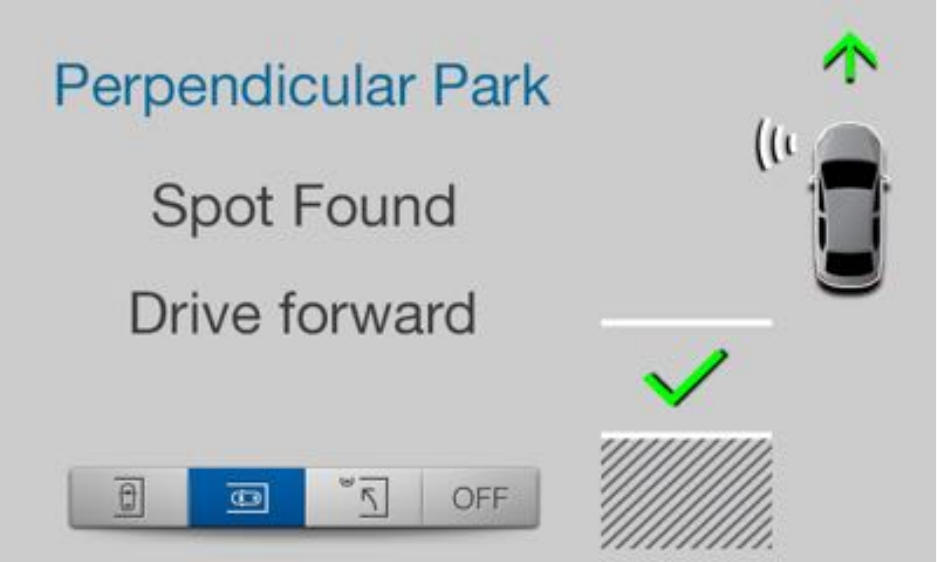

Perpendicular&Parking:&
Perpendicular!parking!is!a!feature!that!will!assist!the!driver!in!finding!a!suitable!parking!spot!to!backup!
into!and!will!actually!park!the!car!for!the!driver.!When!camera!is!available!the!HMI!will!look!similar!to!
APA!and!POA!with!the!following!icons!–! pull!forward,!back!up,!caution,!finish,!stop,!PDC,!and!steering!
wheel.!When!camera!is!not!used!or!unavailable!the!HMI!will!look!like!the!below.!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
25!
!
!
!
!
!
!
!
!
!
!
CAMERA&
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
26!
!
!
&
CAMERA&
&

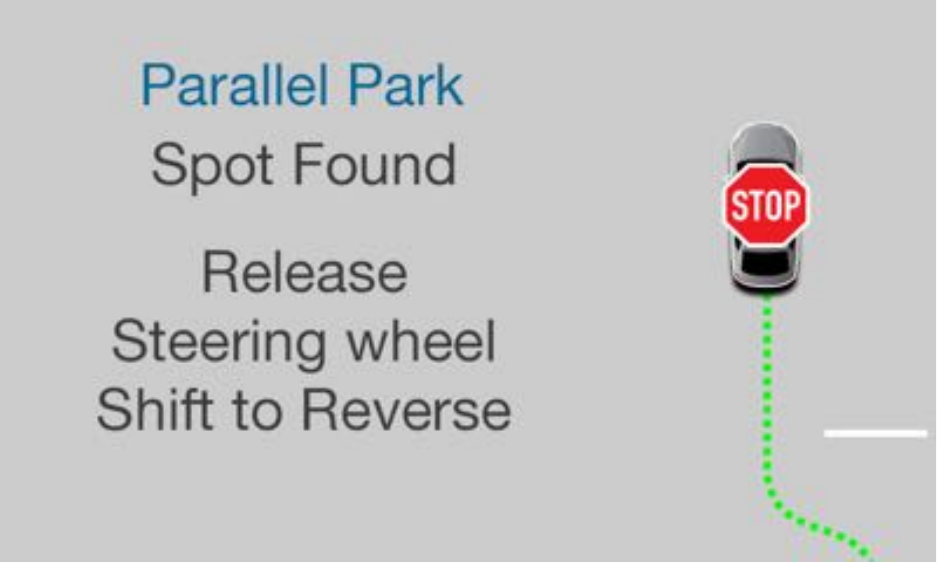

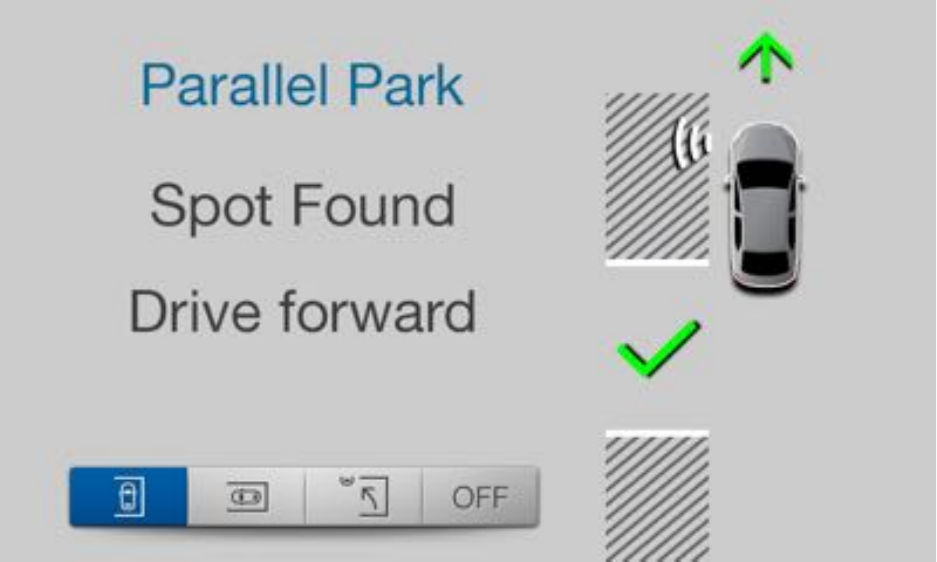

Parallel&Parking:&
Parallel!parking!is!a!feature!that!assists!the!driver!in!finding!a!parking!a!parallel!parking!spot!such!as!that!
next!to!a!curb!on!a!street!and!will!actually!park!the!vehicle!for!the!driver.!When!camera!is!available!the!
HMI! will!look! similar! to! APA,! POA,! and! Perpendicular! Parking! with! the! same! icons! as! Perpendicular!
Parking.!When!camera!is!not!used!or!unavailable!the!HMI!will!look!like!the!below.!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
27!
!
!
!
!
!
!
!
!
!
!
!
CAMERA&
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
28!
!
!
!
FVC:&
FVC!assists!the!driver!in!pulling!the!vehicle!forward.!It!allows!the!driver!to!maneuver!objects!that!they!
would!normally!not!be!able!to!see,!as!well!as!pull!as!close!to!an!object!as!possible.!
!
!
!
!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
29!
!
CAMERA&
!
!

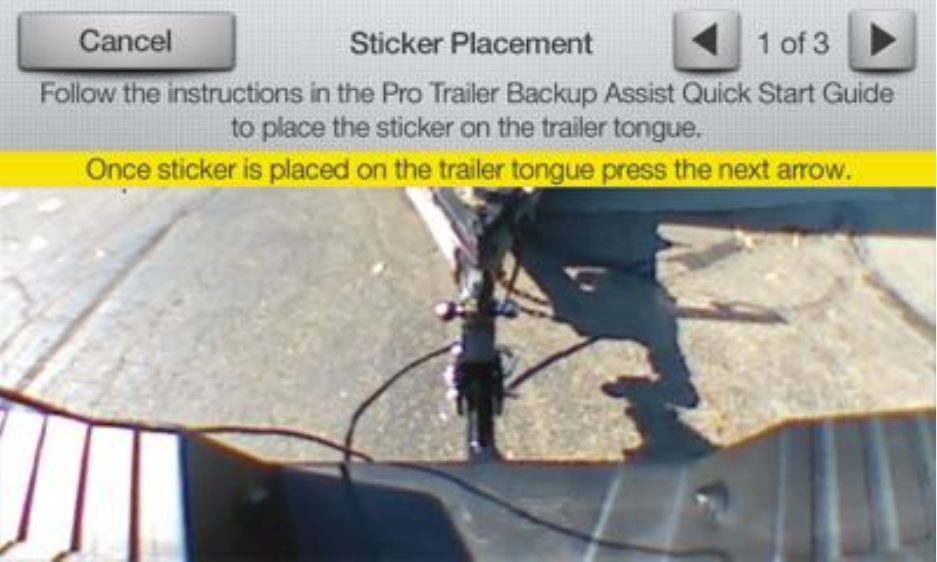

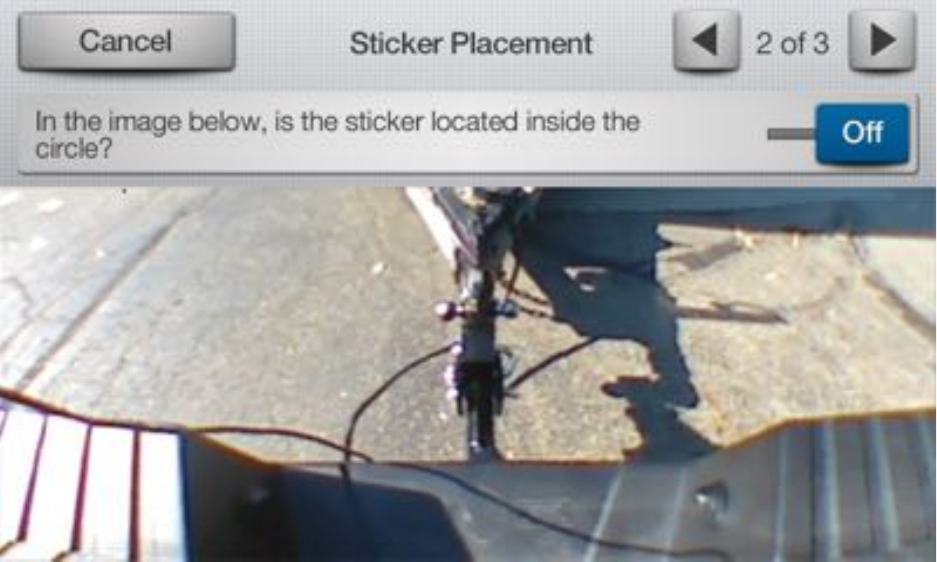

TBA:&
TBA!is!a!feature!that!helps!the!driver!position!the!ball!mount!from!the!trailer!hitch!into!the!receptacle!
from! the! trailer.! This! feature! also! helps! the! driver! to! backup! while! the! trailer! is! attached,! as! well! as!
providing!PDC.!
!
!
!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
30!
!
!
CAMERA&
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
31!
!
!
!
CAMERA&
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
32!
!
!

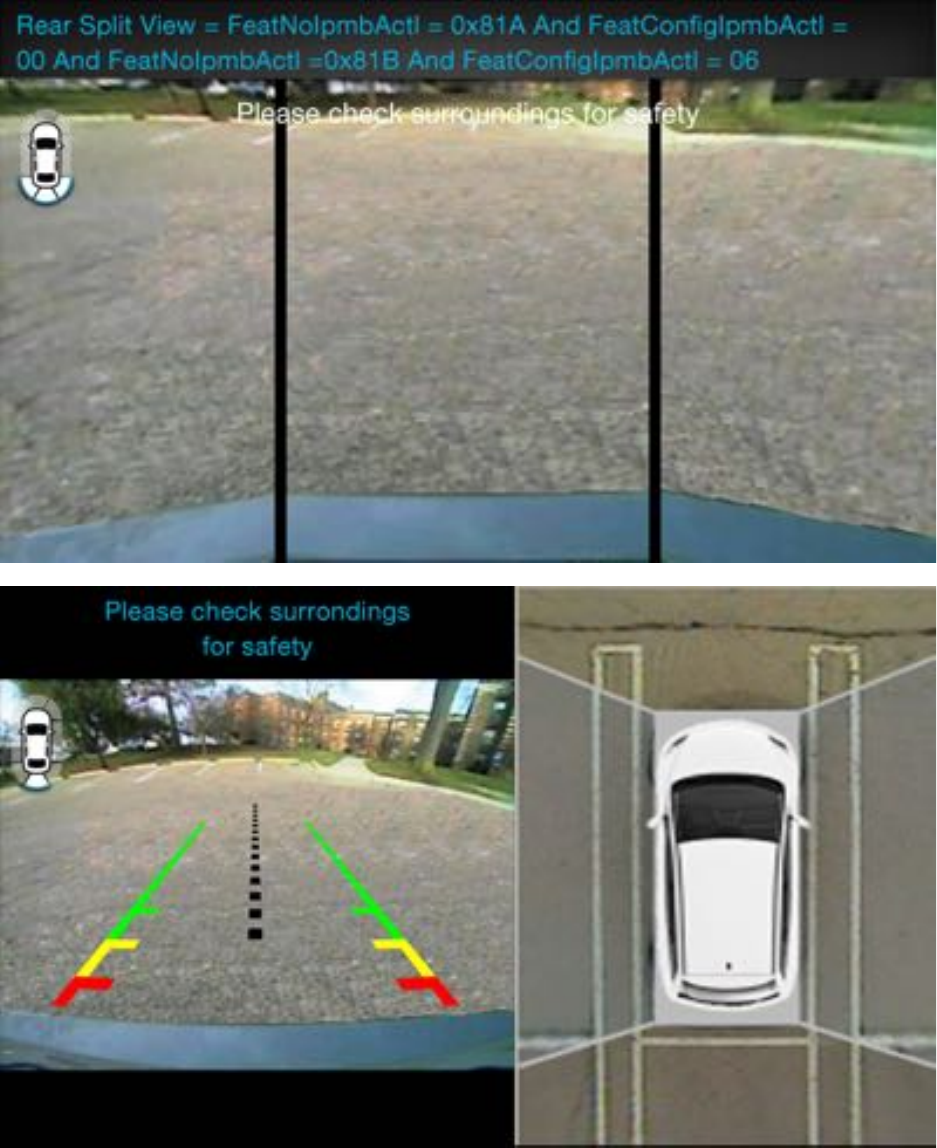

Multi-Camera:&
Multi-camera!is!a!feature!that!enables!the!driver!with!multiple!camera!views,!such!as!RVC,!FVC,!split!RVC,!
and!360!degree!view.!
!
!
!
!
!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
33!
!
CAMERA&
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
34!
!

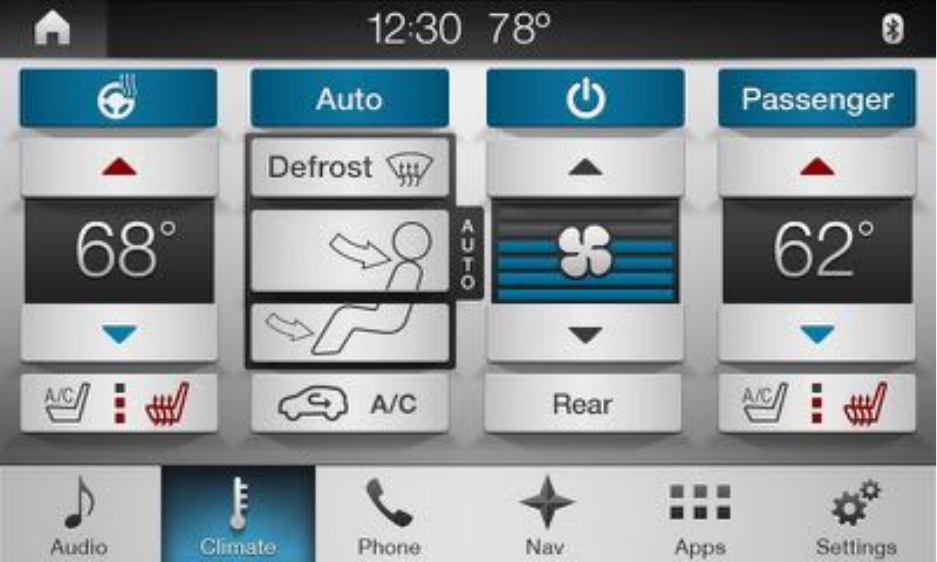

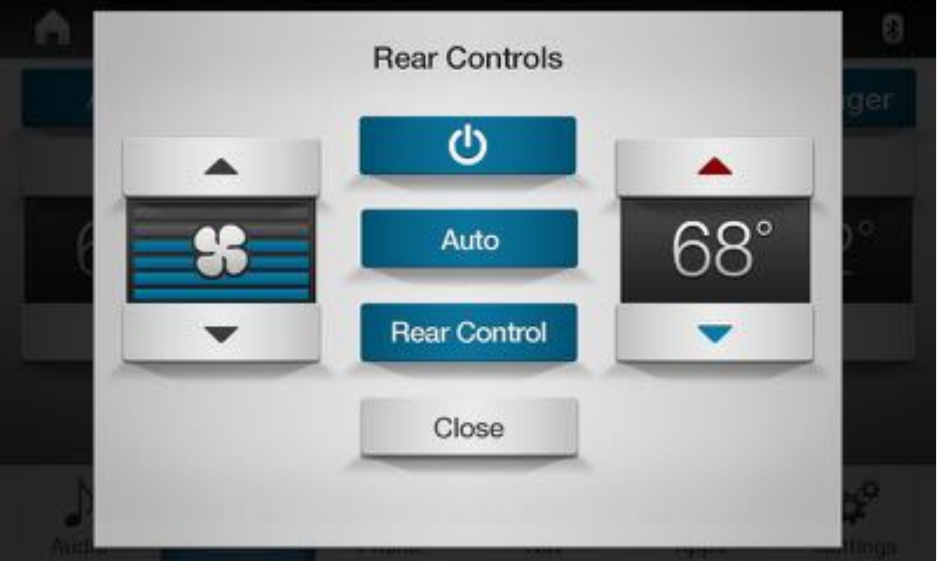

CLIMATE&CONTROL!
&
Brief&description&of&Climate&Control&for&North&American&Market.&
The!SYNC!Gen3!Climate!Control!feature!gives!the!customer!access!to!all!of!the!climate!features,!including!rear!
climate,!with!the!ease!of!touch!control!via!the!center!stack.!The!user!is!able!to!adjust!such!things!as!driver!and!
passenger!temperature,!A/C,!fan!speed,!air!outlet,!heated!&!cooled!seat!intensity,!heated!steering!wheel,!front!
and!rear!defrost,!and!rear!temp!and!fan!speed.!
!
!
!
!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
35!
!
!
CLIMATE&CONTROL!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
36!
!
!
!
CLIMATE&CONTROL!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
37!
!
!
!
&
&
&
&
&
&
&
&
&
&
&

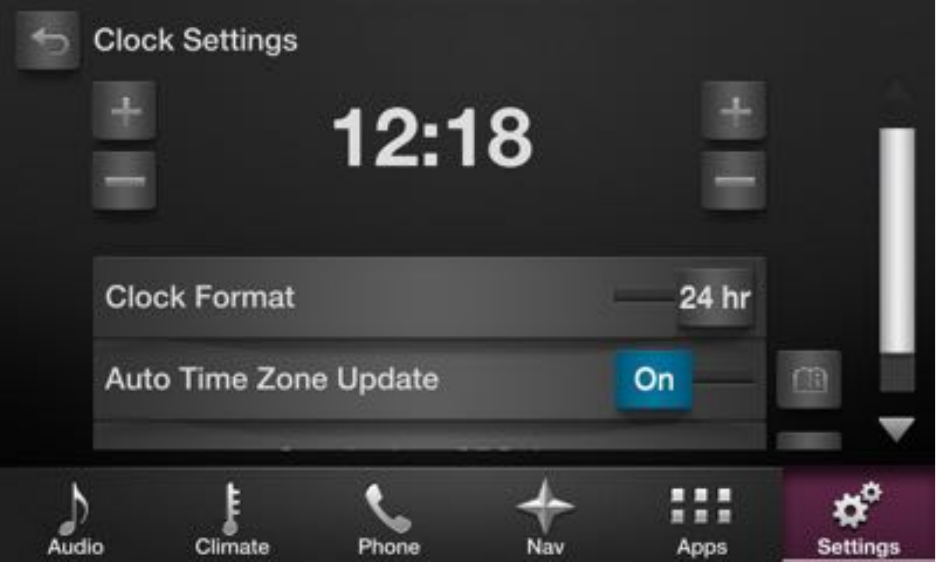

CLOCK&
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
38!
!
!
Clock!is!used!to!tell!the!user!what!time!it!is.!The!User!will!see!the!clock!on!the!status!bar.!

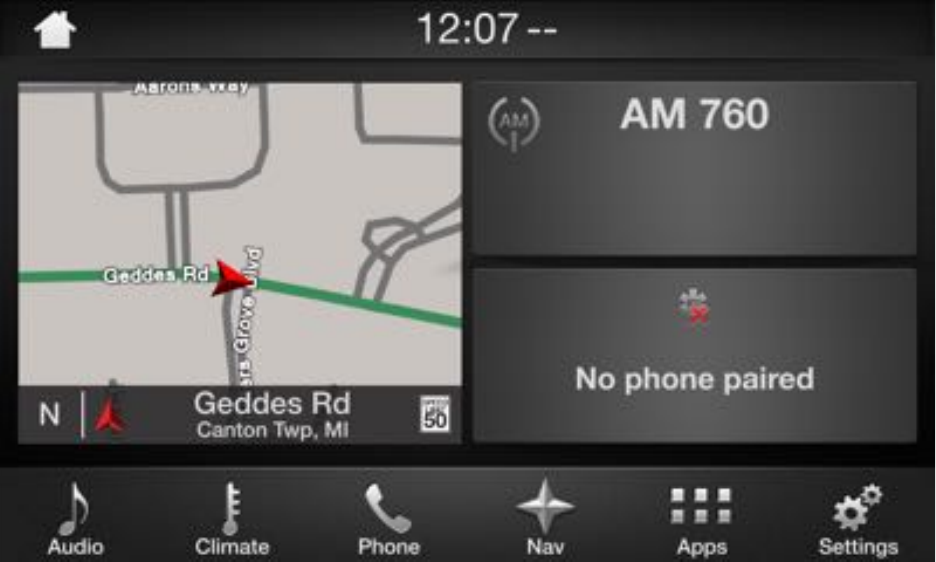

Below:!Clock!is!pictured!in!the!status!bar!with!a!time!of!12:07.!
!
!
!
!
!
!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
39!
!
CLOCK!
If!the!user!presses!the!time!displayed!in!the!status!bar!they!will!see!this:!
!
!
From!here!the!user!can!select!12!or!24!hour!formats,!select!Auto!time!Zone!update,!select!to!sync!the!
clock!with!GPS!time!(when!satellite!signal!is!available)!
!
!
!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
40!
!
!
CLOCK!

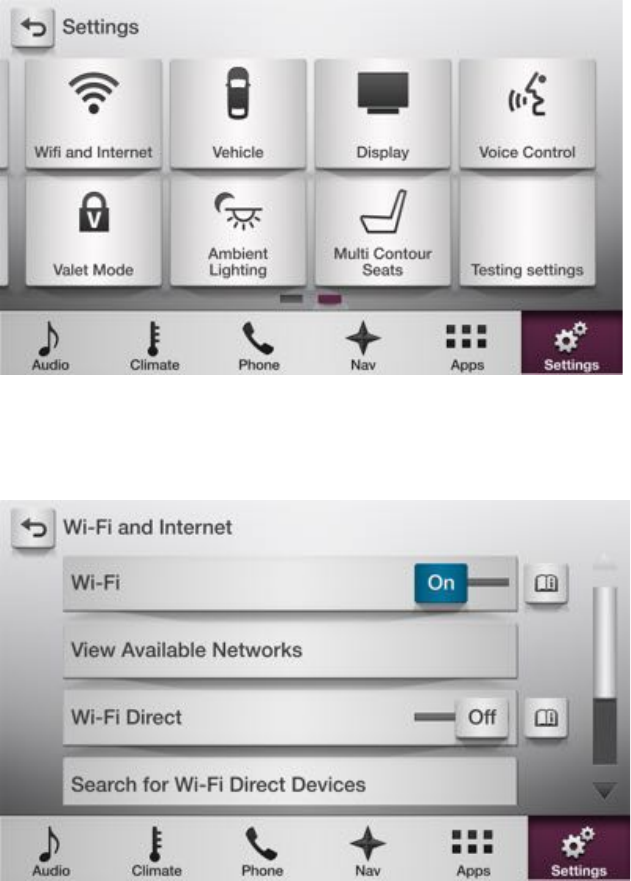

Notice!the!‘settings’!status!interface!button!is!highlighted.!!The!clock!settings!screen!can!be!accessed!
from!this!area!as!well.!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
41!
!
!
!
!
!
ELECTRIFICATION!
&
Brief&description&of&Electrification.&

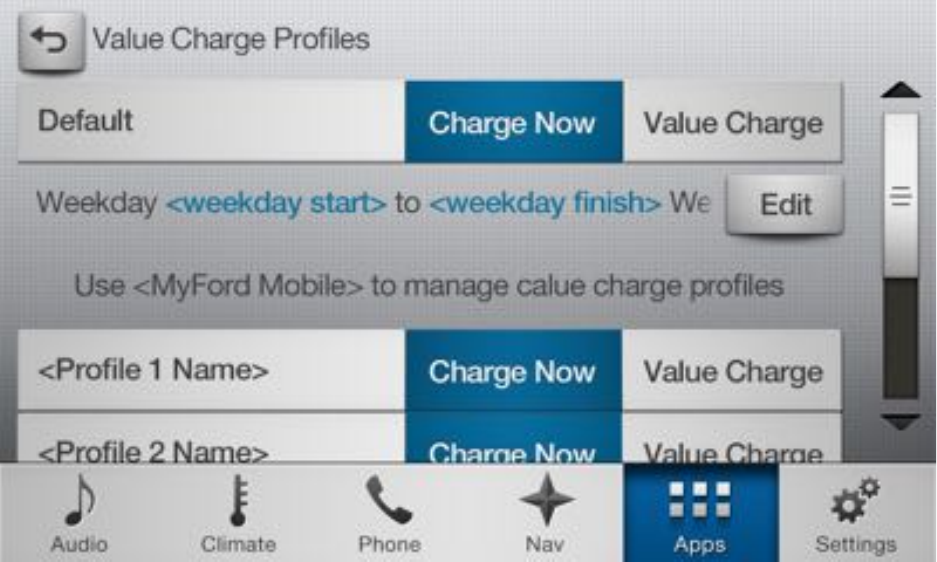

The!SYNC!Gen3!Electrification!feature!allows!a!user!with!a!Hybrid!Electric!Vehicle!(HEV),!Battery!Electric!Vehicle!
(BEV)!or!at!Plug-in!Hybrid!Electric!Vehicle!(PHEV)!to!set!various!parameters!of!how!they!would!like!their!vehicle!to!
charge!while!plugged!in.!This!feature!can!be!entered!by!pressing!the!Settings!button,!then!pressing!the!EV!tile!
button,!and!then!selecting!either!Settings!of!Powerflow.!The!user!can!set!different!times,!durations,!intensities,!as!
well!as!different!start/stop!times!and!seasonal!conditions.!The!user!can!also!view!the!Powerflow!of!electricity!to!
see!how!they!are!using!their!battery!life.!Various!HMI!screens!will!look!like!the!following:!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
42!
!
!
!
!
!
ELECTRIFICATION!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
43!
!
!
!
ELECTRIFICATION!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
44!
!
!
!
&
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
45!
!
EMERGENCY&ASSIST!
Description&of&Emergency&Assistance&(EA)&or&911&Assist®&(for&North&America&Market)&Feature&&
The!SYNC!Global!Emergency!Assistance!feature!provides!direct!access!to!local!emergency!authorities!or!
localized!call!centers!in!the!case!of!a!qualified!vehicle!accident!(RCM!message:!airbags!deployed!and/or!
fuel-pump!shut-off).!!The!EA!feature!utilizes!the!driver’s!Bluetooth!enabled!device!to!place!an!
emergency!call!(ie.!112,!999,!911,!etc)!to!a!local!Public!Safety!Answering!Point!(PSAP).!!Before!the!
emergency!call!is!connected,!SYNC!delivers!a!message!to!the!vehicle!occupants!in!their!set!language!that!
an!emergency!call!is!being!placed.!!Once!the!emergency!call!is!connected,!SYNC!provides!an!introduction!
audio!message!to!the!PSAP!operator!in!the!most!appropriate!language!determined!by!SYNC.!The!PSAP!
audio!messages!will!be!rendered!to!the!operator!based!on!GPS!location!or!information!from!the!
occupant's!handset!as!appropriate.!In!some!cases,!GPS!or!handset!information!will!not!be!required!to!
determine!the!localized!PSAP!language!but!a!pre-defined!PSAP!language!will!be!used!based!on!the!
country!configuration!of!the!module!at!end-of-line!(EOL).!After!relaying!details!of!the!accident!and!your!
vehicle's!location,!EA!will!open!the!line!so!that!occupants!can!speak!directly!with!the!PSAP.!Once!the!
PSAP!call!is!complete,!the!occupant!may!choose!to!auto-dial!previously!enabled!Emergency!Contacts.!
Global&Emergency&Assistance&Block&Diagram&/&System&Architecture&
!
Directions&to&enable&Emergency&Assistance:&(Reference&Flows&–&H28c,&H31a&and&H35)&
911!Assist!is!set!to!Off!by!default,!so!you!must!initially!enable!the!feature!>!After!successfully!pairing!
your!mobile!phone!>!SYNC!will!notify!occupants!that!<Device!name>!was!connected!successfully!>!Pop-
up!will!show![1]!{Feature!Name}!ON/OFF!>!select!ON!>![2]!state!“Set!as!Primary!Phone!>!select!Yes!>![3]!
state!“Auto-Download!Contacts”!>!select!ON!>!Set!and!Select!up!to!two!Emergency!Contacts!(per!phone)!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
46!
!
Previous&SYNC&GEN&Videos&highlights&EA&functionality:!http://www.911assist.ford.com/USA/Overview!
!
MEDIA&PLAYER&
!

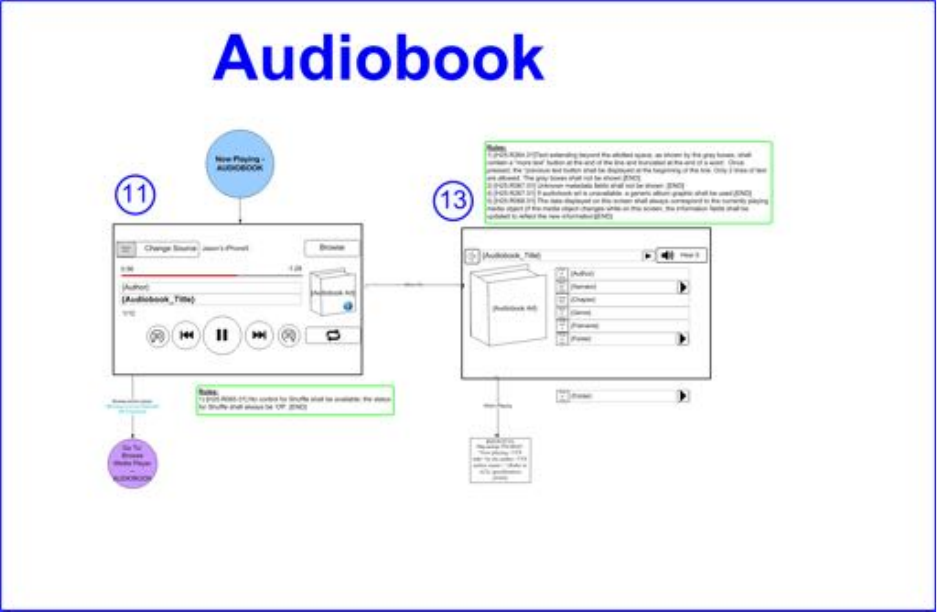

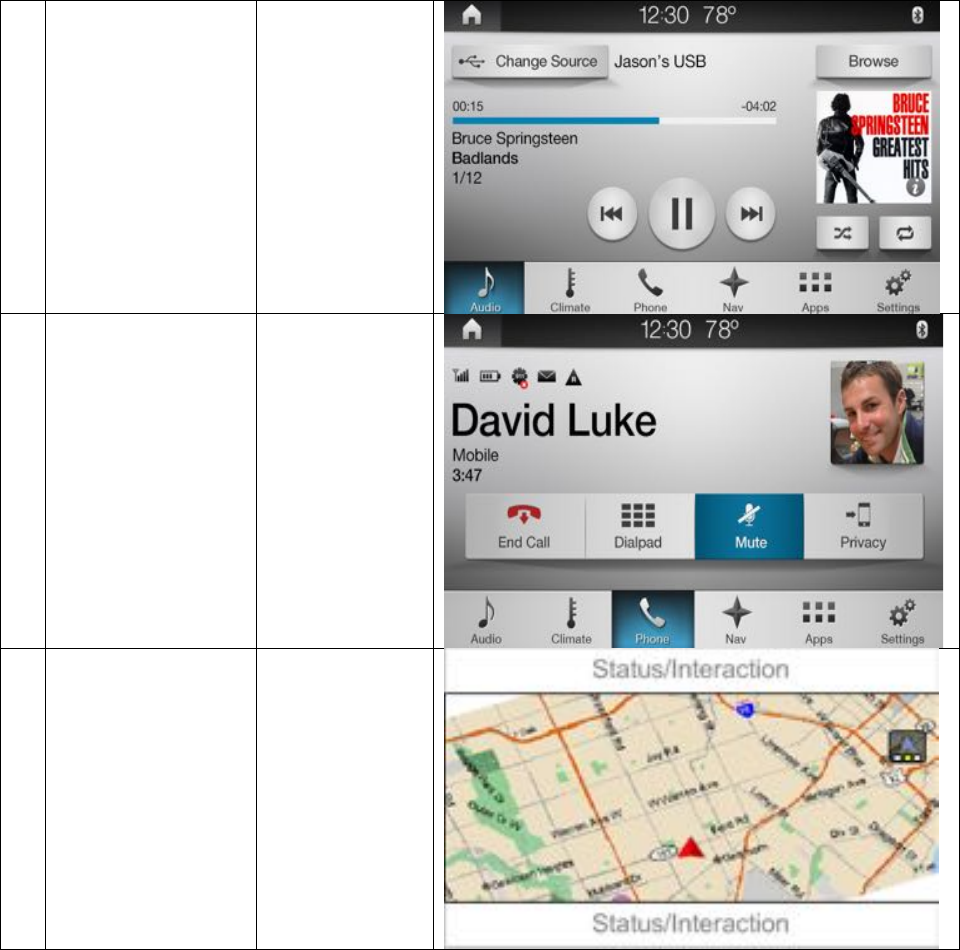

When!a!user!connects!their!device,!the!inserted!media!device!becomes!the!active!audio!source.!The!
system begins to index the content on the device if inserted for the first time, and the system begins to play the
now playing playlist of the media source.
!
!
!
!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
47!
!
!
!
!
MEDIA&PLAYER&
&
!
!
!
!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
48!
!
!
!
!
!
MEDIA&PLAYER&
&
!

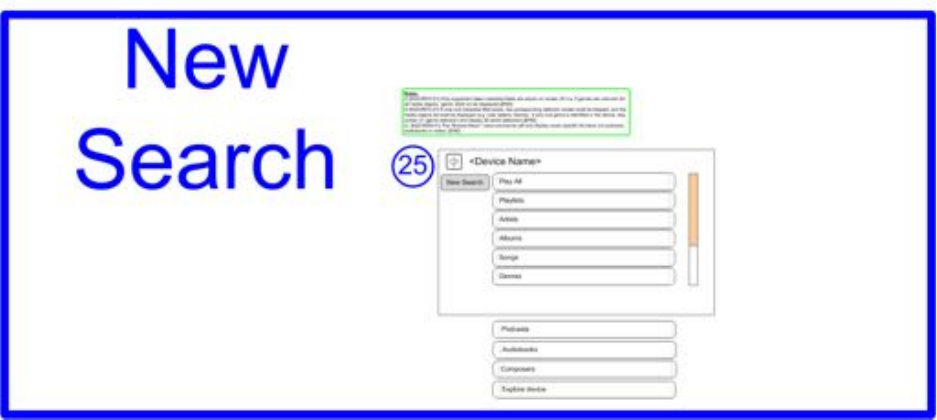

Selecting the “Browse” softkey allows the user to browse the connected device as shown below.
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
49!
!
!
!
!
!
MESSAGE&CENTER&
&
Notifications!include!any!set!DTC’s!in!the!system.!!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
50!
!
<Notification Text>
<Notification Text>
<Notification Text>
<Notification Text>
<Notification Text>
Message Center
More Info
Clear
Clear
Clear
Clear
More Info
More Info
More Info
More Info
Alert
icon
Alert
icon
Alert
icon
Alert
icon
Alert
icon
!
!
Some!DTC’s!can!be!cleared,!while!others!will!remain!present!in!the!system.
<Notification Text>
<Line 1 Text>
<Line 2 Text>
<Line 3 Text>
Close Clear
<MFD Icon>
OR
<telltale icon>
g1 (H78b ‘Icon at MFD’)
<Notification Text>
<Line 1 Text>
<Line 2 Text>
<Line 3 Text>
Close
<MFD Icon>
OR
<telltale icon>
g1 (H78b ‘Icon at MFD’)
c1 (H78b ‘Wordings’)
c2 (H78b ‘Wordings’)
c3 (H78b ‘Wordings’)
c1 (H78b ‘Wordings’)
c2 (H78b ‘Wordings’)
c3 (H78b ‘Wordings’)
a2 (H78b ‘Info-Level’)
<Notification Text>
Do you want to clear the alert for this ignition
cycle?
Yes No
!
Notification!Text!available!in!H78b_DM6_MasterMessageCenterList_Released!
MULTI&CONTOURED&SEATS&
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
51!
!
&
The Multi Contoured Seats Client shall remember Lumbar bladder fill percentages, and Bolster bladder fill
percentages upon powering down of current key cycle. The Client will use these values during initialization of
the next key cycle, until it receives an updated actual value from the Multi Contoured Seats Server.
This screen covers controls to adjust bladder pressures. There will be 5 ranges in the 11 bladder configuration,
4 ranges in the 9 bladder configuration, and 3 ranges in both the 3 bladder and 7 bladder configuration.
RETURN
+
-
+
-
+
-
+
-
+
-
Massage
Adjust
Driver Passenger
!
!
This!screen!covers!controls!to!select!massage!intensity!for!leg!and!back!massage.!
RETURN Massage
Adjust
Driver Passenger
LOOFF HI
LOOFF HI
&
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
52!
!
MYKEY&
The APIM interfaces with the My Key Server and My Key Server2 to implement the My Key functions, Report
Card, Volume Limit, Beltminder Audio Mute, Do Not Disturb and e911 Assist Override.
MyKey
911 Assist Selectable
Create MyKey
MyKey Information
Emergency Assistance Selectable
Do Not Disturb Selectable
Traction Control Selectable
Status/Interaction
!
Speed Limit No Limit
Speed Minder None
Volume Limit No Limit
Clear All MyKeys
Traction Control Selectable
!
!
911!Assist,!Emergency!Assistance,!Do!Not!Disturb,!Traction!Control.!!When!available,!can!be!toggled!
between:!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
53!
!
Always ON
Selectable
!
MYKEY&
!
Speed!Limit!
No Limit
{mph speed limit 1}
{mph speed limit 2}
{mph speed limit 3}
{mph speed limit n}
!!or!
No Limit
{kph speed limit 1}
{kph speed limit 2}
{kph speed limit 3}
{kph speed limit n}
!
!
Speed!Minder!
None
{mph speed minder 1}
{mph speed minder 2}
{mph speed minder 3}
{mph speed minder n}
!!or!!
None
{kph speed minder 1}
{kph speed minder 2}
{kph speed minder 3}
{kph speed minder n}
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
54!
!
!
!
!
!
!
!
!
!
!
MYKEY&
!
!
My!Keys!can!be!cleared:!
Are you sure you want to clear
all MyKeys for this vehicle?
Yes No
!
!
Successfully cleared all MyKeys.
Close
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
55!
!
!
!
!
!
!
!
!
!
!
!
!
MYKEY&
!
My!Keys!can!be!created:!
!
Create
MyKey
Creating a MyKey will transfer the operating
restrictions you have configured on the
previous page to the currently inserted key.
B
Yes No
10
No
Close popup
11
Current key is already a MyKey. D
Close popup
Timer Expires
12
There was a problem, and a
MyKey was NOT created.
G
Close popup
Close
Close
13
Result?
Yes
Successful Already MyKey
General Failure
MyKey Created Successfully
MyKey will be enabled the next key cycle.
Please label the current key as a “MyKey”.
E
Close
Close
Close popup
Please place a key in the ignition.
G
Close popup
Cancel MyKey Setup
14
No Key in ignition
Create&MyKey
Do you wish to do this now?
Creating MyKey...
On Completion
15
Initiate MyKey creation process
Key Detected
Close
Close
Cancel MyKey Setup
Close popup
MyKey NOT
Created.
Close
Close popup Close
!
!
MyKey!info!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
56!
!
MyKey Information
MyKey Miles: <######>
Admin Keys: <##>
MyKeys: <##>
Close
!or!
MyKey Information
MyKey Kilometers: <######>
Admin Keys: <##>
MyKeys: <##>
Close
!
!
!
!
!
!
!
!
NAVIGATION&
!

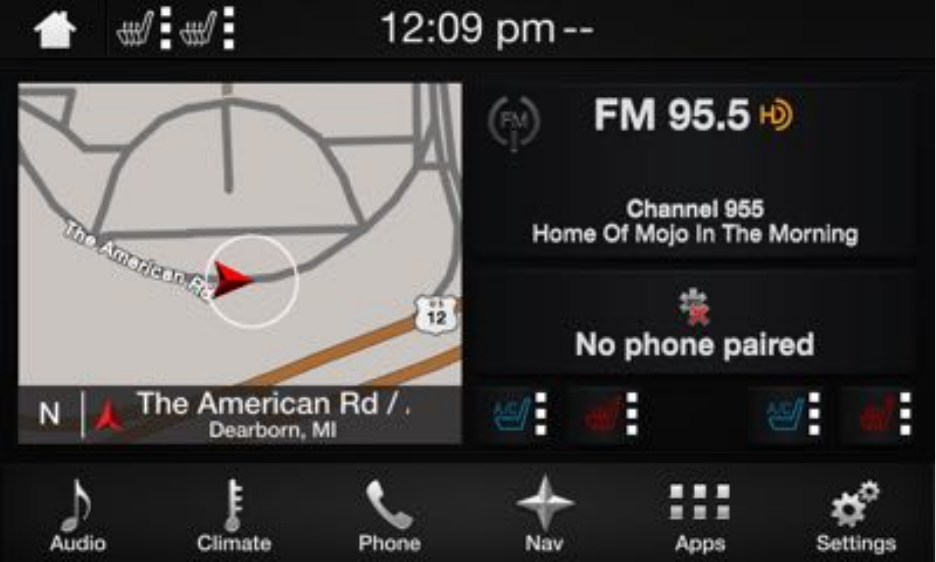

Navigation!provides!information!about!the!surroundings!to!make!driving!easier!including!‘turn!by!turn!
navigation’.!It!is!available!on!the!left!hand!side!of!the!home!screen!and!has!a!status!interface!button!
titled!‘Nav’!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
57!
!
!
!
!
!
!
!
!
!
!
!
NAVIGATION&
When!either!is!pressed!the!user!is!taken!to!the!nav!home!screen:!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
58!
!
!
!
!
!
!
!
!
!
!
!
!
NAVIGATION&

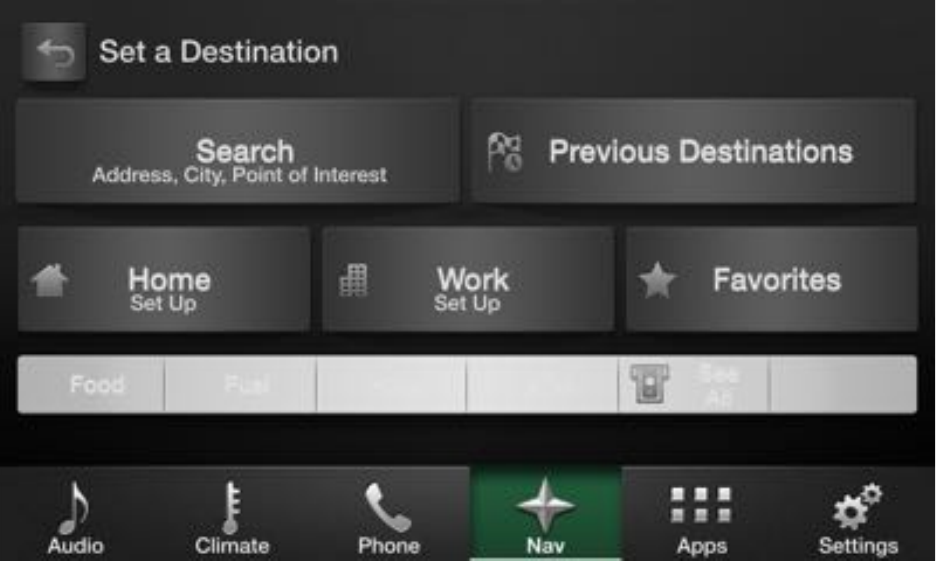

From!here!if!the!user!selects!‘Destination’!the!user!sees!the!below!screen.!!The!user!can!see!a!list!of!
previous!destinations,!set!an!address!as!Work!or!Home!or!select!other!locations!as!favorites.!!Address!
are!found!and!added!to!the!system!using!the!‘One!Box’!search!feature!titled!‘Search’!on!this!screen.!!!
There!is!also!a!list!of!common!‘Points!of!Interest’!(POI)!categories!such!as!‘food’!and!‘Fuel’.!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
59!
!
!
!
!
!
!
!
!
!
!
!
!
NAVIGATION&
The!‘One!Box’!search!screen!looks!like!this:!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
60!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
NAVIGATION&
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
61!
!

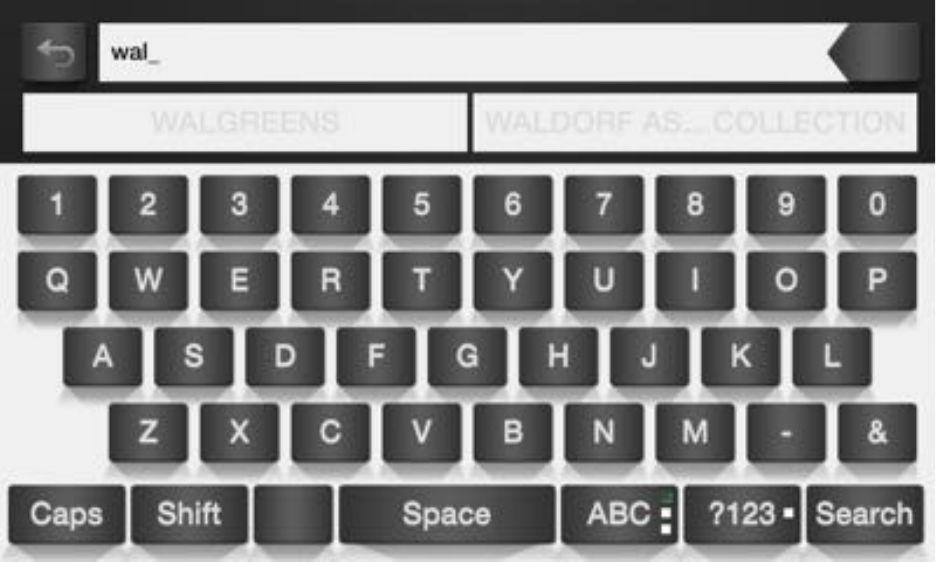

When!the!user!begins!to!type!the!examples!in!the!above!image!are!replaced!with!predictive!text,!which!
can!be!selected!rather!than!finishing!the!text!entry:!
!
!
!
!
!
!
!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
62!
!
NAVIGATION&

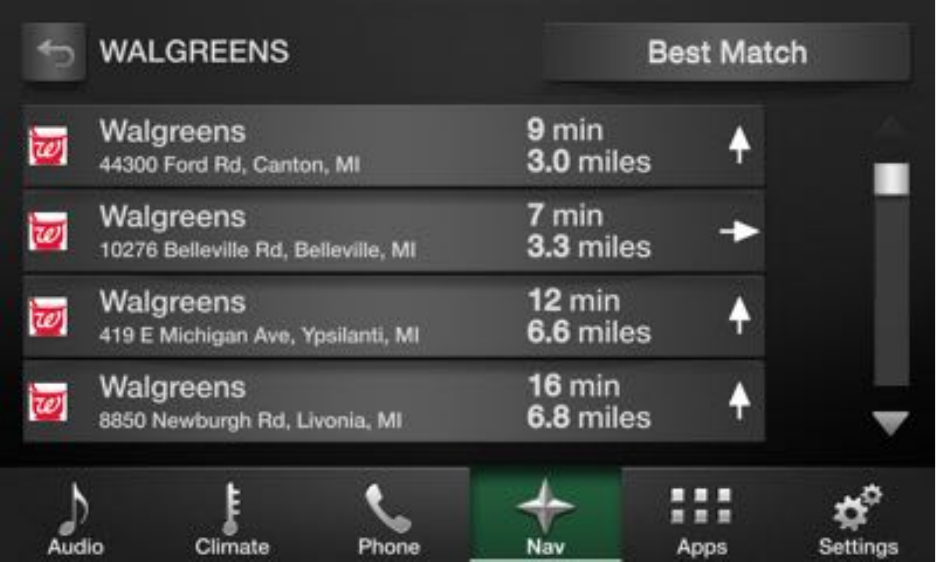

Regardless!of!which!entry!method!is!ultimately!selected!the!user!will!be!informed!a!search!is!in!progress!
followed!by!a!list!detailing!any!findings:!
!
!
!
!
!
!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
63!
!
!
NAVIGATION&

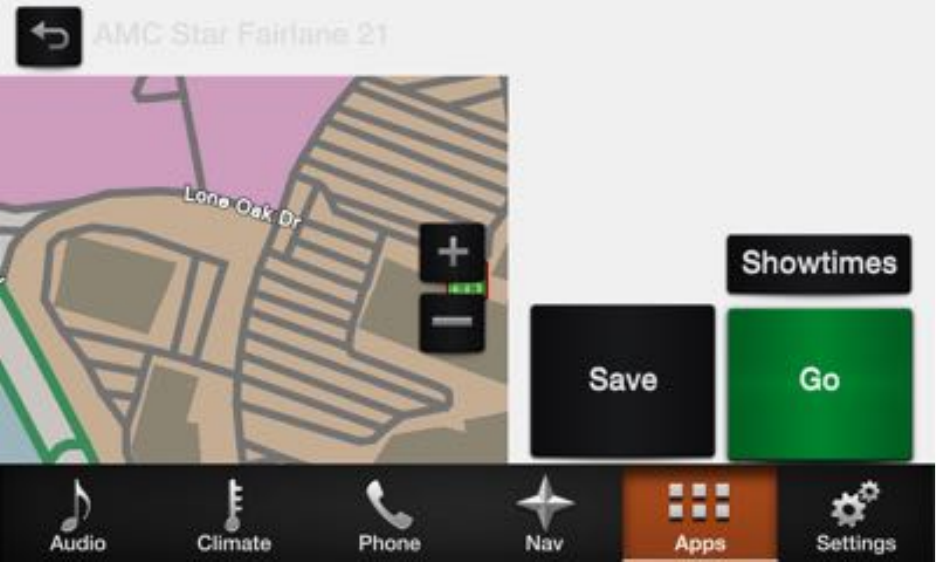

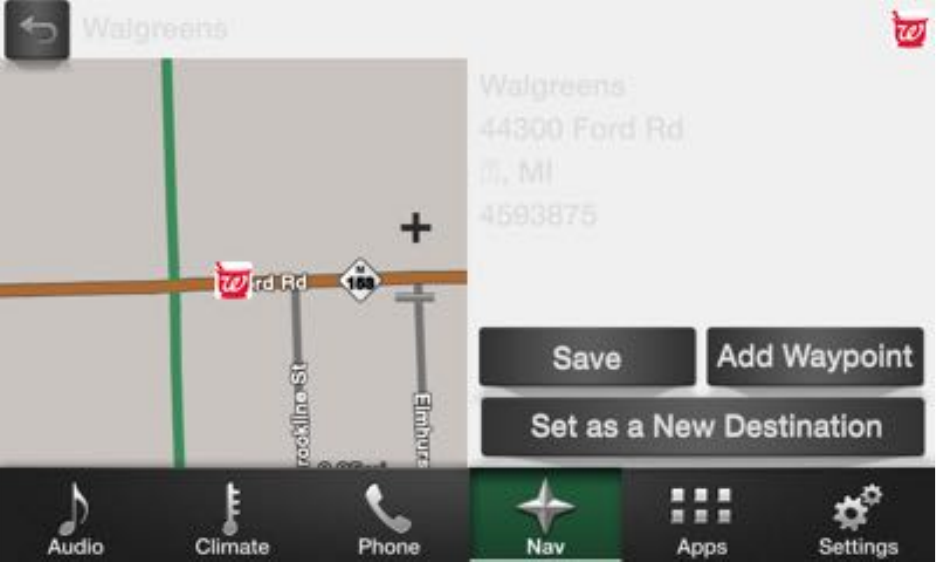

If!the!user!selects!an!item!from!the!list!they!will!be!presented!with!a!informational!screen!that!includes!
the!location!on!a!map,!address!(where!applicable),!and!the!ability!to!start!turn!by!turn!navigation!to!that!
location.!
!
!
!
!
!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
64!
!
!
!
NAVIGATION&
In!the!picture!below!‘Fastest’!is!selected!but!‘shortest’!and!‘Economical’!routes!are!also!options!(if!
configured!in!settings).!!The!user!can!cancel!a!route!from!here!or!press!‘Go’.!!If!the!user!holds!‘Go’!for!10!
seconds!a!simulation!will!begin!from!vehicle!location!to!the!final!destination!complete!with!‘Turn!by!
Turn’!voice!(if!configured!in!settings).!
!
!
!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
65!
!
!
!
!
NAVIGATION&
There!is!also!a!menu!button!on!the!main!nav!screen!that!if!pressed!shows!the!following!user!options.!!!
!
!
!
!
!
!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
66!
!
!
!
!
!
!
!
!
!
POWER&MANAGEMENT&
The!CCPU!power!modes!are!implemented!by!the!SYNC!BSP.!The!CCPU!power!manager!acts!as!a!slave!to!the!VMCU;!
that!is,!all!power!mode!transitions!are!commanded!by!the!VMCU.!Upon!system!power!on,!the!VMCU!will!come!out!
of!reset!and!enable!the!on-board!and!CAN!power!supplies.!The!VMCU!will!then!enable!the!CCPU!main!voltage!rail!
to!bring!up!the!CCPU!subsystem.!!
!
The!system!power!is!implemented!via!a!combination!of!VMCU!actions,!CCPU!power!modes,!and!SYNC!application!
specific!behavior.!!
CCPU&&
Power&Mode&
Description&
Applicable&
SYNC&Function&
Unpowered!
No!power!applied!to!system!
Unpowered!
N/A!
Wait-On!
Minimal!CPU!peripherals!are!
powered,!CPU!is!running!
(transitional!state!only)!
N/A!
N/A!
Infotainment!
SYNC!is!fully!operational,!
Infotainment!components!
are!ON!
1.!MMActive/!
!Extended!Play!Mode!
(turn!power!on!when!IGN!is!
off!and!Delay!ACC!is!off)!
!
!
!
2.!Phone!Mode!
1a.!HMI!active!
1b.!Audio!available!
1c.!Infotainment!features!normal!
operation!(i.e.!AM/FM,!SDARS/DAB,!
CD,!VR,!Bluetooth!Phone,!APIM,!BT!
Audio,!Prompts,!USB,!iPod…)!
!
2a.!Phone!call!active!through!audio!
system.!
!
3.!Emergency!Call!(911)!
DisplayOnly!
!
!
SYNC!is!partially!operational,!
display/HMI!available,!
Infotainment!components!
are!OFF!
1.!10-Minute!Clock!Mode!
(IGN!off!+!Door!open)!
!
2.!MMInactive!
“Welcome/Farewell”!Screen!
Transport!Mode!
CD!Load/Eject!with!ignition!off!
Load!Shed!notification!
Infotainment!audio!sources!inactive!
Non-Infotainment!Standby!Features!
can!be!supported!!(i.e.!Chimes,!
Climate!Control)!
VHM!
(Vehicle!Health!
Monitor)!
SYNC!is!partially!operational,!
display/HMI!unavailable,!
Infotainment!components!
are!OFF!
MMInactive!
Background!tasks!
Wait-Shutdown!
CCPU!is!running,!but!
transitioning!to!Unpowered!
N/A!
N/A!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
67!
!
mode.!E-Shutdown!process!is!
started!
&
!
!
!
!
!
!
!
RADIO&
Radio!features!allow!the!user!interact!with!the!AM,!FM,!FM!HD,!Sirius!radio!bands.!The!Accessory!
Protocol!Interface!Module!(APIM)!does!NOT!have!antennas!for!receiving!these!signals!or!process!them.!!
Those!functions!are!performed!by!the!Audio!Head!Unit!(AHU).!!The!User!will!see!the!selected!radio!band!
on!the!home!screen!(if!one!is!selected).!
Below:!the!AM!band!is!shown!on!the!home!screen.!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
68!
!
!
!
!
!
!
!
RADIO&

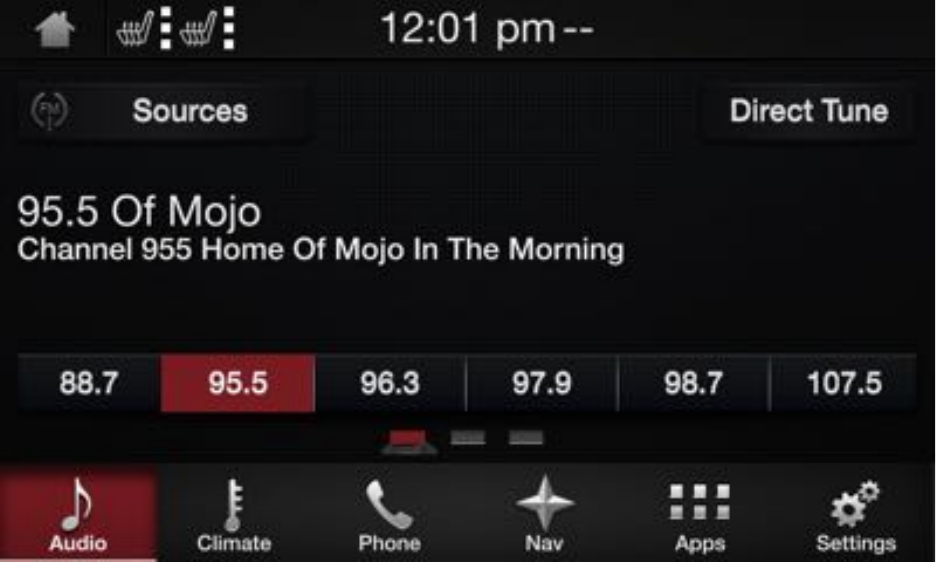

If!the!user!presses!‘Audio’!status!button!or!the!radio!portion!of!the!home!screen!they!will!see!this:!
!
!
Presets!are!displayed!on!this!screen!in!banks!of!6.!The!user!may!swipe!the!preset!bank!to!advance!to!the!
next!preset!bank.!!The!rectangle!below!the!preset!bank!indicates!which!bank!is!selected.!!First!AM!bank!
is!selected!in!the!picture!above.!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
69!
!
To!set!a!preset,!direct!tune!to!a!station!or!use!hardware!seek!or!tune!buttons!!then!press!and!hold!the!
preset!bank!item!that!you!wish!to!have!this!information!until!it!is!so.!
!
!
!
!
!
!
RADIO&

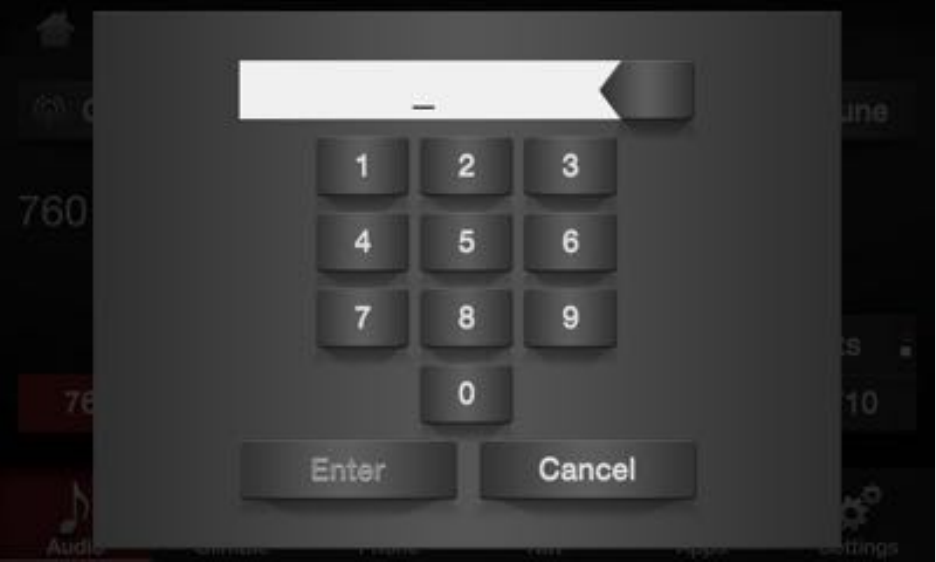

If!the!user!presses!‘Direct!Tune’!they!can!enter!any!valid!station!in!the!band!and!press!enter!to!go!there.!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
70!
!
!
!
!
!
!
!
!
!
!
RADIO&

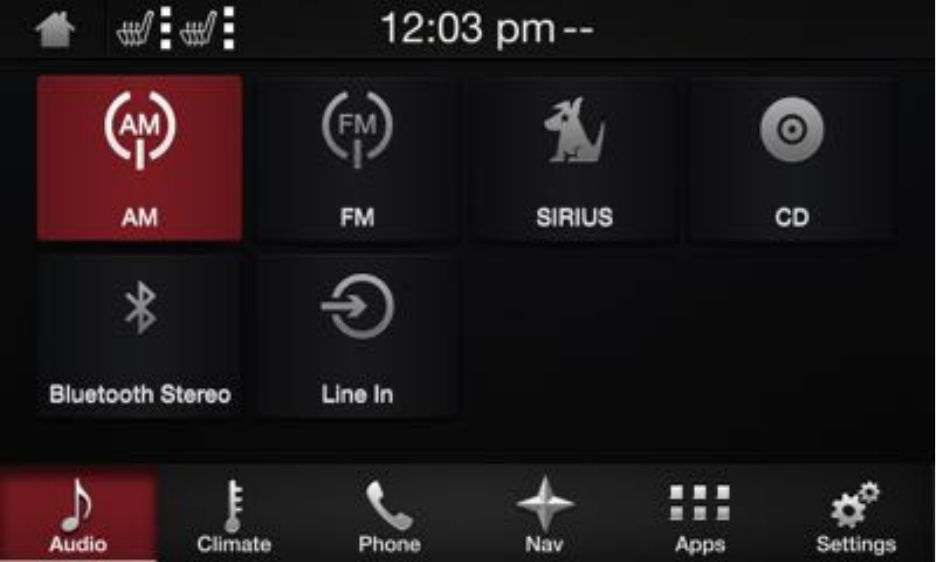

If!the!user!presses!‘Sources’!they!will!see!options!available!with!that!APIM!configuration:!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
71!
!
!
!
!
!
!
!
!
!
!
!
RADIO&
If!the!user!selects!FM!any!HD!or!Radio!Data!System!(RDS)!information!will!be!displayed:!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
72!
!
!
!
!
!
!
!
!
!
!
!
!
RADIO&

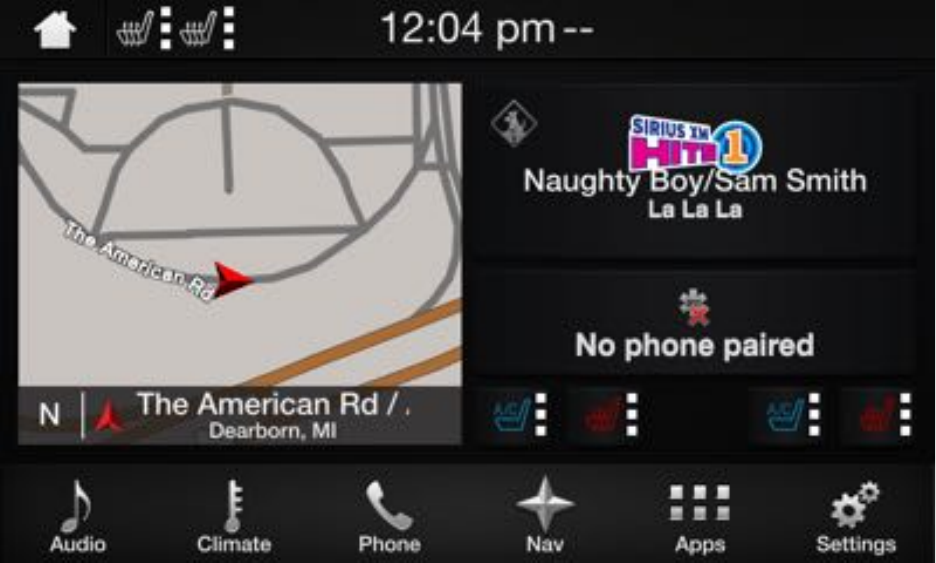

This!information!is!also!displayed!on!the!home!screen:!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
73!
!
!
!
!
!
!
!
!
!
!
!
!
!
RADIO&
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
74!
!
Similarly!Sirius!Radio!information!will!be!displayed!including!channel!art.!!
!
!
Note:!!Sirius!must!be!subscribed!and!configured!properly!in!the!DEXX!configuration!block!for!this!to!be!
displayed!and!work.!
!
!
!
!
!
!
!
!
!
&
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
75!
!
RADIO&
If!the!user!presses!the!‘Settings’!status!interface!button!there!is!radio!settings!but!this!is!covered!in!
another!document.!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
76!
!
!
!
Settings&
After!the!“Settings”!button!at!the!lower!right!corner!of!the!touchscreen!is!pressed:!
!
!
Phone list item only shown when a phone is paired and connected.
The button label for “Radio” shall be variable, dependent on the primary audio source (PAS):
If PAS=AM/FM/DAB: It should read “Radio”
If PAS=Sirius: “Sirius”
If PAS=CD/CD-MP3 & WMA: No button
If PAS=Bluetooth Non-AVRCP A2DP Device or Bluetooth AVRCP 1.0 A2DP Device: No Button Shown
If PAS=Line In or A/V In: No Button Shown
If PAS=Media Player (Music, Podcast, Audiobook, Bluetooth AVRCP 1.3+ Music, Bluetooth AVRCP 1.3+ Podcast,
Bluetooth AVRCP 1.3+ Audiobook): “Media Player”
The button shown labeled “Radio” above should be disabled in while in a phone call
The button shown as “Emergency Assist” above:
The feature name (Emergency Assitance vs. 911 Assist) is market dependent.
If a phone is not paired and connected, this line item is not shown.
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
77!
!
!
!
TRAVEL&LINK&

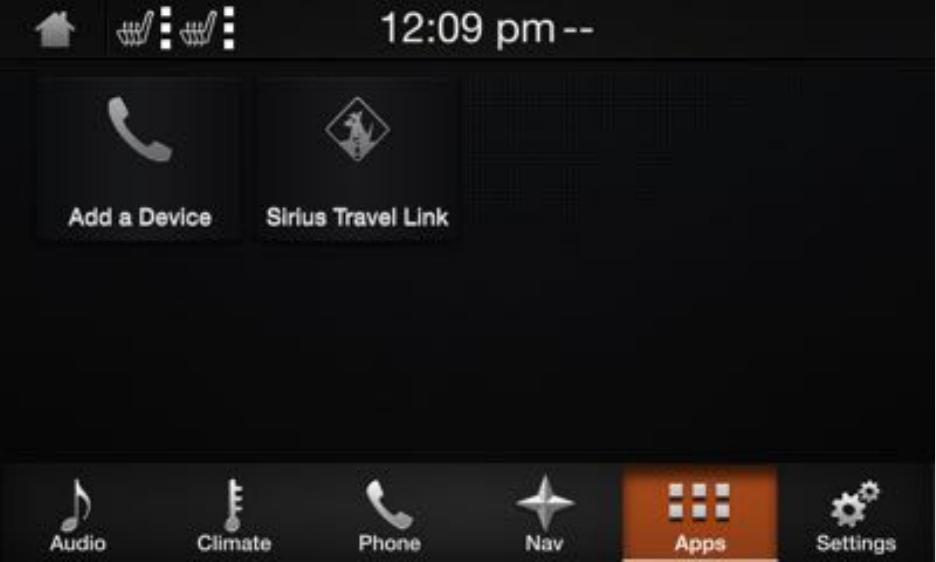

Travel!Link!is!used!to!tell!the!user!local!fuel!prices,!movie!listings,!sports!info,!weather,!and!Ski!
conditions.!!The!User!can!access!Travel!Link!by!the!‘Apps’!status!interface!button:!
!
!
!
!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
78!
!
!
!
!
TRAVEL&LINK&
!
If!the!user!presses!‘traffic!list’!!they!will!see!traffic!incidents!close!by.!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
79!
!
!
TRAVEL&LINK&

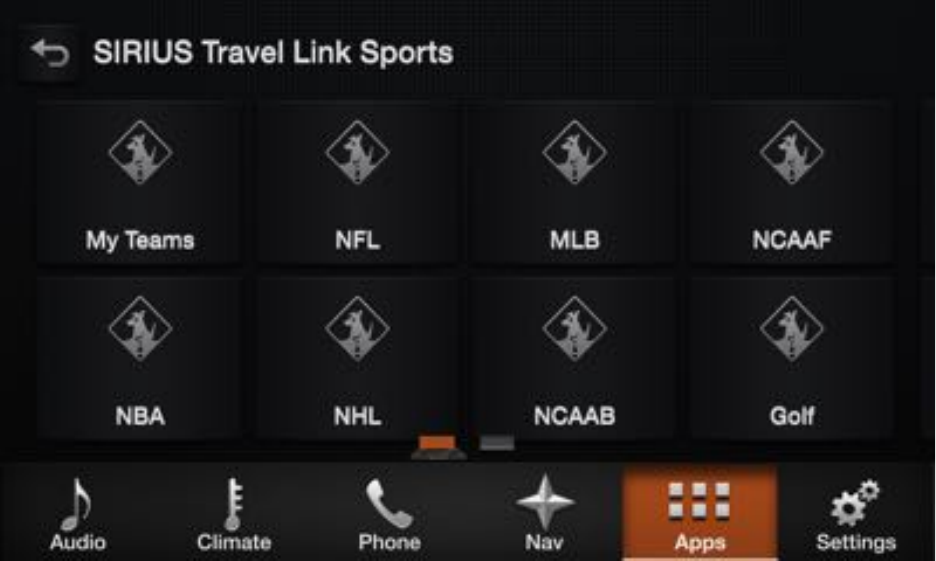

If!the!user!presses!Sports!they!have!further!selection!options!for!the!league.!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
80!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
TRAVEL&LINK!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
81!
!
If!the!user!presses!‘Weather’!
!
If!the!user!presses!‘Movie!Listings’
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
82!
!
TRAVEL&LINK&
If!the!user!selects!a!theater!from!the!list!of!entries,!the!user!is!shown!the!location!of!this!theater!on!a!
map.!!If!desired!this!can!be!set!as!a!navigation!destination!or!a!favorite:!
!
!
Other!features!not!listed!here!explicitly!work!similarly.!
!
Note:!!Sirius!Travel!Link!must!be!subscribed!and!configured!properly!in!the!DEXX!configuration!block!for!
this!to!be!displayed!and!work.!
!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
83!
!
!
TRAVEL&LINK&

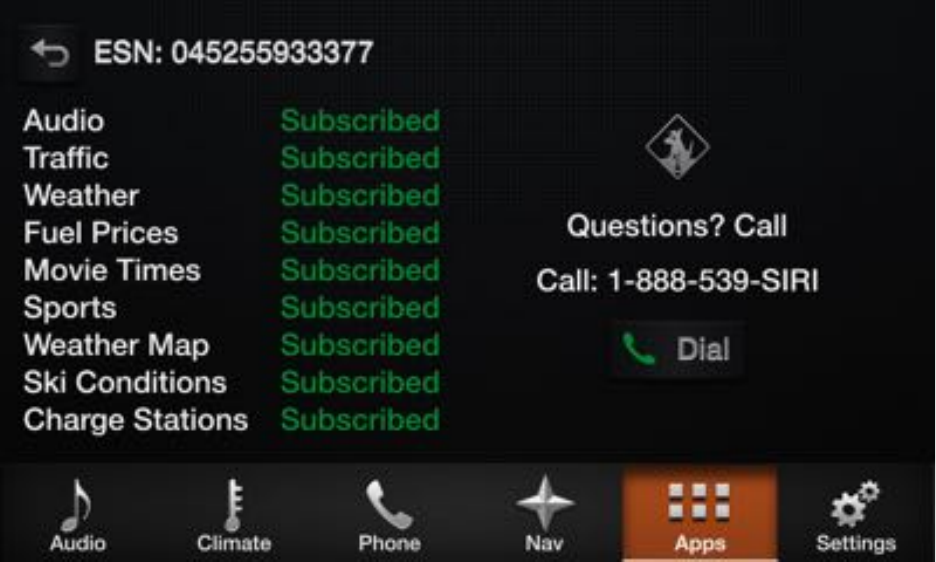

If!the!user!presses!‘subscription!info.’!!They!will!be!shown!a!screen!that!contains!the!Electronic!Serial!
Number!(ESN)!of!the!Sirius!module!inside!the!Audio!Head!Unit!(AHU)!as!well!as!current!subscription!
status!for!all!available!Sirius!Radio/Sirius!Travel!Link!features.!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
84!
!
!
!
!
!
VOICE&COMMANDS&
&
Voice!Commands!User!Guide!
#&
VR&commands&
Expected&
Behavior&
Display&Screen&
1!
Press!PTT!
System!shall!
prompt!'Please!
say!a!command'.!
!
2!
Press!PTT,!then!Long!
press!PTT!
System!shall!
prompt!
'Cancelling'!and!
VR!session!shall!
be!cancelled!
Go!back!to!previous!screen!
3!
a)!Insert!Empty!USB!
b)!Press!PTT!and!say!
USB!
System!shall!
prompt!"USB!
device!is!empty"!
No!change!in!display.!Continue!staying!on!current!
screen!
4!
a)!Insert!USB!with!
Songs.!
Ensure!song!list!
contains!-!Multiple!
track!01,!track!02,!
track!03!with!
different!artists!
b)!Say!'Play!song!
track!01'!
c)!Check!for!
Disambiguation!list!
d)!Select!line!
number!by!Voice!
System!shall!play!
a!selected!song!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
85!
!
5!
a)!PTT!->!Say!"Tune!
to!AM!875"!
b)!Press!PTT!
System!shall!
tune!to!AM875!
!
6!
a)!PTT!->!Say!"FM"!
b)!Press!PTT!
System!shall!
tune!to!FM!107.9!
!
7!
Pre:!USB!music!
playback!is!in!
progress!
a)!Press!PTT!->!"Say!
FM!107.9"!
System!shall!
tune!to!FM!107.9!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
86!
!
8!
Pre:!FM!audio!
station!playback!is!in!
progress!
a)!PTT!->!Say!"USB"!
System!shall!
switch!to!USB!
mode!and!
continue!playing!
songs!from!
where!it!was!
switched!
!
9!
a)!Pair!a!Phone!
b)!Wait!till!Grammar!
build!is!done.!
c)!PTT!->!say!"Call!
<Contact!name>"!
System!shall!
place!a!call!
!
10!
a)!Press!PTT!
b)!Say!'Show!Map'!
System!shall!
show!a!'map'!
screen!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
87!
!
11!
a)!Press!PTT!
b)!Say!'Show!3D'!
System!shall!
show!a!'Map!3D'!
screen!
!
12!
a)!Press!PTT!
b)!Say!'Zoom!In'!
System!shall!
'Zoom!in'!map!
screen!
!
13!
a)!Press!PTT!->!Say!
'Navigation'!
b)!when!prompted,!!
Say!'Destination!
street!address'!
c)!when!prompted,!
Say!'37101!
Corporate!drive,!
Farmington!Hills'!
d)!when!prompted!
to!set!destination,!->!
Press!PTT!&!say!'Set!
as!destination'!
System!shall!
switch!to!split!
map!screen!and!
ask!user!'when!
ready,!hit!PTT!
and!say!'Set!as!
destination'!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
88!
!
14!
a)!Press!PTT!
b)!Say!'What!Can!I!
say'!
System!shall!
show!'what!can!I!
say'!popup!
!
15!
a)!Press!PTT!
b)!Say!'List!of!
Commands'!
System!shall!
show!'list!of!
commands'!
screen!
!
!
&
&
&
&
&
&
&
&
!
VOLUME&
The Volume Settings Client is the interface of the Volume Settings function as called out in the SPSS and as
the interface for the volume HMI Output.
The APIM shall send a single SetVolume increment / decrement to the Volume Settings Server when the
volume button press the MFD / APIM receives is initially pressed.
When the volume button is held longer than Tvolume_button_held then the MFD / APIM shall increment /
decrement the SetVolume signal to the Volume Settings Server every 100 milliseconds the until the button is
released.
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
89!
!
Rotary Volume Horizontal Volume
{Event}
{Min / Max}
{Vol}
!!!!!!!!!!!!!!!!!!!!!!!
{Event}
{Vol}
{Min / Max}
!
!
Table H22e.01. Volume event text detail
Volume Event
Text display on
{Event}
Audio volume adjustment Audio Volume
Voice recognition feedback vol. adjustment Voice Volume
Phone call volume adjustment Phone Volume
Voice prompt vol. adjustment Prompt Volume
Traffic prompt volume adjustment TA Volume
MyKey volume limit MyKey Volume
Volume Event
Text display on
{Min / Max}
Minimum volume reached Minimum
Maximum volume reached Maximum
MyKey volume limit Buckle up to unmute
!
WI-FI&
Wi-Fi!is!used!to!perform!automatic!software!updates.!You!can!connect!to!a!network!from!the!settings!
menu.!Software!updates!will!take!place!in!the!background!when!you!are!connected!to!Wi-Fi.!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
90!
!
Below:!Wifi!and!Internet!options!on!settings!screen!
!
!
Wi-Fi!and!Internet!settings!screen:!
!
!
!
!
WI-FI&
Available!Wifi!Networks!screen:!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
91!
!
!
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
92!
!
Federal&Communications&Commission&(FCC)&Statement&
!
15.21!
You!are!cautioned!that!changes!or!modifications!not!expressly!approved!by!the!part!responsible!for!
compliance!could!void!the!user’s!authority!to!operate!the!equipment.!
!
15.105(b)!
This!equipment!has!been!tested!and!found!to!comply!with!the!limits!for!a!Class!B!digital!device,!
pursuant!to!part!15!of!the!FCC!rules.!These!limits!are!designed!to!provide!reasonable!protection!against!
harmful!interference!in!a!residential!installation.!This!equipment!generates,!uses!and!can!radiate!radio!
frequency!energy!and,!if!not!installed!and!used!in!accordance!with!the!instructions,!may!cause!harmful!
interference!to!radio!communications.!However,!there!is!no!guarantee!that!interference!will!not!occur!
in!a!particular!installation.!If!this!equipment!does!cause!harmful!interference!to!radio!or!television!
reception,!which!can!be!determined!by!turning!the!equipment!off!and!on,!the!user!is!encouraged!to!try!
to!correct!the!interference!by!one!or!more!of!the!following!measures:!
!
-Reorient!or!relocate!the!receiving!antenna.!
-Increase!the!separation!between!the!equipment!and!receiver.!
-Connect! the! equipment! into! an! outlet! on! a! circuit! different! from! that! to! which! the! receiver! is!
connected.!
-Consult!the!dealer!or!an!experienced!radio/TV!technician!for!help.!
!
This&device&complies&with&Part&15&of&the&FCC&Rules.&Operation&is&subject&to&the&following&two&
conditions:&
1)!this!device!may!not!cause!harmful!interference!and!
2)!this!device!must!accept!any!interference!received,!including!interference!that!may!cause!undesired!
operation!of!the!device.!
!
Radio&Frequency&Radiation&Exposure&
•!This!transmitter!must!not!be!co-located!or!operating!in!conjunction!with!any!other!antenna!
or!transmitter.!
•!This!transmitter!complies!with!FCC!RF!radiation!exposure!limits!set!forth!for!an!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
93!
!
uncontrolled!environment.!The!transmitter!should!be!installed!and!operated!with!a!minimum!distance!
of!20!cm!between!the!radiator!and!your!body.!
!
Industry&Canada&Compliance&
IC!Statement:!
This!device!complies!with!Industry!Canada!licence-exempt!RSS!standard(s).!
Operation!is!subject!to!the!following!two!conditions:!(1)!This!device!may!not!cause!interference,!and!(2)!
This!device!must!accept!any!interference,!including!interference!that!may!cause!undesired!operation!of!
the!device.!
This!Class!B!digital!apparatus!complies!with!Canadian!ICES-003.!
Cet!appareil!numérique!de!classe!B!est!conforme!à!la!norme!NMB-003.!
!
Le!présent!appareil!est!conforme!aux!CNR!d'Industrie!Canada!applicables!auxappareils!
radio!exempts!de!licence.L'exploitation!est!autorisée!aux!deux!conditions!suivantes:!
(1)!l'appareil!ne!doit!pas!produire!de!brouillage,!et!
(2)!l'utilisateur!de!l'appareil!doit!accepter!tout!brouillage!adioélectrique!subi,!même!si!le!
brouillage!est!susceptible!d'en!compromettre!le!fonctionnement.!
!
Operation!in!the!band!5150!-!5250!MHz!is!only!for!indoor!use!to!reduce!the!potential!for!harmful!
interference!to!co-channel!
mobile!satellite!systems.!
!
bande!5150!-!5250!MHz!est!réservés!uniquement!pour!une!utilisation!à!l'intérieur!afin!de!réduire!les!
risques!de!
brouillage!préjudiciable!aux!systèmes!de!satellites!mobiles!utilisant!les!mêmes!canaux.!
!
!
!
!
Panasonic
ideas for life Panasonic Automotive Systems Company
of America
Division of Panasonic Corporation of North America
!
94!
!
Caution:&Exposure&to&Radio&Frequency&Radiation.&
To!comply!with!RSS!102!RF!exposure!compliance!requirements,!a!separation!distance!of!at!least!20!cm!
must!be!maintained!between!the!antenna!of!this!device!and!all!persons.!
!
Pour!se!conformer!aux!exigences!de!conformité!CNR!102!RF!exposition,!une!distance!de!séparation!d'au!
moins!20!cm!doit!être!maintenue!entre!l'antenne!de!cet!appareil!et!toutes!les!personnes.!
!
European&Union®ulatory¬ices&
Declaration&of&Conformity&
Products!bearing!the!CE!marking!comply!with!one!or!more!of!the!following!EU!Directives!as!may!be!
applicable:!
R&TTE!Directive!1999/5/EC;!Low!Voltage!Directive!2006/95/EC;!EMC!Directive!2004/108/EC;!Ecodesign!
Directive!2009/125/EC;!RoHS!Directive!2011/65/EU!
Compliance!with!these!directives!is!assessed!using!applicable!European!Harmonised!Standards.!
&
&
&
!
