Users Manual 2
Operating Instructi ons
Smart Handhel d
EB-3901
Operating Instructions
Basic Guide
Tablet Computer
Model No.
FZ-N1
series
RM151A_US_BG
_Draft1.0
2
Table of Contents
Introduction .............................................................. 3
Regulatory information................................................... 3
Handling cautions .......................................................... 5
Terms and illustrations in this document ....................... 9
Disclaimers .................................................................. 10
Getting Started....................................................... 11
Confirming the included items ..................................... 11

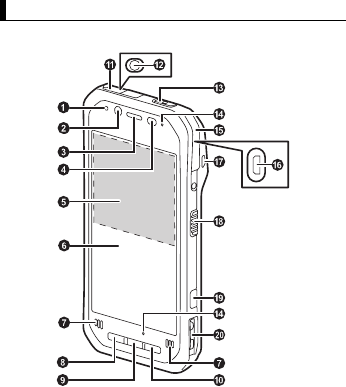

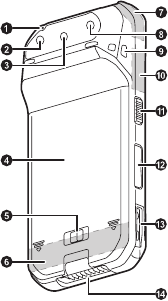

Description of parts...................................................... 12
Opening and closing the interface cover ..................... 16
Removing and attaching the battery cover .................. 17
Installing SIM cards (certain models only)................... 19
Installing an SD card.................................................... 20
Installing and removing the battery.............................. 22
Charging the battery .................................................... 24
Turning the unit on and off........................................... 25

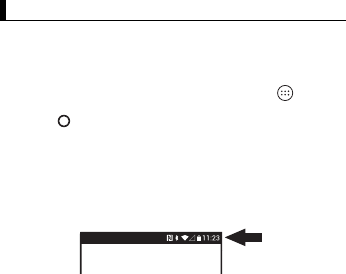

Home screen, status bar, notifications......................... 26
Navigation and function buttons .................................. 27
Factory data reset........................................................ 28
Troubleshooting .................................................... 29
Appendix ................................................................ 33
Specifications............................................................... 33
Limited warranty .......................................................... 39
3Introduction
Introduction
Regulatory information
For USA
FCC RF exposure information
The highest SAR value for this product as reported to the FCC when
tested for use at the ear is listed below:
And when worn on the body in a holder or carry case, is listed below:
For Canada / Pour les Canada
RF exposure information
The highest SAR value for this product as reported to the IC when
tested for use at the ear is listed below:
And when worn on the body in a holder or carry case, is listed below:
Regulatory information
Highest value
0.28 W/kg
Highest value
0.45 W/kg
Highest value
0.27 W/kg
Highest value
0.45 W/kg
4
Information sur l’exposition aux radiofrequences (RF)
Les valeurs de DAS les plus élevées obtenues pour ce produit, telles
que rapportées à l’IC lors des essais pour une utilisation près de
l’oreille, est décrite ci-dessous :
Et lorsque l’appareil porté sur soi dans un portoir ou un boîtier, est
décrit ci-dessous :
Valeur la plus élevée
0,27 W/kg
Valeur la plus élevée
0,45 W/kg
5Introduction
Handling cautions
General use
• Operating environment
Temperature: Operation: -10 °C to 50 °C {14 °F to 122 °F}
(IEC60068-2-1, 2)
*1
Storage: -30 °C to 70 °C {-22 °F to 158 °F}
Humidity: Operation: 30 % to 80 % RH (No condensation)
Storage: 30 % to 90 % RH (No condensation)
Even within the above temperature/humidity ranges, operation for
a long time in extreme environments, smoking nearby, or operation
in places where oil is used or where there is a lot of dust will result
in the product deterioration and will shorten the product life.
Also, when using the product in cold environments, the product
may take longer to start up and battery operation time may be
reduced.
*1 Do not directly touch this product with your bare hands when
using it in a hot or cold environment.
• If the product is wet in temperatures of 0 °C {32 °F} or below,
freeze damage may occur. Make sure to dry off the computer in
such temperatures.
• Do not place the product in the following areas, as doing so may
damage the product.
– Near electric appliances. The image may be distorted or noise
may occur.
• This product is designed to reduce physical shock applied to the
LCD and internal electrical components. However, protection
against malfunction due to such shock is not guaranteed. As with
any portable device, precautions should be taken to avoid any
damage.
• When operating the screen using the dedicated stylus, do not
firmly press it down. Doing so may damage the dedicated stylus or
result in scratches or dents on the screen.
• Do not place objects on the surface of the product or press down
hard on the product with sharp objects. The screen surface may
get scratched.
Handling cautions
6
• Do not scratch the rear camera, barcode reader, or flash panel.
• Do not use the dedicated stylus (sold separately) when dust or dirt
(e.g., oil) is on the screen. Otherwise foreign particles on the
screen/dedicated stylus may scratch the screen surface or
obstruct operation of the dedicated stylus.
• Use the dedicated stylus only for touching the screen. Using it for
any other purpose may damage the dedicated stylus and result in
scratches on the screen.
• Confirm the safety and security of software before downloading or
installing it on the product. Installing malware or viruses can cause
malfunction and the disclosure of any private information stored in
the product, or may cause excessive sound volume.
• Turn off the product before removing the SIM card or SD card.
Failure to do so can result in data loss or damage to the SIM card,
SD card, or product.
• Do not place the product near a television or radio receiver. This
may cause television or radio interference.
• Keep the product away from magnets. Failure to do so may cause
malfunction.
• It is illegal in many areas to record a call without permission.
Always ask the other party for permission before recording a call.
• Follow these instructions and the Reference Manual to avoid any
damage to the devices. Carefully read the instruction manuals of
the peripheral devices.
– Use peripheral devices that conform to the product's
specifications.
– Connect to the connectors in the correct direction.
– If a connector is hard to insert, do not try forcibly. Check its
shape, direction, alignment of pins, etc.
Protecting your data
• To prevent accidental loss of data, we recommend that you back
up any important data that you store in the product, SIM card, and
SD card.
• To prevent the unintended disclosure of private information,
always confirm the destination before sending messages, file
attachments, or any other communications, such as email.
7Introduction
• To prevent the unintended disclosure of sensitive information
stored on the SD card, we recommend using the unit's SD card
encryption feature to encrypt the SD card (see the Reference
Manual for more information).
• Before disposing of the product or handing the product over to a
third party, remove the SIM card, SD card, and any other
accessories.
• Before disposing of the product or handing the product over to a
third party, perform a factory data reset (Page 28) to erase any
data stored in the product.
• Before using Wi-Fi or Bluetooth features, take appropriate action to
secure your data.
Waterproof/dustproof
• The product is waterproof/dustproof when the interface cover and
headset jack cover are closed, and the battery and battery cover
are attached. Therefore, keep water and dust away from product's
internal components, accessories, and optional products.
• To prevent liquids, sand, dust, or any foreign objects from entering
the product, always keep the battery cover and battery clean and
make sure to firmly close the cover after opening. Take care not to
get anything caught between the cover or battery and the product.
• If the product is exposed to water droplets, wipe them off with a
dry, soft cloth and shake the product to remove the water droplets.
Next, remove the battery cover, and shake the product while
holding down the battery so that it does not detach to remove the
water. Then, with the battery still attached, wipe off the water
droplets on the battery and back side of the battery cover, and dry
thoroughly.
• Do not leave any water droplets on the product. Water droplets
may cause the micro USB port or headset jack to short circuit, or
create smears on the screen.
• If the unit is wet, wipe off the moisture before connecting with
peripheral devices.
• Do not dry the product with an appliance or heat source such as a
microwave oven or dryer.
8
• Accessories
Do not use in the rain or in very humid places such as bathrooms
because the accessories are not waterproof/dustproof. Stop use if
they are worn on the body, because the inside may corrode due to
humidity from sweat and cause malfunction.
Maintenance
• When cleaning the product, make sure to turn it off.
• When cleaning the product, wipe it with a soft, dry cloth. An
alcohol-based disinfectant may be used if necessary.
– If the product is particularly dirty, thoroughly wring a cloth
soaked in water, wipe off the dirt, and then wipe with a dry cloth.
– Do not clean the product with solvents such as benzene, thinner,
or strong alkaline detergent because they may affect the surface
of the product.
Battery
• The battery is a consumable item, and battery life varies with
usage conditions. Typical battery life is approximately one year or
about 500 charge cycles. As the battery reaches the end of its life,
the amount of time it can be used becomes dramatically shorter
and repeated charging does not restore its performance. When
this occurs, the battery should be replaced with a new one.
• Do not touch the terminals of the battery. Failure to observe this
may cause poor contact.
• When the battery is left installed in the product, it discharges
electricity gradually in small amounts even if the product's power is
off. If left for a long period (several months or more), the battery will
over discharge and its performance may deteriorate.
• Store the battery in environments with an ambient temperature of -
20 °C to 35 °C (-4 °F to 95 °F). If the battery is stored in other
environments, battery performance and battery life may be
reduced.
• When storing or transporting the battery, make sure that the
battery's terminals do not become dirty and that no foreign objects
or debris become attached to the battery's terminals.
9Introduction
• If battery charging is not completed after the specified charging
time has passed, remove the battery from the unit. The battery
protection device may be damaged.
• You cannot charge an installed battery if it is not recognized by the
product. Make sure that you use the specified battery.
Terms and illustrations in this document
• Panasonic Corporation and/or its affiliates are referred to
collectively as “we” or “Panasonic”.
• This product supports microSD, microSDHC, and microSDXC
memory cards. In this document, the term “SD card” is used as a
generic term for any supported memory card.
• This product supports micro SIM cards (certain models only). In
this document, the term “SIM card” is used as a generic term for
any supported SIM card.
• Some illustrations in this document may look different from the
actual product. Also, the details of the descriptions may vary due to
differences between the software versions or automatic updates of
some software.
• Information in this document is subject to change without notice.
• For the latest information about optional products, refer to the
product catalogs, etc.
Terms and illustrations in this document
10
Disclaimers
Panasonic shall not be liable for loss of data or other incidental or
consequential damages resulting from the use of this product. This
product can download, store, forward, and receive additional content,
such as applications, ringtones, contact information, and media files.
The use of such content may be restricted or prohibited by the rights
of third parties, including but not limited to restriction under
applicable copyright laws. You are entirely responsible for additional
content that you download to or forward from this product; Panasonic
is not responsible for such content or its use. Before using such
content, it is your responsibility to verify that your intended use is
properly licensed or is otherwise authorized. Panasonic does not
warrant or guarantee the accuracy, integrity or quality of any
additional content or any other third-party content. Under no
circumstances will Panasonic be liable in any way for the improper
use of additional content or other third-party content by this product
or its operator. This document and any related product
documentation may refer to services and applications that are
provided by third parties. The use of such services or programs may
require separate registration with the third party provider and may be
subject to additional terms of use. For applications accessed on or
through a third-party web site, please review the web sites’ terms of
use and applicable privacy policy in advance. Panasonic does not
warrant or guarantee the availability or performance of any third-
party web sites, services, or applications.
Disclaimers
13Getting Started
D
Ambient light sensor, proximity sensor
The ambient light sensor automatically adjusts the screen
brightness. The proximity sensor prevents accidental operations
on the touch panel during phone calls.
E
NFC antenna
(internal)
When using an NFC card or other NFC device, touch the card/
device to this area of the unit.
F
Display (touch panel)
Can also be operated while using gloves (glove touch mode).
G
Speaker
H
Application button [A1]
(page 27)
I
Application button [
A2
]
(page 27)
J
Application button [
A3
]
(page 27)
K
Headset jack cover
(page 15)
L
Headset jack
M
Power button
(page 25)
N
Microphone
O
Interface cover
(page 16)
P
micro USB port
(page 24)
Q
Strap attachment hole
R
Side button
(Page 27)
S
Camera button
(page 27)
T
Cradle rail
Used when connecting the unit to an optional cradle, etc.
15Getting Started
M
Cradle rail
Used when connecting the unit to an optional cradle, etc.
N
Expansion bus connector
Used when connecting an optional cradle, etc. or for other future
expansion options.
Opening and closing the headset jack cover
Pull back at the protrusion of the headset jack cover with your
fingertip. When closing, make sure the cover is closed firmly.
IMPORTANT
• Observe the following to ensure the waterproof and dustproof
performance of the unit.
– Make sure the headset jack cover is securely closed when the
headset jack is not being used.
– When closing the headset jack cover, make sure there is no
debris lodged in and around the cover.
16
Opening and closing the interface cover
Opening the interface cover
Closing the interface cover
Opening and closing the interface cover
1.
Slide in the direction of the
arrow at the protrusion
(circled in the illustration
above) with your fingertip.
2.
Pull back the cover and
rotate it downward.
1.
Rotate the cover upward
and insert it to its original
position.
2.
Firmly slide in the direction
of the arrow until the red
area (circled in the
illustration above) of the
cover is no longer visible.
17Getting Started
IMPORTANT
• Observe the following to ensure the waterproof and dustproof
performance of the unit.
– Make sure the interface cover is securely closed and locked
when the micro USB port is not being used.
– When closing the interface cover, make sure there is no debris
lodged in the gasket that seals the cover.
Removing and attaching the battery cover
Removing the battery cover
1.
Slide the battery lock lever (circled in the illustration) in direction
of (A), then slide the battery cover in direction of the arrow
(B).
Removing and attaching the battery cover
18
Attaching the battery cover
1.
Place the battery cover on the unit as shown in the illustration
below (A), and then slide it until you hear a click (B).
2.
Lock the cover by sliding the battery lock lever (circled in the
illustration) toward .
• Firmly slide until the red area is no longer visible.
IMPORTANT
• Observe the following to ensure the waterproof and dustproof
performance of the unit.
– Always make sure the battery cover is securely closed and
locked.
19Getting Started
Installing SIM cards (certain models only)
You can install up to two SIM cards.
1.
Remove the battery cover (page 17)
• If a battery is installed, remove it (Page 23).
2.
Slide the SIM card slot in the direction of the arrow (A), and then
open it (B).
3.
Insert the SIM card into the desired micro SIM card slot.
• Install only micro SIM cards.
• If only one SIM card is installed, insert it into micro SIM card
slot 1.
• Hold the SIM card so that the metal terminals are facing you,
and insert with the notch facing in the same direction of the
circled area in the illustration below.
Installing SIM cards (certain models only)
Slot 1
Slot 2
20
4.
Close the micro SIM card slot (A), and slide it in the direction of
the arrow (B) until you hear a click.
• To remove a SIM card, follow the same procedure, and then
pull out the SIM card at step 3.
Note
• See the
Reference Manual
(tap
[Online Manual]
in the app
list) for information on selecting the active SIM card slot and the
preferred mobile network mode.
Installing an SD card
When installing or removing an SD card, place the unit on a flat
surface.
1.
Remove the battery cover (page 17)
• If a battery is installed, remove it (Page 23).
2.
Slide the microSD card slot in the direction of the arrow (A), and
then open it (B).
Installing an SD card
21Getting Started
3.
Insert the microSD card into the microSD card slot (A), and then
close the slot (B).
• Install only microSD cards.
• Hold the microSD card so that the metal terminals are facing
you, and insert with the notch facing in the same direction of
the circled area in the illustration below.
4.
Slide the microSD card slot in the direction of the arrow until you
hear a click.
• To remove a microSD card, follow the same procedure, and
then pull out the microSD card at step 3.
22
Installing and removing the battery
Installing the battery
1.
Remove the battery cover (page 17).
2.
Insert the tab (circled in the illustration below) on the terminal side
of the battery into the groove of the unit (A), and then push
downward (B).
IMPORTANT
• Observe the following to ensure the waterproof and dustproof
performance of the unit.
– When installing the battery, make sure there is no debris lodged
in the gasket that seals the unit.
Installing and removing the battery
23Getting Started
Removing the battery
1.
Remove the battery cover (Page 17).
2.
Lift the battery up using the tab (circled in the illustration) (A),
then remove it (B).
IMPORTANT
• Do not remove the battery while the unit is wet. When the unit is
wet, remove the water by wiping off the water droplets and
thoroughly drying the unit before removing the battery. (See
"Waterproof/dustproof", page 7.)
Replacing the battery without turning the unit off (Battery warm
swap)
• Replace the battery within 30 seconds. If more than 30 seconds
has passed, apps that are running are forced to close and you may
lose unsaved data.
• During warm swapping, all wireless functions are turned off
temporarily.
1.
Press and hold (power button) until the power options dialog
is displayed.
2.
Tap
[Battery Warm Swap]
.
3.
Follow the on-screen instructions.
• It may take some time until the indicator lights in green.
4.
Replace the battery.
24
Chargi ng the ba ttery
You can charge the unit by using the optional Charging Cup and the
optional adaptor. For more information, refer to the Operating
Instructions of the Charging Cup.
•
Optional accessories
Charging Cup: FZ-VCBN11U
AC Adaptor: CF-AA6373A

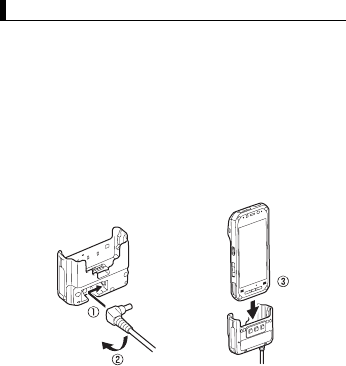

1.
Insert the adaptor straight into the rear indentation as shown in
the figure, and insert into the DC input jack (A).
• Plug the power plug into a power outlet.
2.
Rotate the adaptor downward (B), and firmly insert the unit until
you hear a click (C).
• Charge the battery in environments with an ambient temperature
of 10 °C to 35 °C (50 °F to 95 °F).
• The indicator lights in orange while the battery is charging, and
lights in green when charging is complete.
• The product prevents overcharging of the battery by charging only
when the remaining battery level is less than approximately 95 %
of its full capacity.
• You can also charge the unit by connecting it to the USB port of a
computer or other device using a USB connection cable.
Charging the battery
25Getting Started
Note
• When removing the USB connection cable, make sure to
remove it while holding the plug. Do not pull by the cable.
• When connecting a USB connection cable, note the shape of
the micro USB plug and the micro USB port. Do not attempt to
connect the USB connection cable upside down.
• Remove any dust or water droplets from plugs before
connecting them. Do not use excessive force when inserting
plugs or insert them at an angle.
Confirming the battery level
The battery level is displayed in the upper-right corner of the screen,
in the status bar.
You can also confirm the specific amount of battery level remaining.
From the home screen, tap
→
[Settings]
→
[Battery]
.
Turning the unit on and off
Turning the unit on
Press and hold (power button) on the top of the unit until the unit
briefly vibrates.
Turning the unit off
1.
Press and hold until the power options dialog is displayed.
2.
Select the power off option.
Turning the screen on and off
1.
Press .
2.
Swipe up from the bottom of the screen to release the screen
lock.
• Swiping the bottom-left to the right launches the
[Phone]
app, and swiping the bottom-right to the left launches the
[Camera]
app.
Fully charged Charging Very low
Turning the unit on and off
26
Configuring the unit for the first time
The first time you turn the unit on, you will be prompted to configure
different settings. Follow the on-screen instructions and configure
each item as needed. An Internet connection is required to configure
certain items.
Home screen, status bar, notifications
Using the home screen
The home screen is the main screen from which you can launch
apps, check widgets, etc. You can customize the home screen to suit
your needs by adding, moving, and removing items as desired.
You can also view a list of all installed apps by tapping .
While the screen is on, you can display the home screen at any time
by tapping or
A2
(default setting).
Using the status bar
The status bar is displayed at the top of the screen when using most
apps. It displays icons that let you know the status of the battery,
network signal, and other features.
• See the Reference Manual for a list of commonly used icons and
their meanings.
Using the notifications panel
The notifications panel provides detailed information about incoming
email messages, app updates, calendar events, etc. You can open
the notifications panel by sliding your finger down slowly from the top
of the screen toward the center of the screen. To close the
notifications panel, slide your finger up slowly from the bottom of the
screen toward the center of the screen. While the notifications panel
is open, you can tap a notification and open the corresponding app,
or swipe a notification left or right to delete it from the panel.
Home screen, status bar, notifications
27Getting Started
Naviga tion and function but tons
The navigation buttons are available in most screens and help you
navigate the unit's screens. They appear at the bottom or side of the
touch panel screen, depending on the unit’s orientation.
The unit also features physical buttons that can be used to access
various functions quickly.
The default button assignments are described below.
Some buttons can be customized using the
[UserButtonManager]
app; see the Reference Manual for more information.
Navigation and function buttons
Returns to the previous screen or closes the current dialog
box, menu, etc.
Displays the home screen.
Displays a list of recently used apps. Once the list is
displayed, tap an app to launch it, or swipe left or right to
remove an app from the list.
A1
The same function as .
A2
The same function as .
A3
Displays the list of options (if available) for the
current screen.
Side button
No function by default.
Camera
button
Press and hold to launch the camera app. When
using the camera app, press this button to take
a picture, start and stop video recording, etc.
28
Factory data reset
CAUTION
• The following procedure resets all settings and erases any data
you have stored in the unit. Back up important data before
performing this procedure.
1.
From the home screen, tap
→
[Settings]
→
[Backup &
reset]
.
2.
Tap
[Factory data reset]
→
[RESET TABLET]
→
[ERASE
EVERYTHING]
.
• The unit restarts when the factory data reset is complete.
• All data in the /mnt/sdcard folder will be erased. Data stored on
the SD card will not be erased.
Factory data reset
29Troubleshooting
Troubleshooting
If you experience any trouble while using the unit, refer to the
information in this section for troubleshooting. See the Reference
Manual (tap
[Online Manual]
in the app list) for additional
troubleshooting information.
If the problem persists, contact your technical support representative.
Starting up
The unit does not turn on.
• To turn the unit on, press and hold (power button) until the unit
briefly vibrates.
• The battery may be low or completely discharged. Charge the
battery.
• The unit may be too hot or too cold. Leave the unit in an
environment of 10
°
C to 35
°
C (50
°
F to 95
°
F) for about an hour,
and then try again.
The unit does not wake up from sleep.
• The battery may have become completely discharged while the
unit was in sleep mode. In this case, any data which has not been
saved will be lost, and the unit will not wake up. Charge the
battery.
• The unit may be too hot or too cold. Leave the unit in an
environment of 10
°
C to 35
°
C (50
°
F to 95
°
F) for about an hour,
and then try again.
Nothing appears on the screen.
• The screen may have turned off to save power. Press (power
button).
• Charge the battery.
• Install the battery correctly.
• Replace the battery with a fully-charged one.
• The screen is too dark. See “The screen is too dark.” (page 30).
Other startup problems
• Disconnect and remove all peripheral devices.
30
Shutting down
Screen
The unit does not turn off.
• It may take one or two minutes for the unit to turn off. This is not a
malfunction.
• Press and hold (power button) for at least 10 seconds to force
the unit to restart, and then try again.
• Disconnect and remove all peripheral devices.
The screen is too dark.
• The
[Adaptive brightness]
setting reduced the brightness
according to the ambient brightness. Manually adjust the screen
brightness.
1.
From the home screen, tap
→
[Settings]
→
[Display]
.
2.
Tap
[Adaptive brightness]
to turn it off.
3.
Tap
[Brightness level]
and then adjust the slider.
• The
[Minimum limit brightness]
setting of customized silent
mode was turned on. Turn the setting off.
1.
From the home screen, tap
→
[Settings]
→
[Sound &
notification]
→
[Customized silent mode]
.
2.
Tap
[Customized silent mode]
to turn it off, then tap
[Minimum limit brightness]
to turn it off.
3.
Tap
[Customized silent mode]
to turn it on.
There are red, green, or blue dots on the screen, or there is
unevenness in screen colors or brightness.
• The following are not malfunctions.
– Although advanced high-precision technologies are used in the
production of color LCD screens, a very small number of the
screen pixels may be dark or remain constantly lit.
– Due to the natural characteristics of LCD screens, you may
notice unevenness in colors and brightness depending on your
angle of view. Hues may also vary by product.
31Troubleshooting
Indicator
The indicator flashes in orange.
• The battery cannot be charged temporarily because the ambient
temperature is too low or too high. Leave the unit in an
environment of 10
°
C to 35
°
C (50
°
F to 95
°
F) for about an hour.
The indicator lights in red.
• The remaining battery level is approximately less than 15 % of a
full charge. Charge the battery.
The indicator flashes in red.
• Battery authentication failed. Use a specified battery.
• There may be debris lodged in the battery charge terminals.
Remove the battery and remove any debris found.
• Charging may have stopped automatically. Disconnect the
charger and then reconnect it.
The indicator does not light during charging.
Battery charging ends quickly, or the battery cannot be
charged at all.
• The unit is not connected to the charger properly, or the USB
connection cable is not connected properly. Confirm the
connection.
• There may be debris lodged in the battery charge terminals.
Remove the battery and remove any debris found.
• Replace the battery with a new one.
The screen is dim and the indicator flashes in red or lights in
green.
• The battery cover may be detached. Attach the cover properly.
32
Other
The date and time are incorrect.
• Confirm the date and time settings. From the home screen, tap
→
[Settings]
→
[Date & time]
.
• Set the date and time automatically.
1.
From the home screen, tap
→
[Settings]
→
[Date &
time]
.
2.
Tap
[Automatic date & time]
and
[Automatic time zone]
to turn them off.
3.
Make sure the unit is in an area with good wireless reception,
turn the unit off, and then turn it on again.
• The unit will not recognize dates after December 30, 2037.
The unit’s operation is slow.
• Ambient temperature may be too low or too high. Leave the unit
in an environment of 10
°
C to 35
°
C (50
°
F to 95
°
F) for about an
hour and then try again.
The unit does not respond.
• Turn the unit off and then on again (page 25).
• If an app does not work normally, follow the instructions below to
force quit or uninstall the problematic app or process.
1.
From the home screen, tap
→
[Settings]
→
[Apps]
.
2.
Select the desired app or process and then tap
[UNINSTALL]
or
[FORCE STOP]
.
The screen freezes and no operations can be performed.
• Press and hold (power button) for at least 10 seconds to force
the unit to restart, and then try again.
33Appendix
Appendix
Specifications
Typical unit specifications and certain options are described below.
Unit configuration may vary.
Specifications
Model No.
FZ-N1
CPU
Qualcomm
®
MSM8974AB
2.3 GHz Quad Core
Memory
2
GB
*1
Storage
eMMC: 16 GB
Display Internal LCD
4.7 in. HD (1280
×
720 dots),
Aspect ratio 16:9
16,777,216 colors (1280
×
720 dots)
34
Wi-Fi
IEEE802.11 a/b/g/n/ac
Qualcomm® WCN3680B
Data transfer rate
IEEE 802.11a: up to 54 Mbps
IEEE 802.11b: up to 11 Mbps
IEEE 802.11g: up to 54 Mbps
IEEE 802.11n:
• HT20: up to 72.2 Mbps
• HT40: up to 150 Mbps
IEEE 802.11ac:
• VHT20: up to 86.7 Mbps
• VHT40: up to 200 Mbps
• VHT80: up to 433.3 Mbps
Standards supported
IEEE 802.11a / IEEE 802.11b / IEEE 802.11g /
IEEE 802.11n / IEEE 802.11ac
Transmission method
OFDM system, DSSS system
Wireless channels used
IEEE 802.11a / IEEE 802.11n (5 GHz) / IEEE
802.11ac
• W52 (36, 38, 40, 42, 44, 46, 48 ch)
• W53 (52, 54, 56, 58, 60, 62, 64 ch)
• W56 (100, 102, 104, 106, 108, 110, 112,
116, 132, 134, 136, 140 ch)
• W58 (149, 151, 153, 155, 157, 159, 161,
165 ch)
IEEE 802.11b / IEEE 802.11g / IEEE 802.11n
(2.4 GHz): 1 ch - 11 ch
RF frequency band
2.4 GHz Band: 2.412 GHz - 2.462 GHz
5 GHz Band: 5.18 GHz - 5.32 GHz, 5.5 GHz -
5.7 GHz, 5.745 GHz - 5.825 GHz
35Appendix
Bluetooth
4.1 Classic mode / Low Energy mode, Class 1
Transmission method
FHSS system
Wireless channels used
0 - 78 ch (Low energy: 0 - 39 ch)
RF frequency band
2.400 GHz - 2.4835 GHz (including guard
bands)
Mobile networking
(certain models
only)
LTE, HSPA+, UMTS, EDGE, GPRS,
CDMA 1x, EVDO Rev. A
SIM card slot
micro SIM card slot
×
2
Sound Speaker
Loud volume speaker (mono)
×
2
Microphone
Internal microphone
×
3
Security chip
ARM
®
TrustZone
®
(Built-in)
Camera Front
5 megapixels
Video: 1920
×
1080 pixels, 30 fps
Still: 2592
×
1944 pixels
Rear
8 megapixels
Video: 1920
×
1080 pixels, 30 fps
Still: 3264
×
2448 pixels
GPS
GPS CEP50 (
±
2
m to 4
m), GLONASS
Barcode reader
1D, 2D support
Enhanced data
security
FIPS
140-2 level-1 compliant
36
Sensors
Ambient light sensor, Digital compass,
Gyro sensor, Acceleration sensor, Proximity
sensor
NFC
Built-in (Type A, B, Felica)
Card slots SD memory card
micro SDXC card slot
×
1
*2
Interfaces
USB 2.0 port
×
1
*3
, Headset
×
1,
Cradle interface
×
1, Gadget interface
Touchscreen
10 Finger touch (Capacitive) with glove touch
mode and rain sensing touch mode
*4
Stylus pen (Active type, Passive type) support
Power supply
Battery pack
AC adaptor
(optional)
CF-AA6373A (60 W)
*5
Battery
Li-ion 3.8
V, 3,200 mAh (typ.)
Operating time
(approx.)
*6
Standby: XXX
hours
Talk: XXX
hours
*7
Barcode scanning
*8
: XXX
hours
Charging time
(approx.)
*9
When unit is on: XXX
hours
When unit is off: XXX
hours
Power
consumption
*10
Approx. XXX
W
*11
Battery hot swap
No (Warm Swap is available
*12
)
Dimensions
*13
(W
×
D
×
H)
XXX
mm
×
XXX
mm
×
XXX
mm
(XXX in.
×
XXX in.
×
XXX in.)
without protrusions
Weight
*14
Approx. XXX g (XXX lb), including battery
37Appendix
Specifications are subject to change without notice.
*1 1
MB = 1,048,576 bytes, 1
GB = 1,073,741,824 bytes
*2 Operation has been tested and confirmed using the following
Panasonic brand memory cards: SD (up to 2
GB), SDHC (up to
32
GB). Compatibility with other SD devices is not guaranteed.
*3 Does not guarantee operation of all USB-compatible
peripherals.
*4 Single-point operation when rain sensing touch mode is
enabled.
*5 The AC adaptor is designed for use with power sources that
supply up to 240
V
AC. The AC cord supplied with the AC
adaptor is designed for use with power sources that supply up to
125
V
AC.
*6 Actual performance varies depending on usage conditions,
connected peripherals, etc. Typically, operating time is reduced
in colder environments.
*7 Talk time may vary depending on the condition of the mobile
network.
*8 As defined by the JEITA Specification, Working Mode B.
*9 Varies depending on usage conditions.
Operating
environment
*15
Temperature
-10
°
C to 50
°
C (14
°
F to 122
°
F)
Humidity
30 % to 80 %
RH
Storage
environment
Temperature
-30
°
C to 70
°
C (-22
°
F to 158
°
F)
Humidity
30 % to 90 %
RH
Operating
system
*16
Android 5.1
Water and dust
resistance
IP65, IP67
38
*10 When the battery is fully charged (or not being charged) and the
unit is off.
*11 Rated power consumption.
*12 Need to turn on battery warm swap mode before remove the
battery.
You can turn on battery warm swap mode by UI operation or FZ-
N1 automatically turns into battery warm swap mode when the
battery is removed.
*13 Actual size may vary by unit configuration.
*14 Average weight. Actual weight may vary by unit configuration.
*15 Do not expose the skin to this product when using the product in
a hot or cold environment.
When using the product in hot or cold environments, some
peripherals may not perform properly. Confirm the
recommended operation environment of the peripherals.
Using the product continuously in hot environments will shorten
the product life. Avoid continuous use in these types of
environments.
When using the product in cold environments, the product may
take longer to start up and battery operation time may be
reduced.
Even when using the product within the temperature and
humidity ranges listed here, using the product continuously in
extreme environments will result in product deterioration and will
shorten the life of the product.
*16 Product functionality cannot be guaranteed if the operating
system is modified or replaced by the user or a third party.
39Appendix
Limited warranty
Limited warranty for U.S.A.
Section 1: Limited Warranty - Hardware
PSCNA, referred hereafter as “Panasonic” will repair the products listed below with
Panasonic approved parts, free of charge in the Global Panasonic approved location for
the period specified below from the date of original purchase in the event of a defect in
materials or workmanship.
These warranties are extended solely to the original purchaser. A purchase receipt or
other proof of date of original purchase will be required before warranty performance is
rendered.
Original Battery Warranty
Batteries supplied with the product are covered under the warranty for one (1) year from
date of purchase, except as excluded in Section 3. Batteries purchased separately are
covered under the warranty for one (1) year from the date of purchase. A replacement
battery furnished under the product warranty is covered for the remaining period of the
one year warranty of the original or purchased battery.
Optional: Battery Extended Warranty Program
If this coverage is purchased, the serial numbered unit is entitled to one replacement
battery within each 12 month period, providing the existing battery holds less than 50 %
of the original battery life. For Laptop PCs, FZ-E#, FZ-G#, FZ-X#, and JT-B# models, a
replacement battery will be shipped out in advance for exchange. For FZ-A# models,
the unit must be sent in for expedited battery replacement by calling the number at the
end of the last page of this document. The cost of labor, the battery, and shipping are
included in the price of the Battery Extended Warranty Program.
Limited warranty
Panasonic System Communications Company
of North America (PSCNA)
Computer Products - Worldwide Warranties
Laptop Computers (CF-##): 3 Years
Tablet PC (FZ-##/JT-B#): 3 Years
Ultra-Mobile PC (CF-U#/CF-H# Series): 3 Years
PDRC - LCD & Keyboard Assembly: 3 Years
40
Optional: Extended Warranty Program (PC)
If this coverage is purchased, the serial numbered unit is entitled to the same warranty
coverage as the original warranty, for a period determined at the time of the extended
warranty purchase. In this case the battery is not included in the extended warranty
coverage; a separate coverage program is available for the battery. The cost of labor,
parts, and shipping are included in the price of the Extended Warranty Program.
Optional: Panasonic “Protection Plus” Warranty
Any unit for which the Panasonic “Protection Plus” warranty has been purchased will
receive additional coverage for any failure that occurs due to accidental damage. All
other terms and conditions of the standard warranty apply and this additional coverage
will exist for the duration of the standard warranty period of the unit.
If an extended Protection Plus warranty program is purchased, coverage is extended to
the end of the last year of extended coverage purchased.
This warranty does not cover failures or defects that are caused by fire, intentional acts,
loss, theft, improper maintenance, modification or service by anyone other than the
Panasonic National Service Center or a Panasonic Authorized Service Provider, or
damage that is attributable to acts of God.
Cosmetic damage that does not affect functionality is not covered. Cosmetic damage
on units with hardware failures will be repaired in accordance with the warranty terms.
This warranty is extended solely to the original purchaser on the unit serial number for
which it was purchased.
Complete unit replacement fulfills the full obligation and is at the discretion of Panasonic
and is limited to once during the coverage term.
Refer to the Panasonic web site for full terms and conditions on the above programs.
Options and Accessories Warranties
The below listed Panasonic brand or supplied options and accessories are covered
under this limited warranty for the period specified from the date of purchase or as
specifically stated.
• AC Adaptor and Power Cord: 3 Years
• Car Adaptor and Power Cord: 3 Years
• Cradle: 3 Years
• Optional Battery: 1 Year
• Battery Charger: 1 Year
• Integrated Panasonic supplied options and kits including, but not limited to,
Cameras, GPS devices, Bluetooth devices, Smartcard Readers, Magnetic Card
41Appendix
Readers, Barcode Scanners, and Fingerprint Readers: 3 years or the warranty
period of the unit in which it is installed provided the installation was performed by
Panasonic or an Authorized Integrator.
Section 2: Limited Warranty - Software
Panasonic warrants to you only that the disk(s) or other media on which the Programs
are furnished will be free from defects in material and workmanship under normal use
for a period of sixty (60) days from the date of delivery thereof to you, as evidenced by
your purchase receipt.
This is the only warranty Panasonic makes to you.
Panasonic does not warrant that the functions contained in the Programs will meet your
requirements or that the operation of the Programs will be uninterrupted or error free.
Panasonic shall have no obligation for any defects in the disk(s) or other media on
which the Programs are furnished resulting from your storage thereof, or for defects that
have been caused by operation of the disk(s) or other media.
Panasonic’s entire liability and your exclusive remedy under this warranty shall be
limited to the replacement, in the United States or other Panasonic designated location,
of any defective disk or other media which is returned to Panasonic’s Authorized
Service Center, together with a copy of the purchase receipt, within the aforesaid
warranty period.
Section 3: Limited Warranty Exclusions - Specifically excluded from
the warranty are:
• All consumable items; such as screen protection films, logo badges, labels, cleaning
cloths, carry cases, manuals, cables, straps, belts, holsters, tethers, and harnesses
and any other options and accessories not listed above or covered under a separate
warranty
• Failures related to the product operating system, hard drive or solid state drive
image, software setup, software program, virus, other program(s) or file(s) on any
drive or in any computer memory location
• Failures due to BIOS settings or changes, as well as any cosmetic or physical
damage to the unit
• Any unit or device with a missing or altered model number or serial number label
• Cosmetic damage or any damage which occurs in shipment
• Failures which are caused by products not supplied by Panasonic
42
• Failures which result from alteration, accident, misuse, introduction of liquid or other
foreign matter into the unit, abuse, neglect, installation, maladjustment of consumer
controls, improper maintenance or modification, use not in accordance with product
use instructions
• Failures due to service by anyone other than a Panasonic Authorized Service
Provider
• Failures caused by improper installation of options or accessories or due to
installation by any company other than Panasonic or a Panasonic Authorized
Integrator
• Damage, failure, or loss due to the unit being stolen, lost, misplaced, or used by
anyone other than the original purchaser
• Damage that is attributable to acts of God
This limited warranty only covers failures due to defects in materials or workmanship
which occur during normal use. If a unit is sent to a Panasonic Authorized Service
Center and no hardware failure is found, the customer will be billed for labor to correct a
software issue or reimage the hard drive plus shipping and applicable administrative
fees at the current rates set by the service provider.
THIS PRODUCT IS NOT INTENDED FOR USE AS OR PART OF NUCLEAR
EQUIPMENT/SYSTEMS, AIR TRAFFIC CONTROL EQUIPMENT/SYSTEMS, OR
AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*1. PANASONIC WILL NOT BE
RESPONSIBLE FOR ANY LIABILITY RESULTING FROM THE USE OF THIS
PRODUCT ARISING OUT OF THE FOREGOING USES.
*1 AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include class 2 Electronic Flight Bag
(EFB) Systems and Class 1 EFB Systems when used during critical phases of flight
(e.g., during take-off and landing) and/or mounted onto the aircraft. Class 1 EFB
Systems and 2 EFB Systems are defined by FAA: AC (Advisory Circular) 120-76A or
JAA: JAA TGL (Temporary Guidance Leaflets) No. 36.
Other Limits and Exclusions: There are no other express warranties except as listed
above.
PANASONIC SHALL NOT BE LIABLE FOR LOSS OF DATA OR OTHER INCIDENTAL
OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL
EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF
43Appendix
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED
TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. Some states do
not allow the exclusion or limitation of incidental or consequential damages, or
limitations on how long an implied warranty lasts, so the above limitations or exclusions
may not apply to you.
This limited warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
For technical support or to arrange for service on your Panasonic computer product, call
our toll-free hotline at 1-855-PSC-TECH (1-855-772-8324).
Web site: www.panasonic.com/toughbook
For hearing or speech impaired TTY users, call 1-877-833-8855 using a TTY device.
20150403ZAD
C0216-0
© Panasonic System Networks Co., Ltd. 2016
Two Riverfront Plaza, Newark, NJ 07102, USA
