Black plate (1,1)
Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/
19/12
2013 Chevrolet Camaro Infotainment System M
Infotainment System . . . . . . 3
Introduction ................. 3
Infotainment . . . . . . . . . . . . . . . . . . . . 3
Overview . . . . . . . . . . . . . . . . . . . . . . . 3
Using the System . . . . . . . . . . . . . . 7
Software Updates . . . . . . . . . . . . . . 9
Radio ....................... 10
AM-FM Radio . . . . . . . . . . . . . . . . . 10
Radio Data System (RDS) . . . . 13
Satellite Radio . . . . . . . . . . . . . . . . 14
Pandora Internet Radio . . . . . . . 20
Stitcher Internet Radio . . . . . . . . 24
Audio Players ............. 28
Steering Wheel Controls . . . . . . 28
USB . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Auxiliary Devices . . . . . . . . . . . . . . 34
Bluetooth Audio . . . . . . . . . . . . . . . 34
Navigation ................. 35
Using the Navigation
System . . . . . . . . . . . . . . . . . . . . . . 35
Maps . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Navigation Symbols . . . . . . . . . . . 40
Destination .................... 42
OnStar
®
Destination
Download . . . . . . . . . . . . . . . . . . . . 50
Configure Menu . . . . . . . . . . . . . . . 52
Global Positioning
System (GPS) . . . . . . . . . . . . . . . 61
Vehicle Positioning . . . . . . . . . . . . 62
Problems with Route
Guidance . . . . . . . . . . . . . . . . . . . . 63
If the System Needs
Service . . . . . . . . . . . . . . . . . . . . . . 63
Map Data Updates . . . . . . . . . . . . 63
Database Coverage
Explanations . . . . . . . . . . . . . . . . . 64
Voice Recognition . . . . . . . . 64
Personalization ........... 68
Home Page Customization . . . . 68
Bluetooth Phone/
Devices ................... 69
Bluetooth . . . . . . . . . . . . . . . . . . . . . 69
Hands-Free Phone . . . . . . . . . . . . 75
Trademarks and License
Agreements .............. 76
Index ..................... i-1

Black plate (2,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Black plate (3,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 3

Introduction

Infotainment

The names, logos, emblems,

slogans, vehicle model names, and

vehicle body designs appearing in

this manual including, but not limited

to GM, the GM logo, CHEVROLET,

the CHEVROLET Emblem, Camaro,

and the Camaro Emblem are

registered trademarks and/or

service marks of General Motors

LLC, its subsidiaries, affiliates,

or licensors.

The information in this manual

supplements the owner manual.

This manual describes features that

may or may not be on your specific

vehicle either because they are

options that you did not purchase or

due to changes subsequent to the

printing of this owner manual.

Please refer to the purchase

documentation relating to your

specific vehicle to confirm each of

the features found on your vehicle.

For vehicles first sold in Canada,

substitute the name “General

Motors of Canada Limited”for

Chevrolet wherever it appears in

this manual.

Keep this manual with the owner

manual in the vehicle, so it will be

there if it is needed. If the vehicle is

sold, leave this manual in the

vehicle.

Overview

Keeping your eyes on the road and

your mind on the drive is important

for safe driving. The infotainment

system has built-in features

intended to help with this by

disabling some features when

driving. A pop-up displays when a

feature is not available when the

vehicle is in motion.

All functions are available when the

vehicle is parked. Do the following

before driving:

.Become familiar with the

infotainment system operation,

buttons on the faceplate, and

touch screen buttons.

.Set up the audio by presetting

favorite stations, setting the

tone, and adjusting the

speakers.

.Set up phone numbers in

advance so they can be called

easily by pressing a single

button or by using a single voice

command for vehicles equipped

with phone capability.

.Pair the phone for hands-free

calling and streaming audio

features.

Black plate (4,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

4 Infotainment System

{WARNING

Taking your eyes off the road too

long or too often while using the

infotainment system could cause

a crash and you or others could

be injured or killed. Focus your

attention on driving and limit

glances at the infotainment

screen. Use voice recognition

whenever possible.

Modifications to any phone/device

may result in the radio not working

properly. Make sure that any device

attached has the latest available

operating system and has not been

modified.

Some software on phones such as

Task Management may affect the

phone functionality of the radio.

Infotainment System Overview

The infotainment system is

controlled by using the buttons,

touch screen, steering wheel

controls, and voice recognition.

See Using the System on page 7.

Black plate (5,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 5

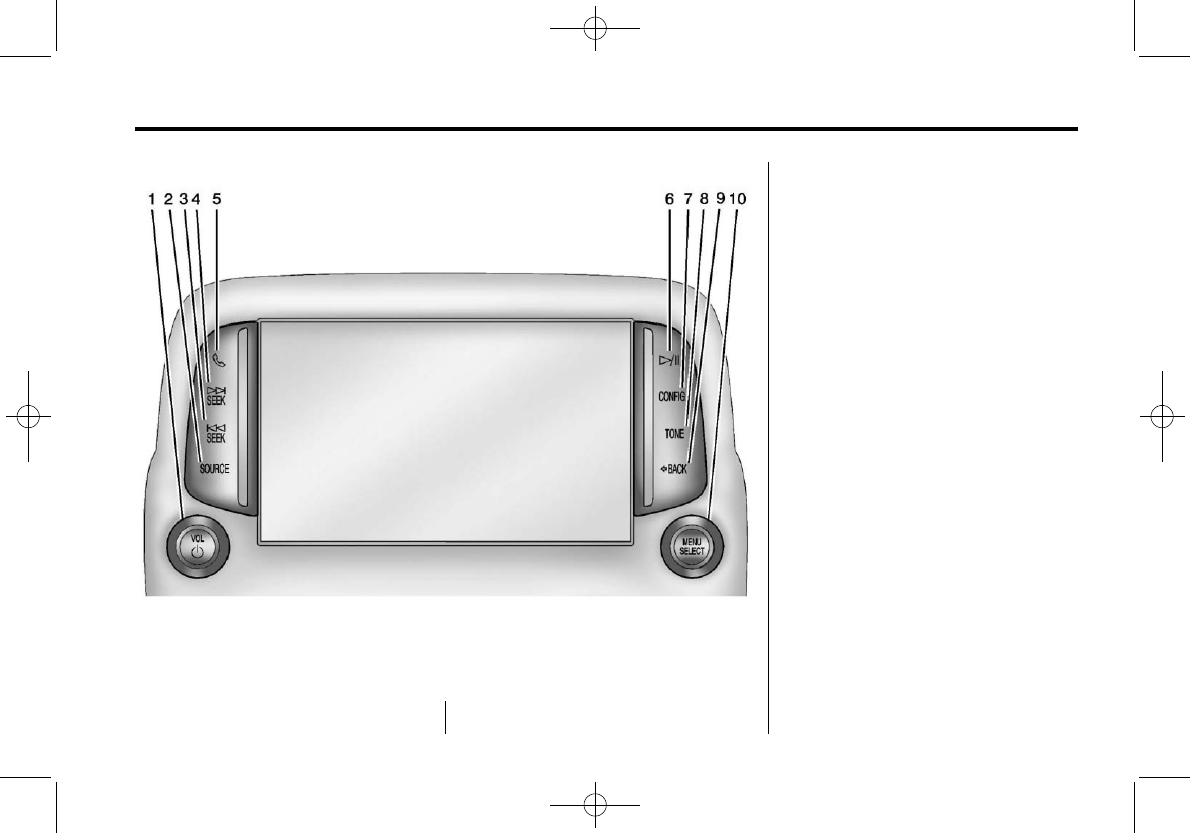

Radio Without Navigation

1. VOL/O(Volume/Power) 2. SOURCE

3. 7SEEK

4. 6SEEK

5. v(Phone)

6. k(Play/Pause)

7. CONFIG (Configuration Menu)

8. TONE

9. 0BACK

10. MENU/SELECT

ERROR - figure

pgwide="page-wide" and does not

match the graphic

Black plate (6,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

6 Infotainment System

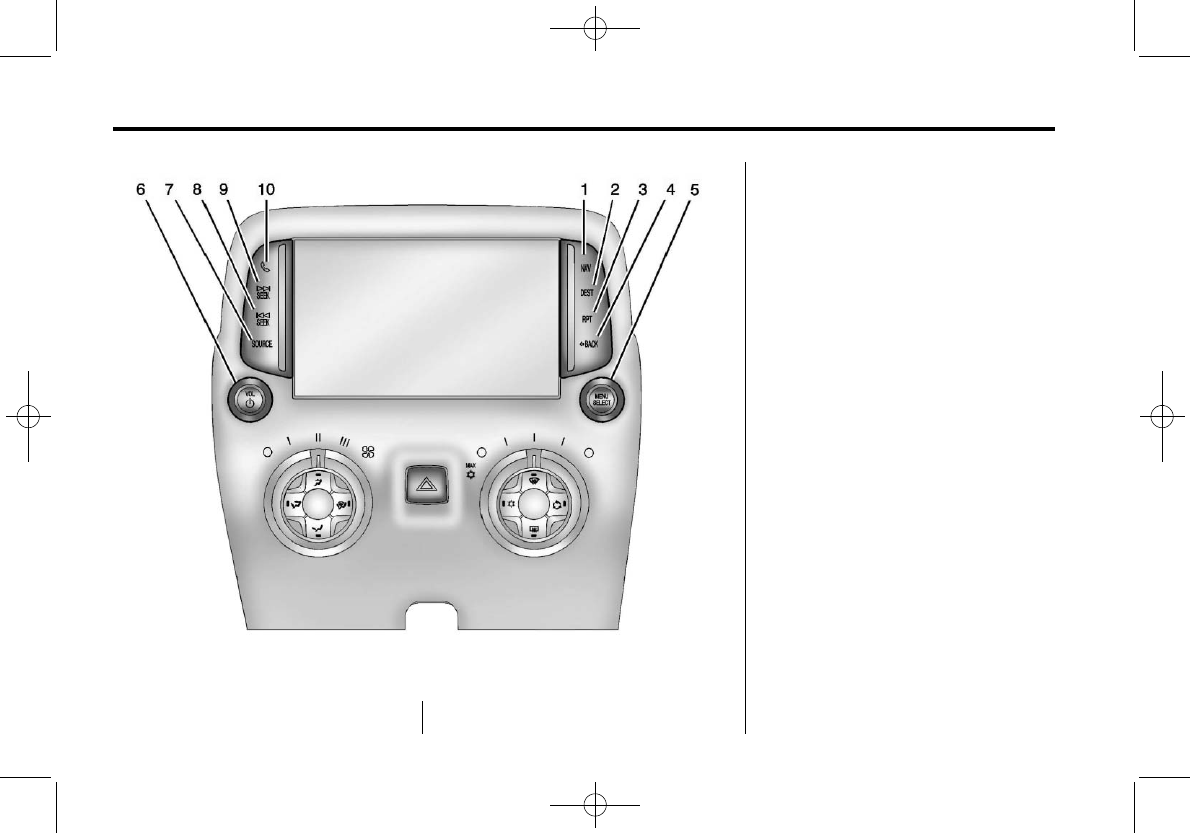

Radio with Navigation

1. NAV (Navigation) 2. DEST (Destination)

3. RPT (Repeat)

4. 0BACK

5. MENU/SELECT

6. VOL/O(Volume/Power)

7. SOURCE

8. 7SEEK

9. 6SEEK

10. v(Phone)

Infotainment Control Buttons

The buttons on the faceplate are

used to start primary functions while

using the infotainment system.

NAV (Navigation):

1. Press to view the vehicle's

current position on the map

screen.

2. Continue pressing to cycle

through the full map and split

screens.

DEST (Destination):

1. Press to enter a destination.

Black plate (7,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 7

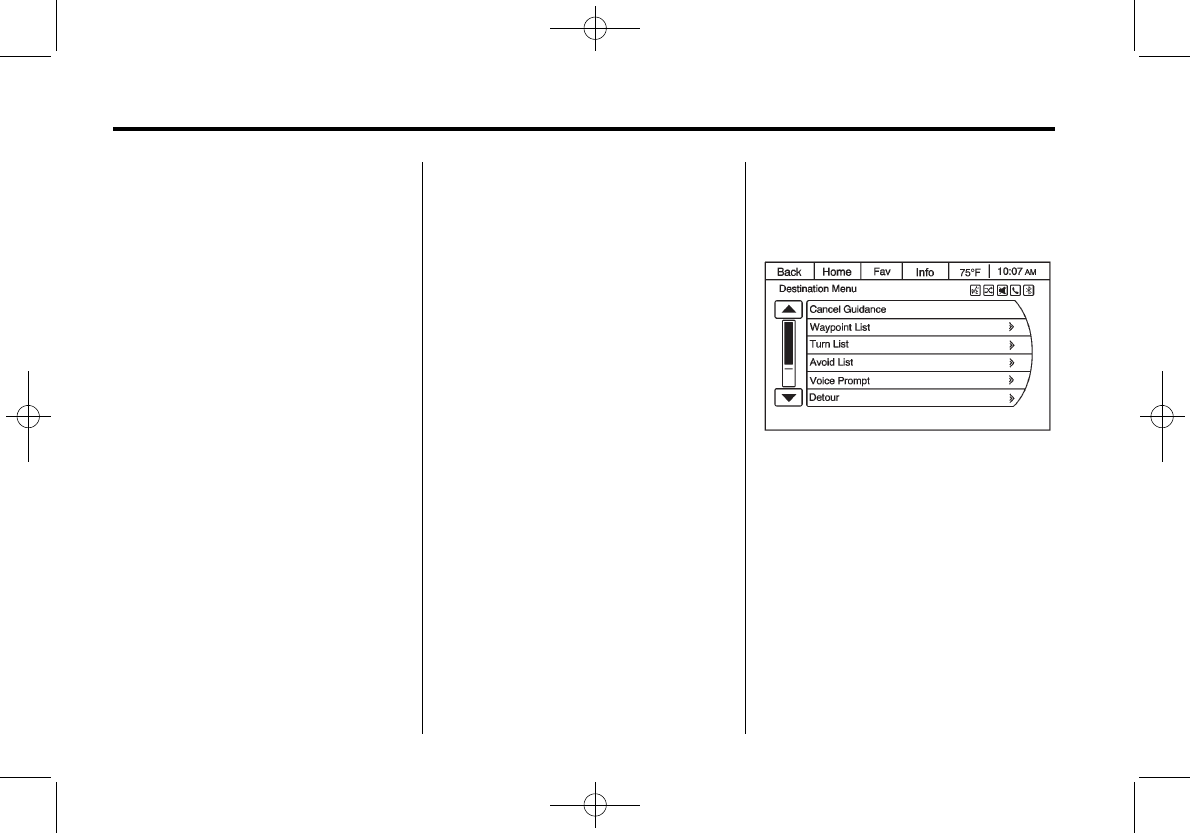

2. If a destination has already been

entered, press to access the

Destination Menu. See

Destination on page 42.

RPT (Repeat): Press to repeat the

last voice guidance prompt.

0BACK: Press to return to the

previous screen in a menu.

If on a page accessed directly by a

faceplate button or Home Page

screen button, pressing 0BACK will

go to the homepage.

MENU/SELECT: Turn to highlight a

feature. Press to activate the

highlighted feature.

VOL/O(Volume/Power):

1. Turn to adjust the volume.

2. Press to turn the system on

and off.

SOURCE: Press to change the

audio sources such as AM-FM

Radio, SIriusXM® (if equipped),

and AUX.

7SEEK:

1. Press to seek to the beginning of

the current or previous track.

If the track has been playing for

less than five seconds, it seeks

the previous track. If longer than

five seconds, the current track

starts from the beginning.

2. Press and hold to quickly

reverse through a track. Release

the button to return to playing

speed. See USB on page 28.

3. For AM, FM, or SiriusXM (if

equipped), press to seek to the

previous strong station.

6SEEK:

1. Press to seek the next track.

2. Press and hold to fast forward

through a track.

3. Release the button to return to

playing speed. See USB on

page 28.

4. For AM, FM, or SiriusXM (if

equipped), press to seek to the

next strong station.

v(Phone): See Bluetooth Audio

on page 34.

k(Play/Pause): Press to pause

or resume play.

Touch Screen Buttons

Touch screen buttons are on the

screen and highlighted when a

feature is available. Some toggle

screen buttons highlight when active

and gray out when inactive.

Using the System

The infotainment system is

controlled by touching the screen;

by using the knobs, and other

buttons.

Voice recognition, through the

steering wheel controls, can be

used to control the infotainment

features.

Press b/gon the steering wheel

controls to begin voice recognition.

See Voice Recognition on page 64.

Black plate (8,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

8 Infotainment System

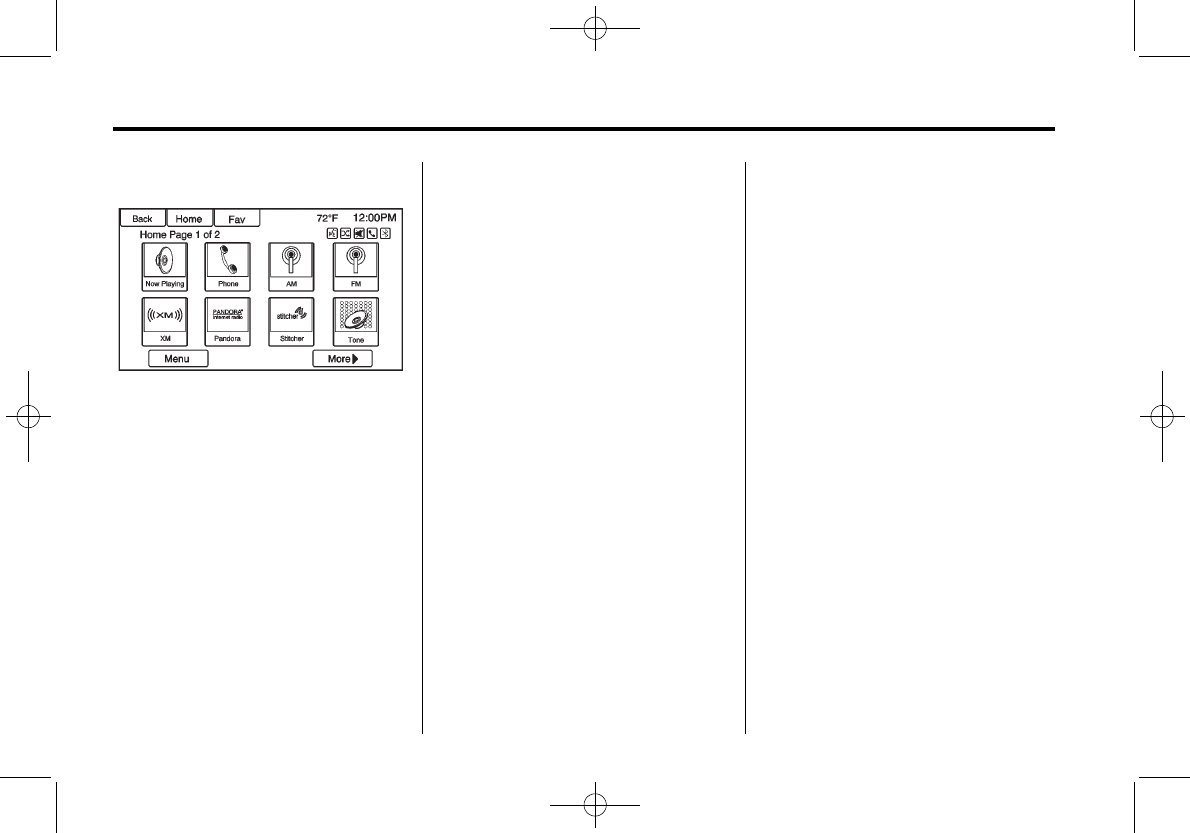

Home Page

Touch Screen Buttons

The Home Page allows access to

many of the features.

Back: Press to return to the

previous page.

Home: Press to go back to the

Home Page.

Fav: Press to display a page of

stored (favorite) AM, FM,

or SiriusXM® (if equipped) stations.

Keep pressing Fav to scroll through

the favorite pages.

More r:Press to go to the

next page.

Page 1 of the Home Page Menu

can be customized. Up to eight

icons can be selected and sorted for

the first Home Page screen.

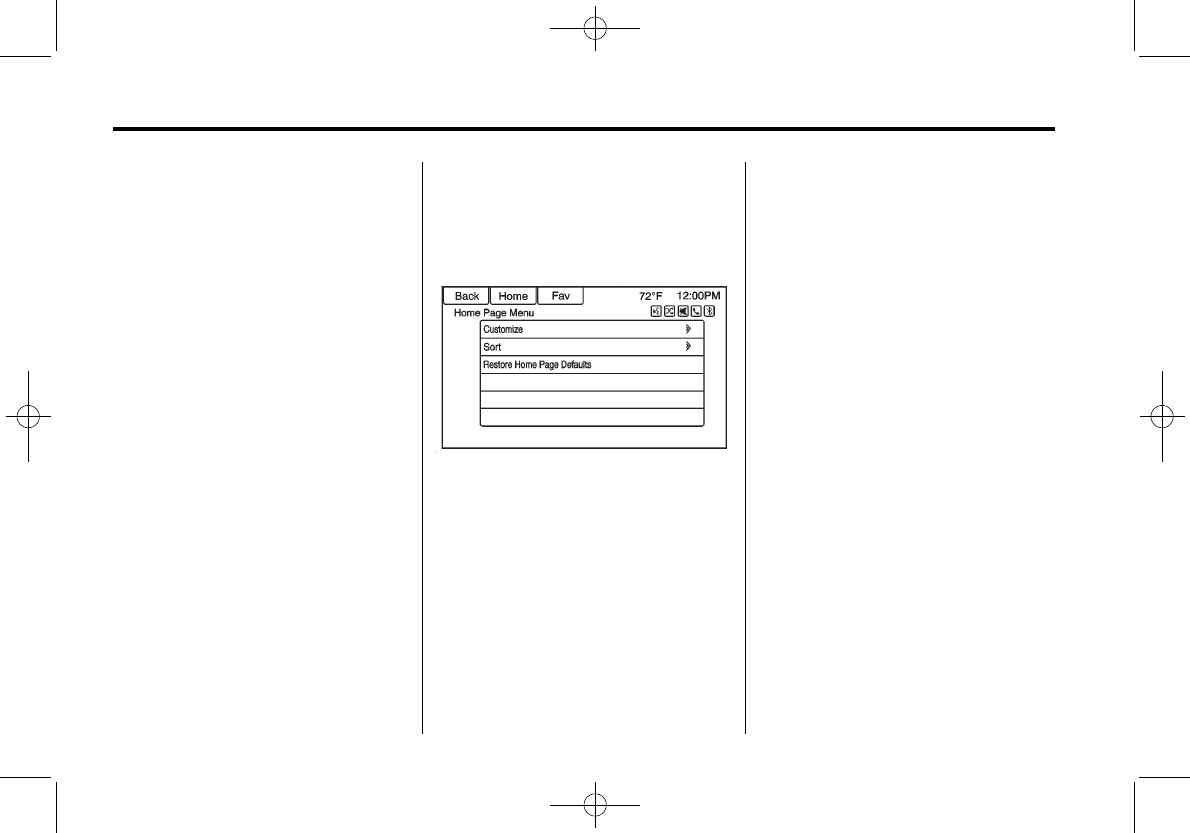

To customize the Home Page, press

Menu and use one of the following

options:

Customize: Press to select an

application to add to page 1 of the

Home Page.

Sort: Press to select an icon to

move and swap with another icon.

Restore Home Page Defaults:

Press to restore the default icons on

the Home Page. Select Yes or

Cancel.

See Home Page Customization on

page 68.

Home Page Features

Touch screen buttons are

highlighted when a feature is

available.

Various functions are disabled when

the vehicle is moving.

Now Playing: Press to display the

active source page. The sources

that may be available are AM, FM,

SiriusXM (if equipped), Pandora,

Stitcher, USB, AUX, and Bluetooth

Audio.

See AM-FM Radio on page 10,

Satellite Radio on page 14,Auxiliary

Devices on page 34,Pandora

Internet Radio on page 20, and

Stitcher Internet Radio on page 24.

Phone: Press to display the Phone

main page. See Bluetooth on

page 69 and Hands-Free Phone on

page 75.

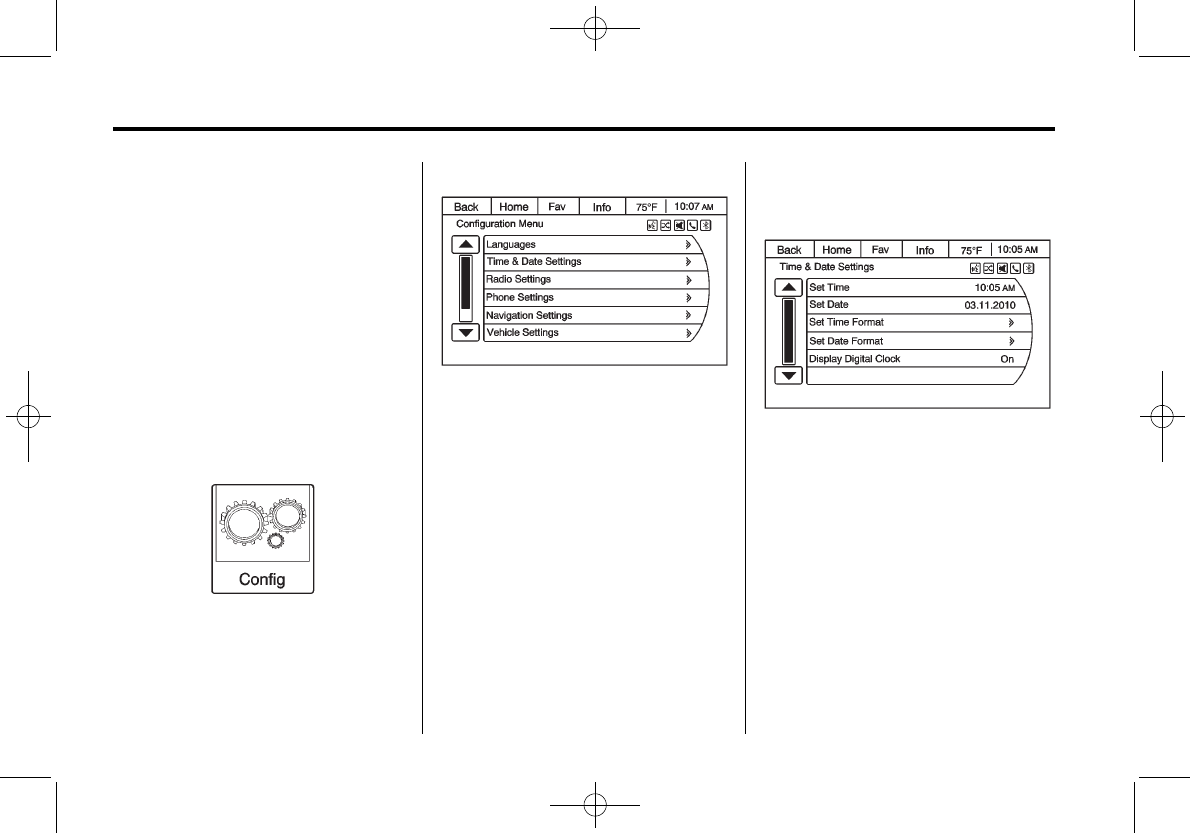

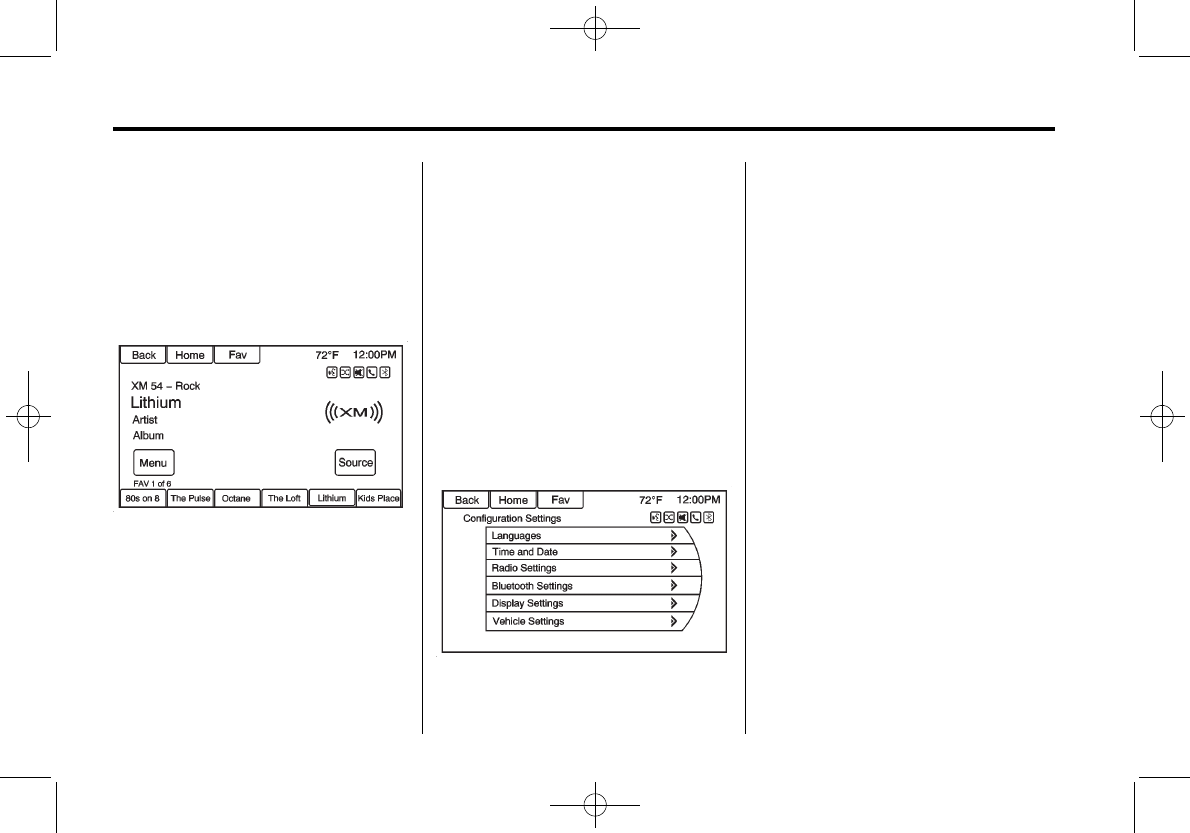

Config: Press to display the

Configuration Settings main page.

From this display, adjust the

language, time and date, radio,

phone, display, and vehicle settings.

Tone Settings: Press to display

the Tone Settings main page. Adjust

the tone and speakers by pressing

the screen buttons to change the

levels of sound for Bass, Mid

Black plate (9,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 9

(Midrange), Treble, EQ, Fade, and

Balance. See AM-FM Radio on

page 10.

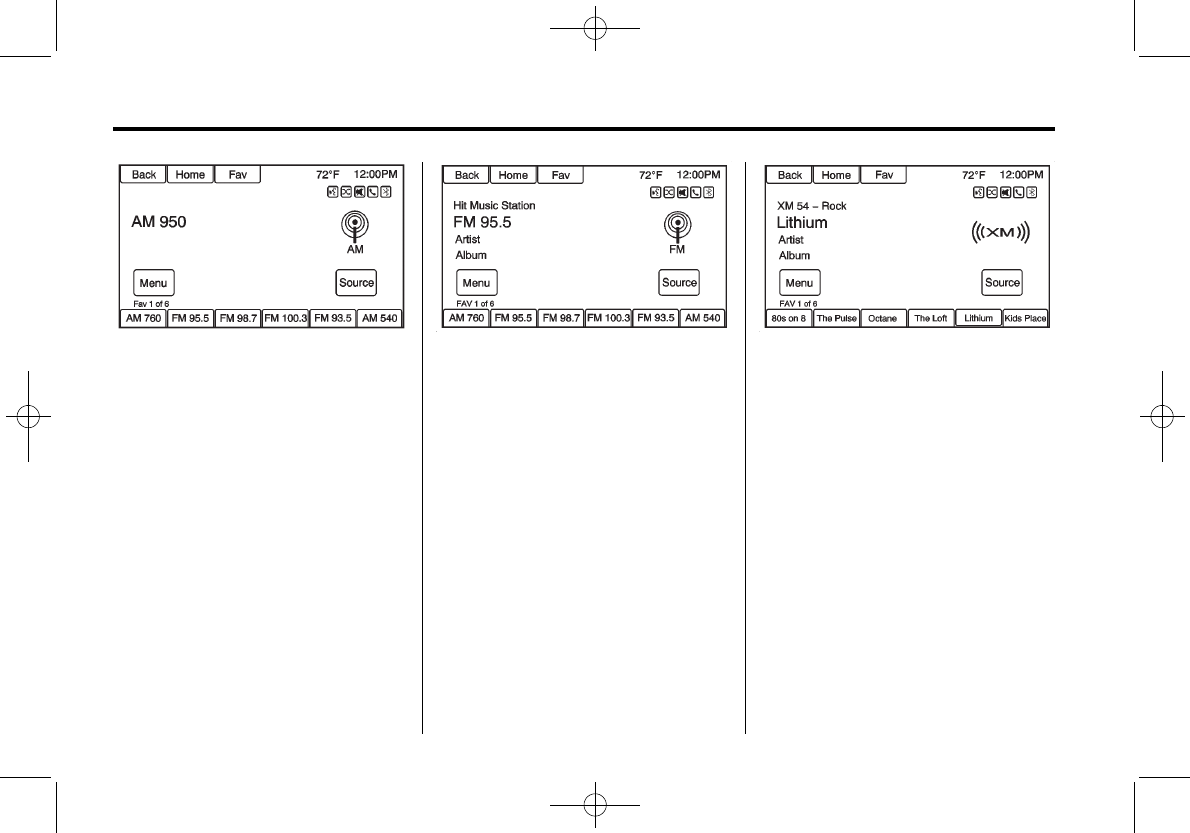

FM: Press to display the FM main

page and play the current or last

tuned FM station. See AM-FM

Radio on page 10.

AM: Press to display the AM main

page and play the current or last

tuned AM station. See AM-FM

Radio on page 10.

XM: Press (if equipped) to display

the SiriusXM main page and play

the current or last tuned SiriusXM

station. See Satellite Radio on

page 14.

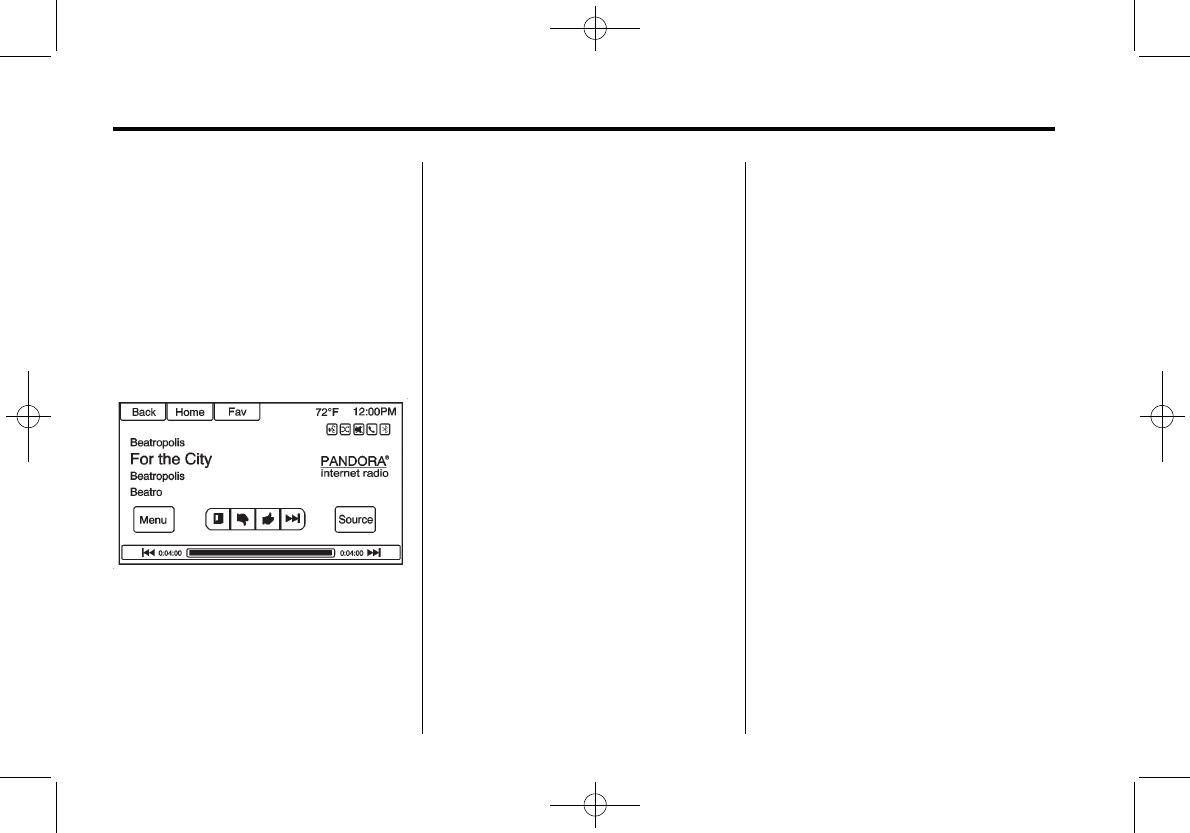

Pandora: Press to display the

Pandora main page and play the

current or last tuned station. See

Pandora Internet Radio on page 20.

Stitcher: Press to display the

Stitcher main page and play the

current or last tuned station. See

Stitcher Internet Radio on page 24.

Bluetooth Audio: Press to display

the Bluetooth Audio main page and

play the current or last song played.

See Bluetooth Audio on page 34.

USB Media: Press to display the

USB Media main page and play the

current or last track selected. See

USB on page 28.

AUX: Press to access any

connected auxiliary device. See

Auxiliary Devices on page 34.

Software Updates

The vehicle is capable of being

updated. These updates can

provide new features or

enhancements, and support for new

devices. To download updates, see

the specific vehicle websites

following. Log into the website with

either a new user name and

password, or an existing

OnStar.com user name and

password. Detailed instructions are

on the website. The updates must

be saved to a customer provided

USB drive, then saved to the

vehicle.

To update:

1. Place the vehicle in P (Park),

start the engine, and turn the

radio on. The engine must be

running until the update is

completed.

2. Insert the USB drive into the

USB port.

3. Press CONFIG.

4. Press Radio Settings.

5. Press Software Versions Menu.

6. Press Update Radio Software.

7. The radio will search the USB

drive for software and verify the

update. This process takes

approximately five minutes.

8. Press the Start Software Update

button and follow the on-screen

prompts. The radio will show the

progress for each update.

Black plate (10,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

10 Infotainment System

The message Software Update

Successful will display and the radio

will restart.

After the update, Bluetooth devices

will need to be re-paired and USB

devices may need to be re-indexed.

Remove the USB drive when the

update is complete.

If you do not have access to the

website, and the device is not

functioning properly, see your

dealer.

Website Information

See the website for more

information, including software

updates:

Chevrolet MyLink

In the U.S., visit www.chevrolet.com/

mylink.

In Canada, visit www.chevrolet.ca.

Chevrolet Customer Assistance

Center

(US) 1-800-222–1020

(Canada) 1-800-263-3777

Radio

AM-FM Radio

Playing the Radio

VOL/O(Volume/Power):

.Press to turn the radio on or off.

.Turn to increase or decrease the

volume of the active source.

The steering wheel controls can

also be used to adjust the volume.

See Steering Wheel Controls on

page 28.

Radio Operation

The radio will work when the key is

in ON/RUN or ACC/

ACCESSORY. When the key is

turned from ON/RUN to LOCK/OFF,

the radio will continue to work for

10 minutes or until the driver door is

opened.

The radio can be turned on by

pressing the power button on the

radio and will stay on for

Black plate (11,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 11

10 minutes. Opening the driver door

will not turn the radio off when

pressing the power button.

Some radios may stay on longer

and reset the time for 10 minutes if

there are any additional presses of

any radio button.

The radio can be turned off at any

time by pressing the power button.

Audio Source

Press SOURCE to display and

scroll through the available sources

AM, FM, SiriusXM® (if equipped),

Pandora, Stitcher, USB, AUX, and

Bluetooth Audio.

Infotainment System Settings

Tone Settings

To access the tone settings, press

the Tone Settings button on the

Home Page. Tone settings are

specific to each source.

To adjust the settings:

.Bass: Press + or −to change

the level.

.Mid (Midrange): Press + or −to

change the level.

.Treble: Press + or −to change

the level.

.EQ: Press or turn the MENU/

SELECT knob to cycle through

the preset EQ options.

.Fade: Press the F or R button

for more sound from the front or

rear speakers. The middle

position balances the sound

between the front and rear

speakers.

.Balance: Press the L or R button

for more sound from the left or

right speakers. The middle

position balances the sound

between the left and right

speakers.

Finding a Station

Press SOURCE to select AM, FM,

SiriusXM (if equipped), Pandora,

Stitcher, USB, AUX, and Bluetooth

Audio.

Turn the MENU/SELECT knob to

find a radio station. To select a

preset station, press FAV to scroll

through the favorite pages and then

press a preset button on the radio or

the screen button.

Seeking a Station

Press 7or 6to search for a

station.

Black plate (12,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

12 Infotainment System

1. Press the AM screen button on

the Home Page or select AM by

pressing SOURCE, or say “Tune

AM”or “AM”through voice

recognition.

2. Press the Menu screen button to

display the AM stations or

categories.

3. Press to select an option. To

update the station list, press

Refresh.

1. Press the FM screen button on

the Home Page or select FM by

pressing SOURCE, or say “Tune

FM”or “FM”through voice

recognition.

2. Press the Menu screen button to

display the FM stations or

categories.

3. Press to select an option. To

update the station list, press

Refresh.

SiriusXM (If Equipped)

1. Press the XM screen button on

the Home Page or select XM by

pressing SOURCE, or say “Tune

XM”or “XM”through voice

recognition.

2. Press the Menu screen button to

display the SiriusXM categories.

3. Press a category and then turn

the MENU/SELECT knob to

scroll the station list. Press to

select an option.

Black plate (13,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 13

Storing Radio Station Presets

Up to 36 preset stations can be

stored. AM, FM, and SiriusXM (if

equipped) can be mixed.

1. From the AM, FM, or SiriusXM

main page, press and hold one

of the preset screen buttons at

the bottom of the screen. After a

few seconds, a beep is heard

and the new preset information

displays on that screen button.

2. Repeat for each preset.

Mixed-Band Presets

Each favorite page can store

six preset stations. The presets

within a page can be from different

radio bands.

To scroll through the pages, press

the Fav screen button on the top

bar. The current page number

displays above the preset buttons.

The stored stations for each favorite

page display on the preset buttons.

To change the number of favorite

pages displayed:

1. Press Config on the

Home Page.

2. Press Radio Settings.

3. Press Number of Favorite

Pages.

Recalling a Preset Station

To recall a preset station from a

favorites page, do one of the

following:

.Press the Fav screen button at

the top bar to display the preset

pop-up. Press one of the preset

screen buttons to go to the

selected preset station.

.In the AM, FM, or SiriusXM (if

equipped) main page, press one

of the preset screen buttons to

go to the selected preset station.

Radio Data System (RDS)

RDS features are available for use

only on FM stations that broadcast

RDS information. With RDS, the

radio can:

.Seek to stations broadcasting

the selected type of

programming.

.Receive announcements

concerning local and national

emergencies.

.Display messages from radio

stations.

This system relies on receiving

specific information from these

stations and only works when the

information is available. It is

possible that a radio station could

broadcast incorrect information that

causes the radio features to work

improperly. If this happens, contact

the radio station.

When information is broadcast from

the current FM station, the station

name or call letters display on the

audio screen. RDS can provide a

Black plate (14,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

14 Infotainment System

program type (PTY) for current

programming and the name of the

program being broadcasted.

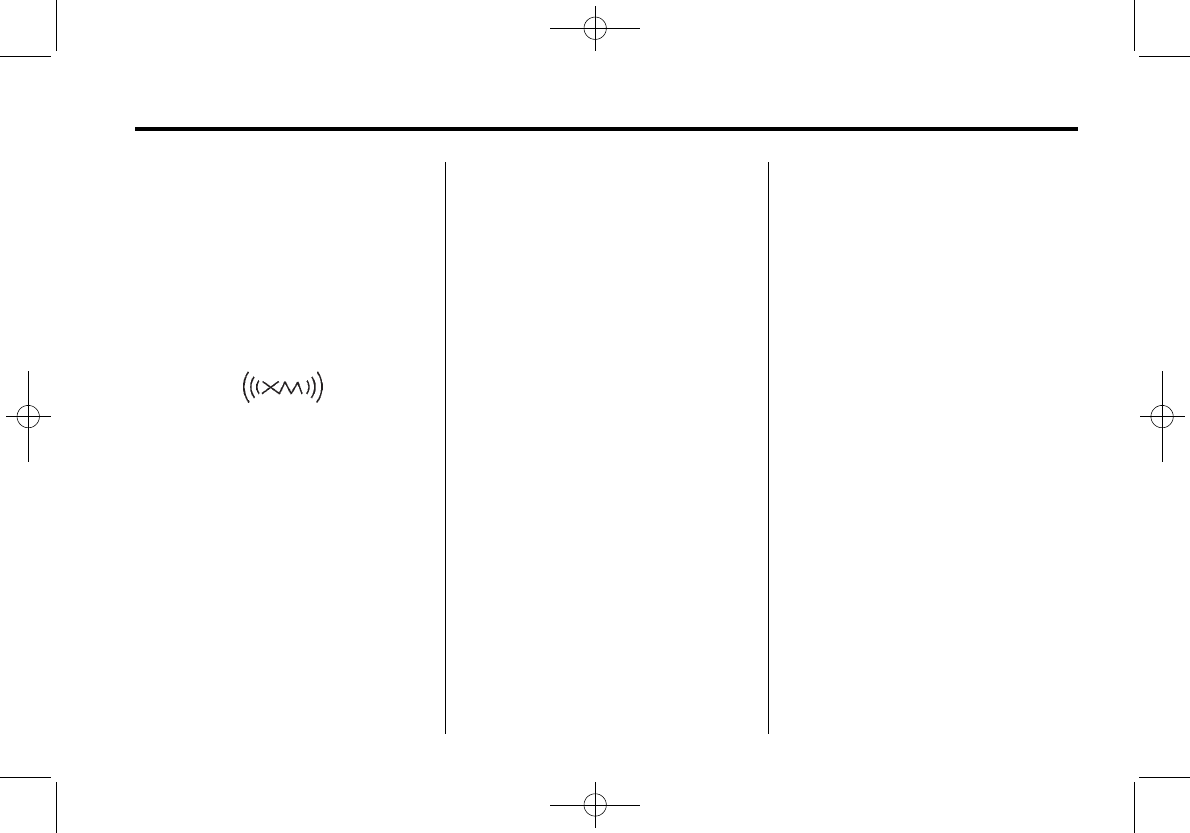

Satellite Radio

SiriusXM® Satellite Radio

Service

Vehicles with a valid SiriusXM

satellite radio subscription can

receive SiriusXM programming.

SiriusXM satellite radio has a wide

variety of programming and

commercial-free music, coast to

coast, and in digital-quality sound.

See www.siriusxm.com or call

1-866-635-2349 in the U.S. In

Canada, see www.xmradio.ca or call

1-877-209-0079.

When SiriusXM is active, the station

name, number, category name,

song title, and artist display on the

screen. SiriusXM may update the

background picture at any time.

SiriusXM Categories

SiriusXM stations are organized in

categories.

Adding or Removing XM

Categories

To customize which SiriusXM

categories are used and displayed

in the system:

1. Press CONFIG on the faceplate

or the Config screen button on

the Home Page.

2. Select Radio Settings from the

Settings Menu list.

3. Select XM Categories.

4. Select or deselect any category

to be used in XM mode.

A checkmark will indicate that

the category is selected.

Press “Show All XM Categories”to

restore all SiriusXM categories.

SiriusXM Channel Art

SiriusXM provides updated category

background art and the radio will

automatically update the screen.

SiriusXM may send updated

category art to the vehicle. When

this happens, the background art

may appear to be incorrect but the

Black plate (15,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 15

radio will update once all of the

graphics have been downloaded

from SiriusXM.

To turn SiriusXM channel art on

or off:

1. Press CONFIG on the faceplate

or the Config screen button on

the Home Page.

2. Select Radio Settings from the

Settings Menu list.

3. Press XM Channel Art to turn on

or off.

SiriusXM Messages

XL (Explicit Language

Channels): These stations, or any

others, can be blocked by request,

by calling 1-866-635-2349 in the

U.S., and 1-877-209-0079 in

Canada.

XM Updating: The encryption code

in the receiver is being updated. No

action is required.

Loading XM: The audio system is

acquiring and processing audio and

text data. No action is needed.

Channel Off Air: This station is not

currently in service.

Channel Unauth: This station is

blocked or cannot be received.

Channel Unavailable: This

previously assigned station is no

longer assigned.

No Artist Info: No artist

information is available at this time

on this station.

No Title Info: No song title

information is available at this time

on this station.

No CAT Info: No category

information is available at this time

on this station.

No Information: No text or

informational messages are

available at this time on this station.

No XM Signal: The vehicle may be

in a location where the SiriusXM

signal is being blocked. When the

vehicle is moved into an open area,

the signal should return.

CAT Not Found: There are no

stations available for the selected

category.

XM Radio ID: If tuned to station 0,

this message alternates with the

SiriusXM radio eight-digit radio ID

label. This label is needed to

activate the service.

Unknown: If this message is

received when tuned to station 0,

there could be a receiver fault.

Consult with your dealer.

Check Antenna: If this message

does not clear within a short period

of time, the receiver could have a

fault. Consult with your dealer.

XM Not Available: If this message

does not clear within a short period

of time, the receiver could have a

fault. Consult with your dealer.

SiriusXM NavTraffic® (If

Equipped)

The navigation system might have

an SiriusXM NavTraffic receiver. It is

a subscription service provided

through SiriusXM Satellite Radio.

Black plate (16,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

16 Infotainment System

A service fee is required to receive

the SiriusXM NavTraffic service.

Real-time traffic information is

provided to fully integrate the

navigation system to display current

traffic conditions for the chosen

route. See “Traffic Settings”in this

section for more information.

A screen displays to indicate that

the SiriusXM Traffic subscription is

not activated.

If activated, traffic information

displays:

.Unscheduled traffic incident

data, such as accidents and

disabled vehicles.

.Scheduled traffic incident data,

such as road construction and

road closures.

.Traffic flow information (rate of

speed data). Flow data might not

be available in all markets.

Traffic information is delivered to the

vehicle by the SiriusXM Radio

satellites. SiriusXM NavTraffic

provides continuously updated

traffic information.

SiriusXM NavTraffic currently

broadcasts the traffic information for

many markets nationally. The

service may be available in more

cities in the future. Visit

www.xmnavtraffic.com for more

details on local coverage.

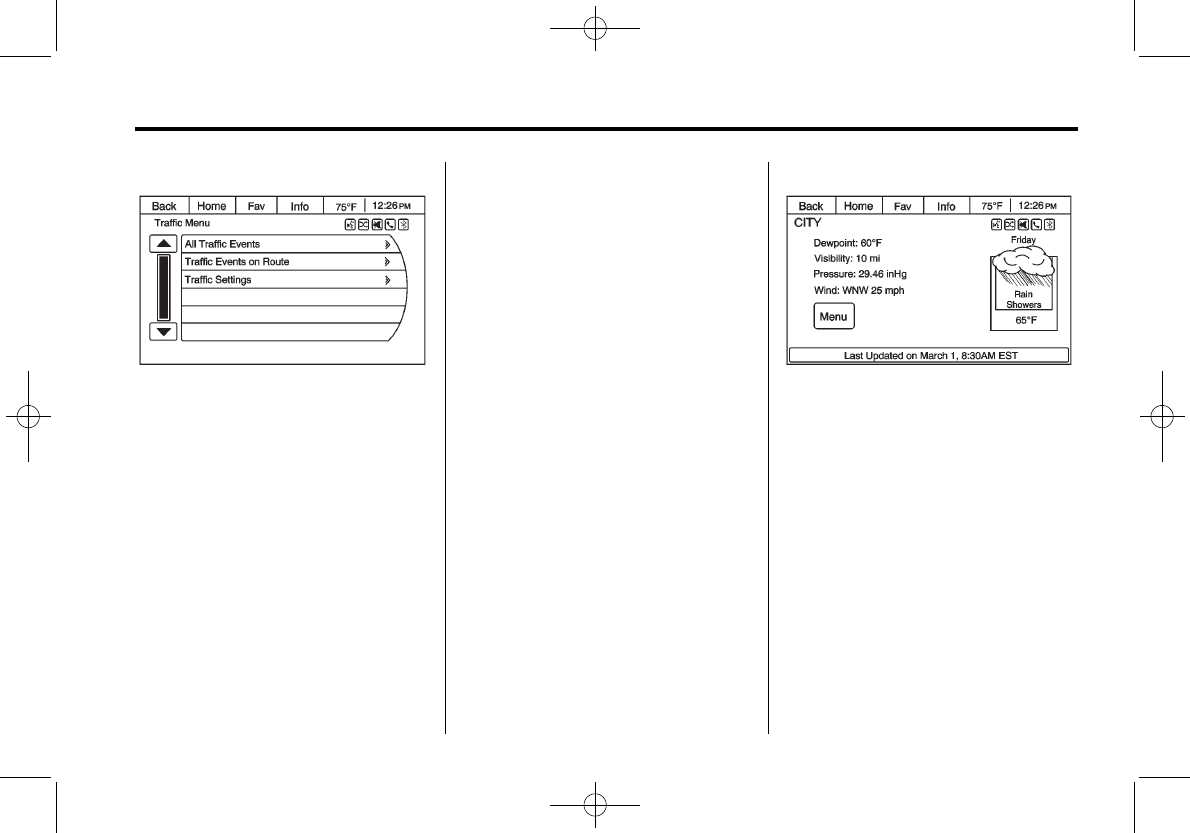

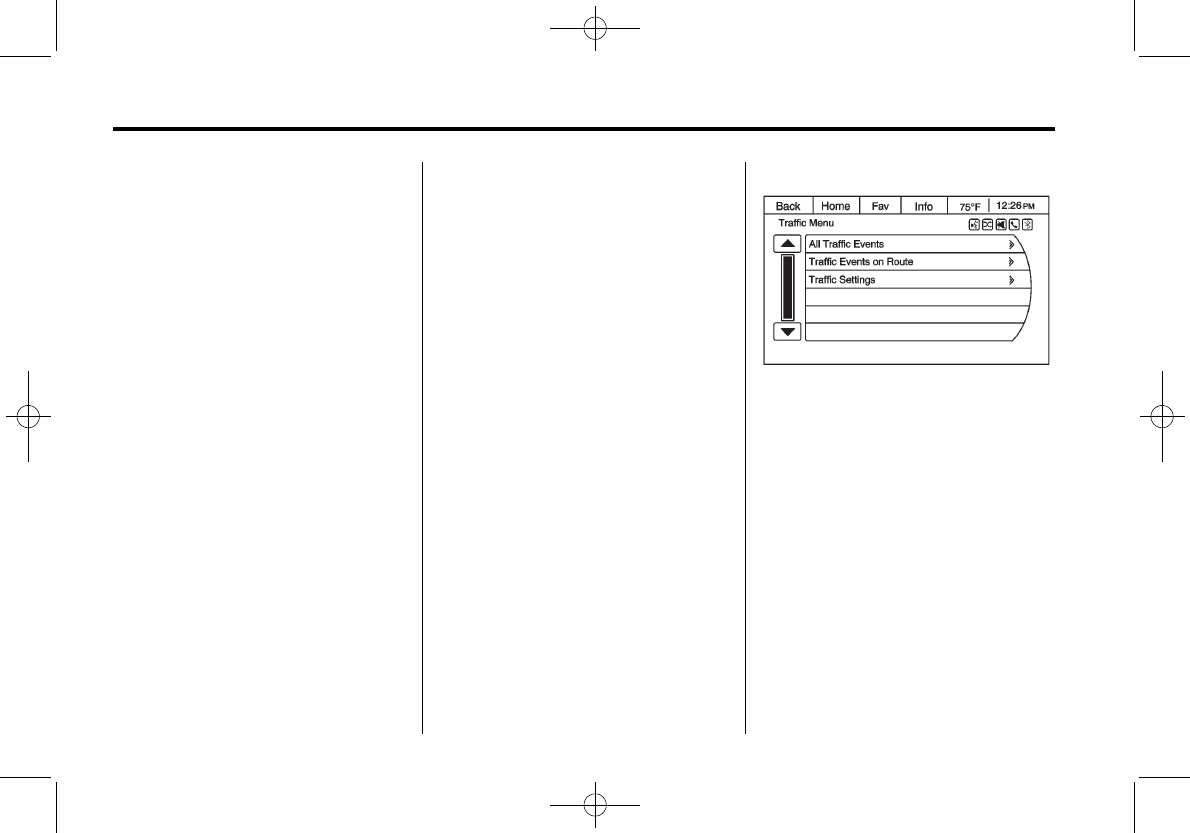

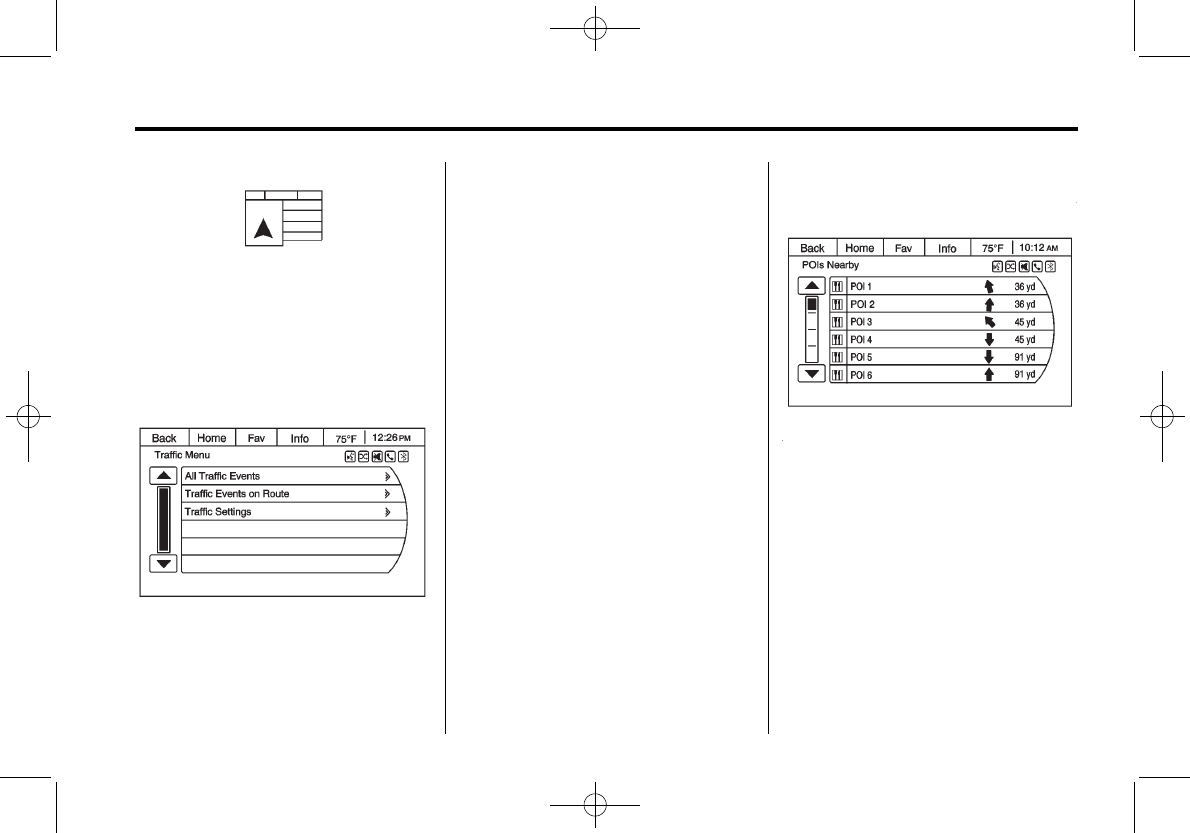

To access the traffic features, press

the XM Traffic button on the Home

Page or map screen.

All Traffic Events: Press to view a

list of reported traffic conditions for

up to approximately 100 km (70 mi).

It could take some time to display

the information received.

The information is displayed with an

arrow and distance. The arrow

indicates the distance is a straight

line and the direction of the event

from the vehicle's current position.

Black plate (17,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 17

Traffic Events on Route: Press to

display a list of reported traffic

conditions on the current route. The

button is toned down if no route is

active.

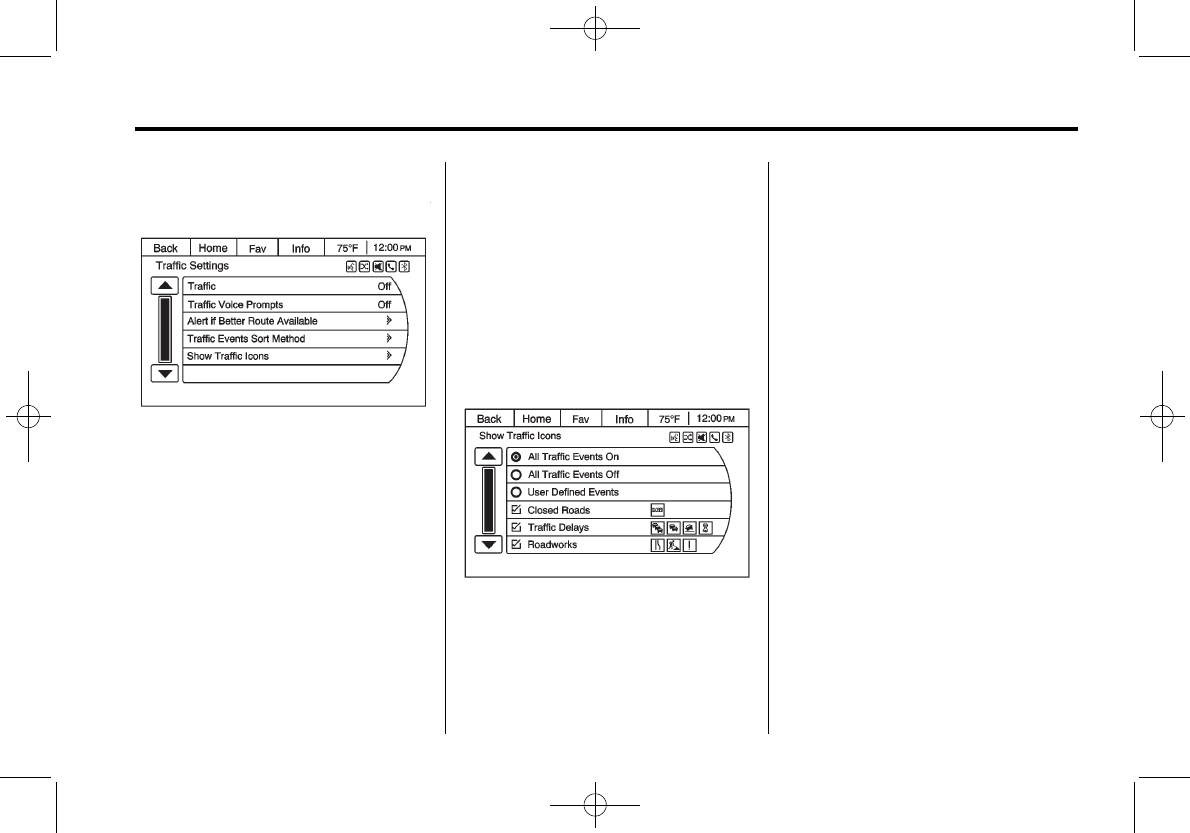

Traffic Settings: Press to

customize traffic options.

SiriusXM® Weather (If

Equipped)

From the Home Page, press the XM

Weather screen button. The system

displays the current weather page.

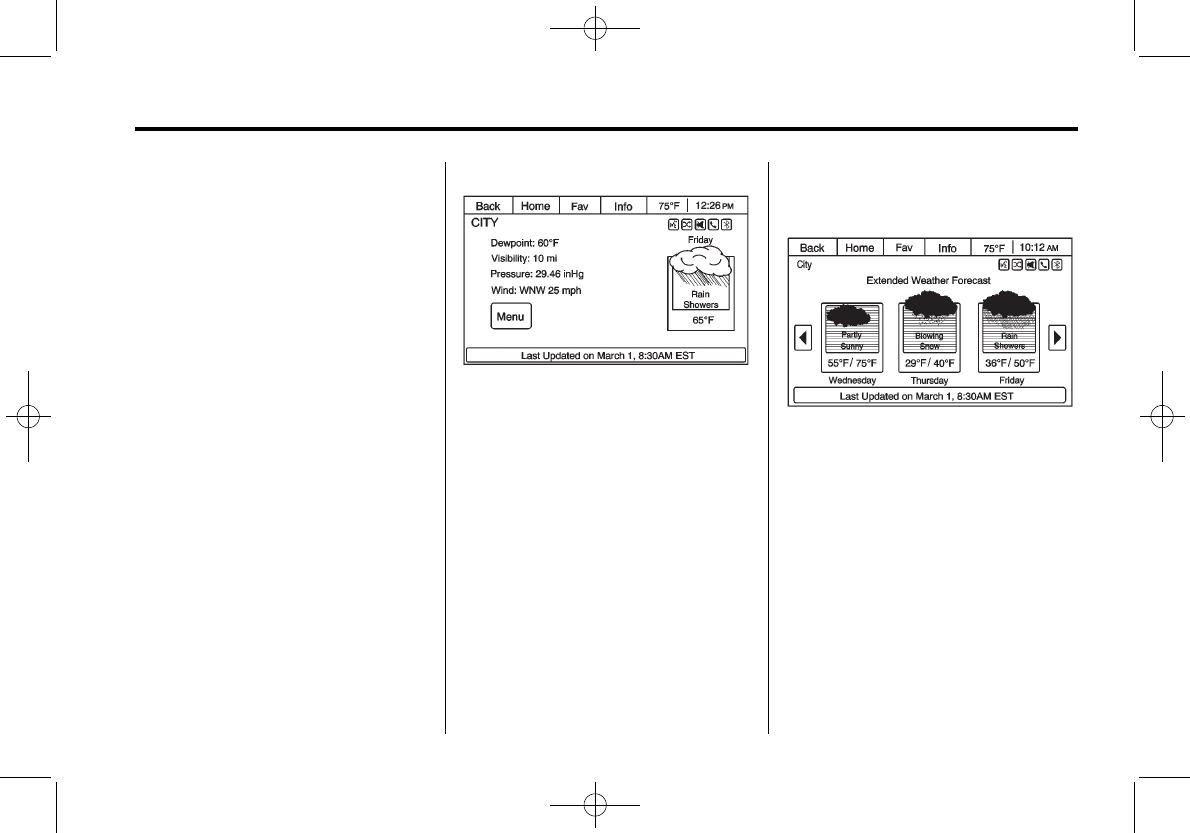

Current Condition

The current weather page shows

the current weather condition in the

city of the vehicle's current position.

On this page, select the Menu

screen button to access other

weather options, such as Extended

Forecast, Weather Along the Route,

Weather Around Other Cities, and

Weather Alerts.

Allow approximately 15 minutes for

the current weather in the area to

display.

Extended Forecast

Press to show the extended

forecast.

Black plate (18,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

18 Infotainment System

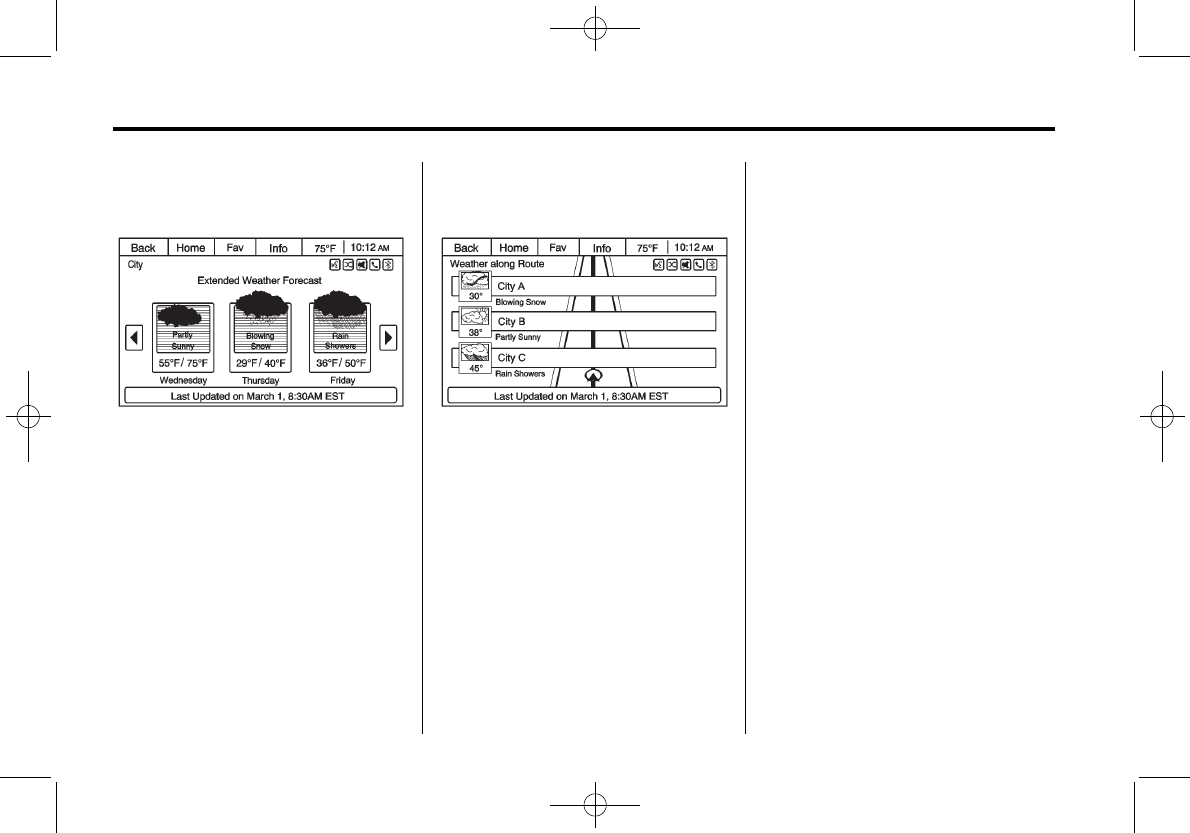

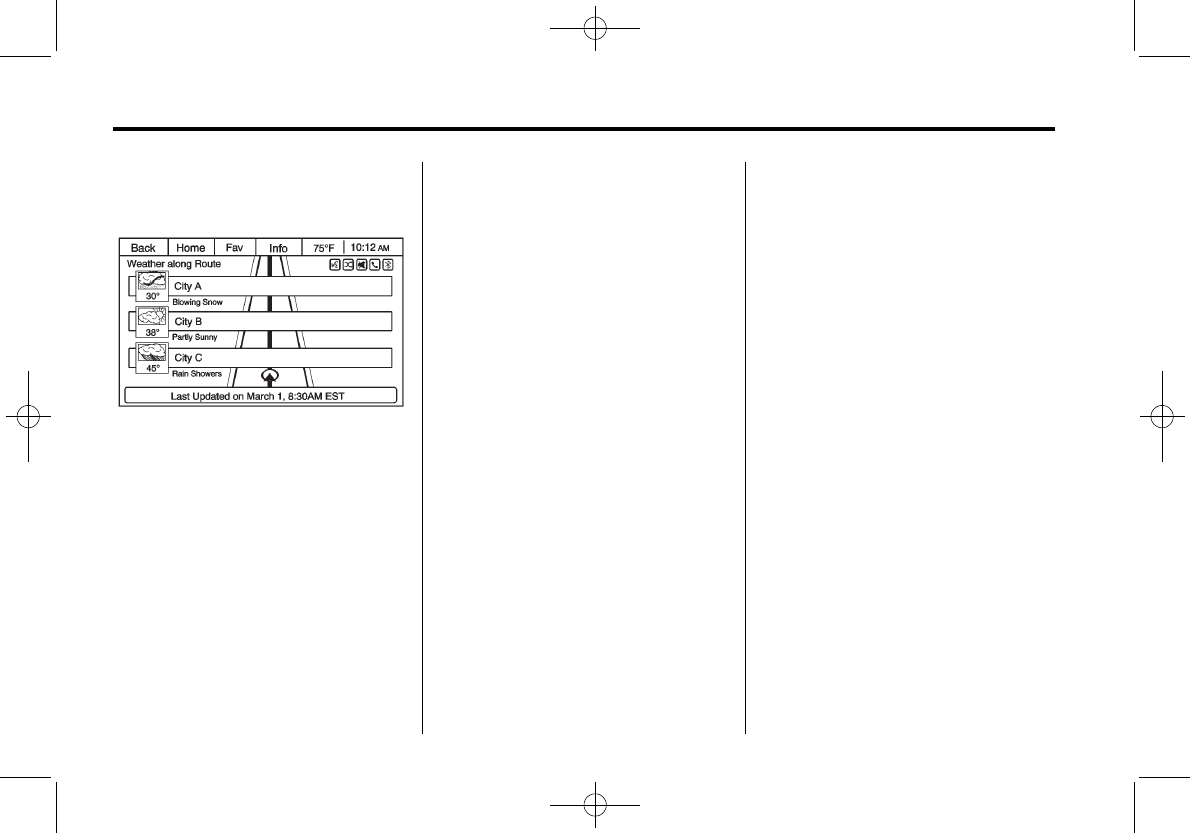

Weather Along the Route

If a destination is set, there is the

option to view weather conditions

for up to three locations along the

route:

.Current vehicle position.

.Midway point from current

position to final destination.

.Current weather condition of the

destination city.

Weather Alerts

From the XM Weather Menu, press

the Weather Alerts screen button to

display any current weather

advisory warnings in effect near the

current position.

Weather Around Other Cities

Select this option to view weather

conditions around or in a specific

city entered by name or selected

from the map.

Restore to Current Location

Press the Restore Current Location

screen button to display the weather

condition for the city where the

vehicle is currently located, if the

system was modified to view

weather conditions in another city.

SiriusXM Travel Link (If

Available)

The infotainment system may have

SiriusXM Travel Link. It is a

subscription service provided

through SiriusXM Satellite Radio.

A service fee is required to receive

the SiriusXM Travel Link service.

When subscribed to SiriusXM Travel

Link, one or more services may be

available.

.Travel Link Weather –National

and Local Weather gives current

and forecasted weather with

radar images.

.Travel Link Fuel Prices –

Detailed nation wide fuel price

information may be available.

.Travel Link Movie Listings –

Detailed local movie theater

listings, start times, and ratings

may be available.

.Travel Link Sports Scores –

During game and final scores as

well as weekly schedules may

be available.

.Travel Link Stocks –Setup a

personal portfolio of stocks and

watch as they move up or down

throughout the day.

Black plate (19,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 19

National and Local Weather

Whether near home or on a long

road trip, detailed weather

information is available. SiriusXM

Travel Link Weather uses the same

sources that professional pilots and

mariners rely on.

Fuel Pricing

When SiriusXM information is

available for a particular fuel station,

the price displays for the regular

unleaded or diesel fuel, depending

on the fuel type configured in the

system.

Press the list Sort button to change

the sort method. The default sort

method is based on distance with

the closest fuel stations shown at

the top of the list. Press on the Sort

button to cycle through the sorting

options of distance, price, or name.

The last viewed sorting method is

displayed and is retained over

ignition cycles.

If the sorting method of price has

been selected, the fuel stations in

the list will appear from the lowest to

the highest price based on the fuel

type selected. For gasoline, the

price shown is for regular unleaded.

When diesel is selected as the fuel

type, the diesel price is shown.

Sports Scores

Setup a personalized sports profile.

Listen to a favorite channel on

SiriusXM satellite radio, and watch

the scores from a game at the same

time. This service includes:

.Game Schedules

.Play-by-play details

.Football –Professional and

College Basketball

.Baseball

.Motorsports

.Plus golf and more

Movie Listings

When the details for a movie theater

are shown, there is additional

information about the theater.

If movie titles and showtimes are

available for the selected theater,

this information is shown in the

additional details area of this

display.

The details that are shown are

dependent on the source of the

information.

Details shown includes:

.Movie Names

.Parental Ratings (G, PG-13,

R, etc.)

.Showtimes

.Runtime

Stocks

Setup a personal portfolio of stocks

and watch as they move up and

down throughout the day.

Black plate (20,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

20 Infotainment System

This service includes:

.Track current price and daily

delta of around 7000 actively

reported securities traded on the

NYSE®, NASDAQ®,

and AMEX®.

.This service is delayed

approximately 20 minutes.

Pandora Internet Radio

Pandora® is a free Internet radio

service that streams personalized

radio stations based on artists,

songs, genres, and comedians.

Create stations using the Pandora

website or smartphone application,

then use -(thumbs up) or ,

(thumbs down) to personalize

stations. To set up an account, or for

more information, go to

www.pandora.com. Pandora may

not be available in Canada or

Mexico.

A phone or tablet with Internet

connection and the Pandora

application installed is required.

Personal cell phone data plans are

used. Make sure the latest version

is installed on the device and the

volume is turned up.

To install Pandora:

.On an Android™phone or

Android Tablet, go to the Android

Market, and search for Pandora.

Install to the phone, not to the

SD card.

.On a BlackBerry® phone, go to

the BlackBerry App World™and

search for Pandora.

.On an iPhone®, iPad®, or iPod

touch®, go to the iTunes® Store

and search for Pandora.

Launching Pandora

Connect the iPhone, iPad, or iPod

touch to the USB port, or connect

an Android or BlackBerry through

Bluetooth. See Auxiliary Devices on

page 34 or Bluetooth on page 69.

For first time use, set up stations

before connecting to the vehicle.

The Pandora icon will be available

on the Home Page and the source

pop-up displays if the latest

application is installed on the

device.

Using the iPhone, iPod touch,

or iPad

1. Plug the device into the USB

port. The phone screen must be

unlocked.

2. To launch, do one of the

following:

.Launch the application on

the device.

.Press Pandora on the

Home Page.

.Press b/gand say

“Pandora”or “Tune

Pandora.”

To relaunch Pandora, press

SOURCE on the faceplate or SRC

on the steering wheel controls.

If nothing happens when the

available Pandora screen button is

pressed, download the latest

Pandora application and retry.

Black plate (21,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 21

Pandora will always be highlighted

on the Home Page when an iPhone,

iPad, or iPod touch is connected

using the USB port. To use, log into

your account.

If the “Please See Device”message

is shown, the login screen may

display on the device.

Using an Android Phone

1. Pair the Android phone using

Bluetooth.

2. Use one of the following to

launch:

.Launch the application on

the device.

.Press Pandora on the

Home Page.

.Press b/gand say

“Pandora”or “Tune

Pandora.”

After Pandora has been launched,

press SOURCE on the faceplate or

SRC on the steering wheel controls

to access Pandora features.

If nothing happens when the

available Pandora screen button is

pressed, download the latest

Pandora application and retry.

If the “Please See Device”message

is shown, the login screen may

display on the device.

Using a BlackBerry Phone

The phone must be unlocked. To

launch Pandora service:

1. Pair the BlackBerry phone using

Bluetooth.

2. Use one of the following to

launch:

.Launch the application on

the device.

.Press Pandora on the

Home Page.

.Press b/gand say

“Pandora”or “Tune

Pandora.”

After Pandora has been launched,

press SOURCE on the faceplate or

SRC on the steering wheel controls

to access Pandora features.

If nothing happens when the

available Pandora screen button is

pressed, download the latest

Pandora application and retry.

If the “Please See Device”message

is shown, the login screen may

display on the device.

Pandora Menus

Press Menu on the Pandora

main page.

Black plate (22,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

22 Infotainment System

Pandora has a menu system with

the following:

Quickmix: Press to play the

stations in random order.

User-Created Stations: Press to

play a user-created station.

Pandora Features

Pandora has features to rate tracks,

skip tracks, or change stations.

}(Bookmarks): Press while

playing a track to bookmark either

the track or the artist. Bookmarks

are viewable on www.pandora.com.

,(Thumbs Down): When

pressed, Pandora stores the

information, changes to the next

track, and does not play the track on

this station again. This helps

Pandora choose which tracks

should not play on this station. This

feature is only available on

user-created stations.

-(Thumbs Up): When pressed,

Pandora stores this information and

-is highlighted for the remainder of

the track. This helps Pandora

choose which tracks should play on

this station.

l(Next Track): When pressed,

Pandora changes to the next track.

J(Play/Pause): Press on the

radio to pause playback. Press

again to resume.

Pandora Skip Limit

Pandora limits the number of skips

allowed on their service. When the

skip limit is reached, ,will not skip

the currently playing track, but ,

feedback will be recorded.

Pandora Advertisement

Pandora may display

advertisements. Artist name and

track title will not be displayed and

the skip track button is not

available.

Switching Between Pandora and

Stitcher

To switch between Pandora and

Stitcher, press the application icon

on the iPhone, iPod touch, or iPad.

This is not required for Android

devices. See Stitcher Internet Radio

on page 24.

Black plate (23,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 23

Pandora Troubleshooting

Unable to Connect Device to

Vehicle

If the device is unable to connect to

the USB or Bluetooth:

1. Turn the vehicle off.

2. Remove the key from the

ignition.

3. Open and close the driver door,

wait about 30 seconds, and try

to connect the device again.

Unable to Start Pandora

If the device is unable to launch

Pandora:

.Check that the latest version of

Pandora is installed.

.Check that there is an active

account logged into Pandora.

.Have at least one station

created.

.For Android and BlackBerry

devices, check that the device is

paired with the vehicle, and the

Bluetooth icon on the display is

highlighted.

.For iPhone, iPod touch, or iPad

devices, check that the USB

cable is connected to the USB

port and the screen is unlocked.

.Close Pandora on the device

and launch again. Devices that

allow multitasking may require

an extra step to quit the Pandora

application. See the cell phone

manufacturer's user guide.

Thumbs Up or Thumbs Down

Error

If there is an error trying to rate a

track with the ,or -buttons, the

message “Thumbs Down Error”or

“Thumbs Up Error”will display.

Press OK to retry.

Loss of Audio

Loss of Pandora audio can happen

in different ways:

.Weak or lost data connection.

.Device needs to be charged.

.Application needs to be

relaunched.

.Connection between phone and

radio lost.

.If any iPhone, iPod touch,

or iPad is connected to

Bluetooth and the dock

connector, go to the Airplay icon

on the device and select dock

connector, or disconnect and

reconnect the dock connector on

the device.

.The volume is too low. Turn up

the volume on the device.

If the connection is lost between the

application and device, a message

“Please unlock your phone or restart

the phone app and try again”will

display. Press OK to retry.

Black plate (24,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

24 Infotainment System

Common Pandora Messages

Please See Device: When the user

is not logged in or when

authentication failed, see the

device. Press OK to continue.

Paused or Audio Paused:

Playback is paused on the radio or

device. Press Jor play on the

device.

No Stations Found: Logged in but

no stations created. Press OK to

continue.

Please Unlock Your Phone or

Restart Phone App and Try

Again: Communication failure

between the radio and the phone

application, or the device is locked.

See www.pandora.com/help for

more information. If the service will

not work, see your dealer for

assistance.

Stitcher Internet Radio

Stitcher SmartRadio™is an Internet

radio service that streams news,

sports, and entertainment shows

through the audio system. Create

personalized, on-demand stations or

discover new shows through

Stitcher's preset stations. To set up

an account, download the

application from the Android Market

or iTunes Store, or go to

www.stitcher.com.

A phone or tablet with Internet

connection is required for this

application. Personal cell phone

data plans are used. Make sure the

latest version is installed on the

device and the volume on the

device is turned up.

BlackBerry phones are not

supported for this application.

To install Stitcher:

.On an Android phone or Tablet

with Internet connection, go to

the Android Market, search for

Stitcher, and install to the phone,

not to the SD card.

.On an iPhone, iPad, or iPod

touch, go to the iTunes store

and search for Stitcher.

Launching Stitcher

Connect the iPhone, iPad, or iPod

touch to the USB port, or connect

Android through Bluetooth. See

Auxiliary Devices on page 34 or

Bluetooth on page 69. For first time

use, set up the stations before

connecting to the vehicle. The

Stitcher icon will be available on the

Home Page and source pop-up

displays if the latest application is

installed on the device.

Using the iPhone, iPod touch,

or iPad

1. Plug the device into the USB

port. The phone screen must be

unlocked.

Black plate (25,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 25

2. Use one of the following to

launch:

.Press the application on the

device.

.Press Stitcher on the

Home Page.

.Press b/gand say

“Stitcher”or “Tune Stitcher.”

3. If Stitcher does not begin

playing, select a category and

then a station.

After Stitcher has been launched,

press SOURCE on the faceplate or

SRC on the steering wheel controls

to access Stitcher features.

If nothing happens when the

available Stitcher screen button is

pressed, download the latest

Stitcher application and retry.

Stitcher will always be highlighted

on the Home Page when an iPhone,

iPad, or iPod touch is connected

using the USB port. To use, log into

your account.

If the “Please See Device”message

is shown, the login screen may

display on the device.

Using an Android Phone

1. Pair the Android phone using

Bluetooth.

2. Use one of the following to

launch:

.Press the application on the

device.

.Press Stitcher on the

Home Page.

.Press b/gand say

“Stitcher”or “Tune Stitcher.”

3. If Stitcher does not begin

playing, select a category and

then a station.

After Stitcher has been launched,

press SOURCE or SRC on the

steering wheel controls to access

Stitcher features.

If nothing happens when the

available Stitcher screen button is

pressed, download the latest

Stitcher application and retry.

If the “Please See Device”message

is shown, the login screen may

display on the device.

Stitcher Menus

Press Menu on the Stitcher

main page.

Stitcher has a menu system with the

following:

My Favorites: Displays a list of

favorite stations and shows.

Black plate (26,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

26 Infotainment System

Select and store programs as

favorites on the device and then

access them through My Favorites.

Stitcher Station Categories:

Displays categories by topic.

When a category then subcategory

is selected, the radio will start

playing the first program in that

subcategory.

Turn the MENU/SELECT knob to

bring up the first 24 stations of that

subcategory.

Current Station Playlist: While

listening to a show, turn the MENU/

SELECT knob to display the menu

list of shows available for the

current station.

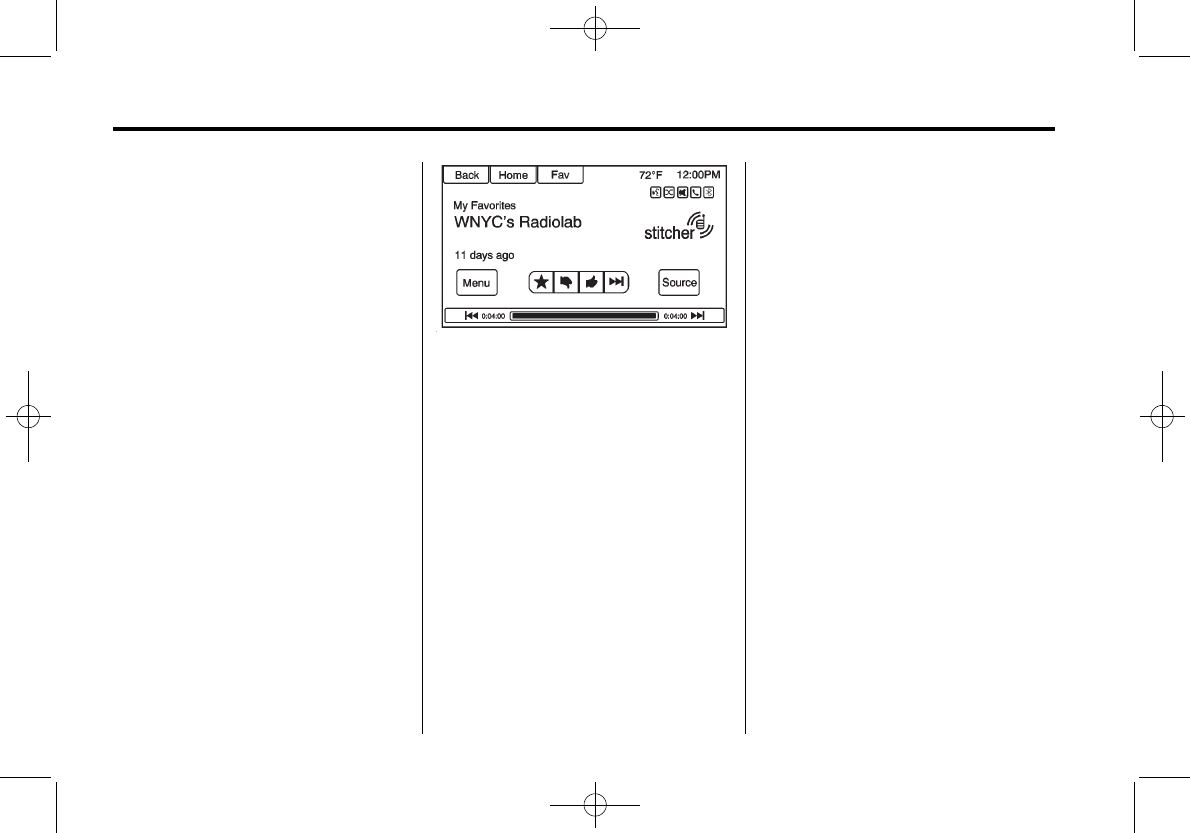

Stitcher Features

Stitcher service has features to rate

or skip shows, or change stations.

q(Favorites): When pressed, the

current show is added to the

favorites station.

,(Thumbs Down): When

pressed, Stitcher changes to the

next show. This helps Stitcher

provide a personalized listening

experience.

-(Thumbs Up): When pressed,

Stitcher stores this information and

-is highlighted for the remainder of

the show. This helps Stitcher

provide a personalized listening

experience.

l(Next Show): When pressed,

Stitcher changes to the next show.

J(Play/Pause): Press on the

radio to pause playback. Press

again to resume.

Stitcher Advertisement

Stitcher may display

advertisements. Artist name and title

may not be displayed and the skip

track button is not available.

Switching Between Pandora and

Stitcher

To switch between Pandora and

Stitcher, press the application icon

on the iPhone, iPod touch, or iPad.

This is not required for Android

devices. See Pandora Internet

Radio on page 20.

Stitcher Troubleshooting

Unable to Connect Device to

Vehicle

If the device is unable to connect to

the USB or Bluetooth:

1. Turn the vehicle off.

2. Remove the key from the

ignition.

Black plate (27,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 27

3. Open and close the driver door,

wait about 30 seconds, and try

to connect the device again.

Unable to Start Stitcher

If the device is unable to launch

Stitcher:

.Check that the latest version of

Stitcher is installed.

.Check that there is an active

account logged into Stitcher.

.Have at least one station

created.

.For Android devices, check that

the device is paired with the

vehicle, and the Bluetooth icon

on the display is highlighted.

.For iPhone, iPod touch, or iPad

devices, check that the USB

cable is connected to the USB

port and the screen is unlocked.

.Close Stitcher on the device and

launch again. Devices that allow

multitasking may require an

extra step to quit the Stitcher

application. See the cell phone

manufacturer's user guide.

Loss of Audio

Loss of Stitcher audio can happen

due to:

.Weak or lost data connection.

.Device needs to be charged.

.Application needs to be

relaunched.

.Connection between phone and

radio is lost.

.If any iPhone, iPod touch,

or iPad is connected to

Bluetooth and the dock

connector, go to the Airplay icon

on the device and select dock

connector, or disconnect and

reconnect the dock connector on

the device.

.The volume is too low. Turn up

the volume on the device.

If the connection is lost between the

application and device, a message

“Please unlock your phone or restart

the phone app and try again”will

display. Press OK to retry.

Common Stitcher Messages

Please Try Again Later: A general

error has occurred. A data

connection may be unavailable due

to a weak or lost signal or the

Stitcher service being temporarily

down. Press OK to continue.

Paused or Audio Paused:

Playback is paused on the radio or

device. Press Jor play on the

device.

Please See Device: When the user

is not logged in or when

authentication failed, see the

device. Press OK to continue.

Disconnect the phone from the radio

and follow the Stitcher account login

process on the phone.

No Stations Found: Logged in but

no stations created. Press OK to

continue.

Black plate (28,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

28 Infotainment System

Please Choose a New Station:

The end of the station has been

reached and there is no more

content to play. Select a new station

through the Stitcher menu.

Please Unlock Your Phone or

Restart Phone App and Try

Again: Communication failure

between the radio and the phone

application or the device is locked.

See www.stitcher.com/help for more

information. If the service will not

work, send an e-mail to

feedback@stitcher.com or see your

dealer for assistance.

Audio Players

Steering Wheel Controls

Depending on the vehicle options,

some audio functions can be

controlled through the steering

wheel controls.

b/g(Push to Talk): Press to

interact with Bluetooth or voice

recognition. See Bluetooth on

page 69 or Voice Recognition on

page 64.

$/i(Mute/End Call): Press to

decline an incoming call, or to end a

current call. Press to silence the

vehicle speakers while using the

infotainment system. Press again to

turn the sound on. Press to cancel

voice recognition.

_SRC ^(Thumbwheel Control):

Press to select an audio source.

Use the thumbwheel to select the

next or previous favorite radio

station, USB, and Bluetooth Audio.

Use _SRC to skip to the next song

or show using Pandora or Stitcher.

See Pandora Internet Radio on

page 20 or Stitcher Internet Radio

on page 24.

+x−(Volume): Press + to

increase the volume. Press −to

decrease.

See “Steering Wheel Controls”in

the owner manual.

USB

Playing from a USB

A USB mass storage or Certified

Windows Vista®/Media Transfer

Protocol (MTP) device can be

connected to the USB port.

The USB port is in the center

console under the armrest.

The USB icon displays when the

USB device is connected.

Black plate (29,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 29

USB Media Formats

The USB port will support the

following media formats:

.MP3

.Unprotected WMA

.Unprotected AAC

Gracenote®

Gracenote technology embedded

into the radio helps manage and

navigate the USB device music

collection. When a USB device is

connected to the radio, Gracenote

identifies the music collection and

delivers the correct album, artist

name, genres, and cover art on the

screen. If information is missing,

Gracenote will fill it in.

Searching Music Library Using

Voice Recognition

Names: Gracenote improves music

search and navigation by identifying

bands, artists, and albums names

that may be hard to pronounce,

irregular spellings, and nicknames.

For example, Gracenote helps the

system understand artist names like

“INXS”or “Mötley Crüe.”It also

allows the use of names like: “The

Boss,” “G.N.R,” “The Fab Four,”and

thousands of other famous artist

nicknames as voice commands to

access music. See Voice

Recognition on page 64.

Normalization: If equipped,

normalization helps to improve the

voice recognition accuracy for titles

that sound similar. It also helps

group long lists of genres into 10

common genres. For example, there

may be multiple rock genres in the

media library; normalization will

group all those into one Rock

Genre. Normalization default is off.

To turn Normalization on:

1. Press CONFIG or Config on the

Home Page.

2. Press Radio Settings, then press

Gracenote Options.

3. Press Normalization to turn on

or off.

Cover Art: The Gracenote

embedded database contains cover

art or album art information for the

music on the USB device. If the

music is recognized by Gracenote

and does not have cover art,

Gracenote will use the cover art

found in the embedded database

and display it on the radio. User

predefined cover art will always be

used first. If no cover art is found,

Gracenote cover art will be used.

Gracenote Indexing

While Gracenote is indexing,

infotainment features are available

including selecting music from the

Black plate (30,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

30 Infotainment System

menu. Voice recognition music will

not be available until the radio has

completed indexing the device.

Devices with more music may take

longer to index. The device will

index when plugged into the radio

for the first time. When "New Media

Device Ready" plays, the device is

ready for voice recognition music

search. On the next connection or

ignition cycle, "Indexing" will show

briefly on the screen. The radio is

searching for changes to the device

and preparing the music list. If

there are no changes, the voice

recognition music search will be

available. The radio will index and

store two devices with up to 10,000

songs on each device.

USB MP3 Player and USB Drives

.The USB MP3 players and USB

drives connected must comply

with the USB Mass Storage

Class specification (USB MSC).

.Hard disk drives are not

supported.

.The radio will not be able to play

back write-protected music.

.File systems supported: FAT32,

NTFS, Linux, and HFS+.

.The following restrictions apply

for the data stored on a USB

MP3 player or USB device:

‐Maximum folder structure

depth: eight levels.

‐Maximum number of MP3/

WMA files that can be

displayed: 10,000.

‐Playlist entries must be in the

form of relative paths.

‐The system attribute for

folders/files that contain audio

data must not be set.

To play a USB device, do one of the

following:

.Connect the USB and it begins

to play.

.Press the Now Playing screen

button on the Home Page.

.Press SRCE to scroll until the

USB source screen is available.

.Press b/gon the steering

wheel controls to select songs

by Artist, Album, Song Title,

or Song Genre. See Voice

Recognition on page 64.

The following playlist formats are

supported:

.M3U (Standard and Extended)

.iTunes

.PLS (Standard)

.WAX

.ASX

.RMP

While the USB source is active, use

the following to operate USB

function:

The radio supports plugging a cell

phone in as a USB drive as long as

the cell phone supports USB mass

storage class or has USB disc drive

support enabled.

Black plate (31,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 31

MENU/SELECT Knob: Turn to

scroll through the list. Turn quickly

to fast scroll alphabetically through

large lists.

J(Play/Pause): Press to start,

pause, or resume play of the current

media source.

7(Seek Down/Reverse):

.Press to seek to the beginning of

the current or previous track.

If the track has been playing for

less than five seconds, the

previous track plays. If playing

longer than five seconds, the

current track restarts.

.Press and hold to reverse

quickly through playback.

Release to return to playing

speed. Elapsed time displays.

6(Seek Up/Forward):

.Press to seek to the next track.

.Press and hold to advance

quickly through playback.

Release to return to playing

speed. Elapsed time displays.

USB Menu

The following are available through

the USB Menu:

Shuffle: Press to play the tracks

randomly. Press again to stop

shuffle.

Folders: Press to open a folder list

to access the files within the folder

structure.

Playlists:

1. Press to view the playlists on

the USB.

2. Select a playlist to view the list

of all songs in that playlist.

3. Select a song from the list to

begin playback.

Artists:

1. Press to view the list of artists

on the USB.

2. Select an artist name to view a

list of all albums by the artist.

3. To select a song, press All

Songs or press an album and

then select a song from the list.

Albums:

1. Press to view the albums on

the USB.

2. Select the album to view a list of

all songs on the album.

3. Select a song from the list to

begin playback.

Songs:

1. Press to display a list of all

songs on the USB.

2. Songs are displayed as they are

stored on the disc. To begin

playback, select a song from

the list.

Genres:

1. Press to view the genres on

the USB.

2. Select a genre to view a list of

all songs of that genre.

3. Select a song from the list to

begin playback.

Black plate (32,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

32 Infotainment System

File System and Naming

The songs, artists, albums, and

genres are taken from the file’s

song information and are only

displayed if present. The radio

displays the file name as the track

name if the song information is not

available.

Playing from an iPod®

This feature supports the following

iPod models:

.iPod classic® (6th generation)

.iPod nano® (3G, 4G, 5G,

and 6G)

.iPod touch® (1G, 2G, 3G,

and 4G)

.iPhone® (2G, 3G, 3GS, and 4)

.iPad® (1G, 2G)

There may be problems with the

operation and function in the

following situations:

.When connecting an iPod on

which a more recent version of

the firmware is installed than is

supported by the infotainment

system.

.When connecting an iPod on

which firmware from other

providers is installed.

To connect an iPod:

1. Connect one end of the standard

iPod USB cable to the iPod's

dock connector.

2. Connect the other end to the

USB port in the center console.

iPod music information displays on

the radio’s display and begins

playing through the vehicle’s audio

system.

The iPod battery recharges

automatically while the vehicle is on.

The iPod shuts off and stops

charging when the vehicle is

shut off.

If the iPod is an unsupported model,

it can still be listened to in the

vehicle by connecting to the

auxiliary input jack using a standard

3.5 mm (1/8 in) stereo cable.

iPod Menu

Shuffle: Press to play the tracks

randomly. Press again to stop

shuffle.

Use the iPod Menu to select:

Playlists:

1. Press to view the playlists on

the iPod.

2. Select a playlist name to view a

list of all songs in the playlist.

Black plate (33,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 33

3. Select the song from the list to

begin playback.

Artists:

1. Press to view the artists on

the iPod.

2. Select an artist name to view a

list of all albums with songs by

the artist.

3. Select an album.

4. Select the song from the list to

begin playback.

Albums:

1. Press to view the albums on

the iPod.

2. Select an album name to view a

list of all songs on the album or

select All Songs to view all

songs on the iPod.

3. Select the song from the list to

begin playback.

Genres:

1. Press to view the genres on

the iPod.

2. Select a genre name to view a

list of artists of that genre.

3. Select an artist to view albums

or All Albums to view all albums

of that genre.

4. Select Artist to view albums.

5. Select Album to view songs.

6. Select the song from the list to

begin playback.

Songs:

1. Press to view a list of all songs

on the iPod.

2. Select the song from the list to

begin playback.

Podcasts:

1. Press to view the podcasts on

the iPod.

2. Select a podcast name to begin

playback.

Composers:

1. Press to view the composers on

the iPod.

2. Select the composer to view a

list of songs by that composer.

3. Select a song from the list to

begin playback.

Audio Books:

1. Press to view the audio books

on the iPod.

2. Select the audio book from the

list to begin playback.

Playing from an iPhone or iPad

This feature supports iPhone 3G,

iPhone 3GS, iPhone 4, and iPad.

Follow the same instructions as

stated earlier for using an iPod. To

use voice recognition to play music,

say “Play USB,” “Play Artist,” “Play

Album,” “Play Song,”or “Play

Genre.”See Voice Recognition on

page 64.

iPad and iPhone Troubleshooting

When an iPhone and iPad are

connected through USB and

Bluetooth, the audio may not be

heard when an iPhone or iPad

Black plate (34,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

34 Infotainment System

source on the radio is selected. If a

phone call is received while listening

to an iPad and there is no audio for

the iPad after the call, then go to the

Airplay icon on the device and

select dock connector, or disconnect

and reconnect the dock connector

on the device.

Bluetooth Audio and Voice

Recognition

See Bluetooth Audio on page 34

and Voice Recognition on page 64

for information using voice

recognition with Bluetooth audio.

Make sure all devices have the

latest software downloaded.

Auxiliary Devices

This vehicle has an auxiliary input

jack in the center console. Possible

auxiliary audio sources include:

.Laptop computer

.MP3 player

.Tape player

This jack is not an audio output. Do

not plug headphones into the

auxiliary input jack. Set up any

auxiliary device while the vehicle is

in P (Park).

Connect a 3.5 mm (1/8 in) cable

from the auxiliary device to the

auxiliary input jack. When a device

is connected, the system

automatically begins playing audio

from the device over the vehicle

speakers.

If an auxiliary device has already

been connected, but a different

source is currently active, do one of

the following:

.Press SOURCE to scroll all of

the available audio source

screens, until the AUX source

screen is selected.

.Say “Play Front AUX”using

voice recognition to play the

auxiliary device. See Voice

Recognition on page 64.

Bluetooth Audio

If equipped, music may be played

from a paired Bluetooth device. See

“Pairing a Phone/Device”under

Bluetooth on page 69.

To play music through Bluetooth

device:

1. Power on the device, pair, and

connect the device.

2. Music can be launched by doing

one of the following:

.Press the Bluetooth Audio

screen button on the

Home Page.

.Press SOURCE until

Bluetooth Audio is selected.

.Press the SRC button on

the steering wheel controls

until Bluetooth Audio is

selected. See Steering

Wheel Controls on page 28.

.Use voice recognition. See

Voice Recognition on

page 64.

Black plate (35,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 35

The music can be controlled by

either the infotainment controls or

the controls on the device.

Bluetooth Audio Menu

Press the Menu screen button and

the following may display:

Shuffle: Press the MENU/SELECT

knob to turn shuffle on or off. Not all

devices support the shuffle feature.

When selecting Bluetooth audio, the

audio player may not be able to

launch. All devices launch and play

back audio differently. Make sure

the correct audio source is playing

on the device for Bluetooth audio

playback on the radio. When the

vehicle is not moving, use the

device to begin playback.

When selecting Bluetooth audio as

a source, the radio may show as

paused on the screen. Press play

on the device or push Jto begin

playback.

Some phones support sending

Bluetooth music information to

display on the radio. When the radio

receives this information, it will

check to see if any album art is

available and display it. For more

information about phone-supported

Bluetooth features, see “Website

Information”under Software

Updates on page 9.

To play a Bluetooth phone as the

audio source, it must be the active

application on the home screen.

When listening to Bluetooth audio,

the audio that will play through the

radio will be what is active or open

on the phone.

As new devices are introduced, see

“Website Information”under

Software Updates on page 9.

Navigation

Using the Navigation

System

Use the NAV button on the

faceplate or Home Page to access

the navigation map.

Press the NAV button again to

change between alternative views of

the normal split and full map views.

The Menu screen button at the

bottom right side of the display

accesses the Navigation Menu.

Black plate (36,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

36 Infotainment System

The touch-sensitive buttons

available are:

Heading Indicator

Press Heading Indicator to display

the Map View. There are three

indicator settings:

.2D North Up –Displays North at

the top of the map screen

regardless of the direction the

vehicle is traveling.

.2D Heading Up –Displays the

direction the vehicle is traveling.

The shaded triangle icon points

North.

.3D Heading Up –Is the same as

2D Heading Up, but the map is

in 3D.

Map Modes

Press to change the view of the

maps while using the navigation

function. The system offers a variety

of full and split views. Some views

are only selectable when route

guidance is active.

Black plate (37,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 37

An alternative method to change the

view of the maps would be to press

the map mode icon.

Traffic

Press Traffic to display the Traffic

Menu. Press the desired option.

Options available are:

.All Traffic Events –Press to view

all reported traffic events while

on or off a planned route.

.Traffic Events on Route –Press

to view traffic events while on a

planned route.

.Traffic Settings –Press to

customize traffic options. This

feature can also be accessed by

pressing the traffic light screen

button displayed at the left lower

side of the map screen. See

Configure Menu on page 52 in

this section.

POIs Nearby

Press to display a search list of

nearby POIs. Select the

desired POI.

Black plate (38,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

38 Infotainment System

Show POIs on Map

Press to customize which major POI

categories are displayed on

the map.

Switch Route Time/Destination

Press to customize the Arrival/

Travel time and Waypoint/

Destination information that is

displayed in the main map screen.

Current Position Information

Press to display a split screen

showing detailed information about

the vehicle position. This feature

can also be accessed by pressing

the vehicle information tab on the

lower center of the display.

Destination Information

Press to display a split map screen

showing the next waypoint/

destination.

Map Adjustments

The system lets you adjust the scale

of view on the map. Also, as you

drive, the map scrolls automatically

based on the direction of travel.

Map Scales

There are two methods to change

the map scale:

.Turn the TUNE/MENU knob

clockwise or counterclockwise to

zoom out or in.

.Press the Map Scale button on

the left bottom corner of the map

screen to change the zoom

level.

The map scale bar times out if

the zoom level is not changed

within a few seconds.

Black plate (39,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 39

The scale can be configured for

English or metric units. To change

from English to metric, see “Driver

Information Center (DIC)”in the

owner manual.

Scroll Features

.To scroll within the map, touch

anywhere on the map screen

and the scroll symbol displays.

.Tap the map to center at that

location on the screen.

.Press and hold the screen in any

direction outside the scroll

symbol to scroll the map in that

direction.

.Scroll speed increases when

touching closer to the edge of

the screen.

.Press NAV on the faceplate to

exit map scrolling and return to

the current vehicle location on

the map.

Press the cycling arrows at the top

of the map screen to toggle from the

normal top bar (Home and FAV) to

the audio information bar.

Maps

This section includes basic

information that you need to know

about the map database.

The maps are stored on a Secured

Digital (SD) card that is used in the

navigation system.

Detailed Areas

Road network attributes are

contained in the map database for

detailed areas. Attributes include

information such as street names,

street addresses, and turn

restrictions. A detailed area includes

all major highways, service roads,

and residential roads. The detailed

areas include points of interest

(POIs) such as restaurants, airports,

banks, hospitals, police stations,

gas stations, tourist attractions, and

historical monuments. The map

database may not include data for

newly constructed areas or map

database corrections that are

completed after the production of

Black plate (40,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

40 Infotainment System

the SD card. The navigation system

provides full route guidance in the

detailed map areas.

Navigation Symbols

Following are the most common

symbols that appear on a map

screen.

The vehicle symbol indicates the

current position and heading

direction of the vehicle on the map.

The destination symbol marks the

final destination after a route has

been planned.

The waypoint symbol marks one or

more set waypoints.

A waypoint is a stopover destination

point added to the planned route.

The estimated time and distance to

the destination are displayed.

If waypoints have been added to the

current route, each waypoint

destination displays estimated time

and distance.

This symbol indicates that the map

view is North up: North up displays

North at the top of the map screen

regardless of the direction the

Black plate (41,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 41

vehicle is traveling. Select this

screen symbol to change the view

to Heading up or 3D.

This symbol indicates that the map

view is Heading up.

Heading up view displays the

direction the vehicle is traveling at

the top of the map screen. The

shaded triangle indicates North.

Press this screen symbol to change

to 3D mode.

The 3D symbol is the same as the

Heading up symbol, but the map is

in 3D.

The No GPS symbol appears when

there is no Global Positioning

System (GPS) satellite signal.

This symbol located at the bottom of

a map screen brings up the map

mode pop-up screen.

Driving on a Route

Urgent Maneuver Alert

The system will give an indication

that the next maneuver is close.

Driving on a Highway

Driving on a Residential Road

Black plate (42,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

42 Infotainment System

Destination

If route guidance is not active, press

the Destination Entry screen button

on the Home Page or the DEST

button on the faceplate to access

the Destination Entry screen.

Several options can be selected to

plan a route by entering

destinations. Some destination entry

items such as Previous

Destinations, Address Book, and My

Home may be grayed out if no

destination was previously entered

or saved.

Alpha-Numeric Keyboard

Letters of the alphabet, symbols,

punctuation, and numbers, when

available, display on the navigation

screen as alpha/numeric keyboards.

The alpha keyboard displays when

data needs to be entered.

QWERTY or ABCDEF: Press to

toggle between QWERTY or

ABCDEF keyboard character

layouts.

Symbols: Use to select symbols.

Space: Use to enter a space

between characters or the words of

a name.

Delete: Press to delete an incorrect

character that has been selected.

Address Entry

Press the Address screen button to

display the Enter Address screen.

Set a route by entering the state

name, city name, street name,

house number, and intersection.

If no state or province has been

entered previously, the city and

state fields are not available. Press

the screen button at the right of the

city name to select a state or

province.

If the state or province was

previously set and is displayed,

press the screen button at the right

of the city name to change the

selected state or province.

To make name selection easier, the

system highlights only characters

that are available after the

previously entered one.

Black plate (43,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 43

State: Enter a state name.

City: Enter a city name.

Street: Enter a street name.

House No.: Enter a valid address

number.

Intersection: Enter a street name

that intersects with the selected

street.

Entering the city name first:

1. Enter the city name.

2. Enter the street name. Use the

Delete screen button to delete

an incorrectly entered character.

A list displays if six or fewer

names are available. If there are

more than six, there is a match

counter with a number of

available streets. Press the List

screen button to view the list and

select the street.

3. Enter the house number.

4. Press the Done screen button at

any time and the system tries to

resolve a destination based on

the entered information, then

displays it on the Destination

Confirmation screen.

5. Press the Start Guidance screen

button and the route calculates.

Entering the street name first:

1. Make sure the state has been

entered before selecting the

street name field. Enter the

street name. Do not enter

directional information or street

type. Use the Delete screen

button to delete an incorrect

character.

Black plate (44,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

44 Infotainment System

A list displays if six or fewer

names are available. If there are

more than six, press the List

screen button to view the list and

select the street.

2. Select the city from the list or

enter the city name.

3. Enter the house number.

4. Press the Done screen button.

5. Press the Start Guidance screen

button and the route calculates.

Points of Interest (POI)

Press the Points of Interest screen

button on the Destination Entry

page. Several options can be

selected to plan a route.

The POI entry list allows selection of

a destination by category search,

selection from map, or search by

name method.

Entering by POI name:

1. Select Search by Name.

2. Make sure the correct state is

selected, then select Name.

3. Enter the POI name.

4. Select a few of the characters or

spell the name in full, by

pressing on the alpha keyboard.

5. Press the List screen button,

or if the list has six or fewer

items, a list of POIs will

immediately display.

6. Press the desired POI.

Black plate (45,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 45

7. Press the Start Guidance screen

button and the route calculates.

Previous Destinations

Select a destination from the

Previous Destination List. Up to

15 points that have been previously

entered can be recalled. If the list is

full, the oldest destinations are

automatically deleted once the

newest destinations are added.

Address Book

If no destination is saved to the

address book, save a destination by

doing the following:

1. Press the Home Page

Destination or DEST faceplate

button.

2. Enter an address using any of

the destination methods

(Address Entry, POI Entry, etc.).

3. On the Destination Confirmation

screen, select Save.

4. The system displays the options

Name, Number, Icon, and Done.

Press Done to save the

destination.

5. To customize the address book

entry, select Name, Number,

or Icon.

If a destination is already saved to

the address book, press the Home

Page Destination Entry or DEST

faceplate button to display the

Address Book screen button.

Choose a destination by selecting

an address that has been stored in

the address book.

1. Press the Address Book screen

button. A list displays the

address book entries.

2. Select the destination from

the list.

3. Press the Start Guidance screen

button and the route calculates.

To edit Address Book entries:

1. Select an item from the

address book.

2. On the Destination Confirmation

screen, select Edit.

Black plate (46,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

46 Infotainment System

3. The system displays the options

Name, Number, Icon, and

Delete. Press Delete to delete

the destination from the

address book.

4. To customize the address book

entry, select Name, Number,

or Icon.

Latitude/Longitude Coordinates

Choose a destination based on

latitudinal and longitudinal

coordinates.

To enter the location as coordinates,

latitude and longitude:

1. Press the Home Page

Destination screen button. Press

the Latitude and Longitude

screen button to display the

screen above.

2. Enter the Latitude and Longitude

coordinates for the destination in

degrees, minutes, and seconds.

3. Press the Done screen button if

the information is correct.

4. Press the Start Guidance screen

button. The route calculates.

Favorite Routes

Adding a Favorite Route:

1. Press the Home Page

Destination Entry or DEST

faceplate button to display the

Favorite Routes screen button.

2. Press the Favorite Routes

screen button to display Add

Favorite Route.

3. Select Add Favorite Route and

enter a favorite route name.

4. Press OK and the display

returns to the favorite routes list.

5. Select the favorite route and add

a waypoint using any of the

destination methods, such as

address entry, POI entry, etc.

Black plate (47,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 47

Selecting a Favorite Route:

1. Press the Home Page

Destination Entry or DEST

faceplate button to display the

Favorite Routes screen button.

2. Press the Favorite Routes

screen button to display a list of

available favorite routes.

3. Scroll and select a favorite route.

4. Press the Start Guidance screen

button. The route calculates.

Deleting a favorite route:

1. Press the Home Page

Destination Entry or DEST

faceplate button to display the

Favorite Routes screen button.

Press this button to display the

list of available favorite routes.

2. Scroll and select the route to be

deleted.

3. Press Edit.

4. Press Delete Favorite Route.

Changing the route name:

1. Press the Home Page

Destination Entry or DEST

faceplate button to display the

Favorite Routes screen button.

Press this button to display the

list of available favorite routes.

2. Press the Edit screen button.

3. Select Edit Name.

4. Using the keypad, enter

the name.

5. Press the Done screen button.

The new name will be in the

Favorite Routes Menu.

My Home

If no home destination is entered,

save a destination by pressing the

Home Page Destination Entry or

DEST button on the faceplate. Enter

a destination using any of the

destination entry methods (Address

Entry, POI Entry, etc.). Select Save

as Home from the Destination

Confirmation screen.

If a destination is already saved as

home, press the Home Page

Destination Entry or DEST faceplate

button to display the My Home

screen button. Press this button to

start route guidance.

Pick from Map

.Press the Home Page

Destination Entry or DEST

faceplate button to display the

Pick from Map screen button.

Press this button to display the

map screen with a scroll symbol

centered on the map.

Black plate (48,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

48 Infotainment System

.Press the Zoom in/out button on

the screen and press the map to

locate the destination to select.

Press and hold a finger on the

map to activate fast scrolling.

.Press the Go button on the

bottom of the screen to display

the Destination Confirmation

screen.

.Press the Start Guidance screen

button. The route calculates.

Destination Confirmation

Multiple options are available on the

Destination Confirmation screen:

Start Guidance: Press to start a

route calculation to the displayed

destination.

Show on Map: Press to switch to

the map view with the displayed

destination centered on the map.

Route Options: Press to modify

your route options. See “Navigation

Settings”for more information.

Call: Press to initiate a phone call

to the displayed phone number (if

phone capability is available).

Save as Home: Press to save the

displayed destination as your home

destination. The home destination

will be stored at the top of the list of

destinations in the address book.

Save/Edit: Press to save the

displayed destination into the

address book. If the displayed

destination is already stored in the

address book, Edit will show as the

menu item.

Destination Menu with Route

Guidance Active

Several functions can be performed

after a destination has been

entered. Press the Home Page

Destination Entry screen button or

the DEST faceplate button to

access the Destination Menu

screen.

Cancel Guidance

Press Cancel Guidance to cancel

the current route.

Black plate (49,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 49

Waypoint List

Select Waypoint List to view options

for organizing waypoints.

Turn List

Select Turn List to view a list of

maneuvers for the entire route.

Press the Avoid screen button next

to one of the turn maneuvers to

avoid a segment of roads.

A maximum of eight avoided

segments are allowed.

Avoid List

Select Avoid List to display a list of

avoided road segments with the

option to remove the avoided items

from the list.

Detour

Press Detour to display the route

detour options. Select to detour the

whole route or by a specific

distance.

Route Options

This feature can be accessed from

the Destination Confirmation Menu,

Navigation Settings Menu, and

Destination Menu with Route

Guidance Active. See “Navigation

Settings Button”for more

information.

Waypoints

Up to three waypoints can be added

to the current route. The waypoints

can be sorted (moved) or deleted.

Black plate (50,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

50 Infotainment System

To add a waypoint:

1. From the Waypoint List menu,

press Add Waypoint.

2. Enter the waypoint by any of the

add destination methods. The

system calculates and highlights

the route and the route can be

started.

3. To add more waypoints, press

Add Waypoint to add the

waypoint in the order desired on

the route.

To delete a waypoint:

1. From the Destination menu,

press Waypoint List.

2. Press Delete Waypoints.

3. Select the waypoints to be

deleted. Press the Delete screen

button.

The Sort Waypoint feature allows

reorganization of the waypoint list.

To sort a waypoint:

1. From the Destination menu,

press Waypoint List.

2. Press Sort Waypoints.

3. Select the waypoint to move.

4. Select the location to move the

waypoint to.

Instead of deleting individual

waypoints, select Delete All

Waypoints to delete all waypoints at

the same time.

To save a waypoint list as a favorite

route, select Save as Favorite.

OnStar

Destination

Download

The destination download lets an

OnStar

subscriber ask an OnStar

Advisor to download a destination to

the navigation system. OnStar will

send address information and

location coordinates of the

destination into the navigation

system.

Black plate (51,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 51

Using Destination Download

If the navigation radio screen is

turned off before a download, the

system automatically turns the

screen on and displays a download

confirmation message. The radio

remains on after the download.

The navigation system displays

“Please wait”as the address is

searched within the map database.

If the address is not found within the

map database, the system may use

latitude and longitude coordinates to

locate the destination.

If the system is unable to locate the

address, the Destination Not Found

screen displays.

Route Guidance Not Active

If an OnStar destination is

downloaded while route guidance is

not active, the navigation system

displays a pop-up screen with the

following screen functions:

Start Guidance: Press to start

route calculation to the

destination(s) received.

Show on Map: Press to display the

Map Screen.

Call: Press to initiate a call with

Bluetooth Phone (if available) or

OnStar Personal Call.

Save as Home: Press to set an

address as a home destination.

Save: Press to save the

downloaded destination to the

address book.

Route Guidance Active

If an OnStar destination is

downloaded while route guidance is

already active, the system displays

a pop-up screen with the following

screen function:

.Press Start Guidance; the

navigation system adds the

downloaded destination before

the next waypoint of the existing

route (closest to the current

vehicle position).

.All other buttons on the pop-up

screen operate as described

under “Route Guidance Not

Active.”

Black plate (52,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

52 Infotainment System

Previous Destinations

Previously downloaded OnStar

destinations are saved under

Previous Destinations in the

navigation system, where they can

be accessed or saved to the

Address Book.

Configure Menu

The Configuration Menu is used to

adjust features and preferences,

such as Sound, Radio, Nav

(Navigation), Display, or Clock

Settings.

1. Press the Config screen button

on the Home Page or the

CONFIG button on the faceplate.

2. Touch-tap the scroll bar until the

desired option displays. Select

the desired settings to change.

Languages

Press the Config button on the

Home Page or the CONFIG button

on the faceplate to enter the menu

options. Turn the MENU knob or

touch-tap the scroll bar to scroll

through the available options. Press

the MENU knob or press Languages

to display the languages. Select the

desired language.

Time and Date Settings

From the Time & Date Settings

screen button, press to display the

Time & Date Settings menu.

Set Time: Press the up or down

arrows to increase or decrease the

Hours and Minutes displayed on the

clock.

Set Date: Press the up or down

arrows to increase or decrease

the day.

Black plate (53,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 53

Set Time Format: Press the 12

Hours screen button for standard

time; press the 24 Hours screen

button for military time.

Set Date Format: Depending on

the region, the following date

formats may be available: MM/DD/

YYYY, DD.MM.YYYY, or YYYY/

MM/DD.

Display Digital Clock: Press

Display to turn the display of the

clock on the screen On or Off.

Press the Back screen button to

save the adjustments that

were made.

Radio Settings

Press the Config button on the

Home Page or the CONFIG button

on the faceplate to enter the menu

options. Turn the MENU knob or

touch-tap the scroll bar to scroll

through the available options. Press

the MENU knob or press Radio

Settings to display the radio settings

menu. Press this feature to make

changes for radio information

displayed, preset pages, Auto

Volume Control, and XM Categories

Restore. See Satellite Radio on

page 14 (if equipped), for more

information about XM Categories.

The Radio Settings are:

Speed Dependent Volume: Select

OFF, Low, Medium, or High

sensitivity to automatically adjust

the volume to minimize the effects

of unwanted background noise that

can result from changing road

surfaces, driving speeds, or open

windows. This feature works best at

lower volume settings where

background noise is typically louder

than the sound system volume.

Startup Volume: Press to set the

maximum volume level for startup

that will be used even if a higher

volume had been set when the radio

was turned off.

Radio Favorites: Press to select

the number of FAV pages to be

used in the system.

Add/Remove XM Categories:

Press to customize which available

XM Categories are used and

displayed in the system.

RDS Settings: Press to customize

station name and radio text display

options.

Phone Settings

See CELL Link Error - Link target

cell (cell ID 183021) is invalid for

this publication.

on page ?‑?

the “Phone”section for more

information on phone settings.

Navigation Settings

Press the Config button on the

Home Page or the CONFIG button

on the faceplate to enter the setup

menu. Turn the MENU knob or

touch-tap the scroll bar until the

Navigation Settings option displays.

Select this feature to make changes

to Voice Prompt, Traffic, Route

Options, and Home Address.

Black plate (54,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

54 Infotainment System

Navigation Settings Button

Various navigation system settings

are available through the

Configuration Menu. Some options

are only available after a route is

planned.

Press Navigation Settings to access

the navigation system settings.

Voice Prompt

The Voice Prompt Menu allows

changes to the voice prompt

features.

Navigation Voice Guidance:

Select the On or Off button to turn

the voice instructions on or off while

traveling on a planned route.

Traffic Voice Prompt: Select the

On or Off button to turn the traffic

voice prompt on or off while

traveling on a planned route.

Navigation Voice Volume: Select

Navigation Voice Volume to change

the volume of the navigation

prompts.

OnStar Prompt Volume: Select

OnStar Prompt Volume to change

the volume of the OnStar prompts.

Black plate (55,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 55

Traffic Settings

Press to display the Traffic

Settings menu.

Traffic (On/Off): Press to enable or

disable the traffic feature.

Traffic Voice Prompts (On/Off):

Press to enable or disable the traffic

voice prompts.

Alert if Better Route Available:

Press to prompt an alert if a better

route is available.

Traffic Events Sort Method: Press

to display a submenu of sort

options.

.Sort by Distance —Press to

display traffic events in order of

distance with the closest event

shown first.

.Sort by Name —Press to

display traffic events in

alphabetical order.

Show Traffic Icons: Press to

display traffic icons on the map.

.All Traffic Events On —Press to

enable display of all traffic icons

on the map.

.All Traffic Events Off —Press to

disable display of all traffic icons

on the map.

.User Defined Events —Press to

define the individual types of

icons that are displayed for

traffic flow and traffic conditions.

Traffic Flow

The traffic flow status will display in

green, yellow, or red lines beside

the road.

.Red indicates significantly

impaired traffic flow with average

speed less than 40 km (25 mph).

.Yellow indicates slightly impaired

traffic flow with average speed

between 40 km and 73 km

(25 and 45 mph).

.Green indicates normal traffic

flow with average speed above

73 km (45 mph).

Black plate (56,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

56 Infotainment System

Closed Roads, Traffic Delays,

Roadwork, Incidents, and

Advisories

Select the traffic event group for

display on the map screen. Some

events may cover more than one

traffic condition. See the following

traffic conditions.

Traffic Conditions

The following traffic condition icons

may display:

Stopped Traffic Traffic Jam

Accident Road Closed

Lane Narrows Road Work,

Construction

Alert Road Condition

Road Visibility Other

Route Options

Press to display the various route

option preferences.

Fastest, Shortest, or Other: Press

one of these options while planning

a route.

Alert if Better Route Available:

There are two options.

Automatic Recalculation —If

enabled and a route with fewer

traffic delays is found, the system

will automatically recalculate without

user confirmation.

Black plate (57,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 57

Calculate After Confirmation —If

enabled, the system will provide a

pop-up if a possible guidance route

is available to detour around traffic

events on the route. Select Yes from

the pop-up and the new route will be

calculated. XM™NavTraffic

information might not be provided

for the alternate route, depending on

what type of road the vehicle is

traveling.

Avoid Freeways: Press to avoid

major roads. A checkmark appears

to indicate the Avoid mode is on.

Avoid Toll Roads: Press to avoid

toll roads. A checkmark appears to

indicate the Avoid mode is on.

Avoid Ferries: Press to avoid

ferries. A checkmark appears to

indicate the Avoid mode is on.

Avoid Tunnels: Press to avoid

tunnels. A checkmark appears to

indicate the Avoid mode is on.

Delete Saved Destinations

Press to delete all saved

destinations. A Delete Saved

Destinations submenu displays.

Select the desired options for

deletion.

Guidance Alerts

Press to enable the guidance alert

pop-up to be viewed on the map or

on the main screens such as audio,

weather, phone, etc. A checkmark

appears to indicate the guidance

alert mode is on.

Vehicle Settings

See “Vehicle Personalization”in the

Index of the vehicle owner manual

for more information.

Black plate (58,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

58 Infotainment System

Display Settings

Press the Config button on the

Home Page or the CONFIG button

on the faceplate, then select Display

Settings from the list.

The following options may display:

Dimming Mode: Press to change

the screen background.

.The Automatic setting adjusts

the screen background

automatically depending on the

exterior lighting conditions.

.The Day setting brightens the

map background.

.The Night setting darkens the

map background.

To change the overall brightness

setting for the display, use the

vehicle interior lighting instrument

panel illumination control.

XM NavTraffic™(If Equipped)

The navigation system might have

an XM NavTraffic receiver. It is a

subscription service provided

through XM Satellite Radio.

A service fee is required to receive

the XM NavTraffic service.

Real-time traffic information is

provided to fully integrate the

navigation system to display current

traffic conditions for the chosen

route. See “Traffic Settings”in this

section for more information.

A screen displays to indicate that

the XM Traffic subscription is not

activated.

If activated, traffic information

displays:

.Unscheduled traffic incident

data, such as accidents and

disabled vehicles.

.Scheduled traffic incident data,

such as road construction and

road closures.

.Traffic flow information (rate of

speed data). Flow data might not

be available in all markets.

Traffic information is delivered to the

vehicle by the XM Radio satellites.

XM NavTraffic provides continuously

updated traffic information.

XM NavTraffic currently broadcasts

the traffic information for many

markets nationally. The service may

be available in more cities in the

future. Visit www.xmnavtraffic.com

for more details on local coverage.

To access the traffic features, press

the XM Traffic button on the Home

Page or map screen.

Black plate (59,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 59

All Traffic Events: Press to view a

list of reported traffic conditions for

up to approximately 100 km (70 mi).

It could take some time to display

the information received.

The information is displayed with an

arrow and distance. The arrow

indicates the distance is a straight

line and the direction of the event

from the vehicle's current position.

Traffic Events on Route: Press to

display a list of reported traffic

conditions on the current route. The

button is toned down if no route is

active.

Traffic Settings: Press to

customize traffic options.

XM Weather (If Equipped)

From the Home Page, press the XM

Weather screen button. The system

displays the current weather page.

Current Condition

The current weather page shows

the current weather condition in the

city of the vehicle's current position.

On this page, select the Menu

screen button to access other

weather options, such as Extended

Forecast, Weather Along the Route,

Weather Around Other Cities, and

Weather Alerts.

Allow approximately 15 minutes for

the current weather in the area to

display.

Black plate (60,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

60 Infotainment System

Extended Forecast

Press to show the extended

forecast.

Weather Along the Route

If a destination is set, there is the

option to view weather conditions

for up to three locations along the

route:

.Current vehicle position.

.Midway point from current

position to final destination.

.Current weather condition of the

destination city.

Weather Alerts

From the XM Weather Menu, press

the Weather Alerts screen button to

display any current weather

advisory warnings in effect near the

current position.

Weather Around Other Cities

Select this option to view weather

conditions around or in a specific

city entered by name or selected

from the map.

Restore to Current Location

Press the Restore Current Location

screen button to display the weather

condition for the city where the

vehicle is currently located, if the

system was modified to view

weather conditions in another city.

Photo Viewer

The Photo Viewer can only be used

with USB devices. If the pictures are

on an SD card, the pictures can

only be viewed if placed on a USB

device or by using a USB-SD

adapter. File sizes above

Black plate (61,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 61

approximately six mega pixels may

not show. Only jpeg files are

supported.

1. Press the Viewer screen button

on the Home Page.

2. The system does a search to

find the picture folders.

A“Please wait”message

displays until the search is

finished.

3. A list displays. Select a picture

to view.

4. Once a picture displays, the

following options are available:

Info: Press to turn file name

information on or off.

S:Press to display a previous

picture if not in slide show mode.

r:Press to toggle between slide

show mode and manual mode.

T:Press to display a next picture

if not in slide show mode.

E:Press to manually rotate a

picture 90 degrees

counterclockwise.

Settings: Press to open the Photo

Viewer settings screen. Slide Show

Timer, Shuffle Image Settings, and

Automatic Rotation Settings can

now be configured.

If the displayed picture screen is not

used within six seconds, the upper

and lower bar options will disappear.

Touch-tap the screen to re-display

the upper and lower bar.

Global Positioning

System (GPS)

The position of the vehicle is

determined by using satellite

signals, various vehicle signals, and

map data.

At times, other interference such as

the satellite condition, road

configuration, condition of the

vehicle, and/or other circumstances

can affect the navigation system's

ability to determine the accurate

position of the vehicle.

Black plate (62,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

62 Infotainment System

The GPS shows the current position

of the vehicle using signals sent by

the GPS Satellites of the United

States Department of Defense.

When the vehicle is not receiving

signals from the satellites, a symbol

appears on the map screen. See

Navigation Symbols on page 40.

This system might not be available

or interference can occur if any of

the following are true:

.Signals are obstructed by tall

buildings, trees, large trucks,

or a tunnel.

.Satellites are being repaired or

improved.

For more information if the GPS is

not functioning properly, see

Problems with Route Guidance on

page 63 and If the System Needs

Service on page 63.

Vehicle Positioning

At times, the position of the vehicle

on the map could be inaccurate due

to one or more of the following

reasons:

.The road system has changed.

.The vehicle is driving on slippery

road surfaces such as sand,

gravel, or snow.

.The vehicle is traveling on

winding roads or long straight

roads.

.The vehicle is approaching a tall

building or a large vehicle.

.The surface streets run parallel

to a freeway.

.The vehicle has been transferred

by a vehicle carrier or a ferry.

.The current position calibration

is set incorrectly.

.The vehicle is traveling at high

speed.

.The vehicle changes directions

more than once, or the vehicle is

turning on a turn table in a

parking lot.

.The vehicle is entering and/or

exiting a parking lot, garage, or a

lot with a roof.

.The GPS signal is not received.

.A roof carrier is installed on the

vehicle.

.Tire chains have been installed.

.The tires are replaced or worn.

.The tire pressure for the tires is

incorrect.

.This is the first navigation use

after the map data is updated.

.The 12-volt battery is

disconnected for several days.

.The vehicle is driving in heavy

traffic where driving is at low

speeds, and the vehicle is

stopped and started repeatedly.

Black plate (63,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 63

Problems with Route

Guidance

Inappropriate route guidance can

occur under one or more of the

following conditions:

.The turn was not made on the

road indicated.

.Route guidance might not be

available when using automatic

rerouting for the next right or

left turn.

.The route might not be changed

when using automatic rerouting.

.There is no route guidance when

turning at an intersection.

.Plural names of places might be

announced occasionally.

.It could take a long time to

operate automatic rerouting

during high-speed driving.

.Automatic rerouting might

display a route returning to the

set waypoint if heading for a

destination without passing

through a set waypoint.

.The route prohibits the entry of a

vehicle due to a regulation by

time or season or any other

regulation which may be given.

.Some routes might not be

searched.

.The route to the destination

might not be shown if there are

new roads, if roads have

recently changed, or if certain

roads are not listed in the map

data. See Maps on page 39 for

more information.

To recalibrate the vehicle's position

on the map, park with the vehicle

running for two to five minutes, until

the vehicle position updates.

If the System Needs

Service

If the navigation system needs

service and the steps listed here

have been followed but there are

still problems, see your dealer for

assistance.

Map Data Updates

The map data in the vehicle is the

most up-to-date information

available when the vehicle was

produced. The map data is updated

periodically, provided that the map

information has changed.

For questions about the operation of

the navigation system or the update

process, contact the GM Nav Disc

Center toll‐free phone number, 1‐

877‐NAV‐DISC (1‐877‐628‐3472) or

go to the center's website,

www.gmnavdisc.com. If updates are

needed, call the GM Nav Disc

Center or order a new SD card

online. To order map data, have the

vehicle's Vehicle Identification

Number (VIN) available. See

“Vehicle Identification Number

(VIN)”in the owner manual.

After receiving the updated map

data, see Maps on page 39 for more

information.

Black plate (64,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

64 Infotainment System

Database Coverage

Explanations

Coverage areas vary with respect to

the level of map detail available for

any given area. Some areas feature

greater levels of detail than others.

If this happens, it does not mean

there is a problem with the system.

As the map data is updated, more

detail can become available for

areas which previously had limited

detail. See Map Data Updates on

page 63 for more information.

Voice Recognition

Voice recognition allows for

hands-free operation of the

infotainment system features.

Voice recognition can be used when

the radio is on or when Retained

Accessory Power (RAP) is active.

See “Retained Accessory Power

(RAP)”in the owner manual. The

system maintains a minimum

volume level.

Using Voice Recognition

1. Press b/gon the steering

wheel. The audio system mutes.

A voice prompt states, “Please

say a command.”Wait until the

tone is heard before speaking.

If there is no tone, make sure

that the volume is turned up.

While voice recognition is active,

the system displays a gsymbol

in the top right of the screen.

2. Clearly speak one of the

commands listed later in this

section.

Press b/gtwice on the steering

wheel to skip the voice prompt

messages.

Canceling Voice Recognition

1. Press and release $/ion

the steering wheel control to

cancel a command, if the system

response does not match the

voice command, or say

“Goodbye”or “Cancel.”

2. The system replies, “Goodbye.”

Helpful Hints for Speaking

Commands

.When multiple commands are

available, choose the command

that works best for you.

.Words in parentheses are

optional. For example, for the

command “Tune FM

Black plate (65,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 65

(frequency),”saying “Tune FM

87.7”or “Tune FM”are both

valid commands.

.When the command is

recognized, the system will

either perform the function or

ask to confirm the choice.

.When the system does not

recognize the command, the

system says “pardon.”

.If experiencing difficulty with the

system recognizing a command,

confirm that the command is

correct. Try saying the command

clearly or wait for a brief moment

after the tone.

.Background noise such as a

climate control fan positioned on

high, open windows, and very

loud outside noises, even if the

windows are closed, can cause

voice commands to be

misunderstood.

.The system is able to recognize

commands in different

languages, such as English,

Canadian French, and Spanish.

The system only recognizes

commands based on the

language selected.

.To increase or decrease the

voice volume during a voice

recognition session, turn the

volume knob of the radio,

or press the volume steering

wheel control. If the volume is

adjusted during a voice

recognition session, a Volume

bar appears on the screen

showing the voice volume level

as it is being adjusted. This also

changes the volume of the

guidance prompts.

Voice Recognition Help

To enter the help playback session,

clearly speak one of the help

commands.

Help: The system plays back more

specific help commands such as

Radio Settings for the user to

choose from.

Radio: Use this command to learn

about how to select a band (AM,

FM, or SiriusXM®), and how to

change radio stations by speaking

frequency numbers.

Phone: Use this command to learn

about how to dial, pair a device,

or delete a device.

My Media: Use this command to

learn how to play specific tracks,

artists, albums, or devices

connected to the USB port, or to

change sources.

Settings: Use this command to

learn about how to turn Verbose on

or off, or set the language.

Voice Recognition Commands

The following list shows the voice

commands available for the

infotainment system with a brief

description of each. The commands

are listed with the optional words in

parentheses. To use the voice

commands, see the previous

instructions.

Black plate (66,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

66 Infotainment System

Radio Commands

Tune AM, Tune FM, Tune XM,

Tune Pandora, Tune Stitcher:

Instructs the system to go to the

specific band and the last station.

Tune AM (frequency), Tune FM

(frequency), Tune XM (station

number), or Tune XM (station

name): Instructs the system to go

to the specific station.

Thumbs Up: Instructs the system

to give the current song or station a

thumbs up in Pandora or Stitcher.

Thumbs Down: Instructs the

system to give the current song or

station a thumbs down in Pandora

or Stitcher.

Phone Commands

Dial or Call (phone number or

contact): Instructs the system to

start a phone call. For example, say

“Dial 1 248 123 4567.”To call a

phone book contact, say “Dial”or

“Call,”say the name and location,

and then say “Dial.”For example,

say “Call John at Home”or “Call

John at Work.”If a number is not

recognized, the first number in the

list will be called.

Pair or Connect: Instructs the

system to begin pairing a device.

Digit Dial: Instructs the system to

dial a phone number one digit at a

time. After saying the digits,

say “Dial.”

Redial or Redial Last Number:

Instructs the system to dial the last

phone number called.

Select Device or Change Phone:

Instructs the system to switch to a

different paired device. The device

must be selected from the screen or

by using the MENU/SELECT knob.

Delete Device: Instructs the

system to delete a paired device.

My Media Commands

AUX, USB, or Bluetooth Audio:

Instructs the system to change the

source.

Play Artist (artist name): Instructs

the system to play songs by a

specific artist. For example, say

“Play Artist <artist name>.”

Play Album (album title): Instructs

the system to play a specific album.

Play Song (song title): Instructs

the system to play a specific song.

Play Genre (genre name):

Instructs the system to play songs

of a particular genre.

Settings Commands

Verbose (set) on (mode), Verbose

(set) off (mode): Instructs the

system to turn voice prompts on or

off. When off, this feature turns off

voice prompts.

Language (language): Instructs

the system to set the language.

List Devices: Instructs the system

to give a list of devices to use.

Black plate (67,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 67

Other Commands

Goodbye: Instructs the system to

end a phone call or voice

recognition.

Cancel: Instructs the system to

cancel an action.

Go Back, Back, Previous:

Instructs the system to go back to a

prior menu.

Main Menu: Instructs the system to

go to the main menu.

Yes, Yep, Yup, Ya, Sure, Right,

Correct, OK, Positive, You Got it,

Probably, You Bet: These can be

used to say “Yes.”

No, Nope, Na, No way, Wrong,

Incorrect, Negative, Not really, No

I said, No I Did Not, No I Do Not:

These can be used to say “No.”

OnStar (If Equipped)

Command

To activate OnStar voice

recognition, press =on the mirror.

See “OnStar”in the owner manual.

OnStar: These commands can be

used after the OnStar button is

pressed.

Help Commands

.Help

.Hands-Free Calling

.Turn-by-Turn Directions

.OnStar Info

After each list of help commands,

the following are available:

.Go Back

.Repeat

.Cancel

.Help

.Goodbye

Hands-Free Calling

.Call

.Store

.Commands

‐Call

‐Store

‐My Number

‐Minutes

‐Store Last Number

‐Digit Dial

‐Redial

‐Dial

‐Number Recall

‐Directory

‐Digit Store

Turn-by-Turn Directions

.Directory

.Plan Route

.Commands

‐Directory

‐Store Destination

‐Plan Route

‐Delete Destination

OnStar Info

.Messages

.Minutes

Black plate (68,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

68 Infotainment System

.My Number

.Commands

‐Messages

‐Virtual Advisor

‐My Number

‐Minutes

‐Number Recall

‐Advisor Playback

.Virtual Advisor

Virtual Advisor

Choose this option to connect to a

live Advisor.

Personalization

Home Page

Customization

The first Home Page can be

customized.

To add screen buttons:

1. Press Menu.

2. Press Customize.

3. Press a screen button to add or

remove from the first Home

Page. A circle with a dot

indicates it will be displayed. The

maximum number of buttons on

Home Page 1 is eight.

4. Press Done.

To move screen buttons:

1. Press Sort.

2. Press to select an icon to move

and swap with another icon on

the first Home Page only.

3. Press Done.

To restore Home Page 1 defaults:

1. Press Menu.

2. Press Restore Home Page

Defaults.

3. Press Yes or Cancel.

Black plate (69,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 69

Bluetooth Phone/

Devices

Bluetooth

Overview

For vehicles equipped with

Bluetooth capability, the system can

interact with many cell phones and

devices, allowing:

.Placing and receiving hands-free

calls.

.Sharing of the cell phone’s

address book or contact list with

the vehicle. The phone book will

only display when that phone is

connected.

.Placing outgoing calls by voice

recognition.

The system can be used while in

ON/RUN, ACC/ACCESSORY,

or Retained Accessory Power

(RAP). The range of the Bluetooth

system can be up to 9.1 m (30 ft).

The radio can connect to most

Bluetooth-enabled phones.

Available features and functions

may be dependent on the device.

See “Website Information”under

Software Updates on page 9.

Bluetooth Controls

Use the buttons on the infotainment

system and the steering wheel to

operate the Bluetooth system.

Steering Wheel Controls

b/g(Push to Talk): Press to

answer incoming calls and start

voice recognition.

$/i(Mute/End Call): Press to

end a call, decline an incoming call,

or cancel voice recognition.

+x−(Volume): Press + or −to

increase or decrease the volume.

Infotainment System Controls

For information about how to

navigate the menu system using the

infotainment controls, see Overview

on page 3.

b/$(Phone/Mute): Press to

enter the Phone main menu. Press

and hold to mute or unmute.

Voice Recognition

The voice recognition system uses

commands to control the system

and dial phone numbers.

Things to know when using voice

recognition:

The system may not recognize

voice commands if there is too

much background noise.

A tone sounds to indicate that the

system is ready for a voice

command. Wait for the tone and

then speak.

Speak clearly in a calm and natural

voice.

See Voice Recognition on page 64.

Black plate (70,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

70 Infotainment System

Audio System

Sound comes through the vehicle's

front audio system speakers and

overrides the audio system. Use the

VOL/Oknob during a call to change

the volume level. The adjusted

volume level remains in memory for

later calls. The system maintains a

minimum volume level.

See Voice Recognition on page 64.

Bluetooth Audio

See Bluetooth Audio on page 34.

Pairing with Infotainment

Controls

A Bluetooth-enabled cell phone

must be paired and then connected

to the vehicle before it can be used.

See your cell phone manufacturer's

user guide for Bluetooth functions

before pairing the cell phone. If a

Bluetooth phone is not connected,

calls will be made using OnStar

Hands-Free Calling, if available.

See “OnStar”in the owner manual.

Pairing Information

.A Bluetooth-enabled phone and

an audio playback device can be

paired to the system at the

same time.

.Up to five devices can be paired

to the Bluetooth system.

.The pairing process is disabled

when the vehicle is moving.

.Pairing only needs to be

completed once, unless the

pairing information on the cell

phone changes or the cell phone

is deleted from the system.

.Only one paired cell phone can

be connected to the Bluetooth

system at a time.

.If multiple paired cell phones are

within range of the system, the

radio will connect to the first

phone in the list or to the phone

that was previously connected.

Pairing a Phone/Device

1. Press the CONFIG button or b

/$.

2. Select Phone Settings.

3. Select Bluetooth.

4. Select Pair Device (Phone). The

radio displays “Please start

Bluetooth search on your phone.

Confirm or enter number:.”If the

device supports a four-digit

Personal Identification Number

(PIN), it will display. The PIN is

used in Step 6.

5. Start the pairing process on the

cell phone to be paired to the

vehicle. See the cell phone

manufacturer's user guide.

6. Locate and select the device

named after the vehicle make

and model in the list on the cell

phone. Follow the instructions

on the cell phone to enter the

PIN provided in Step 4, or to

confirm the six-digit code

matches. The system recognizes

the new connected phone after

the pairing process is complete.

Black plate (71,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 71

7. If the phone prompts to accept

connection or allow phone book

download, select always accept

and allow. The phone book may

not be available if not accepted.

8. Repeat to pair additional

phones.

Listing All Paired and Connected

Phones/Devices

1. Press the CONFIG button.

2. Select Phone Settings.

3. Select Bluetooth.

4. Select Device List.

Deleting a Paired Phone/Device

1. Press the CONFIG button.

2. Select Phone Settings.

3. Select Bluetooth.

4. Select Device List.

5. Select the phone to delete and

follow the screen prompts.

Connecting to a Different Phone

To connect to a different phone, the

new phone must be in the vehicle

and available to be connected to the

Bluetooth system before the

process is started.

1. Press the CONFIG button.

2. Select Phone Settings.

3. Select Bluetooth.

4. Select Device List.

5. Select the new phone to connect

to and follow the screen

prompts.

Pairing with Voice Recognition

A Bluetooth-enabled cell phone

must be paired and then connected

to the vehicle before it can be used.

See the cell phone manufacturer's

user guide for Bluetooth functions

before pairing the cell phone. If a

Bluetooth phone is not connected,

calls will be made using OnStar

Hands-Free Calling, if available.

See “OnStar”in the vehicle owner

manual for more information.

Pairing a Phone

1. Press b/g. The system

responds “Please Say a

Command,”followed by a tone.

2. Say “Pair.”The system responds

with “Please search for

Bluetooth devices on your

phone, select your vehicle,

confirm and enter the PIN

provided on the screen.”

3. Start the search for Bluetooth

devices on the phone. Then

select the device and following

the instructions on the phone by

either entering the four-digit PIN

or confirming the six-digit

passcode. The PIN is used in

Step 4.

4. Locate and select the device

named after the vehicle make

and model in the list on the cell

phone. Follow the instructions

on the cell phone to enter the

PIN provided in Step 2 or to

confirm the six-digit code

matches. The system responds

“successfully paired.”

Black plate (72,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

72 Infotainment System

5. Repeat Steps 1−4 to pair

additional phones.

Listing All Paired and Connected

Phones

The system can list all cell phones

paired to it. If a paired cell phone is

also connected to the vehicle, the

system responds with “is connected”

after that phone name.

1. Press b/g. The system

responds “Please Say a

Command,”followed by a tone.

2. Say “Bluetooth.”

3. Say “Device List.”

Deleting a Paired Phone

If the phone name to delete is

unknown, see “Listing All Paired

and Connected Phones.”

1. Press b/g. The system

responds “Please Say a

Command,”followed by a tone.

2. Say “Bluetooth.”

3. Say “Delete Device.”

4. The system responds with: “To

delete a device, please touch its

name on the screen.”Select the

device to delete on the display

and it will be removed.

To cancel this command, press $/

ion the steering wheel control or

press the BACK button on the radio

faceplate.

Connecting to a Different Phone

or Device

To connect to a different cell phone,

the system looks for the next

available cell phone. Depending on

the cell phone to be connected, this

command may need to be repeated.

1. Press b/g. The system

responds “Please Say a

Command,”followed by a tone.

2. Say “Bluetooth.”

3. Say “Change Phone.”

.To select a device, press

the name on the display.

.If another cell phone is not

found, the original phone

remains connected.

Making a Call Using Phone

Book and Infotainment

Controls

For cell phones that support the

phone book feature, the Bluetooth

system can use the contacts stored

on the cell phone to make calls. See

the cell phone manufacturer‘s user

guide or contact the wireless

provider to find out if this feature is

supported.

When a cell phone supports the

phone book feature, the Phone

Book and Call Lists menus are

automatically available.

The Phone Book menu allows

access to the phone book stored in

the cell phone to make a call.

The Call Lists menu allows access

to the phone numbers from the

Incoming Calls, Outgoing Calls, and

Missed Calls menus on the cell

phone to make a call.

Black plate (73,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 73

The radio will display the first 1,000

contacts and the phone numbers for

each contact including Home, Work,

Mobile, and Other.

To make a call using the Phone

Book menu:

1. Press b/$once on the radio

or the Phone screen button.

2. Select Phone Book.

3. Select the letter group of the

phone book entry to scroll

through the list of names/

numbers.

4. Select the name.

5. Select the number to call.

To make a call using the Call

Lists menu:

1. Press b/$once on the radio

or the Phone screen button.

2. Select Call Lists.

3. Select the Incoming Calls,

Outgoing Calls, or Missed

Calls list.

4. Select the name or number

to call.

Making a Call Using the

Infotainment Controls

To make a call:

1. Press b/$once on the radio

or the Phone screen button.

2. Press Enter Number.

3. Enter the phone number.

4. Select OK to start dialing the

number.

5. Select Call to place the call.

To make a call using voice

recognition, see “Making a Call”

under Hands-Free Phone on

page 75.

Accepting or Declining a Call

When an incoming call is received,

the infotainment system mutes and

a ring tone is heard in the vehicle.

Using the Infotainment Controls

Turn the MENU/SELECT knob to

“Answer”or “Decline”and press the

MENU/SELECT knob or press

Accept or Decline on the screen.

Using Steering Wheel Controls

Press b/gto answer or $/ito

decline the call.

Call Waiting Using the

Infotainment Controls

Call waiting must be supported on

the Bluetooth phone and enabled by

the wireless service carrier to work.

Switching Between Calls (Call

Waiting Calls Only)

To switch between calls turn and

press the MENU/SELECT knob and

select Switch Call or select Switch

Call on the screen.

Black plate (74,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

74 Infotainment System

Call Waiting Using Steering

Wheel Controls

Call waiting must be supported on

the cell phone and enabled by the

wireless service carrier.

.Press b/gto answer an

incoming call when another call

is active. The original call is

placed on hold.

.Press b/gagain to return to

the original call.

.To decline answering the

incoming call, no action is

required or press Decline on the

screen.

.Press $/ito disconnect the

current call and switch to the call

on hold.

Conference Calling Using the

Infotainment Controls

Conference calling and three-way

calling must be supported on the

Bluetooth phone and enabled by the

wireless service carrier to work. This

feature is only supported when the

vehicle is not moving.

To start a conference while in a

current call:

1. Turn and press the MENU/

SELECT knob and select Enter

Number.

2. Enter the phone number and

then select OK.

3. After the call has been placed,

turn the MENU/SELECT knob

and choose Merge Calls.

4. To add more callers to the

conference call, repeat Steps 1

−4. The number of callers that

can be added is limited by your

wireless service carrier.

Ending a Call

Using the Infotainment Controls

Turn and press the MENU/SELECT

knob and select Hang Up or press

Hang Up on the screen.

Using Steering Wheel Controls

Press $/i.

Muting a Call

During a call, all sounds from inside

the vehicle can be muted so that the

person on the other end of the call

cannot hear them.

Using the Infotainment Controls

Turn and press the MENU/SELECT

knob and select Mute Call. Press

again to cancel mute.

Dual Tone Multi-Frequency

(DTMF) Tones

The in-vehicle Bluetooth system can

send numbers during a call. This is

used when calling a menu-driven

phone system.

Using the Infotainment Controls

1. Turn and press the MENU/

SELECT knob and select Enter

Number.

Black plate (75,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 75

2. Enter the phone number or

select Enter Number on the

screen and select digits and

press OK.

Hands-Free Phone

Using Bluetooth Voice

Recognition

To use voice recognition, press the

b/gbutton on the steering wheel.

Use the commands below for the

various voice features. For

additional information, say “Help”

while in a voice recognition menu.

Making a Call

Calls can be made using the

following commands.

Dial or Call: These commands can

be used interchangeably to dial a

phone number.

Digit Dial: This command allows a

phone number to be dialed by

entering the digits one at a time.

Re-dial: This command dials the

last number used on the cell phone.

Using the “Dial”or “Call”

Command

To call a number:

1. Press b/g. The system

responds “Please Say a

Command,”followed by a tone.

2. Say “Dial”or “Call.”

3. Say the entire number without

pausing, followed by “Dial.”

Once connected, the person called

will be heard through the audio

speakers.

To call using a name tag:

1. Press b/g. The system

responds “Please Say a

Command,”followed by a tone.

2. Say “Dial”or “Call”and then say

the name tag. For example “Call

John at Work.”

Once connected, the person called

will be heard through the audio

speakers.

Using the “Digit Dial”Command

This allows a phone number to be

dialed by entering the digits one at

a time.

1. Press b/g. The system

responds “Please Say a

Command,”followed by a tone.

2. Say “Digit Dial.”

3. Say each digit, one at a time, to

dial. After each digit is entered,

the system repeats back the

digit it heard followed by a tone.

After the last digit has been

entered, say “Dial.”

If an unwanted number is repeated

back, say “Clear”to clear the last

number.

Once connected, the person called

will be heard through the audio

speakers.

Using the “Re-dial”Command

1. Press b/g. The system

responds “Please Say a

Command,”followed by a tone.

Black plate (76,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

76 Infotainment System

2. After the tone, say “Re-dial.”The

system dials the last number

called from the connected cell

phone.

Once connected, the person called

will be heard through the audio

speakers.

Clearing the System

Unless information is deleted out of

the vehicle Bluetooth system, it will

be retained. This includes phone

pairing information. For directions

on how to delete this information,

see “Deleting a Paired Phone/

Device.”

Trademarks and

License Agreements

Radio Frequency Statement

This device complies with part 15 of

the FCC Rules. Operation is subject

to the following two conditions: (1)

This device may not cause harmful

interference, and (2) this device

must accept any interference

received, including interference that

may cause undesired operation.

FCC Warning

Changes or modifications not

expressly approved by the party

responsible for compliance could

void the user's authority to operate

the equipment.

This Category II radio

communication device complies with

Industry Canada Standards

RSS-GEN/210/220/310.

Operation is subject to the following

two conditions: (1) this device may

not cause interference, and (2) this

device must accept any

interference, including interference

that may cause undesired operation

of the device.

Ce dispositif de radio

communication de catégorie II

respecte la norme CNR-310

d'Industrie Canada.

L'utilisation de ce dispositif est

autorisée seulement aux deux

conditions suivantes: (1) il ne doit

pas produire de brouillage, et (2)

l'utilisateur du dispositif doit être

prêt à accepter tout brouillage

radioélectrique reçu, même si ce

brouillage est susceptible de

compromettre le fonctionnement du

dispositif.

“Made for iPod”and “Made for

iPhone”mean that an electronic

accessory has been designed to

Black plate (77,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 77

connect specifically to iPod or

iPhone and has been certified by

the developer to meet Apple

performance standards.

iPod and iPhone are trademarks of

Apple Computer, Inc., registered in

the U.S. and other countries.

Fees and Taxes: Subscription fee,

taxes, one time activation fee, and

other fees may apply. Subscription

fee is consumer only. All fees and

programming subject to change.

Subscriptions subject to Customer

Agreement available at

www.siriusxm.com. SiriusXM®

service only available in the

48 contiguous United States and

Canada.

In Canada: Some deterioration of

service may occur in extreme

northern latitudes. This is beyond

the control of SiriusXM® Satellite

Radio.

Explicit Language Notice: Channels

with frequent explicit language are

indicated with an “XL”preceding the

channel name. Channel blocking is

available for SiriusXM Satellite

Radio receivers by notifying

SiriusXM:

.USA: 866-635-2349 or see

www.siriusxm.com.

.Canada: 877-209-0079 or see

www.xmradio.ca.

It is prohibited to copy, decompile,

disassemble, reverse engineer,

hack, manipulate, or otherwise

make available any technology or

software incorporated in receivers

compatible with the SiriusXM

Satellite Radio System or that

support the SiriusXM website, the

Online Service or any of its content.

Furthermore, the AMBER voice

compression software included in

this product is protected by

intellectual property rights including

patent rights, copyrights, and trade

secrets of Digital Voice

Systems, Inc.

General Requirements:

1. A License Agreement from

SiriusXM is required for any

product that incorporates

SiriusXM Technology and/or for

use of any of the SiriusXM

marks to be manufactured,

distributed, or marketed in the

SiriusXM Service Area.

2. For products to be distributed,

marketed, and/or sold in

Canada, a separate agreement

is required with Canadian

Satellite Radio Inc. (operating as

XM Canada).

FreeType 2

Portions of this software are

FreeType Project

(www.freetype.org). All rights

reserved.

Black plate (78,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

78 Infotainment System

Libjpeg

The navigation software is based in

part on the work of the independent

JPEG Group.

Map End User License

Agreement

END USER TERMS

The Map Data Disc (“Data”) is

provided for your personal, internal

use only and not for resale. It is

protected by copyright, and is

subject to the following terms (this

“End User License Agreement”) and

conditions which are agreed to by

you, on the one hand, and NAVTEQ

North America, LLC (“NT”) and its

licensors (including their licensors

and suppliers) on the other hand.

The Data for areas of Canada

includes information taken with

permission from Canadian

Canada Post Corporation,

GeoBase®.

NT holds a nonexclusive license

from the United States Postal

Service® to publish and sell ZIP+4®

information.

2011. Prices are not established,

controlled, or approved by the

United States Postal Service®. The

following trademarks and

registrations are owned by the

USPS: United States Postal

Service, USPS, and ZIP+4.

TERMS AND CONDITIONS

Personal Use Only: You agree to

use this Data for the solely

personal, noncommercial purposes

for which you were licensed, and

not for service bureau, timesharing

or other similar purposes. Except as

otherwise set forth herein, you

agree not to otherwise reproduce,

copy, modify, decompile,

disassemble or reverse engineer

any portion of this Data, and may

not transfer or distribute it in any

form, for any purpose, except to the

extent permitted by mandatory laws.

You may transfer the Data and all

accompanying materials on a

permanent basis if you retain no

copies and the recipient agrees to

the terms of this End User License

Agreement. Multi-disc sets may only

be transferred or sold as a complete

set as provided to you and not as a

subset thereof.

Restrictions

Except where you have been

specifically licensed to do so by NT

and without limiting the preceding

paragraph, you may not (a) use this

Data with any products, systems,

or applications installed or otherwise

connected to or in communication

with vehicles capable of vehicle

navigation, positioning, dispatch,

real time route guidance, fleet

management or similar applications;

or (b) with, or in communication

with, including without limitation,

cellular phones, palmtop and

handheld computers, pagers, and

personal digital assistants or PDAs.

Black plate (79,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 79

Warning

This Data may contain inaccurate or

incomplete information due to the

passage of time, changing

circumstances, sources used, and

the nature of collecting

comprehensive geographic data,

any of which may lead to incorrect

results.

No Warranty

This Data is provided to you “as is,”

and you agree to use it at your own

risk. NT and its licensors (and their

licensors and suppliers) make no

guarantees, representations,

or warranties of any kind, express or

implied, arising by law or otherwise,

including but not limited to, content,

quality, accuracy, completeness,

effectiveness, reliability, fitness for a

particular purpose, usefulness, use

or results to be obtained from this

Data, or that the Data or server will

be uninterrupted or error free.

Disclaimer of Warranty

THE DATABASE IS PROVIDED ON

AN “AS IS”AND “WITH ALL

FAULTS BASIS”AND BOSCH

(AND THEIR LICENSORS AND

SUPPLIERS) EXPRESSLY

DISCLAIM ALL OTHER

WARRANTIES, EXPRESS OR

IMPLIED, INCLUDING BUT NOT

LIMITED TO, THE IMPLIED

WARRANTIES OF

NON-INFRINGEMENT,

MERCHANTABILITY,

SATISFACTORY QUALITY,

ACCURACY, TITLE AND FITNESS

FOR A PARTICULAR PURPOSE.

NO ORAL OR WRITTEN ADVICE

OR INFORMATION PROVIDED BY

BOSCH (OR ANY OF THEIR

LICENSORS, AGENTS,

EMPLOYEES, OR THIRD PARTY

PROVIDERS) SHALL CREATE A

WARRANTY, AND YOU ARE NOT

ENTITLED TO RELY ON ANY

SUCH ADVICE OR INFORMATION.

THIS DISCLAIMER OF

WARRANTIES IS AN ESSENTIAL

CONDITION OF THIS

AGREEMENT.

Disclaimer of Liability

NT AND ITS LICENSORS

(INCLUDING THEIR LICENSORS

AND SUPPLIERS) SHALL NOT BE

LIABLE TO YOU IN RESPECT OF

ANY CLAIM, DEMAND OR

ACTION, IRRESPECTIVE OF THE

NATURE OF THE CAUSE OF THE

CLAIM, DEMAND OR ACTION

ALLEGING ANY LOSS, INJURY

OR DAMAGES, DIRECT OR

INDIRECT, WHICH MAY RESULT

FROM THE USE OR POSSESSION

OF THIS DATA; OR FOR ANY

LOSS OF PROFIT, REVENUE,

CONTRACTS OR SAVINGS, OR

ANY OTHER DIRECT, INDIRECT,

INCIDENTAL, SPECIAL OR

CONSEQUENTIAL DAMAGES

ARISING OUT OF YOUR USE OF

OR INABILITY TO USE THIS DATA,

ANY DEFECT IN THIS DATA, OR

THE BREACH OF THESE TERMS

OR CONDITIONS, WHETHER IN

AN ACTION IN CONTRACT OR

Black plate (80,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

80 Infotainment System

TORT OR BASED ON A

WARRANTY, EVEN IF NT OR ITS

LICENSORS HAVE BEEN

ADVISED OF THE POSSIBILITY

OF SUCH DAMAGES. Some

States, Territories, and Countries do

not allow certain liability exclusions

or damages limitations, so to that

extent the above may not apply

to you.

Export Control

You agree not to export from

anywhere any part of the Data

provided to you or any direct

product thereof except in

compliance with, and with all

licenses and approvals required

under, applicable export laws, rules

and regulations. Entire Agreement:

These terms and conditions

constitute the entire agreement

between NT (and its licensors,

including their licensors and

suppliers) and you pertaining to the

subject matter hereof, and

supersedes in their entirety any and

all written or oral agreements

previously existing between us with

respect to such subject matter.

Governing Law

The above terms and conditions

shall be governed by the laws of the

State of Illinois, without giving effect

to (i) its conflict of laws provisions,

or (ii) the United Nations Convention

for Contracts for the International

Sale of Goods, which is explicitly

excluded. You agree to submit to

the jurisdiction of the State of Illinois

for any and all disputes, claims, and

actions arising from or in connection

with the Data provided to you

hereunder.

Government End Users

If the Data is being acquired by or

on behalf of the United States

government or any other entity

seeking or applying rights similar to

those customarily claimed by the

United States government, this Data

is a “commercial item”as that term

is defined at 48 C.F.R. (“FAR”)

2.101, is licensed in accordance

with this End User License

Agreement, and each copy of Data

delivered or otherwise furnished

shall be marked and embedded as

appropriate with the following

“Notice of Use,”and be treated in

accordance with such Notice:

NOTICE OF USE

CONTRACTOR (MANUFACTURER/

SUPPLIER)

Black plate (81,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

Infotainment System 81

NAME:

NAVTEQ

CONTRACTOR (MANUFACTURER/

SUPPLIER)

ADDRESS:

425 West Randolph Street,

Chicago, IL 60606.

This Data is a commercial item as

defined in FAR 2.101 and is subject

to the End User License Agreement

under which this Data was provided.

reserved.

If the Contracting Officer, federal

government agency, or any federal

official refuses to use the legend

provided herein, the Contracting

Officer, federal government agency,

or any federal official must notify

NAVTEQ prior to seeking additional

or alternative rights in the Data.

END USER NOTICE

The marks of companies displayed

by this product to indicate business

locations are the marks of their

respective owners. The use of such

marks in this product does not imply

any sponsorship, approval,

or endorsement by such companies

of this product.

Black plate (82,1)

Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/

19/12

82 Infotainment System

2NOTES

Black plate (1,1)
Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/
19/12
INDEX i-1
A
Accepting or Declining a Call . . . . 73
Adding or Removing XM
Categories . . . . . . . . . . . . . . . . . . . . . 14
AM-FM Radio . . . . . . . . . . . . . . . . . . . . 10
Audio
Bluetooth . . . . . . . . . . . . . . . . . . . . . . .34
Audio System . . . . . . . . . . . . . . . . . . . . 70
Auxiliary
Devices . . . . . . . . . . . . . . . . . . . . . . . . .34
B
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . 69
Bluetooth Audio . . . . . . . . . . . . . . . . . 34
Bluetooth Controls . . . . . . . . . . . . . . . 69
C
Call Waiting Using Steering
Wheel Controls . . . . . . . . . . . . . . . . . 74
Call Waiting Using the
Infotainment Controls . . . . . . . . . . 73
Canceling Voice Recognition . . . . 64
Clearing the System . . . . . . . . . . . . . 76
Conference Calling Using the
Infotainment Controls . . . . . . . . . . 74
Configure Menu . . . . . . . . . . . . . . . . . 52
Control
Multifunction . . . . . . . . . . . . . . . . . . . . . 7
Customization
Home Page . . . . . . . . . . . . . . . . . . . . .68
D
Database Coverage
Explanations . . . . . . . . . . . . . . . . . . . 64
Destination Download,
OnStar
®
. . . . . . . . . . . . . . . . . . . . . . . . 50
Destination Menu with Route
Guidance Active . . . . . . . . . . . . . . . 48
Destination, Navigation . . . . . . . . . . 42
Detailed Areas . . . . . . . . . . . . . . . . . . . 39
Devices
Auxiliary . . . . . . . . . . . . . . . . . . . . . . . .34
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Display Settings . . . . . . . . . . . . . . . . . 58
Driving on a Route . . . . . . . . . . . . . . . 41
Dual Tone Multi-Frequency
(DTMF) Tones . . . . . . . . . . . . . . . . . . 74
E
Ending a Call . . . . . . . . . . . . . . . . . . . . 74
F
Finding a Station . . . . . . . . . . . . . . . . 11
G
Global Positioning
System (GPS) . . . . . . . . . . . . . . . . . . 61
Gracenote® . . . . . . . . . . . . . . . . . . . . . 29
H
Hands-Free Phone . . . . . . . . . . . . . . 75
Helpful Hints for Speaking
Commands . . . . . . . . . . . . . . . . . . . . . 64
Home Page . . . . . . . . . . . . . . . . . . . . . . . 8
Home Page Customization . . . . . . 68
Home Page Features . . . . . . . . . . . . . 8
I
Infotainment . . . . . . . . . . . . . . . . . . . . . . 3
Infotainment Control Buttons . . . . . . 6
Infotainment System Overview . . . 4
Infotainment System Settings . . . . 11

Black plate (2,1)
Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/
19/12
i-2 INDEX
L
Languages . . . . . . . . . . . . . . . . . . . . . . 52
Launching Pandora . . . . . . . . . . . . . . 20
Launching Stitcher . . . . . . . . . . . . . . . 24
M
Making a Call . . . . . . . . . . . . . . . . . . . . 75
Making a Call Using Phone
Book and Infotainment
Controls . . . . . . . . . . . . . . . . . . . . . . . . 72
Making a Call Using the
Infotainment Controls . . . . . . . . . . 73
Map Adjustments . . . . . . . . . . . . . . . . 38
Map Data Updates . . . . . . . . . . . . . . . 63
Map End User License
Agreement . . . . . . . . . . . . . . . . . . . . . 78
Map Scales . . . . . . . . . . . . . . . . . . . . . . 38
Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Menu
Configure . . . . . . . . . . . . . . . . . . . . . . . 52
Mixed-Band Presets . . . . . . . . . . . . . 13
Multifunction Control . . . . . . . . . . . . . . 7
Muting a Call . . . . . . . . . . . . . . . . . . . . 74
My Media Commands . . . . . . . . . . . 66
N
Navigation
Destination . . . . . . . . . . . . . . . . . . . . .42
Symbols . . . . . . . . . . . . . . . . . . . . . . . . 40
Using the System . . . . . . . . . . . . . . . 35
Navigation Settings . . . . . . . . . . . . . . 53
Navigation Settings Button . . . . . . 54
O
OnStar (If Equipped)
Command . . . . . . . . . . . . . . . . . . . . . . 67
OnStar
®
Destination
Download . . . . . . . . . . . . . . . . . . . . . . 50
Other Commands . . . . . . . . . . . . . . . . 67
Overview . . . . . . . . . . . . . . . . . . . . . . . . 69
Overview, Infotainment System . . . 3
P
Pairing with Infotainment
Controls . . . . . . . . . . . . . . . . . . . . . . . . 70
Pairing with Voice Recognition . . . 71
Pandora Troubleshooting . . . . . . . . 23
Phone
Bluetooth . . . . . . . . . . . . . . . . . . . . . . .69
Hands-Free . . . . . . . . . . . . . . . . . . . . . 75
Phone Commands . . . . . . . . . . . . . . . 66
Phone Settings . . . . . . . . . . . . . . . . . . 53
Photo Viewer . . . . . . . . . . . . . . . . . . . . 60
Playing from a USB . . . . . . . . . . . . . . 28
Playing from an iPhone
or iPad . . . . . . . . . . . . . . . . . . . . . . . . . 33
Playing from an iPod® . . . . . . . . . . . 32
Playing the Radio . . . . . . . . . . . . . . . . 10
Problems with Route
Guidance . . . . . . . . . . . . . . . . . . . . . . 63
R
Radio Commands . . . . . . . . . . . . . . . 66
Radio Settings . . . . . . . . . . . . . . . . . . . 53
Radios
AM-FM Radio . . . . . . . . . . . . . . . . . . .10
Satellite . . . . . . . . . . . . . . . . . . . . . . . . .14
S
Satellite Radio . . . . . . . . . . . . . . . . . . . 14
Scroll Features . . . . . . . . . . . . . . . . . . 39
Settings Commands . . . . . . . . . . . . . 66
SiriusXM Categories . . . . . . . . . . . . . 14
SiriusXM Messages . . . . . . . . . . . . . 15
SiriusXM NavTraffic® (If
Equipped) . . . . . . . . . . . . . . . . . . . . . . 15

Black plate (3,1)
Chevrolet Camaro Infotainment System - 2013 - DRAFT_PDF_COMPARE - 3/
19/12
INDEX i-3
SiriusXM Travel Link (If
Available) . . . . . . . . . . . . . . . . . . . . . . 18
SiriusXM® Satellite Radio
Service . . . . . . . . . . . . . . . . . . . . . . . . . 14
SiriusXM® Weather (If
Equipped) . . . . . . . . . . . . . . . . . . . . . . 17
Software Updates . . . . . . . . . . . . . . . . 9
Stitcher Troubleshooting . . . . . . . . . 26
Storing Radio Station Presets . . . 13
Symbols, Navigation . . . . . . . . . . . . . 40
System
Infotainment . . . . . . . . . . . . . . . . . . . . . 3
System Needs Service, If . . . . . . . . 63
T
Time and Date Settings . . . . . . . . . . 52
Touch Screen Buttons . . . . . . . . . . . . 7
U
Updates
Map Data . . . . . . . . . . . . . . . . . . . . . . .63
Software . . . . . . . . . . . . . . . . . . . . . . . . . 9
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
USB Media Formats . . . . . . . . . . . . . 29
Using Bluetooth Voice
Recognition . . . . . . . . . . . . . . . . . . . . 75
Using Destination Download . . . . . 51
Using Voice Recognition . . . . . . . . . 64
V
Vehicle
Positioning . . . . . . . . . . . . . . . . . . . . . 62
Vehicle Settings . . . . . . . . . . . . . . . . . 57
Voice Recognition . . . . . . . . . . . 64, 69
Voice Recognition Commands . . . 65
Voice Recognition Help . . . . . . . . . . 65
W
Website Information . . . . . . . . . . . . . 10
X
XM NavTraffic™(If Equipped) . . . 58
XM Weather (If Equipped) . . . . . . . 59

Panasonic of North America GA-130-COLR Car Head Unit User Manual 01 Infotainment System en US 1 82

Panasonic Corporation of North America Car Head Unit 01 Infotainment System en US 1 82

Contents

Sample User manual

Navigation menu

Namespaces

Views

Navigation
