User manual
Operating Instructions
PRINTER
Model No. JT-H300PR-U1
Contents
Precautions................................................ 3
Name of each part & function.................... 6
Battery Installation ..................................... 7
Paper Installation....................................... 7
AC cable Set Up ........................................ 8
Charging Battery........................................ 9
Troubleshooting ....................................... 10
How to care ............................................. 11
How to attach the Option parts................ 11
Specifications........................................... 12
Warranty Policy........................................ 13
Compliance Notice .................................. 13
Before operating this product, please read these instructions carefully and save this document
for future use.
Read Me First .............................................. 2
1. Getting Started ........................................ 3
2. Operation................................................. 7
3. Appendix................................................ 10
2
Read Me First
Introduction
Thank you for purchasing the JT-H300PR series Panasonic Printer.
This manual describes the instructions for the printer.
Please read this manual carefully before using this product.
What’s in the Box?
Printer (Battery is not included.)
Safety Precautions
Options
1. AC Adaptor : JT-H300AD-P1
2. Belt Hook : JT-H300BH-P1
3. Wearable Case : JT-H300CA-P1
4. USB Cable : JT-H300CC-P1
Other Equipment
1. Thermal Paper (Please ask our sales rep about the recommended Paper.)
3
1. Getting Started
Precautions
[Printer: JT-H300PR-U1]
1. Avoid Radio Frequency Interference
Do not place the printer near a television or radio receiver.
2. Avoid Stacking
Do not place heavy objects on the printer.
3. Keep Small Objects Away
Do not insert paper clips or other small objects into the printer.
Failure to observe this may cause fire or electric shock.
4. Keep Dry
Failure to observe this may cause fire or electric shock.
5. Do Not Disassemble the Printer
Do not attempt to disassemble the printer. Failure to observe this may cause fire or electric
shock.
6. Do Not Touch
Keep your hands away from the paper cutter and the thermal head.
Failure to observe this may cause injury.
7. Do Not Use With Any Other Battery
The printer is designed for the specified JT-H100DP-50 battery.
Using unspecified battery may cause smoke or fire.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions and/or local requirements.
8. Use only the specified AC adaptor and AC cord
Using unspecified AC adaptor or AC cord may cause smoke or fire.
9. Do Not Use In Aircrafts or Hospitals
This printer includes “Bluetooth” wireless communication.
Turn off the power switch in aircrafts or hospitals. Abnormal use may occur if used in close
proximity to electric instruments or electro-medical apparatus.
10. Do Not hold this product for too long when the power on
Failure to observe this may cause a serious low-temperature burn.
<NOTE>
Do not open the cover while the printer is operating.
Keep the thermal paper away from the direct exposure to light, high temperature, dust and
humidity.
4
Precautions
[Battery Pack: JT-H100DP-50] 〔For Sales rep or service bench〕
1. Avoid Heat
Do not throw the battery pack into a fire or expose it to excessive heat.
Failure to observe this may cause fire or explosion.
2. Keep Articles Away
Do not place the battery pack together with articles such as necklaces or hairpins when
carrying or storing. Failure to observe this may cause heat, fire or explosion.
3. Keep Dry
Failure to observe this may cause heat, fire or explosion.
4. Do Not Disassemble
Do not insert sharp object into the battery pack. Do not deform, disassemble, or modify the
printer. Failure to observe this may cause heat, fire or explosion.
5. Do Not Short
Do not short the positive (+) and negative (-) contact. Failure to observe this may cause
heat, fire or explosion.
6. Avoid Extreme Heat, Cold, and Direct Sunlight
Do not charges, use or leave the battery pack for extended periods where it will be exposed
to direct sunlight or in a hot, or cold environment.
7. Do Not Put Into a Microwave Oven
Do not put the battery pack into a microwave oven or pressurized chamber.
Failure to observe this may cause explosion.
8. Do Not Use With Any Other Device
The battery pack is designed for the specified JT-H300PR-E1 printer and JT-H100CG-55
charger. Do not use the battery with any other device.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions and/or local requirements.
9. Stop Using
Should the battery emit an abnormal odor, become hot to the touch, become discolored,
change shape, or become in any way different, remove it from the printer and stop using it.
<NOTE>
Please charge the battery pack for at least 100minutes before first use.
Please ask our sales rep about the dispose method of the battery.
If the battery pack is not going to be used for a long period, please charge or discharge it until
the remaining battery capacity becomes 30% to 40% and store it in a cool, dry place.
5
Precautions
[AC Adaptor: JT-H300AD-P1]
1. Do Not Disassemble
Do not attempt to disassemble the charger.
Failure to observe this may cause electric shock or fire.
2. Keep Dry
Failure to observe this may cause heat or fire.
3. Do Not Use With Any Other Device
The AC Adaptor is designed for the specified JT-H300PR printer. Do not use the AC adaptor
with any other device.
4. Do Not Exceed the Ratings of AC Outlet and Wirings, and Connect the AC Adaptor
Only within 100-240 V AC.
Exceeding the ratings may result in overheating or fire.
5. Do Not Touch the Plug with Wet Hands
Failure to observe this may cause electric shock.
6. Be Certain to Plug Fully Into the Outlet
Failure to observe this may cause electric shock or fire.
7. When Unplugging, Make Sure to Hold the Body of the Plug
Using damaged power strip may cause electric shock, short circuit or fire.
8. Do Not Use a Damaged Power-code or Plug
Failure to observe this may cause electric shock or fire.
9. Clean the Dust off the Plug, Periodically
Failure to observe this may cause electric shock or fire.
10. Do Not hold this product for too long when the power on
Failure to observe this may cause a serious low-temperature burn.
11. Do not use this product outdoors.
Failure to observe this may cause electric shock or fire.
6

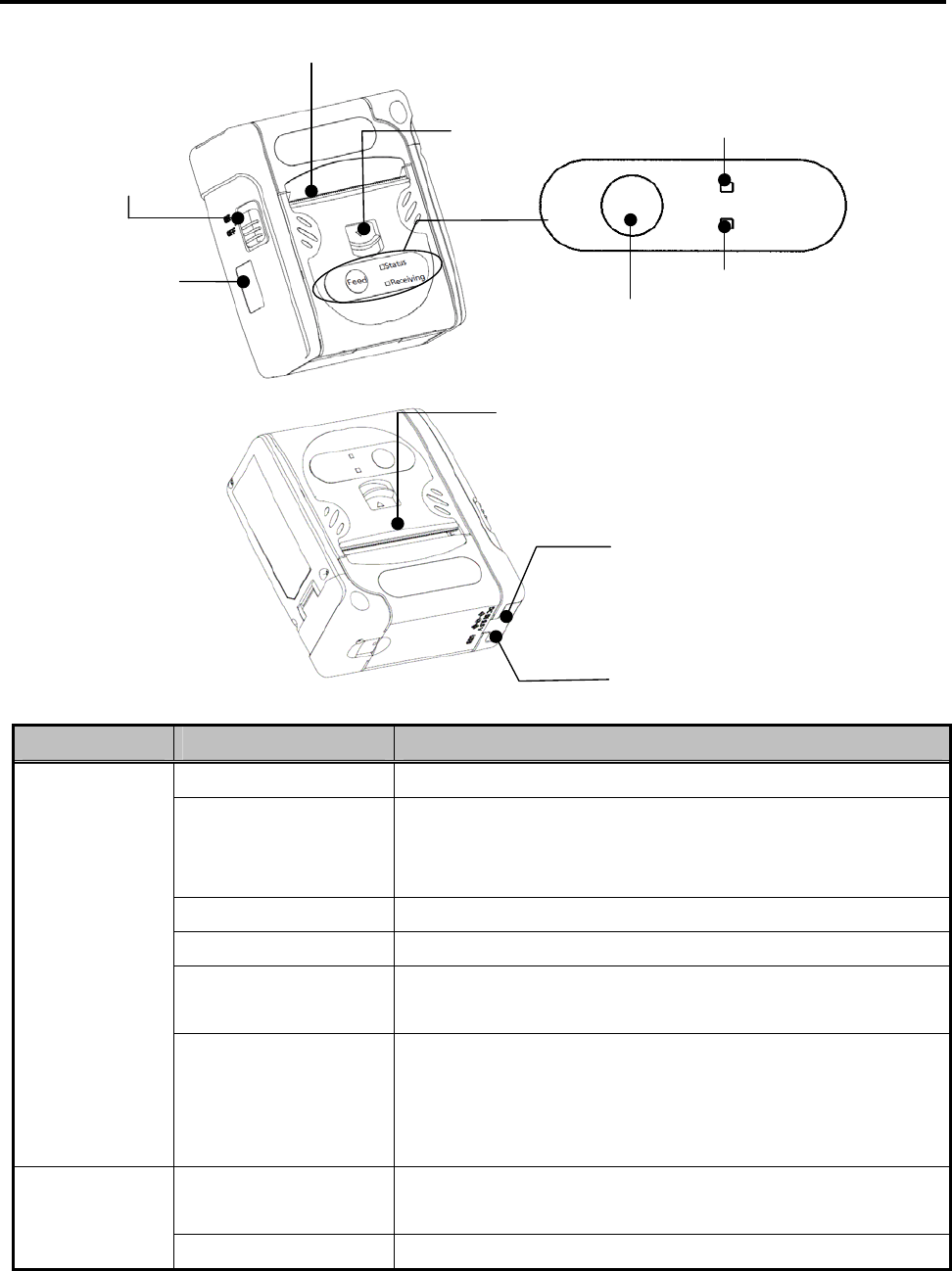

Name of each part & function
LED Indicate Status
Off Normal status.
Green Light
1. Power-on (5 seconds lightning),
2. Power-off (0.5 second lightning)
3. Battery Full Charge(at AC Adaptor connection)
Orange Light Detect battery capacity low; printable.
Orenge Blink The paper is empty
Red Light 1. Detect Low voltage; not printable.
2. Battry Charging(at AC Adaptor connection)
Status
LED
Red Blink
1. The cover of paper is open.
2. Others, the printer is out of order.
3. Battry Charging Error or Preliminary charging
(1.3 second lightning/at AC Adaptor connection)
Green Light 1. Printing
2. Power-off(0.5 sevond lighting)
Receiving
LED Green Blink In communications.
Paper Cover
Receiving LED
Status LED
Feed
(Press button to feed paper)
Feed
Status
Receiving
Power
Switch
Paper Out
IrDA I/F
DC IN 9.5 V Jack
USB Port
Paper Cover
Lever
7
2. Operation

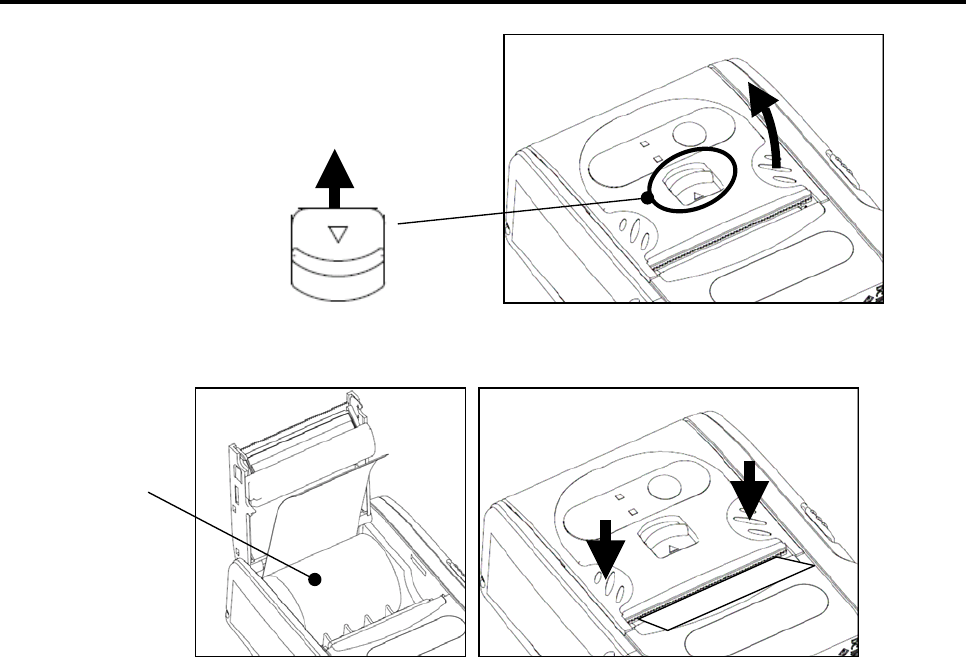

Paper Installation
1) Slide the Paper Cover Lever
2) Open the Paper Cover
3) Install Paper (Paper must be tightly rolled and be confirmed that dust/sand is not on.)
4) Close the Paper Cover (Make sure that the Cover is closed completely.)
1)
2)
3) Pape
r
4)
4)
8

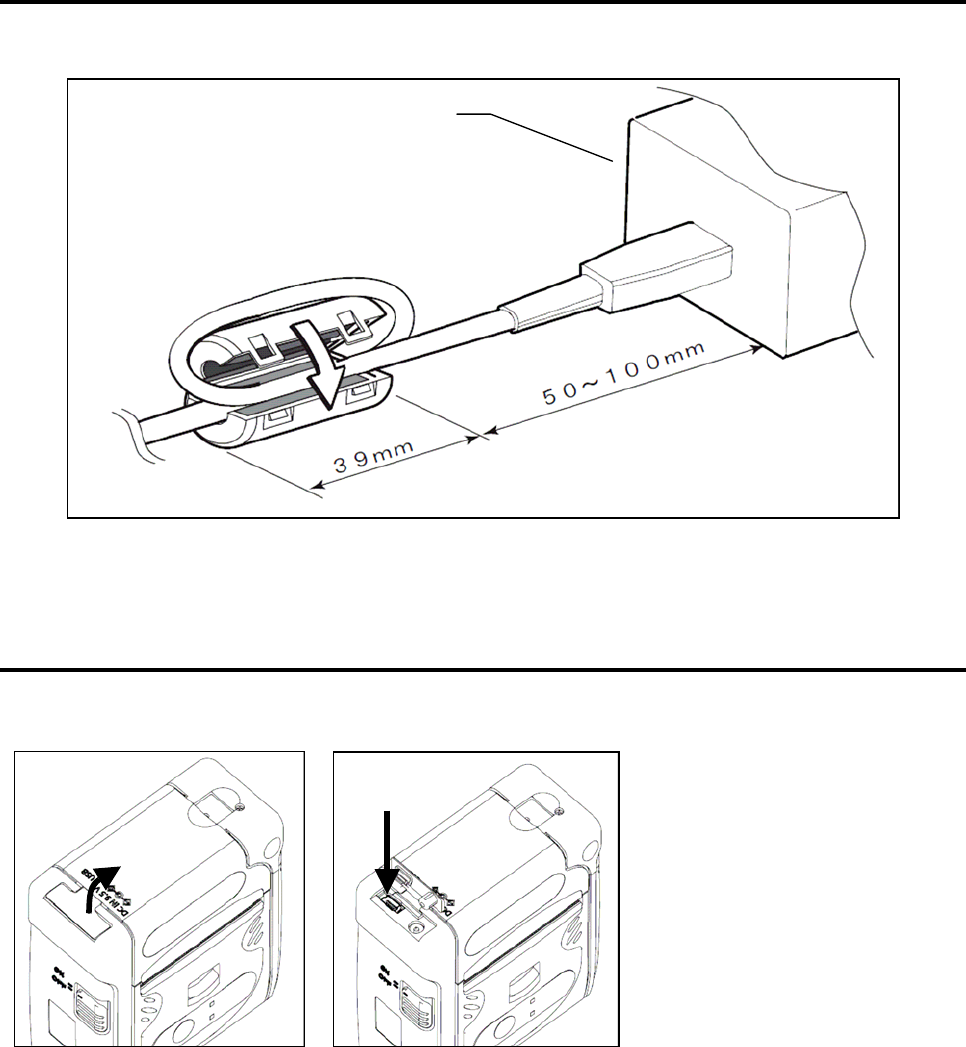

AC cable Set Up
Please attach the core to the AC cable, before using the AC adaptor.
The core is included in the AC adaptor (JT-H300AD-P1).
How to connect USB cable
1) Pull the Connector Cover.
2) Connect the plug of USB cable (JT-H300CC-P1), to the USB connector of the printer.
<Note>
The USB cable must use the special one (JT-H300CC-P1).
1)
2)
AC Adapto
r
9

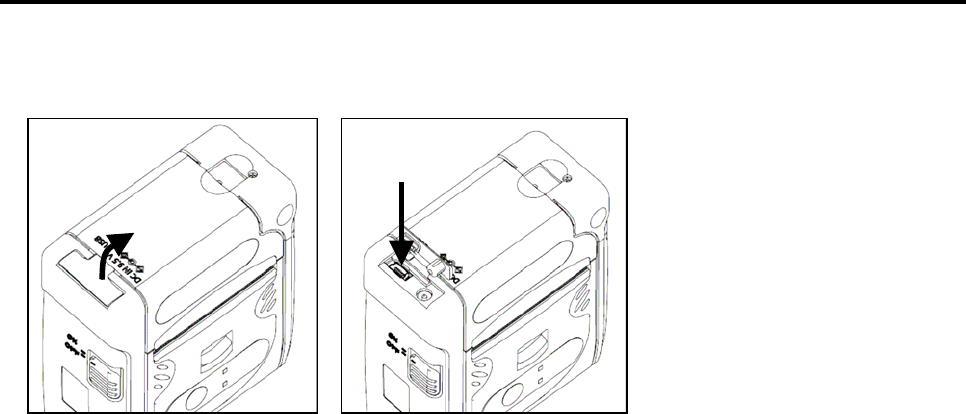

Charging Battery
[By AC Adaptor]
1) Pull the Connector Cover.
2) Connect the plug of AC adaptor, to the DC jack of the printer.
<Note>
Don’t open the battery cover.
1)
2)
10
3. Appendix
Troubleshooting
Symptom Possible Cause Solution
No Power in
Printer
1. Has the battery fully inserted?
2. Is the Power Switch on?
1. Charge the battery pack.
2. Move the Power Switch on.
Nothing is printed
1. Is the power turned on?
2. Is the paper set correctly?
3. Are the LED signals lighting
red?
4. Is the LED blinking red?
5. Are you using Bluetooth?
6. Are you using IrDA?
1. Turn on power.
2. Check the print paper setting.
3. Charge the battery.
4. Make sure that the paper is
setting properly, or close the
paper cover completely.
5. Reduce the distance of the
device and the printer.
6. Adjust the angle of IrDA,or clean
up the window, or avoid direct
sunlight.
The print is faint
1. Isn’t the thermal head dirty?
2. Are you using the
recommended paper?
1. Clean it up.
2. Check the paper.
The orange or red
LED is lighting
even after
charging battery.
The life cycle of the battery pack
may have expired.
Replace the battery pack with a new
one.
11

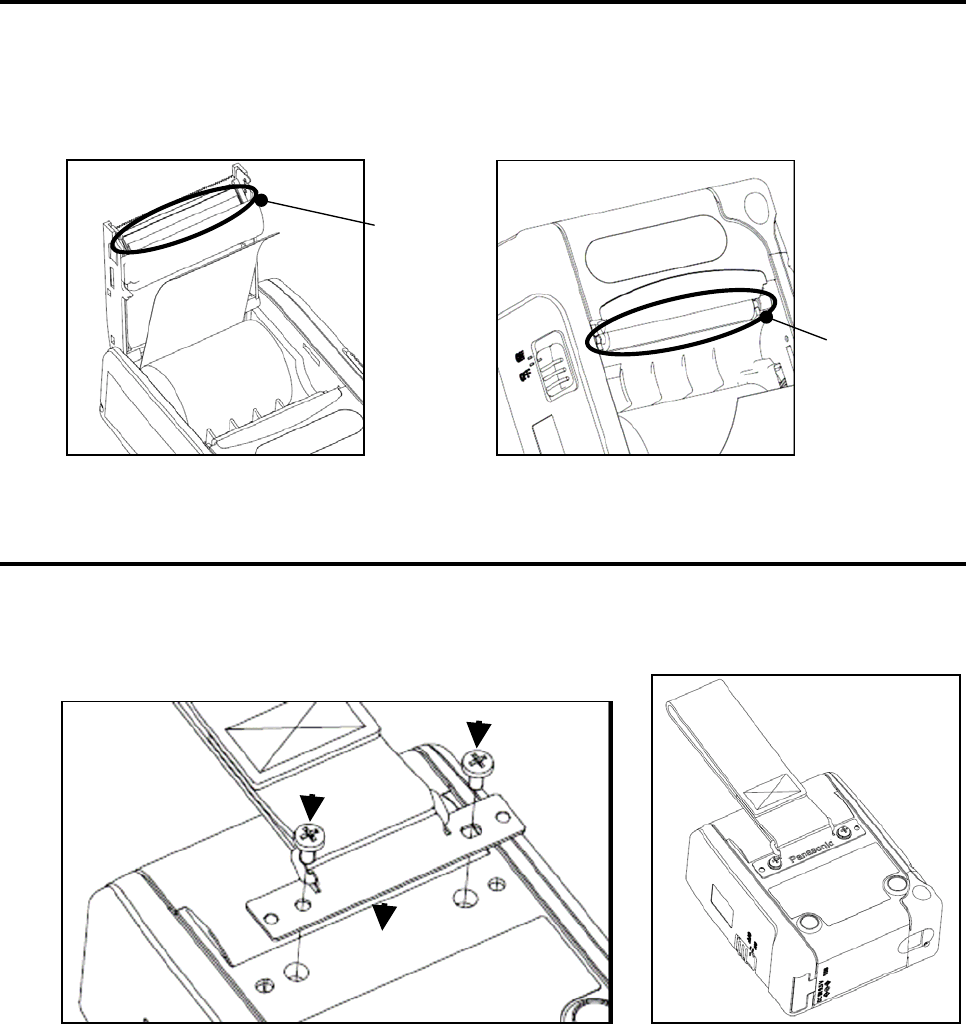

How to care
<How to clean up the thermal head and the rubber roller. >
Push the paper cover lever to open the paper cover.
Wipe off any dust/dirt using the cotton swab with a small amount of alcohol (ethanol).
(Do not use thinner, benzene series or kerosene series.)
Close the cover after alcohol volatilizes.
How to attach the Option parts
<How to attach the Belt hook. >
1) Please put the belt hook on the back of the printer confirming the attaching direction.
2) Please attach the belt hook to the printer with two screws of the attachment so as not to
loosen.
<NOTE>
Do not pull the belt hook strongly.
Failure to observe this may cause breaking and dropping the printer.
Do not use any other screws except the specified screws of the attachment.
Thermal
head
Rubber roller
1)
2)
2)
12
Specifications
[ Printer:JT-H300PR-U1 ]
Items Description Specifications
Printing Line Thermal Mechanical
Printing Speed Max. 106 mm/Sec (Panasonic Test Standard)
Printing Width 48 mm (384 dots/ line) Head
Character font 12 x 24 dots (standard)
Printing
Function
Font Type Alpha-numeric, Barcode, 2D code
1 X 10８
pulse or more Life Time Head
25 Km or more (Recommended paper）
Paper width 58 mm +0 – 1 mm Paper
Roll direction Outside (outside surface; thermal)
Bluetooth Bluetooth V2.0+EDR (Class 2) 2.4 GHz*2
IrDA IrDA V1.2 (Proprietary)
Communication
*1
USB USB V2.0(Proprietary) Full Speed 12Mbps
Power supply Battery Battery Pack:JT-H100DP-50
Size Approx.W 88 mm x L 102 mm x D 43 mm Size & Mass
Mass Approx. 280 g (without paper)
Environment Operation
temperature
0 to 40 degree centigrade (without paper)
*1 : Connectivity of this printer with some equipment (PC, Handheld Computer) made by
Panasonic has confirmed.
This printer may not connect the other equipments.
Some PC or Handheld computer are confirmed the communication with this printer via
I/F(Bluetooth, IrDA,USB) works correctly.
*2 : Bluetooth is a registered trademark if the Bluetooth SIG,Inc.
[AC Adaptor: JT-H300AD-P1 *3]
Items Description Specifications
Input 100 V – 240 V AC 50/60 Hz
Power
Output 9.5 V DC 1 A
*3 : AC cable is not attached.
13
Warranty Policy
The warranty period and what is covered are according to the application, contract or distributor.
Please ask our sales rep.
<NOTE>
The out of term warranty is as follows:
- Any secondary damages as for the loose of Printing paper, data or business chances.
- Any damages by user including dropping, water contact or any other wrong use, other than the
purpose designed for.
14
For USA
Federal Communications Commission Notices
This product complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Harmful Interference Notice
This product has been tested and complies with the specifications for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used according to the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which is found by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment or devices
• Connect the equipment to an outlet other than the receiver's
• Consult a dealer or an experienced radio/TV technician for assistance
Changes or modifications to this equipment that have not been approved by Ruckus Wireless
may void the user's authority to operate this equipment.
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment.
FCC WARNING
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This transmitter must not be co-located or operated in conjunction
with any other antenna or transmitter.
To order the AC Adaptor and/or other options please ask our sales
A
lithium ion/polymer battery that is recyclable powers the product you have
purchased.
Please call 1-800-8-BATTERY for information on how to recycle this battery.
15
For CANADA
Industry Canada Statement
This device complies with Industry Canada ICES-003 and RSS210 rules. Operation is subject to
the following two conditions:
1. This device may not cause interference and
2. This device must accept any interference, including interference that may cause undesired
operation of the device.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment
has very low levels of RF energy that are deemed to comply without testing of specific absorption
ratio (SAR).
Règlement d’Industrie Canada
Cet appareil est conforme aux normes NMB003 et RSS210 d'Industrie Canada.
Le fonctionnement est soumis aux conditions suivantes :
1. Ce périphérique ne doit pas causer d'interférences;
2. Ce périphérique doit accepter toutes les interférences reçues, y compris celles qui risquent
d'entraîner un fonctionnement indésirable.
Cet équipement est conforme aux limitations concernant l'exposition aux radiations dans un
environnement non contrôlé ainsi qu’aux directives de la norme CNR-102 sur l’exposition aux
radiofréquences (RF) établies par IC.
Cet équipement a de très faibles niveaux d'énergie RF lesquels sont considérés comme
conformes sans test du taux d'absorption spécifique (DAS).
A
lithium ion/polymer battery that is recyclable powers the product you have
purchased. Please call 1-800-8-BATTERY for information on how to recycle this
battery.
L’appareil que vous vous êtes procuré est alimenté par une batterie au
lithium-ion/lithium-polymère. Pour des renseignements sur le recyclage de la
batterie, veuillez composer le 1-800-8-BATTERY.
16
Panasonic Solutions Company
Unit of Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
The operation instructions can be downloaded from following URL.
http://www.panasonic.net/pss/ht/jt-h300pr.html
Specifications and manuals are subject to change without notice.
Panasonic System Networks Co., Ltd.
Web Site: http://panasonic.net/
© Panasonic System Networks Co., Ltd. 2010 3TR006673AAA
P0106-0
