Users manual
Please read these Operating
Instructions before using the unit
and save for future reference.
2.4GHz Cordless Phone with Fax
Operating Instructions
Model No. KX-FPG175
2
For your future reference
Date of purchase Serial number
(found on the rear of the unit)
Dealer’s name and address
Dealer’s telephone number
Caution:
●The Telephone Protection Act of 1991 requires the following information to be clearly stated
either at the top or bottom margin of the first message page when transmitting messages via
telephone facsimile:
— date and time of transmission,
— identification of the business, entity or person(s) sending the facsimile, and
— telephone number of the business, entity or person(s).
To program this information into your unit, complete all the instructions on pages 7 to 9.
●Note that the images of copied or received documents will remain on the used ink film. Use
discretion when disposing of the used ink film.
●Do not rub or use an eraser on the printed side of recording paper, as the print may smear.
3
Important safety instructions!
When using this unit, basic safety precautions
should always be followed to reduce the risk of
fire, electric shock, or personal injury.
1. Read and understand all instructions.
2. Follow all warnings and instructions marked
on this unit.
3. Unplug this unit from power outlets before
cleaning. Do not use liquid or aerosol
cleaners. Use a damp cloth for cleaning.
4. Do not use this unit near water, for example
near a bath tub, wash bowl, kitchen sink, or
the like.
5. Place the unit securely on a stable surface.
Serious damage and/or injury may result if
the unit falls.
6. Do not cover slots and openings on the
unit. They are provided for ventilation and
protection against overheating. Never place
the unit near radiators, or in a place where
proper ventilation is not provided.
7. Use only the power source marked on the
unit. If you are not sure of the type of power
supplied to your home, consult your dealer
or local power company.
8. For safety purposes this unit is equipped
with a three prong grounded plug. If you do
not have this type of outlet, please have
one installed. Do not use any type of
adaptor plug to defeat this safety feature.
9. Do not place objects on the power cord.
Install the unit where no one can step or trip
on the cord.
10. Do not overload wall outlets and extension
cords. This can result in the risk of fire or
electric shock.
11. Never push any objects through slots in this
unit. This may result in the risk of fire or
electric shock. Never spill any liquid on the
unit.
12. To reduce the risk of electric shock, do not
disassemble this unit. Take the unit to an
authorized service center when service is
required. Opening or removing covers may
expose you to dangerous voltages or other
risks. Incorrect reassembly can cause
electric shock when the unit is subsequently
used.
13. Unplug this unit from the wall outlet and
refer servicing to an authorized service
center when the following conditions occur:
A. When the power supply cord or plug is
damaged or frayed.
B. If liquid has been spilled into the unit.
C. If the unit has been exposed to rain or
water.
D. If the unit does not work normally by
following the operating instructions.
Adjust only controls covered by the
operating instructions. Improper
adjustment may require extensive work
by an authorized service center.
E. If the unit has been dropped or
physically damaged.
F. If the unit exhibits a distinct change in
performance.
14. During thunderstorms, avoid using
telephones except cordless types. There
may be a remote risk of an electric shock
from lightning.
15. Do not use this unit to report a gas leak,
when in the vicinity of the leak.
SAVE THESE INSTRUCTIONS
4
CAUTION:
To reduce the risk of fire or injury to persons,
read and follow these instructions.
1. Use only the battery(ies) specified.
2. Do not dispose of the battery(ies) in a fire.
They may explode. Check with local waste
management codes for special disposal
instructions.
3. Do not open or mutilate the battery(ies).
Released electrolyte is corrosive and may
cause burns or injury to the eyes or skin.
The electrolyte may be toxic if swallowed.
4. Exercise care in handling batteries in order
not to short the battery to conductive
materials such as rings, bracelets, and keys.
The battery and/or conductor may overheat
and cause burns.
5. Charge the battery(ies) provided with or
identified for use with this product only in
accordance with the instructions and
limitations specified in this manual.
INSTALLATION:
●
Never install telephone wiring during a
lightning storm.
●
Never install telephone jacks in wet locations
unless the jack is specifically designed for wet
locations.
●
Never touch uninsulated telephone wires or
terminals unless the telephone line has been
disconnected at the network interface.
●
Use caution when installing or modifying
telephone lines.
WARNING:
●
To prevent the risk of fire or electrical shock,
do not expose this product to rain or any type
of moisture.
OTHER INFORMATION:
●
Keep the unit away from electrical noise
generating devices, such as fluorescent
lamps and motors.
●
The unit should be kept free from dust, high
temperature and vibration.
●
The unit should not be exposed to direct
sunlight.
●
Do not place heavy objects on top of this unit.
●
Do not touch the plug with wet hands.
Note:
●Operating near 2.4GHz electrical appliances
may cause interference. Move away from the
electrical appliances and/or press the CH
(Channel) button.
●Consult the manufacturer of any personal
medical devices, such as pacemakers, to
determine if they are adequately shielded from
external RF (radio frequency) energy. (The unit
operates in the frequency range of 2401MHz to
2472MHz, and the power output level can range
from 0.001 watts to 0.20 watts.) Do not use the
unit in health care facilities if any regulations
posted in the area instruct you not to do so.
Hospitals or health care facilities may be using
equipment that could be sensitive to external RF
(radio frequency) energy.
5
Ink film – installing!
1Open the front cover by pulling up the center part.
●
If the handset is on the cradle, take it off before opening the cover.
2Push the back cover open button (green) on the right side of the unit.
OR
Push the back cover open lever (green) inside of the unit.
3Open the back cover.
5If the ink film is slack, tighten it by turning the gear.
6Close the back cover securely by pushing down on the dotted area at both ends.
Close the front cover securely.
4Insert the blue core of the front ink film roll into the right slot of the unit. Insert the “T”
shaped gear (blue) into the left slot of the unit.
Insert the rear ink film roll.
6
Recording paper!
1Fan the stack of paper to prevent a paper
jam.
2Pull the tension bar forward and hold open
while inserting the paper.
●The paper should not be over the tab.
●If the paper is not inserted correctly,
readjust the paper, or the paper may jam.

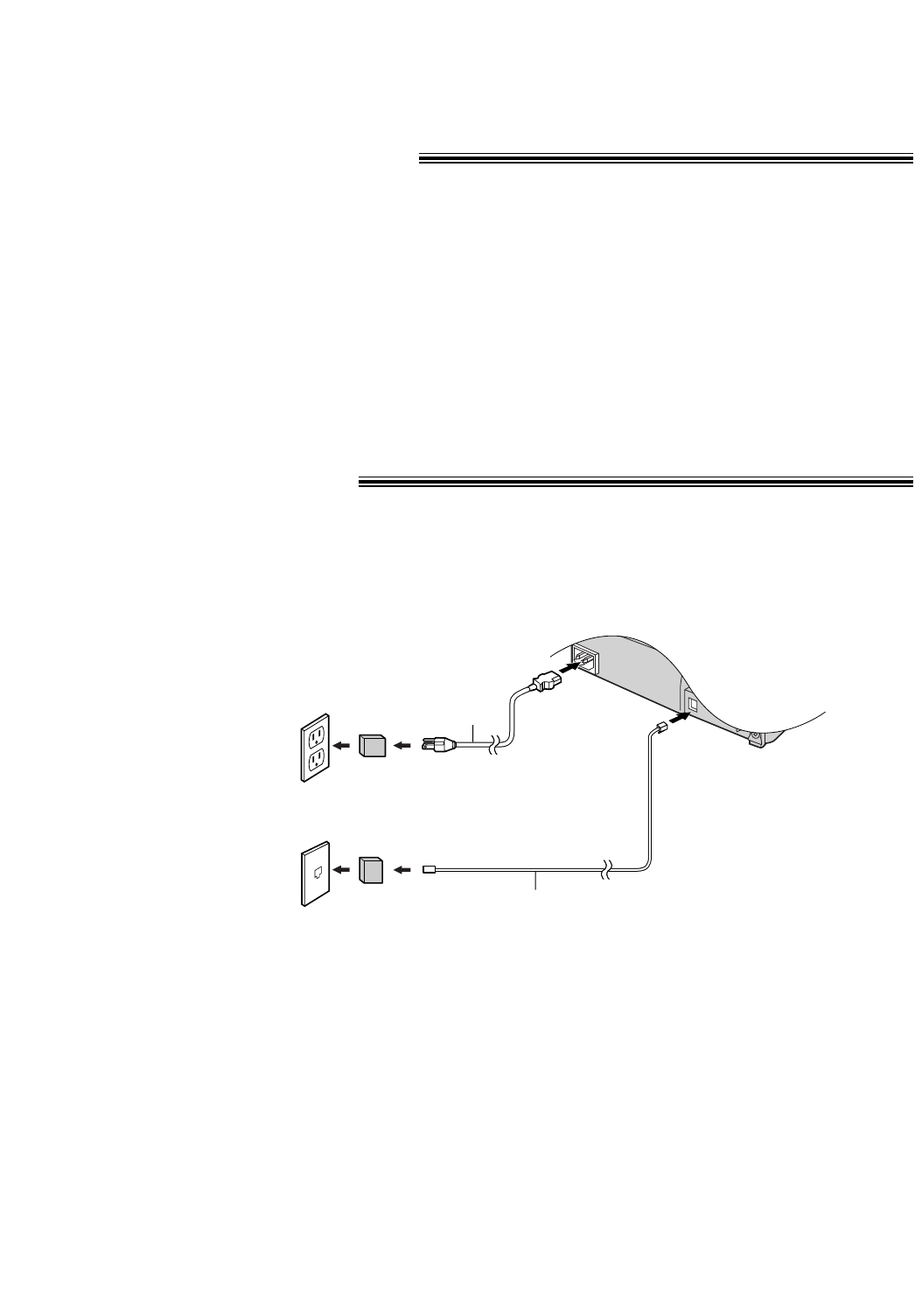

Connections!
To a single
telephone line
jack (RJ11C)
To a power
outlet
(120 V, 60 Hz)
Telephone
line cord
Power cord
Power surge
protector
( )
Line surge
protector
( )
1Connect the telephone line cord.
2Connect the power cord.
Note:
●For additional equipment protection, we recommend you use a surge protector. The following types are
available: TELESPIKE BLOK MODEL TSB (TRIPPE MFG. CO.), SPIKE BLOK MODEL SK6-0 (TRIPPE
MFG. CO.), SUPER MAX (PANAMAX) or MP1 (ITW LINX).
The warranty does not cover damage due to power line surges or lightning.
Caution:
●When you operate this product, the power outlet should be near the product and easily
accessible.
7

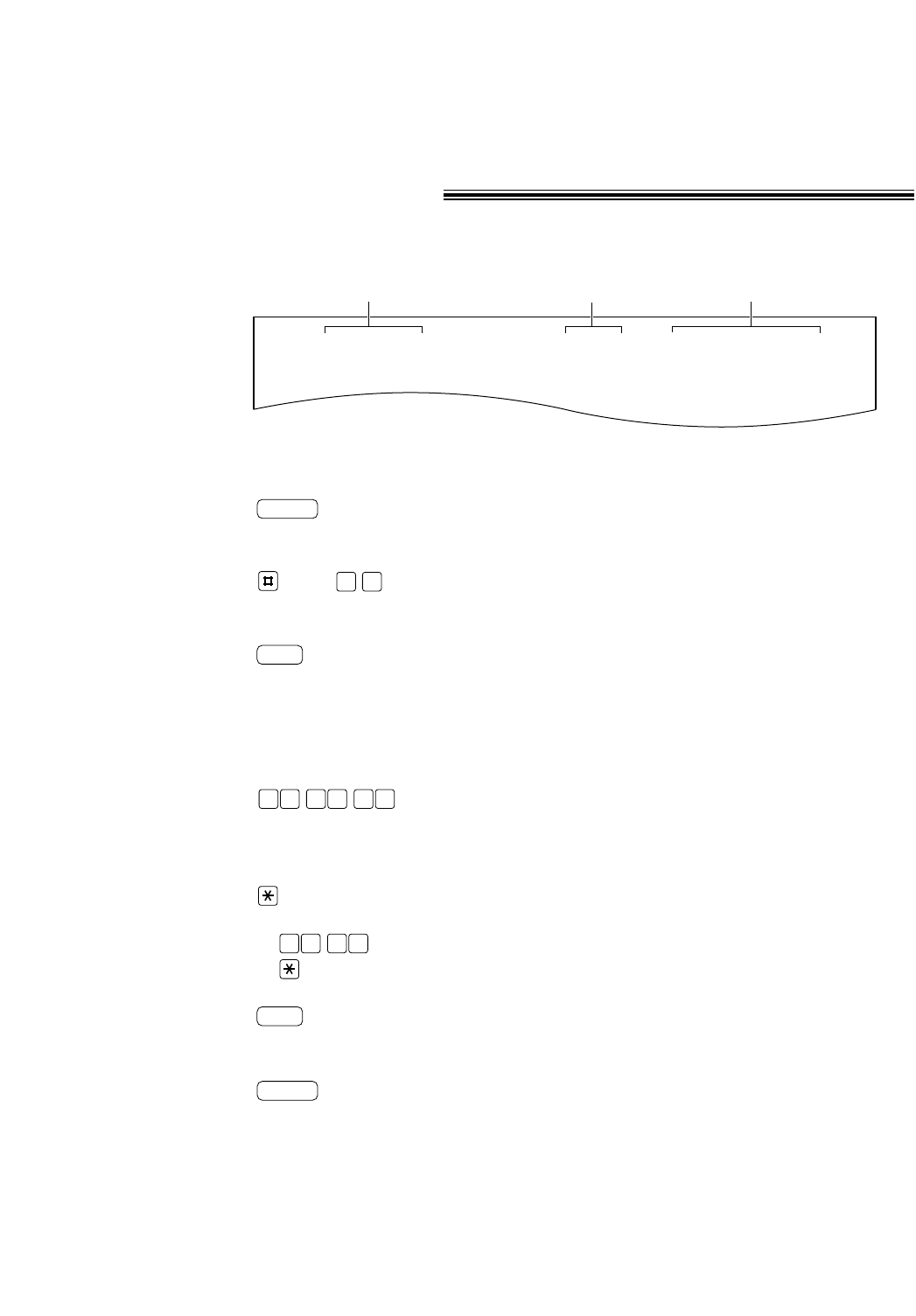

Date and time, your logo and facsimile
telephone number!
You should program the date and time, your logo and facsimile telephone number. This
information will be printed on each page transmitted from your unit.
Fax Correspondence
Your logo Your facsimile telephone number Date and time
FROM : Panasonic Fax
Example: FAX NO. : 1234567 Feb. 26 2001 09:02AM P1
Setting the date and time
1Press .
2Press , then .
3Press .
4
Enter the correct month/day/year by selecting
2 digits for each, using the dial keypad.
Example: Aug. 10, 2001
Press .
5Enter the correct hour/minute by selecting
2 digits for each, using the dial keypad.
Press to select “AM” or “PM”.
Example: 3:15PM
1. Press .
2. Press until “PM” is displayed.
6Press .
7Press .
MENU
SET
1 50 3
00 1 18 0
SET
0 1
MENU
8
1Press .
2Press , then .
3Press .
4Enter your logo, up to 30 characters, using
the dial keypad. See right for details.
Example: “Bill”
1. Press twice.
2. Press six times.
3. Press six times.
4. Press to move the cursor to the next
space and press six times.
5Press .
6Press .
MENU
SET
5
5
4
2
SET
0 2
MENU
Setting your logo
The logo can be your company, division or name.
Keys Characters
1 [ ] { } + – / =
, . _ ` : ; ? |
A B C a b c 2
D E F d e f 3
G H I g h i 4
J K L j k l 5
M N O m n o 6
P Q R S p q r s 7
T U V t u v 8
W X Y Z w x y z 9
0 ( ) ! " # $
% & ¥ @ ^ ’ →
To select characters with the dial
keypad
Pressing the dial keys will select a character as
shown below.
Hyphen button (To insert a
hyphen.)
Insert button (To insert one
character or one space.)
Delete button (To delete a
character.)
key (To move the cursor to the
left.)
key (To move the cursor to the
right.)
To enter another character using
the same number key, move the
cursor to the next space.
1
2
3
4
5
6
7
8
9
0
FLASH
STOP
MUTE
9
Setting your facsimile telephone number
1Press .
2Press , then .
3Press .
4Enter your facsimile telephone number, up to
20 digits, using the dial keypad.
5Press .
6Press .
MENU
SET
SET
0 3
MENU
10
Ringer volume
4 levels (high/middle/low/off) are available.
While the unit is idle, press or .
●If any documents are in the document entrance,
you cannot adjust the ringer volume. Confirm
that there are no documents in the entrance.
Speaker volume
8 levels (high to low) are available.
While using the speakerphone,
press or .
Adjusting base unit volumes!
1Handset is off the base unit:
Press .
Handset is on the base unit:
Lift the handset and press .
●The TALK indicator will light.
2Dial the telephone number.
●If noise interferes with the conversation,
press to select a clear channel or
move closer to the base unit.
3When finished talking, press or
place the handset on the base unit.
●The TALK indicator will turn off.
TALK
CH
TALK
TALK
With the handset
Phone calls - making)
1Press .
2Dial the telephone number.
3When the other party answers, talk into the
microphone.
4When finished talking, press
.
DIGITAL SP-PHONE
DIGITAL SP-PHONE
With the base unit
Fax voice guidance
volume
9 levels (high to off) are available.
While listening to the fax voice
guidance, press or .
Answering device
volume
9 levels (high to off) are available.
While listening to the recorded
messages, press or .
To redial the last number
Regardless of whether the base unit or the
handset was used, the last number dialed will
be redialed.
1. Press .
2. Press .
REDIAL/PAUSE
TALK
11
Phone calls - answering)
1Handset is off the base unit:
Press when the handset rings.
●You can also answer a call by pressing any
dial key 0 to 9, , or #.
(Any key talk feature)
Handset is on the base unit:
Lift the handset when the base unit rings.
2When finished talking, press or
place the handset on the base unit.
TALK
TALK
With the base unit
1When the base unit rings, press
.
2
When finished talking, press
.
DIGITAL SP-PHONE
DIGITAL SP-PHONE
With the handset
Sending a fax manually!
1Adjust the width of the document guides to
the size of the document.
2Insert the document (up to 10 pages) FACE
DOWN until a single beep is heard and the
unit grabs the document.
3Press .
4Dial the fax number.
5When a fax tone is heard:
Press .
OR
When the other party answers your call:
Ask them to press their start button. When
the fax tone is heard, press .
FAX START
FAX START
DIGITAL SP-PHONE
To redial the last number
Press .
●If the line is busy, the unit will automatically redial the
number up to 2 times.
●During redial, “WAITING REDIAL” will be displayed.
●To cancel redialing, press .
STOP
REDIAL
12
1When the unit rings, press
or lift the handset to
answer the call.
2When:
— document reception is required,
— a fax calling tone (slow beep) is heard, or
— no sound is heard,
press .
●The unit will start fax reception.
FAX START
DIGITAL SP-PHONE
Receiving Faxes!
Receiving a fax using the
base unit
1When the handset rings, press .
2When:
— document reception is required,
— a fax calling tone (slow beep) is heard, or
— no sound is heard,
press until a single beep
is heard.
●The unit will start fax reception.
FAX RECEIVE
TALK
Receiving a fax using the
handset
13
List of FCC requirements and information!
If required by the telephone company, inform them
of the following.
●FCC Registration No.:
(found on the rear of the unit)
●Ringer Equivalence No.:
(found on the rear of the unit)
●The particular telephone line to which the
equipment is connected.
This unit must not be connected to a coin operated
line. If you are on a party line, check with your local
telephone company.
Ringer Equivalence Number (REN):
This REN is useful in determining the quantity of
devices you may connect to your telephone line and
still have all of those devices ring when your
telephone number is called. In most but not all
areas, the sum of the REN’s of all devices connected
to one line should not exceed five (5.0). To be
certain of the number of devices you may connect to
your line, as determined by the REN, you should
contact your local telephone company to determine
the maximum REN for your calling area.
In the event that terminal equipment causes harm to
the telephone network, the telephone company
should notify the customer, if possible, that service
may be stopped. However, where prior notice is
impractical, the company may temporarily cease
service providing that they:
a) Promptly notify the customer.
b) Give the customer an opportunity to correct the
problem with their equipment.
c) Inform the customer of the right to bring a
complaint to the Federal Communication
Commission pursuant to procedures set out in
FCC Rules and Regulations Subpart E of Part 68.
The Telephone Company may make changes in its
communications facilities, equipment operations, or
procedures where such action is reasonably required
in the operation of its business and is not
inconsistent with the rules and regulations in FCC
Part 68. If such changes can be reasonably expected
to render any customer terminal equipment
incompatible with telephone company
communications facilities, or require modification or
alteration of such terminal equipment, or otherwise
materially affect its use or performance, the
customer shall be given adequate notice in writing,
to allow the customer an opportunity to maintain
uninterrupted service.
CAUTION:
Any changes or modifications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate this device.
When programming emergency numbers and/or
making test calls to emergency numbers:
1. Remain on the line and briefly explain to the
dispatcher the reason for the call before
hanging up.
2. Perform such activities in the off-peak hours;
such as early morning or late evenings.
This telephone provides magnetic coupling to
hearing aids.
NOTE:
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment
and receiver.
— Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
— Consult the dealer or an experienced radio/TV
technician for help.
Some cordless telephones operate at frequencies
that may cause interference to nearby TVs and
VCRs. To minimize or prevent such interference,
the base of the cordless telephone should not be
placed near or on top of a TV or VCR. If
interference is experienced, move the cordless
telephone further away from the TV or VCR. This
will often reduce, or eliminate, interference.
CAUTION:
To comply with FCC RF exposure requirements,
the base unit should be installed with its antenna
located at 20 cm or more from persons and
handset should be carried with the specific belt-clip
provided for the handset to ensure compliance.
Other non-tested belt-clips or similar body-worn
accessories may not comply, therefore, should be
avoided.
14
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation
of America
One Panasonic Way,
Secaucus, New Jersey 07094
Panasonic Sales Company,
Division of Matsushita Electric of
Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5, San Gabriel
Industrial Park, Carolina, Puerto Rico 00985
PANASONIC Facsimile Products Limited Warranty
In the event of a defect in materials or workmanship, Panasonic Consumer Electronics Company or
Panasonic Sales Company (collectively referred to as “the warrantor”), will repair this product with new or
refurbished parts, free of charge, in the USA or Puerto Rico for 6-month limited warranty from the date of
original purchase.
This Limited Warranty Excludes both Labor and Parts for: batteries, antennas, ink film, toner cartridge,
drum unit, ink cartridge and cosmetic parts (cabinet).
Carry-in or mail-in service in the USA or Puerto Rico can be obtained during the warranty period by
contacting a Panasonic Services Company (PASC) Factory Servicenter listed in the Servicenter Directory.
Or call, toll free, 1-800-HELP-FAX (1-800-435-7329) to locate a PASC Factory Servicenter. Carry-in or mail-
in service in Puerto Rico can be obtained during the warranty period by calling the Panasonic Sales
Company telephone number listed in the Servicenter Directory.
This warranty is extended only to the original purchaser. A purchase receipt or other proof of date of original
purchase will be required before warranty service is rendered.
This warranty only covers failures due to defects in material or workmanship which occur during normal use.
The inability of this product to interface with any specific computer is not a manufacturing defect and is
outside of the scope of this Limited Warranty. In no event shall the warrantor be liable by reason of such
incompatibility. The warranty does not cover damages which occur in shipment, or failures which are caused
by products not supplied by the warrantor such as non Panasonic ink film, toner cartridge or drum unit, or
failures which result from accident, misuse, abuse, neglect, mishandling, faulty installation, misapplication,
set-up adjustments, improper operation or maintenance, alteration, modification, power line surge, improper
voltage supply, lightning damage, signal reception problems, rental use of the product, or service by anyone
other than a PASC Factory Servicenter or a PASC authorized Servicenter, or damage that is attributable to
acts of God.
LIMITS AND EXCLUSIONS
There are no express warranties except as listed above.
THE WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS
WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF
MERCHANTABILITY, ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on
how long an implied warranty lasts, so the above exclusions or limitations may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state to
state. If a problem with this product develops during or after the warranty period, you may contact your
dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the Customer
Satisfaction Center at the company address indicated above.
For product service
●Servicenters are listed on next page.
●Call toll-free 1-800-HELP-FAX (1-800-435-7329) for
the location of an authorized servicenter.
●After the warranty has expired, please contact our
Continued Services Technical Support Line at
1-900-555-PANA (1-900-555-7262). If you have
difficulty reaching this number, it may be blocked by
your phone company. Please contact your local
phone company to correct this.
When you ship the product
●Carefully pack your unit, preferably in the original
carton.
●Attach a letter, detailing the symptom or problem, to
the outside of the carton.
●Send the unit to an authorized servicenter, prepaid
and adequately insured.
●Do not send your unit to the Panasonic Consumer
Electronics Company or to any executive or regional
sales offices. These locations do not repair
consumer products.
Have any questions? CALL 1-800-HELP-FAX (1-800-435-7329) on:
operating the unit, getting repair service, and/or getting supplies.
15
Servicenter directory!
Service in Puerto Rico
Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company / Factory Servicenter:
Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Phone (787) 750-4300 Fax (787) 768-2910
As of Apr 2001
Web Site: www.panasonic.com
(for customers in the USA or Puerto Rico ONLY)
You can purchase parts, accessories or locate your nearest servicenter by
visiting our Web Site.
Factory Servicenter Locations
CALIFORNIA
6550 Katella Avenue
Cypress, CA 90630
800 Dubuque Avenue
S. San Francisco,
CA 94080
3878 Ruffin Road
Suite A
San Diego, CA 92123
COLORADO
1640 South Abilene Street
Suite D
Aurora, CO 80012
FLORIDA
3700 North 29th Avenue
Suite 102
Hollywood, FL 33020
GEORGIA
8655 Roswell Road
Suite 100
Atlanta, GA 30350
ILLINOIS
9060 Golf Road
Niles, IL 60714
1703 North Randall Road
Elgin, IL 60123
(Pick-up / Drop-off only)
MARYLAND
62 Mountain Road
Glen Burnie, MD 21061
MASSACHUSETTS
60 Glacier Drive
Suite G
Westwood, MA 02090
MINNESOTA
7850-12th Avenue South
Airport Business Center
Bloomington, MN 55425
OHIO
2236 Waycross Road
Civic Center Plaza
Forest Park, OH 45240
PENNSYLVANIA
2221 Cabot Blvd. West
Suite B
Langhorne, PA 19047
TEXAS
13615 Welch Road
Suite #101
Farmers Branch,
TX 75244
WASHINGTON
20425-84th Avenue South
Kent, WA 98032
HAWAII
99-859 Iwaiwa Street
Aiea, Hawaii 96701
Phone (808) 488-1996
Fax (808) 486-4369
To obtain service or technical assistance during the warranty period,
please contact:1-800-HELP-FAX (1-800-435-7329), Monday-Friday 9am-8pm
EST.
To obtain support or service after the warranty has expired, please contact:
1-900-555-PANA (1-900-555-7262) for support on a fee basis.
Technical data about this product!
Applicable Lines: Public Switched Telephone Network
Document Size: Max. 216 mm (81⁄2
"
) in width / Max. 600 mm (235⁄8
"
) in length
Effective Scanning Width: 208 mm (83⁄16
"
)
Recording Paper Size: Letter: 216 mm x 279 mm (81⁄2
"
x 11
"
)
Legal: 216 mm x 356 mm (81⁄2
"
x 14
"
)
A4: 210 mm x 297 mm (81⁄4
"
x 1111⁄16
"
)
Effective Printing Width: 208 mm (83⁄16
"
)
Transmission Time*: Approx. 15 s/page (Original mode)**
Scanning Density: Horizontal: 8 pels/mm (203 pels/inch)
Vertical: 3.85 lines/mm (98 lines/inch) –STANDARD
7.7 lines/mm (196 lines/inch) –FINE/PHOTO
15.4 lines/mm (392 lines/inch) –SUPER FINE
Halftone Level: 64-level
Scanner Type: Contact Image Sensor (CIS)
Printer Type: Thermal Transfer on plain paper
Data Compression System:
Modified Huffman (MH), Modified READ (MR)
Modem Speed: 9,600 / 7,200 / 4,800 / 2,400 bps; Automatic Fallback
Operating Environment: 5 °C – 35 °C (41 °F – 95 °F), 20% – 80% RH (Relative Humidity)
Power Supply: 120 V AC, 60 Hz
** Transmission speed depends upon the contents of the pages,
resolution, telephone line conditions and capability of the other
party’s machine.
** Transmission speed is based upon the ITU-T No. 1 Test Chart
and original mode.
If the capability of the other party’s machine is inferior to your
unit, the transmission time may be longer.
ITU-T No. 1 Test Chart
Note:
●Any details given in these instructions are subject to change without notice.
●The pictures and illustrations in these instructions may vary slightly from the actual product.
Panasonic Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America
One Panasonic Way,
Secaucus, New Jersey 07094
Panasonic Sales Company,
Division of Matsushita Electric of
Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
