Panasonic of North America OMNIGTW RFID Security Interrogator User Manual OMNIGTW User Guidex
Omni-ID USA Inc. RFID Security Interrogator OMNIGTW User Guidex
User manual
Visit www.omni-id.com to learn more about
the complete line of Omni-ID RFID products.
Pro-VIEW
™
Gateway P series

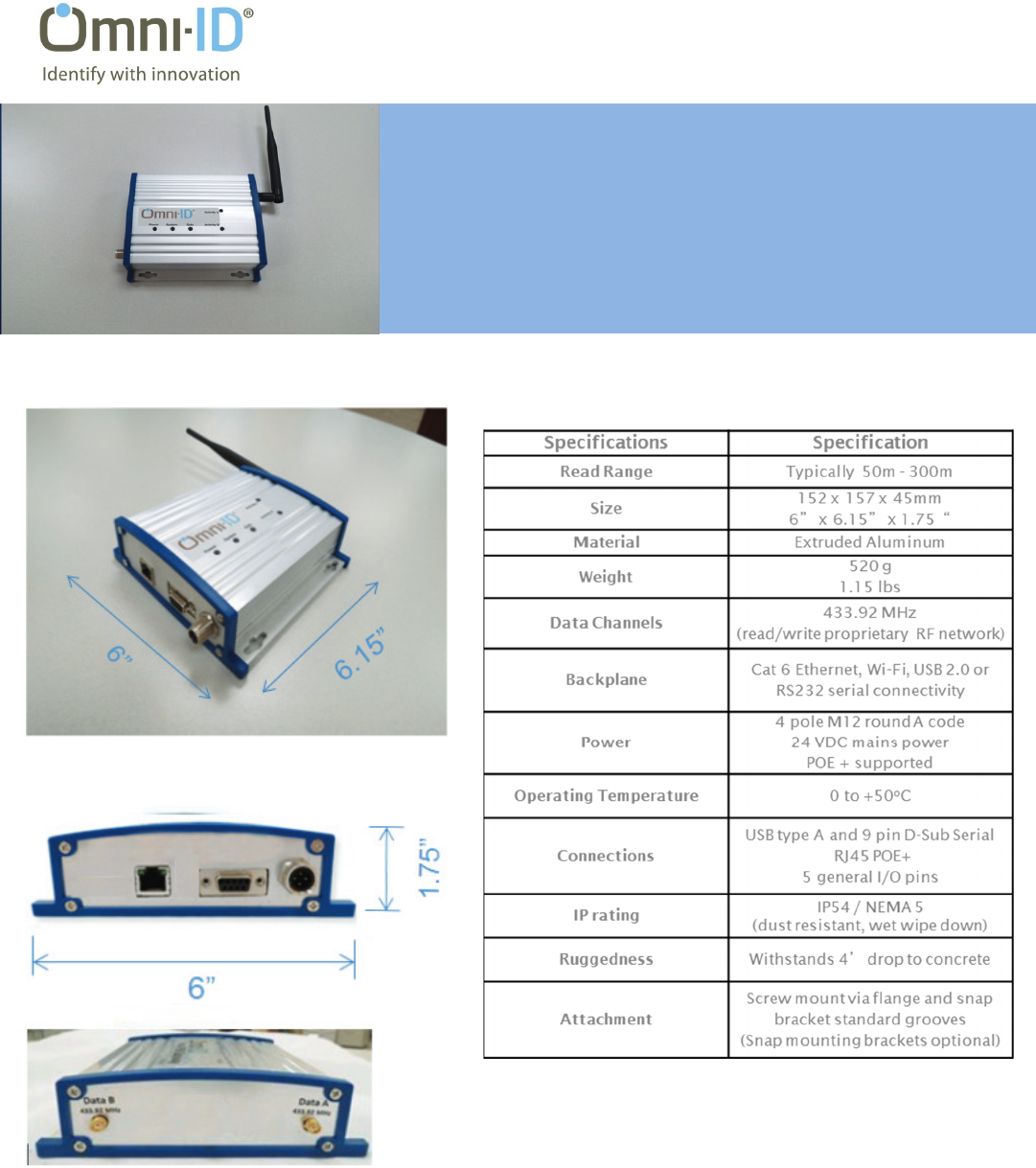

Product Specifications
Gateway Dimensions
The Gateway is the distributed brain of our asset
management system. It communicates with tags,
peripheral devices and sensors to enable the relay of
key data points back to the central server. It also
writes information and triggers events for assets and
operators in the process.
FCC Part 15
Industry Canada
CE
RoHS
WEEE
Certifications
Visit www.omni-id.com to learn more about
the complete line of Omni-ID RFID products.
Related Software:
Printer driver for Windows included with
each transceiver unit:
Writes directly to the closest label or
allows user selection of targets via
barcode scan
Additional modules for advanced
features available
Other P & B series Visual Tags of
various sizes
Pro-VIEW
TM
Server – server software
interface to the tag system
Other Products:

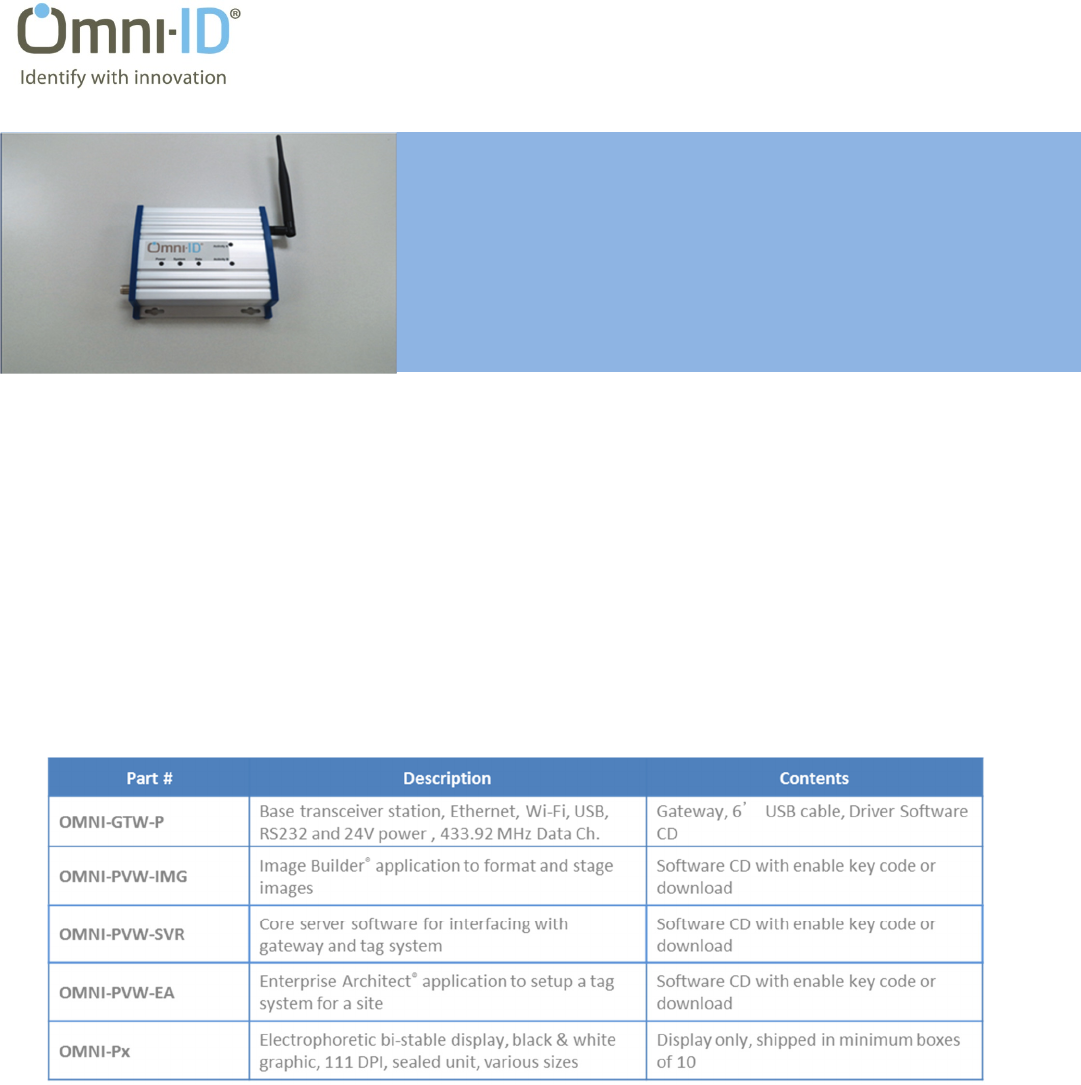

Ordering Information:
Pro-VIEW™ Gateway P series
The Gateway is the distributed brain of our asset
management system. It communicates with tags,
peripheral devices and sensors to enable the relay of
key data points back to the central server. It also
writes information and triggers events for assets and
operators in the process.
Visit www.omni-id.com to learn more about
the complete line of Omni-ID RFID products.
Configuring the Gateway
In order to configure the Gateway, you’ll first need to connect to it via the serial port on the back. If
your machine does not have a serial port, a USB-to-serial adapter works as well. To communicate
over the serial port, we suggest Putty, though you may use another application if you prefer. Make
sure that you connect to the Gateway with a Baud Rate (or ‘Speed’) of 115200, 8 Data bits, 1 Stop
bit, and no Parity or Flow Control.
Once you’ve connected, you’ll be prompted to login (if not, try pressing “enter” one or more times).
Do so using “customer” as both the login name and password. After logging in you’ll be presented
with the current configuration and prompted with a few options, type “c” and hit enter to configure
the Gateway. To configure the Gateway’s IP address enter “i”, and to configure the location of the
CALC Manager Service, enter “c”.
IP Address Configuration:
The Gateway may be configured to have either a static IP address, or a dynamic one. To configure it
to acquire an IP using DHCP, enter “d” at the IP address configuration screen, followed by “y” to
confirm the settings and reboot the Gateway. Please note that the IP address of a DHCP-configured
Gateway may change without warning, requiring the CALC Manager Service to be reconfigured with
the new IP of the Gateway.
To configure the Gateway for a static IP address, enter “s” at the IP address configuration menu and
then enter the desired IP, Subnet mask, and Gateway, then enter “y” to confirm the settings and
reboot the Gateway. After the reboot, the Gateway should be using the new settings.
CALC Manager Configuration:
If not using the default Gateway settings, then the Gateway must be configured with the location of
the CALC Manager Service. To do this, simply enter “c” at the configuration menu, then enter the IP
address of the machine running the CALC Manager Service, followed by the port number that the
service is running on, and finally enter “y” to confirm the settings and reboot the Gateway. Once
rebooted, the Gateway should be using the new settings.
Visit www.omni-id.com to learn more about
the complete line of Omni-ID RFID products.
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
Visit www.omni-id.com to learn more about
the complete line of Omni-ID RFID products.
Industry Canada Compliance
This device complies with Industry Canada license-exempt RSS standard(s). Operation
is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
lebrouillage est susceptible d'en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate
using an antenna of a type and maximum (or lesser) gain approved for the
transmitter by Industry Canada.
To reduce potential radio interference to other users, the antenna type and its
gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur
radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou
inférieur) approuvé pour l'émetteur par Industrie Canada.
Dans le but de réduire les risques de brouillage radioélectrique à l'intention des
autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la
puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité
nécessaire à l'établissement d'une communication satisfaisante.
Pro-VIEW™ Gateway P series
Visit www.omni-id.com to learn more about
the complete line of Omni-ID RFID products.
This radio transmitter 10336A-OMNIGTW has been approved by Industry Canada to
operate with the antenna types listed below with the maximum permissible gain and
required antenna impedance for each antenna type indicated. Antenna types not
included in this list, having a gain greater than the maximum gain indicated for that
type, are strictly prohibited for use with this device.
Le présent émetteur radio (identify the device by certification number, or model
number if Category II) a été approuvé par Industrie Canada pour fonctionner avec les
types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et
l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans
cette liste,
ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour
l'exploitation de l'émetteur.
Antenna
WaveTrend AN350
Size 370 mm x 384 mm x 17 mm
Weight < 2 kg
Temperature Range - 40 °C to 70 °C
Specification Conforms to ETS 300 019
Gain at connector -3 dB
Back attenuation 15 dB Nominal
VSWR < 16: 1
Impedance 50 Ohms
Polarization Circular
Cross Polarization > 20 dB
