Omni-ID® View Tags
User Guide
P a g e | 1

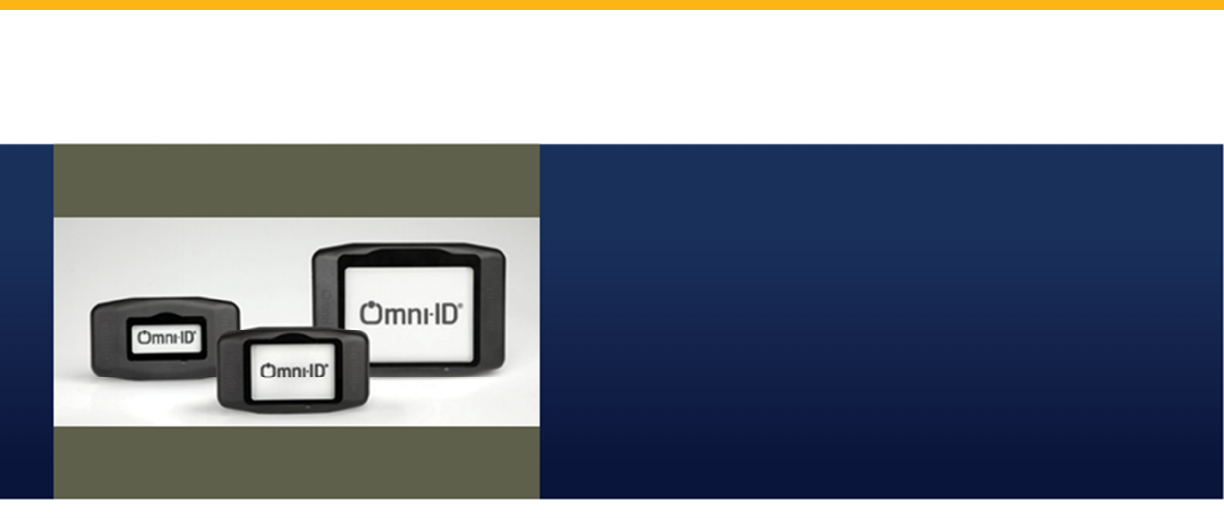

Omni-ID’s View Tags offer three sizes of electrophoretic display and are
used to replace paper labels in cyclic processes, supply chain operations
and dynamic barcode label tasks. Visual tagging adds an electronically re-
writable surface to advanced RF tracking technologies. With its simple
ruggedness, excellent cost and sonically welded case, Omni-ID View 2, 3
and 4 are ideal choices for durable, repetitive labeling in harsh
environments.
Omni-ID® View Tags User Guide
P a g e | 2
Building Intelligent Supply Chains
Omni-ID’s View Tags are the perfect choice for
these applications:
Manufacturing: Work-in-process instructions and
control
Logistics: Cycling containers and Kanban
• Sortation/Postal
Dual Radio Design Active Passive
Power Sealed Battery RF
20,000 image
writes or 5 yrs
Frequency Range 433.27 MHz 866–928
MHz
• Warehousing/Yard Management
• Food supply chain
Read Range*
(typical)
200 m 8 m
Health Care: Equipment tracking and
Labeling
Protocol ISO 18000-7 EPC Gen 2
Physical
Specifications
Memory 24 image pages
128 kb user
space
128 bit user space
V2, V3 & V4 Display Electrophoretic e-paper display,
Full graphic, (black & white)
120
o
viewing angle (in sunlight)
* Indoor installation typical power settings shown. Optimal environments can significantly
enhance performance.
Environmental Specifications
View 2 pecifications
Size (mm)
Screen Area (mm)
Size (in)
Screen Area (in)
107 × 60 × 19.4
50.80 diagonal dimension
4.21 × 2.36 × 0.76
2.0 diagonal dimension
Operating Temperature 0 to +50°C
IP Rating IP68 Nema 4
(water resistant)
Weight (g) 42
View 3 Specifications
Shock and Vibration Withstands 4' drop to concrete
Attachment Options* Adhesive
Clip / Tether / Band
Size (mm)
Screen Area (mm)
Size (in)
Screen Area (in)
107 × 60 × 19.4
66.68 diagonal dimension
4.21 × 2.36 × 0.76
2.6 diagonal dimension
Screw Mount
Certifications EN55022 Class A, EN50082-2
UL60950, UL1604
UL Class 1, Div 2, CSA, RoHS
FCC Class A digital device according to
Weight (g) 42
View 4 Specifications
FCC Part 15 and ICES-003
Warranty 1 year
Size (mm)
Screen Area (mm)
Size (in)
Screen Area (in)
Weight (g)
139 × 94.60
× 19.4
110 diagonal dimension
5.47 × 3.72 × .76
4.3 diagonal
dimension
52
* Custom options available upon request, for example, magnetic strip, custom brackets.
What determines the Visual display that is right for your application?
The location for the display tag
The amount of content that will be displayed in one page
The read distance for the display
Omni-ID® View Tags
User Guide
P a g e | 3

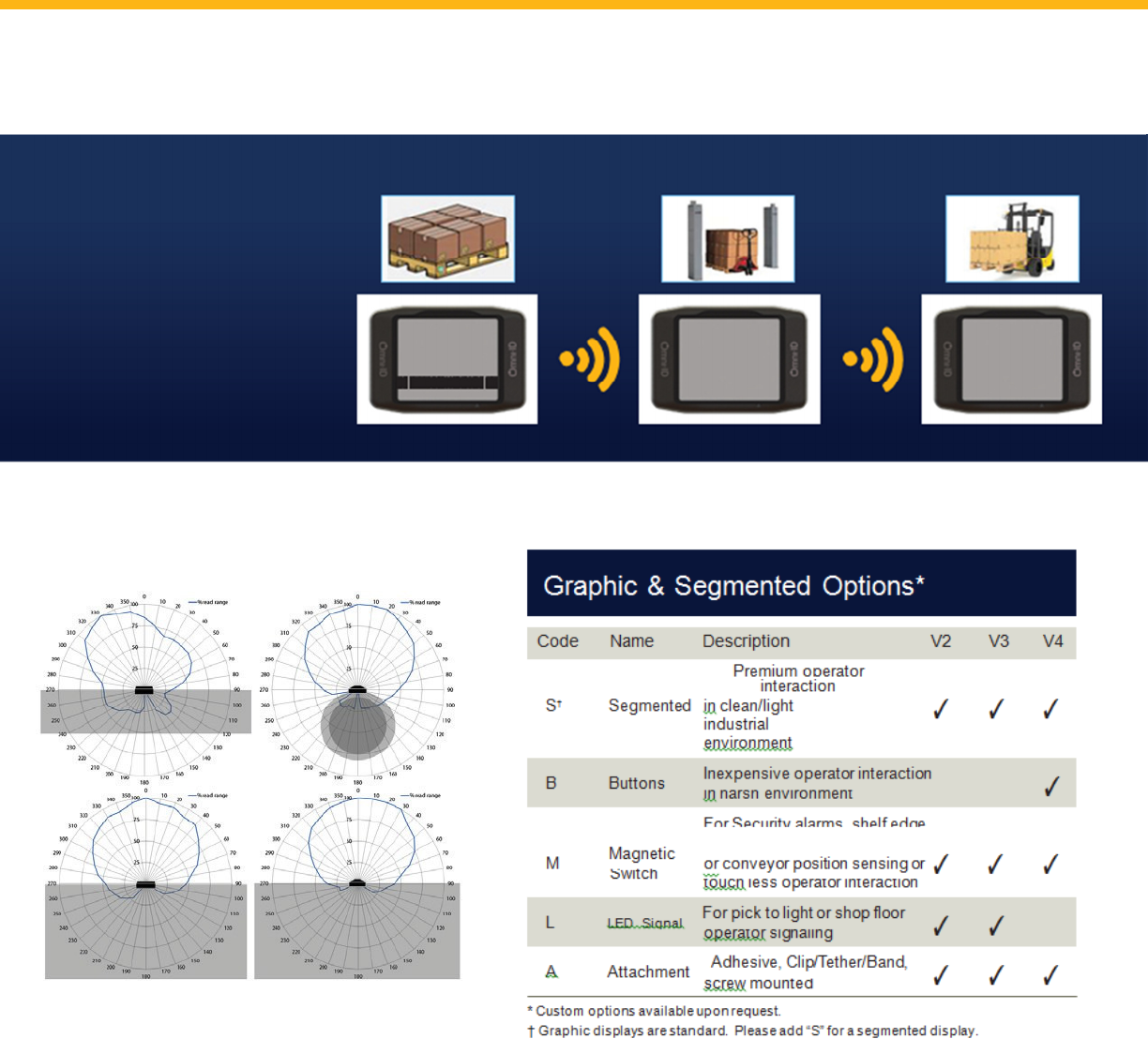

Radiation Patterns
Omni-ID® View Tags
User Guide
P a g e | 4
