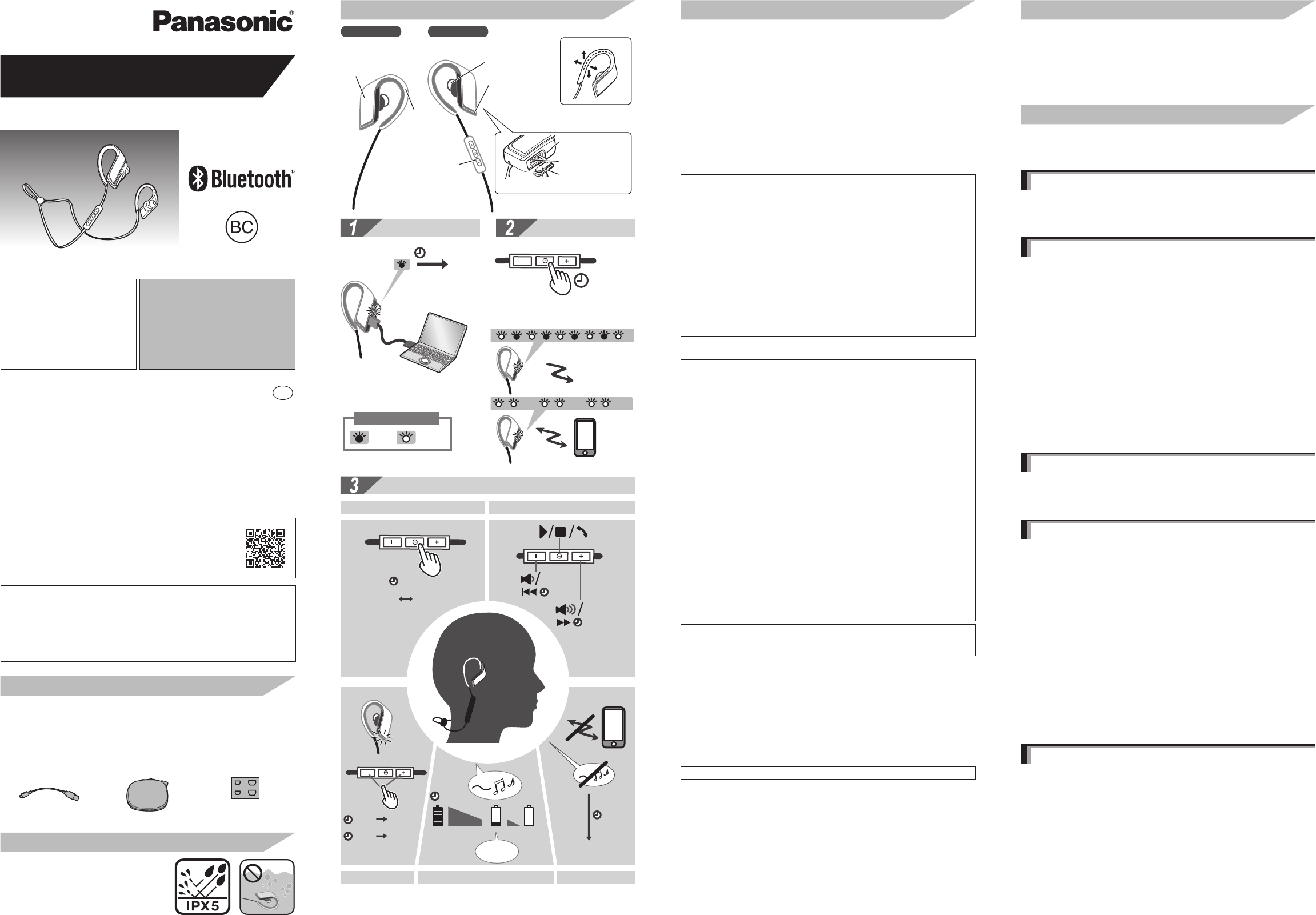

Basic Owner’s Manual
Digital Wireless Stereo Earphones
Model No. RP-BTS50
PP
© Panasonic Corporation 2015
Printed in China
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
www.panasonic.com
Panasonic Corporation of North America
Two Riverfront Plaza, Newark, NJ 07102-5490
http://www.panasonic.com
SQT1228
M1215KZ0
En
Dear customer
Thank you for purchasing this product.
Please read these instructions carefully before using this product, and save this
manual for future use.
More detailed operating instructions are available in “Owner’s
Manual (PDF format)”.
To read it, download it from the website.
http://panasonic.jp/support/global/cs/accessories/oi/rp_bts50/
• Click the desired language.
●The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is
under license.
Other trademarks and trade names are those of their respective owners.
●Other system names and product names appearing in this document are in
general the registered trademarks or trademarks of the respective developer
companies.
Note that the ™ mark and ® mark do not appear in this document.
Accessories
Please check and identify the supplied accessories.
Only for U.S.A.:
To order accessories, refer to “Limited Warranty”.
Only for Canada:
To order accessories, contact the dealer from whom you have made your
purchase.
1 USB charging cord 1 Carrying case 1 Earpieces set (L, S)
•
M-size earpieces are attached
at the time of purchase.
About water resistance
IPX5 equivalent
Protected against water jet.
(Securely close the USB lid.)
Part names
Left Right
Earphone
Remote controller
Earpiece
LED illumination
Microphone
LED indicator light
Charging terminal
USB lid
Clip
Charging Wireless pairing
！
1.5 hours
5 sec.
LED indicator light • Remote controller
• LED indicator light will blink.
Off
Red Blue
LED lighting color
Safety precautions
■Unit
• Avoid using or placing this unit near sources of heat.
• Do not use while operating a motorized vehicle. It may create a traffic hazard
and is illegal in many areas.
• Do not listen with this unit at high volume in places where you need to hear
sounds from the surrounding environment for safety, such as at railroad
crossings, and construction sites.
■Earpieces
• Keep the earpieces out of reach of children to prevent swallowing.
■Allergies
• Discontinue use if you experience discomfort with the earphones or any other
parts that directly contact your skin.
• Continued use may cause rashes or other allergic reactions.
THE FOLLOWING APPLIES ONLY IN THE U.S.A. AND CANADA.
This device complies with Part 15 of FCC Rules and Industry Canada’s
licence-exempt RSSs. Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of this
device.
FCC ID : ACJ-RP-BTS50
Model : RP-BTS50
IC : 216A-RPBTS50
This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
This equipment complies with FCC/IC radiation exposure limits set forth for an
uncontrolled environment and meets the FCC radio frequency (RF) Exposure
Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This
equipment has very low levels of RF energy that is deemed to comply without
testing of specific absorption ratio (SAR).
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
FCC Note:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any unauthorized changes or modifications to this equipment would void the
user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Responsible Party: Panasonic Corporation of North America
Two Riverfront Plaza, Newark, NJ 07102-5490
Support Contact: http://www.panasonic.com/contactinfo
FCC CAUTION
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
THE FOLLOWING APPLIES ONLY IN CANADA.
CAN ICES-3(B)/NMB-3(B)
■USB
• Do not use any other USB charging cords except the supplied one.
Caution: Use only the supplied USB charging cord when connecting to a computer.
Maintenance
Clean this unit with a dry and soft cloth.
• Do not use solvents including benzine, thinner, alcohol, kitchen detergent, a
chemical wiper, etc. This might cause the exterior case to be deformed or the
coating to come off.
Keeping the battery performance
• During the long period of disuse, full charge this unit once every 6 months to
keep the battery performance.
Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt about
some of the check points, or if the remedies indicated in the chart do not solve the
problem, refer to “Customer Services Directory” if you reside in the U.S.A., or refer
to “CONTACT INFORMATION” if you reside in Canada.
General
The unit does not respond
• Connect the unit to a computer using the USB charging cord. The unit will be
reset.
Power supply and charging
Cannot charge the unit
• Make sure the computer is turned on and is not on standby or sleep mode.
• Is the USB port you are currently using working properly? If your computer has
other USB ports, unplug the connector from its current port and plug it into one of
the other ports.
• If the measures mentioned above are not applicable, unplug the USB charging
cord and plug it in again.
• If the charge time and operating time become shortened, the battery may have
run down. (Number of charging times of the installed battery: Approximately
300.)
LED does not light during charging / Charging takes longer
• Is the USB charging cord (supplied) connected firmly to the USB terminal of the
computer? (→ 1 “Charging”)
• Make sure to charge in a room temperature between 10 °C and 35 °C (50 °F and
95 °F).
The power does not turn on
• Is the unit being charged? The power cannot be turned on during charging.
(→ 1 “Charging”)
Bluetooth® device connection
The device cannot be connected
• Delete the pairing information for this unit from the Bluetooth® device, then pair
them again. (→ 2 “Wireless pairing”)
Sound and audio volume
No sound
• Make sure that the unit and the Bluetooth® device are connected correctly.
(→ 2 “Wireless pairing”)
• Check if music is playing on the Bluetooth® device.
• Make sure that the unit is turned on and the volume is not set too low.
• Pair and connect the Bluetooth® device and the unit again. (→ 2 “Wireless
pairing”)
Low volume
• Increase the volume of the unit. (→ 3 “Enjoy !”)
• Increase the volume on the Bluetooth® device.
Sound from the device is cut off / Sound quality is bad
• Sound may be disrupted if signals are blocked. Do not fully cover this unit with
the palm of your hand, etc.
• The device may be out of the 10 m (33 feet) communication range. Move the
device closer to this unit.
• Remove any obstacle between this unit and the device.
• Switch off any wireless LAN device when not in use.
• A communication problem may arise if the battery is not fully charged. Charge
the unit. (→ 1 “Charging”)
Phone calls
You cannot hear the other person
• Make sure that the unit and the Bluetooth® enabled phone are turned on.
• Check if the unit and the Bluetooth® enabled phone are connected.
(→ 2 “Wireless pairing”)
• Check the audio settings of the Bluetooth® enabled phone. Switch the calling
device to the unit if it is set to the Bluetooth® enabled phone.
• If the volume of the other person’s voice is too low, increase the volume of both
the unit and the Bluetooth® enabled phone.
Enjoy !
♫
♪
♫
♪
6 hours
Power on/off Remote controlling
LED illumination Auto power off
BEEP
5 min.
3 sec.
Off
Off
On Off
Operating time
1 sec. On
3 sec. Off
2 sec.
2 sec.
If you have any questions, visit:
In the U.S.A.:
www.panasonic.com/support
In Canada:
www.panasonic.ca/english/support
Pour toute question, visitez :
www.panasonic.ca/french/support
For U.S.A. only /
Pour les É.-U. seulement
The warranty can be found on “Basic Owner’s Manual”.
Register online at
www.panasonic.com/register
(U.S. customers only)
For Canada only / Pour le Canada seulement
The warranty can be found on “Basic Owner’s Manual”.
La garantie se trouve dans le
« Manuel d’utilisation Fonctions de base ».
Specifications
■General
Power supply
DC 5 V, 500 mA
(Internal battery: 3.7 V (Li-polymer
90 mAh))
Operating time*1 (SBC mode) Approx. 6 hours
Charging time*2 (25 ºC (77 ºF)) Approx. 1.5 hours
Charging temperature range 10 ºC to 35 ºC (50 ºF to 95 ºF)
Operating temperature range 0 ºC to 40 ºC (32 ºF to 104 ºF)
Operating humidity range 35%RH to 80%RH (no condensation)
Mass (Weight) Approx. 22 g (0.8 oz)
Water resistant IPX5 equivalent
*1 It may be shorter depending on the operating conditions.
*2 Time taken to recharge from empty to full.
■Bluetooth® section
Bluetooth® system specification Ver. 4.1
Wireless equipment classification Class 2 (2.5 mW)
Frequency band 2.4 GHz band FH-SS
Supported profiles A2DP, AVRCP, HSP, HFP
Supported codec SBC, AAC, aptX®
Operating distance Up to 10 m (33 ft.)
■Speaker section
Driver units 12 mm (1/2 in.)
■Terminal section
DC IN DC 5 V, 500 mA
■Microphone section
Type Mono
■Accessory section
USB charging cord 0.1 m (0.3 ft.)
●Specifications are subject to change without notice.
Useful information
(For Latin American Countries Only)
Customer Service
Customer Service Directory
Obtain products information and operative assistant; localize the closer
distributor or Service Center; buy spare parts and accessories by our
Web Site to Latin American:
COUNTRY WEB SITE CONTACT CENTER
Panama www.panasonic.com/pa/soporte/ 800-7262
Colombia www.panasonic.com/co/soporte/ 01-8000-947262
Ecuador www.panasonic.com/ec/soporte/ 1-800-726276
Costa Rica www.panasonic.com/cr/soporte/ 800-7262737
El Salvador www.panasonic.com/sv/soporte/ 800-7262
Guatemala www.panasonic.com/gt/soporte/ 1-801-811-7262
Uruguay www.panasonic.com/uy/soporte/ 0-800-7262
Paraguay www.panasonic.com/uy/soporte/ 0-800-11-7262
Chile www.panasonic.com/cl/soporte/ 800-390-602
022-797-5000
Peru www.panasonic.com/pe/soporte/ 0800-00726
Venezuela www.panasonic.com/ve/soporte/ 800-7262-800
Mexico www.panasonic.com/mx/soporte/ 01800-847-7262
55-5000-1200
Argentina www.panasonic.com/ar/soporte/ 0800-333-7262
0810-321-7262
Dominican Republic
www.panasonic.com/do/soporte/ 809-200-8000
The serial number of this product can be found on the right earphone. Remove
the USB lid to see it.
Please note them in the space provided below and keep for future reference.
MODEL NUMBER RP-BTS50
SERIAL NUMBER
To remove the battery when disposing
of this unit
The following instructions are not intended for repairing purposes but for
the disposal of this unit. This unit is not restorable once disassembled.
When disposing of this unit, take out the battery installed in this unit and recycle it.
Danger
As the rechargeable battery is specifically for this product, do not use it for any other
device.
Do not charge the removed battery.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with
doors and windows closed.
• Do not pierce the battery with a nail, subject it to an impact, or dismantle or modify it.
• Do not let the wires touch any other metal or each other.
• Do not carry or store the battery with a necklace, hair pin, or the like.
Doing so may cause the battery to generate heat, ignite, or rupture.
Warning
Do not place the removed battery, and other items within reach of infants.
Accidental swallowing of such an item may have an adverse effect on the body.
• In the event that you think such an item has been swallowed, consult a doctor immediately.
In the event of fluid leaking from the battery, take the following measure, and do not touch
the fluid with bare hands.
Fluid entering into an eye may cause loss of eyesight.
• Wash the eye with water immediately without rubbing it, and then consult a doctor.
Fluid getting on your body or clothes may cause inflammation of the skin or injury.
• Sufficiently rinse with clean water, and then consult a doctor.
A lithium-ion polymer rechargeable battery is built in to the left earphone. Please
discard according to local regulations.
When disposing this product, disassemble properly by following the procedure, and
remove the internal rechargeable battery.
• Disassemble after the battery runs out.
• When disposing of the battery, please contact your local authorities or dealer and ask for the
correct method of disposal.
A
1
A
2
B
3
B
4
1Hold the top of the left earphone (L), and put a straight-slot screwdriver
(commercially available) under the upper cover A
• Make sure to keep fingers away from the tip of the screwdriver.
• Select a screwdriver to be large enough for a space under the upper cover.
2Use the screwdriver for leverage, and push the upper cover A upward
• Be careful not to touch the battery with the screwdriver.
3Hold the battery B, and remove it
4Pull off the battery B and separate it from the left earphone by cutting off
the wires, one by one, with scissors
• Insulate the wire parts of the removed battery with cellophane tape.
• Do not damage or dismantle the battery.
A lithium ion battery that is recyclable powers the product you
have purchased. Please call 1-800-8-BATTERY for information
on how to recycle this battery.
Limited Warranty (ONLY FOR U.S.A.)
Panasonic Products Limited Warranty
Limited Warranty Coverage (For USA Only)
If your product does not work properly because of a defect in materials or workmanship,
Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length
of the period indicated on the chart below, which starts with the date of original purchase
(“warranty period”), at its option either (a) repair your product with new or refurbished parts,
(b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase
price. The decision to repair, replace or refund will be made by the warrantor.
Product or Part Name Parts Labor
Accessories 90 Days Not Applicable
Batteries (Non-Rechargeable Batteries are
not warranted) 10 Days Not Applicable
During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty
period, there will be no charge for parts. This Limited Warranty excludes both parts and labor
for non-rechargeable batteries, antennas, and cosmetic parts (cabinet). This warranty only
applies to products purchased and serviced in the United States. This warranty is extended
only to the original purchaser of a new product which was not sold “as is”.
Mail-In Service--Online Repair Request
Online Repair Request
To submit a new repair request and for quick repair status visit our Web Site at
http://shop.panasonic.com/support.
When shipping the unit, carefully pack, include all supplied accessories listed in the Owner’s
Manual, and send it prepaid, adequately insured and packed well in a carton box. When
shipping Lithium Ion batteries please visit our Web Site at http://shop.panasonic.com/support
as Panasonic is committed to providing the most up to date information. Include a letter
detailing the complaint, a return address and provide a daytime phone number where you can
be reached. A valid registered receipt is required under the Limited Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL
BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING
DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL
BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF
PURCHASE.
Limited Warranty Limits and Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES
NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT
COVER damages which occurred in shipment, or failures which are caused by products not
supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect,
mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of
consumer controls, improper maintenance, power line surge, lightning damage, modification,
introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or
other business or rental use of the product, or service by anyone other than a Factory Service
Center or other Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED
WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF
THIS WARRANTY.
(As examples, this excludes damages for lost time, travel to and from the servicer, loss of or
damage to media or images, data or other memory or recorded content. The items listed are
not exclusive, but for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF
MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or
limitations on how long an implied warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary
from state to state. If a problem with this product develops during or after the warranty
period, you may contact your dealer or Service Center. If the problem is not handled to your
satisfaction, then write to:
Consumer Affairs Department
Panasonic Corporation of North America
661 Independence Pkwy
Chesapeake, VA 23320
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE
YOUR RESPONSIBILITY.
for all your Panasonic gear
Go to
http://shop.panasonic.com/support
Get everything you need to get the most out of your Panasonic products
Accessories & Parts for your Camera, Phone, A/V products, TV,
Computers & Networking, Personal Care, Home Appliances, Headphones,
Batteries, Backup Chargers & more…
Customer Services Directory
For Product Information, Operating Assistance, Parts, Owner’s Manuals,
Dealer and Service info go to http://shop.panasonic.com/support
For the hearing or speech impaired TTY: 1- 877-833-8855
As of July 2015
Limited Warranty (ONLY FOR CANADA)
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
PANASONIC PRODUCT – LIMITED WARRANTY
EXCHANGE PROGRAM
Panasonic Canada Inc. warrants this product to be free from defects in material and
workmanship under normal use and for a period as stated below from the date of original
purchase agrees to, at its option either (a) repair your product with new or refurbished parts,
(b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase
price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.
Accessories including rechargeable batteries Ninety (90) days
This warranty is given only to the original purchaser, or the person for whom it was purchased
as a gift, of a Panasonic brand product mentioned above sold by an authorized Panasonic
dealer in Canada and purchased and used in Canada, which product was not sold “as is”, and
which product was delivered to you in new condition in the original packaging.
IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A
PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE,
SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED
LIMITATIONS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES
NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT
COVER damages which occurred in shipment, or failures which are caused by products not
supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse,
neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments,
misadjustment of consumer controls, improper maintenance, power line surge, lightning
damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel,
office, restaurant, or other business or rental use of the product, or service by anyone other
than a Authorized Servicer, or damage that is attributable to acts of God.
Dry cell batteries are also excluded from coverage under this warranty.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA
INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF
ANY EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages
for lost time, travel to and from the Authorized Servicer, loss of or damage to media or
images, data or other memory or recorded content. This list of items is not exhaustive, but for
illustration only.)
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or
consequential damages, or the exclusion of implied warranties, so the above limitations and
exclusions may not be applicable. This warranty gives you specific legal rights and you may
have other rights which vary depending on your province or territory.
CONTACT INFORMATION
For product operation and information assistance, please visit our Support page:
www.panasonic.ca/english/support
For defective product exchange within the warranty period, please contact the original dealer.
