Panasonic of North America SC-HC57 Compact Stereo System User Manual
Panasonic Corporation of North America Compact Stereo System
Manual
RQT9633-P
ESPAÑOL ENGLISH
until
2011/12/26
Owner’s Manual
Unless otherwise indicated, illustrations in this Owner’s Manual are of SC-HC57.
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Please keep this manual for future reference.
If you have any questions contact
U.S.A. and Puerto Rico: 1-800-211-PANA (7262)
Canada: 1-800-561-5505
Compact Stereo System
Model No. SC-HC57
SC-HC37
Included Installation Instructions (>2, 6)
The installation should never be done by any other than a qualified installation specialist.
Before commencing work, carefully read these installation instructions and the operating
instructions to ensure that installation is performed correctly.
(Please keep these instructions. You may need them when maintaining or moving this unit.)
La referencia rápida en español se puede encontrar en la página 20-21.
P
PC
SC-HC57-37~RQT9633.book Page 1 Monday, December 5, 2011 6:39 PM
2
RQT9633
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety
instructions listed below. Keep these operating instructions handy for future reference.
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8 Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding-type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11 Only use attachments/accessories specified by the
manufacturer.
12 Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from
tip-over.
13 Unplug this apparatus during lightning storms or when
unused for long periods of time.
14 Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
Unit
≥To reduce the risk of fire, electric shock or product damage,
– Do not expose this unit to rain, moisture, dripping or
splashing.
– Do not place objects filled with liquids, such as vases, on
this unit.
– Use only the recommended accessories.
– Do not remove covers.
– Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
Power cord
≥Install this unit so that the power cord can be unplugged from
the socket outlet immediately if any problem occurs.
Button-type battery (Lithium battery)
≥Risk of fire, explosion and burns. Do not disassemble, heat
above 60 oC (140 oF) or incinerate.
Unit
≥This unit utilizes a laser. Use of controls or adjustments or
performance of procedures other than those specified herein
may result in hazardous radiation exposure.
≥Do not place sources of naked flames, such as lighted
candles, on this unit.
Placement
≥To reduce the risk of fire, electric shock or product damage,
– Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this unit is
well ventilated.
– Do not obstruct this unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
Button-type battery (Lithium battery)
≥Danger of explosion if battery is incorrectly replaced.
Replace only with the type recommended by the
manufacturer.
≥When disposing the batteries, please contact your local
authorities or dealer and ask for the correct method of
disposal.
≥Keep out of reach of children.
≥Insert with poles aligned.
≥Mishandling of batteries can cause electrolyte leakage and
may cause a fire.
– Remove batteries if you do not intend to use the remote
control for a long period of time. Store in a cool, dark
place.
– Do not heat or expose to flame.
– Do not leave the battery(ies) in a car exposed to direct
sunlight for a long period of time with doors and windows
closed.
– Do not touch the terminals (i and j) with metal objects.
– Do not recharge, disassemble, remodel, heat or throw into
fire.
WARNING
If any electrolyte should come into contact with your hands
or clothes, wash it off thoroughly with water.
If any electrolyte should come into contact with your eyes,
never rub the eyes. Rinse eyes thoroughly with water, and
then consult a doctor.
<For USA-California only>
This product contains a CR Coin Cell Lithium
Battery which contains Perchlorate Material s
special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/
perchlorate.
CAUTION
SC-HC57-37~RQT9633.book Page 2 Monday, December 5, 2011 6:39 PM
3
RQT9633
ENGLISH
Accessories
THE FOLLOWING APPLIES ONLY IN THE
U.S.A.
FCC Note:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
≥Reorient or relocate the receiving antenna.
≥Increase the separation between the equipment and
receiver.
≥Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
≥Consult the dealer or an experienced radio/TV
technician for help.
Any unauthorized changes or modifications to this
equipment would void the user’s authority to operate this
device.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Responsible Party:
Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
Support Contact:
Panasonic Consumer Electronics Company
Telephone No.: 1-800-211-PANA (7262)
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
CAUTION
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
RISK
OF
ELECTRIC
SHOCK
DO
NOT
OPEN
Check the supplied accessories before using this
unit.

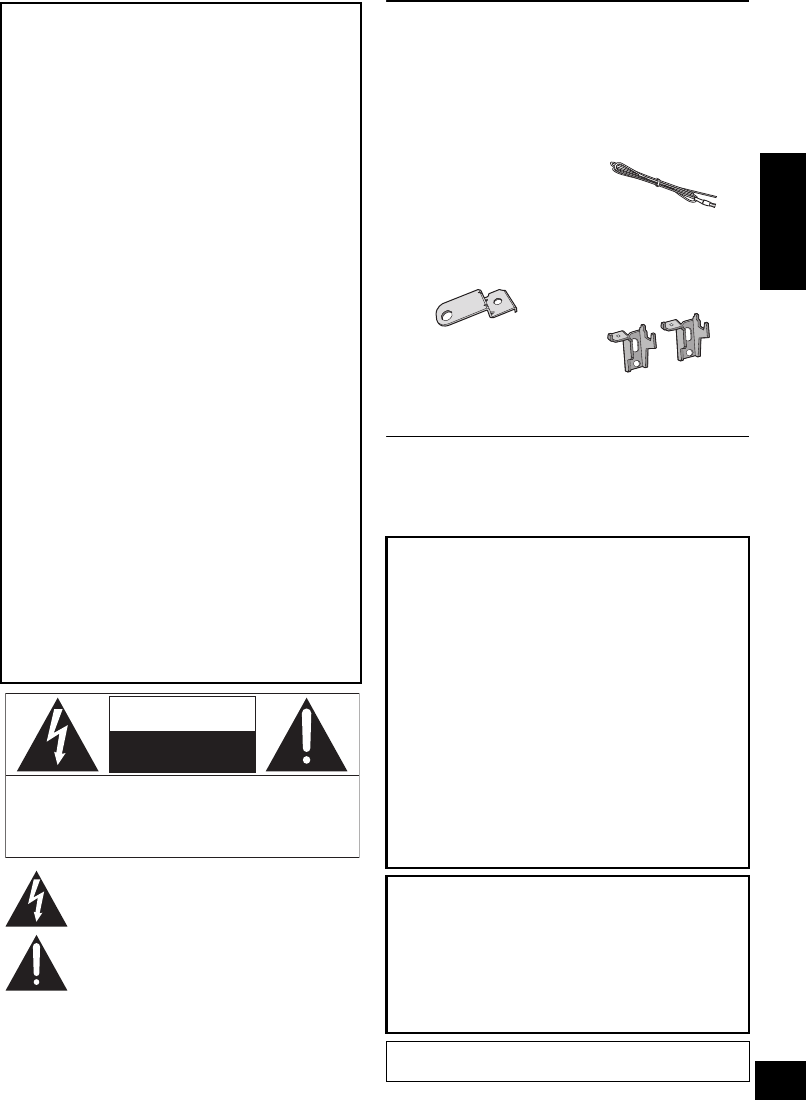

∏1 Remote control
(with a battery)
(N2QAYC000056)
∏1 AC power supply
cord
(K2CB2YY00059)
∏1 FM indoor
antenna
(RSAX0002)
Wall mounting accessories
∏1 Safety holder
(RGQ0660-K)
∏1 Screw
(XTB3i8JFJK)
∏2 Wall mount
brackets
(RMQX1082-K)
(ONLY FOR CANADA)
The enclosed Canadian French label sheet corresponds to the
English display on the top of the unit.
≥Do not use AC power supply cord with other equipment.
≥Product numbers provided in this Owner’s Manual are
correct as of December 2011. These may be subject to
change.
[SC-HC57]
THE FOLLOWING APPLIES IN THE U.S.A.
AND CANADA
This device complies with Part 15 of FCC Rules and RSS-Gen
of IC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of this device.
This transmitter must not be co-located or operated in
conjunction with any other antenna or transmitter.
This equipment complies with FCC/IC radiation exposure limits
set forth for an uncontrolled environment and meets the FCC
radio frequency (RF) Exposure Guidelines in Supplement C to
OET65 and RSS-102 of the IC radio frequency (RF) Exposure
rules. This equipment has very low levels of RF energy that is
deemed to comply without maximum permissive exposure
evaluation (MPE). But it is desirable that it should be installed
and operated keeping the radiator at least 20 cm (7 7/8q) or more
away from person’s body (excluding extremities: hands, wrists,
feet and ankles).
[SC-HC57]
THE FOLLOWING APPLIES ONLY IN
CANADA.
This device complies with RSS-210 of the IC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
(2) This device must accept any interference received,
including interference that may cause undesired operation
of the device.
Product Identification Marking is located on the bottom of
the unit.
SC-HC57-37~RQT9633.book Page 3 Monday, December 5, 2011 6:39 PM
4
RQT9633
Table of contents
IMPORTANT SAFETY INSTRUCTIONS ........... 2
Accessories....................................................... 3
Playable media.................................................. 4
Control reference guide ................................... 5
Attaching the unit to a wall (optional)............. 6
Connections ...................................................... 8
Inserting or removing media ........................... 8
CD, iPod/iPhone playback operations............ 9
Listening to the radio ..................................... 10
Internet Radio.................................................. 10
Sound adjustment ...........................................11
Clock and Timer...............................................11
[SC-HC57] AirPlay.............................................. 12
Others .............................................................. 14
Troubleshooting.............................................. 16
Specifications ................................................. 18
Unit and media care........................................ 19
Licenses .......................................................... 19
Spanish Quick Reference / Referencia
rápida en español

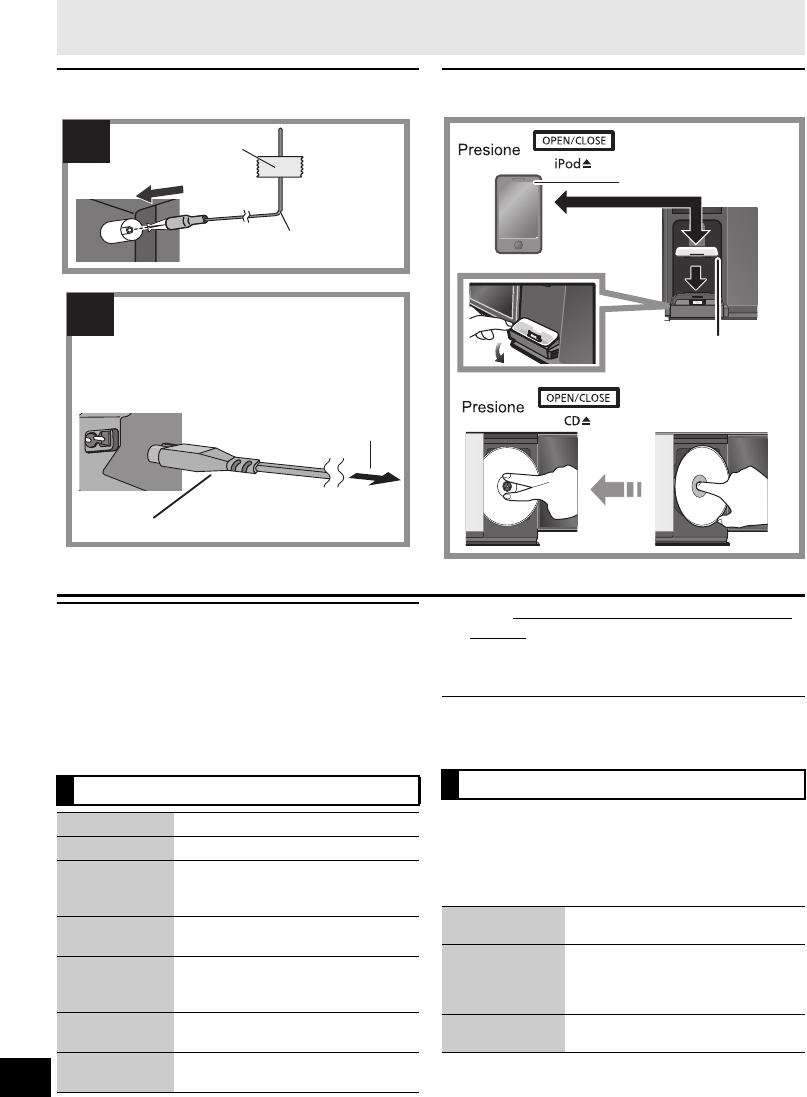

Conexiones ..................................................... 20
Insertar o sacar los medios ........................... 20
Las operaciones de reproducción de CD, iPod/
iPhone.............................................................. 20
Radio................................................................ 21
Reloj y temporizador ...................................... 21
Limited Warranty (ONLY FOR U.S.A. AND
PUERTO RICO)................................................ 22
Limited Warranty (ONLY FOR CANADA) ...... 23
Playable media
(as of December 2011)
≥Compatibility depends on the software version. Update your
iPod/iPhone to the latest software before using it with this
unit.
≥Depending on the model, it may be necessary to remove the
iPod/iPhone and select the album, artist, etc. on the iPod/
iPhone.
≥Be sure to use a dock adapter that is compatible with your
iPod/iPhone. To purchase a dock adapter, consult your iPod/
iPhone dealer. If a dock adapter is not available, insert and
remove the iPod/iPhone with care.
≥Please be aware that Panasonic accepts no responsibility for
the loss of data and/or information.
Charging the iPod/iPhone
The iPod/iPhone will start being charged once connected
to this unit.
≥In standby mode, “IPOD CHARGING” is shown on the main
unit’s display.
≥Check the iPod/iPhone to see if the battery is fully charged.
(Once fully recharged, additional recharging will not occur.)
≥A disc with the CD Logo.
≥This unit can play back discs that conform to the CD-DA
format.
≥The unit may not be able to play some discs due to the
condition of the recording.
≥This unit cannot play back MP3 files.
Note about using a DualDisc
≥The digital audio content side of a DualDisc does not meet
the technical specifications of the Compact Disc Digital Audio
(CD-DA) format so play may not be possible.
≥Do not use a DualDisc in this unit as it may not be possible to
insert it correctly and it may get scratched or scraped.
Compatible iPod/iPhone for
docking
iPod touch
1st, 2nd, 3rd, and 4th generation
iPod nano
2nd, 3rd, 4th, 5th, and 6th generation
iPod classic
iPhone 4S / iPhone 4 / iPhone 3GS / iPhone 3G
/ iPhone
Compatible CD
SC-HC57-37~RQT9633.book Page 4 Monday, December 5, 2011 6:39 PM
5
RQT9633
ENGLISH

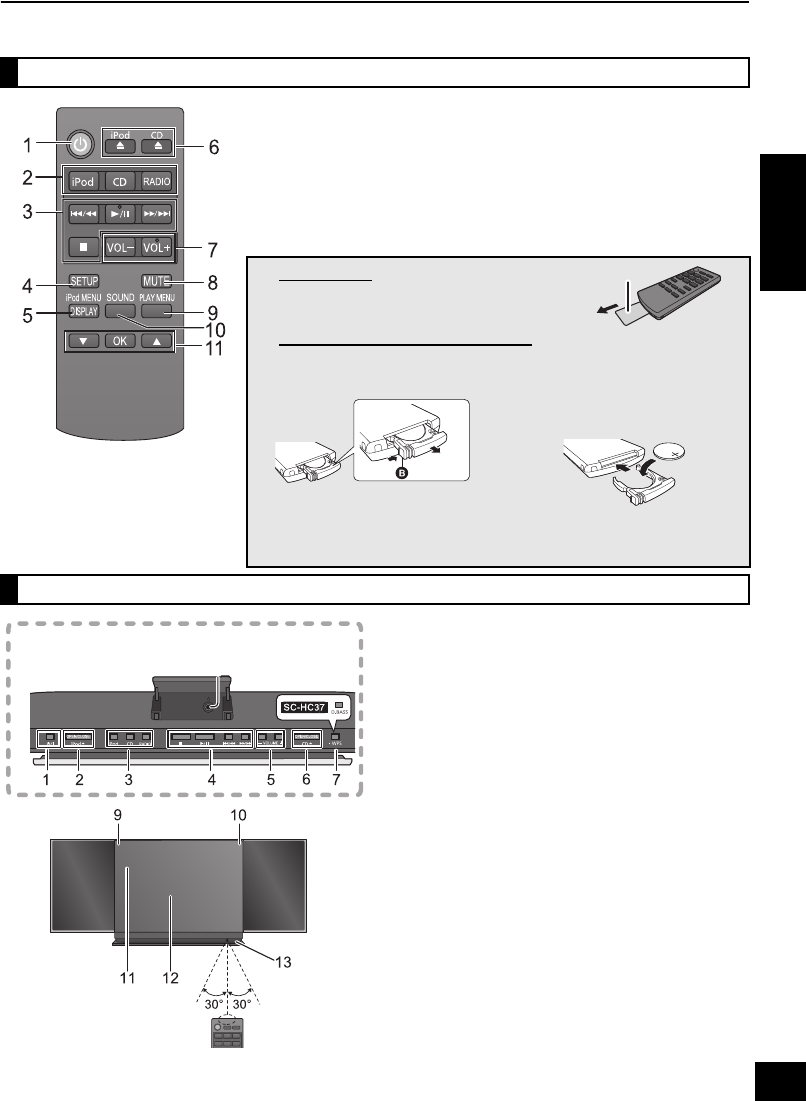

Control reference guide
Remote control
1 Turn this unit on or off
2 Select the audio source
3 Basic playback control buttons
4 Enter setup menu
5 Enter the iPod/iPhone menu /
Change displayed information
6 Open/close the sliding door
7 Adjust the volume
8 Mute the sound
Mutes the sound. Press again to
cancel. “MUTE” is also canceled
when the volume is adjusted or the
unit is turned off.
9 Enter playback menu
10 Enter sound menu
11 Selection/OK
∫Preparation
Remove the insulation sheet A before using.
∫To replace a button-type battery
1 While pressing the stopper B,
pull out the battery holder.
2 Set the button-type battery
with its (i) mark facing
upward and then put the
battery holder back in place.
Keep the button-type battery out
of reach of children to prevent
swallowing. Battery type: CR2025 (Lithium battery)
≥The battery should normally last about 1 year, however this depends on how
frequently the unit is used.
Main unit
1 Standby/on switch [Í/I]
Press to switch the unit from on to standby mode or vice
versa.
In standby mode, the unit is still consuming a small
amount of power.
2 Open/close the sliding door (for iPod/iPhone)
3 Select the audio source
4 Basic playback control buttons
5 Adjust the volume (0(min) to 50(max))
6 Open/close the sliding door (for discs)
7[SC-HC57] WPS pairing button (>12)
[SC-HC37] Dynamic Bass sound effect selector
8 Headphone jack
Plug type: ‰3.5 mm (1/8q) stereo
≥To prevent hearing damage, avoid listening for
prolonged periods of time.
Excessive sound pressure from earphones and
headphones can cause hearing loss.
9 Standby indicator
10 [SC-HC57] Wi-Fi® status indicator
11 Display
12 Sliding door
13 Remote control signal sensor
Distance:
Within approx. 7 m (23 ft) directly in front.
≥To avoid interference, please do not put any objects in
front of signal sensor.
8
Top view
SC-HC57-37~RQT9633.book Page 5 Monday, December 5, 2011 6:39 PM
6
RQT9633

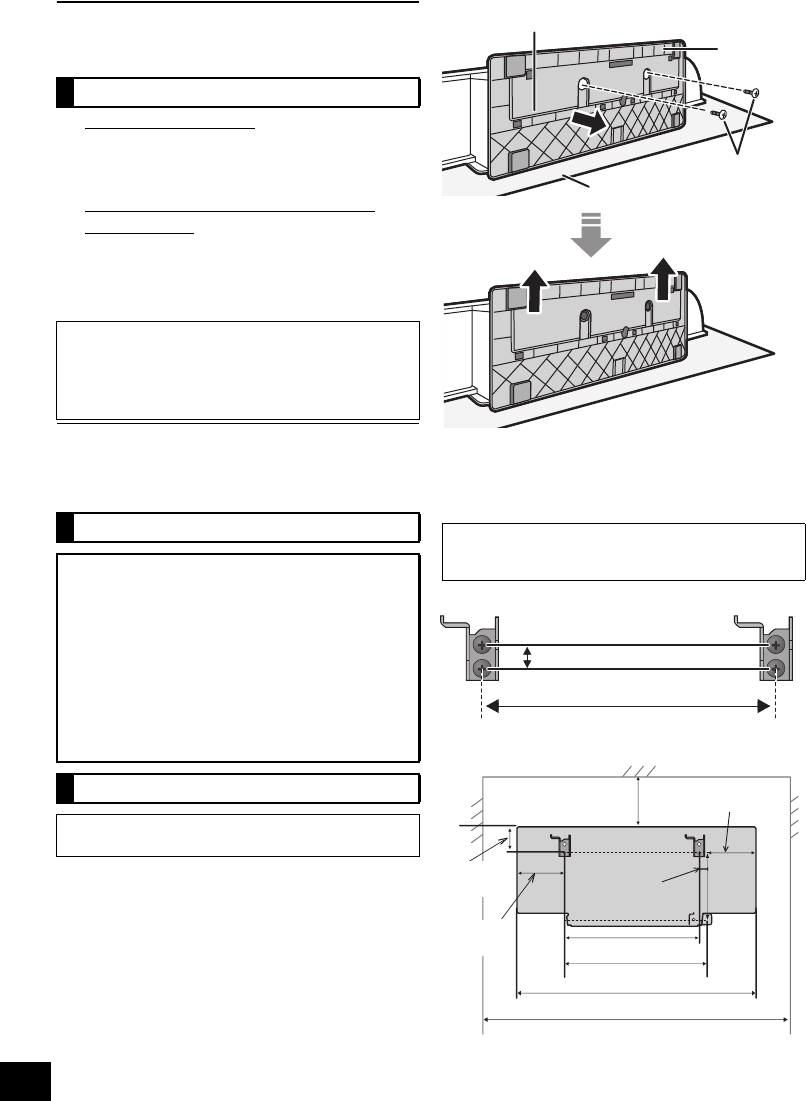

Attaching the unit to a wall
(optional)
∫Supplied accessories
≥1 Safety holder
≥1 Screw
≥2 Wall mount brackets
∫Commercially available accessories
(not supplied)
≥4 Wall mount bracket fixing screws
≥1 Safety holder fixing screw
≥1 Fall prevention cord
≥1 Screw eye
Use screws with a nominal diameter of ‰4 mm (5/32q), which are
suitable to the material of the wall (e.g., wood, steel, concrete,
etc.)
1Detach the stand from the unit.
{. Unscrew the fixing screw (2 pieces) at the bottom of the
unit.
{. Gently pull the stand off the unit as illustrated.
≥Keep the removed screws and stand in a safe place.
2Measure and mark the position of the wall
mount brackets (Both sides).
{. Use figures below to identify the screwing positions.
The position to attach the wall mount brackets
Space required
Installation accessories
≥Keep the safety holder out of reach of children to
prevent swallowing.
≥Keep the screws out of reach of children to prevent
swallowing.
≥Keep the wall mount brackets out of reach of children
to prevent swallowing.
Safety precautions
Professional installation is required.
The installation should never be done by any
other than a qualified installation specialist.
PANASONIC DISCLAIMS ANY PROPERTY
DAMAGE AND/OR SERIOUS INJURY,
INCLUDING DEATH RESULTING FROM
IMPROPER INSTALLATION OR INCORRECT
HANDLING.
≥Be sure to install this unit as indicated
within this Owner’s Manual.
Wall mount instructions
Before installation, turn the unit off and disconnect the
AC power supply cord from the AC outlet.
[SC-HC57] Before deciding the location to place the unit,
be sure to check that the Wi-Fi signal strength is
sufficient. (>12, 15)
Bottom of main unit
Stand
Soft blanket or cloth
Fixing screw
232 mm (9 1/8q)
12.5 mm (1/2q)
300 mm (11 13/16q)
247 mm (9 23/32q)
680 mm (30 23/32q)
65 mm
(2 9/18q)
232 mm (9 1/8q)
116 mm (4 9/16q)
118 mm
(4 21/32q)
480 mm (19q)
113 mm
(4 13/32q)
15 mm
(19/32q)
SC-HC57-37~RQT9633.book Page 6 Monday, December 5, 2011 6:39 PM
7
RQT9633
ENGLISH

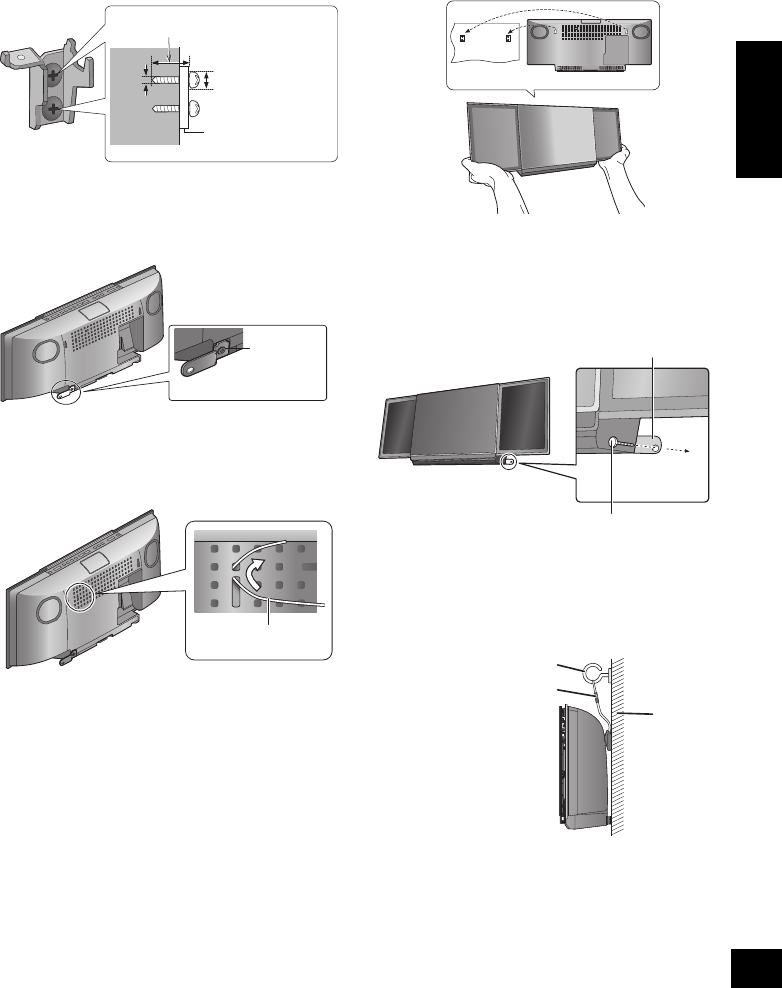

3Attach the wall mount bracket to the wall with 2
screws (not supplied). (Both sides)
≥Use a spirit level to ensure both wall mount brackets are
level.
≥Make sure that the screw used and the wall are strong
enough to support the weight of at least 33 kg (72.8 lbs).
4Fix the safety holder onto the unit with the
screw (supplied).
{. Screw tightening torque: 50 N0cm (0.4 lbf0ft) to 70
N0cm (0.5 lbf0ft).
5Attach the fall prevention cord (not supplied) to
this unit.
≥Use a cord of less than ‰2.0 mm (5/64q), which is
capable of supporting over 33 kg (72.8 lbs).
6Hook the unit securely onto the wall mount
brackets with both hands.
≥Connect the FM antenna and the AC power supply cord
to the unit before hanging the unit onto the wall. (>8)
≥After hanging the unit, release your hand carefully to
confirm the unit sits securely on the wall.
7Drive the safety holder fixing screw
(not supplied) to secure the safety holder onto
the wall.
≥Make sure that the screw used and the wall are strong
enough to support the weight of at least 33 kg (72.8 lbs).
8Attach the fall prevention cord (not supplied) to
the wall.
≥Make sure that the screw used and the wall are strong
enough to support the weight of at least 33 kg (72.8 lbs).
At least 30 mm (1 3/16q)
‰7.5 mm (19/64q) to
‰9.4 mm (3/8q)
4mm
(5/32q)Wall mount bracket
Screw
(supplied)
Cord (not supplied)
Wall
Safety holder fixing screw
(not supplied)
Safety holder
Fixed to the wall
Cord (not supplied)
Screw eye (not supplied)
Wall
SC-HC57-37~RQT9633.book Page 7 Monday, December 5, 2011 6:39 PM
8
RQT9633

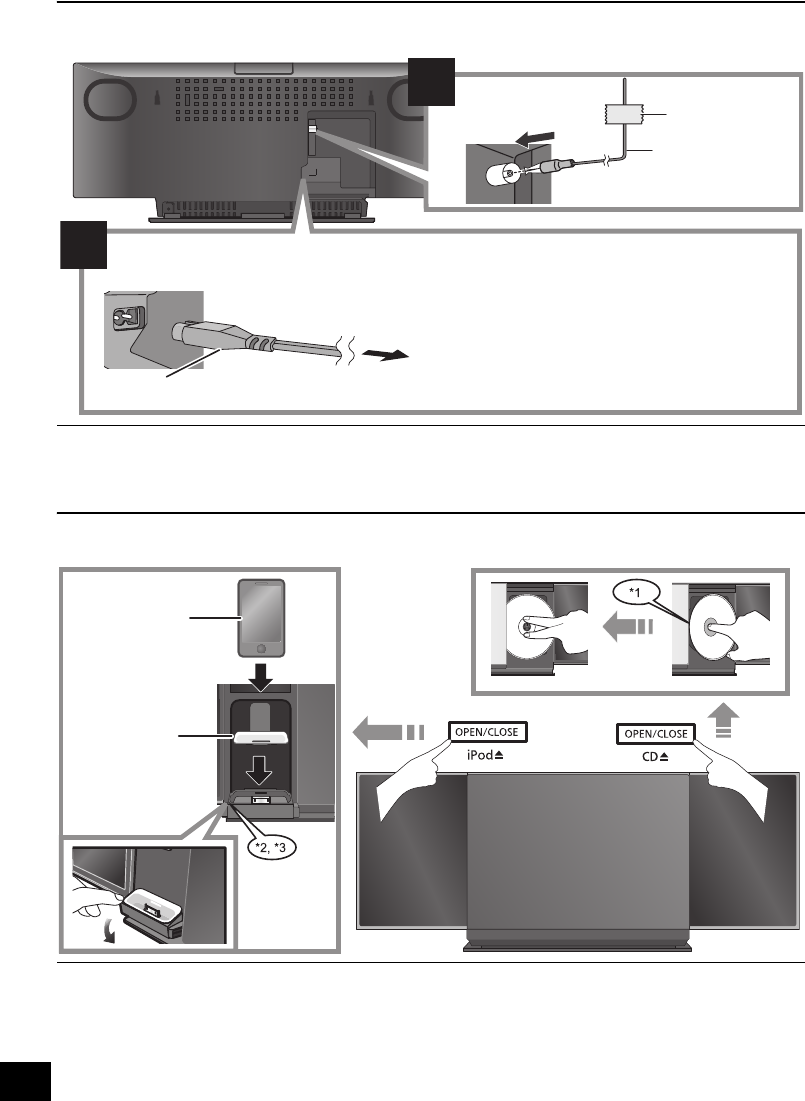

Connections
≥These speakers do not have magnetic shielding. Do not
place them near a television, personal computer or other
devices easily influenced by magnetism.
≥Tape the antenna to a wall or column in a position with the
least amount of interference. (Use an FM outdoor antenna if
radio reception is poor.)
Inserting or removing media
*1: Make sure to tilt the disc so as not to touch the sliding door.
*2: Do not push or pull the dock manually.
*3: When inserting or removing the iPod/iPhone, tilt the dock
slightly by holding the corner of the dock.
≥Make sure that the unit does not fall when inserting or
removing media.
≥Be sure to remove the iPod/iPhone from its case.
≥When moving this unit, be sure to remove all media and turn
this unit to standby mode.
ョヮチモワヵ
ヘブ
モヤチリワ 」
1
2
Adhesive tape
(not supplied)
FM indoor antenna
(supplied)
Connect the AC power supply cord after all other connections are complete.
To household AC outlet
AC Power supply cord (supplied)
This unit consumes a small amount of AC power (>18) even when turned off.
Compatible
iPod/iPhone
(not supplied)
Dock adaptor
(not supplied)
SC-HC57-37~RQT9633.book Page 8 Monday, December 5, 2011 6:39 PM
9
RQT9633
ENGLISH
CD, iPod/iPhone playback
operations
The following marks indicate the availability of the
feature.
[CD]: CD audio in CD-DA format
[iPod]: Compatible iPod/iPhone (>4)
Preparation
≥Turn the unit on.
≥Insert the media. (>8)
≥Press [CD] or [iPod] to select the audio source.
∫[CD] To view the track number and
remaining time
Press [DISPLAY] repeatedly during play or
pause.
∫[iPod] To navigate through the iPod/iPhone
menu
≥[3,4]: To navigate menu items.
≥[OK]: To go to the next menu.
≥[iPod MENU]: To return to the previous menu.
≥To view the operation, open the sliding door.
≥The operation may vary among iPod/iPhone models.
Select the playback mode.
≥These modes can be combined with the repeat play feature.
1Press [PLAY MENU] repeatedly to select
“PLAYMODE”.
2Press [3,4] to select the following mode and
press [OK].
3Press [1/;] to start play.
≥When using iPod/iPhone, use the setting on the iPod/iPhone.
≥During random play, you cannot skip to the previous track.
≥The current play mode is cleared when you open the sliding
door for discs.
1Press [PLAY MENU] repeatedly to select
“REPEAT”.
2Press [3,4] to select “ON REPEAT” and
press [OK].
≥“`” is displayed.
≥When using iPod/iPhone, use the setting on the iPod/iPhone.
≥To cancel repeat play, select “OFF REPEAT” in step 2.
(The mode is also canceled when you open the sliding door
for discs.)
Basic play ([CD], [iPod])
Play Press [1/;].
Stop Press [∫].
Pause Press [1/;].
Press again to restart play.
Skip Press [:/6] or [5/9]
to skip track.
Search During playback
Press and hold [:/6] or
[5/9].
[iPod] Backwards search is only
within the current track.
Volume Press [VOL –] or [VOL +] to
adjust the volume.
Mute Press [MUTE] to mute the
sound.
Play modes ([CD])
OFF
PLAYMODE
Select to cancel the play mode
setting.
1-TRACK
(“1, ” is
displayed.)
Only plays the selected track.
(Skip to the desired track
(>left))
RANDOM
(“RND” is
displayed.)
Plays a disc randomly.
Repeat play ([CD])
SC-HC57-37~RQT9633.book Page 9 Monday, December 5, 2011 6:39 PM
10
RQT9633
Listening to the radio
You can preset up to 30 channels.
Preparation
Make sure that the FM antenna is connected. (>8)
A station previously stored is overwritten when another station
is stored in the same channel preset.
1Press [RADIO] to select “FM”.
2Press [PLAY MENU] repeatedly to select
“A.PRESET” and then press [OK].
3Press [3,4] to select “LOWEST” or
“CURRENT” and then press [OK].
LOWEST:
To begin auto preset with the lowest frequency
(FM 87.9 or FM 87.5).
CURRENT:
To begin auto preset with the current
frequency.*
* To change the frequency, refer to “Manual tuning and
presetting”.
The tuner starts to preset all the stations it can
receive into the channels in ascending order.
Preparation
1 Press [RADIO] to select “FM”.
2 Press [PLAY MENU] repeatedly to select
“TUNEMODE” and then press [OK].
3Press [3,4] to select “PRESET” and then
press [OK].
1Press [RADIO] to select “FM”.
2Press [:/6] or [5/9] to select the
channel.
∫Manual tuning and presetting
Select a radio broadcast.
1 Press [RADIO] to select “FM”.
2 Press [PLAY MENU] repeatedly to select
“TUNEMODE” and then press [OK].
3Press [3,4] to select “MANUAL” and then
press [OK].
4Press [:/6] or [5/9] to tune to the
required station.
≥To start automatic tuning, press and hold [:/6],
[5/9] until the frequency starts scrolling. Tuning
stops when a station is found.
To preset the channel
5 While listening to the radio broadcast
Press [OK].
6Press [3,4] to select the channel and then
press [OK].
∫To improve FM sound quality
1 While receiving FM broadcasts, press
[PLAY MENU] repeatedly to select “FM MODE”
and then press [OK].
2Press [3,4] to select “MONO” and then press
[OK].
≥This setting can be preset and memorized. To do
so, continue to step 5 of “Manual tuning and
presetting”.
≥Select “STEREO” in step 2 to return to stereo broadcasts.
≥“MONO” is canceled if the frequency is changed.
∫To display the current output status
Press [DISPLAY].
“FM ST”: The channel output is stereo.
“FM MONO”: The channel output is monoral.
“FM”: This unit is not tuned to a station.
≥“STEREO” is displayed when this unit tunes to a stereo
broadcast.
Internet Radio
This unit can output Internet radio if “vTuner for
Panasonic” is installed on your iPhone/iPod touch.
Preparation
≥Install “vTuner for Panasonic” to your iPhone/
iPod touch.
≥Install iOS 5.0 or later.
1Insert the iPhone/iPod touch to this unit.
2Press [iPod] repeatedly to select “VTUNER”.
{. “vTuner for Panasonic” starts.
≥Visit the below website for the following information about
“vTuner for Panasonic”:
http://radio.vtuner.com/panasonic/en/
(Compatible iPhone/iPod touch models and software
versions, purchasing, installation and operation details.)
≥A pop-up screen may appear on your iPhone/iPod touch.
Follow the indicated instructions.
Presetting stations
automatically
Listening to a preset channel
SC-HC57-37~RQT9633.book Page 10 Monday, December 5, 2011 6:39 PM
11
RQT9633
ENGLISH
Sound adjustment
The following sound effects can be added to the
audio output.
1Press [SOUND] repeatedly to select the effect
and then press [OK].
2Press [3,4] to select the setting and then
press [OK].
*1: [SC-HC37] This function can also be selected with the
[D.BASS] button on the unit.
≥You may experience a reduction in sound quality when these
effects are used with some sources. If this occurs, turn the
sound effects off.
Clock and Timer
This is a 12-hour clock.
1Press [SETUP] repeatedly to select “CLOCK”
and then press [OK].
2Press [3,4] to set the time and then press
[OK].
≥To display the clock, press [SETUP] repeatedly to select
“CLOCK” and then press [OK] once. The time is displayed for
10 seconds.
(During standby, press [iPod MENU, DISPLAY] once.)
≥The clock is reset when there is a power failure or when the
AC power supply cord is removed.
≥Reset the clock regularly to maintain accuracy.
You can set the timer so this unit turns on at a
certain time every day.
Preparation
Set the clock (>left).
∫Setting the timer
1Press [SETUP] repeatedly to select
“TIMER ADJ” and then press [OK].
2Press [3,4] to set the starting time
(“ON TIME”) and then press [OK].
3Press [3,4] to set the finishing time
(“OFF TIME”) and then press [OK].
≥To display the timer settings, press [SETUP] repeatedly to
select “TIMER ADJ” and then press [OK] once.
(During standby, press [iPod MENU, DISPLAY] twice.)
≥The music source and volume will also be displayed if the
timer is turned on. (>below)
∫Turn the timer on
1Select the music source*1 and set the desired
volume.
2Press [SETUP] repeatedly to select
“TIMER SET” and then press [OK].
3Press [3,4] to select “SET” and then press
[OK].
≥“F” is displayed.
4Press [Í] to turn the unit off.
*1: “CD”, “IPOD” and “FM” can be set as the music source.
≥This unit can be used as normal after the timer is set,
however:
≥Turn the unit to standby mode before the timer start time.
≥Even if the audio source or the volume is changed, the
timer will still use the audio source and volume that was
set when the timer was turned on.
≥To turn the timer off, select “OFF” in step 3.
≥The unit will turn on at the preset time, with the volume
increasing gradually to the preset level.
The sleep timer can turn the unit off after a set time.
1Press [SETUP] repeatedly to select “SLEEP”
and then press [OK].
2Press [3,4] to set the time (in minutes) and
then press [OK].
“SLEEP 30” ,. “SLEEP 60” ,. “SLEEP 90” ,. “SLEEP 120”
^----------------------. OFF (Cancel) (----------------------J
≥The remaining time is indicated on the unit’s display except
when other operations are performed.
≥The play timer and sleep timer can be used together. The
sleep timer always has priority.
Direct-Vocal
Surround
(
D.SURROUND
)
“LEVEL 1”, “LEVEL 2” or
“OFF”.
≥The factory preset is “OFF”.
Preset EQ
(PRESET EQ)
“HEAVY” (heavy), “SOFT”
(soft), “CLEAR” (clear),
“VOCAL” (vocal) or “FLAT”
(flat/off).
≥The factory preset is “HEAVY”.
Bass (BASS) or
Treble (TREBLE)
Adjust the level (j4 to i4).
Dynamic Bass*1
(D.BASS)
“ON D.BASS” or
“OFF D.BASS”.
≥The factory preset is
“ON D.BASS”.
Setting the clock
Play timer
Sleep timer
SC-HC57-37~RQT9633.book Page 11 Monday, December 5, 2011 6:39 PM
12
RQT9633

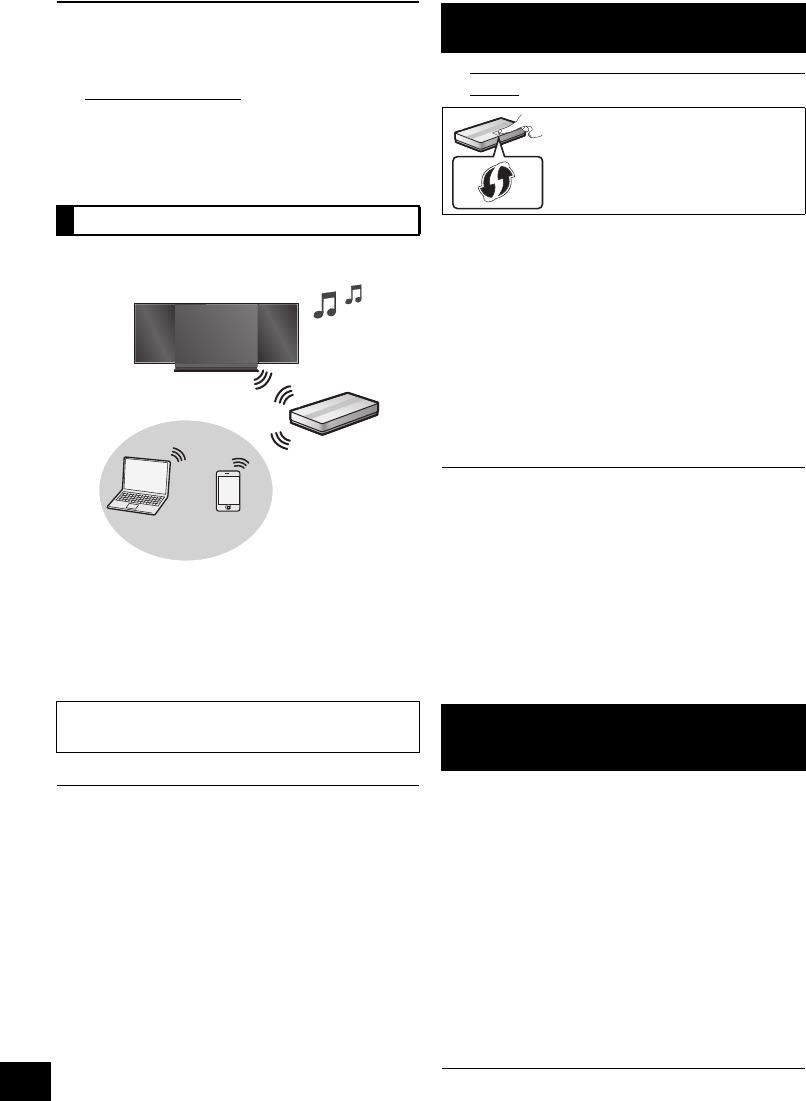

[SC-HC57] AirPlay
With this feature you can wirelessly stream music
to this unit’s speakers.
∫Compatible devices (as of December 2011)
AirPlay works with;
≥iOS 4.2 or later (iPod touch (2nd, 3rd, and 4th
generation), iPhone 4S, iPhone 4, iPhone 3GS,
iPad 2, iPad)
≥iTunes 10.2 or later (Mac / PC)
To use the AirPlay function, this unit must join the
same wireless network as the compatible device.
Preparation
With this unit there are 2 methods to setup the
wireless connection. Determine which type of
wireless network router you are using and follow
the method that matches your device.
≥Refer to the operating instructions of the wireless
network router for details.
≥Turn the unit on.
≥When performing the network settings, place this unit close
to the wireless router.
≥Simultaneous use with a microwave, cordless telephone and
other 2.4 GHz devices may result in connection interruptions.
≥Immediately after this unit is turned on, the network setup
may take longer to start.
≥This unit cannot join a wireless network using WEP security
settings with “Method 1”. Use “Method 2” to join the wireless
network.
≥To cancel this setting in the middle, press [Í] to turn off the
unit.
≥For up to date compatibility information on your Wireless
router refer to
http://panasonic.jp/support/global/cs/
(This site is in English only.)
∫Using the WPS Push Button Configuration
(PBC)
1Press and hold [– WPS] on the unit.
{. “CONNECT” flashes on the display. (Wi-Fi status
indicator blinks blue.)
≥Complete step 2 within 2 mins.
2Press the WPS button on the wireless router.
{. When a link is established “LINKING” is indicated on
this unit’s display.
{. When the configuration is finished “SUCCESS” is
indicated on this unit’s display. (Wi-Fi status indicator
lights blue.)
3Press [OK] on the remote control to complete
the setting.
≥This unit can also be set using the WPS PIN code.
Replace step 2 of “Method 1” with the following steps.
(Before starting, refer to the wireless network router’s
operating instructions for details on how to enter the PIN
code.)
1 While “CONNECT” is flashing press and hold [– WPS]
again to display the 8 digit PIN code. (Wi-Fi status
indicator blinks purple.)
2 Enter the PIN code into the wireless router.
≥To edit this system’s name it is necessary to use “Method 2”.
≥“FAIL” may be displayed if the connection was not made
within the set time limit. Try the setting again. If “FAIL” is still
displayed, try “Method 2”.
With this method, you will access this unit’s
wireless network settings from the Internet browser
of your compatible device.
≥The illustrations and explanations are based on an iPhone.
However, the word “iPhone” can be replaced with your
compatible device.
Preparation
≥Check your home wireless network name
(Network name (SSID)) and password for this
network. This can often be found on the wireless
router itself.
≥Turn on your iPhone.
*1: WPS stands for “Wi-Fi Protected SetupTM”.
Network settings
If you do not know which type of wireless network
router you are using, use “Method 2”.
or
Method 1
If your wireless network router supports WPS*1.
WPS Push Button Configuration
(PBC) compatible wireless router
may have this mark.
Method 2
If your wireless network router does not support
WPS*1.
SC-HC57-37~RQT9633.book Page 12 Monday, December 5, 2011 6:39 PM
13
RQT9633
ENGLISH

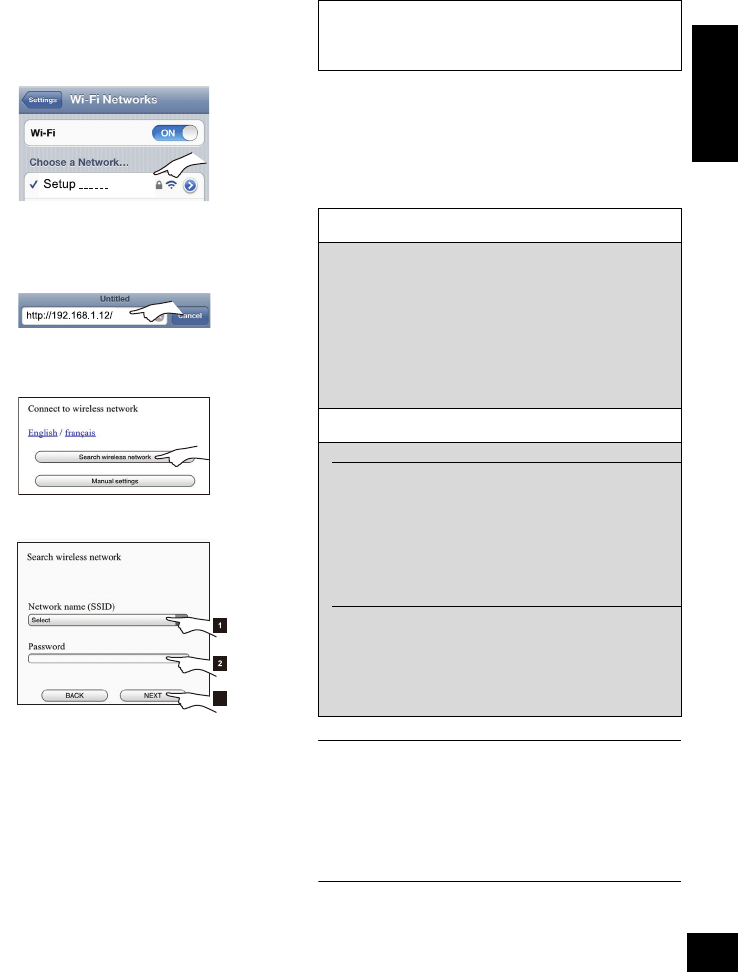

1Press [SETUP] on the remote control
repeatedly to select “NET SETUP” and then
press [OK].
{. “SETTING” is indicated on the display. (Wi-Fi status
indicator blinks purple.)
2Connect your iPhone to this unit’s wireless
network called “Setup _ _ _ _ _ _”*1, 2.
≥Once “Setup _ _ _ _ _ _” is selected, the iPhone is
connected with this unit.
3Start Safari on your iPhone and type
“http://192.168.1.12/” into the URL address
field and display the page.
{. This unit’s setup window is displayed.
4Select “Search wireless network”.
5Select and input the details.
6Perform the “Additional settings”. (>right)
If they do not apply, continue to the next step.
7Select “JOIN” to apply the settings.
{. In the pop-up screen select “OK” to continue.
– Select “CANCEL” to return to the setup window.
{. The wireless status indicator lights blue.
– You can now close the Safari browser.
{. When the configuration is finished “SUCCESS” is
indicated on this unit’s display.
8Press [OK] on the remote control to complete
the settings.
9Connect your iPhone back to your home
wireless network.
≥Enable Java and Cookies in your browser settings.
≥To cancel this setting in the middle, press [Í] to turn off the
unit.
(Continues to next page)
*1: “ _ ” stands for a digit that is unique to each set.
*2: Make sure that DHCP is enabled for the network setting on
the iPhone.
*3: If you have set your wireless network to be invisible, select
“BACK” and refer to “Alternative settings”. (>above)
[1] Select your home wireless network
name.*3
[2] Type the password.
[3] Select “NEXT”.
3
If “FAIL” is displayed press [OK]. Then check the
wireless network password and other settings
and start again from step 1.
Alternative settings
Instead of steps 4 and 5:
Select “Manual settings”.
1 Type your home wireless network name
into the “Network name (SSID)” field.
2 Select the encryption method from the
“Security system” drop down list.
3 Type the password into the “Password” field
and then select “NEXT”.
Additional settings
In step 6:
If your home wireless network has been setup
to use specific IP Addresses, Subnet Mask,
Default Gateway, Primary DNS, etc.
Select “Advanced network settings”.
{. Input the required addresses into each field and select
“OK”.
≥To change the settings back to DHCP, select “ON” from
the “DHCP” drop down list.
If you want to change the name of this unit that
is displayed as the AirPlay speakers.
Select “Edit STEREO SYSTEM name”.
{. Only ASCII characters can be used.
{. Type a new name into the “STEREO SYSTEM name”
field and select “OK”.
SC-HC57-37~RQT9633.book Page 13 Monday, December 5, 2011 6:39 PM
14
RQT9633
When this unit is on the same network as the
compatible device, you can select this unit as the
speakers.
Preparation
≥Connect this unit to the same network as the
compatible device. (>12)
≥Turn on the compatible device.
1Start iTunes on your Mac/PC or the Music App
on your iOS device.
≥If the Music App on your iOS device is used,
select the file that is to be played.
2Select this unit from the AirPlay icon at the
bottom right-hand corner of the display.
{. Check the volume settings before starting the playback.
(When AirPlay is used for the first time, the volume may
be output at the maximum setting.)
≥If you have not changed the name, this unit will be
displayed as “Panasonic HC57 _ _ _ _ _ _”*1, 2.
3Start play.
≥This unit can be set to turn on automatically when this unit is
selected as the output speakers. (>15)
≥Playback of other audio sources will stop and AirPlay output
will have priority.
≥Volume changes on the iOS device or iTunes will be applied
to this unit. (Refer to the iTunes Help for the required settings
in iTunes.)
≥AirPlay will not work when playing back videos on iTunes.
*1: “ _ ” stands for a digit that is unique to each set.
*2: The name that is displayed for this unit can be changed
from the “Edit STEREO SYSTEM name” settings in
“Method 2”. (>12)
Others
As a factory preset, this unit will always turn off
automatically if there is no sound output and no
operation for 30 minutes.
To cancel this function
1Press [SETUP] repeatedly to select
“AUTO OFF” and then press [OK].
2Press [3,4] to select “OFF” and then press
[OK].
≥To turn automatic standby on, select “ON” in step 2.
≥This setting cannot be selected when “FM” is the source.
The brightness of this unit’s display can be
changed.
1Press [SETUP] repeatedly to select “DIMMER”
and then press [OK].
2Press [3,4] to select “ON” and then press
[OK].
To cancel the dimmer, select “OFF” in step 2.
When other Panasonic equipment responds to the
supplied remote control, change the remote control
code.
1Press [CD] to select “CD”.
2Press and hold [CD] on the main unit and [3]
on the remote control until the main unit’s
display shows “REMOTE 2”.
3Press and hold [OK] and [3] on the remote
control for at least 4 seconds.
To change the mode back to “REMOTE 1”, repeat the steps
above by replacing [3] with [4].

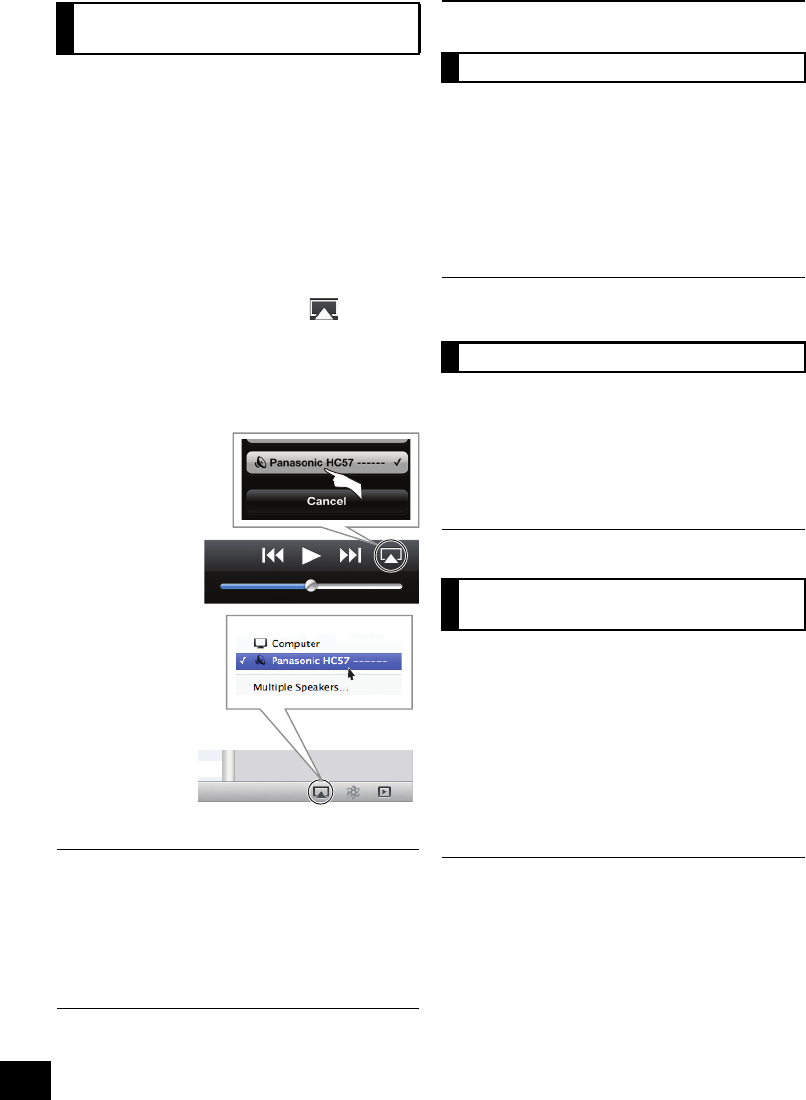

Using AirPlay with this
unit’s speakers
e.g., iPhone iOS 5.0
e.g., iTunes 10.5
(Bottom right)
Automatic standby
Display brightness
Changing the main unit and
remote control code
SC-HC57-37~RQT9633.book Page 14 Monday, December 5, 2011 6:39 PM
15
RQT9633
ENGLISH
Occasionally, Panasonic may release updated
software for this unit that may add or improve the
way a feature operates. These updates are
available free of charge.
Preparation
Connect this unit to the wireless network. (>12)
≥Make sure that the wireless network is connected to the
Internet.
1Press [SETUP] repeatedly to select
“SW UPDATE” and then press [OK].
2Press [3,4] to select “UPDATE? Y” and then
press [OK] to start the update.
{. After the update has finished, “SUCCESS” is displayed.
3Disconnect the AC power supply cord and
reconnect it after 3 minutes.
≥DO NOT DISCONNECT the AC power supply cord while
one of the following messages is displayed.
– “LINKING”, “UPDATING” or “%” (“ ” stands for a
number.)
≥If you do not want to update the unit, select “UPDATE? N”
and then press [OK] in step 2.
≥If there are no updates, “NO NEED” is displayed after step 2.
≥During the update process, no other operations can be
performed.
≥Downloading will require several minutes. It may take
longer or may not work properly depending on the
connection environment.
∫Checking the software version
1 Press [SETUP] repeatedly to select “SW VER.” and then
press [OK].
{. The version of the installed software is displayed.
2 Press [OK] to exit.
To check the Wi-Fi signal strength where the unit is
located.
Preparation
Connect this unit to the wireless network. (>12)
1Press [SETUP] repeatedly to select
“SIG.LEVEL” and then press [OK].
≥The unit’s display shows “LEVEL ”.
(“ ” stands for a number.)
2Press [OK] to exit this display mode.
≥It is recommended to have a signal strength of “3”. Change
the position or angle of your wireless network router or the
unit if the indication is “2” or “1” and see if the connection
improves.
≥If “LEVEL 0” is displayed, this unit cannot establish a link with
the wireless network router. (>17)
This unit can turn on automatically from standby
mode when this unit is selected as the AirPlay
speakers.
Preparation
Connect this unit to the wireless network. (>12)
1Press [SETUP] repeatedly to select
“NET STNBY” and then press [OK].
2Press [3,4] to select “ON” and then press
[OK].
≥To cancel this function, select “OFF” in step 2.
≥The factory preset is “OFF”. If this function is set to “ON” the
standby power consumption will increase.
To check the unit’s IP/MAC address.
1Press [CD] to select “CD”.
2Press and hold [– WPS] on the unit and [4] on
the remote control until the unit’s display shows
the IP address.
{. The IP address is partially displayed.
≥To display the MAC address on the unit, repeat the
steps above by replacing [4] with [3].
3Press [3,4] on the remote control to show the
rest of the IP address.
≥Be sure to remove the disc from the disc tray when checking
the address.
≥The “ – ” displayed on the top or bottom left of the display
indicate the first and last units respectively.
It is possible to directly connect the AirPlay
compatible device to this unit.
1While this unit is turned off, press and hold
[– WPS] and then also [Í/I] on the main unit
for more than 2 seconds.
{. “HC57 DIR _ _ _ _ _ _”*1 is displayed.
2Connect your AirPlay compatible device to this
unit’s wireless network called
“HC57 DIR _ _ _ _ _ _”*1.
≥Refer to “Using AirPlay with this unit’s speakers” (>14) and
start the playback.
*1: “ _ ” stands for a digit that is unique to each set.
≥This setting is reset when this unit is turned off.
≥This unit will always turn off automatically if there is no sound
output and no operation for 10 minutes.
≥Functions other than AirPlay cannot be used while this
feature is used.
[SC-HC57] Software update
[SC-HC57] Wi-Fi signal strength
[SC-HC57] Network standby
[SC-HC57] IP/MAC Address
[SC-HC57] Using AirPlay without
a wireless network router
SC-HC57-37~RQT9633.book Page 15 Monday, December 5, 2011 6:39 PM
16
RQT9633
Troubleshooting
Before requesting service, make the following
checks. If you are in doubt about some of the check
points, or if the solutions indicated in the following
guide do not solve the problem, refer to “Customer
Services Directory (United States and Puerto Rico)”
on page 22 if you reside in the U.S.A. or Puerto
Rico, or refer to “Limited Warranty (ONLY FOR
CANADA)” on page 23 if you reside in Canada.
[SC-HC57] Do you have the latest software
installed?
≥Occasionally, Panasonic may release updated software for
this unit that may add or improve the way a feature operates.
(>15)
Humming heard during play.
≥An AC power supply cord or fluorescent light is near the
cords. Keep other appliances and cords away from this unit’s
cables.
Incorrect display or play will not start.
≥Make sure that the disc is compatible with this unit.(>4)
≥There is moisture on the lens. Wait for about an hour and
then try again.
A beat sound or noise is heard while receiving
radio broadcast.
≥Confirm the FM antenna is properly connected. (>8)
≥Adjust the position of the antenna.
≥Try to keep a certain amount of distance between the
antenna and AC power supply cord.
≥Try to use outdoor antenna if there are buildings or
mountains nearby.
≥Switch the television or other audio player off or separate it
from the unit.
≥Keep this unit away from mobile phones if the interference is
apparent.
Stations cannot be selected.
Change the FM frequency step.
1Press [RADIO] to select “FM”.
2Press and hold [RADIO] on the main unit.
After a few seconds the display changes to show the current
lowest frequency. Continue to hold the button down. The lowest
frequency changes and the step is changed.
Cannot charge or operate.
≥Check that the iPod/iPhone is connected firmly. (>8)
≥The battery of the iPod/iPhone is depleted. Charge the iPod/
iPhone, and then operate again.
≥When unexpected operation occurs while using the iPod/
iPhone, connect the iPod/iPhone again or try to restart the
iPod/iPhone.
Cannot connect to the network
≥Confirm the network connection and settings. (>12)
≥Your wireless network might be set to be invisible. In this
case select “Manual settings” in “Method 2”. (>12)
≥This unit cannot join a wireless network using WEP security
settings with the WPS methods (“Method 1”). Use “Method 2”
to join the wireless network. (>12)
Cannot connect to the unit
≥Make sure that this unit is on the same wireless network as
the device you are trying to use. (>12)
≥If “NET STNBY” is set to “OFF”, the AirPlay compatible
device cannot be connected when this unit is off.
≥Turn off the Wi-Fi setting on the AirPlay compatible device,
set “NET STNBY” to “OFF” (>15) and then turn this unit off
and on. Reconnect the compatible device to the Wi-Fi
network and then select this unit as the AirPlay speakers
again.
≥Make sure that the multicast function on the wireless network
router is set to on (enabled).
My wireless network router is WPS PBC
compatible, but the pairing does not work.
≥If the network is set to be invisible, the push button
configuration does not work. In this case, either make the
wireless network visible while you set up the network for this
unit or use “Method 2”. (>12)
Playback does not start
The sound is interrupted
≥Simultaneous use with a microwave, cordless telephone and
other 2.4 GHz devices may result in connection interruptions.
≥If this unit is turned off and on during AirPlay playback, it may
not be possible to output the sound from the speakers.
Select a different device from the compatible device and then
reselect this unit as the speakers.
To return all settings to the factory preset
When the following situations occur, reset the
memory:
≥There is no response when buttons are pressed.
≥You want to clear and reset the memory contents.
1Disconnect the AC power supply cord. (Wait
for at least 3 minutes before proceeding to
step 2.)
2While pressing and holding down [Í/I] on the
main unit, reconnect the AC power supply
cord.
≥“--------” appears on the display.
3Release [Í/I].
All the settings are returned to the factory preset. You will
need to reset the memory items.
Common problems
Disc operations
Radio
iPod/iPhone operations
[SC-HC57] AirPlay operations
SC-HC57-37~RQT9633.book Page 16 Monday, December 5, 2011 6:39 PM
17
RQT9633
ENGLISH
The remote control doesn't work properly.
≥The remote control and this unit are using a different code.
(>right, “REMOTE ”)
The following messages or service numbers
may appear on the unit's display.
“--:--”
≥You plugged the AC power supply cord in for the first time or
there was a power failure recently. Set the time (>11).
“ADJUST CLOCK”
≥Clock is not set. Adjust the clock accordingly.
“ADJUST TIMER”
≥Play timer is not set. Adjust the play timer accordingly.
“AUTO OFF”
≥The unit has been left unused for about 30 minutes and will
shut down in a minute. Press any button to cancel it.
“CANNOT SET”
≥Select an audio source other than “([SC-HC57]) AIRPLAY” or
“VTUNER”.
“CHECKING CONNECTION”
≥The unit is checking the connected iPod/iPhone. If this
display keeps appearing, make sure that iPod/iPhone is
inserted correctly and try again (>8).
“ERROR”
≥Incorrect operation is performed. Read the instructions and
try again.
“F61”
≥There is a power supply problem. Consult the dealer.
“ILLEGAL OPEN”
≥Sliding door is not in correct position. Turn the unit off and on
again. If this display appears again, consult the dealer.
“NODEVICE”
≥The iPod/iPhone device is not inserted correctly. Read the
instructions and try again (>8).
“NO DISC”
≥Insert the disc to be played (>8).
“NO PLAY”
≥A CD that is not in CD-DA format is inserted. It cannot be
played.
“NOT SUPPORTED”
≥You have inserted an iPod/iPhone that cannot be played
(>4).
≥Insert correctly and try again if iPod/iPhone is compatible.
“READING”
≥The unit is checking the CD information. After this display
has disappeared, start operating.
“START ERROR”
≥Check the iPhone/iPod touch.
Visit the below website for more information:
http://radio.vtuner.com/panasonic/en/
“REMOTE ” (“ ” stands for a number.)
≥The remote control and this unit are using different codes.
Change the code on the remote control.
– When “REMOTE 1” is displayed, press and hold [OK] and
[4] for more than 4 seconds.
– When “REMOTE 2” is displayed, press and hold [OK] and
[3] for more than 4 seconds.
[SC-HC57] “NOCONNECT”
≥This unit cannot connect to the Internet.
Check the Internet connection.
[SC-HC57] “DL ERROR”
≥The software download has failed. Press any button to exit.
Please try again later.
≥The server cannot be found. Press any button to exit. Make
sure that the wireless network is connected to the Internet.
[SC-HC57] “FAIL”
≥Updating or setting has failed. Read the instructions and try
again.
[SC-HC57] “LEVEL 0”
≥There is no link between this unit and the wireless network
router.
Try the following operations:
– Check that the wireless network router is turned on.
– Turn this unit off and on again.
– Reset the wireless network settings. (>12)
If the problem persists, consult your dealer.
Remote control
Messages
SC-HC57-37~RQT9633.book Page 17 Monday, December 5, 2011 6:39 PM
18
RQT9633
Specifications
∫GENERAL
∫AMPLIFIER SECTION
∫TUNER SECTION
∫DISC SECTION
∫SPEAKER SYSTEM SECTION
∫[SC-HC57] Wi-Fi / AirPlay SECTION
∫TERMINAL SECTION
≥Specifications are subject to change without notice.
Mass and dimensions are approximate.
≥Total harmonic distortion is measured by a digital spectrum
analyzer.
Power consumption [SC-HC57] 25 W
[SC-HC37] 23 W
Power consumption in standby mode
Approx. 0.1 W
[SC-HC57] Power consumption in
standby mode (When “NET STNBY” is “ON”)
Approx. 5.6 W
Power supply AC 120 V, 60 Hz
Dimensions (WkHkD)
480 mmk197 mmk84 mm (19qk73/4qk31/2q)
(Depth without stand: 75 mm (3q))
Mass (Weight)
[SC-HC57] Approx. 2.6 kg(5.7 lbs)
[SC-HC37] Approx. 2.5 kg(5.5 lbs)
Operating temperature range
0oCtor40 oC(r32 oF to r104 oF)
Operating humidity range
35 % to 80 % RH (no condensation)
Output power:
RMS Output Power Stereo mode
Front Ch (both ch driven)
20 W per channel (6 ≠), 1 kHz, 10 % THD
Total RMS Stereo mode power
40 W
FTC Output Power Stereo mode
Front Ch (both ch driven)
15 W per channel (6 ≠),
20 Hz to 20 kHz, 1 % THD
Total FTC Stereo mode power
30 W
Preset Memory FM 30 stations
Frequency Modulation (FM)
Frequency range
87.9 MHz to 107.9 MHz (200 kHz step)
87.5 MHz to 108.0 MHz (100 kHz step)
Antenna terminals
75 ≠(unbalanced)
Disc played [8 cm (3q) or 12 cm (5q)]
CD, CD-R/RW (CD-DA)
Pick up
Wavelength 790 nm (CD)
Laser power
For U.S.A. CLASS I
For Canada CLASS 1
Audio output (Disc)
Number of channels 2 ch (FL, FR)
Type
1 way, 1 speaker system (Passive Radiator)
Speaker unit(s)
Full range
6.5 cm (2 1/2q) Cone typek1 per channel
Passive Radiator
8cm(31/8q)k2 per channel
Impedance 6≠
Wi-Fi
WLAN Standards
IEEE802.11b/g
Frequency Band
2.412 GHz to 2.472 GHz
Security
WEP, WPATM, WPA2TM
WPS version
Version 2.0 (WEP not support)
iPod Connector
DCOUT 5V 1.0A MAX
Phone jack
Terminal
Stereo, ‰3.5 mm (1/8q) jack
SC-HC57-37~RQT9633.book Page 18 Monday, December 5, 2011 6:39 PM
19
RQT9633
ENGLISH

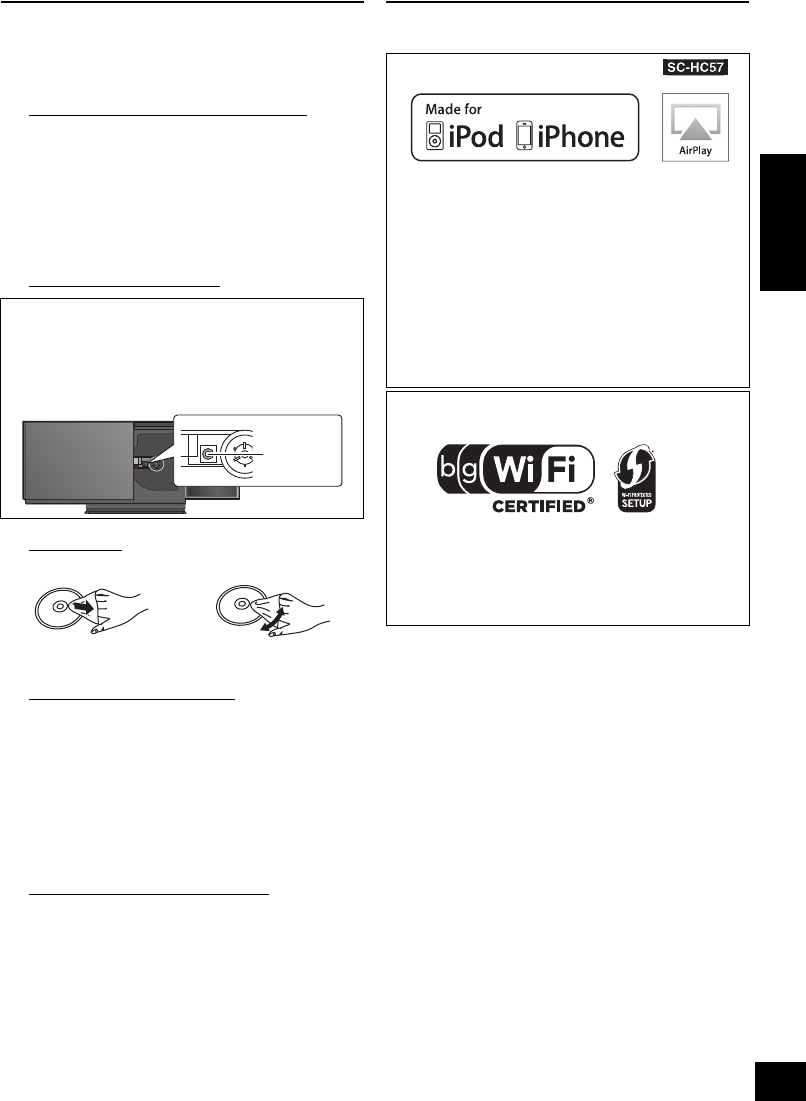

Unit and media care
Pull out the AC power plug from the outlet before
maintenance.
∫Clean this unit with a soft, dry cloth
≥When dirt is heavy, wring a cloth moistened in water tightly to
wipe the dirt, and then wipe it with a dry cloth.
≥When cleaning the speaker covers, use a fine cloth.
Do not use tissues or other materials (towels, etc.) that can
fall apart. Small grains may get stuck inside the speaker
cover.
≥Never use alcohol, paint thinner or benzine to clean this unit.
≥Before using chemically treated cloth, carefully read the
instructions that came with the cloth.
∫Maintenance of the lens
∫Clean discs
Wipe with a damp cloth and then wipe dry.
∫Disc handling precautions
≥Handle discs by the edges to avoid inadvertent scratches or
fingerprints on the disc.
≥Do not attach labels or stickers to discs.
≥Do not use record cleaning sprays, benzine, thinner, static
electricity prevention liquids or any other solvent.
≥Do not use the following discs:
– Discs with exposed adhesive from removed stickers or
labels (rented discs etc.).
– Discs that are badly warped or cracked.
– Irregularly shaped discs, such as heart shapes.
∫To dispose or transfer this unit
The unit may keep the user settings information in
the unit. If you discard this unit either by disposal or
transfer, then follow the procedure to return all the
settings to the factory presets to delete the user
settings. (>16, “To return all settings to the factory
preset”)
≥[SC-HC57] The operation history may be recorded
in the memory of this unit.
Licenses
≥Clean the lens regularly to prevent malfunctions. Use a
blower to remove dust and a cotton swab if it is extremely
dirty.
≥You cannot use a CD type lens cleaner.
≥Do not leave the sliding door open for prolonged periods
of time. This will cause the lens to get dirty.
≥Be careful not to touch the lens with your fingers.
DO DO NOT
Lens
“Made for iPod”, and “Made for iPhone” mean that an
electronic accessory has been designed to connect
specifically to iPod, or iPhone, respectively, and has been
certified by the developer to meet Apple performance
standards.
Apple is not responsible for the operation of this device or
its compliance with safety and regulatory standards.
Please note that the use of this accessory with iPod, or
iPhone may affect wireless performance.
AirPlay, the AirPlay logo, iPhone, iPod, iPod classic, iPod
nano, and iPod touch are trademarks of Apple Inc.,
registered in the U.S. and other countries.
iPad is a trademark of Apple Inc.
[SC-HC57]
The Wi-Fi CERTIFIED Logo is a certification mark of the
Wi-Fi Alliance.
The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi
Alliance.
“Wi-Fi”, “Wi-Fi Protected Setup”, “WPA” and “WPA2” are
marks or registered marks of the Wi-Fi Alliance.
SC-HC57-37~RQT9633.book Page 19 Monday, December 5, 2011 6:39 PM
20
RQT9633
