Panasonic of North America T07001 Transmitter Module User Manual RQTX FX65 En
Panasonic Corporation of North America Transmitter Module RQTX FX65 En
User Manual
PRQTX0047-Y
Designed for Panasonic DVD Home Theater Sound Systems
that are compatible with the SH-FX65.
Dear customer
Thank you for purchasing this product. For optimum performance and
safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read
the instructions completely.
Please keep this manual for future reference.
Operating Instructions
Wireless System and Digital Transmitter
Model No. SH-FX65
Table of Contents
Introduction
IMPORTANT SAFETY INSTRUCTIONS................................................3
Accessory ..............................................................................................3
Use
Setup......................................................................................................4
Connections ........................................................................................5
Making the wireless link ......................................................................6
Reference
Product service ......................................................................................7
Maintenance ..........................................................................................7
Troubleshooting guide ............................................................................7
Limited Warranty ....................................................................................8
Specifications.......................................................................................10
System SH-FX65
Digital transmitter SH-FX65T
Wireless system SE-FX65
As an ENERGY STAR®
Partner,
Panasonic has determined that
this product meets
the ENERGY STAR®
guidelines
for energy efficiency.
RQTX_FX65_En.fm Page 1 Thursday, November 30, 2006 11:52 AM
RQTX0047
2
The following mark and symbols are located on bottom of the unit.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE,
≥
DO NOT EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND THAT
NO OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE APPARATUS.
≥
USE ONLY THE RECOMMENDED ACCESSORIES.
≥
DO NOT REMOVE THE COVER (OR BACK); THERE
ARE NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION!
DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-
IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE
UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC
SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE
THAT CURTAINS AND ANY OTHER MATERIALS DO NOT
OBSTRUCT THE VENTILATION VENTS.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE SCREWS. NO USER-SERVICEABLE
PARTS INSI D E .
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
FCC Note:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
≥Reorient or relocate the receiving antenna.
≥Increase the separation between the equipment and receiver.
≥Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
≥Consult the dealer or an experienced radio/TV technician for help.
FCC caution: To maintain compliance with FCC regulations, shielded interface
cables must be used with this equipment. Operation with non-approved equipment
or unshielded cables may result in interference to radio and TV reception. Any
changes or modifications not approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Responsible Party:
Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
Support Contact:
Panasonic Consumer Electronics Company
Telephone No.: 1-800-211-7262
Marking sign is located on bottom of the unit.
To satisfy FCC RF exposure requirements for mobile transmitting devices,
a separation distance of 20 cm or more should be maintained between
the antenna of this device and persons during device operation.
To ensure compliance, operations at closer than this distance is not
recommended. The antenna used for this transmitter must not be co-located in
conjunction with any other antenna or transmitter.
WARNING:
RQTX_FX65_En.fm Page 2 Thursday, November 30, 2006 1:15 PM
RQTX0047
3
IMPORTANT SAFETY INSTRUCTIONS / Accessory
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow
the safety instructions on the unit and the applicable safety instructions
listed below. Keep these operating instructions handy for future reference.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding-type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit
from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or
when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been
dropped.
- If you see this symbol-
Please check and identify the supplied accessory. Use number indicated
in parentheses when asking for replacement part. (Product number
correct as of December 2006. This may be subject to change.)
To order this accessory, refer to “Accessory Purchases” on page 9.
∏1 AC power supply cord (K2CB2CB00018)
For use with this unit only. Do not use it with other equipment.
Also, do not use cords for other equipment with this unit.
Information on Disposal in other Countries outside the
European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact
your local authorities or dealer and ask for the
correct method of disposal.
The socket outlet shall be installed near the equipment and easily
accessible. The mains plug of the power supply cord shall remain
readily operable.
To completely disconnect this apparatus from the AC Mains,
disconnect the power supply cord plug from AC receptacle.
Accessory
RQTX_FX65_En.fm Page 3 Thursday, November 30, 2006 2:12 PM
RQTX0047
4
Setup
Setup
Preparation
≥Turn off all equipment before connection and read the appropriate operating instructions.
≥Connect the AC power supply cord after all other connections are complete.

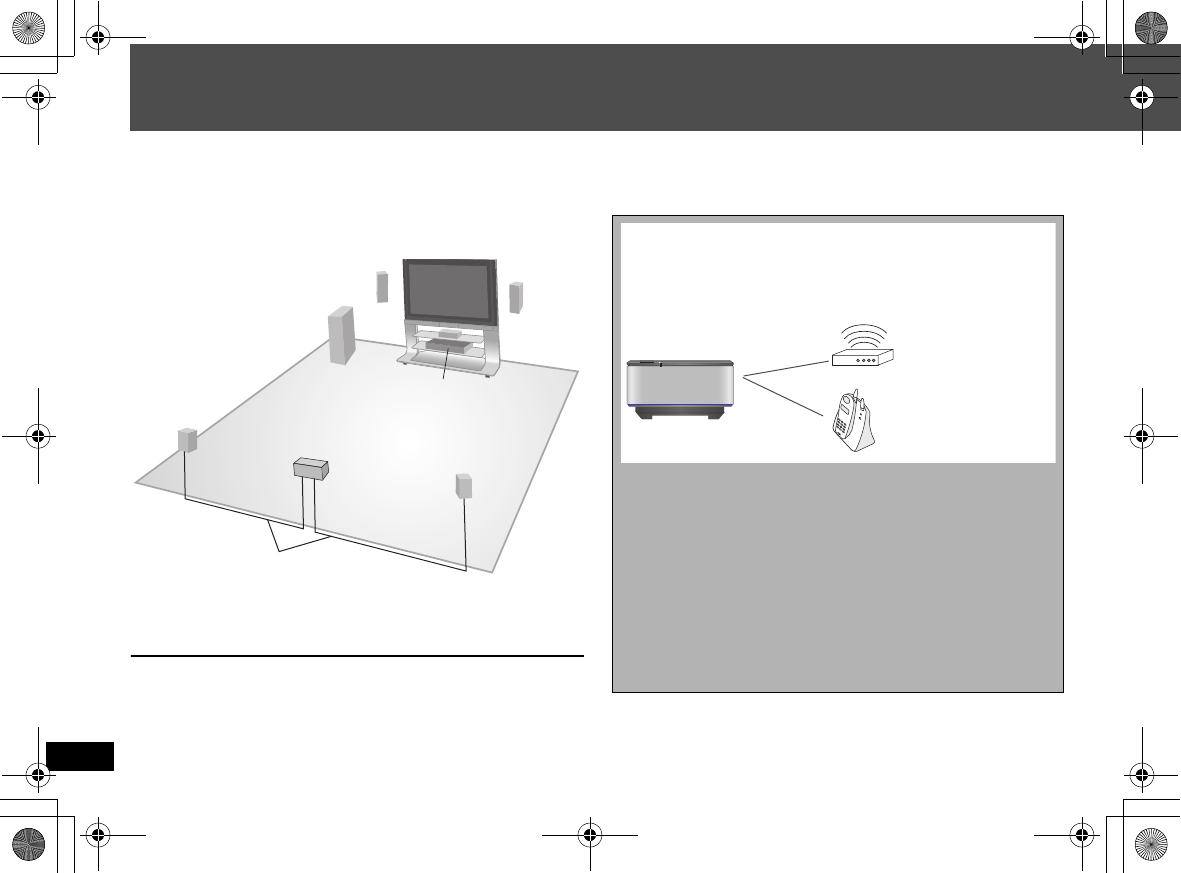

∫Wireless setup diagram
e.g.
Place the wireless system within approximately 10 m (33 ft) from the
home theater unit.
[Note[
Do not use the wireless system and digital transmitter in a metal cabinet
or bookshelf.
Home theater unit (with the digital transmitter)
Do not attempt to connect any extra surround
speakers to the home theater unit.
Surround speaker cables
Wireless
system The wireless system will automatically seek a clear channel if any of
these other devices interfere with its communication.
When this happens, the wireless link indicator (“ [W1] ” or an indicator)
flashes on the home theater unit, and there is a brief interruption in
audio coming from the surround speakers.
This is the normal operation of the product working to assure the best
possible performance of your home theater unit.
If the interference persists, try moving the other devices to another
location outside the range of the wireless system, or move the wireless
system nearer to your home theater unit.
Wireless LAN:
approx. 2 m (6-1/2 ft)
Cordless phone and other
electronic devices:
approx. 2 m (6-1/2 ft)
Wireless system
To avoid interference, maintain the following distances between
the wireless system and other electronic devices that use the
same radio frequency (2.4 GHz band).
e.g.
RQTX_FX65_En.fm Page 4 Monday, December 4, 2006 3:59 PM
RQTX0047
5
Setup

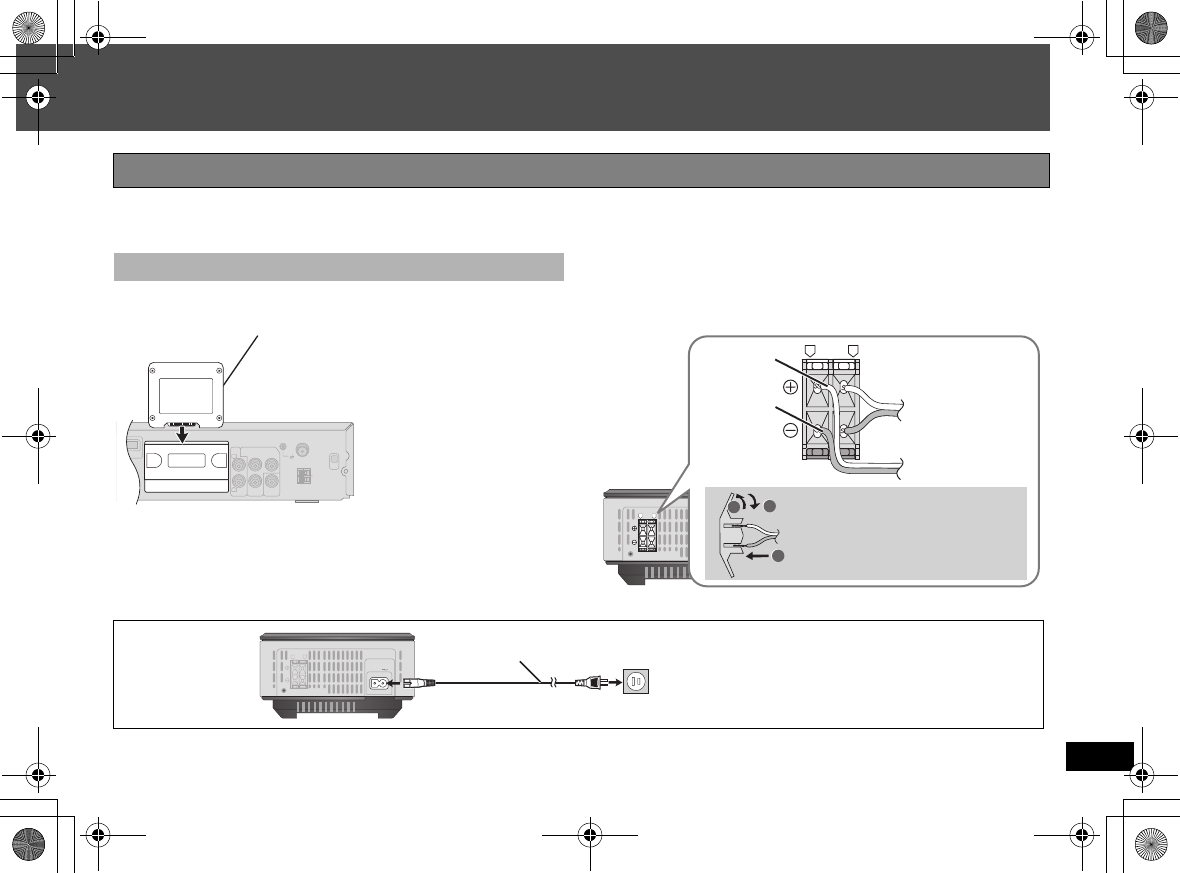

∫Digital transmitter
Refer also to the operating instructions for your home theater unit.
∫Wireless system
Connections
Do not insert or remove while the home theater unit is on.
TRANSMITTER
DIGITAL
Digital transmitter
Insert fully until you hear a click.
e.g.
Rear of the home theater unit
1If the surround speaker cables have already been connected
Disconnect the surround speaker cables from your
home theater unit.
2Connect the surround speaker cables to the wireless
system.
13
2
Surround speaker
cable (R)
i: White
j: Blue
Surround speaker
cable (L)
Insert the wires correctly.
Insert the wires, taking care not to
insert beyond the wire insulation.
∫AC cord
To household AC outlet
(AC 120 V, 60 Hz)
AC power supply cord
RQTX_FX65_En.fm Page 5 Thursday, November 30, 2006 11:52 AM
RQTX0047
6
Setup
Setup
Refer also to the operating instructions for your home theater unit.

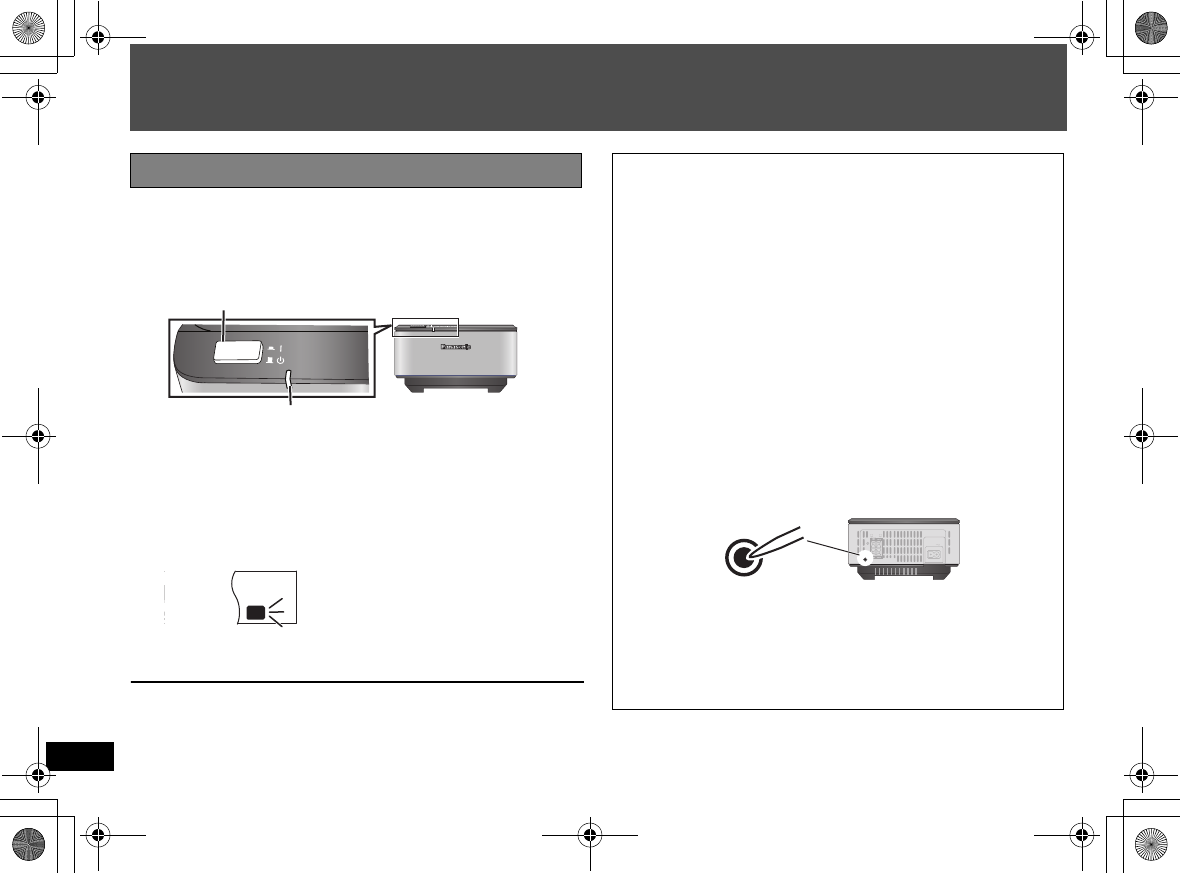

Conserving power
The wireless system consumes a small amount of power, even when it is
off (approx. 0.2 W). To save power when the unit is not to be used for a
long time, unplug it from the household AC outlet.
Making the wireless link
1Turn on the wireless system.
2Turn on your home theater unit and check the wireless
link indicator on the home theater unit.
3Start play on the home theater unit.
AUTO OPERATION ON/OFF
POWER
Unit on/off button [POWER C I, B Í]
Use this button to turn the unit on and off.
C
I
: The unit is on.
B Í
: The unit is off.
AUTO OPERATION ON/OFF indicator
The indicator lights red when the unit is turned on and lights green
when the wireless link is activated.
When the wireless link is inactive for a long time, it turns red.
M
ONO
SLP
ST CT
RDS
RND
PGM
EQ
PRG
SRDE.
PL
DDTS
W2WS
W1
“ [W1] ”or an indicator should light up.
≥If “ [W1] ” or an indicator is flashing,
refer to page 7, Troubleshooting guide.
e.g. Display on the home theater unit
∫Pairing with existing SH-FX85 (not included)
Your SE-FX65 can be used with SH-FX85, both operating on the same
wireless system as SH-FX85. By pairing, you can enjoy the benefits of
both systems working together simultaneously.
Preparation
≥
Use the SH-FX85T transmitter card for pairing.
Store your SH-FX65T transmitter card in a cool dry place for later use.
≥Make sure that the speaker and AC cord connections on page 5 are
completed.
≥Turn on the home theater unit and SH-FX85, and then reduce the
volume.
1 Turn on SE-FX65.
2 While pressing [5/9] on the home theater unit,
press the numbered button [3] on the remote control until “P” lights
in the home theater unit’s display.
≥The indicator on SE-FX65 turns green.
3 While “P” is displayed, press [I/D SET].
4 While pressing [5/9] on the home theater unit,
press the numbered button [3] on the remote control.
≥
“
[W1]
” or the wireless link indicator lights on the home theater unit.
5 Turn off and on SE-FX65.
≥Make sure the indicator on SE-FX65 lights up green.
Use a pointed object.
RQTX_FX65_En.fm Page 6 Tuesday, December 5, 2006 10:47 AM
RQTX0047
7
Product service / Maintenance / Troubleshooting guide
Product service
1. Damage requiring service—The unit should be serviced by qualified
service personnel if:
(a) The AC power supply cord or AC adaptor has been damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked change in
performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing—Do not attempt to service the unit beyond that described
in these operating instructions. Refer all other servicing to authorized
servicing personnel.
3. Replacement parts—When parts need replacing ensure the servicer
uses parts specified by the manufacturer or parts that have the same
characteristics as the original parts. Unauthorized substitutes may
result in fire, electric shock, or other hazards.
4. Safety check—After repairs or service, ask the servicer to perform
safety checks to confirm that the unit is in proper working condition.
The servicer will require all components to service your system.
Therefore, should service ever be necessary, be sure to bring the entire
system.
For product information or assistance with product operation:
Refer to “Customer Services Directory” on page 9.
Clean this unit with a soft, dry cloth.
≥Never use alcohol, paint thinner or benzine to clean this unit.
≥Before using chemically treated cloth, carefully read the instructions that
came with the cloth.
Product information
Maintenance
Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt
about some of the check points, or if the solutions indicated in the table do
not solve the problem, refer to the “Customer Services Directory” on page 9.
On your home theater unit
User memo:
The wireless
link indicator
(e.g. “ [W1] ” or
an indicator) is
flashing.
≥There is no link between the home theater unit and
the wireless system. Turn the wireless system off
and then back on. Alternatively, turn the wireless
system off, disconnect the AC power supply cord,
and then reconnect it.
The wireless
link indicator
(e.g. “ [W1] ” or
an indicator)
does not light.
≥Check that the home theater unit is turned on, and
the wireless system is turned on.
≥Ensure that the digital transmitter is fully inserted
into the slot of the home theater unit.
DATE OF PURCHASE
__________________________________
DEALER NAME
_______________________________________
DEALER ADDRESS
____________________________________
___________________________________________________________________
TELEPHONE NUMBER
_________________________________
The model number and serial number of this product can be found on
either the back or the bottom of the unit. Please note them in the space
provided below and keep for future reference.
MODEL NUMBER SH-FX65
SERIAL NUMBER
RQTX_FX65_En.fm Page 7 Thursday, November 30, 2006 11:52 AM
RQTX0047
8
Limited Warranty
Limited Warranty
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way Secaucus, New Jersey 07094
Panasonic Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic Audio Products Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or
workmanship, Panasonic Consumer Electronics Company or Panasonic Puerto Rico,
Inc. (collectively referred to as “the warrantor”) will, for the length of the period
indicated on the chart below, which starts with the date of original purchase (“warranty
period”), at its option either (a) repair your product with new or refurbished parts, or
(b) replace it with a new or a refurbished product. The decision to repair or replace will
be made by the warrantor.
During the “Labor” warranty period there will be no charge for labor. During the “Parts”
warranty period, there will be no charge for parts. You must carry-in or mail-in your
product during the warranty period.
If non-rechargeable batteries are included, they are not warranted. This warranty only
applies to products purchased and serviced in the United States or Puerto Rico. This
warranty is extended only to the original purchaser of a new product which was not
sold “as is”. A purchase receipt or other proof of the original purchase date is required
for warranty service.
Carry-In or Mail-In Service
For Carry-In or Mail-In Service in the United States call 1-800-211-PANA (1-800-211-
7262) or visit Panasonic web site: http://www.panasonic.com
For assistance in Puerto Rico call Panasonic Puerto Rico, Inc. (787)-750-4300 or fax
(787)-768-2910.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship,
and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty
ALSO DOES NOT COVER damages which occurred in shipment, or failures which
are caused by products not supplied by the warrantor, or failures which result from
accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty
installation, set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, or commercial use
(such as in a hotel, office, restaurant, or other business), rental use of the product,
service by anyone other than a Factory Servicenter or other Authorized Servicer, or
damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED
WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL
OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY.
(As examples, this excludes damages for lost time, travel to and from the servicer, loss
of media or images, data or other memory content. The items listed are not exclusive,
but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES,
INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE
PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, or limitations on how long an implied warranty lasts, so the exclusions may
not apply to you.
This warranty gives you specific legal rights and you may also have other rights which
vary from state to state. If a problem with this product develops during or after the
warranty period, you may contact your dealer or Servicenter. If the problem is not
handled to your satisfaction, then write to the warrantor’s Consumer Affairs
Department at the addresses listed for the warrantor.
PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY ARE YOUR RESPONSIBILITY.
F1104
Product or Part Name Parts Labor
Audio Products (except items listed below)
One (1) year One (1) year
USB Reader-Writer, Personal Computer
Card Adapters
(in exchange for defective item)
One (1) year Not Applicable
Accessories: Headphones, Cartridges,
Microphones, Adapters
Ninety (90) days Ninety (90) days
Rechargeable Batteries, DVD-R/-RAM
Discs (in exchange for defective item)
Ten (10) days Not Applicable
SD Memory Cards, Rechargeable Battery
Packs (in exchange for defective item)
Ninety (90) days Not Applicable
RQTX_FX65_En.fm Page 8 Thursday, November 30, 2006 11:52 AM
RQTX0047
9
Limited Warranty
F1104
Customer Services Directory
Obtain Product Information and Operating Assistance; locate your nearest Dealer or Servicenter; purchase Parts and
Accessories; or make Customer Service and Literature requests by visiting our Web Site at:
http://www.panasonic.com/consumersupport
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at: 1-800-211-PANA (7262),
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.
For hearing or speech impaired TTY users, TTY : 1-877-833-8855
Accessory Purchases
Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at:
http://www.pasc.panasonic.com
or, send your request by E-mail to:
npcparts@us.panasonic.com
You may also contact us directly at: 1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday – Friday 9 am to 8 pm, EST.)
Panasonic Services Company
20421 84th Avenue South, Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)
For hearing or speech impaired TTY users, TTY : 1-866-605-1277
Service in Puerto Rico
Panasonic Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Phone (787)750-4300, Fax (787)768-2910
RQTX_FX65_En.fm Page 9 Thursday, November 30, 2006 11:52 AM
RQTX0047
10
Specifications
Specifications
Wireless module
Frequency range 2.400 to 2.4835 GHz
Number of channels 3
Output power
RMS output power
Surround Ch 125 W per channel (3
≠
), 1 kHz, 10 % THD
Total RMS power 250 W
FTC output power
Surround Ch 34 W per channel (3 ≠), 120 Hz–20 kHz, 1 % THD
Total FTC power 68 W
Power supply AC 120 V, 60 Hz
Power consumption SH-FX65T 1.5 W
SE-FX65 35 W
Dimensions (WtHtD)
SH-FX65T 65 mmk52 mmk8.6 mm (2 9/16
zk
2
1/16
zk
11/32
z
)
SE-FX65 165 mmk90 mmk164 mm (
6
1/2
zk
3 17/32
zk
6
15/32
z
)
Mass SH-FX65T 0.02 kg (0.04 Ibs)
SE-FX65 0.655 kg (1.54 Ibs)
Operating temperature range r5oC to r35 oC (r41 oF to r95 oF)
Operating humidity range 5 % to 90 % RH (no condensation)
[Note]
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by a digital spectrum analyzer.
RF SECTION
AMPLIFIER SECTION
GENERAL
Power consumption in off mode approx. 0.2 W
RQTX_FX65_En.fm Page 10 Thursday, November 30, 2006 11:52 AM
11
RQTX0047
MEMO
RQTX_FX65_En.fm Page 11 Thursday, November 30, 2006 11:52 AM
p
RQTX0047-Y
F1206YM0
C 2006 Matsushita Electric Industrial Co., Ltd.
Printed in Malaysia
Panasonic Consumer Electronics
Company, Division of Panasonic
Corporation of North America
One Panasonic Way Secaucus,
New Jersey 07094
http://www.panasonic.com
Panasonic Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
RQTX_FX65_En.fm Page 12 Thursday, November 30, 2006 11:52 AM
