Panasonic of North America T09001 RF Transceiver Module User Manual
Panasonic Corporation of North America RF Transceiver Module
User Manual
Panasonic Consumer Electronics
Company, Division of Panasonic
Corporation of North America
One Panasonic Way, Secaucus,
New Jersey 07094
http://www.panasonic.com
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
www.panasonic.ca
RQTX0170-Y
F1208ZA0
Panasonic Corporation 2008
Printed in Malaysia
PP
Designed for Panasonic DVD Home Theater Sound Systems
that are compatible with the SH-FX70.
Operating Instructions
Wireless System
Model No. SH-FX70
If you have any questions contact
In the U.S.A. and Puerto Rico:
1-800-211-PANA (7262)
In Canada: 1-800-561-5505
2
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PRODUCT DAMAGE,
DO NOT EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND
THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH
AS VASES, SHALL BE PLACED ON THE
APPARATUS.
USE ONLY THE RECOMMENDED ACCESSORIES.
DO NOT REMOVE THE COVER (OR BACK);
THERE ARE NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION!
DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND ANY
OTHER MATERIALS DO NOT OBSTRUCT THE
VENTILATION VENTS.
The socket outlet shall be installed near the equipment and easily
accessible.
The mains plug of the power supply cord shall remain readily operable.
To completely disconnect this apparatus from the AC Mains, disconnect
the power supply cord plug from AC receptacle.
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
FCC Note:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC caution: To maintain compliance with FCC regulations, shielded interface
cables must be used with this equipment. Operation with non-approved equipment
or unshielded cables may result in interference to radio and TV reception. Any
changes or modifications not approved by the party responsible for compliance
could void the users authority to operate this equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Responsible Party:
Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
Support Contact:
Panasonic Consumer Electronics Company
Telephone No.: 1-800-211-PANA (7262)
To satisfy FCC RF exposure requirements for mobile transmitting devices,
a separation distance of 20 cm or more should be maintained between
the antenna of this device and persons during device operation.
To ensure compliance, operations at closer than this distance is not
recommended. The antenna used for this transmitter must not be co-
located in
conjunction with any other antenna or transmitter.
WARNING:
3
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed
below. Keep these operating instructions handy for future reference.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the
manufacturers instructions.
8) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding-type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from
the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or
when unused for long periods of time.
14)
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has been dropped
.
The following mark and symbols are located on bottom of the unit.
Product Identification Marking is located on the bottom of unit.
THE FOLLOWING APPLIES ONLY IN CANADA.
This Class B digital apparatus complies with Canadian ICES-003.
THE FOLLOWING APPLIES ONLY IN CANADA.
This device complies with RSS-210 of the IC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference,
(2) This device must accept any interference received, including
interference that may cause undesired operation of the device.
4
Accessories
Thank you for purchasing this product. For optimum performance and
safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read
the instructions completely.
Please keep this manual for future reference.
User memo:
- If you see this symbol-
Please check and identify the supplied
accessories. Use numbers indicated in
parentheses when asking for replacement parts.
(Product numbers correct as of November 2008.
This may be subject to change.)
For U.S.A. and Puerto Rico:
To order accessories, refer to Accessory Purchases (United States
and Puerto Rico) on page 14.
For Canada:
To order accessories, call the dealer from whom you made your
purchase.
System SH-FX70
Digital transmitter SH-TR70
Wireless system SE-FX70
DATE OF PURCHASE
___________________________________
DEALER NAME
________________________________________
DEALER ADDRESS
____________________________________
TELEPHONE NUMBER
__________________________________
The model number and serial number of this product can be found on
either the back or the bottom of the unit. Please note them in the space
provided below and keep for future reference.
MODEL NUMBER SH-FX70
SERIAL NUMBER
Information on Disposal in other Countries outside the
European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please
contact your local authorities or dealer and ask
for the correct method of disposal.
AC power supply cord (K2CB2CB00021)
For use with this unit only. Do not use it with other equipment.
Also, do not use cords for other equipment with this unit.
2 Speaker cables
[REEX0992 (Blue), REEX0993 (Grey)]
5

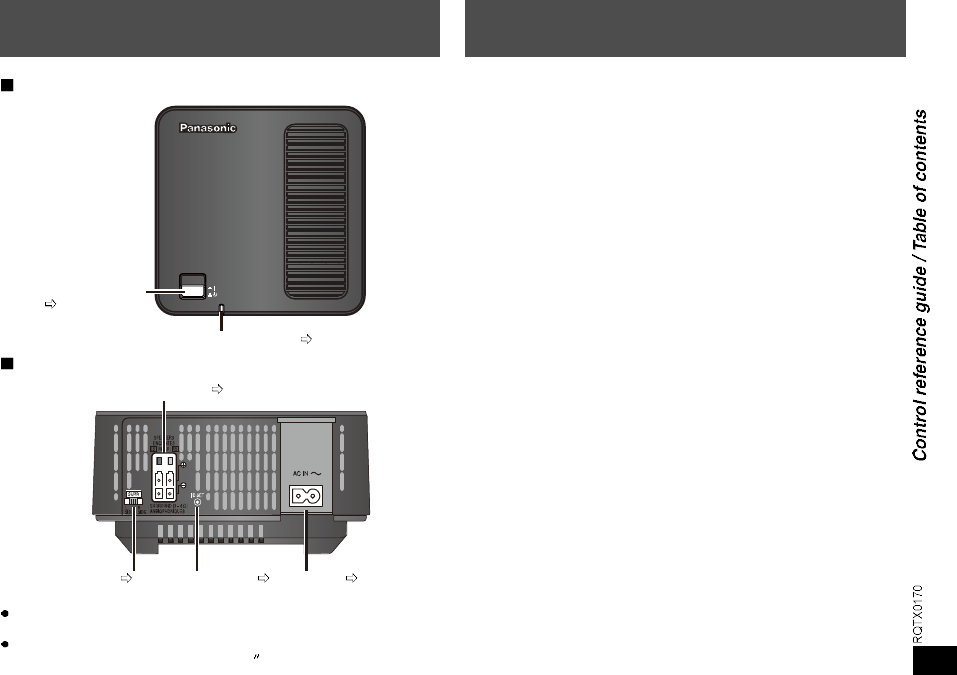

Control reference guide
Top of the main unit
Rear of the main unit
[Note]
Place the main unit in a horizontal position with the top panel faced
upward.
To allow for proper ventilation and to maintain good airflow around the
main unit, position it with at least 5 cm (2 ) of space on all sides.
WIRELESS LINK indicator ( 9)
Unit on/off button
(9)
Surround selector ( 8) I/D SET button ( 10) AC IN ( 8)
Speaker terminals
(
8
)
Table of contents
Introduction
IMPORTANT SAFETY INSTRUCTIONS............................................... 3
Accessories ........................................................................................... 4
Control reference guide......................................................................... 5
Use
Setup ..................................................................................................... 6
Connections ....................................................................................... 7
Making the wireless link ..................................................................... 9
Using the surround back speakers................................................... 10
Reference
Product service.....................................................................................11
Maintenance.........................................................................................11
Troubleshooting guide..........................................................................11
Specifications ...................................................................................... 12
Limited Warranty (ONLY FOR U.S.A. AND PUERTO RICO) .............. 13
Limited Warranty (ONLY FOR CANADA)............................................ 15
6
Setup
Preparation
Turn off all equipment before connection and read the appropriate
operating instructions.
Connect the AC power supply cord after all other connections are
complete.
[Note]
Do not use the wireless system and digital transmitter in a metal cabinet
or bookshelf.
Do not attempt to connect any extra surround speakers to the home
theater unit.
Place the wireless system within approximately 15 m (47 ft) from the
home theater unit.

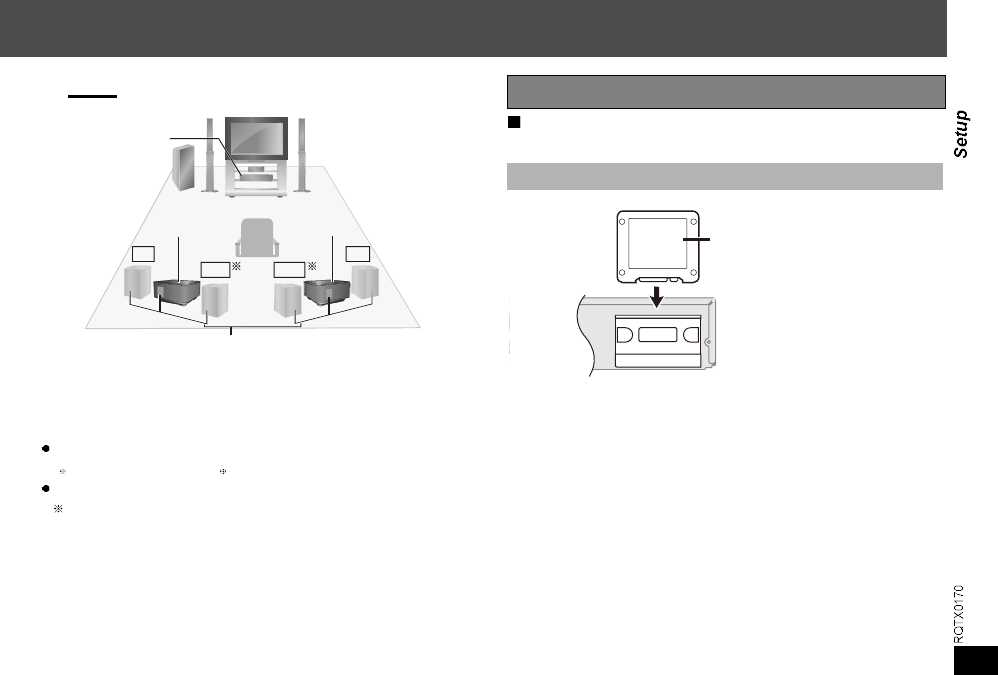

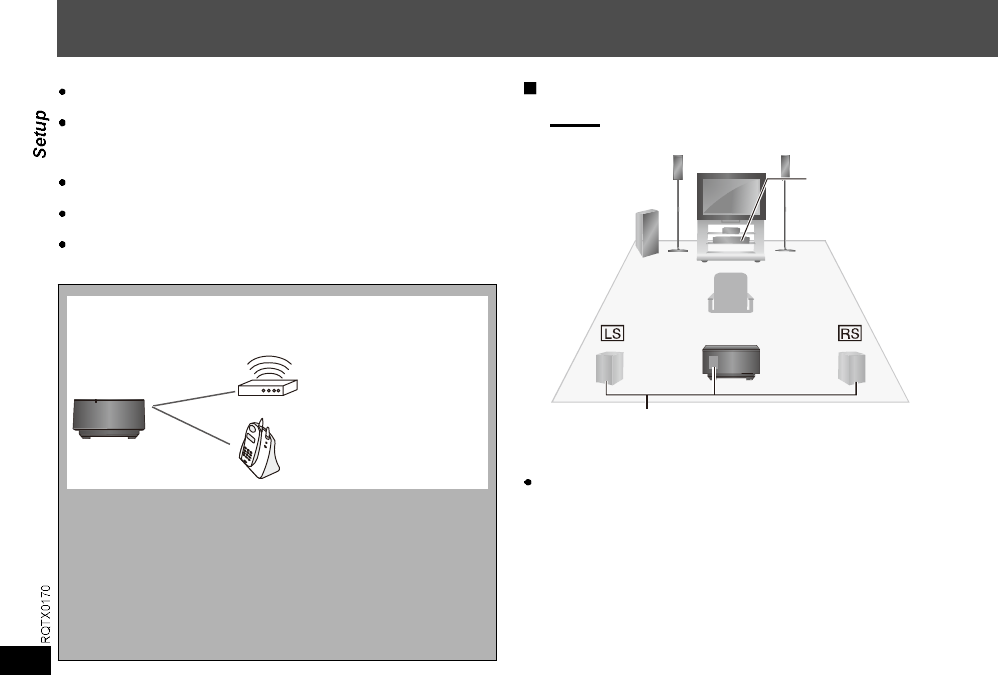

Wireless setup diagram
e.g. 5.1ch
[Compatible model: e.g. SC-PT670]
LS: Surround (left), RS: Surround (right)
Place on the side of or slightly behind the seating position.

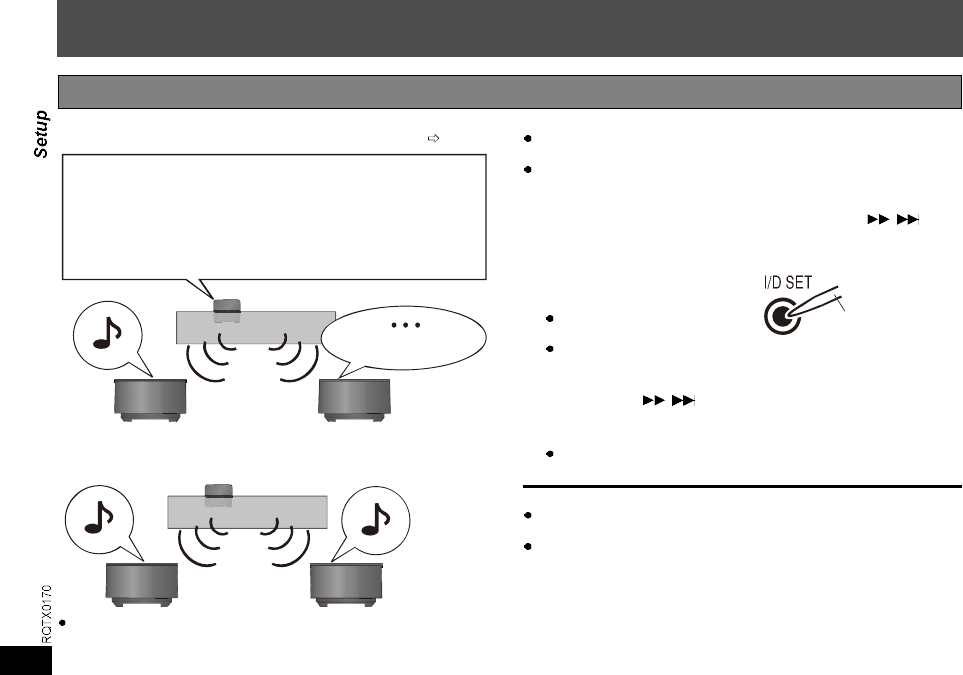

The wireless system will automatically seek a clear channel if any of
these other devices interfere with its communication.
When this happens, the wireless link indicator ([W1] or an indicator)
flashes on the home theater unit, and there is a brief interruption in
audio coming from the surround speakers.
This is the normal operation of the product working to assure the best
possible performance of your home theater unit.
If the interference persists, try moving the other devices to another
location outside the range of the wireless system, or move the wireless
system nearer to your home theater unit.
Wireless LAN: approx.
2 m (6-1/2 ft)
Cordless phone and other
electronic devices:
approx. 2 m (6-1/2 ft)
Wireless
system
To avoid interference,
maintain the following distances between
the wireless system and other electronic devices that use the
same radio frequency (2.4 GHz band).
e.g.

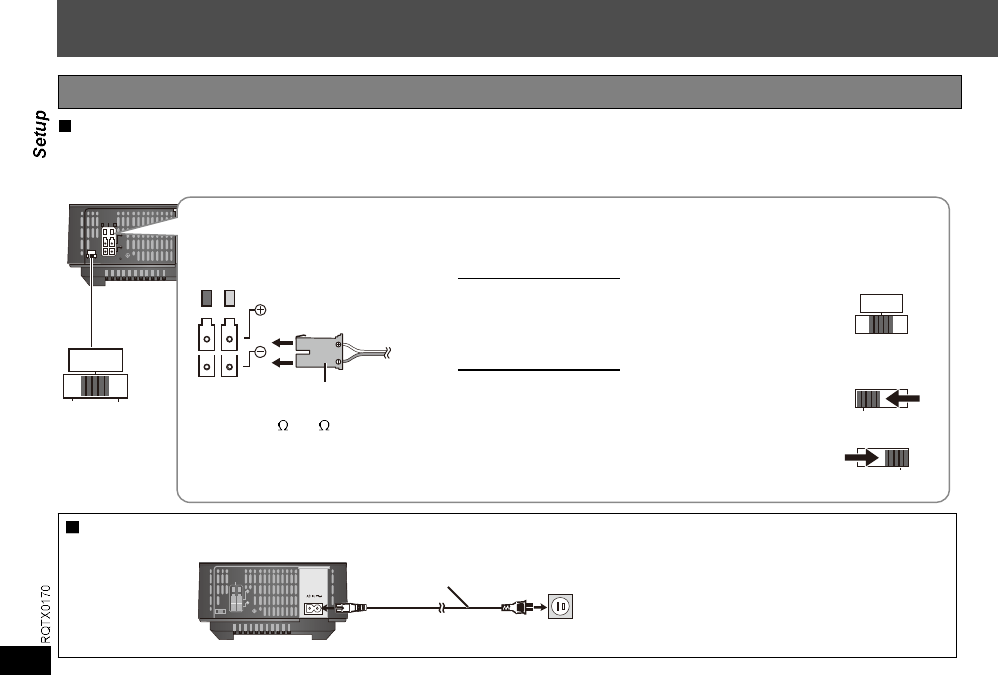

Surround speaker cables (included)
Surround speakers are not included.
Wireless system
Home theater unit
(with the digital
transmitter)
Seating
position
7
e.g. 7.1ch (Using two units of the wireless system)
This placement offers 7.1-channel playback. Your home theater unit must
be capable of 7.1-channel playback.
LS: Surround (left), RS: Surround (right)
Place on the side of the seating position.
LB : Surround back (left), RB : Surround back (right)
LB or SBL RB or SBR
Digital transmitter
Refer also to the operating instructions for your home theater unit.
(Continued on next page)
Surround speaker cables (included)
Wireless system
Home theater unit
(with the digital
transmitter)
Seating position
Wireless system
Connections
Do not insert or remove while the home theater unit is on.
SH-TR70 digital transmitter
Insert fully until you hear a click.
e.g.
Rear of the home theater unit
8
Setup
Wireless system
Preparation
If the surround speaker cables (with a blue connector and a grey connector) have already been connected, disconnect the surround speaker cables from
your home theater unit.
Connections
AC power supply cord
Surround
selector
Connecting the speakers to the wireless system
Connect to terminals of the same color.
Insert fully.
Speaker cable
For 5.1ch connection
SURROUND (LS): Blue
: Grey
For 7.1ch connection
SURROUND (LS): Blue
SURROUND BACK: Grey
SURROUND (RS): Grey
SURROUND BACK (RB): Blue
Selector setting for the
left and right speakers
Selector setting for the
left speakers
Selector setting for the
right speakers
Impedance: 3 to 6
Speaker input power: 100 W (Min)
To household AC outlet
(AC 120 V, 60 Hz)
AC power supply cord (included)
9
Refer also to the operating instructions for your home theater unit.
When you enjoy 7.1-channel playback, refer also to Using the surround back speakers ( 10).
Conserving power
The wireless system consumes a small amount of power, even when it is
off (approx. 0.2 W). To save power when the unit is not to be used for a
long time, unplug it from the household AC outlet.

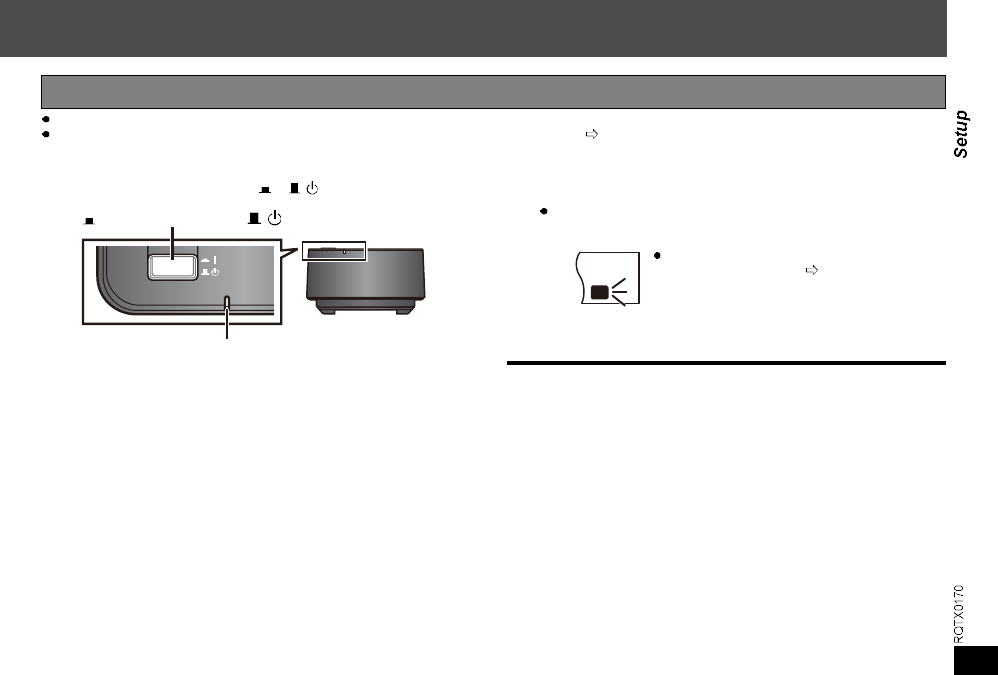

Making the wireless link
1Turn on the wireless system.
Unit on/off button [POWER I, ]
Use this button to turn the unit on and off.
I: The unit is on. : The unit is off.
WIRELESS LINK indicator
Red: The unit is on and the wireless link is deactivated.
Green: The unit is on and the wireless link is activated.
2Turn on your home theater unit.
The wireless link indicator on your home theater unit will be turned
on.
The type of the indicator varies according to the home theater unit.
3Start play on the home theater unit.
If the indicator is flashing, refer to
Troubleshooting guide ( 11).
e.g. Display on the home theater unit
10
Setup
By using 2 sets of SH-FX70, you can enjoy 7.1-channel playback, making
the surround speakers and surround back speakers wireless ( 7).
Keep the digital transmitter of the additional wireless system for later
use.
Preparation
Make sure to connect the AC power supply cord of the additional
wireless system.
Turn on the home theater unit and reduce the volume.
[Note]
If you should change the digital transmitter, repeat the pairing steps for
both units of the wireless system, one unit at a time.
You cannot use the wireless system with SH-FX65T or SH-FX67T
digital transmitter.
Using the surround back speakers
Use only the SH-TR70 digital transmitter.
Wireless system is originally paired to work with the SH-TR70
digital transmitter that comes along with it. For any other
accessories to work with the SH-TR70 digital transmitter in use,
pairing is necessary.
Pairing is necessary.
Wireless system
Home theater unit
Additional wireless system
e.g. After pairing
1 Turn on the additional wireless system.
2 While pressing the skip and slow-search button (e.g. [ /] ) on
the home theater unit, press the numbered button [3] on the remote
control until lights in the home theater units display.
3 While is displayed, press
[I/D SET] on the rear of the
additional wireless system.
The indicator on the additional
system turns green.
If goes off before you press
[I/D SET], repeat step 2 and
then continue the procedure.
4 While pressing [ /] on the home theater unit, press the
numbered button [3] on the remote control.
5 Turn off and on the additional wireless system.
Make sure the indicator on the additional wireless system lights up
green.
Use a pointed object.
11
Product service
1 Damage requiring serviceThe unit should be serviced by qualified
service personnel if:
(a) The AC power supply cord or AC adaptor has been damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked change in
performance; or
(e) The unit has been dropped or the cabinet damaged.
2 ServicingDo not attempt to service the unit beyond that described in
these operating instructions. Refer all other servicing to authorized
servicing personnel.
3 Replacement partsWhen parts need replacing ensure the servicer
uses parts specified by the manufacturer or parts that have the same
characteristics as the original parts. Unauthorized substitutes may
result in fire, electric shock, or other hazards.
4 Safety checkAfter repairs or service, ask the servicer to perform
safety checks to confirm that the unit is in proper working condition.
The servicer will require all components to service your system.
Therefore, should service ever be necessary, be sure to bring the entire
system.
For product information or assistance with product operation:
In the U.S.A. and Puerto Rico, refer to Customer Services Directory
(United States and Puerto Rico) on page 14.
In Canada, contact the Panasonic Canada Inc. Customer Care
Centre at 1-800-561-5505, or visit the website (www.panasonic.ca),
or an authorized Servicentre closest to you.
Product information
Maintenance
Clean this unit with a soft, dry cloth.
Never use alcohol, paint thinner or benzine to clean this unit.
Before using chemically treated cloth, carefully read the instructions that
came with the cloth.
Before requesting service, make the following checks. If you are in doubt
about some of the check points, or if the solutions indicated in the table do
not solve the problem, refer to Customer Services Directory (United
States and Puerto Rico) on page 14 if you reside in the U.S.A. or Puerto
Rico, or refer to Product information on the left if you reside in Canada.
Main unit
On your home theater unit
Troubleshooting guide
No power. Ensure the AC power supply cord is
connected properly.
The indicator does not
turn green even though
[I/D SET] is pressed and
completed the pairing.
Turn the wireless system off and then
back on.
The wireless link
indicator
(e.g. [W1] or an
indicator) is flashing.
There is no link between the home
theater unit and the wireless system. Turn
the wireless system off and then back on.
Alternatively, turn the wireless system off,
disconnect the AC mains lead, and then
reconnect it.
The wireless link
indicator
(e.g. [W1] or an
indicator) does not
light.
Check that the home theater unit is turned
on, and the wireless system is turned on.
Ensure that the digital transmitter is fully
inserted into the slot of the home theater
unit.
Ensure the surround sound setting on the
home theater unit.
12
Specifications
[Note]
1 Specifications are subject to change without notice.
Mass and dimensions are approximate.
2 Total harmonic distortion is measured by a digital spectrum analyzer.
AMPLIFIER SECTION
Output power
RMS output power
Surround Ch 125 W per channel (3 ), 1 kHz, 10 % THD
Total RMS power 250W
Surround Ch 34 W per channel (3 ), 120 Hz to 20 kHz, 1 % THD
Total FTC power 68W
GENERAL
Power supply AC 120 V, 60 Hz
Power consumption SH-TR70 1.5 W
SE-FX70 35 W
Dimensions (W HD)
SH-TR70 65.5 mm 52 mm 8.6 mm 29/32 21/16 11 /32
SE-FX70 165 mm 91.5 mm 164 mm 61/235/8615/32
Mass [Weight] SH-TR70 0.022 k(0.0484 lbs)
SE-FX70 0.65 k(1.43 lbs)
Wireless module
Frequency range 2.4 GHz to 2.4835 GHz
Number of channels 3
Operating temperature range 0C to 40 C ( 32 F to 104 F)
Operating humidity range 20 % to 80 % RH (no condensation)
approx. 0.2 W
13
Limited Warranty (ONLY FOR U.S.A. AND PUERTO RICO)
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Audio Products Limited Warranty
Limited Warranty Coverage (For USA and Puerto Rico Only)
If your product does not work properly because of a defect in materials or
workmanship, Panasonic Consumer Electronics Company (referred to as the
warrantor) will, for the length of the period indicated on the chart below, which starts
with the date of original purchase (warranty period), at its option either (a) repair your
product with new or refurbished parts, or (b) replace it with a new or a refurbished
product. The decision to repair or replace will be made by the warrantor.
During the Labor warranty period there will be no charge for labor. During the Parts
warranty period, there will be no charge for parts. You must carry-in or mail-in your
product during the warranty period. If non-rechargeable batteries are included, they
are not warranted. This warranty only applies to products purchased and serviced in
the United States or Puerto Rico. This warranty is extended only to the original
purchaser of a new product which was not sold as is. A purchase receipt or other
proof of the original purchase date is required for warranty service.
Carry-In or Mail-In Service
For Carry-In or Mail-In Service in the United States and Puerto Rico call 1-800-211-
PANA (7262) or visit Panasonic Web Site: http://www.panasonic.com
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship,
and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty
ALSO DOES NOT COVER damages which occurred in shipment, or failures which
are caused by products not supplied by the warrantor, or failures which result from
accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty
installation, set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, or commercial use
(such as in a hotel, office, restaurant, or other business), rental use of the product,
service by anyone other than a Factory Service Center or other Authorized Servicer,
or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED
UNDER LIMITED WARRANTY COVERAGE. THE WARRANTOR IS
NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT
OF ANY BREACH OF THIS WARRANTY.
(As examples, this excludes damages for lost time, travel to and from the servicer,
loss of media or images, data or other memory content. The items listed are not
exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED
WARRANTIES, INCLUDING THE WARRANTY OF
MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED
WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, or limitations on how long an implied warranty lasts, so the exclusions may
not apply to you.
This warranty gives you specific legal rights and you may also have other rights which
vary from state to state. If a problem with this product develops during or after the
warranty period, you may contact your dealer or Service Center. If the problem is not
handled to your satisfaction, then write to the warrantors Consumer Affairs
Department at the addresses listed for the warrantor.
PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY ARE YOUR RESPONSIBILITY.
(Continued on next page)
Product or Part Name Parts Labor
Audio Products (except items listed
below)
One (1) year One (1) year
USB Reader-Writer, Personal Computer
Card Adapters
(in exchange for defective item)
One (1) year Not Applicable
Accessories: Headphones, Cartridges,
Microphones, Adapters
Ninety (90) days Ninety (90) days
Rechargeable Batteries, DVD-R/-RAM
Discs (in exchange for defective item)
Ten (10) days Not Applicable
SD Memory Cards, Rechargeable
Battery Packs (in exchange for defective
item)
Ninety (90) days Not Applicable
14
Customer Services Directory (United States and Puerto Rico)
http://www.panasonic.com/help
http://www.panasonic.com/contactinfo
Accessory Purchases (United States and Puerto Rico)
http://www.pstc.panasonic.com
npcparts@us.panasonic.com
15
Limited Warranty (ONLY FOR CANADA)
Panasonic Canada Inc.
PANASONIC PRODUCT LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as
stated below from the date of original purchase.
LIMITATIONS AND EXCLUSIONS
This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed, subjected to usage for which
the product was not designed, misused or abused, damaged during shipping, or which has been altered or repaired in any way that affects the reliability
or detracts from the performance, nor does it cover any product which is used commercially. Dry cell batteries are also excluded from coverage under
this warranty.
This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original purchase is required before
warranty service is performed.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied
warranties, so the above limitations and exclusions may not be applicable.
WARRANTY SERVICE
IF YOU SHIP THE PRODUCT TO A SERVICENTRE
Carefully pack and send prepaid, adequately insured and preferably in the original carton.
Include details of the defect claimed, and proof of date of original purchase.
Technics Audio Product
Panasonic Portable / Clock Radio (without Tape, CD, MD)
Panasonic Audio / SD Audio Product
Panasonic DVD Product
Panasonic Combination DVD Player / VCR
Panasonic Combination DVD Recorder / VCR
Accessories including rechargeable batteries
One (1) year, parts and labour
One (1) year, parts and labour
One (1) year, parts and labour
One (1) year, parts and labour
One (1) year, parts and labour
One (1) year, parts and labour
Ninety (90) days
FOR PRODUCT OPERATION ASSISTANCE, please contact:
Our Customer Care Centre: Telephone #:
1-800 #:
Fax #:
Email link:
(905) 624-5505
1-800-561-5505
(905) 238-2360
Customer support on www.panasonic.ca
FOR PRODUCT REPAIRS, please locate your nearest Authorized Servicentre at www.panasonic.ca :
Link : ServicentresTM locator under Customer support
