Digital
Video
Cassette
AG-
Mini-DV Camera/Recorder (PAL)

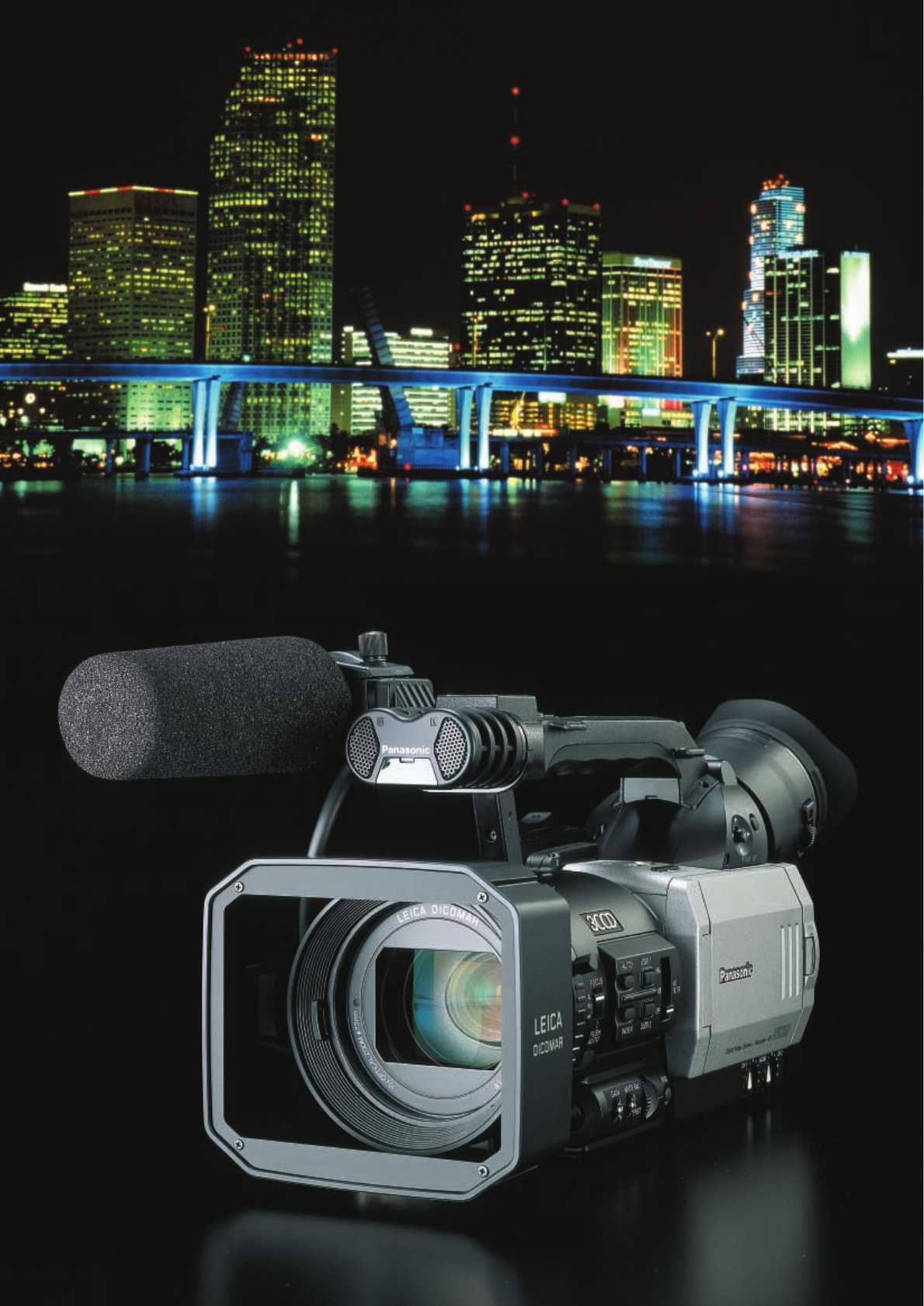

Introducing the Ultimate Handheld
Camera for Video Professionals
Panasonic created the AG-DVX100 with a single goal in mind: To provide the ultimate handheld recording tool for video
professionals. A well balanced, lightweight DV camera, the AG-DVX100 represents the crystallization of decades of advanced
Panasonic video technology. It responds to today's professional broadcasting needs with a wide-angle lens and high sensitivity.
It delivers the finest image quality in its class. Its manual-oriented controls are designed to satisfy professionals. And with features
like the 25P Cine-like mode and IEEE 1394 interface, the AG-DVX100 is ready for the next generation of visual production.
The AG-DVX100 packs all this performance and versatility into a conveniently small, perfectly balanced body that weighs only
1.8 kg in full operating condition.* With the AG-DVX100, Panasonic proudly presents a video camera that excels in every aspect
of news gathering, wedding, live event coverage, video production, and DV filmmaking. It's the ultimate handheld camera for
professionals.
*Camera/recorder with DV cassette tape and supplied batteries.Shown with optional microphone.
Exceptional picture quality, thanks to a 470,000-pixel, 3CCD imaging
system with high F11 sensitivity and low smear and flare levels.
Wide 32.5mm-325mm (35mm lens equivalent) Leica Dicomar lens.
Quick, easy, accurate operation with features such as cam-driven
manual zoom and scene file dial.
Cinema mode for 25p progressive image shooting
and Cine-Like gamma.
Totally designed for professionals, with large electronic viewfinder,
audio XLR input, and oversized audio controls.
IEEE 1394 terminal for non-linear production and digital dubbing.

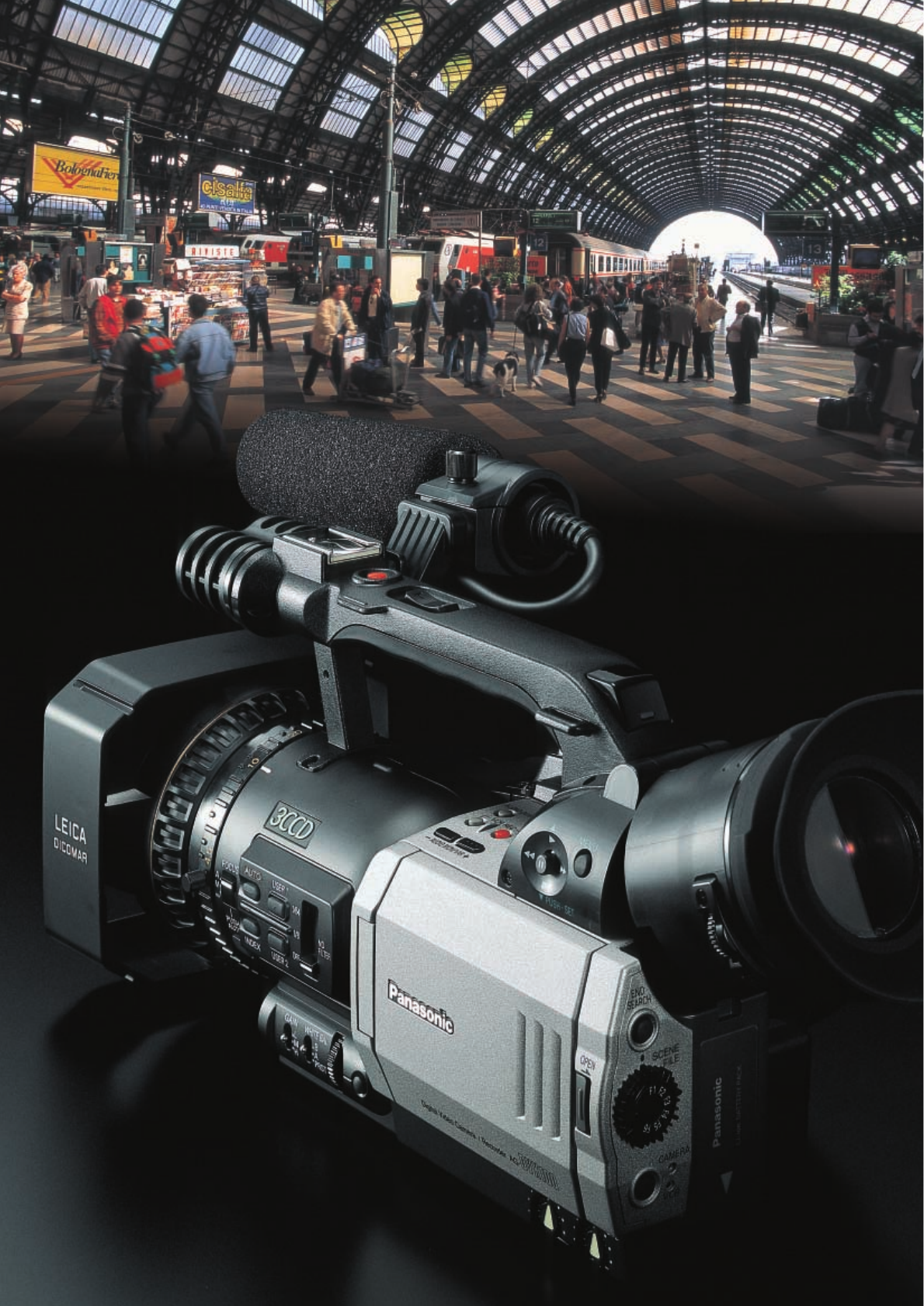

Crafted to Meet the Highest Professional Standards
High Sensitivity, Wide-Angle Lens, Superior Picture Quality, 25p Mode

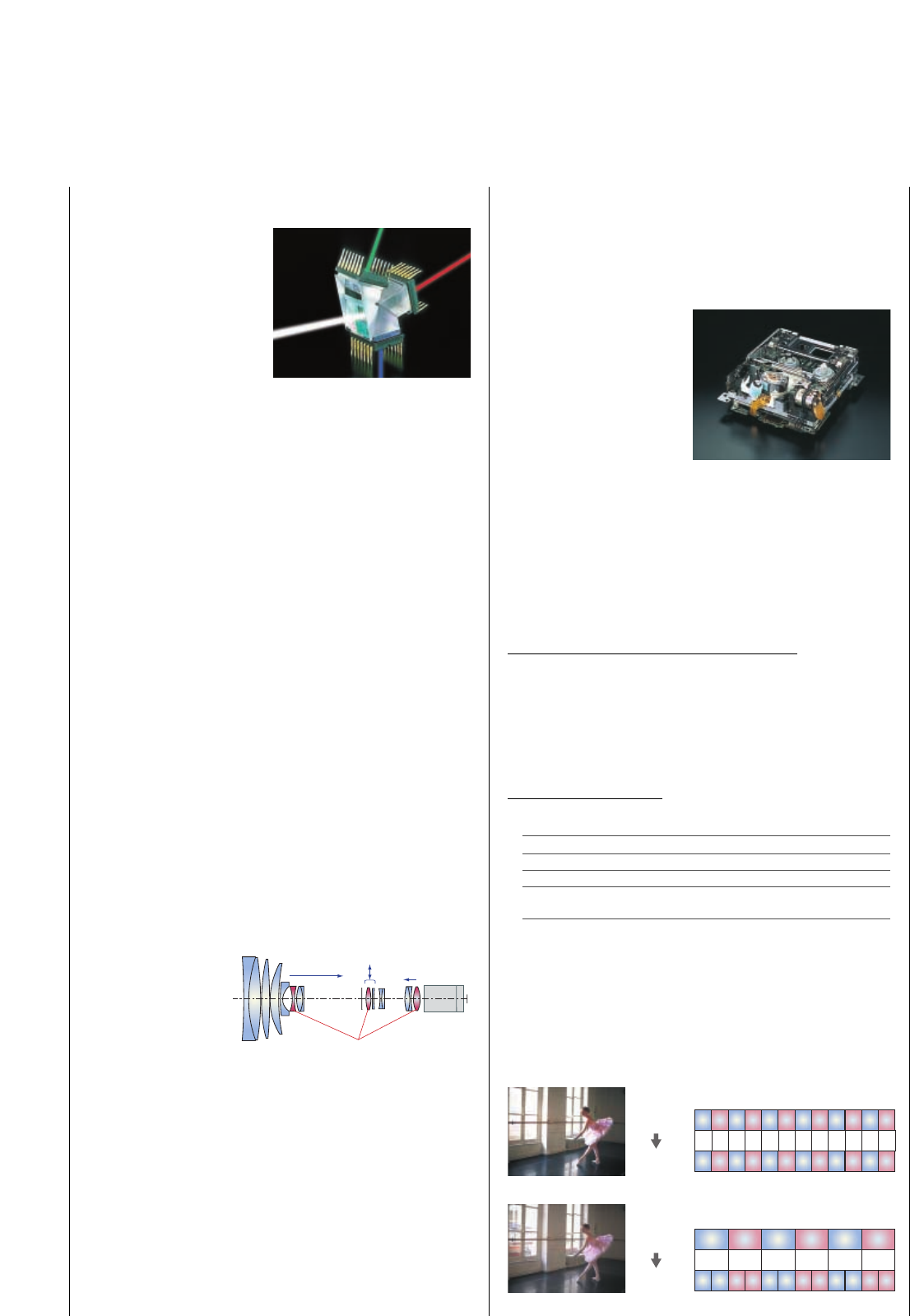

New 470,000-Pixel, 3CCD Image System Provides F11
Sensitivity for Superior Image Quality
Panasonic designed the
AG-DVX100 to deliver the
highest sensitivity and picture
quality in its class. At its heart
is a 3CCD RGB system
comprising three 1/3-inch,
470,000-pixel progressive
CCDs developed especially
for broadcast and
professional applications.
The new on-chip lens design achieves high F11 sensitivity,
allowing the AG-DVX100 to record in light as dim as below three
lux, for example, in nighttime news gathering. Picture quality is
outstanding, with a high S/N ratio that means less noise in darker
parts of the image and low smear that allows shooting in sunlight
or under bright spotlights.
Wide-Angle/Zoom Lens Answers Professional Needs
Previous handheld video cameras lacked sufficient wide-angle
capabilities for professional applications. To make up for this
shortcoming, videographers often had to carry a big, heavy wide-
angle conversion lens. The AG-DVX100 eliminates this problem
with a newly developed zoom lens that also covers the wide-
angle range that professionals need most. Extending all the way to
4.5mm (equivalent to 32.5mm on a 35mm lens), the lens captures
wide-angle shots for news close-ups, recording in small rooms,
and self-recorded interviews. And because there's no need to haul
around a wide-angle conversion lens, you get the full benefit of
the handheld camera's outstanding mobility.
Superb Image Rendering with the Leica Dicomar™ Lens
The AG-DVX100's Leica Dicomar™ lens incorporates the optical
technology of Leica Camera AG, creator of many world-renowned
cameras and lenses. This fine lens system employs 15 lens
elements in 11 groups, including three aspherical lenses, to render
sharp, crisp images with subtle nuances and remarkable shading.
A Leica multi-coating process is also applied to the lenses to
reduce flare and ghosts. The Leica Dicomar™ lens is
manufactured under a quality control process authorized by Leica
Camera AG. It meets
the strict Leica quality
standards for
resolution, contrast and
other characteristics.
*Leica is a registered trademark of
Leica Microsystems IR GmbH.
Dicomar is a registered trademark
of Leica Microsystems IR GmbH.
Optical Image Stabilizer Compensates for Hand Shaking
The AG-DVX100's OIS compensates for the slight hand shaking
that occurs when shooting with a handheld camera. A gyrosensor
detects hand shake and sends signals to a linear motor, which
adjusts the lens to compensate. Because this process takes place
prior to the CCD image capture rather than in the downstream
electronic processing, the OIS virtually eliminates any effect of
hand shake on resolution and screen angle. The OIS is also
extremely effective in dim lighting and when zooming. Because
the processing is done in real-time at 480 operations/sec, there are
virtually no unnatural afterimages or visible interpolation effects.
Highly Reliable DV Mechanism
Panasonic chose a DV mechanism for the AG-DVX100 because of
its superior mobility, low running costs, extended recording
capability, and easy tape availability. However, for the
AG-DVX100 we developed a greatly enhanced, vastly more
reliable mechanism than the ones used in home DV cameras and
recorders.
To minimize dropout and
head clogging, we
incorporated the same
forward cleaning head and
automatic head cleaning
function found in DVCPRO
models. The sturdy loading
system allows quick tape
changes.
25p Mode and Cine-Like Gamma — A Handheld Camera
for Making Film-Like Video Productions
The AG-DVX100 is the handheld camera with cinematic
specifications. With its 25p mode and cine-like gamma curve, the
AG-DVX100 lets you produce video images that closely replicate
the look of film images.
The AG-DVX100 is a revolutionary tool for indie filmmakers and
anyone who produces short movies or streaming video for online use.
• Handheld DV Camera with 25p Shooting Mode
The AG-DVX100 provides two shooting modes: 25p (25 fps,
progressive) and standard 50i (50 fps, interlace). In 25p mode, the
AG-DVX100 gives images and motions a film-like effect
—
they look
very much like the images and motions of conventional 24fps film.
The 25p images are split into two frames and recorded onto tape in
the standard 50i TV format. They can be played back with an ordinary
DV VTR and TV monitor and edited with a DV system.
• Cine-Like Gamma Curve
Select from four gamma curves according to the image tone desired.
CINE-LIKE: Images with a film-like quality
LOW: Images with strong black contrast
NORM: Standard video gamma
HIGH: Bright images with soft contrast and enhanced
gradation in dark areas
With 25p mode and cine-like gamma, the AG-DVX100 lets you
produce video images that closely replicate film images, with a depth
not previously possible.
"NORM" image
"CINE-LIKE" image
aspherical lens
Optical Image Stabilizer
25p (capture)
50i (record)
• 25p Mode (Cine-Like)
ABCDEF
AABBCCDDEEFF
50i (capture)
50i (record)
• 50i Mode (Normal)
A
A
A'BB'CC'DD'EE'FF'
A'BB'CC'DD'EE'FF'

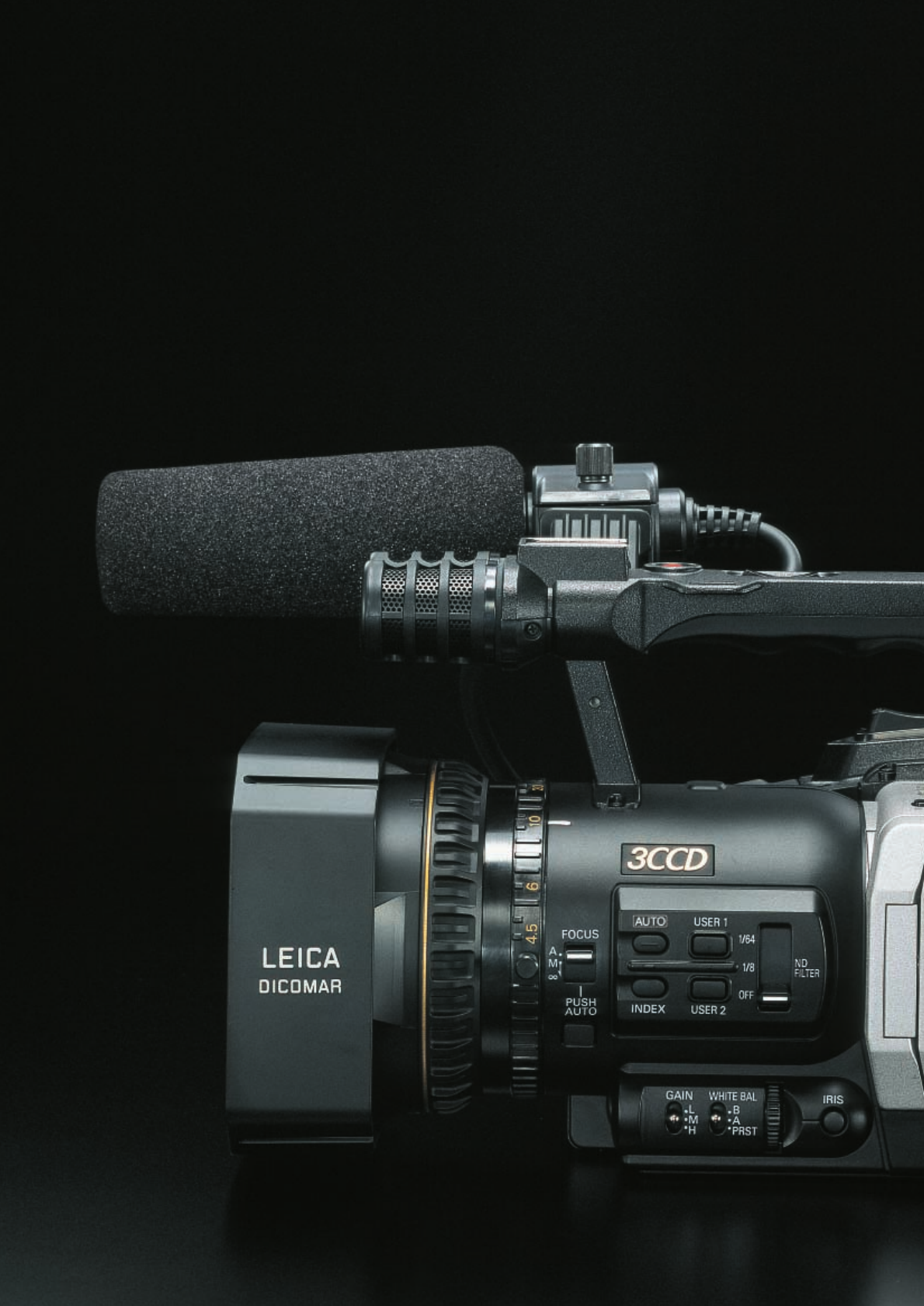

Controls that Replicate Professional Cameras
Versatile Manual and High-Speed Auto Functions
Fast, Smooth, Cam-Driven Manual Zoom
The AG-DVX100 is the first DV handheld camera to be equipped
with the cam-driven manual zoom ring found on most
professional cameras with interchangeable lenses.
The AG-DVX100's pin configuration and tactile sensitivity
replicate the familiar look and feel of a professional lens. Its lens
provides quick, nimble zooming with a multi-speed servo-driven
zoom plus three speed handle zoom. Select the zoom method that
best suits the task at hand.
Manual/Auto Focus
Enjoy fast, sharp focusing either manually or automatically. In
manual mode, the focus ring provides the same responsive control
as conventional professional cameras with interchangeable lenses.
In auto mode you get the kind of sharp, instant focusing needed in
news gathering or when shooting at a high or low angle.
When set to the infinity position, the focal distance is immediately
prepared for the next manual focus. Pressing the Push Auto button
while in manual mode temporarily activates auto focus.
Scene File Dial for Quick, Easy Camera Setup
Set this dial for any of a variety of shooting conditions, and later
you can instantly retrieve the settings. Six preset files are provided
(F1 to F6, described below). You can freely change any of the six
file names and their settings.
File Descriptions
F1: -- Standard settings
F2: FLUO. Indoor shooting under fluorescent lights
F3: SPARK Highlighting subjects at receptions, dinners,
and other gatherings
F4: B-STR Enhanced gradation in dark portions of sunset shots
F5: SCENE 25P
25p mode + Cine-Like gamma + V Detail Freq: Thick
F6:
SCENE CINE
25p mode + Cine-Like gamma + V Detail Freq:Thin
User1/User2 Buttons for Customized Operation
The AG-DVX100 provides two user buttons, each of which can be
assigned any one of the nine functions described below. The
assigned functions can then be accessed at the touch of a button.
This lets you customize the AG-DVX100 for quicker, easier, more
versatile operation.
Assignable Functions
COLOUR BAR Display/hide the colour bar
SPOTLIGHT Turn auto iris spotlight correction ON/OFF
BACKLIGHT Turn auto iris backlight correction ON/OFF
BLACKFADE Fade out to a black screen (linked with audio)
WHITEFADE Fade out to a white screen (linked with audio)
MODECHECK Display camera settings in viewfinder/monitor
ATW Turn auto tracking white balance function ON/OFF
ATWLOCK Lock/unlock white balance in ATW operation
GAIN 18dB Switch the gain to +18 dB
3-Position White Balance with Auto Tracking
White Function
One press of the AWB button is all it takes to adjust the white
balance and black balance. There are three white balance values
to select from: one that's preset, and two (A, B) that you can set
and save in memory. The auto tracking white balance (ATW)
function can also be assigned to any of the three positions. The
ATW mode supports fast, active shooting by adjusting the white
balance in real-time as lighting conditions change.
Auto Button for Instant, Easy Shooting
Just press the Auto button to turn on Auto Iris, Auto Gain, Auto
Tracking White Balance, and Auto Focus -- and you’re quickly
ready to shoot. You can also customize the Auto button by
removing functions and setting the gain to any value desired.
With this new Auto function, the AG-DVX100 gives you the best
of both worlds -- the speed and ease of automatic operation, and
the precision of manual control.
Gain, Iris, Shutter Speed, ND Filter
•Gain: Increases gain up to 18 dB. The selector has three
positions: L is fixed at 0 dB; M and H can be set to 0, +3, +6, +9,
or +12 dB.
•Iris: Allows smooth, gradual manual or auto iris adjustment.
The iris dial allows adjustment even when in Auto mode.
Either backlight compensation or spotlight compensation can be
added to the auto iris adjustment.
•Shutter: Maximum shutter speed is 1/2,000 sec.
When a computer monitor is being recorded, a synchro scan
function matches the shutter speed to the monitor to help
eliminate the moving bar.
•ND filter: Two ND filters (1/8 ND, 1/64 ND) are built-in and
easily accessible.

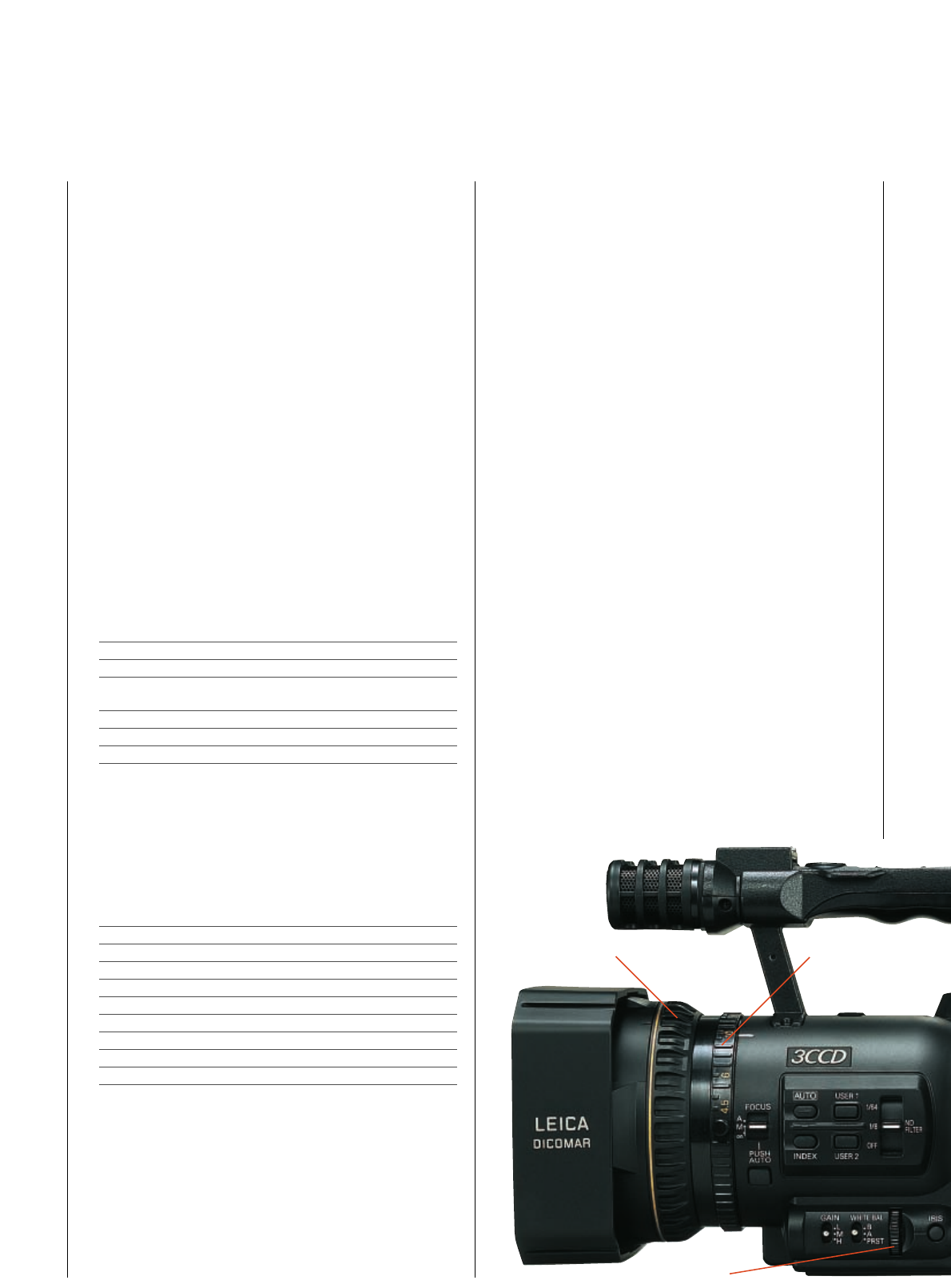

manual focus ring manual zoom ring
iris dial

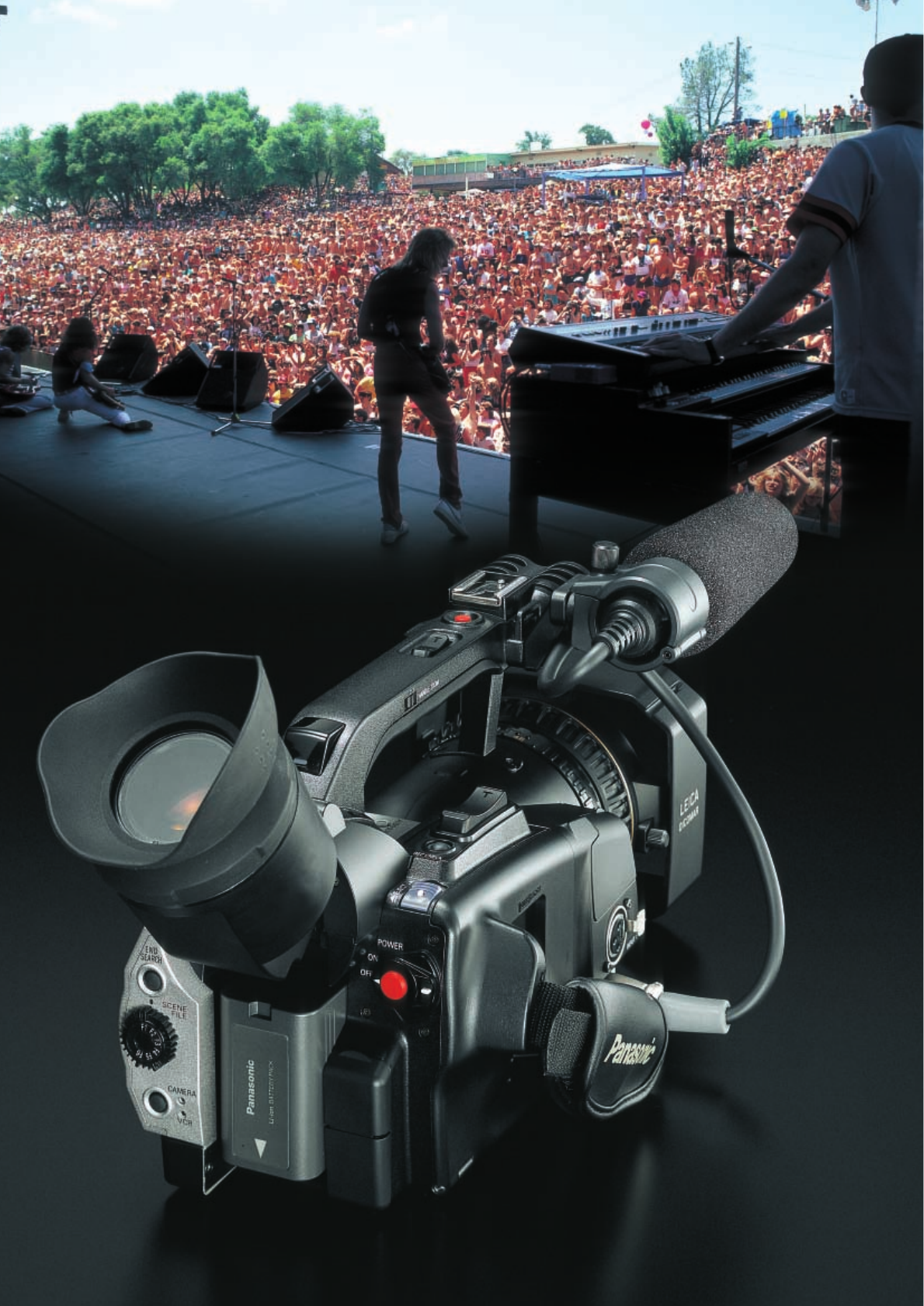

Body Design, Switches, Connectors,
and Recording Functions — All Built for the Professional
New Lightweight Design with Balanced Grip
The AG-DVX100 introduces a new design that ends the
contradiction between a compact, lightweight body and a stable,
secure hold. The center of balance is located precisely at the
handgrip. Because there's no need for a wide-angle conversion
lens, the weight balance is ideal for comfortable shooting.
The AG-DVX100's short body and light weight — it weighs just
1.8 kg in operating condition* — means free, easy
maneuverability. Plus, the low-center-of-gravity design and new
skeleton lens hood greatly improve forward vision.
*Camera/recorder with DV cassette tape and supplied battery.
XLR Audio Input with +48-V Phantom Power Supply
In addition to built-in stereo microphones,
the AG-DVX100 is equipped with two XLR
audio input terminals with a 48-V phantom
power supply for broadcast use. The
terminals are positioned low on the camera
to minimize the possibility of the cables
being snagged when a hand mic is in use.
Both input 1 and input 2 can be switched
between line and mic.
Large Audio Dials and Flexible Input Selection
The AG-DVX100 has the same kind of large level-adjustment dials
as DVCPRO camera/recorders. This practical new design
incorporates professional operating features, such as blind touch
and easy visibility, that have been refined over years of use on
location.
A switch lets you select built-in mic, input 1, or input 2 for the
audio input of both left and right
channels. Auto gain level control
can be turned on and off, and the
input mic level (–50 dB/–60 dB) can
be selected from the menu.
Large Viewfinder and LCD Monitor
The large-diameter viewfinder tilts upward a full 100°. You can
move the viewfinder away from your eye and still see it clearly,
making it easy to adopt a comfortable shooting stance with
unobstructed forward vision. The 3.5-inch colour LCD shows
your subject in sharp, vivid detail and greatly simplifies menu
settings. It rotates a full 270° for shooting at a wide variety of
angles and easy self-recording.
Recessed Trigger and Zoom Control on Upper
Handle Grip
In addition to the lens grip, the upper part of the handle grip
contains both the Rec Start/Stop button and a lens zoom control.
This design assures easy shooting even at low angles or when
using a tripod.
The zoom speed can be set to any of three speed levels or off.
Interval Recording and One-Shot Recording
The AG-DVX100's interval recording works much like a time-
lapse VTR and offers exceptionally high quality. Use it to observe
the growth of a plant, monitor progress at a construction site, or
for a frame-by-frame recording effect. Recording times can be set
from 0.5 to 2 seconds, at intervals from 30 seconds to 10 minutes.
There's also a One-Shot mode — for animation film making —
that records for the set number of seconds each time the Start/Stop
button is pressed.
Built-In Time Code Generator/Reader
The AG-DVX100 records an compliant VTC onto the sub-code
area of the tape. Select from Free Run/Rec Run modes, and use
preset or regen. User bits (UB) are also provided, letting you
record your choice of date, time, TC value, frame rate, or user
data.

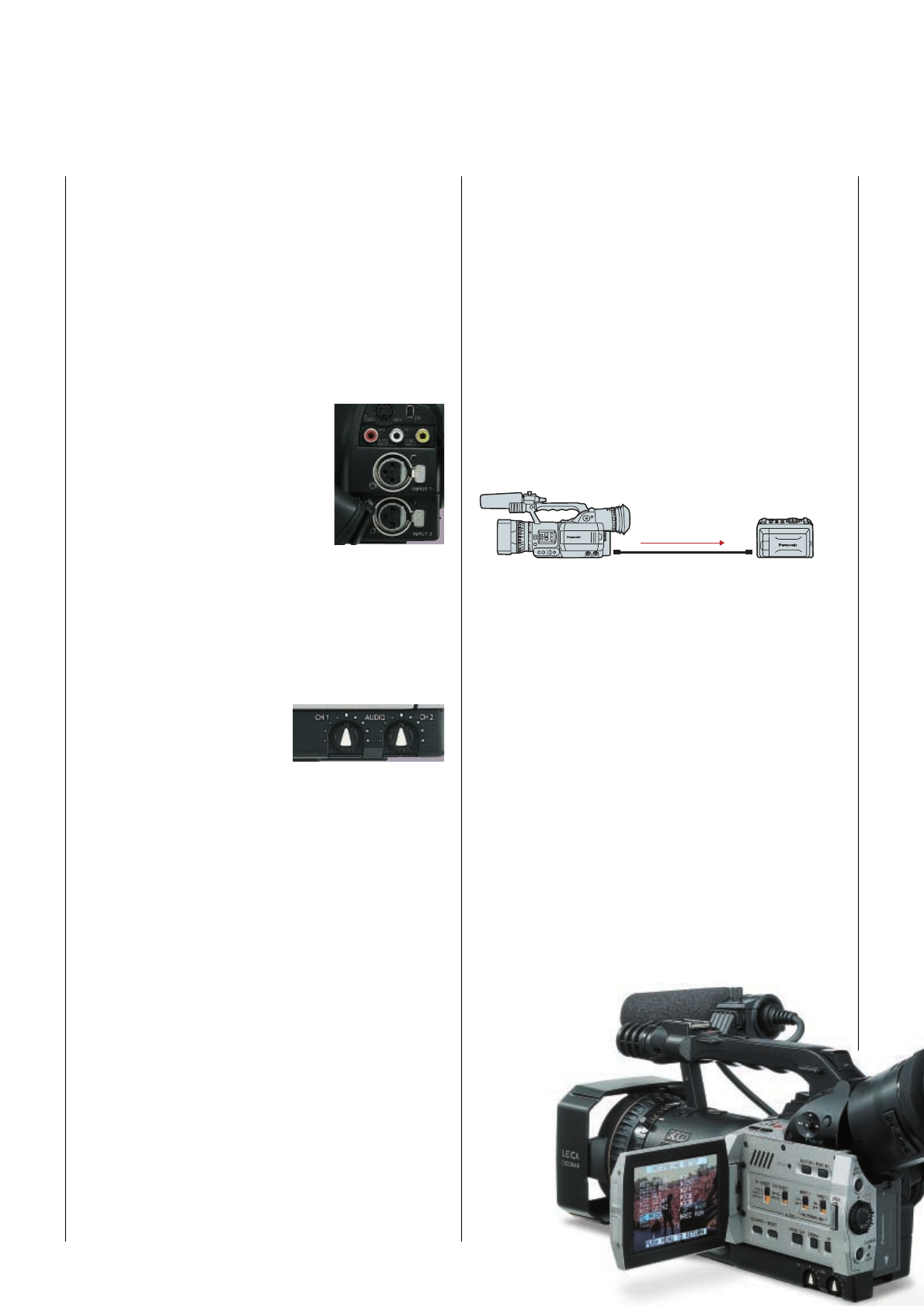

External Backup with the IEEE 1394 Synchro
Lock Function
The AG-DVX100 comes equipped with an IEEE 1394-compliant 4-
pin DV terminal that makes it easy to upload data to a PC and dub
onto a DV recorder. This terminal also features a new synchro
lock function that allows the AG-DVX100 to remotely start and
stop an external DV device connected to it via a DV cable. Three
recording modes help protect against mistakes: record only onto
the external recorder, record onto both the AG-DVX100 and the
external recorder, begin external recording when the AG-DVX100
tape ends.
Support Functions for Greater Convenience
•End search: Automatically searches for the last recorded portion
of the tape. Convenient when preparing to start the next
recording.
•Mode check: Displays a list of the camera settings on the
viewfinder and monitor. Makes it easy to check before
recording.
•2-Pattern zebra: Displays an overexposure warning on the
viewfinder and monitor. Select any two levels from among 80%,
85%, 90%, 95%, and 100%.
•Rec check: Plays back the last portion of a recorded passage for
easy checking.
•Index: Enables marking while recording. Convenient for
searching after recording.
•Tally lamps: Provided on the unit’s front and rear menu
switchable.
•Audio dubbing: Allows voice-over recording on a recorded tape
via an external mic.
•Line recording: Lets you record a video signal input from an
external source.
•Unlike consumer DV camcorders, the audio is locked to the
video with a PLL circuit.
•Reversible eye cup for left and right eyed shooters.
•Built-in colour bars
useful for setup.
DV Cable (4P-4P)AG-DVX100 Camera/Recorder DV Recorder (AG-DV1DC etc.)
IEEE1394 interface
(Digital A/V and Remote)
AG-DVX100 Bundled Standard Accessories Optional Accessories
AG-MC100G XLR microphone CGR-D16S Battery Pack (1.6 Ah)
CGP-D28S Battery Pack (2.8 Ah) CGA-D54S Battery Pack (5.4 Ah)
Shoulder
strap
Eye cup
Lens hood
Wireless
remote
control unit
AC adapter
Cleaning tape
Microphone
holder
Battery
DC Cable
AC cable

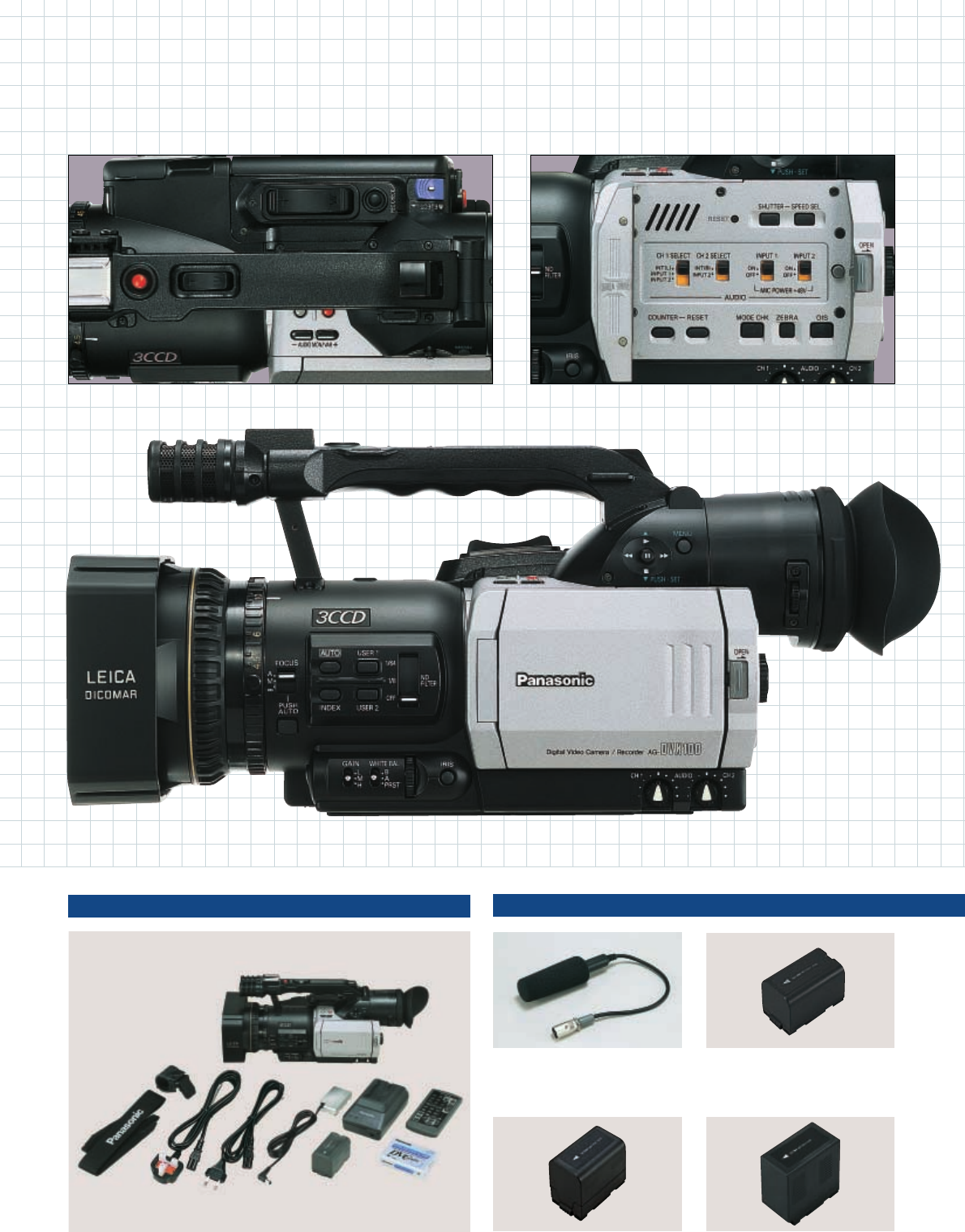

Switches and connectors are arranged to allow easy use of the AG-DVX100's
many functions, and a host of bundled accessories and available options
prepare it for action just about anywhere.
Top view (handle and grip) Sub-panel (with LCD monitor opened)
Side view (with LCD monitor closed)
AG-B15 AC adapter kit
QR-DVX AntonBauer battery adapter
AG-HT100G Hard carry case
AG-SC100G Soft carry case
IEEE1394 Interface cable

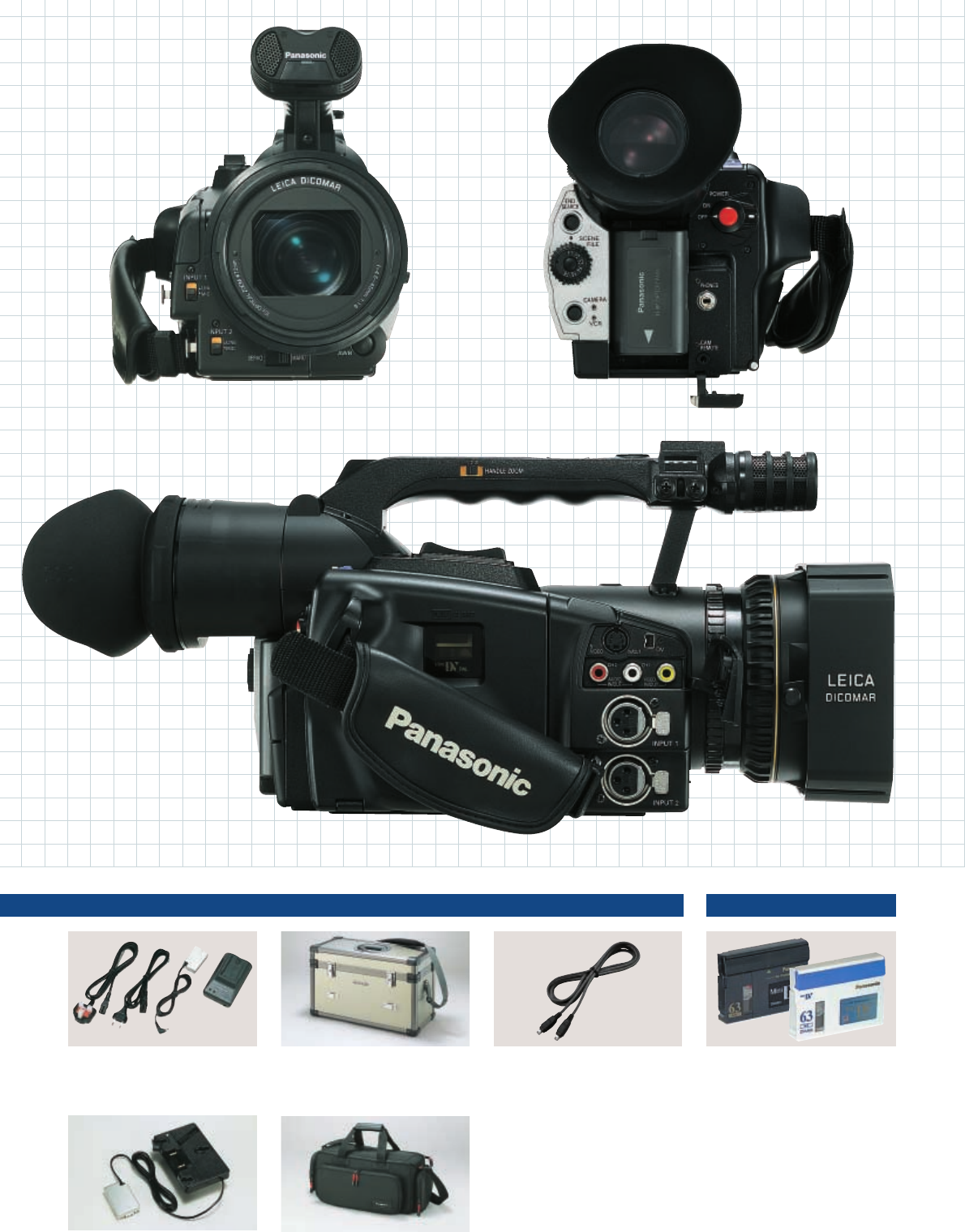

Front view (with lens hood removed) Rear view (with terminal cover removed)
Side view (with terminal cover removed)
AY-DVM63PQ
Professional Series Tape
AY-DVM63MQ
Master Series Tape
*Please do not use 80 minutes miniDV
cassette tapes
AY-DVMCL
Cleaning tape
Mini DV Cassette Tape
AG-LW7208G
Wide conversion lens
AG-LA7200G
16:9 conversion lens
[GENERAL]
Supply Voltage: DC 7.2/7.9 V
Power Consumption: 6.8 W (when viewfinder is used)
7.8 W (when LCD monitor is used)
9.2 W (max.)
Operating Temperature: 0°C to +40°C
Operating Humidity: 10% to 85% (no condensation)
Weight: 1.66 kg
1.83 kg with battery and cassette
Dimensions (WxHxD): 139 x 160 x 364 mm
[CAMERA]
Pick-up Device: 1/3-inch interline transfer type CCD x 3
(progressive modes supported)
Picture Elements: Total: 470,000 pixels
Effective: 440,000 pixels (horizontal pixel shift system)
Lens: Leica DICOMAR lens with optical image stabilizer,
motorized/manual mode switching, 10x zoom
F 1.6 (f = 4.5 to 45 mm) (35 mm equivalent: 32.5 to 325 mm)
Filter Diameter: 72 mm
Optical Colour Separation: Prism system
Optical Filter: ND Filters, 1/8ND, 1/64ND
Gain Selection: 0, +3, +6, +9, +12, +18 dB (50i mode only)
Shooting Mode: 50i (625i) interlaced fields
Progressive mode (25P)
Preset Shutter Speeds: 50i mode: 1/50 (OFF), 1/60, 1/120, 1/250, 1/500,
1/1000, 1/2000 sec.
25P mode: 1/25, 1/50 (OFF), 1/60, 1/120, 1/250,
1/500,1/1000 sec.
Synchro Scan Shutter Speeds: 50i mode: 1/50.3 to 1/250.0 sec.
25P mode: 1/25.1 to 1/250.0 sec.
Sensitivity: F11.0 at 2000 lux
Minimum Illumination: 3 lux (F 1.6, 18 dB gain, 50% video output)
[VTR]
Recorded Audio Signals: PCM digital recording
16 bits: 48 kHz/2 channels, 12 bits: 32 kHz/4 channels
Recording Tracks: Digital video, audio signals: helical track
Time code: helical track (sub-code area)
Tape Speed: SP mode: 18.831 mm/sec., LP mode: 12.568 mm/sec.
Recording Time: SP mode: 60 minutes,
LP mode: 90 minutes (when AY-DVM63 is used)
Tape Used: 6.35 mm wide metal tape
FF/Rew Time: Approx. 85 sec. (when AY-DVM60 is used)
[VIDEO]
Sampling Frequencies: Y: 13.5 MHz, PB/PR: 6.75 MHz
Quantizing: 8 bits
Video Compression System: DCT + variable length code
Error Correction: Reed-Solomon product code
[AUDIO]
Sampling Frequency: 48 kHz/32 kHz
Quantizing: 16 bits/12 bits
Frequency Characteristics: 20 Hz to 20 kHz
Wow & Flutter: Below measurable limits
[CONNECTORS]
VIDEO IN/OUT: RCA x 1, analogue composite input/output, 1.0 Vp-p, 75Ω
(input/output automatically switched)
S-VIDEO IN/OUT: DIN 4pin x 1, Y/C separate signal input/output,
Y: 1.0 Vp-p, C: 0.286 Vp-p, 75Ω
(input/output automatically switched)
AUDIO IN/OUT: RCA x 2 (CH1, CH2)
Input: 316 mV, high impedance
Output: 316 mV, 600Ω
(input/output automatically switched)
DV: 4-pin, digital input/output, IEEE 1394 standard
MIC/LINE INPUT: XLR (3 pins) x 2 (CH1, CH2)
LINE/MIC switching, high impedance
LINE: 0 dBu, MIC: –50 dBu/–60 dBu (menu selection)
DC INPUT: 7.9 V
PHONES: Stereo (3.5 mm diameter), 77 mV, 32Ω
CAM REMOTE: Mini jack (2.5 mm diameter)
[EQUIPMENTS]
LCD Monitor: 3.5-inch LCD colour monitor, 200,000 pixels
Viewfinder: 0.44-inch LCD colour viewfinder, 180,000 pixels
Internal Microphone: Stereo microphone
Internal Speaker: 20mm round shape, volume – or +
[AC ADAPTER]
Power Source: 110/120/220/240 V AC, 50/60 Hz
Power Consumption: 18 W
Weight: 0.16 kg
Dimensions (WxHxD): 70 x 44.5 x 116 mm
*The specifications given above were measured by playing back tapes
recorded by the AG-DVX100 on standard VTRs.
Weight and dimensions shown are approximate.
Specifications are subject to change without notice.
AG-DVX100 Specifications
[Countries and Regions]
Matsushita Electric Industrial Co., Ltd.
Systems Business Group
2-15 Matsuba-cho, Kadoma, Osaka 571-8503
Japan
Tel. 81-6-6905-4650 Fax. 81-6-6908-5969
www.panasonic.co.jp/bsd
Argentina Tel. 54-1-308-1610
Australia Tel. 61-2-9887-6222
Austria Tel. 43-1-61080-773
Bahrain Tel. 973-252292
Belgium Tel. 32-2-481-0481
China Tel. 86-10-6515-8828
(Hong Kong Tel. 852-2313-0888)
Czech Republic Tel. 42-02-2166-4120
Denmark Tel. 45-43-200-853
Egypt Tel. 20-2-3938151
Finland Tel. 358-9-521-5253
France Tel. 33-149464388
Germany Tel. 49-611-18160
Greece Tel. 30-1-969-2300
Hungary Tel. 36-1-382-6060
Indonesia Tel. 62-21-801-5666
62-21-385-9449
Iran Tel. 98-21-2271463
Italy Tel. 39-02-67881
Jordan Tel. 961-6-586-1914
Kuwait Tel. 965-481-2123
Lebanon Tel. 961-1-216827
Malaysia Tel. 60-3-5549-5422
Netherlands Tel. 31-73-640-2721
New Zealand Tel. 64-9-272-0100
Norway Tel. 47-22916800
Pakistan Tel. 92-21-455-5766
Peru Tel. 51-145-29470
Poland Tel. 48-3912-3173
Portugal Tel. 351-21-424-8630
Russia Tel. 7-095-258-4237
Saudi Arabia Tel. 966-1-465-0709
Singapore Tel. 65-6270-0110
Slovakia Tel. 421-7-5292-1423
South Africa Tel. 27-11-313-1400
Spain Tel. 34-93-425-9300
Sweden Tel. 46-8-680-8238
Switzerland Tel. 41-41-259-9632
Thailand Tel. 66-2-731-8888
Turkey Tel. 90-216-416-0150
U.A.E. Tel. 971-4-282201
U.K Tel. 44-118-902-9210
SP-DVX100E1 50K212ZM-1 Printed in Japan

Navigation menu
