AJ- DVCPRO HD-EX Studio VTR
Picture simulated
Standing at the top of the DVCPRO family, the AJ-HD150
master VTR provides high-end editing of 1080i/720p HD
images and 8-channel digital audio. In addition to HD
playback, it provides playback of all DVCPRO50, DVCPRO
P, DVCPRO and DV tapes. Adding an optional board also
allows up/down conversion for HD output from SD
(480i/480p) tapes or SD output from HD tapes. Metadata
such as closed capstion data can be recorded with the
optional AJ-VNC150P.
Compact and lightweight, the AJ-HD150 features almost
the same 4RU size and low power consumption as a
DVCPRO VTR.
The Ultimate DVCPRO VTR for Broadcasting,
Picture simulated
DVCPRO HD-LP: Compact and Lightweight,
with Extended Recording Time
This new format brings DVCPRO's many advantages to HD production.
With its convenient 1/4" tape and compact mechanism, DVCPRO HD
equipment is small and lightweight. Running costs are low.
High-density 100-Mbps recording and an advanced compression
algorithm combine to deliver outstanding picture quality. And with XL
(126 min) and L (92 min) cassettes, DVCPRO HD-LP provides the
same extended running time and easy field use as SD VTRs.
A Superior All-Round Digital HD Performance
with 5.1-ch Surround Sound and 24p Cinema
DVCPRO HD's eight channels of high-quality, non-compressed digital
audio, with 16-bit quantization and 48-kHz sampling, provide all you
need for 5.1-channel surround sound and multilingual productions. HD
images can be recorded and played in either 1080i or 720p. This
accommodates 720p production using VARICAM, and allows the HD
format to handle both broadcasting and cinema work.
High Reliability
With its 9-µm recording track, DVCPRO HD-LP has twice the recording
density of DVCPRO HD. Thanks to Panasonic's advanced VTR
technology — such as double-head playback and edit-point guard track
— this new format offers outstanding editing reliability.
Complete Upward Compatibility
DVCPRO HD-LP provides full upward compatibility with other DVCPRO
formats, from SD all the way up to HD. As a studio VTR,
the AJ-HD1700 plays tapes recorded in the DVCPRO HD, DVCPRO50,
DVCPRO P, DVCPRO, and
DV/DVCAM formats. This
compatibility, together with the
AJ-HD1700's format
conversion feature,
allows single-system HD
production using SD
footage and HD/SD
multi-format
broadcasting.
IN Out
 Guard Track  Guard Track
 Erasing
Previous Data Remaining
Previous Data
 Insert Frames
Track Gap
Cinema, and Other High-End Applications
DVCPRO HD-LP FORMAT
The AJ-HD1700 debuts as a DVCPRO HD high-end studio master VTR
that answers today's most advanced needs in high-definition
production and broadcasting. Featuring the new DVCPRO HD-LP
format, the AJ-HD1700 records and plays up to 126 minutes with an
XL cassette. It can record three types of HD images — 1080/60i,
720/60p, and 1080/50i — and it comes equipped with eight digital
audio channels for 5.1-channel surround sound. The AJ-HD1700
plays all DVCPRO HD, DVCPRO50, DVCPRO P, DVCPRO, DV, and
DVCAM tapes. It has an advanced HD-SD conversion function that
provides parallel output of HD/SD signals from a wide variety of sources.
The AJ-HD1700 can even output a 1080/24p signal from a 720/24p over 60 VARICAM
source tape for convenient editing in 1080/24p such as mastering to D-5 HD on the
AJ-HD3700A VTR.
Able to handle today's growing range of image content — in broadcasting, cinema and
computer graphics, HD and SD, NTSC and PAL — the versatile, high-performance
AJ-HD1700 is the ideal master studio VTR.
FIT_V FIT_HV
FIT_H
Original SD Image
FIT_H
Original HD Image
FIT_HV
FIT_V
Semi-Letter Box (14:9) Semi-Letter Box (13:9)
HD Image (after up-onvert)
SD Image (after down-convert)
Up-Convert
Down-Convert
Picture simulated
Tape Format Video Format HD Output SD Output
DVCPRO HD
1080/60i 1080/60i or 720/60p 480/60i or 480/60p
1080/50i 576/50i
720/60p or 1080/60i 480/60i or 480/60p
1080/24p 480/60i
DVCPRO P 480/60p 1080/60i or 720/60p 480/60i or 480/60p
DVCPRO 50,
DVCPRO, DV,
DVCAM
480/60i 1080/60i or 720/60p 480/60i or 480/60p
1080/50i 576/50i
1080/50i
720/60p
720/24p over 60p
576/50i
Playback VIdeo Fomat
Input Signal
HD
SD
Recording Signal
1080/60i 1080/60i
720/60p 720/60p
1080/50i 1080/50i
480/60i (NTSC) 1080/60i* or 720/60p*
576/50i (PAL) 1080/50i*
Recording Video Format
*with optional board, AJ-UC1700G
Over Two Hours of Recording on an XL Cassette
The AJ-HD1700 accepts the L, M, and new XL cassettes. It can record
up to 126 minutes on a single XL cassette. With its 100-Mbps video
recording rate and highly efficient compression, recording quality is
exceptional.
*The AJ-HD1700 cannot edit tapes recorded in the DVCPRO HD format. Tapes recorded with
the AJ-HD1700 in the DVCPRO HD-LP format cannot be played on a DVCPRO HD VTR.
Selectable 1080i/720p HD Formats
The AJ-HD1700 records and plays both 1080i and 720p video formats
and can be switched to 60, 59.94, or 50 Hz. This allows single-system
operation of 1080/60i, 1080/59.94i, 1080/50i, 720/60p, and 720/59.94p
video footage.
1080/24p Output Supports VARICAM
Source Production
Use the AJ-HD1700 together with the AJ-HDC27F VARICAM for
producing cinema and film-like HD programs. The AJ-HD1700 not only
allows direct playback of VARICAM-recorded tapes, it can also play
720/24p over 60 source tapes while converting them to 1080/24p for
editing.
Records and Plays Eight
Channels of Digital
Audio
The AJ-HD1700's eight channels of
high-quality 16-bit/48-kHz digital
sound are ideal for 5.1-channel
surround sound and multilingual
productions.
Plays Back All DVCPRO Cassettes
The AJ-HD1700 plays back DVCPRO HD (1080i/720p) tapes plus the
entire family of DVCPRO P (480p), DVCPRO50 (480i), and DVCPRO
(480i) tapes, as well as DV DVCAM*1(480i) tapes. It can output HD
playback signals via HD-SDI, and SD playback signals via SD-SDI and
composite*2output.
HD-SD Format Conversion
The AJ-HD1700 incorporates a format up/down-converter with a
high-performance IP system that delivers outstanding image quality.
The AJ-HD1700 can down-convert DVCPRO HD (1080i/720p) to
480i/480p. It can up-convert DVCPRO50, DVCPRO P, DVCPRO, or
DVCAM/DV to 1080i/720p.
Optional Up-Conversion and Recording of
SD Input
Adding the optional AJ-UC1700G SD-HD Up-Converter Board allows
the AJ-HD1700 to up-convert and record 480i or 576i SDI input to 1080i
or 720p. The high-performance IP system assures excellent image
quality.

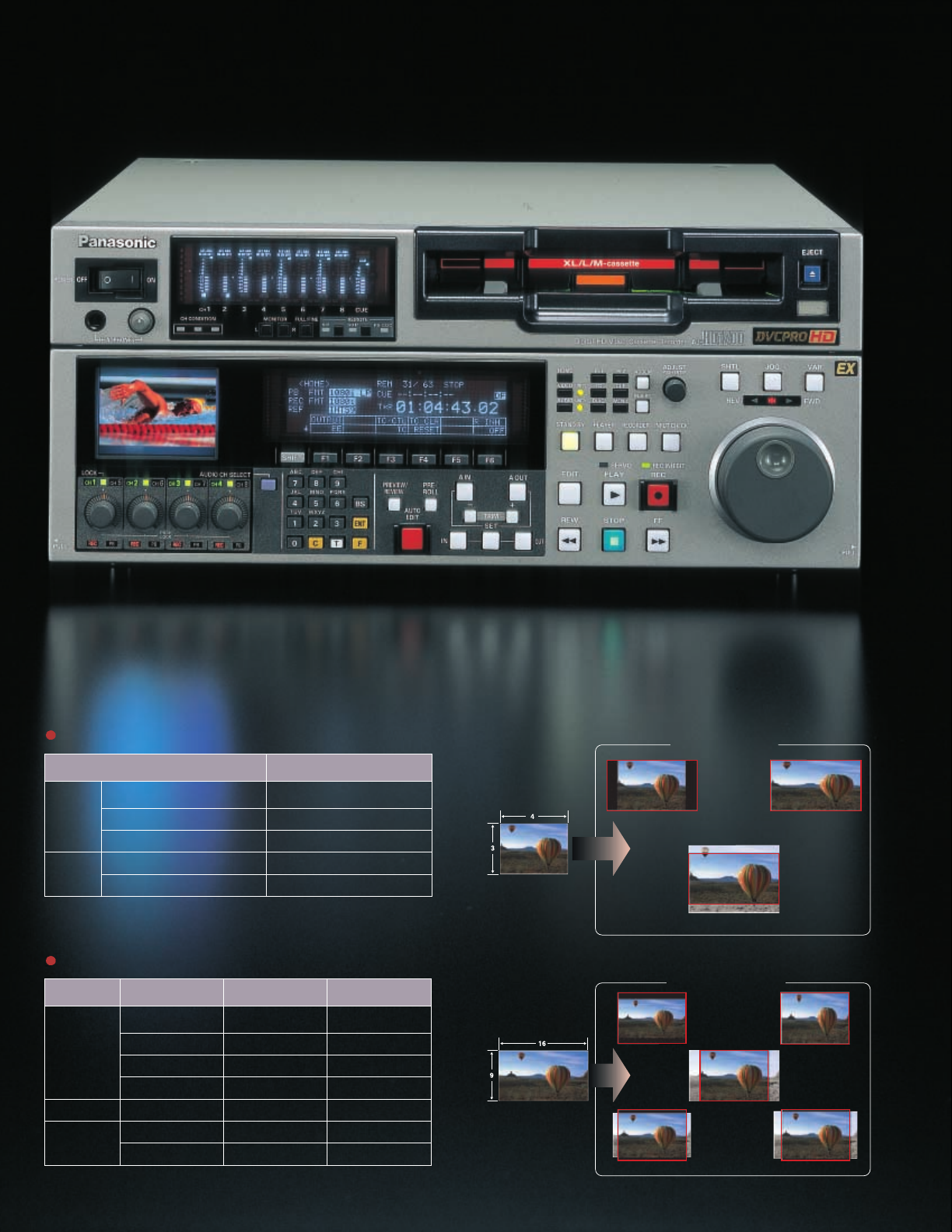

Output Screen Aspect Ratio Conversion
The aspect ratio of up/down-converted images can be changed, as
shown in the diagram on the facing page.

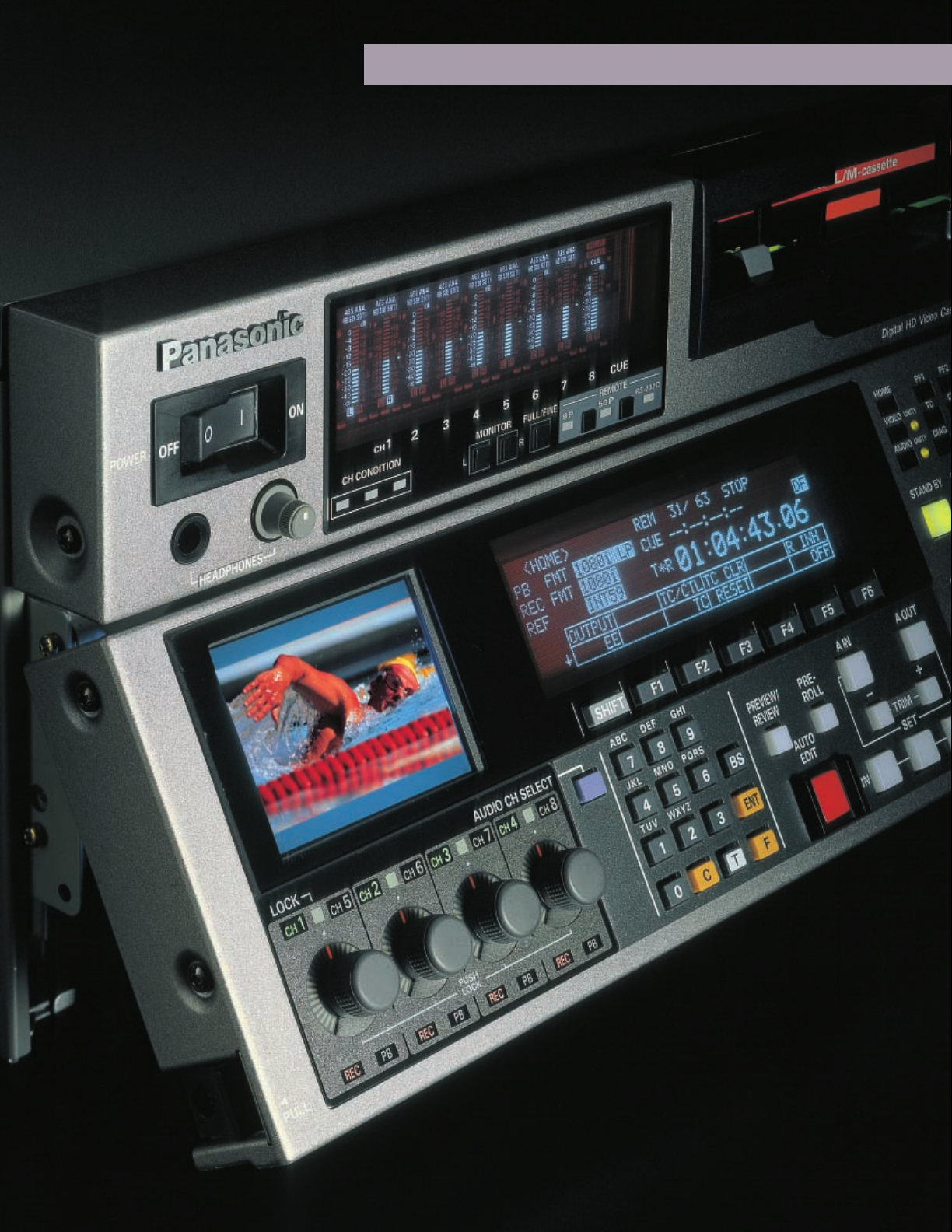

Expanded Front Panel with LCD Monitor
The front panel has been expanded to include a high-resolution LCD
monitor and numerical key pad. Use the LCD to monitor input or output
images,* or to display the on-screen menu for easy function setting. Up
to four user files with settings can be saved to and loaded from IC cards
(SHL-064HSRVS, sold separately).
100x Shuttle and Jog
The AJ-HD1700 provides super-fast
shuttle searching at up to 100x
normal speed (with HD-LP tape) in
both forward and reverse, plus fast
forward and rewind. In jog mode
you can also monitor the audio, for
better accuracy and response.
Noiseless Slow Playback
The playback speed varies (±4.9x)
according to the dial angle. You get
noiseless slow playback from -1x to 2x normal speed (with HD-LP
tape).* PCM/CUE audio can be monitored. The Variable Memory
function lets you store and recall dial operations.
Multi-Cue Functions
Multi-Cue: You can register up to 60 cue (index) points. Cueing is then
possible at any of those points.
High-Precision Editing
Editing with to-the-frame (±0) precision is possible either manually or by
external remote control. Editing operations include assemble, insert
(V/A/CUE/TC), and audio split (audio in/out points).
•Unit-to-unit editing: Edit between two units without a separate editing
controller, by connecting the AJ-HD1700 to an external player via
RS-422A and using the controls on the AJ-HD1700's front panel.
•External remote editing: Edit using a separate editing controller
connected to the AJ-HD1700 via RS-422A.
Built-in Time Code Generator/Reader
The AJ-HD1700 can record and reproduce two of the same or two
different time codes (pseudo LTC/VITC) on the tape's special sub-code
track and video AUX area. Eight-digit hexadecimal (0-9, A-F) text data
can also be recorded for use as a user's bit (UB). The time code mode
allows to-the-frame (±0) editing precision.
126 MINUTES OF RECORDING,
PLUS HD/SD MULTI-FORMAT FUNCTIONS EASY OPERATION, PLUS NEW PLAYBACK
AND EDITING FUNCTIONS

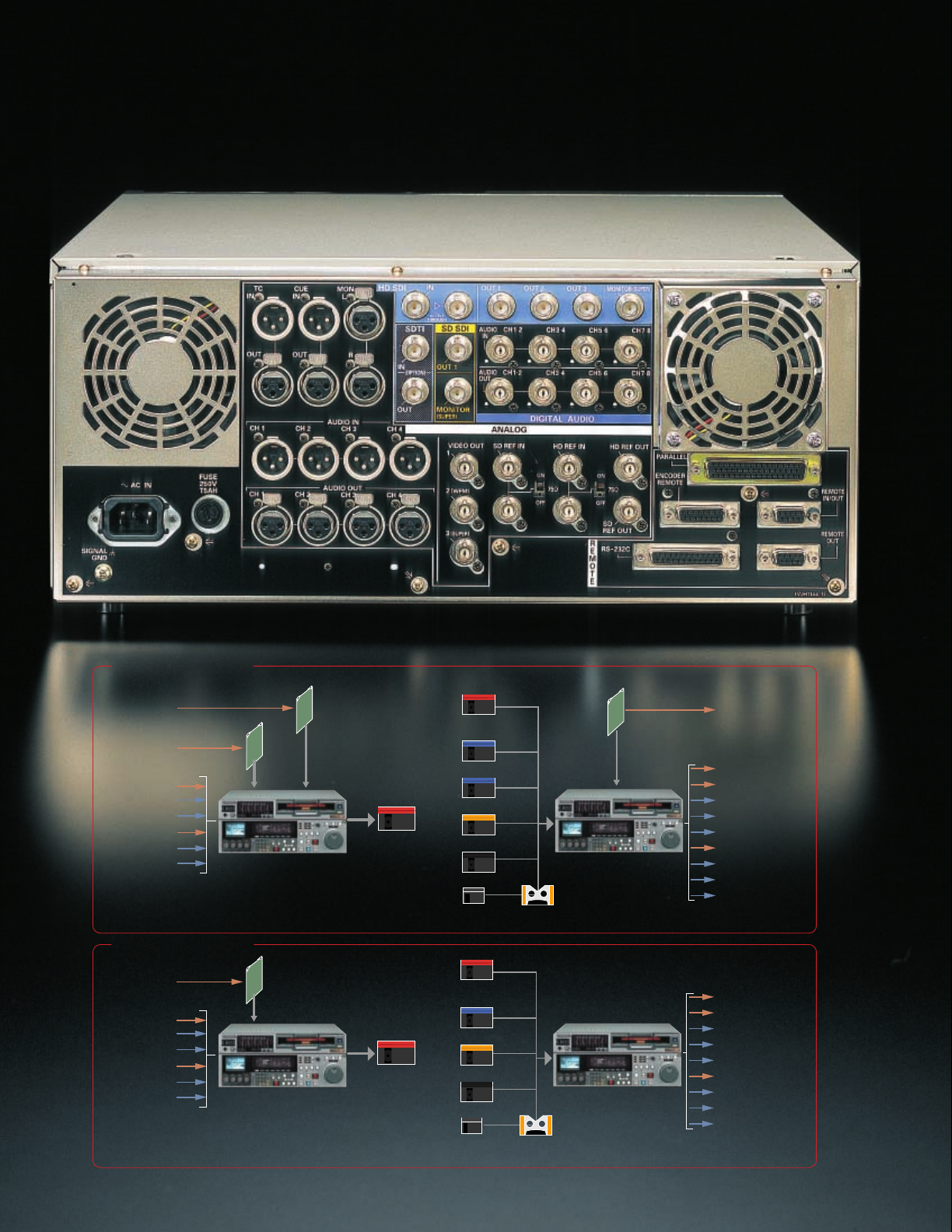

I/O Chart of 60Hz Area
I/O Chart of 50Hz Area
AJ-HD1700
DVCPRO HD-LP
DVCPRO HD
DVCPRO P
DVCPRO 50
DVCPRO
DV/DVCAM
Mini-DV
DVCAM-S
Casette Adapter
AJ-CS455P
SDTI
1080i/720p/480p/480i
HD SDI, 1080i/720p
SDTI Interface Board
AJ-YAC150P
SD SDI, 480i/480p
HD REF
SD REF
Composite Video
Analog Audio 4ch
AES/EBU Audio 8ch
Monitor Audio
TC
1080i/720p
480p
480i
480i
480i
480i
AJ-HD1700
DVCPRO HD-LP
DVCPRO HD
DVCPRO 50
DVCPRO
DV/DVCAM
Mini-DV
DVCAM-S
Casette Adapter
AJ-CS455P
HD SDI, 1080/50i
SD SDI, 576i
HD REF
SD REF
Composite Video
Analog Audio 4ch
AES/EBU Audio 8ch
Monitor Audio
TC
1080/50i
576i
576i
576i
576i
DVCPRO HD-LP
1080i/720p
SDTI, 1080i/720p
HD SDI, 1080i/720p
SDTI Interface Board
AJ-YAC150P
HD REF
SD REF
Analog Audio 4ch
AES/EBU Audio 8ch
TC
SD SDI, 480i
AJ-HD1700
DVCPRO HD-LP
1080/50i
HD SDI, 1080/50i
HD REF
SD REF
Analog Audio 4ch
AES/EBU Audio 8ch
TC
SD SDI, 576/50i SD-HD Upconveter Board
AJ-UC1700G
AJ-HD1700
SD-HD Upconveter Board
AJ-UC1700G
SD-HD Format Converter Board
AJ-UC1700G
SDTI Interface Board
AJ-YAC150P
VANC Board
AJ-VNC150P
DVCPRO HD-EX Cassette Tape
AJ-HP126EXG (126 minutes)
AJ-HP92ELG (92 minutes)
AJ-HP64ELG (64 minutes)
AJ-HP23LP (23 minutes)
Rack Mount Adapter
AJ-MA75P
Cassette Adapter
AJ-CS455P

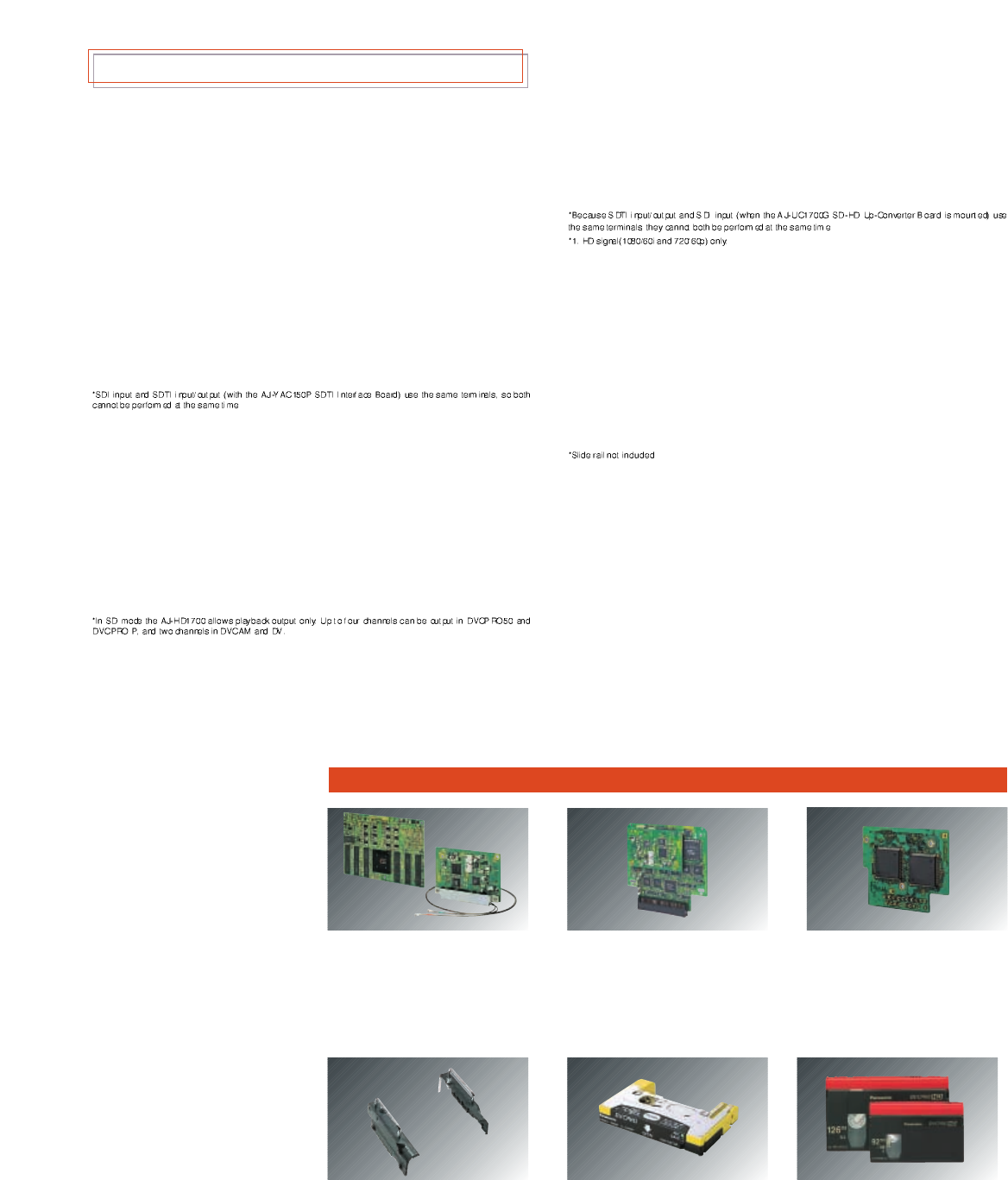

OPTIONAL ACCESSORIES
Standard HD-SDI
The AJ-HD1700 is equipped with an HD Serial Digital Interface (1.5
Gbps/SMPTE292M) for easy, reliable connection to other digital HD
equipment. It has one input (BNC) and four outputs (BNC), one of
which can be used for titles (ON/OFF selectable). Multiplexing
(ON/OFF selectable) is also possible for the eight channels of digital
audio.
SD-SDI Output (standard) and Input (optional)
The AJ-HD1700 has two SDI (SMPTE259M-C/272M) outputs (BNC),
one of which can be used for titles (ON/OFF selectable). Multiplexing
(ON/OFF selectable) is also possible for four channels of digital audio.
Adding the optional AJ-UC1700G SD-HD Up-Converter Board allows
SDI input.
SD Analog Composite Output
The AJ-HD1700 is equipped with three composite video outputs (BNC).
VIDEO2 can be used as a waveform monitor. OUT3 can be used for
titles (ON/OFF selectable).
Digital/Analog Audio In/Out
In HD mode up to eight channels of AES/EBU digital audio (BNC) can
be input and output,* or up to four channels of analog audio (XLR).*
The AJ-HD1700 also provides audio monitor output (XLR) and cue
in/out (XLR) terminals.
SDTI (Serial Data Transport Interface) System*1
Add the optional AJ-YAC150P board to allow SDTI input and output,
and the AJ-HD1700 can be used to transfer compressed data between
HD equipment with no quality loss.
Meta Data Recording
Adding the optional VANC board AJ-VNC150P makes it possible for the
AJ-HD1700 to record supplemental data (such as Meta Data or Closed
Caption Data) onto the tape.
Compact, Easy to Install
The 4RU-size AJ-HD1700 fits into a 19-inch rack. Use the optional AJ-
MA75P* Rack Mount Adaptor for easy installation in the studio or OB
van. The AJ-HD1700's space-saving size and low power requirement
can reduce your operating costs.
Versatile Remote Systems
The AJ-HD1700 is equipped with a host of terminals, including RS-
422A remote in/out (selectable, D-Sub 9-pin), RS-422A remote out (D-
Sub 9-pin), parallel remote (D-Sub 50-pin), RS-232C remote (D-Sub
25-pin), and encoder remote (D-Sub 15-pin).
Encoder Adjustment
The HD-SDI, SD-SDI, and composite video output signals can be
adjusted using the Setup menu on the on-screen display or an external
remote controller.
A WIDE VARIETY OF INTERFACES
SP-HD1700PE1 VSD6262 [03150.2] 3K303ZM-1 Printed in Japan
General
Power Supply: AC (100-240) V ±10%, 50 to 60 Hz
Power Consumption: 240W (full option)
220W
Operating Temperature: 41 °F to 104 °F (5°C to 40°C)
Operating Humidity: 10% to 80% (non dew)
Weight: 48.5 lbs (22 kg)
Dimensions (WxHxD): 16-4/3” x 6-15/16” x 17-11/16”
(424 x 175.2 x 448.9 mm)
Recording Format: DVCPRO HD-LP
Recording Track: Digital Video:1080i/720p
Digital Audio:8 channels
TC: Subcode area
Cue: 1 longitudinal track
CTL: 1 longitudinal track
Tape Speed: 67.64mm/s
Rec/Play Time: Max. 126 minutes with AJ-HP126EX
Max. 92 minutes with AJ-HP92LMG
Tape: 1/4” metal particle
FF/REW Time: Less than 1.5 minutes with AJ-HP126EX
Search Speed: ±100x
Editing Accuracy: ±0 frame (TC)
Tape Timer Accuracy: ±1 frame (continuous CTL)
Servo Lock Time: Within 0.3 sec (standby ON)
Loading/Unloading TIme
: Approx. 4 sec
Video
Sampling Frequency: Y: 74.25 MHz, Pb/Pr: 37.125 MHz
Quantization: 8 bits
Error Correction: Reed Solomonn Product Code
Compression Ratio: 6.7:1
Bit Rate: 100 Mbps
Digital Audio
Channel: 8 channels
Sampling Frequency: 48kHz
Quantization: 16 bits
Frequency Response: 20Hz to 20kHz, ±1.0dB (reference level)
Dynamic Range: More than 90dB (1kHz, emphassis off)
Distortion: within 0.05% (1kHz, emphassis off,
reference level)
Cross Talk: Less than –80dB
(1kHz, between any 2ch)
Wow & Flutter: Below measurable limit
Headroom: 20 dB
Cue Audio
Frequency Response: 300Hz to 6kHz (±3dB)
Digital (Video/Audio) Input and Output
HD SDI Input: BNC x 1, SMPTE 292M
BNC x 1 (active through)
SD-SDI Input (option) BNC x 1, BNC x 1 (active through)
Video: SMPTE 259M-C
Audio: SMPTE 259M-C/272M-A
SDTI Input (option): BNC x 1 (SMPTE 305M/321M)
HD SDI Output BNC x 4 (supeimpose x 1)
SMPTE 292M
SD-SDI Output BNC x 2 (supeimpose x 1)
Video: SMPTE 259M-C/294M
Audio: SMPTE 259M-C/272M-A
SDTI Output (option): BNC x 1 (SMPTE 305M/321M)
Video Input
HD Reference: BNC x 2 (loop-through), 75ΩOn/Off
SD Reference: BNC x 2 (loop-through), 75ΩOn/Off
SDTI (option): BNC x 1, SMPTE 305M
Video Output
HD Reference Sync: BNC x 1
SD Reference Sync: BNC x 1
Analog Composite: BNC x 3 (SD playback or down-convert)
OUT2: switchable for WFM OUT
OUT3: super on/off
Audio Input
Analog: XLR x 4 (CH1/2/3/4),
+4/0/–20/–60 dBu switchable,
600Ω/high-impedance switchable
Digital: BNC x 4 (CH1/2, CH3/4, CH5/6, CH7/8),
AES/EBU
Cue: XLR x 1, +4/0/–20/–60 dBu switchable,
Low-impedance
Audio Output
Analog: XLR x 4 (CH1/2/3/4),
+4/0/–20 dBu switchable,
600Ω/high-impedance switchable
Digital: BNC x 4
(CH1/2, CH3/4, CH5/6, CH7/8), AES/EBU
Cue: XLR x 1, Low-impedance,
+4/0/–20 dBu switchable
Monitor: XLR x 2 (L/R), Low-impedance,
+4/0/–20 dBu switchable
Phones: M6, variable level control, 8Ω
Others
TC IN: XLR x 1, 0.5 to 8.0 Vp-p
TC OUT: XLR x 1, Low-impedance,
2.0Vp-p
±
0.5Vp-p
RS-422A IN/OUT: D-sub 9 pin RS-422A I/F
RS-422A OUT: D-sub 9 pin RS-422A I/F
RS-232C: D-sub 25 pin RS-232C I/F
Parallel IN/OUT: D-sub 50 pin
Encoder Remote: D-sub 15 pin
Video Output Signal
•Component style
HD SDI Y Output Gain:
– ∞to + 3 dB
HD SDI Pb Output Gain:
– ∞to + 3 dB
HD SDI Pr Output Gain:
– ∞to + 3 dB
HD SDI Y Black Level:
±10%
SD SDI Y Output Gain:
– ∞to + 3 dB
SD SDI Pb Output Gain:
– ∞to + 3 dB
SD SDI Pr Output Gain:
– ∞to + 3 dB
SD SDI Y Black Level:
±10%
(Black Clip ON/OFF switchable)
Composite Y Output Gain:
– ∞to + 3 dB
Composite Pb Output Gain:
– ∞to + 3 dB
Composite Pr Output Gain:
– ∞to + 3 dB
Composite Y Black Level: ±10%
(Black Clip ON/OFF switchable)
•Composite style
HD SDI Video Output Gain:
– ∞to + 3 dB
HD SDI Chroma Output Gain:
– ∞to + 3 dB
HD SDI Chroma Phase:
±30
°
HD SDI Y Black Level:
±10%
SD SDI Video Output Gain:
– ∞to + 3 dB
SD SDI Chroma Output Gain:
– ∞to + 3 dB
SD SDI Chroma Phase:
±30
°
SD SDI Y Black Level:
±10%
(Black Clip ON/OFF switchable)
Composite Video Output Gain:
– ∞to + 3 dB
Composite Chroma Output Gain:
– ∞to + 3 dB
Composite Chroma Phase:
±30
°
Composite Y Set Up:
±10%
•System Phase
HD SDI Output : ±5.5H
(±1200 Sample, 13.5nS Step)
SD SDI Output: ±5.5H (±9438 Sample, 37nS Step)
Compsite Video Output: ±5.5H (±9438 Sample, 37nS Step)
Compsite Video Output SC:
±180°
LCD Monitor
3" Digtal, Wide view angle, approx. 200,000 pixcels
AJ-HD1700 SPECIFICATIONS
Matsushita Electric Industrial Co., Ltd.
Systems Business Group
2-15 Matsuba-cho, Kadoma, Osaka 571-8503
Japan
Tel. 81-6-6905-4650 Fax. 81-6-6908-5969
www.panasonic.co.jp/bsd
Argentina Tel. 54-1-308-1610
Australia Tel. 61-2-9887-6222
Austria Tel. 43-1-61080-773
Bahrain Tel. 973-252292
Belgium Tel. 32-2-481-0481
Brazil Tel. 55-11-3889-4035
Canada Tel. 1-905-624-5010
China Tel. 86-10-6515-8828
(Hong Kong Tel. 852-2313-0888)
Czech Republic
Tel. 42-02-2166-4120
Denmark Tel. 45-43-200-853
Egypt Tel. 20-2-3938151
Finland Tel. 358-9-521-5253
France Tel. 33-149464388
Germany Tel. 49-611-18160
Greece Tel. 30-1-969-2300
Hungary Tel. 36-1-382-6060
Indonesia Tel. 62-21-801-5666
62-21-385-9449
Iran Tel. 98-21-2271463
Italy Tel. 39-02-67881
Jordan Tel. 961-6-586-1914
Korea Tel. 82-2-6670-5160
Kuwait Tel. 965-481-2123
Lebanon Tel. 961-1-216827
Malaysia Tel. 60-3-5549-5422
Mexico Tel. 52-5-488-1000
Netherlands Tel. 31-73-640-2721
New Zealand Tel. 64-9-272-0100
Norway Tel. 47-22916800
Pakistan Tel. 92-21-455-5766
Panama Tel. 507-229-2955
Peru Tel. 51-145-29470
Philippines Tel. 63-2-633-6162
Poland Tel. 48-3912-3173
Portugal Tel. 351-21-424-8630
Puerto Rico Tel. 1-787-750-4300
Russia Tel. 7-095-258-4237
Saudi Arabia Tel. 966-1-465-0709
Singapore Tel. 65-6270-0110
Slovakia Tel. 421-7-5292-1423
South Africa Tel. 27-11-313-1400
Spain Tel. 34-93-425-9300
Sweden Tel. 46-8-680-8238
Switzerland Tel. 41-41-259-9632
Taiwan Tel. 886-2-2725-9100
Thailand Tel. 66-2-731-8888
Turkey Tel. 90-216-416-0150
U.A.E. Tel. 971-4-282201
U.K Tel. 44-118-902-9210
U.S.A. Tel. 1-201-348-5300
[Countries and Regions]

Navigation menu
