BT-
BT-
BT-
BT-

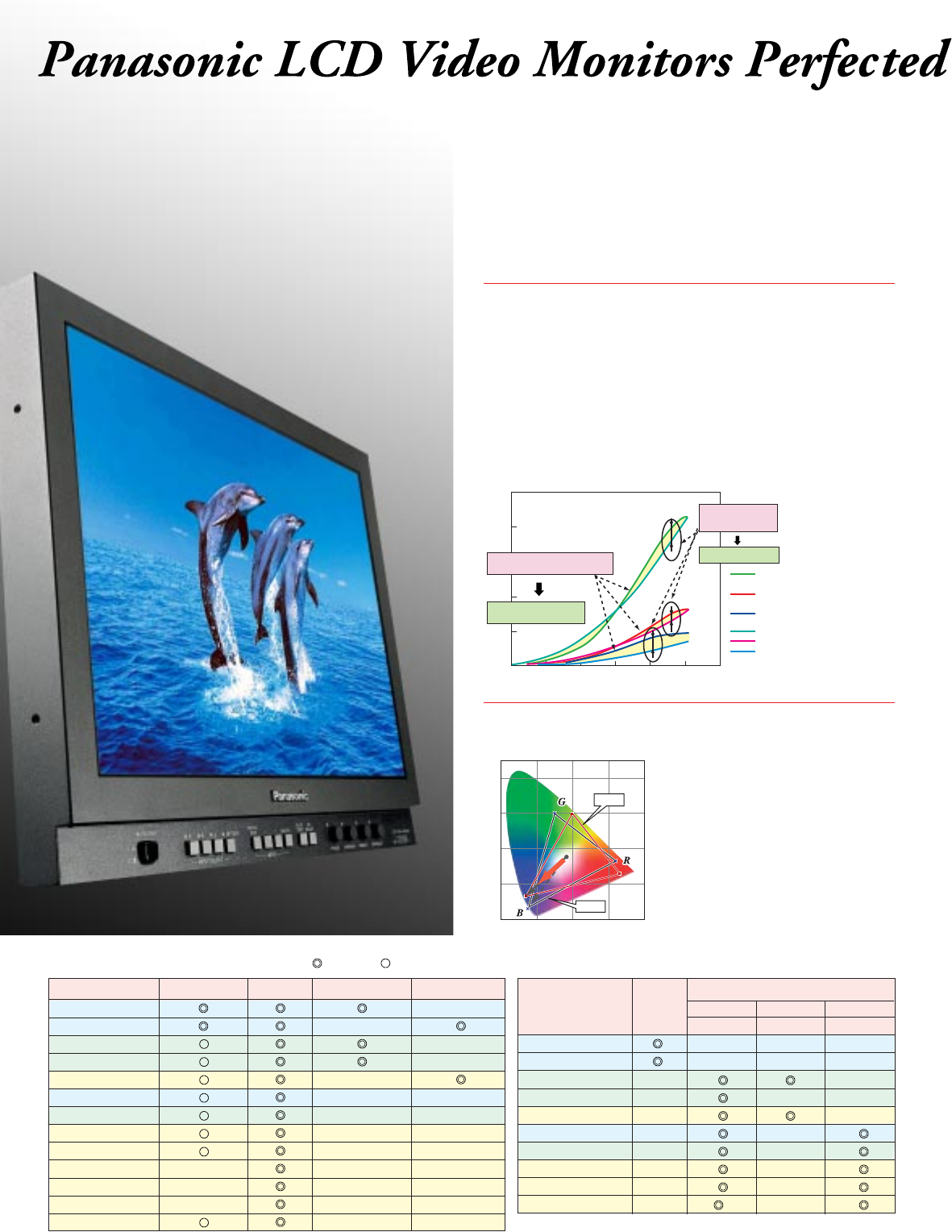

LCD Monitors Lineup Catalogue
Distributed by: Mega Hertz 800-883-8839 sales@megahz.com www.megahz.com
Panasonic’s BT series new LCD monitors can
meet the needs from professional market.
Comprising three HD/SD models and one
dedicated SD model, the BT series is
designed for professionals. These models
combine the thinprofile and light weight
Broadcast-Quality Gradation: Each Monitor
Individually Adjusted
Panasonic adjusts each BT series monitor individually for 256 gradation
steps* in its independent R, G, and B signals. This is your assurance
that each monitor delivers broadcast-quality gradation, with
standardized gamma characteristics of g = 2.2.
The industry-standard D65 or D93 color temperatures can be selected
to match colors and gradation when multiple monitors are used.
*BT-LS series monitors have 8 gradation steps.
Input
0
050
50
100
100
150 200
200
250
250
300
Panel Gamma Characteristics
Output
Yr (actual panel measurement
value)
Yg (actual panel measurement
value)
Yb (actual panel measurement
value)
Yr (target value)
Yg (target value)
Yb (target value)
Actual panel measurement
value › power of 2.2
Gamma curve
--> power of 2.2
Varying errors
in each panel
Errors Corrected
Colors on CRT monitors appear
different from those on LCD monitors
due to slight differences in the
monitors’ chromatic ranges. BT-LH
series models use a technology
called color space conversion to
produce the same EBU-based colors
as a CRT.
Color Gamut
0
0.2
0.4
0.6
0.8
0.2 0.4 0.6 0.8
X
Y
EBU
LCD
chromatic gamut
Formats Supported by the BT Series
: Standard : Optional
Formats
BT-LH1800/1500 BT-LH900
BT-LS1400P(NTSC) BT-LS1400E(PAL)
NTSC
PAL
480/59.94i
480/59.94p
576/50i
720/60p, 59.94p
1035/60i, 59.94i
1080/50i
1080/60i, 59.94i
1080/30p, 29.97p
1080/25p
1080/24p, 23.98p
1080/24psF, 23.98psF
Formats Supported by the Input Units of the BT-LH1800/1500
Optional Input Units
Formats
Component SDI HD-SDI
BT-YA100P BT-YA200P BT-YA320P
NTSC
PAL
480/59.94i
480/59.94p
576/50i
720/60p, 59.94p
1035/60i, 59.94i
1080/50i
1080/60i, 59.94i
1080/24psF, 23.98psF
*Y/Pb/Pr Input Only
*
1
that distinguish LCD monitors with the superior
picture quality and performance needed for
broadcasting use. They are equipped to serve
in a studio, OB van, non-linear editing system,
or on location in the field.
standard
feature
HD/SD Multi-Format Compatibility
The BT-LH series supports both HD and SD formats. The BT-LH1800
and BT-LH1500 are equipped with composite and Y/C inputs, with
optional inputs for component, SDI, and HD-SDI also available. The BT-
LH900 is equipped with component, composite, and two SDI inputs.
170 Viewing Angle
High-brightness, high-contrast horizontal alignment (IPS) LCD panels
give BT-LH monitors a best-in-the industry 170 viewing angle, both
vertically and horizontally. This minimizes color variation and ensures
sharp, easy-to-see images when the monitor is viewed from different
angles.
*BT-LS1400 have a 160 viewing angle.
viewing angle of BT-LH series
Thin, Light and Compact — Easy Layout
A key advantage of these LCD monitors are their thin profile and light
weight. BT series monitors can be rack-mounted in a studio or OB van,
saving substantial space and reducing weight in mobile vehicles.
When a BT series monitor is used in a non-linear editing system or for
other desktop use, VESA brackets and arm stands allow unrestricted
layout. This makes it easy to find the optimum positioning and angle
adjustment.
Wide Range of Broadcast Functions
All models feature underscan, blue-only, and external remote (D-Sub 9-
pin) functions. BT-LH models also feature an HV delay function.
Magnetic Field Resistance, Minimal
Electrostatic Generation
LCD video monitors are virtually unaffected by the earth’s magnetic
field or fields generated by speakers and other peripherals, so there
are preventing color streaking. There’s no need to take anti-magnetic
measures when grouping several monitors. And because these
monitors generate minimal static electricity, their screens remain
virtually dust-free.
Long-Life Backlight (approx. 50,000 hours)
The monitors’ LCD panel suffers virtually no performance degradation.
The backlight has a service life of about 50,000 hours — or around 8.5
years when used 16 hours a day. You’re assured many long years of
bright viewing.
*Actual service life varies with usage conditions.
*The BT-LS1400 backlight has a service life of around 60,000 hours.
Energy-Saving Design
These LCD monitors consume far less power than CRT monitors. They
save electricity in other ways, too. For example, LCD monitors
generate little heat, so less air conditioning is needed. These energy
savings mean lower electric bills and less impact on the environment.
170
170
3-7/16"
(87mm)
12-1/8"(309mm)
14"(356mm)
14"(356mm)
13-7/16"(341mm)
14-7/8"(378mm)
CRT Monitor
TM-1415BT
Weight 13.5kg
LCD Monitor
BT-LS1400
Weight 4.6kg
18" BT-LH1800
15" BT-LH1500
14" BT-LS1400
8.4" BT-LH900
85W
69W
40W
22.8W
50W 100W
14"
14"
(=13"
Actual)
Power consumption
HD/SD
Multi-Format
Monitor
SD
Monitor
BT-LH1800 BT-LH1500 BT-LH900 BT-LS1400
HD/SD Studio
HD/SD OB van
HD/SD Location
HD Camera Viewer (VARICAM)
SDTV Studio
SDTV OB van
Built-in to a VE table
Non-linear editing
Office Viewer
All screen images are simulated.
The Panasonic Lineup
Application Range Model
Comparison of Professional Video Monitors
*Comparing the BT-LS1400 and the Panasonic TM-1415BT 14" CRT monitor.
LCDmonitor CRTmonitor
Color reproduction, gradation
Weight* 1/3(4.6kg) 1(13kg)
Depth* 1/4(87mm) 1(378mm)
Volume* 1/2(9,570cm
3
) 1(45,888cm
3
)
Power consumption* 2/3 (40 W) 1(60 W)
Magnetic influence (No) X (Yes)
Electrostatic generation (No) X (Yes)
Lifetime
2
front control panel
Compo-
nent*
SDI
*
HD-SDI
*
16:9
4:3
HDTV SDTV
High-Performance LCD Monitors
for Broadcasting and Professional Usage
Designed to meet exacting broadcasting and professional needs,
Panasonic’s new high-performance LCD monitors combine the
industry’s widest viewing angle ---170 , both vertically and horizontally
--- with outstanding resolution, color reproduction,
and gradation. Two sizes, 18" and 15", fit a variety of applications.
Thin, Light, Compact
Compact in size and only 3 7/16"(86mm) deep (without option), these
ultra-thin LCD monitors give you greater freedom in setup locations and
methods.
They’re light in weight , a major advantage for ENG and EFP use.
HD/SD Multi-Format Input
Each monitor is equipped for NTSC or PAL input (composite x 2,
Y/C x 1). Adding an optional plug-in board provides compatibility with
HD SDI, SD SDI, and analog component/RGB input as well as giving
you a single unit that handles virtually all HD/SD formats.
(See specifications for format compatibility.)
Rack and VESA Mounting
Optional brackets enable fast and easy EIA rack mounting. VESA
brackets are also included for a variety of mounting configurations, such
as commercially-available VESA wall mounting and arm stand use.
Manual Controls
The BT-LH1800 and BT-LH1500 come with all the controls you need for
production and broadcasting tasks. You can adjust contrast, brightness,
phase, and chroma using manual controls.Because these and other
controls are standardized from conventional broadcast monitors,
operation is easy and intuitive.
Remote
Each monitor is equipped with a GPI remote terminal for versatile
remote control over a variety of functions.
Equipped with marker and blue-only functions
BT-

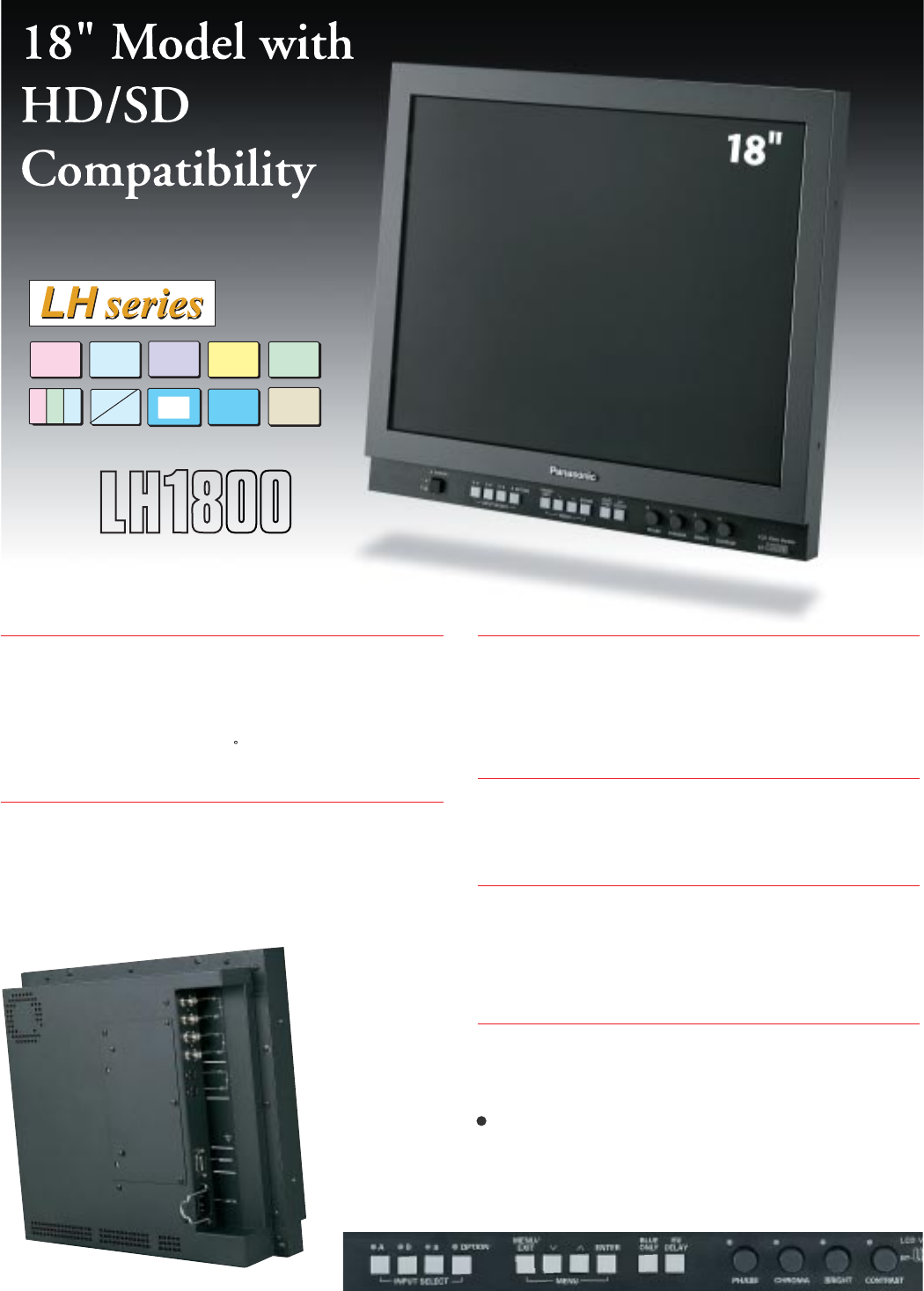

18" HD/SD Multi-Format LCD Monitor
rear view (BT-LH1500)
*Optional
Under-
scan
display
Blue-
only
Rack
mounting
*
R G B
*
3
Weight and dimensions shown are approximate. Specifications are subject to change without notice.
BT-LH1800
BT-LH1500
12-7/16"(317mm)
1-1/2"
(39mm)
1-1/2"
(39mm)
3-3/8"
(86mm)
11/7/16"(291mm)11/7/16"(291mm)
16-1/4"(412mm)
14-15/16"(379mm)
1-1/4"(31.5mm)
12-7/16"(317mm) 3-3/8"
(86mm)
12-3/16"(309mm)
1-1/4"(31.5mm)
13-15/16"(353mm)
BT-
15’’ HD/SD Multi-Format LCD Monitor
SPECIFICATIONS
Dimensions
Input Video Signal: 1080/60i, 1035/60i,1080/59.94i,1035/59.94i,
(RGB) 1080/50i, 720/60p,720/59.94p, 576/50i,
480/59.94p, 480/59.94i
RGB Input: BNC x 3, 0.7Vp-p, 75 through out: BNC x 3
External Sync: BNC x 1, 0.3V/4V, 75 through out: BNC x 1
Input Video Signal: 1080/60i, 1035/60i, 1080/59.94i,1035/59.94i,
(YPBPR) 1080/50i,1080/24psF, 1080/23.98psF,720/60p,
720/59.94p,576/50i, 480/59.94p, 480/59.94i
YPBPR Input: BNC x 3, 0.7Vp-p, 75 through out: BNC x 3
Y: 1.0Vp-p(with Sync),Pb/Pr: 0.7Vp-p
Dimensions: 109 x 168 x 25 mm
(W x H x D) (4-5/16" x 6-5/8" x 1")
Weight: 330 g (0.73 lbs)
BT-MA1800P
Rack Mount Adaptor
for BT-LH1800
Input Video Signal: 480/59.94i, 576/50i
(component serial digital)
SD-SDI Input: BNC x 1, 75 0.8Vp-p
SD-SDI Output: BNC x 1
(active through out)
Dimensions: 109 x 168 x 25 mm
(W x H x D) (4-5/16" x 6-5/8" x 1")
Weight: 260 g (0.58 lbs)
Inout Video Signal: 1080/60i, 1035/60i,
1080/59.94i,1035/59.94i,
1080/50i, 720/60p,
720/59.94p, 1080/24psF,
1080/23.98psF
HD-SDI Input: BNC x 2, 75 0.8Vp-p
HD-SDI Output: BNC x 1 (switched out)
Dimensions: 109 x 168 x 25 mm
(W x H x D) (4-5/16" x 6-5/8" x 1")
Weight: 300 g (0.66 lbs)
BT-YA100P
Component Input Unit BT-YA200P
SDI Input Unit BT-YA320P
HD SDI Input Unit
O P T I O N A L A C C E S S O R I E S
BT-MA1500P
Rack Mount Adaptor
for BT-LH1500
Compo-
nent*
SDI
*
HD-SDI
*
16:9
4:3
HDTV SDTV
*Optional
Under-
scan
display
Blue-
only
Rack
mounting
*
R G B
*
4
BT-LH1800 BT-LH1500
Power Requirements: AC100V- 240V, 50Hz/60Hz
Power Consumption: 0.95A - 0.40A 0.66A - 0.31A
Dimensions (W x H x D): 16-1/4" x 14-15/16" x 3-7/16" 13-15/16" x 12-3/16" x 3-7/16"
(412 x 379 x 86* mm) (353 x 309 x 86* mm)
*110 mm (4-3/8") depth with a optional Input board
Weight: 8.3 kg (18.3 lbs) 6.3 kg (13.9 lbs)
Operating Temperature: 5 - 35 (41 F - 95 F)
Operating Humidity: 20% - 80% (non dew)
Input Video Signal: NTSC (3.58MHz), PAL (4.43MHz)
Line In: BNC x 2, composite, 1.0Vp-p, 75 through out: BNC x 2
S-Video: 4-pin x 1, 75 /through out: 4-pin x 1
Color Temperature: D65/D93/user
Viewing Angle: 170
Resolution: H(max) 1280 dots, V(max) 1024 lines H(max) 1024 dots, V(max) 768 lines
Aspect Ratio: 5:4 4:3
Display Color: approx. 16,770,000 approx. 16,770,000
Optional Input Slot: 1 slot
Remote Terminal: GPI, D-SUB9
Accessory: Power cord, Vesa adaptor
stereo
12-3/4"(324mm)
1-9/16"
(39 mm)
2-13/16"
(71.5mm)
11-9/16"(294mm)
12-1/8"(309mm)
1-5/16"(34mm)
14"(356mm)

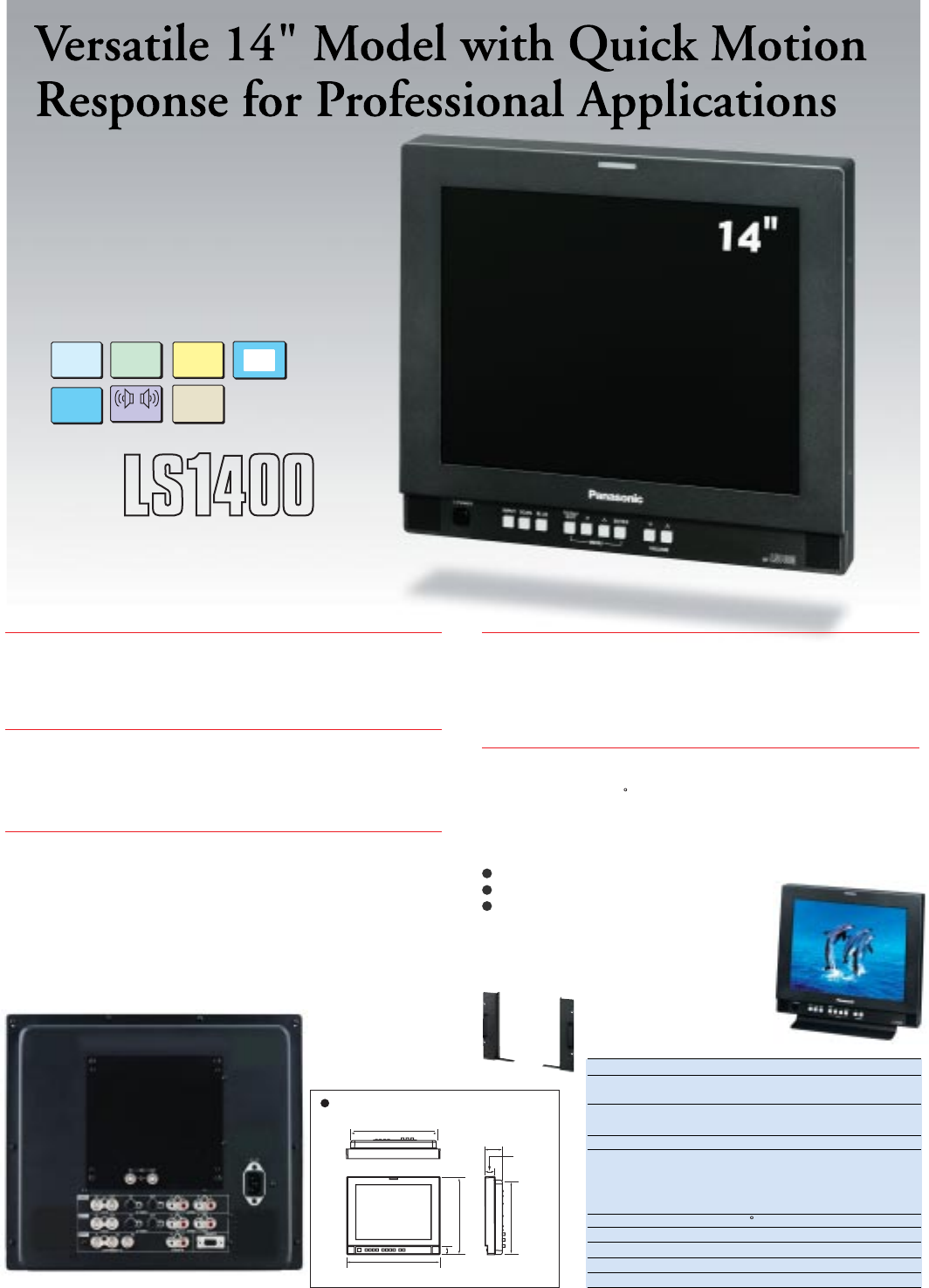

BT-
14’’ LCD Monitor
Compo-
nent* SDI
*
SDTV
*Optional
Under-
scan
switchable
Blue-
only
Rack
mounting
*
High-Speed Panel — 16 msec
The BT-LS1400’s high-speed (16 msec) LCD panel provides a super-
fast response with moving pictures. You get clear, sharp images in
action scenes, with no afterimages or color shift.
Thin, Lightweight and Energy Efficient
The BT-LS1400 lets you take advantage of the LCD panel’s slim
design, with its 3.4" (87-mm) profile and 10.1-lb. (4.6-kg) weight. Power
consumption is a low 40 W.
SD TV Signal Monitor, with SDI-
Compatibility and Built-In Stereo Speakers
The BT-LS1400 is equipped with two composite and Y/C input
terminals and one component input terminal (Y/Pb/Pr). An optional
board is available for SDI input. The BT-LS1400 also has L/R audio
input terminals and built-in stereo speakers.
Metal Cabinet for Rugged Use
Encased in a tough metal cabinet, the BT-LS1400 is ready for active
use. Mount it in an OB van or incorporate it into an SD TV studio rack
or viewing station. table. It also comes with a stand and allows VESA-
compliant mounting.
Wide Viewing Angle, High Picture Quality
A viewing angle of 160 both vertically and horizontally helps minimize
color variation and ensure easy-to-see images when the BT-LS1400 is
viewed from different angles. The 640 x 680-dot (VGA) pictures are
clear and sharp.
Equipped with underscan, blue-only functions
Tally function
GPI terminal for external remote control
Dimensions
BT-MA1400G
Rack Mount Adaptor
BT-YA210G
SDI Input Unit
Power Requirements: AC100V ~ 240V)
Power Consumption: 40W,
48W(including SDI input Yunit)
Dimensions (WxHxD): 14" x 12-1/8 " x 2-13/16 "
( 356 x 309 x 71.5 mm )
Weight: 4.6 kg (10.1 lbs)
Video Input : Composite X 2 (loop-through)
S-VIDEO X 2 (loop-through)
Component X1 (Y/Pb/Pr )
SDI X 1 (option)
Audio X 1 (L/R)
Viewing Angle: 160
Panel Size: 14v
Resolution: H(max) 640 dots, V(max) 480 lines
Aspect Ratio: 4:3
Accessory: Power cord, Stand
Rear Panel (Optional SDI Input Unit BT-YA210G attached)
6
Weight and dimensions shown are approximate. Specifications are subject to change without notice.
All screen images are simulated.

Navigation menu
