Personal Computer

Reference Manual

Model No. CF-18 Series

XP We recommend that this Reference Manual be printed.

Read Me First

Some of the illustrations in this manual may differ slightly in shape from the actual items in

order to make the explanation easier to understand.

If the user has logged on without the administrator authority, some functions may not be

executable, and some screens may be not displayed as shown in this manual.

If this happens, log on with the administrator authority to enable these functions.

Confirm the latest information on optional products in catalogs, etc.

The following drives may be described as "CD/DVD drive".

CD-ROM drive, DVD-ROM drive, CD-R/RW drive, DVD-ROM & CD-R/RW drive, DVD

MULTI drive

Illustrations and Terminology in this Reference Manual

NOTE NOTE provides a useful fact or helpful information.

CAUTION CAUTION indicates a condition that may result in

minor or moderate injury.

Enter

This illustration means to press the [Enter] key.

This illustration means to press and hold the [Fn] key,

then press the [F5] key.

[start] - [Run] This illustration means to click [start], then to click

[Run]. For some applications, you may need to double-

click.

 or ⇒These symbols indicated related pages.

 : Refer to the page in this Reference Manual

⇒ : Refer to the Operating Instructions

cccc*1 If *1 is selected, it will jump to a related explanatory

note.

Read Me First

The terminology in ( ) is the one used in [Intel(R) 82852/82855 GM/GME Graphics Controller

Properties].

To display [Intel(R) 82852/82855 GM/GME Graphics Controller Properties]:

Select [start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) Extreme Graphics].

About Display Mode

Internal LCD (Notebook) This computer's display

External Display (Monitor) External display connected to this computer

Simultaneous display

(Intel(R) Dual Display Clone)

To display the same screen on both the LCD and

external display

Extended Desktop To use both the internal LCD and the external display as

an extended display domain. You can drag a window

from the internal LCD to the external display.

Key Combinations

CAUTION

Do not press the following key combinations repeatedly in (quick) succession. Also, do

not press different key combinations quickly one after another.

Do not press the following key combinations while using the touch pad (external

mouse), touchscreen, tablet buttons, or other keys.

NOTE

Do not press the following key combinations until you log on to Windows and the hard

disk drive indicator turns off. Note, however, that the key combinations

and

are operable in the Setup Utility.

The key combinations below may not work while some applications are running. The

popup window may not be displayed depending on the state of the application you are

using (e.g., when [Command Prompt] is set to "Full Screen").

Key Functions Popup Window

(Displayed after logging

on to Windows)

LCD brightness control (down)

LCD brightness control (up)

Pressing this key combination adjusts the

brightness of LCD.

You can select a different brightness level setting

for when the AC adaptor is connected and for when

it is not connected.

Key Combinations

Display change

(When the external display is connected)

By pressing this key combination, you can select

either an external display, internal LCD or

simultaneous. (page 67)

This key combination does not work when

[Command Prompt] is set to "Full Screen".

CAUTION

Do not press another key until the display

destination has been completely switched.

Do not press this key combination in the

following conditions.

When the external display is not connected.

• When a video such as an MPEG file is

playing.

• When the Extended Desktop is being

utilized.

• When a game such as pinball is

displayed.

NOTE

When switching to a different user with the

Fast User Switching function, this key

operation may not work. In this case, log off

all users and restart the computer.

Key Functions Popup Window

(Displayed after logging

on to Windows)

Key Combinations

Speaker on/off switch

Pressing this key combination turns on/off audio

from the internal speaker and headphone jack.

NOTE

Disabling the speakers will also disable the

warning beep.

Speakers connected to the USB port

cannot be muted.

OFF

(MUTE)

Volume control (down)

Volume control (up)

Pressing this key combination adjusts the volume

of the internal speaker and headphone jack.

NOTE

This key combination cannot be used to

adjust the volume of the warning beep or

speakers connected to the USB port.

Power off using the standby function

Pressing this key combination causes the current

status of the computer to be saved to the memory,

and powers off the computer. (page 36)

Key Functions Popup Window

(Displayed after logging

on to Windows)

Key Combinations

Remaining capacity of the battery pack

Pressing this key combination displays the

remaining battery capacity on the screen.

When the battery pack is

inserted in the computer

(example)

In normal

temperature mode

(page 52)

In high temperature

mode (page 52)

When the battery pack is

not inserted in the

computer

F10

Power off using the hibernation function

Pressing this key combination causes the current

status of the computer to be saved to the hard disk,

and powers off the computer. (page 36)

Key Functions Popup Window

(Displayed after logging

on to Windows)

Key Combinations

There are two Fn key functions as follows:

Fn key lock function

After

is pressed once, it stays in the "pressed" position until another key is pressed.

This is convenient when it is difficult to press two buttons simultaneously.

Popup windows display ON/OFF

1Run the Hotkey Settings.

Select [start] - [All Programs] - [Panasonic] - [Hotkey Settings].

2Set the parameters.

A. Use Fn key lock

Add the check mark if you want to enable the Fn key lock function. The following

Fn key lock function will then be enabled.

To use

only once:

APress

once. (Locked)

BPress another key for combination. (Lock released)

To use

successively:

APress

twice. (Locked)

BPress another key for combination.

Fn key remains locked until

is pressed once more.

B. Notification

This setting is only available when [Use Fn key lock] is checked.

[Make sounds when Fn key is pressed]*1

Notifies the user with a sound when

is locked or released.

[Show status on screen]:

Displays the Fn key status on the taskbar.

is locked

is not locked

C. Disable popup

Add the check mark if you want to turn the popup window display function OFF.

The full-screen display of [Command Prompt] screen or MPEG files may change

to a window display if

*2 keys are pressed. To prevent this, turn the popup

window display function OFF.

Hotkey Settings

Key Combinations

3Select [OK].

NOTE

The Fn key lock function also works with

and other keys (e.g. , ) aside from

*2.

Each user can select separate settings for whether or not to use the Hotkey settings.

*1 If MUTE is set, you will not hear a beep.

*2 "

" indicates any function key from

F10

LED Indicators

Power status Not lit

Power off / Hibernation mode

Green

Power on

Blinking green

Standby mode

Battery pack status page 50

Caps Lock This indicator lights green when

Caps Lock

pressed. Subsequent non-shifted input is

capitalized.

NumLk

(Numeric key)

This indicator lights green when

NumLk

pressed. This causes a portion of the keyboard

to function as a numeric keypad. The [Enter] key

functions differently depending on the

application.

ScrLk

(Scroll lock)

This indicator lights green when

ScrLk

are

pressed. Scroll lock functions differently

depending on the application.

Hard disk drive status This indicator lights when the hard disk drive is

accessed.

Tablet Buttons

When the Windows screen is displayed, you can use the tablet buttons to perform the

following operations.

Button Functions Function Descriptions

LCD brightness control

:down

:up

Pressing these buttons adjusts the brightness

of the LCD.(page 4)

Input Panel Pressing this button turns the software

keyboard on or off.(page 27)

Enter Same operations as when

Enter

is pressed.

Rotation Pressing this button rotates the

display.(page 33)

NOTE

Do not press the rotation button again

until the display has completely

stopped rotating.

Security On the Windows logon screen or the

Welcome screen:

Same operation as when

Ctrl

Alt

Del

are pressed.

After logging on to Windows:

Pressing this button locks the computer.

NOTE

This button will not work while the

screensaver is running.

Tablet Buttons

NOTE

If the computer is set to display the password input screen when resuming from the

screensaver, the input panel, enter, and rotation buttons will not work while the

screensaver is operating.

Immediately after Windows is started up, or the Windows logon screen (or the

Welcome screen) is displayed, the tablet buttons may not work. After waiting for a

while, try pressing the tablet buttons again.

Some of the tablet buttons can be disabled or assigned to other operations.

NOTE

Each user can select separate settings for the tablet buttons.

Changing the Settings

The Input Panel ( ), Enter ( ), and Rotation ( ) buttons can be assigned the following

operations as alternatives to the ones listed above. (page 11)

Press a key or key combination

Launch an application

Turn off screen

Turn Wireless LAN on or off (Only for models with wireless LAN)

• This function requires the installation of the Intel® PROSet/Wireless Software. (Installed

in factory preset.)

Turn Bluetooth on or off (Only for models with Bluetooth)

• Install "Bluetooth Switch" following the procedure below to enable this function.

ASelect [start] - [Run], enter "c:\util\bluesw\setup.exe", and then select [OK].

If the message [Confirm File Deletion] is displayed, select [OK], select [Finish],

and then perform the procedure again from step A.

BAt [Welcome to the InstallShield Wizard for Bluetooth Switch...], select [Next].

CSelect [Yes, I want to restart my computer now], and select [Finish].

The computer will restart.

Changing the Settings of Tablet Buttons

Tablet Buttons

1Select [start] - [All Programs] - [Panasonic] - [Tablet Buttons Settings].

2Select the tablet button you want to change and select [Change].

3Select the function to be assigned to the button from the [Action] list.

When you select [Press a key or key combination], select the keys box and

press the key or the key combination you want to use.

•

cannot be used.

When you select [Launch an application], select [Browse] to set an application

to launch.

The following kinds of files can be registered:

• Executable files (.exe)

• Shortcuts to files (.lnk)

• Files tied in with applications (such as .doc and .txt)

If parameters are required, describe them after the filenames.

4Select [OK].

5Select [OK].

NOTE

On the Windows logon screen or Welcome screen, tablet buttons work in the default

setting.

Disabling the tablet buttons

The Security ( ), Input Panel ( ), Enter ( ), and Rotation ( ) buttons can be disabled

following the procedure bellow.

1Select [start] - [All Programs] - [Panasonic] - [Tablet Buttons Settings].

2Remove the checkmark from [Enable Security, Input Panel, Enter,

Rotation Button.]

3Select [OK].

Tablet Buttons

NOTE

On the Windows logon screen or Welcome screen, the tablet buttons cannot be

disabled.

Touch Pad

Use the touch pad to move the cursor on the screen and perform computer operations.

A. Work Surface (Touch Pad)

B. Left Button

C. Right Button

The touch pad has the following two modes of operation.

Typical mouse operations use the area (F): When no check mark is added for [IntelliMouse

Wheel mode], [Horizontal] and [Vertical] of [Scroll Configuration], the entire surface can be

used for typical mouse operations.

NOTE

When the display is rotated, the scroll functions described above will not work.

Microsoft® IntelliMouse™ Wheel Mode

(Setting at the time of purchase)

Original Mode

Wheel mode operations (almost identical to

the case of using the Microsoft®

IntelliMouse™ for scroll, zoom, etc.,

operations) are possible for Microsoft®

wheel function-compatible applications.

Microsoft® IntelliMouse™ is a mouse-type

device that, in addition to the two

conventional buttons, incorporates a wheel

able to rotate forwards/backwards.

Only scroll operation is possible for

applications not compatible with the

Microsoft® wheel function.

Even for applications compatible with the

Microsoft® wheel function, there are cases

where only vertical scrolling or only

horizontal scrolling is possible in this mode.

Scrolling Area

D. Scrolling up/down

For the Pan and Auto

Scroll functions, the

entire work surface of the

touch pad can be used

for scrolling.

Scrolling Area

D. Scrolling up/down

Possible when a check

mark is added for

[Vertical].

E. Scrolling side-to-side

Possible when a check

mark is added for

[Horizontal].

Touch Pad

When you are not sure whether an application is compatible with the Microsoft® wheel

function or not, try using both modes. Depending on the application, there are cases

where scrolling may not be possible with either mode.

Changing the mode of the touch pad

ADisplay the setting menu.

Select on the taskbar or select [Mouse] in [start] - [Control Panel] - [Printers

and Other Hardware] - [Mouse], and then select [TouchPad].

BChange the settings.

To set the Microsoft® IntelliMouse™ Wheel mode

Add the check mark for [IntelliMouse Wheel mode] of [Scroll Configuration].

To set the original mode

Remove the check mark for [IntelliMouse Wheel mode] of [Scroll

Configuration] and then add the check mark for [Vertical] and/or [Horizontal].

CSelect [OK].

Operating the Touch Pad

Function Operation

Moving the Cursor

Move the tip of your finger lightly over the work

surface.

Tapping/Clicking

tapping or clicking

To right-click: click with the right button

Touch Pad

Double-Tapping/Double-

Clicking

double-tapping or double-clicking

Dragging

Two quick taps, but on the second tap leaving your finger

down (applying pressure) and moving it on the work surface.

While holding down the button, moving your finger on the work

surface.

Scroll *1

Scroll a document.

(rotate the wheel)*2

Microsoft® IntelliMouse™ Wheel Mode

Original Mode

Auto Scroll*1*3

Automatically scroll a

document.

(move the mouse after

clicking the wheel)*2 Operate after pressing the two buttons simultaneously.

When releasing the auto scroll function: One tap on the

work surface.

Function Operation

Touch Pad

*1 The movements will differ depending on the application.

*2 Operations to follow when using an external Microsoft® IntelliMouse™.

*3 Operation applicable to the Microsoft® IntelliMouse™ Wheel mode.

CAUTION

Do not remove [touchpad/touchscreen] in the following menu.

[start] - [Control Panel] - [Performance and Maintenance] - [System] - [Hardware] -

[Device Manager] - [Mice and other pointing devices]

Pan*1*3

Scroll in various directions

of a document.

(move the mouse slightly

while holding down the

wheel)*2

Operate while holding down the two buttons.

Zoom*1*3

Magnify/reduce the

display of a document.

(rotate the wheel while

holding down

Ctrl

)*2

Ctrl

A. Magnify

B. Reduce

Data Zoom*1*3

Display or hide a

document, or perform

operations to return to or

proceed with Internet

Explorer.

(rotate the wheel while

holding down

Shift

)*2

Shift

Function Operation

Touch Pad

NOTE

The double-tapping speed of the touch pad can be changed using the following menu.

[start] - [Control Panel] - [Printers and Other Hardware] - [Mouse] - [Tap and Buttons] -

[Double-click Speed]

The touch pad cannot be used in the Setup Utility.

When you want to use an external mouse through the external keyboard/mouse port of

the port replicator

When an external mouse or trackball with additional functions (e.g., wheel function) is

connected, a part or all of the additional functions may fail to operate. To use these additional

functions, perform the operation below.

If you are using a USB mouse, the following operation is unnecessary.

1Power off your computer (⇒ Operating Instructions "Starting Up/

Shutting Down") and connect the computer to the port replicator (⇒

Operating Instructions of the Port Replicator).

2Connect the external mouse or trackball to the port replicator.

3Turn the computer on and run the Setup Utility (page 88).

4In [Main] menu, set [Touch Pad] and [Touchscreen] to [Disable].

5Close the Setup Utility by pressing

F10

. At the confirmation message,

select [Yes].

6Log on to Windows with the administrator authority.

7If the message [Completing the Found New Hardware Wizard] is

displayed, select [Finish].

It may take a few minutes to complete this operation.

8If the display asks you to restart Windows, select [Yes].

The computer will restart.

Touch Pad

9Following the operating instructions of the connected external mouse

or trackball, install the necessary driver.

When you want to re-enable the touch pad and touchscreen

1Uninstall the driver or application software of an external mouse or

trackball. (Refer to the operating instructions of the external device on

how to uninstall the driver.)

If the explanation of uninstalling the driver or application software can not be found

in the operating instructions for the external device, execute the following steps.

AIn [start] - [Control Panel] - [Performance and Maintenance] - [System] -

[Hardware] - [Device Manager], when an external mouse or trackball device is

displayed in [Mice and other pointing devices], press

Del

to delete it.

BIf the confirmation message is displayed, select [OK].

2If the display asks you to restart Windows, select [No].

3Power off your computer (⇒ Operating Instructions "Starting Up/

Shutting Down") and remove the external mouse or trackball.

4Turn the power on and run the Setup Utility (page 88).

5In [Main] menu, set [Touch Pad] and [Touchscreen] to [Enable].

6Close the Setup Utility by pressing

F10

. At the confirmation message,

select [Yes].

7Log on to Windows with the administrator authority.

8Select [start] - [Control Panel] - [Printers and Other Hardware] -

[Mouse] - [Hardware].

9Confirm that [touchpad/touchscreen] is displayed at [Devices].

ASelect the external mouse or trackball and then select [Properties].

BSelect [Driver] and then select [Update Driver].

Touch Pad

CAt [Welcome to the Hardware Update Wizard], select [No, not this time], and

then select [Next].

DSelect [Install from a list or specific location] and then select [Next].

ESelect [Don't search. I will choose the driver to install.] and then select [Next].

FSelect [Have Disk], input [c:\util\drivers\mouse] at [Copy manufacturer's files

from], then select [OK].

GSelect [touchpad/touchscreen] and then select [Next].

If the some item names are displayed, select one.

If [xx has not passed Windows Logo testing....] is displayed, select [Continue

Anyway].

HSelect [Finish] and then select [Close].

IThe display will ask you to restart Windows. Select [Yes].

The computer will restart.

ASelect [OK].

10 Perform the touchscreen calibration.(page 25)

Touch Pad

By design the touch pad is to be used with a finger tip only. Do not place any object on the

work surface or press down forcefully with sharp-pointed objects (e.g., nails) or hard

objects that can leave marks (e.g., pencils and ball point pens).

Try to avoid having any harmful substances such as oil, come in contact with the touch

pad. The cursor may not work properly in such cases.

When the touch pad becomes dirty:

Wipe to remove dirt by using a dry soft cloth such as gauze or a soft cloth first applied with

detergent diluted with water and then thoroughly wrung.

Do not use benzene or thinner, or rubbing alcohol. Doing so may adversely affect the

surface, e.g., discoloration. In addition, do not use commercially-available household

cleaners and cosmetics, as they may contain components harmful to the surface.

Handling the Touch Pad

Touchscreen

Your computer is equipped with a touchscreen function allowing you to perform the same

operations as the touch pad or mouse by touching the surface of the display with the stylus

(included). If the cursor cannot be pointed correctly with the stylus, perform [Calibration].

(page 25)

The following explanation gives one example (for the default settings).

The operation settings can be changed. (page 25)

Functions Operation

Moving the cursor

The cursor is moved to the location

pointed by the stylus.

Clicking (Tapping)

One tap

Double-clicking

(Double-tapping) Two quick taps

Dragging

Touch and hold the object (i.e. file or

icon), move the stylus on the surface

(dragging the object to the desired

location), then release the stylus.

Touchscreen

NOTE

To right-click:

ASelect on the taskbar.

changes to .

BSelect the object you want to right-click.

changes to .

If you make a mistake and select , select to return to .

CAUTION

When the internal LCD is used alone or with an external display simultaneously, the

touchscreen function will not work properly when the area of either display is set

larger than default setting of the display resolution.

If a change is made to the display resolution, or the cursor can not be pointed

correctly with the stylus, be sure to perform [Calibration]. (page 25)

When mouse drivers are installed (e.g., Intellimouse), the touchscreen function may

not be used.

When you want to uninstall or reinstall the touchscreen (touch pad) driver:page 19

Even when only an external display is in use, the cursor will move on the external

display if the surface of the internal LCD is touched when the touchscreen driver is

active. Therefore, do not touch the internal LCD when only an external display is in

use.

The touchscreen function can not be used in the Setup Utility or when using the full

screen in [Command Prompt].

NOTE

Select on the desktop to view [Important Tips] for using the touchscreen.

You can also view [Important Tips] using the following procedures.

Select [Important Tips] in [start] - [All Programs] - [Panasonic] - [On-Line Manuals].

Touchscreen

Configuring the Touchscreen

When needed, the touchscreen can be configured using the following steps.

1Display [Mouse Properties] screen.

Select on the taskbar and then select [TouchScreen] or select [TouchScreen] in

[start] - [Control Panel] - [Printers and Other Hardware] - [Mouse].

A. Double click settings

Set the width and height of the double click.

B. Advanced Configuration

Set the advanced settings.

C. Test

Test for the "Double click settings".

D. Calibration & Test

Define the calibration setup. Use this procedure when the cursor, the stylus

(included) touches do not appear to agree. (Calibration must be performed when

the display resolution has been changed.)

Touch the "+" mark on the calibration screen for about one second.

After the calibration procedure is executed (e.g., after the nine "+" marks are

touched), the procedure ends when

Enter

is pressed.

2Make necessary changes and select [OK].

NOTE

The double-click speed of the touchscreen can be changed in [Tap and Buttons].

Rotates the display to [0 degrees] before performing the calibration. (page 33)

For more information, click at the upper right corner.

Touchscreen

Use the stylus included with the computer. Do not use pencils, implements with sharp tips

or hard objects for screen operations.

Do not place any object on the surface or press down forcefully with sharp-pointed objects

(e.g., nails), or hard objects that can leave marks (e.g., pencils and ball point pens).

Do not operate the computer when such things as dust are on the screen. Do not allow

contact with substances that could dirty the touchscreen, such as oil.

When the touchscreen becomes dirty:

• Wipe to remove dirt by using a dry soft cloth included with the computer.

• Do not use benzene or thinner, or rubbing alcohol.

• For more information, refer to "Suggestions About Cleaning the LCD Surface" that

comes with the soft cloth.

Clean the stylus tip and screen prior to operation. Foreign particles can scratch the screen

and impede the operation of the stylus.

Use the stylus only for the computer screen. Using it for any other purpose may damage

the stylus and scratch the screen.

Handling the Touchscreen

Handling the Stylus

Software Keyboard

The software keyboard enables you to perform the same operations as the internal keyboard

by touching the screen with the stylus (included).

1Press the input panel button .

A. The system menu is displayed.(page 28)

B. The software keyboard will be moved to the four corners of the screen.

C. One tap : Use as the short cut key.

Two taps : The same function as the key.

D. The action is the same as a right mouse button click. (The same function as the

key.)

2Touch the software keyboard with the stylus to input characters etc.

3Press the input panel button to close the software keyboard.

NOTE

You can also start up the software keyboard using the following procedure.

Select [start] - [All Programs] - [Panasonic] - [Software Keyboard].

If you want to press shortcut key, after pressing one key (the key turns blue), press the

second key in a continuous manner. For example, if you want to type

Ctrl

, after

pressing

Ctrl

, Press

When using two or more keys in combination (

Ctrl

etc.), use the internal

keyboard or the software keyboard alone.

When

is pressed, the function key will change to the display shown at left. (The

key function does not work on the Windows logon screen or the Welcome screen.)



Ctrl

Alt

Del

cannot be input through the software keyboard (except when

logging on).

Depending on the language, some keys are displayed in orange. These keys are used

to input characters such as "ë", "ö", etc. You can set input languages for each

application.(⇒ Windows help) The software keyboard will switch to the keyboard

layout in the language set for the selected application.

To select the language, use the language bar (e.g. ) on the taskbar. If the software

keyboard layout does not change to the language you have set, select the title bar of

the software keyboard then select the application again. Even if the language bar

Using the Software Keyboard

Software Keyboard

display does not match the language set for the application, the input will be correct as

long as the keyboard layout changes into the appropriate language.

Characters cannot be input through the software keyboard when the [Command

Prompt] screen is set to "Full Screen".

The software keyboard may not work while Windows is in the process of shutting

down. Be sure to save the all data before shutting down or restarting Windows.

You can change the keyboard size, switch the keyboard to the numeric keypad, or change

other settings using the system menu.

1Select (on the top left corner of the software keyboard).

2Add a check mark to the function you want to use.

A. Auto Move

The software keyboard moves automatically so as not to hide the window

currently selected. (It will not move if there is no place that it can move to.) Also,

the software keyboard will move to the topmost position on the display when the

computer changes to input mode.

B. Auto Restore

If the software keyboard has been minimized on the task bar, it will automatically

be restored and will move to the topmost position on the display when the

computer changes to input mode. Depending on the application, this function

may not work.

C. Always On Top

Set the software keyboard to the topmost position on the display.

D. Transparent

Set the software keyboard to transparent display.

E. Select the keyboard/keypad.

Changing the Settings

Software Keyboard

NOTE

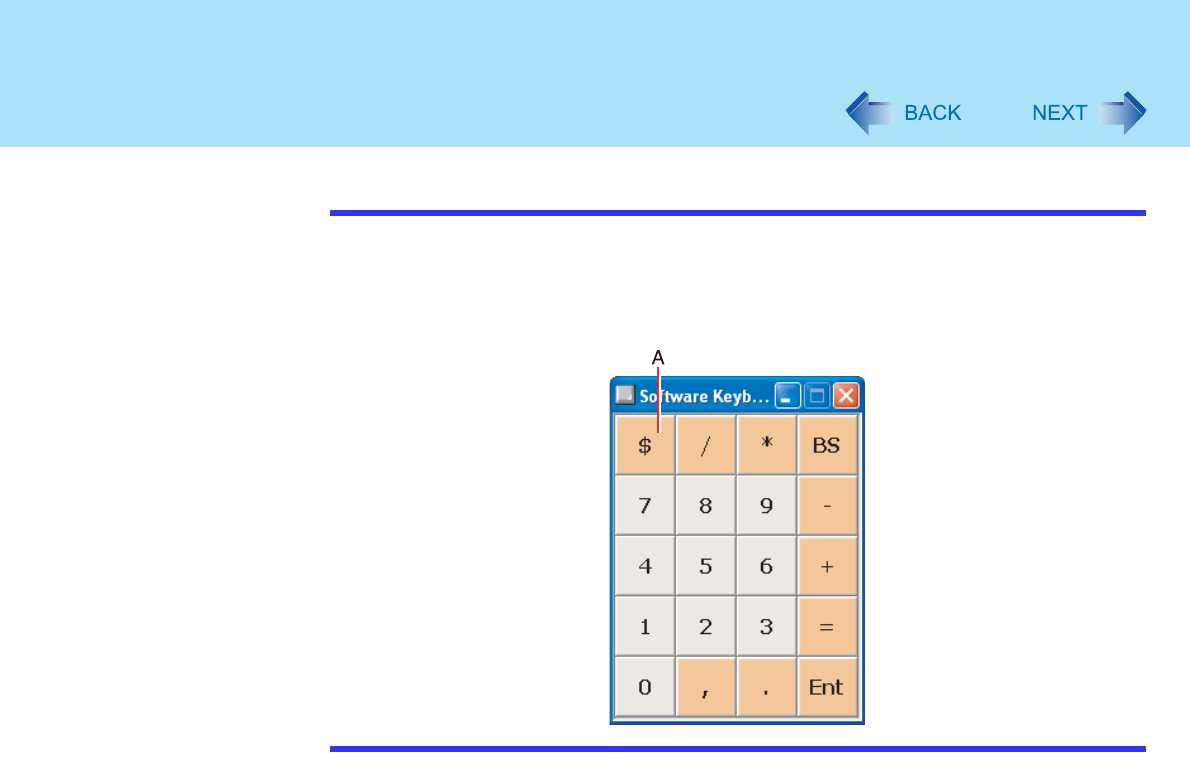

The currency symbols (A) displayed on the numeric keypad are set using the following

menu.

[start] - [Control Panel] - [Date, Time, Language and Regional Options] - [Regional

and Language Options] - [Regional Options] - [Customize] - [Currency] - [Currency

symbol].

Panasonic Hand Writing

Simple characters and figures like signatures and arrows can be made by using the work

surface of the touch pad or the touchscreen, and can be saved to a file as a bitmap (.bmp)

format.

Any change to the size of an image must be made before beginning to draw. If the image

size is changed after the drawing is completed, the image (quality) will not be sharp.

Data can be copied to the clipboard with [Edit] - [Copy]. Copied data can be added to

other applications that support the bitmap format by using the paste function.

The file size of a bitmap image to be saved or pasted to another application can be

changed with [Option] - [Window size].

Changing the number of colors of the display may affect the Panasonic Hand Writing

screen. If the screen is affected, click on the taskbar with the right mouse button, close

the application by selecting [Exit Panasonic Hand Writing], and then run Panasonic Hand

Writing again.

Drawing accuracy may be degraded if another application, such as disk accessing, is

being executed simultaneously. Begin drawing only after other applications have been

closed.

NOTE

If a commercially-available pointing device (e.g., mouse) driver is installed and

overwrites the driver of the touch pad, Panasonic Hand Writing will no longer work.

CAUTION

Do not use the Fast User Switching function while Panasonic Hand Writing is in use.

1Select on the taskbar or run Panasonic Hand Writing as the

following procedure.

Select [Panasonic Hand Writing] from [start] - [All Programs] - [Panasonic].

2Draw a character or figure.

When using the Touch Pad mode

Positions on the work surface of the touch pad have corresponding positions in the

Panasonic Hand Writing window. For example, a character or figure made in the

Drawing Characters or Figures

Panasonic Hand Writing

top-left part of the work surface of the touch pad will be displayed in the top-left part

of the Panasonic Hand Writing window.

ASelect or select [Touch Pad mode] in [Option].

BDraw a character or figure using the touch pad.

Determine the position to begin drawing while pressing down on the right button

of the touch pad. After determining this position, release your finger from the

button and draw. (Drawing is not possible while the right button of the touch pad

is being pressed.)

CPress the left button of the touch pad to end the Touch Pad mode.

When not using the Touch Pad mode

ADrag*1 across the Panasonic Hand Writing window to draw a character or

figure.

*1 Touch pad:page 15

Touchscreen:page 23

NOTE

Do not operate any of the followings when using the Panasonic Hand Writing in the

Touch Pad mode. The Touch Pad mode will be cancelled.

• Switch to another application.

• Resume operation from the standby or hibernation mode.

• Display the settings screen for [Panasonic Hand Writing].

• Select a menu after pressing

Alt

• Touch the touchscreen.

In the following cases, the Touch Pad mode does not work properly.

• When the computer is in the Extended Desktop.

• When the display is rotated 90 or 270 degrees.

In the Touch Pad mode, an external mouse or trackball connected to the external

keyboard/mouse port of the port replicator will not operate.

When a screen saver has been set, it may start up during input in the Touch Pad

mode.

3Select [Save As] or [Save] from [File].

CAUTION

When using the touchscreen, use the stylus included with the computer. Do not use

any of the following objects, as they may damage the work surface.

Panasonic Hand Writing

• Objects with an extremely sharp tip, like screwdrivers and nails.

• Objects that leave marks, like ball-point pens.

When using the touchscreen, do not perform a drag operation by the touch pad or the

external mouse as the movement will be input on the display.

Display Rotation

After windows is started up, you can rotate the display and perform the touch pad and

touchscreen operations in the rotated mode.

1Press the rotation button .

Each time this button is pressed, the screen display rotates counter-clockwise by

90°.(page 34)

NOTE

You can also rotate the display by selecting on the taskbar.

Be sure to use the above procedures to rotate the display.

If you exit Windows while the display is rotated, the next time Windows is started up,

the operation of the touch pad or the touchscreen will not match the display angle for

a few seconds.

If the screen display resolution has been set to 800 x 600 pixels, you can rotate the

display to [0 degrees] and [180 degrees] only.

Rotating the Display

0 degrees 90 degrees 180 degrees 270 degrees

Display Rotation

By using the Display Rotation Tool, you can change the settings of the display rotation.

1Right-click on the taskbar, and then select [Setting].

2Change the settings.

A. The display rotates to the angles with checkmarks in the order that they are

shown. Remove the checkmark from any angle positions (except for [0 degrees])

that will not be used.

B. In the following cases, the display is automatically set to the default angle.

When Windows is started up

When switching from Laptop mode to Tablet mode, or vice versa

When another user logs on with the Fast User Switching function

3Select [OK].

1Right-click on the taskbar, and then select [Exit].

In the default mode, the Display Rotation Tool will start up when Windows starts

up.

To restart the tool after exiting:

Select [start] - [All Programs] - [Panasonic] - [Display Rotation Tool].

NOTE

While the display is rotated:

• Do not use the Extended Desktop. (The touch pad or the touchscreen may fail to

operate properly.)

• Do not calibrate the touchscreen.

• Do not set the display resolution larger than the resolution of the internal LCD.

The computer's performance will decrease somewhat.

Changing the Settings

Exiting the Tool

Display Rotation

If a video is played while the display is rotated, the picture may not be displayed

properly or the sound may be broken up. This problem can be corrected by rotating

the display to [0 degrees].

The touch pad scroll, zoom, and data zoom functions do not work while the display is

rotated.

The display cannot be rotated when the [Command Prompt] is set to "Full Screen".

When some applications are running, the display may not be rotated and the

operation of the touch pad and the touchscreen may not match the display angle.

Press the rotation button 1 - 3 times (until the operation of the touch pad and the

touchscreen matches the display angle). After exiting the application, rotate the

display, then start up the application again.

Standby/Hibernation Functions

If you use the standby or hibernation function, you can shut down the computer without

closing programs and documents. Upon restarting your computer from either the standby or

hibernation mode, you can immediately continue working in all programs, or documents that

were open at the time the computer was placed into standby or hibernation mode.

Differences between the Standby and Hibernation Functions

NOTE

We recommend plugging in the AC adaptor if the standby function is to be used for a

long period of time. If the AC adaptor cannot be connected, we recommend that

hibernation mode be used instead of the standby mode.

If the standby or hibernation function is used repeatedly, the computer may not work

properly. To stabilize computer operations, shut down Windows on a regular basis

(about once a week) without using the standby or hibernation function.

Use any of the following methods to enter the standby or hibernation mode.

To use the hibernation mode, set [Power Options] in advance (page 37).

(Enabled in factory preset.)

Using Fn key combinations (page 6)

Using the power switch (page 38)

Using the display (page 39)

From the shutdown screen

Starting Up Your Computer Quickly

Function Where data is

saved to

Time until

recovery

Requires power supply

Standby

function

Memory Short Yes

(if power is cut, all data is lost)

Hibernation

function

Hard disk Rather long Power is not required to maintain data

Entering the Standby or Hibernation Mode

Standby/Hibernation Functions

• Standby

In [start] - [Turn Off Computer], select [Stand By].

• Hibernation

In [start] - [Turn Off Computer], press and hold

Shift

, then select [Hibernate].

Setting for Using the Hibernation Mode

At the time of purchase, the computer is set so that hibernation mode can be used.

1Select [start] - [Control Panel] - [Performance and Maintenance] -

[Power Options].

2In [Hibernate], add the check mark for [Enable hibernation] and select

[OK].

Precautions

Before entering the standby or hibernation mode

Be sure to save all data.

When a file in an external device such as a CD/DVD drive, external hard disk, or ATA card

is opened, close the file.

Even when a password has been set in the Setup Utility, [Enter Password] does not

appear when the computer resumes from the standby or hibernation mode. If you want to

use the security function when using the standby or hibernation mode, use the Windows

password as follows:

ASelect the account to change in [start] - [Control Panel] - [User Accounts].

BSet the password.

CAdd the check mark for [Prompt for password when computer resumes from

standby] in [start] - [Control Panel] - [Performance and Maintenance] - [Power

Options] - [Advanced].

Do not enter either the standby or hibernation mode under the following conditions. You

may corrupt your data or file, the standby or hibernation function may not work, or the

computer (or peripherals) may fail to work properly.

• When the floppy disk drive being accessed or hard disk drive indicator ( ) is on.

Standby/Hibernation Functions

• When playing/recording audio files and displaying images (such as MPEG files).

• When using communications software or the network function.

• When using PC Cards.

(If these cards fail to work properly, restart the computer.)

• When an external mouse is connected to the serial port.

When entering the standby or hibernation mode

Standby mode: until the power indicator blinks green

Hibernation mode: until the power indicator goes off

Avoid the following:

• Using the keyboard, touch pad, touchscreen, tablet buttons, or power switch.

• Using external mouse or other peripheral devices.

• Connecting or disconnecting the AC adaptor.

• Closing or opening the display.

It may take one or two minutes to enter standby or hibernation mode.

In standby or hibernation mode

Do not insert or remove peripherals; abnormal operation may result.

In standby mode, power is consumed. If PC Cards are inserted, more power is

consumed. When all power has been consumed, all data saved at standby is lost since it

is retained in memory. We therefore recommend plugging in the AC adaptor when using

the standby function.

Using the Power Switch

Setting

1Select [start] - [Control Panel] - [Performance and Maintenance] -

[Power Options] - [Advanced].

2Select [Stand by] or [Hibernate] for [When I press the power button

on my computer], and then select [OK].

Standby/Hibernation Functions

Entering the standby or hibernation mode

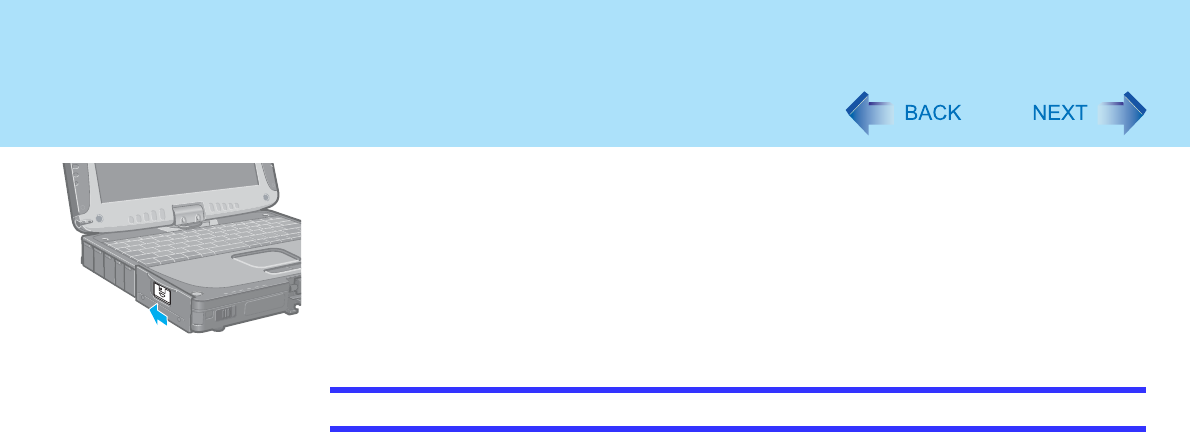

1Slide the power switch (A); at the beep*1 sound, release your finger.

The computer will enter either the standby or hibernation mode, depending on the

setting.

CAUTION

After releasing your finger from the power switch, do not touch the power switch until

the power indicator goes off or blinks.

At the beep*1 sound, release your finger from the power switch. If you continue to

slide the power switch and hold it for more than four seconds, the computer will emit a

second beep*1 then power off. Data not previously saved will be lost.

Even when [When I press the power button on my computer] is set to [Shut down] with

[start] - [Control Panel] - [Performance and Maintenance] - [Power Options] -

[Advanced], if you slide the power switch for more than four seconds and do not

release it, a second beep*1 will sound and the power will be turned off forcibly. Data

not previously saved will be lost.

*1 When the speaker function is disabled, e.g., by the key combination

, there will be no beep

sound.

Using the Display

Setting

1Select [start] - [Control Panel] - [Performance and Maintenance] -

[Power Options] - [Advanced].

2Select [Stand by] or [Hibernate] for [When I close the lid of my

portable computer], and then select [OK].

Entering the standby or hibernation mode

1Close the display.

Standby/Hibernation Functions

The computer will enter either the standby or hibernation mode, depending on the

setting.

When entering the standby or hibernation mode, close the display correctly. If

you do not do so, (for example, if you open the display soon after you close it)

the computer may not enter standby or hibernation mode.

CAUTION

Until resuming is complete (requires about 15 seconds, or 60 seconds if connected to

a network, after the display returns), avoid the following:

• Using the keyboard (except for password input), touch pad, touchscreen, tablet

buttons, or power switch.

• Using external mouse or other peripheral devices.

• Connecting or disconnecting the AC adaptor.

• Closing or opening the display.

• Shutting down or restarting Windows.

• Entering either the standby or hibernation mode again.

Using the Power Switch

When having entered the standby or hibernation mode using Fn key combinations or the

power switch, resume operation using the following procedure.

1Slide the power switch (A).

Resuming Operation

Standby/Hibernation Functions

Using the Display

When [Stand by] or [Hibernate] is selected as the setting for [When I close the lid of my

portable computer] (page 39), you can resume operation using the following procedure.

1Open the display.

Even if the display is closed after the computer has entered either the standby or

hibernation mode, operation will resume when the display is opened. This function

will not work in Tablet mode. If the computer does not resume when the display is

opened, press the power switch.

Security Measures

To prevent unauthorized access of your computer, the various security measures are

provided below.

*1 You need to set the Supervisor Password beforehand.

NOTE

Windows has a security function that differs from the above security measures. For

detailed information, refer to the Windows help.

<Only for models with wireless LAN>

For security functions for the wireless LAN:page 83

1Run the Setup Utility. (page 88)

2Using either  or , select [Security].

3Using either  or , select [Set Supervisor Password] and press

Enter

Situation Function to use

You do not want the settings in the Setup

Utility to be changed

Supervisor Password (see below)

User Password (page 44)*1

You do not want your computer to be used

without permission

Password on boot (page 45)*1

You do not want data stored on the hard disk

to be read or data to be written to the hard

disk and/or you want to prevent loss of data

due to theft of the hard disk

Hard Disk Lock (page 46)*1

You want to prevent theft of your computer Security lock (⇒ Operating Instructions

"Names and Functions of Parts")

Setting the Supervisor Password

(enabling, changing, disabling)

Security Measures

4Only when the Supervisor Password has been set:

Enter your password at [Enter Current Password] and press

Enter

5Enter your password at [Enter New Password] and press

Enter

To disable the Supervisor Password

Press only

Enter

6Re-enter your password at [Confirm New Password] and press

Enter

To disable the Supervisor Password

Press only

Enter

7At [Setup Notice], press

Enter

8Press

F10

and select [Yes], then press

Enter

CAUTION

Do not forget your password. If your Supervisor Password is forgotten, you will be

unable to use your computer. Contact Panasonic Technical Support.

When running the Setup Utility, do not leave your computer even for a short time, as

the possibility exists for the password to be set/changed by another person.

NOTE

Your password will not be displayed on the screen.

Only up to seven alphanumeric characters can be used.

• There is no distinction between upper and lower case letters.

• Use only the upper horizontal row of numeric keys to input your password.

• Do not input your password while holding down on

Shift

Ctrl

Disabling the Supervisor Password also disables the User Password.

Security Measures

NOTE

When the Supervisor Password has not been set, the User Password can not be set.

Set the Supervisor Password if you have not done so. (page 42)

To disable the User Password, start up the Setup Utility with the Supervisor Password.

1Run the Setup Utility. (page 88)

2Using either  or , select [Security].

3Using either  or , select [Set User Password] and press

Enter

4Only when the User Password has been set:

Enter your password at [Enter Current Password] and press

Enter

5Enter your password at [Enter New Password] and press

Enter

To disable the User Password

Press only

Enter

6Re-enter your password at [Confirm New Password] and press

Enter

To disable the User Password

Press only

Enter

7At [Setup Notice], press

Enter

8Press

F10

and select [Yes], then press

Enter

CAUTION

Do not forget your password. If a password is forgotten, you will be unable to use your

computer. If this happens, ask a person who knows the Supervisor Password.

When running the Setup Utility, do not leave your computer even for a short time, as

the possibility exists for the password to be set/changed by another person.

Setting the User Password (enabling, changing, disabling)

Security Measures

NOTE

Your password will not be displayed on the screen.

Only up to seven alphanumeric characters can be used.

• There is no distinction between upper and lower case letters.

• Use only the upper horizontal row of numeric keys to input your password.

• Do not input your password while holding down on

Shift

Ctrl

When you do not want the User Password enabled or changed without permission:

ARun the Setup Utility and enter the Supervisor Password.

BGo to [Security] menu. Using  and , select [User Password Protection] and

press

Enter

CUsing either  or , select [Protected] and press

Enter

When [Password on boot] is set to [Enable], it is impossible to start the computer without the

password.

NOTE

You cannot use [Password on boot] without setting the Supervisor Password. Set the

Supervisor Password if you have not done so. (page 42)

When starting up the Setup Utility, the password input screen will be displayed if a

Supervisor Password or Use Password has been set, even if [Password on boot] is set

to [Disable].

Setting the Password on boot (enabling, disabling)

1Run the Setup Utility. (page 88)

2Using either  or , select [Security].

3Using either  or , select [Password on boot] and press

Enter

When you do not want your computer to be used without

permission

Security Measures

4Select [Enable] or [Disable].

To enable the Password on boot

Select [Enable] and press

Enter

To disable the Password on boot

Select [Disable] and press

Enter

5Press

F10

and select [Yes], then press

Enter

Starting Up When the Password on boot is Set

The screen shown at left is displayed.

Enter your password*1 and press

Enter

When the correct password is input, the computer will start.

When three incorrect password attempts or nothing is input for one minute, the computer

will power off.

*1 Supervisor Password or User Password set in the Setup Utility (not the Windows password).

When the Hard Disk Lock is set to [Enable], it is impossible to read/write data from/to the

hard disk when the hard disk is inserted in a different computer. When the hard disk is

returned to the original computer, you can read and write data as before. In this case,

however, make the settings in the Setup Utility exactly the same as they were before the hard

disk was removed.

It is possible to set the Hard Disk Lock even if [Password on boot] is set to [Disable], but we

recommend that [Password on boot] be set to [Enable] for security reasons.

(Note that this Hard Disk Lock does not guarantee complete protection of data.)

NOTE

In the default setting, [Hard Disk Lock] is set to [Disable].

You cannot set [Hard Disk Lock] without setting the Supervisor Password. Set the

Supervisor Password if you have not done so. (page 42)

When you do not want data stored on the hard disk to be read/

written

Security Measures

The hard disk lock function only works with the internal hard disk. This function does

not work with the second hard disk or the external hard disk.

Setting the Hard Disk Lock (enabling, disabling)

1Run the Setup Utility. (page 88)

2Using either  or , select [Security].

3Using either  or , select [Hard Disk Lock] and press

Enter

4Select [Enable] or [Disable].

To enable the Hard Disk Lock

Select [Enable] and press

Enter

. At [Caution], press

Enter

To disable the Hard Disk Lock

Select [Disable] and press

Enter

5Press

F10

and select [Yes], then press

Enter

CAUTION

To change your hard disk drive

• Contact Panasonic Technical Support.

• Before changing the hard disk, be sure to set the [Hard Disk Lock] to [Disable].

Computing on the Road

One of the main features of notebook-type computers is that you have the power of

computing away from your home or office. In the following, information is provided on how to

maximize use of the battery pack which is necessary for such computing.

Four Important Points

•POINT 1

Be sure to charge your battery before and after use.

•POINT 2

To get the maximum use of your battery, set the power management mode.

•POINT 3

Check to see that you have your AC adaptor with you before leaving your home or

office.

Purchasing a spare battery (CF-VZSU30A) is highly recommended.

•POINT 4

Always watch your battery level!

Power Saving Methods

Change [Power Schemes]

Select [start] - [Control Panel] - [Performance and Maintenance] - [Power Options], and

then set [Power schemes] to [Max Battery].

Power consumption can also be minimized with detailed settings; for example, by

reducing the time setting for [Turn off monitor].

Adjust the brightness (darker) with

or LCD brightness control button

Leave your computer off when it is not in use

(⇒ Operating Instructions "Starting Up/Shutting Down")

Remove peripheral devices (USB devices, PC Cards, external mouse, etc.) when

not in use

Saving Power

Computing on the Road

Before stepping away from your computer, press

to put your computer in

the standby mode (page 6), or

F10

to put your computer in the hibernation

mode (page 7)

If you plan to leave the computer for a long period of time, we recommend using the

standby mode or hibernation mode as often as possible to minimize power consumption.

Before entering the standby or hibernation mode, refer to "Precautions". (page 37)

CAUTION

When installed in a network environment (except when the Wake Up from LAN

function is in use).

Do not use the standby or hibernation mode.

After resuming operation from the standby or hibernation mode, the network

connection may be severed or the computer will not work properly.

NOTE

Select on the desktop to view [Important Tips] for using the battery pack. You

can also view [Important Tips] using the following procedures.

Select [Important Tips] in [start] - [All Programs] - [Panasonic] - [On-Line Manuals].

Battery Power

Use the Battery Indicator to Check the Battery Status

Battery Indicator Battery Status

Not lit Battery pack is not connected or charging not being

performed.

Orange*1 Charging in progress.

Green*1 Fully-charged.

Blinking green In high temperature mode, the battery is discharging to the

level that corresponds to an 80%*2 charge for normal temper-

ature mode. (page 52)

CAUTION

Do not remove the battery pack while the battery indi-

cator is blinking green or the power will be turned off

forcibly.

Red The battery level is very low (the charge is approx. 9% or

less).

Connect the AC adaptor. You can use the computer when

the battery indicator light is orange. If you do not have an AC

adaptor, save your data and power off your computer. After

replacing the battery pack with a fully charged one, turn your

computer on.

Blinking red*1 Battery pack or charging may not be working properly.

Quickly save your data and power off your computer.

Remove the battery pack and disconnect the AC adaptor,

then connect them again. If the problem persists, contact

Panasonic Technical Support. Possible failure in the battery

pack or charging circuit.

Battery Power

*1 When the AC adaptor is connected.

*2 In high temperature mode, the level that corresponds to an 80% charge for normal temperature

mode is displayed as [100%].

NOTE

This computer prevents overcharging of the battery by recharging only when the

remaining power is less than approx. 95% of capacity after the battery is fully charged.

1Press

to Check the Remaining Battery Power on the Screen

(After logging on to Windows)

When the battery pack is inserted in the computer (example)

:normal temperature mode (page 52)

:high temperature mode (page 52)

Blinking orange*1 Battery cannot be recharged temporarily because the internal

temperature of the battery pack is outside of the acceptable

temperature range for recharging. Once the allowable range

requirement is satisfied, charging begins automatically. Your

computer can be used normally in this state.

Blinking green and orange

alternately

Warming up the system to prevent hard disk drive

malfunctions at low temperature. Leave your computer as is.

Once the allowable temperature range requirement is

satisfied, your computer will start automatically.

Battery Indicator Battery Status

Check the Remaining Battery Power

Battery Power

zWhen the battery pack is not inserted in the computer

NOTE

zIn the following cases, there may be a difference between the remaining battery

capacity displayed on the indicator and the actual remaining battery capacity. To

correct this, perform "Battery Recalibration." (Îpage 55)

• The battery indicator light remains red.

• The battery remaining displays 99% and the indicator light is orange for a long

period of time.

• Low battery warning appears after a short period of time.

This may be caused by the use of standby mode for long periods of time. The

battery is discharging while the computer is in standby mode when the AC adaptor

is not connected.

zThere may be a discrepancy between the % value that is displayed on the taskbar

icon, and [Power Meter] in [Power Options Properties]. This is not a malfunction.

About High Temperature Mode

This computer has a high temperature mode function that prevents the deterioration of the

battery in high-temperature environments or when using the fully charged battery pack for a

long period of time.

To use the high temperature mode function, set [Environment] in the [Main] menu of the

Setup Utility to [Auto]*1 or [High Temperature]. In [Auto] mode, high temperature mode or nor-

mal temperature mode is selected automatically depending on the battery status (the internal

temperature of the battery pack, etc.) or usage condition (when the AC adaptor has been

connected for a long period of time).

Note that a level corresponding to a 100% charge for high temperature mode is

approximately equivalent to an 80% charge level for normal temperature mode.

*1 The default mode.

Battery Power

NOTE

zAfter switching from [Normal Temperature] to [High Temperature] or vice versa, the

remaining battery capacity will not be displayed properly until the battery pack is

completely discharged or fully charged.

zIn the [Auto] mode:

Once the computer has automatically switched from [Normal Temperature] to [High

Temperature], the computer will not switch back to [Normal Temperature] until the

battery has been recharged from 0% to 100% about five times. This is to prevent the

deterioration of the battery.

Battery Power

When the Remaining Battery Charge Becomes Low

The following is factory default setting.

Above settings can be changed.

ADisplay [Alarms] screen.

Select [start] - [Control Panel] - [Performance and Maintenance] - [Power

Options] - [Alarms].

When remaining battery capacity falls to

10%

[Low battery alarm]

When remaining battery capacity falls to 5%

[Critical battery alarm]

Displays a message indicating the low

battery level.

Displays a message indicating the low

battery level and the computer will enter

hibernation mode.

Charge your battery. Connect the AC adaptor or replace the

battery pack before starting up the computer

next time.

Connect the AC adaptor immediately. If

you do not have the AC adaptor with you,

exit any programs currently running, then

exit Windows, and confirm that the power

indicator is off.

If you have a fully charged spare battery,

turn off the computer, replace the battery,

and turn the computer on again.

Do not replace the battery pack while the

computer is in standby mode.

Connect the AC adaptor, then charge the

battery.

If you have a fully charged spare battery,

turn off the computer, replace the battery

pack, and turn the computer on again.

After the computer enter hibernation

mode when the battery runs down, if

computer operations are resumed

without charging the battery, Windows

may not start up properly, and in some

cases the alarm function may not operate

properly from that point on.

Do not replace the battery pack while the computer is in standby mode.

Battery Power

BSet alarm operations and remaining battery level for operating alarm functions.

When disabling the speaker by pressing

, the sound alarm is also

disabled.

A. When making a setting for [When the alarm goes off, the computer will] in

[Alarms] - [Alarm Action]:

Add a check mark for [Force stand by or shutdown even if a program stops

responding.].

B. Set the value for [Critical battery alarm] to 5% or more.

This is necessary for the standby or hibernation function to be completed

(assuring data is saved) when the battery level is low.

The battery pack has a function for measuring, storing and learning about battery capacity.

Using "Battery Recalibration" function to accurately display remaining battery capacity

requires that the battery pack be fully charged (charged to 100%), then fully discharged. This

procedure should be performed once after you purchase the computer. As you use the

battery pack over a long period of time, the remaining capacity display may become

inaccurate due to aging of the battery pack and other factors. The following procedure

should be performed again.

NOTE

Perform the following procedure in a temperature range of 10°C to 30°C {50°F to

86°F}.

"Battery Recalibration" function takes time to execute because of the large battery

capacity; this is not a malfunction.

• Time taken to obtain a full charge: Approx. 4 hours [max.]

• Time taken for a complete discharge: Approx. 4.5 hours

If the computer is turned off while performing "Battery Recalibration" (electrical power

outage, accidental removal of the AC adaptor or battery pack, etc.), "Battery

Recalibration" will not be performed properly.

Accurately Displaying Battery Capacity (Battery Recalibration)

Battery Power

1Connect the AC adaptor.

2Close all applications.

3Perform "Battery Recalibration".

ASelect [start] - [All Programs] - [Panasonic] - [Battery Recalibration].

BAt the confirmation message, select [Start].

Performing "Battery Recalibration" at frequent intervals degrades the battery.

A message urging caution will appear when "Battery Recalibration" is to be

performed again in less than a month or so since it was last performed. In a

case like this, do not perform "Battery Recalibration."

CThe display will ask you to shut down Windows. Select [Yes].

"Battery Recalibration" will begin.

After the battery pack is fully charged, discharging begins. When the

discharging is completed, the power automatically goes off.

When "Battery Recalibration" is completed, charging begins.

NOTE

"Battery Recalibration" can also be performed by following the procedure below.

ARestart the computer.

BPress

while the [Panasonic] boot screen is displayed a few moments after the

computer begins the startup procedure.

CWhen the remaining battery capacity is displayed, press

Enter

DFollow the on-screen instructions.

Battery Power

The battery pack is a consumable item and therefore will require replacement (CF-VZSU30A).

If the battery operation time becomes noticeably short, and if performance is not recovered

even after executing Battery Recalibration, we recommend that the battery be replaced.

CAUTION

Do not touch the terminals on the battery pack and the computer. The battery pack

may no longer function properly if the contacts are dirty or damaged. Also, the

computer may not operate properly.

The battery pack is not charged when it is first purchased. Be sure to charge it before

using it for the first time. When the AC adaptor is connected to the computer,

charging begins automatically.

Use only the specified battery pack (CF-VZSU30A) with your computer.

In the standby mode, do not remove/change the battery pack. Removing the pack in

the standby mode will erase your data and may damage the computer.

1Power off your computer.

(⇒ Operating Instructions "Starting Up/Shutting Down")

Do not shut down using the standby function.

2Remove the battery pack.

AUnlock the cover by sliding the latch (A) to the right.

Replacing the Battery Pack

Battery Power

BSlide the latch down, and then without releasing it, open the cover (B).

CPull the tab (C) on the battery pack and remove it from the computer.

3Insert the battery pack.

ASlide the battery pack inward until it is firmly in place.

BClose the cover until it clicks into place.

CLock the cover by sliding the latch to the left.

CAUTION

Be sure to insert the battery pack as illustrated.

Confirm that the latch lock is correctly in place. If you carry your computer without the

latch lock in place, the battery pack may fall out.

PC Cards

Your computer has two PC Card slots.

These slots conform to the PC Card Standard; therefore, communications or SCSI devices,

etc., may be utilized.

Type I (3.3 mm) or II (5.0 mm):

Two cards can be used simultaneously.

Type III (10.5 mm):

One card can be used only in the slot 1.

CAUTION

Check the PC Cards' specifications. Be sure the total operating current does not

exceed the specified limit. Damage may result otherwise.

Allowable Current: 3.3 V: 400 mA, 5 V: 400 mA

There are times when both a Type I card and a Type II card will not work at the same

time.

ZV card, SRAM card, FLASH ROM card (except for an ATA interface) and card

requiring 12V are not supported.

With the repeated insertion/removal of a PC Card, the computer may no longer

recognize the PC Card (depending on the type of card). In such cases, restart the

computer.

When inserting one more CardBus type card with one already inserted, after entering

either the standby or hibernation mode, the computer may not function properly.

If the computer freezes after resuming from the standby or hibernation mode, try

removing and then reinserting the PC Card. If this does not correct the problem,

restart the computer.

PC Cards

Inserting a PC Card

1Unlock the cover by sliding the latch (A) to the right.

2Slide the latch down, and then without releasing it, open the cover (B)

as illustrated.

3Simply slide the PC Card right-side-up until it snaps into place.

Refer to the operating instructions of each card on how to insert the card.

CAUTION

When using a PC Card to connect a peripheral device (SCSI, IEEE 1394, etc.), install

following procedure below (one example).

AConnect the peripheral device to the card.

BTurn the device on.

CSlide the card in until it snaps into place.

When inserting a card, do not force the card in if difficulty is encountered. Depending

on the shape of the card, a segment may remain protruding from the slot after

Inserting/Removing the PC Card

PC Cards

insertion. Do not try to force the card all the way in. You may damage the slot,

making it impossible to remove the card.

Removing a PC Card

CAUTION

Do not remove a PC Card while your computer is in the standby or hibernation mode.

When two PC Cards are inserted, perform the following procedure (from Step 1 to

Step 3 for each of the two cards.

Note that the operation of removing the PC Card may not be complete, depending on

the status of the PC Card or device connected to the PC Card, such as when a SCSI

card is used to connect an external hard disk to the computer. In such cases, turn off

the power from [start] menu, then remove the card.

1Disable the card function.

ASelect on the taskbar, select the PC Card, then select [Stop].

BFollow the on-screen instructions.

(When the PC Card has been removed after the computer is turned off, this step

is not necessary.)

2Press the button (C), and then press the button again.

3Slide the PC Card out.

4Close the cover until it clicks into place.

PC Cards

5Lock the cover by sliding the latch to the left.

NOTE

If the button is sticking out, press it back to its original position.

RAM Module

Use a RAM module meeting the RAM module specifications below. If a module is used that

does not meet the specifications, there are cases in which data may become unusable or the

computer may not operate properly.

RAM module specifications:

200 pins, SO-DIMM, 2.5 V, DDR SDRAM, PC2100

(For information on the RAM modules that can be used, contact Panasonic Technical

Support.)

CAUTION

RAM modules are extremely sensitive to static electricity. There are cases where

static electricity generated by the human body has adversely affected such modules.

When inserting or removing a RAM module, do not touch the terminals or internal

components, insert objects other than the module, or allow foreign particles to enter.

Doing so has been known to cause damage, fire or electric shock.

CAUTION

If the RAM module is difficult to insert or difficult to press down, do not force it. Check

once more to ensure that the module is positioned correctly.

Use the proper size screw driver to insure that the screw does not get stripped.

The two screws shown at left are for fixing the speaker in place. Do not remove these

screws.

1Power off your computer.

(⇒ Operating Instructions "Starting Up/Shutting Down")

Do not use the standby or hibernation function.

Disconnect the AC adaptor and remove the battery pack. (page 57)

Inserting/Removing the RAM Module

RAM Module

2Turn the computer over and remove the screws (A), then remove the

cover (B).

3Insert/Remove RAM module.

Inserting the RAM module

ASlide in the module at an angle.

BPress the module down until the right and left hooks lock into place.

Removing the RAM module

AGently open the left and right hooks (F).

The RAM module will be raised at an angle.

BGently remove the RAM module from the slot.

4Put the cover back in place.

AInsert the cover at an angle, then fit it into place.

BFasten the screw.

5Insert the battery pack.(page 57)

F F

RAM Module

CAUTION

Be sure the cables of the speaker do not caught when closing the cover.

NOTE

If the RAM module is recognized correctly, the total size of the main unit memory and

RAM module memory is displayed on the [Information] menu of the Setup Utility

(page 90). If the RAM module is not recognized, power off the computer and insert

it again.

Port Replicator

A port replicator is available as an option (CF-VEB181). This device eliminates the hassles of

having you connect/disconnect the various cables when carrying your computer around and

allows a variety of peripherals to be connected including a headphone or microphone, etc.

The port replicator connects to the expansion bus connector (A) at the bottom of your com-

puter.

For more detailed information, refer to the Operating Instructions of the port replicator.

CAUTION

Hot/Warm Docking and Hot/Warm Undocking are not possible with the port replicator.

About the driver

The driver for this port replicator is already installed in this computer. Do not install the driver

from the driver CD-ROM provided with the port replicator.

External Display

1Power off your computer.

(⇒ Operating Instructions "Starting Up/Shutting Down")

Do not connect or disconnect devices while the computer is in the standby or

hibernation mode.

2Connect the external display.

Connect the external display to the external display port (A) on your computer.

3Turn on the external display, then turn on your computer.

After Windows starts up, the screen is displayed on the display destination set in

the following menu.

[start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) Extreme

Graphics] - [Devices]

It is possible to change the setting to display only on the external display or on both

the internal LCD and the external display with

4Set your external display.

Select [start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) Extreme

Graphics] - [Devices] - [Monitor] and make the settings.

NOTE

The display destination after resuming from hibernation mode or after restarting may

differ from the display destination before entering hibernation mode or before

restarting.

When changing the display destination after Windows has started, do not press any

keys or tablet button or slide the power switch until the display destination has

changed completely.

After the display destination of the screen is switched with

, the resolution or

number of colors of the display may change.



does not work when [Command Prompt] screen is set to "Full Screen".

When the external display is used alone, set the number of colors, resolution, or

refresh rate to suit the external display. These settings are separate from when the

internal LCD is used alone or with an external display simultaneously.

When the computer is set to display on both the internal LCD and the external display,

DVD-Video, MPEG files and other video files may not be played back smoothly.

When connecting a monitor that does not conform to the Plug & Play standards:

Either select the correct external display driver using in the following menu. Or use

External Display

the driver disk that was supplied with your monitor.

[start] - [Control Panel] - [Appearance and Themes] - [Display] - [Settings] -

[Advanced] - [Monitor] - [Properties] - [Driver] - [Update Driver]

If a picture is not displayed properly, lower the level of [Hardware acceleration] in the

following menu.

[start] - [Control Panel] - [Appearance and Themes] - [Display] - [Settings] -

[Advanced] - [Troubleshoot]

Also, carefully read the operating instructions of the external display.

With Extended Desktop, you can use both the internal LCD and the external display as an

extended display domain. You can also drag a window from the internal LCD to the external

display. To use Extended Desktop;

1Display [Intel(R) Extreme Graphics] screen.

Select [start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) Extreme

Graphics] - [Devices].

2Select [Extended Desktop], make the settings for [Primary Device]

and [Secondary Device].

To make the settings for each display (colors, screen area, etc.), select [Device

Settings] and change the settings where necessary, then select [OK].

3Select [OK].

At the confirmation message, select [OK].

NOTE

There are some applications that cannot be used in the Extended Desktop.

When the button to maximize a window is pressed, one of the displays will show the

maximized display.

A window that has been maximized cannot be moved to the other display.

You cannot switch the display destination by pressing

When the Extended Desktop is being utilized;

Extended Desktop

External Display

• The pop-up window displayed by

key combination is shown only on the primary

device.

• Do not use the display rotation function.

When changing the primary device ([1]) and secondary device ([2]), be sure to

change them in the following menu. If you use other procedures, the window may not

be displayed properly.

Select [start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) Extreme

Graphics] - [Devices] - [Extended Desktop]

The cursor will move on the primary device if the surface of the internal LCD is

touched. Set the primary device to the internal LCD when using the touchscreen.

Precautions

When the application running is not shown on the display, refer

to the following items.

Under the condition the application is in the external display, or after the application is

closed in the external display, there are cases the application will not be shown in the

display when executed the next time if the position of the extended display is changed or

the Extended Desktop is closed.

When there is no display after the position of the extended display is changed:

The application running is being displayed at the position of the extended display before

the change. Return the position of the extended display to the condition before the

change. Move the application to the internal LCD, and then correct the position of the

extended display.

When there is no display after the Extended Desktop is disabled:

The application running is being displayed in the external display. Set the Extended

Desktop again, move the application from the external display to the internal LCD and

then disable the Extended Desktop.

To prevent images from being burned onto the external display

Manually shut off the power to the external display when not in use.

External Display

When the display domain for the Extended Desktop is changed,

there are cases the wallpaper and icons become displaced.

Wallpaper: Change the setting for the wallpaper.

Icons: Right-click on the desktop, and select [Arrange Icons By] - [Auto Arrange].

When an animated pointer is used for the mouse pointer (e.g.,

when changing the theme in [Appearance and Themes] of

[Control Panel])

An error may occur when resuming from the standby or hibernation mode. In such cases,

change the mouse pointer to the standard pointer with the following procedure.

ADisplay [Mouse Properties].

Select [start] - [Control Panel] - [Printers and Other Hardware] - [Mouse].

BSelect [Pointers].

CSelect [None] in [Scheme], then select [OK].

USB Devices

NOTE

The USB floppy disk drive (CF-VFDU03) and the USB CD/DVD drive can be

connected via the USB connector of either the computer or a port replicator. Before

starting up Windows, however, only the USB connector of the computer can be used.

A USB floppy disk drive other than the Panasonic CF-VFDU03 USB floppy disk drive

cannot be used as a boot drive.

Connecting USB devices

1Connect the USB device to the USB port (A) on your computer,

referring to the operating instructions of the USB device.

Follow the on-screen instructions and refer to the operating instructions for USB

devices on how to install the driver.

NOTE

You may need to install drivers compatible with the operating system you are using for

your USB devices.

USB devices may be connected or removed without turning off the computer's power.

When a USB device is connected, there are cases the standby or hibernation function

will not operate in a normal manner due to the USB device. In addition, a USB device

may have to be removed temporarily and the computer restarted in cases where the

computer is unable to start up properly.

Some devices will not operate when connected to a USB HUB; these devices must be

connected directly to the USB port on your computer.

When a USB device is removed and then inserted, may appear in the Device

Manager and the device may not be correctly recognized. If this happens, try

removing and connect the device once more.

When USB devices are connected, power consumption increases. Remove USB

devices when not in use, especially when operating on battery power.

After connecting the USB device to one port and installing the driver, it may be

necessary to reinstall the driver when the device is connected to the other port.

Connecting/Removing USB devices

USB Devices

Removing USB devices

CAUTION

Do not remove a USB device while your computer is in the standby or hibernation

mode.

Save important data and close each application.

1Disable the device function.

ASelect on the taskbar and select the USB device, then select [Stop].

BFollow the on-screen instructions.

(This step is not necessary when the USB device has been removed after the

computer is turned off, if is not displayed, or if the device does not appear in

the list in step A.)

2Remove the USB device.

USB Floppy Disk Drive

Note the following when using an optional USB floppy disk drive (CF-VFDU03).

Do not power off your computer or press the floppy disk drive eject button while the floppy

disk drive being accessed.

Doing so may damage the data on the floppy disk and render the floppy disk useless.

Use care when handling floppy disks.

To protect the data on your floppy disks or to prevent a floppy disk from becoming stuck in

your computer, avoid the following:

• Sliding the shutter on the floppy disk manually.

• Exposing the disk to a magnetic field.

• Storing the disk in locations prone to high temperatures, low pitched noise, dampness,

or dust.

• Applying more than one label on the disk.

Confirm the contents of a floppy disk before formatting it.

Confirm that no important data is on the floppy disk, because all data on the floppy disk

will be erased.

USB Devices

Use the write-protect tab (A).

This is a must for preserving important data. This prevents your data from being erased

or overwritten.

The USB floppy disk drive cannot be used at the same time as other floppy disk drives.

Do not directly open application files (e.g., Microsoft Word, Microsoft Excel) which are

stored on the floppy disk.

First copy the files to the hard disk, then open the copied files from the hard disk.

Modem

CAUTION

Do not use the PBX internal phone lines installed in company offices. Doing so may

lead to a fire or electric shock.

It is not possible to connect the modem to any of the following lines.

• Internal home phones

•Intercoms

Be sure to connect the modem telephone cable into the modem port, not into the LAN

port.

The modem may be damaged by sudden high voltage surges, as may occur in the

event of a lightning strike. We recommend use of a surge protector.

1Connect the computer and the telephone jack (A) using a modem

telephone cable (included)(B).

Open the modem cover, position the cable so that the tab (C) matches the port ( ),

and insert the cable until you hear a "click".

2Change the settings as necessary.

ASelect [Edit] in [start] - [Control Panel] - [Printers and Other Hardware] -

[Phone and Modem Options] - [Dialing Rules], then select the location from

which you will be dialing in [Country/region].

BInput the necessary information (items such as the area code, dialing rules,

etc.), select [OK], then select [OK].

NOTE

Do not enter either the standby or hibernation mode during communications.

To remove the cable, pull out while pressing down on the tab.

<Modem-on-Hold function>

The modem of this computer has Modem-on-Hold function, which allows you to

receive an incoming call and stay connected to the internet (Call-Waiting service from

your phone company is required. Your ISP must also support V.92). To use this

function, select on the taskbar and make settings.

Connecting the Internal Modem with a Telephone Jack

Modem

With this function, if the telephone that is connected to the modem rings in the standby mode,

the power of the computer automatically switches ON.

This function is convenient when using automatic information receiving applications such as

a FAX application.

When using this function, it is necessary to run a software application able to maintain the

condition to receive telephone calls and to return the computer to the original condition after

a call. For further details, refer to the operating instructions provided with software

applications.

Enabling the Ring Resume Function

ASelect [Device Manager] in [start] - [Control Panel] - [Performance and

Maintenance] - [System] - [Hardware], and then select the internal modem

from [Modems].

BSelect [Power Management], add the check mark for [Allow this device to bring

the computer out of standby], then select [OK].

CAUTION

When using this function, it is recommended that the AC adaptor be connected to the

computer.

Concerning the setting for [System standby]*1

• Roughly consider the communication time and then set [System standby]. There

may be cases where the computer enters the standby mode after the time set for

[System standby] elapses even during communications, and cuts off the

communications.

• If [Never] is set, the computer will not enter the standby mode during

communications, but once the computer resumes, the power of the computer will

remain on while the user is absent.

When the Ring Resume function is being used, some time elapses before a

connection is established (equal to the time for the computer to resume). To allow the

computer to resume, set the "Call" to a larger value than a typical telephone call. If it is

not possible for the sending side to set a long "Call", set the "Number of rings until

Ring Resume Function

Modem

answer" (with the software application that is able to maintain the condition to receive

telephone calls) to a small value.

*1 To display the setting for [System standby],

Select [start] - [Control Panel] - [Performance and Maintenance] - [Power Options] - [Power

Schemes].

NOTE

This function does not work when the computer is off or is in hibernation mode.

After operations are resumed from standby mode, the screen remains dark. The

former screen display will be restored when the keyboard, touch pad, touchscreen, or

tablet button is used.

The computer cannot resume if a telephone is connected to the line of a modem (e.g.,

a PC Card modem) other than the internal modem.

LAN

When using the computer as a network computer, some additional settings may have to be

made depending on the usage conditions. We recommend asking your system administrator

or the person in charge of the network.

CAUTION

Do not connect the modem telephone cable into the LAN port.

1Power off your computer.

(⇒ Operating Instructions "Starting Up/Shutting Down")

Do not connect or disconnect devices while the computer is in the standby or

hibernation mode.

2Connect the cable.

Connect the LAN port (A) and the network system (server, HUB, etc.) using a LAN

cable.

3Turn on the computer.

CAUTION

Do not use the standby or hibernation functions during communications (except when

the Wake Up from LAN function is in use), as this may cause an error in data

transmission or reception. The timeout function may engage even during data

transmissions, causing the computer to automatically go into standby or hibernation

mode. When not using the Wake up from LAN function, we recommend disabling the

timeout function using the following menu.

[start] - [Control Panel] - [Performance and Maintenance] - [Power Options] - [Power

Schemes]

Connecting LAN

LAN

NOTE

If you are unable to connect to the network (when the indicator of your HUB unit does

not light):

ADisplay [Device Manager] screen.

Select [Device Manager] in [start] - [Control Panel] - [Performance and

Maintenance] - [System] - [Hardware].

BSelect the network adaptor you are using from [Network adapters].

CSelect [Advanced].

DConfirm the settings of each item.

This is a function of the internal LAN to automatically power the computer on from a network

server when the computer is in the standby or hibernation mode. To use this function, it is

necessary to have a network environment that accommodates Wake up from LAN.

Enabling the Wake up from LAN Function

ASelect [Device Manager] in [start] - [Control Panel] - [Performance and

Maintenance] - [System] - [Hardware].

BSelect the internal network adaptor from [Network adapters].

CSelect [Power Management], add the check mark for [Allow the computer to turn

off this device to save power] and [Allow this device to bring the computer out of

standby], then select [OK].

CAUTION

Be sure to connect the AC adaptor, and enable the supply of power.

NOTE

Even when a password is set in the Setup Utility and [Password on boot] is set to

[Enable], it is not necessary to input the password set in the Setup Utility when the

computer resumes from standby or hibernation mode.

Wake up from LAN

LAN

The Wake up from LAN function will not operate under the following conditions:

• When the computer has been shut down.

• When the power switch is slid over for four seconds or longer to turn off the power

(e.g., when the computer hangs).

• When the AC adaptor and battery pack are removed from the computer or

reattached to the computer.

• When the LAN cable is disconnected and reconnected.

After operations are resumed from standby mode, the screen remains dark. The

former screen display will be restored when the keyboard, touch pad, touchscreen, or

tablet button is used.

The Wake up from LAN function will operate regardless of the [Boot up from LAN]

setting of the Setup Utility.

The computer may start up if accessed by another computer on the network.

The following procedure can be used to prevent startup due to unintentional access

by a computer.

ASelect [start] - [Control Panel] - [Performance and Maintenance] - [System] -

[Hardware] - [Device Manager] - [Network adapters].

BSelect the internal network adaptor, and then select [Power Management].

CAdd the check mark for [Allow this device to bring the computer out of standby]

and [Only allow management stations to bring the computer out of standby],

then select [OK].

Wireless LAN

Only for models with wireless LAN

If you use a wireless LAN, you can use a network without cable connections.

Wireless LAN communication methods

• Infrastructure mode

For data transactions between two or more computers with wireless LAN functions,

using an access point

• Ad hoc mode

For direct data transactions between two computers with wireless LAN functions,

without using an access point

•This computer supports two standards: IEEE802.11b (802.11b) and IEEE802.11g

(802.11g).

CAUTION

Communication is performed through the wireless LAN antenna (A). Do not block the

antenna area with your hand or otherwise interfere with the passage of the radio

signals.

Do not use the Fast User Switching function. The wireless LAN cannot be used.

NOTE

The communication speeds and distances differ depending on the devices that

support the wireless LAN, the installation environment and other ambient conditions.

One characteristic of radio waves is that their transmission rate tends to drop as the

communication distance increases. It is recommended that the devices supporting

the wireless LAN be used in close vicinity to each other.

The rate may drop while a microwave oven is being used.

When using a wireless LAN in an environment that combines both 802.11g and

802.11b, communication speed when using 802.11g may decrease.

Wireless LAN

Do not use wireless LAN on airplanes, in hospitals, or in other

locations where wireless LAN signals may affect the operation

of devices in the vicinity.

Abide by instructions regarding use in airplanes and hospitals.

If you intend to use the computer in the environments described above, turn off the

wireless LAN. (page 82)

To prevent theft of data or unauthorized access to the hard disk

via a wireless LAN.

When using the wireless LAN function, there is a danger that data may be stolen from the

hard disk, or that shared files may be accessed. If you plan to use wireless LAN functions,

we recommend that you do so only after making the appropriate security settings, such as

for encryption.

Precautions

Wireless LAN

Turn on/off the wireless LAN function power using Intel® PROSet/Wireless Software.

NOTE

Before using a wireless LAN, turn the wireless LAN on (at the time of purchase, the

wireless LAN is set to [Wireless Off]).

1Display [Intel PROSet/Wireless] screen.

Double-click / / (when the wireless LAN is on) or (when the

wireless LAN is off) on the taskbar, or select [start] - [All Programs] - [Intel PROSet

Wireless] - [Intel PROSet Wireless].

2Select ▼ and select [Wireless On] or [Wireless Off].

NOTE

You can assign the function for turning the wireless LAN on or off to one of the tablet

buttons. (page 12)

Turning On/Off for the Wireless LAN Function

Wireless LAN

To use the wireless LAN, set the profile using the following procedure.

The settings will vary for different network environments depending on the network system

being used. For more details, ask your system administrator or the person in charge of the

network.

CAUTION

Set profiles for each user using the following procedure.

1Double-click on the taskbar to display [Intel PROSet/Wireless]

screen.

When or is displayed:

The wireless LAN is on. Skip step 2.

2Select (A) and select [Wireless On].

3Select [Add] (B) in [Profiles].

4Enter the profile name and Wireless network name (SSID), and make

other necessary changes; then select [Next].

The Settings

Wireless LAN

5Make necessary changes and select [OK].

For security, we recommend that you enable encryption.

For information on how to set the encryption, ask your system administrator or

the person in charge of the network and refer to the access point’s operating

instructions.

6Select the profile you have set and select [Connect].

If the setting of the profile that is currently connected is changed, the new setting

will not be enabled until you select the profile and then select [Connect].

NOTE

If is displayed, the computer is connecting to an access point. Wait for a

moment.

If is displayed for a longer time, perform the following procedure.

ADisplay [Intel PROSet/Wireless] screen. (page 83)

BSelect again a profile name you want to connect, and select [Connect].

7Select [Close].

NOTE

For more information about how to use the Intel PROSet, refer to [Help] in the menu

bar.

To communicate between two computers using the wireless LAN and without using an

access point, make the following settings on each computer.

Set the network to be accessed as [Device to device (Ad hoc)].

Set the network names to the same name.

Set the network authentication to the same authentication.

When using encryption, set the same encryption and the same network key on both

computers.

Exchanging Data between Computers Using the Wireless LAN

Hard Disk Drive

To change your hard disk drive, contact Panasonic Technical Support.

CAUTION

Be sure to back up all important data before changing the hard disk drive.

You can erase the data before changing the hard disk drive. ("Hard Disk Data Erase

Utility")

If [Hard Disk Lock] is set to [Enable] in the Setup Utility, change this to [Disable] before

changing the hard disk drive.

Be careful when changing the hard disk drive. The hard disk drive is extremely

sensitive to shock. In addition, static electricity could later affect some internal

components.

1Power off your computer. (⇒ Operating Instructions "Starting Up/

Shutting Down")

Do not connect or disconnect devices while the computer is in the standby or

hibernation mode.

Disconnect the AC adaptor.

2Remove the battery pack. (page 57)

3Insert/remove the hard disk drive.

Removing the hard disk drive

AUnlock the cover by sliding the latch (A) to the right.

Inserting/Removing the Hard Disk Drive

Hard Disk Drive

BSlide the latch down, and then without releasing it, open the cover (B).

CPull the tab (C) on the hard disk drive and remove it from the computer.

Inserting the hard disk drive

ASlide the hard disk drive inward until it is firmly in place.

BClose the cover until it clicks into place.

CLock the cover by sliding the latch to the left.

4Insert the battery pack. (page 57)

CAUTION

Be sure to insert the hard disk drive as illustrated.

Confirm that the latch lock is correctly in place. If you carry your computer without the

latch lock in place, the hard disk drive may fall out.

Hard Disk Drive

NOTE

Whether the hard disk is properly recognized or not can be confirmed in [Information]

menu of the Setup Utility (page 90). If the hard disk is not recognized, power off the

computer and insert it again.

Setup Utility

The Setup Utility is a utility for setting the computer's operating environment (password

settings, startup drive selection, etc.). The following six menu items are available.

[Information], [Main], [Advanced], [Security], [Boot], [Exit]

1Turn on or restart the computer.

2Press

while [Panasonic] boot screen is displayed a few moments

after the computer begins the startup procedure.

If [Enter Password] is displayed, enter your password.

When the Setup Utility is started with Supervisor Password

You can register all items of the Setup Utility.

When the Setup Utility is started with User Password

You can not register [Advanced] and [Boot] menu.

On [Security] menu:

• [Set Supervisor Password] and [Hard Disk Lock] will not be displayed.

• [Password on boot], [Setup Utility Prompt], [Boot First Menu] and [User

Password Protection] will be displayed, but cannot be set.

• The User Password can be changed only when [User Password

Protection] has been set to [No Protection]. The User Password cannot be

deleted.

[Get Default Values] will not be displayed on [Exit] menu.



does not work.

NOTE

When [Password on boot] in the Setup Utility is set to [Disable], the password is not

necessary when the computer is started up, but the password becomes necessary

when the Setup Utility is started up. This alternative makes it possible to prevent the

contents of the Setup Utility from being changed.

If you fail to press

at the right moment, the Setup Utility will not start up. In this

case, power off the computer and try again.

To close the Setup Utility, press

Esc

, select the exiting method in [Exit] menu, then

press

Enter

Running the Setup Utility

Setup Utility

Key Operations



To display the corresponding "help" file.



Esc

To display [Exit] menu.





To move among the items.





To move among the menus.



To move among the values.



Enter

To display sub-menu of each item selected by  or .



To set default settings (except the password). (When starting up the Setup Utility with the

User Password, this key is not available.)



F10

To save the settings and exit.

NOTE

When setting date and time,

Tab

can be used to move the cursor.

Setup Utility

Parameters

(Underline indicates settings at the time of factory shipment.)

Select the language for displaying the Setup Utility.

Information Menu

Language: [English]

Model No.: CF-xxxxxxxxx

Serial No.: xxxxxxxxxx

CPU Type: xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

CPU Speed: x.xx GHz

BIOS: Vx.xxLxx

Embedded Controller: Vx.xxLxx

System Memory: xxx MB

Primary Master: xx GB

Language English

Japanese

Setup Utility

*1 Time is shown in 24-hr. style.

*2 Date is shown in order of Month/Day/Year.

*3 This item is displayed only when [Environment] is set to [Auto]. Depending on the battery status,

either "Normal Temperature" or "High Temperature" is displayed.

Parameters

(Underline indicates settings at the time of factory shipment.)

Main Menu

System Time: [xx:xx:xx]*1

System Date: [xx/xx/xxxx]*2

Touch Pad: [Enable]

Touchscreen: [Enable]

Display: [Simultaneous]

Display Expansion: [Enable]

Environment: [Auto]

Current Status:*3 Normal Temperature

Touch Pad Disable

Enable

Touchscreen Disable

Enable

Display*4 External Monitor

Internal LCD

Simultaneous

Display Expansion Disable

Enable

Environment Normal Temperature

High Temperature

Auto

Setup Utility

*4 The display destination in cases where Windows is not running is set here. If an external display is

not connected, all information will appear on the internal LCD even if [External Monitor] or

[Simultaneous] is selected.

After Windows starts up, the screen is displayed on the display destination set in the following menu.

[start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) Extreme Graphics] - [Devices]

*1 Only for models with wireless LAN.

NOTE

[Advanced] menu cannot be changed when the Setup Utility is started up with the

User Password.

Parameters

(Underline indicates settings at the time of factory shipment.)

Advanced Menu

Serial Port A: [Auto]

Serial Port B: [Auto]

Modem: [Enable]

LAN: [Enable]

Boot up from LAN: [Enable]

Wireless LAN:*1 [Enable]

Legacy USB Support: [Enable]

Serial Port A Disable

Enable

Auto

I/O IRQ*2 3F8/IRQ4

2F8/IRQ3

3E8/IRQ7

2E8/IRQ5

Setup Utility

*2 This item is displayed only when the setting of each port is [Enable].

*3 [Disable] is automatically set when [LAN] is set to [Disable].

Serial Port B Disable

Enable

Auto

I/O IRQ*2 3F8/IRQ4

2F8/IRQ3

3E8/IRQ7

2E8/IRQ5

Modem Disable

Enable

LAN Disable

Enable

Boot up from LAN*3 Disable

Enable

Wireless LAN Disable

Enable

Legacy USB Support Disable

Enable

Setup Utility

NOTE

When the Setup Utility is started up with the User Password;

• [Set Supervisor Password] and [Hard Disk Lock] will not be displayed.

• [Password on boot], [Setup Utility Prompt], [Boot First Menu] and [User Password

Protection] will be displayed, but cannot be set.

• The User Password can be changed only when [User Password Protection] has

been set to [No Protection]. The User Password cannot be deleted.

Parameters

(Underline indicates settings at the time of factory shipment.)

Security Menu

Password on boot: [Enable]

XSet Supervisor Password: [Enter]

Setup Utility Prompt: [Enable]

Boot First Menu: [Enable]

Hard Disk Lock: [Disable]

User Password Protection: [No Protection]

XSet User Password: [Enter]

Password on boot Disable

Enable

Set Supervisor Password To the sub-menu

Setup Utility Prompt*1 Disable

Enable

Boot First Menu Disable

Enable

Hard Disk Lock*2 Disable

Enable

Setup Utility

*1 When [Setup Utility Prompt] is set to [Disable], the message "Press F2 for Setup / F12 for LAN" is

not displayed on [Panasonic] boot screen. Even if the message is not displayed,

and

F12

will

work.

*2 Setting impossible when the Supervisor Password is not set.

User Password Protection No Protection

Protected

Set User Password*2 To the sub-menu

Setup Utility

*1 This is displayed even if a floppy disk drive is not connected or [Legacy USB Support] is set to [Dis-

able] on [Advanced] menu.

The following drive can be used for startup (recommended).

Panasonic USB floppy disk drive (optional. CF-VFDU03)

*2 "+" is displayed if the device that can be used for startup is connected. Pressing

Enter

expands or

collapses devices with a - or +. Pressing

Ctrl

Enter

expands all the devices.

If two or more devices are displayed at [Floppy Drive] or [Hard Disk Drive], select the device you

want to use for startup, and then press

until the device is at the top of the menu.

*3 This is displayed even if a CD/DVD drive is not connected or [Legacy USB Support] is se to [Dis-

able] on [Advanced] menu.

*4 This is displayed even if [LAN] is set to [Disable] on [Advanced] menu.

The default order is as follows:

[Floppy Drive] -> [Hard Disk Drive] -> [USB CD/DVD Drive] -> [LAN].

To move a device up by one in the order, select the device with  and , and then press

To move a device down by one in the order, select the device with  and , and then press

NOTE

[Boot] menu cannot be changed when the Setup Utility is started up with the User

Password.

Boot Menu

The device for starting up the operating system can also be selected during computer

start-up. After the computer is turned on, and

Esc

is pressed at [Panasonic] boot

screen, [Boot Menu] (the device selection screen) will appear. When the setting of

[Boot] menu is changed, the selection screen display will also change. [Boot Menu] is

displayed only when [Boot First Menu] in [Security] menu is set to [Enable].

Boot Menu

+Floppy Drive*1*2

+Hard Disk Drive*2

USB CD/DVD Drive *3

LAN*4

Setup Utility

*1 This item is not displayed when starting up the Setup Utility with the User Password.

*2 Only displayed when a backup area is created.

Parameters

Exit Menu

Save Values & Exit

Exit Without Saving Changes

Get Default Values*1

Load Previous Values

Save Current Values

Hard Disk Backup / Restore *2

Save Values & Exit Exit the Setup Utility and save your changes

to CMOS.

Exit Without Saving Changes Exit the Setup Utility without saving your

changes to CMOS.

Get Default Values Set the Setup Utility to the default settings.

Load Previous Values Load previous values from CMOS for all

Setup items.

Save Current Values Save your changes to CMOS.

Hard Disk Backup / Restore Backup data to a backup area in the hard

disk. Also, restore backed up data to the

original hard disk. Before executing, be

sure to read "Hard Disk Backup Function" in

the Operating Instructions.

Technical Information

Only the following resolutions are supported. Do not select other resolutions.

800 x 600, 1024 x 768, 1280 x 1024 pixels

If the power saving function (standby or hibernation mode) activates while communications

software is being used, the network connection may be interrupted, or performance may be

adversely affected. If this happens, restart the computer.

Be sure to close the communications software before using the power saving function.

When using the computer in a network environment, we recommend that you set [System

standby] and [System hibernates] to [Never], using the following procedure:

Select [start] - [Control Panel] - [Performance and Maintenance] - [Power Options] - [Power

Schemes].

The Windows files included in the Retail Version of the Windows CD-ROM for each OS are

contained in the following folders:

c:\windows\docs, c:\windows\dotnetfx, c:\windows\i386, c:\windows\support,

c:\windows\valueadd

Supported Display Resolutions

Network Connections and Communications Software

When Using the Files on the Retail Version of the Windows CD-

ROM

DMI Viewer

This computer conforms to the specifications of the Desktop Management Interface (DMI).

The DMI Viewer can be used when you want to know information on the internal systems this

computer supports, starting with the CPU and memory.

1Select [DMI Viewer] from [start] - [All Programs] - [Panasonic].

The screen shown at left is displayed.

When you select an item, detailed information on that item will be displayed.

Displayed information can be saved to a text file (.txt). Run the DMI Viewer and display the

information you wish to save.

1Select save method.

To save the item that is displayed

Select [Save Selected Data] from [File] menu.

To save all items

Select [Save All Data] from [File] menu.

2Select the folder, input the file name, then select [Save].

Running DMI Viewer

Saving information to a file

100

Icon Enlarger

If the characters, icons, title bars, mouse cursor, or other items are too small and difficult to

see on the screen, use the "Icon Enlarger," and change the screen display by switching

among [Normal Size], [Large Size], and [Extra Large Size].

Characters on Internet screens*1 displayed on Internet Explorer, as well as characters*1 in

sent and received mail in Outlook Express and characters*1 in mail text boxes, change

according to the settings in the "Icon Enlarger".

In the default settings, [Normal Size] is set.

*1 Some characters in homepages and HTML e-mails may not be magnified.

1Select [start] - [All Programs] - [Panasonic] - [Icon Enlarger].

2Select the display size as [Normal Size], [Large Size], or [Extra Large

Size].

3Select [OK].

The screen will be displayed in the selected size.

NOTE

“Icon Enlarger” will not start up if the display resolution is set lower than 1024 x 768

dots.

When magnifying screen, a part of the menu or other screen elements may become

hidden. In this case, overlay the cursor to display pop-ups, scroll the screen, or use

other functions to display the hidden elements.

Close all running application before starting “Icon Enlarger”

How to magnify the computer screen display

101

Loupe Utility

If the characters, images, or other items are too small and difficult to see on the screen,

enlarge a part of the screen that you want to see as if using a magnifying glass.

When using Loupe Utility for the first time, run it from the [start] menu.

Run Loupe Utility

1Select [start] - [All Programs] - [Panasonic] - [Loupe Utility].

If you want to run Loupe Utility automatically when starting Windows next time:

Add the check mark for [Register in Startup].

You can change the settings later for whether or not to register at startup.

If you do not want to display the confirmation screen when running Loupe Utility

next time:

Add the check mark for [In the future, do not show this message].

2Select [OK].

 will be displayed on the taskbar.

Use Loupe Utility

102

Loupe Utility

Enlarging a Part of the Screen

1Point the cursor ( ) to the place on the screen where you want to

Enlarge.

2Right-click while pressing

Alt

The area indicated by the cursor will be enlarged.

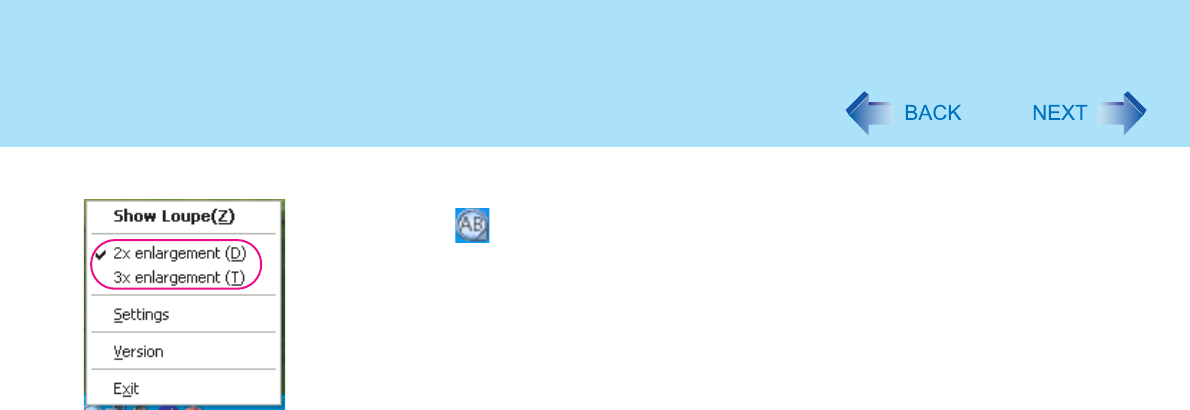

Double-click on in the taskbar, or right-click on and select [Show Loupe]

to show the enlarged display. (page 103)

3Perform the enlarged display

A. Enlarged-display window: If you drag this part, the enlarged display will move.

B. (no-show button): If you select , the enlarged-display window will be

hidden.

• Selecting outside the enlarged display or right-clicking while pressing

Alt

again will hide the enlarged-display window, too.

C. Changing the size: If you drag this part, you can enlarge/downsize the enlarged-

display window.

• The enlarged/downsized size will differ, depending on the display

resolution.

NOTE

Loupe Utility displays the screen at the moment of the display enlargement (e.g., the

moment when the right button is clicked while pressing

Alt

). After the screen has

been enlarged, there is no change in the enlarged-display window even if the original

screen changes.

To reflect the changes, select the enlarged-display window (A).

There are some applications that may not be enlarged properly.

103

Loupe Utility

1Right-click on the taskbar.

2Select [Settings].

Changing the operation when showing/hiding the enlarged-display window

Set key combinations for displaying the enlarged-display window by using an

external mouse, touch pad, or keyboard.

When using the external mouse/touch pad

ASelect [Mouse/Touch Pad](B).

BSelect a combination of

Alt

Ctrl

, and

Shift

, and add the check mark.

(Multiple keys can be combined; for example,

Alt

Ctrl

) (C).

CSelect right-click or left-click (D) with the keys selected in step B.

When using the keyboard

ASelect [Keyboard](A).

BSelect the text box (E), and then press the key used for the shortcut.

(e.g.,

Alt

Ctrl

, etc.)

Changing the window shape

Select [Circular](F) or [Rectangular](H).

Start up Loupe Utility when Windows is started

Add the check mark for [Register in Startup](G).

Return Loupe Utility to the default (factory shipment) setting

Select [Restore Defaults](I).

3Select [OK].

Set Loupe Utility

104

Loupe Utility

Select whether to make the display enlargement 2x or 3x.

Right-click , and then select [2x enlargement] or [3x enlargement].

105

List of Error Codes

When turning on the computer, if one of the following error codes or messages is displayed,

follow the instructions shown below.

If the problem persists, or if the error code or message displayed is not shown here, contact

Panasonic Technical Support.

Error Code/Message Action

0212: Keyboard error If an external keyboard is connected, disconnect this

device.

0251: System CMOS checksum

bad - Default configuration used

An error has occurred in the memory that stores the

Setup Utility settings. This error occurs when the

memory content is changed through some inadvertent

operation by a program or other function.

Run the Setup Utility and load the default values,

then change the settings to the appropriate values as

needed. (page 88)

If the problem persists, the internal clock battery may

need to be replaced. Contact Panasonic Technical

Support.

0271: Check date and time

settings

The data and time setting are incorrect.

Run the Setup Utility and set the date and time

correctly. (page 91)

If the problem persists, the internal clock battery may

need to be replaced. Contact Panasonic Technical

Support.

0280: Previous boot incomplete -

Default configuration used

Startup has failed repeatedly, so the Setup Utility

settings have been returned to their default values, and

the computer has been restarted.

Run the Setup Utility and load the default values,

then change the settings to the appropriate values as

needed. (page 88)

0613: Serial Port*1 configuration

changed

0614: Serial Port*1 config. error -

device disabled

*1 The port name, such as A or B,

is displayed, indicating the

conflicting ports.

I/O address and IRQ settings are in conflict.

Run the Setup Utility and change the settings in

[Advanced] menu so there is no port conflicts.

106

List of Error Codes

Press <F2> to Setup Write down the error details and press

to run the

Setup Utility. Confirm the settings, and change the

settings to the appropriate values as needed.

(page 88)

Operating System not found The OS is not properly installed on the floppy disk or the

hard disk that you are trying to boot from.

If the computer cannot be booted from the floppy

disk, check the floppy disk drive to ensure that the

disk is in fact bootable, and change it to another if

not.

If the computer cannot be booted from the hard disk,

confirm whether the hard disk is properly recognized

in [Information] menu of the Setup Utility. (page

90)

• If the hard disk is recognized, perform the

reinstallation procedure.

• If not, contact Panasonic Technical Support.

If a device is connected to the USB port, disconnect

the device, or run the Setup Utility and set [Legacy

USB Support] in [Advanced] menu to [Disable].

(page 92)

Extended RAM Module Failed If the extended RAM module has not been inserted

properly, or if an extended RAM module other than

one matching the specifications has been inserted, a

beep will sound and the message “Extended RAM

Module Failed” will be displayed when turning the

power on. In this case, turn the power off, confirm

that the extended RAM module meets the

specifications, and reinsert it.

Error Code/Message Action

107

Dealing with Problems (Advanced)

When a problem occurs, refer to this page. If a problem appears to be related to a software

application, read the software related manual. If you still cannot troubleshoot the problem,

contact Panasonic Technical Support. You can use the PC Information Viewer to check the

computer's usage status (page 128).

Starting Up

The power indicator or battery

indicator is not lit

Check the cable connection for the AC adaptor.

Check to see if a fully charged battery is properly inserted.

Remove the battery pack and disconnect the AC adaptor, then connect them

again.

The computer does not operate when

a USB device is connected

The computer may not operate when certain USB devices are connected.

Disconnect the USB device, or set [Legacy USB Support] to [Disable] in

[Advanced] menu of the Setup Utility.

[Enter Password] is displayed Input your Supervisor Password or User Password. If you have forgotten it,

contact Panasonic Technical Support.

POST Startup Error(s) is displayed page 105

Windows startup, or an operation is

extremely slow

Press

in the Setup Utility (page 88).

This will restore the Setup Utility's settings to their default values (except the

password settings). Then, the Setup Utility must be run once again for you to

input the appropriate operating environment settings.

(The processing speed depends on the application software used, so this

operation may not cause the processing speed to increase.)

If you install resident software after purchasing this computer, disable the

resident software.

The date and time are incorrect You can set the date and time using the following menu:

[start] - [Control Panel] - [Date, Time, Language, and Regional Options] - [Date

and Time]

When the computer is connected to a LAN, confirm the date and time of the

server.

If you continue to experience problems, the internal battery maintaining the

clock may need to be replaced. Contact Panasonic Technical Support.

This computer will not correctly recognize the date and time starting from the

year 2100 A.D.

108

Dealing with Problems (Advanced)

When resuming from the standby or

hibernation mode, [Enter Password]

does not appear even if a password

has been set in the Setup Utility

Even when a password has been set in the Setup Utility, [Enter Password] does

not appear when the computer resumes from the standby or hibernation mode.

If you want to use the security function when using the standby or hibernation

mode, use the Windows password as follows:

ASelect the account to change in [start] - [Control Panel] - [User

Accounts] and set the password.

BAdd the check mark for [Prompt for password when computer

resumes from standby] in [Control Panel] - [Performance and

Maintenance] - [Power Options] - [Advanced].

When the administrator password is

forgotten

If you have created a password reset disk (⇒ Operating Instructions "First-time

Operation"), a message is displayed when you fail to correctly enter the

password. Follow the message's instructions and set the password again by

using the password reset disk.

If you have not created a password reset disk, after reinstalling, setup Windows

and then set the password again.

When "Remove disks or other media.

Press any key to restart" (or a similar

message) is displayed

This means a floppy disk that dose not contain system startup information has

been left in the floppy disk drive. Remove the floppy disk, and press any key.

This message may appear when certain USB devices are connected. Remove

the USB device, or set [Legacy USB Support] in [Advanced] menu of the Setup

Utility to [Disable].

If the message still appears even after trying the above measures, this may be

an indication that some type of hard disk failure has occurred. Contact

Panasonic Technical Support.

[Executing Battery Recalibration]

screen is displayed

This screen appears because the Battery Recalibration was canceled before

Windows was shut down last. To start up Windows, turn off the computer by

sliding the power switch, and then turn it back on again.

Starting Up

109

Dealing with Problems (Advanced)

When the previous item is not the

cause

Press

in the Setup Utility. This will restore the Setup Utility's settings to their

default values (except the password settings).

Try removing all peripheral devices.

Check a disk error using the following procedure.

ADisplay [Local Disk (C:) Properties].

Select [Local Disk(C:)] with the right button in [start] - [My Computer],

and select [Properties].

BSelect [Tools] - [Check Now].

CSelect [Start] after selecting required items in [Check disk options].

At startup, hold down

when [Panasonic] boot screen disappears*1, and

release your finger when the Windows Advanced Options Menu is displayed.

Start the computer in Safe Mode, and confirm the details of the error.

*1 When [Password on boot] is set to [Enable], [Enter Password] appears after the

[Panasonic] boot screen disappears. Hold down

a few moments after inputting the

password and pressing

Enter

Display

No display after powering on When there is no display to an external display,

• Check your cable connection to the external display.

• Confirm your display is powered on.

• Check the settings for your external display.

The display destination may be set to the external display.

Try changing the display destination by pressing

If you want to switch the display destination repeatedly by pressing

make sure that the display destination has switched completely each time

before pressing

again.

Press

and adjust the brightness.

The power has not been turned off, but

after a certain period of time, there is

no display

Has the computer been set to the power-saving mode? To resume operation of

your computer from the condition the power of the display is off (for energy

conservation purposes), press any key unrelated to the direct triggering of a

selection, like

Ctrl

To save power, your computer may have automatically entered the standby

mode (power indicator blinks green) or hibernation mode (power indicator turns

off). In such cases, slide the power switch.

Starting Up

110

Dealing with Problems (Advanced)

When the battery pack is used, the

screen is darker than when the AC

adaptor is connected

Press

and adjust the brightness. Note, however, that when the

brightness is increased, the battery running time will become shorter.

Brightness can be set to separate levels for when the AC adaptor is connected

and when it is disconnected.

An afterimage appears (e.g., green,

red, and blue dots remain on the

display) or there are dots not

displaying the correct colors

If an image is displayed for a prolonged period of time, an afterimage may

appear. This is not a malfunction. The afterimage will disappear when a

different screen is displayed.

High-precision and advanced technologies are necessary in the production of

color liquid crystal displays (color LCDs). Therefore, if 0.002% or less of the

picture elements either fail to light or remain constantly lit (that is, more than

99.998% of elements are functioning properly), no defect is considered to exist.

The external display no longer

displays properly

When an external display not compatible with the power saving mode is used

with the computer, the display may not function correctly when the computer

enters the power saving mode. In such cases, turn off the power to the external

display.

When you want to display the fonts or

icons at a larger size

Change the size of the icons, etc. using "Icon Enlarger" (page 100).

To enlarge a part of the screen, use Loupe Utility (page 101).

During simultaneous display, one of

the screens becomes disordered

Try changing the display by pressing

If you continue to experience problems, try changing the display destination in

the following menu.

[start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) Extreme

Graphics] - [Devices]

When the [Command Prompt] is set to "Full Screen" by pressing

Alt

Enter

the picture is displayed on one of the screens only. When the window display is

restored by pressing

Alt

Enter

, the picture is displayed on both screens.

When a video such as an MPEG file is

being played with Windows® Media

Player, the display destination cannot

be switched using

The display destination cannot be switched while a vide such as an MPEG file

is playing. Stop playing the vide before switching the display destination.

Setup Utility

[Enter Password] is displayed Enter the Supervisor Password or User Password. If you have forgotten it,

contact Panasonic Technical Support.

Display

111

Dealing with Problems (Advanced)

[Advanced] and [Boot] menu can not

be registered

Restart the Setup Utility with the Supervisor Password.

Some items in [Security] menu can not

be registered

Restart the Setup Utility with the Supervisor Password.

does not work Restart the Setup Utility with the Supervisor Password.

Shutting Down

Windows cannot be shut down or

restarted

If a USB device is connected, try removing it.

It may take one or two minutes to shutdown.

Standby/Hibernation Function

Unable to enter standby or hibernation

mode

If a USB device is connected to the computer (note: only for some USB

devices), remove the USB device temporarily. If the problem persists, restart

the computer.

It may take one or two minutes to enter the standby or hibernation mode.

The computer may not enter standby mode properly and seems to be frozen in

the case that the computer is communicating via the modem. If this happens,

slide the power switch for four seconds or more to forcibly turn your computer

off.

Unable to automatically enter standby

or hibernation mode

If a peripheral is connected to the computer, disconnect the device.

The computer does not resume Did you slide the power switch and hold it for four seconds or more? If you slide

the power switch and hold it for four seconds or more, the power will be turned

off forcibly. In this case, all unsaved data will be lost.

Did you disconnect the AC adaptor or the battery pack while the computer was

in standby mode? If the computer's power supply is disconnected while the

computer is in standby mode, the unsaved data will be lost.

Setup Utility

112

Dealing with Problems (Advanced)

Battery Indicator

The red indicator lights The battery level is very low (the charge is approx. 9% or less).

Connect the AC adaptor. You can use the computer when the battery indicator

light is orange. If you do not have an AC adaptor, save your data and power off

your computer. After replacing the battery pack with a fully charged one, turn

your computer on.

The red indicator blinks Quickly save your data and power off your computer. Remove the battery pack

and disconnect the AC adaptor, then connect them again. If the problem

persists, contact Panasonic Technical Support. The battery pack or charging

circuit may be defective.

The green indicator blinks In high temperature mode, the battery is discharging to the level that corre-

sponds to an 80%*1 charge for normal temperature mode. Do not remove the

battery pack while the battery indicator is blinking green or the power will be

turned off forcibly.

*1 In high temperature mode, the level that corresponds to an 80% charge for normal

temperature mode is displayed as [100%].

The battery indicator blinks green and

orange alternately

Warming up the system to prevent hard disk drive malfunctions at low

temperature. Leave your computer as is. Once the allowable temperature range

requirement is satisfied, your computer will start automatically.

The orange indicator blinks Battery cannot be recharged temporarily because the internal temperature of

the battery pack is outside of the acceptable temperature range for recharging.

Once the allowable range requirement is satisfied, charging begins

automatically. Your computer can be used normally in this state.

Keyboard

Only numbers can be input Check whether the indicator is on. If it is on, the computer is in ten-key

keyboard mode. To disable the ten-key mode, press

NumLk

Only capital letters are being input Check whether the indicator is on. If it is on, the computer is in Caps Lock

mode. To disable the Caps Lock mode, press

Caps Lock

How to input European characters (ß,

à, ç etc.), symbols or Euro currency

symbol is unclear

Display the character map and point to the desired font name, such as

European fonts, and select it with the following procedure.

Select [start] - [All Programs] - [Accessories] - [System Tools] - [Character

Map].

113

Dealing with Problems (Advanced)

When you want to use the keyboard in

the Tablet mode

Use the software keyboard(page 27).

Display Rotation

The display cannot be changed and

the operation of the touch pad and the

touchscreen do not match the display

angle

When some applications are running, the display may not be rotated and the

operation of the touch pad and the touchscreen may not match the display

angle. Press the rotation button 1 - 3 times (until the operation of the touch

pad and the touchscreen matches the display angle). After exiting the

application, rotate the display, then start up the application again.

If the problem persists, restart the computer.

The display is not rotated

automatically by switching from Laptop

mode to Tablet mode, or vice versa

Confirm that the default angle of each mode is correctly set. (page 34)

Do not switch from Laptop mode to Tablet mode, or vice versa, while Windows

is in the process of switching users with the Fast User Switching function.

The display fails to rotate even when

the rotation button is pressed

Close the applications which are open.

When the screensaver starts while the

display is rotated, nothing is displayed

on the screen

Some screensaver types do not display anything on the screen for the first

minute or so. Try changing the screensaver type.

Networking: General

Unable to connect to a network Confirm that either [Modem], [LAN] or [Wireless LAN] (only for models with

wireless LAN) is set to [Enable] in the Setup Utility.

When using the computer as a network computer, some additional settings may

have to be made depending on the usage conditions. We recommend asking

your system administrator or the person in charge of the network.

If the standby or hibernation mode is entered, the computer may have to be

restarted.

If the link lamp on the HUB unit is not on and the network cannot be accessed,

set the speed to match the HUB unit. (page 78)

Keyboard

114

Dealing with Problems (Advanced)

Cannot check the computer’s MAC

address

Check the computer’s MAC address using the following procedure:

ADisplay [Command Prompt].

Click [start] - [All Programs] - [Accessories] - [Command Prompt].

BInput [ipconfig /all], and press the

Enter

key.

CWireless LAN’s MAC address (only for models with wireless LAN):

Make a note of the 12-digit string of alphanumerics displayed on the

wireless LAN's "Physical Address" line. Then input [exit], and press

the

Enter

key.

LAN’s MAC address:

Make a note of the 12-digit string of alphanumerics displayed on the

LAN's "Physical Address" line. Then input [exit], and press the

Enter

key.

The following phenomena occur

The LAN transmission speed slows

down dramatically

Wireless LAN connection drops out

page 120

Networking: General

115

Dealing with Problems (Advanced)

Networking: Wireless LAN (only for models with wireless LAN)

Access point is not detected Shorten the distance between the computer and the access point, and try the

detection again.

It may take some time before the access point is displayed in [Available

Networks]. Wait a moment.

Confirm the following settings:

• [Wireless LAN] in the [Advanced] menu of the Setup Utility.

Confirm that [Wireless LAN] is set to [Enable] (page 92).

• Wireless device off:

Confirm that / / is displayed on the taskbar.

If / / is not displayed on the taskbar, confirm that [Wireless On]

is selected in [Intel PROSet/Wireless] screen. (page 83)

Confirm whether the Intel® PROSet/Wireless Software is installed using the

following menu.

[start] - [Control Panel] - [Add or Remove Programs].

If it has not been installed, input [c:\util\drivers\wlan\proset\iProInst.exe EoU=False]

in [start] - [Run] to install.

This computer uses channels 1 through 11*1. Check the channel being used by

the access point.

*1 In the case of wireless communications, the frequency band being used can be divided

into segments, so that different communications can be conducted on each band

segment. A "Channel" refers to the individual frequency bandwidth divisions.

Some access points have a function that limits automatic access point

detection. Confirm the access point’s SSID using the access point manual, and

make the settings manually on the computer.

The access point wireless function may be disabled.

Confirm the access point’s settings according to the access point manual.

If you have installed a firewall, change the firewall’s settings to enable

communications from an access point (register as a computer capable of

communications, etc.).

116

Dealing with Problems (Advanced)

Cannot communicate with the access

point

Confirm that the access point is on.

Confirm that the following settings match with the access point. If these

settings do not match, confirm the access point settings, and do the settings on

the computer again.

• Network name (SSID or ESSID)

• Data encryption

• Network authentication

•Network key

•Key index

Using the following procedure, confirm whether the computer’s protocol settings

are correct (only when using TCP/IP).

AWhen is displayed on the taskbar:

Right-click , and select [Open the Network Connection].

When is not displayed on the taskbar:

Select [start] - [Control Panel] - [Network and Internet Connections] -

[Network Connections].

BRight-click [Wireless Network Connection], and select [Properties] -

[General] - [Internet Protocol (TCP/IP)] - [Properties].

CConfirm the protocol settings, such as IP address, and do the settings

properly again.

Depending on the access point and settings, access may not be accepted

unless the computer's MAC address is registered beforehand. In this case,

check the computer's MAC address (page 114) and register it according to

the operating instructions of the access point.

Communication speed decreases Communication speed may decrease if, aside from the access point to which

this computer is connected, there is another access point nearby using the

same channel or a similar channel. Change the channel on the connection

access point, and check to see if the speed recovers. Confirm method for

changing channels using the access point manual.

The rate may drop while a microwave oven is being used.

When using a wireless LAN in an environment that combines both

IEEE802.11g and IEEE802.11b, communication speed when using

IEEE802.11g may decrease.

Networking: Wireless LAN (only for models with wireless LAN)

117

Dealing with Problems (Advanced)

Communications with access point are

cut off

Shorten the distance between the computer and the access point, and try the

detection again.

If there are multiple access points aside from the access point to which this

computer is connected, confirm that different channels have been set for each

access point.

Unable to connect to a network Is the IP address of the access point wrong?

Following the operating instructions of the access point, set the IP address of

the access point again correctly

Cannot communicate via an ADSL, or

cable modem..

Check to see whether IP address and DHCP server settings are set as

indicated by Internet Service Providers (ISP).

Cannot set wireless LAN to [Enable] or

[Disable]

It may become impossible to set the wireless LAN to [Enable] or [Disable] if

these settings are changed repeatedly on the [Network Connection] screen. In

this case, restart the computer

Press the

key in the Setup Utility. This will restore the Setup Utility's

settings to their default values (except the password settings).

is not displayed (or has disap-

peared)

To display , perform the following procedure.

ASelect [start] - [Control Panel] - [Network and Internet Connections]

- [Network Connections].

BRight-click [Wireless Network Connection], and select [Properties].

CAdd a check mark for [Show icon in notification area when

connected], and then select [OK].

Connecting Peripherals

An error occurs while installing the

driver

When you install the driver for a PC Card or peripheral device, be sure to use a

driver that is compatible with the operating system. If you use an incompatible

driver, malfunction may occur. For information on drivers, contact the

manufacturer of the peripheral device you purchased.

Networking: Wireless LAN (only for models with wireless LAN)

118

Dealing with Problems (Advanced)

Your peripheral does not work Make sure a driver is installed.

Contact the manufacturer of the product.

When operation resumes from the standby or hibernation mode, devices such

as a mouse, modem or PC Cards may not function properly. In such cases,

you will need to restart your computer or reinitialize the individual devices.

When is displayed in the Device Manager, try removing and inserting the

device once more. If the problem persists, restart the computer.

Depending on the device connected, the computer may not recognize when the

device is connected or disconnected, or the device may not operate properly.

Use the following procedure.

Select the applied device in [start] - [Control Panel] - [Performance and

Maintenance] - [System] - [Hardware] - [Device Manager], then remove the

check mark for [Allow the computer to turn off this device to save power] in

[Power Management]. (This item may be unavailable for some types of

devices.)

External mouse or trackball connected

to the external keyboard/mouse

port of the port replicator does not

work

page 19

A PC Card does not work Make sure the card is properly inserted.

Confirm that the card conforms to the PC Card Standard.

Note that after a driver (PC Card driver on other) is installed, the computer must

be restarted.

Check that the proper port settings have been made.

Read the operating instructions for the PC Card. Or, you may need to call the

manufacturer of the PC Card.

Try removing/reinserting the PC Card by following the proper procedure.

(page 60)

Confirm that a driver for your operating system has been installed.

Connecting Peripherals

119

Dealing with Problems (Advanced)

USB floppy disk drives do not work as

a boot drive

Only the Panasonic CF-VFDU03 USB floppy disk drive (optional) can be used.

Do not connect the floppy disk drive to the USB hub or the USB connector of

the port replicator for this computer.

Make sure [Legacy USB Support] is set to [Enable] in the [Advanced] menu of

the Setup Utility.

If two or more devices are displayed at [Floppy Drive] in the [Boot] menu of the

Setup Utility, make sure the USB floppy disk drive is at the top of the [Boot]

menu (page 96)

After powering off the computer, connect the USB floppy disk drive and restart

the computer.

You do not know the available RAM

module

page 63

Cannot tell whether the RAM module

has been correctly installed

If the RAM module is recognized correctly, the total size of the main unit

memory and RAM module memory is displayed on the [Information] menu of

the Setup Utility (page 90).

If the RAM module is not recognized, turn the computer off and reinsert the

RAM module.

The RAM module has not been

recognized

Make sure the RAM module has been properly inserted.

Use the RAM module that supports the recommended specifications (page

63).

The address map for IRQ, I/O port

address, etc. is unclear

The current address map can be displayed with the following procedure.

[start] - [Control Panel] - [Performance and Maintenance] - [System] -

[Hardware] - [Device Manager] - [View] - [Resources by type].

The device connected to the serial

port does not work

Check the connection.

Confirm that the device driver for the serial port works. Refer to the operating

instructions of the device. Confirm that two mouse devices are not connected,

one through the external keyboard/mouse port of the port replicator and the

other through the serial port.

Try setting [Touch Pad] and [Touchscreen] to [Disable] in the Setup Utility.

Confirm that [Serial Port A] (or [Serial Port B]) has not been set to [Disable].

Depending on the device, the operable I/O and IRQ may be limited. Try

different I/O and IRQ settings in the Setup Utility.

Connecting Peripherals

120

Dealing with Problems (Advanced)

The following phenomena occur

The LAN transmission speed slows

down dramatically

Poor performance when forwarding

data via a PC card

(e.g., unstable video images when

writing videos to a DV camera

using an IEEE1394 PC card)

<Only for models with wireless LAN>

Wireless LAN connection drops out

These phenomena may be consequences of performance losses that result

from CPU power-saving functions. Execute the following operations after

logging on with the administrator authority.

AInput [c:\util\cpupower\setup.exe] in [start] - [Run], and select [OK].

Follow the on-screen instructions.

BSelect [Performance] in [start] - [All Programs] - [Panasonic] - [CPU

Idle Setting] and select [OK], then select [Yes].

The computer will be restarted automatically.

If these phenomena occur even with the above settings, select

[start] - [Control Panel] - [Performance and Maintenance] - [Power

Options] - [Power Schemes], select [Always On] from [Power

schemes], and select [OK].

• These operations will be helpful in easing the performance losses resulting

from CPU power saving functions, but will not be effective against the

phenomena resulting from other causes. (e.g., noise generated during

periods of exceptionally high load on the CPU, such as during video

playback).

• When these operations are performed, the battery running time will be

reduced to some extent. We thus recommend that when these phenomena

do not occur, you should select [Battery (Windows XP Standard)] in [CPU Idle

Setting], and return [Power schemes] in [Power Options] to [Portable/Laptop].

Disk Operations

Cannot read/write to a floppy disk Are you using the Panasonic CF-VFDU03 USB floppy disk drive (optional)?

Has the floppy disk been correctly inserted?

Has the floppy disk been correctly formatted?

Your floppy disk content may be corrupted.

Unable to write to a disk Is the floppy disk write-protected?

How to format a floppy disk is unclear Format the floppy disk using the following procedure.

Select [My Computer] in [start] and select [3 1/2 Floppy (A:)], then select [File]

from the menu and select [Format]. Confirm the disc capacity and the format

type, then select [Start] to begin the formatting.

Connecting Peripherals

121

Dealing with Problems (Advanced)

Unable to read/write to the hard disk Your drive or file may not have been properly set.

Check to see if the hard disk is full. If it is full, delete unnecessary files.

You cannot use a hard disk drive for which [Enable] has been selected in the

[Hard Disk Lock] setting of the Setup Utility by another computer.

Your hard disk content may be corrupted. Contact Panasonic Technical

Support.

When the previous item is not the

cause

Try testing another drive or media.

Touch Pad / Touchscreen

The cursor cannot be controlled

properly

If you are using an external mouse, ensure that the external mouse has been

connected correctly.

Restart the computer by using the keyboard.

(Press ,

, and select [Restart] with

If the computer does not respond to keyboard commands, read "No response"

(page 122).

The cursor does not move in scrolling

area of the touch pad

When the Microsoft® IntelliMouse™ Wheel mode or the original mode is set for

the touch pad, only scroll operations are possible for the right part or bottom

part of the touch pad. In this case, cursor operations are possible by using the

work surface excluding the right part or bottom part. When no mode is set, the

entire surface of the touch pad can be used for cursor operations.

Unable to input using the touch pad Has the Setup Utility been used to set [Touch Pad] to [Enable]?

When external mouse drivers are installed (e.g., IntelliMouse), the touch pad

may not be used.

Has the touch pad driver been properly installed?

Unable to point correctly with the

stylus included with the computer

As a result of the physical characteristics of the touchscreen, sometimes the

position of the stylus does not match the position of the cursor on the screen.

This is not a malfunction. Perform [Calibration]. (page 25)

Unable to input by touching the display Has the Setup Utility been used to set [Touchscreen] to [Enable]?

When mouse drivers are installed (i.e. IntelliMouse), the touchscreen is unable

to be used.

Has the touchscreen driver been properly installed?

Disk Operations

122

Dealing with Problems (Advanced)

Sound

The sound is not heard Try changing the mute by pressing

Volume does not change when

is pressed

If the Windows sound function is not active, the volume will not change even if

is displayed.

The audio is distorted Audio distortion may occur when operations are performed by pressing

combination with another key. Stop playing and start again.

When starting Sound Recorder, it

displays the message: "There was an

error updating the registry"

Sound Recorder displays this error message when started by a user with a

limited account if the user's language setting is different to that of the user with

the administrator authority which last started it. This will not affect the operation

of the computer.

 Fast User Switching Function

Some applications may not work

properly

When switching to a different user with the Fast User Switching function, the

following problems may occur.

• Some applications may not work properly

• Key combination with

may not work.

• It may not be possible to set the settings of the display.

• A serial mouse may not work.

• <Only for models with wireless LAN>

Wireless LAN may be used.

In this case, log off all users without using Fast User Switching function, and try

the operation once more. If the problem persists, restart the computer.

Others

No response Press

Ctrl

Shift

Esc

to open Task Manager and close the software

application which is not responding.

Is there an input screen (e.g., password input screen at startup) hidden behind

another window? Use

Alt

Tab

to check for other windows being displayed.

After shutting down by sliding the power switch for more than four seconds,

slide the power switch to power on and open the application again. If the

program no longer works normally, delete the program using the following

menu. Then reinstall the program.

[start] - [Control Panel] - [Add or Remove Programs]

123

Dealing with Problems (Advanced)

When trying to play back video files

using Windows® Media Player, the

message [Codec required] appears,

and the file cannot be played back

Some video files use a Codec that is not installed as a standard. In these

cases, if you play back the video file after connecting to the Internet, the Codec

may be downloaded automatically, allowing you to play back the file.

Cannot start a network-used program,

or cannot share files or printers

If you cannot start up a program or share files, this may be because the “Fire-

wall (Windows Firewall)” in the “Windows Security Center” is set to be enabled.

If this function is set to be enabled, damage from viruses and other attacks is

reduced, but some programs and functions cannot be operated.

To use the program or to share files or printers:

You can use programs or other functions without the effects of the Windows

Firewall by registering them as an exception in the Windows Firewall settings (it

is not necessary to disable the Windows Firewall).

Note, however, that if a program is registered as an exception, there is a risk of

damage from viruses or other attacks. Before registering a program as an

exception, confirm the program’s safety with the manufacturer or other reliable

source.

ASelect [start] - [Control Panel] - [Security Center] - [Windows Fire-

wall].

BSelect [Exceptions].

CTo register a network game or other programs as an exception:

Select [Add Program], select the program, and select [OK].

To set access through a specified port as an exception:

Select [Add Port], set the port, and select [OK].

To set a file or printer as an exception:

Add the check mark for [File and Printer Sharing].

DConfirm that there is a check mark for the item to be set as an

exception, and select [OK].

Others

124

Dealing with Problems (Advanced)

Is it necessary to enable the Windows

Firewall?

The Windows Firewall is a security function designed to protect your computer

from unauthorized access via the Internet and other external networks.

The firewall regulates the data exchanged between the computer and the exter-

nal network, so that only approved data can pass through. We recommend that

you use your computer with the Firewall enabled to minimize damage from

viruses and other malicious attacks.

When installing additional commercially available firewall software, we recom-

mend that you disable the Windows Firewall settings, as the new software may

interfere with the Windows Firewall functions.

For details, refer to the manual accompanying the firewall software to be

installed.

When “Automatic Updates” is enabled,

will all updates be downloaded (or

installed)?

Only Windows Update programs with a high level of priority will be automati-

cally downloaded (or installed).

Update programs with a comparatively low level of importance will not be down-

loaded (or installed) automatically. Check regularly whether new update pro-

grams have become available.

Security Center warning function does

not operate

The Security Center warning function will not operate if you are using a network

domain, for example at a company.

Others

125

Dealing with Problems (Advanced)

Problem with Web page display (no

display; display is completely white;

advertisements, logon, and other pop-

ups are not displayed)

In Windows XP, security functions have been strengthened with regard to Web

contents.

One of these is the “Pop-up Blocker,” which may prevent some Web pages from

being displayed.

If you have any problems with Web page displays (e.g., if a page cannot be dis-

played correctly on Internet Explorer), check the contents of the message win-

dow displayed below the address bar (called the “Information Bar”). The

Information Bar shows the information that has been suppressed by Internet

Explorer.

• If the message “Pop-up blocked” is displayed:

Select the message, and select “Temporarily Allow Pop-ups.”

The blocked Popup will be displayed temporarily.

• If the message “This site might require the following ActiveX control...” is dis-

played:

ASelect the message, and select “Install ActiveX Control.”

BCheck “Name” and “Publisher” on the [Security Warning] screen, and

execute the installation.

• If you cannot find the Information Bar:

If you need to display the page, select the Web page link while pressing

Ctrl

The pop-up blocker function will be temporarily disabled.

Images in HTML e-mail messages are

not displayed in Outlook Express

In Windows XP, there is a function that blocks image displays in HTML e-mail

messages.

To display images in HTML e-mail messages, it is necessary to access the

sender’s server, and this may cause problems in the computer.

Preventing these images from appearing can decrease the risk of attack from

viruses etc.

If you need to display images, select the segment where the message “Some

pictures have been blocked…” is displayed. The images can be displayed

temporarily.

Cannot read attachment file in Outlook

Express (cannot save file)

If a message received in Outlook Express has contained an attachment file with

an extension such as “.exe" or “.scr” (potentially unsafe files), Windows XP

blocks those files.

If you need to read the files, select [Tools] - [Options] - [Security] and remove

the check mark from [Do not allow attachments to be saved or opened that

could potentially be a virus].

Others

126

Dealing with Problems (Advanced)

The message “Your computer might be

at risk” is displayed

This message is displayed by the “Security Center” function in Windows XP.

The “Security Center” is a function that monitors the level of safety in Windows

security settings in order to operate the computer safely, for example, with

regard to antivirus measures.

It checks the following three items regularly, and displays messages until the

settings are made at an appropriate level of safety.

• Firewall: Is the Windows Firewall enabled?

• Automatic Updates: Is the automatic Windows Update function enabled?

• Virus Protection: Has antivirus software been installed, has the latest version

of the antivirus software been installed, and is the real-time search function

enabled (ON)?

The message “Your computer might be at risk” is displayed by the “Security

Center” function, and does not indicate an error or malfunction. The “Security

Center” function checks the above three items to ensure that your computer

can be used safely, and notifies the user if the settings are not at an appropriate

level of safety.

You can continue to use the computer even if these messages continue to be

displayed, but we recommend that you follow the procedures below to minimize

damage from viruses.

ARead the message.

BSelect (red icon) on the taskbar.

The [Windows Security Center] screen will be displayed.

CSelect [Recommendations] in [Firewall] or [Virus Protection], or select

[Turn on Automatic Updates] in [Automatic Updates].

If measures are not required, [Recommendations] or [Turn on Auto-

matic Updates] will not be displayed.

DExecute the appropriate measures, following the instructions in the

[Recommendation] screen.

Others

127

Dealing with Problems (Advanced)

is displayed This message is displayed because the “Automatic Updates” setting in the

“Security Center” is disabled or is not set. (Settings have not been made at the

time of purchase.)

“Automatic Updates” is a function that regularly checks whether high-priority

update programs (security updates, etc.) have been provided to Windows

Update, and automatically installs these programs to maintain Windows in its

latest condition.

You can continue using the computer even if these messages continue to be

displayed, but we recommend that “Automatic Updates” is set as [Automatic] to

maintain its latest condition.

ARead the message.

BSelect (yellow icon) on the taskbar.

The [Automatic Updates] screen will be displayed.

CSelect [More Options], and set the Automatic Updates to [Automatic].

Some applications do not work prop-

erly

Some software applications installed after the time of purchase are not compat-

ible with Windows XP Service Pack 2. Refer to software maker’s homepage or

other sources.

If a network-used program is not compatible, also refer to “Cannot start a net-

work-used program.” (page 123)

Others

128

Dealing with Problems (Advanced)

You can use the PC Information Viewer to check the computer's usage status, and use this

information when calling Panasonic Technical Support for advice. (If you have not logged on

with the administrator authority, some information will be displayed as [Not Found].)

Running PC Information Viewer

ASelect [start] - [All Programs] - [Panasonic] - [PC Information Viewer] - [PC

Information Viewer].

Click on the menu items to display detailed information for each item.

NOTE

The [PC Information Viewer] screen is always displayed on the top of every other

screen.

Save information to a file

Displayed information can be saved to a text file(.txt).

ARun the PC Information Viewer and display the information you wish to save.

BSelect [Save].

To save the item that is displayed

Select [Save only the information displayed] and select [OK].

Some of the hidden information on the screen, which cannot be shown

without scrolling the screen, will be saved, too.

To save all items

Select [Save all the information] and select [OK].

CSelect the folder, input the file name, then select [Save].

Save a copy of the screen to a file

You can save a copy of the screen currently being displayed to a file in bitmap format (.bmp).

ADisplay the screen you want to save.

BPress

Ctrl

Alt

Check the Computer's Usage Status

129

Dealing with Problems (Advanced)

CWhen a message "The copy of the screen was saved..." is displayed, select

[OK].

[pcinfo.bmp] file will be saved in [My Documents] folder. If [pcinfo.bmp] file

already exists, it will be overwritten. (If [pcinfo.bmp] file is set as a "Read-only"

or "Hidden" file, the new file cannot be saved.)

NOTE

You can also save a copy of the screen to a file using the following procedure.

Select [start] - [All Programs] - [Panasonic] - [PC Information Viewer] - [Screen Copy].

At the time of purchase, the computer is set so that a copy of the screen can be saved

to a file by pressing

Ctrl

Alt

. This setting can be changed using the following

procedure.

ASelect [start] - [All Programs] - [Panasonic] - [PC Information Viewer].

BSelect [Screen Copy] with the right button, and select [Properties] - [Shortcut].

CMove the cursor to [Shortcut key], and press the key to be used for the shortcut.

Colors are saved in 256 colors.

When using an Extended Desktop

A copy of the screen displayed on the primary device will be saved.

130

Copyright

This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights

reserved. No part of this manual may be reproduced in any form without the prior written

permission of Matsushita Electric Industrial Co., Ltd. No patent liability is assumed with

respect to the use of the information contained herein.

Disclaimer

Computer specifications and manuals are subject to change without notice. Matsushita

Electric Industrial Co., Ltd. assumes no liability for damage incurred directly or indirectly

from errors, omissions or discrepancies between the computer and the manuals.

Trademarks

• Microsoft, Windows, the Windows logo and IntelliMouse are registered trademarks of

Microsoft Corporation of the United States and/or other countries.

• Intel, Pentium and PROSet are either registered trademarks or trademarks of Intel

Corporation.

• Adobe, the Adobe logo and Adobe Reader are either registered trademarks or

trademarks of Adobe Systems Incorporated in the United States and/or other countries.

• Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd.

• Names of products, brands, etc., appearing in this manual are trademarks or registered

trademarks of their respective owner companies.

PCE0165G_XP

Panasonic CF 18 Reference Manual User To The 3f2f4678 67f7 46a0 9828 078d971f8c05

Navigation menu

Versions of this User Manual:

Views

Navigation
