OPERATING INSTRUCTIONS

Personal Computer

Model No. CF-51 series

Introduction.................................................2

Read Me First ..............................................3

Description of Parts .......................................9

First-time Operation .....................................11

On-screen Manual.......................................13

Handling and Maintenance.............................14

Hard Disk Data Erase Utility ...........................16

Reinstalling Software....................................17

Error Code/Message ....................................19

Troubleshooting (Basic) ................................20

LIMITED USE LICENSE AGREEMENT..............23

Contrat de licence d’usage limité ......................24

Specifications ............................................25

LIMITED WARRANTY ..................................29

For more information about the com-

puter, you can refer to the on-screen

manual.

To access the on-screen manual.

Îpage 13 “On-screen Manual”

2

Getting StartedUseful InformationTroubleshootingAppendix

Introduction

Thank you for purchasing this Panasonic computer. For optimum performance and safety, please read these instruc-

tions carefully.

Terms and illustrations in these instructions

zSome illustrations are simplified to help your understanding and may look different from the actual unit.

zIf you do not log on as an administrator, you cannot use some functions or cannot display some screens.

zRefer for the latest information about optional products to the catalogs, etc.

zIn these instructions, the names and terms are referred as follows.

• “Microsoft® Windows® XP Professional Service Pack 2 with Advanced Security Technologies” as “Windows” or

“Windows XP”

• “WinDVD™ 5 (OEM Version)” as “WinDVD”

• “B’s Recorder GOLD8 BASIC” as “B’s Recorder”

• “B’s CLiP 6” as “B’s CLiP”

• DVD-ROM & CD-R/RW drive and DVD MULTI drive as “CD/DVD drive”

• Circular media including DVD-ROM and CD-ROM as “discs”

Copyright

This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may

be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd.

No patent liability is assumed with respect to the use of the information contained herein.

© 2006 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.

Disclaimer

Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd.

assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the com-

puter and the manuals.

Trademarks

Microsoft®, Windows® and the Windows logo are registered trademarks of Microsoft Corporation of the United States

and/or other countries.

Intel, Core, Viiv, Centrino and PROSet are either registered trademarks or trademarks of Intel Corporation.

SD Logo is a trademark.

Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorpo-

rated in the United States and/or other countries.

Bluetooth is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Matsushita Electric Industrial Co., Ltd.

WinDVD™ is a trademark of InterVideo, Inc.

Panasonic® is a registered trademark of Matsushita Electric Industrial Co., Ltd.

Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective

own companies.

: Conditions that may result in minor or moderate injury.

: Useful and helpful information.

Enter

: Press [Enter] key.

Fn

+

F5

: Press and hold [Fn] key, and then press [F5] key.

[start] - [Run] : Click [start], and then click [Run]. You may need to double-click in some cases.

Î : Page in these Operating Instructions or in the Reference Manual.

: Reference to the on-screen manuals.

CAUTION

NOTE

3

Getting StartedUseful InformationTroubleshootingAppendix

Read Me First

Federal Communications Commission Radio Fre-

quency Interference Statement

Note: This equipment has been tested and found to com-

ply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interfer-

ence in a residential installation. This equipment gener-

ates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does

cause harmful interference to radio or television recep-

tion, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

zReorient or relocate the receiving antenna.

zIncrease the separation between the equipment and

receiver.

zConnect the equipment into an outlet on a circuit differ-

ent from that to which the receiver is connected.

zConsult the Panasonic Service Center or an experi-

enced radio/TV technician for help.

Warning

To assure continued compliance, use only shielded inter-

face cables when connecting to a computer or peripheral.

Also, any changes or modifications not expressly

approved by the party responsible for compliance could

void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received,

including interference that may cause undesired oper-

ation.

Responsible Party:

Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Tel No:1-800-LAPTOP5 (1-800-527-8675)

<Only for model with wireless LAN>

FCC RF Exposure Warning:

zThis equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment.

zThis equipment must be installed and operated in

accordance with provided instructions and minimum

1.5 cm spacing must be provided between antenna

and all person’s body (excluding extremities of hands,

wrist and feet) during wireless modes of operation.

zThis transmitter must not be co-located or operated in

conjunction with any other antenna or transmitter.

zThis computer is provided with a PC Card slot that

could be used with wireless transmitter(s), which will

be specifically recommended, when they become

available. Other third-party wireless transmitter(s)

have not been RF exposure evaluated for use with this

computer and may not comply with FCC RF exposure

requirements.

This product is restricted to indoor use due to its operation

in the 5.15 to 5.25 GHz frequency range.

FCC requires this product to be used indoors for the fre-

quency range 5.15 to 5.25 GHz to reduce the potential for

harmful interference to co-channel Mobile Satellite sys-

tems.

High power radars are allocated as primary users of the

5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These

radar stations can cause interference with and/or damage

this product.

FCC Regulation Notice for modem

This equipment contains a FCC approved modem.

1. This equipment complies with CFR47 Part 68 rules.

On the computer is a label that contains, among other

information, the FCC registration number and ringer

equivalence number (REN) for this equipment. If

required, this information must be provided to the tele-

phone company.

2. An FCC compliant telephone cord and modular plug is

provided with this equipment. This equipment is

designed to be connected to the telephone network or

premises wiring using a compatible modular jack

which is Part 68 compliant. See Installation Instruc-

tions for details.

3. The REN is used to determine the quantity of devices

which may be connected to the telephone line. Exces-

sive RENs on the telephone line may result in the

devices not ringing in response to an incoming call. In

most, but not all area, the sum of RENs should not

exceed five (5.0). To be certain of the number of

devices that may be connected to a line, as deter-

mined by the total RENs, contact the local telephone

company.

4. If your telephone equipment cause harm to the tele-

phone network, the telephone company will notify you

in advice that temporary discontinuance of service

may be required. But if advice notice isn’t practical, the

telephone company will notify the customer as soon as

possible. Also, you will be advised of your right to file a

complaint with the FCC if you believe it is necessary.

5. The telephone company may take changes in its facili-

ties, equipment, operations or procedures that could

affect the operation of the equipment. If this happens

the telephone company will provide advance notice in

order for you to make necessary modifications to

maintain uninterrupted service.

6. If trouble is experienced with this equipment, for repair

or warranty information, please contact Panasonic

Corporation of North America at DIAL TOLL FREE 1-

800-LAPTOP5 (1-800-527-8675). If the equipment is

causing harm to the telephone network, the telephone

company may request that you disconnect the equip-

ment until the problem is resolved.

7. There are no user serviceable parts contained in this

equipment.

8. This equipment may not be used on coin service pro-

vided by the telephone company. Connection to party

lines is subject to state tariffs.

9. The Telephone Consumer Protection Act of 1991

makes it unlawful for any person to use a computer or

other electronic device to send any message via a

telephone fax machine unless such message clearly

contains in a margin at the top or bottom of each

Models for U.S.A.

4

Read Me First

Getting StartedUseful InformationTroubleshootingAppendix

transmitted page or on the first page of the transmis-

sion, the date and time it is sent and an identification of

the business or other entry, or other individual sending

the message and the telephone number of the sending

machine or such business, other entity, or individual. In

order to program this information into your fax soft-

ware, you should refer to the manual of the Fax soft-

ware being used.

10.According to the FCC’s electrical safety advisory, we

recommend that you may install an AC surge arrestor

in the AC outlet to which this equipment is connected.

Telephone companies report that electrical surges,

typically lightning transients, are very destructive to

customer terminal equipment connected to AC power

sources and that this is a major nationwide problem.

“Caution : To reduce the risk of fire, use only No.26 AWG or

larger telecommunication line cord.”

“ATTENTION : Pour réduire le risque d’incendie, utiliser

uniquement des conducteurs de télécommunications 26

AWG ou de section supérieure.”

Notice for the products using LCD

This product uses one or more fluorescent lamps contain-

ing a small amount of mercury. It also contains lead in

some components. Disposal of these materials may be

regulated in your community due to environmental consid-

erations.

For disposal or recycling information please contact your

local authorities, or the Electronics Industries Alliance:

<http://www.eiae.org/>

Industry Canada (IC) Notice for modem

This equipment contains an Industry Canada approved

modem unit.

The Industry Canada label is affixed on the modem unit.

EQUIPMENT ATTACHEMENT LIMITATIONS

“NOTICE: The Industry Canada label identifies certified

equipment. This certification means that the equipment

meets telecommunications network protective, opera-

tional and safety requirements as prescribed in the appro-

priate Terminal Equipment Technical Requirements

document(s). The Department does not guarantee the

equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that

it is permissible to be connected to the facilities of the

local telecommunications company. The equipment must

also be installed using an acceptable method of connec-

tion. The customer should be aware that compliance with

the above conditions may not prevent degradation of ser-

vice in some situations.

Repairs to certified equipment should be coordinated by a

representative designated by the supplier. Any repairs or

alterations made by the user to this equipment, or equip-

ment malfunctions, may give the telecommunications

company cause to request the user to disconnect the

equipment.

Users should ensure for their own protection that the elec-

trical ground connections of the power utility, telephone

lines and internal metallic water pipe system, if present,

are connected together. This precaution may be particu-

larly important in rural areas. Caution: Users should not

attempt to make such connections themselves, but should

contact the appropriate electric inspection authority, or

electrician, as appropriate.”

“NOTICE: The Ringer Equivalence Number (REN)

assigned to each terminal device provides an indication of

the maximum number of terminals allowed to be connected

to a telephone interface. The termination on an interface

may consist of any combination of devices subject only to

the requirement that the sum of the Ringer Equivalence

Numbers of all the devices does not exceed 5.”

REN: See bottom of the computer

RESTRICTIONS CONCERNANT LE RACCORDEMENT

DE MATÉRIEL

“AVIS: L’étiquette d’Industrie Canada identifie le matériel

homologué. Cette étiquette certifie que le matériel est

conforme aux normes de protection, d’exploitation et de

sécurité des réseaux de télécommunications, comme le

prescrivent les documents concernant les exigences tech-

niques relatives au matériel terminal. Le Ministère

n’assure toutefois pas que le matériel fonctionnera à la

satisfaction de l’utilisateur.

Avant d’installer ce matériel, l’utilisateur doit s’assurer

qu’il est permis de le raccorder aux installations de l’entre-

prise locale de télécommunication. Le matériel doit égale-

ment être installé en suivant une méthode acceptée de

raccordement.

L’abonné ne doit pas oublier qu’il est possible que la con-

formité aux conditions énoncées ci-dessus n’empêche

pas la dégradation du service dans certaines situations.

Les réparations de matériel homologué doivent être coor-

données par un représentant désigné par le fournisseur.

L’entreprise de télécommunications peut demander à

l’utilisateur de débrancher un appareil à la suite de répa-

rations ou de modifications effectuées par l’utilisateur ou à

cause de mauvais fonctionnement.

Pour sa propre protection, l’utilisateur doit s’assurer que

tous les fils de mise à la terre de la source d’énergie élec-

trique, des lignes téléphoniques et des canalisations

d’eau métalliques, s’il y en a, sont raccordés ensemble.

Cette précaution est particulièrement importante dans les

régions rurales. Avertissement: L’utilisateur ne doit pas

tenter de faire ces raccordements lui-même; il doit avoir

recours à un service d’inspection des installations élec-

triques, ou à un électricien, selon le cas.”

“AVIS: L’indice d’équivalence de la sonnerie (IES) assigné

à chaque dispositif terminal indique le nombre maximal de

terminaux qui peuvent être raccordés à une interface. La

terminaison d’une interface téléphonique peut consister

en une combinaison de quelques dispositifs, à la seule

condition que la somme d’indices d’équivalence de la

sonnerie de touts les dispositifs n’excède pas 5.”

IES: Voir sous le fond de l’ordinateur

Models for Canada

5

Getting StartedUseful InformationTroubleshootingAppendix

<Only for model with wireless LAN>

<Only for model with a “CE” mark on the bottom of the computer>

Declaration of Conformity (DoC)

“Hereby, we declare that this Personal Computer is in compliance with the essential requirements

and other relevant provisions of the Directive 1999/5/EC.”

Hint:

If you want to get a copy of the original DoC of our products which relates to the R&TTE, please con-

tact our web address: http://www.doc.panasonic.de

Contact:

Panasonic Services Europe

A Division of Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Network connection.

The terminal equipment is intended for connection to the following public network;

In all the countries of European Economical Area;

- Public Switched Telephony Networks

Technical Features.

The terminal equipment includes the following features;

- DTMF dialing

- Maximum bitrate receiving mode: 56 kbit/s

- Maximum bitrate sending mode: 33.6 kbit/s

This product is designed to interwork with the Public Switched Telecommunication Networks in UK, Ireland, Nether-

lands, Sweden, Denmark, Finland, Switzerland, Luxembourg, Belgium, France, Germany, Spain, Portugal, Iceland,

Greece, Italy, Norway and Austria.

Compliance Notice - CE Mark

This equipment is in conformance with the requirements of the European Council Directive listed below:

73/23/EEC Low Voltage Directive with amendment 93/68/EEC

89/336/EEC EMC Directive with amendments 92/31/EEC and 93/68/EEC

1999/5/EC R&TTE

When using your telephone equipment, basic safety pre-

cautions should always be followed to reduce the risk of

fire, electric shock and injury to persons, including the fol-

lowing:

1. Do not use this product near water, for example, near

a bath tub, wash bowl, kitchen sink or laundry tub, in a

wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type)

during an electrical storm. There may be a remote risk

of electric shock from lightning.

3. Do not use the telephone to report a gas leak in the

vicinity of the leak.

4. Use only the power cord and batteries indicated in this

manual. Do not dispose of batteries in a fire. They may

explode. Check with local codes for possible special

disposal instructions.

SAVE THESE INSTRUCTIONS

Certaines mesures de sécurité doivent être prises pen-

dant l’utilisation de matérial téléphonique afin de réduire

les risques d’incendie, de choc électrique et de blessures.

En voici quelquesunes:

1. Ne pas utiliser l’appareil près de l’eau, p.ex., près

d’une baignoire, d’un lavabo, d’un évier de cuisine,

d’un bac à laver, dans un sous-sol humide ou près

d’une piscine.

2. Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appar-

eil sans fil) pendant un orage électrique. Ceci peut

présenter un risque de choc électrique causé par la

foudre.

3. Ne pas utiliser l’appareil téléphonique pour signaler

une fuite de gaz s’il est situé près de la fuite.

4. Utiliser seulement le cordon d’alimentation et le type

de piles indiqués dans ce manual. Ne pas jeter les

piles dans le feu: elles peuvent exploser. Se conformer

aux règlements pertinents quant à l’élimination des

piles.

CONSERVER CES INSTRUCTIONS

Industry Canada

This product complies with RSS210 Industry Canada.

Operation is subject to the following two conditions;

(1) this device may not cause interference, and

(2) this device must accept any interference, including

interference that may cause undesired operation of

the device.

Models for Europe

Important Safety Instructions / Importantes Mesures De Sécurité

6

Read Me First

Getting StartedUseful InformationTroubleshootingAppendix

<Only for model with wireless LAN and/or Bluetooth>

This product and your Health

This product, like other radio devices, emits radio fre-

quency electromagnetic energy. The level of energy emit-

ted by this product however is far much less than the

electromagnetic energy emitted by wireless devices like

for example mobile phones.

Because this product operates within the guidelines found in

radio frequency safety standards and recommendations, we

believe this product is safe for use by consumers. These

standards and recommendations reflect the consensus of

the scientific community and result from deliberations of pan-

els and committees of scientists who continually review and

interpret the extensive research literature.

In some situations or environments, the use of this prod-

uct may be restricted by the proprietor of the building or

responsible representatives of the organization. These sit-

uations may for example include:

zUsing this product on board of airplanes, or

zIn any other environment where the risk of interference

to other devices or services is perceived or identified

as harmful.

If you are uncertain of the policy that applies on the use of

wireless devices in a specific organization or environment

(e.g. airports), you are encouraged to ask for authoriza-

tion to use this product prior to turning on the product.

Regulatory Information

We are not responsible for any radio or television interfer-

ence caused by unauthorized modification of this product.

The correction of interference caused by such unautho-

rized modification will be the responsibility of the user. We

and its authorized resellers or distributors are not liable for

damage or violation of government regulations that may

arise from failing to comply with these guidelines.

Lithium Battery!

This computer contains a lithium battery to enable the

date, time, and other data to be stored. The battery should

only be exchanged by authorized service personnel.

Warning!

A risk of explosion from incorrect installation or misappli-

cation may possibly occur.

Pile au lithium!

Le micro-ordinateur renferme une pile au lithium qui per-

met de sauvegarder certaines données, notamment la

date et l’heure. La pile ne doit être remplacée que par un

technicien qualifié.

Danger !

Risque d’explosion en cas de non respect de cette mise

en garde!

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS, ADJUSTMENTS OR PERFOR-

MANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS

RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOUR-

SELF.

REFER SERVICING TO QUALIFIED PERSONNEL.

AVERTISSEMENT!

CET APPAREIL UTILISE UN LASER.

L’UTILISATION DE COMMANDES OU DE RÉGLAGES

OU L’EXÉCUTION DE PROCÉDURES AUTRES QUE

CELLES SPÉCIFIÉES ICI PEUVENT PROVOQUER

UNE EXPOSITION À DES RADIATIONS

DANGEREUSES.

NE PAS OUVRIR LES COUVERCLES NI ESSAYER DE

RÉPARER SOIMÊME.

CONFIER TOUT TRAVAIL D’ENTRETIEN À UN

PERSONNEL QUALIFIÉ.

Information to the User

Lithium Battery / Pile au lithium

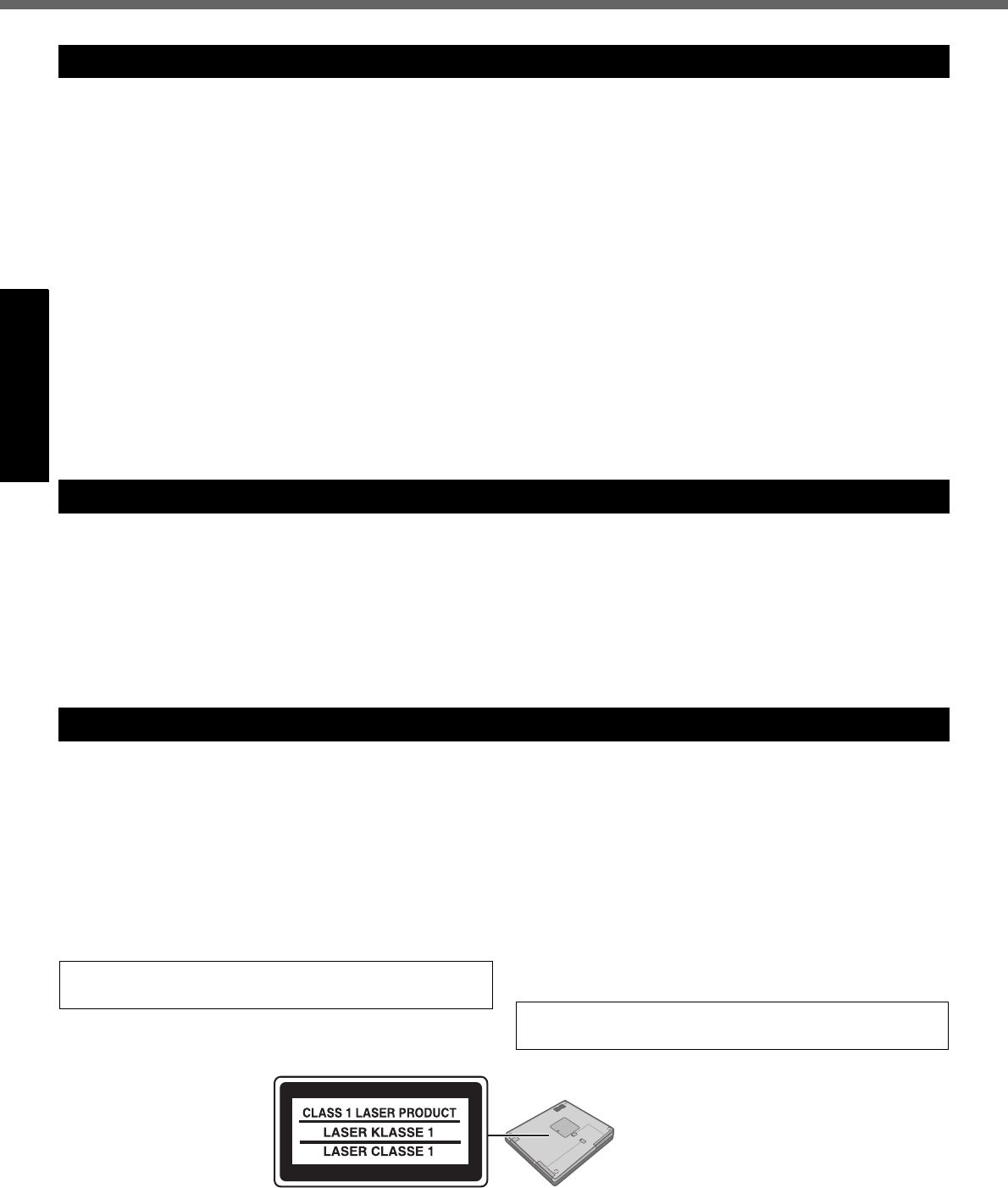

CD/DVD Drive Caution

Laser safety information is appropriate only when drive

with laser is installed.

Les mesures de sécurité relatives au laser ne s’appli-

quent que lors de l’installation d’une unité avec laser.

Bottom

7

Getting StartedUseful InformationTroubleshootingAppendix

This computer has been designed so as to minimize shock to the LCD and hard disk drive, the leakage of liquid (e.g., water)

on to the keyboard, etc., but no warranty is provided against such trouble. Therefore, as a precision instrument, be extremely

careful in the handling

THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CON-

TROL EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS

*1

. PANASONIC WILL NOT BE RESPONSI-

BLE FOR ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.

*1 AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2 Electrical Flight Bag(EFB) Systems and Class1 EFB Systems

when used during critical phases of flight (e.g., during take-off and landing). Class1 EFB Systems and 2 EFB Systems are defined

by FAA: AC (Advisory Circular) 120-76A.

Panasonic cannot guarantee any specifications, technologies, reliability, safety (e.g. Flammability/Smoke/Toxicity/Radio

Frequency Emission, etc) requirements related to aviation standards that exceed the specifications of our COTS (Com-

mercial-Off-The-Shelf) products.

Usage

Avoid Extreme Heat and Cold

Do not store or use the computer in locations

exposed to heat, direct sunlight, or extreme

cold.

Avoid moving the computer between loca-

tions with large temperature difference.

Operation: 5 °C to 35 °C {41 °F to 95 °F}

Storage: -20 °C to 60 °C {-4 °F to 140 °F}

Avoid Direct Sunlight on the LCD Panel

The LCD panel should not be exposed to

direct sunlight or ultraviolet light.

Avoid Humidity, Liquids and Dust

Do not store or use the computer in locations

exposed to high humidity, liquids (including

rain) or dust.

Prevent Shock

Avoid subjecting the computer to severe

vibrations or impact. Do not place the com-

puter inside a car trunk.

Avoid Radio Frequency Interference

Do not place the computer near a television

or radio receiver.

Avoiding Low-temperature Burns

Avoid more than casual contact with any

heat producing area of the notebook com-

puter, AC adaptor, and any option or acces-

sory you use with it. Even low heat, if warmer

than body temperature, can cause a burn, if

the skin is exposed to the heat source for a

long enough period of time.

Do Not Connect a Telephone Line, or a

Network Cable Other Than the One Speci-

fied, into the LAN Port

If the LAN port is connected to a network

such as the ones listed below, a fire or elec-

tric shock may result.

• Networks other than 1000BASE-T,

100BASE-TX or 10BASE-T.

• Phone lines [Telephone lines, internal

phone lines (on-premise switches), digital

public phones, etc.]

Do Not Touch the Computer and Cable

When it Starts Thundering

Do Not Connect the AC Adaptor to a

Power Source Other Than a Standard

Household AC Outlet.

Connecting to a DC/AC converter (inverter)

may damage the AC adaptor.

On an airplane, only connect the AC adaptor/

charger to an AC outlet specifically approved

for such use.

Keep SD Memory Cards Away From

Infants and Small Children.

Accidental swallowing will result in bodily

injury. In the event of accidental swallowing,

see a doctor immediately.

Handling

Avoid Magnetic Fields

Keep the computer away from magnets.

Data stored on the hard disk may be lost.

Avoid Stacking

Do not place heavy objects on top of the

computer.

Keep Small Objects Away

Do not insert paper clips or other small

objects into the computer.

Do Not Disassemble the Computer

Do not attempt to disassemble your com-

puter.

Avoid Excessive Force on the Display

Do not apply excessive downward force on

the display when it is completely opened,

especially when plugs and/or cables are con-

nected to the rear of the computer.

Precautions

Before putting the computer away, be sure to wipe off any moisture.

8

Read Me First

Getting StartedUseful InformationTroubleshootingAppendix

zCare should be exercised with regard to the following

in order to avoid the possibility of overheating, fire or

damage.

Avoid Heat

Do not throw the battery pack into a fire or

expose it to excessive heat.

Keep Articles Away

Do not place the battery pack together with

articles such as necklaces or hairpins when

carrying or storing.

Do Not Disassemble

Do not insert sharp objects into the battery

pack, expose it to bumps or shocks, deform,

disassemble, or modify it.

Do Not Short

Do not short the positive (+) and negative (-)

contacts.

Avoid Extreme Heat, Cold and Direct Sun-

light

Do not charge, use or leave the battery pack

for extended periods where it will be exposed

to direct sunlight, in a hot place (in a car on a

sunny day, for example), or in a cold place.

Do Not Use With Any Other Computer

The battery pack is rechargeable and was

intended for the specified computer or

charger. Do not use it with a computer other

than the one for which it was designed.

Do Not Use This Computer with a Battery

Pack Other Than the One Specified

Use only the specified Panasonic battery

pack (CF-VZSU29) with your CF-51. Use of

batteries other than those manufactured and

supplied by Panasonic may represent a

safety hazard.

Do Not Put into a Microwave

Do not put the battery pack into a microwave

oven or a pressurized chamber.

Stop Using

Should the battery emit an abnormal odor,

become hot to the touch, become discolored,

change shape, or become in any way differ-

ent from normal, remove it from the com-

puter and stop using it.

zDo not touch the terminals on the battery pack. The

battery pack may no longer function properly if the

contacts are dirty or damaged.

zDo not expose the battery pack to water, or allow it to

become wet.

zIf the battery pack will not be used for a long period of

time (a month or more), charge or discharge (use) the

battery pack until the remaining battery level becomes

30% to 40% and store it in a cool, dry place.

zThis computer prevents overcharging of the battery by

recharging only when the remaining power is less than

approx. 95% of capacity.

zThe battery pack is not charged when the computer is

first purchased. Be sure to charge it before using it for

the first time. When the AC adaptor is connected to the

computer, charging begins automatically.

zShould the battery leak and the fluid get into your

eyes, do not rub your eyes. Immediately flush your

eyes with clear water and see a doctor for medical

treatment as soon as possible.

NOTE

zThe battery pack may become warm during recharging

or normal use. This is completely normal.

zRecharging will not commence if internal temperature

of the battery pack is outside of the allowable tempera-

ture range (0 °C to 50 °C {32°F to 122°F}) (Î Ref-

erence Manual “Battery Power”). Once the allowable

range requirement is satisfied, charging begins auto-

matically. Note that the recharging time varies based

on the usage conditions. (Recharging takes longer

than usual when the temperature is 10 °C {50°F} or

below.)

zIf the temperature is low, the operating time is short-

ened. Only use the computer within the allowable tem-

perature range.

zThis computer has a high temperature mode function

that prevents the degradation of the battery in high

temperature environments. (Î Reference Manual

“Battery Power”) A level corresponding to a 100%

charge for high temperature mode is approximately

equivalent to an 80% charge level for normal tempera-

ture mode.

zThe battery pack is a consumable item. If the amount

of time the computer can be run by using a particular

battery pack becomes dramatically shorter and

repeated recharging does not restore its performance,

the battery pack should be replaced with a new one.

zWhen transporting a spare battery inside a package,

briefcase, etc., it is recommended that it be placed in a

plastic bag so that its contacts are protected.

zAlways power off the computer when it is not in use.

Leaving the computer on when the AC adaptor is not

connected will exhaust the remaining battery capacity.

Precautions (Battery Pack)

9

Getting StartedUseful InformationTroubleshootingAppendix

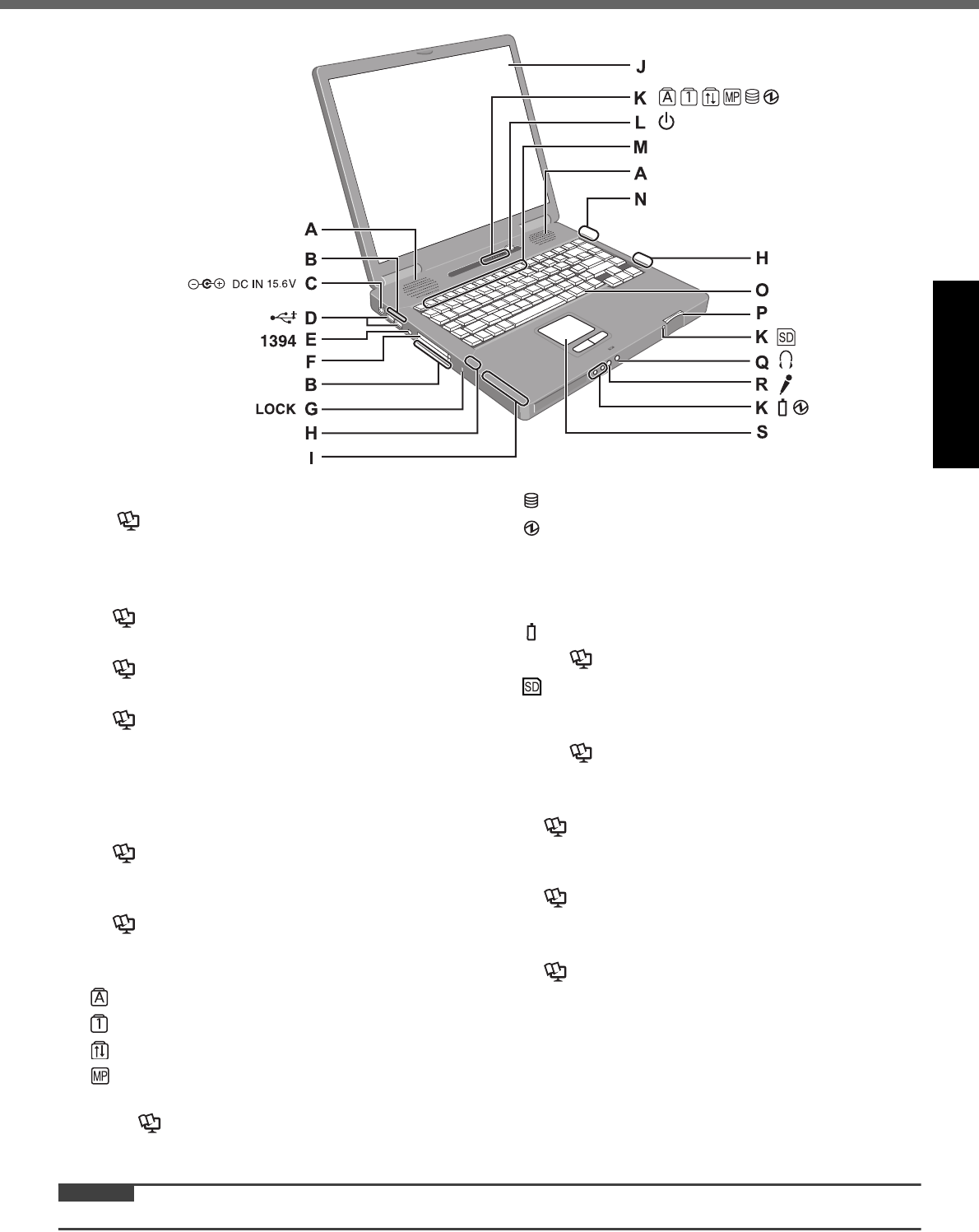

Description of Parts

CAUTION

zDo not put a metallic object or magnetic media close to the speakers.

A : Speaker

Î Reference Manual “Key Combinations”

B : Ventilation hole

C : DC-IN jack

D : USB port

Î Reference Manual “USB Devices”

E : IEEE 1394 interface connector

Î Reference Manual “IEEE 1394 Devices”

F : PC Card slot

Î Reference Manual “PC Cards”

G : Security lock

You can connect a Kensington cable. Refer to the

instruction manual of the cable.

H : Wireless LAN antenna

<Only for model with wireless LAN>

Î Reference Manual “Wireless LAN”

I : Smart Card slot

<Only for model with Smart Card slot>

Î Reference Manual “Smart Card”

J : LCD

K : LED indicator

Caps lock

Numeric key (NumLk)

Scroll lock (ScrLk)

Multimedia pocket device status or the second

battery status

Î Reference Manual “Multimedia Pocket”

“Battery Power”

Hard disk drive status

Power status

(Off: Power off/Hibernation, Green: Power on,

Blinking green: Standby, Blinking green rapidly:

Cannot power on or resume due to low tempera-

ture.)

Battery status

Î Reference Manual “Battery Power”

SD Memory Card status

(Blinking: During access or a password is

requested)

Î

Reference Manual “SD Memory Card”

L : Power button

M : Function key

Î Reference Manual “Key Combinations”

N : Bluetooth antenna

<Only for model with Bluetooth>

Î Reference Manual “Bluetooth”

O : Keyboard

P : SD Memory Card slot

Î Reference Manual “SD Memory Card”

Q : Headphone jack

You can connect headphones or amplified speakers.

When they are connected, audio from the internal

speakers is not heard.

R : Microphone jack

You can use a stereo condenser microphone. Con-

necting other type of microphone may interrupt audio

input or may cause a malfunction.

S : Touch pad

10

Getting Started

Description of Parts

CAUTION

zDo not block the ventilation hole with a thick cloth etc. Select a position with good ventilation.

A : Serial port

B : Modem port

Î Reference Manual “Modem”

C : Ventilation hole

D : USB port

Î Reference Manual “USB Devices”

E : External display port

Î Reference Manual “External Display”

F : External keyboard/Mouse port

G : LAN port

Î Reference Manual “LAN”

H : Multimedia pocket

Î Reference Manual “Multimedia Pocket”

I : Multimedia pocket release button

Î Reference Manual “Multimedia Pocket”

J : Expansion bus connector

Î Reference Manual “Port Replicator”

K : RAM module slot

Î Reference Manual “RAM Module”

L : Hard disk drive

Î Reference Manual “Hard Disk Drive”

M : Battery latch

N : Hard disk drive latch

Î Reference Manual “Hard Disk Drive”

O : Battery pack

A lithium ion battery that is recyclable powers the product you have purchased.

Please call 1-800-8-BATTERY for information on how to recycle this battery.

L’appareil que vous vous êtes procuré est alimenté par une batterie au lithium-ion.

Pour des renseignements sur le recyclage de la batterie, veuillez composer le

1-800-8-BATTERY.

11

Getting StartedUseful InformationTroubleshootingAppendix

First-time Operation

Preparation

ACheck and identify the supplied accessories.

If you do not find the described accessories, contact Panasonic Technical Support (Îpage 29).

zYou will need the serial number when you reinstall B’s Recorder/B’s CLiP using Product Recovery DVD-ROM

(Îpage 22).

B

Read the LIMITED USE LICENSE AGREEMENT before breaking the seal on the computer’s packaging (

Î

page 23).

APress and hold the mark part (A), and slide and remove the cover.

BInsert the battery pack (B) until it securely fits the connector.

CSlide the cover back.

To remove the battery pack

In step

B

above, slide and hold the latch (C), and pull the tab (D) of the battery pack.

CAUTION

zBe careful not to catch the tab when you close the cover.

zMake sure the cover is securely attached. Otherwise the battery pack may fall

when you carry the computer.

zDo not touch the terminals of the battery pack and the computer. Doing so can

make the terminals dirty or damaged, and may cause malfunction of the battery

pack and the computer.

zUse only the specified battery pack (CF-VZSU29A) with your computer. If you

use the former type of battery (CF-VZSU29), the computer’s processing speed

will become slower.

zThe computer’s processing speed will become slower when the computer oper-

ates by the second battery pack.

The battery charging starts automatically.

CAUTION

zDo not disconnect the AC adaptor until the first-time operation procedure is com-

pleted.

zWhen using the computer for the first time, do not connect any peripheral device

except the battery pack and AC adaptor.

zHandling the AC adaptor

• Do not twist or pull the AC power cord forcefully. Doing so may damage the

connections.

• Use only the specified AC adaptor with your computer. Using an AC adaptor

other than the one supplied might damage the battery and/or the computer.

• When the DC plug is not connected to the computer, disconnect the AC cord

from your AC wall outlet.

• Problems such as sudden voltage drops may arise during periods of thunder and

lightning. Since this could adversely affect your computer, an uninterruptible power

source (UPS) is highly recommended unless running from the battery pack alone.

• AC Adaptor . . . . . . 1

Model No: CF-AA1683A (Models for U.S.A)

CF-AA1653A (Models for Canada)

• AC Cord . . . . . . . . . 1 • Battery Pack . . . . . 1

Model No: CF-VZSU29A

• Modem Telephone

Cable . . . . . . . . . . . 1

• Product Recovery DVD-ROM . . . . . . . . . . . . . . 1

• Operating Instructions (This book) . . . . . . . . . 1

•Windows

® Book . . . . . . . . . . . . . . . . . . . . . . . . . 1

A

B

D

C

11 Insert the battery pack.

22 Connect your computer to a power outlet.

12

Getting Started

First-time Operation

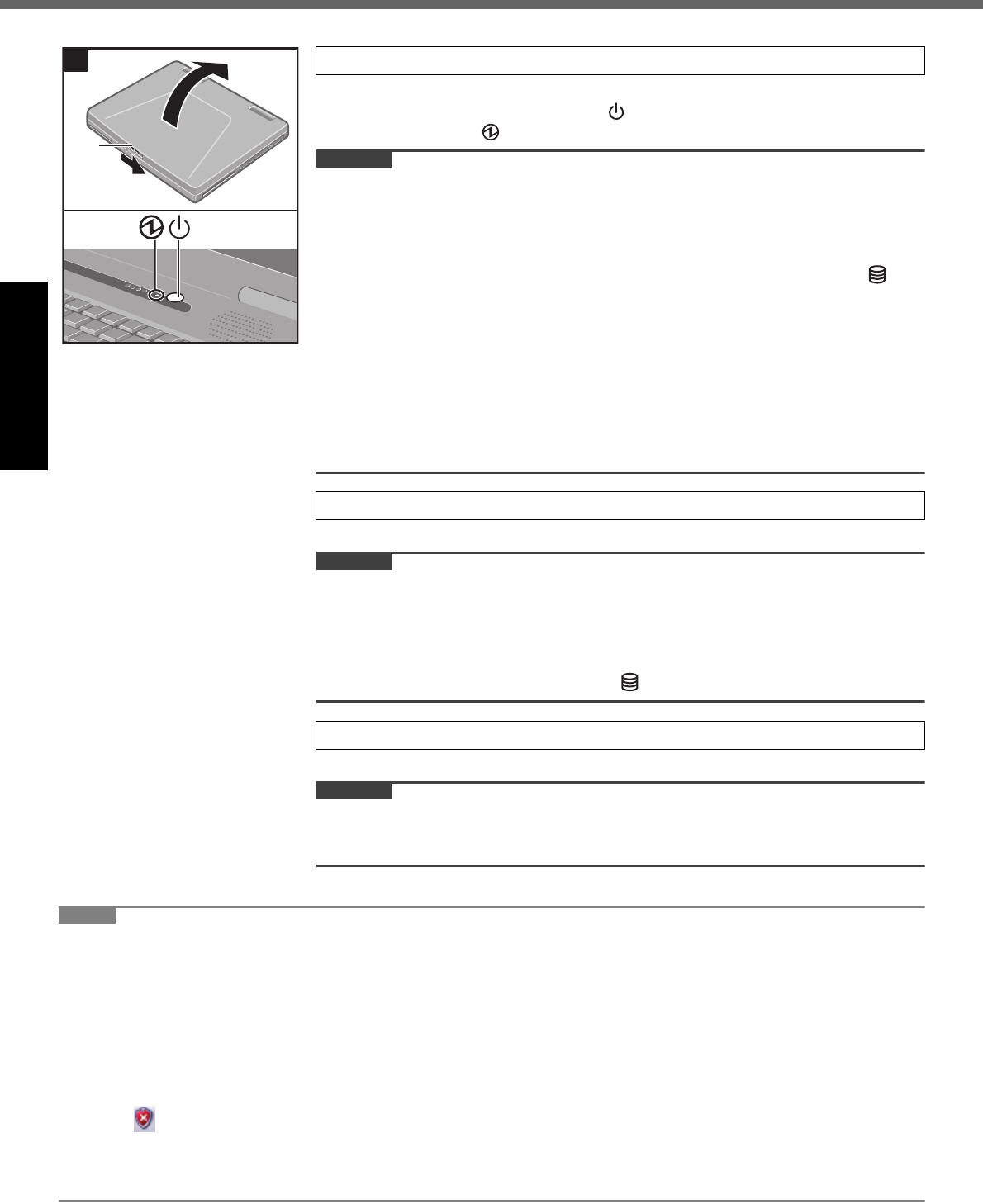

ASlide the latch (A), and open the display.

BPress and hold the power button for approximately one second until the

power indicator lights.

CAUTION

zDo not press the power button repeatedly.

zThe computer will be forcibly turned off if you press and hold the power button for

four seconds or longer.

zOnce you turn off the computer, wait for ten seconds or more before you turn on

the computer again.

zDo not perform the following operation until the hard disk drive indicator

turns off.

• Connecting or disconnecting the AC adaptor

• Pressing the power button

• Touching the keyboard, touch pad or external mouse

• Closing the display

zWhen the CPU temperature is high, the computer may not start up to prevent

overheating of the CPU. Wait until the computer cools down, and then turn the

power on again. If the computer does not power on even after cooling down,

contact Panasonic Technical Support (Îpage 29).

AFollow the on-screen instructions.

CAUTION

zWhen you set date/time/time zone and click [Next], the screen may not go to the

next step for a few minutes. Do not touch the keyboard or touch pad, and wait

until the screen changes.

zIf “An unexpected error has occurred …” (or a similar message) is displayed,

select [OK]. This is not a malfunction.

zWait until the hard disk drive indicator has turned off.

AClick [start] - [Control Panel] - [User Accounts] - [Create a new account].

CAUTION

zRemember your password. If you forget the password, you cannot use the Win-

dows operation system. Creating a password reset disk beforehand is recom-

mended.

NOTE

zRegarding Windows XP

You can select the Classic view of Control Panel or the Classic Start menu. You can also change the way a user logs

on or off. This manual explains using the Windows XP default setting (not Classic view or Classic Start menu etc.).

zWindows Update

You can update to the latest patches and service packs for Windows with the following menus.

Click [start] - [All Programs] - [Windows Update].

Do not apply “Driver Updates” even if a message to update a driver appears. If a driver update is required,

contact Panasonic Technical Support (Îpage 29).

zIf the message “Your computer might be at risk” is displayed

Select on the taskbar and make the appropriate settings. The Windows Security Center regularly gives you

notice so that you can make the optimum settings.

This is not an error message and you can use the computer. However, making appropriate measures is recom-

mended to reduce the risk of virus and other attacks.

A

33 Turn on the computer.

4 Setup Windows.

5 Create a new account.

13

Getting StartedUseful InformationTroubleshootingAppendix

On-screen Manual

You can access the Reference Manual and the Important Tips on the computer screen.

When you access the Reference Manual and the Important Tips for the first time, the License Agreement of the Adobe

Reader may be displayed. Read it carefully and select [Accept] to proceed.

Reference Manual

The Reference Manual contains the practical information to help you fully enjoy the computer’s performance.

To access the Reference Manual:

AClick [start] - [Reference Manual].

Important Tips

The Important Tips will provide you with the battery information so that you can use the battery pack in the optimum

condition to obtain longer operation time.

To access the Important Tips:

ADouble-click on the desktop.

zAlternatively click [start] - [All Programs] - [Panasonic] - [On-Line Manuals] - [Important Tips].

Contents

zKey Combinations

zStandby/Hibernation Functions

zSecurity Measures

zBattery Power

zMultimedia Pocket

zCD/DVD Drive

zWinDVD

zB’s Recorder/B’s CLiP

zPC Cards

zSD Memory Card

zSD Security

zSmart Card

zRAM Module

zPort Replicator

zExternal Display

zUSB Devices

zIEEE 1394 Devices

zModem

zLAN

zWireless LAN

zBluetooth

zWireless Switch Utility

zHard Disk Drive

zSetup Utility

zIcon Enlarger

zLoupe Utility

zDMI Viewer

zTechnical Information

zTroubleshooting (Advanced)

14

Getting StartedUseful InformationTroubleshootingAppendix

Handling and Maintenance

zPlace the computer on a flat stable surface. Do not place the computer upright or turn it over. If the computer is

exposed to an extremely strong impact, it may become inoperable.

zTemperature: Operation : 5 °C to 35 °C {41 °F to 95 °F}

Storage : -20 °C to 60 °C {- 4 °F to 140 °F}

Humidity: Operation : 30% to 80% RH (No condensation)

Storage : 30% to 90% RH (No condensation)

Even within the above temperature/humidity ranges, using for a long time in an extreme environment will result in

the product deterioration and will shorten the product life.

zDo not place the computer in the following areas, otherwise the computer may be damaged.

• Near electronic equipment. Image distortion or noise may occur.

• In extremely high or low temperature.

zAs the computer can become hot during operation, keep it away from items that are sensitive to heat.

This computer is designed to minimize shock to parts such as the LCD and the hard disk drive, but no warranty is pro-

vided against any trouble caused by shock. Be extremely careful when handling the computer.

zWhen carrying the computer:

• Turn off the computer.

• Remove all external devices, cables, PC Cards and other protruding things.

• Remove a disc in the CD/DVD drive.

• Do not drop or hit the computer against solid objects.

• Do not leave the display open.

• Do not grip the display part.

zDo not put anything (e.g., a piece of paper) between the display and keyboard.

zWhen you board an airplane, take the computer with you and never put it in your checked luggage. When using the

computer on airplane, follow the airline’s instructions.

zWhen carrying a spare battery, put it in a plastic bag to protect its terminals.

zThe touch pad is designed to be used with a finger tip. Do not place any object on its surface and do not press down

strongly with sharp-pointed or hard objects that may leave marks (e.g., nails, pencils and ball point pens).

zAvoid any harmful substances such as oil from getting into the touch pad. The cursor may not work correctly.

When using peripheral devices

Follow these instructions and the Reference Manual to avoid any damage to the devices. Carefully read the instruction

manuals of the peripheral devices.

zUse the peripheral devices conforming to the computer’s specifications.

zConnect to the connectors in the correct direction.

zIf it is hard to insert, do not try forcibly but check the connector’s shape, direction, alignment of pins, etc.

zIf screws are included, fasten them securely.

zRemove the cables when you carry the computer. Do not pull the cables forcibly.

Preventing your computer from unauthorized use via wireless LAN

<Only for model with wireless LAN>

zBefore using wireless LAN, make the appropriate security settings such as data encryption.

Operation Environment

Handling Cautions

15

Getting StartedUseful InformationTroubleshootingAppendix

To clean the LCD panel

zDo not use water to clean the panel. Ingredients included in water may leave scratches and reduce readability of the

screen.

zTo remove dust or dirt, do not use a cloth to rub it off since it may leave scratch on the screen.

Use a fine brush to sweep dust or dirt, then wipe with a dry soft glass-cleaning cloth.

zTo clean the oily surface, use a soft gauze dipped in camera lens cleaner, and then wipe with a dry soft glass-clean-

ing cloth.

To clean areas other than the LCD panel

Wipe with a soft dry cloth such as gauze. When using detergent, dip a soft cloth in water-diluted detergent and wring it

thoroughly.

CAUTION

zDo not use benzene, thinner, or rubbing alcohol since it may adversely affect the surface causing discoloration, etc.

Do not use commercially-available household cleaners and cosmetics, as they may contain components harmful to

the surface.

zDo not apply water or detergent directly to the computer, since liquid may enter inside of the computer and cause

malfunction or damage.

Maintenance

16

Getting StartedUseful InformationTroubleshootingAppendix

Hard Disk Data Erase Utility

When disposing the computer or transferring the ownership, erase all hard disk data in order to avoid data leakage.

Even if you erase the data or initialize the hard disk using normal Windows commands, the data can be read with some

special software. Use the hard disk data erase utility to erase the data completely.

Note that transferring of the ownership without uninstalling the commercial software will be a violation of the software’s

license agreement.

Preparation

zPrepare the following items:

• The Product Recovery DVD-ROM (included)

• Panasonic CD/DVD drive

zRemove all peripherals (except for the CD/DVD drive).

zConnect the AC adaptor and do not remove it until hard disk data erase is complete.

NOTE

zEven if hard disk data erase is performed, the number of times of DVD’s region code setting will not be reset.

1 Turn off the computer and insert the CD/DVD drive into the multimedia pocket

(Î Reference Manual “Multimedia Pocket”).

2 Turn on the computer, and press

F2

several times while [Panasonic] boot screen is dis-

played.

The Setup Utility starts up.

zIf the password is requested, enter the Supervisor Password.

3 Select the [Boot] menu, then select [IDE MP] and press

F6

until [IDE MP] is at the top of

the boot priority order.

4 Select the [Security] menu and set [MP CD/DVD Operation] to [Enable].

5 Set the Product Recovery DVD-ROM into the CD/DVD drive.

6 Press

F10

.

At the confirmation message, select [Yes] and press

Enter

.

The computer restarts.

7 Press

2

to execute [2. [Erase HDD]].

zTo cancel this operation, press

0

.

8 At the confirmation message, press

Y

.

9 When [<<< Start menu >>>] is displayed, press

Enter

.

The approximate time required for erasing data will be displayed.

10 Press

Space

.

At the confirmation message, press

Enter

.

The hard disk erase process starts. When the operation is completed, the [Hard disk data has been deleted.]

message will appear. If a problem has occurred during the operation, an error message will appear.

zTo cancel partway, press

Ctrl

+

C

. The data erasure will be up to that point.

11 Remove the Product Recovery DVD-ROM, and then press any key to turn off the com-

puter.

The hard disk data erase utility erases the data using overwriting method. If a malfunction or other operational error

occurs during the erasing process, the data may not be completely erased. Also there may be special devices to read

the erased data. To erase highly confidential data, ask a specialized company. Matsushita Electric Industrial Co., Ltd.

will bear no responsibility for losses or damages suffered as a result of the use of this utility.

17

Getting StartedUseful InformationTroubleshootingAppendix

Reinstalling Software

Preparation

zPrepare the following items:

• The Product Recovery DVD-ROM (included)

• Panasonic CD/DVD drive

zRemove all peripherals (except for the CD/DVD drive).

zConnect the AC adaptor and do not remove it until reinstallation is complete.

NOTE

zEven if reinstallation is performed, the number of times of DVD’s region code setting will not be reset.

1 Turn off the computer and insert the CD/DVD drive into the multimedia pocket

(Î Reference Manual “Multimedia Pocket”).

2 Turn on the computer, and press

F2

several times while [Panasonic] boot screen is dis-

played.

The Setup Utility starts up.

zIf the password is requested, enter the Supervisor Password.

3 Write down all of the contents of the Setup Utility and press

F9

.

At the confirmation message, select [Yes] and press

Enter

.

4 Select the [Boot] menu, then select [IDE MP] and press

F6

until [IDE MP] is at the top of

the boot priority order.

5 Select the [Security] menu and set [MP CD/DVD Operation] to [Enable].

6 Set the Product Recovery DVD-ROM into the CD/DVD drive.

7 Press

F10

.

At the confirmation message, select [Yes] and press

Enter

.

The computer will restart.

8 Press

1

to execute [1. [Recovery]].

The License Agreement screen appears.

zTo cancel partway, press

0

.

9 Press

1

to select [1. Yes, I agree to the provisions above and wish to continue!].

10 Select the settings.

z[2]: Enter the size of operating system partition and press

Enter

.

(The size of data partition will be determined by subtracting the operating system partition size from the

maximum size.)

[3]: Windows will be installed in the first partition.

(The size of the first partition must be 20 GB or more. If smaller, installation will not be possible.)

At the confirmation message, press

Y

.

Reinstallation starts automatically. (It will take approximately 15 minutes.)

zDo not interrupt reinstallation, for example by turning off the computer or pressing

Ctrl

+

Alt

+

Del

. Other-

wise reinstallation may become unavailable as Windows may not start up or the data may be corrupted.

11 Remove the Product Recovery DVD-ROM, and then press any key to turn off the com-

puter.

12 Turn on the computer, and press

F2

several times while [Panasonic] boot screen is dis-

played.

The Setup Utility starts up.

zIf the password is requested, enter the Supervisor Password.

13 Press

F9

.

At the confirmation message, select [Yes] and then press

Enter

.

The Setup Utility settings excluding the password(s) will return to the default values.

When you reinstall the software, the hard disk data will be erased. Back up important data before reinstallation.

Reinstalling software will return the computer to the default condition. Even if the data is stored in partitions on the

hard disk, it may be erased or corrupted.

18

Getting StartedUseful InformationTroubleshootingAppendix

Reinstalling Software

14 Select the [Exit] menu and then select [Save Current Values], then press

Enter

.

At the confirmation message, select [Yes] and press

Enter

.

15 Turn the computer off by using the power button.

zIf additional instructions are included with the computer, be sure to read them. It may be necessary to perform

additional operations during the following procedure.

16 Perform the First-time Operation (Îpage 11).

17 Start the Setup Utility and change the settings as necessary.

To change the drive letter of hard disk or CD/DVD drive

NOTE

zDrive letters can be changed only when two or more partitions have been created on the hard disk drive.

zThe name of the C: drive cannot be changed.

zChange the drive letters before installing applications.

AClick [start] - [Control Panel] - [Performance and Maintenance] - [Administrative Tools], and double-click [Com-

puter Management].

BClick [Disk Management] from [Storage].

CRight-click the hard disk partition or the CD/DVD drive name, and click [Change Drive Letter and Paths...].

DClick [Change...].

EClick [Assign the following drive letter] and the new drive letter, and then click [OK].

At the confirmation message, click [Yes].

19

Getting StartedUseful InformationTroubleshootingAppendix

Error Code/Message

Follow the instructions below when an error message or code appears. If the problem persists or if the error code/mes-

sage is not shown here, contact Panasonic Technical Support (Îpage 29).

To start the Setup Utility

ARestart the computer.

BPress

F2

several times while [Panasonic] boot screen is displayed soon after the computer begins the startup

procedure.

Error Code/Message Solution

0211 Keyboard error zDisconnect external keyboard or mouse.

0251 System CMOS

checksum bad -

Default configuration

used

An error has occurred in the memory of Setup Utility settings. This occurs when the memory

content is changed by an unexpected program operation, etc.

zStart the Setup Utility and return the settings to the default values, and then change the

settings as necessary.

zIf the problem persists, the internal clock battery may need to be replaced. Contact

Panasonic Technical Support (Îpage 29).

0271 Check date and

time settings

The date and time settings are not correct.

zStart the Setup Utility and set the correct date and time.

zIf the problem persists, the internal clock battery may need to be replaced. Contact

Panasonic Technical Support (Îpage 29).

0280 Previous boot

incomplete - Default

configuration used

Startup has failed repeatedly, so the Setup Utility settings have been returned to the default

values to startup the computer.

zStart the Setup Utility and return the settings to the default values, and then change the

settings as necessary.

Press <F2> to Setup zWrite down the error details and press

F2

to start the Setup Utility. Change the settings if

necessary.

Operating System not

found

The operating system is not installed in the floppy disk or the hard disk that you are going to

boot from.

zIf using a floppy disk, change the disk to the one you can use for boot.

zIf using the hard disk, check if the hard disk is recognized in [Information] menu of the

Setup Utility. If the hard disk is recognized, perform the reinstallation (Îpage 17). If not,

contact Panasonic Technical Support (Îpage 29).

zIf a device is connected to the USB port, disconnect the device, or set [USB Port] or

[Legacy USB Support] to [Disable] in [Advanced] menu of the Setup Utility.

RAM Module Failed When the RAM module is not inserted correctly or the RAM module is not conforming to the

computer’s specifications, so a beep will sound and the “RAM Module Failed” message will

be displayed when you turn the power on.

zPress the power button for four seconds or longer to turn off the computer, confirm that

the RAM module conforms to the specifications, and reinsert it.

20

Getting StartedUseful InformationTroubleshootingAppendix

Troubleshooting (Basic)

Follow the instructions below when a problem has occurred. There is also an advanced troubleshooting guide in the

“Reference Manual”. For a software problem, refer to the software’s instruction manual. If the problem persists, contact

Panasonic Technical Support (Îpage 29). You can also check the computer’s status in the PC Information Viewer

(Î Reference Manual “Troubleshooting (Advanced)”).

Starting Up

Cannot start up.

The power indicator or bat-

tery indicator is not lit.

zConnect the AC adaptor.

zInsert a fully charged battery.

zRemove the battery pack and the AC adaptor, then connect them again.

zRemove the USB device, or set [USB Port] or [Legacy USB Support] to [Disable] in

[Advanced] menu of the Setup Utility. The computer may not start up when certain

USB devices are connected.

The power is turned on but

“Warming up the system (up

to 30 minutes)” appears.

zThe computer is warming up before start up. Wait for the computer to start up (takes

up to 30 minutes). If, “Cannot warm up the system” is displayed, the computer failed

to warm up and does not start. In this case, turn off the computer, leave it in an envi-

ronment of 5 °C {41 °F} or higher temperature for about an hour, and then turn on

the power once more.

Cannot turn on the computer.

The computer does not

resume from standby mode.

(The power indicator blinks

quickly in green.)

zLeave it in an environment of 5 °C {41 °F} or higher temperature for about an hour,

then turn on the power once more.

You have forgotten the

password.

zSupervisor Password or User Password: Contact Panasonic Technical Support

(Îpage 29).

zAdministrator password:

• If you have a password reset disk, you can reset the administrator password. Set

the disk and enter any wrong password, then follow the on-screen instructions and

set a new password.

• If you do not have a password reset disk, reinstall (Îpage 17) and set up Win-

dows, and then set a new password.

“Remove disks or other

media. Press any key to

restart” or a similar mes-

sage appears.

zA floppy disk is in the drive and it does not contain system startup information.

Remove the floppy disk and press any key.

zThis message may appear with some USB devices. Remove the USB device, or set

[USB Port] or [Legacy USB Support] to [Disable] in the [Advanced] menu of the

Setup Utility.

zIf the problem persists after removing the disk, it may be a hard disk failure. Contact

Panasonic Technical Support (Îpage 29).

Windows startup and opera-

tion is slow.

zPress

F9

in the Setup Utility (Îpage 19 “To start the Setup Utility”) to return the

Setup Utility settings (excluding the passwords) to the default values. Start the

Setup Utility and make the settings again. (Note that the processing speed depends

on the application software, so this procedure may not make Windows faster.)

zIf you installed a resident software after purchase, turn off the residence.

zDisable Indexing Service in the following menu.

Click [start] - [Search] - [Change preferences] - [Without Indexing Service].

The date and time are incor-

rect.

zMake the correct settings. Click [start] - [Control Panel] - [Date, Time, Language,

and Regional Options] - [Date and Time].

zIf the problem persists, the internal clock battery may need to be replaced. Contact

Panasonic Technical Support (Îpage 29).

zWhen the computer is connected to LAN, check the date and time of the server.

zThe 2100 A.D. or later year will not be correctly recognized on this computer.

[Executing Battery Recali-

bration] screen appears.

zThe Battery Recalibration was canceled before Windows was shut down last time.

To start up Windows, turn off the computer by the power button, and then turn on.

21

Getting StartedUseful InformationTroubleshootingAppendix

[Enter Password] does not

appear when resuming from

standby/hibernation.

zTo display [Enter Password] at resuming, set the Windows password. The password

you have set in the Setup Utility is not requested at resuming.

AClick [start] - [Control Panel] - [User Accounts] and select the account, and set

the password.

BClick [start] - [Control Panel] - [Performance and Maintenance] - [Power Options]

- [Advanced] and add a check mark for [Prompt for password when computer

resumes from standby].

Other startup problems. zPress

F9

in the Setup Utility (Îpage 19 “To start the Setup Utility”) to return the

Setup Utility settings (excluding the passwords) to the default values. Start the

Setup Utility and make the settings again.

zRemove all peripheral devices.

zCheck to see if there was a disk error.

AClick [start] - [My Computer] and right-click [Local Disk(C:)], and click [Proper-

ties].

BClick [Tools] - [Check Now].

CSelect the option in [Check disk options] and click [Start].

zStart the computer in Safe Mode and check the error details. When the [Panasonic]

boot screen disappears*1 at startup, press and hold

F8

until the Windows Advanced

Options Menu is displayed.

*1 When [Password on boot] is set to [Enable] in the [Security] menu of the Setup Util-

ity, [Enter Password] appears after the [Panasonic] boot screen disappears. As

soon as you enter the password and press

Enter

, press and hold

F8

.

Display

No display. zThe external display is selected. Press

Fn

+

F3

to switch the display. Wait until the

display has been switched completely before pressing

Fn

+

F3

again.

zWhen using an external display,

• Check the cable connection.

• Turn on the display.

• Check the settings of external display.

zThe display is turned off by the power-saving function. To resume, do not press the

direct selection keys, but press any other key like

Ctrl

.

zThe computer entered standby or hibernation by the power-saving function. To

resume, press the power button.

The screen is dark. zThe screen is darker when the AC adapter is not connected. Press

Fn

+

F2

and

adjust the brightness. As you increase the brightness, battery consumption

increases.

You can separately set the brightness for when the AC adaptor is connected and

when not connected.

The screen is disordered.

<Only for model with Intel®

945GM chipset>

zChanging the number of display colors and resolution may affect the screen. Restart

the computer.

zWhen using Simultaneous display, set the same display colors for the external dis-

play as those for the LCD.

zWhen using Simultaneous display, do not press

Fn

+

F3

.

zEnable or disable Simultaneous display, and soon restart the computer.

During Simultaneous dis-

play, one of the screens

becomes disordered.

<Only for model with Intel®

945GM chipset>

zWhen using the Extended Desktop, use the same display colors for the external dis-

play as those used by the LCD.

zIf you continue to experience problems, try changing the display by clicking [start] -

[Control Panel] - [Other Control Panel Options] - [Intel(R) GMA Driver for Mobile] -

[Display Devices].

zWhen the [Command Prompt] is set to “Full Screen” by pressing

Alt

+

Enter

, the

picture is displayed on one of the screens only. When the window display is restored

by pressing

Alt

+

Enter

, the picture is displayed on both screens.

zSimultaneous display cannot be used until Windows startup is complete (during

Setup Utility, etc.).

Starting Up

22

Getting StartedUseful InformationTroubleshootingAppendix

Troubleshooting (Basic)

The external display does

not work normally.

zIf the external display does not support the power saving function, it may not work

normally when the computer enters the power saving mode. Turn off the external

display.

Shutting down

Windows does not shut

down.

zRemove the USB device.

zWait one or two minutes. It is not a malfunction.

Touch Pad

The cursor does not work. zWhen using the external mouse, connect it correctly.

zRestart the computer using the keyboard.

(Press ,

U

, and

R

to select [Restart].)

zIf the computer does not respond to keyboard commands, read “No response”

(Îbelow).

Cannot input using the

touch pad.

zSet [Touch Pad] to [Enable] in the [Main] menu of the Setup Utility.

zThe drivers for some mice may disable the touch pad. Check your mouse’s operat-

ing instructions.

Reference Manual

The Reference Manual is

not displayed.

zInstall Adobe Reader.

ALog on to Windows as an administrator.

BClick [start] - [Run], input [c:\util\reader\AdbeRdr70_enu_full.exe], then click

[OK].

CFollow the on-screen instructions.

Reinstalling B’s Recorder/B’s CLiP

A serial number is

requested when reinstalling.

zInput the following serial number

B’s Recorder:

B’s CLiP:

Others

No response. zPress

Ctrl

+

Shift

+

Esc

to open Task Manager and close the software application

that is not responding.

zAn input screen (e.g., password input screen at startup) may be hidden behind

another window. Press

Alt

+

Tab

to check.

zPress the power button for four seconds or longer to shut down the computer, and

then press the power button to turn it on. If the application program does not work

normally, uninstall and reinstall the program. To uninstall, click [start] - [Control

Panel] - [Add or Remove Programs].

Display

23

Getting StartedUseful InformationTroubleshootingAppendix

LIMITED USE LICENSE AGREEMENT

THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC® PRODUCT (“PRODUCT”)

ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH

THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY

DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.

Matsushita Electric Industrial Co., Ltd. (“MEI”) has developed or otherwise obtained the Programs and hereby licenses

their use to you. You assume sole responsibility for the selection of the Product (including the associated Programs) to

achieve your intended results, and for the installation, use and results obtained therefrom.

LICENSE

A. MEI hereby grants you a personal, non-transferable and non-exclusive right and license to use the Programs in

accordance with the terms and conditions stated in this Agreement. You acknowledge that you are receiving only a

LIMITED LICENSE TO USE the Programs and related documentation and that you shall obtain no title, ownership

nor any other rights in or to the Programs and related documentation nor in or to the algorithms, concepts, designs

and ideas represented by or incorporated in the Programs and related documentation, all of which title, ownership

and rights shall remain with MEI or its suppliers.

B. You may use the Programs only on the single Product which was accompanied by the Programs.

C. You and your employees and agents are required to protect the confidentiality of the Programs. You may not distrib-

ute or otherwise make the Programs or related documentation available to any third party, by time-sharing or other-

wise, without the prior written consent of MEI.

D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documentation for

any purpose, except that you may make one (1) copy of the Programs for backup purposes only in support of your

use of the Programs on the single Product which was accompanied by the Programs. You shall not modify, or

attempt to modify, the Programs.

E. You may transfer the Programs and license them to another party only in connection with your transfer of the single

Product which was accompanied by the Programs to such other party. At the time of such a transfer, you must also

transfer all copies, whether in printed or machine readable form, of every Program, and the related documentation,

to the same party or destroy any such copies not so transferred.

F. You may not remove any copyright, trademark or other notice or product identification from the Programs and you

must reproduce and include any such notice or product identification on any copy of any Program.

YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANICALLY OR ELECTRONICALLY TRACE

THE PROGRAMS, OR ANY COPY THEREOF, IN WHOLE OR IN PART.

YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PROGRAMS OR ANY COPY THEREOF, IN

WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THE LICENSE.

IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO ANOTHER PARTY, EXCEPT AS PER-

MITTED IN PARAGRAPH E ABOVE, YOUR LICENSE IS AUTOMATICALLY TERMINATED.

TERM

This license is effective only for so long as you own or lease the Product, unless earlier terminated. You may terminate

this license at any time by destroying, at your expense, the Programs and related documentation together with all cop-

ies thereof in any form. This license will also terminate effective immediately upon occurrence of the conditions thereof

set forth elsewhere in this Agreement, or if you fail to comply with any term or condition contained herein. Upon any

such termination, you agree to destroy, at your expense, the Programs and related documentation together with all cop-

ies thereof in any form.

YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE BOUND

BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE STATE-

MENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT,

ORAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN US, RELATING TO THE SUBJECT MAT-

TER OF THIS AGREEMENT.

About Intel® software products

The enclosed software products and documentation were developed at private expense, and are provided with

“RESTRICTED RIGHTS.” Use, duplication or disclosure by the government is subject to restrictions as set forth in

FAR 52.227-14 and DFARS 252.227-7013 et. seq. or its successor. The use of this product by the government

constitutes acknowledgment of Intel’s proprietary rights in the product.

24

Getting StartedUseful InformationTroubleshootingAppendix

Contrat de licence d’usage limité

Le(s) logiciel(s) (les “Logiciels”) fournis avec ce produit Panasonic® (le “Produit”) sont exclusivement concédés en

licence à l’utilisateur ultime (“vous”), et ils ne peuvent être utilisés que conformément aux clauses contractuelles

cidessous. En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et

conditions

des présentes.

Matsushita Electric Industrial Co., Ltd. (“MEI”) a mis au point ou obtenu les Logiciels et vous en concède l’utilisation par

les présentes. Vous assumez l’entière responsabilité du choix de ce Produit (y compris des Logiciels associés) pour

obtenir les résultats escomptés, ainsi que de l’installation, de l’utilisation et des résultats obtenus.

Licence

A. MEI vous octroie par les présentes le droit et la licence personnels, non cessibles et non exclusifs d’utiliser les

Logiciels conformément aux termes, clauses et conditions de ce contrat. Vous reconnaissez ne recevoir qu’un droit

limité d’utiliser les Logiciels et la documentation les accompagnant et vous vous engagez à n’obtenir aucun droit de

titre, propriété ni aucun autre droit vis-à-vis des Logiciels et de la documentation les accompagnant ni vis-à-vis des

algorithmes, concepts, dessins, configurations et idées représentés par ou incorporés dans les Logiciels et la

documentation les accompagnant, dont les titres, la propriété et les droits resteront tous à MEI ou à leurs

propriétaires.

B. Vous ne pouvez utiliser les Logiciels que sur le Produit unique qui est accompagné par les Logiciels.

C. Vous et vos employés ou agents êtes requis de protéger la confidentialité des Logiciels. Vous ne pouvez ni

distribuer ni mettre les Logiciels et la documentation les accompagnant à la disposition d’un tiers, par partage de

temps ou de quelque autre manière que ce soit, sans l’autorisation écrite préalable de MEI.

D. Vous ne pouvez ni copier ni reproduire ni permettre la copie ni la reproduction des Logiciels ni de la documentation

les accompagnant pour quelque fin que ce soit, à l’exception d’une (1) copie des Logiciels à des fins de sauvegarde

uniquement pour soutenir votre utilisation des Logiciels sur le Produit unique qui est accompagné par les Logiciels.

Vous ne pouvez ni modifier ni tenter de modifier les Logiciels.

E. Vous ne pouvez céder les Logiciels et en octroyer la licence à une autre partie qu’en rapport avec votre cession du

Produit unique qui est accompagné par les Logiciels à cette autre partie. Au moment de cette cession, vous devez

céder également toutes les copies, que ce soit sous forme imprimée ou lisible par la machine, de tous les Logiciels

ainsi que de la documentation les accompagnant, à la même partie ou détruire les copies non cédées.

F. Vous ne pouvez retirer aucune marque de droits d’auteur, marque de commerce ou autre ni aucune identification de

produit des Logiciels et vous devez reproduire et inclure toutes ces notices ou identifications de produit sur toutes

les copies des Logiciels.

Vous ne pouvez assembler en sens inverse, compiler en sens inverse ni retracer les Logiciels ni aucune de leurs

copies, de façon électronique ou mécanique, en tout ou en partie.

Vous ne pouvez utiliser, copier, modifier, altérer ni céder les Logiciels ni aucune de leurs copies, en tout ou en partie, à

l’exception de ce qui est expressément stipulé dans ce contrat.

Si vous cédez la possession de toute copie ou de tout Logiciel à une autre partie, à l’exception de ce qui est autorisé au

paragraphe E ci-dessus, votre licence est automatiquement résiliée.

Termes, clauses et conditions

Cette licence n’est effective que pour la durée de possession ou de crédit-bail du Produit, à moins d’une résiliation

antérieure. Vous pouvez résilier cette licence à tout moment en détruisant, à vos frais, les Logiciels et la documentation

les accompagnant avec toutes leurs copies, sous quelque forme que ce soit. Cette licence sera également résiliée,

avec application immédiate, si les conditions de résiliation définies ailleurs dans ce contrat se sont réalisées ou si vous

ne respectez pas les termes, clauses et conditions qui y sont contenues. Au moment de la résiliation, vous acceptez de

détruire, à vos frais, les Logiciels et la documentation les accompagnant avec toutes leurs copies, sous quelque forme

que ce soit.

Vous reconnaissez avoir lu ce contrat, en avoir compris toute la substance et avoir accepté de respecter ses termes,

clauses et conditions. Vous reconnaissez en outre qu’ils sont la description complète et exclusive du contrat conclu

entre nous, contrat qui remplace et annule toute proposition ou contrat précédent, écrit ou oral, et toute autre

communication entre nous, relativement à l’objet du présent contrat.

25

Getting StartedUseful InformationTroubleshootingAppendix

Specifications

This page provides the specifications for the basic model CF-51PFVDEBM/CF-51PF2DEBM/CF-51PFVEEBM/

CF-51PF2EEBM/CF-51PFVGEBM/CF-51QFVDEBM/CF-51QF2DEBM/CF-51QFVEEBM/CF-51QF2EEBM/

CF-51RCLDFBM/CF-51RCBDFBM/CF-51RCLEFBM/CF-51RCBEFBM/CF-51RCLGFBM/CF-51RCBJFBM/

CF-51RCBKFBM/CF-51RCLJFBM/CF-51RCLLFBM/CF-51RCBMFBM/CF-51SCLDFBM/CF-51SCBDFBM/

CF-51SCBEFBM/CF-51SCBJFBM/CF-51SCLJFBM/CF-51RCVDNBM. The model number is different according to the

unit configuration.

zTo check the model number:

Check the bottom of the computer or the box the computer came in at the time of purchase.

zTo check CPU speed, memory size and the hard disk drive (HDD) size:

Run the Setup Utility (Î Reference Manual “Setup Utility”) and select [Information] menu.

[CPU Speed]: CPU speed, [System Memory]: Memory size, [Primary Master]: Hard disk drive size

Main Specifications

Model No. CF-51PFVDEBM / CF-51PF2DEBM /

CF-51PFVGEBM / CF-51QFVDEBM /

CF-51QF2DEBM / CF-51PFVEEBM /

CF-51PF2EEBM / CF-51QFVEEBM /

CF-51QF2EEBM

CF-51RCLDFBM / CF-51RCBDFBM /

CF-51RCLEFBM / CF-51RCBEFBM /

CF-51RCLGFBM / CF-51RCBJFBM /

CF-51RCBKFBM / CF-51RCLJFBM /

CF-51RCLLFBM / CF-51RCBMFBM /

CF-51SCLDFBM / CF-51SCBDFBM /

CF-51SCBEFBM / CF-51SCBJFBM /

CF-51SCLJFBM

CF-51RCVDNBM

CPU Intel® Core™ Duo Processor T2500

(2

GHz

, 2

MB

L2 cache, 667

MHz

FSB)

Intel® Core™ Duo Processor T2300E

(1.66 GHz, 2 MB L2 cache, 667 MHz FSB)

Chipset Intel® 945PM Intel® 945GM

Memory*1*2 512 MB (4096 MB*3 Max.)

Video Memory*1 128 MB UMA (128 MB)*4

Hard Disk Drive*5 80 GB 60 GB 80 GB

Floppy Disk Drive*6 720 KB/1.44 MB (two-mode)

CD/DVD Drive Îpage 27

Display Method 15.0 UXGA type (TFT) 15.0 XGA type (TFT)

Internal LCD*7 65,536/16,777,216 colors

(800 × 600 dots/1024 × 768 dots/

1600 × 1200 dots)

65,536/16,777,216 colors (800 × 600 dots/1024 × 768 dots)

External Display*8 65,536/16,777,216 colors (800 × 600 dots/1024 × 768 dots/1280 × 1024 dots/1600 × 1200 dots/

2048 × 1536 dots)

Wireless LAN*9 Îpage 28

Bluetooth*10 Version 2.0+EDR -

LAN*11 IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T

Modem Data: 56 kbps (V.92) FAX: 14.4 kbps

Sound WAVE and MIDI playback, Stereo speaker

Security Chip TPM (TCG V1.2 compliant)*12

Card

Slot

PC Card Type I or Type II x 2, or Type III x 1 (3.3 V: 400 mA, 5 V: 400 mA)

SD Memory

Card*13 x 1 (Data transfer rate = 8 MB per second*14)

Smart Card*15 x 1 -

RAM Module Slot 200-pin, SO-DIMM, PC2-4200 DDR2 SDRAM

Interface USB port (4-pin, USB 2.0) x 4, Serial Port (Dsub 9-pin male), Modem port (RJ-11), LAN port (RJ-45)*11,

External display port (Mini Dsub 15-pin female), External keyboard/ Mouse port (Mini DIN 6-pin female),

Expansion Bus Connector (Dedicated 100-pin female), IEEE1394a Interface Connector (4-pin × 1),

Microphone Jack (Miniature jack, 3.5 DIA, Stereo), Headphone Jack (Miniature jack, 3.5 DIA, Impedance

32 Ω, Output Power 4 mW × 2, Stereo)

Keyboard / Pointing Device

87 keys / Touch Pad

26

Getting StartedUseful InformationTroubleshootingAppendix

Specifications

*1 1MB = 1,048,576 bytes

*2

When expanding memory, remove the RAM module that was inserted at the time of factory shipment, and insert two 1024

MB

-RAM modules.

*3 You can physically expand the memory up to 4 GB, but the total amount of usable memory available will be less depending on the

actual system configuration.

*4 A segment of the main memory is allotted automatically depending on the computer’s operating status. The size of the Video

Memory cannot be set by the user.

*5 1GB = 1,000,000,000 bytes. Your operating system or some application software will report as fewer GB.

*6 The drives included in the computer cannot be inserted into the multimedia pocket simultaneously.

1KB = 1,024 bytes

1MB = 1,024,000 bytes. Your operating system or some application software will report as fewer MB.

*7 A 16,777,216 color display is achieved by using the dithering function.

*8 Maximum resolution depends on the specifications of the external display.

*9 Only for model with wireless LAN

*10 Only for model with Bluetooth

Model No. CF-51PFVDEBM / CF-51PF2DEBM /

CF-51PFVGEBM / CF-51QFVDEBM /

CF-51QF2DEBM / CF-51PFVEEBM /

CF-51PF2EEBM / CF-51QFVEEBM /

CF-51QF2EEBM

CF-51RCLDFBM / CF-51RCBDFBM /

CF-51RCLEFBM / CF-51RCBEFBM /

CF-51RCLGFBM / CF-51RCBJFBM /

CF-51RCBKFBM / CF-51RCLJFBM /

CF-51RCLLFBM / CF-51RCBMFBM /

CF-51SCLDFBM / CF-51SCBDFBM /

CF-51SCBEFBM / CF-51SCBJFBM /

CF-51SCLJFBM

CF-51RCVDNBM

Power Supply AC adaptor or Battery pack

AC Adaptor*16 Input: 100 V to 240 V AC, 50 Hz/60 Hz, Output: 15.6 V DC, 8.0 AInput: 100 V to 240 V AC,

50 Hz/60 Hz, Output:

15.6 V DC, 5.0 A

Battery Pack Li-ion 11.1 V, 7.65 Ah

Operating Time*17 Main Battery: Approx. 2 hours to 4

hours*18 (Approx. 4 hours*19)

Main Battery + Second Battery:

Approx. 3.5 hours to 6.5 hours

(Approx. 6 hours)

Main Battery: Approx. 2.5 hours to 5.5 hours*18 (Approx. 5.5

hours*19)

Main Battery + Second Battery: Approx. 4 hours to 9 hours

(Approx. 8.5 hours)

Charging

Time*17

Power on Main Battery: Approx. 4.5 hours

Main Battery + Second Battery: Approx. 7 hours

Power off Main Battery: Approx. 4.5 hours

Main Battery + Second Battery: Approx. 7 hours

Clock Battery Coin type lithium battery 3.0 V

Power Consumption*20 Approx. 60 W*21/ Approx. 90 W

(Maximum when recharging in the ON

state)

Approx. 60 W*21/ Approx. 80 W

(Maximum when recharging in the ON state)

Physical Dimensions

(W × H × D)

325 mm × 47 mm × 278 mm {12.8" × 1.9" × 10.9" }

Weight Approx. 2.9 kg {Approx. 6.4 lb.} (excluding multimedia pocket device)

Approx. 3.1 kg {Approx. 6.8 lb.} (including CD/DVD drive in the multimedia pocket)

Operation Environment Temperature: 5 °C to 35 °C {41 °F to 95 °F}

Humidity: 30% to 80% RH (No condensation)

Storage Environment Temperature: -20 °C to 60 °C {-4 °F to 140 °F}

Humidity: 30% to 90% RH (No condensation)

Operating System Microsoft® Windows® XP Professional Service Pack 2 with Advanced Security Technologies

Utility Programs DMI Viewer, Adobe Reader, PC Information Viewer, SD Utility, Icon Enlarger, Loupe Utility, WinDVD™ 5

(OEM Version), B’s Recorder GOLD8 BASIC, B’s CLiP 6, Intel® PROSet/Wireless Software*9, Wireless

LAN Switch*9, Bluetooth™ Stack for Windows® by TOSHIBA*10, Bluetooth Switch*10, Wireless Switch

Utility, Hotkey Settings, Battery Recalibration, Infineon TPM Professional Package*22

Setup Utility, Hard Disk Data Erase Utility*23

Main Specifications

27

Getting StartedUseful InformationTroubleshootingAppendix

*11 When using the LAN port of the mini port replicator, IEEE802.3ab 1000Base-T is not available.

*12 For information on TPM, click [start] - [Run] and input “c:\util\drivers\tpm\README.pdf”, and refer to the Installation Manual of

“Trusted Platform Module (TPM)”.

*13 This slot does not support the MultiMedia card.

Operation has been confirmed for Panasonic SD Memory Cards with up to 2 GB capacity.

*14 Theoretical value and not the actual speed. The transfer rate does not become higher even if you use a card that supports the

higher transfer rate.

*15 Only for model with Smart Card slot

*16

The AC adaptor is compatible with power sources up to 240

V

AC adaptor. The computer is supplied with a 125

V

AC compatible AC cord.

*17 Varies depending on the usage conditions.

*18 Measured using BatteryMark™ Version 4.0.1 (LCD brightness: Maximum - Minimum)

*19 Measured using MobileMark™ 2002 (LCD brightness: 60 cd/m2)

*20 Approx. 0.9 W when the battery pack is fully charged (or not being charged) and the computer is OFF.

Approx. 1.5 W when the Wake up from LAN has been enabled.

*21 Rated power consumption

*22 You need to install to use the feature.

*23 The Product Recovery DVD-ROM is required.

*24 The data transfer rate of DVD per 1X speed is 1,350 KB/s.

The data transfer rate of CD per 1X speed is 150 KB/s.

*25 If an unbalanced disc (e.g., a disc with which the balance has been displaced from the center) is inserted, the speed may become

slower if there are large vibrations while the disc is rotating.

*26 Depending on the disc, the writing speed may become slower.

*27 1GB = 1,000,000,000 bytes. Your operating system or some application software will report as fewer GB.

*28 Does not support DVD-RW Ver.1.0.

*29 DVD-RAM: Only non-cartridge type or removable cartridge type can be used.

CD/DVD Drive

Model No. CF-51PFVDEBM / CF-51PF2DEBM /

CF-51PFVGEBM / CF-51QFVDEBM /

CF-51QF2DEBM / CF-51RCLDFBM /

CF-51RCBDFBM / CF-51RCLGFBM /

CF-51RCBJFBM / CF-51RCLJFBM /

CF-51RCLLFBM / CF-51SCLDFBM /

CF-51SCBDFBM / CF-51SCBJFBM /

CF-51SCLJFBM / CF-51RCVDNBM

CF-51PFVEEBM / CF-51PF2EEBM /

CF-51QFVEEBM / CF-51QF2EEBM /

CF-51RCLEFBM / CF-51RCBEFBM /

CF-51RCBKFBM / CF-51RCBMFBM /

CF-51SCBEFBM

CD/DVD Drive DVD-ROM & CD-R/RW Drive DVD MULTI Drive

Data

Transfer

Rate*24

Reading*25 DVD-ROM: 8X (Max.), CD-ROM: 24X (Max.)

Writing*26 CD-R: 4X/8X/10-16X/10-24X

CD-RW: 4X

High-Speed CD-RW: 4X/8X/10X

Ultra-Speed CD-RW: 10X/10-16X/10-24X

CD-R: 8X/8-12X/8-16X/8-24X

CD-RW: 4X

High-Speed CD-RW: 4X/8X/10X

Ultra-Speed CD-RW: 8X/10X

DVD-R: 1X/2X/2-4X/2-6X/2-8X

DVD-RW: 1X/2X/2-4X

DVD-RAM: 2X/3X/3-5X

+R: 2.4X/2.4-4X/2.4-6X/2.4-8X

+R DL: 2.4X

+RW: 2.4X/2.4-4X

Supported

Discs/For-

mat*27

Reading DVD-ROM (4.7 GB, 8.5 GB, 9.4 GB, 17 GB), DVD-Video, DVD-R (1.4 GB, 3.95 GB, 4.7 GB),

DVD-R DL (8.5 GB), DVD-RW*28 (1.4 GB, 2.8 GB, 4.7 GB, 9.4 GB), DVD-RAM*29 (1.4 GB,

2.8 GB, 2.6 GB, 5.2 GB, 4.7 GB, 9.4 GB), +R (4.7 GB), +R DL (8.5 GB), +RW (4.7 GB),

CD-Audio, CD-ROM, CD-R, Photo CD, Video CD, CD-RW, CD TEXT, CD-EXTRA

Writing CD-R, CD-RW DVD-R (1.4 GB, 4.7 GB for General),

DVD-RW*28 (1.4 GB, 2.8 GB, 4.7 GB, 9.4 GB),

DVD-RAM*29 (1.4 GB, 2.8 GB, 4.7 GB,

9.4 GB), +R (4.7 GB), +R DL (8.5 GB), +RW

(4.7 GB), CD-R, CD-RW

28

Getting StartedUseful InformationTroubleshootingAppendix

Specifications

Wireless LAN

<Only for model with wireless LAN>

Intel® PRO / wireless 3945 ABG (802.11 a + b + g) PCI Ex. 1/4

Data Transfer Rates IEEE802.11a: 54/48/36/24/18/12/9/6 Mbps (automatically switched)

IEEE802.11b: 11/5.5/2/1 Mbps (automatically switched)

IEEE802.11g: 54/48/36/24/18/12/9/6 Mbps (automatically switched)

Standards Supported IEEE802.11a/IEEE802.11b/IEEE802.11g

Transmission method OFDM system, DSSS system

Wireless Channels Used IEEE802.11a: Channels 36 to 64, 149 to 165

IEEE802.11b/IEEE802.11g: Channels 1 to 11

RF Frequency Band IEEE802.11a: 5.18-5.32 GHz, 5.745-5.825 GHz

IEEE802.11b/IEEE802.11g: 2.412-2.462 GHz

29

Getting StartedUseful InformationTroubleshootingAppendix

LIMITED WARRANTY

PANASONIC PERSONAL COMPUTER AND PERIPHERALS LIMITED WARRANTY

Panasonic Computer Solutions Company (referred to as “Panasonic”) will repair this product (other than software, which is covered

by a separate warranty) with new or rebuilt parts, free of charge in the U.S.A. for three (3) years from the date of original purchase in

the event of a defect in materials or workmanship. This warranty includes the AC adaptor but excludes the batteries and all other

options and accessories which are covered for a period of one (1) year from the date of purchase.

This warranty is extended solely to the original purchaser. A purchase receipt or other proof of date of original purchase will be

required before warranty performance is rendered.

This warranty only covers failures due to defects in materials or workmanship which occur during normal use. It does not cover dam-

age which occurs in shipment or failures which are caused by products not supplied by Panasonic, or failures which result from alter-

ation, accident, misuse, introduction of liquid or other foreign matter into the unit, abuse, neglect, installation, maladjustment of

consumer controls, improper maintenance, modification or service by anyone other than a Factory Service Center or authorized

Panasonic Service Dealer, or damage that is attributable to acts of God.

THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CON-

TROL EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*1. PANASONIC WILL NOT BE RESPONSIBLE

FOR ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.

*1 AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2 Electrical Flight Bag(EFB) Systems and Class1 EFB Systems

when used during critical phases of flight (e.g., during take-off and landing). Class1 EFB Systems and 2 EFBSystems are defined

by FAA: AC (Advisory Circular) 120-76A.

Limits and Exclusions:

There are no other express warranties except as listed below.

PANASONIC SHALL NOT BE LIABLE FOR LOSS OF DATA OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES

RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS

AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. Some states do not allow the exclu-

sion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitations

or exclusions may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. If a problem

with your product develops during or after the warranty period, you may contact our representatives at 1-800-LAPTOP5. If the prob-

lem is not handled to your satisfaction, then write to the Consumer Affairs Division at the address indicated below.

SOFTWARE LIMITED WARRANTY

Panasonic Computer Solutions Company (referred to as “Panasonic”) warrants to you only that the disk(s) or other media on which

the Programs are furnished will be free from defects in materials and workmanship under normal use for a period of sixty (60) days

from the date of delivery thereof to you, as evidenced by your purchase receipt.

This is the only warranty Panasonic makes to you. Panasonic does not warrant that the functions contained in the Programs will meet

your requirements or that the operation of the Programs will be uninterrupted or error free.

Panasonic’s entire liability, and your exclusive remedy under this warranty shall be limited to the replacement, in the United States, of

any defective disk or other media which is returned to Panasonic’s Authorized Service Center, together with a copy of the purchase

receipt, within the aforesaid warranty period.

Anything in the foregoing to the contrary notwithstanding, Panasonic shall have no obligation for any defects in the disk(s) or other

media on which the Programs are furnished resulting from your storage thereof, or for defects that have been caused by operation of

the disk(s) or other media otherwise than on the Product or in environmental conditions other than those specified by Panasonic by

alteration, accident, misuse, abuse, neglect, mishandling, misapplication, installation, maladjustment of consumer controls, improper

maintenance, modification of damage that is attributable to acts of God. In addition, Panasonic shall have no obligation for any

defects in the disk(s) or other media if you have modified, or attempted to modify any Program.

DURATION OF IMPLIED WARRANTIES, IF ANY, IS LIMITED TO SIXTY (60) DAYS.

PANASONIC ASSUMES NO RISK OF AND SHALL NOT IN ANY CASE BE LIABLE FOR ANY DAMAGES, INCLUDING, WITHOUT

LIMITATION, ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES ARISING FROM BREACH OF WAR-

RANTY OR CONTRACT, NEGLIGENCE OR ANY OTHER LEGAL THEORY, INCLUDING, WITHOUT LIMITATION LOSS OF

GOODWILL, PROFITS OR REVENUE, LOSS OF USE OF THE PROGRAMS OR PRODUCTS OR ANY ASSOCIATED EQUIP-

MENT, COST OF CAPITAL, COST OF ANY SUBSTITUTE EQUIPMENT, FACILITIES, SERVICES, DOWNTIME COSTS, OR

CLAIMS OF ANY PARTY DEALING WITH YOU FOR SUCH DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied

warranty lasts, so the above limitations or exclusions may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

This Limited Warranty will be governed by the laws the State of New York, without regard to its conflict-of-laws rules.

* * *

To obtain service or technical assistance within the continental U.S.A. and Alaska.

Correspondence requesting product information should be sent to:

Panasonic Computer Solutions Company

50 Meadowlands Parkway, Panazip 2F-5, Secaucus, NJ 07094

For U.S.A.

DIAL TOLL FREE: 1-800-LAPTOP5

30

Getting StartedUseful InformationTroubleshootingAppendix

LIMITED WARRANTY

PANASONIC COMPUTER AND PERIPHERALS LIMITED WARRANTY

Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end user customer, this computer product (excluding software

media), when purchased from PCI or from a PCI authorized reseller, to be free from defects in materials and workmanship under nor-

mal use, subject to the terms set forth below, during the period of warranty coverage specified.

Remedy – In the event of a warranty claim, contact PCI’s representatives within the applicable warranty period, identifying the nature

of the defect claimed, at 1-800-668-8386 between 9:00 A.M. and 5:00 P.M., Eastern Time Zone, Mon. – Fri. (excluding holidays) for

instructions on how to obtain service. A purchase receipt or other proof of date of original purchase is required before warranty ser-

vice is performed. Defective parts covered by this Limited Warranty will be repaired or replaced with new or comparable rebuilt parts

on an exchange basis. Warranty replacement or repair is subject to the terms of this Limited Warranty for the balance of the original

period of warranty coverage.

No Coverage – This Limited Warranty does not cover products purchased outside Canada. Neither does it cover damage to, failure

of, or defects in a product or accessory through mishandling, improper installation, abnormal use, misuse, neglect, accident, intro-

duction of liquid or other foreign matter into the product, alteration or servicing by anyone not authorized by PCI, or act of God.

THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CON-

TROL EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*2. PANASONIC WILL NOT BE RESPONSIBLE

FOR ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.

*2 AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2 Electrical Flight Bag(EFB) Systems and Class1 EFB Systems

when used during critical phases of flight (e.g., during take-off and landing). Class1 EFB Systems and 2 EFB Systems are defined

by FAA: AC (Advisory Circular) 120-76A.

SOFTWARE MEDIA LIMITED WARRANTY

Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end user customer, that the disk(s) or other media on which

software program(s) is/are supplied will be free from defects in materials and workmanship under normal use in Canada for a period

of sixty (60) days from date of receipt as evidenced by your purchase receipt for your Panasonic Computer product.

THIS IS THE ONLY WARRANTY THAT PCI MAKES RESPECTING THE SOFTWARE MEDIA. PCI does not warrant the software.

Please refer to the software licensor’s written warranty (accompanying the copy of the software) for any software warranty claim.

Claim Procedure – In the event of a defect in material or workmanship in the media during the sixty (60) day warranty period, and

you return it, transportation costs prepaid, to Panasonic Canada Inc., Computer Products Marketing, at the above address, within the

warranty period, together with a copy of your purchase receipt, and an explanation of the suspected defect, PCI will replace in Can-

ada the defective disk(s) or other media.

Remedy – PCI’s entire liability, and your only remedy for any breach of this software media warranty is limited to replacement of the

media only. It does not cover any other damages, including, but not limited to, loss of use or profit loss, or special, indirect or conse-

quential damages, or other claims, whether or not of similar character.

No Coverage – This limited warranty does not apply if the disk(s) or other media has been used in other than a Panasonic product,

or in environmental conditions other than those specified by PCI or the manufacturer, or if subjected to misuse, neglect, mishandling,

modification or attempted modification of the program, or if damaged by accident or act of God. PCI is not responsible for damage to

or loss of any program, data or removable storage media.

GENERAL

NO OTHER WARRANTIES – PCI DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT

NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH

RESPECT TO THE SOFTWARE, SOFTWARE MEDIA, COMPUTER PRODUCT, OPTIONS AND ACCESSORIES.

NO LIABILITY FOR CONSEQUENTIAL DAMAGES – IN NO EVENT SHALL PCI BE LIABLE FOR ANY SPECIAL, INDIRECT OR

CONSEQUENTIAL DAMAGES ARISING FROM ANY BREACH OF THE LIMITED WARRANTIES SET OUT IN THIS DOCUMENT,

OR FROM THE USE OF THE COMPUTER PRODUCT, INCLUDING, WITHOUT LIMITATION, LOSS OF DATA, BUSINESS,

PROFIT OR GOODWILL.

IN ANY EVENT, PCI’S MAXIMUM LIABILITY FOR ANY BREACH SHALL NOT EXCEED THE AMOUNT ACTUALLY PAID BY YOU

FOR THE COMPUTER PRODUCT.

NO ACTION, REGARDLESS OF ITS BASIS, MAY BE BEGUN AGAINST PCI MORE THAN TWO (2) YEARS AFTER THE CAUSE

OF ACTION AROSE.

Statutory Warranties – Some jurisdictions do not allow these limitations or exclusions, so they may not apply to you.

For Canada

Scope of Coverage Period of Coverage Type of Failure Coverage

Whole Product (except Batteries), AC adaptor and CD-

ROM (if factory installed)

Three (3) Years from Date of Origi-

nal End User Customer Purchase

Defective Materials or Workman-

ship

Batteries, CD-ROM (unless factory installed), Port

Replicator, Extra Memory Modules and all other Periph-

erals, Options and Accessories

One (1) Year from Date of Original

End User Customer Purchase

Defective Materials or Workman-

ship

IF YOU SHIP THE PRODUCT FOR WARRANTY SERVICE

Carefully pack the product, preferably in the original carton. Include details of defect claimed and proof of date of original purchase.

No liability is assumed for loss or damage to the product while in transit, if you chose your own transportation carrier.

31

Getting StartedUseful InformationTroubleshootingAppendix

MEMO

As an ENERGY STAR® Partner, Matsushita Electric Industrial Co., Ltd. has

determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

© 2006 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.

Printed in Taiwan

Panasonic Computer Solutions Company

50 Meadowlands Parkway, Panazip 2F-5,

Secaucus, NJ 07094

Panasonic Canada Inc.

5770 Ambler Drive Mississauga,

Ontario L4W 2T3

Outline of the International ENERGY STAR® Office Equipment Program

The international ENERGY STAR® Office Equipment Program is an international program that promotes energy

saving through the use of computers and other office equipment. The program backs the development and dissem-

ination of products with functions that effectively reduce energy consumption. It is an open system in which busi-

ness proprietors can participate voluntarily. The targeted products are office equipment such as computers,

displays, printers, facsimiles, and copiers. Their standards and logos are uniform among participating nations.

TA0106-1056

DFQX5589YAT
