Panasonic CV-DW DISPLAY AUDIO User Manual Operation Manual 20170320x

Panasonic Taiwan Co., Ltd. DISPLAY AUDIO Operation Manual 20170320x

2ALXP-CV-DW_User manual

Display Audio SystemOwner's ManualCV-DW

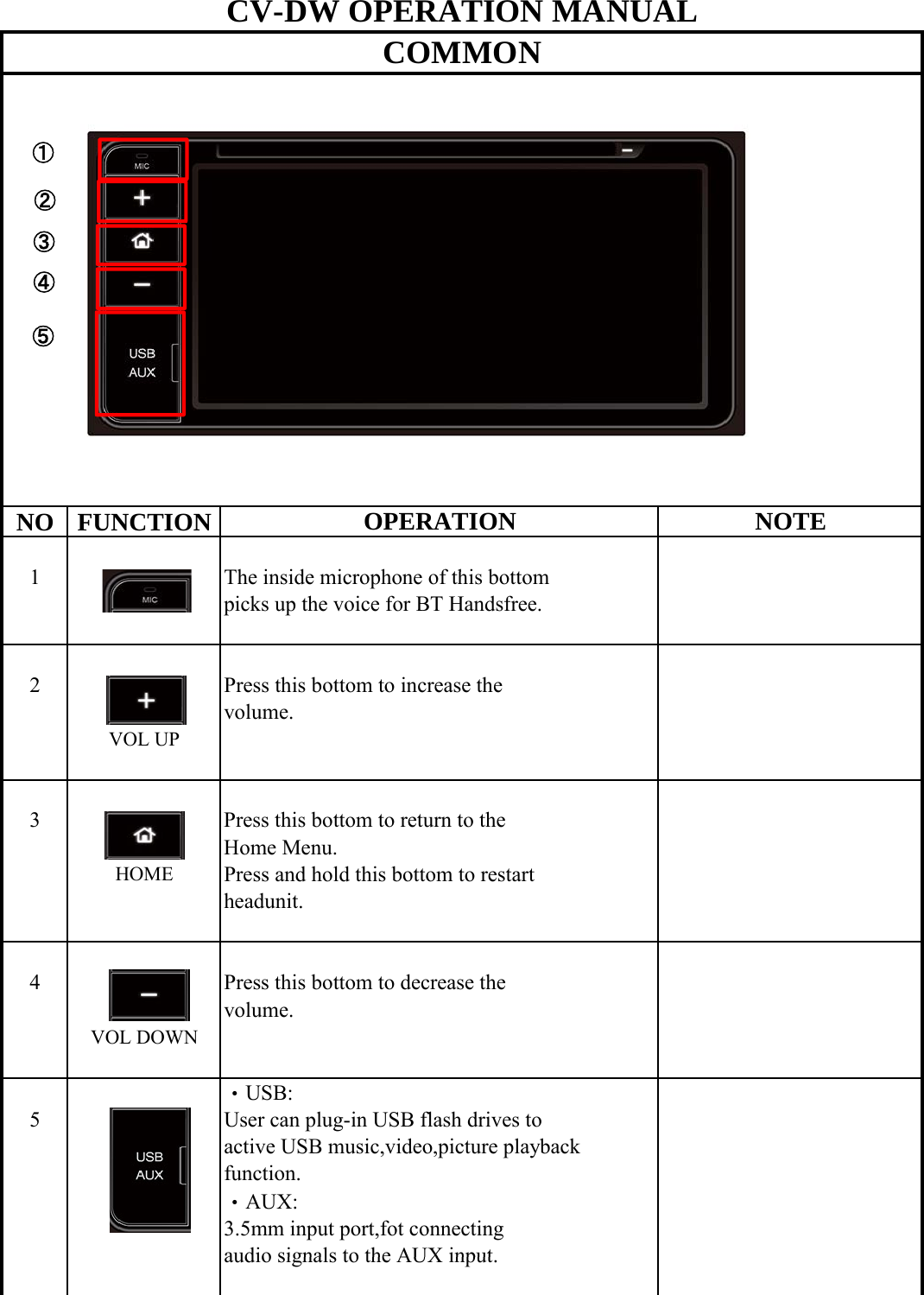

NO FUNCTION1Th i id i h f thi b ttCV-DW OPERATION MANUALCOMMONOPERATION NOTE①②③④⑤1The inside microphone of this bottom picks up the voice for BT Handsfree.2 Press this bottom to increase the volume.VOL UP3 Press this bottom to return to the Home Menu.HOMEPress and hold this bottom to restartheadunit.4 Press this bottom to decrease the volume.VOL DOWN・USB:5 User can plug-in USB flash drives toactive USB music,video,picture playbackfunction.・AUX:3.5mm input port,fot connectingaudio signals to the AUX inputaudio signals to the AUX input.
1.Function 2.Quick Toggle Function3.Status notification bar NO FUNCTION1FunctionsTouch to move to radio modeCV-DW OPERATION MANUALCOMMONOPERATION NOTETouch to move to media modeTouch to move to phone modeTouch to move to Qibla modeTouch to move to setting mode2Quick ToggleTouch to move to quick toggleFunctionfunctionA.Mute/UnmuteTouch to mute or unmute theDisplay Audio System.B.Screen Off Touch to turn off the screen.C.EjectTouch to eject disc.D.SoundTouch to enter sound settingpageE.DimmerTouch to enter screen dimmersetting page.3Status notificationShows when Mute turns onbarShows when BT function turns onShows when BT function turns onGPS signal status
NO FUNCTION1Current radioShows the radio station frequency youstation freq.are currently listening to.CV-DW OPERATION MANUALRADIOOPERATION NOTE2Band display3Stereo4Radio stationTouch once to start the downward seek seekoperation.The seek stops where there(previous/fastis a broadcasting station,and hold onbackward)to it.5Radio stationTouch once to start the upward seek seekoperation.The seek stops where there(next/fastis a broadcasting station,and hold onforward)to it.6Station PresetTouch once any button of this area,the frequency memorized in the Preset-Channel-button is recalled andreceived.Touch and hold any button of this area,tuner stores the currently receivingtuner stores the currently receivingstation in the channel pressed.

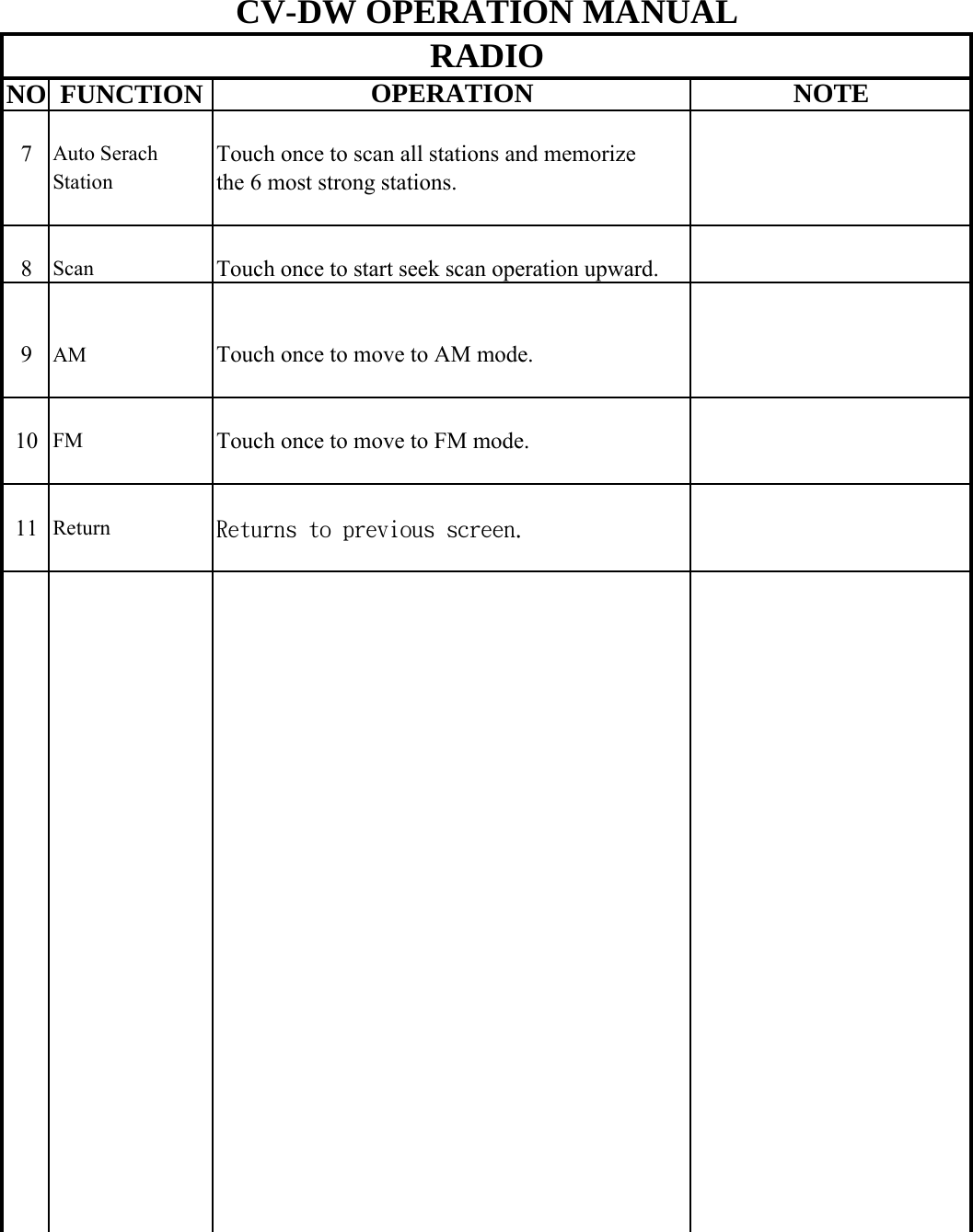

NO FUNCTION7Auto SerachTouch once to scan all stations and memorizeStationthe 6 most strong stations.8ScanTouch once to start seek scan operation upward.9AMTouch once to move to AM mode.10FMTouch once to move to FM mode.11ReturnReturns to previous screen.CV-DW OPERATION MANUALRADIOOPERATION NOTE11euReturns to previous screen.

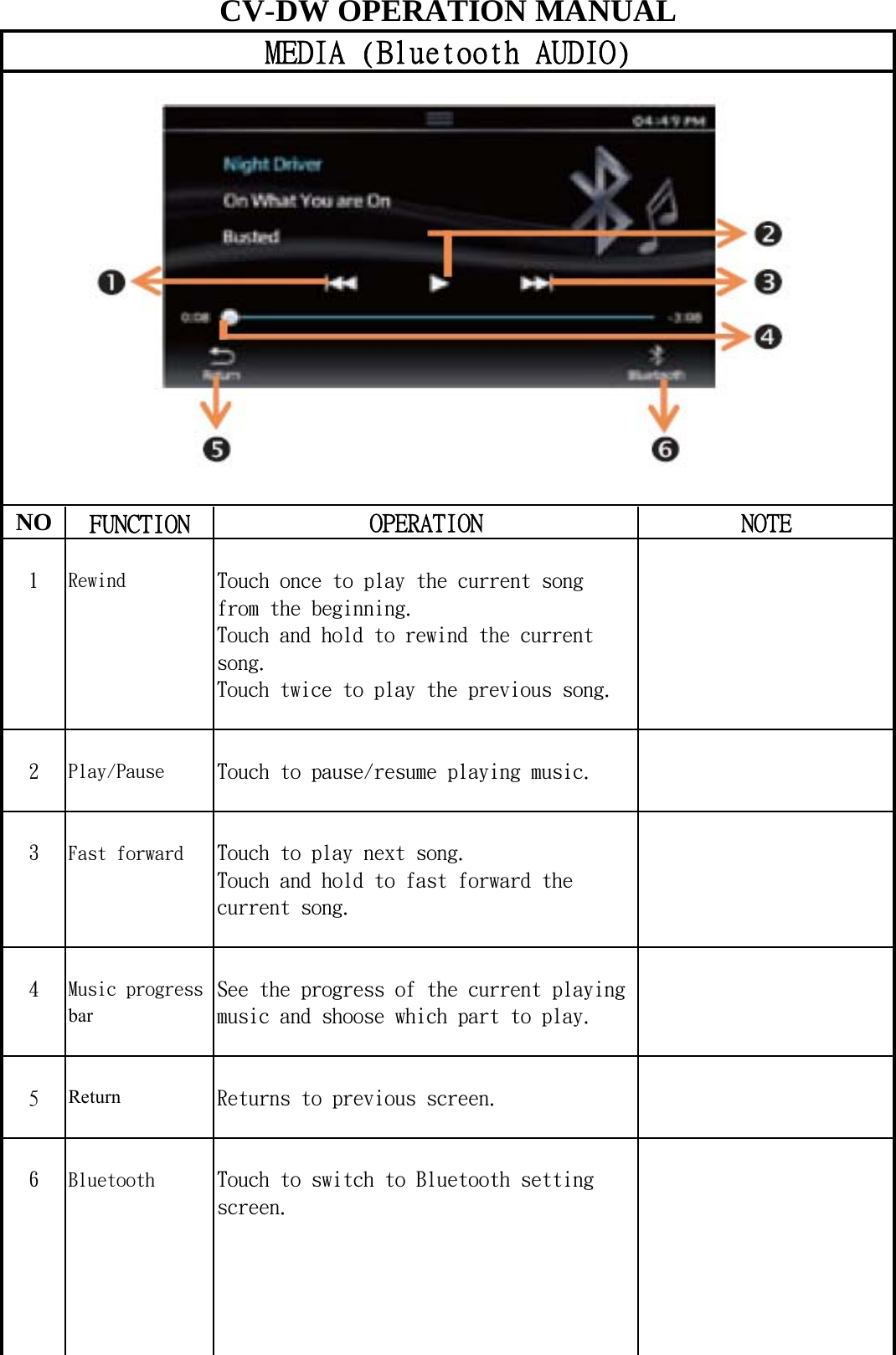

NO FUNCTION1RewindTouch once to play the current song f thbiiCV-DW OPERATION MANUALMEDIA (Bluetooth AUDIO)OPERATION NOTEfrom the beginning.Touch and hold to rewind the currentsong.Touch twice to play the previous song.2Play/PauseTouch to pause/resume playing music.3Fast forwardTouch to play next song.Touch and hold to fast forward the current song.4Music progressSee the progress of the current playingbarmusic and shoose which part to play.5ReturnReturns to previous screen.6BluetoothTouch to switch to Bluetooth settingscreen.

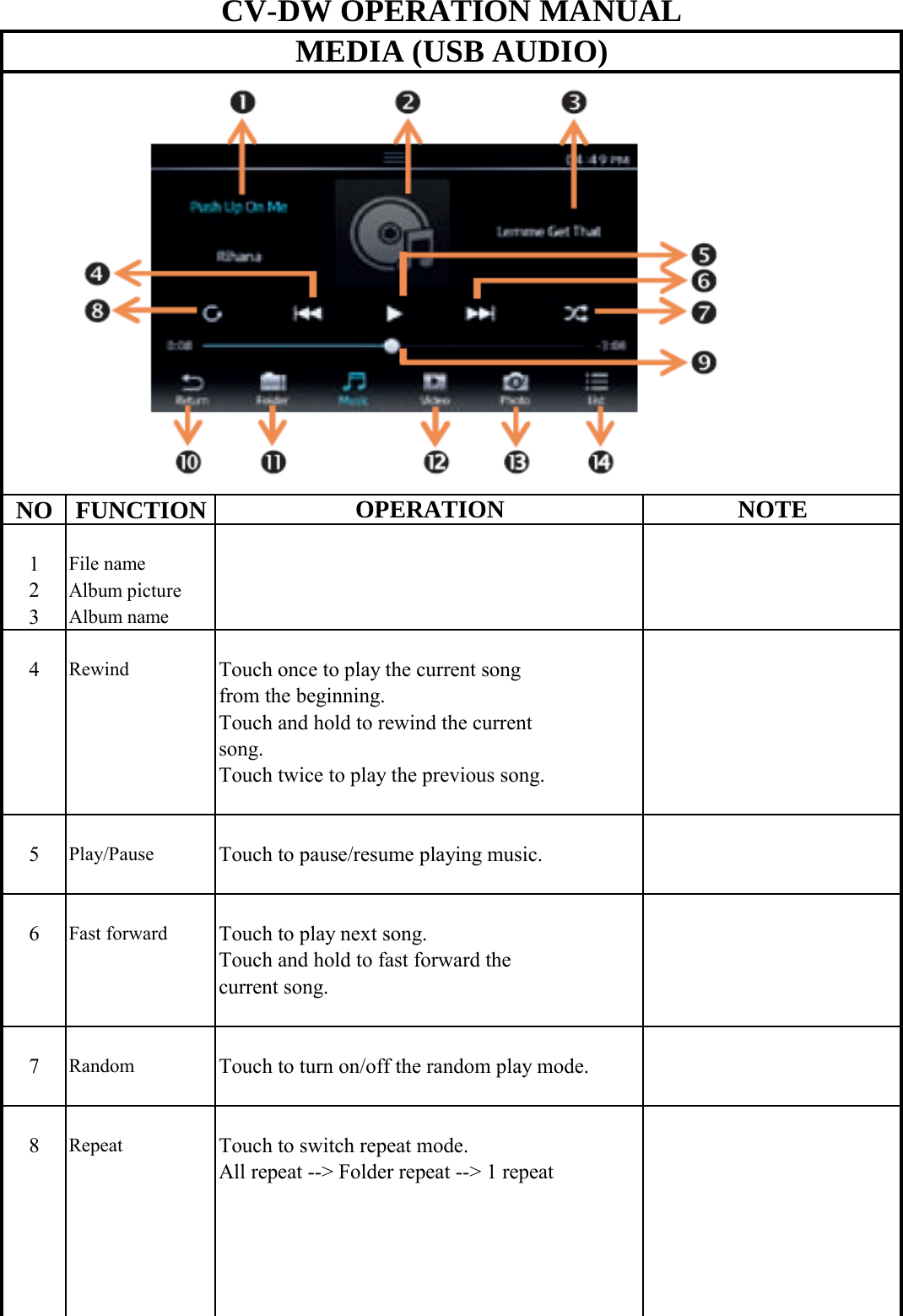

NO FUNCTION1File name2Alb iCV-DW OPERATION MANUALMEDIA (USB AUDIO)OPERATION NOTE2Album picture3Album name4RewindTouch once to play the current song from the beginning.Touch and hold to rewind the currentsong.Touch twice to play the previous song.5Play/PauseTouch to pause/resume playing music.6Fast forwardTouch to play next song.Touch and hold to fast forward the current song.7RandomTouch to turn on/off the random play mode.8RepeatTouch to switch repeat mode.All repeat --> Folder repeat --> 1 repeat

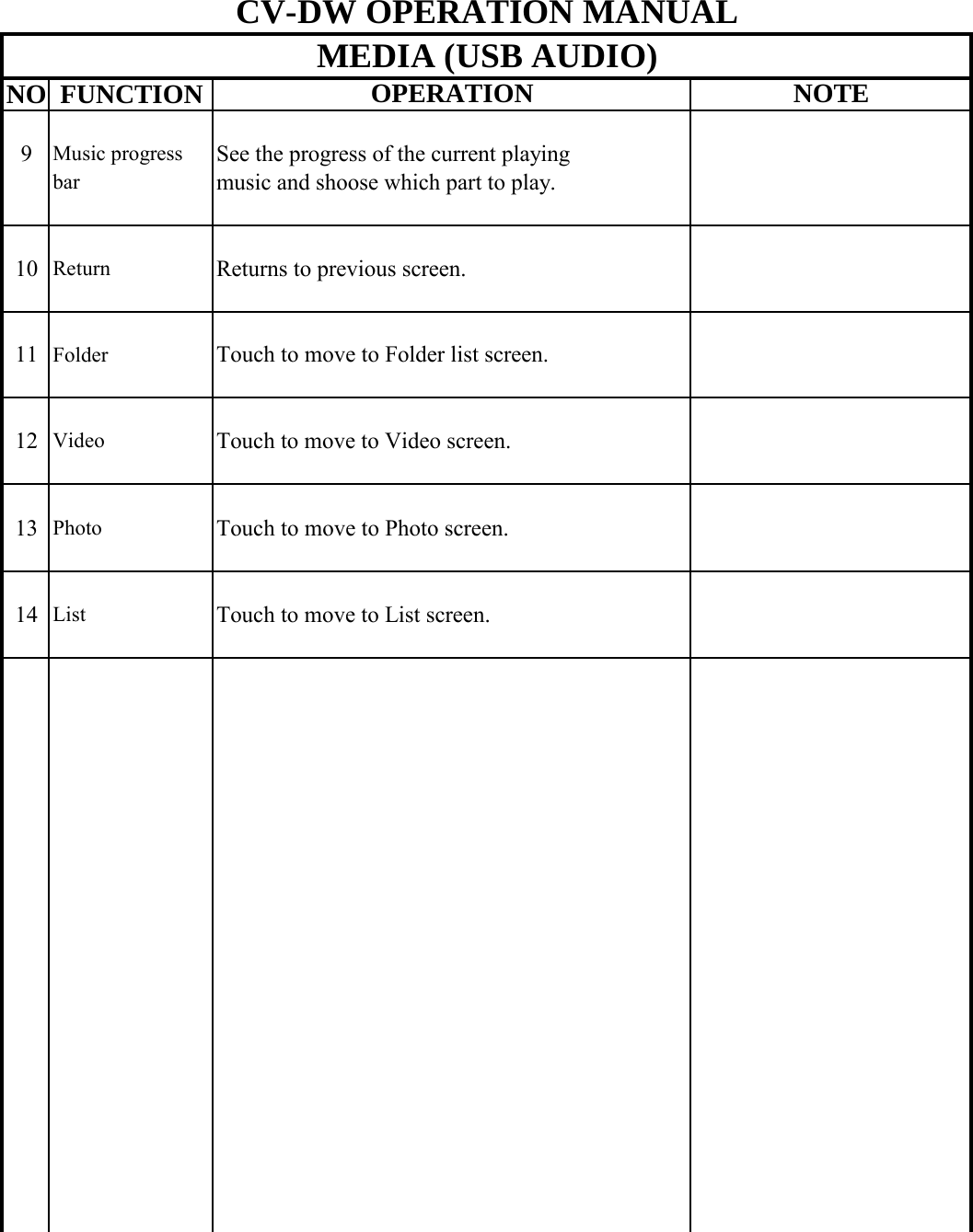

NO FUNCTION9Music progressSee the progress of the current playingbarmusic and shoose which part to play.10ReturnReturns to previous screen.11FolderTouch to move to Folder list screen.12VideoTouch to move to Video screen.13PhotoTouch to move to Photo screen.CV-DW OPERATION MANUALMEDIA (USB AUDIO)OPERATION NOTE13ooTouch to move to Photo screen.14ListTouch to move to List screen.

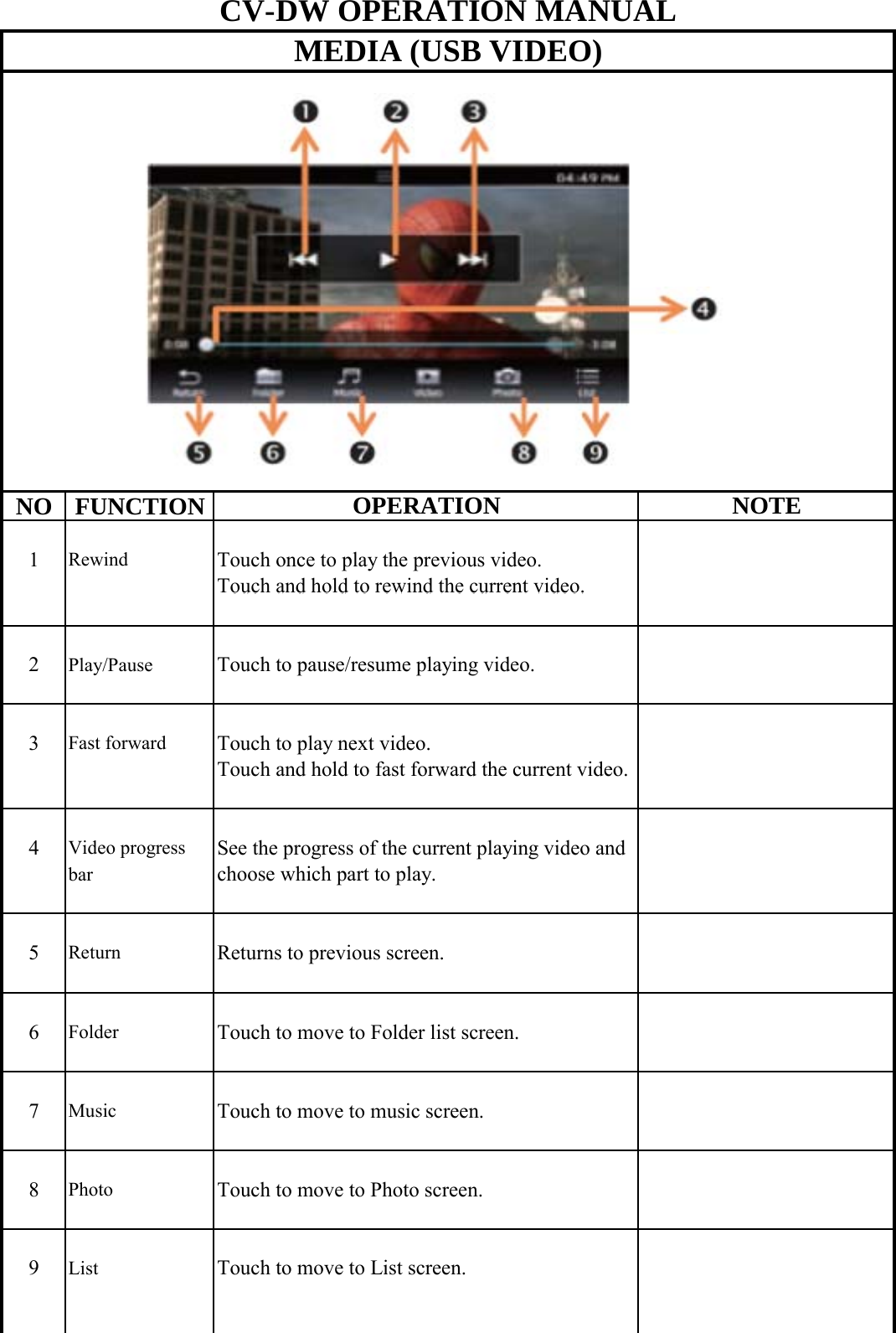

NO FUNCTION1RewindTouch once to play the previous video.Touch and hold to rewind the current video.CV-DW OPERATION MANUALMEDIA (USB VIDEO)OPERATION NOTETouch and hold to rewind the current video.2Play/PauseTouch to pause/resume playing video.3Fast forwardTouch to play next video.Touch and hold to fast forward the current video.4Video progressSee the progress of the current playing video and barchoose which part to play.5ReturnReturns to previous screen.6FolderTouch to move to Folder list screen.7MusicTouch to move to music screen.8PhotoTouch to move to Photo screen.9ListTouch to move to List screen.

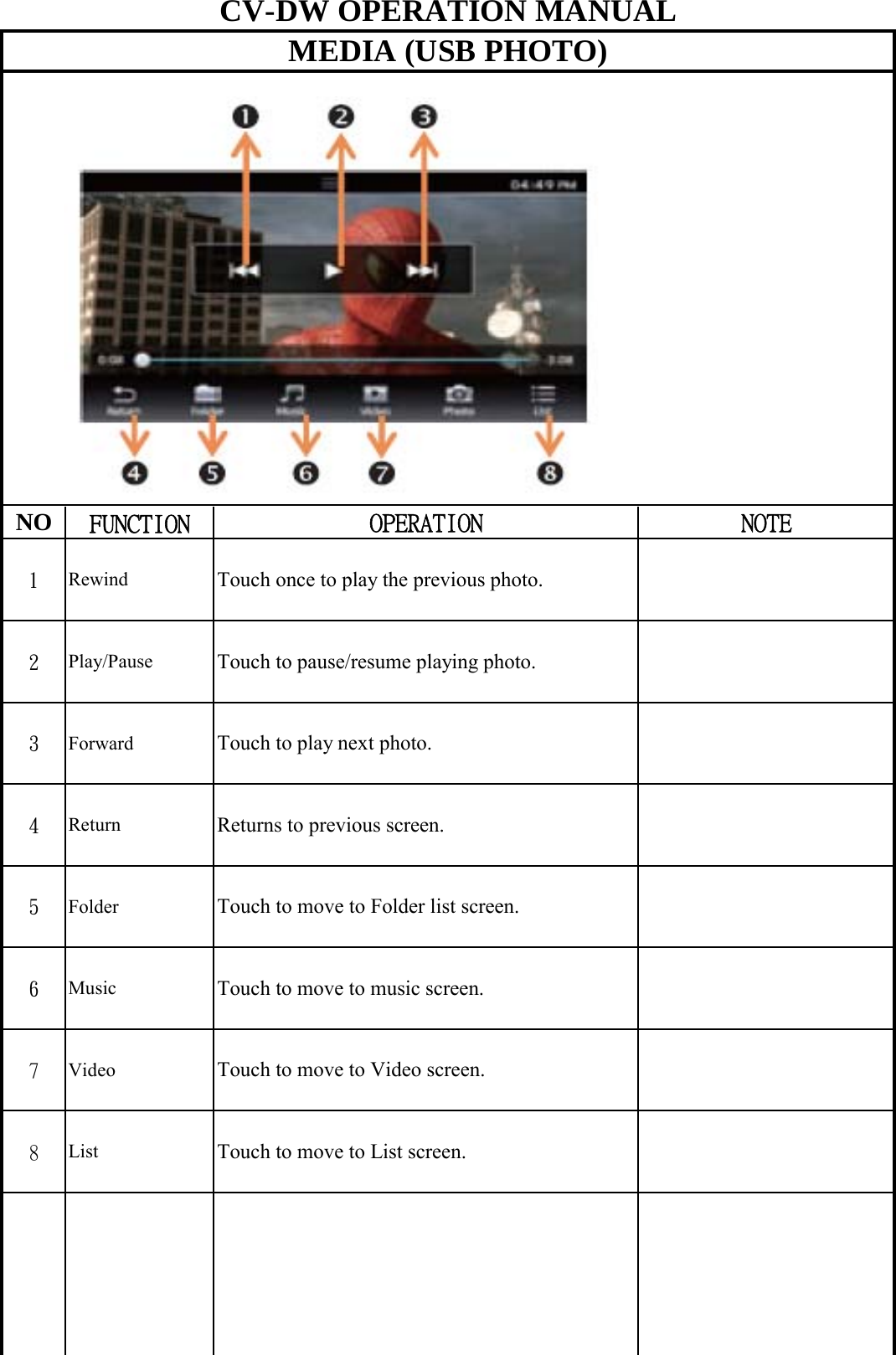

NO FUNCTION1RewindTouch once to play the previous photo.CV-DW OPERATION MANUALMEDIA (USB PHOTO)OPERATION NOTE2Play/PauseTouch to pause/resume playing photo.3ForwardTouch to play next photo.4ReturnReturns to previous screen.5FolderTouch to move to Folder list screen.6MusicTouch to move to music screen.7VideoTouch to move to Video screen.8ListTouch to move to List screen.

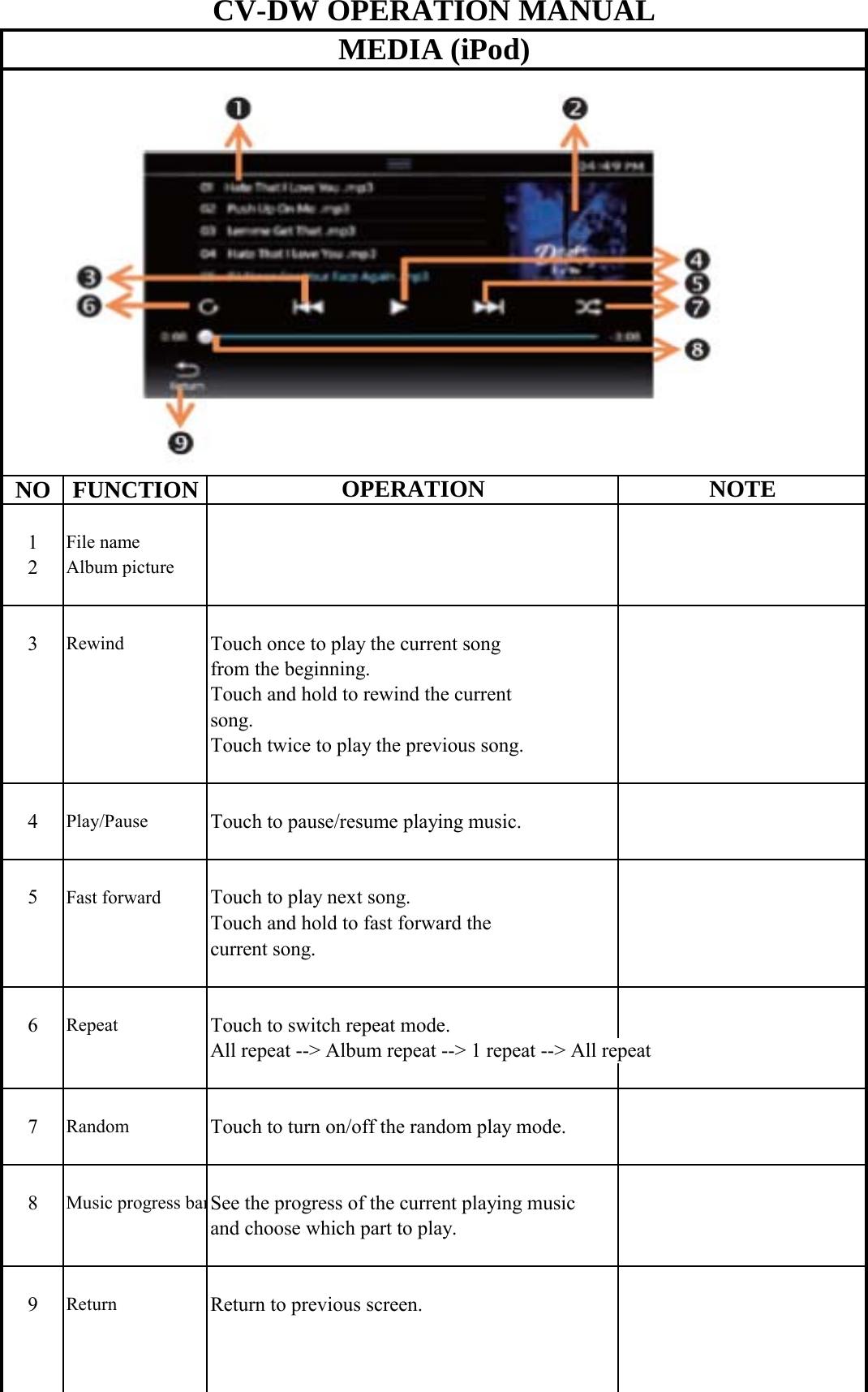

NO FUNCTION1File name2Album pictureCV-DW OPERATION MANUALMEDIA (iPod)OPERATION NOTE3RewindTouch once to play the current song from the beginning.Touch and hold to rewind the currentsong.Touch twice to play the previous song.4Play/PauseTouch to pause/resume playing music.5Fast forwardTouch to play next song.Touch and hold to fast forward the current song.6RepeatTouch to switch repeat mode.All repeat --> Album repeat --> 1 repeat --> All repeat7RandomTouch to turn on/off the random play mode.8Music progress barSee the progress of the current playing musicand choose which part to play.9ReturnReturn to previous screen.

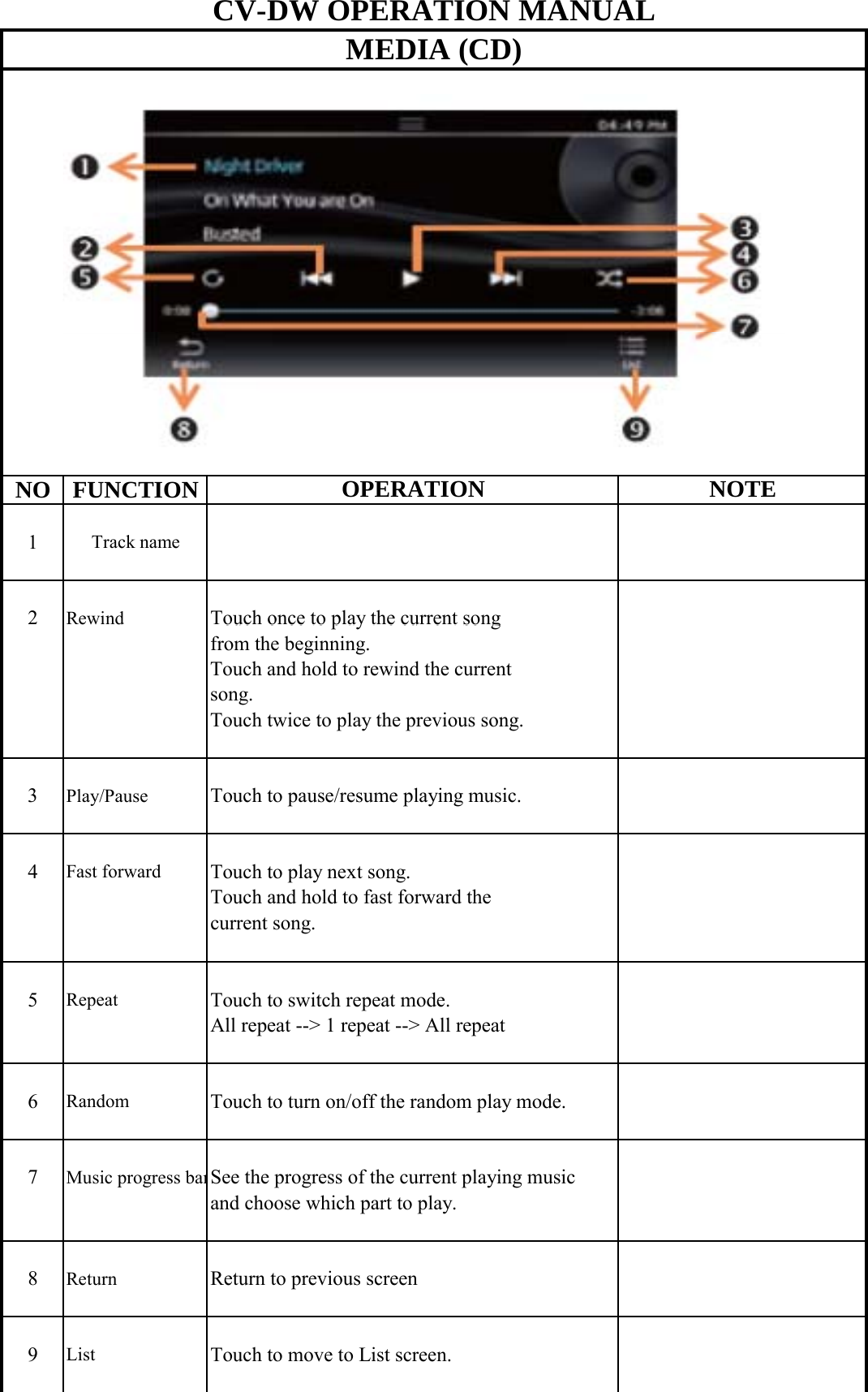

NO FUNCTION1Track name2RewindTouch once to play the current song CV-DW OPERATION MANUALMEDIA (CD)OPERATION NOTE2Touch once to play the current song from the beginning.Touch and hold to rewind the currentsong.Touch twice to play the previous song.3Play/PauseTouch to pause/resume playing music.4Fast forwardTouch to play next song.Touch and hold to fast forward the current song.5RepeatTouch to switch repeat mode.All repeat --> 1 repeat --> All repeat6RandomTouch to turn on/off the random play mode.7Music progress barSee the progress of the current playing musicand choose which part to play.8ReturnReturn to previous screen9ListTouch to move to List screen.

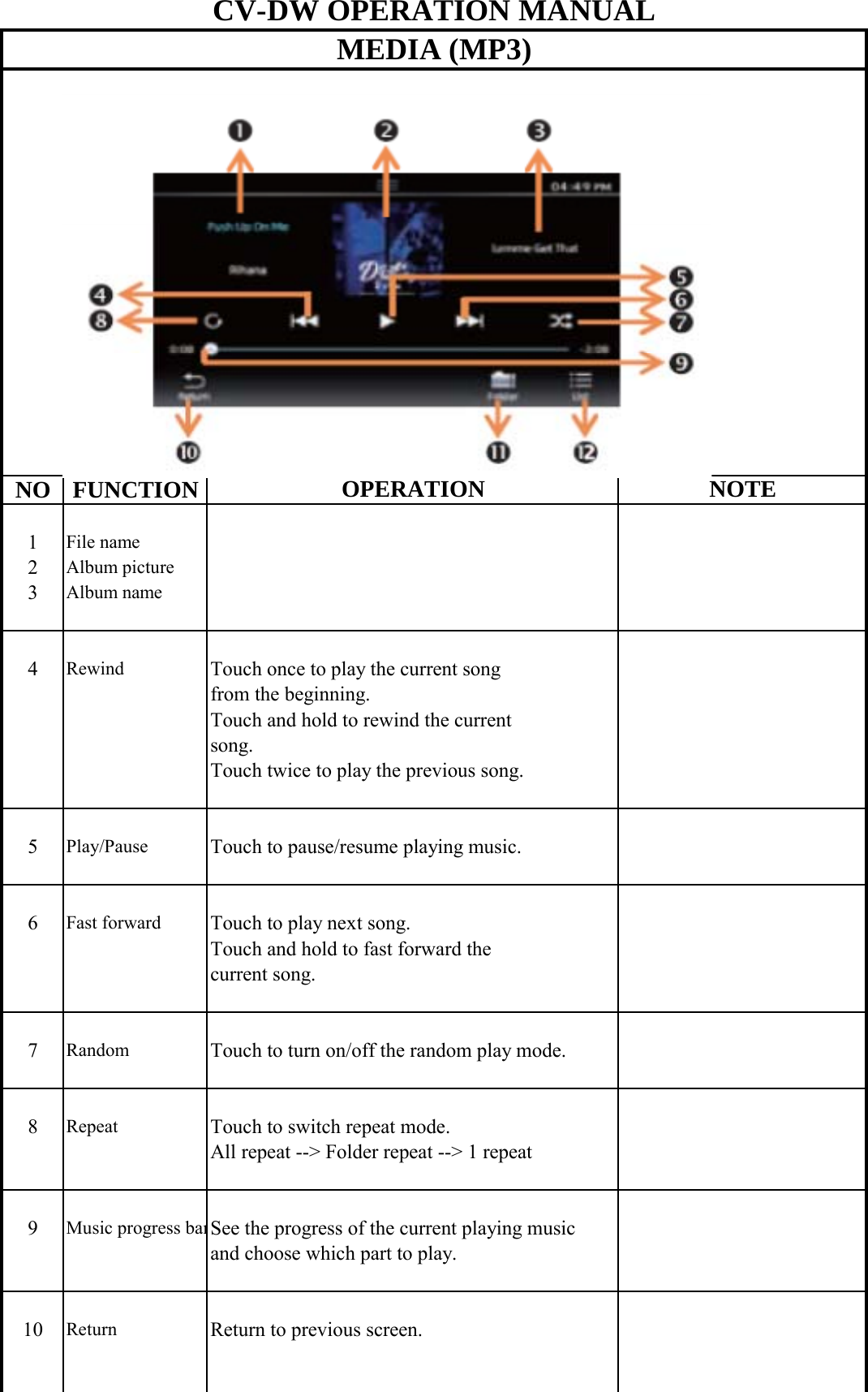

NO FUNCTION1File name2Album picture3Album nameCV-DW OPERATION MANUALMEDIA (MP3)OPERATION NOTE4RewindTouch once to play the current song from the beginning.Touch and hold to rewind the currentsong.Touch twice to play the previous song.5Play/PauseTouch to pause/resume playing music.6Fast forwardTouch to play next song.Touch and hold to fast forward the current song.7RandomTouch to turn on/off the random play mode.8RepeatTouch to switch repeat mode.All repeat --> Folder repeat --> 1 repeat9Music progress barSee the progress of the current playing musicand choose which part to play.10ReturnReturn to previous screen.

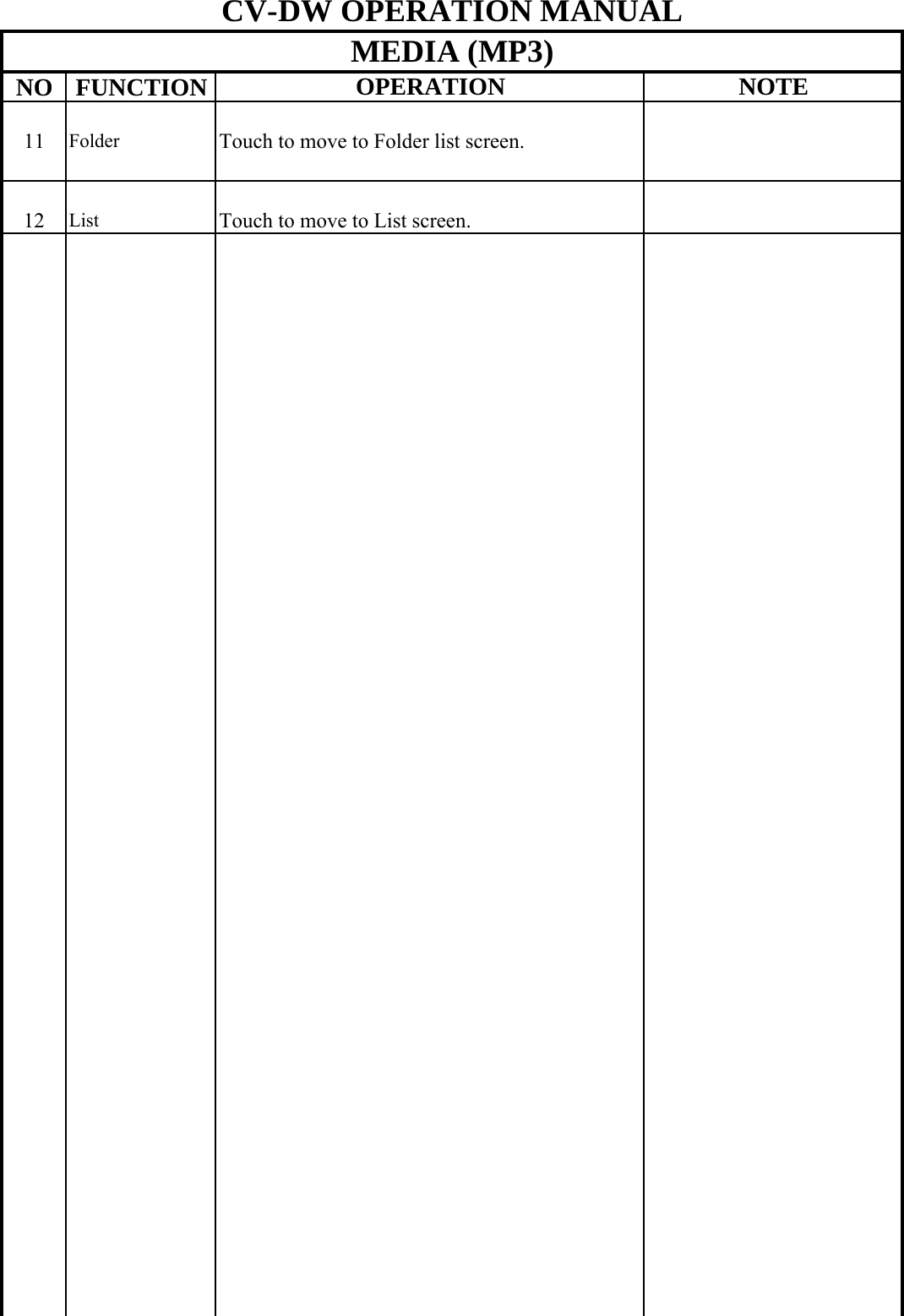

NO FUNCTION11 Folder Touch to move to Folder list screen.12 List Touch to move to List screen.CV-DW OPERATION MANUALMEDIA (MP3)OPERATION NOTE

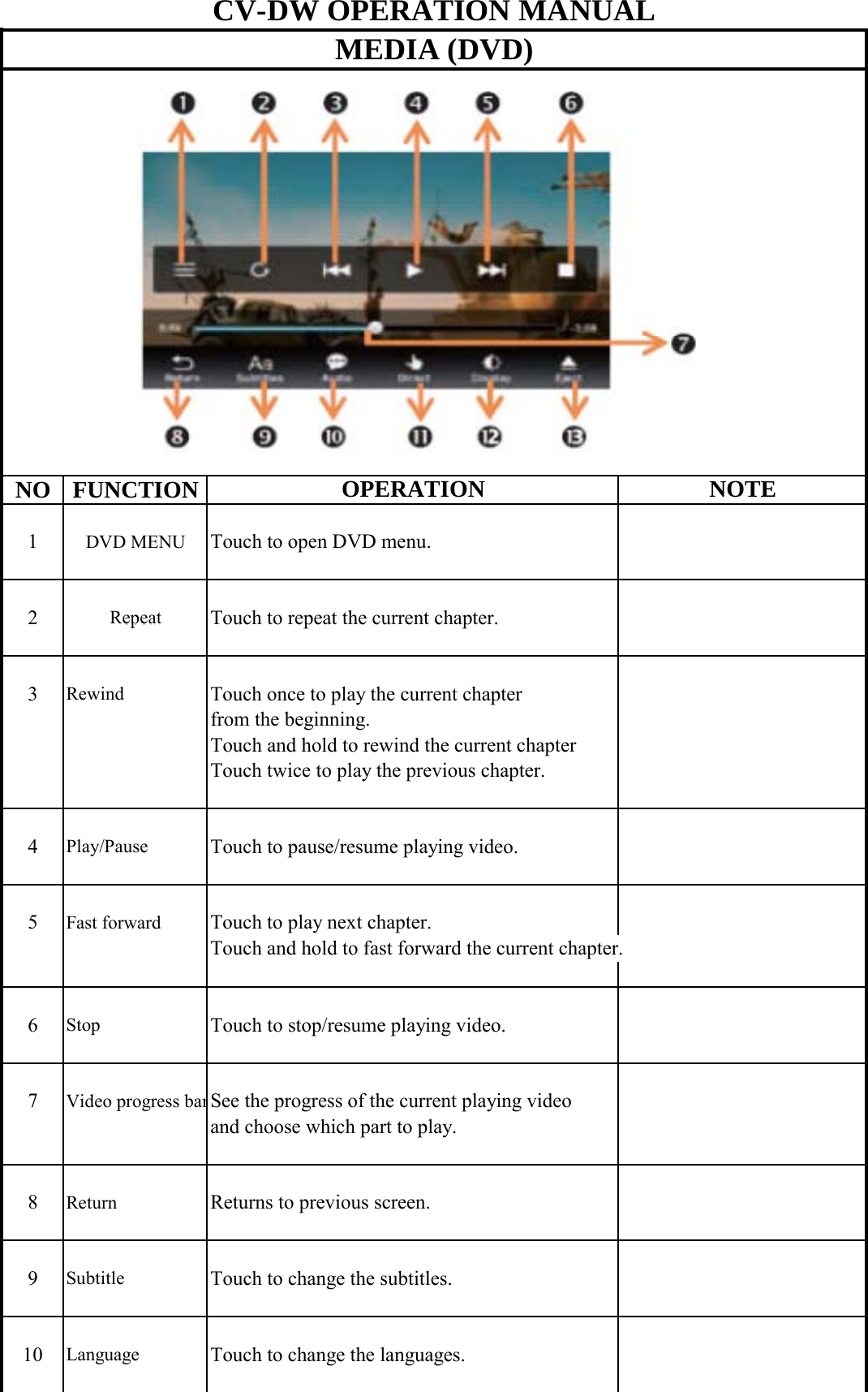

NO FUNCTION1DVD MENUTouch to open DVD menu.2RepeatTouch to repeat the current chapter.CV-DW OPERATION MANUALMEDIA (DVD)OPERATION NOTE2RepeatTouch to repeat the current chapter.3RewindTouch once to play the current chapter from the beginning.Touch and hold to rewind the current chapterTouch twice to play the previous chapter.4Play/PauseTouch to pause/resume playing video.5Fast forwardTouch to play next chapter.Touch and hold to fast forward the current chapter.6StopTouch to stop/resume playing video.7Video progress barSee the progress of the current playing videoand choose which part to play.8ReturnReturns to previous screen.9SubtitleTouch to change the subtitles.10LanguageTouch to change the languages.
NO FUNCTION11 Title number Touch to choose Title number / Chapter number directly.Chapter number12 Brightness Touch to set brightness or contrast.Contrast13 Eject Touch to eject DVD disc.CV-DW OPERATION MANUALMEDIA (MP3)OPERATION NOTE

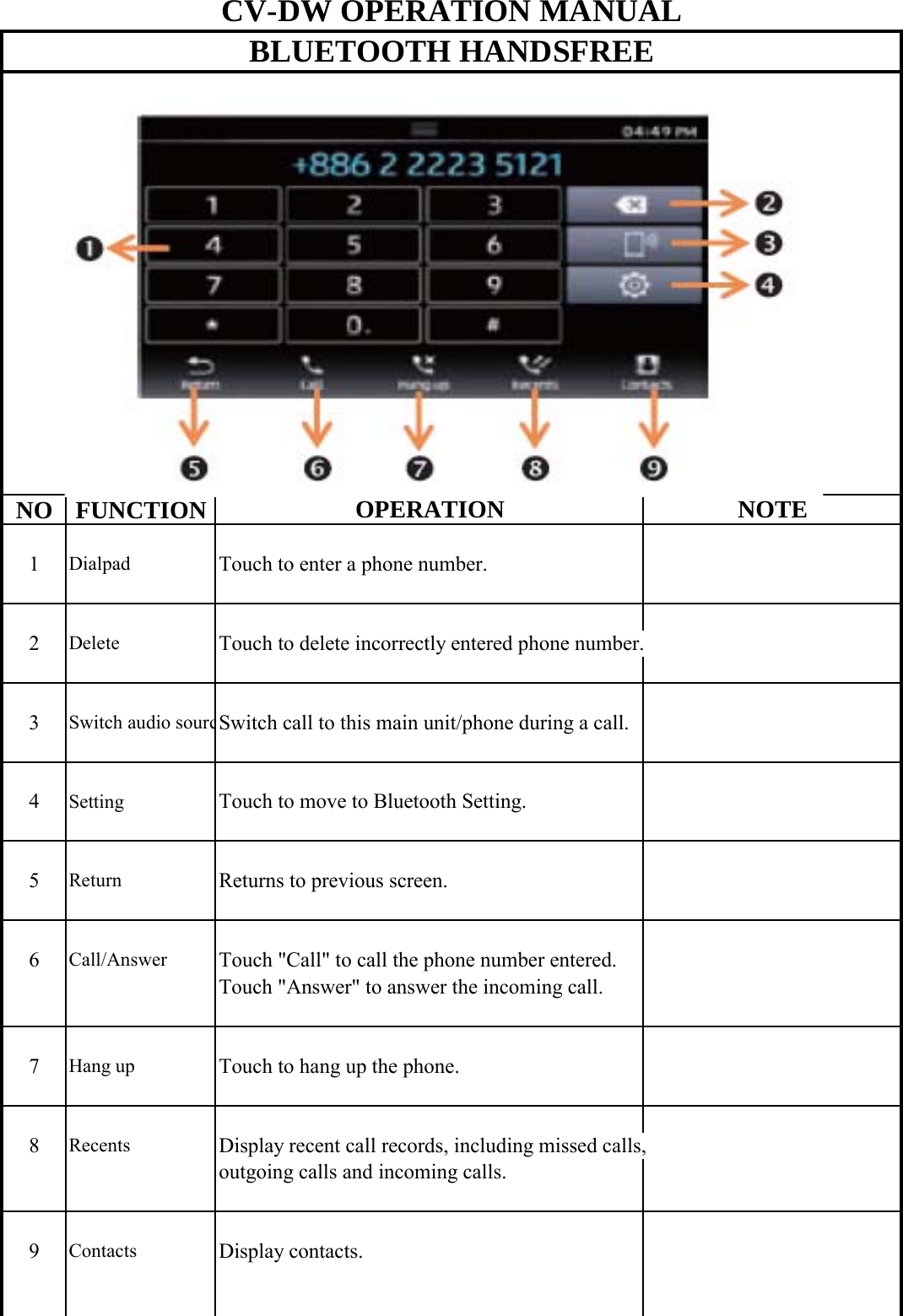

NO FUNCTION1DialpadTouch to enter a phone number.CV-DW OPERATION MANUALBLUETOOTH HANDSFREEOPERATION NOTE2DeleteTouch to delete incorrectly entered phone number.3Switch audio sourcSwitch call to this main unit/phone during a call.4SettingTouch to move to Bluetooth Setting.5ReturnReturns to previous screen.6Call/AnswerTouch "Call" to call the phone number entered.Touch "Answer" to answer the incoming call.7Hang upTouch to hang up the phone.8RecentsDisplay recent call records, including missed calls,outgoing calls and incoming calls.9ContactsDisplay contacts9ContactsDisplay contacts.

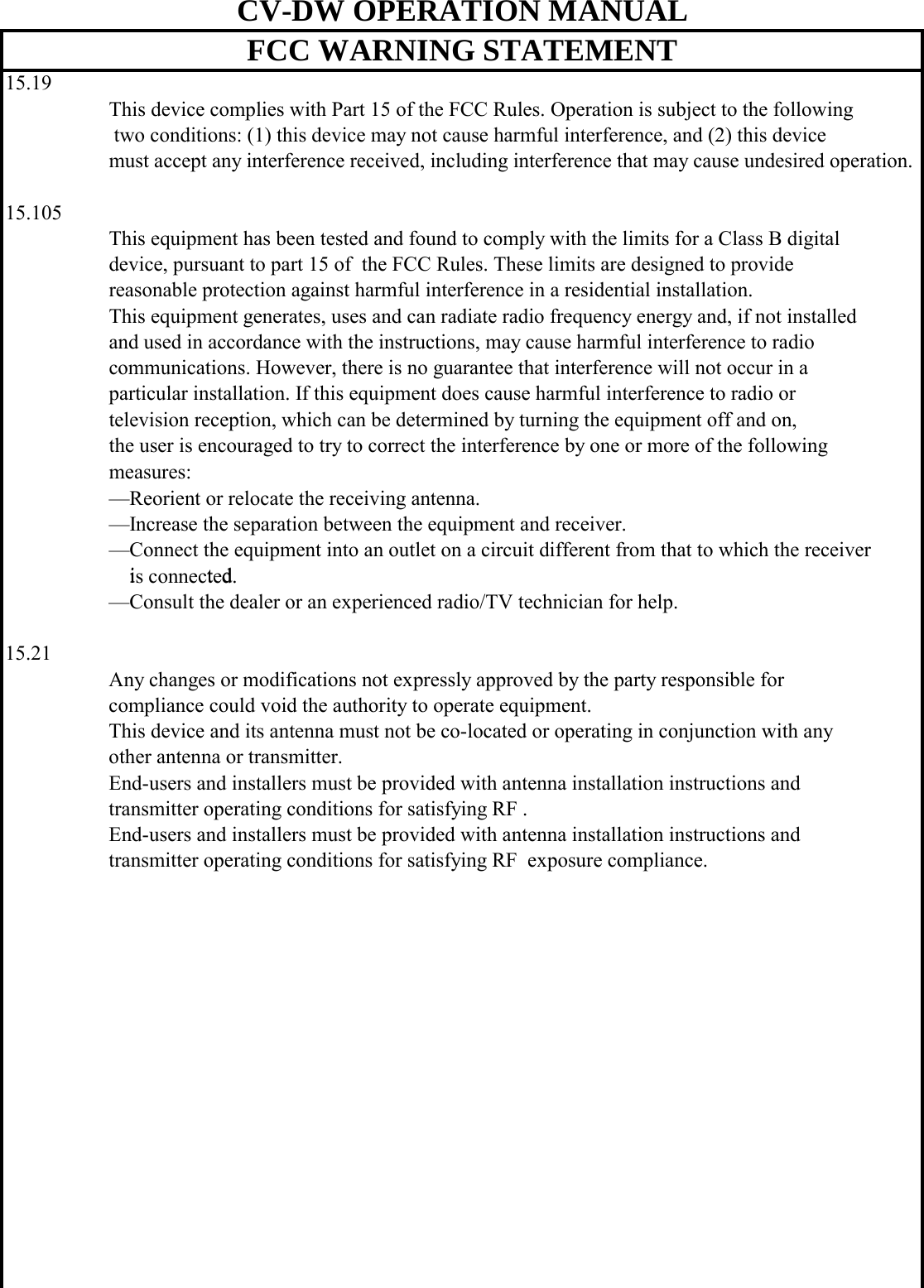

15.19This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.15.105This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installedand used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiveritdCV-DW OPERATION MANUALFCC WARNING STATEMENT is connected. —Consult the dealer or an experienced radio/TV technician for help.15.21Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment.This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.End-users and installers must be provided with antenna installation instructions andtransmitter operating conditions for satisfying RF .End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

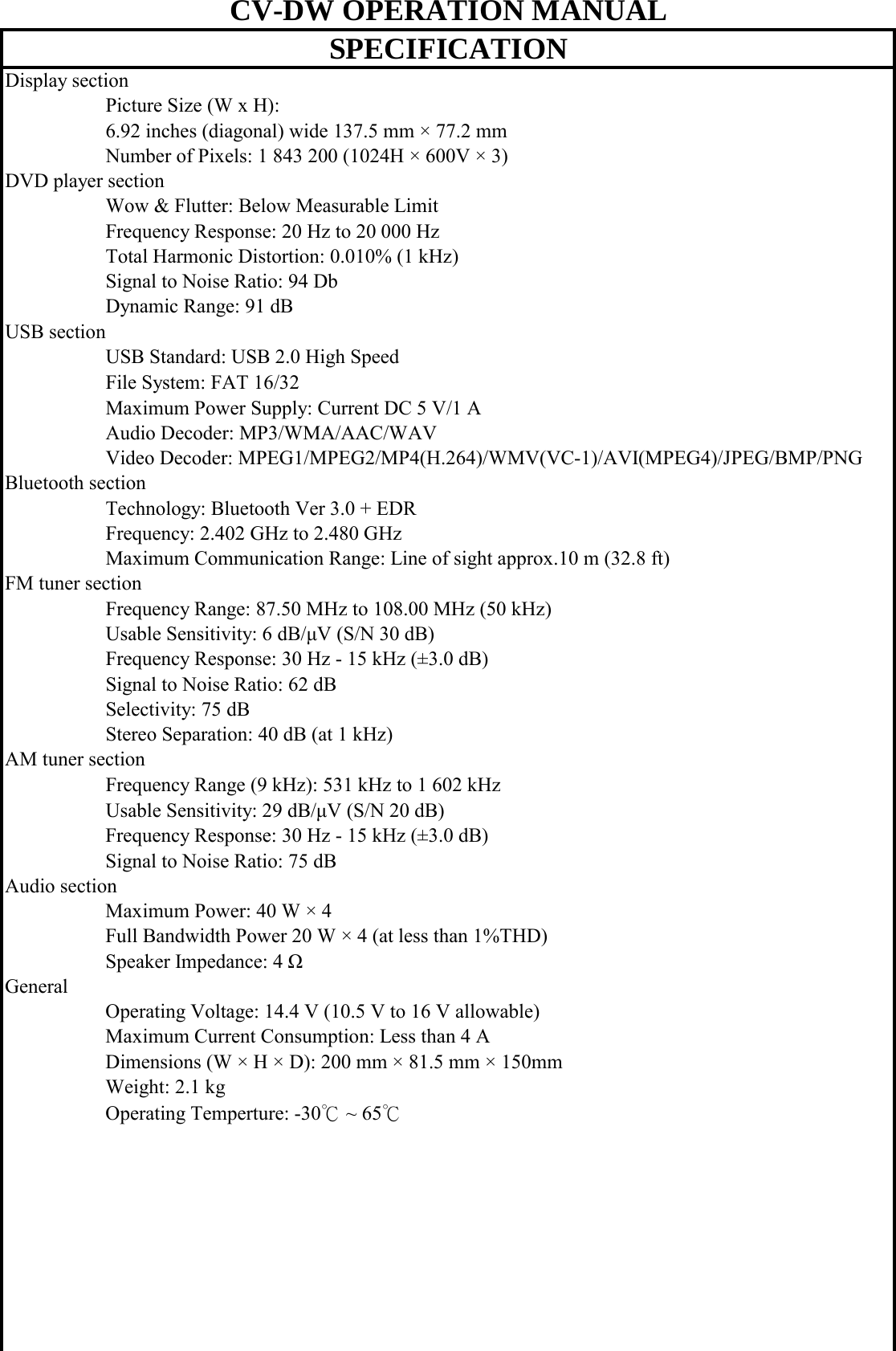

Display sectionPicture Size (W x H):6.92 inches (diagonal) wide 137.5 mm × 77.2 mmNumber of Pixels: 1 843 200 (1024H × 600V × 3)DVD player sectionWow & Flutter: Below Measurable LimitFrequency Response: 20 Hz to 20 000 HzTotal Harmonic Distortion: 0.010% (1 kHz)Signal to Noise Ratio: 94 DbDynamic Range: 91 dBUSB sectionUSB Standard: USB 2.0 High SpeedFile System: FAT 16/32Maximum Power Supply: Current DC 5 V/1 AAudio Decoder: MP3/WMA/AAC/WAVVideo Decoder: MPEG1/MPEG2/MP4(H.264)/WMV(VC-1)/AVI(MPEG4)/JPEG/BMP/PNGBluetooth sectionTechnology: Bluetooth Ver 3.0 + EDRFrequency: 2.402 GHz to 2.480 GHzMaximum Communication Range: Line of sight approx.10 m (32.8 ft)FM tuner sectionF R 87 50 MH t 108 00 MH (50 kH )CV-DW OPERATION MANUALSPECIFICATIONFrequency Range: 87.50 MHz to 108.00 MHz (50 kHz)Usable Sensitivity: 6 dB/μV (S/N 30 dB)Frequency Response: 30 Hz - 15 kHz (±3.0 dB)Signal to Noise Ratio: 62 dBSelectivity: 75 dBStereo Separation: 40 dB (at 1 kHz)AM tuner sectionFrequency Range (9 kHz): 531 kHz to 1 602 kHzUsable Sensitivity: 29 dB/μV (S/N 20 dB)Frequency Response: 30 Hz - 15 kHz (±3.0 dB)Signal to Noise Ratio: 75 dBAudio sectionMaximum Power: 40 W × 4Full Bandwidth Power 20 W × 4 (at less than 1%THD)Speaker Impedance: 4 ΩGeneralOperating Voltage: 14.4 V (10.5 V to 16 V allowable)Maximum Current Consumption: Less than 4 ADimensions (W × H × D): 200 mm × 81.5 mm × 150mmWeight: 2.1 kgOperating Temperture: -30℃ ~ 65℃
