Panasonic DMC FZ47 Lumix User Guide Manual Operating Instructions To The 75a4aa13 E1c9 480a B663 Ae4c7cc9a8ff

User Manual: Panasonic DMC-FZ47 to the manual

Open the PDF directly: View PDF PDF.
Page Count: 44

Basic Owner’s Manual
Digital Camera
Model No. DMC-FZ47
Before connecting, operating or adjusting this product,
please read the instructions completely.
More detailed instructions on the
operation of this camera are
contained in “Owner’s Manual for
advanced features (PDF format)” in the supplied
CD-ROM. Install it on your PC to read it.
until
2011/8/8
VQT3R28
For USA and Puerto Rico assistance, please call: 1-800-211-PANA(7262) or,
contact us via the web at: http://www.panasonic.com/contactinfo
P
DMC-FZ48&FZ47P-VQT3R28_eng.book 1 ページ ２０１１年６月２９日　水曜日　午後４時３０分
VQT3R28 (ENG)
2
Dear Customer,
Thank you for choosing Panasonic!
You have purchased one of the most sophisticated and reliable products on
the market today. Used properly, we’re sure it will bring you and your family
years of enjoyment. Please take time to fill in the information on the below.
The serial number is on the tag located on the underside of your camera. Be
sure to retain this manual as your convenient camera information source.
Please note that the actual controls and components, menu items, etc. of
your Digital Camera may look somewhat different from those shown in the
illustrations in this Owner’s Manual.
Carefully observe copyright laws.
•Recording of pre-recorded tapes or discs or other published or broadcast
material for purposes other than your own private use may infringe copyright
laws. Even for the purpose of private use, recording of certain material may be
restricted.
A lithium ion battery that is recyclable powers the product
you have purchased. Please call 1-800-8-BATTERY for
information on how to recycle this battery.
Date of Purchase
Dealer Purchased From
Dealer Address
Dealer Phone No.
Model No.
Serial No.
DMC-FZ48&FZ47P-VQT3R28_eng.book 2 ページ ２０１１年６月２９日　水曜日　午後４時３０分
3
(ENG) VQT3R28
Information for Your Safety
∫Product identification marking
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT
DAMAGE,
•DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING
OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH
AS VASES, SHALL BE PLACED ON THE APPARATUS.
•USE ONLY THE RECOMMENDED ACCESSORIES.
•DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THE SOCKET OUTLET SHALL BE INSTALLED NEAR THE
EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.
Product Location
Digital Camera Bottom
Battery charger Bottom
DMC-FZ48&FZ47P-VQT3R28_eng.book 3 ページ ２０１１年６月２９日　水曜日　午後４時３０分
VQT3R28 (ENG)
4
FCC Note:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:To assure continued compliance, follow the attached
installation instructions and use only shielded interface
cables with ferrite core when connecting to computer or
peripheral devices.
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this
equipment.
Declaration of Conformity
Trade Name: Panasonic
Model No.: DMC-FZ47
Responsible party: Panasonic Corporation of North America
One Panasonic Way, Secaucus, NJ 07094
Support Contact: Panasonic Consumer Electronics Company
1-800-211-PANA (7262)
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
DMC-FZ48&FZ47P-VQT3R28_eng.book 4 ページ ２０１１年６月２９日　水曜日　午後４時３０分
5
(ENG) VQT3R28
∫About the battery pack
•Do not heat or expose to flame.
•Do not leave the battery(ies) in an automobile exposed to direct sunlight for a
long period of time with doors and windows closed.
∫About the battery charger
CAUTION
Battery pack (Lithium ion battery pack)
•Use the specified unit to recharge the battery pack.
•Do not use the battery pack with equipment other than the specified unit.
•Do not get dirt, sand, liquids, or other foreign matter on the terminals.
•Do not touch the plug terminals (i and j) with metal objects.
•Do not disassemble, remodel, heat or throw into fire.
If any electrolyte should come into contact with your hands or clothes,
wash it off thoroughly with water.
If any electrolyte should come into contact with your eyes, never rub the
eyes. Rinse eyes thoroughly with water, and then consult a doctor.
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer. Dispose
of used batteries according to the manufacturer’s instructions.
Warning
Risk of fire, explosion and burns. Do not disassemble, heat above 60 xC
(140 oF) or incinerate.
CAUTION!
DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN
CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT
IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK
OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT
CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE
VENTILATION VENTS.
DMC-FZ47
DMC-FZ48&FZ47P-VQT3R28_eng.book 5 ページ ２０１１年６月２９日　水曜日　午後４時３０分
VQT3R28 (ENG)
6
∫Cautions for Use
•Always use a genuine Panasonic AV cable (DMW-AVC1; optional).
•Always use a genuine Panasonic HDMI mini cable (RP-CDHM15, RP-CDHM30;
optional).
Part numbers: RP-CDHM15 (1.5 m) (5 feet), RP-CDHM30 (3.0 m) (10 feet)
•Do not use any other USB connection cables except the supplied one.
Keep this unit as far away as possible from electromagnetic equipment
(such as microwave ovens, TVs, video games etc.).
•If you use this unit on top of or near a TV, the pictures and/or sound on this unit
may be disrupted by electromagnetic wave radiation.
•Do not use this unit near cell phones because doing so may result in noise
adversely affecting the pictures and/or sound.
•Recorded data may be damaged, or pictures may be distorted, by strong
magnetic fields created by speakers or large motors.
•Electromagnetic wave radiation generated by microprocessors may adversely
affect this unit, disturbing the pictures and/or sound.
•If this unit is adversely affected by electromagnetic equipment and stops
functioning properly, turn this unit off and remove the battery or disconnect AC
adaptor (DMW-AC8PP; optional). Then reinsert the battery or reconnect AC
adaptor and turn this unit on.
Do not use this unit near radio transmitters or high-voltage lines.
•If you record near radio transmitters or high-voltage lines, the recorded pictures
and/or sound may be adversely affected.
Battery charger
This battery charger operates on AC between 110 V and 240 V.
But
•In the U.S.A. and Canada, the battery charger must be connected to a 120 V
AC power supply only.
•When connecting to an AC supply outside of the U.S.A. or Canada, use a
plug adaptor to suit the AC outlet configuration.
DMC-FZ48&FZ47P-VQT3R28_eng.book 6 ページ ２０１１年６月２９日　水曜日　午後４時３０分
7
(ENG) VQT3R28
-If you see this symbol-
Information on Disposal in other Countries outside
the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your
local authorities or dealer and ask for the correct
method of disposal.
DMC-FZ48&FZ47P-VQT3R28_eng.book 7 ページ ２０１１年６月２９日　水曜日　午後４時３０分
VQT3R28 (ENG)
8
Contents
Information for Your Safety ...........................................................................3
Care of the camera .......................................................................................9

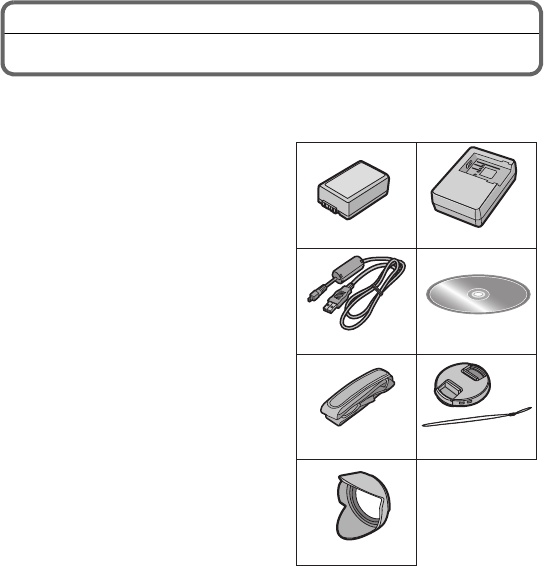

Standard Accessories .................................................................................10
Names and Functions of Components........................................................11
Charging the Battery ................................................................................... 14
• Charging ...............................................................................................14
• Approximate operating time and number of recordable pictures ..........16
About the Built-in Memory/the Card............................................................17
Inserting and Removing the Card (optional)/the Battery.............................18
Setting Date/Time (Clock Set).....................................................................19
• Changing the clock setting....................................................................19
Selecting the Recording Mode .................................................................... 20
Taking Pictures with Your Favorite Settings (Program AE Mode) ..............22
• Program Shift ........................................................................................23
Taking Pictures Using the Automatic Function (Intelligent Auto Mode) ......24
Recording Motion Pictures..........................................................................26
Playing Back Pictures ([NORMAL PLAY]) ..................................................27
Deleting Pictures.........................................................................................27
Setting the Menu.........................................................................................28
Compensating the Exposure.......................................................................29
Taking Pictures by Specifying the Aperture/Shutter Speed ........................ 30
• Aperture-Priority AE..............................................................................30
• Shutter-Priority AE ................................................................................ 30
• Manual Exposure Mode ........................................................................31
Reading the Owner’s Manual (PDF format)................................................32
Specifications..............................................................................................34
Digital Camera Accessory System..............................................................38
Digital Camera Accessory Order Form .......................................................39
Limited Warranty (ONLY FOR U.S.A. AND PUERTO RICO) .....................40
DMC-FZ48&FZ47P-VQT3R28_eng.book 8 ページ ２０１１年６月２９日　水曜日　午後４時３０分
9
(ENG) VQT3R28
Care of the camera
Do not subject to strong vibration, shock, or
pressure.
•The lens, LCD monitor, or external case may be
damaged if used in following conditions.
It may also malfunction or image may not be
recorded.
–Drop or hit the camera.
–Press hard on the lens or the LCD monitor.
•When carrying or using the playback feature,
ensure that the lens is in the stored position.
•There are times when rattling sounds or
vibrations will come from the camera, but these
are due to the motion of the aperture, the zoom
and the motor and do not indicate a defect.
This camera is not dust/drip/water proof.
Avoid using the camera at location with a lot of
dust, water, sand, etc.
•Liquids, sand and other foreign material may get into
the space around the lens, buttons, etc. Be
particularly careful since it may not just cause
malfunctions, but it may become unrepairable.
–Places with a lot of sand or dust.
–Places where water can come into contact with this
unit such as when using it on a rainy day or on a
beach.
DMC-FZ48&FZ47P-VQT3R28_eng.book 9 ページ ２０１１年６月２９日　水曜日　午後４時３０分
VQT3R28 (ENG)
10
Standard Accessories
Check that all the accessories are supplied before using the camera.
Product numbers correct as of August 2011. These may be subject to change.
1 Battery Pack
(Indicated as battery pack or
battery in the text)
Charge the battery before use.
2 Battery Charger
(Indicated as battery charger or
charger in the text)
3 USB Connection Cable
4 CD-ROM
•Software:
Use it to install the software to your
PC.
•Owner’s Manual
5 Shoulder Strap
6 Lens Cap/Lens Cap String
7Lens Hood
•SD Memory Card, SDHC Memory Card
and SDXC Memory Card are indicated
as card in the text.
•The card is optional.
You can record or play back pictures
on the built-in memory when you are
not using a card.
•For information about optional
accessories, refer to the “Digital Camera
Accessory System”.
•If any accessories are lost, customers
should contact Panasonic’s parts
department at 1 800 833-9626 for
further information about obtaining
replacement parts.
DMC-FZ48&FZ47P-VQT3R28_eng.book 10 ページ ２０１１年６月２９日　水曜日　午後４時３０分
11
(ENG) VQT3R28
Names and Functions of Components
1Lens
2 Self-timer indicator
AF Assist Lamp
3Flash
4 Flash open button
5 Diopter adjustment dial
6 Viewfinder
7 [EVF/LCD] button
8 [AF/AE LOCK] button
9 Rear dial
10 [AF/AF#/MF] button
11 Playback button
12 [MENU/SET] button
13 Cursor buttons
14 [Q.MENU] button/Delete button
15 [DISPLAY] button
16 LCD monitor
3/ Exposure compensation/
Auto Bracket/Flash output adjustment
2/ Self-timer button
1/ISO
4/ Function button
The following menus can be assigned.
[PHOTO STYLE]/[ASPECT RATIO]/[QUALITY]/[METERING MODE]/
[WHITE BALANCE]/[I.DYNAMIC]/[GUIDE LINE]/[ REC AREA]/
[REMAINING DISP.]
12 3
845 6 7 9
11
12
10
13
141516
DMC-FZ48&FZ47P-VQT3R28_eng.book 11 ページ ２０１１年６月２９日　水曜日　午後４時３０分
VQT3R28 (ENG)
12
17 Stereo microphone
18 Zoom lever
19 Shutter button
20 Motion picture button
21 [FOCUS] button
22 Power lamp
23 Camera ON/OFF switch
24 Mode dial
25 Speaker
•Do not cover the speaker with your fingers.
26 Shoulder strap eyelet
27 [HDMI] socket
28 [AV OUT/DIGITAL] socket
29 Terminal door
30 Lens barrel
31 Tripod receptacle
32 Release lever
33 Card/Battery door
34 DC coupler cover
•When using an AC adaptor, ensure that the
Panasonic DC coupler (DMW-DCC6;
optional) and AC adaptor (DMW-AC8PP;
optional) are used.
•Always use a genuine Panasonic AC
adaptor (DMW-AC8PP; optional).
•It is recommended to use a fully charged
battery or AC adaptor when recording motion pictures.
•If while recording motion pictures using the AC adaptor and the power
supply is cut off due to a power outage or if the AC adaptor is disconnected
etc., the motion picture being recorded will not be recorded.
CUST
M
18
19
21
20
22
24 23
17
25
AV OUT/DIGITAL
26
28
27
2930
31 32
34
33
DMC-FZ48&FZ47P-VQT3R28_eng.book 12 ページ ２０１１年６月２９日　水曜日　午後４時３０分
13
(ENG) VQT3R28
This document expresses the up, down, left, and right of the cursor button as
follows, or as 3/4/2/1.
Cursor button:
Selection of items or setting of values etc., is performed.
[MENU/SET] button:
Confirmation of setting contents, etc., is performed.
There are 2 ways to operate the rear dial, rotating left or right, and deciding by
pressing.
Rotating:
Selection of items or setting of values is performed during the various
settings.
Pressing:
Operations that are the same as [MENU/SET] button, such as determine
settings, etc., are performed during the various settings.
•Rear dial is described as follows in this Owner’s Manual.
Cursor buttons/[MENU/SET] button
e.g.: When you press the 4 (down) button
or Press 4
Rear Dial
e.g.: Rotating left or right e.g.: Pressing the rear dial
DMC-FZ48&FZ47P-VQT3R28_eng.book 13 ページ ２０１１年６月２９日　水曜日　午後４時３０分
VQT3R28 (ENG)
14
Charging the Battery
∫About batteries that you can use with this unit
The battery that can be used with this unit is DMW-BMB9PP.
•Use the dedicated charger and battery.
•The battery is not charged when the camera is shipped. Charge the battery
before use.
•Charge the battery with the charger indoors.
It has been found that counterfeit battery packs which look very similar
to the genuine product are made available to purchase in some markets.
Some of these battery packs are not adequately protected with internal
protection to meet the requirements of appropriate safety standards.
There is a possibility that these battery packs may lead to fire or
explosion. Please be advised that we are not liable for any accident or
failure occurring as a result of use of a counterfeit battery pack. To
ensure that safe products are used we would recommend that a genuine
Panasonic battery pack is used.
Charging
Attach the battery paying attention
to the direction of the battery.
Connect the charger to the
electrical outlet.
•The [CHARGE] indicator A lights up and
charging begins. 90°
DMC-FZ48&FZ47P-VQT3R28_eng.book 14 ページ ２０１１年６月２９日　水曜日　午後４時３０分
15
(ENG) VQT3R28
∫About the [CHARGE] indicator
The [CHARGE] indicator turns on:
The [CHARGE] indicator is turned on during charging.
The [CHARGE] indicator turns off:
The [CHARGE] indicator will turn off once the charging has completed without any
problem. (Disconnect the charger from the electrical socket and detach the
battery after charging is completed.)
•When the [CHARGE] indicator flashes
–The battery temperature is too high or too low. It is recommended to charge
the battery again in an ambient temperature of between 10 oC and 30 oC
(50 oF and 86 oF).
–The terminals of the charger or the battery are dirty. In this case, wipe them
with a dry cloth.
∫Charging time
Charging time Approx. 155 min
DMC-FZ48&FZ47P-VQT3R28_eng.book 15 ページ ２０１１年６月２９日　水曜日　午後４時３０分
VQT3R28 (ENG)
16
Recording conditions by CIPA standard
•CIPA is an abbreviation of [Camera & Imaging Products Association].
•Program AE Mode
•Temperature: 23 oC (73.4 oF)/Humidity: 50%RH when LCD monitor is on.
•Using a Panasonic SD Memory Card (32 MB).
•Using the supplied battery.
•Starting recording 30 seconds after the camera is turned on. (When the Optical
Image Stabilizer function is set to [ON].)
•Recording once every 30 seconds with full flash every second recording.
•Rotating the zoom lever from Tele to Wide or vice versa in every recording.
•Turning the camera off every 10 recordings and leaving it until the temperature
of the battery decreases.
Approximate operating time and number of recordable pictures
Number of recordable pictures Approx. 400 pictures
Recording time Approx. 200 min
Playback time Approx. 330 min
DMC-FZ48&FZ47P-VQT3R28_eng.book 16 ページ ２０１１年６月２９日　水曜日　午後４時３０分
17
(ENG) VQT3R28
About the Built-in Memory/the Card
•Memory size: Approx. 70 MB
•The access time for the built-in memory may be longer than the access time for
a card.
The following cards which conform to the SD video standard can be used with this
unit.
(These cards are indicated as card in the text.)
¢SD Speed Class is the speed standard regarding continuous writing. Check
via the label on the card, etc.
•Please confirm the latest information on the following website.
http://panasonic.jp/support/global/cs/dsc/
(This Site is English only.)
Note
•Keep the Memory Card out of reach of children to prevent swallowing.
Built-in Memory
Card
Remarks
SD Memory Card
(8 MB to 2 GB) •Use a card with SD Speed Class¢ with “Class 4” or
higher when recording motion pictures.
•SDHC Memory Card can be used with SDHC Memory
Card or SDXC Memory Card compatible equipment.
•SDXC Memory Card can only be used with SDXC
Memory Card compatible equipment.
•Check that the PC and other equipment are compatible
when using the SDXC Memory Cards.
http://panasonic.net/avc/sdcard/information/
SDXC.html
•Only the cards with capacity listed left can be used.
SDHC Memory Card
(4 GB to 32 GB)
SDXC Memory Card
(48 GB, 64 GB)
e.g.:
DMC-FZ48&FZ47P-VQT3R28_eng.book 17 ページ ２０１１年６月２９日　水曜日　午後４時３０分
VQT3R28 (ENG)
18
Inserting and Removing the Card
(optional)/the Battery
•Turn the power switch to [OFF] and confirm that the lens barrel is retracted.
•We recommend using a Panasonic card.
Slide the release lever in the
direction of the arrow and open the
card/battery door.
•Always use genuine Panasonic batteries
(DMW-BMB9PP).
•If you use other batteries, we cannot
guarantee the quality of this product.
Battery: Being careful about the
battery orientation, insert all the
way until you hear a locking sound
and then check that it is locked by
lever A.
Pull the lever A in the direction of
the arrow to remove the battery.
Card: Push it securely all the way
until you hear a “click” while being
careful about the direction in which
you insert it.
To remove the card, push the card until it clicks, then pull
the card out upright.
B: Do not touch the connection terminals of the card.
1:Close the card/battery door.
2:Slide the release lever in the
direction of the arrow.
B
DMC-FZ48&FZ47P-VQT3R28_eng.book 18 ページ ２０１１年６月２９日　水曜日　午後４時３０分
19
(ENG) VQT3R28
Setting Date/Time (Clock Set)
•The clock is not set when the camera is shipped.
Turn the camera on.
•The power lamp 1 lights when you turn this
unit on.
Press [MENU/SET].
Press 2/1 to select the items (year,
month, day, hour, minute, display
sequence or time display format),
and press 3/4 to set.
Press [MENU/SET] to set.
Press [MENU/SET].
Select [CLOCK SET] in the [REC] or [SETUP] menu, and press 1.
•It can be changed in steps 3 and 4 to set the clock.
Changing the clock setting
DMC-FZ48&FZ47P-VQT3R28_eng.book 19 ページ ２０１１年６月２９日　水曜日　午後４時３０分
VQT3R28 (ENG)
20
Selecting the Recording Mode
Switching the mode by rotating the
mode dial.
Align a desired mode with part A.
•Rotate the mode dial slowly and surely to
adjust to each mode.
∫Basic
Program AE Mode
The subjects are recorded using your own settings.
Intelligent Auto Mode
The subjects are recorded using settings automatically selected by the camera.
CUST
M
CUST
M
DMC-FZ48&FZ47P-VQT3R28_eng.book 20 ページ ２０１１年６月２９日　水曜日　午後４時３０分
21
(ENG) VQT3R28
∫Advanced
∫Advanced Scene Mode
Aperture-Priority AE Mode
The shutter speed is automatically determined by the aperture value you set.
Shutter-Priority AE Mode
The aperture value is automatically determined by the shutter speed you set.
Manual Exposure Mode
The exposure is adjusted by the aperture value and the shutter speed which are
manually adjusted.
Creative Video Mode
Record motion picture with manual settings.
Custom Mode
Use this mode to take pictures with previously registered settings.
Scene Mode
This allows you to take pictures that match the scene being recorded.
Creative Control Mode
Record while checking the image effect.
Portrait Mode
Use this mode to take pictures of people.
Scenery Mode
Use this mode to take pictures of scenery.
Sports Mode
Use this mode to take pictures of sporting events, etc.
Close-up Mode
Use this mode to take pictures of a close-by subject.
Night Portrait Mode
Use this mode to take pictures of night scenes and people against night time
scenery.
DMC-FZ48&FZ47P-VQT3R28_eng.book 21 ページ ２０１１年６月２９日　水曜日　午後４時３０分
VQT3R28 (ENG)
22
Applicable modes:
Taking Pictures with Your Favorite
Settings (Program AE Mode)
The camera automatically sets the shutter speed and the aperture value
according to the brightness of the subject.
You can take pictures with greater freedom by changing various settings in [REC]
menu.
Set the mode dial to [ ].
Aim the AF area at the point you want to focus on.
Press the shutter button halfway to
focus.
AAperture value
BShutter speed
CISO sensitivity
•The focus indication D (green) lights when
the subject is focused.
Press the shutter button fully (push
it in further), and take the picture.
CUST
M
CUST
M
D
A B C
DMC-FZ48&FZ47P-VQT3R28_eng.book 22 ページ ２０１１年６月２９日　水曜日　午後４時３０分
23
(ENG) VQT3R28
In Program AE Mode, you can change the preset aperture value and shutter
speed without changing the exposure. This is called Program Shift.
You can make the background more blurred by decreasing the aperture value or
record a moving subject more dynamically by slowing the shutter speed when
taking a picture in Program AE Mode.
Press the shutter button halfway and display the aperture
value and shutter speed value on the screen.
While the values are displayed
(about 10 seconds), perform the
Program Shift by rotating the rear
dial.
•The Program Shift indication A appears on
the screen when Program Shift is activated.
•Program Shift is canceled if the camera is turned off or the rear dial is
rotated until the Program Shift indication disappears.
∫Example of Program Shift
(A): Aperture value
(B): Shutter speed
1Program Shift amount
2Program Shift line chart
3Program Shift limit
Program Shift
A
1 2 3 4 5 6 7 8 9 10 11 12 13
1 1/2 1/4 1/8 1/15 1/30 1/60 1/125 1/250 1/500 1/1000 1/2000
2
2.8
4
5.6
8
11
(B)
(A)
14
DMC-FZ48&FZ47P-VQT3R28_eng.book 23 ページ ２０１１年６月２９日　水曜日　午後４時３０分
VQT3R28 (ENG)
24
Applicable modes:
Taking Pictures Using the Automatic
Function (Intelligent Auto Mode)
The camera will set the most appropriate settings to match the subject and the
recording conditions so we recommend this mode for beginners or those who
want to leave the settings to the camera and take pictures easily.
Set the mode dial to [ ].
Press the shutter button halfway to
focus and then press it fully to take
the picture.
AFocus indication
•The AF area B is displayed around the
subject’s face by the Face Detection
function. In other cases, it is displayed at the
point on the subject which is in focus.
CUST
M
CUST
M
A
B
DMC-FZ48&FZ47P-VQT3R28_eng.book 24 ページ ２０１１年６月２９日　水曜日　午後４時３０分
25
(ENG) VQT3R28
When the camera identifies the optimum scene, the icon of the scene concerned
is displayed in blue for 2 seconds, after which its color changes to the usual red.
•[¦] is set if none of the scenes are applicable, and the standard settings are
set.
•When [ ], [ ] or [ ] is selected, the camera automatically detects a person’s
face, and it will adjust the focus and exposure. (Face Detection)
Scene Detection
¦>[i-PORTRAIT] [i-SCENERY]
[i-MACRO] [i-NIGHT PORTRAIT]¢1
[i-NIGHT SCENERY] [i-SUNSET]
[i-BABY]¢2
¢1 Only when [ ] is selected.
¢2 When [FACE RECOG.] is set to [ON], [ ] will be displayed for
birthdays of registered faces already set only when the face of a
person 3 years old or younger is detected.
DMC-FZ48&FZ47P-VQT3R28_eng.book 25 ページ ２０１１年６月２９日　水曜日　午後４時３０分
VQT3R28 (ENG)
26
Applicable modes:
Recording Motion Pictures
This unit can record motion pictures in either AVCHD or MP4 formats.
Note
•Maximum time to record motion pictures continuously with [MP4] is 29 minutes
59 seconds or up to 4 GB.
Start recording by pressing the motion
picture button.
A Available recording time
B Elapsed recording time
•You can record motion pictures fitting each
Recording Mode.
•Release the motion picture button right after you
press it.
•The recording state indicator (red) C will flash
while recording motion pictures.
Stop the recording by pressing the
motion picture button again.
CUST
M
A
B
C
DMC-FZ48&FZ47P-VQT3R28_eng.book 26 ページ ２０１１年６月２９日　水曜日　午後４時３０分
27
(ENG) VQT3R28
Playing Back Pictures ([NORMAL PLAY])
Press 2 or 1.
•After selecting the motion picture, press 3
to start playback.
Deleting Pictures
Once deleted, pictures cannot be recovered.
•Pictures on the built-in memory or the card, which are being played back will be
deleted.
Press [(].
Press [(].
Select the picture to be deleted,
and then press [‚].
•Confirmation screen is displayed.
Picture is deleted by selecting [YES].
VQT3R28~Body1_eng.fm 27 ページ ２０１１年７月４日　月曜日　午後７時５６分
VQT3R28 (ENG)
28
Setting the Menu
Example: In the [REC] menu, change [AF MODE] from [Ø] (1-area-focusing) to
[š] (Face Detection)
Press [MENU/SET].
∫Close the menu
Press [MENU/SET] or press the shutter button halfway.
∫Switching to other menus
e.g.: Switching to the [SETUP] menu from [REC] Mode menu
1Press [MENU/SET].
2Press 2.
3Press 4 or rotate the rear dial to select the
[SETUP] menu icon [ ].
4Press 1 or the rear dial.
•Select a menu item next and set it.
Press 3/4 or rotate the rear dial to select
the menu item.
Press 1 or the rear dial.
•Depending on the menu item, its setting may not appear or it may be
displayed in a different way.
Press 3/4 or rotate the rear dial to select
the settings.
Press [MENU/SET] or the rear dial to set.
DMC-FZ48&FZ47P-VQT3R28_eng.book 28 ページ ２０１１年６月２９日　水曜日　午後４時３０分
29
(ENG) VQT3R28
Applicable modes:
Compensating the Exposure
Use this function when you cannot achieve appropriate exposure due to the
difference in brightness between the subject and the background.
∫Operate with the rear dial
1Press the rear dial and enable [È].
2Rotate the rear dial to compensate the
exposure.
AExposure compensation value
Press 3 [È] until [EXPOSURE]
appears.
Press 2/1 to compensate the
exposure and then press
[MENU/SET].
•The exposure compensation value appears
on the screen.
•Select [0 EV] to return to the original
exposure.
A
DMC-FZ48&FZ47P-VQT3R28_eng.book 29 ページ ２０１１年６月２９日　水曜日　午後４時３０分
VQT3R28 (ENG)
30
Applicable modes:
Taking Pictures by Specifying the
Aperture/Shutter Speed
Set the aperture value to a higher number when you want a sharp focus
background. Set the aperture value to a lower number when you want a soft focus
background.
Set the mode dial to [ ].
Rotate the rear dial to set the aperture
value.
AAperture Value
•It will switch between aperture setting operation and
Exposure Compensation operation every time the
rear dial is pressed.
Set with a faster shutter speed when you want to take a sharp picture of a fast
moving subject. Set to a slower shutter speed when you want to create a trail
effect.
Set the mode dial to [ ].
Rotate the rear dial to set the shutter
speed.
BShutter Speed
•It will switch between shutter speed setting
operation and Exposure Compensation operation
every time the rear dial is pressed.
Aperture-Priority AE
Shutter-Priority AE
A
B
DMC-FZ48&FZ47P-VQT3R28_eng.book 30 ページ ２０１１年６月２９日　水曜日　午後４時３０分
31
(ENG) VQT3R28
Determine the exposure by manually setting the aperture value and the shutter
speed.
The Manual Exposure Assistance appears on the lower portion of the screen to
indicate the exposure.
Set the mode dial to [ ].
Rotate the rear dial to set the aperture
and shutter speed.
CManual Exposure Assistance
•It will switch between aperture setting operation and
shutter speed setting operation every time the rear
dial is pressed.
∫Manual Exposure Assistance
•The Manual Exposure Assistance is an approximation. We recommend
checking the pictures on the playback screen.
Manual Exposure Mode
The exposure is adequate.
Set to faster shutter speed or larger aperture value.
Set to slower shutter speed or smaller aperture value.
C
DMC-FZ48&FZ47P-VQT3R28_eng.book 31 ページ ２０１１年６月２９日　水曜日　午後４時３０分
VQT3R28 (ENG)
32
Reading the Owner’s Manual
(PDF format)
More detailed instructions on the operation of this camera are contained in
“Owner’s Manual for advanced features (PDF format)” in the supplied
CD-ROM. Install it on your PC to read it.
∫For Windows
Turn the PC on and insert the CD-ROM containing the
Owner’s Manual (supplied).
Click the [Owner’s Manual].
Select the desired language
and then click [Owner’s
Manual] to install.
ATo return to the install menu.
Double click the “Owner’s
Manual” shortcut icon on the
desktop.
DMC-FZ48&FZ47P-VQT3R28_eng.book 32 ページ ２０１１年６月２９日　水曜日　午後４時３０分
33
(ENG) VQT3R28
∫When the Owner’s Manual (PDF format) will not open
You will need Adobe Acrobat Reader 5.0 or later or Adobe Reader 7.0 or later to
browse or print the Owner’s Manual (PDF format).
Insert the CD-ROM containing the Owner’s Manual (supplied), click B and then
follow the messages on the screen to install.
(Compatible OS: Windows XP SP3/Windows Vista SP2/Windows 7)
•You can download and install a version of Adobe Reader that you can use with
your OS from the following Web Site.
http://get.adobe.com/reader/otherversions
∫To uninstall the Owner’s Manual (PDF format)
Delete the PDF file from the “Program Files\Panasonic\Lumix\” folder.
∫For Mac
Turn the PC on and insert the CD-ROM containing the
Owner’s Manual (supplied).
Open the “Manual” folder in the CD-ROM and then copy
the PDF file with the desired language inside the folder.
Double click the PDF file to open it.
DMC-FZ48&FZ47P-VQT3R28_eng.book 33 ページ ２０１１年６月２９日　水曜日　午後４時３０分
VQT3R28 (ENG)
34
Others
Specifications
Digital Camera:
Information for your safety
Power Source: DC 8.4 V
Power
Consumption: 1.7 W (When recording with LCD Monitor)
1.5 W (When recording with Viewfinder)
1.0 W (When playing back with LCD Monitor)
0.7 W (When playing back with Viewfinder)
Camera effective
pixels
12,100,000 pixels
Image sensor 1/2.33q CCD, total pixel number 12,500,000 pixels,
Primary color filter
Lens
[NANO SURFACE
COATING]
Optical 24k zoom, f = 4.5 mm to 108 mm
(35 mm film camera equivalent: 25 mm to 600 mm)
Wide end: F2.8 to F8.0
(when recording motion pictures: F2.8 to F11)
Tele end: F5.2 to F8.0
(when recording motion pictures: F5.2 to F11)
Digital zoom Max. 4k
Extended optical
zoom Max. 46.9k (When set to 3,000,000 pixels [3M] or less)
Focus range AF 30 cm (0.99 feet) (Wide)/
2 m (6.57 feet) (Tele) to
AF Macro/MF/
Intelligent Auto
/
Motion Picture
1 cm (0.04 feet) (Wide)/
1 m (3.28 feet) (Tele) to
Scene Mode There may be differences in the above
settings.
DMC-FZ48&FZ47P-VQT3R28_eng.book 34 ページ ２０１１年６月２９日　水曜日　午後４時３０分
35
(ENG) VQT3R28
Shutter system Electronic shutteriMechanical shutter
Burst recording
Burst speed Approx. 3.7 pictures/second
Number of
recordable
pictures
Max. 7 pictures
Hi-speed burst
Burst speed Approx. 10 pictures/second (Speed priority)
Approx. 7 pictures/second (Image priority)
[3M (4:3), 2.5M (3:2), 2M (16:9) or 2.5M (1:1) is selected
as the picture size.]
Number of
recordable
pictures
Approx. 15 to 100 pictures
Minimum
Illumination Approx. 9 lx (when i-low light is used, the shutter speed
is 1/30th of a second)
Shutter speed
Still picture 60 seconds to 1/2000th of a second
[STARRY SKY] Mode: 15 seconds, 30 seconds,
60 seconds
Motion pictures 1/30 to 1/20000th of a second
Creative Video Mode
(Manual Exposure/Manual Focus): 1/8 to 1/20000th of a
second
DMC-FZ48&FZ47P-VQT3R28_eng.book 35 ページ ２０１１年６月２９日　水曜日　午後４時３０分
VQT3R28 (ENG)
36
Exposure (AE) Program AE (P)/Aperture-Priority AE (A)/
Shutter-Priority AE (S)/Manual Exposure (M)
Exposure compensation (1/3 EV Step, j3EV to i3EV)
Metering mode Multiple/Center weighted/Spot
LCD monitor 3.0q TFT LCD (3:2)
(Approx. 461,000 dots) (field of view ratio about 100%)
Viewfinder Color LCD Viewfinder (Approx. 202,000 dots)
(field of view ratio about 100%)
(with diopter adjustment j4 to i4 diopter)
Flash Built-in pop up flash
Flash range:
Approx. 30 cm (0.99 feet) to 9.5 m (31.16 feet)
(Wide, [ISO AUTO] is set)
Microphone Stereo
Speaker Monaural
Recording media Built-in Memory (Approx. 70 MB)/SD Memory Card/
SDHC Memory Card/SDXC Memory Card
Recording file
format
Still Picture JPEG (based on “Design rule for Camera File system”,
based on “Exif 2.3” standard, DPOF corresponding)/
MPO
Motion pictures AVCHD/MP4
Audio compression AVCHD AC3/2 ch
MP4 AAC/2 ch
Interface
Digital “USB 2.0” (High Speed)
Analog video
Audio NTSC
Audio line output (monaural)
VQT3R28~Body3_eng.fm 36 ページ ２０１１年７月６日　水曜日　午後７時５分
37
(ENG) VQT3R28
Battery Charger (Panasonic DE-A83B):
Information for your safety
Equipment mobility:
Movable
Battery Pack (lithium-ion) (Panasonic DMW-BMB9PP):
Information for your safety
Terminal
[AV OUT/
DIGITAL] Dedicated jack (8 pin)
[HDMI] MiniHDMI TypeC
Dimensions
(excluding the
projecting parts)
Approx. 120.3 mm (W)k79.8 mm (H)k91.9 mm (D)
[4.74q
(W)
k3.14q
(H)
k3.62q
(D)]
Mass (weight) Approx. 498 g/1.10 lb (with card and battery)
Approx. 454 g/1.00 lb (excluding card and battery)
Operating
temperature 0oC to 40 oC (32 oF to 104 oF)
Operating humidity 10%RH to 80%RH
Language select [ENGLISH]/[ESPAÑOL]
Input: 110 V to 240 V, 50/60 Hz, 0.15 A
Output: 8.4 V, 0.43 A
Voltage/capacity: 7.2 V/895 mAh
VQT3R28~Body3_eng.fm 37 ページ ２０１１年６月３０日　木曜日　午後６時３２分
VQT3R28 (ENG)
38
Digital Camera Accessory System
Product numbers correct as of August 2011. These may be subject to
change.
¢1 The AC Adaptor (optional) can only be used with the designated Panasonic
DC Coupler (optional). The AC adaptor (optional) cannot be used by itself.
¢2 The lens adapter (optional) is necessary to attach a tele conversion lens or
close-up lens.
•NOTE: Accessories and/or model numbers may vary between countries.
Consult your local dealer.
Description Accessory#
Lithum Ion Battery DMW-BMB9
AC Adaptor¢1DMW-AC8
DC Coupler¢1DMW-DCC6
MC Protector DMW-LMC52
ND Filter DMW-LND52
PL Filter (Circular Type) DMW-LPL52
Tele Conversion Lens¢2DMW-LT55
Close-up Lens¢2DMW-LC55
Lens Adapter DMW-LA5
AV Cable DMW-AVC1
HDMI mini Cable RP-CDHM15, RP-CDHM30
Class 10 64 GB SDXC Memory Card
Class 10 32 GB SDHC Memory Card
Class 10 16 GB SDHC Memory Card
Class 10 8 GB SDHC Memory Card
Class 10 4 GB SDHC Memory Card
Class 4 16 GB SDHC Memory Card
Class 4 8 GB SDHC Memory Card
Class 4 4 GB SDHC Memory Card
Class 4 2 GB SD Memory Card
RP-SDU64GE1K
RP-SDU32GU1K
RP-SDU16GU1K
RP-SDU08GU1K
RP-SDU04GU1K
RP-SDL16GU1K
RP-SDL08GU1K
RP-SDL04GU1K
RP-SDL02GU1K
VQT3R28~Body4_eng.fm 38 ページ ２０１１年７月４日　月曜日　午後７時５６分
39
(ENG) VQT3R28
Digital Camera Accessory Order Form
TO OBTAIN ANY OF OUR DIGITAL CAMERA ACCESSORIES YOU CAN DO ANY OF
THE FOLLOWING:
VISIT YOUR LOCAL PANASONIC DEALER
OR
CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368
[6 AM-6 PM M-F, PACIFIC TIME]
OR
MAIL THIS ORDER TO: PANASONIC SERVICE AND TECHNOLOGY COMPANY
ACCESSORY ORDER OFFICE
20421 84th Avenue South Kent, WA. 98032
Ship To:
Mr.
Mrs.
Ms. First Last
Street Address
City State Zip
Phone#:
Day ( )
Night ()
4. Shipping information (UPS delivery requires complete street address)
Please photocopy this form when placing an order.
3. Method of payment (check one)
Check of Money Order enclosed (NO C.O.D.SHIPMENTS)
VISA
MasterCard
Make Check or Money Order to: PANASONIC ACCESSORIES
(Please do not send cash)
2. Items Ordered
QuantityAccessory # Price EachDescription Total Price
6.95
Subtotal
Your State & Local Sales Tax
Shipping & Handling
Total Enclosed
1. Digital Camera Model #
Discover
Expiration Date
Credit Card #
Customer Signature
DMC-FZ48&FZ47P-VQT3R28_eng.book 39 ページ ２０１１年６月２９日　水曜日　午後４時３０分
VQT3R28 (ENG)
40
Limited Warranty
(ONLY FOR U.S.A. AND PUERTO RICO)
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Digital Still Camera Products
Limited Warranty
Limited Warranty Coverage (For USA and Puerto Rico Only)
If your product does not work properly because of a defect in materials or
workmanship, Panasonic Consumer Electronics Company (referred to as “the
warrantor”) will, for the length of the period indicated on the chart below, which
starts with the date of original purchase (“warranty period”), at its option either (a)
repair your product with new or refurbished parts, (b) replace it with a new or a
refurbished equivalent value product, or (c) refund your purchase price. The
decision to repair, replace or refund will be made by the warrantor.
During the “Labor” warranty period there will be no charge for labor. During the
“Parts” warranty period, there will be no charge for parts. This Limited Warranty
excludes both parts and labor for non-rechargeable batteries, antennas, and
cosmetic parts (cabinet). This warranty only applies to products purchased and
serviced in the United States or Puerto Rico. This warranty is extended only to the
original purchaser of a new product which was not sold “as is”.
Product or Part Name Parts Labor
Digital Still Camera 1 year 1 year
CCD 6 months 90 days
SD Memory Cards, Rechargeable
Battery Pack (defective exchange) 90 days Not Applicable
DMC-FZ48&FZ47P-VQT3R28_eng.book 40 ページ ２０１１年６月２９日　水曜日　午後４時３０分
41
(ENG) VQT3R28
Mail-In Service
For assistance in the U.S.A. and Puerto Rico in obtaining repairs, please ship the
product prepaid to:
Panasonic Exchange Center
4900 George McVay Drive
Suite B
McAllen, TX 78503
panacare@us.panasonic.com
When shipping the unit, carefully pack, include all accessories, and send it
prepaid, adequately insured and preferably in the original carton.
When shipping Lithium Ion batteries please visit our Web Site at
www.panasonic.com/BatteryHandling as Panasonic is committed to providing the
most up to date information. Include a letter detailing the complaint, a return
address and provide a daytime phone number where you can be reached. A valid
registered receipt is required under the Limited Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF
OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND
PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR
OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The warranty ALSO DOES NOT COVER damages which occurred in
shipment, or failures which are caused by products not supplied by the warrantor,
or failures which result from accidents, misuse, abuse, neglect, mishandling,
misapplication, alteration, faulty installation, set-up adjustments, misadjustment of
consumer controls, improper maintenance, power line surge, lightning damage,
modification, introduction of sand, humidity or liquids, commercial use such as
hotel, office, restaurant, or other business or rental use of the product, or service
by anyone other than a Factory Service Center or other Authorized Servicer, or
damage that is attributable to acts of God.
DMC-FZ48&FZ47P-VQT3R28_eng.book 41 ページ ２０１１年６月２９日　水曜日　午後４時３０分
VQT3R28 (ENG)
42
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
“LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING
OUT OF ANY BREACH OF THIS WARRANTY.
(As examples, this excludes damages for lost time, travel to and from the servicer,
loss of or damage to media or images, data or other memory or recorded content.
The items listed are not exclusive, but for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY
OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED
WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, or limitations on how long an implied warranty lasts, so the exclusions
may not apply to you.
This warranty gives you specific legal rights and you may also have other rights
which vary from state to state. If a problem with this product develops during or
after the warranty period, you may contact your dealer or Service Center. If the
problem is not handled to your satisfaction, then write to the warrantor's
Consumer Affairs Department at the addresses listed for the warrantor.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY, ARE YOUR RESPONSIBILITY.
DMC-FZ48&FZ47P-VQT3R28_eng.book 42 ページ ２０１１年６月２９日　水曜日　午後４時３０分
43
(ENG) VQT3R28
As of December 2010
Customer Services Directory (United States and Puerto Rico)
Obtain Product Information and Operating Assistance; locate your nearest
Dealer or Service Center; purchase Parts and Accessories; or make
Customer Service and Literature requests by visiting our Web Site at:
http://www.panasonic.com/help
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262)
Monday-Friday 9am-9pm, Saturday-Sunday 10am-7pm EST
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Accessory Purchases (United States and Puerto Rico)
Purchase Parts, Accessories and Instruction Books online for all Panasonic
Products by visiting our Web Site at:
http://www.pstc.panasonic.com
Or, send your request by E-mail to:
npcparts@us.panasonic.com
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)
(Monday-Friday 9am-9pm EST)
Panasonic Service and Technology Company
20421 84th Avenue South, Kent, WA 98032
(We accept Visa, MasterCard, Discover Card, American Express, and Personal
Checks)
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
DMC-FZ48&FZ47P-VQT3R28_eng.book 43 ページ ２０１１年６月２９日　水曜日　午後４時３０分
•SDXC Logo is a trademark of SD-3C, LLC.
•The “AVCHD” and the “AVCHD” logo are trademarks of Panasonic
Corporation and Sony Corporation.
•Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
•HDMI, the HDMI Logo, and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
•VIERA Link™ is a trademark of Panasonic Corporation.
•EZ Sync™ is a trademark of Panasonic Corporation.
•HDAVI Control™ is a trademark of Panasonic Corporation.
•QuickTime and the QuickTime logo are trademarks or registered trademarks
of Apple Inc., used under license therefrom.
•Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and
other countries.
•Windows and Windows Vista are either registered trademarks or trademarks
of Microsoft Corporation in the United States and/or other countries.
•Other names of systems and products mentioned in these instructions are
usually the registered trademarks or trademarks of the manufacturers who
developed the system or product concerned.
This product is licensed under the AVC patent portfolio license for the personal
and non-commercial use of a consumer to (i) encode video in compliance with
the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was
encoded by a consumer engaged in a personal and non-commercial activity
and/or was obtained from a video provider licensed to provide AVC Video. No
license is granted or shall be implied for any other use. Additional information
may be obtained from MPEG LA, LLC. See http://www.mpegla.com.
One Panasonic Way, Secaucus, NJ 07094
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
Panasonic Corporation 2011
Printed in Japan
DMC-FZ48&FZ47P-VQT3R28_eng.book 44 ページ ２０１１年６月２９日　水曜日　午後４時３０分

Navigation menu
