EGCA RQT8127-B

OperationsReference

Getting started

Operating Instructions

DVD/CD PLAYER

Model No. DVD-S295

Dear customer

Thank you for purchasing this product. Before connecting, operating or adjusting this

product, please read the instructions completely. Please keep this manual for future

reference.

Region number

The player plays DVD-Video marked with labels containing the region number “2” or

“ALL”.

Example:

Accessories/Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Discs that can be played. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Basic play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Convenient functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Displaying current playback condition (Quick On Screen Display)/

Reviewing titles/programs to play (Advanced Disc Review)/

Recalling recommended audio/video setting (AV Enhancer)/

Enjoying clear sound (Sound Enhancement)/. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Enjoying virtual surround (Advanced Surround)/Picture Mode/

Skipping 30 seconds forward/Changing play speed/

Starting play from a selected group/Angle select/Still picture rotation/ . . . . . . . . . 11

Changing soundtracks/Changing subtitles/Zoom/Quick replay. . . . . . . . . . . . . . . . 12

Changing the play sequences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Program/Random play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Using navigation menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Playing data discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Playing CD/Playing HighMATTM discs/Playing RAM/DVD-RW (DVD-VR) discs . . . 15

Using On-Screen Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Main menus/Other Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Changing the player settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Main feature index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back cover

ALL

Table of contents

Getting started

STEP 1 Connection to a television . . . . . . . . . . . . . . . . . . . . . . . 6

STEP 2 The remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

STEP 3 QUICK SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Operations

Reference

RQT8127-B.fm Page 1 Friday, April 8, 2005 5:24 PM

RQT8127

SUOMI

NORSK

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR

PERFORMANCE OF PROCEDURES OTHER THAN

THOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR

YOURSELF. REFER SERVICING TO QUALIFIED

PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE

THIS APPARATUS TO RAIN, MOISTURE, DRIPPING

OR SPLASHING AND THAT NO OBJECTS FILLED

WITH LIQUIDS, SUCH AS VASES, SHALL BE

PLACED ON THE APPARATUS.

CAUTION!

≥DO NOT INSTALL OR PLACE THIS UNIT IN A

BOOKCASE, BUILT-IN CABINET OR IN ANOTHER

CONFINED SPACE. ENSURE THE UNIT IS WELL

VENTILATED. TO PREVENT RISK OF ELECTRIC

SHOCK OR FIRE HAZARD DUE TO

OVERHEATING, ENSURE THAT CURTAINS AND

ANY OTHER MATERIALS DO NOT OBSTRUCT

THE VENTILATION VENTS.

≥DO NOT OBSTRUCT THE UNIT’S VENTILATION

OPENINGS WITH NEWSPAPERS, TABLECLOTHS,

CURTAINS, AND SIMILAR ITEMS.

≥DO NOT PLACE SOURCES OF NAKED FLAMES,

SUCH AS LIGHTED CANDLES, ON THE UNIT.

≥DISPOSE OF BATTERIES IN AN

ENVIRONMENTALLY FRIENDLY MANNER.

This product may receive radio interference caused by

mobile telephones during use. If such interference is

apparent, please increase separation between the

product and the mobile telephone.

The socket outlet shall be installed near the equipment

and easily accessible or the mains plug or an

appliance coupler shall remain readily operable.

[The\Middle\East\and\South\Africa\

THIS UNIT IS INTENDED FOR USE IN TROPICAL

CLIMATES.

\Continental\Europe\

THIS UNIT IS INTENDED FOR USE IN MODERATE

CLIMATES.

VAROITUS!

LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ

KÄYTTÖOHJEESSA MAINITULLA TAVALLA

SAATTAA ALTISTAA KÄYTTÄJÄN

TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE

NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.

VAROITUS:

TULIPALO-, SÄHKÖISKUVAARAN TAI TUOTETTA

KOHTAAVAN MUUN VAHINGON VÄHENTÄMISEKSI

EI LAITETTA SAA ALTISTAA SATEELLE,

KOSTEUDELLE, VESIPISAROILLE TAI

ROISKEELLE, EIKÄ NESTETTÄ SISÄLTÄVIÄ

ESINEITÄ, KUTEN ESIMERKIKSI MALJAKOITA,

SAA ASETTAA LAITTEEN PÄÄLLE.

VAROITUS!

≥ÄLÄ ASENNA TAI LAITA TÄTÄ LAITETTA

KABINETTITYYPPISEEN KIRJAKAAPPIIN TAI

MUUHUN SULJETTUUN TILAAN, JOTTA

TUULETUS ONNISTUISI. VARMISTA, ETTÄ

VERHO TAI MIKÄÄN MUU MATERIAALI EI

HUONONNA TUULETUSTA, JOTTA

VÄLTETTÄISIIN YLIKUUMENEMISESTA

JOHTUVA SÄHKÖISKU- TAI TULIPALOVAARA.

≥ÄLÄ PEITÄ LAITTEEN TUULETUSAUKKOJA

SANOMALEHDELLÄ, PÖYTÄLIINALLA,

VERHOLLA TAI MUULLA VASTAAVALLA

ESINEELLÄ.

≥ÄLÄ ASETA PALAVAA KYNTTILÄÄ TAI MUUTA

AVOTULEN LÄHDETTÄ LAITTEEN PÄÄLLE.

≥HÄVITÄ PARISTOT LUONTOA

VAHINGOITTAMATTOMALLA TAVALLA.

TÄMÄ LAITE ON TARKOITETTU KÄYTETTÄVÄKSI

LEUDOSSA ILMASTOSSA.

Laite tulee asettaa lähelle verkkopistorasiaa ja

pistokkeen täytyy olla sellaisessa asennossa, että

siihen on helppo tarttua ongelman sattuessa.

ADVARSEL!

DETTE PRODUKTET ANVENDER EN LASER.

BETJENING AV KONTROLLER, JUSTERINGER

ELLER ANDRE INNGREP ENN DE SOM ER

BESKREVET I DENNE BRUKSANVISNING, KAN

FØRE TIL FARLIG BESTRÅLING.

DEKSLER MÅ IKKE ÅPNES, OG FORSØK ALDRI Å

REPARERE APPARATET PÅ EGENHÅND. ALT

SERVICE OG REPARASJONSARBEID MÅ UTFØRES

AV KVALIFISERT PERSONELL.

ADVARSEL:

FOR Å REDUSERE FAREN FOR BRANN,

ELEKTRISK STØT ELLER SKADER PÅ

PRODUKTET, MÅ DETTE APPARATET IKKE

UTSETTES FOR REGN, FUKTIGHET,

VANNDRÅPER ELLER VANNSPRUT. DET MÅ

HELLER IKKE PLASSERES GJENSTANDER FYLT

MED VANN, SLIK SOM BLOMSTERVASER, OPPÅ

APPARATET.

ADVARSEL!

≥APPARATET MÅ IKKE PLASSERES I EN

BOKHYLLE, ET INNEBYGGET KABINETT ELLER

ET ANNET LUKKET STED HVOR

VENTILASJONSFORHOLDENE ER

UTILSTREKKELIGE. SØRG FOR AT GARDINER

ELLER LIGNENDE IKKE FORVERRER

VENTILASJONSFORHOLDENE, SÅ RISIKO FOR

ELEKTRISK SJOKK ELLER BRANN

FORÅRSAKET AV OVERHETING UNNGÅS.

≥APPARATETS VENTILASJONSÅPNINGER MÅ

IKKE DEKKES TIL MED AVISER, BORDDUKER,

GARDINER OG LIGNENDE.

≥PLASSER IKKE ÅPEN ILD, SLIK SOM LEVENDE

LYS, OPPÅ APPARATET.

≥

BRUKTE BATTERIER MÅ KASSERES UTEN FARE

FOR MILJØET.

DETTE APPARATET ER BEREGNET TIL BRUK UNDER

MODERATE KLIMAFORHOLD.

Utstyret bør plasseres i nærheten av AC-stikkontakten,

og støpslet må være lett tilgjengelig hvis det skulle

oppstå problemer.

RQT8127-B.fm Page 2 Friday, April 8, 2005 5:24 PM

RQT8127

Accessories

Use numbers when asking for replacement parts.

(Product numbers correct as of April 2005. These may be subject to

change.)

∏1 Remote control (EUR7631110R)

∏1 AC mains lead

∏1 Audio/video cable

∏2 Remote control batteries

[Note]

The included AC mains lead is for use with this unit only. Do not use it with other

equipment.

Safety precautions

Set the unit up on an even surface away from direct sunlight, high temperatures, high

humidity, and excessive vibration. These conditions can damage the cabinet and other

components, thereby shortening the unit’s service life. Do not place heavy items on the

unit.

Do not use high voltage power sources. This can overload the unit and cause a fire. Do

not use a DC power source. Check the source carefully when setting the unit up on a

ship or other place where DC is used.

Ensure the AC mains lead is connected correctly and not damaged. Poor connection

and lead damage can cause fire or electric shock. Do not pull, bend, or place heavy

items on the lead.

Grasp the plug firmly when unplugging the lead. Pulling the AC mains lead can cause

electric shock. Do not handle the plug with wet hands. This can cause electric shock.

Do not let metal objects fall inside the unit. This can cause electric shock or

malfunction.

Do not let liquids get into the unit. This can cause electric shock or malfunction. If this

occurs, immediately disconnect the unit from the power supply and contact your dealer.

Do not spray insecticides onto or into the unit. They contain flammable gases which

can ignite if sprayed into the unit.

Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to

light, smoke appears, or any other problem that is not covered in these instructions

occurs, disconnect the AC mains lead and contact your dealer or an authorized service

center. Electric shock or damage to the unit can occur if the unit is repaired,

disassembled or reconstructed by unqualified persons.

Extend operating life by disconnecting the unit from the power source if it is not to be

used for a long time.

Placement

Voltage

AC mains lead protection

Foreign matter

Service

Accessories/Safety precautions

RQT8127-B.fm Page 3 Friday, April 8, 2005 5:24 PM

RQT8127

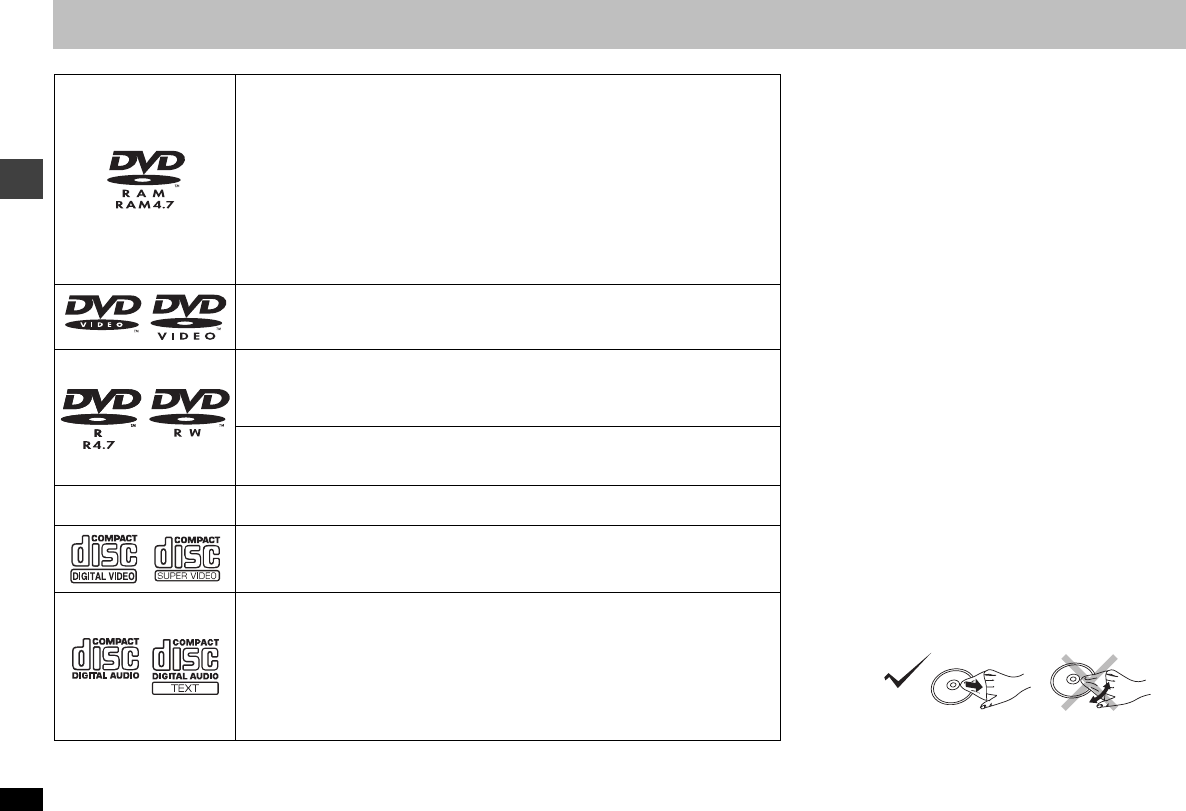

Discs that can be played

Operations in these instructions are described mainly with formats. Icons such as

[RAM]

show the formats.

§ A process that allows play on compatible equipment.

≥It may not be possible to play the above discs in all cases due to the type of discs, the condition of the recording, the

recording method and how the files were created (➜page 5, Tips for making data discs).

DVD-RAM

[RAM]

[JPEG]

[MPEG4] [DivX]

≥

[RAM]

Recorded with devices using Version 1.1 of the Video Recording Format (a

unified video recording standard), such as DVD video recorders, DVD video cameras,

personal computers, etc.

≥

[JPEG]

Recorded with Panasonic SD multi cameras or DVD-Video recorders using the

DCF (Design rule for Camera File system) Standard Version 1.0.

≥[MPEG4] Recorded with the Panasonic SD multi cameras or DVD video recorders

[conforming to SD VIDEO specifications (ASF standard)/MPEG4 (Simple Profile)

video system/G.726 audio system].

≥[DivX] Created using DivX ver.3.11, 4.x, 5.x [DivX video system/MP3, Dolby Digital or

MPEG audio system].

DVD-Video

[DVD-V]

—

DVD-R (DVD-Video)/DVD-RW (DVD-Video)

[DVD-V]

[DivX]

≥

[DVD-V]

Discs recorded and finalized§ on DVD video recorders or DVD video cameras

≥[DivX] Created using DivX ver.3.11, 4.x, 5.x [DivX video system/MP3, Dolby Digital or

MPEG audio system]. Finalize§ the disc after recording.

DVD-RW (DVD-VR)

[DVD-RW[‹VR›]

Discs recorded and finalized§ on DVD video recorders or DVD video cameras using

Version 1.1 of the Video Recording Format (a unified video recording standard).

—iR (Video)/iRW (Video)

[DVD-V]

Discs recorded and finalized§ on DVD video recorders or DVD video cameras

Video CD

[VCD]

Including SVCD (Conforming to IEC62107)

[CD]

[WMA]

[MP3]

[JPEG]

[MPEG4] [DivX]

[VCD]

≥This unit can play CD-R/RW recorded with the above formats. Close the sessions or

finalize§ the disc after recording.

≥

[WMA]

[MP3]

[JPEG]

This unit also plays HighMAT discs.

≥

[WMA]

This unit is not compatible with Multiple Bit Rate (MBR: a file that contains the

same content encoded at several different bit rates).

≥[DivX] Created using DivX ver.3.11, 4.x, 5.x [DivX video system/MP3, Dolby Digital or

MPEG audio system].

∫Discs that cannot be played

DVD-Audio, Version 1.0 of DVD-RW, DVD-ROM, CD-

ROM, CDV, CD-G, SACD, Photo CD, DVD-RAM that

cannot be removed from their cartridge, 2.6-GB and 5.2-

GB DVD-RAM, and “Chaoji VCD” available on the market

including CVD, DVCD and SVCD that do not conform to

IEC62107.

∫Handling precautions

≥Do not attach labels or stickers to discs (This may

cause disc warping, rendering it unusable).

≥Do not write on the label side with a ball-point pen or

other writing instrument.

≥Do not use record cleaning sprays, benzine, thinner,

static electricity prevention liquids or any other solvent.

≥Do not use scratch-proof protectors or covers.

≥Do not use the following discs:

– Discs with exposed adhesive from removed stickers

or labels (rented discs etc.).

– Discs that are badly warped or cracked.

– Irregularly shaped discs, such as heart shapes.

∫Clean this unit with a soft, dry cloth

≥Never use alcohol, paint thinner or benzine to clean this

unit.

≥Before using chemically treated cloth, read the

instructions that came with the cloth carefully.

≥Cleaning of the lens is generally not necessary

although this depends on the operating environment.

≥Do not use commercially available lens cleaners as

they may cause malfunction.

∫Clean discs

Wipe with a damp cloth and then wipe dry.

Discs that can be played

RQT8127-B.fm Page 4 Friday, April 8, 2005 5:24 PM

RQT8127

∫Tips for making data discs

≥If groups were created away from the root like “002 group” in the illustration below, the

eighth one onwards is displayed on the same vertical line in the menu screen.

≥

There may be differences in the display order on the menu screen and computer screen.

≥This unit cannot play files recorded using packet write.

DVD-RAM

≥Discs must conform to UDF 2.0.

CD-R/RW

≥Discs must conform to ISO9660 level 1 or 2 (except for extended formats).

≥This unit is compatible with multi-session but if there are a lot of sessions it takes more

time for play to start. Keep the number of sessions to a minimum to avoid this.

DVD-R/RW

≥Discs must conform to UDF bridge (UDF 1.02/ISO9660).

≥This unit is not compatible with multi-session. The default session only is played.

Naming folders and files (Files are treated as contents

and folders are treated as groups on this unit.)

At the time of recording, prefix folder and file names. This

should be with numbers that have an equal number of digits,

and should be done in the order you want to play them (this

may not work at times).

[WMA]

(Extension: “.WMA” or “.wma”)

≥Compatible compression rate: between 48 kbps and 320

kbps

≥You cannot play WMA files that are copy protected.

≥This unit is not compatible with Multiple Bit Rate (MBR: a

file that contains the same content encoded at several

different bit rates).

[MP3]

(Extension: “.MP3” or “.mp3”)

≥Compatible compression rate: between 32 kbps and 320

kbps

≥This unit is not compatible with ID3 tags.

[JPEG]

(Extension: “.JPG”, “.jpg”, “.JPEG” or “.jpeg”)

≥

JPEG files taken on a digital camera that conforms to DCF Standard Version 1.0 are displayed.

– Files that have been altered, edited or saved with computer picture editing software

may not be displayed.

≥This unit cannot display moving pictures, MOTION JPEG and other such formats, still

pictures other than JPEG (e.g. TIFF) or play pictures with attached audio.

[MPEG4]

(Extension: “.ASF” or “.asf”)

≥You can play MPEG4 data [conforming to SD VIDEO specifications (ASF standard)/

MPEG4 (Simple Profile) video system/G.726 audio system] recorded with the

Panasonic SD multi cameras or DVD video recorders with this unit.

≥The recording date may differ from that of the actual date.

[DivX] (Extension: “.DIVX”, “.divx”, “.AVI” or “.avi”)

≥You can play DivX data created using ver.3.11, 4.x, 5.x [DivX video system/MP3,

Dolby Digital or MPEG audio system].

≥GMC (Global Motion Compensation) is not supported.

≥DivX files greater than 2GB or have no index may not play properly on this unit.

≥

This unit supports all resolutions up to maximum of 720

480 (NTSC)/720

576 (PAL).

≥You can select up to 8 types of audio and subtitles on this unit.

∫About DivX VOD content

DivX Video-on-Demand (VOD) content is encrypted for copyright protection. In order to

play DivX VOD content on this unit, you first need to register the unit.

Follow the on line instructions for purchasing DivX VOD content to enter the unit’s

registration code and register the unit. For more information about DivX VOD, visit

www.divx.com/vod.

Display the unit’s registration code

(➜page 19, “DivX Registration” in “Others” tab)

≥We recommend that you make a note of this code for future reference.

≥After playing DivX VOD content for the first time, another registration code is then

displayed in “DivX Registration”. Do not use this registration code to purchase DivX

VOD content. If you use this code to purchase DivX VOD content, and then play the

content on this unit, you will no longer be able to play any content that you purchased

using the previous code.

≥If you purchase DivX VOD content using a registration code different from this unit’s

code, you will not be able to play this content. (“Authorization Error” is displayed.)

Regarding DivX content that can only be played a set number of times

Some DivX VOD content can only be played a set number of times. When you play this

content, the remaining number of plays is displayed. You cannot play this content when

the number of remaining plays is zero.

(“Rented Movie Expired” is displayed.)

When playing this content

≥The number of remaining plays is reduced by one if

–you press [Í] or [SETUP].

–you press [∫] (STOP). [Press [;] (PAUSE) to stop play.]

–you press [: 9] (SKIP) or [6 5] (SEARCH) etc. and arrive at another

content or the start of the content being played.

≥Resume (

➜

page 8, Stop

) and Marker (

➜

page 16,

Play Menu) functions do not work.

002 group

001

001 group

001 track.mp3

002 track.mp3

003 track.mp3

003 group

001 track.mp3

002 track.mp3

003 track.mp3

001 track.mp3

002 track.mp3

003 track.mp3

004 track.mp3

e.g.

[MP3]

root

Setup

DivX Registration

DivX Video-on-Demand

Your registration code is : XXXXXXXX

To learn more visit www.divx.com/vod

Others

Display

Audio

Video

Disc

to continuePress

ENTER

8 alphanumeric

characters

Discs that can be played

RQT8127-B.fm Page 5 Friday, April 8, 2005 5:24 PM

RQT8127

STEP 1 Connection to a television

≥Do not place the unit on amplifiers or equipment that may become hot. The heat can damage the unit.

≥Do not connect through the video cassette recorder. Due to copy guard protection, the picture may not display properly.

≥Turn off all equipment before connection and read the appropriate operating instructions.

≥Connect the terminals of the same colour.

≥Unless otherwise indicated, illustrations are of the models for the Middle East and South Africa.

≥(\Continental\Europe\ :There is no S VIDEO OUT terminal on the unit.)

Please connect directly to TV.

SCART (AV) IN

AUDIO IN

R L COMPONENT

VIDEO IN

AUDIO IN

R L VIDEO

IN S VIDEO

Audio/video

cable (included)

With VIDEO IN or S VIDEO IN

S video cable§

With SCART (AV) IN

21-pin SCART

cable

≥If the television is compatible with S-video,

select “S-Video/YPbPr”, or compatible with

RGB, select “RGB/No Output” for the AV

terminals in QUICK SETUP (➜page 7).

With COMPONENT VIDEO IN

Video

cables

§When using this connection, the audio cable

(red and white plugs) should also be connected.

You can connect the audio cable to the 2-

channel audio input terminals of an analog

amplifier or system component to enjoy

stereo sound.

Audio/video

cable (included)

Not used

Television

\Continental\Europe\

To enjoy progressive video

Connect to a progressive output compatible television.

\Continental\Europe]

Select “Video/YPbPr” for the component terminals in

QUICK SETUP (➜page 7).

2Set “Video Output Mode” to “xxxp”, then follow the

instructions on the menu screen (➜page 17, Picture

Menu).

\Continental\Europe]

Panasonic televisions with 625 (576)/50i · 50p, 525 (480)/

60i . 60p input terminals are progressive compatible.

Back of the unit

Connection to a television

RQT8127-B.fm Page 6 Friday, April 8, 2005 5:24 PM

RQT8127

Turn on the television and select the appropriate video input on the television.

To change these settings later

Select “QUICK SETUP” (➜page 19, “Others” tab).

Please connect directly to TV.

COAXIAL IN

Amplifier with a built-in

decoder or a decoder-

amplifier combination

Coaxial cable

∫Enjoying multi-channel surround sound

Change “PCM Digital Output”, “Dolby Digital”, “DTS Digital Surround” and

“MPEG” (➜page 19, “Audio” tab).

AC IN

To household

mains socket

AC mains lead (included)

∫Connect the AC mains lead last

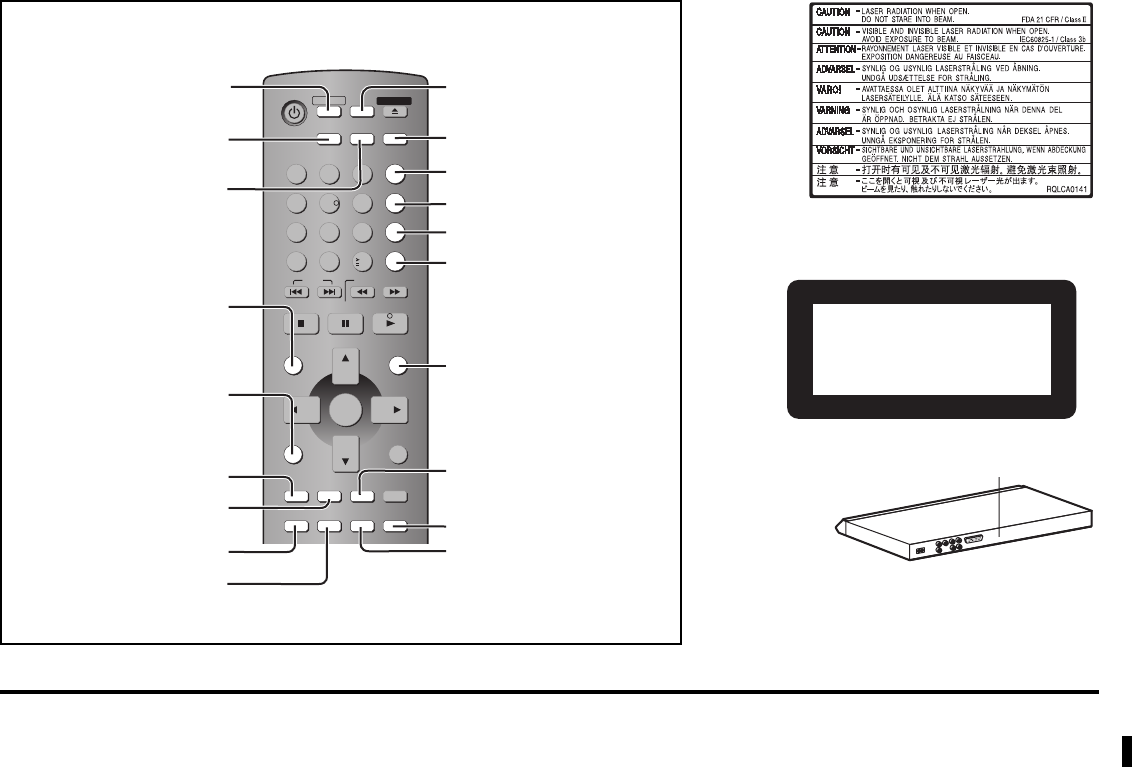

STEP 2 The remote control

∫Batteries ≥Insert so the poles (i and j) match those in the remote control.

≥Do not use rechargeable type batteries.

Do not:

≥mix old and new batteries.

≥use different types at the same time.

≥heat or expose to flame.

≥take apart or short circuit.

≥attempt to recharge alkaline or manganese batteries.

≥

use batteries if the covering has been peeled off.

Mishandling of batteries can cause electrolyte leakage which can

damage items the fluid contacts and may cause a fire.

Remove if the remote control is not going to be used for a long period

of time. Store in a cool, dark place.

∫Use

Aim at the remote control sensor (➜page 8), avoiding obstacles, at a

maximum range of 7 m directly in front of the unit.

R6/LR6, AA

STEP 3 QUICK SETUP

12345

Power ON.

Shows

QUICK

SETUP

screen.

Follow the message

and make the settings.

Press to finish

QUICK SETUP.

Press to exit.

ADVANCED

DISC REVIEW

ENHANCER

FL SELECT

OPEN/CLOSE

QUICK OSD

ADVANCED

SURROUND

SOUND

ENHANCEMENT

DIRECT NAVIGATOR

PLAY LIST

TOP MENU

FUNCTIONS

SUBTITLE AUDIO

ANGLE/PAGE

SETUP

RETURN

ENTER

SETUP

ENTER

RETURN

ENTER

SETUP

Connection to a television/The remote control/QUICK SETUP

RQT8127-B.fm Page 7 Friday, April 8, 2005 5:24 PM

RQT8127

Basic play

ENHANCER

ADVANCED

DISC REVIEW

SOUND

ENHANCEMENT

ADVANCED

SURROUND

PICTURE MODE

MANUAL SKIP

QUICK REPLAY

CANCEL

SKIP

DIRECT NAVIGATOR

PLAY LIST

TOP MENU

FUNCTIONS

SUBTITLE AUDIO

ANGLE/PAGE

SETUP

RETURN

ENTER

STOP PAUSE PLAY

SLOW/SEARCH

QUICK OSD FL SELECT

OPEN/CLOSE

123

789

PauseStop

1Power ON. 2Open the disc tray.

3Load the disc. 4Start play.

Remote control sensor

≥

Load double-sided discs so the label for the side you want to play is facing up.

≥

[RAM]

Remove discs from their cartridges before use.

Skip

≥

[RAM] [DVD-RW[‹VR›]

Can also skip to the markers.

Stop

The position is memorized when “!” flashes on the display.

≥Press [1] (PLAY) to resume.

≥Press [∫] to clear the position.

≥Even after the unit is turned off, the position is memorized

(

Normal playback only

Search (during play)

Slow-motion (during pause)

≥Up to 5 steps

≥Press [1] (PLAY) to restart play.

≥

[VCD]

Slow-motion: forward direction only

≥[MPEG4] [DivX] Slow-motion: Does not work.

Pause

≥Press [1] (PLAY) to restart play.

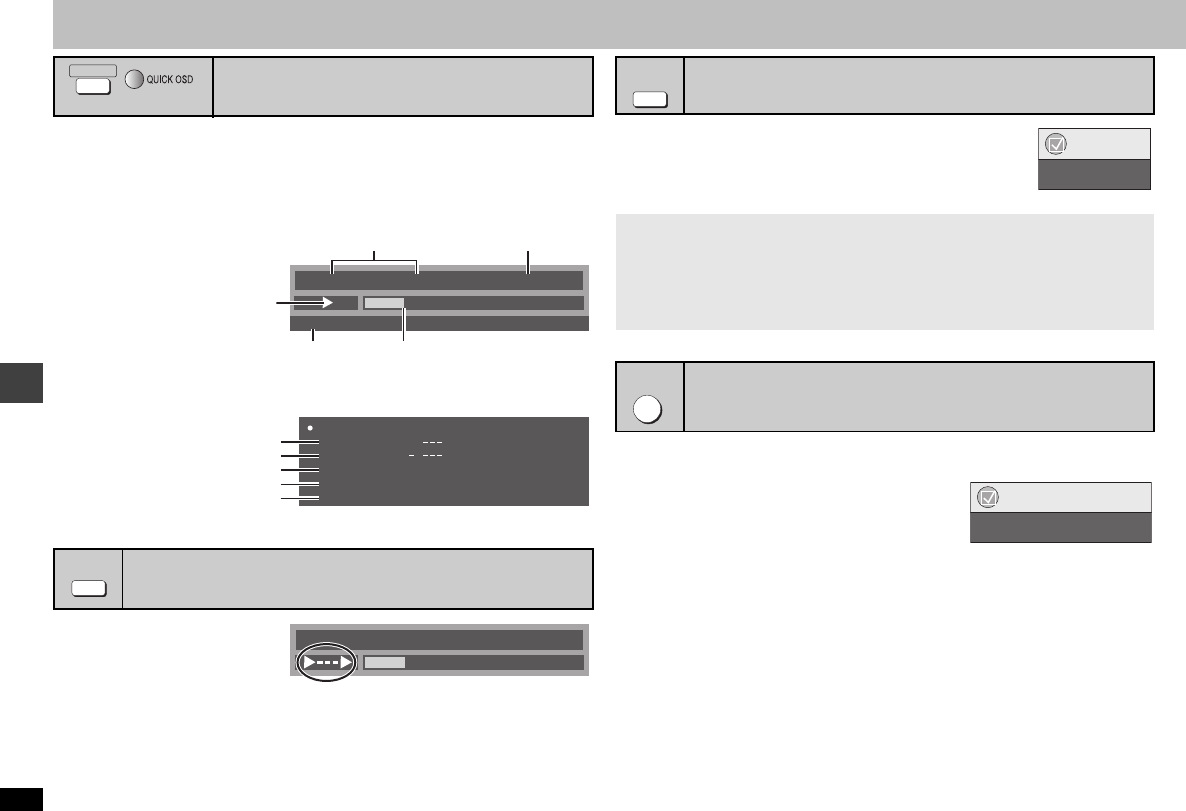

Displaying current playback

condition ➜ page 10

Repeat play

≥Select “Repeat” or “A-B Repeat” (➜page 16, Play Menu).

Basic play

RQT8127-B.fm Page 8 Friday, April 8, 2005 5:24 PM

RQT8127

Standby/on switch (Í/I)

Press to switch the unit from on to standby mode or vice versa. In standby mode, the

unit is still consuming a small amount of power.

Standby/on indicator (Í)

When the unit is connected to the AC mains supply, this indicator lights up in standby

mode and goes out when the unit is turned on.

≥To play JPEG, MPEG4 or DivX video contents on DVD-RAM that contain both

[RAM]

and another format (e.g.

[JPEG]

), select “Play as Data Disc” (➜ page 17, Other Menu).

≥Discs continue to rotate while menus are displayed. Press [∫] when you finish to

preserve the unit’s motor and your television screen.

≥Total title number may not be displayed properly on iR/iRW.

If you are experiencing problems, refer to troubleshooting guide (➜page 20, 21).

DivX

A video compression format developed by DivXNetworks, Inc. that compresses

video files without any considerable loss of video quality.

MPEG4

A compression system for use on mobile devices or a network, that allows highly

efficient recording at a low bit rate.

Group skip

[WMA]

[MP3]

[JPEG]

[MPEG4] [DivX]

≥Does not work while paused.

Frame-by-frame

(during pause)

[RAM] [DVD-RW[‹VR›]

[DVD-V] [VCD]

≥

[VCD]

forward direction only

On-screen

item select

Return to

screen

Enter

number

[RAM] [DVD-RW[‹VR›] [DVD-V] [VCD]

[CD]

e.g. To select 12: [S10] ➜ [1] ➜ [2]

[WMA]

[MP3]

[JPEG]

[MPEG4] [DivX]

e.g. To select 123: [1]

➜

[2]

➜

[3]

➜

[ENTER]

Disc

[DVD-V]

Shows a disc top menu.

[RAM] [DVD-RW[‹VR›]

Plays the programs (➜page 15).

[DVD-V]

Shows a disc menu.

[RAM] [DVD-RW[‹VR›]

Plays a play list (➜page 15).

[VCD]

with playback control

Shows a disc menu.

Main unit

display

Number display

Time display

Information

screen

[JPEG]

ENTER

Select

RETURN

123

456

789

ENTER

TOP MENU

DIRECT NAVIGATOR

PLAY LIST

RETURN

FL SELECT

SUBTITLE

Basic play

RQT8127-B.fm Page 9 Friday, April 8, 2005 5:24 PM

RQT8127

Convenient functions

Press [QUICK OSD].

Basics ------------> Details

^-------- Off ,-------b

∫Basics

∫Details

≥

[MPEG4]

[DivX] Video and audio information is not displayed during search.

1 Press [ADVANCED DISC

REVIEW].

2 Press [1](PLAY) when

you find a title/program to

play.

≥You can also review each 10 minutes. Select “Interval Mode” (➜page 18, “Advanced

Disc Review” in “Disc” tab).

≥This may not work depending on the play position.

≥

[RAM] [DVD-RW[‹VR›]

This does not work when playing a play list (➜page 15).

By pressing just one button the disc type is automatically determined

and the best audio and video settings are configured.

Press [AV ENHANCER] to select “On”.

≥This may not work depending on the discs recording.

You can enjoy clear sound by adding higher frequency signals not recorded on the disc.

Press [SOUND ENHANCEMENT] to select

“On”.

≥This does not work when Advanced Surround

(➜page 11) is on.

≥This may not work depending on the discs recording.

Displaying current playback condition

(Quick On Screen Display)

Reviewing titles/programs to play (Advanced Disc Review)

[RAM] [DVD-RW[‹VR›]

(Excep

t still picture part)

[DVD-V]

(Except

iR/iRW

)

(Normal playback only)

QUICK OSD

(Main unit)

Chapter

Title

Time

0 : 00 : 2211

Program Playback

e.g.

[DVD-V]

Playback condition

Current position

Elapsed play time

Current playback number

Play mode

Details-DVD-Video

Audio

Subtitle

Angle

Source Aspect

Title Total Time

1 DTS 3/2.1ch

1/1

4:3

0:54:28

e.g.

[DVD-V]

See page 12 for changing soundtracks

See page 12 for

changing subtitles

See page 11, Angle select for changing angles

Total play time of current playback title

Aspect of current playback title

ADVANCED

DISC REVIE

Chapter

Title

Time 0 : 00 : 2211

Recalling recommended audio/video setting

(AV Enhancer)

When AV Enhancer is on, you cannot change the individual settings indicated below.

Audio settings:

Advanced Surround (➜page 11), Sound Enhancement (➜below),

Dialogue Enhancer (➜page 17)

Video settings:

Picture Mode (➜page 11)

Enjoying clear sound (Sound Enhancement)

[RAM]

[DVD-RW[‹VR›] [DVD-V]

[VCD]

[CD]

[WMA]

[MP3]

ENHANCER

Functions

AV Enhancer On

SOUND

ENHANCEMEN

Functions

Sound Enhancement

Convenient functions

RQT8127-B.fm Page 10 Friday, April 8, 2005 5:24 PM

RQT8127

Press [ADVANCED SURROUND] to select “SP 1”,

“SP 2”, “HP 1” or “HP 2”.

SP (Speaker) 1 Natural SP 2 Enhanced

HP (Headphone) 1 Natural HP 2 Enhanced Off

≥When using discs recorded with surround sound, sound seems to come from

speakers on either side of you.

≥When using headphones from the connected equipment, select “HP 1” or “HP 2”.

≥Optimum seating position is 3 to 4 times the distance between the front left and right

speakers or the width of the television if using the television’s speakers.

≥Do not use in combination with surround effects on other equipment.

Press [PICTURE MODE] to select the picture

quality for movie viewing.

Normal: Normal images

Cinema1: Mellows images and enhances detail in dark

scenes.

Cinema2: Sharpens images and enhances detail in dark scenes.

Animation: Suitable for animation

Dynamic: Enhances the contrast for powerful images.

Convenient when you want to skip commercials etc.

During play, press [MANUAL SKIP].

≥This may not work depending on the play position.

During play, press

[PLAY SPEED]

to select

“

Fast

”, “

Normal

” or “

Slow

”.

Fine adjustments

While the menu is displayed

Press [21] to increase or decrease the playing

speed from k0.6 to k1.4 in 0.1 units.

≥Press [1] (PLAY) to return to the normal play.

≥After you change the speed

– Advanced Surround

(

➜left

) and

Sound Enhancement

(

➜page 10

) do not work.

– Digital output switches to PCM-2ch.

– 96 kHz sampling frequency is converted to 48 kHz.

≥This may not work depending on the disc’s recording.

A folder on WMA/MP3, JPEG, MPEG4 and DivX video discs is treated as a “Group”.

1 Press [GROUP].

2 Press [34] or the numbered buttons to select a

group and press [ENTER].

Press [ANGLE/PAGE] to select the angle or rotate the

still picture.

Enjoying virtual surround (Advanced Surround)

[RAM]

[DVD-RW[‹VR›] [DVD-V]

[VCD]

(2 or more channels)

Picture Mode

[RAM]

[DVD-RW[‹VR›] [DVD-V]

[VCD]

[JPEG]

[MPEG4] [DivX]

Skipping 30 seconds forward

[RAM]

[DVD-RW[‹VR›]

[DVD-V]

(Except

iR/iRW

) (Normal playback only)

ADVANCED

SURROUN

Functions

Advanced Surround

SP 1

PICTURE MOD

Functions

Picture Mode Normal

MANUAL SKIP

Changing play speed

[RAM] [DVD-RW[‹VR›] [DVD-V]

Starting play from a selected group

[WMA]

[MP3]

[JPEG]

[MPEG4] [DivX]

Angle select

[DVD-V]

(with multiple angles)

Still picture rotation

[JPEG]

PLAY SPEED

Functions

Play Speed

Slow

x1.4 Normal

Fast

GROUP

Functions

Group Search 1

ANGLE/PAGE

Functions

Angle 1/4

e.g.

[DVD-V]

Convenient functions

RQT8127-B.fm Page 11 Friday, April 8, 2005 5:24 PM

RQT8127

Convenient functions

Press [AUDIO] to select the soundtrack.

[RAM]

[DVD-RW[‹VR›] [VCD]

You can use this button to select “L”, “R” or “LR”.

[DivX]

While the menu is displayed

Press [21] to select “L”, “R” or “LR”.

[DVD-V]

(Karaoke discs)

While the menu is displayed

Press [21] to select “On” or “Off” of vocals. Read the disc’s instructions for details.

Signal type/data

LPCM/Î Digital/DTS/MP3/MPEG: Signal type

kHz (Sampling frequency)/bit/ch (Number of channels)

Example: 3/2 .1ch

.1: Low frequency effect

(not displayed if there is no signal)

0: No surround

1: Mono surround

2: Stereo surround (left/right)

1: Center

2: Front leftiFront right

3: Front leftiFront rightiCenter

≥[DivX]

It may take some time for play to start if you change the audio on a DivX video disc.

[DVD-V] [VCD]

[DivX]

Press [SUBTITLE] to select the subtitle language.

≥On iR/iRW, a subtitle number may be shown for subtitles that

are not displayed.

To clear/display the subtitles

Press [21] to select “On” or “Off”.

[RAM] [DVD-RW[‹VR›]

Press [SUBTITLE] to select “On” or “Off”.

≥Subtitle on/off information cannot be recorded using Panasonic DVD Recorders.

This feature expands a letterbox picture to fit the screen.

Press [ZOOM] to select the preset aspect ratio

or “Auto”. (Just Fit Zoom)

[RAM] [DVD-RW[‹VR›] [DVD-V]

[VCD]

Auto --. 4:3 Standard --. European Vista --. 16:9 Standard

Cinemascope2 ,------ Cinemascope1 ,------- American Vista

[MPEG4] [DivX]

Standard --. Original

^----- Full ,-----}

Fine adjustments (Manual Zoom)

Press [21] while the menu is displayed. (Press and hold to alter faster.)

–from k1.00 to k1.60 (in 0.01 units), from k1.60 to k2.00 (in 0.02 units)

[MPEG4] [DivX] only

–from k2.00 to k4.00 (in 0.05 units)

≥It may not be possible to zoom up to k4.00 depending upon the connected

television and its settings.

Press [QUICK REPLAY] to skip back a few seconds.

≥This may not work depending on the disc’s recording.

Changing soundtracks

[DVD-V]

[DivX]

(with multiple soundtracks)

[RAM] [DVD-RW[‹VR›] [VCD]

Changing subtitles

[DVD-V]

[DivX] (with subtitles)

[VCD]

(SVCD with subtitles only)

[RAM]

[DVD-RW[‹VR›]

(On/Off only with discs

that contain subtitle on/off information)

AUDIO

Functions

Audio 1

SUBTITLE

Functions

Subtitle Off

Zoom

[RAM] [DVD-RW[‹VR›]

[DVD-V]

[VCD]

[MPEG4] [DivX]

Quick replay (Only when the elapsed play time can be displayed)

(Except

[MPEG4] [DivX] , iR/iRW

)

ZOOM

Functions

Just Fit Zoom

1.00

QUICK REPLAY

Convenient functions

RQT8127-B.fm Page 12 Friday, April 8, 2005 5:24 PM

RQT8127

Changing the play sequences

While stopped, press [PLAY MODE].

Program ---) Random---) Off (Normal play)

^-------------------------------------------b

≥Disable HighMAT disc play to use random and program play. Select “Play as Data

Disc” in Other Menu (➜page 17).

∫Program play (up to 32 items)

1 Press the numbered buttons to select the

items (➜page 9, Enter number).

Repeat this step to program other items.

2 Press [1](PLAY).

Selecting all the items (on the disc or in the title or group)

Press [ENTER] and [34] to select “ALL”, then press

[ENTER] again to register.

Changing the program

Press [34] to select an item.

–To change an item, repeat step 1.

–To clear an item, press [CANCEL] (or select “Clear” and press [ENTER]).

≥Press [ANGLE/PAGE] to skip page by page.

Clearing the whole program

Select “Clear all” and press [ENTER]. The whole program is also cleared when the unit

is turned off or the disc tray is opened.

∫Random play

[DVD-V]

[WMA]

[MP3]

[JPEG]

[MPEG4] [DivX]

Press the numbered buttons to select a group

or a title (➜page 9, Enter number).

2 Press [1](PLAY).

To exit the program or random mode

Press [PLAY MODE] several times while stopped.

Program/Random play

[DVD-V]

[VCD]

[CD]

[WMA]

[MP3]

[JPEG]

[MPEG4] [DivX]

PLAY MODE

Choose a title and chapter.

No. Time

Title

Play

Clear

Clear all

Chapter

e.g.

[DVD-V]

Press PLAY to start

Random Playback

to select to start

Title

Choose a title.

PLAY

0 ~ 9

e.g. [DVD-V]

Changing the play sequences

RQT8127-B.fm Page 13 Friday, April 8, 2005 5:24 PM

RQT8127

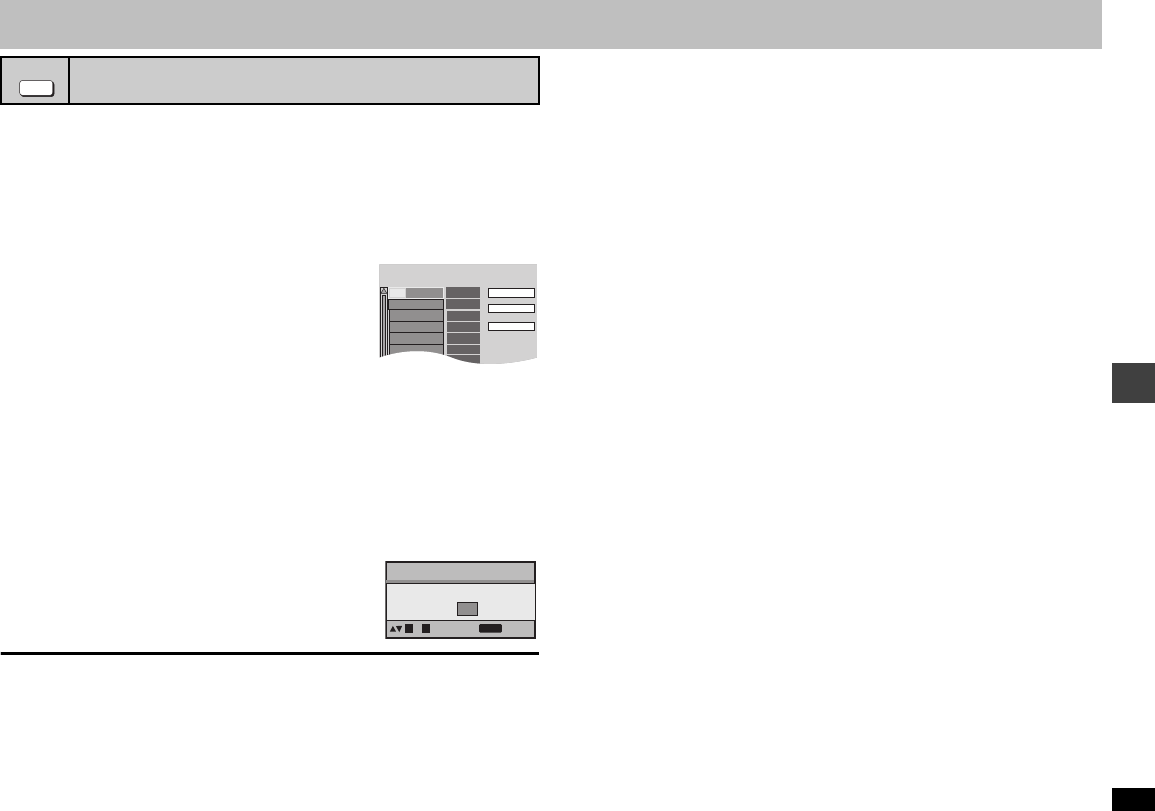

Using navigation menus

Select “Play as Data Disc” (➜page 17, Other Menu) to play JPEG, MPEG4 or DivX video contents on DVD-RAM that contain both

[RAM]

and another format (e.g.

[JPEG]

) or to play

HighMAT discs without using the HighMAT function.

While the menu is displayed

Press [34] to select

“All”, “Audio”, “Picture”

or “Video” and press

[ENTER].

≥To display/exit the screen,

press [TOP MENU].

1 Press [MENU].

2 Press [3421] to select the group and press [ENTER].

3≥To play content in the group in order

Press [ENTER].

≥To start play from the selected content

Press [34] to select and press [ENTER].

≥Press [ANGLE/PAGE] to skip page by page.

≥To listen to WMA/MP3 while showing a JPEG image on the screen

Select a JPEG first, and then select WMA/MP3.

(The opposite order is not effective.)

≥To exit the screen, press [MENU].

∫Using the submenu

1 Press [MENU].

2 Press [FUNCTIONS].

3 Press [34] to select an item and press [ENTER].

∫Searching by a content or group title

1 Press [MENU].

≥Press [21] to highlight a group title to search a group, or a content title to search

its content.

2 Press [FUNCTIONS].

3 Press [34] to select “Find” and

press [ENTER].

4 Press [34] to select a character and

press [ENTER].

≥Repeat to enter another character.

≥Lower case is also searched.

≥Press [65] to skip between A, E, I, O and U.

≥Press [2] to erase a character.

≥Erase the asterisk (¢) to search for the titles starting with that character.

5 Press [1] to select “Find” and press [ENTER].

The search result screen appears.

6 Press [34] to select the content or group and press [ENTER].

Playing data discs

[WMA]

[MP3]

[JPEG]

[MPEG4] [DivX]

TOP MENU

Playing items in order (Playback Menu)

Playing from the selected item (Navigation Menu)

Playback Menu

ENTER

to select and press

All Total 436

Audio Total 7

Picture Total 427

Video Total 2

All contents

WMA/MP3

JPEG

MPEG4 and

DivX video

avigation

enu

FUNCTIONS

RETURN

to display the sub menu

Group 005/023 Content 0001/0005

to exit

Perfume

001 Brazilian

002 Chinese

003 Czech

004 Hungarian

005 Japanese

006 Mexican

007 Philippine

008 Swedish

009 Piano

010 Vocal

001 Lady Starfish

002 Metal Glue

003 Life on Jupiter

005 Starperson

004 Starperson

001 My favorite1

002 My favorite2

5JPEG

002 My favorite2 005 Japanese 001 Lady Starfish

Group and content number currently playing

:WMA/MP3

:JPEG

Number currently selected

Group Content

:MPEG4 and DivX video

Multi

List

Tree

Thumbnail

Next group

Previous group

All

Audio


Video

Help display

Find

Content only

Groups only

Thumbnail images [JPEG]

WMA/MP3, JPEG, MPEG4 and DivX video

WMA/MP3 only

JPEG only

To switch between guide messages and the elapsed play time indicator

To search by a content or group title (➜ see below)

Groups and content

To the previous group

To the next group

MPEG4 and DivX video only

¢Find

Using navigation menus

RQT8127-B.fm Page 14 Friday, April 8, 2005 5:24 PM

RQT8127

Titles appear with CD text playback.

1 Press [MENU].

2 Press [34] to select the

track and press [ENTER].

≥Press [ANGLE/PAGE] to skip page by

page.

≥To exit the screen, press [MENU].

While the menu is displayed

Press [3421] to select then press [ENTER].

≥

To return to the menu screen, press

[TOP MENU]

then press

[RETURN]

several times.

≥To change the menu background, press [FUNCTIONS].

The background changes to the one recorded on the disc.

≥To display/exit the screen, press [TOP MENU].

1 During play, press [MENU].

2 Press [2] then [34] to switch among

“Playlist”, “Group” and “Content” lists.

3 Press [1] then [34] to select an item

and press [ENTER].

≥Press [ANGLE/PAGE] to skip page by page.

≥To exit the screen, press [MENU].

≥Titles appear only if you have entered them.

≥You cannot edit play lists and titles.

1 Press [DIRECT NAVIGATOR].

2 Press [34] or the numbered buttons

to select the program.

≥Press [ANGLE/PAGE] to skip page by page.

≥To select a 2-digit number

e.g. 23: [S10] ➜ [2] ➜ [3]

≥Press [1] to show the contents of the

program.

3 Press [ENTER].

1 Press [PLAY LIST].

2 Press [3 4] or the numbered buttons

to select the play list.

≥Press [ANGLE/PAGE] to skip page by page.

≥To select a 2-digit number

e.g. 23: [S10] ➜ [2] ➜ [3]

3 Press [ENTER].

1 Do steps 1–2 (➜above, Playing a play list).

2 Press [1].

3 Press [3 4] to select “Scene List” and press [ENTER].

≥Select “Contents” to show the contents of the program.

4 Press [3421] to select a scene and press [ENTER].

Playing CD

[CD]

Playing HighMATTM discs

[WMA]

[MP3]

[JPEG]

Selecting from the list

CD Text

Ashley at Prom

10.

201

1/23

Disc Title: All By Artist

Disc Artist: Pink Island

Track Title:

Long John Platinum

Track Artist: SHIPWRECKED

City Penguin

Formura one

Soccer

Baseball

Neanderthal

Cartoons

Trilobites

White Dwarf

Discovery

ENTER

RETURN

to select and press

to exit

e.g. CD text

Press

[FUNCTIONS]

to switch between guide

messages and the elapsed play time indicator.

TOP MENU

Menu:

Takes you to the next menu which

shows play lists or another menu.

Play list:

Play starts.

Playlist

Group

Content

All By Artist

ENTER

RETURN

to playto select

to exit

Content title

No.

1Few times in summer

Less and less

And when I was born

Quatre gymnopedies

You've made me sad

I can't quit him

Evening glory

Wheeling spin

Velvet Cuppermine

Ziggy starfish

Pink Island

Playing RAM/DVD-RW (DVD-VR) discs

[RAM]

[DVD-RW[‹VR›]

Playing the programs

Playing a play list (Only when the disc contains a play list)

Playing a scene

PLAY LIST

DIRECT NAVIGATOR

Direct Navigator

11/ 1(WED) 0:05 Monday feature1

1/ 1 (MON) 1:05 Auto action2

2/ 2 (TUE) 2:21 Cinema3

3/ 3 (WED) 3:37 Music4

4/10(THU) 11:05 Baseball5

Date

No. On Contents

to select

RETURN

to exit

Title

11/1 0:00:01 City Penguin1

1/ 1 0:01:20 Ashley at Prom2

2/ 2 1:10:04 Formula one3

3/ 3 0:10:20 Soccer4

4/10 0:00:01 Baseball5

DateNo. Total Time Title Contents

Playlist

ENTER

RETURN

to select and press

to exit

Using navigation menus

RQT8127-B.fm Page 15 Friday, April 8, 2005 5:24 PM

RQT8127

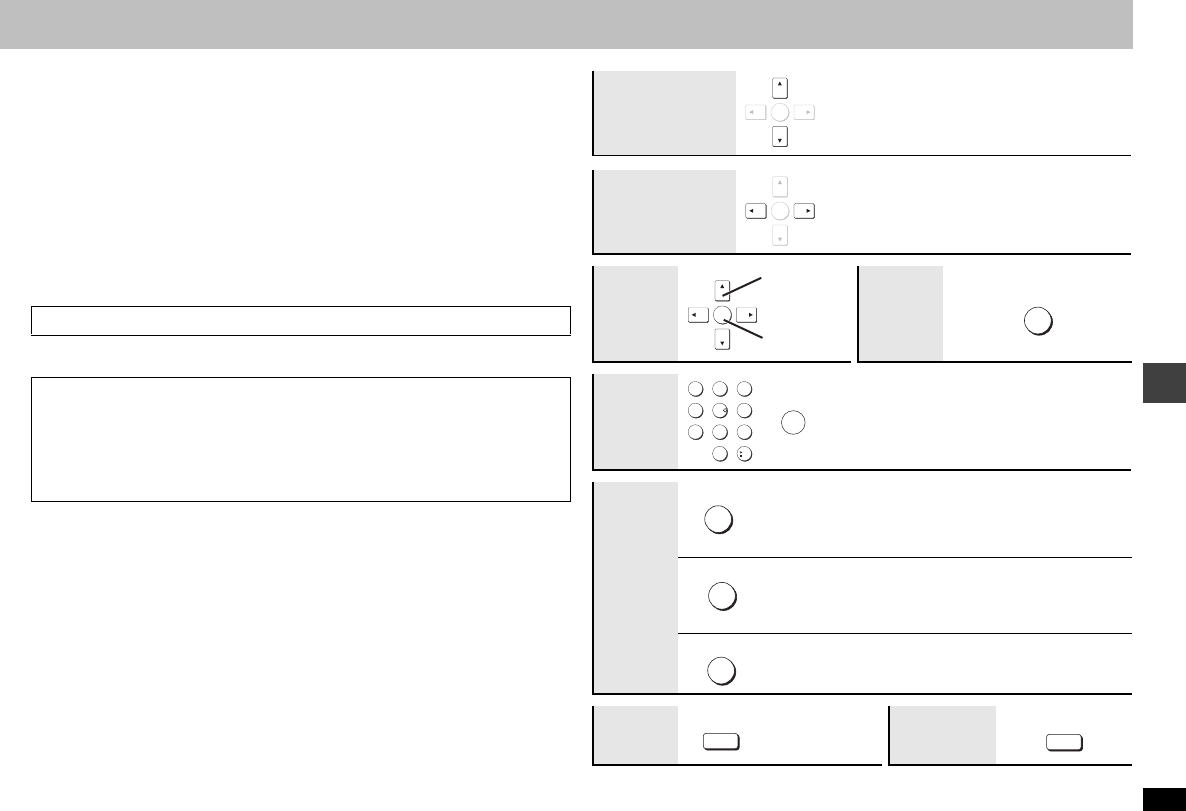

Using On-Screen Menus

Items shown differ depending on the type of software.

§ Except iR/iRW

∫Play Menu

(Only when the elapsed play time can be displayed,

[JPEG]

The Repeat and Marker

functions can be used.)

1234

Press. Select the menu. Make the settings. Press to exit.

FUNCTIONS

ENTER

Select Go to the next

Return to the previous menu

123

456

789

ENTER

Select

RETURN

Main menus

Program, Group, Title

Chapter, Track

Playlist, Content

To start from a specific item

Time

To skip incrementally or decrementally§ (Time Slip for play

only)

1. Press [ENTER] twice to show Time Slip indicator.

2. Press [34] to select the time and press [ENTER].

≥Press and hold [34] to alter faster.

To start from a specific time§ (Time Search)

To change remaining/elapsed time display

Video To display pixel number

[DivX] fps (frame per second) is also displayed.

Audio (➜page 12, Changing soundtracks)

To display the current bitrate or sampling frequency

Thumbnail To show thumbnail images

Subtitle (➜page 12, Changing subtitles)

Marker (VR) To recall a marker recorded on DVD-Video recorders

Angle (➜page 11, Angle select)

Rotate Picture

(➜page 11, Still picture rotation)

Slideshow To turn on/off slideshow

To change the slideshow timing (0-30 sec)

Other Settings

(➜ right)

Other Settings

Play Speed (➜page 11, Changing play speed)

AV Enhancer (➜page 10, Recalling recommended audio/video setting)

Repeat Select an item to be repeated.

A-B Repeat

To repeat a specified section

Press [ENTER] at the starting and ending points.

Press [ENTER] again to cancel.

≥

[RAM] [DVD-RW[‹VR›]

(still picture part): Does not work.

Marker

Except

[RAM]

[DVD-RW[‹VR›]

To mark up to 5 positions to play again

Press [ENTER] (The unit is now ready to accept markers.)

To mark a position: [ENTER] (at the desired point)

To mark another position: [21] to select “¢”➜ [ENTER]

To recall a marker: [21] ➜ [ENTER]

To erase a marker: [21] ➜ [CANCEL]

≥This feature doesn’t work during program and random play.

≥Markers you add clear when you open the disc tray or switch the

unit to standby.

Advanced

Disc Review

(➜page 10, Reviewing titles/programs to play)

Using On-Screen Menus

RQT8127-B.fm Page 16 Friday, April 8, 2005 5:24 PM

RQT8127

∫Picture Menu ∫Audio Menu

∫Display Menu

∫Other Menu

Picture Mode (➜page 11, Picture Mode)

Video Output

Mode

§480p/525p/576p/625p (progressive)

§480i/525i/576i/625i (interlace)

When you select “xxx§p” (progressive) and a confirmation screen

appears, select “Yes” only if connecting to a progressive output

compatible television.

§The numbers displayed depend on the geographical location and

disc being played. One of the above numbers is displayed.

Transfer

Mode

If you have chosen “xxx§p” (progressive) (➜ above), select the

method of conversion for progressive output to suit the type of

material.

When playing PAL discs

Auto: Detects 25 frame-per-second film content and

appropriately converts it.

Video: Select when using Auto, and the video content is distorted.

When playing NTSC discs

Auto1 (normal): Detects 24 frame-per-second film content and

appropriately converts it.

Auto2: Compatible with 30 frame-per-second film content in

addition to 24 frame-per-second film content.

Video: Select when using Auto1 and Auto2, and the video content

is distorted.

Source Select

When you select “Auto” the constructing method of the DivX contents is

automatically distinguished and output. If the picture is distorted, select “I

(Interlace)” or “P (Progressive)” depending on which constructing method

was used when the contents were recorded to disc.

Auto

I (Interlace)

P (Progressive)

Advanced

Surround

(➜page 11, Enjoying virtual surround)

Dialogue

Enhancer

To make the dialogue in movies easier to hear

[DVD-V]

(Dolby Digital, DTS, MPEG, 3-channel or over, with the

dialogue recorded in the center channel)

[DivX] (Dolby Digital, 3-channel or over, with the dialogue recorded in

the center channel)

On ,------. Off

Sound

Enhancement

(➜page 10, Enjoying clear sound)

Attenuator

With AUDIO OUT connections (➜page 6)

Switch on if sound is distorted.

On ,------. Off

Information On ,------. Off

Subtitle Position 0 to s60 (in 2 units)

Subtitle Brightness Auto, 0 to s7

4:3 Aspect

To select how to show images made for 4:3 aspect screens

on a 16:9 aspect television

Normal: Laterally stretches images.

Auto: The standard setting is “Shrink”. However this

automatically changes to “Zoom” with a letterbox

picture.

Shrink: Images appear in the center of the screen.

Zoom: Expands to 4:3 aspect ratio.

Just Fit Zoom (➜page 12, Zoom)

Manual Zoom (➜page 12, Zoom)

GUI See-through Off, On, Auto

GUI Brightness s3 to r3

Quick OSD (➜page 10, Displaying current playback condition)

Setup (➜page 18, Changing the player settings)

Play as DVD-VR

Play as HighMAT

Play as Data Disc

Select “Play as Data Disc” to play JPEG, MPEG4 or DivX

video contents on DVD-RAM that contain both

[RAM]

and

another format (e.g.

[JPEG]

) or to play HighMAT discs without

using the HighMAT function.

Using On-Screen Menus

RQT8127-B.fm Page 17 Friday, April 8, 2005 5:24 PM

RQT8127

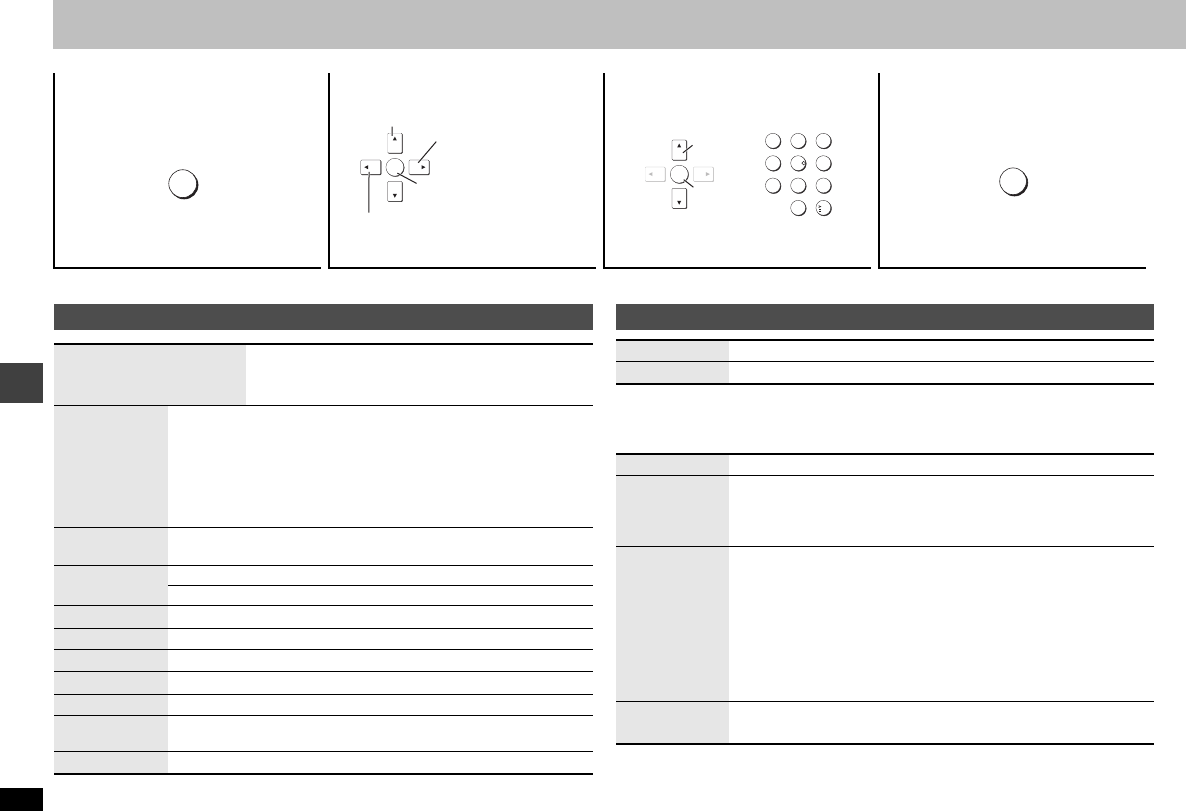

Changing the player settings

≥The settings remain intact even if you switch the unit to standby.

≥Underlined items are the factory preset.

∫“Disc” tab

∫“Video” tab

1234 5

Shows Setup menu. Select the tab. Select the item. Make the settings. Press to exit.

SETUP

ENTER

Select

Go right

ENTER

Select

123

456

789

ENTER

Select

SETUP

The QUICK SETUP enables successive settings of the items in the shaded area.

Audio

Choose the audio

language.

English (Language options)§1Original§2

Other

¢¢¢¢

§3

Subtitle

Choose the subtitle

language.

Automatic§4English (Language options)§1

Other

¢¢¢¢

§3

Menus

Choose the

language for disc

menus.

English (Language options)§1Other

¢¢¢¢

§3

≥Changing the menu language from QUICK SETUP also

changes this setting.

Advanced Disc

Review

Select how to review

(➜page 10).

Intro Mode: Reviews each title/program.

Interval Mode: Reviews each 10 minutes.

Ratings

Set a ratings level to

limit DVD-Video play.

≥Follow the on-

screen instructions.

Setting ratings (When level 8 is selected)

8 No Limit 1 to 7

0 Lock All: To prevent play of discs without ratings levels.

When setting a ratings level, a password screen is shown.

Follow the on-screen instructions.

Do not forget your password.

A message screen will be shown if a DVD-Video exceeding

the ratings level is inserted in the unit. Follow the on-screen

instructions.

TV Aspect

Choose the setting to suit

your television and

preference.

4:3 Pan&Scan

: Regular aspect

television (4:3)

The sides of the widescreen picture are

cut off so it fills the screen (unless

prohibited by the disc).

4:3 Letterbox: Regular aspect

television (4:3)

Widescreen picture is shown in the

letterbox style.

16:9: Widescreen television (16:9)

TV Type

Select to suit the type of

television.

Standard (Direct View TV) CRT Projector

LCD TV/Projector Projection TV

Plasma TV

Time Delay

When connected with an AV

amplifier and Plasma display,

adjust if you notice the audio is

out of sync with the video.

0ms 20ms 40ms 60ms

80ms 100ms

Video Out (AV/Component)

Choose the video signal format

to be output from the SCART

and COMPONENT VIDEO OUT

terminals (

➜

page 6).

Video/YPbPr

S-Video/YPbPr

RGB/No Output

Still Mode

Specify the type of picture

shown when paused.

Automatic

Field: The picture is not blurred, but picture

quality is lower.

Frame: Overall quality is high, but the picture may

appear blurred.

NTSC Disc Output

Choose PAL 60 or NTSC output

when playing NTSC discs.

PAL60

: NTSC discs can be viewed on PAL television.

NTSC

: Output signal from NTSC discs remains as NTSC.

Picture/Video Output

Choose the video signal

format to be output for

JPEG, MPEG4 and DivX

video.

Automatic

PAL

NTSC/PAL60: Output will depend on “NTSC Disc

Output” setting (➜above).

≥If picture output is not smooth during playback,

change the setting.

RQT8127-B.fm Page 18 Friday, April 8, 2005 5:24 PM

RQT8127

Changing the player settings

∫“Audio” tab

∫“Display” tab

∫“Others” tab

§1Language options

\Continental\Europe]

French, German, Italian, Spanish, Polish, Swedish and Dutch

[The\Middle\East\and\South\Africa\

French, German, Italian, Spanish, Portuguese, Russian and Dutch

§2The original language designed on the disc is selected.

§3Input a code number referring to the table (➜ page 23).

§4If the language selected for “Audio” is not available, subtitles appear in that language

(If available on the disc).

§5

\Continental\Europe]

§6

[The\Middle\East\and\South\Africa\

PCM Digital Output

Check the digital input

limitations of the

equipment you

connect using

COAXIAL terminal and

select the maximum

sampling frequency of

PCM digital output.

Up to 48 kHz:When connected to equipment compatible

with 44.1 or 48 kHz

Up to 96 kHz: When connected to equipment compatible

with 88.2 or 96 kHz

≥Signals from copy-protected discs are converted to 48 or

44.1 kHz.

≥Some equipment cannot handle sampling frequencies of

88.2 kHz, even if they can handle 96 kHz. Read your

equipment’s operating instructions for details.

Dolby Digital

With COAXIAL

connections (

➜

page 7)

Bitstream PCM Select “Bitstream” when the

equipment can decode the

bitstream (digital form of multi-

channel data). Otherwise,

select “PCM”. (If the bitstream

is output to the equipment

without a decoder, high levels

of noise can be output and

may damage your speakers

and hearing.)

DTS Digital Surround

With COAXIAL

connections (

➜

page 7)

Bitstream PCM

MPEG

With COAXIAL

connections (

➜

page 7)

PCM Bitstream

Dynamic Range

Compression Off

On:

Adjusts for clarity even when the volume is low through

compressing the range of the lowest sound level and

the highest sound level. Convenient for late night

viewing. (Only works with Dolby Digital)

Menu Language

§5English Français Deutsch Italiano Español

Polski Svenska Nederlands

§6English Français Deutsch Italiano Español

Português Русский Nederlands

On-Screen Messages

On Off

Background during

Play

Select background

during JPEG,

MPEG4 and DivX

video playback.

Black Grey

FL Dimmer

Changes the

brightness of the

unit’s display.

Bright Dim

Auto: The display is dimmed, but brightens only when you

perform some operations.

Auto Power Off On: The unit switches to standby mode after about 30

minutes in the stop mode.

Off

DivX Registration

Displays the unit’s

registration code.

You need this registration code to purchase and play DivX

Video-on-Demand (VOD) content. (➜page 5, About DivX

VOD content)

QUICK SETUP Yes No

Re-initialise Setting

This returns all

values in the Setup

menus to the default

settings.

Yes: The password screen is shown if “Ratings” (➜page 18)

are set. Please enter the same password. After “INI” on

the display disappears, turn the unit off and on again.

RQT8127-B.fm Page 19 Friday, April 8, 2005 5:24 PM

RQT8127

Troubleshooting guide

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, consult

your dealer for instructions. (Reference pages are shown in parentheses.)

Power

No operation

Specific operation impossible or incorrect

Picture incorrect

No power. ≥Insert the AC mains lead securely into the household mains

socket. (7)

The unit is

automatically

switched to the

standby mode.

≥When “Auto Power Off” is set to “On”, the unit automatically

switches to standby after approximately 30 minutes in the

stop mode. (19)

No response

when any buttons

pressed.

≥This unit cannot play discs other than the ones listed in

these operating instructions. (4)

≥The unit may not be operating properly due to lightning,

static electricity or some other external factor. Turn the unit

off and then back to ON. Alternatively, turn the unit off,

disconnect the AC mains lead, and then reconnect it.

≥

Condensation has formed: Wait 1 to 2 hours for it to evaporate.

No response

when remote

control buttons

pressed.

≥Check that the batteries are installed correctly. (7)

≥The batteries are depleted: Replace them with new ones. (7)

≥Point the remote control at the remote control sensor and

operate. (8)

No picture or

sound. ≥Check the video or audio connection. (6, 7)

≥Check the power or input setting of the connected

equipment.

≥Check that the disc has something recorded on it.

You have

forgotten your

ratings password.

Reset all the settings

to Factory Preset.

≥While stopped, press and hold [QUICK OSD] and [;] on the

unit and then also press and hold [<OPEN/CLOSE] on the

unit until “Initialised” disappears from the television. Turn the

unit off and on again. All settings will return to the default

values.

It takes time

before play starts. ≥Play may take time to begin when an MP3 track has still

picture data. Even after the track starts, the correct play time

will not be displayed; however, this is normal.

[MP3]

≥This is normal on DivX video. [DivX]

The program and

random play functions

do not work.

[DVD-V]

≥These functions do not work with some DVD-Videos.

Menu doesn’t

appear.

[VCD]

with

playback control

≥Press [∫] twice and then press [1] (PLAY).

Play doesn’t start. ≥This unit may not play WMA and MPEG4 that

contains still picture data.

[WMA]

[MPEG4]

≥If playing DivX VOD content, refer to the

homepage where you purchased the DivX VOD

content. (Example: www.divx.com/vod) [DivX]

≥If a disc contains CD-DA (

[CD]

) and other formats,

proper playback may not be possible.

Subtitle position is wrong. ≥Adjust the position. (“Subtitle Position” in Display

Menu) (17)

No subtitles. ≥Display the subtitles. (12)

In A-B Repeat, point B is

automatically set. ≥The end of an item becomes point B when it is

reached.

Repeat play is automatically

canceled. ≥A-B Repeat is canceled when you press

[QUICK REPLAY].

≥Repeat play may be canceled when you press

[MANUAL SKIP] or [ADVANCED DISC REVIEW].

Picture distorted. ≥Ensure that the unit is not connected through a video

cassette recorder. (6)

≥Make sure that progressive output has not been selected

when the connected television is not progressive compatible.

Press and hold [CANCEL] until the picture displays correctly.

The settings will return to “xxxi” (interlace).

≥ Change “Source Select” in Picture Menu. [DivX] (17)

Picture size

doesn’t fit the

screen.

≥Change “TV Aspect” in “Video” tab. (18)

≥Use the television to change the aspect. If your television

does not have that function, change “4:3 Aspect” in Display

Menu. (17)

≥Change the Zoom setting. (12)

Picture stops. ≥Picture may stop if the DivX files are greater than 2GB. [DivX]

The television

may display

incorrectly or

colours appear

faded.

≥The unit and television are using different video systems.

Use a multi-system or PAL television.

≥The system used on the disc doesn’t match your television.

–PAL discs cannot be correctly viewed on an NTSC

television.

–This unit can convert NTSC signals to PAL 60 for viewing

on a PAL television (“NTSC Disc Output” in “Video” tab).

(18)

Troubleshooting guide

RQT8127-B.fm Page 20 Friday, April 8, 2005 5:24 PM

RQT8127 Troubleshooting guide

Progressive video

Sound incorrect

Recording

Unit displays

Television displays

§ S VIDEO OUT:

[The\Middle\East\and\South\Africa\

Menu not displayed

correctly.

≥Restore the zoom ratio to a1.00. (12)

≥Set “Subtitle Position” in Display Menu to “0”. (17)

≥Set “4:3 Aspect” in Display Menu to “Normal”. (17)

Auto zoom

function does not

work well.

≥Turn off TV’s zoom function.

≥Use the other preset aspect ratios or manual adjustment.

(12)

≥Zoom function may not work well, especially in dark scenes

and may not work depending on the type of disc.

There is ghosting

when progressive

output is on.

≥This problem is caused by the editing method or material

used on DVD-Video, but should be corrected if you use

interlace output. Change “Video Output Mode” in Picture

Menu to “xxxi” (interlace). (17)

Pictures not in

progressive output.

≥If the unit is connected to the television through VIDEO OUT

or S VIDEO OUT§, output will be interlace.

Sound distorted. ≥Select “Off” in “Advanced Surround”. (11)

≥Select “On” in “Attenuator” in Audio Menu if it causes

distortion with AUDIO OUT connections. (17)

Piercing noise

comes from the

speakers.

≥

If you have connected a digital amplifier which does not

include decoder, be sure to select “PCM” in “Dolby Digital”,

“DTS Digital Surround” or “MPEG” in “Audio” tab.

(19)

Effects do not

work.

≥None of the audio effects work when the unit is outputting

bitstream signals from the COAXIAL terminal. (7)

≥Some audio effects do not work or have less effect with

some discs.

≥Advanced Surround and Sound Enhancement do not work if

you have changed the play speed.

No sound ≥

There may be a pause in sound when you change the play speed.

≥

Audio may not be output due to how files were created.

[DivX] (5)

Cannot record to

digital recording

equipment.

(Incorrect sound

recorded.)

≥You cannot record WMA/MP3.

≥You cannot record DVDs that have protection preventing

digital recording.

≥You cannot record DVDs if the recording equipment cannot

handle signals with a sampling frequency of 48 kHz.

≥Make the following settings:

– Advanced Surround: Off (11)

– PCM Digital Output: Up to 48 kHz (19)

– Dolby Digital/DTS Digital Surround/MPEG: PCM (19)

“noPLAy” ≥You inserted a disc the unit cannot play; insert one it can. (4)

≥You inserted a blank disc.

≥You inserted a disc that has not been finalized. (4)

“U11” ≥The disc may be dirty. (4)

“H∑∑”

(∑∑

stands for a

number.)

≥Trouble may have occurred. The number following “H”

depends on the status of the unit. Turn the unit off and then

back to ON. Alternatively, turn the unit off, disconnect the AC

mains lead, and then reconnect it.

≥If the service numbers fail to clear, note the service number

and contact a qualified service person.

“nodISC” ≥You haven’t inserted a disc: Insert one.

≥

You haven’t inserted the disc correctly: Insert it correctly.

(8)

“/”≥The operation is prohibited by the unit or disc.

“Cannot play group xx,

content xx”

“Cannot display group

xx, content xx”

≥You are trying to play incompatible group or content. (5)

“

Group xx, content

xx is protected

”

≥You are trying to play protected group or content. You cannot

play it.

“Cannot play audio”

“No audio”

≥Audio has not been recorded, or recorded in a format this unit

cannot playback. Video playback only is possible. (5)

“Check the disc” ≥This disc may be dirty. (4)

“This disc may not

be played in your

region”

≥The player plays DVD-Video marked with labels containing

the region number “2” or “ALL”. (Cover)

No on-screen display.

≥

Select “On” in “On-Screen Messages” in “Display” tab.

(19)

“Authorization Error”

≥You are trying to play the DivX VOD content that was

purchased with a different registration code. You cannot play

the content on this unit. [DivX] (5)

“

Rented Movie

Expired

”

≥The DivX VOD content has zero remaining plays. You cannot

play it. [DivX] (5)

RQT8127-B.fm Page 21 Friday, April 8, 2005 5:24 PM

RQT8127

Specifications

Signal system: PAL 625/50, PAL525/60, NTSC

Operating temperature range: i5 to i35 oC

Operating humidity range: 5 to 90 % RH (no condensation)

Discs played (8 cm or 12 cm):

(1) DVD (DVD-Video, DivX§6, 7)

(2) DVD-RAM (DVD-VR, JPEG§4, 7, MPEG4§5, 7, DivX§6, 7)

(3) DVD-R (DVD-Video, DivX§6, 7) (4) DVD-RW (DVD-Video, DVD-VR, DivX§6, 7)

(5) iR/iRW (Video)

(6) CD, CD-R/RW [CD-DA, Video CD, SVCD§1, MP3§2, 7, WMA§3, 7, JPEG§4, 7,

MPEG4§5, 7, DivX§6, 7, HighMAT Level 2 (Audio and Image)]

Video output:

Output level: 1 Vp-p (75 ≠)

Output terminal:

\Continental\Europe]

Pin jack (1 system)/AV

[The\Middle\East\and\South\Africa\

Pin jack (1 system)

S-video output:

Y output level: 1 Vp-p (75 ≠)

C output level: NTSC; 0.286 Vp-p (75 ≠)

PAL; 0.300 Vp-p (75 ≠)

Output terminal:

\Continental\Europe]

[The\Middle\East\and\South\Africa\

S terminal (1 system)

Component video output:

[NTSC: 525 (480)p/525 (480)i, PAL: 625 (576)p/625 (576)i]

Y output level: 1 Vp-p (75 ≠)

PB output level: 0.7 Vp-p (75 ≠)

PR output level: 0.7 Vp-p (75 ≠)

Output terminal: Pin jack (Y: green, PB: blue, PR: red) (1 system)

RGB video output:

\Continental\Europe]

R output level: 0.7 Vp-p (75 ≠)

G output level: 0.7 Vp-p (75 ≠)

B output level: 0.7 Vp-p (75 ≠)

Output terminal: AV

Audio output:

Output level: 2 Vrms (1 kHz, 0 dB)

Output terminal:

\Continental\Europe]

Pin jack/AV

[The\Middle\East\and\South\Africa\

Pin jack

Number of terminals: 2 channel:1 system

Audio performance:

(1) Frequency response:

≥DVD (linear audio): 4 Hz to 22 kHz (48 kHz sampling)

4 Hz to 44 kHz (96 kHz sampling)

≥CD Audio: 4 Hz to 20 kHz

(2) S/N ratio:

≥CD Audio: 115 dB

(3) Dynamic range:

≥DVD (linear audio): 100 dB

≥CD Audio: 98 dB

(4) Total harmonic distortion:

≥CD Audio: 0.0025 %

Digital audio output:

Coaxial digital output: Pin jack

Pickup:

Wave length: 662 nm/785 nm

Laser power: CLASS 2/CLASS 3A

NORSK

Pickup:

Bølgelengde: 662 nm/785 nm

Laserstyrke: Ingen farlig stråling sendes ut

Power supply:

[Continental\Europe\

AC 230 V, 50 Hz

[The\Middle\East\and\South\Africa\

AC 220 to 240 V, 50/60 Hz

Power consumption: 10 W

Power consumption in standby mode:approx. 1 W

Dimensions (WkDkH): 430 mm k248 mmk43 mm

Mass: 2.2 kg

[Note]

Specifications are subject to change without notice. Mass and dimensions are

approximate.

§1Conforming to IEC62107

§2MPEG-1 Layer 3, MPEG-2 Layer 3

§3Windows Media Audio Ver.9.0 L3

Not compatible with Multiple Bit Rate (MBR)

§4Exif Ver 2.1 JPEG Baseline files

Picture resolution: between 160

120 and 6144

4096 pixels (sub sampling is 4:2:2 or 4:2:0)

§5MPEG4 data recorded with the Panasonic SD multi cameras or DVD video recorders

Conforming to SD VIDEO specifications (ASF standard)/MPEG4 (Simple Profile)

video system/G.726 audio system.

§6DivX 3.11, 4.x, 5.x

GMC (Global Motion Compensation) is not supported.

§7The total combined maximum number of recognizable audio, picture and video

contents and groups: 4000 audio, picture and video contents and 400 groups.

Specifications

RQT8127-B.fm Page 22 Friday, April 8, 2005 5:24 PM

RQT8127

Abkhazian: 6566

Afar: 6565

Afrikaans: 6570

Albanian: 8381

Ameharic: 6577

Arabic: 6582

Armenian: 7289

Assamese: 6583

Aymara: 6589

Azerbaijani: 6590

Bashkir: 6665

Basque: 6985

Bengali; Bangla: 6678

Bhutani: 6890

Bihari: 6672

Breton: 6682

Bulgarian: 6671

Burmese: 7789

Byelorussian: 6669

Cambodian: 7577

Catalan: 6765

Chinese: 9072

Corsican: 6779

Croatian: 7282

Czech: 6783

Danish: 6865

Dutch: 7876

English: 6978

Esperanto: 6979

Estonian: 6984

Faroese: 7079

Fiji: 7074

Finnish: 7073

French: 7082

Frisian: 7089

Galician: 7176

Georgian: 7565

German: 6869

Greek: 6976

Greenlandic: 7576

Guarani: 7178

Gujarati: 7185

Hausa: 7265

Hebrew: 7387

Hindi: 7273

Hungarian: 7285

Icelandic: 7383

Indonesian: 7378

Interlingua: 7365

Irish: 7165

Italian: 7384

Japanese: 7465

Javanese: 7487

Kannada: 7578

Kashmiri: 7583

Kazakh: 7575

Kirghiz: 7589

Korean: 7579

Kurdish: 7585

Laotian: 7679

Latin: 7665

Latvian, Lettish: 7686

Lingala: 7678

Lithuanian: 7684

Macedonian: 7775

Malagasy: 7771

Malay: 7783

Malayalam: 7776

Maltese: 7784

Maori: 7773

Marathi: 7782

Moldavian: 7779

Mongolian: 7778

Nauru: 7865

Nepali: 7869

Norwegian: 7879

Oriya: 7982

Pashto, Pushto: 8083

Persian: 7065

Polish: 8076

Portuguese: 8084

Punjabi: 8065

Quechua: 8185

Rhaeto-Romance:

8277

Romanian: 8279

Russian: 8285

Samoan: 8377

Sanskrit: 8365

Scots Gaelic: 7168

Serbian: 8382

Serbo-Croatian: 8372

Shona: 8378

Sindhi: 8368

Singhalese: 8373

Slovak: 8375

Slovenian: 8376

Somali: 8379

Spanish: 6983

Sundanese: 8385

Swahili: 8387

Swedish: 8386

Tagalog: 8476

Tajik: 8471

Tamil: 8465

Tatar: 8484

Telugu: 8469

Thai: 8472

Tibetan: 6679

Tigrinya: 8473

Tonga: 8479

Turkish: 8482

Turkmen: 8475

Twi: 8487

Ukrainian: 8575

Urdu: 8582

Uzbek: 8590

Vietnamese: 8673

Volapük: 8679

Welsh: 6789

Wolof: 8779

Xhosa: 8872

Yiddish: 7473

Yoruba: 8979

Zulu: 9085

Language code list Manufactured under license from Dolby Laboratories. “Dolby” and the double-D

symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS 2.0 i Digital Out” are trademarks of Digital Theater Systems, lnc.

This product incorporates copyright protection technology that is protected by method

claims of certain U.S. patents and other intellectual property rights owned by

Macrovision Corporation and other rights owners. Use of this copyright protection

technology must be authorized by Macrovision Corporation, and is intended for home

and other limited viewing uses only unless otherwise authorized by Macrovision

Corporation. Reverse engineering or disassembly is prohibited.

MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson multimedia.

This product is licensed under the MPEG-4 Visual patent portfolio license for the

personal and non-commercial use of a consumer for (i) encoding video in compliance

with the MPEG-4 Visual Standard (“MPEG-4 Video”) and/or (ii) decoding MPEG-4

Video that was encoded by a consumer engaged in a personal and non-commercial

activity and/or was obtained from a video provider licensed by MPEG LA to provide

MPEG-4 Video. No license is granted or shall be implied for any other use. Additional

information including that relating to promotional, internal and commercial uses and

licensing may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

HighMATTM and the HighMAT logo are either trademarks or

registered trademarks of Microsoft Corporation in the United

States and/or other countries.

Windows Media, and the Windows logo are trademarks,

or registered trademarks of Microsoft Corporation in the

United States and/or other countries.

WMA is a compression format developed by Microsoft

Corporation. It achieves the same sound quality as MP3

with a file size that is smaller than that of MP3.

Official DivX Certified™ product.

Plays DivX® 5, DivX® 4, DivX® 3, and DivX® VOD video content (in compliance with DivX

Certified™ technical requirements).

DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc. and

are used under license.

RQT8127-B.fm Page 23 Friday, April 8, 2005 5:24 PM

RQT8127-B

F0405AK0

ENHANCER

ADVANCED

DISC REVIEW

SOUND

ENHANCEMENT

ADVANCED

SURROUND

PICTURE MODE

MANUAL SKIP

QUICK REPLAY

CANCEL

SKIP

DIRECT NAVIGATOR

PLAY LIST

TOP MENU

FUNCTIONS

SUBTITLE AUDIO

ANGLE/PAGE

SETUP

PLAY MODE PLAY SPEED

ZOOM

GROUP

RETURN

ENTER

STOP PAUSE PLAY

SLOW/SEARCH

QUICK OSD FL SELECT

OPEN/CLOSE

123

789

Main feature index (Reference pages are shown in parentheses.)

Recalls recommended

audio/video setting (10)

Shows a disc top menu (9)

or program list (15)

Shows On-Screen Menus (16)

Changes soundtracks (12)

Program/random play (13)

Displays current playback

condition (10) Changes the unit’s display (9)

Changes play speed (11)

Skips back a few seconds (12)

Shows a disc menu (9, 14, 15)

or play list (15)

Changes subtitles (12)

Reviews titles/programs

to play (10)

Changes angles or rotates

still pictures (11)

Selects groups to play (11)

Changes the zoom ratio (12)

To enjoy virtual surround (11)

To select the preset picture

quality (11)

Skips 30 seconds forward (11)

To enjoy clear sound (10)

(Inside of product)

(Produktets innside)

(Tuotteen sisällä)

CLASS 1

LASER PRODUCT

LUOKAN 1 LASERLAITE

KLASS 1 LASER APPARAT

(Back of product)

The illustration shows the models for Continental Europe.
