Page Count: 77

General

Power requirements: AC 110-240 V, 50/60 Hz

Power consumption: 18 W (approx. 4.0 W in

STANDBY mode)

Dimensions: 430 (W)×271 (D)×82 (H) mm

(excluding protrusions)

Mass: 2.9 kg

Signal system: NTSC

Operating temperature range: +5 to +35°C

Operating humidity range: 5-90 % RH (no condensation)

Region number: Region NO.4

Discs played

(1) DVD-Video disc:

12 cm single-sided, single-layer

12 cm single-sided, dual-layer

12 cm double-sided, single-layer

8 cm single-sided, single-layer

8 cm single-sided, dual-layer

8 cm double-sided, single-layer

(2) Compact disc (CD-DA, Video CD):

12 cm disc

8 cm disc

Video output

Output level: 1 Vp-p (75 Ω)

Output terminal: Pin jack (2 systems)

S video output

Y output level: 1 Vp-p (75 Ω)

C output level: 0.286 Vp-p (75 Ω)

Output terminal: S terminal (1 system)

Component video output

Y output level: 1 Vp-p (75 Ω)

PBoutput level: 0.7 Vp-p (75 Ω)

PRoutput level: 0.7 Vp-p (75 Ω)

rights reserved. Unauthorized copying and

distribution is a violation of law.

DVD-RV60

Area

PM.........................South America.

Output terminal: Pin jack

(Y: green, PB: blue, PR: red)

Audio output

Output level: 2 Vrms (1 kHz, 0 dB)

Output terminal:

Mixed output (L/R): Pin jack (1 system)

5.1ch discrete output: Pin jack (1 system)

Audio signal output characteristics

(1) Frequency response:

DVD (linear audio): 4 Hz-22 kHz (48 kHz sampling)

4 Hz-44 kHz (96 kHz sampling)

CD audio: 4 Hz-20 kHz (EIAJ)

(2) S/N ratio:

CD audio: 115 dB (EIAJ)

(3) Dynamic range:

DVD (linear audio): 102 dB

CD audio: 98 dB (EIAJ)

(4) Total harmonic distortion:

CD audio: 0.0025 % (EIAJ)

Digital audio output

Optical digital output: Optical terminal

Coaxial audio output: Pin jack

Pickup

Wave length: 665 nm

Laser power: CLASS 2

Notes:

Specifications are subject to change without notice.

Mass and dimensions are approximate.

DVD Player

Specifications

ORDER NO.ODSD000506C3

1 SAFETY PRECAUTIONS 4

1.1. GENERAL GUIDELINES 4

2 PREVENTION OF ELECTRO STATIC DISCHARGE (ESD) TO

ELECTROSTATICALLY SENSITIVE (ES) DEVICES 4

3 PRECAUTION OF LASER DIODE 5

4 HANDLING PRECAUTIONS FOR TRAVERSE DECK 5

4.1. Handling of optical pickup 5

4.2. Grounding for electrostatic breakdown prevention 5

5 Optical Pickup Self-Diagnosis and Replacement Procedure 6

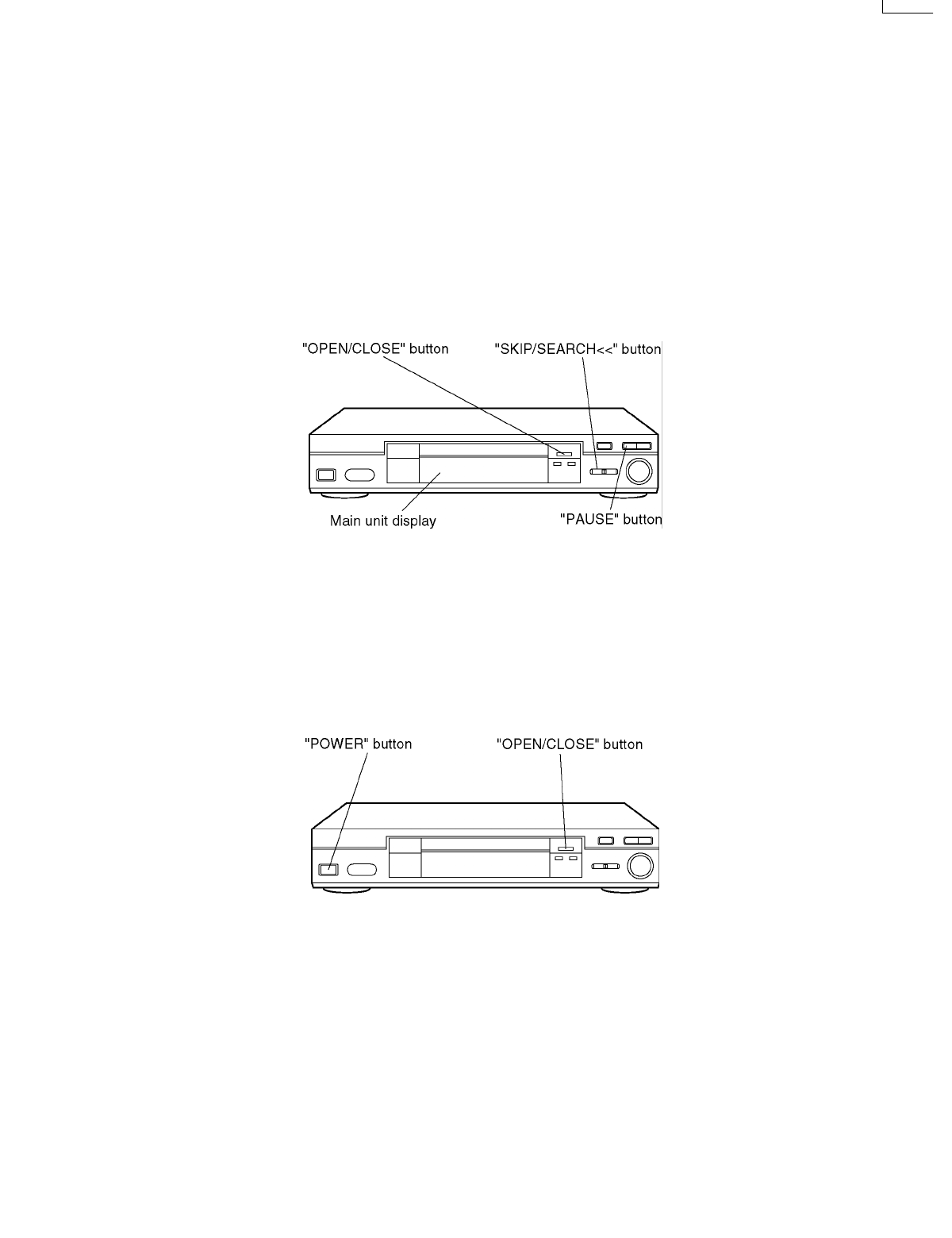

6 Self-Diagnosis Function and Service Modes 7

6.1. Service Mode Table 7

6.2. Self-Diagnosis Function (UHF Display) 7

6.3. Examples of Repairs Using Error Codes 8

6.4. Sales Demonstration Lock Function 8

7 Service Tools and Equipment 9

7.1. Service Tools and Equipment Table 9

7.2. Storing and Handling Test Discs 9

8 General Description 10

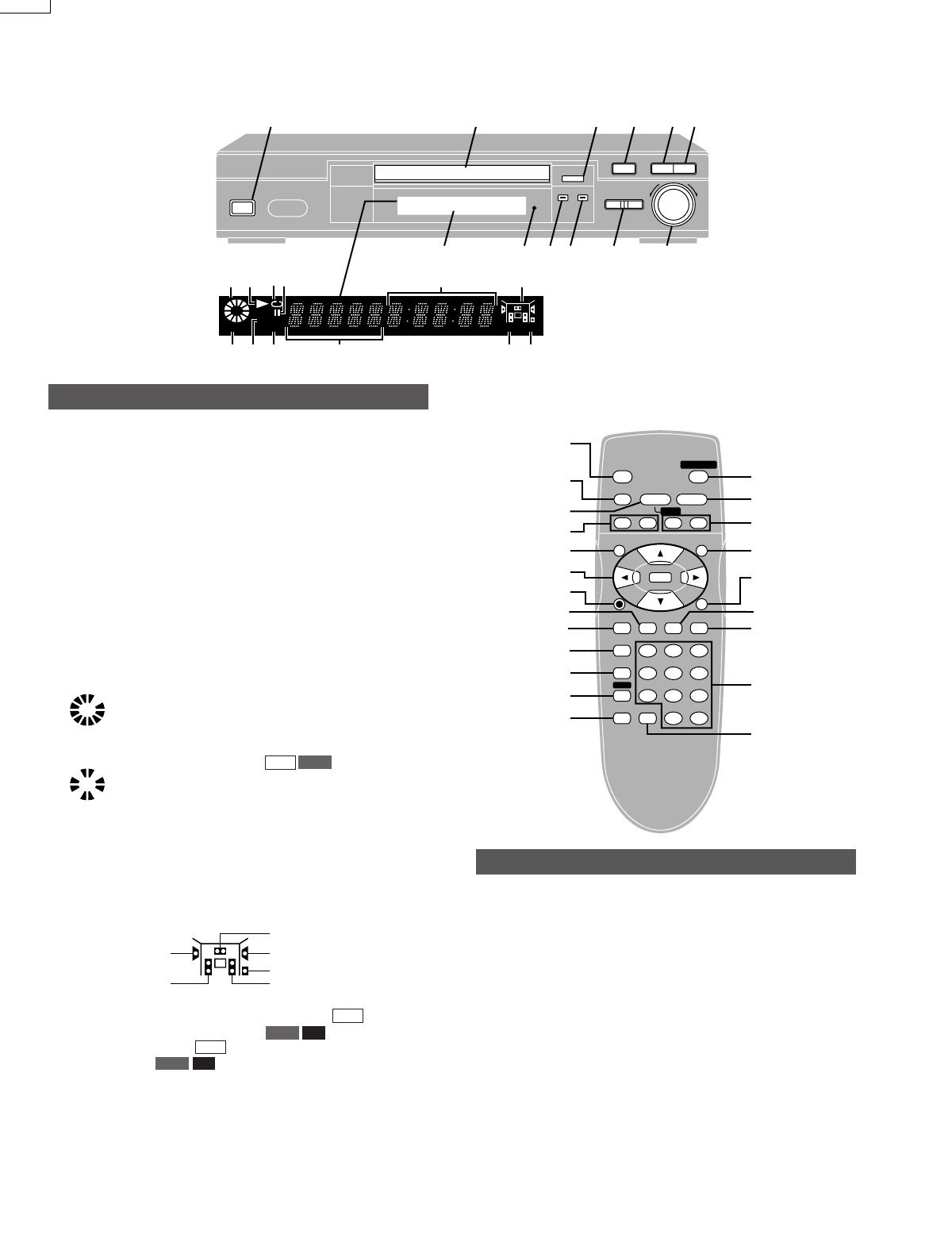

8.1. Operating Instructions 10

9 Assembling and Disassembling the Casing and Checking

P.C.B.s 11

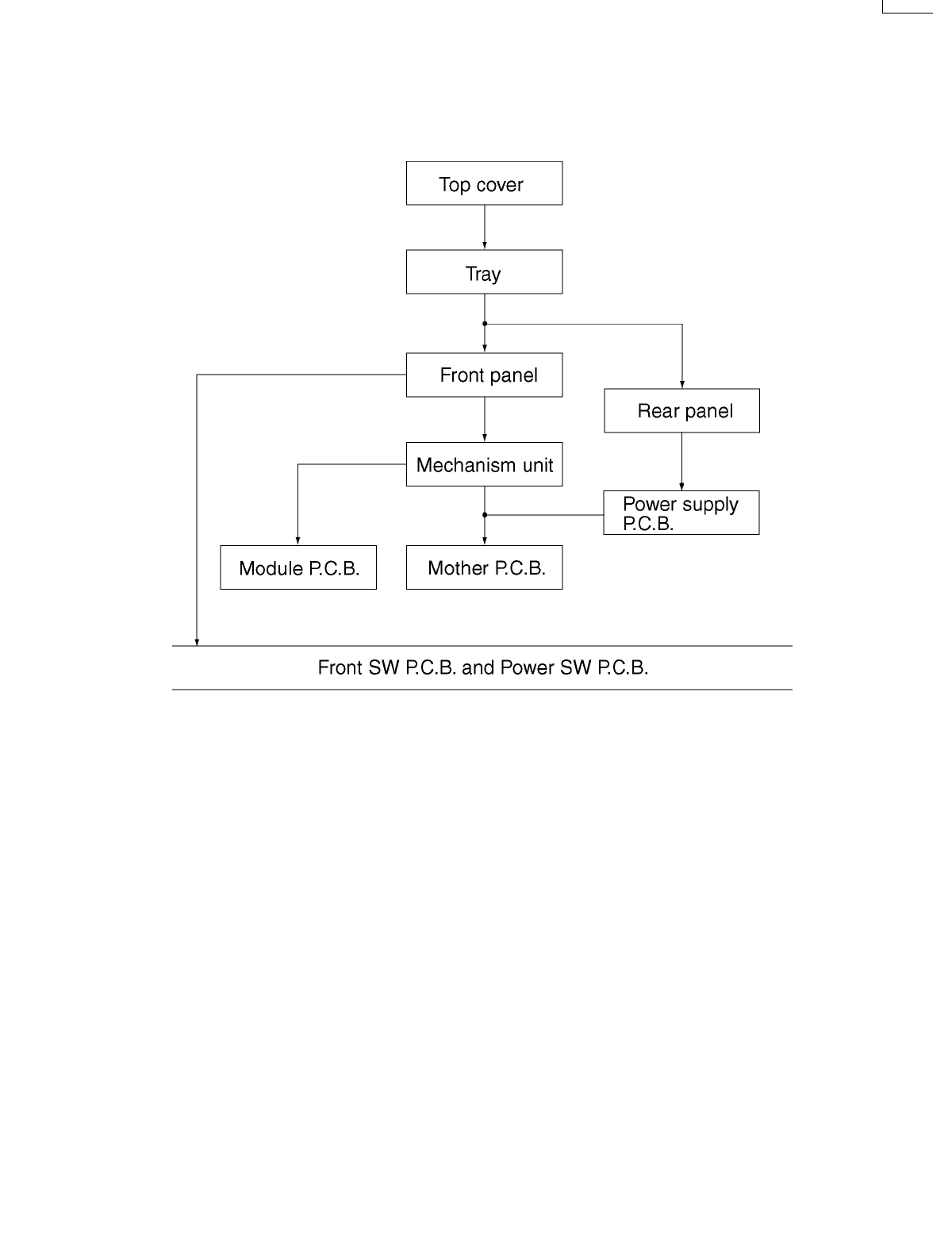

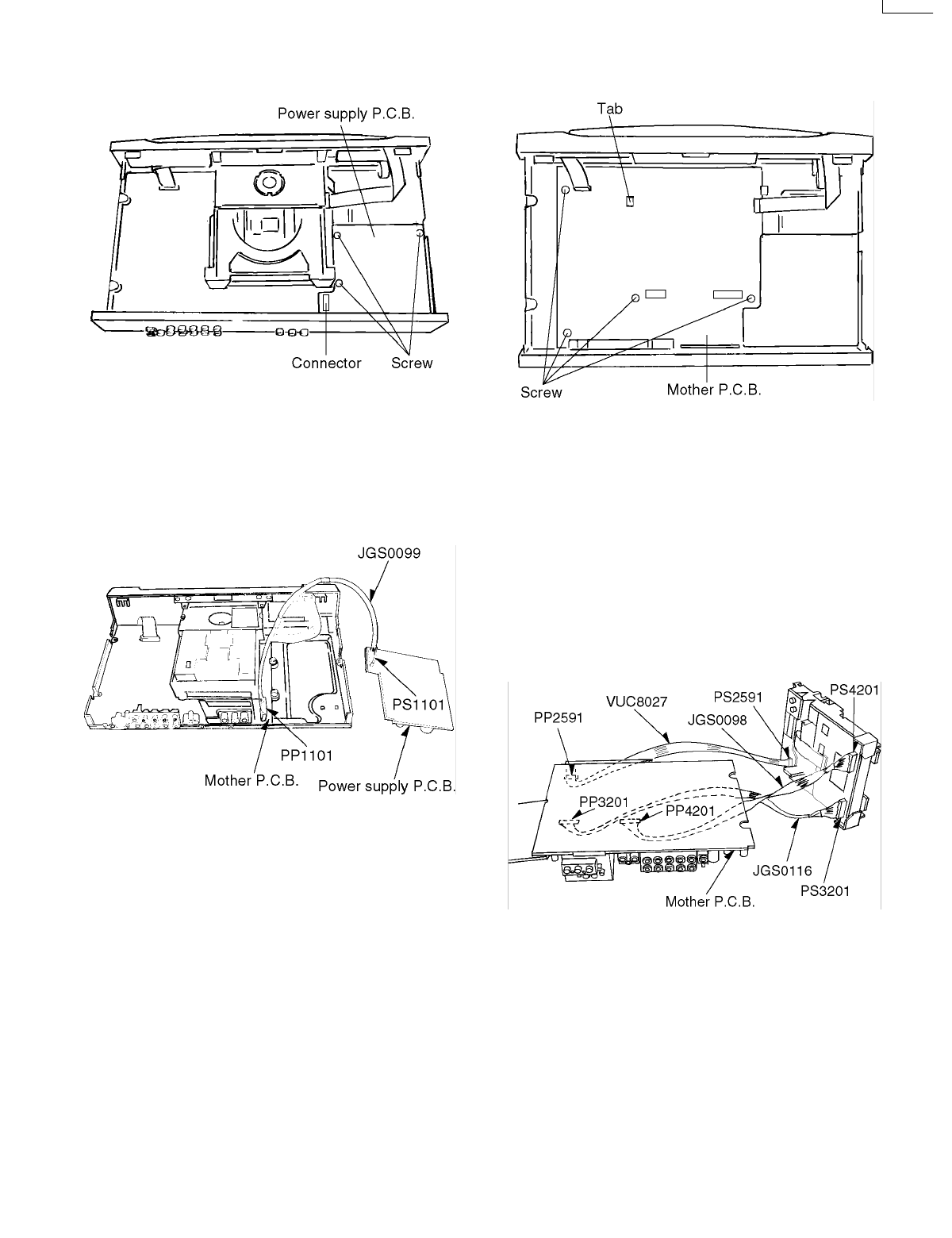

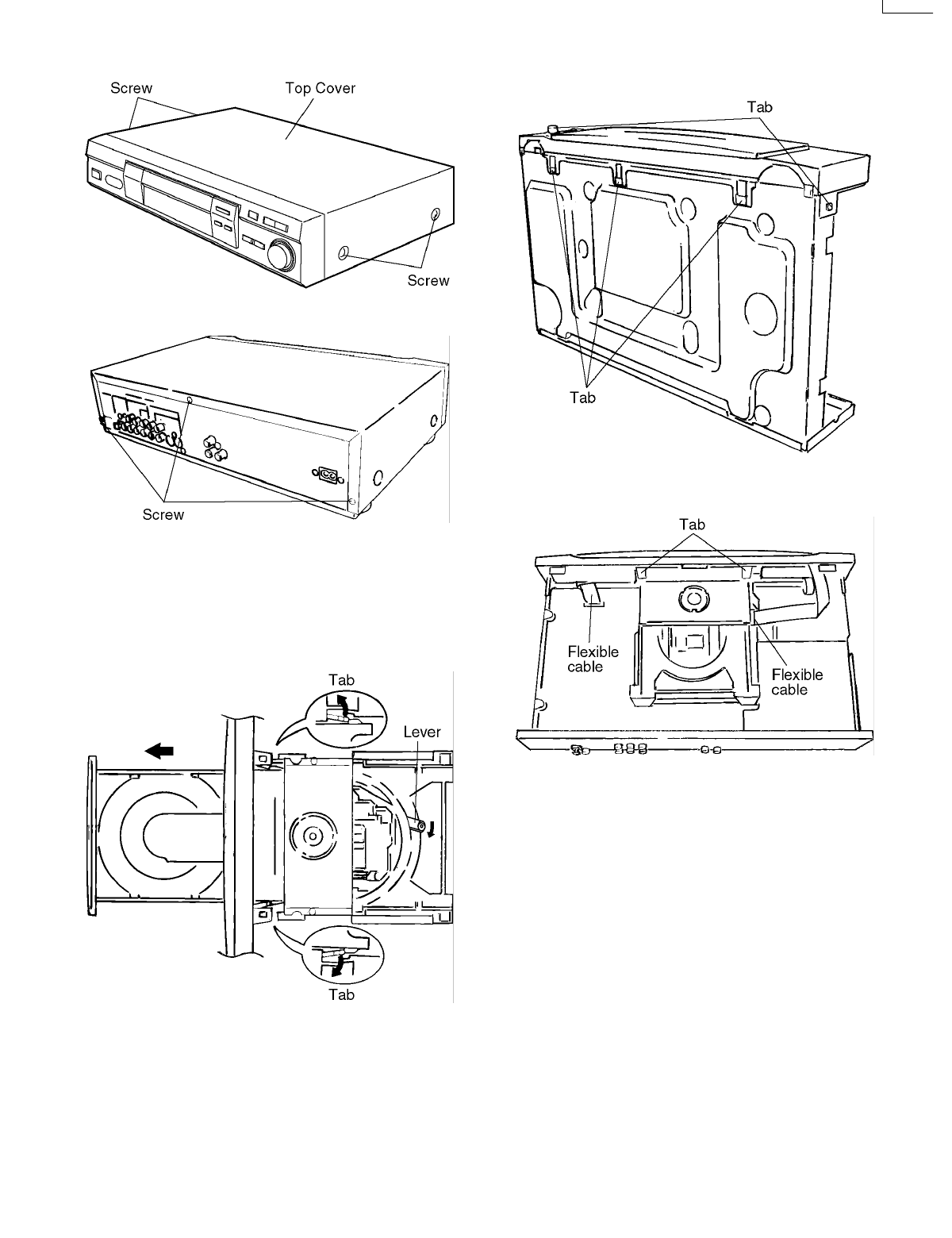

9.1. Disassembly Procedure 11

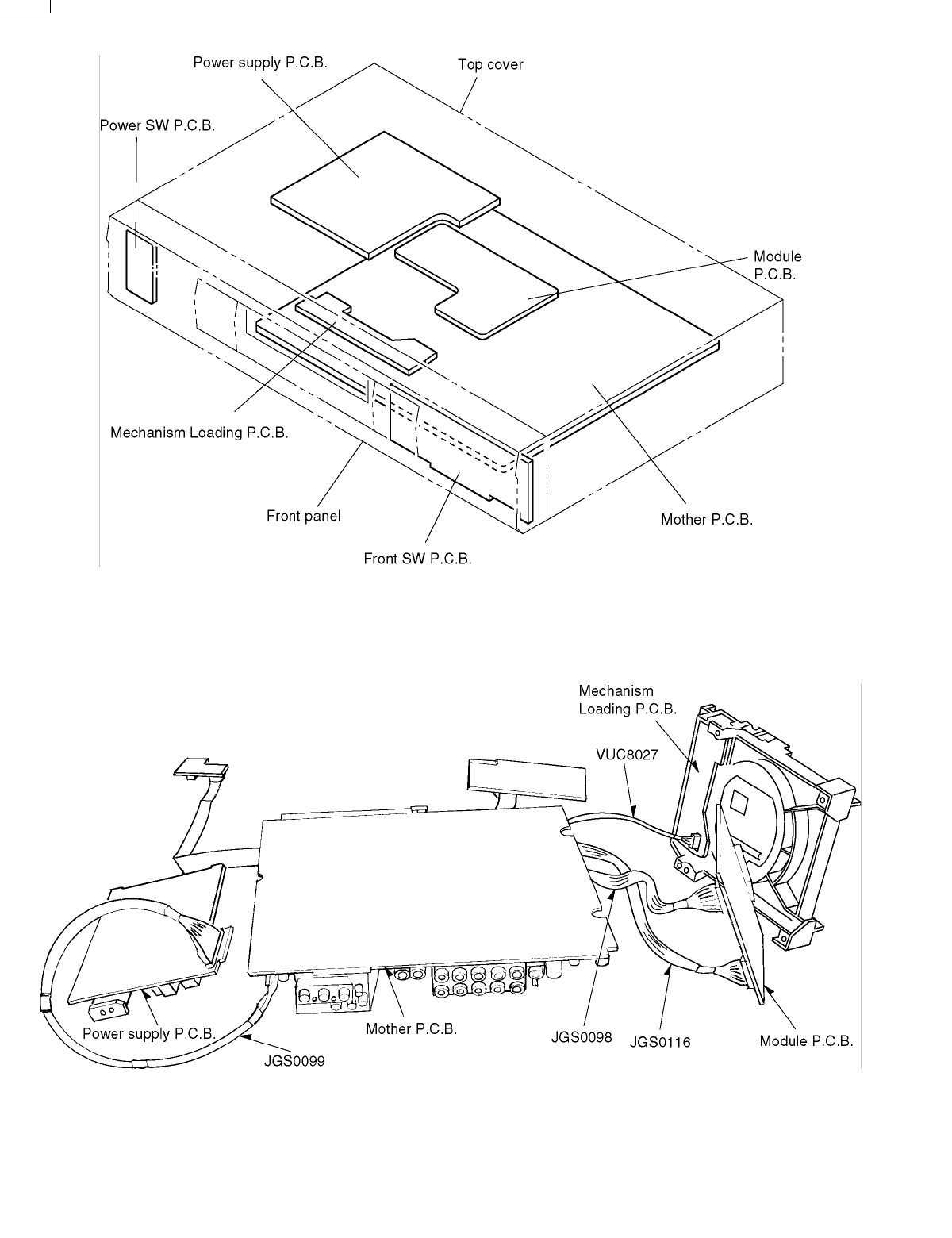

9.2. Casing Parts and P.C.B. Positions 12

9.3. Service Positions 12

9.4. Disassembling the Top Cover 13

9.5. Disassembling the Tray 13

9.6. Disassembling the Front Panel 13

9.7. Disassembling the Loading Base Unit 14

9.8. Checking the Module P.C.B. 14

9.9. Disassembling the Rear Panel 14

9.10. Checking the Power Supply P.C.B. 15

9.11. Checking the Mother P.C.B. 15

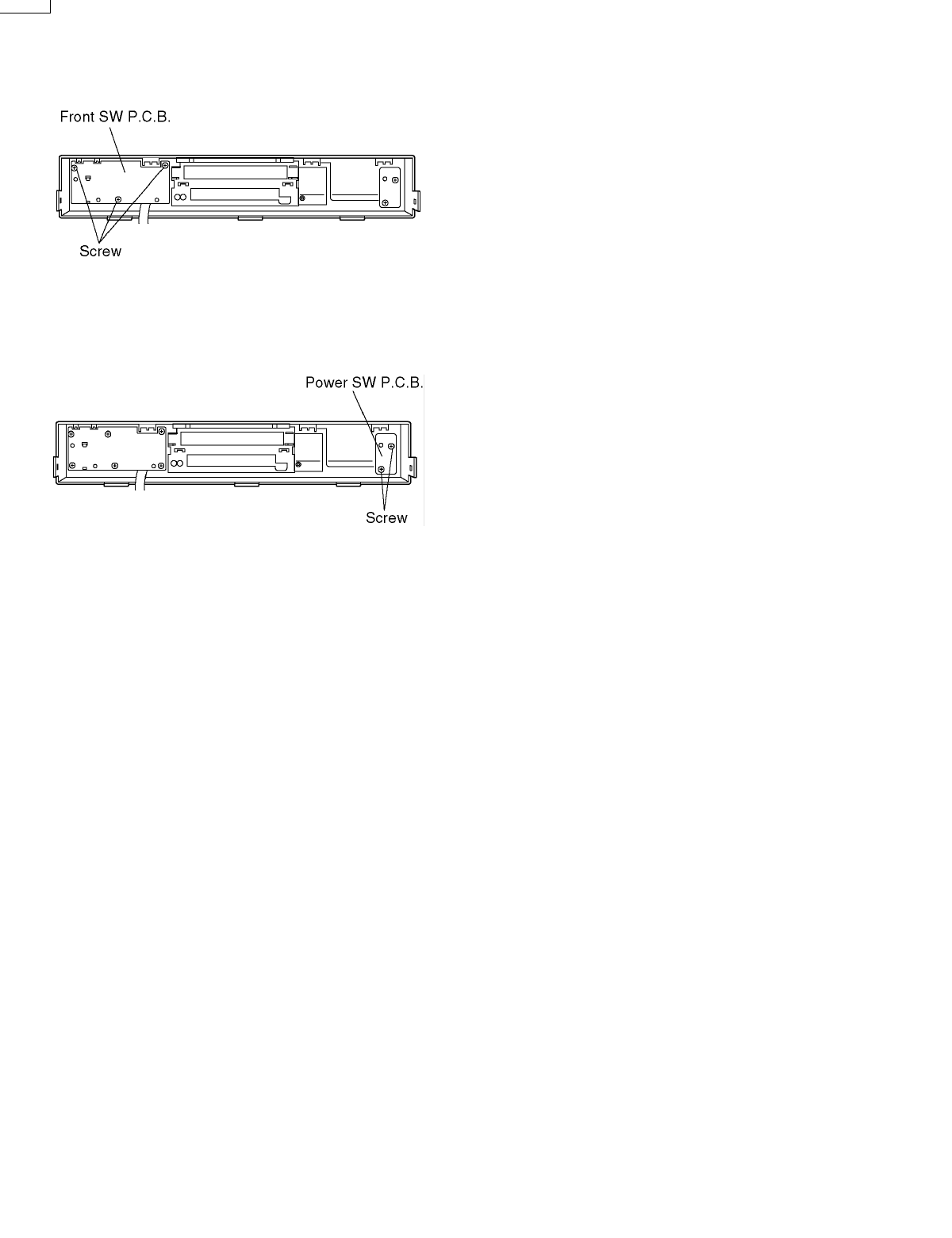

9.12. Checking the Front Switch P.C.B. 16

9.13. Checking the Power Switch P.C.B. 16

10 Service Precautions 17

10.1. Initializing the DVD Player 17

10.2. Handling After Completing Repairs 17

11 Assembling and Disassembling the Optical Pickup

(Mechanical Parts) 18

11.1. Handling the Optical Pickup 18

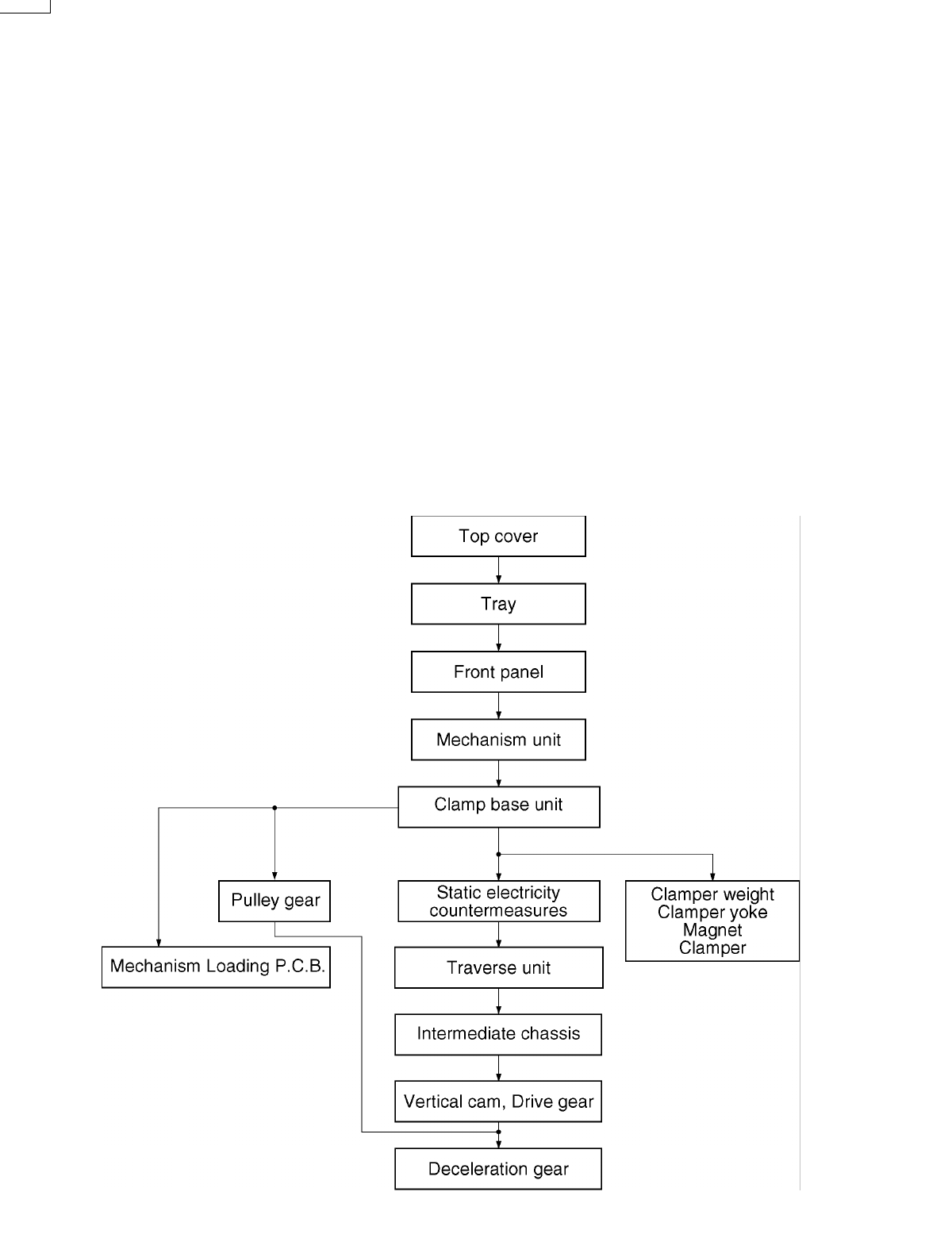

11.2. Disassembly Procedure 18

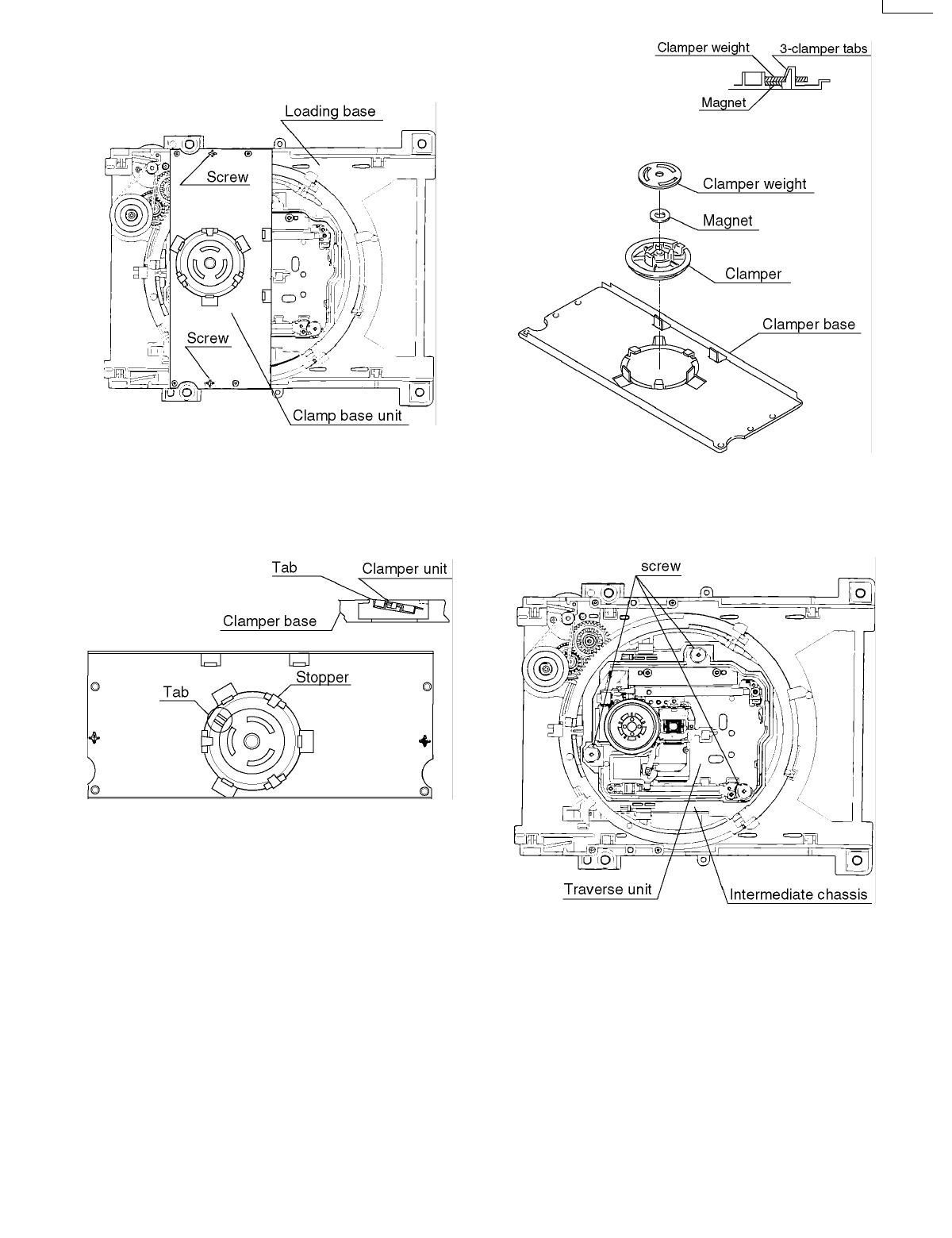

11.3. Disassembling the Clamp Base Unit 19

11.4. Disassembling the Clamper Weight, Clamper Yoke,

Magnet and Clamper 19

11.5. Disassembling the Traverse Unit 19

11.6. Disassembling the Stepping Motor Unit 20

11.7. Disassembling the Optical Pickup Unit 20

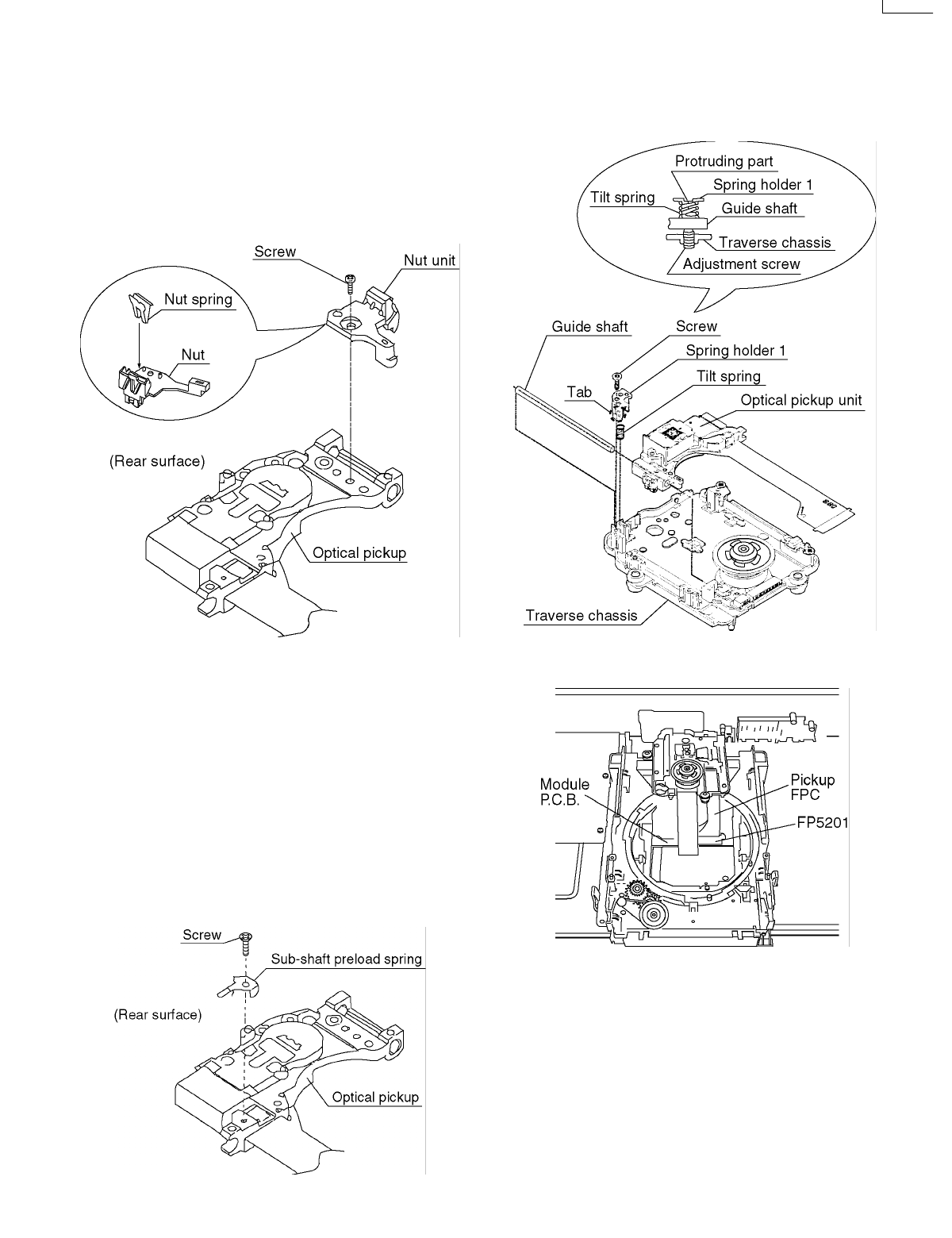

11.8. Disassembling the Nut Unit 21

11.9. Disassembling the Sub-Shaft Preload Spring 21

11.10. Assembling the Optical Pickup 21

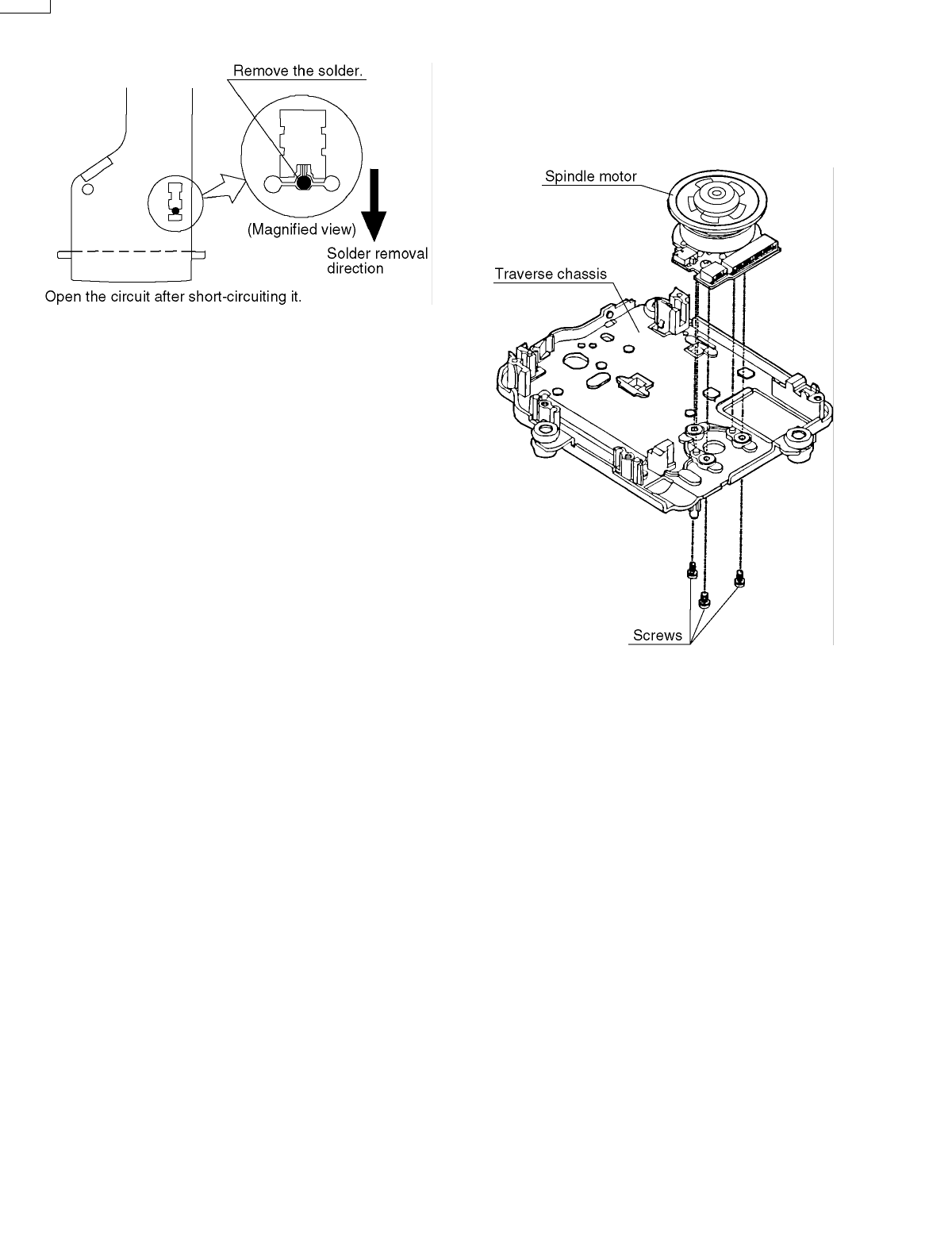

11.11. Disassembling the Spindle Motor Unit 22

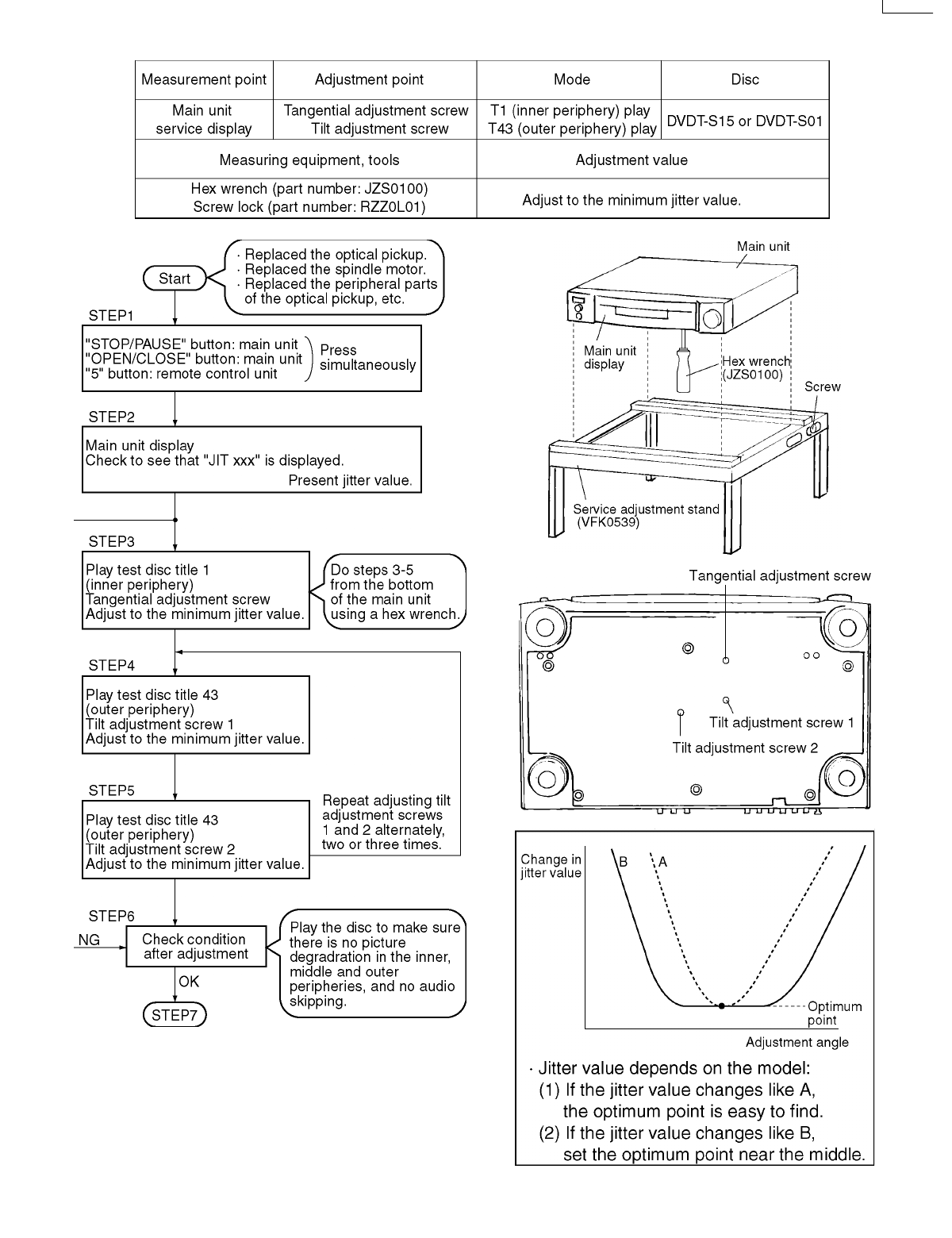

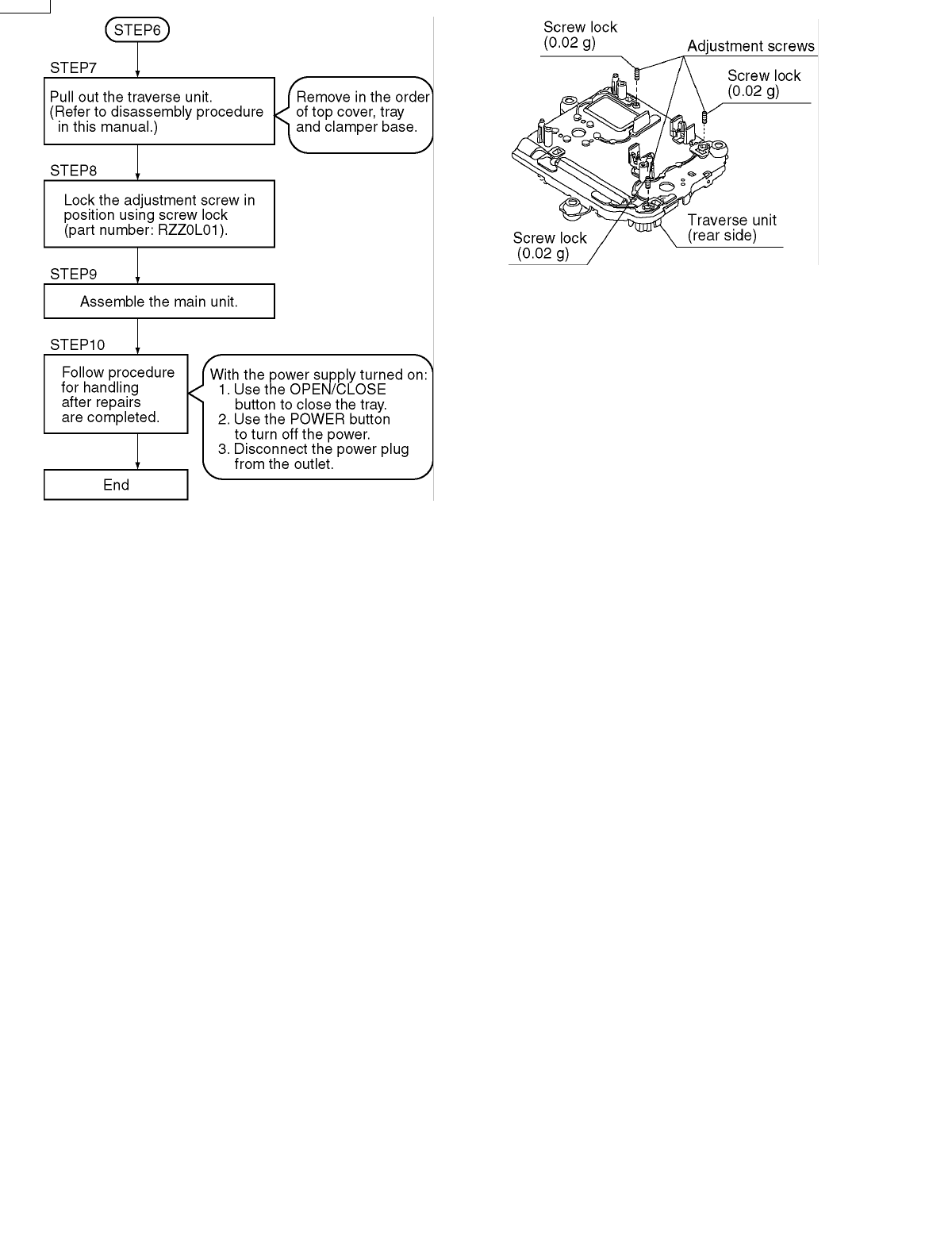

11.12. Optical Pickup Tilt Adjustment 23

11.13. Disassembling the Intermediate Chassis 25

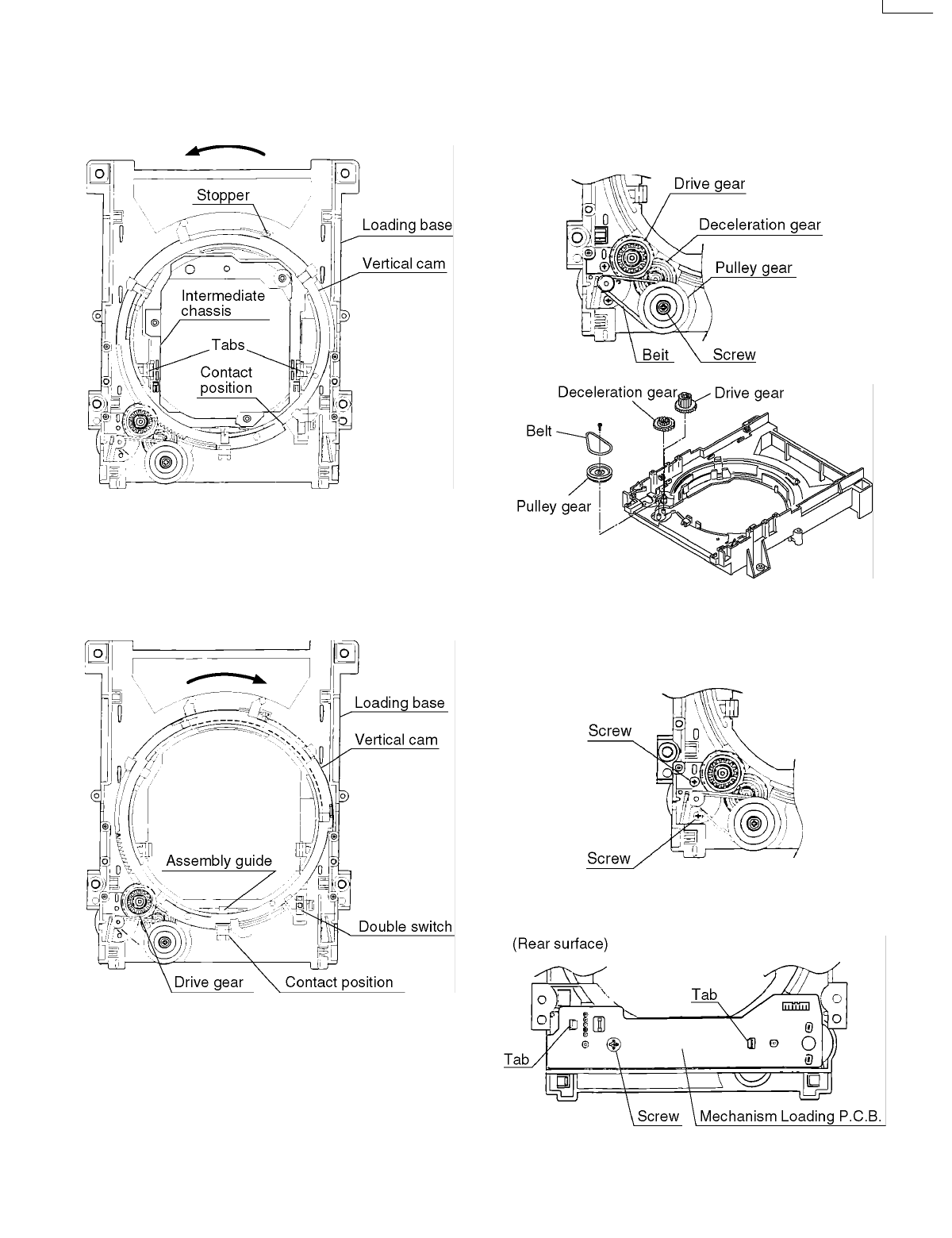

11.14. Disassembling the Vertical cam and Drive gear 25

11.15. Disassembling the Pulley Gear and Deceleration Gear 25

11.16. Disassembling the Mechanism Loading P.C.B. 25

12 Electrical Adjustment 26

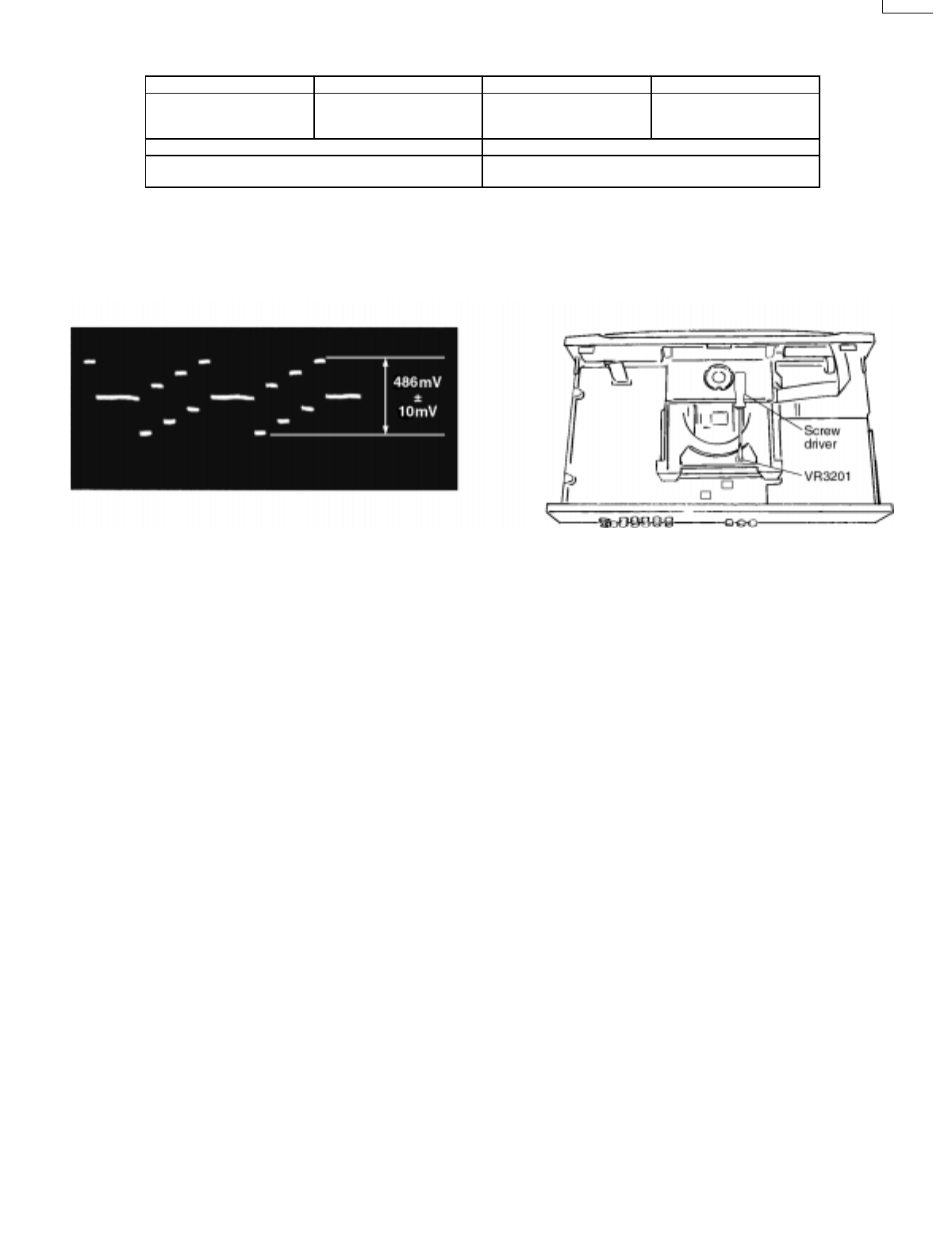

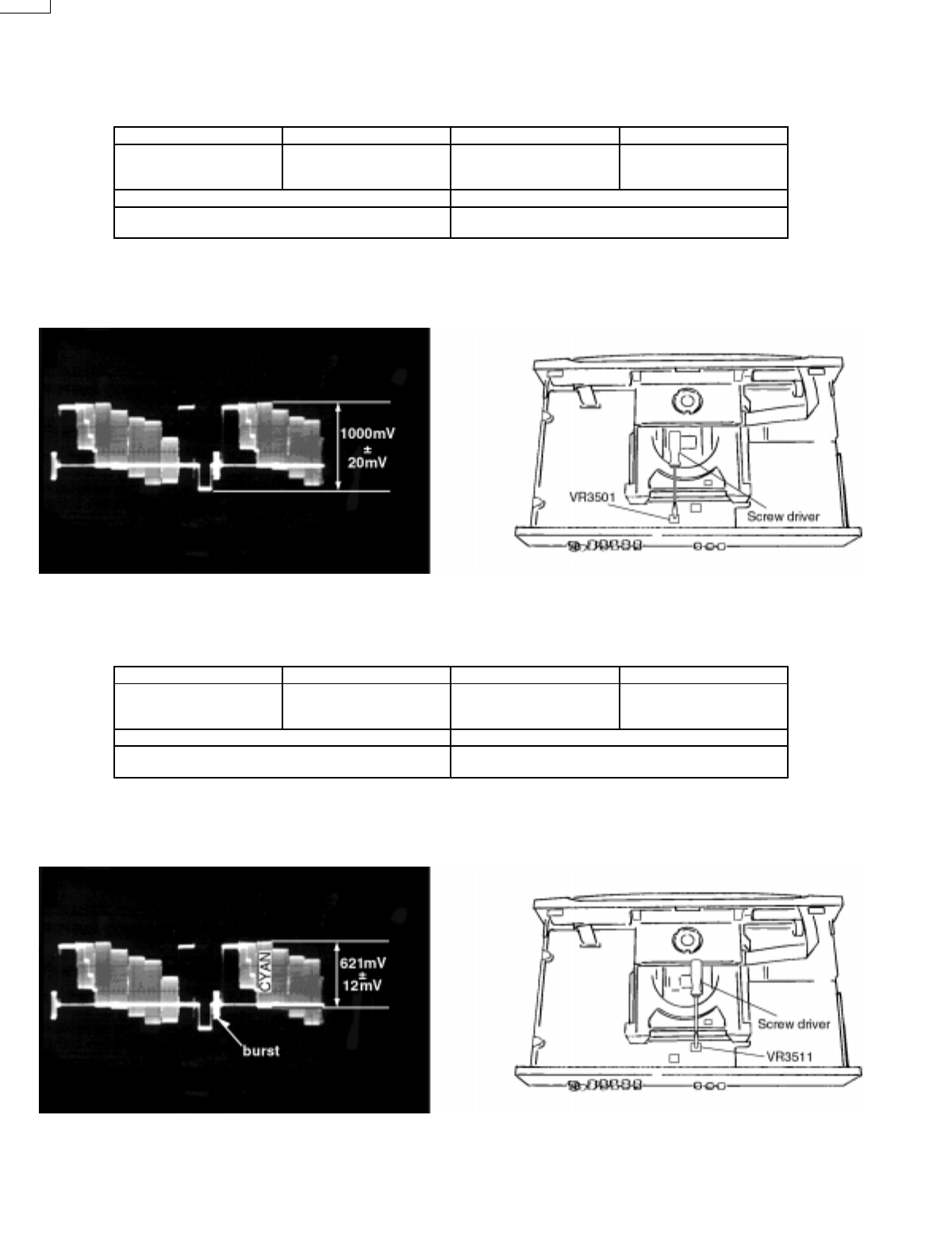

12.1. Video Output (Luminance Signal) Adjustment 26

12.2. Video Output (Chrominance Signal) Adjustment 26

12.3. Video Component Signal (CB) Output Adjustment 27

13 Abbreviations 28

14 VOLTAGE CHART 30

14.1. POWER SUPPLY P.C.B. 30

14.2. MODULE P.C.B. 30

14.3. MOTHER P.C.B. 33

15 BLOCK DIAGRAM 35

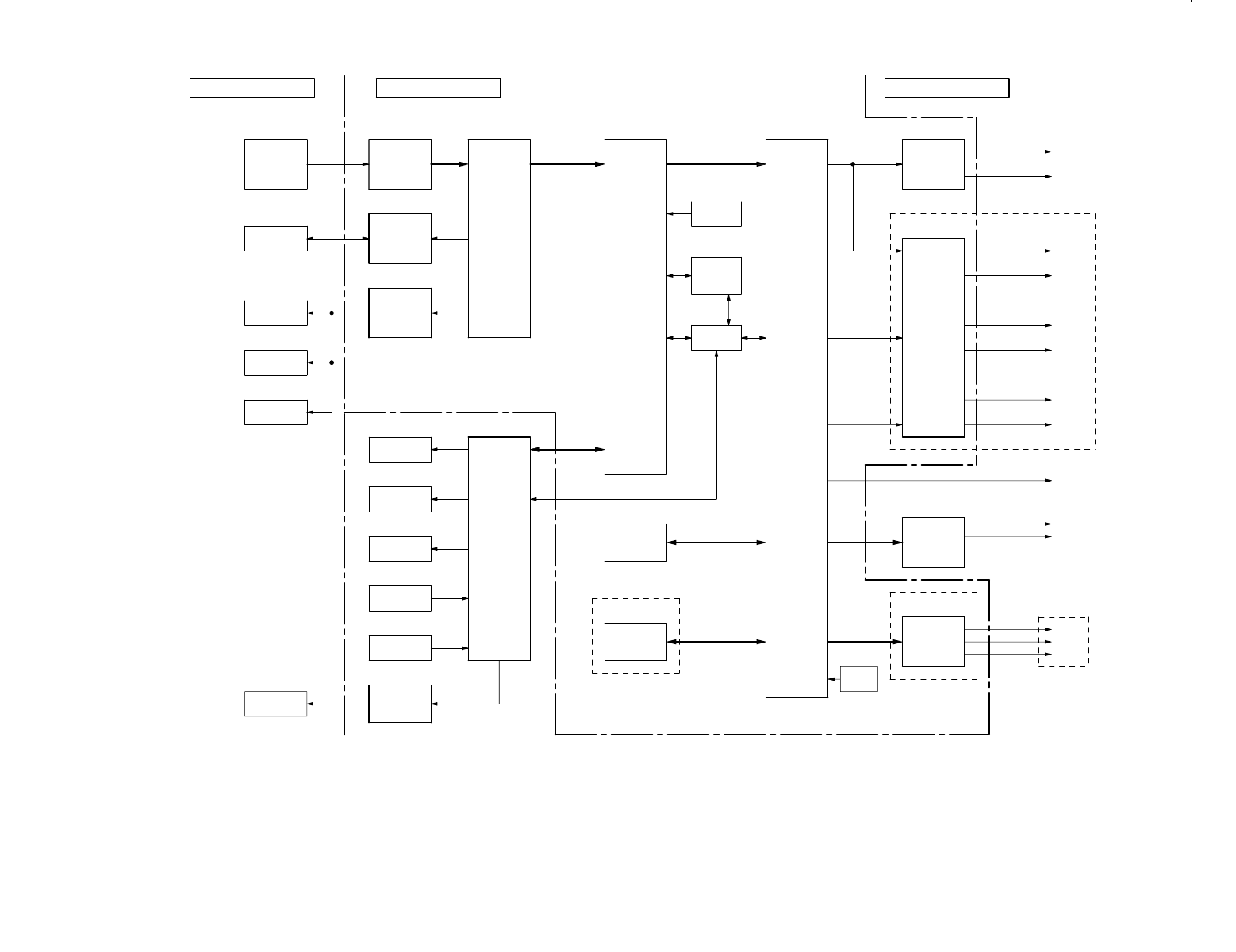

15.1. OVERALL BLOCK DIAGRAM 35

15.2. SERVO BLOCK DIAGRAM 36

15.3. VIDEO BLOCK DIAGRAM 37

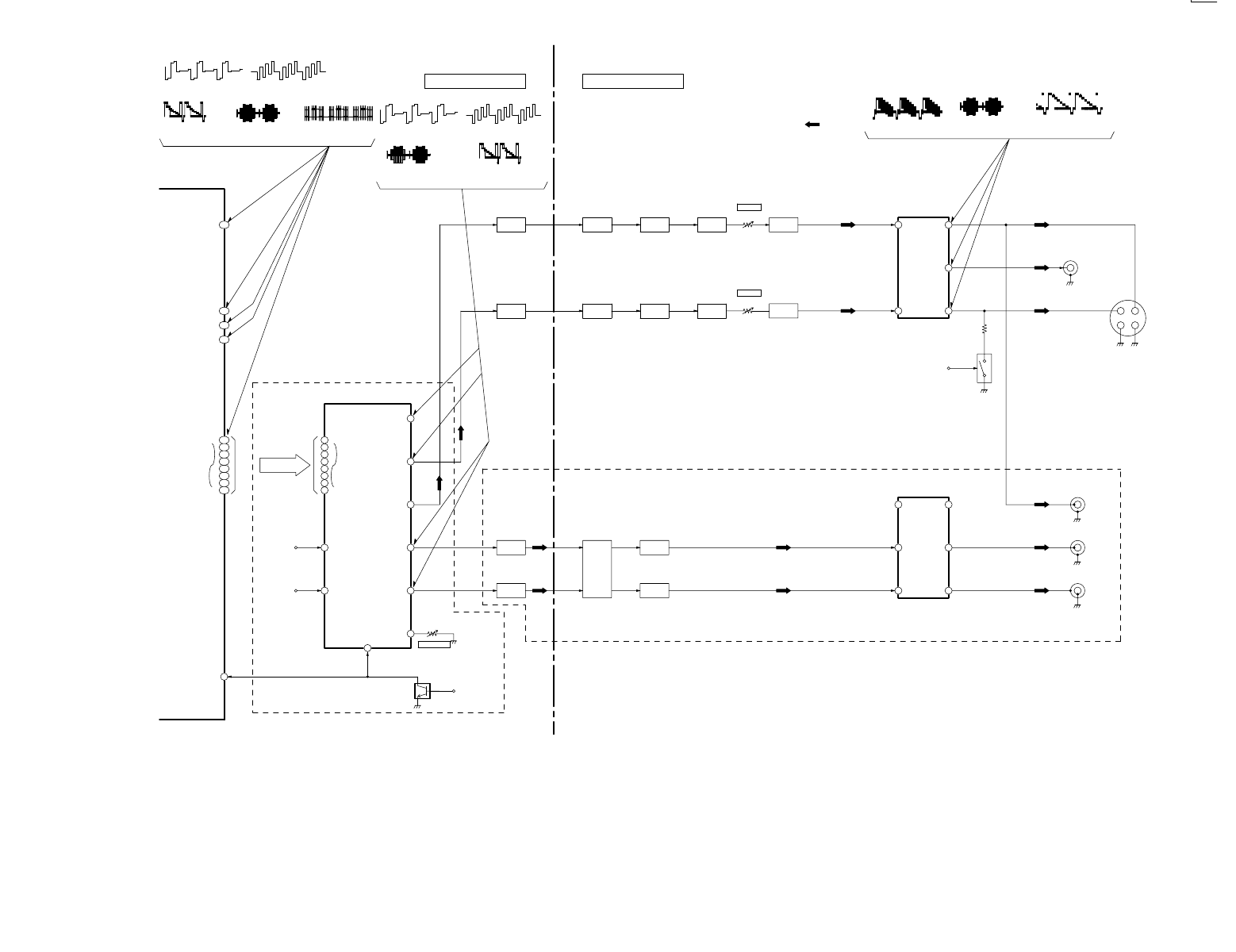

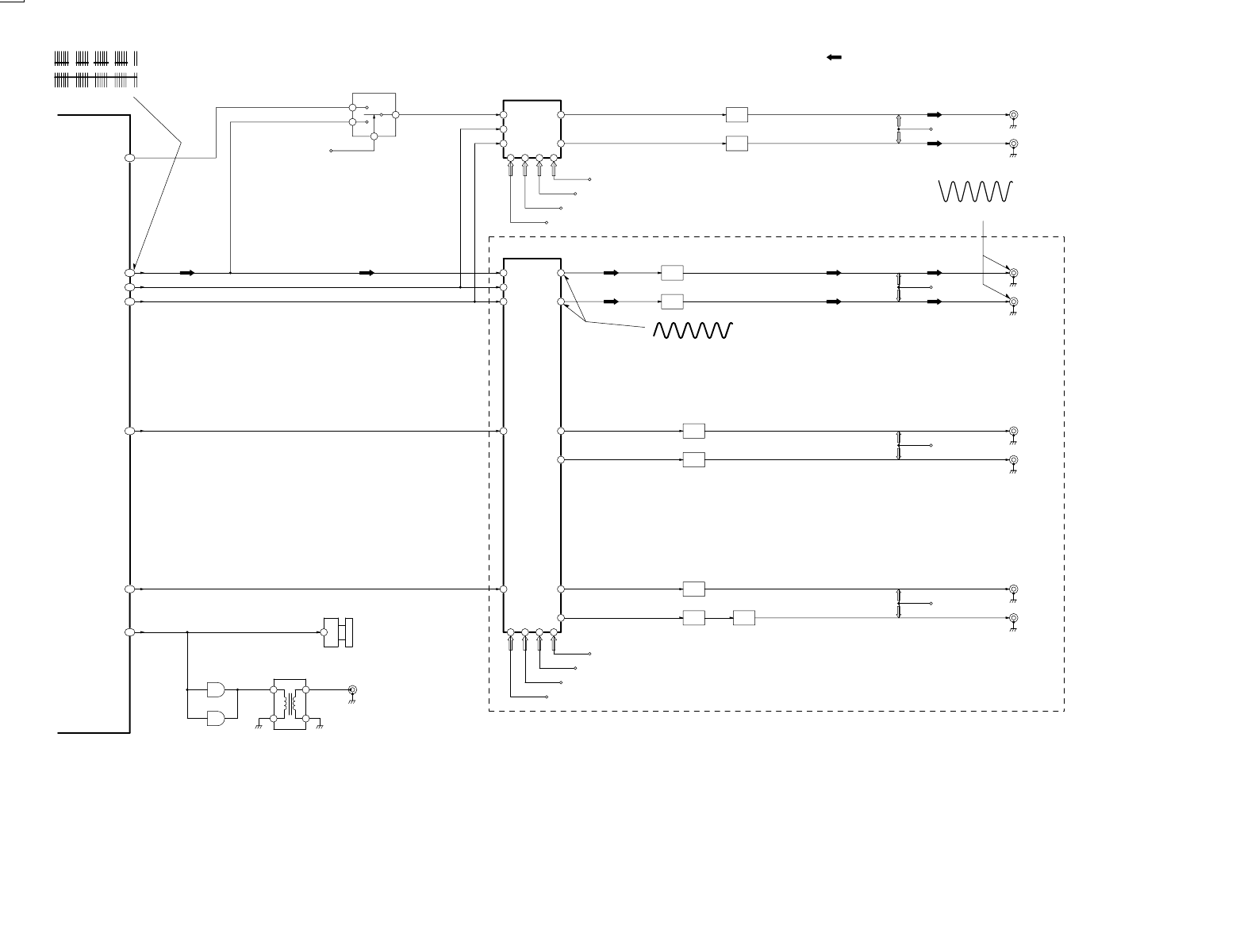

15.4. AUDIO BLOCK DIAGRAM 38

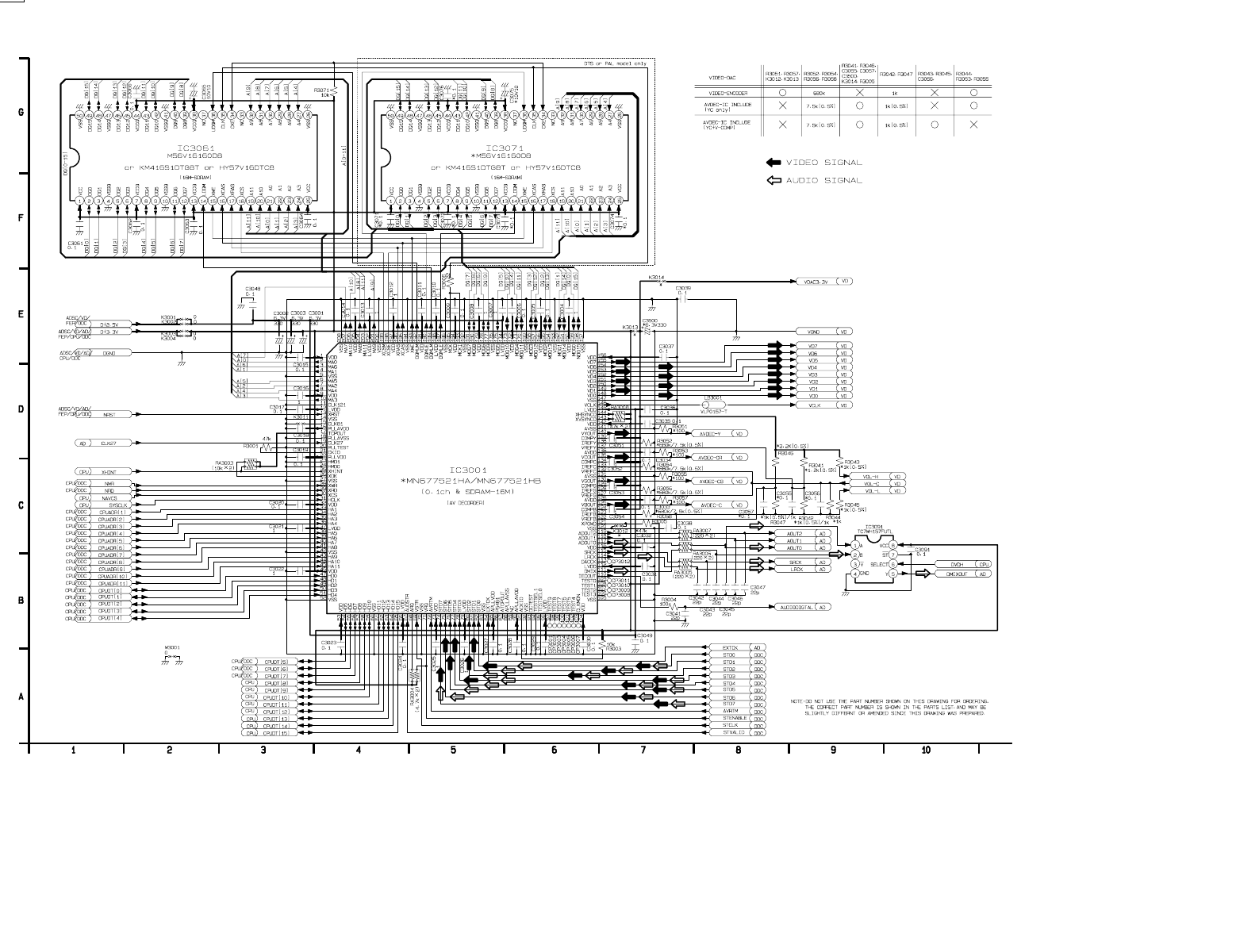

16 SCHEMATIC DIAGRAM 39

16.1. INTERCONNECTION SCHEMATIC DIAGRAM 39

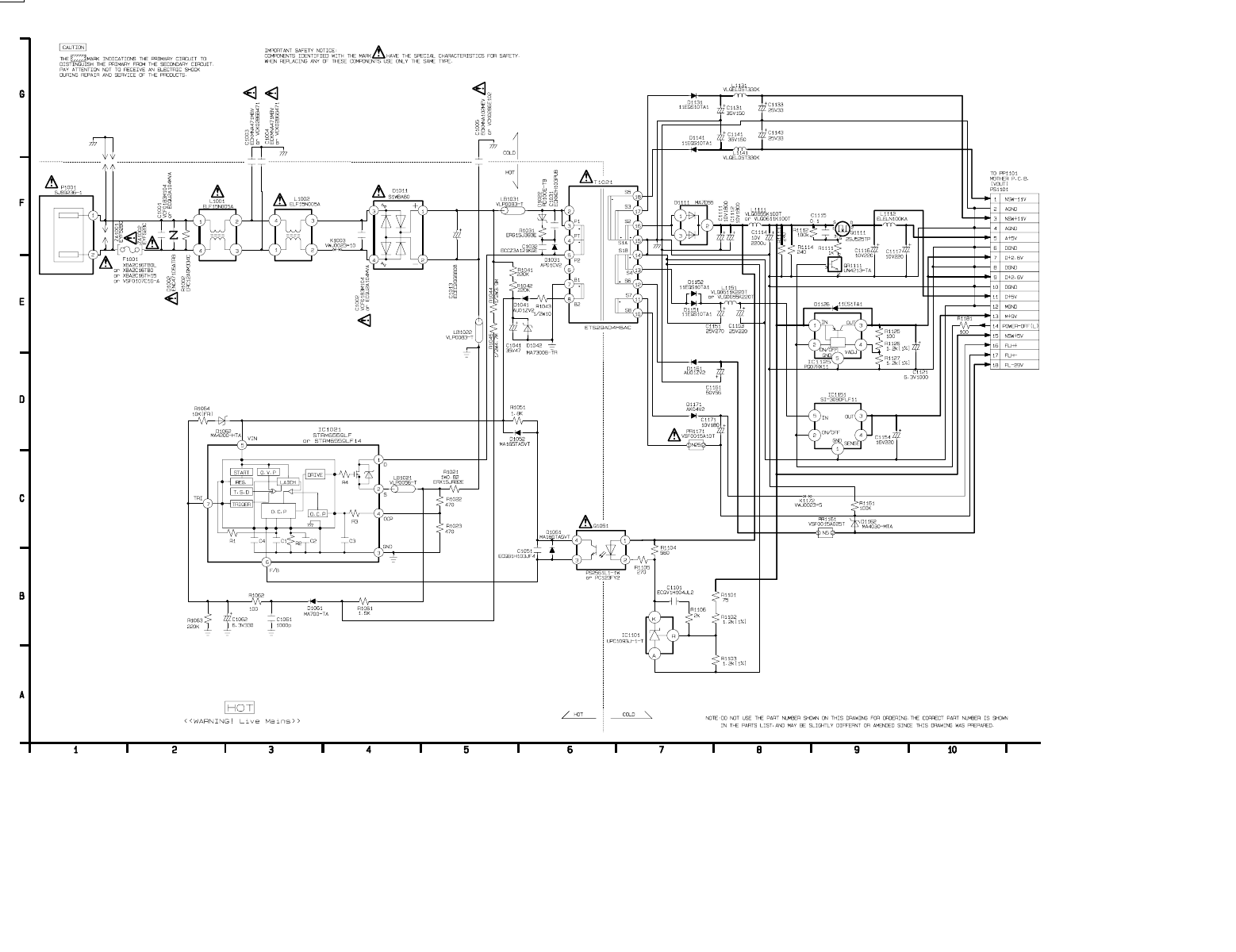

16.2. POWER SUPPLY SCHEMATIC DIAGRAM 40

16.3. ADSC SECTION (MODULE P.C.B. (1/7)) SCHEMATIC

DIAGRAM 41

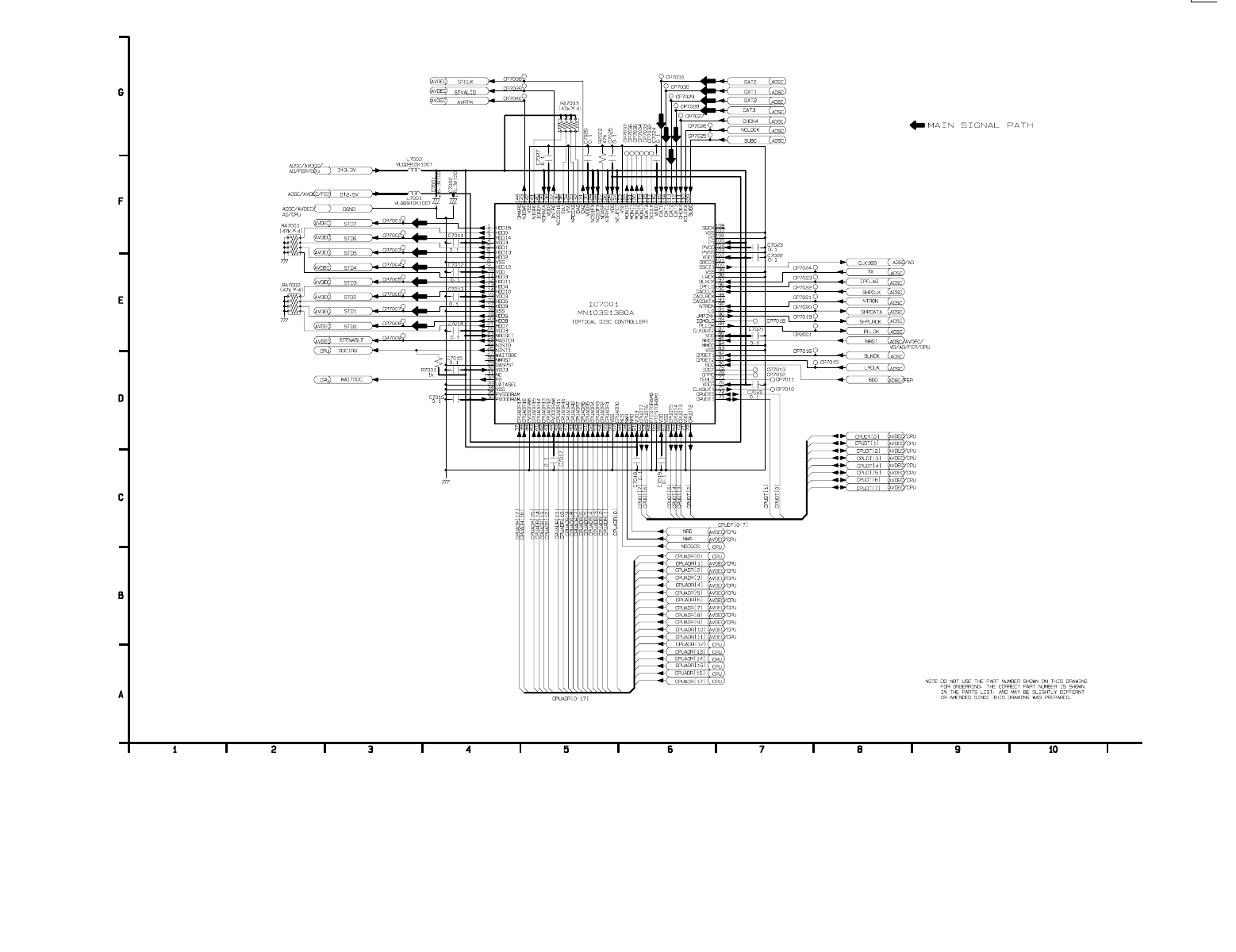

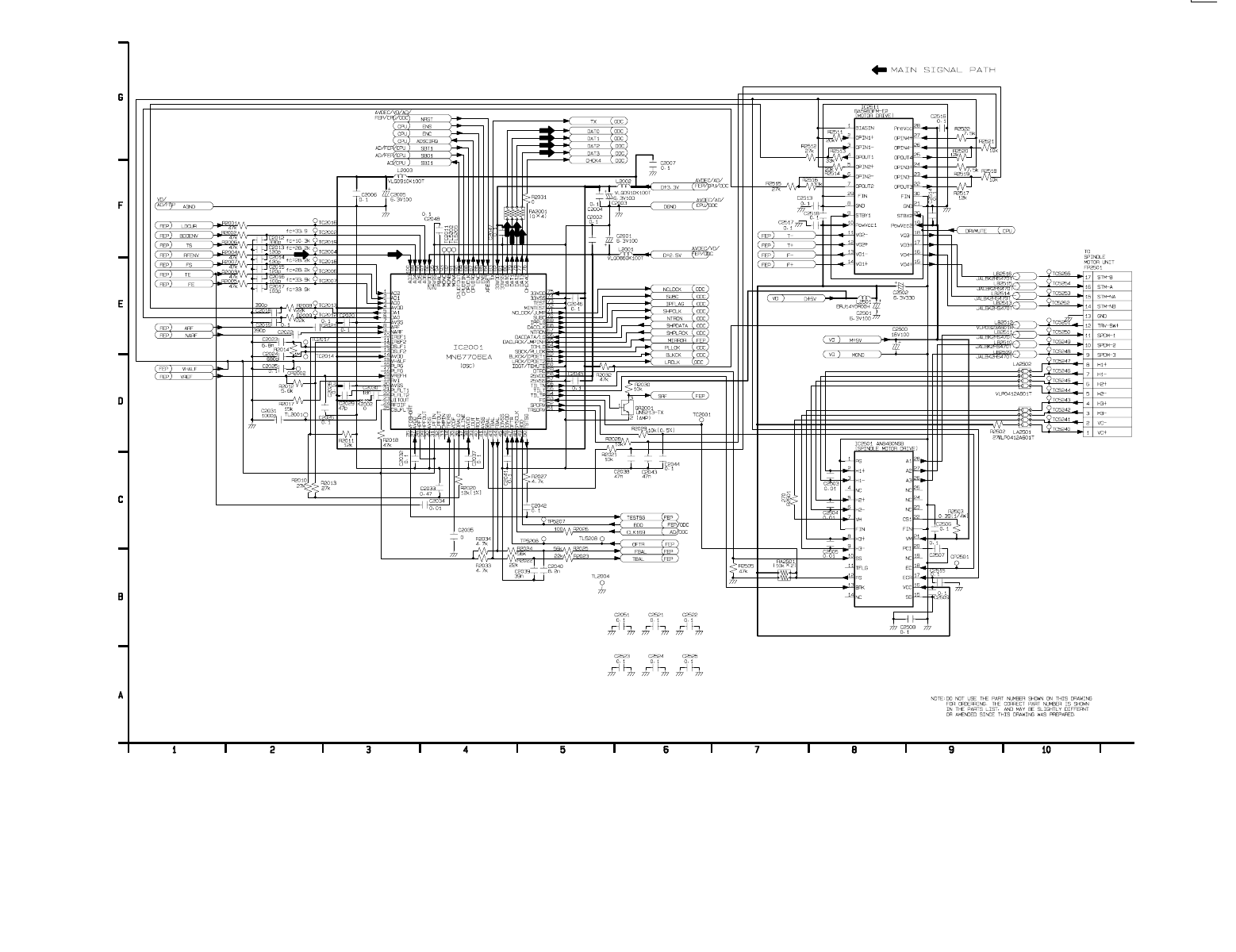

16.4. AV DECORDER SECTION (MODULE P.C.B. (2/7))

SCHEMATIC DIAGRAM 42

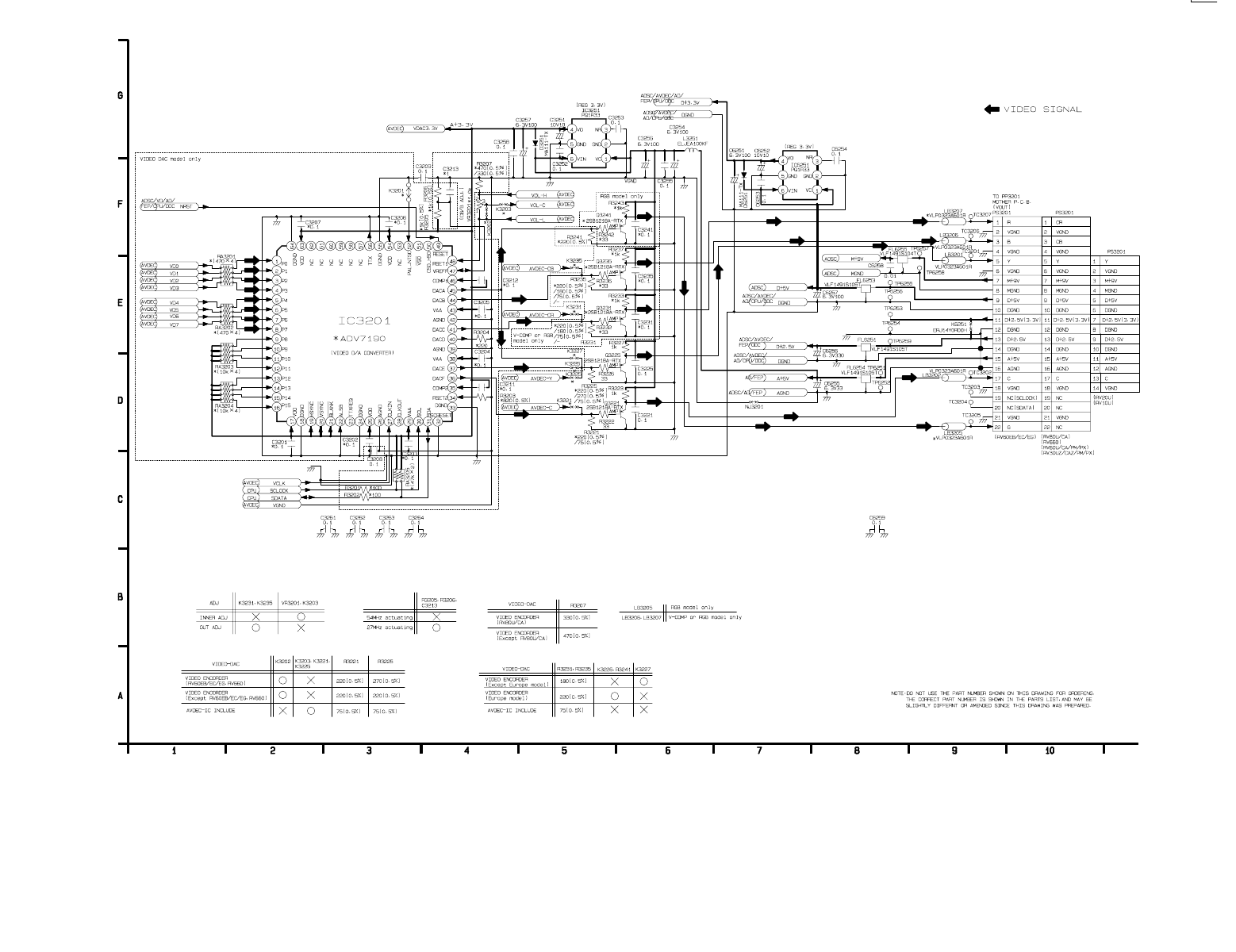

16.5. VIDEO D/A CONVERTER SECTION (MODULE P.C.B.

(3/7)) SCHEMATIC DIAGRAM 43

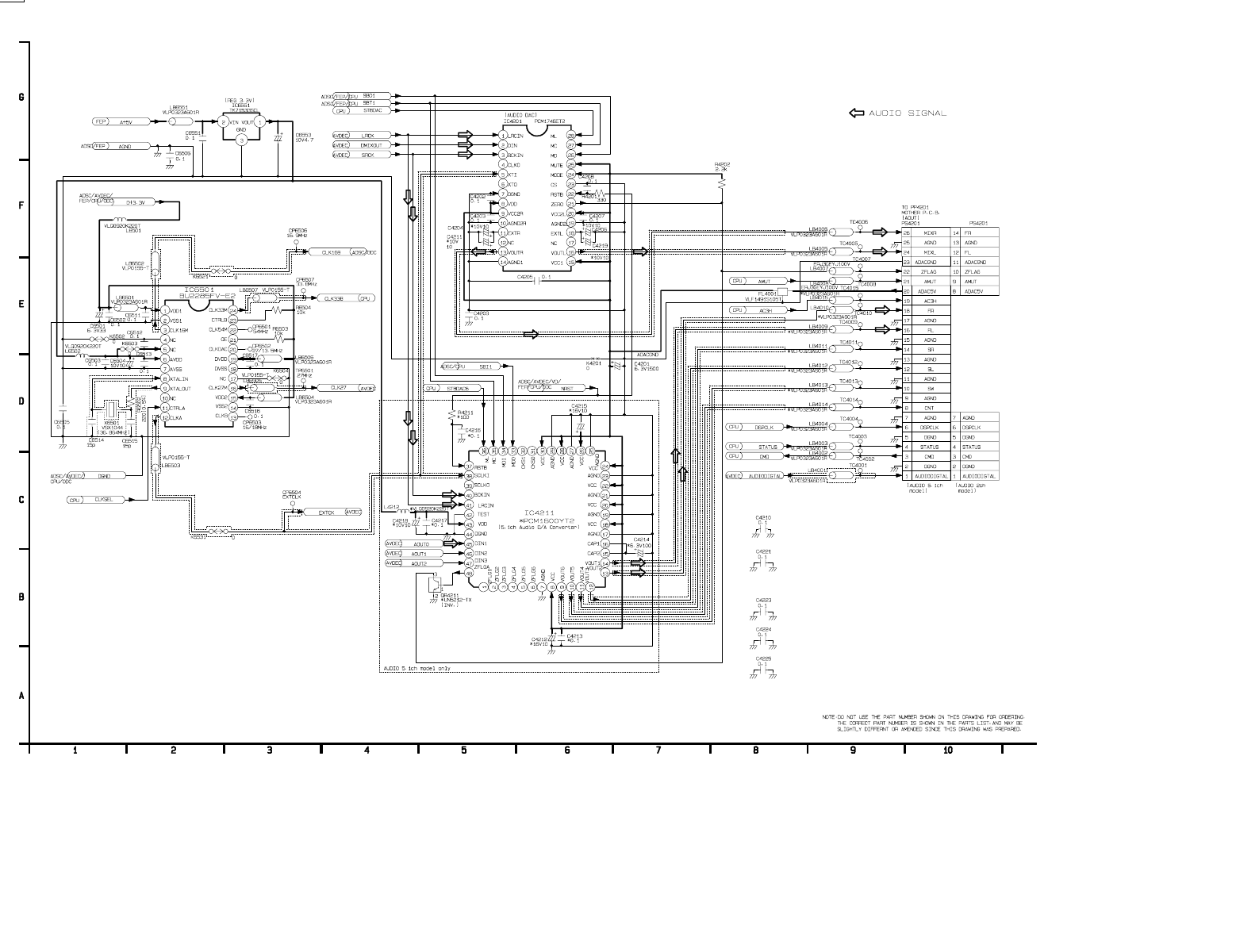

16.6. AUDIO SECTION (MODULE P.C.B. (4/7)) SCHEMATIC

DIAGRAM 44

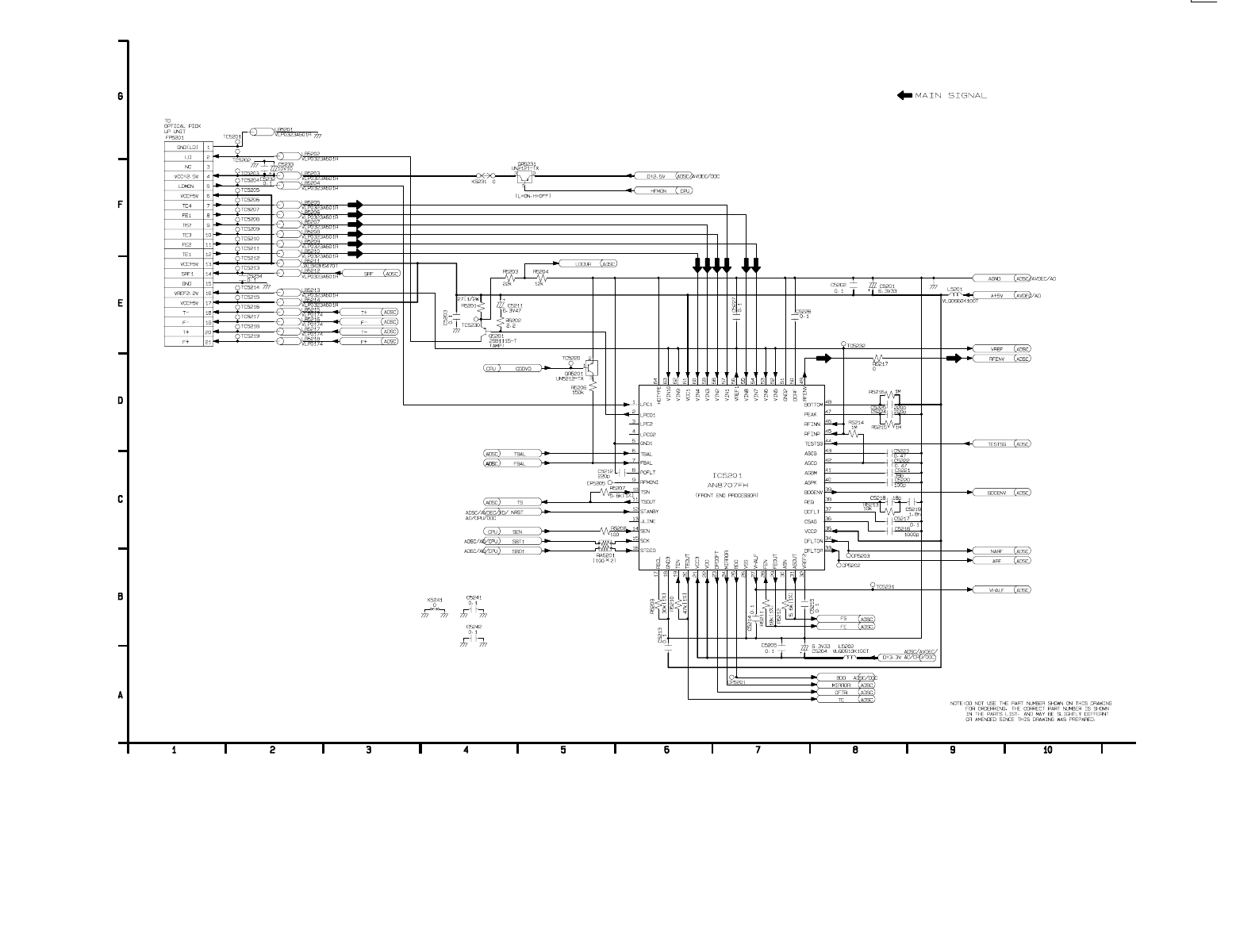

16.7. FEP SECTION (MODULE P.C.B. (5/7)) SCHEMATIC

DIAGRAM 45

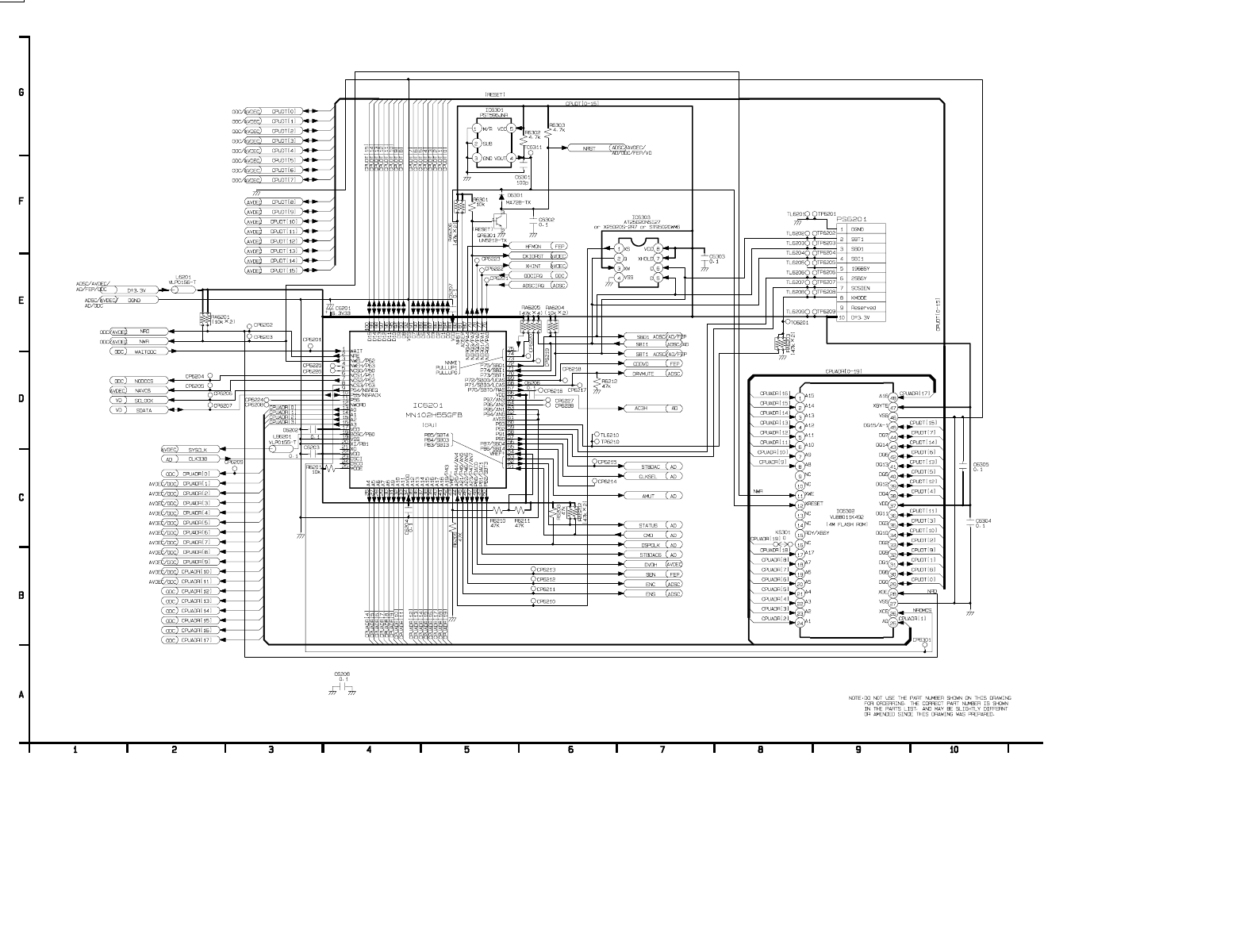

16.8. CPU SECTION (MODULE P.C.B. (6/7)) SCHEMATIC

DIAGRAM 46

16.9. ODC SECTION (MODULE P.C.B. (7/7)) SCHEMATIC

DIAGRAM 47

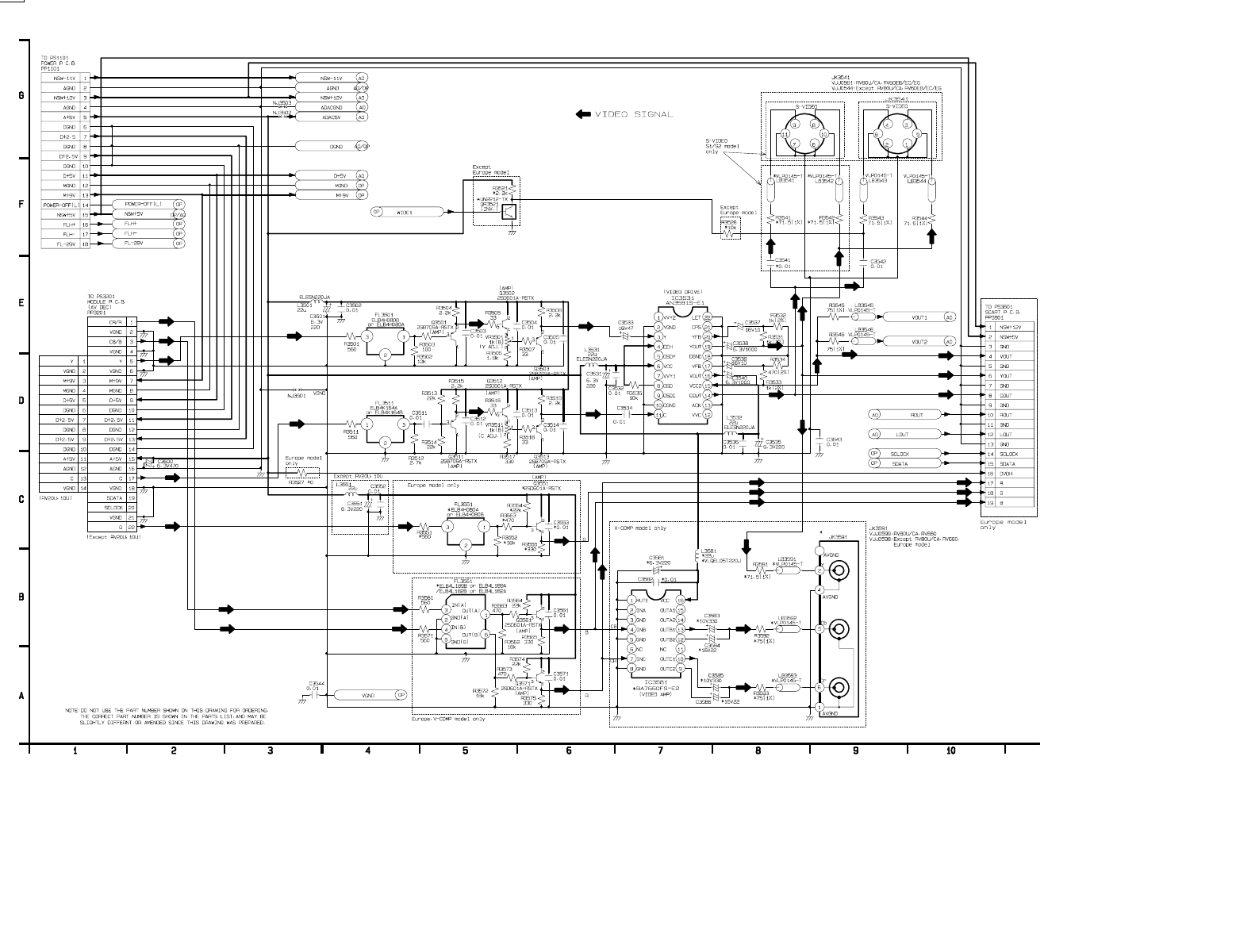

16.10. VIDEO OUT SECTION (MOTHER P.C.B. (1/3))

SCHEMATIC DIAGRAM 48

CONTENTS

Page Page

DVD-RV60

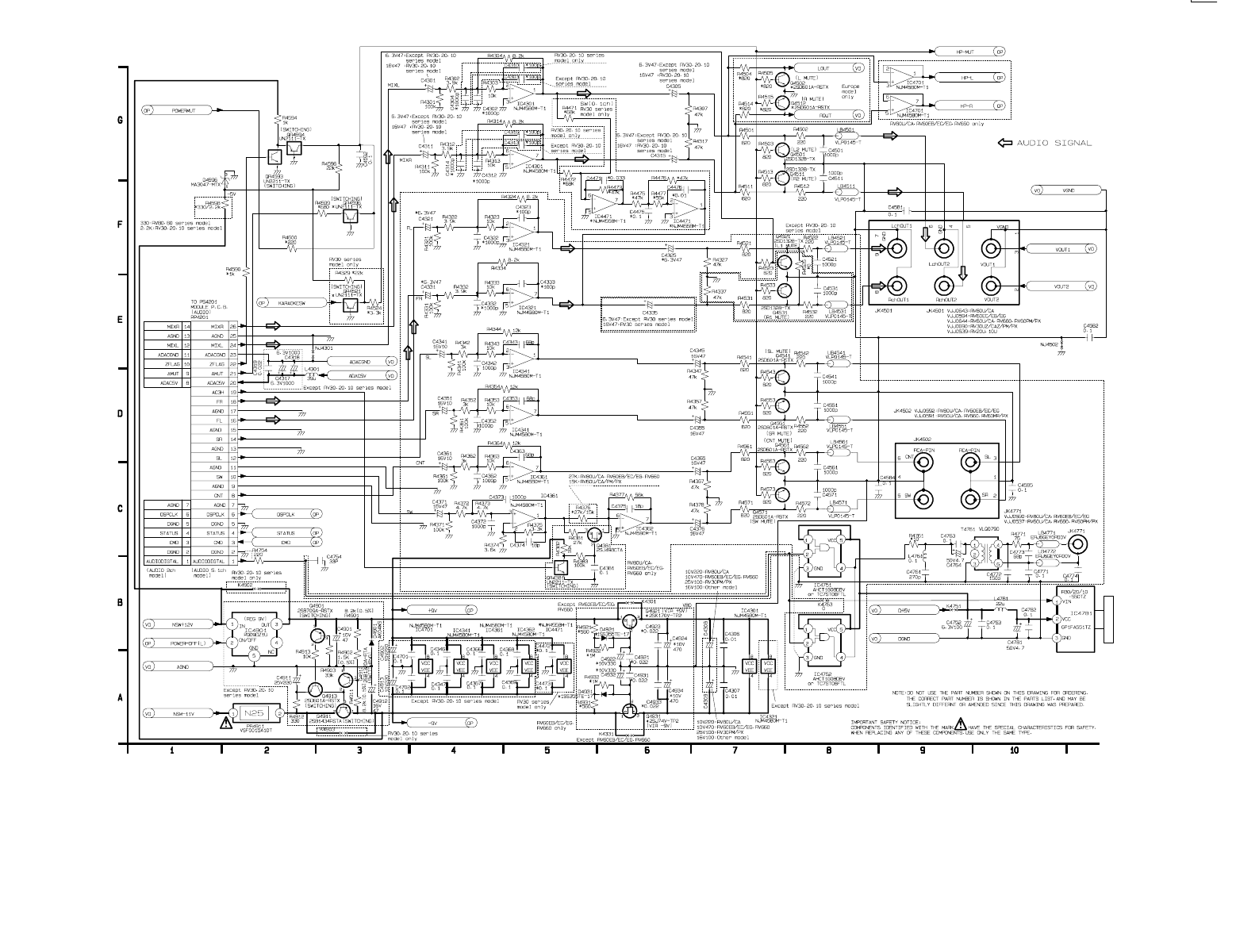

16.11. AUDIO OUT SECTION (MOTHER P.C.B. (2/3))

SCHEMATIC DIAGRAM 49

16.12. OPERATION SECTION (MOTHER P.C.B. (3/3))

SCHEMATIC DIAGRAM 50

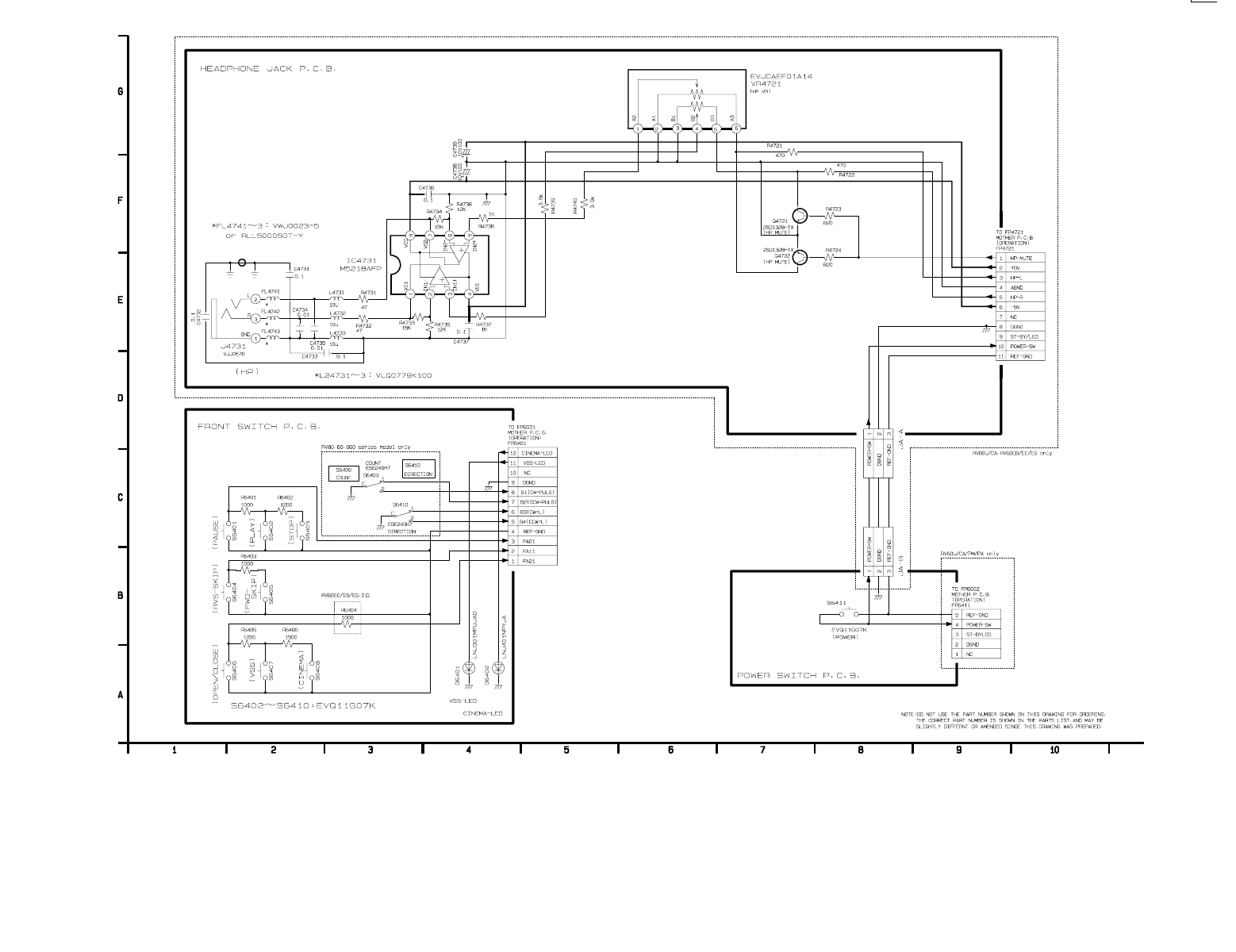

16.13. FRONT SWITCH AND POWER SWITCH SCHEMATIC

DIAGRAM 51

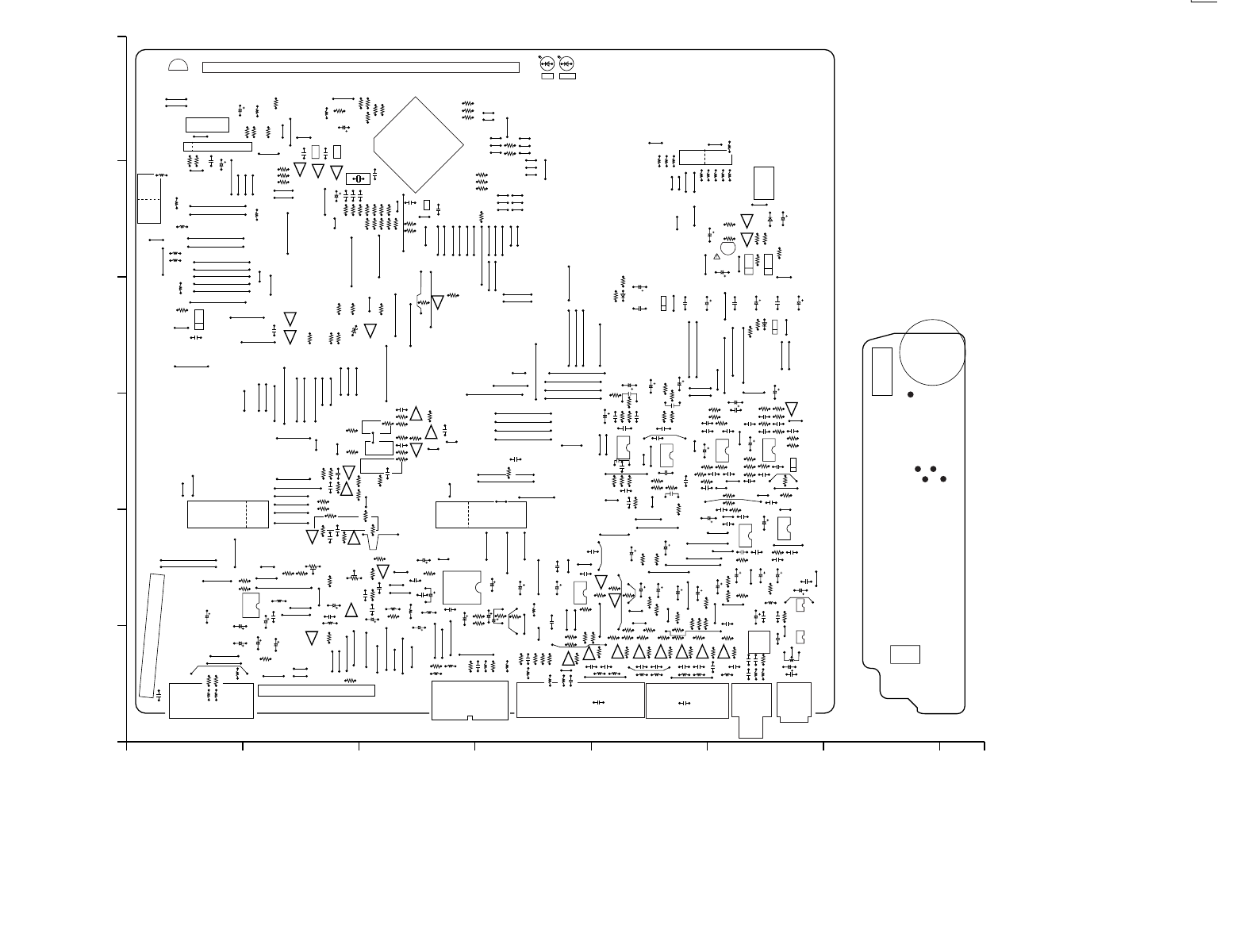

17 PRINTED CIRCUIT BOARD DIAGRAM 53

17.1. POWER SUPPLY P.C.B. 53

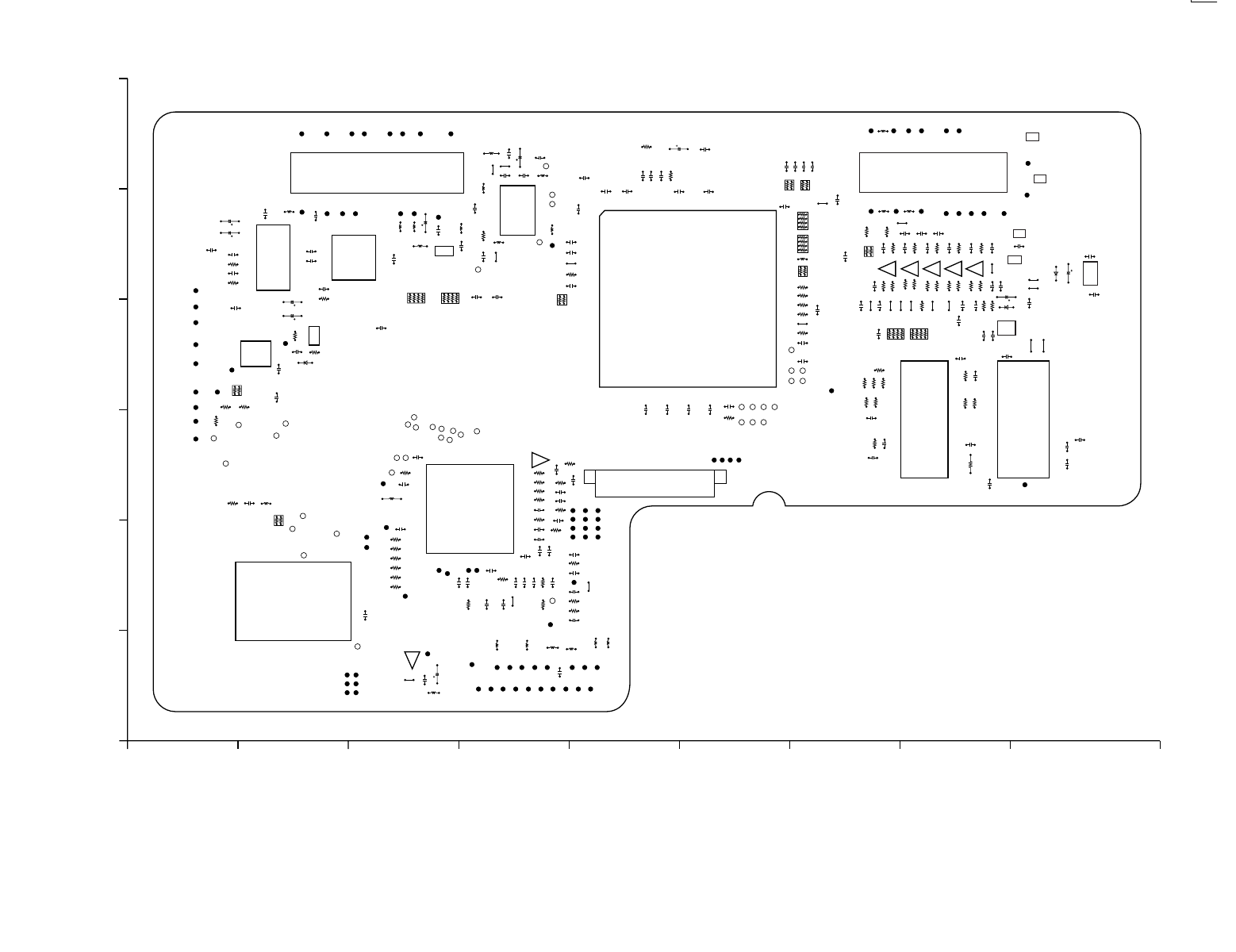

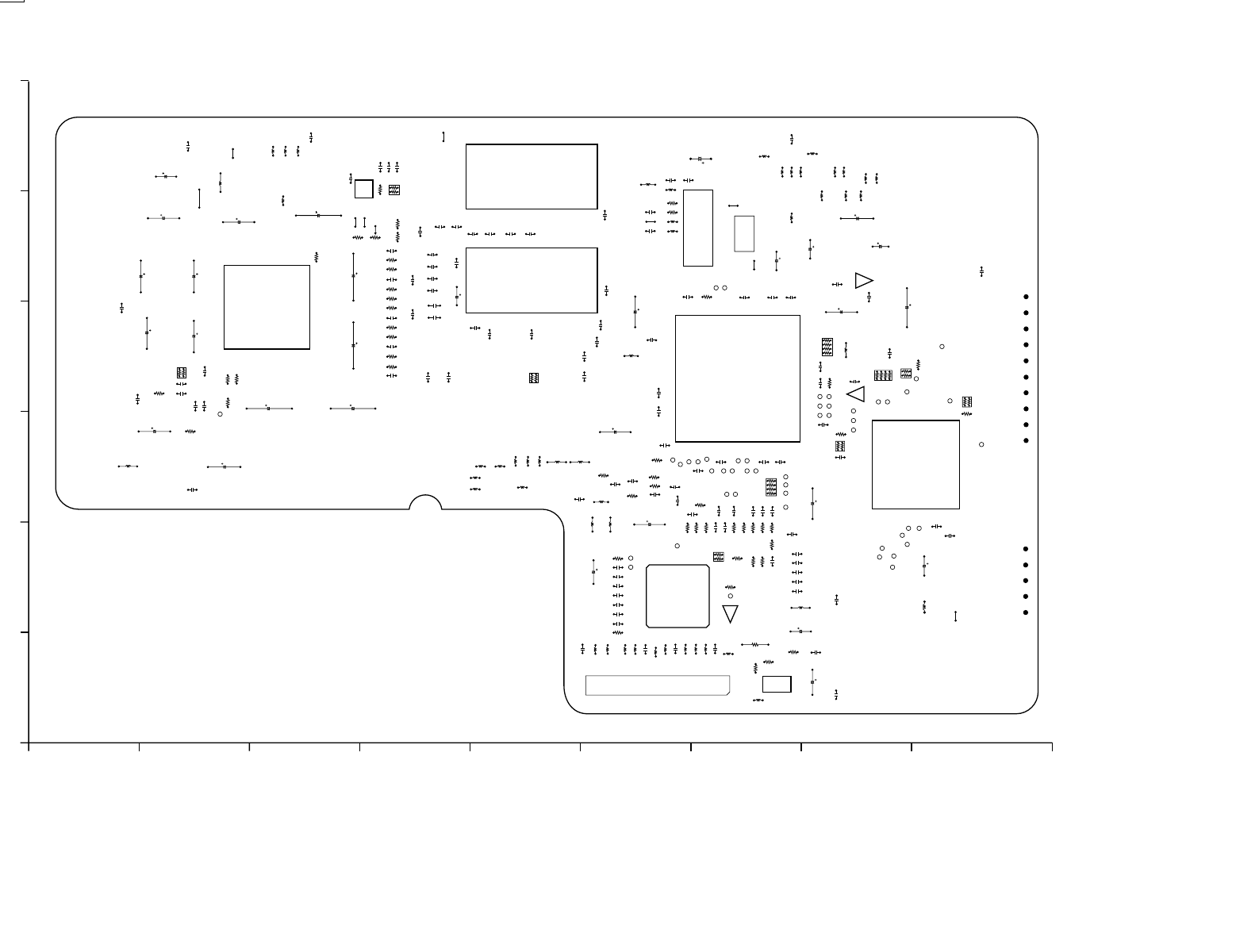

17.2. MODULE P.C.B. (1/2) (COMPONENT SIDE) 54

17.3. MODULE P.C.B. (2/2) (FOIL SIDE) 55

17.4. MODULE P.C.B. AND MOTHER P.C.B. ADDRESS

INFORMATION 56

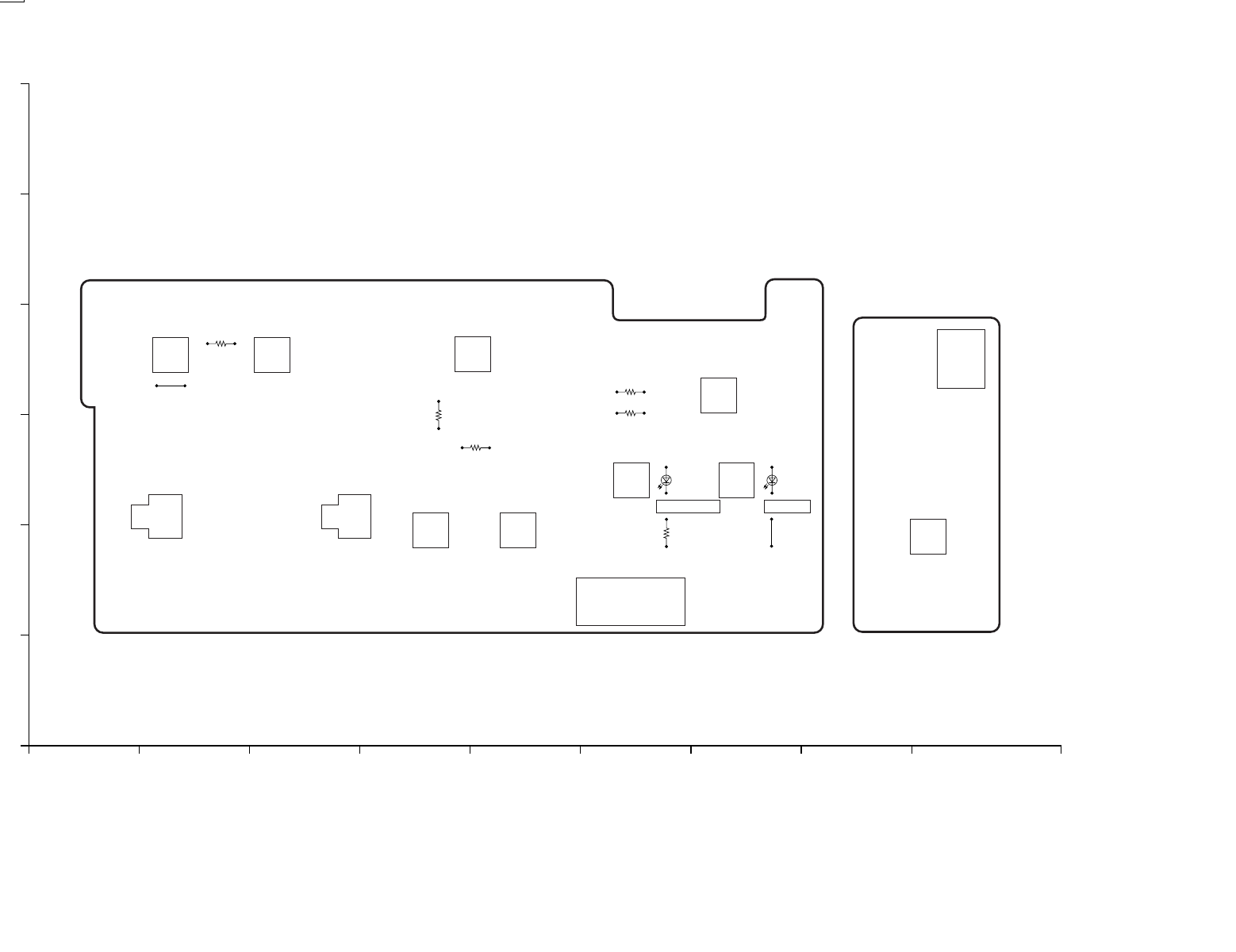

17.5. MOTHER P.C.B. 57

17.6. FRONT SWITCH P.C.B. AND POWER SWITCH P.C.B.

18 EXPLODED VIEWS 59

18.1. Casing Parts & Mechanism Section Exploded View 59

18.2. Loading Mechanism Section Exploded View 60

18.3. Traverse Section Exploded View 61

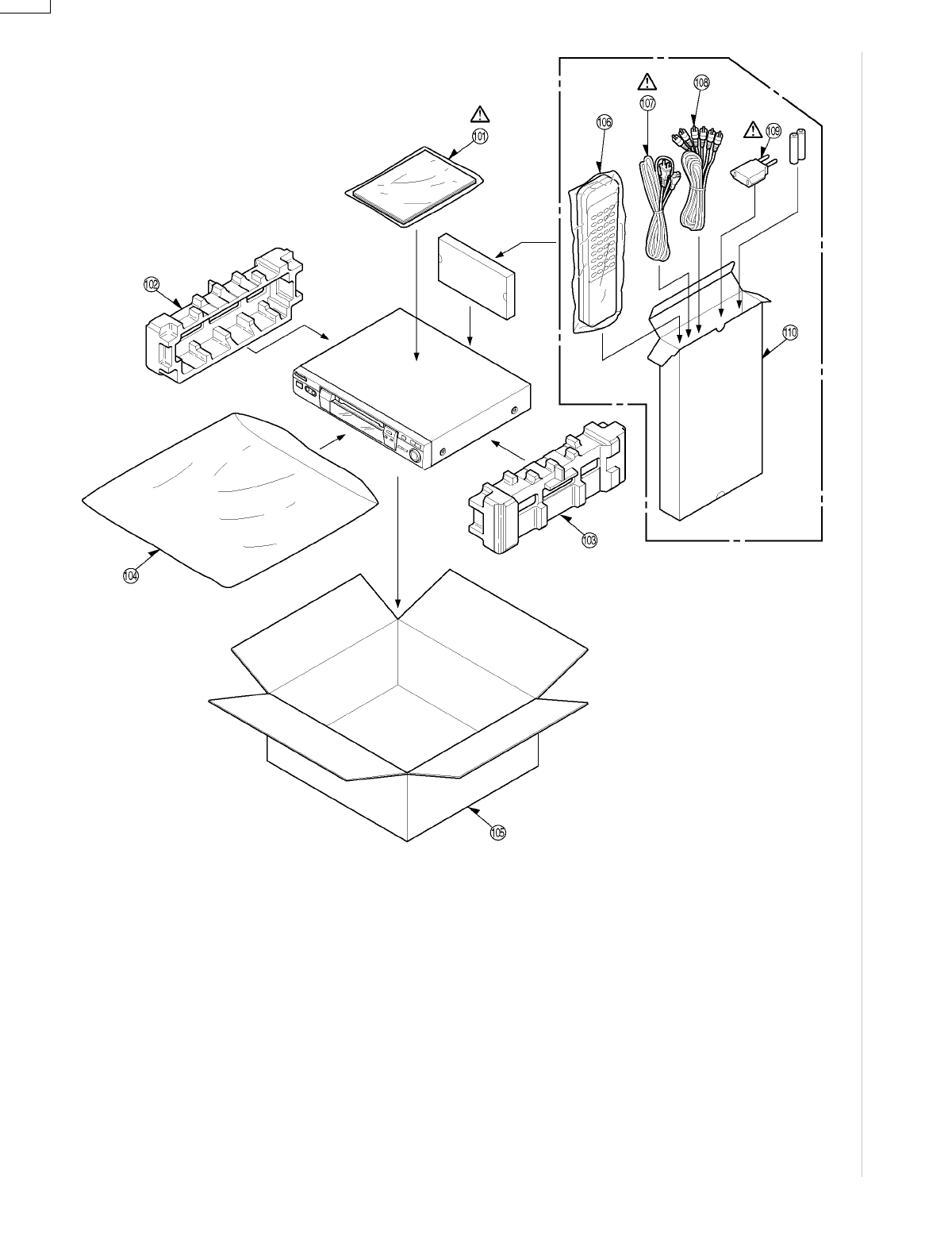

18.4. Packing & Accessories Section Exploded View 62

19 REPLACEMENT PARTS LIST 63

19.1. Casing Parts & Mechanism Section Parts List 63

19.2. Loading Mechanism Section Parts List 63

19.3. Traverse Section Parts List 64

19.4. Packing & Accessories Section Parts List 64

19.5. Electrical Replacement Parts List 65

DVD-RV60

1.1.1. LEAKAGE CURRENT COLD

CHECK

1. Unplug the AC cord and connect a jumper between the two

prongs on the plug.

2. Measure the resistance value, with an ohmmeter, between

the jumpered AC plug and each exposed metallic cabinet

part on the equipment such as screwheads, connectors,

control shafts, etc. When the exposed metallic part has a

return path to the chassis, the reading should be between

1MΩand 5.2MΩ.

When the exposed metal does not have a return path to

the chassis, the reading must be .

Figure 1

1.1.2. LEAKAGE CURRENT HOT CHECK

(See Figure 1.)

1. Plug the AC cord directly into the AC outlet. Do not use an

isolation transformer for this check.

2. Connect a 1.5kΩ, 10 watts resistor, in parallel with a 0.15µF

capacitors, between each exposed metallic part on the set

and a good earth ground such as a water pipe, as shown in

Figure 1.

3. Use an AC voltmeter, with 1000 ohms/volt or more

sensitivity, to measure the potential across the resistor.

4. Check each exposed metallic part, and measure the

voltage at each point.

5. Reverse the AC plug in the AC outlet and repeat each of the

above measurements.

6. The potential at any point should not exceed 0.75 volts

RMS. A leakage current tester (Simpson Model 229 or

equivalent) may be used to make the hot checks, leakage

current must not exceed 1/2 milliamp. In case a

measurement is outside of the limits specified, there is a

possibility of a shock hazard, and the equipment should be

repaired and rechecked before it is returned to the

customer.

1 SAFETY PRECAUTIONS

1.1. GENERAL GUIDELINES

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or

damaged by the short circuit.

2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly

installed.

3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

2 PREVENTION OF ELECTRO STATIC DISCHARGE (ESD)

TO ELECTROSTATICALLY SENSITIVE (ES) DEVICES

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called

Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and

semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage

caused by electro static discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your

body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,

which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alminum

foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)" can

generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most

replacement ES devices are packaged with leads electrically shorted together by conductive foam, alminum foil or comparable

conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material

to the chassis or circuit assembly into which the device will be installed.

DVD-RV60

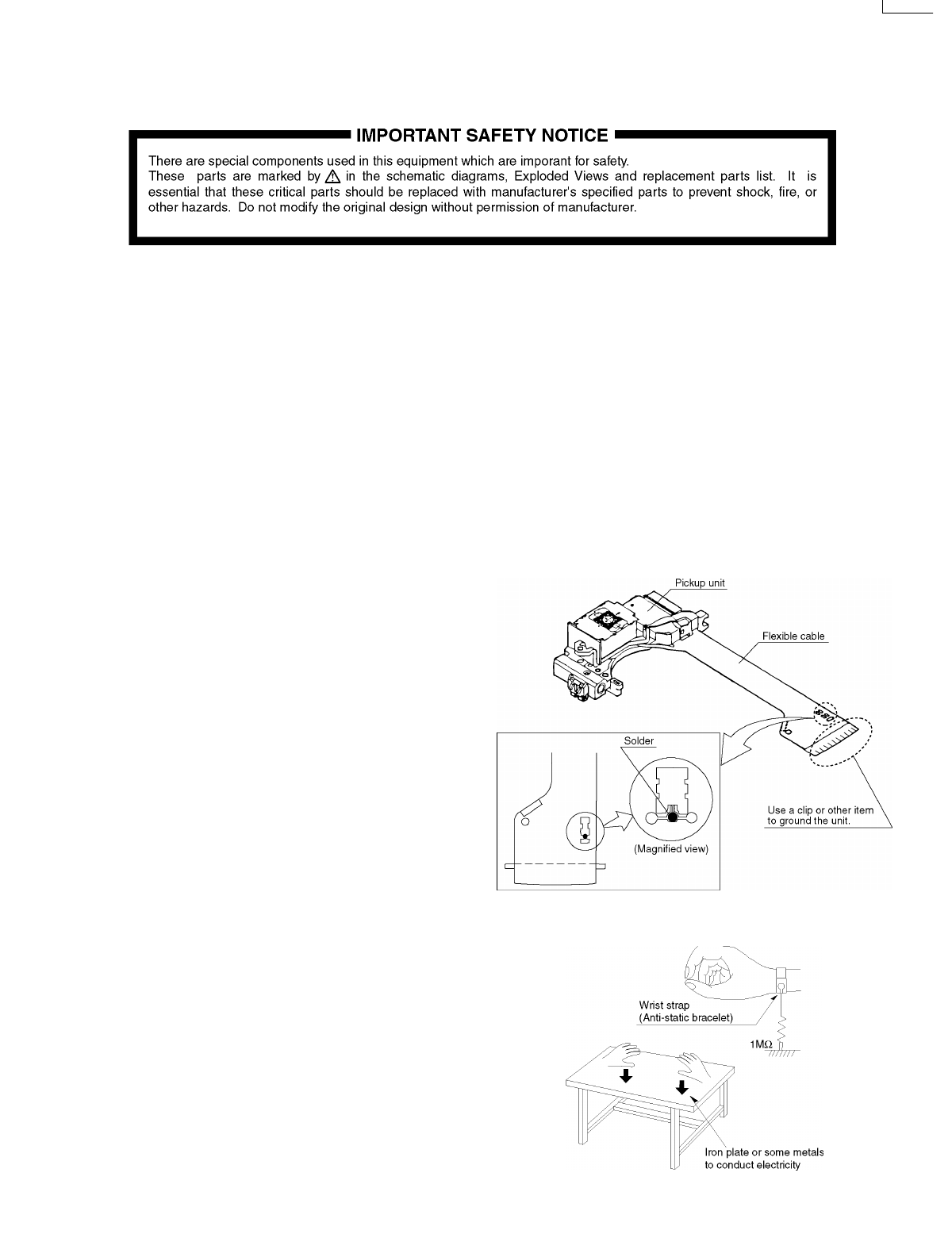

The laser diode in the optical pickup may break down due to

potential difference caused by static electricity of clothes or

human body.

So be careful of electrostatic break down during repair of the

optical pickup.

4.1. Handling of optical pickup

1. Do not subject the optical pickup to static electricity as it is

extremely sensitive to electrical shock.

2. To prevent the breakdown of the laser diode, an antistatic

shorting pin is inserted into the flexible board (FPC Board).

When removing or connecting the short pin, finish the job in

as short times as possible.

3. Be careful not to apply excessive stress to the flexible board

(FPC Board).

4. Do not turn the variable resistor (Laser power adjustment).

1. Human body grounding

Use the antistatic wrist strap to discharge the static

electricity from your body.

2. Work table grounding

Put a conductive material (sheet) or steel sheet on the area

where the optical pickup is placed and ground the sheet.

Caution

The static electricity of your clothes will not be grounded

through the wrist strap. So take care not to let your

clothes touch the optical pickup.

Caution

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise hamless motion such as the brushing

together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to

damage an ES device).

3 PRECAUTION OF LASER DIODE

Caution

This unit utilizes a class I laser. Invisible laser radiation is emitted from the optical pickup lens when the unit is turned on:

1. Do not look directly into the pickup lens.

2. Do not use optical instruments to look at the pickup lens.

3. Do not adjust the preset variable resistor on the optical pickup.

4. Do not disassemble the optical pickup unit.

5. If the optical pickup is replaced, use the manufactures specified replacement pickup only.

6. Use of control or adjustment or performance of procedures other than those specified herin may result in hazardous radiation

exposure.

4 HANDLING PRECAUTIONS FOR TRAVERSE DECK

4.2. Grounding for electrostatic breakdown prevention

DVD-RV60

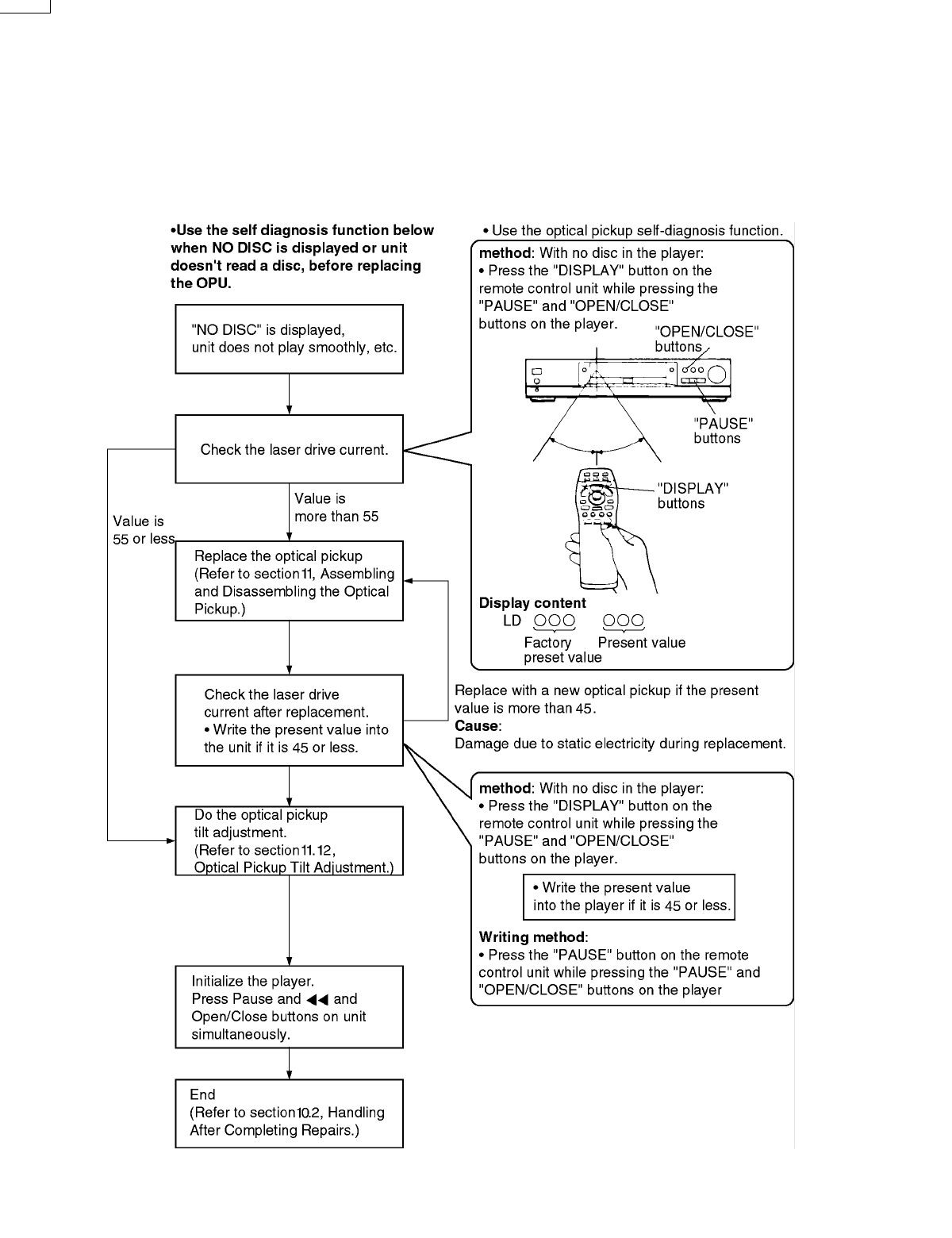

5 Optical Pickup Self-Diagnosis and Replacement

Procedure

The optical pickup self-diagnosis function and tilt adjustment check function have been newly added to this player. When repairing,

use the following procedure for effective Self-diagnosis and tilt adjustment.

Be sure to use the self-diagnosis function before replacing the optical pickup when "NO DISC" is displayed. As a guideline, you

should replace the optical pickup when the value of the laser drive current is more than 55.

Note

Press the power button to turn on the power, and check the value before the unit warms up (within three minutes).

DVD-RV60

6 Self-Diagnosis Function and Service Modes

6.1. Service Mode Table

The service modes can be activated by pressing various button combinations on the player and remote control unit.

Player buttons Remote control unit buttons Application Note

PAUSE

OPEN/CLOSE

0 Displaying the UHF display F_ _ _ Refer to section 6.2, Self-

Diagnosis Function (UHF

Display).

5Jitter check, Tilt adjustment

*Display shows JITXXX

The 3 digit number (JITXXX) indicates the Jitter rate

(JIT088=8.8%)

The 3 digit number the right of JITXXX displays

an error counter (increases as errors occur) but does not

necessarily mean picture/ playback problems will occur.

(This number is not as important as the JITXXX) Refer to

section 11.12 for Optical Pickup Tilt Adjustment

Procedure

Refer to section 11.12,

Optical Pickup Tilt

Adjustment.

6Checking the region numbers and broadcast system

7Checking the program version Check the IC6302

FLASH ROM program.

9Lighting Confirmation Function of Display Tube

DISPLAY Checking the laser drive current Refer to section 5,

Optical Pickup

Self-Diagnosis and

Replacement

PAUSE Writing the laser drive current value after replacing

the optical pickup (do not use for anything other than

optical pickup replacement)

Procedure.

PAUSE

SKIP/SEARCH<<

OPEN/CLOSE

Initializing the DVD player

(restoring factory preset settings)

*Use when replaceing a microprocessor, microprocessor

peripheral parts, or P.C.B.

Refer to section 10.1,

Initializing the DVD

Player

6.2. Self-Diagnosis Function (UHF Display)

This unit incorporates a convenient self-diagnosis function for use in troubleshooting.

Display method Display Diagnosis Checkpoints

Service numbers displayed

during use CHECK THE DISC Focus error IC2001,IC2511,IC5201,pickup

H01 Tray loading error IC2001, IC2511, loading motor

H02 Spindle servo error Spindle motor, IC2501, IC2001

H03 Traverse error Stepping motor, IC2511, IC2001

H04 Tracking servo error IC2001, IC2501, IC5201, pickup, disc

H05 Seek error Stepping motor, IC2511, IC2001

H06 Power supply error IC1125, IC1151, IC6001

Press the "0" button on the remote

control unit while pressing the

"PAUSE" and "OPEN/CLOSE"

button on the player.

F0** Disc format error If this type of error occurs, refer to section

6.3, Examples of Repairs Using Error

Codes.

F1** Disc code error

F2** Decoder LSI error

F3** SDRAM error

F4** IIC BUS error

F5** DSC

F6** ECC error

F7** Microprocessor error

F8** Microprocessor error

DVD-RV60

6.3. Examples of Repairs Using Error Codes

Refer to this section when carrying out repairs.

Error display Malfunction example

F0**

F103

F4FF

F500

F501

F502

F504

F505

F506

F600

F601

F602

F603

F610

F611

F612

F620

F621

F700

F701

F702

F880

F890

F891

F8A0

F893

F894

Disc, IC7001

IC6001

Optical pickup, IC2001, IC5201, IC2511, IC2501

IC2001, IC6201

IC2501, IC2511, IC2001, IC5201

IC5201, IC2001

Disc, IC2501, IC2511, IC5201, IC2001

Disc, Optical pickup, IC2001

Disc, IC7001, IC5201, IC2001

Disc, IC7001

Disc, IC5201, IC2001

IC7001

IC7001, IC5201, IC2001

Laser drive circuit

IC6201

IC6302

IC6303

6.4. Sales Demonstration Lock Function

This function prevents discs from being lost when the unit is used for sales demonstrations, by disabling the disc eject function.

"LOCKED" is displayed on the unit, and ordinary operation is disabled.

6.4.1. Setting Method

The sales demonstration lock function is set by simultaneously pressing the "POWER" button of DVD Player on the remote control

unit and the "STOP" button on the main unit. ("LOCKED" is displayed when the lock function is engaged.)

6.4.2. Release Method

The function can be released using the same procedure as for setting. If the remote control unit is not at hand, the function can be

released by using the same method as for player initialization (pressing the "PAUSE," "SKIP/SEARCH<<" and "OPEN/CLOSE"

buttons simultaneously).

DVD-RV60

7 Service Tools and Equipment

7.1. Service Tools and Equipment Table

Application Name Number

General DVD test disc DVDT-S15 or DVDT-S01

Tilt adjustment Hex wrench JGS0100

Adjustment table VFK0539

Inspection Extension cable (power supply P.C.B. to mother P.C.B.) JGS0099

Extension cable (mechanism loading P.C.B. to mother P.C.B.) VUC8027

Extension cables (module P.C.B. to mother P.C.B.) JGS0116, JGS0098

Others Screw lock RZZ0L01

Grease JGS0091

JGS0092

Lubricant JZS0648

Grease JGS0101

Confirmation CD test disc SZZP1054C

VCD test disc PVCD_K06

Electrical adjustment Oscilloscope

Probe

AV cable VJA0658

TV monitor

General General tools (Screw driver. etc)

Static electricity countermeasures Soldering iron (with ESD countermeasure)

Anti-static wrist strap

Conductive material (conductive sheet)

7.2. Storing and Handling Test Discs

· Surface precision is vital for DVD test discs. Be sure to store and handle them carefully.

1. Do not place discs directly onto the workbench, etc., after use.

2. Handle discs carefully in order to maintain their flatness.

Place them into their case after use and store them vertically. Store discs in a cool place where they are not exposed to

direct sunlight or air from air conditioners.

3. Accurate adjustment will not be possible if the disc is warped from being placed on a surface made of glass, etc. If this

happens, use a new test disc to make optical adjustments.

4. If adjustment is done using a warped disc, the adjustment will be incorrect and some discs will not be playable.

DVD-RV60

8.1. Operating Instructions

8 General Description

Main unit

1Standby/on switch (POWER, Í/I)

Press to switch the unit from on to standby mode or vice versa.

In standby mode, the unit is still consuming a small amount of

power.

2Disc tray

3Disc tray open/close button (< OPEN/CLOSE)

4Stop button (∫)

5Pause button (;)

6Play button (1)

7FL display

8Standby indicator (Í STANDBY)

When the unit is connected to the AC mains supply, this indicator

lights up in standby mode and goes out when the unit is turned on.

9Virtual Surround Sound button/indicator (V.S.S.)

:Cinema button/indicator (CINEMA)

;Skip buttons (:, 9)

<Shuttle dial (6, 5)

=Rotates during play.

Rotates fast clockwise or counterclockwise during

rapid advance (rapid reverse).

Rotates slowly clockwise or counterclockwise

during slow-motion play.

Illuminates in the stop mode.

>Illuminates during play.

Flashes when the RESUME function is ON.

?Illuminates during repeat play.

@Illuminates in the still picture (pause) mode.

AElapsed playing time from the start of the title/track during

play

BAudio channel information recorded in the disc being

played (e.g. 2ch or 5.1ch)

CA DVD is loaded.

DIlluminates when you can change the angle.

EIlluminates during program play.

FTitle/chapter number

Track number

GLinear PCM of 96 kHz sampling is being played.

HLinear PCM of 24 bit is being played.

Buttons such as 1 function in exactly the same way as

the buttons on the main unit.

Remote control

ITop menu button (TOP MENU)

JCursor buttons (3, 4, 2, 1)/Enter button (ENTER)

KDisplay button (DISPLAY)

LSubtitle button (SUBTITLE)

MPlay mode button (PLAY MODE)

NRepeat mode button (REPEAT MODE)

OA-B repeat button (A-B REPEAT)

PAction button (ACTION)

QSlow/Search buttons (6, 5 SLOW/SEARCH)

RMenu button (MENU)

SReturn button (RETURN)

TAudio button (AUDIO)

UAngle button (ANGLE)

VNumeric buttons (1–9, 0, S10)

≥To select a 2-digit number

Example: To select track 23

Press [S10], then [2] and [3].

WCancel button (CANCEL)

aSurround (left)

fFront (left)

bCenter

cSurround (right)

dSubwoofer

eFront (right)

DVD

PROG.

ANGLE

96kHz 24bit

=>?@ A B

CD F GHE

;1∫?

CINEMA

OPEN/CLOSE

V.S.S.

POWER

Í/I

Í?

STANDBY

1 2 3 4 5 6

;<87 9:

POWER

STOP

PAUSE

PLAY

OPEN/CLOSE

SKIP

TOP MENU

DISPLAY

PLAY MODE SUBTITLE

AUDIO ANGLE

ENTER

RETURN

123

A-B REPEAT

456

789

ACTION CANCEL

6:9 5

∫? ; 1

SLOW / SEARCH

V.S.S.

REPEAT MODE

;

V-CD

DVD

V-CD CD

DVD

V-CD CD

DVD-RV60

9 Assembling and Disassembling the Casing and

Checking P.C.B.s

9.1. Disassembly Procedure

When servicing the unit, use the following procedure to disassemble the casing and inside parts for internal inspection.

DVD-RV60

9.2. Casing Parts and P.C.B. Positions

9.3. Service Positions

Note

To inspect the loading base unit, position the left side upward (as viewed from the front).

DVD-RV60

9.4. Disassembling the Top Cover

1. Remove the 4 screws.

2. Remove the 3 screws.

9.5. Disassembling the Tray

1. Turn the lever clockwise.

2. Move the tray in the direction of the arrow until it locks.

3. Release the tab locks on the left and right, then pull out the

tray.

9.6. Disassembling the Front Panel

1. Release the 3 tabs on the bottom.

2. Release the 2 tabs on the left and right.

3. Release the 2 tabs.

4. Disconnect the 2 flexible cables.

DVD-RV60

9.7. Disassembling the Loading

Base Unit

1. Remove the 4 screws.

2. Pull out the loading base unit vertically.

Note

There is a danger of damaging the connectors.

9.8. Checking the Module P.C.B.

1. Remove the screw.

2. Connect the module P.C.B. to the mother P.C.B. with the

extension cables for inspection.

· Extension cable: JGS0098

· Extension cable: JGS0116

Mother P.C.B. Module P.C.B.

PP4201-PS4201

PP3201-PS3201

3. Connect the mechanism loading P.C.B. to the mother

P.C.B.with the extension cable: for inspection.

· Extension cable: VUC8027

Mother P.C.B. Mechanism Loading P.C.B.

PP2591-PS2591

Note

Be sure to initialize the player whenever you replace a

P.C.B. (Refer to section 10.1, Initializing the DVD

Player.)

9.9. Disassembling the Rear Panel

1. Remove all of the screws connected to the rear panel. (The

number of screws varies according to the model).

2. Release the two tabs on the left and right.

DVD-RV60

9.10. Checking the Power Supply

P.C.B.

1. Remove the 3 screws.

2. Carefully pull out the power supply P.C.B.

Note

There is a danger of damaging the connectors.

3. Connect the power supply P.C.B. and the mother P.C.B.

with the extension cable for inspection.

· Extension cable: JGS0099 (connects the power supply

P.C.B. PS1101 and the mother P.C.B. PP1101)

9.11. Checking the Mother P.C.B.

1. Remove the 4 screws.

2. Release the tab.

3. Check by connecting the module P.C.B. and the mother

P.C.B. with the extension cables.

· Extension cable: JGS0116

· Extension cable: JGS0098

Module P.C.B. Mother P.C.B.

PS3201-PP3201

PS4201-PP4201

4. Check by connecting the mechanism loading P.C.B. and

the mother P.C.B. with the extension cable.

· Extension cable: VUC8027

Mechanism Loading P.C.B. Mother P.C.B.

PS2591-PP2591

Note

Be sure to initialize the player whenever you replace

a P.C.B. (Refer to section 10.1, Initializing the DVD

player.)

DVD-RV60

9.12. Checking the Front Switch

P.C.B.

1. Remove the 3 screws.

9.13. Checking the Power Switch

P.C.B.

1. Remove the 2 screws.

DVD-RV60

10 Service Precautions

10.1. Initializing the DVD Player

Initialize the DVD player whenever you replace a microprocessor, microprocessor peripheral parts, module P.C.B. or mother P.C.B.

10.1.1. Precautions

The customer settings will return to factory preset settings when the player is initialized. Make a note of the settings and reset them

after initializing.

· When resetting, see the Initial Settings in the Operating Instructions.

10.1.2. Initialization Method

The player will be initialized (return to the factory preset condition) when you press the "PAUSE," "SKIP/SEARCH<<" and

"OPEN/CLOSE" buttons simultaneously. When the DVD player is initialized, "Initialized" appears on screen, it also displays

"INITIALIZE".

Press them at the least for three seconds after you confirmed the display.

10.2. Handling After Completing Repairs

Use the following procedure to secure the traverse unit in the standby position.

10.2.1. Method

Confirm that the power is turned on:

1. Press the "OPEN/CLOSE" button to close the tray.

2. Press the "POWER" button to turn off the power.

3. Disconnect the power plug from the outlet.

10.2.2. Precautions

Do not disconnect the power plug from the outlet with the tray still open, then close the tray manually. If you were to do so, the

traverse unit would not go to the upper (standby) position, and the player could not be transported.

DVD-RV60

The optical pickup can be damaged by static electricity from

your body. Be sure to take static electricity countermeasures

when working around the optical pickup.

11 Assembling and Disassembling the Optical Pickup

(Mechanical Parts)

11.1. Handling the Optical Pickup

The optical pickup can be damaged by static electricity from your body. Be sure to take static electricity countermeasures when

working around the optical pickup.

1. The optical pickup is an extremely high-precision mechanism. Do not subject it to strong impact.

2. To preserve the quality of the optical pickup replacement parts during transport and installation, the terminals of the laser diode

are short-circuited. After replacing the parts, use the proper procedure to return the laser diode to its original condition. (Refer

to section 11.10, Assembling the Optical Pickup.)

3. Testers cannot be used to check the laser diode of the optical pickup. The power supply inside the tester can easily damage

the laser diode.

4. Take care when handling the flexible cable because excessive force can cause it to break.

5. You cannot adjust the semifixed resistor for laser power adjustment. Do not turn it.

11.2. Disassembly Procedure

Use the following procedure to replace major parts.

For the assembly procedure, follow the flow chart in reverse.

DVD-RV60

11.3. Disassembling the Clamp

Base Unit

1. Remove the 2 screws.

11.4. Disassembling the Clamper

Weight, Clamper Yoke, Magnet

and Clamper

1. Release the tab, and pull out the clamper.

2. Release the 3 tabs on the clamper.

11.5. Disassembling the Traverse

Unit

1. Remove the 3 screws.

Note

Be sure to take static electricitiy countermeasures befer

disconnecting the flexible cable.(Refer to section 4,

HANDLING PRECAUTIONS FOR TRAVERSE DECK.)

DVD-RV60

2. Disconnect the 2 flexible cables.

11.6. Disassembling the Stepping

Motor Unit

1. Disconnect the flexible cable.

2. Remove the 2 screws.

Note

Take care when handling the flexible cable because it can

be broken by excessive force.

11.7. Disassembling the Optical

Pickup Unit

1. Remove the screw.

2. Release the tab, then remove spring holder 1.

Note

Be sure not to lose the spring.

3. Remove the guide shaft.

Note

Be sure to adjust the optical pickup tilt after replacing

the optical pickup.

(Refer to section 11.12, Opitcal Pickup Tilt Adjustment.)

DVD-RV60

11.8. Disassembling the Nut Unit

1. Remove the screw.

Notes

· The nut unit is not part of the optical pickup.

Before replacing the optical pickup, remove the nut

unit for use with the new optical pickup.

· After installation, use screw lock to lock the screw in

position.

· When reassembling, use screw lock to lock the

screw in position after attaching it.

11.9. Disassembling the Sub-Shaft

Preload Spring

1. Remove the screw.

Notes

· Handle the sub-shaft preload spring carefully

because the shape of the tip is easily deformed.

· The sub-shaft preload spring is not part of the optical

pickup. Before replacing the optical pickup, remove

the sub-sahft preload spring for use with the new

optical pickup.

· After installation, use screw lock to lock the screw in

position.

11.10. Assembling the Optical Pickup

1. Install the optical pickup.

Note

Take care not ot attach the tilt spring and guide shaft in

the wrong order.

2. Insert the pickup FPC into connector FP5201 on the

module P.C.B.

DVD-RV60

3. Remove the solder from the pickup FPC´s soldered short-

circuit.

4. Adjust the optical pickup tilt after removing the solder.

(Refer to section 11.12, Optical Pickup Tilt Adjustment.)

11.11. Disassembling the Spindle

Motor Unit

1. Remove the three screws.

Note

Be sure to adjust the optical pickup tilt after replacing

the spindle motor unit.

DVD-RV60

11.12. Optical Pickup Tilt Adjustment

DVD-RV60

Notes

· Adjustment is generally unnecessary after replacing other parts of the traverse unit. However, adjust if there is a noticeable

degradation in picture quality.

· Optical adjutments cannnot be made inside the optical pickup.

· Adjustment is generally unnecessary after replacing the traverse unit.

DVD-RV60

11.13. Disassembling the

Intermediate Chassis

1. Push the stopper downward, then rotate it until it contacts

the Vertical cam.

2. Release the 2 tabs.

11.14. Disassembling the Vertical

cam and Drive gear

1. Rotate the Vertical cam until it reaches the contact position.

2. Lift the Vertical cam straight upward to pull it out.

3. Remove the Drive gear.

11.15. Disassembling the Pulley Gear

and Deceleration Gear

1. Remove the screw.

2. Remove the pulley gear.

3. Remove the belt.

4. Remove the deceleration gear.

11.16. Disassembling the Mechanism

Loading P.C.B.

1. Remove the 2 screws.

2. Remove the 2 screws.

3. Release the 2 tabs.

DVD-RV60

Do this adjustment after replacing a P.C.B.

Purpose: To maintain video signal output compatibility.

12 Electrical Adjustment

12.1. Video Output (Luminance Signal) Adjustment

Do this adjustment after replacing a P.C.B.

Measurement point Adjustment point Mode Disc

Video output terminal VR3501 (mother P.C.B.) Color bar 75%

PLAY (Title 46):DVDT-S15

PLAY (Title 12):DVDT-S01

DVDT-S15

DVDT-S01

Measuring equipment, tools Adjustment value

Screwdriver, Oscilloscope

200mV/div, 10µsec/div 1000mVp-p±20mV

Purpose: To maintain video signal output compatibility.

1. Connect the oscilloscope to the video output terminal and terminate at 75 ohms.

2. Adjust VR3501 so that the luminance signal (Y+S) level becomes 1000 mVp-p±20 mV.

12.2. Video Output (Chrominance Signal) Adjustment

Measurement point Adjustment point Mode Disc

Video output terminal VR3511 (mother P.C.B.) Color bar 75%

PLAY (Title 46):DVDT-S15

PLAY (Title 12):DVDT-S01

DVDT-S15

DVDT-S01

Measuring equipment, tools Adjustment value

Screwdriver,Oscilloscope

200mV/div, 10µsec/div 621mVp-p±12mV

1. Connect the oscilloscope to the video output terminal and terminate at 75 ohms.

2. Adjust VR3511 so that the chrominance signal (C) level becomes 621 mVp-p±12 mV.

DVD-RV60

12.3. Video Component Signal (CB) Output Adjustment

Do this adjustment after replacing a P.C.B.

Measurement point Adjustment point Mode Disc

Video output terminal

(Y) (CB) Output terminal VR3201 (module P.C.B.) Color bar 75%

PLAY (Title 46):DVDT-S15

PLAY (Title 12):DVDT-S01

DVDT-S15

DVDT-S01

Measuring equipment, tools Adjustment value

Screwdriver, Oscilloscope

100mV/div, 10µsec/div 486mVp-p±10mV

Purpose: To maintain video signal output compatibility.

1. Connect the oscilloscope to the video component output terminal and terminate at 75 ohms.

2. Apply the trigger at the Y output terminal signal.

3. Adjust VR3201 so that the video component signal (CB) level becomes 486 mVp-p ±10 mV.

DVD-RV60

INITIAL/LOGO ABBREVIATIONS

AA0~UP

ACLK

AD0~UP

ADATA

ALE

AMUTE

AREQ

ARF

ASI

ASO

ASYNC

ADDRESS

AUDIO CLOCK

ADDRESS BUS

AUDIO PES PACKET DATA

ADDRESS LATCH ENABLE

AUDIO MUTE

AUDIO PES PACKET REQUEST

AUDIO RF

SERVO AMP INVERTED INPUT

SERVO AMP OUTPUT

AUDIO WORD DISTINCTION SYNC

BBCK

BCKIN

BDO

BLKCK

BOTTOM

BYP

BYTCK

BIT CLOCK (PCM)

BIT CLOCK INPUT

BLACK DROP OUT

SUB CODE BLOCK CLOCK

CAP. FOR BOTTOM HOLD

BYPATH

BYTE CLOCK

CCAV

CBDO

CDSCK

CDSRDATA

CDRF

CDV

CHNDATA

CKSL

CLV

COFTR

CPA

CPCS

CPDT

CPUADR

CPUADT

CPUIRQ

CPRD

CPWR

CSYNCIN

CSYNCOUT

CONSTANT ANGULAR VELOCITY

CAP. BLACK DROP OUT

COMPACT DISC

CD SERIAL DATA CLOCK

CD SERIAL DATA

CD RF (EFM) SIGNAL

COMPACT DISC-VIDEO

CHANNEL DATA

SYSTEM CLOCK SELECT

CONSTANT LINEAR VELOCITY

CAP. OFF TRACK

CPU ADDRESS

CPU CHIP SELECT

CPU DATA

CPU ADDRESS LATCH

CPU ADDRESS DATA BUS

CPU INTERRUPT REQUEST

CPU READ ENABLE

CPU WRITE ENABLE

CHIP SELECT

COMPOSITE SYNC IN

COMPOSITE SYNC OUT

DDACCK

DEEMP

DEMPH

DIG0~UP

DIN

DMSRCK

DMUTE

DOUT0~UP

DRF

DRPOUT

DREQ

DRESP

DSC

DSLF

DVD

D/A CONVERTER CLOCK

DEEMPHASIS BIT ON/OFF

DEEMPHASIS SWITCHING

FL DIGIT OUTPUT

DATA INPUT

DM SERIAL DATA READ CLOCK

DIGITAL MUTE CONTROL

DROP OUT

DATA OUTPUT

DATA SLICE RF (BIAS)

DROP OUT SIGNAL

DATA REQUEST

DATA RESPONSE

DIGITAL SERVO CONTROLLER

DATA SLICE LOOP FILTER

DIGITAL VIDEO DISC

INITIAL/LOGO ABBREVIATIONS

EEC

ECR

ENCSEL

ETMCLK

ETSCLK

ERROR TORQUE CONTROL

REFERENCE

ENCODER SELECT

EXTERNAL M CLOCK (81MHz/40.5MHz)

EXTERNAL S CLOCK (54MHz)

F FBAL

FCLK

FFI

FEO

FSC

FSCK

FOCUS BALANCE

FRAME CLOCK

FOCUS ERROR

FOCUS ERROR AMP INVERTED INPUT

FOCUS ERROR AMP OUTPUT

FREQUENCY GENERATOR

FREQUENCY SUB CARRIER

FS (384 OVER SAMPLING) CLOCK

GGND COMMON GROUNDING (EARTH)

HHA0~UP

HD0~UP

HINT

HRXW

HOST ADDRESS

HOST DATA

HOST INTERRUPT

HOST READ/WRITE

IIECOUT

IPFRAG

IREF

ISEL

IEC958 FORMAT DATA OUTPUT

INTERPOLATION FLAG

I (CURRENT) REFERENCE

INTERFACE MODE SELECT

LLDON

LPC

LRCK

LASER DIODE CONTROL

LASER POWER CONTROL

L CH/R CH DISTINCTION CLOCK

MMA0~UP

MCK

MCKI

MCLK

MDATA

MDQ0~UP

MDQM

MLD

MPEG

MEMORY ADDRESS

MEMORY CLOCK

MEMORY CLOCK INPUT

MEMORY SERIAL COMMAND CLOCK

MEMORY SERIAL COMMAND DATA

MEMORY DATA INPUT/OUTPUT

MEMORY DATA I/O MASK

MEMORY SERIAL COMMAND LOAD

MOVING PICTURE EXPERTS GROUP

OODC

OFTR

OSCI

OSCO

OSD

OPTICAL DISC CONTROLLER

OFF TRACKING

OSCILLATOR INPUT

OSCILLATOR OUTPUT

ON SCREEN DISPLAY

PP1~UP

PCD

PCK

PDVD

PEAK

PLLCLK

PLLOK

PWMCTL

PWMDA

PWMOA, B

PORT

CD TRACKING PHASE DIFFERENCE

PLL CLOCK

DVD TRACKING PHASE DIFFERENCE

CAP. FOR PEAK HOLD

CHANNEL PLL CLOCK

PLL LOCK

PWM OUTPUT CONTROL

PULSE WAVE MOTOR DRIVE A

PULSE WAVE MOTOR OUT A, B

13 Abbreviations

DVD-RV60

INITIAL/LOGO ABBREVIATIONS

RRE

RFENV

RFO

RSEL

RST

RSV

READ ENABLE

RF ENVELOPE

RF PHASE DIFFERENCE OUTPUT

(CD-ROM) REGISTER SELECT

RF POLARITY SELECT

RESET

RESERVE

SSBI0, 1

SBO0

SBT0, 1

SCK

SCKR

SCL

SCLK

SDA

SEG0~UP

SELCLK

SEN

SIN1, 2

SOUT1, 2

SPDI

SPDO

SPEN

SPRCLK

SPWCLK

SQCK

SQCX

SRDATA

SRMADR

SRMDT0~7

STAT

STCLK

STD0~UP

STENABLE

STSEL

STVALID

SUBC

SBCK

SUBQ

SYSCLK

SERIAL DATA INPUT

SERIAL DATA OUTPUT

SERIAL CLOCK

SERIAL DATA CLOCK

AUDIO SERIAL CLOCK RECEIVER

SERIAL CLOCK

SERIAL DATA

FL SEGMENT OUTPUT

SELECT CLOCK

SERIAL PORT ENABLE

SERIAL DATA IN

SERIAL DATA OUT

SERIAL PORT DATA INPUT

SERIAL PORT DATA OUTPUT

SERIAL PORT R/W ENABLE

SERIAL PORT READ CLOCK

SERIAL PORT WRITE CLOCK

SUB CODE Q CLOCK

SUB CODE Q DATA READ CLOCK

SERIAL DATA

SRAM ADDRESS BUS

SRAM DATA BUS 0~7

START/STOP

STATUS

STREAM DATA CLOCK

STREAM DATA

STREAM DATA INPUT ENABLE

STREAM DATA POLARITY SELECT

STREAM DATA VALIDITY

SUB CODE SERIAL

SUB CODE CLOCK

SUB CODE Q DATA

SYSTEM CLOCK

TTE

TIBAL

TID

TIN

TIP

TIS

TPSN

TPSO

TPSP

TRCRS

TRON

TRSON

TRACKING ERROR

BALANCE CONTROL

BALANCE OUTPUT 1

BALANCE INPUT

BALANCE OUTPUT 2

OP AMP INPUT

OP AMP OUTPUT

OP AMP INVERTED INPUT

TRACK CROSS SIGNAL

TRACKING ON

TRAVERSE SERVO ON

INITIAL/LOGO ABBREVIATIONS

VVBLANK

VCC

VCDCONT

VDD

VFB

VREF

VSS

V BLANKING

COLLECTOR POWER SUPPLY

VOLTAGE

VIDEO CD CONTROL (TRACKING

BALANCE)

DRAIN POWER SUPPLY VOLTAGE

VIDEO FEED BACK

VOLTAGE REFERENCE

SOURCE POWER SUPPLY VOLTAGE

WWAIT

WDCK

WEH

WSR

BUS CYCLE WAIT

WORD CLOCK

WRITE ENABLE HIGH

WORD SELECT RECEIVER

X X

XALE

XAREQ

XCDROM

XCS

XCSYNC

XDS

XHSYNCO

XHINT

XINT

XMW

XRE

XSRMCE

XSRMOE

XSRMWE

XVCS

XVDS

XVSYNCO

X´ TAL

X ADDRESS LATCH ENABLE

X AUDIO DATA REQUEST

X CD ROM CHIP SELECT

X CHIP SELECT

X COMPOSITE SYNC

X DATA STROBE

X HORIZONTAL SYNC OUTPUT

XH INTERRUPT REQUEST

X´ TAL OSCILLATOR INPUT

X INTERRUPT

X MEMORY WRITE ENABLE

X´ TAL OSCILLATOR OUTPUT

X READ ENABLE

X SRAM CHIP ENABLE

X SRAM OUTPUT ENABLE

X SRAM WRITE ENABLE

X V-DEC CHIP SELECT

X V-DEC CONTROL BUS STROBE

X VERTICAL SYNC OUTPUT

DVD-RV60

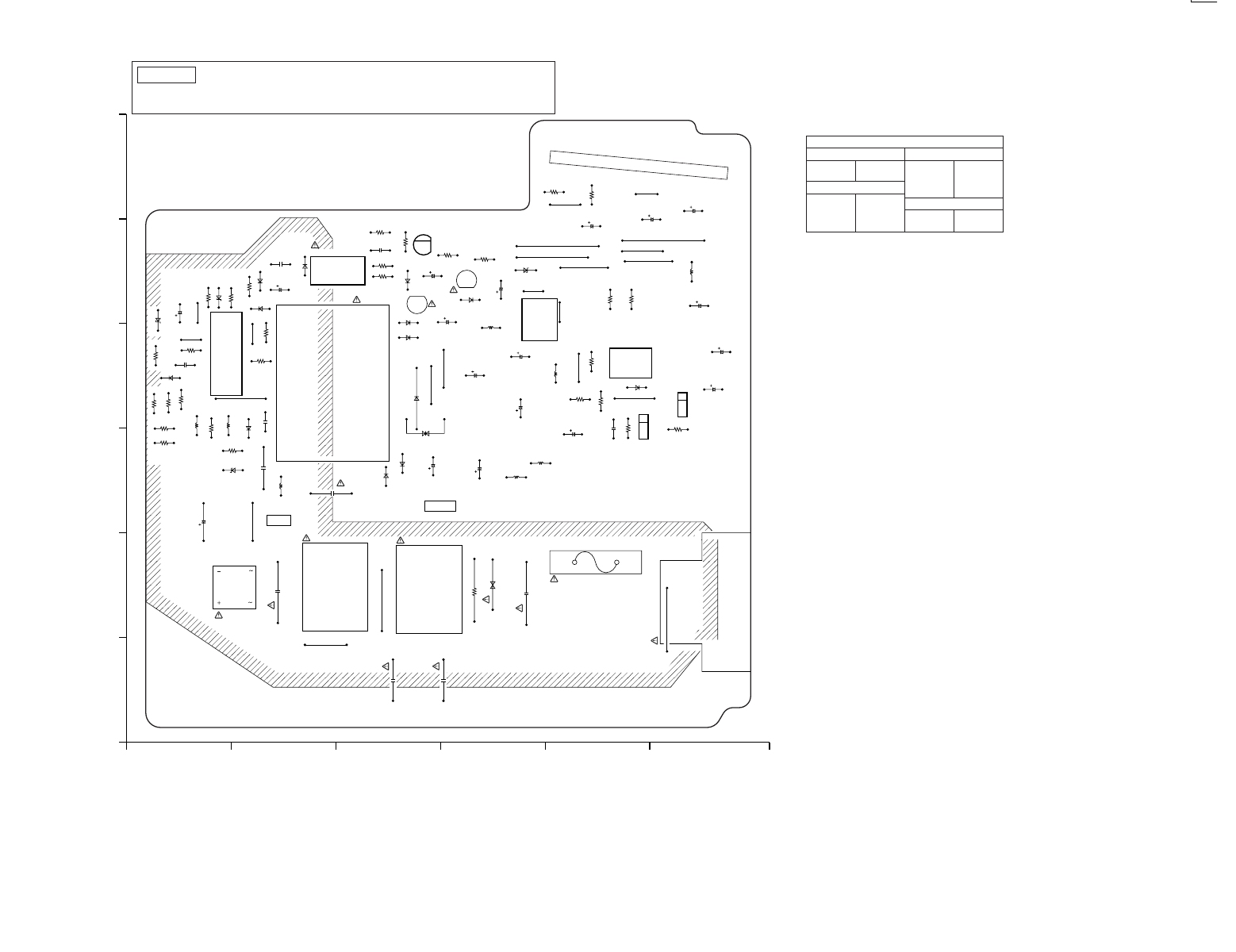

14.1. POWER SUPPLY P.C.B.

14.2. MODULE P.C.B.

14 VOLTAGE CHART

Ref No.

MODE 1234567 AKR 1234

STOP -26.0 0 0 0 17.0 0.5 0.2 0 3.9 2.5 5.1 3.3 0 3.4

PLAY -26.0 0 0 0 17.0 0.5 0.2 0 3.9 2.5 5.1 3.3 0 3.4

Ref No.

MODE 12345

STOP 0 3.4 8.9 8.9 12.5

PLAY 0 3.4 8.9 8.9 12.5

Ref No.

MODE 1234 SDG

STOP 5.2 4.1 0.5 16.6 5.1 5.1 0

PLAY 5.2 4.1 0.5 16.6 5.1 5.1 0

Ref No.

MODE E C B

STOP 0 0 3.4

PLAY 0 0 3.4

IC2201 IC1125

IC1151

Q1051 Q1111

QR1111

IC1021

Ref No.

MODE 1234567891011121314151617181920

STOP 1.7 1.6 1.6 3.3 1.7 0 0 1.6 1.6 1.5 0 0 0 3.3 1.6 2.8 0.2 2.2 1.5 0

PLAY 1.5 0 1.7 3.3 1.5 1.7 0 1.6 1.6 1.5 1.5 1.5 1.6 3.3 1.7 2.8 0.2 2.2 1.5 0

Ref No.

MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

STOP 2.2 2.2 0 0 1.5 2.2 3.3 1.7 0 0 1.7 0.4 1.7 1.6 0 1.6 1.7 3.3 0 1.7

PLAY 1.8 1.7 1.5 1.7 1.5 2.2 3.3 1.7 1.2 0 1.7 1.2 1.7 1.6 0 1.6 1.7 3.3 1.7 1.7

Ref No.

MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

STOP 0 2.1 1.4 1.6 0 3.3 3.0 1.5 0000000002.500

PLAY 0 2.0 1.6 1.7 0 3.3 0 0 0 0.4 1.5 1.6 1.4 3.3 3.3 0 0 3.0 3.0 0

Ref No.

MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

STOP 3.3 000003.3001.400003.31.61.61.61.60

PLAY 3.3 0 3.3 00001.701.4000001.61.61.61.61.6

Ref No.

MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

STOP 0 0 0 3.2 3.3 3.3 3.3 3.1 3.3 3.1 0 0 0 0.1 0 2.5 1.7 1.6 1.6 1.7

PLAY 0 3.3 3.3 3.3 0 0 3.3 3.2 3.3 3.1 000002.51.41.81.42.2

Ref No.

MODE 1234567891011121314151617181920

STOP 0 5.0 5.0 0 5.1 5.1 5.1 5.1 5.1 0 5.0 2.7 3.3 0 0 5.0 1.7 1.7 0 0

PLAY 00002.92.90.8003.35.01.43.3005.001.600.6

Ref No.

MODE 21 22 23 24 25 26 27 28

STOP 9.0 9.0 0 0 0 1.5 1.6 1.7

PLAY 9.0 9.0 0 0 0 7.4 7.4 7.4

Ref No.

MODE 1234567891011121314151617181920

STOP 1.7 1.7 1.7 1.6 1.7 1.6 1.6 0 0 5.1 2.4 0.5 0.5 0.5 6.7 7.0 7.1 7.4 9.0 0

PLAY 1.7 1.7 1.7 1.7 1.7 0 1.7 0 3.3 5.0 2.6 2.4 2.4 2.7 4.8 3.7 3.4 5.0 9.0 0

Ref No.

MODE 21 22 23 24 25 26 27 28

STOP 0 1.9 1.9 1.7 2.0 2.0 1.7 9.0

PLAY 0 1.5 1.7 1.7 1.8 1.7 1.7 9.0

IC2511

IC2001

IC2501

IC2511

IC2001

DVD-RV60

Ref No.

MODE 1234567891011121314151617181920

STOP 3.3 0 1.2 0 0 1.2 0 1.0 3.3 1.2 3.3 3.2 3.3 1.8 000000

PLAY 3.3 0 1.1 0 0 1.1 0 1.0 3.3 2.0 3.3 3.2 3.3 1.8 000000

Ref No.

MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

STOP 0 0 0 0 0 0 3.3 3.3 0 3.3 3.1 3.3 1.5 3.3 3.0 3.0 2.9 3.0 1.8 2.8

PLAY 0 0 0 0 0 0 0 3.3 0 3.3 3.3 3.3 1.5 3.3 3.3 3.3 3.3 0 1.8 3.3

Ref No.

MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

STOP 3.1 2.8 2.7 0 2.9 2.9 2.9 3.3 3.1 3.1 3.1 0 3.3 3.1 3.1 3.1 3.2 0 3.2 3.1

PLAY 0 3.3 3.3 0 3.3 0 0 3.3 3.3 3.3 0 0 3.3 3.3 3.3 3.3 3.3 0 3.3 3.3

Ref No.

MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

STOP 3.1 3.1 1.8 3.1 3.2 3.1 3.2 0 3.2 0 1.6 3.3 3.3 3.3 3.3 0 3.3 0 1.8 0

PLAY 3.3 3.3 1.8 3.3 3.3 3.3 3.3 0 3.3 0 1.6 3.3 3.3 3.3 0 3.3 3.3 3.3 1.8 3.3

Ref No.

MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

STOP 3.3 0 3.3 0 1.6 0 1.8 1.4 1.6 1.6 3.3 0000003.3

1.6 3.3

PLAY 3.3 3.3 3.3 1.7 0 1.8 1.4 1.7 1.6 0000003.31.53.3

3.3 3.3

Ref No.

MODE 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120

STOP 1.1 0 0 1.8 1.8 0 0 1.8 3.3 1.6 3.3 3.3 0.6 0 0 1.0 1.0 2.3 0.6 3.3

PLAY 1.3 0 0.2 1.8 00003.31.63.33.30001.0000.63.3

Ref No.

MODE 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140

STOP 0.6 0.6 2.4 0.4 0 0.6 0.6 2.3 0.4 3.3 1.3 1.3 2.2 0.4 000000

PLAY 0.6 0.6 0 0.4 0 0.6 0.6 2.3 0.4 3.3 1.3 2.2 0.5 0000000

Ref No.

MODE 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160

STOP 0 0 3.3 3.1 0 1.8 0000000003.302.82.93.3

PLAY 0 0 3.3 3.1 0 1.8 0000000003.302.703.3

Ref No.

MODE 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180

STOP 2.6 2.8 0 2.7 2.8 3.3 3.0 2.8 0 2.8 3.1 3.3 0 1.8 2.9 0 2.8 2.7 3.3 2.9

PLAY 2.6 2.7 0 2.6 2.5 3.3 2.5 2.5 0 2.5 2.6 3.3 2.5 1.8 2.6 0 3.3 3.3 3.3 2.6

Ref No.

MODE 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200

STOP 2.8 0 1.7 3.3 0 0 0 1.8 2.6 3.3 3.3 0 3.2 0 0 3.1 3.3 3.3 3.0 0

PLAY 2.6 0 1.6 3.3 1.6 0 3.3 1.8 2.2 3.3 3.3 1.9 3.3 3.3 3.2 3.3 3.3 3.0 0 0

Ref No.

MODE 201 202 203 204 205 206 207 208

STOP 0 1.8 1.2 0 3.3 0 0.9 0

PLAY 0 0 1.4 0 0 0 1.2 0

Ref No.

MODE 12345

STOP 2.6 2.6 1.8 0 0

PLAY 2.6 2.6 1.8 0 0

Ref No.

MODE 1234567891011121314151617181920

STOP 3.3 2.8 2.8 0 2.8 3.3 3.3 3.1 2.9 0 2.7 2.8 3.3 2.6 3.2 3.2 3.1 3.0 1.2 0

PLAY 3.3 3.1 3.1 0 3.3 3.3 3.3 3.3 3.3 0 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 0 0

Ref No.

MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

STOP 0 0 0 1.2 3.3 0 1.0 0000003.31.72.603.3

2.9 2.8

PLAY 00003.30001.4000000003.3

0 2.5

Ref No.

MODE 41 42 43 44 45 46 47 48 49 50 123456

STOP 0 2.6 0 3.3 2.9 2.8 0 2.6 2.8 0 5.0 0 1.3 3.3 0 5.0

PLAY 0 2.5 2.5 3.3 2.7 2.6 0 0 0.2 0 5.0 0 1.3 3.3 0 5.0

Ref No.

MODE 123456

STOP 5.0 0 1.3 3.3 0 5.0

PLAY 5.0 0 1.3 3.3 0 5.0

Ref No.

MODE 1234567891011121314151617181920

STOP 1.7 0 1.6 1.7 1.6 2.6 0 4.9 4.9 0 2.4 0 0 0 4.9 2.5 0 2.4 0 4.9

PLAY 1.7 1.2 1.6 1.7 1.6 2.6 0 4.9 4.9 0 2.4 0 2.4 0 4.9 0 0 0 00

Ref No.

MODE 21 22 23 24 25 26 27 28

STOP 0.2 3.2 0 0 4.9 3.3 3.2 3.3

PLAY 4.2 3.2 0 4.9 4.9 0 3.2 3.3

Ref No.

MODE 1234567891011121314151617181920

STOP 0 4.4 0.9 0.9 0 1.7 1.7 1.9 0.6 1.6 1.6 3.2 1.7 3.3 3.3 3.3 0 0 1.7 1.7

PLAY 0.6 3.3 1.3 1.3 0 1.7 1.7 1.9 1.1 1.6 1.6 3.2 1.7 3.3 3.2 3.3 1.2 0 1.7 1.7

Ref No.

MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

STOP 3.3 0 0 0 0 0 1.7 1.7 0 0 0 2.2 2.1 5.0 5.0 2.8 2.1 0 1.6 3.4

PLAY 3.3 3.3 3.2 1.2 0 0 1.7 1.7 1.7 1.7 1.7 1.9 2.1 0 4.9 2.8 2.1 0.1 1.6 3.4

Ref No.

MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

STOP 3.6 2.1 1.1 2.2 2.2 0 1.7 1.5 1.7 2.2 0 2.2 2.2 2.2 2.2 2.2 2.2 2.2 00

PLAY 3.7 2.2 1.2 2.2 2.2 0 0 1.5 1.7 2.2 0 0 2.2 0 0 1.9 0 0 00

Ref No.

MODE 61 62 63 64

STOP 5.0 0 0 0

PLAY 0 2.2 0 0

IC3001

IC3002

IC3001

IC5201

IC3061 IC3091

IC4201

IC5201

IC3251

IC3061

IC4201

DVD-RV60

Ref No.

MODE 1234567891011121314151617181920

STOP 3.3 3.1 3.3 2.1 0 3.3 3.3 3.0 3.3 0 3.3 3.3 2.5 3.0 0 0 3.3 0 0 0

PLAY 3.3 0 3.3 2.3 0 0 3.3 2.7 000002.7000000

Ref No.

MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

STOP 3.3 3.3 1.6 1.6 3.3 3.0 2.8 3.0 3.3 0.3 0 0.1 0.3 3.3 0 3.3 3.3 3.3 3.3 0.1

PLAY 3.3 3.3 1.6 1.6 3.3 2.7 2.6 2.7 2.7 2.6 2.6 2.6 2.7 3.3 2.4 2.3 2.5 2.7 2.5 2.8

Ref No.

MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

STOP 0.1 0.3 0 0.5 0.4 0.5 2.7 1.0 1.3 3.3 3.3 3.3 3.2 1.3 3.3 3.3 0.4 0.4 0.4 0

PLAY 1.9 2.0 0.8 3.3 3.3 3.3 3.3 1.0 1.2 2.8 1.5 2.5 0 1.3 3.3 3.3 3.3 0 0 0.1

Ref No.

MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

STOP 0 1.3 1.0 0.5 0.5 3.3 0 0 0 3.3 0 3.3 3.3 3.3 3.3 3.3 3.3 0 0 0

PLAY 0 1.3 1.2 3.3 0 3.3 3.3 3.3 0 3.3 2.8 3.3 3.2 0 3.2 3.3 0.1 0 0 0.1

Ref No.

MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

STOP 3.3 3.3 3.3 3.3 3.3 3.3 3.3 0 3.3 3.3 3.3 0 3.3 3.3 3.3 3.3 0 0 3.3 3.3

PLAY 3.2 3.3 3.3 0 2.6 0 0 0 3.3 3.3 2.4 0 0 0 2.5 0 0 3.3 3.3 3.3

Ref No.

MODE 123456 12345

STOP 5.1 0 1.3 3.3 0 5.1 0 0 0 3.3 3.3

PLAY 5.0 0 1.3 3.3 0 5.0 0 0 0 3.3 3.3

Ref No.

MODE 1234567891011121314151617181920

STOP 2.9 2.8 2.9 2.6 2.7 2.9 0 0 0 3.3 3.3 0 0 0 2.5 2.5 2.7 2.6 2.8 3.1

PLAY 2.6 2.7 2.5 2.3 2.4 2.8 2.6 2.6 0 0 3.3 3.3 0 0 0 2.0 1.9 2.6 2.7 2.8

Ref No.

MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

STOP 2.8 3.0 0 0 3.0 3.1 0 3.1 1.1 1.2 1.1 1.3 1.6 2.1 0.9 0 0 0.9 2.1 0.4

PLAY 2.6 2.7 2.6 2.8 0 2.7 0 2.8 2.8 2.8 2.8 2.8 2.9 2.9 2.9 2.9 3.3 2.9 2.9 2.9

Ref No.

MODE 41 42 43 44 45 46 47 48 12345678

STOP 1.3 0.4 1.3 0.4 1.2 0 3.3 0 3.3 3.1 3.3 0 3.3 0 3.3 3.3

PLAY 2.9 2.9 3.0 3.0 3.0 0 3.3 2.8 3.3 3.1 0 0 3.3 3.1 3.3 3.3

Ref No.

MODE 1234567891011121314151617181920

STOP 3.3 0 1.3 0 3.3 3.3 0 1.5 1.6 0 3.3 0 1.3 0 3.3 1.5 0 0 3.2 0

PLAY 3.3 0 1.4 0 3.3 3.3 0 1.5 1.6 0 3.3 1.6 1.3 0 3.3 1.5 0 0 3.2 0

Ref No.

MODE 21 22 23 24

STOP 3.3 1.6 3.3 1.6

PLAY 0 1.6 0 1.6

Ref No.

MODE 1 2 3

STOP 3.3 5.0 0

PLAY 3.3 5.0 0

Ref No.

MODE 1234567891011121314151617181920

STOP 3.3 0.6 0 0 3.3 3.3 00000003.33.30003.33.3

PLAY 3.3 3.3 3.3 3.3 3.3 3.3 0 0 3.3 2.5 3.3 3.3 3.3 3.3 3.3 0 0 0 3.3 3.3

Ref No.

MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

STOP 3.3 3.3 3.3 3.3 0.4 3.3 0.4 0.4 0 3.3 000002.53.33.303.3

PLAY 3.3 3.3 3.3 3.3 0.5 0 0.5 0.5 0 3.3 0 3.3 0 0 0 2.5 0000

Ref No.

MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

STOP 3.3 3.3 3.3 2.5 0 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 0 3.3 3.3 3.3 3.3

PLAY 00003.3003.3003.33.303.30.1003.33.33.2

Ref No.

MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

STOP 3.3 3.3 3.3 0 0 2.5 0 3.3 3.3 3.3 0 3.3 3.3 3.3 1.6 3.3 0 2.0 0 0

PLAY 3.3 0 3.3 0 0 2.5 0 3.3 2.4 3.3 0 2.5 2.5 0000000

Ref No.

MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

STOP 3.3 0 0 0 3.2 2.5 000003.303.31.703.3000

PLAY 3.3 0 0 0 3.2 2.5 000003.303.31.703.3001.4

Ref No.

MODE 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120

STOP 0 1.6 3.3 3.1 3.3 00000000003.33.33.300

PLAY 1.3 0 0 0 3.3 0 0 0 1.7 0 1.6 1.6 1.6 1.7 1.7 0 3.3 3.3 0 0

Ref No.

MODE 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140

STOP 0 0 0 3.3 2.5 3.3 0 3.3 3.3 3.3 1.6 3.3 3.3 0 3.3 0.5 0 3.3 3.3 0.5

PLAY 0 0 0 3.3 2.5 3.3 0 3.3 3.3 3.3 1.6 3.3 3.3 0 3.3 0.5 0 3.3 2.9 0

Ref No.

MODE 141 142 143 144

STOP 0 0 3.3 3.3

PLAY 0 0 0 3.3

Ref No.

MODE E C B E C B E C B E C B E C B

STOP 1.3 0 0.6 1.1 0 0.4 0 0 0.4 1.0 0 0.3 4.9 1.4 4.6

PLAY 1.3 0 0.6 1.1 0 0.4 0 0 0.4 1.2 0 0.5 3.9 2.2 0

Ref No.

MODE E C B E C B E C B E C B

STOP 0 0 0 0 1.6 0 2.6 0 3.3 0 3.2 0

PLAY 0 0 3.3 0 1.6 0 2.6 2.5 0 0 3.2 0

IC6303

IC6251 IC6301

IC6302

IC6551

IC6201

IC6302

IC6201

IC6501

IC6302

IC6201

IC7001

QR5201 QR5231 QR6301

Q3081 Q3082 Q3083 Q3084 Q5201

QR2001

IC7001

DVD-RV60

14.3. MOTHER P.C.B.

Ref No.

MODE 123456789

STOP 7.4 0.2 0 0.2 9.0 9.0 0 0 0

PLAY 7.4 2.8 0 2.8 9.0 9.0 0 0 0

Ref No.

MODE 1234567891011121314151617181920

STOP 3.2 0.7 1.0 0 0 4.9 0.7 0 0.7 0 0.9 0 0.1 0.1 1.3 0.9 4.9 0.9 0 1.5

PLAY 3.2 0.9 1.2 0 0 4.9 0.7 0 0.7 0 0 0 0.1 0.1 1.3 0.9 4.9 0.9 0 1.8

Ref No.

MODE 21 22 23 24

STOP 1.5 4.9 0 0.4

PLAY 1.9 0 0.4 0.4

Ref No.

MODE 12345678 12345678

STOP 0 0 0 -8.1 0 0 0 8.1 0 0 0 -8.1 0 0 0 8.1

PLAY 0 0 0 -8.1 0 0 0 8.1 0 0 0 -8.1 0 0 0 8.1

Ref No.

MODE 1 2 3 1 2 3 1 2 3

STOP 1.7 5.1 0 8.1 0 10.1 0 -10.2 -8.1

PLAY 1.7 5.1 0 8.1 0 10.1 0 -10.2 -8.1

Ref No.

MODE 1234567891011121314151617181920

STOP 1.5 3.8 4.3 5.1 5.1 5.1 0 5.1 2.4 2.5 0 0 5.1 0 0 5.1 5.1 5.1 1.9 1.9

PLAY 1.5 3.8 4.3 5.1 0 5.1 0 5.1 2.4 2.5 0 0 5.1 0 0 5.1 5.1 5.1 1.2 1.2

Ref No.

MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

STOP 1.8 1.9 1.8 5.1 0 5.1 5.1 000005.12.01.91.31.41.05.10

PLAY 1.2 1.3 1.3 5.1 0 5.1 5.1 000005.10.70.70.70.70.75.10

Ref No.

MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

STOP 1.0 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 2.8 4.9 -25.0 -25.0 -25.0 -24.9 -24.9 -24.9 -24.9 -24.9 -24.9

PLAY 0.8 0.3 0.1 0.1 0.1 0.1 0.1 0.1 0.1 -4.8 4.9 -25.1 -25.1 -25.1 -24.9 -24.9 -24.9 -24.9 -24.9 -24.9

Ref No.

MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

STOP -24.9 -24.9 -24.9 -24.9 -15.5 -24.6 -24.6 -24.6 -20.0 -20.0 -20.0 -20.1 -22.5 -20.3 -24.9 -24.9 -24.9 -22.5 -15.5 3.8

PLAY -24.9 -24.9 -24.9 -24.9 -8.6 -22.4 -20.0 -24.7 -8.7 -8.6 -20.2 -20.2 -9.0 -13.6 -24.9 -24.9 -24.9 -18.1 -11.2 3.7

Ref No.

MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

STOP 3.7 3.8 3.8 4.1 3.8 4.4 4.4 4.4 4.5 4.1 4.6 4.6 4.2 4.4 4.5 4.5 4.5 4.4 4.4 -27.1

PLAY 0 0 3.6 3.9 0 0 0 4.2 4.2 0 4.4 4.5 0 4.3 0 4.3 4.3 4.3 4.3 -27.3

Ref No.

MODE 1234 123 12345 12345

STOP 0 0 5.1 5.1 5.1 0 5.1 2.8 2.8 0 4.3 5.1 2.5 2.5 0 3.9 5.1

PLAY 0 0 5.1 5.1 5.1 0 5.1 2.8 2.8 0 4.3 5.1 2.5 2.5 0 3.8 5.1

Ref No.

MODE E C B E C B E C B E C B E C B

STOP 0.6 4.9 1.2 0 0 0.7 0 0 0.7 0 0 -4.8 0 0 0.7

PLAY 0.7 4.9 1.4 0 0 -4.8 0 0 -4.8 0 0 -4.8 0 0 -4.8

Ref No.

MODE E C B

STOP -20.2 -20.1 -19.4

PLAY -20.1 -20.1 -19.4

Ref No.

MODE E C B E C B E C B E C B E C B

STOP 0 5.0 0 0 -4.8 0 0 2.9 0.2 2.9 2.8 0 2.9 2.8 0

PLAY 0 5.0 0 0 -4.8 0 0 0.1 3.8 0.1 -4.8 0 0 -4.8 0

Ref No.

MODE E C B

STOP 5.1 -2.1 5.1

PLAY 5.1 -2.0 5.1

QR6009

Q4531

Q6009

QR3521 QR4521 QR4593 QR4594 QR4596

Q3501 Q4501 Q4511 Q4521

IC6001

IC6002 IC6003 IC6004 IC6005

IC4781 IC4902

IC6001

IC4911

IC2591

IC3511

IC4321 IC4471

DVD-RV60

15.1. OVERALL BLOCK DIAGRAM

15 BLOCK DIAGRAM

MOTHER P.C.B.

MECHANISM UNIT

MODULE P.C.B.

MODEL ONLY

AUDIO 5.1CH

MODEL ONLY

V-COMP

ONLY

VIDEO DAC MODEL

PAL MODEL ONLY

IC2591

DRIVE

MOTOR

CNT

27MHz

AUDIO DIGITAL OUT

IC3201

IC3071

IC3061

IC6001

IC2511

IC2501

CR(R)

CB(B)

Y(G)

S-VIDEO OUT

VIDEO OUT

IC3531

IC4211

IC4201

MIXR

MIXL

CONVERTER

D/A

VIDEO

DRIVER

VIDEO

CONVERTER

D/A

AUDIO

5.1CH

CONVERTER

D/A

AUDIO

IC3001IC7001IC2001IC5201

(AV DEC)

DECODER

SRAM

16MBIT

(ODC)

CONTROLLER

DISC

OPTICAL

SRAM

16MBIT

COIL

TRACKING

COIL

FOCUS

CPU

SUB

KEY

REMOCON

LED

OSD

(DSC)

CONTROLLER

SERVO

DIGITAL

IC6302

IC6201

CPU

MAIN

ROM

FLASH

16.9MHz

DRIVE

MOTOR

4ch

MOTOR

STEPPING

DRIVE

MOTOR

SPINDLE

MOTOR

SPINDLE

(FEP)

PROCESSOR

END

FRONT

UNIT

PICK UP

OPTICAL

15.2. SERVO BLOCK DIAGRAM

(LOADING MOTOR DRIVE)

IC2591

TRAY CLOSE

TRAY OPEN

TRAY SET2

TRAY SET1

(OPERATION MICON)

IC6001

RFENV

100

(0.5sec./DIV.)

CLOSE 2.5Vp-p

IC2591-2(UP),IC2591-4(DOWN)

5.0Vp-p(20usec./div.)

IC2501-12

7.2Vp-p(20usec./div.)

IC2511-11,12,13,14

(0.5sec./DIV.)

OPEN 2.5Vp-p

IC2591-2(UP),IC2591-4(DOWN)

RF SIGNAL

SPINDLE MOTOR DRIVE SIGNAL STEPPING MOTOR DRIVE SIGNAL

TRACKING ERROR SIGNAL

FOCUS ERROR SIGNAL

BRK

FIN

RIN

ECR

OPIN2-

OPIN1-

OPIN3-

OPIN4-

BRK

ECR

TRV-SW

FOCUS DRIVE

TRAKING DRIVE

TRSDRV-B

TRSDRV-A

OFTR

BDO

FBAL

TBAL

VIN4

VIN3

VIN2

VIN1

VIN8

VIN7

STNBY

STD1

SCK

SEN

DAT3

DAT2

DAT1

DAT0

SBI1

SBO1

SBT1

CPUIRQ

CPCEN

CPSEN

OUT2

OUT1

H1+

H1-

H2+

H2-

H3+

H3-

VO2-

VO2+

VO1-

VO1+

VO4+

VO4-

VO3+

VO3-

OPTICAL PICK UP UNIT

PHOTO DETECTOR

B3B4

B2B1

LASER DIODE

AMP

HEAD

Q5201

LD DRIVE

IC6303

(EEPROM)

112

113

114

115

IC6201

(CPU)

IC7001

(ODC)

INTERFACE

BALANCE

FOCUS

BALANCE

TRACKING

(FEP)

IC5201

(DSC)

IC2001

(MOTOR DRIVE)

(SPINDLE MOTOR DRIVE)

IC2501

IC2511

M2601

LOAD M-

LOAD M+

MOTOR

S2601

TRAY OPEN

TRAY CLOSE

H1-

HALL1

H1+

H2-

H2+

HALL2

H3+

H3-

TRV-SW

HALL3

TRAVERSE SWITCH

ACT T-

ACT T+

ACT F-

ACT F+

STEPPING MOTOR UNIT

STEPPING MOTOR

LOADING MOTOR UNIT

SPINDLE MOTOR UNIT

OPTICAL PICK UP UNIT

ACTUATOR

COIL

TRACKING

COIL

FOCUS

15.3. VIDEO BLOCK DIAGRAM

MOTHER P.C.B.MODULE P.C.B.

V-COMP MODEL ONLY

(VIDEO AMP)

IC3581

OUTC

OUTB

INB

INC

OUTA

INA

QR3521

IC6201-31PIN

FROM

WIDE1

Q3513

AMP

VIDEO DAC MODEL ONLY

VCOUT

VGOUT

VBOUT

VYOUT

135

130

125

140

0.64Vp-p(20usec./div.)

IC3001-130

0.68Vp-p(20usec./div.)

IC3001-135

0.8Vp-p(20usec/div)

IC3001-125

1.2Vp-p(20usec/div)

IC3001-140

VIDEO SIGNAL

Q3503

AMP

QR6301

1.2Vp-p(20usec./div.)

IC3201-36

2.2Vp-p(20usec./div.)

IC3531-19

2.2Vp-p(20usec./div.)

IC3531-16

1.5Vp-p(20usec./div.)

IC3201-37

1.2Vp-p(20usec./div.)

IC3531-14

0.64Vp-p(20usec./div.)

IC3201-44

0.68Vp-p(20usec./div.)

IC3201-41

6.0Vp-p(20usec./div.)

IC3001-148~155

(AV DECORDER)

IC3001

XRST

IC6201-79PIN

FROM

NRST

XRESET

Q3225

AMP

Q3221

FL3501

B.P.F.

L.P.F.

FL3511

Q3501

AMP

Q3511

Q3502

AMP

Q3512

VR3511

VR3501

C ADJ.

Y ADJ.

VIDEO OUT

(VIDEO DRIVER)

IC3531

COUT

VOUT

YOUT

VD7

VD0

155

154

153

152

151

150

149

148

(VIDEO D/A CONVERTER)

IC3201

IC6201-10PIN

FROM

SDATA

IC6201-9PIN

FROM

SCLOCK

SDATA

SCLOCK

CB/B ADJ

VR3201

CR/R

CB/B

Y/G

DAC-C

DAC-B

DAC-A

DAC-F

DAC-E

AMP

Q3231

AMP

Q3235

FL3561

AMP

Q3571

AMP

Q3561

S-VIDEO OUT

15.4. AUDIO BLOCK DIAGRAM

AMP

114

115

117

IC3091

DVD-H

IC6201-48

FROM

DMIX

111

5.1ch MODEL ONLY

110

AUDIO SIGNAL

Rch OUT

Lch OUT

A MUT

IC6201-53PIN

FROM

IC4301

NRST

IC6201-79PIN

FROM

SBO1

IC6201-72PIN

FROM

SBT1

IC6201-70PIN

FROM

MIXR

STBDAC

MIXL

IC6201-57PIN

FROM

(AUDIO D/A CONVERTER)

IC4201

28272622

IC4362

0.7Vp-p(0.5msec./div.)

0.6Vp-p(0.5msec./div.)

IC4211-13,14

6.4Vp-p(10usec./div.)

IC3001-117

T4761

IC4781

OPTICAL

DIGITAL AUDIO OUT

COAXIAL

DIGITAL AUDIO OUT

JK4771

IC4751

IC4752

IEC OUT

SW OUT

CNT OUT

SR OUT

SL OUT

FR OUT

FL OUT

IC6201-53PIN

FROM

A MUT

IC6201-53PIN

FROM

IC6201-53PIN

FROM

A MUT

IC4321

IC4361

IC4341

IC4321

NRST

IC6201-79PIN

FROM

SBO1

IC6201-72PIN

FROM

SBT1

IC6201-70PIN

FROM

STBDAC

CNT

IC6201-57PIN

FROM

36353437

AOUT2

119

1246

(5.1CH AUDIO D/A CONVERTER)

IC4211

AOUT1

118

LRCK

SRCK

IC3001

AOUT0

16 SCHEMATIC DIAGRAM

16.1. INTERCONNECTION SCHEMATIC DIAGRAM

16.2. POWER SUPPLY SCHEMATIC DIAGRAM

16.3. ADSC SECTION (MODULE P.C.B. (1/7)) SCHEMATIC DIAGRAM

ADSC SECTION : Page 41, AVDEC SECTION : Page 42, VD SECTION : Page 43

AD SECTION : Page 44, FEP SECTION : Page 45, CPU SECTION : Page 46, ODC SECTION : Page 47

16.4. AV DECORDER SECTION (MODULE P.C.B. (2/7)) SCHEMATIC DIAGRAM

ADSC SECTION : Page 41, AVDEC SECTION : Page 42, VD SECTION : Page 43

AD SECTION : Page 44, FEP SECTION : Page 45, CPU SECTION : Page 46, ODC SECTION : Page 47

16.5. VIDEO D/A CONVERTER SECTION (MODULE P.C.B. (3/7)) SCHEMATIC DIAGRAM

ADSC SECTION : Page 41, AVDEC SECTION : Page 42, VD SECTION : Page 43

AD SECTION : Page 44, FEP SECTION : Page 45, CPU SECTION : Page 46, ODC SECTION : Page 47

16.6. AUDIO SECTION (MODULE P.C.B. (4/7)) SCHEMATIC DIAGRAM

ADSC SECTION : Page 41, AVDEC SECTION : Page 42, VD SECTION : Page 43

AD SECTION : Page 44, FEP SECTION : Page 45, CPU SECTION : Page 46, ODC SECTION : Page 47

16.7. FEP SECTION (MODULE P.C.B. (5/7)) SCHEMATIC DIAGRAM

ADSC SECTION : Page 41, AVDEC SECTION : Page 42, VD SECTION : Page 43

AD SECTION : Page 44, FEP SECTION : Page 45, CPU SECTION : Page 46, ODC SECTION : Page 47

16.8. CPU SECTION (MODULE P.C.B. (6/7)) SCHEMATIC DIAGRAM

ADSC SECTION : Page 41, AVDEC SECTION : Page 42, VD SECTION : Page 43

AD SECTION : Page 44, FEP SECTION : Page 45, CPU SECTION : Page 46, ODC SECTION : Page 47

16.9. ODC SECTION (MODULE P.C.B. (7/7)) SCHEMATIC DIAGRAM

ADSC SECTION : Page 41, AVDEC SECTION : Page 42, VD SECTION : Page 43

AD SECTION : Page 44, FEP SECTION : Page 45, CPU SECTION : Page 46, ODC SECTION : Page 47

16.10. VIDEO OUT SECTION (MOTHER P.C.B. (1/3)) SCHEMATIC DIAGRAM

VO SECTION : Page 48, AO SECTION : Page 49, OP SECTION : Page 50

16.11. AUDIO OUT SECTION (MOTHER P.C.B. (2/3)) SCHEMATIC DIAGRAM

VO SECTION : Page 48, AO SECTION : Page 49, OP SECTION : Page 50

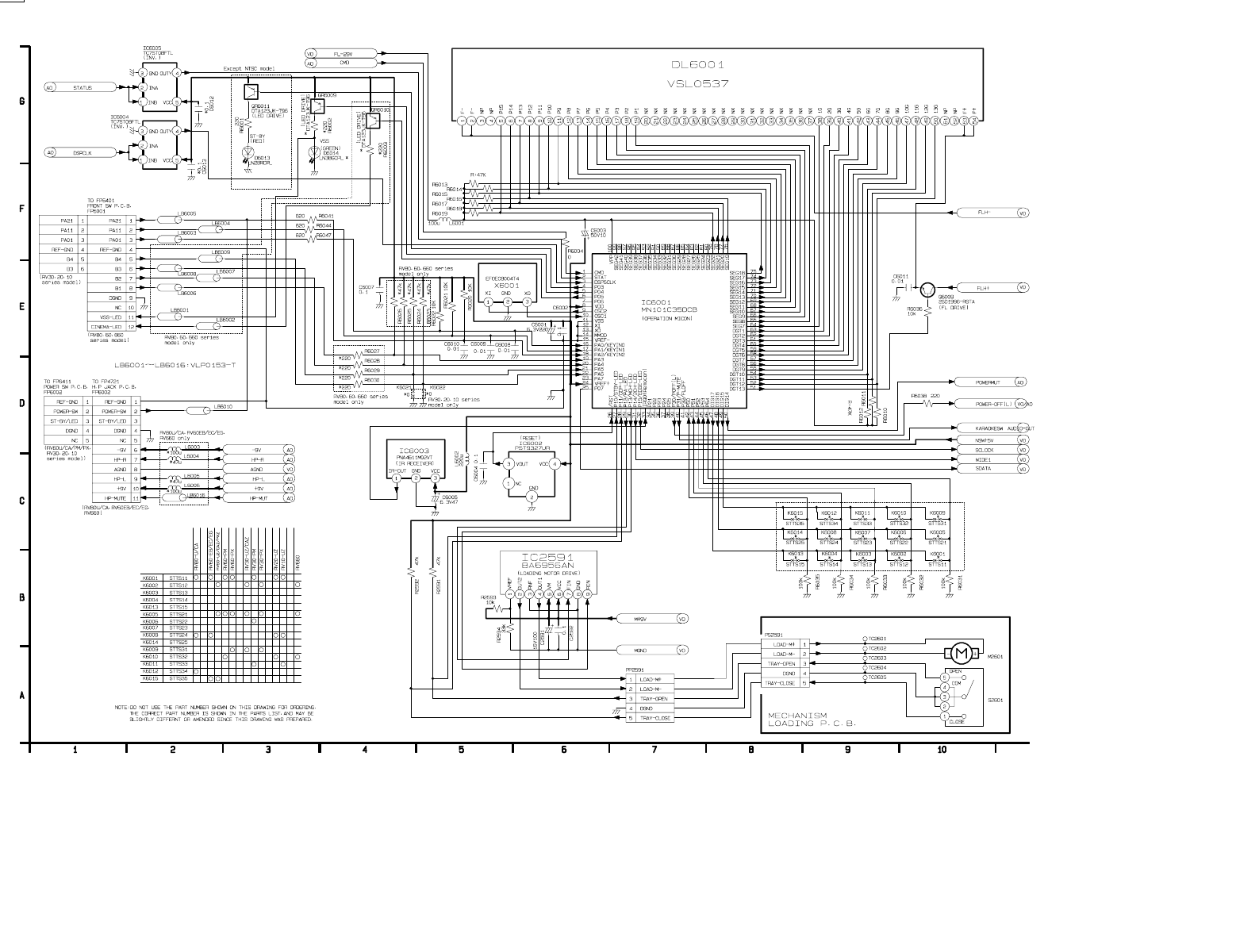

16.12. OPERATION SECTION (MOTHER P.C.B. (3/3)) SCHEMATIC DIAGRAM

VO SECTION : Page 48, AO SECTION : Page 49, OP SECTION : Page 50

16.13. FRONT SWITCH AND POWER SWITCH SCHEMATIC DIAGRAM

17 PRINTED CIRCUIT BOARD DIAGRAM

17.1. POWER SUPPLY P.C.B.

D1011

C1002

C1004

C1003

L1002

C1001

L1001

K1003

W101

W201

HOT

C1013

R1044

R1041

R1042

R1045

R1061

R1062

R1051

R1064

R1063

R1021

R1043

R1013

R1031

R1002

LB1021

LB1022

D1061

D1022

D1041

D1052

D1062

D1051

C1061

C1051

R1022

R1023

W002

D1031

LB1031

C1032

C1005

C1031

W154

C1041

C1062

7531

642

Q1051

IC1021

D1042

W003

W001

D1002

F1001

D1131

D1141

C1131

C1141

C1114

C1133

C1143

C1116

C1112

L1141

L1131

C1115

R1112

R1114

R1127

R1126

R1125

R1113

R1111

Q1111

QR1111

W105

W152

W004

W051

W005

K1172

W101

W153

W251

W301 W302

D1126

L1112

PR1161

PR1171 D1171

C1171

C1161

D1161

R1104

R1102 R1101

R1106

R1105

RAK

IC1101

D1162

18 15 10 51

PS1101

C1154 C1121

C1117

R1181

R1161

W052

L1151

L1111

C1153

C1151

C1111

D1111

D1151

D1152

D1112

W104

W103

531

IC1151

T1021

SIB

SIA

C1101

531

IC1125

W202

P1001

COLD

3 524 6

THE STRIPED FRAME INDICATES THE PRIMARY CIRCUIT TO DISTINGUISH

THE PRIMARY FROM THE SECONDARY CIRCUIT.

PAY ATTENTION NOT TO RECEIVE AN ELECTRIC SHOCK DURING REPAIR

AND SERVICE OF THE PRODUCTS.

CAUTION

POWER SUPPLY P.C.B.

Transistors

POWER SUPPLY P.C.B.

Q1051 E-2

Q1111 D-6

QR1111 D-7

IC1021 D-1

IC1101 E-3

IC1125 D-5

IC1151 E-4

B-6

PS1101 F-6

Integrated Circuits

P1001

Transistor-resistors

Connectors

ADDRESS INFORMATION

17.2. MODULE P.C.B. (1/2) (COMPONENT SIDE)

C6255

C6257

C6251

C3254

C6252

C3500

K6251

LB3201

LB3204

LB3203

LB3202

NJ3201

L3251

C3257

C3256

C3262

C6259

C3091

RA3005

R3004

RA2501

C3003C3002

C3001C2502

C2515

C3041

C3043

C3042

C3261

C2505

IC3091

C2501

C2500

116

64 17

IC3201

R2521

R2520R2519

C2509

C2508

C2521

C2506

C2507

R2505

R2501

L2501

CP2501

C3064

C7018C7019

C3020

C3021

C3022

C3023

C3063

C7002

C3062

C3030

C3029

C3033 C3034

C3004

C3065 C3066

C3074

X6501

PS6201

R3043

R3207

C3061

RA3004

C3054

C3053

C3055

C3039

C3056

C3057

C3038

R3055

R3047

R3046

R3044

R3057

R3041

R3053

R3042

R3051

R3045 VR3201

C3036

C3035

C3051

C3052

C3005 C3006

C3071 C3008 C3072 C3073

IC3061

C6502

R6504

R6503

LB6501

LB6504

LB6506

C6511

C6501

C6517

K6504

C6516

110

C4215

IC3071

K6521

LB4011 FL4001

L6501

LB4009

LB4010LB4012

LB4015

LB4008

LB4004

LB4003

LB4002

LB4007

LB4005

LB4006

C4210

C4221

C4201

C6208

C7026C7025

R7002

R6212

L7002

RA7003

C4209

C7001

C4212

C4218

QR4211

C4217

C7011C7012C7013 TL6201

TL6204

TL6202

TL6203

TL6207

TL6209

TL6208

TL6206

TL6205

TL6210

TL2004

TL2001

TL5208

TL5202

TL5205

CP6215

LB2514

LA2502 LA2501

C2007 L2002

C2004

C2003

L7001

C2042

C7020

C7017

CP7008CP7009

C7015 R7001

72 109

76 50

100 26

125

144

73 108

C2041

C2034

C2038

C7021 C7022

C6203

C6204

C7023

C7024

C6207

R6301

C6302

RA6206

RA6205 RA6204

C2005

R5211CP5202

33 16

32 17

1357911

FP5201

1315171921

2468101214161820

231

CP5201

CP7019 CP7021

CP7036

CP7034

CP7032

CP7037

CP7035

CP7033 CP6221

CP6218

CP6214

CP6210

R6208

CP6217

CP6219

CP6220

CP6222

CP6223

CP7029

CP7028

CP7030

CP6209

CP6207

CP6206

CP6201

CP6202

CP6203

CP6226

CP6208

CP7031

CP5203

R5214

LB5201

R5203

R5202

R5201

R5207

CP5205

R2012

R2033

RA5201

RA2001

LB5202

C5213

C5216

C5217

C5220

C5221

C5222

C5223

R2025

R2032 R2027

R2026

R2021

LB2513

LB2515

LB2516 LB2512

LB2511

LB2510

LB2509

L2003

C2051

L5202

C5204

IC5201

L5201

EQR5201

Q5201

C5242

C5226

LB5218

LB5216

LB5209

LB5214

LB5213

LB5206

LB5208

LB5207

LB5204

C5227

C5202

C5241 C6305

L6201

K6301

R2010

R2013

C2020

R5208

R5210

R2018

R5209

C2025

C2045

C2024

C2023

C2017

C2001

C2019

C2018

C6201

C2028

R2014

R2011

R2005

R2009

R2008

R5204

C5203

C5201

C2016

C2015

C2014

C2013

C2012

C2002

C5211

CP7010

CP7011

CP7012

CP7013

CP7015

CP7016

CP7017

CP7018

CP7023

CP7024

CP7022

CP7020

IC7001

QR6301

RA6202

IC6201

35792468

MODULE P.C.B. (1/2)

(CONPONENT SIDE)

R3202

W3001

K3202

K3203

K4201

C4214

17.3. MODULE P.C.B. (2/2) (FOIL SIDE)

C2035

C2037

C2036

C2026

C5205 C5219

C5218

C5224

C5225

C2039

TC5244 TC5248

FP2501

TC5240

TC5245 TC5249TC5241

TC5246 TC5250TC5242

TC5247 TC5251TC5243

TC2001

C2513

C2517

C2514

C2523

C3031

C3032

C3028

C2033

C2040

R2020

R2022

R2019

R2024

R2029

R2031

R2017

R2001

R2002

R2006

R2004

R2007

R2003

R2028

R2030

R3005

R2511

K3012

R3058

R3056

R3054

RA3008

RA3201

R3052

R2034

R2023

R5213

R5215

R5216

C2044

C3026

C3025

C3027

C3024

C2032

C2029

C5232

C6304

C5234

C5212

LB5210

C2006

C2043

QR2001

100

125

IC2001

208

157

104

156

105

IC3001

TC2013

TC2012

TC2017

TC2007

TC5220

TP5208

TP5207

TC2011

TC2014

C2021

C2022

C2030

K2002

C2031

C5214

C5215

R5212

R5217

R5206

TC5231

TC5232

TC5255

TC5254

TC5253

TC5252

CP2002

CP3002

CP3004

CP3006

CP3001

CP3003

CP3005

CP3007

CP3011

CP3012

CP3008

CP3009

CP3010

K5241

LB5215

LB5217

LB5205

C5233

LB5211 LB5212

C2048

C2047

C2046

L2001

CP7027

CP7025

CP7038

CP7040 CP7039

CP7001

CP7003

CP7002

CP7004

CP7007

CP7005

CP7006

CP7026

TC5201

K5231

TC5230

TC2002 TC2016

TC2019 TC2004

TC2018 TC2006

TC5202

TC5203

TC5205

TC5207

TC5209

TC5211

TC5213

TC5214

TC5216

TC5218

TC5204

TC5206

TC5208

TC5210

TC5212 TC5215

TC5217

TC5219

LB5203

QR5231

IC6302

CP6301

CP6204

CP6225

CP6224

CP6205

LB6201

CP6211

CP6213 CP6228

CP6227

CP6212

481

2524

RA6201

R6209

R6302

R6502

R3006

RA6203

C6202

R6201

R6210 R6211

R6303

R4201

R4202

TP6210

TP6205

TP6206

TP6208

TP6209

TP6207

TP6202

TP6204

TP6201

TC4001 TC4002

TC4003

TC4004

TC4014

TC4013 TC4012

TP6501

TC4006 TC4005 TC4007

TC4008

TC4015

TC4010

TC4009 TC4011

TC6201

TP6203

TC6311

C6206 C6303

C4205

C4223

C4213

C6551

C6515

RA3003

K6531

C3015

C6505

C6514

C6503

C3012

C3011

C3010

C6301

D6301

C4208

C4207 C4203

C4202

R4211

C4216

C4224

C4206

LB4001

C4225

C7027

C7014 C7015

C3016

C3017

C3019

123

36 1

26 14

1 13

37 48

28 1

IC6303

IC4201 IC4211 IC6551

PS4201

IC6501

IC6301

C4219

C4204

C4211

L4212

RA7001 RA7002

LB4014

LB6551

LB6502

LB6505

LB4013

C6553

C6504

LB6503

LB6507

L6502

K6502

K3011

K6503

C6512 C6513

C6506

C3014

C3048

C3013

C3076

C3009 C3007

CP6504

CP6502

CP6501

CP6503

CP6507

R3071 C3075

117

RA3205

RA3203RA3204

RA3202

C3037

C3211 C3204 C3205

C3263

C3044

C3264

C3045

C3044

C3047

C3046

K3013

RA3006 RA3007

TC3205 TC3204

TC3207

22 12

111

TC3206 TC3201

PS3201

TP6257

TP6258

TP6255

TP6256

TP6254

TP6253

TP6259

FL6253

FL6251

FL6254

FL6255

TC3203

TC3202 TP6252

TP6251

C3021

C3203

C3206

C3209

C3258

C2301

C3225

C3207

C3252

C2524

TC2507

C3253

C6254

C6253

C6258

C3251

C3202

K3221

C3212

C3213

C3208

C3225

C3231

C3235

C3241

C3255

R3223

R3201

R3203

R3221

R3222

R3225

R3226

R3231

R3204

R3206

R3205

R3232

R3235

R3236

R3241

R3242

R3227

R3233

R3237

R3243

Q3221 Q3225 Q3231 Q3235 Q3241

IC3251

K3225

K3226

K3227

K3231

K3235

K3001

K3002

K3003

K3004

123

654

IC6251

D6251

C6252

D3251

R2514

R2512

R2513

R2515

R2516

R2518

R2517

R2502

C2518

R2522

C2516

128

14 15 28

IC2511 IC2501

R2503

C2522

C2503 C2504

3 5 792468

MODULE P.C.B. (2/2)

(FOIL SIDE)

R3001

R3003

K3014

LB3001

LB3205

LB3207 LB3206

K3201

17.4. MODULE P.C.B. AND MOTHER P.C.B. ADDRESS INFORMATION

Transistors

Q3501 C-3

Q3502 C-3

Q3503 C-2

Q3511 B-3

Q3512 B-3

Q3531 B-2

Q3551 C-3

Q3561 B-2

Q3571 B-2

Q4381 F-3

Q4501 D-1

Q4502 E-2

Q4511 D-1

Q4512 E-2

Q4531 E-1

Q4541 E-1

Q4551 E-1

Q4561 E-1

Q4571 F-1

Q4593 B-4

Q4901 F-5

Q4911 F-4

Q4912 F-4

Q4913 F-5

Q4921 E-4

Q4931 F-4

Q5421 E-1

Q6009 A-4

Transistor-resistors

QR3521 B-1

QR4381 F-3

QR4521 C-4

QR4594 B-4

QR4596 C-4

QR6009 B-5

QR6010 B-5

QR6011 B-5

Integrated Circuits

IC2591 A-6

IC3531 C-2

IC3581 A-2

IC4301 E-3

IC4321 E-3

IC4341 F-3

IC4361 F-3

IC4362 F-2

IC4471 F-2

IC4701 D-2

IC4751 F-1

IC4752 F-2

IC4781 F-1

IC4901 F-5

IC6001 C-6

IC6002 C-5

IC6003 A-6

IC6004 B-6

IC6005 B-6

Adjastments

VR3501 B-2

VR3511 B-2

Connectors

FP6001 E-6

FP6002 A-5

PP1101 A-1

PP2591 A-6

PP3201 A-3

PP3801 B-1

PP4201 C-3

JK3541 C-1

JK3591 A-1

JK4501 D-1

JK4502 E-1

JK4771 F-1

ADDRESS INFORMATION

... COMPONENT SIDE

... FOIL SIDE

ADDRESS INFORMATION

Transistors

Q3221 E-7 F

Q3225 E-8 F

Q3231 E-8 F

Q3235 E-8 F

Q3241 E-8 F

Q5201 A-7 C

Transistor-resistors

QR2001 C-4 F

QR4211 E-8 C

QR5201 B-7 C

QR5231 A-3 F

QR6301 D-8 C

Integrated Circuits

IC2001 C-4 F

IC2501 C-9 F

IC2511 C-8 F

IC3001 E-5 F

IC3061 E-5 C

IC3071 F-5 C

IC3081 E-4 C

IC3091 F-4 C

IC3201 D-3 C

IC3251 D-8 F

IC4201 E-2 F

IC4211 E-3 F

IC5201 B-6 C

IC6201 C-8 C

IC6251 E-9 F

IC6301 D-2 F

IC6302 D-2 F

IC6303 D-2 F

IC6501 E-4 F

IC6551 E-3 F

IC7001 D-7 C

Test Points

TP5207 C-3 F

TP5208 B-3 F

TP6201 E-1 F

TP6202 D-1 F

TP6203 D-1 F

TP6204 D-1 F

TP6205 C-1 F

TP6206 D-1 F

TP6207 D-1 F

TP6208 D-1 F

TP6209 D-1 F

TP6210 C-1 F

TP6251 F-8 F

TP6252 F-8 F

TP6253 F-9 F

TP6254 E-8 F

TP6255 E-8 F

TP6256 E-8 F

TP6257 E-8 F

TP6258 E-8 F

TP6259 F-9 F

TP6501 E-4 F

Adjustments

VR3201 E-4 C

Connectors

FP2501 C-5 F

FP5201 A-6 F

PS3201 F-8 F

PS4201 F-3 F

PS6201 E-7 C

MODULE P.C.B. MOTHER P.C.B.

17.5. MOTHER P.C.B.

C4781

L4781

C4782

LB4571

C4584

C4581

W236

R4367

R4473

R4377

C4561C4551

R4571

R4562

IC4781

IC4751

W807

C4772

R4771

LB4771

LB4772

C4774 C4771

C4773

K4753

IC4752

K4751

C4763

C4761

C4571

R4552

JK4771

R4761

R4378

R4752

R4573

T4761

LB4561

W517

LB4551

C4541C4531C4521C4511

W023

C4582

LB4541

LB4531

LB4521

W512

LB4511

R4477

R4476

R4475 R4376

Q4571

Q4561Q4551Q4541Q4531

Q4521

IC4701

Q4512

Q4511

Q4501

32 65

C4585

JK4502

R4541

R4542

R4525

R4531R4523 R4543

R4521R4522

R4553

R4532

R4533

W513

95623

JK4501

C4501

R3546

R4513

R3545

R3526

C3542

C3539

C3537 C3540

C4702

R3543

R3544

R3541

C3541

LB4501

LB3546

LB3545

LB3543

LB3544

L4301

C4317

R4512

R4503

W227

C4319

R4511

R4501

R3533

R3534

R3532

R3531

C3536

C3535

R4514

R4515

R4505

R4331

C4332

R4333

R4332

R4504

W026

C4701

W029

R4502

W724

W016

W222

W421

W024

W511

W319

W017

W320

W318

W228

W425

R4317

R4307 R4472

W028

C4318

C3544

W333

W031

C4314

W474

C4305

W231

Q4502

C4315

C4325

C4335

C4345

C4355

C4365

C4376 C4902

C4764

W343

W515

W516

W514

W335

W030

C4312

C4307

C4323

C4322

W027

R4314

R4311

R4303

R4302

R4304

R4323

R4324 R4322

R4321

R4312

R4313

R4471

R4334

R4327

R4551

R4563

R4337

W235

R4347 R4357

R4561

W334

W046

W733

W339

W810

W338

W040

W241

W239

W238

W337

W038

L4761 W336

C4752

C4753

C4368

C4375

C4369

C4366

C4381

R4374

R4371

C4374

C4373

R4372

R4373

R4375C4372

R4341

C4341

C4367

C4363

R4363

R4362

R4361

R4352

R4343

R4344

R4342

R4351

R4353

R4354 R4364

R4383

R4382

C4362

C4476

W809

C4473

W743

C4475

C4913

C4352

C4353

C4347 C4343

C4342

C4346

C4472

C4471

IC4362

IC4361

IC4341

IC4321

IC4301

IC4471

W808

W037

W237

W518

W047

W426

W742

W519

C4308

C4309

R4381

SGD

Q4381

QR4381

C4361

C4371

W341

C4351

C4311

W039

C4316

C4304

C4310

C4306

W806

W036

W233

W232

W230

C4313

C4333

C4303

K4331

W340

W737

W734

W240

C4321

W735

K4301

W736

W601

C4331

C4301

C4302

R4301

W727

W229

DGS

Q4931

C4934

C4932

C4924

R4931

C4933

D4931

R4932

C4931

W342

W243

W242

W244

W245

LB6009

LB6005

LB6004

LB6003

LB6008

LB6007

LB6006

LB6002 LB6001

W032

W034

W035

K4903

C4923

R4922

R4921

D4921

W501

C4912

R4912

R4903

K4902

C4921

DGS

Q4921

C4922

Q4911

Q4913

Q4912

R4902

R4911 R4913

R4901 D4901

Q4901

IC4901

W041

C4901

PR4911

C4911

W033

1115

210 12

FP6001

W042

W424

W328

W330

W327

W326

W325

W324

W323

W322

W321

W223

W738

W740

W329

W331

W224

W225

W234

W226

W732

W731

W730

W725

W719

W716

W720

W721

W722

W718

C4754

W717

W422

W726

W729

W728

W423

W020

R4754

W420

LB3541

89 3 4

106571

11 2

JK3541

LB3542

R3542

C3538

W419

W317

W418

W221

W417

W219

W217

W216

W310

W414

W413

W412

W215

W507

C3532

C3531

C3534 IC3531

111

2212

W801

W010

R3507

W009

W218

R3535

C3533

R3519

262014

PP4201

W805

L3501

L3551

L3581 L3531

L3532

C3501

R3527

19151051

PP3801

W002

W202

W201

W214

W702

W703

W704

W302

W304

W301

W401

W701 W001

W045

W407

W406

W405

W404

W602

W415

W427

Q3503

Q3513

QR3521

IC3581

Q3571

R3506

C3505

R3508

R3518 R3573

R3564

R3562

W802

R3563

R3516

R3511

R3513

R3515

C3513

C3512

R3512

R3554

R3514

R3521

VR3501

VR3511

C3571

C3561

C3511

C3504

C3514

C3502

C3551

C3552

C3583

C3581

C3582

C3584

LB3592

C3500

R3592

R3575

R3517

R3572

R3561

R3502

W018

C3503

R3504

R3503

R3553

R3555

R3501

R3551

R3552

R3505

R3571

R3574

R3565

LB3591

C3543

LB3593

R3591

R3593

265

JK3591

PP1101

C3586

C3585

169

W303

W203

W003

11 5

22201512

PP3201

Q3561

Q3512

Q3511

Q3501

Q3502

Q3551

6431

W416

W012

W011

W803

FL3561

C3553

R4329

R4524 W332

W307

W019

FL3511

FL3501

FL3551

W739

W520

W723

W510

W603

W506

W509

W508

W315

W314

W313

W312

W306

W305

C4592

W044

R4594

W204

W311

W505

W503

W502

W409

W715

W408

C6011

W705

W714

W713

W712

W711

W710

LB6010

LB6011

L6003

W709

W706

W708

W707

W004

R6036

W043

W006

W410

W428

W213

R6003

R6002

R6001

W005

W207

W211

W008

W220

W206

DL6001

W212

QR4594

QR4596

QR4521

IC6002

IC6001

Q4593

R4600

R4599

R4590

R6028

R6027

R6041

R6047

R6044

R6023

R6024

R6025

R6026

R6020

R6021

R6022

R6015

R6016

C6010

C3009

C6008

C6001

W014

R6014

L6001

R6013R6017

R4596

R4598

D4596

W308

W013

W205

W210

W209

W309

W208

W007

W411

R6029

W804

R6035

K6008 K6014

R6030

C6007

100

W015

K6004 K6013

K6012 K6015

K6011

K6007

K6003

K6009

W022

W021

K6005

K6001

K6010

K6006

K6002

C6004

R6038

C2592

R2594

R2591

R6019

R2592

R6004

C6005

R2593

C6013

C6012

C6002

C2591

W316

X6001

R6018

R6003

QR6010

QR6009 IC6004

QR6011

Q6009

LB6016

L6004

L6006

L6005

FP6002

15 11

102

L6002

IC2591

IC6003

PP2591

IC6005

R6034

R6033

R6032

R6010

R6031

R6011

R6012

D6013

RED

D6014

545350454038191515521

GREEN

CEGBDFH

PS2591

TC2602

M2601

S2601

TC2605

TC2604

TC2603

TC2601

MECHANISM

P.C.B.

MOTHER P.C.B.

17.6. FRONT SWITCH P.C.B. AND POWER SWITCH P.C.B.

W001

S6402 R6401

PLAY

R6403

S6401

PAUSE

R6402

S6403

STOP

S6405

FWD-

SKIP

S6409

COUNT S6404

RVS-

SKIP

S6410

DIRECTION

FP6401

S6408

D6402

CINEMA

S6406

OPEN/

S6407

VSS

S6411

POWER

CINEMA-LED

R6406

R6405

R6404

D6401

VSS-LED

W002

FP6411

FRONT SWITCH P.C.B.

POWER SWITCH

P.C.B.

3 5 792468

18 EXPLODED VIEWS

18.1. Casing Parts & Mechanism Section Exploded View

DVD-RV60

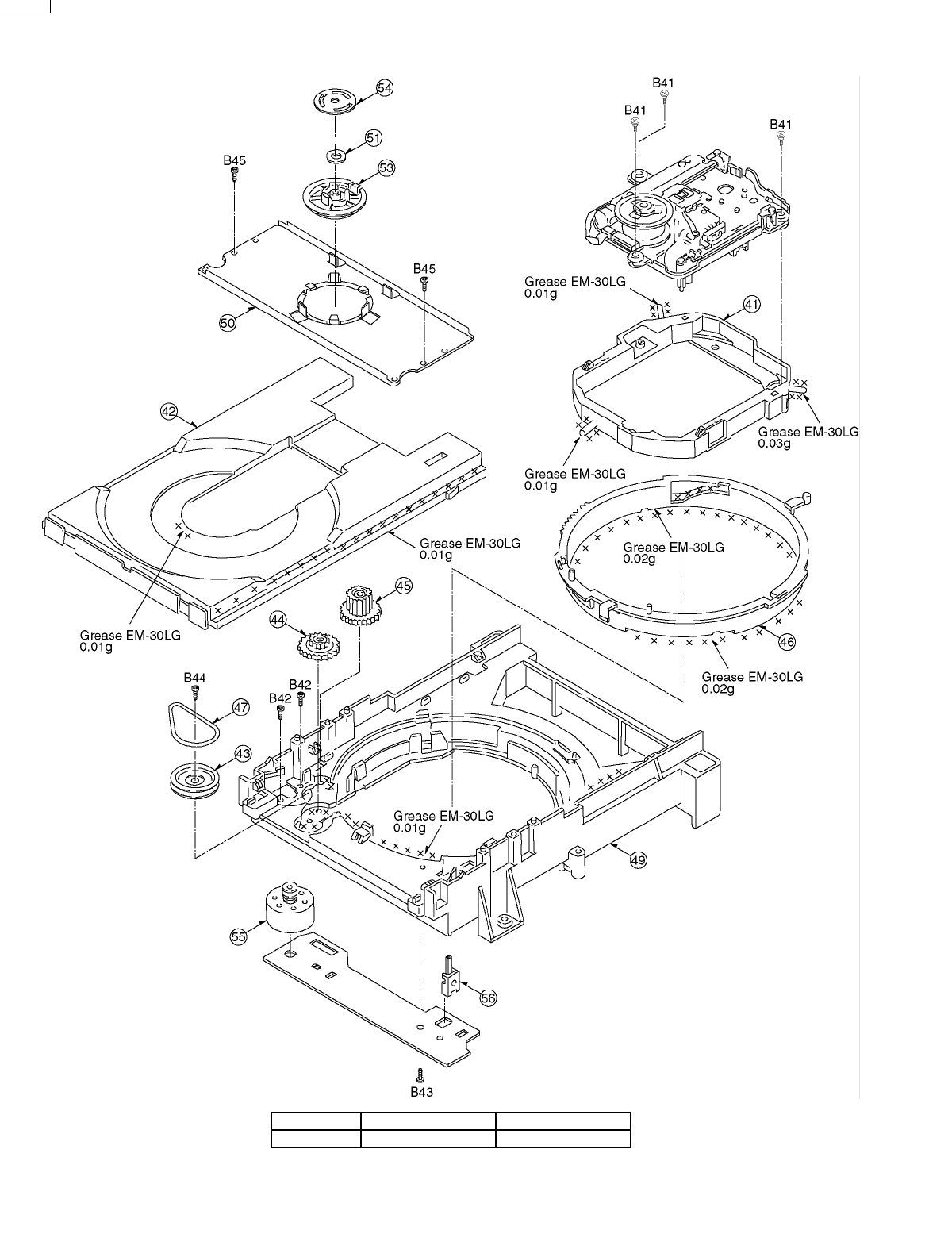

18.2. Loading Mechanism Section Exploded View

When replacing parts, lubricate the parts marked “×××” in the diagram.

Part number Service Tool

Grease JGS0091 Grease EM-30LG

DVD-RV60

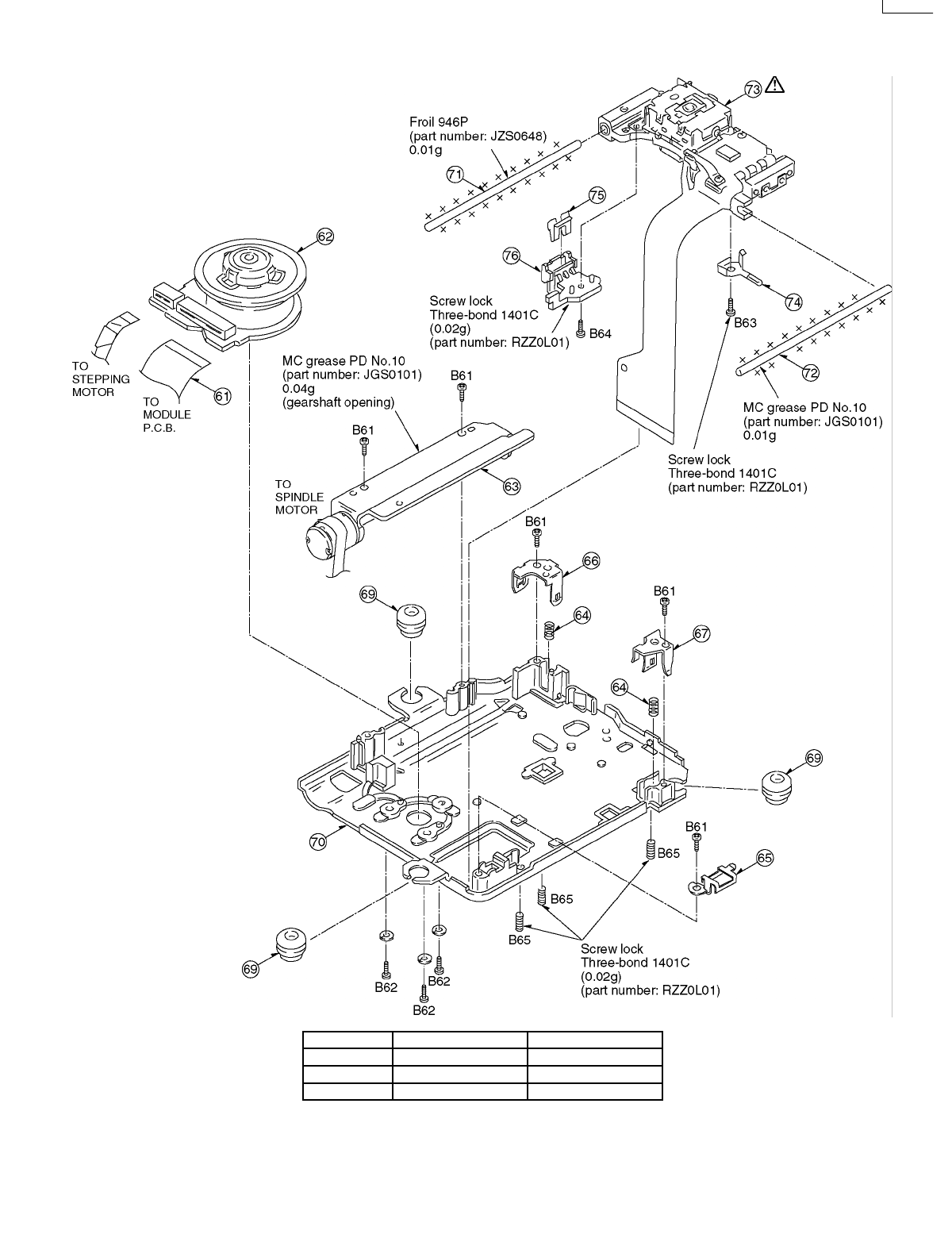

18.3. Traverse Section Exploded View

When replacing parts, lubricate the parts marked “×××” in the diagram.

Parts number Service Tool

Screw lock RZZ0L01 Three-bond 1401C

Lubricating oil JZS0648 Froil 946P

Grease JGS0101 MC grease PD No.10

DVD-RV60

18.4. Packing & Accessories Section Exploded View

DVD-RV60

19.1. Casing Parts & Mechanism

Section Parts List

Ref. No. Part No. Part Name &

Description Pcs Remarks

1 (1) VGM1696 TOP COVER 1

2 (1) VYK8895 LEG 2

3 (1) VEP91251A POWER SUPPLY

P.C.B. 1(RTL)

3-1 (1) EYF52BC FUSE HOLDER 2

4 (1) VEP99145J MOTHER P.C.B. 1(RTL)

6 (1) VMA0F67 REAR PANEL 1

7 (1) VMD3854 SPACER(L) 1

8 (1) VMD3855 SPACER(R) 1

9 (1) VYF2675 TRAY TOP 1

10 (1) VKA0039 FOOT RUBBER 2

11 (1) VEP96587A FRONT SWITCH

P.C.B. 1(RTL)

12 (1) VWJ1406 12-PIN FLEXIBLE

CABLE 1(FP6401-

FP6001)

14-* (1) VGQ5639 MASK SHEET 1

15 (1) VMD3955 SHUTTLE BASE 1

16 (1) VDK0164 SHUTTLE CAM 1

17 (1) VMB3430 SHUTTLE SPRING 1

18 (1) VGL0812 HOLDER 1

19 (1) VYQ1896 SHUTTLE KNOB 1

25 (1) VKW2802 FRONT COVER 1

26 (1) VYP7772 FRONT PANEL 1

28 (1) VEP96586C MODULE P.C.B. 1(RTL)

31 (1) VEP96588A POWER SWITCH

P.C.B. 1(RTL)

34 (1) VWJ1439 5-PIN FLEXIBLE

CABLE 1(FP6411-

FP6002)

35 (1) VMA0E29 FRONT ANGLE 1

B1 (1) VHD1094 SCREW 4

B2 (1) VHD0690 SCREW 3

B3 (1) VHD0690 SCREW 10

B4 (1) XTV3+8G SCREW 2

B5 (1) XTBS26+10J SCREW 8

B6 (1) XYE3+EF12 SCREW 2

B7 (1) XYE3+EF20 SCREW 2

B8 (1) XYE3+EF25 SCREW 4

B9 (1) XYE3+EF8 SCREW 3

B11 (1) XTV3+10G SCREW 1

19.2. Loading Mechanism Section

Parts List

Ref.No. Part No. Part Name &

Description Pcs Remarks

41 (2) VMD3270 INTERMEDIATE

CHASSIS 1

42 (2) VMD3265 TRAY 1

43 (2) VDG1308 PULLEY GEAR 1

44 (2) VDG1309 DECELERATION

GEAR 1

45 (2) VDG1310 DRIVE GEAR 1

46 (2) VDK0156 VERTICAL CAM 1

47 (2) VDV0373 BELT 1

49 (2) VMD3266 LOADING BASE 1

50 (2) VMA0E55-2 CLAMPER BASE 1

51 (2) RHM245ZA MAGNET 1

53 (2) VMD3884 CLAMPER 1

54 (2) VMA0E54 CLAMPER WEIGHT 1

55 (2) VEM0664 LOADING MOTOR

UNIT 1

56 (2) VSH0170 DOUBLE SWITCH 1

B41 (2) VHD1223 SCREW 3

B42 (2) XQNQC17+3 SCREW 2

B43 (2) XTV3+10G SCREW 1

B44 (2) VHD1330 SCREW 1

B45 (2) XTV3+10G SCREW 2

19 REPLACEMENT PARTS LIST

DVD-RV60

19.3. Traverse Section Parts List

Ref. No. Part No. Part Name &

Description Pcs Remarks

61 (3) VWJ1388 SPINDLE FFC 1(DISC MOTOR-

FP2501)

62 (3) BML3E4CRU SPINDLE MOTOR 1

63 (3) VEM0720 STEPPING MOTOR

UNIT 1

64 (3) VMB3278 TILT SPRING 2

65 (3) VMC1487 SUB-SHAFT TILT

SPRING 1

66 (3) VMC1606 SPRING HOLDER 1 1

67 (3) VMC1607 SPRING HOLDER 2 1

69 (3) VMG1166 FLOATING RUBBER 3

70 (3) VMK0502 TRAVERSE CHASSIS 1

71 (3) VMS6471 GUIDE SHAFT 1 1

72 (3) VMS6472 GUIDE SHAFT 2 1

73 (3) VED0402-1 OPTICAL PICK-UP 1

74 (3) VMC1491 SUB-SHAFT

PRELOAD SPRING 1

75 (3) VMC1490 SCREW NUT 1

76 (3) VMD3260 NUT 1

B61 (3) VHD1224 SCREW 5

B62 (3) VHD1358 SCREW 3

B63 (3) VHD1057 SCREW 1

B64 (3) XQNQC17+3 SCREW 1

B65 (3) XXE26C6FN SCREW 3

19.4. Packing & Accessories

Section Parts List

Ref. No. Part No. Part Name &

Description Pcs Remarks

101 (4) VQT8623 OPERATING

INSTRUCTIONS 1

102 (4) VPN5369 CUSHION(L) 1

103 (4) VPN5370 CUSHION(R) 1

104 (4) VPF0731 POLYETHYLENE BAG 1

105 (4) VPG0E30 PACKING CASE 1

106 (4) VEQ2377 REMOTE CONTROL

UNIT 1

106-* (4) TR1122722010 BATTERY COVER 1

107 (4) VJA0667 AC CORD 1

108 (4) VJA1062 A/V CORD 1

109 (4) VJS1993 AC PLUG ADAPTOR 1

110 (4) VPK1891Z ACCESSORY CASE 1

DVD-RV60

19.5. Electrical Replacement Parts

List

Ref. No. Part No. Part Name &

Description Pcs Remarks

VEP96586C MODULE P.C.B. 1(RTL)

VEP99145J MOTHER P.C.B. 1(RTL)

VEP91251A POWER SUPPLY

P.C.B. 1(RTL)

VEP96587A FRONT SWITCH

P.C.B. 1(RTL)

VEP96588A POWER SWITCH

P.C.B. 1(RTL)

LOADING P.C.B. 1

VEP96586C MODULE P.C.B. 1(RTL)

C2001 EEVHB0J101 E.CAPACITOR 6.3V

100U 1

C2002 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2003 EEVHB0J101 E.CAPACITOR 6.3V

100U 1

C2004 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2005 EEVHB0J101 E.CAPACITOR 6.3V

100U 1

C2006 ECUX1C104KBV C.CAPACITOR CH

16V 0.1U 1

C2007 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2012 ECUX1H331JCV C.CAPACITOR CH

50V 330P 1

C2013 ECUX1H121JCV C.CAPACITOR CH

50V 120P 1

C2014 ECUX1H121JCV C.CAPACITOR CH

50V 120P 1

C2015 ECUX1H121JCV C.CAPACITOR CH

50V 120P 1

C2016 ECUX1H101JCV C.CAPACITOR CH

50V 100P 1

C2017 ECUX1H101JCV C.CAPACITOR CH

50V 100P 1

C2018 ECUX1H391JCV C.CAPACITOR CH

50V 390P 1

C2019 ECUX1H391JCV C.CAPACITOR CH

50V 390P 1

C2020 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

Ref. No. Part No. Part Name &

Description Pcs Remarks

C2021 ECUX1C104KBV C.CAPACITOR CH

16V 0.1U 1

C2022 ECUX1C104KBV C.CAPACITOR CH

16V 0.1U 1

C2023 ECUX1H682KBV C.CAPACITOR CH

50V 6800P 1

C2024 ECUX1H681JCV C.CAPACITOR CH

50V 680P 1

C2025 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2026 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2028 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2029 ECUX1H470JCV C.CAPACITOR CH

50V 47P 1

C2030 ECUX1C183KBV C.CAPACITOR CH

16V 0.018U 1

C2031 ECUX1H102JCV C.CAPACITOR CH

50V 1000P 1

C2032 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2033 ECUM1C474KBN C.CAPACITOR CH

16V 0.47U 1

C2034 ECUX1H103KBV C.CAPACITOR CH

50V 0.01U 1

C2035 ERJ3GEY0R00 M.RESISTOR CH

1/16W 0 1

C2037 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2038 ECUX1C473KBV C.CAPACITOR CH

16V 0.047U 1

C2039 ECUX1C393KBV C.CAPACITOR CH

16V 0.039U 1

C2040 ECUX1H822KBV C.CAPACITOR CH

50V 8200P 1

C2041 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2042 ECUX1C104KBV C.CAPACITOR CH

16V 0.1U 1

C2043 ECUX1C473KBV C.CAPACITOR CH

16V 0.047U 1

C2044 ECUX1C104KBV C.CAPACITOR CH

16V 0.1U 1

C2045 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2046 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2047 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2048 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2051 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2500 ECEV1CA101W E.CAPACITOR CH

16V 100U 1

C2501 EEVHB0J101 E.CAPACITOR 6.3V

100U 1

C2502 ECEV0JA331P E.CAPACITOR

CH6.3V 330U 1

C2503 ECUX1H103KBV C.CAPACITOR CH

50V 0.01U 1

C2504 ECUX1H103KBV C.CAPACITOR CH

50V 0.01U 1

C2505 ECUX1H103KBV C.CAPACITOR CH

50V 0.01U 1

C2506 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2507 ECUX1C104KBV C.CAPACITOR CH

16V 0.1U 1

C2508 ECUX1C104KBV C.CAPACITOR CH

16V 0.1U 1

C2509 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2513 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2514 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2515 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

DVD-RV60

Ref. No. Part No. Part Name &

Description Pcs Remarks

C2516 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2517 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2518 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2521 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2522 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2523 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2524 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C2525 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3001 ECEV0JA331P E.CAPACITOR

CH6.3V 330U 1

C3002 ECEV0JA331P E.CAPACITOR

CH6.3V 330U 1

C3003 ECEV0JA331P E.CAPACITOR

CH6.3V 330U 1

C3004 ECUX1A105ZFV C.CAPACITOR CH

10V 1U 1

C3005 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3006 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3007 ECUX1A105ZFV C.CAPACITOR CH

10V 1U 1

C3008 ECUX1A105ZFV C.CAPACITOR CH

10V 1U 1

C3009 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3010 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3011 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3012 ECUX1A105ZFV C.CAPACITOR CH

10V 1U 1

C3013 ECUX1A105ZFV C.CAPACITOR CH

10V 1U 1

C3014 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3015 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3016 ECUX1A105ZFV C.CAPACITOR CH

10V 1U 1

C3017 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3018 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3019 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3020 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3021 ECUX1A105ZFV C.CAPACITOR CH

10V 1U 1

C3022 ECUX1A105ZFV C.CAPACITOR CH

10V 1U 1

C3023 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3024 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3025 ECUX1A105ZFV C.CAPACITOR CH

10V 1U 1

C3026 ECUX1A105ZFV C.CAPACITOR CH

10V 1U 1

C3027 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3028 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3029 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3030 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3031 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3032 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

Ref. No. Part No. Part Name &

Description Pcs Remarks

C3033 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3034 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3035 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3036 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3037 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3038 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3039 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3041 ECUX1H220JCV C.CAPACITOR CH

50V 22P 1

C3048 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3049 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3051 ECUM1A105KBN C.CAPACITOR CH

10V 1U 1

C3052 ECUM1A105KBN C.CAPACITOR CH

10V 1U 1

C3053 ECUM1A105KBN C.CAPACITOR CH

10V 1U 1

C3054 ECUM1A105KBN C.CAPACITOR CH

10V 1U 1

C3061 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3062 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3063 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3064 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3065 VCS1AS106 T.CAPACITOR CH

10V 10U 1

C3066 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3091 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3201 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3202 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3203 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3204 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3205 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3206 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3207 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3208 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3209 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3211 ECUX1C104KBV C.CAPACITOR CH

16V 0.1U 1

C3212 ECUX1C104KBV C.CAPACITOR CH

16V 0.1U 1

C3213 ECUM1A105KBN C.CAPACITOR CH

10V 1U 1

C3221 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3225 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3231 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3235 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3251 VCS1AS106 T.CAPACITOR CH

10V 10U 1

C3252 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3253 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

DVD-RV60

Ref. No. Part No. Part Name &

Description Pcs Remarks

C3254 EEVHB0J101 E.CAPACITOR 6.3V

100U 1

C3255 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3256 EEVHB0J101 E.CAPACITOR 6.3V

100U 1

C3257 EEVHB0J101 E.CAPACITOR 6.3V

100U 1

C3258 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3261 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3262 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3263 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C3264 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C4201 EEVFC0J152XP E.CAPACITOR 6.3V

1500U 1

C4202 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C4203 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C4204 VCS1AS106 T.CAPACITOR CH

10V 10U 1

C4205 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C4206 VCS1AS106 T.CAPACITOR CH

10V 10U 1

C4207 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C4208 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C4209 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C4210 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C4212 VCS1CU106 T.CAPACITOR CH

16V 10U 1

C4213 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C4214 EEVHB0J101 E.CAPACITOR 6.3V

100U 1

C4215 VCS1CU106 T.CAPACITOR CH

16V 10U 1

C4216 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C4217 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C4218 VCS1AS106 T.CAPACITOR CH

10V 10U 1

C4221 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C4223 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C4224 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C4225 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C5201 EEVHB0J330R E.CAPACITOR 6.3V

33U 1

C5202 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C5203 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C5204 EEVHB0J330R E.CAPACITOR 6.3V

33U 1

C5205 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C5211 EEVHB0J470 E.CAPACITOR 6.3V

47U 1

C5212 ECUX1H221JCV C.CAPACITOR CH

50V 220P 1

C5213 ECUX1C104KBV C.CAPACITOR CH

16V 0.1U 1

C5214 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C5215 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

Ref. No. Part No. Part Name &

Description Pcs Remarks

C5216 ECUX1H102JCV C.CAPACITOR CH

50V 1000P 1

C5217 ECUX1C104KBV C.CAPACITOR CH

16V 0.1U 1

C5218 ECUX1H180JCV C.CAPACITOR CH

50V 18P 1

C5219 ECUX1H182KBV C.CAPACITOR CH

50V 1800P 1

C5220 ECUX1H101JCV C.CAPACITOR CH

50V 100P 1

C5221 ECUX1H390JCV C.CAPACITOR CH

50V 39P 1

C5222 ECUV1A474KBV C.CAPACITOR CH

10V 0.47U 1

C5223 ECUV1A474KBV C.CAPACITOR CH

10V 0.47U 1

C5224 ECUX1H221JCV C.CAPACITOR CH

50V 220P 1

C5225 ECUX1H221JCV C.CAPACITOR CH

50V 220P 1

C5226 ECUX1C104KBV C.CAPACITOR CH

16V 0.1U 1

C5227 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C5232 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C5233 VCS1AS106 T.CAPACITOR CH

10V 10U 1

C5234 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C5241 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C5242 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6201 EEVHB0J330R E.CAPACITOR 6.3V

33U 1

C6202 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6203 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6204 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6206 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6207 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6208 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6251 EEVHB0J101 E.CAPACITOR 6.3V

100U 1

C6252 VCS1AS106 T.CAPACITOR CH

10V 10U 1

C6253 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6254 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6255 EEVHB0J330R E.CAPACITOR 6.3V

33U 1

C6256 ECEV0JA331P E.CAPACITOR

CH6.3V 330U 1

C6257 EEVHB0J101 E.CAPACITOR 6.3V

100U 1

C6258 ECUX1H103KBV C.CAPACITOR CH

50V 0.01U 1

C6259 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6301 ECUX1H101JCV C.CAPACITOR CH

50V 100P 1

C6302 ECUX1C104KBV C.CAPACITOR CH

16V 0.1U 1

C6303 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6304 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6305 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6501 EEVHB0J330R E.CAPACITOR 6.3V

33U 1

C6502 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

DVD-RV60

Ref. No. Part No. Part Name &

Description Pcs Remarks

C6503 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6504 VCS1AS106 T.CAPACITOR CH

10V 10U 1

C6505 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6506 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6511 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6512 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6513 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6514 ECUX1H150JCV C.CAPACITOR CH

50V 15P 1

C6515 ECUX1H150JCV C.CAPACITOR CH

50V 15P 1

C6516 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6517 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6551 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C6553 VCS1AS475 T.CAPACITOR CH

10V 4.7U 1

C7001 EEVHB0J101 E.CAPACITOR 6.3V

100U 1

C7002 EEVHB0J101 E.CAPACITOR 6.3V

100U 1

C7011 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C7012 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C7013 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C7014 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C7015 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C7016 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C7017 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C7018 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C7019 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C7020 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C7021 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C7022 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C7023 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C7024 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C7025 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C7026 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

C7027 ECUX1C104ZFV C.CAPACITOR CH

16V 0.1U 1

D3251 MA111 DIODE 1

D6251 MA111 DIODE 1

D6301 MA728 DIODE 1

FL4001 VLF1491S105 FILTER 1

FL6251 VLF1491S105 FILTER 1

FL6253 VLF1491S105 FILTER 1

FL6254 VLF1491S105 FILTER 1

FL6255 VLF1491S104 FILTER 1

FP2501 VJS4383D017B CONNECTOR

(FEMALE) 17P 1

FP5201 VJS3913A021 CONNECTOR

(FEMALE) 21P 1

Ref. No. Part No. Part Name &

Description Pcs Remarks

IC2001 MN67706EA IC 1

IC2501 AN8480NSB IC 1

IC2511 BA5983FM IC 1

IC3001 MN677521HB IC 1

IC3061 M56V16160D8 IC 1

IC3091 TC7WH157FU IC 1

IC3201 ADV7190 IC 1

IC3251 PQ1R33 IC 1

IC4201 PCM1746E IC 1

IC4211 PCM1600Y IC 1

IC5201 AN8707FH IC 1

IC6201 MN102H55GFB IC 1

IC6251 PQ1R33 IC 1

IC6301 PST596JNR IC 1

IC6302 VUB8011K492 IC 1

IC6303 AT25020NSI27 IC 1

IC6501 BU2285FV IC 1

IC6551 TK71533SCL IC 1

IC7001 MN103S13BGA IC 1

K2002 ERJ3GEY0R00 M.RESISTOR CH

1/16W 0 1

K3001 ERJ6GEY0R00 M.RESISTOR CH

1/10W 0 1

K3002 ERJ6GEY0R00 M.RESISTOR CH

1/10W 0 1

K3003 ERJ6GEY0R00 M.RESISTOR CH

1/10W 0 1

K3004 ERJ6GEY0R00 M.RESISTOR CH

1/10W 0 1

K3011 ERJ3GEY0R00 M.RESISTOR CH

1/16W 0 1

K3012 ERJ3GEY0R00 M.RESISTOR CH

1/16W 0 1

K3013 ERJ3GEY0R00 M.RESISTOR CH

1/16W 0 1

K3201 ERJ3GEY0R00 M.RESISTOR CH

1/16W 0 1

K3202 ERJ3GEY0R00 M.RESISTOR CH

1/16W 0 1

K3227 ERJ3GEY0R00 M.RESISTOR CH

1/16W 0 1

K4201 ERJ6GEY0R00 M.RESISTOR CH

1/10W 0 1

K5231 ERJ3GEY0R00 M.RESISTOR CH

1/16W 0 1

K5241 ERJ3GEY0R00 M.RESISTOR CH

1/16W 0 1

K6251 ERJ14Y0R00 M.RESISTOR CH

1/4W 0 1

K6502 ERJ3GEY0R00 M.RESISTOR CH

1/16W 0 1

K6503 ERJ3GEY0R00 M.RESISTOR CH

1/16W 0 1

K6504 ERJ3GEY0R00 M.RESISTOR CH

1/16W 0 1

K6521 ERJ3GEY0R00 M.RESISTOR CH

1/16W 0 1

K6531 ERJ3GEY0R00 M.RESISTOR CH

1/16W 0 1

L2001 VLQ0860K100 COIL 10UH 1

L2002 VLQ0910K100 COIL 10UH 1

L2003 VLQ0910K100 COIL 10UH 1

L2501 ERJ14Y0R00 M.RESISTOR CH

1/4W 0 1

L3251 ELJEA100KF COIL 1

L4212 ERJ8GEYJ470 M.RESISTOR CH

1/8W 47 1

L5201 VLQ0860K100 COIL 10UH 1

L5202 VLQ0910K100 COIL 10UH 1

L6201 VLP0156 COIL 1

L6501 VLQ0920K220 COIL 22UH 1

L6502 VLQ0920K220 COIL 22UH 1

L7001 VLQ0910K100 COIL 10UH 1

L7002 VLQ0910K100 COIL 10UH 1

DVD-RV60

Ref. No. Part No. Part Name &

Description Pcs Remarks

LA2501 VLP0412A601 CHIP SOLID

INDUCTOR 1

LA2502 VLP0412A601 CHIP SOLID

INDUCTOR 1

LB2509 JALBK2HS470T COIL 1

LB2510 JALBK2HS470T COIL 1

LB2511 JALBK2HS470T COIL 1

LB2512 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB2513 JALBK2HS470T COIL 1

LB2514 JALBK2HS470T COIL 1

LB2515 JALBK2HS470T COIL 1

LB2516 JALBK2HS470T COIL 1

LB3001 VLP0157 COIL 1

LB3201 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB3202 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB3206 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB3207 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB4001 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB4002 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB4003 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB4004 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB4005 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB4006 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB4007 ERJ3GEYJ100 M.RESISTOR CH

1/16W 10 1

LB4008 ERJ3GEYJ100 M.RESISTOR CH

1/16W 10 1

LB4009 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB4010 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB4011 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB4012 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB4013 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB4014 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB5201 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB5202 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB5203 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB5204 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB5205 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB5206 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB5207 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB5208 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB5209 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB5210 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB5211 JALBK2HS470T COIL 1

LB5212 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB5213 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB5214 VLP0323A601R CHIP SOLID

INDUCTOR 1

Ref. No. Part No. Part Name &

Description Pcs Remarks

LB5215 VLP0174 COIL 1

LB5216 VLP0174 COIL 1

LB5217 VLP0174 COIL 1

LB5218 VLP0174 COIL 1

LB6201 VLP0155 COIL 1

LB6501 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB6502 VLP0155 COIL 1

LB6503 VLP0155 COIL 1

LB6504 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB6505 VLP0155 COIL 1

LB6506 VLP0323A601R CHIP SOLID

INDUCTOR 1

LB6507 VLP0155 COIL 1

LB6551 VLP0323A601R CHIP SOLID

INDUCTOR 1

PS3201 VJS4222C022B CONNECTOR

(FEMALE) 22P 1

PS4201 VJS4222A026B CONNECTOR

(FEMALE) 26P 1

PS6201 VJS2961A010 CONNECTOR

(FEMALE) 10P 1

Q3221 2SB1218A-R TRANSISTOR 1

Q3225 2SB1218A-R TRANSISTOR 1

Q3231 2SB1218A-R TRANSISTOR 1

Q3235 2SB1218A-R TRANSISTOR 1

Q5201 2SB1115-T TRANSISTOR 1

QR2001 UN5213 TRANSISTOR-

RESISTOR 1

QR4211 UN5212 TRANSISTOR-

RESISTOR 1

QR5201 UN5212 TRANSISTOR-

RESISTOR 1

QR5231 UN2121 TRANSISTOR-

RESISTOR 1

QR6301 UN5212 TRANSISTOR-

RESISTOR 1

R2001 ERJ3GEYJ473 M.RESISTOR CH

1/16W 47K 1

R2002 ERJ3GEYJ473 M.RESISTOR CH

1/16W 47K 1

R2003 ERJ3GEYJ473 M.RESISTOR CH

1/16W 47K 1

R2004 ERJ3GEYJ473 M.RESISTOR CH

1/16W 47K 1

R2005 ERJ3GEYJ473 M.RESISTOR CH

1/16W 47K 1

R2006 ERJ3GEYJ473 M.RESISTOR CH

1/16W 47K 1

R2007 ERJ3GEYJ473 M.RESISTOR CH

1/16W 47K 1

R2008 ERJ3GEYJ223 M.RESISTOR CH

1/16W 22K 1

R2009 ERJ3GEYJ223 M.RESISTOR CH

1/16W 22K 1

R2010 ERJ3GEYJ273 M.RESISTOR CH

1/16W 27K 1

R2011 ERJ3GEYJ123 M.RESISTOR CH

1/16W 12K 1

R2012 ERJ3GEYJ562 M.RESISTOR CH

1/16W 5.6K 1

R2013 ERJ3GEYJ273 M.RESISTOR CH

1/16W 27K 1

R2014 ERJ3GEYJ105 M.RESISTOR CH

1/16W 1M 1

R2017 ERJ3GEYF153 M.RESISTOR CH

1/16W 15K 1

R2018 ERJ3GEYJ473 M.RESISTOR CH

1/16W 47K 1

R2020 ERJ3GEYF123 M.RESISTOR CH

1/16W 12K 1

R2021 ERJ3GEYJ103 M.RESISTOR CH

1/16W 10K 1

DVD-RV60

Ref. No. Part No. Part Name &

Description Pcs Remarks

R2022 ERJ3GEYJ223 M.RESISTOR CH

1/16W 22K 1

R2023 ERJ3GEYJ223 M.RESISTOR CH

1/16W 22K 1

R2024 ERJ3GEYJ563 M.RESISTOR CH

1/16W 56K 1

R2025 ERJ3GEYJ563 M.RESISTOR CH

1/16W 56K 1

R2026 ERJ3GEYJ101 M.RESISTOR CH

1/16W 100 1

R2027 ERJ3GEYJ472 M.RESISTOR CH

1/16W 4.7K 1

R2028 ERJ3GEYJ103 M.RESISTOR CH

1/16W 10K 1

R2029 ERJ3RBD103 M.RESISTOR CH

1/16W 10K 1

R2030 ERJ3GEYJ103 M.RESISTOR CH

1/16W 10K 1

R2031 ERJ3GEY0R00 M.RESISTOR CH

1/16W 0 1

R2032 ERJ3GEYJ473 M.RESISTOR CH

1/16W 47K 1

R2033 ERJ3GEYJ472 M.RESISTOR CH

1/16W 4.7K 1

R2034 ERJ3GEYJ472 M.RESISTOR CH

1/16W 4.7K 1

R2501 ERJ3GEYJ271 M.RESISTOR CH

1/16W 270 1

R2502 ERJ3GEYJ271 M.RESISTOR CH

1/16W 270 1

R2503 ERJ14YKR39 M.RESISTOR CH

1/4W 0.39 1

R2505 ERJ3GEYJ473 M.RESISTOR CH

1/16W 47K 1

R2511 ERJ3GEYJ203 M.RESISTOR CH

1/16W 20K 1

R2512 ERJ3GEYJ273 M.RESISTOR CH

1/16W 27K 1

R2513 ERJ3GEYJ333 M.RESISTOR CH

1/16W 33K 1

R2514 ERJ3GEYJ203 M.RESISTOR CH

1/16W 20K 1

R2515 ERJ3GEYJ273 M.RESISTOR CH

1/16W 27K 1

R2516 ERJ3GEYJ333 M.RESISTOR CH

1/16W 33K 1

R2517 ERJ3GEYJ123 M.RESISTOR CH

1/16W 12K 1

R2518 ERJ3GEYJ103 M.RESISTOR CH

1/16W 10K 1

R2519 ERJ3GEYJ752 M.RESISTOR CH

1/16W 7.5K 1

R2520 ERJ3GEYJ123 M.RESISTOR CH

1/16W 12K 1

R2521 ERJ3GEYJ103 M.RESISTOR CH

1/16W 10K 1

R2522 ERJ3GEYJ752 M.RESISTOR CH

1/16W 7.5K 1

R3001 ERJ3GEYJ473 M.RESISTOR CH

1/16W 47K 1

R3003 ERJ3GEYJ103 M.RESISTOR CH

1/16W 10K 1

R3004 ERJ3GEYJ101 M.RESISTOR CH

1/16W 100 1

R3006 ERJ3GEYJ220 M.RESISTOR CH

1/16W 22 1

R3042 ERJ3GEYJ102 M.RESISTOR CH

1/16W 1K 1

R3044 ERJ3GEYJ102 M.RESISTOR CH

1/16W 1K 1

R3047 ERJ3GEYJ102 M.RESISTOR CH

1/16W 1K 1

R3051 ERJ3GEYJ101 M.RESISTOR CH

1/16W 100 1

R3052 ERJ3GEYJ684 M.RESISTOR CH

1/16W 680K 1

R3053 ERJ3GEYJ101 M.RESISTOR CH

1/16W 100 1

R3054 ERJ3GEYJ684 M.RESISTOR CH

1/16W 680K 1

Ref. No. Part No. Part Name &

Description Pcs Remarks

R3055 ERJ3GEYJ101 M.RESISTOR CH

1/16W 100 1

R3056 ERJ3GEYJ684 M.RESISTOR CH

1/16W 680K 1

R3057 ERJ3GEYJ101 M.RESISTOR CH

1/16W 100 1

R3058 ERJ3GEYJ684 M.RESISTOR CH

1/16W 680K 1

R3071 ERJ3GEYJ103 M.RESISTOR CH

1/16W 10K 1

R3201 ERJ3GEYJ101 M.RESISTOR CH

1/16W 100 1

R3202 ERJ3GEYJ101 M.RESISTOR CH

1/16W 100 1

R3203 ERJ3RBD821 M.RESISTOR CH

1/16W 820 1

R3204 ERJ3GEYJ221 M.RESISTOR CH

1/16W 220 1

R3205 ERJ3RBD102 M.RESISTOR CH

1/16W 1K 1

R3206 ERJ3RBD102 M.RESISTOR CH

1/16W 1K 1

R3207 ERJ3RBD471 M.RESISTOR CH

1/16W 470 1

R3221 ERJ3RBD221 M.RESISTOR CH

1/16W 220 1

R3222 ERJ3GEYJ330 M.RESISTOR CH

1/16W 33 1

R3223 ERJ3GEYJ102 M.RESISTOR CH

1/16W 1K 1

R3225 ERJ3RBD221 M.RESISTOR CH

1/16W 220 1

R3226 ERJ3GEYJ330 M.RESISTOR CH

1/16W 33 1

R3227 ERJ3GEYJ102 M.RESISTOR CH

1/16W 1K 1

R3231 ERJ3RBD181 M.RESISTOR CH

1/16W 180 1

R3232 ERJ3GEYJ330 M.RESISTOR CH

1/16W 33 1

R3233 ERJ3GEYJ102 M.RESISTOR CH

1/16W 1K 1

R3235 ERJ3RBD181 M.RESISTOR CH

1/16W 180 1

R3236 ERJ3GEYJ330 M.RESISTOR CH

1/16W 33 1

R3237 ERJ3GEYJ102 M.RESISTOR CH

1/16W 1K 1

R4201 ERJ3GEYJ331 M.RESISTOR CH

1/16W 330 1

R4202 ERJ3GEYJ222 M.RESISTOR CH

1/16W 2.2K 1

R4211 ERJ3GEYJ101 M.RESISTOR CH

1/16W 100 1

R5201 ERJ12YJ270 M.RESISTOR CH

1/2W 27 1

R5202 ERJ3GEYJ2R2 M.RESISTOR CH

1/16W 2.2 1

R5203 ERJ3GEYJ223 M.RESISTOR CH

1/16W 22K 1

R5204 ERJ3GEYJ123 M.RESISTOR CH

1/16W 12K 1

R5206 ERJ3GEYJ154 M.RESISTOR CH

1/16W 150K 1

R5207 ERJ3GEYF562 M.RESISTOR CH

1/16W 5.6K 1

R5208 ERJ3GEYJ101 M.RESISTOR CH

1/16W 100 1

R5209 ERJ3GEYF303 M.RESISTOR CH

1/16W 30K 1

R5210 ERJ3GEYF473 M.RESISTOR CH

1/16W 47K 1

R5211 ERJ3GEYF183 M.RESISTOR CH

1/16W 18K 1

R5212 ERJ3GEYF562 M.RESISTOR CH

1/16W 5.6K 1

R5213 ERJ3GEYJ103 M.RESISTOR CH

1/16W 10K 1

R5214 ERJ3GEYJ105 M.RESISTOR CH

1/16W 1M 1

DVD-RV60

Ref. No. Part No. Part Name &

Description Pcs Remarks

R5215 ERJ3GEYJ105 M.RESISTOR CH

1/16W 1M 1

R5216 ERJ3GEYJ105 M.RESISTOR CH

1/16W 1M 1

R5217 ERJ3GEY0R00 M.RESISTOR CH

1/16W 0 1

R6201 ERJ3GEYJ103 M.RESISTOR CH

1/16W 10K 1

R6208 ERJ3GEYJ473 M.RESISTOR CH

1/16W 47K 1

R6209 ERJ3GEYJ473 M.RESISTOR CH

1/16W 47K 1

R6210 ERJ3GEYJ473 M.RESISTOR CH

1/16W 47K 1

R6211 ERJ3GEYJ473 M.RESISTOR CH

1/16W 47K 1

R6212 ERJ3GEYJ473 M.RESISTOR CH

1/16W 47K 1

R6301 ERJ3GEYJ103 M.RESISTOR CH

1/16W 10K 1

R6302 ERJ3GEYJ472 M.RESISTOR CH

1/16W 4.7K 1

R6303 ERJ3GEYJ472 M.RESISTOR CH

1/16W 4.7K 1

R6502 ERJ3RBD221 M.RESISTOR CH

1/16W 220 1

R6503 ERJ3GEYJ103 M.RESISTOR CH

1/16W 10K 1

R6504 ERJ3GEYJ103 M.RESISTOR CH

1/16W 10K 1

R7001 ERJ3GEYJ102 M.RESISTOR CH

1/16W 1K 1

R7002 ERJ3GEYJ473 M.RESISTOR CH

1/16W 47K 1

RA2001 EXBV8VR000 RESISTOR-

RESISTOR 1

RA2501 EXBV4V103J RESISTOR-

RESISTOR 1

RA3003 EXBV4V103J RESISTOR-

RESISTOR 1

RA3004 EXBV4V472J RESISTOR-

RESISTOR 1

RA3005 EXBV4V221J RESISTOR-

RESISTOR 1

RA3006 EXBV4V221J RESISTOR-

RESISTOR 1

RA3007 EXBV4V221J RESISTOR-

RESISTOR 1

RA3008 EXBV4V473J RESISTOR-

RESISTOR 1

RA3201 EXBV8V471J RESISTOR-

RESISTOR 1

RA3202 EXBV8V471J RESISTOR-

RESISTOR 1

RA3203 EXBV8V103J RESISTOR-

RESISTOR 1

RA3204 EXBV8V103J RESISTOR-

RESISTOR 1

RA3205 EXBV4V473J RESISTOR-

RESISTOR 1

RA5201 EXBV4V101J RESISTOR-

RESISTOR 1

RA6201 EXBV4V103J RESISTOR-

RESISTOR 1

RA6202 EXBV4V473J RESISTOR-

RESISTOR 1

RA6203 EXBV4V473J RESISTOR-

RESISTOR 1

RA6204 EXBV4V103J RESISTOR-

RESISTOR 1

RA6205 EXBV8V473J RESISTOR-

RESISTOR 1

RA6206 EXBV4V473J RESISTOR-

RESISTOR 1

RA7001 EXBV8V473J RESISTOR-

RESISTOR 1

RA7002 EXBV8V473J RESISTOR-

RESISTOR 1

RA7003 EXBV8V473J RESISTOR-

RESISTOR 1

Ref. No. Part No. Part Name &

Description Pcs Remarks

VR3201 VRV0293B102T VARIABLE

RESISTOR 1

W3001 ERJ6GEY0R00 M.RESISTOR CH

1/10W 0 1

X6501 VSX1044 CRYSTAL

OSCILLATOR 1

VEP99145J MOTHER P.C.B. 1(RTL)

C2591 ECEA1CKA101 E.CAPACITOR 16V

100U 1

C2592 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C3500 ECA0JM471 E.CAPACITOR 6.3V

470U 1

C3501 ECA0JM221 E.CAPACITOR 6.3V

220U 1

C3502 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C3503 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C3504 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C3505 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C3511 ECUM1H103KBN C.CAPACITOR CH

50V 0.01U 1

C3512 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C3513 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C3514 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C3531 ECA0JM221 E.CAPACITOR 6.3V

220U 1

C3532 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C3533 ECEA1CKA470 E.CAPACITOR 16V

47U 1

C3534 ECUM1H103KBN C.CAPACITOR CH

50V 0.01U 1

C3535 ECA0JM221 E.CAPACITOR 6.3V

220U 1

C3536 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C3537 ECEA1CKA100 E.CAPACITOR 16V

10U 1

C3538 ECA0JM102 E.CAPACITOR 6.3V

1000U 1

C3539 ECEA1CKA100 E.CAPACITOR 16V

10U 1

C3540 ECA0JM102 E.CAPACITOR 6.3V

1000U 1

C3542 ECUM1H103KBN C.CAPACITOR CH

50V 0.01U 1

C3543 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C3544 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C3551 ECA0JM221 E.CAPACITOR 6.3V

220U 1

C3552 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C3561 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C3571 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C3581 ECEA0JKA221 E.CAPACITOR 6.3V

220U 1

C3582 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C3583 ECA1AM331 E.CAPACITOR 10V

330U 1

C3584 ECEA1CKA220 E.CAPACITOR 16V

22U 1

DVD-RV60

Ref. No. Part No. Part Name &

Description Pcs Remarks

C3585 ECA1AM331 E.CAPACITOR 10V

330U 1

C3586 ECEA1CKA220 E.CAPACITOR 16V

22U 1

C4301 ECEA0JPZ470 E.CAPACITOR 6.3V

47U 1

C4302 ECQB1H102JZ P.CAPACITOR 50V

1000P 1

C4303 ECQB1H101JZ C.CAPACITOR 50V

100U 1

C4305 ECEA0JPZ470 E.CAPACITOR 6.3V

47U 1

C4306 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C4307 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C4308 ECA1APX221B E.CAPACITOR 10V

220U 1

C4309 ECA1APX221B E.CAPACITOR 10V

220U 1

C4311 ECEA0JPZ470 E.CAPACITOR 6.3V

47U 1

C4312 ECQB1H102JZ P.CAPACITOR 50V

1000P 1

C4313 ECQB1H101JZ C.CAPACITOR 50V

100U 1

C4315 ECEA0JPZ470 E.CAPACITOR 6.3V

47U 1

C4317 ECA0JPX102 E.CAPACITOR 6.3V

1000U 1

C4318 ECA0JPX102 E.CAPACITOR 6.3V

1000U 1

C4319 ECHR1H223JZ P.CAPACITOR 50V

0.022U 1

C4321 ECEA0JPZ470 E.CAPACITOR 6.3V

47U 1

C4322 ECQB1H102JZ P.CAPACITOR 50V

1000P 1

C4323 ECQB1H101JZ C.CAPACITOR 50V

100U 1

C4325 ECEA0JPZ470 E.CAPACITOR 6.3V

47U 1

C4331 ECEA0JPZ470 E.CAPACITOR 6.3V

47U 1

C4332 ECQB1H102JZ P.CAPACITOR 50V

1000P 1

C4333 ECQB1H101JZ C.CAPACITOR 50V

100U 1

C4335 ECEA0JPZ470 E.CAPACITOR 6.3V

47U 1

C4341 ECA1CAK100X E.CAPACITOR 16V

10U 1

C4342 ECUM1H102JCN C.CAPACITOR CH

50V 1000P 1

C4343 ECUM1H680JCN C.CAPACITOR CH

50V 68P 1

C4345 ECA1CAK470X E.CAPACITOR 16V

47U 1

C4346 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C4347 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C4351 ECA1CAK100X E.CAPACITOR 16V

10U 1

C4352 ECUM1H102JCN C.CAPACITOR CH

50V 1000P 1

C4353 ECUM1H680JCN C.CAPACITOR CH

50V 68P 1

C4355 ECA1CAK470X E.CAPACITOR 16V

47U 1

C4361 ECA1CAK100X E.CAPACITOR 16V

10U 1

C4362 ECUM1H102JCN C.CAPACITOR CH

50V 1000P 1

C4363 ECUM1H680JCN C.CAPACITOR CH

50V 68P 1

C4365 ECA1CAK470X E.CAPACITOR 16V

47U 1

C4366 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

Ref. No. Part No. Part Name &

Description Pcs Remarks

C4367 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C4368 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C4369 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C4371 ECA1CAK470X E.CAPACITOR 16V

47U 1

C4372 ECUM1H102JCN C.CAPACITOR CH

50V 1000P 1

C4373 ECUM1H102JCN C.CAPACITOR CH

50V 1000P 1

C4374 ECUM1H180JCN C.CAPACITOR CH

50V 18P 1

C4375 ECUM1H180JCN C.CAPACITOR CH

50V 18P 1

C4376 ECA1ANK470X E.CAPACITOR 10V

47U 1

C4501 ECUM1H102JCN C.CAPACITOR CH

50V 1000P 1

C4511 ECUM1H102JCN C.CAPACITOR CH

50V 1000P 1

C4521 ECUM1H102JCN C.CAPACITOR CH

50V 1000P 1

C4531 ECUM1H102JCN C.CAPACITOR CH

50V 1000P 1

C4541 ECUM1H102JCN C.CAPACITOR CH

50V 1000P 1

C4551 ECUM1H102JCN C.CAPACITOR CH

50V 1000P 1

C4561 ECUM1H102JCN C.CAPACITOR CH

50V 1000P 1

C4571 ECUM1H102JCN C.CAPACITOR CH

50V 1000P 1

C4581 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C4582 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C4584 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C4585 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C4592 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C4751 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C4752 ECEA0JKA101 E.CAPACITOR 6.3V

100U 1

C4753 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C4754 ECUM1H330JCN C.CAPACITOR CH

50V 33P 1

C4755 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C4761 ECUM1H271JCN C.CAPACITOR CH

50V 270P 1

C4763 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C4764 ECEA1HKA4R7 E.CAPACITOR 50V

4.7U 1

C4771 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C4772 ECUM1H151JCN C.CAPACITOR CH

50V 150P 1

C4773 ECUM1H151JCN C.CAPACITOR CH

50V 150P 1

C4774 ECUM1H102ZFN C.CAPACITOR CH

50V 1000P 1

C4781 ECEA1HKA4R7 E.CAPACITOR 50V

4.7U 1

C4782 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C4901 VCEA1CJC470 E.CAPACITOR 16V

47U 1

C4902 ECA1APX221B E.CAPACITOR 10V

220U 1

C4911 VCEA1EJC221 E.CAPACITOR 25V

220U 1

C4912 VCEA1CJC470 E.CAPACITOR 16V

47U 1

DVD-RV60

Ref. No. Part No. Part Name &

Description Pcs Remarks

C4913 ECA1APX221B E.CAPACITOR 10V

220U 1

C6001 ECEA0JKA221 E.CAPACITOR 6.3V

220U 1

C6002 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C6003 ECEA1HKA100 E.CAPACITOR 50V

10U 1

C6004 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C6005 ECEA0JKA470 E.CAPACITOR 6.3V

47U 1

C6007 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C6008 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C6009 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C6010 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C6011 ECUM1H103ZFN C.CAPACITOR CH

50V 0.01U 1

C6012 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

C6013 ECUM1H104ZFN C.CAPACITOR CH

50V 0.1U 1

D4596 MA3047M ZENER DIODE 1

D4901 AK04WS DIODE 1

D6013 LN28RCPL DIODE 1

DL6001 VSL0537 DISPLAY TUBE 1

FL3501 ELB4H080B FILTER 1

FL3511 ELB4K164B FILTER 1

FL3561 ELB4L182B FILTER 1

FP6001 VJS3537A012G CONNECTOR

(FEMALE) 12P 1

FP6002 VJS3537B005G CONNECTOR

(FEMALE) 5P 1

IC2591 BA6956AN IC 1

IC3531 AN3581S IC 1

IC3581 BA7660FS IC 1

IC4301 NJM4580M IC 1

IC4321 NJM4580M IC 1

IC4341 NJM4580M IC 1

IC4361 NJM4580M IC 1

IC4362 NJM4580M IC 1

IC4751 AHCT1G08DBV IC 1

IC4752 AHCT1G08DBV IC 1

IC4781 GP1FA551TZ IC 1

IC4901 PQ09DZ1U IC 1

IC6001 MN101C35DCC IC 1

IC6002 PST9327UR IC 1

IC6003 PNA4611M02VT IR RECEIVER UNIT 1

IC6004 TC7ST08F IC 1

IC6005 TC7ST08F IC 1

JK3541 VJJ0544 Y/C CONNECTOR 1 1

JK3591 VJJ0598 PIN JACK (3P) 1

JK4501 VJJ0644 RCA JACK (6P) 1

JK4502 VJJ0591 PIN JACK (4P) 1

JK4771 VJJ0537-B PIN JACK (1P) 1

K4753 ERJ6GMZ0R00 M.RESISTOR CH

1/10W 0 1

K6001 ERJ6GMZ0R00 M.RESISTOR CH

1/10W 0 1

K6005 ERJ6GMZ0R00 M.RESISTOR CH

1/10W 0 1

K6010 ERJ6GMZ0R00 M.RESISTOR CH

1/10W 0 1

L3501 ELESN220JA 1

L3531 ELESN220JA 1

L3532 ELESN220JA 1

Ref. No. Part No. Part Name &

Description Pcs Remarks

L3551 ELESN220JA 1

L3581 VLQEL05S220J COIL 22UH 1

L4301 ELESE390JA INDUCTOR 39UH 1

L4761 ELJNDR10JF COIL 1

L4781 ELESN220JA 1

L6001 VLQEL05S101J COIL 100UH 1

L6002 VLQEL05S221J COIL 220UH 1

LB3543 VLP0145 COIL 1

LB3544 VLP0145 COIL 1

LB3545 VLP0145 COIL 1

LB3546 VLP0145 COIL 1

LB3591 VLP0145 COIL 1

LB3592 VLP0145 COIL 1

LB3593 VLP0145 COIL 1

LB4501 VLP0145 COIL 1

LB4511 VLP0145 COIL 1

LB4521 VLP0145 COIL 1

LB4531 VLP0145 COIL 1

LB4541 VLP0145 COIL 1

LB4551 VLP0145 COIL 1

LB4561 VLP0145 COIL 1

LB4571 VLP0145 COIL 1

LB4771 VLF1148A121 CHIP BEAD 1

LB4772 VLF1148A121 CHIP BEAD 1

LB6001 VLP0153 COIL 1

LB6002 VLP0153 COIL 1

LB6003 VLP0153 COIL 1

LB6004 VLP0153 COIL 1

LB6005 VLP0153 COIL 1

LB6006 VLP0153 COIL 1

LB6007 VLP0153 COIL 1

LB6008 VLP0153 COIL 1

LB6009 VLP0153 COIL 1

LB6010 VLP0153 COIL 1

PP1101 VJP4223E018B CONNECTOR (MALE)

18P 1

PP2591 VJP4366A005B CONNECTOR (MALE)

5P 1

PP3201 VJP4370E022B CONNECTOR (MALE)

22P 1

PP4201 VJP4369A026B CONNECTOR (MALE)

26P 1

PR4911 VSF0015A10 FUSE 1

Q3501 2SB709A TRANSISTOR 1

Q3502 2SD601A TRANSISTOR 1

Q3503 2SB709A TRANSISTOR 1

Q3511 2SB709A TRANSISTOR 1

Q3512 2SD601A TRANSISTOR 1

Q3513 2SB709A TRANSISTOR 1

Q3561 2SD601A TRANSISTOR 1

Q3571 2SD601A TRANSISTOR 1

Q4501 2SD1328 TRANSISTOR 1

Q4511 2SD1328 TRANSISTOR 1

Q4521 2SD1328 TRANSISTOR 1

Q4531 2SD1328 TRANSISTOR 1

Q4541 2SD601A TRANSISTOR 1

Q4551 2SD601A TRANSISTOR 1

Q4561 2SD601A TRANSISTOR 1

Q4571 2SD601A TRANSISTOR 1

Q4901 2SB709A TRANSISTOR 1

Q4911 2SB1434R TRANSISTOR 1

Q4912 2SB1320A-R TRANSISTOR 1

Q4913 2SD601A TRANSISTOR 1

QR3521 UN2212 TRANSISTOR-

RESISTOR 1

QR4593 UN2211 TRANSISTOR 1

QR4594 UN2111 TRANSISTOR 1

QR4596 UN2111 TRANSISTOR 1

QR6009 DTA123JK TRANSISTOR 1

DVD-RV60

Ref. No. Part No. Part Name &

Description Pcs Remarks

QR6010 DTA123JK TRANSISTOR 1

QR6011 DTA123JK TRANSISTOR 1

R2591 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R2592 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R2593 ERJ6GMYJ103 M.RESISTOR CH

1/10W 10K 1

R2594 ERJ6GMYJ333 M.RESISTOR CH

1/10W 33K 1

R3501 ERJ6GMYJ561 M.RESISTOR CH

1/10W 560 1

R3502 ERJ6GMYJ103 M.RESISTOR CH

1/10W 10K 1

R3503 ERJ6GMYJ101 M.RESISTOR CH

1/10W 100 1

R3504 ERJ6GMYJ222 M.RESISTOR CH

1/10W 2.2K 1

R3505 ERJ6GMYJ330 M.RESISTOR CH

1/10W 33 1

R3506 ERJ6GMYJ182 M.RESISTOR CH

1/10W 1.8K 1

R3507 ERJ6GMYJ330 M.RESISTOR CH

1/10W 33 1

R3508 ERJ6GMYJ222 M.RESISTOR CH

1/10W 2.2K 1

R3511 ERJ6GMYJ561 M.RESISTOR CH

1/10W 560 1

R3512 ERJ6GMYJ272 M.RESISTOR CH

1/10W 2.7K 1

R3513 ERJ6GMYJ223 M.RESISTOR CH

1/10W 22K 1

R3514 ERJ6GMYJ223 M.RESISTOR CH

1/10W 22K 1

R3515 ERJ6GMYJ222 M.RESISTOR CH

1/10W 2.2K 1

R3516 ERJ6GMYJ330 M.RESISTOR CH

1/10W 33 1

R3517 ERJ6GMYJ331 M.RESISTOR CH

1/10W 330 1

R3518 ERJ6GMYJ330 M.RESISTOR CH

1/10W 33 1

R3519 ERJ6GMYJ222 M.RESISTOR CH

1/10W 2.2K 1

R3521 ERJ6GMYJ222 M.RESISTOR CH

1/10W 2.2K 1

R3526 ERJ6GMYJ103 M.RESISTOR CH

1/10W 10K 1

R3531 ERJ6GMYG102 M.RESISTOR CH

1/10W 1K 1

R3532 ERJ6GMYG102 M.RESISTOR CH

1/10W 1K 1

R3533 ERJ6GMYG102 M.RESISTOR CH

1/10W 1K 1

R3534 ERJ6GMYG471 M.RESISTOR CH

1/10W 470 1

R3535 ERJ6GMYJ103 M.RESISTOR CH

1/10W 10K 1

R3543 ERJ6ENF71R5 M.RESISTOR CH

1/10W 71.5 1

R3544 ERJ6ENF71R5 M.RESISTOR CH

1/10W 71.5 1

R3545 ERJ6ENF75R0 M.RESISTOR CH

1/10W 75 1

R3546 ERJ6ENF75R0 M.RESISTOR CH

1/10W 75 1

R3561 ERJ6GMYJ561 M.RESISTOR CH

1/10W 560 1

R3562 ERJ6GMYJ183 M.RESISTOR CH

1/10W 18K 1

R3563 ERJ6GMYJ471 M.RESISTOR CH

1/10W 470 1

R3564 ERJ6GMYJ223 M.RESISTOR CH

1/10W 22K 1

R3565 ERJ6GMYJ331 M.RESISTOR CH

1/10W 330 1

R3571 ERJ6GMYJ561 M.RESISTOR CH

1/10W 560 1

Ref. No. Part No. Part Name &

Description Pcs Remarks

R3572 ERJ6GMYJ183 M.RESISTOR CH

1/10W 18K 1

R3573 ERJ6GMYJ471 M.RESISTOR CH

1/10W 470 1

R3574 ERJ6GMYJ223 M.RESISTOR CH

1/10W 22K 1

R3575 ERJ6GMYJ331 M.RESISTOR CH

1/10W 330 1

R3591 ERJ6ENF71R5 M.RESISTOR CH

1/10W 71.5 1

R3592 ERJ6ENF75R0 M.RESISTOR CH

1/10W 75 1

R3593 ERJ6ENF75R0 M.RESISTOR CH

1/10W 75 1

R4301 ERJ6GMYJ104 M.RESISTOR CH

1/10W 100K 1

R4302 ERJ6GMYJ392 M.RESISTOR CH

1/10W 3.9K 1

R4303 ERJ6GMYJ103 M.RESISTOR CH

1/10W 10K 1

R4304 ERJ6GMYJ822 M.RESISTOR CH

1/10W 8.2K 1

R4307 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R4311 ERJ6GMYJ104 M.RESISTOR CH

1/10W 100K 1

R4312 ERJ6GMYJ392 M.RESISTOR CH

1/10W 3.9K 1

R4313 ERJ6GMYJ103 M.RESISTOR CH

1/10W 10K 1

R4314 ERJ6GMYJ822 M.RESISTOR CH

1/10W 8.2K 1

R4317 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R4321 ERJ6GMYJ104 M.RESISTOR CH

1/10W 100K 1

R4322 ERA6YED392 M.RESISTOR CH

1/10W 3.9K 1

R4323 ERA6YED103 M.RESISTOR CH

1/10W 10K 1

R4324 ERA6YED822 M.RESISTOR CH

1/10W 8.2K 1

R4327 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R4331 ERJ6GMYJ104 M.RESISTOR CH

1/10W 100K 1

R4332 ERA6YED392 M.RESISTOR CH

1/10W 3.9K 1

R4333 ERA6YED103 M.RESISTOR CH

1/10W 10K 1

R4334 ERA6YED822 M.RESISTOR CH

1/10W 8.2K 1

R4337 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R4341 ERJ6GMYJ104 M.RESISTOR CH

1/10W 100K 1

R4342 ERJ6GMYJ302 M.RESISTOR CH

1/10W 3K 1

R4343 ERJ6GMYJ103 M.RESISTOR CH

1/10W 10K 1

R4344 ERJ6GMYJ123 M.RESISTOR CH

1/10W 12K 1

R4347 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R4351 ERJ6GMYJ104 M.RESISTOR CH

1/10W 100K 1

R4352 ERJ6GMYJ302 M.RESISTOR CH

1/10W 3K 1

R4353 ERJ6GMYJ103 M.RESISTOR CH

1/10W 10K 1

R4354 ERJ6GMYJ123 M.RESISTOR CH

1/10W 12K 1

R4357 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R4361 ERJ6GMYJ104 M.RESISTOR CH

1/10W 100K 1

R4362 ERJ6GMYJ302 M.RESISTOR CH

1/10W 3K 1

R4363 ERJ6GMYJ103 M.RESISTOR CH

1/10W 10K 1

DVD-RV60

Ref. No. Part No. Part Name &

Description Pcs Remarks

R4364 ERJ6GMYJ123 M.RESISTOR CH

1/10W 12K 1

R4367 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R4371 ERJ6GMYJ104 M.RESISTOR CH

1/10W 100K 1

R4372 ERJ6GMYJ472 M.RESISTOR CH

1/10W 4.7K 1

R4373 ERJ6GMYJ472 M.RESISTOR CH

1/10W 4.7K 1

R4374 ERJ6GMYJ362 M.RESISTOR CH

1/10W 3.6K 1

R4375 ERJ6GMYJ332 M.RESISTOR CH

1/10W 3.3K 1

R4376 ERJ6RBD153 M.RESISTOR CH

1/10W 15K 1

R4377 ERJ6GMYJ563 M.RESISTOR CH

1/10W 56K 1

R4378 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R4501 ERJ6GMYJ821 M.RESISTOR CH

1/10W 820 1

R4502 ERJ6GMYJ221 M.RESISTOR CH

1/10W 220 1

R4503 ERJ6GMYJ821 M.RESISTOR CH

1/10W 820 1

R4511 ERJ6GMYJ821 M.RESISTOR CH

1/10W 820 1

R4512 ERJ6GMYJ221 M.RESISTOR CH

1/10W 220 1

R4513 ERJ6GMYJ821 M.RESISTOR CH

1/10W 820 1

R4521 ERJ6GMYJ821 M.RESISTOR CH

1/10W 820 1

R4522 ERJ6GMYJ221 M.RESISTOR CH

1/10W 220 1

R4523 ERJ6GMYJ821 M.RESISTOR CH

1/10W 820 1

R4531 ERJ6GMYJ821 M.RESISTOR CH

1/10W 820 1

R4532 ERJ6GMYJ221 M.RESISTOR CH

1/10W 220 1

R4533 ERJ6GMYJ821 M.RESISTOR CH

1/10W 820 1

R4541 ERJ6GMYJ821 M.RESISTOR CH

1/10W 820 1

R4542 ERJ6GMYJ221 M.RESISTOR CH

1/10W 220 1

R4543 ERJ6GMYJ821 M.RESISTOR CH

1/10W 820 1

R4551 ERJ6GMYJ821 M.RESISTOR CH

1/10W 820 1

R4552 ERJ6GMYJ221 M.RESISTOR CH

1/10W 220 1

R4553 ERJ6GMYJ821 M.RESISTOR CH

1/10W 820 1

R4561 ERJ6GMYJ821 M.RESISTOR CH

1/10W 820 1

R4562 ERJ6GMYJ221 M.RESISTOR CH

1/10W 220 1

R4563 ERJ6GMYJ821 M.RESISTOR CH

1/10W 820 1

R4571 ERJ6GMYJ821 M.RESISTOR CH

1/10W 820 1

R4572 ERJ6GMYJ221 M.RESISTOR CH

1/10W 220 1

R4573 ERJ6GMYJ821 M.RESISTOR CH

1/10W 820 1

R4590 ERJ6GMYJ102 M.RESISTOR CH

1/10W 1K 1

R4594 ERJ8GEYJ102 M.RESISTOR CH

1/8W 1K 1

R4596 ERJ6GMYJ223 M.RESISTOR CH

1/10W 22K 1

R4598 ERJ6GMYJ331 M.RESISTOR CH

1/10W 330 1

R4599 ERJ6GMYJ681 M.RESISTOR CH

1/10W 680 1

R4600 ERJ6GMYJ221 M.RESISTOR CH

1/10W 220 1

Ref. No. Part No. Part Name &

Description Pcs Remarks

R4754 ERJ6GMYJ221 M.RESISTOR CH

1/10W 220 1

R4761 ERJ6GMYJ220 M.RESISTOR CH

1/10W 22 1

R4771 ERJ6GMYJ750 M.RESISTOR CH

1/10W 75 1

R4901 ERJ6RBD822 M.RESISTOR CH

1/10W 8.2K 1

R4902 ERJ6RBD152 M.RESISTOR CH

1/10W 1.5K 1

R4903 ERJ6GMYJ333 M.RESISTOR CH

1/10W 33K 1

R4911 ERJ6RBD822 M.RESISTOR CH

1/10W 8.2K 1

R4912 ERJ6GMYJ331 M.RESISTOR CH

1/10W 330 1

R4913 ERJ6GMYJ103 M.RESISTOR CH

1/10W 10K 1

R6001 ERJ6GMYJ221 M.RESISTOR CH

1/10W 220 1

R6002 ERJ6GMYJ221 M.RESISTOR CH

1/10W 220 1

R6003 ERJ6GMYJ221 M.RESISTOR CH

1/10W 220 1

R6004 ERJ6GMZ0R00 M.RESISTOR CH

1/10W 0 1

R6010 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R6011 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R6012 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R6013 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R6014 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R6015 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R6016 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R6017 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R6018 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R6019 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R6020 ERJ6GMYJ103 M.RESISTOR CH

1/10W 10K 1

R6021 ERJ6GMYJ103 M.RESISTOR CH

1/10W 10K 1

R6022 ERJ6GMYJ103 M.RESISTOR CH

1/10W 10K 1

R6023 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R6024 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R6025 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R6026 ERJ6GMYJ473 M.RESISTOR CH

1/10W 47K 1

R6027 ERJ6GMYJ221 M.RESISTOR CH

1/10W 220 1

R6028 ERJ6GMYJ221 M.RESISTOR CH

1/10W 220 1

R6029 ERJ6GMYJ221 M.RESISTOR CH

1/10W 220 1

R6030 ERJ6GMYJ221 M.RESISTOR CH

1/10W 220 1

R6031 ERJ6GMYJ104 M.RESISTOR CH

1/10W 100K 1

R6032 ERJ6GMYJ104 M.RESISTOR CH

1/10W 100K 1

R6033 ERJ6GMYJ104 M.RESISTOR CH

1/10W 100K 1

R6034 ERJ6GMYJ104 M.RESISTOR CH

1/10W 100K 1

R6035 ERJ6GMYJ104 M.RESISTOR CH

1/10W 100K 1

R6038 ERJ6GMYJ221 M.RESISTOR CH

1/10W 220 1

DVD-RV60

Ref. No. Part No. Part Name &

Description Pcs Remarks

R6041 ERJ6GMYJ821 M.RESISTOR CH

1/10W 820 1

R6044 ERJ6GMYJ821 M.RESISTOR CH

1/10W 820 1

R6047 ERJ6GMYJ821 M.RESISTOR CH

1/10W 820 1

T4761 VLQ0790 TRANSFORMER 1

VR3501 EVNCYAA03B13 TRIMMER

POTENTIOMETER 1

VR3511 EVNCYAA03B13 TRIMMER

POTENTIOMETER 1

W801 ERJ6GMZ0R00 M.RESISTOR CH

1/10W 0 1

W802 ERJ6GMZ0R00 M.RESISTOR CH

1/10W 0 1

W803 ERJ6GMZ0R00 M.RESISTOR CH

1/10W 0 1

W804 ERJ6GMZ0R00 M.RESISTOR CH

1/10W 0 1

W805 ERJ6GMZ0R00 M.RESISTOR CH

1/10W 0 1

W806 ERJ6GMZ0R00 M.RESISTOR CH

1/10W 0 1

W807 ERJ6GMZ0R00 M.RESISTOR CH

1/10W 0 1

W808 ERJ6GMZ0R00 M.RESISTOR CH

1/10W 0 1

W809 ERJ6GMZ0R00 M.RESISTOR CH

1/10W 0 1

W810 ERJ6GMZ0R00 M.RESISTOR CH

1/10W 0 1

X6001 EF0EC8004A4 CERAMIC

OSCILLATOR 1

ZA3501 VJR0978 EARTH ANGLE 1

ZA4201 VJR0978 EARTH ANGLE 1

ZA4751 VJR0978 EARTH ANGLE 1

ZA4752 VMC1446 EARTH SPRING 1

ZA6001 VJR0978 EARTH ANGLE 1

MISCELLANEOUS

VYQ1654 FL HOLDER UNIT 1

VEP91251A POWER SUPPLY

P.C.B. 1(RTL)

C1001 VCF0183M104 POLYESTER FILM

CAPACITOR 1

C1002 VCF0183M104 POLYESTER FILM

CAPACITOR 1

C1003 ECKMNA471MBV C.CAPACITOR 470P 1

C1004 ECKMNA471MBV C.CAPACITOR 470P 1

C1005 ECKMNA102MEV C.CAPACITOR

1000P 1

C1013 ECEC2GG680 E.CAPACITOR 400V

68U 1

C1031 ECKD2H103PU C.CAPACITOR 500V

0.01U 1

C1032 ECCZ3A121KGE C.CAPACITOR 1KV

120P 1

C1041 VCEA1VJC470 E.CAPACITOR 35V

47U 1

C1051 ECQB1H103JF P.CAPACITOR 50V

0.01U 1

C1061 ECKF1H102KB C.CAPACITOR 50V

1000P 1

C1062 VCEA0JJC331 E.CAPACITOR 6.3V

330U 1

C1101 ECQV1H104JL P.CAPACITOR 50V

0.1U 1

C1111 VCEA1AJH182 E.CAPACITOR 10V

1800U 1

Ref. No. Part No. Part Name &

Description Pcs Remarks

C1112 VCEA1AJH182 E.CAPACITOR 10V

1800U 1

C1114 VCEA1AJC222 E.CAPACITOR 10V

2200U 1

C1115 ECFR1E104ZF5 C.CAPASITOR 25V

0.1U 1

C1116 VCEA1AJC221 E.CAPACITOR 10V

220U 1

C1117 ECA1APX221B E.CAPACITOR 10V

220U 1

C1121 ECA0JM102 E.CAPACITOR 6.3V

1000U 1

C1131 VCEA1VJH151 E.CAPACITOR 35V

150U 1

C1133 VCEA1EJC330 E.CAPACITOR 25V

33U 1

C1141 VCEA1VJH151 E.CAPACITOR 35V

150U 1

C1143 VCEA1EJC330 E.CAPACITOR 25V

33U 1

C1151 VCEA1EJH271 E.CAPACITOR 25V

270U 1

C1153 VCEA1EJC221 E.CAPACITOR 25V

220U 1

C1154 VCEA1CJC221 E.CAPACITOR 16V

220U 1

C1161 VCEA1HJH560 E.CAPACITOR 50V

56U 1

C1171 VCEA1AJH181 E.CAPACITOR 10V

180U 1

D1002 ENC471D5ATRB DIODE 1

D1011 S1WBA80 DIODE 1

D1022 RD100E ZENER DIODE 1

D1031 AP01C DIODE 1

D1041 AU01Z DIODE 1

D1042 MA7300B DIODE 1

D1051 MA165 DIODE 1

D1052 MA165 DIODE 1

D1061 MA700 DIODE 1

D1062 MA4200H DIODE 1

D1111 MA7D55 DIODE 1

D1126 11ES1 DIODE 1

D1131 11EQS10 DIODE 1

D1141 11EQS10 DIODE 1

D1151 11EQS10 DIODE 1

D1152 11EQS10 DIODE 1

D1161 AU01Z DIODE 1

D1162 MA4030 DIODE 1

D1171 AK04 DIODE 1

F1001 XBA2C16TB0 FUSE 1

IC1021 STRM6559LF IC 1

IC1101 UPC1093J IC 1

IC1125 PQ07RX11 IC 1

IC1151 SI-3090FLF11 IC 1

L1001 ELF15N005A NOISE FILTER 1

L1002 ELF15N005A NOISE FILTER 1

L1111 VLQ0611K100 COIL 10UH 1

L1112 ELELN100KA INDUCTOR 10UH 1

L1131 VLQEL05S330K COIL 33UH 1

L1141 VLQEL05S330K COIL 33UH 1

L1151 VLQ0611K220 COIL 22UH 1

LB1021 VLP0056 COIL 1

LB1022 VLP0083 COIL 1

LB1031 VLP0083 COIL 1

P1001 SJS9236 AC INLET 1

PR1161 VSF0015A025 IC PROTECTOR 1

PR1171 VSF0015A10 FUSE 1

DVD-RV60

Ref. No. Part No. Part Name &

Description Pcs Remarks

PS1101 VJS4223A018 CONNECTOR

(FEMALE) 18P 1

Q1051 PS2561L1 PHOTO COUPLER 1

Q1111 2SJ525 TRANSISTOR 1

QR1111 UN4213 TRANSISTOR 1

R1002 ERC12AGM334 S.RESISTOR 1/2W

330K 1

R1021 ERX1SJR82 M.RESISTOR 1W

0.82 1

R1022 ERDS2FJ471 C.RESISTOR 1/4W

470 1

R1023 ERDS2FJ471 C.RESISTOR 1/4W

470 1

R1031 ERG1SJ393 M.RESISTOR 1W

39K 1

R1041 ERDS2FJ224 C.RESISTOR 1/4W

220K 1

R1042 ERDS2FJ224 C.RESISTOR 1/4W

220K 1

R1043 ERG12SJ100 M.RESISTOR 1/2W

10 1

R1044 ERDS1TJ395 C.RESISTOR 1/2W

3.9M 1

R1045 ERDS1TJ475 C.RESISTOR 1/2W

4.7M 1

R1051 ERDS2FJ182 C.RESISTOR 1/4W

1.8K 1

R1061 ERDS2FJ152 C.RESISTOR 1/4W

1.5K 1

R1062 ERDS2FJ101 C.RESISTOR 1/4W

100 1

R1063 ERDS2FJ224 C.RESISTOR 1/4W

220K 1

R1064 ERDS2FJ103 C.RESISTOR 1/4W

10K 1

R1101 ERDS2TJ750 C.RESISTOR 1/4W

75 1

R1102 ER0S2CKF1201 M.RESISTOR 1/4W

1.2K 1

R1103 ER0S2CKF1201 M.RESISTOR 1/4W

1.2K 1

R1104 ERDS2TJ561 C.RESISTOR 1/4W

560 1

R1105 ERDS2TJ271 C.RESISTOR 1/4W

270 1

R1106 ERDS2TJ202 C.RESISTOR 1/4W

2K 1

R1111 ERDS2TJ102 C.RESISTOR 1/4W

1K 1

R1112 ERDS2TJ104 C.RESISTOR 1/4W

100K 1

R1113 ERDS2TJ241 C.RESISTOR 1/4W

240 1

R1114 ERDS2TJ241 C.RESISTOR 1/4W

240 1

R1125 ERDS2TJ101 C.RESISTOR 1/4W

100 1

R1126 ER0S2CKF1201 M.RESISTOR 1/4W

1.2K 1

R1127 ER0S2CKF1201 M.RESISTOR 1/4W

1.2K 1

R1161 ERDS2TJ104 C.RESISTOR 1/4W

100K 1

R1181 ERDS2TJ101 C.RESISTOR 1/4W

100 1

T1021 ETS29AD4H6AC TRANSFORMER 1

ZA1001 EYF52BC FUSE HOLDER 1

ZA1002 EYF52BC FUSE HOLDER 1

ZA1111 VJR0978 EARTH ANGLE 1

ZA1125 VSC5095 HEAT SINK 1

VEP96587A FRONT SWITCH

P.C.B. 1(RTL)

Ref. No. Part No. Part Name &

Description Pcs Remarks

D6401 LNJ301MPUJAD LED (GREEN) 1

D6402 LNJ401NPYJA LED (AMBER) 1

FP6401 VJS3537B012G CONNECTOR

(FEMALE) 12P 1

R6401 ERDS2TJ102 C.RESISTOR 1/4W

1K 1

R6402 ERDS2TJ122 C.RESISTOR 1/4W

1.2K 1

R6403 ERDS2TJ102 C.RESISTOR 1/4W

1K 1

R6404 ERDS2TJ102 C.RESISTOR 1/4W

1K 1

R6405 ERDS2TJ122 C.RESISTOR 1/4W

1.2K 1

R6406 ERDS2TJ152 C.RESISTOR 1/4W

1.5K 1

S6401 EVQ11G07K SWITCH 1

S6402 EVQ11G07K SWITCH 1

S6403 EVQ11G07K SWITCH 1

S6404 EVQ11G07K SWITCH 1

S6405 EVQ11G07K SWITCH 1

S6406 EVQ11G07K SWITCH 1

S6407 EVQ11G07K SWITCH 1

S6408 EVQ11G07K SWITCH 1

S6409 ESE24SH7 SWITCH 1

S6410 ESE24SH7 SWITCH 1

MISCELLANEOUS

VWJ1406 FLAT CARD CABLE 1

VEP96588A POWER SWITCH

P.C.B. 1(RTL)

FP6411 VJS3537B005G CONNECTOR

(FEMALE) 5P 1

S6411 EVQ11G07K SWITCH 1

MISCELLANEOUS

VWJ1439 FLAT CARD CABLE 1

LOADING P.C.B. 1

PS2591 VJS4366A005B CONNECTOR (MALE)

5P 1

H000500000TK/TT

DVD-RV60

Panasonic DVDRV60 Tmp.sgm User Manual To The E985e388 A1fd 4b2f Aa8b 80c8c9714851

Navigation menu

Versions of this User Manual:

Views

Navigation
