Digital Cordless Phone
Operating Instructions
Model No. KX-TCD410AL
Contents
Preparation
Before Initial Use ......................... 2
Important Information .................. 3
Setting up .................................... 6
Cordless Telephone
Using the Telephone ................. 11
Making Calls.............................. 12
Caller ID .................................... 13
Answering Calls......................... 16
Phonebook ................................ 17
Handset Settings ....................... 21
Base Unit Settings..................... 27
Initial Settings ............................ 29
Multi-unit User Operation........... 31
Intercom .................................... 35
Useful Information
Before Requesting Help ............ 36
Technical Information ................ 38
Index.......................................... 39
Caller ID Compatible
PLEASE READ BEFORE USE AND SAVE.
Charge the battery for about 7 hours before initial use.
Preparation Cordless Telephone Useful Information
410AL_e_01.fm Page 1 Monday, August 18, 2003 9:38 PM
2
Before Initial Use
Thank you for purchasing your new Panasonic digital cordless telephone.
Dear purchaser,
You have acquired a KX-TCD410AL, which is a product made in regard with
the Digital Enhanced Cordless Telecommunications (DECT). DECT technology is
characterized by high-security protection against interceptions as well as high-quality
digital transmission. This telephone was designed for a wide range of applications. For
example, this telephone can be used within a network of base units and handsets,
constituting a telephone system which:
•operates up to 6 handsets at one base unit.
•allows an intercom between 2 handsets.
•allows the operation of a handset at up to 4 base units, expanding the communication
radio area.

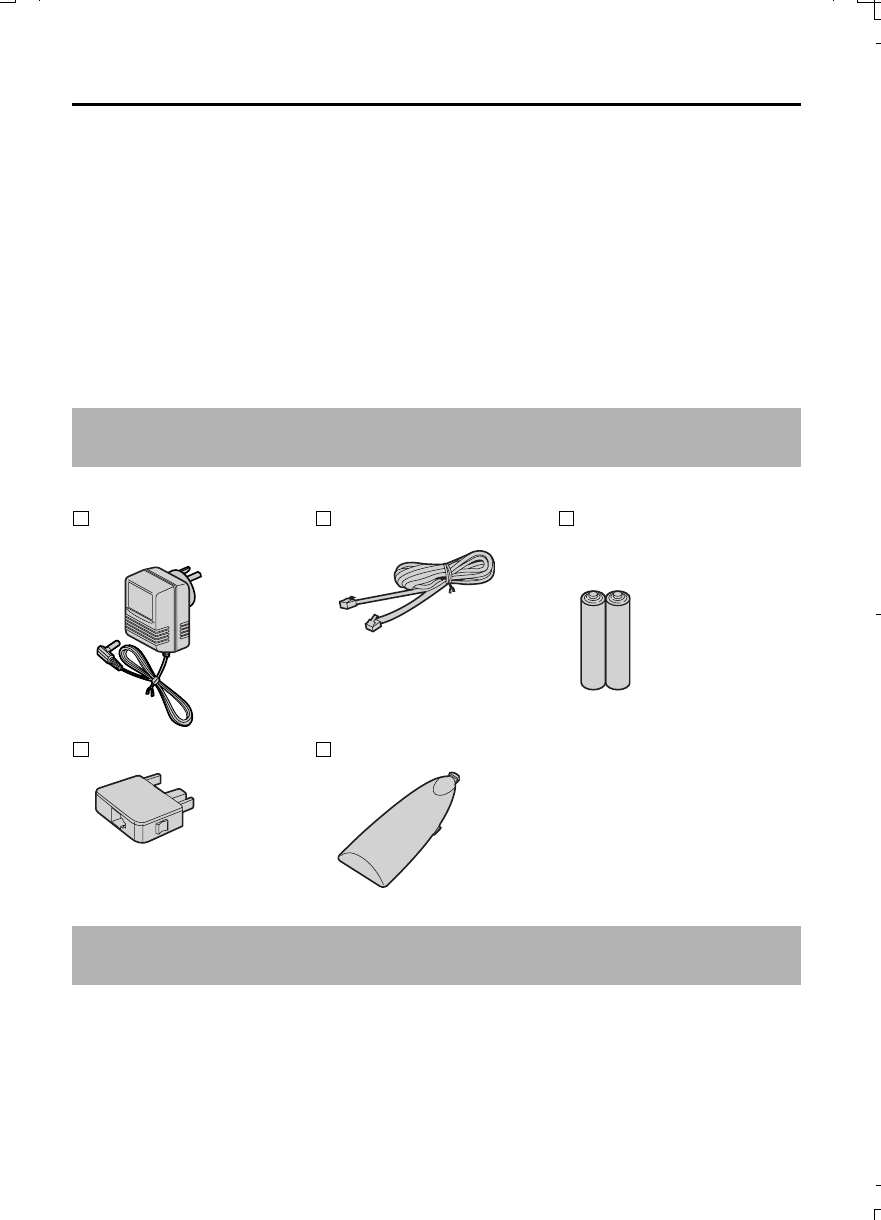

Accessories (included)
Caller ID Service, where available, is a telephone company service. After subscribing
to Caller ID, this phone will display the caller’s phone number.
AC Adaptor
PQLV19AL
Telephone Line Cord Rechargeable Batteries
(AAA size)
HHR-4EPT/BA2
Telephone Plug Battery Cover
Additional accessories are available for purchase. Contact your Panasonic Service
Centre for further details.
TCD410AL_e.book Page 2 Thursday, July 10, 2003 7:53 PM
3
Preparation
Important Information
Instructions to customer
Installation
Attached to this apparatus is an approval label. This label is evidence that it is a
“Permitted Attachment” which has been authorised to be connected to your telephone
service.
Conditions relating to connection and operation of this Permitted Attachment are
contained in Telecommunications General By-Law 220 (5).
You are authorised to install this Permitted Attachment yourself by plugging it into the
line socket of any regular telephone. You may connect it in place of your existing
telephone or to any spare telephone socket installed in your premises.
To disconnect your existing telephone you must first remove its plug from the line socket.
You can then insert the plug of your Permitted Attachment into the socket and use your
equipment.
If the plug of your existing telephone cannot be readily removed, you will have to remove
the screw securing it. To do this proceed as follows:
1. Loosen screw “A” sufficiently to remove the socket cover. (See Fig. 1.)
2. Remove screw “B” and withdraw the plug. (See Fig. 2.)
3. Replace screw “B”. (See Fig. 3.) Ensure that it screws completely into the socket recess.
(If the screw is too long, increase the hole depth or replace the screw with one 5 mm
shorter.)
4. Replace socket cover and tighten screw “A”. (See Fig. 4.)
SOCKET
SCREW “A”
PLUG
Fig. 1 TELEPHONE CORD
Connect to the PLUG
as shown in Fig. 1.
( )
SCREW
“B”
Fig. 2
SCREW
“B”
Fig. 3
SOCKET
SCREW “A”
Fig. 4
TCD410AL_e.book Page 3 Thursday, July 10, 2003 7:53 PM
4
Important Information
If you are satisfied with the operation of your telephone service after plugging in your
Permitted Attachment, your installation is completed.
You will be unable to connect this Permitted Attachment if your telephone service
consists only of a wall phone or an old style telephone which is not connected by means
of a modern plug and socket. In such cases a new socket will need to be installed.
Should the Permitted Attachment not operate when plugged into a socket, it is either
faulty or unsuitable for operation with your telephone service. It should be returned to the
store where purchased or an Authorised Service Centre.
Service difficulties
If at any time a fault occurs on your telephone service, carry out the following checks
before you call for service:
•Disconnect the Permitted Attachment and try using the service with the normal
telephone.
•If the telephone service then operates satisfactorily, the fault is in your Permitted
Attachment. Leave the Permitted Attachment disconnected and report the fault to its
supplier or agent to arrange for repair.
•If when using the telephone the service is still faulty, report the fault to “Service
Difficulties and Faults” for attention.
You are required to keep this Permitted Attachment in good working order while it is
connected to your telephone service. Its construction or internal circuit must not be
modified in any way without permission.
WARNING
This cordless telephone system does not incorporate provision for secrecy of
conversations. Appropriately tuned radio equipment and other cordless telephone
systems in close proximity may be used by a third party to monitor and possibly interrupt
conversations in progress when this system is on radio operation.
TCD410AL_e.book Page 4 Thursday, July 10, 2003 7:53 PM
5
Preparation
Important Information
Only use the power supply included with
the product.
Do not connect the AC Adaptor to any AC
outlet other than the standard AC230 V.
The apparatus is approved for use with
PQLV19AL power supply.
This apparatus is unable to make
emergency telephone calls under the
following conditions:
•The portable handset batteries need
recharging, or have failed.
•During a mains power failure.
•When the Key Lock is set to ON.
•When the unit is in Direct Call mode.
Do not open the base unit or handset
(other than to change the batteries).
This apparatus should not be used near
emergency/intensive care medical
equipment and should not be used by
people with pacemakers.
Care should be taken that objects do not
fall onto, and liquids are not spilled into
the unit. Do not subject this unit to
excessive smoke, dust, mechanical
vibration or shock.
Environment
Do not use this unit near liquid—for
example, near a bath tub, washbowl, sink,
etc. Damp basements should also be
avoided.
The unit should be kept away from heat
sources such as heaters, kitchen stoves,
etc. It also should not be placed in rooms
where the temperature is less than 5 °C or
greater than 40 °C.
The AC Adaptor is used as the main
disconnect device, ensure that the AC
outlet is located/installed near the unit and
is accessible.
Battery Caution
Use only specified batteries.
Only use rechargeable batteries.
Do not mix old and new batteries.
Do not dispose of batteries in a fire, they
may explode.
Check local waste management codes for
special disposal instructions.
Do not open or mutilate the batteries.
Released electrolyte is corrosive and may
cause burns or injury to the eyes or skin.
The electrolyte may be toxic if swallowed.
Exercise care in handling the batteries in
order not to short the batteries with
conductive materials such as rings,
bracelets and keys.
The batteries and/or conductor may
overheat and cause burns.
Charge the batteries provided in
accordance with the information given in
this operating guide.
Location
•For maximum distance noise-free
operation, place your base unit:
- Away from electrical appliances such
as TV, radio, personal computer or
another phone.
- In a convenient high and central
location.
WARNING:
TO PREVENT THE RISK OF FIRE OR
ELECTRICAL SHOCK, DO NOT
EXPOSE THIS PRODUCT TO RAIN
OR ANY TYPE OF MOISTURE.
THE CORDLESS HANDSET IS
MAGNETISED AND MAY RETAIN
SMALL METALLIC OBJECTS.
410AL_e_02.fm Page 5 Tuesday, September 9, 2003 4:15 PM
6
Setting up
Connection
Plug in the AC adaptor and the telephone line cord in order 1, 2, 3, 4.
•Never install telephone wiring during a lightning storm.
•KX-TCD410AL is not designed to be used with rotary (pulse dialling) services.
Battery Installation
Please ensure the batteries are inserted as shown. part should be inserted first.
Close the cover as indicated by the arrow.
•When you replace the batteries, part should be removed first.
The AC adaptor must remain connected at all times. (It is normal for the adaptor to
feel warm during use.)
1
LINE
1
Hook
Hooks
Fasten the AC adaptor
cord to prevent it from
being disconnected. 3
24
To replace the battery:
Press the notch on the cover firmly
and slide it as indicated by the arrow.
Replace 2 batteries and close the
cover then charge the handset for
about 7 hours.
TCD410AL_e.book Page 6 Thursday, July 10, 2003 7:53 PM
7
Preparation
Setting up

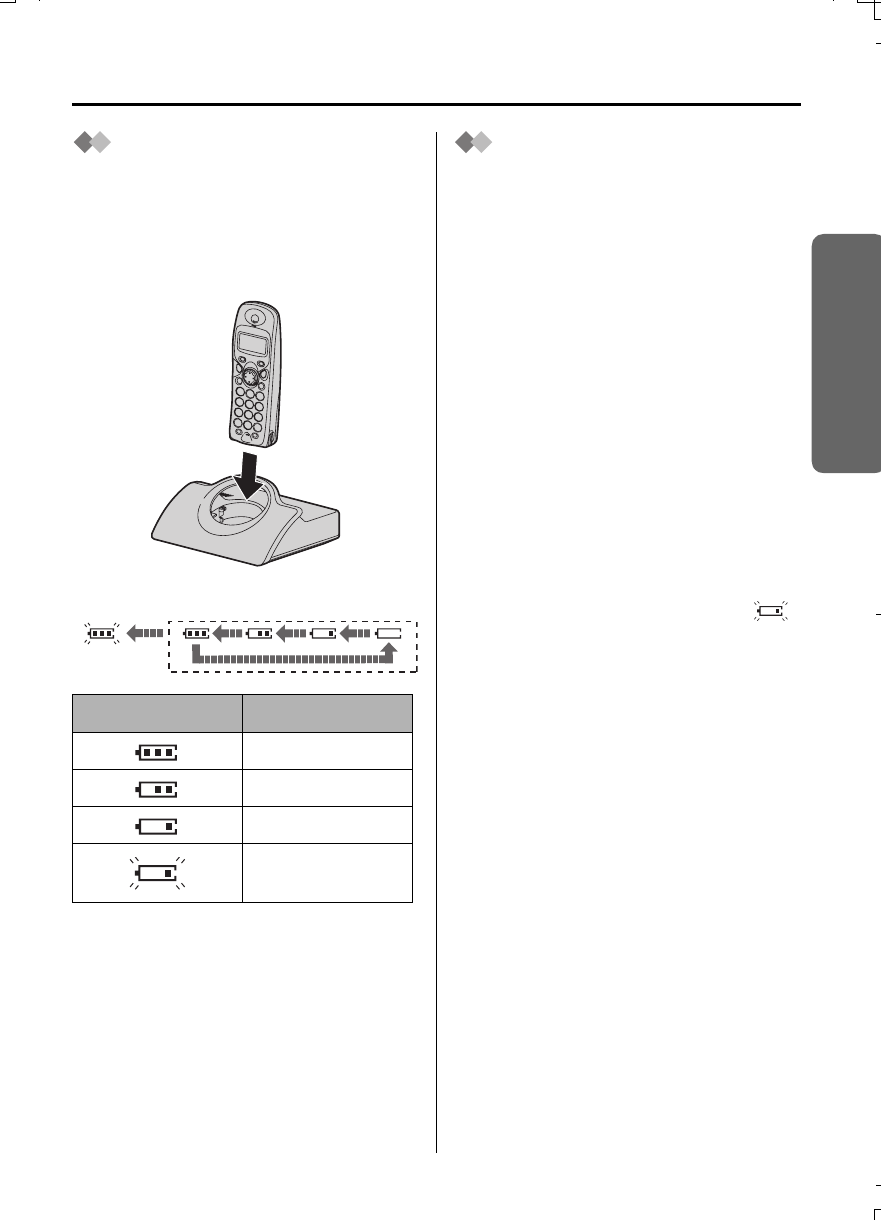

Battery Charge
At the time of shipment, the batteries are
not charged. To charge, place the
handset on the base unit. Please charge
the batteries for about 7 hours before
initial use. During charging, the battery
icon is as shown below.
Fully charged During charging
The handset which power is off will be
turned on automatically when it is placed
on the base unit.
In normal use, the handset and the base
unit should be powered on at all times.
Battery Life
Battery life is dependent on use and
conditions but in general when using fully
charged Ni-MH batteries (700 mAh):
Talk time: 10hrs approx.
Standby time: 120hrs approx.
When using Ni-Cd batteries (250 mAh):
Talk time: 4hrs approx.
Standby time: 40hrs approx.
(Times indicated are for peak
performance.)
The batteries reach peak performance
after several full charge/discharge cycles.
The batteries cannot be overcharged
unless they are repeatedly removed and
replaced.
If battery life is shortened then please
check that battery and charge terminals
are clean.
For maximum battery life, it is
recommended that the handset not be
recharged until battery icon flashes .
Display icon Battery strength
High
Medium
Low
Needs to be
charged
(Flashing)
TCD410AL_e.book Page 7 Thursday, July 10, 2003 7:53 PM
8
Setting up

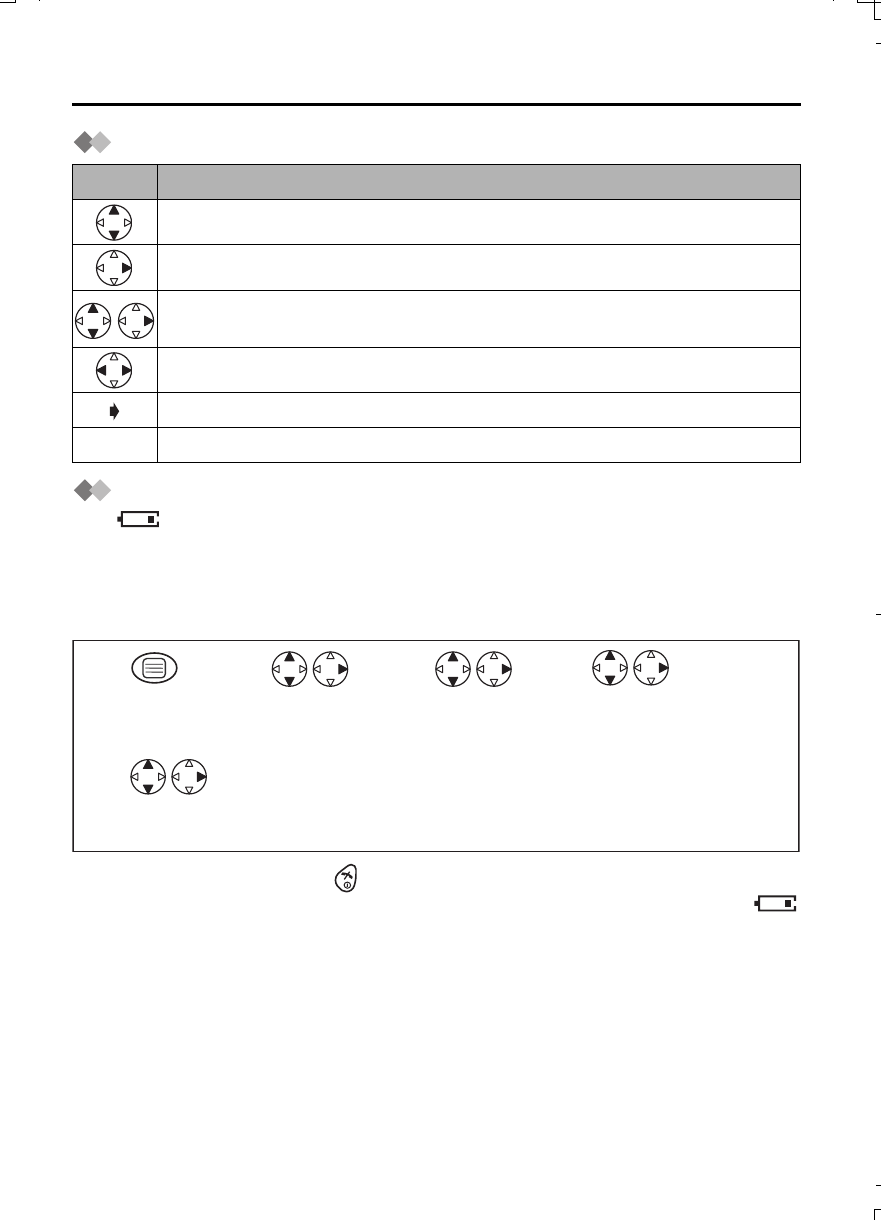

Symbols Used in This Operating Instructions
Replacing the Batteries
If the icon flashes after a few telephone calls even when the handset batteries have
been fully charged, 2 batteries must be replaced.
Charge new batteries for approximately 7 hours before initial use.
When replacing the batteries, ensure that the correct battery type is selected.
Selecting the Battery Type
•To exit the operation, press any time.
•When Ni-Cd batteries are fitted with the "BATTERY TYPE" setting in "NI-MH",
icon will disappear and stop charging even if the handset is on the cradle.
•Do not use non-rechargeable batteries. If non-rechargeable batteries are fitted and
start charging, it may cause the leakage of the battery electrolyte.
Please use only Panasonic HHR-4EPT(Ni-MH) or P-4NPT(Ni-Cd) batteries.
Symbol Meaning
To search the desired item, press UP or DOWN.
To select the desired item, press RIGHT.
To search and then to select the desired item, press UP or DOWN then
RIGHT.
To move the cursor to the right or to the left, press RIGHT or LEFT.
To go to the next step.
" " The words in " " indicate the words in display.
Press MENU. Search/Select
"OTHER OPT".
Search/Select
"SETTING HS".
12 3
Search/Select
"BATTERY TYPE".
Search/Select
"NI-CD" or "NI-MH".
4
5
410AL_e_02.fm Page 8 Monday, August 25, 2003 8:17 PM
9
Preparation
Setting up
Location of Controls
Handset
Base unit
Handset Display
1 - : PHONEBOOK Button
2 - TALK Button
3 - Navigator Key
4 - REDIAL/PAUSE Button
5 - RECALL Button
6 - :MENU/OK Button
7 - OFF/POWER Button
8 - CLEAR Button
9 - INTERCOM Button
C
2
1
3
4
5
6
78
0
R
INT
9
9
6
7
8
Charge
Contact
2
3
4
1
5
Display
Receiver
Microphone
Charge
Contact
R
CC
INT
LINE
PAGE Button and Indicato
r
Within range of a base unit
Out of range/No registration/
No power on base unit
Paging or using the handset
Making or answering calls
Phonebook Mode
In Setting Mode
Battery strength is low.
Battery strength is high.
Call BAR ON (p. 24)
Direct Call ON (p. 25)
Key Lock ON (p. 26)
Ringer Volume OFF (p. 22)
Dialling Pause (p. 26)
TCD410AL_e.book Page 9 Thursday, July 10, 2003 7:53 PM
10
Setting up

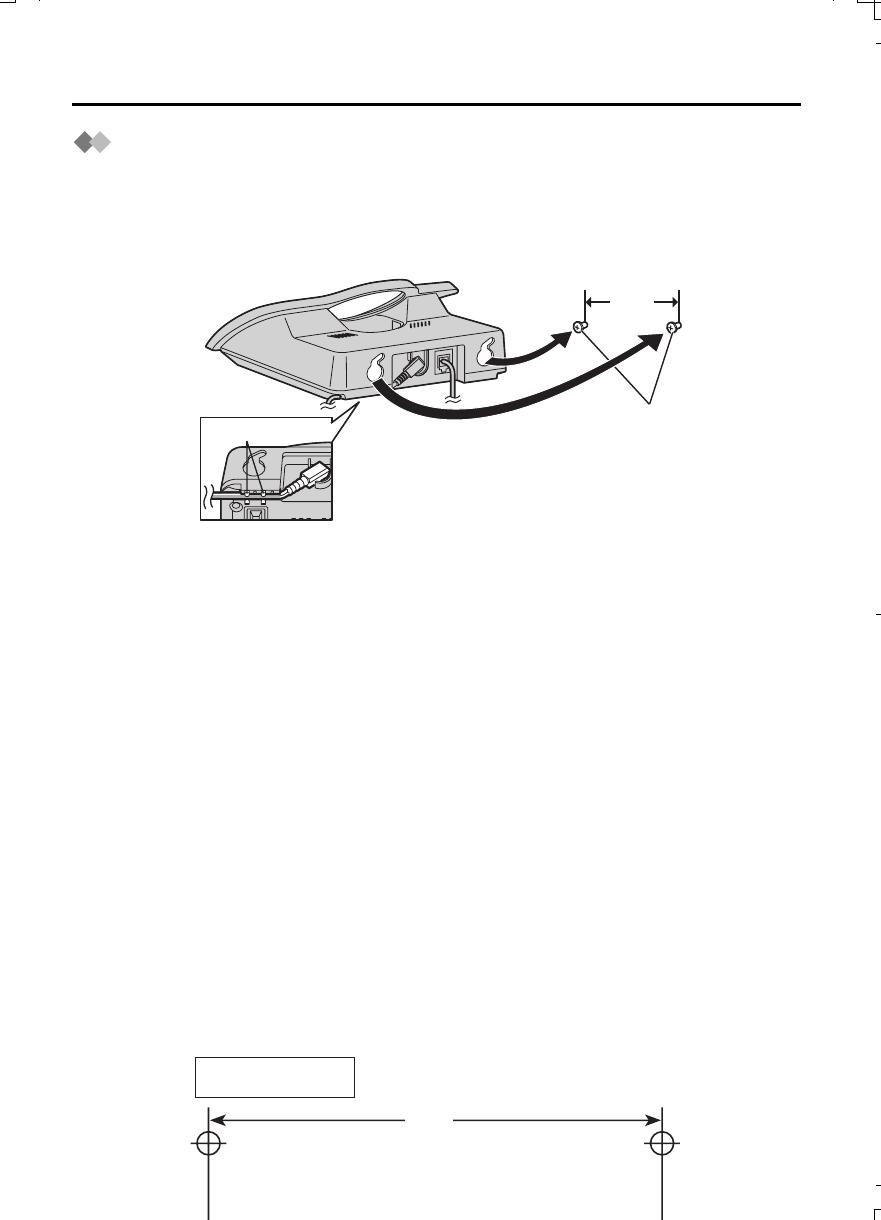

Wall Mounting
This unit can be mounted on a wall.
- Insert screws into the wall. The centre of the screw hole should be 8 cm horizontally
apart.
- Connect the AC adaptor and the telephone line cord.
- Arrange the wires as shown, then mount the unit.
8 cm
Screws
Hooks
8 cm
Wall Template
TCD410AL_e.book Page 10 Thursday, July 10, 2003 7:53 PM
11
Cordless Telephone
Using the Telephone
Power On/Off
Power on Power off
*1 When button is released, the display changes to the standby mode.
*2 The display goes blank.
Making a Call
Pre-dialling Post-dialling
*1 If you need correction, press CLEAR. Digit is cleared to the left, then enter numbers.
Answering a Call
Terminating a Call
*1 You can also answer a call by pressing any dialling button, INTERCOM, t or x.
Setting the Clock/Date
After a mains power failure the clock needs to be reset. Ensure that icon is not
flashing.
•To exit the operation, press any time.
*1 For example, to set 7:15, enter 0715.
*2 For example, to set the 16th of February, 2003, enter 160203.
Press for more than 2 seconds.*2
Press for more than 1 second.*1
Press TALK.
Phone Number*1
Press TALK.
Phone Number
1122
Press TALK.*1
(During a call)
Press OFF.
"INPUT CODE"
Press MENU.Search/Select
"SETTING BS".
Press OK.
Time
Enter time.
4-digit
(24 hour clock)*1
Date
Enter day,
month then
year.*2
1
4
Press OK.
76
23
twice
"INPUT CODE"
Press
RIGHT.
5
410AL_e_03.fm Page 11 Monday, August 25, 2003 8:17 PM
12
Making Calls

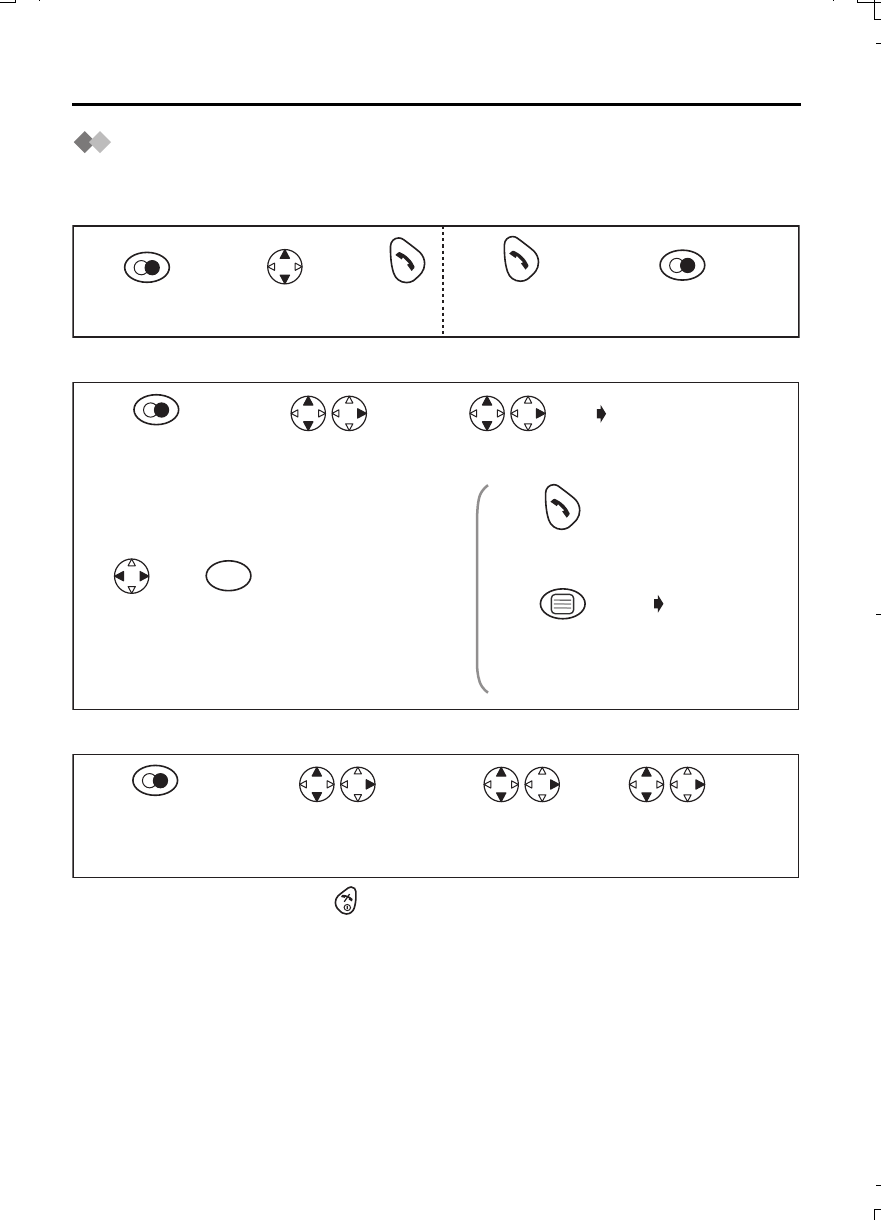

Redialling
The last 10 numbers dialled are stored in the redial list automatically.
Dialling with the Redial List Dialling the Last Number Dialled
Editing the Dialled Number in the Redial List
Clearing One/All Dialled Item(s) in the Redial List
•To exit the operation, press any time.
*1 If there is no item stored in the redial list, the display shows "NO ITEM".
*2 Digits are cleared to the left of the flashing digit.
*3 Digits are added to the left of the flashing digit. If you need to clear and/or add more
than one number, repeat from step 4.
Press
REDIAL.*1
Search the desired
dialled item.
Press
TALK.
Press TALK.Press REDIAL.
11223
Press REDIAL.*1 Search/Select the
desired dialled item.
Search/Select
"EDIT CALL NO".
The 1st digit of
the desired dialled
number blinks.
Move
cursor.
If you need to
store a name,
go to Name
on page 17 or
press OK.
Press
CLEAR.*2
Number
Edit the
phone
number.*3
Press TALK.
Press OK 3 times
to store the number.
OR
AND/
OR
C
1
45 6
23
Search/Select the
desired dialled item.
Search/Select
"CLEAR" or
"ALL CLEAR".
Search/Select
"YES".
Press REDIAL.*1
12 34
TCD410AL_e.book Page 12 Thursday, July 10, 2003 7:53 PM
13
Cordless Telephone
Caller ID
Caller ID Service
Caller ID is a service of your Network provider and will only operate if you have
subscribed to this feature.
After subscribing to Caller ID, this phone will display the caller information.
If your unit is connected to a PBX or a telephone line that does not support this service,
you will not be able to use it.
Caller ID does not display caller information while using the handset for an intercom call.
However, the caller information will be stored to the Caller ID List.
Call Waiting and Caller ID Compatible: If you subscribe to Caller ID service, your
handset displays the second caller’s information while talking. After you hear a
call-waiting tone, the caller’s phone number will be displayed.
You can answer the second call, keeping the first call on hold. Follow Telstra or your
service provider instructions using RECALL.
•If the phone number is stored in the phonebook with its name, the caller’s name will
also be displayed.
•Please contact Telstra or your service provider for details and availability in your area.
Using Caller ID Type II
When you receive a second call during a conversation, you will hear a signal tone
following the call waiting tone and the conversation will be interrupted or muted for
a short period of time. This is not the fault of the product as these events are normal.
Note: The tones are generated by the telephone company.
TCD410AL_e.book Page 13 Thursday, July 10, 2003 7:53 PM
14
Caller ID
Caller ID Service
When receiving a call, the display shows its phone
number.
For example, a caller whose phone number is
01234567890 has been received.
If you store a phone number with a name in the
phonebook, the display shows caller’s name when
receiving a call.
If the caller has requested not to display his/her
information, the display shows "PRIVATE".
If the caller dialled from an area which does not provide
Caller ID service, the display shows "OUT OF AREA".
When new calls have been received, the display
shows the numbers of calls.
For example, 4 new calls have been received.
TCD410AL_e.book Page 14 Thursday, July 10, 2003 7:53 PM
15
Cordless Telephone
Caller ID
Caller ID List
Information up to 50 different callers is stored from the most recent call to the oldest call
in the caller list. When the 51st call is received, the oldest caller information is cleared.
If you receive a call from the same phone number you stored with a name in the
phonebook, the display will show the caller’s name.
Calling Back
Editing the Received Number in the Caller List
Clearing One/All Received Item(s) in the Caller List
•To exit the operation, press any time.
*1 If there is no item stored in the caller list, the display shows "NO ITEM". on the
right edge of the display when searching the item in the caller list indicates that the
item has been already shown previously.
*2 Digits are cleared to the left of the flashing digit.
*3 Digits are added to the left of the flashing digit. If you need to clear and/or add more
than one number, repeat from step 3.
Press TALK.
Search the desired
received item.*1
12
Press OK 3 times
to store the number.
Search/Select the
desired received
item.*1
Search/Select
"EDIT CALL NO".
The 1st digit of the
desired received
number blinks.
Number
Press TALK.
OR
Press
CLEAR.*2
If you need to store
a name, go to
Name on page 17
or press OK.
AND/
OR
C
Edit the
number.*3
Move
cursor.
1
45
23
Search/Select the
desired received item.*1
Search/Select
"CLEAR" or
"ALL CLEAR".
Search/Select
"YES".
123
TCD410AL_e.book Page 15 Thursday, July 10, 2003 7:53 PM
16
Answering Calls
Auto Talk
If you set Auto Talk to on, you can answer the phone by lifting the handset off the base
unit.
•To exit the operation, press any time.
Temporary Bell Off
When an external call is incoming, you can temporarily turn off the handset ringer.
This function will not work when the handset is on the base unit or if an internal call is
incoming.
Receiver Volume
During a call, press UP or DOWN to change the volume setting to LOW (0), MEDIUM
(00), HIGH (000).
Handset Locator/Paging
Using this feature, you can locate a misplaced handset by paging.
*1 You can also stop paging by pressing any dialling buttons, INTERCOM, t or x.
Search/Select
"ON" or "OFF".
Search/Select
"OTHER OPT".
Press
MENU.Search/Select
"SETTING HS".
Search/Select
"AUTO TALK".
12 3 4 5
Press and hold
DOWN for
over 1 second.
(During a call)
Press UP or
DOWN.
Press on the base unit.
Press on the base unit OR on one of the handsets.
<To stop paging>
All registered handsets ring for 1 minute.
1
3
2
*1
TCD410AL_e.book Page 16 Thursday, July 10, 2003 7:53 PM
17
Cordless Telephone
Phonebook
You can store up to 20 caller information in the phonebook. If you received a call from
the same phone number you stored with a name in the phonebook, the display will show
the caller’s name.
Storing a Caller Information
•To exit the operation, press any time.
*1 If you need to make a correction, press RIGHT or LEFT to move cursor then clear
digit/character by pressing CLEAR, and/or enter digits/characters. Digits/characters
are cleared or added to the left of the flashing digit/character. To enter digits/
characters, see Character Selection below.
*2 To continue storing another caller information, repeat from step 3.
Character Selection
Character Table
Enter phone number.
(max. 24 digits)*1
Press MENU.Select
"NEW PHONE".
Press OK.
Phone Number
Press OK.*2
Enter name.
(max. 9 characters)*1
Name
1
56
23 4
0
1
2
3
4
5
6
7
8
9
Keys
Number of times key is pressed
2
X
Q
0
U
N
8
1
4
*
5
,
6
-
7
/
3
C
L
F
]
I
2
5
3
4
3
R
V
O
Y
1
P
T
M
W
5
7
9
4
S
8
6
Z
1
A
J
D
#
G
2
B
K
E
[
H
Number of times key is pressed
Keys
Blank
BVW X Y
ACDEFGHIJKLMNOPQRSTU
#
Z123456789*0 - []
/
,
TCD410AL_e.book Page 17 Thursday, July 10, 2003 7:53 PM
18
Phonebook
Editing a Caller Information
Clearing a Caller Information
Dialling with the Phonebook
•To exit the operation, press any time.
*1 If there is no item stored in the phonebook, the display shows "NO ITEM".
*2 Digits are cleared to the left of the flashing digit.
*3 Digits are added to the left of the flashing digit. If you need to clear or add more than
one digit, repeat from step 4.
*4 Characters are added to the left of the flashing character. If you need to clear or add
more than one character, repeat from step 7.
*5 To continue clearing another caller information, repeat from step 2.
Edit the name.*4
Number
Edit the phone
number.*3
Move cursor.
<Phone Number>
Name
Press OK.
Press CLEAR.*2 Press OK.
<Name>
Move cursor. Press CLEAR.*2
Search/Select
desired item.
Press
PHONEBOOK.*1 Select "EDIT".
The 1st digit of the
desired phone
number blinks.
AND/
OR
AND/
OR
C
C
1
4
78 9
56
23
Press
PHONEBOOK.*1
Search/Select
desired item.
Search/Select
"CLEAR".
Search/Select
"YES".*5
1234
Press
PHONEBOOK.*1
Search
desired item.
Press TALK.
123
TCD410AL_e.book Page 18 Thursday, July 10, 2003 7:53 PM
19
Cordless Telephone
Phonebook
Storing the Phone Number into the Phonebook
When Pre-dialling
•To exit the operation, press any time.
*1 If you need correction, press CLEAR. Digit is cleared to the left, then enter numbers.
*2 To enter characters, see Character Selection on page 17.
Storing the Number from the Redial/Caller List into
the Phonebook
•To exit the operation, press any time.
*1 If there is no item stored in the redial/caller list, the display shows "NO ITEM".
*2 If you need to make a correction, press RIGHT or LEFT to move cursor then clear a
digit by pressing CLEAR, and/or enter digits. Digits are cleared or added to the left of
the flashing digit.
Phone Number
*1
Press OK twice.Press OK to
store the number.
Press OK.
Enter name.*2
Name
1
5
234
Press REDIAL.*1
If you need to store a name, go to Name on page 17.
Press OK.
Search/Select
the desired dialled
number.
Search/Select
"SAVE TEL NO".*2
Search/Select
the desired received
number.*1
OR
OR
Press OK.
12
4
3
TCD410AL_e.book Page 19 Thursday, July 10, 2003 7:53 PM
20
Phonebook

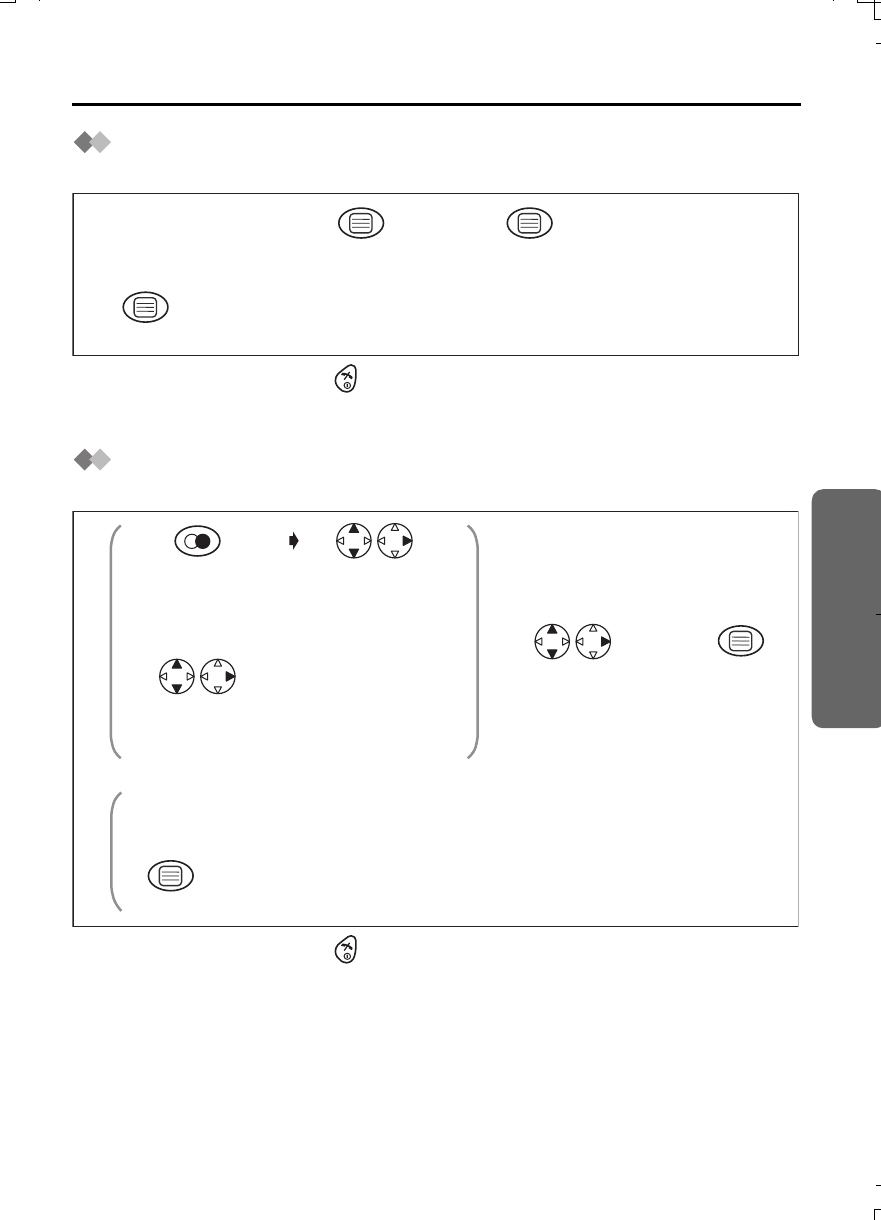

Hot Key
You can assign the dialling buttons 1 through 9 as hot keys. You can choose 9 phone
numbers from the phonebook.
Registering a Phone Number as a Hot Key
Dialling with Hot Key
Clearing the Hot Key Registration
•To exit the operation, press any time.
*1 If there is no item stored in the phonebook, the display shows "NO ITEM".
*2 The number is flashing if the dialling button is already assigned as a hot key.
*3 Phonebook registration will be remained even hot key registration is cleared.
Press
PHONEBOOK.*1 Search/Select
desired item.
Search/Select
"HOT KEY REG".
Search/Select
"YES".
Search/Select
desired dialling
button number.*2
1
5
23 4
Press and hold the dialling button registered as a hot key.
Press TALK.
12
Press and hold the dialling
button registered as a hot
key. Press RIGHT. Select "CLEAR". Search/Select
"YES".*3
1234
410AL_e_03.fm Page 20 Monday, August 25, 2003 8:17 PM
21
Cordless Telephone

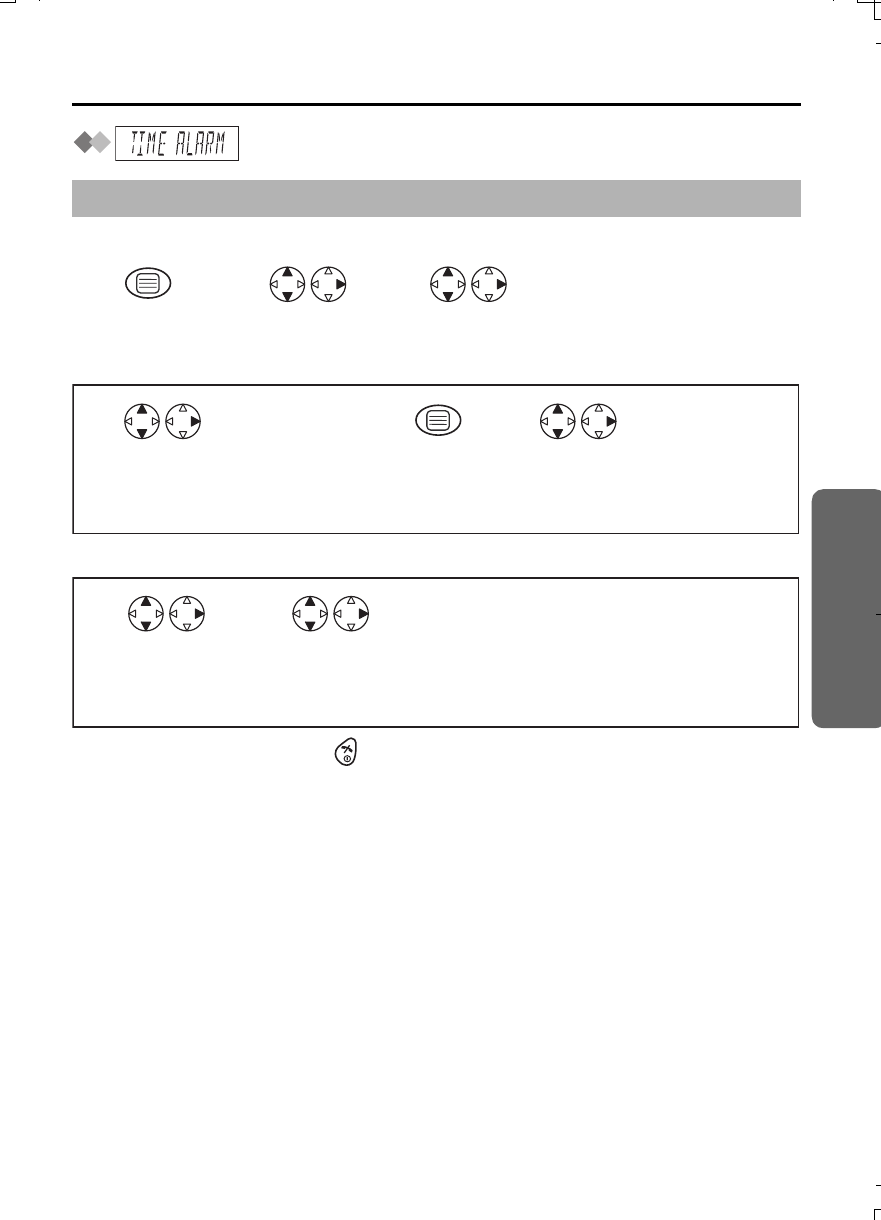

Handset Settings
: Time Alarm
You must set the clock before setting the time alarm.
Setting Alarm Time
Setting Time Alarm On/Off
•To exit the operation, press any time.
To stop time alarm: Time alarm will sound for 3 minutes. When the alarm sounds, press
any dialling buttons or key. Alarm stops and display returns to the standby mode.
If "ONCE" is selected, the setting is turned off. When in talk or intercom mode, the alarm
will not sound until the call is ended.
Before programming, please follow steps 1 to 3.
Press MENU. Search/Select
"TIME ALARM".
Search/Select
"SETTING HS".
12 3
Search/Select
"SET TIME".
Time
Enter time.
4-digit
(24 hour clock)
Press OK.Search/Select
"OFF",
"ONCE" or
"REPEAT DAILY".
4567
Search/Select
"SET ALARM".
Search/Select
"OFF",
"ONCE" or
"REPEAT DAILY".
45
TCD410AL_e.book Page 21 Thursday, July 10, 2003 7:53 PM
22

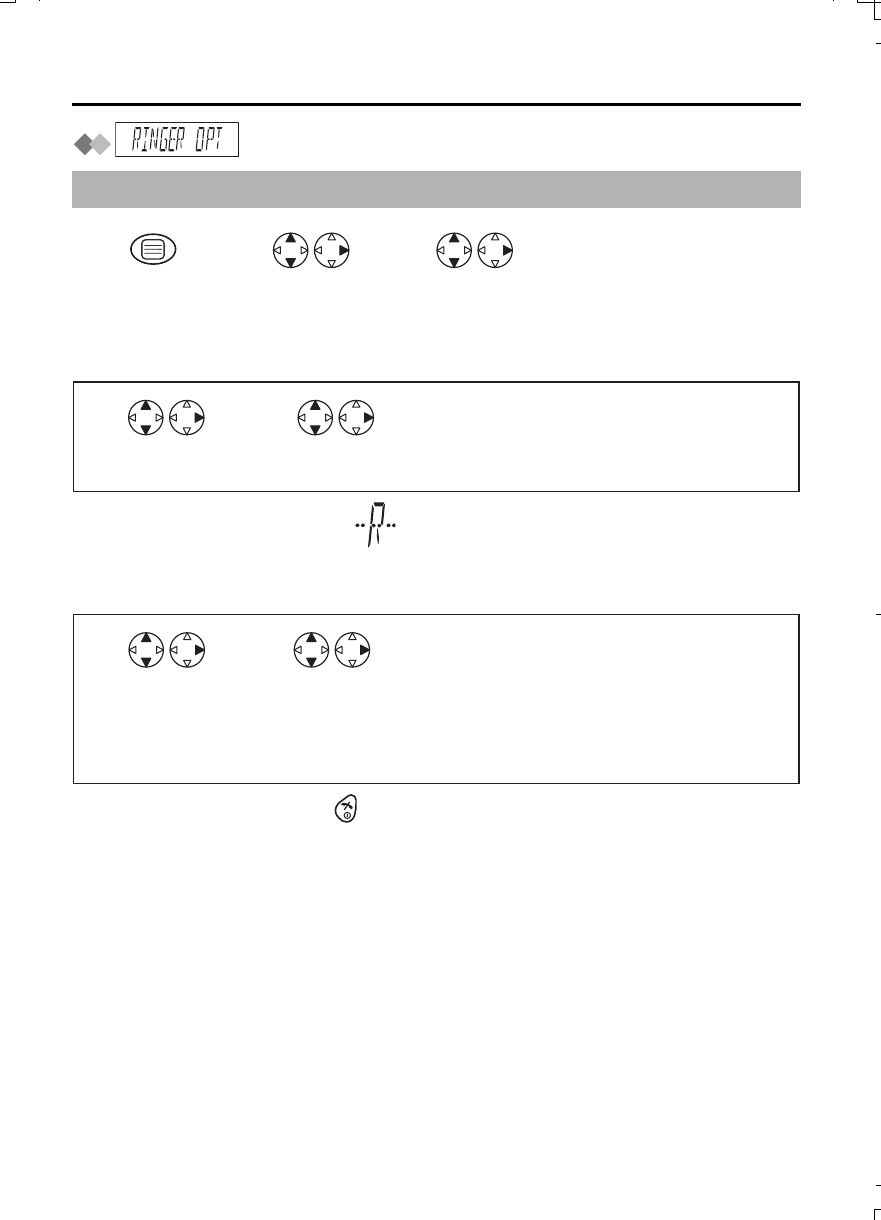

Handset Settings
: Ringer Option
Setting the Ringer Volume
The choices are 6 levels and off.
•If "RINGER OFF" is selected, is displayed.
Setting the Ringer Pattern for External Call/Internal Call/Paging/Alarm
There are 20 patterns available on each ringer.
•To exit the operation, press any time.
*1 If you select one of the melody ringer patterns, it keeps ringing for 10 seconds even
if a caller hangs up a call. Therefore, you may hear dial tone or no one there after you
answer a call.
Before programming, please follow steps 1 to 3.
Press MENU. Search/Select
"RINGER OPT".
Search/Select
"SETTING HS".
12 3
Search/Select
"RINGER VOL".
Search/Select
desired ringer volume.
45
Search/Select
"EXT RINGER",
"INT RINGER",
"PAGING" or
"ALARM".
Search/Select
desired ringer pattern.*1
45
410AL_e_03.fm Page 22 Monday, August 25, 2003 8:18 PM
23
Cordless Telephone
Handset Settings
: Tone Option
You can set the following sounds on or off.
Key Tone: Key tone will sound when you press any key, and a confirmation tone and
an error tone will be heard during operation.
Call Waiting Tone: Call waiting tone will sound when an incoming external call is
received during an intercom call.
Range Warning Alarm: Alarm will sound when you move out of range of a base unit.
Battery Low Alarm: Alarm will sound when the batteries need to be charged.
•To exit the operation, press any time.
: Display Option
Selecting the Standby Mode Display
•To exit the operation, press any time.
*1 Time will only be displayed if the clock has been set. When new calls have been
received, the display shows the number of new call.
Search/Select
"ON" or "OFF".
Search/Select
"KEY TONE",
"CALL WAITING",
"RANGE ALARM" or
"BATTERY LOW".
Press MENU.Search/Select
"TONE OPT".
Search/Select
"SETTING HS".
1
5
234
Search/Select
"STANDBY MODE".
Search/Select
"CLOCK",*1
"OFF",
"BS NO"(Base unit number) or
"HS NO"(Handset number).
4
5
Press MENU. Search/Select
"DISPLAY OPT".
Search/Select
"SETTING HS".
12 3
TCD410AL_e.book Page 23 Thursday, July 10, 2003 7:53 PM
24

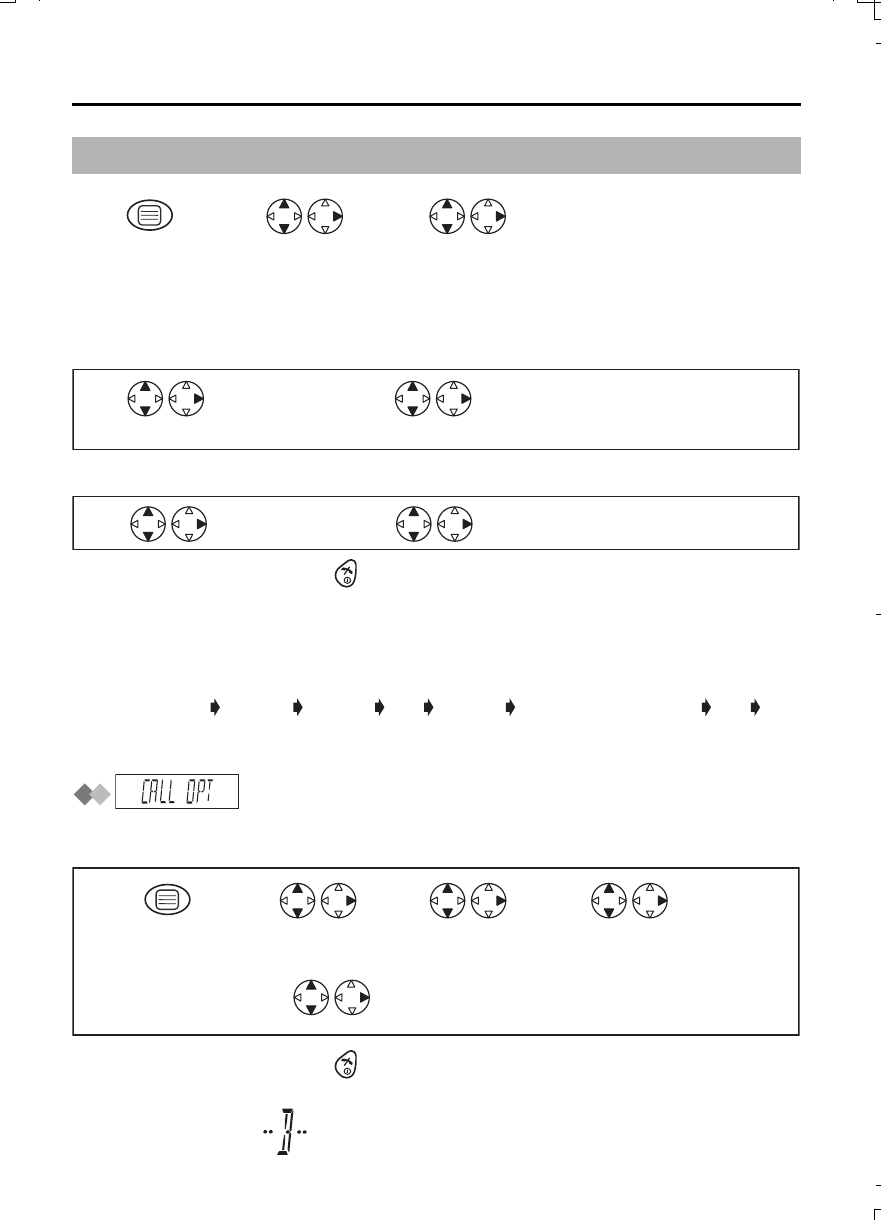

Handset Settings
Selecting the Talk Mode Display
Even if you select "PHONE NO", the other party’s phone number will not appear on your
display when you receive calls without subscribing to a Caller ID service.
Selecting the Display Language
•To exit the operation, press any time.
•If "F43 00" is selected, the Command Interface will be displayed instead of a
language. Each menu will be displayed as an alphanumeric code. The Command
Interface codes for each menu item are shown on page 4 of the Quick Guide.
*1 You can select one of 10 languages. If you set a language you cannot read, reset the
handset to its initial settings.
Press MENU DOWN RIGHT UP RIGHT 4-digit Handset PIN UP OK.
All handset setting will be reset to their initial settings (p. 29), however, the Phonebook
data will be saved.
: Call Option
Call BAR On/Off
This allows you to make an emergency and internal call.
•To exit the operation, press any time.
*1 The factory preset is 0000.
*2 If "ON" is selected, is displayed.
Before programming, please follow steps 1 to 3.
Press MENU. Search/Select
"DISPLAY OPT".
Search/Select
"SETTING HS".
12 3
Search/Select
"TALK MODE".
Search/Select
"TALK TIME"(Length of the call) or
"PHONE NO"(Phone number).
45
Search/Select
"LANGUAGE".
Search/Select
desired language.*1
45
Search/Select
"ON" or "OFF".*2
4-digit
Handset PIN
*1
Search/Select
"CALL BAR".
4
56
Press MENU. Search/Select
"CALL OPT".
Search/Select
"SETTING HS".
12 3
410AL_e_03.fm Page 24 Monday, August 18, 2003 3:42 PM
25
Cordless Telephone
Handset Settings
Setting the Direct Call Number
After a direct call number has been set and on, you can dial the direct call number only
by pressing TALK. Incoming calls are accepted.
Setting the Direct Call On/Off
•To exit the operation, press any time.
*1 If "ON" is selected, is displayed.
: Other Options
Changing Handset PIN
The factory preset is 0000. Once you have programmed the handset PIN, you
cannot confirm it. We recommend you write down the handset PIN. If you forget
it, please consult your nearest Panasonic Service Centre.
•To exit the operation, press any time.
Before programming, please follow steps 1 to 3.
Press MENU. Search/Select
"CALL OPT".
Search/Select
"SETTING HS".
12 3
Search/Select
"DIRECT NO".
Phone Number
Enter the direct
call number. (max. 24 digits) Press OK 3 times.*1
45 6
Search/Select
"SET DIRECT".
Search/Select
"ON" or "OFF".*1
45
Current 4-digit Handset PIN
Search/Select
"HSPIN CHANGE".
New 4-digit Handset PIN
New 4-digit Handset PIN again to verify
4
6
7
5
Press MENU. Search/Select
"OTHER OPT".
Search/Select
"SETTING HS".
12 3
TCD410AL_e.book Page 25 Thursday, July 10, 2003 7:53 PM
26

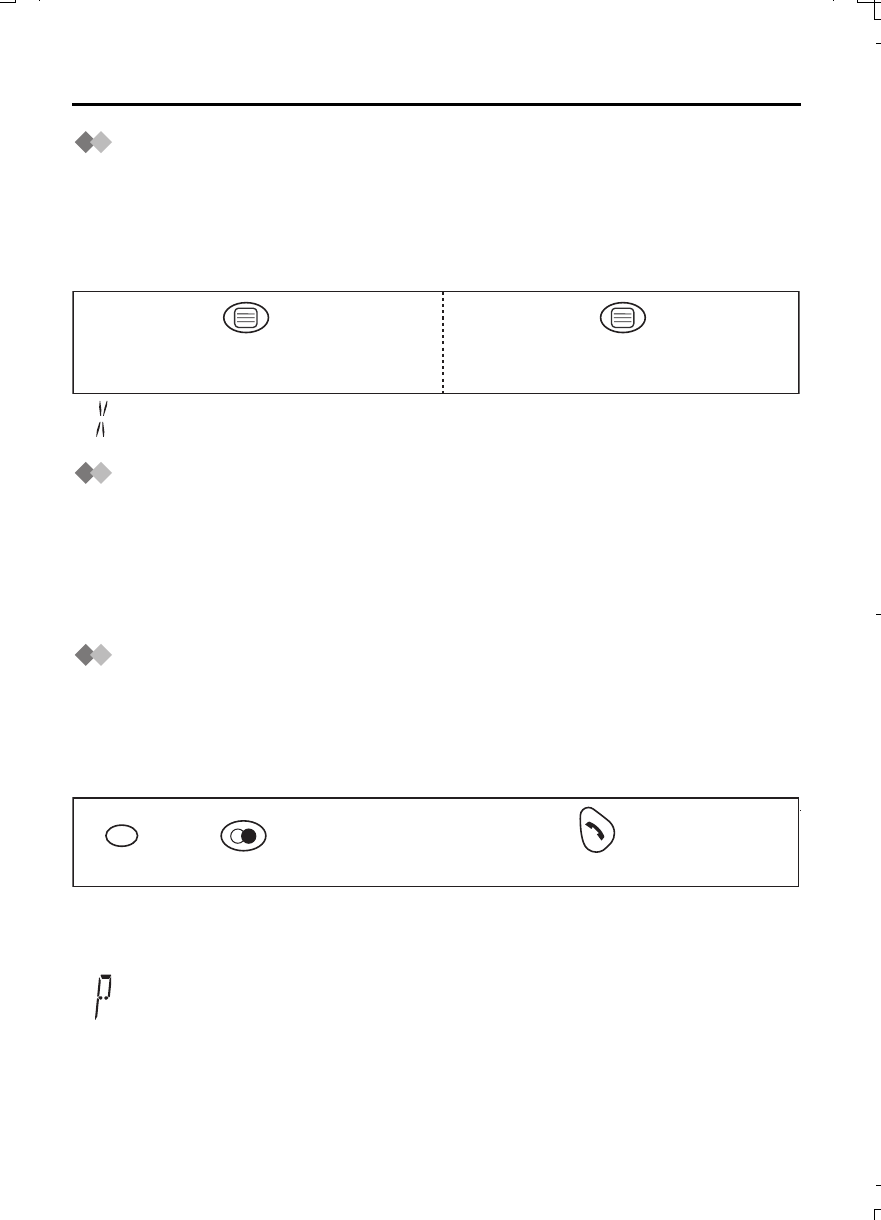

Handset Settings
Key Lock
You can lock the handset dialling buttons. Only incoming calls are accepted while the
key lock is on. The key lock is cancelled if the handset is turned off.
When the key lock is on, emergency calls cannot be made until key lock is
cancelled.
Key Lock On Key Lock Off
• is displayed and all dialling buttons are locked.
Recall Feature
RECALL is used to access special telephone services. Contact your Network provider
for details. If your unit is connected to a PBX, pressing RECALL allows you to access
some features of your host PBX such as transferring an extension call.
•Users in Australia can access Telstra’s “EASY CALL” service by having the recall time
set at 100 msec (this is the factory default setting), and then follow Telstra’s “EASY
CALL” instructions to operate this service.
Dialling Pause (for PBX line/long distance service
users)
A dialling pause is used when a pause in the dialling of the phone number is necessary
using a PBX or accessing a long distance service.
For example, when 0 (line access number) is dialled followed by a pause to access an
outside line through a PBX:
•Entering a pause prevents misdialling when you redial or dial a stored number.
•Pressing PAUSE once creates one pause. To extend the pause requirement time,
press PAUSE accordingly.
*1 is displayed on the LCD.
Press OK for more
than 2 seconds.
Press OK for more
than 2 seconds.
Press PAUSE.*1
Phone Number
Press TALK.
0
12 3 4
TCD410AL_e.book Page 26 Thursday, July 10, 2003 7:53 PM
27
Cordless Telephone

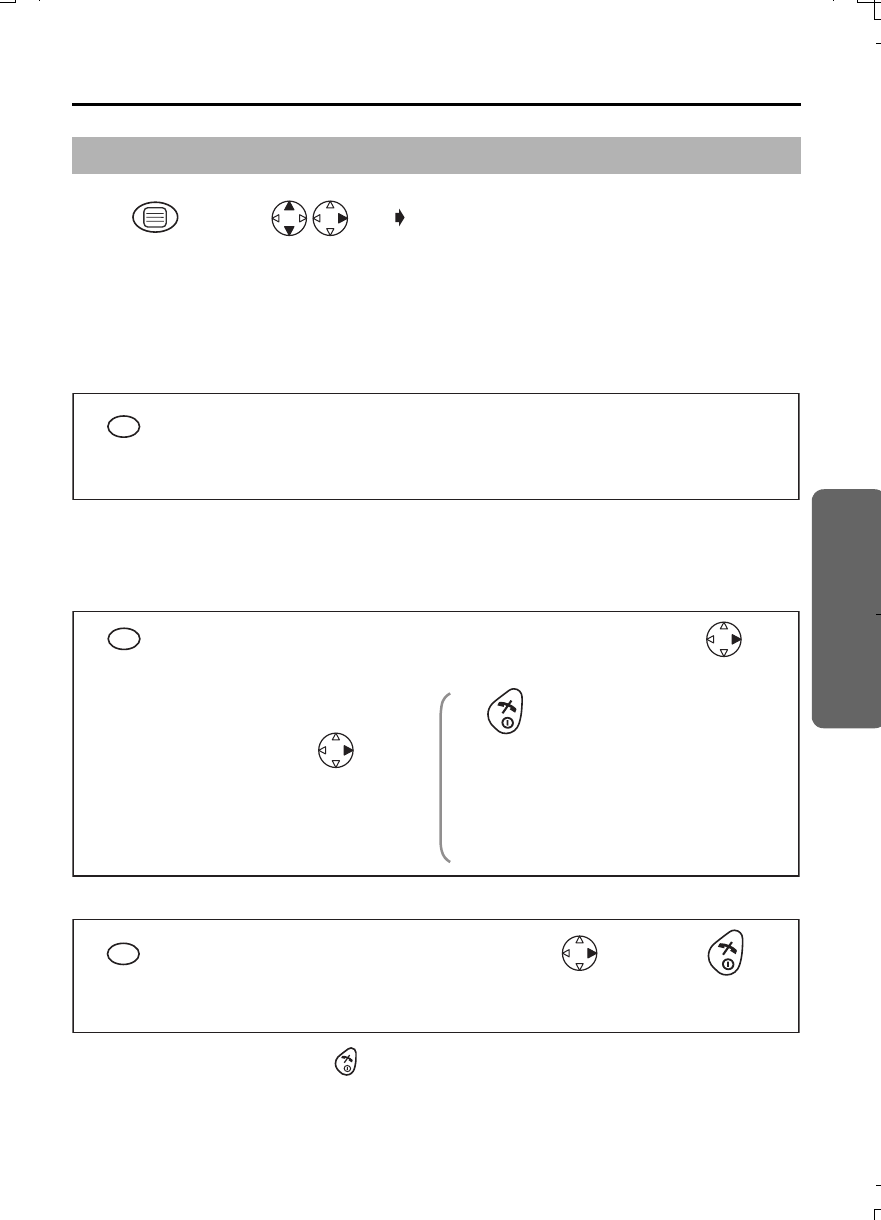

Base Unit Settings
Changing Base Unit PIN
The factory preset is 0000. Once you have programmed the base unit PIN, you
cannot confirm it. We recommend you write down the base unit PIN. If you forget
it, please consult your nearest Panasonic Service Centre.
Call Restriction
You can restrict selected handset(s) from dialling selected phone numbers. You can
assign up to 10 call restriction numbers (up to 8 digits). If you dial a restricted number,
the call does not connect and restricted number flashes.
Cancelling Call Restricted Handset(s)
•To exit the operation, press any time.
*1 The factory preset is 0000.
*2 The selected handset number flashes.
*3 The selected handset(s) number(s) will stop flashing.
Before programming, please follow steps 1 to 2.
Press MENU. Search/Select
"SETTING BS".
"INPUT CODE"
12
Current 4-digit Base Unit PIN New 4-digit Base Unit PIN
New 4-digit Base Unit PIN again to verify
5
3
6
45
4-digit Base
Unit PIN
*1 Select desired handset number.*2
Handset Number
Phone Number
Press OFF.
To continue entering call
restriction numbers, repeat
the steps 7 to 8.
(up to 10 numbers)
OR
Press RIGHT.
Press RIGHT.
6
3
789
45 6
Enter phone
number to be
restricted.
(up to 8 digits)
4-digit Base
Unit PIN*1
Handset
Number
Select desired
handset number.*3
6
34 5 6 7
Press OFF.
Press RIGHT.
410AL_e_03.fm Page 27 Monday, August 25, 2003 8:18 PM
28
Base Unit Settings
Cancelling Call Restricted Number
Selecting the Recall Time
You can select the recall time, 700 msec (milliseconds), or 100 msec depending on your
PBX requirements.
Pause Timing
You can set the pause timing to 3 or 5 seconds, depending on your PBX requirements.
•To exit the operation, press any time.
•The factory preset is in shade.
*1 The factory preset is 0000.
Before programming, please follow steps 1 to 2.
Press MENU. Search/Select
"SETTING BS".
"INPUT CODE"
12
4-digit Base
Unit PIN
*1 Press CLEAR.
Press RIGHT repeatedly
until desired call restriction
number is displayed.
C
Press RIGHT.
<to continue>
Repeat the
steps 5 to 7.
<to finish>
6
3
7
6
8
45
OR
Press OFF.
4-digit
Base Unit
PIN
*1 Press OK.
1
2
100 msec
700 msec
OR
1
2
3
34 56 8
7
Press OK.
7
4-digit
Base Unit
PIN
*1
3 Seconds
5 Seconds
OR
1
2
33
34 56
TCD410AL_e.book Page 28 Thursday, July 10, 2003 7:53 PM
29
Cordless Telephone
Initial Settings
: Reset Handset Settings
You can reset all of the handset settings to their initial settings.
•To exit the operation, press any time.
*1 The factory preset is 0000.
Handset Initial Settings
Function Initial Setting
Time Alarm Mode OFF
Alarm Time Clear
Handset Ringer Volume 6
Handset External Ringer Pattern 1
Handset Internal Ringer Pattern 1
Handset Paging Tone Pattern 1
Handset Alarm Tone Pattern 1
Key Tone ON
Call Waiting Tone ON
Range Warning Alarm OFF
Battery Low Alarm ON
Standby Mode Display Clock
Talk Mode Display Length of the Call
Display Language English
Call BAR OFF
Direct Call Mode OFF
Direct Call Number Clear
4-Digit Handset PIN 0000
Auto Talk OFF
Base Unit Access Automatic Base Unit Access
Redial Memory All Clear
Handset Receiver Volume Medium
Search/Select
"YES" or "NO".
4-digit Handset PIN
*1
Press MENU.Search/Select
"RESET HS".
Search/Select
"SETTING HS".
1
5
234
TCD410AL_e.book Page 29 Thursday, July 10, 2003 7:53 PM
30
Initial Settings
Reset Base Unit Settings
If the base unit is reset, the Caller ID list will clear.
•To exit the operation, press any time.
*1 The factory preset is 0000.
Base Unit Initial Settings
Function Initial Setting
Ringer Mode All Handsets
Number of Rings 3
Recall Time 100 msec
Pause Timing 3 seconds
Call Restricted Handsets All Clear
Call Restriction Numbers All Clear
4-Digit Base Unit PIN 0000
Press OK.
4-digit Base Unit PIN
*1
Press MENU.Search/Select
"SETTING BS".
"INPUT CODE" 0
1
45
23
TCD410AL_e.book Page 30 Thursday, July 10, 2003 7:53 PM
31
Cordless Telephone
Multi-unit User Operation
: Handset Registration to a Base Unit
Handset Registration
The handset supplied with the base unit is already registered. If an optional handset is
purchased, it must be registered. Additional KX-A142AL handsets are available to
purchase separately. Up to 6 handsets can be registered to a single base unit. Using
additional handsets allows you to have an intercom call while simultaneously conducting
a call to an outside line.
Handset must be registered within 1 minute after pressing PAGE button. If over
1 minute, press then start over again.
Charge the optional handset batteries for 7 hours before initial use.
•To exit the operation, press any time.
*1 The factory preset is 0000.
KX-A142AL Handset: You can see the illustrations for answering system feature on
additional KX-A142AL handset body, but KX-TCD410AL does not have an answering
system feature. Therefore, the answering system does not work even if KX-A142AL handset
has been registered to KX-TCD410AL.
Search/Select desired
base unit number
available to register
the handset.
If all registered handsets start ringing (Paging),
press to stop paging then start over again.
When a handset is
registered successfully,
a confirmation tone
sounds and icon
lights.
Press and hold on the Base Unit
(for about 10 seconds) until the green indicator flashes.
4-digit Base
Unit PIN after
"BS PIN" is
displayed.*1
Press OK.
4
78
5
6
Press
RIGHT.
Press MENU.Search/Select
"REGISTRATION".
Search/Select
"SETTING HS".
12 3
"REGISTER HS"
TCD410AL_e.book Page 31 Thursday, July 10, 2003 7:53 PM
32
Multi-unit User Operation
Cancelling a Base Unit
You can cancel any base unit that your handset is registered to.
Cancelling a Handset
Each handset can cancel itself or another handset.
•To exit the operation, press any time.
*1 The factory preset is 0000.
*2 The selected base unit number flashes.
*3 The selected handset number flashes.
Search/Select
"CANCEL BS".
4-digit
Handset PIN*1 Search/Select
"YES" or "NO".
Press RIGHT.
Search/Select
desired base unit
number to cancel.*2
4
7856
Press MENU.Search/Select
"REGISTRATION".
Search/Select
"SETTING HS".
123
4-digit Base
Unit PIN*1 Select desired
handset number.*3
Handset Number
Press OK.
Press MENU.Search/Select
"SETTING BS".
Please wait until
"SETTING BS" is
displayed.
"INPUT CODE"
1
7
3
45 6
2
410AL_e_03.fm Page 32 Monday, August 25, 2003 8:18 PM
33
Cordless Telephone
Multi-unit User Operation
Ringer Mode Selection;
Setting the All Handsets Mode
Setting the Selected Handsets Mode
Setting the Selected then All Handsets Mode
The specific handset(s) will ring for a selected number of rings.
If not answered, all handsets will ring.
•To exit the operation, press any time.
•The factory preset is in shade.
*1 The factory preset is 0000.
*2 The selected handset number flashes.
*3 Press dialling button through to enter the number of rings.
Before programming, please follow steps 1 to 4.
Press
MENU.Search/Select
"SETTING BS".
"INPUT CODE" 4-digit
Base Unit
PIN*1
1
12 34
All handsets mode. Press OK.
1
56
Press desired
handset numbers.
Selected handsets
mode.
Handset Numbers*2
Press OK.
2
56 7
Selected then all
handsets mode.
Press desired
handset numbers.
Handset Numbers
*2
Press RIGHT.
Select how many times
it rings. (up to 6 rings)
Number of Rings
*3
Press OK.
3
5
89
67
1 6
TCD410AL_e.book Page 33 Thursday, July 10, 2003 7:53 PM
34
Multi-unit User Operation
: Base Unit Selection
When Automatic Base Unit Access is selected, if you move outside of the radio range of
the current base unit the handset automatically searches for other registered bases.
When a specified base unit is selected, the handset will access that base unit only. Calls
(both incoming and outgoing) can be conducted only via the selected base unit, even if
the radio cells overlap with neighbouring base units.
•To exit the operation, press any time.
Operating Additional Base Units: You can register and operate your handset with up
to 4 base units. Each base unit forms 1 radio cell. If the individual bases are linked to the
same telephone line then you can extend the operating range of the system by
positioning the bases so that the two radio cells overlap. If the handset is set to AUTO
base selection, then in standby mode the handset will automatically swap to the second
base if the range on the first base is exceeded. It is not possible to transfer calls between
bases (only between handsets linked to the same base unit).
Note: Calls are disconnected when the handset moves from one radio cell to
another.
Search/Select
"AUTO" or specific
base unit number.
Press MENU.Search/Select
"SELECT BS".
Search/Select
"SETTING HS".
12 3 4
1
2
3
5
4
E.g.
Additional
handsets
(KX-A142AL)
registered with
2 base units.
Radio Cell
TCD410AL_e.book Page 34 Thursday, July 10, 2003 7:53 PM
35
Cordless Telephone
Intercom
Intercom between Handsets
You can use your handsets as a 2-way intercom.
For example, when Handset 1 calls Handset 2. To hang up, press .
•Intercom calls can be conducted within the radio cell of the current base unit, but not
with units in neighbouring radio areas.
Transferring a Call to Another Handset/Conference Call
Intercom can be used during a call to transfer an external call between handsets that are
registered to the same base unit. For example, when handset 1 transfers a call to
Handset 2. To hang up, press .
*1 You can also press any dialling button, INTERCOM, t or x.
*2 If you press after pressing desired handset number, a call can be transferred to
another handset without speaking to another handset.
If the transferred call is not answered within 30 seconds, Handset 1 will ring again.
*3 When Handset 2 answers a call transferred, press to complete a call transfer or
press dialling button to establish the conference call.
Press TALK.*1
<Handset 1>
Press INTERCOM.Press desired
Handset Number.
( on the display)
INT
<Handset 2>
2
12
3
Press TALK.*1
<Handset 1>
(During a call)
<Handset 2>
Press INTERCOM.Press desired
Handset Number.*2
*3
( on the display)
INT
2
12
3
4
3
3
TCD410AL_e.book Page 35 Thursday, July 10, 2003 7:53 PM
36
Before Requesting Help
If you experience any problems with the normal use of your apparatus, you should
unplug it from the telephone outlet and connect a known working telephone in its place.
If the known working telephone still has problems, then please contact the customer
service department of your Network provider.
If it operates correctly, then the problem is likely to be a fault in your apparatus.
In this case, contact your supplier for advice. Your Network provider may charge you if
they attend a service call that is not due to apparatus supplied by them.
Turn the power OFF then ON (Handset)/Disconnect then connect the AC adaptor
(Base unit).
Problem Possible cause Solution
NO LCD display in handset. •Handset not turned on. •Turn on power (p. 11).
Handset will not turn on. •Batteries not inserted.
•Batteries not charged.
•Insert the 2 rechargeable
batteries supplied (p. 6).
•Place handset in base and
connect AC adaptor to base
and AC outlet (full charge
period 7 hrs).
Batteries charge icon not
counting up.
•Dirty charge contact.
•Base not powered up.
•Clean charge/battery
contact and retry charge.
•Connect AC adaptor to
base unit and AC outlet.
icon flashes. •Handset not registered to
base.
•Handset out of range of
base.
•No power into base unit.
•Register handset to base.
•Move handset closer to
base.
•Connect AC adaptor to
base unit and AC outlet.
Handset busy tone heard
when is pressed.
•Handset out of range of
base.
•Another handset in use.
•Move handset closer to
base.
•Wait for the other user to
complete call.
No dial tone. •Telephone line not
connected.
•Insert telephone cord to
network.
•Turn power OFF then ON.
Cannot dial out. •Call BAR set.
•Particular dialled number is
restricted.
•Key lock mode ON.
•Turn feature off.
•Remove number from call
restricted list.
•Turn key lock OFF.
TCD410AL_e.book Page 36 Thursday, July 10, 2003 7:53 PM
37
Useful Information
Before Requesting Help
Panasonic Australia operates a toll free Customer Support Centre.
Please phone Panasonic on 132600 for assistance.
Problem Possible cause Solution
Handset will not ring. •Ringer switched off. •Set ringer to one of
6 volume levels.
(see “Handset Settings”.)
Last number redial does not
work.
•Number exceeded 24 digits. •Redial manually.
No Caller ID number
displayed.
•Service not supplied.
•Caller has withheld info.
•Caller ID service must be
arranged with Network
provider.
icon flashes. •Battery low. •Recharge batteries.
icon is disappeared. •Wrong battery type
selected.
•Set the correct battery type.
Cannot register handset to
base.
•Max. number of bases
already registered to
handset.
•Max. number of handsets
already registered to base
unit.
•Wrong PIN number entered
(Default 0000).
•Electrical noise in local
area.
•Delete unused base
registrations from handset.
•Delete unused handset
registrations from base.
•If PIN number is lost,
contact the Panasonic
Service Centre.
•Move base/handset away
from sources of electrical
noise (TVs, radios, etc.).
TCD410AL_e.book Page 37 Thursday, July 10, 2003 7:53 PM
38
Technical Information
Specifications:
•Specifications are subject to change.
•The illustrations used in this manual may differ slightly from the original device.
Connections:
The unit will not work during a power failure. We recommend you connect a standard
telephone on the same line for power protetion.
Standard: DECT=(Digital Enhanced Cordless
Telecommunications)
GAP=(Generic Access Profile)
Number of channels: 120 Duplex Channels
Frequency range: 1.88 GHz to 1.9 GHz
Duplex procedure: TDMA (Time Division Multiple Access)
Channel spacing: 1728 kHz
Bit rate: 1152 kbit/s
Modulation: GFSK
RF Transmission Power: Approx. 250 mW
Voice coding: ADPCM 32 kbit/s
Power source: AC Adaptor 220 - 240 V, 50 Hz
Power consumption, base unit: Standby: Approx. 3.5 W
Maximum: Approx. 9.2 W
Operating conditions: 5 - 40 °C, 20 - 80 % relative air humidity (dry)
Dimensions, Base Unit: About (58 mm x 128 mm x 105 mm) x 170 g
Dimensions, Handset: About (143 mm x 48 mm x 32 mm) x 120 g
TCD410AL_e.book Page 38 Thursday, July 10, 2003 7:53 PM
39
Useful Information
Index
AC Adaptor .......................................... 2, 6
Accessories.............................................. 2
Answering Calls ..................................... 16
Auto Talk................................................ 16
Base Unit
Initial Settings.................................... 30
PIN .................................................... 27
Reset................................................. 30
Selection ........................................... 34
Battery
Caution................................................ 5
Charge ................................................ 7
Installation........................................... 6
Life ...................................................... 7
Battery Low Alarm.................................. 23
Call Restriction
Cancelling Call Restricted
Handset(s) ........................................ 27
Cancelling Call Restricted Number ... 28
Call Waiting............................................ 13
Caller ID List
Calling Back ...................................... 15
Clearing............................................. 15
Editing ............................................... 15
Storing............................................... 19
Calls
Answering ......................................... 11
Making ........................................ 11, 12
Redialling .......................................... 12
Terminating ....................................... 11
Cancelling a Base Unit........................... 32
Cancelling a Handset ............................. 32
Clock/Date.............................................. 11
Conference Call ..................................... 35
Dialling Pause ........................................ 26
Direct Call Number................................. 25
Display
Standby Mode................................... 23
Talk Mode ......................................... 24
Handset
Display................................................ 9
Initial Settings ................................... 29
Locator.............................................. 16
Paging............................................... 16
PIN.................................................... 25
Registration....................................... 31
Reset ................................................ 29
Ringer ............................................... 22
Intercom................................................. 35
Key
Lock .................................................. 26
Tone.................................................. 23
Making Calls
Redialling .......................................... 12
with the Phonebook .......................... 18
Phonebook
Hot Key............................................. 20
Storing .............................................. 17
Power On/Off ......................................... 11
Range Warning Alarm ........................... 23
Recall..................................................... 26
Recall Time ............................................ 28
Receiver Volume ................................... 16
Ringer Pattern........................................ 22
Ringer Volume ....................................... 22
Setting up................................................. 6
Specifications......................................... 38
Time Alarm ............................................ 21
Tone Option ........................................... 23
Wall Mounting ........................................ 10
TCD410AL_e.book Page 39 Thursday, July 10, 2003 7:53 PM
For your future reference
Serial No. Date of purchase
(found on the bottom of the unit)
Name and address of dealer
Attach or keep original receipt to assist with any repair under warranty.
Technical specifications are subject to change.
Panasonic Australia Pty. Limited
Austlink Corporate Park
1 Garigal Road
Belrose
NSW 2085
Australia
Panasonic Communications Co., Ltd.
1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan
N52
PQQX13520ZA F0803-1093
410AL_e_05.fm Page 40 Friday, September 5, 2003 7:23 PM

Navigation menu
