TABLE OF CONTENTS
Before Use
Preparation
Basic
Advanced (Recording pictures)
Advanced (Playback)
Connecting to other equipment
Others

Operating Instructions

Digital Camera

Model No. DMC-FS7

DMC-FS8

DMC-FS6

Before connecting, operating or adjusting this product,

please read the instructions completely.

VQT2C70-1

For USA and Puerto Rico assistance, please call: 1-800-211-PANA(7262) or,

For Canadian assistance, please call: 1-800-99-LUMIX (1-800-995-8649) or

send e-mail to: lumixconcierge@ca.panasonic.com

DMC-FS7&8&6P-VQT2C70_eng.book 1 ページ２００９年４月２８日　火曜日　午前１１時１分

VQT2C70

Before Use

Dear Customer,

Thank you for choosing Panasonic!

You have purchased one of the most sophisticated and reliable products on the market

today. Used properly, we’re sure it will bring you and your family years of enjoyment.

Please take time to fill in the information on the below. The serial number is on the tag

located on the underside of your Camera. Be sure to retain this manual as your

convenient Camera information source. Please note that the actual controls and

components, menu items, etc. of your Digital Camera may look somewhat different from

those shown in the illustrations in these Operating Instructions.

Carefully observe copyright laws.

•Recording of pre-recorded tapes or discs or other published or broadcast material for purposes

other than your own private use may infringe copyright laws. Even for the purpose of private

use, recording of certain material may be restricted.

Information for Your Safety

A lithium ion battery that is recyclable powers the product you have

purchased. Please call 1-800-8-BATTERY for information on how to

recycle this battery.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE,

• DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR

SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,

SHALL BE PLACED ON THE APPARATUS.

• USE ONLY THE RECOMMENDED ACCESSORIES.

• DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

THE SOCKET OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AND

SHALL BE EASILY ACCESSIBLE.

Product Identification Marking is located on the bottom of units.

Model No.

Serial No.

VQT2C70~Safety_eng.fm 2 ページ２００９年２月２４日　火曜日　午前１０時３５分

VQT2C70

Before Use

THE FOLLOWING APPLIES ONLY IN CANADA.

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

This Class B digital apparatus complies with Canadian ICES-003.

FCC Note:

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

•Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, follow the attached installation

instructions and use only shielded interface cables with ferrite core when

connecting to computer or peripheral devices.

Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate this equipment.

Declaration of Conformity

Trade Name: Panasonic

Model No.: DMC-FS7

DMC-FS8

DMC-FS6

Responsible party: Panasonic Corporation of North America One Panasonic Way,

Secaucus, NJ 07094

Support Contact: Panasonic Consumer Electronics Company 1-800-211-PANA (7262)

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

DMC-FS7

DMC-FS6

DMC-FS8

DMC-FS7&8&6P-VQT2C70_eng.book 3 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Before Use

∫About the battery pack

•Do not heat or expose to flame.

•Do not leave the battery(ies) in an automobile exposed to direct sunlight for a long period of

time with doors and windows closed.

∫About the battery charger

CAUTION

Battery pack (Lithium ion battery pack)

•Use the specified unit to recharge the battery pack.

•Do not use the battery pack with equipment other than the specified unit.

•Do not get dirt, sand, liquids, or other foreign matter on the terminals.

•Do not touch the plug terminals (i and j) with metal objects.

•Do not disassemble, remodel, heat or throw into fire.

If any electrolyte should come into contact with your hands or clothes, wash it off

thoroughly with water.

If any electrolyte should come into contact with your eyes, never rub the eyes. Rinse

eyes thoroughly with water, and then consult a doctor.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or

equivalent type recommended by the manufacturer. Dispose of used batteries

according to the manufacturer’s instructions.

Warning

Risk of fire, explosion and burns. Do not disassemble, heat above 60 xC (140 oF) or

incinerate.

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR

IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO

PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING,

ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT

THE VENTILATION VENTS.

Battery charger

This battery charger operates on AC between 110 V and 240 V.

But

•In the U.S.A. and Canada, the battery charger must be connected to a 120 V AC power

supply only.

•When connecting to an AC supply outside of the U.S.A. or Canada, use a plug adaptor to

suit the AC outlet configuration.

DMC-FS7&8&6P-VQT2C70_eng.book 4 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Before Use

∫Care of the camera

•Do not strongly shake or bump the camera by dropping or hitting it. Do not subject to

strong pressure.

The camera may malfunction, recording pictures may become impossible, or the lens, the LCD

monitor or the external case may be damaged.

•We strongly recommend you do not leave the camera in your trousers pocket

when you sit down or forcefully insert it into a full or tight bag etc.

Damage to the LCD monitor or personal injury may result.

•Do not attach any other items to the hand strap that’s included with your

camera. While being stored, that item can rest against the LCD monitor and

damage it.

•Be particularly careful in the following places as they may cause this

unit to malfunction.

–Places with a lot of sand or dust.

–Places where water can come into contact with this unit such as when using

it on a rainy day or on a beach.

•Do not touch the lens or the sockets with dirty hands. Also, be careful not to allow

liquids, sand and other foreign matter to get into the space around the lens, buttons etc.

•This camera is not waterproof. If water or seawater splashes on the camera, use a dry

cloth to wipe the camera body carefully.

If the unit does not operate normally, please contact the dealer where you purchased the

camera or the repair service center.

∫About Condensation (When the lens is fogged up)

•Condensation occurs when the ambient temperature or humidity changes. Be careful of

condensation since it causes lens stains, fungus and camera malfunction.

•If condensation occurs, turn the camera off and leave it for about 2 hours. The fog will

disappear naturally when the temperature of the camera becomes close to the ambient

temperature.

∫Read together with the “Cautions for Use”. (P90)

∫About illustrations in these operating instructions

The procedure is described for DMC-FS7 as an example.

-If you see this symbol-

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local

authorities or dealer and ask for the correct method of disposal.

DMC-FS7&8&6P-VQT2C70_eng.book 5 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Contents

Before Use

Information for Your Safety.......................2

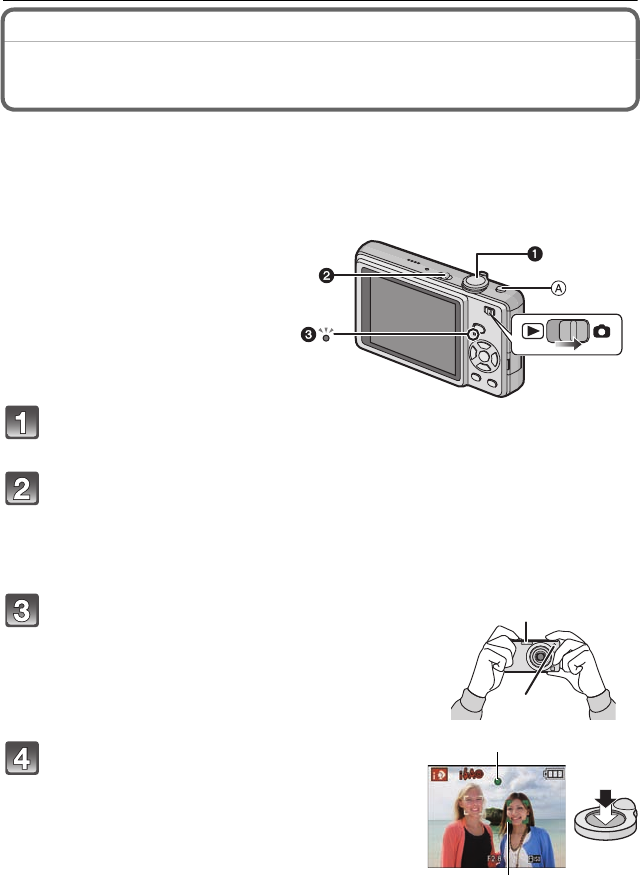

Quick Guide..............................................8

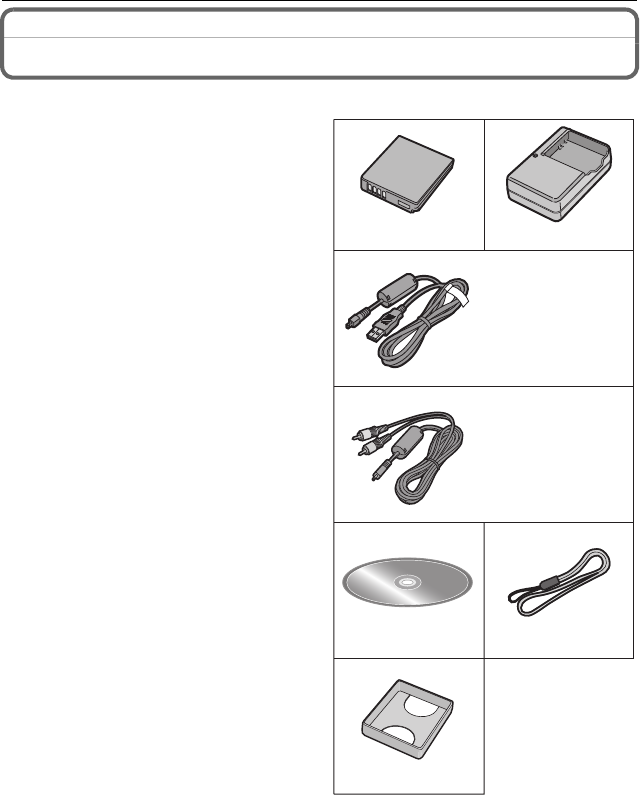

Standard Accessories...............................9

Names of the Components.....................10

Preparation

Charging the Battery...............................12

• About the Battery (charging/number

of recordable pictures)......................13

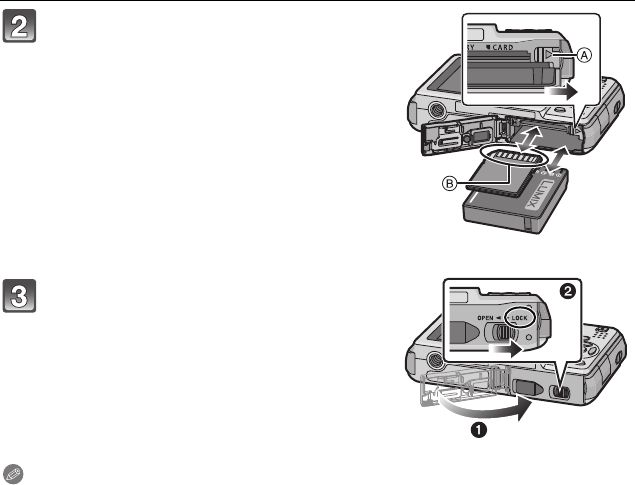

Inserting and Removing the Card

(optional)/the Battery ..............................14

About the Built-in Memory/the Card........16

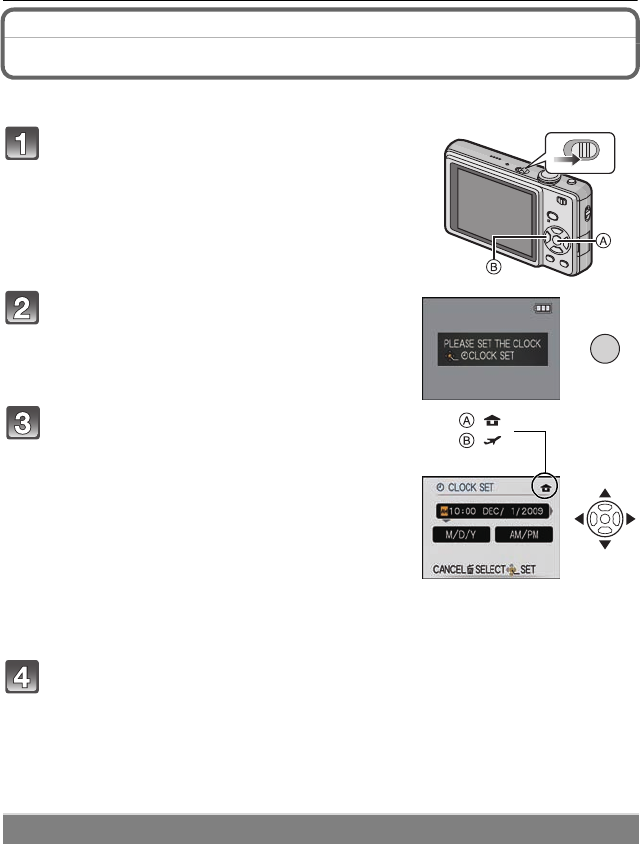

Setting Date/Time (Clock Set)................18

• Changing the clock setting ...............18

Setting the Menu.....................................19

• Setting menu items...........................20

• Using the quick menu.......................21

About the Setup Menu............................22

Selecting the [REC] Mode ......................27

Basic

Taking pictures using the automatic

function (ñ: Intelligent Auto Mode)........28

• Scene detection................................29

• About the flash..................................30

• Settings in Intelligent auto mode ......30

Taking pictures with your favorite

settings (·: Normal picture mode).........31

• Focusing...........................................32

• When the subject is not in focus

(such as when it is not in the center

of the composition of the picture

you want to take)..............................32

• Preventing jitter (camera shake).......32

• Direction detection function ..............33

Taking Pictures with the Zoom ...............33

• Using the Optical Zoom/Using the

Extended Optical Zoom (EZ)/

Using the Digital Zoom.....................33

Playing back Pictures

([NORMAL PLAY])..................................34

• Displaying Multiple Screens

(Multi Playback)................................35

• Using the Playback Zoom.................35

• Switching the [PLAYBACK] mode ....36

Deleting Pictures.....................................36

• To delete a single picture..................36

• To delete multiple pictures (up to 50)

or all the pictures..............................37

Advanced (Recording pictures)

About the LCD Monitor...........................38

Taking Pictures using the

Built-in Flash...........................................39

• Switching to the appropriate flash

setting...............................................39

Taking Close-up Pictures........................42

Taking Pictures with the Self-timer .........43

Compensating the Exposure ..................44

Taking Pictures using Auto Bracket........45

Taking pictures that match the scene

being recorded (Scene mode) ................46

• Registering scenes in Scene mode

( : My scene mode).......................46

• Selecting the Scene mode for each

recording (¿: Scene mode).............47

• * [PORTRAIT]................................47

• + [SOFT SKIN]...............................47

• [TRANSFORM] ..........................48

• 0 [SELF PORTRAIT]......................48

• , [SCENERY] ................................48

• - [SPORTS]...................................49

• . [NIGHT PORTRAIT] ...................49

• / [NIGHT SCENERY]....................49

• 1 [FOOD] ......................................49

• 2 [PARTY]......................................50

• 3 [CANDLE LIGHT]........................50

• : [BABY1]/; [BABY2]..................50

• í [PET]...........................................51

• ï [SUNSET]...................................51

• 9 [HIGH SENS.].............................51

• ô [HI-SPEED BURST]....................52

• [FLASH BURST] ........................52

• 5 [STARRY SKY]...........................53

• 4 [FIREWORKS]............................53

• 6 [BEACH] .....................................53

• 8 [SNOW].......................................54

• 7 [AERIAL PHOTO].......................54

• [FILM GRAIN].............................54

• [PHOTO FRAME].......................54

Motion Picture Mode...............................55

DMC-FS7&8&6P-VQT2C70_eng.book 6 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Useful Functions at Travel

Destinations............................................56

• Recording which Day of the

Vacation You Take the Picture.........56

• Recording Dates/Times at Overseas

Travel Destinations (World Time).....58

Using the [REC] Mode Menu..................59

• @ [PICTURE SIZE]...........................59

• A [QUALITY]...................................60

• ? [ASPECT RATIO] .......................60

• [INTELLIGENT ISO]...................61

• > [SENSITIVITY]............................61

• = [WHITE BALANCE] ....................62

• [AF MODE].................................63

• ˜ [BURST]......................................64

• ) [DIGITAL ZOOM]........................65

• H [COLOR MODE] ..........................65

• [STABILIZER] ............................65

• F [AF ASSIST LAMP]...................66

• U [CLOCK SET]...............................66

Advanced (Playback)

Playing Back Pictures in Sequence

(Slide Show) ...........................................67

Selecting Pictures and Playing them

Back ([CATEGORY PLAY]/

[FAVORITE PLAY]) .................................69

• [CATEGORY PLAY] .........................69

• [FAVORITE PLAY]............................70

Playing Back Motion Pictures .................70

Using the [PLAYBACK] mode menu.......71

• [CALENDAR]..............................71

• [TITLE EDIT]..............................72

• [TEXT STAMP]...........................73

• Q [RESIZE]

Reducing the picture size

(number of pixels).............................74

• [TRIMMING]...............................75

• M [ROTATE DISP.].........................76

• Ü [FAVORITE].................................77

• [PRINT SET]...............................78

• P [PROTECT].................................79

• S [COPY] ......................................80

Connecting to other equipment

Connecting to a PC.................................81

Printing the Pictures................................84

• Selecting a single picture and

printing it...........................................85

• Selecting multiple pictures and

printing them.....................................85

• Print Settings ....................................86

Playing Back Pictures on a

TV Screen...............................................88

• Playing back pictures using the AV

cable.................................................88

• Playing back pictures on a TV with

an SD Memory Card slot..................88

Others

Screen Display........................................89

Cautions for Use.....................................90

Message Display ....................................94

Troubleshooting......................................96

Number of Recordable Pictures and

Available Recording Time.....................103

Specifications........................................107

Digital Camera Accessory System........110

Digital Camera Accessory Order Form

(For USA and Puerto Rico

Customers) ...........................................111

Request for Service Notice

(For USA and Puerto Rico Only)...........112

Limited Warranty

(For USA and Puerto Rico Only)...........113

Customer Services Directory

(United States and Puerto Rico)...........115

Précautions à prendre

(pour le Canada)...................................116

Index.....................................................118

CAL

DMC-FS7&8&6P-VQT2C70_eng.book 7 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Before Use

Quick Guide

This is an overview of how to record and play back pictures with the camera. For each

step, be sure to refer to the pages indicated in brackets.

Charge the battery. (P12)

• The battery is not charged when the

camera is shipped. Charge the battery

before use.

Insert the battery and the card.

(P14)

• When you do not use the card, you can

record or play back pictures on the

built-in memory. (P16) Refer to P17

when you use a card.

Turn the camera on to take

pictures.

1Slide the [REC]/[PLAYBACK] selector

switch to [!].

2Press the shutter button to take

pictures. (P28)

Play back the pictures.

1Slide the [REC]/[PLAYBACK] selector

switch to [(].

2Select the picture you want to view.

(P34)

90

OFF

DMC-FS7&8&6P-VQT2C70_eng.book 8 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Before Use

Standard Accessories

Check that all the accessories are included before using the camera.

1Battery Pack

(Indicated as battery in the text)

Charge the battery before use.

2 Battery Charger

(Indicated as charger in the text)

3 USB Connection Cable

4 AV Cable

(supplied for DMC-FS7/DMC-FS6,

not supplied for DMC-FS8)

5 CD-ROM

• Software:

Use it to install the software to your PC.

6 Hand Strap

7Battery Case

• SD Memory Card, SDHC Memory Card and

MultiMediaCard are indicated as card in the

text.

• The card is optional.

You can record or play back pictures on the

built-in memory when you are not using a

card.

• For information about optional accessories,

refer to the “Digital Camera Accessory

System”. (P110)

• If any accessories are lost, customers in the

USA and Puerto Rico should contact

Panasonic’s parts department at

1 800 833-9626 and customers in Canada

should contact 1 800 99-LUMIX

(1-800-995-8649) for further information about

obtaining replacement parts.

DMW-BCF10PP DE-A59B

VGQ0D56

VFC4297

K1HA08AD0002

(DMC-FS7P/

DMC-FS7PC)

K1HA08AD0001

(DMC-FS8P/

DMC-FS6P/

DMC-FS6PC)

K1HA08CD0028

(DMC-FS7P/

DMC-FS7PC)

K1HA08CD0027

(DMC-FS6P/

DMC-FS6PC)

DMC-FS7&8&6P-VQT2C70_eng.book 9 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Before Use

Names of the Components

1 Flash (P39)

2 Lens (P91)

3 Self-timer indicator (P43)

AF assist lamp (P66)

4 LCD monitor (P38, 89)

5 Status indicator (P15, 23, 28)

6 [MENU/SET] button (P18)

7 [DISPLAY] button (P38)

8 [Q.MENU] (P21)/Delete (P36) button

9 [MODE] button (P27)

10 [REC]/[PLAYBACK] selector switch

(P19)

11 Cursor buttons

A: 3/Exposure compensation (P44)/

Auto bracket (P45)

B: 4/Macro mode (P42)

C: 2/Self-timer button (P43)

D: 1/Flash setting button (P39)

In these operating instructions, the cursor buttons are described as shown in the

figure below or described with 3/4/2/1.

e.g.: When you press the 4 (down) button

or Press 4

123

114109

5786

DMC-FS7&8&6P-VQT2C70_eng.book 10 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Before Use

12 Camera ON/OFF switch (P18)

13 Zoom lever (P33)

14 Speaker (P70)

15 Microphone (P55)

16 Shutter button (P28, 55)

17 Intelligent auto button (P28)

18 Hand strap eyelet

• Be sure to attach the hand strap when

using the camera to ensure that you will

not drop it.

19 Lens barrel

20 [AV OUT/DIGITAL] socket (P81, 84, 88)

21 Tripod receptacle

• When you use a tripod, make sure the

tripod is stable when the camera is

attached to it.

22 Card/Battery door (P14, 16)

23 Release lever (P14)

24 DC coupler cover (P16)

• When using an AC adaptor, ensure that

the Panasonic DC coupler (DMW-DCC4;

optional) and AC adaptor (DMW-AC5PP;

optional) are used. For connection details,

refer to P16.

12 13

14 15 16 17

21 22

2324

DMC-FS7&8&6P-VQT2C70_eng.book 11 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Preparation

Charging the Battery

∫About batteries that you can use with this unit

The battery that can be used with this unit is DMW-BCF10PP.

• Use the dedicated charger and battery.

• This unit has a function that can distinguish useable batteries. Exclusive batteries

(DMW-BCF10PP) are supported by this function. (Conventional batteries not supported

by this function cannot be used.)

• The battery is not charged when the camera is shipped. Charge the battery before use.

• Charge the battery with the charger indoors.

• Charge the battery in a temperature between 10 oC to 35 oC (50 oF to 95 oF). (The battery

temperature should also be the same.)

It has been found that counterfeit battery packs which look very similar to the

genuine product are made available to purchase in some markets. Some of these

battery packs are not adequately protected with internal protection to meet the

requirements of appropriate safety standards. There is a possibility that these

battery packs may lead to fire or explosion. Please be advised that we are not

liable for any accident or failure occurring as a result of use of a counterfeit

battery pack. To ensure that safe products are used we would recommend that a

genuine Panasonic battery pack is used.

Attach the battery paying

attention to the direction of the

battery.

Connect the charger to the

electrical outlet.

• Charging starts when the [CHARGE]

indicator A lights green.

• Charging is complete when the

[CHARGE] indicator A turns off (after

approx. 130 min maximum).

Detach the battery after

charging is completed.

90

DMC-FS7&8&6P-VQT2C70_eng.book 12 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Preparation

∫When the [CHARGE] indicator flashes

• The battery temperature is excessively high or low. The charging time will be longer than

normal. Also, charging may not be completed.

• The terminals of the charger or the battery are dirty. In this case, wipe them with a dry cloth.

Note

•

After charging is completed, be sure to disconnect the power supply device from the electrical outlet.

• The battery becomes warm after using it and during and after charging. The camera also

becomes warm during use. This is not a malfunction.

• The battery will be exhausted if left for a long period of time after being charged.

• The battery can be recharged even when it still has some charge left, but it is not

recommended that the battery charge be frequently topped up while the battery is fully

charged. (The battery has characteristics that will reduce its operating duration and cause the

battery to swell up.)

• When the operating time of the camera becomes extremely short even after properly charging

the battery, the life of the battery may have expired. Buy a new battery.

• Do not leave any metal items (such as clips) near the contact areas of the power plug.

Otherwise, a fire and/or electric shocks may be caused by short-circuiting or the

resulting heat generated.

∫Battery indication

The battery indication is displayed on the LCD monitor.

[It does not appear when you use the camera with the AC adaptor (DMW-AC5PP;

optional) connected.]

• The indication turns red and blinks if the remaining battery power is exhausted. (The status

indicator blinks when the LCD monitor turns off.) Recharge the battery or replace it with a fully

charged battery.

∫The battery life

Recording conditions by CIPA standard

• CIPA is an abbreviation of [Camera & Imaging Products Association].

• Temperature: 23 oC (73.4 oF)/Humidity: 50% when LCD monitor is on.¢

• Using a Panasonic SD Memory Card (32 MB).

• Using the supplied battery.

• Starting recording 30 seconds after the camera is turned on. (When the Optical image stabilizer

function is set to [AUTO].)

•Recording once every 30 seconds with full flash every second recording.

• Rotating the zoom lever from Tele to Wide or vice versa in every recording.

• Turning the camera off every 10 recordings and leaving it until the temperature of the battery

decreases.

¢The number of recordable pictures decreases in Auto Power LCD mode, Power LCD mode

and High angle mode (P23).

The number of recordable pictures varies depending on the recording interval time.

If the recording interval time becomes longer, the number of recordable pictures

decreases. [e.g. When recording once every 2 minutes, the number of recordable

pictures decreases to about 90 (DMC-FS7/DMC-FS8)/100 (DMC-FS6).]

About the Battery (charging/number of recordable pictures)

Number of recordable

pictures Approx. 360 pictures

Approx. 400 pictures (DMC-FS7/DMC-FS8)

(DMC-FS6) By CIPA standard in

normal picture mode

Recording time Approx. 180 min

Approx. 200 min (DMC-FS7/DMC-FS8)

(DMC-FS6)

DMC-FS7&8&6P-VQT2C70_eng.book 13 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Preparation

The number of recordable pictures and playback time will vary depending on the

operating conditions and storing condition of the battery.

∫Charging

Charging time and number of recordable pictures with the optional battery pack

(DMW-BCF10PP) are the same as above.

The charging time will vary slightly depending on the status of the battery and the

conditions in the charging environment.

When the charging has been completed successfully, the [CHARGE] indicator turns off.

Note

• The battery may swell and its operating time may become shorter as the number of times it is

charged increases. For long term battery use, we recommend you do not frequently charge the

battery before it is exhausted.

• The performance of the battery may temporarily deteriorate and the operating time may

become shorter in low temperature conditions (e.g. skiing/snowboarding).

Inserting and Removing the Card (optional)/the

Battery

• Check that this unit is turned off.

• We recommend using a Panasonic card.

Slide the release lever in the direction

of the arrow and open the card/battery

door.

• Always use genuine Panasonic batteries

(DMW-BCF10PP).

• If you use other batteries, we cannot

guarantee the quality of this product.

Playback time Approx. 390 min

Approx. 450 min (DMC-FS7/DMC-FS8)

(DMC-FS6)

Charging time Approx. 130 min maximum

DMC-FS7&8&6P-VQT2C70_eng.book 14 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Preparation

Battery: Insert until it is locked by the

lever A being careful about the

direction you insert it. Pull the lever A

in the direction of the arrow to remove

the battery.

Card: Push it fully until it clicks being

careful about the direction you insert it.

To remove the card, push the card until

it clicks, then pull the card out upright.

B:Do not touch the connection terminals of the

card.

• The card may be damaged if it is not fully inserted.

1: Close the card/battery door.

2: Slide the release lever in the

direction of the arrow.

• If the card/battery door cannot be completely

closed, remove the card, check its direction and

then insert it again.

Note

• Remove the battery after use. Store the removed battery in the battery case (supplied).

• Do not remove the battery until the LCD monitor and the status indicator (green) turn off as the

settings on the camera may not be stored properly.

• The supplied battery is designed only for the camera. Do not use it with any other equipment.

• Before removing the card or battery, turn the camera off, and wait until the status indicator has

gone off completely. (Otherwise, this unit may no longer operate normally and the card itself

may be damaged or the recorded pictures may be lost.)

DMC-FS7&8&6P-VQT2C70_eng.book 15 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Preparation

∫Using an AC adaptor (optional) and a DC coupler (optional) instead of the battery

Ensure that the AC adaptor (DMW-AC5PP;

optional) and DC coupler (DMW-DCC4; optional)

are purchased as a set. Do not use if sold

separately.

1Open the card/battery door.

Insert the DC coupler, being careful of the direction.

3Close the card/battery door.

• Ensure that the card/battery door is closed.

4Open the DC coupler cover A.

• If it is difficult to open, push open the coupler cover

from the interior with the card/battery door in an

open state.

5Plug the AC adaptor into an electrical outlet.

6Connect the AC adaptor B to the [DC IN] socket

C of the DC coupler.

D Align the marks, and insert.

• Ensure that only the AC adaptor and DC coupler for this

camera are used. Using any other equipment may

cause damage.

Note

• Always use a genuine Panasonic AC adaptor (DMW-AC5PP; optional).

• Some tripods cannot be attached when the DC coupler is connected.

• This unit cannot stand upright when the AC adaptor is connected. When operating it on a flat

surface, we recommend placing it on a soft cloth.

• Make sure to unplug the AC adaptor when you open the card/battery door.

• If the AC adaptor and DC coupler are not necessary, then remove them from the digital

camera. Also, please keep the DC coupler cover closed.

• Also read the operating instructions for the AC adaptor and DC coupler.

•

For information about optional accessories, refer to the

“

Digital Camera Accessory System

”

. (P110)

• We recommend you use a battery with sufficient battery power or the AC adaptor when

recording motion pictures.

•

If while recording motion pictures using the AC adaptor the power supply is cut off due to a power cut

or if the AC adaptor is disconnected etc., the motion picture being recorded will not be recorded.

About the Built-in Memory/the Card

The following operations can be performed using this unit.

• When a card has not been inserted: Pictures can be recorded in

the built-in memory and played back.

• When a card has been inserted: Pictures can be recorded on the

card and played back.

• When using the built-in memory

k>ð (access indication¢)

• When using the card

† (access indication¢)

¢The access indication lights red when pictures are being recorded

on the built-in memory (or the card).





DMC-FS7&8&6P-VQT2C70_eng.book 16 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Preparation

• Memory size: Approx. 50 MB

• Recordable motion pictures: QVGA (320k240 pixels) only

• The built-in memory can be used as a temporary storage device when the card being used

becomes full.

• You can copy the recorded pictures to a card. (P80)

• The access time for the built-in memory may be longer than the access time for a card.

The following types of cards can be used with this unit.

(These cards are indicated as card in the text.)

¢The SDHC Memory Card is a memory card standard decided by the SD Association in 2006

for high capacity memory cards more than 2 GB.

¢You can use an SDHC Memory Card in equipment that is compatible with SDHC Memory

Cards however you cannot use an SDHC Memory Card in equipment that is only compatible

with SD Memory Cards. (Always read the operating instructions for the equipment being

used.)

• You can only use cards with SDHC logo (indicating compliance with the SD standard) if using

cards with 4 GB or more capacity.

• Please confirm the latest information on the following website.

http://panasonic.co.jp/pavc/global/cs

(This Site is English only.)

Note

• Do not turn this unit off, remove its battery or card, or disconnect the AC adaptor

(DMW-AC5PP; optional) when the access indication is lit [when pictures are being

written, read or deleted, or the built-in memory or the card is being formatted (P25)].

Furthermore, do not subject the camera to vibration, impact or static electricity.

The card or the data on the card may be damaged, and this unit may no longer operate

normally.

If operation fails due to vibration, impact or static electricity, perform the operation

again.

• The data on the built-in memory or the card may be damaged or lost due to electromagnetic

waves, static electricity or breakdown of the camera or the card. We recommend storing

important data on a PC etc.

• Do not format the card on your PC or other equipment. Format it on the camera only to ensure

proper operation. (P25)

• Keep the Memory Card out of reach of children to prevent swallowing.

Built-in Memory

Card

Type of card Characteristics

SD Memory Card (8 MB to 2 GB)

(Formatted using the FAT12 or FAT16

format in compliance with the SD

standard)

• Fast recording and writing speed

• Write-Protect switch A provided (When

this switch is set to the [LOCK] position,

no further data writing, deletion or

formatting is possible. The ability to

write, delete and format data is restored

when the switch is returned to its

original position.)

SDHC Memory Card (4 GB to

32 GB)¢

(Formatted using the FAT32 format in

compliance with the SD standard)

MultiMediaCard • Still pictures only.

DMC-FS7&8&6P-VQT2C70_eng.book 17 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Preparation

Setting Date/Time (Clock Set)

• The clock is not set when the camera is shipped.

Turn the camera on.

• The [PLEASE SET THE CLOCK] message appears.

(This message does not appear in [PLAYBACK]

mode.)

A[MENU/SET] button

BCursor buttons

Press [MENU/SET].

A: Time at the home area

B: Time at the travel destination (P58)

‚: Cancel without setting the clock.

• Select either [24HRS] or [AM/PM] for the time display

format.

• AM/PM is displayed when [AM/PM] is selected.

• When [AM/PM] is selected as the time display format, midnight is displayed as AM

12:00 and noon is displayed as PM 12:00. This display format is common in North

America and elsewhere.

Press [MENU/SET] to set.

• After completing the clock settings, turn the camera off. Then turn the camera back on,

switch to Recording mode, and check that the display reflects the settings that were

performed.

• When [MENU/SET] has been pressed to complete the settings without the clock having

been set, set the clock correctly by following the “Changing the clock setting” procedure

below.

Select [CLOCK SET] in the [REC] or [SETUP] menu, and press 1. (P20)

• It can be changed in steps 3 and 4 to set the clock.

• The clock setting is maintained for 3 months using the built-in clock battery even

without the battery. (Leave the charged battery in the unit for 24 hours to charge the

built-in battery.)

Press 2/1 to select the items (year,

month, day, hour, minute, display

sequence or time display format), and

press 3/4 to set.

Changing the clock setting

OFF

/SET

DMC-FS7&8&6P-VQT2C70_eng.book 18 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Preparation

Note

• The clock is displayed when [DISPLAY] is pressed several times during recording.

• You can set the year from 2000 to 2099.

• If the clock is not set, the correct date cannot be printed when you stamp the date on the

pictures with [TEXT STAMP] (P73) or order a photo studio to print the pictures.

•

If the clock is set, the correct date can be printed even if the date is not displayed on the screen of the camera.

Setting the Menu

The camera comes with menus that allow you to set the settings for taking pictures and playing them

back just as you like and menus that enable you to have more fun with the camera and use it more easily.

In particular, the [SETUP] menu contains some important settings relating to the camera’s

clock and power. Check the settings of this menu before proceeding to use the camera.

A[REC]/[PLAYBACK] selector switch

Note

Due to the camera’s specifications, it may not be possible to set some of the functions or

some functions may not work in some of the conditions under which the camera is used.

( [PLAYBACK] mode menu (P71 to 80) ! [REC] mode menu (P59 to 66)

• This menu lets you

set the protection,

trimming or print

settings (DPOF), etc.

of recorded pictures.

• This menu lets you

set the coloring,

sensitivity, aspect

ratio, number of pixels

and other aspects of

the pictures you are

recording.

[SETUP] menu (P22 to 26)

• This menu lets you perform the clock settings, select the operating

beep tone settings and set other settings which make it easier for you

to operate the camera.

• The [SETUP] menu can be set from either the [REC MODE] or

[PLAYBACK MODE].

DMC-FS7&8&6P-VQT2C70_eng.book 19 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Preparation

This section describes how to select the normal picture mode settings, and the same

setting can be used for the [PLAYBACK] menu and [SETUP] menu as well.

Example: Setting [AF MODE] from [Ø] to [š] in the normal picture mode

Setting menu items

Turn the camera on.

A[MENU/SET] button

B[REC]/[PLAYBACK] selector switch

C[MODE] button

Slide the [REC]/[PLAYBACK] selector

switch to [!], and then press [MODE].

• When selecting the [PLAYBACK] mode menu settings,

set the [REC]/[PLAYBACK] selector switch to [(], and

proceed to step 4.

Press 3/4 to select [NORMAL PICTURE],

and then press [MENU/SET].

Press [MENU/SET] to display the menu.

• You can switch menu screens from any menu item by

rotating the zoom lever.

Switching to the [SETUP] menu

Press 2.

Press 4 to select the [SETUP] menu

icon .

Press 1.

• Select a menu item next and set it.

OFF

/SET

DMC-FS7&8&6P-VQT2C70_eng.book 20 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Preparation

Press [MENU/SET] to close the menu.

By using the quick menu, some of the menu settings can be easily found.

• Some of the menu items cannot be set by the modes.

• When [DISPLAY] is pressed while [STABILIZER] (P65) is selected, [JITTER, SUBJ. MOVE

DEMO.] can be displayed.

Press 3/4 to select [AF MODE].

• Select the item at the very bottom, and press 4 to

move to the second screen.

Press 1.

• Depending on the item, its setting may not appear or it

may be displayed in a different way.

Press 3/4 to select [š].

Press [MENU/SET] to set.

Using the quick menu

Press and hold [Q.MENU] when recording.

Press 3/4/2/1 to select the menu item

and the setting and then press [MENU/SET]

to close the menu.

AThe items to be set and the settings are displayed.

/SET

Q.MENU

DMC-FS7&8&6P-VQT2C70_eng.book 21 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Preparation

About the Setup Menu

[CLOCK SET], [ECONOMY] and [AUTO REVIEW] are important items. Check their

settings before using them.

• In the Intelligent auto mode, only [CLOCK SET], [WORLD TIME], [BEEP] and [LANGUAGE]

can be set.

For details on how to select the [SETUP] menu settings, refer to P20.

• Refer to P18 for details.

• Refer to P58 for details.

• Refer to P56 for details.

• When you connect the camera to a TV, the volume of the TV speakers does not change.

U [CLOCK SET] Setting Date/Time.

[WORLD TIME]

Set the time in your home area and travel destination.

“ [DESTINATION]:

Travel destination area

– [HOME]:

Your home area

— [TRAVEL DATE]

Set the departure date and the return date of the vacation.

[TRAVEL SETUP]:

[OFF]/[SET] [LOCATION]:

[OFF]/[SET]

r [BEEP]

This allows you to set the beep and shutter sound.

r [BEEP LEVEL]:

[s] (Muted)

[t] (Low)

[u] (High)

[SHUTTER VOL.]:

[] (Muted)

[ ] (Low)

[ ] (High)

[BEEP TONE]:

[]/[]/[] [SHUTTER TONE]:

[]/[]/[]

u [VOLUME] Adjust the volume of the speaker to any of 7 levels.

[MONITOR] Adjust the brightness of the LCD monitor in 7 steps.

DMC-FS7&8&6P-VQT2C70_eng.book 22 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Preparation

• High angle mode is also canceled if you turn the camera off or [POWER SAVE] is activated.

• The brightness of the pictures displayed on the LCD monitor is increased so some subjects

may appear differently from actuality on the LCD monitor. However, this does not affect the

recorded pictures.

• The LCD monitor automatically returns to normal brightness after 30 seconds when recording

in Power LCD mode. Press any button to make the LCD monitor bright again.

• If the screen is difficult to see because of light from the sun etc. shining on it, use your hand or

another object to block the light.

• The number of recordable pictures decreases in Auto Power LCD mode, Power LCD mode and

High angle mode.

• [AUTO POWER LCD] and [HIGH ANGLE] cannot be selected in Playback mode.

• Press the shutter button halfway or turn the camera off and on to cancel [POWER SAVE].

• [POWER SAVE] is set to [5MIN.] in the Intelligent auto mode.

• [POWER SAVE] is fixed to [2MIN.] when [AUTO LCD OFF] is set to [15SEC.] or [30SEC.].

• The status indicator lights while the LCD monitor is turned off. Press any button to turn on the

LCD monitor again.

• [AUTO LCD OFF] does not work while operating menu or playback zoom.

• [POWER SAVE] does not work in the following cases.

[LCD MODE]

These menu settings make it easier to see the LCD monitor when

you are in bright places or when you are holding the camera high

above your head.

[OFF]

„ [AUTO POWER LCD]:

The brightness is adjusted automatically depending on how bright

it is around the camera.

… [POWER LCD]:

The LCD monitor becomes brighter and easier to see even when

taking pictures outdoors.

Å [HIGH ANGLE]:

The LCD monitor is easier to see when taking pictures with the

camera held high above your head.

[DISPLAY SIZE] Change the display size of some icons and menu screens.

[STANDARD]/[LARGE]

[FOCUS ICON] Change the focus icon.

[ ]/[ ]/[ ]/[ ]/[ ]/[ ]

q [ECONOMY]

You can conserve the battery life by setting these menus.

p [POWER SAVE]:

The camera is automatically turned off if the camera has not been

used for the time selected on the setting.

[OFF]/[2MIN.]/[5MIN.]/[10MIN.]

[AUTO LCD OFF]:

The LCD monitor is automatically turned off if the camera has not

been used for the time selected on the setting.

[OFF]/[15SEC.]/[30SEC.]

LCD

DMC-FS7&8&6P-VQT2C70_eng.book 23 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Preparation

– When using the AC adaptor

– When connecting to a PC or a printer

– When recording or playing back motion pictures

– During a slide show

–[AUTO DEMO]

• [AUTO LCD OFF] does not work in the following cases.

– When using the AC adaptor

– When connecting to a PC or a printer

– While the self-timer is set

– While recording motion pictures

– While the menu screen is displayed

–[AUTO DEMO]

• [AUTO REVIEW] is activated regardless of its setting when using Auto bracket (P45),

[HI-SPEED BURST] (P52), [FLASH BURST] (P52) and [PHOTO FRAME] (P54) in Scene

mode and [BURST] (P64). (The pictures cannot be enlarged.)

• In Intelligent auto mode, the Auto review function is fixed to [2SEC.].

• [AUTO REVIEW] does not work in Motion picture mode.

• The folder number is updated and the file number starts from 0001. (P83)

• A folder number between 100 and 999 can be assigned.

When the folder number reaches 999, the number cannot be reset. We recommend formatting

the card (P25) after saving the data on a PC or elsewhere.

• To reset the folder number to 100, format the built-in memory or the card first and then use this

function to reset the file number.

A reset screen for the folder number will then appear. Select [YES] to reset the folder number.

• When the [RESET] setting is selected during recording, the operation that resets the lens is

also performed at the same time. You will hear the sound of the lens operating but this is

normal and not indicative of malfunctioning.

• When [SETUP] menu settings are reset, the following settings are also reset. In addition,

[FAVORITE] (P77) in [PLAYBACK] mode menu is set to [OFF], and [ROTATE DISP.] (P76) is

set to [ON].

– The setting and registration for My scene mode (P46)

– The birthday and name settings for [BABY1]/[BABY2] (P50) and [PET] (P51) in Scene mode.

– The settings of [TRAVEL DATE] (P56) (departure date, return date, location)

– The [WORLD TIME] (P58) setting.

• The folder number and the clock setting are not changed.

o [AUTO REVIEW]

Set the length of time that the picture is displayed after taking it.

[OFF]

[1SEC.]

[2SEC.]

[HOLD]: The pictures are displayed until one any of the buttons

is pressed.

[ZOOM]: The picture is displayed for 1 second and then

enlarged 4k and displayed for 1 more second.

v [NO.RESET] Reset the file number of the next recording to 0001.

w [RESET] The [REC] or [SETUP] menu settings are reset to the initial

settings.

DMC-FS7&8&6P-VQT2C70_eng.book 24 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Preparation

• When [PC] is selected, the camera is connected via the “USB Mass Storage” communication

system.

• When [PictBridge(PTP)] is selected, the camera is connected via the “PTP (Picture Transfer

Protocol)” communication system.

• This will work when the AV cable (P88) is connected.

• Use a battery with sufficient battery power or the AC adaptor (DMW-AC5PP; optional) and DC

coupler (DMW-DCC4; optional) when formatting. Do not turn the camera off during formatting.

• If a card has been inserted, only the card is formatted. To format the built-in memory, remove

the card.

• If the card has been formatted on a PC or other equipment, format it on the camera again.

• It may take longer to format the built-in memory than the card.

• If the built-in memory or the card cannot be formatted, consult your nearest Service Center.

x [USB MODE]

Select the USB communication system after or before connecting

the camera to your PC or your printer with the USB connection

cable (supplied).

y [SELECT ON CONNECTION]:

Select either [PC] or [PictBridge(PTP)] if you connected the

camera to a PC or a printer supporting PictBridge.

{ [PictBridge(PTP)]:

Set after or before connecting to a printer supporting PictBridge.

z [PC]:

Set after or before connecting to a PC.

[TV ASPECT]

Set to match the type of TV.

(Playback mode only)

[W]: When connecting to a 16:9 screen TV.

[X]: When connecting to a 4:3 screen TV.

[VERSION DISP.]

It is possible to check which version of

firmware is on the camera.

[FORMAT] The built-in memory or card is formatted. Formatting irretrievably

deletes all the data so check the data carefully before formatting.

For Canadian assistance, please call:

1-800-99-LUMIX (1-800-995-8649) or

send e-mail to: lumixconcierge@ca.panasonic.com

For USA and Puerto Rico assistance, please call:

1-800-211-PANA(7262) or, contact us via the web at:

http://www.panasonic.com/contactinfo

DMC-FS7&8&6P-VQT2C70_eng.book 25 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Preparation

• If you set a different language by mistake, select [~] from the menu icons to set the desired

language.

• In Playback mode, [JITTER, SUBJ. MOVE DEMO.] cannot be displayed.

• Press [DISPLAY] to close [JITTER, SUBJ. MOVE DEMO.].

• [JITTER, SUBJ. MOVE DEMO.] is an approximation.

• [AUTO DEMO] has no TV output capability.

~ [LANGUAGE]

Set the language displayed on the screen.

[ENGLISH]/[DEUTSCH]¢/[FRANÇAIS]¢/[ESPAÑOL]/

[ITALIANO]¢/[繁體中文]¢/[¢]¢

¢Not displayed on DMC-FS7P/DMC-FS8P/DMC-FS6P

[DEMO MODE]

The camera automatically detects jitter and the movement of the

subject and displays these on the indicator. ([JITTER, SUBJ.

MOVE DEMO.])

The camera’s features are displayed as slide shows. ([AUTO

DEMO])

[JITTER, SUBJ. MOVE DEMO.]

AJitter detection demonstration

BMovement detection demonstration

[AUTO DEMO]:

[OFF]

[ON]

DEMO

DMC-FS7&8&6P-VQT2C70_eng.book 26 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Preparation

Selecting the [REC] Mode

When the [REC] mode is selected, the camera can be set to the Intelligent auto mode in

which the optimal settings are established in line with the subject to be recorded and the

recording conditions, or to the Scene mode which enables you to take pictures that match

the scene being recorded.

∫List of [REC] modes

Note

• When the mode has been switched from [PLAYBACK] mode to [REC] mode, the previously set

[REC] mode will be set.

• Refer to P28 for details on selecting Intelligent auto mode.

Turn the camera on.

A[MENU/SET] button

B[REC]/[PLAYBACK] selector switch

C[MODE] button

Slide the [REC]/[PLAYBACK] selector

switch to [!].

Press [MODE].

Press 3/4 to select the mode.

Press [MENU/SET].

¦ Intelligent auto mode (P28)

The subjects are recorded using settings automatically selected by the camera.

! Normal picture mode (P31)

The subjects are recorded using your own settings.

My scene mode (P46)

Pictures are taken using previously registered recording scenes.

Û Scene mode (P46)

This allows you to take pictures that match the scene being recorded.

$ Motion picture mode (P55)

This mode allows you to record motion pictures with audio.

OFF

DMC-FS7&8&6P-VQT2C70_eng.book 27 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Basic

[REC] mode: ñ

Basic

Taking pictures using the automatic function

(ñ: Intelligent Auto Mode)

The camera will set the most appropriate settings to match the subject and the recording

conditions so we recommend this mode for beginners or those who want to leave the

settings to the camera and take pictures easily.

• The following functions are activated automatically.

– Scene detection/[STABILIZER]/[INTELLIGENT ISO]/Face detection/Backlight

Compensation/Digital Red-eye Correction

Slide the [REC]/[PLAYBACK] selector switch to [!], and then press

[MODE].

Press 3/4 to select [INTELLIGENT AUTO], and then press [MENU/

SET].

• You can quickly switch to Intelligent auto mode by pressing [¦] A when the [REC]/

[PLAYBACK] selector switch is set to record. Pressing [¦] again takes you back to the

previous mode.

• The status indicator 3 lights when you

turn this unit on 2. (It turns off after about

1 second.)

(1: Shutter button)

Hold the camera gently with both hands,

keep your arms still at your side and stand

with your feet slightly apart.

BFlash

CAF assist lamp

Press the shutter button halfway to focus.

• The focus indication 1 (green) lights when the subject

is focused.

• The AF area 2 is displayed around the subject’s face

by the face detection function. In other cases, it is

displayed at the point on the subject which is in focus.

• The focus range is 5 cm (0.17 feet) (Wide)/50 cm

(1.64 feet) (Tele) to ¶.

• The maximum close-up distance (the shortest distance

at which the subject can be taken) differs depending on

the zoom magnification.





DMC-FS7&8&6P-VQT2C70_eng.book 28 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Basic

∫When taking pictures using the flash (P39)

∫When taking pictures using the zoom (P33)

Note

• Be careful not to move the camera when you press the shutter button.

• Do not cover the flash or the AF assist lamp with your fingers or other objects.

• Do not touch the front of the lens.

When the camera identifies the optimum scene, the icon of the scene concerned is

displayed in blue for 2 seconds, after which its color changes to the usual red.

•[¦] is set if none of the scenes are applicable, and the standard settings are set.

• If a tripod is used, for instance, and the camera has judged that camera shake is minimal when

the Scene mode has been identified as [ ], the shutter speed will be set to a maximum of

8 seconds. Take care not to move the camera while taking pictures.

∫Face detection

When [ ] or [ ] is selected, the camera automatically detects a person’s face, and it will

adjust the focus and exposure (P63).

Note

• Due to conditions such as the ones below, a different scene may be

identified for the same subject.

– Subject conditions: When the face is bright or dark, The size of the

subject, The distance to the subject, The contrast of the subject,

When the subject is moving, When zoom is used

– Recording conditions: Sunset, Sunrise, Under low brightness

conditions, When the camera is shaken

• To take pictures in an intended scene, it is recommended that you take pictures in the

appropriate Recording mode.

∫The Backlight Compensation

Backlight refers to when light comes from the back of a subject.

In this case, the subject will become dark, so this function compensates the backlight by

brightening the whole of the picture automatically.

Press the shutter button fully (push it in

further), and take the picture.

• The access indication (P16) lights red when pictures

are being recorded on the built-in memory (or the

card).

Scene detection

¦ >[i-PORTRAIT]

[i-SCENERY]

[i-MACRO]

[i-NIGHT PORTRAIT] • Only when [‡] is selected

[i-NIGHT SCENERY] • Only when [Œ] is selected

DMC-FS7&8&6P-VQT2C70_eng.book 29 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Basic

• When [‡] is selected, [ ], [ ] or [ ] is set depending on the type of subject and

brightness.

• When [ ] or [ ] is set, the flash is activated twice.

• Only the following functions can be set in this mode.

[REC] mode menu

– [PICTURE SIZE]¢ (P59)/[BURST] (P64)/[COLOR MODE]¢ (P65)

¢The settings which can be selected are different from when other [REC] modes are used.

[SETUP] menu

– [CLOCK SET]/[WORLD TIME]/[BEEP]/[LANGUAGE]

• The settings of the following items are fixed.

• The following functions cannot be used.

– [AUTO LCD OFF]/[EXPOSURE]/[AUTO BRACKET]/[DIGITAL ZOOM]

• The other items on the [SETUP] menu can be set in a mode such as the normal picture mode.

What is set will be reflected in the Intelligent auto mode.

About the flash

Settings in Intelligent auto mode

Item Settings

[ECONOMY]

([POWER SAVE]) (P23) [5MIN.]

[AUTO REVIEW] (P24) [2SEC.]

Flash (P39) ‡/Œ

Self-timer (P43) 10 seconds/off

[QUALITY] (P60) A

[INTELLIGENT ISO] (P61)

[WHITE BALANCE] (P62) [AWB]

[AF MODE] (P63) š (Set to [ ] when a face cannot be detected)

[STABILIZER] (P65) [AUTO]

[AF ASSIST LAMP] (P66) [ON]

ISOMAX

1600

DMC-FS7&8&6P-VQT2C70_eng.book 30 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Basic

[REC] mode: ·

Taking pictures with your favorite settings

(·: Normal picture mode)

The camera automatically sets the shutter speed and the aperture value according to the

brightness of the subject.

You can take pictures with greater freedom by changing various settings in [REC] menu.

∫To adjust the exposure and take pictures at times when the image appears too

dark (P44)

∫To adjust the colors and take pictures at times when the image appears too red

(P62)

Slide the [REC]/[PLAYBACK] selector

switch to [!], and then press [MODE].

A[MODE] button

B[REC]/[PLAYBACK] selector switch

Press 3/4 to select [NORMAL

PICTURE], and then press [MENU/SET].

• To change the setting while taking pictures, refer

to “Using the [REC] Mode Menu” (P59).

C[MENU/SET] button

Aim the AF area at the point you want to

focus on.

Press the shutter button halfway to

focus.

• The focus indication (green) lights when the

subject is focused.

• The focus range is 50 cm (1.64 feet) to ¶.

• If pictures are to be taken at an even closer

range, refer to “Taking Close-up Pictures” (P42).

Press the halfway pressed shutter

button fully to take a picture.

• The access indication lights (P16) red when

pictures are being recorded on the built-in

memory (or the card).

DMC-FS7&8&6P-VQT2C70_eng.book 31 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Basic

Aim the AF area at the subject, and then press the shutter button halfway.

AFocus indication

BAF area (normal)

CAF area (when using the digital zoom or when it is dark)

DFocus range

EAperture value¢

FShutter speed¢

GISO sensitivity

¢If correct exposure cannot be achieved, it will be displayed in red.

(However, it will not be displayed in red when the flash is used.)

1Aim the AF area at the subject, and then press the shutter button halfway to fix the

focus and exposure.

2Press and hold the shutter button halfway while moving the camera as you

compose the picture.

• You can repeatedly retry the actions in step 1

before pressing the shutter button fully.

We recommend that you use the face

detection function when taking pictures of

people. (P63)

∫Subject and recording conditions which are difficult to focus in

• Fast-moving subjects, extremely bright subjects or subjects without contrast

• When the recordable range display has appeared in red

• When recording subjects through windows or near shiny objects

• When it is dark or when jitter occurs

• When the camera is too close to the subject or when taking a picture of both distant and near

subjects

When the jitter alert [ ] appears, use [STABILIZER] (P65), a tripod or the self-timer

(P43).

• Shutter speed will be slower particularly in the following cases. Keep the camera still from the

moment the shutter button is pressed until the picture appears on the screen. We recommend

using a tripod.

– In [NIGHT PORTRAIT], [NIGHT SCENERY], [PARTY], [CANDLE LIGHT], [STARRY SKY] or

[FIREWORKS] in Scene mode (P46)

Focusing

Focus When the subject is

focused When the subject

is not focused

Focus indication On Blinks

AF area White>Green White>Red

Sound Beeps 2 times Beeps 4 times

When the subject is not in focus (such as when it is not in the center of

the composition of the picture you want to take)

Preventing jitter (camera shake)

DFG

1/301/30F2.8F2.8

ISOISO

80 80

1/30F2.8

ISO

1/301/30F2.8F2.8

ISOISO

80 80

1/30F2.8

ISO

DMC-FS7&8&6P-VQT2C70_eng.book 32 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Basic

Pictures recorded with the camera held vertically are played back vertically (rotated). (Only

when [ROTATE DISP.] (P76) is set to [ON])

• Pictures may not be displayed vertically if they were taken with the camera aimed up or down.

• Motion pictures taken with the camera held vertically are not displayed vertically.

[REC] mode: ñ· ¿n

Taking Pictures with the Zoom

You can zoom-in to make people and objects appear closer or zoom-out to record landscapes in

wide angle. To make subjects appear even closer [maximum of 7.1

(DMC-FS7/DMC-FS8)/6.4

(DMC-FS6)], do not set the picture size to the highest setting for each aspect ratio (

Even higher levels of magnification are possible when [DIGITAL ZOOM] is set to [ON] in [REC] menu.

∫Types of zooms

• When using the zoom function, an estimate of the focus range will appear in conjunction

with the zoom display bar. (Example: 0.5 m (1.64 ft.) –¶)

¢The magnification level differs depending on [PICTURE SIZE] and [ASPECT RATIO] setting.

Direction detection function

Using the Optical Zoom/Using the Extended Optical Zoom (EZ)/Using

the Digital Zoom

To make subjects appear closer use (Tele)

Rotate the zoom lever towards Tele (T).

To make subjects appear further away use (Wide)

Rotate the zoom lever towards Wide (W).

Feature Optical zoom

Extended optical zoom (EZ)

Digital zoom

Maximum

magnification 4k

7.1k¢

(DMC-FS7/DMC-FS8)

6.4k¢

(DMC-FS6)

16k [including optical zoom

4k]

28.5k (DMC-FS7/DMC-FS8)

[including extended optical

zoom 7.1k]

25.5k (DMC-FS6) [including

extended optical zoom 6.4k]


quality No deterioration No deterioration

The higher the magnification level,

the greater the deterioration.

Conditions None [PICTURE SIZE] with

(P59) is selected. [DIGITAL ZOOM] (P65) on the

[REC] menu is set to [ON].

Screen

display

A [ ] is displayed.

BThe digital zoom range is

displayed.

DMC-FS7&8&6P-VQT2C70_eng.book 33 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Basic

∫Extended optical zoom mechanism

When you set the picture size to [ ] (3 million pixels), the 10M (10.1 million pixels)

(DMC-FS7/DMC-FS8)/8M (8.1 million pixels) (DMC-FS6) CCD area is cropped to the

center 3M (3 million pixels) area, allowing a picture with a higher zoom effect.

Note

• The digital zoom cannot be set when õ has been selected.

• The indicated zoom magnification is an approximation.

• “EZ” is an abbreviation of “Extended optical Zoom”.

• The optical zoom is set to Wide (1k) when the camera is turned on.

• If you use the zoom function after focusing on the subject, focus on the subject again.

• The lens barrel extends or retracts according to the zoom position. Take care not to interrupt

the motion of the lens barrel while the zoom lever is rotated.

• When using the digital zoom, [STABILIZER] may not be effective.

• When using the digital zoom, we recommend using a tripod and the self-timer (P43) for taking

pictures.

• The extended optical zoom cannot be used in the following cases.

– In Macro zoom mode

– In [TRANSFORM], [HIGH SENS.], [HI-SPEED BURST], [FLASH BURST], [FILM GRAIN] or

[PHOTO FRAME] in Scene mode

– In Motion picture mode

• [DIGITAL ZOOM] cannot be used in the following cases.

– In [TRANSFORM], [SPORTS], [BABY1]/[BABY2], [PET], [HIGH SENS.],

[HI-SPEED BURST], [FLASH BURST], [FILM GRAIN] or [PHOTO FRAME] in Scene mode

– When [INTELLIGENT ISO] is set

[PLAYBACK] mode: ¸

Playing back Pictures ([NORMAL PLAY])

∫Fast forwarding/Fast rewinding

Press and hold 2/1 during playback.

Slide the [REC]/[PLAYBACK] selector

switch A to [(].

• Normal playback is set automatically in the

following cases.

– When the mode was switched from the [REC] to

[PLAYBACK]

– When the camera was turned on while the [REC]/

[PLAYBACK] selector switch was at [(].

Press 2/1 to select the picture.

2: Play back the previous picture

1: Play back the next picture

2: Fast rewind

1: Fast forward

DMC-FS7&8&6P-VQT2C70_eng.book 34 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Basic

• The file number A and the picture number B only change one by one. Release 2/1 when the

number of the desired picture appears to play back the picture.

• If you keep pressing 2/1, the number of pictures forwarded/rewound increases.

Rotate the zoom lever towards [L] (W).

1 screen>12 screens>30 screens>Calendar screen

display (P71)

ANumber of the selected picture and the total number of

recorded pictures

• Rotate the zoom lever towards [Z] (T) to return to the

previous screen.

• Pictures are not rotated for display.

∫To return to normal playback

1Press 3/4/2/1 to select a picture.

• An icon will be displayed depending on the recorded picture and the settings.

2Press [MENU/SET].

• The picture that was selected will appear.

Note

• This camera complies with the DCF standard “Design rule for Camera File system” established

by JEITA “Japan Electronics and Information Technology Industries Association” and with Exif

“Exchangeable Image File Format”. Files which do not comply with the DCF standard cannot

be played back.

• The lens barrel retracts about 15 seconds after switching from [REC] mode to [PLAYBACK]

mode.

• If you want to save the enlarged picture, use the trimming function. (P75)

• The playback zoom may not operate if pictures have been recorded with other equipment.

• Playback zoom cannot be used during motion picture playback.

Displaying Multiple Screens (Multi Playback)

Using the Playback Zoom

Rotate the zoom lever towards [Z] (T).

1k>2k>4k>8k>16k

• When you rotate the zoom lever towards [L] (W) after

enlarging the picture, the magnification becomes lower.

• When you change the magnification, the zoom position

indication A appears for about 1 second, and the position of

the enlarged section can be moved by pressing 3/4/2/1.

• The more a picture is enlarged, the more its quality

deteriorates.

• When you move the position to be displayed, the zoom

position indication appears for about 1 second.

DMC-FS7&8&6P-VQT2C70_eng.book 35 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Basic

[PLAYBACK] mode: ¸

Deleting Pictures

Once deleted, pictures cannot be recovered.

• Pictures on the built-in memory or the card, which is being played back will be deleted.

Switching the [PLAYBACK] mode

1Press [MODE] during playback.

2Press 3/4 to select the item and then press

[MENU/SET].

[NORMAL PLAY] (P34)

All the pictures are played back.

[SLIDE SHOW] (P67)

The pictures are played back in sequence.

[CATEGORY PLAY] (P69)

The pictures grouped together in categories are played back.

[FAVORITE PLAY] (P70)¢

Your favorite pictures are played back.

¢ [FAVORITE PLAY] is not displayed when [FAVORITE] has not been set.

To delete a single picture

Select the picture to be deleted, and then

press [‚].

A[DISPLAY] button

B[‚] button

Press 2 to select [YES] and then press

[MENU/SET].

/SET

DMC-FS7&8&6P-VQT2C70_eng.book 36 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Basic

∫When [DELETE ALL] has been selected with the [FAVORITE] (P77) setting

The selection screen is displayed again. Select [DELETE ALL] or

[ALL DELETE EXCEPTÜ], press 3 to select [YES] and delete the pictures.

([ALL DELETE EXCEPTÜ] cannot be selected if no pictures have been set as

[FAVORITE].)

Note

• Do not turn the camera off while deleting (while [‚] is displayed). Use a battery with sufficient

battery power or the AC adaptor (DMW-AC5PP; optional) and DC coupler (DMW-DCC4;

optional).

• If you press [MENU/SET] while deleting pictures using [DELETE MULTI], [DELETE ALL] or

[ALL DELETE EXCEPT Ü], the deleting will stop halfway.

• Depending on the number of pictures to be deleted, it may take some time to delete them.

•If pictures do not conform to the DCF standard or are protected (P79), they will not be

deleted even if [DELETE ALL] or [ALL DELETE EXCEPTÜ] is selected.

To delete multiple pictures (up to 50) or all the pictures

Press [‚].

Press 3/4 to select [DELETE MULTI] or [DELETE ALL] and then

press [MENU/SET].

•[DELETEALL] > step 5.

Press 3/4/2/1 to select the picture, and

then press [DISPLAY] to set. (Repeat this

step.)

• [ ] appears on the selected pictures. If [DISPLAY] is

pressed again, the setting is canceled.

Press [MENU/SET].

Press 3 to select [YES] and then press [MENU/SET] to set.

DISPLAY

DMC-FS7&8&6P-VQT2C70_eng.book 37 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

About the LCD Monitor

Press [DISPLAY] to change.

ALCD monitor

B[DISPLAY] button

• When the menu screen appears, the [DISPLAY] button is not

activated. During playback zoom (P35), while playing back motion

pictures (P70) and during a slide show (P67), you can only select

“Normal display F” or “No display H”.

In Recording mode

In Playback mode

Note

• In [NIGHT PORTRAIT], [NIGHT SCENERY], [STARRY SKY] and [FIREWORKS] in Scene

mode, the guideline is gray. (P46)

• In [PHOTO FRAME] in scene mode, the guideline is not displayed. (P46)

∫Recording guideline

When you align the subject on the horizontal and vertical guidelines

or the cross point of these lines, you can take pictures with

well-designed composition by viewing the size, the slope and the

balance of the subject.

This is used when dividing the entire screen into 3k3 for taking

pictures with a well-balanced composition.

CNormal display

DNo display

ENo display (Recording

guideline)

FNormal display

GDisplay with recording

information

HNo display



ISO

100

AWB

ISO

100

AWB



1/9

100_0001

months

days

months

days

months

days

1ST DAY

1/9

100_0001

F3.3 1/30

10:00 DEC. 1.2009

10:00 DEC. 1.2009 10:00 DEC. 1.2009

10:00 DEC. 1.2009

DMC-FS7&8&6P-VQT2C70_eng.book 38 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

[REC] mode: ñ· ¿

Taking Pictures using the Built-in Flash

Set the flash to match the recording.

Press 1 [‰].

Press 3/4 to select a mode.

• You can also press 1 [‰] to select.

• For information about flash settings that can be selected, refer to

“Available flash settings by Recording mode”. (P40)

Press [MENU/SET].

• You can also press the shutter button halfway to finish.

•

The menu screen disappears after about 5 seconds. At this time, the selected item is automatically set.

¢The flash is activated twice. The subject should not move until the second flash is

activated. Interval until the second flash depends on the brightness of the subject.

APhoto flash

Do not cover it with your fingers or other objects.

Switching to the appropriate flash setting

Item Description of settings

‡: AUTO

The flash is automatically activated when the recording conditions make it necessary.

AUTO/Red-eye

reduction¢

The flash is automatically activated when the recording conditions make it necessary.

It is activated once before the actual recording to reduce the red-eye

phenomenon (eyes of the subject appearing red in the picture) and then

activated again for the actual recording.

• Use this when you take pictures of people in low lighting conditions.

‰:

Forced flash ON

Forced ON/

Red-eye

reduction¢

The flash is activated every time regardless of the recording conditions.

• Use this when your subject is back-lit or under fluorescent light.

• The flash setting is set to [ ] only when you set [PARTY] or

[CANDLE LIGHT] in Scene mode. (P46)

Slow sync./

Red-eye

reduction¢

If you take a picture with a dark background landscape, this feature will slow the

shutter speed when the flash is activated so that the dark background landscape

will become bright. Simultaneously it reduces the red-eye phenomenon.

• The flash setting is set to [ ] only when you set

[NIGHT PORTRAIT], [PARTY], [CANDLE LIGHT] in Scene mode (P46).

Œ:

Forced flash

OFF

The flash is not activated in any recording conditions.

• Use this when you take pictures in places where the use of the flash

is not permitted.



DMC-FS7&8&6P-VQT2C70_eng.book 39 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

∫About the digital red-eye correction

When the flash is used with the Red-eye reduction ([ ], [ ], [ ]) selected, it will

automatically detect and correct the red-eye in the image data.

¢It may not be able to correct the red-eye depending on the recording conditions. It may also

correct objects other than red-eye.

∫Available flash settings by Recording mode

The available flash settings depend on the Recording mode.

(±: Available, —: Not available, ¥: Scene mode initial setting)

When [

‡

] is selected, [ ], [ ] or [ ] is set depending on the type of subject and brightness.

•

The flash setting may change if the Recording mode is changed. Set the flash setting again if necessary.

• The flash setting is memorized even if the camera is turned off. However, the Scene mode flash

setting is reset to the initial setting when the Scene mode is changed.

∫The available flash range to take pictures

• The available flash range is an approximation.

‡ ‰ Œ ‡ ‰ Œ

ñ±¢————±;±¥±——±

·±±±——±í±—±——¥

*±¥±——±ï—————¥

+±¥±——±9±—±——¥

±¥±——±ô—————¥

0±¥±——±——¥———

,—————¥5—————¥

-¥—±——±4—————¥

.———¥—±6——¥——±

/—————¥8¥—±——±

1±—±——¥7—————¥

2———¥±± ¥—±——±

3———±±¥ ¥±±——±

:±¥±——±n—————±

ISO sensitivity Available flash range

Wide Tele

AUTO 30 cm (0.99 feet) to 6.3 m (20.7 feet) 50 cm (1.64 feet) to 3.0 m (9.84 feet)

ISO80 30 cm (0.99 feet) to 1.7 m (5.58 feet) 50 cm (1.64 feet) to 80 cm (2.62 feet)

ISO100 30 cm (0.99 feet) to 2.0 m (6.56 feet) 50 cm (1.64 feet) to 90 cm (2.96 feet)

ISO200 40 cm (1.32 feet) to 2.8 m (9.18 feet) 50 cm (1.64 feet) to 1.3 m (4.26 feet)

ISO400 60 cm (1.97 feet) to 4.0 m (13.1 feet) 60 cm (1.97 feet) to 1.8 m (5.91 feet)

ISO800 80 cm (2.62 feet) to 5.6 m (18.4 feet) 60 cm (1.97 feet) to 2.6 m (8.53 feet)

ISO1600

1.15 m (3.77 feet) to 8.0 m (26.2 feet)

90 cm (2.96 feet) to 3.7 m (12.1 feet)

DMC-FS7&8&6P-VQT2C70_eng.book 40 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

• In [HIGH SENS.] (P51) in Scene mode, the ISO sensitivity automatically switches to between

[ISO1600] and [ISO6400] and the available flash range also differs.

• In [FLASH BURST] (P52) in Scene mode, the ISO sensitivity automatically switches to

between [ISO100] and [ISO3200] and the available flash range also differs.

∫Shutter speed for each flash setting

¢1The shutter speed changes depending on the [STABILIZER] (P65) setting.

¢2 When Intelligent ISO is set (P61)

•¢1, 2: The shutter speed becomes a maximum of 1 second in the following cases.

– When the Optical image stabilizer is set to [OFF].

– When the camera has determined that there is little jitter when the Optical image stabilizer is

set to [MODE1], [MODE2] or [AUTO].

• In Intelligent auto mode, shutter speed changes depending on the identified scene.

• In Scene mode, shutter speed will be different from the above table.

Note

• If you bring the flash too close to an object, the object may be distorted or discolored by the

heat or lighting from the flash.

• When you take a picture beyond the available flash range, the exposure may not be adjusted

properly and the picture may become bright or dark.

• When the flash is being charged, the flash icon blinks red, and you cannot take a picture even

when you press the shutter button fully. When [AUTO LCD OFF] is set, the LCD monitor

turns off and the status indicator lights.

• The white balance may not be properly adjusted if the flash level is insufficient for the subject.

• When the shutter speed is fast, the flash effect may not be sufficient.

• It may take time to charge the flash if you repeat taking a picture. Take a picture after the

access indication disappears.

• The red-eye reduction effect differs between people. Also, if the subject was far away from the

camera or was not looking at the first flash, the effect may not be evident.

Wide:

Approx. 1.15 m (3.77 feet) to approx. 16.0 m (52.5 feet)

Tele:

Approx. 90 cm (2.96 feet) to approx. 7.5 m (24.6 feet)

Wide:

Approx. 30 cm (0.99 feet) to approx. 4.0 m (13.1 feet)

Tele:

Approx. 50 cm (1.64 feet) to approx. 1.9 m (6.23 feet)

Flash setting Shutter speed (Sec.) Flash setting Shutter speed (Sec.)

‡

1/30 to 1/2000 1 or 1/8 to 1/2000¢1

1 or 1/4 to 1/2000¢2

‰Œ

DMC-FS7&8&6P-VQT2C70_eng.book 41 ページ２００９年４月２８日　火曜日　午前１１時２分

VQT2C70

Advanced (Recording pictures)

[REC] mode: ·n

Taking Close-up Pictures

This mode allows you to take close-up pictures of a subject, e.g. when taking pictures of

flowers. You can take pictures of a subject as close as 5 cm (0.17 feet) from the lens by

rotating the zoom lever upmost to Wide (1k). (AF macro mode)

You can take a picture with the digital zoom up to 3k while maintaining the distance to the

subject for the extreme Wide position [5 cm (0.17 feet)]. (Macro zoom mode)

Press 4 [#].

Press 3/4 to select a mode.

Press [MENU/SET].

• You can also press the shutter button halfway to

finish.

• The menu screen disappears after about 5 seconds.

At this time, the selected item is automatically set.

Press the shutter button halfway to focus

and then press it fully to take the picture.

AFocus range

• [ ] is displayed during AF macro mode and [ ]

is displayed during Macro zoom mode.

• To cancel, select [OFF] in step 2.

• Zoom range, focus range, and zoom magnification

are displayed during zooming. Zoom range will be

displayed in blue (digital zoom range) during Macro

zoom mode.

∫Focus range in AF macro mode

¢The focus range changes in steps.

•

Focus range will be 5 cm (0.17 feet) to

during macro zoom mode regardless of the zoom position.

Note

• We recommend using a tripod and the self-timer.

• We recommend setting the flash to [Œ] when you take pictures at close range.

• If the distance between the camera and the subject is beyond the focus range of the camera,

the picture may not be properly focused even if the focus indication lights.

• When a subject is close to the camera, the effective focus range is significantly narrowed.

Therefore, if the distance between the camera and the subject is changed after focusing on the

subject, it may become difficult to focus on it again.

5 cm (0.17 feet)

50 cm (1.64 feet)

DMC-FS7&8&6P-VQT2C70_eng.book 42 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

• Macro mode gives priority to a subject close to the camera. Therefore, if the distance between

the camera and the subject is more than 50 cm (1.64 feet) it takes longer to focus on it.

• When you take pictures at close range, the resolution of the periphery of the picture may

decrease slightly. This is not a malfunction.

• The image quality when recording in [MACRO ZOOM] is poorer than during normal recording.

• The extended optical zoom will not function when [MACRO ZOOM] is set.

[REC] mode: ñ· ¿

Taking Pictures with the Self-timer

Note

• When using a tripod etc., setting the self-timer to 2 seconds is a convenient way to avoid the

jitter caused by pressing the shutter button.

• When you press the shutter button once fully, the subject is automatically focused just before

recording. In dark places, the self-timer indicator will blink and then may turn on brightly

operating as an AF assist lamp (P66) to allow the camera to focus on the subject.

• We recommend using a tripod when recording with the self-timer.

• The number of pictures which can be taken in [BURST] is fixed to 3.

• The number of pictures which can be taken in [FLASH BURST] in Scene mode is fixed to 5.

• Self-timer cannot be set to 2 seconds in Intelligent auto mode.

• Self-timer cannot be set to 10 seconds in [SELF PORTRAIT] in Scene mode.

• Self-timer cannot be used while in [HI-SPEED BURST] in Scene mode.

Press 2 [ë].

Press 3/4 to select a mode.

• You can also press 2 [ë] to select.

Press [MENU/SET].

• You can also press the shutter button halfway to finish.

• The menu screen disappears after about 5 seconds. At this time, the selected item is

automatically set.

Press the shutter button halfway to focus

and then press it fully to take the picture.

• The self-timer indicator A blinks and the shutter is

activated after 10 seconds (or 2 seconds).

• If you press [MENU/SET] while the self-timer is set, the

self-timer setting is canceled. 

DMC-FS7&8&6P-VQT2C70_eng.book 43 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

[REC] mode: ·¿n

Compensating the Exposure

Use this function when you cannot achieve appropriate exposure due to the difference in

brightness between the subject and the background. Look at the following examples.

Note

• EV is an abbreviation of [Exposure Value]. It refers to the amount of light given to the CCD by

the aperture value and the shutter speed.

• The exposure compensation value appears on the lower left of the screen.

• The set exposure value is memorized even if the camera is turned off.

• The compensation range of the exposure will be limited depending on the brightness of the

subject.

• Exposure compensation cannot be used when in [STARRY SKY] in Scene mode.

Underexposed Properly

exposed Overexposed

Compensate the exposure

towards positive. Compensate the exposure

towards negative.

Press 3 [È] until [EXPOSURE] appears,

compensate the exposure with 2/1.

• Select [0 EV] to return to the original exposure.

Press [MENU/SET] to finish.

• You can also press the shutter button halfway to finish.

DMC-FS7&8&6P-VQT2C70_eng.book 44 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

[REC] mode: ·¿

Taking Pictures using Auto Bracket

In this mode, 3 pictures are automatically recorded in the selected exposure

compensation range each time the shutter button is pressed. You can select the picture

with the desired exposure from the 3 pictures with different exposures.

With Auto bracket d1 EV

Note

• When setting Auto bracket, [ ] appears on the screen.

• When taking pictures using Auto bracket after setting the exposure compensation range, the

pictures taken are based on the selected exposure compensation range.

When the exposure is compensated, the exposure compensation value appears on the lower

left of the screen.

• The Auto bracket setting is canceled if you turn the camera off or [POWER SAVE] is activated.

• When Auto bracket is set, the Auto review function is activated regardless of the Auto review

setting. (The picture is not enlarged.) You cannot set the Auto review function in the [SETUP]

menu.

• The exposure may not be compensated with Auto bracket depending on the brightness of the

subject.

•[Œ] is set for the flash when Auto bracket is set.

• Burst is canceled when Auto bracket is set.

• Auto bracket cannot be used when in [TRANSFORM], [HI-SPEED BURST], [FLASH BURST],

[STARRY SKY], [FILM GRAIN] and [PHOTO FRAME] in Scene mode.

1st picture 2nd picture 3rd picture

d0EV j1 EV i1 EV

Press 3 [È] several times until [AUTO BRACKET]

appears, set the compensation range of the

exposure with 2/1.

• When you do not use Auto bracket, select [OFF] (0).

Press [MENU/SET] to finish.

• You can also press the shutter button halfway to finish.

DMC-FS7&8&6P-VQT2C70_eng.book 45 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

[REC] mode: ¿

Taking pictures that match the scene being

recorded (Scene mode)

When you select a Scene mode to match the subject and recording situation, the camera

sets the optimal exposure and hue to obtain the desired picture.

In [MY SCENE MODE], you can register the Scene mode you use most frequently as one

of the Recording modes.

Slide the [REC]/[PLAYBACK] selector switch to [!], and then press

[MODE].

Press 3/4 to select [ ] ([MY SCENE MODE]), and

then press [MENU/SET].

• If you have already registered My scene mode, the icon for the

registered Scene mode will be displayed, rather than [ ].

Press 3/4/2/1 to select the Scene mode.

Press [MENU/SET] to set.

• The menu screen is switched to the recording screen in the

selected Scene mode.

• The selected Scene mode is registered as My Scene mode, so

that the next time you are recording, you can select it from [REC MODE].

∫Changing My scene mode

1Press [MODE], select the third item from the top and press

[MENU/SET].

2Press [MENU/SET] to display the menu screen.

3Press 3 to select [¿], switch menus and press 1.

• For details on switching menus, refer to P20.

4Press 3/4/2/1 to select the Scene mode.

5Press [MENU/SET] to set.

∫About the information

• If you press [DISPLAY] when selecting a Scene mode, explanations about each Scene mode

are displayed. (If you press [DISPLAY] again, the screen returns to the Scene mode menu.)

Registering scenes in Scene mode ( : My scene mode)

DMC-FS7&8&6P-VQT2C70_eng.book 46 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

In [SCENE MODE], you can select the Scene mode each time you make a recording.

1In step 2, select [SCENE MODE] and press [MENU/SET].

2Press 3/4/2/1 to select the Scene mode, and then press [MENU/SET] to set.

• The recording screen for the selected Scene mode will be displayed.

Note

• To change the Scene mode, press [MENU/SET] and then press 1, and return to step 3.

• The Scene mode flash setting is reset to the initial setting when the Scene mode is changed.

• When you take a picture with a Scene mode that is not adequate for the purpose, the hue of the

picture may differ from the actual scene.

• The following items cannot be set in Scene mode because the camera automatically adjusts

them to the optimal setting.

– [INTELLIGENT ISO]

– [SENSITIVITY]

–[COLORMODE]

• Shutter speed for Scene modes, except [SPORTS], [NIGHT PORTRAIT], [NIGHT SCENERY],

[CANDLE LIGHT], [BABY1]/[BABY2], [PET], [FLASH BURST], [STARRY SKY] and

[FIREWORKS], will be from 1/8th of a second to 1/2000th of a second.

When taking pictures of people outdoors during the daytime, this mode allows you to

improve their appearance and make their skin tones look healthier.

∫Technique for Portrait mode

To make this mode more effective:

1Rotate the zoom lever as far as possible to Tele.

2Move close to the subject to make this mode more effective.

Note

• ISO sensitivity is fixed to [ISO80].

• The initial setting for [AF MODE] is [š].

When taking pictures of people outdoors during the daytime, this mode enables the texture

of their skin to appear even softer than with [PORTRAIT]. (It is effective when taking

pictures of people from the chest up.)

∫Technique for Soft skin mode

To make this mode more effective:

1Rotate the zoom lever as far as possible to Tele.

2Move close to the subject to make this mode more effective.

Note

• If a part of the background etc. is a color close to skin color, this part is also smoothed.

• This mode may not be effective when there is insufficient brightness.

• ISO sensitivity is fixed to [ISO80].

• The initial setting for [AF MODE] is [š].

Selecting the Scene mode for each recording (¿: Scene mode)

* [PORTRAIT]

+ [SOFT SKIN]

DMC-FS7&8&6P-VQT2C70_eng.book 47 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

Subject can be recorded either slim or stretched, and at the same time, skin can be

recorded smoothly.

1Press 3/4 to select the setting, and then press [MENU/

SET].

• It can be set from the quick menu (P21).

2Take pictures.

Note

• [PICTURE SIZE] and [ASPECT RATIO] are fixed as given below.

–[ ] for [X], [ ] for [Y] and [ ] for [W]

• [QUALITY] is automatically fixed to [›].

• You can take pictures suitable for 4qk6q/10k15 cm printing.

• The initial setting for [AF MODE] is [š].

• Transform mode cannot be used without notifying the copyright owner, except for personal use.

• Do not use the material against the public order and morals, or to offend someone.

• Do not use the material against the object’s interest.

Select this to take pictures of yourself.

∫Technique for Self portrait mode

• Press the shutter button halfway to focus. The self-timer indicator

lights up when you are brought into focus. Making sure you hold

the camera still, press the shutter button fully to take the picture.

• The subject is not focused when the self-timer indicator is

blinking. Make sure to press the shutter button halfway again to

focus.

• The recorded picture automatically appears on the LCD monitor

for reviewing.

• If the picture is blurry due to the slow shutter speed, we recommend using the 2 second

self-timer.

Note

• The focus range is about 30 cm (0.99 feet) to 1.2 m (3.94 feet) (Wide).

• The zoom magnification is automatically moved to Wide (1k).

• The self-timer can only be set to off or 2 seconds. If it is set to 2 seconds, this setting will

remain until the camera is turned off, the Scene mode is changed or [REC] mode or

[PLAYBACK] mode is selected.

• The Stabilizer function mode is fixed to [MODE2]. (P65)

• The initial setting for [AF MODE] is [š].

This allows you to take pictures of a wide landscape.

Note

• The flash setting is fixed to [Œ].

• The focus range is 5 m (16.4 feet) to ¶.

[TRANSFORM]

0 [SELF PORTRAIT]

, [SCENERY]

DMC-FS7&8&6P-VQT2C70_eng.book 48 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

Set here when you want to take pictures of sports scenes or other fast-moving events.

Note

• This mode is suitable for taking pictures of subjects at distances of 5 m (16.4 feet) or more.

• [INTELLIGENT ISO] is activated, and maximum ISO sensitivity level becomes [ISO1600].

This allows you to take pictures of a person and the background with near real-life

brightness.

∫Technique for Night portrait mode

• Use the flash. (You can set to [ ].)

• Since the shutter speed becomes slower, we recommend using a tripod and the self-timer for

taking pictures.

• Ask the subject not to move while taking a picture.

• We recommend rotating the zoom lever to Wide (1k) and being about 1.5 m (4.92 feet) from

the subject when taking a picture.

Note

• The shutter may remain closed (max. about 8 sec.) after taking the picture because of signal

processing. This is not a malfunction.

• Noise may become visible when you take pictures in dark places.

• The initial setting for [AF MODE] is [š].

This allows you to take vivid pictures of the nightscape.

∫Technique for Night scenery mode

• When the camera is set to [STABILIZER] and there is very little jitter, or if [STABILIZER] is set

to [OFF], shutter speed may slow down up to 8 seconds. We recommend using the tripod and

the self-timer for taking pictures.

Note

• The flash setting is fixed to [Œ].

• The focus range is 5 m (16.4 feet) to ¶.

• The shutter may remain closed (max. about 8 sec.) after taking the picture because of signal

processing. This is not a malfunction.

• Noise may become visible when you take pictures in dark places.

This mode allows you to take pictures of food with a natural hue without being affected by

the ambient light in restaurants etc.

Note

- [SPORTS]

. [NIGHT PORTRAIT]

• The focus range is 1.2 m (3.94 feet) to 5 m (16.4 feet).

/ [NIGHT SCENERY]

1 [FOOD]

• The focus range is 5 cm (0.17 feet) (Wide)/50 cm (1.64 feet) (Tele) to ¶.

DMC-FS7&8&6P-VQT2C70_eng.book 49 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

Select this when you want to take pictures at a wedding reception, an indoor party etc.

This allows you to take pictures of people and the background with near real-life

brightness.

∫Technique for Party mode

• Use the flash. (You can set to [ ] or [ ].)

• We recommend using a tripod and the self-timer for taking pictures.

• We recommend rotating the zoom lever to Wide (1k) and being about 1.5 m (4.92 feet) from

the subject when taking pictures.

Note

• The initial setting for [AF MODE] is [š].

This mode allows you to take pictures with a candle-lit atmosphere.

∫Technique for Candle light mode

• This is more effective when taking pictures without using the flash.

• We recommend using a tripod and the self-timer for taking pictures.

Note

• The shutter may remain closed (max. about 1 sec.) after taking the picture because of signal

processing. This is not a malfunction.

• The initial setting for [AF MODE] is [š].

This takes pictures of a baby with a healthy complexion. When you use the flash, the light

from it is weaker than usual.

It is possible to set different birthdays and names for [BABY1] and [BABY2]. You can

select to have these appear at the time of playback, or have them stamped on the

recorded image using [TEXT STAMP] (P73).

∫Birthday/Name setting

1Press 3/4 to select [AGE] or [NAME] and then press 1.

2Press 3/4 to select [SET] and then press [MENU/SET].

3Enter the birthday or name.

Birthday:

2/1: Select the items (year/month/day).

3/4:Set.

[MENU/SET]: Exit.

Name: For details on how to enter characters, read the [TITLE EDIT] section on P72.

• When the birthday or name is set, [AGE] or [NAME] is automatically set to [ON].

• If [ON] is selected when the birthday or name has not been registered, the setting screen

appears automatically.

4Press [MENU/SET] to finish.

∫To cancel [AGE] and [NAME]

Select the [OFF] setting in step 2 of the “Birthday/Name setting” procedure.

2 [PARTY]

3 [CANDLE LIGHT]

• The focus range is 5 cm (0.17 feet) (Wide)/50 cm (1.64 feet) (Tele) to ¶.

: [BABY1]/; [BABY2]

DMC-FS7&8&6P-VQT2C70_eng.book 50 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

Note

• The age and name can be printed out using the “PHOTOfunSTUDIO” bundled software on the

CD-ROM (supplied).

• If [AGE] or [NAME] is set to [OFF] even when the birthday or name has been set, the age or

name will not be displayed. Before taking pictures, set [AGE] or [NAME] to [ON].

• [INTELLIGENT ISO] is activated, and maximum ISO sensitivity level becomes [ISO1600].

• If the camera is turned on with [BABY1]/[BABY2] set, the age and name are displayed at the

lower left of the screen for about 5 seconds, along with the current date and time.

• If the age is not properly displayed, check the clock and birthday settings.

• The birthday setting and name setting can be reset with [RESET].

• The initial setting for [AF MODE] is [š].

Select this when you want to take pictures of a pet such as a dog or a cat.

You can set your pet’s birthday and name. You can select to have these appear at the time

of playback, or have them stamped on the recorded image using [TEXT STAMP] (P73).

For information about [AGE] or [NAME], refer to [BABY1]/[BABY2] on P50.

Note

• The initial setting for the AF assist lamp is [OFF].

• The initial setting for [AF MODE] is [Ø].

• Refer to [BABY1]/[BABY2] for other information about this mode.

Select this when you want to take pictures of a sunset view. This allows you to take vivid

pictures of the red color of the sun.

Note

• The flash setting is fixed to [Œ].

• ISO sensitivity is fixed to [ISO80].

This mode minimizes the jitter of the subjects, and enables you to take pictures of these

subjects in dimly lit rooms. (Select this for high-sensitivity processing. The sensitivity

automatically switches to between [ISO1600] and [ISO6400].)

∫Picture size and aspect ratio

1Press 3/4 to select the picture size and aspect ratio and then press [MENU/

SET] to set.

• 3M (4:3), 2.5M (3:2) or 2M (16:9) is selected as the picture size.

2Take pictures.

Note

• [QUALITY] is automatically fixed to [›].

• You can take pictures suitable for 4qk6q/10k15 cm printing.

• The focus range is 5 cm (0.17 feet) (Wide)/50 cm (1.64 feet) (Tele) to ¶.

í [PET]

ï [SUNSET]

9 [HIGH SENS.]

• The focus range is 5 cm (0.17 feet) (Wide)/50 cm (1.64 feet) (Tele) to ¶.

DMC-FS7&8&6P-VQT2C70_eng.book 51 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

This is a convenient mode for shooting rapid movement or a decisive moment.

∫Picture size and aspect ratio

Press

to select the picture size and aspect ratio and then press [MENU/SET] to set.

• 3M (4:3), 2.5M (3:2) or 2M (16:9) is selected as the picture size.

2Take pictures.

• Still pictures are taken continuously while the shutter button is pressed fully.

• The burst speed changes according to the recording conditions.

• The number of burst recording pictures are limited by the picture-taking conditions and the type

and/or status of the card used.

• The number of burst recording pictures increase immediately after formatting.

Note

• The flash setting is fixed to [Œ].

• [QUALITY] is automatically fixed to [›].

• You can take pictures suitable for 4qk6q/10k15 cm printing.

• The focus, zoom, exposure, white balance, shutter speed and ISO sensitivity are fixed to the

settings for the first picture.

• The ISO sensitivity automatically switches to between [ISO500] and [ISO800]. However, the

ISO sensitivity is increased to make the shutter speed become high-speed.

• Depending on the operating conditions, it may take time to take the next picture if you repeat

taking a picture.

Still pictures are taken continuously with flash. It is convenient to take continuous still

pictures in dark places.

∫Picture size and aspect ratio

Press

to select the picture size and aspect ratio and then press [MENU/SET] to set.

• 3M (4:3), 2.5M (3:2) or 2M (16:9) is selected as the picture size.

2Take pictures.

• Still pictures are taken continuously while the shutter button is pressed fully.

Note

• [QUALITY] is automatically fixed to [›].

• You can take pictures suitable for 4qk6q/10k15 cm printing.

• The focus, zoom, exposure, shutter speed, ISO sensitivity, and flash level are fixed to the

settings for the first picture.

• The shutter speed becomes 1/30th of a second to 1/2000th of a second.

• [INTELLIGENT ISO] is activated, and maximum ISO sensitivity level becomes [ISO3200].

• See the Note on P41 when using the flash.

ô [HI-SPEED BURST]

Maximum Burst

speed DMC-FS7/DMC-FS8: approx. 6 pictures/second

DMC-FS6: approx. 5.5 pictures/second

Number of

recordable pictures approx. 10 (built-in memory)/approx. 10 to 100¢ (card)

¢the maximum is 100.

• The focus range is 5 cm (0.17 feet) (Wide)/50 cm (1.64 feet) (Tele) to ¶.

[FLASH BURST]

Number of recordable

pictures max. 5 pictures

• The focus range is 5 cm (0.17 feet) (Wide)/50 cm (1.64 feet) (Tele) to ¶.

DMC-FS7&8&6P-VQT2C70_eng.book 52 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

This allows you to take vivid pictures of a starry sky or a dark subject.

∫Setting the shutter speed

Select a shutter speed of [15 SEC.], [30 SEC.] or [60 SEC.].

1Press 3/4 to select the number of seconds and then press [MENU/SET].

• It is also possible to change the number of seconds using the quick menu. (P21)

2Take pictures.

• Press the shutter button fully to display the countdown screen. Do

not move the camera after this screen is displayed. When

countdown finishes, [PLEASE WAIT...] is displayed for the same

length of time as the set shutter speed for signal processing.

• Press [MENU/SET] to stop taking the picture while the countdown

screen is displayed.

∫Technique for Starry sky mode

• The shutter opens for 15, 30 or 60 seconds. Be sure to use a tripod. We also recommend

taking pictures with the self-timer.

Note

• The flash setting is fixed to [Œ].

• The Optical image stabilizer function is fixed to [OFF].

• ISO sensitivity is fixed to [ISO80].

This mode allows you to take beautiful pictures of fireworks exploding in the night sky.

∫Technique for Fireworks mode

• Since the shutter speed becomes slower, we recommend using a tripod.

Note

• The flash setting is fixed to [Œ].

• This mode is most effective when the subject is 10 m (32.8 feet) or more away.

• The shutter speed becomes the following.

– When [OFF] is set on the Optical image stabilizer function: Fixed to 2 seconds

– When [AUTO], [MODE1] or [MODE2] is set on the Optical image stabilizer function: 1/4th of a

second or 2 seconds (The shutter speed becomes 2 seconds only when the camera has

determined that there is little jitter such as when using a tripod etc.)

– You can change the shutter speed by compensating the exposure.

• The AF area is not displayed.

• ISO sensitivity is fixed to [ISO80].

This allows you to take even more vivid pictures of the blue color of the sea, sky etc. It also

prevents underexposure of people under strong sunlight.

Note

• The initial setting for [AF MODE] is [š].

• Do not touch the camera with wet hands.

• Sand or seawater will cause the camera to malfunction. Make sure that sand or seawater does

not get into the lens or the terminals.

• Problems caused by sand or seawater are not covered by the product warranty.

5 [STARRY SKY]

4 [FIREWORKS]

6 [BEACH]

DMC-FS7&8&6P-VQT2C70_eng.book 53 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

This allows you to take pictures that show the snow as white as possible at a ski resort or

a snow-covered mountain.

This mode allows you to take pictures through an airplane window.

∫Technique for Aerial photo mode

• We recommend using this technique if it is difficult to focus when taking pictures of clouds etc.

Aim the camera at something with high contrast, press the shutter button halfway to fix the

focus and then aim the camera at the subject and press the shutter button fully to take the

picture.

Note

• The flash setting is fixed to [Œ].

• The focus range is 5 m (16.4 feet) to ¶.

• Turn the camera off when taking off or landing.

• When using the camera, follow all instructions from the cabin crew.

• Be careful about the reflection from the window.

Picture is taken with a grainy texture as though blasted with sand.

∫Picture size and aspect ratio

1Press 3/4 to select the picture size and aspect ratio and then press [MENU/

SET] to set.

• 3M (4:3), 2.5M (3:2) or 2M (16:9) is selected as the picture size.

2Take pictures.

Note

• [QUALITY] is automatically fixed to [›].

• You can take pictures suitable for 4qk6q/10k15 cm printing.

• ISO sensitivity is fixed to [ISO1600].

Record the image with a frame around it.

∫Setting the frame

1Press 2/1 to select the frame to use, and then press [MENU/SET].

• The number of pixels is fixed to 2M (4:3).

2Take pictures.

Note

• [AUTO REVIEW] is fixed to [2SEC.].

• The color of the frame displayed on the screen and the color of the frame around the actual

image may differ, but this is not a malfunction.

8 [SNOW]

7 [AERIAL PHOTO]

[FILM GRAIN]

• The focus range is 5 cm (0.17 feet) (Wide)/50 cm (1.64 feet) (Tele) to ¶.

[PHOTO FRAME]

DMC-FS7&8&6P-VQT2C70_eng.book 54 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

[REC] mode: n

Advanced (Recording pictures)

Motion Picture Mode

• When you set the recording quality to [ ] or [ ], we recommend using a high-speed card

with “10MB/s” or greater displayed on the package.

Press [MENU/SET].

Press 3/4 to select [REC QUALITY] and then

press 1.

Press 3/4 to select the item and then press

[MENU/SET].

¢Cannot be recorded in the built-in memory.

Slide the [REC]/[PLAYBACK] selector switch to [!], and then press

[MODE].

Press

to select [MOTION PICTURE], and then press [MENU/SET].

Press the shutter button halfway to focus

and then press it fully to start recording.

AAudio recording

• The available recording time B is displayed on the top

right and the elapsed recording time C is displayed on

the bottom right of the screen.

• After pressing the shutter button fully, release it straight

away. If the button is held down, the sound will not be

recorded for a few seconds when recording starts.

•

When the subject is focused, the focus indication lights.

• The focus and zoom are fixed to the setting when

recording starts (the first frame).

• The audio is also recorded simultaneously from the

built-in microphone on this unit. (Motion pictures

cannot be recorded without audio.)

Press the shutter button fully to stop recording.

• If the built-in memory or the card becomes full in the middle of recording, the camera

stops recording automatically.

Changing the settings for the recording quality

Item Picture size fps Aspect ratio

¢848k480 pixels 30 16:9

¢640k480 pixels 30 4:3

320k240 pixels 30

A B

DMC-FS7&8&6P-VQT2C70_eng.book 55 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

Press [MENU/SET] to close the menu.

• You can also press the shutter button halfway to close the menu.

Note

• The flash setting is fixed to [Œ].

• Refer to P106 for information about the available recording time.

• The available recording time displayed on the screen may not decrease regularly.

• Depending on the type of the card, the card access indication may appear for a while after

recording motion pictures. This is not a malfunction.

• When motion pictures recorded with the camera are played back on other equipment, the

quality of the picture and sound may deteriorate and it may not be possible to play them back.

Also the recording information may not be displayed correctly.

• Sound from motion pictures recorded by this camera cannot be played back by older models of

Panasonic digital cameras (LUMIX) launched before July 2008.

• In Motion picture mode, the following functions cannot be used.

–[š] and [Ø] in [AF MODE]

– Direction detection function

– [OFF], [AUTO] and [MODE2] on the Optical image stabilizer function

• This unit does not support recording motion pictures on MultiMediaCards.

•

We recommend you use a battery with sufficient battery power or the AC adaptor when recording

motion pictures.

•

If while recording motion pictures using the AC adaptor the power supply is cut off due to a power cut

or if the AC adaptor is disconnected etc., the motion picture being recorded will not be recorded.

[REC] mode: ñ· ¿n

Useful Functions at Travel Destinations

For details on the [SETUP] menu settings, refer to P20.

If you set the departure date or the travel destination of the vacation in advance, the number of

days that have passed since the departure date (which day of the vacation it is) is recorded

when you take the picture. You can display the number of days that have passed when playing

back the pictures and stamp it on the recorded pictures with [TEXT STAMP] (P73).

• The number of days that have passed since the departure date can be printed out using the

“PHOTOfunSTUDIO” bundled software on the CD-ROM (supplied).

• Select [CLOCK SET] to set the current date and time in advance. (P18)

• Motion pictures can be recorded continuously up to 2 GB. The maximum available recording

time for up to 2 GB only is displayed on the screen.

Recording which Day of the Vacation You Take the Picture

Select [TRAVEL DATE] from the [SETUP] menu, and

then press 1.

Press 3 to select [TRAVEL SETUP] and then press

DMC-FS7&8&6P-VQT2C70_eng.book 56 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

∫Canceling the travel date

The travel date is automatically canceled if the current date is after the return date. If you

want to cancel the travel date before the end of the vacation, select [OFF] on the screen

shown in step 3 or 7 and then press [MENU/SET] twice. If the [TRAVEL SETUP] is set to

[OFF] in step 3, [LOCATION] will be also set to [OFF].

Press 4 to select [SET] and then press [MENU/

SET].

Press 3/4/2/1 to set the departure date (year/

month/day), and then press [MENU/SET].

Press 3/4/2/1 to set the return date (year/month/

day), and then press [MENU/SET].

• If you do not want to set the return date, press [MENU/SET] while

the date bar is displayed.

Press 4 to select [LOCATION] and then press 1.

Press 4 to select [SET] and then press [MENU/

SET].

Enter the location.

• For details on how to enter characters, read the [TITLE EDIT] section on P72.

Press [MENU/SET] twice to close the menu.

Take a picture.

• The number of days that have passed since the departure date is displayed for about

5 seconds if this unit is turned on etc. after setting the travel date or when the travel date

is set.

• When the travel date is set, [—] appears on the lower right of the screen.

DMC-FS7&8&6P-VQT2C70_eng.book 57 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

Note

• The travel date is calculated using the date in the clock setting and the departure date you set.

If you set [WORLD TIME] (P58) to the travel destination, the travel date is calculated using the

date in the clock setting and the travel destination setting.

• The travel date setting is memorized even if the camera is turned off.

• If [TRAVEL DATE] is set to [OFF], the number of days that have passed since the departure

date will not be recorded even if you set the travel date or the return date. Even if

[TRAVEL DATE] is set to [SET] after taking the pictures, the day of the vacation you took them

on is not displayed.

• If you set a departure date and then take a picture on a date before this departure date, [-]

(minus) is displayed in orange and the day of the vacation that you took the picture is not

recorded.

• If the travel date is displayed as [-] (minus) in white, there is a time difference that involves date

change between the [HOME] and [DESTINATION]. (It will be recorded)

• The text set as [LOCATION] can be edited later with [TITLE EDIT].

• The names for [BABY1]/[BABY2] and [PET] will not be recorded when [LOCATION] is set.

• [LOCATION] cannot be recorded when taking motion pictures.

• Intelligent auto mode cannot be set. Setting of other Recording mode will be reflected.

For details on the [SETUP] menu settings, refer to P20.

You can display the local times at the travel destinations and record them on the pictures

you take.

• Select [CLOCK SET] to set the current date and time in advance. (P18)

Recording Dates/Times at Overseas Travel Destinations (World Time)

Select [WORLD TIME] from the [SETUP] menu,

and then press 1.

• When first using the camera after purchasing it, the

[PLEASE SET THE HOME AREA] message appears.

Press [MENU/SET], and set the home area on the screen in

step 3.

Press 4 to select [HOME], and then press

[MENU/SET].

Press 2/1 to select the home area, and then

press [MENU/SET].

ACurrent time

BTime difference from GMT (Greenwich Mean Time)

• If daylight saving time [ ] is used at the home area, press

3. Press 3 again to return to the original time.

• The daylight saving time setting for the home area does not

advance the current time. Advance the clock setting by one

hour.

DMC-FS7&8&6P-VQT2C70_eng.book 58 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

Note

• Return the setting to [HOME] when the vacation is finished by performing steps 1, 2 and 3.

• If [HOME] is already set, change only the travel destination, and use.

• If you cannot find the travel destination in the areas displayed on the screen, set by the time

difference from the home area.

•

The travel destination icon [

“

] appears when playing back pictures taken at the travel destination.

Using the [REC] Mode Menu

For details on [REC] mode menu settings, refer to P20.

Set the number of pixels. The higher the numbers of pixels, the finer the detail of the

pictures will appear even when they are printed onto large sheets.

Applicable modes: ñ· ¿

∫When the aspect ratio is [X].

¢1 DMC-FS7/DMC-FS8

¢2 DMC-FS6

¢3This item cannot be set in the Intelligent auto mode.

Press 3 to select [DESTINATION] and then

press [MENU/SET] to set.

CDepending on the setting, the time at the travel destination

area or the home area is displayed.

Press 2/1 to select the area the travel

destination is in and then press [MENU/SET] to

set.

DCurrent time of the destination area

ETime difference

• If daylight saving time [ ] is used at the travel destination,

press 3. (The time advances by one hour.) Press 3 again to

return to the original time.

Press [MENU/SET] to close the menu.

@ [PICTURE SIZE]

(10M) 3648k2736 pixels¢1

(8M) 3264k2448 pixels¢2

(7M )¢33072k2304 pixels¢1

(5M ) 2560k1920 pixels

(3M ) 2048k1536 pixels

(2M )¢31600k1200 pixels

(0.3M )¢3640k480 pixels

DMC-FS7&8&6P-VQT2C70_eng.book 59 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

∫When the aspect ratio is [Y].

∫When the aspect ratio is [W].

Note

• “EZ” is an abbreviation of “Extended optical Zoom”.

•

A digital picture is made of numerous dots called pixels. The

higher the numbers of pixels, the finer the picture will be when it

is printed on a large piece of paper or displayed on a PC monitor.

AMany pixels (Fine)

BFew pixels (Rough)

¢These pictures are examples to show the effect.

•If you change the aspect ratio, set the picture size again.

•

The extended optical zoom does not work when [MACRO

ZOOM] is set or in [TRANSFORM], [HIGH SENS.], [HI-SPEED BURST], [FLASH BURST],

[FILM GRAIN] and [PHOTO FRAME] in Scene mode so the picture size for [ ] is not displayed.

• Pictures may appear mosaic depending on the subject and the recording conditions.

• Refer to P103 for information about the number of recordable pictures.

For details on [REC] mode menu settings, refer to P20.

Set the compression rate at which the pictures are to be stored.

Applicable modes: ·¿

Note

• Refer to P103 for information about the number of recordable pictures.

For details on [REC] mode menu settings, refer to P20.

This allows you to select the aspect ratio of the pictures to suit printing or the playback

method.

Applicable modes: ·¿

(9M) 3648k2432 pixels¢1

(7M) 3264k2176 pixels¢2

(6M )¢33072k2048 pixels¢1

(4.5M )¢32560k1712 pixels

(2.5M )¢32048k1360 pixels

(7.5M)¢33648k2056 pixels¢1

(6M)¢33264k1840 pixels¢2

(5.5M )¢33072k1728 pixels¢1

(3.5M )¢32560k1440 pixels

(2M ) 1920k1080 pixels

A [QUALITY]

[A]: Fine (when giving priority to the picture quality)

[›]: Standard (when using the standard picture quality and increasing the number of

pictures to be recorded without changing the number of pixels)

? [ASPECT RATIO]

DMC-FS7&8&6P-VQT2C70_eng.book 60 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

Note

•The ends of the recorded pictures may be cut at printing so check before printing. (P101)

For details on [REC] mode menu settings, refer to P20.

The camera automatically sets the optimum ISO sensitivity and shutter speed to suit the

movement of the subject and brightness of the scene to minimize the jitter of the subject.

Applicable modes: ·

[OFF]/[ ]/[ ]/[ ]

• The upper limit of the ISO sensitivity can be set.

• The higher the value set for the ISO sensitivity, the more the jitter is reduced but the greater the

amount of picture noise.

Note

• Depending on the brightness and how fast the subject is moving, jitter may not be avoided.

• Movements may not be detected when a moving subject is small, when a moving subject is at

the edge of the screen or when a subject has moved at the very moment when the shutter

button was pressed fully.

• To avoid picture noise, we recommend decreasing maximum ISO sensitivity level or setting

[COLOR MODE] to [NATURAL]. (P65)

For details on [REC] mode menu settings, refer to P20.

This allows the sensitivity to light (ISO sensitivity) to be set. Setting to a higher figure

enables pictures to be taken even in dark places without the resulting pictures coming out

dark.

Applicable modes: ·

[AUTO]/[80]/[100]/[200]/[400]/[800]/[1600]

[X]: [ASPECT RATIO] of a 4:3 TV

[Y]: [ASPECT RATIO] of a 35 mm film camera

[W]: [ASPECT RATIO] of a high-definition TV, etc.

[X][Y][W]

[INTELLIGENT ISO]

> [SENSITIVITY]

ISO sensitivity

80 1600

Recording location

(recommended) When it is light (outdoors) When it is dark

Shutter speed Slow Fast

Noise Less Increased

ISOMAX

400

ISOMAX

800

ISOMAX

1600

DMC-FS7&8&6P-VQT2C70_eng.book 61 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

Note

• When setting to [AUTO], the ISO sensitivity is automatically adjusted to a maximum of [ISO400]

according to the brightness. (It can be adjusted to a maximum of [ISO1000] when using the

flash.)

• The setting is not available when [INTELLIGENT ISO] is being used. ([ ] is displayed.)

• To avoid picture noise, we recommend that you either reduce the maximum ISO sensitivity

level or set [COLOR MODE] to [NATURAL], and then take pictures. (P65)

For details on [REC] mode menu settings, refer to P20.

In sunlight, under incandescent lights or in other such conditions where the color of white

takes on a reddish or bluish tinge, this item adjusts to the color of white which is closest to

what is seen by the eye in accordance with the light source.

Applicable modes: ·¿n

• The optimal white balance will differ depending on the type of halogen lighting being recorded

under so use [AWB] or [Ó].

Auto white balance

Depending on the conditions prevailing when pictures are taken, the pictures may take on

a reddish or bluish tinge. Furthermore, when a multiple number of light sources are being

used or there is nothing with a color close to white, auto white balance may not function

properly. In a case like this, set the white balance to a mode other than [AWB].

1 Auto white balance will work within this range.

2 Blue sky

3 Cloudy sky (Rain)

4 Shade

5 TV screen

6 Sunlight

7 White fluorescent light

8 Incandescent light bulb

9 Sunrise and sunset

10 Candlelight

KlKelvin Color Temperature

= [WHITE BALANCE]

[AWB]: Automatic adjustment

[V]: When taking pictures outdoors under a clear sky

[Ð]: When taking pictures outdoors under a cloudy sky

[î]: When taking pictures outdoors in the shade

[Ñ]: When taking pictures under incandescent lights

[Ò]: Value set by using [Ó]

[Ó]: Set manually

2)3)

4) 5)

10)

DMC-FS7&8&6P-VQT2C70_eng.book 62 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

Setting the white balance manually

1Select [Ó] and then press [MENU/SET].

2Aim the camera at a sheet of white paper etc. so that the

frame in the center is filled by the white object only and then

press [MENU/SET].

Note

• The white balance setting is memorized even if the camera is turned off. (However, the white

balance setting for a Scene mode returns to [AWB] when the Scene mode is changed.)

• In the Scene modes listed below, white balance is fixed to [AWB].

– [SCENERY]/[NIGHT PORTRAIT]/[NIGHT SCENERY]/[FOOD]/[PARTY]/[CANDLE LIGHT]/

[SUNSET]/[FLASH BURST]/[STARRY SKY]/[FIREWORKS]/[BEACH]/[SNOW]/

[AERIAL PHOTO]/[FILM GRAIN]

For details on [REC] mode menu settings, refer to P20.

This allows the focusing method that suits the positions and number of the subjects to be

selected.

Applicable modes: ·¿

Note

• The camera is focusing on all the AF areas when multiple AF areas (max. 9 areas) light at the

same time in [ ]. If you want to determine the focus position to take pictures, switch the AF

mode to [Ø].

• If the AF mode is set to [ ], the AF area is not displayed until the picture is brought into focus.

• The camera may detect subjects other than a person as the face. In this case, switch the AF

mode to any modes other than [š] and then take a picture.

• The AF mode cannot be set in [FIREWORKS] in Scene mode.

• It is not possible to set [š] in the following cases.

– In [NIGHT SCENERY], [FOOD], [STARRY SKY] and [AERIAL PHOTO] in Scene mode.

∫About [š]

The following AF area frames are displayed when the camera detects the

faces.

Yellow:

When the shutter button is pressed halfway, the frame turns green when

the camera is focused.

White:

Displayed when more than one face is detected. Other faces that are the same distance

away as faces within the yellow AF areas are also focused.

[AF MODE]

[š]: Face detection The camera automatically detects the person’s face. The

focus and exposure can then be adjusted to fit that face no

matter what portion of the picture it is in. (max. 15 areas)

[]: 9-area-focusing The camera focuses on any of 9 focus areas. This is effective

when the subject is not in the center of the screen.

[Ø]: 1-area-focusing The camera focuses on the subject in the AF area on the

center of the screen.

DMC-FS7&8&6P-VQT2C70_eng.book 63 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

• Under certain picture-taking conditions including the following cases, the facial recognition

function may fail to work, making it impossible to detect faces. [AF MODE] is switched to [ ].

– When the face is not facing the camera

– When the face is at an angle

– When the face is extremely bright or dark

– When there is little contrast on the faces

– When the facial features are hidden behind sunglasses, etc.

– When the face appears small on the screen

– When there is rapid movement

– When the subject is other than a human being

– When the camera is shaking

– When digital zoom is used

For details on [REC] mode menu settings, refer to P20.

Pictures are taken continuously while the shutter button is pressed.

Select the ones you really like from among the pictures you have taken.

Applicable modes: ñ· ¿

¢The burst speed is constant regardless of the transfer speed of the card.

• The burst speed values given above apply when the shutter speed is 1/60 or faster and when

the flash is not activated.

Note

• When the Burst mode setting is set to Unlimited

–The burst speed becomes slower halfway. The exact timing of this depends on the type of

card, the picture size and the quality.

– You can take pictures until the capacity of the built-in memory or the card is full.

• The focus is fixed when the first picture is taken.

• When the burst speed is set to [˜], the exposure and white balance are fixed at the settings

used for the first picture for the subsequent pictures as well. When the burst speed is set to

[ò], they are adjusted each time you take a picture.

• When the self-timer is used, the number of recordable pictures in Burst mode is fixed to 3.

• If you are following a moving subject while taking pictures in a place (landscape) indoors,

outdoors etc. where there is a large difference between the light and shade, it may take time

until the exposure is stable. If burst is used at this time, the exposure may not become optimal.

• The burst speed (pictures/second) may become slower depending on the recording

environment such as in dark places, if the ISO sensitivity is high etc.

• Burst mode is not canceled when the camera is switched off.

•

If you take pictures in Burst mode with the built-in memory, it will take time to write the picture data.

•[Œ] is set for the flash when burst is set.

• Auto bracket is canceled when burst is set.

• Burst cannot be used in [TRANSFORM], [HI-SPEED BURST], [FLASH BURST],

[STARRY SKY], [FILM GRAIN] or [PHOTO FRAME] in Scene mode.

˜ [BURST]

[OFF] ˜ ò

Burst speed (pictures/

second) —2.3¢

(DMC-FS7/DMC-FS8)

3¢(DMC-FS6)

approx. 1.7

(DMC-FS7/DMC-FS8)

approx. 2 (DMC-FS6)

Number of

recordable

pictures

A —

max. 3

(DMC-FS7/DMC-FS8)

max. 4 (DMC-FS6) Depends on the

remaining capacity of the

built-in memory/card.

› —

max. 5

(DMC-FS7/DMC-FS8)

max. 7 (DMC-FS6)

DMC-FS7&8&6P-VQT2C70_eng.book 64 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

For details on [REC] mode menu settings, refer to P20.

This can enlarge subjects even more than the optical zoom or extended optical zoom.

Applicable modes: ·¿n

[OFF]/[ON]

Note

• Refer to P33 for details.

• If camera shake (jitter) is a problem during zooming, it is recommended that [STABILIZER] be

set to [AUTO] or [MODE1].

• The setting is fixed to [ON] in Macro zoom mode.

For details on [REC] mode menu settings, refer to P20.

Using these modes, the pictures can be made sharper or softer, the colors of the pictures

can be turned into sepia colors or other color effects can be achieved.

Applicable modes: ñ·n

Note

• When you take pictures in dark places, noise may become visible. To avoid noise, we

recommend setting to [NATURAL].

• You cannot set [NATURAL], [VIVID], [COOL] or [WARM] in intelligent auto mode. Also, you

cannot set [NATURAL] or [VIVID] in Motion picture mode.

• Different color modes can be set in different [REC] modes.

For details on [REC] mode menu settings, refer to P20.

Using one of these modes, jitter during picture taking is detected, and the camera

automatically compensates the jitter, enabling jitter-free images to be taken.

Applicable modes: ·¿

) [DIGITAL ZOOM]

H [COLOR MODE]

[STANDARD]: This is the standard setting.

[NATURAL]: The picture becomes softer.

[VIVID]: The picture becomes sharper.

[B/W]: The picture becomes black and white.

[SEPIA]: The picture becomes sepia.

[COOL]: The picture becomes bluish.

[WARM]: The picture becomes reddish.

[STABILIZER]

[OFF]

[AUTO]: The optimum jitter compensation is selected depending on the condition.

[MODE1]: Jitter is always compensated during [REC] mode.

[MODE2]: The jitter is compensated for when the shutter button is pressed.

DMC-FS7&8&6P-VQT2C70_eng.book 65 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Recording pictures)

Note

• The Stabilizer function may not be effective in the following cases.

– When there is a lot of jitter.

– When the zoom magnification is high.

– In digital zoom range.

– When taking pictures while following a moving subject.

– When the shutter speed becomes slower to take pictures indoors or in dark places.

Be careful of camera jitter when you press the shutter button.

• The setting is fixed to [MODE2] with [SELF PORTRAIT] in Scene mode and to [OFF] in

[STARRY SKY] in Scene mode.

• The setting is fixed to [MODE1] in Motion picture mode.

For details on [REC] mode menu settings, refer to P20.

Illuminating the subject makes it easier for the camera to focus when recording in low light

conditions that make focusing difficult.

Applicable modes: ·¿

Note

• The effective range of the AF assist lamp is 1.5 m (4.92 feet).

• When you do not want to use the AF assist lamp A (e.g. when taking

pictures of animals in dark places), set the [AF ASSIST LAMP] to [OFF]. In

this case, it will become more difficult to focus on the subject.

• [AF ASSIST LAMP] is fixed to [OFF] in [SELF PORTRAIT], [SCENERY],

[NIGHT SCENERY], [SUNSET], [FIREWORKS] and [AERIAL PHOTO] in

Scene mode.

• [AF ASSIST LAMP] is fixed to [ON] in the Motion picture mode.

For details on [REC] mode menu settings, refer to P20.

To set the year, month, day and time

It functions in exactly the same way as [CLOCK SET] (P22) in the [SETUP] menu.

F [AF ASSIST LAMP]

[OFF]: The AF assist lamp does not turn on.

[ON]: When taking pictures in dark places, the AF assist lamp lights while the shutter

button is pressed halfway. (Larger AF areas are now displayed.)

U [CLOCK SET]



DMC-FS7&8&6P-VQT2C70_eng.book 66 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Playback)

[PLAYBACK] mode: ¸

Advanced (Playback)

Playing Back Pictures in Sequence (Slide Show)

You can play back the pictures you have taken in synchronisation with music, and you can

do this in sequence while leaving a fixed interval between each of the pictures.

Furthermore, you can play back the pictures grouped together by category or play back

only those pictures you have set as favorites as a slide show.

This playback method is recommended when you have connected the camera to a TV set

to view the pictures you have taken.

Slide the [REC]/[PLAYBACK] selector switch to

[(], and then press [MODE].

Press 3/4 to select [SLIDE SHOW], and then

press [MENU/SET].

When [ALL] or [FAVORITE] has been selected in step 3

When [CATEGORY SELECTION] has been selected in step 3

Press 3/4 to select the item and then press

[MENU/SET].

•

[FAVORITE] can be selected only when [FAVORITE] on the [PLAYBACK]

menu (P77) is at [ON] and there are pictures already set as favorites.

Press 3 to select [START] and then press [MENU/

SET].

Press 4 to finish the slide show.

• Normal playback resumes after the slide show finishes.

Press 3/4/2/1 to select the category to play back

and then press [MENU/SET] to set.

• For details on categories, refer to P69.

Press 3 to select [START] and then press [MENU/

SET].

DMC-FS7&8&6P-VQT2C70_eng.book 67 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Playback)

∫Operations performed during slide show

The cursor displayed during playback is the same as 3/4/2/1.

• The menu screen is restored when [‚] is pressed.

∫Changing the slide show settings

You can change the settings for slide show playback by selecting

[EFFECT] or [SETUP] on the slide show menu screen.

[EFFECT]

This allows you to select the screen effects or music effects when

switching from one picture to the next.

[NATURAL], [SLOW], [SWING], [URBAN], [OFF], [AUTO]

• When [URBAN] has been selected, the picture may appear in black and white as a screen

effect.

• [AUTO] can be used only when [CATEGORY SELECTION] has been selected. The pictures

are played back with the recommended effects in each category.

[SETUP]

[DURATION] or [REPEAT] can be set.

• [DURATION] can be set only when [OFF] has been selected as the [EFFECT] setting.

• [MUSIC] cannot be selected when [OFF] has been selected as the [EFFECT] setting.

Note

• Motion pictures cannot be played back as a slide show.

• It is not possible to add new music effects.

Press 4 to finish the slide show.

• Normal playback resumes after the slide show finishes.

APlay/Pause

BStop

CBack to previous picture¢

DAhead to next picture¢

¢These operations can be performed only in the Pause mode.

EReduce volume level

FIncrease volume level

Item Settings

[DURATION] 1SEC./2SEC./3SEC./5SEC.

[REPEAT] ON/OFF

[MUSIC] ON/OFF

DMC-FS7&8&6P-VQT2C70_eng.book 68 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Playback)

[PLAYBACK] mode: ¸

Selecting Pictures and Playing them Back

([CATEGORY PLAY]/[FAVORITE PLAY])

This mode allows you to search images by Scene mode or other categories (such as

[PORTRAIT], [SCENERY] or [NIGHT SCENERY]) and sort the pictures into each of the

categories. You can then play back the pictures in each category.

Slide the [REC]/[PLAYBACK] selector switch to [(], and then press

[MODE].

Press 3/4 to select [CATEGORY PLAY], and then press [MENU/SET].

Press 3/4/2/1 to select the category and then

press [MENU/SET] to set.

• If a picture is found in a category, the category icon turns blue.

• It may take time to search the picture files if there are a lot on the

card or the built-in memory.

• If you press [‚] while searching, the searching will stop halfway.

• Pictures are sorted into the categories shown below.

[CATEGORY PLAY]

[CATEGORY] Recording information

e.g. Scene modes [CATEGORY] Recording information

e.g. Scene modes

[PORTRAIT],

[i-PORTRAIT],

[SOFT SKIN],

[TRANSFORM],

[SELF PORTRAIT],

[NIGHT PORTRAIT],

[i-NIGHT PORTRAIT],

[BABY1]/[BABY2]

[SPORTS], [PARTY],

[CANDLE LIGHT],

[FIREWORKS],

[BEACH], [SNOW],

[AERIAL PHOTO]

[SCENERY],

[i-SCENERY],

[SUNSET],

[AERIAL PHOTO]

Î [BABY1]/[BABY2]

í [PET]

1 [FOOD]

[TRAVEL DATE]

[NIGHT PORTRAIT],

[i-NIGHT PORTRAIT],

[NIGHT SCENERY],

[i-NIGHT SCENERY],

[STARRY SKY]

Í [MOTION PICTURE]

DMC-FS7&8&6P-VQT2C70_eng.book 69 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Playback)

You can play back the pictures you have set as [FAVORITE] (P77) (Only when

[FAVORITE] is set to [ON] and there are pictures which have been set to [FAVORITE]).

Slide the [REC]/[PLAYBACK] selector switch to [(], and then press

[MODE].

Press 3/4 to select [FAVORITE PLAY], and then press [MENU/SET].

Note

• You can use only [ROTATE DISP.], [PRINT SET] or [PROTECT] in the [PLAYBACK] menu.

[PLAYBACK] mode: ¸

Playing Back Motion Pictures

Press 2/1 to select a picture with a motion picture

icon (such as [ ]), and then press 3 to play back.

AThe motion picture recording time

BMotion picture icon

CMotion picture playback icon

• After playback starts, the elapsed playback time is displayed on the

upper right of the screen.

For example, 8 minutes and 30 seconds is displayed as [8m30s].

∫Operations performed during motion picture playback

The cursor displayed during playback is the same as 3/4/2/1.

APlay/Pause

BStop

CFast rewind, Frame-by-frame rewind¢

DFast forward, Frame-by-frame forward¢

¢These operations can be performed only in the Pause mode.

EReduce volume level

FIncrease volume level

Note

• Sound can be heard through the speaker. Refer to [VOLUME] (P22) for information about how

to adjust the volume in the [SETUP] menu.

• The file format that can be played back with this camera is QuickTime Motion JPEG.

• Please note that the bundled software includes QuickTime to play back motion picture files

created with the camera on the PC.

• Some QuickTime Motion JPEG files recorded by a PC or other equipment may not play back

on the camera.

[FAVORITE PLAY]

CBA

DMC-FS7&8&6P-VQT2C70_eng.book 70 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Playback)

• If you play back motion pictures that have been recorded with other equipment, the picture

quality may deteriorate or the pictures may not play back.

• When using a high capacity card, it is possible that fast rewinding may be slower than usual.

[PLAYBACK] mode: ¸

Using the [PLAYBACK] mode menu

You can use various functions in Playback mode to rotate pictures, set protection for them

etc.

• With [TEXT STAMP], [RESIZE] or [TRIMMING], a new edited picture is created. A new picture

cannot be created if there is no free space on the built-in memory or the card so we

recommend checking that there is free space and then editing the picture.

You can display pictures by recording date.

Note

• The recording date of the picture selected in the playback screen becomes the date selected

when the calendar screen is first displayed.

• If there are multiple pictures with the same recording date, the first picture recorded on that day

is displayed.

• You can display the calendar between January 2000 and December 2099.

• If the date is not set in the camera, the recording date is set as January 1st, 2009.

• If you take pictures after setting the travel destination in [WORLD TIME], the pictures are

displayed by the dates at the travel destination in calendar playback.

[CALENDAR]

Select [CALENDAR] on the [PLAYBACK] mode menu. (P20)

• You can also rotate the zoom lever several times towards [L] (W) to display the

calendar screen. (P35)

Press 3/4/2/1 to select the date to be played

back.

3/4: Select the month

2/1: Select the date

• If there were no pictures recorded during a month, the month is

not displayed.

Press [MENU/SET] to display the pictures that were

recorded on the selected date.

• Press [‚] to return to the calendar screen.

Press 3/4/2/1 to select a picture and then press [MENU/SET].

• The picture that was selected will appear.

CAL

DMC-FS7&8&6P-VQT2C70_eng.book 71 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Playback)

You can add text (comments) to pictures. After text has been registered, it can be included in

prints using [TEXT STAMP] (P73). (Only alphabetical characters and symbols can be entered.)

Names set in [BABY1]/[BABY2] and [PET] in Scene mode or [LOCATION] in Travel date

are also recorded as the titles.

Select [TITLE EDIT] on the [PLAYBACK] mode menu. (P20)

Press 3/4 to select [SINGLE] or [MULTI] and then

press [MENU/SET].

Press 3/4/2/1 to select text and then press

[MENU/SET] to register.

• Press [DISPLAY] to switch text between [A] (capitals), [a] (lower

case) and [&/1] (special characters and numbers).

• The entry position cursor can be moved left and right with the

zoom lever.

• To enter a blank, move the cursor to [SPACE] or to delete an entered character, move

the cursor to [DELETE], and press [MENU/SET].

• To stop editing at any time during text entry, press [‚].

• A maximum of 30 characters can be entered.

Press 3/4/2/1 to move the cursor to [EXIT] and then press [MENU/

SET] to end text input.

Press [‚] to return to the menu screen.¢

¢The menu screen is automatically restored when [MULTI] is selected.

• Press [MENU/SET] to close the menu.

∫Delete the title

[SINGLE] setting

1In step 4, delete all the texts, select [EXIT], and press [MENU/SET].

2Press [‚].

3Press [MENU/SET] to close the menu.

[TITLE EDIT]

Select the picture, and then press

[MENU/SET] to set.

•[’] is displayed for pictures with titles

already registered.

[MULTI] setting

Press [DISPLAY] to set (repeat), and

then press [MENU/SET] to set.

• The setting is canceled when [DISPLAY]

is pressed again.

[SINGLE] [MULTI]

Press 2/1 to

select the picture.

Press 3/4/2/1 to

select the pictures.

DMC-FS7&8&6P-VQT2C70_eng.book 72 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Playback)

[MULTI] setting

1In step 4, delete all the texts, select [EXIT], and press [MENU/SET].

2Press [MENU/SET] to close the menu.

Note

• Text can be scrolled if all of the registered text does not fit on the screen.

• The name setting of [BABY1]/[BABY2] or [PET] in Scene mode or [LOCATION] in travel date

can also be registered by using the operation in steps 4 and following.

• The name setting of [BABY1]/[BABY2] or [PET] in Scene mode, [LOCATION] in travel date and

[TITLE EDIT] cannot be registered at the same time.

•

You can print out texts (comments) using the “PHOTOfunSTUDIO” bundled software on the CD-ROM (supplied).

• You can set up to 50 pictures at one time with [MULTI].

• You cannot use title edit for the following pictures.

– Motion pictures

– Protected pictures

– Pictures recorded with other equipment

You can stamp the recording date/time, age, travel date or title onto the recorded pictures.

It is suitable for regular size printing. (Pictures with a picture size larger than [ ] will be

resized when stamping the date etc. on them.)

Select [TEXT STAMP] on the [PLAYBACK] mode menu. (P20)

Press 3/4 to select [SINGLE] or [MULTI] and then

press [MENU/SET].

Press 3/4/2/1 to select [SHOOTING DATE], [AGE], [TRAVEL DATE]

or [TITLE] and then press [MENU/SET] to set each item.

[SHOOTING DATE]

[AGE] (P50)

If this is set to [ON], [AGE] is stamped on the pictures.

[TEXT STAMP]

Select the picture, and then press

[MENU/SET] to set.

•[‘] appears on screen if the picture is

stamped with text.

[MULTI] setting

Press [DISPLAY] to set (repeat), and

then press [MENU/SET] to set.

• The setting is canceled when [DISPLAY]

is pressed again.

[SINGLE] [MULTI]

Press 2/1 to

select the picture.

Press 3/4/2/1 to

select the pictures.

[W/O TIME]: Stamp the year, month and date.

[WITH TIME]: Stamp the year, month, day, hour and minutes.

DMC-FS7&8&6P-VQT2C70_eng.book 73 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Playback)

[TRAVEL DATE]

If this is set to [ON], [TRAVEL DATE] is stamped on the pictures.

[TITLE]

Text is printed together with the image for pictures that have already been recorded with text in

[BABY1]/[BABY2] or [PET] name settings in Scene mode, [LOCATION] in travel date or [TITLE EDIT].

Press [MENU/SET].

• If you set [TEXT STAMP] for a picture with a picture size larger than [ ], the picture

size will become smaller as shown below.

• The picture becomes slightly rougher.

¢1 DMC-FS7/DMC-FS8

¢2 DMC-FS6

Press

to select [YES] and then press [MENU/SET].

• The message [SAVE NEW PICTURES?] appears if the picture

was recorded with a picture size [ ] or less.

Press [‚] to return to the menu screen.¢

¢The menu screen is automatically restored when [MULTI] is

selected.

• Press [MENU/SET] to close the menu.

Note

• When you print pictures stamped with text, the date will be printed over the stamped text if you

specify printing of the date at the photo shop or on the printer.

• You can set up to 50 pictures at one time in [MULTI].

•

Depending on the printer being used, some characters may be cut at printing. Check before printing.

• When text is stamped onto the [ ] pictures, it is difficult to read it.

• Text and dates cannot be stamped on the pictures in the following cases.

– Motion pictures

– Pictures recorded without setting the clock and title

– Pictures that were previously stamped with [TEXT STAMP]

– Pictures recorded with other equipment

We recommend resizing to [ ] if you want to attach a picture to an e-mail or use it on a website.

Pictures set to the minimum number of pixels for [ASPECT RATIO] cannot be further reduced in size.

Select [RESIZE] on the [PLAYBACK] mode menu. (P20)

Aspect ratio setting Picture size

X ¢1/¢2/¢1/ >

Y ¢1/¢2/¢1/ >

W ¢1/¢2/¢1/ >

Q [RESIZE] Reducing the picture size (number of pixels)

Press 3/4 to select [SINGLE] or [MULTI] and then

press [MENU/SET].

DMC-FS7&8&6P-VQT2C70_eng.book 74 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Playback)

Press 3 to select [YES] and then press [MENU/

SET].

Press [‚] to return to the menu screen.¢

¢The menu screen is automatically restored when [MULTI] is

selected.

• Press [MENU/SET] to close the menu.

Note

• You can set up to 50 pictures at one time in [MULTI].

• The picture quality of the resized picture will deteriorate.

• It may not be possible to resize pictures recorded with other equipment.

• Motion pictures and pictures stamped with [TEXT STAMP] cannot be resized.

You can enlarge and then clip the important part of the recorded picture.

Select [TRIMMING] on the [PLAYBACK] mode menu. (P20)

Select the picture and size.

[SINGLE] setting

1Press 2/1 to select the picture,

and then press [MENU/SET].

2Press 2/1 to select the size¢, and

then press [MENU/SET].

¢Only the sizes to which the pictures can be

resized is displayed.

[SINGLE]

[MULTI] setting

1Press 3/4 to select the size, and

then press [MENU/SET].

• When [DISPLAY] is pressed, an

explanation of resizing is displayed.

2Press 3/4/2/1 to select the

picture, and then press [DISPLAY].

• Repeat this step for each picture, and

press [MENU/SET] to set.

[MULTI]

[TRIMMING]

Press 2/1 to select the picture, and then press

[MENU/SET].

DMC-FS7&8&6P-VQT2C70_eng.book 75 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Playback)

Press [MENU/SET].

Press 3 to select [YES] and then press [MENU/

SET].

Press [‚] to return to the menu screen.

• Press [MENU/SET] to close the menu.

Note

• Depending on the cut size, the picture size of the trimmed picture may become smaller than

that of the original picture.

• The picture quality of the trimmed picture will deteriorate.

• It may not be possible to trim pictures recorded with other equipment.

• Motion pictures and pictures stamped with [TEXT STAMP] cannot be trimmed.

This mode allows you to automatically display pictures vertically if they were recorded

holding the camera vertically.

Select [ROTATE DISP.] on the [PLAYBACK] mode menu. (P20)

Use the zoom lever and press

3/4/2/1 to select the parts

to be trimmed.

Zoom lever (T): Enlargement

Zoom lever (W): Reduction

3/4/2/1: Move

Reduction Enlargement

()

Move the position

()

M [ROTATE DISP.]

Press 4 to select [ON] and then press [MENU/SET].

• The pictures are displayed without being rotated when you select

[OFF].

• Refer to P34 for information about how to play back pictures.

Press [MENU/SET] to close the menu.

DMC-FS7&8&6P-VQT2C70_eng.book 76 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Playback)

Note

• When you play back pictures on a PC, they cannot be displayed in the rotated direction unless

the OS or software is compatible with Exif. Exif is a file format for still pictures which allows

recording information etc. to be added. It was established by “JEITA (Japan Electronics and

Information Technology Industries Association)”.

• It may not be possible to rotate pictures that have been recorded with other equipment.

• The display is not rotated during Multi playback (P35) or [CALENDAR] (P71).

You can do the following if a mark has been added to pictures and they have been set as

favorites.

• Play back only the pictures set as favorites. ([FAVORITE PLAY])

• Play back the pictures set as favorites only as a slide show.

• Delete all the pictures not set as favorites. ([ALL DELETE EXCEPTÜ])

Select [FAVORITE] on the [PLAYBACK] mode menu. (P20)

∫Canceling all the [FAVORITE] settings

1Select [CANCEL] on the screen shown in step 2 and then press [MENU/SET].

2Press 3 to select [YES] and then press [MENU/SET].

3Press [MENU/SET] to close the menu.

• You cannot select [CANCEL] if not even one picture has been set as a favorite.

Note

• You can set up to 999 pictures as favorites.

• When printing pictures at a photo printing store, [ALL DELETE EXCEPTÜ] (P37) is useful so

only the pictures you want to be printed remain on the card.

• You may not be able to set pictures taken with other equipment as favorites.

• You can perform, check and cancel the settings of images as favorites using the

“PHOTOfunSTUDIO” bundled software on the CD-ROM (supplied).

Ü [FAVORITE]

Press 4 to select [ON] and then press [MENU/SET].

• You cannot set pictures as favorites if [FAVORITE] is set to

[OFF]. Also [Ü] will not appear when [FAVORITE] is set to [OFF]

even if it was previously set to [ON].

Press [MENU/SET] to close the menu.

Press 2/1 to select the picture and then press 4.

• Repeat the above procedure.

• If 4 is pressed again, the favorite setting is canceled.

DMC-FS7&8&6P-VQT2C70_eng.book 77 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Playback)

DPOF “Digital Print Order Format” is a system that allows the user to select which pictures

to print, how many copies of each picture to print and whether or not to print the recording

date on the pictures when using a DPOF compatible photo printer or photo printing store.

For details, ask at your photo printing store.

When you want to use a photo printing store to print pictures recorded on the built-in

memory, copy them to a card (P80) and then set the print setting.

For more information visit:

http://panasonic.jp/dc/dpof_110/white_e.htm

Select [PRINT SET] on the [PLAYBACK] mode menu. (P20)

Press 3/4 to set the number of prints, and then press [MENU/SET]

to set.

• When [MULTI] has been selected, repeat steps 3 and 4 for each picture. (It is not

possible to use the same setting for a multiple number of pictures.)

Press [‚] to return to the menu screen.

• Press [MENU/SET] to close the menu.

∫Canceling all the [PRINT SET] settings

1Select [CANCEL] on the screen shown in step 2 and then press [MENU/SET].

2Press 3 to select [YES] and then press [MENU/SET].

3Press [MENU/SET] to close the menu.

• You cannot select [CANCEL] if not even one picture has been set for printing.

[PRINT SET]

Press 3/4 to select [SINGLE] or [MULTI] and then

press [MENU/SET].

Select the picture, and then press

[MENU/SET].

[SINGLE] [MULTI]

Press 2/1 to

select the picture.

Press 3/4/2/1

to select the

pictures.

DMC-FS7&8&6P-VQT2C70_eng.book 78 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Playback)

∫To print the date

After setting the number of prints, set/cancel printing with the recording date by pressing

[DISPLAY].

• When you go to a photo printing store for digital printing, be sure to order the printing of the

date additionally if required.

• Depending on the photo printing store or the printer, the date may not be printed even if you set

to print the date. For further information, ask at your photo printing store or refer to the

operating instructions for the printer.

• The date cannot be printed on pictures stamped with text.

Note

• The number of prints can be set from 0 to 999.

• With a printer supporting PictBridge, the date print settings of the printer may take precedence

so check if this is the case.

• It may not be possible to use the print settings with other equipment. In this case, cancel all the

settings, and reset the settings.

• If the file is not based on the DCF standard, the print setting cannot be set.

You can set protection for pictures you do not want to be deleted by mistake.

Select [PROTECT] on the [PLAYBACK] mode menu. (P20)

Press [‚] to return to the menu screen.

• Press [MENU/SET] to close the menu.

∫Canceling all the [PROTECT] settings

1Select [CANCEL] on the screen shown in step 2 and then press [MENU/SET].

2Press 3 to select [YES] and then press [MENU/SET].

3Press [MENU/SET] to close the menu.

• If you press [MENU/SET] while canceling protection, the canceling will stop halfway.

P [PROTECT]

Press 3/4 to select [SINGLE] or [MULTI] and then

press [MENU/SET].

Select the picture, and then press

[MENU/SET].

When [MULTI] has been selected

• Repeat these steps for each picture.

• The settings are canceled when [MENU/

SET] is pressed again.

[SINGLE] [MULTI]

Press 2/1 to

select the picture. Press 3/4/2/1

to select the

pictures.

DMC-FS7&8&6P-VQT2C70_eng.book 79 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Advanced (Playback)

Note

• The protect setting may not be effective on other equipment.

• Even if you protect pictures in the built-in memory or a card, they will be deleted if the built-in

memory or the card is formatted.

• Even if you do not protect pictures on an SD Memory Card or an SDHC Memory Card, they

cannot be deleted when the card’s Write-Protect switch is set to [LOCK].

You can copy the data of the pictures you have taken from the built-in memory to a card or

from a card to the built-in memory.

Select [COPY] on the [PLAYBACK] mode menu. (P20)

Press 3/4 to select the copy destination and then

press [MENU/SET].

Press 2/1 to select the picture and then press [MENU/SET].

Press 3 to select [YES], and then press [MENU/

SET].

• If you press [MENU/SET] while copying pictures from the built-in

memory to the card, the copying will stop halfway.

• Do not turn the camera off at any point during the copying

process.

Press [‚] to return to the menu screen.

• Press [MENU/SET] to close the menu.

• If you copy from the built-in memory to a card, all the pictures are copied and then the

screen automatically returns to the playback screen.

Note

• If you copy picture data from the built-in memory to a card which does not have sufficient free

space, the picture data will only be copied halfway. We recommend using a card which has

more free space than the built-in memory (about 50 MB).

• If a picture exists with the same name (folder number/file number) as the picture to be copied in

the copy destination when [ ] is selected, a new folder is created and the picture is copied.

If a picture exists with the same name (folder number/file number) as the picture to be copied in

the copy destination when [ ] is selected, that picture is not copied. (P94)

• It may take time to copy the picture data.

• Only pictures recorded with a Panasonic digital camera (LUMIX) will be copied.

(Even if the pictures were recorded with a Panasonic digital camera, you may not be able to

copy them if they were edited with a PC.)

• Print settings on the original picture data will not be copied. Set the print settings again after

copying is finished.

S [COPY]

:All the picture data in the built-in memory are copied onto

the card at one time. > step 4.

:One picture at a time is copied from the card to the built-in

memory. > step 3.

DMC-FS7&8&6P-VQT2C70_eng.book 80 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Connecting to other equipment

Connecting to a PC

You can acquire recorded pictures to a PC by connecting the camera and the PC.

• You can easily print out or e-mail the pictures you have imported. Use of the

“PHOTOfunSTUDIO” bundled software on the CD-ROM (supplied) is a convenient way of

doing this.

• Read the separate operating instructions for the supplied software for more information about

the software in the CD-ROM (supplied) and how to install it.

Preparations:

Turn on the camera and the PC.

Remove the card before using the pictures in the built-in memory.

AUSB connection cable (supplied)

• Check the directions of the connectors, and plug them straight in or unplug them straight out.

(Otherwise the connectors may be bent out of shape which will cause a malfunction.)

BAlign the marks, and insert.

• Use a battery with sufficient battery power or the AC adaptor (DMW-AC5PP; optional) and DC

coupler (DMW-DCC4; optional). If the remaining battery power becomes low while the camera

and the PC are communicating, the status indicator blinks and the alarm beeps.

Refer to “Disconnecting the USB connection cable safely” (P82) before disconnecting the USB

connection cable. Otherwise, data may be destroyed.

Connect the camera to a PC via the USB connection cable A

(supplied).

• Do not use any other USB connection cables except the supplied one.

Use of cables other than the supplied USB connection cable may cause a malfunction.

DIGITAL

AV OUT

DMC-FS7&8&6P-VQT2C70_eng.book 81 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Connecting to other equipment

Using a drag-and-drop operation, move the pictures you want to

acquire or the folder storing those pictures to any different folder on

the PC.

∫Disconnecting the USB connection cable safely

• Proceed with the hardware removal using “Safely Remove Hardware” on the task tray of the

PC. If the icon is not displayed, check that [ACCESS] is not displayed on the LCD monitor of

the digital camera before removing the hardware.

Note

• This unit cannot stand upright when the AC adaptor is connected. When operating it on a flat

surface, we recommend placing it on a soft cloth.

• Turn the camera off before connecting or disconnecting the AC adaptor (DMW-AC5PP;

optional).

• Before inserting or removing a card, turn the camera off and disconnect the USB connection

cable. Otherwise, data may be destroyed.

Press 3/4 to select [PC], and then press [MENU/

SET].

• If [USB MODE] (P25) is set to [PC] in the [SETUP] menu in

advance, the camera will be automatically connected to the PC

without displaying the [USB MODE] selection screen. Since there

is no need to set this each time you connect to the PC, it is

convenient.

• When the camera has been connected to the PC with

[USB MODE] set to [PictBridge(PTP)], a message may appear

on the PC’s screen. Select [Cancel] to close the screen, and

disconnect the camera from the PC. Then set [USB MODE] to

[PC] again.

Double-click on [Removable Disk] in [My Computer].

• When using a Macintosh, the drive is displayed on the desktop. (“LUMIX”, “NO_NAME”

or “Untitled” is displayed.)

Double-click [DCIM] folder.

USB MODE

PLEASE SELECT

THE USB MODE

PictBridge(PTP)

SELECT SET

DMC-FS7&8&6P-VQT2C70_eng.book 82 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Connecting to other equipment

∫Viewing the contents of the built-in memory or card using the PC (folder

composition)

A new folder is created when pictures are taken in the following situations.

• After [NO.RESET] (P24) in the [SETUP] menu has been executed

• When a card containing a folder with the same folder number has been inserted (Such as when

pictures were taken using another maker of camera)

• When there is a picture with file number 999 inside the folder

∫Connection in the PTP mode (WindowsR XP, Windows VistaR and Mac OS X only)

Set [USB MODE] to [PictBridge(PTP)].

Data can now be read only from the card into the PC.

• When there are 1000 or more pictures on a card, the pictures may not be imported in the PTP

mode.

1Folder number

2File number

3JPG: Pictures

MOV: Motion pictures

MISC: DPOF print

Favorite

100_PANA

101_PANA

999_PANA

DCIM

MISC




100_PANA

≥Built-in memory

≥

Card

DMC-FS7&8&6P-VQT2C70_eng.book 83 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Connecting to other equipment

Printing the Pictures

If you connect the camera to a printer supporting PictBridge, you can select the pictures to

be printed out and instruct that printing be started on the camera’s LCD monitor.

Preparations:

Turn on the camera and the printer.

Remove the card before printing the pictures in the built-in memory.

Perform the print quality and other settings at the printer before printing the pictures.

AUSB connection cable (supplied)

• Check the directions of the connectors, and plug them straight in or unplug them straight out.

(Otherwise the connectors may be bent out of shape which will cause trouble.)

BAlign the marks, and insert.

•

Use a battery with a sufficient battery power or the AC adaptor (DMW-AC5PP; optional) and DC

coupler (DMW-DCC4; optional). If the remaining battery power becomes low while the camera

and the printer are connected, the status indicator blinks and the alarm beeps. If this happens

during printing, stop printing at once. If not printing, disconnect the USB connection cable.

Connect the camera to a printer via the USB connection cable

(supplied).

• When the camera is connected to the printer, the cable disconnect prohibit icon [å]

appears. Do not disconnect the USB cable while [å] is displayed.

Note

• This unit cannot stand upright when the AC adaptor is connected. When operating it on a flat

surface, we recommend placing it on a soft cloth.

• Do not use any other USB connection cables except the supplied one.

Use of cables other than the supplied USB connection cable may cause malfunction.

•

Turn the camera off before connecting or disconnecting the AC adaptor (DMW-AC5PP; optional).

•

Before inserting or removing a card, turn the camera off, and disconnect the USB connection cable.

• You cannot switch between the built-in memory and the card while the camera is connected to

the printer. Disconnect the USB connection cable, insert (or remove) the card and then connect

the USB connection cable to the printer again.

Press 3/4 to select [PictBridge(PTP)], and then

press [MENU/SET].

DIGITAL

AV OUT

USB MODE

SELECT SET

PLEASE SELECT

THE USB MODE

PictBridge(PTP)

DMC-FS7&8&6P-VQT2C70_eng.book 84 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Connecting to other equipment

¢Only when [FAVORITE] is at [ON] and when there are pictures set as favorites. (P77)

Selecting a single picture and printing it

Press 2/1 to select the picture and then press

[MENU/SET].

• The message disappears in about 2 seconds.

Press 3 to select [PRINT START] and then press

[MENU/SET].

• Refer to “Print Settings” (P86) for the items which can be set

before starting to print the pictures.

• Press [MENU/SET] to cancel printing halfway.

• Disconnect the USB connection cable after printing.

Selecting multiple pictures and printing them

Press 3.

Press 3/4 to select an item and then press [MENU/

SET].

• If the print check screen has appeared, select [YES], and print

the pictures.

Item Description of settings

[MULTI SELECT]

Multiple pictures are printed at one time.

• Press 3/4/2/1 to select the pictures, and then when [DISPLAY] is

pressed, [é] appears on the pictures to be printed. (When [DISPLAY] is

pressed again, the setting is canceled.)

• After the pictures have been selected, press [MENU/SET].

[SELECT ALL] Prints all the stored pictures.

[PRINT SET

(DPOF)] Prints the pictures set in [PRINT SET] only. (P78)

[FAVORITE]¢Prints the pictures set as favorites only. (P77)

Press 3 to select [PRINT START] and then press

[MENU/SET].

• Refer to “Print Settings” (P86) for the items which can be set

before starting to print the pictures.

• Press [MENU/SET] to cancel printing.

• Disconnect the USB connection cable after printing.

PictBridge

MULTI PRINT

100-0001

PLEASE SELECT

THE PICTURE TO PRINT

SELECT

OFF

CANCEL SELECT SET

PRINT START

PRINT WITH DATE

NUM. OF PRINTS

PAPER SIZE

PAGE LAYOUT

SINGLE SELECT

MULTI SELECT

SELECT ALL

PRINT SET(DPOF)

FAVORITE

PictBridge

CANCEL SELECT SET

OFF

PRINT START

PRINT WITH DATE

NUM. OF PRINTS

PAPER SIZE

PAGE LAYOUT

MULTI SELECT

CANCEL SELECT SET

DMC-FS7&8&6P-VQT2C70_eng.book 85 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Connecting to other equipment

Select and set the items both on the screen in step 2 of the

“Selecting a single picture and printing it” and in step 3 of the

“Selecting multiple pictures and printing them” procedures.

• When you want to print pictures in a paper size or a layout which is not

supported by the camera, set [PAPER SIZE] or [PAGE LAYOUT] to [{]

and then set the paper size or the layout on the printer. (For details,

refer to the operating instructions of the printer.)

• When [PRINT SET (DPOF)] has been selected, the

[PRINT WITH DATE] and [NUM. OF PRINTS] items are not displayed.

• If the printer does not support date printing, the date cannot be printed on the picture.

• Since the printer’s settings may take precedence over the print with date setting, check the

printer’s print with date setting as well.

• When printing images with a text stamp, please remember to set print with date to [OFF] or the

date will print on top.

Note

When asking the photo shop to print the pictures

• By stamping the date using [TEXT STAMP] (P73) or setting date printing at the time of the

[PRINT SET] (P78) setting before going to a photo shop, the dates can be printed at the photo

shop.

You can set the number of prints up to 999.

Print Settings

[PRINT WITH DATE]

Item Description of settings

[OFF] Date is not printed.

[ON] Date is printed.

[NUM. OF PRINTS]

OFF

CANCEL SELECT EXIT

PRINT START

PRINT WITH DATE

NUM. OF PRINTS

PAPER SIZE

PAGE LAYOUT

MULTI SELECT

DMC-FS7&8&6P-VQT2C70_eng.book 86 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Connecting to other equipment

• Paper sizes not supported by the printer will not be displayed.

• An item cannot be selected if the printer does not support the page layout.

∫Layout printing

When printing a picture several times on 1 sheet of paper

For example, if you want to print the same picture 4 times on 1 sheet of paper, set

[PAGE LAYOUT] to [ä] and then set [NUM. OF PRINTS] to 4 for the picture that you

want to print.

When printing different pictures on 1 sheet of paper

For example, if you want to print 4 different pictures on 1 sheet of paper, set

[PAGE LAYOUT] to [ä] and then set [NUM. OF PRINTS] to 1 for each of the 4 pictures.

Note

• The camera is receiving an error message from the printer when the [¥] indication lights

orange during printing. After finishing printing, make sure there are no problems with the

printer.

• If the number of prints is high, the pictures may be printed several times. In this case, the

remaining number of prints indicated may differ from the number set.

[PAPER SIZE]

Item Description of settings

{ Settings on the printer are prioritized.

[L/3.5qk5q]

89 mm

127 mm

[2L/5qk7q]127 mmk178 mm

[POSTCARD] 100 mmk148 mm

[16:9] 101.6 mmk180.6 mm

[A4] 210 mmk297 mm

[A3] 297 mmk420 mm

[10k15cm] 100 mmk150 mm

[4qk6q]101.6 mmk152.4 mm

[8qk10q]203.2 mmk254 mm

[LETTER] 216 mmk279.4 mm

[CARD SIZE] 54 mmk85.6 mm

[PAGE LAYOUT] (Layouts for printing that can be set with this unit)

Item Description of settings

{ Settings on the printer are prioritized.

á 1 picture with no frame on 1 page

â 1 picture with a frame on 1 page

ã 2pictures on 1page

ä 4pictures on 1page

DMC-FS7&8&6P-VQT2C70_eng.book 87 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Connecting to other equipment

[PLAYBACK] mode: ¸

Playing Back Pictures on a TV Screen

Please use the supplied AV cable. (DMC-FS7/DMC-FS6)

Please use the optional AV cable (DMW-AVC1). (DMC-FS8)

Preparations:

Set the [TV ASPECT]. (P25)

Turn this unit and the TV off.

1Yellow: to the video input socket

2White: to the audio input socket

AAlign the marks, and insert.

BAV cable

• Check the directions of the connectors, and plug them straight in or unplug them straight out.

(Otherwise the connectors may be bent out of shape which will cause trouble.)

Connect the AV cable to the video input and the audio input sockets on the TV.

Connect the AV cable to the [AV OUT] socket on the camera.

Turn the TV on and select external input.

Turn the camera on.

Note

• Depending on the [ASPECT RATIO], black bands may be displayed on the top and bottom or

the left and right of the pictures.

• Do not use any other AV cables except the supplied one. (DMC-FS7/DMC-FS6)

•

Do not use any other cables except a genuine Panasonic AV cable (DMW-AVC1; optional). (DMC-FS8)

• Read the operating instructions for the TV.

• When you play back a picture vertically, it may be blurry.

Still pictures recorded on an SD Memory Card can be played back on a TV with an SD

Memory Card slot.

Note

• Depending on the TV model, pictures may not be displayed on the full screen.

• Motion pictures cannot be played back. To play back motion pictures, connect the camera to

the TV with the AV cable.

• You cannot play back pictures on SDHC cards if the TV does not support these cards.

• You may not be able to play back MultiMediaCards.

Playing back pictures using the AV cable

Playing back pictures on a TV with an SD Memory Card slot

DIGITAL

AV OUT

DMC-FS7&8&6P-VQT2C70_eng.book 88 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Others

Screen Display

∫In recording

Recording in normal picture mode [!] (Initial setting)

1 Recording mode

2 Flash mode (P39)

3 AF area (P32)

4 Focus (P32)

5 Picture size (P59)

6 Quality (P60)

7 Battery indication (P13)

8 Number of recordable pictures (P103)

9 Built-in memory (P16)

: Card (P16) (displayed only during recording)

10 Recording state

11 ISO sensitivity (P61)

12 Shutter speed (P32)

13 Aperture value (P32)

14 Optical image stabilizer (P65)/ : Jitter alert (P32)

∫

In recording (after settings)

15 AF macro mode (P42)

: Macro zoom mode (P42)

16 White balance (P62)

17 ISO sensitivity (P61)

maximum ISO sensitivity level (P61)

18 Color mode (P65)

19 Recording quality (P55)

20 Available recording time (P55):

21 Name¢1 (P50)

22 Age¢1 (P50)

Location¢2 (P56)

23 Travel date (P56)

24 Elapsed recording time (P55)

: Intelligent ISO (P61)

25 Current date and time/“: Travel destination setting¢2 (P58)

Zoom/Extended optical zoom (P33)/ : Digital zoom (P33, 65)

26 Exposure compensation (P44)

27 High angle mode (P23)

…: Power LCD (P23)

„: Auto Power LCD (P23)

28 Self-timer mode (P43)

29 Burst (P64)/ : Auto bracket (P45)/B: Audio recording (P55)

30 AF assist lamp (P66)

31 Number of days that have passed since the departure date (P56)

¢1 This is displayed for about 5 seconds when this unit is turned on in [BABY1]/[BABY2] or [PET] in

Scene mode.

¢2 This is displayed for about 5 seconds when the camera is turned on, after setting the clock and

after switching from Playback mode to Recording mode.

999

1/301/301/30F3.3F3.3F3.3

456 7

ISOISO

100100

ISO

100

3s3s3s3s

NANATURALTURALNATURAL

ISOISO

100100

ISO

100

26 25

DMC-FS7&8&6P-VQT2C70_eng.book 89 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Others

∫In playback

1 Playback mode (P34)

2 Protected picture (P79)

3 Favorites (P77)

4 Stamped with text indication (P73)

5 Picture size (P59)

Motion picture icon (P70)

6 Quality (P60)

7 Battery indication (P13)

8 Folder/File number (P83)

Built-in memory (P16)

Elapsed playback time (P70):

9 Picture number/Total pictures

10 Motion picture recording time

(P70):

11 Exposure compensation (P44)

12 Recording information

13 Favorites settings (P77)

14 Recorded date and time/Travel destination setting (P56, 58)

Name (P50)

Title (P72)

15 Age (P50)

16 Number of days that have passed since the departure date (P56)

17 Power LCD (P23)

18 Number of prints (P78)

19 Motion picture playback (P70)

Cable disconnection warning icon (P84)

Cautions for Use

Take care not to drop or knock the unit or put a lot of pressure on it.

• Take care not to knock or drop the bag/case that you inserted the camera in as the shock may

cause damage to the camera, lens or LCD monitor.

• Do not attach any other items to the hand strap that’s included with your camera. While being

stored, that item can rest against the LCD monitor and damage it.

• Do not use a paper bag as it can easily rip causing the camera to fall and be damaged.

• We strongly recommend you purchase a good camera bag/case from your local dealer to

protect your camera.

Keep the camera as far away as possible from electromagnetic equipment (such as

microwave ovens, TVs, video games etc.).

• If you use the camera on top of or near a TV, the pictures and sound on the camera may be

disrupted by electromagnetic wave radiation.

• Do not use the camera near cell phones because doing so may result in noise adversely

affecting the pictures and sound.

• Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields

created by speakers or large motors.

Optimal use of the camera

1/91/91/9

1ST DAY1ST DAY1ST DAY

10:00 DEC.1.200910:00 DEC.1.200910:00 DEC.1.200910:00 DEC.1.2009

100100_00010001

9s9s

100_0001

1234 6 75

14 13

DMC-FS7&8&6P-VQT2C70_eng.book 90 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Others

• Electromagnetic wave radiation generated by microprocessors may adversely affect the

camera, disturbing the pictures and sound.

• If the camera is adversely affected by electromagnetic equipment and stops functioning

properly, turn the camera off and remove the battery or disconnect AC adaptor (DMW-AC5PP;

optional). Then reinsert the battery or reconnect AC adaptor and turn the camera on.

Do not use the camera near radio transmitters or high-voltage lines.

• If you record near radio transmitters or high-voltage lines, the recorded pictures and sound may

be adversely affected.

Always use the supplied cords and cables. If you use optional accessories, use the

cords and the cables supplied with them.

Do not extend the cords or the cables.

Do not spray the camera with insecticides or volatile chemicals.

• If the camera is sprayed with such chemicals, the body of the camera may be damaged and the

surface finish may peel off.

• Do not keep rubber or plastic products in contact with the camera for a long period of time.

Before cleaning the camera, remove the battery or the DC coupler (DMW-DCC4;

optional), or disconnect the power plug from the outlet. Then wipe the camera with

a dry soft cloth.

• When the camera is soiled badly, it can be cleaned by wiping the dirt off with a wrung wet cloth,

and then with a dry cloth.

• Do not use solvents such as benzine, thinner, alcohol, kitchen detergents, etc., to clean the

camera, since it may deteriorate the external case or the coating may peel off.

• When using a chemical cloth, be sure to follow the accompanying instructions.

• If the LCD monitor is dirty, blow away dust and foreign matter with a commercial blower brush.

If it is very dirty, gently rub with a soft cloth or an eyeglass cloth.

• Do not press the LCD monitor with excessive force. Uneven colors may appear on the LCD

monitor and it may malfunction.

• Do not press on the LCD monitor with hard pointed tips, such as ball point pens.

• Do not scratch or press the LCD monitor too hard.

• If the camera is cold when you turn it on, the picture on the LCD monitor will be slightly darker

than usual at first. However, the picture will return to normal brightness when the internal

temperature of the camera increases.

• Do not press the lens with excessive force.

• Do not leave the camera with the lens facing the sun as rays of light from the sun may cause it

to malfunction. Also, be careful when placing the camera outside or near a window.

Cleaning

About the LCD monitor

Extremely high precision technology is employed to produce the LCD monitor screen.

However there may be some dark or bright spots (red, blue or green) on the screen.

This is not a malfunction. The LCD monitor screen has more than 99.99% effective

pixels with a mere 0.01% of the pixels inactive or always lit. The spots will not be

recorded on pictures on the built-in memory or a card.

About the Lens

DMC-FS7&8&6P-VQT2C70_eng.book 91 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Others

The battery is a rechargeable lithium ion battery. Its ability to generate power comes

from the chemical reaction that takes place inside it. This reaction is susceptible to

the surrounding temperature and humidity. If the temperature is too high or too low,

the operating time of the battery will become shorter.

Always remove the battery after use.

• Store the removed battery in the battery case (supplied).

If you drop the battery accidentally, check to see if the body

of the battery and the terminals are damaged.

• Inserting a damaged battery in the camera will damage the camera.

Bring charged spare batteries when going out.

• Be aware that the operating time of the battery becomes shorter in low temperature conditions

such as at a ski resort.

• When you travel, do not forget to bring the battery charger (supplied) so that you can charge

the battery in the country that you are traveling in.

Dispose of unusable battery.

• The battery has a limited life.

• Do not throw the battery into fire because it may cause an explosion.

• The unusable battery should be discarded in accordance with battery recycling laws. Call the

RBRC hotline at 1-800-822-8837 for information.

Do not allow battery terminals to come into contact with metal objects (such as

necklaces, hairpins etc.).

• This can cause short circuiting or heat generation and you may be badly burned if you touch a

battery.

• If you use the battery charger near a radio, the radio reception may be disturbed.

• Keep the charger 1 m (3.28 feet) or more away from radios.

• The charger may generate whirring sounds when it is being used. This is not a malfunction.

• After use, be sure to disconnect the power supply device from the electrical outlet. (A very

small amount of current is consumed if it is left connected.)

• Keep the terminals of the charger and battery clean.

Do not leave the card where the temperature is high, where electromagnetic waves

or static electricity are easily generated or exposed to direct sunlight.

Do not bend or drop the card.

• The card may be damaged or the recorded content may be damaged or deleted.

• Put the card in the card case or the storage bag after use and when storing or carrying the

card.

• Do not allow dirt, dust or water to get into the terminals on the back of the card and do not touch

the terminals with your fingers.

Notice for when transferring to another party, or disposing of the memory card

• “Format” or “delete” using the camera or a PC will only modify the file management information,

and it will not erase the data in the memory card completely.

It is recommended to physically destroy the memory card or use the commercially available

computer data deletion software to completely erase the data in the memory card before

transferring to another party or disposing.

Management of data in the memory card is the responsibility of the user.

Battery

Charger

Card

DMC-FS7&8&6P-VQT2C70_eng.book 92 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Others

Personal information is included in the recorded image when the name or birthday is set in

[BABY1]/[BABY2] in Scene mode.

Disclaimer

• Information including personal information may be altered or vanish due to erroneous

operation, effect of static electricity, accident, malfunction, repair, or other handlings.

Please note in advance that Panasonic is not liable in any way for any direct or indirect damage

from the alteration or vanishing of information or personal information.

When requesting a repair, transferring to another party or disposing

• Reset the settings to protect the personal information. (P24)

• If there are pictures stored in the built-in memory, copy them into the memory card (P80) before

formatting the built-in memory (P25) as needed.

• Remove the memory card from the camera when requesting a repair.

• Built-in memory and settings may return to factory default when camera is repaired.

• Please contact the dealer where you purchased the camera or your nearest Service Centre if

above operations are not possible due to malfunction.

When transferring to another party, or disposing of the memory card, please refer to

“Notice for when transferring to another party, or disposing of the memory card” on

P92.

• Store the battery in a cool and dry place with a relatively stable temperature: [Recommended

temperature: 15 oC to 25 oC (59 oF to 77 oF), Recommended humidity: 40% to 60%]

• Always remove the battery and the card from the camera.

• If the battery is left inserted in the camera, it will discharge even if the camera is turned off. If

the battery continues to be left in the camera, it will discharge excessively and may become

unusable even if charged.

• When storing the battery for a long period of time, we recommend charging it once a year.

Remove the battery from the camera and store it again after it has completely discharged.

• We recommend storing the camera with a desiccant (silica gel) when you keep it in a closet or

a cabinet.

• Recorded data may be damaged or lost if the camera breaks down due to inappropriate

handling. Panasonic will not be liable for any damage suffered due to loss of recorded data.

• When you use a tripod, make sure the tripod is stable when this unit is attached to it.

• You may not be able to remove the card or the battery when using a tripod.

• Make sure that the screw on the tripod is not at an angle when attaching or detaching the

camera. You may damage the screw on the camera if you use excessive force when turning it.

Also, the camera body and the rating label may be damaged or scratched if the camera is

attached too tightly to the tripod.

• Read the operating instructions for the tripod carefully.

• Some tripods cannot be attached when the DC coupler (DMW-DCC4; optional) and AC adaptor

(DMW-AC5PP; optional) are connected.

About the personal information

When not using the camera for a long period of time

About the picture data

About tripods

DMC-FS7&8&6P-VQT2C70_eng.book 93 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Others

Message Display

Confirmation messages or error messages will be displayed on the screen in some cases.

The major messages are described below as examples.

[THIS MEMORY CARD IS LOCKED]

>The Write-Protect switch on the SD Memory Card and the SDHC Memory Card are

moved to [LOCK]. Move the switch back to unlock it. (P17)

[NO VALID PICTURE TO PLAY]

>Record a picture or insert a card with a recorded picture and then play it.

[THIS PICTURE IS PROTECTED]

>Delete the picture after canceling the protect setting. (P79)

[THIS PICTURE CANNOT BE DELETED]/[SOME PICTURES CANNOT BE DELETED]

• Pictures not based on the DCF standard cannot be deleted.

>If you want to delete some pictures, format the card after saving necessary data on a PC

etc. (P25)

[NO ADDITIONAL SELECTIONS CAN BE MADE]

• The number of pictures, which can be set at one time when [MULTI] has been selected for

[DELETE MULTI] (P37), [FAVORITE] (P77), [TITLE EDIT] (P72), [TEXT STAMP] (P73) or

[RESIZE] (P74) has been exceeded.

>Reduce the number of pictures set, and then repeat the operation.

• More than 999 favorites have been set.

[CANNOT BE SET ON THIS PICTURE]

• [TITLE EDIT], [TEXT STAMP] or [PRINT SET] cannot be set for pictures not based on the

DCF standard.

[NOT ENOUGH SPACE ON BUILT-IN MEMORY]/[NOT ENOUGH MEMORY ON THE

CARD]

• There is no space left on the built-in memory or the card.

– When you copy pictures from the built-in memory to the card (batch copy), the pictures are

copied until the capacity of the card becomes full.

[SOME PICTURES CANNOT BE COPIED]/[COPY COULD NOT BE COMPLETED]

• The following pictures cannot be copied.

– When a picture with the same name as the picture to be copied exists in the copy

destination. (Only when copying from a card to the built-in memory.)

– Files not based on the DCF standard.

• Moreover, pictures recorded or edited by other equipment may not be copied.

[BUILT-IN MEMORY ERROR

FORMAT BUILT-IN MEMORY?]

• This message will be displayed when you formatted the built-in memory on a PC.

>Format the built-in memory on the camera again. (P25) The data on the built-in memory

will be deleted.

DMC-FS7&8&6P-VQT2C70_eng.book 94 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Others

[MEMORY CARD ERROR

FORMAT THIS CARD?]

• This card has a format which is not recognized by the camera.

>Format the card again with the camera after saving necessary data on a PC etc. (P25)

[PLEASE TURN CAMERA OFF AND THEN ON AGAIN]/[SYSTEM ERROR]

• This message appears when the camera is not operating properly.

>Turn the camera off and on. If the message persists, contact the dealer or your nearest

Service Center.

[MEMORY CARD PARAMETER ERROR]

>Use a card compatible with this unit. (P17)

• You can only use an SDHC Memory Card if using cards with 4 GB or more capacity.

[MEMORY CARD ERROR

PLEASE CHECK THE CARD]

• An error has occurred accessing the card.

>Insert the card again.

>Insert a different card.

[READ ERROR/WRITE ERROR

PLEASE CHECK THE CARD]

• It has failed to read or write data.

>Remove the card after turning the power [OFF]. Insert the card again, turn the power on,

and try to read or write the data again.

• The card may be broken.

>Insert a different card.

[MOTION RECORDING WAS CANCELLED DUE TO THE LIMITATION OF THE

WRITING SPEED OF THE CARD]

• When you set the recording quality to [ ] or [ ], we recommend using a high-speed

card with “10MB/s” or greater displayed on the package.

• In the event that it stops even after using a “10MB/s” card or higher, the data writing speed has

deteriorated so it is recommended to make a backup and then format (P25).

• Depending on the type of SD Memory Card or SDHC Memory Card, motion picture recording

may stop in the middle.

[A FOLDER CANNOT BE CREATED]

• A folder cannot be created because there are no remaining folder numbers that can be used.

(P83)

>Format the card after saving necessary data on a PC etc. (P25) If you execute

[NO.RESET] in the [SETUP] menu after formatting, the folder number is reset to 100.

(P24)

[PICTURE IS DISPLAYED FOR 4:3 TV]/[PICTURE IS DISPLAYED FOR 16:9 TV]

• The AV cable (P88) is connected to the camera.

>Press [MENU/SET] if you want to delete this message at once.

>Select [TV ASPECT] in the [SETUP] menu if you want to change the TV aspect. (P25)

• This message also appears when the USB connection cable is connected to the camera only.

In this case, connect the other end of the USB connection cable to a PC or a printer. (P81, 84)

[PRINTER BUSY]/[PLEASE CHECK THE PRINTER]

• The printer cannot print.

>Check the printer.

DMC-FS7&8&6P-VQT2C70_eng.book 95 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Others

Troubleshooting

First, try out the following procedures (P96–102).

• The battery is not inserted correctly. (P14)

• The battery is exhausted.

• Is [AUTO LCD OFF] (P23) of the [ECONOMY] mode active?

>Press the shutter button halfway to cancel these modes.

• The battery is exhausted.

• If you leave the camera on, the battery will be exhausted.

>Turn the camera off frequently by using the [ECONOMY] mode etc. (P23)

• Is the temperature of the battery excessively high or low? If it is, it will take longer than usual to

charge the battery or charging may remain incomplete.

• Are the terminals of the charger or battery dirty?

>Wipe off the dirt using a dry cloth.

[NO BATTERY POWER REMAINS]

• The remaining battery power is low.

>Charge the battery.

[THIS BATTERY CANNOT BE USED]

• The battery cannot be recognized by the camera.

>Use a genuine Panasonic battery. If this message is displayed even when a genuine

Panasonic battery is used, contact the dealer or your nearest Service Center.

• The battery cannot be recognized as its terminal is dirty.

>Remove any dirt etc. from the terminal.

If the problem is not resolved, it may be improved by selecting [RESET]

(P24)

on the

[SETUP] menu when taking pictures.

Battery and power source

The camera cannot be operated even when it is turned on.

The LCD monitor turns off while the camera is turned on.

The camera turns off immediately after it is turned on.

The [CHARGE] lamp flashes.

DMC-FS7&8&6P-VQT2C70_eng.book 96 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Others

• Is the [REC]/[PLAYBACK] selector switch at the [!] setting? (P27)

• Is there any memory remaining on the built-in memory or the card?

>Delete the pictures which are not necessary to increase the available memory. (P36)

• The picture can become whitish if there is dirt e.g. fingerprints on the lens.

>If the lens is dirty, turn on the camera, eject the lens barrel (P11) and gently wipe the lens

surface with a soft dry cloth.

• Was this picture taken with the flash at the close range when the zoom is near [W] (1k)?

>Zoom in a little, and then take the pictures. (P33)

>Check that the exposure is correctly compensated. (P44)

>Set Auto bracket (P45), [HI-SPEED BURST] (P52), [FLASH BURST] (P52) in Scene mode

or [BURST] (P64) of the [REC] mode menu to [OFF].

• The focus range varies depending on the Recording mode.

>Set to the proper mode for the distance to the subject.

• The subject is beyond the focus range of the camera. (P31)

• There is camera shake (jitter) or the subject is moving slightly. (P32)

>The shutter speed becomes slower when pictures are taken in dark places so hold the

camera firmly with both hands to take the pictures. (P28)

>When taking pictures at a slow shutter speed, use the self-timer. (P43)

• Is the number of recordable pictures 2 or less?

• Is the ISO sensitivity high or the shutter speed slow?

(ISO sensitivity is set to [AUTO] when the camera is shipped. Therefore, when taking pictures

indoors etc. noise will appear.)

>Decrease the ISO sensitivity. (P61)

>Set [COLOR MODE] to [NATURAL]. (P65)

>Take pictures in bright places.

• Has [HIGH SENS.] or [HI-SPEED BURST] in the Scene mode been set? If so, the resolution of

the recorded picture decreases slightly because of high sensitivity processing, but this is not a

malfunction.

Recording

The picture cannot be recorded.

The recorded picture is whitish.

The area around where the pictures were taken becomes dark.

The recorded picture is too bright or dark.

2 or 3 pictures are taken at one time.

The subject is not focused properly.

The recorded picture is blurred. The Optical image stabilizer is not effective.

Taking pictures using Auto bracket is not possible.

The recorded picture looks rough. Noise appears on the picture.

DMC-FS7&8&6P-VQT2C70_eng.book 97 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Others

• If recording under fluorescent light, the brightness or the hue may change slightly when the

shutter speed becomes fast. This occurs due to the characteristics of fluorescent light. It is not

a malfunction.

• Depending on the type of the card, recording may stop in the middle.

>When you set the recording quality to [ ] or [ ], we recommend using a high-speed

card with “10MB/s” or greater displayed on the package.

>In the event that it stops even after using a “10MB/s” card or higher, the data writing speed

has deteriorated so it is recommended to make a backup and then format (P25).

• Are you using a MultiMediaCard? This unit does not support MultiMediaCards.

• The LCD monitor turns off and the status indicator lights when [AUTO LCD OFF] (P23) is

selected for the [ECONOMY] mode.

[This does not happen when using the AC adaptor (DMW-AC5PP; optional).]

If the remaining battery power is low, it may take longer for the flash to be charged, and the

time during which the LCD monitor is turned off may become longer.

• This phenomenon appears when you press the shutter button halfway to set the aperture value

and does not affect the recorded pictures.

• This phenomenon also appears when the brightness changes when the camera is zoomed or

when the camera is moved. This is because of operation of the automatic aperture of the

camera, and it is not a malfunction.

• The LCD monitor may flicker for a few seconds after turning the camera on indoors under

fluorescent light. This is not a malfunction.

>Adjust the brightness of the screen. (P22)

• [POWER LCD] or [HIGH ANGLE] is activated. (P23)

The brightness or the hue of the recorded picture is different from the actual

scene.

A reddish vertical line (smear) appears on the LCD monitor during

picture-taking.

• This is a characteristic of CCDs, and it appears when the subject has a

bright part. Some unevenness may occur in the surrounding areas, but

this is not a malfunction.

It is recorded in motion pictures but is not recorded on still pictures.

• It is recommended that you take pictures while taking care not to expose

the screen to sunlight or any other source of strong light.

Motion picture recording stops in the middle.

LCD monitor

The LCD monitor turns off although the camera is turned on.

The LCD monitor becomes darker or brighter for a moment.

The LCD monitor flickers indoors.

The LCD monitor is too bright or dark.

DMC-FS7&8&6P-VQT2C70_eng.book 98 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

Others

• This is not a malfunction.

These pixels do not affect the recorded pictures.

• In dark places, noise may appear to maintain the brightness of the LCD monitor. This does not

affect the pictures you are recording.

• If the LCD monitor is pressed with a finger and pressure is applied, distortion (uneven colors)

will appear on the screen, but this is not a malfunction.

• Is the flash setting set to [Œ]?

>Change the flash setting. (P39)

• Flash mode is not available when Auto bracket (P45) or [BURST] (P64) in [REC] mode menu

has been set.

• The flash is activated twice when red-eye reduction (P39) has been set.

• Has [FLASH BURST] (P52) in Scene mode been set?

• [ROTATE DISP.] (P76) is set to [ON].

• Is the [REC]/[PLAYBACK] selector switch set to [(]? (P34)

• Is there a picture on the built-in memory or the card?

>The pictures on the built-in memory appear when a card is not inserted. The picture data on

the card appears when a card is inserted.

• Is this a picture whose file name has been changed in the PC? If it is, it cannot be played back

by this unit.

• Has [CATEGORY PLAY] or [FAVORITE PLAY] been set for playback?

>Change to [NORMAL PLAY]. (P34)

Black, red, blue and green dots appear on the LCD monitor.

Noise appears on the LCD monitor.

Distortion appears in the LCD monitor.

Flash

The flash is not activated.

Flash is activated several times.

Playback

The picture being played back is rotated and displayed in an unexpected

direction.

The picture is not played back.

The recorded pictures are not displayed.

DMC-FS7&8&6P-VQT2C70_eng.book 99 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

100

Others

• Is this a non-standard picture, a picture which has been edited using a PC or a picture which

was taken by another maker of digital camera?

• Did you remove the battery immediately after picture-taking or did you take the picture using a

battery with a low remaining charge?

>Format the data to delete the pictures mentioned above. (P25)

(Other pictures will be deleted as well and it will not be possible to restore them.

Therefore, check well before formatting.)

• Is the clock in the camera set properly? (P18)

• When pictures edited using a PC or pictures taken by other equipment are searched, they may

be displayed on dates differing from the actual dates on which the pictures were taken.

• When the flash is set to red-eye reduction ([ ], [ ], [ ]) and if you take a picture of

subject with red color surrounded by a skin tone color, that red part may be corrected to black

by the digital red-eye reduction function.

>It is recommended to take picture with Flash mode set to [‡], [‰], or [Œ].

• Is it a picture that has been recorded with other equipment? In such cases, these pictures may

be displayed with a deteriorated picture quality.

• This unit automatically adjusts the aperture during motion picture recording. At such times, the

sound may break up. This is not a malfunction.

• Is the camera connected to the TV correctly?

>Set the TV input to external input mode.

• Depending on the TV model, the pictures may be extra horizontally or vertically or they may be

displayed with their edges cut off.

The folder number and the file number are displayed as [—] and the screen turns

black.

With a calendar search, pictures are displayed on dates differing from the actual

dates on which the pictures were taken.

White round spots like soap bubbles appear on the recorded picture.

• If you take a picture with the flash in a dark place or indoors, white

round spots may appear on the picture caused by the flash reflecting of

particles of dust in the air. This is not a malfunction.

A characteristic of this is that the number of round spots and their

position differ in every picture.

Red part of the recorded image has changed color to black.

[THUMBNAIL IS DISPLAYED] appears on the screen.

The sound of the recorded motion pictures sometimes breaks up.

TV, PC and printer

The picture does not appear on the television.

The display areas on the TV screen and the camera’s LCD monitor are different.

DMC-FS7&8&6P-VQT2C70_eng.book 100 ページ２００９年２月１７日　火曜日　午前１１時４９分

101

VQT2C70

Others

• Are you trying to play back the motion pictures by directly inserting the card in the card slot of

the TV?

>Connect the camera to the TV with the AV cable and then play back the pictures on the

camera. (P88)

>Check [TV ASPECT] setting. (P25)

• Is the camera connected to the PC correctly?

• Is the camera recognized by the PC correctly?

>Set to [PC] in [USB MODE]. (P25, 81)

>Disconnect the USB connection cable. Connect it again while the card is inserted in the

camera.

• Pictures cannot be printed using a printer which does not support PictBridge.

>Set to [PictBridge(PTP)] in [USB MODE]. (P25, 84)

>When using a printer with a trimming or borderless printing function, cancel this function

before printing. (For details, refer to the operating instructions for the printer.)

>When you order photo studios to print pictures, ask the photo studio if the pictures can be

printed with both ends.

>Press [MENU/SET], select the [SETUP] menu icon [ ] and then select the [~] icon to set

the desired language. (P26)

• In dark places, the AF assist lamp (P66) lights red to make it easier to focus on a subject.

• Is [AF ASSIST LAMP] on the [REC] mode menu set to [ON]? (P66)

• The AF assist lamp does not turn on in bright places.

• The surface of the camera may become warm during use. This does not affect the performance

or quality of the camera.

The motion pictures cannot be played back on a TV.

The picture is not displayed fully on the TV.

The picture cannot be transferred when the camera is connected to a PC.

The card is not recognized by the PC. (The built-in memory is recognized.)

The picture cannot be printed when the camera is connected to a printer.

The ends of the pictures are cut at printing.

Others

An unreadable language was selected by mistake.

A red lamp sometimes turns on when the shutter button is pressed halfway.

The AF assist lamp does not turn on.

The camera becomes warm.

DMC-FS7&8&6P-VQT2C70_eng.book 101 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

102

Others

• When the brightness changes due to zoom or camera movement etc., the lens may click and

the picture on the screen may drastically change. However, the picture is not affected. The

sound is caused by the automatic adjustment of the aperture. This is not a malfunction.

• If you do not use the camera for a long time, the clock may be reset.

>When the message [PLEASE SET THE CLOCK] appears, set the clock again. When you

take a picture before setting the clock, [AM12:00 0. 0. 0] is recorded. (P18)

• At some magnification levels, the pictures taken are slightly distorted or the outlines and other

areas in the pictures taken are colored, but this is not a malfunction.

• When using the extended optical zoom, the zooming action will stop temporarily near [W]. This

is not a malfunction.

• Is the camera set to Macro zoom mode? (P42)

Maximum zoom during Macro zoom mode is 3k digital zoom.

• When you perform an operation after taking a certain action, the pictures may be recorded in

folders with different numbers from the ones used prior to the operation. (P83)

• If the battery was inserted or removed without first turning the camera’s power off, the folder

and file numbers for the pictures taken will not be stored in the memory. When the power is

then turned back on and pictures are taken, they may be stored under file numbers which

should have been assigned to previous pictures.

• Check the clock (P18) and birthday settings (P50).

• The lens barrel retracts about 15 seconds after switching from [REC] mode to [PLAYBACK]

mode.

• This is the [AUTO DEMO] to introduce the features of the camera. Press a button to return the

camera to the original screen.

The lens clicks.

The clock is reset.

When pictures are taken using the zoom, they are slightly distorted and the

areas around the subject contain colors which are not actually present.

Zooming stops instantaneously.

Zoom does not go up to maximum magnification.

The file numbers are not recorded consecutively.

The file numbers are recorded in ascending order.

[AGE] is not displayed correctly.

The lens barrel is retracted.

When the camera is left alone, the slide show is suddenly displayed.

DMC-FS7&8&6P-VQT2C70_eng.book 102 ページ２００９年２月１７日　火曜日　午前１１時４９分

103

VQT2C70

Others

Number of Recordable Pictures and Available

Recording Time

• The number of recordable pictures and the available recording time are an approximation.

(These vary depending on the recording conditions and the type of card.)

• The number of recordable pictures and the available recording time varies depending on the

subjects.

∫Number of recordable pictures (¢1: DMC-FS7/DMC-FS8, ¢2: DMC-FS6)

Aspect ratio X

Picture size ¢1¢2 ()

¢1 ()

Quality A › A › A › A ›

Built-in Memory

(Approx. 50 MB) 9 19122513282040

Card

32 MB 5116147161123

64 MB 11 24 14 30 16 34 24 48

128 MB 24 49 30 61 35 69 50 99

256 MB 48 97 61 120 68 135 98 190

512 MB 97 190 120 240 135 270 195 380

1GB 195 380 240 480 270 540 390 770

2GB 390 770 490 970 550 1090 790 1530

4GB 770 1520 970 1910 1090 2150 1560 3010

6GB 1180 2320 1470 2910 1660 3270 2380 4580

8GB 1580 3100 1980 3890 2230 4380 3180 6130

12 GB 2380 4680 2980 5880 3360 6610 4810 9260

16 GB 3180 6250 3980 7840 4490 8820 6410 12350

32 GB 6390 12540 7990 15730 9010 17700 12870 24780

DMC-FS7&8&6P-VQT2C70_eng.book 103 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

104

Others

Aspect ratio X

Picture size () ()

()

Quality A › A › A ›

Built-in Memory

(Approx. 50 MB) 31 62 51 96 240 400

Card

32 MB 18 36 29 56 145 230

64 MB 38 75 61 115 290 480

128 MB 78 150 125 230 600 970

256 MB 150 290 240 460 1170 1900

512 MB 300 590 480 910 2320 3770

1GB 600 1180 970 1830 4640 7550

2GB 1220 2360 1920 3610 8780 12290

4GB 2410 4640 3770 7090 17240 24130

6GB 3660 7050 5730 10790 26210 36700

8GB 4910 9440 7670 14440 35080 49120

12 GB 7400 14240 11570 21790 52920 74090

16 GB 9880 19000 15440 29070 70590 98840

32 GB 19820 38120 30970 58310 141620 198270

Aspect ratio Y

Picture size ¢1¢2 ()

¢1 () ()

Quality A › A › A › A › A ›

Built-in Memory

(Approx. 50 MB) 10 22 13 27 15 31 22 45 35 69

Card

32 MB 6 12 7 16 8 18 13 26 20 40

64 MB 13 27 16 33 19 38 27 54 43 83

128 MB 27 55 34 69 39 78 56 110 88 165

256 MB 54 105 68 135 77 150 110 210 170 330

512 MB 105 210 135 260 150 300 210 430 340 650

1GB 210 430 270 530 300 600 440 860 680 1310

2GB 440 870 550 1070 620 1220 890 1700 1360 2560

4GB 870 1720 1080 2110 1230 2410 1740 3350 2680 5020

6GB 1320 2620 1650 3210 1870 3660 2650 5090 4070 7640

8GB 1770 3500 2210 4300 2500 4910 3550 6820 5450 10230

12 GB 2680 5290 3330 6490 3770 7400 5360 10290 8230 15430

16 GB 3580 7050 4450 8660 5040 9880 7160 13720 10980 20590

32 GB 7180 14160 8930 17390 10110 19820 14360 27530 22020 41300

DMC-FS7&8&6P-VQT2C70_eng.book 104 ページ２００９年２月１７日　火曜日　午前１１時４９分

105

VQT2C70

Others

Aspect ratio W

Picture size ¢1¢2 ()

¢1 () ()

Quality A › A › A › A › A ›

Built-in Memory

(Approx. 50 MB) 13 26 16 33 18 37 27 52 47 91

Card

32 MB 7 15 9 19 10 21 15 30 27 53

64 MB 15 32 19 40 22 45 32 63 57 105

128 MB 33 65 41 81 46 92 66 125 115 220

256 MB 65 125 80 155 91 180 130 250 220 430

512 MB 125 250 160 310 180 350 250 500 450 860

1GB 250 510 320 630 360 710 520 1000 900 1720

2GB 520 1020 650 1270 730 1420 1040 1980 1800 3410

4GB 1030 2010 1280 2510 1450 2800 2040 3890 3540 6700

6GB 1560 3050 1950 3820 2210 4260 3100 5910 5390 10190

8GB 2090 4090 2610 5110 2950 5710 4160 7920 7220 13640

12 GB 3160 6170 3940 7710 4460 8610 6270 11950 10890 20580

16 GB 4220 8230 5250 10290 5950 11490 8370 15940 14530 27450

32 GB 8470 16520 10540 20650 11940 23050 16800 31970 29150 55070

DMC-FS7&8&6P-VQT2C70_eng.book 105 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

106

Others

∫Available recording time (when recording motion pictures)

Note

• The number of recordable pictures and the available recording time displayed on the screen

may not decrease in order.

• This unit does not support recording motion pictures on MultiMediaCards.

• The extended optical zoom does not work when [MACRO ZOOM] is set or in [TRANSFORM],

[HIGH SENS.], [HI-SPEED BURST], [FLASH BURST], [FILM GRAIN] and [PHOTO FRAME] in

Scene mode so the picture size for [ ] is not displayed.

Recording quality setting

Built-in Memory

(Approx. 50 MB) jj1min 37s

Card

32 MB 16 s 17 s 56 s

64 MB 37 s 39 s 1 min 58 s

128 MB 1 min 18 s 1 min 22 s 4 min

256 MB 2 min 35 s 2 min 40 s 7 min 50 s

512 MB 5 min 10 s 5 min 20 s 15 min 40 s

1GB 10 min 20 s 10 min 50 s 31 min 20 s

2GB 21 min 20 s 22 min 10 s 1 h 4 min

4GB 41 min 50 s 43 min 40 s 2 h 5 min

6GB 57min 1h 6min 3h 11min

8GB 1 h 25 min 1 h 28 min 4 h 15 min

12 GB 1 h 55 min 2 h 14 min 6 h 26 min

16 GB 2 h 52 min 2 h 59 min 8 h 35 min

32 GB 5 h 45 min 5 h 59 min 17 h 13 min

¢Motion pictures can be recorded continuously up to 2 GB.

The maximum available recording time for up to 2 GB only is displayed on the screen.

DMC-FS7&8&6P-VQT2C70_eng.book 106 ページ２００９年２月１７日　火曜日　午前１１時４９分

107

VQT2C70

Others

Specifications

Digital Camera: Information for your safety

Power Source: DC 5.1 V

Power Consumption: 1.2 W (When recording) (DMC-FS7/DMC-FS8)

1.0 W (When recording) (DMC-FS6)

0.6 W (When playing back) (DMC-FS7/DMC-FS8)

0.5 W (When playing back) (DMC-FS6)

Camera effective pixels

:10,100,000 pixels (DMC-FS7/DMC-FS8)/8,100,000 pixels

(DMC-FS6)

Image sensor:

1/2.5

CCD, total pixel number 10,300,000 pixels, Primary color

filter

(DMC-FS7/DMC-FS8)

1/2.5q CCD, total pixel number 8,320,000 pixels, Primary color

filter (DMC-FS6)

Lens: Optical 4kzoom, fl5.5 mm to 22 mm (35 mm film camera

equivalent: 33 mm to 132 mm)/F2.8 to F5.9

Digital zoom: Max. 4k

Extended

optical zoom: Max. 7.1k (DMC-FS7/DMC-FS8)/Max. 6.4k (DMC-FS6)

Focus: Normal/AF macro/Macro zoom/Face detection/9-area-focusing/

1-area-focusing

Focus range: Normal: 50 cm (1.64 feet) to ¶

Macro/Intelligent auto:

5 cm (0.17 feet) (Wide)/50 cm (1.64 feet) (Tele) to ¶

Scene mode: There may be differences in the above settings.

Shutter system: Electronic shutteriMechanical shutter

Motion picture

recording: 848k480 pixels (30 frames/second, only when using a Card)/

640k480 pixels (30 frames/second, only when using a Card)/

320k240 pixels (30 frames/second)

Burst recording

Burst speed:

2.3 pictures/second

(DMC-FS7/DMC-FS8)

/3 pictures/second

(DMC-FS6)

(

Normal

), Approx. 1.7 pictures/second

(DMC-FS7/

DMC-FS8)

/2 pictures/second

(DMC-FS6) (Unlimited)

Number of recordable

pictures: Max. 5 pictures (DMC-FS7/DMC-FS8)/7 pictures (DMC-FS6)

(Standard), Max. 3 pictures (DMC-FS7/DMC-FS8)/4 pictures

(DMC-FS6) (Fine), Depends on the remaining capacity of the

built-in memory or the card (Unlimited).

(Performance in Burst recording is only with SD Memory Card/

SDHC Memory Card. MultiMediaCard performance will be

less.)

Hi-speed burst

Burst speed: Approx. 6 pictures/second (DMC-FS7/DMC-FS8)/

Approx. 5.5 pictures/second (DMC-FS6)

(3M (4:3), 2.5M (3:2) or 2M (16:9) is selected as the picture

size.)

DMC-FS7&8&6P-VQT2C70_eng.book 107 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

108

Others

Number of recordable

pictures: When using the built-in memory:

Approx. 10 pictures

(immediately after formatting)

When using a Card: Max. 100 pictures (differs depending on

the type of Card and the recording conditions)

ISO sensitivity: AUTO/80/100/200/400/800/1600

[HIGH SENS.] mode: 1600 to 6400

Shutter speed: 8 seconds to 1/2000th of a second (Wide)

8 seconds to 1/1000th of a second (Tele)

[STARRY SKY] mode: 15 seconds, 30 seconds, 60 seconds

White balance: Auto white balance/Daylight/Cloudy/Shade/Incandescent lights/

White set

Exposure (AE): Program AE

Exposure compensation (1/3 EV Step, j2 EV to i2EV)

Metering mode: Multiple

LCD monitor: 2.7q TFT LCD (DMC-FS7/DMC-FS8)

2.5q TFT LCD (DMC-FS6)

(Approx. 230,000 dots) (field of view ratio about 100%)

Flash: Flash range: [ISO AUTO]

Approx. 30 cm (0.99 feet) to 6.3 m (20.7 feet) (Wide)

AUTO, AUTO/Red-eye reduction, Forced flash ON (Forced ON/

Red-eye reduction), Forced flash OFF (, Slow sync./Red-eye

reduction)

Microphone: Monaural

Speaker: Monaural

Recording media: Built-in Memory (Approx. 50 MB)/SD Memory Card/SDHC

Memory Card/MultiMediaCard (Still pictures only)

Picture size

Still picture: When the aspect ratio setting is [X]

3648k2736 pixels (DMC-FS7/DMC-FS8), 3264k2448 pixels

(DMC-FS6), 3072k2304 pixels (DMC-FS7/DMC-FS8),

2560k1920 pixels, 2048k1536 pixels, 1600k1200 pixels,

640k480 pixels

When the aspect ratio setting is [Y]

3648k2432 pixels (DMC-FS7/DMC-FS8), 3264k2176 pixels

(DMC-FS6), 3072k2048 pixels (DMC-FS7/DMC-FS8),

2560k1712 pixels, 2048k1360 pixels

When the aspect ratio setting is [W]

3648k2056 pixels (DMC-FS7/DMC-FS8), 3264k1840 pixels

(DMC-FS6), 3072k1728 pixels (DMC-FS7/DMC-FS8),

2560k1440 pixels, 1920k1080 pixels

Motion pictures: 848k480 pixels (Only when using a Card)/

640k480 pixels (Only when using a Card)/

320k240 pixels

Quality: Fine/Standard

Recording file format

Still Picture: JPEG (based on “Design rule for Camera File system”, based

on “Exif 2.21” standard)/DPOF corresponding

Motion pictures: “QuickTime Motion JPEG” (motion pictures with audio)

DMC-FS7&8&6P-VQT2C70_eng.book 108 ページ２００９年２月１７日　火曜日　午前１１時４９分

109

VQT2C70

Others

Interface

Digital: “USB 2.0” (Full Speed)

Analog video/

audio: NTSC,

Audio line output (monaural)

Terminal

[AV OUT/DIGITAL]: Dedicated jack (8 pin)

Dimensions: Approx. 97.0 mm (W)k54.4 mm (H)k21.7 mm (D)

[Approx. 3 13/16q (W)k21/8q(H)k7/8q (D)] (DMC-FS7/

DMC-FS8)/

Approx. 97.0 mm (W)k54.4 mm (H)k21.2 mm (D)

[Approx. 3 13/16q (W)k21/8q(H)k7/8q (D)] (DMC-FS6)

(excluding the projecting parts)

Mass (weight): Approx. 117 g/4.13 oz (DMC-FS7/DMC-FS8)/Approx. 115 g/

4.06 oz (DMC-FS6) (excluding card and battery)

Approx. 139 g/4.90 oz (DMC-FS7/DMC-FS8)/Approx. 137 g/

4.83 oz (DMC-FS6) (with card and battery)

Operating temperature: 0oC to 40 oC (32 oF to 104 oF)

Operating humidity: 10% to 80%

Language select: [ENGLISH]/[ESPAÑOL] (DMC-FS7P/DMC-FS8P/DMC-FS6P)

[ENGLISH]/[DEUTSCH]/[FRANÇAIS]/[ESPAÑOL]/[ITALIANO]/

[繁體中文]/[¢] (DMC-FS7PC/DMC-FS6PC)

Battery Charger

(Panasonic DE-A59B): Information for your safety

Input: 110 V to 240 V 50/60 Hz, 0.2 A

Output: CHARGE 4.2 V 0.65 A

Equipment mobility: Movable

Battery Pack

(lithium-ion)

(Panasonic

DMW-BCF10PP): Information for your safety

Voltage/capacity

(Minimum): 3.6 V/940 mAh

DMC-FS7&8&6P-VQT2C70_eng.book 109 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

110

Others

Digital Camera Accessory System

¢Ensure that the AC adaptor (DMW-AC5PP; optional) and DC coupler (DMW-DCC4; optional)

are purchased as a set. Do not use if sold separately.

• Refer to P13 for information about the battery charging time and the number of recordable

pictures.

• NOTE: Accessories and/or model numbers may vary between countries. Consult your local

dealer.

32 GB SDHC Memory Card

16 GB SDHC Memory Card

12 GB SDHC Memory Card

8 GB SDHC Memory Card

6 GB SDHC Memory Card

4 GB SDHC Memory Card

2 GB SD Memory Card

1 GB SD Memory Card

Accessory# Description

Illustration

DMW-CHFX30

DMW-AC5PP

DMW-DCC4

Semi Hard Case

DMW-BCF10PP Battery Pack

DMW-CS5 Soft Case

RP-SDV32GU1K

RP-SDV16GU1K

RP-SDM12GU1K

RP-SDV08GU1K

RP-SDM06GU1K

RP-SDM04GU1K

RP-SDV04GU1K

RP-SDM02GU1A

RP-SDV02GU1A

RP-SDR01GU1A

AC Adaptor

DC Coupler

DMW-AVC1 AV Cable

DMC-FS7&8&6P-VQT2C70_eng.book 110 ページ２００９年２月１７日　火曜日　午前１１時４９分

111

VQT2C70

Others

Digital Camera Accessory Order Form

(For USA and Puerto Rico Customers)

In CANADA, please contact your local Dealer for more information about accessories.

TO OBTAIN ANY OF OUR DIGITAL CAMERA ACCESSORIES YOU CAN DO ANY OF

THE FOLLOWING:

VISIT YOUR LOCAL PANASONIC DEALER

CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368

[6 AM-6 PM M-F, PACIFIC TIME]

MAIL THIS ORDER TO: PANASONIC SERVICE AND TECHNOLOGY COMPANY

ACCESSORY ORDER OFFICE

20421 84th Avenue South Kent, WA. 98032

Ship To:

Mr.

Mrs.

Ms. First Last

Street Address

City State Zip

Phone#:

Day ( )

Night ()

4. Shipping information (UPS delivery requires complete street address)

Please photocopy this form when placing an order.

3. Method of payment (check one)

Check of Money Order enclosed (NO C.O.D.SHIPMENTS)

VISA

MasterCard

Make Check or Money Order to: PANASONIC ACCESSORIES

(Please do not send cash)

2. Items Ordered

QuantityAccessory # Price EachDescription Total Price

6.95

Subtotal

Your State & Local Sales Tax

Shipping & Handling

Total Enclosed

1. Digital Camera Model #

Discover

Expiration Date

Credit Card #

Customer Signature

DMC-FS7&8&6P-VQT2C70_eng.book 111 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

112

Others

Request for Service Notice (For USA and Puerto Rico Only)

Mail this completed form and your Proof of Purchase along with your unit to:

Panasonic Services Company

Customer Servicenter

Suite B

4900 George McVay Drive

McAllen, TX 78503

Reason for requesting service:

(USA and Puerto Rico Only)

Please make a copy of this page and note the problem you are having. Include it with

your proof of purchase, and ship your camera to the address below.

DMC-FS7&8&6P-VQT2C70_eng.book 112 ページ２００９年４月２８日　火曜日　午前１１時２分

113

VQT2C70

Others

Limited Warranty (For USA and Puerto Rico Only)

PANASONIC CONSUMER ELECTRONICS COMPANY, DIVISION OF PANASONIC

CORPORATION OF NORTH AMERICA

One Panasonic Way, Secaucus, New Jersey 07094

Panasonic Digital Still Camera

Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship,

Panasonic Consumer Electronics Company (referred to as “the warrantor”) will, for the

length of the period indicated on the chart below, which starts with the date of original

purchase (“warranty period”), at its option either (a) repair your product with new or

refurbished parts, or (b) replace it with a new or refurbished product. The decision to repair

or replace will be made by the warrantor.

During the “Labor” warranty period there will be no charge for labor. During the “Parts”

warranty period, there will be no charge for parts. You must carry-in or mail-in your product

during the warranty period. If non-rechargeable batteries are included, they are not

warranted. This warranty only applies to products purchased and serviced in the United

States or Puerto Rico. This warranty is extended only to the original purchaser of a new

product which was not sold “as is”. A purchase receipt or other proof of the original

purchase date is required for warranty service.

PRODUCT OR PART NAME PARTS LABOR

DIGITAL STILL CAMERA

(EXCEPT ITEMS LISTED

BELOW)

1 (ONE) YEAR 1 (ONE) YEAR

CCD 6 (SIX) MONTHS 90 (NINETY) DAYS

RECHARGEABLE BATTERY

PACK

(IN EXCHANGE FOR

DEFECTIVE BATTERY PACK)

90 (NINETY) DAYS NOT APPLICABLE

SD MEMORY CARD

(IN EXCHANGE FOR

DEFECTIVE SD CARD)

90 (NINETY) DAYS NOT APPLICABLE

DMC-FS7&8&6P-VQT2C70_eng.book 113 ページ２００９年２月１７日　火曜日　午前１１時４９分

VQT2C70

114

Others

Carry-In or Mail-In Service

For Carry-In or Mail-In Service in the United States and Puerto Rico call

1-800-211-PANA (7262).

This warranty ONLY COVERS failures due to defects in materials or workmanship, and

DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO

DOES NOT COVER damages which occurred in shipment, or failures which are caused

by products not supplied by the warrantor, or failures which result from accidents, misuse,

abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up

adjustments, misadjustment of consumer controls, improper maintenance, power line

surge, lightning damage, modification, or commercial use (such as in a hotel, office,

restaurant, or other business), rental use of the product, service by anyone other than a

Factory Service center or other Authorized Servicer, or damage that is attributable to acts

of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED

WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR

CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR

ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes

damages for lost time, travel to and from the servicer, loss of media or images, data or

other memory content. The items listed are not exclusive, but are for illustration only.) ALL

EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF

MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential

damages, or limitations on how long an implied warranty lasts, so the exclusions may not

apply to you.

This warranty gives you specific legal rights and you may also have other rights which vary

from state to state. If a problem with this product develops during or after the warranty

period, you may contact your dealer or Service center. If the problem is not handled to

your satisfaction, then write to the warrantor’s Consumer Affairs Department at the

addresses listed for the warrantor.

PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED

WARRANTY ARE YOUR RESPONSIBILITY.

DMC-FS7&8&6P-VQT2C70_eng.book 114 ページ２００９年２月１７日　火曜日　午前１１時４９分

115

VQT2C70

Others

Customer Services Directory

(United States and Puerto Rico)

As of April 2009

Product Repairs (United States and Puerto Rico)

MAIL TO :

Panasonic Services Company

Customer Servicenter

Suite B

4900 George McVay Drive

McAllen, TX 78503

Important: Please include all supplied accessories and the original carton box

(if possible). To minimize the possibility of shipping damage, place

the original box and contents in a prepaid shipping carton, insured

for the full value of the camera. Include a detailed description of the

problem, proof of purchase, your return address and a daytime

phone number and/or E-mail address.

Accessory Purchases (United States and Puerto Rico)

Purchase Parts, Accessories and Instruction Books online for all Panasonic

Products by visiting our Web Site at:

http://www.pstc.panasonic.com

or, send your request by E-mail to:

npcparts@us.panasonic.com

You may also contact us directly at:

1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)

(Monday - Friday 9 am to 9 pm, EST.)

PANASONIC SERVICE AND TECHNOLOGY COMPANY

20421 84th Avenue South, Kent, WA 98032

(We Accept Visa, MasterCard, Discover Card, American Express,

and Personal Checks)

Obtain Product Information and Operating Assistance; locate your nearest

Dealer or Service Center; purchase Parts and Accessories; or make

Customer Service and Literature requests by visiting our Web Site at:

http://www.panasonic.com/help

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at:

1-800-211-PANA (7262),

Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST

For hearing or speech impaired TTY users, TTY :1-877-833-8855

For hearing or speech impaired TTY users, TTY :1-866-605-1277

DMC-FS7&8&6P-VQT2C70_eng.book 115 ページ２００９年４月２８日　火曜日　午前１１時２分

VQT2C70

116

Others

Précautions à prendre (pour le Canada)

∫À propos du bloc-batterie

•N’exposez pas la batterie à la chaleur et tenez-la éloignée de toute flamme.

•Ne laissez pas la ou les batteries dans un véhicule exposé au soleil avec vitres et portes

fermées pendant une longue période de temps.

AVERTISSEMENT :

POUR RÉDUIRE LES RISQUES D’INCENDIE, DE CHOC ÉLECTRIQUE OU DE

DOMMAGES À L’APPAREIL,

•N’EXPOSEZ PAS CET APPAREIL À LA PLUIE, À L’HUMIDITÉ, À L’ÉGOUTTEMENT OU

AUX ÉCLABOUSSEMENTS, ET NE PLACEZ SUR L’APPAREIL AUCUN OBJET

REMPLI DE LIQUIDE, COMME PAR EXEMPLE DES VASES.

•UTILISEZ EXCLUSIVEMENT LES ACCESSOIRES RECOMMANDÉS.

•NE RETIREZ PAS LE COUVERCLE (OU LE PANNEAU ARRIÈRE) ; IL N’Y A AUCUNE

PIÈCE RÉPARABLE PAR L’UTILISATEUR À L’INTÉRIEUR. CONFIEZ TOUTE

RÉPARATION À UN TECHNICIEN DE SERVICE QUALIFIÉ.

LA PRISE DE COURANT DOIT SE TROUVER À PROXIMITÉ DE L’APPAREIL ET

ÊTRE FACILEMENT ACCESSIBLE.

La plaque signalétique se trouve sur le dessous des appareils.

ATTENTION

Batterie (batterie au lithium-ion)

•Utilisez l’unité spécifiée pour recharger la batterie.

•N’utilisez la batterie avec aucun autre appareil que l’appareil spécifiée.

•Évitez le contact des saletés, du sable, du liquide ou autres corps étrangers avec les

bornes.

•Ne touchez pas les bornes des fiches (i et j) avec des objets métalliques.

•Évitez de démonter, remodeler, chauffer ou jeter au feu.

Si de l’électrolyte entre en contact avec vos mains ou vos vêtements, lavez-les avec

beaucoup d’eau.

Si de l’électrolyte pénètre dans vos yeux, ne les frottez pas.

Rincez-vous les yeux avec beaucoup d’eau, puis consultez un médecin.

ATTENTION

Danger d’explosion si la batterie/pile n’est pas remplacée correctement. Remplacez-la

uniquement par une batterie/pile identique ou du même type recommandée par le

fabricant.

Suivez les instructions du fabricant pour jeter les batteries/piles usées.

Avertissement

Risque d'incendie, d'explosion et de brûlures. Ne pas démonter, chauffer à plus de

60 °C (140 °F) ou incinérer.

DMC-FS7&8&6P-VQT2C70_eng.book 116 ページ２００９年２月１７日　火曜日　午前１１時４９分

117

VQT2C70

Others

∫À propos du chargeur de batterie

•Assurez-vous d’utiliser un adaptateur secteur de marque Panasonic (DMW-AC5PP; en option).

•Assurez-vous d’utiliser une batterie de marque Panasonic (DMW-BCF10PP).

•Si vous utilisez d’autres batteries, nous ne pouvons pas garantir la qualité de ce produit.

•N’utilisez pas d’autres câbles de connexion USB à l’exception de celui fourni.

•N’utilisez pas d’autres câbles AV à l’exception de celui fourni. (DMC-FS7/DMC-FS6)

•N’utilisez pas d’autres câbles qu’un véritable câble AV de Panasonic (DMW-AVC1; en option).

(DMC-FS8)

•Conservez la carte mémoire hors de portée des enfants afin qu’ils ne puissent pas l’avaler.

Évitez d’approcher l’appareil photo de tout équipement magnétisé (four à

micro-ondes, téléviseur, équipement de jeux vidéo, etc.).

•Si vous utilisez l’appareil photo à proximité d’un téléviseur, les radiations électromagnétiques

pourraient nuire au son et à l’image.

•N’utilisez pas l’appareil photo à proximité d’un téléphone cellulaire; cela pourrait entraîner un

bruit nuisible à l’image et au son.

•Le puissant champ magnétique de haut-parleurs ou de moteurs peut endommager les

données enregistrées et distordre les images.

•Les ondes électromagnétiques émises par un microprocesseur peuvent nuire à l’appareil photo

numérique et perturber l’image et le son.

•Advenant le cas où le fonctionnement de l’appareil serait dérangé par un champ magnétique,

coupez le contact, retirez la batterie ou débranchez l’adaptateur secteur (modèle

DMW-AC5PP; en option) pour ensuite soit remettre la batterie en place, soit rebranché

l’adaptateur. Remettez l’appareil en marche.

N’utilisez pas l’appareil photo à proximité d’un émetteur radio ou de lignes à haute

tension.

•L’utilisation de l’appareil photo à proximité d’un émetteur radio ou de lignes à haute tension

pourrait nuire à l’image ou au son.

ATTENTION!

NE PAS INSTALLER CET APPAREIL DANS UNE BIBLIOTHÈQUE, UNE ARMOIRE

OU TOUT AUTRE ESPACE CONFINÉ. S’ASSURER QUE LA VENTILATION DE

L’APPAREIL EST ADÉQUATE. AFIN D’ÉVITER TOUT RISQUE DE CHOC

ÉLECTRIQUE OU D’INCENDIE DÛ À UN SURCHAUFFEMENT, S’ASSURER QUE

RIDEAUX OU TOUT OBJET QUELCONQUE NE BOUCHENT LES ÉVENTS

D’AÉRATION DE L’APPAREIL.

Chargeur de batterie

Ce chargeur fonctionne sur le secteur entre 110 V et 240 V.

Toutefois

• Aux États-Unis et au Canada, le chargeur doit être branché sur une prise secteur de

120 V seulement.

• Lors du branchement à une prise secteur à l’extérieur des États-Unis ou du Canada,

utilisez un adaptateur conforme à la configuration de la prise secteur.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

VQT2C70~Safety_fre.fm 117 ページ２００９年２月１９日　木曜日　午前１１時２３分

VQT2C70

118

Others

Index

AC Adaptor ................................16, 81, 84

Access indication ...................................16

Aerial Photo Mode .................................54

AF Assist Lamp ......................................66

AF Macro Mode .....................................42

AF Mode ................................................63

Aspect Ratio ..........................................60

Audio Recording ....................................55

Auto Bracket ..........................................45

Auto Demonstration ...............................26

Auto LCD Off .........................................23

Auto Power LCD ....................................23

Auto Review ...........................................24

Auto White Balance ...............................62

AV Cable ................................................88

Available Recording Time ....................106

Baby Mode .............................................50

Backlight Compensation ........................29

Battery .......................................12, 13, 14

Battery Case ..........................................92

Beach Mode ...........................................53

Beep ......................................................22

Brightness of the LCD Monitor ...............22

Built-in Flash ..........................................39

Built-in Memory ......................................17

Burst ......................................................64

Calendar ................................................71

Candle Light Mode .................................50

Card .................................................14, 16

Category ................................................69

Charger ..................................................92

Charging ................................................13

Cleaning .................................................91

Clock Set ...............................................18

Color Mode ............................................65

Condensation ...........................................5

Copy ......................................................80

Date Printing ....................................79, 86

DC Coupler ............................................16

DCF standard ........................................35

Deleting Pictures ....................................36

Demo Mode ...........................................26

Digital Red-eye Correction .....................40

Digital Zoom .....................................33, 65

Display Size ...........................................23

Economy Mode ......................................23

Exposure Compensation .......................44

Extended Optical Zoom .........................33

EZ ................................33, 34, 59, 60, 103

Face Detection .................................29, 63

Favorite ..................................................77

Favorite Play ..........................................70

File Number ...............................24, 83, 90

Film Grain Mode ....................................54

Fine ........................................................60

Fireworks Mode .....................................53

Flash Burst Mode ...................................52

Focus .....................................................32

Focus Icon .............................................23

Folder Composition ................................83

Folder Number ...........................24, 83, 90

Food Mode .............................................49

Formatting ..............................................25

Guideline ................................................38

High Angle .............................................23

High Sensitivity Mode ............................51

Hi-speed Burst Mode .............................52

Intelligent Auto Mode .............................28

Intelligent ISO ........................................61

ISO Sensitivity .......................................61

Jitter .......................................................32

Language Setting ................................... 26

Layout ....................................................87

LCD Mode ..............................................23

LCD Monitor .....................................38, 89

Macro Mode ...........................................42

Macro Zoom Mode .................................42

Motion Picture Mode ..............................55

Multi Playback ........................................35

My Scene Mode .....................................46

DMC-FS7&8&6P-VQT2C70_eng.book 118 ページ２００９年２月１７日　火曜日　午前１１時４９分

119

VQT2C70

Others

Night Portrait Mode ................................49

Night Scenery Mode ..............................49

NO.RESET ............................................24

Normal Picture Mode .............................31

Number of Prints ....................................86

Number of Recordable Pictures .....13, 103

Optical Image Stabilizer .........................65

Optical Zoom .........................................33

Paper Size .............................................87

Party Mode ............................................50

PC ....................................................25, 81

Personal Information ..............................93

Pet Mode ...............................................51

Photo Frame Mode ................................54

PictBridge ..............................................25

Picture Size ............................................59

Playback Pictures on TV ........................88

Playback Zoom ......................................35

Playing Back Motion Pictures ................70

Portrait Mode .........................................47

Power LCD ............................................23

Power Save ...........................................23

Print Mode .............................................84

Print Setting ...........................................78

Protect ...................................................79

Quality ....................................................60

Quick Menu ............................................21

Recording Quality Setting

(Motion Picture Mode) ...........................55

Reset of Setting .....................................24

Resizing .................................................74

Rotate Display .......................................76

Scene Detection ....................................29

Scene Mode ...........................................46

Scenery Mode ........................................48

Self Portrait Mode ..................................48

Self-timer ...............................................43

Setup Menu ...........................................22

Shutter Volume ......................................22

Slide Show .............................................67

Snow Mode ............................................54

Soft Skin Mode ......................................47

Sound ....................................................22

Sports Mode ..........................................49

Standard ................................................60

Starry Sky Mode ....................................53

Status Indicator ................................23, 28

Sunset Mode ..........................................51

Text Stamp ............................................73

Thumbnail ............................................100

Title Edit .................................................72

Transform Mode ....................................48

Travel Date ......................................22, 56

Trimming ................................................75

Tripods ...................................................93

TV Aspect ..............................................25

USB Connection Cable ..........................81

USB Mode .............................................25

Version Display ......................................25

Volume of Speakers ..............................22

White Balance ........................................62

White Set ...............................................63

World Time ......................................22, 58

Zoom ......................................................33

DMC-FS7&8&6P-VQT2C70_eng.book 119 ページ２００９年２月１７日　火曜日　午前１１時４９分

•SDHC Logo is a trademark.

•QuickTime and the QuickTime logo are trademarks or registered trademarks

of Apple Inc., used under license therefrom.

•Microsoft product screen shot(s) reprinted with permission from Microsoft

Corporation.

•Other names, company names, and product names printed in these

instructions are trademarks or registered trademarks of the companies concerned.

One Panasonic Way, Secaucus, NJ 07094

Panasonic Consumer Electronics Company,

Division of Panasonic Corporation of North America

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario, L4W 2T3

 Panasonic Corporation 2009

VQT2C70-1

F0209MH1049

Printed in China

DMC-FS7&8&6P-VQT2C70_eng.book 120 ページ２００９年４月２８日　火曜日　午前１１時２分

Panasonic Dmc Fs6 Operating Instructions

DMC-FS6 - Operating Instructions DMC_FS7 Free User Guide for Panasonic Camera, Manual - page1

Navigation menu

Versions of this User Manual:

Views

Navigation
