Operating Instructions

for advanced features

Digital Camera

Model No. DMC-FT30

Please read these instructions carefully before using this product,

and save this manual for future use.

SQW0305

F1214CT0

- 2 -

Contents

Before Use

Care of the camera ...................................................................................................... 6

(Important) About the Waterproof/Dustproof and Anti-shock Performance of

the Camera................................................................................................................... 8

Standard Accessories............................................................................................... 13

Names and Functions of Main Parts........................................................................ 14

Preparation

Charging the Battery................................................................................................. 16

• Charging ............................................................................................................. 16

• Approximate operating time and number of recordable pictures ........................ 18

Inserting and Removing the Card (optional)/

the Battery.................................................................................................................. 20

About the Built-in Memory/the Card........................................................................ 22

• Approximate number of recordable pictures and available recording time......... 24

Setting Date/Time (Clock Set) .................................................................................. 25

• Changing the Clock Setting ................................................................................ 26

Tips for taking good pictures ................................................................................... 27

• Fit the strap and hold the camera carefully......................................................... 27

• Preventing jitter (camera shake)......................................................................... 27

Basic

Selecting the Recording Mode................................................................................. 28

Taking pictures using the automatic function

(Intelligent Auto Mode) ............................................................................................. 29

• Changing the settings......................................................................................... 31

Taking pictures with your favourite settings

(Normal Picture Mode) .............................................................................................. 32

Focusing .................................................................................................................... 33

Recording Motion Pictures....................................................................................... 35

Playing Back .............................................................................................................. 37

• Displaying Multiple Screens (Multi Playback)..................................................... 38

• Using the Playback Zoom................................................................................... 38

Deleting Pictures ....................................................................................................... 39

• To delete a single picture.................................................................................... 39

• To delete multiple pictures (up to 100) or all the pictures ................................... 39

Setting the Menu ....................................................................................................... 40

• Setting menu items ............................................................................................. 40

• Using the Quick Menu ........................................................................................ 41

About the Setup Menu .............................................................................................. 42

- 3 -

Recording

About the LCD Monitor ............................................................................................. 51

Using the Zoom ......................................................................................................... 52

• Optical Zoom ...................................................................................................... 52

• Extra Optical Zoom (EZ) ..................................................................................... 53

• Intelligent Zoom .................................................................................................. 53

• Digital Zoom........................................................................................................ 53

Taking Pictures Using the Built-in Flash................................................................. 54

• Switching to the appropriate flash setting ........................................................... 54

Taking Close-up Pictures ([AF Macro]/[Macro Zoom])........................................... 58

Taking Pictures with the Self-timer.......................................................................... 59

Compensating the Exposure.................................................................................... 60

Taking Pictures Using Auto Bracket ....................................................................... 61

Taking Pictures with different image effects

(Creative Control Mode)............................................................................................ 62

• [Expressive] ........................................................................................................ 63

• [Retro]................................................................................................................. 63

• [High Key] ........................................................................................................... 63

• [Low Key]............................................................................................................ 63

• [Sepia]................................................................................................................. 64

• [Dynamic Monochrome]...................................................................................... 64

• [Impressive Art]................................................................................................... 64

• [High Dynamic] ................................................................................................... 64

• [Cross Process] .................................................................................................. 65

• [Toy Effect] .......................................................................................................... 65

• [Miniature Effect]................................................................................................. 66

• [One Point Color] ................................................................................................ 66

Take the Outdoors Scene Expressively .................................................................. 67

• [Sports]................................................................................................................ 67

• [Snow]................................................................................................................. 67

• [Beach & Surf]..................................................................................................... 67

• [Advanced Underwater] ...................................................................................... 68

Taking panorama pictures ([Panorama Shot])........................................................ 69

Taking pictures that match the scene being recorded (Scene Mode).................. 72

• [Portrait] .............................................................................................................. 73

• [Soft Skin] ........................................................................................................... 73

• [Scenery]............................................................................................................. 73

• [Night Portrait]..................................................................................................... 74

• [Night Scenery] ................................................................................................... 74

• [Food].................................................................................................................. 74

• [Baby1]/[Baby2] .................................................................................................. 75

• [Pet] .................................................................................................................... 76

• [Sunset]............................................................................................................... 76

• [High Sens.] ........................................................................................................ 76

• [Starry Sky] ......................................................................................................... 76

• [Glass Through] .................................................................................................. 76

- 4 -

Entering Text.............................................................................................................. 77

Using the [Rec] Menu................................................................................................ 78

• [Picture Size]....................................................................................................... 78

• [Sensitivity].......................................................................................................... 79

• [White Balance]................................................................................................... 80

• [AF Mode] ........................................................................................................... 82

• [Face Recog.] ..................................................................................................... 85

• [i.Exposure]......................................................................................................... 89

• [i.Resolution]....................................................................................................... 89

• [Digital Zoom]...................................................................................................... 89

• [Burst] ................................................................................................................. 90

• [Time Lapse Shot]............................................................................................... 92

• [Color Mode] ....................................................................................................... 95

• [Color Reproduction]........................................................................................... 95

• [AF Assist Lamp]................................................................................................. 95

• [Red-Eye Removal]............................................................................................. 96

• [Stabilizer] ........................................................................................................... 96

• [Date Stamp] ....................................................................................................... 97

• [Clock Set] .......................................................................................................... 97

Using the [Motion Picture] Menu ............................................................................. 98

• [Rec Quality] ....................................................................................................... 98

• [Continuous AF].................................................................................................. 98

Playback/Editing

Various methods of playback................................................................................... 99

• [Slide Show]........................................................................................................ 99

• [Filtering Play]................................................................................................... 101

• [Calendar] ......................................................................................................... 104

Having Fun with Recorded Pictures (Retouch) .................................................... 105

• [Auto Retouch].................................................................................................. 105

• [Creative Retouch]............................................................................................ 106

• [Color Reproduction]......................................................................................... 107

Using the [Playback] Menu..................................................................................... 108

• [Text Stamp]...................................................................................................... 108

• [Retouch] ...........................................................................................................110

• [Video Divide].....................................................................................................110

• [Time Lapse Video]............................................................................................111

• [Resize]..............................................................................................................112

• [Cropping] ..........................................................................................................113

• [Favorite]............................................................................................................114

• [Print Set] ...........................................................................................................115

• [Protect] .............................................................................................................117

• [Face Rec Edit] ..................................................................................................118

• [Copy] ................................................................................................................119

- 5 -

Connecting to other equipment

Playing Back Pictures on a TV Screen.................................................................. 120

Saving still pictures and motion pictures on your PC......................................... 122

• About the supplied software ............................................................................. 122

Saving still pictures and motion pictures on a Recorder.................................... 126

• Copy by inserting the SD card into the recorder............................................... 126

Printing the Pictures ............................................................................................... 127

• Selecting a single picture and printing it ........................................................... 128

• Selecting multiple pictures and printing them ................................................... 128

• Print Settings .................................................................................................... 129

Others

Screen Display......................................................................................................... 132

Cautions for Use...................................................................................................... 134

Message Display ..................................................................................................... 142

Troubleshooting ...................................................................................................... 145

- 6 -

Before Use

Care of the camera

∫Handling of the camera (to prevent water leakage and malfunction)

•Foreign objects may adhere to the inner side of the side door (around the

rubber seal or connecting terminals) when the side door is opened or

closed in places with sand or dust etc. This may result in the impairment

of the waterproof performance if the side door is closed with foreign

objects adhered. Be extremely careful since it may result in malfunction

etc.

•In case foreign objects adhere to the inner side of the side door, wipe

them off with a dry, lint-free cloth.

•If any liquid such as water droplets is adhered to the camera or inner side

of the side door, wipe off with a soft dry cloth. Do not open or close the

side door near the water, when underwater, using wet hands, or when the

camera is wet. It may cause water leakage.

Do not apply strong shock or vibration by dropping or knocking the

camera. Also, do not apply strong pressure to the camera.

e.g.:

–Sit down with the camera in your trousers pocket or forcefully insert it into a

full or tight bag, etc.

–Attach any items such as accessories to the strap attached to the camera.

–When strong pressure is applied using the camera at a depth exceeding 8 m (26 feet).

•Waterproof performance may be impaired.

•Lens or LCD monitor may be damaged.

•It may cause malfunction in the performance or the function.

Please be sure to read “(Important) About the Waterproof/Dustproof and Anti-shock

Performance of the Camera” (P8) before using this unit underwater to prevent the unit from

being mishandled, which may cause water to seep in.

- 7 -

Before Use

∫When inner side of the lens is fogged (condensation)

It is not a malfunction or failure of the camera. It may be caused

by the environment in which the camera is used.

What to do when inner side of the lens is fogged

•Turn this unit off and open the side door in a place with constant ambient

temperature, away from high temperatures, humidity, sand and dust. The

fog will disappear naturally in 10 minutes to 2 hours with the side door open when the temperature of

the camera gets close to the ambient temperature.

•Contact Panasonic if the fogging does not disappear.

Conditions in which inner side of the lens may be fogged

Condensation may occur and the inner side of the lens may be fogged when the camera is

used in areas that undergo a significant change in temperature or in high humidity, such as the

following:

•When the camera is used underwater suddenly after being on a hot beach etc.

•When the camera is moved to a warm area from a cold area, such as at a ski resort or at high

altitude

•When the side door is opened in a high-humidity environment

- 8 -

Before Use

(Important) About the Waterproof/Dustproof and

Anti-shock Performance of the Camera

This does not guarantee no destruction, no malfunction, or waterproofing in all

conditions.

¢1 This means that the camera can be used underwater for specified time in specified pressure in

accordance with the handling method established by Panasonic.

¢2 “MIL-STD 810F Method 516.5-Shock” is the test method standard of the U.S. Defense

Department, which specifies performing drop tests from a height of 122 cm (4 feet), at

26 orientations (8 corners, 12 ridges, 6 faces) using 5 sets of devices, and passing the

26 orientation drops within 5 devices. (If failure occurs during the test, a new set is used to pass

the drop orientation test within a total of 5 devices)

Panasonic’s test method is based on the above “MIL-STD 810F Method 516.5-Shock”. However,

the drop height was changed from 122 cm (4 feet) to 150 cm (5 feet) dropping onto 3 cm

(0.1 feet) thick plyboard. This drop test was passed.

(Disregarding appearance change such as loss of paint or distortion of the part where drop impact

is applied.)

Waterproof/Dustproof Performance

This camera’s waterproof/dustproof rating complies with the “IPX8” and “IP6X”

ratings. Provided the care and maintenance guidelines described in this document

are strictly followed, this camera can operate underwater, to a depth not exceeding

8 m (26 feet) for a time not exceeding 60 minutes. (¢1)

Anti-shock Performance

This camera also complies with “MIL-STD 810F Method 516.5-Shock”. The camera

has cleared a drop test from a height of 1.5 m (5 feet) onto 3 cm (0.1 feet) thick

plywood. In most cases this camera should not sustain any damage if dropped from a

height not exceeding 1.5 m (5 feet). (¢2)

- 9 -

Before Use

∫Handling of the camera

•Waterproofing is not guaranteed if the unit is subject to an impact as a result of being hit or dropped

etc. If an impact to the camera occurs, it should be inspected (subject to a fee) by Panasonic to

verify that the waterproofing is still effective.

•When the camera is splashed with detergent, soap, hot spring, bath additive, sun oil, sun screen,

chemical, etc., wipe it off immediately.

•Waterproof function of the camera is for sea water and fresh water only.

•Any malfunction caused by customer misuse, or mishandling will not be covered by the warranty.

•The inside of this unit is not waterproof. Water leakage will cause malfunction.

•Supplied accessories are not waterproof.

•Card and battery are not waterproof. Do not handle with a wet hand. Also, do not insert wet card or

battery into the camera.

•Do not leave the camera for a long period of time in places where the temperature is very low (such

as at ski resorts or high altitudes) or where the temperature may exceed 40 ºC (104 oF) (such as

inside cars in strong sunlight, close to a heater, on boats, or on the beach). (Waterproof performance

may become degraded.)

∫About the [Precautions] demonstration display

([Requirements for Underwater use])

•[Precautions] is displayed when this unit is turned on for the first time after purchase, with the side

door completely closed.

•Please check beforehand to maintain the waterproof performance.

1Press 2 to select [Yes], and press [MENU/SET].

•It will automatically skip to the clock setting screen if [No] is selected before it starts.

2Press 2/1 to select the picture.

•It can be forcefully ended by pressing [MENU/SET].

•When it is forcefully ended while checking by turning the unit off or pressing [MENU/SET],

[Precautions] is displayed every time this unit is turned on.

3After the final screen (12/12), press [MENU/SET] to finish.

•When [MENU/SET] is pressed after the final screen (12/12), [Precautions] is not displayed from

the next time this unit is turned on.

•This can also be viewed from [Precautions] (P42) in the [Setup] menu.

2: Return to the previous screen

1: View the next screen

- 10 -

Before Use

1Check that there are no foreign objects on the inner side of the side door.

•If there is any foreign object, such as lint, hair, sand, etc., on the surrounding area, water will

leak within a few seconds causing malfunction.

•Wipe it off with a dry soft cloth if there is any liquid.

It may cause water leaks and malfunction if you use the camera with liquid adhered.

•If foreign objects are present, wipe them off with a dry, lint-free cloth.

•Be extremely careful to remove the small sand etc. that may adhere to the sides and corners of

the rubber seal.

2Check for cracks and deformation of the rubber seal on the side door.

•The integrity of the rubber seals may decrease after about 1 year, with use and age. To avoid

permanently damaging the camera the seals should be replaced once each year. Please

contact Panasonic for related costs and other information.

3Close the side door securely.

A[LOCK] switch (grey part)

BRed part

CReleased state

DLocked state

•Lock the [LOCK] switch securely until the

red part is no longer visible.

•To prevent water intrusion, be careful not to

catch foreign objects such as liquids, sand,

hair, dust, or the strap cord.

Check before using underwater

Always wipe the rubber seal on the side door and the area where rubber seal sits with

a dry, lint-free cloth.

Do not open or close the side door in places with sand and dust, close to water, or with

wet hands. Sand or dust adhering may cause water leaks.

ロヰヤレ

- 11 -

Before Use

•Use the camera underwater to 8 m (26 feet) with the water temperature between 0 oC and 40 oC

(32 oF and 104 oF).

•Do not use for scuba diving (Aqualung).

•Do not use the camera at a depth of over 8 m (26 feet).

•Do not use it in the hot water over 40 oC (104 oF) (in the bath or hot spring).

•Do not use the camera underwater for longer than 60 minutes continuously.

•Do not open or close the side door underwater.

•Do not apply shock to the camera underwater. (Waterproof performance may not be maintained, and

there is a chance of water leak.)

•Do not dive into the water holding the camera. Do not use the camera in a location where the water

will splash strongly, such as rapid flow or waterfall. (Strong water pressure may be applied, and it

may cause malfunction.)

•The camera will sink in the water. Take care not to drop the camera and lose it underwater by

securely placing the strap around your wrist or similar measure.

1Rinse with water with the side door closed.

•After use at the seaside or underwater, soak the unit in fresh

water pooled in a shallow container for 10 minutes or less.

•If the zoom button or camera [ON/OFF] button do not press

smoothly, it may be caused by an adhesion of foreign objects.

Using in such a state may cause malfunctions, such as

locking up, so wash off any foreign objects by shaking the

camera in fresh water.

•Bubbles may come out of the drainage hole when you

immerse the camera in water, but this is not a malfunction.

Using the camera underwater

Caring of the camera after using it underwater

Do not open or close the side door until the sand and dust is removed by rinsing the

camera with water.

Make sure to clean the camera after using it.

•Thoroughly wipe off any water droplets, sand, and saline matter on your hands, body, hair, etc.

•It is recommended to clean the camera indoors, avoiding places where water spray or sand may

fall.

After using it underwater, always clean the camera rather than leaving it in a dirty state.

•Leaving the camera with foreign objects or saline matter on it may cause damage, discolouration,

corrosion, unusual odour, or deterioration of the waterproof performance.

- 12 -

Before Use

2Drain water by holding the camera upside-down A and the right way up B and

shaking it lightly a few times.

•After using the camera at the beach or in water, or after washing it, water may remain around

the speaker and microphone for a while and may cause a drop in volume or sound distortion.

•Make sure to put your hand through the strap to prevent the camera from falling.

3Wipe off water drops on the camera with a dry

soft cloth and dry the camera in a shaded area

which is well ventilated.

•Dry the camera by standing it on a dry cloth. This

unit incorporates drain design, draining water in

gaps in the camera [ON/OFF] button and zoom

button etc.

•Do not dry the camera with hot air from dryer or

similar. Waterproof performance will deteriorate due to deformation.

•Do not use chemicals such as benzine, thinner, alcohol or cleanser, soap or detergents.

4Confirm that there are no water droplets, open the side door, and wipe off any water

droplets or sand left inside using a soft dry cloth. (P137)

•Water droplets may adhere to the card or battery when the side door is opened without

thoroughly drying. Also, water may accumulate in the gap around the card/battery slot or the

terminal connector. Be sure to wipe any water off with a soft dry cloth.

•The water droplets may seep into the camera when the side door is closed while it is still wet,

causing condensation or failure.

- 13 -

Before Use

Standard Accessories

Check that all the accessories are supplied before using the camera.

•Supplied accessories are not waterproof.

•The accessories and their shape will differ depending on the country or area where the camera was

purchased.

For details on the accessories, refer to “Basic Operating Instructions”.

•Battery Pack is indicated as battery pack or battery in the text.

•Battery Charger is indicated as battery charger or charger in the text.

•SD Memory Card, SDHC Memory Card and SDXC Memory Card are indicated as card in the text.

•The card is optional.

You can record or play back pictures on the built-in memory when you are not using a card.

- 14 -

Before Use

Names and Functions of Main Parts

1Flash (P54)

2 Motion picture button (P35)

3 Shutter button (P29, 32)

4 Camera [ON/OFF] button (P25)

5 Microphone

6 Self-timer indicator (P59)/

AF Assist Lamp (P95)/

LED light (P47)

7 Lens (P7, 138, 148)

8 LCD monitor (P51, 132, 137)

9 [MODE] button (P28, 99)

10 Zoom button (P52)

11 Strap eyelet (P27)

•Be sure to attach the strap when using the

camera to ensure that you will not drop it.

12 [(] (Playback) button (P37)

13 [Q.MENU] button (P41)/

[ ] (Delete/Cancel) button (P39)

14 [DISP.] button (P51)

15 [MENU/SET] button (P40)

16 Cursor buttons

A: 3/Exposure compensation (P60)

Auto Bracket (P61)

B: 4/Macro Mode (P58)

AF Tracking (P84)

C: 2/Self-timer (P59)

D: 1/Flash setting (P54)

In these operating instructions, the cursor buttons are described as shown in the figure

below or described with 3/4/2/1.

e.g.: When you press the 4 (down)

button

or Press 4

2134567

891011

15 14

- 15 -

Before Use

17 Speaker (P44)

•Be careful not to cover the speaker with your

finger. Doing so may make sound difficult to

hear.

18 Tripod mount

•A tripod with a screw length of 5.5 mm

(0.22 inch) or more may damage this unit if

attached.

19 [AV OUT/DIGITAL] socket (P120, 124, 126,

127)

20 Card slot (P20)

21 Battery slot (P20)

•When using an AC adaptor, ensure that the

Panasonic DC coupler (optional) and AC

adaptor (optional) are used. For connection

details, refer to P21.

22 Release lever (P20)

23 [LOCK] switch (P10, 20)

24 Side door (P10, 20)

17 1817 1817 18

ャモヵヵユンヺ

モヷチヰヶヵバチュリヨリヵモロ

ヤモンュ

ロヰヤレ

- 16 -

Preparation

Charging the Battery

∫About batteries that you can use with this unit

•Use the dedicated charger and battery.

•The battery is not charged when the camera is shipped. Charge the battery before use.

•Charge the battery with the charger indoors.

•Charge the battery in areas with an ambient temperature, between 10 oC and 30 oC (50 oF and

86 oF) (same as the battery temperature), is recommended.

It has been found that counterfeit battery packs which look very similar to the

genuine product are made available for purchase in some markets. Some of these

battery packs are not adequately protected with internal protection to meet the

requirements of appropriate safety standards. There is a possibility that these battery

packs may lead to fire or explosion. Please be advised that we are not liable for any

accident or failure occurring as a result of use of a counterfeit battery pack. To

ensure that safe products are used. We recommend that a genuine Panasonic battery

pack is used.

Charging

Attach the battery paying attention to the

direction of the battery.

Connect the charger to the electrical outlet.

•The [CHARGE] indicator A lights up and charging

begins.

plug-in type

inlet type

- 17 -

Preparation

∫About the [CHARGE] indicator

•When the [CHARGE] indicator flashes

–The battery temperature is too high or too low. It is recommended to charge the battery again in an

ambient temperature of between 10 oC and 30 oC (50 oF and 86 oF).

–The terminals of the charger or the battery are dirty. In this case, wipe off the dirt with a dry cloth.

∫Charging time

•The indicated charging time is for when the battery has been discharged completely. The

charging time may vary depending on how the battery has been used. The charging time for

the battery in hot/cold environments or a battery that has not been used for a long time may

be longer than normal.

∫Battery indication

The battery indication is displayed on the LCD monitor.

•The indication turns red and blinks if the remaining battery power is low. Recharge the battery or

replace it with a fully charged battery.

•Do not leave any metal items (such as clips) near the contact areas of the power plug.

Otherwise, a fire and/or electric shocks may be caused by short-circuiting or the resulting

heat generated.

•The battery becomes warm after using it and during and after charging. The camera also becomes

warm during use. This is not a malfunction.

•The battery can be recharged even when it still has some power left, but it is not recommended that

the battery charge be frequently topped up while the battery is fully charged. (Since characteristic

swelling may occur.)

On: Charging.

Off: Charging has completed. (Disconnect the charger from the electrical socket and

detach the battery after charging is completed.)

Charging time Approx. 120 min

- 18 -

Preparation

∫Recording still pictures

Recording conditions by CIPA standard

•CIPA is an abbreviation of [Camera & Imaging Products Association].

•Temperature: 23 oC (73.4 oF)/Humidity: 50%RH when LCD monitor is on.

•Using a Panasonic SD Memory Card (32 MB).

•Using the supplied battery.

•Starting recording 30 seconds after the camera is turned on. (When the Optical Image Stabiliser

function is set to [ON].)

•Recording once every 30 seconds using full flash every second recording.

•Changing the zoom magnification from Tele to Wide or vice versa in every recording.

•Turning the camera off every 10 recordings and leaving it until the temperature of the battery

decreases.

The number of recordable pictures varies depending on the recording interval time. As

the recording interval time becomes longer, the number of recordable pictures

decreases. [For example, if you were to take one picture every two minutes, then the

number of pictures would be reduced to approximately one-quarter of the number of

pictures given above (based upon one picture taken every 30 seconds).]

∫Recording motion pictures

When recording with picture quality set to [HD]

•These times are for an ambient temperature of 23 oC (73.4 oF) and a humidity of 50%RH. Please be

aware that these times are approximate.

•Actual recordable time is the time available for recording when repeating actions such as turning this

unit on and off, starting/stopping recording, zoom operation, etc.

•Maximum time to record motion pictures continuously is 29 minutes 59 seconds. The maximum

available recording time continuously is displayed on the screen.

Approximate operating time and number of recordable pictures

Number of recordable

pictures Approx. 250 pictures By CIPA standard in Normal

Picture Mode

Recording time Approx. 125 min

Recordable time Approx. 100 min

Actual recordable time Approx. 50 min

- 19 -

Preparation

∫Playback

•The operating times and number of recordable pictures will differ according to the

environment and the operating conditions.

For example, in the following cases, the operating times will shorten and the number of recordable

pictures is reduced:

–At low temperature or in cold locations such as ski resorts or at high altitude¢

¢Residual image may show on the LCD display when in use. The battery performance will

decrease, so keep the camera and spare batteries warm by placing them in a warm place

such as inside your cold protection gear or clothing. Performance of batteries and LCD

monitor will restore to normal when the temperature returns to normal.

–When using [Monitor Luminance].

–When operations such as flash and zoom are used repeatedly.

•When the operating time of the camera becomes extremely short even after properly charging the

battery, the life of the battery may have expired. Buy a new battery.

Playback time Approx. 240 min

- 20 -

Preparation

Inserting and Removing the Card (optional)/

the Battery

•Check that this unit is turned off.

•Confirm that there is no foreign object. (P10)

•We recommend using a Panasonic card.

1: Slide the [LOCK] switch A, and release

the lock.

2: Slide the release lever B and open the

side door.

•Always use genuine Panasonic batteries.

•If you use other batteries, we cannot guarantee the quality of this product.

Battery: Being careful about the battery

orientation, insert all the way until you hear

a locking sound and then check that it is

locked by lever C. Pull the lever C in the

direction of the arrow to remove the

battery.

Card: Push it securely all the way until you

hear a “click” while being careful about the

direction in which you insert it. To remove the card, push the card until it

clicks, then pull the card out upright.

D: Do not touch the connection terminals of the card.

Close the side door until it clicks, and then lock

the [LOCK] switch by sliding it toward [

•Confirm that the red part on the [LOCK] switch is not

showing.

ロヰヤレ

- 21 -

Preparation

•Remove the battery after use. (The battery will be exhausted if left for a long period of time after

being charged.)

•Turn the camera off and wait for the “LUMIX” display on the LCD monitor to clear before removing

the card or battery. (Otherwise, this unit may no longer operate normally and the card itself may be

damaged or the recorded pictures may be lost.)

∫About the water leakage warning message

To maintain the waterproof performance of this unit, a message prompting to check for any

foreign material inside the side door or to perform maintenance is displayed along with a

warning sound when the following are performed. (P144)

•When this unit is turned on after opening the side door and replacing the card.

•When this unit is turned on after opening the side door and replacing the battery.

•After opening the side door, close it securely taking care not to get any foreign objects caught.

•If foreign objects are present, wipe them off with a dry, lint-free cloth.

•Warning message display can be turned off by pressing any button.

The AC adaptor (optional) can only be used with the designated

Panasonic DC coupler (optional). The AC adaptor (optional)

cannot be used by itself.

1Open the side door A.

2Insert the DC coupler, being careful of the direction.

3Plug the AC adaptor into an electrical outlet.

4Connect the AC adaptor B to the [DC IN] socket C of the DC

coupler.

•Ensure that only the AC adaptor and DC coupler for this camera are

used. Using any other equipment may cause damage.

•Always use a genuine Panasonic AC adaptor (optional).

•When using an AC adaptor, use the AC cable supplied with the AC adaptor.

•Side door cannot be closed while the AC adaptor is connected.

•Do not apply any force to the side door with the weight of the cable or your hand when the AC

adaptor is connected. It may cause damage.

•The DC coupler may get disconnected from this unit if a cable is pulled when connecting the

AC adaptor, so take caution.

•Before removing the DC coupler, turn the camera off and disconnect the AC adaptor.

•Also read the operating instructions for the AC adaptor and DC coupler.

•Waterproof/dustproof function does not operate when the AC adaptor is connected.

Using an AC adaptor (optional) and a DC coupler (optional) instead of the battery

- 22 -

Preparation

About the Built-in Memory/the Card

•You can copy the recorded pictures to a card. (P119)

•Memory size: Approx. 220 MB

•The access time for the built-in memory may be longer than the access time for a card.

The following cards, which conform to the SD video standard, can be used with this unit.

(These cards are indicated as card in the text.)

•Please confirm the latest information on the following website.

http://panasonic.jp/support/global/cs/dsc/

(This site is English only.)

The following operations can be performed using this unit:

When a card has not been

inserted

Pictures can be recorded on the built-in memory and played

back.

When a card has been inserted Pictures can be recorded on the card and played back.

•When using the built-in memory

k>ð (access indication¢)

•When using the card

(access indication¢)

¢The access indication is displayed in red when pictures are being recorded on the

built-in memory (or the card).

Built-in Memory

Card

Remarks

SD Memory Card

(8 MB to 2 GB)

•Use a card with SD Speed Class¢ with “Class 4” or higher

when recording motion pictures.

•SDHC Memory Cards and SDXC Memory Cards can be used only

with their compatible devices.

•Check that the PC and other equipment are compatible when using

the SDXC Memory Cards.

http://panasonic.net/avc/sdcard/information/SDXC.html

•Only the cards with capacity listed left can be used.

SDHC Memory Card

(4 GB to 32 GB)

SDXC Memory Card

(48GB, 64GB)

¢SD Speed Class is the speed standard regarding continuous

writing. Check via the label on the card, etc.

e.g.:

- 23 -

Preparation

•Do not turn this unit off, remove its battery or card, or disconnect the AC adaptor (optional)

when the access indication is lit (when pictures are being written, read or deleted, or the

built-in memory or the card is being formatted). Furthermore, do not subject the camera to

vibration, impact or static electricity.

The card or the data on the card may be damaged, and this unit may no longer operate

normally.

If operation fails due to vibration, impact or static electricity, perform the operation again.

•Write-Protect switch A provided (When this switch is set to the [LOCK] position, no

further data writing, deletion or formatting is possible. The ability to write, delete and

format data is restored when the switch is returned to its original position.)

•The data on the built-in memory or the card may be damaged or lost due to

electromagnetic waves, static electricity or breakdown of the camera or the card. We

recommend storing important data on a PC etc.

•Do not format the card on your PC or other equipment. Format it on the camera only to ensure

proper operation. (P50)

•Keep the Memory Card out of reach of children to prevent swallowing.



- 24 -

Preparation

∫About the display of the number of recordable pictures and available recording time

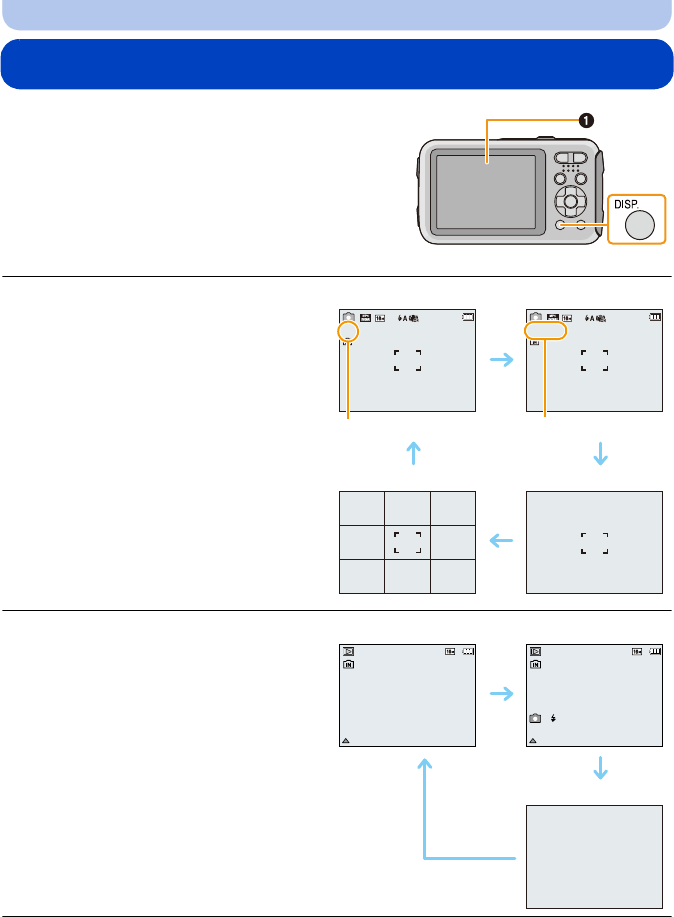

•Switch the display (number of recordable pictures, available recording time, etc.) by pressing

[DISP.]. (P51)

•The number of recordable pictures and the available recording time are an approximation. (These

vary depending on the recording conditions and the type of card.)

•The number of recordable pictures and the available recording time varies depending on the

subjects.

∫Number of recordable pictures

•[i99999] is displayed if there are more than 100,000 pictures remaining.

∫Available recording time (when recording motion pictures)

•“h” is an abbreviation for hour, “m” for minute and “s” for second.

•The recordable time is the total time of all the motion pictures which have been recorded.

•Maximum time to record motion pictures continuously is 29 minutes 59 seconds.

•The maximum available continuous recording time is displayed on the screen.

Approximate number of recordable pictures and available recording time

ANumber of recordable pictures

BAvailable recording time

[Picture Size] Built-in Memory

(Approx. 220 MB) 2GB 32 GB 64 GB

16M (4:3) 34 300 4910 9880

5M (4:3) 76 660 10620 21490

0.3M (4:3) 1170 10240 162960 247160

[Rec Quality] Built-in Memory

(Approx. 220 MB) 2GB 32 GB 64 GB

HD j23m45s 6h28m15s 13h5m20s

VGA 5m52s 52m17s 14h14m28s 28h48m24s

R1m10s

- 25 -

Preparation

Setting Date/Time (Clock Set)

•The clock is not set when the camera is shipped.

Press camera [ON/OFF] button.

•If the language select screen is not displayed,

proceed to [Requirements for Underwater use]

below.

Press [MENU/SET].

Press 3/4 to select the language, and press [MENU/SET].

Press [MENU/SET].

[Requirements for Underwater use]

Be sure to check this so that you can maintain the waterproof performance.

[Please set the clock] is displayed after viewing the last screen.

For details, refer to P9.

- 26 -

Preparation

Press 2/1 to select the items (year, month,

day, hour, minute, display sequence or time

display format), and press 3/4 to set.

A: Time at the home area

B: Time at the travel destination

•You can cancel without setting the clock by pressing

[].

Press [MENU/SET] to set.

Press [MENU/SET].

Select [Clock Set] in the [Rec] or [Setup] menu, and press [MENU/SET]. (P40)

•The clock can be reset as shown in steps 5 and 6.

•The clock setting is maintained for 3 months using the built-in clock battery even without the

battery. (Leave the charged battery in the unit for 24 hours to charge the built-in battery.)

•If the clock is not set, the correct date cannot be printed when you order a photo studio to print the

picture, or when you stamp the date on the pictures with [Date Stamp] or [Text Stamp].

•If the clock is set, the correct date can be printed even if the date is not displayed on the screen of

the camera.

Changing the Clock Setting

- 27 -

Preparation

Tips for taking good pictures

Hold the camera gently with both hands, keep your arms still at your side and

stand with your feet slightly apart.

•To prevent dropping, be sure to attach the supplied strap and fit it to your wrist. (P14)

•Do not swing around or pull forcefully on the unit with the strap attached. The strap may break.

•Be careful not to move the camera when you press the shutter button.

•Be careful not to put your fingers on the flash, AF assist lamp/LED light, microphone, speaker or lens

etc.

AStrap

BSpeaker

CFlash

DMicrophone

EAF Assist Lamp/LED light

∫Direction Detection Function ([Rotate Disp.])

Pictures recorded with the camera held vertically are played back vertically (rotated). (Only

when [Rotate Disp.] (P49) is set)

•When the camera is held vertically and tilted up and down to record pictures, the Direction Detection

function may not work correctly.

•Motion pictures taken with the camera held vertically are not displayed vertically.

When the Jitter alert [ ] appears, use [Stabilizer] (P96), a tripod or the Self-timer (P59).

•Shutter speed will be slower particularly in the following cases. Keep the camera still from the

moment the shutter button is pressed until the picture appears on the screen. We recommend using

a tripod.

–Slow sync./Red-Eye Reduction

–[Night Portrait]/[Night Scenery]/[Starry Sky](Scene Mode)

Fit the strap and hold the camera carefully

Preventing jitter (camera shake)

- 28 -

Basic

Selecting the Recording Mode

∫List of Recording Modes

•When the mode has been switched from Playback Mode to Recording Mode, the previously set

Recording Mode will be set.

Press [MODE].

Press 3/4/2/1 to select the Recording Mode.

Press [MENU/SET].

Intelligent Auto Mode (P29) Beach & Surf Mode (P67)

The subjects are recorded using settings

automatically selected by the camera.

This mode is optimal for taking pictures to

3 m (10 feet) underwater and at the beach.

Normal Picture Mode (P32) Advanced Underwater Mode (P68)

The subjects are recorded using your own

settings.

This mode is optimal for taking pictures at

depths of 3 m (10 feet) to 8 m (26 feet).

Creative Control Mode (P62) Panorama Shot Mode (P69)

Record while checking the image effect. This mode allows you to take panorama

pictures.

Sports Mode (P67) Scene Mode (P72)

Use this mode to take pictures of sporting

events, etc.

This allows you to take pictures that match

the scene being recorded.

Snow Mode (P67)

This allows you to take pictures that show

the snow as white as possible at a ski resort

or a snow-covered mountain.

- 29 -

Basic

Taking pictures using the automatic function

(Intelligent Auto Mode)

Recording Mode:

The camera will set the most appropriate settings to match the subject and the recording

conditions so we recommend this mode for beginners or those who want to leave the settings

to the camera and take pictures easily.

•The following functions are activated automatically.

–Scene Detection/Backlight Compensation/Intelligent ISO sensitivity control/Auto White Balance/

Face Detection/[i.Exposure]/[i.Resolution]/[i.ZOOM]/[AF Assist Lamp]/[Red-Eye Removal]/

[Stabilizer]/[Continuous AF]

Press [MODE].

AShutter button

Press 3/4/2/1 to select [Intelligent Auto], and

then press [MENU/SET].

Press the shutter button halfway to focus.

•The focus indication B (green) lights when the subject is

focused.

•The AF area C is displayed around the subject’s face by the

Face Detection function. In other cases, it is displayed at the

point on the subject which is in focus.

• The minimal distance (how close you can be to the

subject) will change depending on the zoom factor.

Please check with the recordable range display on the

screen. (P33)

•If you press 3 while [AF Tracking] is displayed, you can set

AF tracking. For details, refer to P84. (AF tracking is

cancelled by pressing 3 again)

Press the shutter button fully (push it in

further), and take the picture.

- 30 -

Basic

When the camera identifies the optimum scene, the icon of the scene concerned is displayed in

blue for 2 seconds, after which its colour changes to the usual red.

When taking pictures

When recording motion pictures

•[¦] is set if none of the scenes are applicable, and the standard settings are set.

•When [ ], [ ] or [ ] is selected, the camera automatically detects a person’s face, and it will

adjust the focus and exposure. (Face Detection)

•If a tripod is used, for instance, and the camera has judged that camera shake is minimal when the

Scene Mode has been identified as [ ], the shutter speed will be set to a maximum of 8 seconds.

Take care not to move the camera while taking pictures.

•When [Face Recog.] is set to [ON], and the face similar to the registered face is detected, [R] is

displayed in the top right of [ ], [ ] and [ ].

•Due to conditions such as the ones below, a different scene may be identified for the same subject.

–Subject conditions: When the face is bright or dark, the size of the subject, the colour of the

subject, the distance to the subject, the contrast of the subject, when the subject is moving

–Recording conditions: Sunset, sunrise, under low brightness conditions, underwater, when the

camera is shaken, when zoom is used

•For the best results, it is recommended that you take pictures in the appropriate Recording Mode.

•Face Detection may become slower or it may not detect underwater.

When there is a backlight, the subject appears darker and the camera will automatically

attempt to correct it by increasing the brightness of the picture.

In Intelligent Auto Mode, backlight compensation works automatically. The [ ] is displayed on

the screen when backlighting is detected. (Depending on the backlighting conditions,

backlighting may not be detected correctly.)

Scene Detection

¦>[i-Portrait] [i-Scenery]

[i-Macro] [i-Night Portrait]¢1

[i-Night Scenery] [i-Sunset]

[i-Baby]¢2

¢1 Only when [ ] is selected.

¢2 When [Face Recog.] is set to [ON], [ ] will be displayed for birthdays of registered

faces already set only when the face of a person 3 years old or younger is detected.

¦>[i-Portrait] [i-Scenery]

[i-Low Light] [i-Macro]

The Backlight Compensation

- 31 -

Basic

Following menus can be set.

•For the setting method of the menu, refer to P40.

¢Settings may be different from other Recording Modes.

•Colour setting of [Happy] is available in [Color Mode]. It is possible to automatically take a picture

with a higher level of brilliance for the colour brightness and vividness.

•When [ ] is selected, [ ], [ ], [ ] or [ ] is set depending on the type of subject and

brightness.

•When [ ], [ ] is set, Red-Eye Removal is enabled.

•Shutter speed will be slower during [ ] or [ ].

Changing the settings

Menu Item

[Rec] [Picture Size]¢/[Burst]¢/[Time Lapse Shot]/[Color Mode]¢/[Face

Recog.]

[Motion Picture] [Rec Quality]

[Setup] [Clock Set]/[World Time]/[Beep]¢/[LED Light]/[Language]/

[Stabilizer Demo.]

•Menu items other than those listed above are not displayed, but you

can set them in other Recording Modes.

[Color Mode]

About the flash (P54)

- 32 -

Basic

Taking pictures with your favourite settings

(Normal Picture Mode)

Recording Mode:

The camera automatically sets the shutter speed and the aperture value according to the

brightness of the subject.

You can take pictures with greater freedom by changing various settings in the [Rec] menu.

Press [MODE].

AShutter button

Press 3/4/2/1 to select [Normal

Picture], and then press [MENU/SET].

Aim the AF area at the point you want to focus on.

Press the shutter button halfway to focus

and then press it fully to take the picture.

BISO sensitivity

CAperture value

DShutter speed

•Aperture value and shutter speed is displayed in red

when correct exposure is not achieved. (Exclude

when using a flash)

ISO

1/601/601/60

F3.9F3.9F3.9

B C D

- 33 -

Basic

Focusing

Aim the AF area at the subject, and then press the

shutter button halfway.

•The AF area may be displayed larger for certain zoom magnifications and in dark places.

∫About focus range

The focus range is displayed when operating the zoom.

•The focus range is displayed in red when it is not focused after pressing

the shutter button halfway.

The focus range may change gradually depending on the zoom

position.

e.g.: Range of focus during the Normal Picture Mode

Focus When the subject is focused When the subject is not

focused

Focus indication AOn Blinks

AF area BWhite>Green White>Red

Sound Beeps 2 times Beeps 4 times

ISO

1/601/601/60

F3.9F3.9F3.9

0.5m

∞

1 m (3.3 feet)

50 cm (1.6 feet)

- 34 -

Basic

∫When the subject is not in focus (such as when it is not in the centre of the

composition of the picture you want to take)

1Aim the AF area at the subject, and press the

shutter button half way to fix the focus and

exposure.

2Press and hold the shutter button half way

while moving the camera as you compose the

picture.

•You can repeatedly retry the actions in step 1 before pressing the shutter button fully.

∫Subject and recording conditions which are difficult to focus in

•Fast-moving subjects, extremely bright subjects or subjects without contrast

•When recording subjects through windows or near shiny objects

•When it is dark or when jitter occurs

•When the camera is too close to the subject or when taking a picture of both distant and near

subjects

- 35 -

Basic

Recording Motion Pictures

Applicable modes:

Start recording by pressing the motion

picture button.

AAvailable recording time

BElapsed recording time

•You can record motion pictures fitting each Recording Mode.

•Release the motion picture button right after you press it.

•The recording state indicator (red) C will flash while recording motion

pictures.

•When recording with [Rec Quality] set to [HD], “Active Mode”

(stabiliser for motion pictures) will work automatically. For more

details, refer to [Stabilizer] (P96).

•For the setting of [Rec Quality], refer to P98.

Stop the recording by pressing the motion picture button again.

∫About the recording format for recording motion pictures

This unit can record motion pictures in MP4 format.

MP4:

This is a simpler video format best used when extensive editing is needed, or when uploading

videos to online services.

∫About the compatibility of the recorded motion pictures

Even if a compatible MP4 playback device is used, the video or sound quality of the recorded

motion pictures may be poor, or they may not be able to be played. There may also be times

when the recorded data is not displayed properly. If you experience such issues, please play

back the video on this camera.

•For details on MP4 compatible devices, refer to the support sites below.

http://panasonic.jp/support/global/cs/dsc/

(This Site is English only.)

3s3s3s

1m07s

- 36 -

Basic

•When recording to the built-in memory, [Rec Quality] is fixed to [VGA].

•The available recording time displayed on the screen may not decrease regularly.

•Depending on the type of the card, the card access indication may appear for a while after recording

motion pictures. This is not a malfunction.

•The screen may be blacked out momentarily, or the unit may record noise due to static electricity or

electromagnetic waves etc. depending on the environment of the motion picture recording.

•Even if the aspect ratio setting is the same in still pictures and motion pictures, the angle of view may

change at the start of the motion picture recording.

When [Video Rec Area] (P46) is set to [ON], angle of view during motion picture recording is

displayed.

•About zooming while recording motion pictures

–If the Extra Optical Zoom are used before pressing the motion picture button, those settings will be

cleared, so the shooting range will change dramatically.

–If you operate the zoom etc. while recording motion pictures, the sound of the operation may be

recorded.

–The zoom speed will be slower than usual when recording motion pictures.

–Operating the zoom while recording motion pictures can take time for the image to come into

focus.

•If you end motion picture recording after a short time when using [Miniature Effect] of the Creative

Control Mode, the camera may go on recording for a certain period. Please continue to hold the

camera until the recording finishes.

•Noise may be recorded underwater.

•It is recommended to use a fully charged battery or AC adaptor (optional) when recording motion

pictures.

•If while recording motion pictures using the AC adaptor (optional) and the power supply is cut off due

to a power outage or if the AC adaptor (optional) is disconnected, etc., the motion picture being

recorded will not be recorded.

•Motion pictures cannot be recorded in the following case.

–When using [Time Lapse Shot]

•A sound might be muffed or warped when there is water on the microphone or the speaker. Wipe the

residue after letting the water drip out from the microphone and speaker by tipping it down, and use

it only after letting it dry for a while. (P138)

•It will be recorded in following categories for certain Recording Modes. A motion picture recording

matching each Recording Mode will be performed for the ones not listed below.

Selected Recording Mode Recording Mode while recording motion picture

•[Baby1]/[Baby2] (Scene Mode) Portrait Mode

•[Night Portrait]/[Night Scenery]/

[Starry Sky] (Scene Mode) Low Light Mode

•[Sports]

•[Pet] (Scene Mode) Normal motion picture

- 37 -

Basic

Playing Back

∫Playing Back Motion Pictures

Select a picture with a Motion Picture icon (such as [ ]),

and then press 3 to play back.

AMotion picture icon

BMotion picture recording time

•If you have filtered images for playback by using [Slide Show]

(P99)

or [Filtering Play] (P101), the selection screen appears.

Press 3/4 to select [Play Video], and then press [MENU/SET].

•After playback starts, the elapsed playback time is displayed on

the screen.

For example, 8 minutes and 30 seconds is displayed as [8m30s].

•Operations performed during Motion Picture Playback

Press [(].

Press 2/1 to select pictures.

AFile number

BPicture number

•If you press and hold 2/1, you can play back the pictures in

succession.

•Speed of picture Forwarding/Rewinding changes depending

on the playback status.

3Play/Pause

4Stop

2Fast rewind¢/

Frame-by-frame rewind (while pausing)

1Fast forward¢/

Frame-by-frame forward (while pausing)

¢The fast forward/rewind speed increases if you press 1/2 again.

–You can adjust the volume with the zoom button.

100-0001100-0001100-0001

1/51/ 5

3s3s3s

- 38 -

Basic

•If you turn on the camera by pressing and holding [(], playback starts automatically.

•This camera complies with the DCF standard “Design rule for Camera File system” established by

JEITA “Japan Electronics and Information Technology Industries Association” and with Exif

“Exchangeable Image File Format”. Files that do not comply with the DCF standard cannot be

played back.

•Images recorded with other camera may not be able to play back on this unit.

•This unit was designed to play motion pictures using the MP4 and QuickTime Motion JPEG formats.

•When using a high capacity card, it is possible that fast rewinding may be slower than usual.

•To play back the motion pictures recorded by this unit on a PC, use the “ PHOTOfunSTUDIO”

software on the CD-ROM (supplied).

•Be careful not to block the speaker of the camera during playback.

Press [W] of the zoom button.

1 screen>12 screens>30 screens>Calendar screen display

ANumber of the selected picture and the total number of recorded

pictures

•Press [T] of the zoom button to return to the previous screen.

•Pictures displayed using [ ] cannot be played back.

∫To return to normal playback

Press 3/4/2/1 to select a picture and then press [MENU/SET].

Displaying Multiple Screens (Multi Playback)

Using the Playback Zoom

Press [T] of the zoom button.

1k>2k>4k>8k>16k

•When you press [W] of the zoom button after enlarging the picture,

the magnification becomes lower.

•When you change the magnification, the zoom position indication

B appears for about 2 seconds, and the position of the enlarged

section can be moved by pressing 3/4/2/1.

•The more a picture is enlarged, the more its quality deteriorates.

1/26

2X2X2X

- 39 -

Basic

Deleting Pictures

Once deleted, pictures cannot be recovered.

•Pictures on the built-in memory or the card that are being played back will be deleted.

•Pictures that are not in the DCF standard or those that are protected cannot be deleted.

Select the picture to be deleted, and

then press [ ].

•Confirmation screen is displayed.

Picture is deleted by selecting [Yes].

•The picture group taken in [Time Lapse Shot] (pictures with the [ ] icon) will be treated as a single

picture. Deleting the picture group will delete all pictures in the group. (P94)

•Do not turn the camera off while deleting. Use a battery with sufficient battery power or the AC

adaptor (optional).

•Depending on the number of pictures to be deleted, it may take some time to delete them.

To delete a single picture

To delete multiple pictures (up to 100) or all the pictures

Press [ ].

Press 3/4 to select [Delete Multi] or [Delete All] and then press

[MENU/SET].

•[Delete All] > Confirmation screen is displayed.

Pictures are deleted by selecting [Yes].

•It is possible to delete all pictures except the ones set as favourite when [All

Delete Except Favorite] is selected with the [Delete All] set.

(When [Delete Multi] is selected) Press

to select the picture, and then press [DISP.] to set.

(Repeat this step.)

•[ ] appears on the selected pictures. If [DISP.] is pressed

again, the setting is cancelled.

(When [Delete Multi] is selected) Press [MENU/SET].

•Confirmation screen is displayed. Pictures are deleted by selecting [Yes].

4 6

231

- 40 -

Basic

Setting the Menu

The camera comes with menus that allow you to choose the settings for taking pictures and

playing them back just as you like and menus that enable you to have more fun with the

camera and use it more easily.

In particular, the [Setup] menu contains some important settings relating to the camera’s clock

and power. Check the settings of this menu before proceeding to use the camera.

Example: In the [Rec] menu, change [AF Mode] from [Ø] ([1-Area]) to [š] ([Face Detection])

Press [MENU/SET].

Setting menu items

Press 2/1 to select menu and then press

[MENU/SET].

Menu Description of settings

[Rec] (P78 to 97)

(Recording Mode only)

The menu lets you set the Colouring, Sensitivity or Number of

pixels, etc. of pictures you are recording.

[Motion Picture] (P98)

(Recording Mode only)

This menu lets you set the setting for motion pictures such as

recording quality.

[Playback] (P108 to 119)

(Playback Mode only)

This menu lets you set the Protection, Cropping or Print

Settings, etc. of recorded pictures.

[Setup] (P42 to 50)

This menu lets you perform the clock settings, beep tone

settings and other settings which make it easier for you to

operate the camera.

- 41 -

Basic

∫Close the menu

Press [ ] until the screen returns to the

recording/playback screen or press the shutter

button half-way.

•There are functions that cannot be set or used depending on the modes or menu settings being

used on the camera due to the specifications.

By using the Quick Menu, some of the menu settings can be easily found.

•The features that can be adjusted using Quick Menu are determined by the mode or a display style

the camera is in.

Press 3/4 to select the menu item and then

press [MENU/SET].

AMenu screen page

•It will switch to the next page when you reach the bottom.

(It will also switch by pressing the zoom button)

Press 3/4 to select the setting and then press

[MENU/SET].

•Depending on the menu item, its setting may not appear or it

may be displayed in a different way.

Using the Quick Menu

Press [Q.MENU] when recording.

Press 3/4/2/1 to select the menu item and the setting

and then press [MENU/SET] to close the menu.

- 42 -

Basic

About the Setup Menu

For details on how to select the [Setup] menu settings, refer to P40.

•[Clock Set], [Auto Power Off] and [Auto Review] are important items. Check their settings before

using them.

•In Intelligent Auto Mode, only [Clock Set], [World Time], [Beep]¢, [LED Light], [Language],

[Stabilizer Demo.] can be set.

¢Available settings are different from other Recording Modes.

•Refer to P9 for details.

•Refer to P25 for details.

•Press 3 if you are using Summer Time [ ]. (The time will move forward by 1 hour.) Press 3

once more to return to the normal time.

•If you cannot find the travel destination in the areas displayed on the screen, set by the time

difference from the home area.

[Precautions] To maintain waterproof performance, display the things you need to

check before use.

U [Clock Set] Setting Date/Time.

[World Time]

Set the time in your home area and travel destination.

You can display the local times at the travel destinations and record

them on the pictures you take.

After selecting [Destination] or [Home], press 2/1 to select an

area, and press [MENU/SET] to set.

•Set [Home] first thing after purchasing. [Destination] can be set after

setting up [Home].

“ [Destination]:

Travel destination area

ACurrent time of the destination area

BTime difference from home area

– [Home]:

Your home area

CCurrent time

DTime difference from GMT (Greenwich

Mean Time)

- 43 -

Basic

•The number of days that have passed since the departure date can be printed out using the

“PHOTOfunSTUDIO” bundled software on the CD-ROM (supplied).

•The travel date is calculated using the date in the clock setting and the departure date you set. If you

set [World Time] to the travel destination, the travel date is calculated using the date in the clock

setting and the travel destination setting.

•The travel date setting is memorised even if the camera is turned off.

•The number of days that have passed since the departure date is not recorded before the departure

date.

•[Location] cannot be recorded when taking motion pictures.

•[Travel Date] cannot be set in the Intelligent Auto Mode. Setting of other Recording Mode will be

reflected.

— [Travel Date]

Departure date and return date of the travel as well as the name of the

travel destination can be set.

You can display the number of days that have passed when playing

back the pictures and stamp it on the recorded pictures with [Text

Stamp] (P108).

[Travel Setup]:

[SET]:

Departure date and return date are set. Elapsed days (how many

days after) of the travel are recorded.

[OFF]

•The travel date is automatically cancelled if the current date is after the

return date. If the [Travel Setup] is set to [OFF], [Location] will also be

set to [OFF].

[Location]:

[SET]:

Travel destination is recorded at the time of recording.

[OFF]

•For details on how to enter characters, refer to “Entering Text” on P77.

- 44 -

Basic

•When you connect the camera to a TV, the volume of the TV speakers does not change. Also, when

connected, no sound is output from the camera speakers.

•Some subjects may appear differently from actuality on the LCD monitor. However, this does not

affect the recorded pictures.

•When [Monitor Luminance] is set to [High Angle], [Brightness] and [Contrast · Saturation] cannot be

adjusted.

r [Beep]

This allows you to set the beep and shutter sound.

r [Beep Level]: [Shutter Vol.]:

[t]

[u]

[s]

([Low])

([High])

([OFF])

[]

([Low])

([High])

([OFF])

[Beep Tone]:

[]/[]/[]

[Shutter Tone]:

[]/[]/[]

u [Speaker Volume] Adjust the volume of the speaker to any of the 7 levels.

[Monitor Display]

Brightness, colour, or red or blue tint of the LCD monitor is adjusted.

[Brightness]:

Adjust the brightness.

[Contrast · Saturation]:

Adjust the contrast or clarity of colours.

[Red Tint]:

Adjust the red tint.

[Blue Tint]:

Adjust the blue tint.

1Select the settings by pressing 3/4, and adjust with 2/1.

2Press [MENU/SET] to set.

- 45 -

Basic

•High Angle Mode is also cancelled if you turn the camera off or [Auto Power Off] is activated.

•The brightness of the pictures displayed on the LCD monitor is increased so some subjects may

appear different from real life on the LCD monitor. However, this does not affect the recorded

pictures.

•The LCD monitor automatically returns to normal brightness if no operations are preformed for

30 seconds when recording in [Power Monitor]. Press any button to make the LCD monitor bright

again.

•When [Monitor Luminance] is set, the usage time is reduced.

•When you align the subject on the horizontal and vertical guidelines or the cross point of these lines,

you can take pictures with well-designed composition by viewing the size, the slope and the balance

of the subject.

•The [Pattern] setting is fixed to [ ] in the Intelligent Auto Mode.

•The guideline is not displayed in the [Panorama Shot].

[Monitor Luminance]

These menu settings make it easier to see the LCD monitor when you

are in bright places or when you are holding the camera high above

your head.

[„] ([Auto Power Monitor])¢:

The brightness is adjusted automatically depending on how bright it is

around the camera.

[…] ([Power Monitor]):

The LCD monitor becomes brighter and easier to see even when

taking pictures outdoors.

[Å] ([High Angle])¢:

The LCD monitor is easier to see when taking pictures with the camera

held high above your head.

[OFF]

¢Can be set only during Recording Mode.

[Guide Line]

Set the pattern of the guidelines displayed when taking pictures. You

can also set whether or not to have the recording information

displayed when the guidelines are displayed. (P51)

[Rec. Info.]:

[ON]/[OFF]

[Pattern]:

[]/[]

- 46 -

Basic

•When you take pictures with the flash or in dark places, the histogram is displayed in orange

because the recorded picture and the histogram do not match each other.

•The histogram is an approximation in Recording Mode.

•The Histogram of a picture may not match in the Recording Mode and the Playback Mode.

•The Histogram displayed in this camera does not match Histograms displayed by picture editing

software used in PCs etc.

•Histograms are not displayed in the following cases.

–Intelligent Auto Mode

–Multi Playback

–Recording motion pictures

–Playback Zoom

–Calendar

•Motion picture recording area display is only an approximation.

•Recording area display may disappear when zooming to Tele depending on the picture size setting.

•It will be fixed to [OFF] during the Intelligent Auto Mode.

[Histogram]

This allows you to set either to display or not display the histogram.

[ON]/[OFF]

A Histogram is a graph that displays brightness along

the horizontal axis (black to white) and the number of

pixels at each brightness level on the vertical axis.

It allows you to easily check a picture’s exposure.

Adark

Boptimal

Cbright

[Video Rec Area]

Angle of view for motion picture recording can be checked.

[ON]/[OFF]

- 47 -

Basic

•Maximum illuminating range of the LED light is 50 cm (1.6 feet).

•The life of battery will decrease when the LED light is turned on constantly.

•In locations where the use of light is prohibited, set to [ ].

•It is fixed to [ ] in the following cases.

–[Advanced Underwater]

–[Panorama Shot]

–[Baby1]/[Baby2] (Scene Mode)

•It is not available in Playback Mode.

•[Auto Power Off] is set to [5MIN.] in the Intelligent Auto Mode.

•[Auto Power Off] does not work in the following cases.

–When using the AC adaptor

–When connecting to a PC or a printer

–When using [Time Lapse Shot]

–When recording or playing back motion pictures

–During a Slide Show

[LED Light]

This will illuminate the subject with a lamp when taking motion pictures

in dark surrounding.

Also, the LED can also be used as a simple light when necessary.

[] ([On]):

LED light A is turned on continuously while

recording motion pictures.

[] ([Off]):

To use a simple light

If you set to [ ], and press and hold down 1 (‰) on the recording

standby screen, the LED light will come on for 60 seconds. The LED

light can be conveniently used as a simple light when you wish to

illuminate your immediate surroundings in a dark location.

To turn off the light at any time, press [ ].

p [Auto Power Off]

The camera is automatically turned off if the camera has not been

used for the time selected on the setting.

[2MIN.]/[5MIN.]/[10MIN.]/[OFF]

- 48 -

Basic

•[Auto Review] is activated regardless of its setting in the following cases.

–When using Auto Bracket

–When using [Burst]

•The Auto Review function is fixed to [2 SEC.] in the following case.

–Intelligent Auto Mode

•[Auto Review] does not work in the following cases.

–When using [Time Lapse Shot]

–When recording motion pictures.

•The folder number is updated and the file number starts from 0001.

•A folder number between 100 and 999 can be assigned.

When the folder number reaches 999, the number cannot be reset. We recommend formatting the

card (P50) after saving the data on a PC or elsewhere.

•To reset the folder number to 100, format the built-in memory or the card first and then use this

function to reset the file number.

A reset screen for the folder number will then appear. Select [Yes] to reset the folder number.

•When the [Rec] menu settings are reset during recording, the operation that resets the lens is also

performed at the same time. You will hear the sound of the lens operating but this is normal and not

indicative of malfunctioning.

•When the [Rec] menu settings are reset, data registered with [Face Recog.] will be also reset.

•When [Setup] menu settings are reset, the following settings are also reset.

–The birthday and name settings for [Baby1]/[Baby2] and [Pet] in Scene Mode.

–The [Travel Date] setting. (Departure date, return date, destination)

–The [World Time] setting.

•The folder number and the clock setting are not changed.

o [Auto Review]

Set the length of time that the picture is displayed after taking the still

picture.

[1SEC.]

[2SEC.]

[HOLD]:

The pictures are displayed until one of the buttons is pressed.

[OFF]

v [No.Reset] Reset the file number of the next recording to 0001.

w [Reset] The [Rec] or [Setup] menu settings are reset to the initial settings.

- 49 -

Basic

•This will work when the AV cable (optional) is connected.

•Refer to P37 for information about how to play back pictures.

•When you play back pictures on a PC, they cannot be displayed in the rotated direction unless the

OS or software is compatible with Exif. Exif is a file format for still pictures which allows recording

information etc. to be added. It was established by “JEITA (Japan Electronics and Information

Technology Industries Association)”.

•It may not be possible to rotate pictures that have been recorded with other equipment.

•Pictures are not rotated during Multi Playback.

| [Output]

Set to match the colour television system in each country or the type of

TV.

[|] ([Video Out]):

[NTSC]:

Video output is set to NTSC system.

[PAL]:

Video output is set to PAL system.

[ ] ([TV Aspect]):

[W]:

When connecting to a 16:9 screen TV.

[X]:

When connecting to a 4:3 screen TV.

M [Rotate Disp.]

This mode allows you to display pictures vertically if they were

recorded holding the camera vertically.

[] ([On]):

Rotate pictures on a TV and the LCD monitor so that they are

displayed vertically.

[] ([External Only]):

Pictures are displayed vertically by rotating when played back on TV.

[OFF]

[Version Disp.] It is possible to check which version of firmware is on the camera.

- 50 -

Basic

•Use a battery with sufficient battery power or the AC adaptor (optional) when formatting. Do not turn

the camera off during formatting.

•If a card has been inserted, only the card is formatted. To format the built-in memory, remove the

card.

•If the card has been formatted on a PC or other equipment, format it on the camera again.

•It may take longer to format the built-in memory than the card.

•If the card cannot be formatted, please try another card before contacting Panasonic.

•If you set a different language by mistake, select [~] from the menu icons to set the desired

language.

•The Stabiliser function is switched between [On] and [Off] every time [MENU/SET] is pressed.

•[Stabilizer Demo.] is an approximation.

[Format] The built-in memory or card is formatted. Formatting irretrievably

deletes all the data so check the data carefully before formatting.

~ [Language] Set the language displayed on the screen.

[Stabilizer Demo.]

Displays the amount of jitter the camera has detected.

AAmount of jitter

BAmount of jitter after correction

- 51 -

Recording

About the LCD Monitor

Press [DISP.] to change.

1LCD monitor

•When the menu screen appears, the [DISP.] button is not

activated. During Playback Zoom, while playing back

Motion Pictures and during a Slide Show, you can only

select E or G.

¢1 If the [Histogram] in [Setup] menu is set to [ON], Histogram will be displayed.

¢2 Name of the registered person in [Face Recog.] is displayed when [DISP.] is pressed.

In Recording Mode

ANormal display¢1

BNormal display¢1

CNo display

DNo display (Recording guide line)¢1

2Number of recordable pictures

3Available recording time

In Playback Mode

ENormal display

FDisplay with recording information¢1

GNo display¢2

R1m10s

100-0001 1/5

Retouch

10:00 1.DEC.2015

100-0001

F3.9

ISO

100

1/60

AWB

1/5

Retouch

- 52 -

Recording

Using the Zoom

Applicable modes:

You can zoom in to make people and objects appear closer or zoom out to record landscapes

in wide angle.

∫Screen display

Example of display when Extra Optical Zoom (EZ), Intelligent Zoom and Digital Zoom are used

together.

•When using the Zoom function, an estimate of the focus range will appear in conjunction

with the zoom display bar. (Example: 0.5 m (1.6 ft.) –¶)

Zooms in without deteriorating the image quality.

Maximum magnification: 4k

To make subjects appear further away use (Wide)

Press [W] of the zoom button.

To make subjects appear closer use (Tele)

Press [T] of the zoom button.

AExtra Optical Zoom indication

BOptical Zoom range

CIntelligent Zoom range

DDigital Zoom range

EZoom magnification (approximation)

Optical Zoom

- 53 -

Recording

This function works when any of the picture sizes (P78) indicated with is selected. You can

zoom in further than you can with the Optical Zoom without deteriorating the image quality.

Maximum magnification: 9k

(This includes the optical zoom magnification. The magnification level differs depending on

[Picture Size] setting.)

•“EZ” is an abbreviation of “Extra Optical Zoom”.

•This function is not available in the following cases:

–In Macro Zoom Mode

–[Toy Effect] (Creative Control Mode)

–[High Sens.] (Scene Mode)

–When [Burst] in the [Rec] menu is set to [ ] or [ ]

–When recording motion pictures

This function works when [i.Resolution] (P89) in the [Rec] menu is set to [i.ZOOM]. You can

zoom in up to twice the original zoom magnification while minimising the deterioration of the

image quality.

•This will work automatically in Intelligent Auto Mode.

•This function is not available in the following cases:

–In Macro Zoom Mode

–[Toy Effect] (Creative Control Mode)

–[High Sens.] (Scene Mode)

–When [Burst] in the [Rec] menu is set to [ ] or [ ]

This function works when [Digital Zoom] (P89) in the [Rec] menu is set to [ON]. Although the

image quality deteriorates every time you zoom in further, you can zoom in up to four times the

original zoom magnification.

•When using the [i.ZOOM], the maximum magnification of the Digital Zoom is limited to 2k.

•We recommend using a tripod and the Self-timer (P59) for taking pictures.

•This function is not available in the following cases:

–Intelligent Auto Mode

–[Toy Effect]/[Miniature Effect] (Creative Control Mode)

–[High Sens.] (Scene Mode)

–When [Burst] in the [Rec] menu is set to [ ] or [ ]

Extra Optical Zoom (EZ)

Intelligent Zoom

Digital Zoom

- 54 -

Recording

Taking Pictures Using the Built-in Flash

Applicable modes:

Set the flash to match the recording.

Press 1 [‰].

Press 3/4 to select the item and then press [MENU/SET].

APhoto flash

Do not cover it with your fingers or other objects.

Switching to the appropriate flash setting

- 55 -

Recording

¢1 This can be set only when Intelligent Auto Mode is set. The icon changes depending on the type

of subject and brightness. (P31)

¢2The flash is activated twice. The subject should not move until the second flash is

activated. Interval until the second flash depends on the brightness of the subject.

[Red-Eye Removal] (P96) on the [Rec] menu is set to [ON], [ ] appears on the flash icon.

Item Description of settings

[‡]([Auto]) The flash is automatically activated when the recording conditions

make it necessary.

[]([iAuto])¢1

[]

([Auto/Red-Eye])¢2

The flash is automatically activated when the recording conditions

make it necessary.

It is activated once before the actual recording to reduce the

red-eye phenomenon (eyes of the subject appearing red in the

picture) and then activated again for the actual recording.

•Use this when you take pictures of people in low lighting

conditions.

[‰]

([Forced Flash On])

The flash is activated every time regardless of the recording

conditions.

•Use this when your subject is back-lit or under fluorescent

light.

[]

([Slow Sync./Red-Eye])¢2

If you take a picture with a dark background landscape, this

feature will slow the shutter speed when the flash is activated so

that the dark background will become bright. Simultaneously, it

reduces the red-eye phenomenon.

•Use this when you take pictures of people in front of a dark

background.

[Œ]

([Forced Flash Off]

)

The flash is not activated in any recording conditions.

•Use this when you take pictures in places where the use of

flash is not permitted.

- 56 -

Recording

∫Available Flash Settings in Recording Mode

The available flash settings depend on the Recording Mode.

(±: Available, —: Not available, ¥: Scene Mode initial setting)

¢[ ] is displayed.

•The flash setting may change if the Recording Mode is changed. Set the flash setting again if

necessary.

•The flash setting is memorised even if the camera is turned off. However, the Scene Mode flash

setting is reset to the initial setting when the Scene Mode is changed.

•Flash will not be activated when recording motion picture.

‡ ‰ Œ

±¢———±

±±±—±

±—±—±

* + : ;±¥±—±

, / ï 5 ————¥

.———¥±

1 í 9±—±—¥

- 57 -

Recording

∫The available flash range

∫Shutter speed for each flash setting

¢1The shutter speed changes depending on the [Stabilizer] setting.

¢2 When [ ] in [Sensitivity] is set.

•¢1, 2: The shutter speed becomes a maximum of 1 second in the following cases.

–When the Optical Image Stabiliser is set to [OFF].

–When the camera has determined that there is very little jitter when the Optical Image Stabiliser is

set to [ON].

•In Intelligent Auto Mode, shutter speed changes depending on the identified scene.

•The shutter speed for [Sports], [Snow], [Beach & Surf], [Advanced Underwater] and Scene Modes

will be different from above table.

•If you bring the Flash too close to an object, the object may be distorted or discoloured by the heat or

lighting from the Flash.

•Recording a subject from too close, or without sufficient flash will not provide the appropriate level of

exposure, and may result in a picture that is too white or dark.

•When the Flash is being charged, the Flash icon blinks red, and you cannot take a picture even

when you press the shutter button fully.

•If recording a subject without sufficient flash, the White Balance may not be properly adjusted.

•The effects of the flash may not be adequately achieved under the following conditions.

–When [Burst] in the [Rec] menu is set to [ ]

–When the shutter speed is too fast

•It may take time to charge the Flash if you repeat taking a picture. Take a picture after the access

indication disappears.

•The Red-Eye Reduction effect differs between people. Also, if the subject is far away from the

camera or was not looking at the first Flash, the effect may not be evident.

Wide Te le

In [ ] in

[Sensitivity] 30 cm (0.98 feet) to 4.4 m (14 feet) 1 m (3.3 feet) to 3 m (9.8 feet)

Flash setting Shutter speed (Sec.) Flash setting Shutter speed (Sec.)

‡

1/60 to 1/1300 1 or 1/8 to 1/1300¢1

1 or 1/4 to 1/1300¢2

‰Œ

- 58 -

Recording

Taking Close-up Pictures ([AF Macro]/[Macro Zoom])

Applicable modes:

This mode allows you to take close-up pictures of a subject, e.g. when taking pictures of

flowers.

Press 4 [#].

Press 3/4 to select the item and then press [MENU/SET].

•We recommend using a tripod and the Self-timer.

•We recommend setting the flash to [Œ] when you take pictures at close range.

•If the distance between the camera and the subject is beyond the focus range of the camera, the

picture may not be properly focused even if the focus indication lights.

•When a subject is close to the camera, the effective focus range is significantly narrowed. Therefore,

if the distance between the camera and the subject is changed after focusing on the subject, it may

become difficult to focus on it again.

•Macro Mode gives priority to a subject close to the camera. Therefore, if the distance between the

camera and the subject is far, it takes longer to focus on it.

•When you take pictures at close range, the resolution of the periphery of the picture may decrease

slightly. This is not a malfunction.

•[ ] cannot be set in the following cases.

–[Toy Effect]/[Miniature Effect] (Creative Control Mode)

–When [AF Mode] is set to [ ]

–When [Burst] is set to [ ] or [ ]

Item Description of settings

[]

([AF Macro])

You can take pictures of a subject as close as 5 cm (0.16 feet)

from the lens by pressing the zoom button upmost to Wide (1k).

[]

([Macro Zoom])

Use this setting to get close to the subject and then further

enlarge when taking the picture.

You can take a picture with the Digital Zoom up to 3k while

maintaining the distance to the subject for the extreme Wide

position [5 cm (0.16 feet)].

•The image quality is poorer than during normal recording.

•Zoom range will be displayed in blue. (digital zoom range)

[OFF] j

- 59 -

Recording

Taking Pictures with the Self-timer

Applicable modes:

Press 2 [ë].

Press 3/4 to select the item and then press [MENU/SET].

•When you press the shutter button once fully, the subject is automatically focused just before

recording. In dark places, the Self-timer indicator will blink and then may turn on brightly, operating

as an AF Assist Lamp to allow the camera to focus on the subject.

•We recommend using a tripod when recording with the Self-timer.

•Self-timer is disabled in the following cases.

–When using [Time Lapse Shot]

–When recording motion pictures

Item Description of settings

[]

([10sec.]) Picture is taken 10 seconds after shutter is pressed.

[]([2sec.])

Picture is taken 2 seconds after shutter is pressed.

•When using a tripod, etc., this setting is a convenient way to avoid

the jitter caused by pressing the shutter button.

[OFF] j

Press the shutter button halfway to focus and

then press it fully to take the picture.

•The self-timer indicator A blinks and the shutter is activated

after 10 seconds (or 2 seconds).

- 60 -

Recording

Compensating the Exposure

Applicable modes:

Use this function when you cannot achieve appropriate exposure due to the difference in

brightness between the subject and the background.

Press 3 [È] until [Exposure] appears.

•EV is an abbreviation of [Exposure Value], a unit indicating the amount of exposure. The EV

changes with the aperture value or the shutter speed.

•The set exposure value is memorised even if the camera is turned off.

•The compensation range of the exposure will be limited depending on the brightness of the subject.

•You cannot use the Exposure Compensation in following condition.

–[Starry Sky] (Scene Mode)

Underexposed Properly exposed Overexposed

Compensate the exposure

towards positive.

Compensate the exposure

towards negative.

Press 2/1 to compensate the exposure and then press

[MENU/SET].

•The exposure compensation value appears on the screen.

•Select [0 EV] to return to the original exposure.

- 61 -

Recording

Taking Pictures Using Auto Bracket

Applicable modes:

In this mode, 3 pictures are automatically recorded in the selected exposure compensation

range each time the shutter button is pressed.

With Auto Bracket d1EV

Press 3 [È] until [Auto Bracket]

appears.

•When Auto Bracket is set, [ ] is displayed on the screen.

•When taking pictures using Auto Bracket after setting the exposure compensation range, the

pictures taken are based on the selected exposure compensation range.

•The exposure may not be compensated with Auto Bracket depending on the brightness of the

subject.

•[Œ] is set for the flash when Auto Bracket is set.

•You cannot use the Auto Bracket in following conditions.

–[Toy Effect]/[Miniature Effect] (Creative Control Mode)

–[Starry Sky] (Scene Mode)

–When using [Time Lapse Shot]

–When recording motion pictures

1st picture 2nd picture 3rd picture

d0EV j1EV i1EV

Press 2/1 to set the compensation range of the

exposure and then press [MENU/SET].

•When you do not use Auto Bracket, select [OFF] (d0).

- 62 -

Recording

Taking Pictures with different image effects

(Creative Control Mode)

Recording Mode:

This mode records with additional image effects. You can set the effects to add by selecting

example images and checking them on the screen.

Press [MODE].

Press 3/4/2/1 to select [Creative Control], and then press

[MENU/SET].

Press 3/4 to select image effects and then press

[MENU/SET].

•The image effect of the selected example image will be applied in a

preview display A.

•A brief description of selected image effect appears when you press

[DISP.].

•To change the Creative Control Mode, press [MENU/SET], select [Creative Control] using 3/4/2/

1, and then press [MENU/SET].

•The displayed image on the recording screen and the preview of the selected image effect may differ

from the actual recorded image.

•The Creative Control Mode setting is stored even after turning off this unit.

•White Balance will be fixed to [AWB].

•The following cannot be set as the camera adjusts automatically.

–[Sensitivity]

- 63 -

Recording

¢These pictures are examples to show the effect.

This effect emphasises the colour to make a pop art picture.

This effect gives a faded image.

This effect adds a bright, airy and soft feel to the overall image.

This effect adds a dark and relaxing feel to the overall image and

enhances bright parts.

[Expressive]

[Retro]

[High Key]

•If you select this effect with [Panorama Shot], the effect may not be

apparent in places with insufficient brightness.

[Low Key]

- 64 -

Recording

This effect creates a sepia image.

This effect gives a higher contrast to create an impressive black and

white picture.

This effect gives your photo a dramatic contrast look.

This effect produces the optimum brightness for both dark and bright

parts.

[Sepia]

[Dynamic Monochrome]

[Impressive Art]

•If you select this effect with [Panorama Shot], seams between pictures

may become noticeable.

[High Dynamic]

- 65 -

Recording

This effect gives your photo a dramatic colour look.

This effect reduces peripheral brightness to give the impression of a toy

camera.

[Cross Process]

Items that can be set

Colour Green tone/Blue tone/Yellow tone/Red tone

•Press 2/1 to select the colour to enhance, and

press [MENU/SET].

[Toy Effect]

Items that can be set

Colour Orange emphasised Blue emphasised

•Press 2/1 to select the colour tone, and

press [MENU/SET].

- 66 -

Recording

This effect blurs peripheral areas to give the impression of a diorama.

This effect leaves one selected colour to emphasise impressiveness.

[Miniature Effect]

•Display of the recording screen will be delayed more than usual and the

screen will look as if frames are being dropped.

•No sound is recorded in motion pictures.

•Approximately 1/8 of the time period is recorded. (If you record for

8 minutes, the resulting motion picture recording will be approximately

1 minute long.)

The displayed available recording time is approximately 8 times. When

switching to Recording Mode, please check the available recording time.

•When taking pictures of a large size, the screen may turn black after taking

the picture because of signal processing. This is not a malfunction.

[One Point Color]

∫Set the colour to leave in

1Fit the colour you want to leave in the

frame at the centre of the screen, and

then press [MENU/SET].

•If you press [DISP.], you will return to step 1.

2Check the colour you have set, and then

press [MENU/SET].

•The set colour is memorised even if the

camera is turned off. In that case, the

operation starts from step 2.

•Depending on the subject, the set colour may not

be left in.

- 67 -

Recording

Take the Outdoors Scene Expressively

Recording Mode:

By setting the Recording Mode to [ ], [ ], [ ] or [ ] pictures can be taken more effectively

matching the conditions such as sports, snow, beach & surf.

•Tone of the colour of the image may change when picture is taken with unmatched usage.

•The following cannot be set as the camera adjusts automatically.

–[Sensitivity]/[i.Exposure]/[i.Resolution]/[Color Mode]/[Red-Eye Removal]

Setting for when you want to take pictures of sports scenes or other fast-moving events.

•Shutter speed may slow down up to 1 second.

•This mode is suitable for taking pictures of subjects at distances of 5 m (16 feet) or more.

This allows you to take pictures that show the snow as white as possible at a ski resort or a

snow-covered mountain.

•To prevent water leakage, make sure that there are no foreign objects, such as sand, hair, dust, etc.,

clamped and close the side door all the way until it clicks. Also, read “(Important) About the

Waterproof/Dustproof and Anti-shock Performance of the Camera” (P8) before using the camera.

This mode is optimal for taking pictures to 3 m (10 feet) underwater and at the beach.

•To prevent water leakage, make sure that there are no foreign objects, such as sand, hair, dust, etc.,

clamped and close the side door all the way until it clicks. Also, read “(Important) About the

Waterproof/Dustproof and Anti-shock Performance of the Camera” (P8) before using the camera.

•Dip the camera in fresh water in a shallow container for 10 minutes or less after using it, then wipe

the water off with dry soft cloth. (P11)

[Sports]

[Snow]

[Beach & Surf]

- 68 -

Recording

This mode is optimal for taking pictures at depths of 3 m (10 feet) to 8 m (26 feet).

You can use [Color Reproduction] (P95) in the [Rec] menu and take pictures underwater

without losing the red tinge.

¢This camera has a waterproof/dustproof function equivalent to “IP68”. It is possible to take

pictures in 8 m (26 feet) depth for 60 minutes.

∫Fixing the focus underwater (AF Lock)

You can fix the focus before taking a picture with AF lock. This is useful if you want to take

pictures of a fast moving subject etc.

1Aim the AF area at the subject.

2Press 2 to fix the focus.

•The AF lock icon appears when the subject is focused.

•Press 2 again to cancel AF lock.

•When you press the zoom button, the AF lock is cancelled. In this case, focus on the subject

and fix the focus again.

•You cannot set to AF lock when [AF Mode] is set to [ ].

∫To beautifully record the underwater red tinge (Underwater colour reproduction)

Subjects appear blue in pictures taken underwater. Using [Color Reproduction] in the [Rec]

menu will allow pictures to be taken without the subjects losing their red tone.

1Select [Color Reproduction] in the [Rec] menu.

2Press 3/4 to select the effect, and then press [MENU/SET].

•You can select the effect of [HIGH], [MEDIUM], [LOW], or [OFF].

•Ichikawa Soft Laboratory has studied colour loss in water based on the results of measurements of a

large number of colour samples actually conducted in the ocean, and has developed “Natural Light

Technology” to reproduce vivid, accurate colours based on ongoing research into colour

reproduction of pictures taken underwater.¢

[Color Reproduction] in the [Rec] menu and [Color Reproduction] under [Retouch] in the [Playback]

menu make use of this technology.

¢“Natural Light Technology” is the technology behind “SILKYPIX Marine Photography”, Ichikawa

Soft Laboratory’s digital reproduction software designed for underwater pictures.

•To prevent water leakage, make sure that there are no foreign objects, such as sand, hair, dust, etc.,

clamped and close the side door all the way until it clicks. Also, read “(Important) About the

Waterproof/Dustproof and Anti-shock Performance of the Camera” (P8) before using the camera.

•Dip the camera in fresh water in a shallow container for 10 minutes or less after using it, then wipe

the water off with dry soft cloth. (P11)

•If there is a substantial amount of matter in the water, set flash to [Œ].

•[Color Reproduction] is initially set to [LOW] on the camera.

•Depending on the recording conditions or environment, the way the effect of [Color Reproduction] is

applied may vary.

[Advanced Underwater]

- 69 -

Recording

Taking panorama pictures ([Panorama Shot])

Recording Mode:

Pictures are recorded continuously while moving the camera horizontally or vertically, and are

combined to make a single panorama picture.

Press [MODE].

Press 3/4/2/1 to select [Panorama Shot], and then press [MENU/SET].

Press 3/4 to select the recording direction and then

press [MENU/SET].

Press 3/4 to select the image effect, and then press [MENU/SET].

•You can add the same image effect as the Creative Control Mode with the same operation as

the Creative Control Mode. (except for [Toy Effect] and [Miniature Effect])

•Read P63–66 for details on the respective effects.

•If you are not going to add an image effect, select [OFF].

After confirming the recording direction, press [MENU/SET].

•A horizontal/vertical guide is displayed.

If you press 1, you will return to step 3.

Press the shutter button halfway to focus.

- 70 -

Recording

Press the shutter button fully and record a picture while moving the

camera in a small circle in the direction selected in Step 3.

Press the shutter button once again to end the still picture recording.

•Recording can also be ended by keeping the camera still while recording.

Recording from left to right

Trace a half-circle with the camera, taking about 4 seconds.

•Move the camera at a constant speed.

Pictures may not be able to be recorded properly if the camera is moved too fast or slow.

A1 second

B2 seconds

C3 seconds

D4 seconds

ERecording direction and panning (Guide)

- 71 -

Recording

∫Technique for Panorama Shot Mode

•The zoom position is fixed to Wide.

•The focus, white balance, and exposure are fixed at the optimum values for the first picture. As a

result, if the focus or brightness changes substantially during recording, the entire panorama picture

may not be recorded at the suitable focus or brightness.

•White Balance is fixed to [AWB] while an image effect is applied.

•When multiple pictures are combined to create a single panorama picture, the subject may appear

distorted or the connection points may be noticeable in some cases.

•The number of recording pixels in the horizontal and vertical directions of the panorama picture

varies depending on the recording direction and the number of combined pictures. The maximum

number of pixels is shown below.

•A panorama picture may not be able to be created, or the pictures may not be combined properly

when recording the following subjects or under the recording conditions below.

–Subjects with a single, uniform colour or repetitive pattern (such as the sky or a beach)

–Moving subjects (person, pet, car, waves, flowers blowing in the breeze, etc.)

–Subjects where the colour or patterns change in a short time (such as an image appearing on a

display)

–Dark places

–Locations with flickering light sources such as fluorescent lights or candles

∫About playback

¢1 If you have filtered images for playback by using [Slide Show] (P99)

or [Filtering Play] (P101), the

selection screen appears. Press 3/4 to select [Play Panorama], and then press [MENU/SET].

¢2 You can perform frame-by-frame forward/rewind by pressing 1/2 during a pause.

AMove the camera in the recording direction

without shaking it. If the camera shakes too

much, pictures may not be able to be

recorded, or the recorded panorama picture

may become narrower (smaller).

BMove the camera towards the edge of the

range you wish to record. (The edge of the

range will not be recorded in the last frame)

Recording direction Horizontal Resolution Vertical Resolution

Horizontal 3200 pixels 720 pixels

Vertical 960 pixels 3200 pixels

3Start panorama playback¢1/Pause¢2

4Stop

- 72 -

Recording

Taking pictures that match the scene being

recorded (Scene Mode)

Recording Mode:

When you select a Scene Mode to match the subject and recording situation, the camera sets

the optimal exposure and hue to obtain the desired picture.

Press [MODE].

Press 3/4/2/1 to select [Scene Mode], and then press [MENU/SET].

Press 3/4/2/1 to select the Scene Mode and then

press [MENU/SET].

•To change the Scene Mode, press [MENU/SET], select [Scene Mode] using 3/4/2/1, and then

press [MENU/SET].

•The following cannot be set in Scene Mode as the camera adjusts automatically.

–[Sensitivity]/[i.Exposure]/[i.Resolution]/[Color Mode]

- 73 -

Recording

When taking pictures of people outdoors during the daytime, this mode allows you to improve

the appearance and make their skin tones look healthier.

∫Technique for Portrait Mode

To make this mode more effective:

1Press and hold down the zoom button as far as possible to Tele.

2Move close to the subject to make this mode more effective.

When taking pictures of people outdoors during the daytime, this mode enables the texture of

their skin to appear even softer than with [Portrait]. (It is effective when taking pictures of people

from the chest up.)

∫Technique for Soft Skin Mode

To make this mode more effective:

1Press and hold down the zoom button as far as possible to Tele.

2Move close to the subject to make this mode more effective.

•If a part of the background etc. is a colour close to skin colour, this part is also smoothed.

•This mode may not be effective when there is insufficient brightness.

This allows you to take pictures of a wide landscape.

[Portrait]

[Soft Skin]

[Scenery]

- 74 -

Recording

This allows you to take pictures of a person and the background with near real-life brightness.

∫Technique for Night Portrait Mode

•Use the flash. (You can set to [ ].)

•Ask the subject not to move while taking a picture.

•We recommend using a tripod and the Self-timer for taking pictures.

•Shutter speed may slow down up to 8 seconds.

•The shutter may remain closed (max. about 8 sec.) after taking the picture because of signal

processing. This is not a malfunction.

•Noise may become visible when you take pictures in dark places.

This allows you to take vivid pictures of the nightscape.

•We recommend using a tripod and the Self-timer for taking pictures.

•Shutter speed may slow down up to 8 seconds.

•The shutter may remain closed (max. about 8 sec.) after taking the picture because of signal

processing. This is not a malfunction.

•Noise may become visible when you take pictures in dark places.

This mode allows you to take pictures of food with a natural hue without being affected by the

ambient light in restaurants, etc.

[Night Portrait]

[Night Scenery]

[Food]

- 75 -

Recording

This takes pictures of a baby with a healthy complexion. When you use the flash, the light from

it is weaker than usual.

It is possible to set different birthdays and names for [Baby1] and [Baby2]. You can select to

have these appear at the time of playback, or have them stamped on the recorded image using

[Text Stamp] (P108).

∫Birthday/Name setting

1Press 3/4 to select [Age] or [Name] and then press [MENU/SET].

2Press 3/4 to select [SET] and then press [MENU/SET].

3Enter the birthday or name.

•When the birthday or name is set, [Age] or [Name] is automatically set to [ON].

•If [ON] is selected when the birthday or name has not been registered, the setting screen

appears automatically.

4Press 4 to select [Exit] and then press [MENU/SET] to finish.

∫To cancel [Age] and [Name]

Select the [OFF] setting in step 2.

•The age and name can be printed out using the “PHOTOfunSTUDIO” bundled software on the

CD-ROM (supplied).

•If [Age] or [Name] is set to [OFF] even when the birthday or name has been set, the age or name will

not be displayed.

•Shutter speed may slow down up to 1 second.

[Baby1]/[Baby2]

Birthday: 2/1: Select the items (year/month/day)

3/4: Setting

[MENU/SET]: Set

Name: For details on how to enter characters, refer to “Entering Text” on P77.

- 76 -

Recording

Select this when you want to take pictures of a pet such as a dog or a cat.

You can set your pet’s birthday and name.

For information about [Age] or [Name], refer to [Baby1]/[Baby2] on P75.

Select this when you want to take pictures of a sunset view. This allows you to take vivid

pictures of the red colour of the sun.

This mode minimises the jitter of the subjects, and enables you to take pictures of these

subjects in dimly lit rooms.

∫Picture Size

Select the picture size of 3M (4:3), 2.5M (3:2), 2M (16:9) or 2.5M (1:1).

This mode allows you to take vivid pictures of a starry sky or a dark subject.

∫Setting the shutter speed

Select a shutter speed of [15 sec.], [30 sec.] or [60 sec.].

•Press the shutter button fully to display the countdown screen. Do not move the camera after this

screen is displayed. When countdown finishes, [Please wait...] is displayed for the same length of

time as the set shutter speed for signal processing.

∫Technique for Starry Sky Mode

•The shutter opens for 15, 30 or 60 seconds. Be sure to use a tripod. We also recommend taking

pictures with the self-timer.

Objects in the distance are prioritised for focus.

This mode is ideal for taking pictures of scenery and other landscapes through clear glass,

such as in vehicles or buildings.

•The camera may focus on the glass if it is dirty or has dust on it.

•The pictures taken may not look natural if the glass is coloured. When this happens, change the

white balance settings. (P80)

[Pet]

[Sunset]

[High Sens.]

[Starry Sky]

[Glass Through]

- 77 -

Recording

Entering Text

It is possible to enter babies’ and pets’ names and the locations when

recording. When a screen that looks like the one on the right is displayed,

you can enter characters. (Only alphabetical characters and symbols can

be entered.)

Press 3/4/2/1 to select text and then press [MENU/SET] to register.

•Move the cursor to [ ] and then press [MENU/SET] to switch text between [A] (capitals), [a]

(lower case), [1] (numbers) and [&] (special characters).

•To continuously enter the same character, move the cursor by pressing [T] on the zoom

button.

•The following operations can be performed by moving the cursor to the item and pressing

[MENU/SET]:

•The following characters and numbers can be entered.

Press 3/4/2/1 to move the cursor to [Set] and then press [MENU/SET]

to end text input.

•Text can be scrolled if all of the entered text does not fit on the screen.

•It is displayed in order of location, [Name] ([Baby1]/[Baby2], [Pet]), [Name] ([Face Recog.]).

–[]]: Enter a blank

–[Delete]: Delete a character

–[ ]: Move the entry position cursor to the left

–[ ]: Move the entry position cursor to the right

–A maximum of 30 characters can be entered (Maximum of 9 characters when setting

names in [Face Recog.]).

A maximum of 15 characters can be entered for [ ], [ ], [ ], [ ] and [ ] (Maximum

of 6 characters when setting names in [Face Recog.]).

- 78 -

Recording

Using the [Rec] Menu

For details on [Rec] menu settings, refer to P40.

Applicable modes:

Set the number of pixels. The higher the numbers of pixels, the finer the detail of the pictures

will appear even when they are printed onto large sheets.

¢This item cannot be set in the Intelligent Auto Mode.

•In specific modes, Extra Optical Zoom cannot be used, and the picture size for [ ] is not displayed.

For details regarding modes in which Extra Optical Zoom cannot be used, refer to P53.

•Pictures may appear mosaic depending on the subject and the recording conditions.

[Picture Size]

Settings Picture Size

[] 4608k3456

[]

¢3648k2736

[] 2560k1920

[]

¢2048k1536

[]

¢1280k960

[] 640k480

[] 4608k3072

[] 4608k2592

[] 3456k3456

X :Aspect ratio of a 4:3 TV

Y :Aspect ratio of a 35 mm film camera

W :Aspect ratio of a high-definition TV, etc.

:Square aspect ratio

- 79 -

Recording

Applicable modes:

This allows the Sensitivity to light (ISO sensitivity) to be set. Setting to a higher figure enables

pictures to be taken even in dark places without the resulting pictures coming out dark.

•For the focus range of flash when [ ] is set, refer to P57.

•The ISO sensitivity is automatically set under the following conditions.

–When recording motion pictures

–When [Burst] in the [Rec] menu is set to [ ] or [ ]

[Sensitivity]

Settings Description of settings

[] ([i.ISO])

The ISO sensitivity is adjusted according to the movement of the

subject and the brightness.

•Maximum [1600]

•The shutter speed is not fixed when the shutter button is pressed

halfway. It is continuously changing to match the movement of the

subject until the shutter button is pressed fully.

[100]

The ISO sensitivity is fixed to various settings.

[200]

[400]

[800]

[1600]

[100]

[

1600]

Recording location

(recommended) When it is light (outdoors) When it is dark

Shutter speed Slow Fast

Noise Less Increased

Jitter of the subject Increased Less

- 80 -

Recording

Applicable modes:

In sunlight, under incandescent lights or in other such conditions where the colour of white

takes on a reddish or bluish tinge, this item adjusts to the colour of white which is closest to

what is seen by the eye in accordance with the light source.

•Under fluorescent lighting, LED lighting fixture etc., the appropriate White Balance will vary

depending on the lighting type, so use [AWB] or [Ó].

•The White Balance setting is memorised even if the camera is turned off. (However, the White

Balance setting for a Scene Mode returns to [AWB] when the Scene Mode is changed.)

•White Balance is fixed to [AWB] in following cases.

–[Scenery]/[Night Portrait]/[Night Scenery]/[Food]/[Sunset]/[Starry Sky] (Scene Mode)

[White Balance]

Settings Description of settings

[AWB]

([Auto White Balance])

Automatic adjustment

[V]

([Daylight])

When taking pictures outdoors under a clear sky

[Ð]

([Cloudy])

When taking pictures outdoors under a cloudy sky

[î]

([Shade])

When taking pictures outdoors in the shade

[Ñ]

([Incandescent])

When taking pictures under incandescent lights

[Ò]

([White Set])

Value set by using [Ó]

[Ó]

([White Set Setting])

Set manually

- 81 -

Recording

∫Auto White Balance

Depending on the conditions prevailing when pictures are taken, the pictures may take on a

reddish or bluish tinge. Furthermore, when a multiple number of light sources are being used or

there is nothing with a colour close to white, Auto White Balance may not function properly. In

this case, set the White Balance to a mode other than [AWB].

1 Auto White Balance will work within this range

2 Blue sky

3 Cloudy sky (Rain)

4 Shade

5 Sunlight

6 White fluorescent light

7 Incandescent light bulb

8 Sunrise and sunset

9 Candlelight

KlKelvin Colour Temperature

Set the White Balance value. Use to match the condition when taking photographs.

1Select [Ó] and then press [MENU/SET].

Aim the camera at a sheet of white paper etc. so that the frame in the

centre is filled by the white object only and then press [MENU/SET].

•White Balance may not be set when the subject is too bright or too dark.

Set the White Balance again after adjusting to appropriate brightness.

•Exit the menu after it is set.

Setting the White Balance manually

- 82 -

Recording

Applicable modes:

This allows the focusing method that suits the positions and number of the subjects to be

selected.

¢1[Ø] will be used during recording motion pictures or using [Time Lapse Shot].

¢2[

Ø] will be used during recording motion pictures.

•[AF Mode] is fixed to [Ø] in the following cases.

–[Miniature Effect] (Creative Control Mode)

–[Starry Sky] (Scene Mode)

•It will be fixed to [š] when the [Face Recog.] is set to [ON].

•It is not possible to set [š] in the following cases.

–[Advanced Underwater]

–[Panorama Shot]

–[Night Scenery]/[Food] (Scene Mode)

•It is not possible to set [ ] in the following cases.

–[Sepia]/[Dynamic Monochrome]/[High Dynamic]/[Toy Effect] (Creative Control Mode)

–[Panorama Shot]

–[B&W]/[SEPIA] ([Color Mode])

[AF Mode]

Settings Description of settings

[š]

([Face Detection])

The camera automatically detects the person’s face. (max.

15 areas)

The focus and exposure can then be adjusted to fit that face no

matter what portion of the picture it is in.

[]

([AF Tracking])¢1

Focus can be adjusted to a specified subject. Focus will keep on

following the subject even if it moves. (Dynamic tracking)

[]

([23-Area])¢2

Up to 23 points for each AF area can be focused. This is effective

when the subject is not in the centre of the screen.

(AF area frame will be same as image aspect ratio setting.)

[Ø]

([1-Area])

The camera focuses on the subject in the AF area on the centre

of the screen.

[Ù]

([Spot])¢2

The camera focuses on a limited narrow area in the screen.

- 83 -

Recording

∫About [š] ([Face Detection])

The following AF area frames are displayed when the camera detects the

faces.

Yellow:

When the shutter button is pressed halfway, the frame turns green when

the camera is focused.

White:

Displayed when more than one face is detected. Other faces that are the same distance away

as the faces within the yellow AF areas are also brought into focus.

•Under certain picture-taking conditions including the following cases, the face detection function may

fail to work, making it impossible to detect faces. [AF Mode] is switched to [ ] ([Ø] while motion

pictures are taken).

–When the face is not facing the camera

–When the face is at an angle

–When the face is extremely bright or dark

–When there is little contrast on the faces

–When the facial features are hidden behind sunglasses, etc.

–When the face appears small on the screen

–When there is rapid movement

–When the subject is not a human being

–When the camera is shaking

–When Digital Zoom is used

–Taking pictures underwater

•If the camera is registering something other than someone’s face, change the settings to something

other than [š].

- 84 -

Recording

∫Setting up [ ] ([AF Tracking])

Align the subject with the AF tracking frame, and then press 4 to

lock onto the subject.

AAF tracking frame

•AF area will be displayed in yellow when a subject is recognised, and focus

will automatically adjust continuously following the subject’s movement

(Dynamic tracking).

•AF tracking is cancelled when 4 is pressed again.

•Dynamic tracking function may not work in the following cases:

–When the subject is too small

–When the recording location is too dark or bright

–When the subject is moving too fast

–When the background has the same or similar colour to the subject

–When jitter is occurring

–When using the zoom

–Taking picture underwater

•When the lock fails, the AF tracking frame will turn red and then disappear. Press 4 again.

•The camera records pictures with [AF Mode] as [Ø] when locked or Dynamic Tracking is not

working.

- 85 -

Recording

Applicable modes:

Face Recognition is a function which finds a face resembling a registered face and prioritises

focus and exposure automatically. Even if the person is located towards the back or on the end

of a line in a group photo, the camera can still take a clear picture.

Settings: [ON]/[OFF]/[MEMORY]

•The following functions will also work with the Face Recognition

function.

In Recording Mode

–Display of corresponding name when camera detects a registered face¢

(if name has been set for the registered face)

In Playback Mode

–Display of name and age (if information has been registered)

–Selective playback of pictures chosen from pictures registered with Face Recognition ([Category

Selection] in [Filtering Play]).

¢Names of up to 3 people are displayed. Precedence for the names displayed when taking

pictures is determined according to the order of registration.

•During the Burst Mode, [Face Recog.] picture information can be attached to only the first picture.

•[Face Recog.] does not guarantee secure recognition of a person.

•Face Recognition may take more time to select and recognise distinctive facial features than regular

face detection.

•Even when Face Recognition information has been registered, pictures taken with [Name] set to

[OFF] will not be categorised by Face Recognition in [Category Selection] ([Filtering Play]).

•Even when Face Recognition information is changed (P88), Face Recognition information for

the pictures already taken will not be changed.

For instance, if the name is changed, pictures recorded before the change will not be categorised by

Face Recognition in [Category Selection] ([Filtering Play]).

•

To change the name information of the pictures taken, perform the [REPLACE] in [Face Rec Edit] (P118).

•[Face Recog.] cannot be used in the following cases.

–Recording Modes which do not allow setting to [š] of [AF Mode]

–When recording motion pictures

[Face Recog.]

[Face Recog.] is initially set to [OFF] on the camera.

[Face Recog.] will turn [ON] automatically when the face image is registered.

- 86 -

Recording

You can register information such as names and birthdays for face images of up to 6 people.

Registration can be facilitated by taking multiple face images of each person.

(up to 3 pictures/registration)

1Select [Face Recog.] on the [Rec] menu and then press [MENU/SET].

2Press 3

4 to select [MEMORY] and then press [MENU/SET].

3Press 3/4/2/1 to select the Face Recognition frame that is

not registered, and then press [MENU/SET].

4Take the picture adjusting the face with the guide.

•Confirmation screen is displayed. It is executed when [Yes] is selected.

•The faces of subjects other than people (pets, etc.) cannot be

registered.

•When [DISP.] is pressed, an explanation appears for taking face

images.

Face Settings

1HZ

- 87 -

Recording

5Select item to edit with 3/4, and then press [MENU/SET].

•Exit the menu after it is set.

Item Description of settings

[Name]

1Press 4 to select [SET] and then press [MENU/SET].

2Enter the name.

•For details on how to enter characters, refer to “Entering Text”

section on P77.

[Age]

1Press 4 to select [SET] and then press [MENU/SET].

2Press 2/1 to select the items (Year/Month/Day), and then

press 3/4 to set and then press [MENU/SET].

[Focus Icon]

Change the displayed focus icon when the subject is focused.

Press 3/4 to select the focus icon, and then press [MENU/

SET].

[Add Images]

To add additional face images.

(Add Images)

1Select the unregistered face recognition frame, and then press

[MENU/SET].

2Perform step 4 in “Face Settings”.

To delete one of the face images.

(Delete)

Press 2/1 to select the face image to delete, and then press

[MENU/SET].

•If there is only one image registered, it cannot be deleted.

•Confirmation screen is displayed. It is executed when [Yes] is selected.

- 88 -

Recording

You can modify the pictures or information of an already registered person. You can also delete

the information of the registered person.

1Press 4 to select [MEMORY] and press [MENU/SET].

2Press 3/4/2/1 to select the face image to edit or delete and then press [MENU/

SET].

3Press 3/4 to select the item and then press [MENU/SET].

•Exit the menu after it is set.

∫Point of recording when registering the face images

•Face front with eyes open and mouth closed, making sure the

outline of the face, the eyes, or the eyebrows are not covered with

the hair when registering.

•Make sure there is no extreme shading on the face when

registering. (Flash will not flash during registration.)

(Good example for

registering)

∫When it is not recognising during recording

•

•Additionally register at the location of recording.

•When a person who is registered is not recognised, correct by re-registering.

•Face Recognition may not be possible or may not recognise faces correctly even for registered

faces, depending on the facial expression and environment.

Change or delete the information for a registered person

Item Description of settings

[Info Edit] Changing the information of an already registered person.

Perform step 5 in “Face Settings”.

[Priority]

The focus and exposure are preferentially adjusted for

higher-priority faces.

Press 3/4/2/1 to select the priority and then press [MENU/

SET].

[Delete] Deleting information of a registered person.

•Confirmation screen is displayed. It is executed when [Yes] is selected.

- 89 -

Recording

Applicable modes:

Contrast and exposure will be adjusted automatically when there is a big difference in

brightness between the background and subject, to bring the image close to real life.

Settings: [ON]/[OFF]

•[ ] in the screen turns yellow when [i.Exposure] is in effect.

•Even when the [Sensitivity] is set to [100], [Sensitivity] may be set higher than [100] if the picture is

taken with [i.Exposure].

•Compensation effect may not be achieved depending on the conditions.

Applicable modes:

Pictures with sharp profile and resolution can be taken by using the Intelligent Resolution

Technology.

•Refer to P53 for information about the Intelligent Zoom.

Applicable modes:

This can enlarge subjects even more than the Optical Zoom, Extra Optical Zoom, or [i.ZOOM].

Settings: [ON]/[OFF]

•Refer to P53 for details.

•The setting is fixed to [ON] in Macro Zoom Mode.

[i.Exposure]

[i.Resolution]

Settings Description of settings

[ON] [i.Resolution] is activated.

[i.ZOOM] [i.Resolution] is activated, and zoom magnification increased to 2 times

while limiting deterioration of the picture.

[OFF] j

[Digital Zoom]

- 90 -

Recording

Applicable modes:

Pictures are taken continuously while the shutter button is pressed.

[Burst]

Settings Description of settings

[˜]

([Burst On])

Burst speed approx. 1.3 pictures/second

•You can take pictures until the capacity of the built-in memory or the card is

full.

•The burst speed becomes slower halfway. The exact timing of this depends

on the type of card and the Picture Size.

•The focus is fixed when the first picture is taken.

•The exposure and White Balance are adjusted each time you take a picture.

•The Burst speed (pictures/second) may become slower depending on the

recording environment, such as in dark places, if the ISO sensitivity is high etc.

[]

([Hi-Speed Burst])

Burst speed approx. 8 pictures/second

Number of recordable

pictures max. 100 pictures

•This can be set only during Normal Picture Mode.

•The picture size is fixed to 3M (4:3), 2.5M (3:2), 2M (16:9) or 2.5M (1:1).

•The Burst speed changes according to the recording conditions.

•The number of Burst recording pictures are limited by the picture-taking

conditions and the type and/or status of the card used.

•The number of Burst recording pictures may increase when you use a card

with fast writing speed or card is formatted.

•The focus, zoom, exposure, White Balance, shutter speed and ISO sensitivity

are fixed to the settings for the first picture.

•The ISO sensitivity is automatically adjusted. However, the ISO sensitivity is

increased to make the shutter speed become high-speed.

[]

([Flash Burst])

Number of recordable

pictures max. 5 pictures

•Still pictures are taken continuously with flash.

•This can be set only during Normal Picture Mode.

•The picture size is fixed to 3M (4:3), 2.5M (3:2), 2M (16:9) or 2.5M (1:1).

•Settings for focus, zoom, exposure, shutter speed, ISO sensitivity, flash output

are fixed to the first picture.

•The flash setting is fixed to [‰].

[OFF] j

- 91 -

Recording

•Depending on the operating conditions, it may take time to take the next picture if you repeat the

recording of pictures.

•It may take time to save pictures taken in Burst Mode on the card. If you take pictures

continuously while saving, the maximum number of recordable pictures decreases. For

continuous shooting, use of a high speed memory card is recommended.

•Burst Mode is not cancelled when the camera is turned off.

•If you take pictures in Burst Mode with the built-in memory, it will take time to write the picture data.

•The Burst Mode cannot be used in the following cases.

–[Toy Effect]/[Miniature Effect] (Creative Control Mode)

–[Starry Sky] (Scene Mode)

–When using [Time Lapse Shot]

•When the Self-Timer is used, the number of recordable pictures in Burst Mode is fixed to 3

(5 pictures in [ ]).

•The flash setting is fixed to [Œ] (except for [ ]).

- 92 -

Recording

Applicable modes:

You can set the recording start time, the recording interval and the number of pictures, and

automatically record subjects such as animals and plants as time elapses.

You can create motion pictures using [Time Lapse Video] in [Playback] menu. (P111)

•Set the date and time settings in advance. (P25)

•It cannot be recorded into the built-in memory. Please use a card.

∫Set the recording start time/interval/number of pictures

1Press 3/4 to select the item and then press [MENU/SET].

[Time Lapse Shot]

Item Description of settings

[Start Time]

[Now]:

Starts the recording by fully-pressing the shutter button.

[Start Time Set]:

You can set the time to start recording. Any time up to 24 hours

ahead can be set.

Select the start time (hours/minutes) with 2/1, adjust with

3/4, and then press [MENU/SET] to set.

[Shooting Interval]

[Image Count]

Sets the number of pictures to be taken and the recording interval.

Select the item (recording interval/number of pictures to be

taken) with 2/1, adjust with 3/4, and then press [MENU/

SET] to set.

[Shooting Interval]:

You can set the time ranging from 10 seconds to 1 minute in

10-second increments, and from 1 minute to 30 minutes in

1-minute increments.

•The setting may be available from a 1-minute interval or 5-minutes

interval depending on the shutter speed.

[Image Count]:

You can set the number of pictures ranging from 10 to 1000 in

10-picture increments.

[Alert]

[ON]:

The user is notified that recording is to start by a warning sound

and flashing AF assist lamp.

[OFF]:

There is no warning sound. Also, the AF assist lamp doesn’t flash.

- 93 -

Recording

2Press 3/4 to select [Start Shooting] and then press [MENU/SET].

3Press the shutter button fully.

•The recording starts automatically.

•If the recording interval is set to 40 seconds or more, this unit will turn off automatically while in

recording standby. [Time Lapse Shot] is continued even with this unit turned off. When the

recording start time arrives, this unit turns on automatically. To turn on this unit manually, press

the camera [ON/OFF] button or press and hold [(].

•To stop the Time Lapse Shooting partway through, press [MENU/SET] or [(] while this unit

turned on, and end the recording on the displayed confirmation screen.

•This function is not for use in a security camera.

•If you leave the unit somewhere to perform [Time Lapse Shot], please be careful of theft.

•Recording for long periods in cold places such as ski resorts or places at high altitude, or in

warm, wet environments may cause a malfunction, so please be careful.

•When the recording interval is set to a value of less than 1 minute and the previous recording has

not finished yet, recording may be skipped.

•We do not recommend using [Time Lapse Shot] while underwater.

•When the recording warning is set to [ON], a warning sound will be emitted. Check this setting is

suitable for the recording environment.

•The unit is fixed to the zoom position prior to the start of recording.

•We recommend to use a fully charged battery.

•In situations that require longer recording time such as when recording in [Starry Sky] of the Scene

Mode or when recording in a dark place, we recommend you use an AC adaptor (optional).

•[Time Lapse Shot] will be cancelled partway through in the following cases.

–When the charge on the battery runs out

–When the number of recordable pictures drops to none

•Do not connect the AV cable (optional) or the USB connection cable (supplied) during Time Lapse

Shooting.

- 94 -

Recording

Pictures taken in [Time Lapse Shot] are stored in groups, each containing

the series of pictures recorded in a single Time Lapse Shot. The [ ] icon

is displayed for the group.

•Deleting and editing in a group unit is possible. (For example, if you delete a

picture group with [ ], all the pictures in that group are deleted.)

∫Continuously playing back

Press 2/1 to select a picture with the [ ] icon, and then press 3.

•If you have filtered images for playback by using [Slide Show] (P99)

or [Filtering Play] (P101), the

selection screen appears. Press 3/4 to select [Sequential Play], and then press [MENU/SET].

•Operations during continuous playback

∫Playing back each picture

1Press 2/1 to select a picture with the [ ] icon, and then press 4.

2Press 2/1 to select the picture.

•Press 4 again to return to the normal playback screen.

•Operations similar to those for Normal Play can be used on the pictures in the group. (Multi

playback, playback zoom, deleting the pictures, etc.)

•If you delete all pictures except one in the group, that picture will be saved as a single picture.

Playing back pictures taken in [Time Lapse Shot]

3Play/Pause

4Stop

2Fast rewind, Previous picture¢

1Fast forward, Next picture¢

¢These operations can be performed only in the Pause Mode.

- 95 -

Recording

Applicable modes:

Sets various colour effects, including making the picture sharper, brighter, or applying a sepia

tone.

¢1 This can be set only when Intelligent Auto Mode is set.

¢2 This can be set only during Normal Picture Mode.

Applicable modes:

•Refer to P68 for details.

Applicable modes:

AF assist lamp will illuminate the subject when the shutter button is pressed halfway, making it

easier for the camera to focus when recording in low light conditions. (Larger AF area is

displayed depending on the recording conditions.)

Settings: [ON]/[OFF]

•The effective distance of the AF Assist Lamp is a maximum of approximately

1.5 m (4.9 feet).

•When you do not want to use the AF Assist Lamp A (e.g. when taking pictures

of animals in dark places), set the [AF Assist Lamp] to [OFF]. In this case, it will

become more difficult to focus on the subject.

•[AF Assist Lamp] is fixed to [OFF] in the following cases.

–[Scenery]/[Night Scenery]/[Sunset]/[Glass Through] (Scene Mode)

[Color Mode]

Settings Description of settings

[STANDARD] This is the standard setting.

[Happy]¢1Image with enhanced brightness and vividness.

[VIVID]¢2The picture becomes sharper.

[B&W] The picture becomes black and white.

[SEPIA] The picture becomes sepia.

[Color Reproduction]

[AF Assist Lamp]

- 96 -

Recording

Applicable modes:

When Red-Eye Reduction ([ ], [ ]) is selected, Red-Eye Removal is performed

whenever the flash is used. The camera automatically detects red-eye and corrects the picture.

Settings: [ON]/[OFF]

•Only available when [AF Mode] is set to [š] and Face Detection is active.

•Under certain circumstances, red-eye cannot be corrected.

Applicable modes:

Using this mode, jitter during picture taking is detected, and the camera automatically

compensates for the jitter, enabling jitter-free images to be taken.

When recording motion pictures, “Active Mode” (stabiliser for motion pictures) will automatically

function. This decreases the jitter of the image when recording motion pictures while walking,

etc.

Settings: [ON]/[OFF]

•During motion picture recording, this setting is fixed to [ON] and “Active Mode” is enabled.

Note that “Active Mode” is disabled when [Rec Quality] is set to [VGA].

•In “Active Mode”, stronger effect of the correction can be achieved at the wide end.

•The stabiliser function may not be effective in the following cases.

Be careful of camera jitter when you press the shutter button.

–When there is a lot of jitter

–When the zoom magnification is high

–In Digital Zoom range

–When taking pictures while following a moving subject

–When the shutter speed becomes slower to take pictures indoors or in dark places

•The setting is fixed to [OFF] in the following case.

–[Starry Sky] (Scene Mode)

[Red-Eye Removal]

[Stabilizer]

- 97 -

Recording

Applicable modes:

You can take a picture with date and time of recording.

•Date information for pictures recorded with the [Date Stamp] set cannot be deleted.

•When printing pictures with [Date Stamp] at a shop or with a printer, the date will be printed

on top of the other if you choose to print with the date.

•If the time has not been set, you cannot stamp with the date information.

•The setting is fixed to [OFF] in the following cases.

–When using Auto Bracket

–When using [Burst]

–When recording motion pictures

•[Text Stamp], [Resize], and [Cropping] cannot be set for pictures recorded with [Date Stamp] set.

•Even if you take a picture with [Date Stamp] set to [OFF], it is possible to stamp dates onto the

recorded pictures using [Text Stamp] (P108) or setup the Date print (P116, 129).

•Refer to P25 for details.

[Date Stamp]

Settings Description of settings

[W/O TIME] Stamp the year, month, and day.

[WITH TIME] Stamp the year, month, day, hour, and minutes.

[OFF] j

[Clock Set]

- 98 -

Recording

Using the [Motion Picture] Menu

For details on [Motion Picture] menu settings, refer to P40.

Applicable modes:

This sets up the picture quality of motion pictures.

•What is bit rate

This is the volume of data for a definite period of time, and the quality becomes higher when the

number gets bigger. This unit is using the “VBR” recording method. “VBR” is an abbreviation of

“Variable Bit Rate”, and the bit rate (volume of data for definite period of time) is changed

automatically depending on the subject to record. Therefore, the recording time is shortened when a

subject with fast movement is recorded.

Applicable modes:

It will continually keep on focusing on a subject for which the focus was once set.

Settings: [ON]/[OFF]

•Set this function to [OFF] if you wish to fix the focus on the position where you started the motion

picture recording.

•The setting is fixed to [OFF] in the following case.

–[Starry Sky] (Scene Mode)

[Rec Quality]

Settings Picture size/Bit rate fps Aspect ratio

[HD] 1280k720 pixels/Approx. 10 Mbps 25 16:9

[VGA] 640k480 pixels/Approx. 4 Mbps 4:3

[Continuous AF]

- 99 -

Playback/Editing

Various methods of playback

You can play back the recorded pictures in various methods.

Press [(].

Press [MODE].

Press 3/4/2/1 to select item, and then press [MENU/SET].

•Following items can be selected.

You can play back the pictures you have taken in synchronisation with music, and you can do

this in sequence while leaving a fixed interval between each of the pictures.

You can also play back images that have been sorted by category, images that have been set

as favourites, etc. in a slide show.

This playback method is recommended when you have connected the camera to a TV set to

view the pictures you have taken.

Press 3/4 to select [Start] and then press [MENU/SET].

∫Operations performed during slide show

The cursor displayed during playback is the same as 3/4/2/1.

[]([All]) (P37) []([Filtering Play]) (P101)

[]([Slide Show]) (P99) []([Calendar]) (P104)

[Slide Show]

3Play/Pause Reduce volume level

4Stop

2Back to previous picture Increase volume level

1Ahead to next picture

- 100 -

Playback/Editing

∫To filter images for slide show playback

You can filter images and play them back in a slide show by selecting

[Filtering] on the slide show menu screen.

•If you select [All], you can play back all images in a slide show.

You can also filter images by using the same setting as [Filtering Play]. Refer

to P101–103 for the setting.

•The filter settings are stored even after terminating slide show playback. To

cancel filtering, refer to P101.

∫Changing the slide show settings

By selecting [Setup] on the slide show menu screen, you can change the

settings such as [Effect] and [Duration] for slide show playback.

Settings Description of settings

[Effect]

This allows you to select the screen effects or music effects when switching

from one picture to the next.

[NATURAL], [SLOW], [SWING], [URBAN], [OFF]

•When [URBAN] has been selected, the picture may appear in black and

white as a screen effect.

•Some [Effect] will not operate when playing back pictures displayed

vertically.

•Even if [Effect] is set, it does not work during a slide show of Group

Pictures.

•[Effect]is locked to [OFF] when [Filtering] is set to the following:

–[Motion Pic. Only]

–[ ] in [Category Selection]

[Duration]

[1SEC.]/[2SEC.]/[3SEC.]/[5SEC.]

•When playing back the following pictures, the [Duration] setting is

disabled.

–Motion pictures

–Panorama pictures

–Group of pictures taken in [Time Lapse Shot]

[Repeat] [ON]/[OFF]

[Sound]

[OFF]: There will be no sound.

[AUTO]: Music is played when the still pictures are played back,

and audio is played when the motion pictures are played

back.

[Music]: Music is played back.

[Audio]: Audio (only for motion pictures) is played back.

- 101 -

Playback/Editing

The images sorted into the category or images set as favourite are played back.

∫To cancel filtering

1Press 3 while playing back one picture at a time.

2Press 3/4 to select [Filtering Off] and then press [MENU/SET].

•Filtering is also cancelled by turning off the camera or switching to Recording Mode.

[Filtering Play]

Settings Description of settings

[Picture Only] Only still pictures are played back.

[Video Only] Only motion pictures are played back.

[Category

Selection]

This mode allows you to search images by Scene Mode or other categories (such

as [Portrait], [Scenery] or [Night Scenery]) and sort the pictures into each of the

categories. You can then play back the pictures in each category.

[Select Date] You can play back pictures taken on each date.

[Favorite] You can play back the pictures you have set as [Favorite] (P114).

- 102 -

Playback/Editing

1Press 3/4 to select [Category Selection] and then press [MENU/SET].

2Press 3/4/2/1 to select the category and then press [MENU/

SET] to set.

•You can play back only the category in which an image has been found.

Sorting by category to play back

Category Recording information e.g. Scene Modes

[Face Recog.]¢

*[Portrait], [i-Portrait], [Soft Skin], [Night Portrait], [i-Night Portrait], [Baby1]/

[Baby2], [i-Baby]

,[Panorama Shot], [Scenery], [i-Scenery], [Sunset], [i-Sunset],

[Glass Through]

.[Night Portrait], [i-Night Portrait], [Night Scenery], [i-Night Scenery],

[Starry Sky]

[Sports], [Snow], [Beach & Surf]

Î[Baby1]/[Baby2], [i-Baby]

í[Pet]

1[Food]

[Advanced Underwater]

[Travel Date]

[Time Lapse Shot], [Time Lapse Video]

¢Press 3/4/2/1 to select the person to play back and then press [MENU/SET].

The Group of pictures taken in [Time Lapse Shot] are treated as Face Recognition

pictures in group units.

- 103 -

Playback/Editing

1Press 3/4 to select [Select Date] and then press [MENU/SET].

2Press 3/4/2/1 to select the date to be played back and then

press [MENU/SET].

•If there were no pictures recorded during a month, that month is not

displayed.

∫Changing the filtering date

1Press 3 while playing back one picture at a time.

2Press 3/4 to select [Change Date] and then press [MENU/SET].

3Press 3/4/2/1 to select the date to be played back and then press [MENU/SET].

•The recording date of the picture selected in the playback screen becomes the date selected when

the calendar screen is first displayed.

•If there are multiple pictures with the same recording date, the first picture recorded on that day is

displayed.

•You can display the calendar between January 2000 and December 2099.

•If the date is not set in the camera, the recording date is set as the 1st January, 2015.

•If you take pictures after setting the travel destination in [World Time], the pictures are displayed by

the dates at the travel destination in Calendar Playback.

•Motion pictures created with [Time Lapse Video] are displayed in the calendar by the date on which

they were created with [Time Lapse Video].

You can play back pictures taken on each date.

SUN MON TUE WED THU FRI SAT

2015

29 30 31

22 23 24 262520 21

13 14

27 28

8 9 10 1211

15 16 17 1918

123 54

- 104 -

Playback/Editing

You can search for images by recorded date.

•The recording date of the picture selected in the playback screen becomes the date selected when

the calendar screen is first displayed.

•If there are multiple pictures with the same recording date, the first picture recorded on that day is

displayed.

•You can display the calendar between January 2000 and December 2099.

•If the date is not set in the camera, the recording date is set as the 1st January, 2015.

•If you take pictures after setting the travel destination in [World Time], the pictures are displayed by

the dates at the travel destination in Calendar Playback.

•Motion pictures created with [Time Lapse Video] are displayed in the calendar by the date on which

they were created with [Time Lapse Video].

[Calendar]

Press 3/4/2/1 to select the date you want to search.

•If there were no pictures recorded during a month, that month is not

displayed.

Press [MENU/SET] to display the list of images.

•Pictures are displayed with Multi Playback (30 screens). The cursor

appears on the picture at the beginning of the selected date.

Press 3/4/2/1 to select a picture and then press

[MENU/SET].

•To continue the search, return to the previous screen with [W] of the zoom

button. (P38)

SUN MON TUE WED THU FRI SAT

2015

29 30 31

22 23 24 262520 21

13 14

27 28

8 9 10 1211

15 16 17 1918

123 54

1/52

- 105 -

Playback/Editing

Having Fun with Recorded Pictures (Retouch)

You can adjust the colour tone of the pictures taken, or add your preferred effects.

•The processed pictures are newly generated, so be sure that you have enough space in the built-in

memory or on the card. Note also that processing will not be possible if the Write-Protect switch of

the card is in the [LOCK] position.

•Effects may be difficult to see depending on the picture.

•Pictures taken with other cameras may not be processed.

The brightness and colour of the pictures taken can be balanced.

¢These pictures are examples to show the effect.

Press 2/1 to select a picture, and then press 3.

•If you have filtered images for playback by using [Slide Show] (P99)

or [Filtering Play]

(P101), the selection screen appears. You can proceed to step 2 by selecting [Retouch] with

3/4, and then pressing [MENU/SET].

•You can also proceed to step 2 by selecting [Retouch] from the [Playback] menu.

Press 3/4 to select [Auto Retouch], and then press [MENU/SET].

Press 3/4 to select [ON], and then press [MENU/SET].

•If you select [OFF], an image with no effect is displayed. If you are not going to add an effect,

exit the menu.

•Confirmation screen is displayed. It is executed when [Yes] is selected.

•Depending on the picture, noise may be emphasised by [Auto Retouch].

•It may not be possible to perform [Auto Retouch] on pictures which have already been retouched.

•The following pictures cannot be processed:

–Motion pictures

–Pictures taken in [Panorama Shot]

•Picture groups taken with [Time Lapse Shot] cannot be processed on a group-by-group basis.

[Auto Retouch]

- 106 -

Playback/Editing

You can add your desired effects to the pictures that you have taken.

Press 2/1 to select a picture, and then press 3.

•If you have filtered images for playback by using [Slide Show] (P99)

or [Filtering Play]

(P101), the selection screen appears. You can proceed to step 2 by selecting [Retouch] with

3/4, and then pressing [MENU/SET].

•You can also proceed to step 2 by selecting [Retouch] from the [Playback] menu.

Press 3/4 to select [Creative Retouch], and then press [MENU/SET].

Press 3/4 to select image effects and then press [MENU/SET].

•You can select the item from the following options that are also available in the Creative

Control mode.

[Expressive]/[Retro]/[High Key]/[Low Key]/[Sepia]/[Dynamic Monochrome]/[Impressive Art]/

[High Dynamic]/[Cross Process]/[Toy Effect]/[Miniature Effect]/[One Point Color]

•A brief description of selected image effect appears when you press [DISP.].

•Read P63–66 for details on the respective effects.

•To set the colour you want to keep by using [One Point Color], move

the frame at the centre of the screen to the desired colour with 3/4/

2/1, and then press [MENU/SET].

•If you select [OFF], an image with no effect is displayed. To proceed

with the retouch operation, select another image effect. If you are not

going to add any effect, exit the menu.

•Confirmation screen is displayed. It is executed when [Yes] is selected.

•The image effect may appear weak compared to the effect given by the Creative Control Mode.

•The following pictures cannot be processed:

–Motion pictures

–Pictures taken in [Panorama Shot]

•Picture groups taken with [Time Lapse Shot] cannot be processed on a group-by-group basis.

[Creative Retouch]

- 107 -

Playback/Editing

You can recreate the red tinge of the pictures taken underwater.

¢These pictures are examples to show the effect.

Press 2/1 to select a picture, and then press 3.

•If you have filtered images for playback by using [Slide Show] (P99)

or [Filtering Play]

(P101), the selection screen appears. You can proceed to step 2 by selecting [Retouch] with

3/4, and then pressing [MENU/SET].

•You can also proceed to step 2 by selecting [Retouch] from the [Playback] menu.

Press 3/4 to select [Color Reproduction], and then press [MENU/SET].

Press 3/4 to select the effect, and then press [MENU/SET].

•You can select from three levels of effect.

•If you select [OFF], an image with no effect is displayed. To proceed with the

[Color Reproduction] operation, select another image effect. If you are not going to add any

effect, exit the menu.

•Confirmation screen is displayed. It is executed when [Yes] is selected.

•The effect may be weaker than that of [Color Reproduction] in the [Rec] menu.

•The following pictures cannot be processed:

–Motion pictures

–Pictures taken in [Panorama Shot]

•Picture groups taken with [Time Lapse Shot] cannot be processed on a group-by-group basis.

[Color Reproduction]

- 108 -

Playback/Editing

Using the [Playback] Menu

You can perform actions like cropping recorded pictures, as well as set up the protection of

recorded images, etc.

•With [Text Stamp], [Retouch], [Time Lapse Video], [Resize] or [Cropping] a new edited picture is

created. A new picture cannot be created if there is no free space on the built-in memory or the card

so we recommend checking that there is free space and then editing the picture.

You can stamp the recording date/time, name, location or travel date onto the recorded

pictures.

Select [Text Stamp] on the [Playback] menu.

Press 3/4 to select [SINGLE] or [MULTI] and then press [MENU/SET].

Press 3/4 to select [Set], and then press [MENU/SET].

Press 3/4 to select text stamp items, and then press [MENU/SET].

[Text Stamp]

Select the picture, and then press

[MENU/SET] to set.

•[‘] is displayed on pictures already with date

or text stamped.

[MULTI] setting

Press [DISP.] to set (repeat), and then

press [MENU/SET] to set.

•The setting is cancelled when [DISP.] is

pressed again.

[SINGLE] [MULTI]

Press 2/1 to

select the picture.

Press 3/4/2/1 to

select the pictures.

4 6

231

- 109 -

Playback/Editing

Press 3/4 to select the settings, and then press [MENU/SET].

Press [ ].

Press 3 to select [OK], and then press [MENU/SET].

•Confirmation screen is displayed. It is executed when [Yes] is selected.

Exit the menu after it is executed.

•When you print pictures stamped with text, the date will be printed over the stamped text if you

specify printing of the date at the photo shop or on the printer.

•You can set up to 100 pictures at one time in [MULTI].

•The picture quality may deteriorate when text stamping is carried out.

•Depending on the printer being used, some characters may be cut at printing. Check before printing.

•When text is stamped onto the 0.3M pictures, it is difficult to read it.

•When you stamp pictures in a group, the stamped ones are saved separately from the original ones

in the group.

•Text and dates cannot be stamped on the pictures in the following cases.

–Motion pictures

–Pictures taken in [Panorama Shot]

–Pictures recorded without setting the clock

–Pictures with date or text stamped

–Pictures recorded with other equipment

Item Setting item

[Shooting Date]

[W/O TIME]: Stamp the year, month and day.

[WITH TIME]: Stamp the year, month, day, hour and minutes.

[OFF]

[Name]

[]: ([Face Recognition])

Name registered in Face Recognition will be

stamped.

[]: ([Baby/Pet])

Stamps names registered in name settings for

[Baby1]/[Baby2] or [Pet] in Scene Mode.

[OFF]

[Location]

[ON]: Stamps the travel destination name set under

[Location].

[OFF]

[Travel Date]

[ON]: Stamps the travel date set under [Travel Date].

[OFF]

- 110 -

Playback/Editing

You can add the effect of [Auto Retouch], [Creative Retouch], or [Color Reproduction] to

recorded pictures.

•Refer to P105–107 for details.

Recorded motion picture can be divided in two. It is recommended for when you want to divide a

part you need with a part you do not need.

It cannot be restored once divided.

•[Video Divide] may not be performed on motion pictures recorded with other equipment.

•Motion pictures cannot be divided at a location close to the start or end of the motion picture.

•The order of images will change if motion pictures are divided.

It is recommended to search these motion pictures by using [Calendar] or [Video Only] in the

[Filtering Play].

•Motion pictures with a short recording time cannot be divided.

[Retouch]

[Video Divide]

Select [Video Divide] on the [Playback] menu.

Press 2/1 to select the motion picture to divide, and then press [MENU/

SET].

Press 3 at the location to divide.

•Motion picture is played back from the same location when 3 is

pressed again.

•You can finely adjust the location for division by pressing 2/1 while

the motion picture is paused.

Press 4.

•Confirmation screen is displayed. It is executed when [Yes] is selected.

Exit the menu after it is executed.

•Motion picture may be lost if the card or battery is removed while processing the dividing.

3s3s3s

- 111 -

Playback/Editing

This function allows you to create a motion picture from a picture group recorded with [Time

Lapse Shot]. The created motion picture is saved in MP4 recording format.

Select [Time Lapse Video] on the [Playback] menu.

Press 2/1 to select the picture group from which you want to create a

motion picture, and then press [MENU/SET].

Press 3/4 to select the item and settings, and then press [MENU/SET].

Press 3/4 to select [Start], and then press [MENU/

SET].

•Confirmation screen is displayed. It is executed when [Yes] is

selected.

Exit the menu after it is executed.

•When recording to the built-in memory, [Time Lapse Video] is not available.

•If you select the image quality in which the aspect ratio is different from the one for the picture group,

black strips will appear on the top and bottom or left and right of the image.

•If a recorded image quality with a resolution higher than the group pictures have been selected, the

image will become blurry.

•When creating motion pictures, we recommend you use the sufficiently-charged battery or the AC

adaptor (optional).

•If power supply is lost by unplugging the AC adaptor or due to a blackout while creating a motion

picture with the AC adaptor, the motion picture you are creating will not be recorded.

•The following motion pictures cannot be created:

–A motion picture longer than 29 minutes and 59 seconds

•A motion picture shorter than 1 second is displayed as “0s” on the motion picture recording time

(P37).

[Time Lapse Video]

Item Settings Setting item

[Rec Quality]

[HD] Creates motion pictures in the pixel resolution of

1280k720 and aspect ratio of 16:9.

[VGA] Creates motion pictures in the pixel resolution of

640k480 and aspect ratio of 4:3.

[Frame Rate]

[5fps] Plays back 5 images in 1 second.

[25fps] Plays back 25 images in 1 second.

- 112 -

Playback/Editing

To allow easy posting to web pages, attachment to email etc., picture size (number of pixels) is

reduced.

Select [Resize] on the [Playback] menu.

Press 3/4 to select [SINGLE] or [MULTI] and then press [MENU/SET].

•You can set up to 100 pictures at one time in [MULTI].

•The picture quality of the resized picture will deteriorate.

•It may not be possible to resize pictures recorded with other equipment.

•The following images cannot be resized.

–Motion pictures

–Pictures taken in [Panorama Shot]

–Pictures with date or text stamped

[Resize]

Select the picture and size.

[SINGLE] setting

1Press 2/1 to select the picture, and then press [MENU/

SET].

2Press 2/1 to select the size, and then press [MENU/SET].

•Confirmation screen is displayed. It is executed when [Yes] is

selected.

Exit the menu after it is executed.

[MULTI] setting

1Press 3/4 to select the size, and then press [MENU/SET].

2Press 3/4/2/1 to select the picture, and then press

[DISP.].

•Repeat this step for each picture, and press [MENU/SET] to set.

•Confirmation screen is displayed. It is executed when [Yes] is

selected.

Exit the menu after it is executed.

4 6

231

- 113 -

Playback/Editing

You can enlarge and then clip the important part of the recorded picture.

Select [Cropping] on the [Playback] menu.

Press 2/1 to select the picture, and then press [MENU/SET].

Use the zoom button and press 3/4/2/1 to select the parts to be

cropped.

Press [MENU/SET].

•Confirmation screen is displayed. It is executed when [Yes] is selected.

Exit the menu after it is executed.

•The picture quality of the cropped picture will deteriorate.

•Crop one picture at a time. (You cannot edit all pictures in a group at once)

•When you crop pictures in a group, the cropped ones are saved separately from the original ones in

the group.

•It may not be possible to crop pictures recorded with other equipment.

•Information regarding the Face Recognition in the original picture will not be copied to images

having undergone [Cropping].

•The following images cannot be cropped.

–Motion pictures

–Pictures taken in [Panorama Shot]

–Pictures with date or text stamped

[Cropping]

: Reduction

: Enlargement

3/4/2/1:Move

- 114 -

Playback/Editing

You can do the following if a mark has been added to pictures and they have been set as

favourites.

•Play back only the pictures set as favourites. ([Favorite] in [Filtering Play])

•Play back the pictures set as favourites only as a Slide Show.

•Delete all the pictures not set as favourites. ([All Delete Except Favorite])

Select [Favorite] on the [Playback] menu.

Press 3/4 to select [SINGLE] or [MULTI] and then press

[MENU/SET].

∫Cancelling all the [Favorite] settings

1Select [Favorite] on the [Playback] menu.

2Press 3/4 to select [CANCEL] and then press [MENU/SET].

•Confirmation screen is displayed. It is executed when [Yes] is selected.

Exit the menu after it is executed.

•You can set up to 999 pictures as favourites.

•You may not be able to set pictures taken with other equipment as favourites.

[Favorite]

Select the picture, and then press

[MENU/SET].

•The setting is cancelled when [MENU/SET] is

pressed again.

•Exit the menu after it is set.

[SINGLE] [MULTI]

Press 2/1 to

select the picture.

Press 3/4/2/1 to

select the pictures.

4 6

231

- 115 -

Playback/Editing

DPOF “Digital Print Order Format” is a system that allows the user to select which pictures to

print, how many copies of each picture to print and whether or not to print the recording date on

the pictures when using a DPOF compatible photo printer or photo printing store. For details,

ask at your photo printing store.

When you want to use a photo printing store to print pictures recorded on the built-in memory,

copy them to a card (P119) and then set the print setting.

When you set [Print Set] for a group pictures, the print setting for the number of prints will be

applied to every picture in the group.

Select [Print Set] on the [Playback] menu.

Press 3/4 to select [SINGLE] or [MULTI] and then press [MENU/SET].

Press 3/4 to set the number of prints, and then press [MENU/SET] to

set.

•When [MULTI] has been selected, repeat steps 3 and 4 for each picture. (It is not possible to

use the same setting for a multiple number of pictures.)

•Exit the menu after it is set.

[Print Set]

Select the picture, and then press

[MENU/SET].

[SINGLE] [MULTI]

Press 2/1 to

select the picture.

Press 3/4/2/1 to

select the pictures.

'DWH

&RXQW 1

4 6

231

DISP.

&RXQW 'DWH

- 116 -

Playback/Editing

∫Cancelling all the [Print Set] settings

1Select [Print Set] on the [Playback] menu.

2Press 3/4 to select [CANCEL] and then press [MENU/SET].

•Confirmation screen is displayed. It is executed when [Yes] is selected.

Exit the menu after it is executed.

∫To print the date

After setting the number of prints, set/cancel printing with the recording date by pressing

[DISP.].

•Depending on the photo printing store or the printer, the date may not be printed even if you set to

print the date. For further information, ask at your photo printing store or refer to the operating

instructions for the printer.

•The date cannot be printed on pictures with date or text stamped.

•The number of prints can be set from 0 to 999.

•Depending on the printer, the date print settings of the printer may take precedence so check if this

is the case.

•It may not be possible to use the print settings with other equipment. In this case, cancel all the

settings, and reset the settings.

•You cannot use [Print Set] for the following pictures.

–Motion pictures

–File that does not comply with the DCF standard

- 117 -

Playback/Editing

You can set protection for pictures you do not want to be deleted by mistake.

Select [Protect] on the [Playback] menu.

Press 3/4 to select [SINGLE] or [MULTI] and then press [MENU/SET].

∫Cancelling all the [Protect] settings

1Select [Protect] on the [Playback] menu.

2Press 3/4 to select [CANCEL] and then press [MENU/SET].

•Confirmation screen is displayed. It is executed when [Yes] is selected.

Exit the menu after it is executed.

•The protect setting may not be effective on other equipment.

•Even if you protect pictures in the built-in memory or a card, they will be deleted if the built-in

memory or the card is formatted.

•Even if you do not protect pictures on a card, they cannot be deleted when the card’s Write-Protect

switch is set to [LOCK].

[Protect]

Select the picture, and then press

[MENU/SET].

•The settings are cancelled when [MENU/SET]

is pressed again.

•Exit the menu after it is set.

[SINGLE] [MULTI]

Press 2/1 to

select the picture.

Press 3/4/2/1 to

select the pictures.

4 6

231

- 118 -

Playback/Editing

You can delete or change the information relating to Face Recognition for the selected picture.

Select [Face Rec Edit] on the [Playback] menu.

•Cleared information regarding the [Face Recog.] cannot be restored.

•When all Face Recognition information in a picture has been cancelled, the picture will not be

categorised using Face Recognition in [Category Selection] in [Filtering Play].

•You cannot edit the Face Recognition information of protected pictures.

[Face Rec Edit]

Press 3/4 to select [REPLACE] or [DELETE] and then press [MENU/

SET].

Press 2/1 to select the picture and then press [MENU/SET].

Press 2/1 to select the person and then press

[MENU/SET].

(When [REPLACE] is selected) Press 3/4/2/1 to

select the person to replace and then press [MENU/

SET].

•Confirmation screen is displayed. It is executed when [Yes] is

selected.

Exit the menu after it is executed.

- 119 -

Playback/Editing

You can copy the data of the pictures you have taken from the built-in memory to a card or from

a card to the built-in memory.

Select [Copy] on the [Playback] menu.

Press 3/4 to select the copy destination and then press

[MENU/SET].

•Confirmation screen is displayed. It is executed when [Yes] is selected.

Exit the menu after it is executed.

•Do not turn the camera off at any point during the copying process.

•If a picture exists with the same name (folder number/file number) as the picture to be copied in the

copy destination when [ ] is selected, a new folder is created and the picture is copied. If a

picture exists with the same name (folder number/file number) as the picture to be copied in the copy

destination when [ ] is selected, that picture is not copied.

•It may take time to copy the picture data.

•[Print Set], [Protect] or [Favorite] settings will not be copied. Perform the settings again after copying

is finished.

[Copy]

[]([IN>SD]):All the picture data in the built-in memory are copied onto the card at

one time.

[]([SD>IN]):One picture at a time is copied from the card to the built-in memory.

Press 2/1 to select the picture and then press [MENU/SET].

- 120 -

Connecting to other equipment

Playing Back Pictures on a TV Screen

Pictures recorded with this unit can be played back on a TV screen.

Preparations:

Set the [TV Aspect]. (P49)

Turn this unit and the TV off.

Connect the camera and a TV.

•Check the directions of the connectors, and plug them straight in or unplug them straight out.

(Otherwise the connectors may be bend of shape, which will cause a malfunction.)

•Always use a genuine Panasonic AV cable (DMW-AVC1: optional).

Turn the TV on and select external input.

Turn the camera on and then press [(].

AYellow: to the video input socket

BWhite: to the audio input socket

CAV cable (optional)

DAlign the marks, and insert.

ャ

モヷヰ

モ

- 121 -

Connecting to other equipment

•Depending on the [Picture Size], black bands may be displayed on the top and bottom or the left and

right of the pictures.

•Change the screen mode on your TV if the picture is displayed with the top or bottom cut off.

•When you play back a picture vertically, it may be blurry.

•When pictures are displayed, they may not be displayed properly depending on the type of TV.

•You can view pictures on TVs in other countries (regions) which use the NTSC or PAL system when

you set [Video Out] in the [Setup] menu.

•No sound is output from the camera speakers.

•Read the operating instructions for the TV.

•Before removing a battery, turn the camera off and disconnect the AV cable.

The recorded still pictures can be played back on a TV with an SD Memory Card slot.

•Depending on the TV model, pictures may not be displayed on the full screen.

•Motion pictures may not be played back depending on the TV type.

•In some cases, panorama pictures cannot be played back. Also, auto-scroll playback of

panorama pictures may not work.

•For cards compatible with playback, refer to the operating instructions of the TV.

- 122 -

Connecting to other equipment

Saving still pictures and motion pictures on your

You can transfer the pictures in the camera to a PC by connecting the camera and the PC.

•Some PCs can read directly from the card removed from the camera. For details, refer to the

operating instructions of your PC.

•If the computer being used does not support SDXC Memory Cards, a message prompting you

to format may appear. (Doing so will cause recorded images to be erased so do not choose to

format.)

If the card is not recognised, please refer to the below support site.

http://panasonic.net/avc/sdcard/information/SDXC.html

∫PC that can be used

The unit can be connected to any PC capable of recognising a mass storage device.

The supplied CD-ROM includes the following software.

Install the software on to your computer before use.

•PHOTOfunSTUDIO 9.0 SE (Windows Vista/Windows 7/Windows 8/Windows 8.1)

This software allows you to manage images. For example, you can send pictures and motion

pictures to a PC and sort them by recording date or model name. You can also perform operations

such as writing images to a DVD, processing and correcting images, and editing motion pictures.

•LoiLoScope 30 day full trial version (Windows Vista/Windows 7/Windows 8/Windows 8.1)

LoiLoScope is a video editing software where that draws out the full power of your PC. Creating

videos is as easy as organizing cards on top of a desk. Use your music, picture and video files to

create videos to share with your friends and family by burning it to a DVD, uploading it to websites,

or simply share your videos with your friends via e-mail.

–This will only install a shortcut to the trial version download site.

•Windows support: Windows Vista/Windows 7/Windows 8/Windows 8.1

•Mac support: OS X v10.5 ~ v10.10

About the supplied software

For more information on how to use LoiLoScope, read the LoiLoScope manual available

for download at the link below.

Manual URL: http://loilo.tv/product/20

- 123 -

Connecting to other equipment

∫Installing supplied software

•Before inserting the CD-ROM, close all running applications.

Check the environment of your PC.

•Operating environment of “PHOTOfunSTUDIO 9.0 SE”

–OS:

Windows VistaR (32bit) SP2,

WindowsR 7 (32bit/64bit) or SP1,

WindowsR 8 (32bit/64bit),

WindowsR 8.1 (32bit/64bit)

–CPU:

PentiumR III 800 MHz or higher (Windows VistaR),

PentiumR III 1 GHz or higher (WindowsR 7/WindowsR 8/WindowsR 8.1)

–Display:

1024k768 pixels or more (1920k1080 pixels or more recommended)

–RAM:

512 MB or more (Windows VistaR),

1 GB or more (WindowsR 7 32bit/WindowsR 8 32bit/WindowsR 8.1 32bit),

2 GB or more (WindowsR 7 64bit/WindowsR 8 64bit/WindowsR 8.1 64bit)

–Free hard disk space:

450 MB or more for installing software

•Refer to the operating instructions of “PHOTOfunSTUDIO” (PDF) for further operating

environment.

Insert the CD-ROM with the supplied software.

•If the automatic playback screen is displayed, you can display the menu by selecting and

executing [Launcher.exe].

•In Windows 8/Windows 8.1, you can display the menu by clicking a message that is

displayed after inserting the CD-ROM and then selecting and executing [Launcher.exe].

•You can also display the menu by double-clicking [SFMXXXX] in [Computer] (XXXX differs

depending on the model).

Click on the [Applications] on the install menu.

Click on the [Recommended Installation].

•Proceed with installation according to messages appearing on the screen.

•The software compatible with your PC will be installed.

•“PHOTOfunSTUDIO” and “LoiLoScope” are not compatible with Mac.

- 124 -

Connecting to other equipment

∫Transferring pictures to a PC

Connect the computer and camera with the USB connection cable

(supplied).

Press 3/4 to select [PC], and then press [MENU/SET].

Copy the images to a PC using “PHOTOfunSTUDIO”.

•Do not delete or move copied files or folders in Windows Explorer. When viewing in

“PHOTOfunSTUDIO”, you will not be able to play back or edit.

•Use a battery with sufficient battery power or the AC adaptor (optional). If the remaining battery

power becomes low while the camera and the PC are communicating, the status indicator blinks and

the alarm beeps.

Refer to “Disconnecting the USB connection cable safely” (P125) before disconnecting the USB

connection cable. Otherwise, data may be destroyed.

•Before connecting or disconnecting the AC adaptor (optional), turn the camera off.

•Before inserting or removing a card, turn the camera off and disconnect the USB connection cable.

Otherwise, data may be destroyed.

Preparations: Install “PHOTOfunSTUDIO” to the PC.

•Please turn this unit on and your PC before connecting.

•Check the directions of the connectors, and plug them straight in or unplug them straight

out. (Otherwise the connectors may be bend of shape, which will cause a malfunction.)

•Do not use any other USB connection cables except the supplied one or a genuine

Panasonic USB connection cable (DMW-USBC1: optional).

AUSB connection cable (supplied) BAlign the marks, and insert.

ャ

モヷヰ

- 125 -

Connecting to other equipment

∫Copying to a PC without using “PHOTOfunSTUDIO”

If the installation of “PHOTOfunSTUDIO” fails, you can copy files and folders to your PC by

dragging and dropping them from the camera after connecting to your PC.

Directory structure of built-in memory/card of this unit is shown by the figure below.

•A new folder is created when pictures are taken in the following situations.

–After [No.Reset] (P48) in the [Setup] menu has been executed

–When a card containing a folder with the same folder number has been inserted (such as when

pictures were taken using another maker of camera)

–When there is a picture with file number 999 inside the folder

∫Disconnecting the USB connection cable safely

Select the [ ] icon in the task tray displayed on the PC, and then click [Eject

DMC-XXX] (XXX varies by model).

•Depending on your PC’s settings, this icon may not be displayed.

•If the icon is not displayed, check that [Access] is not displayed on the LCD monitor of the digital

camera before removing the hardware.

∫Connection in the PTP Mode

Select [PictBridge(PTP)] when connecting USB connection cable.

•Data can now be read only from the card into the PC.

•When there are 1000 or more pictures on a card, the pictures may not be imported in the PTP Mode.

•Motion picture cannot be played back in PTP Mode.

For Windows: A drive ([Removable Disk]) is displayed in [Computer]

For Mac: A drive ([NO_NAME]) is displayed on the desktop

•Built-in Memory

•Card

DCIM: Images

1Folder number

2File number

3JPG: Still pictures

MP4: MP4 Motion pictures

MISC: DPOF print

Favourite

DCIM

100_PANA

101_PANA

999_PANA




MISC

- 126 -

Connecting to other equipment

Saving still pictures and motion pictures on a

Recorder

If you insert card holding content recorded with this unit into a Panasonic recorder, you can dub

the content to a Blu-ray Disc or DVD etc.

•See the operating instructions for the recorder about the details about copying and playing back.

∫Dubbing with non-compatible equipment

You can dub the content played back using this unit to non-compatible equipment such as

recorders and video players by connecting this unit to the non-compatible equipment using an

AV cable (optional). Non-compatible equipment will be able to play back the content. This is

convenient if you wish to pass around dubbed content. In this case, the content will be played

back in standard rather than high-definition picture quality.

•When you play back motion pictures on 4:3 aspect ratio TV, you must set [TV Aspect] (P49) on this

unit to [4:3] before starting a copy. The image will be vertically long if you play back motion pictures

copied with [16:9] setting on a [4:3] aspect TV.

•See the operating instructions for the recording equipment regarding the details of copying and

playing back.

Copy by inserting the SD card into the recorder

For details on Panasonic devices compatible with the

respective file format (such as a Blu-ray Disc recorder), refer

to the support sites below.

For details on compatible devices, refer to the support sites below.

http://panasonic.jp/support/global/cs/dsc/

(This Site is English only.)

¢Some compatible devices may not be sold in certain countries and regions.

1Connect this unit with the recording

equipment with an AV cable (optional).

2Start the playback of this unit.

3Start the recording on the recording

equipment.

•When ending the recording (copying), stop

the playback on this unit after stopping the

recording of the recording equipment.

1Yellow: to the video input socket

2White: to the audio input socket

AAV cable (optional)

ャ

モヷヰ

- 127 -

Connecting to other equipment

Printing the Pictures

If you connect the camera to a printer supporting PictBridge, you can select the pictures to be

printed out and instruct that printing be started on the camera’s LCD monitor.

•Some printers can print directly from the card removed from the camera. For details, refer to the

operating instructions of your printer.

Preparations:

Turn on the camera and the printer.

Remove the card before printing the pictures from the built-in memory.

Check print quality and other settings on the printer before printing the pictures.

Connect the printer and camera with the USB connection cable

(supplied).

Press 3/4 to select [PictBridge(PTP)], and then press [MENU/SET].

•Use a battery with sufficient battery power or the AC adaptor (optional). If the remaining battery

power becomes low while the camera and the printer are connected, the status indicator blinks and

the alarm beeps. If this happens during printing, stop printing at once. If not printing, disconnect the

USB connection cable.

•Do not disconnect the USB connection cable while [å] (Cable disconnect prohibit icon) is displayed.

(may not be displayed depending on the type of printer used)

•Before connecting or disconnecting the AC adaptor (optional), turn the camera off.

•Before inserting or removing a card/battery, turn the camera off, and disconnect the USB connection

cable.

•Motion pictures cannot be printed out.

•Check the directions of the connectors, and plug them straight in or unplug them straight

out. (Otherwise the connectors may be bent out of shape which will cause a malfunction.)

•Do not use any other USB connection cables except the supplied one or a genuine

Panasonic USB connection cable (DMW-USBC1: optional).

AUSB connection cable (supplied) BAlign the marks, and insert.

ャ

モヷヰ

- 128 -

Connecting to other equipment

Press 3.

Press 3/4 to select an item and then press [MENU/SET].

Press 3 to select [Print start] and then press [MENU/SET].

•If the print check screen has appeared, select [Yes], and print the pictures.

•Refer to P129 for the items which can be set before starting to print the pictures.

•Disconnect the USB connection cable after printing.

Selecting a single picture and printing it

Press 2/1 to select the picture and then press [MENU/

SET].

Press 3 to select [Print start] and then press [MENU/

SET].

•Refer to P129 for the items which can be set before starting to print the

pictures.

•Disconnect the USB connection cable after printing.

Selecting multiple pictures and printing them

Item Description of settings

[Multi Select]

Multiple pictures are printed at one time.

•Press 3/4/2/1 to select the pictures, and then press [DISP.].

(When [DISP.] is pressed again, the setting is cancelled.)

•After the pictures have been selected, press [MENU/SET].

[Select All] Prints all the stored pictures.

[Print Set (DPOF)] Prints the pictures set in [Print Set] only. (P115)

[Favorite] Prints the pictures set as favourites only. (P114)

PictBridge

2))



3ULQWVWDUW

3ULQWZLWK'DWH

1XPRISULQWV

3DSHU6L]H

3DJH/D\RXW

6LQJOH6HOHFW

6HW6HOHFW&DQFHO

- 129 -

Connecting to other equipment

Select and set the items both on the screen in step 2 of the “Selecting a single picture

and printing it” and in step 3 of the “Selecting multiple pictures and printing them”

procedures.

•When you want to print pictures in a paper size or a layout which is not supported by the camera, set

[Paper Size] or [Page Layout] to [{] and then set the paper size or the layout on the printer. (For

details, refer to the operating instructions of the printer.)

•When [Print Set (DPOF)] has been selected, the [Print with Date] and [Num.of prints] items are not

displayed.

•If the printer does not support date printing, the date cannot be printed on the picture.

•Depending on the printer, the date print settings of the printer may take precedence so check if this

is the case.

•When printing images with [Date Stamp] or [Text Stamp], please remember to set [Print with Date] to

[OFF] or the date will print on top.

When asking the photo shop to print the pictures

•By stamping the date using [Date Stamp] (P97) or [Text Stamp] (P108) or setting date printing at the

time of the [Print Set] (P115) setting before going to a photo shop, the dates can be printed at the

photo shop.

You can set the number of prints up to 999.

Print Settings

[Print with Date]

Item Description of settings

[ON] Date is printed.

[OFF] Date is not printed.

[Num.of prints]

- 130 -

Connecting to other equipment

•Paper sizes not supported by the printer will not be displayed.

[Paper Size]

Item Description of settings

{Settings on the printer are prioritised.

[L/3.5qk5q]

89 mm

127 mm

[2L/5qk7q]127 mmk178 mm

[POSTCARD] 100 mmk148 mm

[16:9] 101.6 mmk180.6 mm

[A4] 210 mmk297 mm

[A3] 297 mmk420 mm

[10k15cm] 100 mmk150 mm

[4qk6q]101.6 mmk152.4 mm

[8qk10q]203.2 mmk254 mm

[LETTER] 216 mmk279.4 mm

[CARD SIZE] 54 mmk85.6 mm

- 131 -

Connecting to other equipment

•An item cannot be selected if the printer does not support the page layout.

∫Layout printing

When printing a picture several times on 1 sheet of paper

For example, if you want to print the same picture 4 times on 1 sheet of paper, set

[Page Layout] to [ä] and then set [Num.of prints] to 4 for the picture that you want to print.

When printing different pictures on 1 sheet of paper

For example, if you want to print 4 different pictures on 1 sheet of paper, set [Page Layout] to

[ä] and then set [Num.of prints] to 1 for each of the 4 pictures.

•The camera is receiving an error message from the printer when the [¥] indication lights orange

during printing. After finishing printing, make sure there are no problems with the printer.

•If the number of prints is high, the pictures may be printed several times. In this case, the remaining

number of prints indicated may differ from the number set.

[Page Layout] (Layouts for printing that can be set with this unit)

Item Description of settings

{Settings on the printer are prioritised.

á1 picture with no frame on 1 page

â1 picture with a frame on 1 page

ã2 pictures on 1 page

ä4 pictures on 1 page

- 132 -

Others

Screen Display

∫In recording

1 Recording Mode

2 Recording Quality (P98)

Picture Size (P78)

: Backlight Compensation (P30)

3 Focus (P33)

4 Flash Mode (P54)

: LED light (P47)

5 Optical Image Stabiliser (P96)

: Jitter alert (P27)

6 White Balance (P80)

7 Colour Mode (P95)

: Creative control adjustment display

(P62)

8 AF Macro Mode (P58)

: Macro Zoom Mode (P58)

9 Battery indication (P17)

10 Burst (P90)

: Auto Bracket (P61)

11 Intelligent Exposure (P89)

12 Histogram (P46)

13 AF area (P33)

: Spot AF area (P82)

14 Self-timer Mode (P59)

: Time Lapse Shot (P92)

15 Shutter speed (P32)

16 Aperture value (P32)

17 ISO sensitivity (P79)

18 Number of days that have passed since

the departure date (P43)

Location (P43)

Name (P75)

Age (P75)

Current date and time

“: World Time (P42)

Zoom (P52):

19 AF Tracking (P84)

: AF assist lamp (P95)

20 Exposure compensation (P60)

21 Elapsed recording time (P35):¢

22 Monitor Luminance (P45)

23 Date Stamp (P97)

24 Recording state (P35)

25 Built-in memory (P22)

: Card (P22) (displayed only during

recording)

26 Number of recordable pictures (P24)

Available recording time

(P24, 35):¢

¢“m” is an abbreviation for minute and “s” for

second.

555

ISO

3s3s3s3s

ᵫᵮᵒ

ᵴᵥᵟᵴᵥᵟ

16 15

31 54 9267

18 17

- 133 -

Others

∫In playback

1 Playback Mode (P99)

2 Protected picture (P117)

3 Favourites (P114)

4 Date/Text stamped display (P97, 108)

5 Colour Mode (P95)

6 After Auto Retouch (P105)

After Creative Retouch (P106)

After Underwater Colour Reproduction

(P107)

7 Picture Size (P78)

8 Battery indication (P17)

9 Picture number

Total pictures

Elapsed playback time (P37):¢

10 Number of prints (P115)

11 Histogram (P46)

12 Location (P43)

Recording information

Name (P75)

Age (P75)

13 Single playback of a picture taken with

[Time Lapse Shot] (P94)

14 Folder/File number (P125)

15 Motion picture recording time

(P37):¢

16 Auto Retouch (P105)

Creative Retouch (P106)

Underwater Colour Reproduction (P107)

Motion picture playback (P37)

Play panorama (P71)

Sequential playback in the group of the

pictures taken in [Time Lapse Shot] (P94)

Filtering cancel (P101)

17 Number of days that have passed since

the departure date (P43)

Recorded date and time

“: World Time (P42)

18 Power Monitor (P45)

19 Currently retrieving information icon

(P144)

20 Recording Quality (P98)

: Group of pictures taken in [Time

Lapse Shot] (P94)

21 Built-in memory (P22)

Cable disconnection prohibiting icon

(P127)

¢“m” is an abbreviation for minute and “s” for

second.

ᵫᵮᵒ

ᵴᵥᵟᵴᵥᵟ

1/51/51/5

100100 00010001100 0001

3s3s3s3s

1234

5678

1516

- 134 -

Others

Cautions for Use

•This camera has a waterproof/dustproof function equivalent to “IP68”. It is possible to take pictures

in 8 m (26 feet) depth for 60 minutes.¢

(This means that the camera can be used underwater for specified time in specified pressure in

accordance with the handling method established by Panasonic.)

•The camera has cleared a drop test from a height of 1.5 m (5 feet) onto 3 cm (0.1 feet) thick

plywood, which is compliant with “MIL-STD 810F Method 516.5-Shock”.¢

¢This does not guarantee no destruction, no malfunction, or waterproofing in all conditions.

•Waterproofing is not guaranteed if the unit is subject to an impact as a result of being hit or dropped

etc. If an impact to the camera occurs, it should be inspected (subject to a fee) by Panasonic to

verify that the waterproofing is still effective.

•Using the camera in environments where splashing with hot spring water, oil or alcohol is likely to

occur may cause the water/dust resistance and impact resistance of the camera to deteriorate.

•Malfunction caused by exposure to water due to mishandling by the customer will not be covered by

the warranty.

•Supplied accessories are not waterproof.

For more detail, refer to “(Important) About the Waterproof/Dustproof and Anti-shock

Performance of the Camera” (P8).

(Important) About the waterproof/dustproof and anti-shock performance of the

camera

- 135 -

Others

•It may cause injury to the skin if you directly touch the metal parts of the unit in places where

temperature is very low [environments under 0 oC (32 oF), such as ski resorts or places at

high altitude] for a long period of time.

Use gloves or similar when using it for long periods.

•The performance of the battery (number of recordable pictures/operating time) may decrease

temporarily when using in a temperature between j10 oC and 0 oC (14 oF and 32 oF) (cold places

such as ski resorts or places at high altitude).

•The battery cannot be recharged in a temperature less than 0 oC (32 oF). (The [CHARGE] indicator

blinks when the battery cannot be recharged.)

•If the camera gets very cold in cold places such as ski resorts or places at high altitude, performance

of the LCD monitor may temporarily drop immediately after turning this unit on, e.g. the picture on

the LCD monitor being slightly darker than usual or ghost images appearing. In cold environments,

keep the camera warm during use by keeping it inside your cold-weather gear or clothes. The

performance will resume as normal when the internal temperature rises.

•If the camera is used in cold places such as ski resorts or places at high altitude with snow or water

droplets adhered to the camera, some parts of the camera may become hard to move or the sound

may become dim with snow or water droplets freezing in the gap of the zoom button, the camera

[ON/OFF] button, speakers, and microphone. This is not a malfunction.

When using in a cold climate or at low temperatures

- 136 -

Others

Keep this unit as far away as possible from electromagnetic equipment (such as

microwave ovens, TVs, video games etc.).

•If you use this unit on top of or near a TV, the pictures and/or sound on this unit may be disrupted by

electromagnetic wave radiation.

•Do not use this unit near cell phones because doing so may result in noise adversely affecting the

pictures and/or sound.

•Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields created by

speakers or large motors.

•Electromagnetic wave radiation generated by microprocessors may adversely affect this unit,

disturbing the pictures and/or sound.

•If this unit is adversely affected by electromagnetic equipment and stops functioning properly, turn

this unit off and remove the battery or disconnect AC adaptor (optional). Then reinsert the battery or

reconnect AC adaptor and turn this unit on.

Do not use this unit near radio transmitters or high-voltage lines.

•If you record near radio transmitters or high-voltage lines, the recorded pictures and/or sound may

be adversely affected.

Always use the supplied cords and cables. If you use optional accessories, use the

cords and the cables supplied with them.

Do not extend the cords or the cables.

Do not spray the camera with insecticides or volatile chemicals.

•If the camera is sprayed with such chemicals, the body of the camera may be damaged and the

surface finish may peel off.

•Do not keep rubber or plastic products in contact with the camera for a long period of time.

The speaker does not have magnetic shielding. Do not keep this speaker and

magnetised cards (bank cards, commuter passes, etc.) close together.

Operation of this unit is tested up to j10 oC (14 oF), but be aware that some parts of the

camera may become hard to move when the zoom button or the camera [ON/OFF]

button gets frozen etc., or the side door may become hard to open in cold places such

as ski resorts or places at high altitude where the temperature may drop very rapidly.

•When the camera is used in a cold places such as ski resorts or places at high altitude, keep the

camera warm by placing it in a warm place such as inside your cold protection gear or clothing.

Optimal use of the camera

- 137 -

Others

Before cleaning the camera, remove the battery or the DC coupler (optional), or

disconnect the power plug from the outlet. Then wipe the camera with a dry, soft cloth.

•When the camera is soiled badly, it can be cleaned by wiping the dirt off with a wrung wet cloth, and

then with a dry cloth.

•Do not use solvents such as benzine, thinner, alcohol, cleanser, kitchen detergents, etc., to clean the

camera, since it may deteriorate the external case or the coating may peel off.

•When using a chemical cloth, be sure to follow the accompanying instructions.

•When salt etc., has adhered to the camera, the arm part of the side

door etc., may whiten. Use damp cotton swabs or similar to wipe

until the whitened part is removed.

AArm part

•Do not press the LCD monitor with excessive force. Uneven colours may appear on the LCD monitor

and it may malfunction.

•If the camera gets very cold in cold places such as ski resorts or places at high altitude, performance

of the LCD monitor may temporarily drop immediately after turning this unit on, e.g. the picture on

the LCD monitor being slightly darker than usual or ghost images appearing. Keep the camera warm

when using in a cold environment. The performance will resume as normal when the internal

temperature rises.

Cleaning

About the LCD monitor

Extremely high precision technology is employed to produce the LCD monitor screen.

However, there may be some dark or bright spots (red, blue, or green) on the screen. This is

not a malfunction. The LCD monitor screen has more than 99.99% effective pixels with a

mere 0.01% of the pixels inactive or always lit. The spots will not be recorded on pictures on

the built-in memory or a card.

- 138 -

Others

•Do not press the lens with excessive force.

•Do not leave the camera with the lens facing the sun, as rays of light from the sun may cause it to

malfunction. Also, be careful when placing the camera outside or near a window.

•If there is water or dirt on the lens, wipe it off with dry soft cloth before taking a picture.

•A sound might be muffled or warped when there is water on the microphone or the speaker. Wipe

the residues after letting the water drip out from the microphone and speaker by tipping the camera

downward, and use it after letting it dry for a while.

•Do not poke the holes of microphone and speaker with sharp points. (It may damage the waterproof

sheet inside, which may damage the waterproof performance.)

The battery is a rechargeable lithium ion battery. Its ability to generate power comes

from the chemical reaction that takes place inside it. This reaction is susceptible to the

surrounding temperature and humidity. If the temperature is too high or too low, the

operating time of the battery will become shorter.

Always remove the battery after use.

•Place the removed battery in a plastic bag, and store or carry away from metallic objects (clips, etc.).

If you drop the battery accidentally, check to see if the body of the battery and the

terminals are damaged.

•Inserting a damaged battery in the camera will damage the camera.

Bring charged spare batteries when going out.

•Be aware that the operating time of the battery becomes shorter in cold places such as ski resorts or

places at high altitude.

•When you travel, do not forget to bring the battery charger (supplied) so that you can charge the

battery in the country that you are travelling in.

Dispose of unusable battery.

•The battery has a limited life.

•Do not throw the battery into fire because it may cause an explosion.

Do not allow battery terminals to come into contact with metal objects (such as

necklaces, hairpins, etc.).

•This can cause short-circuiting or heat generation and you may be badly burned if you touch a

battery.

About the lens, the microphone, and the speaker

Battery

- 139 -

Others

•The [CHARGE] indicator may blink under the influence of static electricity or electromagnetic wave.

This phenomenon have no effects on charging.

•If you use the battery charger near a radio, the radio reception may be disturbed.

•Keep the charger 1 m (3.3 feet) or further away from radios.

•The charger may generate whirring sounds when it is being used. This is not a malfunction.

•After use, be sure to disconnect the power supply device from the electrical outlet. (A very small

amount of current is consumed if it is left connected.)

•Keep the terminals of the charger and battery clean.

Do not leave the card where the temperature is high, where electromagnetic waves or

static electricity are easily generated or exposed to direct sunlight.

Do not bend or drop the card.

•The card may be damaged or the recorded content may be damaged or deleted.

•Put the card in the card case or the storage bag after use and when storing or carrying the card.

•Do not allow dirt, dust, or water to get into the terminals on the back of the card and do not touch the

terminals with your fingers.

Notice for when transferring to another party, or disposing of the memory card

•“Format” or “delete” using the camera or a PC will only modify the file management information, it

will not erase the data in the memory card completely.

It is recommended to physically destroy the memory card or use the commercially available

computer data deletion software to completely erase the data in the memory card before transferring

to another party or disposing.

Management of data in the memory card is the responsibility of the user.

Charger

Card

- 140 -

Others

If a name or birthday is set for [Baby1]/[Baby2]/Face Recognition function, this personal

information is kept in the camera and recorded in the image.

Disclaimer

•Information including personal information may be altered or vanish due to erroneous operation,

effect of static electricity, accident, malfunction, repair, or other handlings.

Please note in advance that Panasonic is not liable in any way for any direct or indirect damage from

the alteration or vanishing of information or personal information.

When requesting a repair, transferring to another party, or disposing

•Reset the settings to protect the personal information. (P48)

•If there are pictures stored in the built-in memory, copy them onto the memory card (P119) before

formatting the built-in memory (P50) as needed.

•Remove the memory card from the camera when requesting a repair.

•Built-in memory and settings may return to factory default when camera is repaired.

•Please contact the dealer where you purchased the camera or Panasonic if above operations are

not possible due to malfunction.

When transferring to another party, or disposing of the memory card, please refer to

“Notice for when transferring to another party, or disposing of the memory card” on

P139.

When uploading images on WEB services

•Images may contain information that can be used for identifying individuals such as titles, recording

dates, and location information. When uploading images on WEB services, check carefully, and then

upload.

About the personal information

- 141 -

Others

•Store the battery in a cool and dry place with a relatively stable temperature: [Recommended

temperature: 15 oC to 25 oC (59 oF to 77 oF), Recommended humidity: 40%RH to 60%RH]

•Always remove the battery and the card from the camera.

•If the battery is left inserted in the camera, it will discharge even if the camera is turned off. If the

battery continues to be left in the camera, it will discharge excessively and may become unusable

even if charged.

•When storing the battery for a long period of time, we recommend charging it once a year. Remove

the battery from the camera and store it again after it has completely discharged.

•We recommend storing the camera with a desiccant (silica gel) when you keep it in a closet or a

cabinet.

Recorded data may be damaged or lost if the camera breaks down due to inappropriate

handling. Panasonic will not be liable for any damage suffered due to loss of recorded data.

•When you use a tripod, make sure the tripod is stable when this unit is attached to it.

•You may not be able to remove the card or the battery when using a tripod or unipod.

•Make sure that the screw on the tripod or unipod is not at an angle when attaching or detaching the

camera. You may damage the screw on the camera if you use excessive force when turning it. Also,

the camera body and the rating label may be damaged or scratched if the camera is attached too

tightly to the tripod or unipod.

•Read the operating instructions for the tripod or unipod carefully.

•Some tripods or unipods may block the speaker, making it difficult to hear operating sounds etc.

When not using the camera for a long period of time

About the picture data

About tripods or unipods

- 142 -

Others

Message Display

Confirmation messages or error messages will be displayed on the screen in some cases.

The major messages are described below as examples.

[This picture is protected]

>Delete the picture after cancelling the protect setting. (P117)

[Some pictures cannot be deleted]/[This picture cannot be deleted]

•Pictures not based on the DCF standard cannot be deleted.

>Format the card after saving necessary data on a PC etc. (P50)

[Cannot be set on this picture]

•[Text Stamp] or [Print Set] cannot be set for pictures not based on the DCF standard.

[Built-in memory full]/[Memory card full]/[Not enough space on built-in memory]/[Not

enough memory on the card]

•There is no space left on the built-in memory or the card.

•When you copy pictures from the built-in memory to the card (batch copy), the pictures are copied

until the capacity of the card becomes full.

[Some pictures cannot be copied]/[Copy could not be completed]

•The following pictures cannot be copied.

–When a picture with the same name as the picture to be copied exists in the copy destination.

(Only when copying from a card to the built-in memory.)

–Files not based on the DCF standard.

•Moreover, pictures recorded or edited by other equipment may not be copied.

[Built-In Memory Error]/[Format built-in memory?]

•This message will be displayed when you format the built-in memory on a PC.

>Format the built-in memory on the camera again. (P50) The data on the built-in memory will be

deleted.

[Memory card error.

This card cannot be used in this camera.

Format this card?]

•It is a format that cannot be used with this unit.

>Insert a different card and try again.

>Reformat on this unit (P50) after saving necessary data using a PC, etc. Data will be deleted.

- 143 -

Others

[Please turn camera off and then on again]/[System Error]

•This message will be displayed when the lens did not operate properly.

>Turn the camera off and on. If the message persists, contact the dealer or Panasonic.

[Memory Card Error]/[Memory card parameter error]/[This memory card cannot be

used]

>Use a card compatible with this unit. (P22)

–SD Memory Card (8 MB to 2 GB)

–SDHC Memory Card (4 GB to 32 GB)

–SDXC Memory Card (48 GB, 64 GB)

[Insert SD card again]/[Try another card]

•An error has occurred accessing the card.

>Insert the card again.

>Insert a different card.

[Read Error/Write Error

Please check the card]

•It has failed to read or write data.

>Remove the card after turning this unit off. Insert the card again, turn this unit on, and try to

read or write the data again.

•The card may be broken.

>Insert a different card.

[Motion recording was cancelled due to the limitation of the writing speed of the card]

•Use a card with SD Speed Class with “Class 4” or higher when recording motion pictures.

•In the event that it stops even after using a “Class 4” card or higher, the data writing speed has

deteriorated so it is recommended to make a backup and then format (P50).

•Depending on the type of the card, motion picture recording may stop in the middle.

[Cannot record due to incompatible format(NTSC/PAL) data on this card.]

>Format the card after saving necessary data on a PC etc. (P50)

>Insert a different card.

- 144 -

Others

[A folder cannot be created]

•A folder cannot be created because there are no remaining folder numbers that can be used.

>Format the card after saving necessary data on a PC etc. (P50) If you execute [No.Reset] in the

[Setup] menu after formatting, the folder number is reset to 100. (P48)

[Picture is displayed for 16:9 TV]/[Picture is displayed for 4:3 TV]

•Select [TV Aspect] in the [Setup] menu if you want to change the TV aspect. (P49)

•This message also appears when the USB connection cable is connected to the camera only.

In this case, connect the other end of the USB connection cable to a PC or a printer. (P124, 127)

[Editing operation cannot proceed as information processing is ongoing.]

•If a card inserted into the unit contains a group of pictures taken in [Time Lapse Shot] and one or

more pictures from the group have been deleted or have had their file names changed in a PC or

other device, the unit automatically retrieves new information and reconstitutes the group. When

there are many image files, the currently retrieving information icon [ ] may be displayed for

a significant period on the playback screen. During this period, it will not be possible to use delete

or the playback menu.

If you turn off this unit while information is being retrieved, only the still pictures for which data has

been retrieved will be saved as the group. When you switch on again, the information retrieval will

restart from the same point.

[This battery cannot be used]

•Use a genuine Panasonic battery. If this message is displayed even when a genuine Panasonic

battery is used, contact the dealer or Panasonic.

•If the battery terminal is dirty, clean it and remove any objects.

[To prevent water leakage, ensure that the door is locked properly.]

•Refer to P21 for details.

- 145 -

Others

Troubleshooting

First, try out the following procedures (P145–154).

•The battery is exhausted. Charge the battery.

•If you leave the camera on, the battery will be exhausted.

>Turn the camera off frequently by using the [Auto Power Off] etc. (P47)

•Insert all the way until you hear a locking sound and it is locked by the lever while being careful

about the direction the battery is inserted. (P20)

•Is there any memory remaining on the built-in memory or the card?

>Delete the pictures which are not necessary to increase available space in the memory. (P39)

•You may not be able to record for a short while after turning this unit on when using a large capacity

card.

•The picture can become whitish if there is dirt, e.g. fingerprints on the lens.

>When it is dirty, lightly wipe the surface of the lens with soft and dry cloth.

•Is the inside of the lens fogged?

>There is condensation. Refer to “When inner side of the lens is fogged (condensation)” on P7 for

what to do.

If the problem is not resolved, it may be improved by selecting [Reset] (P48) on the

[Setup] menu.

Battery and power source

The camera cannot be operated even when it is turned on.

The camera turns off immediately after it is turned on.

Side door does not close.

Recording

The picture cannot be recorded.

The recorded picture is whitish.

- 146 -

Others

>Check that the exposure is correctly compensated. (P60)

>Set Auto Bracket (P61) or [Burst] (P90) of the [Rec] menu to [OFF].

•The focus range varies depending on the Recording Mode.

>Set to the proper mode for the distance to the subject.

•The subject is beyond the focus range of the camera. (P33)

•There is camera shake (jitter) or the subject is moving slightly. (P27)

>The shutter speed becomes slower when pictures are taken in dark places so hold the camera

firmly with both hands to take the pictures. (P27)

>When taking pictures at a slow shutter speed, use the Self-timer. (P59)

•Is there any memory remaining on the built-in memory or the card?

•Is the ISO sensitivity high or the shutter speed slow?

(ISO sensitivity is set to [ ] when the camera is shipped. Therefore, when taking pictures indoors

etc. noise will appear.)

>Decrease the ISO sensitivity. (P79)

>Take pictures in bright places.

•Have you set [High Sens.] in Scene Mode, or [Burst] in [Rec] menu to [ ] or [ ]? If so, the

resolution of the recorded picture decreases slightly because of high sensitivity processing, but this

is not a malfunction.

The recorded picture is too bright or dark.

Multiple pictures are taken at one time.

The subject is not focused properly.

The recorded picture is blurred. The Optical Image Stabiliser is not effective.

Taking pictures using Auto Bracket is not possible.

The recorded picture looks rough. Noise appears on the picture.

- 147 -

Others

•When recording under fluorescent or LED lighting fixture etc., increasing the shutter speed may

introduce slight changes to brightness and colour. These are a result of the characteristics of the

light source and do not indicate a malfunction.

•Use a card with SD Speed Class with “Class 4” or higher when recording motion pictures.

•Depending on the type of the card, recording may stop in the middle.

>If motion picture recording stops during use of a card of at least “Class 4” or if you use a card

that has been formatted on a PC or other equipment, the data-writing speed is lower. In such

cases, we recommend that you make a backup of the data and then format (P50) the card in this

unit.

•Set the AF area to the distinctive colour of the subject if there is a part that is different from the

surrounding colour. (P84)

•If the camera is moved too slowly, the camera has assumed that camera motion was stopped and

ended the still picture recording.

•If there is large shaking towards the recording direction while moving the camera, recording is

ended.

>When recording in [Panorama Shot], try to trace a small half-circle parallel to the recording

direction, taking about 4 seconds to complete the half-circle (approximate).

•Is your finger covering up the speaker? (P15)

The brightness or the hue of the recorded picture is different from the actual scene.

When recording pictures or half-pressing the shutter button, reddish stripes may

appear on the LCD monitor. Alternatively, part or all of the LCD monitor may turn a

reddish colour.

•This is a characteristic of CCDs, and it appears when the subject has a bright

part. Some unevenness may occur in the surrounding areas, but this is not a

malfunction.

It is recorded in motion pictures but is not recorded on still pictures.

•It is recommended that when you take pictures you take care not to expose

the screen to sunlight or any other source of strong light.

Motion picture recording stops in the middle.

Subject cannot be locked.

(AF tracking not possible)

Recording by [Panorama Shot] is ended before finishing.

Operation sound is small.

- 148 -

Others

•It is possible that the subject may be warped slightly, or the borders get coloured, depending on the

zoom magnification, due to the characteristics of the lens. Also, the peripherals of the image might

look warped because the perspective is enhanced when the wide angle is used. This is not a

malfunction.

•The inside of the lens may fog due to condensation depending on the environment this unit is used

in, areas that undergo a significant change in temperature or in high humidity, etc. Refer to “When

inner side of the lens is fogged (condensation)” on P7 for what to do.

•This phenomenon appears when you press the shutter button halfway to set the aperture value and

does not affect the recorded pictures.

•This phenomenon also appears when the brightness changes when the camera is zoomed or when

the camera is moved. This is because of operation of the automatic aperture of the camera, and it is

not a malfunction.

•The LCD monitor may flicker for a few seconds after this unit is turned on. This is an operation to

correct flicker caused by lighting such as fluorescent lights, LED lights etc. and is not a malfunction.

•Is [Monitor Luminance] active? (P45)

•Perform [Monitor Display]. (P44)

•This is not a malfunction.

These pixels do not affect the recorded pictures.

•In dark places, noise may appear to maintain the brightness of the LCD monitor. This does not affect

the pictures you are recording.

Lens

Recorded image may be warped, or nonexistent colour is surrounding the subject.

The inner side of the lens is fogged.

LCD monitor

The LCD monitor becomes darker or brighter for a moment.

The LCD monitor flickers indoors.

The LCD monitor is too bright or dark.

Black, red, blue and green dots appear on the LCD monitor.

Noise appears on the LCD monitor.

- 149 -

Others

•Is the flash setting set to [Œ]?

>Change the flash setting. (P54)

•The flash cannot be used in the following cases:

–When using Auto Bracket (P61)

–Creative Control Mode (P62)

–[Panorama Shot] (P69)

–[Scenery]/[Night Scenery]/[Sunset]/[Starry Sky]/[Glass Through] (Scene Mode) (P72)

–When recording in [Burst] (except for [ ]) (P90)

•The flash is activated twice when Red-Eye Reduction (P55) has been set.

•Has [Burst] (P90) in the [Rec] menu been set to [ ]?

•[Rotate Disp.] (P49) is set to [ ] or [ ].

•Is there a picture on the built-in memory or the card?

>The pictures on the built-in memory appear when a card is not inserted. The picture data on the

card appears when a card is inserted.

•Is this a folder or picture which was processed in the PC? If it is, it cannot be played back by this unit.

>It is recommended to use the “PHOTOfunSTUDIO” software in the CD-ROM (supplied) to write

pictures from PC to card.

•Are you playing back filtered images by using [Slide Show] or [Filtering Play]?

Cancel the filter

. (P101)

Flash

The flash is not activated.

Flash is activated several times.

Playback

The picture being played back is rotated and displayed in an unexpected direction.

The picture is not played back.

The recorded pictures are not displayed.

- 150 -

Others

•Is this a non-standard picture, a picture which has been edited using a PC or a picture which was

taken by another maker of digital cameras?

•Did you remove the battery immediately after picture-taking or did you take the picture using a

battery with a low remaining charge?

>Format the data to delete the pictures mentioned above. (P50)

(Other pictures will be deleted as well and it will not be possible to restore them. Therefore,

check well before formatting.)

•Is something covering up the speaker? (P15)

•Is the clock in the camera set properly? (P25)

•When pictures edited using a PC or pictures taken by other equipment are searched, they may

display dates differing from the actual dates on which the pictures were taken.

•When Red-Eye Removal ([ ], [ ]) is in operation, if you take a picture of a subject with red

colour surrounded by a skin tone colour, that red part may be corrected to black by the Red-Eye

Removal function.

>It is recommended to take a picture with the Flash Mode set to [‡], [‰] or [Œ], or

[Red-Eye Removal] on the [Rec] menu set to [OFF]. (P96)

The folder number and the file number are displayed as [—] and the screen turns

black.

Playback sound or operation sound is small.

With a Calendar Search, pictures display dates differing from the actual dates on

which the pictures were taken.

White round spots like soap bubbles appear on the recorded picture.

•If you take a picture with the flash in a dark place or indoors, white round

spots may appear on the picture caused by the flash reflecting off of particles

of dust in the air. This is not a malfunction.

A characteristic of this is that the number of round spots and their position

differ in every picture.

Red part of the recorded image has changed colour to black.

- 151 -

Others

•Is it a picture that has been recorded with other equipment? In such cases, these pictures may be

displayed with a deteriorated picture quality.

•This unit automatically adjusts the aperture during motion picture recording. At such times, the

sound may break up. This is not a malfunction.

•Even if a compatible MP4 playback device is used, the video or sound quality of the recorded motion

pictures may be poor, or they may not be able to be played. The recorded data may also not be

displayed properly in certain cases.

•Is the camera connected to the TV correctly?

>Set the TV input to External Input Mode.

•Depending on the TV model, the pictures may be elongated horizontally or vertically or they may be

displayed with their edges cut off.

•Are you trying to play back the motion pictures by directly inserting the card in the card slot of the

TV?

>Connect the camera to the TV with the AV cable (optional) and then play back the pictures on

the camera. (P120)

>Check [TV Aspect] setting. (P49)

[Thumbnail is displayed] appears on the screen.

The sound of the recorded motion pictures sometimes breaks up.

Motion pictures recorded with this model cannot be played back on other equipment.

TV, PC and printer

The picture does not appear on the television.

The display areas on the TV screen and the camera’s LCD monitor are different.

The motion pictures cannot be played back on a TV.

The picture is not displayed fully on the TV.

- 152 -

Others

•Is the camera connected to the PC correctly?

•Is the camera recognised by the PC correctly?

>Select [PC] when connecting. (P124)

>Turn this unit off and on.

>Disconnect the USB connection cable. Connect it again while the card is inserted in the camera.

>If there are two or more USB terminal on a single PC, try connecting the USB connection cable

to another USB terminal.

>Check if your PC is compatible with SDXC memory cards.

http://panasonic.net/avc/sdcard/information/SDXC.html

>A message prompting to format the card may be displayed when connecting, but do not format.

>If the [Access] displayed on the LCD monitor does not disappear, disconnect the USB

connection cable after turning this unit off.

•Pictures cannot be printed using a printer that does not support PictBridge.

>Select [PictBridge(PTP)] when connecting. (P127)

>When using a printer with a Cropping or borderless printing function, cancel this function before

printing. (For details, refer to the operating instructions for the printer.)

>When you order photo studios to print pictures, ask the photo studio if the 16:9 pictures can be

printed.

•Since aspect ratio of a panorama picture differs from normal pictures, it may not always be possible

to print it correctly.

>Please use a printer that supports panorama pictures. (For details, please see the operating

instructions of your printer)

>We recommend using the “PHOTOfunSTUDIO” software on the CD-ROM (supplied) to adjust

the size of the still picture to the print paper size.

Cannot communicate with the PC.

The card is not recognised by the PC. (The built-in memory is recognised.)

The card is not recognised by the PC. (SDXC memory card is used)

The picture cannot be printed when the camera is connected to a printer.

The ends of the pictures are cut at printing.

The panorama picture is not printing correctly.

- 153 -

Others

•Press [MENU/SET] after viewing the last screen (12/12). For details, refer to P9.

>Press [MENU/SET], select the [Setup] menu icon [ ]. Then press [MENU/SET], and then

select the [~] icon to set the desired language. (P50)

•AF Assist Lamp will turn on white in the dark place to assist the focusing.

•Is [AF Assist Lamp] on the [Rec] menu set to [ON]? (P95)

•The AF Assist Lamp does not turn on in bright places.

•The surface of the camera may become warm during use. This does not affect the performance or

quality of the camera.

•When the brightness changes due to zoom or camera movement, etc., the lens may click and the

picture on the screen may drastically change. However, the picture is not affected. The sound is

caused by the automatic adjustment of the aperture. This is not a malfunction.

•Have foreign objects become trapped?

>Remove the foreign objects. (P10)

•When closing, do not set the [LOCK] switch to the locked side. Doing so may cause damage or

leaks.

>Release the lock. (P20)

•If the camera is used in cold places such as ski resorts or places at high altitude with the snow or

water droplets adhered to the camera, some parts of the camera may become hard to move with

snow or water droplets freezing in the gap of the zoom button or the camera [ON/OFF] button. This

is not a malfunction. When the camera returns to normal temperature it will function as normal.

•When using the camera in a place with sand or dust, some parts of the camera may become hard to

move with foreign objects getting in the gap of the zoom button, or the camera [ON/OFF] button.

Wipe off with a dry, lint-free cloth or rinse with fresh water.

Others

[Requirements for Underwater use] is displayed repeatedly whenever this unit is

turned on.

An unreadable language was selected by mistake.

A white lamp sometimes turns on when the shutter button is pressed halfway.

The AF Assist Lamp does not turn on.

The camera becomes warm.

The lens clicks.

The side door will not close.

A part of the camera such as the zoom button and side door does not move.

- 154 -

Others

•Below cases are not malfunctions, so you can use the camera as normal.

>You hear a “rattling” sound when the camera is shaken while this unit is turned off or during

Playback Mode (this is the sound of the lens moving).

>When this unit is turned on or off, or when switching from recording to Playback Mode, there is a

rattling noise (this is the sound of the lens moving).

>When zooming, you can feel some vibration (this is caused by the lens moving).

•If you do not use the camera for a long time, the clock may be reset.

>[Please set the clock] message will be displayed, please reset the clock. (P25)

•It is possible that the subject may be warped slightly, or the borders get coloured, depending on the

zoom magnification, due to the characteristics of the lens, but this is not a malfunction.

•When using the Extra Optical Zoom, the zooming action will stop temporarily. This is not a

malfunction.

•Is the camera set to Macro Zoom Mode? (P58)

Maximum zoom during Macro Zoom Mode is 3k digital zoom.

•When you perform an operation after taking a certain action, the pictures may be recorded in folders

with different numbers from the ones used prior to the operation.

•If you insert or remove the battery before turning off this unit, the folder and file numbers for the

pictures taken will not be stored in the memory. When this unit is turned on again and pictures are

taken, they may be stored under file numbers which should have been assigned to previous

pictures.

•

Formatting is not available in Intelligent Auto Mode. Switch the recording mode to another one. (P50)

The camera makes a rattling sound or you can feel some vibration.

The clock is reset.

When pictures are taken using the zoom, they are slightly distorted and the areas

around the subject contain colours which are not actually present.

Zooming stops instantaneously.

Zoom does not go up to maximum magnification.

The file numbers are not recorded consecutively.

The file numbers are recorded with previously used numbers.

The card cannot be formatted.

•SDXC Logo is a trademark of SD-3C, LLC.

•QuickTime and the QuickTime logo are trademarks or registered trademarks

of Apple Inc., used under license therefrom.

•Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and

other countries.

•SILKYPIX® is a registered trademark of Ichikawa Soft Laboratory.

•Windows and Windows Vista are either registered trademarks or trademarks

of Microsoft Corporation in the United States and/or other countries.

•This product uses “DynaFont” from DynaComware Corporation. DynaFont is a registered

trademark of DynaComware Taiwan Inc.

•Other names of systems and products mentioned in these instructions are usually the registered

trademarks or trademarks of the manufacturers who developed the system or product concerned.

This product is licensed under the AVC patent portfolio license for the personal and

non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard (“AVC

Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and

non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video.

No license is granted or shall be implied for any other use. Additional information may be obtained

from MPEG LA, LLC. See http://www.mpegla.com .

Panasonic Dmc Ft30 Owners Manual

DMC-FT30 - Owner’s Manual for Advanced Features DMC-FT30_UGA_EN Free User Guide for Panasonic Camera, Manual - page1

Navigation menu

Versions of this User Manual:

Views

Navigation
