VQT4H90

M0712KZ0

Basic Owner’s Manual

Digital Camera

Model No. DMC-LX7

Before connecting, operating or adjusting this product,

please read the instructions completely.

More detailed instructions on the operation of

this camera are contained in “Owner’s Manual

for advanced features (PDF format)” in the

supplied CD-ROM. Install it on your PC to read it.

Register online at www.panasonic.com/register (U.S. customers only)

P

For USA and Puerto Rico assistance, please call: 1-800-211-PANA(7262) or,

contact us via the web at: http://www.panasonic.com/contactinfo

2 VQT4H90 (ENG)

Dear Customer,

Thank you for choosing Panasonic!

You have purchased one of the most sophisticated and reliable

products on the market today. Used properly, we’re sure it will bring

you and your family years of enjoyment. Please take time to fill in

the information below. The serial number is on the tag located on the

underside of your camera. Be sure to retain this manual as your

convenient camera information source.

Date of Purchase Dealer Phone No.

Dealer Purchased From Model No.

Dealer Address Serial No.

Please note that the actual controls and components, menu items, etc.

of your Digital Camera may look somewhat different from those shown

in the illustrations in this Owner’s Manual.

Carefully observe copyright laws.

• Recording of pre-recorded tapes or discs or other published or broadcast

material for purposes o her han your own private use may infringe copyright

laws. Even for the purpose of private use, recording of certain material may

be restricted.

A lithium ion battery that is recyclable powers

the product you have purchased. Please call

1-800-8-BATTERY for information on how to recycle

this battery.

(ENG) VQT4H90 3

Information for Your Safety

WARNING:

To reduce the risk of fire, electric shock or product damage,

•Do not expose this unit to rain, moisture, dripping or

splashing.

•Use only the recommended accessories.

•Do not remove covers.

•Do not repair this unit by yourself. Refer servicing to

qualified service personnel.

The socket outlet shall be installed near the equipment and shall be

easily accessible.

■Product identification marking

Product Location

Digital camera Bottom

Battery charger Bottom

4 VQT4H90 (ENG)

FCC Note:

This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, follow the attached

installation instructions and use only shielded

interface cables with ferrite core when connecting to

computer or peripheral devices.

Any changes or modifications not expressly approved by the

party responsible for compliance could void the user’s authority to

operate this equipment.

Declaration of Conformity

Trade Name: Panasonic

Model No.: DMC-LX7

Responsible Party: Panasonic Corporation

of North America

One Panasonic Way,

Secaucus, NJ 07094

Support Contact:

Panasonic Consumer

Marketing Company of

North America

1-800-211-PANA (7262)

This device complies with Part 15 of the

FCC Rules. Operation is subject to the

following two conditions: (1) This device

may not cause harmful interference, and

(2) this device must accept any interference

received, including interference that may

cause undesired operation.

DMC-LX7

(ENG) VQT4H90 5

■About the battery pack

CAUTION

Battery pack (Lithium ion battery pack)

• Use the specified unit to recharge the battery pack.

• Do not use the battery pack with equipment other than the specified unit.

• Do not get dirt, sand, liquids, or other foreign matter on he terminals.

• Do not touch the plug terminals (+ and −) with metal objects.

• Do not disassemble, remodel, heat or throw into fire.

If any electrolyte should come into contact with your hands or

clothes, wash it off thoroughly with water.

If any electrolyte should come into contact with your eyes, never

rub the eyes. Rinse eyes thoroughly with water, and then consult a

doctor.

CAUTION

• Danger of explosion if battery is incorrectly replaced. Replace

only with the type recommended by the manufacturer.

• When disposing the batteries, please contact your local

authorities or dealer and ask for the correct method of disposal.

• Do not heat or expose to flame.

• Do not leave the battery(ies) in a car exposed to direct sunlight for a

long period of time with doors and windows closed.

Warning

Risk of fire, explosion and burns. Do not disassemble, heat above

60 °C (140 °F) or incinerate.

6 VQT4H90 (ENG)

■About the battery charger

CAUTION!

To reduce the risk of fire, electric shock or product damage,

•Do not install or place this unit in a bookcase, built-in cabinet or in

another confined space. Ensure this unit is well ventilated.

Battery charger

This battery charger operates on AC between 110V and 240V.

But

• In the U.S.A. and Canada, the battery charger must be connected

to a 120V AC power supply only.

• When connecting to an AC supply outside of the U.S.A. or

Canada, use a plug adaptor to suit the AC outlet configuration.

(ENG) VQT4H90 7

■Cautions for Use

• Do not use any other USB connection cables except the supplied one or a

genuine Panasonic USB connection cable (DMW-USBC1: optional).

• Always use a genuine Panasonic HDMI mini cable

(RP-CDHM15, RP-CDHM30: optional).

Part numbers: RP-CDHM15 (1.5 m) (4.9 feet), RP-CDHM30 (3.0 m) (9.8 feet)

• Always use a genuine Panasonic AV cable (DMW-AVC1: optional).

Keep this unit as far away as possible from electromagnetic equipment

(such as microwave ovens, TVs, video games etc.).

• If you use this unit on top of or near a TV, the pictures and/or sound on this

unit may be disrupted by electromagnetic wave radiation.

• Do not use this unit near cell phones because doing so may result in noise

adversely affecting the pictures and/or sound.

• Recorded data may be damaged, or pictures may be distorted, by strong

magnetic fields created by speakers or large motors.

• Electromagnetic wave radiation generated by microprocessors may adversely

affect this unit, disturbing the pictures and/or sound.

• If this unit is adversely affected by electromagnetic equipment and stops

functioning properly, turn this unit off and remove the battery or disconnect AC

adaptor (DMW-AC5PP: optional). Then reinsert the battery or reconnect AC

adaptor and turn this unit on.

Do not use this unit near radio transmitters or high-voltage lines.

• If you record near radio transmitters or high-voltage lines, the recorded

pictures and/or sound may be adversely affected.

For information about the software used for this product, press [MENU/SET]

and select [Setup] to display [Version Disp.] before pressing [MENU/SET]

again.

This product is licensed under the AVC patent portfolio license for he personal

and non-commercial use of a consumer to (i) encode video in compliance

with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was

encoded by a consumer engaged in a personal and non-commercial activity

and/or was obtained from a video provider licensed to provide AVC Video. No

license is granted or shall be implied for any other use. Additional information

may be obtained from MPEG LA, LLC.

See http://www.mpegla.com.

8 VQT4H90 (ENG)

Contents

Before use

Information for Your Safety .... 3

Before use ................................ 8

Standard accessories ............. 9

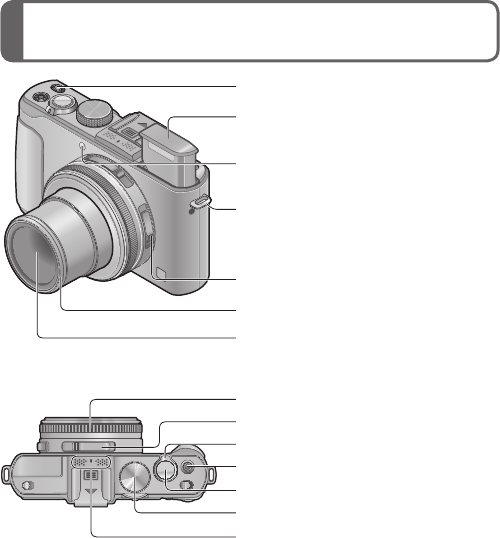

Names and Functions of

Main Parts .............................. 11

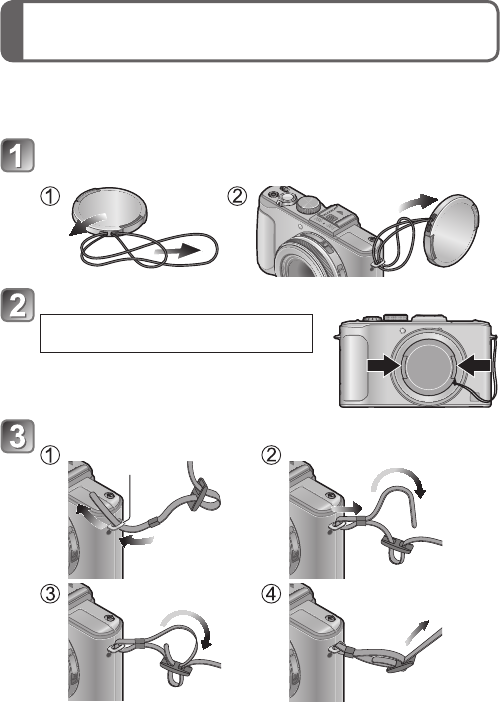

Attaching the lens cap and

shoulder strap........................ 14

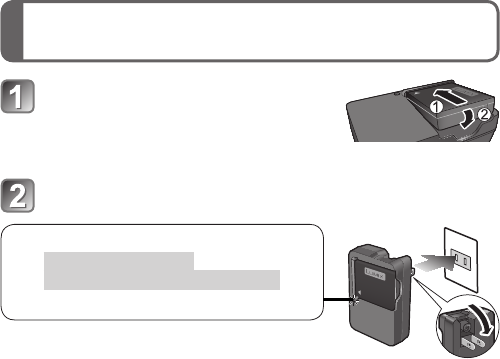

Charging the battery ............. 15

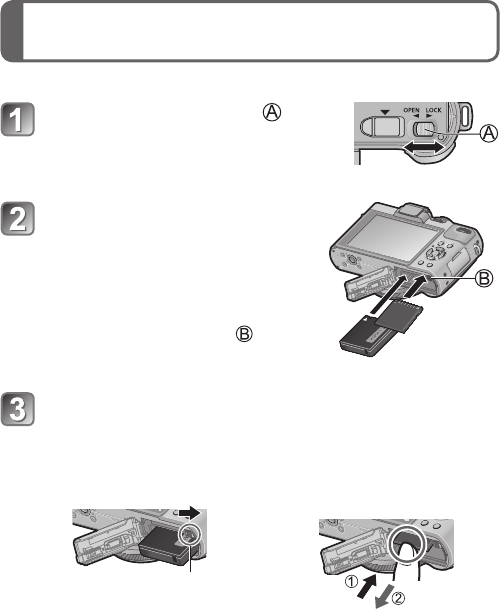

Inserting and removing the

battery or SD memory card

(optional) ................................ 16

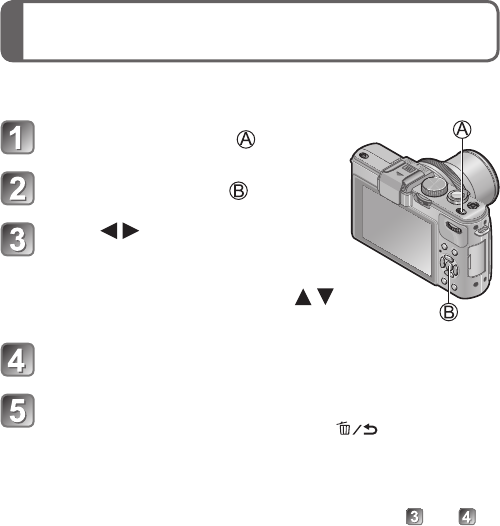

Setting the clock .................... 17

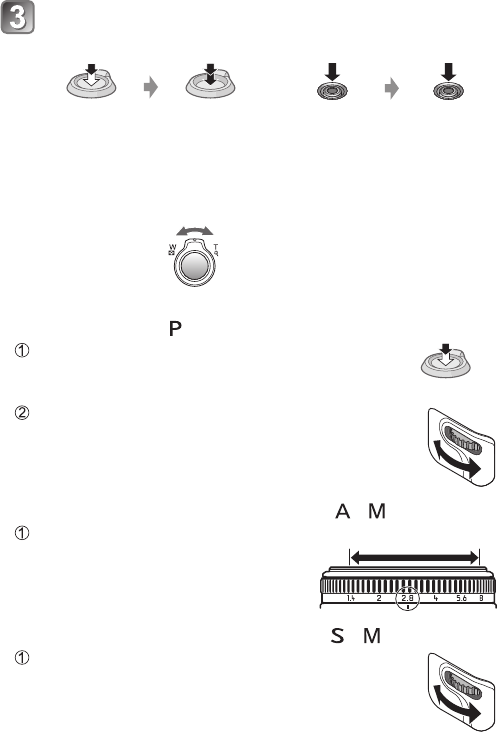

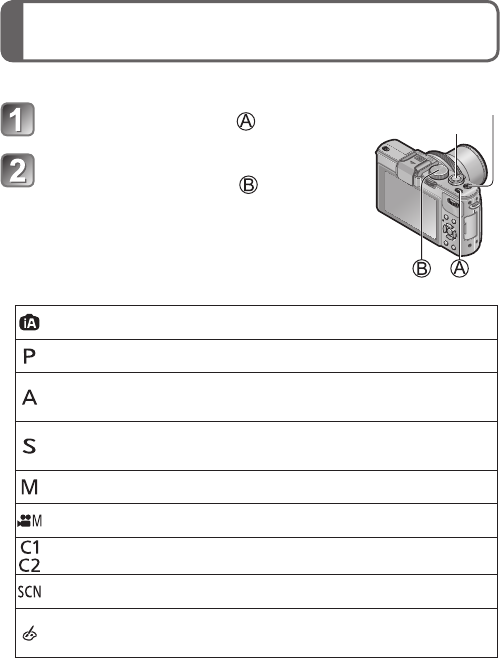

Taking pictures ...................... 18

Viewing your pictures

[Normal Play] ......................... 21

Deleting pictures ................... 21

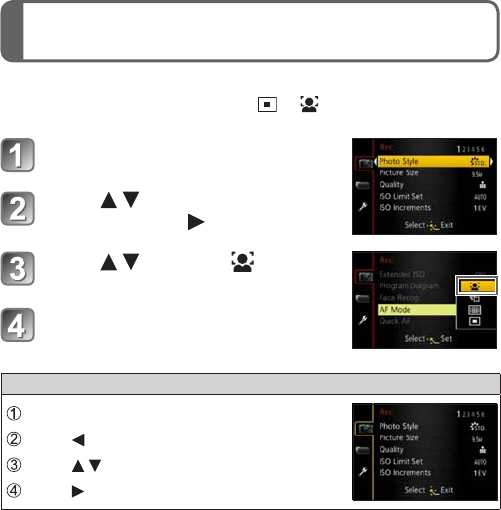

Setting the menu ................... 22

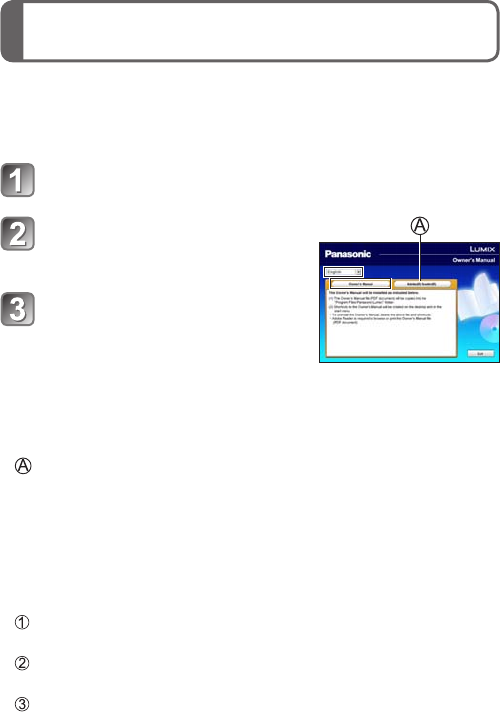

Reading the Owner’s Manual

(PDF format) ........................... 23

Supplied software .................. 24

Installing supplied software

... 25

Specifications ........................ 26

Digital Camera Accessory

System .................................... 29

Digital Camera Accessory

Order Form ............................. 30

Limited Warranty (ONLY FOR

U.S.A. AND PUERTO RICO)

... 31

■Camera handling

●

Keep the camera away from excessive v bration, force, or pressure.

●The camera is not dust resistant, splash resistant, or waterproof.

Avoid using the camera in places with excessive dust or sand, or

where water can come into contact with the camera.

■Condensation (When the lens or the LCD monitor is fogged up)

●

Condensation may occur when the camera is exposed to sudden

changes of temperature or humidity. Avoid these conditions, which may

make the lens or LCD monitor dirty, cause mold, or damage the camera.

●If condensation does occur, turn off the camera and wait about two

hours before using it. Once the camera adjusts to the surrounding

temperature, the fogging will clear naturally.

(ENG) VQT4H90 9

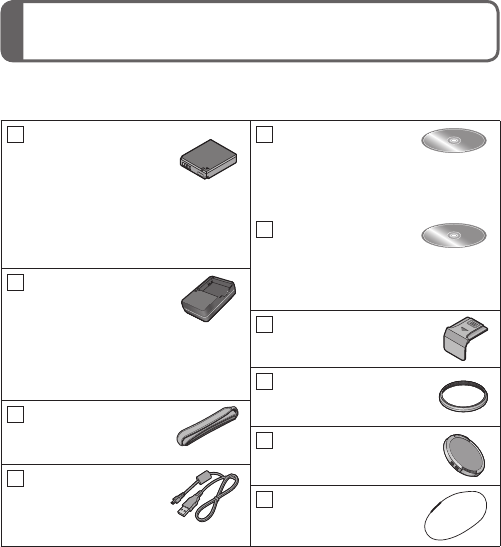

Standard accessories

Check that all the accessories are supplied before using the camera.

Part numbers are as of July 2012. These may be subject to change.

Battery pack

DMW-BCJ13PP

• Charge the battery

before use.

Battery pack is indicated as

battery pack or battery in the

text.

Battery charger

DE-A81B

Battery charger is indicated as

battery charger or charger in

the text.

Shoulder strap

VFC4901

USB connection

cable

K1HY08YY0025

CD-ROM

• Software:

Use it to install

the software on

your PC.

CD-ROM

VFF1038

• Owner’s Manual

for advanced

features

Hot shoe cover*

VKF4970

Thread protector*

VGQ1H81 (Black)

VGQ1H82 (White)

Lens cap*

VYK5W85 (Black)

VYK5W86 (White)

Lens cap string

VFC4366

* Already attached to the camera at the time of purchase.

10 VQT4H90 (ENG)

Standard accessories

• SD Memory Card, SDHC Memory Card and SDXC Memory Card

are indicated as card in the text.

• Cards are optional. You can record or play back pictures on the

built-in memory when you are not using a card.

• For information about optional accessories, refer to the “Digital

Camera Accessory System”.

• If any accessories are lost, customers should contact Panasonic’s

parts department at 1 800 833-9626 for further information about

obtaining replacement parts.

• Please dispose of all packaging appropriately.

• Keep small parts in a safe place out of the reach of children.

• The illustrations and screens in this manual may differ from the

actual product.

(ENG) VQT4H90 11

Names and Functions of Main Parts

Camera ON/OFF switch

Built-in flash (flash)

Self-timer indicator/

AF Assist Lamp

Shoulder strap eyelet

• Attach the supplied shoulder strap

and lens cap string to this eyelet.

Focus selector switch

Thread protector

Lens

Aperture ring

Aspect ratio selector switch

Zoom lever

Motion picture button

Shutter button

Mode dial

Microphone

12 VQT4H90 (ENG)

Names and Functions of Main Parts

LCD monitor

[ND/FOCUS] lever

Rear dial

Status indicator

Cursor buttons

[MENU/SET]

[Q.MENU]/[ ]

(Delete/Cancel) button

[DISP.] button

Flash open switch

Hot shoe (Hot shoe cover)

[AF/AE LOCK]

button

Playback button

• Switches

between

recording mode

and playback

mode.

[HDMI] socket

[AV OUT/

DIGITAL] socket

* Do not attach to a tripod with a 5.5 mm or longer screw. Doing so may

damage this unit.

●Always use a genuine Panasonic AC adaptor (DMW-AC5PP:

optional).

●When using an AC adaptor, ensure that the Panasonic DC coupler

(DMW-DCC7: optional) and AC adaptor (DMW-AC5PP: optional)

are used.

●Keep the hot shoe cover out of reach of children to prevent

swallowing.

●Be sure to attach the hot shoe cover when the hot shoe is not in

use.

Tripod mount*

• Ensure that the tripod is stable.

Card/Battery door

Release lever

DC coupler cover

Speaker

(ENG) VQT4H90 13

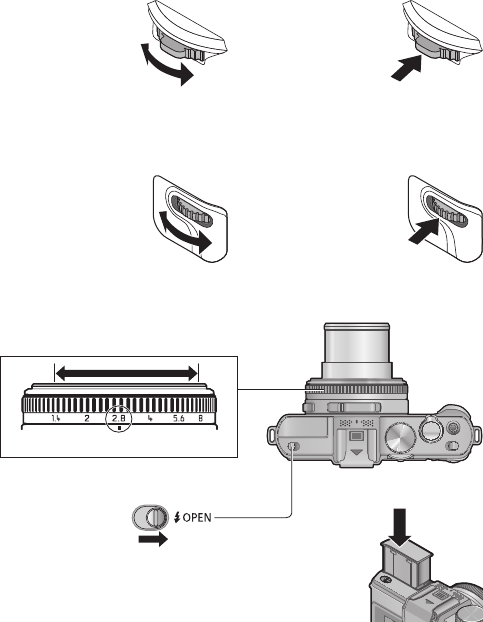

■[ND/FOCUS] lever

To operate this lever, move it left or right, or push it in.

Manual Focus

adjustment, etc. Turning the built-in

ND filter on/off, etc.

When the built-in

ND filter is turned

on, you can use

even slower shutter

speeds or a wider

aperture.

Press

■Rear dial

To operate the dial, rotate it left or right, or push it in.

Shutter speed

adjustment, etc. Selecting and

setting operation

items, etc.

Press

■Aperture ring

Rotate the ring to adjust the aperture value.

Align with the indicator.

■Built-in flash

The flash opens.

After use, press down the flash until it clicks into place.

14 VQT4H90 (ENG)

Attaching the lens cap and shoulder strap

Cover the lens with the lens cap to protect it when you are not taking

pictures. We also recommend attaching the shoulder strap to prevent

the camera from being dropped.

Use the supplied string to attach the lens cap to

the camera

Attach the lens cap

When taking pictures, remove the

lens cap and turn on the camera.

To attach and remove the lens cap,

press the areas shown by arrows in

the illustration.

Attach the shoulder strap

Shoulder strap

eyelet

• Attach the other end of the shoulder strap.

• Make sure that the shoulder strap does not come loose.

(ENG) VQT4H90 15

Charging the battery

Position the battery contacts

to meet the charger, then insert

the battery into the charger

Ensure [LUMIX] faces outwards.

Plug the charger into the AC power

Charging light ([CHARGE])

On:

Charging in progress

(approx. 155 min. if fully depleted)

Off: Charging complete

■About batteries that you can use with this unit

The DMW-BCJ13PP is the only battery that can be used in this

camera.

•Use the dedicated charger and battery.

•The battery is not charged when the camera is shipped. Charge

the battery and set the clock before use.

•Charge the battery with the charger indoors (10 °C to 30 °C

(50 °F to 86 °F)).

16 VQT4H90 (ENG)

Inserting and removing the battery or SD

memory card (optional)

Check that this unit is turned off.

Slide the release lever ( ) to

the [OPEN] position and open

the card/battery door

[OPEN] [LOCK]

Insert the battery and card,

making sure that their

orientation is correct

• Battery: Insert the battery all the way

firmly until a locking sound

is heard, and check that it is

locked by lever ( ).

• Card: Insert the card all the way

firmly until it clicks.

Do not touch

the terminals

on the back of

the card.

Close the door

Slide the release lever to the [LOCK] position.

■To remove

•To remove battery:

Move lever in direction of arrow.

Lever

•To remove card:

Push the card until it clicks,

then pull the card out.

●Always use genuine Panasonic batteries (DMW-BCJ13PP).

●If you use other batteries, we cannot guarantee the quality of this

product.

●Keep the Memory Card out of reach of children to prevent

swallowing.

●We recommend using a Panasonic card.

(ENG) VQT4H90 17

Setting the clock

The clock is not set when the camera is shipped.

Before using the camera, remove the lens cap.

Turn the camera on ( )

Press [MENU/SET] ( )

Press to select the items

(year, month, day, hour,

minute, display order or time

display format), and press

to set

Press [MENU/SET]

Press [MENU/SET] to set

• To return to the previous screen, press [ ] button.

■Changing time settings

Select [Clock Set] from [Rec] or [Setup] menu, perform and .

For details about how to set the menu (→22)

18 VQT4H90 (ENG)

Taking pictures

Before using the camera, remove the lens cap.

Turn the camera on ( ) Shutter button

Motion picture button

Rotate the mode dial to select

the recording mode ( )

■Recording mode

[Intelligent Auto] Mode

Take pictures with automatic settings.

[Program AE] Mode

Take pictures with automatic shutter speed and aperture value settings.

[Aperture-Priority] Mode

The shutter speed is automatically determined for the aperture value

you set.

[Shutter-Priority] Mode

The aperture value is automatically determined by the shutter speed

you set.

[Manual Exposure] Mode

The user sets the shutter speed and aperture value manually.

[Creative Video Mode]

Record motion pictures with manual settings.

[Custom] Mode

Use his mode to access previously saved user configurations.

[Scene Mode]

Take pictures using Scene modes.

[Creative Control] Mode

Take pictures using different picture effects such as [Dynamic

Monochrome] or [Miniature Effect].

• For details, refer to “About recording modes” (Owner’s Manual for

advanced features).

(ENG) VQT4H90 19

Taking pictures

■Taking still pictures

(Shutter button)

Press halfway

(press lightly

and focus)

Press fully

(press the button all

the way to record)

■Recording motion pictures

(Motion picture button)

Press

(Start recording) Press

(End recording)

■Use the zoom lever to adjust the range of the picture to

be captured

Capture a wider area

(wide-angle) Enlarge the subject

(telephoto)

■Select the combination of shutter speed and aperture

value (Mode dial: )

Press the shutter button halfway to measure

the exposure

Press halfway

Rotate the rear dial to select the combination

of shutter speed and aperture value

• Perform this step while the shutter speed

and aperture value are displayed (about

10 seconds).

■Select the aperture value (Mode dial: / )

Rotate the aperture ring to select the aperture value

• You can set the aperture values

between [1.4] and [8] in 1/3-stop

increments. (Set the aperture ring

where it clicks.)

■Select the shutter speed (Mode dial: / )

Rotate the rear dial to select the shutter speed

20 VQT4H90 (ENG)

Taking pictures

■About recording motion pictures

●We recommend you use a battery with sufficient battery power or

the AC adaptor when recording motion pictures.

●If the power supply is cut off due to a power cut or the AC adaptor

being disconnected, the motion picture being recorded using the

AC adaptor will not be recorded.

●You can continuously record a motion picture in [MP4] for up to

29 minutes 59 seconds or approx. 4 GB. (Since recording in [MP4]

with [FHD] creates larger files, the recording time for such motion

pictures will be shorter than 29 minutes 59 seconds.)

●If [Rec Quality] of [AVCHD] motion pictures is set to [PSH] or

[FSH], you can continuously record a motion picture for up to

29 minutes 59 seconds.

●You can record a motion picture to the built-in memory only in

[MP4] using the [VGA] setting.

(ENG) VQT4H90 21

Viewing your pictures [Normal Play]

Deleting pictures

Press the Playback button ( )

Press to select a picture to

be displayed

• You can also rotate the rear dial to

select a picture.

●To play back a motion picture, select a picture with or , and then

press to start playback.

●To switch to recording mode, press the playback button again or

press the shutter button during playback.

Deleted pictures cannot be recovered.

Press [ ] button ( ) to

delete the displayed picture

Press to select [Yes], and

press [MENU/SET] ( )

22 VQT4H90 (ENG)

Setting the menu

Refer to the following procedures to operate the menus.

Example: Setting [AF Mode] from to in the [Program AE]

Mode

Press [MENU/SET] to display

the menu

Press to select [AF Mode]

and then press

Press to select and

then press [MENU/SET] to set

Press [MENU/SET] to close the

menu

Switching to other menus

Press [MENU/SET] to display the menu

Press

Press to select a menu icon

Press

●Depending on the item, its setting may not appear or it may be

displayed in a different way.

●The operation of menus varies depending on the menu.

(ENG) VQT4H90 23

Reading the Owner’s Manual (PDF format)

More detailed instructions on the operation of this camera are

contained in “Owner’s Manual for advanced features (PDF format)” in

the supplied CD-ROM. Install it on your PC to read it.

■For Windows

Turn the PC on and insert the CD-ROM

containing the Owner’s Manual (supplied)

Select the desired language

and then click “Owner’s

Manual” to install

Double-click the “Owner’s

Manual” shortcut icon on

the desktop

■When the Owner’s Manual (PDF format) will not open

You will need Adobe Acrobat Reader 5.0 or later, or Adobe Reader

7.0 or later to browse or print the Owner’s Manual (PDF format).

Insert the CD-ROM containing the Owner’s Manual (supplied), click

and then follow the messages on the screen to install.

Compatible OS:

Windows XP SP3 / Windows Vista SP2 / Windows 7

• You can download and install a version of Adobe Reader that you

can use with your OS from the following Website.

http://get.adobe.com/reader/otherversions/

■For Mac

Turn the PC on and insert the CD-ROM containing the

Owner’s Manual (supplied)

Open the “Manual” folder in the CD-ROM and then copy the

PDF file with the desired language inside the folder

Double click the PDF file to open it

24 VQT4H90 (ENG)

Supplied software

The supplied CD-ROM contains the following software.

Install the software on your computer to use.

■PHOTOfunSTUDIO 8.3 PE

This software allows you to acquire pictures to the PC, and also

categorize these acquired pictures by their recording date or the

model name of the camera used.

•Operating environment

OS Windows® XP (32 bit) SP3

Windows Vista® (32 bit) SP2

Windows® 7 (32 bit/64 bit) and SP1

CPU

Windows® XP Pentium® III 500 MHz or higher

Windows Vista®Pentium® III 800 MHz or higher

Windows® 7 Pentium® III 1 GHz or higher

Display 1024 × 768 pixels or more

(1920 × 1080 pixels or more recommended)

RAM

Windows® XP 512 MB or more

Windows Vista®

Windows® 7 1 GB or more (32 bit)

2 GB or more (64 bit)

Free hard disk space 450 MB or more for installing software

• Refer to the Operating Instructions of “PHOTOfunSTUDIO” (PDF) for

further information about the operating environment.

■SILKYPIX Developer Studio

(Windows XP/Vista/7, Mac OS X v10.4/v10.5/v10.6/v10.7)

This is software to edit RAW format images.

For details on how to use the SILKYPIX Developer Studio, refer to

the “Help” or the Ich kawa Soft Laboratory’s support website:

http://www.isl.co.jp/SILKYPIX/english/p/support/

(ENG) VQT4H90 25

■LoiLoScope 30-day full-trial version

(Windows XP/Vista/7)

This software allows you to make full use of your computer and edit

motion pictures easily.

• This will only install a shortcut to the trial version download site.

Installing supplied software

Preparations:

• Check the environment of your PC.

• Before inserting the CD-ROM, close all running applications.

■For Windows

Insert the CD-ROM with the supplied software

• When you insert the supplied CD-ROM, the install menu will

start.

Click on the [Recommended Installation]

• Proceed with installation according to messages appearing on

the screen.

■For Mac (SILKYPIX Developer Studio)

Insert the CD-ROM with the supplied software

Double-click the folder that automatically appears to open

Double-click an icon in the folder

• Proceed with installation according to messages appearing on

the screen.

●PHOTOfunSTUDIO is not compatible with Mac.

26 VQT4H90 (ENG)

Specifications

Specifications are subject to change without notice.

Digital Camera: Information for Your Safety

Power Source DC 5.1 V

Power

Consumption

When recording: 1.6 W

When playing back: 1.1 W

Camera effective

pixels

10,100,000 pixels

Image sensor 1/1.7” MOS sensor,

total pixel number 12,800,000 pixels

Primary color filter

Lens

[NANO SURFACE

COATING]

Optical 3.8x zoom

f=4.7 mm to 17.7 mm

(35 mm film camera equivalent: 24 mm to 90 mm)

/

F1.4 (Max. Wide) to F2.3 (Max. Tele)

Image Stabilizer Optical method

Focus range

Normal 50 cm (1.6 feet) to

AF Macro /

MF /

Intelligent Auto

/

Motion pictures

1 cm (0.033 feet) (Max. Wide) /

30 cm (0.98 feet) (Max. Tele) to

Scene Mode The focus ranges listed above may vary

depending on the selected Scene Mode.

Shutter system Electronic shutter + Mechanical shutter

Minimum

Illumination

Approx. 3 lx (when i-Low light is used, the

shutter speed is 1/30th of a second)

Shutter speed 250 seconds to 1/4000th of a second

Exposure (AE) Program AE (P) / Aperture-priority AE (A) /

Shutter-priority AE (S) / Manual exposure (M)

Metering Mode [Multi Metering] / [Center Weighted] / [Spot]

(ENG) VQT4H90 27

LCD monitor 3.0” TFT LCD (3:2) (Approx. 921,600 dots)

Microphone Stereo

Speaker Monaural

Recording media Built-in Memory (Approx. 70 MB)

SD Memory Card / SDHC Memory Card /

SDXC Memory Card

Recording file

format

Still picture RAW / JPEG (based on Design rule for Camera

File system, based on Exif 2.3 standard /

DPOF corresponding) / MPO

Motion pictures

AVCHD / MP4

Audio

compression

format

AVCHD: Dolby® Digital (2 ch)

MP4: AAC (2 ch)

Interface

Digital USB 2.0 (High Speed)

Analog video NTSC Composite

Audio Audio line output (Monaural)

Terminal HDMI: MiniHDMI TypeC

AV OUT/DIGITAL: Dedicated jack (8 pin)

Dimensions

Approx. 110.5 mm (W) x 67.1 mm (H) x 45.6 mm (D)

[4.35” (W) x 2.64” (H) x 1.80” (D)]

(excluding the projection part)

Mass (Weight) With card and battery:

Approx. 298 (0.66 b)

Excluding card and battery:

Approx. 269 (0.60 b)

28 VQT4H90 (ENG)

Specifications

Operating

temperature

0 °C to 40 °C (32 °F to 104 °F)

Operating

humidity

10%RH to 80%RH

Language select [ENGLISH] / [ESPAÑOL]

Battery charger

(Panasonic DE-A81B): Information for Your Safety

Input ~ 110 V to 240 V, 50/60 Hz, 0.2 A

Output 4.2 V, 0.65 A

Equipment mobility: Movable

Battery pack (lithium-ion)

(Panasonic DMW-BCJ13PP): Information for Your Safety

Voltage / capacity

3.6 V / 1250 mAh

(ENG) VQT4H90 29

Digital Camera Accessory System

Description Accessory#

Battery pack DMW-BCJ13

DC coupler*DMW-DCC7

AC adaptor*DMW-AC5

Live view finder DMW-LVF2

External viewfinder DMW-VF1

Flash DMW-FL220

DMW-FL360

DMW-FL500

Filter adaptor kit DMW-FA1

PL filter DMW-LPLA37

MC protector DMW-LMCH37

ND filter DMW-LND37

AV cable DMW-AVC1

HDMI mini cable RP-CDHM15, RP-CDHM30

USB connection cable DMW-USBC1

Class 10 64 GB SDXC Memory Card

Class 10 32 GB SDHC Memory Card

Class 10 16 GB SDHC Memory Card

Class 10 8 GB SDHC Memory Card

Class 10 4 GB SDHC Memory Card

Class 6 32 GB SDHC Memory Card

Class 6 16 GB SDHC Memory Card

Class 6 8 GB SDHC Memory Card

Class 6 4 GB SDHC Memory Card

Class 4 32 GB SDHC Memory Card

Class 4 16 GB SDHC Memory Card

Class 4 8 GB SDHC Memory Card

Class 4 4 GB SDHC Memory Card

Class 4 2 GB SD Memory Card

RP-SDUA64GUK

RP-SDUA32GUK

RP-SDUA16GUK

RP-SDUA08GUK

RP-SDUA04GUK

RP-SDQA32GUK

RP-SDQA16GUK

RP-SDQA08GUK

RP-SDQA04GUK

RP-SDLA32GUK

RP-SDLA16GUK

RP-SDLA08GUK

RP-SDLA04GUK

RP-SDLA02GUK

* The AC adaptor (op ional) can only be used with the designated Panasonic

DC Coupler (optional). The AC adaptor (optional) cannot be used by itself.

●Product numbers are correct as of July 2012. These may be subject

to change.

●Accessories and/or model numbers may vary between countries.

Consult your local dealer.

30 VQT4H90 (ENG)

Digital Camera Accessory Order Form

Please photocopy this form when placing an order.

1. Digital Camera Model #

2. Items Ordered

Accessory # Description Price Each Quantity Total Price

Shipping & Handling $6.95

Subtotal

Your State & Local Sales Tax

Total

3. Method of payment (check one)

American Express

VISA Credit Card #

MasterCard Expiration Date

Discover Customer Signature

(Please do not send cash)

4. Shipping information (UPS delivery requires complete street address)

Ship To:

Mr.

Mrs.

Ms.

First Last

Street Address

City State Zip

Night ( )

Day ( )

Phone#:

TO OBTAIN ANY OF OUR DIGITAL CAMERA ACCESSORIES YOU CAN DO ANY OF

THE FOLLOW NG:

VISIT YOUR LOCAL PANASONIC DEALER

OR

CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368

[6 AM-6 PM M-F, PACIFIC T ME]

OR

MAIL THIS ORDER TO: PANASONIC NATIONAL PARTS CENTER

20421 84th Ave S., Kent, WA 98032

(ENG) VQT4H90 31

Limited Warranty

(ONLY FOR U.S.A. AND PUERTO RICO)

Panasonic Consumer Marketing Company of North America,

Division of Panasonic Corporation of North America

One Panasonic Way, Secaucus, New Jersey 07094

Panasonic Digital Still Camera Products

Limited Warranty

Limited Warranty Coverage (For USA and Puerto Rico Only)

If your product does not work properly because of a defect in materials or

workmanship, Panasonic Consumer Marketing Company of North America

(referred to as “the warrantor”) will, for the length of the period indicated on the

chart below, which starts with the date of original purchase (“warranty period”),

at its option ei her (a) repair your product with new or refurbished parts, (b)

replace it with a new or a refurbished equivalent value product, or (c) refund

your purchase price. The decision to repair, replace or refund will be made by

the warrantor.

Product or Part Name Parts Labor

Digital Still Camera 1 year 1 year

SD Memory Cards, Rechargeable

Battery Pack (defective exchange) 90 days Not Applicable

During the “Labor” warranty period there will be no charge for labor. During the

“Parts” warranty period, there will be no charge for parts. This Limited Warranty

excludes both parts and labor for non-rechargeable batteries, antennas, and

cosmetic parts (cabinet). This warranty only applies to products purchased and

serviced in the United States or Puerto Rico. This warranty is extended only to

the original purchaser of a new product which was not sold “as is”.

32 VQT4H90 (ENG)

Mail-In Service

For assistance in the U.S.A. and Puerto Rico in obtaining repairs, please ship

the product prepaid to:

Panasonic Exchange Center

4900 George McVay Drive

Suite B

McAllen, TX 78503

panacare@us.panasonic.com

When shipping the unit, carefully pack, include all supplied accessories listed in

the Owner’s Manual, and send it prepaid, adequately insured and packed well in

a carton box. When shipping Lithium Ion batteries please visit our Web Site at

www.panasonic.com/BatteryHandling as Panasonic is committed to providing

the most up to date information. Include a letter detailing the complaint, a return

address and provide a daytime phone number where you can be reached. A

valid registered receipt is required under the Limited Warranty.

IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE

PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF

OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND

PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR

OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or

workmanship, and DOES NOT COVER normal wear and tear or cosmetic

damage. The warranty ALSO DOES NOT COVER damages which occurred

in shipment, or failures which are caused by products not supplied by the

warrantor, or failures which result from accidents, misuse, abuse, neglect,

mishandling, misapplication, alteration, faulty installation, set-up adjustments,

misadjustment of consumer controls, improper maintenance, power line surge,

lightning damage, modification, introduction of sand, humidity or liquids,

commercial use such as hotel, office, restaurant, or other business or rental

use of the product, or service by anyone other than a Factory Service Center or

other Authorized Servicer, or damage that is attributable to acts of God.

(ENG) VQT4H90 33

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER

“LIMITED WARRANTY COVERAGE”.

THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL

DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING

OUT OF ANY BREACH OF THIS WARRANTY.

(As examples, this excludes damages for lost time, travel to and from the

servicer, loss of or damage to media or images, data or other memory or

recorded content. The items listed are not exclusive, but for illustration only.)

ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY

OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED

WARRANTY.

Some states do not allow the exclusion or limitation of incidental or

consequential damages, or limitations on how long an implied warranty lasts, so

the exclusions may not apply to you.

This warranty gives you specific legal rights and you may also have other rights

which vary from state to state. If a problem with this product develops during

or after the warranty period, you may contact your dealer or Service Center.

If the problem is not handled to your satisfaction, then write to the warrantor’s

Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED

WARRANTY, ARE YOUR RESPONSIBILITY.

34 VQT4H90 (ENG)

Customer Services Directory (United States and Puerto Rico)

Obtain Product Information and Operating Assistance; locate your

nearest Dealer or Service Center; purchase Parts and Accessories; or

make Customer Service and Literature requests by visiting our Web

Site at:

http://www.panasonic.com/help

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at:

1-800-211-PANA (7262)

Monday-Friday 9am-9pm, Saturday-Sunday 10am-7pm EST

For hearing or speech impaired TTY users, TTY: 1-877-833-8855

Accessory Purchases (United States and Puerto Rico)

Purchase Parts, Accessories and Instruction Books online for all Panasonic

Products by visiting our Web Site at:

http://www.pstc.panasonic.com

Or, send your request by E-mail to:

npcparts@us.panasonic.com

You may also contact us directly at:

1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)

(Monday-Friday 9am-9pm EST)

Panasonic National Parts Center

20421 84th Ave S., Kent, WA 98032

(We accept Visa, MasterCard, Discover Card, American Express)

For hearing or speech impaired TTY users, TTY: 1-866-605-1277

As of January 2012

(ENG) VQT4H90 35

• HDMI, the HDMI Logo, and High-Definition

Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing LLC in the United

States and other countries.

• HDAVI Control™ is a trademark of Panasonic

Corporation.

•

VIERA Link™ is a trademark of Panasonic Corporation.

• EZ Sync™ is a trademark of Panasonic Corporation.

• “AVCHD Progressive”, “AVCHD”, the “AVCHD

Progressive” Logo and the “AVCHD” Logo are

trademarks of Panasonic Corporation and Sony

Corporation.

•

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of

Dolby Laboratories.

• SDXC Logo is a trademark of SD-3C, LLC.

• QuickTime and the QuickTime logo are trademarks

or registered trademarks of Apple Inc., used under

license therefrom.

• Windows and Windows Vista are either registered

trademarks or trademarks of Microsoft Corporation

in the United States and/or other countries.

• Mac and Mac OS are trademarks of Apple Inc.,

registered in the U.S. and other countries.

• This product uses “DynaFont” from DynaComware

Corporation. DynaFont is a registered trademark of

DynaComware Taiwan Inc.

• Other names, company names, and product names

printed in these instructions are trademarks or

registered trademarks of the companies concerned.

-If you see this symbol-

Information on Disposal in other Countries outside

the European Union

This symbol is only valid in the European Union. If you

wish to discard this product, please contact your local

authorities or dealer and ask for the correct method of

disposal.

Panasonic Consumer Marketing Company of North America,

Division of Panasonic Corporation of North America

One Panasonic Way, Secaucus, NJ 07094

© Panasonic Corporation 2012

Printed in Japan
